Tech Specs: 1970s Team Fuji Track

A 1970s Team Fuji track frame in Fuji 331 double butted chrome molybdenum, built out of the Japanese track parts bin: Nitto, Sugino, Suzue, Araya and HKK.

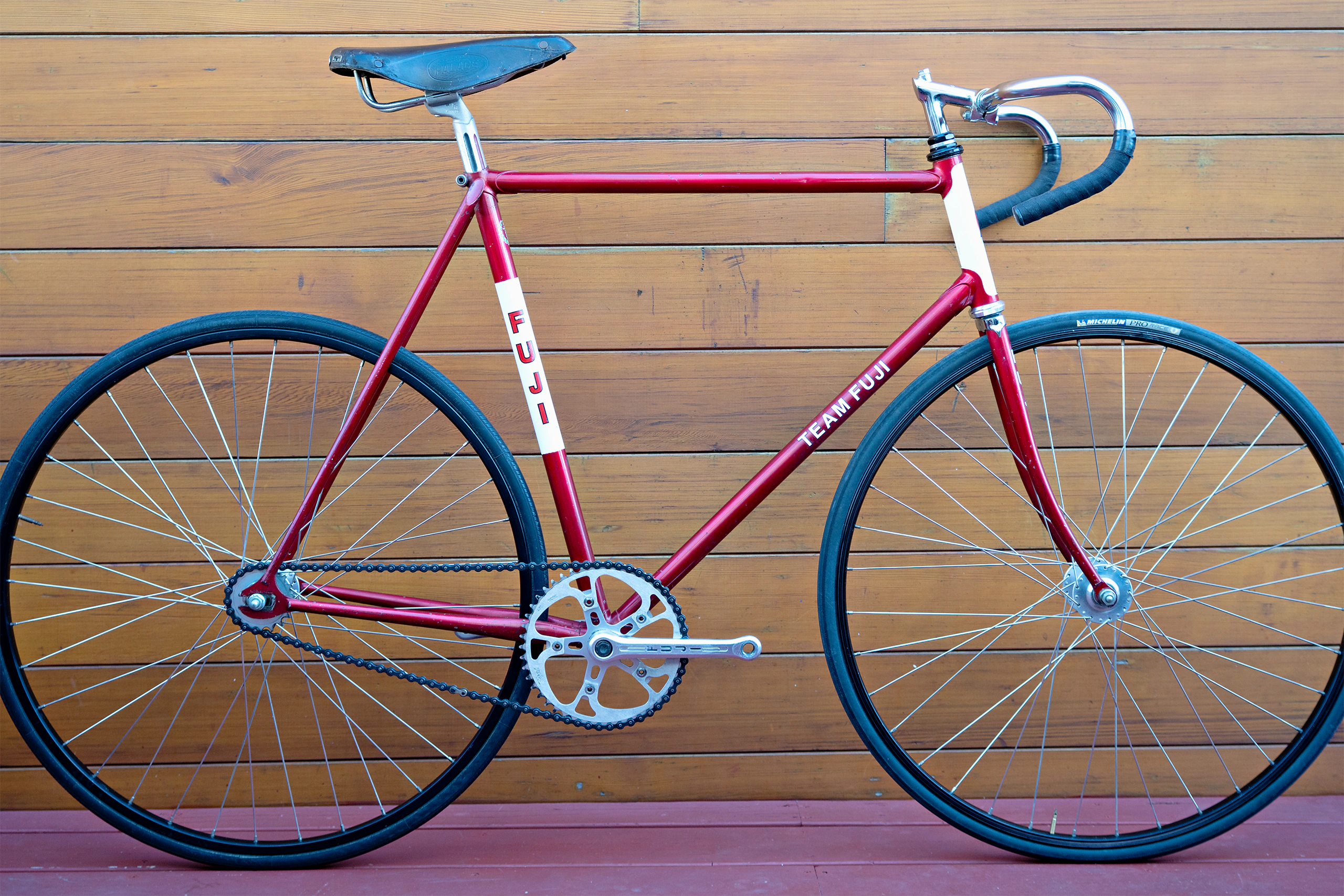

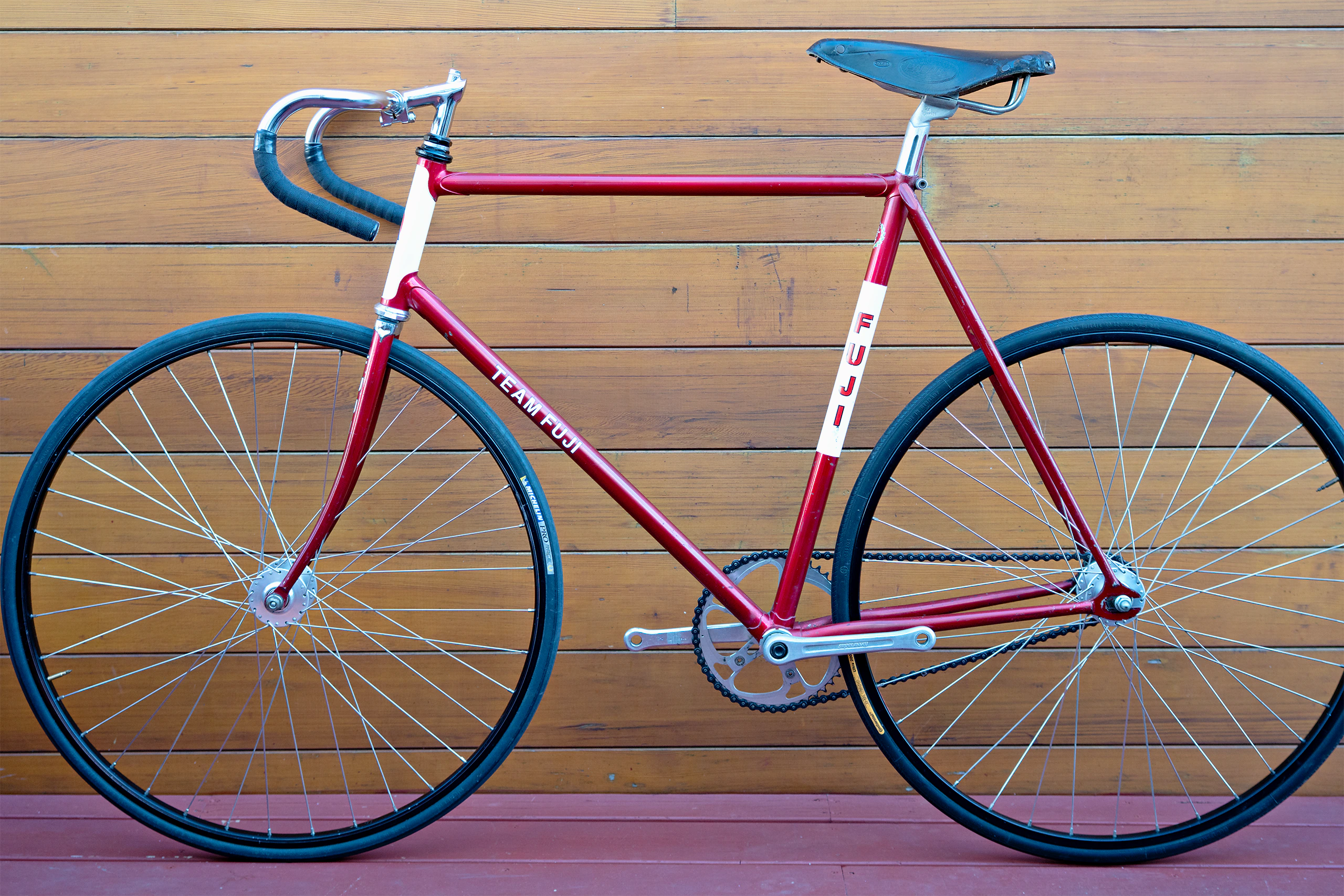

Drive-side profile of a 1970s Team Fuji track bicycle in metallic red with white head tube and seat tube panels, fitted with a Sugino crankset, Araya rims and a Palace leather saddle
Non-drive-side profile of the 1970s Team Fuji track bicycle, showing the FUJI seat tube panel and the Nitto track handlebar

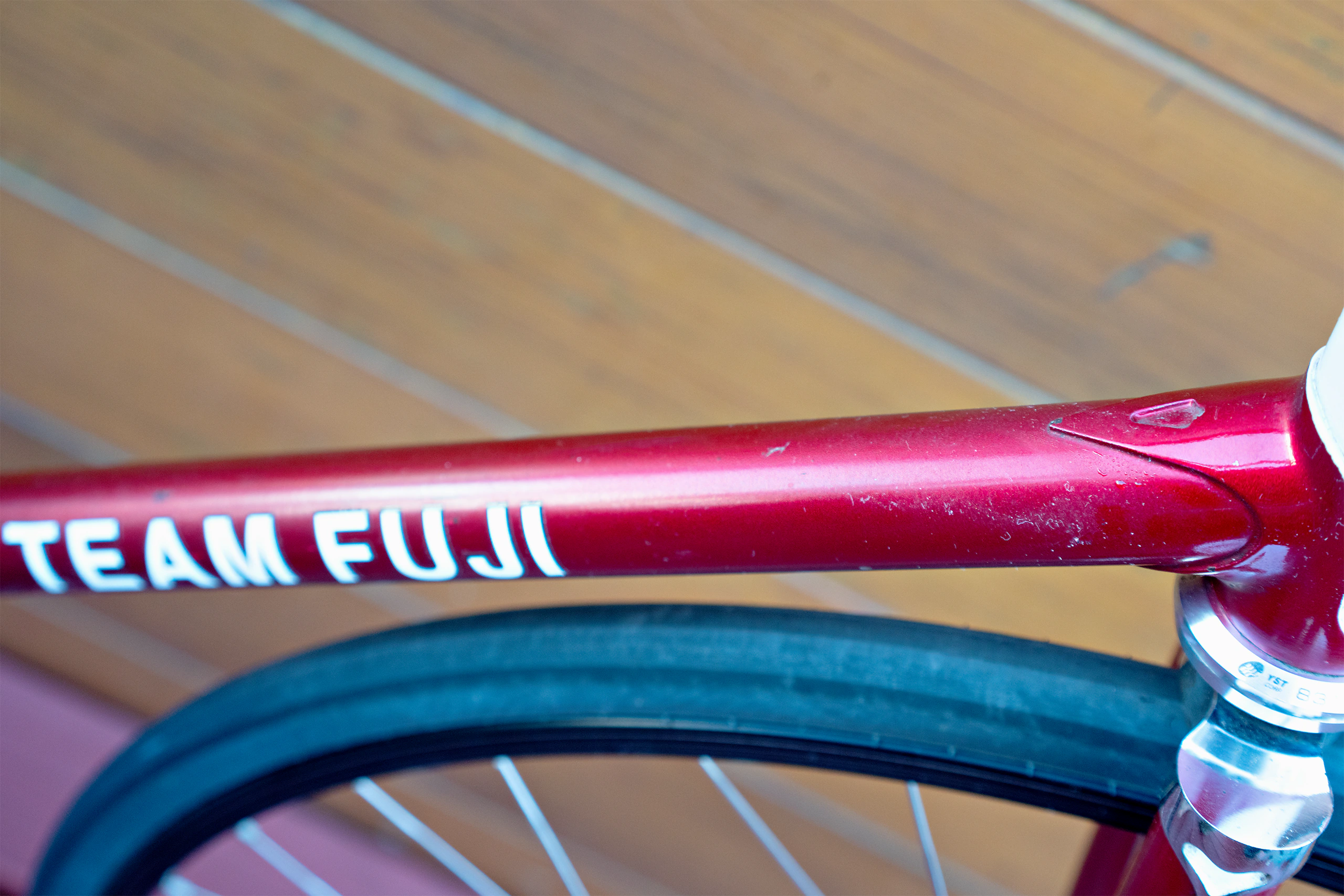

The TEAM FUJI down tube decal running into the spearpoint head lug of the Team Fuji track frame

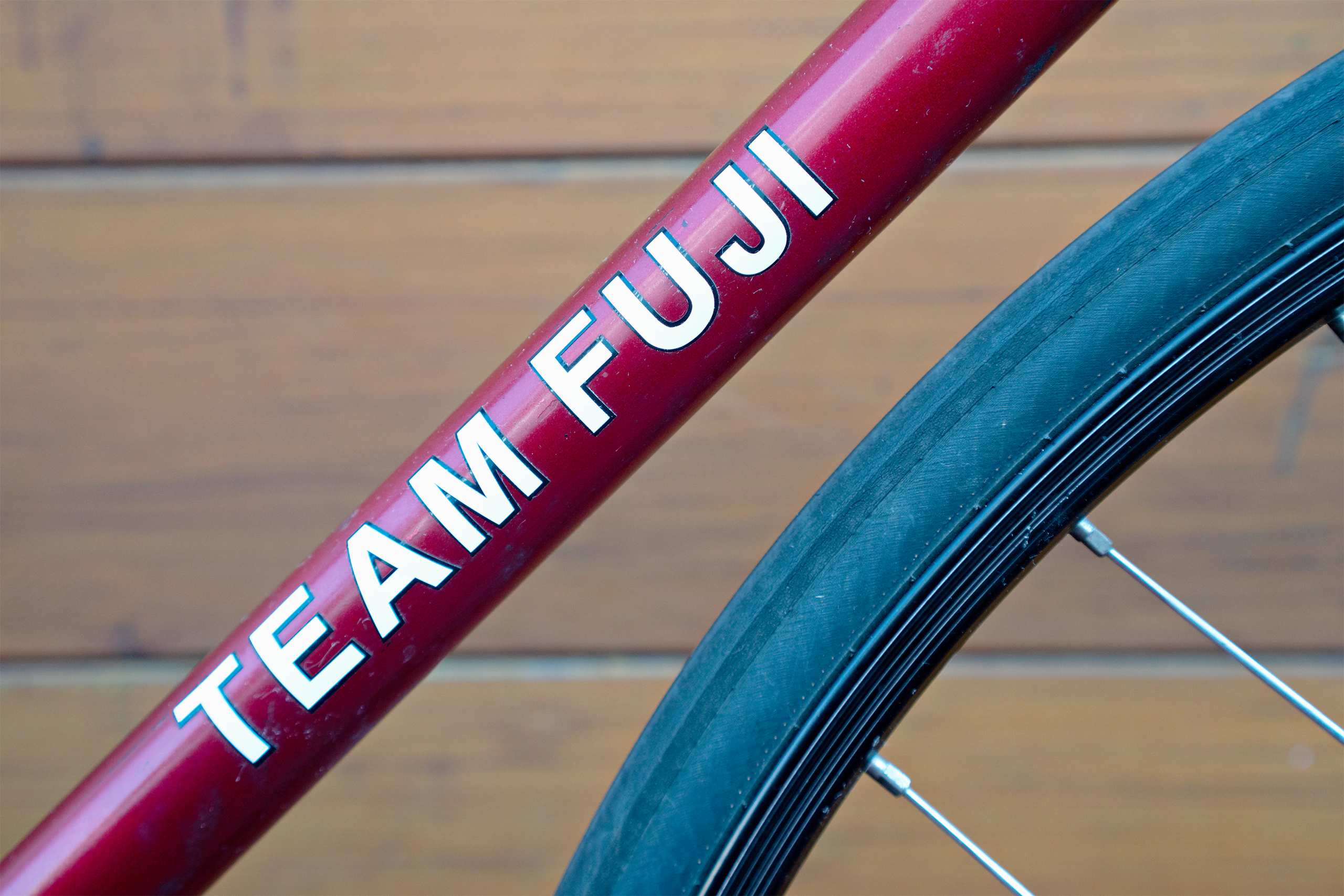

Close view of the TEAM FUJI down tube decal in white on the metallic red frame

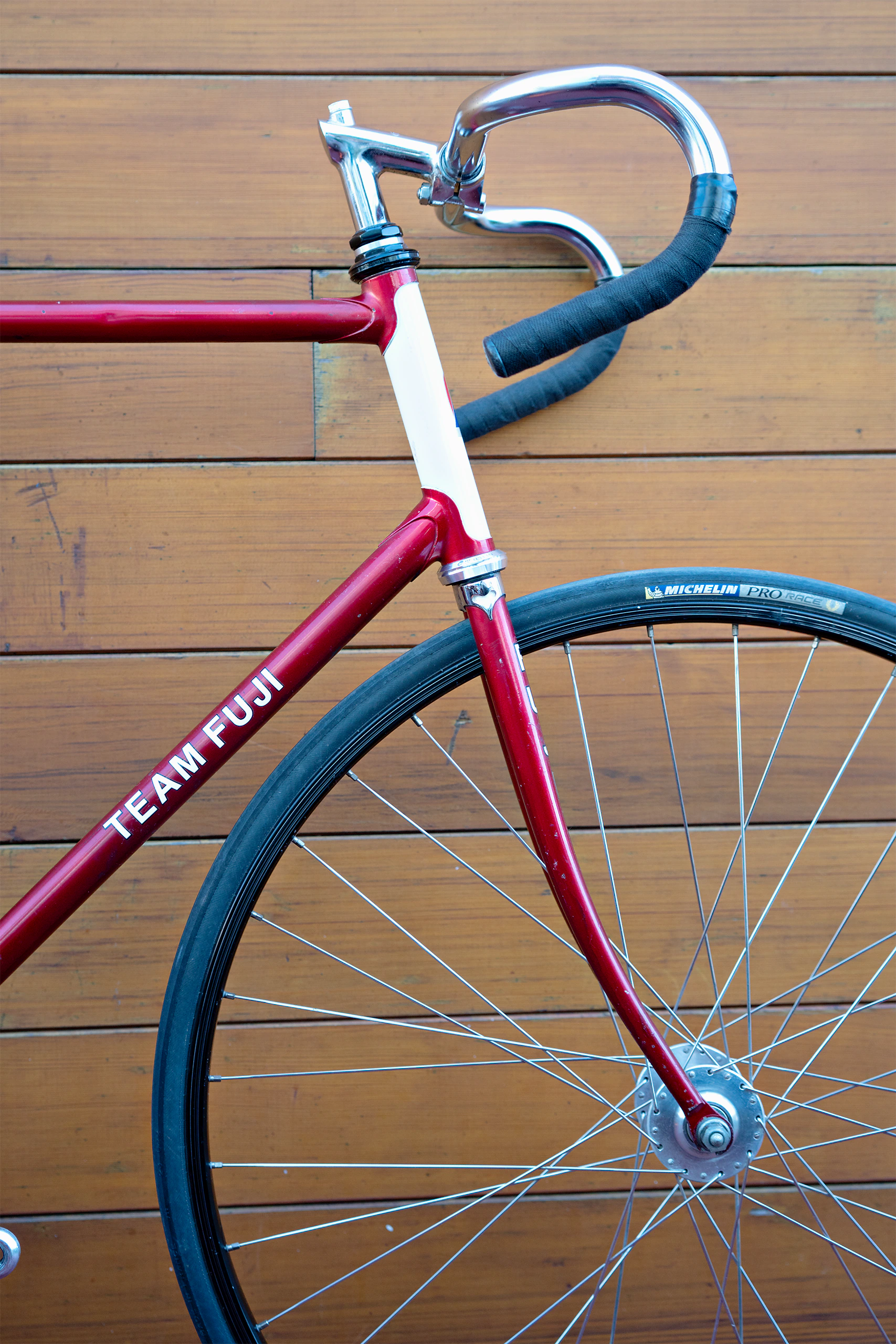

Front quarter view of the Team Fuji head tube, its chrome Nitto track stem and the dropped track handlebar

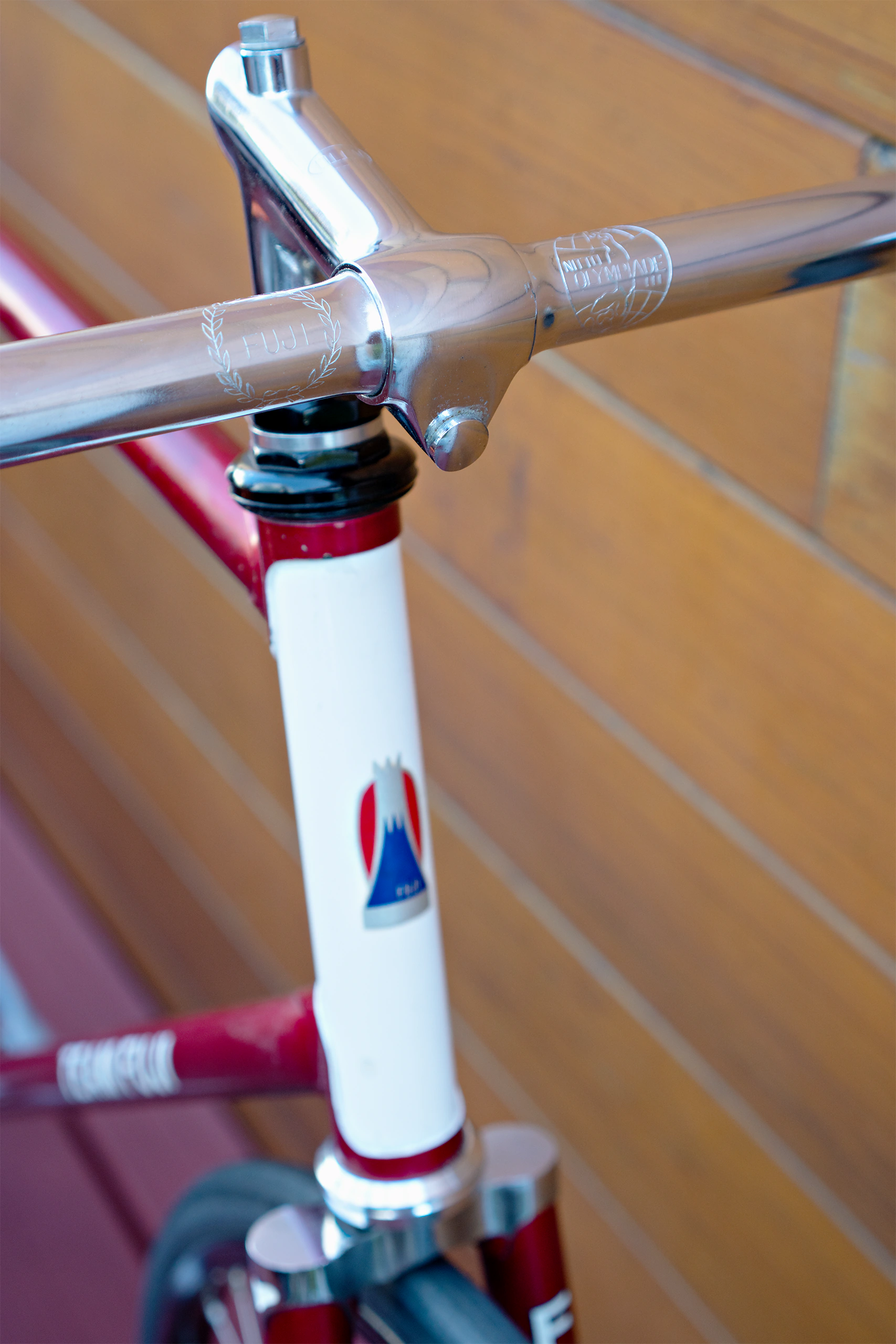

Mount Fuji head badge on the white head tube panel of the Team Fuji, with the Nitto Olympiade stamp and the Fuji laurel engraving on the handlebar above it

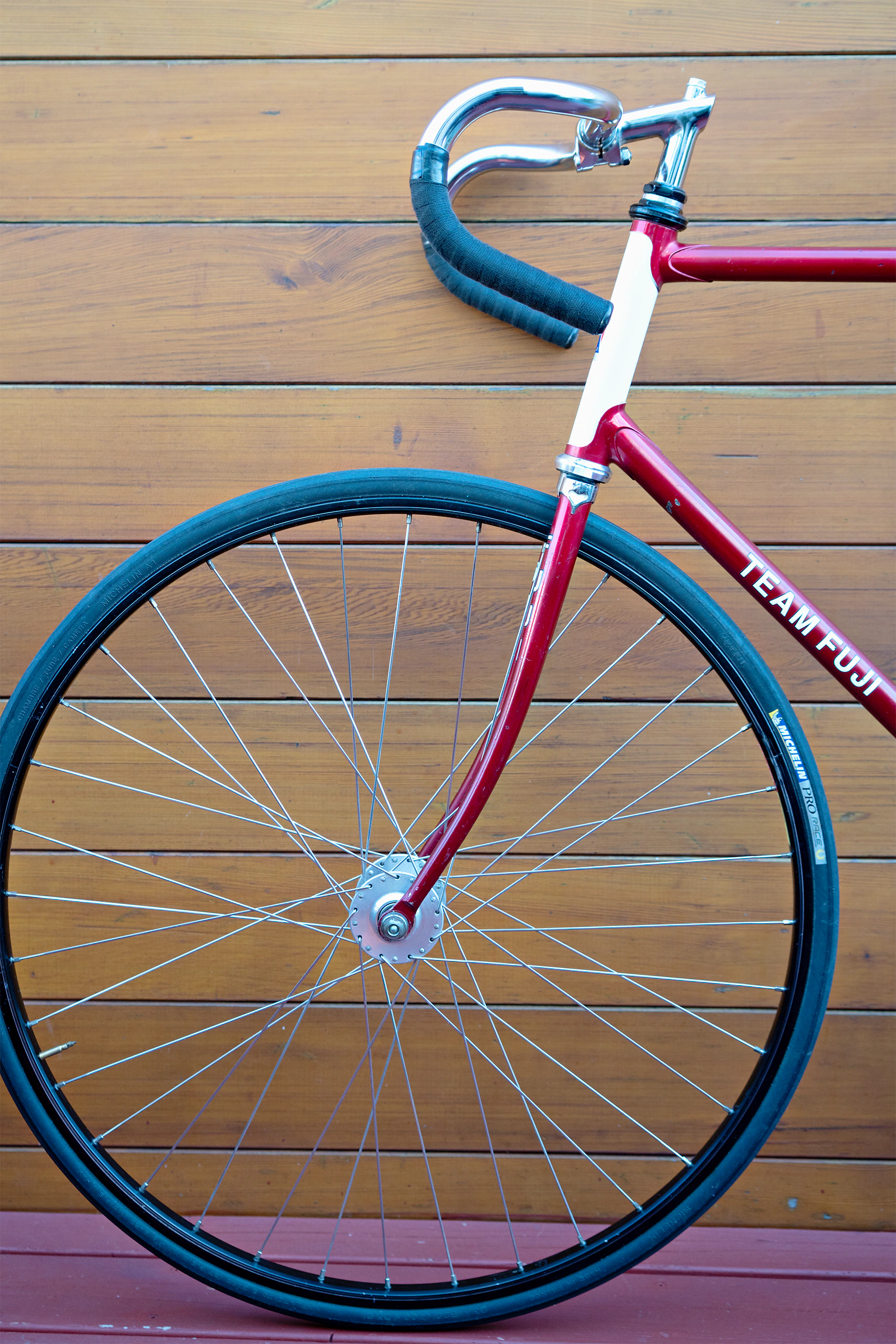

Front wheel and track handlebar of the Team Fuji, with the Michelin Pro Race tire and the large-flange front hub
Fuji 331 chrome molybdenum double butted steel tubing decal on the seat tube of the Team Fuji, below the seat cluster

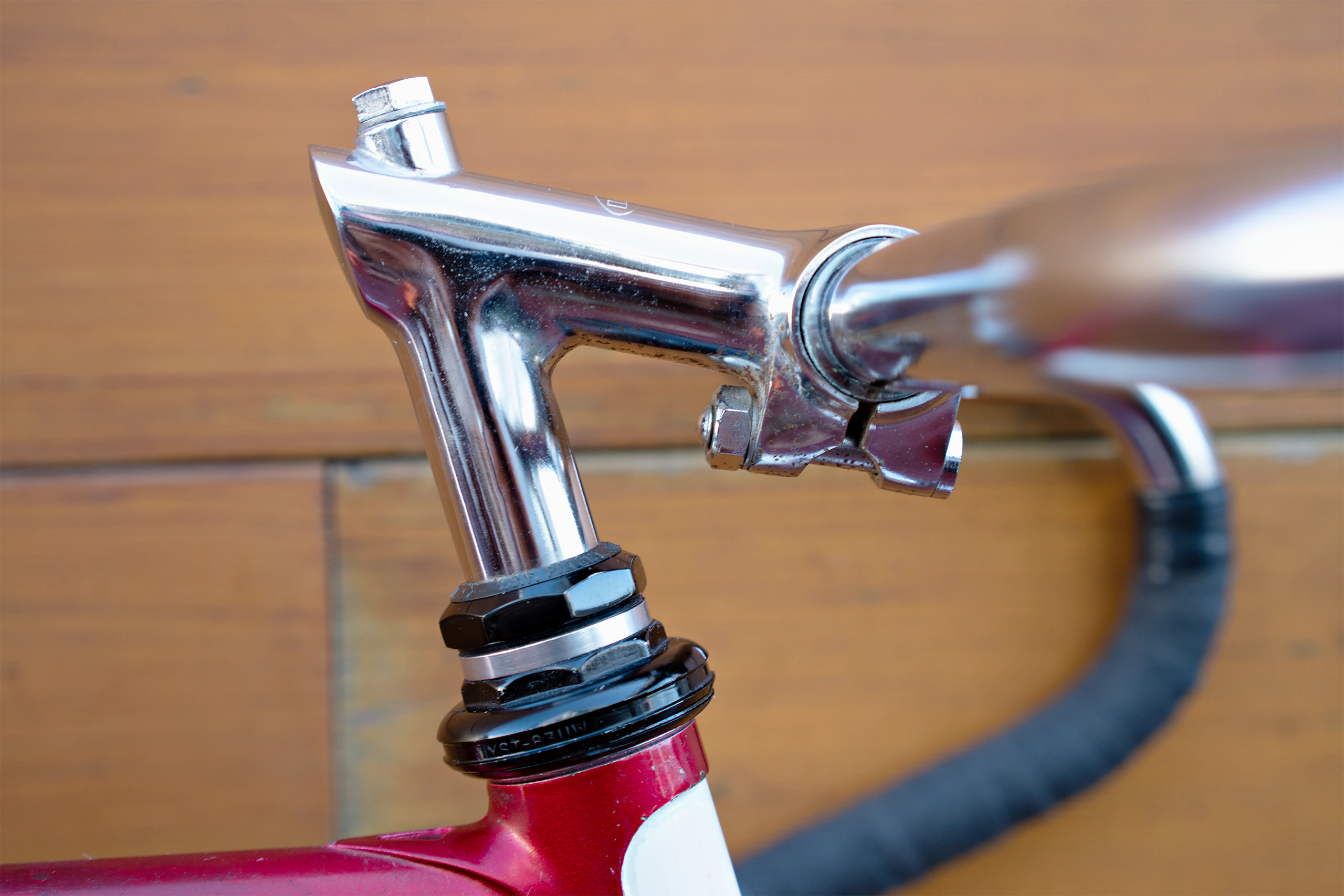

Chrome Nitto track stem and headset of the Team Fuji seen from the side, with the taped handlebar behind

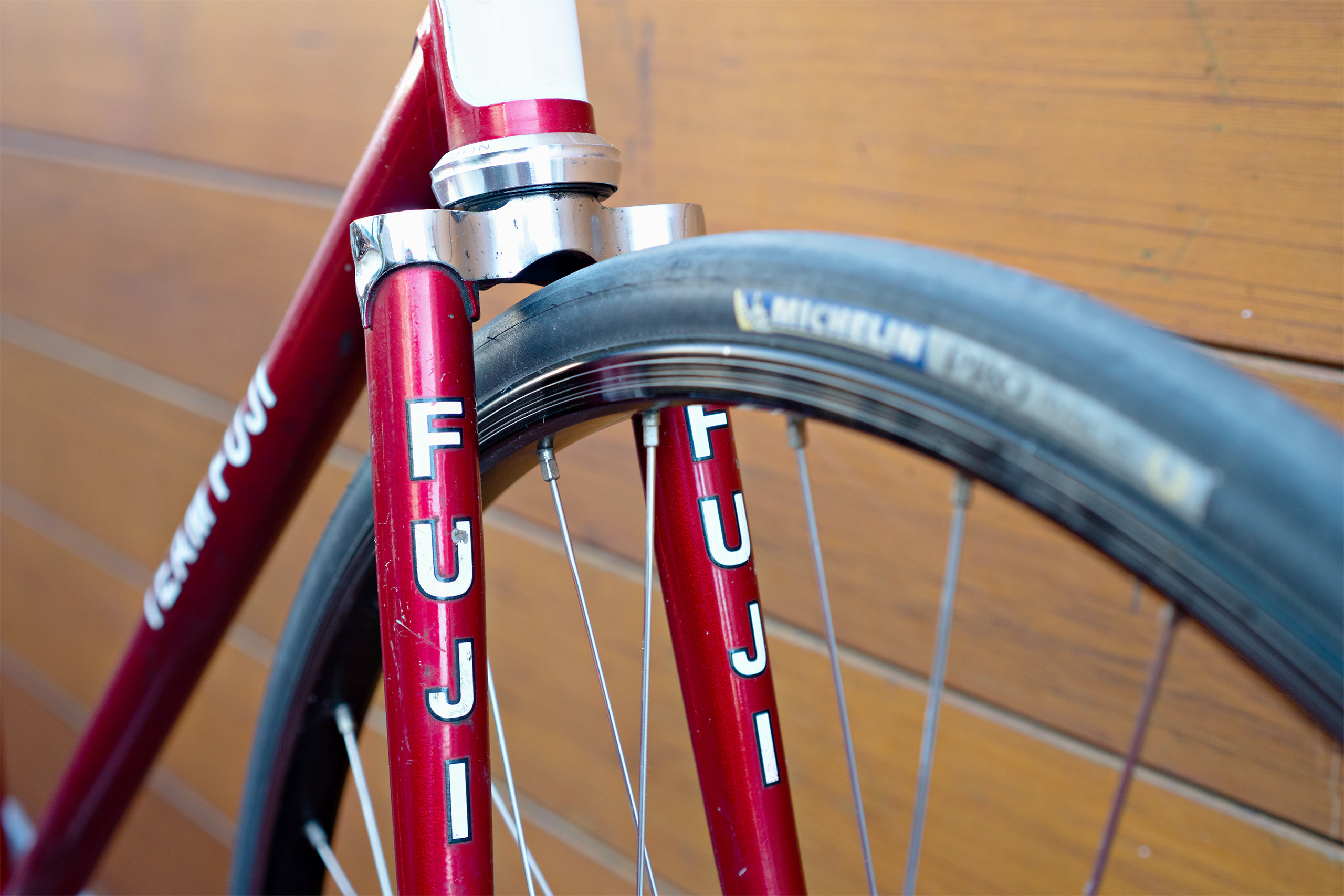

FUJI decals on both fork blades of the Team Fuji, alongside the Michelin Pro Race front tire and the Araya rim

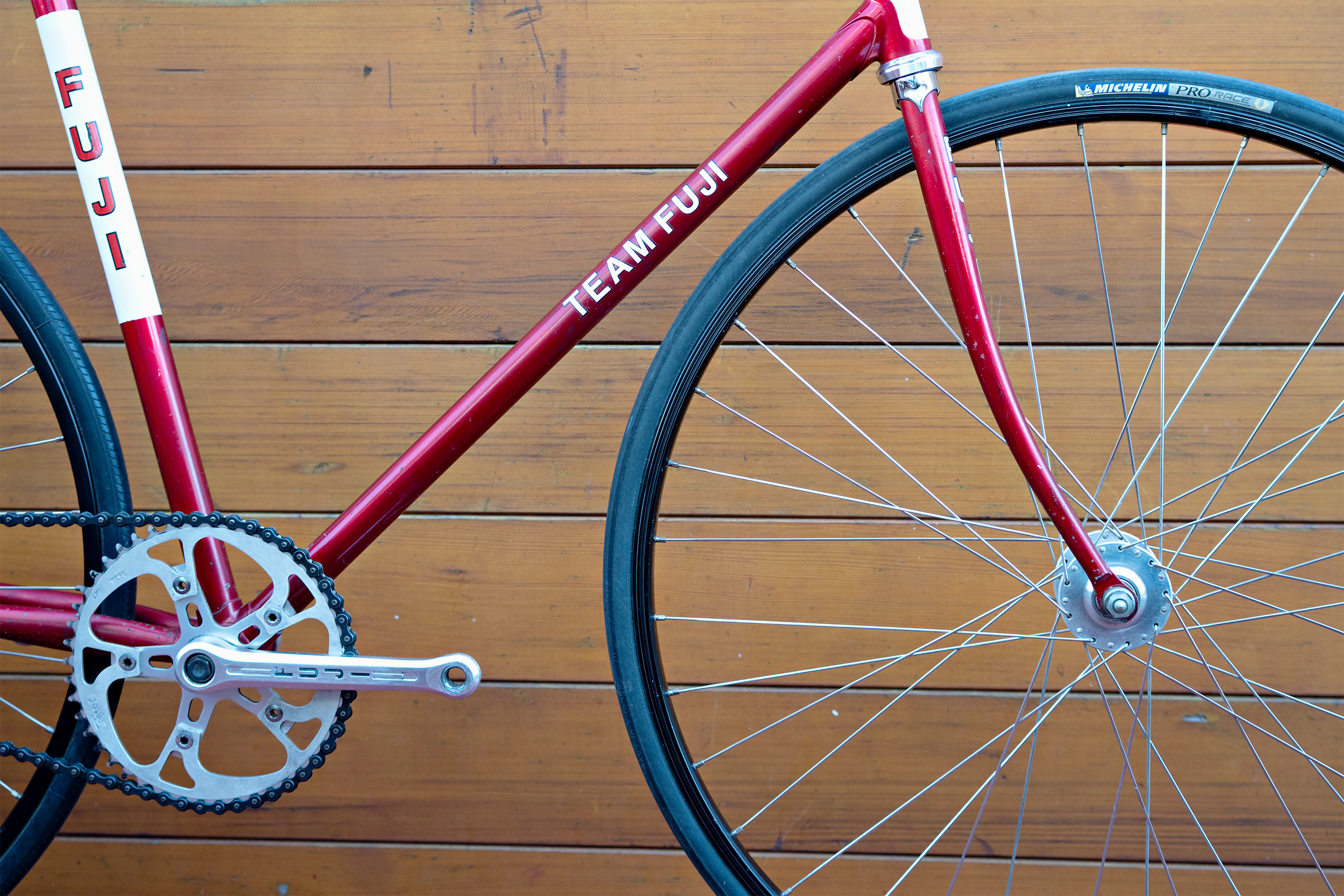

Drive side of the Team Fuji from the crankset forward, showing the Sugino chainring, the fork and the large-flange front hub

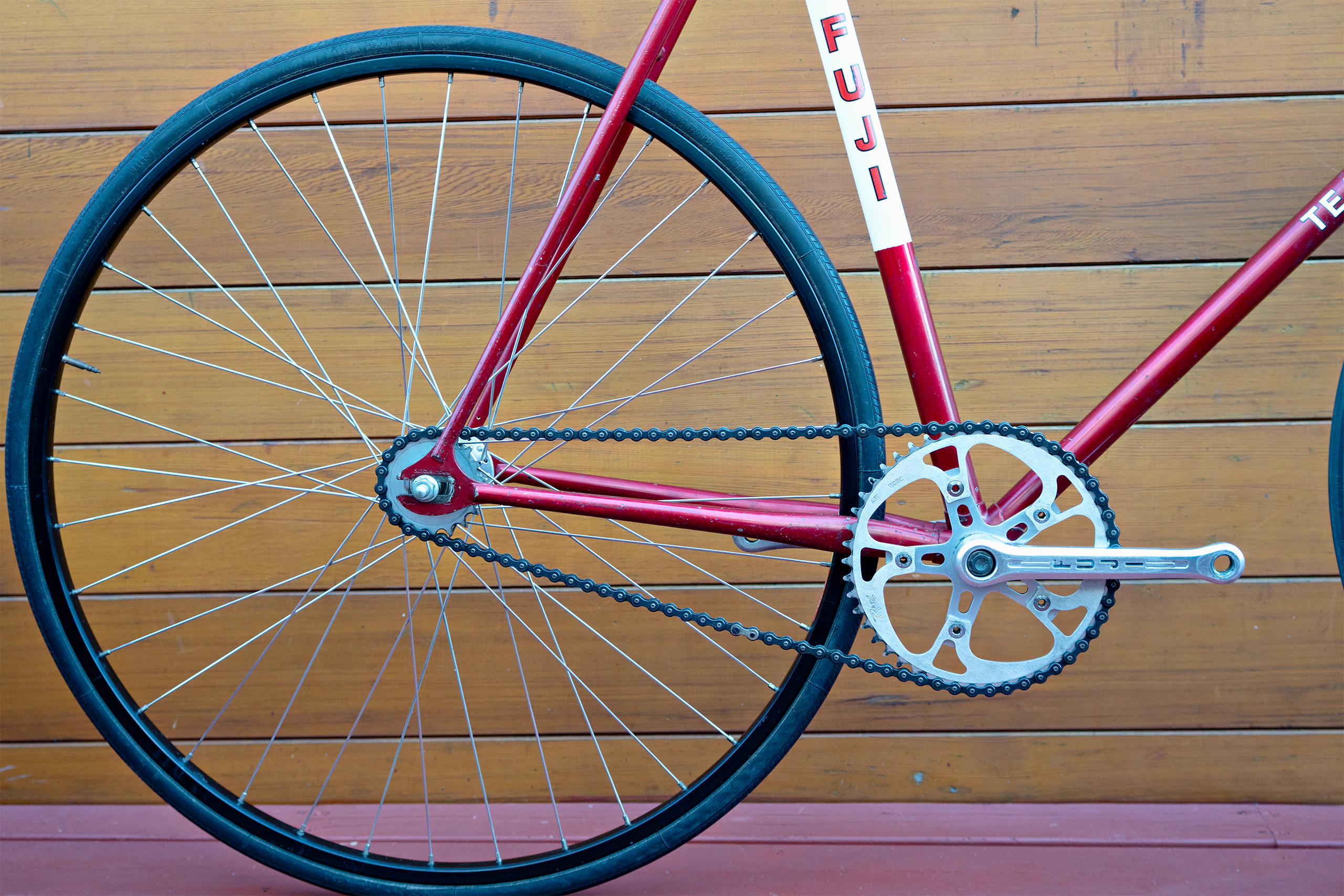

Rear wheel and drivetrain of the Team Fuji, showing the fixed cog and lockring, the chain and the Sugino chainring

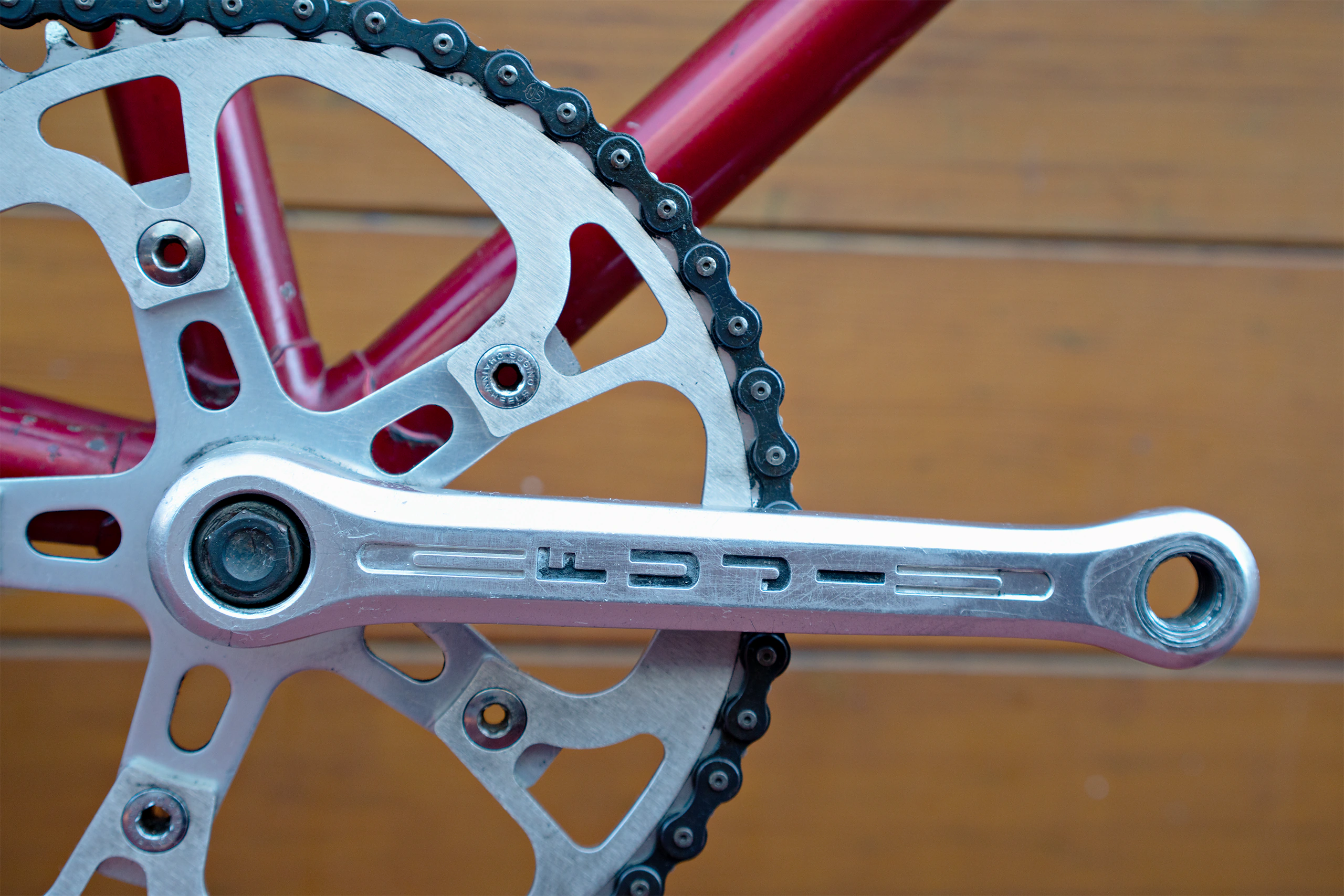

Sugino crank arm engraved FUJI on the Team Fuji, with the drilled chainring and its SUGINO CHAINWHEELS bolts

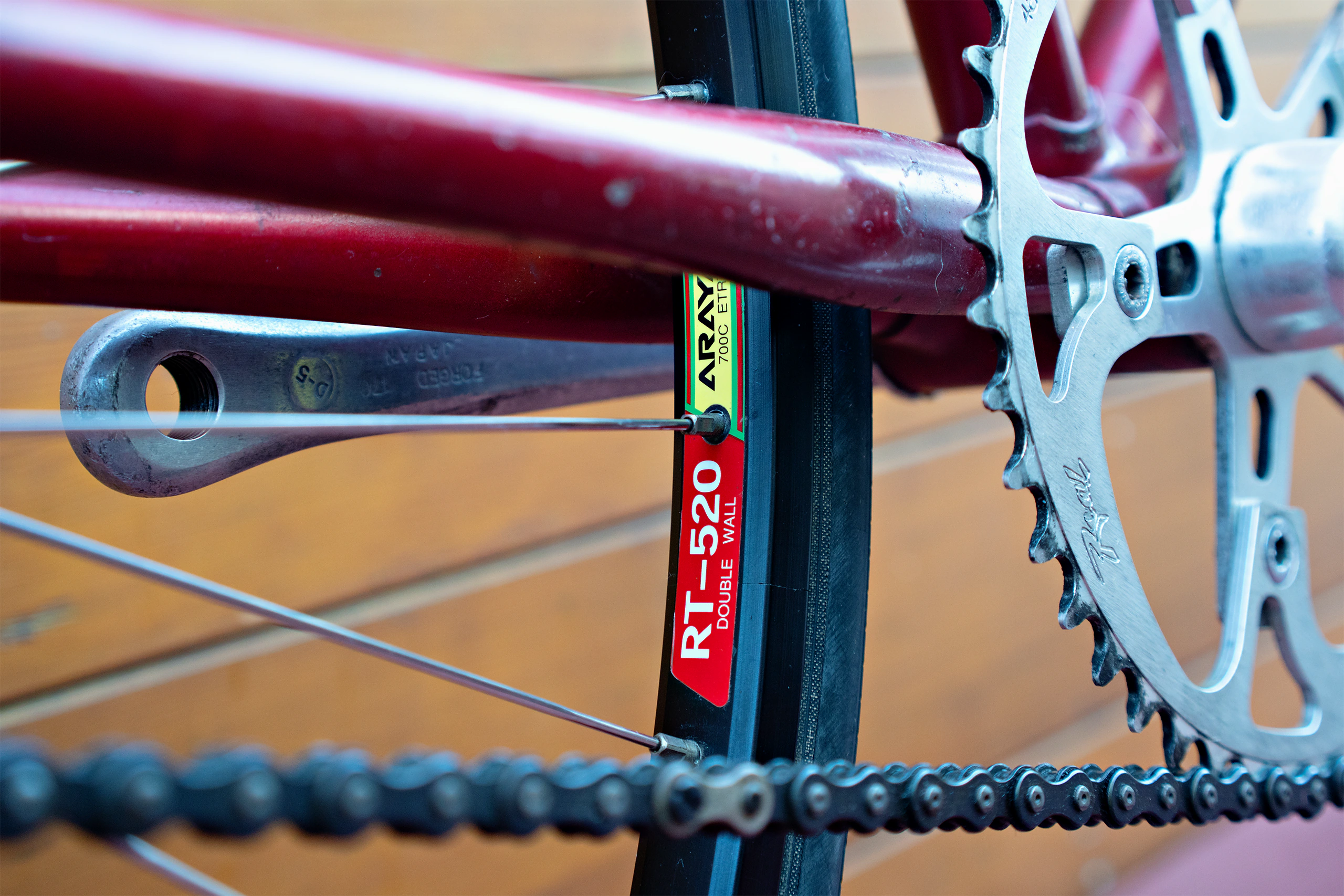

Araya RT-520 double wall 700C rim decal on the Team Fuji, with the reverse of the Sugino crank arm behind it

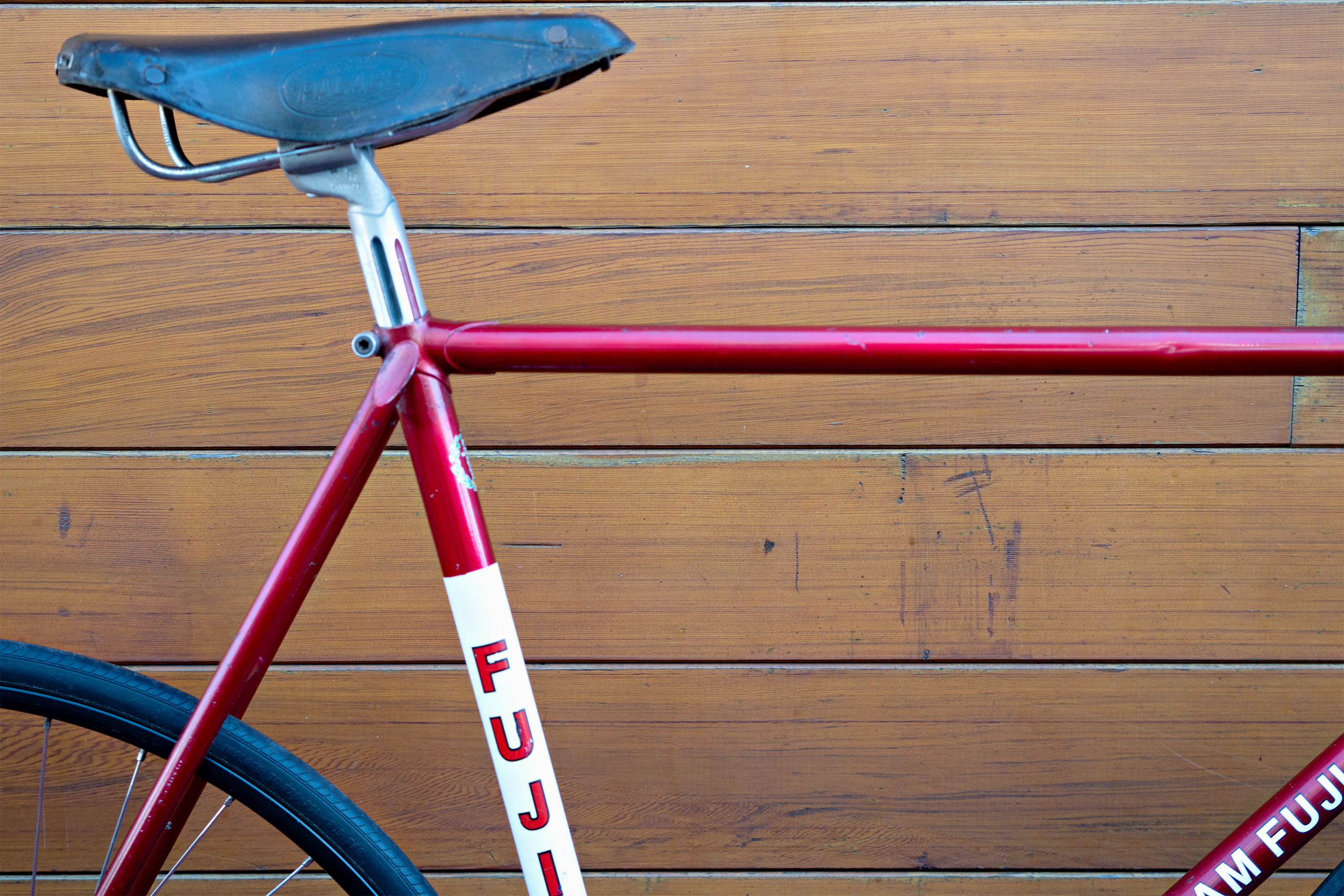

Seat cluster of the Team Fuji with the fluted SR Laprade seatpost, the Palace leather saddle and the FUJI seat tube panel

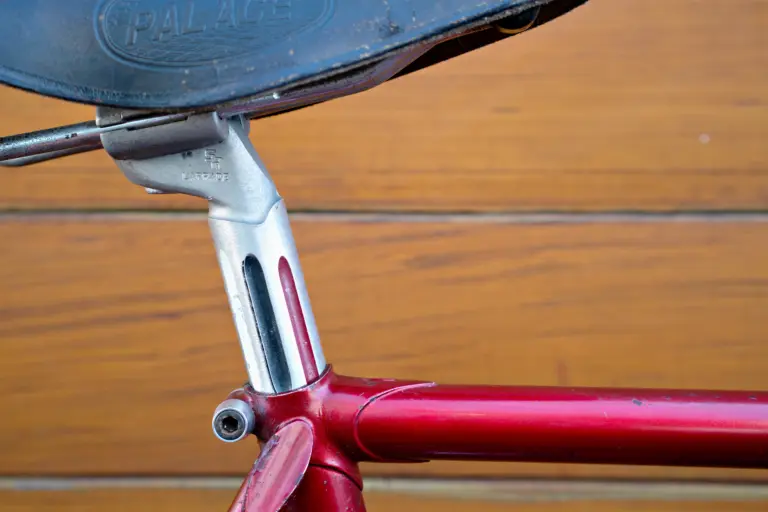

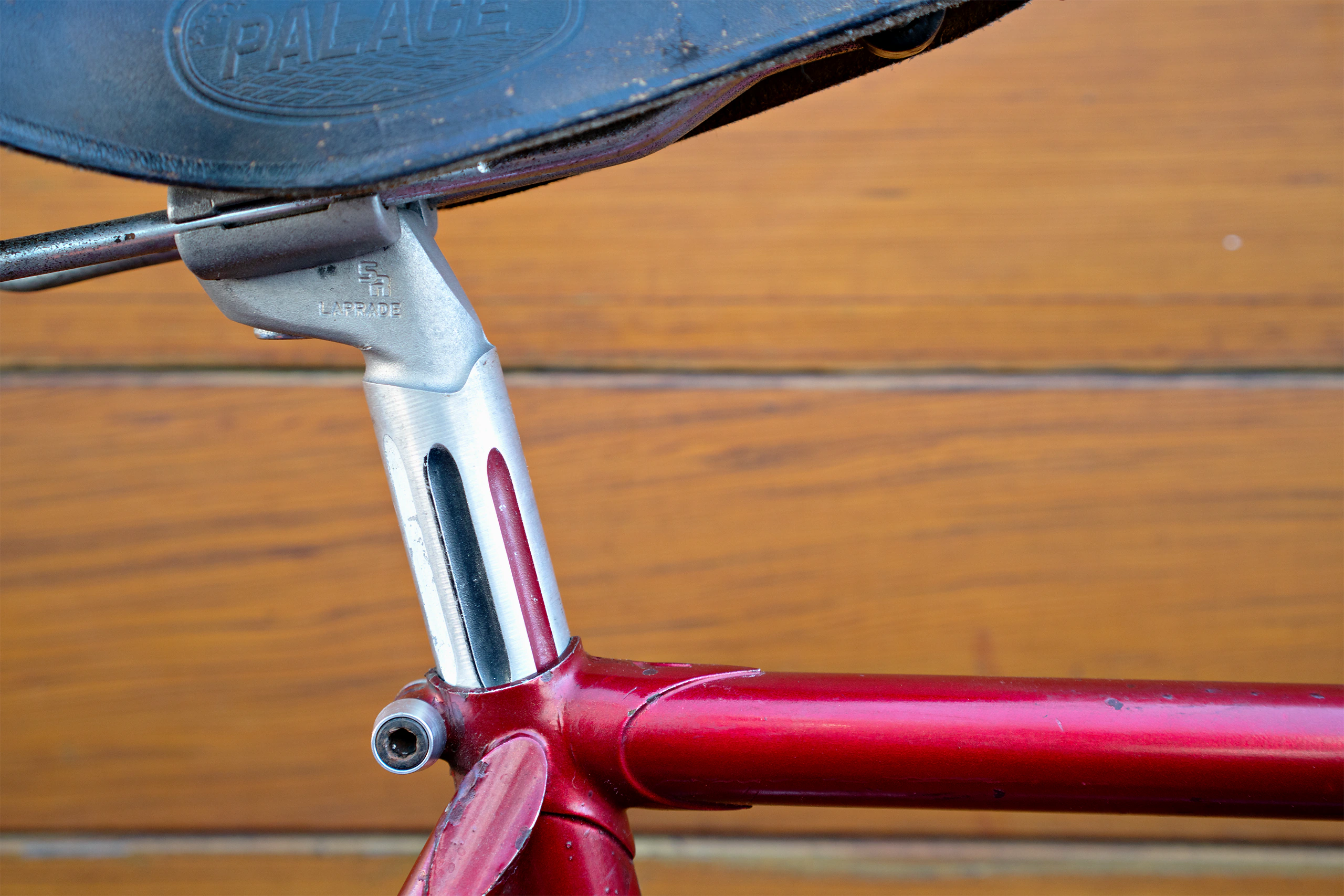

SR Laprade seatpost with painted flute cutouts under the Palace leather saddle of the Team Fuji
Detail photographs of the 1970s Team Fuji: the spearpoint head lug and TEAM FUJI down tube decal, the Mount Fuji head badge, the Nitto Olympiade handlebar with its Fuji laurel engraving, the Sugino crankset engraved FUJI, the Araya RT-520 rims and the SR Laprade seatpost under the Palace saddle.


1970s Team Fuji Track

Frame: Team Fuji Track

  • Fuji 331 Double Butted Chrome Molybdenum Steel Tubing
  • Stylized Spearpoint Lugs with Window Cutouts
  • SunTour 10mm Horizontal Track Ends
  • Metallic Red with White Head Tube and Seat Tube Panels

Fork: Team Fuji Track

  • Fuji 331 Double Butted Chrome Molybdenum Steel Tubing
  • Slim Crown with Side Window Cutouts
  • SunTour Vertical Fork Ends
  • FUJI Blade Decals

Handlebar: Nitto B115, Track Drop, Nitto Olympiade Stamp, Fuji Palmares Engraving

Stem: Nitto, Track, Steep Angle

Headset: YST Comp

Crank: Sugino Super Maxy, Fuji Branded, Aluminum Alloy, 170mm Length

Chainring: Sugino, Five Bolt, 110mm BCD, 48 Teeth

Chain: HKK, Track, NJS Stamp

Hubs: Suzue, Large Flange, Double Threaded Flip-Flop, Aluminum Alloy

Rims: Araya RT-520, Double Wall, Black, 700C ETRTO 622

Tires: Michelin Pro Race Front, Continental Ultra 2000 Rear

Saddle: Palace K170, Leather Top, Chrome Rails

Seatpost: SR Laprade, Fluted Inset Cutouts Painted to Match

Size: 56cm TT CC, 57cm ST CC

Notes: Very Good Rideable Condition, Limited Use Mostly on the Track, Small Handlebar Dent on the Top Tube, Original Fuji 331 Tubing Decal Intact
