- Bianchi Frameset
- Campagnolo Drivetrain
- Ambrosio & Coppi Cockpit
- Campagnolo & Fiamme Wheelset

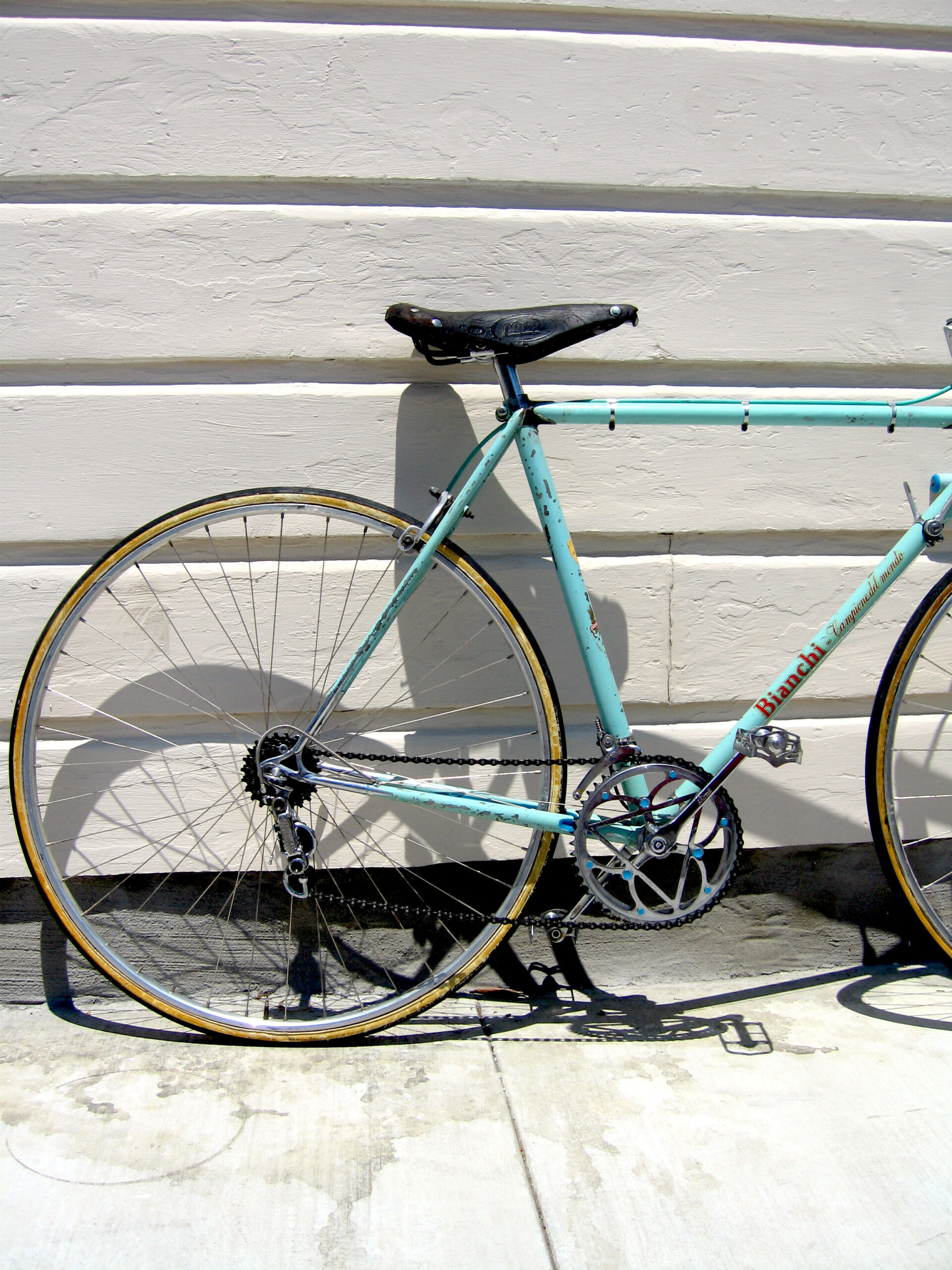

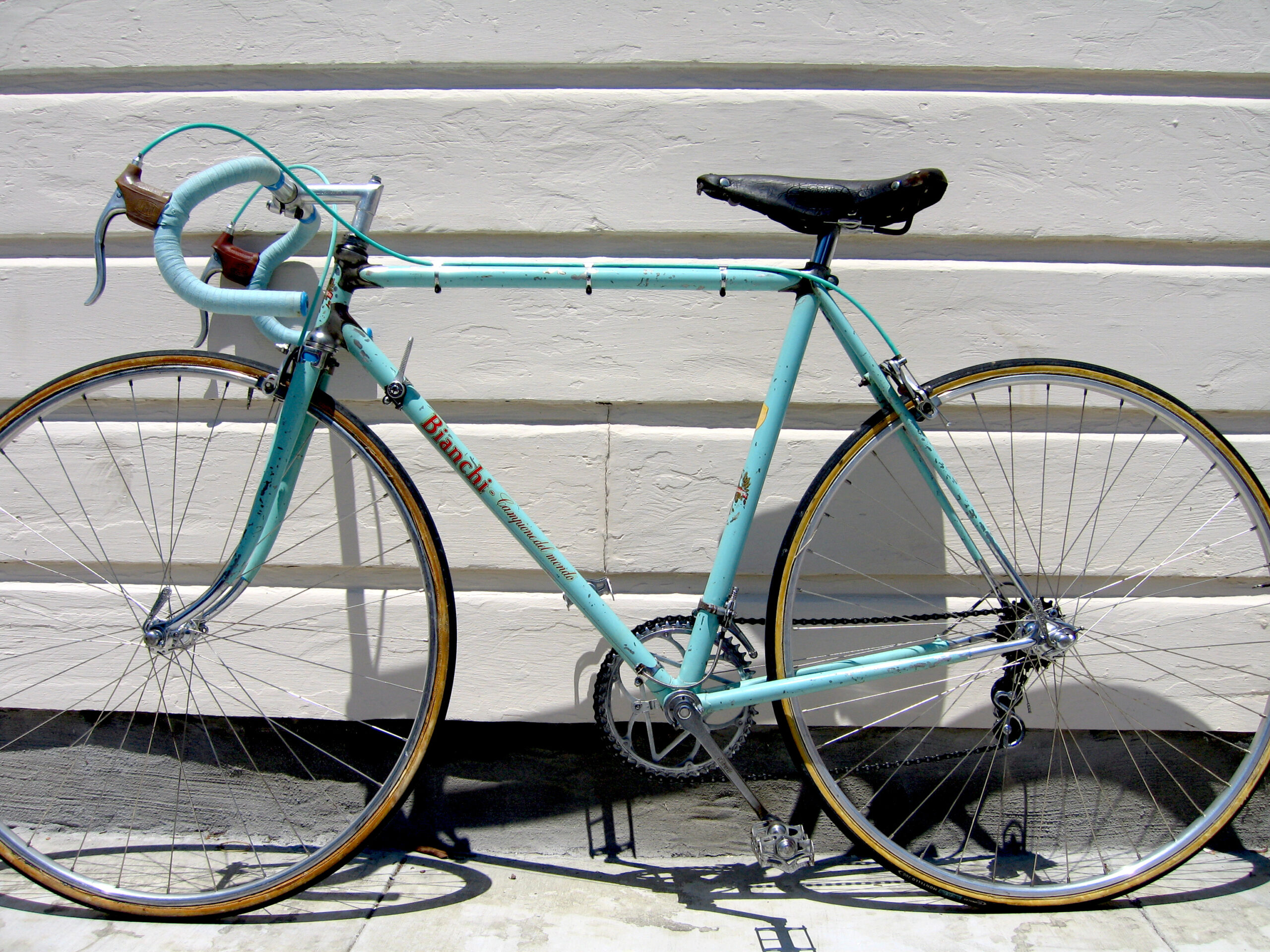

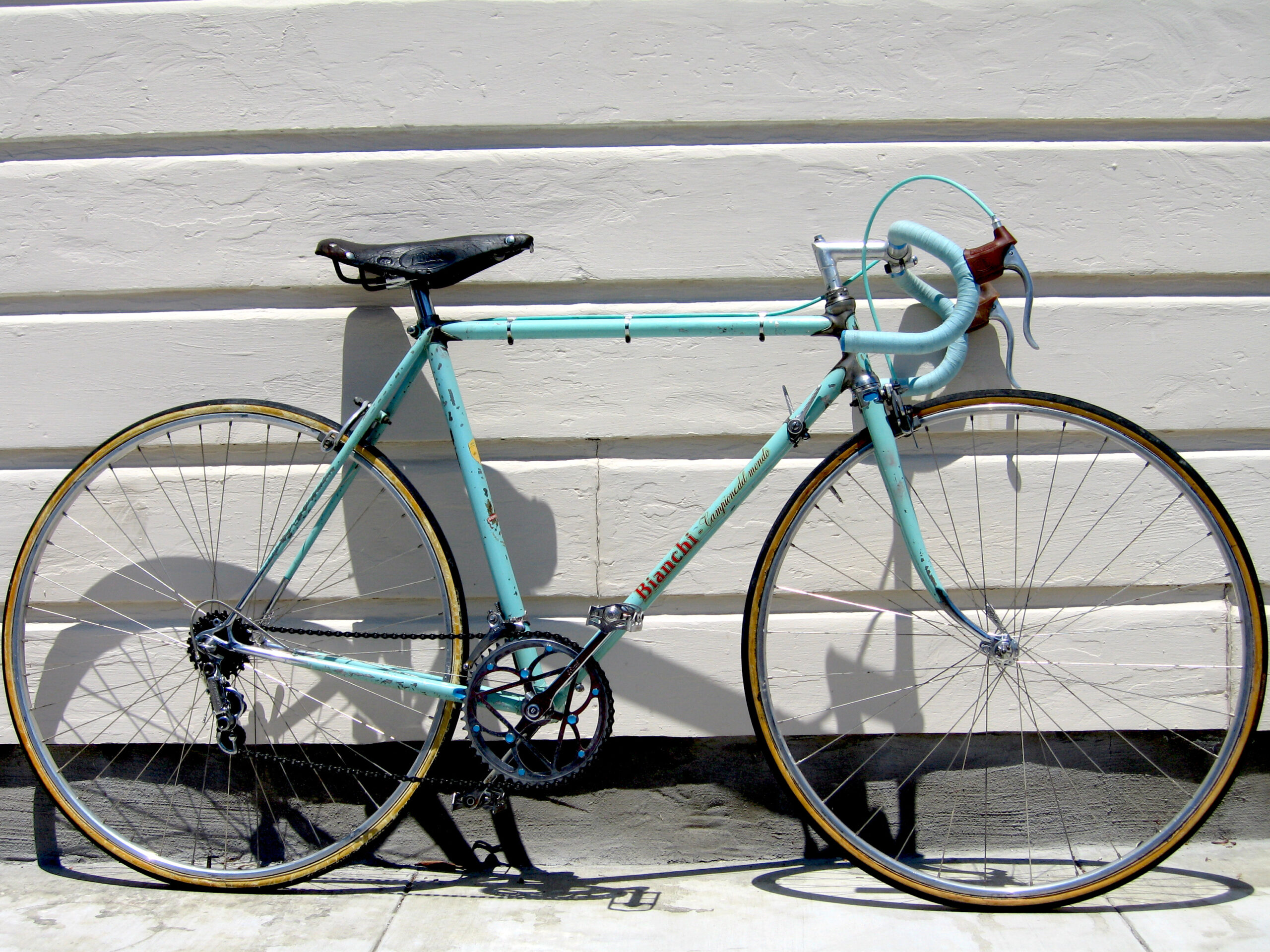

| Frame: | Bianchi, traditional Italian lugs, fender mounts, steel |

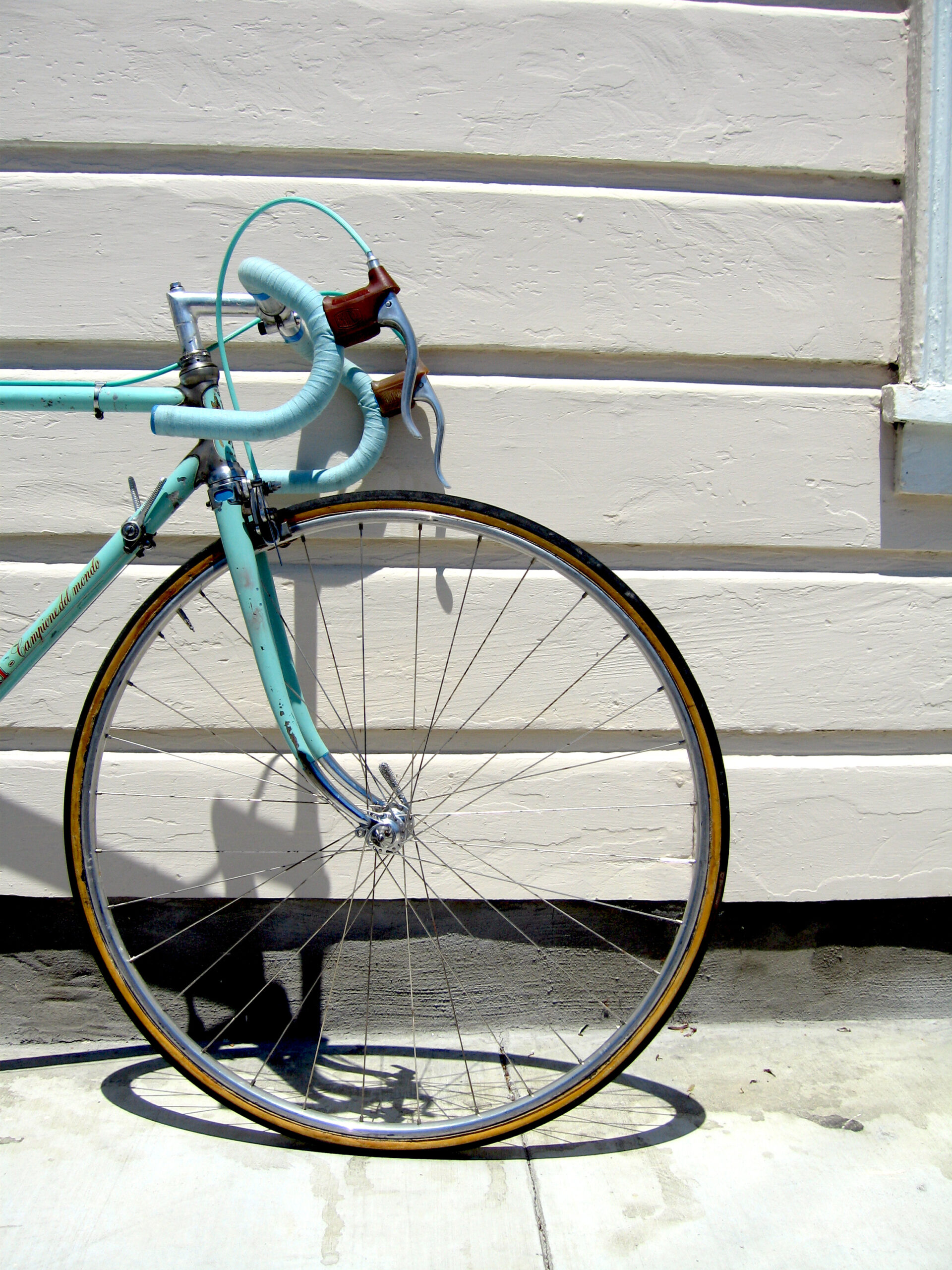

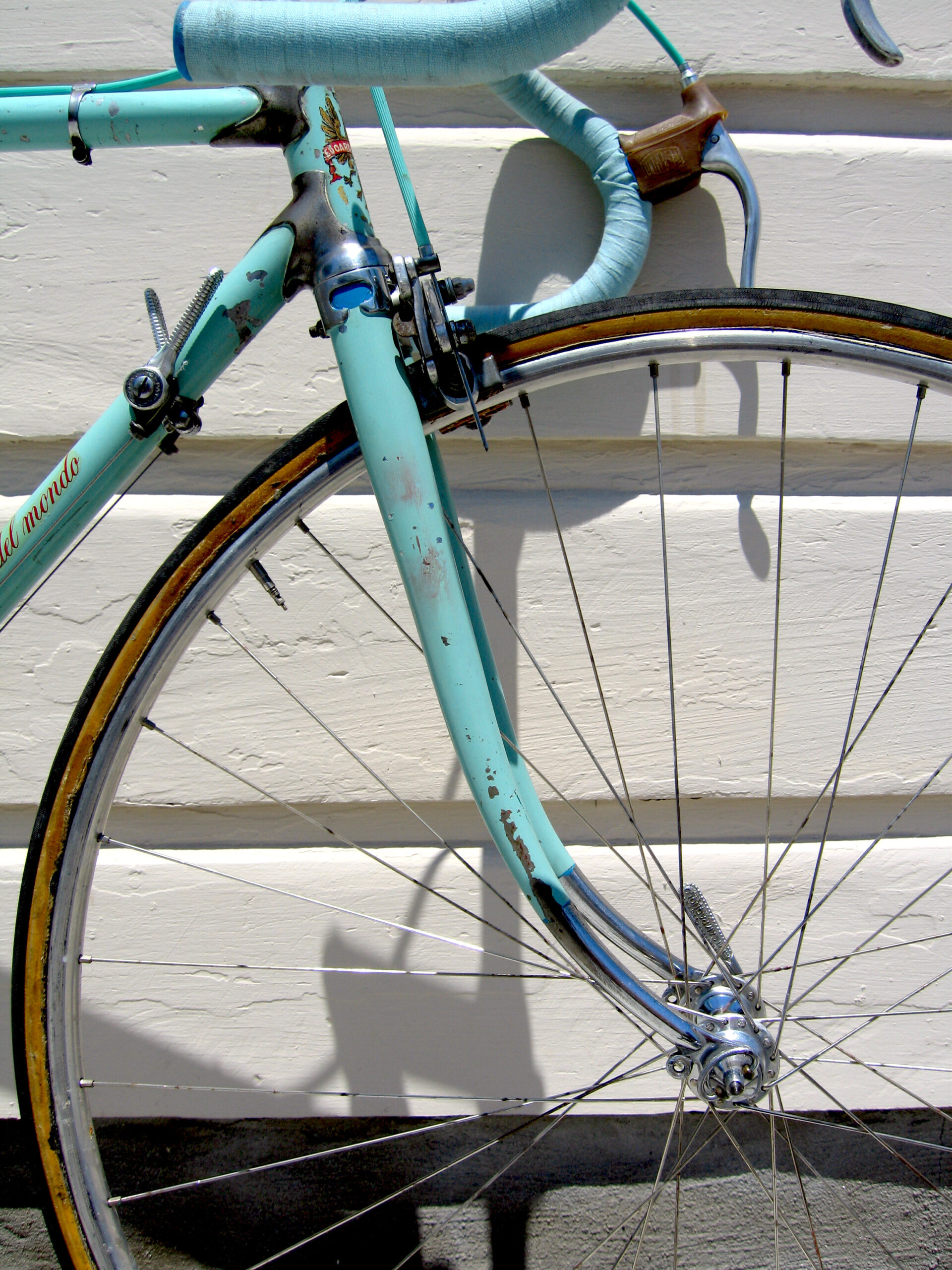

| Fork: | Bianchi, square crown, fender mounts, steel |
| Dropouts: | Campagnolo, steel |

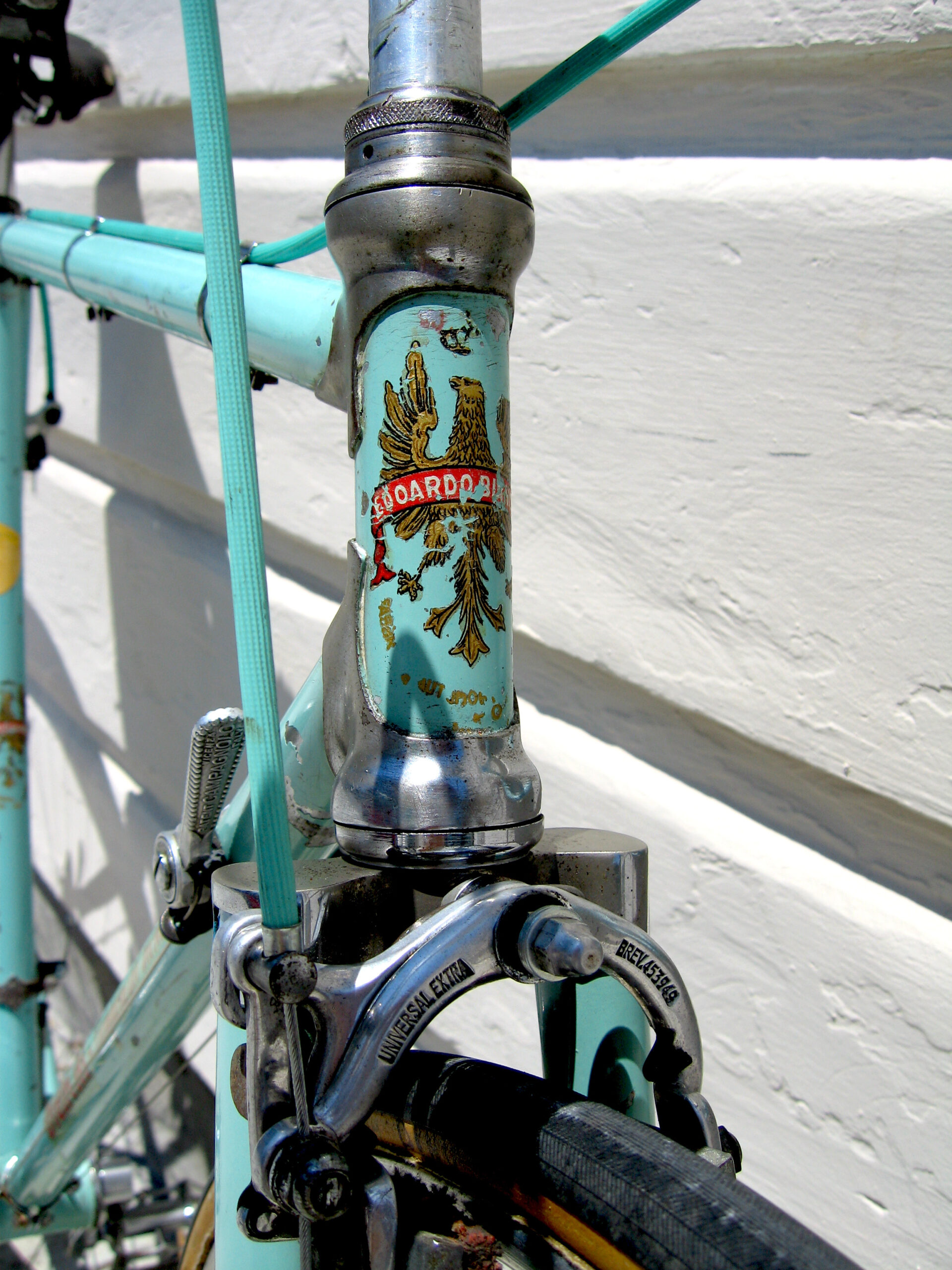

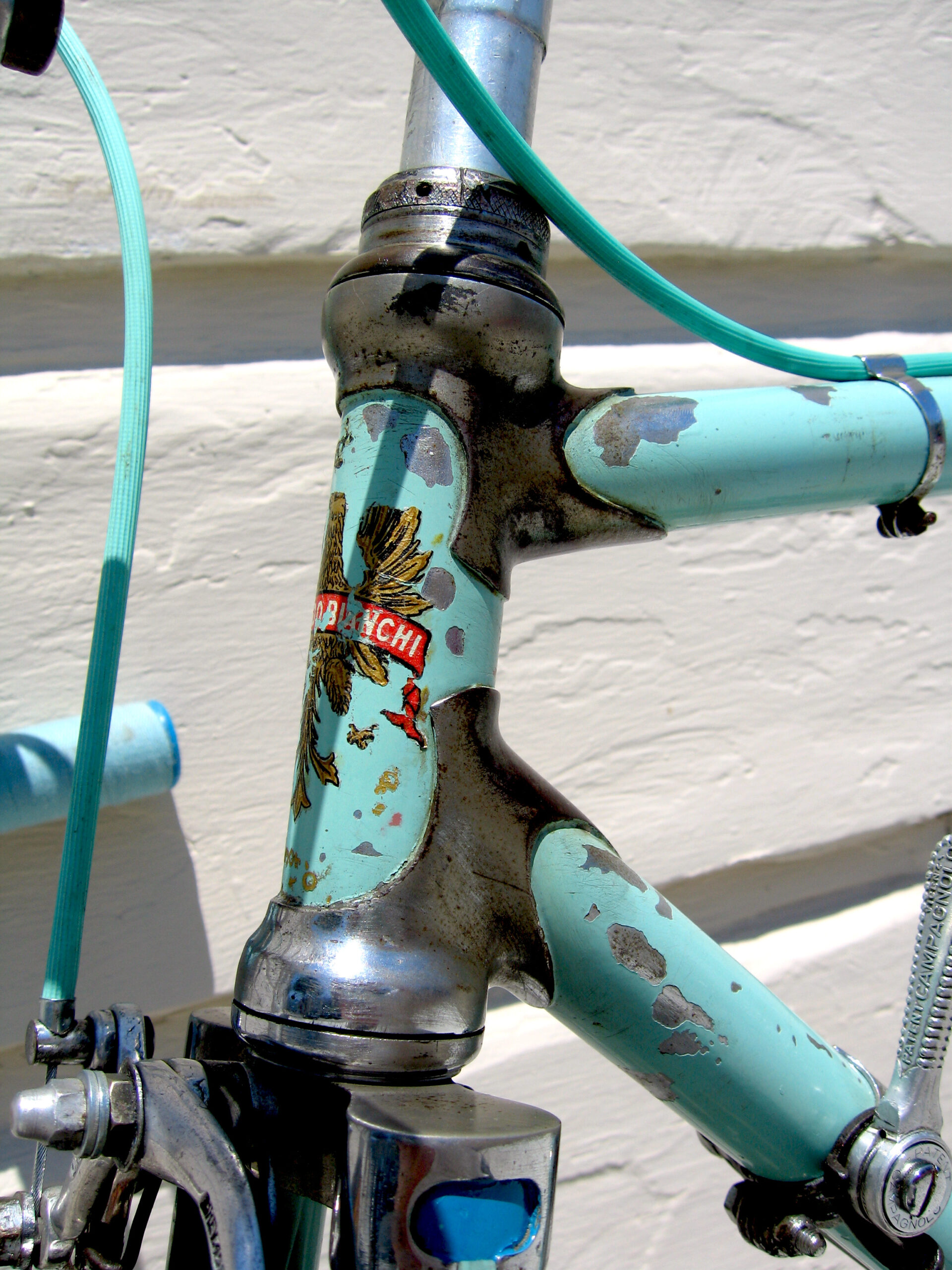

| Headset: | Bianchi, floating internal, steel |

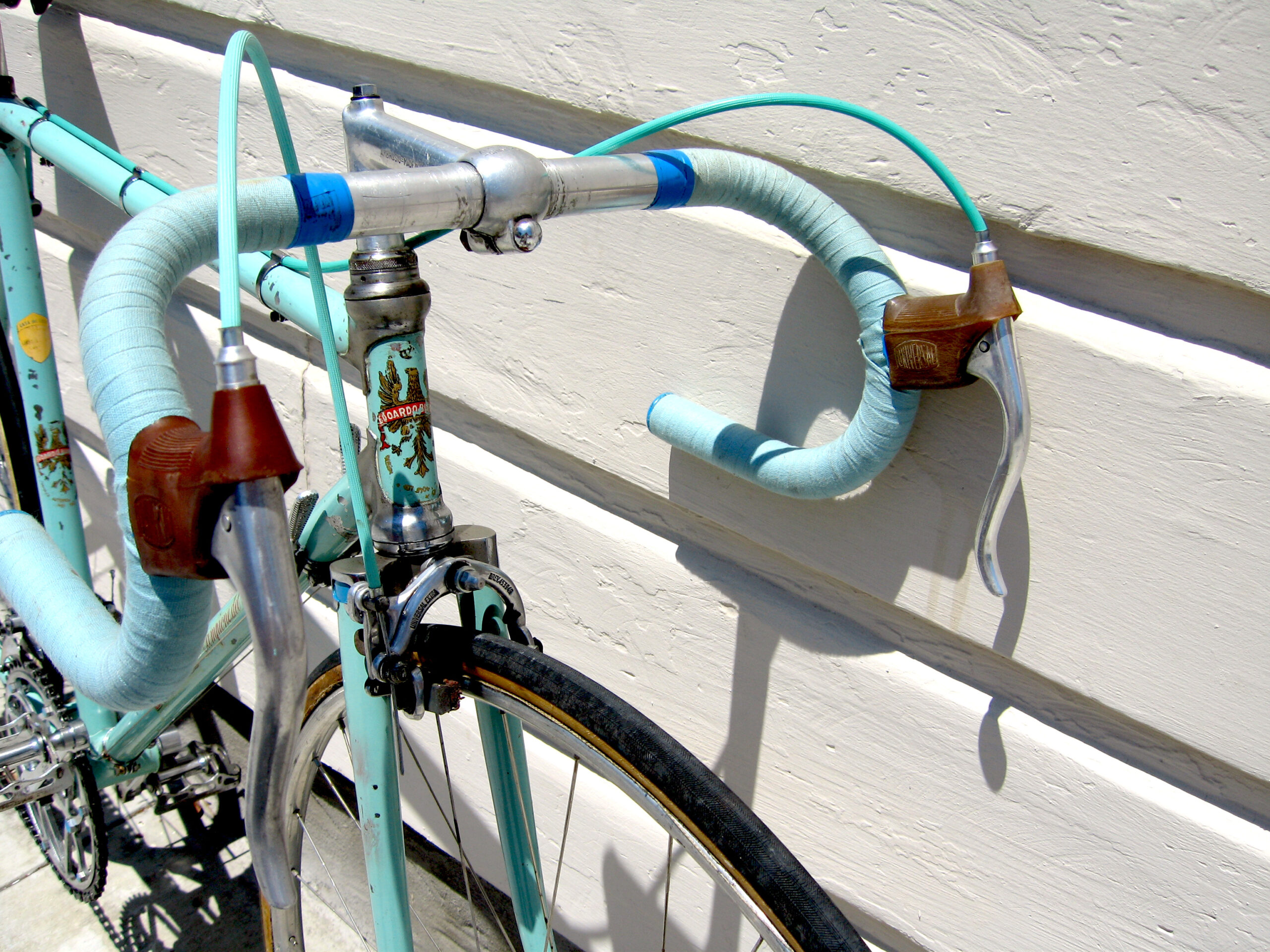

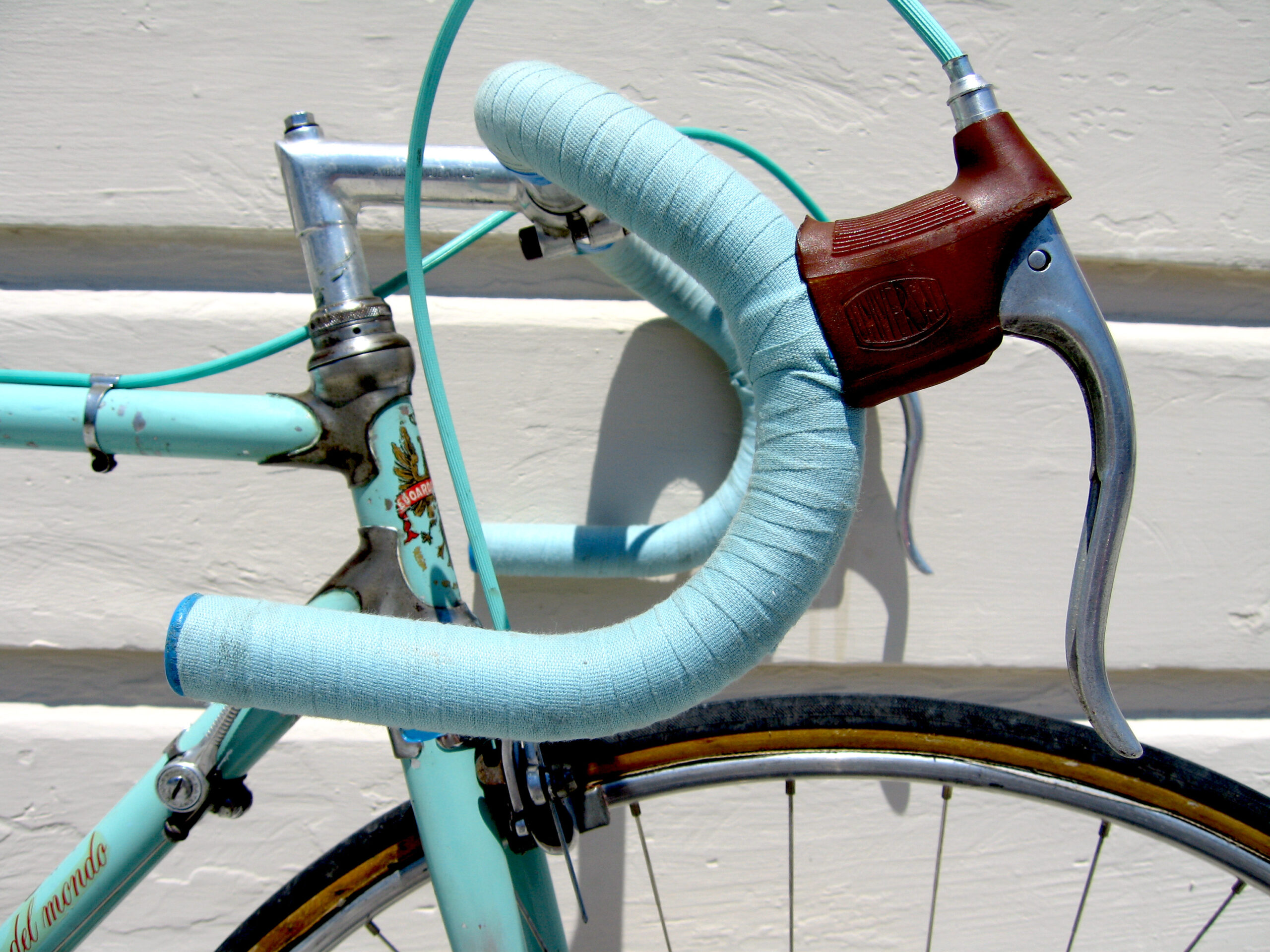

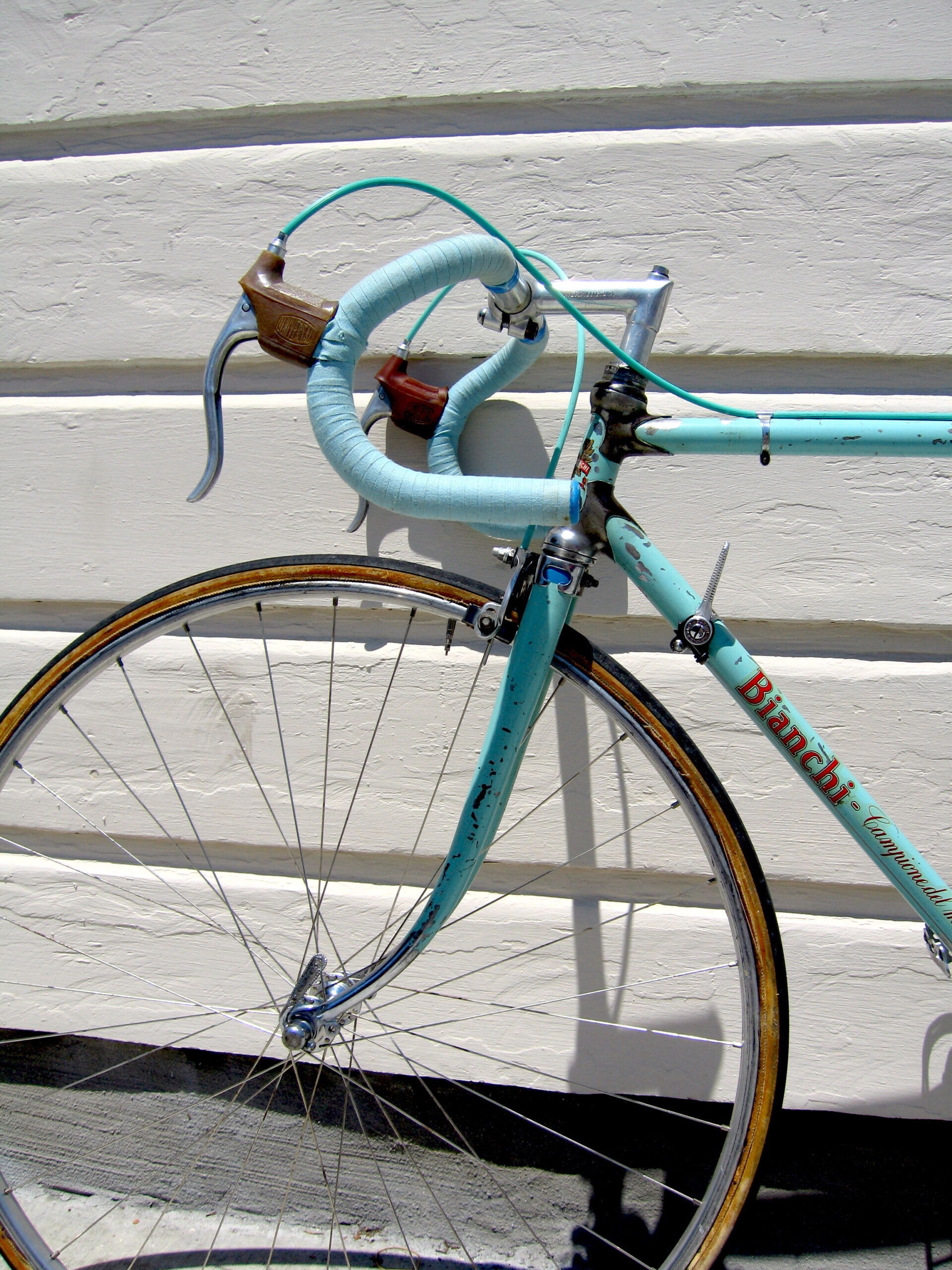

| Handlebar: | Ambrosio, criterium drop, aluminum |

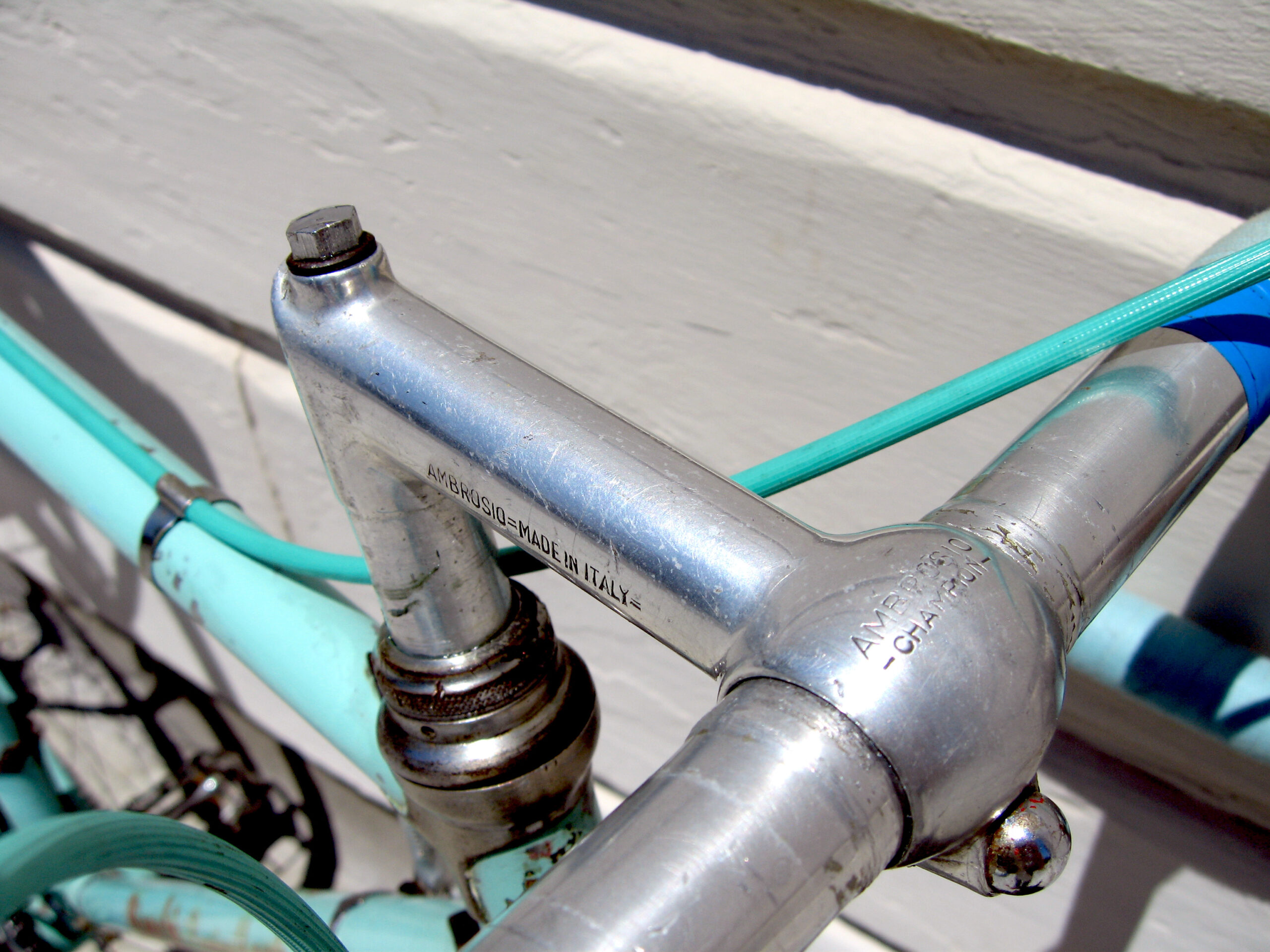

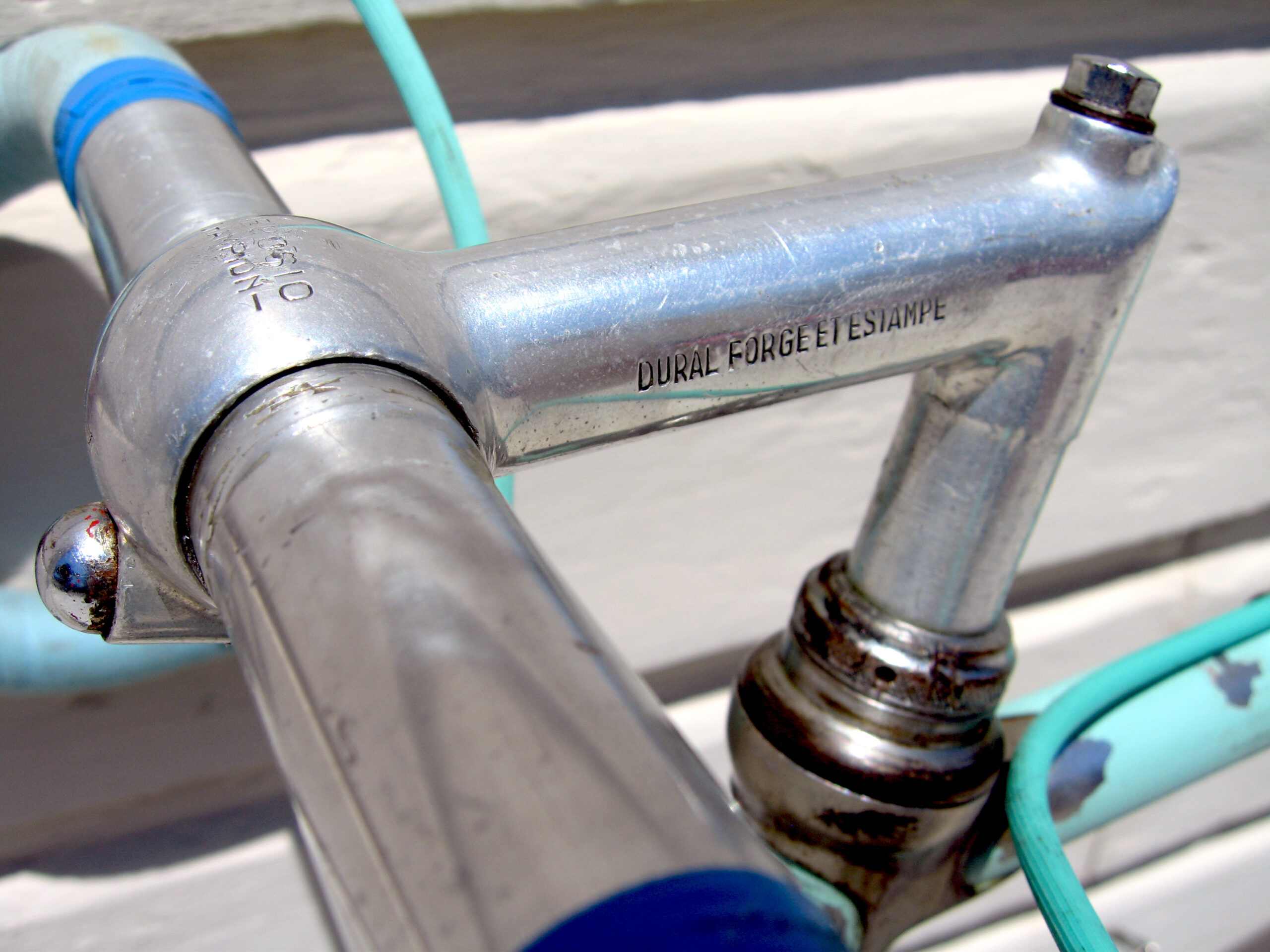

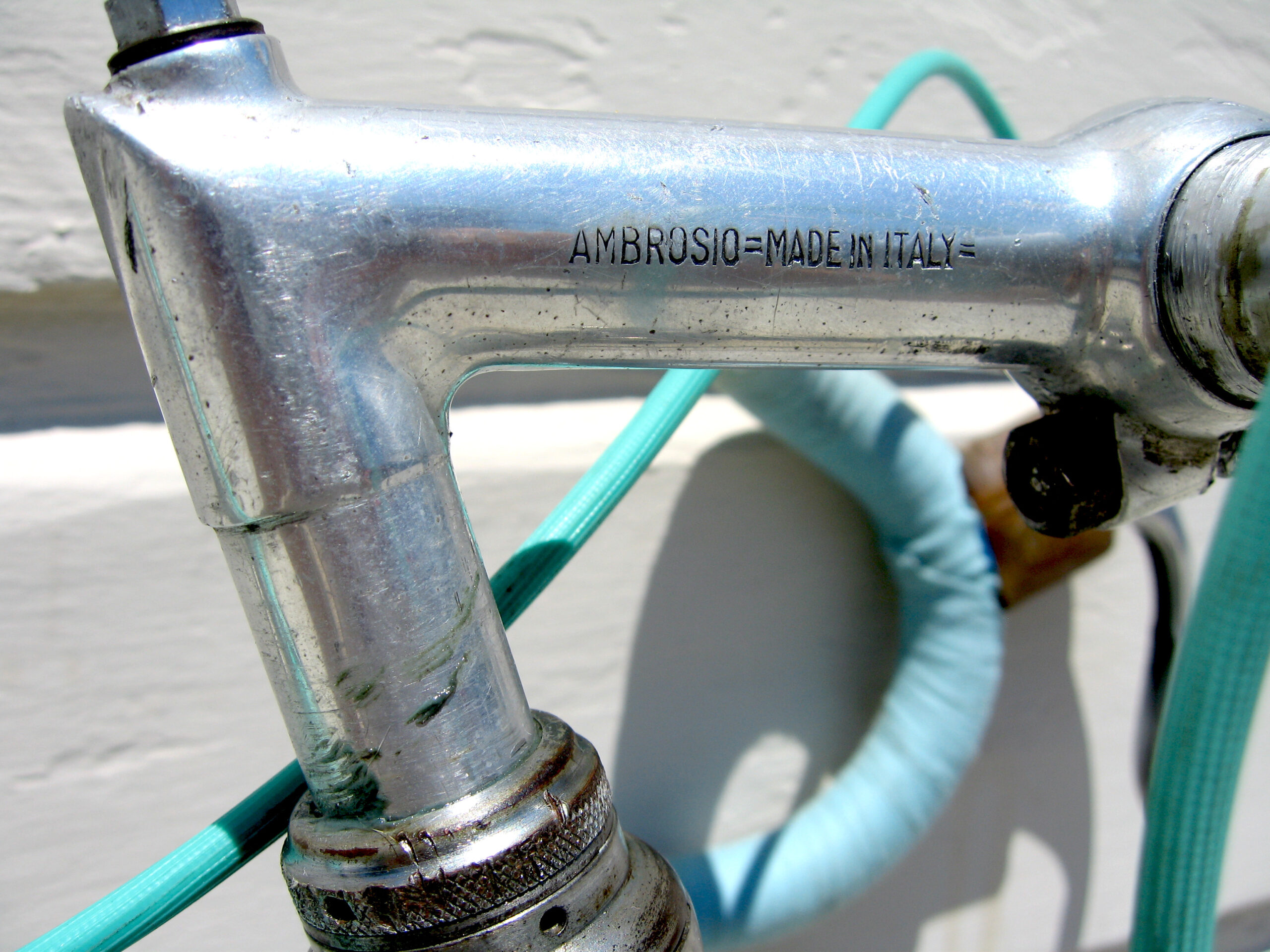

| Stem: | Ambrosio Champion, single domed bolt, aluminum |
| Brake Levers: | Universal, partially open back, aluminum |

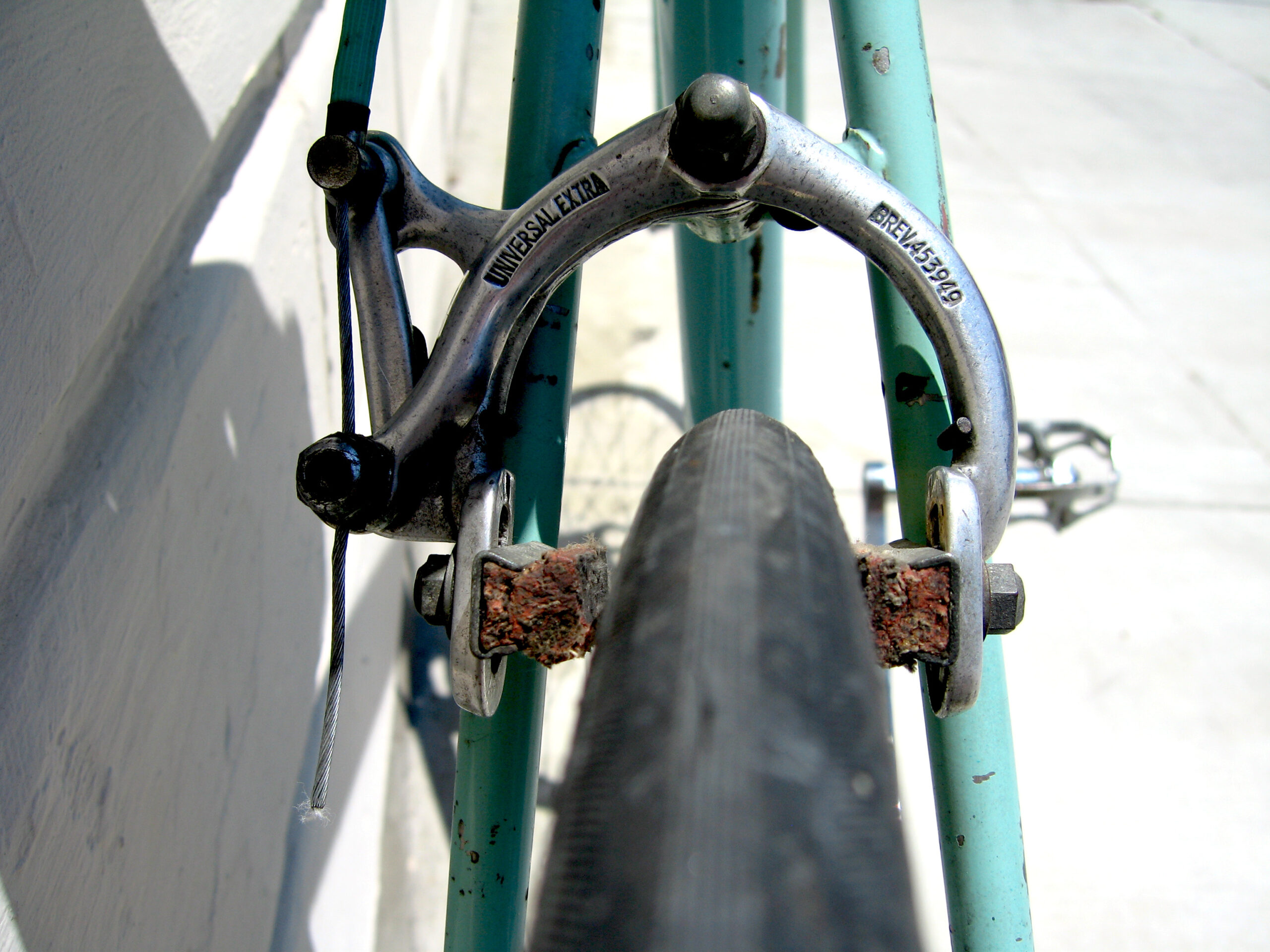

| Brake Calipers: | Universal Tenax, Brev. 45, aluminum |

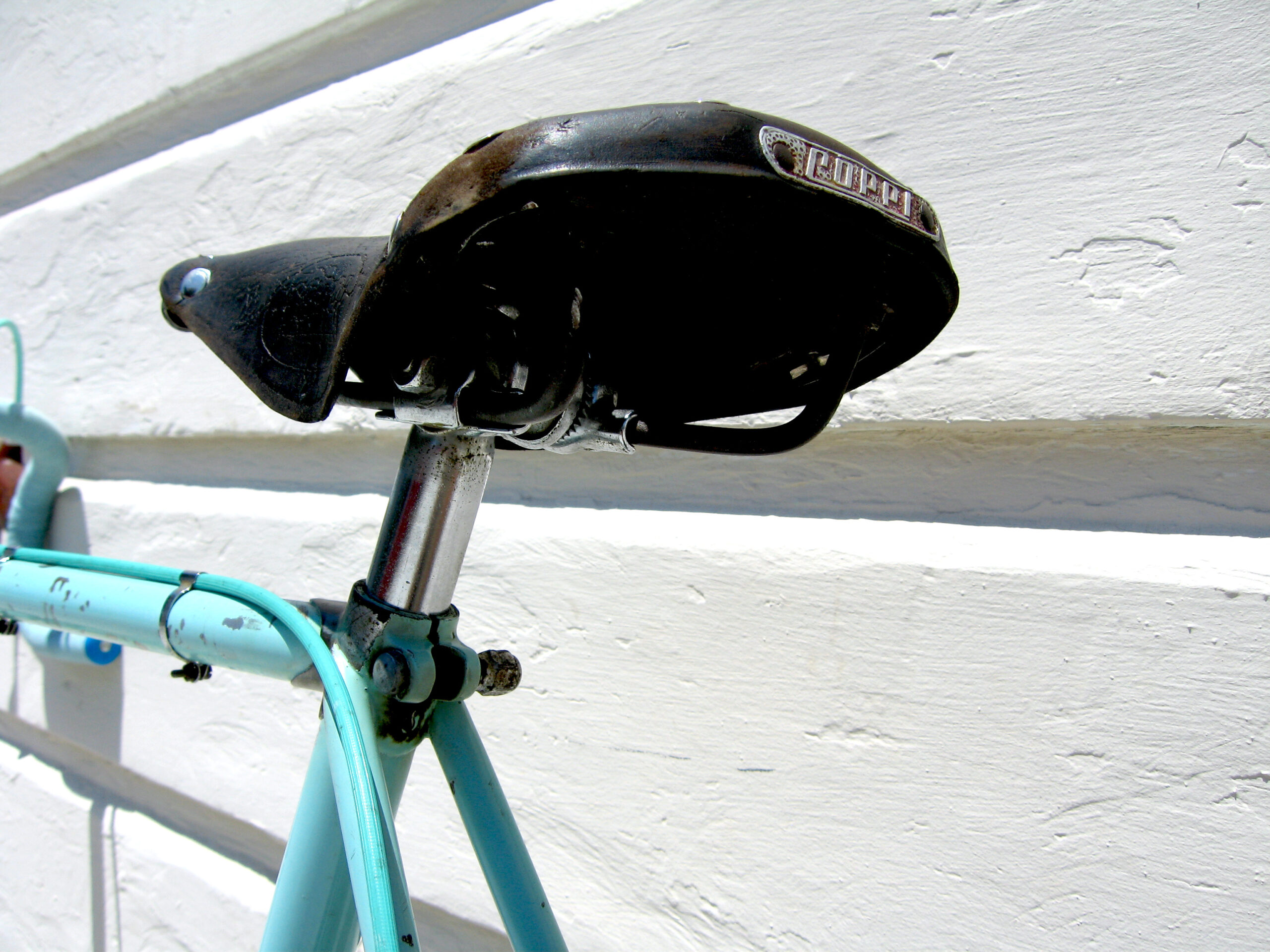

| Saddle: | Coppi, chrome rivets, steel rails |
| Post: | Italian, dome top, steel |

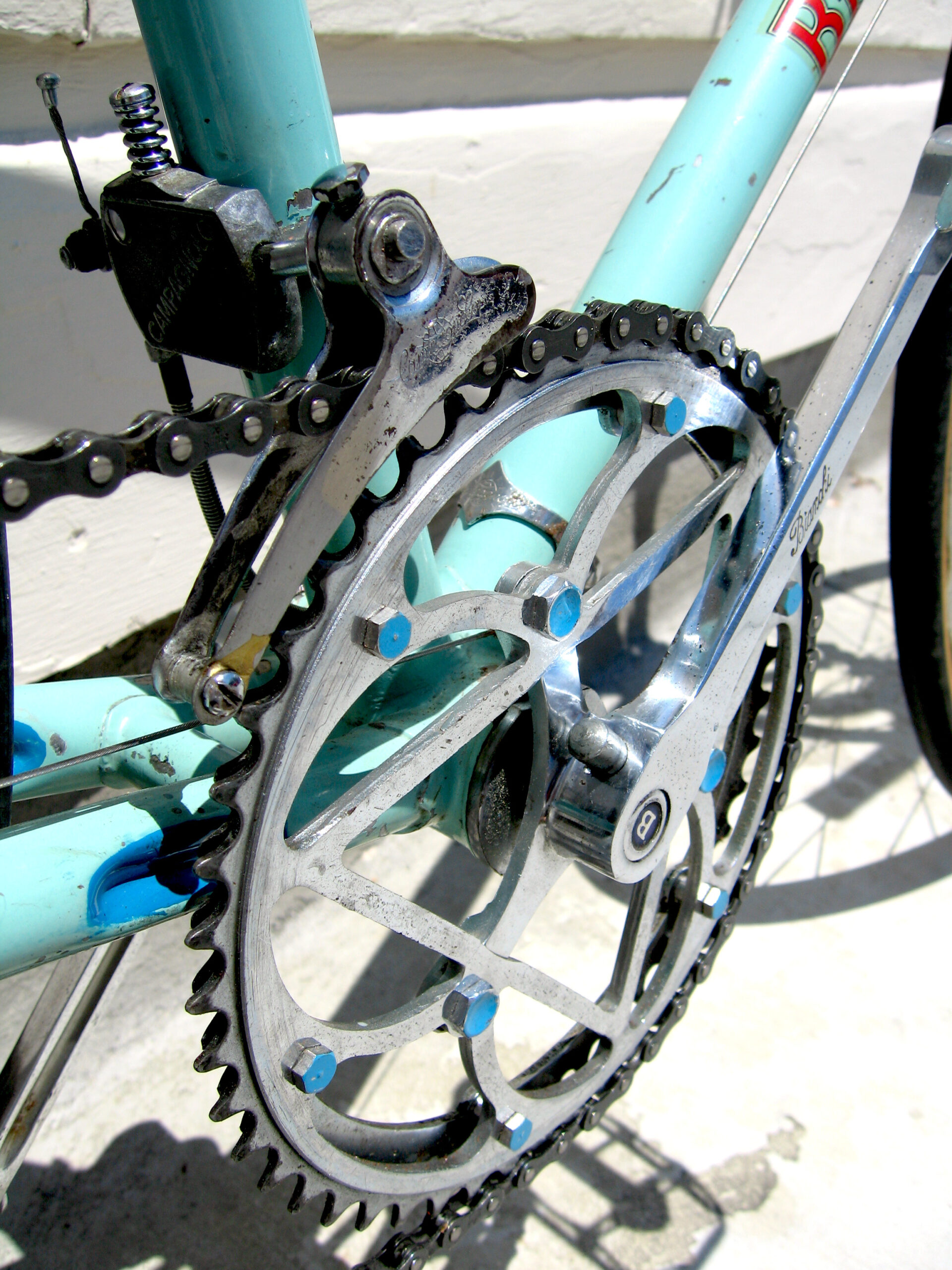

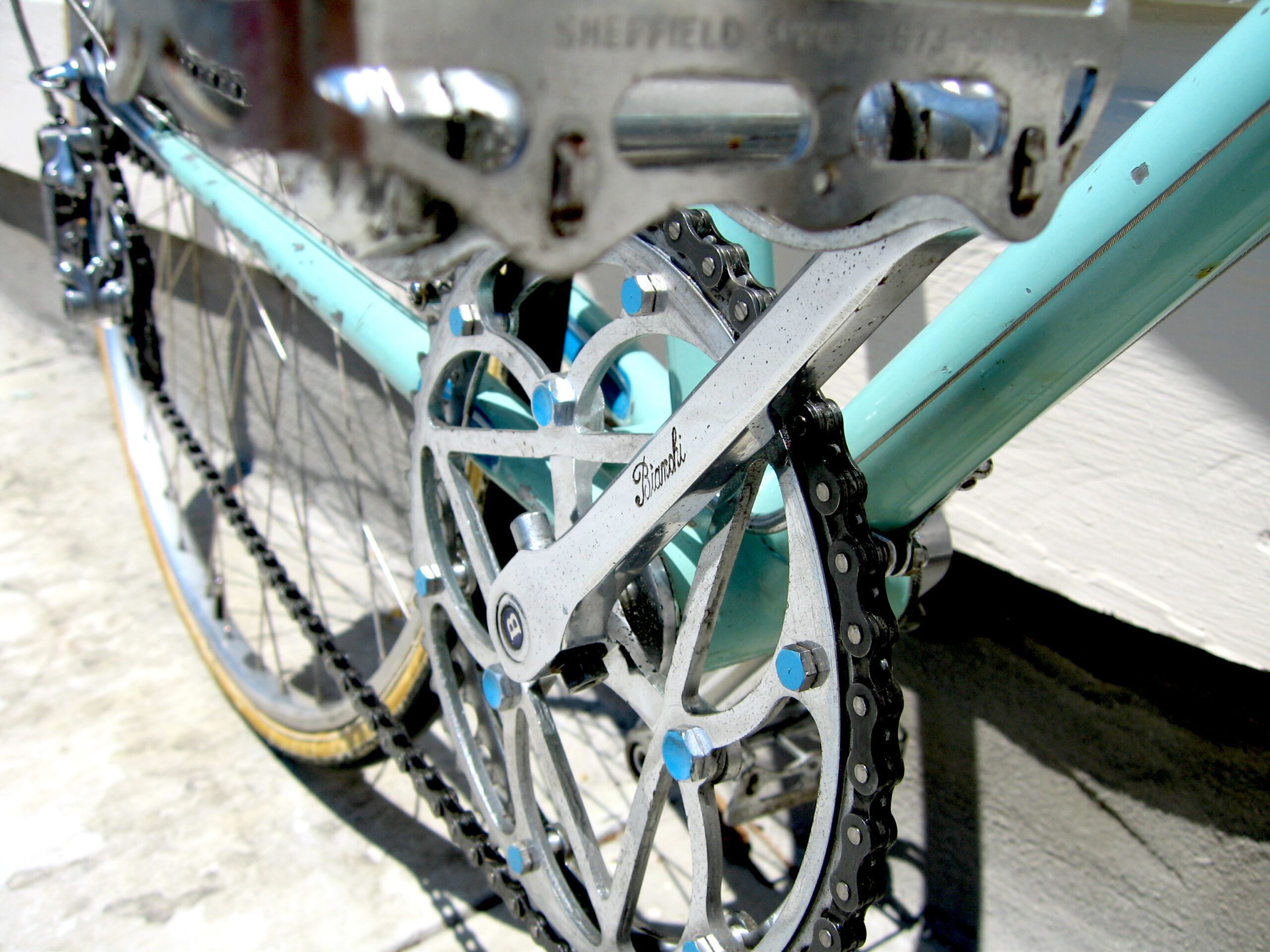

| Crank: | Campagnolo for Bianchi, cottered, three bolt spider, steel |
| Chainrings: | Campagnolo for Bianchi, 49-46 teeth, steel |
| Freewheel: | Everest, 5 speed, 15-17-19-21-23 teeth, steel |
| Bottom Bracket: | Campagnolo, cottered, steel |

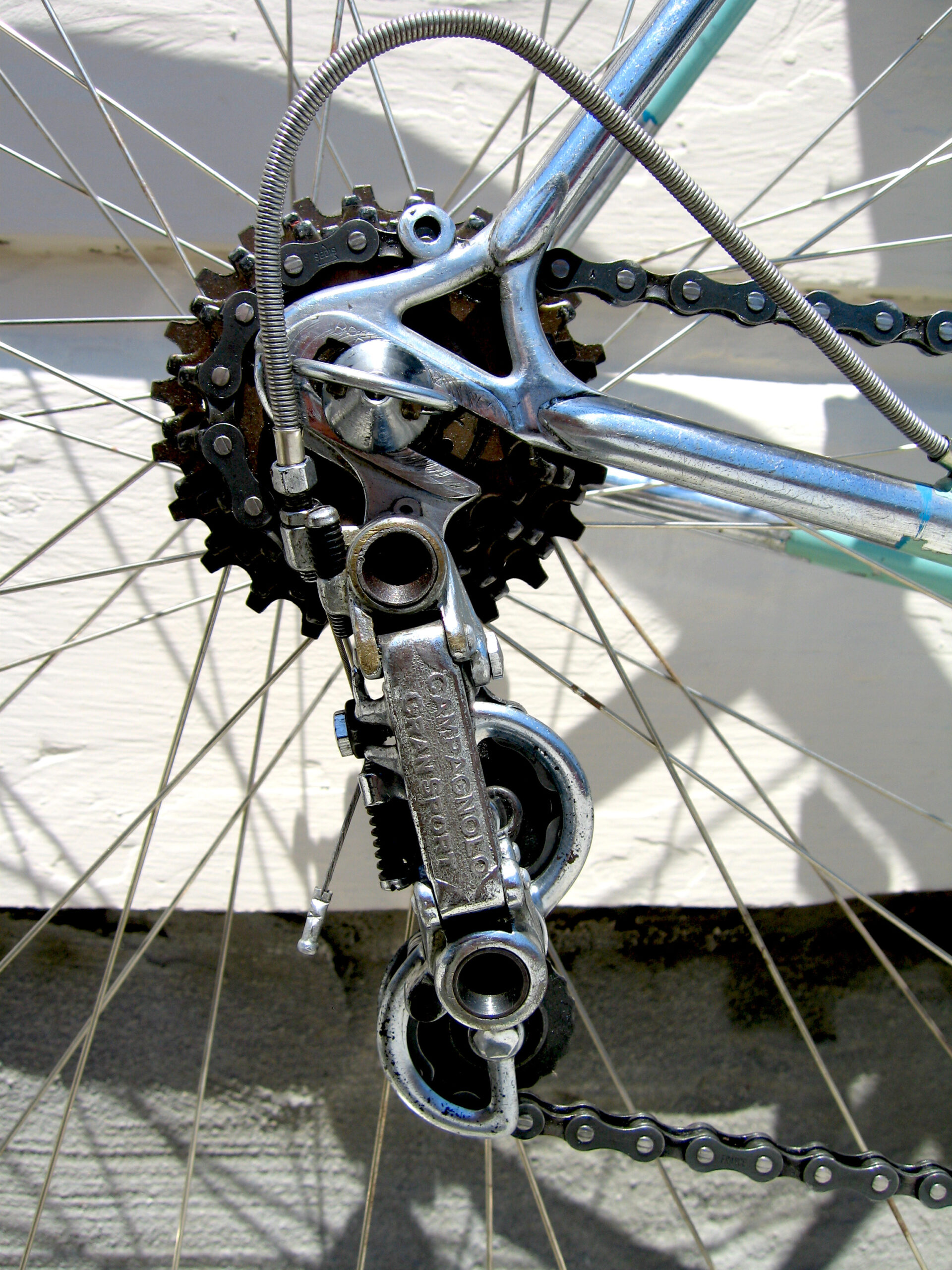

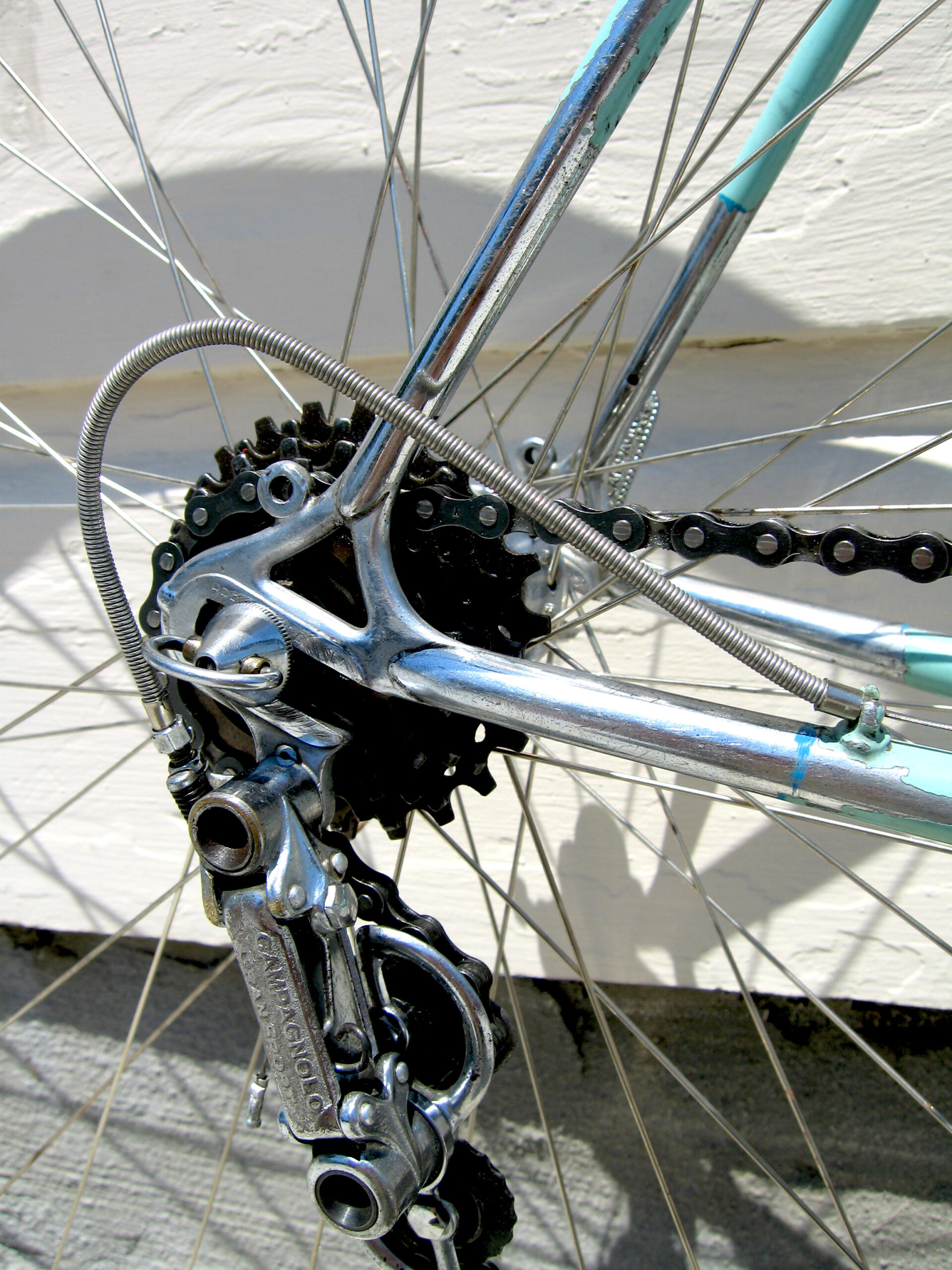

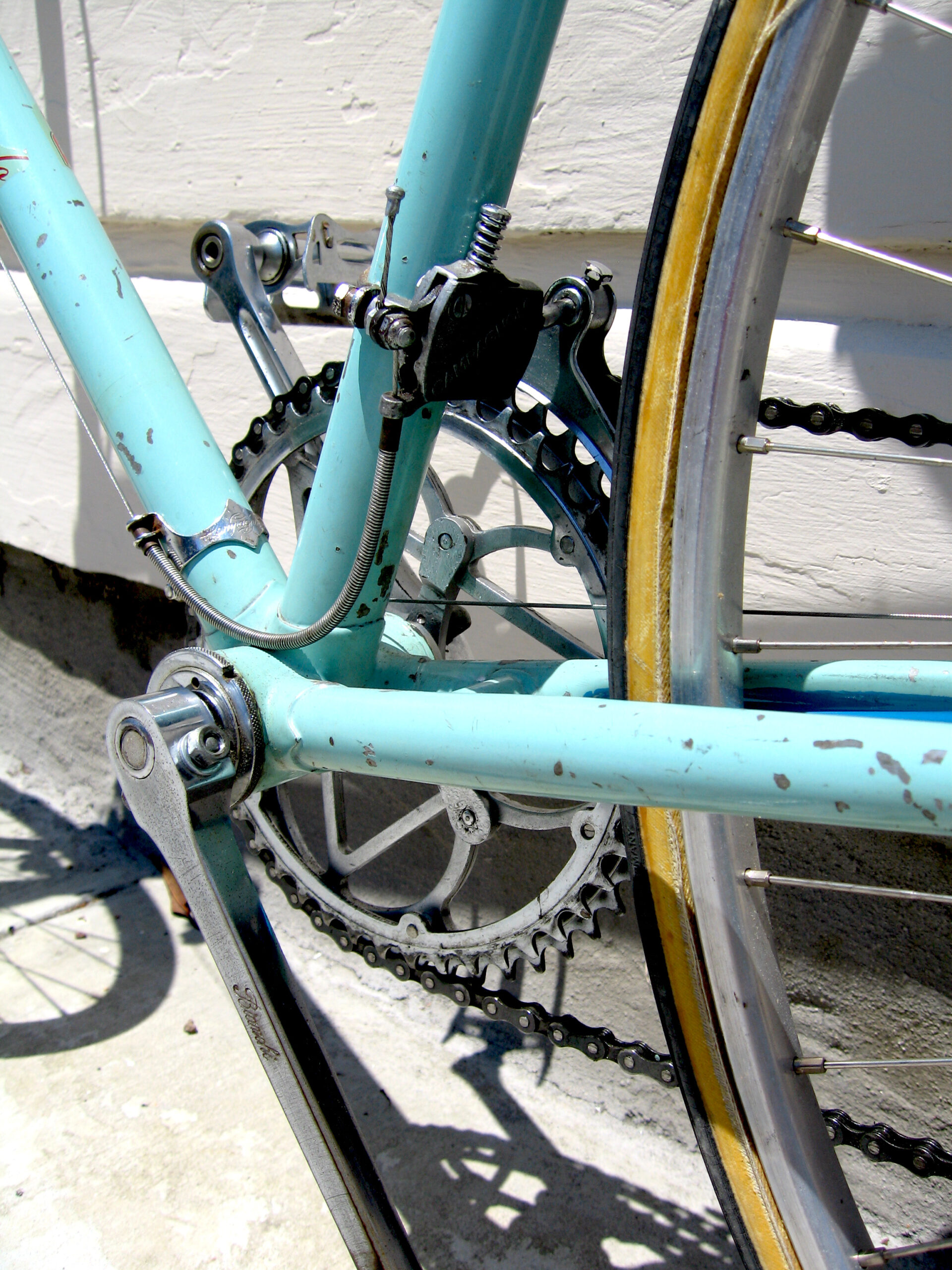

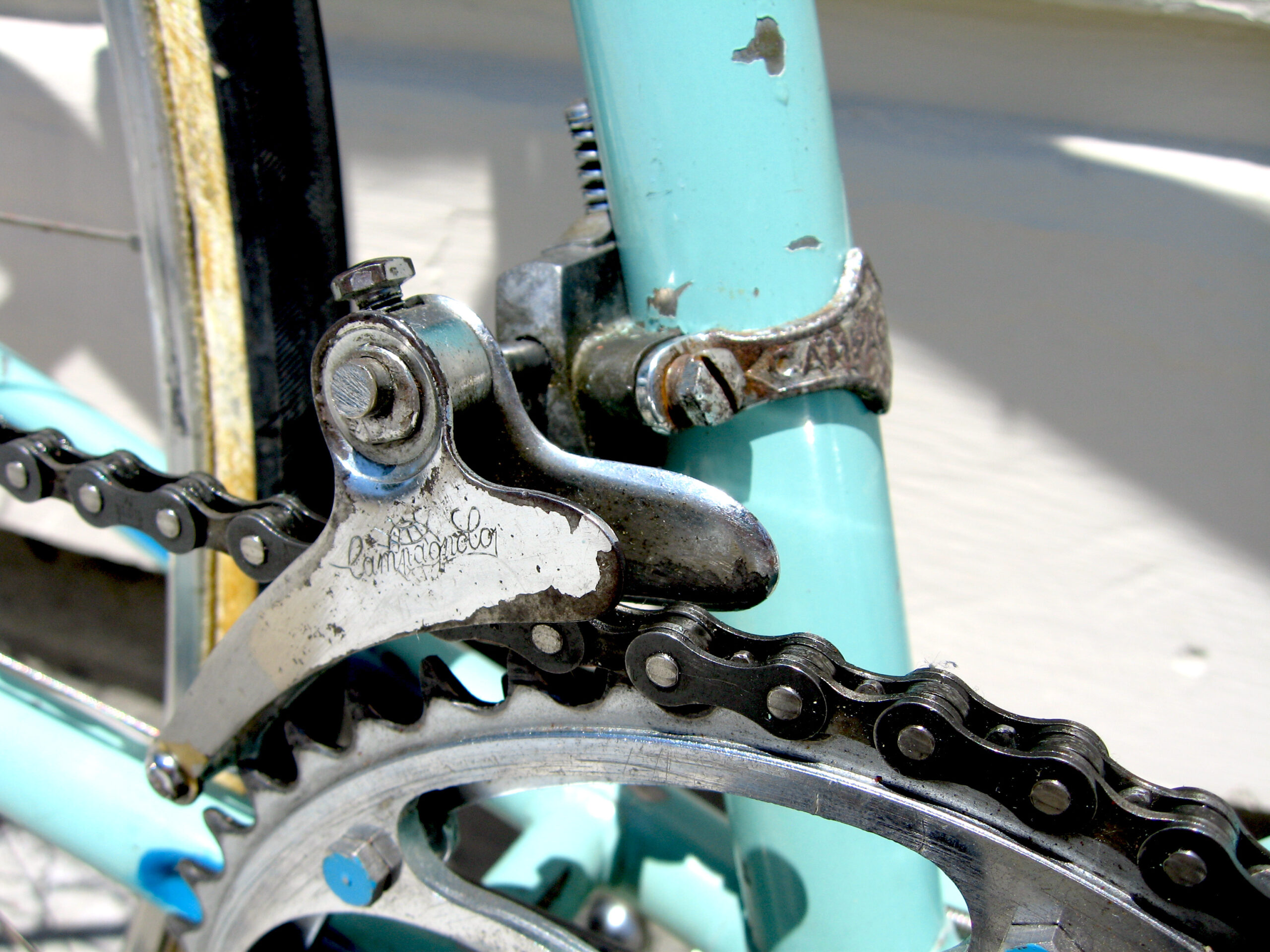

| Rear Derailleur: | Campagnolo Gran Sport, 5 speed, steel |
| Chain: | Sedis, steel |

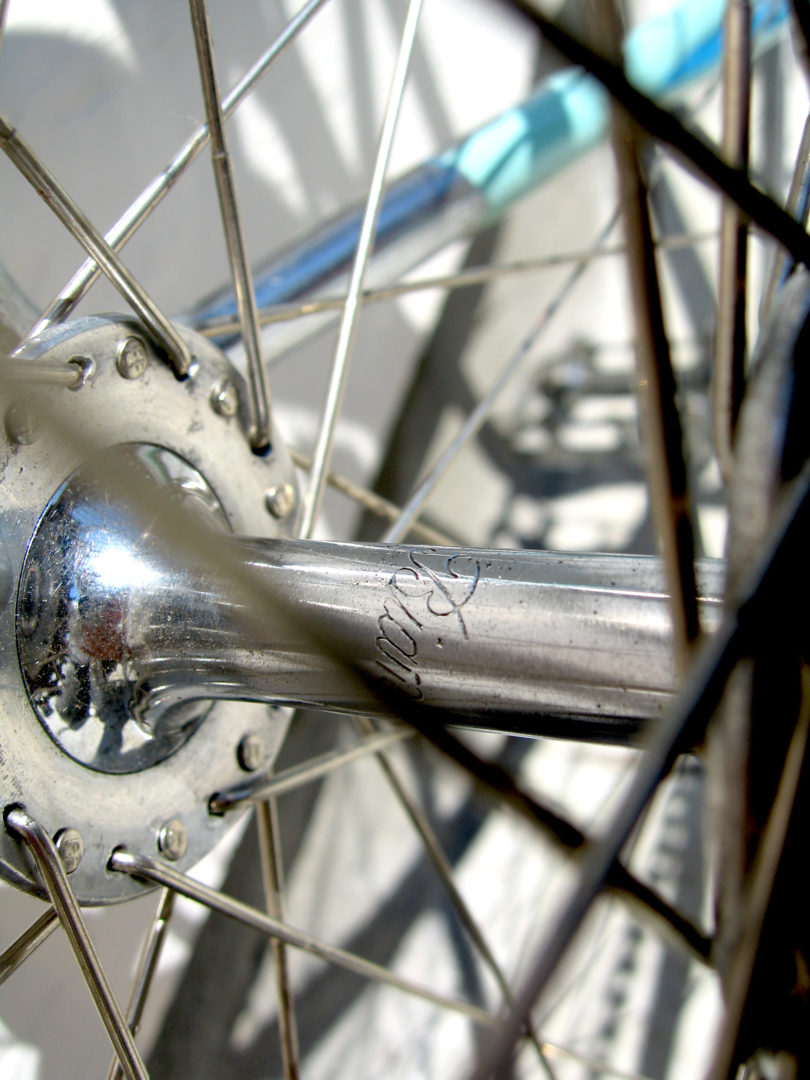

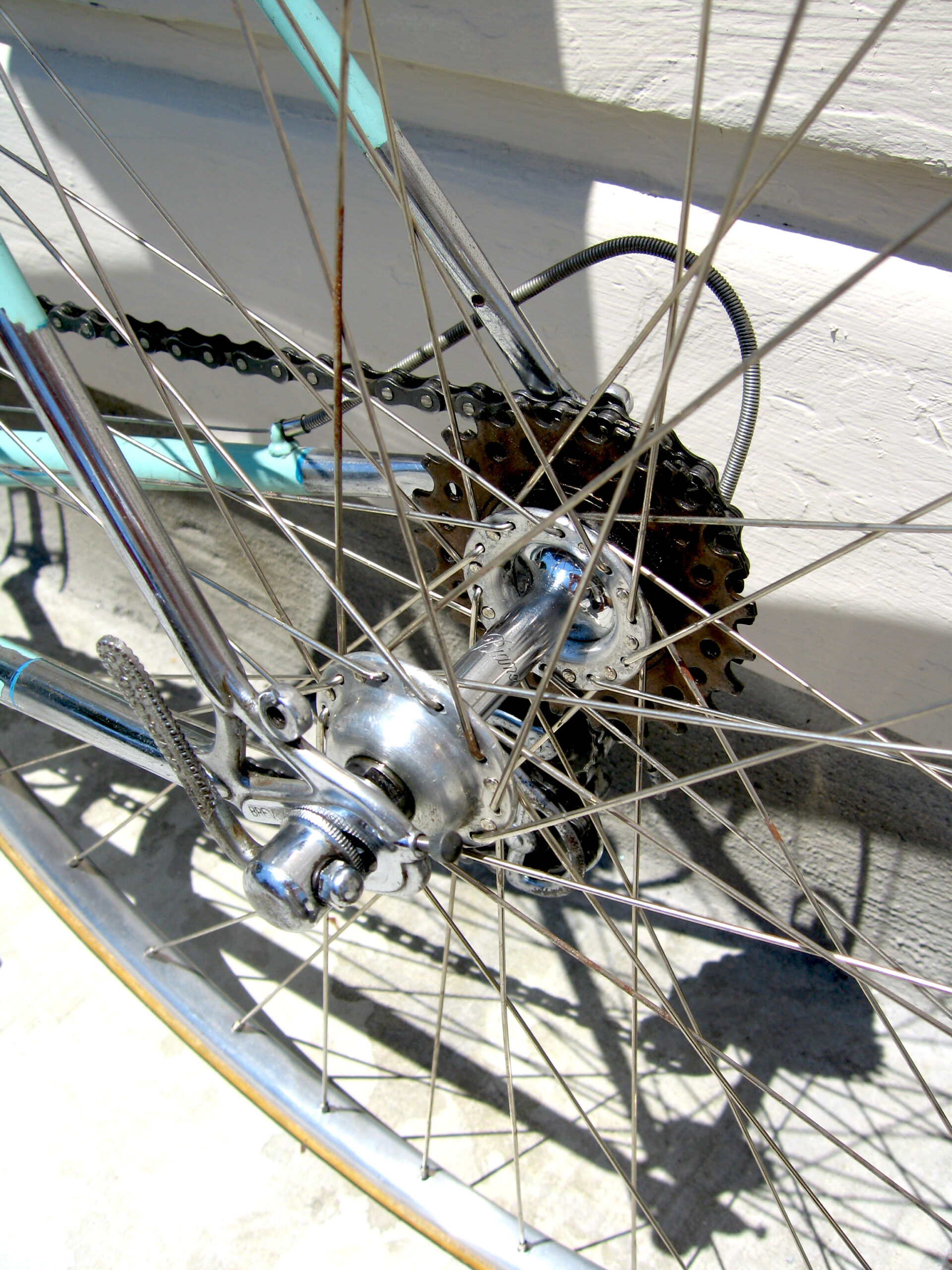

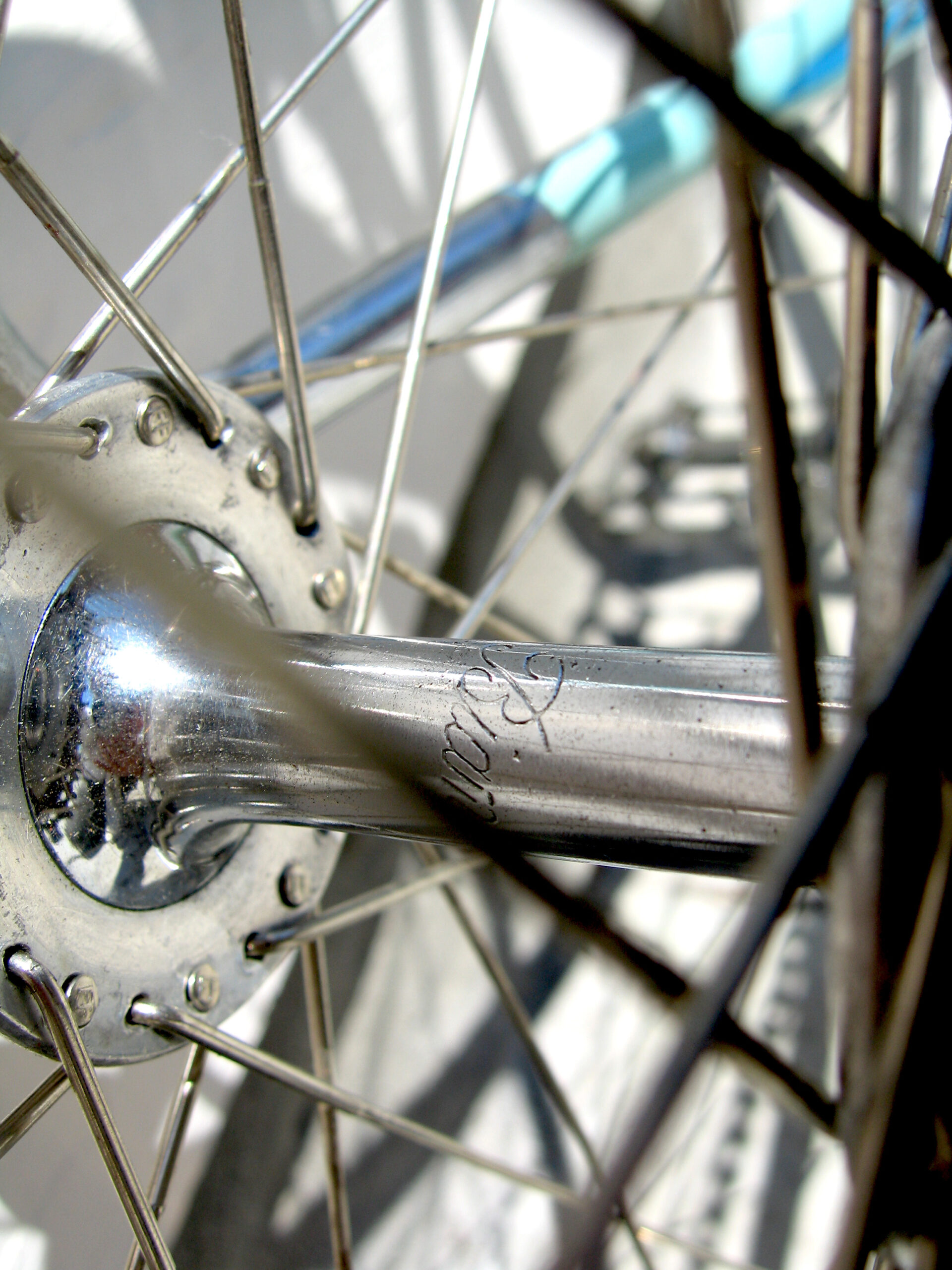

| Hubs: | Campagnolo for Bianchi, Gran Sport three piece, low flange, 32F-40R hole, steel and aluminum |
| Rims: | Fiamme, tubular, 700c, 32F-40R hole, aluminum |
| Tires: | Swallow Montello front, Schwalbe Montello rear, 700c |
| Spokes: | 32F by 3X cross, 40R by 3X cross, steel |

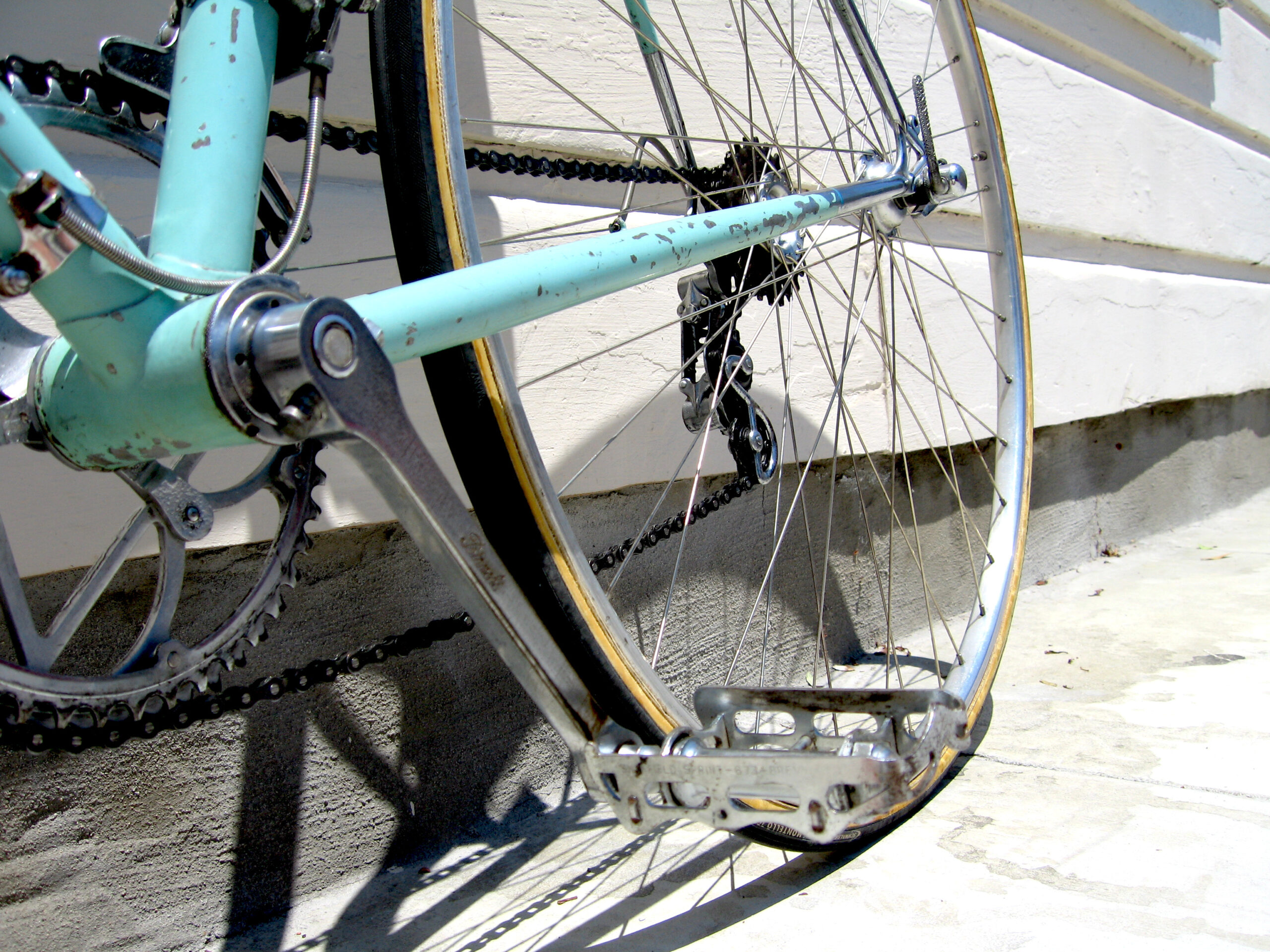

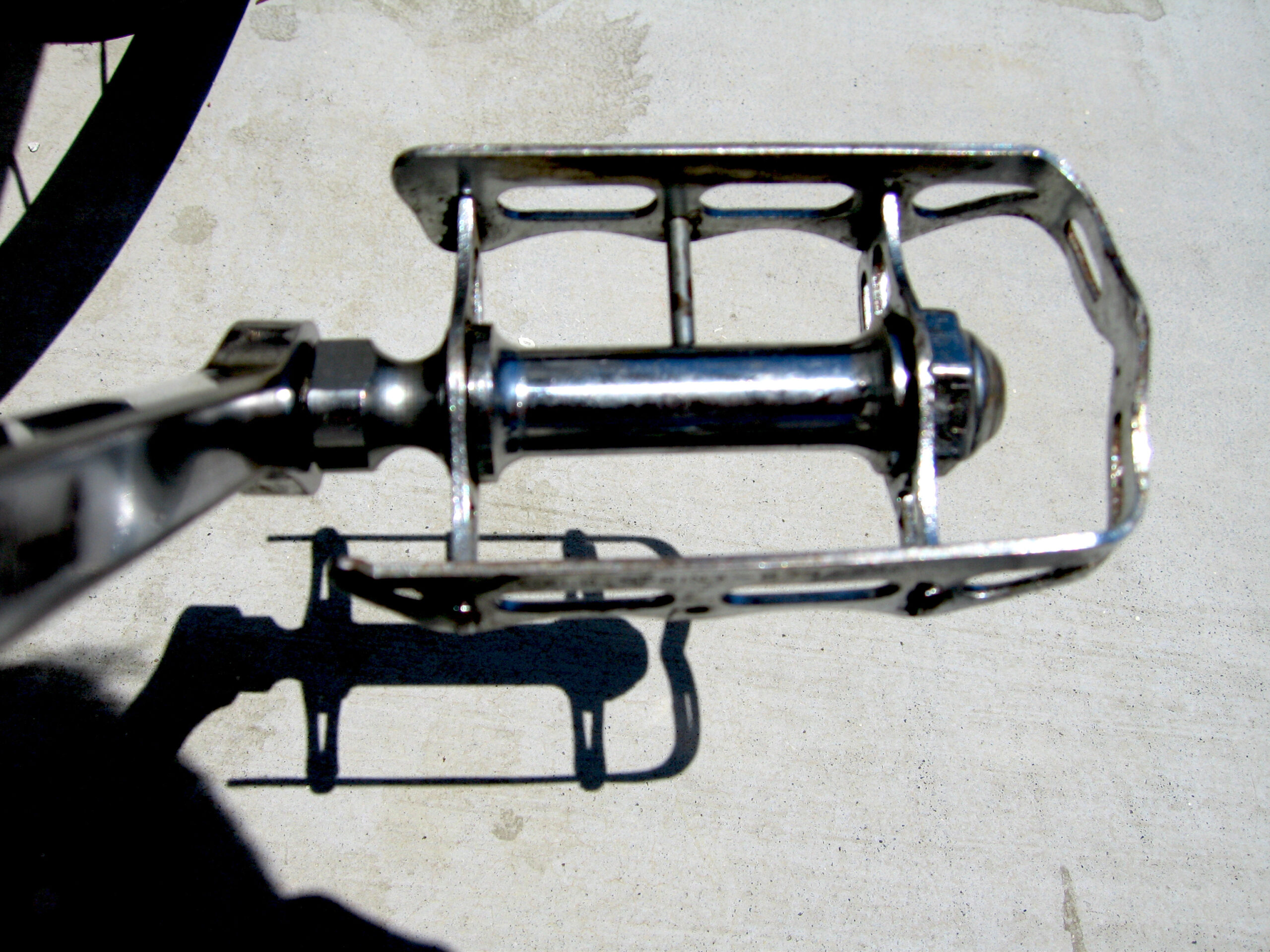

| Pedals: | Sheffiled Sprint 673, reinforced, aluminum |

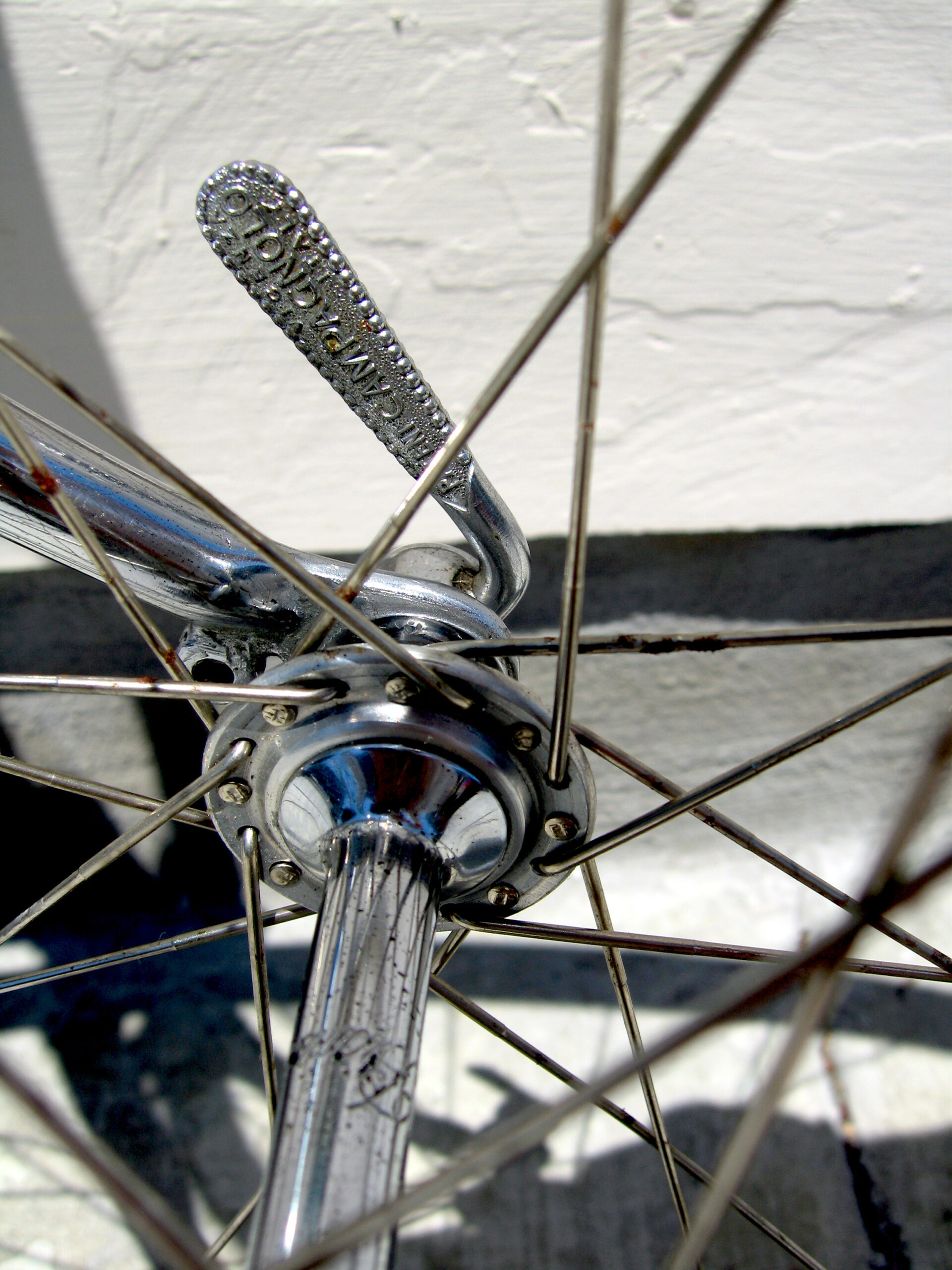

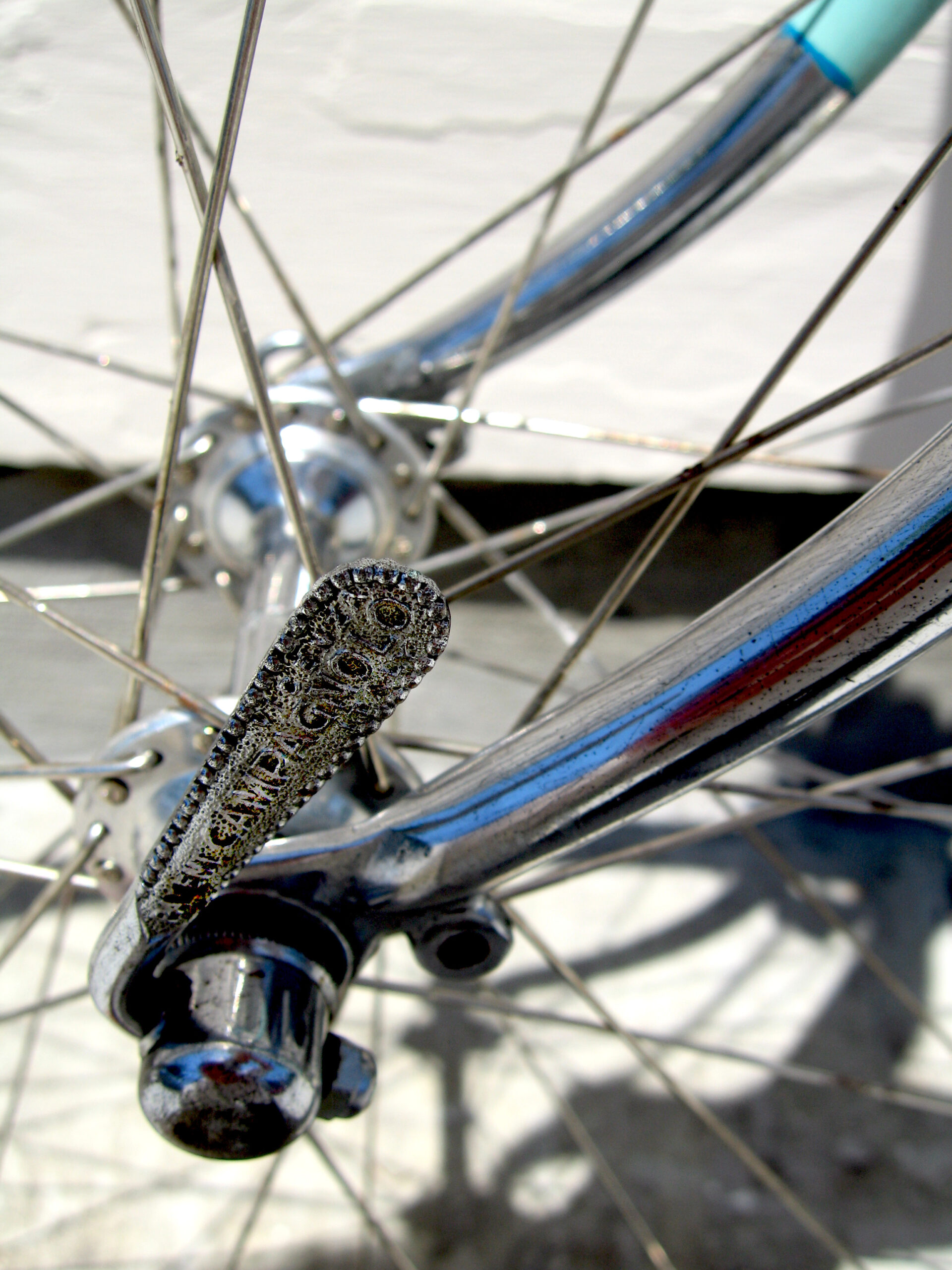

| Extras: | Campagnolo “Open C” skewers, steel; REG cable guides, steel; Mil Remo bar plugs, plastic; bar wrap, cotton; ribbed cable housing, plastic and steel |

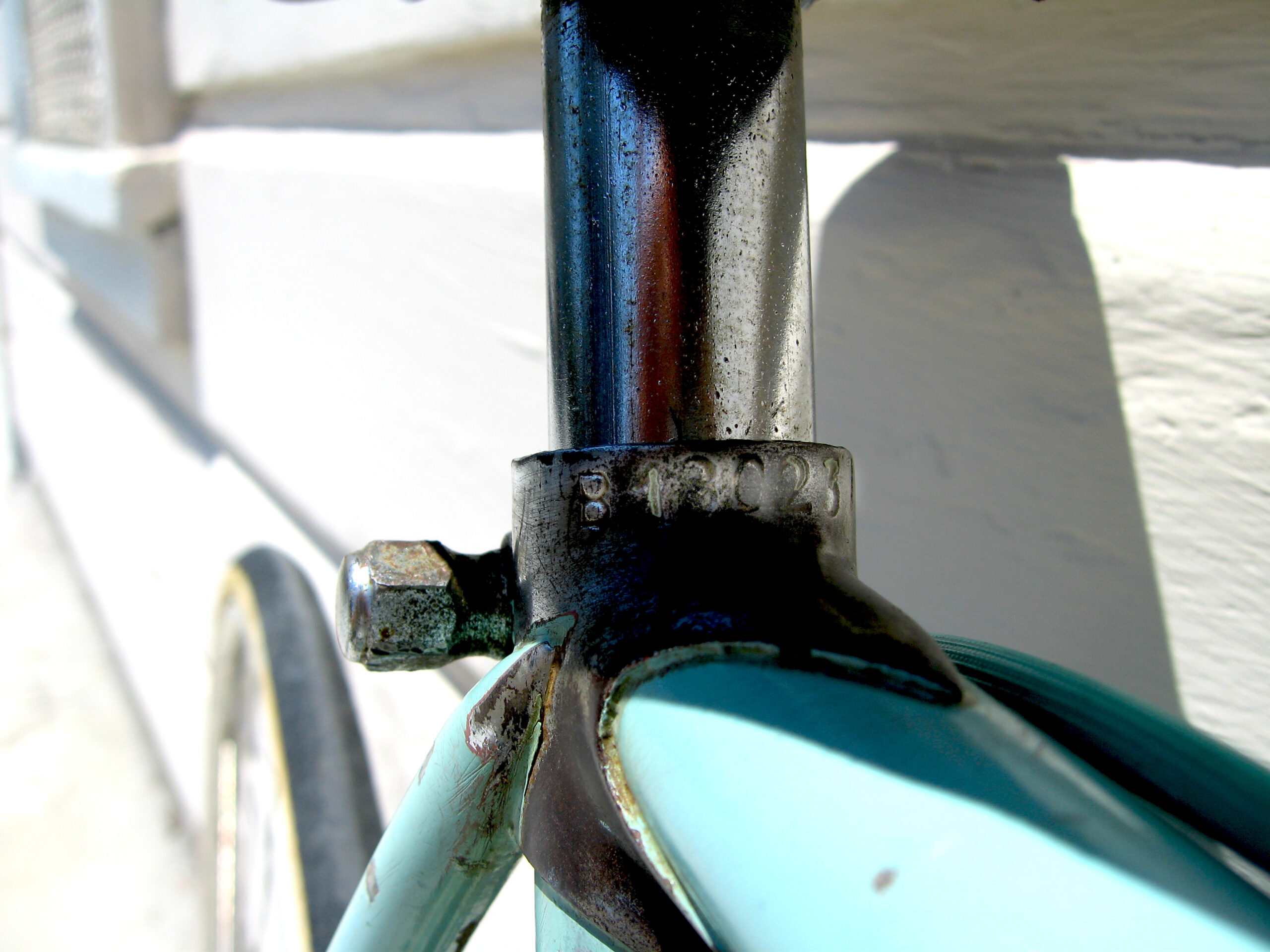

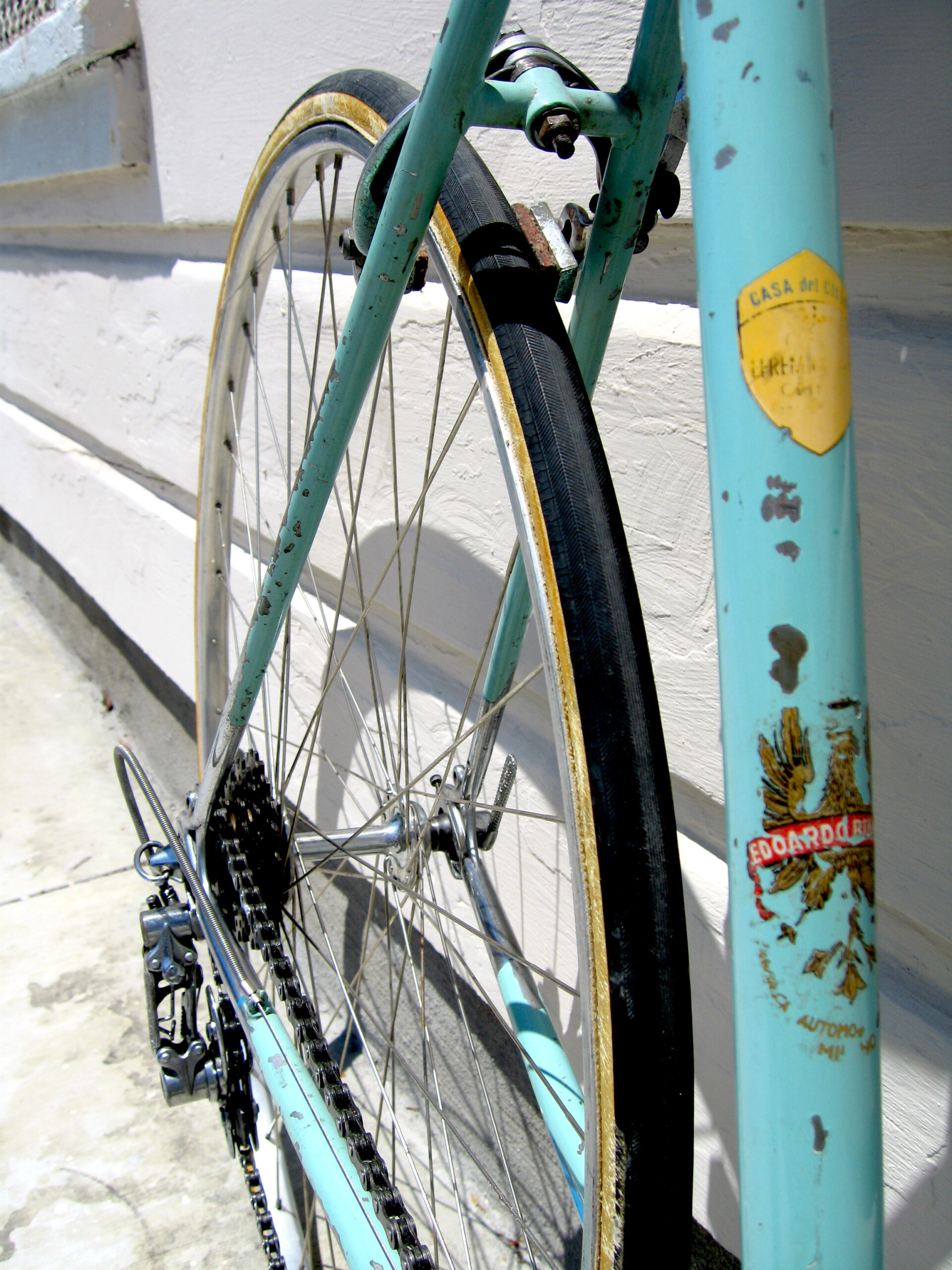

| Notes: | Celeste finish, blue accents, chrome head and seat lugs, chrome stay ends, chrome fork crown and ends, red transfer on downtube, Bianchi crest on seat tube, yellow “Casa del Ciclo” shop transfer on seat tube, “B180237” seat lug stamp, original except tires/hoods/chain, respray in 1960’s, fair condition, paint chipping, chrome peppering |
| Size: | 55cm top tube center-center, 53cm seat tube center-center |
| Weight: | 10kg |
