Tech Specs: 1984 Colnago Super Pista Saronni

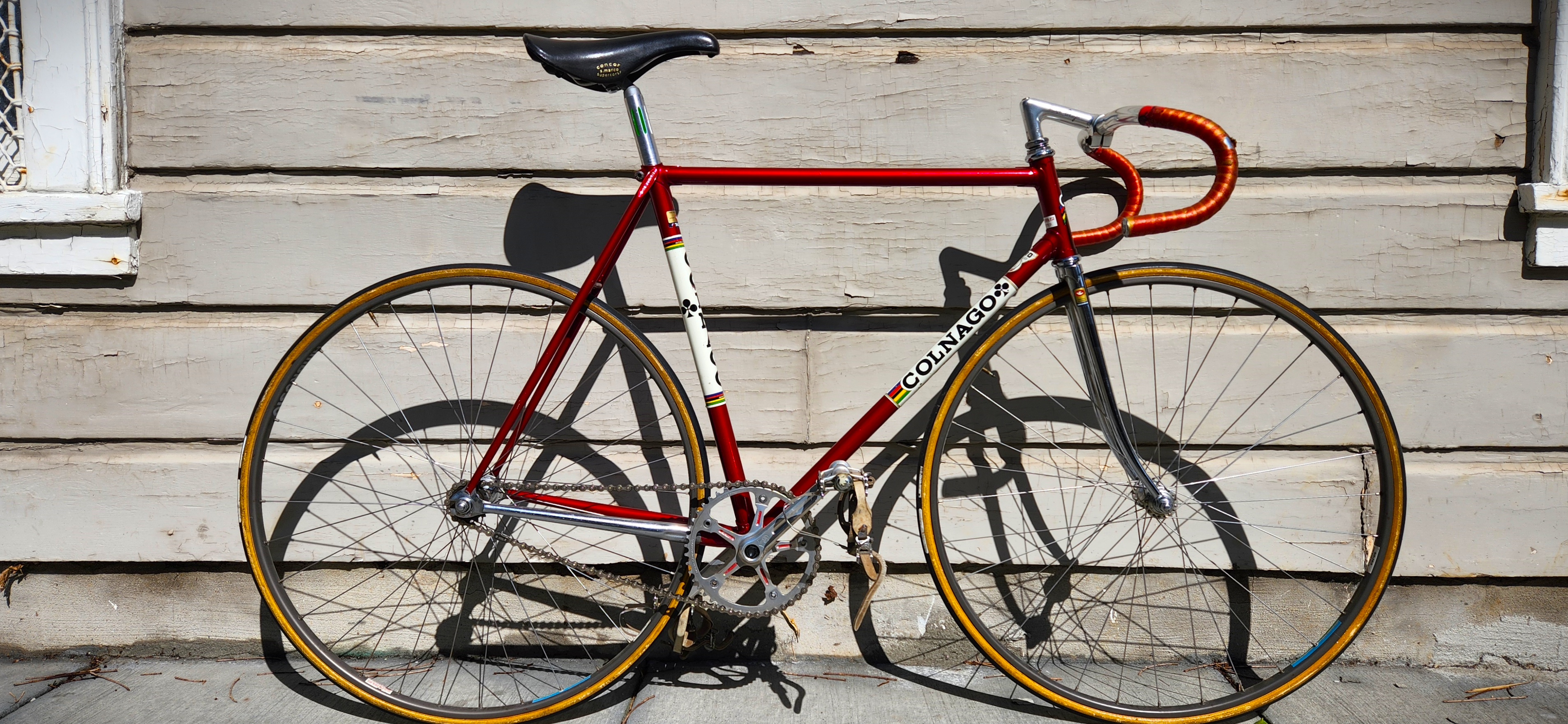

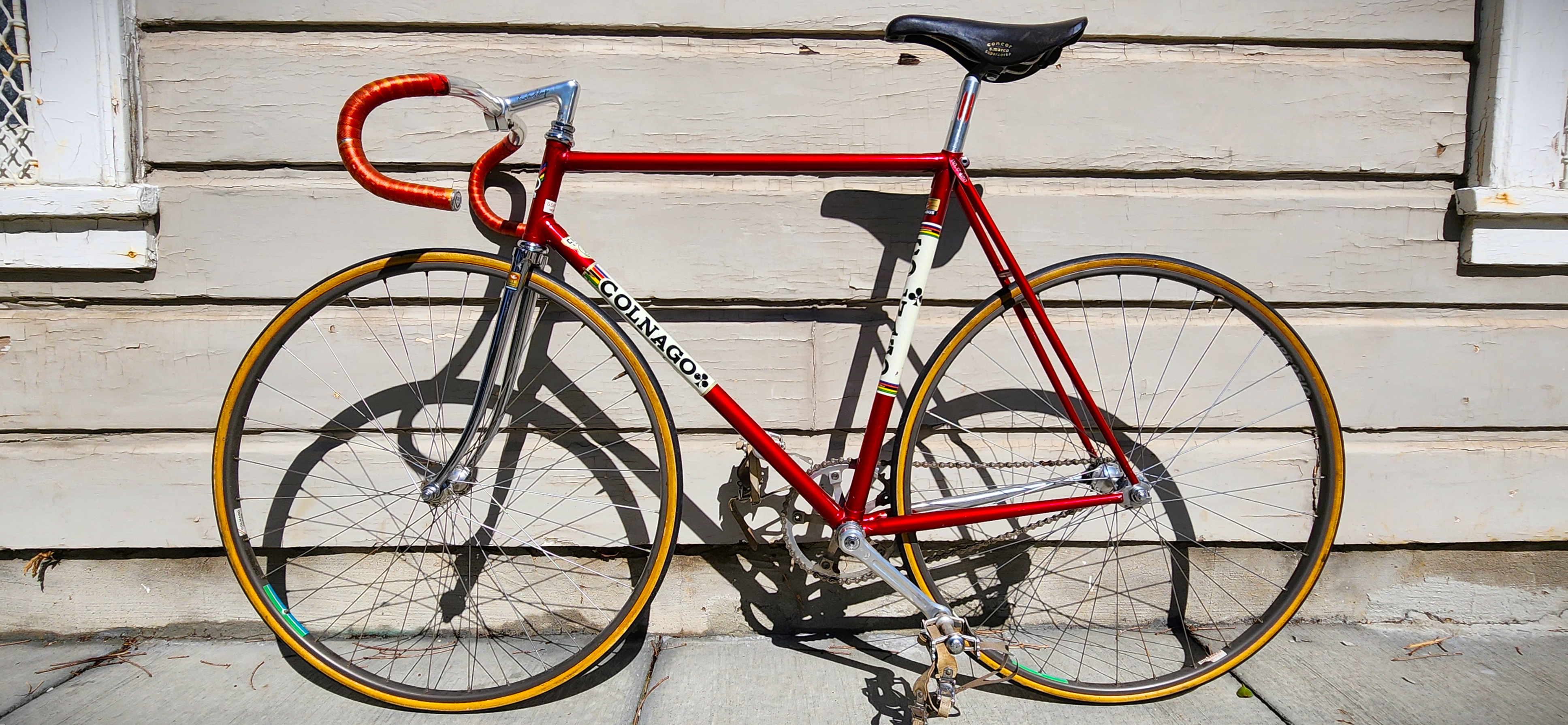

1984 Colnago Super Pista Saronni

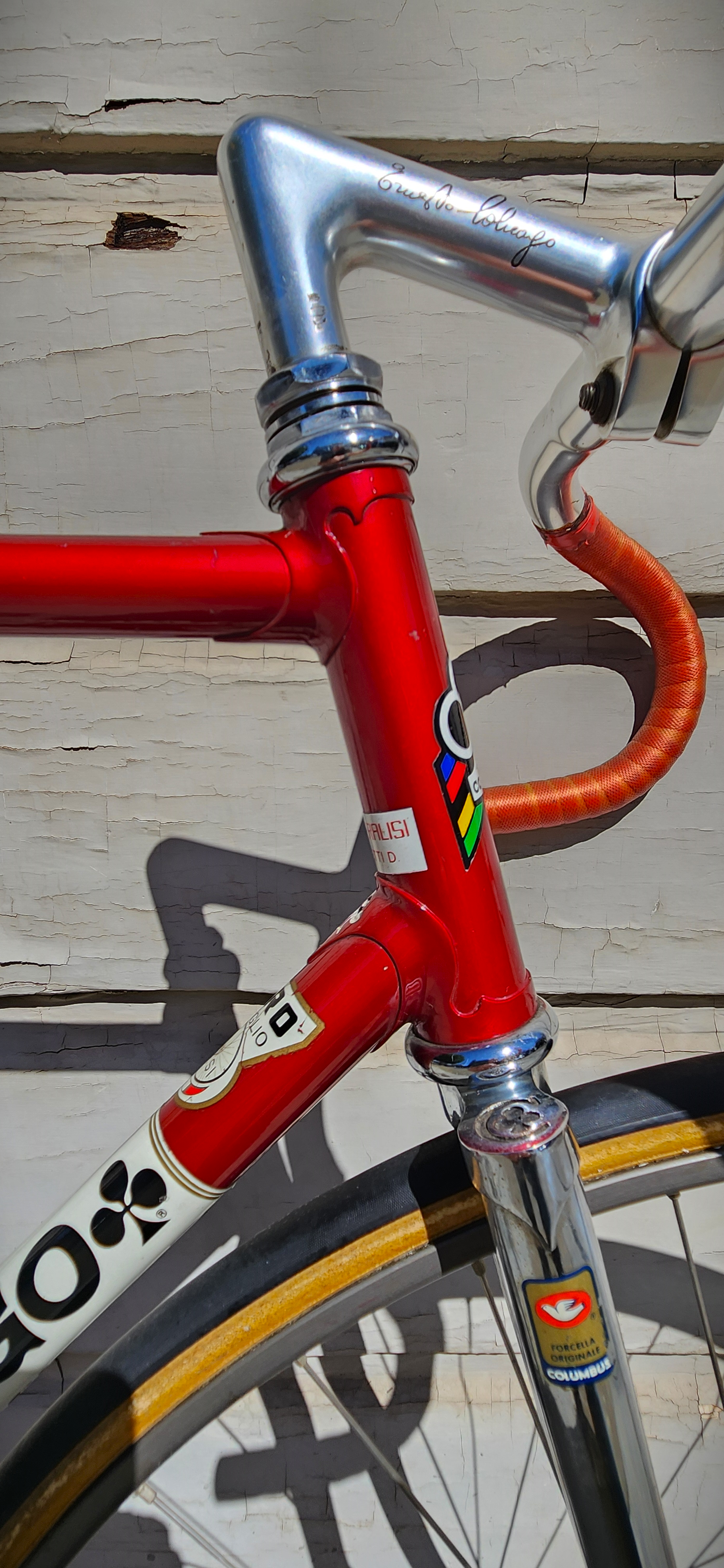

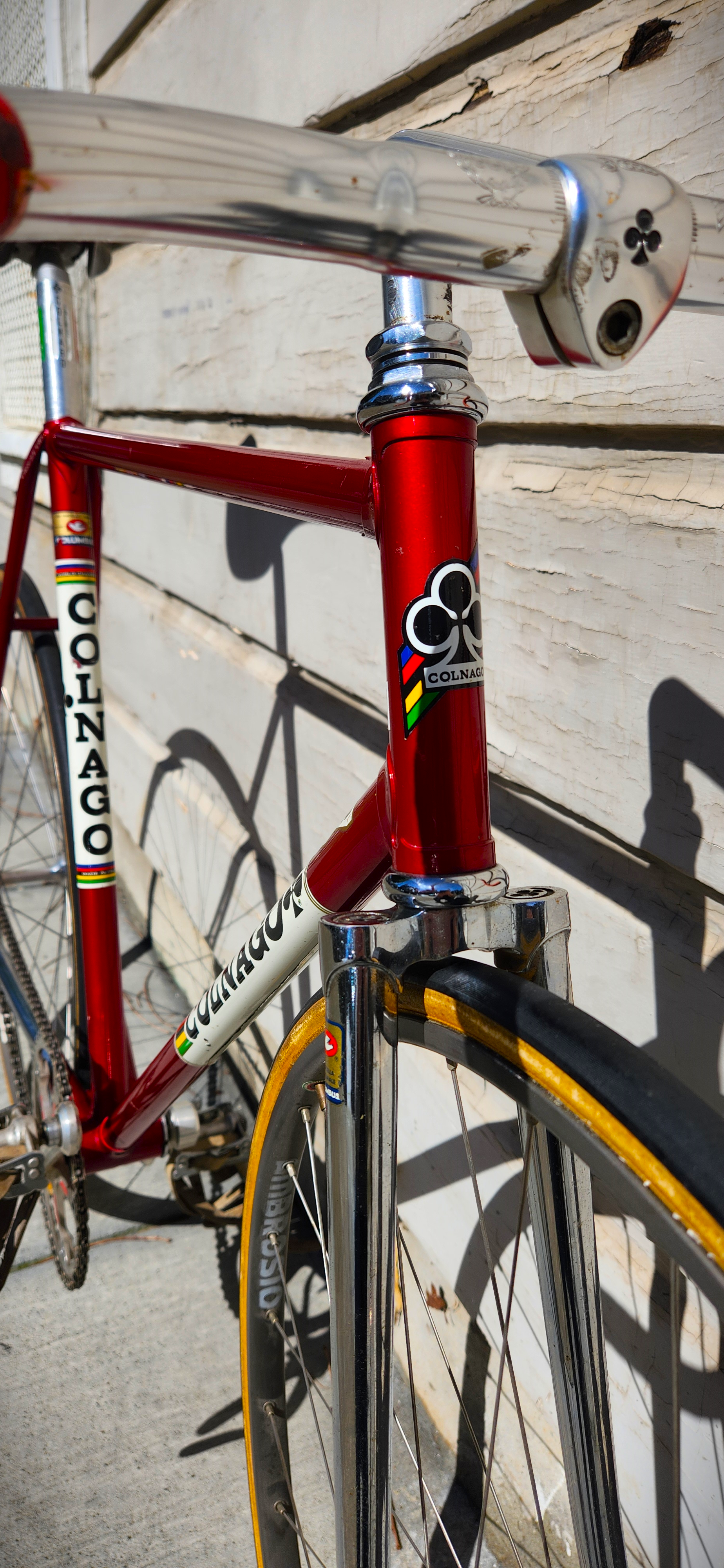

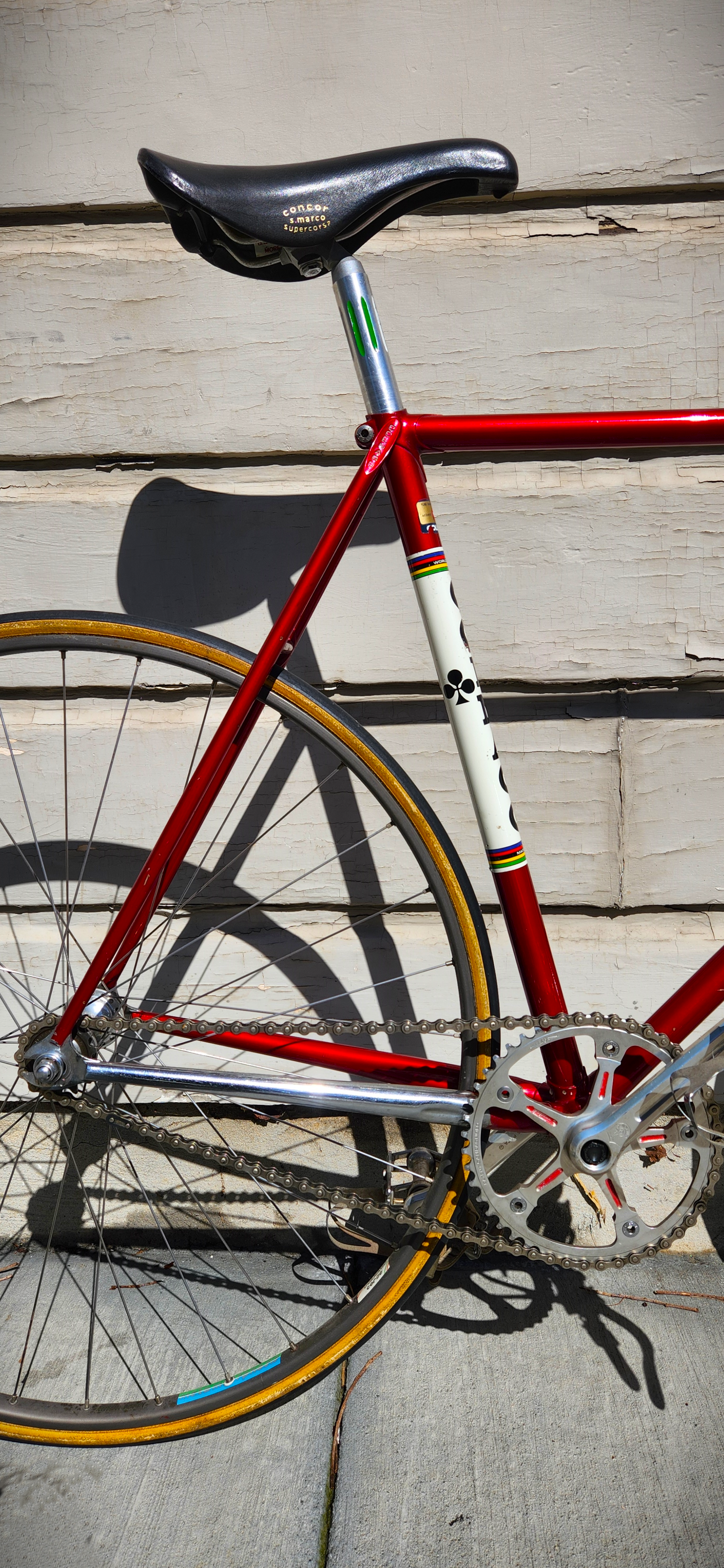

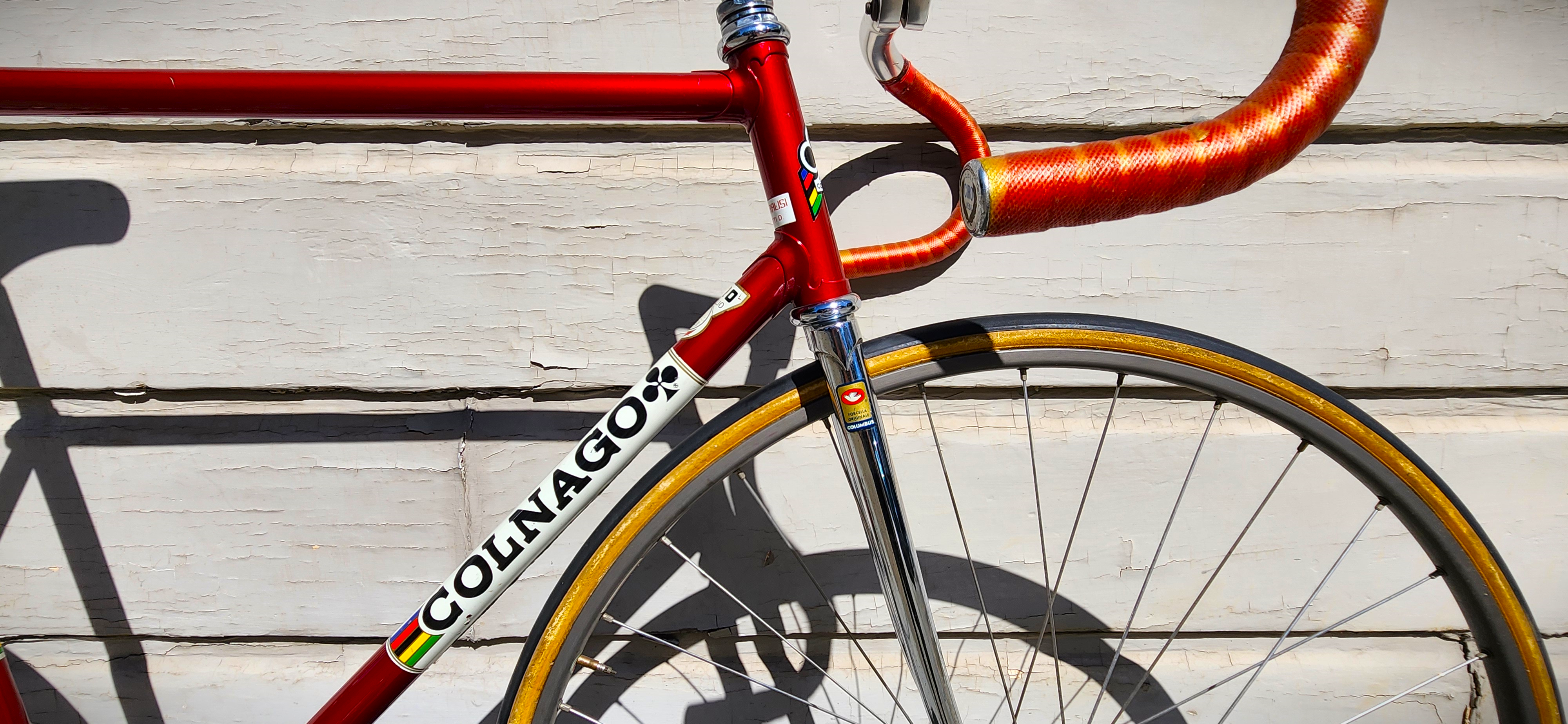

FRAME: Colnago Super Pista

• Columbus SL Tubing
• Minimalist Lugs
• Clover Head Lug Engraving

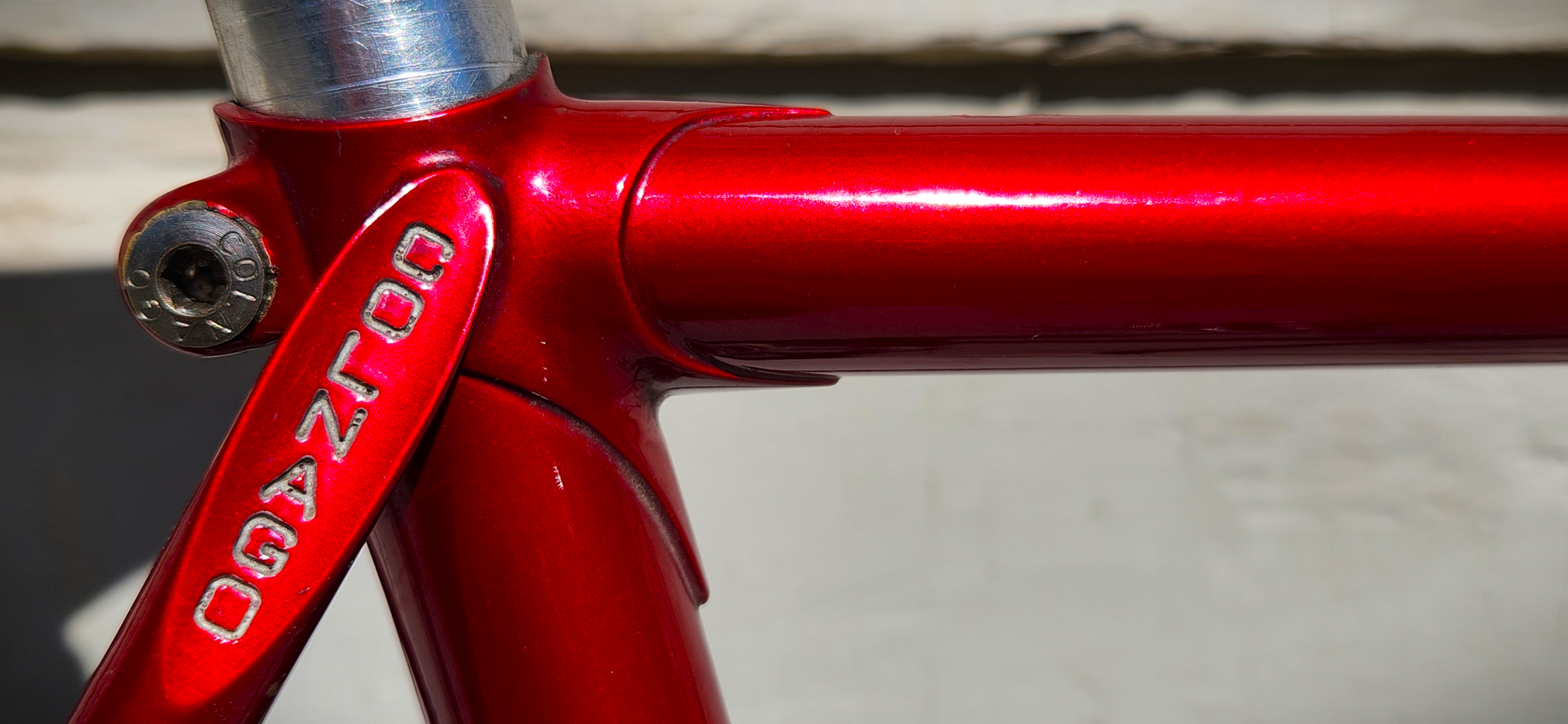

• Colnago Seat Stay Engravings
• Chrome Chain Stay

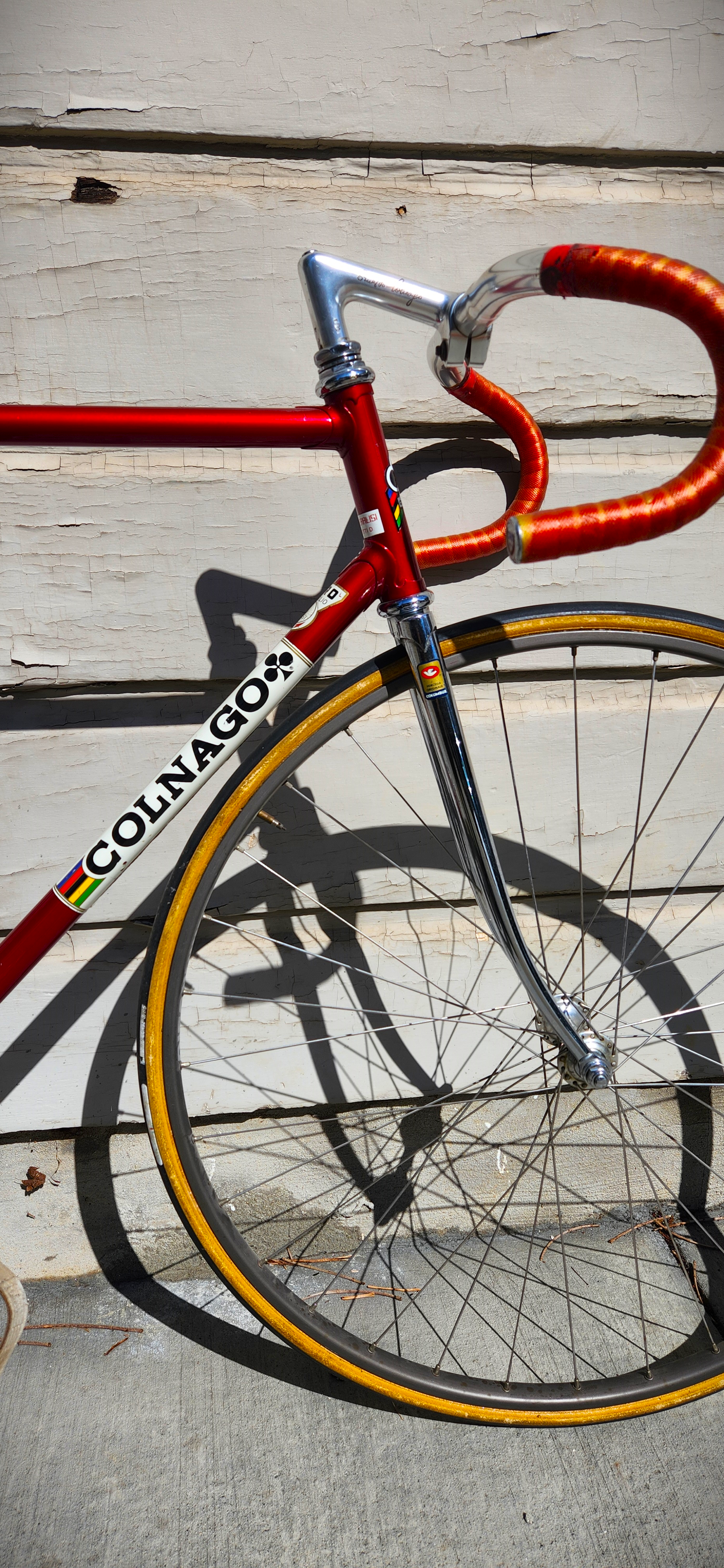

FORK: Colnago Super Pista

• Columbus Tubing
• “C” Clover Engraving
• Elegant Square Crown
• Minimalist Pointed Tangs
• Chrome Finish

HEADSET:
Campagnolo Record, 1″ diameter

HANDLEBAR:
3TTT Pista, Colnago clover and palmares engraving, deep drop, 40cm width c-c

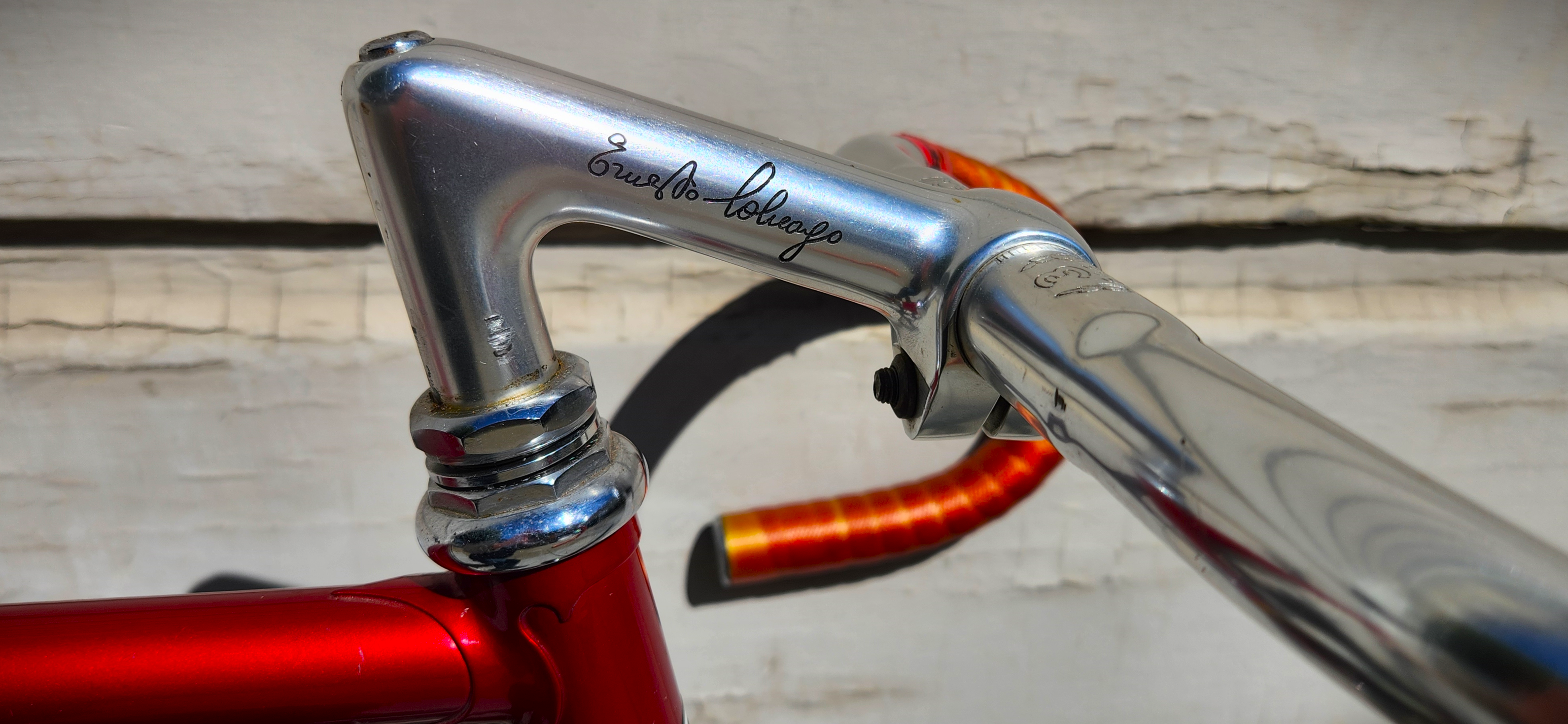

STEM:
3TTT Pista, Ernesto Colnago signatures, Colnago clover engraving, steep angle, 115mm length

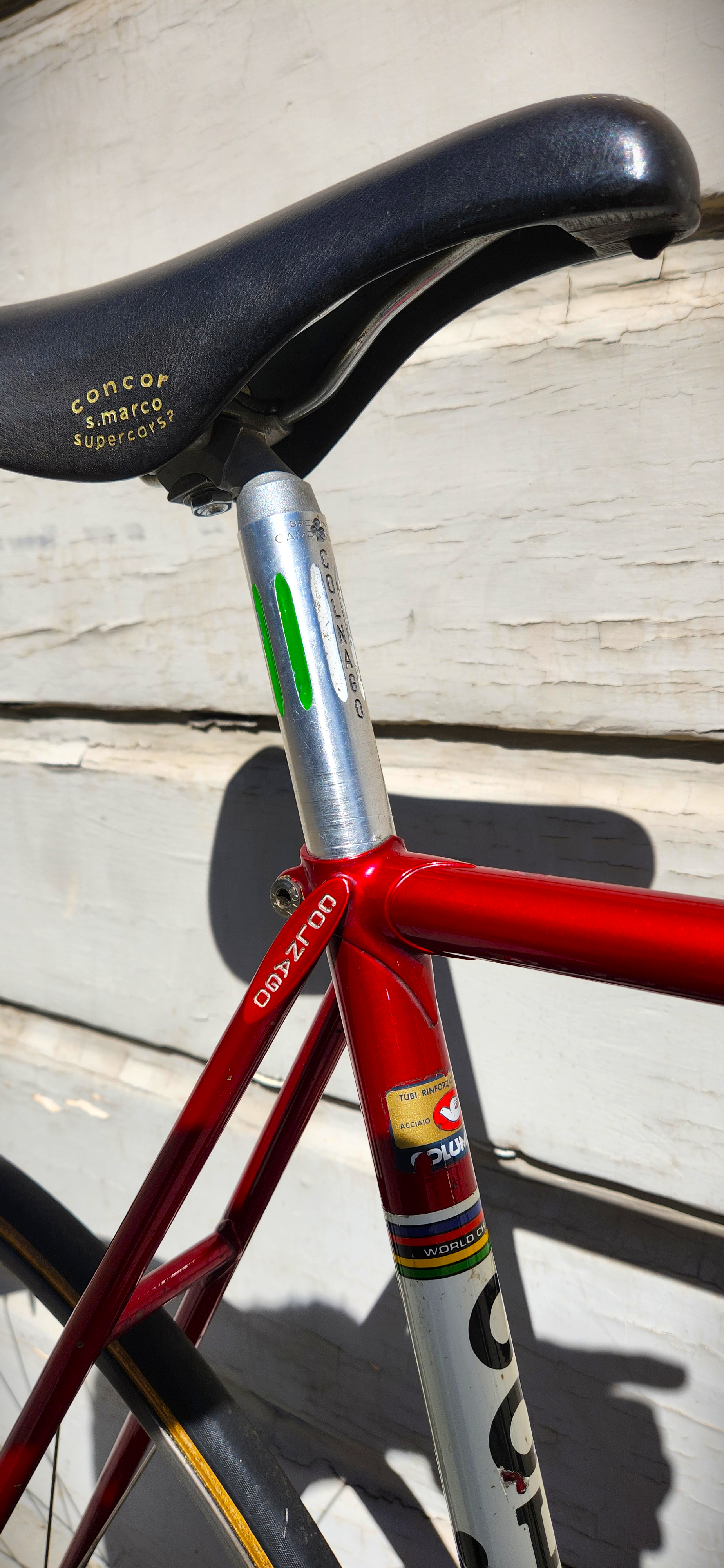

SADDLE:
Selle San Marco Concor Supercorsa, leather

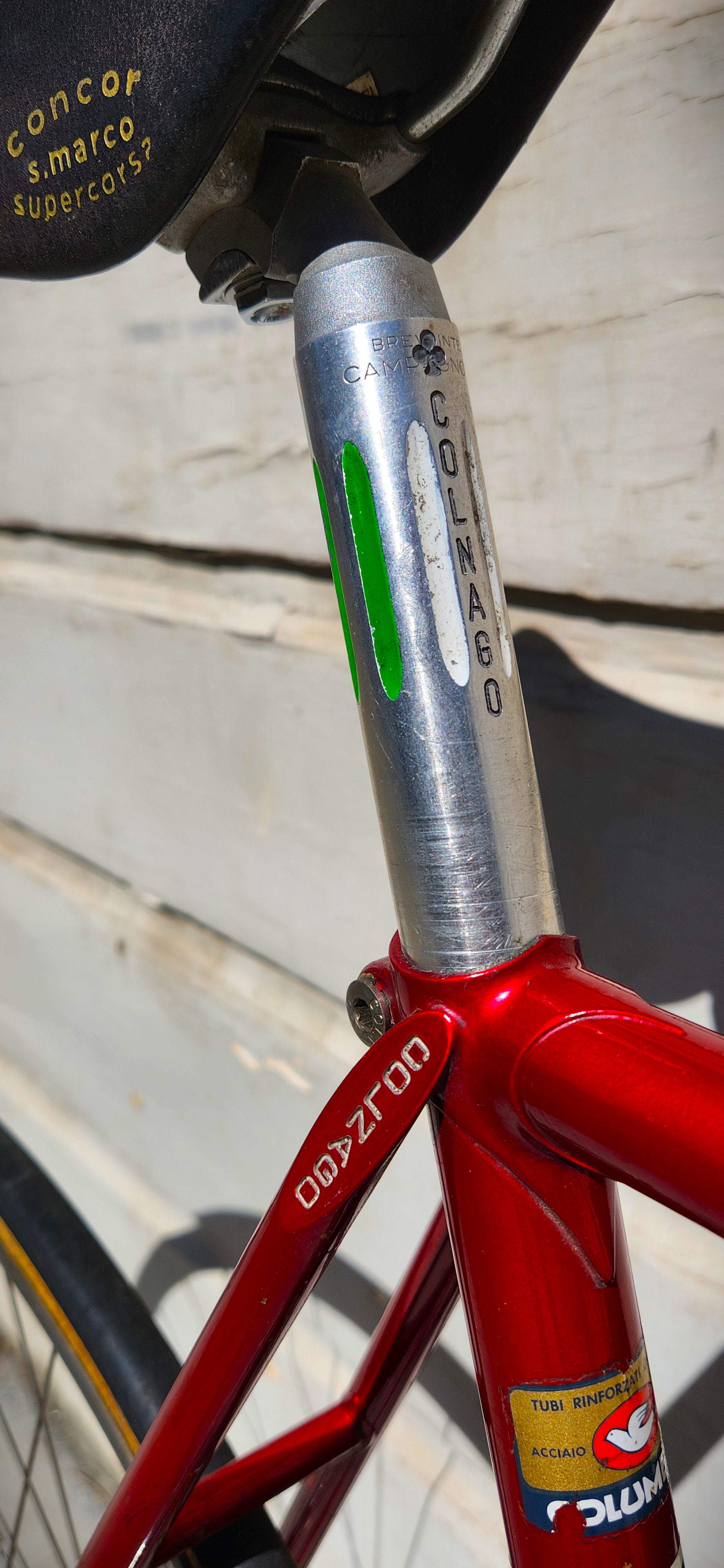

SEATPOST:
Colnago Record, dual Colnago and clover engravings, fluted inserts, 27.2mm diameter

RIMS:
Ambrosio Metamorphesis, Colnago Corse, 32 holes

SPOKES:
32 per wheel, straight gauge

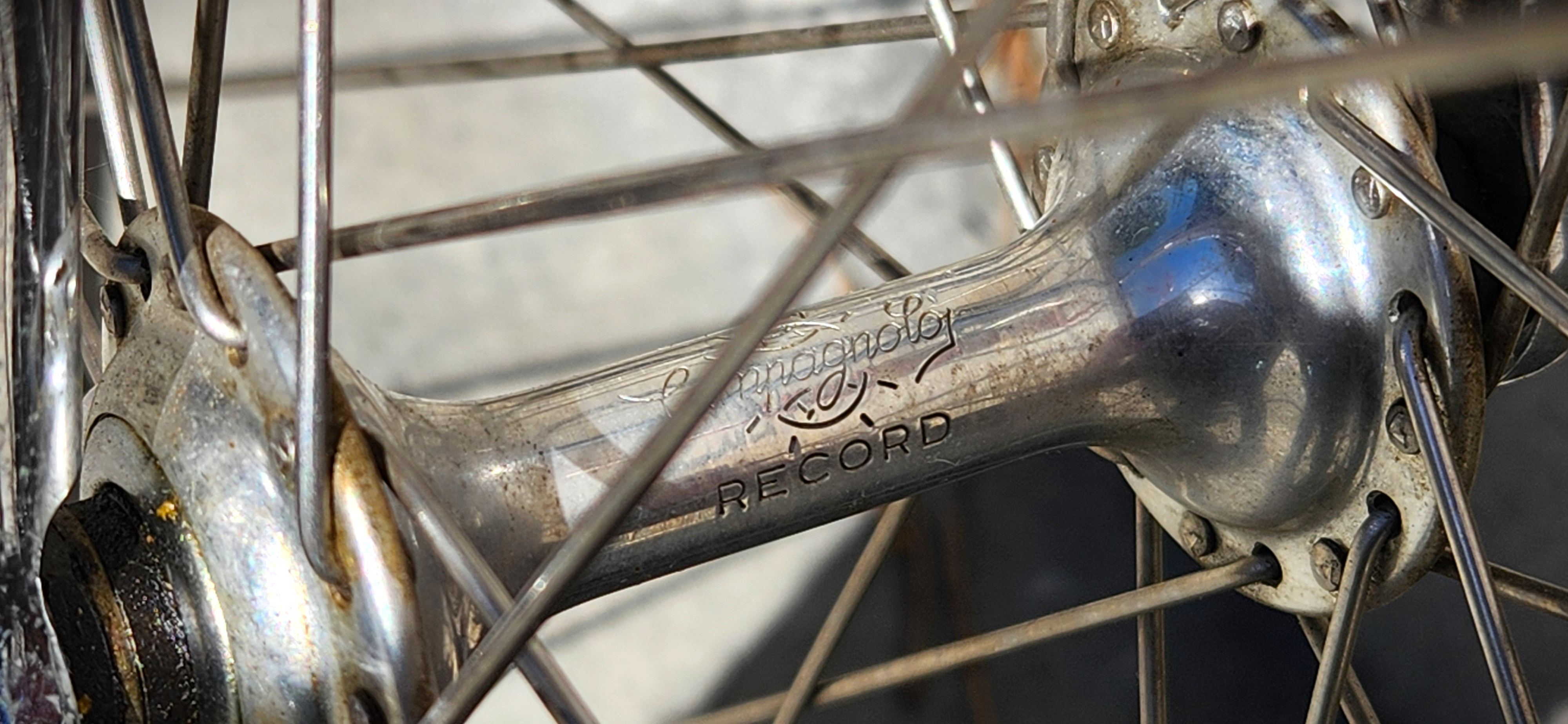

HUBS:
Campagnolo Record Pista, low flange, 32 holes

PEDALS:
Campagnolo Record Pista

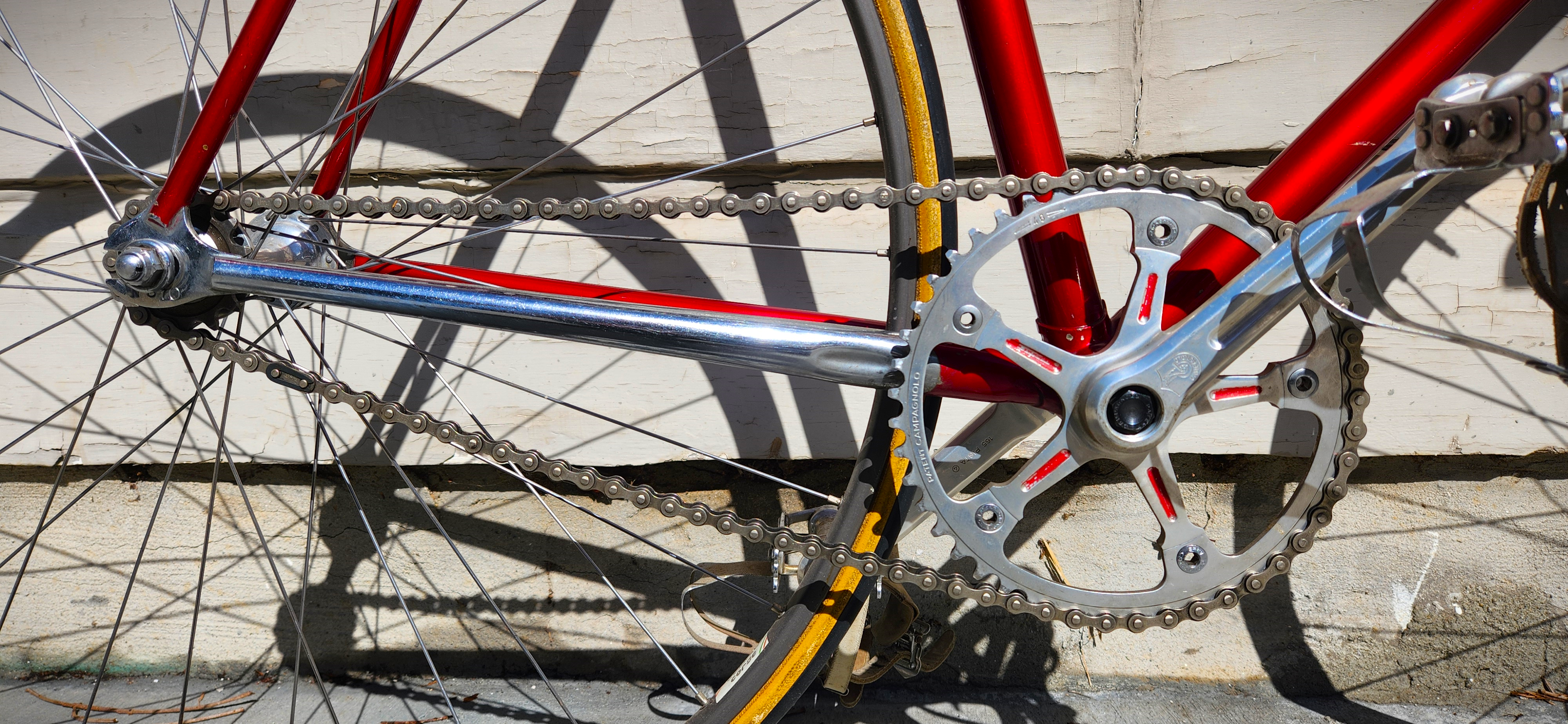

CRANK:
Campagnolo Record Pista, 165mm, “4” stamp with circle surround

CHAIN:
DID Pista

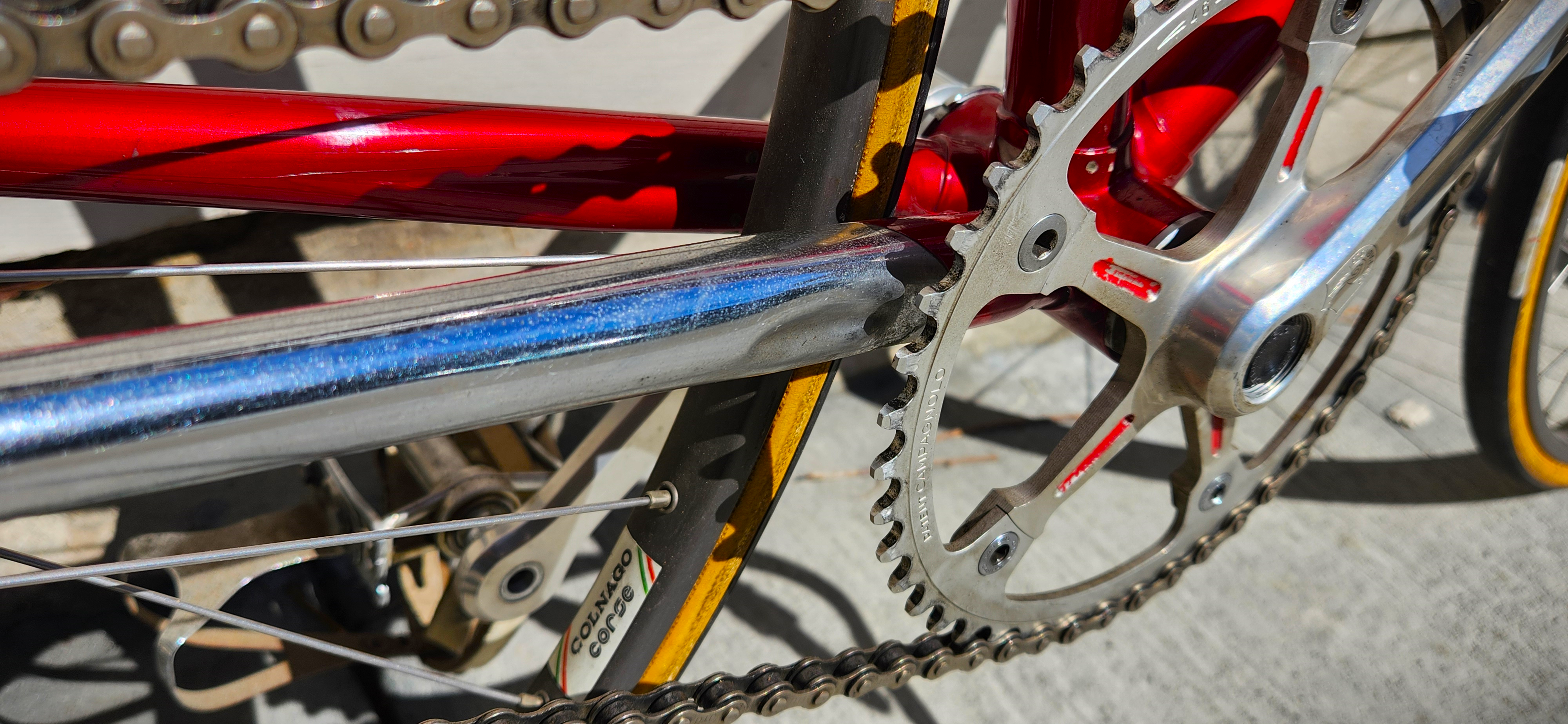

CHAIN RING:
Campagnolo Pista, 46T

BOTTOM BRACKET:
Campagnolo Record

TIRES:
Vittoria, Colnago Servizo Corse, tubular (display only)

SIZE:
Seat tube 55cm c-c, Top Tube 55cm c-c

EXTRAS:
Campagnolo hub bolts, Campagnolo crank bolts, Campagnolo chain ring bolts, ALE/Colnago toe clips, Alfredo Binda Prestige toe straps (4X), red faded handlebar tape, Campagnolo seat post binder bolt, Campagnolo rear cog (14T), Ciro bar ends

NOTES:
100% original condition, Saronni red color, exclusive 1980s track use/never on road, wrapped since 1980s, authentic Colnago and other decals, various shop scratches, impeccable craftsmanship throughout
