Campagnolo 1985 Catalogue No. 18 bis — C-Record, Victory and Triomphe: the Groups, Gears, Brakes and Rims of the C-Record Range

— Page 1 (front cover) —
BREVETTI INTERNAZIONALI
Campagnolo®

catalogue n. 18 bis

[The white front cover of Campagnolo catalogue n. 18 bis, with the blue Campagnolo script logo over a globe at the top and the title in blue type below the center. Pale yellow blotches across the white ground and a small brown spot on the logo appear to be paper staining rather than printing.]

— Page 2 —

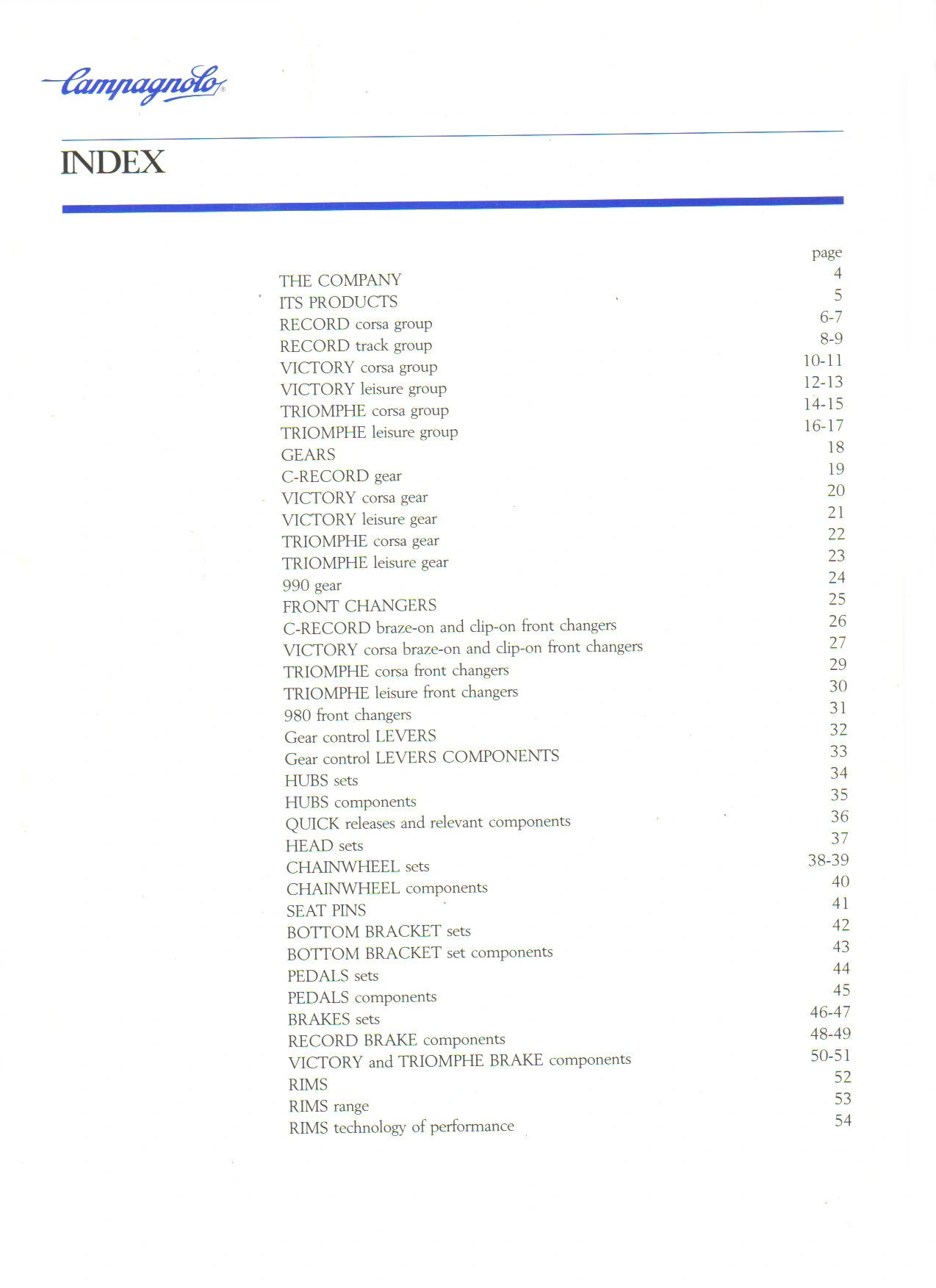

Campagnolo®

INDEX

page
THE COMPANY | 4
ITS PRODUCTS | 5
RECORD corsa group | 6-7
RECORD track group | 8-9
VICTORY corsa group | 10-11
VICTORY leisure group | 12-13
TRIOMPHE corsa group | 14-15
TRIOMPHE leisure group | 16-17
GEARS | 18
C-RECORD gear | 19
VICTORY corsa gear | 20
VICTORY leisure gear | 21
TRIOMPHE corsa gear | 22
TRIOMPHE leisure gear | 23
990 gear | 24
FRONT CHANGERS | 25
C-RECORD braze-on and clip-on front changers | 26
VICTORY corsa braze-on and clip-on front changers | 27
TRIOMPHE corsa front changers | 29
TRIOMPHE leisure front changers | 30
980 front changers | 31

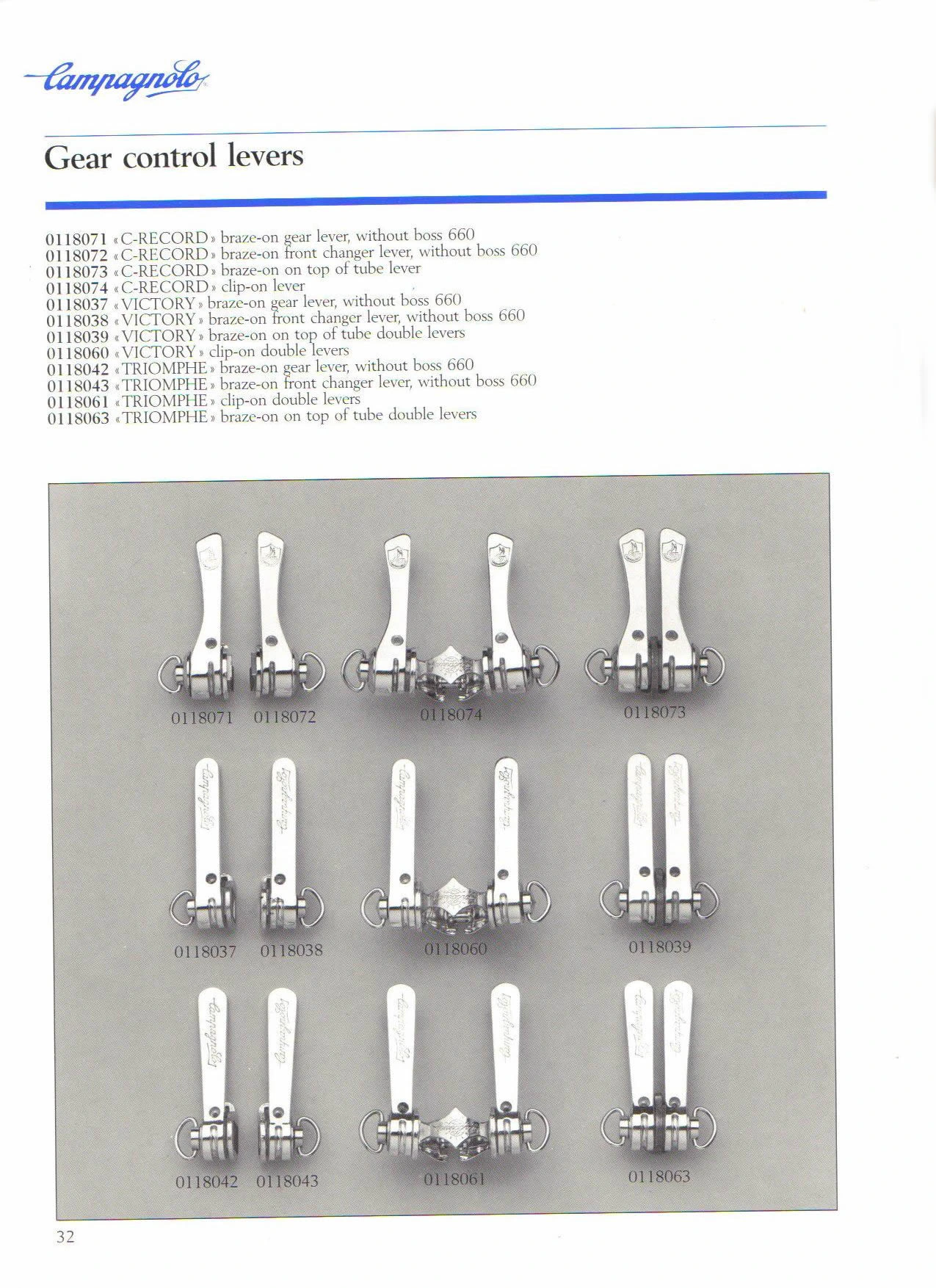

Gear control LEVERS | 32

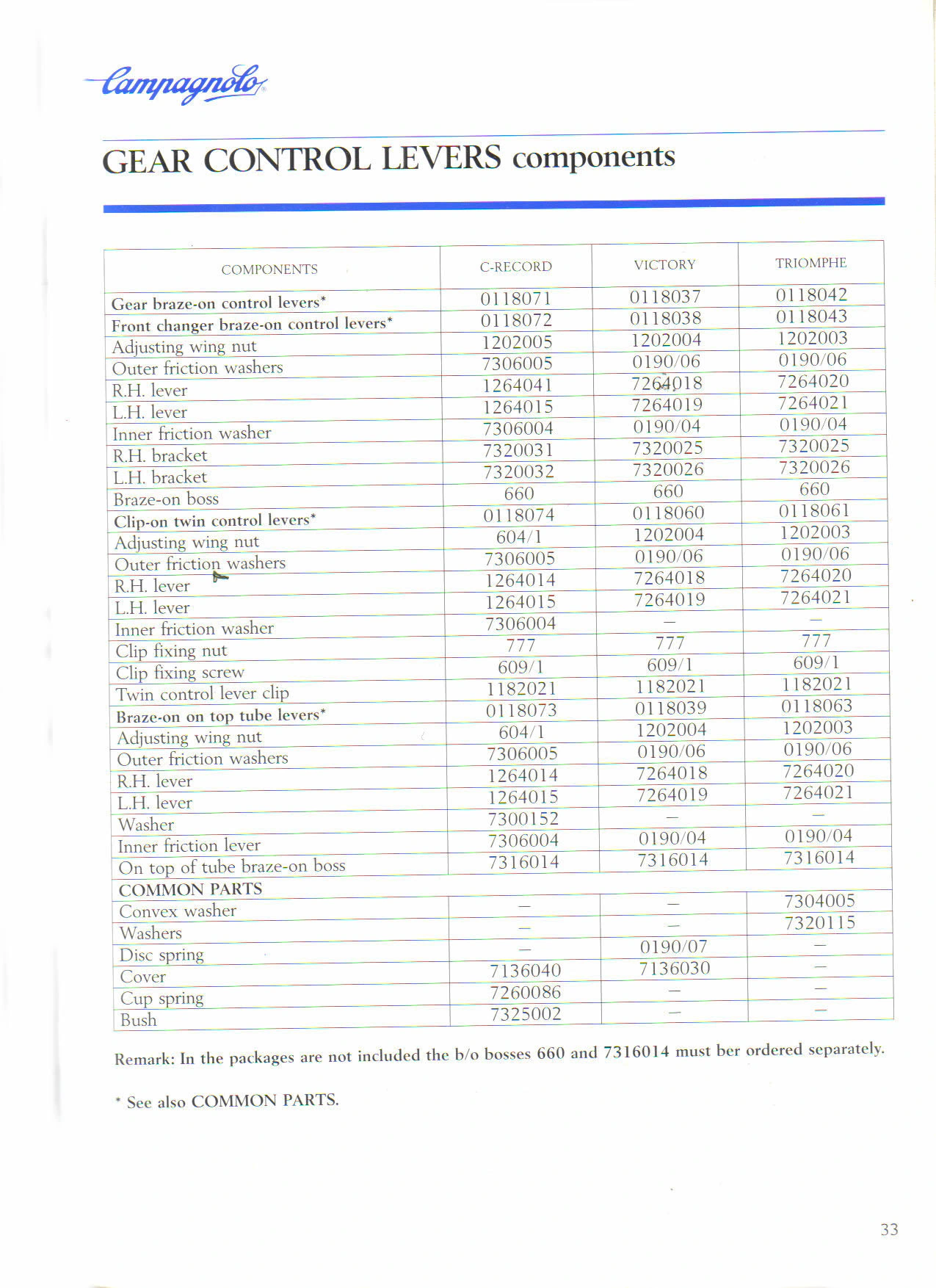

Gear control LEVERS COMPONENTS | 33
HUBS sets | 34

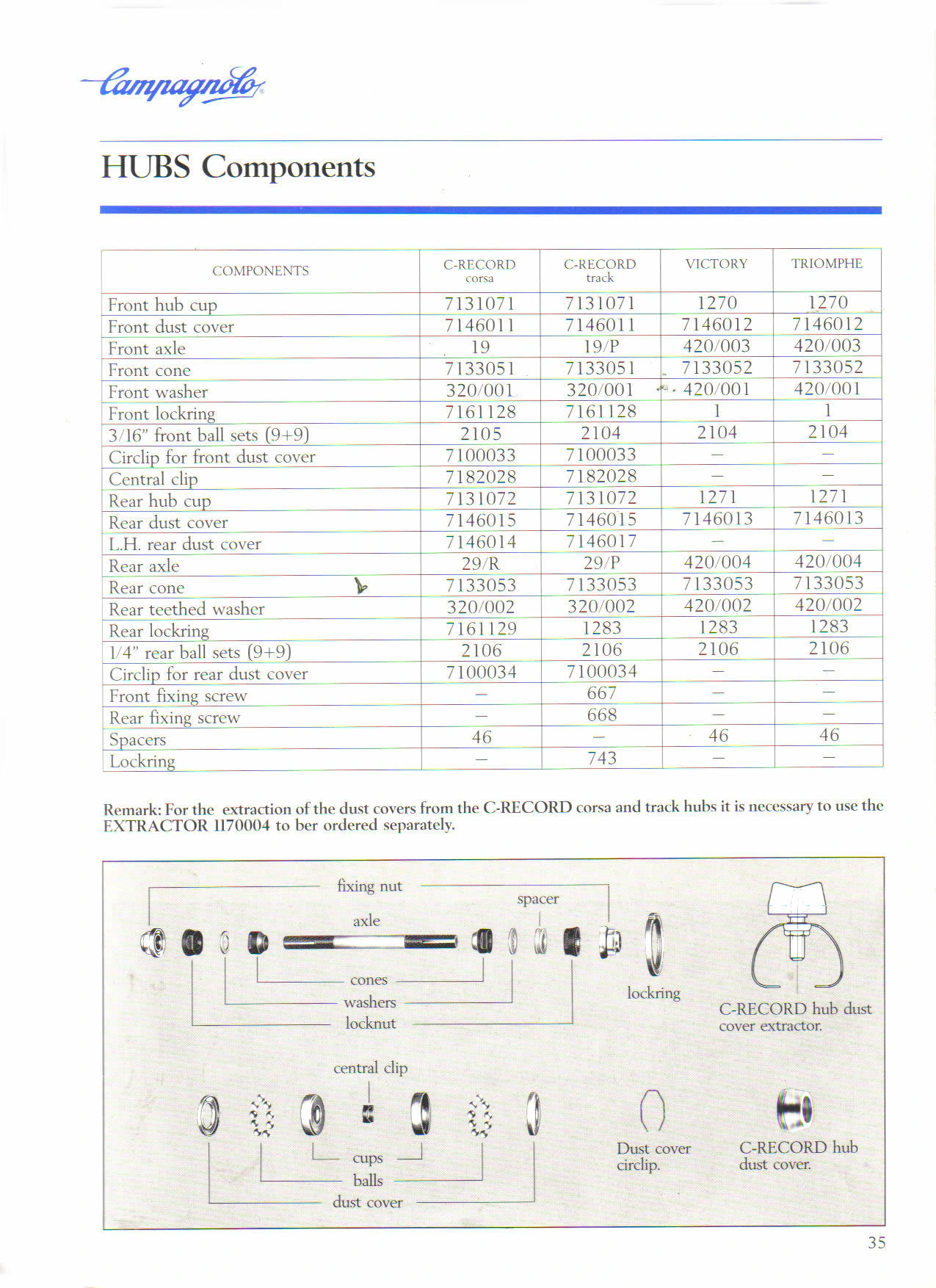

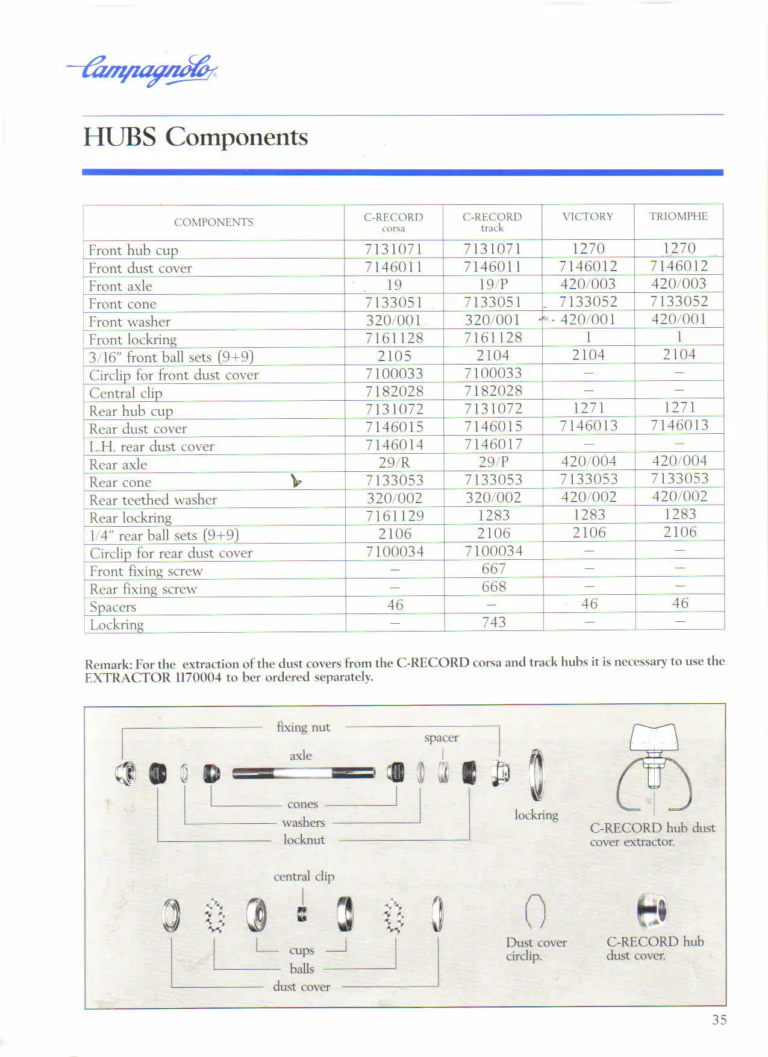

HUBS components | 35

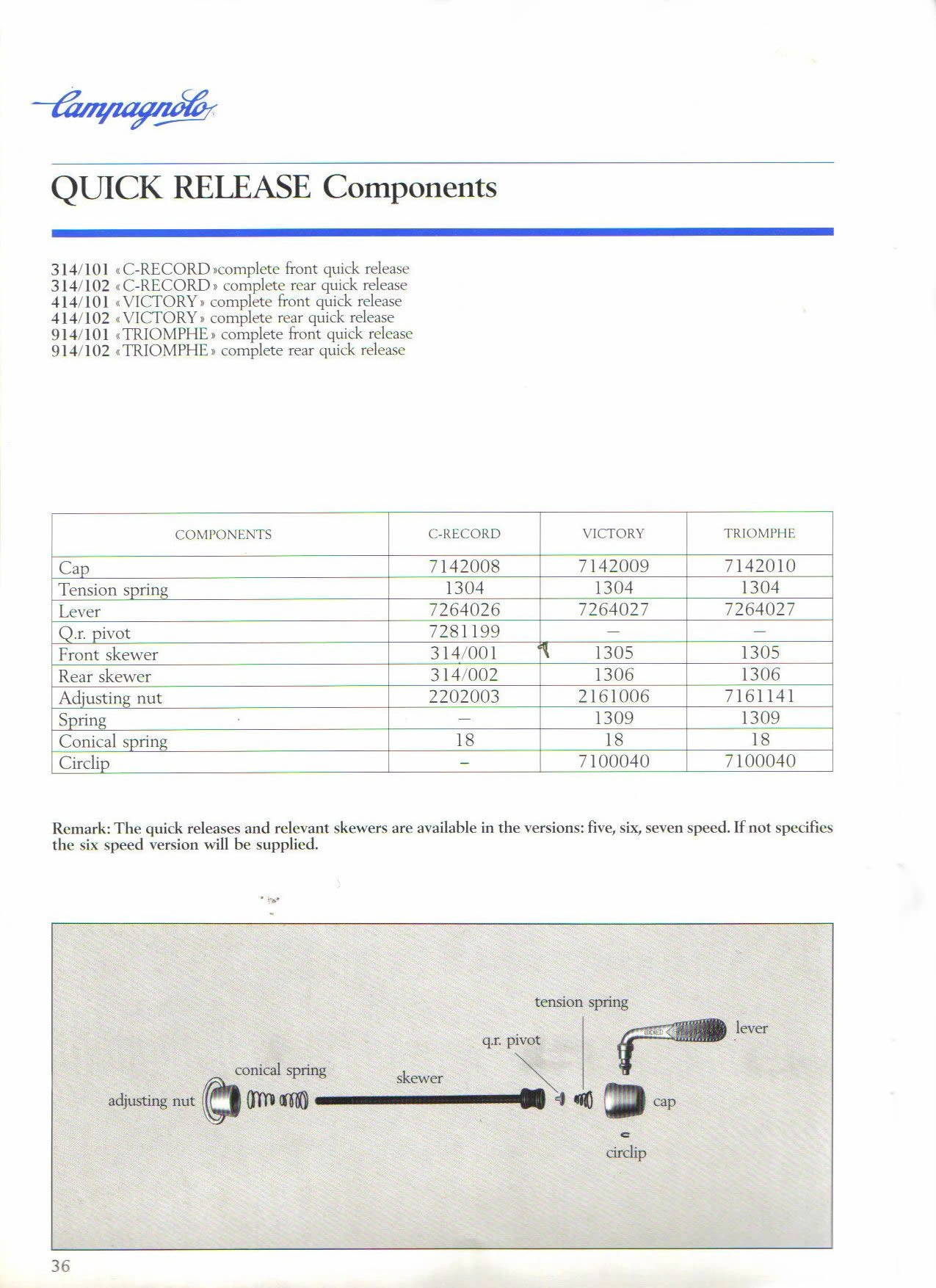

QUICK releases and relevant components | 36
HEAD sets | 37

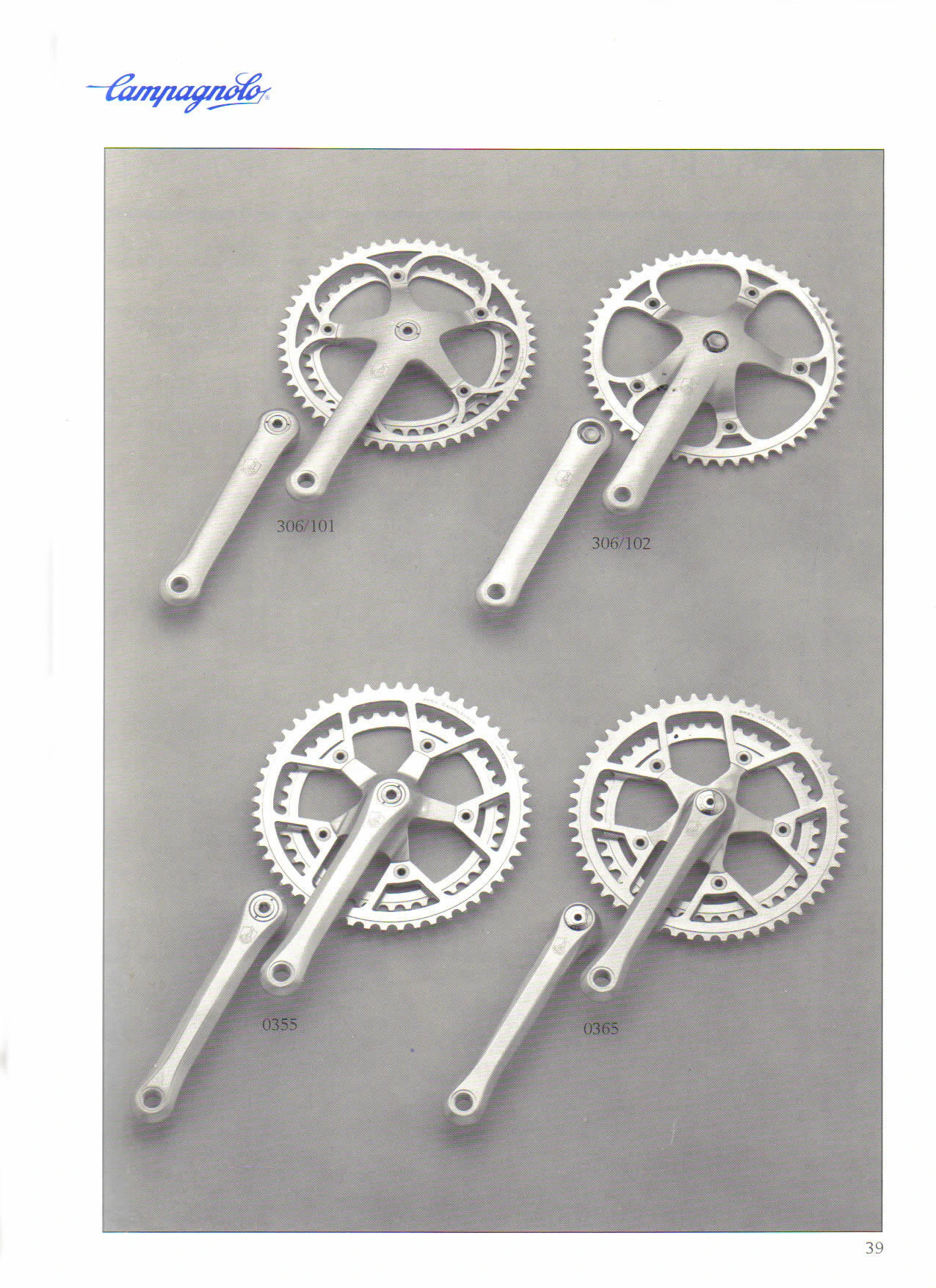

CHAINWHEEL sets | 38-39

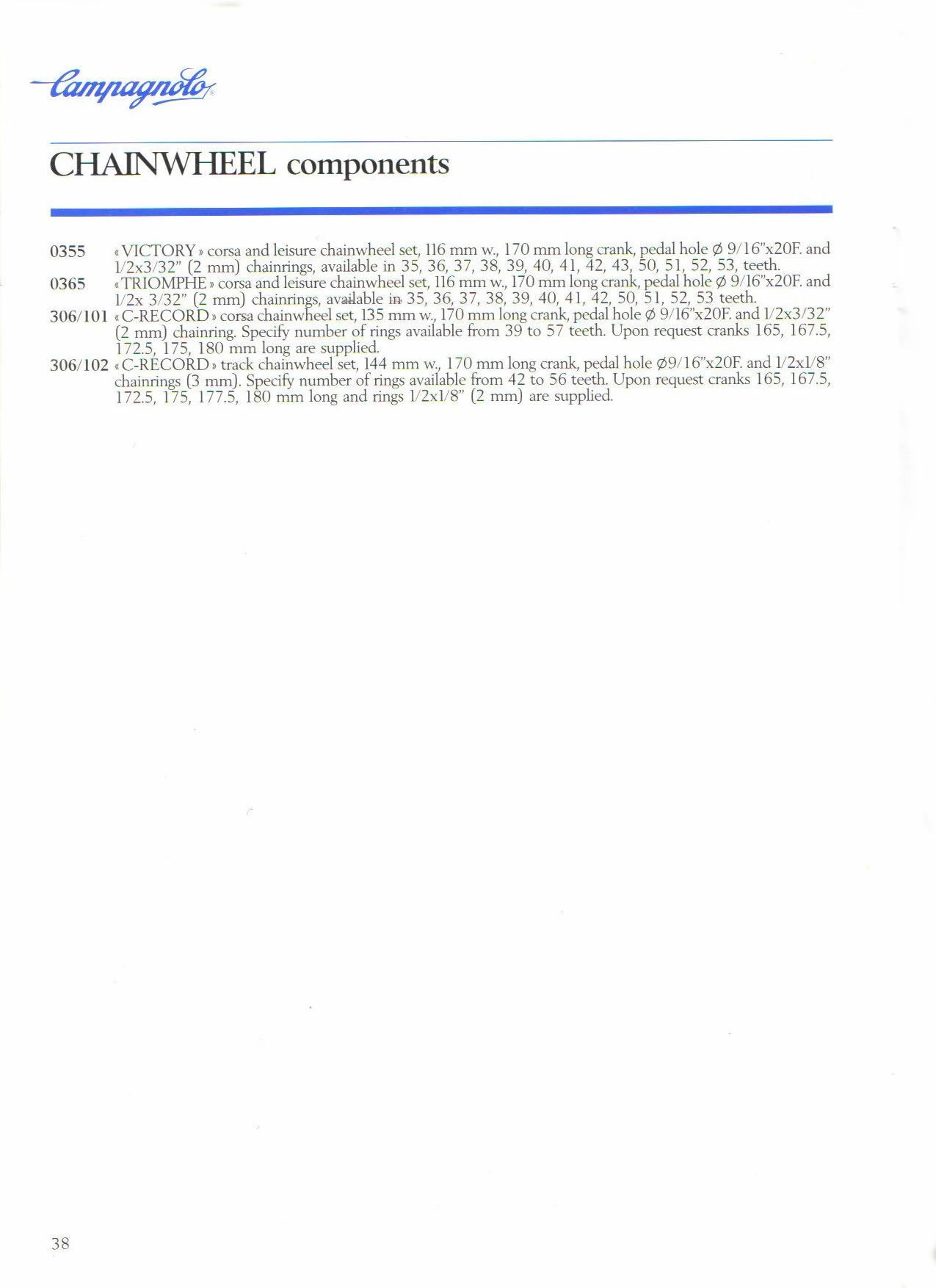

CHAINWHEEL components | 40
SEAT PINS | 41

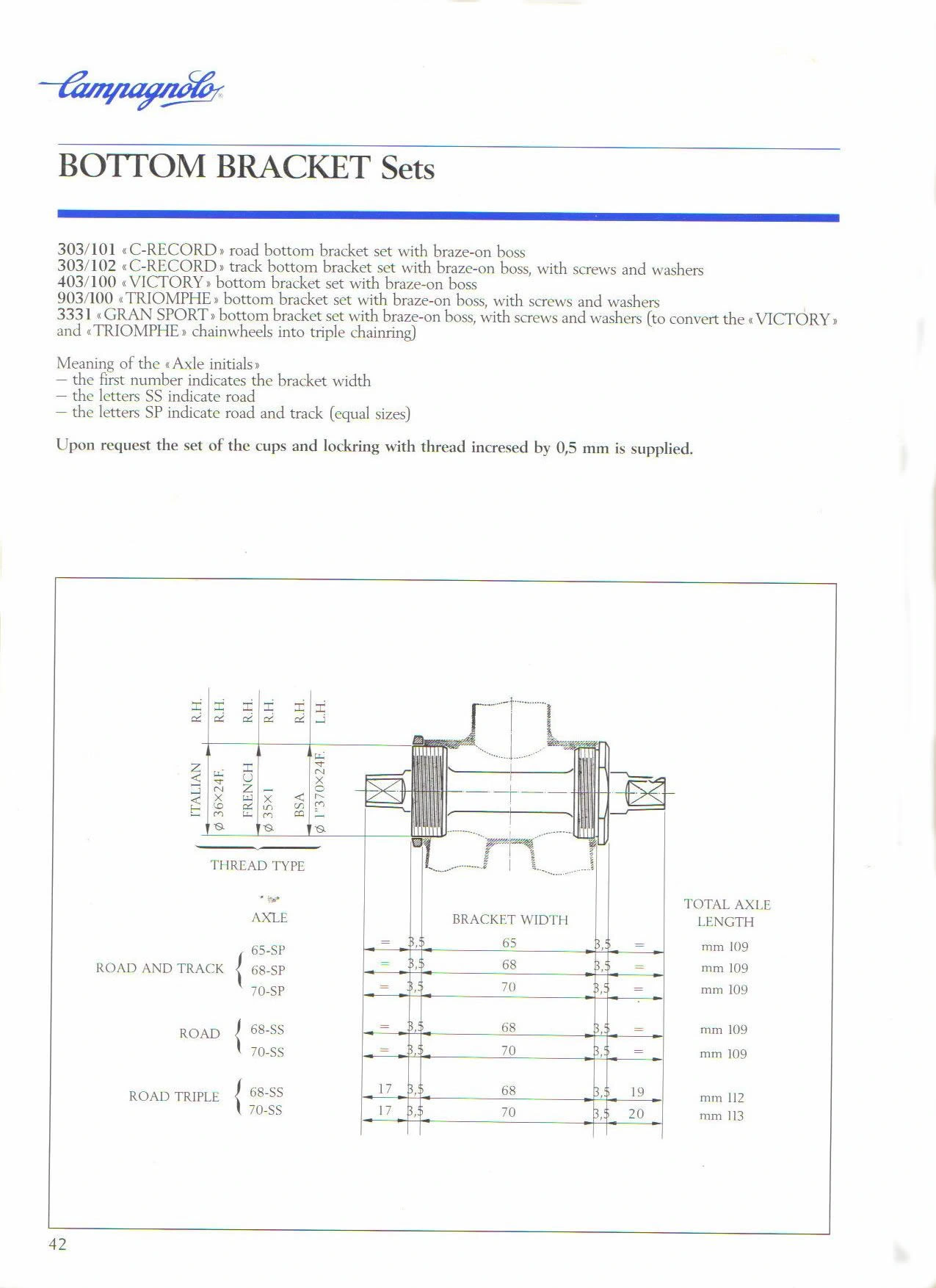

BOTTOM BRACKET sets | 42

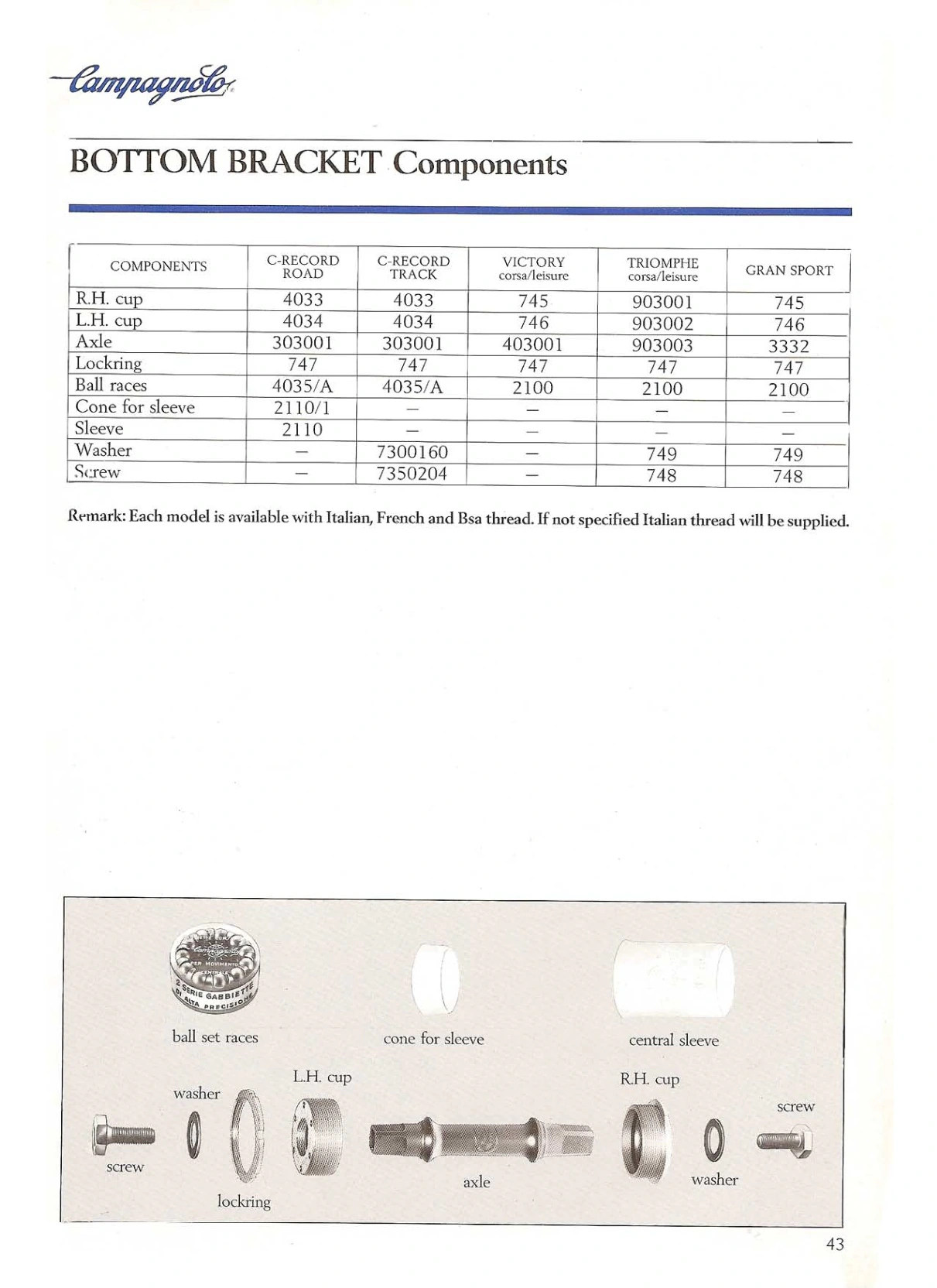

BOTTOM BRACKET set components | 43

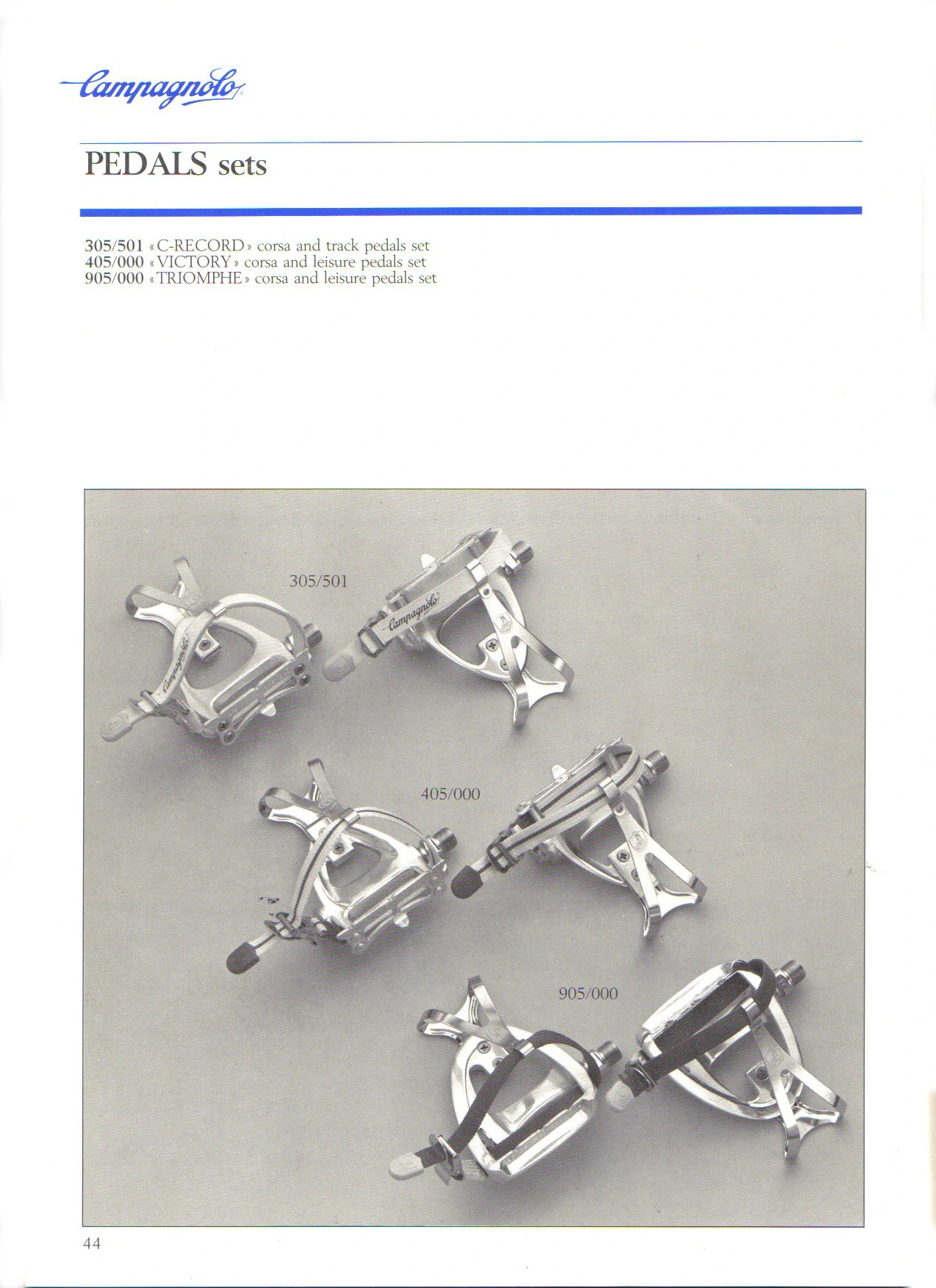

PEDALS sets | 44
PEDALS components | 45

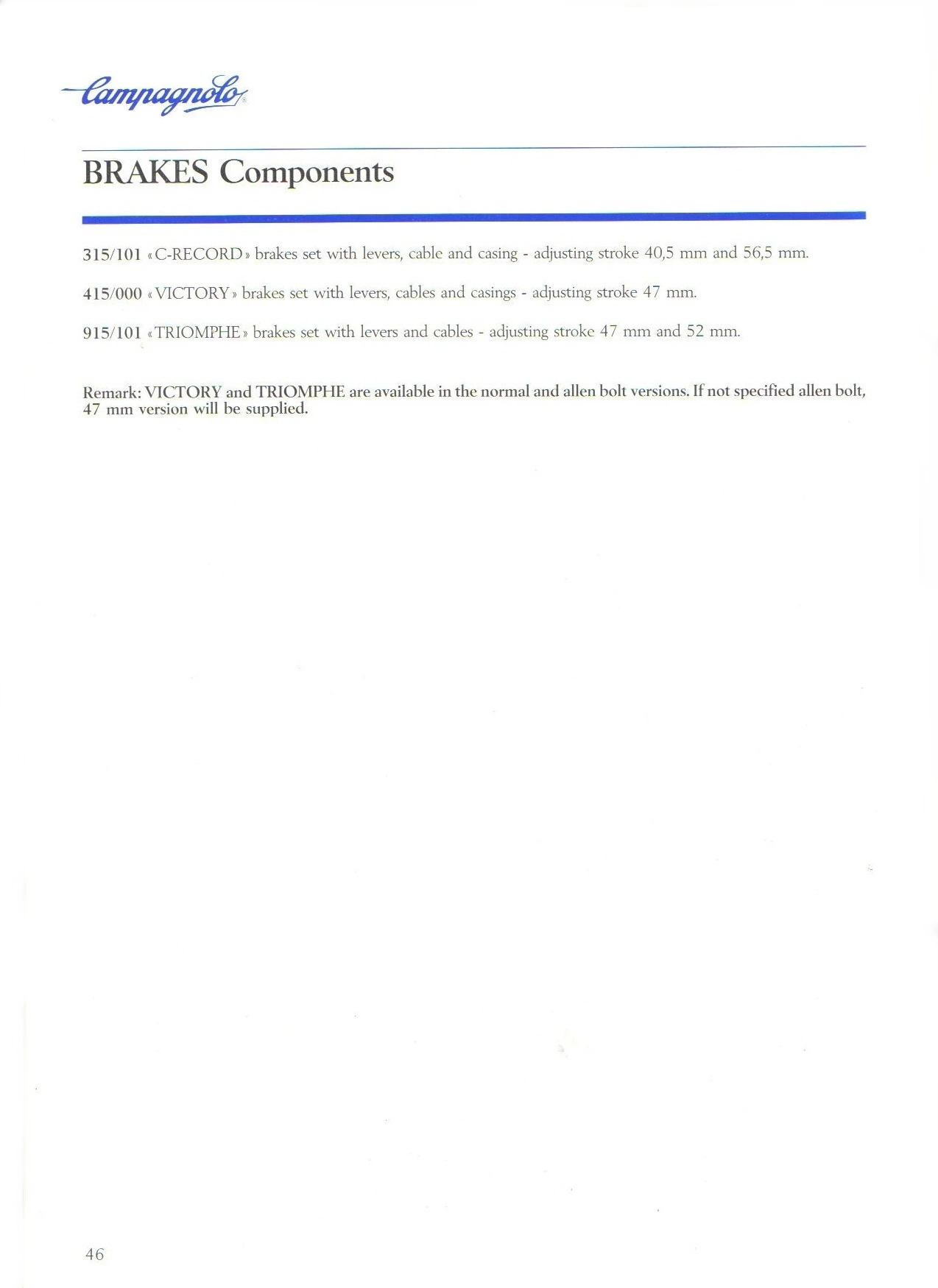

BRAKES sets | 46-47

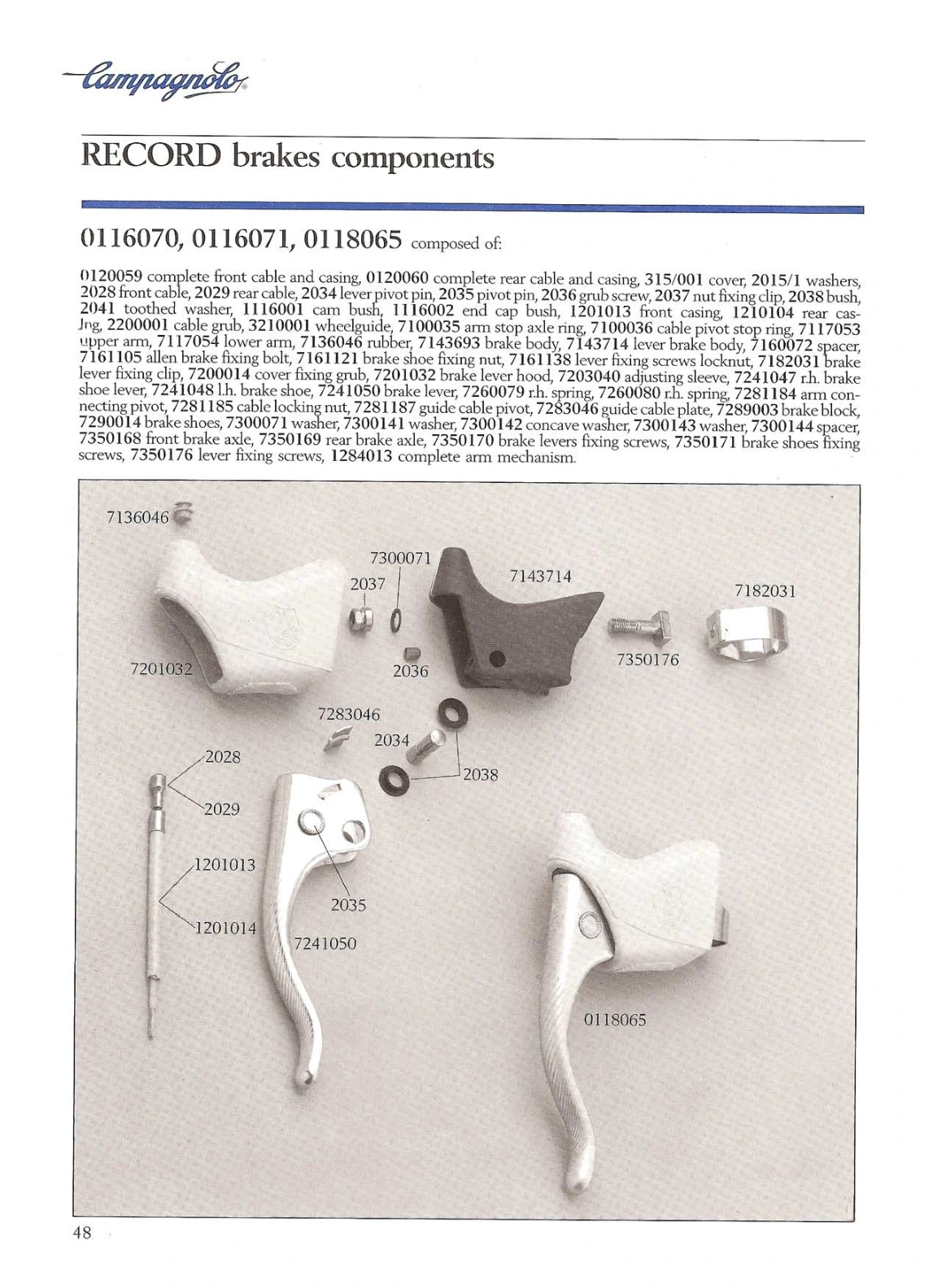

RECORD BRAKE components | 48-49

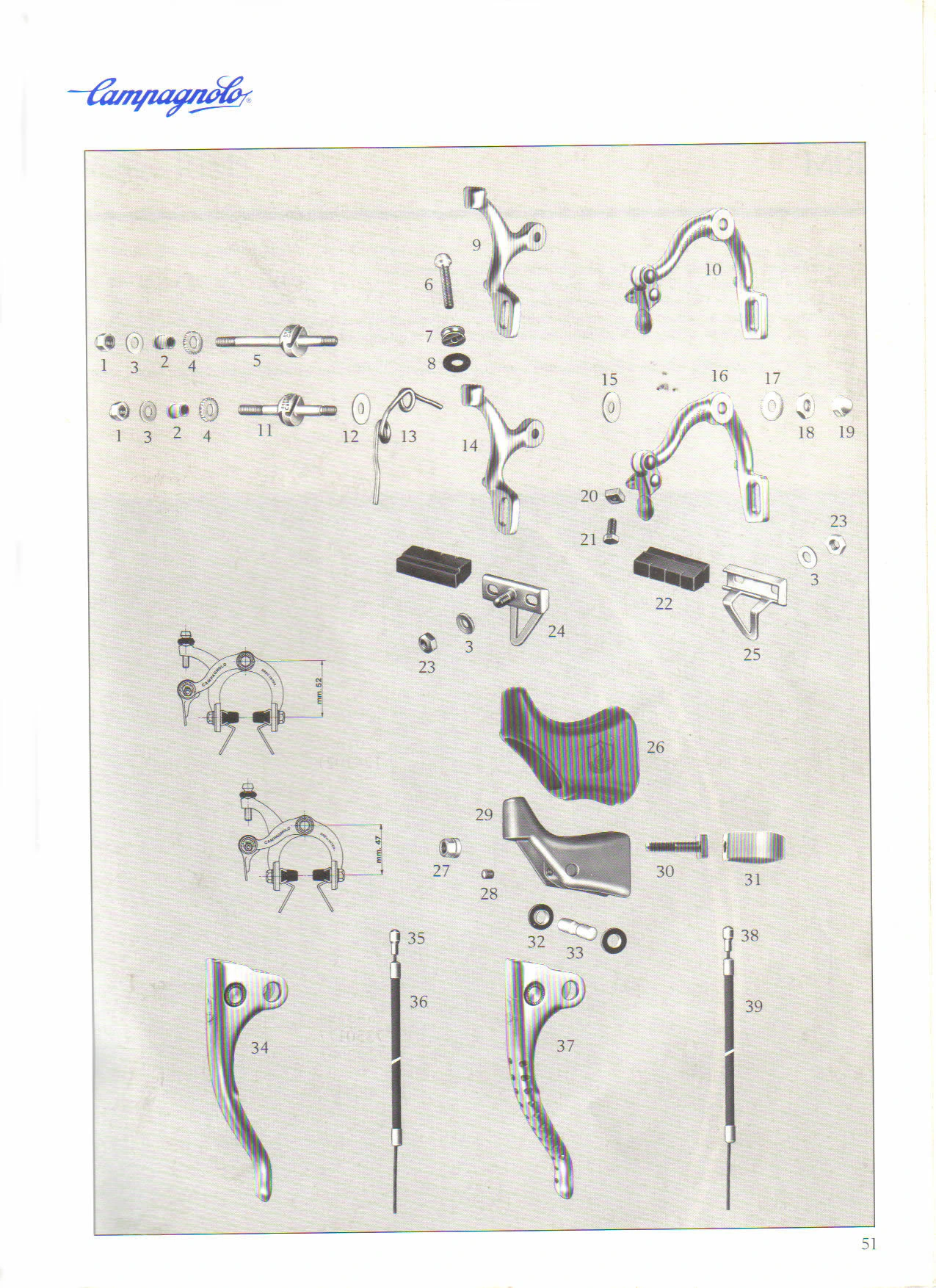

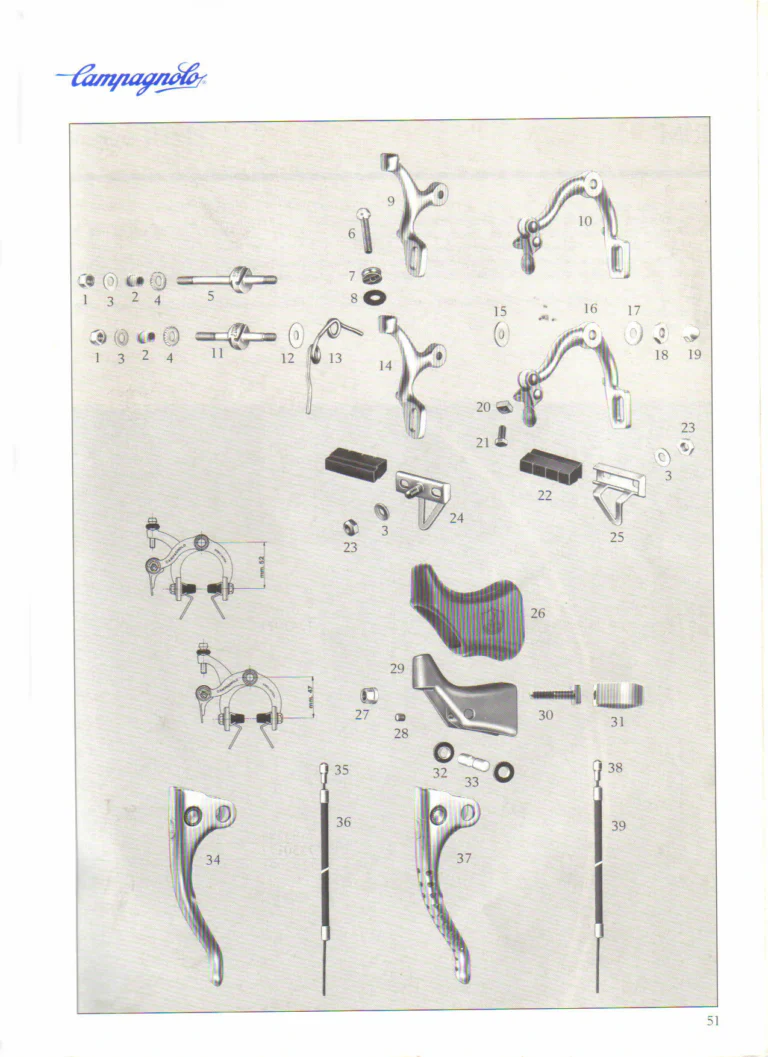

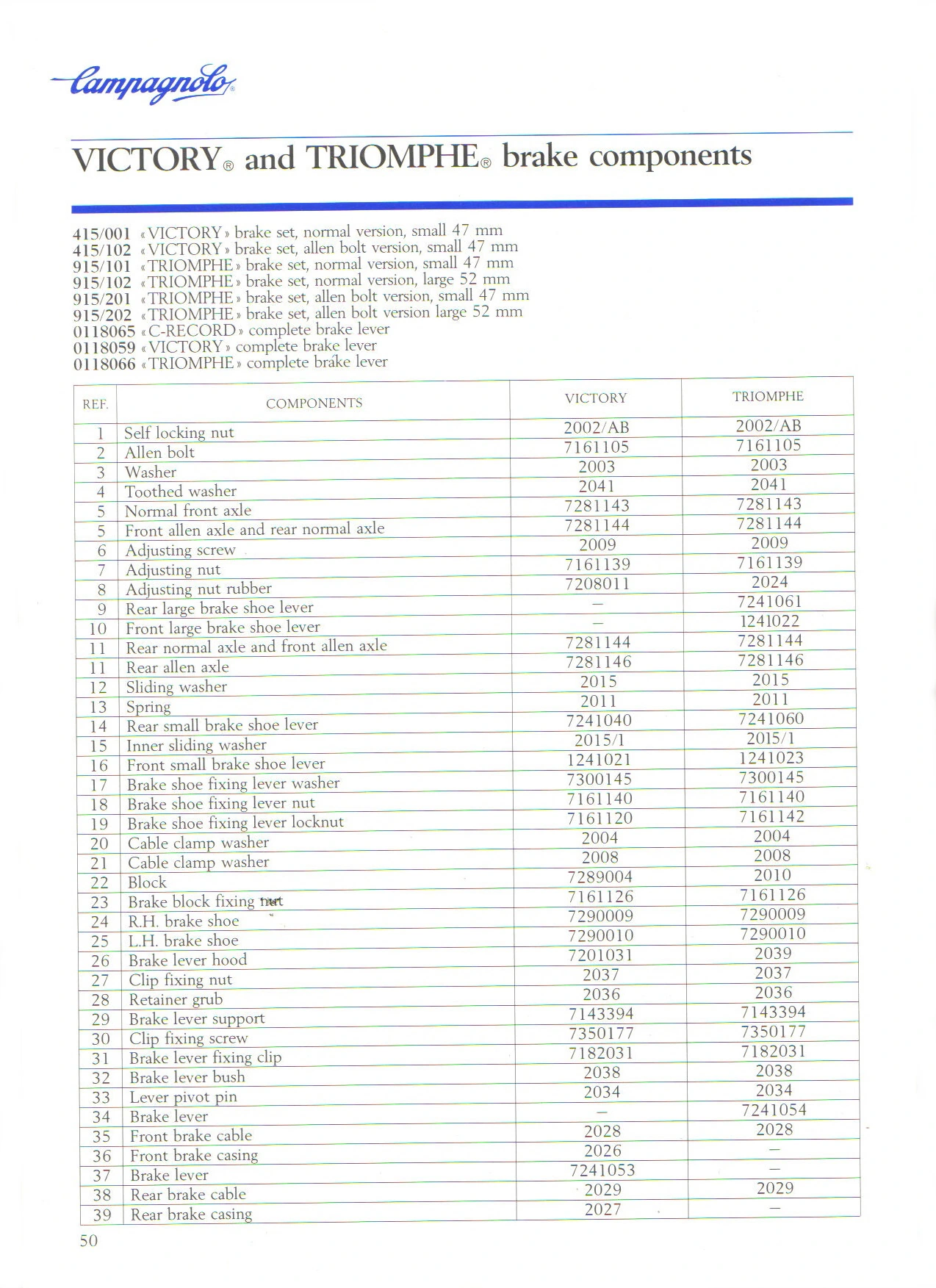

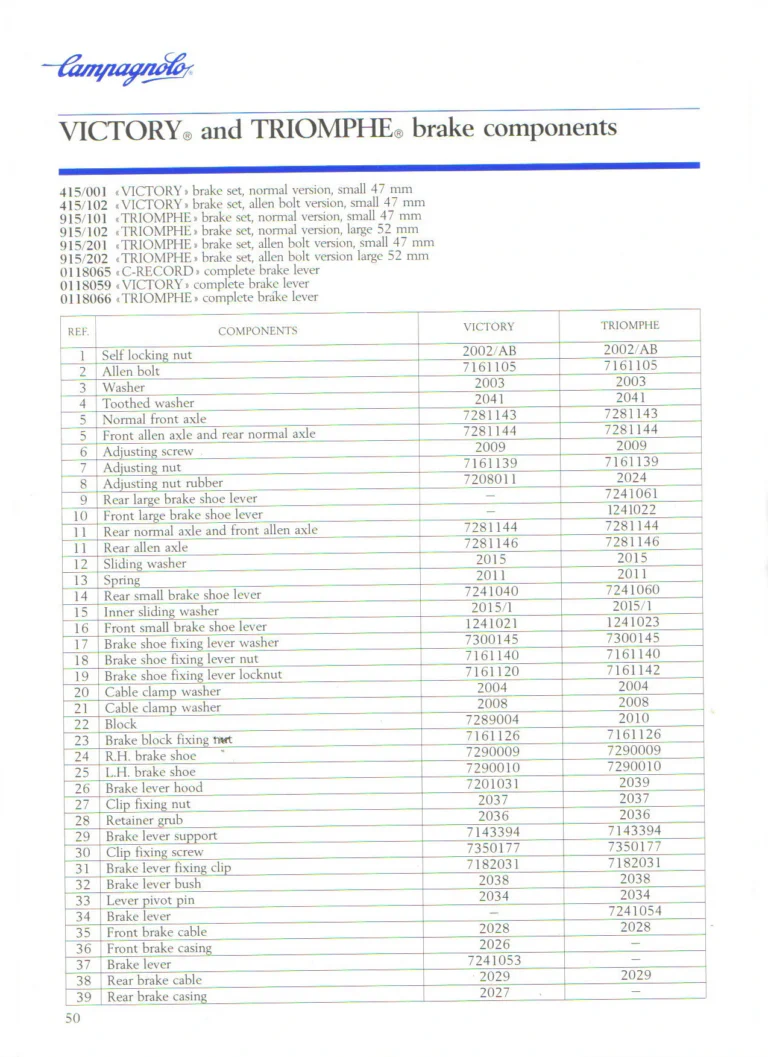

VICTORY and TRIOMPHE BRAKE components | 50-51

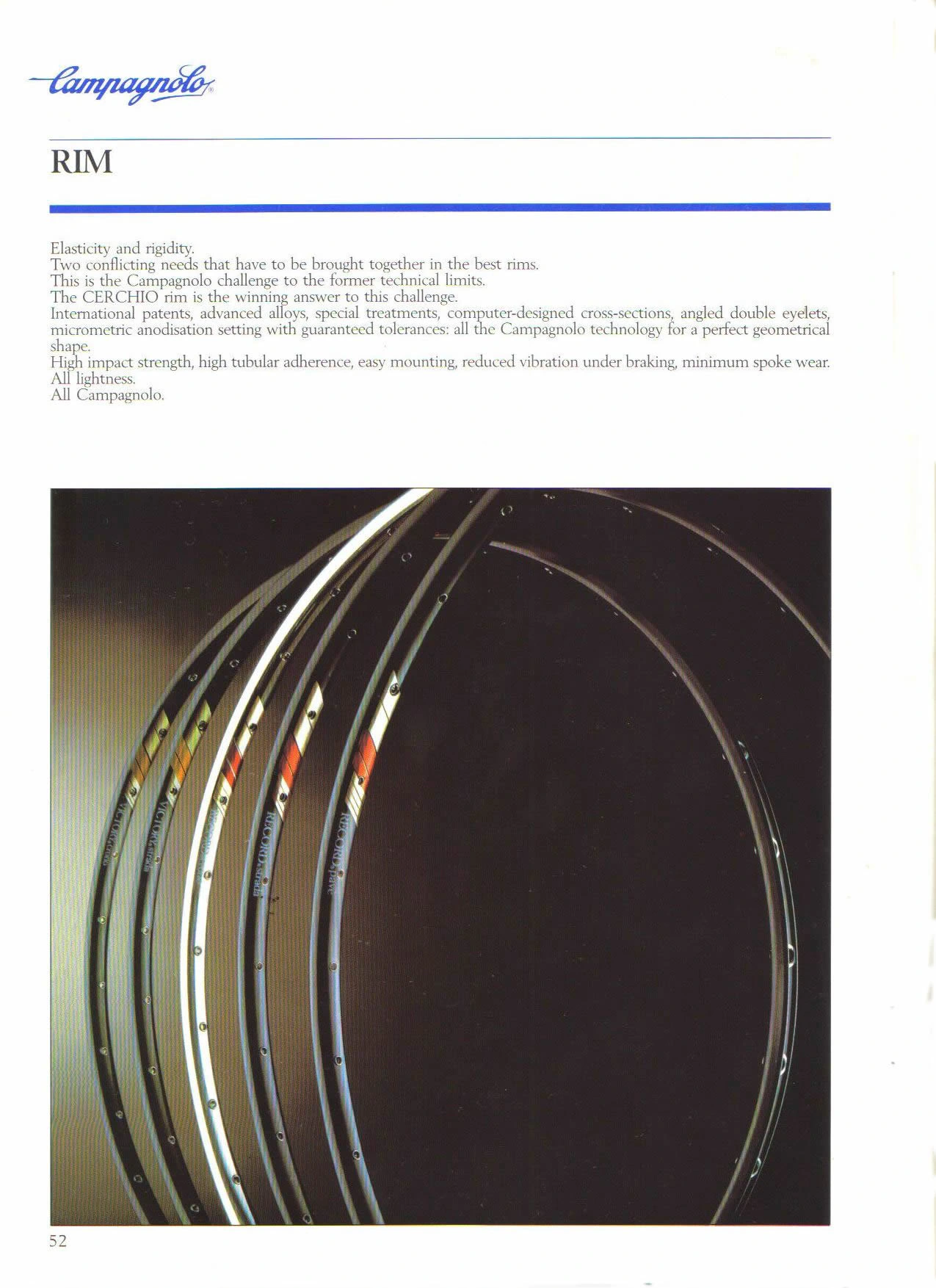

RIMS | 52

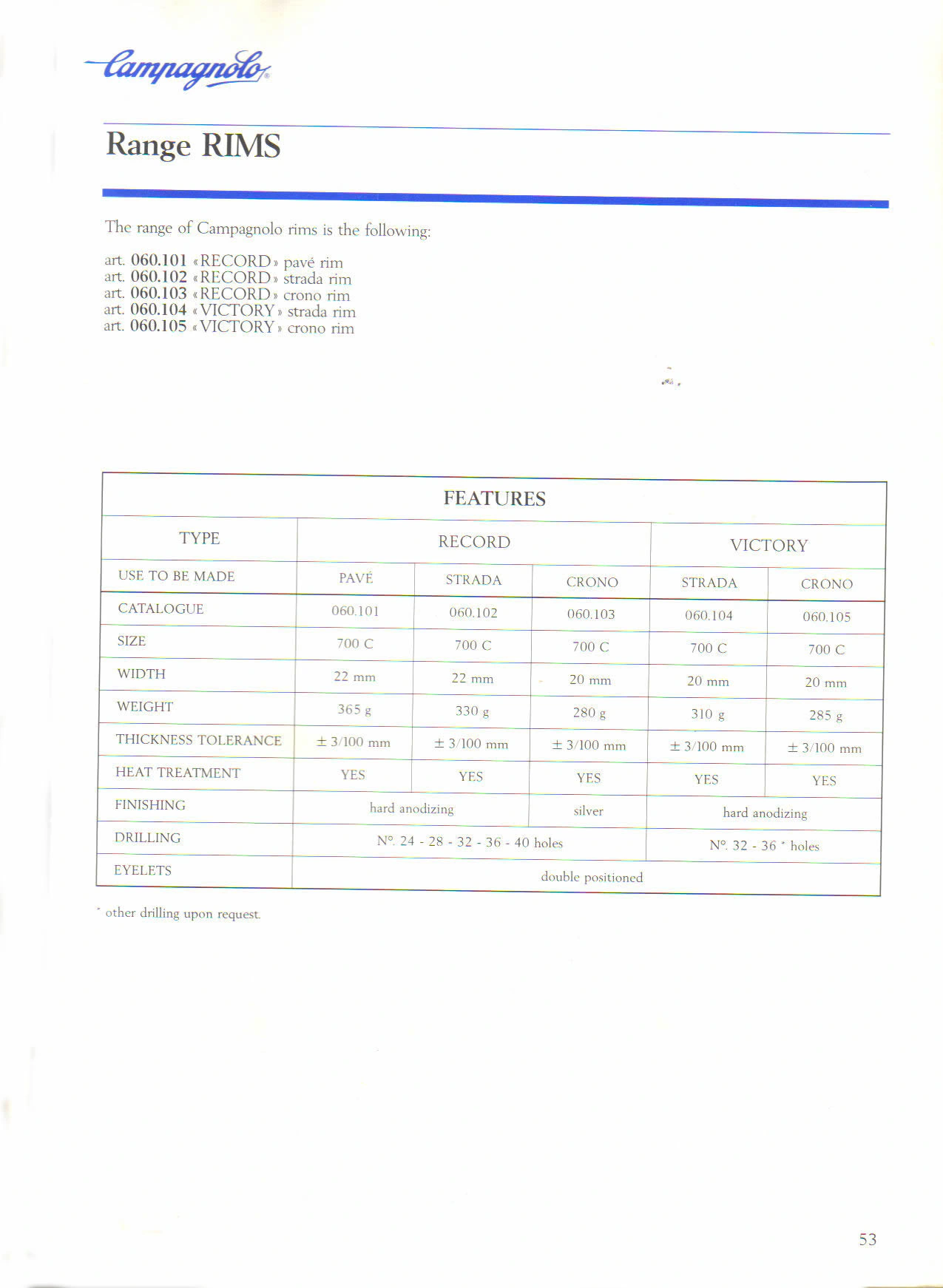

RIMS range | 53
RIMS technology of performance | 54

[The index page of Campagnolo catalogue n. 18 bis, listing each section from the company history through the rim pages against its page number, under the blue Campagnolo script logo and a blue rule. The page numbers are set slightly above their entries, the list skips page 28, and the page carries no printed folio.]

— Page 3 —

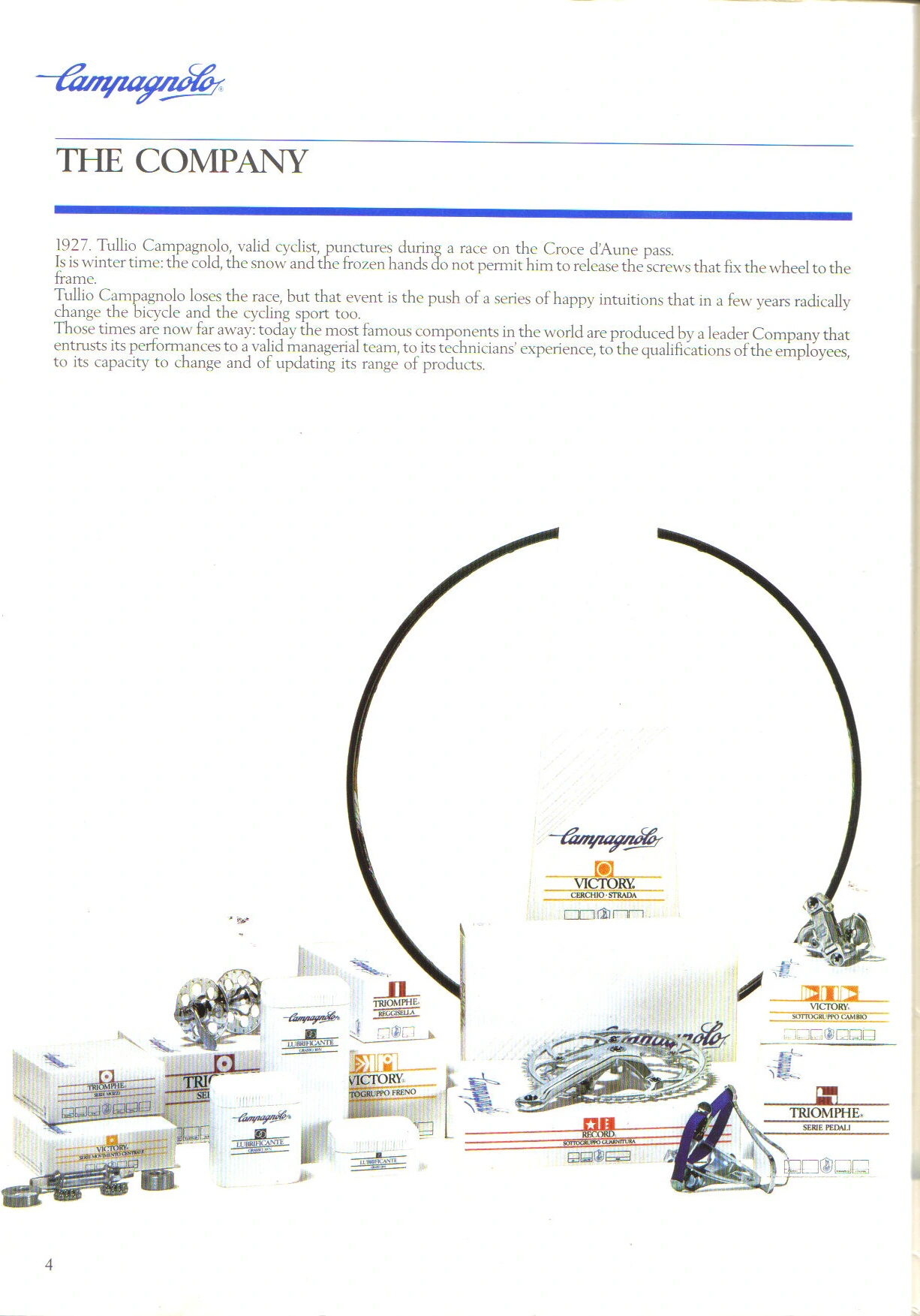

Campagnolo®

THE COMPANY

1927. Tullio Campagnolo, valid cyclist, punctures during a race on the Croce d’Aune pass.
Is is winter time: the cold, the snow and the frozen hands do not permit him to release the screws that fix the wheel to the frame.
Tullio Campagnolo loses the race, but that event is the push of a series of happy intuitions that in a few years radically change the bicycle and the cycling sport too.
Those times are now far away: today the most famous components in the world are produced by a leader Company that entrusts its performances to a valid managerial team, to its technicians’ experience, to the qualifications of the employees, to its capacity to change and of updating its range of products.

4

[A page on the history of the company: a short text under the Campagnolo script logo and the heading, above a photograph of a black rim standing behind boxed Campagnolo components, among them a crankset, hubs, a front changer, a pedal and tins of lubricant. The boxes carry Victory, Triomphe and Record group labels.]

— Page 4 —
Campagnolo®

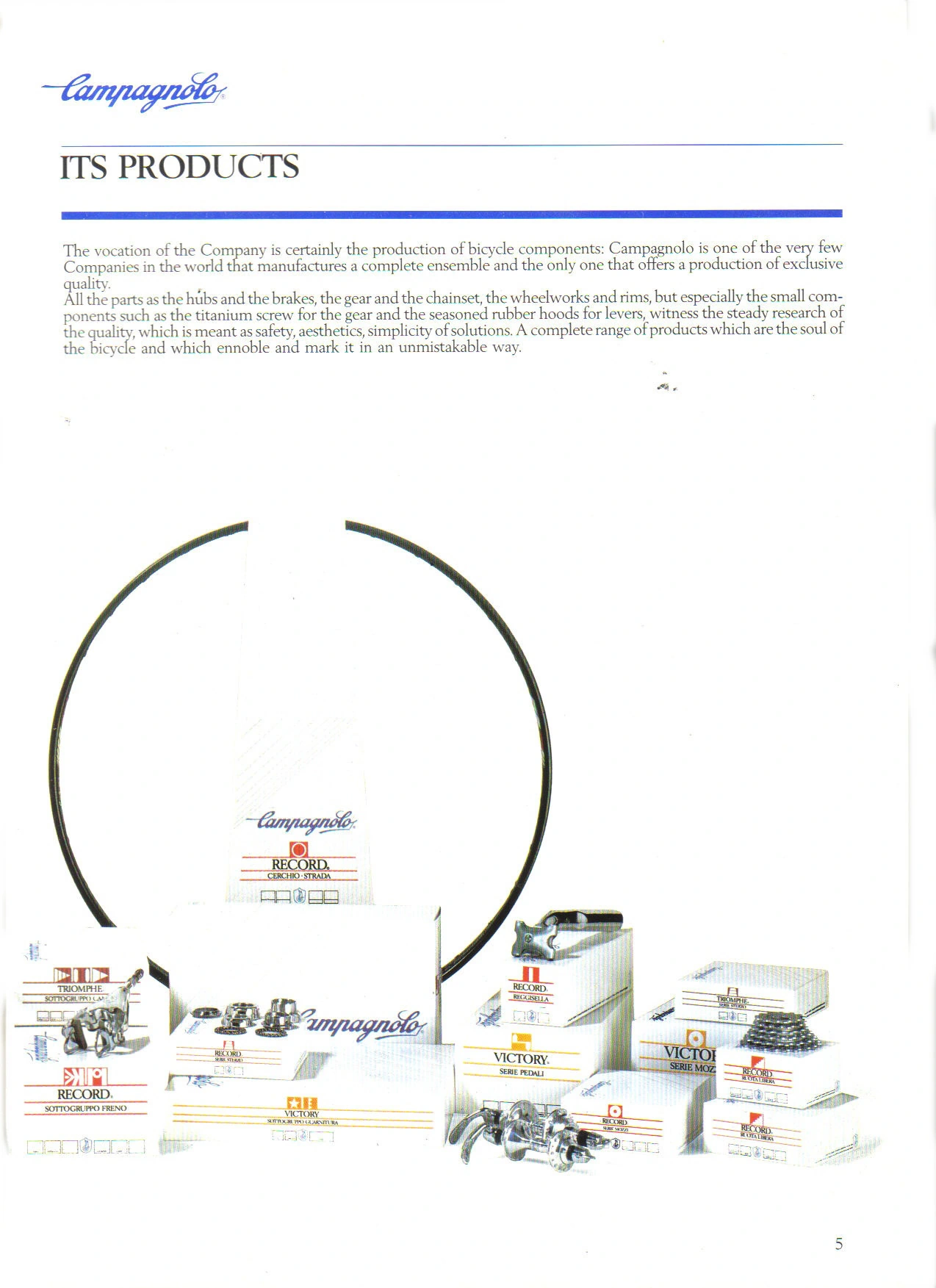

ITS PRODUCTS

The vocation of the Company is certainly the production of bicycle components: Campagnolo is one of the very few Companies in the world that manufactures a complete ensemble and the only one that offers a production of exclusive quality.
All the parts as the hubs and the brakes, the gear and the chainset, the wheelworks and rims, but especially the small components such as the titanium screw for the gear and the seasoned rubber hoods for levers, witness the steady research of the quality, which is meant as safety, aesthetics, simplicity of solutions. A complete range of products which are the soul of the bicycle and which ennoble and mark it in an unmistakable way.

5

[A page introducing the Campagnolo product range: a short text under the Campagnolo script logo and the heading, above a photograph of a black rim standing behind boxed Campagnolo components, among them a rear derailleur, a seat pillar, hubs, a headset and a freewheel. The boxes carry Record, Victory and Triomphe group labels.]

— Page 5 —
Campagnolo®

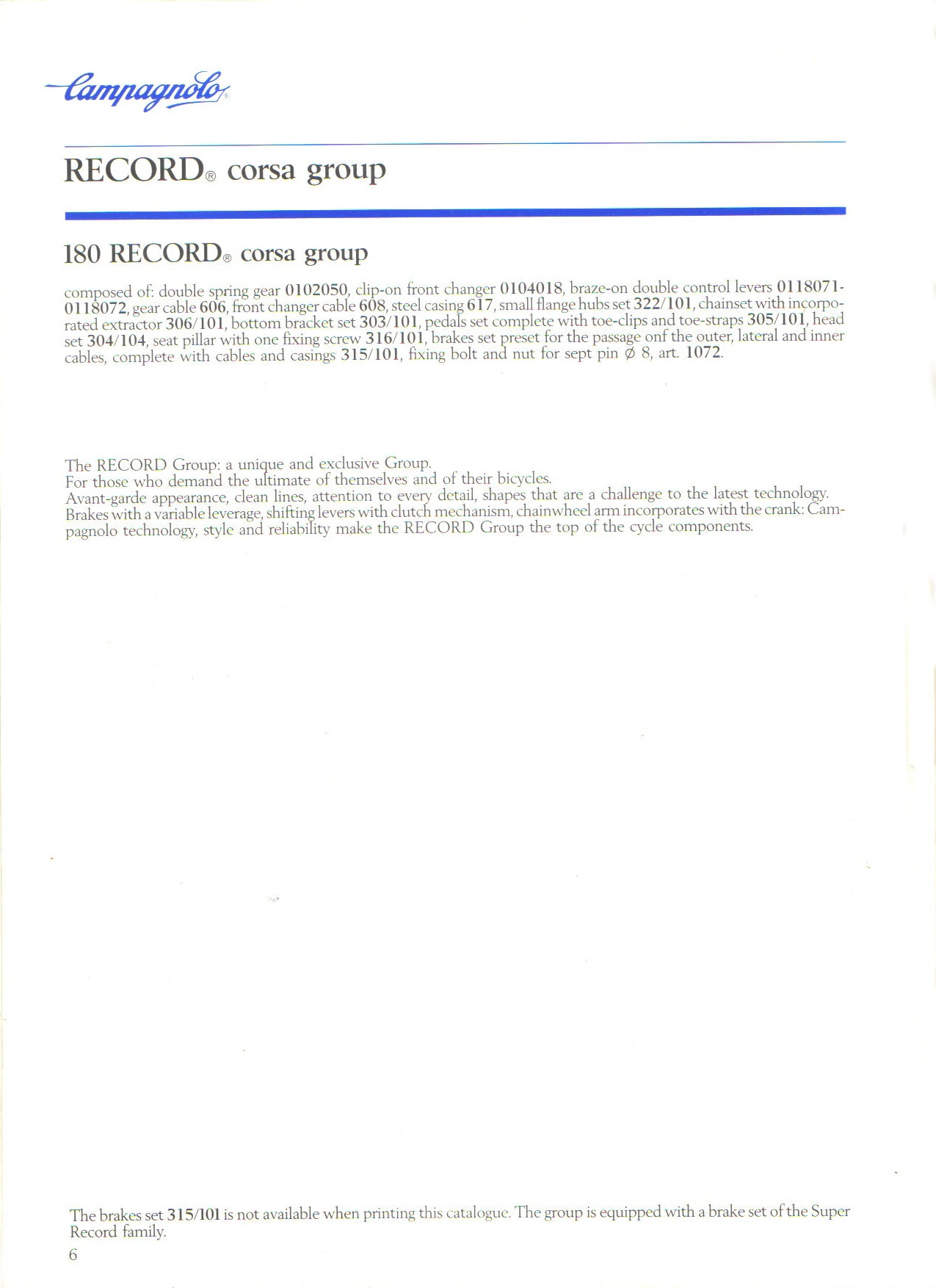

RECORD® corsa group

180 RECORD® corsa group

composed of: double spring gear 0102050, clip-on front changer 0104018, braze-on double control levers 0118071-0118072, gear cable 606, front changer cable 608, steel casing 617, small flange hubs set 322/101, chainset with incorporated extractor 306/101, bottom bracket set 303/101, pedals set complete with toe-clips and toe-straps 305/101, head set 304/104, seat pillar with one fixing screw 316/101, brakes set preset for the passage onf the outer, lateral and inner cables, complete with cables and casings 315/101, fixing bolt and nut for sept pin Ø 8, art. 1072.

The RECORD Group: a unique and exclusive Group.
For those who demand the ultimate of themselves and of their bicycles.
Avant-garde appearance, clean lines, attention to every detail, shapes that are a challenge to the latest technology.
Brakes with a variable leverage, shifting levers with clutch mechanism, chainwheel arm incorporates with the crank: Campagnolo technology, style and reliability make the RECORD Group the top of the cycle components.

The brakes set 315/101 is not available when printing this catalogue. The group is equipped with a brake set of the Super Record family.

6

[A text page for the Campagnolo Record corsa group, 180, listing its components by part number with a short description of the group, and a note at the foot that the 315/101 brake set was not yet available. The lower half of the page is blank.]

— Page 6 —
Campagnolo®

7

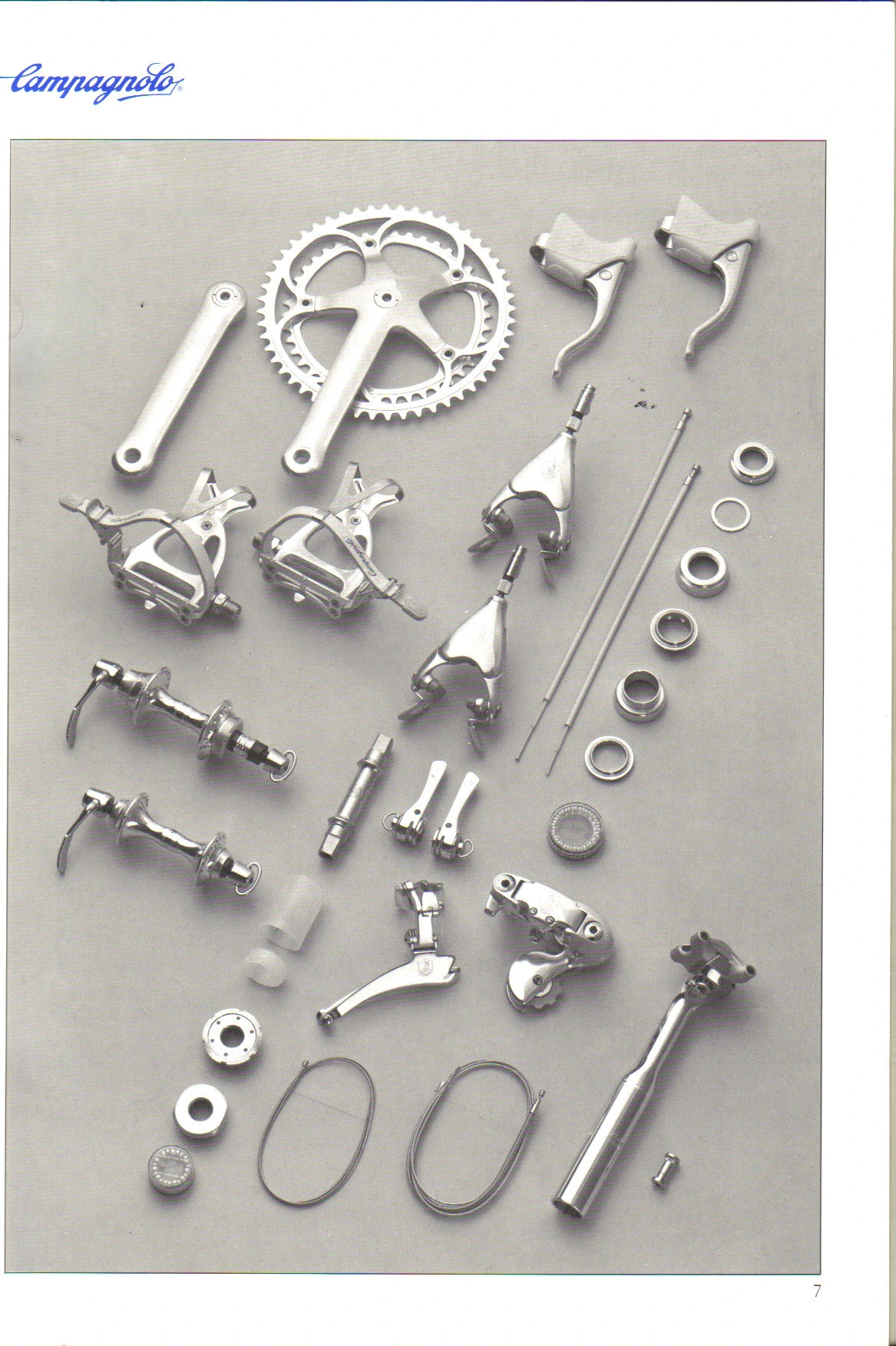

[A black and white photograph of the parts of the Campagnolo Record corsa group laid out on a gray ground: crankset, pedals with toe clips and straps, brake levers, brake calipers, hubs with quick releases, bottom bracket, headset, shift levers, front and rear derailleurs, seat pillar and cables. A small dark spot sits on the photograph beside the upper brake caliper.]

— Page 7 —
Campagnolo®

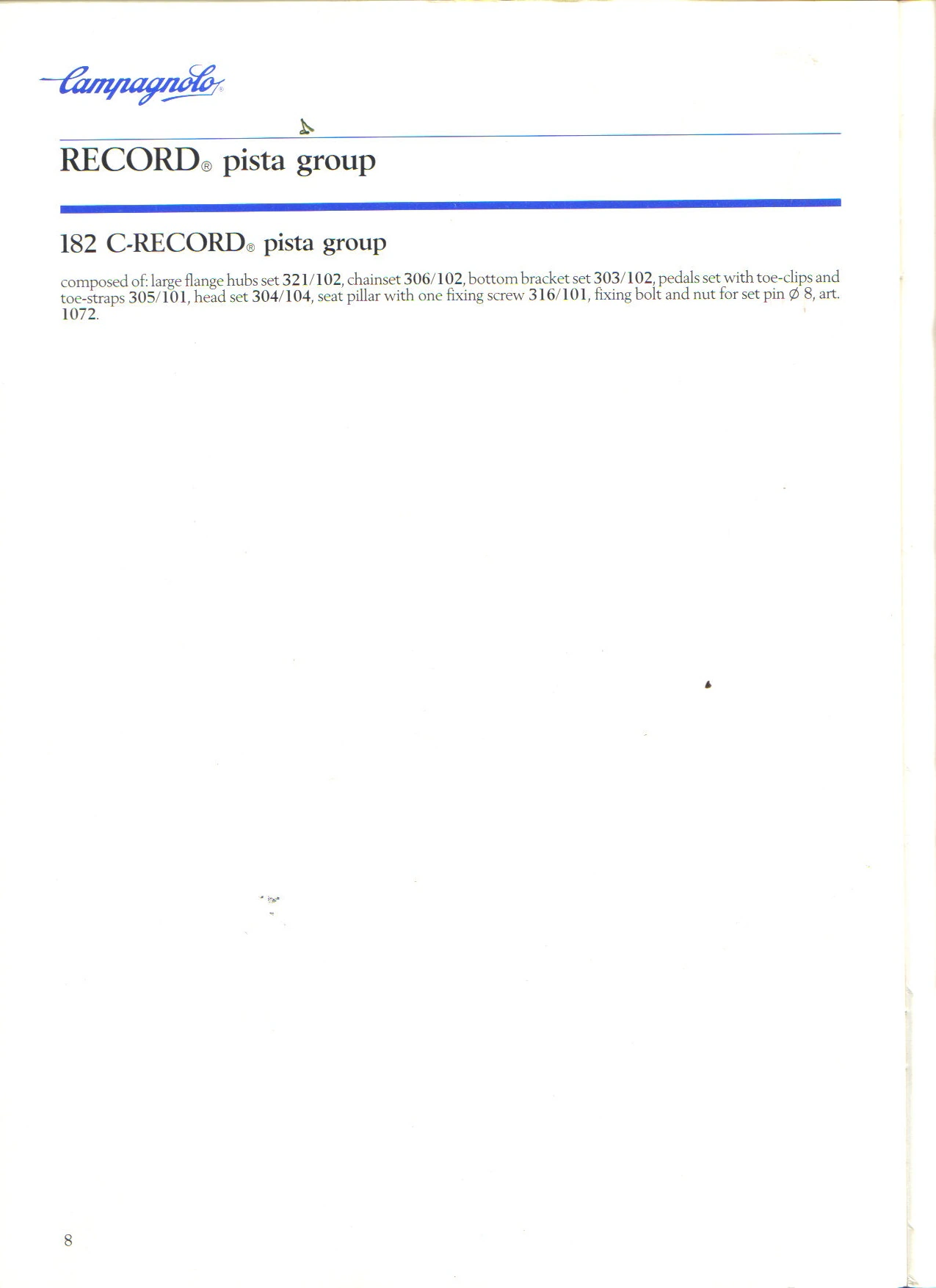

RECORD® pista group

182 C-RECORD® pista group

composed of: large flange hubs set 321/102, chainset 306/102, bottom bracket set 303/102, pedals set with toe-clips and toe-straps 305/101, head set 304/104, seat pillar with one fixing screw 316/101, fixing bolt and nut for set pin Ø 8, art. 1072.

8

[A text page for the Campagnolo C-Record pista group, 182, listing its track components by part number. Most of the page below the list is blank, with a few small dark specks on the paper.]

— Page 8 —
Campagnolo®

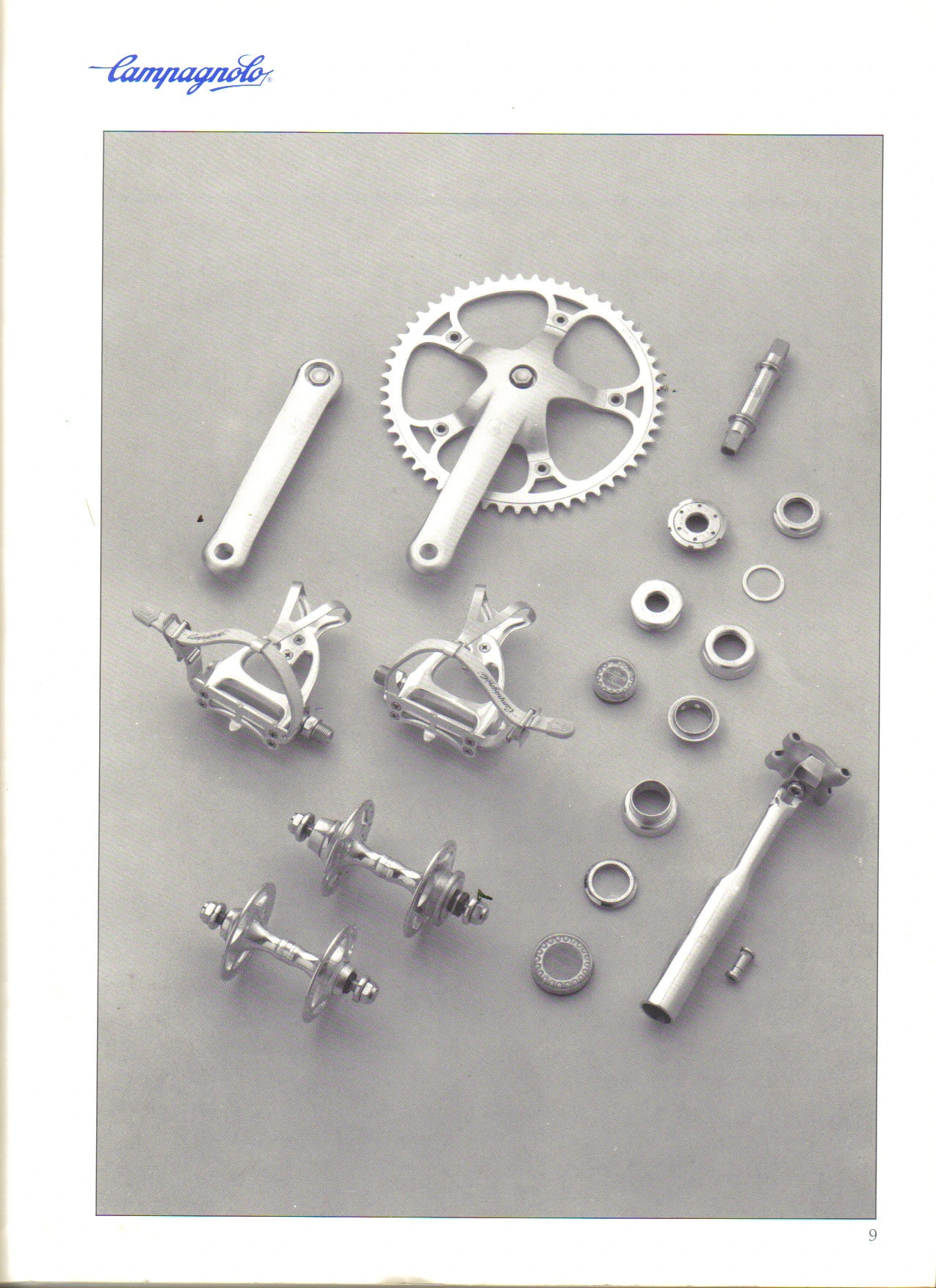

9

[A black and white photograph of the parts of the Campagnolo C-Record pista group laid out on a gray ground: a single chainring track crankset, pedals with toe clips and straps, large flange track hubs with nuts, bottom bracket, headset and seat pillar.]

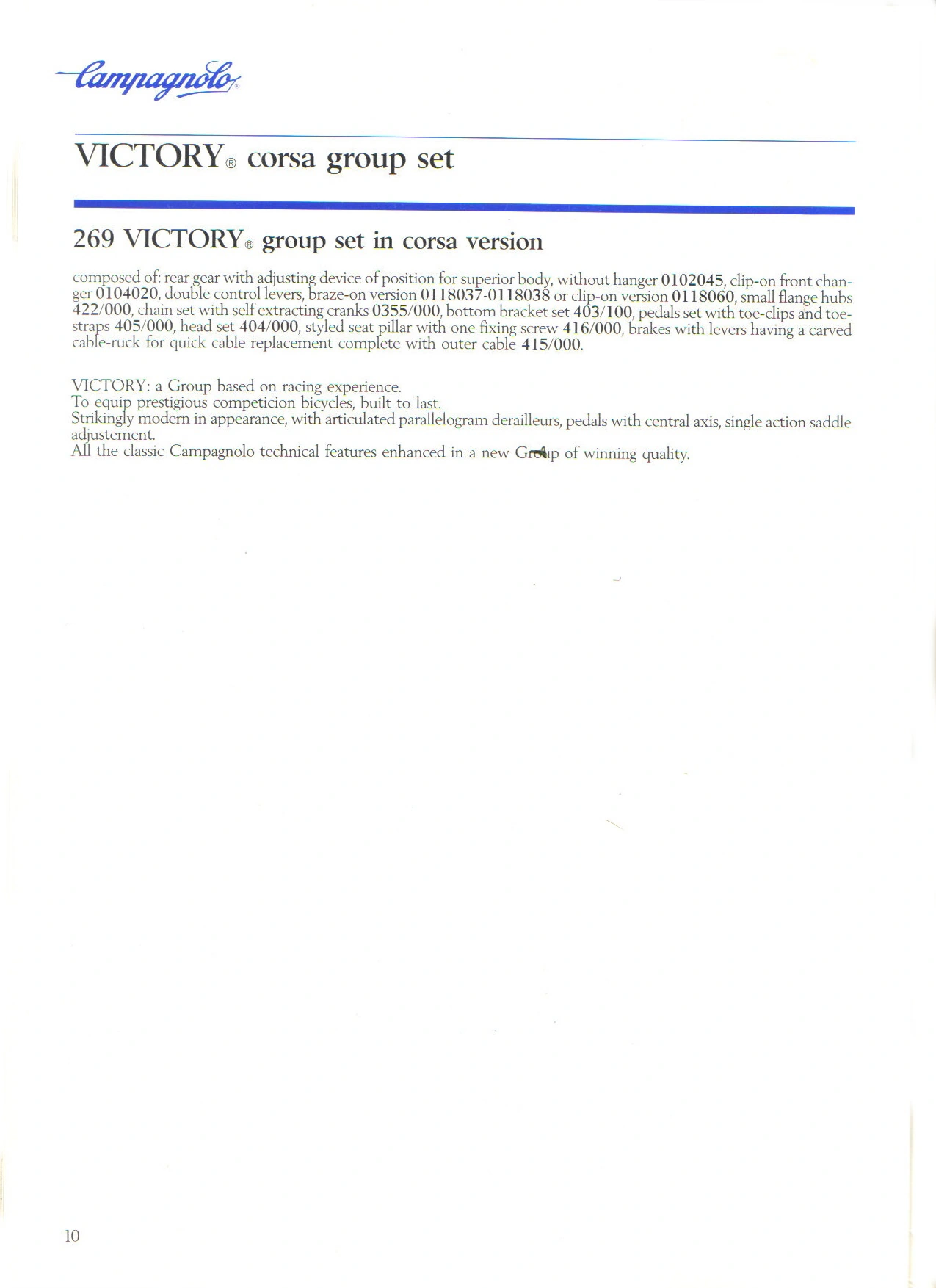

— Page 9 —
Campagnolo®

VICTORY® corsa group set

269 VICTORY® group set in corsa version

composed of: rear gear with adjusting device of position for superior body, without hanger 0102045, clip-on front changer 0104020, double control levers, braze-on version 0118037-0118038 or clip-on version 0118060, small flange hubs 422/000, chain set with self extracting cranks 0355/000, bottom bracket set 403/100, pedals set with toe-clips and toe-straps 405/000, head set 404/000, styled seat pillar with one fixing screw 416/000, brakes with levers having a carved cable-ruck for quick cable replacement complete with outer cable 415/000.

VICTORY: a Group based on racing experience.
To equip prestigious competicion bicycles, built to last.
Strikingly modern in appearance, with articulated parallelogram derailleurs, pedals with central axis, single action saddle adjustement.
All the classic Campagnolo technical features enhanced in a new Group of winning quality.

10

[A text page for the Campagnolo Victory corsa group set, 269, listing its components by part number with a short description of the group. The lower two thirds of the page are blank, and a dark blot on the paper partly covers the word “Group” in the last line.]

— Page 10 —
Campagnolo®

11

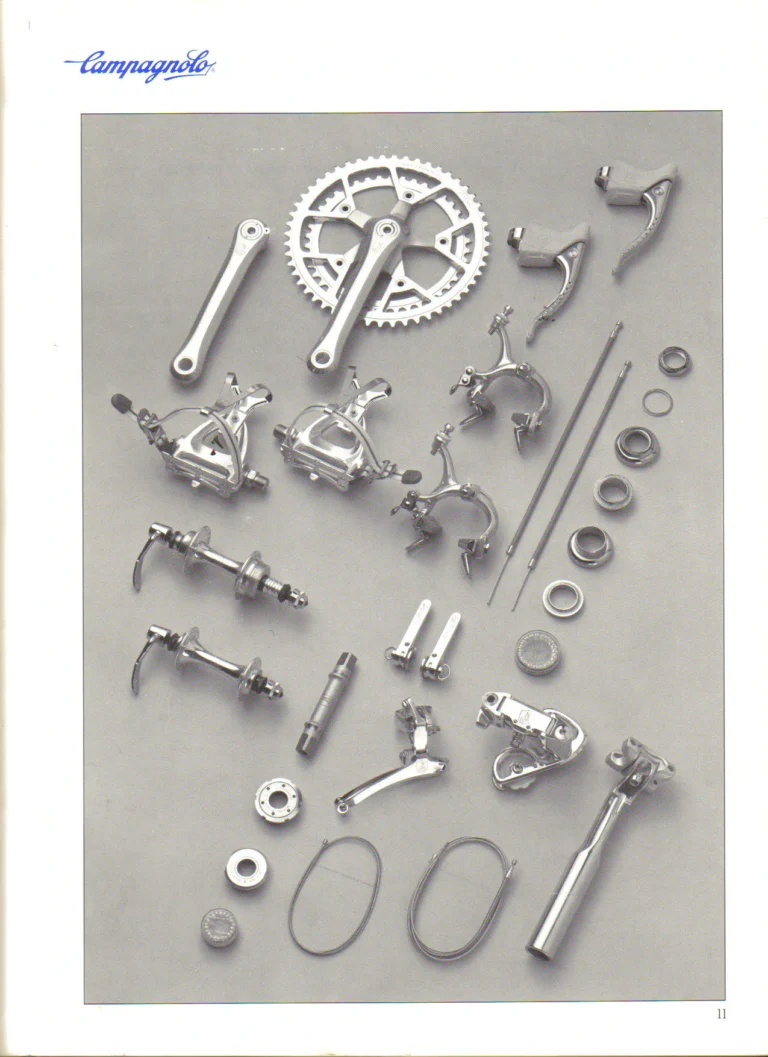

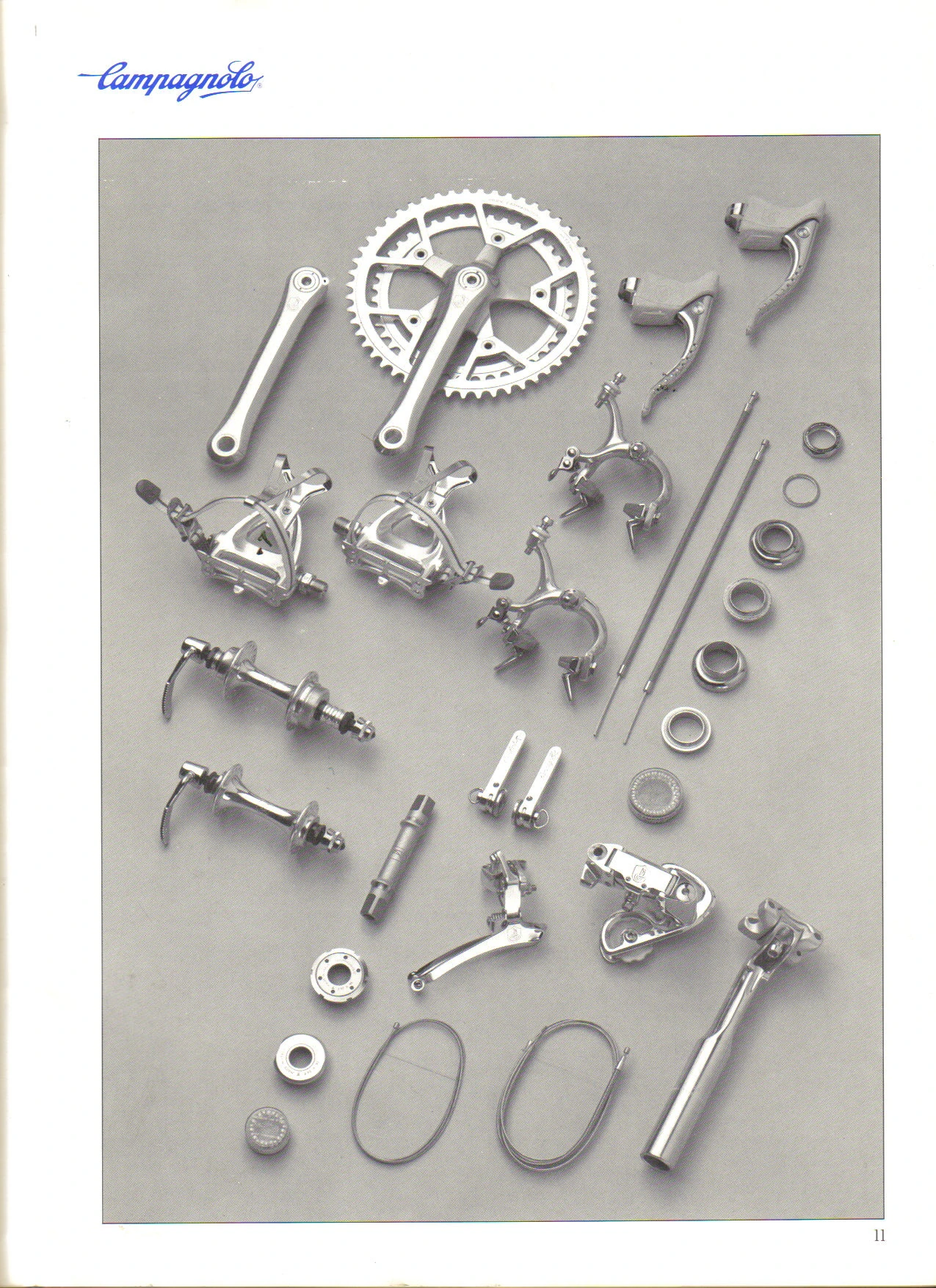

[An uncaptioned black and white photograph of a Campagnolo group laid out on a gray ground: a double chainset with its left crank, a pair of brake levers with hoods, a pair of pedals with toe clips and straps, two sidepull brakes, front and rear quick release hubs, headset parts, two inner cables, a pair of shift levers, a bottom bracket axle and cups, a front changer, a rear derailleur, a seat pillar, two coiled cables and packed bearing ball retainers. The page names no group or part numbers.]

— Page 11 —
Campagnolo®

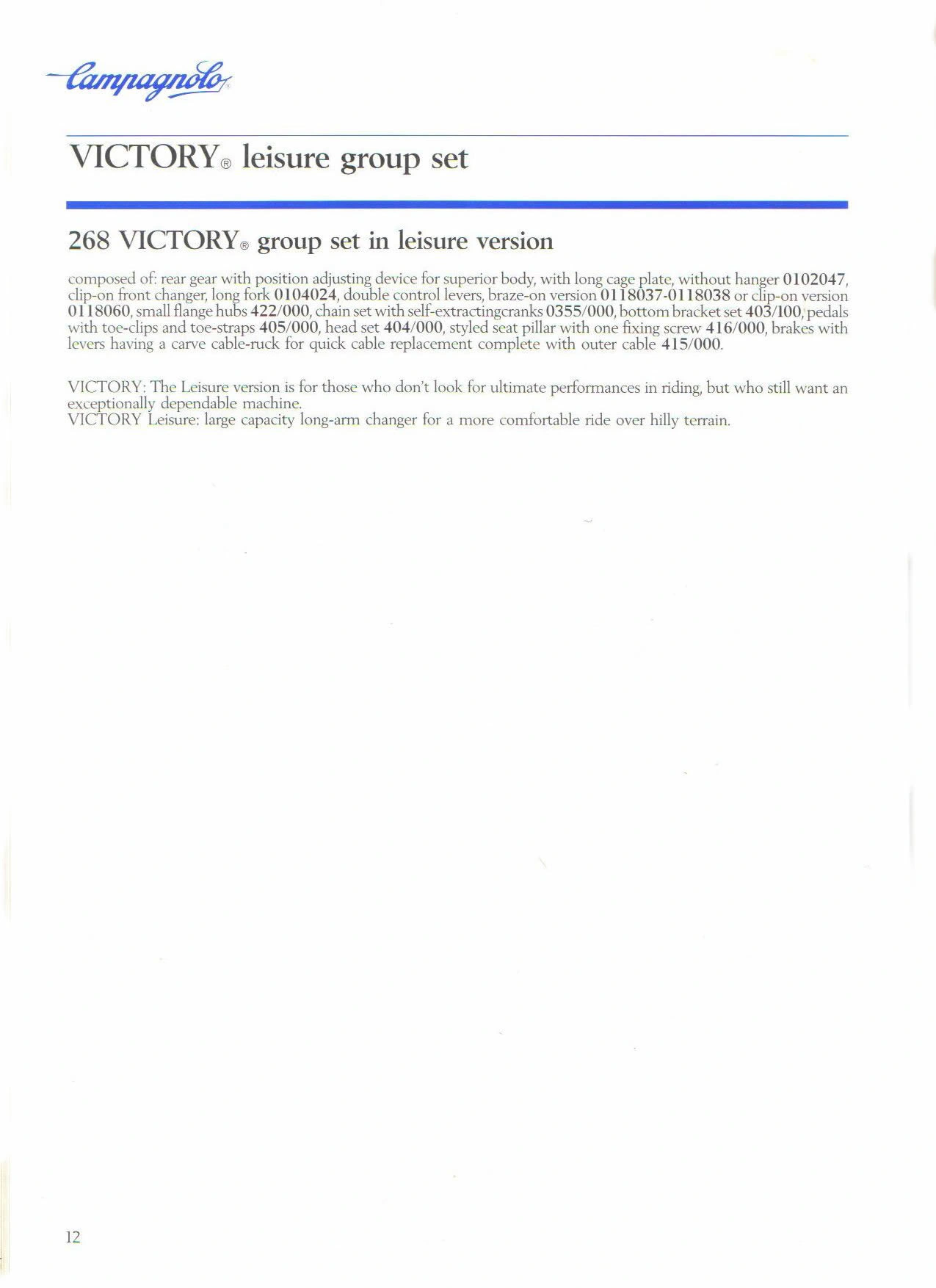

VICTORY® leisure group set

268 VICTORY® group set in leisure version

composed of: rear gear with position adjusting device for superior body, with long cage plate, without hanger 0102047, clip-on front changer, long fork 0104024, double control levers, braze-on version 0118037-0118038 or clip-on version 0118060, small flange hubs 422/000, chain set with self-extractingcranks 0355/000, bottom bracket set 403/100, pedals with toe-clips and toe-straps 405/000, head set 404/000, styled seat pillar with one fixing screw 416/000, brakes with levers having a carve cable-ruck for quick cable replacement complete with outer cable 415/000.

VICTORY: The Leisure version is for those who don’t look for ultimate performances in riding, but who still want an exceptionally dependable machine.
VICTORY Leisure: large capacity long-arm changer for a more comfortable ride over hilly terrain.

12

[A text page listing the contents of the Campagnolo Victory group set in leisure version, 268, with two short lines on its purpose, under the blue Campagnolo script logo and a blue rule. The lower two thirds of the page are blank.]

— Page 12 —
Campagnolo®

13

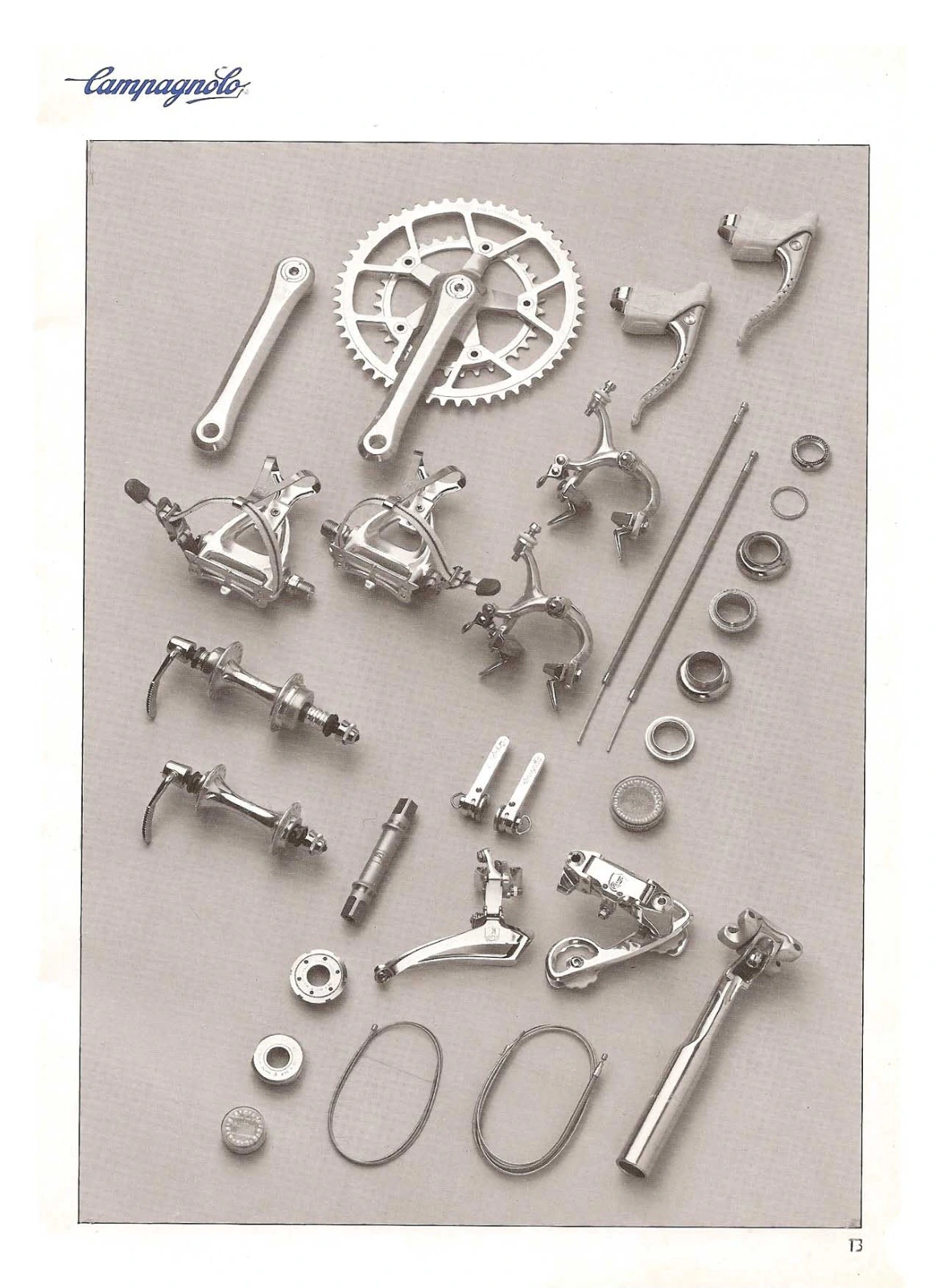

[An uncaptioned black and white photograph of a Campagnolo group laid out on a light gray ground, facing the listing of the Victory group set in leisure version: a double chainset with its left crank, a pair of brake levers with hoods, a pair of pedals with toe clips and straps, two sidepull brakes, front and rear quick release hubs, headset parts, two inner cables, a pair of shift levers, a bottom bracket axle and cups, a front changer, a long-cage rear derailleur, a seat pillar, two coiled cables and packed bearing ball retainers. The page names no group or part numbers.]

— Page 13 —
Campagnolo®

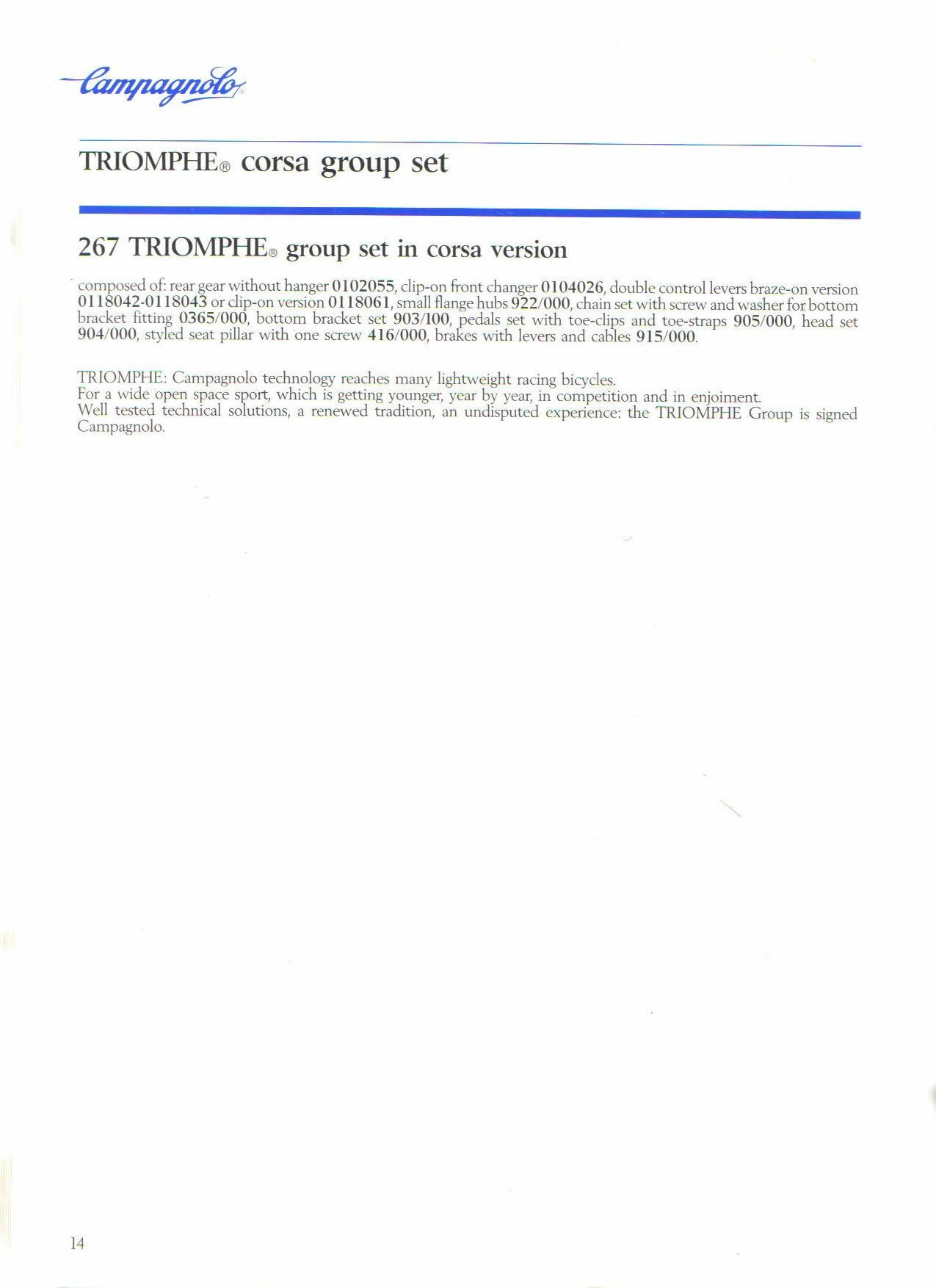

TRIOMPHE® corsa group set

267 TRIOMPHE® group set in corsa version

composed of: rear gear without hanger 0102055, clip-on front changer 0104026, double control levers braze-on version 0118042-0118043 or clip-on version 0118061, small flange hubs 922/000, chain set with screw and washer for bottom bracket fitting 0365/000, bottom bracket set 903/100, pedals set with toe-clips and toe-straps 905/000, head set 904/000, styled seat pillar with one screw 416/000, brakes with levers and cables 915/000.

TRIOMPHE: Campagnolo technology reaches many lightweight racing bicycles.
For a wide open space sport, which is getting younger, year by year, in competition and in enjoiment.
Well tested technical solutions, a renewed tradition, an undisputed experience: the TRIOMPHE Group is signed Campagnolo.

14

[A text page listing the contents of the Campagnolo Triomphe group set in corsa version, 267, with three short lines on its purpose, under the blue Campagnolo script logo and a blue rule. The lower two thirds of the page are blank.]

— Page 14 —
Campagnolo®

15

[An uncaptioned black and white photograph of a Campagnolo group laid out on a gray ground: a double chainset with its left crank, a pair of brake levers with dark hoods, a pair of pedals with toe clips and straps, two sidepull brakes, front and rear quick release hubs, headset parts, two inner cables, a pair of shift levers, a dark bottom bracket axle with its cups, a front changer, a rear derailleur, a seat pillar, two coiled cables and packed bearing ball retainers. It faces the listing of the Triomphe group set in corsa version; the page names no group or part numbers.]

— Page 15 —

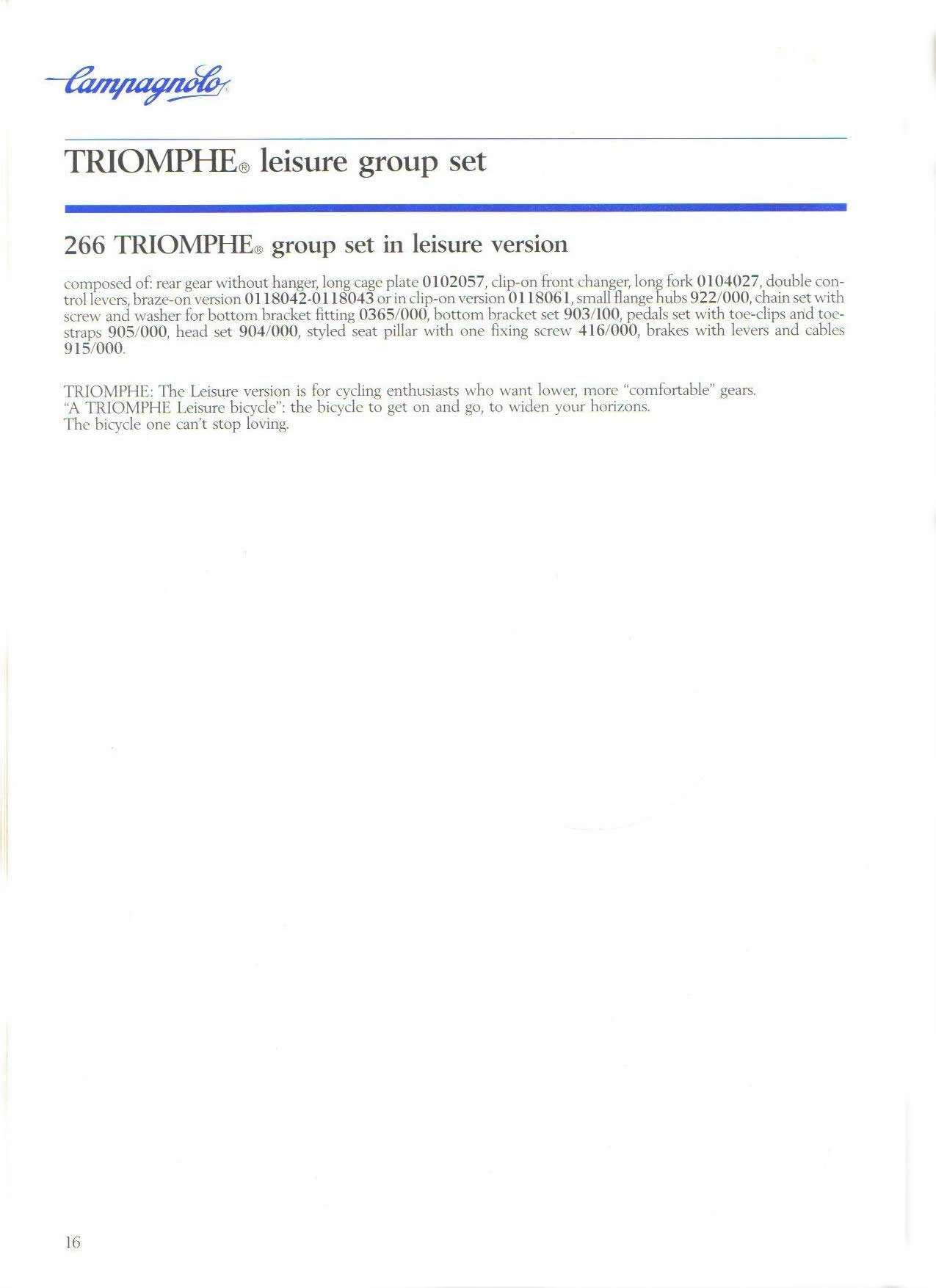

Campagnolo®

TRIOMPHE® leisure group set

266 TRIOMPHE® group set in leisure version

composed of: rear gear without hanger, long cage plate 0102057, clip-on front changer, long fork 0104027, double control levers, braze-on version 0118042-0118043 or in clip-on version 0118061, small flange hubs 922/000, chain set with screw and washer for bottom bracket fitting 0365/000, bottom bracket set 903/100, pedals set with toe-clips and toe-straps 905/000, head set 904/000, styled seat pillar with one fixing screw 416/000, brakes with levers and cables 915/000.

TRIOMPHE: The Leisure version is for cycling enthusiasts who want lower, more “comfortable” gears.
“A TRIOMPHE Leisure bicycle”: the bicycle to get on and go, to widen your horizons.
The bicycle one can’t stop loving.

16

[A text page listing the contents of the Campagnolo Triomphe group set in leisure version, 266, with three short lines on its purpose, under the blue Campagnolo script logo and a blue rule. The lower two thirds of the page are blank.]

— Page 16 —
Campagnolo®

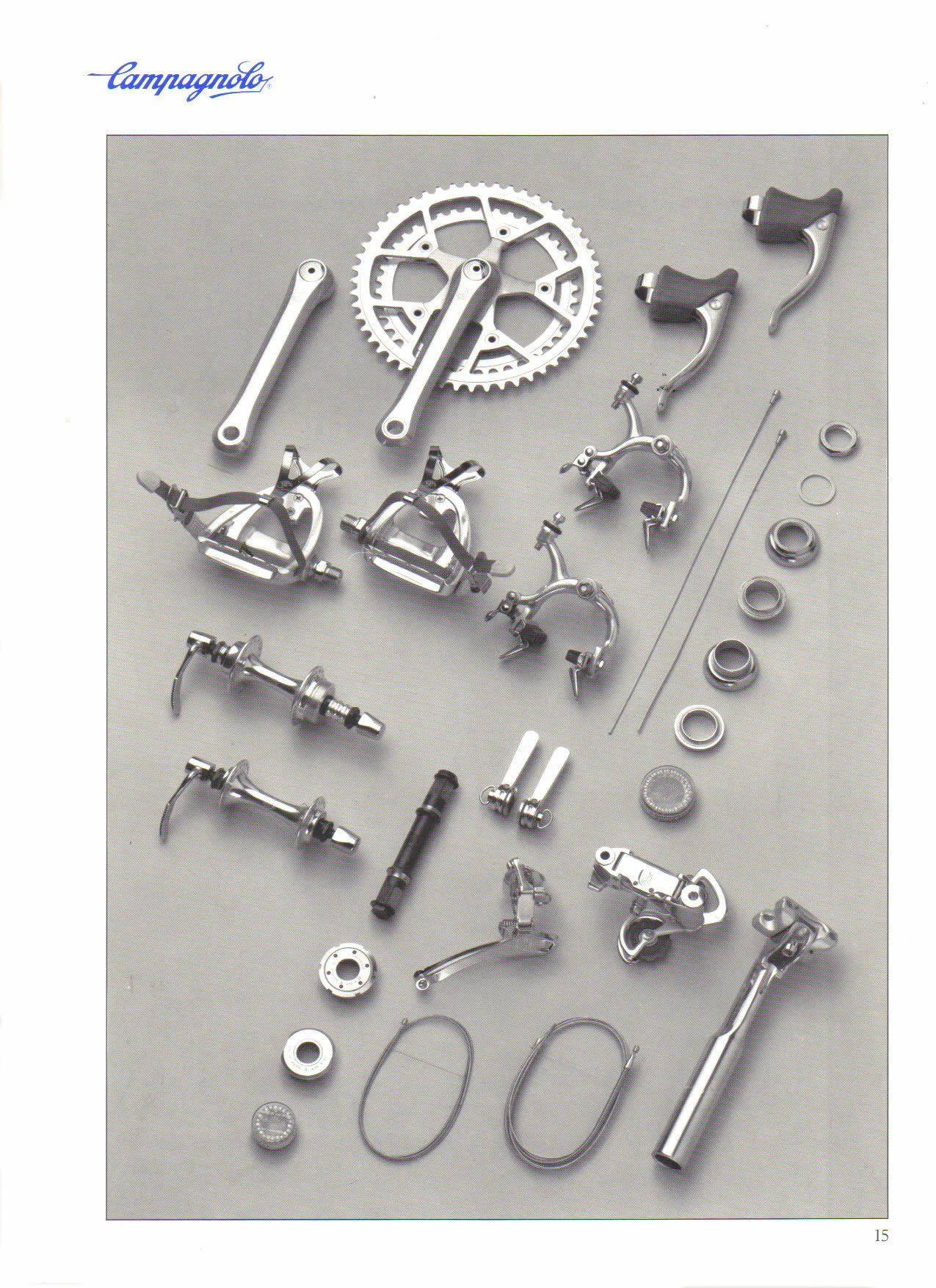

17

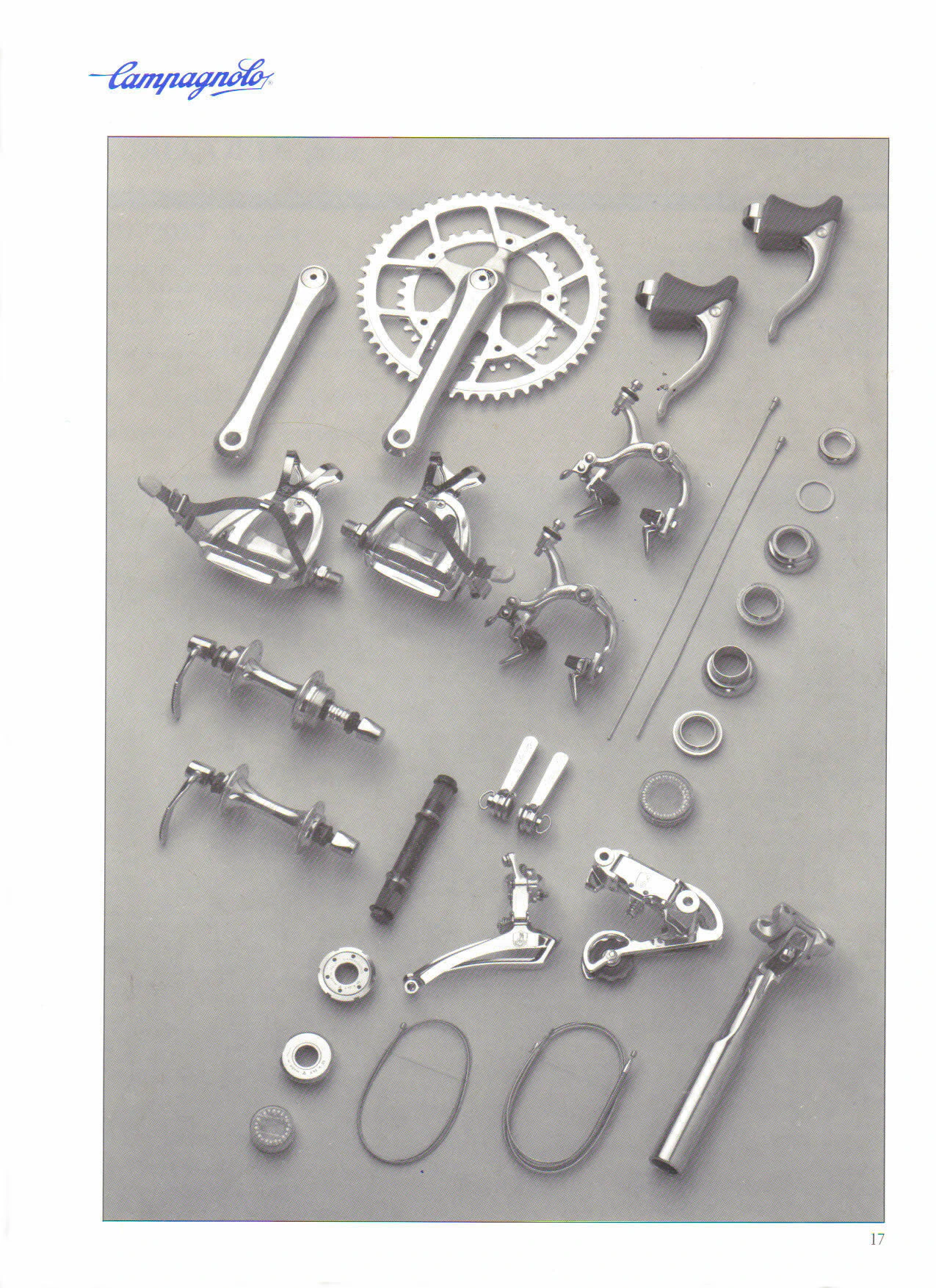

[An uncaptioned black and white photograph of a Campagnolo group laid out on a gray ground: a double chainset with its left crank, a pair of brake levers with dark hoods, a pair of pedals with toe clips and straps, two sidepull brakes, front and rear quick release hubs, headset parts, two inner cables, a pair of shift levers, a dark bottom bracket axle with its cups, a front changer, a long cage rear derailleur, a seat pillar, two coiled cables and packed bearing ball retainers. It faces the listing of the Triomphe group set in leisure version; the page names no group or part numbers.]

— Page 17 —

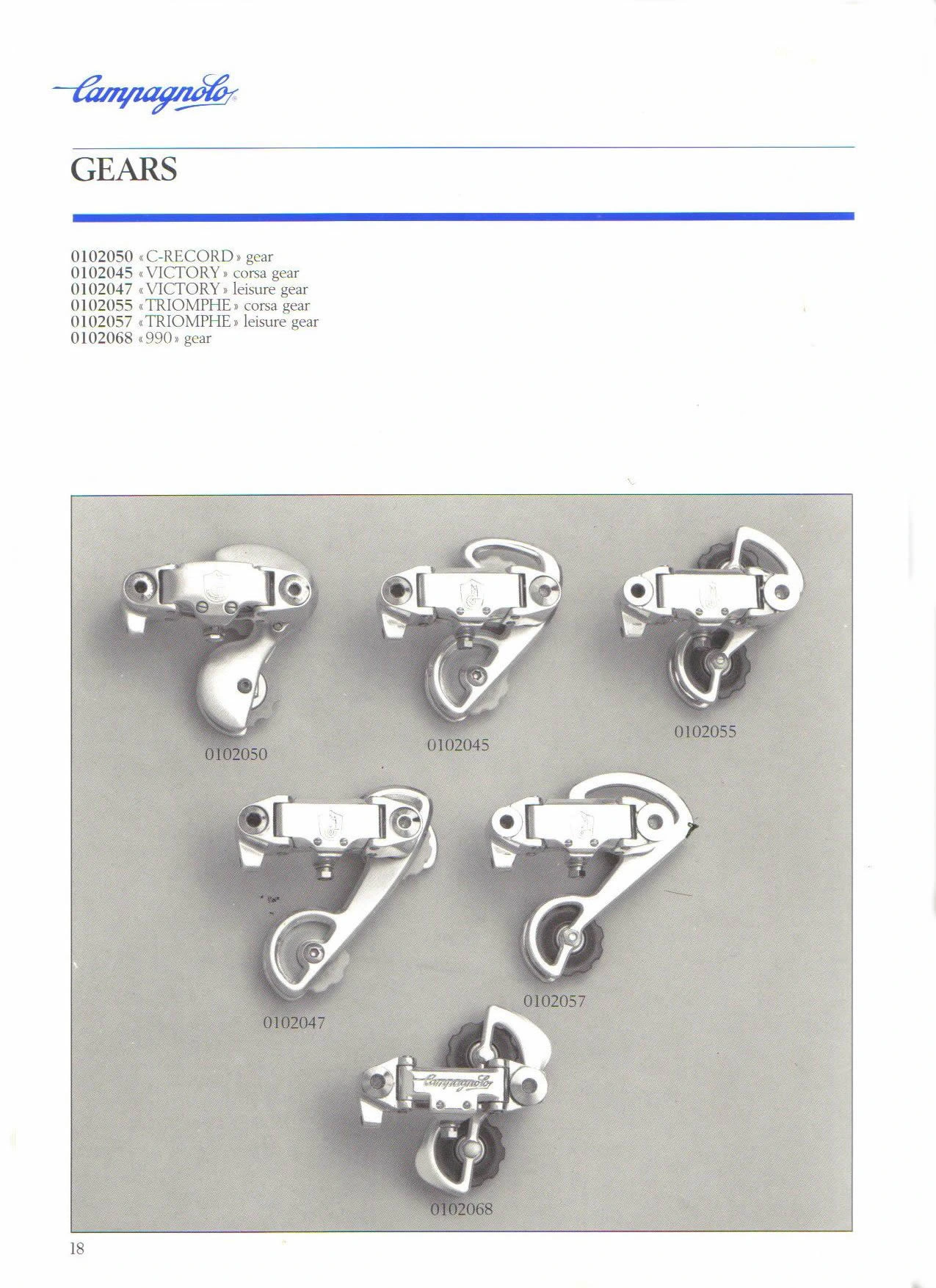

Campagnolo®

GEARS

0102050 «C-RECORD» gear
0102045 «VICTORY» corsa gear
0102047 «VICTORY» leisure gear
0102055 «TRIOMPHE» corsa gear
0102057 «TRIOMPHE» leisure gear
0102068 «990» gear

Callouts: 0102050 0102045 0102055 0102047 0102057 0102068

18

[A black and white photograph of six Campagnolo rear derailleurs, each captioned with its number, below a list naming them: the C-Record 0102050, the Victory corsa 0102045 and leisure 0102047, the Triomphe corsa 0102055 and leisure 0102057, and the 990 0102068. The leisure models have long cages, and the 990 carries the Campagnolo script name on its body.]

— Page 18 —
Campagnolo®

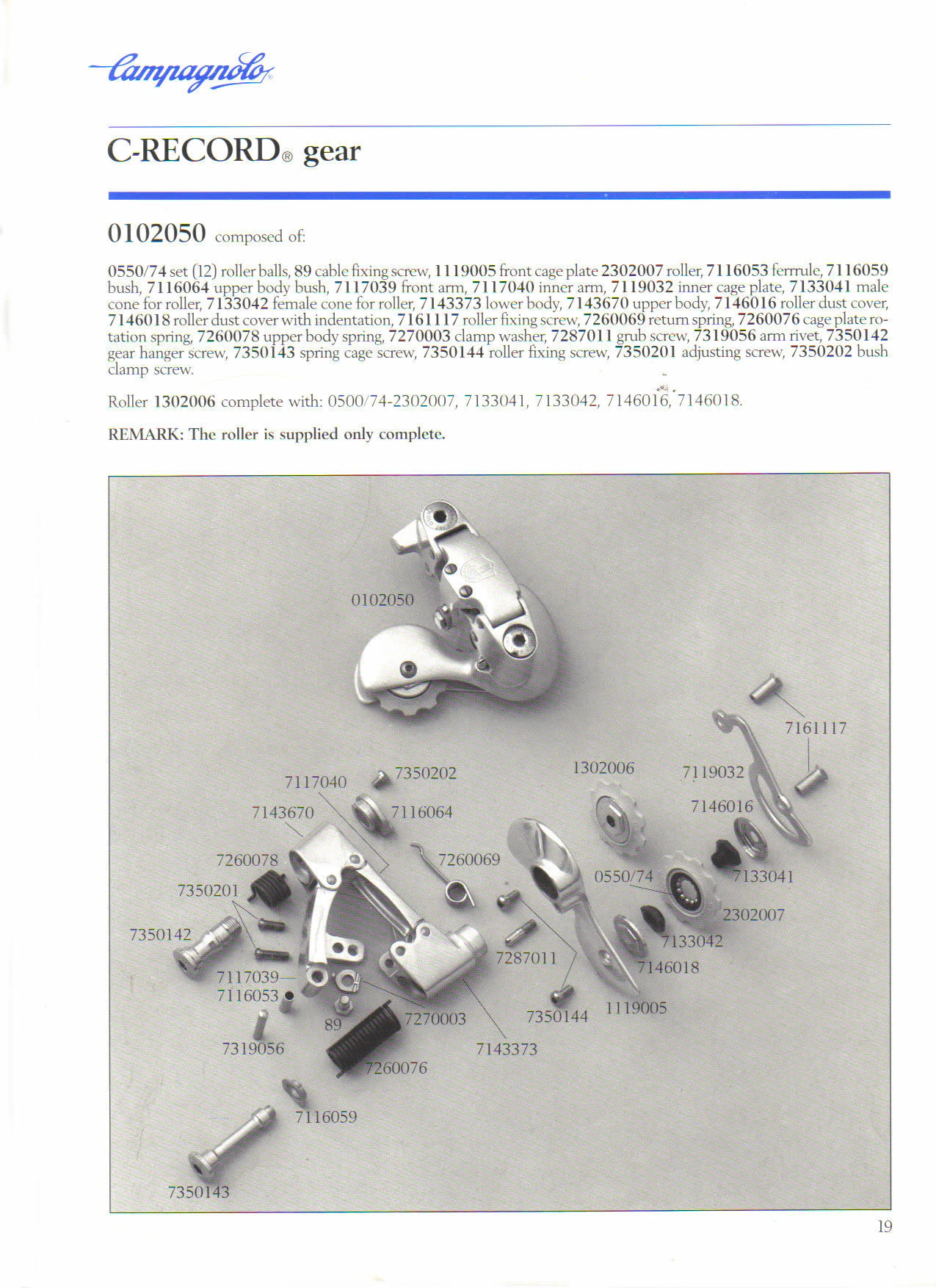

C-RECORD® gear

0102050 composed of:

0550/74 set (12) roller balls, 89 cable fixing screw, 1119005 front cage plate 2302007 roller, 7116053 ferrrule, 7116059 bush, 7116064 upper body bush, 7117039 front arm, 7117040 inner arm, 7119032 inner cage plate, 7133041 male cone for roller, 7133042 female cone for roller, 7143373 lower body, 7143670 upper body, 7146016 roller dust cover, 7146018 roller dust cover with indentation, 7161117 roller fixing screw, 7260069 return spring, 7260076 cage plate rotation spring, 7260078 upper body spring, 7270003 clamp washer, 7287011 grub screw, 7319056 arm rivet, 7350142 gear hanger screw, 7350143 spring cage screw, 7350144 roller fixing screw, 7350201 adjusting screw, 7350202 bush clamp screw.

Roller 1302006 complete with: 0500/74-2302007, 7133041, 7133042, 7146016, 7146018.

REMARK: The roller is supplied only complete.

Callouts: 0102050 7161117 7117040 7350202 1302006 7119032 7143670 7116064 7146016 7260078 7260069 7350201 0550/74 7133041 2302007 7350142 7133042 7287011 7146018 7117039 7116053 89 7270003 7350144 1119005 7319056 7143373 7260076 7116059 7350143

19

[A black and white photograph of the Campagnolo C-Record rear derailleur, 0102050, shown assembled above its exploded parts, each part labeled with the number used in the parts list above. The list notes that the roller, 1302006, is supplied only complete.]

— Page 19 —

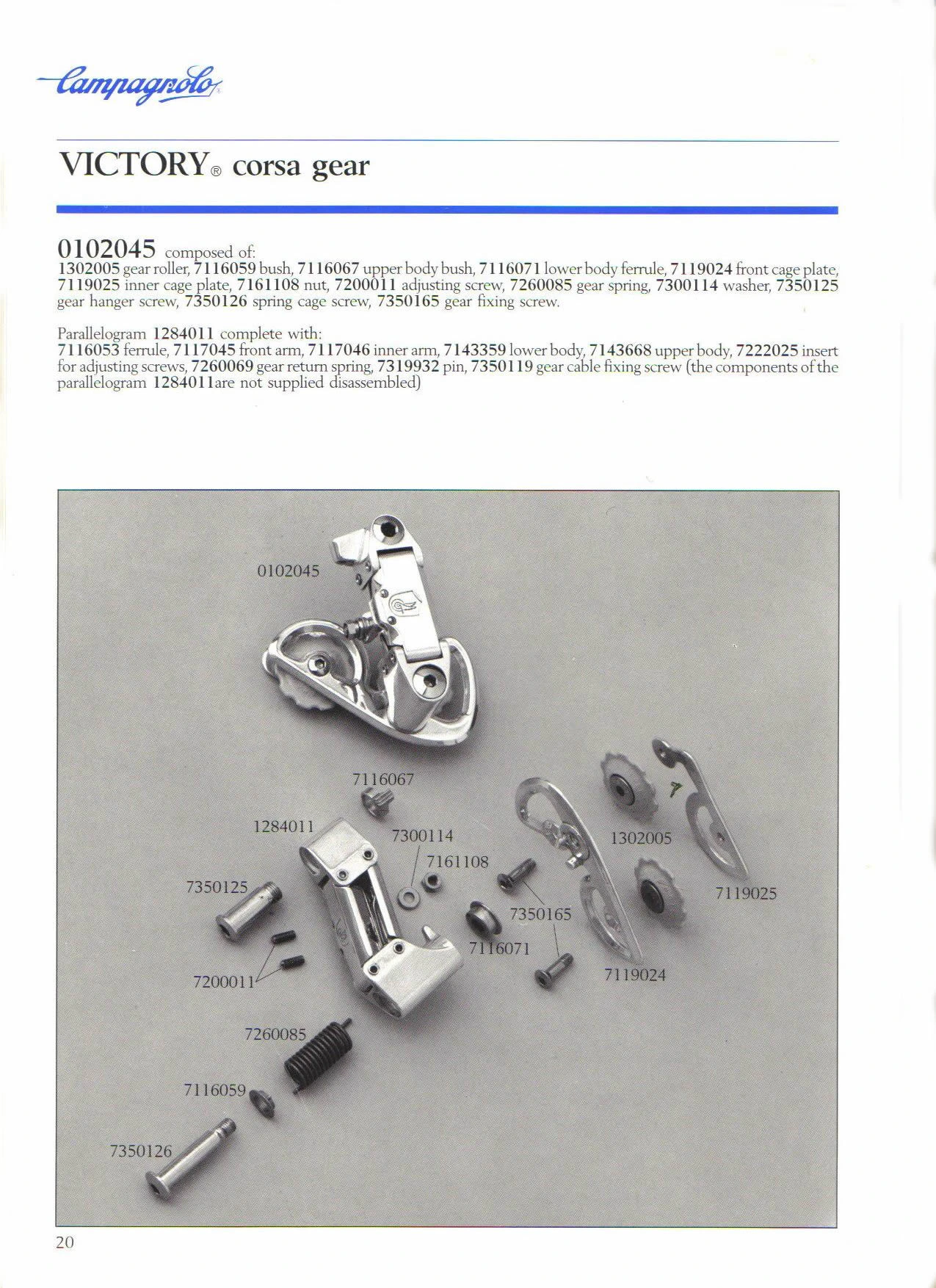

Campagnolo®

VICTORY® corsa gear

0102045 composed of:
1302005 gear roller, 7116059 bush, 7116067 upper body bush, 7116071 lower body ferrule, 7119024 front cage plate, 7119025 inner cage plate, 7161108 nut, 7200011 adjusting screw, 7260085 gear spring, 7300114 washer, 7350125 gear hanger screw, 7350126 spring cage screw, 7350165 gear fixing screw.

Parallelogram 1284011 complete with:
7116053 ferrule, 7117045 front arm, 7117046 inner arm, 7143359 lower body, 7143668 upper body, 7222025 insert for adjusting screws, 7260069 gear return spring, 7319932 pin, 7350119 gear cable fixing screw (the components of the parallelogram 1284011are not supplied disassembled)

Callouts: 0102045 7116067 1284011 7300114 1302005 7161108 7350125 7119025 7350165 7116071 7119024 7200011 7260085 7116059 7350126

20

[A photograph of the Campagnolo Victory corsa rear derailleur, 0102045, shown assembled above its exploded parts, each part keyed by its part number to the parts list. A small green mark like a “7” sits on the photograph beside the inner cage plate, 7119025; it is not part of the printed type.]

— Page 20 —

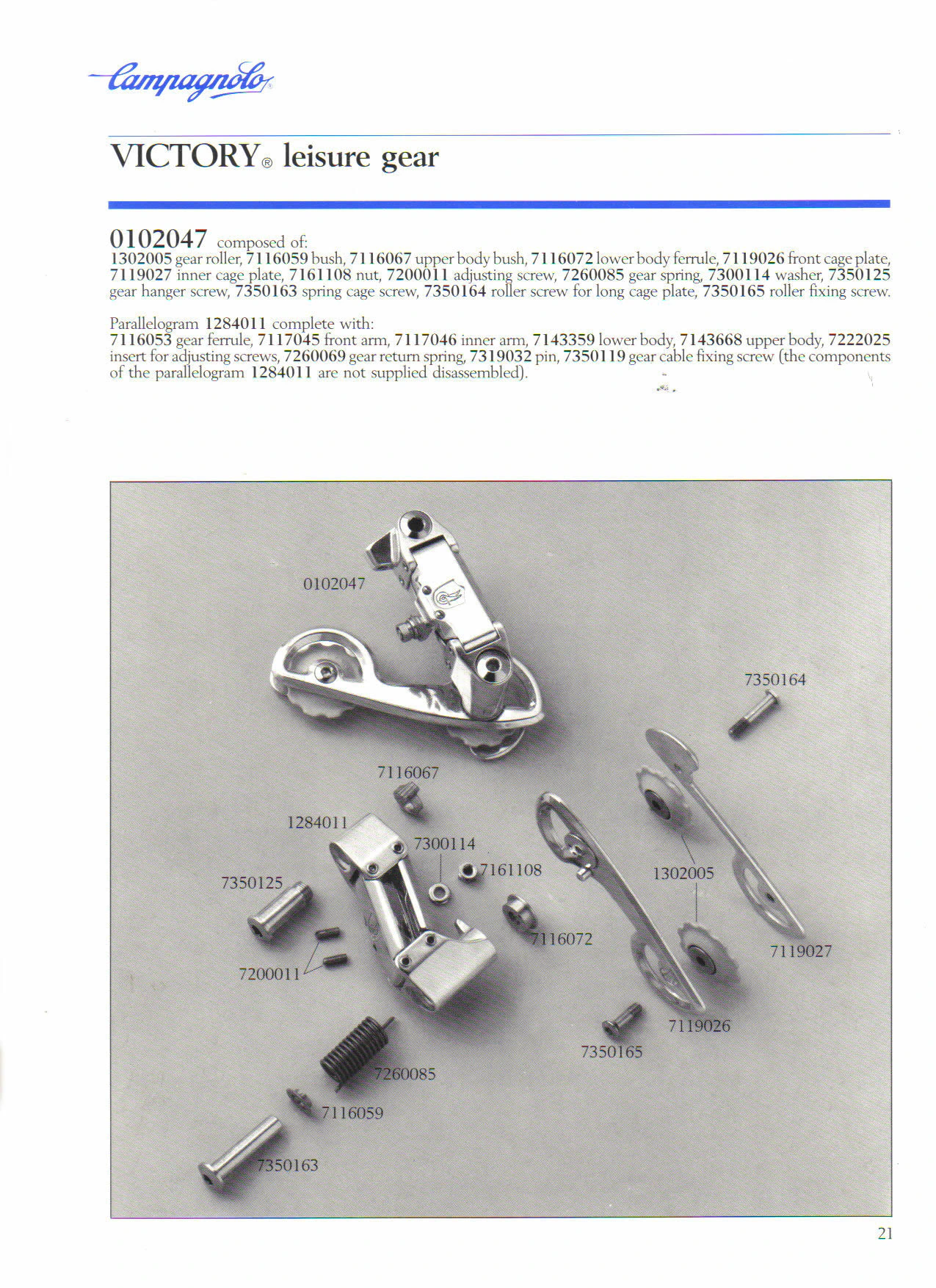

Campagnolo®

VICTORY® leisure gear

0102047 composed of:
1302005 gear roller, 7116059 bush, 7116067 upper body bush, 7116072 lower body ferrule, 7119026 front cage plate, 7119027 inner cage plate, 7161108 nut, 7200011 adjusting screw, 7260085 gear spring, 7300114 washer, 7350125 gear hanger screw, 7350163 spring cage screw, 7350164 roller screw for long cage plate, 7350165 roller fixing screw.

Parallelogram 1284011 complete with:
7116053 gear ferrule, 7117045 front arm, 7117046 inner arm, 7143359 lower body, 7143668 upper body, 7222025 insert for adjusting screws, 7260069 gear return spring, 7319032 pin, 7350119 gear cable fixing screw (the components of the parallelogram 1284011 are not supplied disassembled).

Callouts: 0102047 7350164 7116067 1284011 7300114 7161108 1302005 7350125 7116072 7119027 7200011 7119026 7350165 7260085 7116059 7350163

21

[A photograph of the Campagnolo Victory leisure rear derailleur, 0102047, the long-cage version, shown assembled above its exploded parts, each part keyed by its part number to the parts list.]

— Page 21 —
Campagnolo®

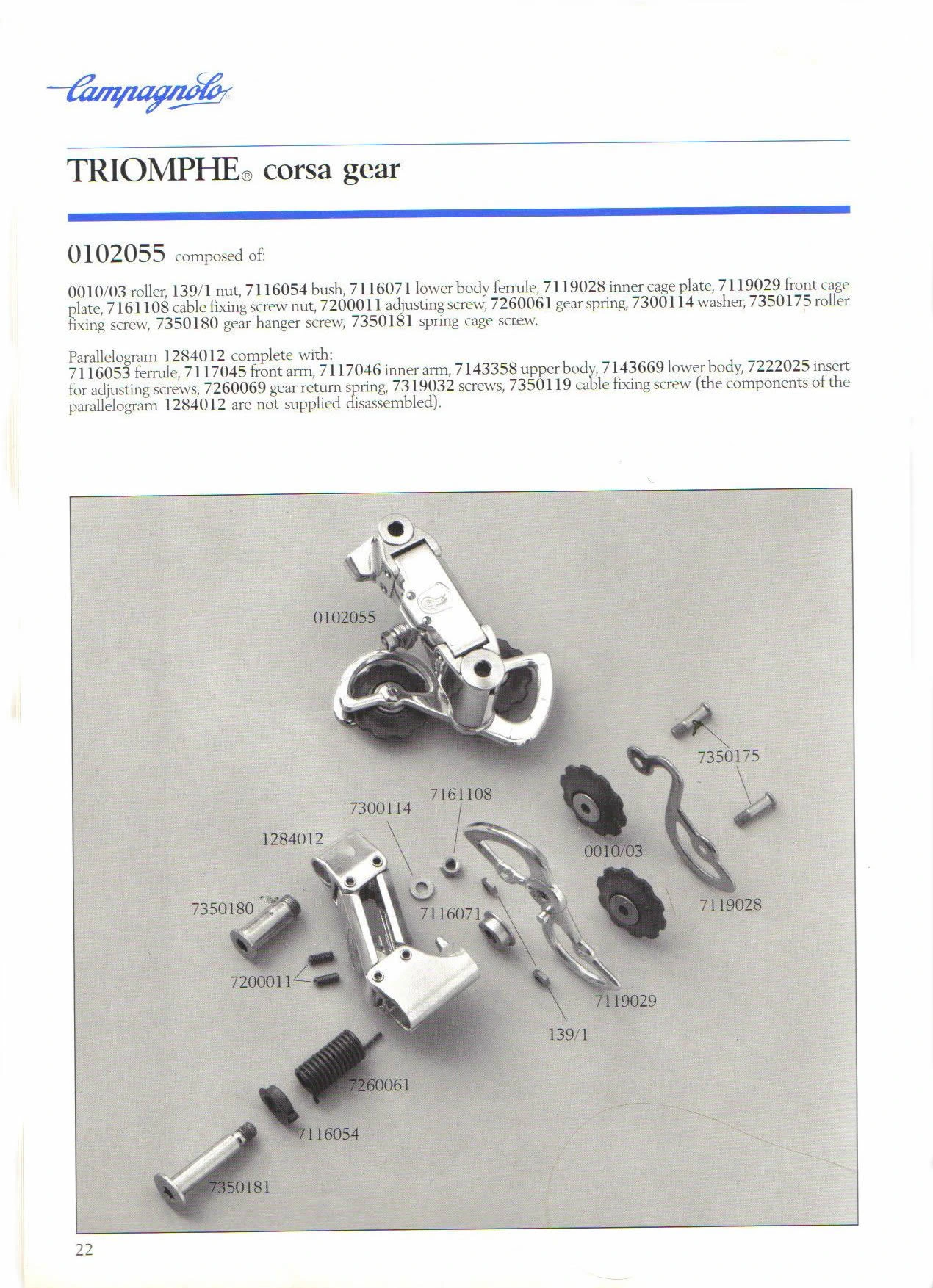

TRIOMPHE® corsa gear

0102055 composed of:

0010/03 roller, 139/1 nut, 7116054 bush, 7116071 lower body ferrule, 7119028 inner cage plate, 7119029 front cage plate, 7161108 cable fixing screw nut, 7200011 adjusting screw, 7260061 gear spring, 7300114 washer, 7350175 roller fixing screw, 7350180 gear hanger screw, 7350181 spring cage screw.

Parallelogram 1284012 complete with:
7116053 ferrule, 7117045 front arm, 7117046 inner arm, 7143358 upper body, 7143669 lower body, 7222025 insert for adjusting screws, 7260069 gear return spring, 7319032 screws, 7350119 cable fixing screw (the components of the parallelogram 1284012 are not supplied disassembled).

Callouts: 0102055 7350175 7161108 7300114 1284012 0010/03 7350180 7116071 7119028 7200011 7119029 139/1 7260061 7116054 7350181

22

[A photograph of the Campagnolo Triomphe corsa rear derailleur, 0102055, shown assembled above its exploded parts, each part keyed by its part number to the parts list.]

— Page 22 —

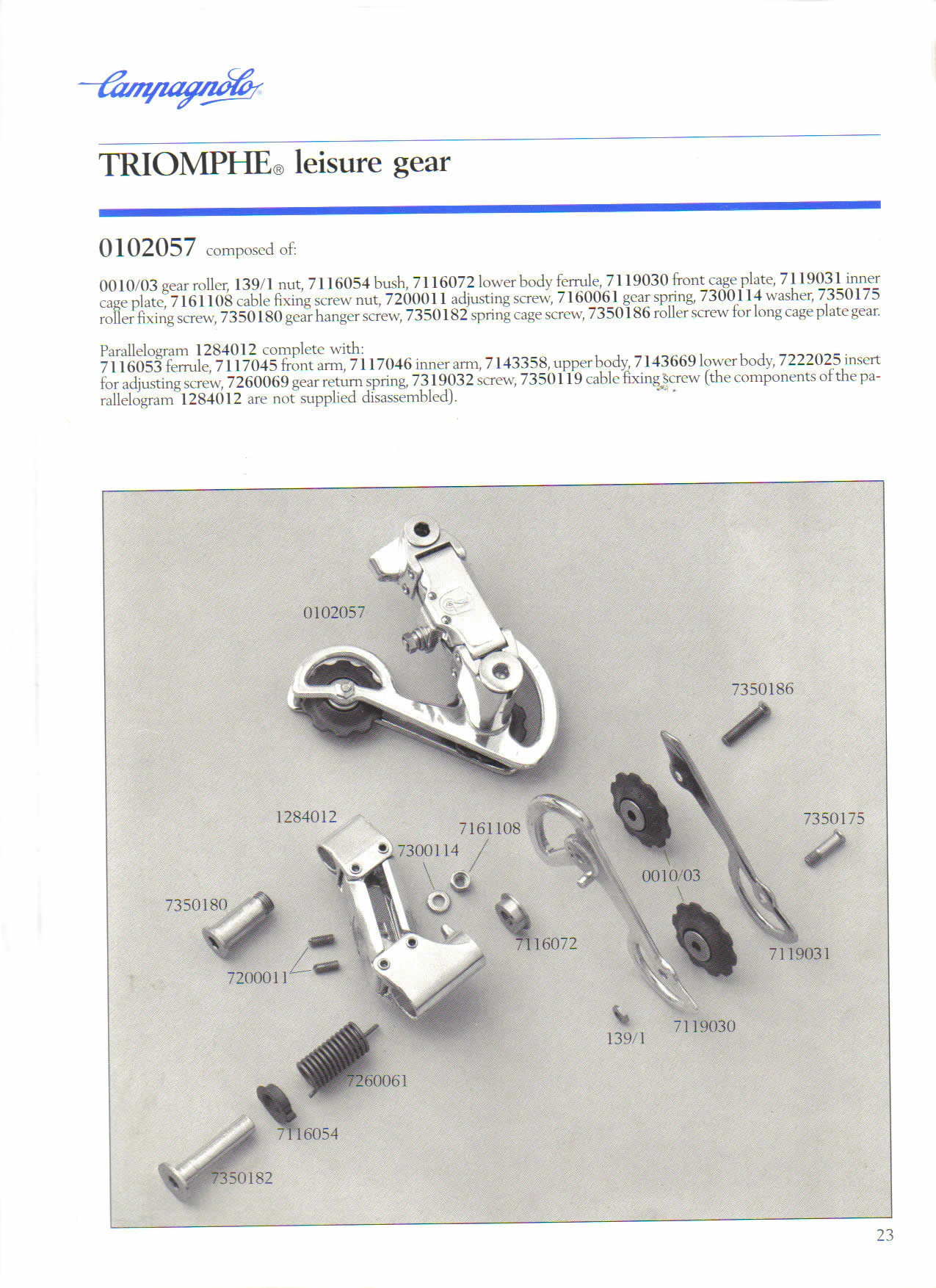

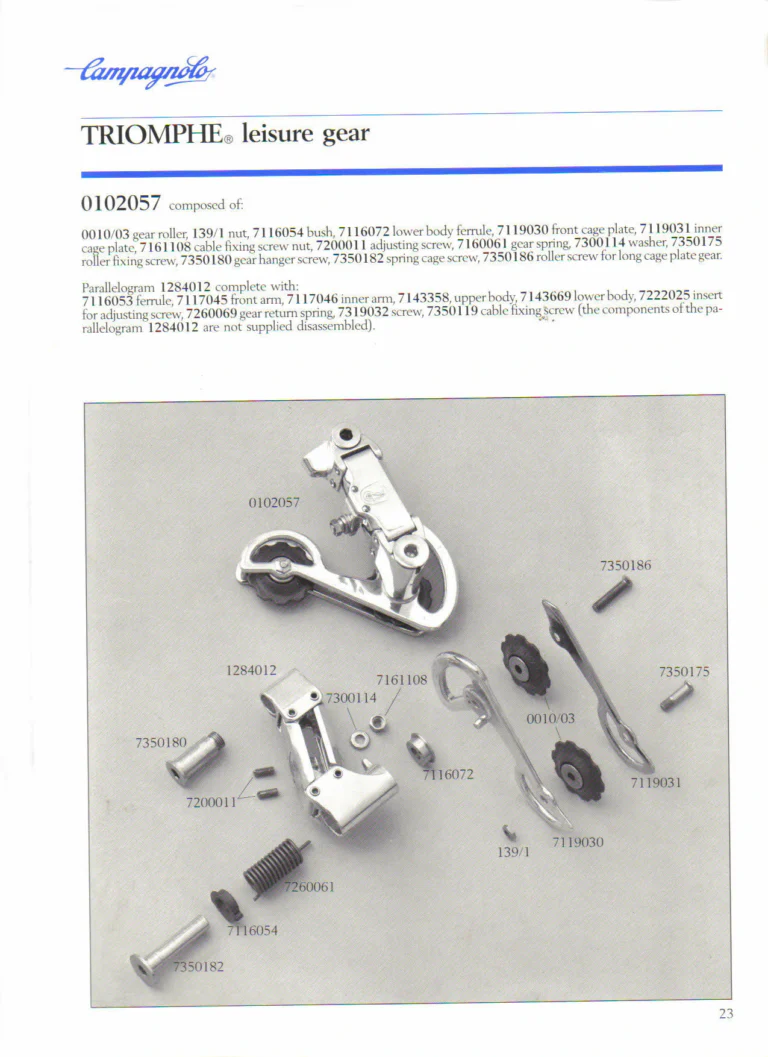

Campagnolo®

TRIOMPHE® leisure gear

0102057 composed of:

0010/03 gear roller, 139/1 nut, 7116054 bush, 7116072 lower body ferrule, 7119030 front cage plate, 7119031 inner cage plate, 7161108 cable fixing screw nut, 7200011 adjusting screw, 7160061 gear spring, 7300114 washer, 7350175 roller fixing screw, 7350180 gear hanger screw, 7350182 spring cage screw, 7350186 roller screw for long cage plate gear.

Parallelogram 1284012 complete with:
7116053 ferrule, 7117045 front arm, 7117046 inner arm, 7143358, upper body, 7143669 lower body, 7222025 insert for adjusting screw, 7260069 gear return spring, 7319032 screw, 7350119 cable fixing screw (the components of the parallelogram 1284012 are not supplied disassembled).

Callouts: 0102057 7350186 1284012 7161108 7350175 7300114 0010/03 7350180 7116072 7119031 7200011 139/1 7119030 7260061 7116054 7350182

23

[A photograph of the Campagnolo Triomphe leisure rear derailleur, 0102057, the long-cage version, shown assembled above its exploded parts, each part keyed by its part number to the parts list.]

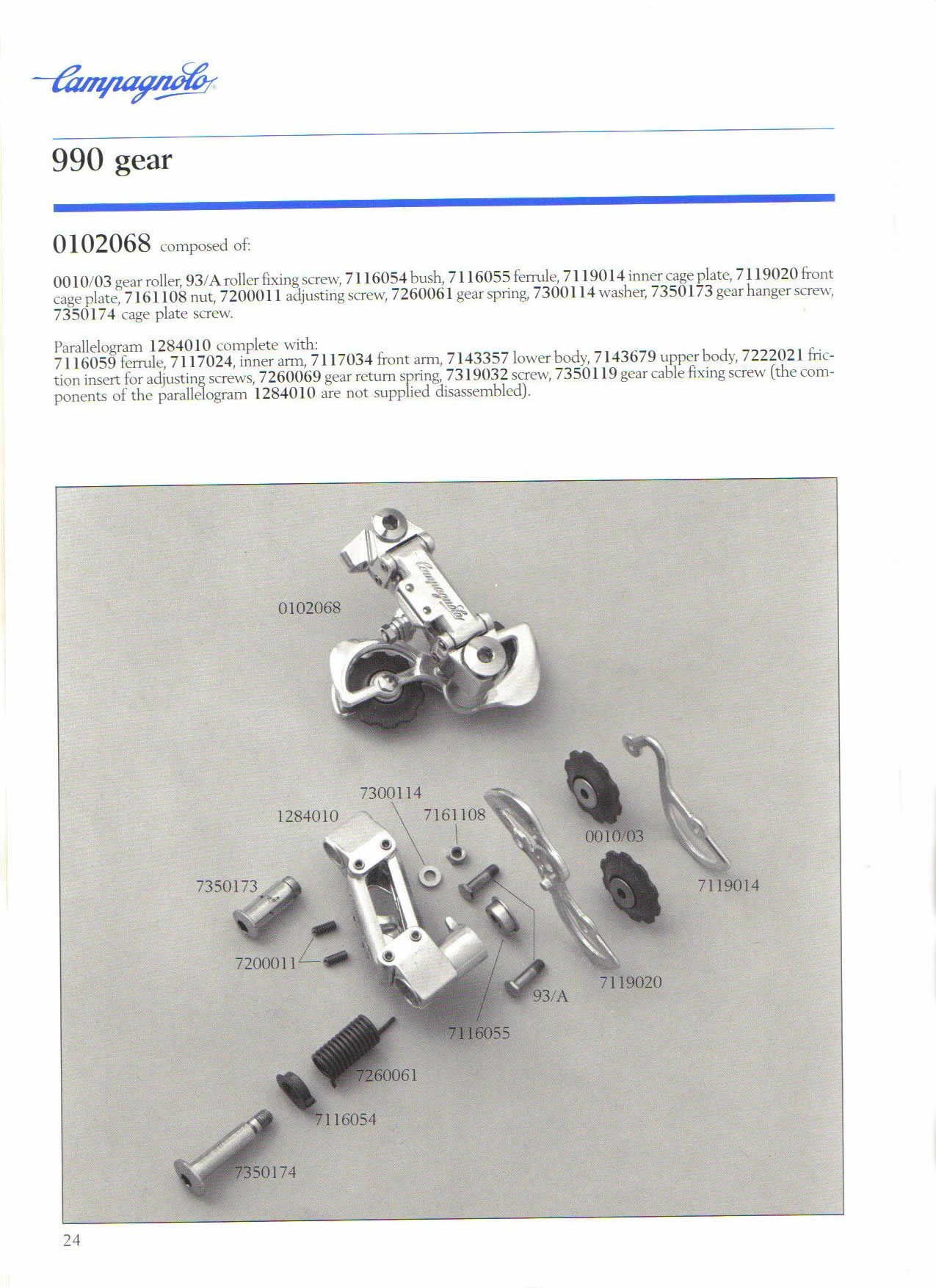

— Page 23 —
Campagnolo®

990 gear

0102068 composed of:

0010/03 gear roller, 93/A roller fixing screw, 7116054 bush, 7116055 ferrule, 7119014 inner cage plate, 7119020 front cage plate, 7161108 nut, 7200011 adjusting screw, 7260061 gear spring, 7300114 washer, 7350173 gear hanger screw, 7350174 cage plate screw.

Parallelogram 1284010 complete with:
7116059 ferrule, 7117024, inner arm, 7117034 front arm, 7143357 lower body, 7143679 upper body, 7222021 friction insert for adjusting screws, 7260069 gear return spring, 7319032 screw, 7350119 gear cable fixing screw (the components of the parallelogram 1284010 are not supplied disassembled).

Callouts: 0102068 7300114 1284010 7161108 0010/03 7350173 7119014 7200011 7119020 93/A 7116055 7260061 7116054 7350174

24

[A photograph of the Campagnolo 990 rear derailleur, 0102068, shown assembled above its exploded parts, each part keyed by its part number to the parts list. The assembled derailleur carries the Campagnolo script name on its parallelogram.]

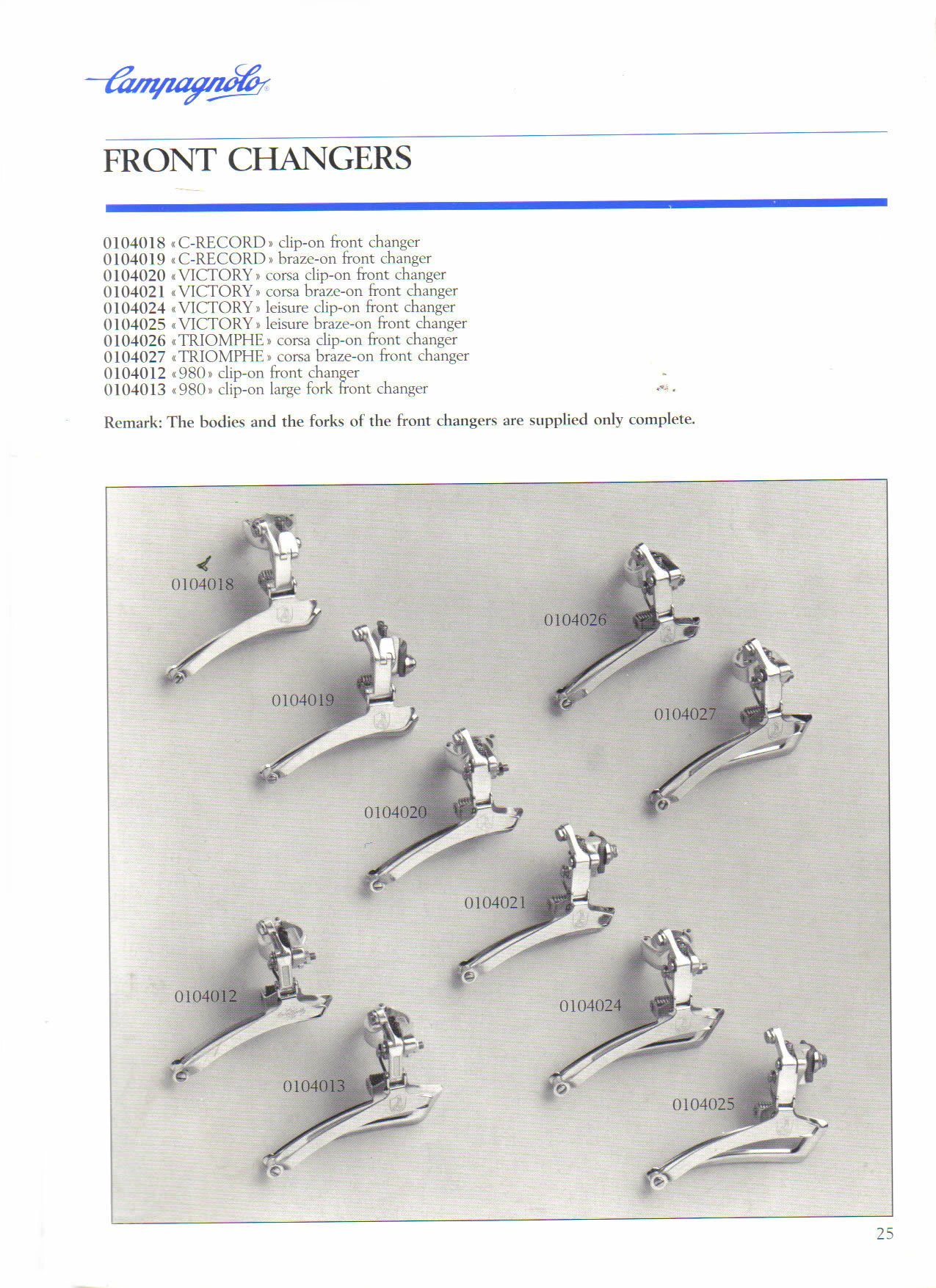

— Page 24 —
Campagnolo®

FRONT CHANGERS

0104018 «C-RECORD» clip-on front changer
0104019 «C-RECORD» braze-on front changer
0104020 «VICTORY» corsa clip-on front changer
0104021 «VICTORY» corsa braze-on front changer
0104024 «VICTORY» leisure clip-on front changer
0104025 «VICTORY» leisure braze-on front changer
0104026 «TRIOMPHE» corsa clip-on front changer
0104027 «TRIOMPHE» corsa braze-on front changer
0104012 «980» clip-on front changer
0104013 «980» clip-on large fork front changer

Remark: The bodies and the forks of the front changers are supplied only complete.

Callouts: 0104018 0104026 0104019 0104027 0104020 0104021 0104012 0104024 0104013 0104025

25

[A photograph of 10 Campagnolo front changers, the C-Record, Victory, Triomphe and 980 models in clip-on and braze-on versions, each labeled with its part number. A small green tick mark sits on the photograph above the label 0104018; it is not part of the printed type.]

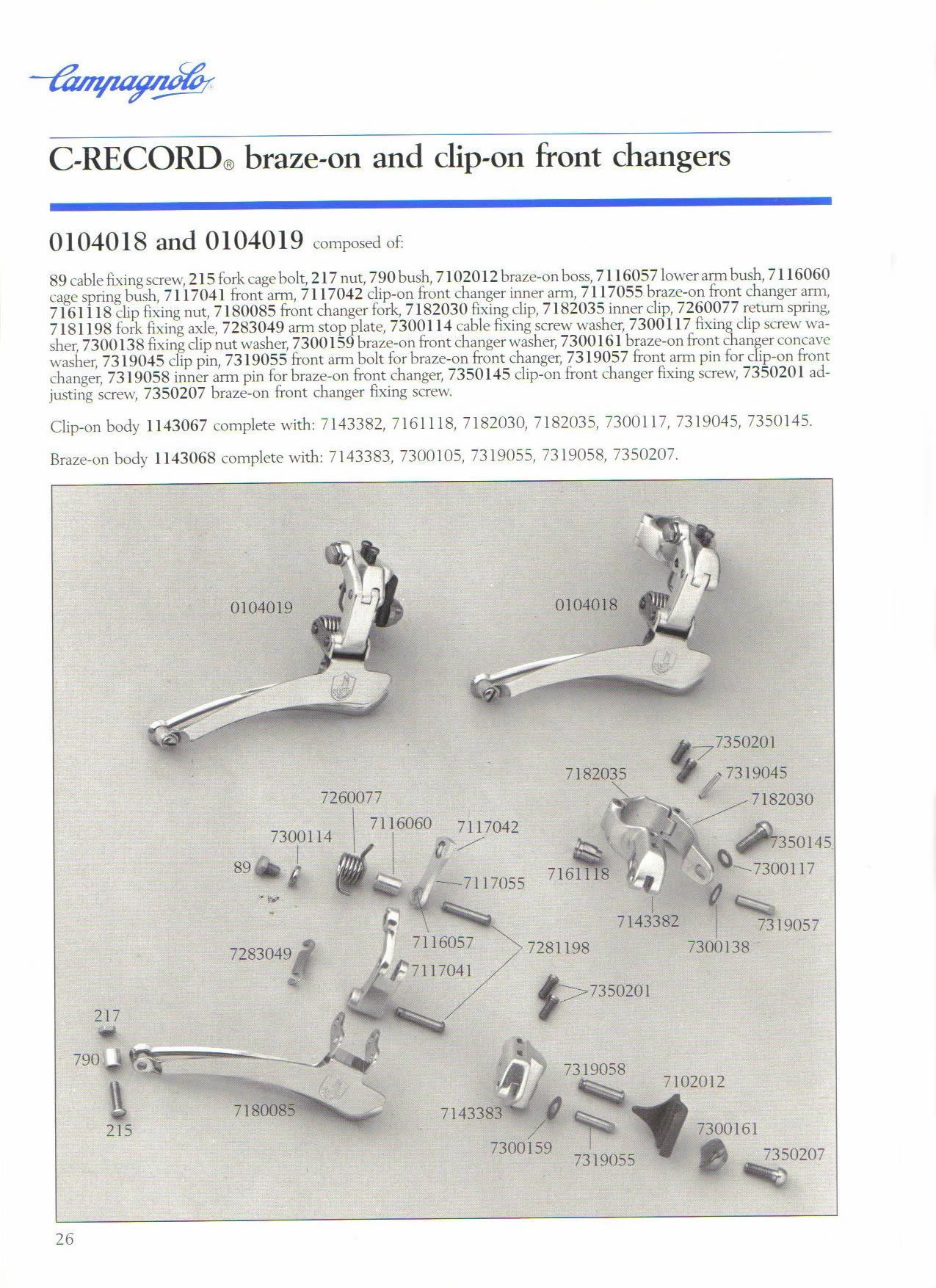

— Page 25 —

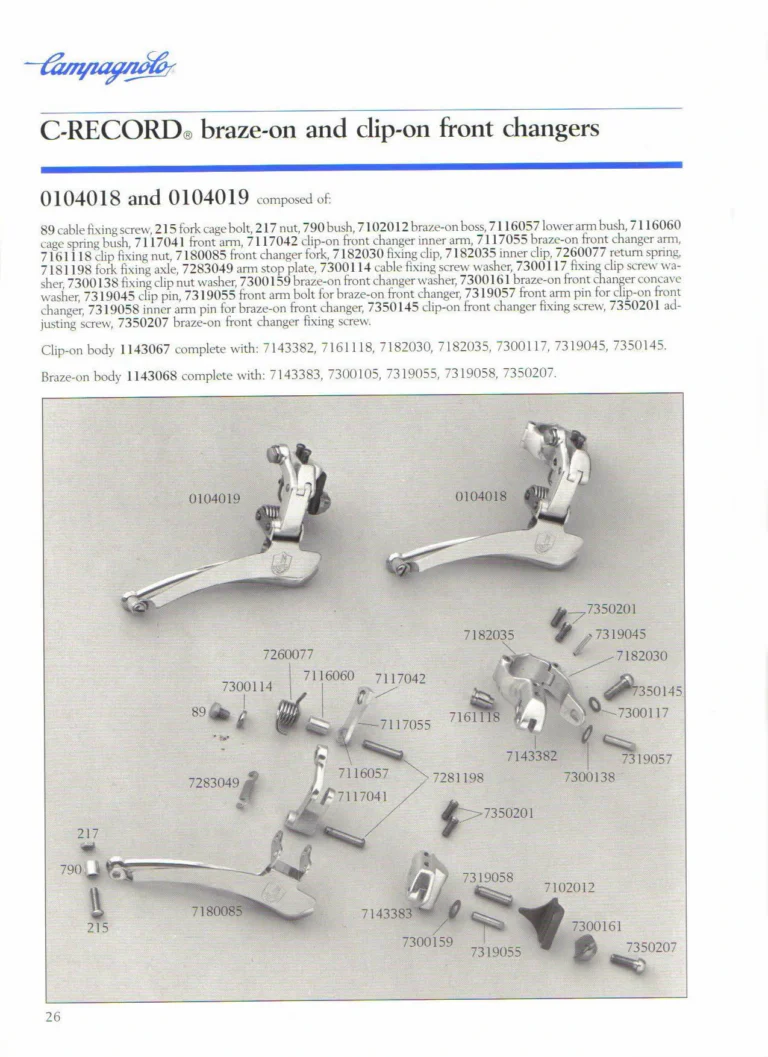

Campagnolo®

C-RECORD® braze-on and clip-on front changers

0104018 and 0104019 composed of:

89 cable fixing screw, 215 fork cage bolt, 217 nut, 790 bush, 7102012 braze-on boss, 7116057 lower arm bush, 7116060 cage spring bush, 7117041 front arm, 7117042 clip-on front changer inner arm, 7117055 braze-on front changer arm, 7161118 clip fixing nut, 7180085 front changer fork, 7182030 fixing clip, 7182035 inner clip, 7260077 return spring, 7181198 fork fixing axle, 7283049 arm stop plate, 7300114 cable fixing screw washer, 7300117 fixing clip screw washer, 7300138 fixing clip nut washer, 7300159 braze-on front changer washer, 7300161 braze-on front changer concave washer, 7319045 clip pin, 7319055 front arm bolt for braze-on front changer, 7319057 front arm pin for clip-on front changer, 7319058 inner arm pin for braze-on front changer, 7350145 clip-on front changer fixing screw, 7350201 adjusting screw, 7350207 braze-on front changer fixing screw.

Clip-on body 1143067 complete with: 7143382, 7161118, 7182030, 7182035, 7300117, 7319045, 7350145.

Braze-on body 1143068 complete with: 7143383, 7300105, 7319055, 7319058, 7350207.

Callouts: 0104019 0104018 7350201 7182035 7319045 7260077 7182030 7300114 7116060 7117042 7350145 89 7117055 7161118 7300117 7143382 7319057 7283049 7116057 7281198 7300138 7117041 7350201 217 790 7319058 7102012 7180085 7143383 7300161 215 7300159 7319055 7350207

26

[A photograph of the Campagnolo C-Record braze-on and clip-on front changers, 0104019 and 0104018, shown assembled above their exploded parts, each part keyed by its part number to the parts list.]

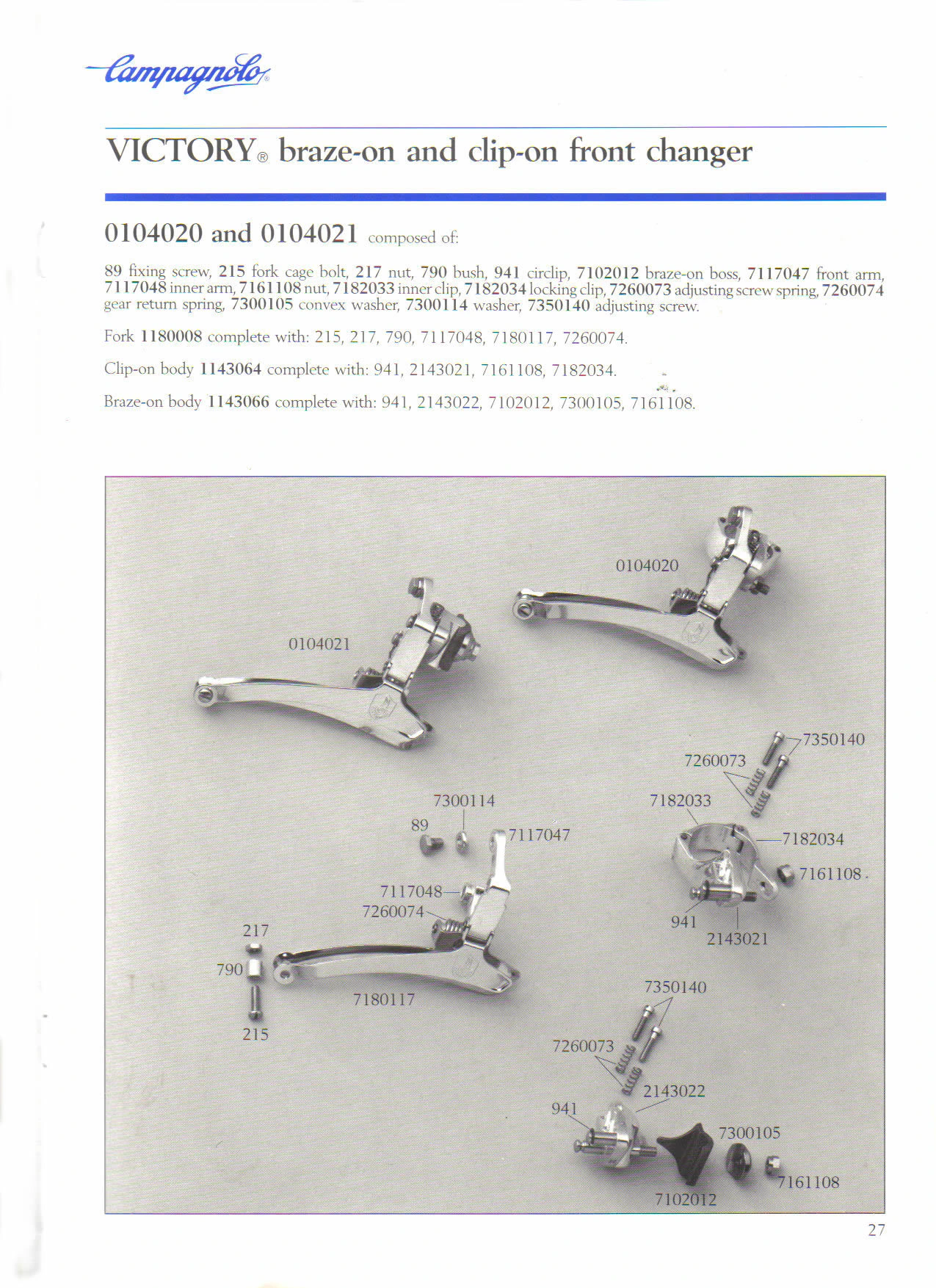

— Page 26 —
Campagnolo®

VICTORY® braze-on and clip-on front changer

0104020 and 0104021 composed of:

89 fixing screw, 215 fork cage bolt, 217 nut, 790 bush, 941 circlip, 7102012 braze-on boss, 7117047 front arm, 7117048 inner arm, 7161108 nut, 7182033 inner clip, 7182034 locking clip, 7260073 adjusting screw spring, 7260074 gear return spring, 7300105 convex washer, 7300114 washer, 7350140 adjusting screw.

Fork 1180008 complete with: 215, 217, 790, 7117048, 7180117, 7260074.

Clip-on body 1143064 complete with: 941, 2143021, 7161108, 7182034.

Braze-on body 1143066 complete with: 941, 2143022, 7102012, 7300105, 7161108.

Callouts: 0104020 0104021 7350140 7260073 7300114 7182033 89 7117047 7182034 7161108 7117048 7260074 941 217 2143021 790 7350140 7180117 215 7260073 2143022 941 7300105 7161108 7102012

27

[A photograph of the Campagnolo Victory braze-on and clip-on front changers, 0104021 and 0104020, shown assembled above their exploded parts, each part keyed by its part number to the parts list.]

— Page 27 —
Campagnolo®

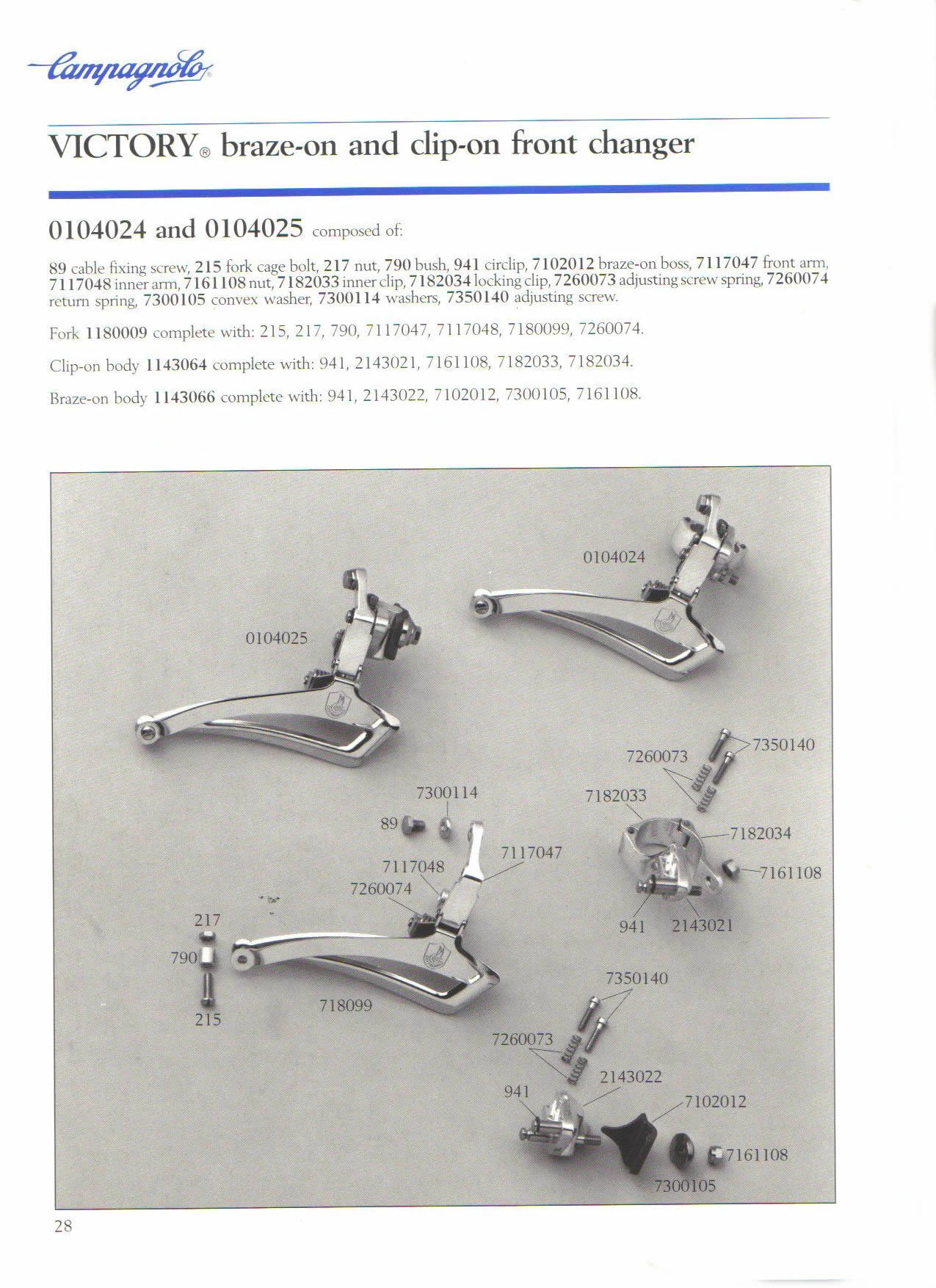

VICTORY® braze-on and clip-on front changer

0104024 and 0104025 composed of:

89 cable fixing screw, 215 fork cage bolt, 217 nut, 790 bush, 941 circlip, 7102012 braze-on boss, 7117047 front arm, 7117048 inner arm, 7161108 nut, 7182033 inner clip, 7182034 locking clip, 7260073 adjusting screw spring, 7260074 return spring, 7300105 convex washer, 7300114 washers, 7350140 adjusting screw.

Fork 1180009 complete with: 215, 217, 790, 7117047, 7117048, 7180099, 7260074.

Clip-on body 1143064 complete with: 941, 2143021, 7161108, 7182033, 7182034.

Braze-on body 1143066 complete with: 941, 2143022, 7102012, 7300105, 7161108.

Callouts: 0104024 0104025 7260073 7350140 7300114 7182033 89 7182034 7117047 7117048 7161108 7260074 217 941 2143021 790 7350140 718099 215 7260073 2143022 941 7102012 7161108 7300105

28

[A photograph of the Campagnolo Victory braze-on and clip-on front changers, 0104025 and 0104024, shown assembled above their exploded parts, each part keyed by its part number to the parts list.]

— Page 28 —

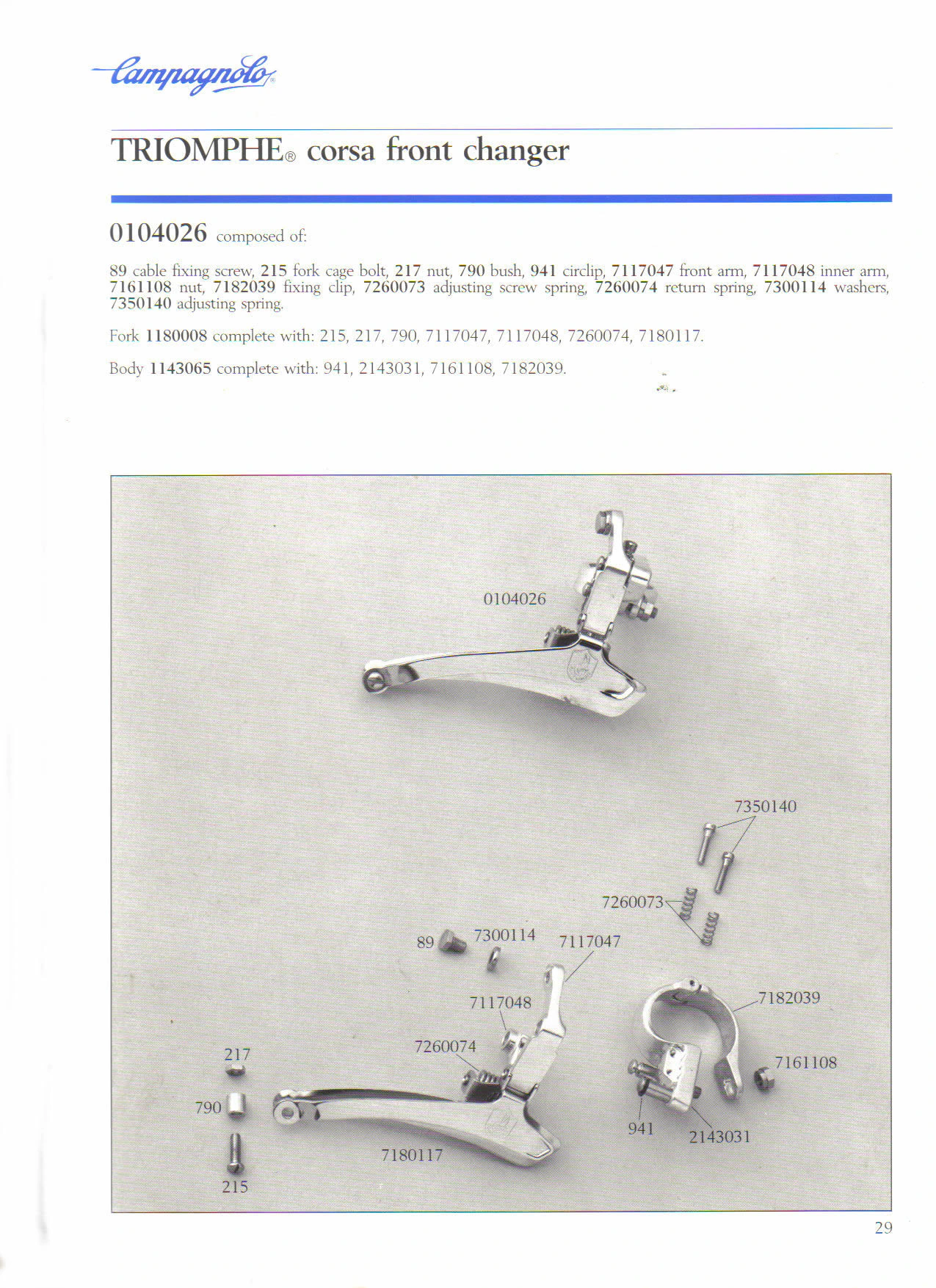

Campagnolo®

TRIOMPHE® corsa front changer

0104026 composed of:

89 cable fixing screw, 215 fork cage bolt, 217 nut, 790 bush, 941 circlip, 7117047 front arm, 7117048 inner arm, 7161108 nut, 7182039 fixing clip, 7260073 adjusting screw spring, 7260074 return spring, 7300114 washers, 7350140 adjusting spring.

Fork 1180008 complete with: 215, 217, 790, 7117047, 7117048, 7260074, 7180117.

Body 1143065 complete with: 941, 2143031, 7161108, 7182039.

Callouts: 0104026 7350140 7260073 89 7300114 7117047 7182039 7117048 217 7260074 7161108 790 941 2143031 7180117 215

29

[A photograph of the Campagnolo TRIOMPHE corsa front changer, 0104026, shown assembled above its parts laid out and numbered, with the parts list, the fork assembly 1180008 and the body assembly 1143065 set above the photograph. The page carries the blue Campagnolo script logo and a blue rule under the heading.]

— Page 29 —
Campagnolo®

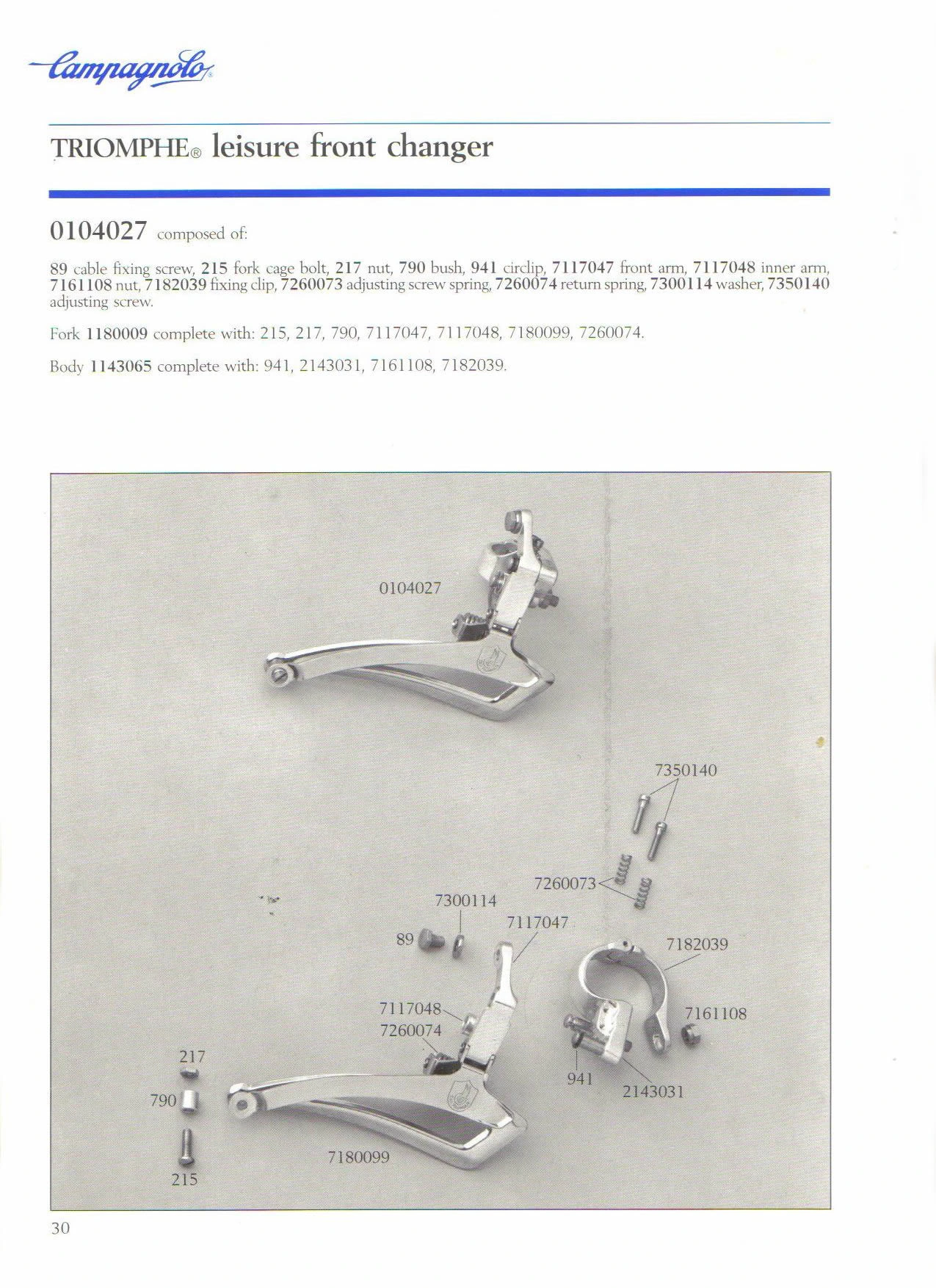

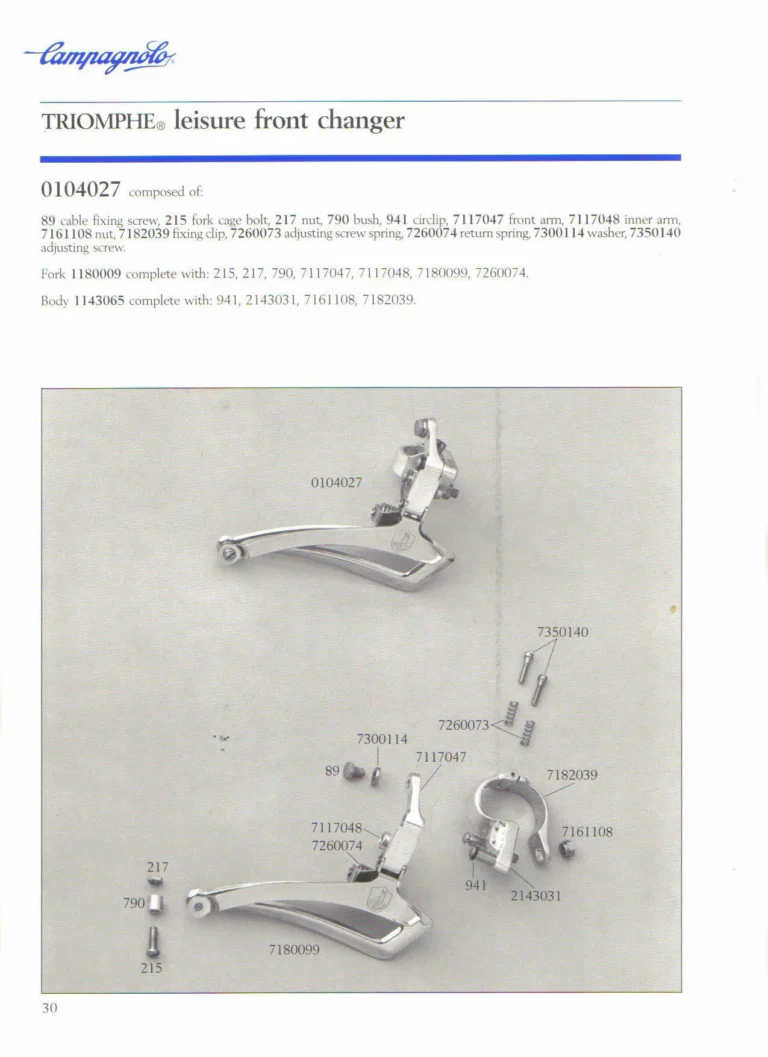

TRIOMPHE® leisure front changer

0104027 composed of:

89 cable fixing screw, 215 fork cage bolt, 217 nut, 790 bush, 941 circlip, 7117047 front arm, 7117048 inner arm, 7161108 nut, 7182039 fixing clip, 7260073 adjusting screw spring, 7260074 return spring, 7300114 washer, 7350140 adjusting screw.

Fork 1180009 complete with: 215, 217, 790, 7117047, 7117048, 7180099, 7260074.

Body 1143065 complete with: 941, 2143031, 7161108, 7182039.

Callouts: 0104027 7350140 7260073 7300114 7117047 89 7182039 7117048 7161108 7260074 217 941 790 2143031 7180099 215

30

[A photograph of the Campagnolo TRIOMPHE leisure front changer, 0104027, shown assembled above its parts laid out and numbered, with the parts list, the fork assembly 1180009 and the body assembly 1143065 set above the photograph. The page carries the blue Campagnolo script logo and a blue rule under the heading.]

— Page 30 —
Campagnolo®

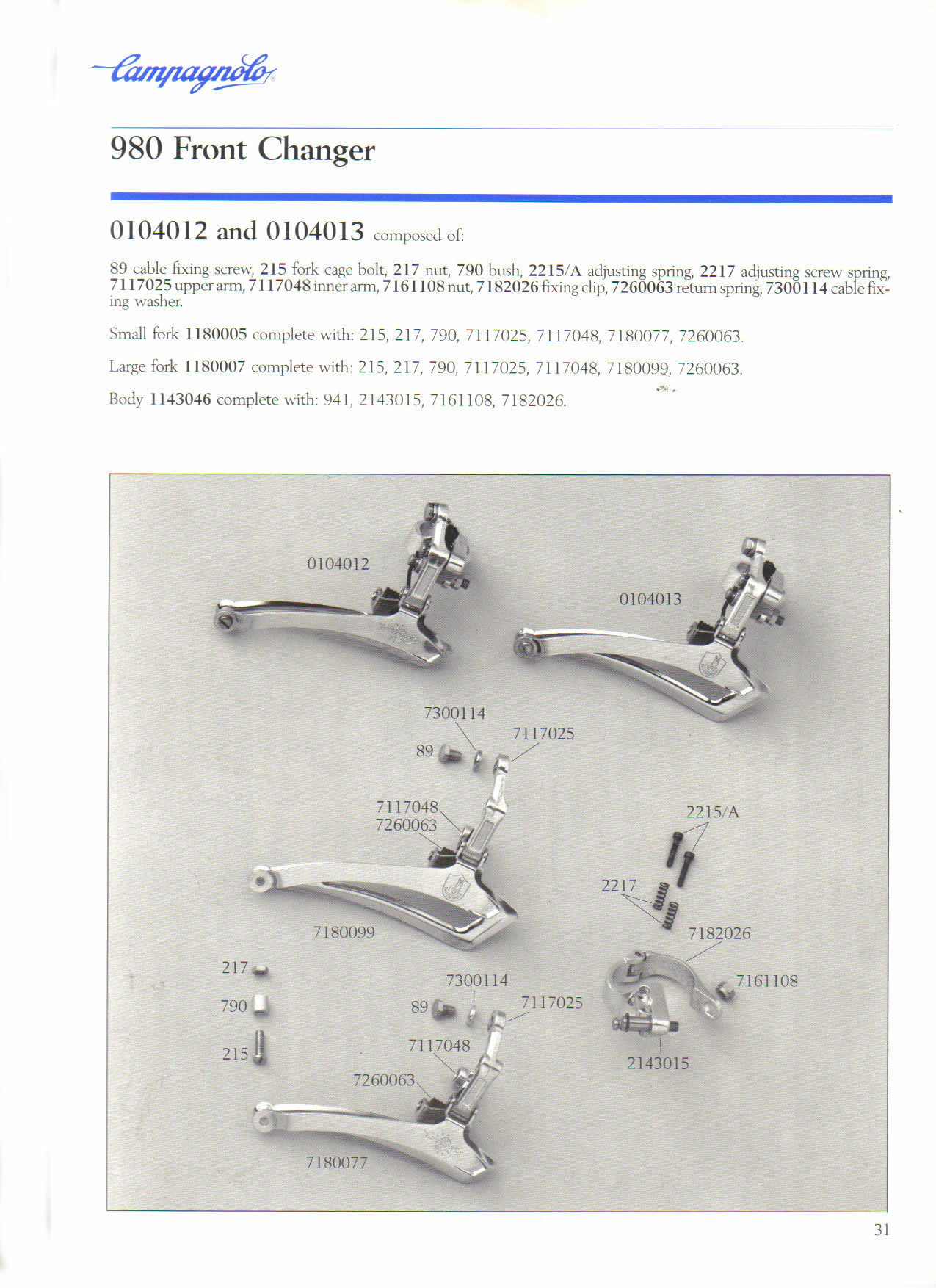

980 Front Changer

0104012 and 0104013 composed of:

89 cable fixing screw, 215 fork cage bolt, 217 nut, 790 bush, 2215/A adjusting spring, 2217 adjusting screw spring, 7117025 upper arm, 7117048 inner arm, 7161108 nut, 7182026 fixing clip, 7260063 return spring, 7300114 cable fixing washer.

Small fork 1180005 complete with: 215, 217, 790, 7117025, 7117048, 7180077, 7260063.

Large fork 1180007 complete with: 215, 217, 790, 7117025, 7117048, 7180099, 7260063.

Body 1143046 complete with: 941, 2143015, 7161108, 7182026.

Callouts: 0104012 0104013 7300114 7117025 89 7117048 7260063 2215/A 2217 7180099 7182026 217 7300114 7161108 7117025 89 790 7117048 215 2143015 7260063 7180077

31

[A photograph of the Campagnolo 980 Front Changer in two versions, 0104012 and 0104013, shown assembled above two sets of numbered parts with the large and small forks, with the parts list, the small and large fork assemblies and the body assembly set above the photograph. The page carries the blue Campagnolo script logo and a blue rule under the heading.]

— Page 31 —
Campagnolo®

Gear control levers

0118071 «C-RECORD» braze-on gear lever, without boss 660
0118072 «C-RECORD» braze-on front changer lever, without boss 660
0118073 «C-RECORD» braze-on on top of tube lever
0118074 «C-RECORD» clip-on lever
0118037 «VICTORY» braze-on gear lever, without boss 660
0118038 «VICTORY» braze-on front changer lever, without boss 660
0118039 «VICTORY» braze-on on top of tube double levers
0118060 «VICTORY» clip-on double levers
0118042 «TRIOMPHE» braze-on gear lever, without boss 660
0118043 «TRIOMPHE» braze-on front changer lever, without boss 660
0118061 «TRIOMPHE» clip-on double levers
0118063 «TRIOMPHE» braze-on on top of tube double levers

0118071 0118072 0118074 0118073
0118037 0118038 0118060 0118039
0118042 0118043 0118061 0118063

32

[A photograph of the Campagnolo C-RECORD, VICTORY and TRIOMPHE gear control levers in three rows, each row showing the separate braze-on gear and front changer levers, the clip-on double levers and the braze-on on top of tube double levers, captioned with their part numbers below a list of the 12 levers. The C-RECORD levers carry the Campagnolo shield and the VICTORY and TRIOMPHE levers the Campagnolo script.]

— Page 32 —
Campagnolo®

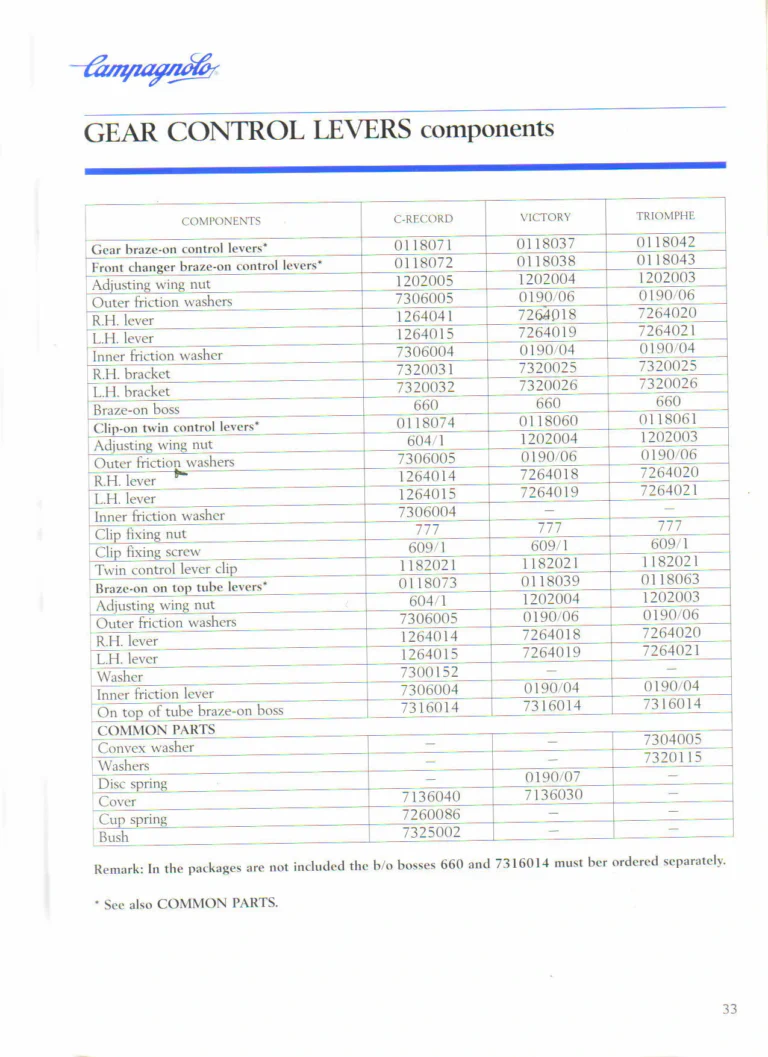

GEAR CONTROL LEVERS components

COMPONENTS | C-RECORD | VICTORY | TRIOMPHE
Gear braze-on control levers* | 0118071 | 0118037 | 0118042
Front changer braze-on control levers* | 0118072 | 0118038 | 0118043
Adjusting wing nut | 1202005 | 1202004 | 1202003
Outer friction washers | 7306005 | 0190/06 | 0190/06
R.H. lever | 1264041 | 7264018 | 7264020
L.H. lever | 1264015 | 7264019 | 7264021
Inner friction washer | 7306004 | 0190/04 | 0190/04
R.H. bracket | 7320031 | 7320025 | 7320025
L.H. bracket | 7320032 | 7320026 | 7320026
Braze-on boss | 660 | 660 | 660
Clip-on twin control levers* | 0118074 | 0118060 | 0118061
Adjusting wing nut | 604/1 | 1202004 | 1202003
Outer friction washers | 7306005 | 0190/06 | 0190/06
R.H. lever | 1264014 | 7264018 | 7264020
L.H. lever | 1264015 | 7264019 | 7264021
Inner friction washer | 7306004 | – | –
Clip fixing nut | 777 | 777 | 777
Clip fixing screw | 609/1 | 609/1 | 609/1
Twin control lever clip | 1182021 | 1182021 | 1182021
Braze-on on top tube levers* | 0118073 | 0118039 | 0118063
Adjusting wing nut | 604/1 | 1202004 | 1202003
Outer friction washers | 7306005 | 0190/06 | 0190/06
R.H. lever | 1264014 | 7264018 | 7264020
L.H. lever | 1264015 | 7264019 | 7264021
Washer | 7300152 | – | –
Inner friction lever | 7306004 | 0190/04 | 0190/04
On top of tube braze-on boss | 7316014 | 7316014 | 7316014
COMMON PARTS
Convex washer | – | – | 7304005
Washers | – | – | 7320115
Disc spring | – | 0190/07 | –
Cover | 7136040 | 7136030 | –
Cup spring | 7260086 | – | –
Bush | 7325002 | – | –

Remark: In the packages are not included the b/o bosses 660 and 7316014 must ber ordered separately.

* See also COMMON PARTS.

33

[A table of the components of the Campagnolo C-RECORD, VICTORY and TRIOMPHE gear control levers, giving the part number of each component of the braze-on, clip-on twin and braze-on on top tube levers in each of the three groups, followed by the common parts. A remark and a footnote are printed below the table.]

— Page 33 —
Campagnolo®

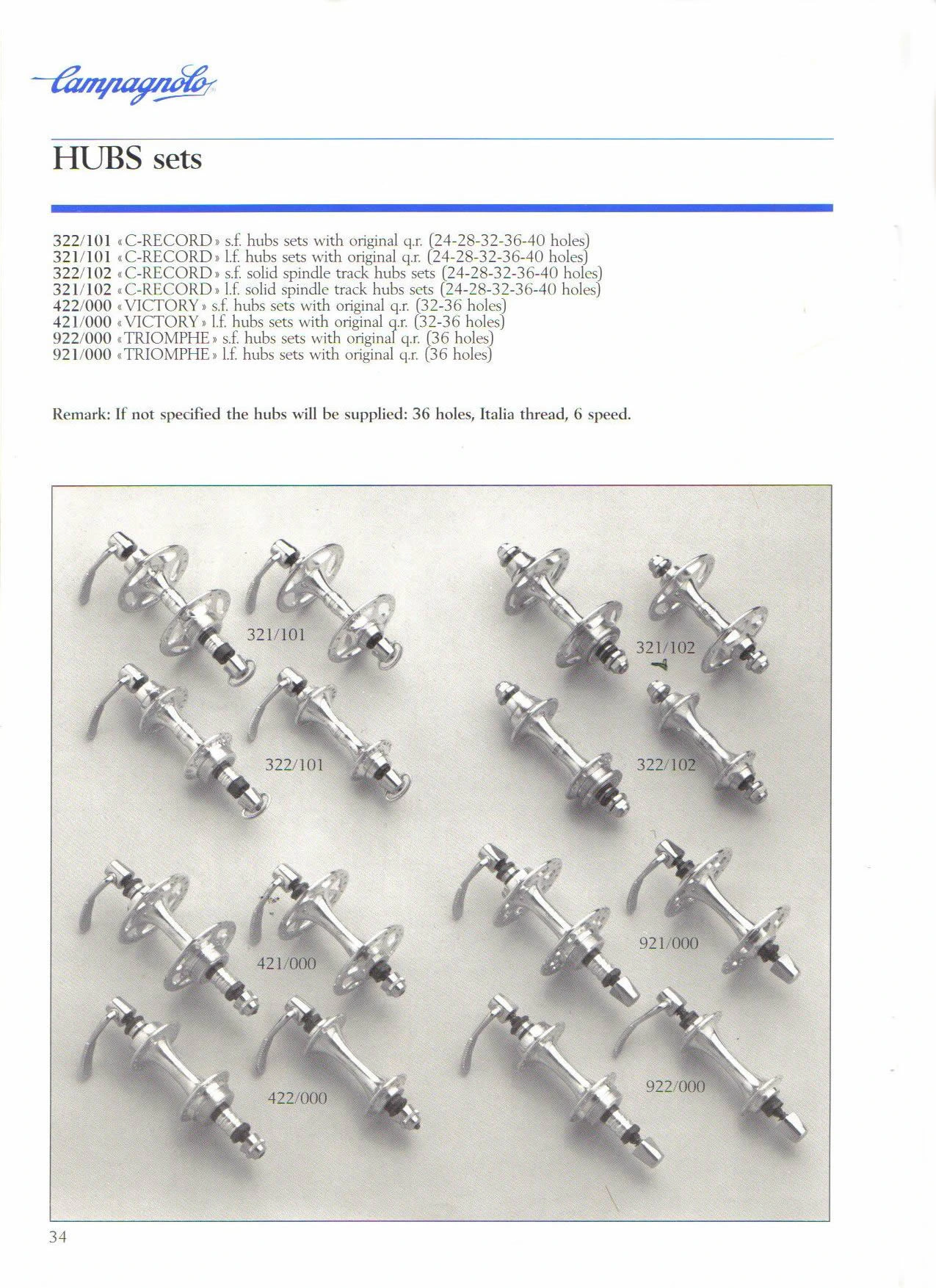

HUBS sets

322/101 «C-RECORD» s.f. hubs sets with original q.r. (24-28-32-36-40 holes)
321/101 «C-RECORD» l.f. hubs sets with original q.r. (24-28-32-36-40 holes)
322/102 «C-RECORD» s.f. solid spindle track hubs sets (24-28-32-36-40 holes)
321/102 «C-RECORD» l.f. solid spindle track hubs sets (24-28-32-36-40 holes)
422/000 «VICTORY» s.f. hubs sets with original q.r. (32-36 holes)
421/000 «VICTORY» l.f. hubs sets with original q.r. (32-36 holes)
922/000 «TRIOMPHE» s.f. hubs sets with original q.r. (36 holes)
921/000 «TRIOMPHE» l.f. hubs sets with original q.r. (36 holes)

Remark: If not specified the hubs will be supplied: 36 holes, Italia thread, 6 speed.

321/101 321/102
322/101 322/102
421/000 921/000
422/000 922/000

34

[A photograph of eight pairs of Campagnolo hubs, the C-RECORD, VICTORY and TRIOMPHE small flange and large flange hub sets with quick releases and the C-RECORD solid spindle track hub sets, each pair captioned with its set number below a list of the eight sets and a remark on the default specification.]

— Page 34 —
Campagnolo®

HUBS Components

COMPONENTS | C-RECORD corsa | C-RECORD track | VICTORY | TRIOMPHE
Front hub cup | 7131071 | 7131071 | 1270 | 1270
Front dust cover | 7146011 | 7146011 | 7146012 | 7146012
Front axle | 19 | 19/P | 420/003 | 420/003
Front cone | 7133051 | 7133051 | 7133052 | 7133052
Front washer | 320/001 | 320/001 | 420/001 | 420/001
Front lockring | 7161128 | 7161128 | 1 | 1
3/16″ front ball sets (9+9) | 2105 | 2104 | 2104 | 2104
Circlip for front dust cover | 7100033 | 7100033 | – | –
Central clip | 7182028 | 7182028 | – | –
Rear hub cup | 7131072 | 7131072 | 1271 | 1271
Rear dust cover | 7146015 | 7146015 | 7146013 | 7146013
L.H. rear dust cover | 7146014 | 7146017 | – | –
Rear axle | 29/R | 29/P | 420/004 | 420/004
Rear cone | 7133053 | 7133053 | 7133053 | 7133053
Rear teethed washer | 320/002 | 320/002 | 420/002 | 420/002
Rear lockring | 7161129 | 1283 | 1283 | 1283
1/4″ rear ball sets (9+9) | 2106 | 2106 | 2106 | 2106
Circlip for rear dust cover | 7100034 | 7100034 | – | –
Front fixing screw | – | 667 | – | –
Rear fixing screw | – | 668 | – | –
Spacers | 46 | – | 46 | 46
Lockring | – | 743 | – | –

Remark: For the extraction of the dust covers from the C-RECORD corsa and track hubs it is necessary to use the EXTRACTOR 1170004 to ber ordered separately.

fixing nut
spacer
axle
cones
washers
locknut
lockring
C-RECORD hub dust cover extractor.
central clip
cups
balls
dust cover
Dust cover circlip.
C-RECORD hub dust cover.

35

[A table of the components of the Campagnolo C-RECORD corsa, C-RECORD track, VICTORY and TRIOMPHE hubs with the part number of each, followed by a remark on the dust cover extractor. Below it a labeled drawing lays out the hub axle parts and the hub shell parts in order, with the lockring, the dust cover circlip, the C-RECORD hub dust cover and the C-RECORD hub dust cover extractor.]

— Page 35 —
Campagnolo®

QUICK RELEASE Components

314/101 «C-RECORD»complete front quick release
314/102 «C-RECORD» complete rear quick release
414/101 «VICTORY» complete front quick release
414/102 «VICTORY» complete rear quick release
914/101 «TRIOMPHE» complete front quick release
914/102 «TRIOMPHE» complete rear quick release

COMPONENTS | C-RECORD | VICTORY | TRIOMPHE
Cap | 7142008 | 7142009 | 7142010
Tension spring | 1304 | 1304 | 1304
Lever | 7264026 | 7264027 | 7264027
Q.r. pivot | 7281199 | – | –
Front skewer | 314/001 | 1305 | 1305
Rear skewer | 314/002 | 1306 | 1306
Adjusting nut | 2202003 | 2161006 | 7161141
Spring | – | 1309 | 1309
Conical spring | 18 | 18 | 18
Circlip | – | 7100040 | 7100040

Remark: The quick releases and relevant skewers are available in the versions: five, six, seven speed. If not specifies the six speed version will be supplied.

tension spring
lever
q.r. pivot
conical spring
skewer
adjusting nut
cap
circlip

36

[A labeled drawing of a Campagnolo quick release laid out in order, from the adjusting nut and conical spring along the skewer to the q.r. pivot, tension spring, cap, circlip and lever, below a list of the C-RECORD, VICTORY and TRIOMPHE complete front and rear quick releases and a table of their components. A remark on the five, six and seven speed versions sits between the table and the drawing.]

— Page 36 —
Campagnolo®

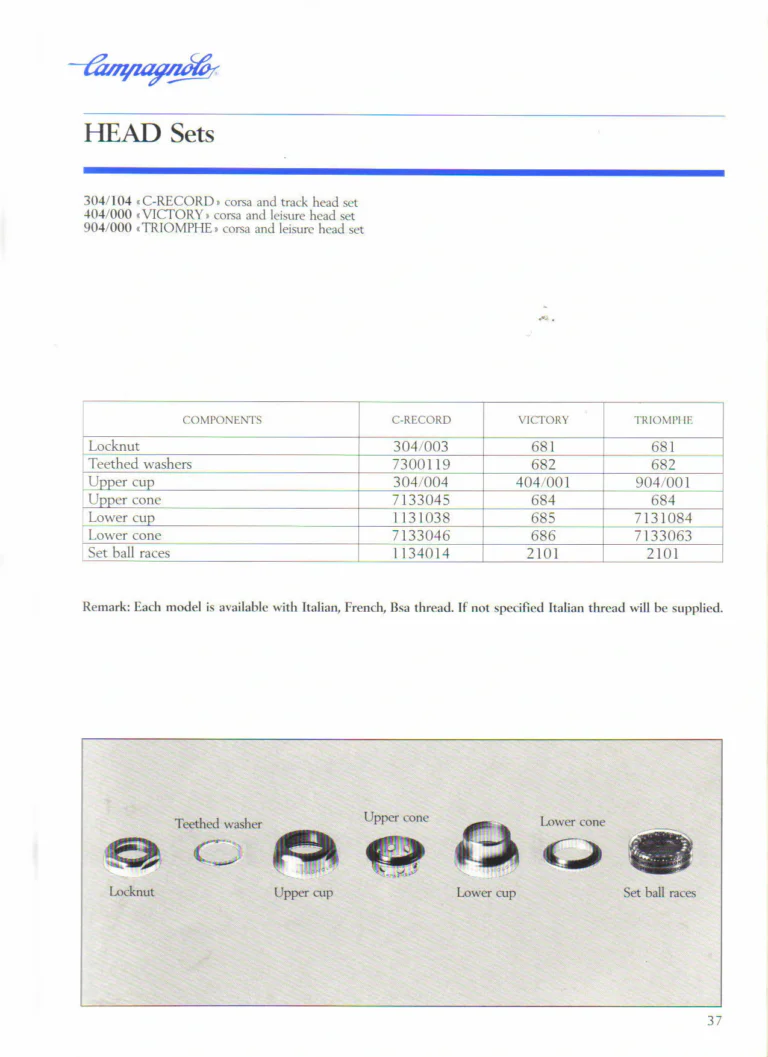

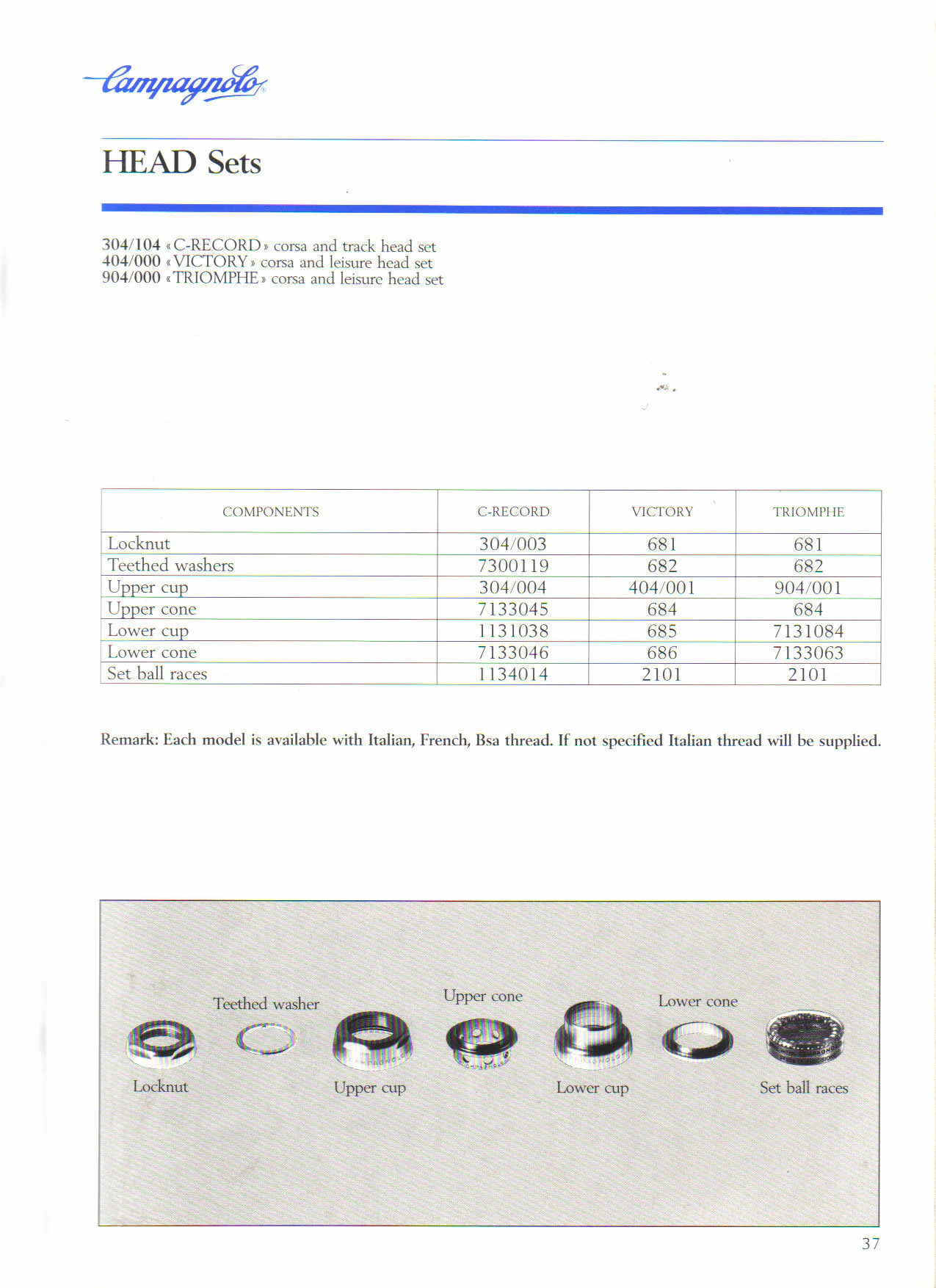

HEAD Sets

304/104 «C-RECORD» corsa and track head set
404/000 «VICTORY» corsa and leisure head set
904/000 «TRIOMPHE» corsa and leisure head set

COMPONENTS | C-RECORD | VICTORY | TRIOMPHE
Locknut | 304/003 | 681 | 681
Teethed washers | 7300119 | 682 | 682
Upper cup | 304/004 | 404/001 | 904/001
Upper cone | 7133045 | 684 | 684
Lower cup | 1131038 | 685 | 7131084
Lower cone | 7133046 | 686 | 7133063
Set ball races | 1134014 | 2101 | 2101

Remark: Each model is available with Italian, French, Bsa thread. If not specified Italian thread will be supplied.

Teethed washer
Upper cone
Lower cone
Locknut
Upper cup
Lower cup
Set ball races

37

[A photograph of the parts of a Campagnolo head set laid out in a row and labeled, from the locknut and teethed washer through the upper cup and cone and the lower cup and cone to the set ball races. Above it are a list of the C-RECORD, VICTORY and TRIOMPHE head sets, a table of their components and a remark on the Italian, French and Bsa threads.]

— Page 37 —
Campagnolo®

CHAINWHEEL components

0355 «VICTORY» corsa and leisure chainwheel set, 116 mm w., 170 mm long crank, pedal hole Ø 9/16″x20F. and 1/2×3/32″ (2 mm) chainrings, available in 35, 36, 37, 38, 39, 40, 41, 42, 43, 50, 51, 52, 53, teeth.
0365 «TRIOMPHE» corsa and leisure chainwheel set, 116 mm w., 170 mm long crank, pedal hole Ø 9/16″x20F. and 1/2x 3/32″ (2 mm) chainrings, available in 35, 36, 37, 38, 39, 40, 41, 42, 50, 51, 52, 53 teeth.
306/101 «C-RECORD» corsa chainwheel set, 135 mm w., 170 mm long crank, pedal hole Ø 9/16″x20F. and 1/2×3/32″ (2 mm) chainring. Specify number of rings available from 39 to 57 teeth. Upon request cranks 165, 167.5, 172.5, 175, 180 mm long are supplied.
306/102 «C-RECORD» track chainwheel set, 144 mm w., 170 mm long crank, pedal hole Ø9/16″x20F. and 1/2×1/8″ chainrings (3 mm). Specify number of rings available from 42 to 56 teeth. Upon request cranks 165, 167.5, 172.5, 175, 177.5, 180 mm long and rings 1/2×1/8″ (2 mm) are supplied.

38

[A text page listing four Campagnolo chainwheel sets by number, the Victory 0355, the Triomphe 0365 and the C-Record corsa 306/101 and track 306/102, with the width, crank length, pedal thread and the tooth counts available. The rest of the page is blank under the blue Campagnolo script logo, the title rule and a broad blue bar.]

— Page 38 —
Campagnolo®

Callouts: 306/101 306/102 0355 0365

39

[A black and white photograph of four Campagnolo chainwheel sets, each with its left crank laid beside it: the C-Record 306/101 and 306/102 at the top and the 0355 and 0365 at the bottom. The photograph fills a ruled frame under the blue Campagnolo script logo, and the only lettering is the part number printed beside each set.]

— Page 39 —
Campagnolo®

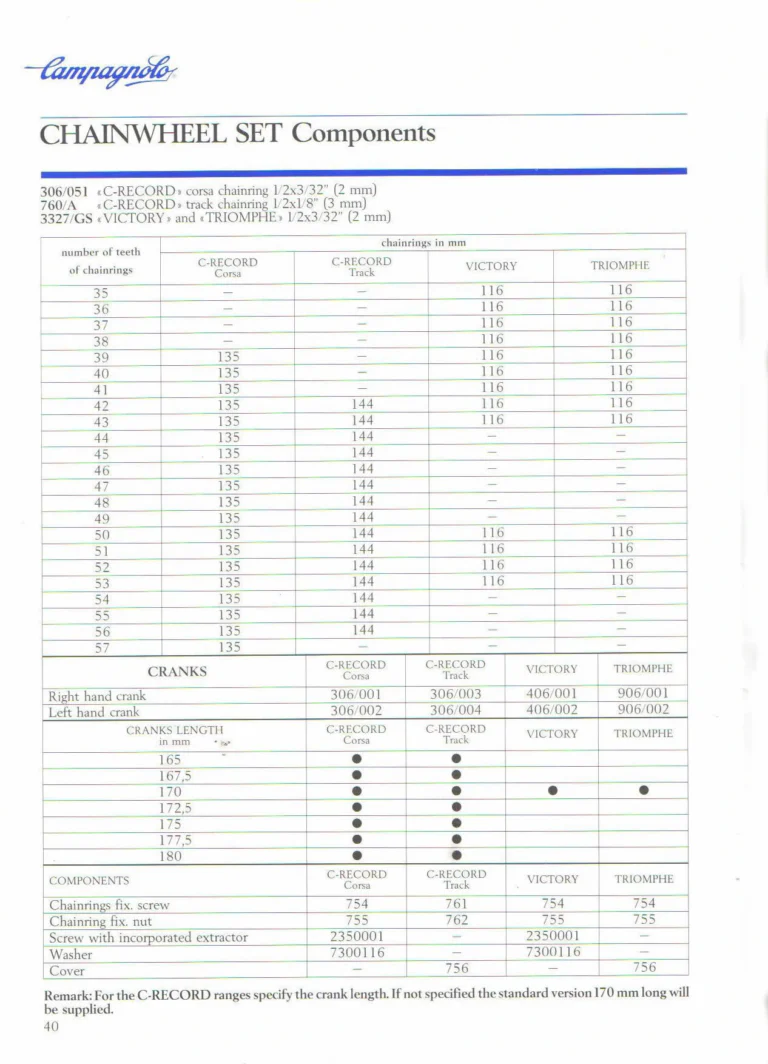

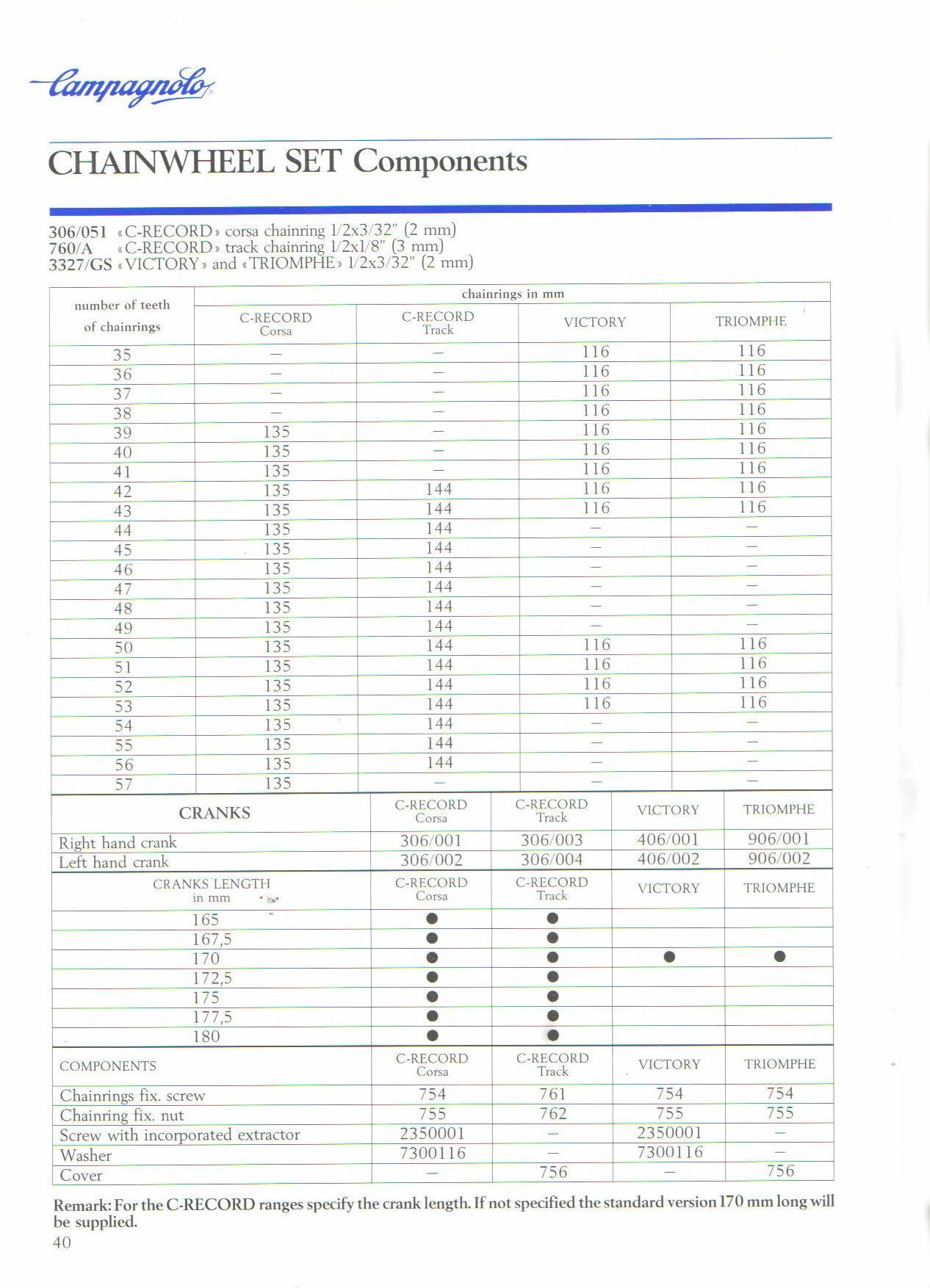

CHAINWHEEL SET Components

306/051 «C-RECORD» corsa chainring 1/2×3/32″ (2 mm)
760/A «C-RECORD» track chainring 1/2×1/8″ (3 mm)
3327/GS «VICTORY» and «TRIOMPHE» 1/2×3/32″ (2 mm)

number of teeth of chainrings | chainrings in mm: C-RECORD Corsa | C-RECORD Track | VICTORY | TRIOMPHE
35 | — | — | 116 | 116
36 | — | — | 116 | 116
37 | — | — | 116 | 116
38 | — | — | 116 | 116
39 | 135 | — | 116 | 116
40 | 135 | — | 116 | 116
41 | 135 | — | 116 | 116
42 | 135 | 144 | 116 | 116
43 | 135 | 144 | 116 | 116
44 | 135 | 144 | — | —
45 | 135 | 144 | — | —
46 | 135 | 144 | — | —
47 | 135 | 144 | — | —
48 | 135 | 144 | — | —
49 | 135 | 144 | — | —
50 | 135 | 144 | 116 | 116
51 | 135 | 144 | 116 | 116
52 | 135 | 144 | 116 | 116
53 | 135 | 144 | 116 | 116
54 | 135 | 144 | — | —
55 | 135 | 144 | — | —
56 | 135 | 144 | — | —
57 | 135 | — | — | —

CRANKS | C-RECORD Corsa | C-RECORD Track | VICTORY | TRIOMPHE
Right hand crank | 306/001 | 306/003 | 406/001 | 906/001
Left hand crank | 306/002 | 306/004 | 406/002 | 906/002

CRANKS LENGTH in mm | C-RECORD Corsa | C-RECORD Track | VICTORY | TRIOMPHE
165 | ● | ● | |
167,5 | ● | ● | |
170 | ● | ● | ● | ●
172,5 | ● | ● | |
175 | ● | ● | |
177,5 | ● | ● | |
180 | ● | ● | |

COMPONENTS | C-RECORD Corsa | C-RECORD Track | VICTORY | TRIOMPHE
Chainrings fix. screw | 754 | 761 | 754 | 754
Chainring fix. nut | 755 | 762 | 755 | 755
Screw with incorporated extractor | 2350001 | — | 2350001 | —
Washer | 7300116 | — | 7300116 | —
Cover | — | 756 | — | 756

Remark: For the C-RECORD ranges specify the crank length. If not specified the standard version 170 mm long will be supplied.

40

[A page of tables for the Campagnolo chainwheel sets: the chainring numbers 306/051, 760/A and 3327/GS, then a table of the tooth counts made for the C-Record corsa, C-Record track, Victory and Triomphe chainrings with their widths in mm, followed by tables of the crank part numbers, the crank lengths offered and the chainring fixing components. In the first table the heading “chainrings in mm” spans the four range columns; a bold remark on crank length closes the page.]

— Page 40 —
Campagnolo®

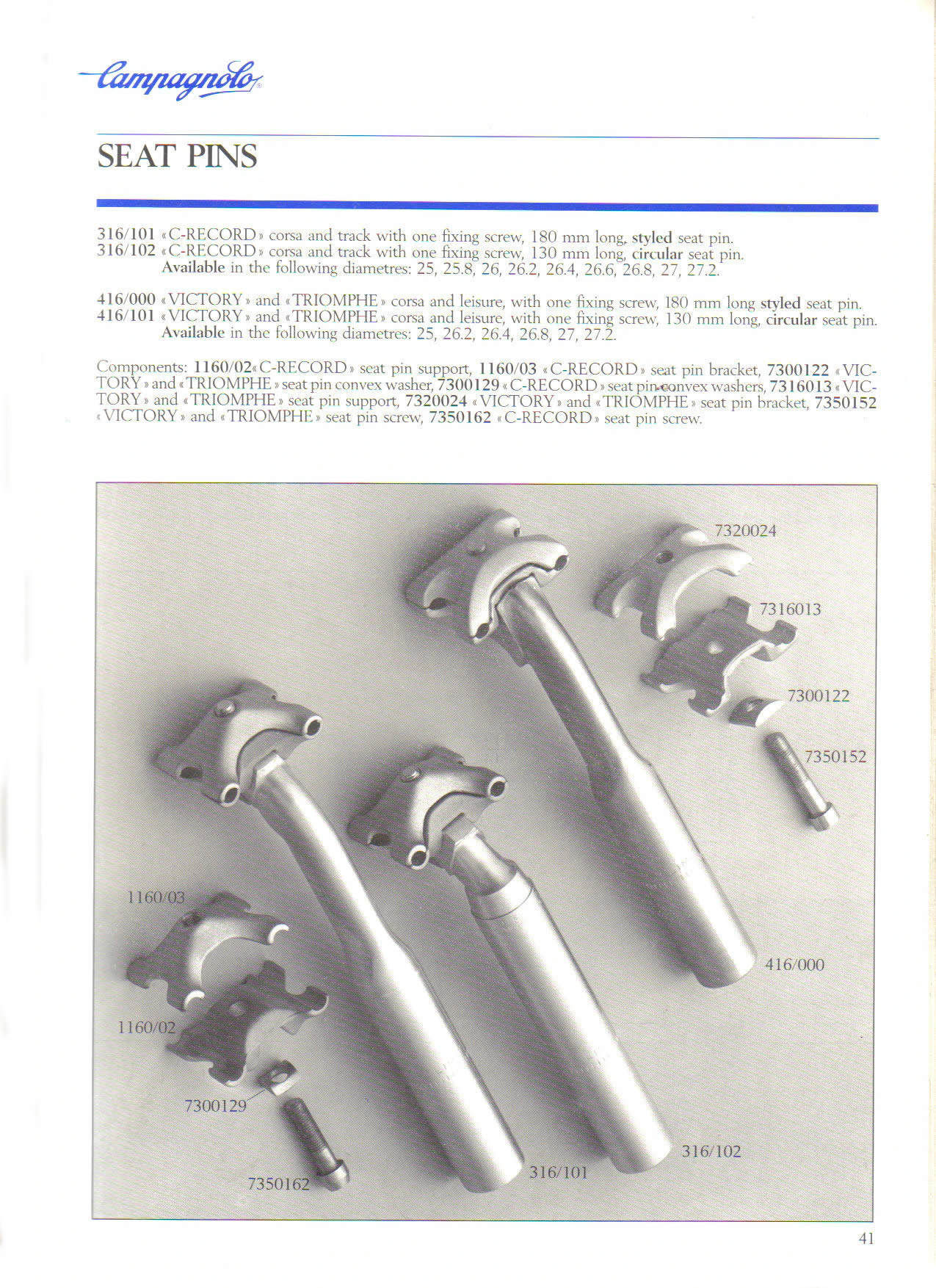

SEAT PINS

316/101 «C-RECORD» corsa and track with one fixing screw, 180 mm long, styled seat pin.
316/102 «C-RECORD» corsa and track with one fixing screw, 130 mm long, circular seat pin.
Available in the following diametres: 25, 25.8, 26, 26.2, 26.4, 26.6, 26.8, 27, 27.2.

416/000 «VICTORY» and «TRIOMPHE» corsa and leisure, with one fixing screw, 180 mm long styled seat pin.
416/101 «VICTORY» and «TRIOMPHE» corsa and leisure, with one fixing screw, 130 mm long, circular seat pin.
Available in the following diametres: 25, 26.2, 26.4, 26.8, 27, 27.2.

Components: 1160/02«C-RECORD» seat pin support, 1160/03 «C-RECORD» seat pin bracket, 7300122 «VICTORY» and «TRIOMPHE» seat pin convex washer, 7300129 «C-RECORD» seat pin convex washers, 7316013 «VICTORY» and «TRIOMPHE» seat pin support, 7320024 «VICTORY» and «TRIOMPHE» seat pin bracket, 7350152 «VICTORY» and «TRIOMPHE» seat pin screw, 7350162 «C-RECORD» seat pin screw.

Callouts: 7320024 7316013 7300122 7350152 1160/03 416/000 1160/02 7300129 316/102 316/101 7350162

41

[A black and white photograph of three Campagnolo seat pins, the C-Record 316/101 and 316/102 and the Victory and Triomphe 416/000, with the clamp parts and fixing screws of each laid out beside them and numbered. Above the photograph the page lists the C-Record and the Victory and Triomphe seat pins with their lengths and diameters and names each numbered component.]

— Page 41 —
Campagnolo®

BOTTOM BRACKET Sets

303/101 «C-RECORD» road bottom bracket set with braze-on boss
303/102 «C-RECORD» track bottom bracket set with braze-on boss, with screws and washers
403/100 «VICTORY» bottom bracket set with braze-on boss
903/100 «TRIOMPHE» bottom bracket set with braze-on boss, with screws and washers
3331 «GRAN SPORT» bottom bracket set with braze-on boss, with screws and washers (to convert the «VICTORY» and «TRIOMPHE» chainwheels into triple chainring)

Meaning of the «Axle initials»
– the first number indicates the bracket width
– the letters SS indicate road
– the letters SP indicate road and track (equal sizes)

Upon request the set of the cups and lockring with thread incresed by 0,5 mm is supplied.

THREAD TYPE
ITALIAN Ø 36×24F. | R.H. | R.H.
FRENCH Ø 35×1 | R.H. | R.H.
BSA Ø 1″370×24F. | R.H. | L.H.

| AXLE | | | BRACKET WIDTH | | | TOTAL AXLE LENGTH
ROAD AND TRACK | 65-SP | = | 3,5 | 65 | 3,5 | = | mm 109
| 68-SP | = | 3,5 | 68 | 3,5 | = | mm 109
| 70-SP | = | 3,5 | 70 | 3,5 | = | mm 109
ROAD | 68-SS | = | 3,5 | 68 | 3,5 | = | mm 109
| 70-SS | = | 3,5 | 70 | 3,5 | = | mm 109
ROAD TRIPLE | 68-SS | 17 | 3,5 | 68 | 3,5 | 19 | mm 112
| 70-SS | 17 | 3,5 | 70 | 3,5 | 20 | mm 113

42

[A boxed technical drawing of a bottom bracket shell in section with its cups and axle, set above a dimension diagram that gives, for each axle, the left spacing, cup widths, bracket width, right spacing and total axle length for road and track, road and road triple axles. Above the drawing the page lists the five Campagnolo bottom bracket sets by number, the C-Record, Victory, Triomphe and Gran Sport, and explains the axle initials; the drawing names the Italian, French and BSA thread types with the hand of each cup thread.]

— Page 42 —
Campagnolo®

BOTTOM BRACKET Components

COMPONENTS | C-RECORD ROAD | C-RECORD TRACK | VICTORY corsa/leisure | TRIOMPHE corsa/leisure | GRAN SPORT
R.H. cup | 4033 | 4033 | 745 | 903001 | 745
L.H. cup | 4034 | 4034 | 746 | 903002 | 746
Axle | 303001 | 303001 | 403001 | 903003 | 3332
Lockring | 747 | 747 | 747 | 747 | 747
Ball races | 4035/A | 4035/A | 2100 | 2100 | 2100
Cone for sleeve | 2110/1 | — | — | — | —
Sleeve | 2110 | — | — | — | —
Washer | — | 7300160 | — | 749 | 749
Screw | — | 7350204 | — | 748 | 748

Remark: Each model is available with Italian, French and Bsa thread. If not specified Italian thread will be supplied.

ball set races
cone for sleeve
central sleeve
screw
washer
lockring
L.H. cup
axle
R.H. cup
washer
screw

43

[A table of the Campagnolo bottom bracket components, cups, axle, lockring, ball races, sleeve, washer and screw, with their part numbers for the C-Record road and track, Victory, Triomphe and Gran Sport sets. Below it a boxed photograph lays out one set in assembly order, from screw, washer, lockring and left cup through the axle to the right cup, washer and screw, with the caged ball races in their Campagnolo box (printed “2 SERIE GABBIETTE DI ALTA PRECISIONE”), the cone for sleeve and the central sleeve above.]

— Page 43 —
Campagnolo®

PEDALS sets

305/501 «C-RECORD» corsa and track pedals set
405/000 «VICTORY» corsa and leisure pedals set
905/000 «TRIOMPHE» corsa and leisure pedals set

Callouts: 305/501 405/000 905/000

44

[A black and white photograph of three pairs of Campagnolo pedals fitted with toe clips and straps, the C-Record 305/501, the Victory 405/000 and the Triomphe 905/000, each pair labeled with its number. The C-Record straps carry the Campagnolo script name, and the three pedal sets are listed by number above the photograph.]

— Page 44 —

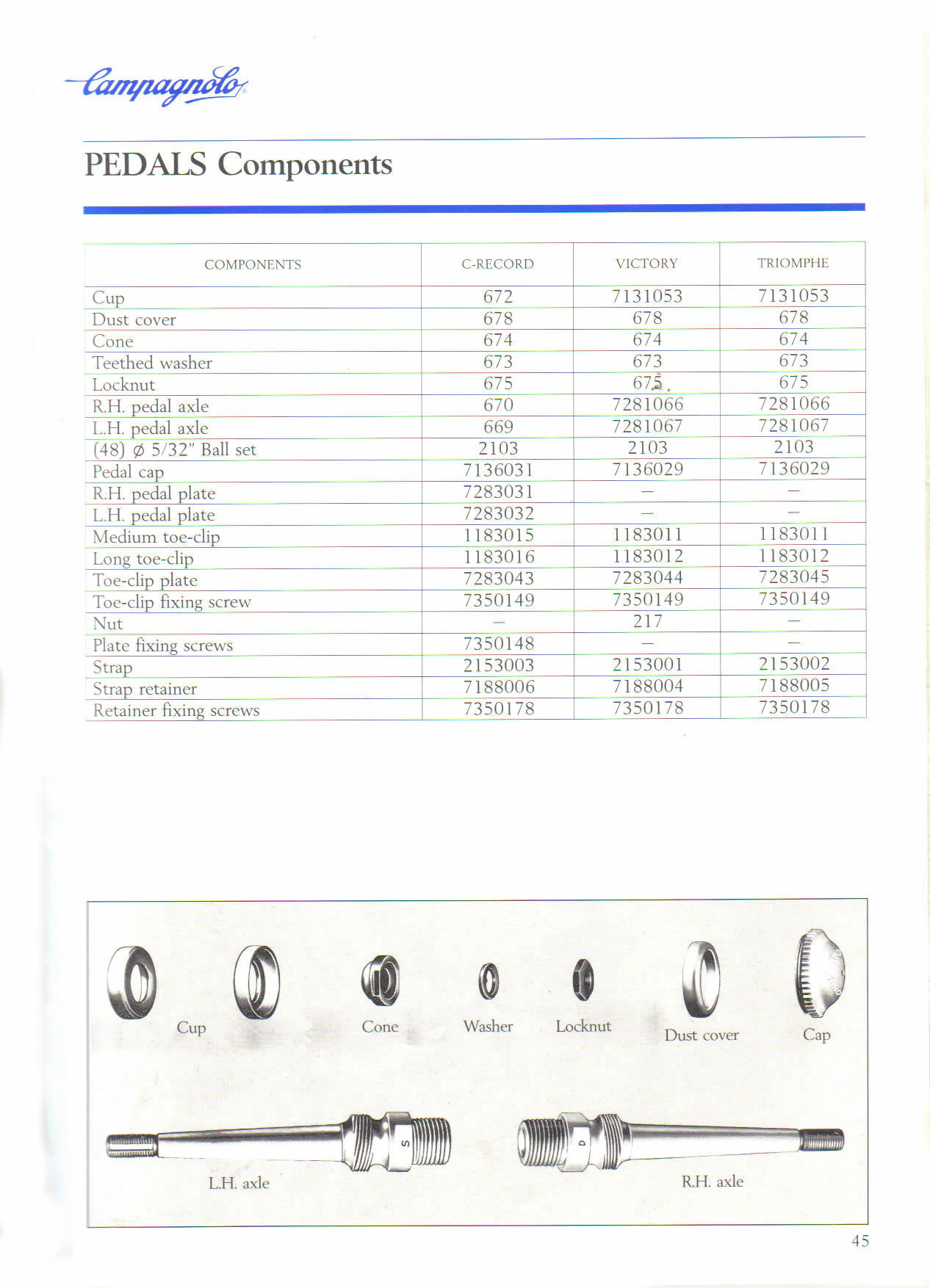

Campagnolo®

PEDALS Components

COMPONENTS | C-RECORD | VICTORY | TRIOMPHE
Cup | 672 | 7131053 | 7131053
Dust cover | 678 | 678 | 678
Cone | 674 | 674 | 674
Teethed washer | 673 | 673 | 673
Locknut | 675 | 675 | 675
R.H. pedal axle | 670 | 7281066 | 7281066
L.H. pedal axle | 669 | 7281067 | 7281067
(48) Ø 5/32″ Ball set | 2103 | 2103 | 2103
Pedal cap | 7136031 | 7136029 | 7136029
R.H. pedal plate | 7283031 | — | —
L.H. pedal plate | 7283032 | — | —
Medium toe-clip | 1183015 | 1183011 | 1183011
Long toe-clip | 1183016 | 1183012 | 1183012
Toe-clip plate | 7283043 | 7283044 | 7283045
Toe-clip fixing screw | 7350149 | 7350149 | 7350149
Nut | — | 217 | —
Plate fixing screws | 7350148 | — | —
Strap | 2153003 | 2153001 | 2153002
Strap retainer | 7188006 | 7188004 | 7188005
Retainer fixing screws | 7350178 | 7350178 | 7350178

Cup
Cone
Washer
Locknut
Dust cover
Cap
L.H. axle
R.H. axle

45

[A table of the Campagnolo pedal components, from cup, cone and locknut to toe clips, straps and retainers, with their part numbers for the C-Record, Victory and Triomphe pedals. Below it a boxed photograph shows the pedal bearing parts, two cups, cone, washer, locknut, dust cover and cap, above the left and right axles, which are stamped “S” and “D”.]

— Page 45 —
Campagnolo®

BRAKES Components

315/101 «C-RECORD» brakes set with levers, cable and casing – adjusting stroke 40,5 mm and 56,5 mm.

415/000 «VICTORY» brakes set with levers, cables and casings – adjusting stroke 47 mm.

915/101 «TRIOMPHE» brakes set with levers and cables – adjusting stroke 47 mm and 52 mm.

Remark: VICTORY and TRIOMPHE are available in the normal and allen bolt versions. If not specified allen bolt, 47 mm version will be supplied.

46

[A text page listing three Campagnolo brake sets by number, the C-Record 315/101, the Victory 415/000 and the Triomphe 915/101, with what each set includes and its adjusting stroke, followed by a bold remark on the normal and allen bolt versions. The rest of the page is blank under the blue Campagnolo script logo and title bar.]

— Page 46 —

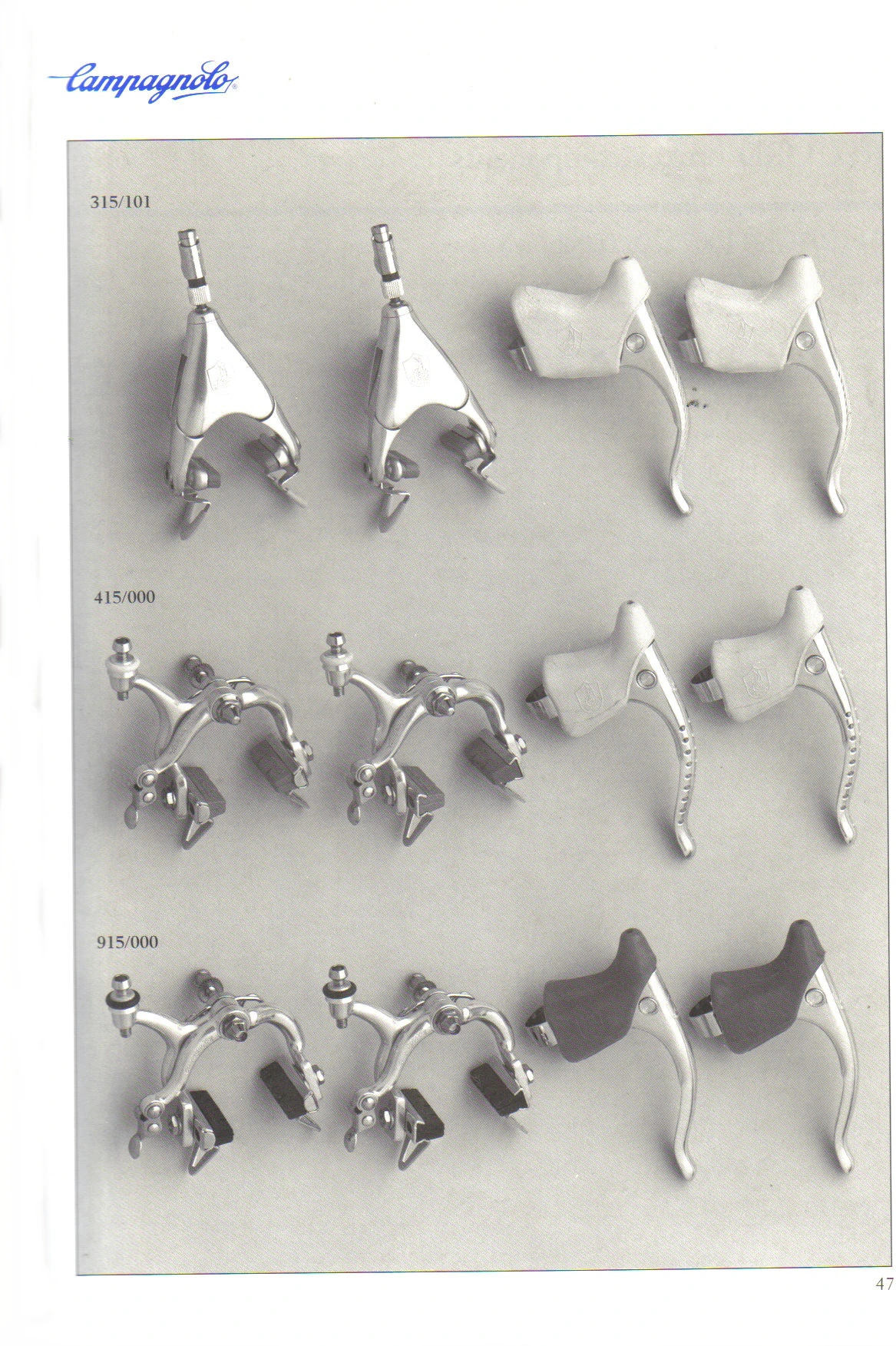

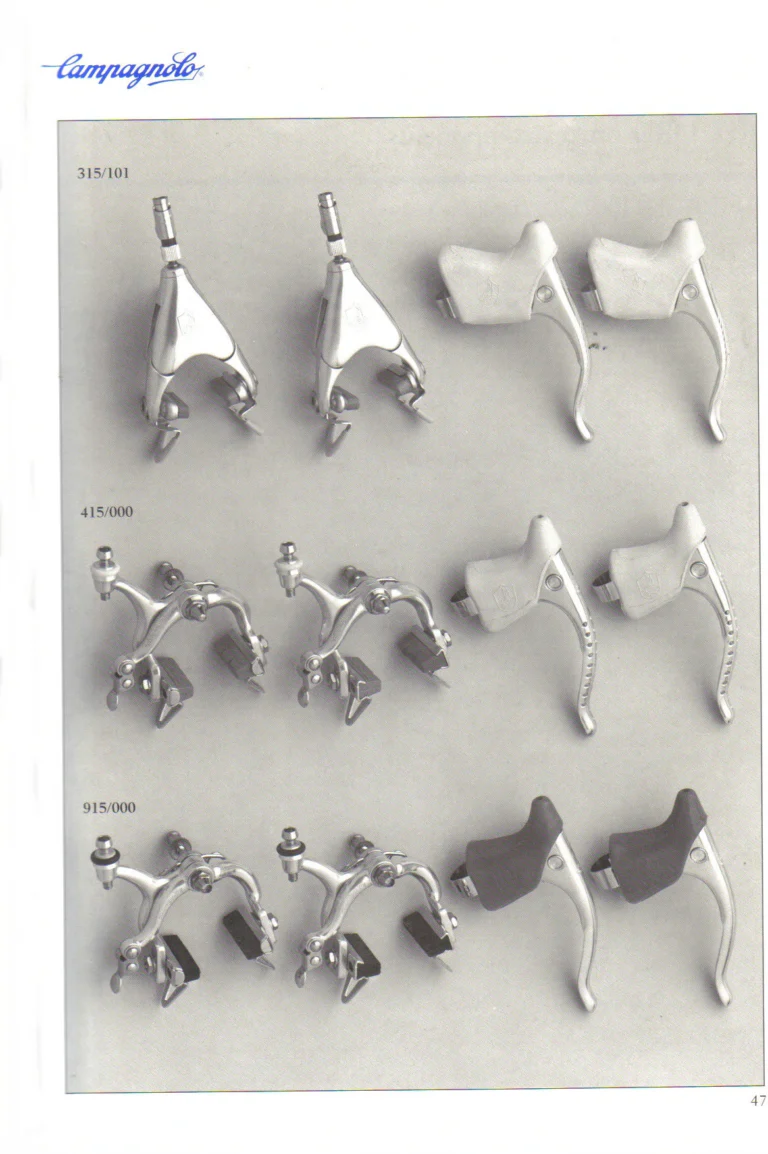

Campagnolo®

315/101

415/000

915/000

47

[A black and white photograph of three Campagnolo brake sets on a gray ground, each a pair of brakes with a pair of levers: the 315/101 set with centerpull style brakes and white hoods, the 415/000 set with sidepull brakes and drilled levers under white hoods, and the 915/000 set with sidepull brakes and dark hoods. The page carries the blue Campagnolo script logo and no text beyond the three set numbers.]

— Page 47 —
Campagnolo®

RECORD brakes components

0116070, 0116071, 0118065 composed of:

0120059 complete front cable and casing, 0120060 complete rear cable and casing, 315/001 cover, 2015/1 washers, 2028 front cable, 2029 rear cable, 2034 lever pivot pin, 2035 pivot pin, 2036 grub screw, 2037 nut fixing clip, 2038 bush, 2041 toothed washer, 1116001 cam bush, 1116002 end cap bush, 1201013 front casing, 1210104 rear casing, 2200001 cable grub, 3210001 wheelguide, 7100035 arm stop axle ring, 7100036 cable pivot stop ring, 7117053 upper arm, 7117054 lower arm, 7136046 rubber, 7143693 brake body, 7143714 lever brake body, 7160072 spacer, 7161105 allen brake fixing bolt, 7161121 brake shoe fixing nut, 7161138 lever fixing screws locknut, 7182031 brake lever fixing clip, 7200014 cover fixing grub, 7201032 brake lever hood, 7203040 adjusting sleeve, 7241047 r.h. brake shoe lever, 7241048 l.h. brake shoe, 7241050 brake lever, 7260079 r.h. spring, 7260080 r.h. spring, 7281184 arm connecting pivot, 7281185 cable locking nut, 7281187 guide cable pivot, 7283046 guide cable plate, 7289003 brake block, 7290014 brake shoes, 7300071 washer, 7300141 washer, 7300142 concave washer, 7300143 washer, 7300144 spacer, 7350168 front brake axle, 7350169 rear brake axle, 7350170 brake levers fixing screws, 7350171 brake shoes fixing screws, 7350176 lever fixing screws, 1284013 complete arm mechanism.

Callouts: 7136046 2037 7300071 7143714 7182031 7201032 2036 7350176 7283046 2034 2028 2038 2029 1201013 2035 1201014 7241050 0118065

48

[A photograph of the Campagnolo RECORD brake lever, 0118065, shown assembled beside its parts laid out and numbered: the white hood, the lever body, the clip, the lever blade, the pivot pin, washers and bushes, and a cable with its casing. The parts list above covers the whole RECORD brake set, 0116070, 0116071 and 0118065, and the page carries the blue Campagnolo script logo and a blue rule under the heading.]

— Page 48 —

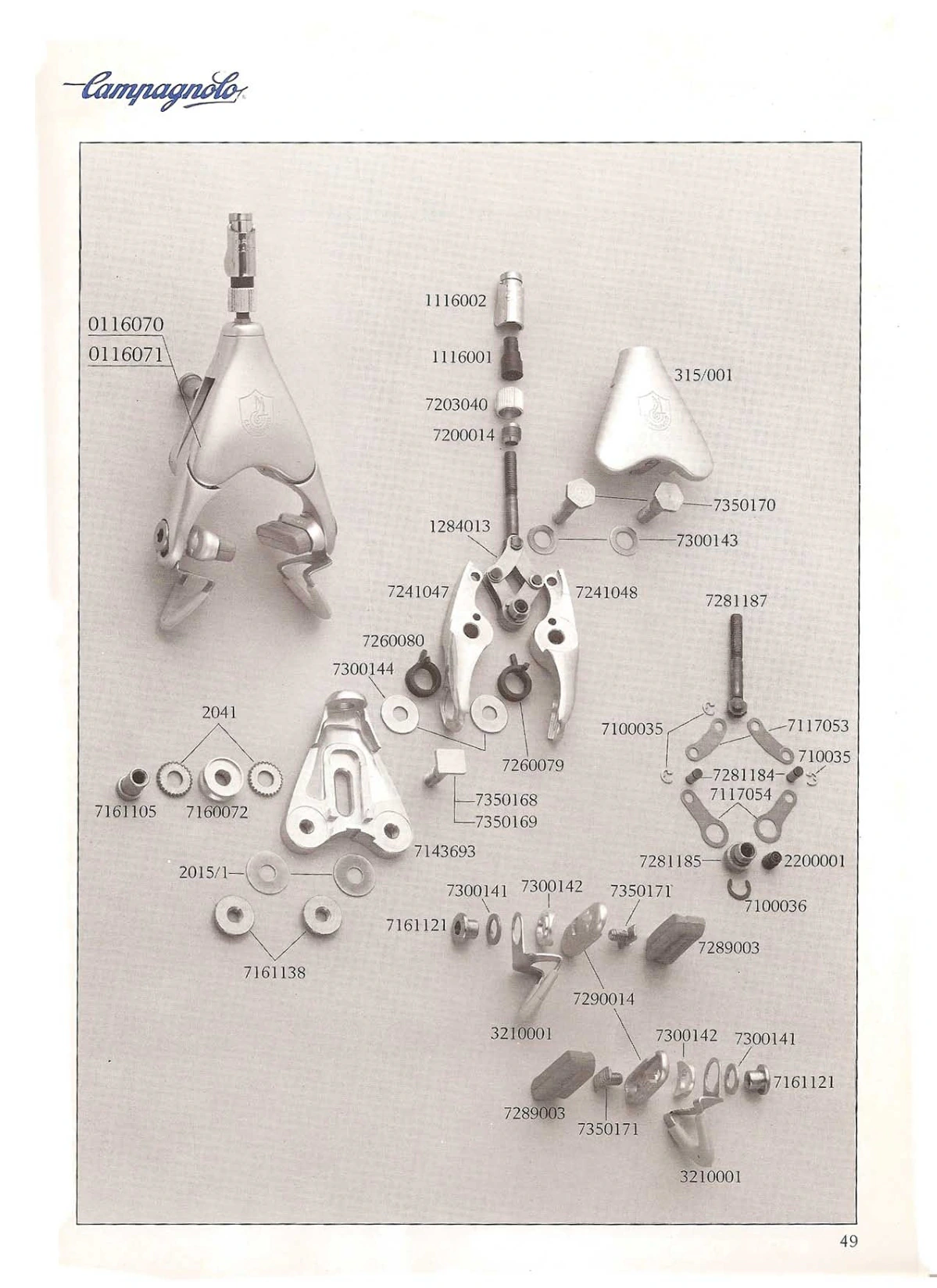

Campagnolo®

Callouts: 1116002 0116070 0116071 1116001 315/001 7203040 7200014 7350170 1284013 7300143 7241047 7241048 7281187 7260080 7300144 2041 7100035 7117053 7260079 710035 7161105 7160072 7281184 7350168 7117054 7350169 7143693 2015/1 7281185 2200001 7300141 7300142 7350171 7100036 7161121 7289003 7161138 7290014 3210001 7300142 7300141 7161121 7289003 7350171 3210001

49

[A photograph of the Campagnolo RECORD brake, 0116070 and 0116071, shown assembled beside its parts laid out and numbered: the brake body, the cover 315/001, the cable adjuster parts, the arms, springs, washers, the linkage plates and the two brake shoes with their blocks. The page continues the RECORD brakes components parts list of the facing page, has no heading and carries the blue Campagnolo script logo.]

— Page 49 —
Campagnolo®

VICTORY® and TRIOMPHE® brake components

415/001 «VICTORY» brake set, normal version, small 47 mm
415/102 «VICTORY» brake set, allen bolt version, small 47 mm
915/101 «TRIOMPHE» brake set, normal version, small 47 mm
915/102 «TRIOMPHE» brake set, normal version, large 52 mm
915/201 «TRIOMPHE» brake set, allen bolt version, small 47 mm
915/202 «TRIOMPHE» brake set, allen bolt version large 52 mm
0118065 «C-RECORD» complete brake lever
0118059 «VICTORY» complete brake lever
0118066 «TRIOMPHE» complete brake lever

REF. | COMPONENTS | VICTORY | TRIOMPHE
1 | Self locking nut | 2002/AB | 2002/AB
2 | Allen bolt | 7161105 | 7161105
3 | Washer | 2003 | 2003
4 | Toothed washer | 2041 | 2041
5 | Normal front axle | 7281143 | 7281143
5 | Front allen axle and rear normal axle | 7281144 | 7281144
6 | Adjusting screw | 2009 | 2009
7 | Adjusting nut | 7161139 | 7161139
8 | Adjusting nut rubber | 7208011 | 2024
9 | Rear large brake shoe lever | – | 7241061
10 | Front large brake shoe lever | – | 1241022
11 | Rear normal axle and front allen axle | 7281144 | 7281144
11 | Rear allen axle | 7281146 | 7281146
12 | Sliding washer | 2015 | 2015
13 | Spring | 2011 | 2011
14 | Rear small brake shoe lever | 7241040 | 7241060
15 | Inner sliding washer | 2015/1 | 2015/1
16 | Front small brake shoe lever | 1241021 | 1241023
17 | Brake shoe fixing lever washer | 7300145 | 7300145
18 | Brake shoe fixing lever nut | 7161140 | 7161140
19 | Brake shoe fixing lever locknut | 7161120 | 7161142
20 | Cable clamp washer | 2004 | 2004
21 | Cable clamp washer | 2008 | 2008
22 | Block | 7289004 | 2010
23 | Brake block fixing nut | 7161126 | 7161126
24 | R.H. brake shoe | 7290009 | 7290009
25 | L.H. brake shoe | 7290010 | 7290010
26 | Brake lever hood | 7201031 | 2039
27 | Clip fixing nut | 2037 | 2037
28 | Retainer grub | 2036 | 2036
29 | Brake lever support | 7143394 | 7143394
30 | Clip fixing screw | 7350177 | 7350177
31 | Brake lever fixing clip | 7182031 | 7182031
32 | Brake lever bush | 2038 | 2038
33 | Lever pivot pin | 2034 | 2034
34 | Brake lever | – | 7241054
35 | Front brake cable | 2028 | 2028
36 | Front brake casing | 2026 | –
37 | Brake lever | 7241053 | –
38 | Rear brake cable | 2029 | 2029
39 | Rear brake casing | 2027 | –

50

[A parts table for the Campagnolo VICTORY and TRIOMPHE brakes, listing 39 reference numbers with the part number of each component for the VICTORY and the TRIOMPHE versions, below a list of the VICTORY and TRIOMPHE brake sets and the C-RECORD, VICTORY and TRIOMPHE complete brake levers. The page carries the blue Campagnolo script logo and a blue rule under the heading; a small dark smudge sits over the word “nut” in row 23.]

— Page 50 —
Campagnolo®

Callouts: 9 10 6 7 1 3 2 4 5 8 15 16 17 1 3 2 4 11 12 13 18 19 14 20 23 21 3 22 24 3 25 23 26 29 27 30 31 28 35 38 32 33 36 39 34 37

mm. 52

mm. 47

51

[Photographs of the parts of the Campagnolo VICTORY and TRIOMPHE sidepull brakes and brake levers laid out and numbered 1 to 39, keyed to the reference numbers of the parts table on the facing page, with two line drawings of the brake marking the reach of the large version at mm. 52 and the small version at mm. 47. The page has no heading and carries the blue Campagnolo script logo.]

— Page 51 —
Campagnolo®

RIM

Elasticity and rigidity.
Two conflicting needs that have to be brought together in the best rims.
This is the Campagnolo challenge to the former technical limits.
The CERCHIO rim is the winning answer to this challenge.
International patents, advanced alloys, special treatments, computer-designed cross-sections, angled double eyelets, micrometric anodisation setting with guaranteed tolerances: all the Campagnolo technology for a perfect geometrical shape.
High impact strength, high tubular adherence, easy mounting, reduced vibration under braking, minimum spoke wear.
All lightness.
All Campagnolo.

52

[A color photograph of five Campagnolo rims fanned against a dark ground, their decals reading VICTORY crono, VICTORY strada, RECORD crono, RECORD strada and RECORD pavé, set below a short introduction to the Campagnolo CERCHIO rim. The page carries the blue Campagnolo script logo and a blue rule under the heading.]

— Page 52 —
Campagnolo®

Range RIMS

The range of Campagnolo rims is the following:

art. 060.101 «RECORD» pavé rim
art. 060.102 «RECORD» strada rim
art. 060.103 «RECORD» crono rim
art. 060.104 «VICTORY» strada rim
art. 060.105 «VICTORY» crono rim

FEATURES
TYPE | RECORD | VICTORY
USE TO BE MADE | PAVÉ | STRADA | CRONO | STRADA | CRONO
CATALOGUE | 060.101 | 060.102 | 060.103 | 060.104 | 060.105
SIZE | 700 C | 700 C | 700 C | 700 C | 700 C
WIDTH | 22 mm | 22 mm | 20 mm | 20 mm | 20 mm
WEIGHT | 365 g | 330 g | 280 g | 310 g | 285 g
THICKNESS TOLERANCE | ± 3/100 mm | ± 3/100 mm | ± 3/100 mm | ± 3/100 mm | ± 3/100 mm
HEAT TREATMENT | YES | YES | YES | YES | YES
FINISHING | hard anodizing | silver | hard anodizing
DRILLING | N°. 24 – 28 – 32 – 36 – 40 holes | N°. 32 – 36 * holes
EYELETS | double positioned

* other drilling upon request.

53

[A specification table of the Campagnolo rim range, the RECORD pavé, strada and crono rims and the VICTORY strada and crono rims, giving for each its catalog number, size, width, weight, thickness tolerance, heat treatment, finishing, drilling and eyelets. In the table the RECORD pavé and strada share one finishing cell (“hard anodizing”), the two VICTORY rims share another, the three RECORD rims share one drilling cell, the two VICTORY rims share another, and a single eyelets cell spans all five; the page carries the blue Campagnolo script logo and a blue rule under the heading.]

— Page 53 —

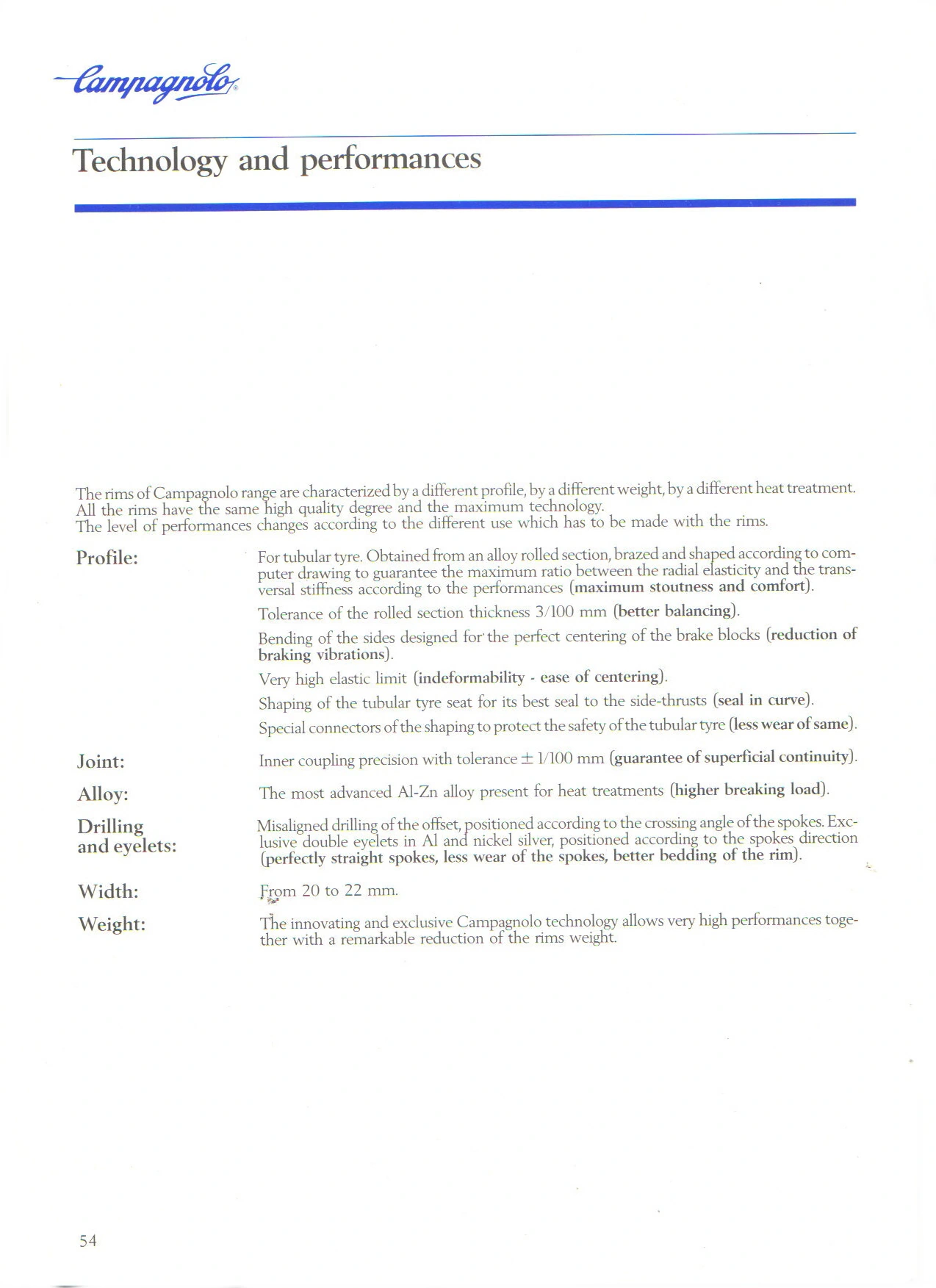

Campagnolo®

Technology and performances

The rims of Campagnolo range are characterized by a different profile, by a different weight, by a different heat treatment.
All the rims have the same high quality degree and the maximum technology.
The level of performances changes according to the different use which has to be made with the rims.

Profile:
For tubular tyre. Obtained from an alloy rolled section, brazed and shaped according to computer drawing to guarantee the maximum ratio between the radial elasticity and the transversal stiffness according to the performances (maximum stoutness and comfort).
Tolerance of the rolled section thickness 3/100 mm (better balancing).
Bending of the sides designed for the perfect centering of the brake blocks (reduction of braking vibrations).
Very high elastic limit (indeformability – ease of centering).
Shaping of the tubular tyre seat for its best seal to the side-thrusts (seal in curve).
Special connectors of the shaping to protect the safety of the tubular tyre (less wear of same).

Joint:
Inner coupling precision with tolerance ± 1/100 mm (guarantee of superficial continuity).

Alloy:
The most advanced Al-Zn alloy present for heat treatments (higher breaking load).

Drilling and eyelets:
Misaligned drilling of the offset, positioned according to the crossing angle of the spokes. Exclusive double eyelets in Al and nickel silver, positioned according to the spokes direction (perfectly straight spokes, less wear of the spokes, better bedding of the rim).

Width:
From 20 to 22 mm.

Weight:
The innovating and exclusive Campagnolo technology allows very high performances together with a remarkable reduction of the rims weight.

54

[A text page on the technology of the Campagnolo rims, describing their profile, joint, alloy, drilling and eyelets, width and weight under bold side headings, with each benefit set in bold in parentheses. A wide blank space lies between the heading and the text; the page carries the blue Campagnolo script logo and a blue rule under the heading.]

— Page 54 (back cover) —
BREVETTI INTERNAZIONALI
Campagnolo®

Via della Chimica, 4
36100 VICENZA – Italia

società per azioni
Capitale Sociale Lit. 16.000.000.000
N. 11558 Reg. Soc. Tribunale di Vicenza
Telefono 0444/564933 (16 linee con r.a.)
Telex 480074 CAMPA I
Telegr. CAMPAGNOLO VICENZA
Casella Postale N. 822

FOTOTECNICA – Vicenza — Printed in Italy / OFFSET INVICTA S.p.A. – Limena/Padova – 12/85

[The back cover of the catalog, white and otherwise blank, with the Campagnolo script logo over a globe beneath the words BREVETTI INTERNAZIONALI at lower left, followed by the company’s address in Vicenza, its share capital, registration, telephone, telex, telegraph address and post office box, all printed in blue. The printer’s line runs vertically up the right edge.]
