Campagnolo 1974 Catalogue No. 17 — Super Record in Titanium, Record, Gran Sport and Valentino Extra, with the Firm Beyond Bicycles

— Page 1 (front cover) —
catalogue n. 17

Campagnolo

[The front cover of Campagnolo catalogue n. 17: a silver card cover embossed with a large globe ringed by short rays, with the Campagnolo script logo in blue across its center and the title printed in black at the top right. The cover is spiral bound at the left edge and shows scuffs, scratches and worn corners.]

— Page 2 (inside front cover) —

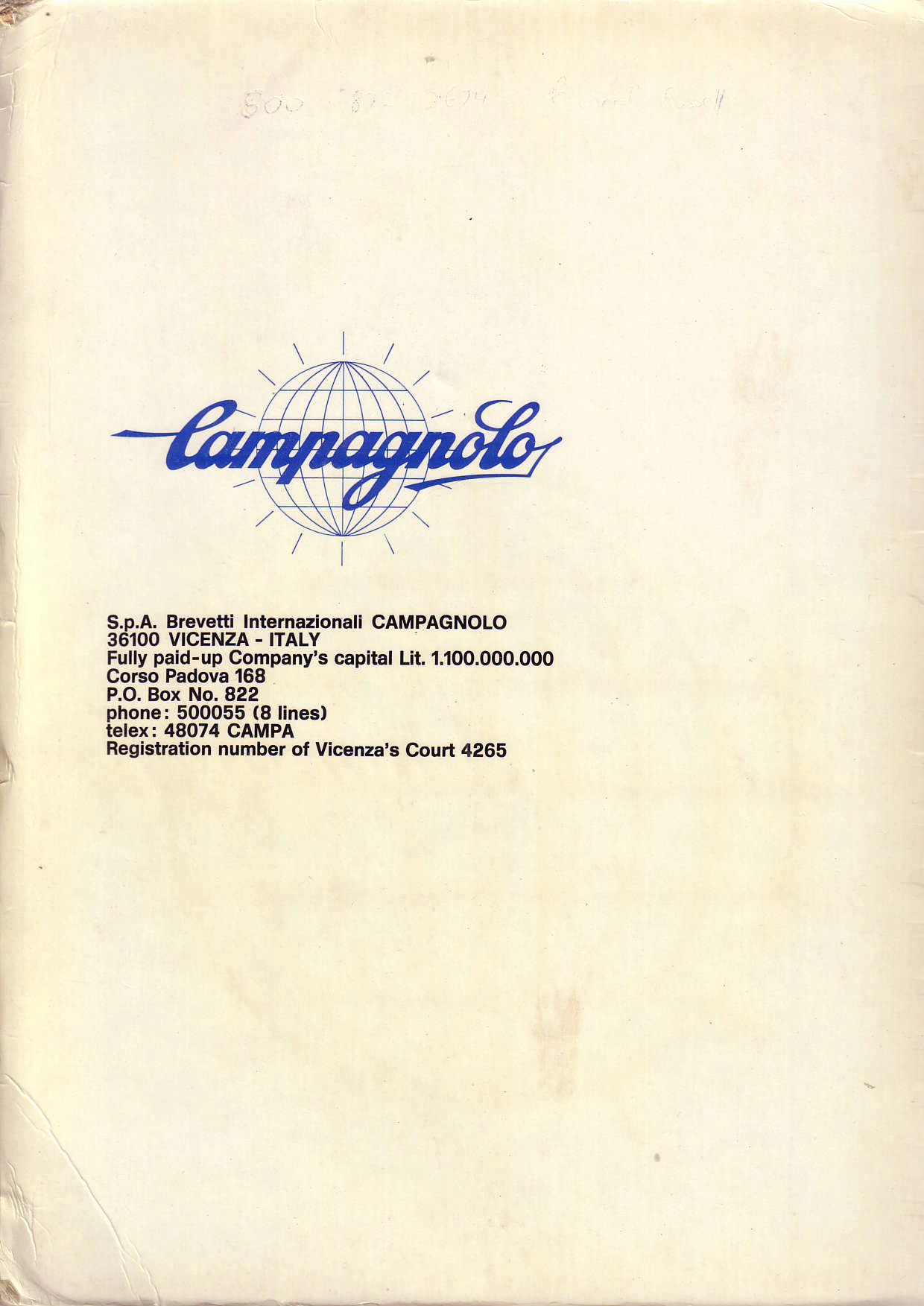

Campagnolo

S.p.A. Brevetti Internazionali CAMPAGNOLO
36100 VICENZA – ITALY
Fully paid-up Company’s capital Lit. 1.100.000.000
Corso Padova 168
P.O. Box No. 822
phone: 500055 (8 lines)
telex: 48074 CAMPA
Registration number of Vicenza’s Court 4265

[The inside front cover, printed with the blue Campagnolo script logo over a globe and the company name, address, capital, post office box, telephone, telex and court registration number of S.p.A. Brevetti Internazionali Campagnolo of Vicenza. Across the top a faint handwritten pencil note reads what may be a telephone number, “800 872 2674”, followed by one or two words that may end in “Russell”; the note is too faint to read with confidence.]

— Page 3 —

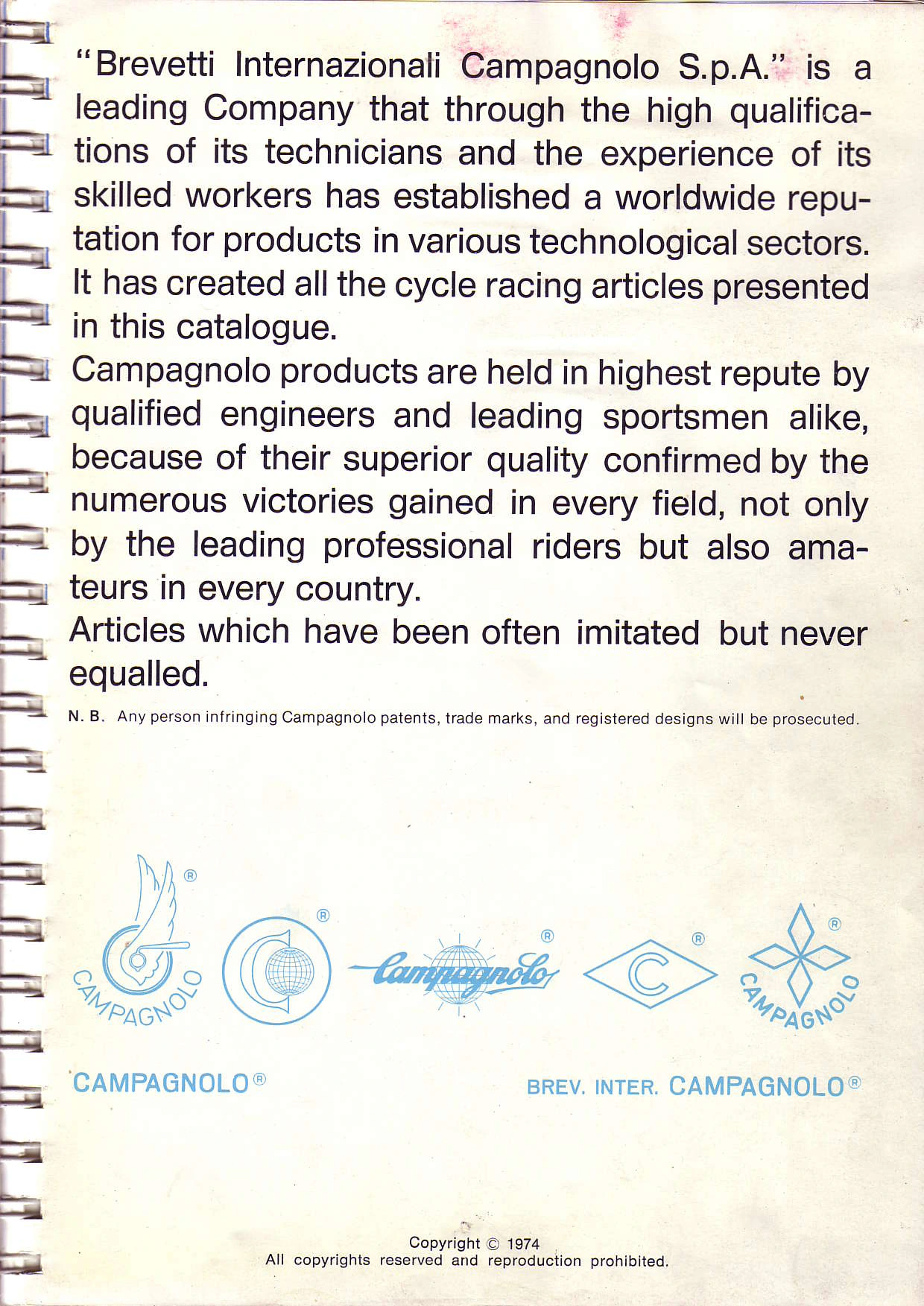

“Brevetti Internazionali Campagnolo S.p.A.” is a leading Company that through the high qualifications of its technicians and the experience of its skilled workers has established a worldwide reputation for products in various technological sectors. It has created all the cycle racing articles presented in this catalogue.

Campagnolo products are held in highest repute by qualified engineers and leading sportsmen alike, because of their superior quality confirmed by the numerous victories gained in every field, not only by the leading professional riders but also amateurs in every country.

Articles which have been often imitated but never equalled.

N. B. Any person infringing Campagnolo patents, trade marks, and registered designs will be prosecuted.

CAMPAGNOLO®

BREV. INTER. CAMPAGNOLO®

Copyright © 1974
All copyrights reserved and reproduction prohibited.

[An introduction to Brevetti Internazionali Campagnolo S.p.A. above a row of five Campagnolo trademarks printed in pale blue, each marked ®: the winged wheel with the word CAMPAGNOLO, a letter C over a globe in a circle, the script Campagnolo wordmark over a radiant globe, a letter C in a lozenge, and a four-pointed diamond star with CAMPAGNOLO. The registered names and the 1974 copyright line are printed below; the spiral binding shows along the left edge.]

— Page 4 —

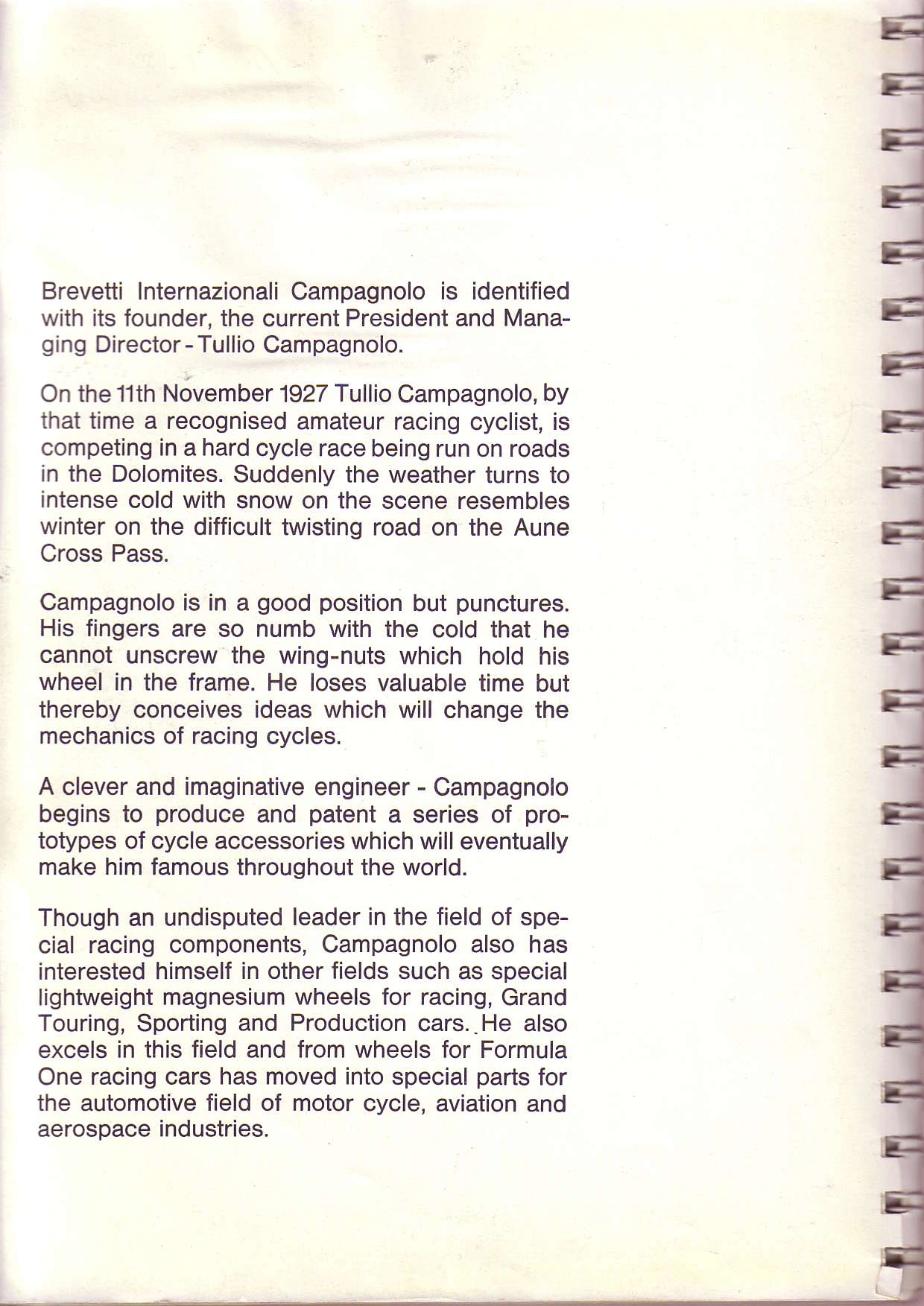

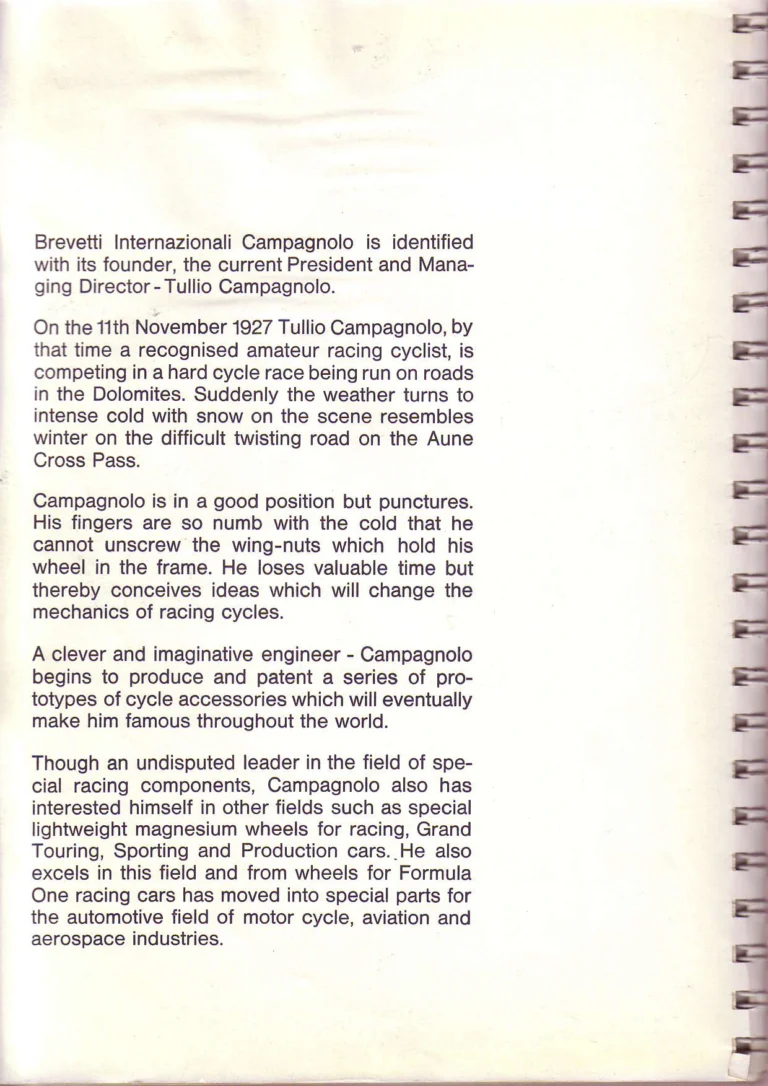

Brevetti Internazionali Campagnolo is identified with its founder, the current President and Managing Director – Tullio Campagnolo.

On the 11th November 1927 Tullio Campagnolo, by that time a recognised amateur racing cyclist, is competing in a hard cycle race being run on roads in the Dolomites. Suddenly the weather turns to intense cold with snow on the scene resembles winter on the difficult twisting road on the Aune Cross Pass.

Campagnolo is in a good position but punctures. His fingers are so numb with the cold that he cannot unscrew the wing-nuts which hold his wheel in the frame. He loses valuable time but thereby conceives ideas which will change the mechanics of racing cycles.

A clever and imaginative engineer – Campagnolo begins to produce and patent a series of prototypes of cycle accessories which will eventually make him famous throughout the world.

Though an undisputed leader in the field of special racing components, Campagnolo also has interested himself in other fields such as special lightweight magnesium wheels for racing, Grand Touring, Sporting and Production cars. He also excels in this field and from wheels for Formula One racing cars has moved into special parts for the automotive field of motor cycle, aviation and aerospace industries.

[A page of text on the founder, Tullio Campagnolo, recounting the race over the Aune Cross Pass in the Dolomites on 11 November 1927 in which numb fingers on frozen wing nuts cost him time, and the company’s later work on magnesium car wheels and parts for the motorcycle, aviation and aerospace industries. The spiral binding shows along the right edge.]

— Page 5 —
Tullio Campagnolo competing on the Aune Cross Pass during a cycle race November 11th 1927.

[A full-page sepia photograph of Tullio Campagnolo riding head-on toward the camera through snow and slush, mud-spattered, with spare tubes over his shoulders and a car behind him. The photograph carries a reproduced handwritten signature reading “Campagnolo – Tullio” at the lower right, and the caption is printed below it.]

— Page 6 —
This short introduction is an abbreviation of the many and varied activities of Brevetti Internazionali Campagnolo S.p.A. and what it produces in several factories all controlled to the same standards of scientific and technical accuracy.

[Three uncaptioned color photographs illustrating the company’s aerospace and aviation work: a large view of a satellite with its solar panels and spherical antennas against a black background, a rocket lifting off from a launch tower and a camouflaged jet fighter parked on grass. A short introductory paragraph is printed at the top left.]

— Page 7 —

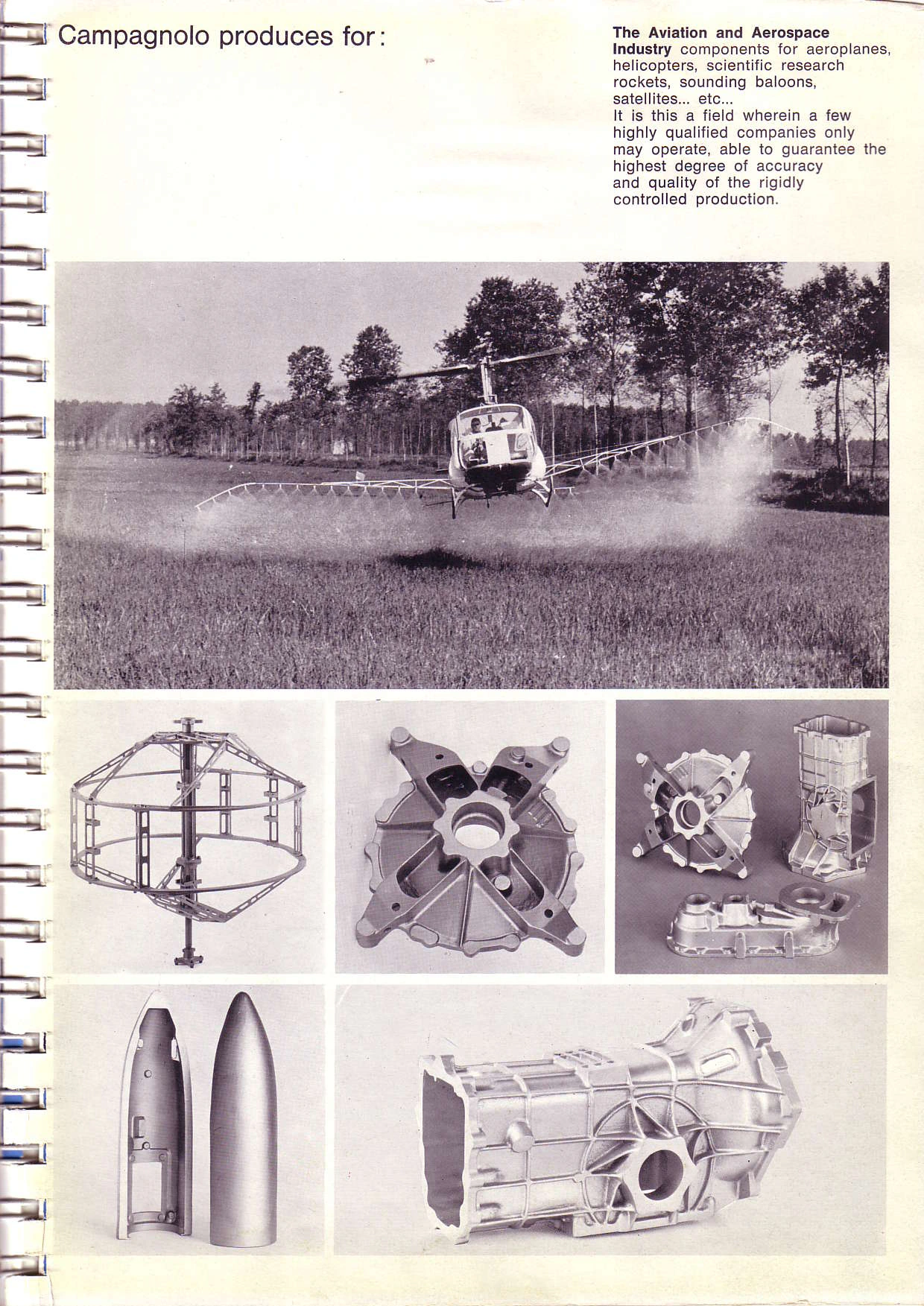

Campagnolo produces for:

The Aviation and Aerospace Industry components for aeroplanes, helicopters, scientific research rockets, sounding baloons, satellites… etc…
It is this a field wherein a few highly qualified companies only may operate, able to guarantee the highest degree of accuracy and quality of the rigidly controlled production.

[Uncaptioned black and white photographs of the company’s aviation and aerospace work: a helicopter spraying a field from long booms, a cylindrical lattice frame on a central shaft, cast alloy housings and gearbox casings, and a nose cone shown whole beside a cutaway half. The heading and a paragraph on the aviation and aerospace industry are printed at the top.]

— Page 8 —

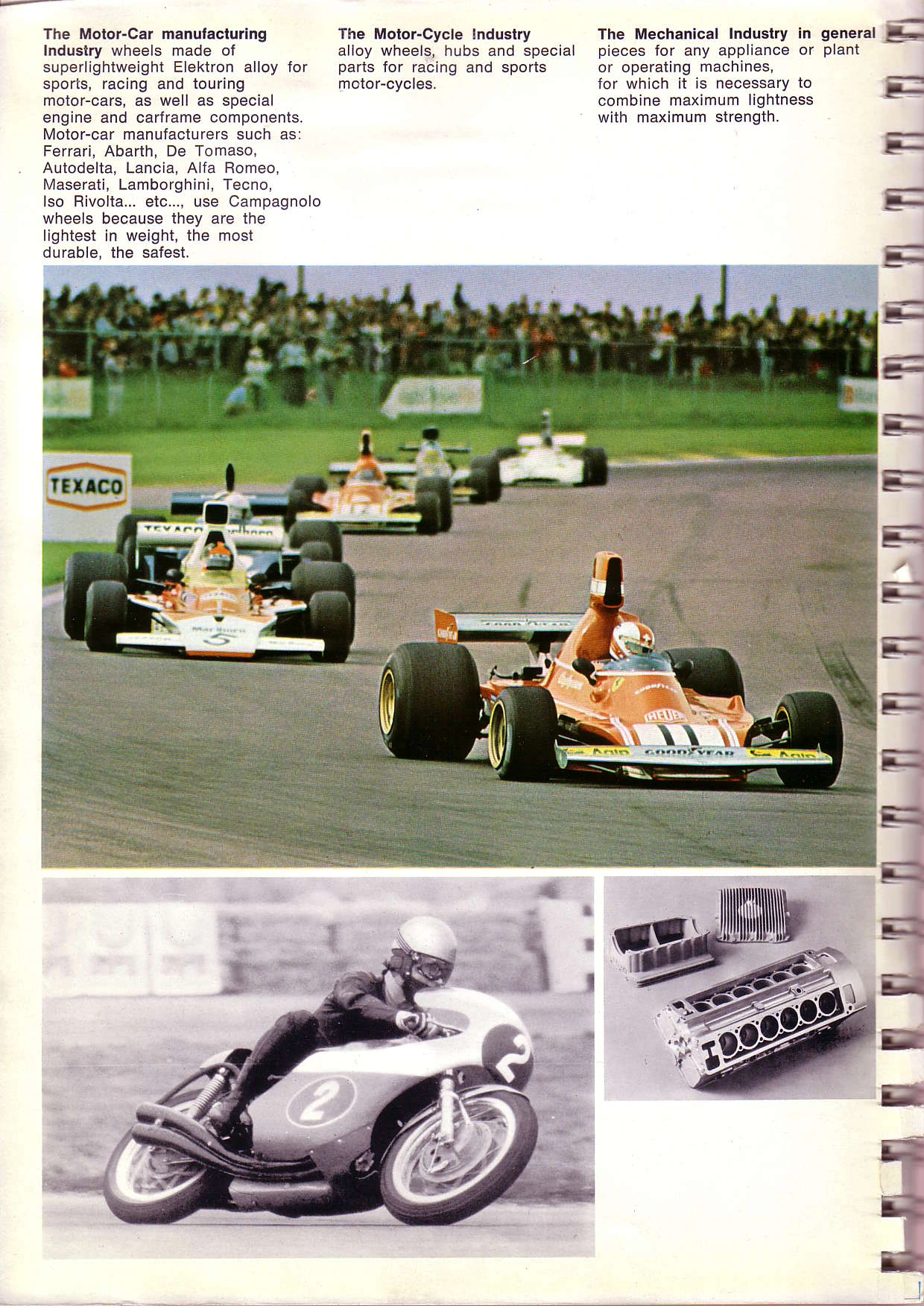

The Motor-Car manufacturing Industry wheels made of superlightweight Elektron alloy for sports, racing and touring motor-cars, as well as special engine and carframe components. Motor-car manufacturers such as: Ferrari, Abarth, De Tomaso, Autodelta, Lancia, Alfa Romeo, Maserati, Lamborghini, Tecno, Iso Rivolta… etc…, use Campagnolo wheels because they are the lightest in weight, the most durable, the safest.

The Motor-Cycle Industry alloy wheels, hubs and special parts for racing and sports motor-cycles.

The Mechanical Industry in general pieces for any appliance or plant or operating machines, for which it is necessary to combine maximum lightness with maximum strength.

[Three paragraphs on the motorcar, motorcycle and general mechanical industries above three uncaptioned photographs: a color view of Formula One cars racing before a grandstand crowd, led by a red car numbered 11 on gold wheels; a black and white photograph of a racing motorcyclist numbered 2 leaning into a bend; and cast alloy engine parts including a cylinder block.]

— Page 9 —

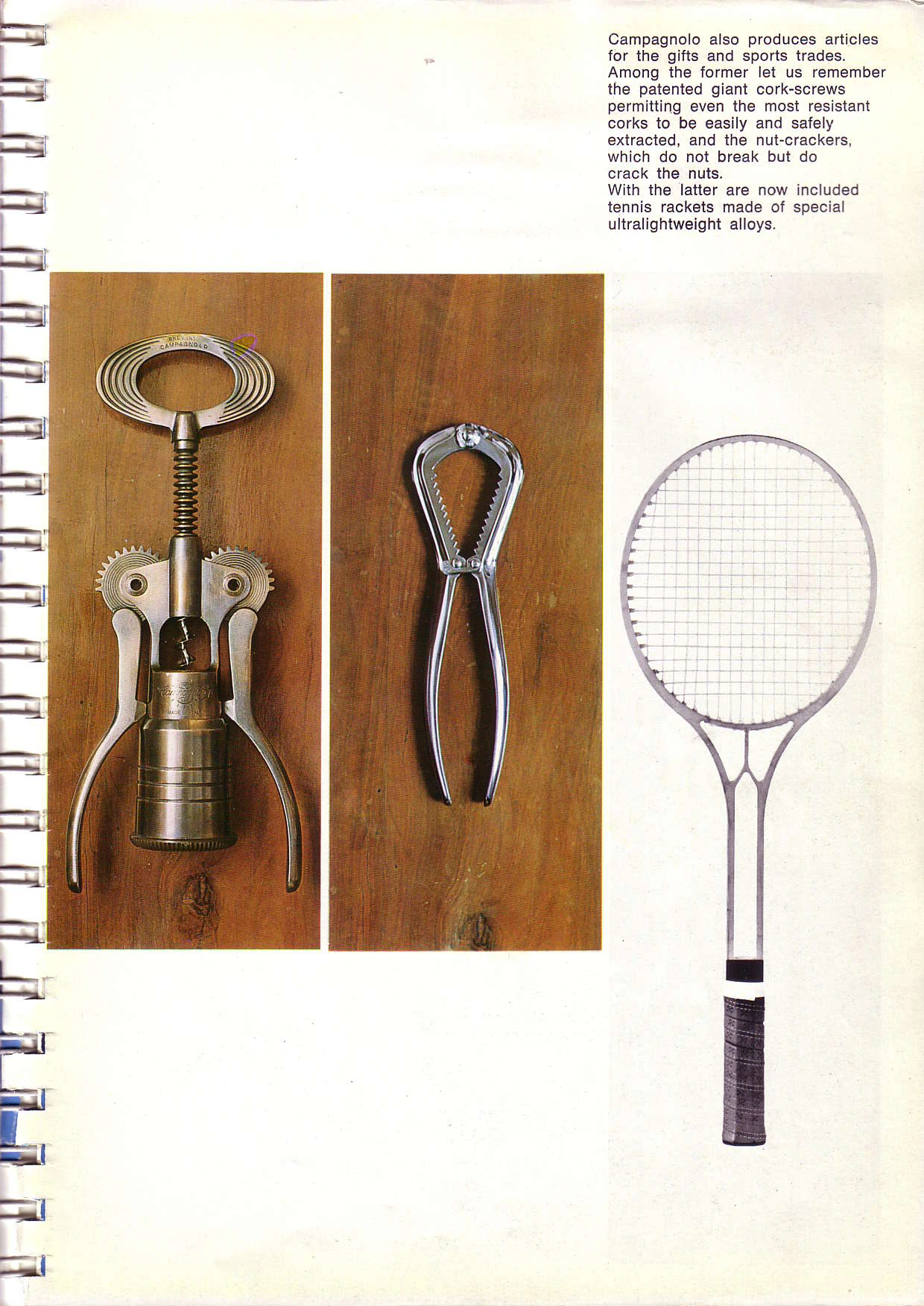

Campagnolo also produces articles for the gifts and sports trades. Among the former let us remember the patented giant cork-screws permitting even the most resistant corks to be easily and safely extracted, and the nut-crackers, which do not break but do crack the nuts.
With the latter are now included tennis rackets made of special ultralightweight alloys.

[Three uncaptioned photographs of Campagnolo gift and sports articles: a lever corkscrew stamped BREV. INT. CAMPAGNOLO on its handle and a chrome nutcracker, each on a wood background, and an alloy tennis racket with a taped grip. A paragraph on the gift and sports trades is printed at the top right; a small purple and yellow loop on the corkscrew handle may be a printing flaw or a later mark.]

— Page 10 —
Campagnolo

[A photograph of a white cutout relief map of the Americas on a blue ground, with red pins marking locations across North, Central and South America and the edge of West Africa showing at the right, under the white Campagnolo script logo over a globe. The map appears to be the left half of a spread that continues on the facing page.]

— Page 11 —
Campagnolo employs more than 2,000 skilled production workers and is constantly expanding. It exports directly to approximately 100 countries including all european markets, every american state, and a large number of African and Asian nations. Exports account for approximately 80% of the total production.

[A photograph of a white relief map of Europe, Africa, Asia and Australia on a blue ground, with red pins marking the countries Campagnolo exports to. The text block sits at the top right; the map continues the export theme of the facing page.]

— Page 12 —

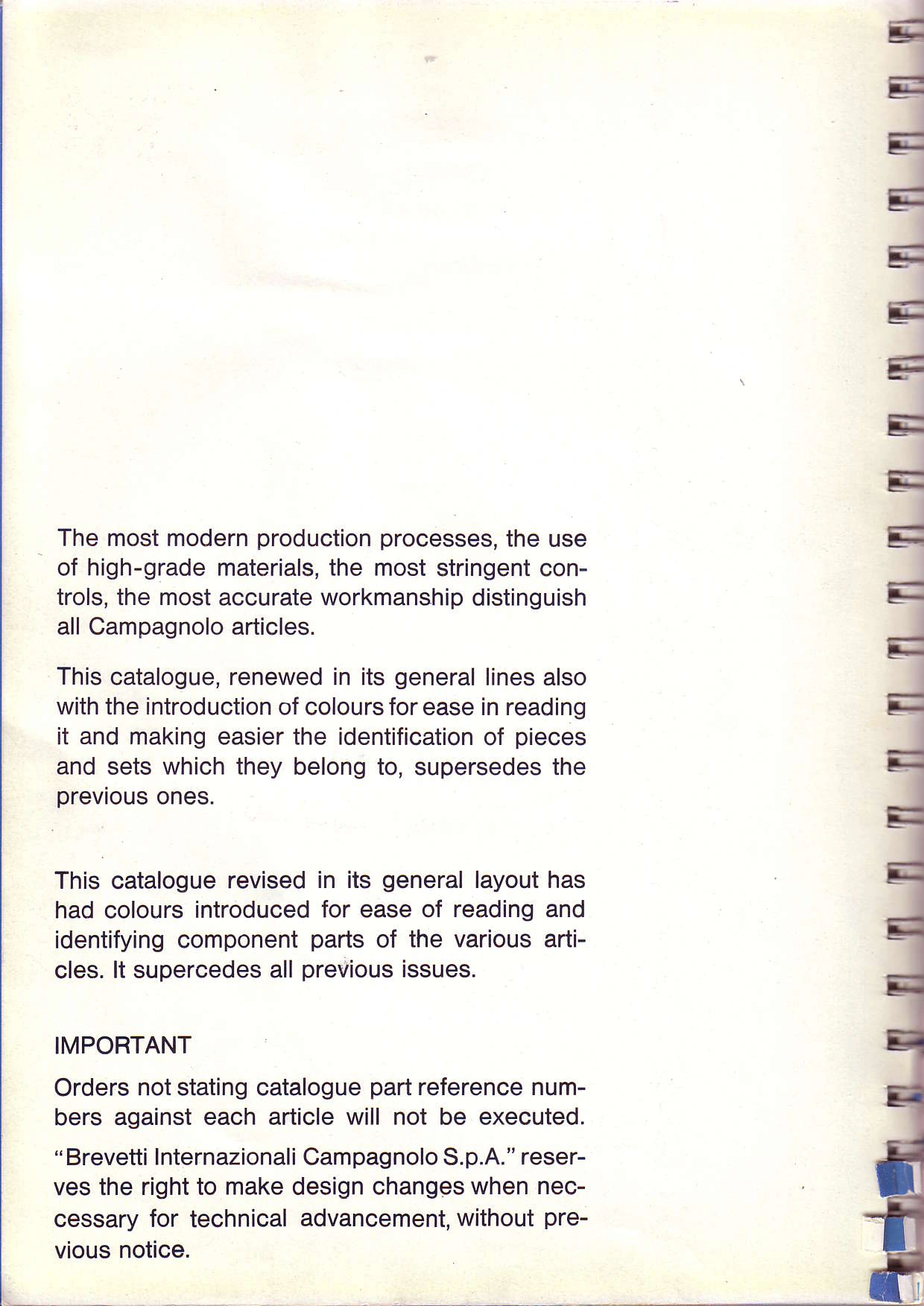

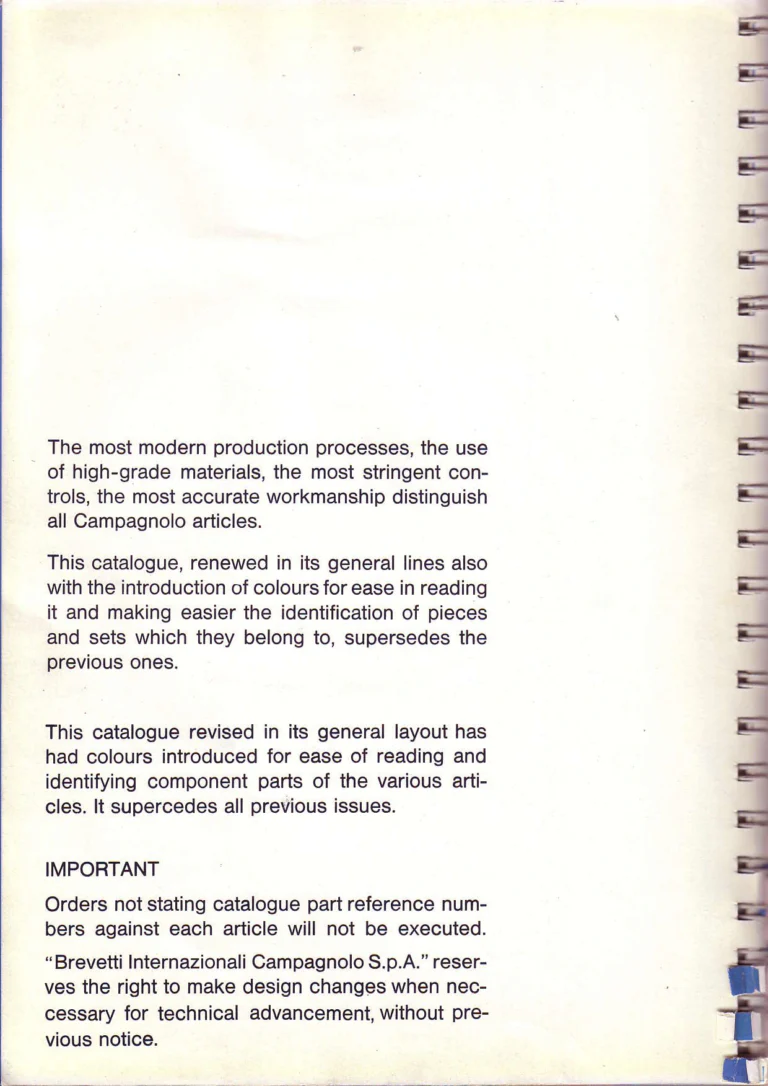

The most modern production processes, the use of high-grade materials, the most stringent controls, the most accurate workmanship distinguish all Campagnolo articles.

This catalogue, renewed in its general lines also with the introduction of colours for ease in reading it and making easier the identification of pieces and sets which they belong to, supersedes the previous ones.

This catalogue revised in its general layout has had colours introduced for ease of reading and identifying component parts of the various articles. It supercedes all previous issues.

IMPORTANT

Orders not stating catalogue part reference numbers against each article will not be executed.

“Brevetti Internazionali Campagnolo S.p.A.” reserves the right to make design changes when neccessary for technical advancement, without previous notice.

[A text page on a plain cream ground stating the quality claims of Campagnolo, the use of colors in this catalog and the ordering terms. The statement about colors is printed twice in two different English wordings.]

— Page 13 —

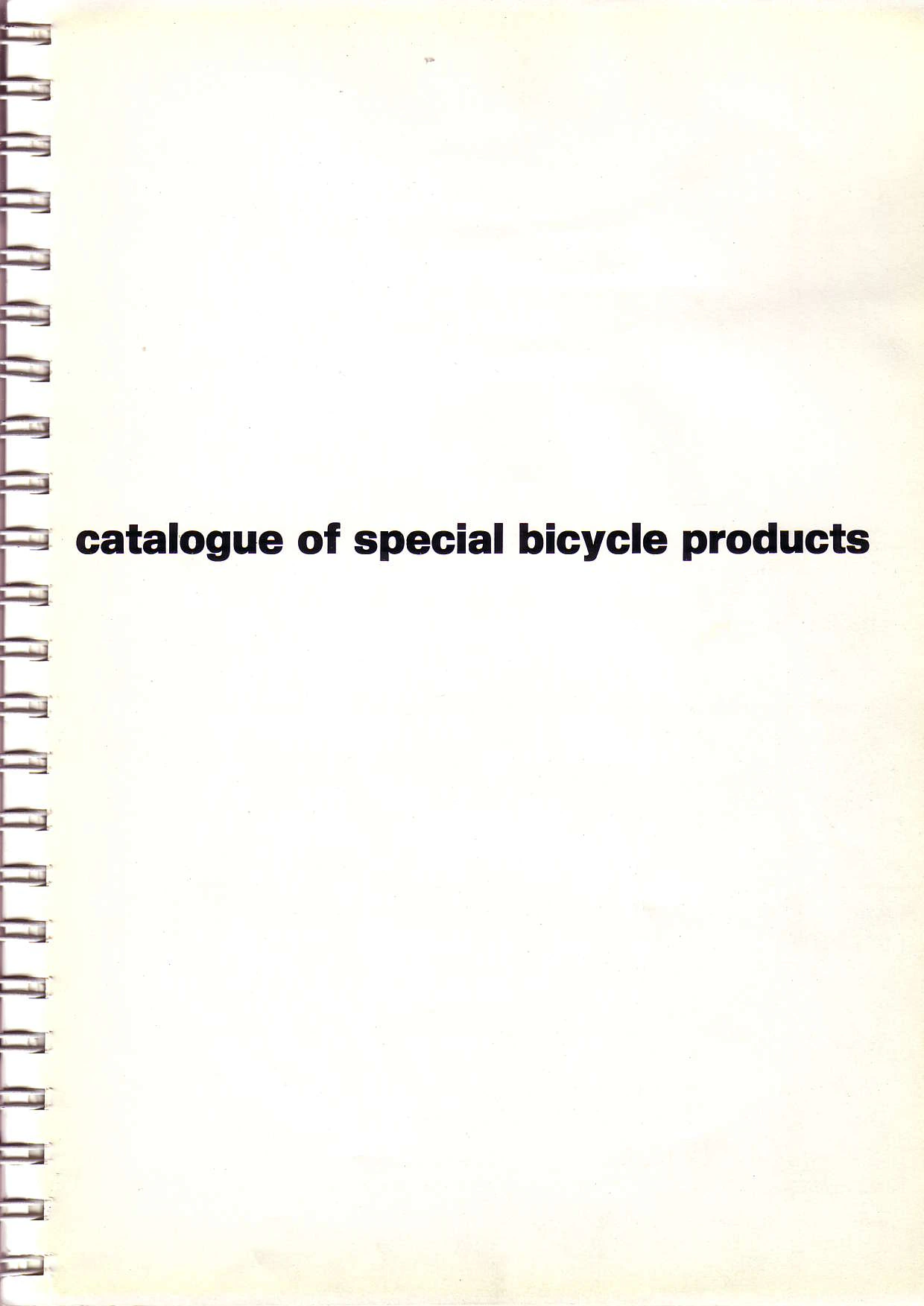

catalogue of special bicycle products

[A section title page on a plain cream ground, a single line of bold lowercase type across the middle of the page.]

— Page 14 —

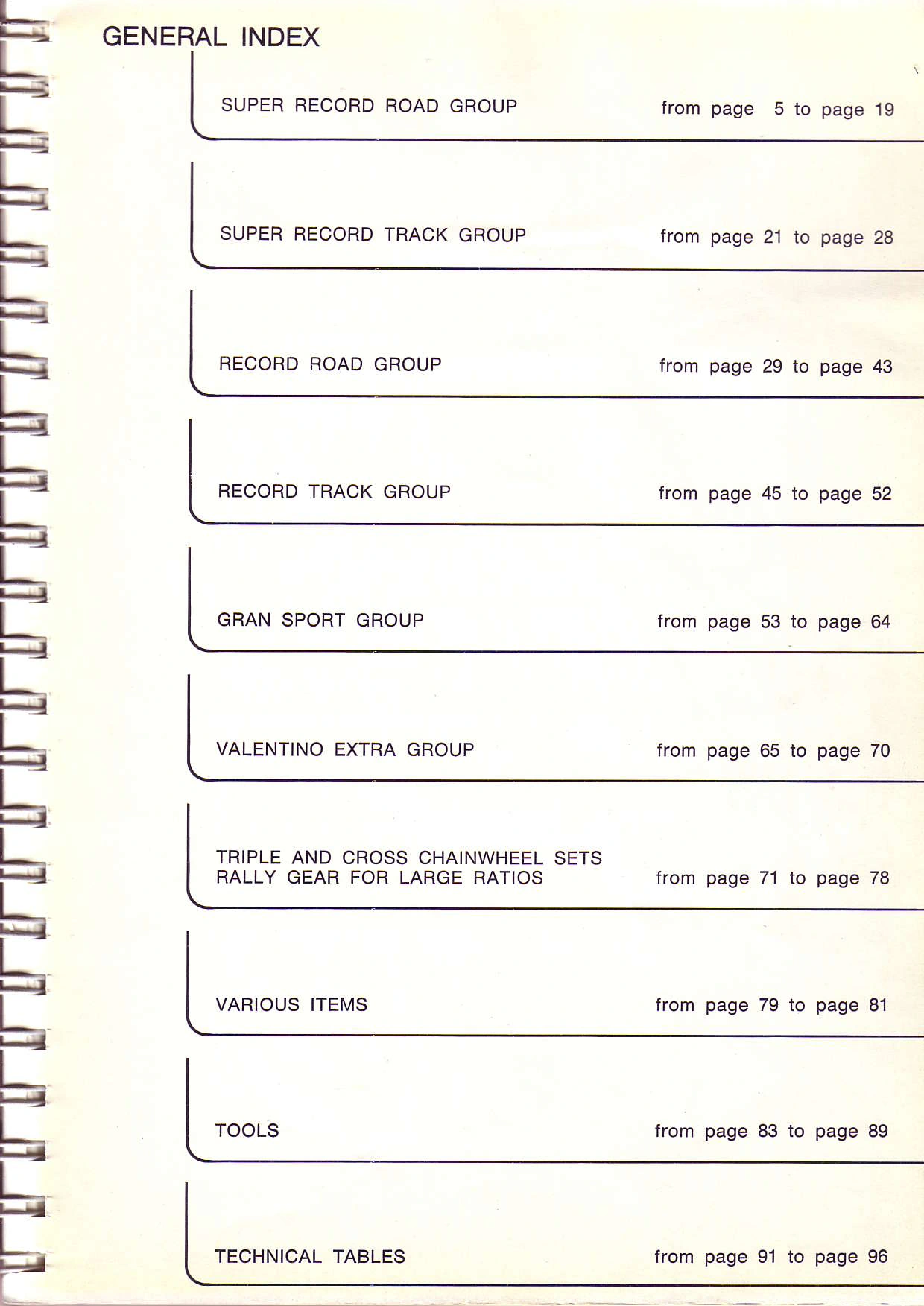

GENERAL INDEX

SUPER RECORD ROAD GROUP | from page 5 to page 19
SUPER RECORD TRACK GROUP | from page 21 to page 28
RECORD ROAD GROUP | from page 29 to page 43
RECORD TRACK GROUP | from page 45 to page 52
GRAN SPORT GROUP | from page 53 to page 64
VALENTINO EXTRA GROUP | from page 65 to page 70
TRIPLE AND CROSS CHAINWHEEL SETS RALLY GEAR FOR LARGE RATIOS | from page 71 to page 78
VARIOUS ITEMS | from page 79 to page 81
TOOLS | from page 83 to page 89
TECHNICAL TABLES | from page 91 to page 96

[The general index of the catalog, ten sections from the Super Record road group to the technical tables, each set in its own ruled box with its page range at the right.]

— Page 15 —

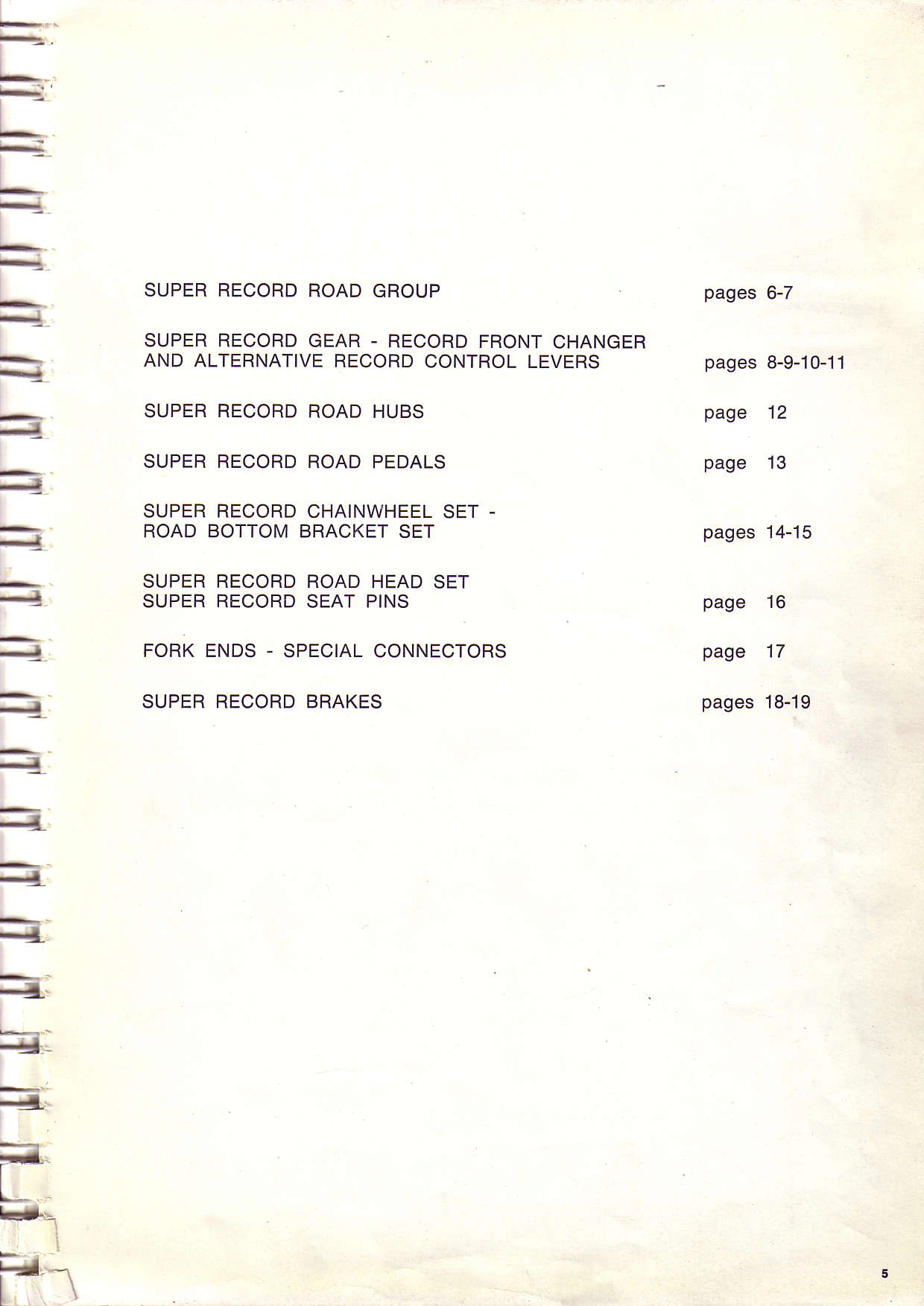

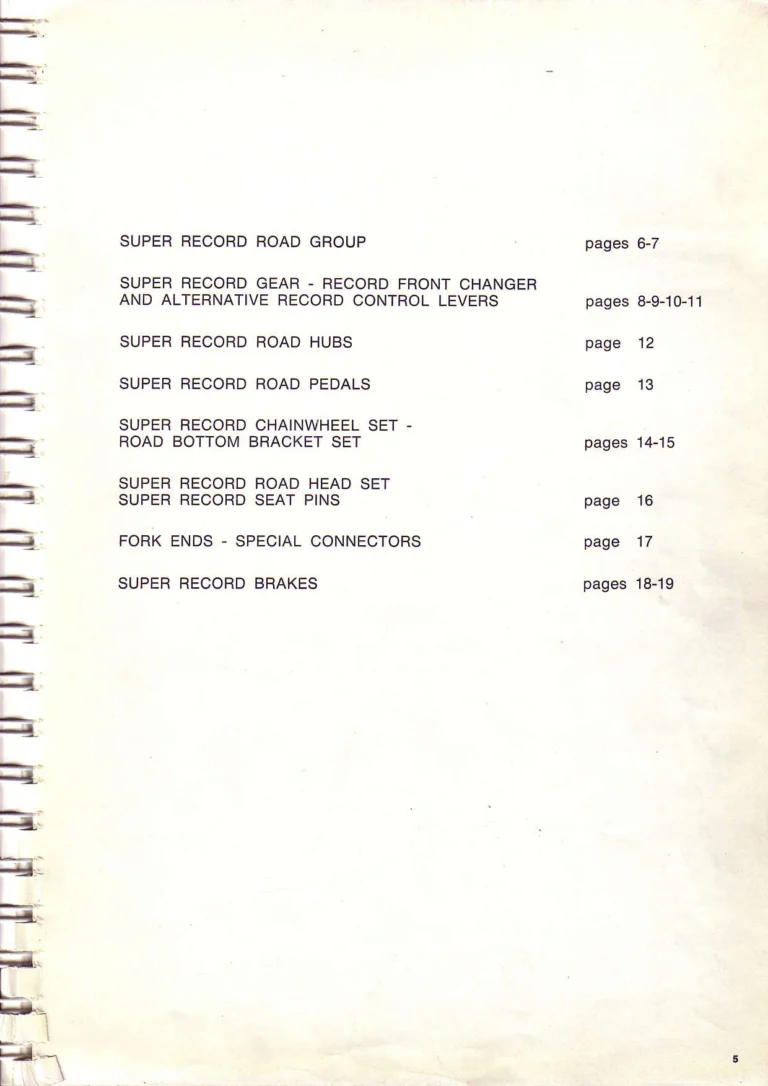

SUPER RECORD ROAD GROUP | pages 6-7
SUPER RECORD GEAR – RECORD FRONT CHANGER AND ALTERNATIVE RECORD CONTROL LEVERS | pages 8-9-10-11
SUPER RECORD ROAD HUBS | page 12
SUPER RECORD ROAD PEDALS | page 13
SUPER RECORD CHAINWHEEL SET – ROAD BOTTOM BRACKET SET | pages 14-15
SUPER RECORD ROAD HEAD SET SUPER RECORD SEAT PINS | page 16
FORK ENDS – SPECIAL CONNECTORS | page 17
SUPER RECORD BRAKES | pages 18-19

5

[The contents page of the Super Record road group section, listing its components from the derailleurs and hubs to the brakes with their page numbers.]

— Page 16 —

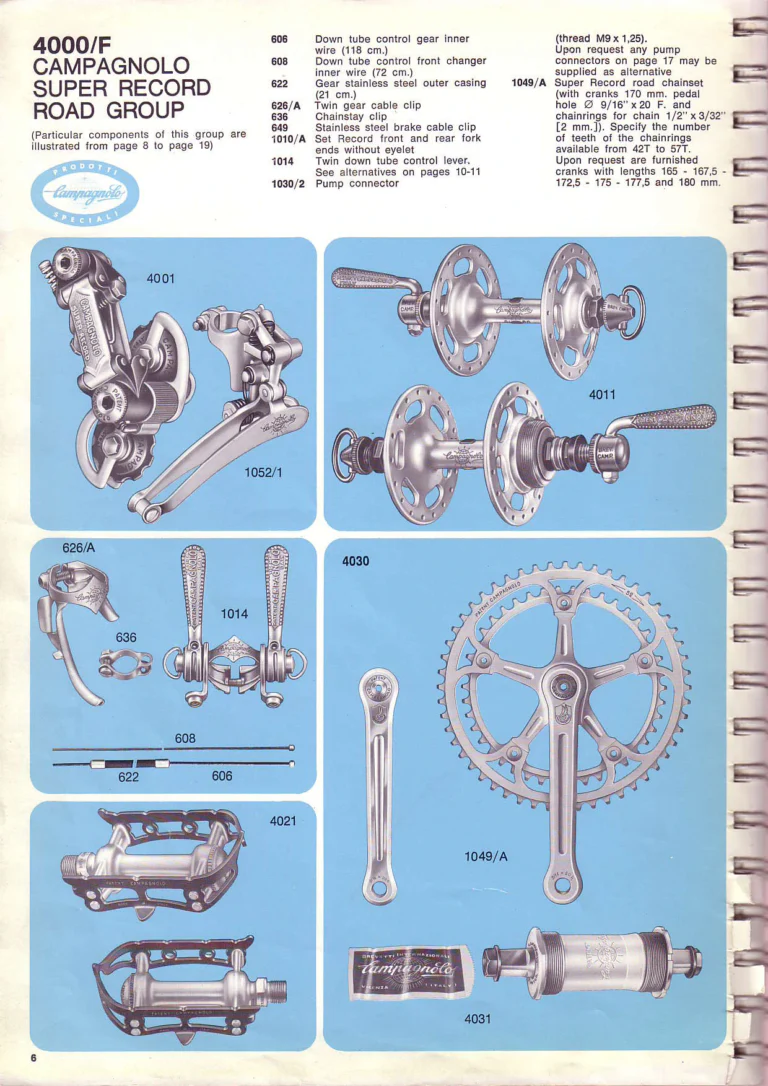

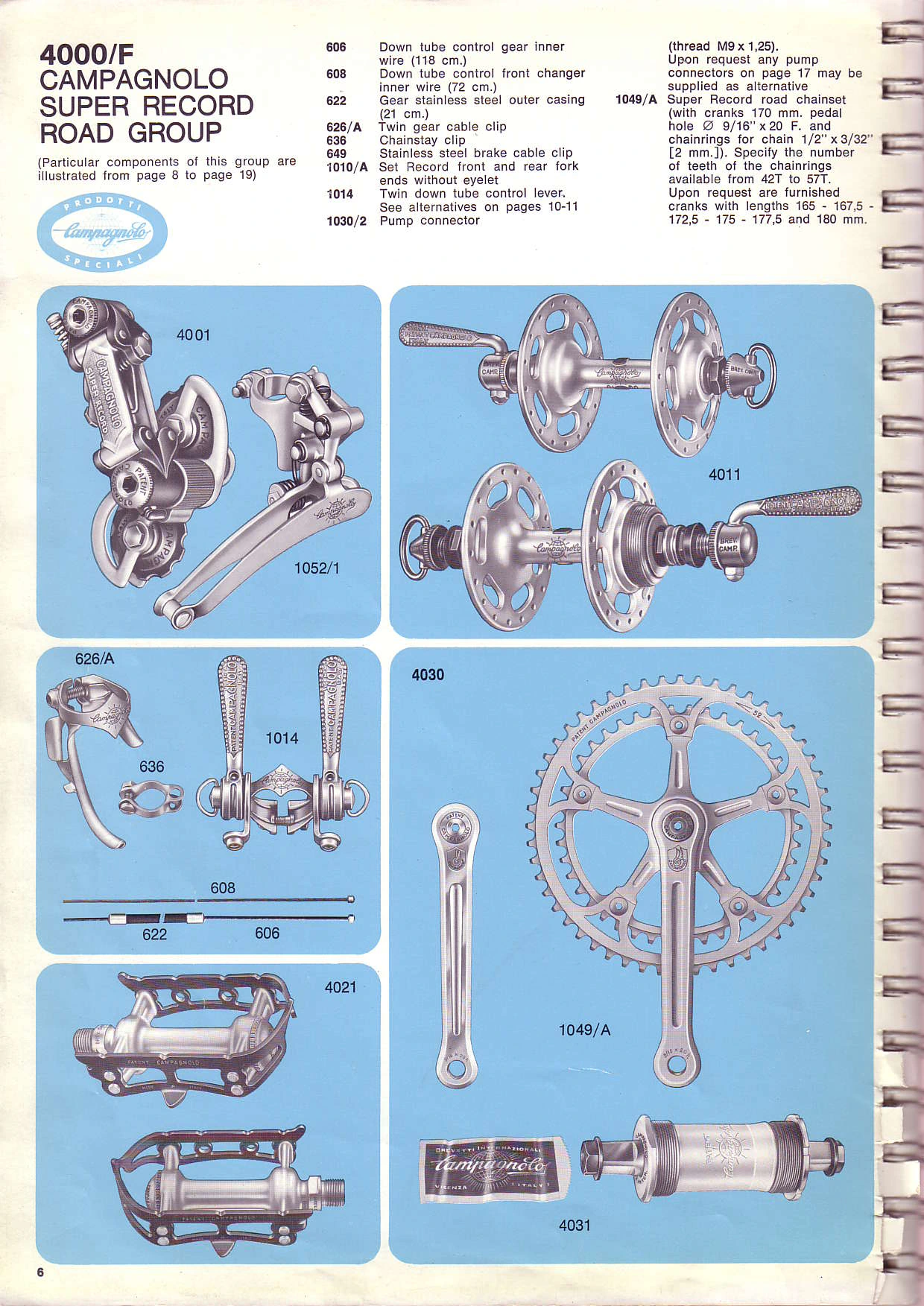

4000/F
CAMPAGNOLO SUPER RECORD ROAD GROUP

(Particular components of this group are illustrated from page 8 to page 19)

PRODOTTI Campagnolo SPECIALI

606 Down tube control gear inner wire (118 cm.)
608 Down tube control front changer inner wire (72 cm.)
622 Gear stainless steel outer casing (21 cm.)
626/A Twin gear cable clip
636 Chainstay clip
649 Stainless steel brake cable clip
1010/A Set Record front and rear fork ends without eyelet
1014 Twin down tube control lever. See alternatives on pages 10-11
1030/2 Pump connector (thread M9 x 1,25). Upon request any pump connectors on page 17 may be supplied as alternative
1049/A Super Record road chainset (with cranks 170 mm. pedal hole Ø 9/16″ x 20 F. and chainrings for chain 1/2″ x 3/32″ [2 mm.]). Specify the number of teeth of the chainrings available from 42T to 57T. Upon request are furnished cranks with lengths 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm.

Callouts: 4001 4011 1052/1 626/A 4030 1014 636 608 622 606 4021 1049/A 4031

6

[The Campagnolo Super Record road group, 4000/F, photographed on light blue panels: the rear derailleur and front changer, a pair of hubs, the cable clips and twin down tube levers with their wires and casing, a pair of pedals, the chainset and the bottom bracket set with its box label. The oval “Prodotti Campagnolo Speciali” emblem sits below the heading and the group’s parts list runs across the top of the page.]

— Page 17 —

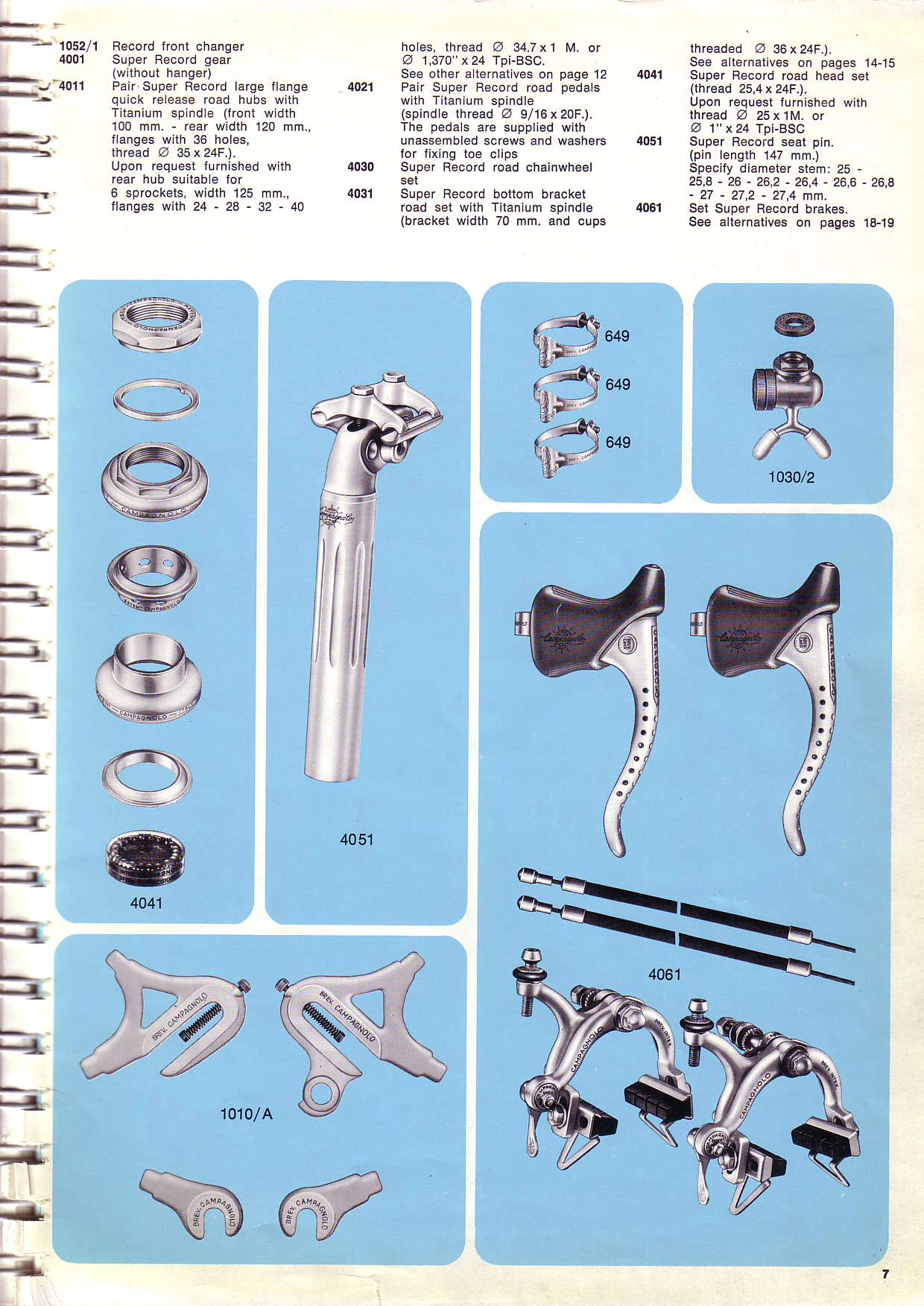

1052/1 Record front changer
4001 Super Record gear (without hanger)
4011 Pair Super Record large flange quick release road hubs with Titanium spindle (front width 100 mm. – rear width 120 mm., flanges with 36 holes, thread Ø 35 x 24F.). Upon request furnished with rear hub suitable for 6 sprockets, width 125 mm., flanges with 24 – 28 – 32 – 40 holes, thread Ø 34.7 x 1 M. or Ø 1,370″ x 24 Tpi-BSC. See other alternatives on page 12
4021 Pair Super Record road pedals with Titanium spindle (spindle thread Ø 9/16 x 20F.). The pedals are supplied with unassembled screws and washers for fixing toe clips
4030 Super Record road chainwheel set
4031 Super Record bottom bracket road set with Titanium spindle (bracket width 70 mm. and cups threaded Ø 36 x 24F.). See alternatives on pages 14-15

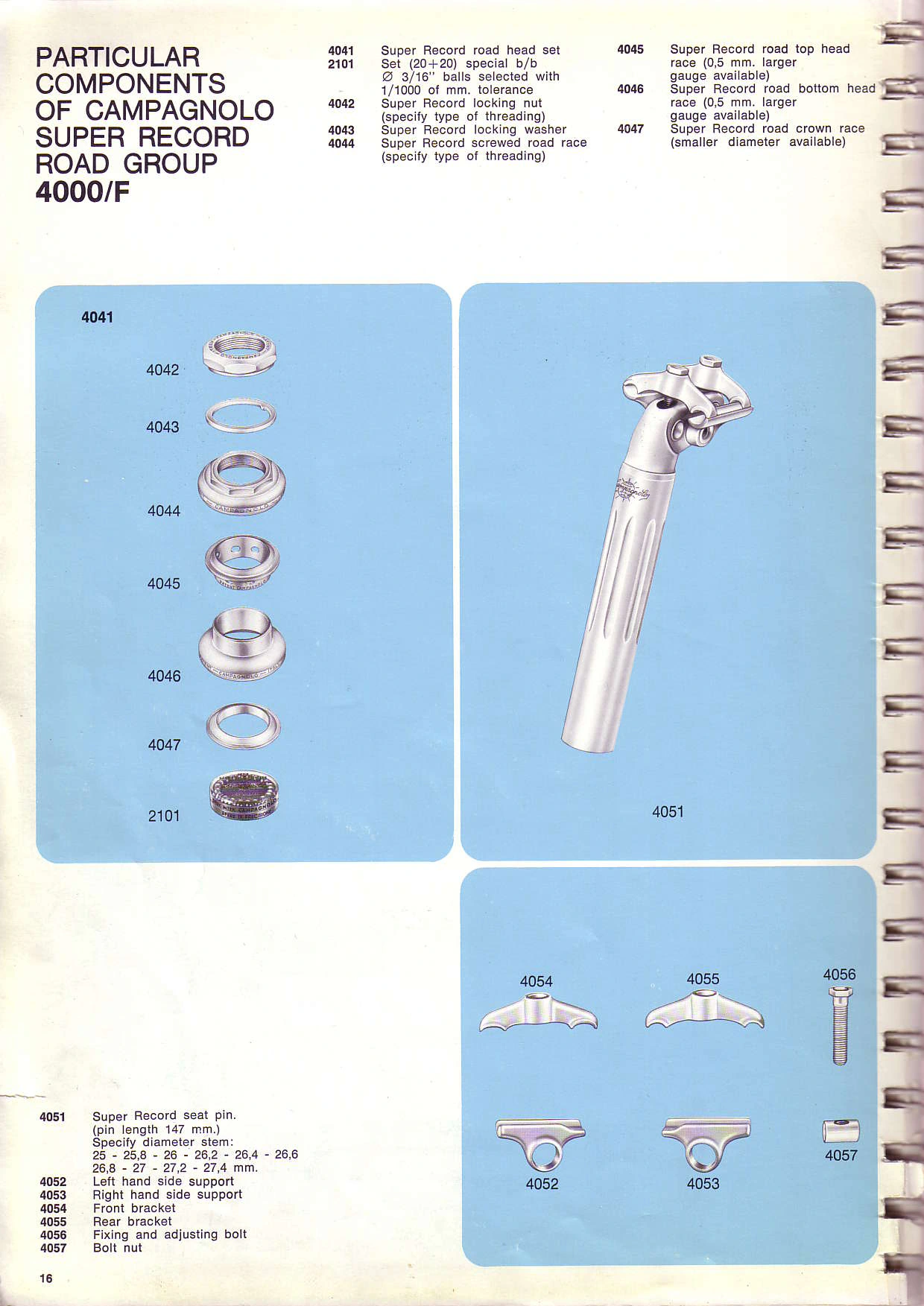

4041 Super Record road head set (thread 25,4 x 24F.). Upon request furnished with thread Ø 25 x 1M. or Ø 1″ x 24 Tpi-BSC
4051 Super Record seat pin. (pin length 147 mm.) Specify diameter stem: 25 – 25,8 – 26 – 26,2 – 26,4 – 26,6 – 26,8 – 27 – 27,2 – 27,4 mm.
4061 Set Super Record brakes. See alternatives on pages 18-19

Callouts: 649 649 649 1030/2 4051 4041 4061 1010/A

7

[The second page of the Campagnolo Super Record road group, photographed on light blue panels: the parts of the head set, the seat pin, three brake cable clips, the pump connector, the front and rear fork ends, and a pair of brakes with their levers and cables. The parts list continued from the facing page runs across the top in three columns.]

— Page 18 —
PARTICULAR COMPONENTS OF CAMPAGNOLO SUPER RECORD ROAD GROUP
4000/F

Callouts: 4001 99 4007 930/A 937 84 815/A 931/A 4002 937 4004 98/A 93/A 807/A 937 4006 88 931/A 930/A 124 937 4009 82/A 4003 93/A 814/A 808/A 4008 813/A 812/1A 810/1A 4005 99

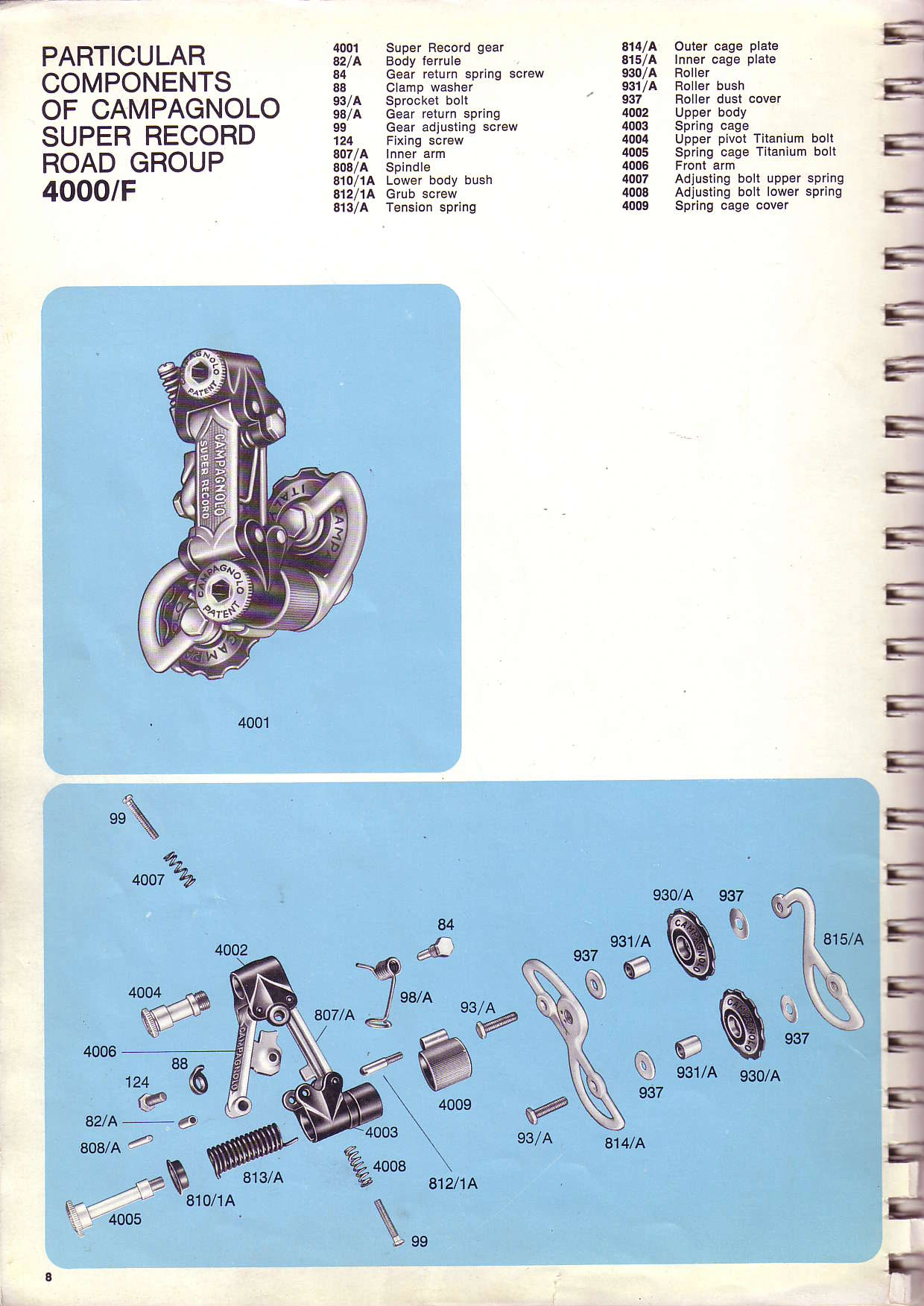

4001 Super Record gear
82/A Body ferrule
84 Gear return spring screw
88 Clamp washer
93/A Sprocket bolt
98/A Gear return spring
99 Gear adjusting screw
124 Fixing screw
807/A Inner arm
808/A Spindle
810/1A Lower body bush
812/1A Grub screw
813/A Tension spring
814/A Outer cage plate
815/A Inner cage plate
930/A Roller
931/A Roller bush
937 Roller dust cover
4002 Upper body
4003 Spring cage
4004 Upper pivot Titanium bolt
4005 Spring cage Titanium bolt
4006 Front arm
4007 Adjusting bolt upper spring
4008 Adjusting bolt lower spring
4009 Spring cage cover

8

[A photograph of the Campagnolo Super Record rear derailleur, 4001, above a photographed exploded view of the same derailleur with every part numbered and keyed to the parts list, all on light blue panels.]

— Page 19 —

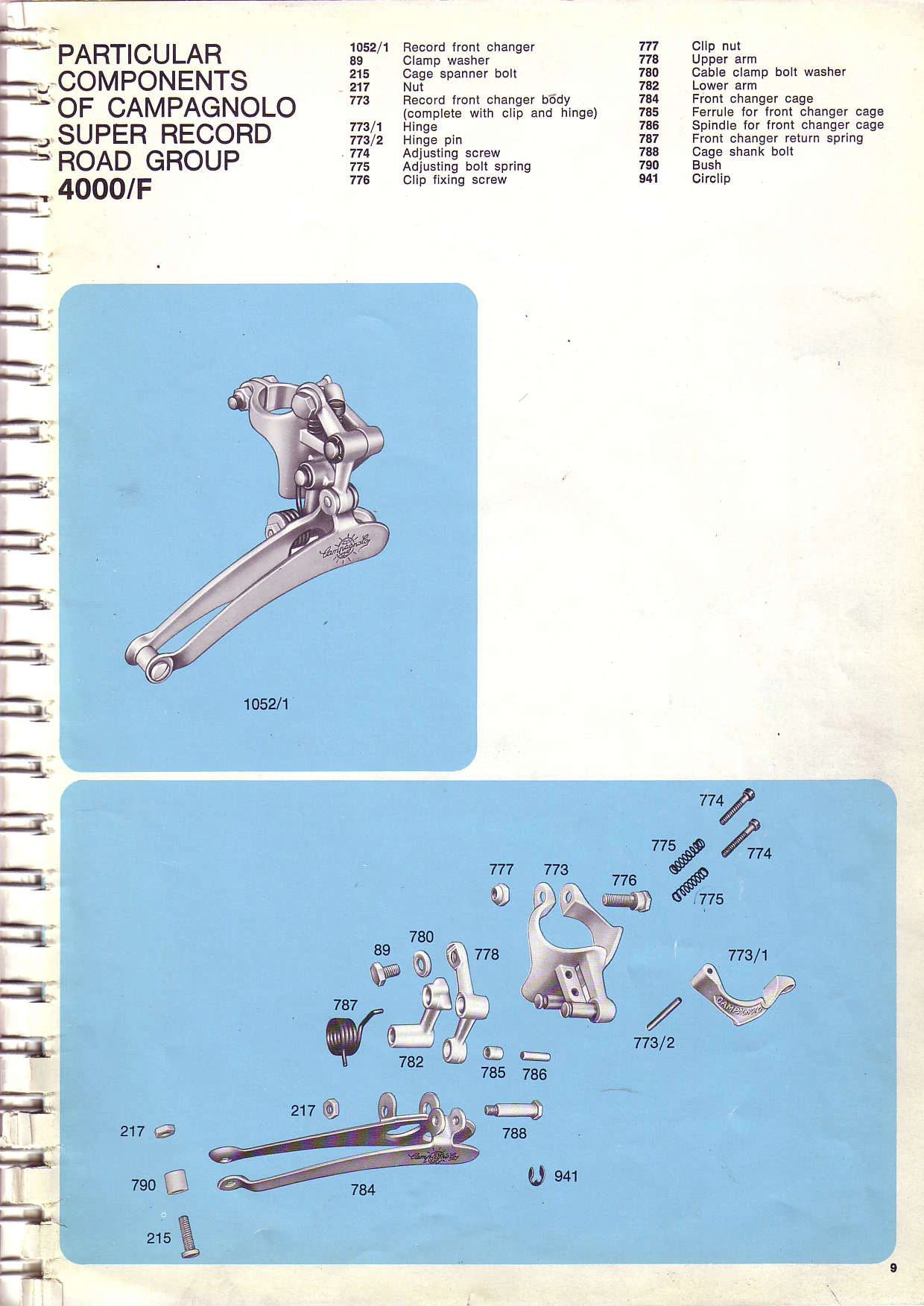

PARTICULAR COMPONENTS OF CAMPAGNOLO SUPER RECORD ROAD GROUP
4000/F

Callouts: 1052/1 774 775 774 777 773 776 775 780 89 778 773/1 787 773/2 782 785 786 217 217 788 941 790 784 215

1052/1 Record front changer
89 Clamp washer
215 Cage spanner bolt
217 Nut
773 Record front changer body (complete with clip and hinge)
773/1 Hinge
773/2 Hinge pin
774 Adjusting screw
775 Adjusting bolt spring
776 Clip fixing screw
777 Clip nut
778 Upper arm
780 Cable clamp bolt washer
782 Lower arm
784 Front changer cage
785 Ferrule for front changer cage
786 Spindle for front changer cage
787 Front changer return spring
788 Cage shank bolt
790 Bush
941 Circlip

9

[A photograph of the Campagnolo Record front changer, 1052/1, above a photographed exploded view of the same changer with every part numbered and keyed to the parts list, all on light blue panels.]

— Page 20 —
PARTICULAR COMPONENTS OF CAMPAGNOLO SUPER RECORD ROAD GROUP
4000/F

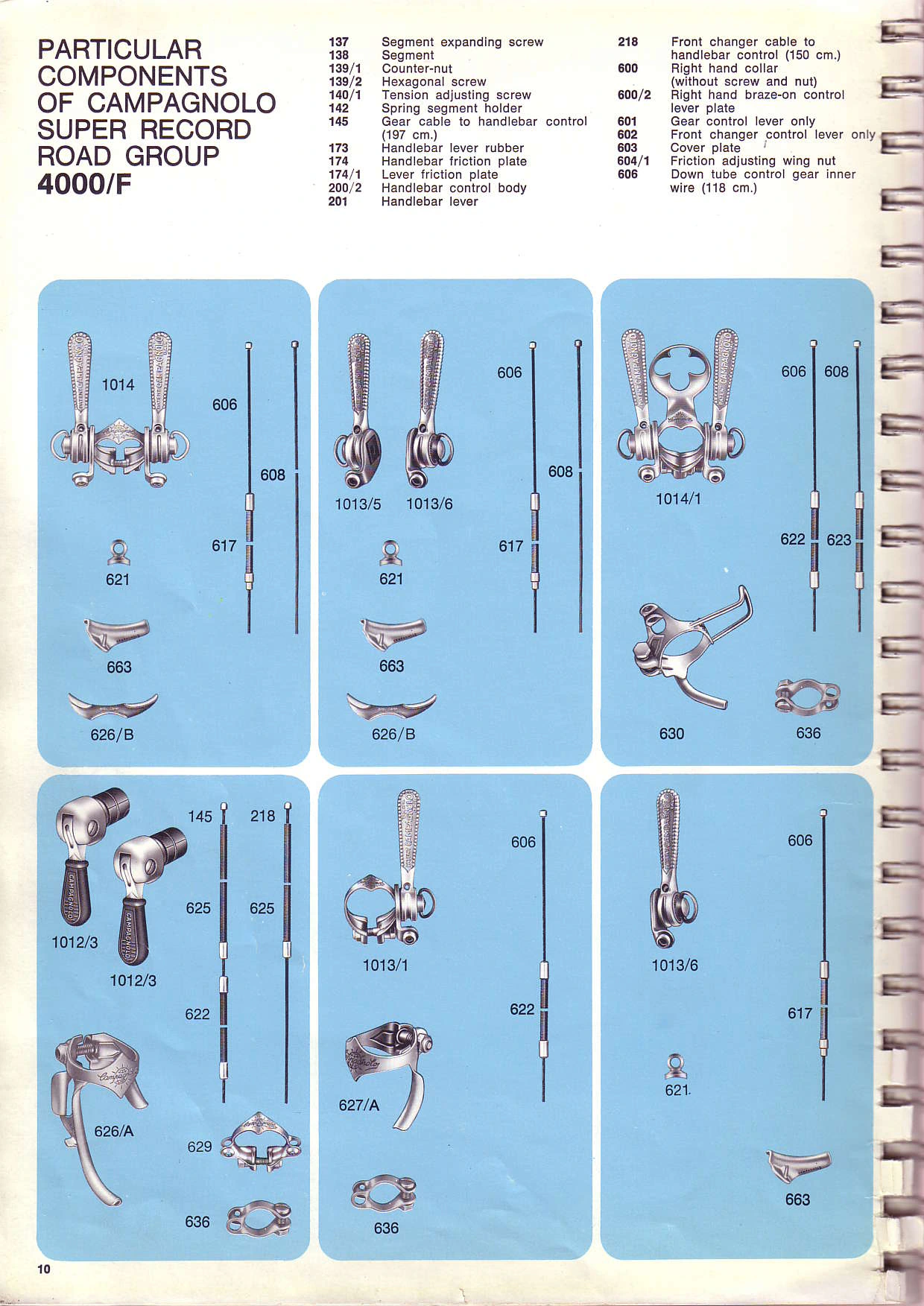

137 Segment expanding screw
138 Segment
139/1 Counter-nut
139/2 Hexagonal screw
140/1 Tension adjusting screw
142 Spring segment holder
145 Gear cable to handlebar control (197 cm.)
173 Handlebar lever rubber
174 Handlebar friction plate
174/1 Lever friction plate
200/2 Handlebar control body
201 Handlebar lever
218 Front changer cable to handlebar control (150 cm.)
600 Right hand collar (without screw and nut)
600/2 Right hand braze-on control lever plate
601 Gear control lever only
602 Front changer control lever only
603 Cover plate
604/1 Friction adjusting wing nut
606 Down tube control gear inner wire (118 cm.)

Callouts: 1014 606 608 617 621 663 626/B 606 608 1013/5 1013/6 617 621 663 626/B 606 608 1014/1 622 623 630 636 145 218 625 625 1012/3 1012/3 622 626/A 629 636 606 1013/1 622 627/A 636 606 1013/6 617 621. 663

10

[Six light blue panels of Campagnolo gear controls and their fittings for the Super Record road group, 4000/F: twin down tube levers, single levers, a braze-on twin lever set, handlebar end controls, clamp-on levers with their inner wires, casings, cable stops and clips. The parts list on this page ends at 606, so the higher callout numbers are not listed here; the callouts are given panel by panel, top row first.]

— Page 21 —

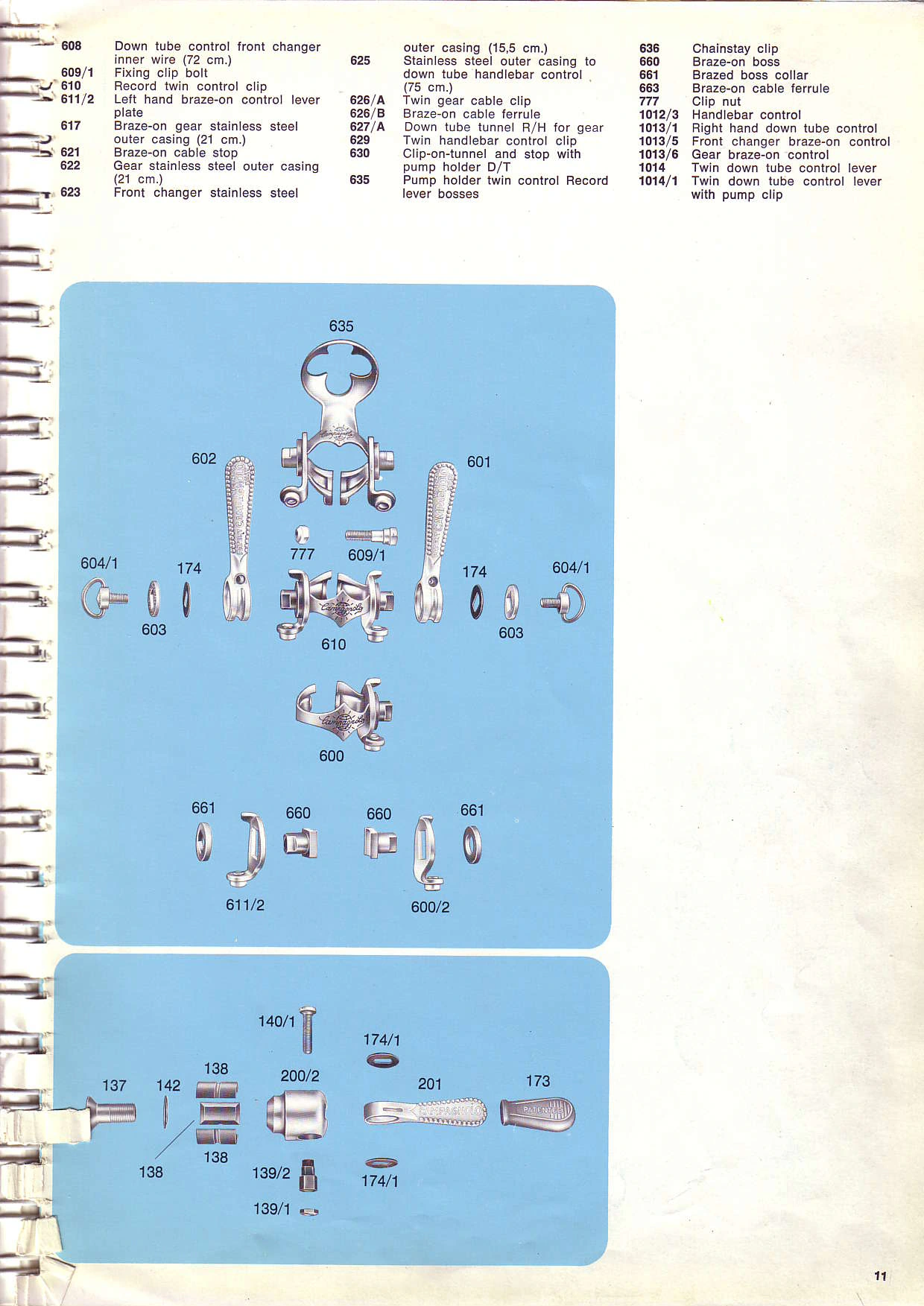

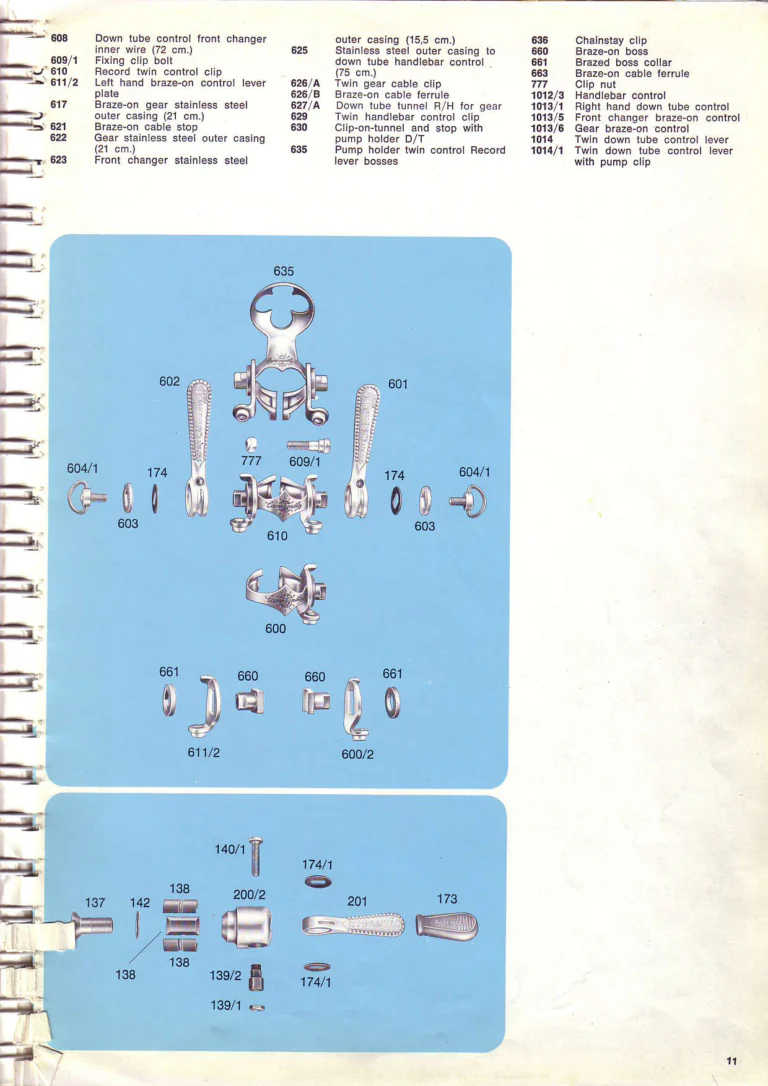

608 Down tube control front changer inner wire (72 cm.)
609/1 Fixing clip bolt
610 Record twin control clip
611/2 Left hand braze-on control lever plate
617 Braze-on gear stainless steel outer casing (21 cm.)
621 Braze-on cable stop
622 Gear stainless steel outer casing (21 cm.)
623 Front changer stainless steel outer casing (15,5 cm.)
625 Stainless steel outer casing to down tube handlebar control (75 cm.)
626/A Twin gear cable clip
626/B Braze-on cable ferrule
627/A Down tube tunnel R/H for gear
629 Twin handlebar control clip
630 Clip-on-tunnel and stop with pump holder D/T
635 Pump holder twin control Record lever bosses
636 Chainstay clip
660 Braze-on boss
661 Brazed boss collar
663 Braze-on cable ferrule
777 Clip nut
1012/3 Handlebar control
1013/1 Right hand down tube control
1013/5 Front changer braze-on control
1013/6 Gear braze-on control
1014 Twin down tube control lever
1014/1 Twin down tube control lever with pump clip

Callouts: 635 602 601 604/1 174 777 609/1 174 604/1 603 610 603 600 661 660 660 661 611/2 600/2 140/1 174/1 137 142 138 200/2 201 173 138 138 139/2 174/1 139/1

11

[Two blue panels of photographed Campagnolo gear control parts, each part numbered: the twin down tube control levers with their clips, pump holder, braze-on bosses and lever plates above, and the parts of the handlebar control below. The parts list at the top continues a list begun on the previous page.]

— Page 22 —
PARTICULAR COMPONENTS OF CAMPAGNOLO SUPER RECORD ROAD GROUP 4000/F

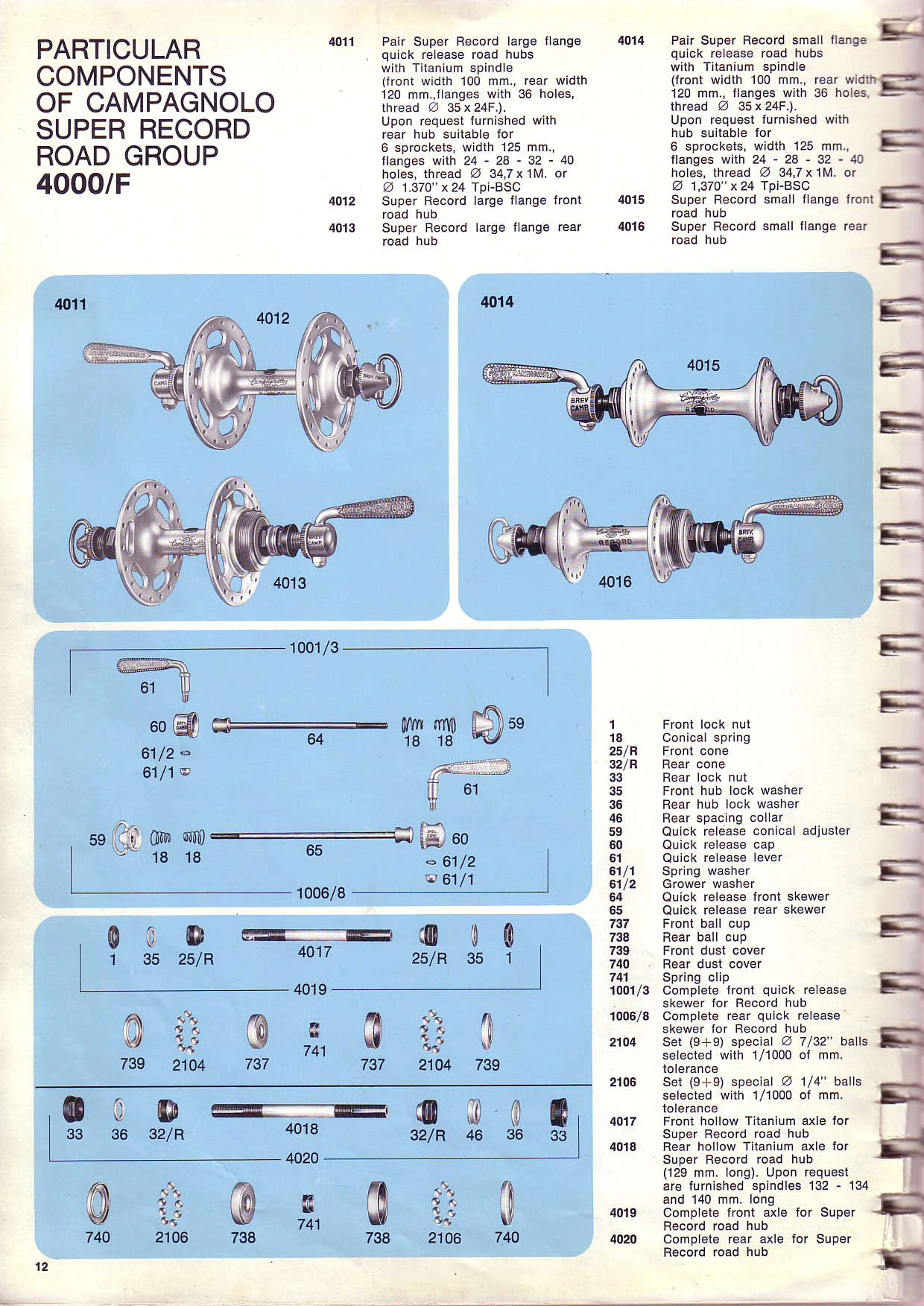

4011 Pair Super Record large flange quick release road hubs with Titanium spindle (front width 100 mm., rear width 120 mm.,flanges with 36 holes, thread Ø 35 x 24F.). Upon request furnished with rear hub suitable for 6 sprockets, width 125 mm., flanges with 24 – 28 – 32 – 40 holes, thread Ø 34,7 x 1M. or Ø 1.370″ x 24 Tpi-BSC
4012 Super Record large flange front road hub
4013 Super Record large flange rear road hub
4014 Pair Super Record small flange quick release road hubs with Titanium spindle (front width 100 mm., rear width 120 mm., flanges with 36 holes, thread Ø 35 x 24F.). Upon request furnished with hub suitable for 6 sprockets, width 125 mm., flanges with 24 – 28 – 32 – 40 holes, thread Ø 34,7 x 1M. or Ø 1,370″ x 24 Tpi-BSC
4015 Super Record small flange front road hub
4016 Super Record small flange rear road hub

Callouts: 4011 4012 4013 4014 4015 4016 1001/3 61 60 64 18 18 59 61/2 61/1 61 59 18 18 65 60 61/2 61/1 1006/8 1 35 25/R 4017 25/R 35 1 4019 739 2104 737 741 737 2104 739 33 36 32/R 4018 32/R 46 36 33 4020 740 2106 738 741 738 2106 740

1 Front lock nut
18 Conical spring
25/R Front cone
32/R Rear cone
33 Rear lock nut
35 Front hub lock washer
36 Rear hub lock washer
46 Rear spacing collar
59 Quick release conical adjuster
60 Quick release cap
61 Quick release lever
61/1 Spring washer
61/2 Grower washer
64 Quick release front skewer
65 Quick release rear skewer
737 Front ball cup
738 Rear ball cup
739 Front dust cover
740 Rear dust cover
741 Spring clip
1001/3 Complete front quick release skewer for Record hub
1006/8 Complete rear quick release skewer for Record hub
2104 Set (9+9) special Ø 7/32″ balls selected with 1/1000 of mm. tolerance
2106 Set (9+9) special Ø 1/4″ balls selected with 1/1000 of mm. tolerance
4017 Front hollow Titanium axle for Super Record road hub
4018 Rear hollow Titanium axle for Super Record road hub (129 mm. long). Upon request are furnished spindles 132 – 134 and 140 mm. long
4019 Complete front axle for Super Record road hub
4020 Complete rear axle for Super Record road hub

12

[Photographs of the Campagnolo Super Record large flange and small flange quick release road hubs, 4011 and 4014, with the front and rear quick release skewers and the hub axle assemblies laid out part by part and numbered. The parts are shown on blue panels keyed to the descriptions above and to the parts list at the lower right.]

— Page 23 —
PARTICULAR COMPONENTS OF CAMPAGNOLO SUPER RECORD ROAD GROUP 4000/F

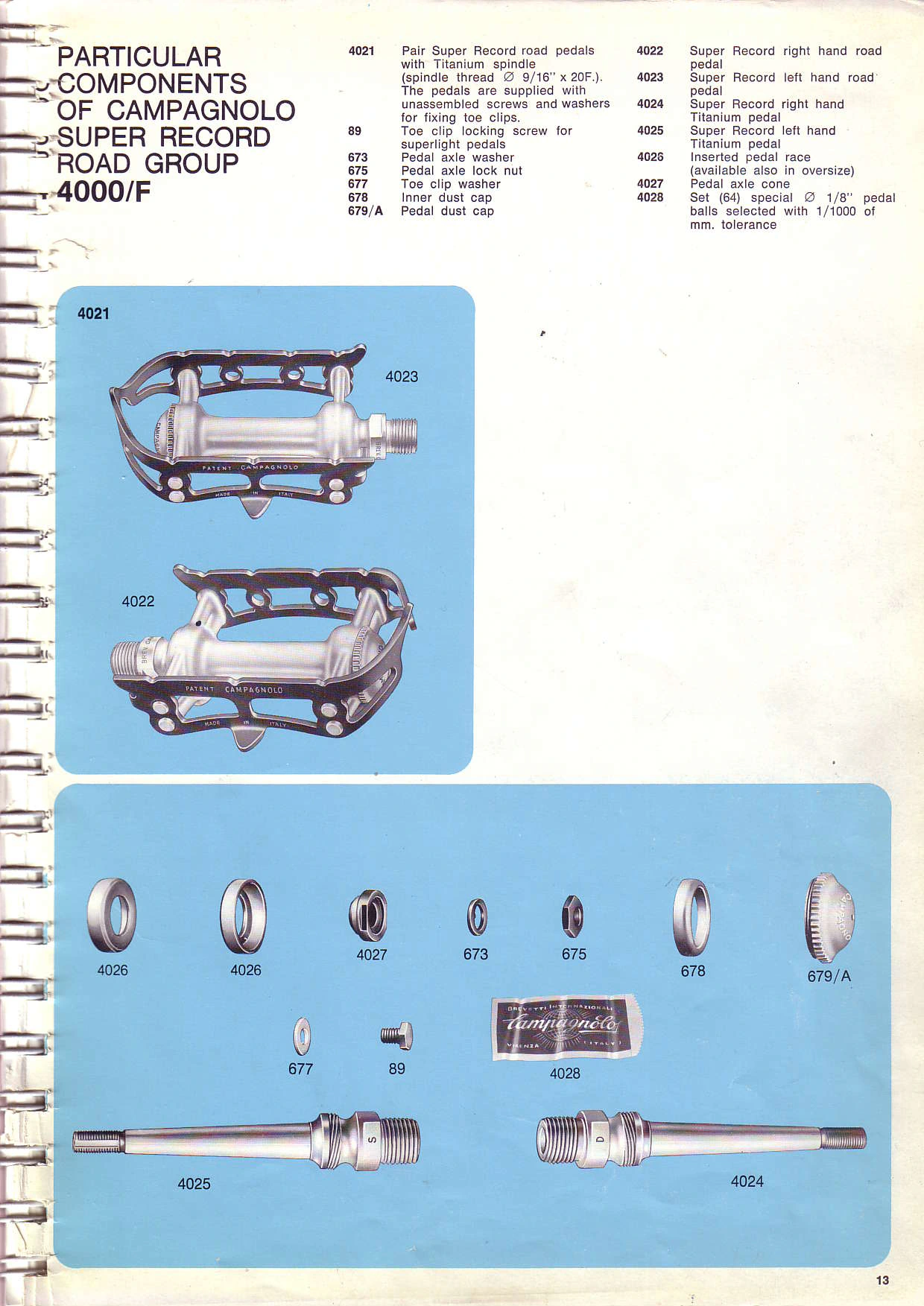

4021 Pair Super Record road pedals with Titanium spindle (spindle thread Ø 9/16″ x 20F.). The pedals are supplied with unassembled screws and washers for fixing toe clips.
89 Toe clip locking screw for superlight pedals
673 Pedal axle washer
675 Pedal axle lock nut
677 Toe clip washer
678 Inner dust cap
679/A Pedal dust cap
4022 Super Record right hand road pedal
4023 Super Record left hand road pedal
4024 Super Record right hand Titanium pedal
4025 Super Record left hand Titanium pedal
4026 Inserted pedal race (available also in oversize)
4027 Pedal axle cone
4028 Set (64) special Ø 1/8″ pedal balls selected with 1/1000 of mm. tolerance

Callouts: 4021 4023 4022 4026 4026 4027 673 675 678 679/A 677 89 4028 4025 4024

13

[Photographs of the Campagnolo Super Record road pedals with titanium spindle, 4021, shown as a left and right pair, above the pedal’s small parts and the two titanium spindles, each numbered. The spindles are stamped “S” and “D” and the packet of pedal balls, 4028, carries the Brevetti Internazionali Campagnolo Vicenza label.]

— Page 24 —

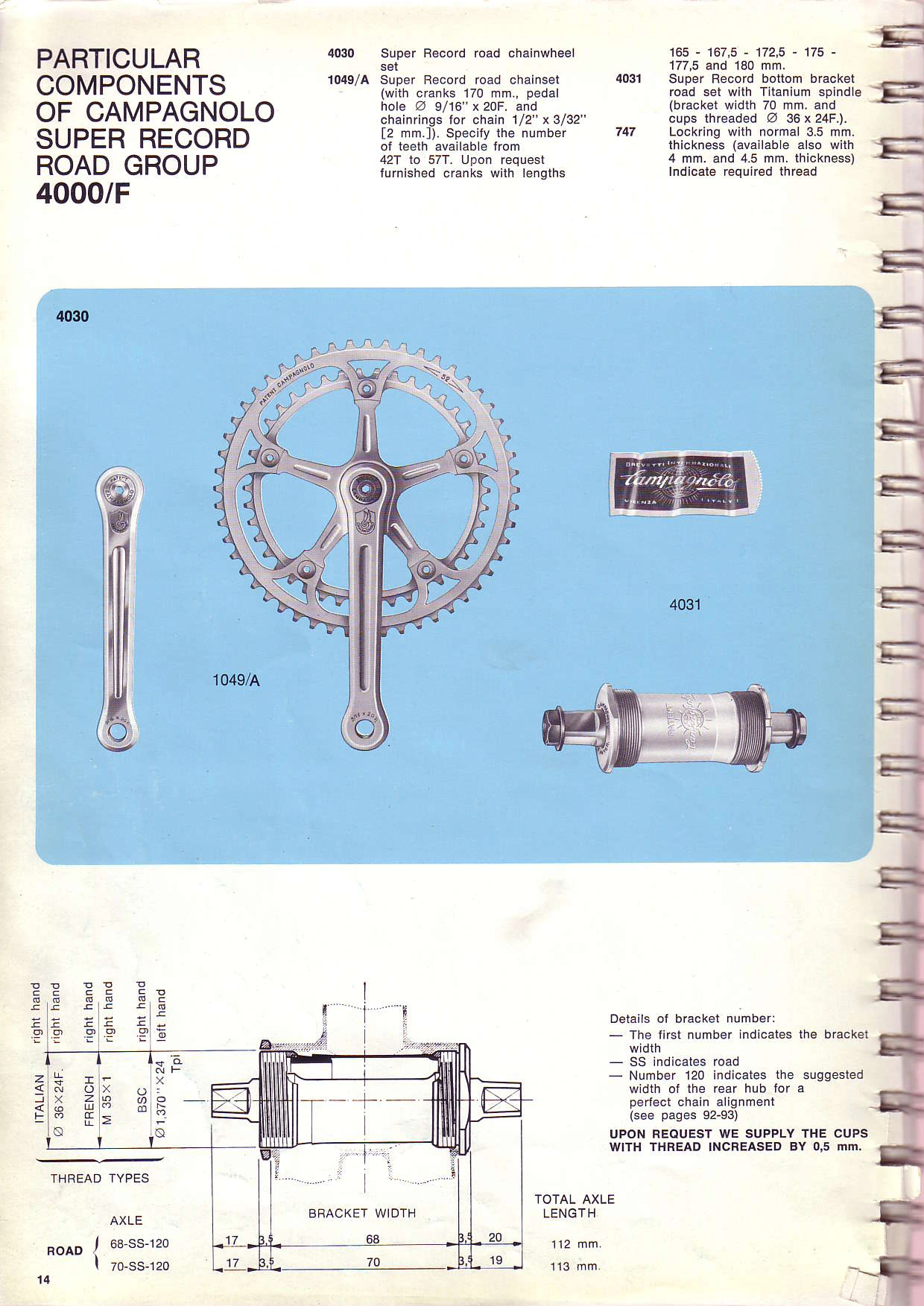

PARTICULAR COMPONENTS OF CAMPAGNOLO SUPER RECORD ROAD GROUP 4000/F

4030 Super Record road chainwheel set
1049/A Super Record road chainset (with cranks 170 mm., pedal hole Ø 9/16″ x 20F. and chainrings for chain 1/2″ x 3/32″ [2 mm.]). Specify the number of teeth available from 42T to 57T. Upon request furnished cranks with lengths 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm.
4031 Super Record bottom bracket road set with Titanium spindle (bracket width 70 mm. and cups threaded Ø 36 x 24F.).
747 Lockring with normal 3.5 mm. thickness (available also with 4 mm. and 4.5 mm. thickness) Indicate required thread

Callouts: 4030 1049/A 4031

THREAD TYPES
ITALIAN | Ø 36×24F. | right hand | right hand
FRENCH | M 35×1 | right hand | right hand
BSC | Ø 1,370″×24 Tpi | right hand | left hand

AXLE | | | BRACKET WIDTH | | | TOTAL AXLE LENGTH
ROAD 68-SS-120 | 17 | 3,5 | 68 | 3,5 | 20 | 112 mm.
ROAD 70-SS-120 | 17 | 3,5 | 70 | 3,5 | 19 | 113 mm.

Details of bracket number:
— The first number indicates the bracket width
— SS indicates road
— Number 120 indicates the suggested width of the rear hub for a perfect chain alignment (see pages 92-93)

UPON REQUEST WE SUPPLY THE CUPS WITH THREAD INCREASED BY 0,5 mm.

14

[A photograph of the Campagnolo Super Record road chainwheel set, 4030, showing the left crank, the right crank with double chainrings, 1049/A, and the titanium spindle bottom bracket set, 4031, with its packet label. Below is a sectional drawing of the bottom bracket with its thread types and the axle, cup and bracket width dimensions for the 68 and 70 mm road brackets.]

— Page 25 —

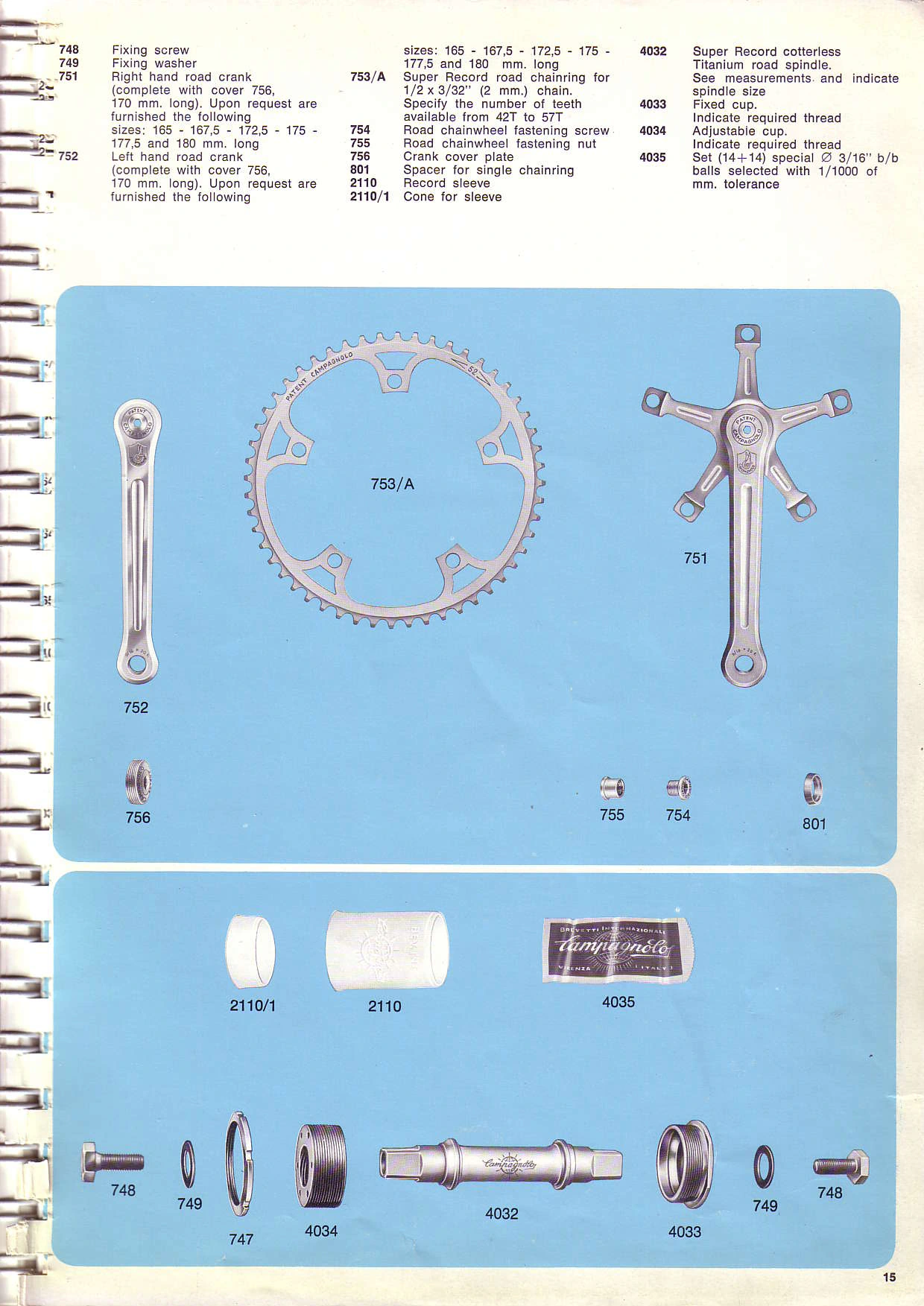

748 Fixing screw
749 Fixing washer
751 Right hand road crank (complete with cover 756, 170 mm. long). Upon request are furnished the following sizes: 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm. long
752 Left hand road crank (complete with cover 756, 170 mm. long). Upon request are furnished the following sizes: 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm. long
753/A Super Record road chainring for 1/2 x 3/32″ (2 mm.) chain. Specify the number of teeth available from 42T to 57T
754 Road chainwheel fastening screw
755 Road chainwheel fastening nut
756 Crank cover plate
801 Spacer for single chainring
2110 Record sleeve
2110/1 Cone for sleeve
4032 Super Record cotterless Titanium road spindle. See measurements and indicate spindle size
4033 Fixed cup. Indicate required thread
4034 Adjustabie cup. Indicate required thread
4035 Set (14+14) special Ø 3/16″ b/b balls selected with 1/1000 of mm. tolerance

Callouts: 753/A 751 752 756 755 754 801 2110/1 2110 4035 748 749 747 4034 4032 4033 749 748

15

[Photographs of the parts of the Campagnolo Super Record road chainset and bottom bracket, each numbered: the left and right cranks, a 52 tooth chainring, the chainring bolts, nut and spacer above, and the bottom bracket sleeve, cups, lockring, fixing bolts and titanium spindle below. The ball packet, 4035, carries the Brevetti Internazionali Campagnolo Vicenza label.]

— Page 26 —
PARTICULAR COMPONENTS OF CAMPAGNOLO SUPER RECORD ROAD GROUP 4000/F

4041 Super Record road head set
2101 Set (20+20) special b/b Ø 3/16″ balls selected with 1/1000 of mm. tolerance
4042 Super Record locking nut (specify type of threading)
4043 Super Record locking washer
4044 Super Record screwed road race (specify type of threading)
4045 Super Record road top head race (0,5 mm. larger gauge available)
4046 Super Record road bottom head race (0,5 mm. larger gauge available)
4047 Super Record road crown race (smaller diameter available)

Callouts: 4041 4042 4043 4044 4045 4046 4047 2101 4051 4054 4055 4056 4052 4053 4057

4051 Super Record seat pin. (pin length 147 mm.) Specify diameter stem: 25 – 25,8 – 26 – 26,2 – 26,4 – 26,6 26,8 – 27 – 27,2 – 27,4 mm.
4052 Left hand side support
4053 Right hand side support
4054 Front bracket
4055 Rear bracket
4056 Fixing and adjusting bolt
4057 Bolt nut

16

[Photographs of the Campagnolo Super Record road head set, 4041, shown as a stack of its numbered parts from the locking nut down to the crown race and the ball packet, beside the Super Record seat pin, 4051. A third panel shows the seat pin’s saddle clamp parts, 4052 to 4057.]

— Page 27 —

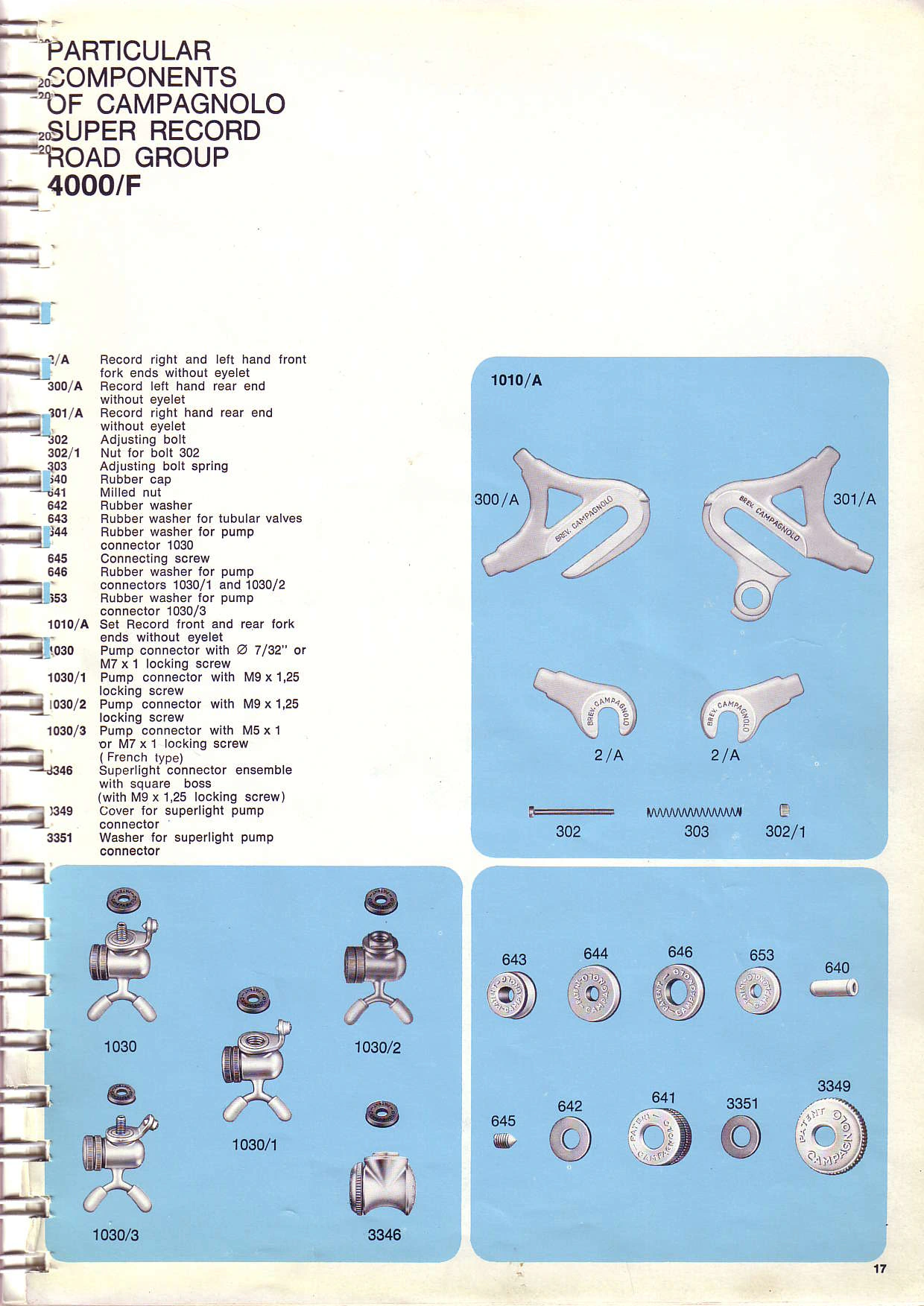

PARTICULAR COMPONENTS OF CAMPAGNOLO SUPER RECORD ROAD GROUP 4000/F

2/A Record right and left hand front fork ends without eyelet
300/A Record left hand rear end without eyelet
301/A Record right hand rear end without eyelet
302 Adjusting bolt
302/1 Nut for bolt 302
303 Adjusting bolt spring
640 Rubber cap
641 Milled nut
642 Rubber washer
643 Rubber washer for tubular valves
644 Rubber washer for pump connector 1030
645 Connecting screw
646 Rubber washer for pump connectors 1030/1 and 1030/2
653 Rubber washer for pump connector 1030/3
1010/A Set Record front and rear fork ends without eyelet
1030 Pump connector with Ø 7/32″ or M7 x 1 locking screw
1030/1 Pump connector with M9 x 1,25 locking screw
1030/2 Pump connector with M9 x 1,25 locking screw
1030/3 Pump connector with M5 x 1 or M7 x 1 locking screw ( French type)
3346 Superlight connector ensemble with square boss (with M9 x 1,25 locking screw)
3349 Cover for superlight pump connector
3351 Washer for superlight pump connector

Callouts: 1010/A 300/A 301/A 2/A 2/A 302 303 302/1 1030 1030/2 1030/1 1030/3 3346 643 644 646 653 640 645 642 641 3351 3349

17

[Photographs of the Campagnolo Record fork ends and rear ends without eyelet, 1010/A, with their adjusting bolts and springs, above the pump connectors 1030 to 1030/3 and 3346 and their rubber washers, nuts and covers, each part numbered. Several part numbers at the left edge of the parts list are partly hidden by the spiral binding holes.]

— Page 28 —

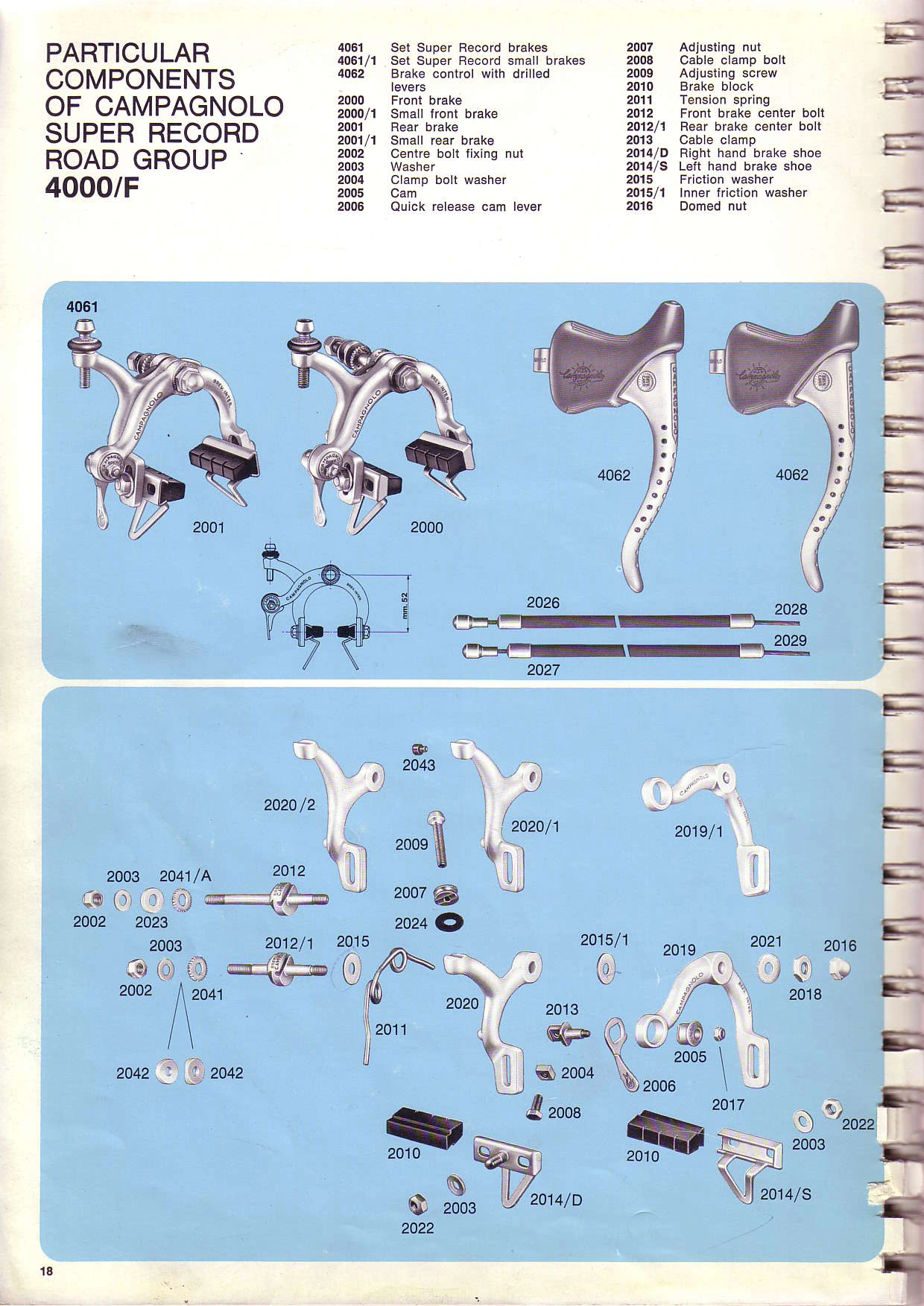

PARTICULAR COMPONENTS OF CAMPAGNOLO SUPER RECORD ROAD GROUP 4000/F

4061 Set Super Record brakes
4061/1 Set Super Record small brakes
4062 Brake control with drilled levers
2000 Front brake
2000/1 Small front brake
2001 Rear brake
2001/1 Small rear brake
2002 Centre bolt fixing nut
2003 Washer
2004 Clamp bolt washer
2005 Cam
2006 Quick release cam lever
2007 Adjusting nut
2008 Cable clamp bolt
2009 Adjusting screw
2010 Brake block
2011 Tension spring
2012 Front brake center bolt
2012/1 Rear brake center bolt
2013 Cable clamp
2014/D Right hand brake shoe
2014/S Left hand brake shoe
2015 Friction washer
2015/1 Inner friction washer
2016 Domed nut

Callouts: 4061 4062 4062 2001 2000 2026 2028 2029 2027 2043 2020/2 2020/1 2019/1 2009 2003 2041/A 2012 2007 2002 2023 2024 2003 2012/1 2015 2015/1 2019 2021 2016 2002 2041 2018 2020 2013 2011 2005 2042 2042 2004 2006 2017 2008 2022 2003 2010 2010 2014/S 2014/D 2003 2022

mm. 52

18

[Photographs of the Campagnolo Super Record brake set, 4061, showing the rear and front side pull brakes, 2001 and 2000, the brake levers with drilled blades, 4062, and the brake cables, with a line drawing marking the 52 mm reach of the brake. Below, every part of the brake is laid out and numbered; the parts list continues on the next page.]

— Page 29 —

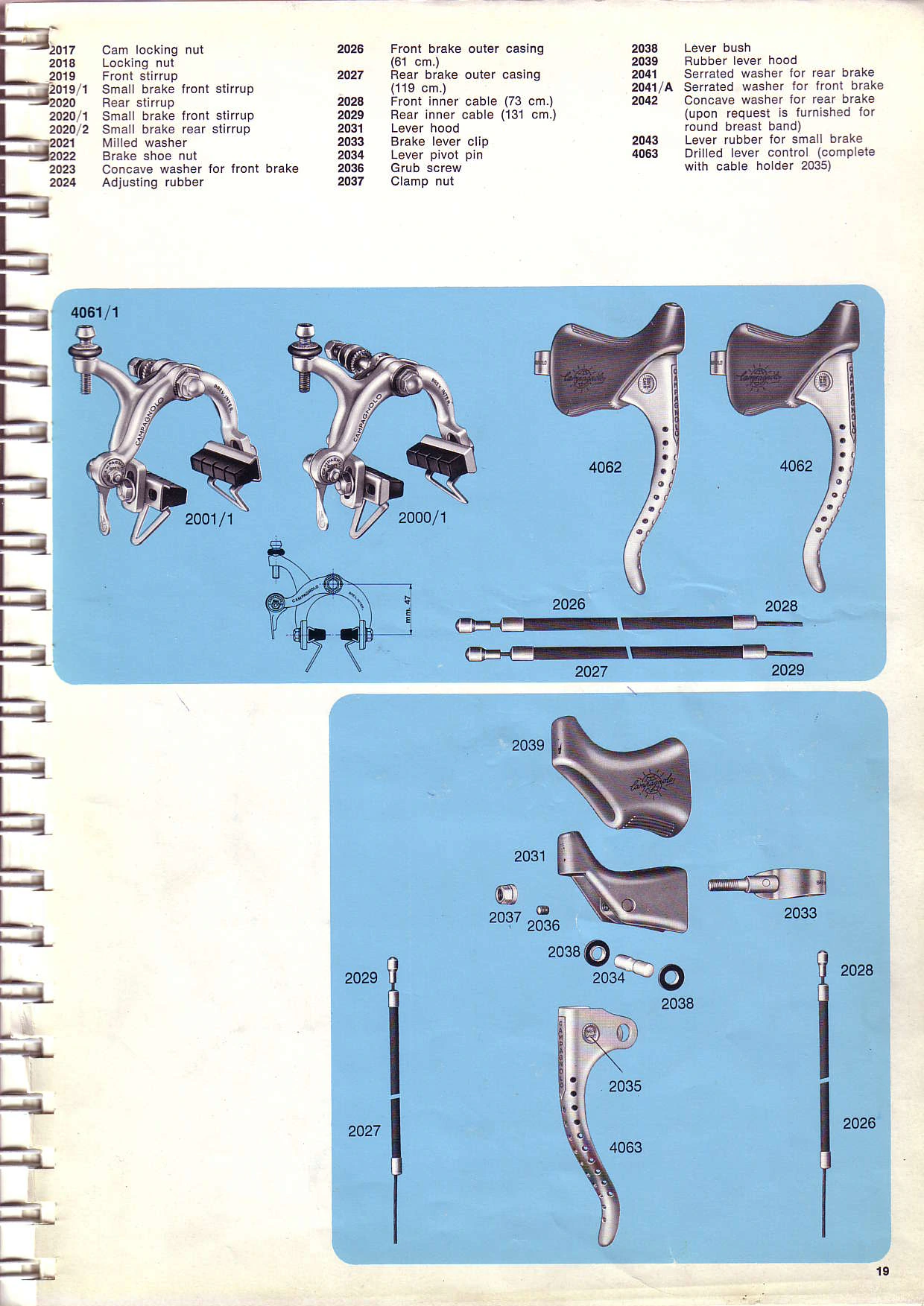

2017 Cam locking nut
2018 Locking nut
2019 Front stirrup
2019/1 Small brake front stirrup
2020 Rear stirrup
2020/1 Small brake front stirrup
2020/2 Small brake rear stirrup
2021 Milled washer
2022 Brake shoe nut
2023 Concave washer for front brake
2024 Adjusting rubber
2026 Front brake outer casing (61 cm.)
2027 Rear brake outer casing (119 cm.)
2028 Front inner cable (73 cm.)
2029 Rear inner cable (131 cm.)
2031 Lever hood
2033 Brake lever clip
2034 Lever pivot pin
2036 Grub screw
2037 Clamp nut
2038 Lever bush
2039 Rubber lever hood
2041 Serrated washer for rear brake
2041/A Serrated washer for front brake
2042 Concave washer for rear brake (upon request is furnished for round breast band)
2043 Lever rubber for small brake
4063 Drilled lever control (complete with cable holder 2035)

Callouts: 4061/1 4062 4062 2001/1 2000/1 2026 2028 2027 2029 2039 2031 2037 2036 2033 2029 2038 2034 2038 2028 2027 2035 4063 2026

mm. 47

19

[Photographs of the Campagnolo Super Record small brake set, 4061/1, showing the small rear and front brakes, 2001/1 and 2000/1, the drilled brake levers, 4062, and the cables, with a line drawing marking the 47 mm reach of the small brake. Below, the drilled brake lever, 4063, is shown taken apart with its hood, clip, pivot pin, bushes and cables, each part numbered; the parts list continues the list from the previous page.]

— Page 30 —
SUPER RECORD TRACK GROUP | pages 22-23
SUPER RECORD TRACK HUBS | page 24
SUPER RECORD TRACK PEDALS | page 25
SUPER RECORD CHAINWHEEL SET – TRACK BOTTOM BRACKET SET | pages 26-27
SUPER RECORD TRACK HEAD SET SUPER RECORD SEAT PINS – FORK ENDS | page 28

21

[A section contents page on a plain cream ground listing the Super Record track group, hubs, pedals, chainwheel and bottom bracket set, head set, seat pins and fork ends with their page numbers.]

— Page 31 —

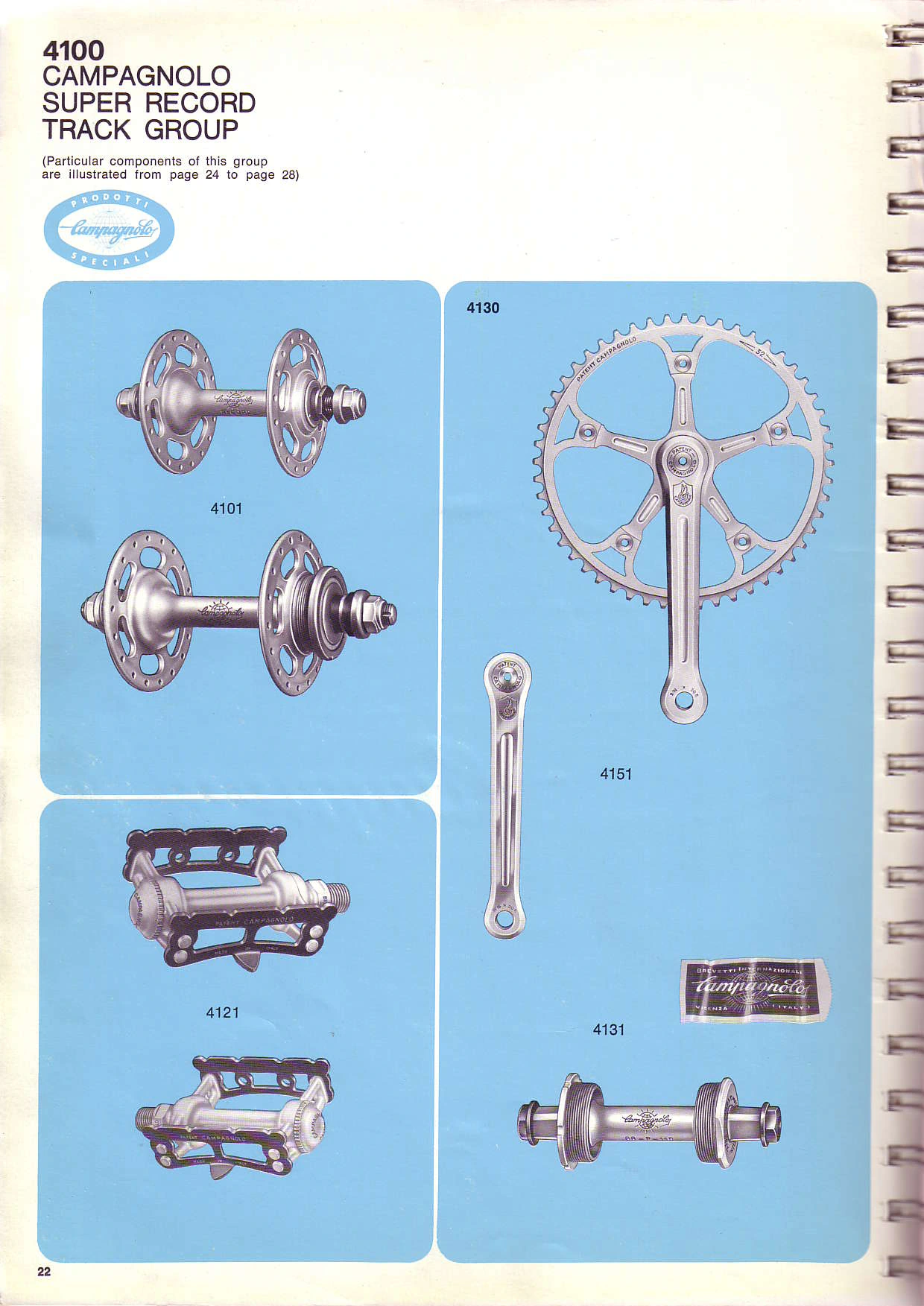

4100
CAMPAGNOLO SUPER RECORD TRACK GROUP

(Particular components of this group are illustrated from page 24 to page 28)

PRODOTTI Campagnolo SPECIALI

Callouts: 4130 4101 4151 4121 4131

22

[The Campagnolo Super Record track group, 4100, photographed on light blue panels: a pair of large flange track hubs, a pair of track pedals, the track chainwheel set with its left crank, and the bottom bracket set with its “Brevetti Internazionali Campagnolo Vicenza Italy” box label. The oval “Prodotti Campagnolo Speciali” emblem sits below the heading.]

— Page 32 —

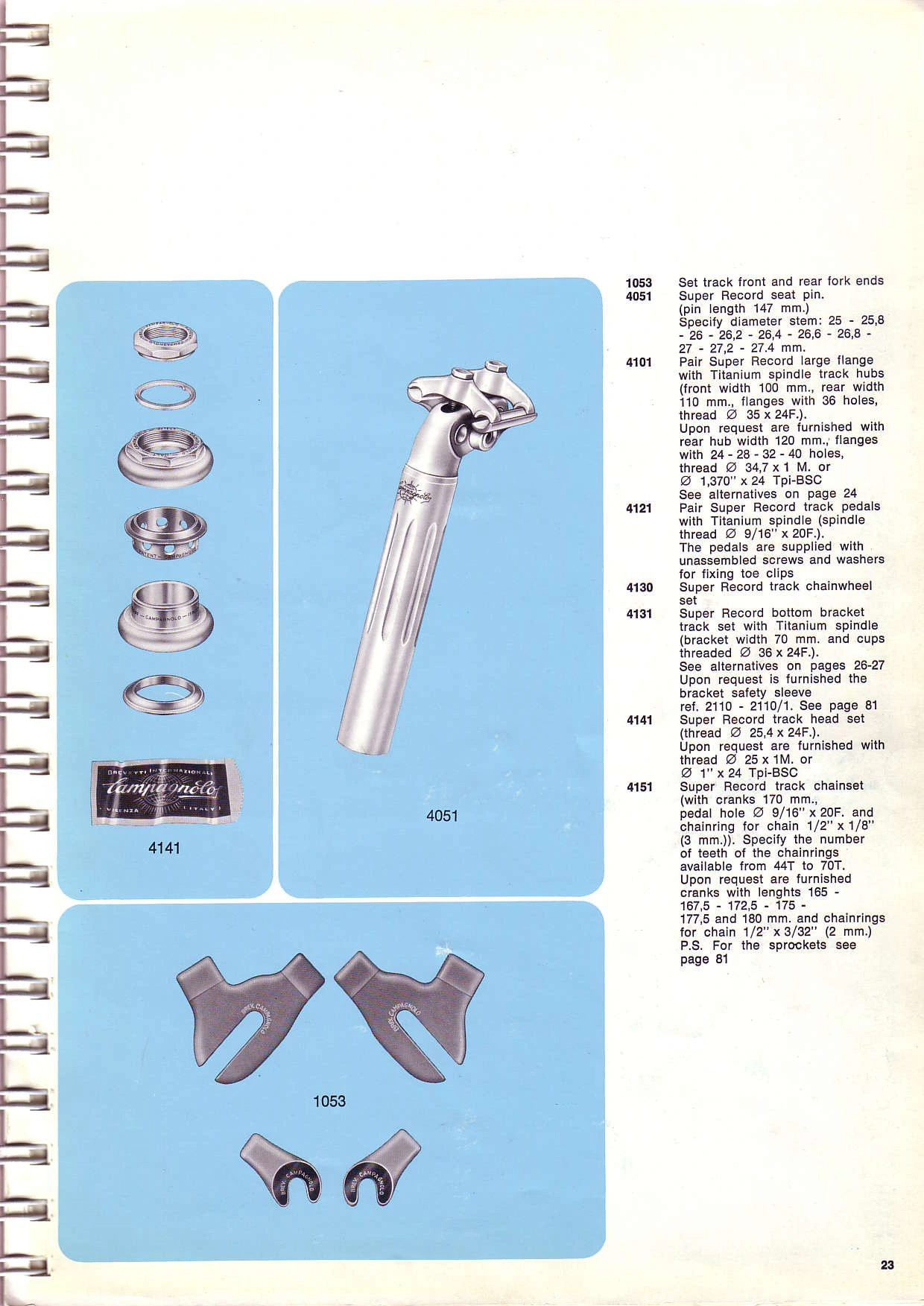

1053 Set track front and rear fork ends
4051 Super Record seat pin. (pin length 147 mm.) Specify diameter stem: 25 – 25,8 – 26 – 26,2 – 26,4 – 26,6 – 26,8 – 27 – 27,2 – 27.4 mm.
4101 Pair Super Record large flange with Titanium spindle track hubs (front width 100 mm., rear width 110 mm., flanges with 36 holes, thread Ø 35 x 24F.). Upon request are furnished with rear hub width 120 mm., flanges with 24 – 28 – 32 – 40 holes, thread Ø 34,7 x 1 M. or Ø 1,370″ x 24 Tpi-BSC See alternatives on page 24
4121 Pair Super Record track pedals with Titanium spindle (spindle thread Ø 9/16″ x 20F.). The pedals are supplied with unassembled screws and washers for fixing toe clips
4130 Super Record track chainwheel set
4131 Super Record bottom bracket track set with Titanium spindle (bracket width 70 mm. and cups threaded Ø 36 x 24F.). See alternatives on pages 26-27 Upon request is furnished the bracket safety sleeve ref. 2110 – 2110/1. See page 81
4141 Super Record track head set (thread Ø 25,4 x 24F.). Upon request are furnished with thread Ø 25 x 1M. or Ø 1″ x 24 Tpi-BSC
4151 Super Record track chainset (with cranks 170 mm., pedal hole Ø 9/16″ x 20F. and chainring for chain 1/2″ x 1/8″ (3 mm.)). Specify the number of teeth of the chainrings available from 44T to 70T. Upon request are furnished cranks with lenghts 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm. and chainrings for chain 1/2″ x 3/32″ (2 mm.) P.S. For the sprockets see page 81

Callouts: 4141 4051 1053

23

[The second page of the Campagnolo Super Record track group, 4100, with the track head set, the seat pin and two pairs of track fork ends photographed on light blue panels beside the group’s parts list. A “Brevetti Internazionali Campagnolo Vicenza Italy” box label lies below the head set parts.]

— Page 33 —
PARTICULAR COMPONENTS OF CAMPAGNOLO SUPER RECORD TRACK GROUP 4100

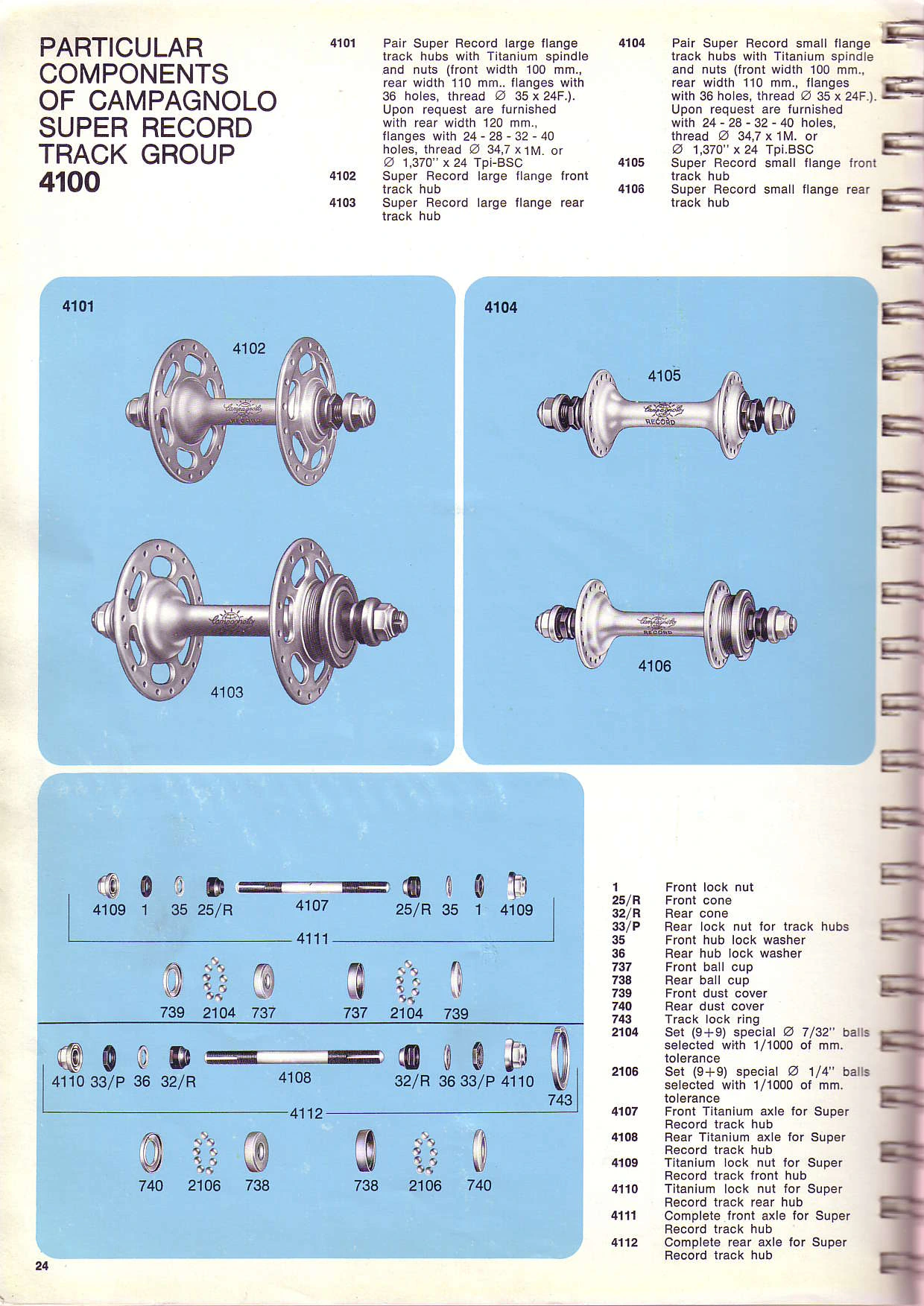

4101 Pair Super Record large flange track hubs with Titanium spindle and nuts (front width 100 mm., rear width 110 mm.. flanges with 36 holes, thread Ø 35 x 24F.). Upon request are furnished with rear width 120 mm., flanges with 24 – 28 – 32 – 40 holes, thread Ø 34,7 x 1M. or Ø 1,370″ x 24 Tpi-BSC
4102 Super Record large flange front track hub
4103 Super Record large flange rear track hub
4104 Pair Super Record small flange track hubs with Titanium spindle and nuts (front width 100 mm., rear width 110 mm., flanges with 36 holes, thread Ø 35 x 24F.). Upon request are furnished with 24 – 28 – 32 – 40 holes, thread Ø 34,7 x 1M. or Ø 1,370″ x 24 Tpi.BSC
4105 Super Record small flange front track hub
4106 Super Record small flange rear track hub

Callouts: 4101 4102 4103 4104 4105 4106 4109 1 35 25/R 4107 25/R 35 1 4109 4111 739 2104 737 737 2104 739 4110 33/P 36 32/R 4108 32/R 36 33/P 4110 743 4112 740 2106 738 738 2106 740

1 Front lock nut
25/R Front cone
32/R Rear cone
33/P Rear lock nut for track hubs
35 Front hub lock washer
36 Rear hub lock washer
737 Front ball cup
738 Rear ball cup
739 Front dust cover
740 Rear dust cover
743 Track lock ring
2104 Set (9+9) special Ø 7/32″ balls selected with 1/1000 of mm. tolerance
2106 Set (9+9) special Ø 1/4″ balls selected with 1/1000 of mm. tolerance
4107 Front Titanium axle for Super Record track hub
4108 Rear Titanium axle for Super Record track hub
4109 Titanium lock nut for Super Record track front hub
4110 Titanium lock nut for Super Record track rear hub
4111 Complete front axle for Super Record track hub
4112 Complete rear axle for Super Record track hub

24

[The Campagnolo Super Record track hubs, 4100 group: the large flange pair 4101 and the small flange pair 4104 photographed on light blue panels, above the parts of the front and rear axles laid out in two numbered rows. Brackets group the axle parts into the complete front axle 4111 and the complete rear axle 4112, keyed to the parts list at the right.]

— Page 34 —

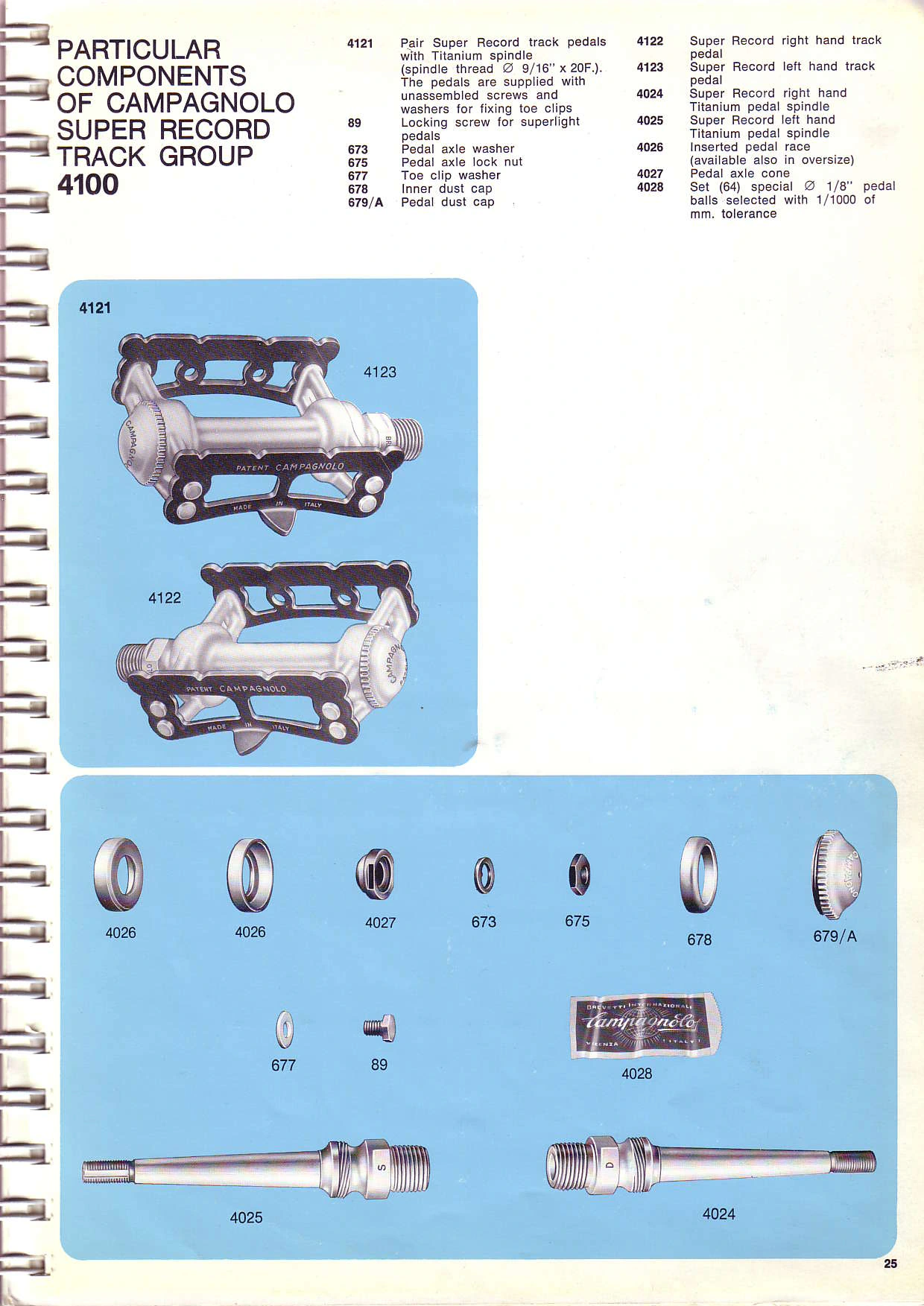

PARTICULAR COMPONENTS OF CAMPAGNOLO SUPER RECORD TRACK GROUP 4100

4121 Pair Super Record track pedals with Titanium spindle (spindle thread Ø 9/16″ x 20F.). The pedals are supplied with unassembled screws and washers for fixing toe clips
89 Locking screw for superlight pedals
673 Pedal axle washer
675 Pedal axle lock nut
677 Toe clip washer
678 Inner dust cap
679/A Pedal dust cap
4122 Super Record right hand track pedal
4123 Super Record left hand track pedal
4024 Super Record right hand Titanium pedal spindle
4025 Super Record left hand Titanium pedal spindle
4026 Inserted pedal race (available also in oversize)
4027 Pedal axle cone
4028 Set (64) special Ø 1/8″ pedal balls selected with 1/1000 of mm. tolerance

Callouts: 4121 4123 4122 4026 4026 4027 673 675 678 679/A 677 89 4028 4025 4024

25

[The Campagnolo Super Record track pedals, 4121, photographed on light blue panels as a right and a left pedal, above their separate parts: races, cone, washers, lock nut, dust caps, a locking screw, the left and right Titanium spindles and a packet of balls under a “Brevetti Internazionali Campagnolo” label, each numbered and keyed to the parts list.]

— Page 35 —
PARTICULAR COMPONENTS OF CAMPAGNOLO SUPER RECORD TRACK GROUP 4100

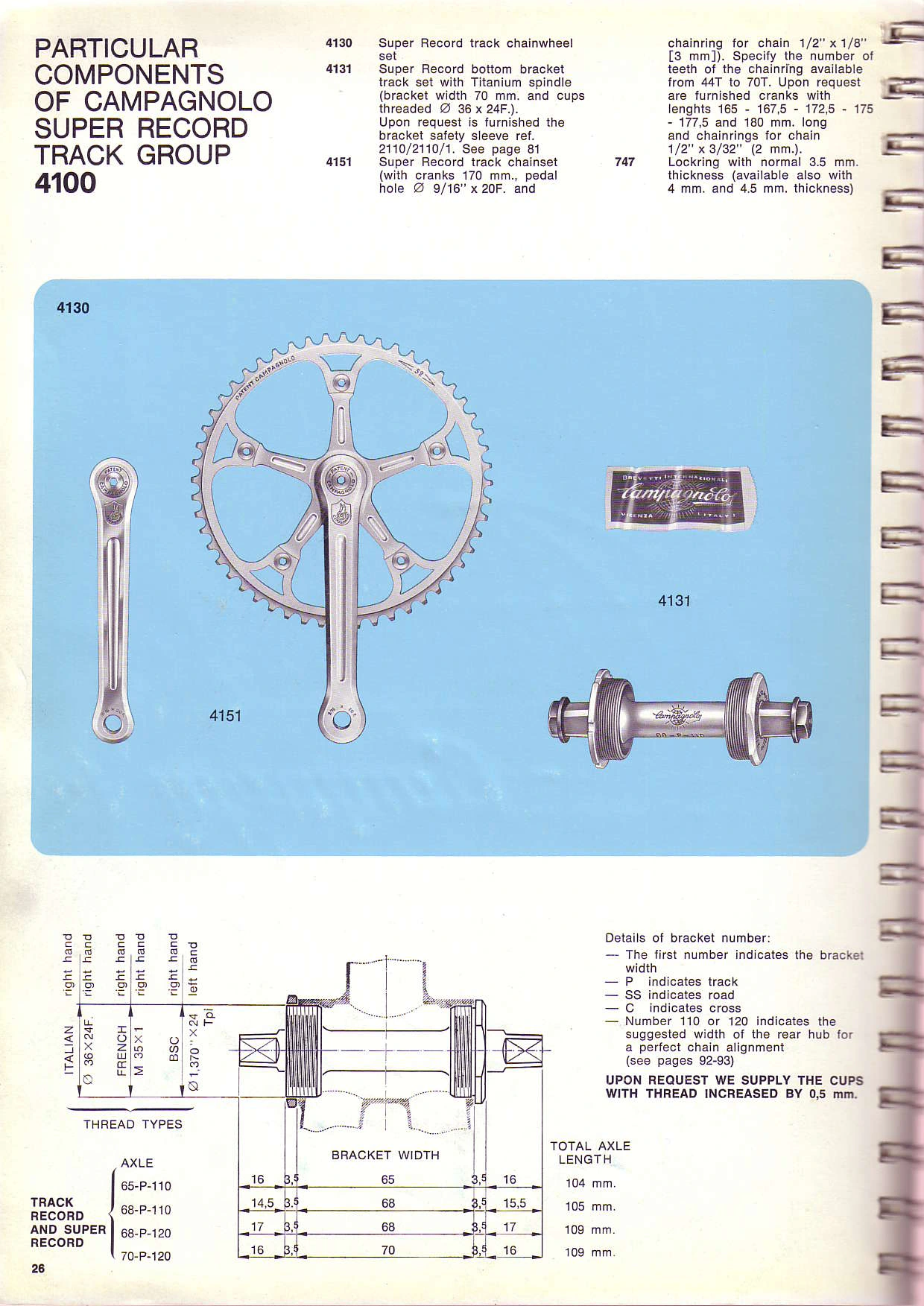

4130 Super Record track chainwheel set
4131 Super Record bottom bracket track set with Titanium spindle (bracket width 70 mm. and cups threaded Ø 36 x 24F.). Upon request is furnished the bracket safety sleeve ref. 2110/2110/1. See page 81
4151 Super Record track chainset (with cranks 170 mm., pedal hole Ø 9/16″ x 20F. and chainring for chain 1/2″ x 1/8″ [3 mm]). Specify the number of teeth of the chainring available from 44T to 70T. Upon request are furnished cranks with lenghts 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm. long and chainrings for chain 1/2″ x 3/32″ (2 mm.).
747 Lockring with normal 3.5 mm. thickness (available also with 4 mm. and 4.5 mm. thickness)

Callouts: 4130 4131 4151

ITALIAN | Ø 36 × 24F. | right hand | right hand
FRENCH | M 35 × 1 | right hand | right hand
BSC | Ø 1,370″ × 24 Tpi | right hand | left hand
THREAD TYPES

TRACK RECORD AND SUPER RECORD
AXLE | | | BRACKET WIDTH | | | TOTAL AXLE LENGTH
65-P-110 | 16 | 3,5 | 65 | 3,5 | 16 | 104 mm.
68-P-110 | 14,5 | 3.5 | 68 | 3,5 | 15,5 | 105 mm.
68-P-120 | 17 | 3,5 | 68 | 3,5 | 17 | 109 mm.
70-P-120 | 16 | 3,5 | 70 | 3,5 | 16 | 109 mm.

Details of bracket number:
— The first number indicates the bracket width
— P indicates track
— SS indicates road
— C indicates cross
— Number 110 or 120 indicates the suggested width of the rear hub for a perfect chain alignment (see pages 92-93)

UPON REQUEST WE SUPPLY THE CUPS WITH THREAD INCREASED BY 0,5 mm.

26

[The Campagnolo Super Record track chainset, 4151, with its left crank, and the bottom bracket set, 4131, photographed on a light blue panel beside a “Brevetti Internazionali Campagnolo” box label. Below, a sectional drawing of the bottom bracket in the frame shell gives the Italian, French and BSC cup threads and a dimension table of the four track axles from 65-P-110 to 70-P-120 with their total lengths.]

— Page 36 —

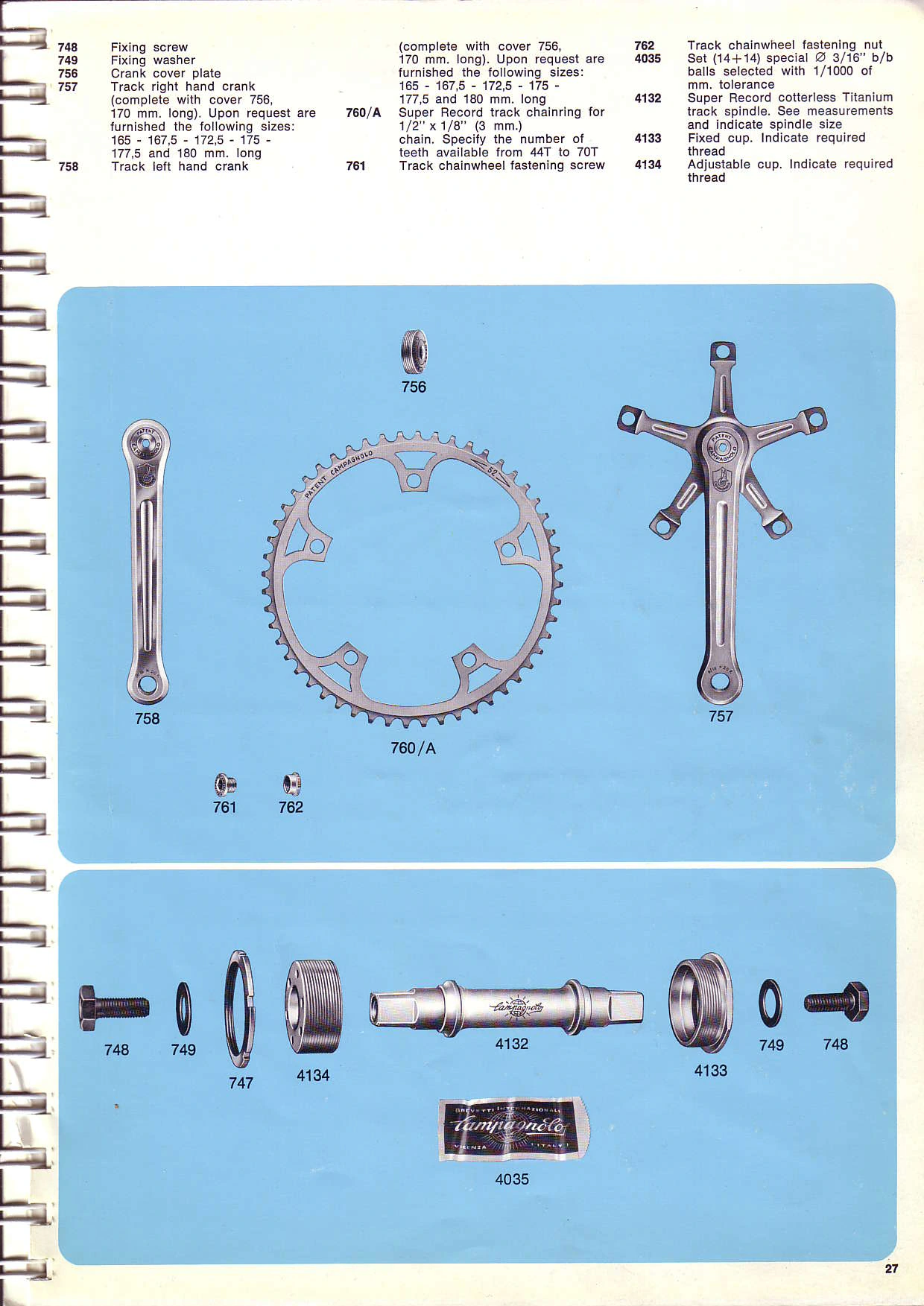

748 Fixing screw
749 Fixing washer
756 Crank cover plate
757 Track right hand crank (complete with cover 756, 170 mm. long). Upon request are furnished the following sizes: 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm. long
758 Track left hand crank (complete with cover 756, 170 mm. long). Upon request are furnished the following sizes: 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm. long
760/A Super Record track chainring for 1/2″ x 1/8″ (3 mm.) chain. Specify the number of teeth available from 44T to 70T
761 Track chainwheel fastening screw
762 Track chainwheel fastening nut
4035 Set (14+14) special Ø 3/16″ b/b balls selected with 1/1000 of mm. tolerance
4132 Super Record cotterless Titanium track spindle. See measurements and indicate spindle size
4133 Fixed cup. Indicate required thread
4134 Adjustable cup. Indicate required thread

Callouts: 756 758 757 760/A 761 762 748 749 747 4134 4132 4133 749 748 4035

27

[The separate parts of the Campagnolo Super Record track chainset and bottom bracket photographed on light blue panels: the left and right cranks, the chainring, the crank cover plate and the chainwheel screw and nut above; the fixing screws and washers, lockring, cups, Titanium spindle and a packet of balls under a “Brevetti Internazionali Campagnolo” label below. Each part is numbered and keyed to the parts list across the top of the page.]

— Page 37 —

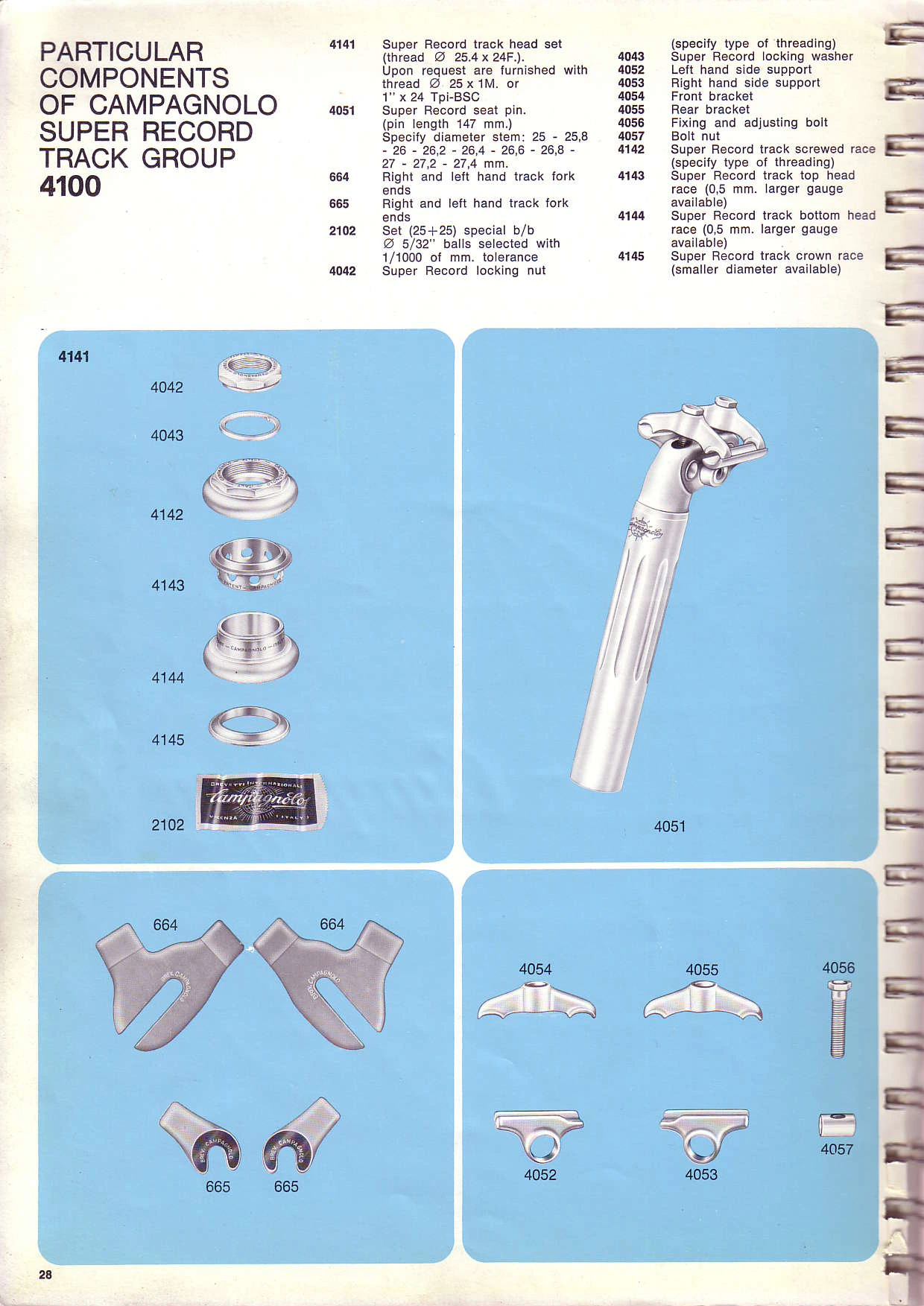

PARTICULAR COMPONENTS OF CAMPAGNOLO SUPER RECORD TRACK GROUP 4100

4141 Super Record track head set (thread Ø 25.4 x 24F.). Upon request are furnished with thread Ø 25 x 1M. or 1″ x 24 Tpi-BSC
4051 Super Record seat pin. (pin length 147 mm.) Specify diameter stem: 25 – 25,8 – 26 – 26,2 – 26,4 – 26,6 – 26,8 – 27 – 27,2 – 27,4 mm.
664 Right and left hand track fork ends
665 Right and left hand track fork ends
2102 Set (25+25) special b/b Ø 5/32″ balls selected with 1/1000 of mm. tolerance
4042 Super Record locking nut (specify type of threading)
4043 Super Record locking washer
4052 Left hand side support
4053 Right hand side support
4054 Front bracket
4055 Rear bracket
4056 Fixing and adjusting bolt
4057 Bolt nut
4142 Super Record track screwed race (specify type of threading)
4143 Super Record track top head race (0,5 mm. larger gauge available)
4144 Super Record track bottom head race (0,5 mm. larger gauge available)
4145 Super Record track crown race (smaller diameter available)

Callouts: 4141 4042 4043 4142 4143 4144 4145 2102 4051 664 664 665 665 4054 4055 4056 4052 4053 4057

28

[The Campagnolo Super Record track head set, 4141, seat pin, 4051, and two pairs of track fork ends, 664 and 665, photographed on light blue panels, with the head set parts stacked in order above a “Brevetti Internazionali Campagnolo” ball packet and the seat pin clamp parts shown separately. Each part is numbered and keyed to the parts list across the top of the page.]

— Page 38 —
RECORD ROAD GROUP | pages 30-31
RECORD GEAR – RECORD FRONT CHANGER AND ALTERNATIVE RECORD CONTROL LEVERS | pages 32-33-34-35
RECORD ROAD HUBS | page 36
RECORD AND SUPERLIGHT RECORD ROAD PEDALS | page 37
ROAD RECORD CHAINWHEEL SET AND BOTTOM BRACKET SET | pages 38-39
RECORD ROAD HEAD SET – RECORD SEAT PIN | page 40
FORK ENDS – SPECIAL CONNECTORS | page 41
RECORD BRAKES | pages 42-43

29

[The contents page of the Record road group section, listing its components from the derailleurs and hubs to the brakes with their page numbers.]

— Page 39 —

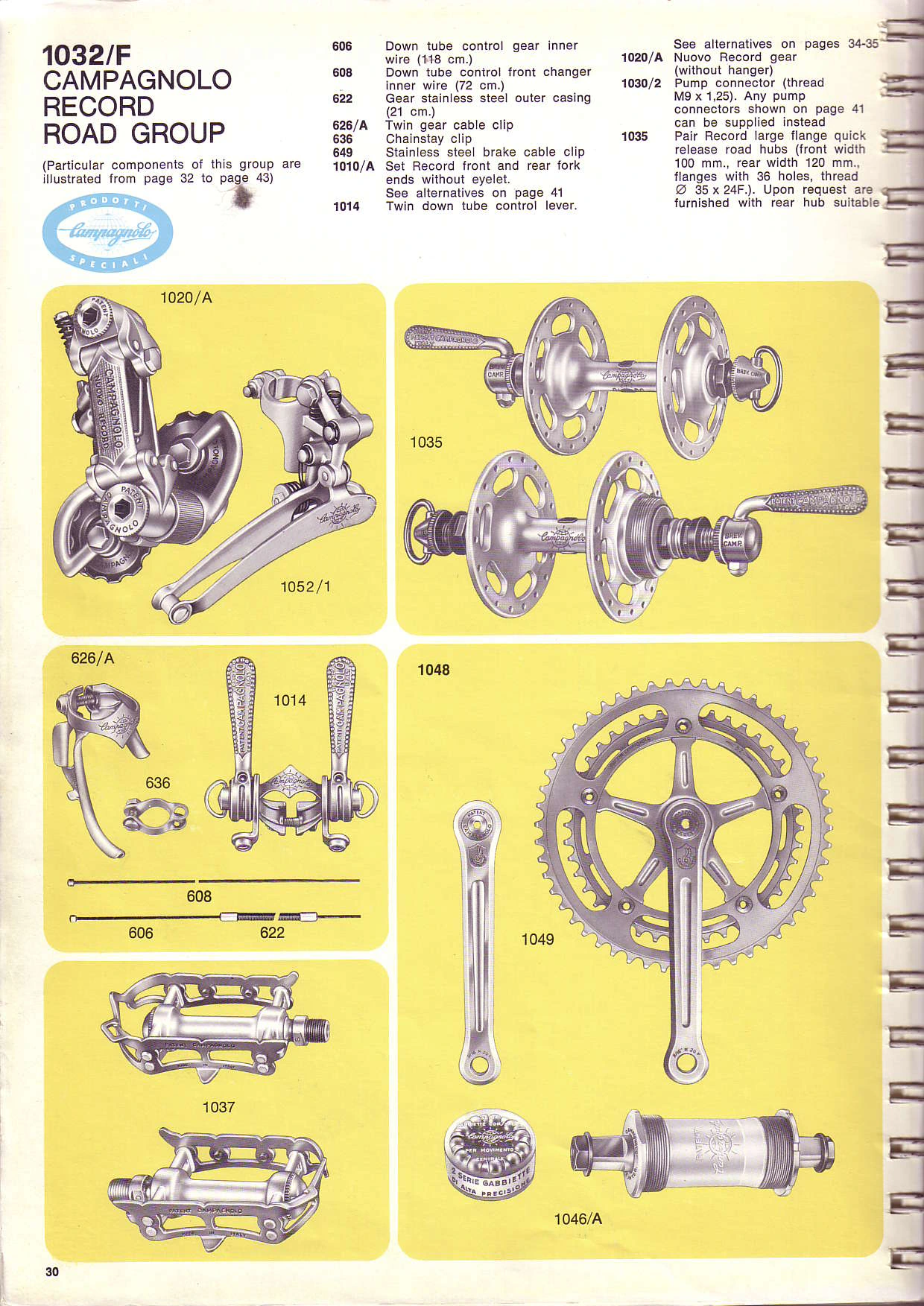

1032/F
CAMPAGNOLO RECORD ROAD GROUP

(Particular components of this group are illustrated from page 32 to page 43)

PRODOTTI Campagnolo SPECIALI

606 Down tube control gear inner wire (118 cm.)
608 Down tube control front changer inner wire (72 cm.)
622 Gear stainless steel outer casing (21 cm.)
626/A Twin gear cable clip
636 Chainstay clip
649 Stainless steel brake cable clip
1010/A Set Record front and rear fork ends without eyelet. See alternatives on page 41
1014 Twin down tube control lever. See alternatives on pages 34-35
1020/A Nuovo Record gear (without hanger)
1030/2 Pump connector (thread M9 x 1,25). Any pump connectors shown on page 41 can be supplied instead
1035 Pair Record large flange quick release road hubs (front width 100 mm., rear width 120 mm., flanges with 36 holes, thread Ø 35 x 24F.). Upon request are furnished with rear hub suitable

Callouts: 1020/A 1052/1 1035 626/A 1014 636 608 606 622 1048 1049 1046/A 1037

30

[The Campagnolo Record road group, 1032/F, photographed on yellow panels: the Nuovo Record rear derailleur and front changer, a pair of large flange quick release hubs, the cable clips and twin down tube levers with their wires and casing, a pair of pedals, the chainwheel set and the bottom bracket set with its box of “Serie gabbiette alta precisione” ball cages. The oval “Prodotti Campagnolo Speciali” emblem sits below the heading and the group’s parts list, continued on the facing page, runs across the top.]

— Page 40 —

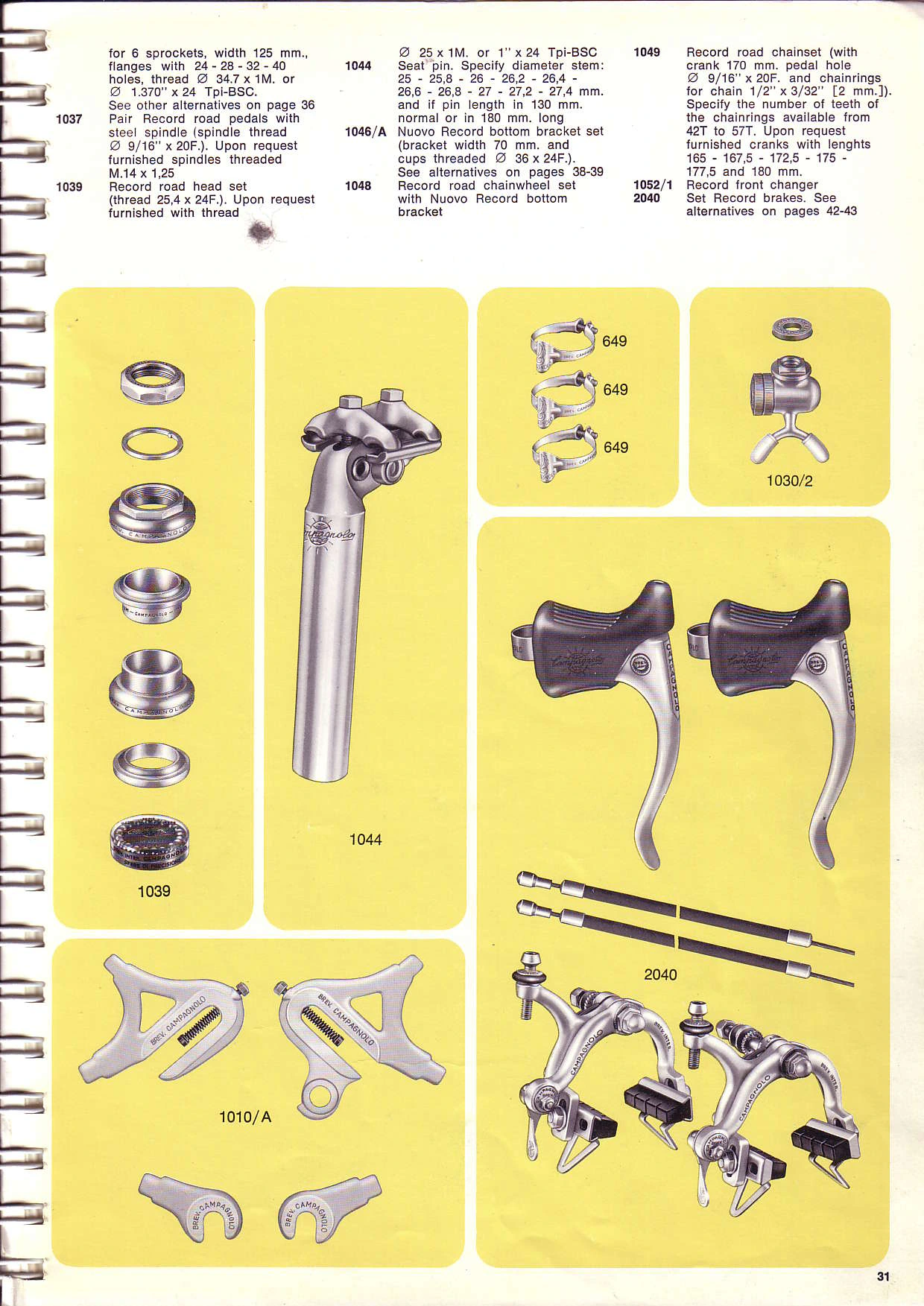

for 6 sprockets, width 125 mm., flanges with 24 – 28 – 32 – 40 holes, thread Ø 34.7 x 1M. or Ø 1.370″ x 24 Tpi-BSC. See other alternatives on page 36
1037 Pair Record road pedals with steel spindle (spindle thread Ø 9/16″ x 20F.). Upon request furnished spindles threaded M.14 x 1,25

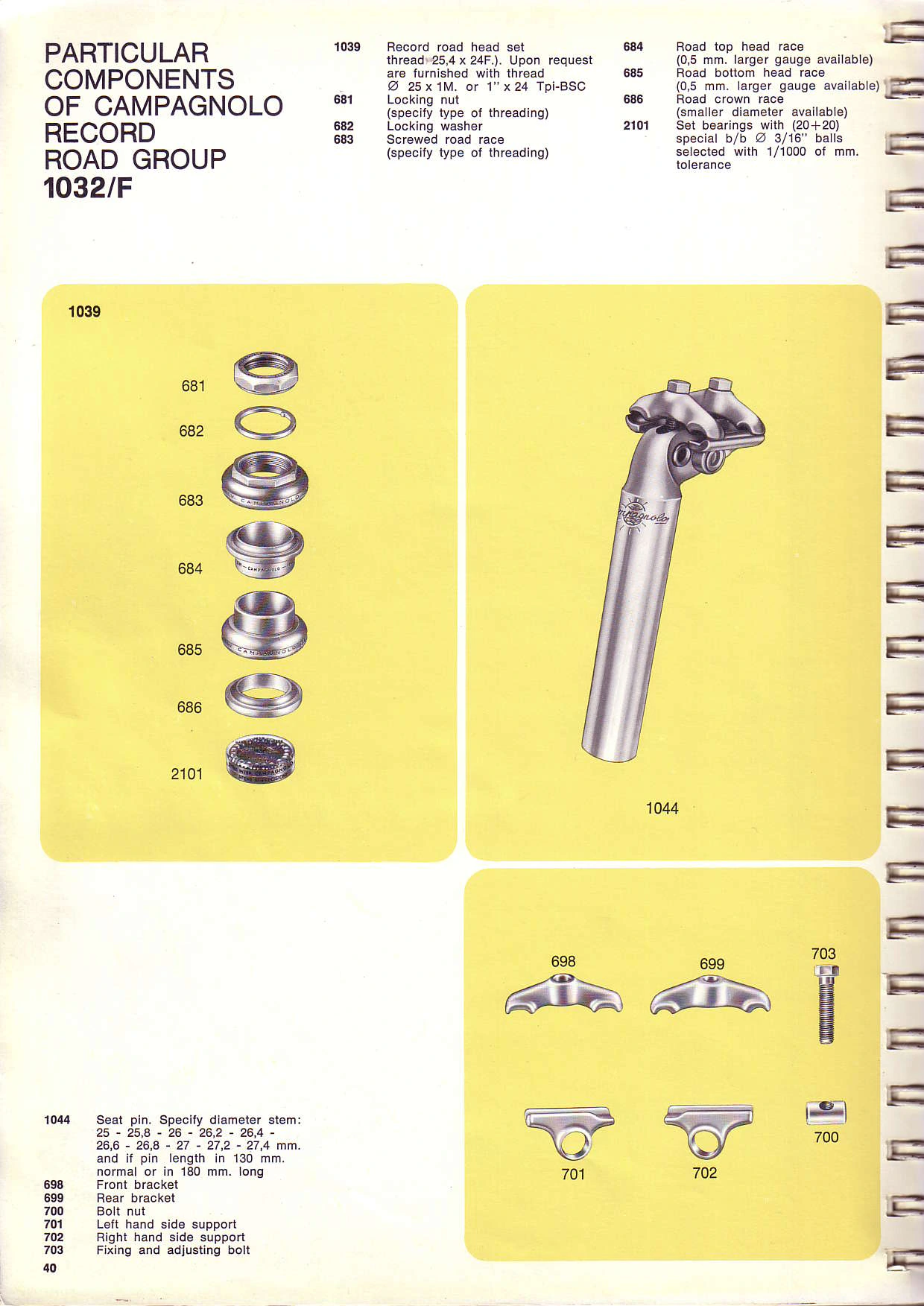

1039 Record road head set (thread 25,4 x 24F.). Upon request furnished with thread Ø 25 x 1M. or 1″ x 24 Tpi-BSC
1044 Seat pin. Specify diameter stem: 25 – 25,8 – 26 – 26,2 – 26,4 – 26,6 – 26,8 – 27 – 27,2 – 27,4 mm. and if pin length in 130 mm. normal or in 180 mm. long
1046/A Nuovo Record bottom bracket set (bracket width 70 mm. and cups threaded Ø 36 x 24F.). See alternatives on pages 38-39
1048 Record road chainwheel set with Nuovo Record bottom bracket
1049 Record road chainset (with crank 170 mm. pedal hole Ø 9/16″ x 20F. and chainrings for chain 1/2″ x 3/32″ [2 mm.]). Specify the number of teeth of the chainrings available from 42T to 57T. Upon request furnished cranks with lenghts 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm.
1052/1 Record front changer
2040 Set Record brakes. See alternatives on pages 42-43

Callouts: 1039 1044 649 649 649 1030/2 1010/A 2040

31

[The second page of the Campagnolo Record road group, 1032/F, photographed on yellow panels: the head set parts stacked in order, the seat pin, three brake cable clips, the pump connector, two pairs of fork ends and the brake set with its levers and cables. The parts list across the top continues the list from the facing page.]

— Page 41 —

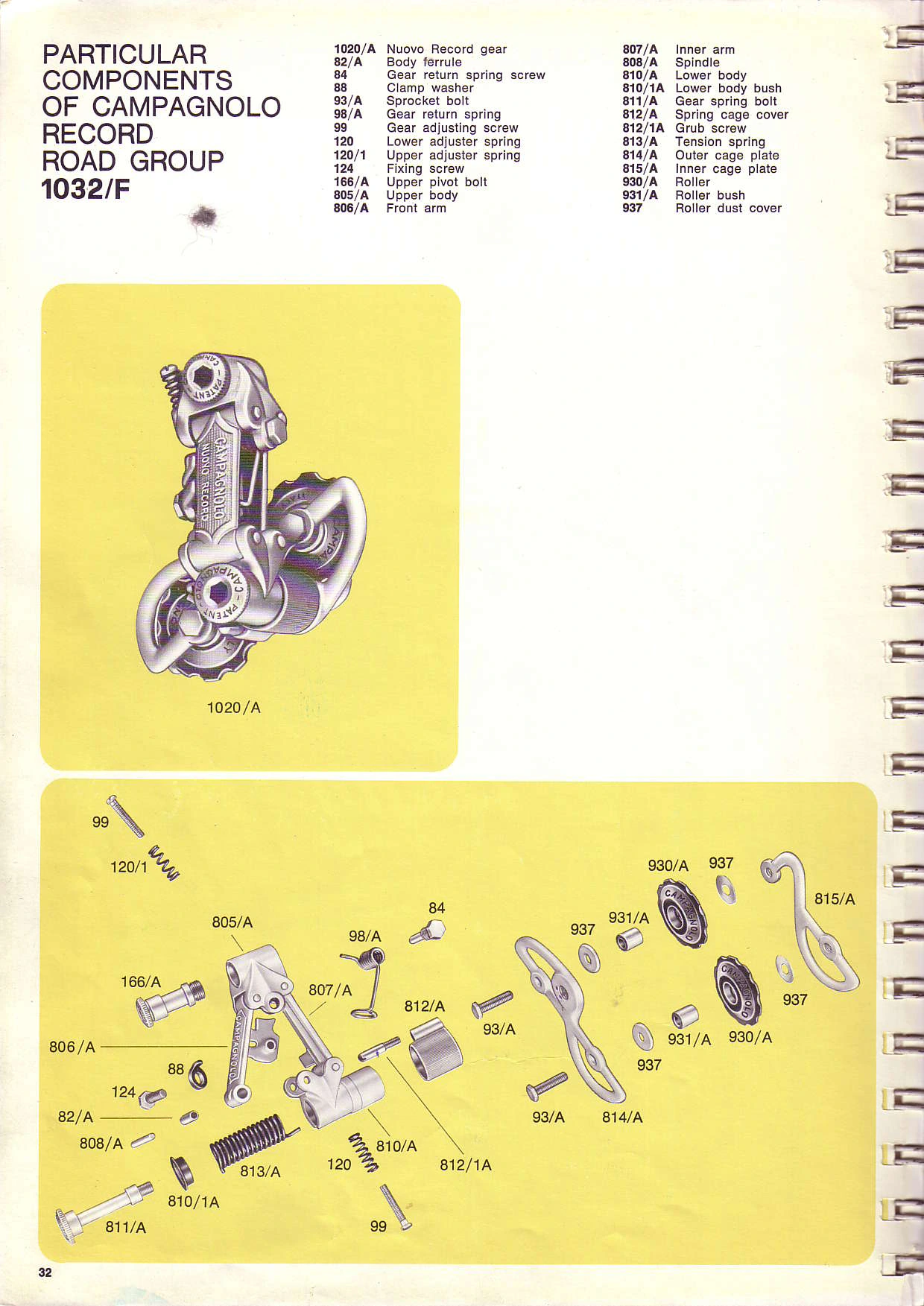

PARTICULAR COMPONENTS OF CAMPAGNOLO RECORD ROAD GROUP 1032/F

1020/A Nuovo Record gear
82/A Body ferrule
84 Gear return spring screw
88 Clamp washer
93/A Sprocket bolt
98/A Gear return spring
99 Gear adjusting screw
120 Lower adjuster spring
120/1 Upper adjuster spring
124 Fixing screw
166/A Upper pivot bolt
805/A Upper body
806/A Front arm
807/A Inner arm
808/A Spindle
810/A Lower body
810/1A Lower body bush
811/A Gear spring bolt
812/A Spring cage cover
812/1A Grub screw
813/A Tension spring
814/A Outer cage plate
815/A Inner cage plate
930/A Roller
931/A Roller bush
937 Roller dust cover

1020/A

Callouts: 99 120/1 930/A 937 815/A 805/A 84 98/A 937 931/A 166/A 807/A 812/A 93/A 937 806/A 88 931/A 930/A 937 124 82/A 93/A 814/A 808/A 810/A 120 812/1A 813/A 810/1A 811/A 99

32

[A drawing of the Campagnolo Nuovo Record rear derailleur, 1020/A, above an exploded drawing of the same derailleur with every part numbered and keyed to a parts list, both on yellow panels. The page belongs to the particular components of the Record road group, 1032/F.]

— Page 42 —

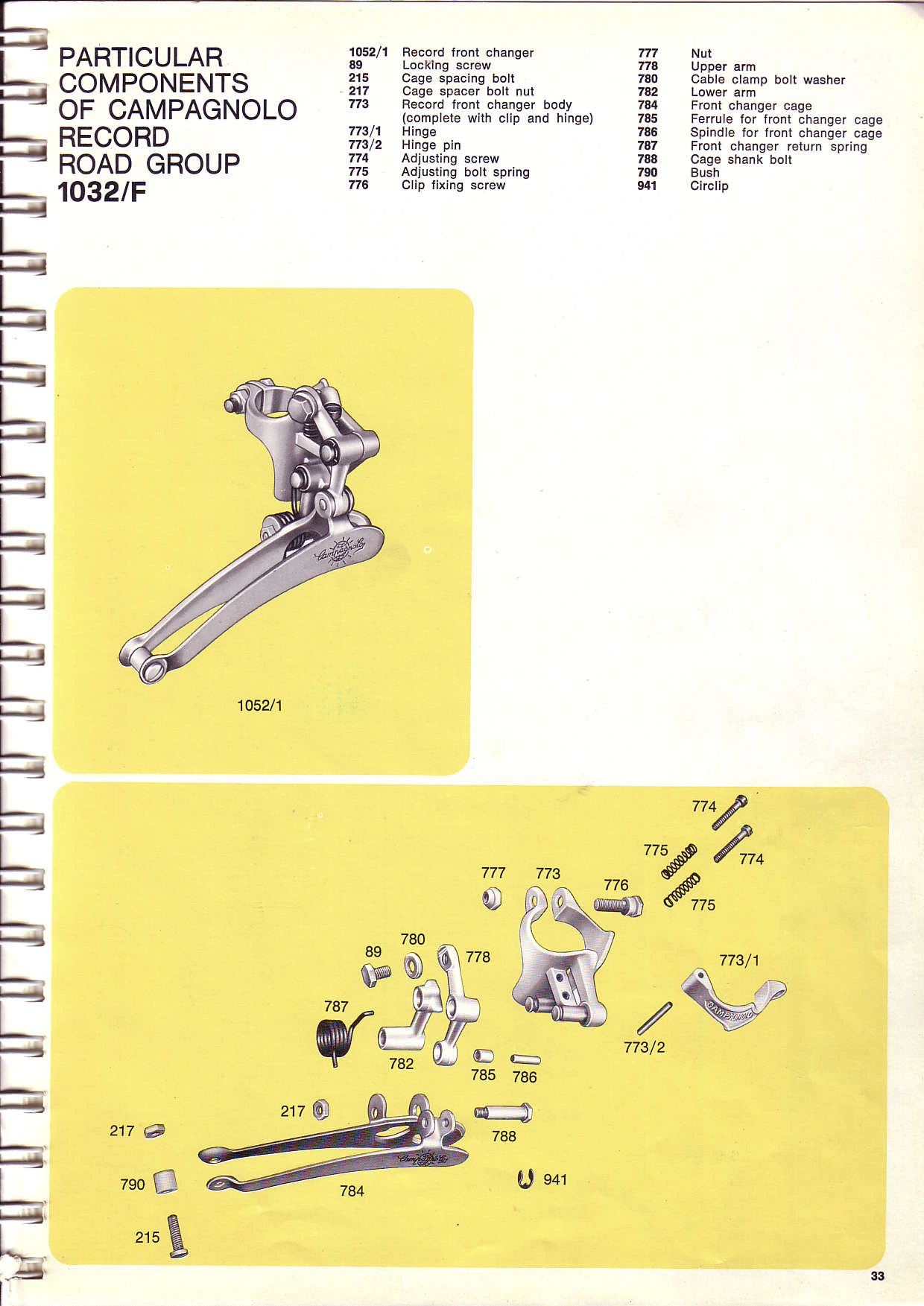

PARTICULAR COMPONENTS OF CAMPAGNOLO RECORD ROAD GROUP 1032/F

1052/1 Record front changer
89 Locking screw
215 Cage spacing bolt
217 Cage spacer bolt nut
773 Record front changer body (complete with clip and hinge)
773/1 Hinge
773/2 Hinge pin
774 Adjusting screw
775 Adjusting bolt spring
776 Clip fixing screw
777 Nut
778 Upper arm
780 Cable clamp bolt washer
782 Lower arm
784 Front changer cage
785 Ferrule for front changer cage
786 Spindle for front changer cage
787 Front changer return spring
788 Cage shank bolt
790 Bush
941 Circlip

1052/1

Callouts: 774 775 774 777 773 776 775 89 780 778 773/1 787 773/2 782 785 786 217 217 788 790 784 941 215

33

[A drawing of the Campagnolo Record front changer, 1052/1, above an exploded drawing of the same changer with every part numbered and keyed to a parts list, both on yellow panels. The page belongs to the particular components of the Record road group, 1032/F.]

— Page 43 —

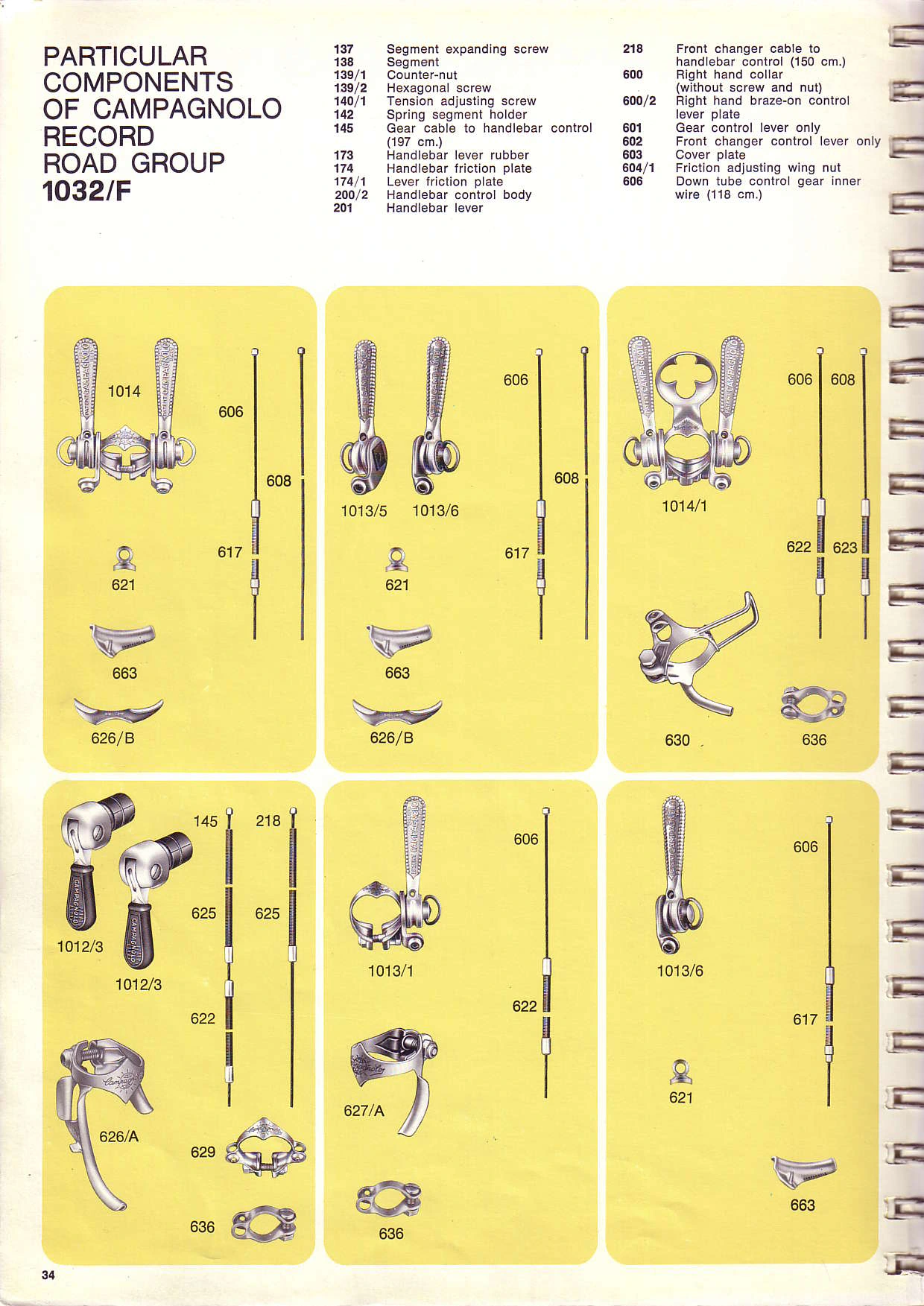

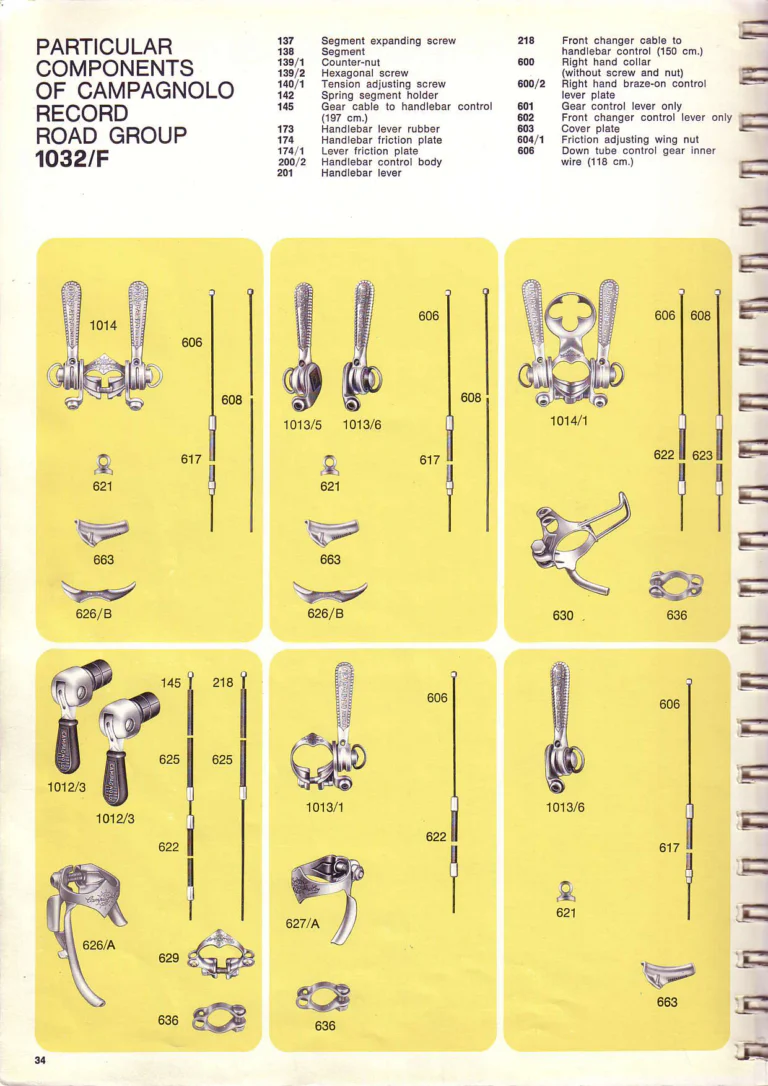

PARTICULAR COMPONENTS OF CAMPAGNOLO RECORD ROAD GROUP 1032/F

137 Segment expanding screw
138 Segment
139/1 Counter-nut
139/2 Hexagonal screw
140/1 Tension adjusting screw
142 Spring segment holder
145 Gear cable to handlebar control (197 cm.)
173 Handlebar lever rubber
174 Handlebar friction plate
174/1 Lever friction plate
200/2 Handlebar control body
201 Handlebar lever
218 Front changer cable to handlebar control (150 cm.)
600 Right hand collar (without screw and nut)
600/2 Right hand braze-on control lever plate
601 Gear control lever only
602 Front changer control lever only
603 Cover plate
604/1 Friction adjusting wing nut
606 Down tube control gear inner wire (118 cm.)

Callouts: 1014 606 608 617 621 663 626/B
Callouts: 606 1013/5 1013/6 608 617 621 663 626/B
Callouts: 606 608 1014/1 622 623 630 636
Callouts: 145 218 625 625 1012/3 1012/3 622 626/A 629 636
Callouts: 606 1013/1 622 627/A 636
Callouts: 606 1013/6 617 621 663

34

[Six yellow panels of Campagnolo gear controls for the Record road group, 1032/F, each drawn with its cables, casings and fittings and numbered: the twin down tube control 1014, the single levers 1013/5 and 1013/6, the twin control 1014/1 with its clip 630, the handlebar end controls 1012/3 with clips 626/A and 629, the clip-on lever 1013/1 and the braze-on lever 1013/6. The callouts are given panel by panel, top row first, left to right; the parts list continues on the next page.]

— Page 44 —

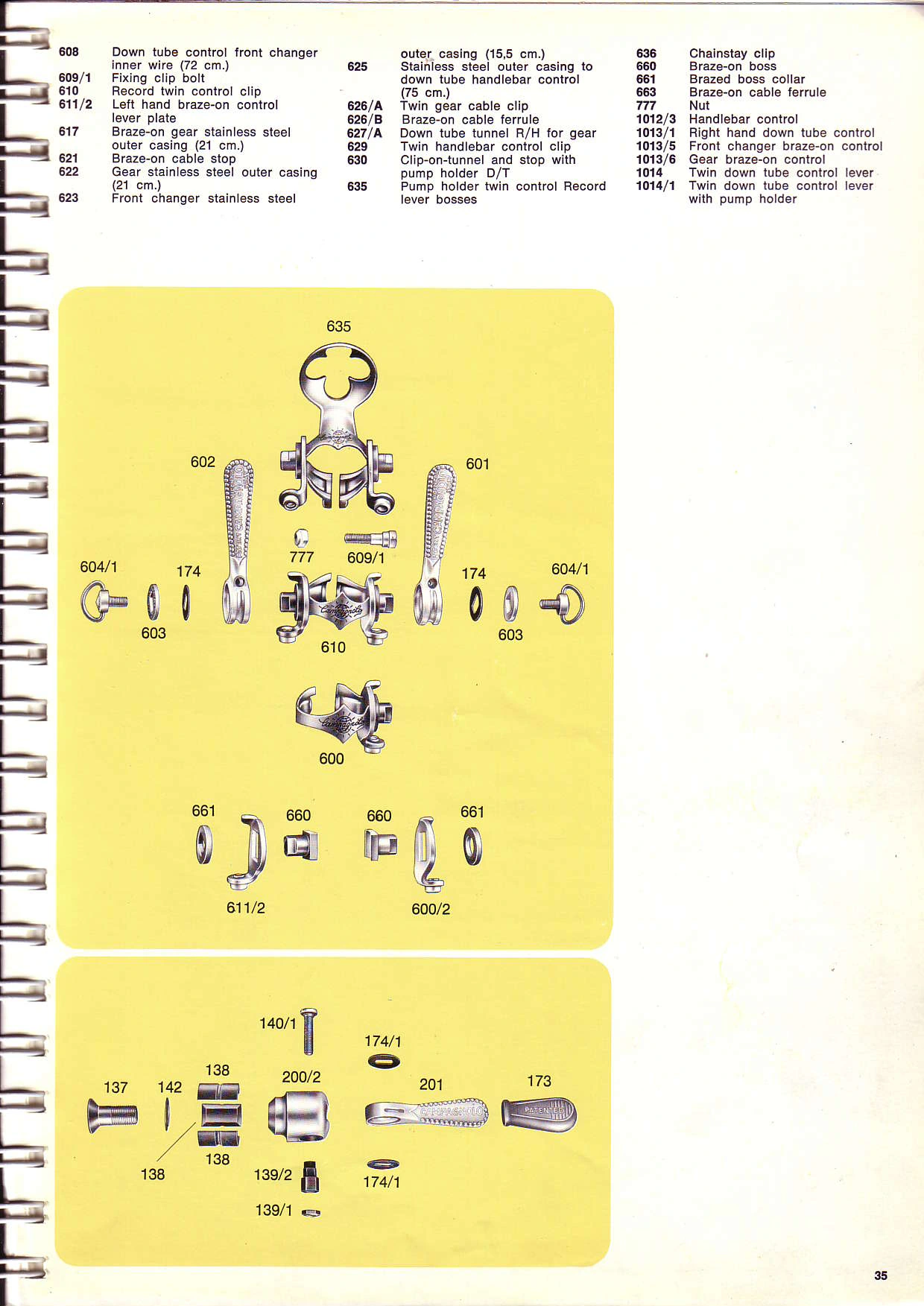

608 Down tube control front changer inner wire (72 cm.)
609/1 Fixing clip bolt
610 Record twin control clip
611/2 Left hand braze-on control lever plate
617 Braze-on gear stainless steel outer casing (21 cm.)
621 Braze-on cable stop
622 Gear stainless steel outer casing (21 cm.)
623 Front changer stainless steel outer casing (15,5 cm.)
625 Stainless steel outer casing to down tube handlebar control (75 cm.)
626/A Twin gear cable clip
626/B Braze-on cable ferrule
627/A Down tube tunnel R/H for gear
629 Twin handlebar control clip
630 Clip-on-tunnel and stop with pump holder D/T
635 Pump holder twin control Record lever bosses
636 Chainstay clip
660 Braze-on boss
661 Brazed boss collar
663 Braze-on cable ferrule
777 Nut
1012/3 Handlebar control
1013/1 Right hand down tube control
1013/5 Front changer braze-on control
1013/6 Gear braze-on control
1014 Twin down tube control lever
1014/1 Twin down tube control lever with pump holder

Callouts: 635 602 601 777 609/1 604/1 174 174 604/1 603 610 603 600 661 660 660 661 611/2 600/2
Callouts: 140/1 174/1 138 200/2 201 173 137 142 138 138 139/2 174/1 139/1

35

[Two exploded drawings on yellow panels of Campagnolo gear control parts, continuing the Record road group parts list begun on the previous page: the twin down tube levers with their clips, pump holder, braze-on bosses and lever plates, and below them the handlebar end control taken apart. Each drawing has its own line of callouts, upper panel first.]

— Page 45 —

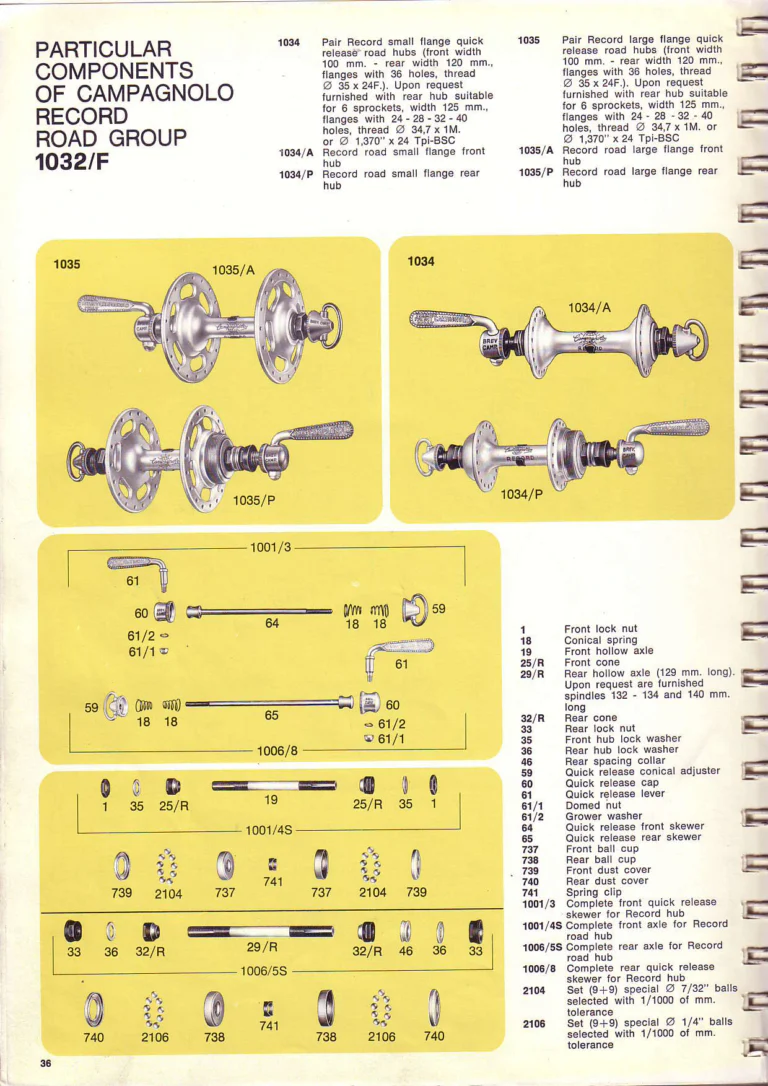

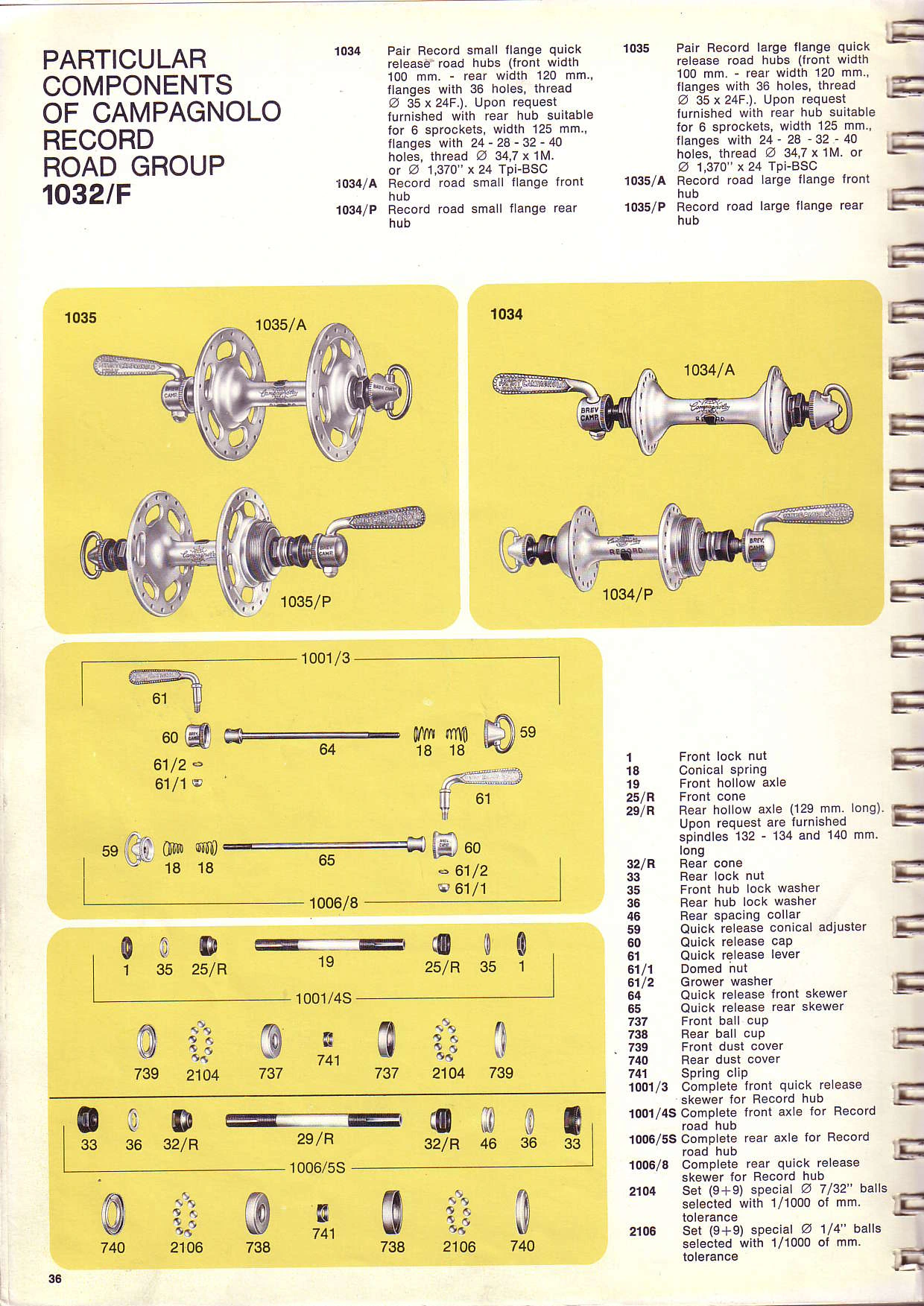

PARTICULAR COMPONENTS OF CAMPAGNOLO RECORD ROAD GROUP 1032/F

1034 Pair Record small flange quick release road hubs (front width 100 mm. – rear width 120 mm., flanges with 36 holes, thread Ø 35 x 24F.). Upon request furnished with rear hub suitable for 6 sprockets, width 125 mm., flanges with 24 – 28 – 32 – 40 holes, thread Ø 34,7 x 1M. or Ø 1,370″ x 24 Tpi-BSC
1034/A Record road small flange front hub
1034/P Record road small flange rear hub
1035 Pair Record large flange quick release road hubs (front width 100 mm. – rear width 120 mm., flanges with 36 holes, thread Ø 35 x 24F.). Upon request furnished with rear hub suitable for 6 sprockets, width 125 mm., flanges with 24 – 28 – 32 – 40 holes, thread Ø 34,7 x 1M. or Ø 1,370″ x 24 Tpi-BSC
1035/A Record road large flange front hub
1035/P Record road large flange rear hub

Callouts: 1035 1035/A 1035/P
Callouts: 1034 1034/A 1034/P

Callouts: 1001/3 61 60 64 18 18 59 61/2 61/1 61 59 18 18 65 60 61/2 61/1 1006/8
Callouts: 1 35 25/R 19 25/R 35 1 1001/4S 739 2104 737 741 737 2104 739 33 36 32/R 29/R 32/R 46 36 33 1006/5S 740 2106 738 741 738 2106 740

1 Front lock nut
18 Conical spring
19 Front hollow axle
25/R Front cone
29/R Rear hollow axle (129 mm. long). Upon request are furnished spindles 132 – 134 and 140 mm. long
32/R Rear cone
33 Rear lock nut
35 Front hub lock washer
36 Rear hub lock washer
46 Rear spacing collar
59 Quick release conical adjuster
60 Quick release cap
61 Quick release lever
61/1 Domed nut
61/2 Grower washer
64 Quick release front skewer
65 Quick release rear skewer
737 Front ball cup
738 Rear ball cup
739 Front dust cover
740 Rear dust cover
741 Spring clip
1001/3 Complete front quick release skewer for Record hub
1001/4S Complete front axle for Record road hub
1006/5S Complete rear axle for Record road hub
1006/8 Complete rear quick release skewer for Record hub
2104 Set (9+9) special Ø 7/32″ balls selected with 1/1000 of mm. tolerance
2106 Set (9+9) special Ø 1/4″ balls selected with 1/1000 of mm. tolerance

36

[Drawings of the Campagnolo Record large flange quick release road hubs, 1035, and small flange hubs, 1034, front and rear, above exploded drawings of the front and rear quick release skewers, 1001/3 and 1006/8, and the complete front and rear axles, 1001/4S and 1006/5S, with their cones, cups, dust covers and ball sets. All parts are numbered and keyed to a parts list at the lower right.]

— Page 46 —
PARTICULAR COMPONENTS OF CAMPAGNOLO RECORD ROAD GROUP 1032/F

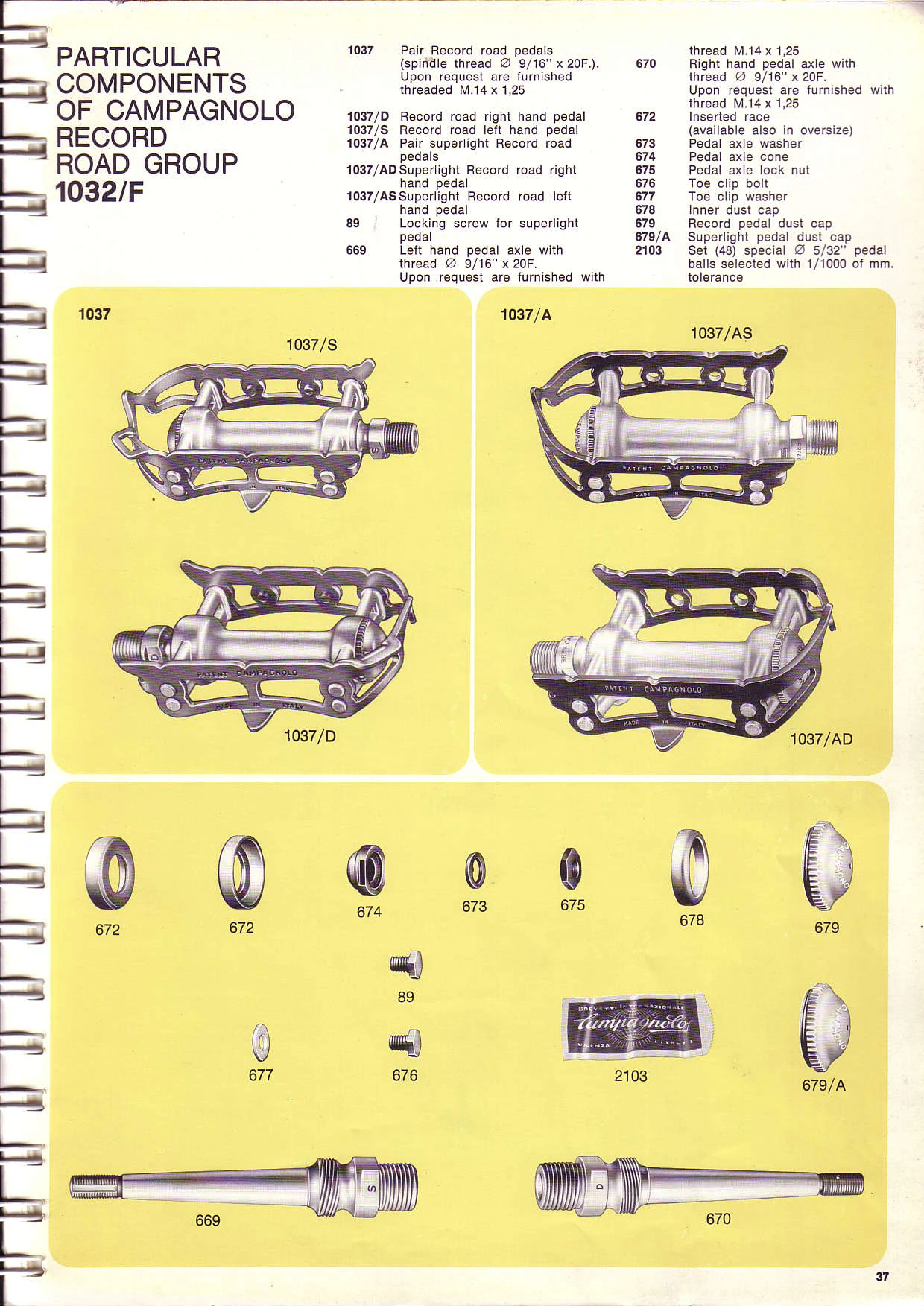

1037 Pair Record road pedals (spindle thread Ø 9/16″ x 20F.). Upon request are furnished threaded M.14 x 1,25
1037/D Record road right hand pedal
1037/S Record road left hand pedal
1037/A Pair superlight Record road pedals
1037/AD Superlight Record road right hand pedal
1037/AS Superlight Record road left hand pedal
89 Locking screw for superlight pedal
669 Left hand pedal axle with thread Ø 9/16″ x 20F. Upon request are furnished with thread M.14 x 1,25
670 Right hand pedal axle with thread Ø 9/16″ x 20F. Upon request are furnished with thread M.14 x 1,25
672 Inserted race (available also in oversize)
673 Pedal axle washer
674 Pedal axle cone
675 Pedal axle lock nut
676 Toe clip bolt
677 Toe clip washer
678 Inner dust cap
679 Record pedal dust cap
679/A Superlight pedal dust cap
2103 Set (48) special Ø 5/32″ pedal balls selected with 1/1000 of mm. tolerance

Callouts: 1037 1037/S 1037/D
Callouts: 1037/A 1037/AS 1037/AD
Callouts: 672 672 674 673 675 678 679 89 677 676 2103 679/A 669 670

37

[Drawings of the Campagnolo Record road pedals, 1037, left and right, and the superlight Record road pedals, 1037/A, on two yellow panels, above a panel of their separate parts: races, cones, washers, dust caps, toe clip bolt, the packet of balls 2103 and the left and right axles 669 and 670. All parts are numbered and keyed to the parts list.]

— Page 47 —
PARTICULAR COMPONENTS OF CAMPAGNOLO RECORD ROAD GROUP 1032/F

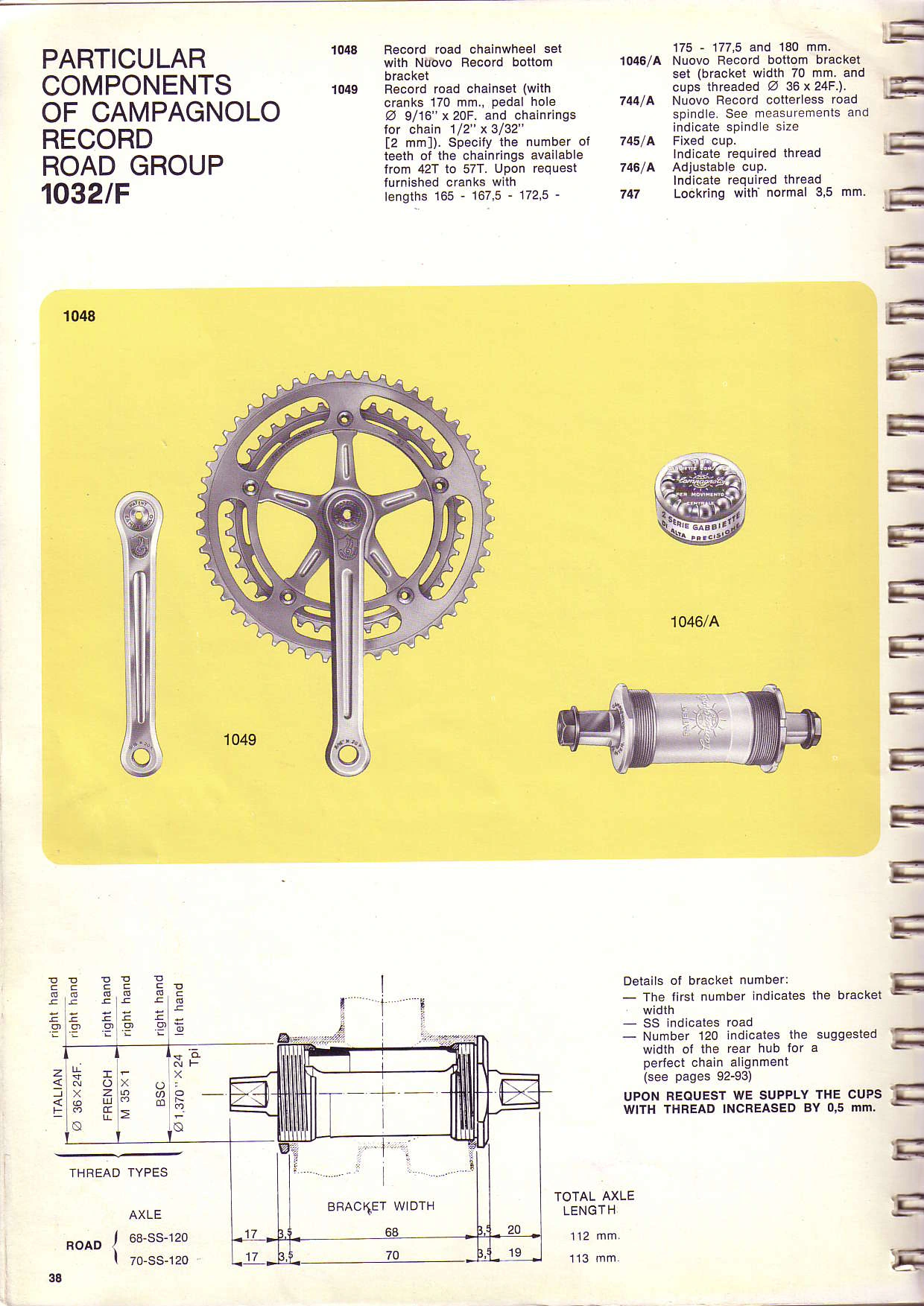

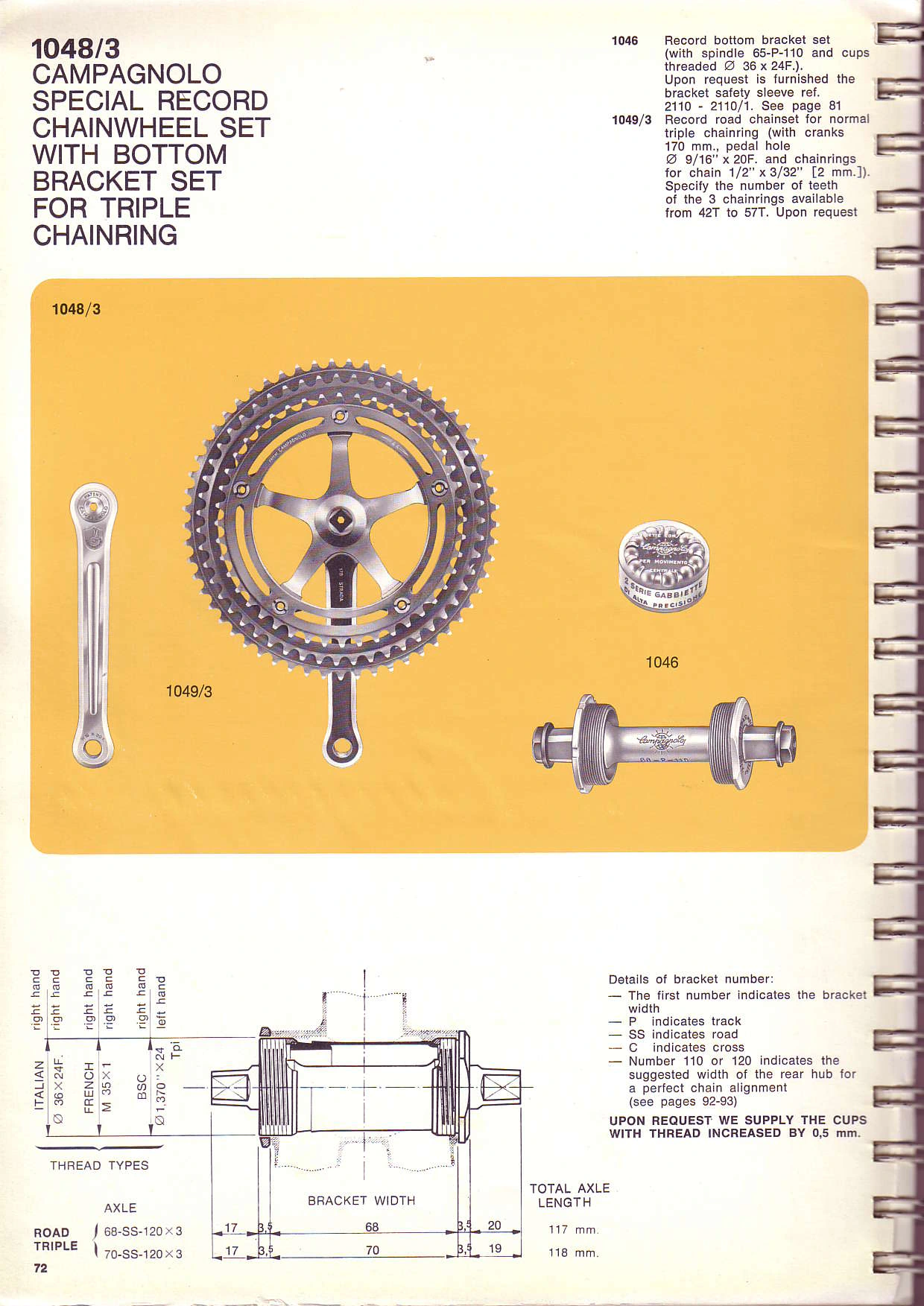

1048 Record road chainwheel set with Nuovo Record bottom bracket
1049 Record road chainset (with cranks 170 mm., pedal hole Ø 9/16″ x 20F. and chainrings for chain 1/2″ x 3/32″ [2 mm]). Specify the number of teeth of the chainrings available from 42T to 57T. Upon request furnished cranks with lengths 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm.
1046/A Nuovo Record bottom bracket set (bracket width 70 mm. and cups threaded Ø 36 x 24F.).
744/A Nuovo Record cotterless road spindle. See measurements and indicate spindle size
745/A Fixed cup. Indicate required thread
746/A Adjustable cup. Indicate required thread
747 Lockring with normal 3,5 mm.

Callouts: 1048 1049 1046/A

THREAD TYPES
ITALIAN | Ø 36×24F. | right hand | right hand
FRENCH | M 35×1 | right hand | right hand
BSC | Ø 1,370″×24 Tpi | right hand | left hand

AXLE | | | BRACKET WIDTH | | | TOTAL AXLE LENGTH
ROAD 68-SS-120 | 17 | 3,5 | 68 | 3,5 | 20 | 112 mm.
ROAD 70-SS-120 | 17 | 3,5 | 70 | 3,5 | 19 | 113 mm.

Details of bracket number:
— The first number indicates the bracket width
— SS indicates road
— Number 120 indicates the suggested width of the rear hub for a perfect chain alignment (see pages 92-93)

UPON REQUEST WE SUPPLY THE CUPS WITH THREAD INCREASED BY 0,5 mm.

38

[A drawing of the Campagnolo Record road chainwheel set, 1048, with the chainset 1049 and the Nuovo Record bottom bracket set 1046/A in its box, on a yellow panel. Below it a dimensioned section of the bottom bracket shows the Italian, French and BSC thread types and the spindle measurements for the 68 and 70 mm road brackets; the parts list continues on the next page.]

— Page 48 —

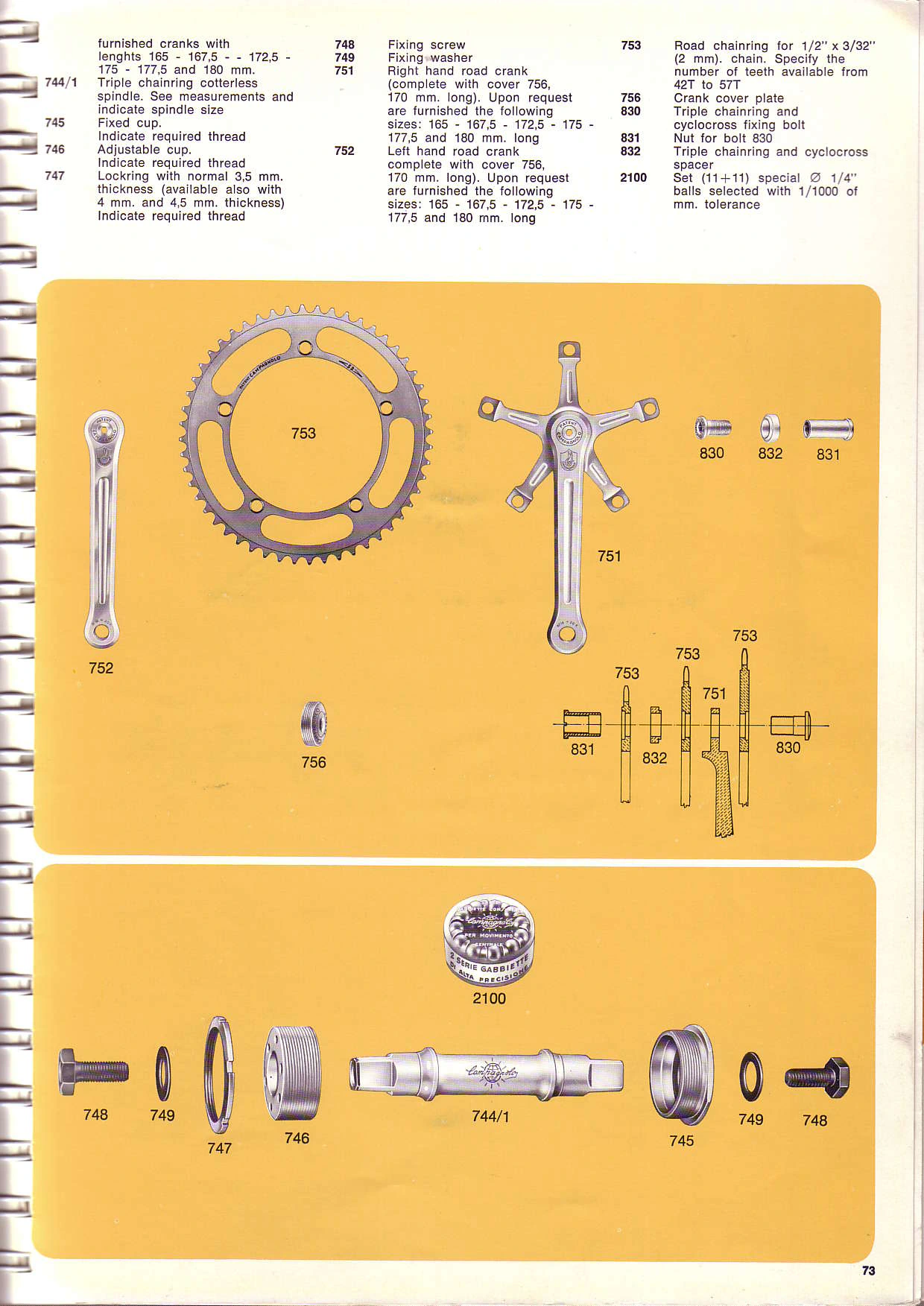

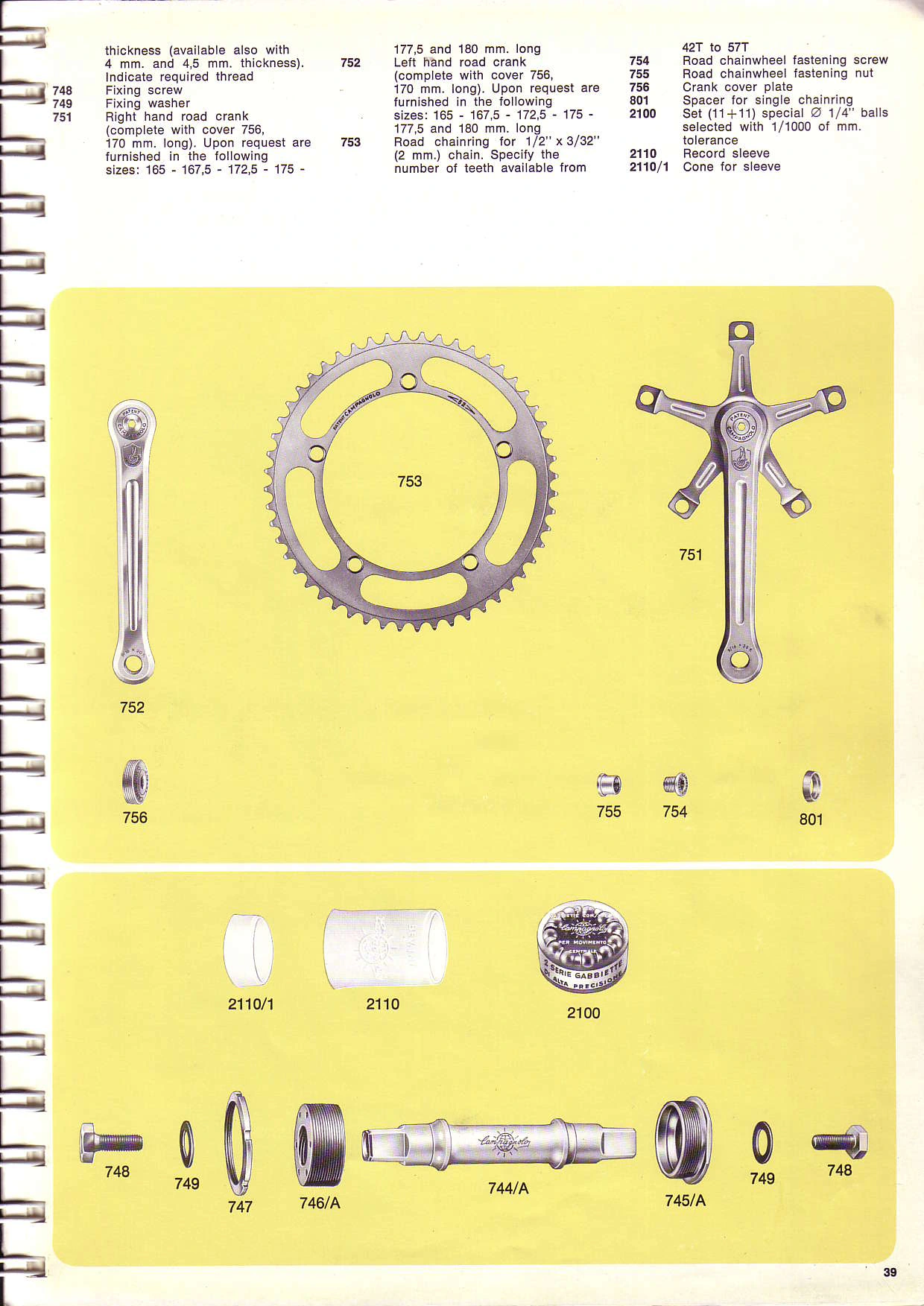

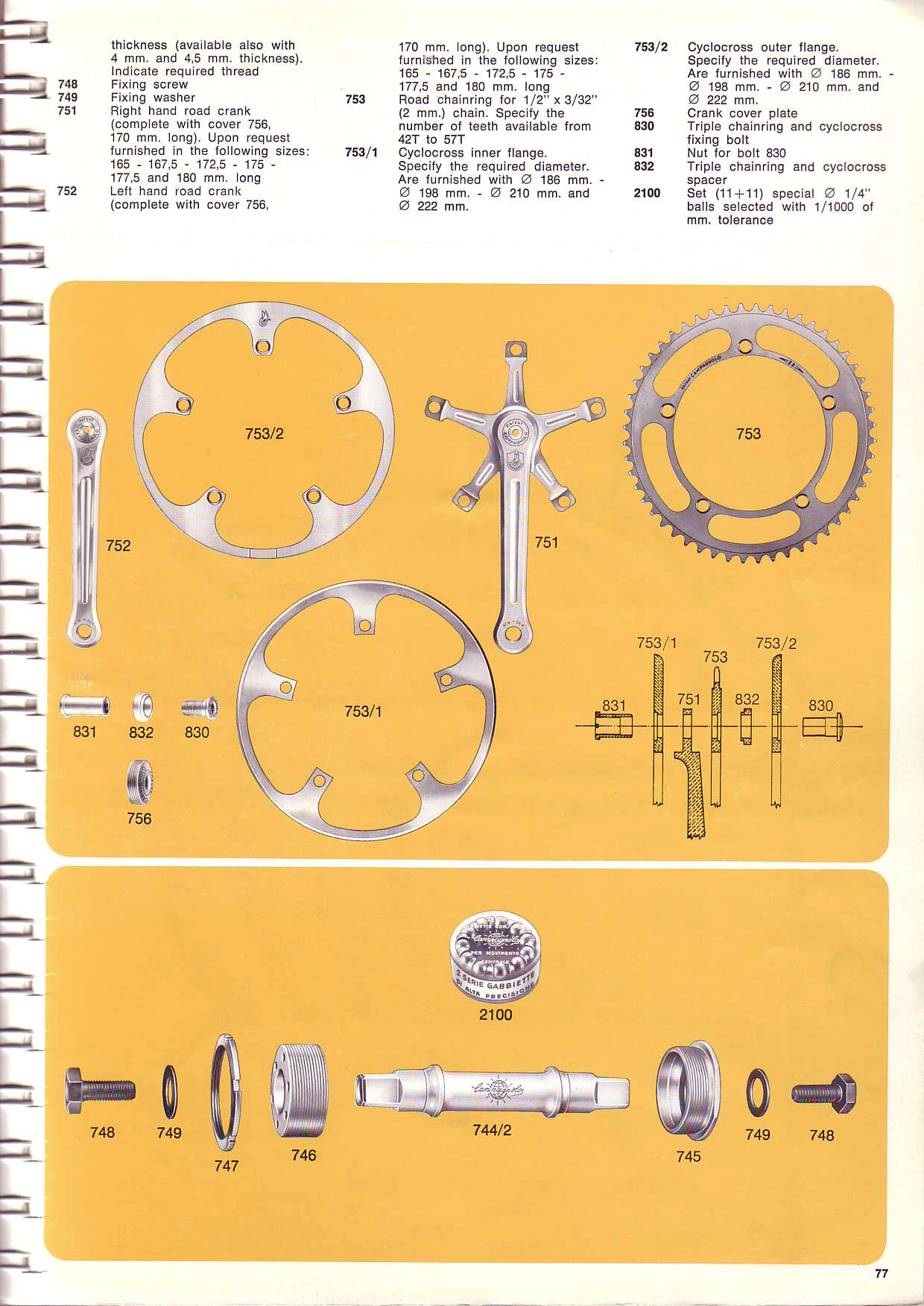

thickness (available also with 4 mm. and 4,5 mm. thickness). Indicate required thread
748 Fixing screw
749 Fixing washer
751 Right hand road crank (complete with cover 756, 170 mm. long). Upon request are furnished in the following sizes: 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm. long
752 Left hand road crank (complete with cover 756, 170 mm. long). Upon request are furnished in the following sizes: 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm. long
753 Road chainring for 1/2″ x 3/32″ (2 mm.) chain. Specify the number of teeth available from 42T to 57T

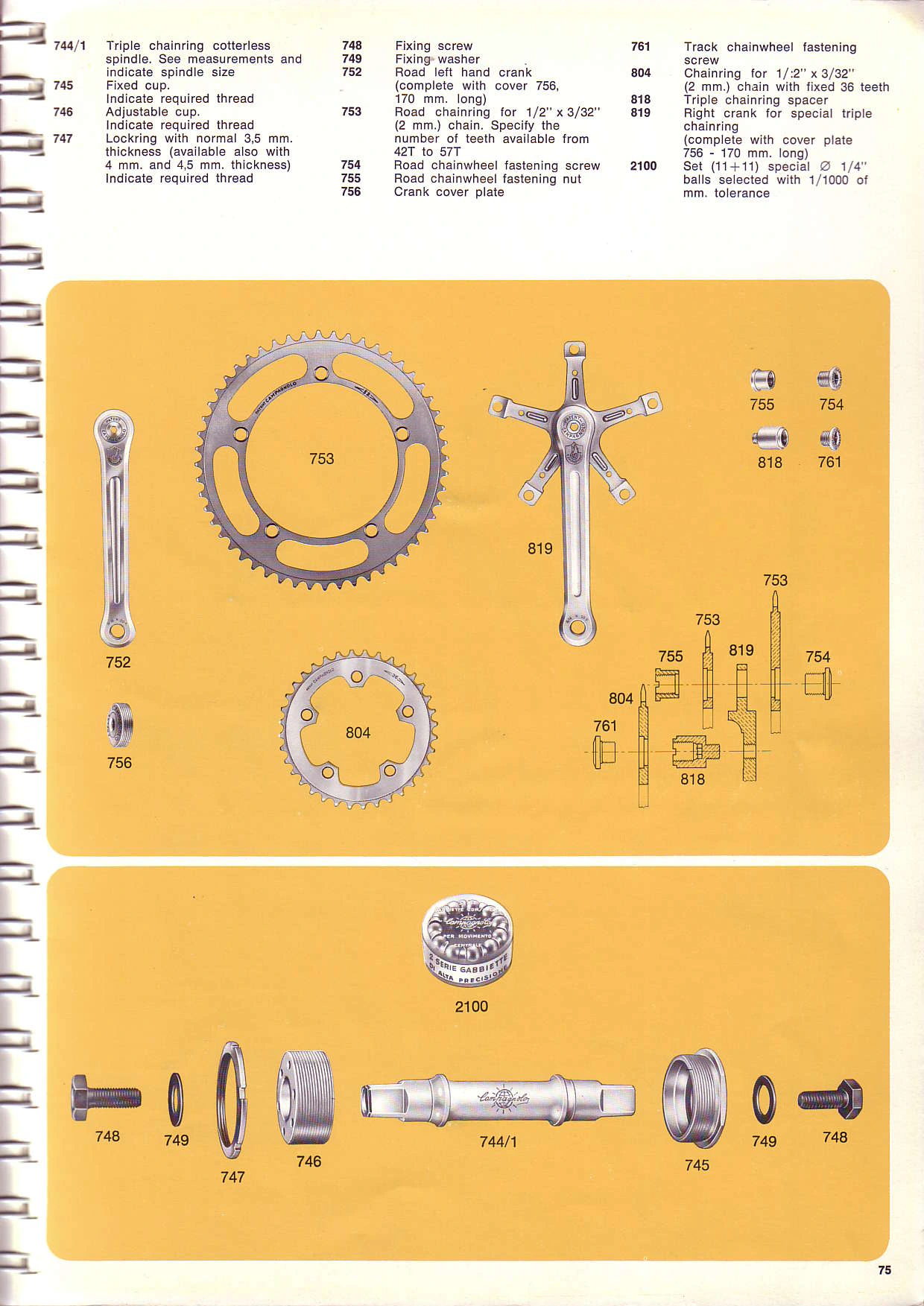

754 Road chainwheel fastening screw
755 Road chainwheel fastening nut
756 Crank cover plate
801 Spacer for single chainring
2100 Set (11+11) special Ø 1/4″ balls selected with 1/1000 of mm. tolerance
2110 Record sleeve
2110/1 Cone for sleeve

Callouts: 753 751 752 756 755 754 801
Callouts: 2110/1 2110 2100 748 749 747 746/A 744/A 745/A 749 748

39

[Two yellow panels of the separate parts of the Campagnolo Record road chainset and bottom bracket, continuing the parts list from the previous page: the left and right cranks 752 and 751, the chainring 753 and its fastening screw, nut and spacer above; the sleeve, its cone, the boxed ball set 2100, the spindle 744/A, the cups, lockring and crank fixing screws and washers below.]

— Page 49 —
PARTICULAR COMPONENTS OF CAMPAGNOLO RECORD ROAD GROUP 1032/F

1039 Record road head set thread 25,4 x 24F.). Upon request are furnished with thread Ø 25 x 1M. or 1″ x 24 Tpi-BSC
681 Locking nut (specify type of threading)
682 Locking washer
683 Screwed road race (specify type of threading)
684 Road top head race (0,5 mm. larger gauge available)
685 Road bottom head race (0,5 mm. larger gauge available)
686 Road crown race (smaller diameter available)
2101 Set bearings with (20+20) special b/b Ø 3/16″ balls selected with 1/1000 of mm. tolerance

Callouts: 1039 681 682 683 684 685 686 2101
Callouts: 1044
Callouts: 698 699 703 700 701 702

1044 Seat pin. Specify diameter stem: 25 – 25,8 – 26 – 26,2 – 26,4 – 26,6 – 26,8 – 27 – 27,2 – 27,4 mm. and if pin length in 130 mm. normal or in 180 mm. long
698 Front bracket
699 Rear bracket
700 Bolt nut
701 Left hand side support
702 Right hand side support
703 Fixing and adjusting bolt

40

[A stacked drawing of the Campagnolo Record road head set, 1039, with its locking nut, washer, races and bearing set numbered, beside a drawing of the Record seat pin, 1044. Below the seat pin a panel shows its separate clamp parts, the brackets, side supports, bolt and nut, keyed to a parts list at the lower left.]

— Page 50 —

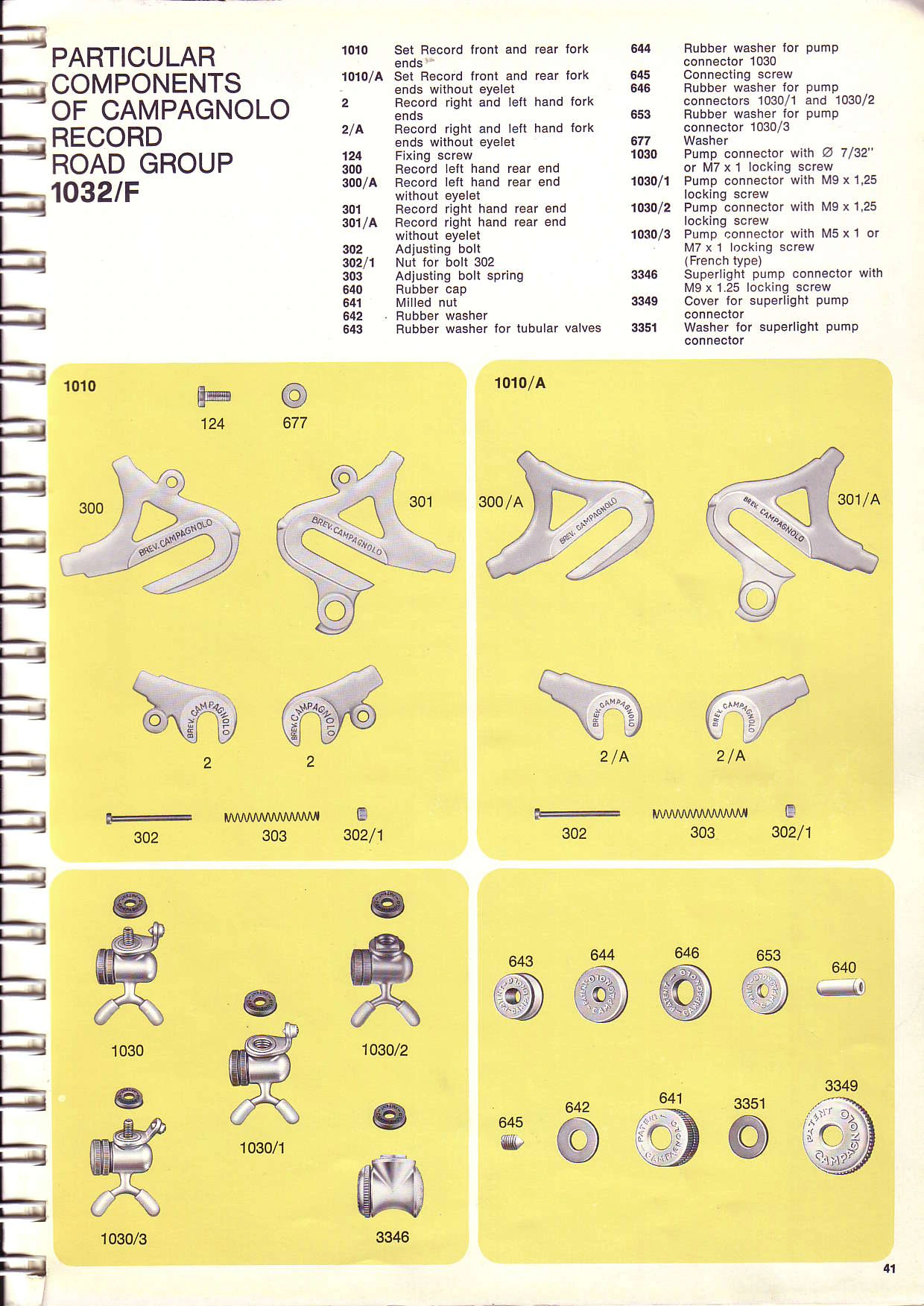

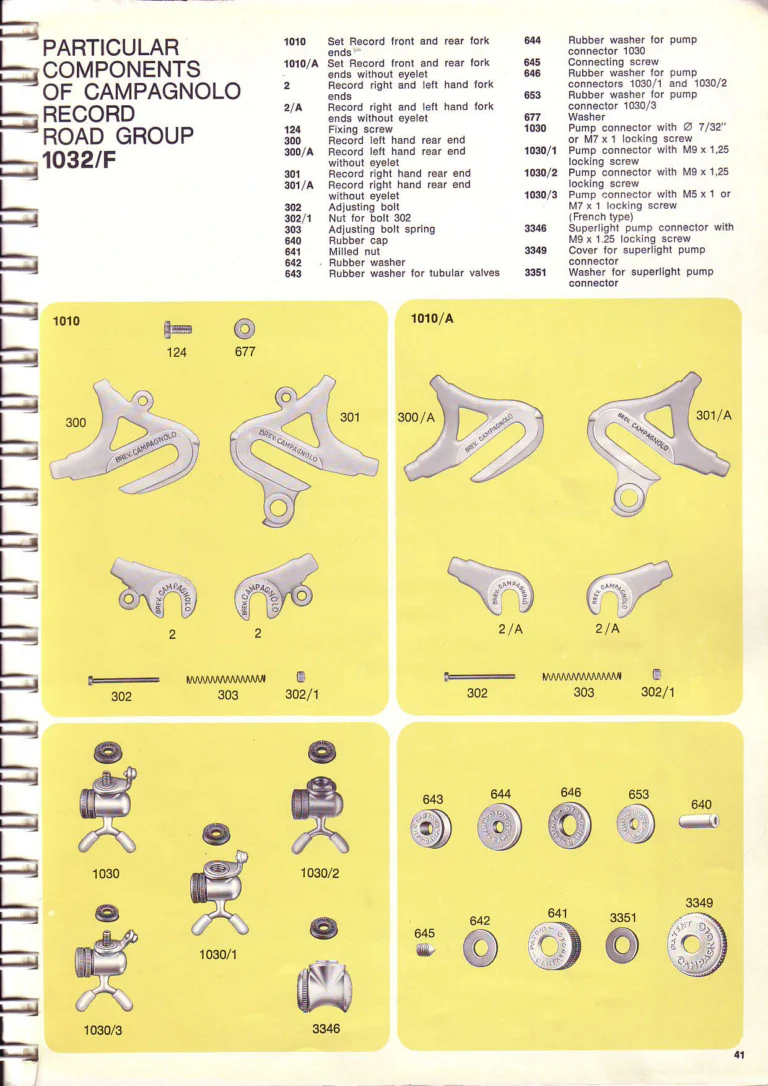

PARTICULAR COMPONENTS OF CAMPAGNOLO RECORD ROAD GROUP 1032/F

1010 Set Record front and rear fork ends
1010/A Set Record front and rear fork ends without eyelet
2 Record right and left hand fork ends
2/A Record right and left hand fork ends without eyelet
124 Fixing screw
300 Record left hand rear end
300/A Record left hand rear end without eyelet
301 Record right hand rear end
301/A Record right hand rear end without eyelet
302 Adjusting bolt
302/1 Nut for bolt 302
303 Adjusting bolt spring
640 Rubber cap
641 Milled nut
642 Rubber washer
643 Rubber washer for tubular valves
644 Rubber washer for pump connector 1030
645 Connecting screw
646 Rubber washer for pump connectors 1030/1 and 1030/2
653 Rubber washer for pump connector 1030/3
677 Washer
1030 Pump connector with Ø 7/32″ or M7 x 1 locking screw
1030/1 Pump connector with M9 x 1,25 locking screw
1030/2 Pump connector with M9 x 1,25 locking screw
1030/3 Pump connector with M5 x 1 or M7 x 1 locking screw (French type)
3346 Superlight pump connector with M9 x 1.25 locking screw
3349 Cover for superlight pump connector
3351 Washer for superlight pump connector

Callouts: 1010 124 677 300 301 2 2 302 303 302/1
Callouts: 1010/A 300/A 301/A 2/A 2/A 302 303 302/1
Callouts: 1030 1030/2 1030/1 1030/3 3346
Callouts: 643 644 646 653 640 645 642 641 3351 3349

41

[Drawings of the Campagnolo Record fork ends, 1010, and the same set without eyelets, 1010/A, each with its rear ends, front fork ends, adjusting bolt, spring and nut, on two yellow panels. Below them are the pump connectors 1030, 1030/1, 1030/2, 1030/3 and the superlight connector 3346 with their washers, and a panel of tire valve and pump washers, caps and nuts, all keyed to the parts list.]

— Page 51 —
PARTICULAR COMPONENTS OF CAMPAGNOLO RECORD ROAD GROUP 1032/F

2040 Set Record brakes
2040/1 Set Record small brakes
2030 Brake lever
2000 Front brake
2000/1 Small front brake
2001 Rear brake
2001/1 Small rear brake
2002 Center bolt fixing nut
2003 Washer
2004 Clamp bolt washer
2005 Cam
2006 Quick release cam lever
2007 Adjusting nut
2008 Cable clamp bolt
2009 Adjusting screw
2010 Brake block
2011 Tension spring
2012 Front brake center bolt
2012/1 Rear brake center bolt
2013 Cable clamp
2014/D Right hand brake shoe
2014/S Left hand brake shoe

Callouts: 2040 2030 2030 2000 2001 mm. 52 2026 2028 2029 2027

Callouts: 2043 2020/2 2009 2020/1 2019/1 2003 2041/A 2012 2007 2002 2023 2024 2003 2012/1 2015 2015/1 2019 2021 2016 2002 2041 2020 2013 2018 2011 2005 2042 2042 2004 2006 2017 2008 2022 2010 2003 2010 2014/D 2014/S 2003 2022

42

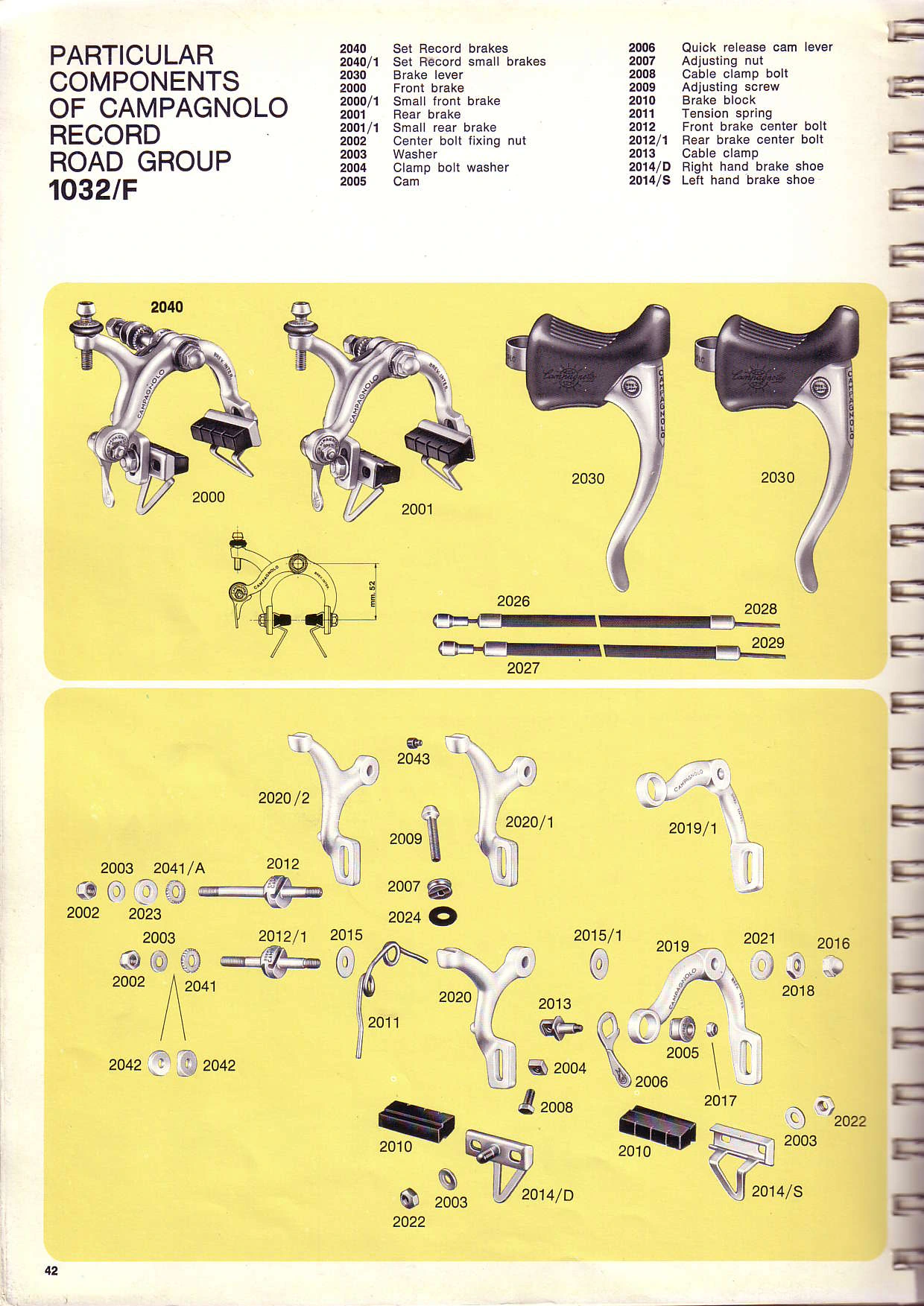

[Photographs of the Campagnolo Record brake set, 2040, with the front and rear brakes 2000 and 2001, a pair of 2030 brake levers and the front and rear cables, above an exploded view of the brake with every part laid out and numbered, on yellow panels. A line drawing of the brake gives its reach as 52 mm, and the parts list begun here continues on the facing page.]

— Page 52 —

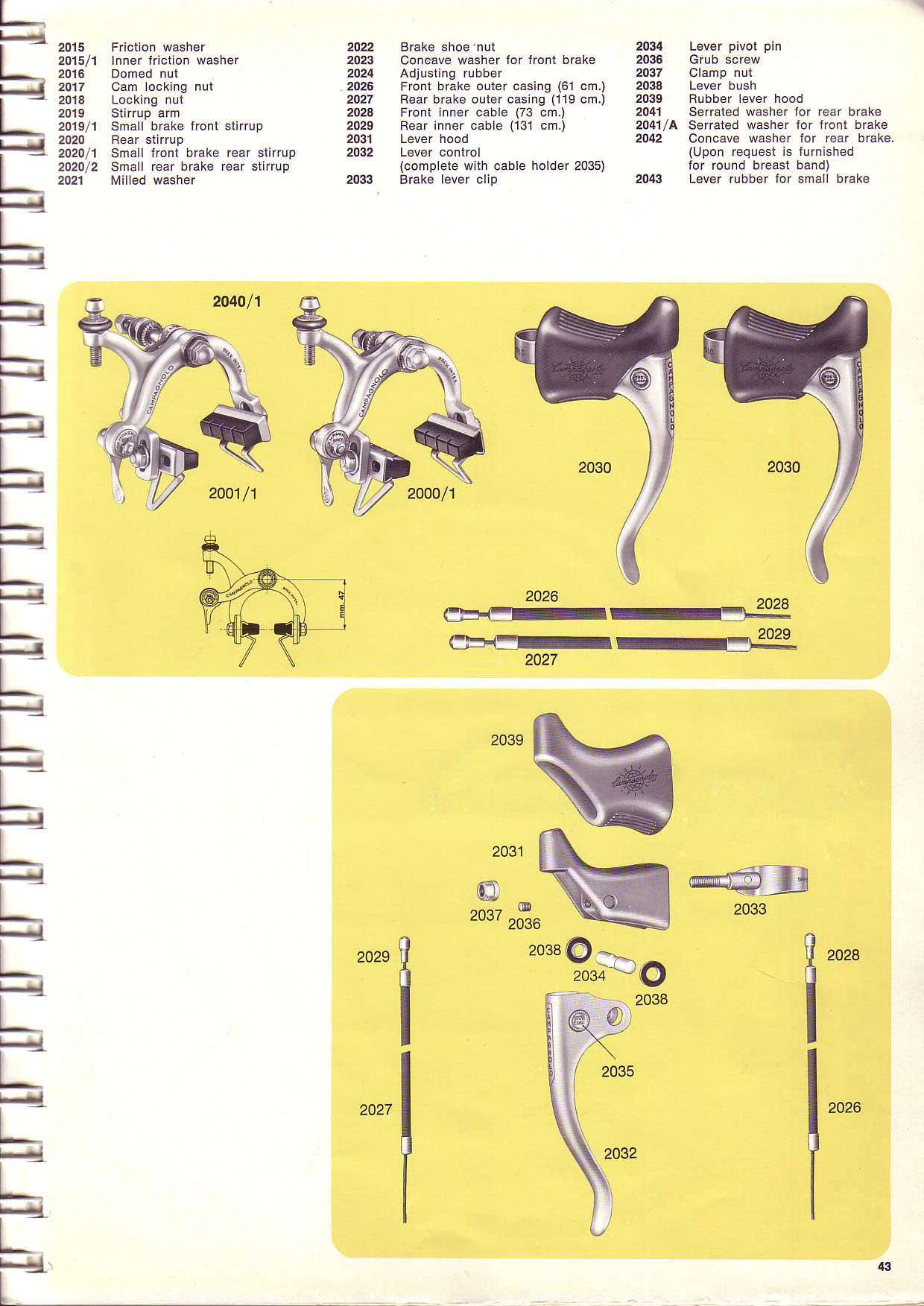

2015 Friction washer
2015/1 Inner friction washer
2016 Domed nut
2017 Cam locking nut
2018 Locking nut
2019 Stirrup arm
2019/1 Small brake front stirrup
2020 Rear stirrup
2020/1 Small front brake rear stirrup
2020/2 Small rear brake rear stirrup
2021 Milled washer
2022 Brake shoe nut
2023 Concave washer for front brake
2024 Adjusting rubber
2026 Front brake outer casing (61 cm.)
2027 Rear brake outer casing (119 cm.)
2028 Front inner cable (73 cm.)
2029 Rear inner cable (131 cm.)
2031 Lever hood
2032 Lever control (complete with cable holder 2035)
2033 Brake lever clip
2034 Lever pivot pin
2036 Grub screw
2037 Clamp nut
2038 Lever bush
2039 Rubber lever hood
2041 Serrated washer for rear brake
2041/A Serrated washer for front brake
2042 Concave washer for rear brake. (Upon request is furnished for round breast band)
2043 Lever rubber for small brake

Callouts: 2040/1 2030 2030 2001/1 2000/1 mm. 47 2026 2028 2029 2027

Callouts: 2039 2031 2037 2036 2033 2029 2038 2034 2038 2028 2035 2027 2026 2032

43

[Photographs of the Campagnolo Record small brake set, 2040/1, with the small rear and front brakes 2001/1 and 2000/1, a pair of 2030 brake levers and the front and rear cables, above an exploded view of the 2030 brake lever and its cables, on yellow panels. A line drawing of the small brake gives its reach as 47 mm, and the parts list continues from the facing page.]

— Page 53 —

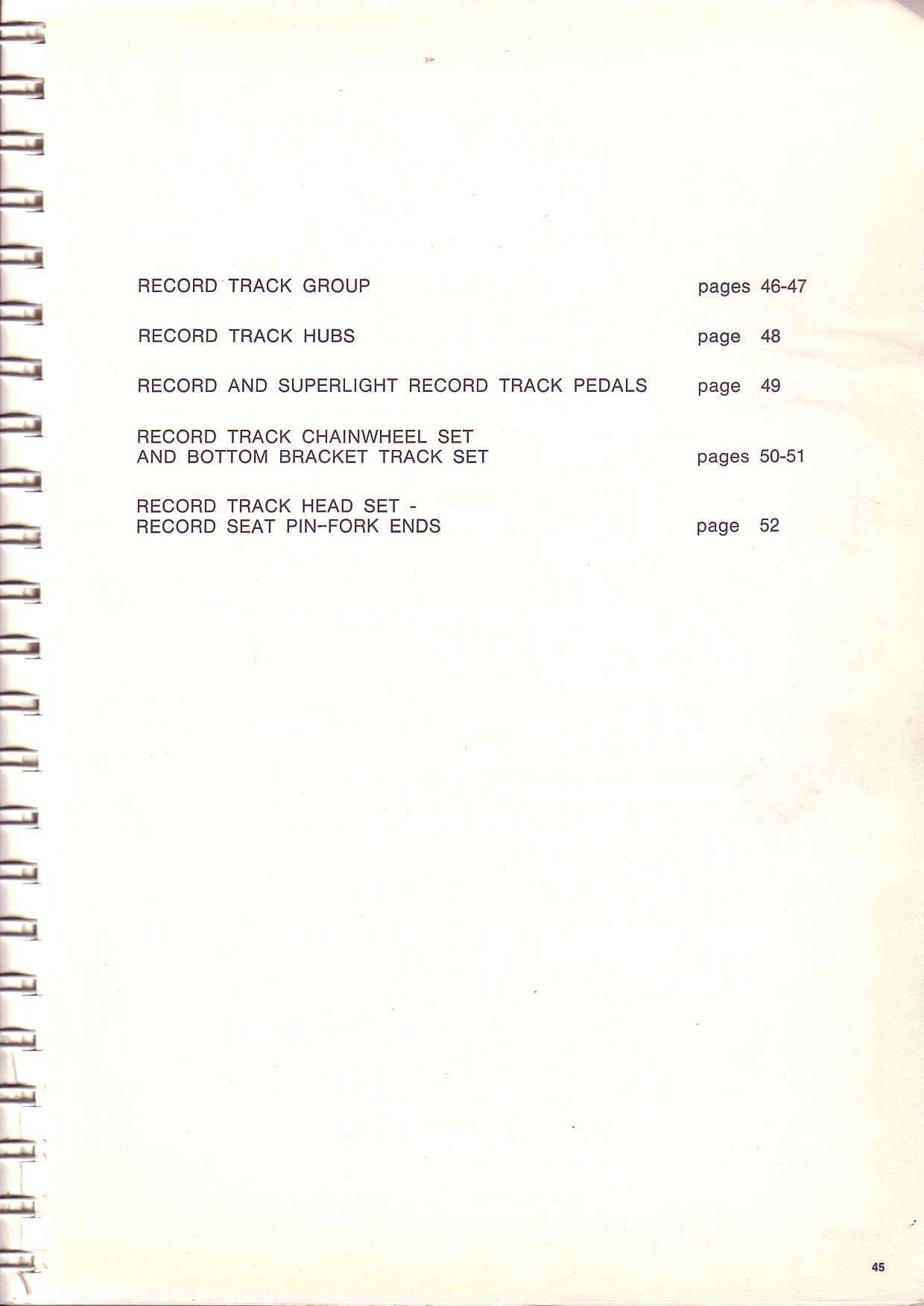

RECORD TRACK GROUP | pages 46-47
RECORD TRACK HUBS | page 48
RECORD AND SUPERLIGHT RECORD TRACK PEDALS | page 49
RECORD TRACK CHAINWHEEL SET AND BOTTOM BRACKET TRACK SET | pages 50-51
RECORD TRACK HEAD SET – RECORD SEAT PIN-FORK ENDS | page 52

45

[The contents page of the Record track group section, listing its hubs, pedals, chainwheel and bottom bracket sets, head set, seat pin and fork ends with their page numbers.]

— Page 54 —
1033 CAMPAGNOLO RECORD TRACK GROUP

(Particular components of this group are illustrated from page 48 to page 52)

Callouts: 1050 1036 1051 1038 1046

46

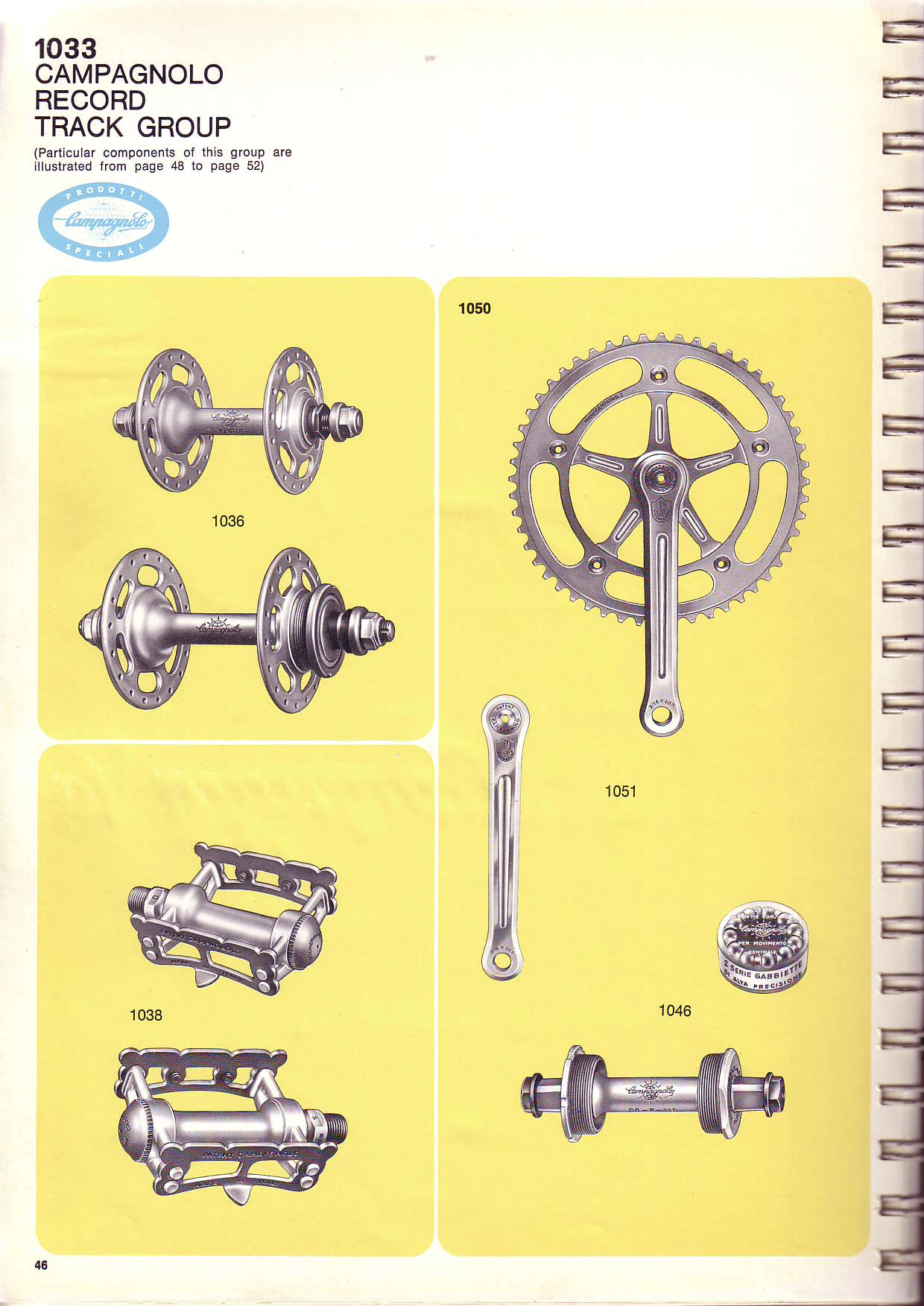

[The Campagnolo Record track group, 1033, photographed on yellow panels: a pair of track hubs, a pair of track pedals, the track chainwheel set with its left crank, and the bottom bracket set with a box of ball cages labeled “2 Serie Gabbiette di alta precisione”. The oval “Prodotti Campagnolo Speciali” emblem sits below the heading, and the group’s parts list is on the facing page.]

— Page 55 —
1036 Pair Record large flange solid spindle track hubs (front width 100 mm., rear width 110 mm., flanges with 36 holes, thread Ø 35 x 24F.). Upon request furnished with rear hub width 120 mm., flanges with 24 – 28 – 32 – 40 holes, thread Ø 34,7 x 1M. or 1,370″ x 24 Tpi-BSC. See other alternatives on page 48

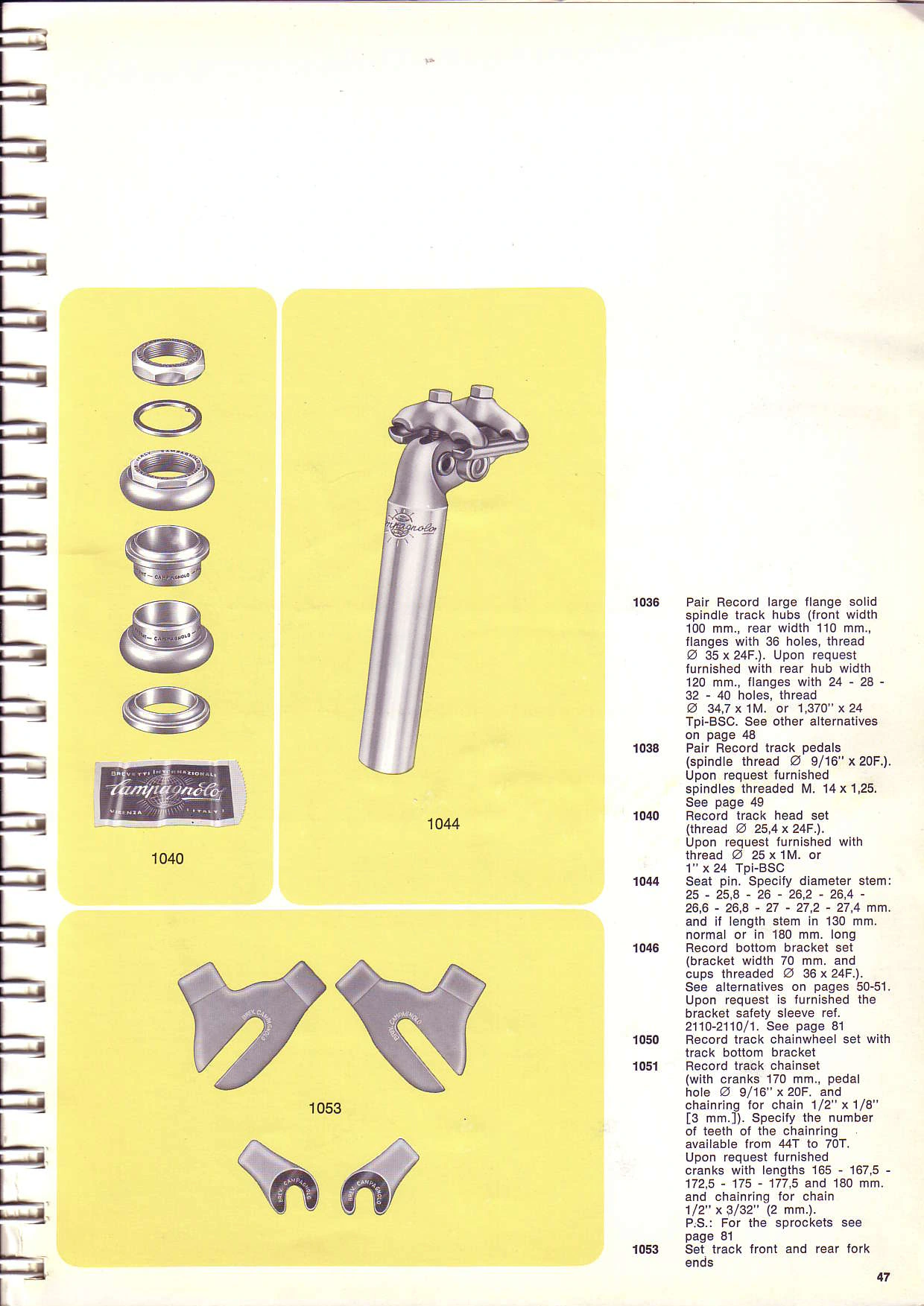

1038 Pair Record track pedals (spindle thread Ø 9/16″ x 20F.). Upon request furnished spindles threaded M. 14 x 1,25. See page 49
1040 Record track head set (thread Ø 25,4 x 24F.). Upon request furnished with thread Ø 25 x 1M. or 1″ x 24 Tpi-BSC
1044 Seat pin. Specify diameter stem: 25 – 25,8 – 26 – 26,2 – 26,4 – 26,6 – 26,8 – 27 – 27,2 – 27,4 mm. and if length stem in 130 mm. normal or in 180 mm. long
1046 Record bottom bracket set (bracket width 70 mm. and cups threaded Ø 36 x 24F.). See alternatives on pages 50-51. Upon request is furnished the bracket safety sleeve ref. 2110-2110/1. See page 81
1050 Record track chainwheel set with track bottom bracket
1051 Record track chainset (with cranks 170 mm., pedal hole Ø 9/16″ x 20F. and chainring for chain 1/2″ x 1/8″ [3 mm.]). Specify the number of teeth of the chainring available from 44T to 70T. Upon request furnished cranks with lengths 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm. and chainring for chain 1/2″ x 3/32″ (2 mm.). P.S.: For the sprockets see page 81
1053 Set track front and rear fork ends

Callouts: 1040 1044 1053

47

[The second page of the Campagnolo Record track group, photographed on yellow panels: the parts of the 1040 track head set stacked above a wrapped packet of balls, the 1044 seat pin, and the 1053 front and rear track fork ends. The group’s parts list, continued from the facing page, runs down the right margin.]

— Page 56 —

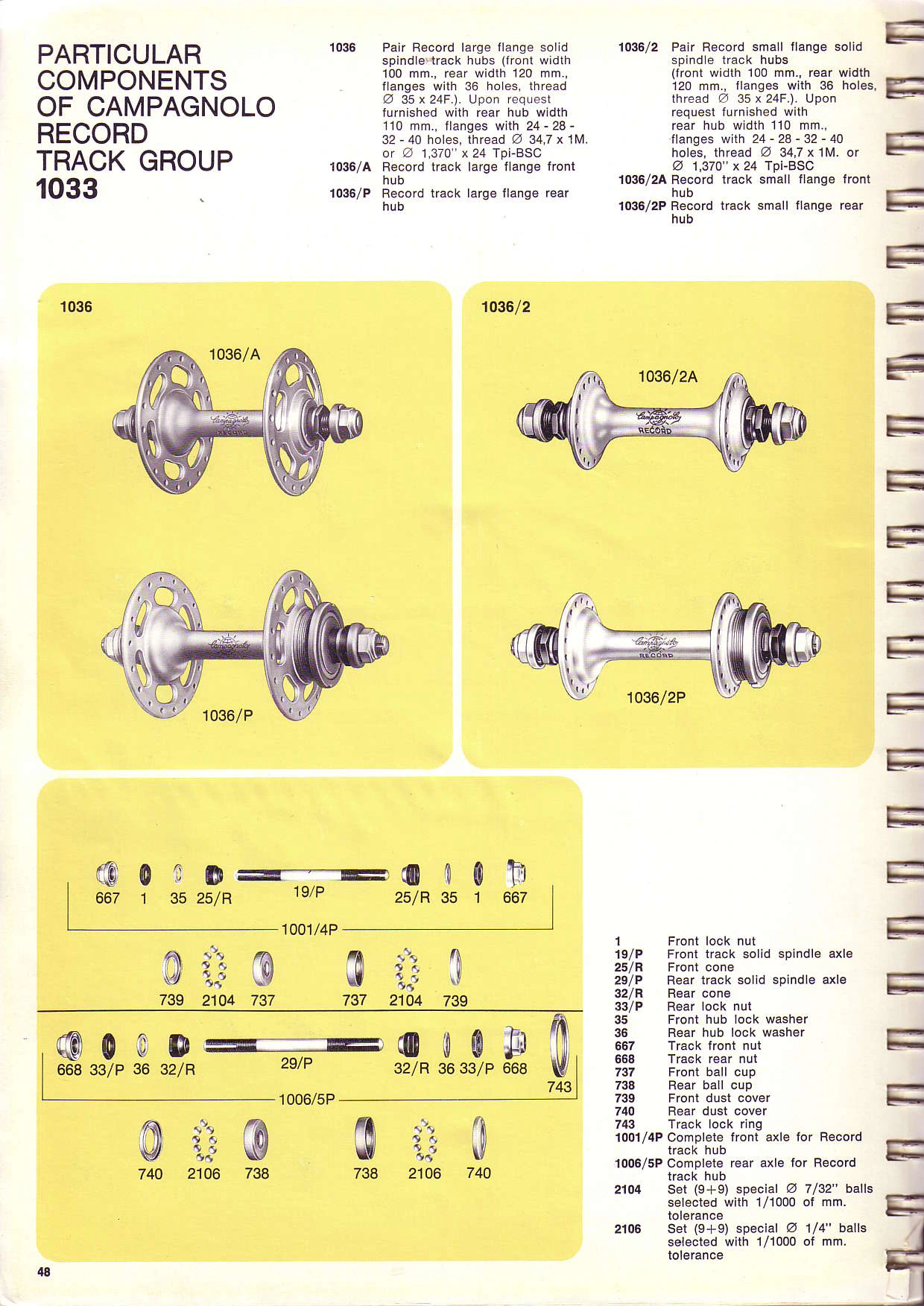

PARTICULAR COMPONENTS OF CAMPAGNOLO RECORD TRACK GROUP 1033

1036 Pair Record large flange solid spindle track hubs (front width 100 mm., rear width 120 mm., flanges with 36 holes, thread Ø 35 x 24F.). Upon request furnished with rear hub width 110 mm., flanges with 24 – 28 – 32 – 40 holes, thread Ø 34,7 x 1M. or Ø 1,370″ x 24 Tpi-BSC
1036/A Record track large flange front hub
1036/P Record track large flange rear hub
1036/2 Pair Record small flange solid spindle track hubs (front width 100 mm., rear width 120 mm., flanges with 36 holes, thread Ø 35 x 24F.). Upon request furnished with rear hub width 110 mm., flanges with 24 – 28 – 32 – 40 holes, thread Ø 34,7 x 1M. or Ø 1,370″ x 24 Tpi-BSC
1036/2A Record track small flange front hub
1036/2P Record track small flange rear hub

Callouts: 1036 1036/2 1036/A 1036/2A 1036/P 1036/2P

Callouts: 667 1 35 25/R 19/P 25/R 35 1 667 1001/4P 739 2104 737 737 2104 739 668 33/P 36 32/R 29/P 32/R 36 33/P 668 743 1006/5P 740 2106 738 738 2106 740

1 Front lock nut
19/P Front track solid spindle axle
25/R Front cone
29/P Rear track solid spindle axle
32/R Rear cone
33/P Rear lock nut
35 Front hub lock washer
36 Rear hub lock washer
667 Track front nut
668 Track rear nut
737 Front ball cup
738 Rear ball cup
739 Front dust cover
740 Rear dust cover
743 Track lock ring
1001/4P Complete front axle for Record track hub
1006/5P Complete rear axle for Record track hub
2104 Set (9+9) special Ø 7/32″ balls selected with 1/1000 of mm. tolerance
2106 Set (9+9) special Ø 1/4″ balls selected with 1/1000 of mm. tolerance

48

[Photographs of the Campagnolo Record large flange and small flange track hubs, 1036 and 1036/2, front and rear, on yellow panels, with the front and rear solid axle assemblies, 1001/4P and 1006/5P, laid out part by part and numbered below. The parts list sits at the lower right.]

— Page 57 —
PARTICULAR COMPONENTS OF CAMPAGNOLO RECORD TRACK GROUP 1033

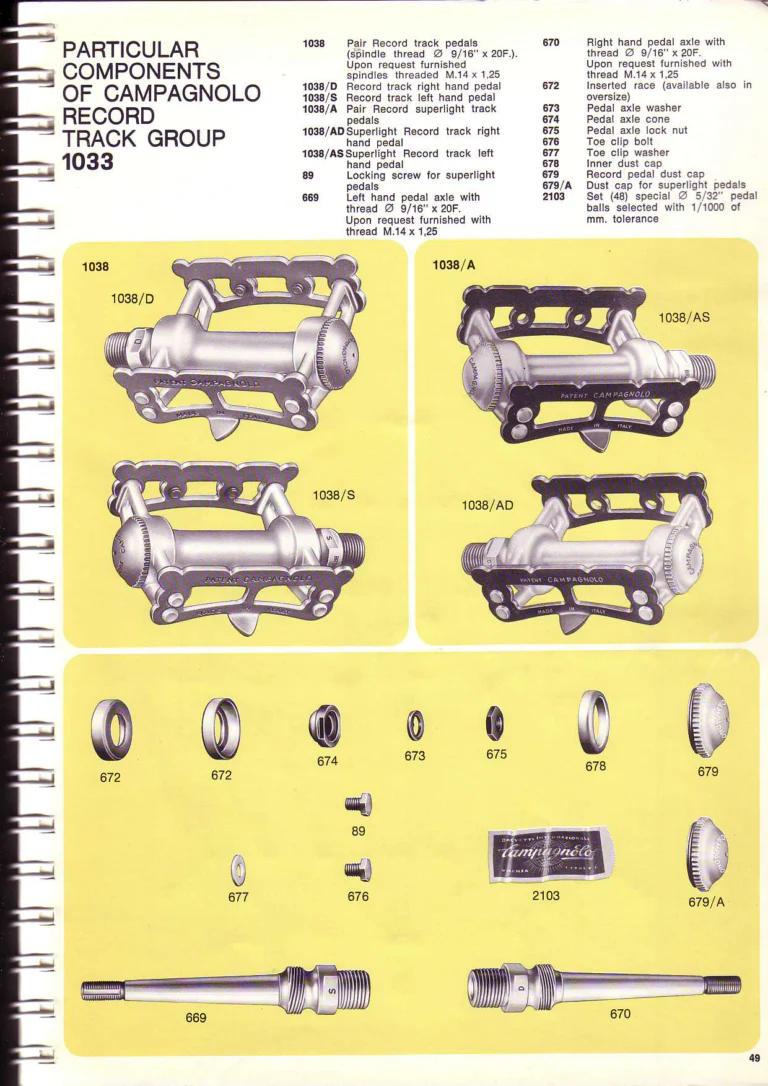

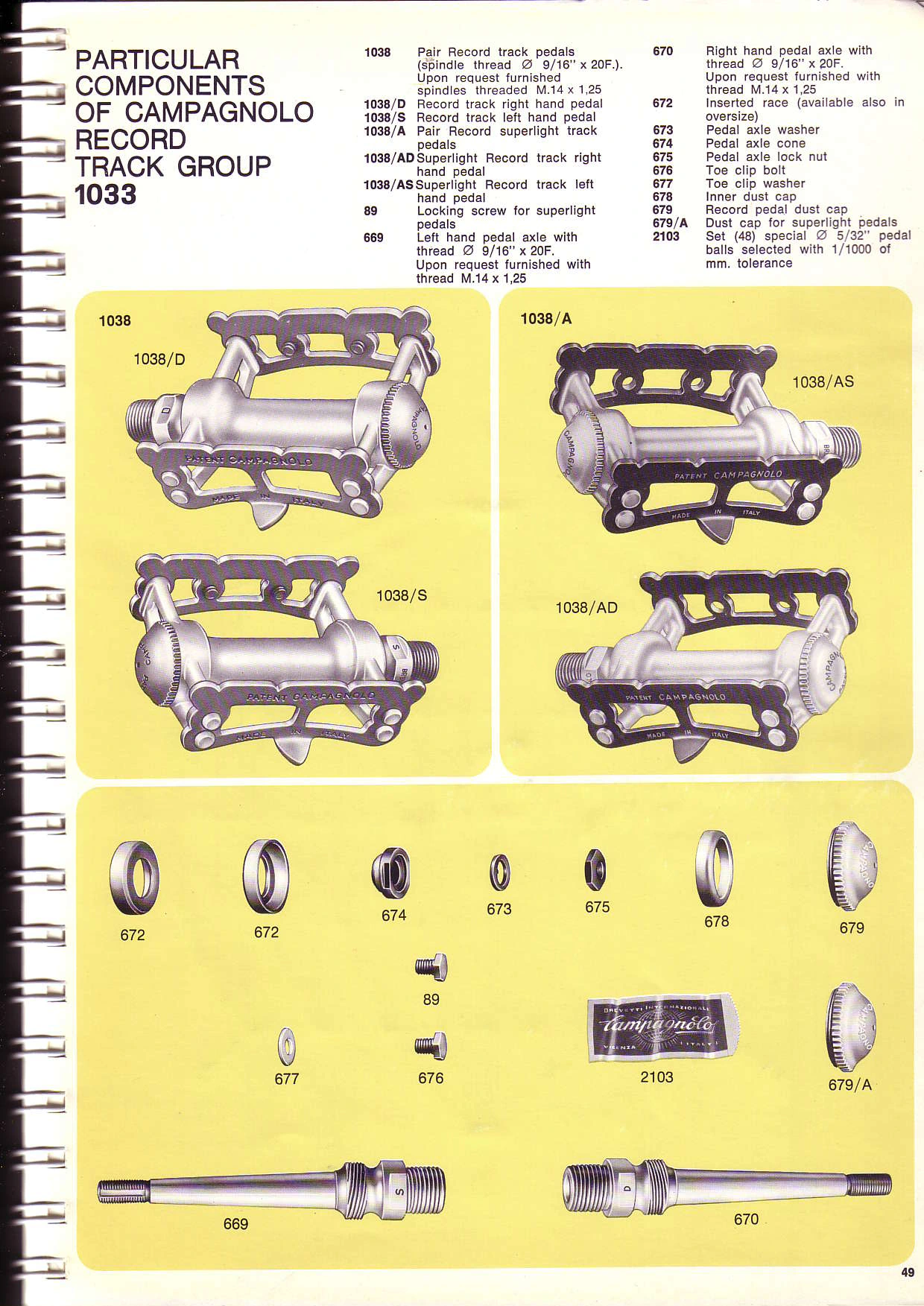

1038 Pair Record track pedals (spindle thread Ø 9/16″ x 20F.). Upon request furnished spindles threaded M.14 x 1,25
1038/D Record track right hand pedal
1038/S Record track left hand pedal
1038/A Pair Record superlight track pedals
1038/AD Superlight Record track right hand pedal
1038/AS Superlight Record track left hand pedal
89 Locking screw for superlight pedals
669 Left hand pedal axle with thread Ø 9/16″ x 20F. Upon request furnished with thread M.14 x 1,25
670 Right hand pedal axle with thread Ø 9/16″ x 20F. Upon request furnished with thread M.14 x 1,25
672 Inserted race (available also in oversize)
673 Pedal axle washer
674 Pedal axle cone
675 Pedal axle lock nut
676 Toe clip bolt
677 Toe clip washer
678 Inner dust cap
679 Record pedal dust cap
679/A Dust cap for superlight pedals
2103 Set (48) special Ø 5/32″ pedal balls selected with 1/1000 of mm. tolerance

Callouts: 1038 1038/A 1038/D 1038/AS 1038/S 1038/AD 672 672 674 673 675 678 679 89 677 676 2103 679/A 669 670

49

[Photographs of the Campagnolo Record track pedals, 1038, and the Record superlight track pedals, 1038/A, right and left, on yellow panels, above the pedal parts laid out and numbered: races, cone, washers, lock nut, dust caps, toe clip bolt, a packet of balls and the left and right pedal axles. The parts list runs across the top in two columns.]

— Page 58 —

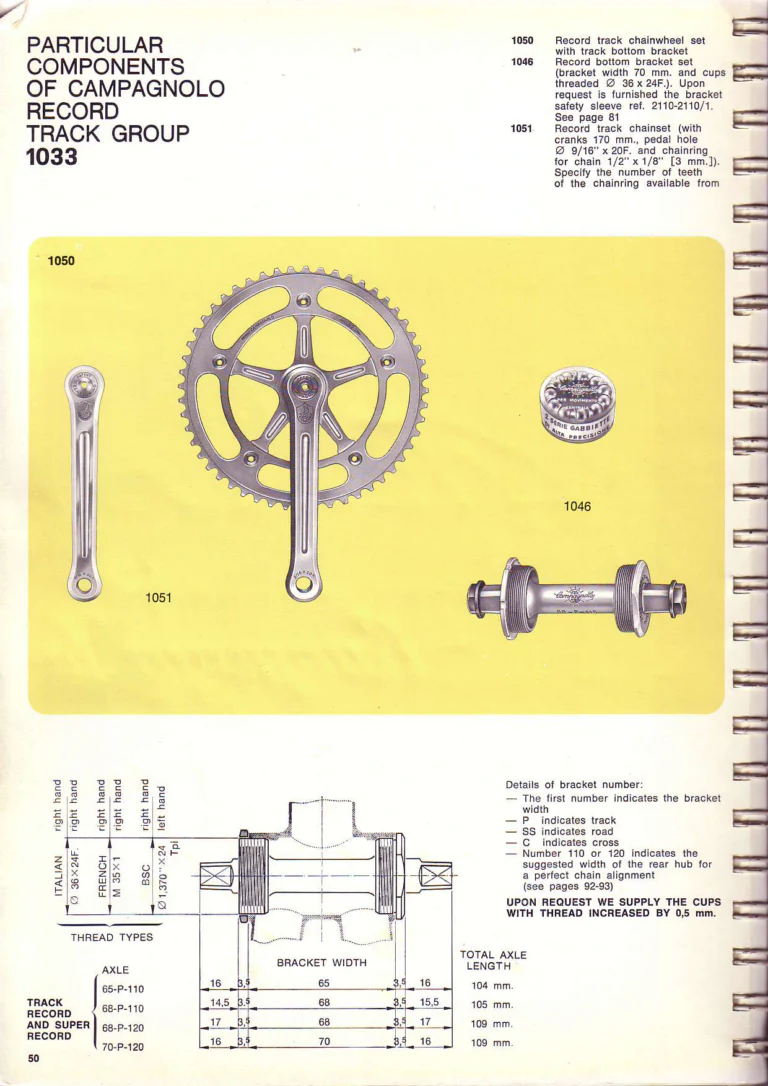

PARTICULAR COMPONENTS OF CAMPAGNOLO RECORD TRACK GROUP 1033

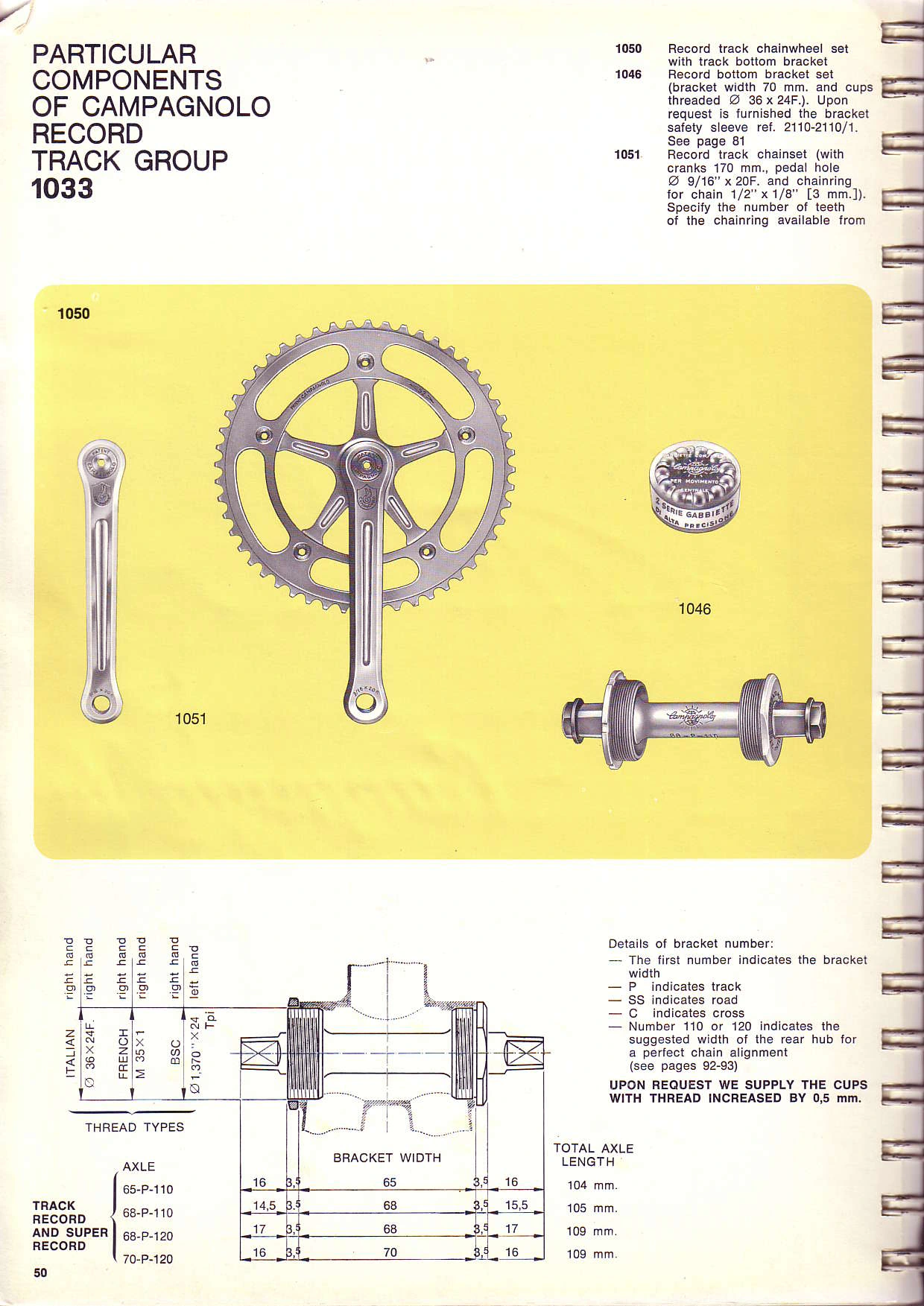

1050 Record track chainwheel set with track bottom bracket
1046 Record bottom bracket set (bracket width 70 mm. and cups threaded Ø 36 x 24F.). Upon request is furnished the bracket safety sleeve ref. 2110-2110/1. See page 81
1051 Record track chainset (with cranks 170 mm., pedal hole Ø 9/16″ x 20F. and chainring for chain 1/2″ x 1/8″ [3 mm.]). Specify the number of teeth of the chainring available from

Callouts: 1050 1046 1051

THREAD TYPES
ITALIAN | Ø 36×24F. | right hand | right hand
FRENCH | M 35×1 | right hand | right hand
BSC | Ø 1,370″×24 Tpi | right hand | left hand

AXLE | | | BRACKET WIDTH | | | TOTAL AXLE LENGTH
TRACK RECORD AND SUPER RECORD
65-P-110 | 16 | 3,5 | 65 | 3,5 | 16 | 104 mm.
68-P-110 | 14,5 | 3.5 | 68 | 3,5 | 15,5 | 105 mm.
68-P-120 | 17 | 3,5 | 68 | 3,5 | 17 | 109 mm.
70-P-120 | 16 | 3,5 | 70 | 3,5 | 16 | 109 mm.

Details of bracket number:
— The first number indicates the bracket width
— P indicates track
— SS indicates road
— C indicates cross
— Number 110 or 120 indicates the suggested width of the rear hub for a perfect chain alignment (see pages 92-93)

UPON REQUEST WE SUPPLY THE CUPS WITH THREAD INCREASED BY 0,5 mm.

50

[A photograph of the Campagnolo Record track chainwheel set, 1050, showing the left crank, the right crank with its single chainring, 1051, and the bottom bracket set, 1046, with a box of ball cages, on a yellow panel. Below is a sectional drawing of the bottom bracket with its thread types and the axle, cup and bracket width dimensions for the 65, 68 and 70 mm track brackets.]

— Page 59 —

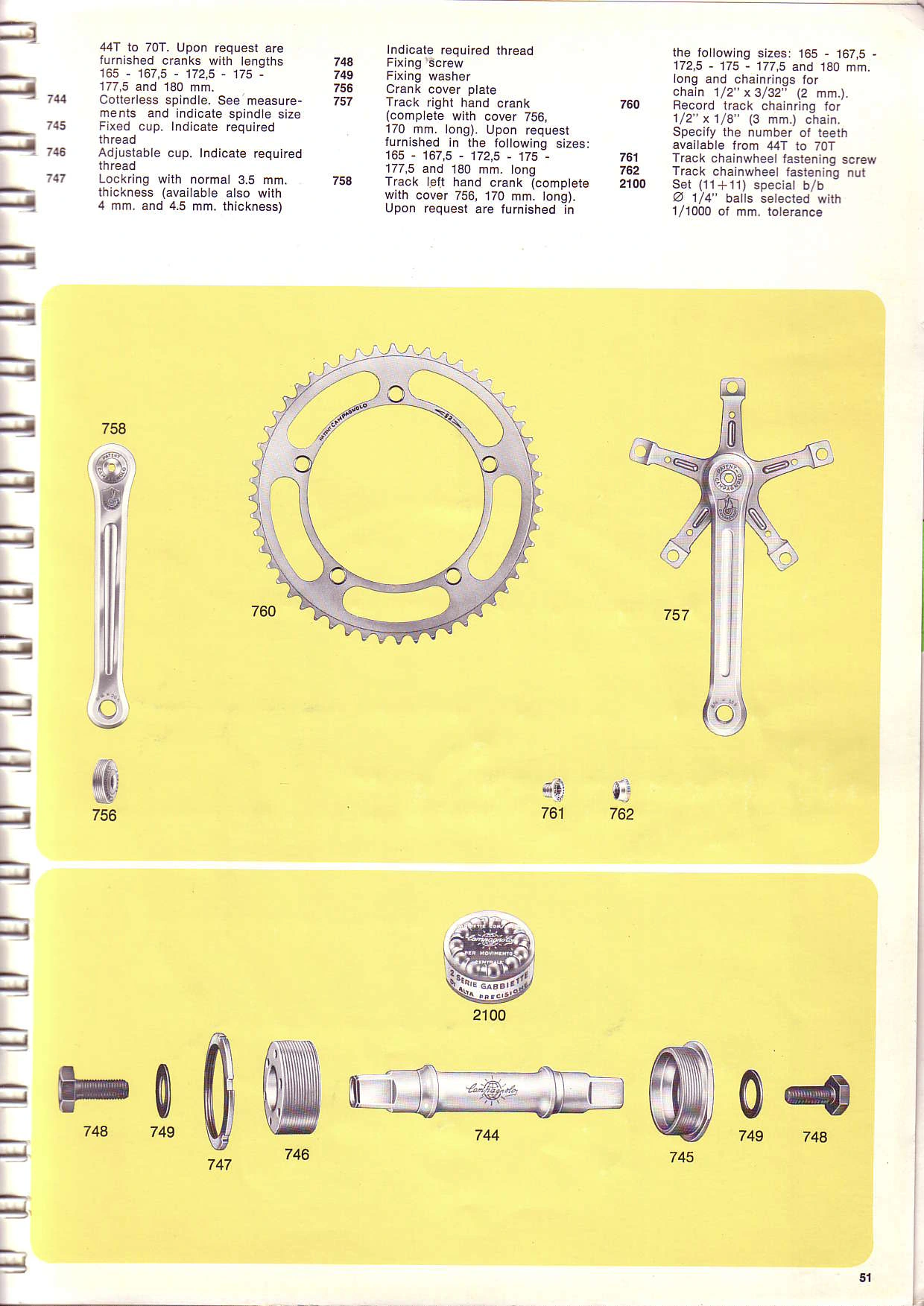

44T to 70T. Upon request are furnished cranks with lengths 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm.
744 Cotterless spindle. See measurements and indicate spindle size
745 Fixed cup. Indicate required thread
746 Adjustable cup. Indicate required thread
747 Lockring with normal 3.5 mm. thickness (available also with 4 mm. and 4.5 mm. thickness) Indicate required thread
748 Fixing screw
749 Fixing washer
756 Crank cover plate
757 Track right hand crank (complete with cover 756, 170 mm. long). Upon request furnished in the following sizes: 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm. long
758 Track left hand crank (complete with cover 756, 170 mm. long). Upon request are furnished in the following sizes: 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm. long and chainrings for chain 1/2″ x 3/32″ (2 mm.).
760 Record track chainring for 1/2″ x 1/8″ (3 mm.) chain. Specify the number of teeth available from 44T to 70T
761 Track chainwheel fastening screw
762 Track chainwheel fastening nut
2100 Set (11+11) special b/b Ø 1/4″ balls selected with 1/1000 of mm. tolerance

Callouts: 758 760 757 756 761 762 2100 748 749 747 746 744 745 749 748

51

[Photographs of the parts of the Campagnolo Record track chainwheel set on yellow panels: the 758 left crank, the 760 track chainring, the 757 right crank and its cover plate and fastening screw and nut, and below them the bottom bracket parts laid out in order from fixing screw to fixing screw, with a box of ball cages, 2100. The parts list at the top continues the 1051 entry from the facing page.]

— Page 60 —

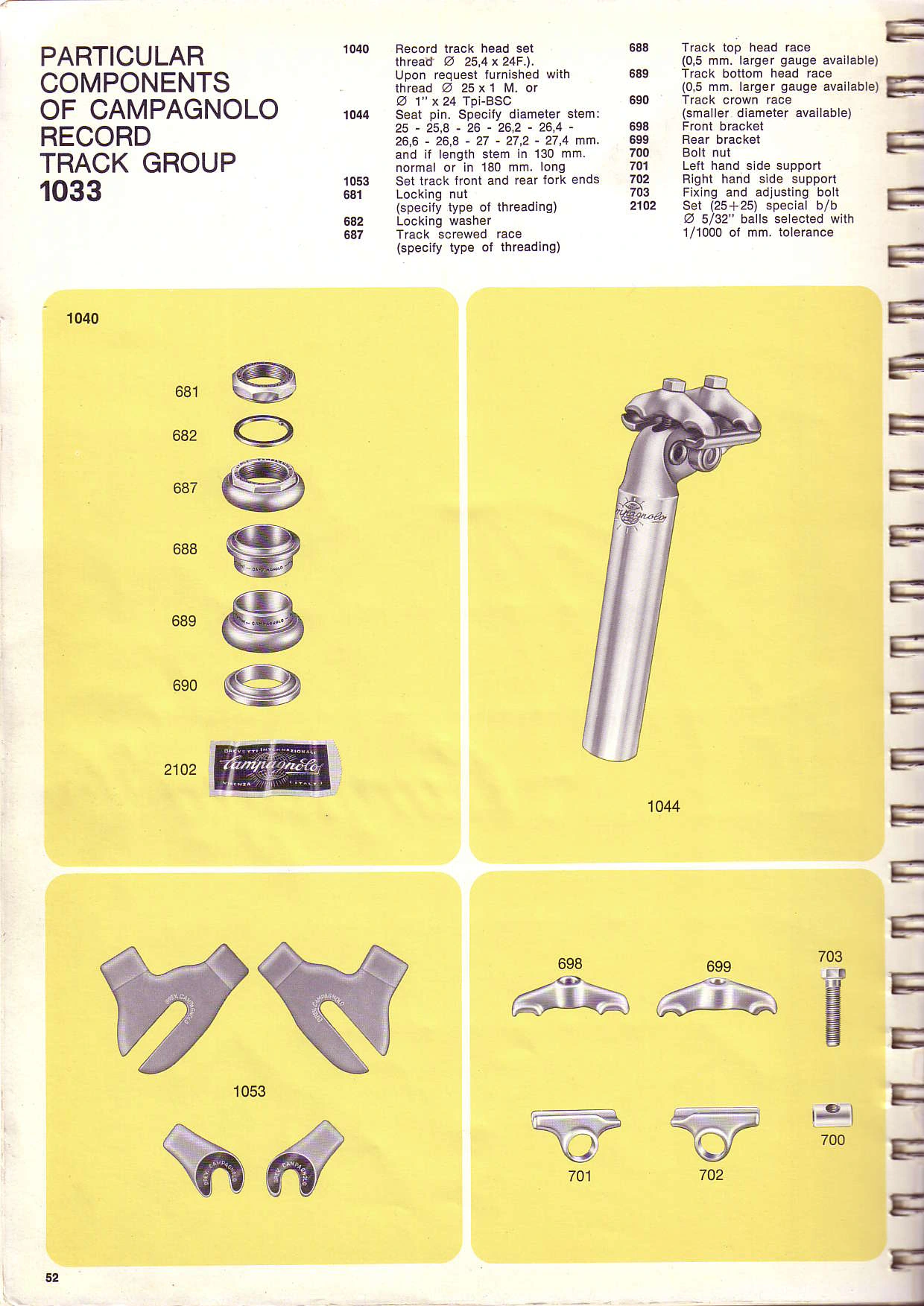

PARTICULAR COMPONENTS OF CAMPAGNOLO RECORD TRACK GROUP 1033

1040 Record track head set thread Ø 25,4 x 24F.). Upon request furnished with thread Ø 25 x 1 M. or Ø 1″ x 24 Tpi-BSC
1044 Seat pin. Specify diameter stem: 25 – 25,8 – 26 – 26,2 – 26,4 – 26,6 – 26,8 – 27 – 27,2 – 27,4 mm. and if length stem in 130 mm. normal or in 180 mm. long
1053 Set track front and rear fork ends
681 Locking nut (specify type of threading)
682 Locking washer
687 Track screwed race (specify type of threading)
688 Track top head race (0,5 mm. larger gauge available)
689 Track bottom head race (0,5 mm. larger gauge available)
690 Track crown race (smaller diameter available)
698 Front bracket
699 Rear bracket
700 Bolt nut
701 Left hand side support
702 Right hand side support
703 Fixing and adjusting bolt
2102 Set (25+25) special b/b Ø 5/32″ balls selected with 1/1000 of mm. tolerance

Callouts: 1040 681 682 687 688 689 690 2102 1044 1053 698 699 703 700 701 702

52

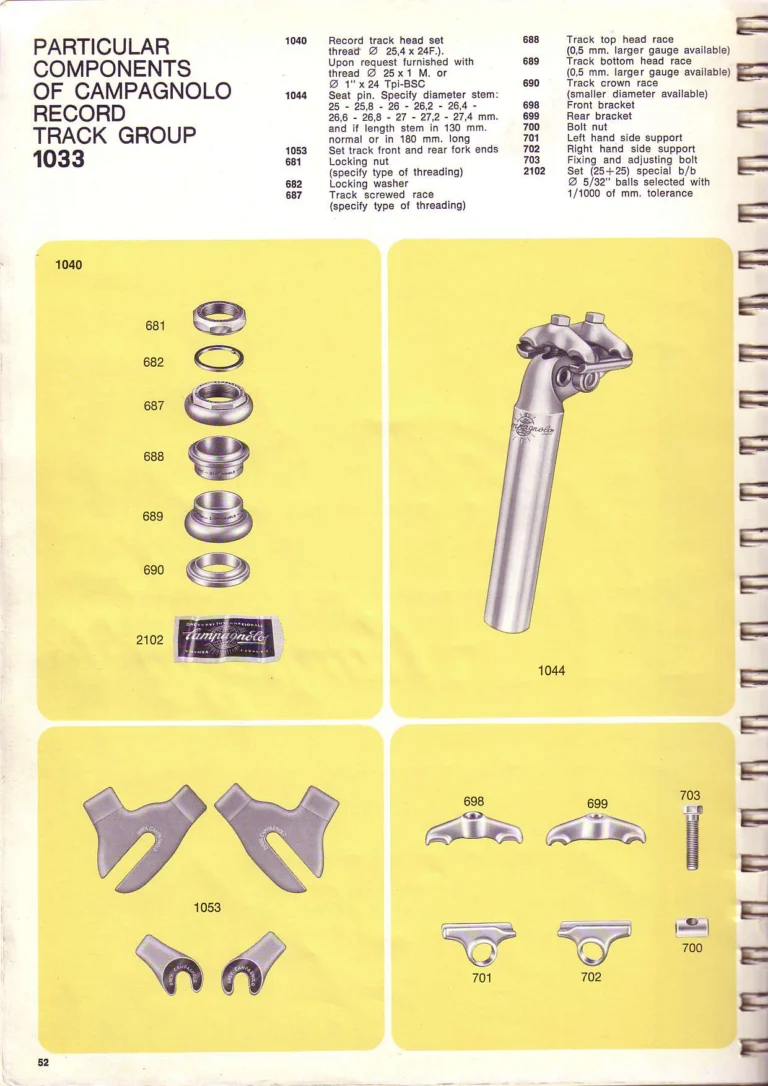

[Photographs of the parts of the Campagnolo Record track group on yellow panels: the 1040 track head set stacked race by race above its wrapped set of balls, 2102, the 1044 seat pin, the 1053 front and rear track fork ends, and the seat pin clamp parts, 698 to 703. The parts list runs across the top in two columns.]

— Page 61 —

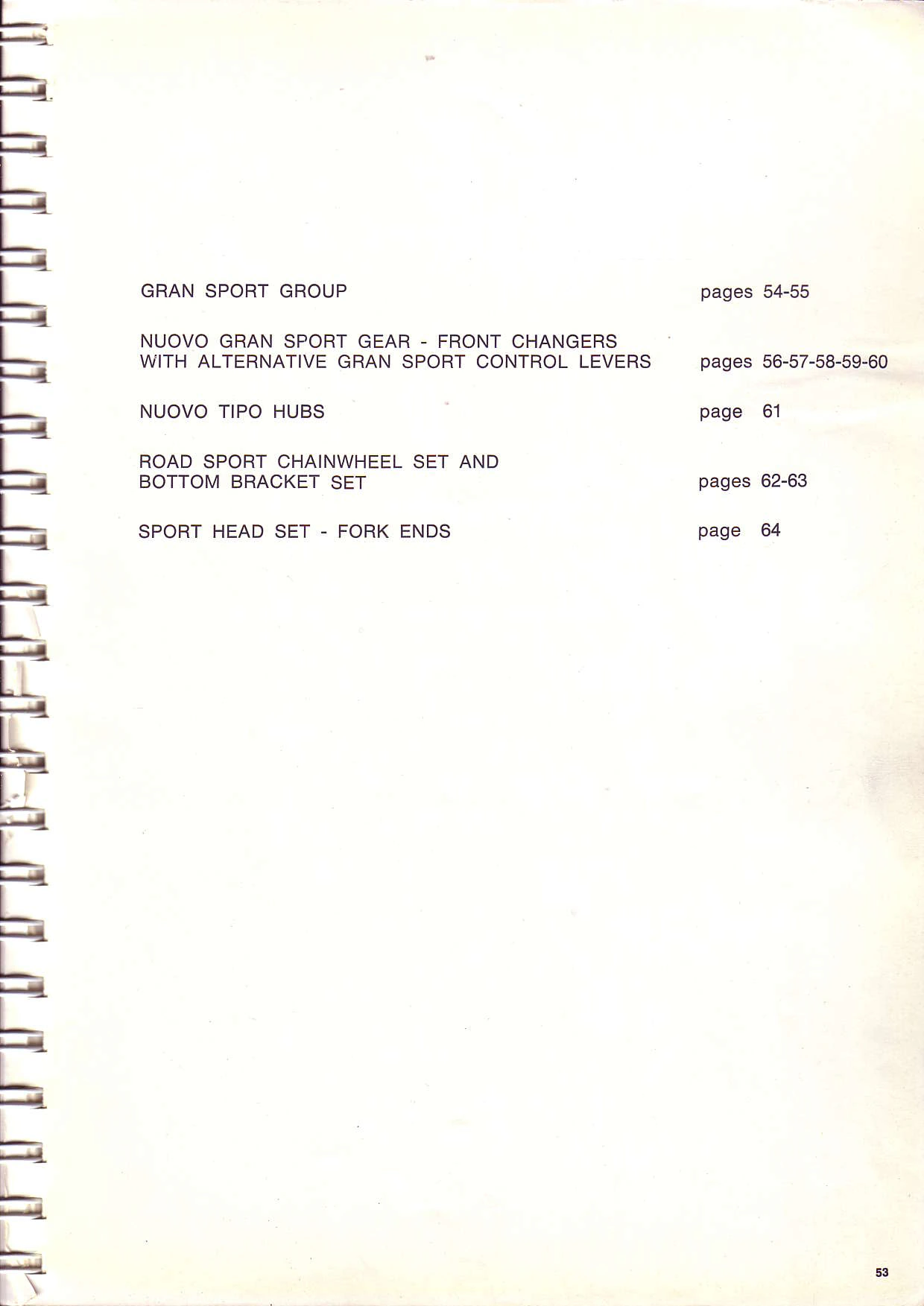

GRAN SPORT GROUP | pages 54-55
NUOVO GRAN SPORT GEAR – FRONT CHANGERS WITH ALTERNATIVE GRAN SPORT CONTROL LEVERS | pages 56-57-58-59-60
NUOVO TIPO HUBS | page 61
ROAD SPORT CHAINWHEEL SET AND BOTTOM BRACKET SET | pages 62-63
SPORT HEAD SET – FORK ENDS | page 64

53

[The contents page of the Gran Sport group section, listing its components from the Nuovo Gran Sport derailleur and front changers to the Sport head set and fork ends with their page numbers.]

— Page 62 —
2240

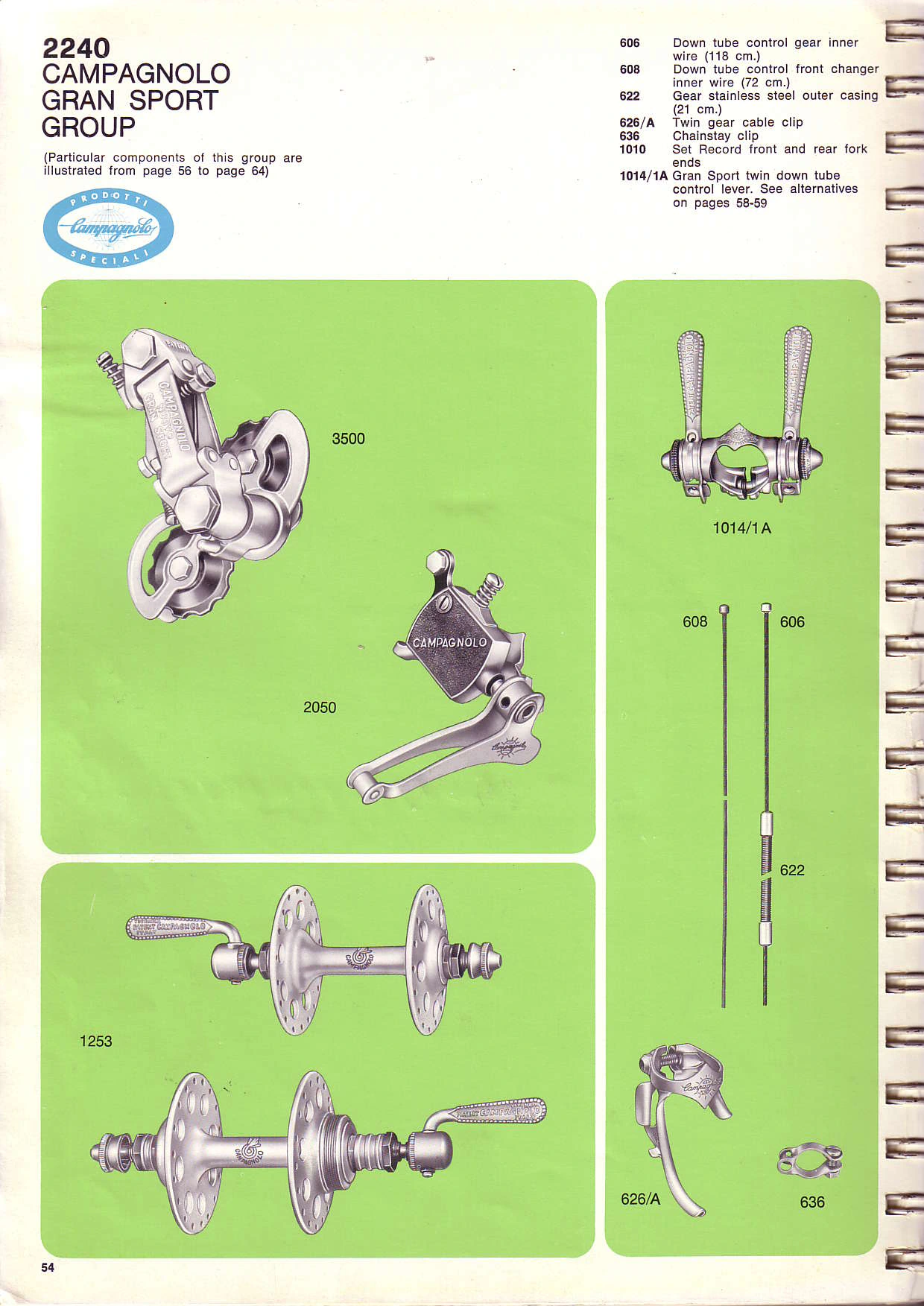

CAMPAGNOLO GRAN SPORT GROUP

(Particular components of this group are illustrated from page 56 to page 64)

PRODOTTI Campagnolo SPECIALI

606 Down tube control gear inner wire (118 cm.)
608 Down tube control front changer inner wire (72 cm.)
622 Gear stainless steel outer casing (21 cm.)
626/A Twin gear cable clip
636 Chainstay clip
1010 Set Record front and rear fork ends
1014/1A Gran Sport twin down tube control lever. See alternatives on pages 58-59

Callouts: 3500 1014/1A 608 606 2050 622 1253 626/A 636

54

[The Campagnolo Gran Sport group, 2240, photographed on green panels: the rear derailleur, 3500, the front changer, 2050, a pair of quick release hubs, 1253, the twin down tube control lever, 1014/1A, the gear and front changer inner wires with outer casing, the twin gear cable clip and the chainstay clip. The oval “Prodotti Campagnolo Speciali” emblem sits below the heading.]

— Page 63 —

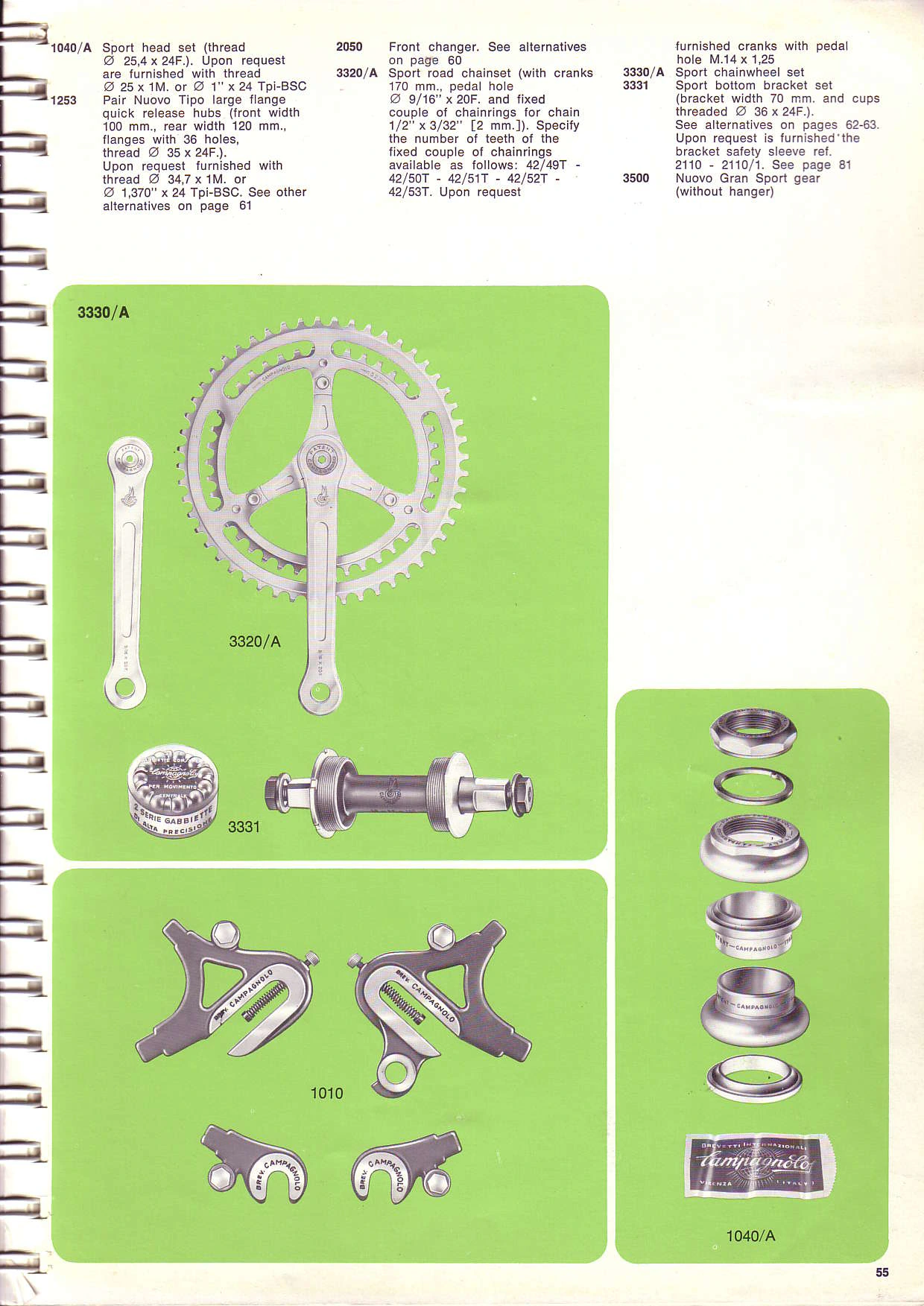

1040/A Sport head set (thread Ø 25,4 x 24F.). Upon request are furnished with thread Ø 25 x 1M. or Ø 1″ x 24 Tpi-BSC
1253 Pair Nuovo Tipo large flange quick release hubs (front width 100 mm., rear width 120 mm., flanges with 36 holes, thread Ø 35 x 24F.). Upon request furnished with thread Ø 34,7 x 1M. or Ø 1,370″ x 24 Tpi-BSC. See other alternatives on page 61
2050 Front changer. See alternatives on page 60
3320/A Sport road chainset (with cranks 170 mm., pedal hole Ø 9/16″ x 20F. and fixed couple of chainrings for chain 1/2″ x 3/32″ [2 mm.]). Specify the number of teeth of the fixed couple of chainrings available as follows: 42/49T – 42/50T – 42/51T – 42/52T – 42/53T. Upon request furnished cranks with pedal hole M.14 x 1,25
3330/A Sport chainwheel set
3331 Sport bottom bracket set (bracket width 70 mm. and cups threaded Ø 36 x 24F.). See alternatives on pages 62-63. Upon request is furnished the bracket safety sleeve ref. 2110 – 2110/1. See page 81
3500 Nuovo Gran Sport gear (without hanger)

Callouts: 3330/A 3320/A 3331 1010 1040/A

55

[The Gran Sport group continued on green panels: the Sport chainwheel set, 3330/A, with its left crank and double chainring right crank, 3320/A, the Sport bottom bracket set, 3331, beside a tin of bearing cages, the Record front and rear fork ends, 1010, and the Sport head set, 1040/A, shown stacked with its Brevetti Internazionali Campagnolo packet label. A parts list in three columns runs across the top of the page.]

— Page 64 —

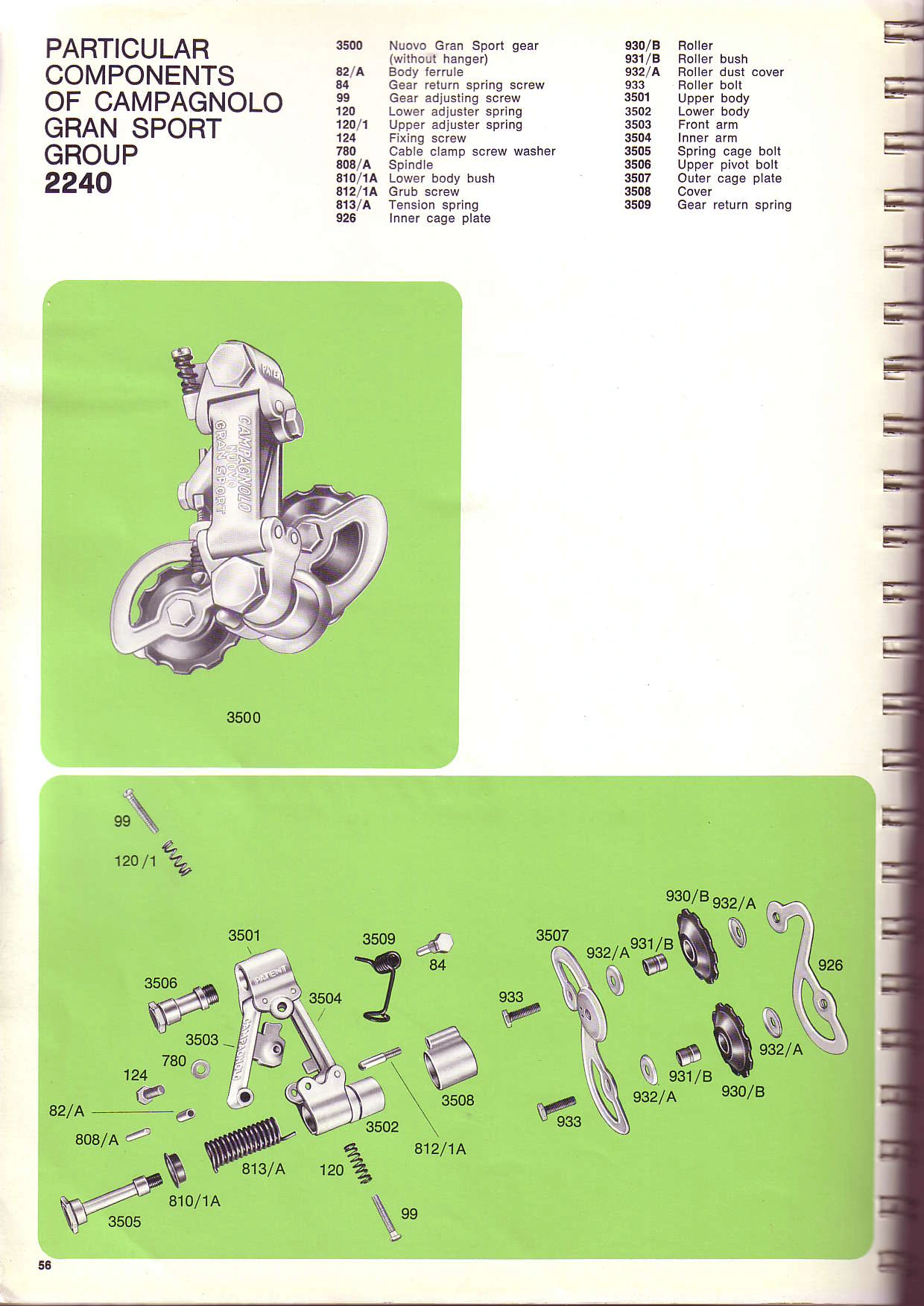

PARTICULAR COMPONENTS OF CAMPAGNOLO GRAN SPORT GROUP 2240

3500 Nuovo Gran Sport gear (without hanger)
82/A Body ferrule
84 Gear return spring screw
99 Gear adjusting screw
120 Lower adjuster spring
120/1 Upper adjuster spring
124 Fixing screw
780 Cable clamp screw washer
808/A Spindle
810/1A Lower body bush
812/1A Grub screw
813/A Tension spring
926 Inner cage plate
930/B Roller
931/B Roller bush
932/A Roller dust cover
933 Roller bolt
3501 Upper body
3502 Lower body
3503 Front arm
3504 Inner arm
3505 Spring cage bolt
3506 Upper pivot bolt
3507 Outer cage plate
3508 Cover
3509 Gear return spring

3500

Callouts: 99 120/1 930/B 932/A 3501 3509 3507 932/A 931/B 84 926 3506 3504 933 3503 932/A 780 124 931/B 930/B 932/A 3508 82/A 933 3502 808/A 812/1A 813/A 120 810/1A 99 3505

56

[A drawing of the Campagnolo Nuovo Gran Sport rear derailleur, 3500, above an exploded drawing of the same derailleur with every part numbered and keyed to a parts list, both on green panels. The page belongs to the particular components of the Gran Sport group, 2240.]

— Page 65 —

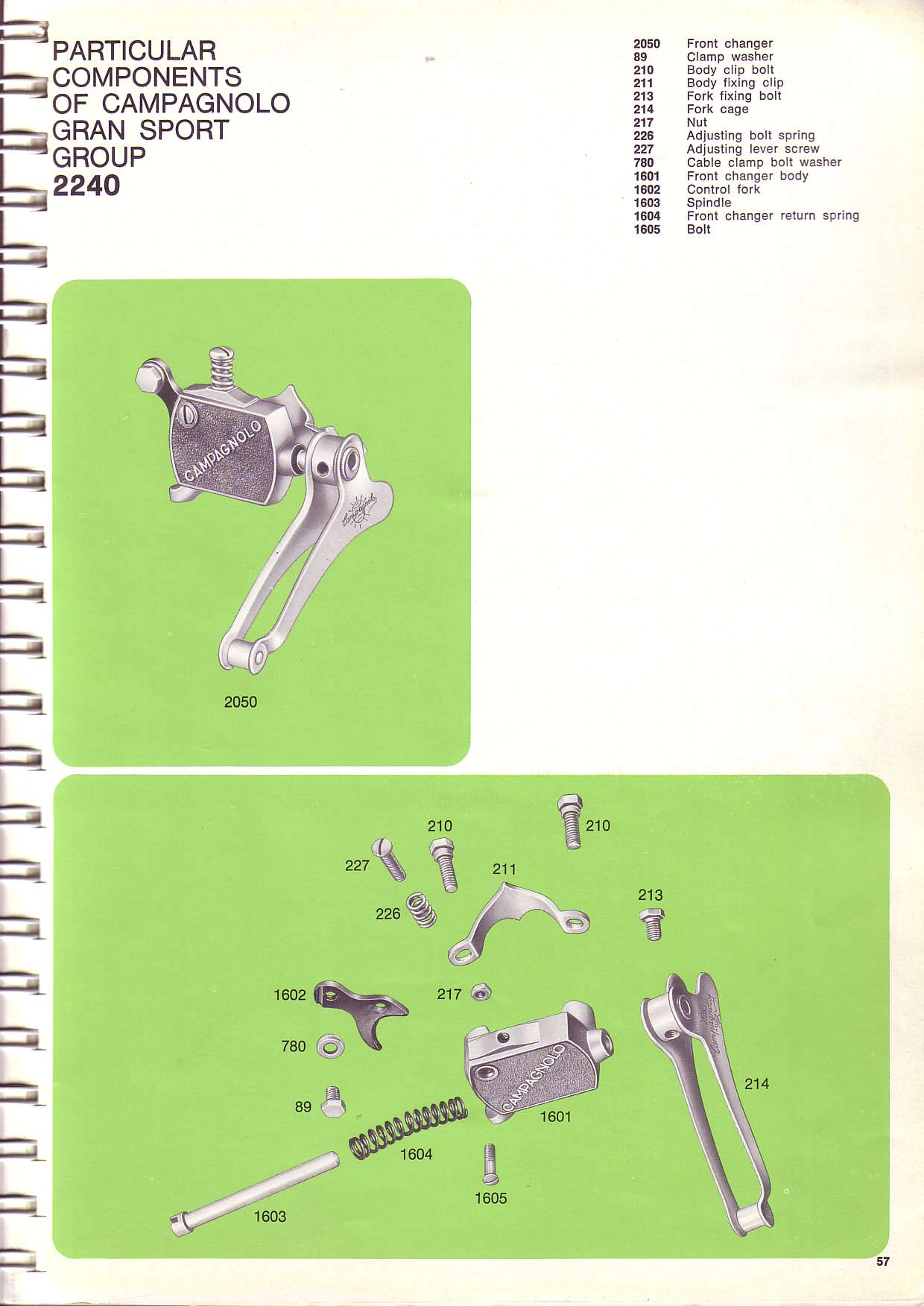

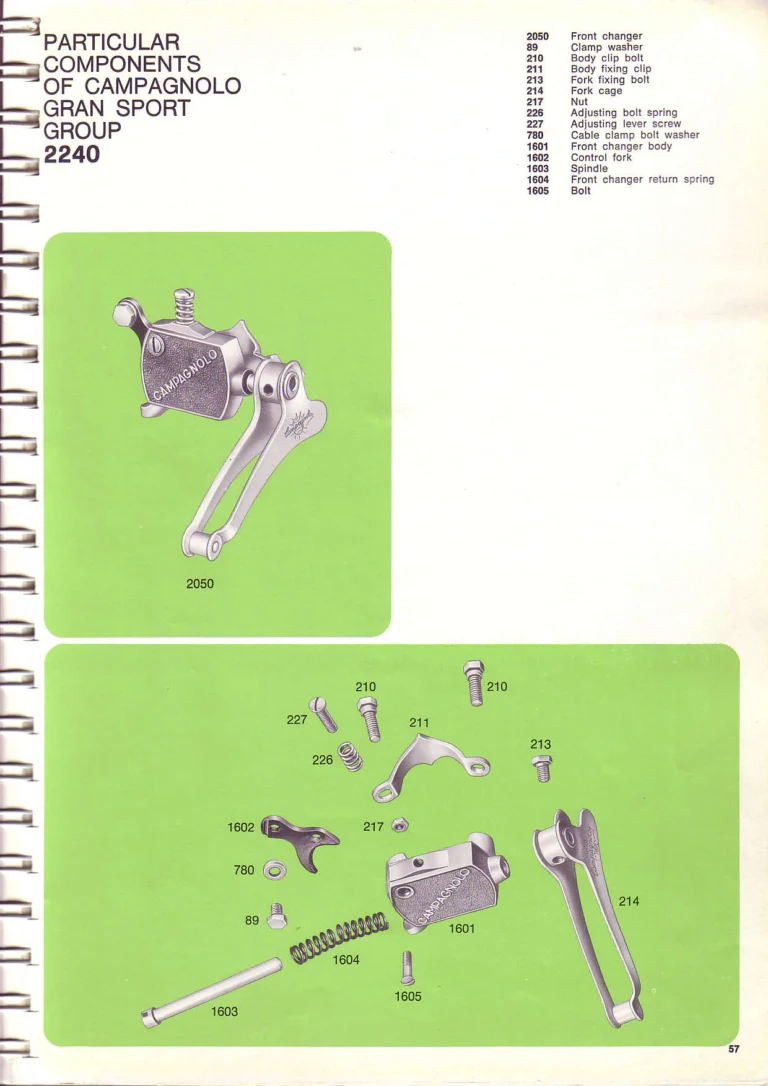

PARTICULAR COMPONENTS OF CAMPAGNOLO GRAN SPORT GROUP 2240

2050 Front changer
89 Clamp washer
210 Body clip bolt
211 Body fixing clip
213 Fork fixing bolt
214 Fork cage
217 Nut
226 Adjusting bolt spring
227 Adjusting lever screw
780 Cable clamp bolt washer
1601 Front changer body
1602 Control fork
1603 Spindle
1604 Front changer return spring
1605 Bolt

2050

Callouts: 210 210 227 211 213 226 1602 217 780 214 89 1601 1604 1605 1603

57

[A drawing of the Campagnolo Gran Sport front changer, 2050, above an exploded drawing of the same changer with every part numbered and keyed to a parts list, both on green panels. The page belongs to the particular components of the Gran Sport group, 2240.]

— Page 66 —

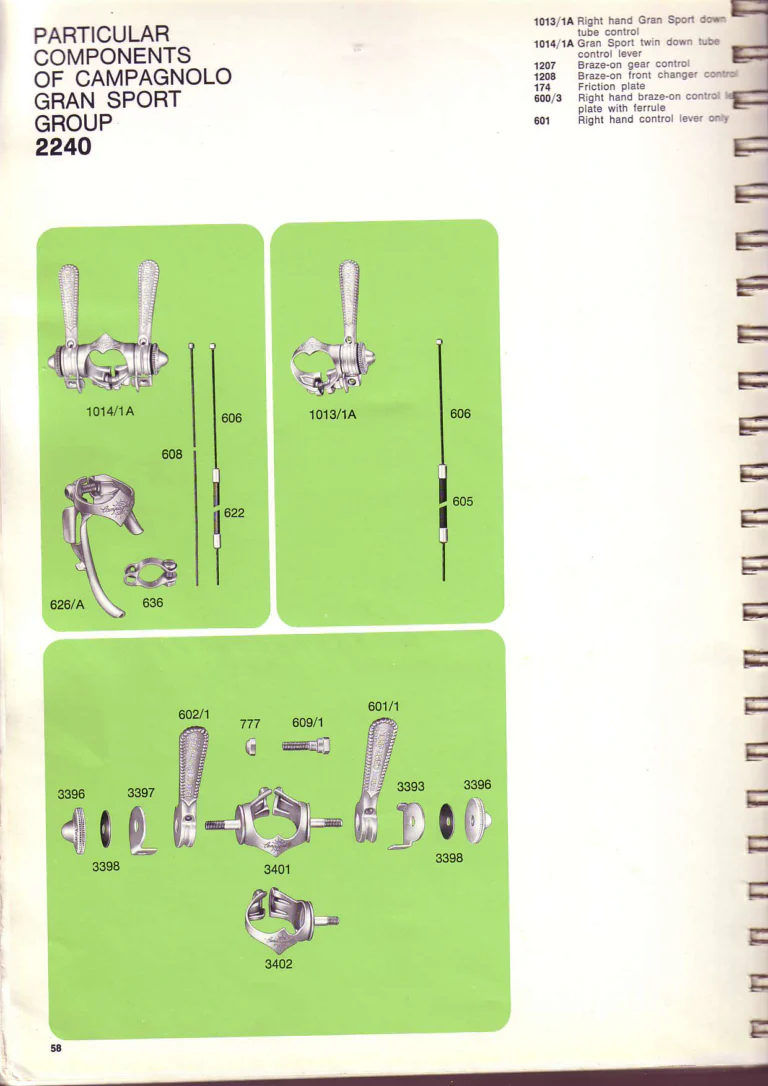

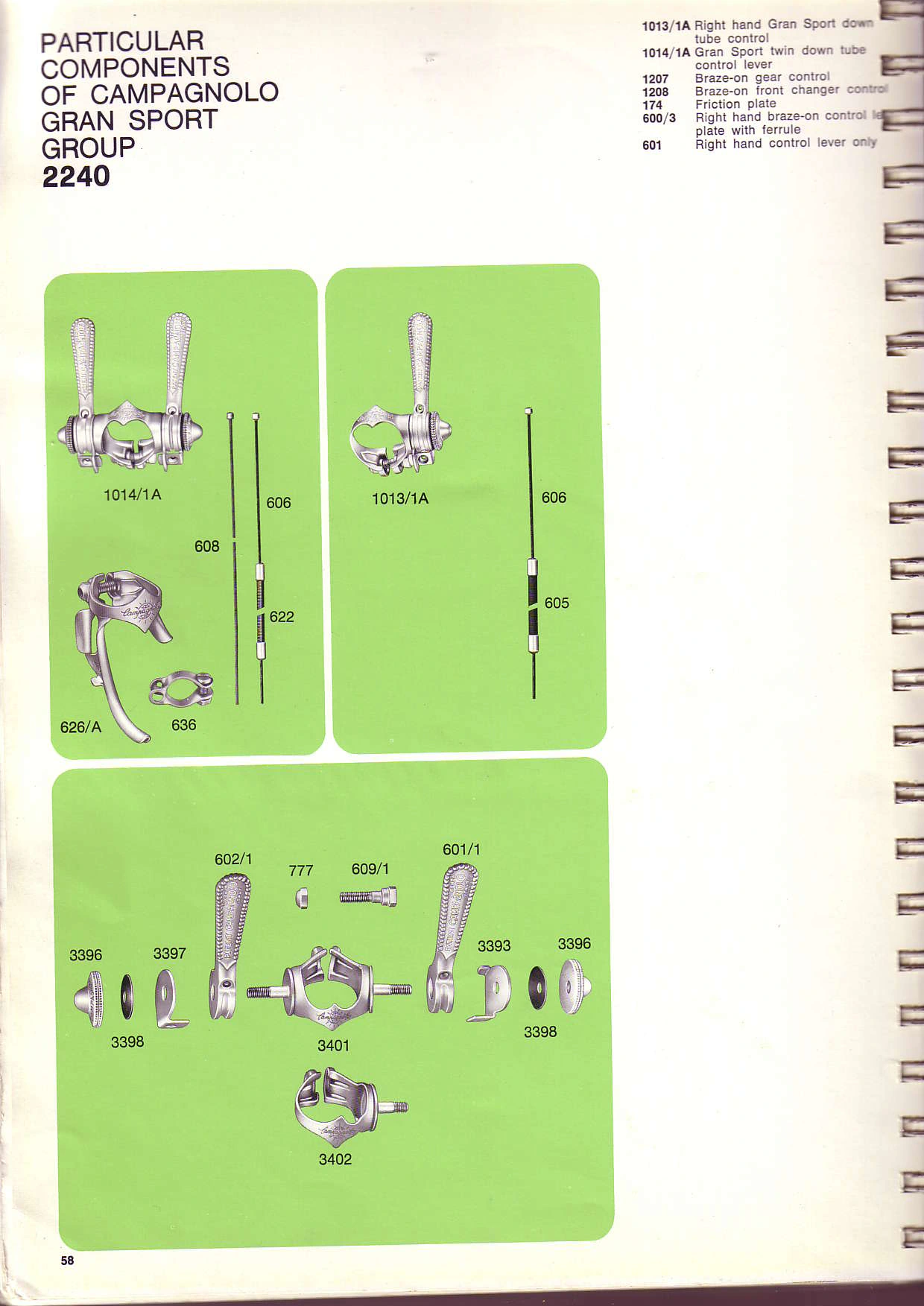

PARTICULAR COMPONENTS OF CAMPAGNOLO GRAN SPORT GROUP 2240

1013/1A Right hand Gran Sport down tube control
1014/1A Gran Sport twin down tube control lever
1207 Braze-on gear control
1208 Braze-on front changer control
174 Friction plate
600/3 Right hand braze-on control lever [?] plate with ferrule
601 Right hand control lever only

Callouts: 1014/1A 606 1013/1A 606 608 622 605 626/A 636 602/1 777 609/1 601/1 3396 3397 3393 3396 3398 3401 3398 3402

58

[The Campagnolo Gran Sport control levers on green panels: the twin down tube control lever, 1014/1A, with its inner wires, outer casing, twin gear cable clip and chainstay clip; the right hand down tube control, 1013/1A, with its inner wire and casing; and an exploded view of a twin down tube lever with its levers, clamps, friction plates and fixing screws. The parts list at the top right runs into the spiral binding at its right edge.]

— Page 67 —

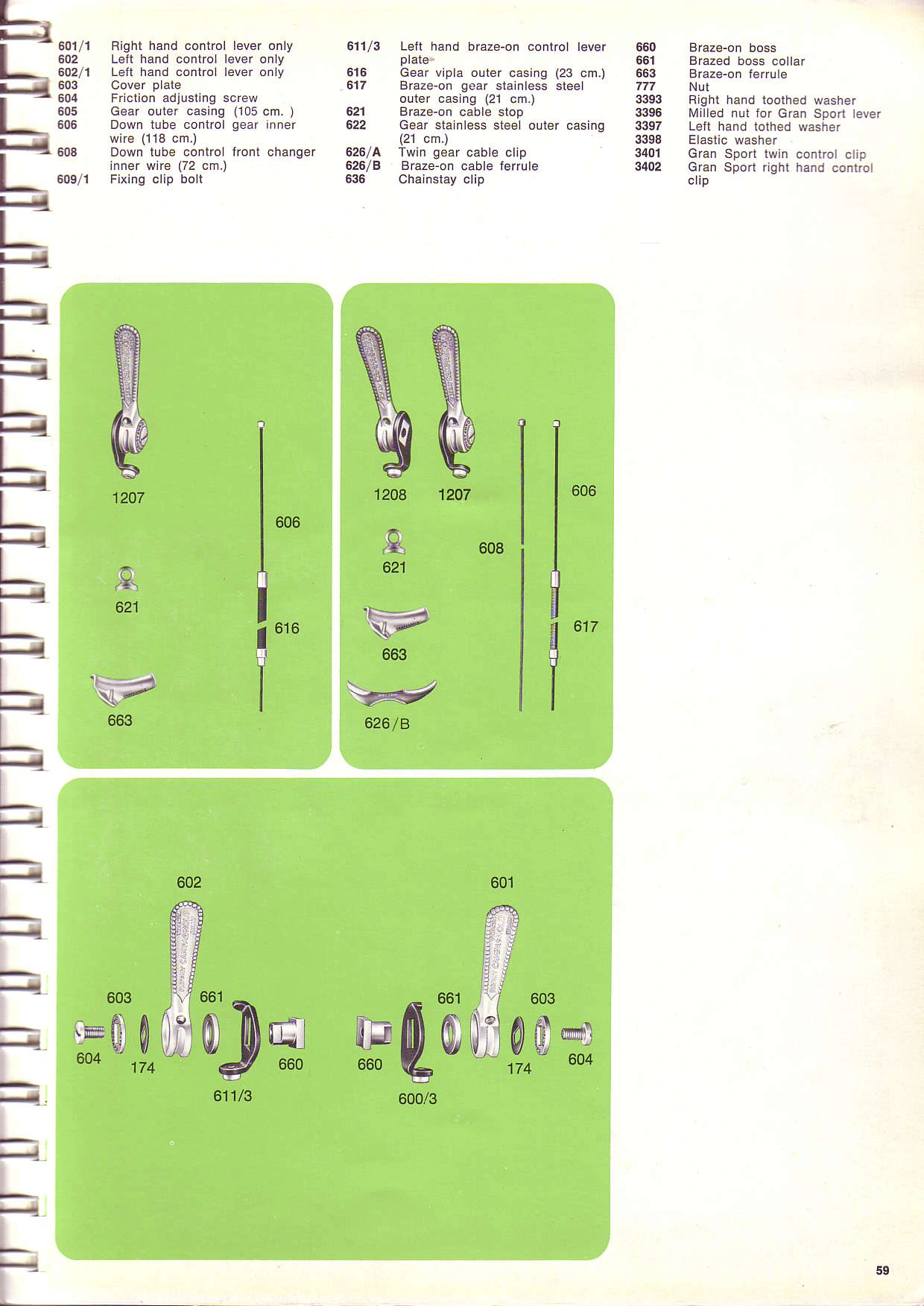

601/1 Right hand control lever only
602 Left hand control lever only
602/1 Left hand control lever only
603 Cover plate
604 Friction adjusting screw
605 Gear outer casing (105 cm. )
606 Down tube control gear inner wire (118 cm.)
608 Down tube control front changer inner wire (72 cm.)
609/1 Fixing clip bolt
611/3 Left hand braze-on control lever plate
616 Gear vipla outer casing (23 cm.)
617 Braze-on gear stainless steel outer casing (21 cm.)
621 Braze-on cable stop
622 Gear stainless steel outer casing (21 cm.)
626/A Twin gear cable clip
626/B Braze-on cable ferrule
636 Chainstay clip
660 Braze-on boss
661 Brazed boss collar
663 Braze-on ferrule
777 Nut
3393 Right hand toothed washer
3396 Milled nut for Gran Sport lever
3397 Left hand tothed washer
3398 Elastic washer
3401 Gran Sport twin control clip
3402 Gran Sport right hand control clip

Callouts: 1207 1208 1207 606 606 608 621 621 616 617 663 663 626/B 602 601 603 661 661 603 604 174 660 660 174 604 611/3 600/3

59

[The Campagnolo Gran Sport braze-on controls on green panels: the braze-on gear control, 1207, and the braze-on front changer control, 1208, with their inner wires, outer casings, cable stops, ferrules and braze-on cable ferrule; and an exploded view of the left and right braze-on levers with their bosses, collars, friction plates and screws. The parts list in three columns continues the list of the facing page.]

— Page 68 —

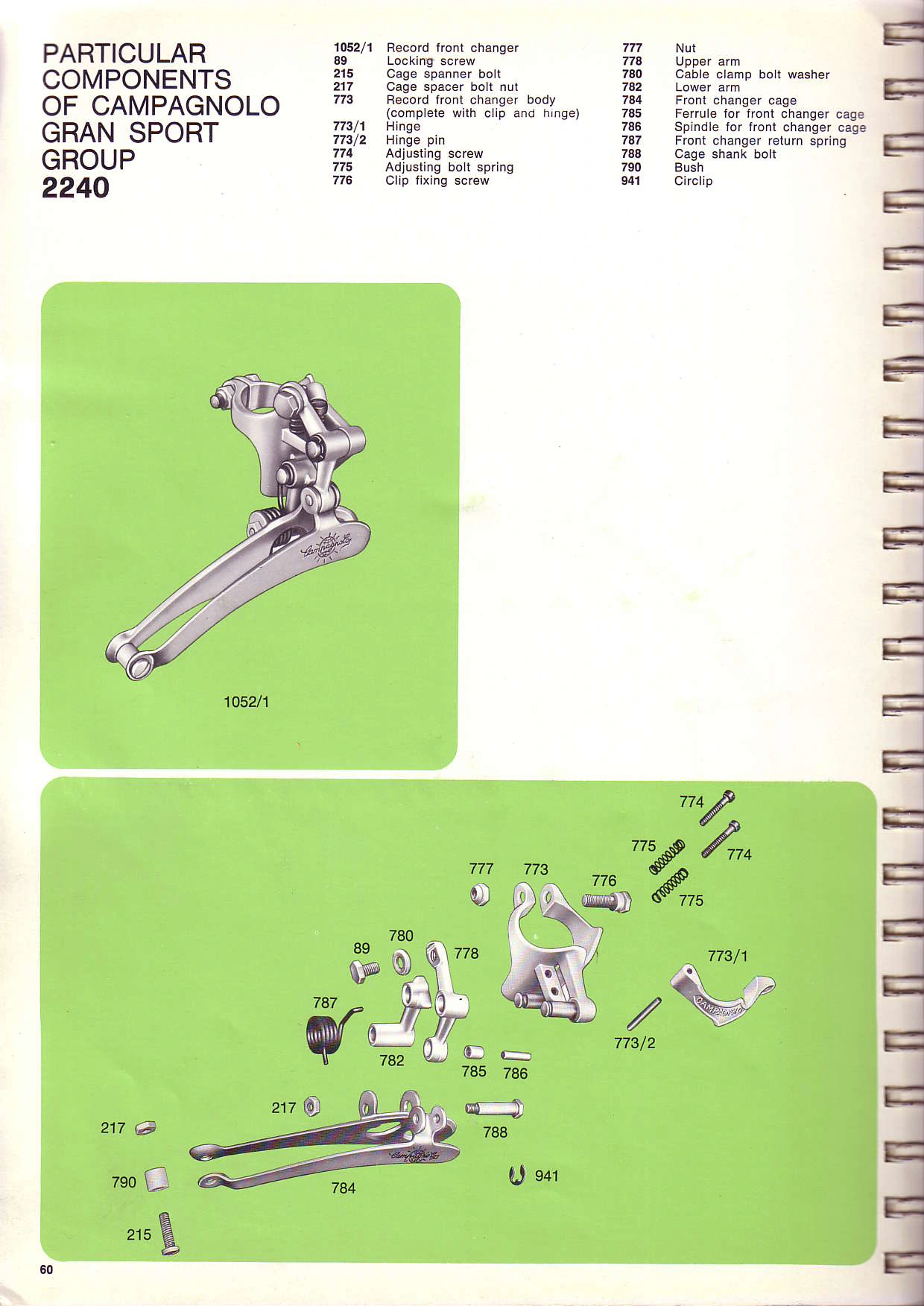

PARTICULAR COMPONENTS OF CAMPAGNOLO GRAN SPORT GROUP 2240

1052/1 Record front changer
89 Locking screw
215 Cage spanner bolt
217 Cage spacer bolt nut
773 Record front changer body (complete with clip and hinge)
773/1 Hinge
773/2 Hinge pin
774 Adjusting screw
775 Adjusting bolt spring
776 Clip fixing screw
777 Nut
778 Upper arm
780 Cable clamp bolt washer
782 Lower arm
784 Front changer cage
785 Ferrule for front changer cage
786 Spindle for front changer cage
787 Front changer return spring
788 Cage shank bolt
790 Bush
941 Circlip

1052/1

Callouts: 774 775 774 777 773 776 775 89 780 778 773/1 787 782 785 786 773/2 217 217 788 790 784 941 215

60

[A drawing of the Campagnolo Record front changer, 1052/1, above an exploded drawing of the same changer with every part numbered and keyed to a parts list, both on green panels. The page belongs to the particular components of the Gran Sport group, 2240, and shows the Record changer as the alternative front changer.]

— Page 69 —

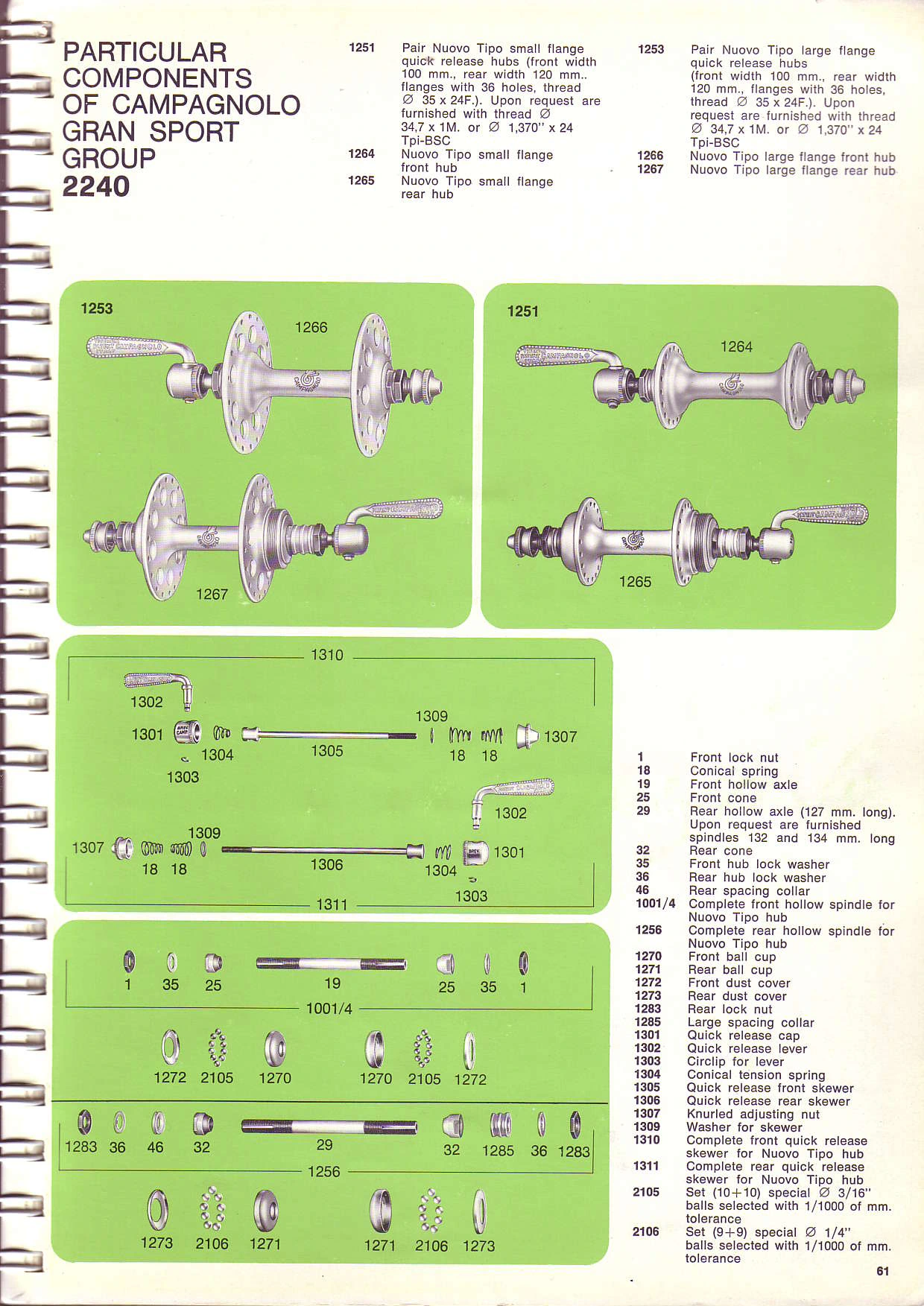

PARTICULAR COMPONENTS OF CAMPAGNOLO GRAN SPORT GROUP 2240

1251 Pair Nuovo Tipo small flange quick release hubs (front width 100 mm., rear width 120 mm.. flanges with 36 holes, thread Ø 35 x 24F.). Upon request are furnished with thread Ø 34,7 x 1M. or Ø 1,370″ x 24 Tpi-BSC
1264 Nuovo Tipo small flange front hub
1265 Nuovo Tipo small flange rear hub
1253 Pair Nuovo Tipo large flange quick release hubs (front width 100 mm., rear width 120 mm., flanges with 36 holes, thread Ø 35 x 24F.). Upon request are furnished with thread Ø 34,7 x 1M. or Ø 1,370″ x 24 Tpi-BSC
1266 Nuovo Tipo large flange front hub
1267 Nuovo Tipo large flange rear hub

1 Front lock nut
18 Conical spring
19 Front hollow axle
25 Front cone
29 Rear hollow axle (127 mm. long). Upon request are furnished spindles 132 and 134 mm. long
32 Rear cone
35 Front hub lock washer
36 Rear hub lock washer
46 Rear spacing collar
1001/4 Complete front hollow spindle for Nuovo Tipo hub
1256 Complete rear hollow spindle for Nuovo Tipo hub
1270 Front ball cup
1271 Rear ball cup
1272 Front dust cover
1273 Rear dust cover
1283 Rear lock nut

1285 Large spacing collar
1301 Quick release cap
1302 Quick release lever
1303 Circlip for lever
1304 Conical tension spring
1305 Quick release front skewer
1306 Quick release rear skewer
1307 Knurled adjusting nut
1309 Washer for skewer
1310 Complete front quick release skewer for Nuovo Tipo hub
1311 Complete rear quick release skewer for Nuovo Tipo hub
2105 Set (10+10) special Ø 3/16″ balls selected with 1/1000 of mm. tolerance
2106 Set (9+9) special Ø 1/4″ balls selected with 1/1000 of mm. tolerance

Callouts: 1253 1266 1251 1264 1267 1265 1310 1302 1309 1301 1304 1305 18 18 1307 1303 1302 1309 1307 18 18 1306 1304 1301 1303 1311 1 35 25 19 25 35 1 1001/4 1272 2105 1270 1270 2105 1272 1283 36 46 32 29 32 1285 36 1283 1256 1273 2106 1271 1271 2106 1273

61

[The Campagnolo Nuovo Tipo quick release hubs on green panels: the large flange pair, 1253, and the small flange pair, 1251, photographed, above exploded drawings of the front and rear quick release skewers, 1310 and 1311, and of the front and rear hollow spindles, 1001/4 and 1256, with their cones, cups, dust covers, washers and ball sets. Every part is numbered and keyed to the parts lists on the page.]

— Page 70 —

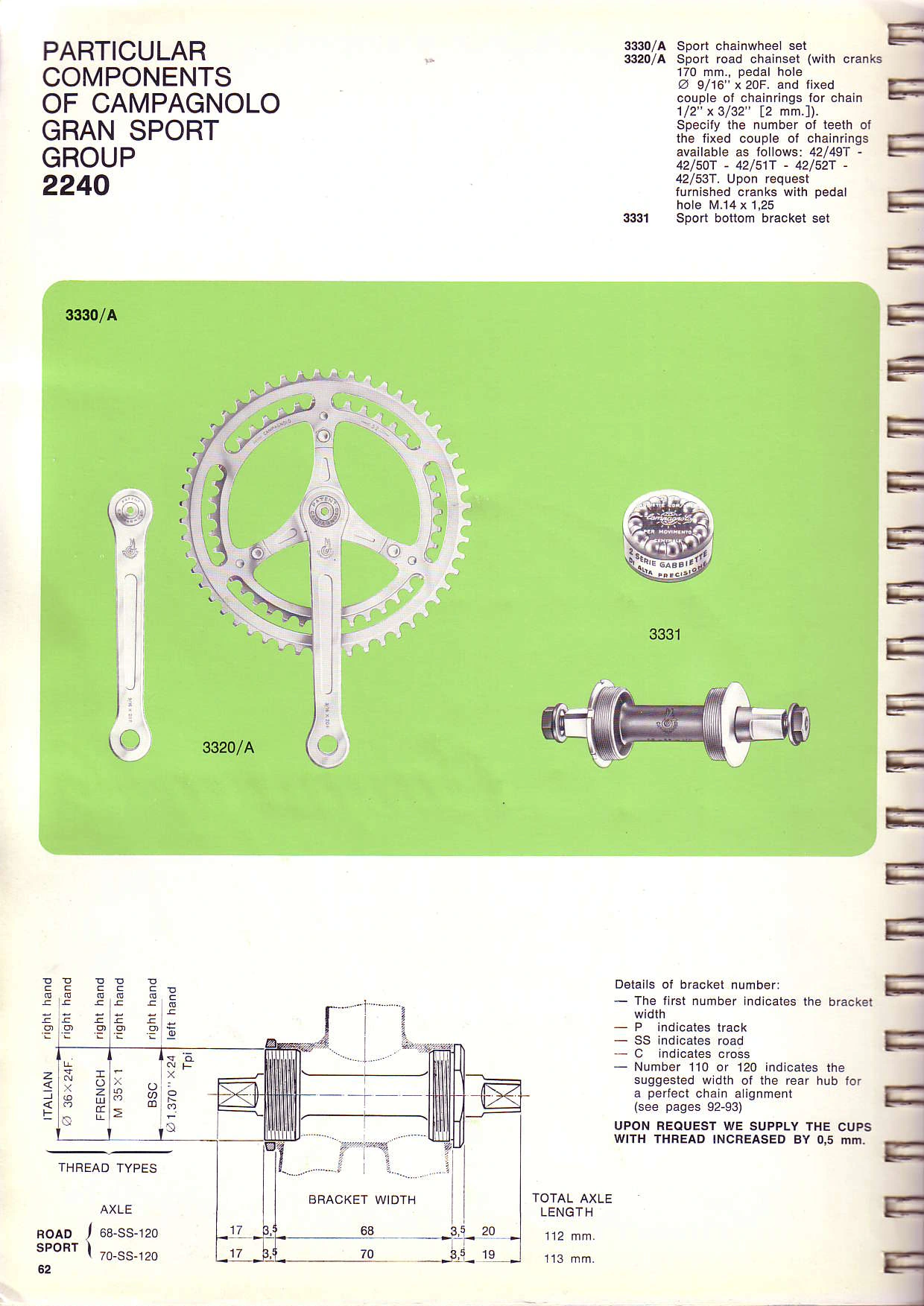

PARTICULAR COMPONENTS OF CAMPAGNOLO GRAN SPORT GROUP 2240

3330/A Sport chainwheel set
3320/A Sport road chainset (with cranks 170 mm., pedal hole Ø 9/16″ x 20F. and fixed couple of chainrings for chain 1/2″ x 3/32″ [2 mm.]). Specify the number of teeth of the fixed couple of chainrings available as follows: 42/49T – 42/50T – 42/51T – 42/52T – 42/53T. Upon request furnished cranks with pedal hole M.14 x 1,25
3331 Sport bottom bracket set

Callouts: 3330/A 3331 3320/A

THREAD TYPES
ITALIAN | Ø 36×24F. | right hand | right hand
FRENCH | M 35×1 | right hand | right hand
BSC | Ø 1,370″×24 Tpi | right hand | left hand

AXLE | | | BRACKET WIDTH | | | TOTAL AXLE LENGTH
ROAD SPORT 68-SS-120 | 17 | 3,5 | 68 | 3,5 | 20 | 112 mm.
ROAD SPORT 70-SS-120 | 17 | 3,5 | 70 | 3,5 | 19 | 113 mm.

Details of bracket number:
— The first number indicates the bracket width
— P indicates track
— SS indicates road
— C indicates cross
— Number 110 or 120 indicates the suggested width of the rear hub for a perfect chain alignment (see pages 92-93)

UPON REQUEST WE SUPPLY THE CUPS WITH THREAD INCREASED BY 0,5 mm.

62

[A photograph of the Campagnolo Sport chainwheel set, 3330/A, showing the left crank, the right crank with double chainrings, 3320/A, and the Sport bottom bracket set, 3331, with a tin of bearing cages, on a green panel. Below is a sectional drawing of the bottom bracket with its thread types and the axle, cup and bracket width dimensions for the 68 and 70 mm road sport brackets.]

— Page 71 —

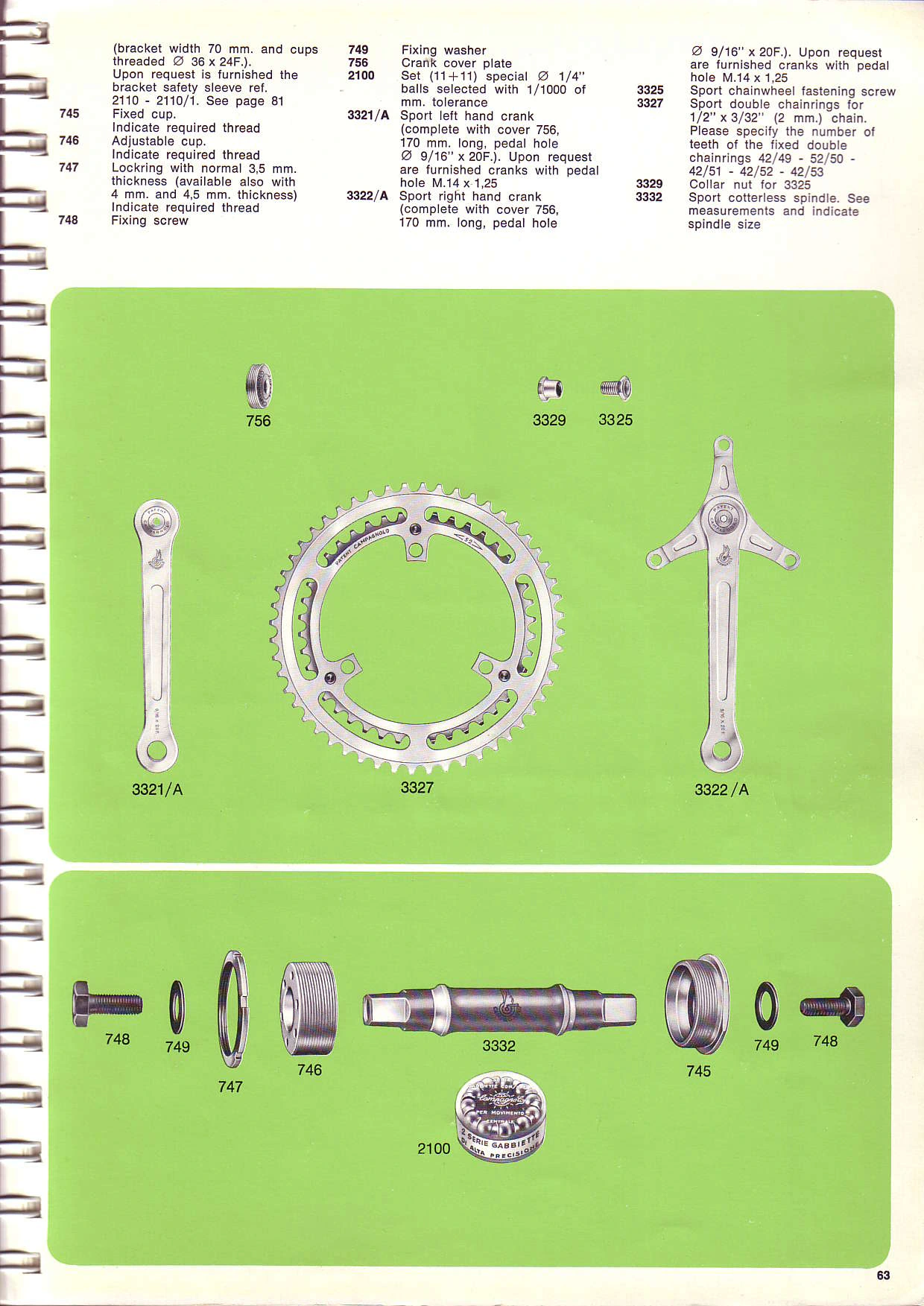

Callouts: 756 3329 3325 3321/A 3327 3322/A 748 749 747 746 3332 745 749 748 2100

(bracket width 70 mm. and cups threaded Ø 36 x 24F.). Upon request is furnished the bracket safety sleeve ref. 2110 – 2110/1. See page 81
745 Fixed cup. Indicate required thread
746 Adjustable cup. Indicate required thread
747 Lockring with normal 3,5 mm. thickness (available also with 4 mm. and 4,5 mm. thickness) Indicate required thread
748 Fixing screw
749 Fixing washer
756 Crank cover plate
2100 Set (11+11) special Ø 1/4″ balls selected with 1/1000 of mm. tolerance
3321/A Sport left hand crank (complete with cover 756, 170 mm. long, pedal hole Ø 9/16″ x 20F.). Upon request are furnished cranks with pedal hole M.14 x 1,25
3322/A Sport right hand crank (complete with cover 756, 170 mm. long, pedal hole Ø 9/16″ x 20F.). Upon request are furnished cranks with pedal hole M.14 x 1,25
3325 Sport chainwheel fastening screw
3327 Sport double chainrings for 1/2″ x 3/32″ (2 mm.) chain. Please specify the number of teeth of the fixed double chainrings 42/49 – 52/50 – 42/51 – 42/52 – 42/53
3329 Collar nut for 3325
3332 Sport cotterless spindle. See measurements and indicate spindle size

63

[Photographs of the parts of the Campagnolo Sport chainset and bottom bracket on two green panels: the 3321/A and 3322/A cranks, the 3327 double chainrings, the fixing screws and collar nuts, and below them the bottom bracket cups, lockring, spindle, fixing screws and washers and a box of 2100 bearing balls. The three-column parts list at the top continues an entry from the previous page.]

— Page 72 —

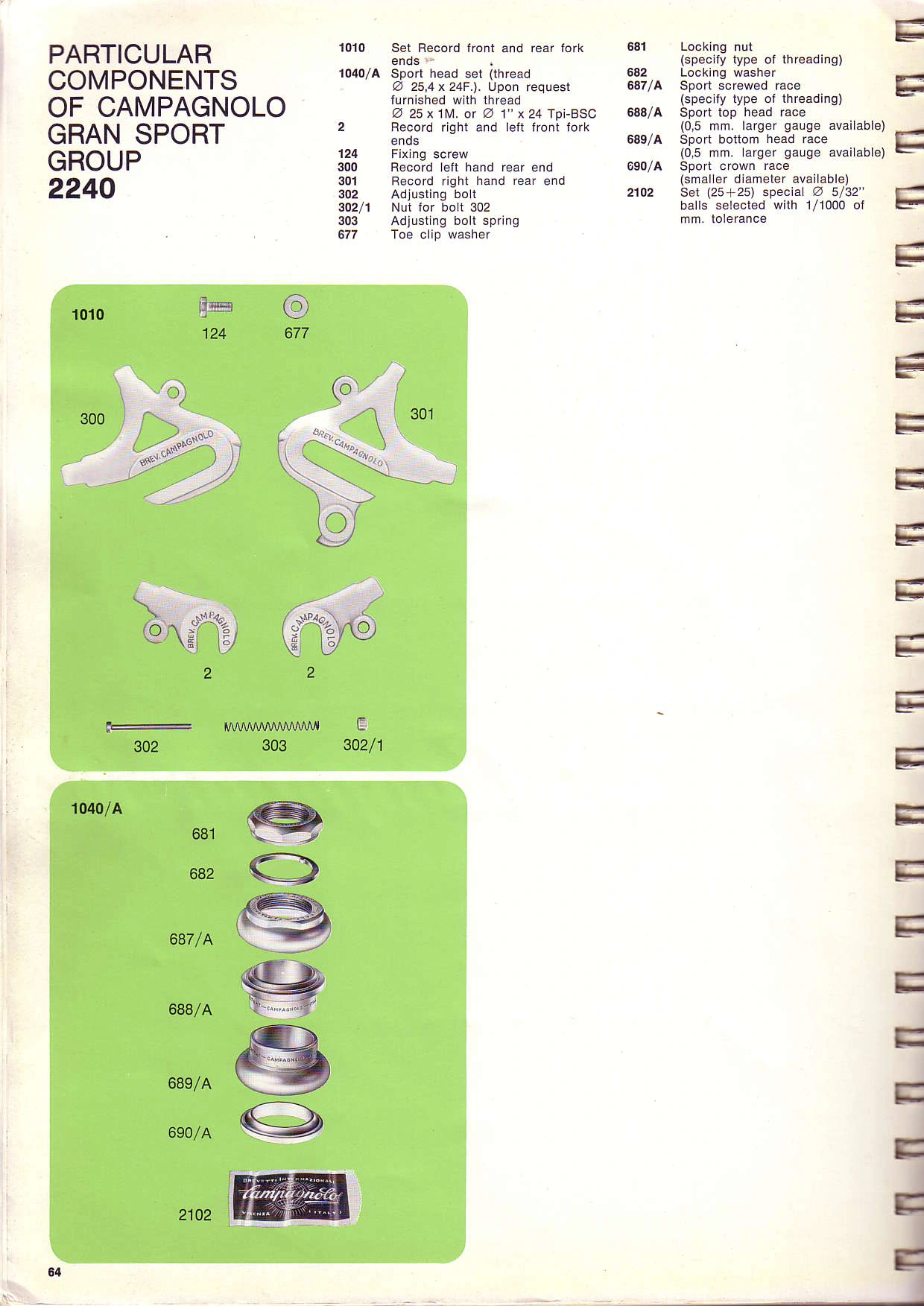

PARTICULAR COMPONENTS OF CAMPAGNOLO GRAN SPORT GROUP 2240

Callouts: 1010 124 677 300 301 2 2 302 303 302/1 1040/A 681 682 687/A 688/A 689/A 690/A 2102

1010 Set Record front and rear fork ends
1040/A Sport head set (thread Ø 25,4 x 24F.). Upon request furnished with thread Ø 25 x 1M. or Ø 1″ x 24 Tpi-BSC
2 Record right and left front fork ends
124 Fixing screw
300 Record left hand rear end
301 Record right hand rear end
302 Adjusting bolt
302/1 Nut for bolt 302
303 Adjusting bolt spring
677 Toe clip washer
681 Locking nut (specify type of threading)
682 Locking washer
687/A Sport screwed race (specify type of threading)
688/A Sport top head race (0,5 mm. larger gauge available)
689/A Sport bottom head race (0,5 mm. larger gauge available)
690/A Sport crown race (smaller diameter available)
2102 Set (25+25) special Ø 5/32″ balls selected with 1/1000 of mm. tolerance

64

[Photographs of the Campagnolo Gran Sport group fork ends and head set on two green panels: the 1010 set of Record front and rear fork ends with its adjusting bolts, spring and screws, and the 1040/A Sport head set shown as a stack of races, washer and locking nut above a packet of 2102 bearing balls. The upper right half of the page below the parts list is blank.]

— Page 73 —
VALENTINO EXTRA GROUP page 66

VALENTINO EXTRA GEAR – FRONT CHANGER WITH ALTERNATIVE VALENTINO CONTROL LEVERS pages 67-68-69-70

65

[A section contents page for the Campagnolo Valentino Extra group, listing the Valentino Extra group and the Valentino Extra gear and front changer with page references and otherwise left blank.]

— Page 74 —

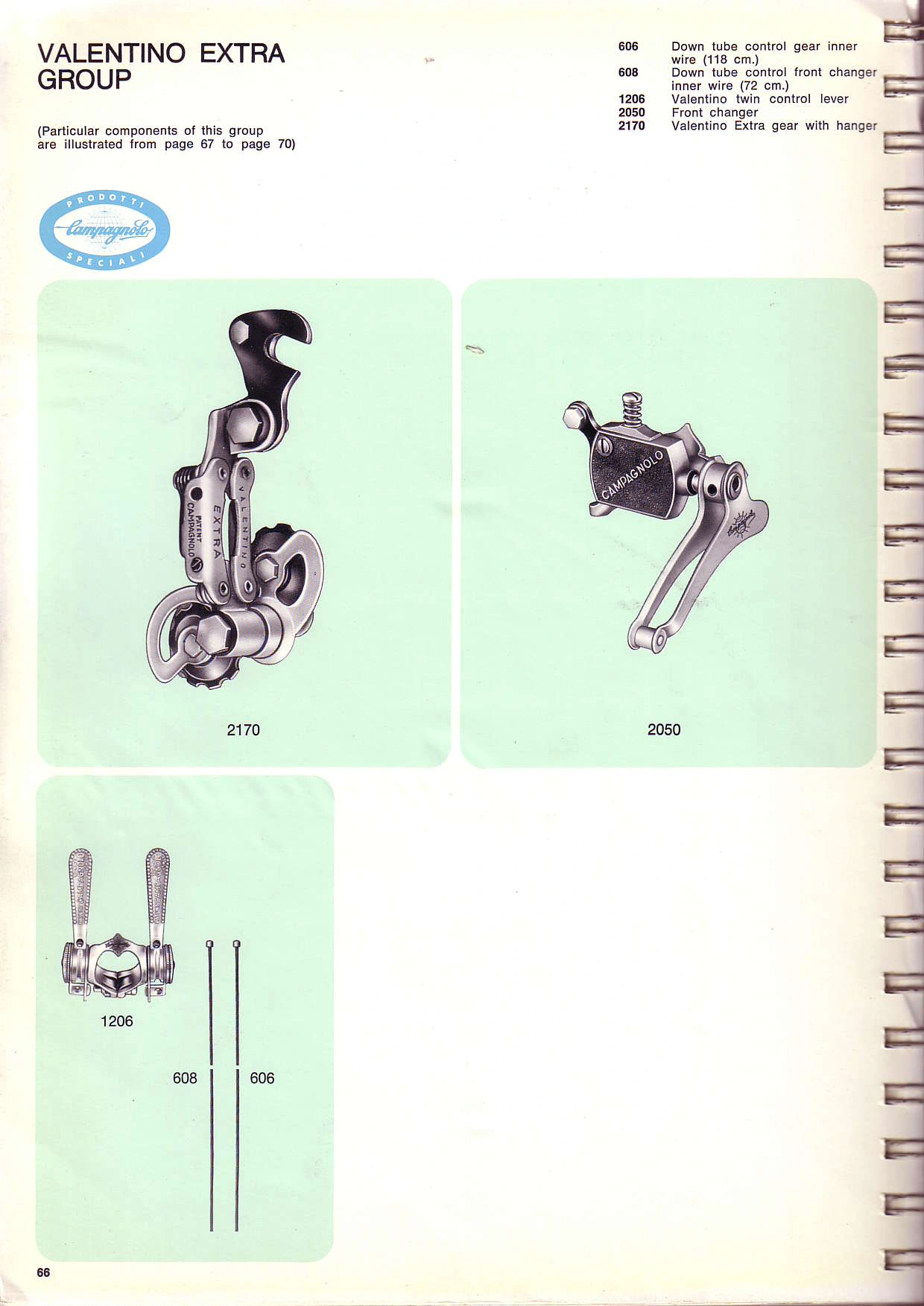

VALENTINO EXTRA GROUP

(Particular components of this group are illustrated from page 67 to page 70)

PRODOTTI Campagnolo SPECIALI

Callouts: 2170 2050 1206 608 606

606 Down tube control gear inner wire (118 cm.)
608 Down tube control front changer inner wire (72 cm.)
1206 Valentino twin control lever
2050 Front changer
2170 Valentino Extra gear with hanger

66

[Photographs of the Campagnolo Valentino Extra group on pale green panels: the 2170 Valentino Extra rear gear with hanger, the 2050 front changer, and the 1206 Valentino twin control lever with the 608 and 606 inner wires. A light blue oval “Prodotti Campagnolo Speciali” emblem sits below the heading.]

— Page 75 —

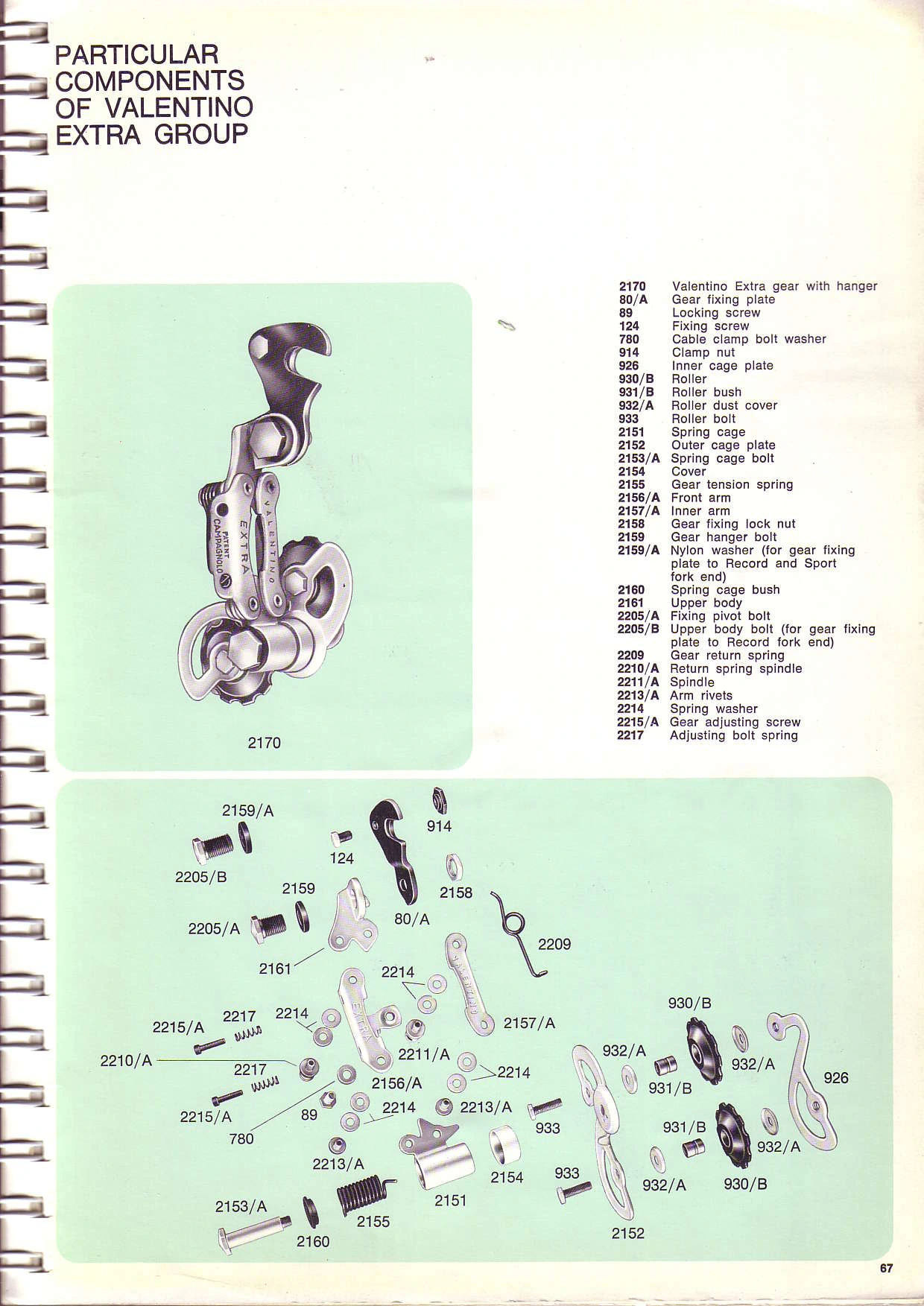

PARTICULAR COMPONENTS OF VALENTINO EXTRA GROUP

Callouts: 2170 2159/A 914 124 2205/B 2159 2158 80/A 2205/A 2209 2161 2214 930/B 2214 2217 2215/A 2157/A 932/A 2211/A 2210/A 2217 2214 932/A 926 2156/A 931/B 2215/A 89 2214 2213/A 933 931/B 780 932/A 2213/A 933 2154 932/A 930/B 2151 2153/A 2155 2152 2160

2170 Valentino Extra gear with hanger
80/A Gear fixing plate
89 Locking screw
124 Fixing screw
780 Cable clamp bolt washer
914 Clamp nut
926 Inner cage plate
930/B Roller
931/B Roller bush
932/A Roller dust cover
933 Roller bolt
2151 Spring cage
2152 Outer cage plate
2153/A Spring cage bolt
2154 Cover
2155 Gear tension spring
2156/A Front arm
2157/A Inner arm
2158 Gear fixing lock nut
2159 Gear hanger bolt
2159/A Nylon washer (for gear fixing plate to Record and Sport fork end)
2160 Spring cage bush
2161 Upper body
2205/A Fixing pivot bolt
2205/B Upper body bolt (for gear fixing plate to Record fork end)
2209 Gear return spring
2210/A Return spring spindle
2211/A Spindle
2213/A Arm rivets
2214 Spring washer
2215/A Gear adjusting screw
2217 Adjusting bolt spring

67

[A photograph of the Campagnolo Valentino Extra rear gear with hanger, 2170, above an exploded photograph of all its parts, each numbered and keyed to the parts list at the upper right, on pale green panels.]

— Page 76 —

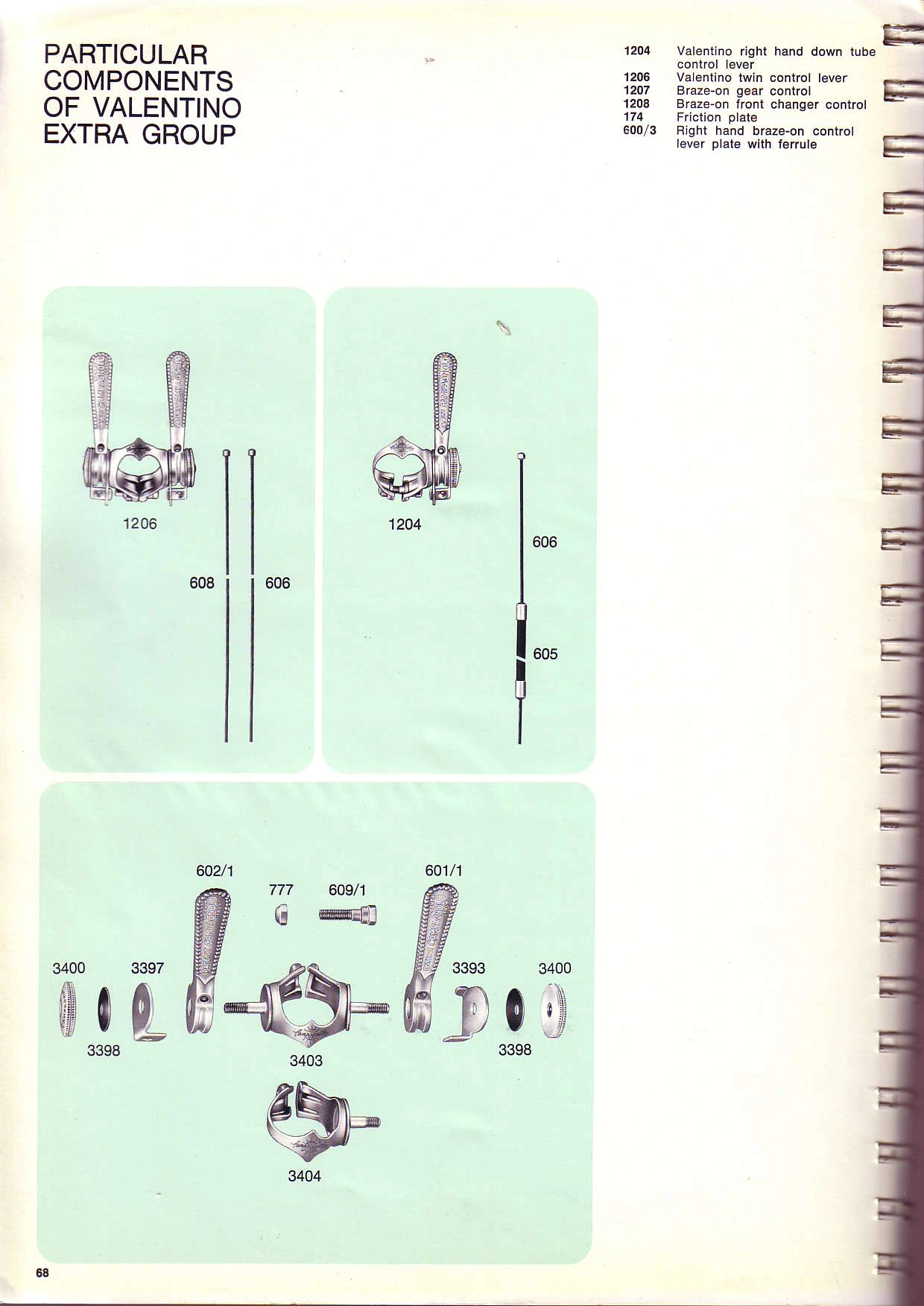

PARTICULAR COMPONENTS OF VALENTINO EXTRA GROUP

Callouts: 1206 1204 606 608 606 605 602/1 601/1 777 609/1 3400 3397 3393 3400 3398 3403 3398 3404

1204 Valentino right hand down tube control lever
1206 Valentino twin control lever
1207 Braze-on gear control
1208 Braze-on front changer control
174 Friction plate
600/3 Right hand braze-on control lever plate with ferrule

68

[Photographs of the Campagnolo Valentino control levers on pale green panels: the 1206 Valentino twin control lever with the 608 and 606 inner wires, the 1204 Valentino right hand down tube control lever with the 606 inner wire and 605 outer casing, and an exploded view of the twin lever with its levers, clamp bodies, screws, washers and wing nuts numbered. The parts list continues on the facing page.]

— Page 77 —

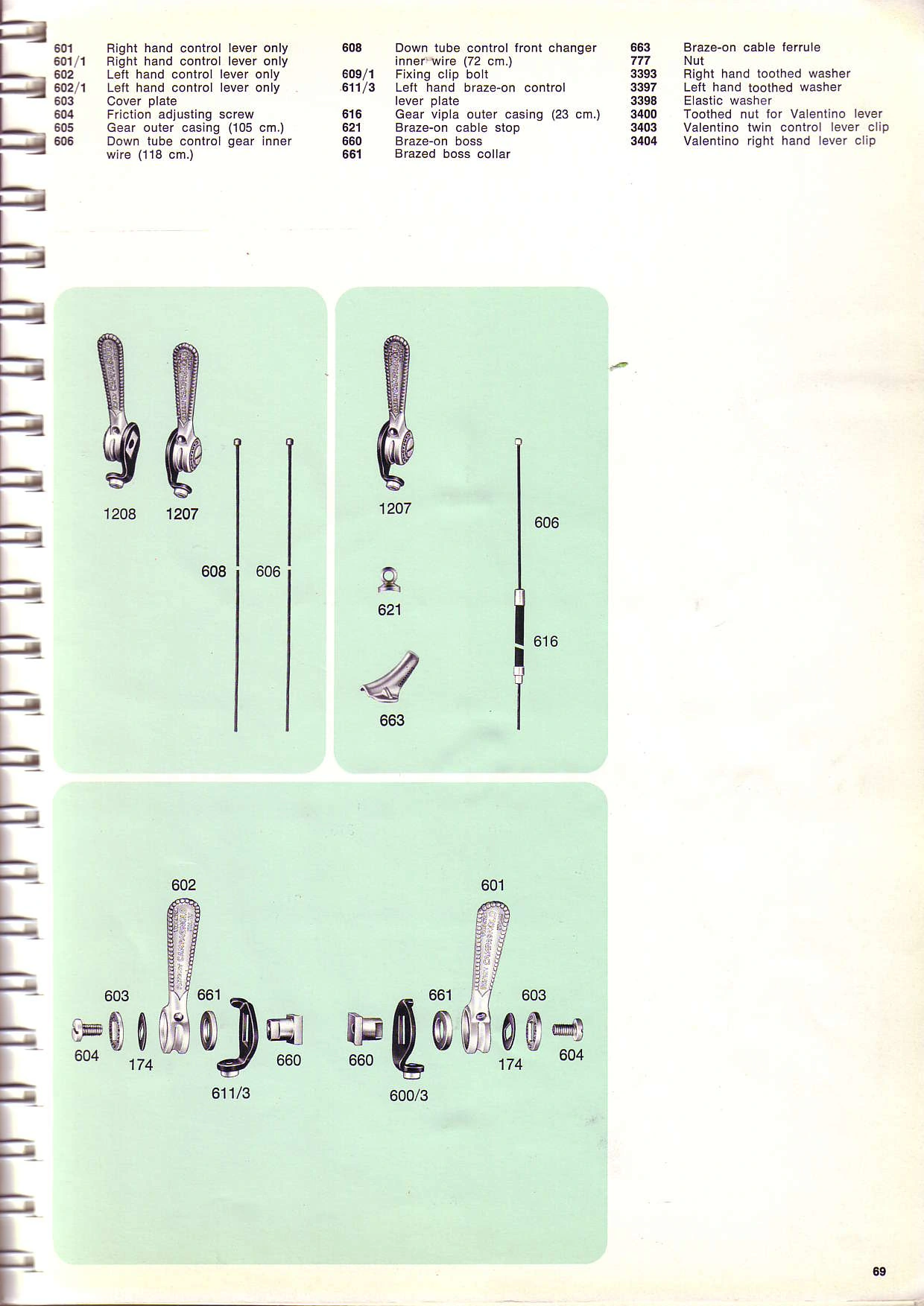

Callouts: 1208 1207 1207 606 608 606 621 616 663 602 601 603 661 661 603 604 174 660 660 174 604 611/3 600/3

601 Right hand control lever only
601/1 Right hand control lever only
602 Left hand control lever only
602/1 Left hand control lever only
603 Cover plate
604 Friction adjusting screw
605 Gear outer casing (105 cm.)
606 Down tube control gear inner wire (118 cm.)
608 Down tube control front changer inner wire (72 cm.)
609/1 Fixing clip bolt
611/3 Left hand braze-on control lever plate
616 Gear vipla outer casing (23 cm.)
621 Braze-on cable stop
660 Braze-on boss
661 Brazed boss collar
663 Braze-on cable ferrule
777 Nut
3393 Right hand toothed washer
3397 Left hand toothed washer
3398 Elastic washer
3400 Toothed nut for Valentino lever
3403 Valentino twin control lever clip
3404 Valentino right hand lever clip

69

[Photographs of the Campagnolo Valentino Extra braze-on controls on pale green panels: the 1208 braze-on front changer control and 1207 braze-on gear control with the 608 and 606 inner wires, the 1207 control with the 621 cable stop, 663 cable ferrule, 616 outer casing and 606 inner wire, and exploded views of the left and right braze-on levers with their bosses, plates, washers and screws. The parts list in three columns at the top continues the list begun on the facing page.]

— Page 78 —

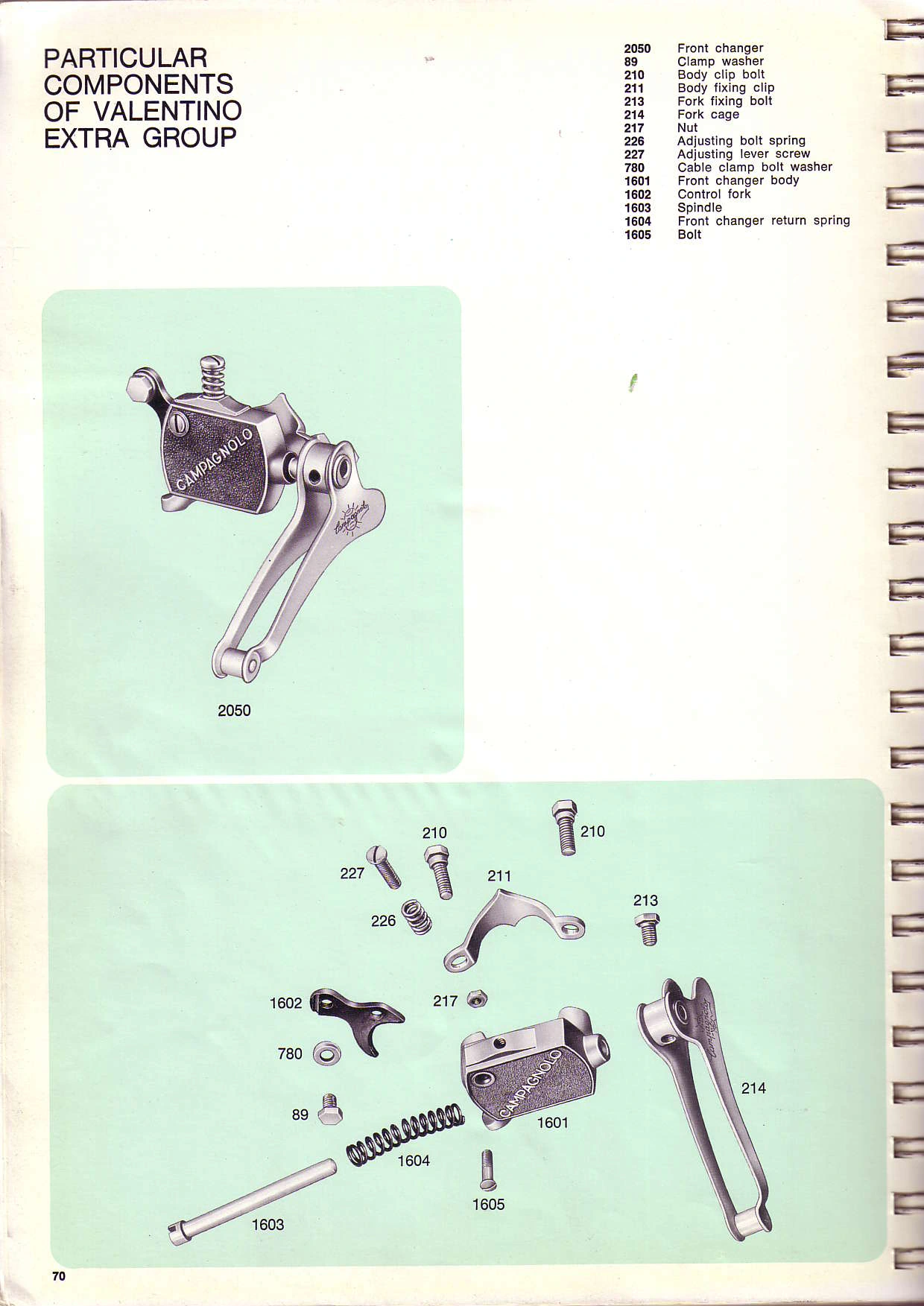

PARTICULAR COMPONENTS OF VALENTINO EXTRA GROUP

Callouts: 2050 210 210 227 211 213 226 1602 217 780 214 89 1601 1604 1605 1603

2050 Front changer
89 Clamp washer
210 Body clip bolt
211 Body fixing clip
213 Fork fixing bolt
214 Fork cage
217 Nut
226 Adjusting bolt spring
227 Adjusting lever screw
780 Cable clamp bolt washer
1601 Front changer body
1602 Control fork
1603 Spindle
1604 Front changer return spring
1605 Bolt

70

[A photograph of the Campagnolo Valentino Extra front changer, 2050, above an exploded photograph of its parts, each numbered and keyed to the parts list at the upper right, on pale green panels.]

— Page 79 —
RECORD CHAINWHEEL SETS WITH BOTTOM BRACKET SET FOR TRIPLE CHAINRING pages 72-73-74-75

RECORD CHAINWHEEL SET WITH BOTTOM BRACKET SET FOR CYCLOCROSS pages 76-77

RALLY GEAR FOR LARGE RATIOS page 78

71

[A section contents page listing the Campagnolo Record chainwheel sets for triple chainring and for cyclocross and the Rally gear for large ratios, with page references, and otherwise left blank.]

— Page 80 —
1048/3 CAMPAGNOLO SPECIAL RECORD CHAINWHEEL SET WITH BOTTOM BRACKET SET FOR TRIPLE CHAINRING

Callouts: 1048/3 1046 1049/3

1046 Record bottom bracket set (with spindle 65-P-110 and cups threaded Ø 36 x 24F.). Upon request is furnished the bracket safety sleeve ref. 2110 – 2110/1. See page 81
1049/3 Record road chainset for normal triple chainring (with cranks 170 mm., pedal hole Ø 9/16″ x 20F. and chainrings for chain 1/2″ x 3/32″ [2 mm.]). Specify the number of teeth of the 3 chainrings available from 42T to 57T. Upon request

THREAD TYPES
ITALIAN | Ø 36×24F. | right hand | right hand
FRENCH | M 35×1 | right hand | right hand
BSC | Ø 1,370″×24 Tpi | right hand | left hand

ROAD TRIPLE
AXLE | | | BRACKET WIDTH | | | TOTAL AXLE LENGTH
68-SS-120×3 | 17 | 3,5 | 68 | 3,5 | 20 | 117 mm.
70-SS-120×3 | 17 | 3,5 | 70 | 3,5 | 19 | 118 mm.

Details of bracket number:
— The first number indicates the bracket width
— P indicates track
— SS indicates road
— C indicates cross
— Number 110 or 120 indicates the suggested width of the rear hub for a perfect chain alignment (see pages 92-93)

UPON REQUEST WE SUPPLY THE CUPS WITH THREAD INCREASED BY 0,5 mm.

72

[A photograph of the Campagnolo Special Record chainwheel set with bottom bracket set for triple chainring, 1048/3, on a yellow panel: the 1049/3 triple chainset with its left crank and the 1046 bottom bracket set with a box of bearing balls. Below it a dimensioned section drawing of the bottom bracket gives the thread types and the axle measurements for road triple use; the 1049/3 entry in the parts list continues on the next page.]

— Page 81 —
furnished cranks with lenghts 165 – 167,5 – – 172,5 – 175 – 177,5 and 180 mm.
744/1 Triple chainring cotterless spindle. See measurements and indicate spindle size
745 Fixed cup. Indicate required thread
746 Adjustable cup. Indicate required thread
747 Lockring with normal 3,5 mm. thickness (available also with 4 mm. and 4,5 mm. thickness) Indicate required thread
748 Fixing screw
749 Fixing washer
751 Right hand road crank (complete with cover 756, 170 mm. long). Upon request are furnished the following sizes: 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm. long
752 Left hand road crank complete with cover 756, 170 mm. long). Upon request are furnished the following sizes: 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm. long
753 Road chainring for 1/2″ x 3/32″ (2 mm). chain. Specify the number of teeth available from 42T to 57T
756 Crank cover plate
830 Triple chainring and cyclocross fixing bolt
831 Nut for bolt 830
832 Triple chainring and cyclocross spacer
2100 Set (11+11) special Ø 1/4″ balls selected with 1/1000 of mm. tolerance

Callouts: 753 830 832 831 751 752 753 753 753 751 756 831 832 830

Callouts: 2100 748 749 747 746 744/1 745 749 748

73

[Photographs of Campagnolo crank and bottom bracket parts on two yellow panels, keyed to a parts list that continues from the previous page: a road chainring, the right and left road cranks, a crank cover plate, the triple chainring bolt, nut and spacer, with a section drawing of a triple chainring assembly. The lower panel shows the bottom bracket spindle, cups, lockring, fixing screws and washers and a box of 2100 selected balls.]

— Page 82 —

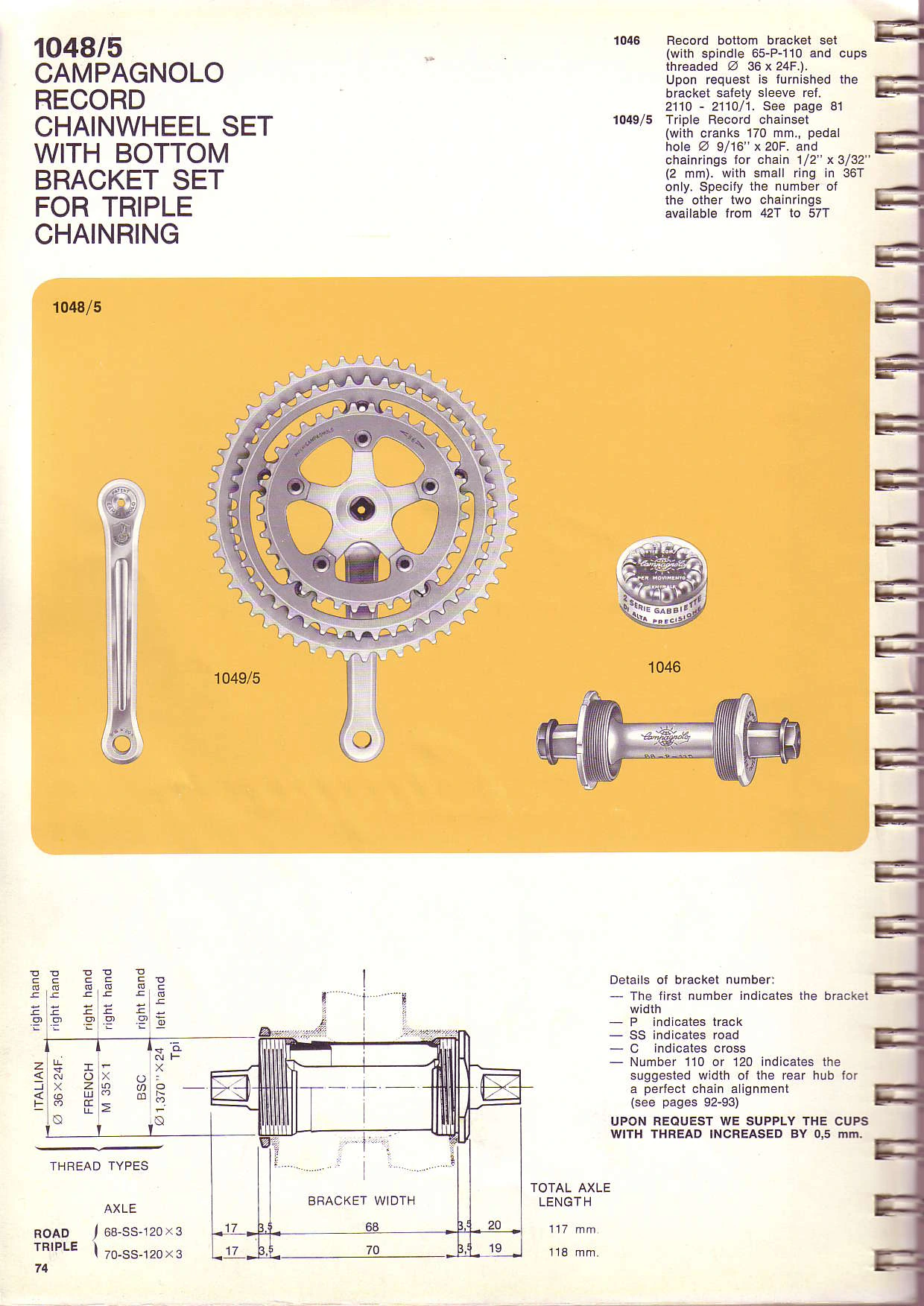

1048/5 CAMPAGNOLO RECORD CHAINWHEEL SET WITH BOTTOM BRACKET SET FOR TRIPLE CHAINRING

1046 Record bottom bracket set (with spindle 65-P-110 and cups threaded Ø 36 x 24F.). Upon request is furnished the bracket safety sleeve ref. 2110 – 2110/1. See page 81
1049/5 Triple Record chainset (with cranks 170 mm., pedal hole Ø 9/16″ x 20F. and chainrings for chain 1/2″ x 3/32″ (2 mm). with small ring in 36T only. Specify the number of the other two chainrings available from 42T to 57T

1048/5

Callouts: 1049/5 1046

THREAD TYPES
ITALIAN | Ø 36×24F. | right hand | right hand
FRENCH | M 35×1 | right hand | right hand
BSC | Ø 1,370″×24 Tpi | right hand | left hand

AXLE | | | BRACKET WIDTH | | | TOTAL AXLE LENGTH
ROAD TRIPLE 68-SS-120×3 | 17 | 3,5 | 68 | 3,5 | 20 | 117 mm.
ROAD TRIPLE 70-SS-120×3 | 17 | 3,5 | 70 | 3,5 | 19 | 118 mm.

Details of bracket number:
— The first number indicates the bracket width
— P indicates track
— SS indicates road
— C indicates cross
— Number 110 or 120 indicates the suggested width of the rear hub for a perfect chain alignment (see pages 92-93)

UPON REQUEST WE SUPPLY THE CUPS WITH THREAD INCREASED BY 0,5 mm.

74

[A photograph of the Campagnolo Record chainwheel set with bottom bracket set for triple chainring, 1048/5, showing the left crank, the right crank with three chainrings, 1049/5, and the Record bottom bracket set, 1046, with a box of bearing balls, on a yellow panel. Below is a sectional drawing of the bottom bracket with its thread types and the axle, cup and bracket width dimensions for the 68 and 70 mm road triple brackets.]

— Page 83 —
744/1 Triple chainring cotterless spindle. See measurements and indicate spindle size
745 Fixed cup. Indicate required thread
746 Adjustable cup. Indicate required thread
747 Lockring with normal 3,5 mm. thickness (available also with 4 mm. and 4,5 mm. thickness) Indicate required thread
748 Fixing screw
749 Fixing washer
752 Road left hand crank (complete with cover 756, 170 mm. long)
753 Road chainring for 1/2″ x 3/32″ (2 mm.) chain. Specify the number of teeth available from 42T to 57T
754 Road chainwheel fastening screw
755 Road chainwheel fastening nut
756 Crank cover plate
761 Track chainwheel fastening screw
804 Chainring for 1/:2″ x 3/32″ (2 mm.) chain with fixed 36 teeth
818 Triple chainring spacer
819 Right crank for special triple chainring (complete with cover plate 756 – 170 mm. long)
2100 Set (11+11) special Ø 1/4″ balls selected with 1/1000 of mm. tolerance

Callouts: 753 755 754 818 761 819 753 753 752 755 819 754 804 761 804 756 818

Callouts: 2100 748 749 747 746 744/1 745 749 748

75

[Photographs of the parts of the Campagnolo Record triple chainwheel set on two yellow panels, keyed to a parts list: a road chainring, the 36 tooth inner chainring, 804, the special right crank for triple chainring, 819, the left crank, the crank cover plate and the chainwheel screws, nuts and spacer, with a section drawing of the triple chainring assembly. The lower panel shows the bottom bracket spindle, cups, lockring, fixing screws and washers and a box of 2100 selected balls.]

— Page 84 —

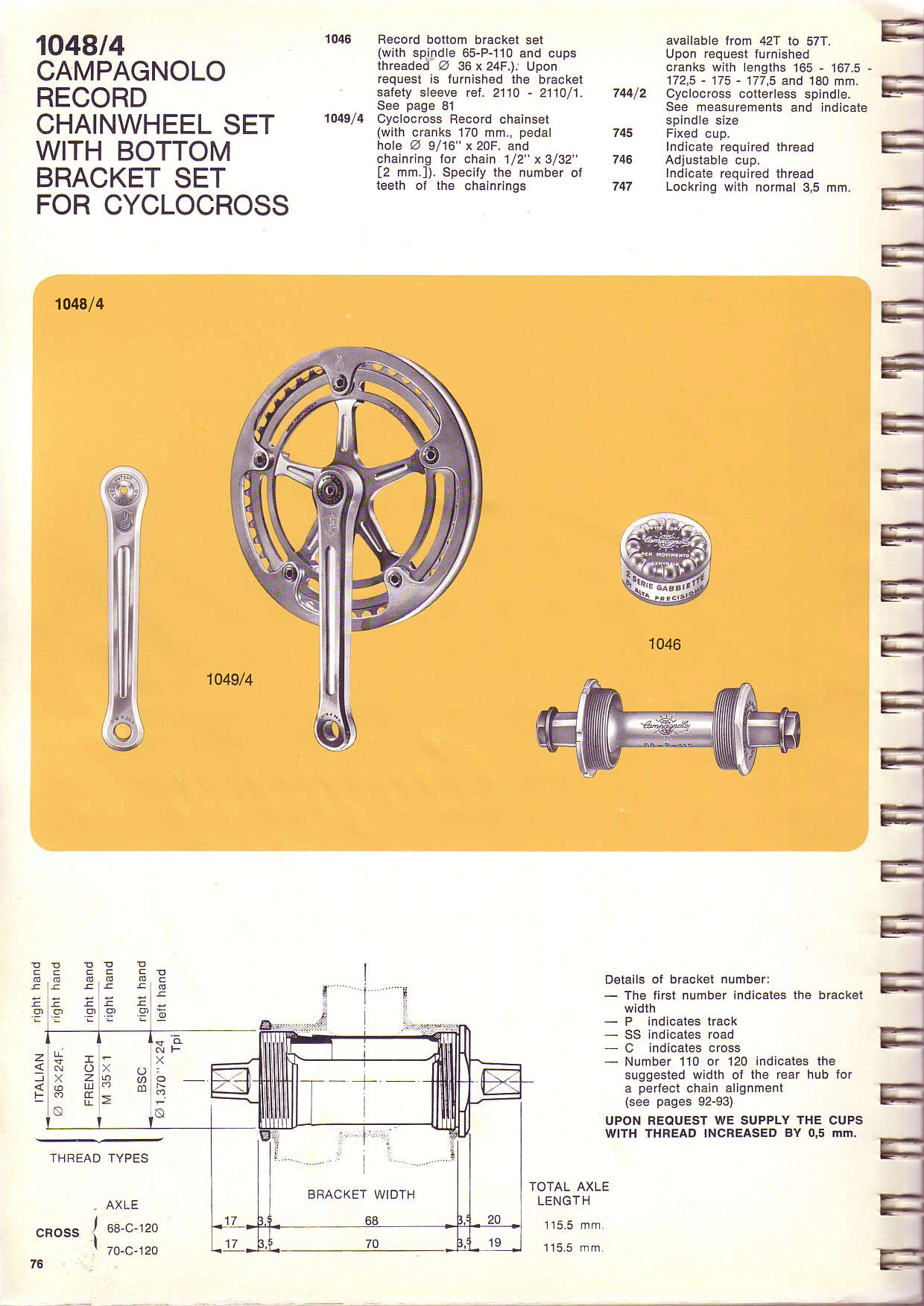

1048/4 CAMPAGNOLO RECORD CHAINWHEEL SET WITH BOTTOM BRACKET SET FOR CYCLOCROSS

1046 Record bottom bracket set (with spindle 65-P-110 and cups threaded Ø 36 x 24F.):[?] Upon request is furnished the bracket safety sleeve ref. 2110 – 2110/1. See page 81
1049/4 Cyclocross Record chainset (with cranks 170 mm., pedal hole Ø 9/16″ x 20F. and chainring for chain 1/2″ x 3/32″ [2 mm.]). Specify the number of teeth of the chainrings available from 42T to 57T. Upon request furnished cranks with lengths 165 – 167.5 – 172,5 – 175 – 177,5 and 180 mm.
744/2 Cyclocross cotterless spindle. See measurements and indicate spindle size
745 Fixed cup. Indicate required thread
746 Adjustable cup. Indicate required thread
747 Lockring with normal 3,5 mm.

1048/4

Callouts: 1049/4 1046

THREAD TYPES
ITALIAN | Ø 36×24F. | right hand | right hand
FRENCH | M 35×1 | right hand | right hand
BSC | Ø 1,370″×24 Tpi | right hand | left hand

AXLE | | | BRACKET WIDTH | | | TOTAL AXLE LENGTH
CROSS 68-C-120 | 17 | 3,5 | 68 | 3,5 | 20 | 115.5 mm.
CROSS 70-C-120 | 17 | 3,5 | 70 | 3,5 | 19 | 115.5 mm.

Details of bracket number:
— The first number indicates the bracket width
— P indicates track
— SS indicates road
— C indicates cross
— Number 110 or 120 indicates the suggested width of the rear hub for a perfect chain alignment (see pages 92-93)

UPON REQUEST WE SUPPLY THE CUPS WITH THREAD INCREASED BY 0,5 mm.

76

[A photograph of the Campagnolo Record chainwheel set with bottom bracket set for cyclocross, 1048/4, showing the left crank, the right crank with a single chainring between two guard plates, 1049/4, and the Record bottom bracket set, 1046, with a box of bearing balls, on a yellow panel. Below is a sectional drawing of the bottom bracket with its thread types and the axle, cup and bracket width dimensions for the 68 and 70 mm cyclocross brackets.]

— Page 85 —
thickness (available also with 4 mm. and 4,5 mm. thickness). Indicate required thread
748 Fixing screw
749 Fixing washer
751 Right hand road crank (complete with cover 756, 170 mm. long). Upon request furnished in the following sizes: 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm. long
752 Left hand road crank (complete with cover 756, 170 mm. long). Upon request furnished in the following sizes: 165 – 167,5 – 172,5 – 175 – 177,5 and 180 mm. long
753 Road chainring for 1/2″ x 3/32″ (2 mm.) chain. Specify the number of teeth available from 42T to 57T
753/1 Cyclocross inner flange. Specify the required diameter. Are furnished with Ø 186 mm. – Ø 198 mm. – Ø 210 mm. and Ø 222 mm.
753/2 Cyclocross outer flange. Specify the required diameter. Are furnished with Ø 186 mm. – Ø 198 mm. – Ø 210 mm. and Ø 222 mm.
756 Crank cover plate
830 Triple chainring and cyclocross fixing bolt
831 Nut for bolt 830
832 Triple chainring and cyclocross spacer
2100 Set (11+11) special Ø 1/4″ balls selected with 1/1000 of mm. tolerance

Callouts: 753/2 753 752 751 753/1 753 753/2 753/1 831 751 832 830 831 832 830 756

Callouts: 2100 748 749 747 746 744/2 745 749 748

77

[Photographs of the parts of the Campagnolo Record cyclocross chainwheel set on two yellow panels, keyed to a parts list that continues from the previous page: the cyclocross inner and outer flanges, 753/1 and 753/2, a road chainring, the right and left road cranks, the crank cover plate and the fixing bolt, nut and spacer, with a section drawing of the cyclocross chainring assembly. The lower panel shows the cyclocross bottom bracket spindle, 744/2, the cups, lockring, fixing screws and washers and a box of 2100 selected balls.]

— Page 86 —

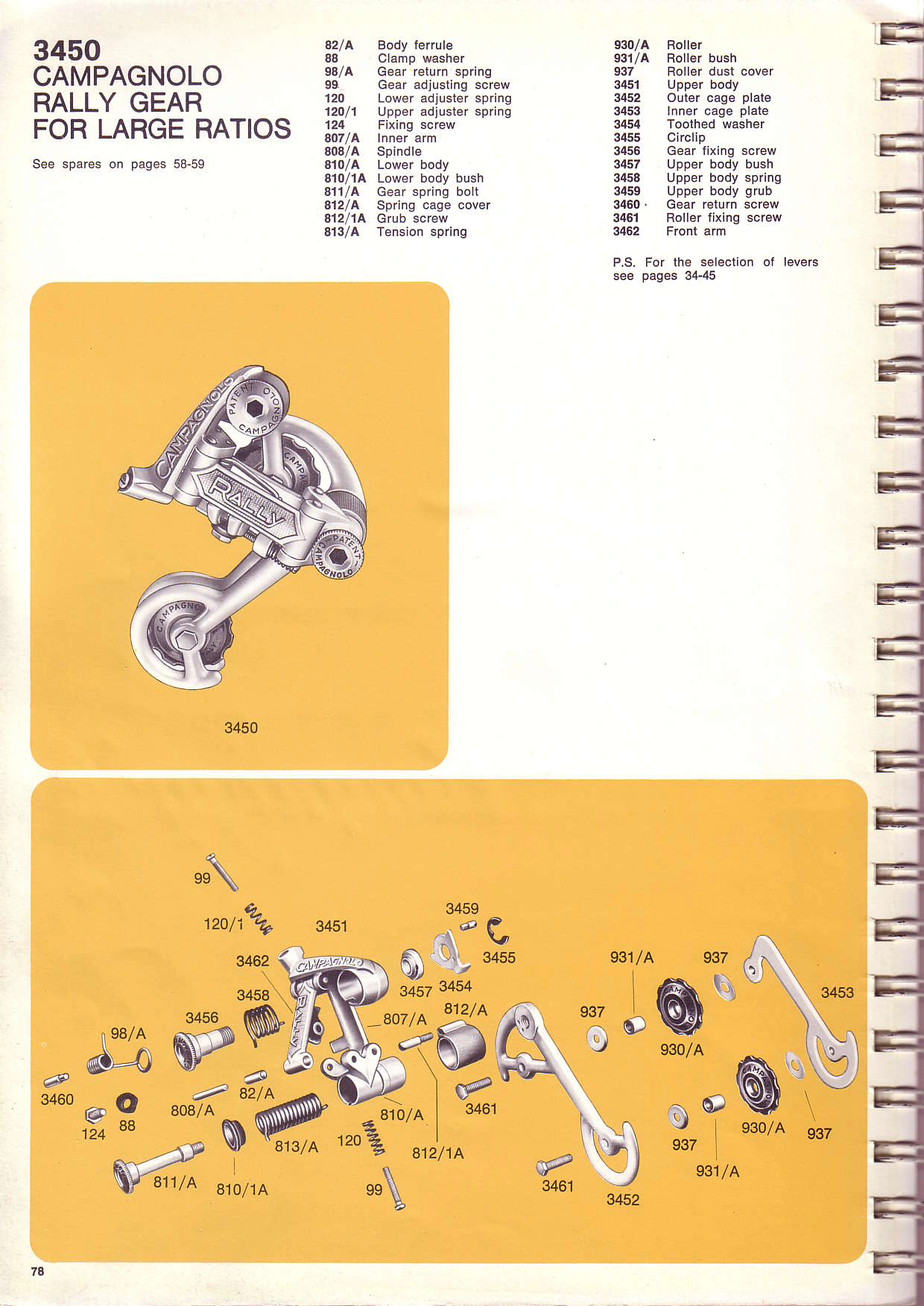

3450 CAMPAGNOLO RALLY GEAR FOR LARGE RATIOS

See spares on pages 58-59

82/A Body ferrule
88 Clamp washer
98/A Gear return spring
99 Gear adjusting screw
120 Lower adjuster spring
120/1 Upper adjuster spring
124 Fixing screw
807/A Inner arm
808/A Spindle
810/A Lower body
810/1A Lower body bush
811/A Gear spring bolt
812/A Spring cage cover
812/1A Grub screw
813/A Tension spring
930/A Roller
931/A Roller bush
937 Roller dust cover
3451 Upper body
3452 Outer cage plate
3453 Inner cage plate
3454 Toothed washer
3455 Circlip
3456 Gear fixing screw
3457 Upper body bush
3458 Upper body spring
3459 Upper body grub
3460 Gear return screw
3461 Roller fixing screw
3462 Front arm

P.S. For the selection of levers see pages 34-45

3450

Callouts: 99 3459 120/1 3451 3462 3455 931/A 937 3458 3457 3454 3453 3456 807/A 812/A 937 98/A 930/A 3460 82/A 3461 808/A 810/A 88 124 120 813/A 930/A 937 937 812/1A 931/A 811/A 810/1A 99 3461 3452

78

[A photograph of the Campagnolo Rally gear for large ratios, 3450, a long cage rear derailleur, on a yellow panel, above an exploded drawing of the same derailleur with every part numbered and keyed to a parts list.]

— Page 87 —
CLIPS – GEAR HANGERS – FORK ENDS SPROCKETS – SPECIAL GREASE – SCREWS AND NUTS FOR SEAT PIN AND SUNDRIES | pages 80-81

79

[The contents page of the section on clips, gear hangers, fork ends, sprockets, special grease, seat pin screws and nuts and sundries, giving its page numbers. The rest of the page is blank.]

— Page 88 —

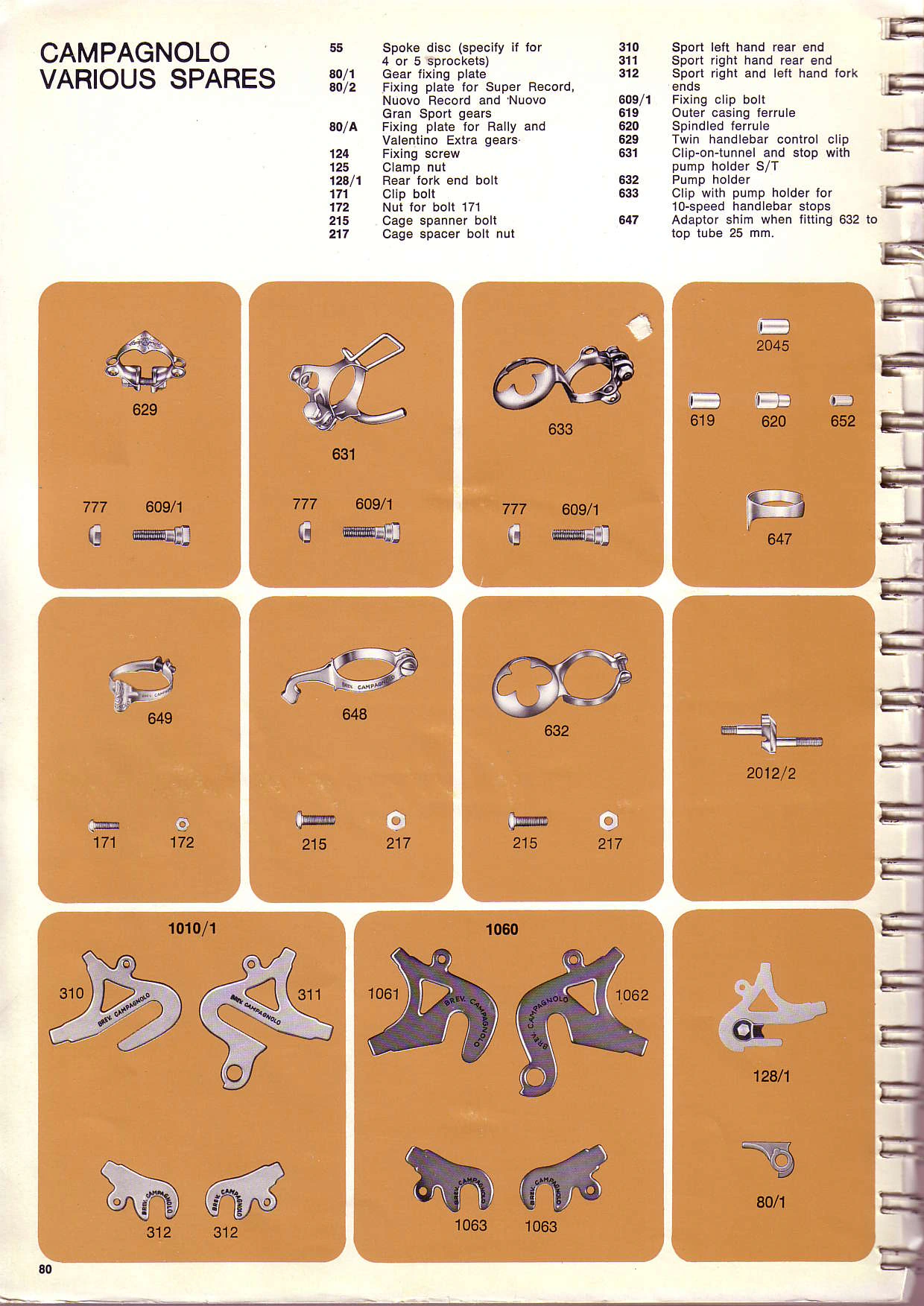

CAMPAGNOLO VARIOUS SPARES

55 Spoke disc (specify if for 4 or 5 sprockets)
80/1 Gear fixing plate
80/2 Fixing plate for Super Record, Nuovo Record and Nuovo Gran Sport gears
80/A Fixing plate for Rally and Valentino Extra gears
124 Fixing screw
125 Clamp nut
128/1 Rear fork end bolt
171 Clip bolt
172 Nut for bolt 171
215 Cage spanner bolt
217 Cage spacer bolt nut
310 Sport left hand rear end
311 Sport right hand rear end
312 Sport right and left hand fork ends
609/1 Fixing clip bolt
619 Outer casing ferrule
620 Spindled ferrule
629 Twin handlebar control clip
631 Clip-on-tunnel and stop with pump holder S/T
632 Pump holder
633 Clip with pump holder for 10-speed handlebar stops
647 Adaptor shim when fitting 632 to top tube 25 mm.

Callouts: 629 777 609/1 631 777 609/1 633 777 609/1 2045 619 620 652 647 649 171 172 648 215 217 632 215 217 2012/2 1010/1 310 311 312 312 1060 1061 1062 1063 1063 128/1 80/1

80

[Photographs of Campagnolo spare parts on 11 orange panels, keyed to a parts list: handlebar control and pump holder clips with their bolts and nuts, cable ferrules, an adaptor shim, frame clips, a bolt, 2012/2, the Sport rear ends and fork ends, 1010/1, a second set of rear ends and fork ends, 1060, and the rear fork end bolt and gear fixing plate.]

— Page 89 —

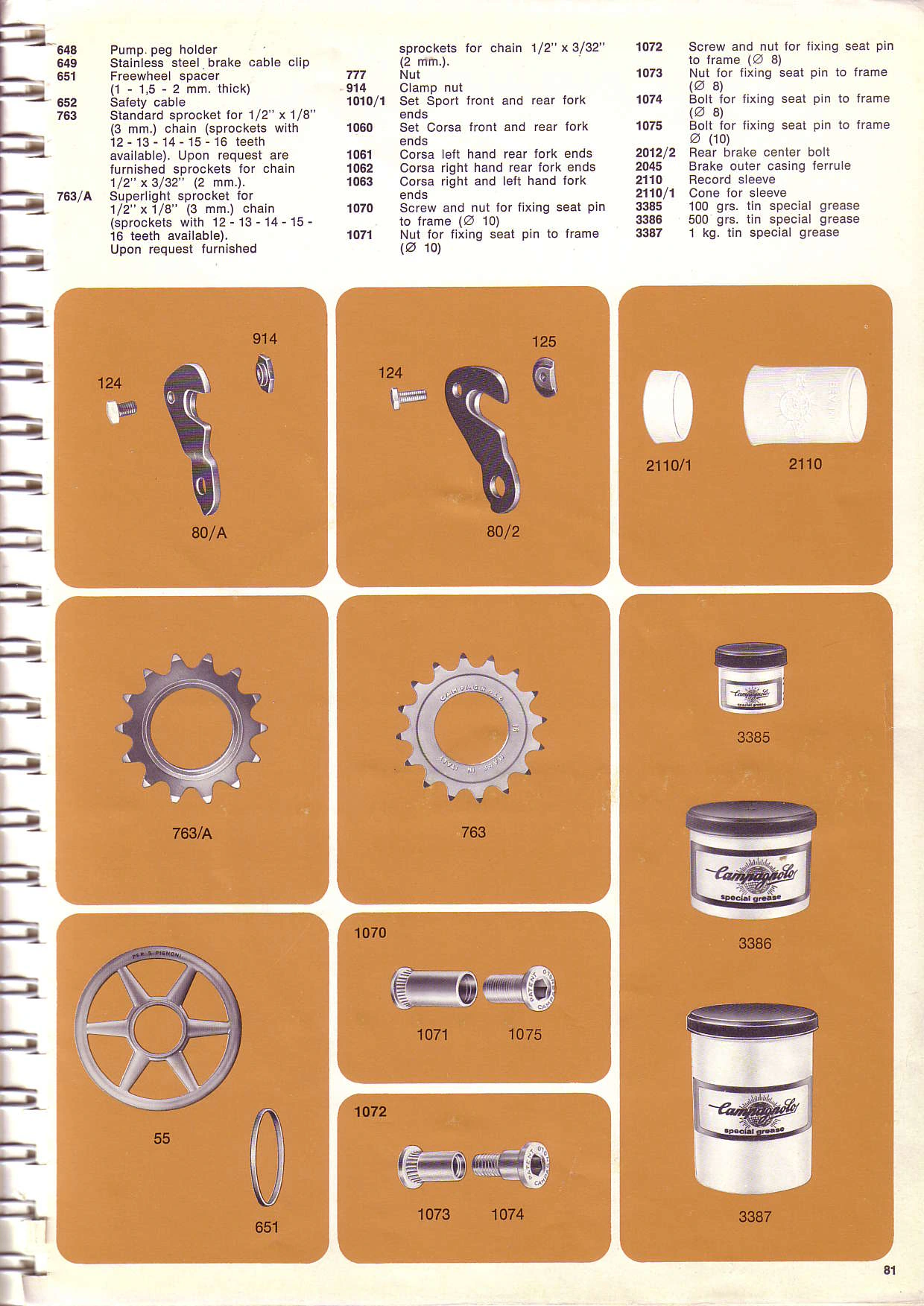

648 Pump peg holder
649 Stainless steel brake cable clip
651 Freewheel spacer (1 – 1,5 – 2 mm. thick)
652 Safety cable
763 Standard sprocket for 1/2″ x 1/8″ (3 mm.) chain (sprockets with 12 – 13 – 14 – 15 – 16 teeth available). Upon request are furnished sprockets for chain 1/2″ x 3/32″ (2 mm.).
763/A Superlight sprocket for 1/2″ x 1/8″ (3 mm.) chain (sprockets with 12 – 13 – 14 – 15 – 16 teeth available). Upon request furnished sprockets for chain 1/2″ x 3/32″ (2 mm.).
777 Nut
914 Clamp nut
1010/1 Set Sport front and rear fork ends
1060 Set Corsa front and rear fork ends
1061 Corsa left hand rear fork ends
1062 Corsa right hand rear fork ends
1063 Corsa right and left hand fork ends
1070 Screw and nut for fixing seat pin to frame (Ø 10)
1071 Nut for fixing seat pin to frame (Ø 10)
1072 Screw and nut for fixing seat pin to frame (Ø 8)
1073 Nut for fixing seat pin to frame (Ø 8)
1074 Bolt for fixing seat pin to frame (Ø 8)
1075 Bolt for fixing seat pin to frame Ø (10)
2012/2 Rear brake center bolt
2045 Brake outer casing ferrule
2110 Record sleeve
2110/1 Cone for sleeve
3385 100 grs. tin special grease
3386 500 grs. tin special grease
3387 1 kg. tin special grease

Callouts: 914 124 80/A 125 124 80/2 2110/1 2110 763/A 763 3385 3386 3387 55 651 1070 1071 1075 1072 1073 1074

81

[Photographs of Campagnolo spare parts on nine orange panels, keyed to a parts list that continues from the previous page: the gear fixing plates, 80/A and 80/2, with their screws and nuts, the Record bottom bracket sleeve and cone, the Superlight and standard sprockets, the spoke disc and a freewheel spacer, the seat pin fixing screws and nuts, 1070 and 1072, and three sizes of Campagnolo special grease tin.]

— Page 90 —
TOOL CASES | pages 84-85-86-87-88
SPECIAL TOOLS AND BICYCLE ASSEMBLING STAND | pages 88-89

83

[The contents page of the section on tool cases, special tools and the bicycle assembling stand, giving their page numbers. The rest of the page is blank.]

— Page 91 —

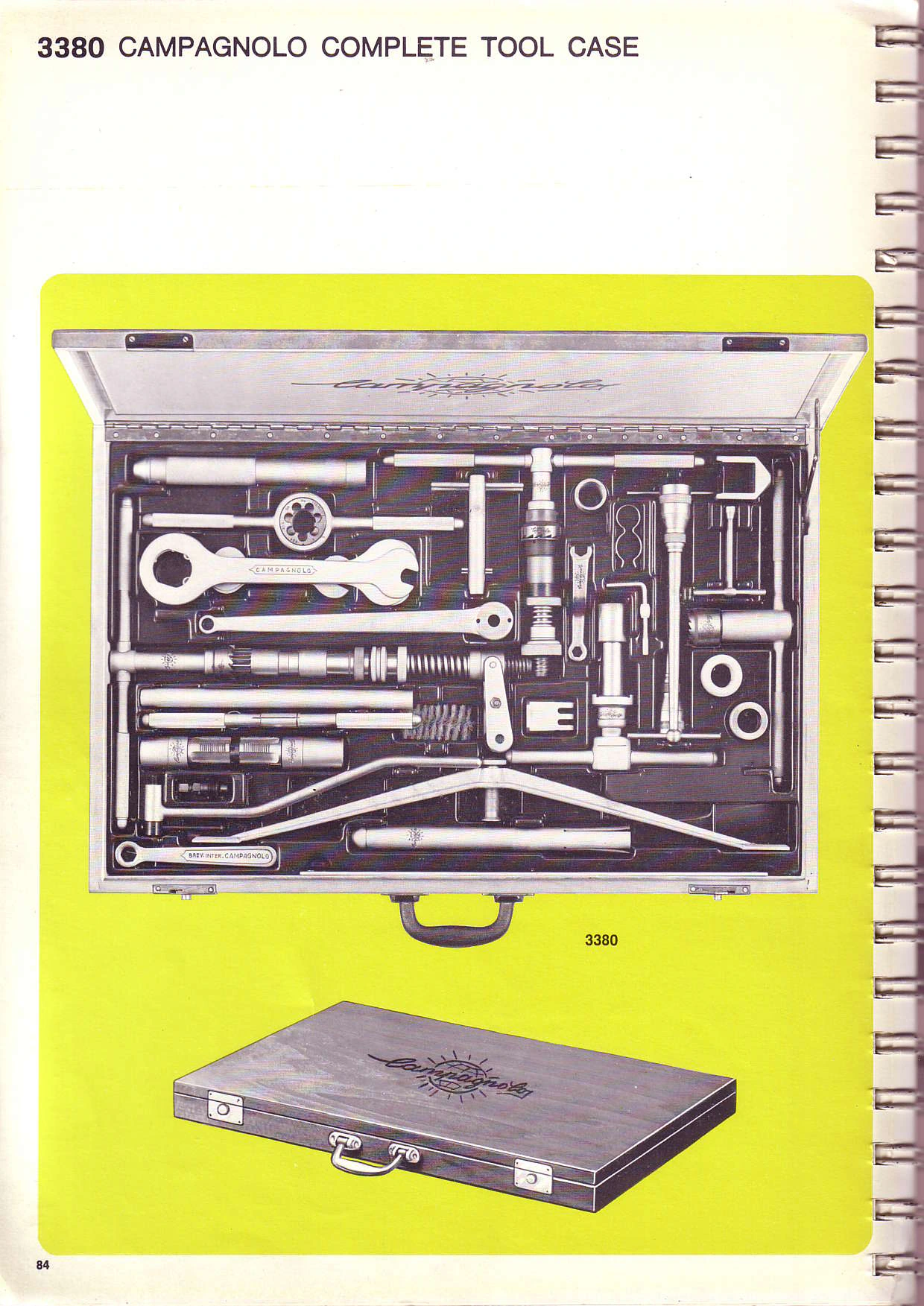

3380 CAMPAGNOLO COMPLETE TOOL CASE

3380

84

[A photograph of the Campagnolo complete tool case, 3380, open to show its fitted tray of workshop tools, with a second view of the closed wooden case below, both on a yellow-green panel. The lid and the case top carry the Campagnolo script logo, and two wrenches in the tray are stamped “CAMPAGNOLO” and “BREV. INTER. CAMPAGNOLO”.]

— Page 92 —

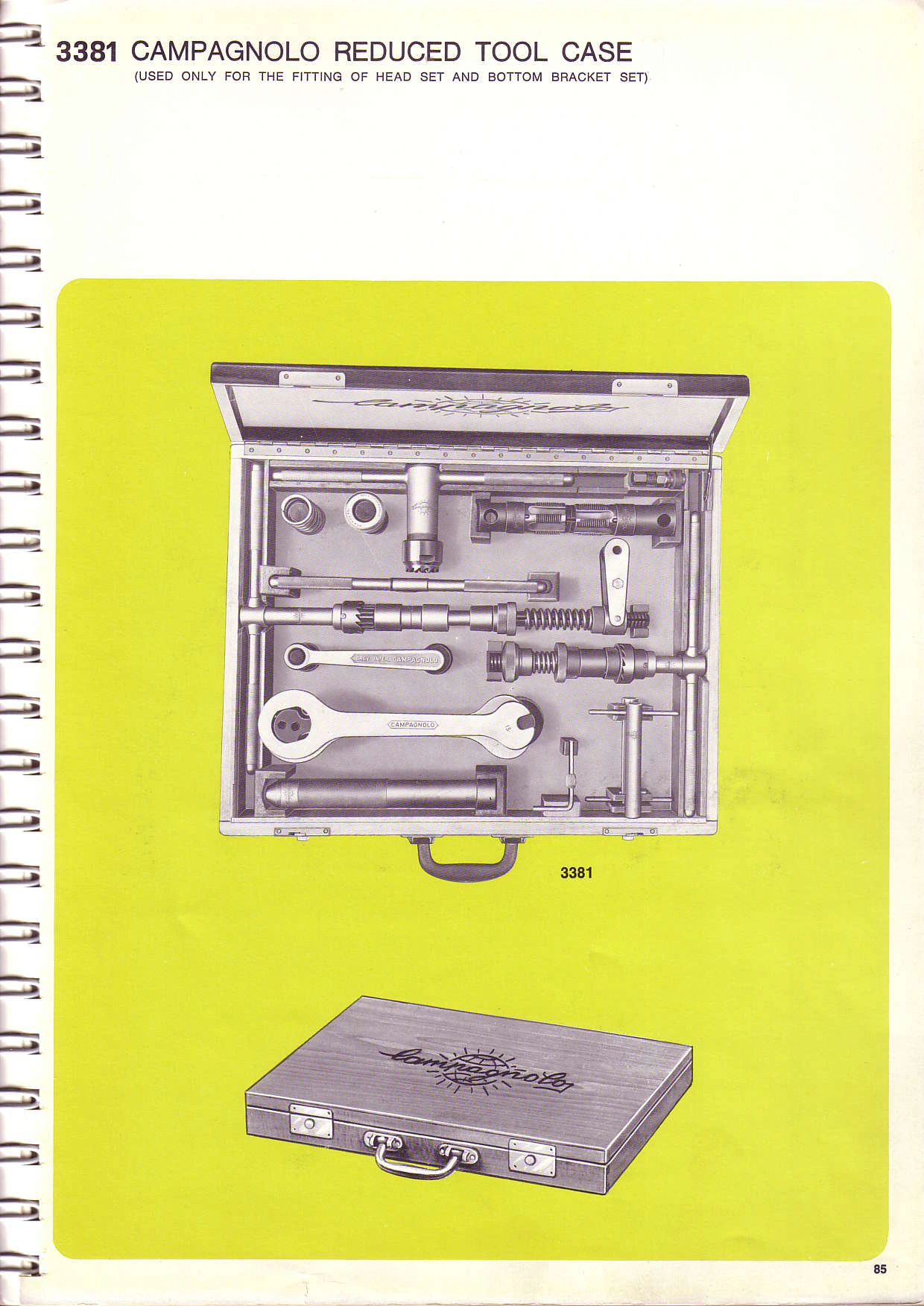

3381 CAMPAGNOLO REDUCED TOOL CASE
(USED ONLY FOR THE FITTING OF HEAD SET AND BOTTOM BRACKET SET)

3381

85

[A photograph of the Campagnolo reduced tool case, 3381, open to show its smaller set of headset and bottom bracket tools, with a second view of the closed wooden case below, both on a yellow-green panel. The lid and the case top carry the Campagnolo script logo, and two wrenches in the tray are stamped “BREV. INTER. CAMPAGNOLO” and “CAMPAGNOLO”.]

— Page 93 —

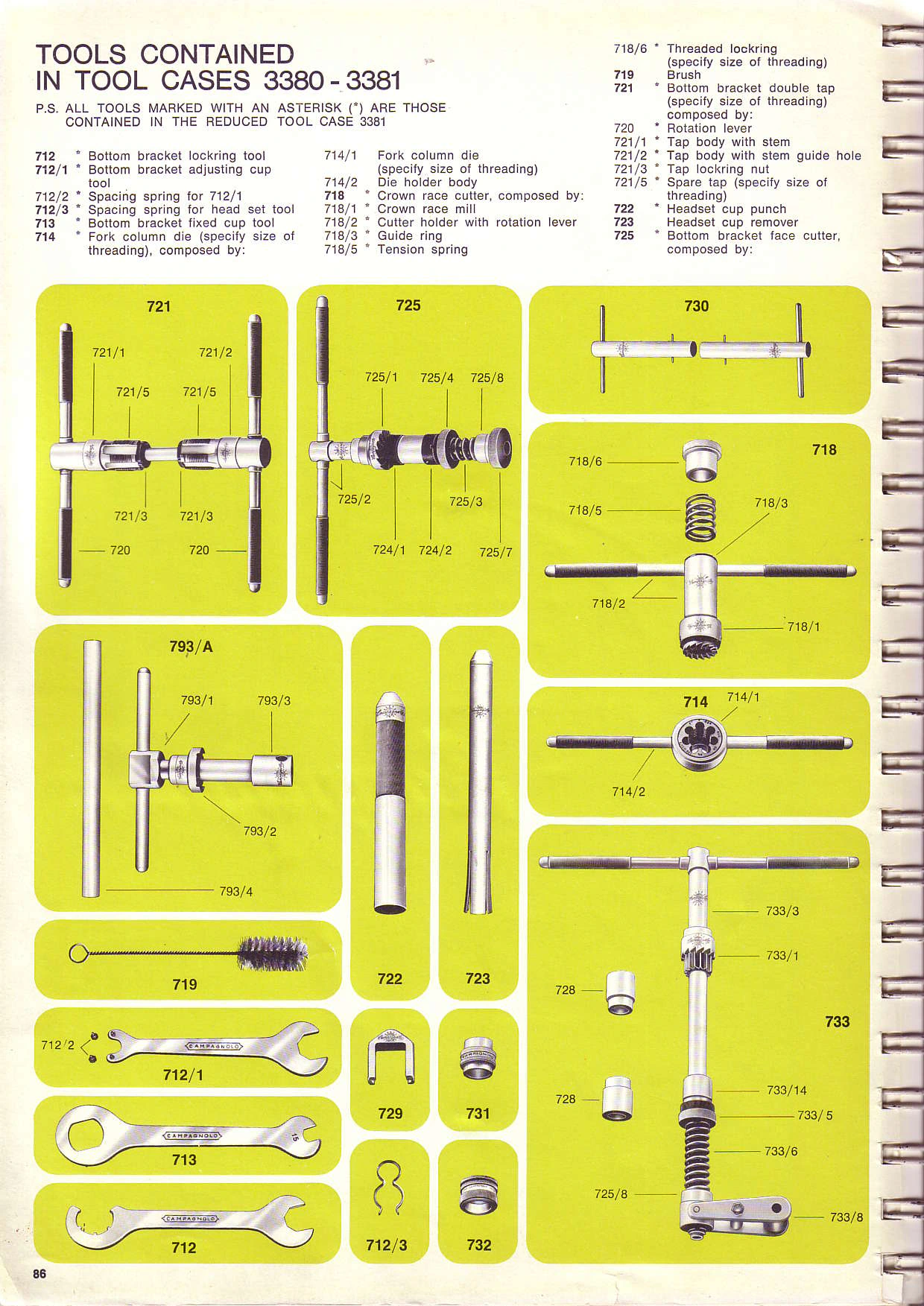

TOOLS CONTAINED IN TOOL CASES 3380 – 3381

P.S. ALL TOOLS MARKED WITH AN ASTERISK (*) ARE THOSE CONTAINED IN THE REDUCED TOOL CASE 3381

712 * Bottom bracket lockring tool
712/1 * Bottom bracket adjusting cup tool
712/2 * Spacing spring for 712/1
712/3 * Spacing spring for head set tool
713 * Bottom bracket fixed cup tool
714 * Fork column die (specify size of threading), composed by:
714/1 Fork column die (specify size of threading)
714/2 Die holder body
718 * Crown race cutter, composed by:
718/1 * Crown race mill
718/2 * Cutter holder with rotation lever
718/3 * Guide ring
718/5 * Tension spring
718/6 * Threaded lockring (specify size of threading)
719 Brush
721 * Bottom bracket double tap (specify size of threading) composed by:
720 * Rotation lever
721/1 * Tap body with stem
721/2 * Tap body with stem guide hole
721/3 * Tap lockring nut
721/5 * Spare tap (specify size of threading)
722 * Headset cup punch
723 Headset cup remover
725 * Bottom bracket face cutter, composed by:

Callouts: 721 721/1 721/2 721/5 721/5 721/3 721/3 720 720 725 725/1 725/4 725/8 725/2 725/3 724/1 724/2 725/7 730 718/6 718 718/5 718/3 718/2 718/1 793/A 793/1 793/3 793/2 793/4 722 723 714 714/1 714/2 733/3 733/1 728 733 728 733/14 733/5 733/6 725/8 733/8 719 712/2 712/1 729 731 713 712/3 732 712

86

[A page of photographs of the tools in the Campagnolo tool cases 3380 and 3381, each tool on its own yellow-green panel with its part number and its components keyed by callout, under the first half of a three-column parts list. The tools shown include the bottom bracket double tap 721, the bottom bracket face cutter 725, the crown race cutter 718, the fork column die 714, the head race mill 733 and the wrenches 712, 712/1 and 713, which are stamped “CAMPAGNOLO”.]

— Page 94 —

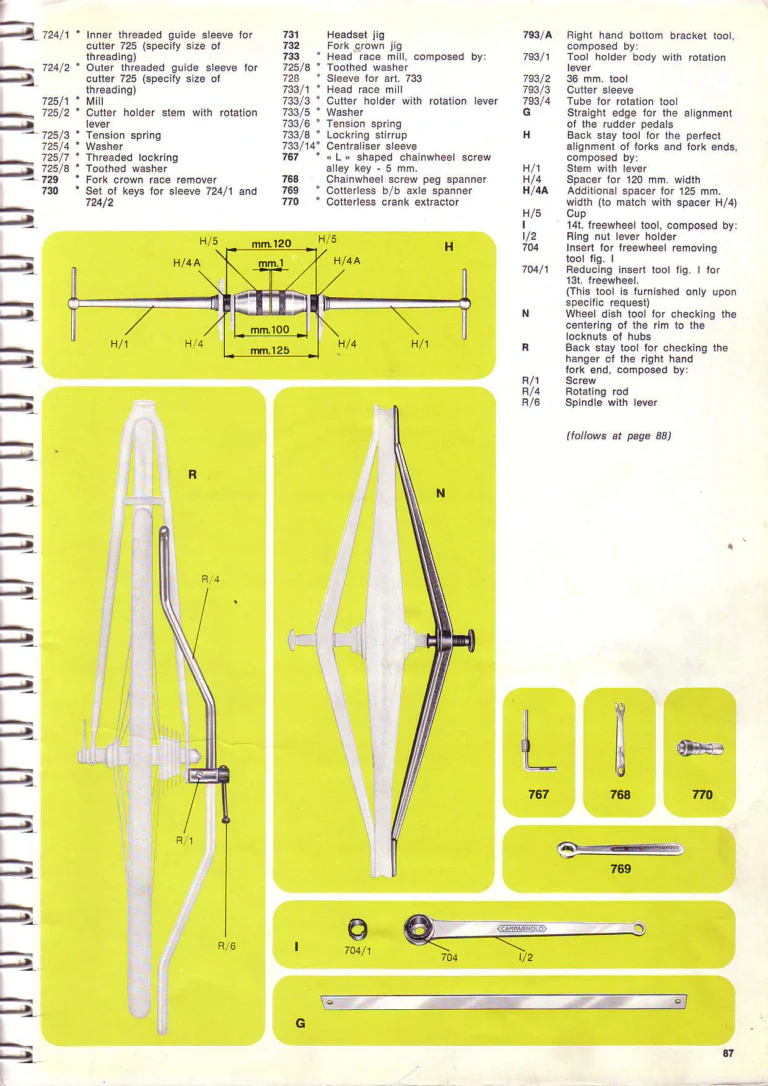

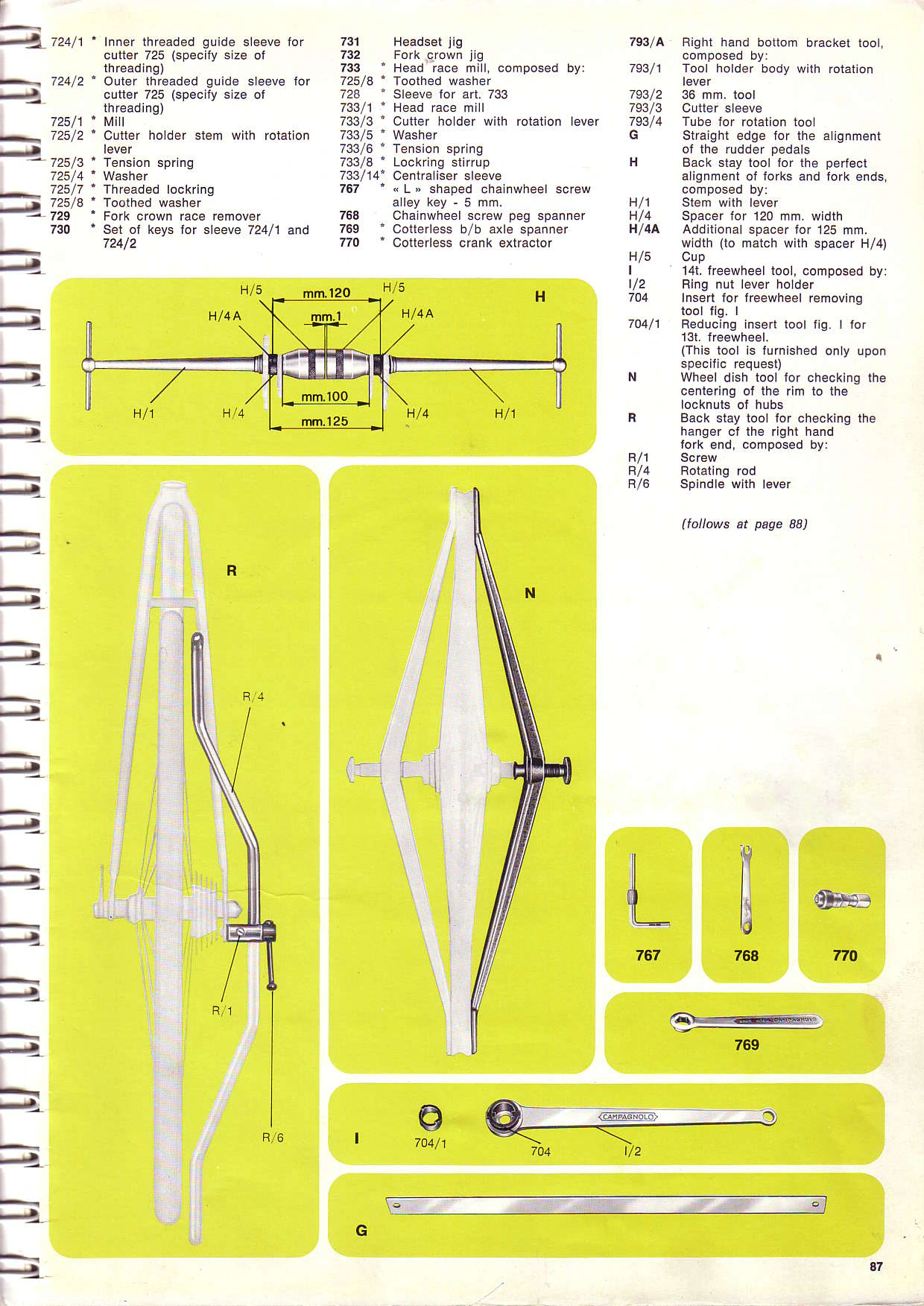

724/1 * Inner threaded guide sleeve for cutter 725 (specify size of threading)
724/2 * Outer threaded guide sleeve for cutter 725 (specify size of threading)
725/1 * Mill
725/2 * Cutter holder stem with rotation lever
725/3 * Tension spring
725/4 * Washer
725/7 * Threaded lockring
725/8 * Toothed washer
729 * Fork crown race remover
730 * Set of keys for sleeve 724/1 and 724/2
731 Headset jig
732 Fork crown jig
733 * Head race mill, composed by:
725/8 * Toothed washer
728 * Sleeve for art. 733
733/1 * Head race mill
733/3 * Cutter holder with rotation lever
733/5 * Washer
733/6 * Tension spring
733/8 * Lockring stirrup
733/14* Centraliser sleeve
767 * « L » shaped chainwheel screw alley key – 5 mm.
768 Chainwheel screw peg spanner
769 * Cotterless b/b axle spanner
770 * Cotterless crank extractor
793/A Right hand bottom bracket tool, composed by:
793/1 Tool holder body with rotation lever
793/2 36 mm. tool
793/3 Cutter sleeve
793/4 Tube for rotation tool
G Straight edge for the alignment of the rudder pedals
H Back stay tool for the perfect alignment of forks and fork ends, composed by:
H/1 Stem with lever
H/4 Spacer for 120 mm. width
H/4A Additional spacer for 125 mm. width (to match with spacer H/4)
H/5 Cup
I 14t. freewheel tool, composed by:
I/2 Ring nut lever holder
704 Insert for freewheel removing tool fig. I
704/1 Reducing insert tool fig. I for 13t. freewheel. (This tool is furnished only upon specific request)
N Wheel dish tool for checking the centering of the rim to the locknuts of hubs
R Back stay tool for checking the hanger cf the right hand fork end, composed by:
R/1 Screw
R/4 Rotating rod
R/6 Spindle with lever

(follows at page 88)

Callouts: H/5 mm.120 H/5 H H/4A mm.1 H/4A H/1 H/4 mm.100 H/4 H/1 mm.125 R R/4 R/1 R/6 N 767 768 770 769 I 704/1 704 I/2 G

87

[A page of photographs of further Campagnolo workshop tools on yellow-green panels, keyed to the second part of the tool case parts list: the frame alignment tool H with its spacers and dimensions in millimeters, the dropout hanger alignment tool R shown fitted to a frame’s rear triangle, the wheel dish tool N, the freewheel tool I, the straight edge G and the small tools 767, 768, 769 and 770. The wrench in panel I is stamped “CAMPAGNOLO”.]

— Page 95 —

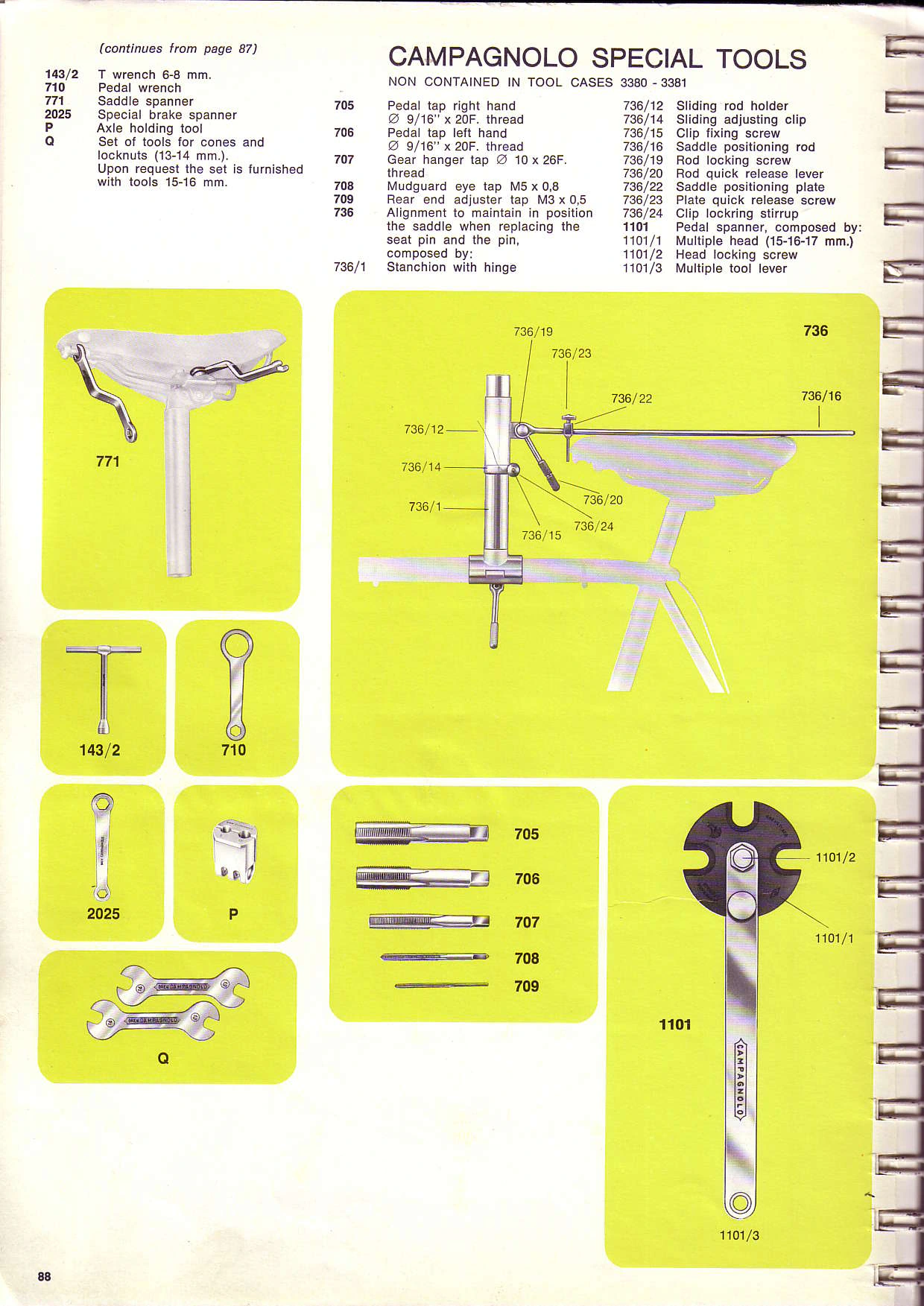

(continues from page 87)

143/2 T wrench 6-8 mm.
710 Pedal wrench
771 Saddle spanner
2025 Special brake spanner
P Axle holding tool
Q Set of tools for cones and locknuts (13-14 mm.). Upon request the set is furnished with tools 15-16 mm.

CAMPAGNOLO SPECIAL TOOLS
NON CONTAINED IN TOOL CASES 3380 – 3381

705 Pedal tap right hand Ø 9/16″ x 20F. thread
706 Pedal tap left hand Ø 9/16″ x 20F. thread
707 Gear hanger tap Ø 10 x 26F. thread
708 Mudguard eye tap M5 x 0,8
709 Rear end adjuster tap M3 x 0,5
736 Alignment to maintain in position the saddle when replacing the seat pin and the pin, composed by:
736/1 Stanchion with hinge
736/12 Sliding rod holder
736/14 Sliding adjusting clip
736/15 Clip fixing screw
736/16 Saddle positioning rod
736/19 Rod locking screw
736/20 Rod quick release lever
736/22 Saddle positioning plate
736/23 Plate quick release screw
736/24 Clip lockring stirrup
1101 Pedal spanner, composed by:
1101/1 Multiple head (15-16-17 mm.)
1101/2 Head locking screw
1101/3 Multiple tool lever

Callouts: 771 143/2 710 2025 P Q 736/19 736 736/23 736/22 736/16 736/12 736/14 736/1 736/20 736/24 736/15 705 706 707 708 709 1101/2 1101/1 1101 1101/3

88

[A page of photographs of Campagnolo tools on yellow-green panels: the end of the tool case parts list, with the saddle spanner 771 shown on a saddle, the T wrench 143/2, the pedal wrench 710, the brake spanner 2025, the axle holding tool P and the cone wrenches Q, followed by the special tools not contained in the cases. These are the saddle alignment tool 736 shown clamped to a frame, the taps 705 to 709 and the pedal spanner 1101, whose handle is stamped “CAMPAGNOLO”.]

— Page 96 —

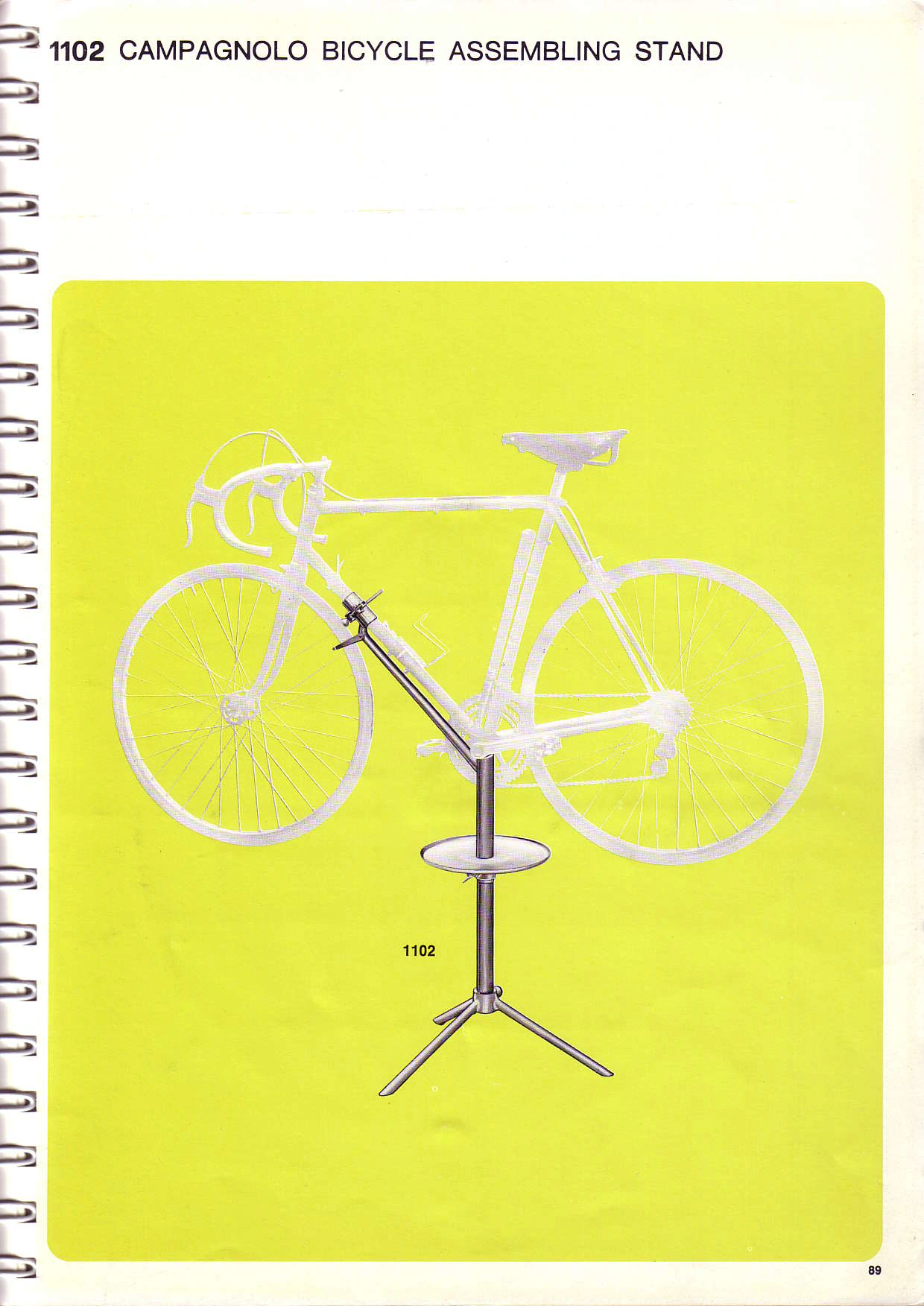

1102 CAMPAGNOLO BICYCLE ASSEMBLING STAND

1102

89

[A photograph of the Campagnolo bicycle assembling stand, 1102, a tripod workstand with a round parts tray, holding a road bicycle clamped by its down tube, on a yellow-green panel. The bicycle is shown pale against the panel so that the stand stands out.]

— Page 97 —
CHAIN LINES pages 92-93

GEAR RATIO TABLES pages 94-95-96

91

[A divider page listing the technical section that follows, the chain lines and the gear ratio tables, with their page numbers, on an otherwise blank page.]

— Page 98 —

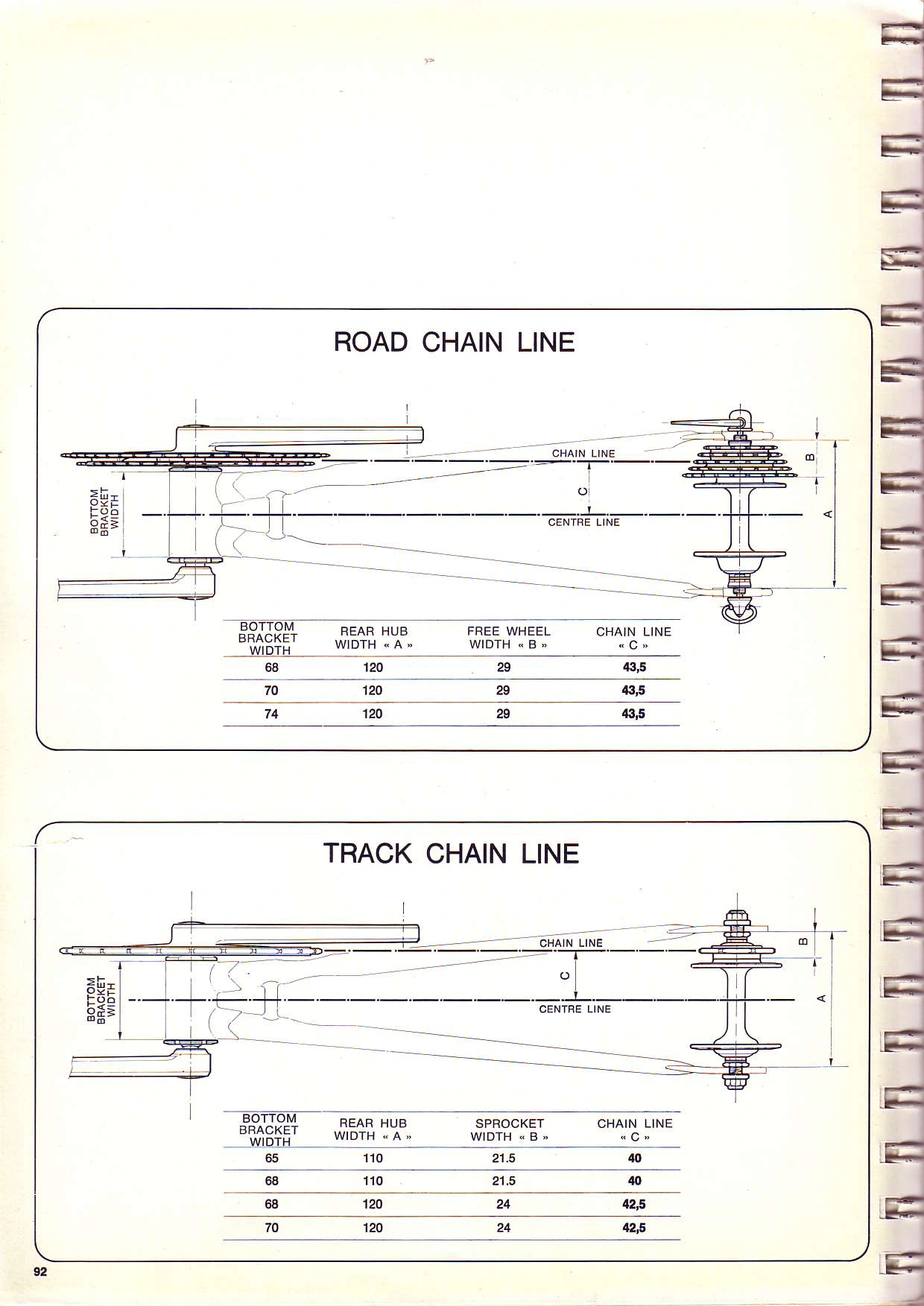

ROAD CHAIN LINE

Callouts: BOTTOM BRACKET WIDTH CHAIN LINE C CENTRE LINE B A

BOTTOM BRACKET WIDTH | REAR HUB WIDTH « A » | FREE WHEEL WIDTH « B » | CHAIN LINE « C »
68 | 120 | 29 | 43,5
70 | 120 | 29 | 43,5
74 | 120 | 29 | 43,5

TRACK CHAIN LINE

Callouts: BOTTOM BRACKET WIDTH CHAIN LINE C CENTRE LINE B A

BOTTOM BRACKET WIDTH | REAR HUB WIDTH « A » | SPROCKET WIDTH « B » | CHAIN LINE « C »
65 | 110 | 21.5 | 40
68 | 110 | 21.5 | 40
68 | 120 | 24 | 42,5
70 | 120 | 24 | 42,5

92

[Two line drawings in plan view of a bicycle’s crank, chainstays and rear hub, one for the road chain line with a multiple freewheel and one for the track chain line with a single sprocket, each marking the chain line, the center line and the dimensions A, B and C. Under each drawing a table gives the chain line for each combination of bottom bracket width, rear hub width and freewheel or sprocket width.]

— Page 99 —

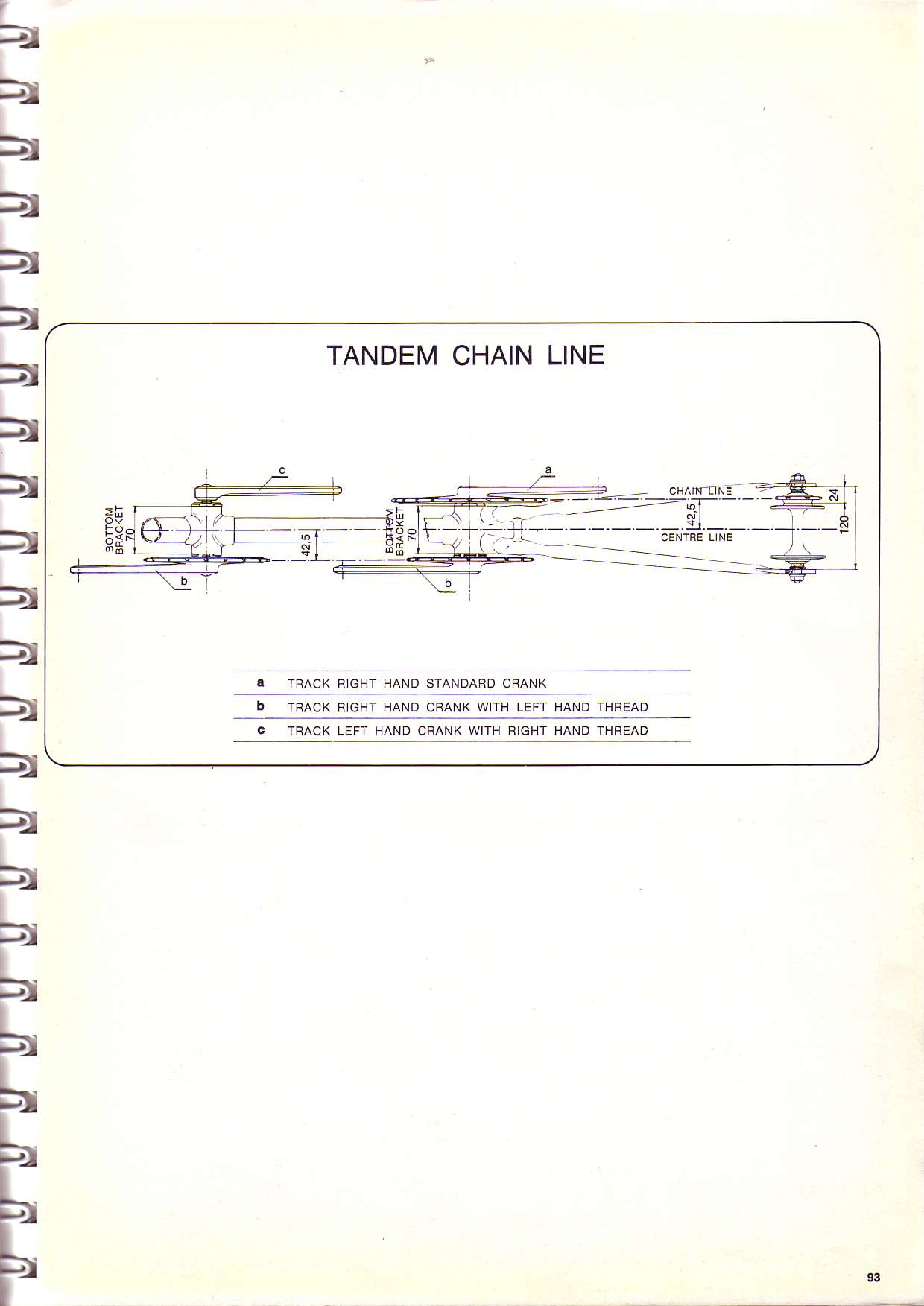

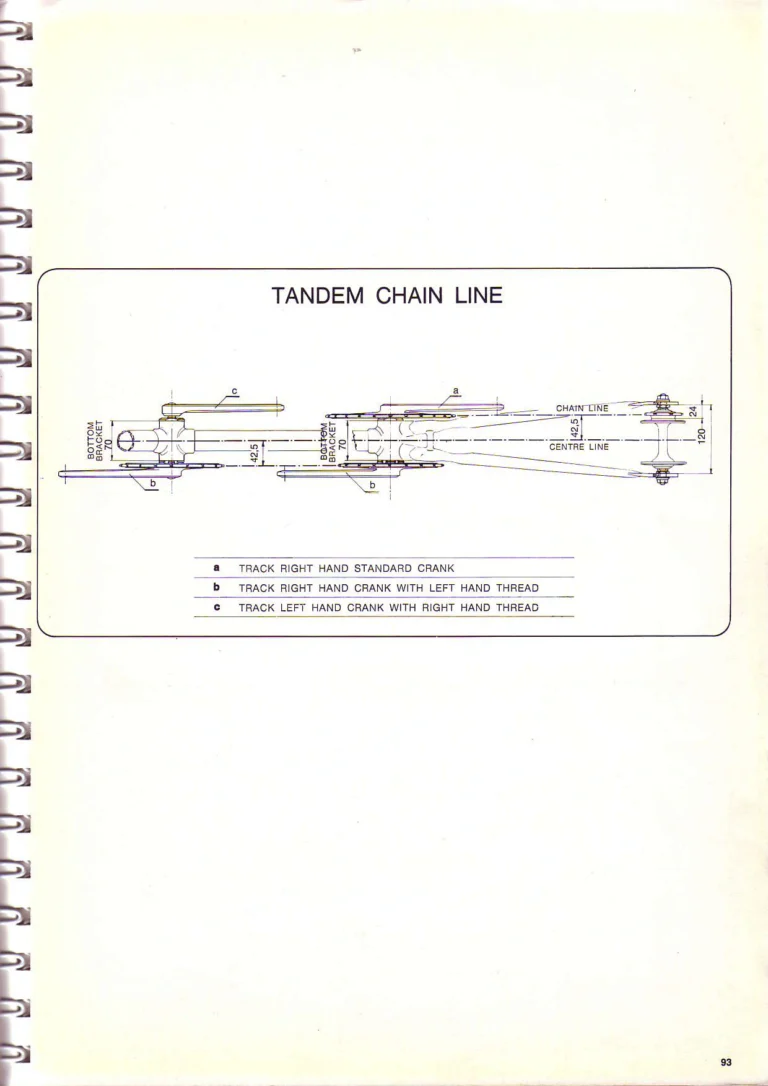

TANDEM CHAIN LINE

Callouts: c a CHAIN LINE 24 BOTTOM BRACKET 70 42,5 BOTTOM BRACKET 70 42,5 120 CENTRE LINE b b

a TRACK RIGHT HAND STANDARD CRANK
b TRACK RIGHT HAND CRANK WITH LEFT HAND THREAD
c TRACK LEFT HAND CRANK WITH RIGHT HAND THREAD

93

[A line drawing in plan view of the tandem chain line, showing the front and rear bottom brackets with their cranks and chainrings and the rear hub, with the chain line, the center line and the dimensions 70, 42,5, 24 and 120 marked. A key below identifies the three track cranks a, b and c used on the tandem.]

— Page 100 —

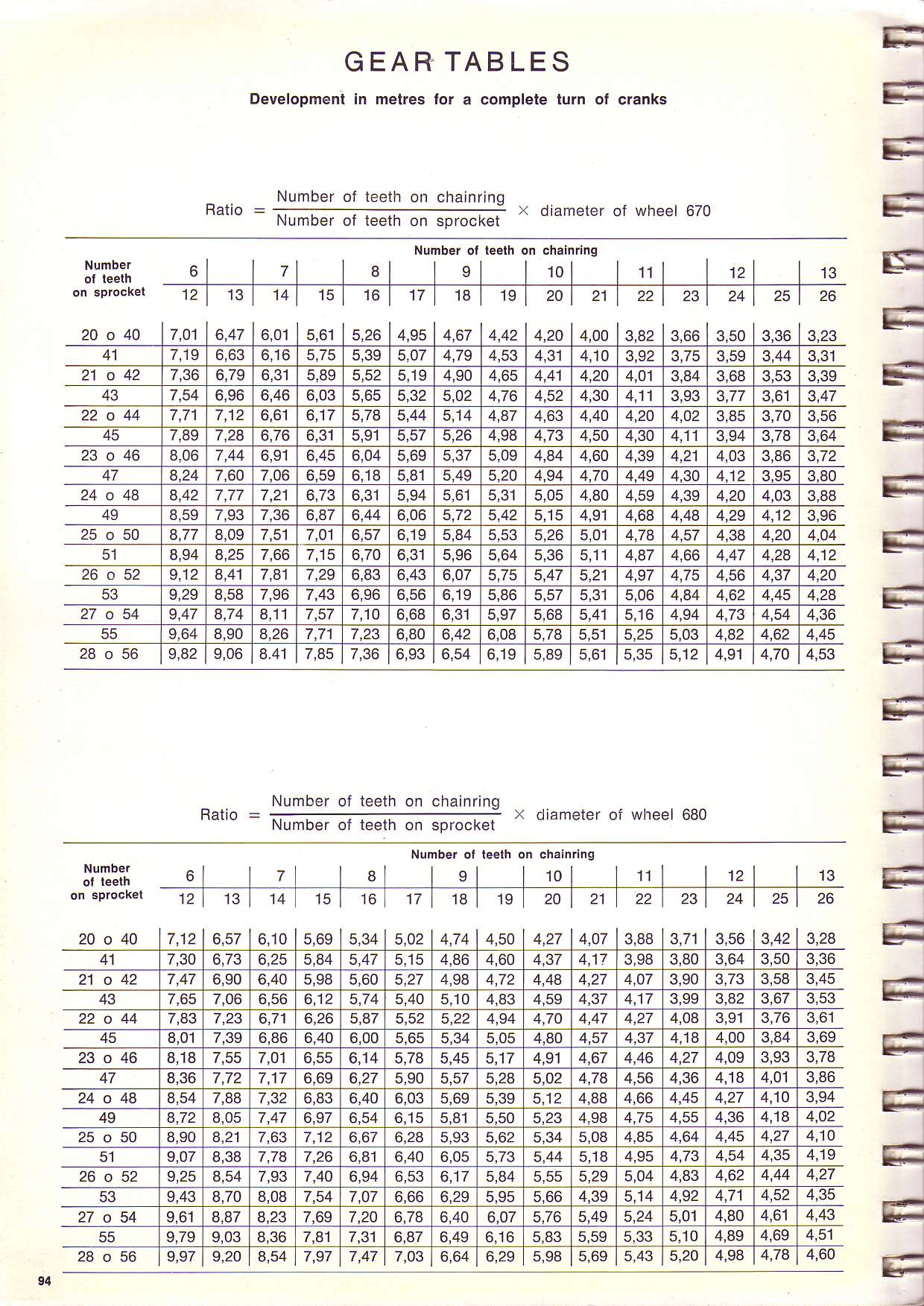

GEAR TABLES

Development in metres for a complete turn of cranks

Ratio = Number of teeth on chainring / Number of teeth on sprocket × diameter of wheel 670

Number of teeth on chainring
Number of teeth on sprocket | 6 | | 7 | | 8 | | 9 | | 10 | | 11 | | 12 | | 13
| 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26
20 o 40 | 7,01 | 6,47 | 6,01 | 5,61 | 5,26 | 4,95 | 4,67 | 4,42 | 4,20 | 4,00 | 3,82 | 3,66 | 3,50 | 3,36 | 3,23
41 | 7,19 | 6,63 | 6,16 | 5,75 | 5,39 | 5,07 | 4,79 | 4,53 | 4,31 | 4,10 | 3,92 | 3,75 | 3,59 | 3,44 | 3,31
21 o 42 | 7,36 | 6,79 | 6,31 | 5,89 | 5,52 | 5,19 | 4,90 | 4,65 | 4,41 | 4,20 | 4,01 | 3,84 | 3,68 | 3,53 | 3,39
43 | 7,54 | 6,96 | 6,46 | 6,03 | 5,65 | 5,32 | 5,02 | 4,76 | 4,52 | 4,30 | 4,11 | 3,93 | 3,77 | 3,61 | 3,47
22 o 44 | 7,71 | 7,12 | 6,61 | 6,17 | 5,78 | 5,44 | 5,14 | 4,87 | 4,63 | 4,40 | 4,20 | 4,02 | 3,85 | 3,70 | 3,56
45 | 7,89 | 7,28 | 6,76 | 6,31 | 5,91 | 5,57 | 5,26 | 4,98 | 4,73 | 4,50 | 4,30 | 4,11 | 3,94 | 3,78 | 3,64
23 o 46 | 8,06 | 7,44 | 6,91 | 6,45 | 6,04 | 5,69 | 5,37 | 5,09 | 4,84 | 4,60 | 4,39 | 4,21 | 4,03 | 3,86 | 3,72
47 | 8,24 | 7,60 | 7,06 | 6,59 | 6,18 | 5,81 | 5,49 | 5,20 | 4,94 | 4,70 | 4,49 | 4,30 | 4,12 | 3,95 | 3,80
24 o 48 | 8,42 | 7,77 | 7,21 | 6,73 | 6,31 | 5,94 | 5,61 | 5,31 | 5,05 | 4,80 | 4,59 | 4,39 | 4,20 | 4,03 | 3,88
49 | 8,59 | 7,93 | 7,36 | 6,87 | 6,44 | 6,06 | 5,72 | 5,42 | 5,15 | 4,91 | 4,68 | 4,48 | 4,29 | 4,12 | 3,96
25 o 50 | 8,77 | 8,09 | 7,51 | 7,01 | 6,57 | 6,19 | 5,84 | 5,53 | 5,26 | 5,01 | 4,78 | 4,57 | 4,38 | 4,20 | 4,04
51 | 8,94 | 8,25 | 7,66 | 7,15 | 6,70 | 6,31 | 5,96 | 5,64 | 5,36 | 5,11 | 4,87 | 4,66 | 4,47 | 4,28 | 4,12
26 o 52 | 9,12 | 8,41 | 7,81 | 7,29 | 6,83 | 6,43 | 6,07 | 5,75 | 5,47 | 5,21 | 4,97 | 4,75 | 4,56 | 4,37 | 4,20
53 | 9,29 | 8,58 | 7,96 | 7,43 | 6,96 | 6,56 | 6,19 | 5,86 | 5,57 | 5,31 | 5,06 | 4,84 | 4,62 | 4,45 | 4,28
27 o 54 | 9,47 | 8,74 | 8,11 | 7,57 | 7,10 | 6,68 | 6,31 | 5,97 | 5,68 | 5,41 | 5,16 | 4,94 | 4,73 | 4,54 | 4,36
55 | 9,64 | 8,90 | 8,26 | 7,71 | 7,23 | 6,80 | 6,42 | 6,08 | 5,78 | 5,51 | 5,25 | 5,03 | 4,82 | 4,62 | 4,45
28 o 56 | 9,82 | 9,06 | 8.41 | 7,85 | 7,36 | 6,93 | 6,54 | 6,19 | 5,89 | 5,61 | 5,35 | 5,12 | 4,91 | 4,70 | 4,53

Ratio = Number of teeth on chainring / Number of teeth on sprocket × diameter of wheel 680

Number of teeth on chainring
Number of teeth on sprocket | 6 | | 7 | | 8 | | 9 | | 10 | | 11 | | 12 | | 13
| 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26
20 o 40 | 7,12 | 6,57 | 6,10 | 5,69 | 5,34 | 5,02 | 4,74 | 4,50 | 4,27 | 4,07 | 3,88 | 3,71 | 3,56 | 3,42 | 3,28
41 | 7,30 | 6,73 | 6,25 | 5,84 | 5,47 | 5,15 | 4,86 | 4,60 | 4,37 | 4,17 | 3,98 | 3,80 | 3,64 | 3,50 | 3,36
21 o 42 | 7,47 | 6,90 | 6,40 | 5,98 | 5,60 | 5,27 | 4,98 | 4,72 | 4,48 | 4,27 | 4,07 | 3,90 | 3,73 | 3,58 | 3,45
43 | 7,65 | 7,06 | 6,56 | 6,12 | 5,74 | 5,40 | 5,10 | 4,83 | 4,59 | 4,37 | 4,17 | 3,99 | 3,82 | 3,67 | 3,53
22 o 44 | 7,83 | 7,23 | 6,71 | 6,26 | 5,87 | 5,52 | 5,22 | 4,94 | 4,70 | 4,47 | 4,27 | 4,08 | 3,91 | 3,76 | 3,61
45 | 8,01 | 7,39 | 6,86 | 6,40 | 6,00 | 5,65 | 5,34 | 5,05 | 4,80 | 4,57 | 4,37 | 4,18 | 4,00 | 3,84 | 3,69
23 o 46 | 8,18 | 7,55 | 7,01 | 6,55 | 6,14 | 5,78 | 5,45 | 5,17 | 4,91 | 4,67 | 4,46 | 4,27 | 4,09 | 3,93 | 3,78
47 | 8,36 | 7,72 | 7,17 | 6,69 | 6,27 | 5,90 | 5,57 | 5,28 | 5,02 | 4,78 | 4,56 | 4,36 | 4,18 | 4,01 | 3,86
24 o 48 | 8,54 | 7,88 | 7,32 | 6,83 | 6,40 | 6,03 | 5,69 | 5,39 | 5,12 | 4,88 | 4,66 | 4,45 | 4,27 | 4,10 | 3,94
49 | 8,72 | 8,05 | 7,47 | 6,97 | 6,54 | 6,15 | 5,81 | 5,50 | 5,23 | 4,98 | 4,75 | 4,55 | 4,36 | 4,18 | 4,02
25 o 50 | 8,90 | 8,21 | 7,63 | 7,12 | 6,67 | 6,28 | 5,93 | 5,62 | 5,34 | 5,08 | 4,85 | 4,64 | 4,45 | 4,27 | 4,10
51 | 9,07 | 8,38 | 7,78 | 7,26 | 6,81 | 6,40 | 6,05 | 5,73 | 5,44 | 5,18 | 4,95 | 4,73 | 4,54 | 4,35 | 4,19
26 o 52 | 9,25 | 8,54 | 7,93 | 7,40 | 6,94 | 6,53 | 6,17 | 5,84 | 5,55 | 5,29 | 5,04 | 4,83 | 4,62 | 4,44 | 4,27
53 | 9,43 | 8,70 | 8,08 | 7,54 | 7,07 | 6,66 | 6,29 | 5,95 | 5,66 | 4,39 | 5,14 | 4,92 | 4,71 | 4,52 | 4,35
27 o 54 | 9,61 | 8,87 | 8,23 | 7,69 | 7,20 | 6,78 | 6,40 | 6,07 | 5,76 | 5,49 | 5,24 | 5,01 | 4,80 | 4,61 | 4,43
55 | 9,79 | 9,03 | 8,36 | 7,81 | 7,31 | 6,87 | 6,49 | 6,16 | 5,83 | 5,59 | 5,33 | 5,10 | 4,89 | 4,69 | 4,51
28 o 56 | 9,97 | 9,20 | 8,54 | 7,97 | 7,47 | 7,03 | 6,64 | 6,29 | 5,98 | 5,69 | 5,43 | 5,20 | 4,98 | 4,78 | 4,60

94

[A page of two gear tables giving the development in meters for one turn of the cranks, the first for a wheel diameter of 670 and the second for 680, each with chainrings of 40 to 56 teeth (or the halved values 20 to 28) down the side and sprockets of 12 to 26 teeth (or 6 to 13) across the top. The formula for the ratio is printed above each table.]

— Page 101 —

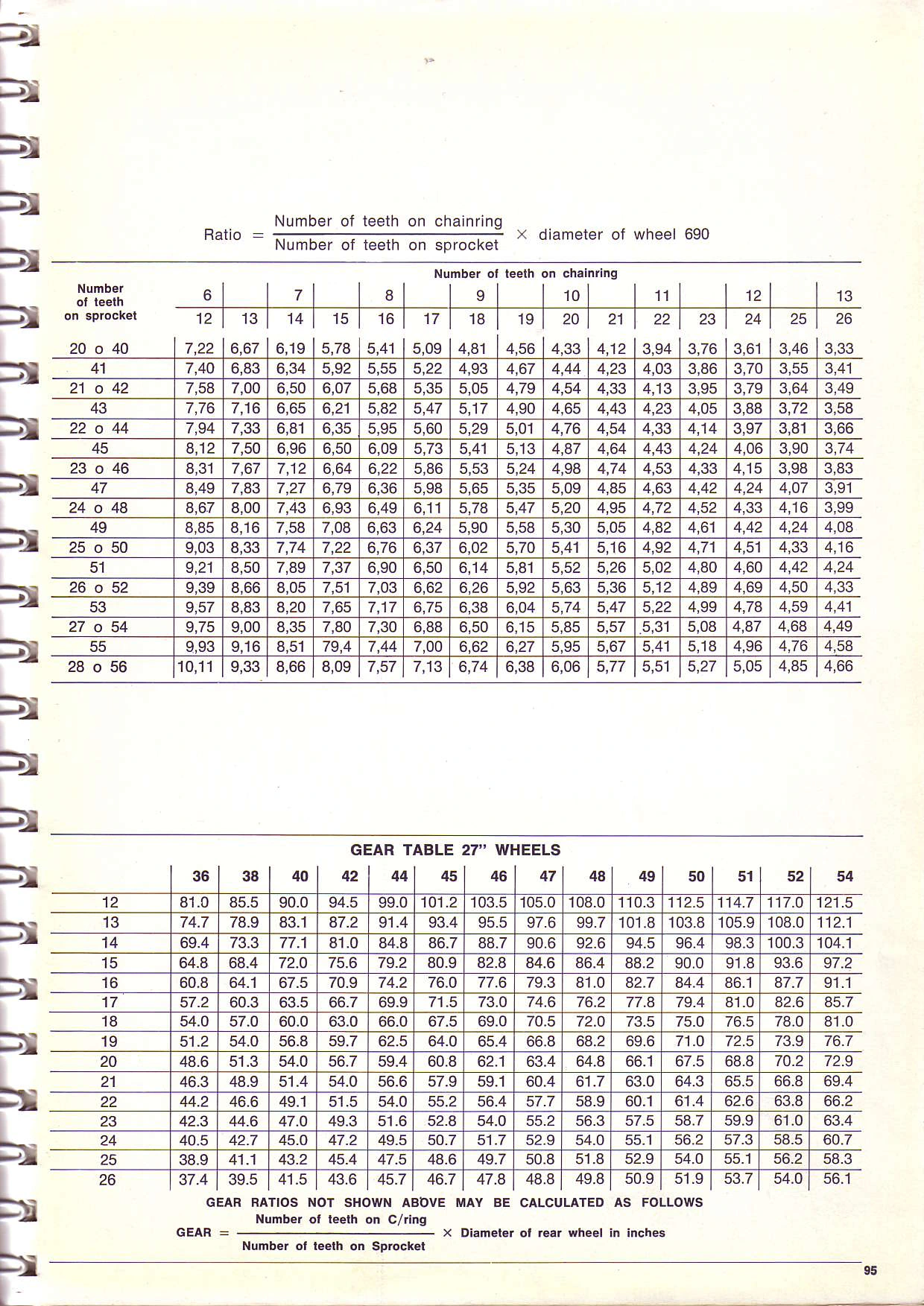

Ratio = Number of teeth on chainring / Number of teeth on sprocket × diameter of wheel 690

Number of teeth on chainring
Number of teeth on sprocket | 6 | | 7 | | 8 | | 9 | | 10 | | 11 | | 12 | | 13
| 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26
20 o 40 | 7,22 | 6,67 | 6,19 | 5,78 | 5,41 | 5,09 | 4,81 | 4,56 | 4,33 | 4,12 | 3,94 | 3,76 | 3,61 | 3,46 | 3,33
41 | 7,40 | 6,83 | 6,34 | 5,92 | 5,55 | 5,22 | 4,93 | 4,67 | 4,44 | 4,23 | 4,03 | 3,86 | 3,70 | 3,55 | 3,41
21 o 42 | 7,58 | 7,00 | 6,50 | 6,07 | 5,68 | 5,35 | 5,05 | 4,79 | 4,54 | 4,33 | 4,13 | 3,95 | 3,79 | 3,64 | 3,49
43 | 7,76 | 7,16 | 6,65 | 6,21 | 5,82 | 5,47 | 5,17 | 4,90 | 4,65 | 4,43 | 4,23 | 4,05 | 3,88 | 3,72 | 3,58
22 o 44 | 7,94 | 7,33 | 6,81 | 6,35 | 5,95 | 5,60 | 5,29 | 5,01 | 4,76 | 4,54 | 4,33 | 4,14 | 3,97 | 3,81 | 3,66
45 | 8,12 | 7,50 | 6,96 | 6,50 | 6,09 | 5,73 | 5,41 | 5,13 | 4,87 | 4,64 | 4,43 | 4,24 | 4,06 | 3,90 | 3,74
23 o 46 | 8,31 | 7,67 | 7,12 | 6,64 | 6,22 | 5,86 | 5,53 | 5,24 | 4,98 | 4,74 | 4,53 | 4,33 | 4,15 | 3,98 | 3,83
47 | 8,49 | 7,83 | 7,27 | 6,79 | 6,36 | 5,98 | 5,65 | 5,35 | 5,09 | 4,85 | 4,63 | 4,42 | 4,24 | 4,07 | 3,91
24 o 48 | 8,67 | 8,00 | 7,43 | 6,93 | 6,49 | 6,11 | 5,78 | 5,47 | 5,20 | 4,95 | 4,72 | 4,52 | 4,33 | 4,16 | 3,99
49 | 8,85 | 8,16 | 7,58 | 7,08 | 6,63 | 6,24 | 5,90 | 5,58 | 5,30 | 5,05 | 4,82 | 4,61 | 4,42 | 4,24 | 4,08
25 o 50 | 9,03 | 8,33 | 7,74 | 7,22 | 6,76 | 6,37 | 6,02 | 5,70 | 5,41 | 5,16 | 4,92 | 4,71 | 4,51 | 4,33 | 4,16
51 | 9,21 | 8,50 | 7,89 | 7,37 | 6,90 | 6,50 | 6,14 | 5,81 | 5,52 | 5,26 | 5,02 | 4,80 | 4,60 | 4,42 | 4,24
26 o 52 | 9,39 | 8,66 | 8,05 | 7,51 | 7,03 | 6,62 | 6,26 | 5,92 | 5,63 | 5,36 | 5,12 | 4,89 | 4,69 | 4,50 | 4,33
53 | 9,57 | 8,83 | 8,20 | 7,65 | 7,17 | 6,75 | 6,38 | 6,04 | 5,74 | 5,47 | 5,22 | 4,99 | 4,78 | 4,59 | 4,41
27 o 54 | 9,75 | 9,00 | 8,35 | 7,80 | 7,30 | 6,88 | 6,50 | 6,15 | 5,85 | 5,57 | 5,31 | 5,08 | 4,87 | 4,68 | 4,49
55 | 9,93 | 9,16 | 8,51 | 79,4 | 7,44 | 7,00 | 6,62 | 6,27 | 5,95 | 5,67 | 5,41 | 5,18 | 4,96 | 4,76 | 4,58
28 o 56 | 10,11 | 9,33 | 8,66 | 8,09 | 7,57 | 7,13 | 6,74 | 6,38 | 6,06 | 5,77 | 5,51 | 5,27 | 5,05 | 4,85 | 4,66

GEAR TABLE 27″ WHEELS

| 36 | 38 | 40 | 42 | 44 | 45 | 46 | 47 | 48 | 49 | 50 | 51 | 52 | 54
12 | 81.0 | 85.5 | 90.0 | 94.5 | 99.0 | 101.2 | 103.5 | 105.0 | 108.0 | 110.3 | 112.5 | 114.7 | 117.0 | 121.5
13 | 74.7 | 78.9 | 83.1 | 87.2 | 91.4 | 93.4 | 95.5 | 97.6 | 99.7 | 101.8 | 103.8 | 105.9 | 108.0 | 112.1
14 | 69.4 | 73.3 | 77.1 | 81.0 | 84.8 | 86.7 | 88.7 | 90.6 | 92.6 | 94.5 | 96.4 | 98.3 | 100.3 | 104.1
15 | 64.8 | 68.4 | 72.0 | 75.6 | 79.2 | 80.9 | 82.8 | 84.6 | 86.4 | 88.2 | 90.0 | 91.8 | 93.6 | 97.2
16 | 60.8 | 64.1 | 67.5 | 70.9 | 74.2 | 76.0 | 77.6 | 79.3 | 81.0 | 82.7 | 84.4 | 86.1 | 87.7 | 91.1
17 | 57.2 | 60.3 | 63.5 | 66.7 | 69.9 | 71.5 | 73.0 | 74.6 | 76.2 | 77.8 | 79.4 | 81.0 | 82.6 | 85.7
18 | 54.0 | 57.0 | 60.0 | 63.0 | 66.0 | 67.5 | 69.0 | 70.5 | 72.0 | 73.5 | 75.0 | 76.5 | 78.0 | 81.0
19 | 51.2 | 54.0 | 56.8 | 59.7 | 62.5 | 64.0 | 65.4 | 66.8 | 68.2 | 69.6 | 71.0 | 72.5 | 73.9 | 76.7
20 | 48.6 | 51.3 | 54.0 | 56.7 | 59.4 | 60.8 | 62.1 | 63.4 | 64.8 | 66.1 | 67.5 | 68.8 | 70.2 | 72.9
21 | 46.3 | 48.9 | 51.4 | 54.0 | 56.6 | 57.9 | 59.1 | 60.4 | 61.7 | 63.0 | 64.3 | 65.5 | 66.8 | 69.4
22 | 44.2 | 46.6 | 49.1 | 51.5 | 54.0 | 55.2 | 56.4 | 57.7 | 58.9 | 60.1 | 61.4 | 62.6 | 63.8 | 66.2
23 | 42.3 | 44.6 | 47.0 | 49.3 | 51.6 | 52.8 | 54.0 | 55.2 | 56.3 | 57.5 | 58.7 | 59.9 | 61.0 | 63.4
24 | 40.5 | 42.7 | 45.0 | 47.2 | 49.5 | 50.7 | 51.7 | 52.9 | 54.0 | 55.1 | 56.2 | 57.3 | 58.5 | 60.7
25 | 38.9 | 41.1 | 43.2 | 45.4 | 47.5 | 48.6 | 49.7 | 50.8 | 51.8 | 52.9 | 54.0 | 55.1 | 56.2 | 58.3
26 | 37.4 | 39.5 | 41.5 | 43.6 | 45.7 | 46.7 | 47.8 | 48.8 | 49.8 | 50.9 | 51.9 | 53.7 | 54.0 | 56.1

GEAR RATIOS NOT SHOWN ABOVE MAY BE CALCULATED AS FOLLOWS

GEAR = Number of teeth on C/ring / Number of teeth on Sprocket × Diameter of rear wheel in inches

95

[A page of two gear tables: the development in meters for one turn of the cranks with a wheel diameter of 690, laid out as on the previous page, and a gear table in inches for 27 inch wheels with chainrings of 36 to 54 teeth across the top and sprockets of 12 to 26 teeth down the side. A formula below explains how to calculate gears not shown.]

— Page 102 —

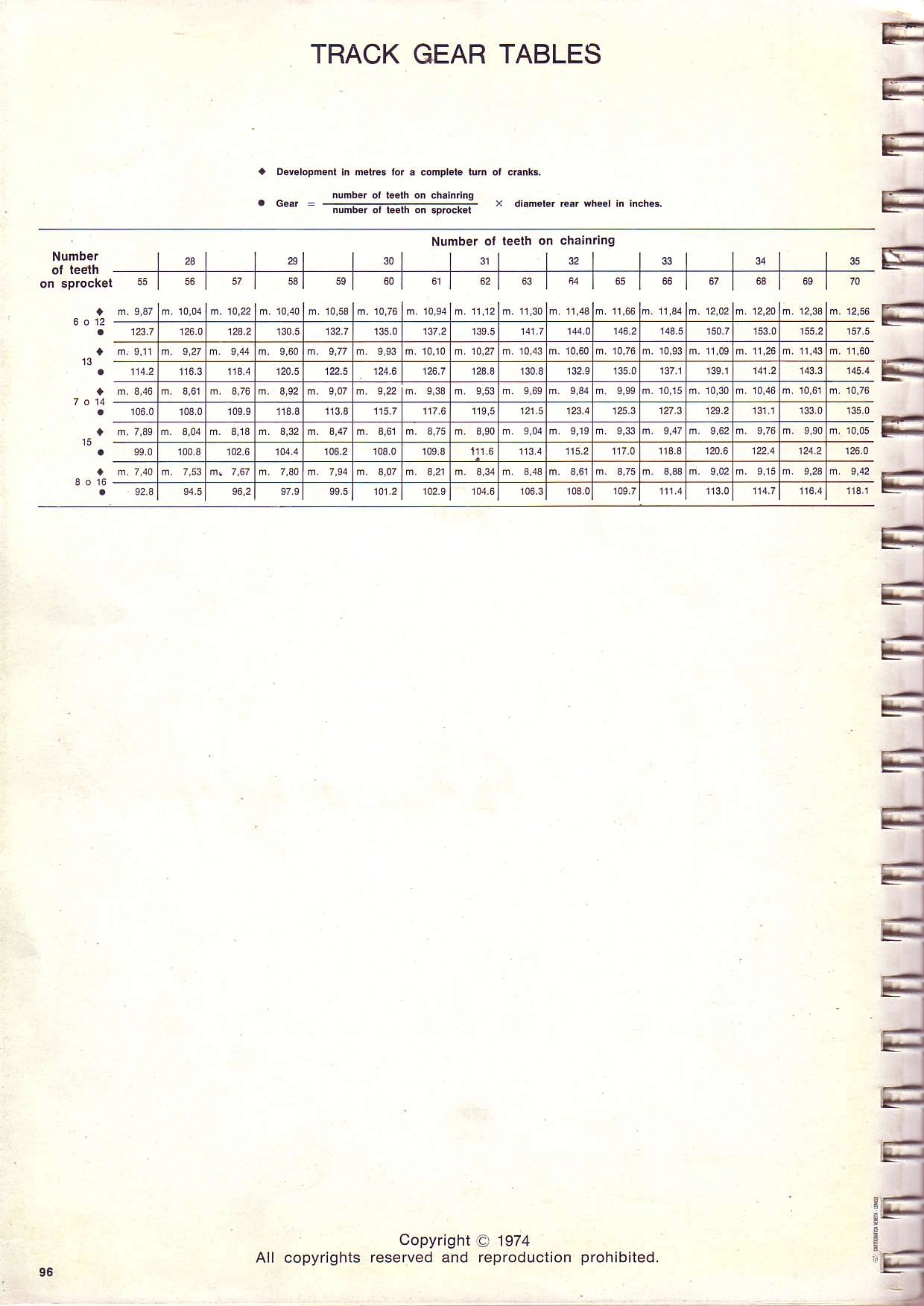

TRACK GEAR TABLES

◆ Development in metres for a complete turn of cranks.

● Gear = number of teeth on chainring / number of teeth on sprocket × diameter rear wheel in inches.

Number of teeth on chainring
Number of teeth on sprocket | | 28 | | 29 | | 30 | | 31 | | 32 | | 33 | | 34 | | 35
| 55 | 56 | 57 | 58 | 59 | 60 | 61 | 62 | 63 | 64 | 65 | 66 | 67 | 68 | 69 | 70
6 o 12 ◆ | m. 9,87 | m. 10,04 | m. 10,22 | m. 10,40 | m. 10,58 | m. 10,76 | m. 10,94 | m. 11,12 | m. 11,30 | m. 11,48 | m. 11,66 | m. 11,84 | m. 12,02 | m. 12,20 | m. 12,38 | m. 12,56
6 o 12 ● | 123.7 | 126.0 | 128.2 | 130.5 | 132.7 | 135.0 | 137.2 | 139.5 | 141.7 | 144.0 | 146.2 | 148.5 | 150.7 | 153.0 | 155.2 | 157.5
13 ◆ | m. 9,11 | m. 9,27 | m. 9,44 | m. 9,60 | m. 9,77 | m. 9,93 | m. 10,10 | m. 10,27 | m. 10,43 | m. 10,60 | m. 10,76 | m. 10,93 | m. 11,09 | m. 11,26 | m. 11,43 | m. 11,60
13 ● | 114.2 | 116.3 | 118.4 | 120.5 | 122.5 | 124.6 | 126.7 | 128.8 | 130.8 | 132.9 | 135.0 | 137.1 | 139.1 | 141.2 | 143.3 | 145.4
7 o 14 ◆ | m. 8,46 | m. 8,61 | m. 8,76 | m. 8,92 | m. 9,07 | m. 9,22 | m. 9,38 | m. 9,53 | m. 9,69 | m. 9,84 | m. 9,99 | m. 10,15 | m. 10,30 | m. 10,46 | m. 10,61 | m. 10,76
7 o 14 ● | 106.0 | 108.0 | 109.9 | 118.8 | 113.8 | 115.7 | 117.6 | 119,5 | 121.5 | 123.4 | 125.3 | 127.3 | 129.2 | 131.1 | 133.0 | 135.0
15 ◆ | m. 7,89 | m. 8,04 | m. 8,18 | m. 8,32 | m. 8,47 | m. 8,61 | m. 8,75 | m. 8,90 | m. 9,04 | m. 9,19 | m. 9,33 | m. 9,47 | m. 9,62 | m. 9,76 | m. 9,90 | m. 10,05
15 ● | 99.0 | 100.8 | 102.6 | 104.4 | 106.2 | 108.0 | 109.8 | 111.6 | 113.4 | 115.2 | 117.0 | 118.8 | 120.6 | 122.4 | 124.2 | 126.0
8 o 16 ◆ | m. 7,40 | m. 7,53 | m. 7,67 | m. 7,80 | m. 7,94 | m. 8,07 | m. 8,21 | m. 8,34 | m. 8,48 | m. 8,61 | m. 8,75 | m. 8,88 | m. 9,02 | m. 9,15 | m. 9,28 | m. 9,42
8 o 16 ● | 92.8 | 94.5 | 96,2 | 97.9 | 99.5 | 101.2 | 102.9 | 104.6 | 106.3 | 108.0 | 109.7 | 111.4 | 113.0 | 114.7 | 116.4 | 118.1

Copyright © 1974
All copyrights reserved and reproduction prohibited.

CARTOGRAFICA VENETA – LONIGO [?]

96

[The track gear tables, giving for sprockets of 12 to 16 teeth (or the halved values 6 to 8) and chainrings of 55 to 70 teeth (or 28 to 35) both the development in meters for one turn of the cranks, marked with a diamond, and the gear in inches, marked with a dot. The lower part of the page is blank apart from the 1974 copyright notice, and a tiny printer’s line with a small logo runs vertically up the right edge near the spiral binding.]
