Campagnolo 1975 Catalog 17a — Super Record, Nuovo Record, Gran Sport, Rally and Valentino, with Every Part Numbered

— Page 1 (front cover) —
Campagnolo

Catalog 17a

[The front cover of Campagnolo Catalog 17a, with the Campagnolo script wordmark set over a line drawing of a globe ringed by short rays. The scan shows a row of punched binding holes along the top edge and gray speckle from the scanning threshold.]

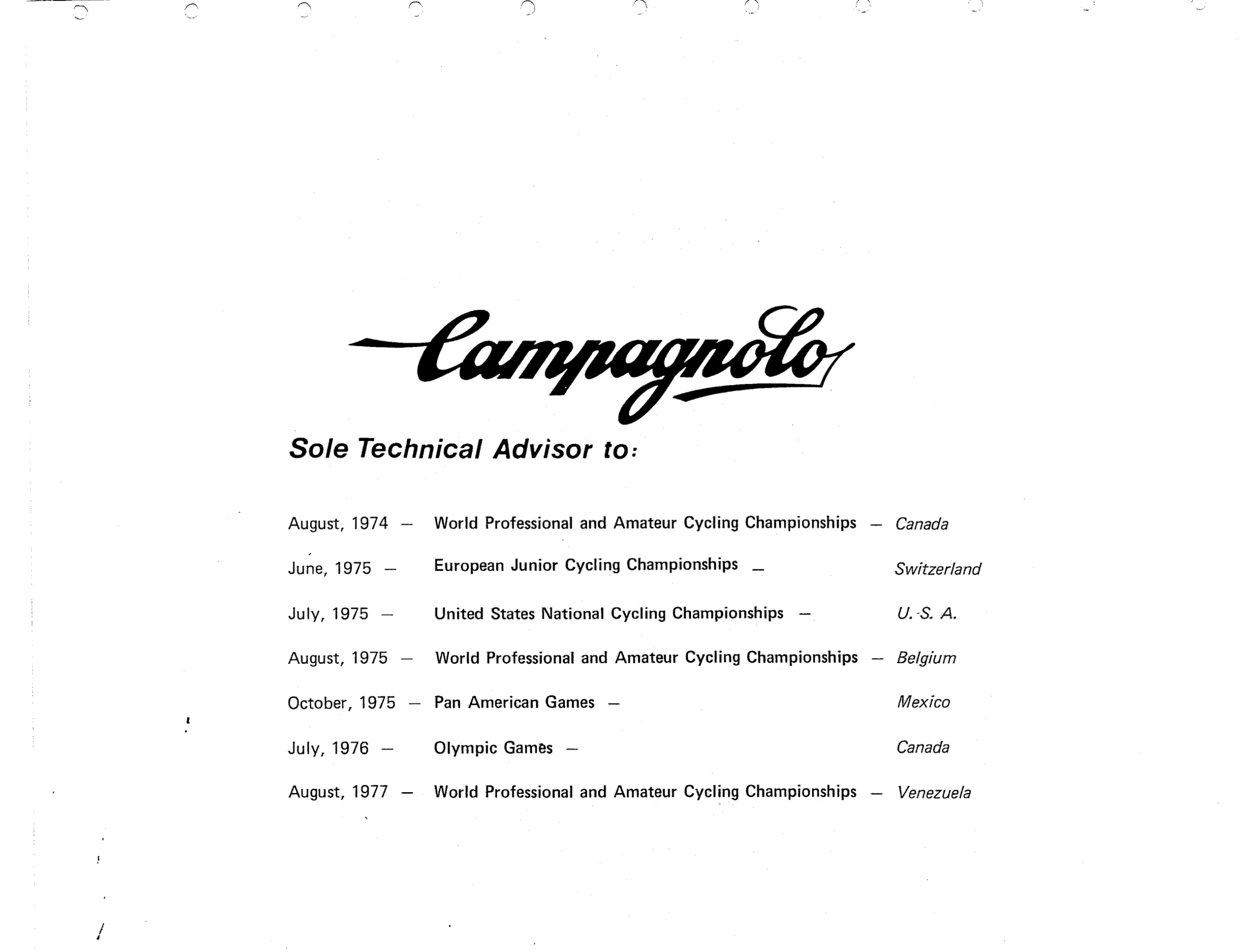

— Page 2 —
Campagnolo

Sole Technical Advisor to:

August, 1974 — World Professional and Amateur Cycling Championships — Canada

June, 1975 — European Junior Cycling Championships — Switzerland

July, 1975 — United States National Cycling Championships — U. S. A.

August, 1975 — World Professional and Amateur Cycling Championships — Belgium

October, 1975 — Pan American Games — Mexico

July, 1976 — Olympic Games — Canada

August, 1977 — World Professional and Amateur Cycling Championships — Venezuela

[A page under the Campagnolo script wordmark listing seven championships and games, from 1974 to 1977, for which the company served as sole technical advisor, each with its month, year and host country.]

— Page 3 —

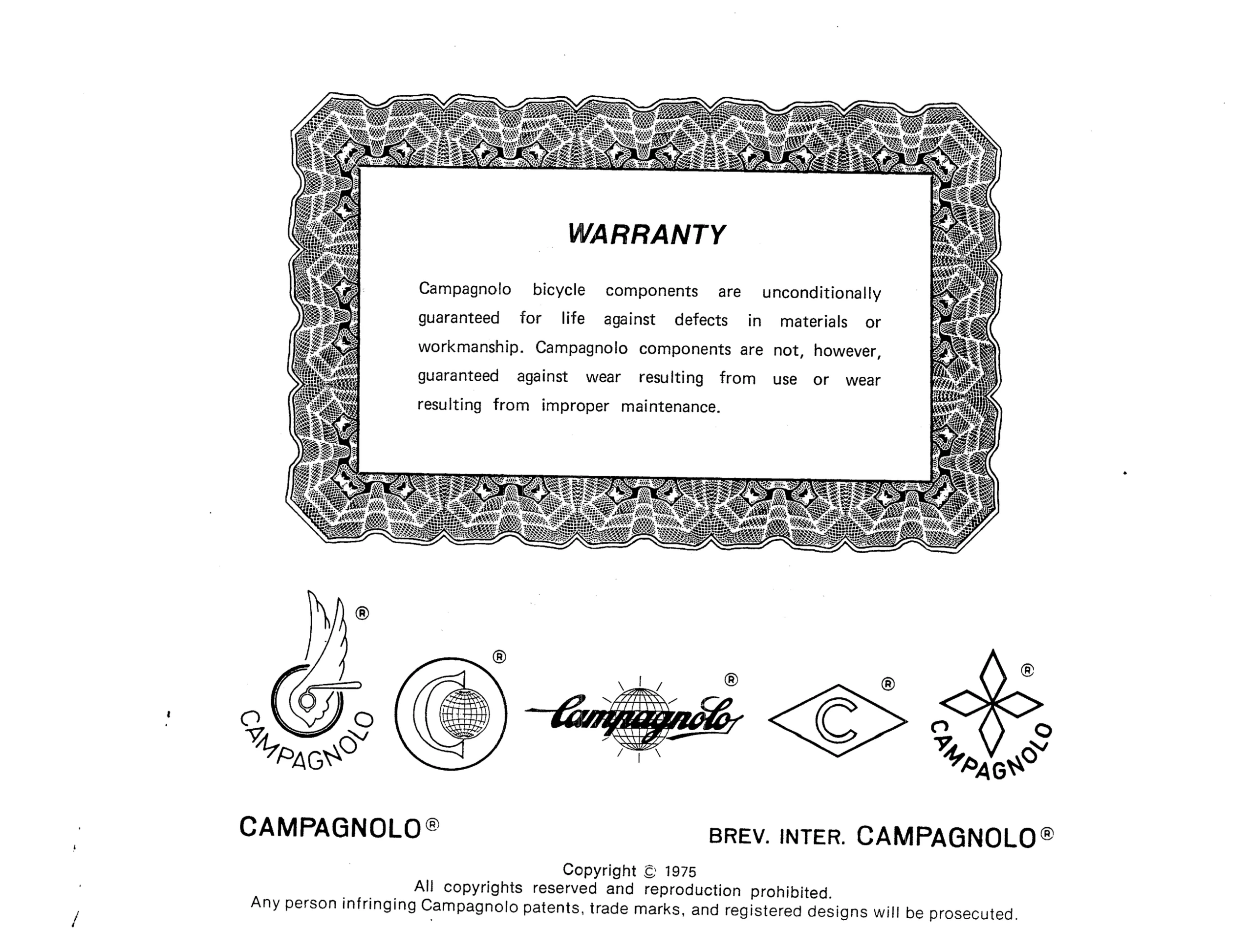

WARRANTY

Campagnolo bicycle components are unconditionally guaranteed for life against defects in materials or workmanship. Campagnolo components are not, however, guaranteed against wear resulting from use or wear resulting from improper maintenance.

CAMPAGNOLO® ® Campagnolo® ® CAMPAGNOLO®

CAMPAGNOLO®

BREV. INTER. CAMPAGNOLO®

Copyright © 1975
All copyrights reserved and reproduction prohibited.
Any person infringing Campagnolo patents, trade marks, and registered designs will be prosecuted.

[The Campagnolo lifetime warranty set inside an engraved guilloche border, above a row of five registered trademarks: the winged wheel, the C on a globe, the script wordmark over a globe, the C in a diamond and the four-point cross, each marked with the registration sign. Below them run the two registered names and a 1975 copyright notice.]

— Page 4 —

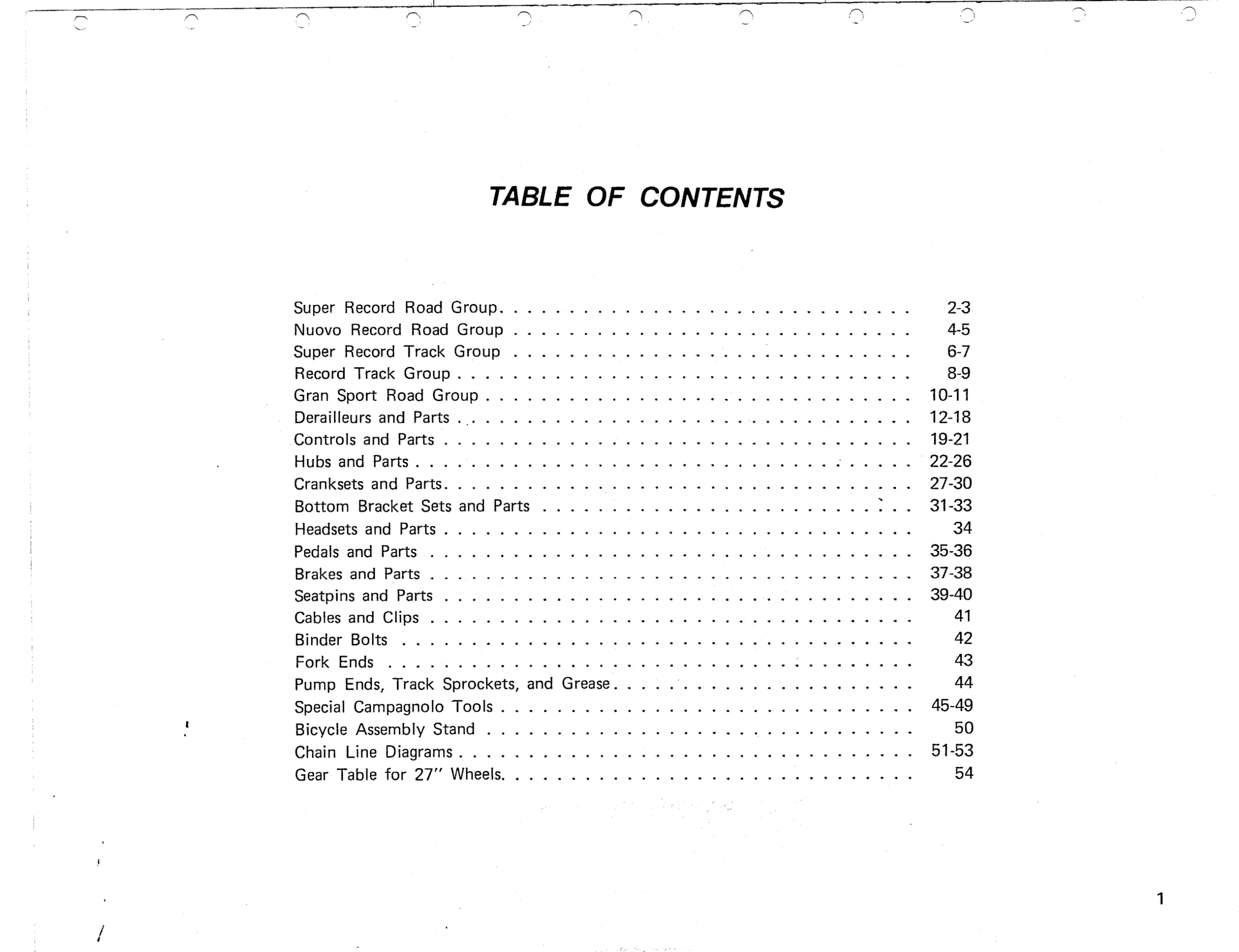

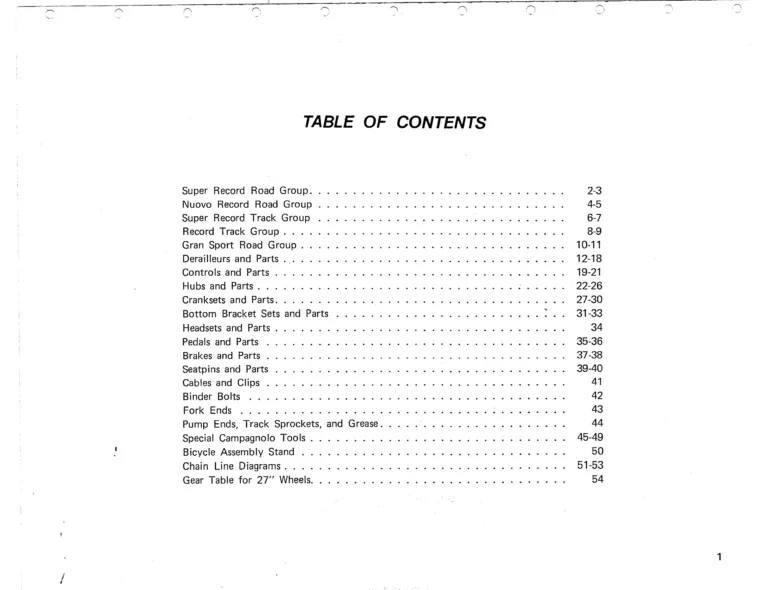

TABLE OF CONTENTS

Super Record Road Group | 2-3
Nuovo Record Road Group | 4-5
Super Record Track Group | 6-7
Record Track Group | 8-9
Gran Sport Road Group | 10-11
Derailleurs and Parts | 12-18
Controls and Parts | 19-21
Hubs and Parts | 22-26
Cranksets and Parts | 27-30
Bottom Bracket Sets and Parts | 31-33

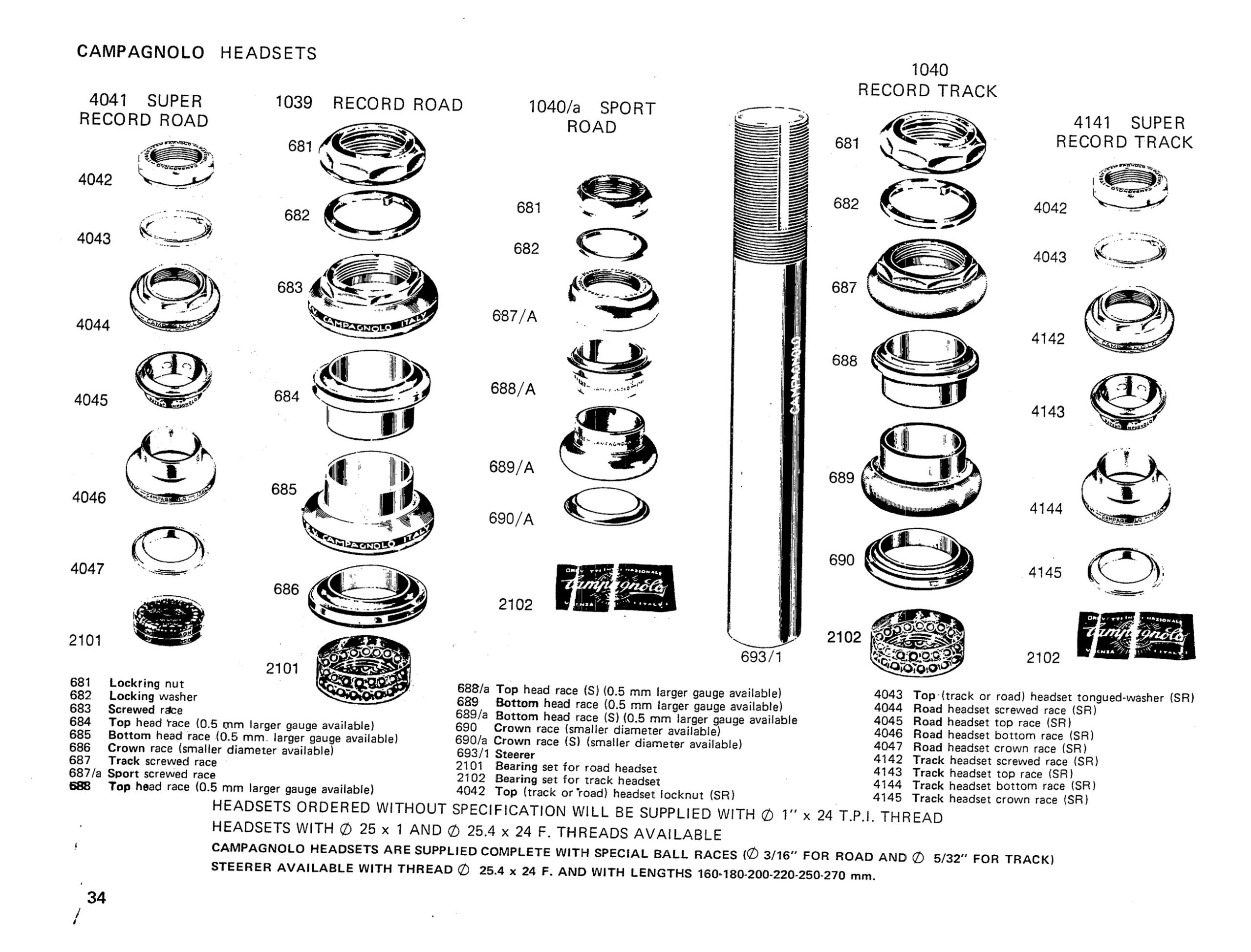

Headsets and Parts | 34
Pedals and Parts | 35-36
Brakes and Parts | 37-38
Seatpins and Parts | 39-40
Cables and Clips | 41
Binder Bolts | 42
Fork Ends | 43
Pump Ends, Track Sprockets, and Grease | 44
Special Campagnolo Tools | 45-49

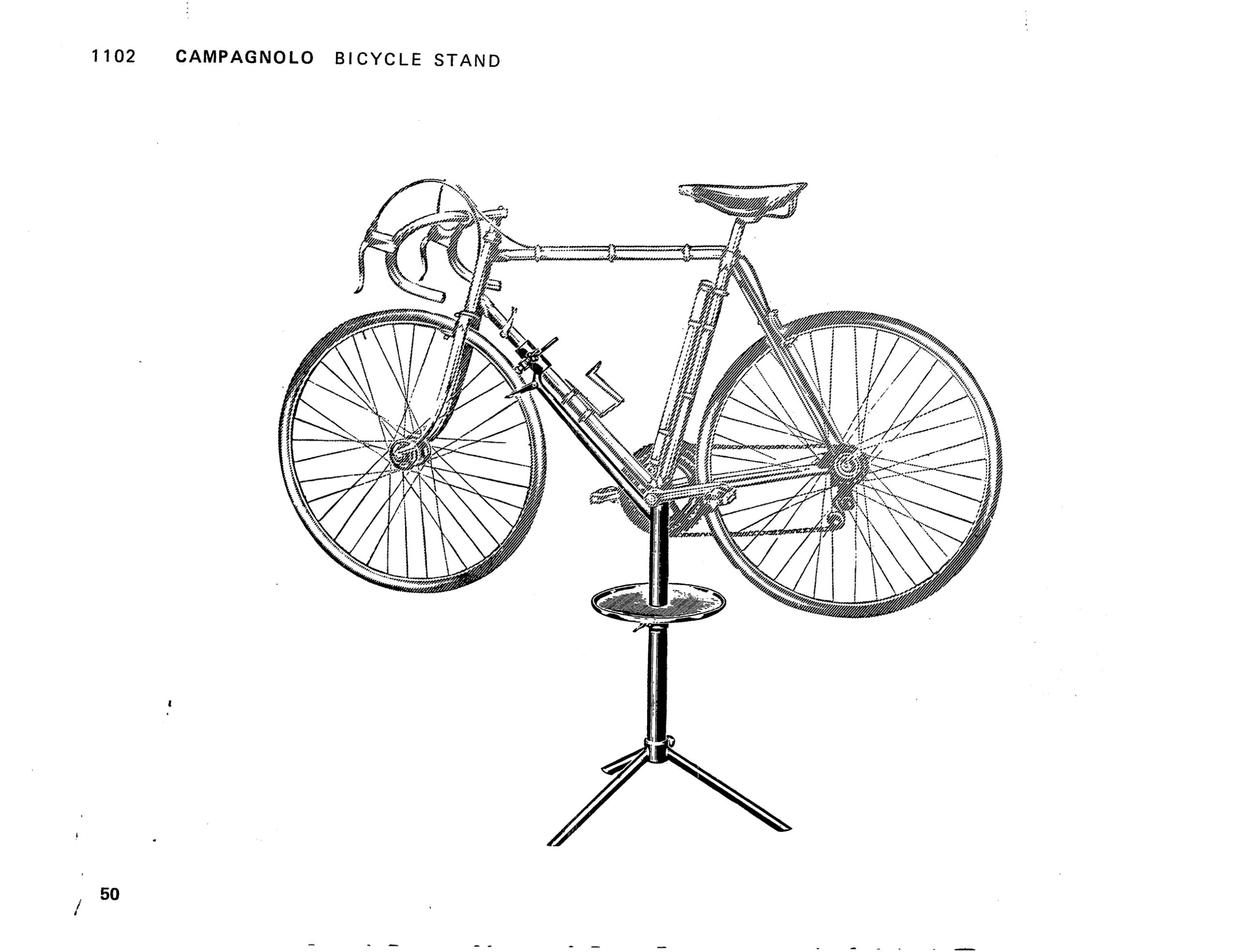

Bicycle Assembly Stand | 50
Chain Line Diagrams | 51-53

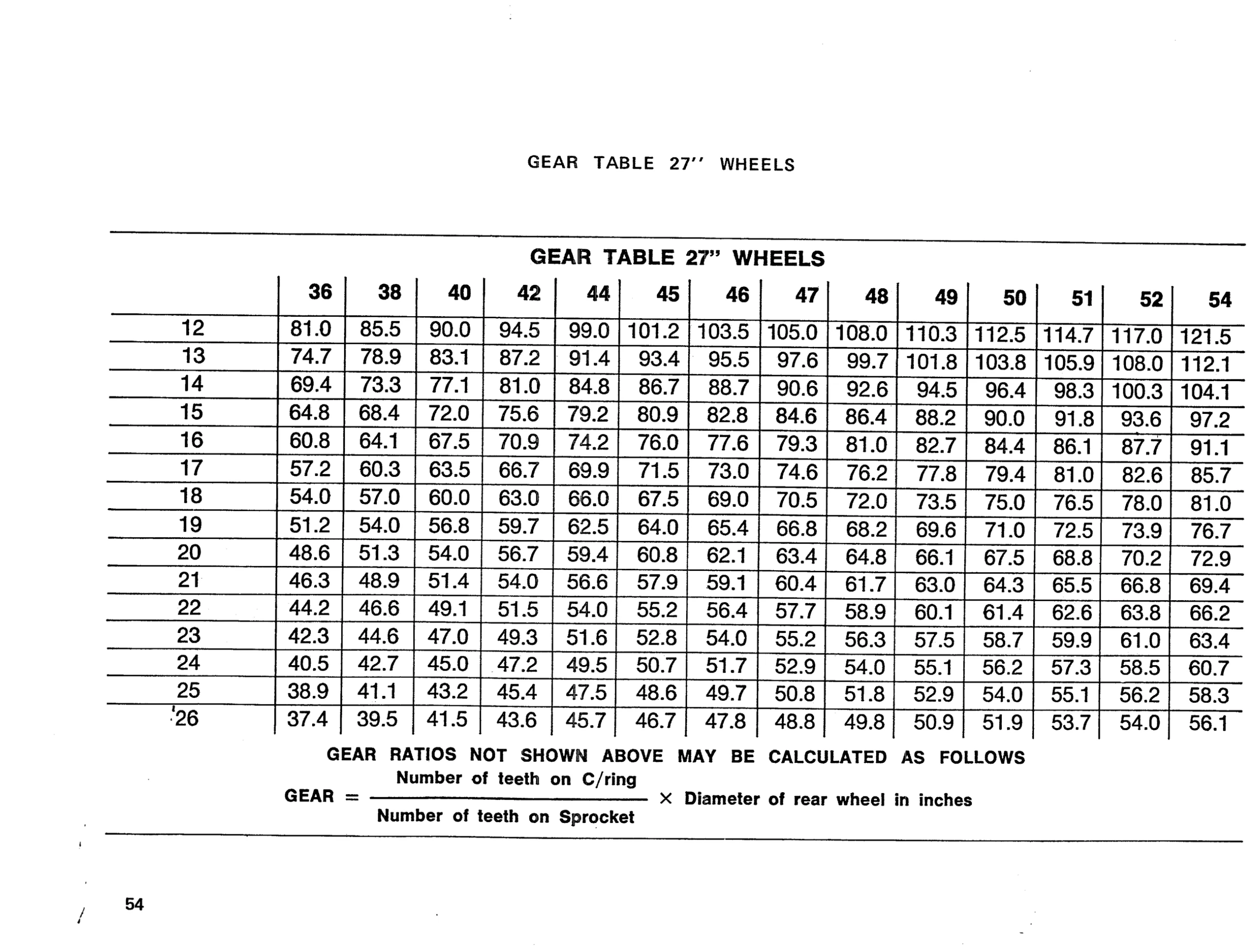

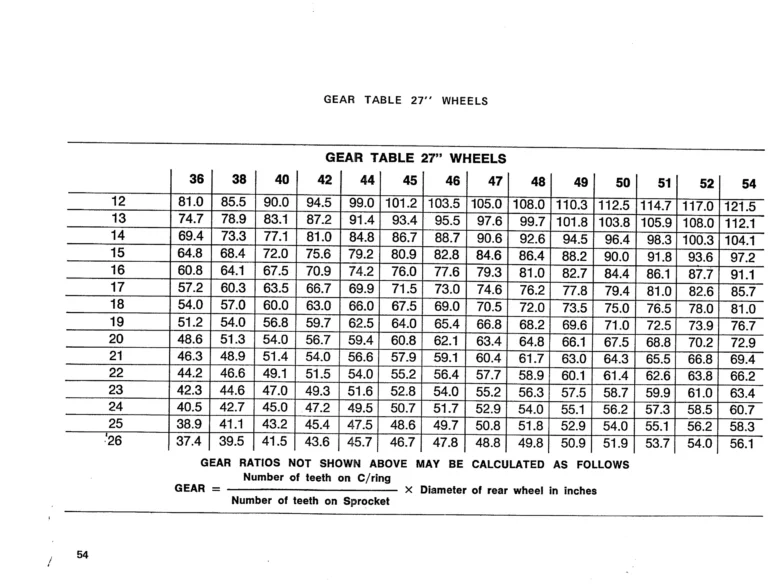

Gear Table for 27″ Wheels | 54

1

[The table of contents of Catalog 17a, listing 22 sections from the Super Record Road Group on pages 2 and 3 to the gear table for 27 inch wheels on page 54, with dot leaders to the page numbers.]

— Page 5 —
4000/F CAMPAGNOLO SUPER RECORD ROAD GROUP

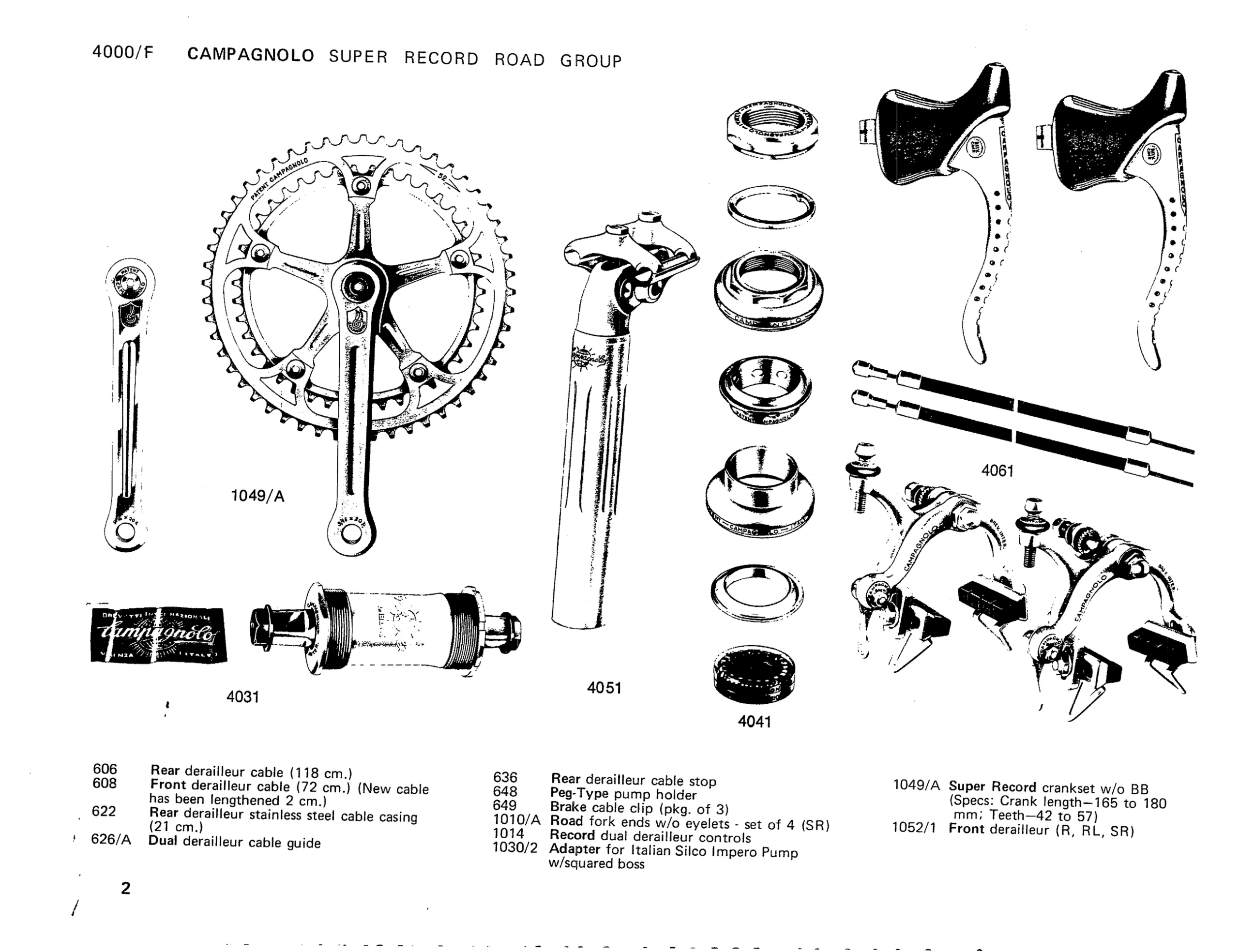

Callouts: 1049/A 4061 4031 4051 4041

606 Rear derailleur cable (118 cm.)
608 Front derailleur cable (72 cm.) (New cable has been lengthened 2 cm.)
622 Rear derailleur stainless steel cable casing (21 cm.)
626/A Dual derailleur cable guide
636 Rear derailleur cable stop
648 Peg-Type pump holder
649 Brake cable clip (pkg. of 3)
1010/A Road fork ends w/o eyelets – set of 4 (SR)
1014 Record dual derailleur controls
1030/2 Adapter for Italian Silco Impero Pump w/squared boss
1049/A Super Record crankset w/o BB (Specs: Crank length—165 to 180 mm; Teeth—42 to 57)
1052/1 Front derailleur (R, RL, SR)

2

[The first page of the Campagnolo Super Record Road Group, 4000/F, with photographs of the 1049/A crankset and left crank, the 4031 bottom bracket beside its Campagnolo box label, the 4051 seatpin, the 4041 headset shown in its separate parts, a pair of brake levers with hoods, two brake cables and a pair of sidepull brakes. A parts list of cables, guides, fork ends, controls and the front derailleur runs in three columns along the foot of the page.]

— Page 6 —
SUPER RECORD ROAD GROUP

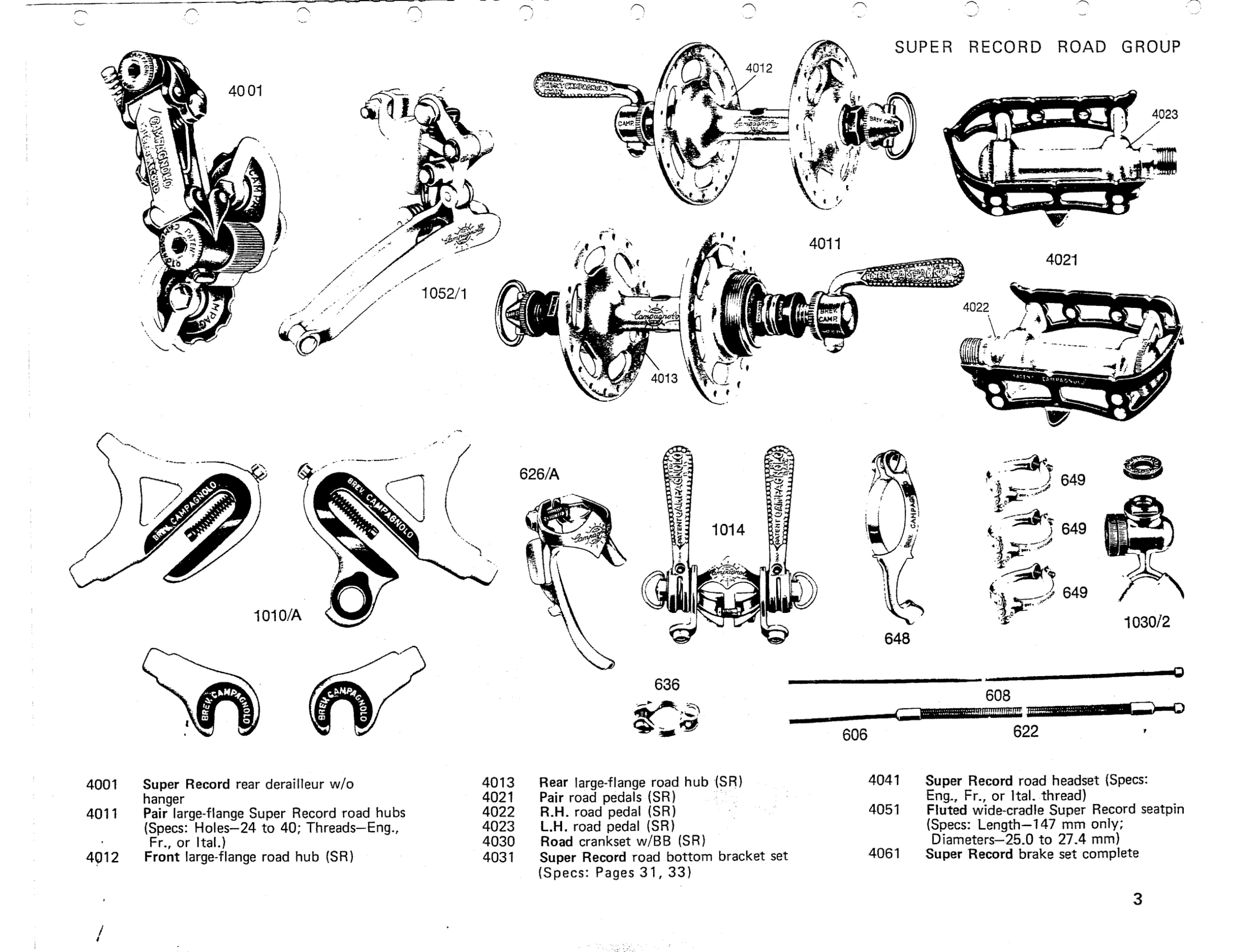

Callouts: 4001 4012 4023 4011 4021 1052/1 4022 4013 626/A 649 1014 649 1010/A 649 648 1030/2 636 608 606 622

4001 Super Record rear derailleur w/o hanger
4011 Pair large-flange Super Record road hubs (Specs: Holes—24 to 40; Threads—Eng., Fr., or Ital.)
4012 Front large-flange road hub (SR)
4013 Rear large-flange road hub (SR)
4021 Pair road pedals (SR)
4022 R.H. road pedal (SR)
4023 L.H. road pedal (SR)
4030 Road crankset w/BB (SR)
4031 Super Record road bottom bracket set (Specs: Pages 31, 33)
4041 Super Record road headset (Specs: Eng., Fr., or Ital. thread)
4051 Fluted wide-cradle Super Record seatpin (Specs: Length—147 mm only; Diameters—25.0 to 27.4 mm)
4061 Super Record brake set complete

3

[The second page of the Super Record Road Group, with photographs of the 4001 rear derailleur, the 1052/1 front derailleur, the 4012 and 4013 large flange hubs with quick releases, the 4022 and 4023 road pedals, the 1010/A fork ends, the 626/A cable guide, the 1014 dual controls, the 648 pump holder, three 649 brake cable clips, the 1030/2 pump adapter, the 636 cable stop and the 606 and 608 cables with 622 casing. A three column parts list runs along the foot of the page.]

— Page 7 —

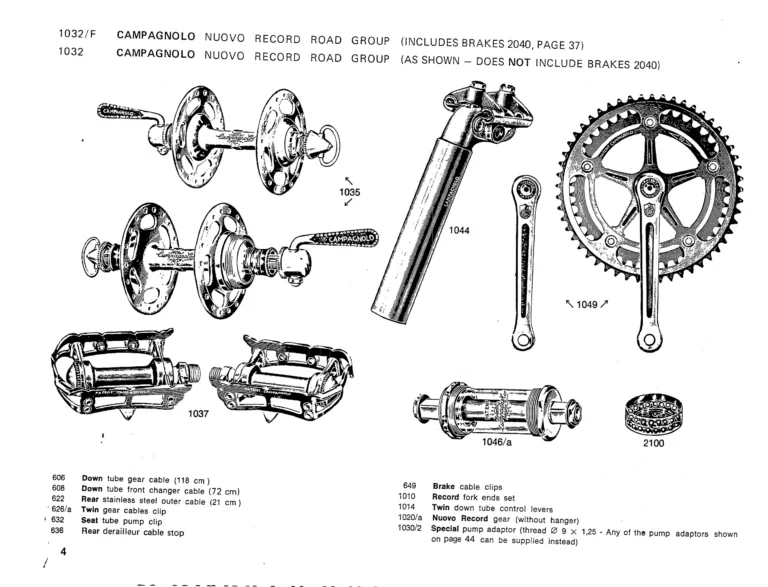

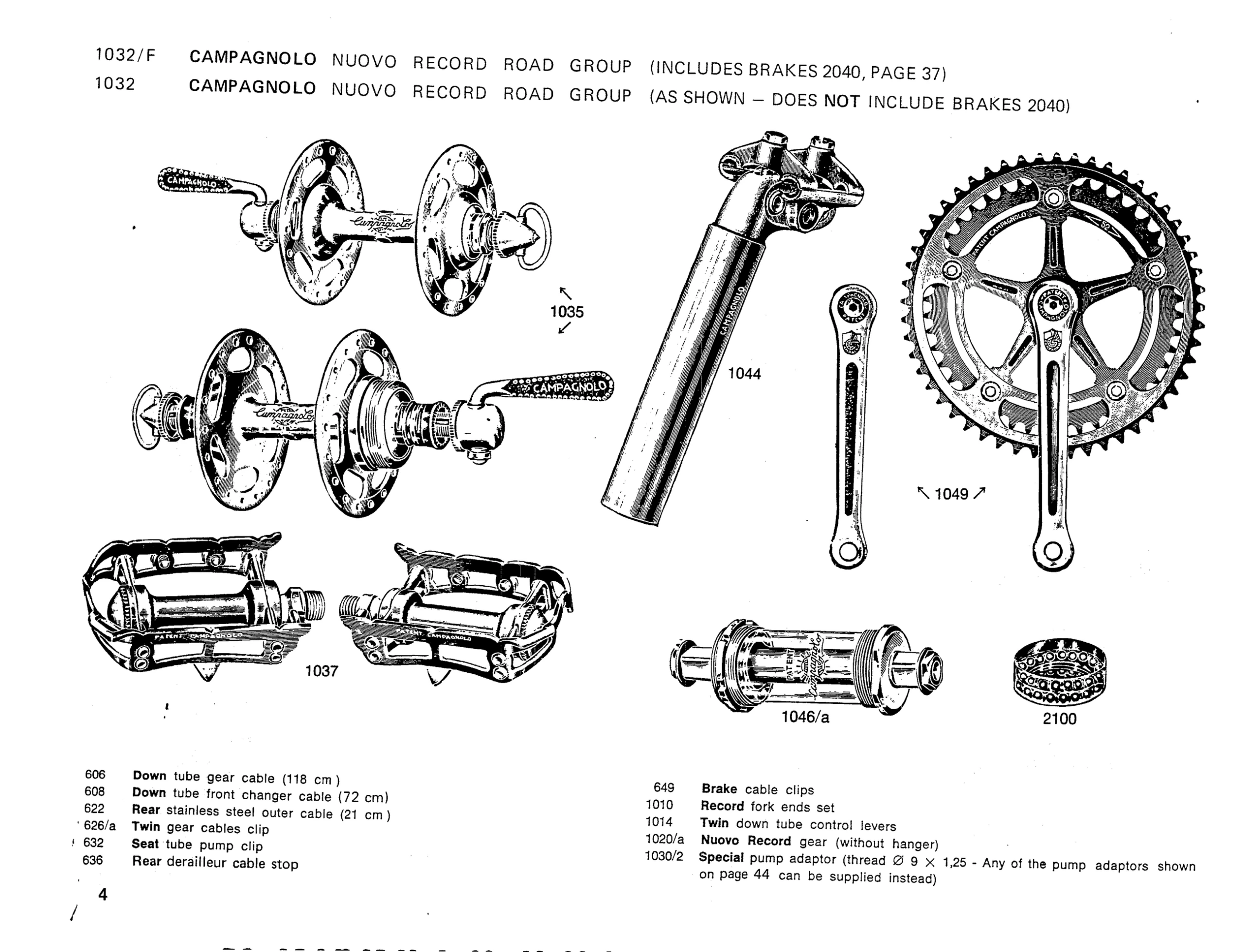

1032/F CAMPAGNOLO NUOVO RECORD ROAD GROUP (INCLUDES BRAKES 2040, PAGE 37)
1032 CAMPAGNOLO NUOVO RECORD ROAD GROUP (AS SHOWN — DOES NOT INCLUDE BRAKES 2040)

Callouts: 1035 1044 1049 1037 1046/a 2100

606 Down tube gear cable (118 cm )
608 Down tube front changer cable (72 cm)
622 Rear stainless steel outer cable (21 cm )
626/a Twin gear cables clip
632 Seat tube pump clip
636 Rear derailleur cable stop
649 Brake cable clips
1010 Record fork ends set
1014 Twin down tube control levers
1020/a Nuovo Record gear (without hanger)
1030/2 Special pump adaptor (thread Ø 9 × 1,25 – Any of the pump adaptors shown on page 44 can be supplied instead)

4

[The first page of the Campagnolo Nuovo Record Road Group, 1032/F with brakes and 1032 without, with photographs of the 1035 large flange hubs with quick releases, the 1044 seatpin, the 1049 crankset and left crank, the 1037 pedals, the 1046/a bottom bracket and the 2100 headset bearing cage. A two column parts list of cables, clips, fork ends, controls, the rear derailleur and the pump adaptor runs along the foot of the page.]

— Page 8 —

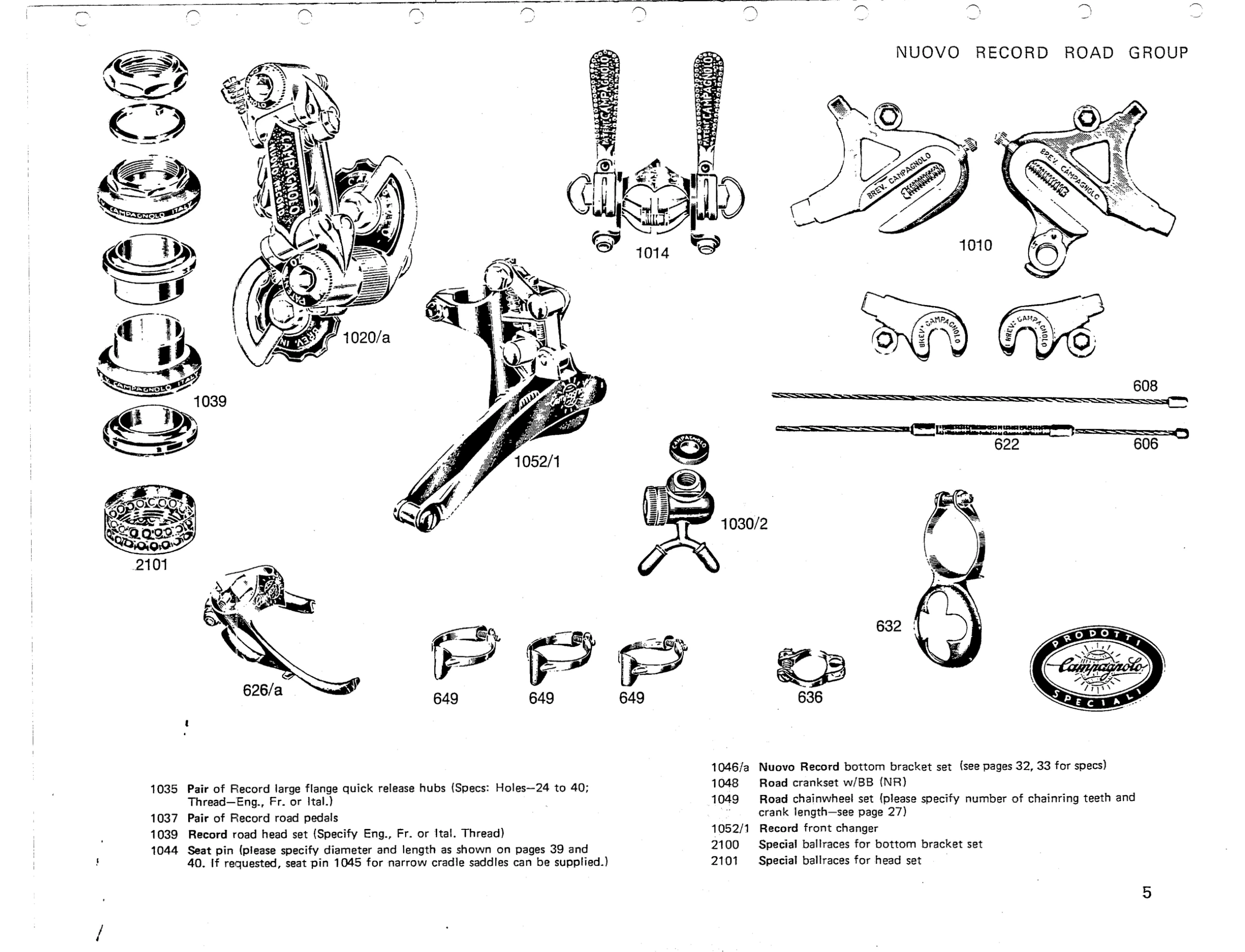

NUOVO RECORD ROAD GROUP

Callouts: 1014 1010 1020/a 608 1039 622 606 1052/1 1030/2 2101 632 626/a 649 649 649 636

PRODOTTI Campagnolo SPECIALI

1035 Pair of Record large flange quick release hubs (Specs: Holes—24 to 40; Thread—Eng., Fr. or Ital.)
1037 Pair of Record road pedals
1039 Record road head set (Specify Eng., Fr. or Ital. Thread)
1044 Seat pin (please specify diameter and length as shown on pages 39 and 40. If requested, seat pin 1045 for narrow cradle saddles can be supplied.)
1046/a Nuovo Record bottom bracket set (see pages 32, 33 for specs)
1048 Road crankset w/BB (NR)
1049 Road chainwheel set (please specify number of chainring teeth and crank length—see page 27)
1052/1 Record front changer
2100 Special ballraces for bottom bracket set
2101 Special ballraces for head set

5

[The second page of the Nuovo Record Road Group, with photographs of the 1039 headset in its separate parts, the 2101 headset bearing cage, the 1020/a rear derailleur, the 1052/1 front derailleur, the 1014 dual controls, the 1010 fork ends, the 606 and 608 cables with 622 casing, the 1030/2 pump adaptor, the 632 pump clip, the 626/a cable guide, three 649 brake cable clips and the 636 cable stop. An oval Prodotti Campagnolo Speciali badge sits at lower right, above a two column parts list.]

— Page 9 —

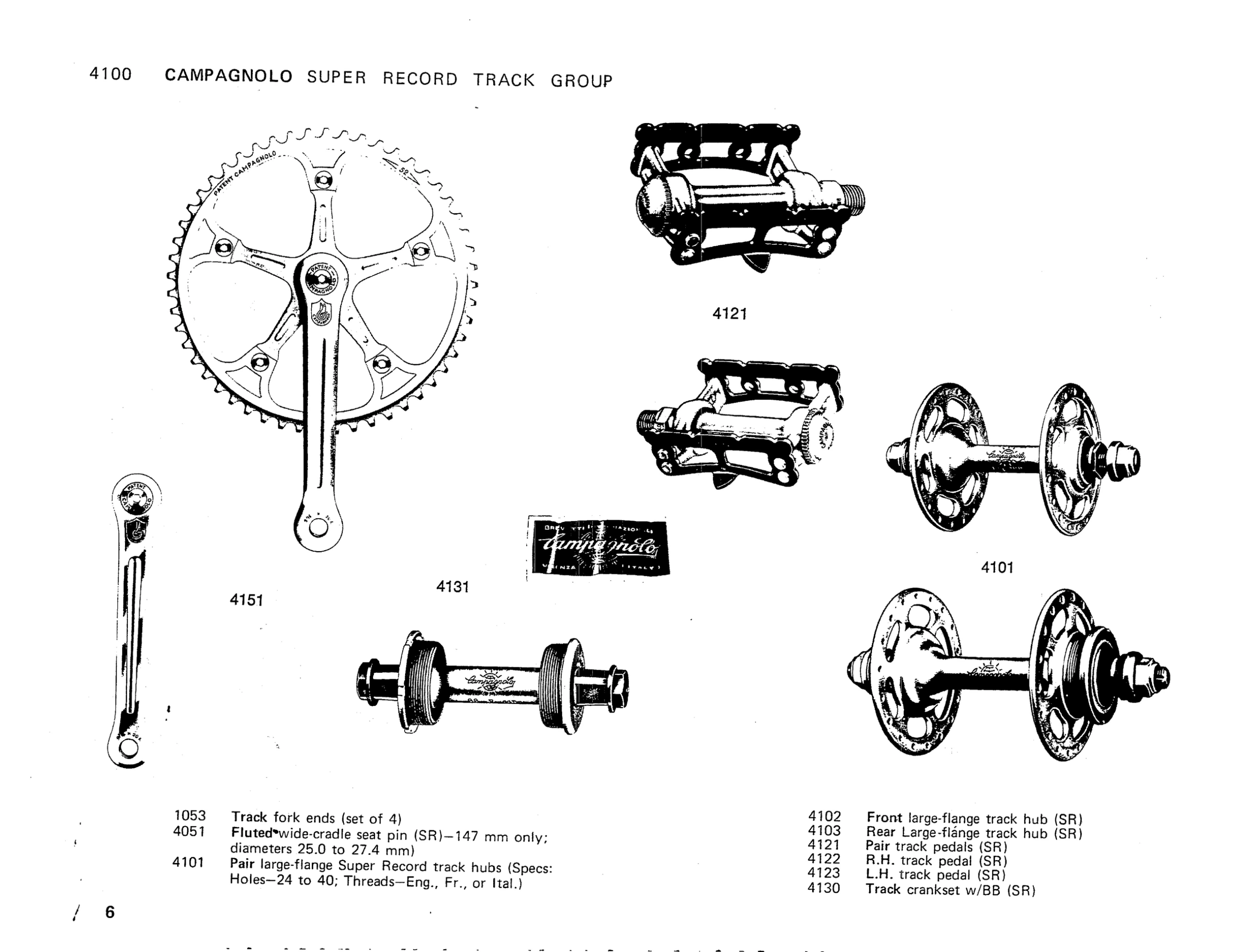

4100 CAMPAGNOLO SUPER RECORD TRACK GROUP

Callouts: 4121 4151 4131 4101

1053 Track fork ends (set of 4)
4051 Fluted wide-cradle seat pin (SR)—147 mm only; diameters 25.0 to 27.4 mm)
4101 Pair large-flange Super Record track hubs (Specs: Holes—24 to 40; Threads—Eng., Fr., or Ital.)
4102 Front large-flange track hub (SR)
4103 Rear Large-flánge [?] track hub (SR)
4121 Pair track pedals (SR)
4122 R.H. track pedal (SR)
4123 L.H. track pedal (SR)
4130 Track crankset w/BB (SR)

6

[The first page of the Campagnolo Super Record Track Group, 4100, with photographs of the 4151 single chainring track crankset and left crank, the 4121 track pedals, the 4131 bottom bracket beside its Campagnolo box label and the 4101 pair of large flange track hubs with axle nuts. A two column parts list runs along the foot of the page.]

— Page 10 —

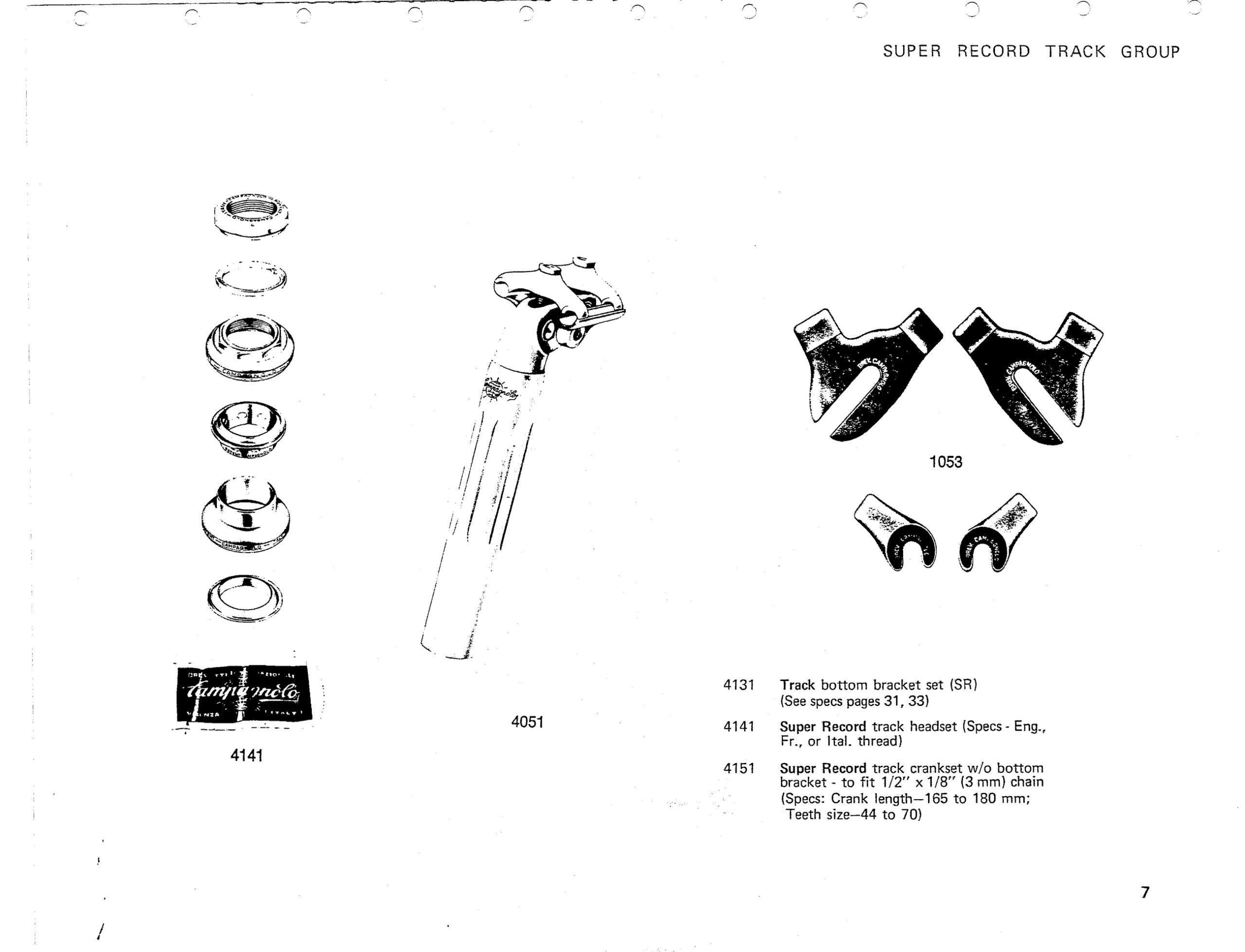

SUPER RECORD TRACK GROUP

Callouts: 1053 4141 4051

4131 Track bottom bracket set (SR) (See specs pages 31, 33)

4141 Super Record track headset (Specs – Eng., Fr., or Ital. thread)

4151 Super Record track crankset w/o bottom bracket – to fit 1/2″ x 1/8″ (3 mm) chain (Specs: Crank length—165 to 180 mm; Teeth size—44 to 70)

7

[The second page of the Super Record Track Group, with photographs of the 4141 track headset shown in its separate parts above its Campagnolo box label, the 4051 fluted seat pin and the 1053 track fork ends, front and rear pairs. A short parts list for the bottom bracket, headset and track crankset sits at lower right.]

— Page 11 —
1033 CAMPAGNOLO RECORD TRACK GROUP

Callouts: 1036 1038 1051

1036 Pair of Record track hubs (Specs: Holes—24 to 40; Threads—Eng., Fr., or Ital.)
1038 Pair of Record track pedals
1040 Record track head set (Specs: Eng., Fr., or Ital. Threads)

8

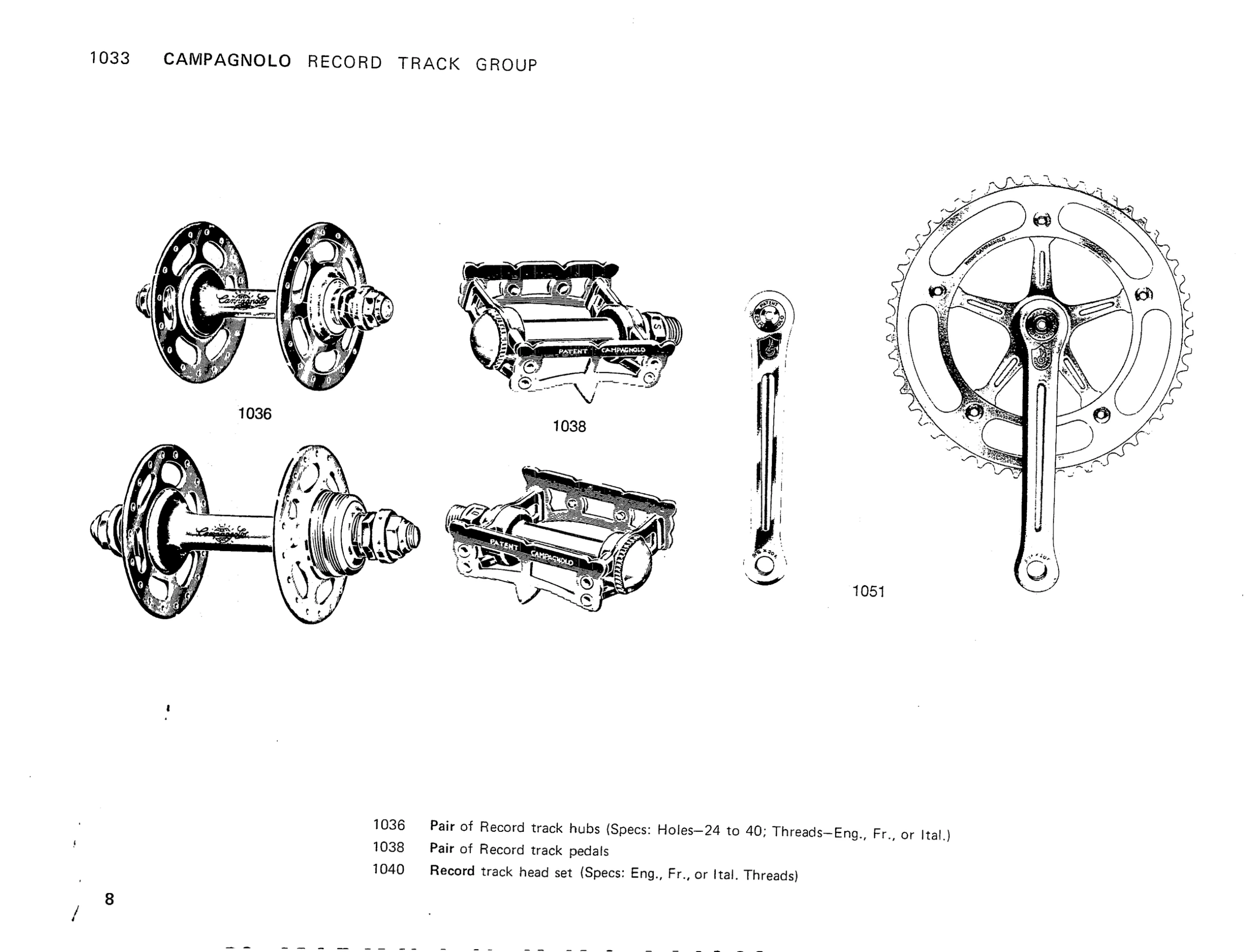

[Drawings of the Campagnolo Record track group, 1033: a pair of Record track hubs, 1036, a pair of Record track pedals, 1038, and a single-ring crankset, 1051, keyed to a short parts list. The list also names the Record track head set, 1040, which is not pictured, and the crankset, 1051, is pictured but not listed.]

— Page 12 —

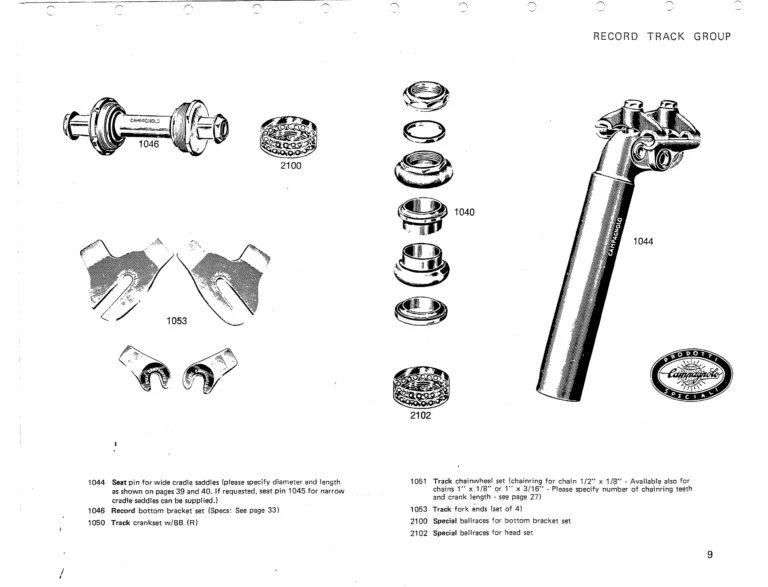

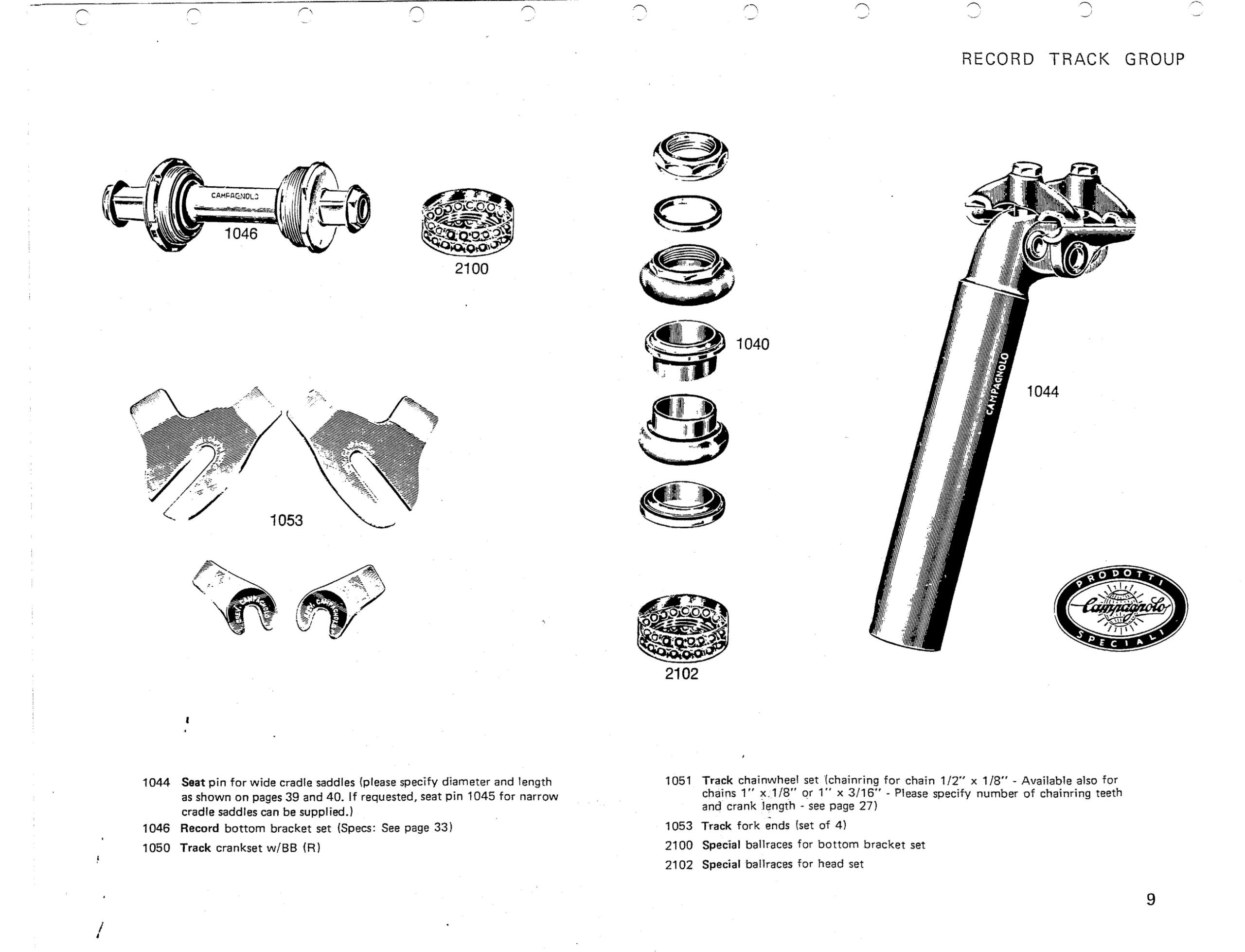

RECORD TRACK GROUP

Callouts: 1046 2100 1040 1044 1053 2102

PRODOTTI Campagnolo SPECIALI

1044 Seat pin for wide cradle saddles (please specify diameter and length as shown on pages 39 and 40. If requested, seat pin 1045 for narrow cradle saddles can be supplied.)
1046 Record bottom bracket set (Specs: See page 33)
1050 Track crankset w/BB (R)
1051 Track chainwheel set (chainring for chain 1/2″ x 1/8″ – Available also for chains 1″ x 1/8″ or 1″ x 3/16″ – Please specify number of chainring teeth and crank length – see page 27)
1053 Track fork ends (set of 4)
2100 Special ballraces for bottom bracket set
2102 Special ballraces for head set

9

[Drawings of the rest of the Campagnolo Record track group: the Record bottom bracket set, 1046, with its ballraces, 2100, the track fork ends, 1053, the exploded head set, 1040, with its ballraces, 2102, and the seat pin, 1044, keyed to a parts list. The oval “Prodotti Campagnolo Speciali” emblem sits at lower right.]

— Page 13 —
2240 CAMPAGNOLO GRAN SPORT ROAD GROUP

Callouts: 3320 3500 3331 1040/A 2050

606 Rear derailleur cable (118 cm)
608 Front derailleur cable (72 cm) (New Cable is 2 cm longer)
622 Rear derailleur stainless steel cable casing (21 cm)
626/A Dual derailleur cable guide
636 Cable stop C/S

10

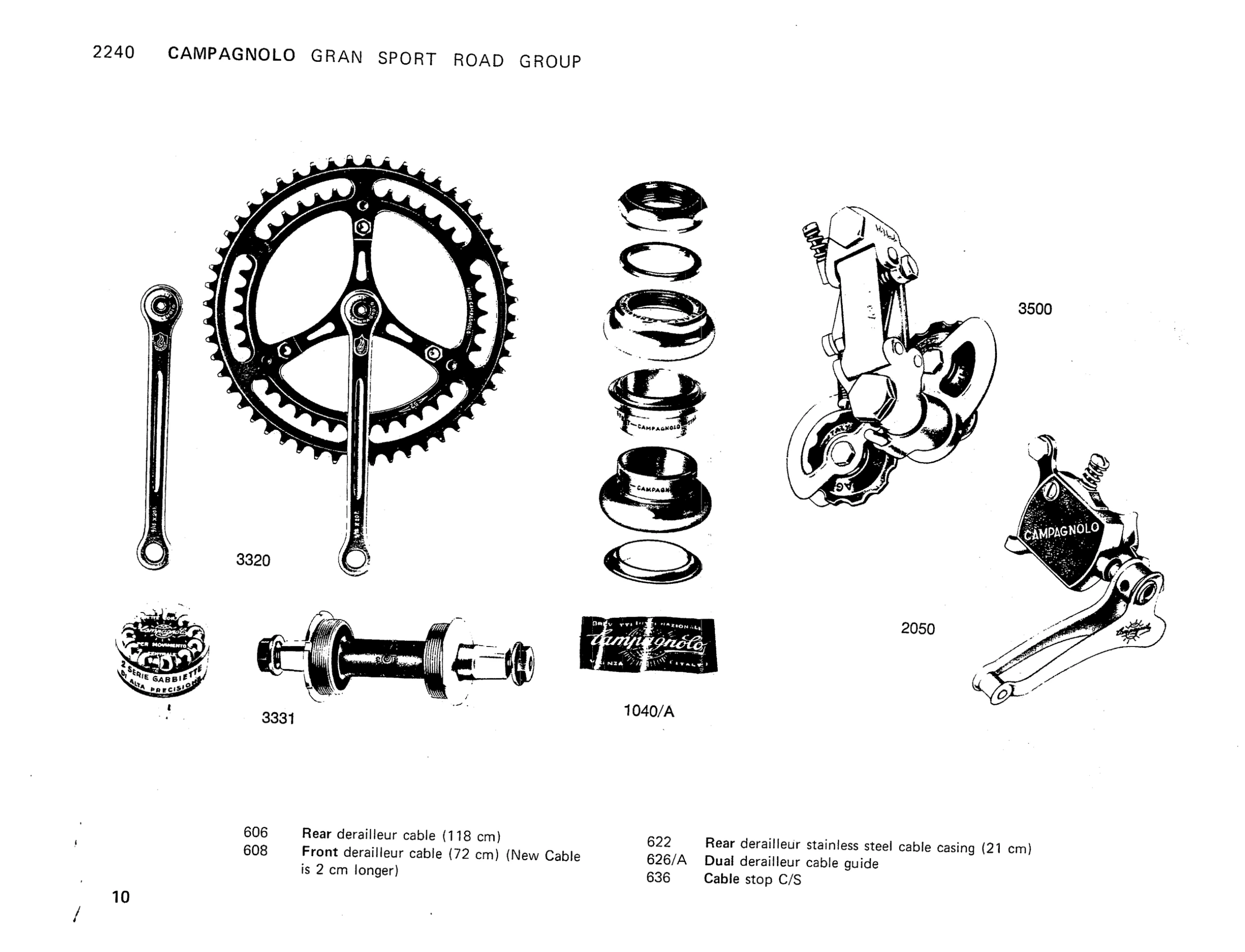

[Drawings of the Campagnolo Gran Sport road group, 2240: a double chainset with its left crank, 3320, the bottom bracket set, 3331, with a box of ball cages, an exploded head set with its wrapper label, 1040/A, the rear derailleur, 3500, and the front derailleur, 2050. The short parts list below covers the cables, casing, cable guide and cable stop; the box label reads “2 Serie Gabbiette di alta precisione” and the head set wrapper “Brevetti Internazionali Campagnolo Vicenza (Italy)”.]

— Page 14 —

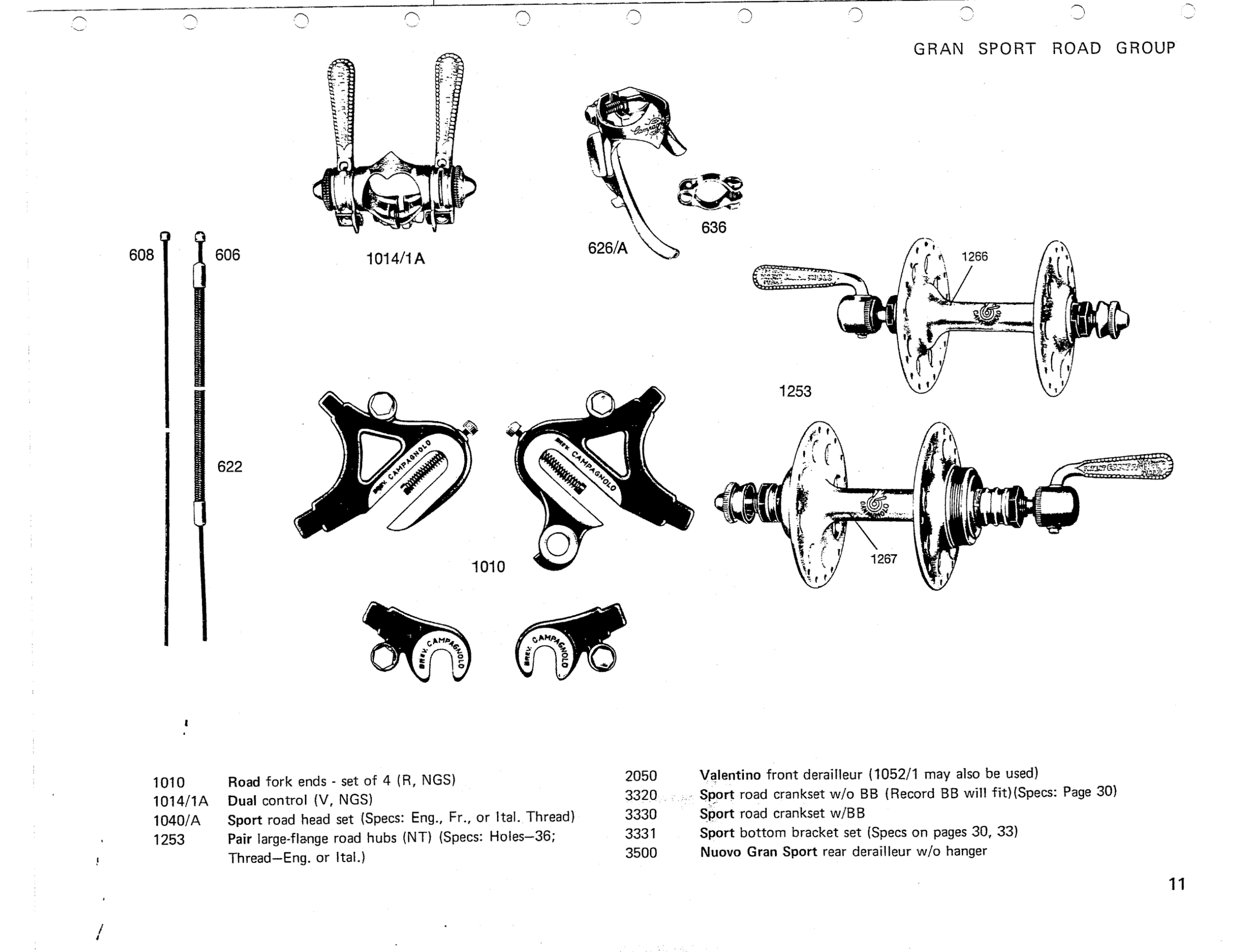

GRAN SPORT ROAD GROUP

Callouts: 608 606 1014/1A 626/A 636 1266 1253 622 1010 1267

1010 Road fork ends – set of 4 (R, NGS)
1014/1A Dual control (V, NGS)
1040/A Sport road head set (Specs: Eng., Fr., or Ital. Thread)
1253 Pair large-flange road hubs (NT) (Specs: Holes—36; Thread—Eng. or Ital.)
2050 Valentino front derailleur (1052/1 may also be used)
3320 Sport road crankset w/o BB (Record BB will fit)(Specs: Page 30)
3330 Sport road crankset w/BB
3331 Sport bottom bracket set (Specs on pages 30, 33)
3500 Nuovo Gran Sport rear derailleur w/o hanger

11

[Drawings of the rest of the Campagnolo Gran Sport road group: the derailleur cables, 608 and 606, with casing, 622, the dual control levers, 1014/1A, the cable guide, 626/A, and cable stop, 636, the road fork ends, 1010, and a pair of large flange quick release hubs, 1253, with their quick release levers, 1266 and 1267. The parts list below also covers the head set, front derailleur, cranksets, bottom bracket set and rear derailleur pictured on the facing page.]

— Page 15 —

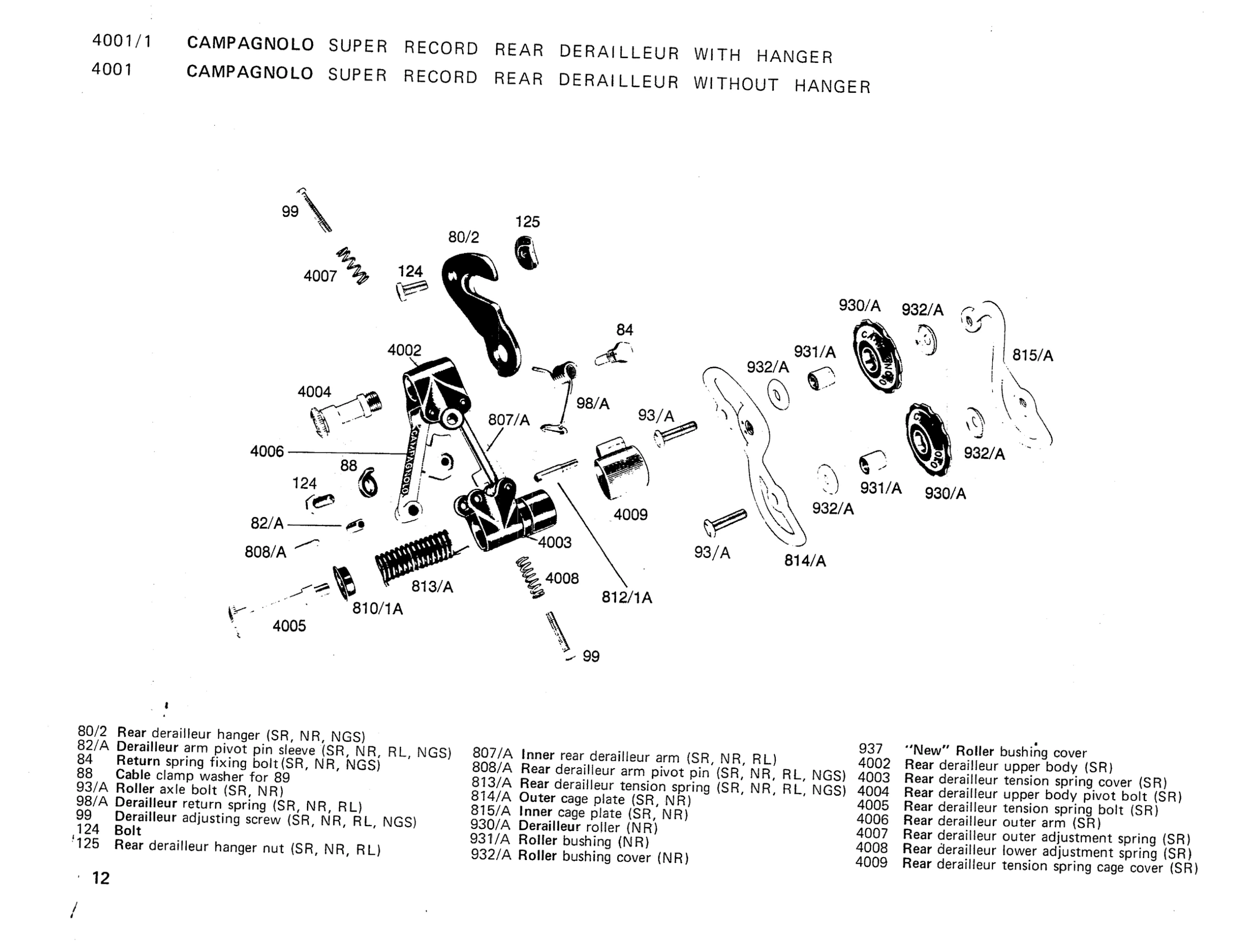

4001/1 CAMPAGNOLO SUPER RECORD REAR DERAILLEUR WITH HANGER
4001 CAMPAGNOLO SUPER RECORD REAR DERAILLEUR WITHOUT HANGER

Callouts: 99 125 80/2 124 4007 930/A 932/A 84 4002 931/A 815/A 932/A 4004 98/A 93/A 807/A 4006 932/A 88 124 931/A 930/A 932/A 4009 82/A 4003 808/A 93/A 814/A 4008 813/A 812/1A 810/1A 4005 99

80/2 Rear derailleur hanger (SR, NR, NGS)
82/A Derailleur arm pivot pin sleeve (SR, NR, RL, NGS)
84 Return spring fixing bolt(SR, NR, NGS)
88 Cable clamp washer for 89
93/A Roller axle bolt (SR, NR)
98/A Derailleur return spring (SR, NR, RL)
99 Derailleur adjusting screw (SR, NR, RL, NGS)
124 Bolt
125 Rear derailleur hanger nut (SR, NR, RL)
807/A Inner rear derailleur arm (SR, NR, RL)
808/A Rear derailleur arm pivot pin (SR, NR, RL, NGS)
813/A Rear derailleur tension spring (SR, NR, RL, NGS)
814/A Outer cage plate (SR, NR)
815/A Inner cage plate (SR, NR)
930/A Derailleur roller (NR)
931/A Roller bushing (NR)
932/A Roller bushing cover (NR)
937 “New” Roller bushing cover
4002 Rear derailleur upper body (SR)
4003 Rear derailleur tension spring cover (SR)
4004 Rear derailleur upper body pivot bolt (SR)
4005 Rear derailleur tension spring bolt (SR)
4006 Rear derailleur outer arm (SR)
4007 Rear derailleur outer adjustment spring (SR)
4008 Rear derailleur lower adjustment spring (SR)
4009 Rear derailleur tension spring cage cover (SR)

12

[An exploded drawing of the Campagnolo Super Record rear derailleur, 4001/1 with hanger and 4001 without, with every part numbered and keyed to a three column parts list. The outer arm is engraved “Campagnolo”.]

— Page 16 —

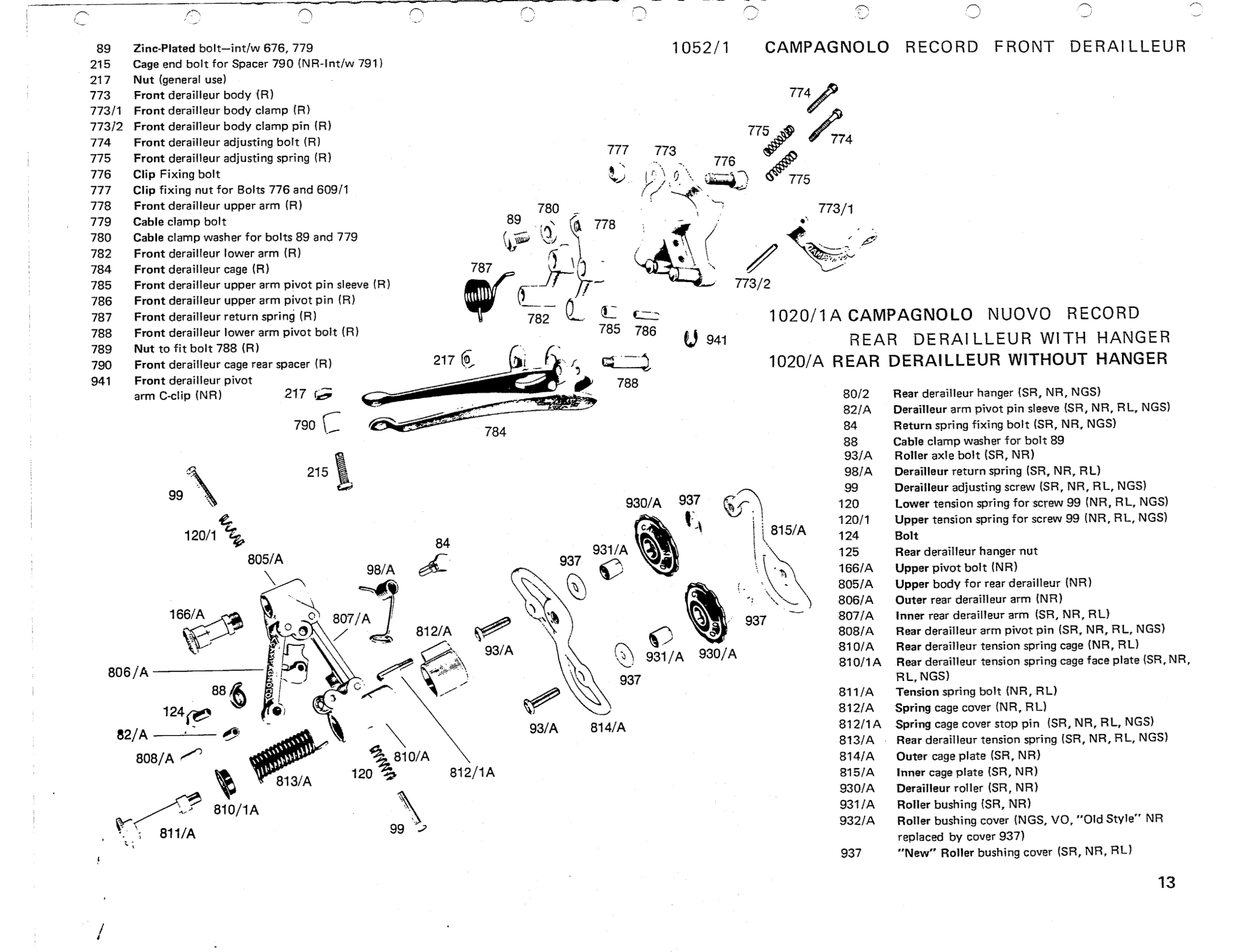

1052/1 CAMPAGNOLO RECORD FRONT DERAILLEUR

Callouts: 774 775 774 777 773 776 775 780 773/1 89 778 787 773/2 782 785 786 941 217 788 217 790 784 215

89 Zinc-Plated bolt—int/w 676, 779
215 Cage end bolt for Spacer 790 (NR-Int/w 791)
217 Nut (general use)
773 Front derailleur body (R)
773/1 Front derailleur body clamp (R)
773/2 Front derailleur body clamp pin (R)
774 Front derailleur adjusting bolt (R)
775 Front derailleur adjusting spring (R)
776 Clip Fixing bolt
777 Clip fixing nut for Bolts 776 and 609/1
778 Front derailleur upper arm (R)
779 Cable clamp bolt
780 Cable clamp washer for bolts 89 and 779
782 Front derailleur lower arm (R)
784 Front derailleur cage (R)
785 Front derailleur upper arm pivot pin sleeve (R)
786 Front derailleur upper arm pivot pin (R)
787 Front derailleur return spring (R)
788 Front derailleur lower arm pivot bolt (R)
789 Nut to fit bolt 788 (R)
790 Front derailleur cage rear spacer (R)
941 Front derailleur pivot arm C-clip (NR)

1020/1A CAMPAGNOLO NUOVO RECORD REAR DERAILLEUR WITH HANGER
1020/A REAR DERAILLEUR WITHOUT HANGER

Callouts: 99 937 930/A 815/A 120/1 84 931/A 805/A 937 98/A 166/A 807/A 937 812/A 93/A 930/A 931/A 806/A 937 88 124 93/A 814/A 82/A 810/A 808/A 812/1A 120 813/A 810/1A 99 811/A

80/2 Rear derailleur hanger (SR, NR, NGS)
82/A Derailleur arm pivot pin sleeve (SR, NR, RL, NGS)
84 Return spring fixing bolt (SR, NR, NGS)
88 Cable clamp washer for bolt 89
93/A Roller axle bolt (SR, NR)
98/A Derailleur return spring (SR, NR, RL)
99 Derailleur adjusting screw (SR, NR, RL, NGS)
120 Lower tension spring for screw 99 (NR, RL, NGS)
120/1 Upper tension spring for screw 99 (NR, RL, NGS)
124 Bolt
125 Rear derailleur hanger nut
166/A Upper pivot bolt (NR)
805/A Upper body for rear derailleur (NR)
806/A Outer rear derailleur arm (NR)
807/A Inner rear derailleur arm (SR, NR, RL)
808/A Rear derailleur arm pivot pin (SR, NR, RL, NGS)
810/A Rear derailleur tension spring cage (NR, RL)
810/1A Rear derailleur tension spring cage face plate (SR, NR, RL, NGS)
811/A Tension spring bolt (NR, RL)
812/A Spring cage cover (NR, RL)
812/1A Spring cage cover stop pin (SR, NR, RL, NGS)
813/A Rear derailleur tension spring (SR, NR, RL, NGS)
814/A Outer cage plate (SR, NR)
815/A Inner cage plate (SR, NR)
930/A Derailleur roller (SR, NR)
931/A Roller bushing (SR, NR)
932/A Roller bushing cover (NGS, VO, “Old Style” NR replaced by cover 937)
937 “New” Roller bushing cover (SR, NR, RL)

13

[Two exploded drawings on one page: the Campagnolo Record front derailleur, 1052/1, at top and the Campagnolo Nuovo Record rear derailleur, 1020/1A with hanger and 1020/A without, below, each with every part numbered and keyed to its own parts list. The front derailleur list runs down the left margin and the rear derailleur list down the right.]

— Page 17 —

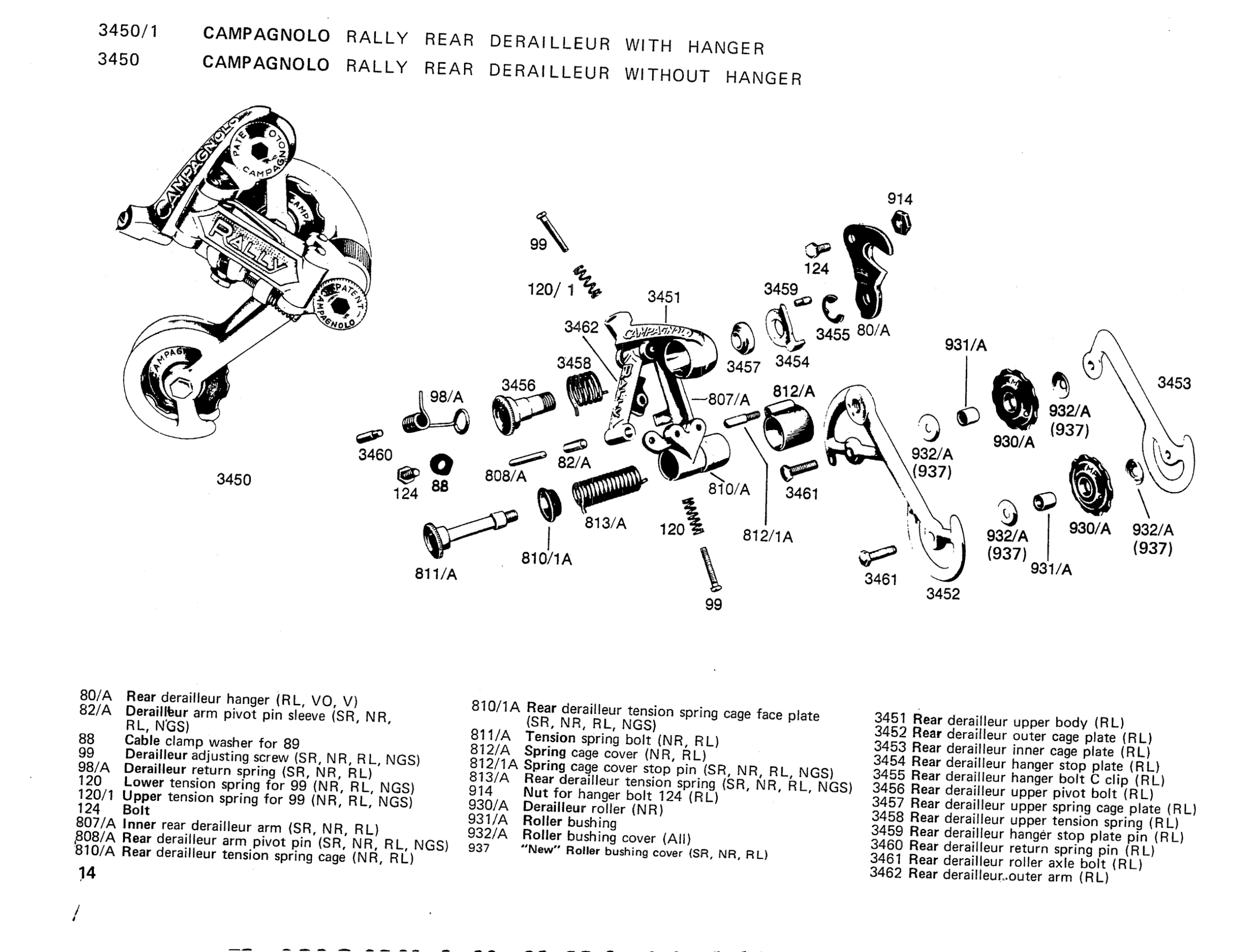

3450/1 CAMPAGNOLO RALLY REAR DERAILLEUR WITH HANGER
3450 CAMPAGNOLO RALLY REAR DERAILLEUR WITHOUT HANGER

Callouts: 914 99 124 3459 120/ 1 3451 3462 80/A 3455 931/A 3454 3458 3457 3453 3456 812/A 98/A 807/A 932/A (937) 930/A 3460 82/A 932/A (937) 808/A 3450 88 124 810/A 3461 813/A 930/A 120 932/A (937) 932/A (937) 812/1A 810/1A 931/A 811/A 3461 3452 99

80/A Rear derailleur hanger (RL, VO, V)
82/A Derailleur arm pivot pin sleeve (SR, NR, RL, NGS)
88 Cable clamp washer for 89
99 Derailleur adjusting screw (SR, NR, RL, NGS)
98/A Derailleur return spring (SR, NR, RL)
120 Lower tension spring for 99 (NR, RL, NGS)
120/1 Upper tension spring for 99 (NR, RL, NGS)
124 Bolt
807/A Inner rear derailleur arm (SR, NR, RL)
808/A Rear derailleur arm pivot pin (SR, NR, RL, NGS)
810/A Rear derailleur tension spring cage (NR, RL)

810/1A Rear derailleur tension spring cage face plate (SR, NR, RL, NGS)
811/A Tension spring bolt (NR, RL)
812/A Spring cage cover (NR, RL)
812/1A Spring cage cover stop pin (SR, NR, RL, NGS)
813/A Rear derailleur tension spring (SR, NR, RL, NGS)
914 Nut for hanger bolt 124 (RL)
930/A Derailleur roller (NR)
931/A Roller bushing
932/A Roller bushing cover (All)
937 “New” Roller bushing cover (SR, NR, RL)
3451 Rear derailleur upper body (RL)
3452 Rear derailleur outer cage plate (RL)
3453 Rear derailleur inner cage plate (RL)
3454 Rear derailleur hanger stop plate (RL)
3455 Rear derailleur hanger bolt C clip (RL)
3456 Rear derailleur upper pivot bolt (RL)
3457 Rear derailleur upper spring cage plate (RL)
3458 Rear derailleur upper tension spring (RL)
3459 Rear derailleur hanger stop plate pin (RL)
3460 Rear derailleur return spring pin (RL)
3461 Rear derailleur roller axle bolt (RL)
3462 Rear derailleur outer arm (RL)

14

[An exploded drawing of the Campagnolo Rally rear derailleur, 3450/1 with hanger and 3450 without, beside a drawing of the assembled derailleur, with every part numbered and keyed to a three column parts list. The assembled derailleur is marked “Rally”, “Campagnolo” and “Patent”.]

— Page 18 —

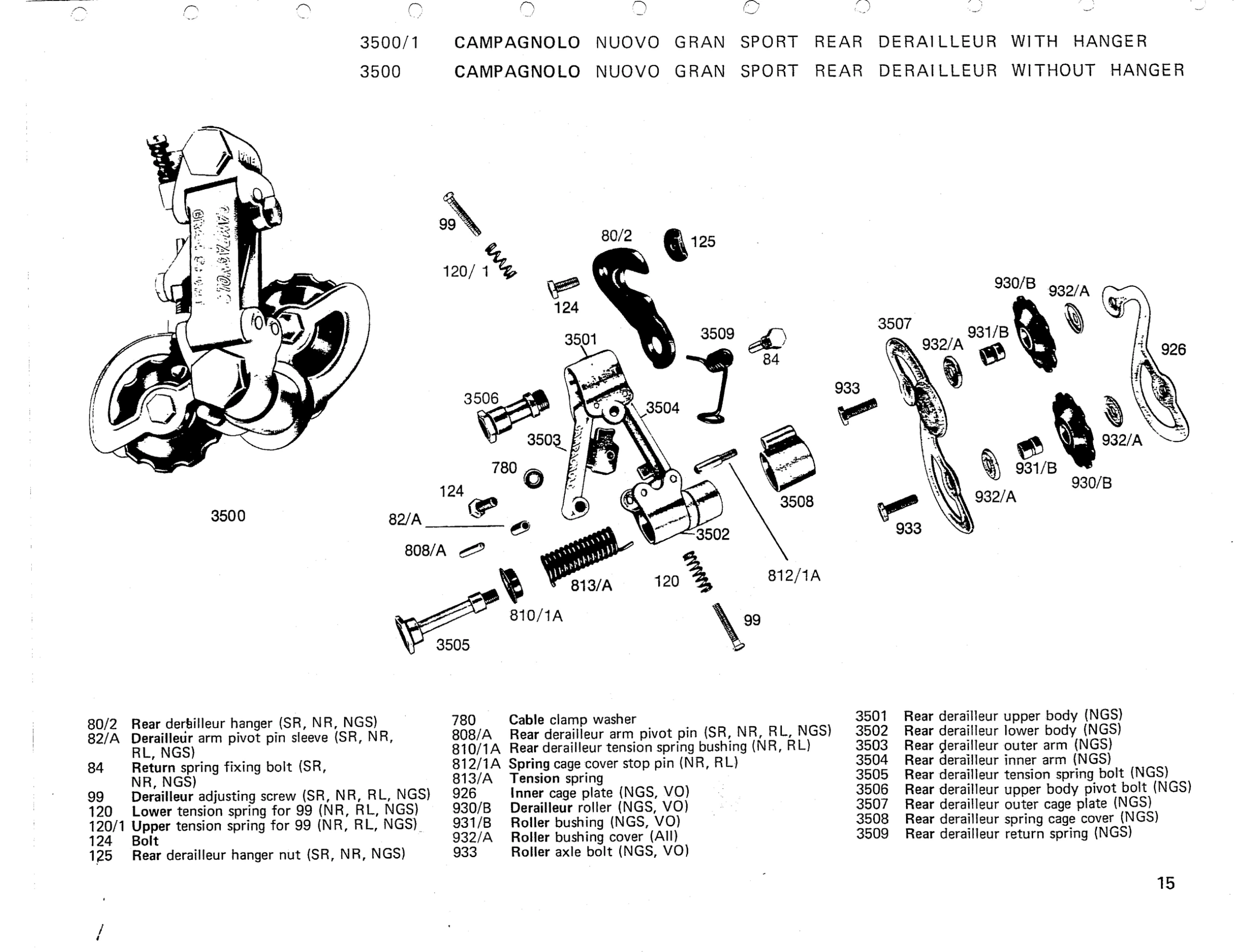

3500/1 CAMPAGNOLO NUOVO GRAN SPORT REAR DERAILLEUR WITH HANGER
3500 CAMPAGNOLO NUOVO GRAN SPORT REAR DERAILLEUR WITHOUT HANGER

Callouts: 99 80/2 125 120/ 1 930/B 932/A 124 3507 931/B 3509 3501 932/A 926 84 933 3506 3504 3503 932/A 780 931/B 930/B 124 932/A 3508 3500 82/A 933 3502 808/A 812/1A 120 813/A 810/1A 99 3505

80/2 Rear derailleur [?] hanger (SR, NR, NGS)
82/A Derailleur arm pivot pin sleeve (SR, NR, RL, NGS)
84 Return spring fixing bolt (SR, NR, NGS)
99 Derailleur adjusting screw (SR, NR, RL, NGS)
120 Lower tension spring for 99 (NR, RL, NGS)
120/1 Upper tension spring for 99 (NR, RL, NGS)
124 Bolt
125 Rear derailleur hanger nut (SR, NR, NGS)

780 Cable clamp washer
808/A Rear derailleur arm pivot pin (SR, NR, RL, NGS)
810/1A Rear derailleur tension spring bushing (NR, RL)
812/1A Spring cage cover stop pin (NR, RL)
813/A Tension spring
926 Inner cage plate (NGS, VO)
930/B Derailleur roller (NGS, VO)
931/B Roller bushing (NGS, VO)
932/A Roller bushing cover (All)
933 Roller axle bolt (NGS, VO)
3501 Rear derailleur upper body (NGS)
3502 Rear derailleur lower body (NGS)
3503 Rear derailleur outer arm (NGS)
3504 Rear derailleur inner arm (NGS)
3505 Rear derailleur tension spring bolt (NGS)
3506 Rear derailleur upper body pivot bolt (NGS)
3507 Rear derailleur outer cage plate (NGS)
3508 Rear derailleur spring cage cover (NGS)
3509 Rear derailleur return spring (NGS)

15

[An exploded drawing of the Campagnolo Nuovo Gran Sport rear derailleur, 3500/1 with hanger and 3500 without, beside a drawing of the assembled derailleur, with every part numbered and keyed to a three column parts list.]

— Page 19 —

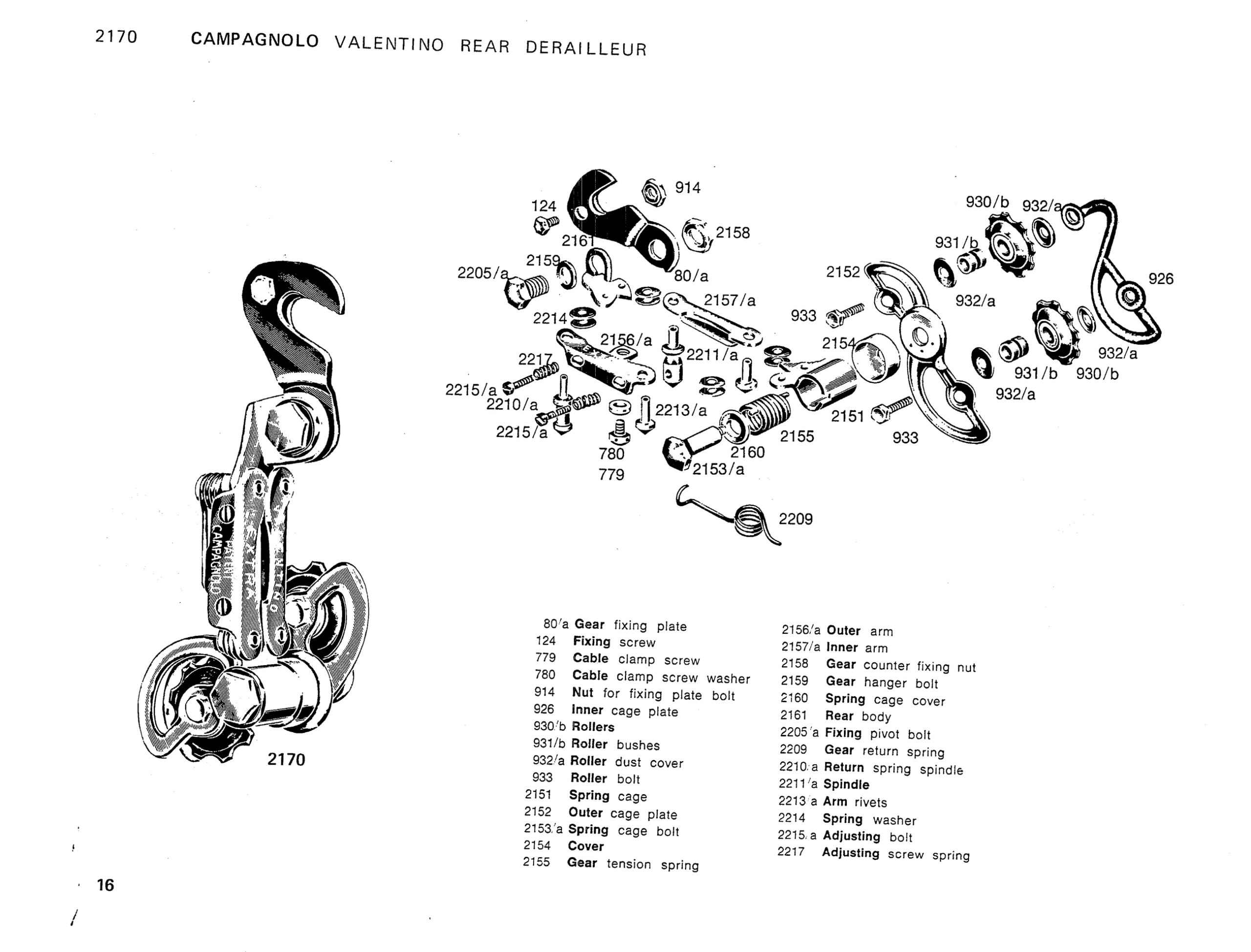

2170 CAMPAGNOLO VALENTINO REAR DERAILLEUR

Callouts: 914 124 930/b 932/a 2158 2161 931/b 2159 2205/a 2152 80/a 926 2157/a 932/a 933 2214 2156/a 2154 932/a 2211/a 2217 931/b 930/b 2215/a 932/a 2210/a 2213/a 2151 2215/a 2155 933 2160 780 2153/a 779 2209 2170

80/a Gear fixing plate
124 Fixing screw
779 Cable clamp screw
780 Cable clamp screw washer
914 Nut for fixing plate bolt
926 Inner cage plate
930/b Rollers
931/b Roller bushes
932/a Roller dust cover
933 Roller bolt
2151 Spring cage
2152 Outer cage plate
2153/a Spring cage bolt
2154 Cover
2155 Gear tension spring
2156/a Outer arm
2157/a Inner arm
2158 Gear counter fixing nut
2159 Gear hanger bolt
2160 Spring cage cover
2161 Rear body
2205/a Fixing pivot bolt
2209 Gear return spring
2210/a Return spring spindle
2211/a Spindle
2213/a Arm rivets
2214 Spring washer
2215/a Adjusting bolt
2217 Adjusting screw spring

16

[An exploded drawing of the Campagnolo Valentino rear derailleur, 2170, beside a drawing of the assembled derailleur, with every part numbered and keyed to a two column parts list. The assembled derailleur is engraved “Extra” and “Patent Campagnolo”.]

— Page 20 —

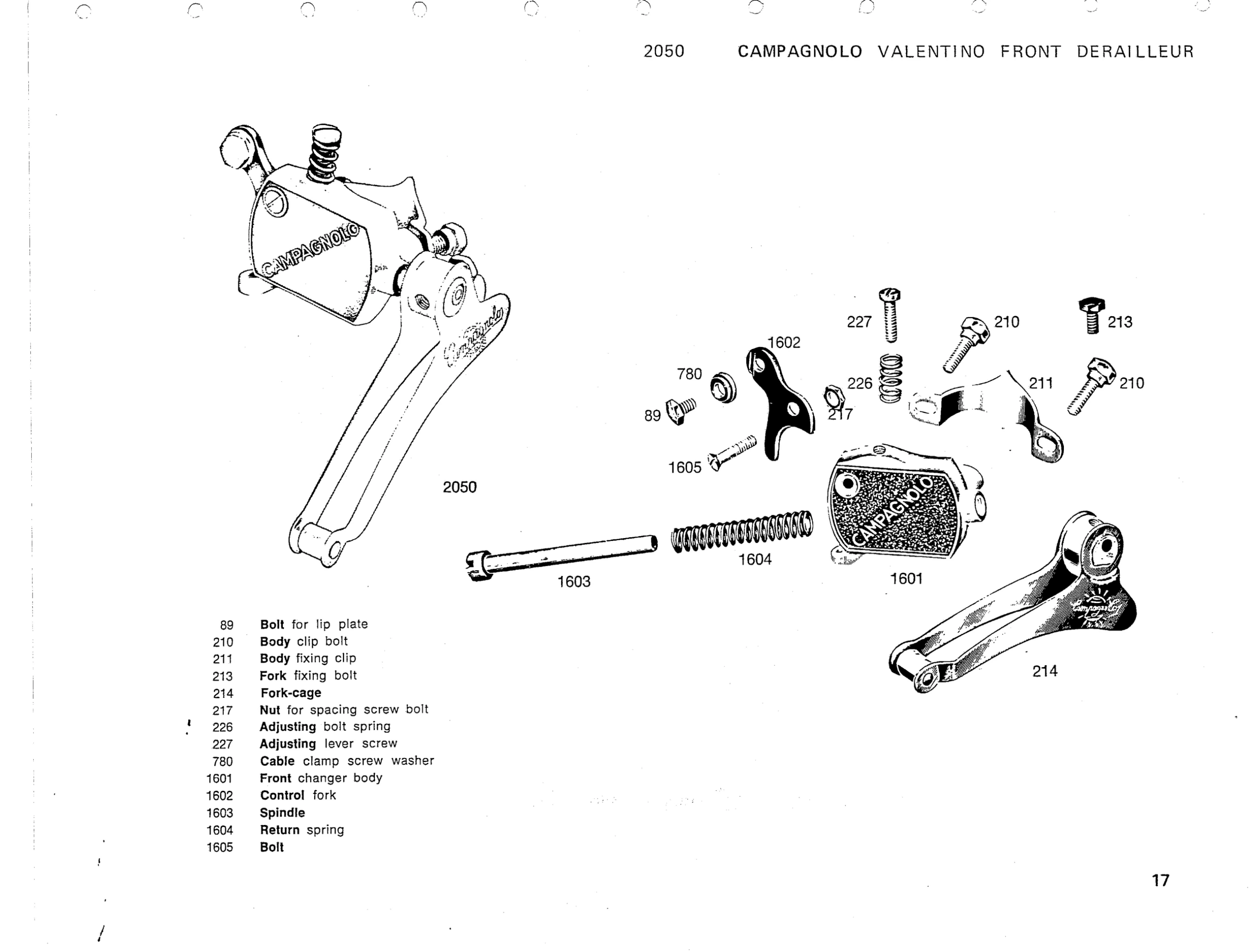

2050 CAMPAGNOLO VALENTINO FRONT DERAILLEUR

Callouts: 227 210 213 1602 780 226 211 210 89 217 1605 2050 1604 1601 1603 214

89 Bolt for lip plate
210 Body clip bolt
211 Body fixing clip
213 Fork fixing bolt
214 Fork-cage
217 Nut for spacing screw bolt
226 Adjusting bolt spring
227 Adjusting lever screw
780 Cable clamp screw washer
1601 Front changer body
1602 Control fork
1603 Spindle
1604 Return spring
1605 Bolt

17

[An exploded drawing of the Campagnolo Valentino front derailleur, 2050, beside a drawing of the assembled derailleur, with every part numbered and keyed to a parts list. The changer body is marked “Campagnolo”.]

— Page 21 —

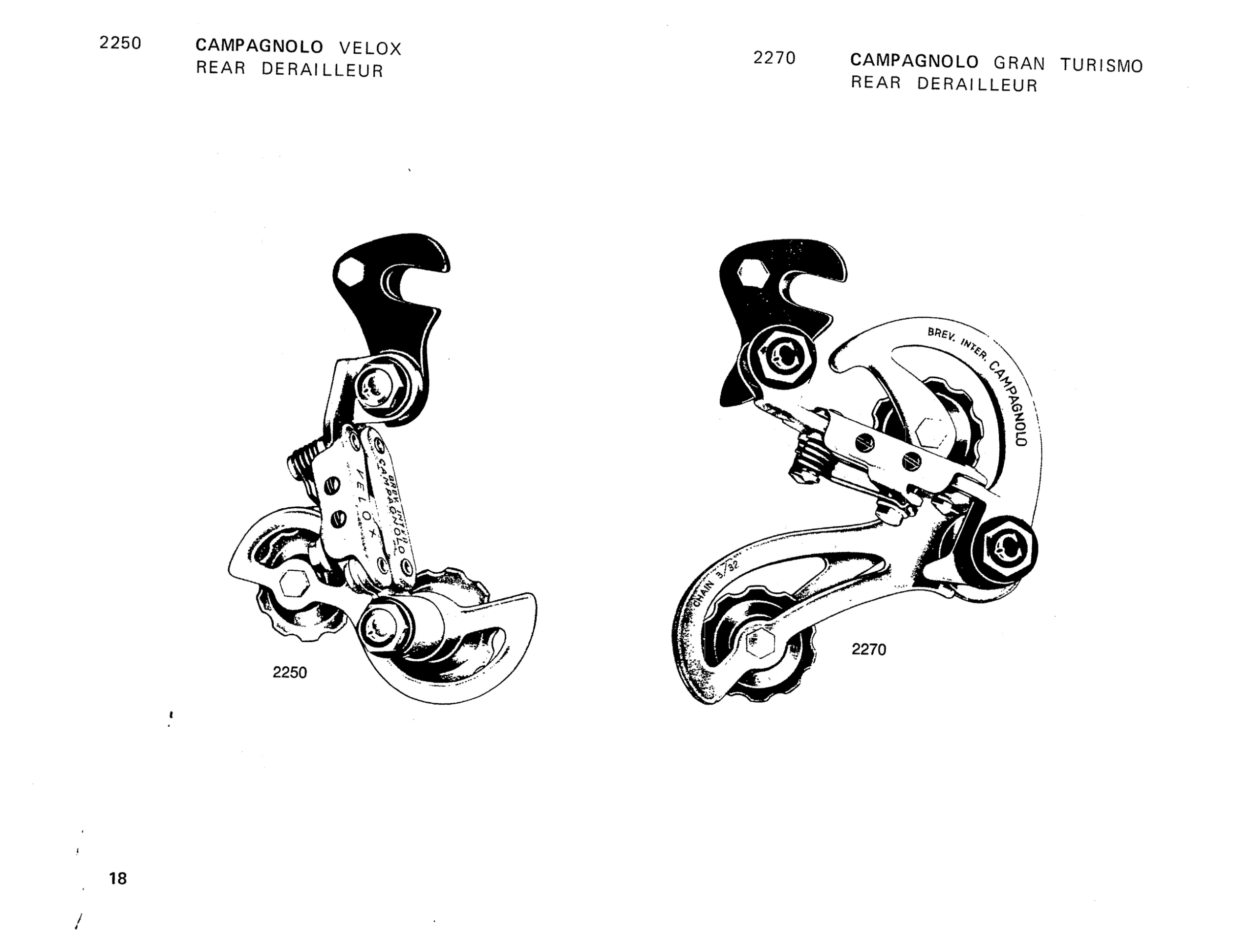

2250 CAMPAGNOLO VELOX
REAR DERAILLEUR

2270 CAMPAGNOLO GRAN TURISMO
REAR DERAILLEUR

Callouts: 2250 2270

18

[Two drawings of rear derailleurs: the Campagnolo Velox rear derailleur, 2250, on the left and the Campagnolo Gran Turismo rear derailleur, 2270, on the right, each numbered beside it. The Velox body is engraved with its name and the Campagnolo patent mark; the Gran Turismo cage reads “BREV. INTER. CAMPAGNOLO” and “CHAIN 3/32”.]

— Page 22 —

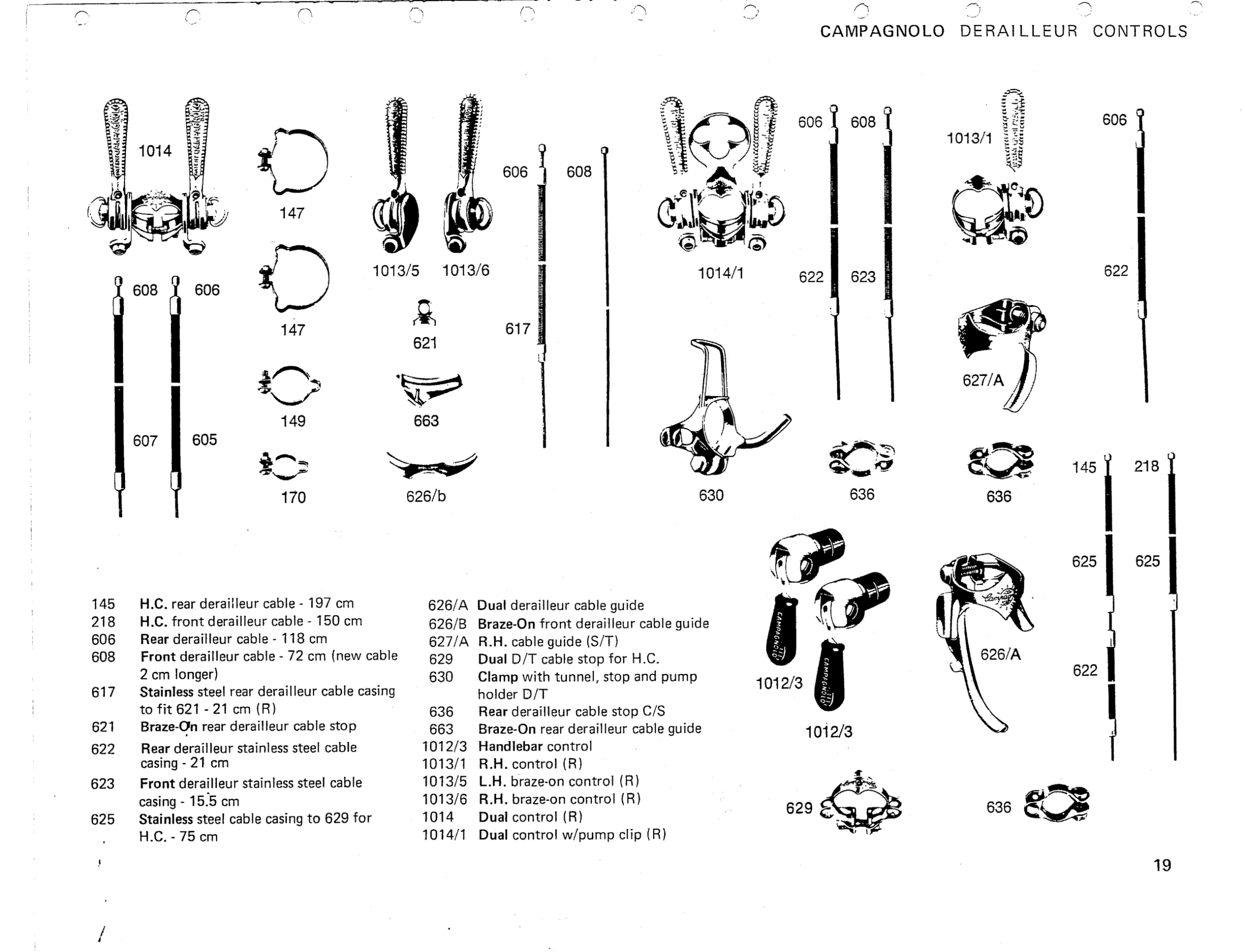

CAMPAGNOLO DERAILLEUR CONTROLS

Callouts: 1014 606 608 606 608 1013/1 606 147 608 606 1013/5 1013/6 1014/1 622 623 622 147 621 617 627/A 607 605 149 663 170 626/b 630 636 636 145 218 625 625 1012/3 626/A 622 1012/3 629 636

145 H.C. rear derailleur cable – 197 cm
218 H.C. front derailleur cable – 150 cm
606 Rear derailleur cable – 118 cm
608 Front derailleur cable – 72 cm (new cable 2 cm longer)
617 Stainless steel rear derailleur cable casing to fit 621 – 21 cm (R)
621 Braze-On rear derailleur cable stop
622 Rear derailleur stainless steel cable casing – 21 cm
623 Front derailleur stainless steel cable casing – 15.5 cm
625 Stainless steel cable casing to 629 for H.C. – 75 cm
626/A Dual derailleur cable guide
626/B Braze-On front derailleur cable guide
627/A R.H. cable guide (S/T)
629 Dual D/T cable stop for H.C.
630 Clamp with tunnel, stop and pump holder D/T
636 Rear derailleur cable stop C/S
663 Braze-On rear derailleur cable guide
1012/3 Handlebar control
1013/1 R.H. control (R)
1013/5 L.H. braze-on control (R)
1013/6 R.H. braze-on control (R)
1014 Dual control (R)
1014/1 Dual control w/pump clip (R)

19

[Drawings of Campagnolo derailleur controls and their fittings: down-tube and braze-on shift levers, handlebar-end controls, cables and cable casings, clamps, cable stops and cable guides, each numbered and keyed to a parts list in two columns. The callouts 147, 149, 170, 605 and 607 on the clamps and cable casings have no entry in the printed list.]

— Page 23 —

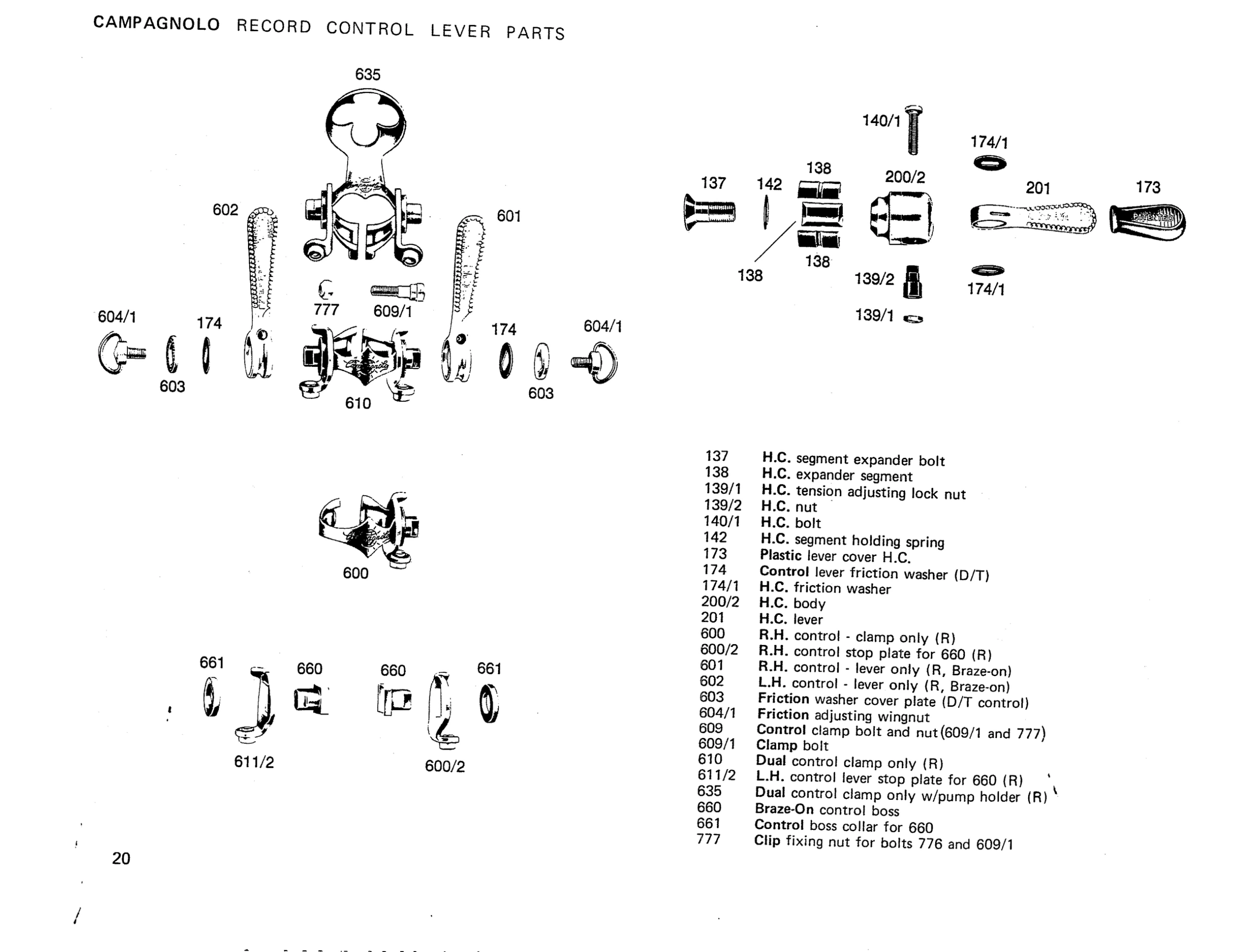

CAMPAGNOLO RECORD CONTROL LEVER PARTS

Callouts: 635 140/1 174/1 137 142 138 200/2 201 173 602 601 138 138 139/2 174/1 604/1 174 777 609/1 174 604/1 139/1 603 610 603 600 661 660 660 661 611/2 600/2

137 H.C. segment expander bolt
138 H.C. expander segment
139/1 H.C. tension adjusting lock nut
139/2 H.C. nut
140/1 H.C. bolt
142 H.C. segment holding spring
173 Plastic lever cover H.C.
174 Control lever friction washer (D/T)
174/1 H.C. friction washer
200/2 H.C. body
201 H.C. lever
600 R.H. control – clamp only (R)
600/2 R.H. control stop plate for 660 (R)
601 R.H. control – lever only (R, Braze-on)
602 L.H. control – lever only (R, Braze-on)
603 Friction washer cover plate (D/T control)
604/1 Friction adjusting wingnut
609 Control clamp bolt and nut(609/1 and 777)
609/1 Clamp bolt
610 Dual control clamp only (R)
611/2 L.H. control lever stop plate for 660 (R)
635 Dual control clamp only w/pump holder (R)
660 Braze-On control boss
661 Control boss collar for 660
777 Clip fixing nut for bolts 776 and 609/1

20

[Exploded drawings of the Campagnolo Record control lever parts: the dual down-tube control with its clamps, levers, washers and wingnuts; the handlebar-end control broken into its expander bolt, segments, body, lever and plastic cover; and the braze-on bosses with their stop plates and collars, each part numbered and keyed to a parts list. The plastic cover 173 is lettered “PATENTED”.]

— Page 24 —

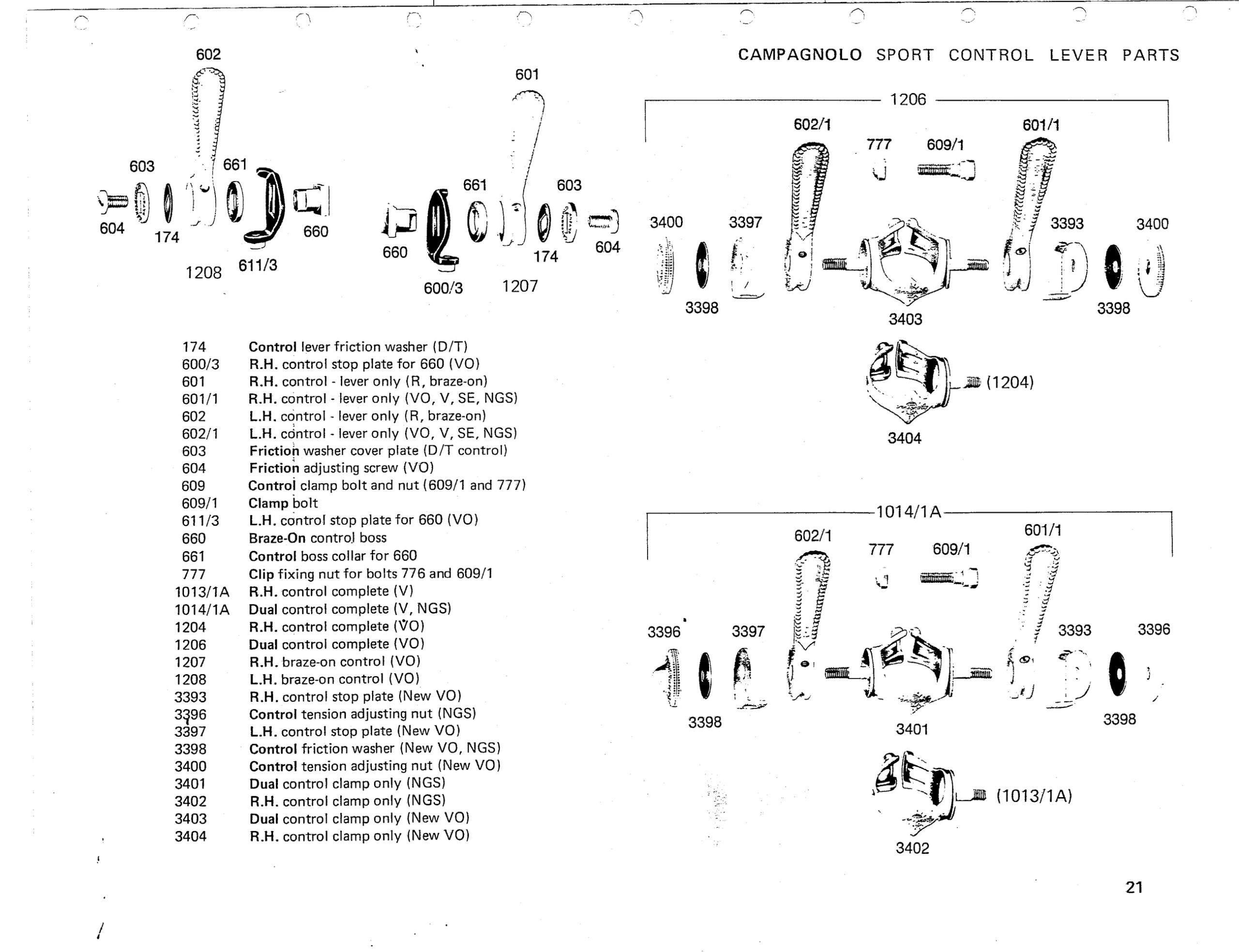

CAMPAGNOLO SPORT CONTROL LEVER PARTS

Callouts: 602 603 661 604 174 660 1208 611/3 601 661 603 660 174 604 600/3 1207 1206 602/1 601/1 777 609/1 3400 3397 3393 3400 3398 3398 3403 (1204) 3404 1014/1A 602/1 601/1 777 609/1 3396 3397 3393 3396 3398 3398 3401 (1013/1A) 3402

174 Control lever friction washer (D/T)
600/3 R.H. control stop plate for 660 (VO)
601 R.H. control – lever only (R, braze-on)
601/1 R.H. control – lever only (VO, V, SE, NGS)
602 L.H. control – lever only (R, braze-on)
602/1 L.H. control – lever only (VO, V, SE, NGS)
603 Friction washer cover plate (D/T control)
604 Friction adjusting screw (VO)
609 Control clamp bolt and nut (609/1 and 777)
609/1 Clamp bolt
611/3 L.H. control stop plate for 660 (VO)
660 Braze-On control boss
661 Control boss collar for 660
777 Clip fixing nut for bolts 776 and 609/1
1013/1A R.H. control complete (V)
1014/1A Dual control complete (V, NGS)
1204 R.H. control complete (VO)
1206 Dual control complete (VO)
1207 R.H. braze-on control (VO)
1208 L.H. braze-on control (VO)
3393 R.H. control stop plate (New VO)
3396 Control tension adjusting nut (NGS)
3397 L.H. control stop plate (New VO)
3398 Control friction washer (New VO, NGS)
3400 Control tension adjusting nut (New VO)
3401 Dual control clamp only (NGS)
3402 R.H. control clamp only (NGS)
3403 Dual control clamp only (New VO)
3404 R.H. control clamp only (New VO)

21

[Exploded drawings of the Campagnolo Sport control lever parts: the left and right braze-on controls 1208 and 1207, and the down-tube dual controls 1206 and 1014/1A, each bracketed under its number with the single right-hand clamp drawn below it, every part numbered and keyed to a parts list.]

— Page 25 —

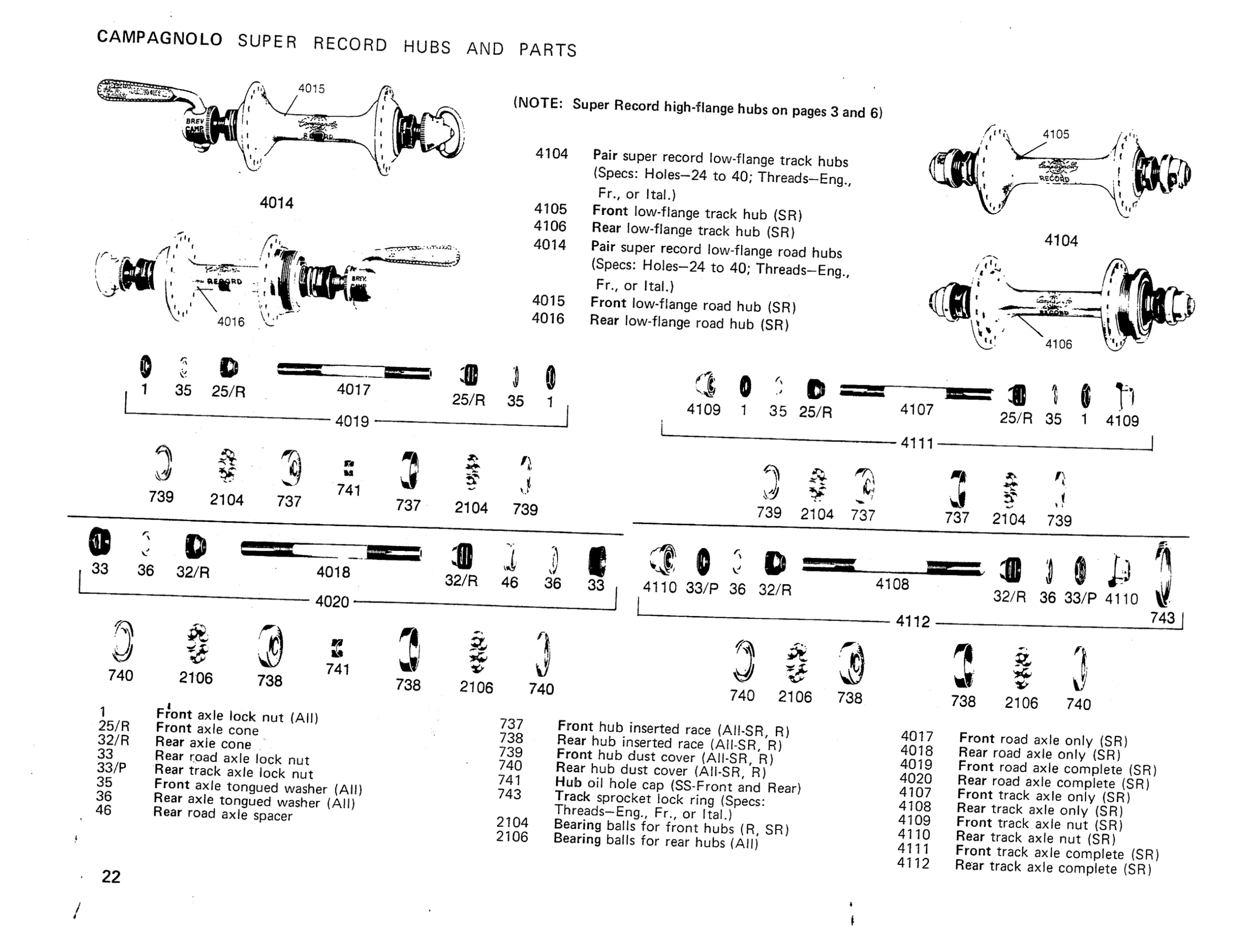

CAMPAGNOLO SUPER RECORD HUBS AND PARTS

Callouts: 4015 4014 4016 4105 4104 4106 1 35 25/R 4017 25/R 35 1 4019 4109 1 35 25/R 4107 25/R 35 1 4109 4111 739 2104 737 741 737 2104 739 739 2104 737 737 2104 739 33 36 32/R 4018 32/R 46 36 33 4020 4110 33/P 36 32/R 4108 32/R 36 33/P 4110 743 4112 740 2106 738 741 738 2106 740 740 2106 738 738 2106 740

(NOTE: Super Record high-flange hubs on pages 3 and 6)

4104 Pair super record low-flange track hubs (Specs: Holes—24 to 40; Threads—Eng., Fr., or Ital.)
4105 Front low-flange track hub (SR)
4106 Rear low-flange track hub (SR)
4014 Pair super record low-flange road hubs (Specs: Holes—24 to 40; Threads—Eng., Fr., or Ital.)
4015 Front low-flange road hub (SR)
4016 Rear low-flange road hub (SR)

1 Front axle lock nut (All)
25/R Front axle cone
32/R Rear axle cone
33 Rear road axle lock nut
33/P Rear track axle lock nut
35 Front axle tongued washer (All)
36 Rear axle tongued washer (All)
46 Rear road axle spacer
737 Front hub inserted race (All-SR, R)
738 Rear hub inserted race (All-SR, R)
739 Front hub dust cover (All-SR, R)
740 Rear hub dust cover (All-SR, R)
741 Hub oil hole cap (SS-Front and Rear)
743 Track sprocket lock ring (Specs: Threads—Eng., Fr., or Ital.)
2104 Bearing balls for front hubs (R, SR)
2106 Bearing balls for rear hubs (All)
4017 Front road axle only (SR)
4018 Rear road axle only (SR)
4019 Front road axle complete (SR)
4020 Rear road axle complete (SR)
4107 Front track axle only (SR)
4108 Rear track axle only (SR)
4109 Front track axle nut (SR)
4110 Rear track axle nut (SR)
4111 Front track axle complete (SR)
4112 Rear track axle complete (SR)

22

[Drawings of the Campagnolo Super Record low-flange hubs, the road pair 4014 with quick-release skewers and the track pair 4104 with axle nuts, above exploded drawings of the front and rear road and track axles with their cones, washers, lock nuts, races, dust covers and bearing balls, each numbered and keyed to a parts list in three columns. The hub shells are lettered “Campagnolo RECORD” and the quick-release levers “BREV. CAMP.”.]

— Page 26 —

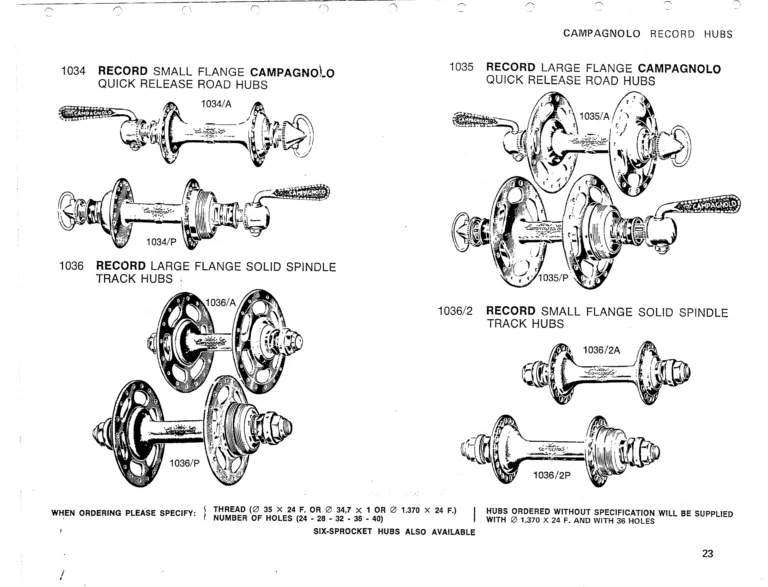

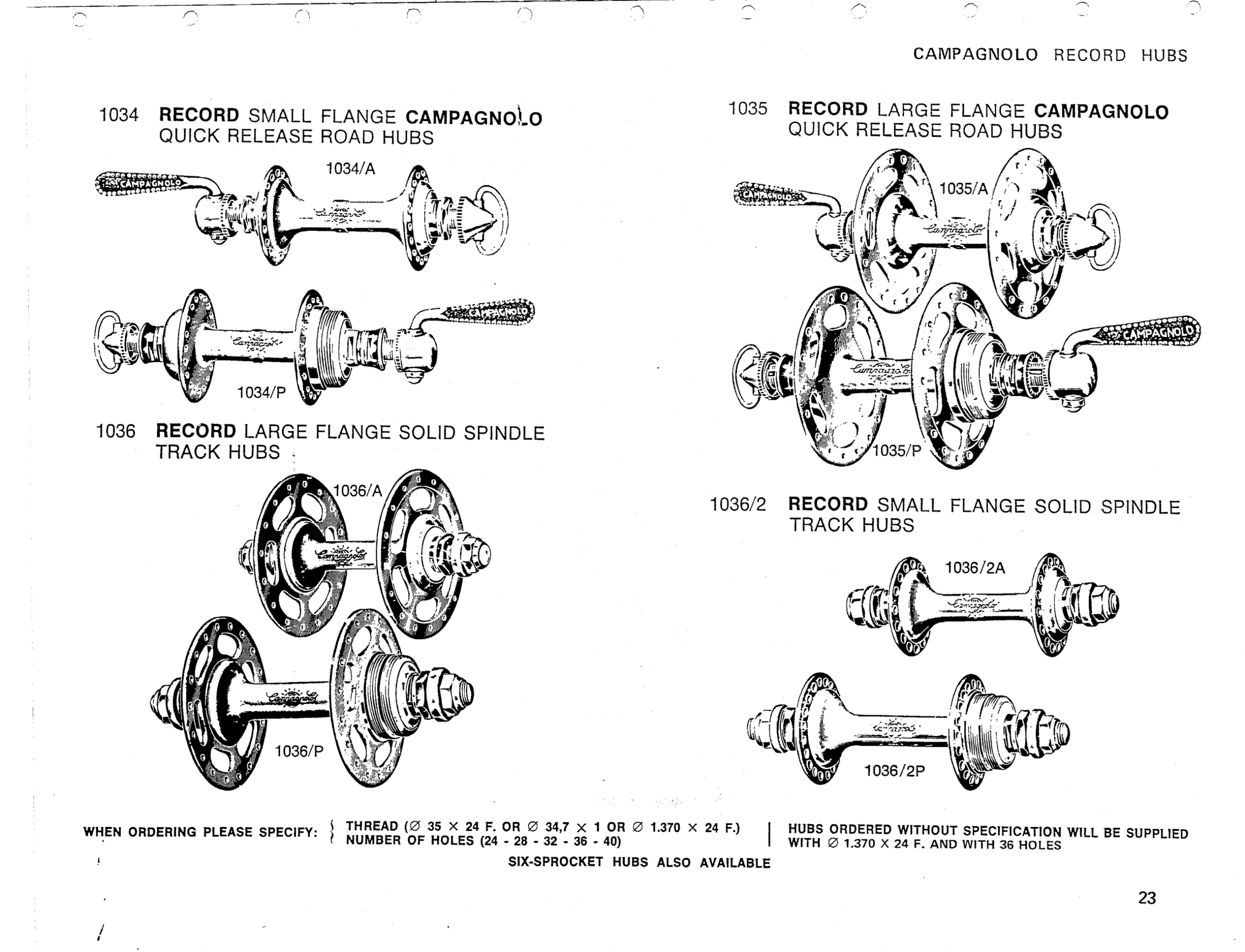

CAMPAGNOLO RECORD HUBS

1034 RECORD SMALL FLANGE CAMPAGNOLO
QUICK RELEASE ROAD HUBS

1035 RECORD LARGE FLANGE CAMPAGNOLO
QUICK RELEASE ROAD HUBS

1036 RECORD LARGE FLANGE SOLID SPINDLE
TRACK HUBS

1036/2 RECORD SMALL FLANGE SOLID SPINDLE
TRACK HUBS

Callouts: 1034/A 1035/A 1034/P 1035/P 1036/A 1036/2A 1036/P 1036/2P

WHEN ORDERING PLEASE SPECIFY: THREAD (Ø 35 × 24 F. OR Ø 34,7 × 1 OR Ø 1.370 × 24 F.)
NUMBER OF HOLES (24 – 28 – 32 – 36 – 40)

HUBS ORDERED WITHOUT SPECIFICATION WILL BE SUPPLIED WITH Ø 1.370 X 24 F. AND WITH 36 HOLES

SIX-SPROCKET HUBS ALSO AVAILABLE

23

[Drawings of four pairs of Campagnolo Record hubs, each pair shown front and rear: the small-flange and large-flange quick-release road hubs, 1034 and 1035, and the large-flange and small-flange solid-spindle track hubs, 1036 and 1036/2. A footnote lists the threads and drillings to specify when ordering; the quick-release levers are lettered “CAMPAGNOLO” and the hub shells carry the Campagnolo script.]

— Page 27 —

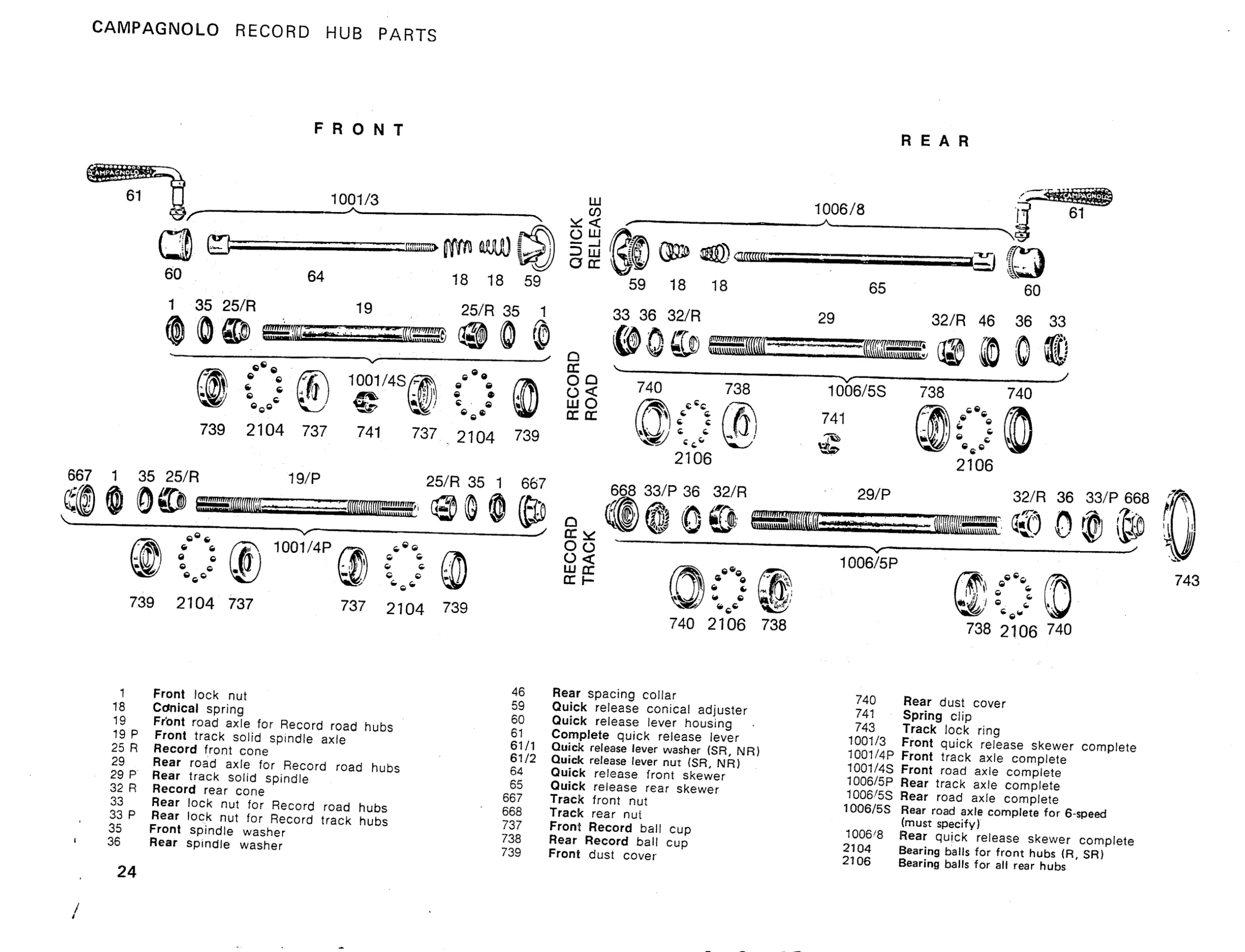

CAMPAGNOLO RECORD HUB PARTS

FRONT

REAR

QUICK RELEASE
Callouts: 61 1001/3 60 64 18 18 59 1006/8 61 59 18 18 65 60

RECORD ROAD
Callouts: 1 35 25/R 19 25/R 35 1 739 2104 737 1001/4S 741 737 2104 739 33 36 32/R 29 32/R 46 36 33 740 738 1006/5S 738 740 741 2106 2106

RECORD TRACK
Callouts: 667 1 35 25/R 19/P 25/R 35 1 667 1001/4P 739 2104 737 737 2104 739 668 33/P 36 32/R 29/P 32/R 36 33/P 668 1006/5P 743 740 2106 738 738 2106 740

1 Front lock nut
18 Conical spring
19 Front road axle for Record road hubs
19 P Front track solid spindle axle
25 R Record front cone
29 Rear road axle for Record road hubs
29 P Rear track solid spindle
32 R Record rear cone
33 Rear lock nut for Record road hubs
33 P Rear lock nut for Record track hubs
35 Front spindle washer
36 Rear spindle washer
46 Rear spacing collar
59 Quick release conical adjuster
60 Quick release lever housing
61 Complete quick release lever
61/1 Quick release lever washer (SR, NR)
61/2 Quick release lever nut (SR, NR)
64 Quick release front skewer
65 Quick release rear skewer
667 Track front nut
668 Track rear nui
737 Front Record ball cup
738 Rear Record ball cup
739 Front dust cover
740 Rear dust cover
741 Spring clip
743 Track lock ring
1001/3 Front quick release skewer complete
1001/4P Front track axle complete
1001/4S Front road axle complete
1006/5P Rear track axle complete
1006/5S Rear road axle complete
1006/5S Rear road axle complete for 6-speed (must specify)
1006/8 Rear quick release skewer complete
2104 Bearing balls for front hubs (R, SR)
2106 Bearing balls for all rear hubs

24

[Exploded drawings of the Campagnolo Record hub parts, front hubs on the left and rear hubs on the right, in three rows: the quick-release skewers, the Record road axles and the Record track axles with their cones, washers, lock nuts, ball cups, dust covers and bearing balls, every part numbered and keyed to a parts list in three columns. The quick-release levers are lettered “CAMPAGNOLO”.]

— Page 28 —

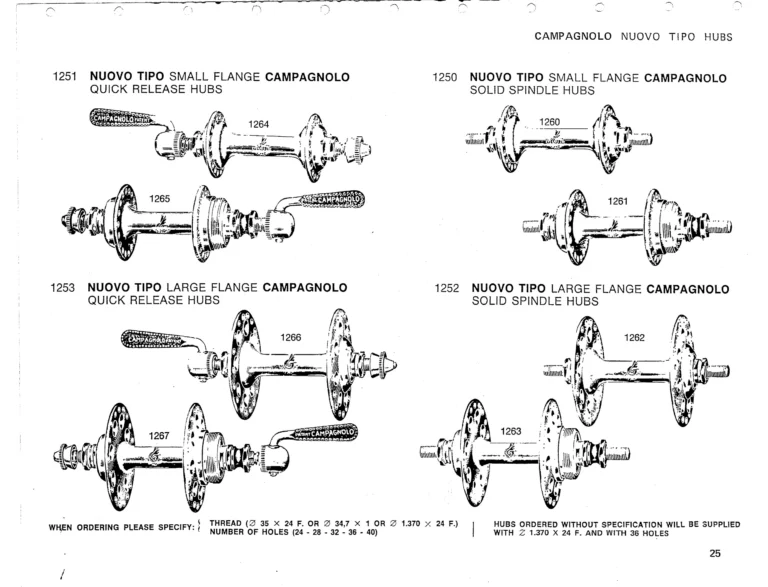

CAMPAGNOLO NUOVO TIPO HUBS

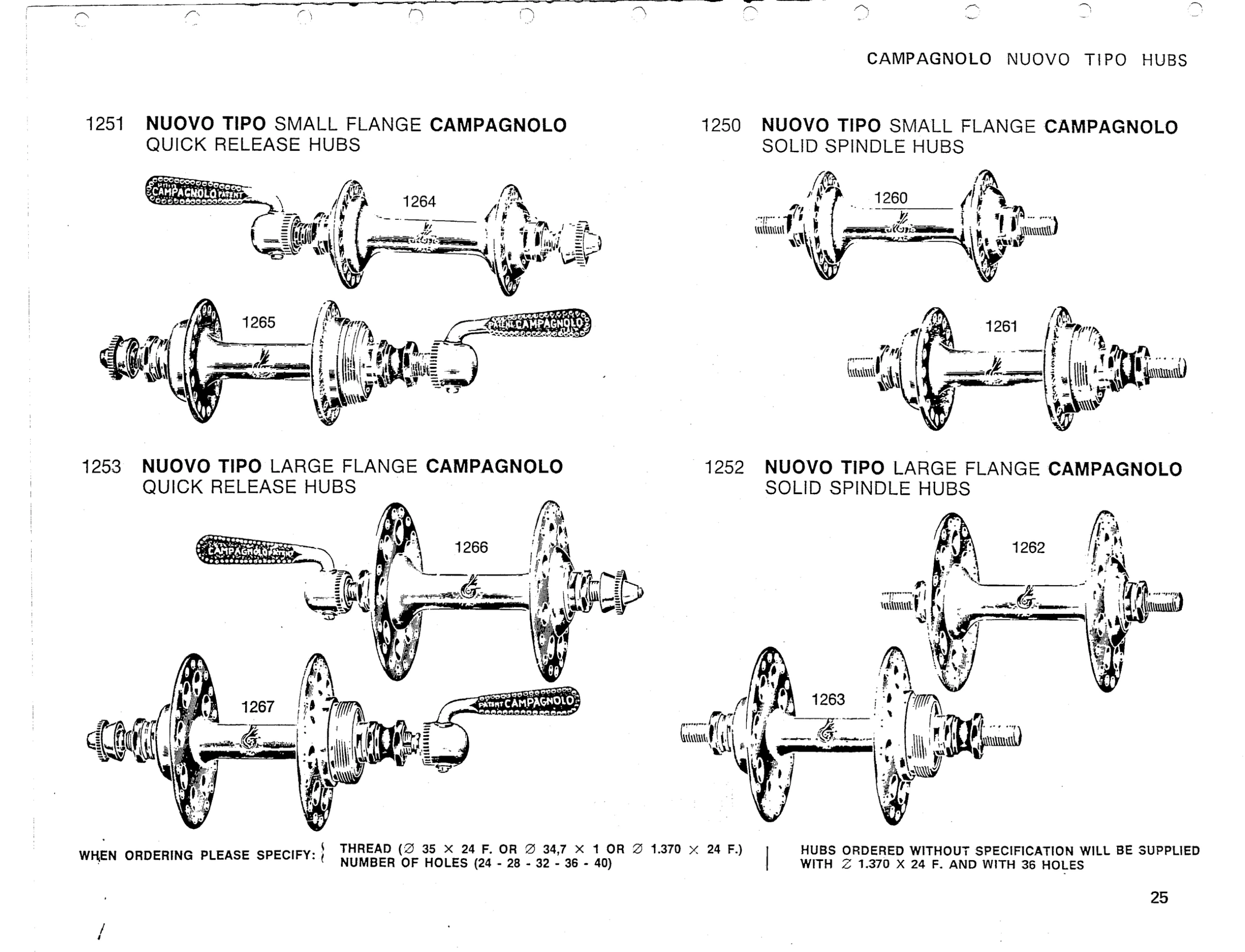

1251 NUOVO TIPO SMALL FLANGE CAMPAGNOLO
QUICK RELEASE HUBS

1250 NUOVO TIPO SMALL FLANGE CAMPAGNOLO
SOLID SPINDLE HUBS

1253 NUOVO TIPO LARGE FLANGE CAMPAGNOLO
QUICK RELEASE HUBS

1252 NUOVO TIPO LARGE FLANGE CAMPAGNOLO
SOLID SPINDLE HUBS

Callouts: 1264 1260 1265 1261 1266 1262 1267 1263

WHEN ORDERING PLEASE SPECIFY: THREAD (Ø 35 × 24 F. OR Ø 34,7 × 1 OR Ø 1.370 × 24 F.)
NUMBER OF HOLES (24 – 28 – 32 – 36 – 40)

HUBS ORDERED WITHOUT SPECIFICATION WILL BE SUPPLIED WITH Ø [?] 1.370 X 24 F. AND WITH 36 HOLES

25

[Drawings of four pairs of Campagnolo Nuovo Tipo hubs, each pair shown front and rear: the small-flange and large-flange quick-release hubs, 1251 and 1253, and the small-flange and large-flange solid-spindle hubs, 1250 and 1252. A footnote lists the threads and drillings to specify when ordering; the quick-release levers are lettered “CAMPAGNOLO PATENT”.]

— Page 29 —

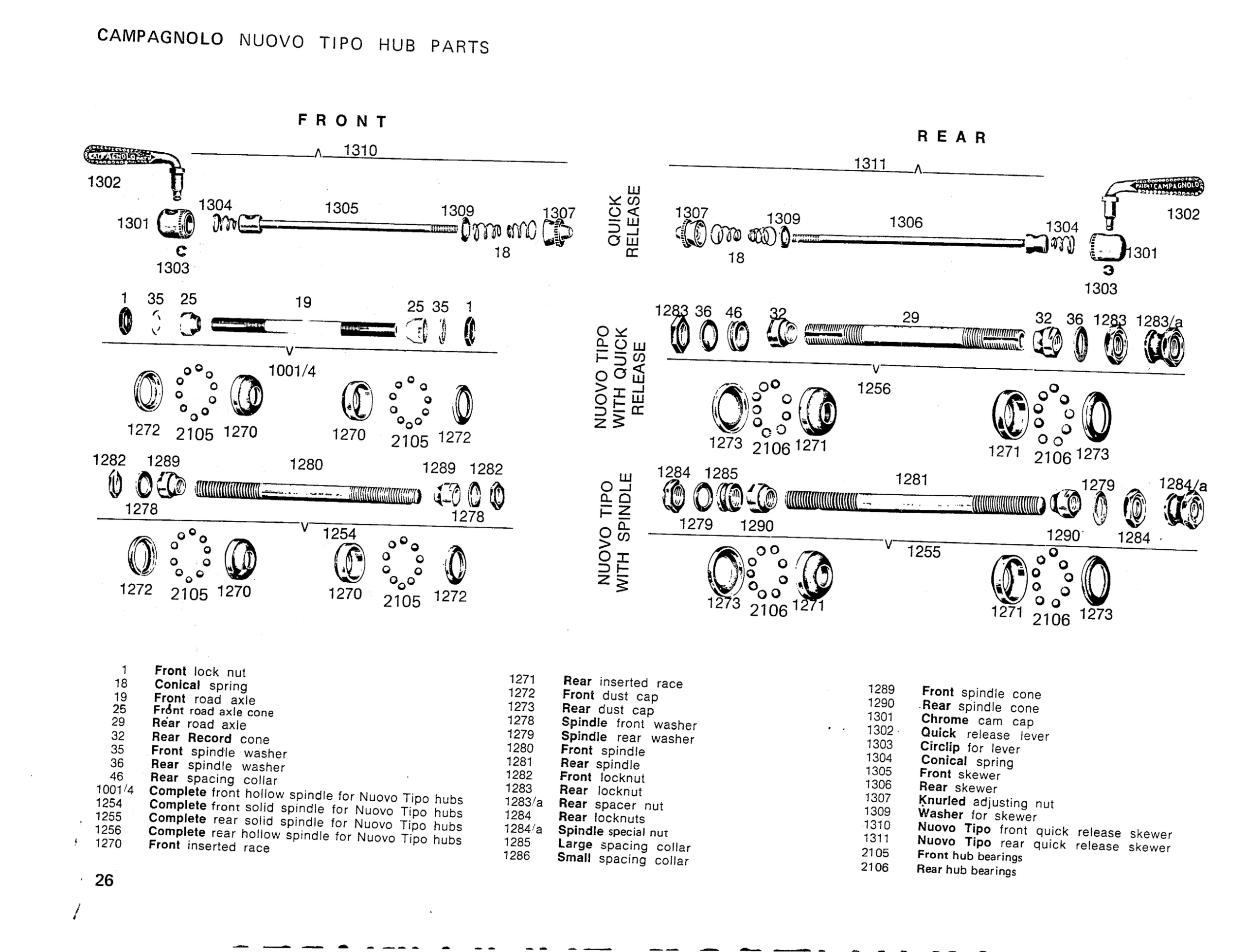

CAMPAGNOLO NUOVO TIPO HUB PARTS

FRONT

REAR

QUICK RELEASE
Callouts: 1310 1302 1304 1305 1309 1307 1301 18 1303 1311 1307 1309 1306 1304 1302 18 1301 1303

NUOVO TIPO WITH QUICK RELEASE
Callouts: 1 35 25 19 25 35 1 1001/4 1272 2105 1270 1270 2105 1272 1283 36 46 32 29 32 36 1283 1283/a 1256 1273 2106 1271 1271 2106 1273

NUOVO TIPO WITH SPINDLE
Callouts: 1282 1289 1280 1289 1282 1278 1278 1254 1272 2105 1270 1270 2105 1272 1284 1285 1281 1279 1284/a 1279 1290 1290 1284 1255 1273 2106 1271 1271 2106 1273

1 Front lock nut
18 Conical spring
19 Front road axle
25 Front road axle cone
29 Rear road axle
32 Rear Record cone
35 Front spindle washer
36 Rear spindle washer
46 Rear spacing collar
1001/4 Complete front hollow spindle for Nuovo Tipo hubs
1254 Complete front solid spindle for Nuovo Tipo hubs
1255 Complete rear solid spindle for Nuovo Tipo hubs
1256 Complete rear hollow spindle for Nuovo Tipo hubs
1270 Front inserted race
1271 Rear inserted race
1272 Front dust cap
1273 Rear dust cap
1278 Spindle front washer
1279 Spindle rear washer
1280 Front spindle
1281 Rear spindle
1282 Front locknut
1283 Rear locknut
1283/a Rear spacer nut
1284 Rear locknuts
1284/a Spindle special nut
1285 Large spacing collar
1286 Small spacing collar
1289 Front spindle cone
1290 Rear spindle cone
1301 Chrome cam cap
1302 Quick release lever
1303 Circlip for lever
1304 Conical spring
1305 Front skewer
1306 Rear skewer
1307 Knurled adjusting nut
1309 Washer for skewer
1310 Nuovo Tipo front quick release skewer
1311 Nuovo Tipo rear quick release skewer
2105 Front hub bearings
2106 Rear hub bearings

26

[Exploded drawings of the Campagnolo Nuovo Tipo hub parts, front hubs on the left and rear hubs on the right, in three rows: the quick-release skewers, the hollow axles for quick-release hubs and the solid spindles, with their cones, washers, locknuts, races, dust caps and bearings, every part numbered and keyed to a parts list in three columns. The quick-release levers are lettered “PATENT CAMPAGNOLO”.]

— Page 30 —

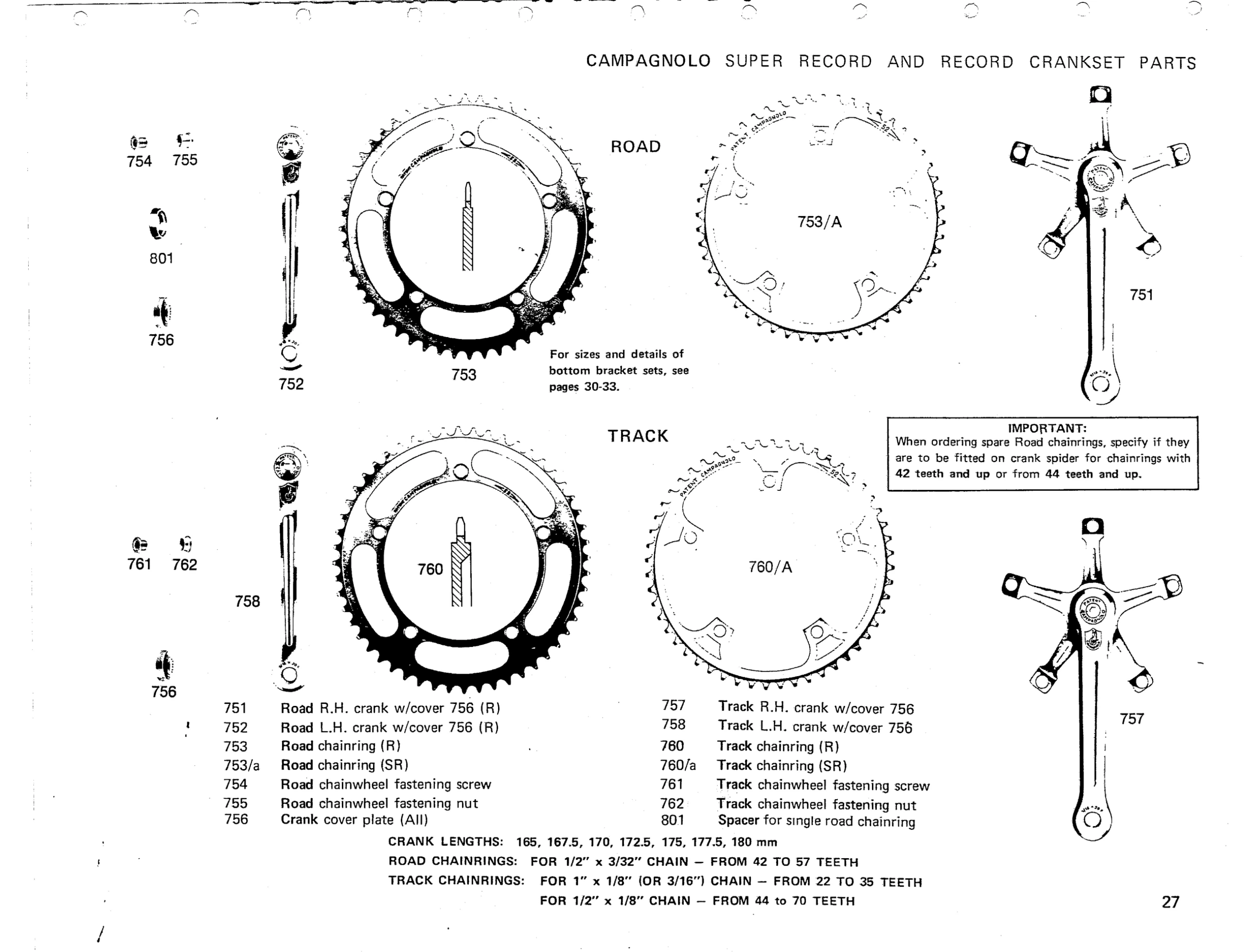

CAMPAGNOLO SUPER RECORD AND RECORD CRANKSET PARTS

ROAD

TRACK

Callouts: 754 755 753/A 801 751 756 753 752 761 762 760 760/A 758 756 757

For sizes and details of bottom bracket sets, see pages 30-33.

IMPORTANT:
When ordering spare Road chainrings, specify if they are to be fitted on crank spider for chainrings with 42 teeth and up or from 44 teeth and up.

751 Road R.H. crank w/cover 756 (R)
752 Road L.H. crank w/cover 756 (R)
753 Road chainring (R)
753/a Road chainring (SR)
754 Road chainwheel fastening screw
755 Road chainwheel fastening nut
756 Crank cover plate (All)
757 Track R.H. crank w/cover 756
758 Track L.H. crank w/cover 756
760 Track chainring (R)
760/a Track chainring (SR)
761 Track chainwheel fastening screw
762 Track chainwheel fastening nut
801 Spacer for single road chainring

CRANK LENGTHS: 165, 167.5, 170, 172.5, 175, 177.5, 180 mm
ROAD CHAINRINGS: FOR 1/2″ x 3/32″ CHAIN – FROM 42 TO 57 TEETH
TRACK CHAINRINGS: FOR 1″ x 1/8″ (OR 3/16″) CHAIN – FROM 22 TO 35 TEETH
FOR 1/2″ x 1/8″ CHAIN – FROM 44 to 70 TEETH

27

[Drawings of the Campagnolo Super Record and Record crankset parts in two rows, road above and track below: the left crank seen edge-on, the Record chainring with its tooth section, the Super Record chainring in outline, the right crank and spider, and the chainring screws, nuts, spacer and crank cover plates, each numbered and keyed to a parts list. A boxed note concerns ordering spare road chainrings, and a footnote gives crank lengths and chainring sizes; the Super Record chainrings 753/A and 760/A are lettered “PATENT CAMPAGNOLO”.]

— Page 31 —

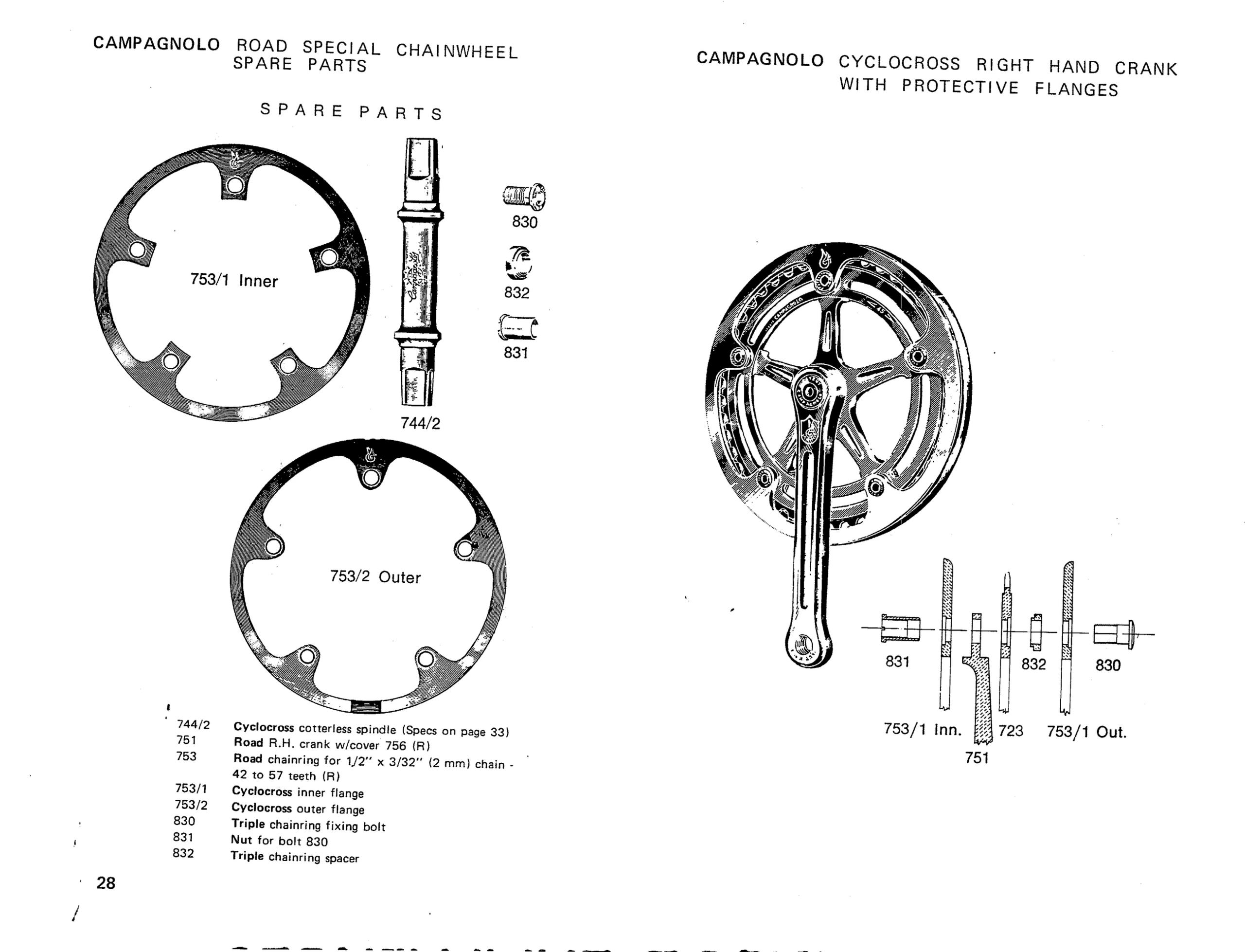

CAMPAGNOLO ROAD SPECIAL CHAINWHEEL SPARE PARTS

SPARE PARTS

Callouts: 830 753/1 Inner 832 831 744/2 753/2 Outer

744/2 Cyclocross cotterless spindle (Specs on page 33)
751 Road R.H. crank w/cover 756 (R)
753 Road chainring for 1/2″ x 3/32″ (2 mm) chain – 42 to 57 teeth (R)
753/1 Cyclocross inner flange
753/2 Cyclocross outer flange
830 Triple chainring fixing bolt
831 Nut for bolt 830
832 Triple chainring spacer

CAMPAGNOLO CYCLOCROSS RIGHT HAND CRANK WITH PROTECTIVE FLANGES

Callouts: 831 753/1 Inn. 751 723 832 753/1 Out. 830

28

[Campagnolo Road Special chainwheel spare parts and the cyclocross right hand crank with protective flanges, on one landscape page: on the left the cyclocross inner and outer protective flanges, 753/1 and 753/2, the cyclocross cotterless spindle 744/2 and the triple chainring bolt, nut and spacer, keyed to a parts list. On the right a photograph of the cyclocross right hand crank fitted with its protective flanges, above a sectional drawing showing the order of flanges, crank, chainring, spacer and bolt.]

— Page 32 —

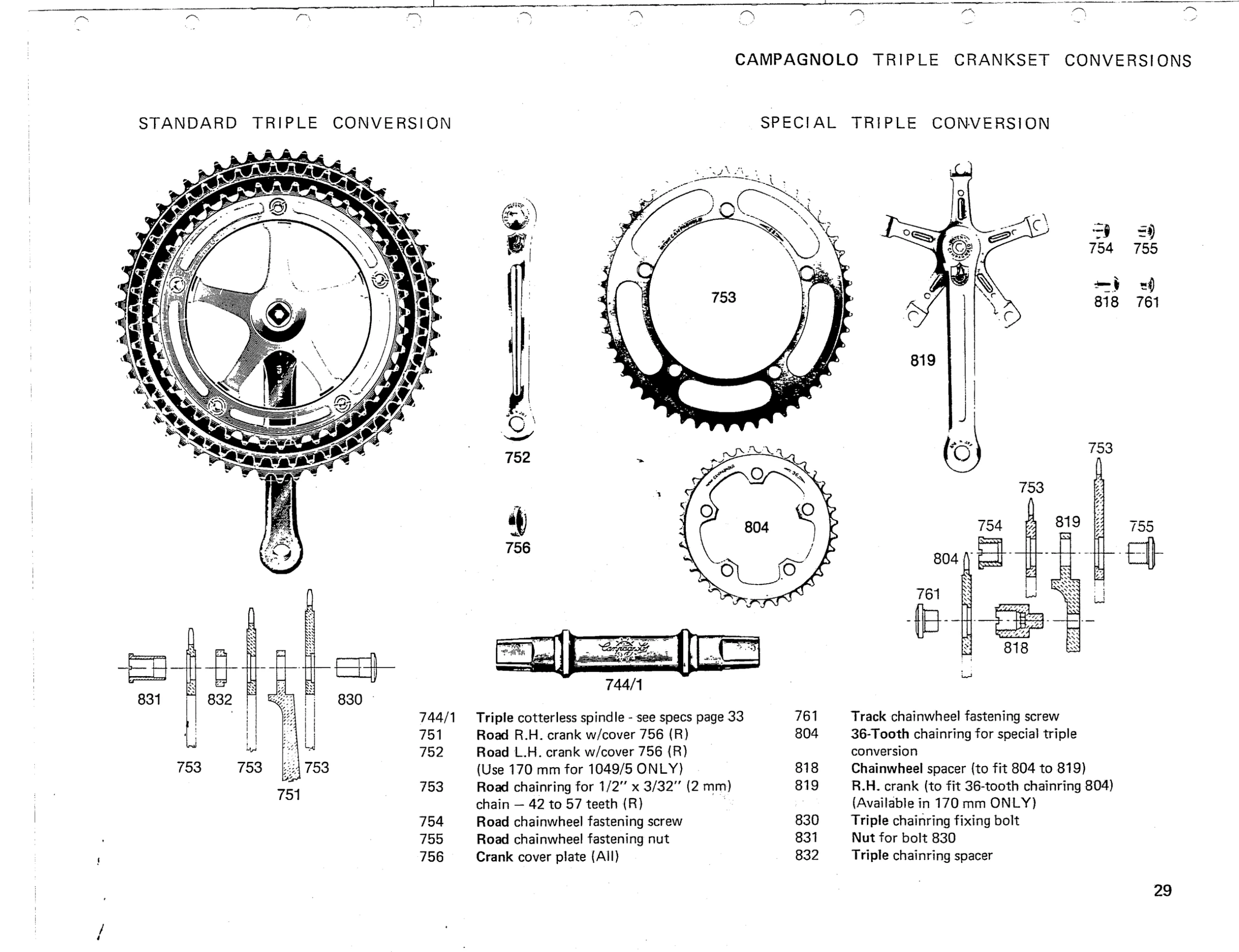

CAMPAGNOLO TRIPLE CRANKSET CONVERSIONS

STANDARD TRIPLE CONVERSION

SPECIAL TRIPLE CONVERSION

Callouts: 831 832 830 753 753 753 751 752 756 753 804 744/1 754 755 818 761 819 753 753 754 819 755 804 761 818

744/1 Triple cotterless spindle – see specs page 33
751 Road R.H. crank w/cover 756 (R)
752 Road L.H. crank w/cover 756 (R) (Use 170 mm for 1049/5 ONLY)
753 Road chainring for 1/2″ x 3/32″ (2 mm) chain – 42 to 57 teeth (R)
754 Road chainwheel fastening screw
755 Road chainwheel fastening nut
756 Crank cover plate (All)
761 Track chainwheel fastening screw
804 36-Tooth chainring for special triple conversion
818 Chainwheel spacer (to fit 804 to 819)
819 R.H. crank (to fit 36-tooth chainring 804) (Available in 170 mm ONLY)
830 Triple chainring fixing bolt
831 Nut for bolt 830
832 Triple chainring spacer

29

[Campagnolo triple crankset conversions: on the left the standard triple conversion, a photograph of a right hand crank with three chainrings above a sectional drawing of the bolt, nut and spacer that carry the third ring; on the right the special triple conversion, with the 36-tooth chainring 804 bolted through the spacer 818 to the special right hand crank 819. The left hand crank, chainrings, spindle 744/1 and fastenings are pictured and keyed to a two-column parts list.]

— Page 33 —

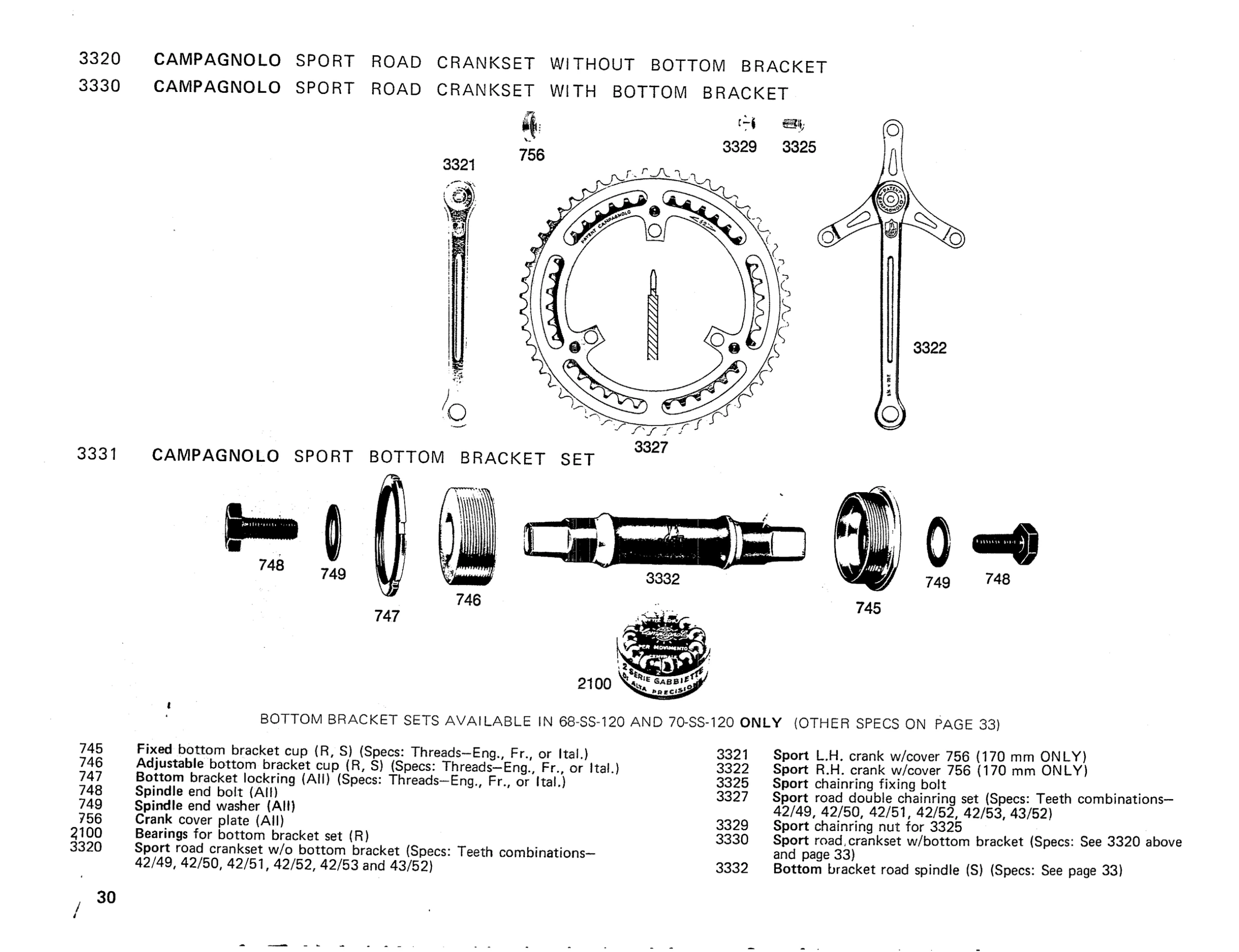

3320 CAMPAGNOLO SPORT ROAD CRANKSET WITHOUT BOTTOM BRACKET
3330 CAMPAGNOLO SPORT ROAD CRANKSET WITH BOTTOM BRACKET

Callouts: 756 3329 3325 3321 3322 3327

3331 CAMPAGNOLO SPORT BOTTOM BRACKET SET

Callouts: 748 749 747 746 3332 745 749 748 2100

BOTTOM BRACKET SETS AVAILABLE IN 68-SS-120 AND 70-SS-120 ONLY (OTHER SPECS ON PAGE 33)

745 Fixed bottom bracket cup (R, S) (Specs: Threads—Eng., Fr., or Ital.)
746 Adjustable bottom bracket cup (R, S) (Specs: Threads—Eng., Fr., or Ital.)
747 Bottom bracket lockring (All) (Specs: Threads—Eng., Fr., or Ital.)
748 Spindle end bolt (All)
749 Spindle end washer (All)
756 Crank cover plate (All)
2100 Bearings for bottom bracket set (R)
3320 Sport road crankset w/o bottom bracket (Specs: Teeth combinations—42/49, 42/50, 42/51, 42/52, 42/53 and 43/52)
3321 Sport L.H. crank w/cover 756 (170 mm ONLY)
3322 Sport R.H. crank w/cover 756 (170 mm ONLY)
3325 Sport chainring fixing bolt
3327 Sport road double chainring set (Specs: Teeth combinations—42/49, 42/50, 42/51, 42/52, 42/53, 43/52)
3329 Sport chainring nut for 3325
3330 Sport road,[?] crankset w/bottom bracket (Specs: See 3320 above and page 33)
3332 Bottom bracket road spindle (S) (Specs: See page 33)

30

[The Campagnolo Sport road crankset, 3320 without and 3330 with bottom bracket, with its left and right hand cranks, double chainring set and fixing bolt and nut pictured and numbered. Below, the parts of the Sport bottom bracket set 3331 are laid out in a row, cups, lockring, spindle, washers and bolts, with a boxed set of bearings 2100, all keyed to a two-column parts list.]

— Page 34 —

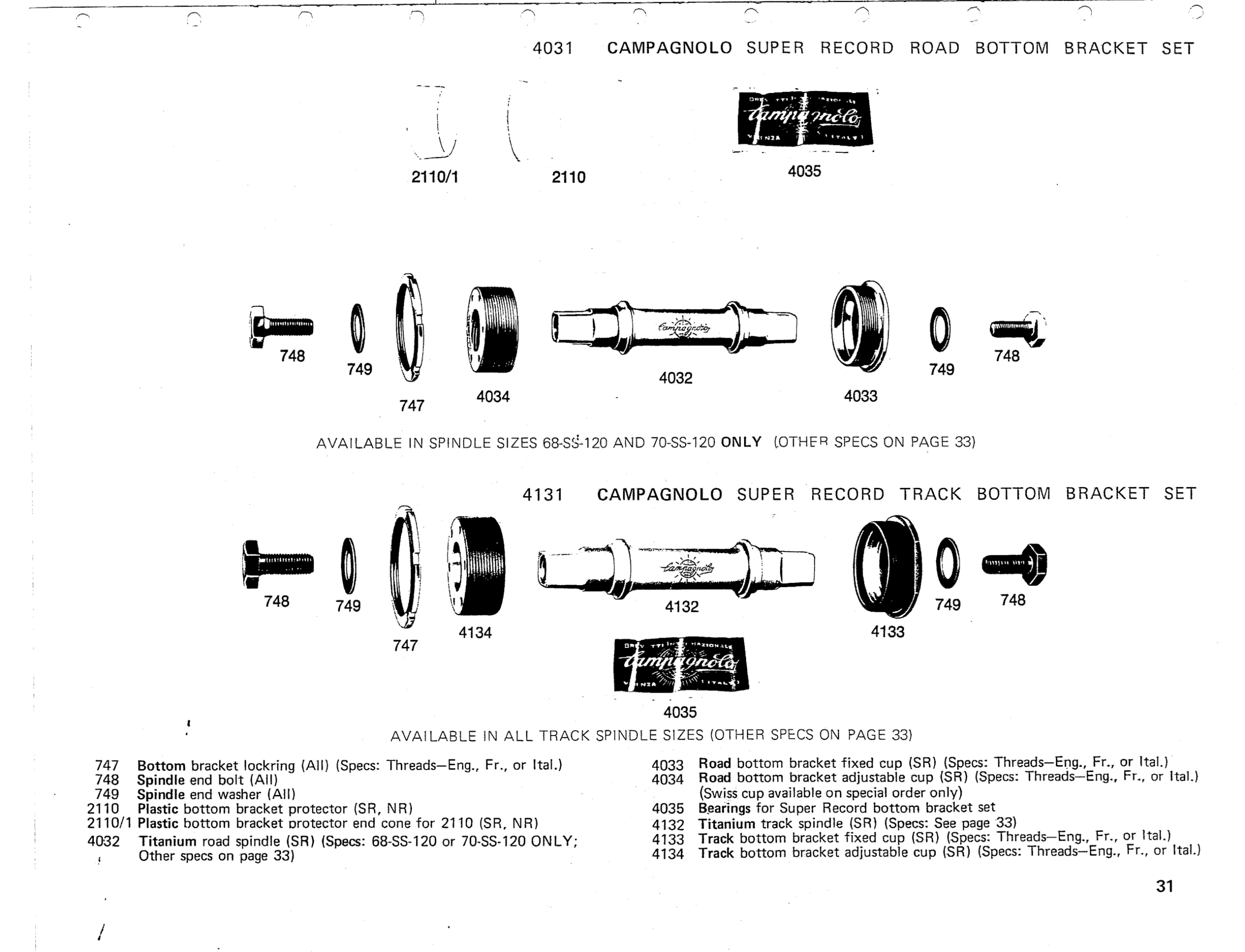

4031 CAMPAGNOLO SUPER RECORD ROAD BOTTOM BRACKET SET

Callouts: 2110/1 2110 4035 748 749 747 4034 4032 4033 749 748

AVAILABLE IN SPINDLE SIZES 68-SS-120 AND 70-SS-120 ONLY (OTHER SPECS ON PAGE 33)

4131 CAMPAGNOLO SUPER RECORD TRACK BOTTOM BRACKET SET

Callouts: 748 749 747 4134 4132 4035 4133 749 748

AVAILABLE IN ALL TRACK SPINDLE SIZES (OTHER SPECS ON PAGE 33)

747 Bottom bracket lockring (All) (Specs: Threads—Eng., Fr., or Ital.)
748 Spindle end bolt (All)
749 Spindle end washer (All)
2110 Plastic bottom bracket protector (SR, NR)
2110/1 Plastic bottom bracket protector end cone for 2110 (SR, NR)
4032 Titanium road spindle (SR) (Specs: 68-SS-120 or 70-SS-120 ONLY; Other specs on page 33)
4033 Road bottom bracket fixed cup (SR) (Specs: Threads—Eng., Fr., or Ital.)
4034 Road bottom bracket adjustable cup (SR) (Specs: Threads—Eng., Fr., or Ital.) (Swiss cup available on special order only)
4035 Bearings for Super Record bottom bracket set
4132 Titanium track spindle (SR) (Specs: See page 33)
4133 Track bottom bracket fixed cup (SR) (Specs: Threads—Eng., Fr., or Ital.)
4134 Track bottom bracket adjustable cup (SR) (Specs: Threads—Eng., Fr., or Ital.)

31

[The Campagnolo Super Record road bottom bracket set 4031 and Super Record track bottom bracket set 4131, each laid out part by part in a row: spindle end bolts and washers, lockring, adjustable and fixed cups and the titanium spindle. The plastic bottom bracket protector 2110 with its end cone 2110/1 and the packet of bearings 4035 are also pictured, and every part is keyed to a two-column parts list.]

— Page 35 —

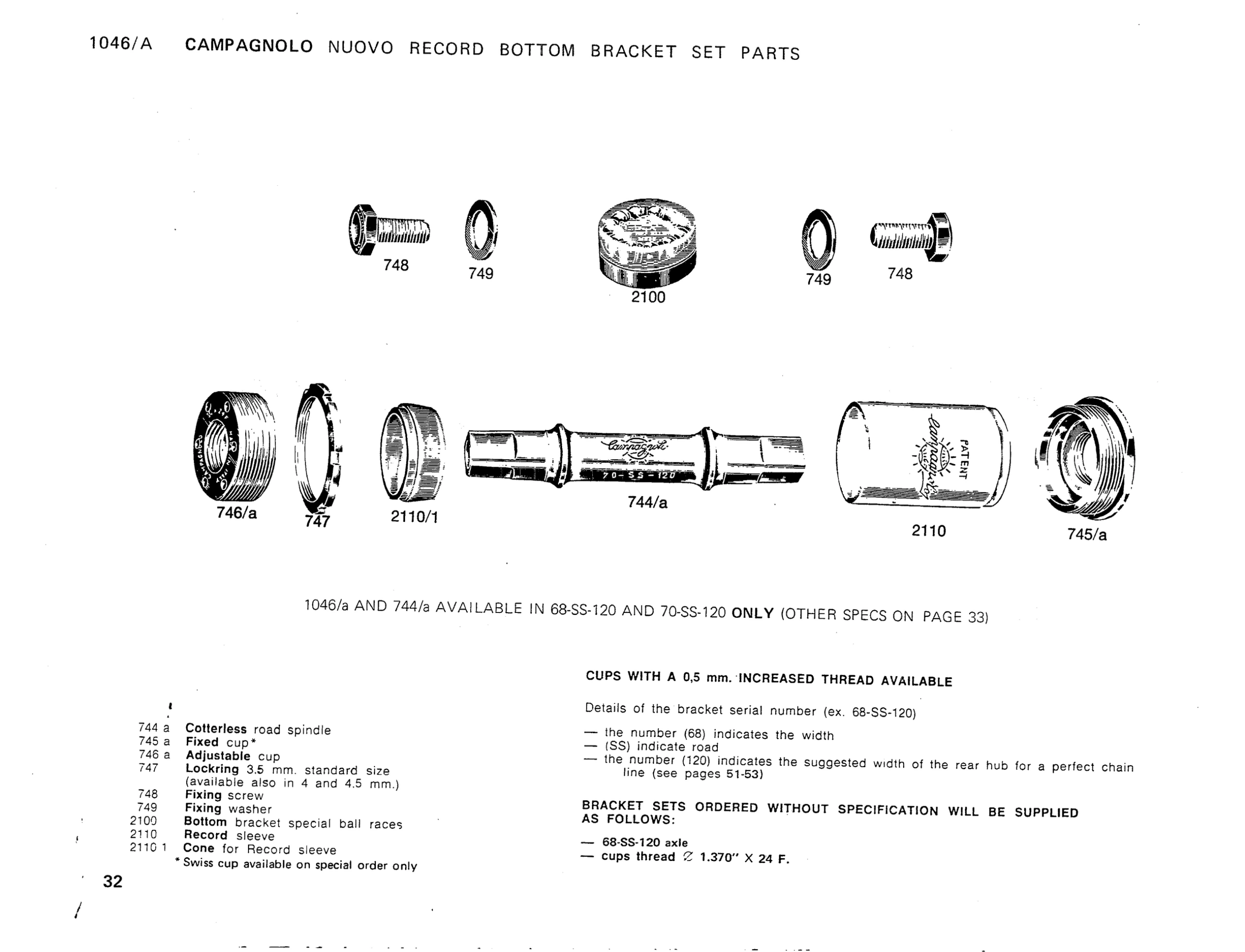

1046/A CAMPAGNOLO NUOVO RECORD BOTTOM BRACKET SET PARTS

Callouts: 748 749 2100 749 748 746/a 747 2110/1 744/a 2110 745/a

1046/a AND 744/a AVAILABLE IN 68-SS-120 AND 70-SS-120 ONLY (OTHER SPECS ON PAGE 33)

744 a Cotterless road spindle
745 a Fixed cup*
746 a Adjustable cup
747 Lockring 3.5 mm. standard size (available also in 4 and 4.5 mm.)
748 Fixing screw
749 Fixing washer
2100 Bottom bracket special ball races
2110 Record sleeve
2110 1 Cone for Record sleeve
* Swiss cup available on special order only

CUPS WITH A 0,5 mm. INCREASED THREAD AVAILABLE

Details of the bracket serial number (ex. 68-SS-120)

— the number (68) indicates the width
— (SS) indicate road
— the number (120) indicates the suggested width of the rear hub for a perfect chain line (see pages 51-53)

BRACKET SETS ORDERED WITHOUT SPECIFICATION WILL BE SUPPLIED AS FOLLOWS:

— 68-SS-120 axle
— cups thread Ø 1.370″ X 24 F.

32

[The parts of the Campagnolo Nuovo Record bottom bracket set 1046/A laid out and numbered: fixing screws and washers, the boxed ball races 2100, adjustable cup, lockring, the cone and plastic Record sleeve, the cotterless spindle marked 70-SS-120 and the fixed cup. Below the parts list, a note explains the bracket serial number and the specification supplied when none is ordered.]

— Page 36 —

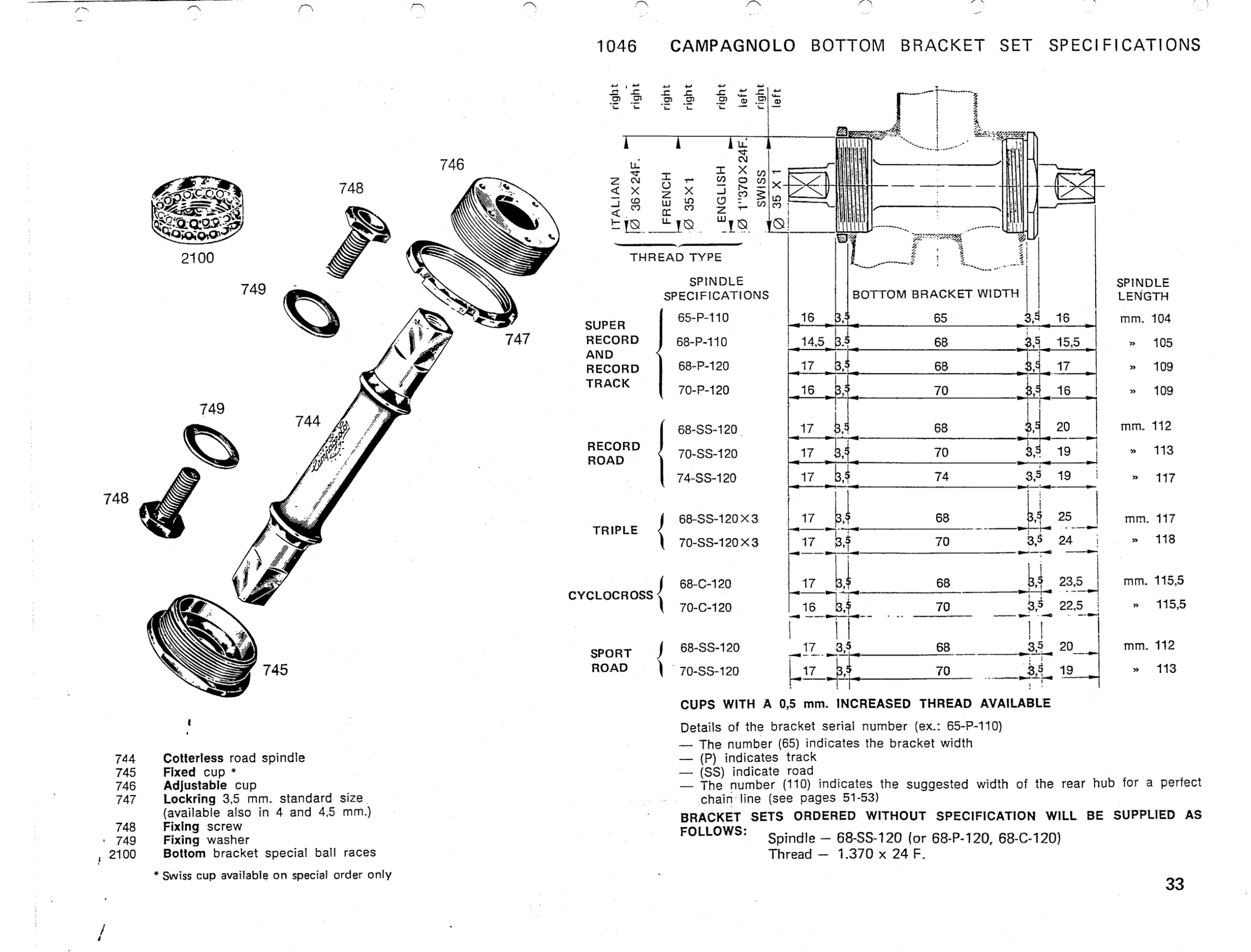

1046 CAMPAGNOLO BOTTOM BRACKET SET SPECIFICATIONS

Callouts: 746 748 2100 749 747 749 744 748 745

THREAD TYPE
ITALIAN | Ø 36×24F. | right | right
FRENCH | Ø 35×1 | right | right
ENGLISH | Ø 1″370×24F. | right | left
SWISS | Ø 35 X 1 | right | left

| SPINDLE SPECIFICATIONS | | | BOTTOM BRACKET WIDTH | | | SPINDLE LENGTH
SUPER RECORD AND RECORD TRACK | 65-P-110 | 16 | 3,5 | 65 | 3,5 | 16 | mm. 104
| 68-P-110 | 14,5 | 3.5 | 68 | 3,5 | 15,5 | » 105
| 68-P-120 | 17 | 3,5 | 68 | 3,5 | 17 | » 109
| 70-P-120 | 16 | 3,5 | 70 | 3,5 | 16 | » 109
RECORD ROAD | 68-SS-120 | 17 | 3,5 | 68 | 3,5 | 20 | mm. 112
| 70-SS-120 | 17 | 3,5 | 70 | 3,5 | 19 | » 113
| 74-SS-120 | 17 | 3,5 | 74 | 3,5 | 19 | » 117
TRIPLE | 68-SS-120×3 | 17 | 3,5 | 68 | 3,5 | 25 | mm. 117
| 70-SS-120×3 | 17 | 3,5 | 70 | 3,5 | 24 | » 118
CYCLOCROSS | 68-C-120 | 17 | 3,5 | 68 | 3,5 | 23,5 | mm. 115,5
| 70-C-120 | 16 | 3,5 | 70 | 3,5 | 22,5 | » 115,5
SPORT ROAD | 68-SS-120 | 17 | 3,5 | 68 | 3,5 | 20 | mm. 112
| 70-SS-120 | 17 | 3,5 | 70 | 3,5 | 19 | » 113

CUPS WITH A 0,5 mm. INCREASED THREAD AVAILABLE

Details of the bracket serial number (ex.: 65-P-110)
— The number (65) indicates the bracket width
— (P) indicates track
— (SS) indicate road
— The number (110) indicates the suggested width of the rear hub for a perfect chain line (see pages 51-53)

BRACKET SETS ORDERED WITHOUT SPECIFICATION WILL BE SUPPLIED AS FOLLOWS:
Spindle — 68-SS-120 (or 68-P-120, 68-C-120)
Thread — 1.370 x 24 F.

744 Cotterless road spindle
745 Fixed cup *
746 Adjustable cup
747 Lockring 3,5 mm. standard size (available also in 4 and 4,5 mm.)
748 Fixing screw
749 Fixing washer
2100 Bottom bracket special ball races
* Swiss cup available on special order only

33

[The Campagnolo bottom bracket set 1046 shown as an exploded drawing, with the ball races 2100, cups, lockring, fixing screws and washers and the Campagnolo cotterless spindle 744 numbered. Beside it a dimensioned section of the bottom bracket gives the thread type of each cup (Italian, French, English and Swiss) and a table of spindle specifications, cup and shell widths and spindle lengths for the Super Record and Record track, Record road, triple, cyclocross and Sport road sets.]

— Page 37 —
CAMPAGNOLO HEADSETS

4041 SUPER RECORD ROAD
Callouts: 4042 4043 4044 4045 4046 4047 2101

1039 RECORD ROAD
Callouts: 681 682 683 684 685 686 2101

1040/a SPORT ROAD
Callouts: 681 682 687/A 688/A 689/A 690/A 2102

Callouts: 693/1

1040 RECORD TRACK
Callouts: 681 682 687 688 689 690 2102

4141 SUPER RECORD TRACK
Callouts: 4042 4043 4142 4143 4144 4145 2102

681 Lockring nut
682 Locking washer
683 Screwed race
684 Top head race (0.5 mm larger gauge available)
685 Bottom head race (0.5 mm. larger gauge available)
686 Crown race (smaller diameter available)
687 Track screwed race
687/a Sport screwed race
688 Top head race (0.5 mm larger gauge available)
688/a Top head race (S) (0.5 mm larger gauge available)
689 Bottom head race (0.5 mm larger gauge available)
689/a Bottom head race (S) (0.5 mm larger gauge available
690 Crown race (smaller diameter available)
690/a Crown race (S) (smaller diameter available)
693/1 Steerer
2101 Bearing set for road headset
2102 Bearing set for track headset
4042 Top (track or road) headset locknut (SR)
4043 Top (track or road) headset tongued-washer (SR)
4044 Road headset screwed race (SR)
4045 Road headset top race (SR)
4046 Road headset bottom race (SR)
4047 Road headset crown race (SR)
4142 Track headset screwed race (SR)
4143 Track headset top race (SR)
4144 Track headset bottom race (SR)
4145 Track headset crown race (SR)

HEADSETS ORDERED WITHOUT SPECIFICATION WILL BE SUPPLIED WITH Ø 1″ x 24 T.P.I. THREAD

HEADSETS WITH Ø 25 x 1 AND Ø 25.4 x 24 F. THREADS AVAILABLE

CAMPAGNOLO HEADSETS ARE SUPPLIED COMPLETE WITH SPECIAL BALL RACES (Ø 3/16″ FOR ROAD AND Ø 5/32″ FOR TRACK)

STEERER AVAILABLE WITH THREAD Ø 25.4 x 24 F. AND WITH LENGTHS 160-180-200-220-250-270 mm.

34

[Campagnolo headsets shown in five exploded columns, the Super Record road 4041, Record road 1039, Sport road 1040/a, Record track 1040 and Super Record track 4141, each with its locknut, washer, races and bearing set numbered, and a threaded steerer 693/1 standing in the middle. A three-column parts list and notes on threads, ball sizes and steerer lengths run across the foot of the page.]

— Page 38 —

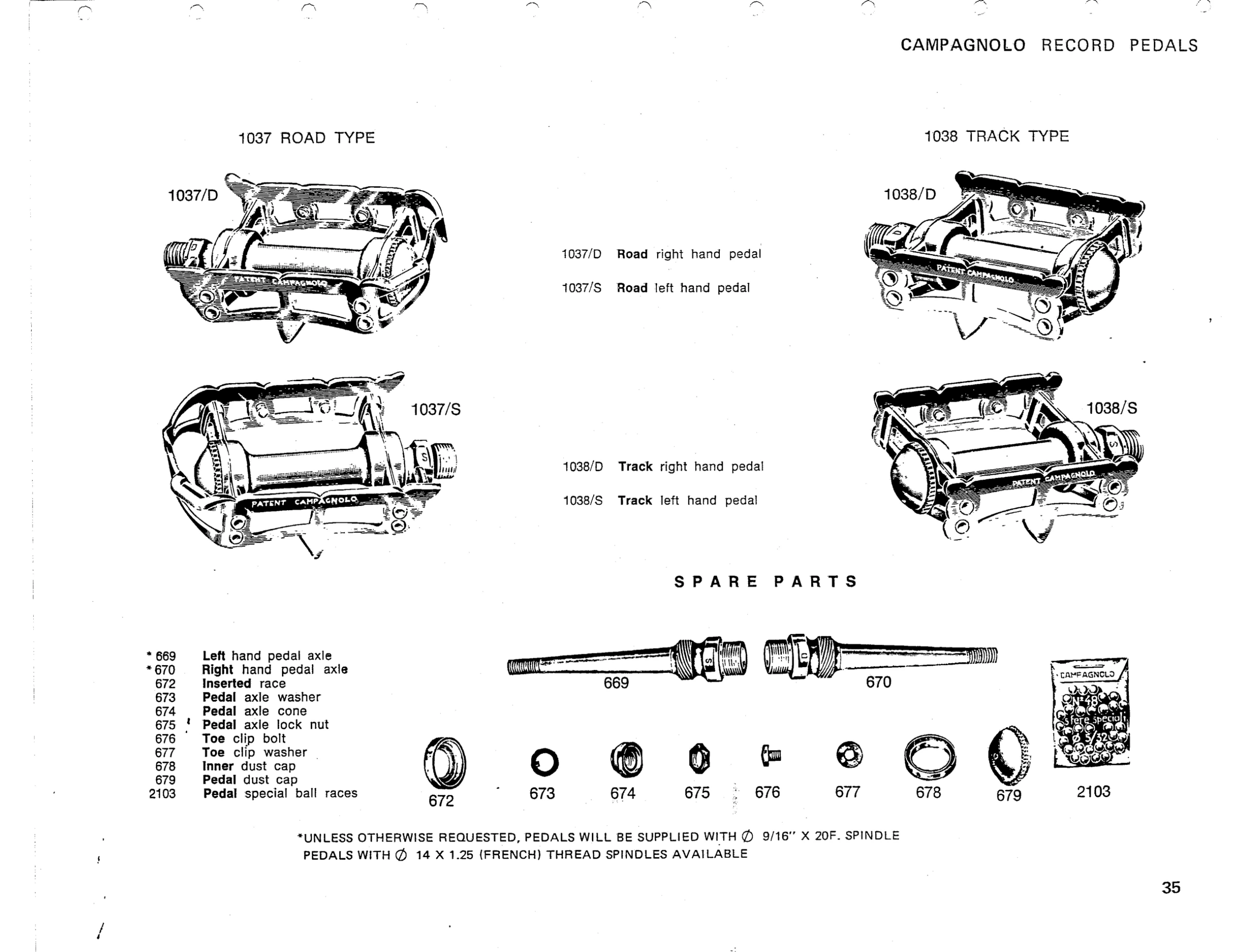

CAMPAGNOLO RECORD PEDALS

1037 ROAD TYPE

1038 TRACK TYPE

Callouts: 1037/D 1038/D 1037/S 1038/S

1037/D Road right hand pedal
1037/S Road left hand pedal

1038/D Track right hand pedal
1038/S Track left hand pedal

SPARE PARTS

Callouts: 669 670 672 673 674 675 676 677 678 679 2103

* 669 Left hand pedal axle
* 670 Right hand pedal axle
672 Inserted race
673 Pedal axle washer
674 Pedal axle cone
675 Pedal axle lock nut
676 Toe clip bolt
677 Toe clip washer
678 Inner dust cap
679 Pedal dust cap
2103 Pedal special ball races

*UNLESS OTHERWISE REQUESTED, PEDALS WILL BE SUPPLIED WITH Ø 9/16″ X 20F. SPINDLE
PEDALS WITH Ø 14 X 1.25 (FRENCH) THREAD SPINDLES AVAILABLE

35

[Campagnolo Record pedals: the road type 1037 and track type 1038, each shown as a right hand pedal (D) and a left hand pedal (S), with “PATENT CAMPAGNOLO” on the cage plates. Below, the spare parts are photographed in a row, the left and right hand axles, races, washers, cone, lock nut, toe clip bolt and washer, dust caps and a packet of ball races, keyed to a parts list.]

— Page 39 —

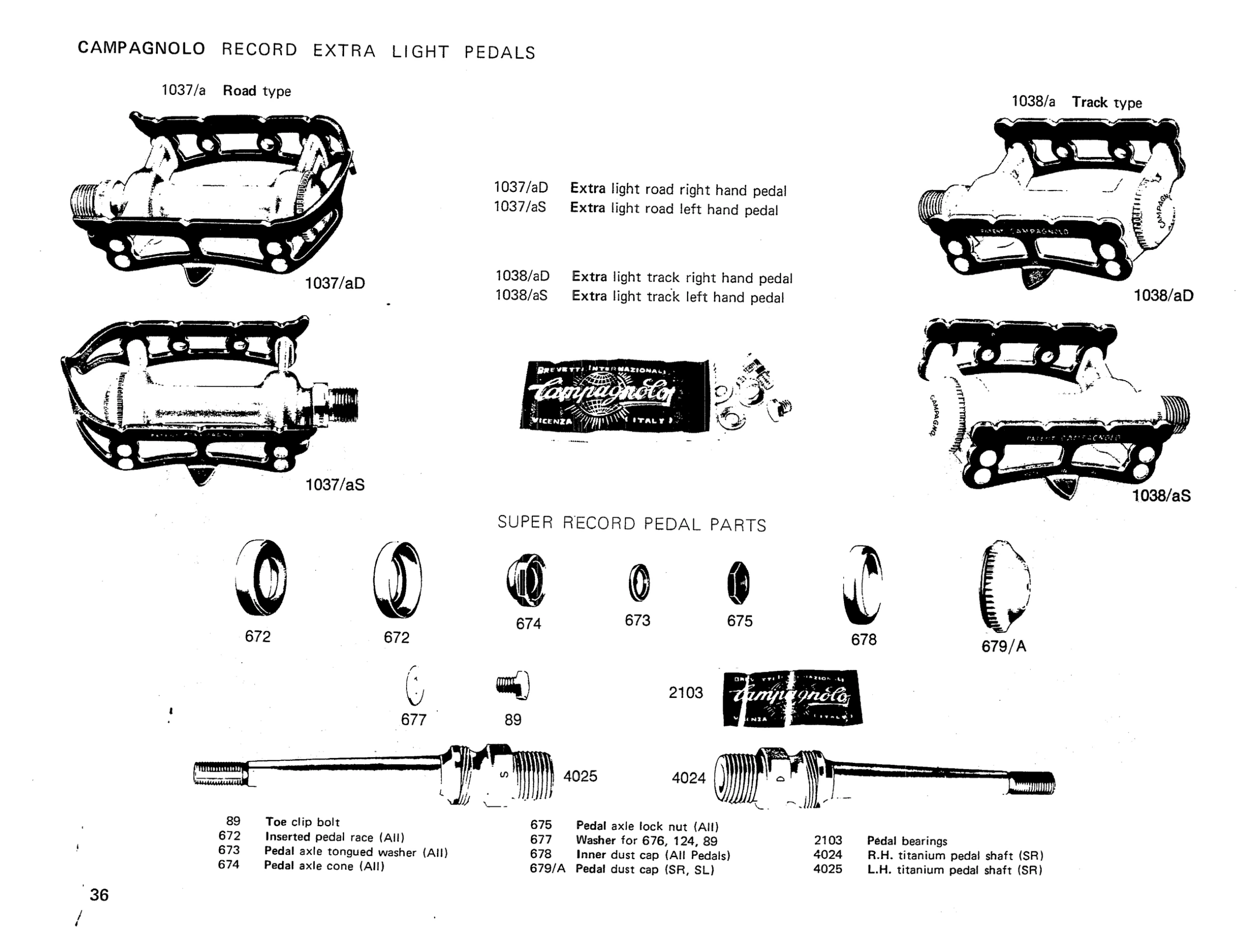

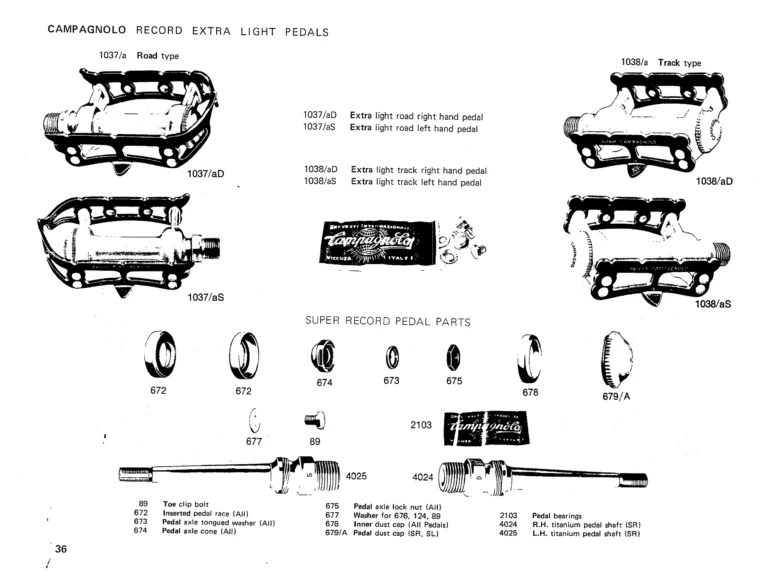

CAMPAGNOLO RECORD EXTRA LIGHT PEDALS

1037/a Road type

1038/a Track type

Callouts: 1037/aD 1038/aD 1037/aS 1038/aS

1037/aD Extra light road right hand pedal
1037/aS Extra light road left hand pedal

1038/aD Extra light track right hand pedal
1038/aS Extra light track left hand pedal

SUPER RECORD PEDAL PARTS

Callouts: 672 672 674 673 675 678 679/A 677 89 2103 4025 4024

89 Toe clip bolt
672 Inserted pedal race (All)
673 Pedal axle tongued washer (All)
674 Pedal axle cone (All)
675 Pedal axle lock nut (All)
677 Washer for 676, 124, 89
678 Inner dust cap (All Pedals)
679/A Pedal dust cap (SR, SL)
2103 Pedal bearings
4024 R.H. titanium pedal shaft (SR)
4025 L.H. titanium pedal shaft (SR)

36

[Campagnolo Record extra light pedals: the road type 1037/a and track type 1038/a, each shown as a right hand (aD) and left hand (aS) pedal, with an unnumbered Campagnolo packet of small parts between them. Below, the Super Record pedal parts are photographed and numbered, races, washers, cone, lock nut, dust caps, toe clip bolt, a packet of bearings and the right and left hand titanium pedal shafts 4024 and 4025, keyed to a three-column parts list.]

— Page 40 —

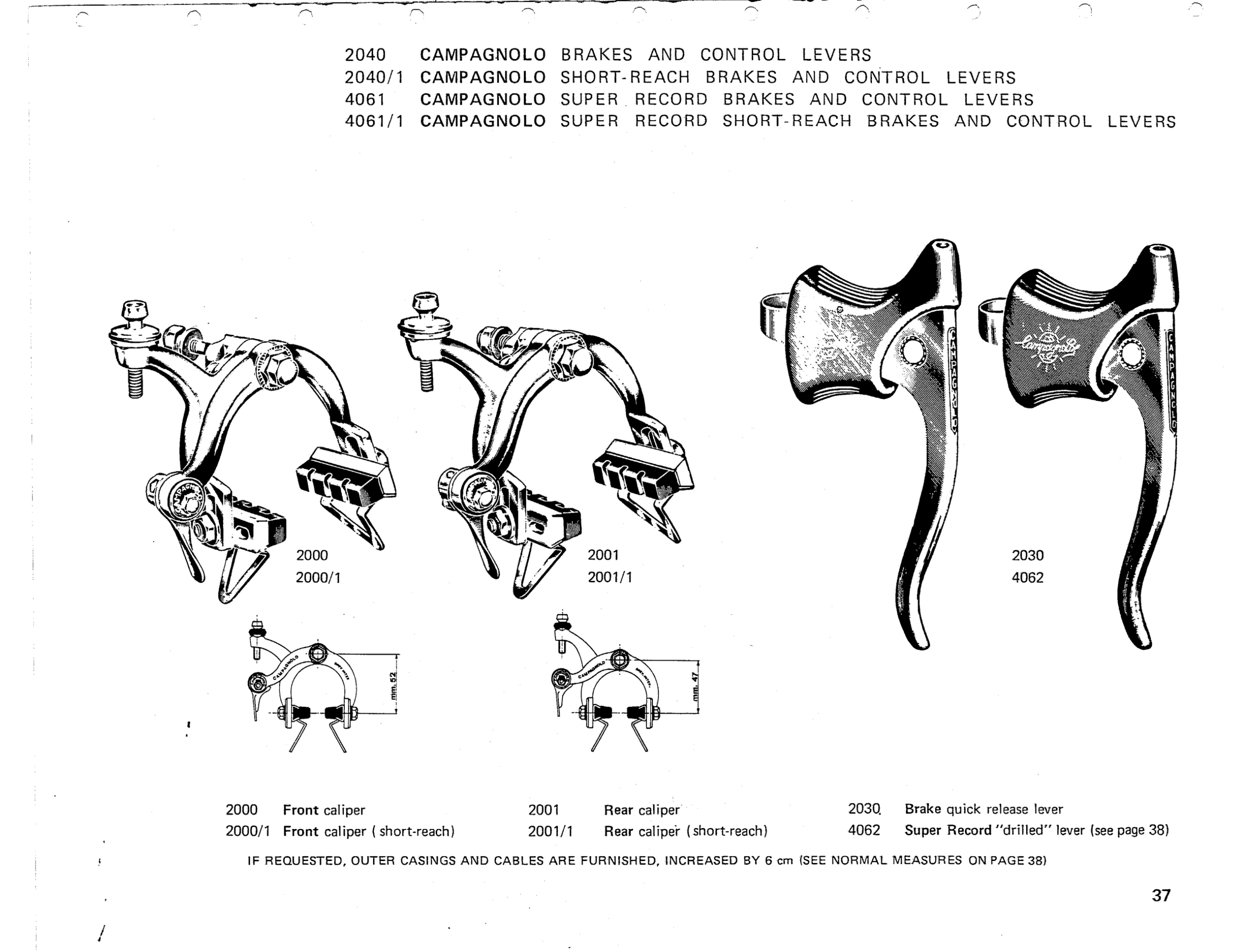

2040 CAMPAGNOLO BRAKES AND CONTROL LEVERS
2040/1 CAMPAGNOLO SHORT-REACH BRAKES AND CONTROL LEVERS
4061 CAMPAGNOLO SUPER RECORD BRAKES AND CONTROL LEVERS
4061/1 CAMPAGNOLO SUPER RECORD SHORT-REACH BRAKES AND CONTROL LEVERS

Callouts: 2000 2000/1 2001 2001/1 2030 4062

mm. 52

mm. 47

2000 Front caliper
2000/1 Front caliper ( short-reach)
2001 Rear caliper
2001/1 Rear caliper ( short-reach)
2030 Brake quick release lever
4062 Super Record “drilled” lever (see page 38)

IF REQUESTED, OUTER CASINGS AND CABLES ARE FURNISHED, INCREASED BY 6 cm (SEE NORMAL MEASURES ON PAGE 38)

37

[Campagnolo brakes and control levers 2040, with the short-reach 2040/1 and Super Record 4061 and 4061/1 versions: photographs of the front caliper 2000, rear caliper 2001 and two brake levers numbered 2030 and 4062, one of them with the Campagnolo emblem on its body. Below each caliper a dimensioned line drawing is marked “mm. 52” and “mm. 47” respectively, and a parts list runs across the foot of the page.]

— Page 41 —

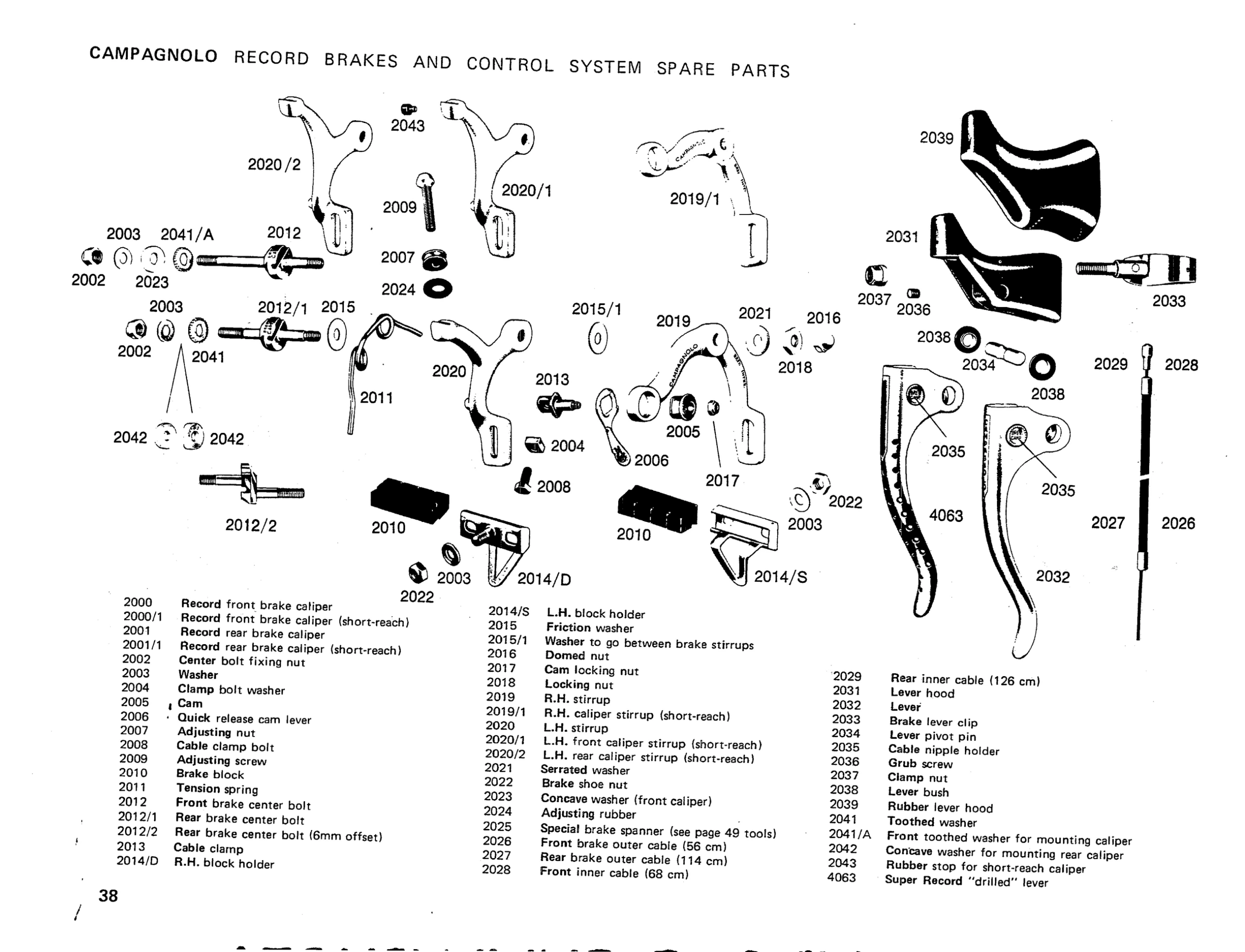

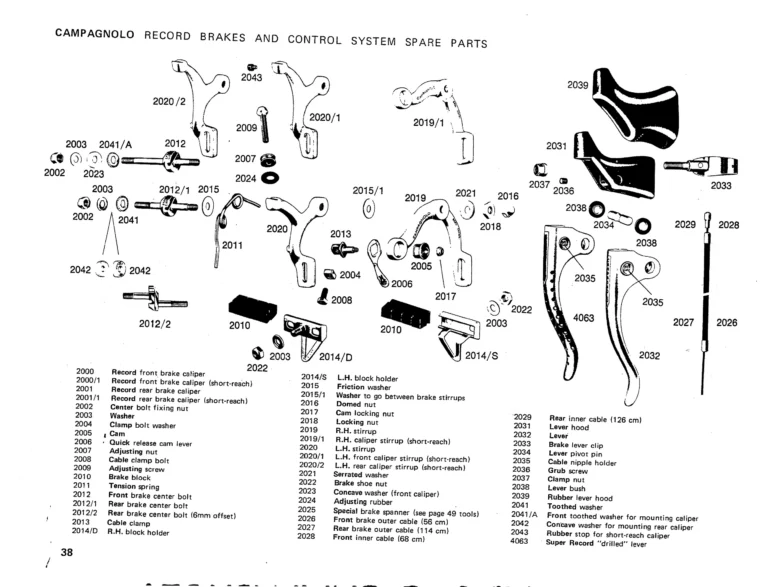

CAMPAGNOLO RECORD BRAKES AND CONTROL SYSTEM SPARE PARTS

Callouts: 2020/2 2043 2039 2003 2041/A 2012 2009 2020/1 2019/1 2031 2002 2023 2007 2024 2037 2033 2003 2012/1 2015 2015/1 2019 2021 2016 2036 2002 2041 2011 2020 2013 2018 2038 2034 2038 2029 2028 2042 2042 2004 2005 2006 2035 2012/2 2010 2008 2010 2017 2003 2022 4063 2035 2027 2026 2022 2003 2014/D 2014/S 2032

2000 Record front brake caliper
2000/1 Record front brake caliper (short-reach)
2001 Record rear brake caliper
2001/1 Record rear brake caliper (short-reach)
2002 Center bolt fixing nut
2003 Washer
2004 Clamp bolt washer
2005 Cam
2006 Quick release cam lever
2007 Adjusting nut
2008 Cable clamp bolt
2009 Adjusting screw
2010 Brake block
2011 Tension spring
2012 Front brake center bolt
2012/1 Rear brake center bolt
2012/2 Rear brake center bolt (6mm offset)
2013 Cable clamp
2014/D R.H. block holder
2014/S L.H. block holder
2015 Friction washer
2015/1 Washer to go between brake stirrups
2016 Domed nut
2017 Cam locking nut
2018 Locking nut
2019 R.H. stirrup
2019/1 R.H. caliper stirrup (short-reach)
2020 L.H. stirrup
2020/1 L.H. front caliper stirrup (short-reach)
2020/2 L.H. rear caliper stirrup (short-reach)
2021 Serrated washer
2022 Brake shoe nut
2023 Concave washer (front caliper)
2024 Adjusting rubber
2025 Special brake spanner (see page 49 tools)
2026 Front brake outer cable (56 cm)
2027 Rear brake outer cable (114 cm)
2028 Front inner cable (68 cm)
2029 Rear inner cable (126 cm)
2031 Lever hood
2032 Lever
2033 Brake lever clip
2034 Lever pivot pin
2035 Cable nipple holder
2036 Grub screw
2037 Clamp nut
2038 Lever bush
2039 Rubber lever hood
2041 Toothed washer
2041/A Front toothed washer for mounting caliper
2042 Concave washer for mounting rear caliper
2043 Rubber stop for short-reach caliper
4063 Super Record “drilled” lever

38

[An exploded drawing of the Campagnolo Record brakes and control system, with the caliper stirrups, center bolts, washers, quick release cam, brake blocks and holders, the rubber and plain lever hoods, the standard lever 2032 and the Super Record drilled lever 4063, each part numbered and keyed to a parts list in three columns. The stirrups carry the engraved Campagnolo name.]

— Page 42 —

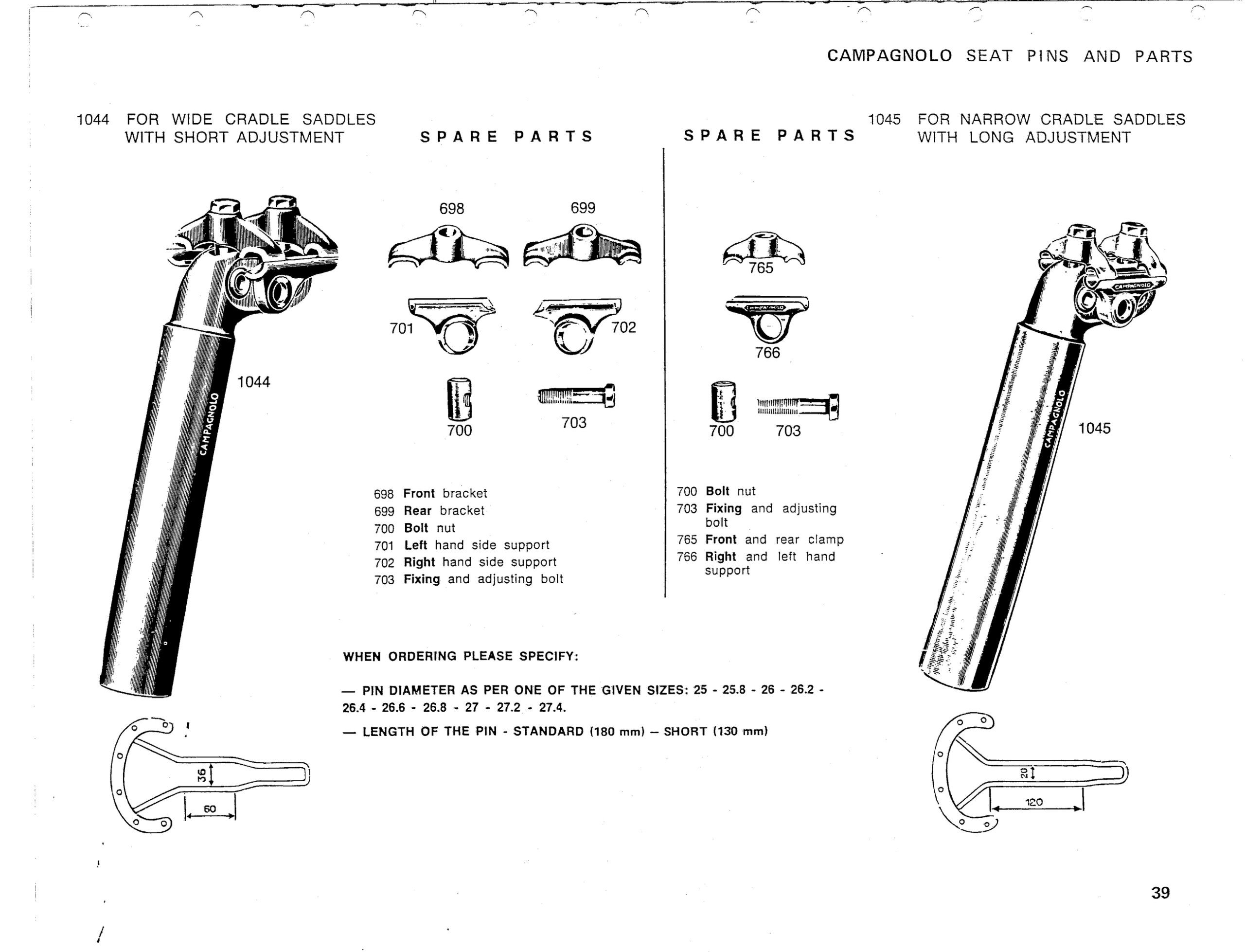

CAMPAGNOLO SEAT PINS AND PARTS

1044 FOR WIDE CRADLE SADDLES WITH SHORT ADJUSTMENT

SPARE PARTS

SPARE PARTS

1045 FOR NARROW CRADLE SADDLES WITH LONG ADJUSTMENT

Callouts: 698 699 765 701 702 766 1044 700 703 700 703 1045 36 60 20 120

698 Front bracket
699 Rear bracket
700 Bolt nut
701 Left hand side support
702 Right hand side support
703 Fixing and adjusting bolt

700 Bolt nut
703 Fixing and adjusting bolt
765 Front and rear clamp
766 Right and left hand support

WHEN ORDERING PLEASE SPECIFY:

— PIN DIAMETER AS PER ONE OF THE GIVEN SIZES: 25 – 25.8 – 26 – 26.2 – 26.4 – 26.6 – 26.8 – 27 – 27.2 – 27.4.

— LENGTH OF THE PIN – STANDARD (180 mm) – SHORT (130 mm)

39

[Drawings of the two Campagnolo seat pins, 1044 for wide cradle saddles with short adjustment and 1045 for narrow cradle saddles with long adjustment, each with its clamp parts drawn and listed as spare parts. Below each pin a plan of a saddle frame is dimensioned at the cradle, 36 and 60 for the wide cradle and 20 and 120 for the narrow, with the ordering sizes printed between them.]

— Page 43 —

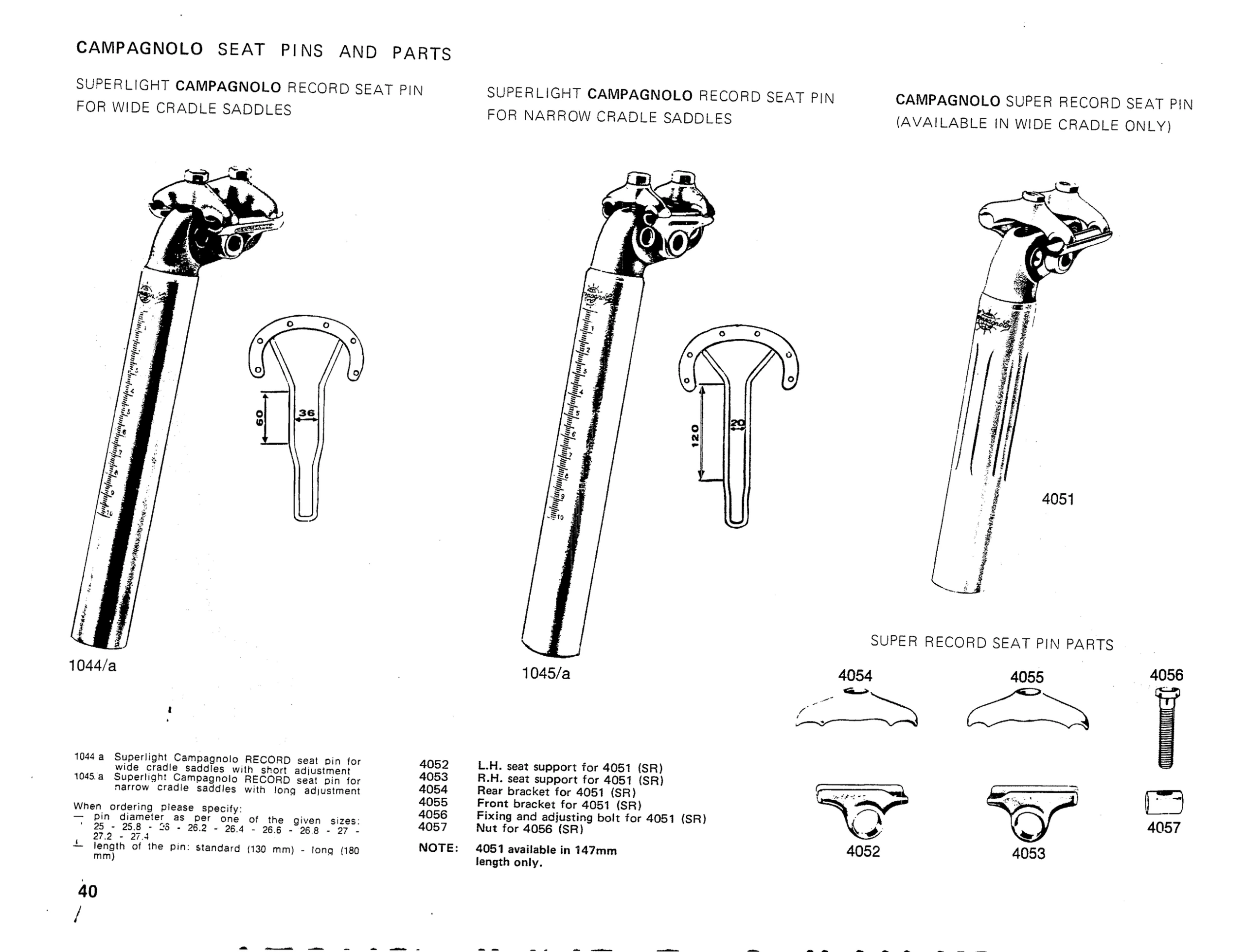

CAMPAGNOLO SEAT PINS AND PARTS

SUPERLIGHT CAMPAGNOLO RECORD SEAT PIN FOR WIDE CRADLE SADDLES

SUPERLIGHT CAMPAGNOLO RECORD SEAT PIN FOR NARROW CRADLE SADDLES

CAMPAGNOLO SUPER RECORD SEAT PIN (AVAILABLE IN WIDE CRADLE ONLY)

Callouts: 60 36 120 20 4051 1044/a 1045/a

SUPER RECORD SEAT PIN PARTS

Callouts: 4054 4055 4056 4057 4052 4053

1044 a Superlight Campagnolo RECORD seat pin for wide cradle saddles with short adjustment
1045.a Superlight Campagnolo RECORD seat pin for narrow cradle saddles with long adjustment

When ordering please specify:
— pin diameter as per one of the given sizes: 25 – 25.8 – 26 – 26.2 – 26.4 – 26.6 – 26.8 – 27 – 27.2 – 27.4
— length of the pin: standard (130 mm) – long (180 mm)

4052 L.H. seat support for 4051 (SR)
4053 R.H. seat support for 4051 (SR)
4054 Rear bracket for 4051 (SR)
4055 Front bracket for 4051 (SR)
4056 Fixing and adjusting bolt for 4051 (SR)
4057 Nut for 4056 (SR)

NOTE: 4051 available in 147mm length only.

40

[Photographs of three Campagnolo seat pins: the Superlight Record 1044/a for wide cradle saddles, the Superlight Record 1045/a for narrow cradle saddles and the fluted Super Record 4051, available in wide cradle only. Saddle frame plans dimensioned 60 and 36 and 120 and 20 stand beside the first two pins, which carry a printed length scale, and the Super Record clamp parts 4052 to 4057 are drawn and listed at lower right.]

— Page 44 —

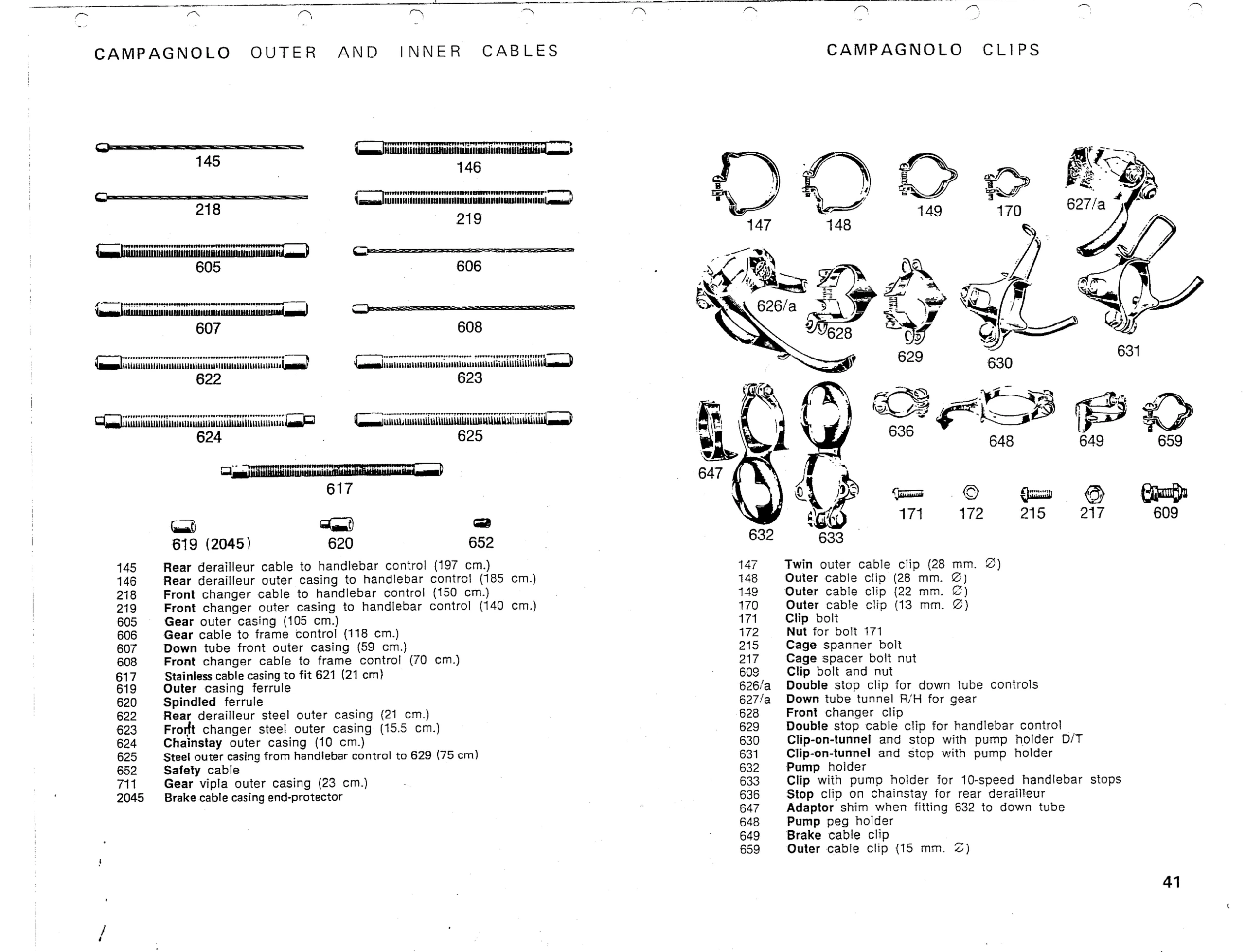

CAMPAGNOLO OUTER AND INNER CABLES

Callouts: 145 146 218 219 605 606 607 608 622 623 624 625 617 619 (2045) 620 652

145 Rear derailleur cable to handlebar control (197 cm.)
146 Rear derailleur outer casing to handlebar control (185 cm.)
218 Front changer cable to handlebar control (150 cm.)
219 Front changer outer casing to handlebar control (140 cm.)
605 Gear outer casing (105 cm.)
606 Gear cable to frame control (118 cm.)
607 Down tube front outer casing (59 cm.)
608 Front changer cable to frame control (70 cm.)
617 Stainless cable casing to fit 621 (21 cm)
619 Outer casing ferrule
620 Spindled ferrule
622 Rear derailleur steel outer casing (21 cm.)
623 Front changer steel outer casing (15.5 cm.)
624 Chainstay outer casing (10 cm.)
625 Steel outer casing from handlebar control to 629 (75 cm)
652 Safety cable
711 Gear vipla outer casing (23 cm.)
2045 Brake cable casing end-protector

CAMPAGNOLO CLIPS

Callouts: 147 148 149 170 627/a 626/a 628 629 630 631 636 648 649 659 647 171 172 215 217 609 632 633

147 Twin outer cable clip (28 mm. Ø)
148 Outer cable clip (28 mm. Ø)
149 Outer cable clip (22 mm. Ø)
170 Outer cable clip (13 mm. Ø)
171 Clip bolt
172 Nut for bolt 171
215 Cage spanner bolt
217 Cage spacer bolt nut
609 Clip bolt and nut
626/a Double stop clip for down tube controls
627/a Down tube tunnel R/H for gear
628 Front changer clip
629 Double stop cable clip for handlebar control
630 Clip-on-tunnel and stop with pump holder D/T
631 Clip-on-tunnel and stop with pump holder
632 Pump holder
633 Clip with pump holder for 10-speed handlebar stops
636 Stop clip on chainstay for rear derailleur
647 Adaptor shim when fitting 632 to down tube
648 Pump peg holder
649 Brake cable clip
659 Outer cable clip (15 mm. Ø)

41

[Drawings of Campagnolo inner cables, outer casings and ferrules on the left half of the page, and of Campagnolo cable clips, cable stops, down tube tunnels and pump holders on the right, each numbered and keyed to its own parts list. A row of binding holes shows along the top edge.]

— Page 45 —

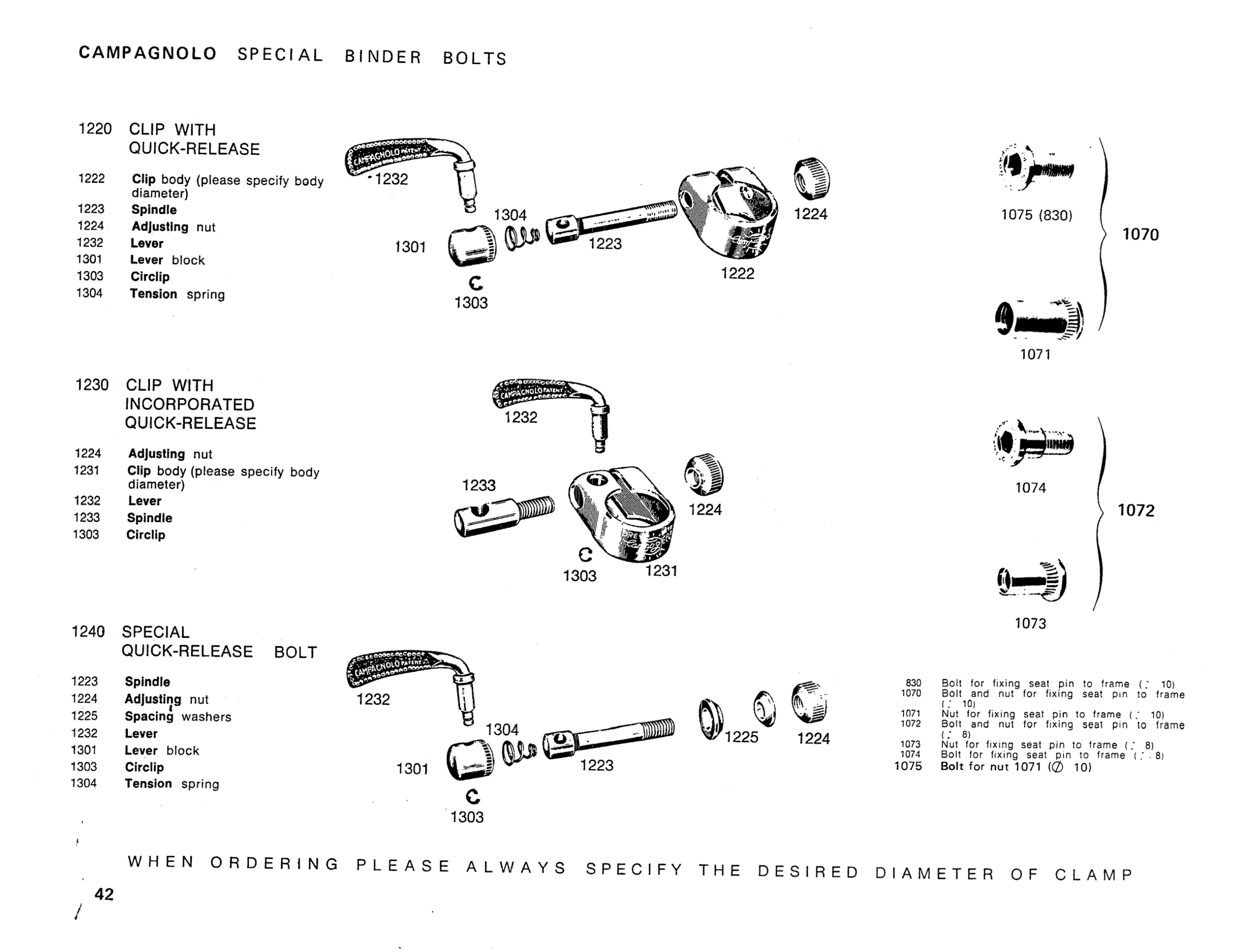

CAMPAGNOLO SPECIAL BINDER BOLTS

1220 CLIP WITH QUICK-RELEASE

1222 Clip body (please specify body diameter)
1223 Spindle
1224 Adjusting nut
1232 Lever
1301 Lever block
1303 Circlip
1304 Tension spring

Callouts: 1232 1304 1301 1223 1224 1222 1303

1230 CLIP WITH INCORPORATED QUICK-RELEASE

1224 Adjusting nut
1231 Clip body (please specify body diameter)
1232 Lever
1233 Spindle
1303 Circlip

Callouts: 1232 1233 1224 1303 1231

1240 SPECIAL QUICK-RELEASE BOLT

1223 Spindle
1224 Adjusting nut
1225 Spacing washers
1232 Lever
1301 Lever block
1303 Circlip
1304 Tension spring

Callouts: 1232 1304 1301 1223 1225 1224 1303

Callouts: 1075 (830) 1070 1071 1074 1072 1073

830 Bolt for fixing seat pin to frame (Ø 10)
1070 Bolt and nut for fixing seat pin to frame (Ø 10)
1071 Nut for fixing seat pin to frame (Ø 10)
1072 Bolt and nut for fixing seat pin to frame (Ø 8)
1073 Nut for fixing seat pin to frame (Ø 8)
1074 Bolt for fixing seat pin to frame (Ø 8)
1075 Bolt for nut 1071 (Ø 10)

WHEN ORDERING PLEASE ALWAYS SPECIFY THE DESIRED DIAMETER OF CLAMP

42

[Exploded drawings of three Campagnolo special binder bolts, the 1220 clip with quick-release, the 1230 clip with incorporated quick-release and the 1240 special quick-release bolt, each with a parts list; the levers carry the engraved name Campagnolo Patent. At right, the seat pin binder bolt and nut sets 1070 and 1072 are drawn and bracketed with their parts and listed in small type.]

— Page 46 —

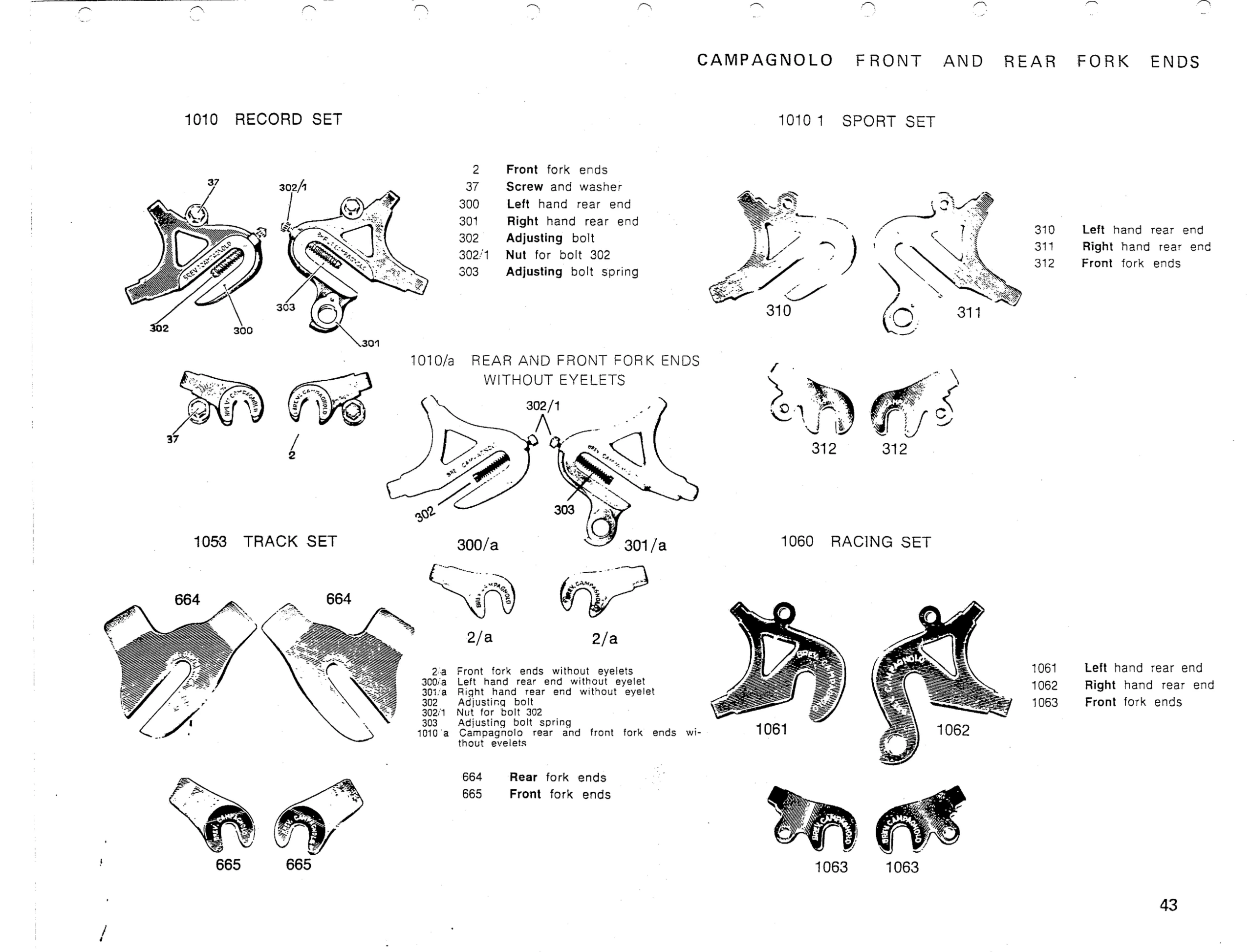

CAMPAGNOLO FRONT AND REAR FORK ENDS

1010 RECORD SET

Callouts: 37 302/1 303 302 300 301 37 2

2 Front fork ends
37 Screw and washer
300 Left hand rear end
301 Right hand rear end
302 Adjusting bolt
302/1 Nut for bolt 302
303 Adjusting bolt spring

1010 1 SPORT SET

Callouts: 310 311 312 312

310 Left hand rear end
311 Right hand rear end
312 Front fork ends

1010/a REAR AND FRONT FORK ENDS WITHOUT EYELETS

Callouts: 302/1 302 303 300/a 301/a 2/a 2/a

2/a Front fork ends without eyelets
300/a Left hand rear end without eyelet
301/a Right hand rear end without eyelet
302 Adjusting bolt
302/1 Nut for bolt 302
303 Adjusting bolt spring
1010 a Campagnolo rear and front fork ends without evelets

1053 TRACK SET

Callouts: 664 664 665 665

664 Rear fork ends
665 Front fork ends

1060 RACING SET

Callouts: 1061 1062 1063 1063

1061 Left hand rear end
1062 Right hand rear end
1063 Front fork ends

43

[Drawings of Campagnolo front and rear fork ends in five sets, the 1010 Record set with adjusting screws, the Sport set, the 1010/a rear and front fork ends without eyelets, the 1053 Track set and the 1060 Racing set, each with its numbered parts listed beside it. Most of the dropouts show the stamped “Brev. Campagnolo” lettering. A row of binding holes shows along the top edge.]

— Page 47 —

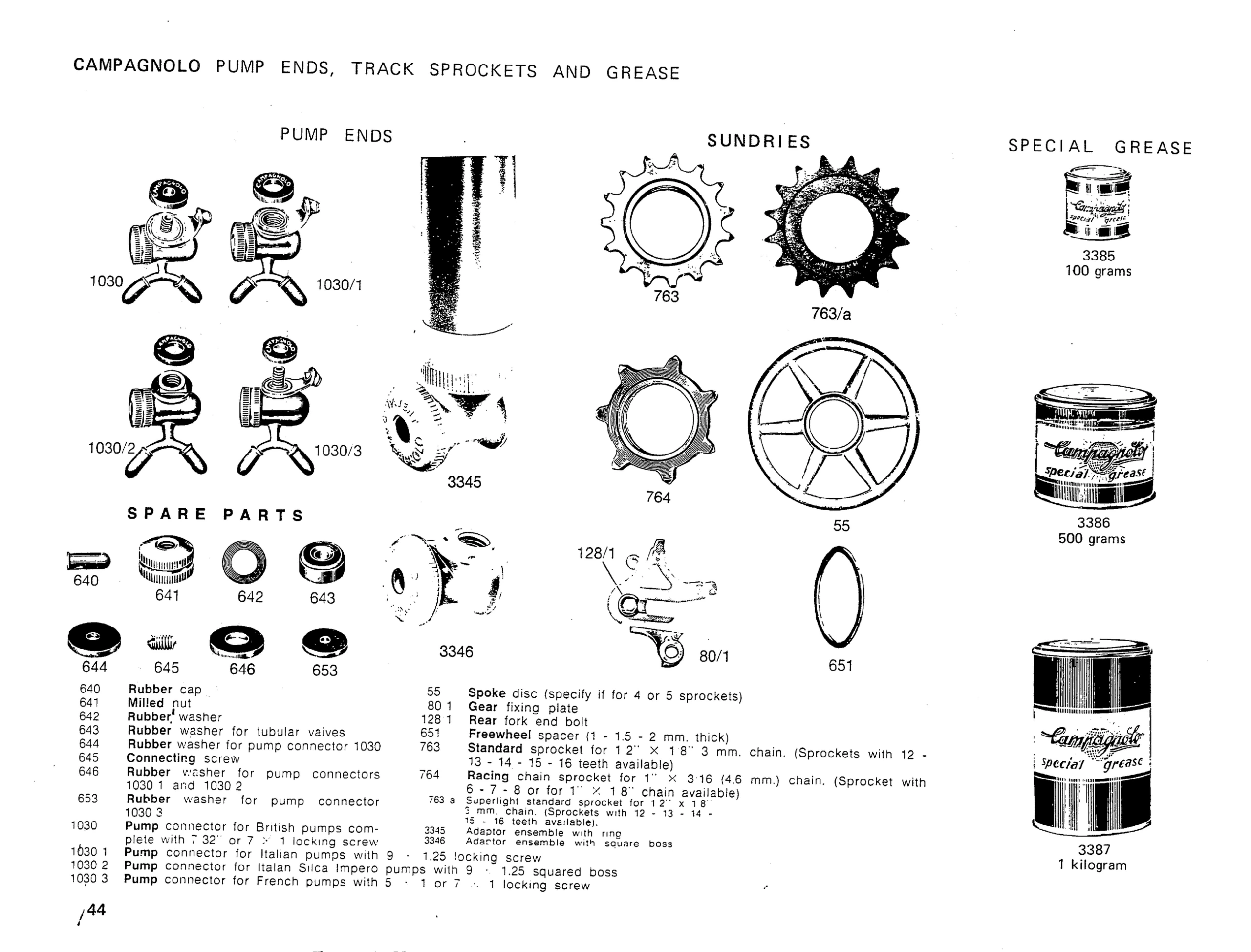

CAMPAGNOLO PUMP ENDS, TRACK SPROCKETS AND GREASE

PUMP ENDS

Callouts: 1030 1030/1 1030/2 1030/3 3345 3346

SPARE PARTS

Callouts: 640 641 642 643 644 645 646 653

SUNDRIES

Callouts: 763 763/a 764 55 128/1 80/1 651

SPECIAL GREASE

3385
100 grams

3386
500 grams

3387
1 kilogram

640 Rubber cap
641 Milled nut
642 Rubber washer
643 Rubber washer for tubular valves [?]
644 Rubber washer for pump connector 1030
645 Connecting screw
646 Rubber washer for pump connectors 1030/1 and 1030/2
653 Rubber washer for pump connector 1030/3
1030 Pump connector for British pumps complete with 7/32″ or 7 × 1 locking screw
1030/1 Pump connector for Italian pumps with 9 × 1.25 locking screw
1030/2 Pump connector for Italan Silca Impero pumps with 9 × 1.25 squared boss
1030/3 Pump connector for French pumps with 5 × 1 or 7 × 1 locking screw

55 Spoke disc (specify if for 4 or 5 sprockets)
80/1 Gear fixing plate
128/1 Rear fork end bolt
651 Freewheel spacer (1 – 1.5 – 2 mm. thick)
763 Standard sprocket for 1/2″ × 1/8″ 3 mm. chain. (Sprockets with 12 – 13 – 14 – 15 – 16 teeth available)
764 Racing chain sprocket for 1″ × 3/16 (4,6 mm.) chain. (Sprocket with 6 – 7 – 8 or for 1″ × 1/8″ chain available)
763/a Superlight standard sprocket for 1/2″ x 1/8″ 3 mm. chain. (Sprockets with 12 – 13 – 14 – 15 – 16 teeth available).
3345 Adaptor ensemble with ring
3346 Adaptor ensemble with square boss

44

[Drawings and photographs of Campagnolo pump ends 1030 to 1030/3 with their spare parts, the adaptor ensembles 3345 and 3346, track sprockets 763, 763/a and 764, the spoke disc 55, the gear fixing plate 80/1 with the fork end bolt 128/1, the freewheel spacer 651, and three tins of Campagnolo special grease of 100 grams, 500 grams and one kilogram. All are keyed to parts lists in small type at the foot of the page.]

— Page 48 —

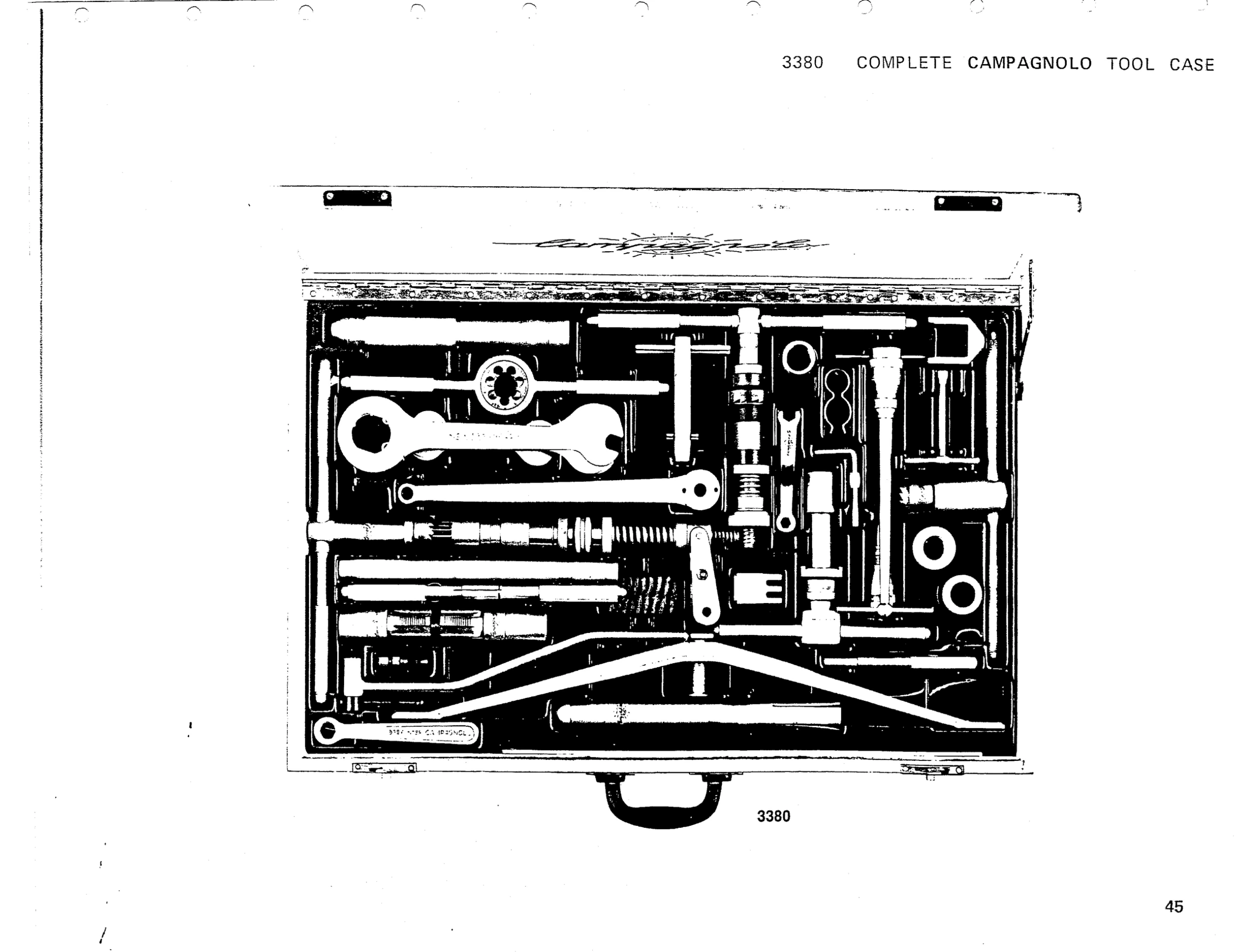

3380 COMPLETE CAMPAGNOLO TOOL CASE

Callouts: 3380

45

[A photograph of the Campagnolo complete tool case 3380, opened to show its tools fitted into a molded tray: bottom bracket and headset tools, spanners, a die holder, a thread chaser, a crank puller and the long frame alignment bars. The lid carries the Campagnolo script name and the case has a carrying handle at the front.]

— Page 49 —

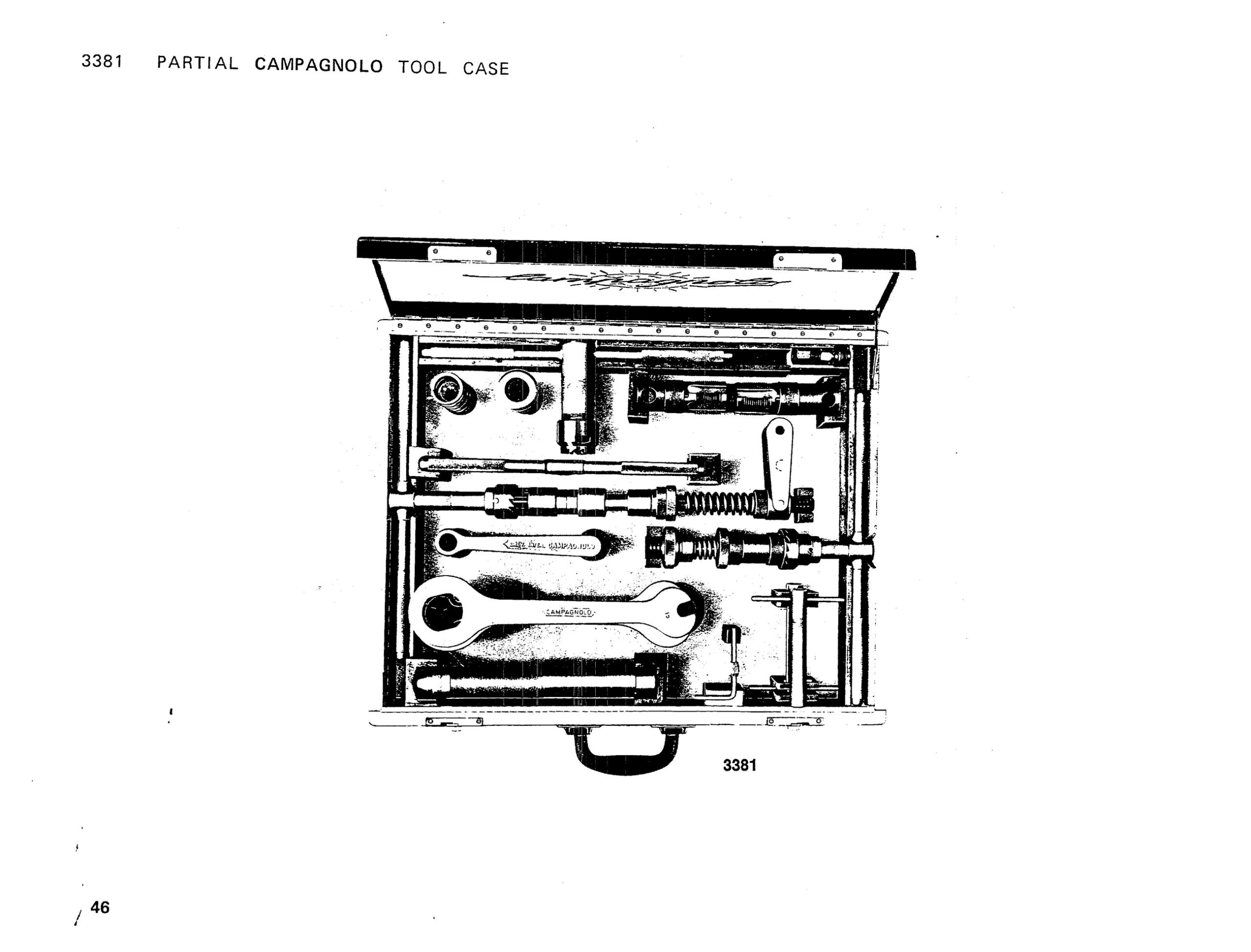

3381 PARTIAL CAMPAGNOLO TOOL CASE

Callouts: 3381

46

[A photograph of the Campagnolo partial tool case 3381, opened to show a smaller set of tools: headset and bottom bracket tools, a crank puller, a thread chaser, a pedal spanner and a large double spanner marked Campagnolo. The lid carries the Campagnolo script name and the case has a carrying handle at the front.]

— Page 50 —

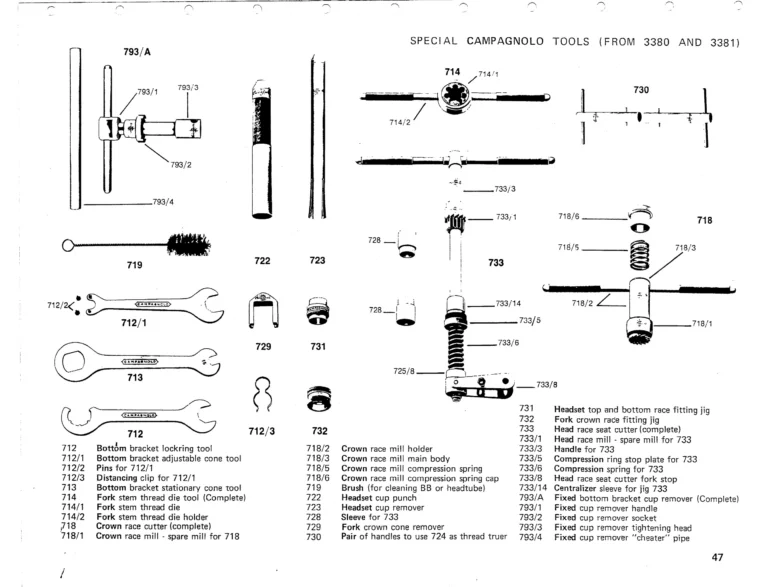

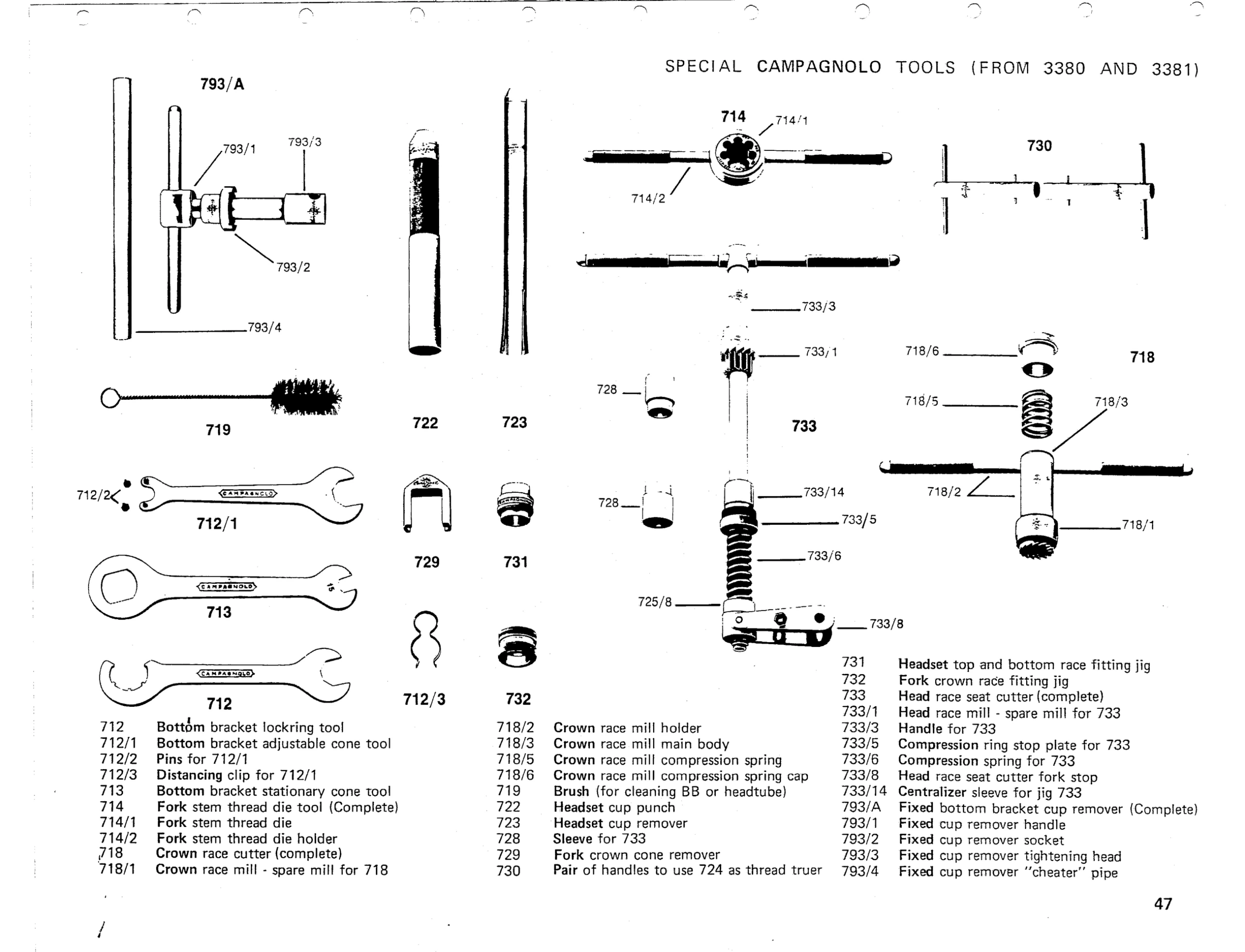

SPECIAL CAMPAGNOLO TOOLS (FROM 3380 AND 3381)

Callouts: 793/A 714 714/1 793/1 793/3 730 714/2 793/2 733/3 793/4 733/1 718/6 718 728 718/5 718/3 719 722 723 733 712/2 728 733/14 718/2 733/5 712/1 718/1 733/6 729 731 725/8 713 733/8 712 712/3 732

712 Bottom bracket lockring tool
712/1 Bottom bracket adjustable cone tool
712/2 Pins for 712/1
712/3 Distancing clip for 712/1
713 Bottom bracket stationary cone tool
714 Fork stem thread die tool (Complete)
714/1 Fork stem thread die
714/2 Fork stem thread die holder
718 Crown race cutter (complete)
718/1 Crown race mill – spare mill for 718
718/2 Crown race mill holder
718/3 Crown race mill main body
718/5 Crown race mill compression spring
718/6 Crown race mill compression spring cap
719 Brush (for cleaning BB or headtube)
722 Headset cup punch
723 Headset cup remover
728 Sleeve for 733
729 Fork crown cone remover
730 Pair of handles to use 724 as thread truer
731 Headset top and bottom race fitting jig
732 Fork crown race fitting jig
733 Head race seat cutter (complete)
733/1 Head race mill – spare mill for 733
733/3 Handle for 733
733/5 Compression ring stop plate for 733
733/6 Compression spring for 733
733/8 Head race seat cutter fork stop
733/14 Centralizer sleeve for jig 733
793/A Fixed bottom bracket cup remover (Complete)
793/1 Fixed cup remover handle
793/2 Fixed cup remover socket
793/3 Fixed cup remover tightening head
793/4 Fixed cup remover “cheater” pipe

47

[Drawings of the special Campagnolo tools supplied in the tool cases 3380 and 3381: the fixed bottom bracket cup remover 793/A, the bottom bracket spanners 712, 712/1 and 713, the cleaning brush, headset cup punch and remover, the fork crown and headset race fitting jigs, the fork stem thread die tool 714, the thread truer handles 730, and the crown race cutter 718 and head race seat cutter 733 shown exploded, all numbered and keyed to a parts list in three columns. The spanners carry the Campagnolo name.]

— Page 51 —

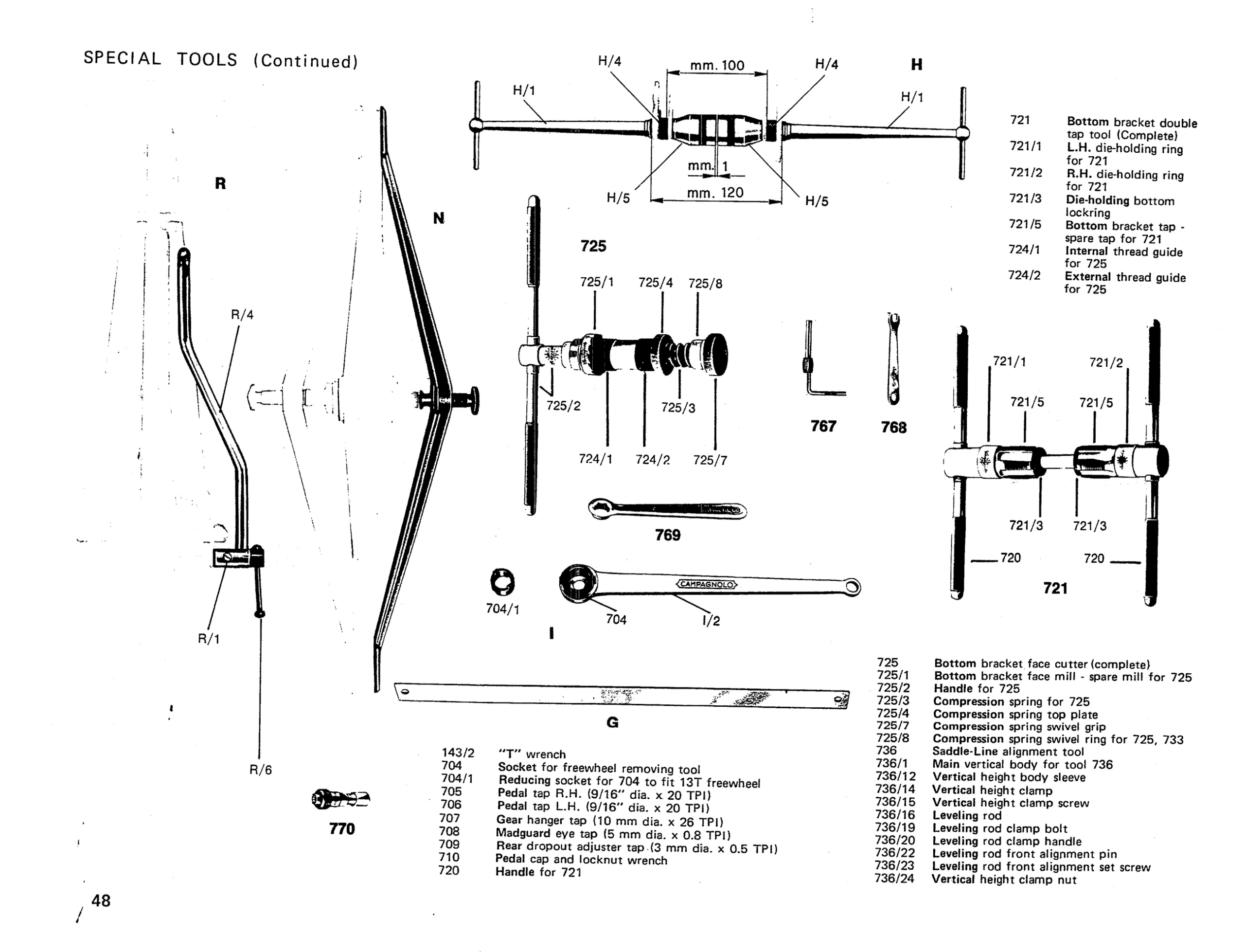

SPECIAL TOOLS (Continued)

Callouts: H/4 mm. 100 H/4 H H/1 H/1 mm. 1 R H/5 mm. 120 H/5 N 725 725/1 725/4 725/8 R/4 721/1 721/2 725/2 725/3 721/5 721/5 767 768 724/1 724/2 725/7 721/3 721/3 769 720 720 721 704/1 704 I/2 R/1 I G R/6 770

721 Bottom bracket double tap tool (Complete)
721/1 L.H. die-holding ring for 721
721/2 R.H. die-holding ring for 721
721/3 Die-holding bottom lockring
721/5 Bottom bracket tap – spare tap for 721
724/1 Internal thread guide for 725
724/2 External thread guide for 725

143/2 “T” wrench
704 Socket for freewheel removing tool
704/1 Reducing socket for 704 to fit 13T freewheel
705 Pedal tap R.H. (9/16″ dia. x 20 TPI)
706 Pedal tap L.H. (9/16″ dia. x 20 TPI)
707 Gear hanger tap (10 mm dia. x 26 TPI)
708 Madguard eye tap (5 mm dia. x 0.8 TPI)
709 Rear dropout adjuster tap (3 mm dia. x 0.5 TPI)
710 Pedal cap and locknut wrench
720 Handle for 721

725 Bottom bracket face cutter (complete)
725/1 Bottom bracket face mill – spare mill for 725
725/2 Handle for 725
725/3 Compression spring for 725
725/4 Compression spring top plate
725/7 Compression spring swivel grip
725/8 Compression spring swivel ring for 725, 733
736 Saddle-Line alignment tool
736/1 Main vertical body for tool 736
736/12 Vertical height body sleeve
736/14 Vertical height clamp
736/15 Vertical height clamp screw
736/16 Leveling rod
736/19 Leveling rod clamp bolt
736/20 Leveling rod clamp handle
736/22 Leveling rod front alignment pin
736/23 Leveling rod front alignment set screw
736/24 Vertical height clamp nut

48

[A page of Campagnolo special tools shown in photographs with numbered callouts: the bottom bracket double tap tool 721 with its handles 720, the bottom bracket face cutter 725, the tool H drawn with its dimensions in millimeters, the lettered tools R, N, I and G and the small tools 767, 768, 769 and 770. Three parts lists name the taps, wrenches, tap and cutter parts and the parts of the 736 Saddle-Line alignment tool; the lettered tools are named in the list on the facing page.]

— Page 52 —

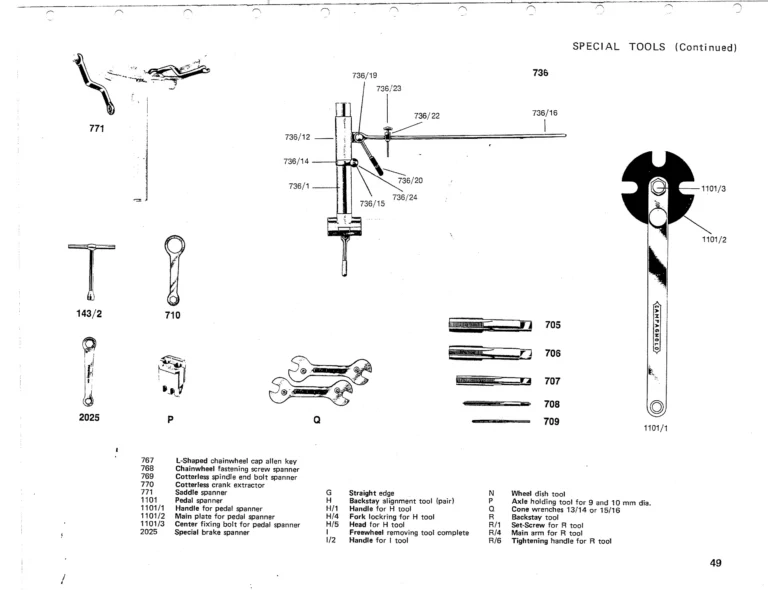

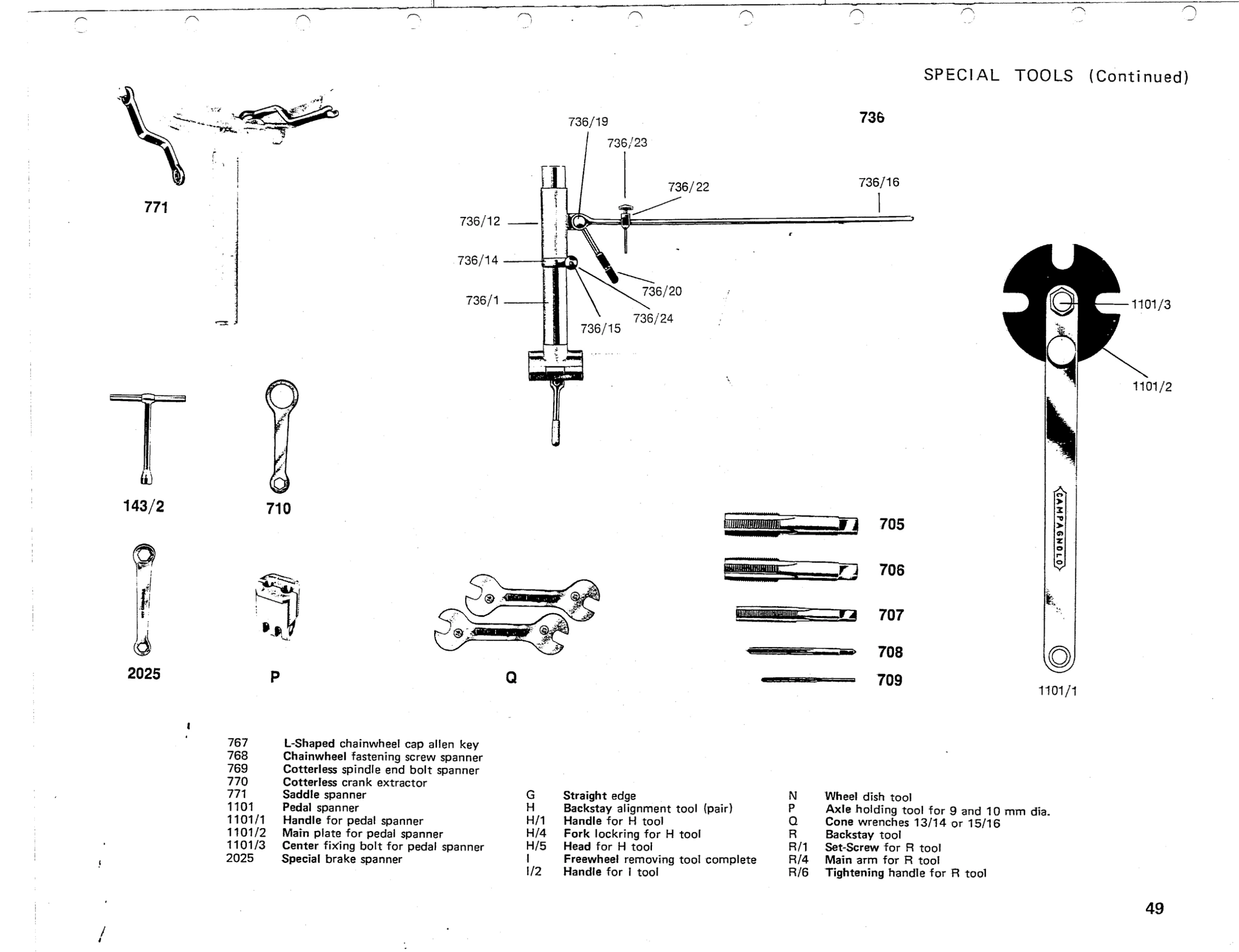

SPECIAL TOOLS (Continued)

Callouts: 736 736/19 736/23 736/22 736/16 771 736/12 736/14 736/20 736/1 736/24 736/15 1101/3 1101/2 143/2 710 705 706 707 708 709 2025 P Q 1101/1

767 L-Shaped chainwheel cap allen key
768 Chainwheel fastening screw spanner
769 Cotterless spindle end bolt spanner
770 Cotterless crank extractor
771 Saddle spanner
1101 Pedal spanner
1101/1 Handle for pedal spanner
1101/2 Main plate for pedal spanner
1101/3 Center fixing bolt for pedal spanner
2025 Special brake spanner

G Straight edge
H Backstay alignment tool (pair)
H/1 Handle for H tool
H/4 Fork lockring for H tool
H/5 Head for H tool
I Freewheel removing tool complete
I/2 Handle for I tool

N Wheel dish tool
P Axle holding tool for 9 and 10 mm dia.
Q Cone wrenches 13/14 or 15/16
R Backstay tool
R/1 Set-Screw for R tool
R/4 Main arm for R tool
R/6 Tightening handle for R tool

49

[A page of Campagnolo special tools continued, with photographs of the 736 Saddle-Line alignment tool and its numbered parts, the saddle spanner 771, the “T” wrench 143/2, the wrench 710, the special brake spanner 2025, the axle holding tool P, the cone wrenches Q, the taps 705 to 709 and the pedal spanner 1101. Three parts lists name the numbered tools and the lettered tools G to R shown on this page and the facing page.]

— Page 53 —
1102 CAMPAGNOLO BICYCLE STAND

50

[A line drawing of the Campagnolo bicycle stand, 1102, a tripod stand with a tray, holding a lightweight road bicycle clamped by its down tube. The page carries no other text.]

— Page 54 —

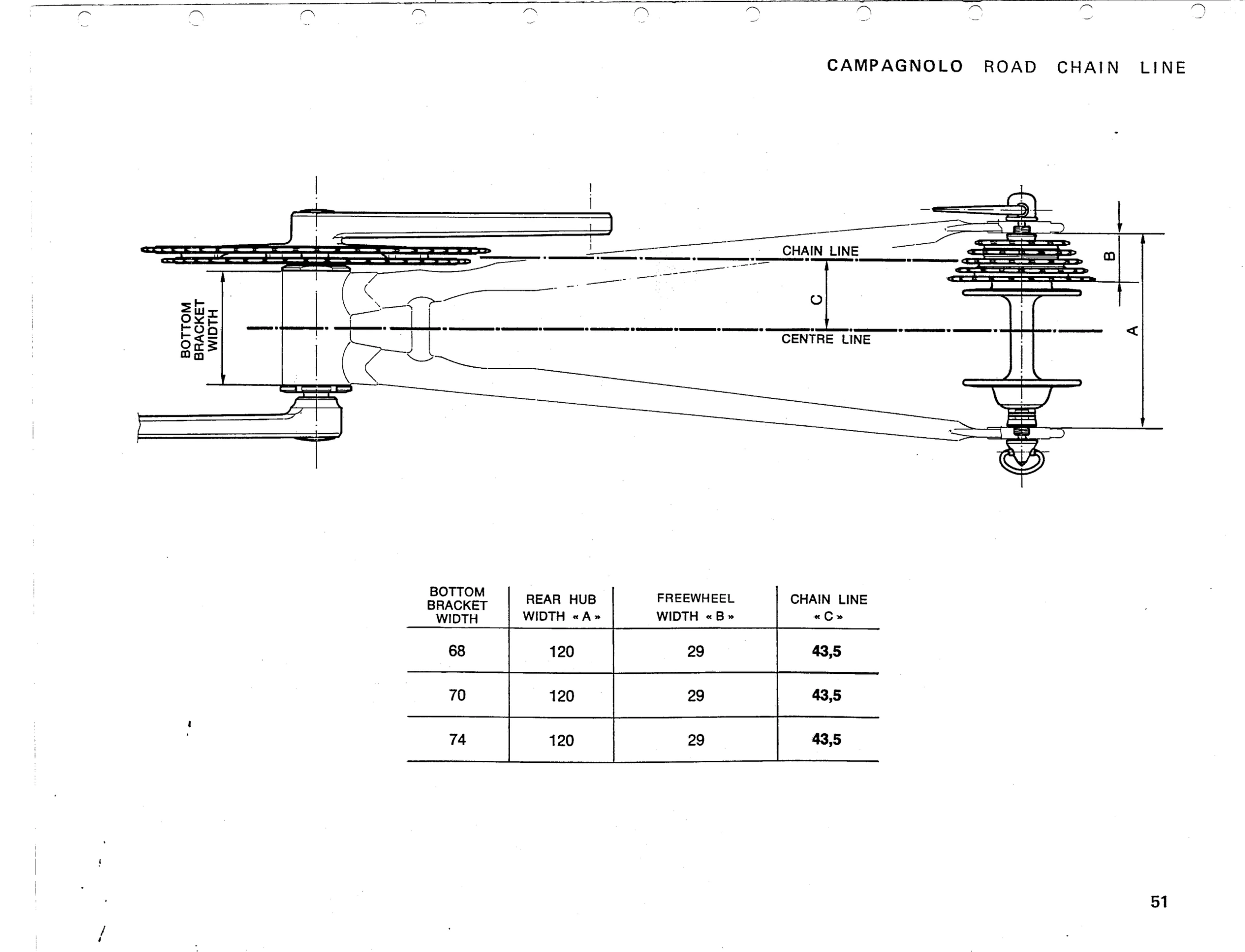

CAMPAGNOLO ROAD CHAIN LINE

Callouts: BOTTOM BRACKET WIDTH | CHAIN LINE | C | CENTRE LINE | B | A

BOTTOM BRACKET WIDTH | REAR HUB WIDTH « A » | FREEWHEEL WIDTH « B » | CHAIN LINE « C »
68 | 120 | 29 | 43,5
70 | 120 | 29 | 43,5
74 | 120 | 29 | 43,5

51

[A plan drawing of a road bicycle’s chainset, bottom bracket, chainstays and rear hub with a five-sprocket freewheel, marking the bottom bracket width, the rear hub width A, the freewheel width B and the chain line C measured from the center line. Below it a table gives the chain line for bottom bracket widths of 68, 70 and 74.]

— Page 55 —

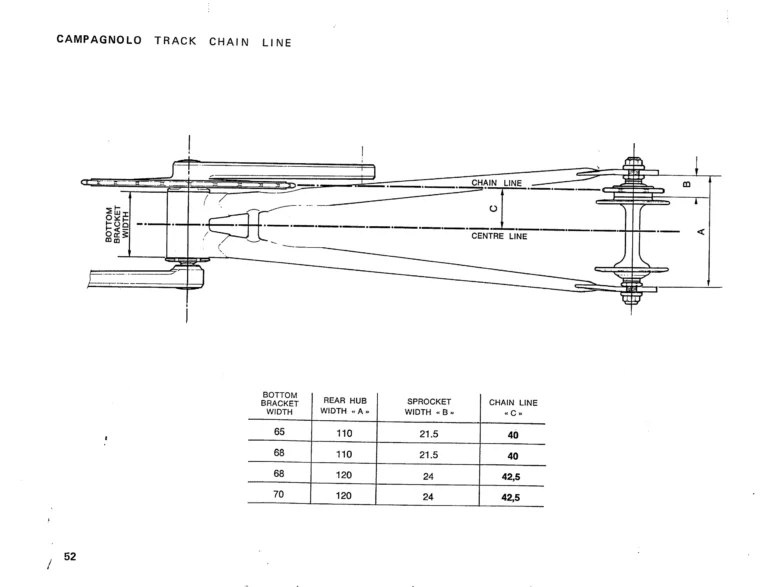

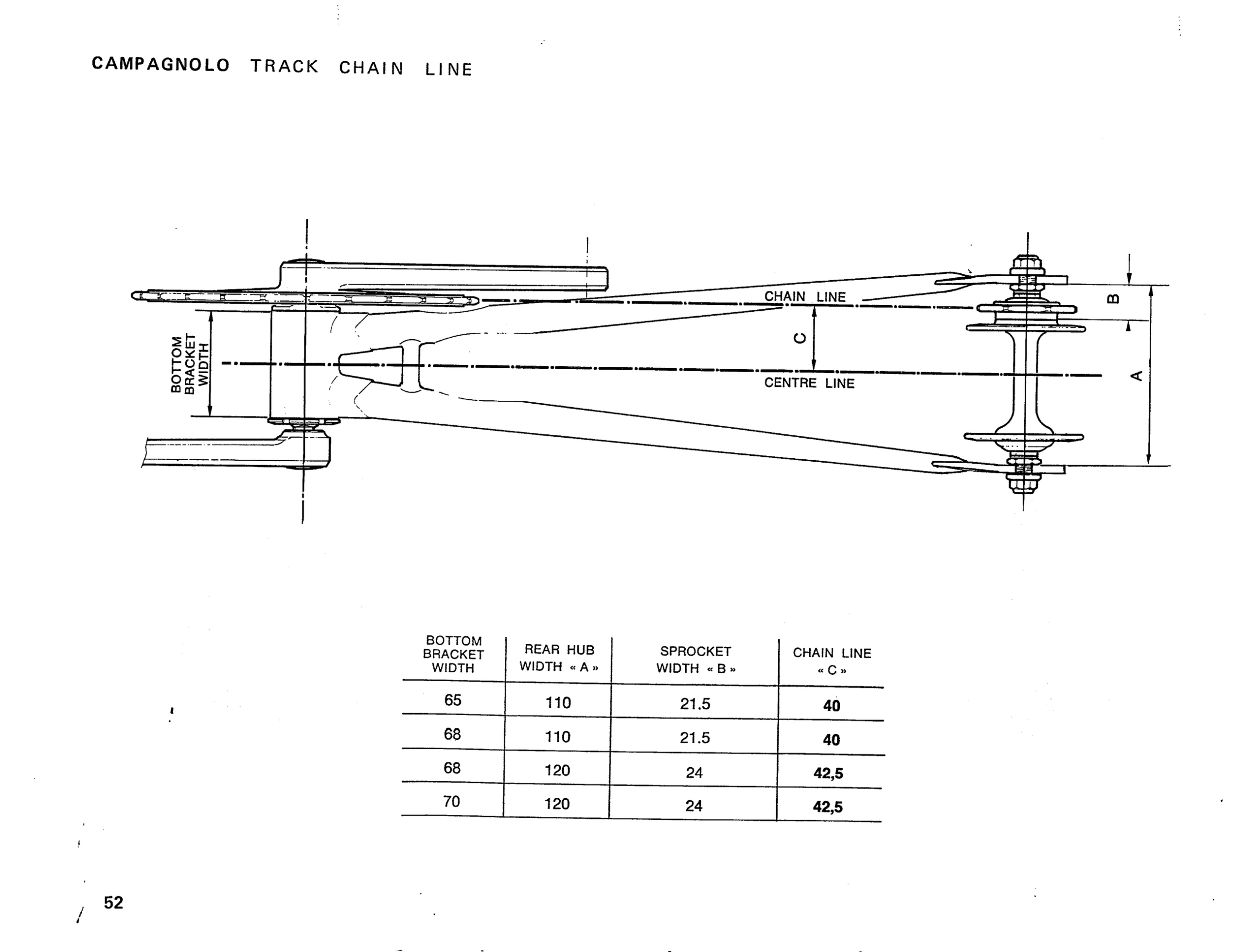

CAMPAGNOLO TRACK CHAIN LINE

Callouts: BOTTOM BRACKET WIDTH | CHAIN LINE | C | CENTRE LINE | B | A

BOTTOM BRACKET WIDTH | REAR HUB WIDTH « A » | SPROCKET WIDTH « B » | CHAIN LINE « C »
65 | 110 | 21.5 | 40
68 | 110 | 21.5 | 40
68 | 120 | 24 | 42,5
70 | 120 | 24 | 42,5

52

[A plan drawing of a track bicycle’s chainset, bottom bracket, chainstays and rear hub with a single sprocket, marking the bottom bracket width, the rear hub width A, the sprocket width B and the chain line C measured from the center line. Below it a table gives the chain line for bottom bracket widths of 65, 68 and 70 with 110 and 120 rear hubs.]

— Page 56 —

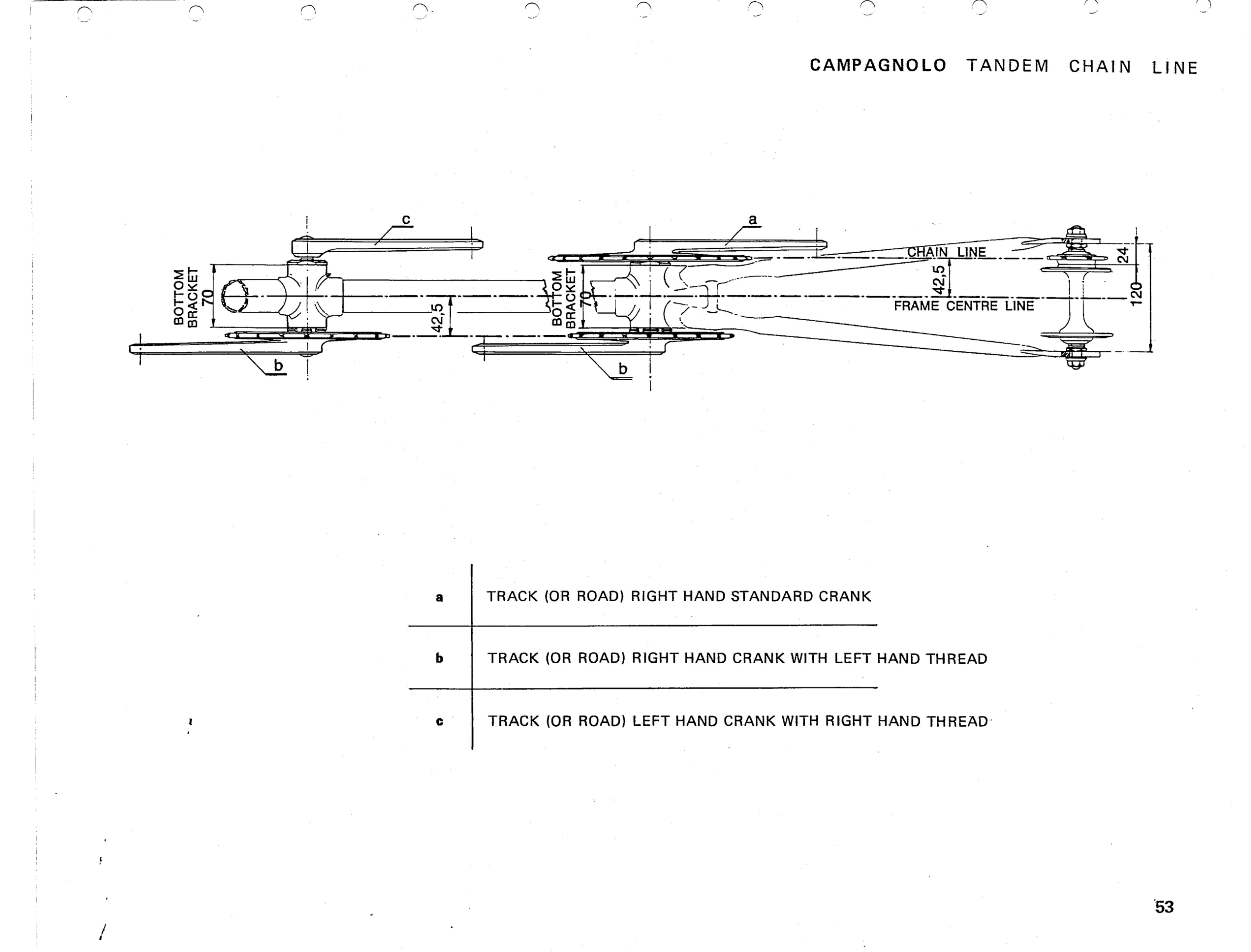

CAMPAGNOLO TANDEM CHAIN LINE

Callouts: c | a | BOTTOM BRACKET 70 | 42,5 | BOTTOM BRACKET 70 | CHAIN LINE | 42,5 | FRAME CENTRE LINE | 24 | 120 | b | b

a | TRACK (OR ROAD) RIGHT HAND STANDARD CRANK
b | TRACK (OR ROAD) RIGHT HAND CRANK WITH LEFT HAND THREAD
c | TRACK (OR ROAD) LEFT HAND CRANK WITH RIGHT HAND THREAD

53

[A plan drawing of a tandem’s two bottom brackets, cranks, chainstays and rear hub, with dimensions in millimeters for the 70 bottom brackets, the chain line of 42,5 from the frame center line, the 24 sprocket width and the 120 rear hub. A key below names the three cranks lettered a, b and c.]

— Page 57 —
GEAR TABLE 27” WHEELS

GEAR TABLE 27″ WHEELS

| 36 | 38 | 40 | 42 | 44 | 45 | 46 | 47 | 48 | 49 | 50 | 51 | 52 | 54
12 | 81.0 | 85.5 | 90.0 | 94.5 | 99.0 | 101.2 | 103.5 | 105.0 | 108.0 | 110.3 | 112.5 | 114.7 | 117.0 | 121.5
13 | 74.7 | 78.9 | 83.1 | 87.2 | 91.4 | 93.4 | 95.5 | 97.6 | 99.7 | 101.8 | 103.8 | 105.9 | 108.0 | 112.1
14 | 69.4 | 73.3 | 77.1 | 81.0 | 84.8 | 86.7 | 88.7 | 90.6 | 92.6 | 94.5 | 96.4 | 98.3 | 100.3 | 104.1
15 | 64.8 | 68.4 | 72.0 | 75.6 | 79.2 | 80.9 | 82.8 | 84.6 | 86.4 | 88.2 | 90.0 | 91.8 | 93.6 | 97.2
16 | 60.8 | 64.1 | 67.5 | 70.9 | 74.2 | 76.0 | 77.6 | 79.3 | 81.0 | 82.7 | 84.4 | 86.1 | 87.7 | 91.1
17 | 57.2 | 60.3 | 63.5 | 66.7 | 69.9 | 71.5 | 73.0 | 74.6 | 76.2 | 77.8 | 79.4 | 81.0 | 82.6 | 85.7
18 | 54.0 | 57.0 | 60.0 | 63.0 | 66.0 | 67.5 | 69.0 | 70.5 | 72.0 | 73.5 | 75.0 | 76.5 | 78.0 | 81.0
19 | 51.2 | 54.0 | 56.8 | 59.7 | 62.5 | 64.0 | 65.4 | 66.8 | 68.2 | 69.6 | 71.0 | 72.5 | 73.9 | 76.7
20 | 48.6 | 51.3 | 54.0 | 56.7 | 59.4 | 60.8 | 62.1 | 63.4 | 64.8 | 66.1 | 67.5 | 68.8 | 70.2 | 72.9
21 | 46.3 | 48.9 | 51.4 | 54.0 | 56.6 | 57.9 | 59.1 | 60.4 | 61.7 | 63.0 | 64.3 | 65.5 | 66.8 | 69.4
22 | 44.2 | 46.6 | 49.1 | 51.5 | 54.0 | 55.2 | 56.4 | 57.7 | 58.9 | 60.1 | 61.4 | 62.6 | 63.8 | 66.2
23 | 42.3 | 44.6 | 47.0 | 49.3 | 51.6 | 52.8 | 54.0 | 55.2 | 56.3 | 57.5 | 58.7 | 59.9 | 61.0 | 63.4
24 | 40.5 | 42.7 | 45.0 | 47.2 | 49.5 | 50.7 | 51.7 | 52.9 | 54.0 | 55.1 | 56.2 | 57.3 | 58.5 | 60.7
25 | 38.9 | 41.1 | 43.2 | 45.4 | 47.5 | 48.6 | 49.7 | 50.8 | 51.8 | 52.9 | 54.0 | 55.1 | 56.2 | 58.3
26 | 37.4 | 39.5 | 41.5 | 43.6 | 45.7 | 46.7 | 47.8 | 48.8 | 49.8 | 50.9 | 51.9 | 53.7 | 54.0 | 56.1

GEAR RATIOS NOT SHOWN ABOVE MAY BE CALCULATED AS FOLLOWS

GEAR = Number of teeth on C/ring / Number of teeth on Sprocket × Diameter of rear wheel in inches

54

[A gear table for 27 inch wheels giving the gear in inches for chainrings of 36 to 54 teeth against sprockets of 12 to 26 teeth. Below the table a formula, set as a fraction, gives the gear as the chainring teeth divided by the sprocket teeth times the rear wheel diameter in inches.]
