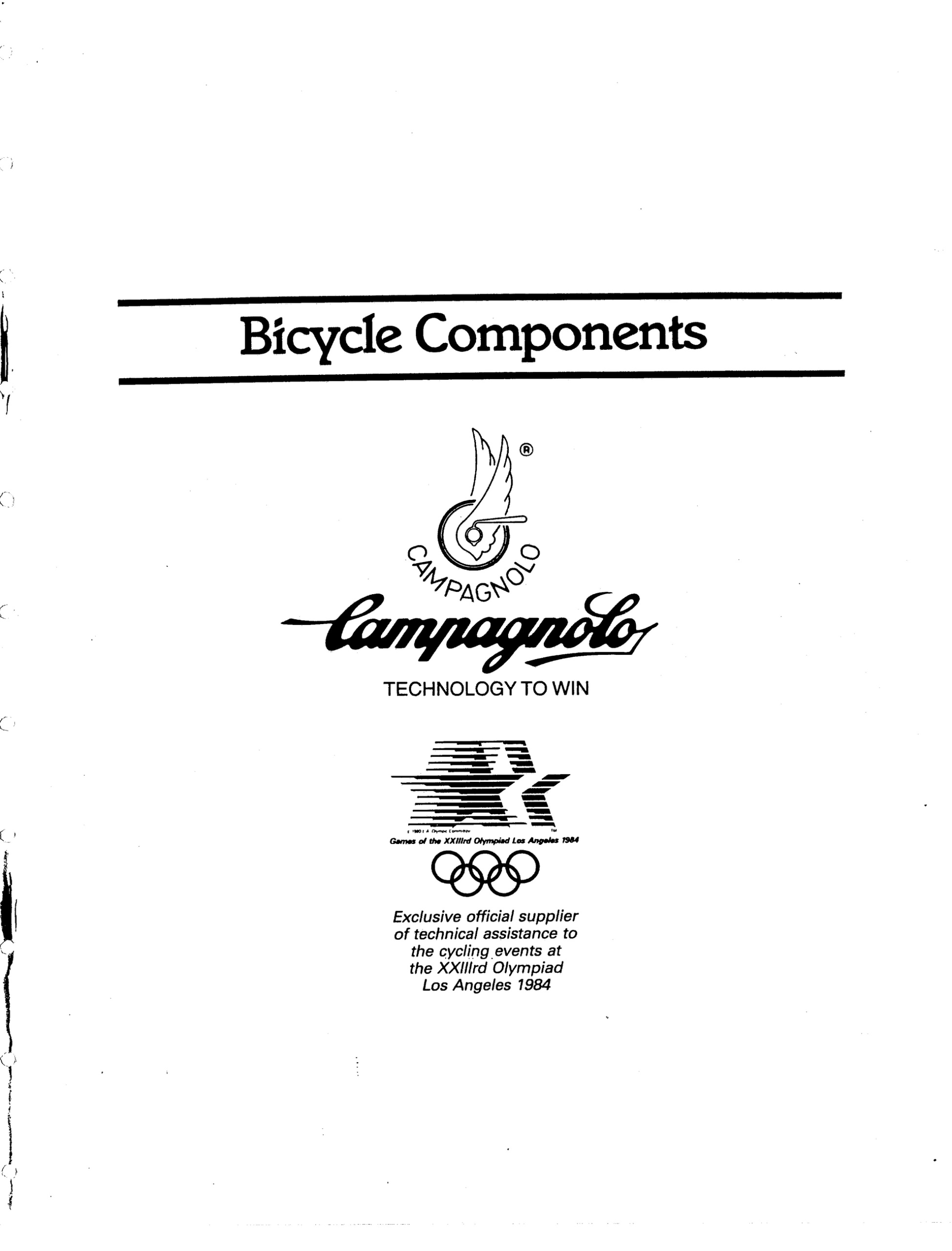

— Page 1 (front cover) —
Bicycle Components

® CAMPAGNOLO

Campagnolo

TECHNOLOGY TO WIN

©[?] 1980[?] L.A. Olympic Committee [?] TM

Games of the XXIIIrd Olympiad Los Angeles 1984

Exclusive official supplier of technical assistance to the cycling events at the XXIIIrd Olympiad Los Angeles 1984

[The front cover of the Campagnolo “Bicycle Components” catalog, with the title between two heavy rules above the winged-wheel Campagnolo emblem, the Campagnolo script logo and the slogan “TECHNOLOGY TO WIN”. Below are the stars-in-motion emblem of the Los Angeles 1984 Olympic Games, the Olympic rings and a line naming Campagnolo the exclusive official supplier of technical assistance to the cycling events. The ring binder holes show along the left edge.]

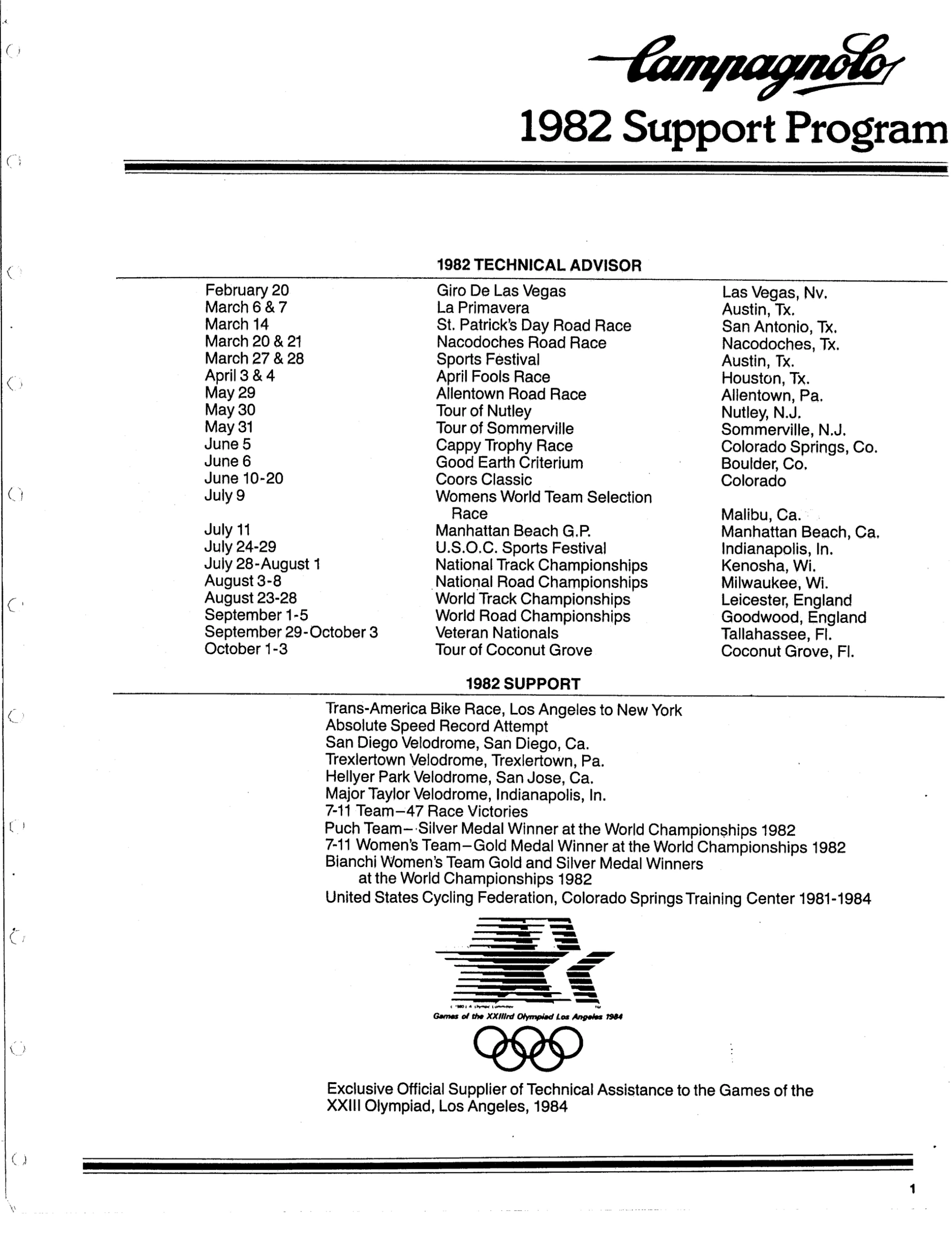

— Page 2 —
Campagnolo

1982 Support Program

1982 TECHNICAL ADVISOR

February 20 | Giro De Las Vegas | Las Vegas, Nv.
March 6 & 7 | La Primavera | Austin, Tx.
March 14 | St. Patrick’s Day Road Race | San Antonio, Tx.
March 20 & 21 | Nacodoches Road Race | Nacodoches, Tx.
March 27 & 28 | Sports Festival | Austin, Tx.
April 3 & 4 | April Fools Race | Houston, Tx.
May 29 | Allentown Road Race | Allentown, Pa.
May 30 | Tour of Nutley | Nutley, N.J.
May 31 | Tour of Sommerville | Sommerville, N.J.
June 5 | Cappy Trophy Race | Colorado Springs, Co.
June 6 | Good Earth Criterium | Boulder, Co.
June 10-20 | Coors Classic | Colorado
July 9 | Womens World Team Selection Race | Malibu, Ca.
July 11 | Manhattan Beach G.P. | Manhattan Beach, Ca.
July 24-29 | U.S.O.C. Sports Festival | Indianapolis, In.
July 28-August 1 | National Track Championships | Kenosha, Wi.
August 3-8 | National Road Championships | Milwaukee, Wi.
August 23-28 | World Track Championships | Leicester, England
September 1-5 | World Road Championships | Goodwood, England
September 29-October 3 | Veteran Nationals | Tallahassee, Fl.
October 1-3 | Tour of Coconut Grove | Coconut Grove, Fl.

1982 SUPPORT

Trans-America Bike Race, Los Angeles to New York
Absolute Speed Record Attempt
San Diego Velodrome, San Diego, Ca.
Trexlertown Velodrome, Trexlertown, Pa.
Hellyer Park Velodrome, San Jose, Ca.
Major Taylor Velodrome, Indianapolis, In.
7-11 Team–47 Race Victories
Puch Team–Silver Medal Winner at the World Championships 1982
7-11 Women’s Team–Gold Medal Winner at the World Championships 1982
Bianchi Women’s Team Gold and Silver Medal Winners at the World Championships 1982
United States Cycling Federation, Colorado Springs Training Center 1981-1984

©[?] 1980[?] L.A. Olympic Committee [?] TM

Games of the XXIIIrd Olympiad Los Angeles 1984

Exclusive Official Supplier of Technical Assistance to the Games of the XXIII Olympiad, Los Angeles, 1984

1

[A text page headed “1982 Support Program” under the Campagnolo script logo, listing the 1982 races at which Campagnolo served as technical advisor, with dates, event names and places, followed by the teams, velodromes and programs it supported in 1982. At the foot are the Los Angeles 1984 Olympic emblem, the Olympic rings and a line naming Campagnolo the exclusive official supplier of technical assistance to the Games.]

— Page 3 —
Campagnolo

Warranty

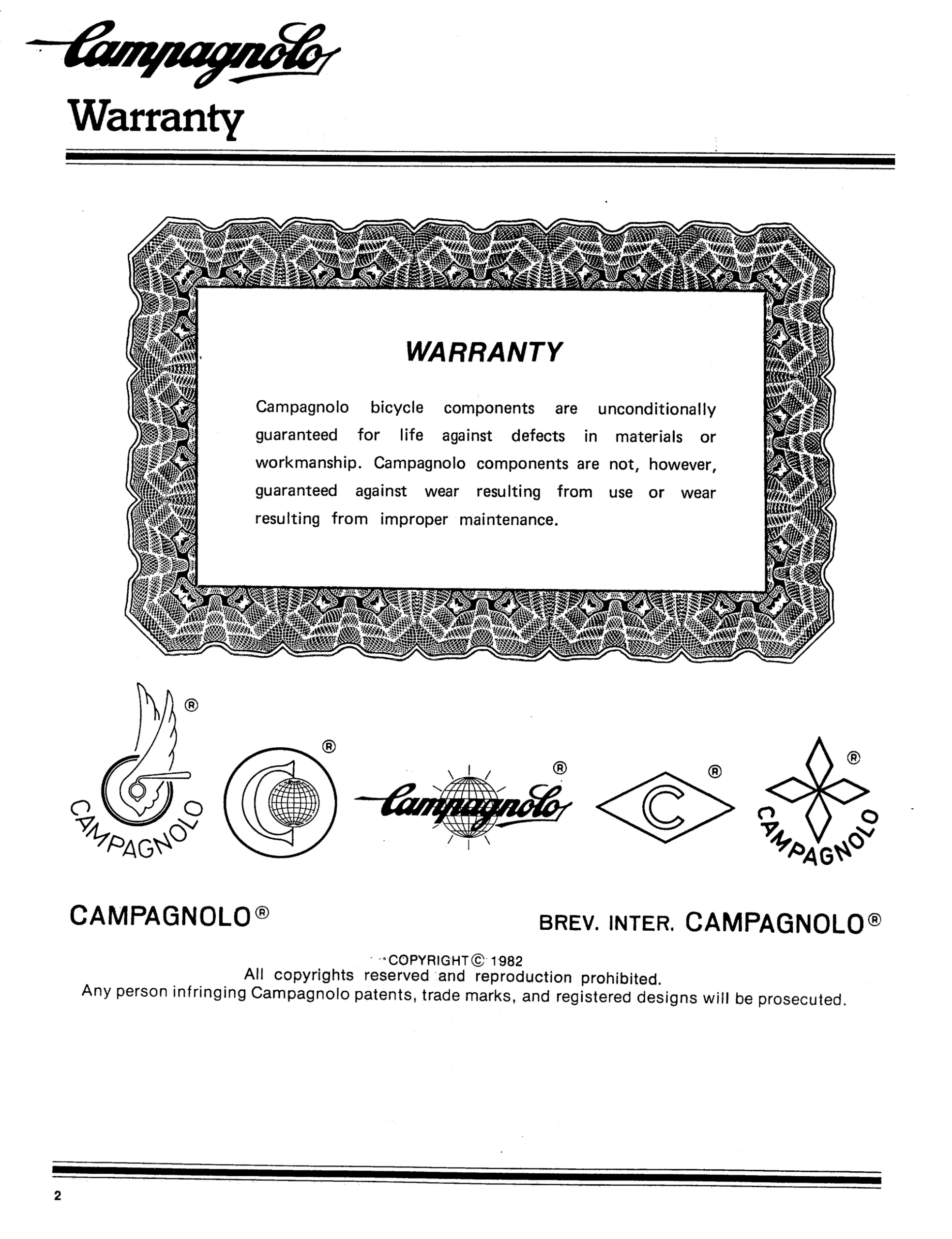

WARRANTY

Campagnolo bicycle components are unconditionally guaranteed for life against defects in materials or workmanship. Campagnolo components are not, however, guaranteed against wear resulting from use or wear resulting from improper maintenance.

® CAMPAGNOLO ® ® Campagnolo ® ® CAMPAGNOLO

CAMPAGNOLO®

BREV. INTER. CAMPAGNOLO®

COPYRIGHT © 1982
All copyrights reserved and reproduction prohibited.
Any person infringing Campagnolo patents, trade marks, and registered designs will be prosecuted.

2

[A page headed “Warranty” with the Campagnolo lifetime warranty statement set inside an ornamental guilloche border like that of a certificate. Below are five registered Campagnolo trademarks: the winged-wheel emblem, a C around a globe, the script logo with a globe, a C in a diamond and a four-pointed star mark, each lettered CAMPAGNOLO or marked ®, followed by the 1982 copyright notice.]

— Page 4 —
Campagnolo

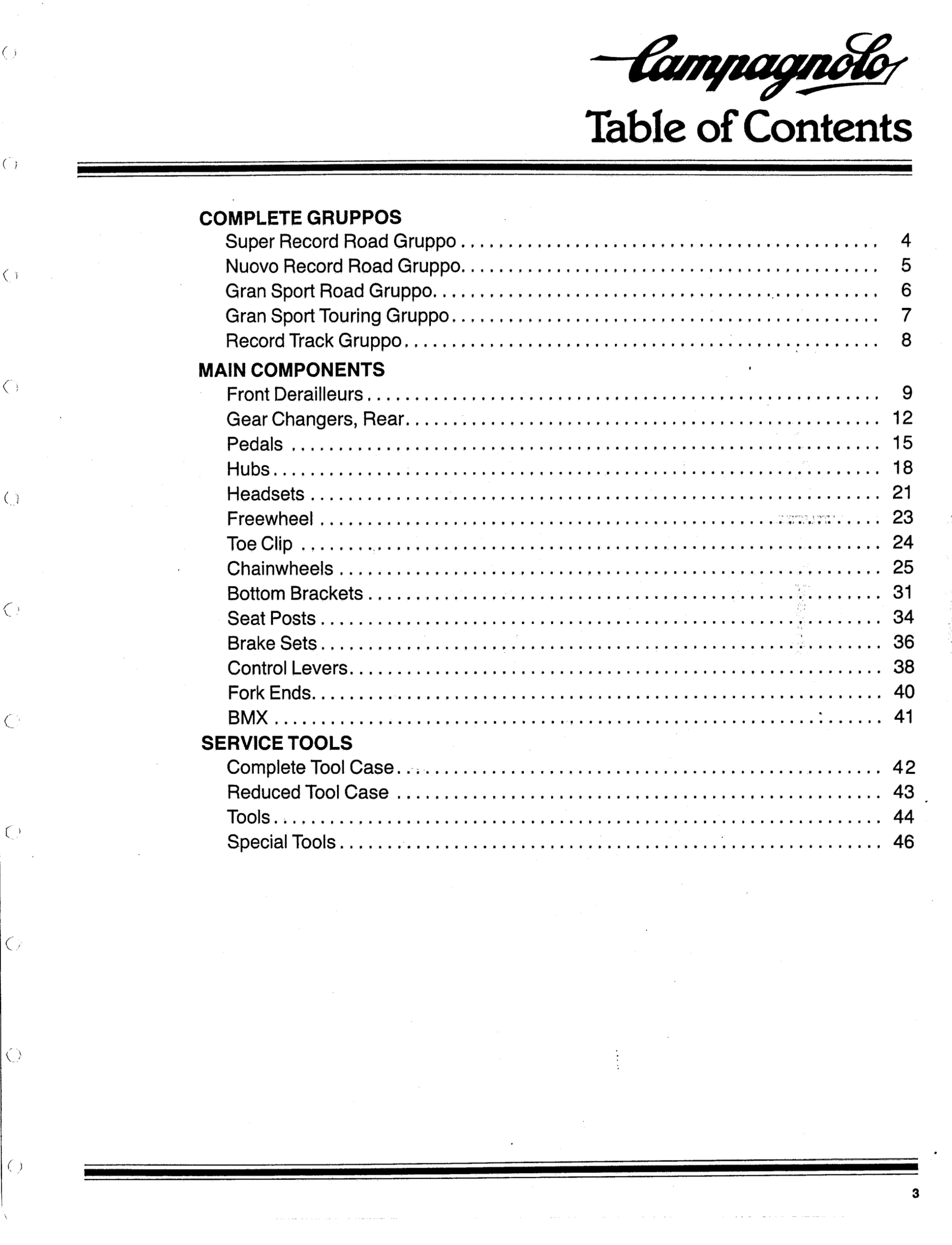

Table of Contents

COMPLETE GRUPPOS
Super Record Road Gruppo | 4
Nuovo Record Road Gruppo | 5
Gran Sport Road Gruppo | 6
Gran Sport Touring Gruppo | 7
Record Track Gruppo | 8

MAIN COMPONENTS
Front Derailleurs | 9
Gear Changers, Rear | 12
Pedals | 15
Hubs | 18
Headsets | 21
Freewheel | 23
Toe Clip | 24
Chainwheels | 25
Bottom Brackets | 31
Seat Posts | 34
Brake Sets | 36
Control Levers | 38
Fork Ends | 40
BMX | 41

SERVICE TOOLS
Complete Tool Case | 42
Reduced Tool Case | 43
Tools | 44
Special Tools | 46

3

[The table of contents of the catalog, headed “Table of Contents” under the Campagnolo script logo, listing complete gruppos, main components and service tools with dot leaders to their page numbers.]

— Page 5 —
Campagnolo

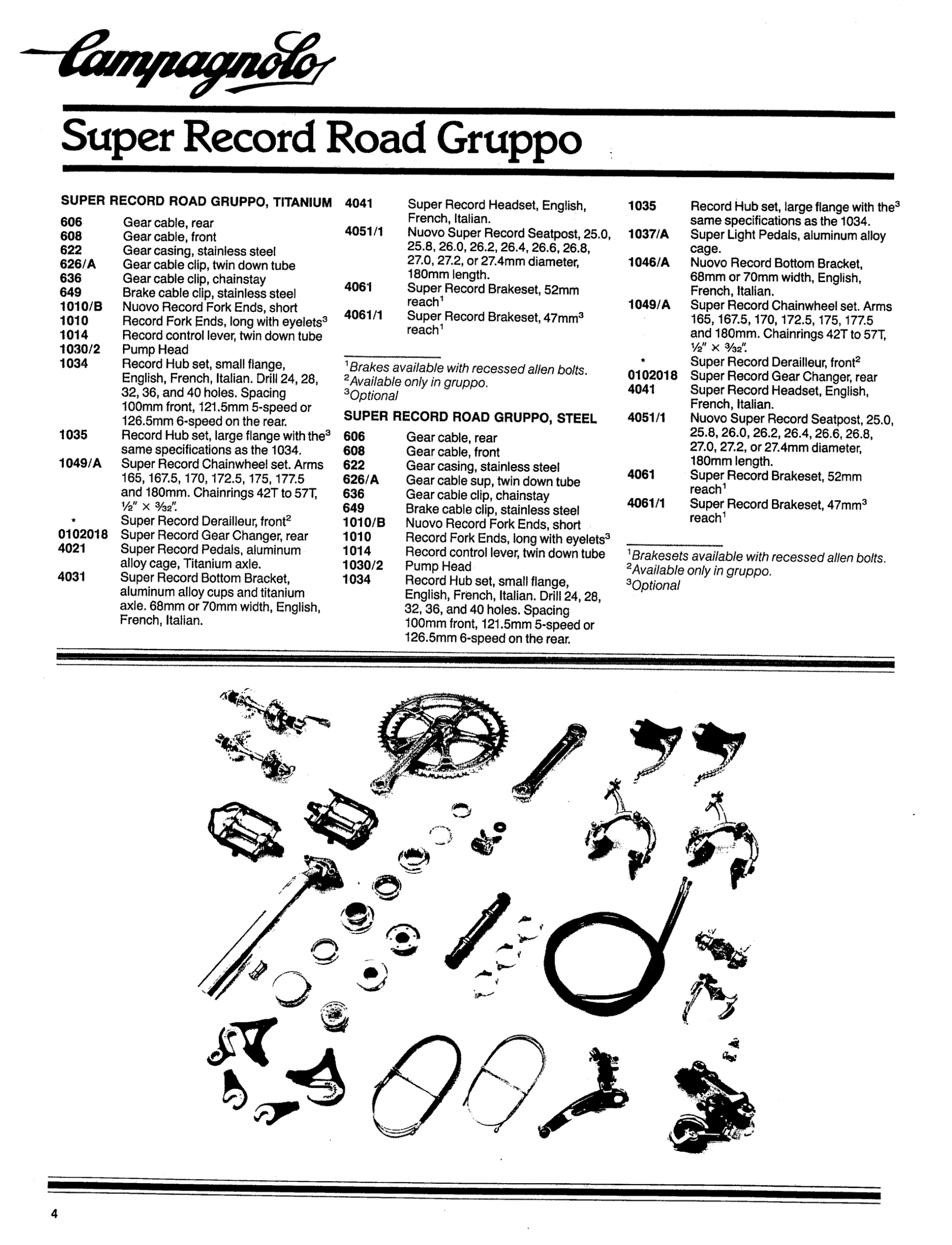

Super Record Road Gruppo

SUPER RECORD ROAD GRUPPO, TITANIUM
606 Gear cable, rear
608 Gear cable, front
622 Gear casing, stainless steel
626/A Gear cable clip, twin down tube
636 Gear cable clip, chainstay
649 Brake cable clip, stainless steel
1010/B Nuovo Record Fork Ends, short
1010 Record Fork Ends, long with eyelets³
1014 Record control lever, twin down tube
1030/2 Pump Head
1034 Record Hub set, small flange, English, French, Italian. Drill 24, 28, 32, 36, and 40 holes. Spacing 100mm front, 121.5mm 5-speed or 126.5mm 6-speed on the rear.
1035 Record Hub set, large flange with the³ same specifications as the 1034.
1049/A Super Record Chainwheel set. Arms 165, 167.5, 170, 172.5, 175, 177.5 and 180mm. Chainrings 42T to 57T, ½” × ³⁄₃₂”.
* Super Record Derailleur, front²
0102018 Super Record Gear Changer, rear
4021 Super Record Pedals, aluminum alloy cage, Titanium axle.
4031 Super Record Bottom Bracket, aluminum alloy cups and titanium axle. 68mm or 70mm width, English, French, Italian.
4041 Super Record Headset, English, French, Italian.
4051/1 Nuovo Super Record Seatpost, 25.0, 25.8, 26.0, 26.2, 26.4, 26.6, 26.8, 27.0, 27.2, or 27.4mm diameter, 180mm length.
4061 Super Record Brakeset, 52mm reach¹
4061/1 Super Record Brakeset, 47mm³ reach¹

¹Brakes available with recessed allen bolts.
²Available only in gruppo.
³Optional

SUPER RECORD ROAD GRUPPO, STEEL
606 Gear cable, rear
608 Gear cable, front
622 Gear casing, stainless steel
626/A Gear cable sup, twin down tube
636 Gear cable clip, chainstay
649 Brake cable clip, stainless steel
1010/B Nuovo Record Fork Ends, short
1010 Record Fork Ends, long with eyelets³
1014 Record control lever, twin down tube
1030/2 Pump Head
1034 Record Hub set, small flange, English, French, Italian. Drill 24, 28, 32, 36, and 40 holes. Spacing 100mm front, 121.5mm 5-speed or 126.5mm 6-speed on the rear.
1035 Record Hub set, large flange with the³ same specifications as the 1034.
1037/A Super Light Pedals, aluminum alloy cage.
1046/A Nuovo Record Bottom Bracket, 68mm or 70mm width, English, French, Italian.
1049/A Super Record Chainwheel set. Arms 165, 167.5, 170, 172.5, 175, 177.5 and 180mm. Chainrings 42T to 57T, ½” × ³⁄₃₂”.
* Super Record Derailleur, front²
0102018 Super Record Gear Changer, rear
4041 Super Record Headset, English, French, Italian.
4051/1 Nuovo Super Record Seatpost, 25.0, 25.8, 26.0, 26.2, 26.4, 26.6, 26.8, 27.0, 27.2, or 27.4mm diameter, 180mm length.
4061 Super Record Brakeset, 52mm reach¹
4061/1 Super Record Brakeset, 47mm³ reach¹

¹Brakesets available with recessed allen bolts.
²Available only in gruppo.
³Optional

4

[A page for the Campagnolo Super Record Road Gruppo, listing the parts of the titanium and steel versions of the group by part number, above a photograph of the complete group laid out: hubs, crankset, pedals, seatpost, headset and bottom bracket parts, brakes and levers, cables, fork ends and the front and rear derailleurs.]

— Page 6 —
Campagnolo

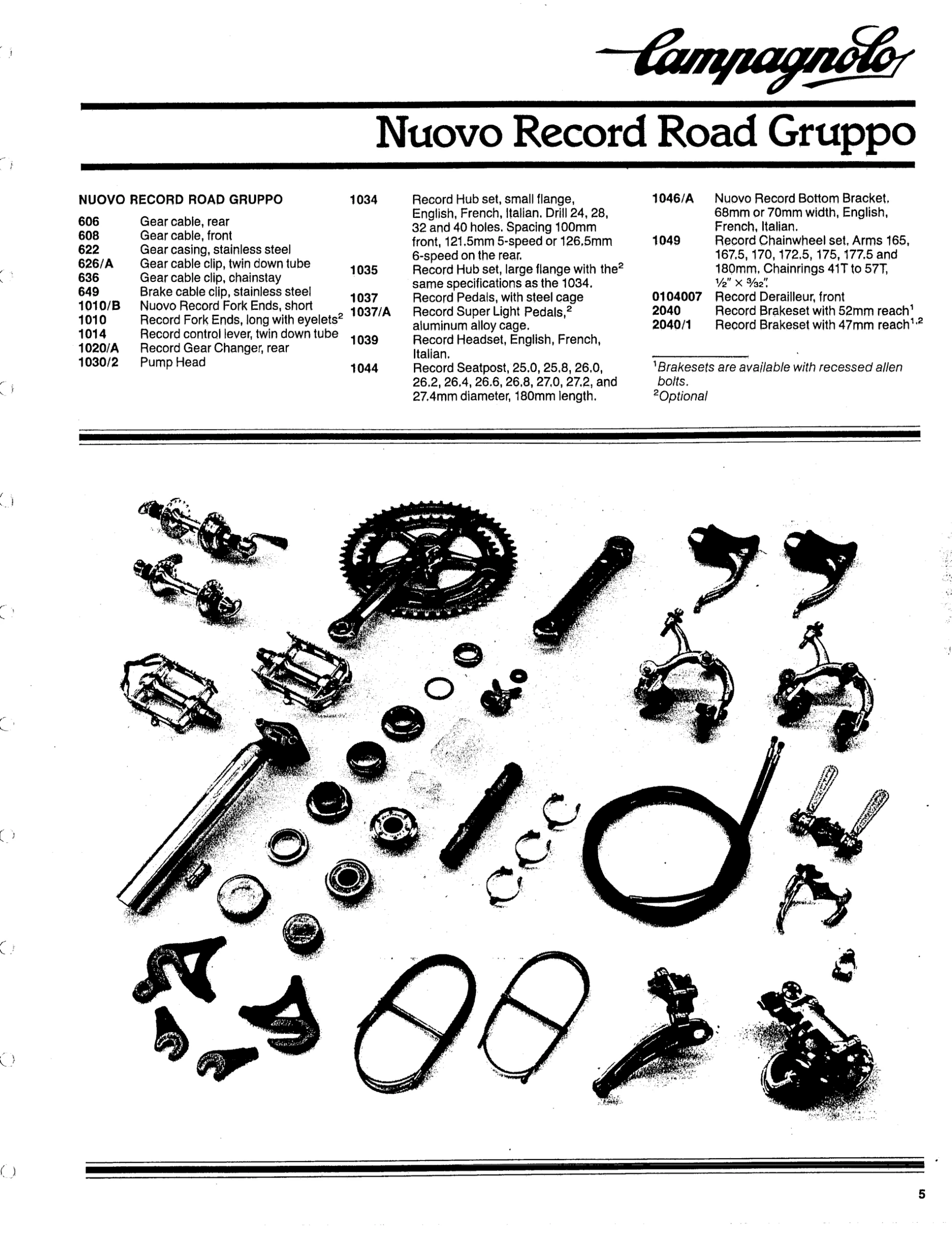

Nuovo Record Road Gruppo

NUOVO RECORD ROAD GRUPPO
606 Gear cable, rear
608 Gear cable, front
622 Gear casing, stainless steel
626/A Gear cable clip, twin down tube
636 Gear cable clip, chainstay
649 Brake cable clip, stainless steel
1010/B Nuovo Record Fork Ends, short
1010 Record Fork Ends, long with eyelets²
1014 Record control lever, twin down tube
1020/A Record Gear Changer, rear
1030/2 Pump Head
1034 Record Hub set, small flange, English, French, Italian. Drill 24, 28, 32 and 40 holes. Spacing 100mm front, 121.5mm 5-speed or 126.5mm 6-speed on the rear.
1035 Record Hub set, large flange with the² same specifications as the 1034.
1037 Record Pedals, with steel cage
1037/A Record Super Light Pedals,² aluminum alloy cage.
1039 Record Headset, English, French, Italian.
1044 Record Seatpost, 25.0, 25.8, 26.0, 26.2, 26.4, 26.6, 26.8, 27.0, 27.2, and 27.4mm diameter, 180mm length.
1046/A Nuovo Record Bottom Bracket, 68mm or 70mm width, English, French, Italian.
1049 Record Chainwheel set. Arms 165, 167.5, 170, 172.5, 175, 177.5 and 180mm. Chainrings 41T to 57T, ½” × ³⁄₃₂”.
0104007 Record Derailleur, front
2040 Record Brakeset with 52mm reach¹
2040/1 Record Brakeset with 47mm reach¹,²

¹Brakesets are available with recessed allen bolts.
²Optional

5

[A page for the Campagnolo Nuovo Record Road Gruppo, listing its parts by part number, above a photograph of the complete group laid out: hubs, crankset, pedals, seatpost, headset and bottom bracket parts, brakes and levers, cables, down tube shift levers, fork ends and the front and rear derailleurs.]

— Page 7 —
Campagnolo

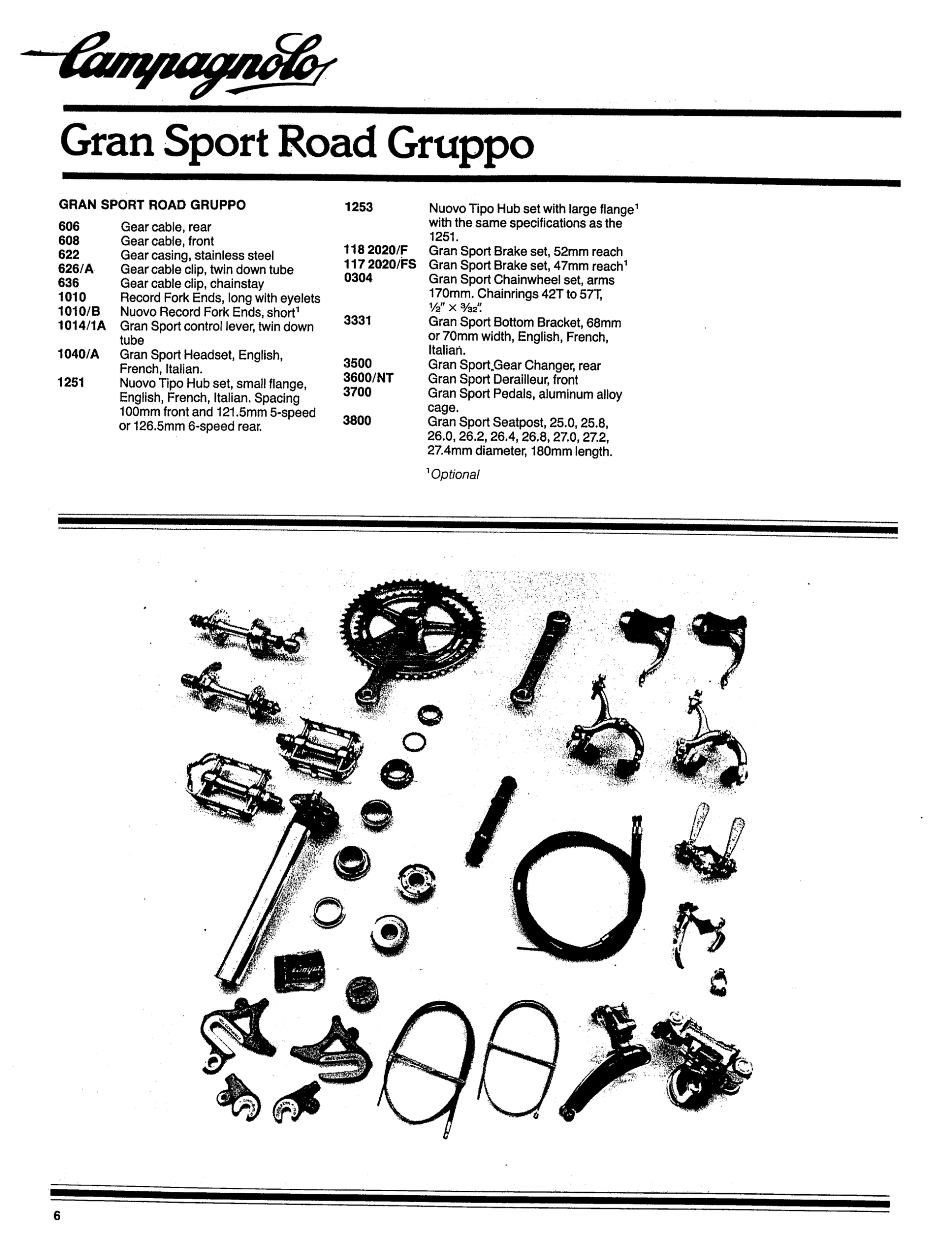

Gran Sport Road Gruppo

GRAN SPORT ROAD GRUPPO
606 Gear cable, rear
608 Gear cable, front
622 Gear casing, stainless steel
626/A Gear cable clip, twin down tube
636 Gear cable clip, chainstay
1010 Record Fork Ends, long with eyelets
1010/B Nuovo Record Fork Ends, short¹
1014/1A Gran Sport control lever, twin down tube
1040/A Gran Sport Headset, English, French, Italian.
1251 Nuovo Tipo Hub set, small flange, English, French, Italian. Spacing 100mm front and 121.5mm 5-speed or 126.5mm 6-speed rear.
1253 Nuovo Tipo Hub set with large flange¹ with the same specifications as the 1251.
118 2020/F Gran Sport Brake set, 52mm reach
117 2020/FS Gran Sport Brake set, 47mm reach¹
0304 Gran Sport Chainwheel set, arms 170mm. Chainrings 42T to 57T, ½” × ³⁄₃₂”.
3331 Gran Sport Bottom Bracket, 68mm or 70mm width, English, French, Italian.
3500 Gran Sport Gear Changer, rear
3600/NT Gran Sport Derailleur, front
3700 Gran Sport Pedals, aluminum alloy cage.
3800 Gran Sport Seatpost, 25.0, 25.8, 26.0, 26.2, 26.4, 26.8, 27.0, 27.2, 27.4mm diameter, 180mm length.

¹Optional

6

[A page for the Campagnolo Gran Sport Road Gruppo, listing its parts by part number, above a photograph of the complete group laid out: hubs, crankset, pedals, seatpost, headset and bottom bracket parts, brakes and levers, cables, down tube shift levers, fork ends and the front and rear derailleurs.]

— Page 8 —
Campagnolo

Gran Sport Touring Gruppo

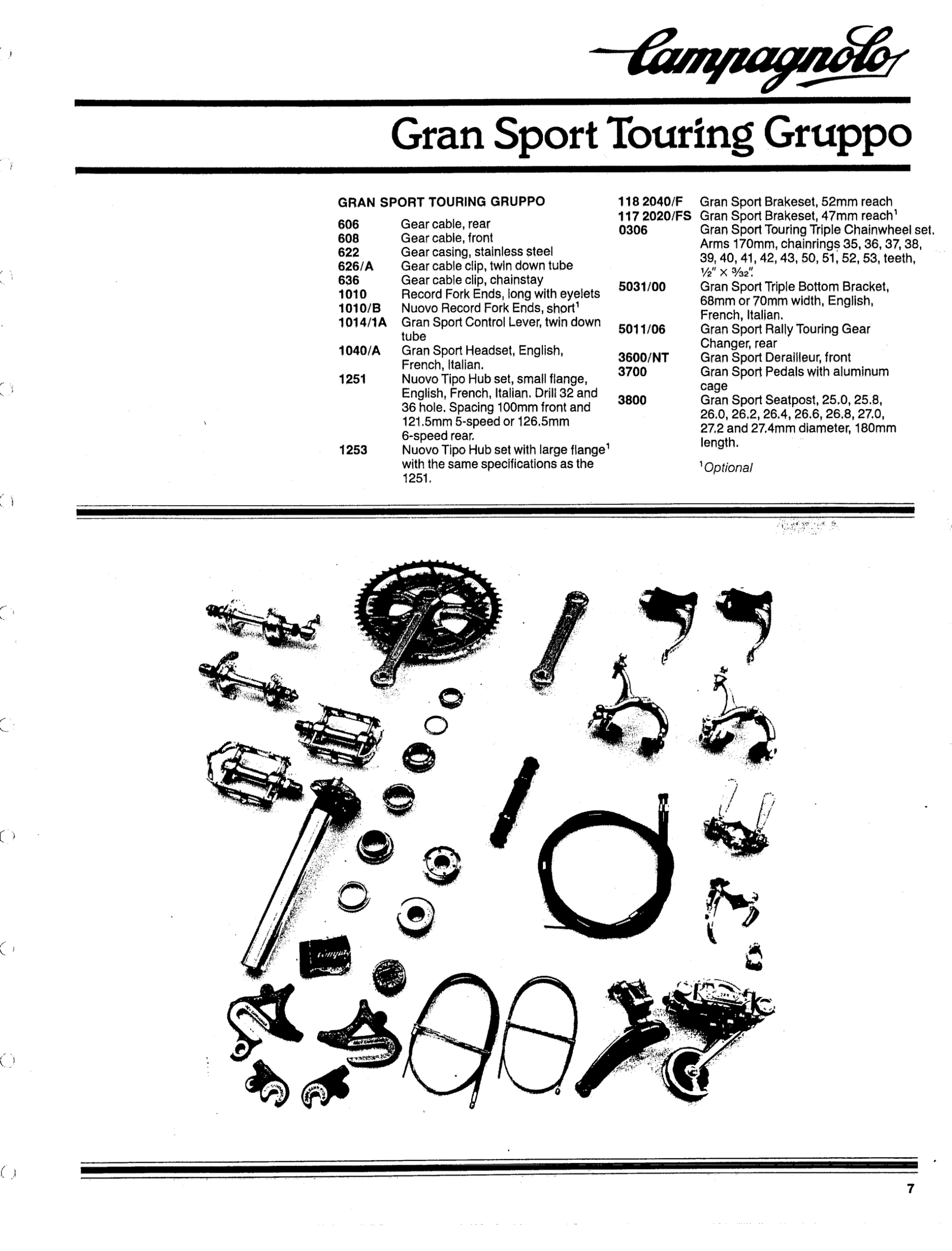

GRAN SPORT TOURING GRUPPO
606 Gear cable, rear
608 Gear cable, front
622 Gear casing, stainless steel
626/A Gear cable clip, twin down tube
636 Gear cable clip, chainstay
1010 Record Fork Ends, long with eyelets
1010/B Nuovo Record Fork Ends, short¹
1014/1A Gran Sport Control Lever, twin down tube
1040/A Gran Sport Headset, English, French, Italian.
1251 Nuovo Tipo Hub set, small flange, English, French, Italian. Drill 32 and 36 hole. Spacing 100mm front and 121.5mm 5-speed or 126.5mm 6-speed rear.
1253 Nuovo Tipo Hub set with large flange¹ with the same specifications as the 1251.
118 2040/F Gran Sport Brakeset, 52mm reach
117 2020/FS Gran Sport Brakeset, 47mm reach¹
0306 Gran Sport Touring Triple Chainwheel set. Arms 170mm, chainrings 35, 36, 37, 38, 39, 40, 41, 42, 43, 50, 51, 52, 53, teeth, ½” × ³⁄₃₂”.
5031/00 Gran Sport Triple Bottom Bracket, 68mm or 70mm width, English, French, Italian.
5011/06 Gran Sport Rally Touring Gear Changer, rear
3600/NT Gran Sport Derailleur, front
3700 Gran Sport Pedals with aluminum cage
3800 Gran Sport Seatpost, 25.0, 25.8, 26.0, 26.2, 26.4, 26.6, 26.8, 27.0, 27.2 and 27.4mm diameter, 180mm length.

¹Optional

7

[A page for the Campagnolo Gran Sport Touring Gruppo, listing its parts by part number, above a photograph of the complete group laid out: hubs, triple crankset, pedals, seatpost, headset and bottom bracket parts, brakes and levers, cables, down tube shift levers, fork ends and the front derailleur and Rally rear derailleur.]

— Page 9 —
Campagnolo

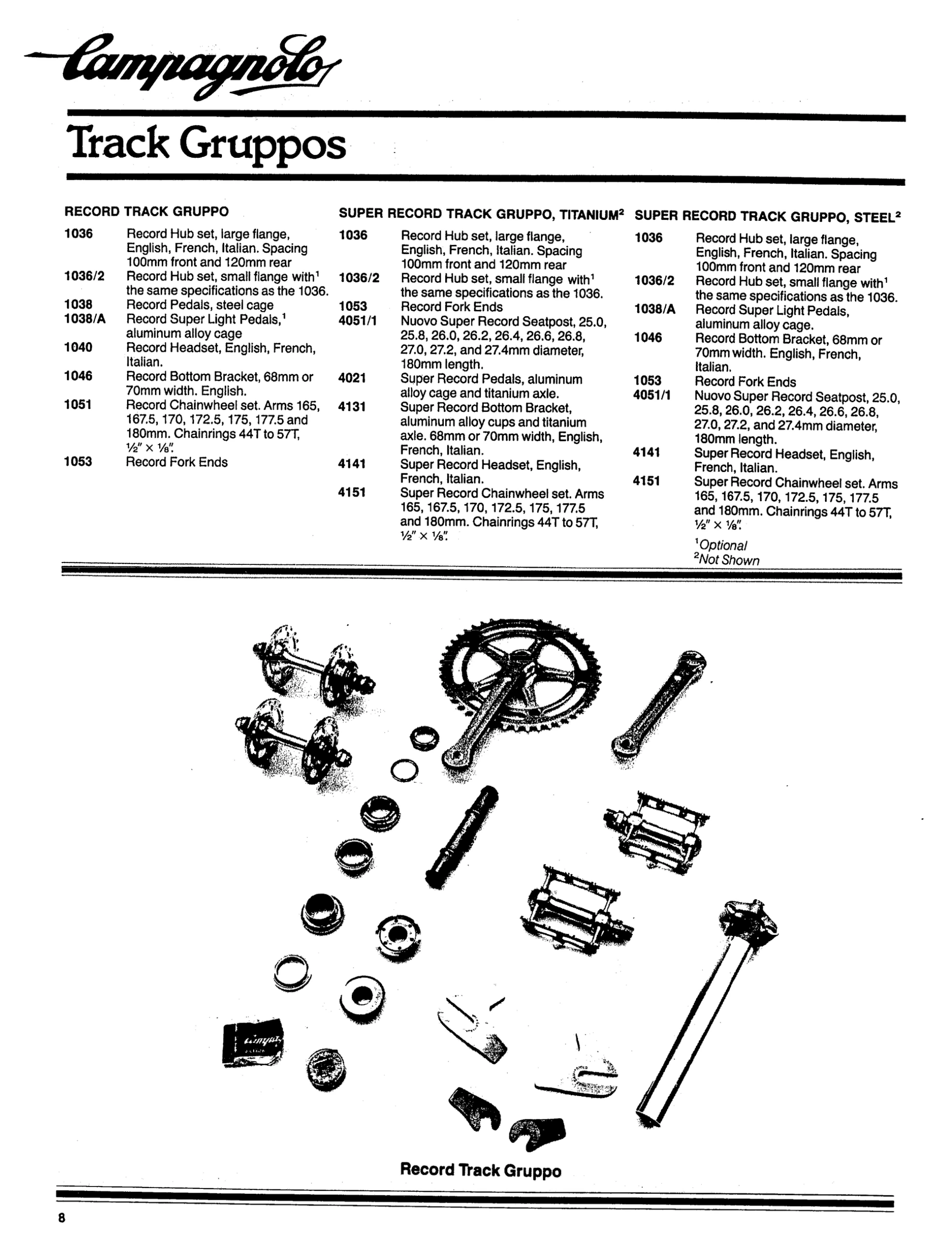

Track Gruppos

RECORD TRACK GRUPPO
1036 Record Hub set, large flange, English, French, Italian. Spacing 100mm front and 120mm rear
1036/2 Record Hub set, small flange with¹ the same specifications as the 1036.
1038 Record Pedals, steel cage
1038/A Record Super Light Pedals,¹ aluminum alloy cage
1040 Record Headset, English, French, Italian.
1046 Record Bottom Bracket, 68mm or 70mm width. English.
1051 Record Chainwheel set. Arms 165, 167.5, 170, 172.5, 175, 177.5 and 180mm. Chainrings 44T to 57T, ½” × ⅛”.
1053 Record Fork Ends

SUPER RECORD TRACK GRUPPO, TITANIUM²
1036 Record Hub set, large flange, English, French, Italian. Spacing 100mm front and 120mm rear
1036/2 Record Hub set, small flange with¹ the same specifications as the 1036.
1053 Record Fork Ends
4051/1 Nuovo Super Record Seatpost, 25.0, 25.8, 26.0, 26.2, 26.4, 26.6, 26.8, 27.0, 27.2, and 27.4mm diameter, 180mm length.
4021 Super Record Pedals, aluminum alloy cage and titanium axle.
4131 Super Record Bottom Bracket, aluminum alloy cups and titanium axle. 68mm or 70mm width, English, French, Italian.
4141 Super Record Headset, English, French, Italian.
4151 Super Record Chainwheel set. Arms 165, 167.5, 170, 172.5, 175, 177.5 and 180mm. Chainrings 44T to 57T, ½” × ⅛”.

SUPER RECORD TRACK GRUPPO, STEEL²
1036 Record Hub set, large flange, English, French, Italian. Spacing 100mm front and 120mm rear
1036/2 Record Hub set, small flange with¹ the same specifications as the 1036.
1038/A Record Super Light Pedals, aluminum alloy cage.
1046 Record Bottom Bracket, 68mm or 70mm width. English, French, Italian.
1053 Record Fork Ends
4051/1 Nuovo Super Record Seatpost, 25.0, 25.8, 26.0, 26.2, 26.4, 26.6, 26.8, 27.0, 27.2, and 27.4mm diameter, 180mm length.
4141 Super Record Headset, English, French, Italian.
4151 Super Record Chainwheel set. Arms 165, 167.5, 170, 172.5, 175, 177.5 and 180mm. Chainrings 44T to 57T, ½” × ⅛”.

¹Optional
²Not Shown

Record Track Gruppo

8

[A page headed “Track Gruppos” listing by part number the parts of the Record Track Gruppo and of the titanium and steel Super Record Track Gruppos, above a photograph captioned “Record Track Gruppo” showing its hubs, crankset, pedals, seatpost, headset and bottom bracket parts and track fork ends.]

— Page 10 —
Campagnolo

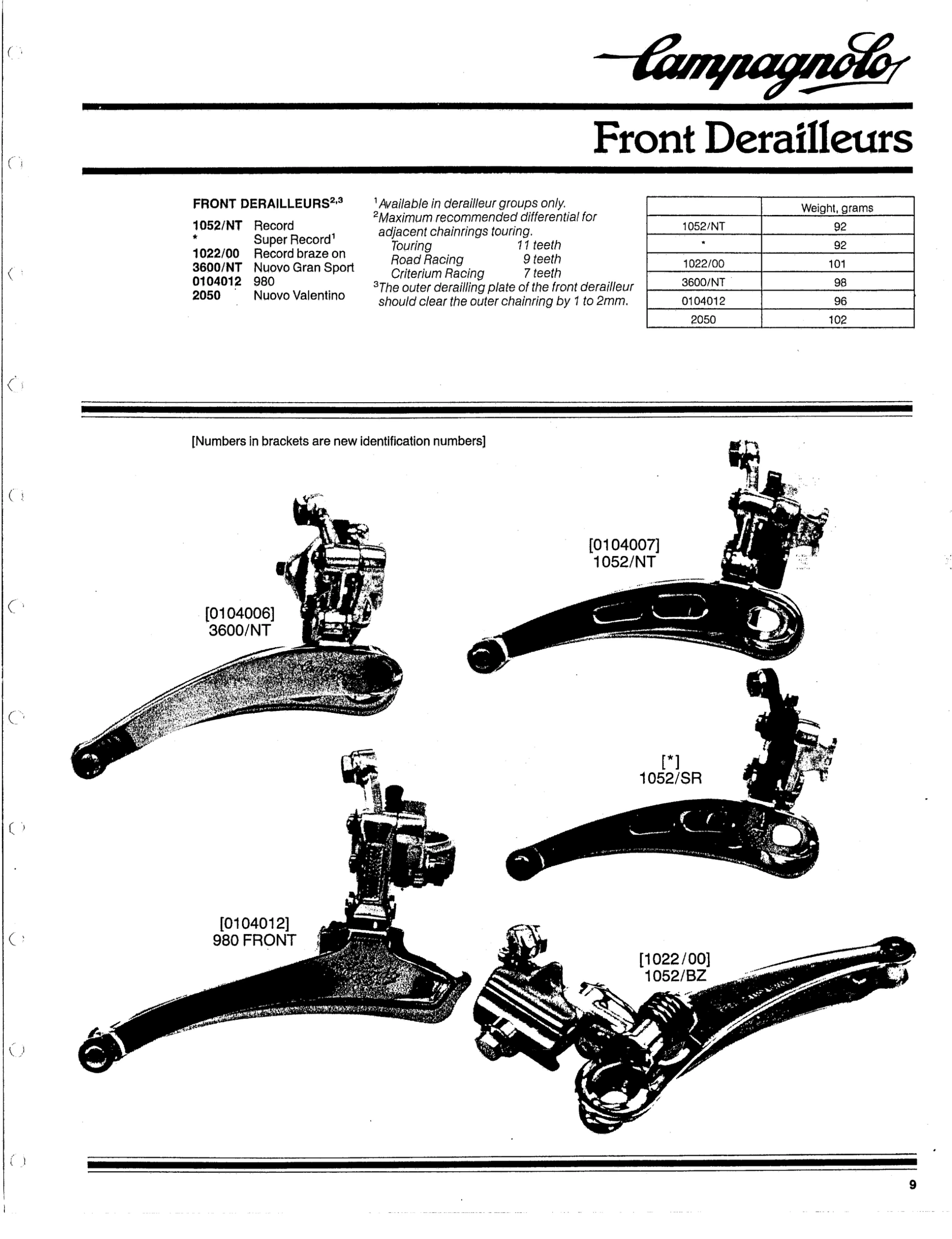

Front Derailleurs

FRONT DERAILLEURS²,³
1052/NT Record
* Super Record¹
1022/00 Record braze on
3600/NT Nuovo Gran Sport
0104012 980
2050 Nuovo Valentino

¹Available in derailleur groups only.
²Maximum recommended differential for adjacent chainrings touring.
Touring | 11 teeth
Road Racing | 9 teeth
Criterium Racing | 7 teeth
³The outer derailling plate of the front derailleur should clear the outer chainring by 1 to 2mm.

| Weight, grams
1052/NT | 92
* | 92
1022/00 | 101
3600/NT | 98
0104012 | 96
2050 | 102

[Numbers in brackets are new identification numbers]

[0104007] 1052/NT

[0104006] 3600/NT

[*] 1052/SR

[0104012] 980 FRONT

[1022/00] 1052/BZ

9

[A page of Campagnolo front derailleurs: a list of models by part number with footnotes on chainring differentials and plate clearance, a table of weights in grams, and photographs of five front derailleurs, each captioned with its old number and, in printed square brackets, its new identification number.]

— Page 11 —

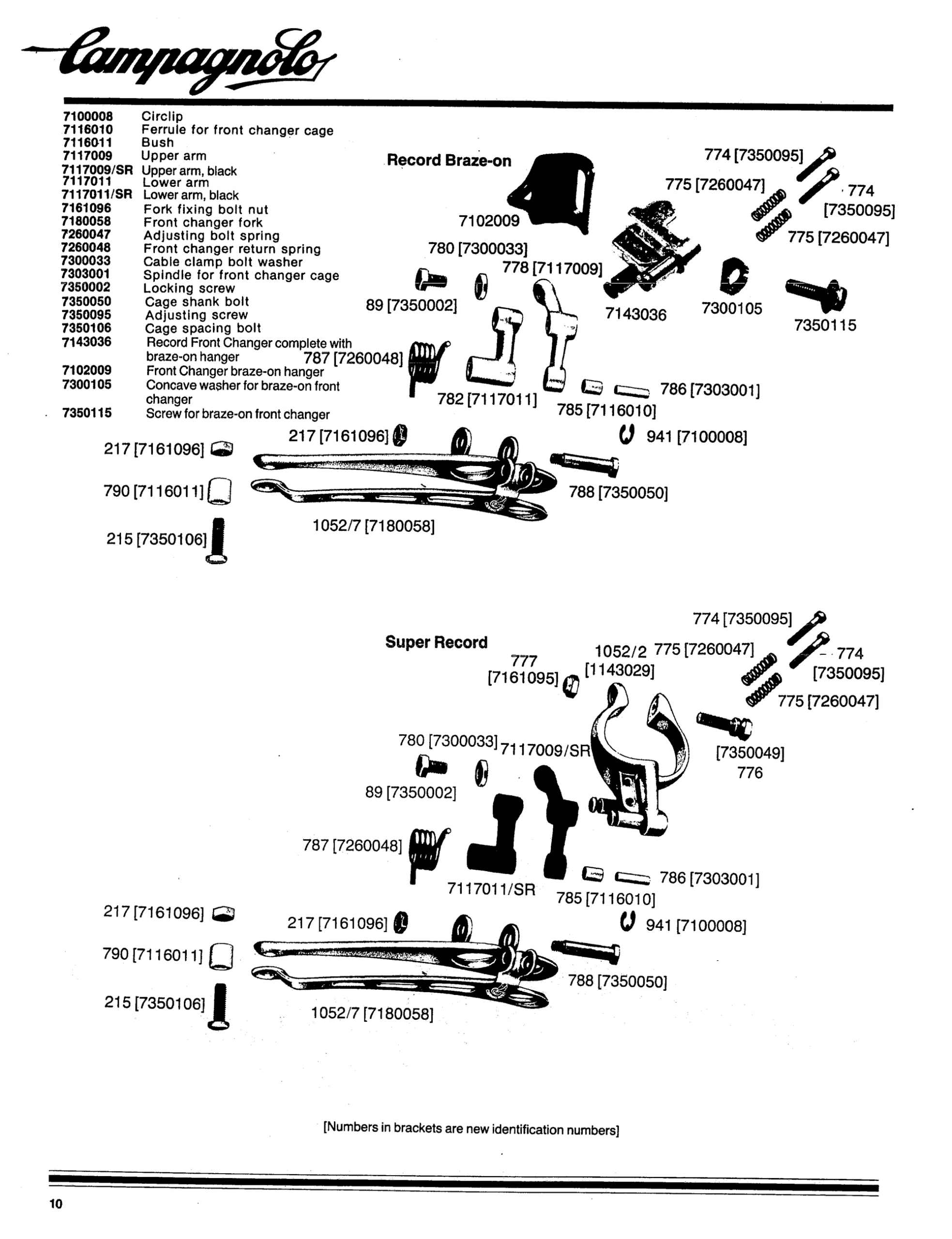

Campagnolo

7100008 Circlip
7116010 Ferrule for front changer cage
7116011 Bush
7117009 Upper arm
7117009/SR Upper arm, black
7117011 Lower arm
7117011/SR Lower arm, black
7161096 Fork fixing bolt nut
7180058 Front changer fork
7260047 Adjusting bolt spring
7260048 Front changer return spring
7300033 Cable clamp bolt washer
7303001 Spindle for front changer cage
7350002 Locking screw
7350050 Cage shank bolt
7350095 Adjusting screw
7350106 Cage spacing bolt
7143036 Record Front Changer complete with braze-on hanger
7102009 Front Changer braze-on hanger
7300105 Concave washer for braze-on front changer
7350115 Screw for braze-on front changer

Record Braze-on

Callouts: 774 [7350095] 775 [7260047] 774 [7350095] 7102009 775 [7260047] 780 [7300033] 778 [7117009] 89 [7350002] 7143036 7300105 7350115 787 [7260048] 786 [7303001] 782 [7117011] 785 [7116010] 217 [7161096] 941 [7100008] 217 [7161096] 790 [7116011] 788 [7350050] 215 [7350106] 1052/7 [7180058]

Super Record

Callouts: 774 [7350095] 777 [7161095] 1052/2 [1143029] 775 [7260047] 774 [7350095] 775 [7260047] 780 [7300033] 7117009/SR [7350049] 776 89 [7350002] 787 [7260048] 786 [7303001] 7117011/SR 785 [7116010] 217 [7161096] 217 [7161096] 941 [7100008] 790 [7116011] 788 [7350050] 215 [7350106] 1052/7 [7180058]

[Numbers in brackets are new identification numbers]

10

[Two exploded photographs of Campagnolo front changers, the Record Braze-on model 7143036 above and the Super Record below, with every part labeled by its old number and its new seven-digit number in brackets. A single parts list at the top left keys the new numbers to part names for both changers, including the braze-on hanger 7102009, the concave washer 7300105 and the screw 7350115.]

— Page 12 —
Campagnolo

1143013 Front changer body (with clip and hinge)
7100008 Circlip
7116010 Ferrule for front changer cage
7116011 Bush
7117009 Upper arm
7117011 Lower arm
7161011 Fixing screw nut
7161012 Fork fixing bolt nut
7180056 Front changer fork
7260017 Adjusting bolt spring
7260018 Front changer return spring
7300033 Cable clamp bolt washer
7303001 Spindle for front changer cage
7350002 Locking screw
7350010 Cage spacing bolt
7350048 Adjusting screw
7350049 Clip fixing screw
7350050 Cage shank bolt

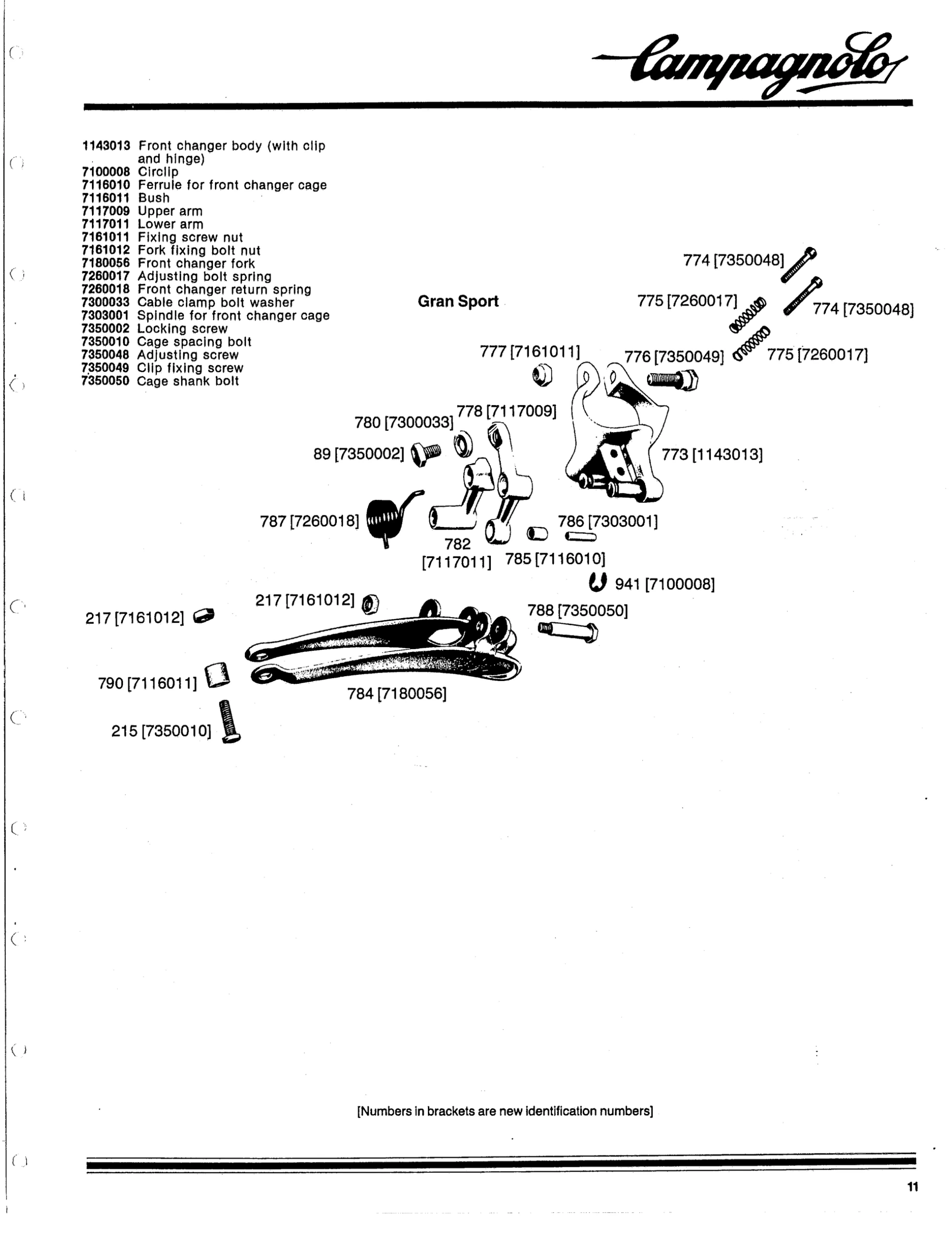

Gran Sport

Callouts: 774 [7350048] 775 [7260017] 774 [7350048] 777 [7161011] 776 [7350049] 775 [7260017] 778 [7117009] 780 [7300033] 89 [7350002] 773 [1143013] 787 [7260018] 786 [7303001] 782 [7117011] 785 [7116010] 941 [7100008] 217 [7161012] 217 [7161012] 788 [7350050] 790 [7116011] 784 [7180056] 215 [7350010]

[Numbers in brackets are new identification numbers]

11

[An exploded photograph of the Campagnolo Gran Sport front changer, with every part labeled by its old number and its new seven-digit number in brackets, beside a parts list keyed to the new numbers. The lower half of the page is blank.]

— Page 13 —
Campagnolo

Gear Changers, Rear

GEAR CHANGERS, REAR
1020/A Nuovo Record
3500 Gran Sport
5011/06 Gran Sport Rally
6011/00 980
0102018 Super Record

| 0102018 | 3500 | 5011/06 | 1020/A | 980
Weight Grams | 182 | 220 | 225 | 199 | 200
Teeth Capacity | 28 | 26 | 32 | 26 | 26
Applications | Racing | Sport/Racing | Touring | Racing | Sport/Touring

[Numbers in brackets are new identification numbers]

1020/A

980 REAR [6011/00]

4001 [0102018]

3550 [5011/06]

3500

12

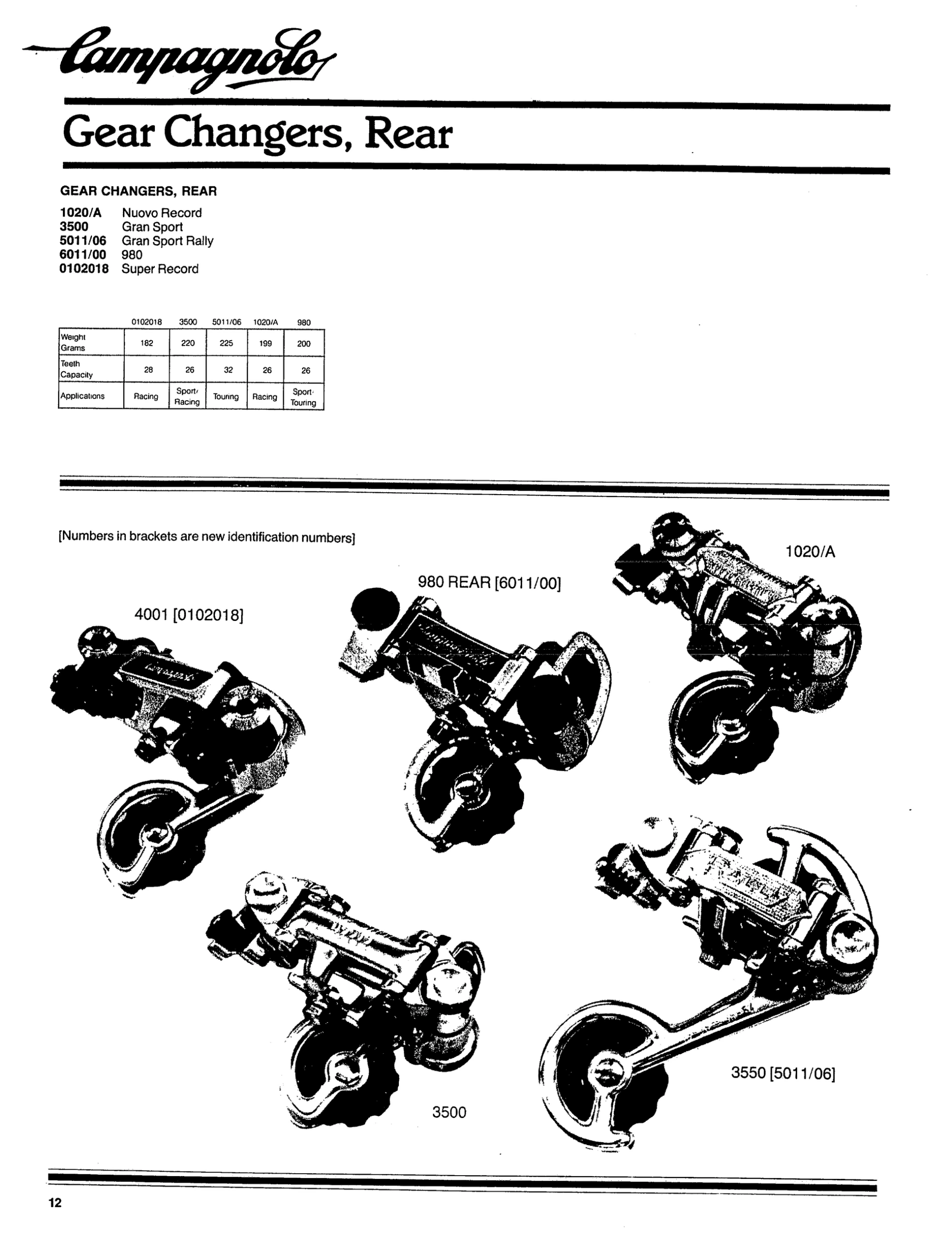

[Photographs of five Campagnolo rear derailleurs, captioned 4001 [0102018], 980 REAR [6011/00], 1020/A, 3500 and 3550 [5011/06], under the section heading Gear Changers, Rear. Above them a list names the models Nuovo Record, Gran Sport, Gran Sport Rally, 980 and Super Record, and a table gives each one’s weight in grams, teeth capacity and application.]

— Page 14 —
Campagnolo

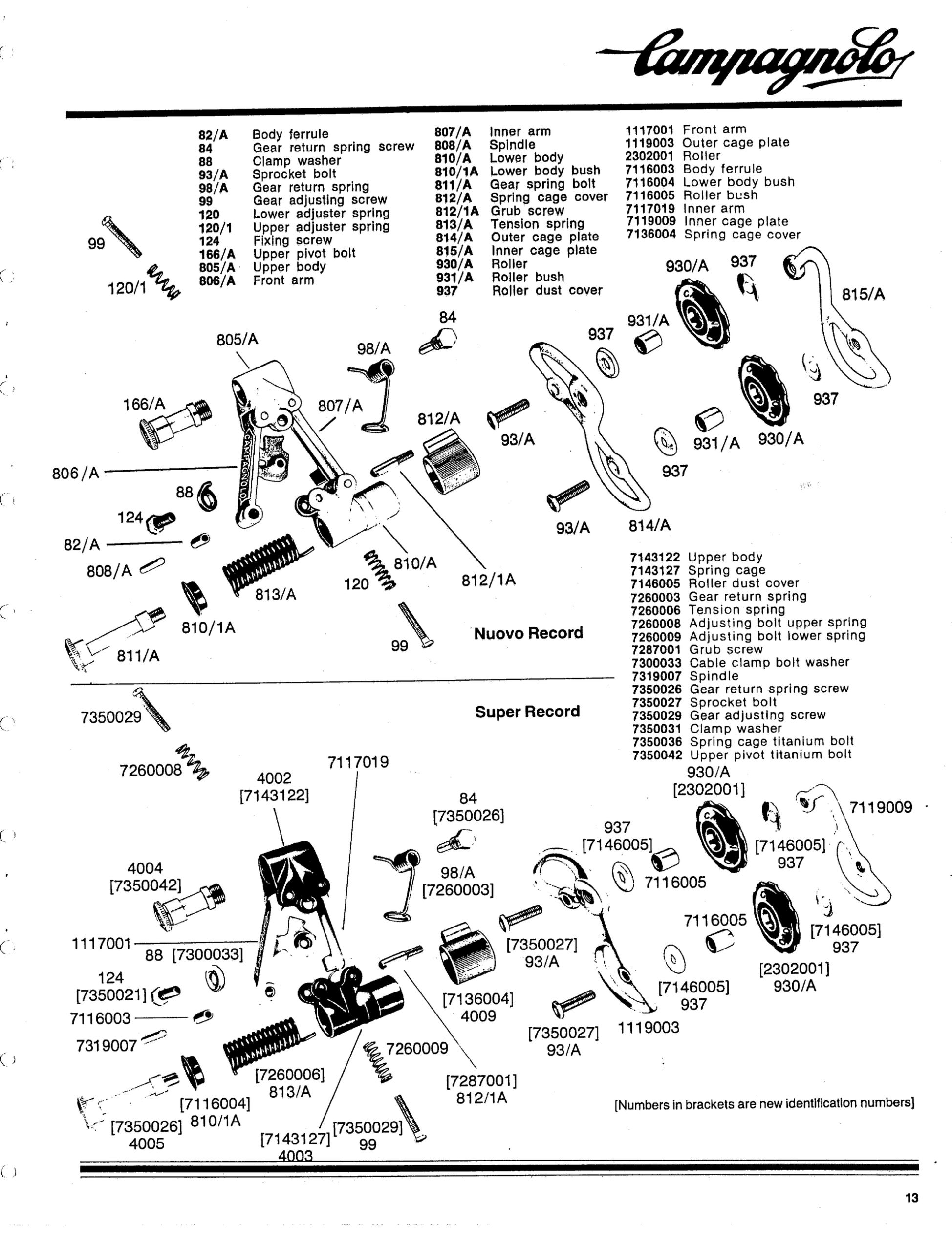

82/A Body ferrule
84 Gear return spring screw
88 Clamp washer
93/A Sprocket bolt
98/A Gear return spring
99 Gear adjusting screw
120 Lower adjuster spring
120/1 Upper adjuster spring
124 Fixing screw
166/A Upper pivot bolt
805/A Upper body
806/A Front arm
807/A Inner arm
808/A Spindle
810/A Lower body
810/1A Lower body bush
811/A Gear spring bolt
812/A Spring cage cover
812/1A Grub screw
813/A Tension spring
814/A Outer cage plate
815/A Inner cage plate
930/A Roller
931/A Roller bush
937 Roller dust cover
1117001 Front arm
1119003 Outer cage plate
2302001 Roller
7116003 Body ferrule
7116004 Lower body bush
7116005 Roller bush
7117019 Inner arm
7119009 Inner cage plate
7136004 Spring cage cover
7143122 Upper body
7143127 Spring cage
7146005 Roller dust cover
7260003 Gear return spring
7260006 Tension spring
7260008 Adjusting bolt upper spring
7260009 Adjusting bolt lower spring
7287001 Grub screw
7300033 Cable clamp bolt washer
7319007 Spindle
7350026 Gear return spring screw
7350027 Sprocket bolt
7350029 Gear adjusting screw
7350031 Clamp washer
7350036 Spring cage titanium bolt
7350042 Upper pivot titanium bolt

Nuovo Record

Callouts: 99 120/1 930/A 937 815/A 84 931/A 805/A 98/A 937 937 166/A 807/A 812/A 93/A 931/A 930/A 937 806/A 88 124 93/A 814/A 82/A 808/A 810/A 120 812/1A 813/A 810/1A 811/A 99

Super Record

Callouts: 7350029 930/A [2302001] 7260008 7119009 7117019 4002 [7143122] 84 [7350026] 937 [7146005] [7146005] 937 7116005 4004 [7350042] 98/A [7260003] 7116005 [7146005] 937 1117001 88 [7300033] [7350027] 93/A 124 [7350021] [7136004] 4009 [2302001] 930/A 7116003 [7146005] 937 7319007 7260009 [7350027] 93/A 1119003 [7260006] 813/A [7287001] 812/1A [7116004] 810/1A [7350026] 4005 [7143127] 4003 [7350029] 99

[Numbers in brackets are new identification numbers]

13

[Two exploded photographs of Campagnolo rear derailleurs, the Nuovo Record above with its parts labeled by old numbers and the Super Record below with old numbers and new seven-digit numbers in brackets. Parts lists across the top and down the right side key both sets of numbers to part names, including the titanium spring cage and upper pivot bolts of the Super Record.]

— Page 15 —
Campagnolo

1038/A

4121

1038

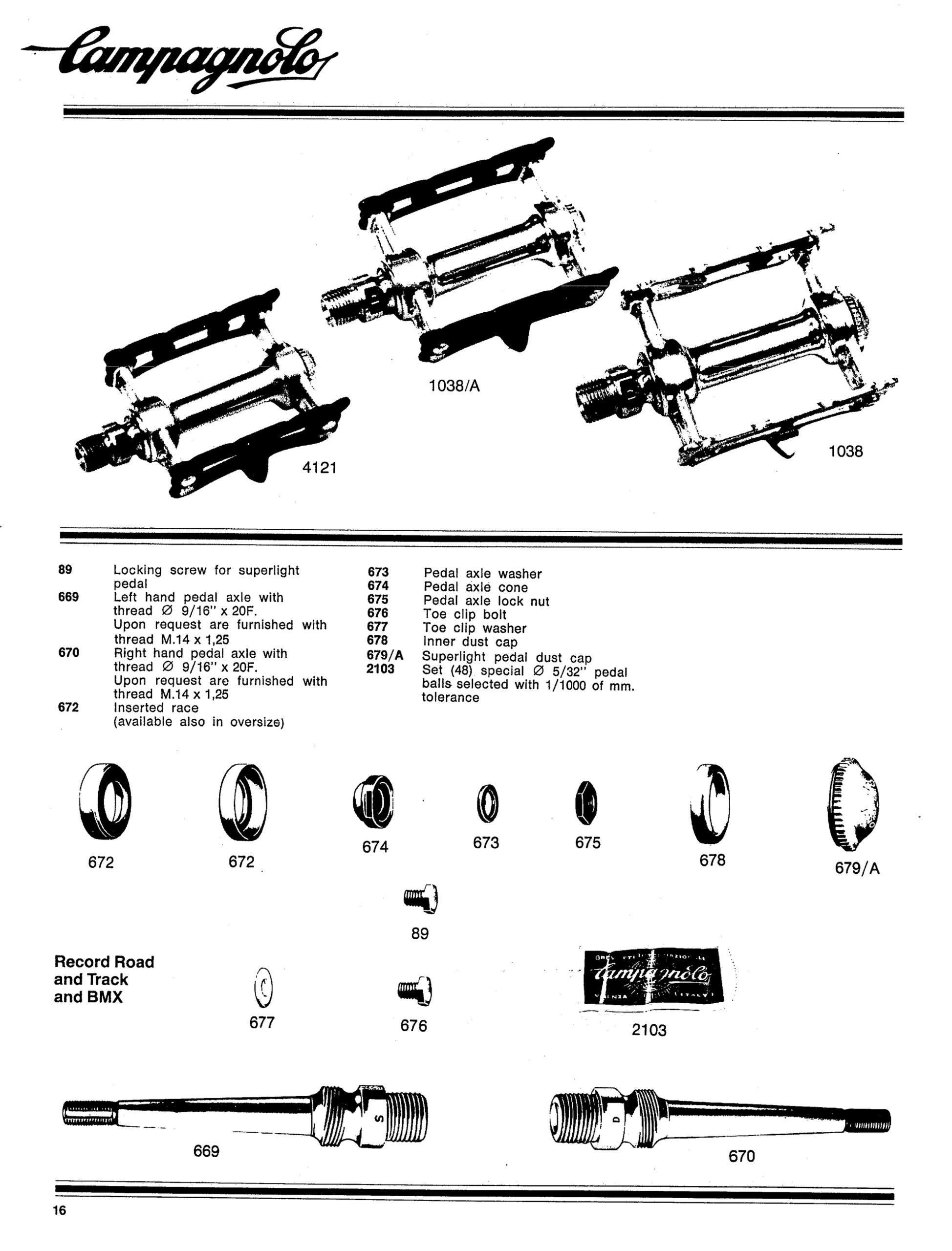

89 Locking screw for superlight pedal
669 Left hand pedal axle with thread Ø 9/16″ x 20F. Upon request are furnished with thread M.14 x 1,25
670 Right hand pedal axle with thread Ø 9/16″ x 20F. Upon request are furnished with thread M.14 x 1,25
672 Inserted race (available also in oversize)
673 Pedal axle washer
674 Pedal axle cone
675 Pedal axle lock nut
676 Toe clip bolt
677 Toe clip washer
678 Inner dust cap
679/A Superlight pedal dust cap
2103 Set (48) special Ø 5/32″ pedal balls selected with 1/1000 of mm. tolerance

Record Road and Track and BMX

Callouts: 672 672 674 673 675 678 679/A 89 677 676 2103 669 670

16

[Photographs of three Campagnolo pedals, captioned 4121, 1038/A and 1038, above a parts list and photographs of the pedal parts for the Record Road and Track and BMX pedals: races, cone, washer, lock nut, dust caps, toe clip bolt and washer, a packet of 2103 pedal balls and the left and right axles 669 and 670. The ball packet carries the Campagnolo name.]

— Page 16 —
Campagnolo

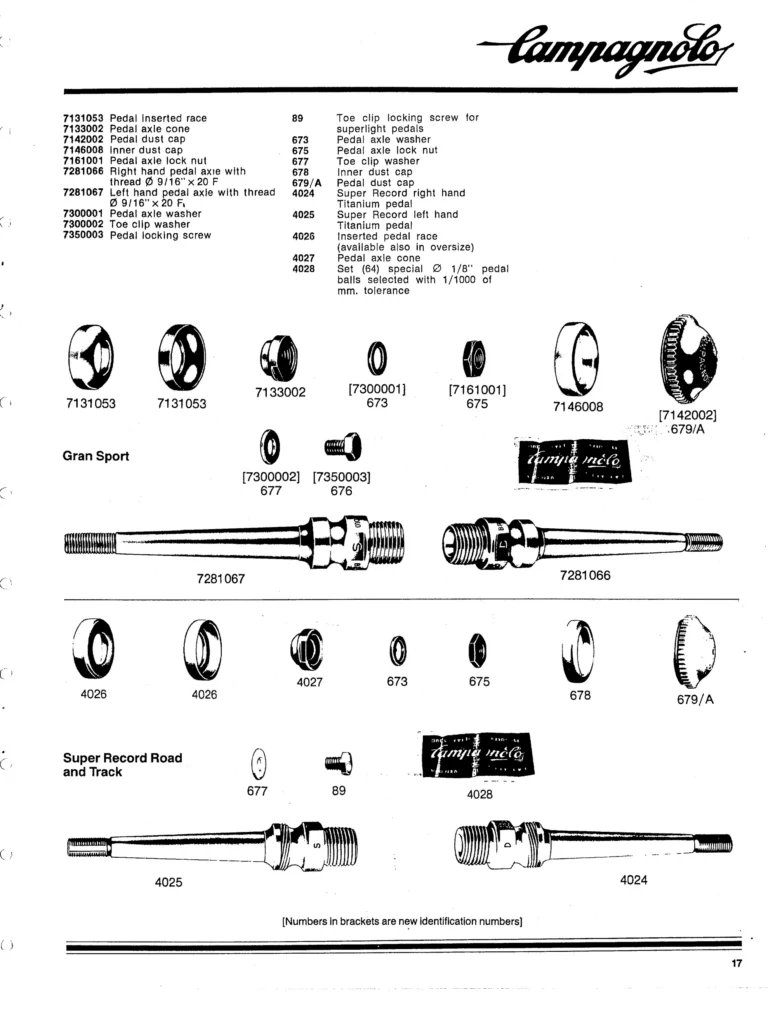

7131053 Pedal inserted race
7133002 Pedal axle cone
7142002 Pedal dust cap
7146008 Inner dust cap
7161001 Pedal axle lock nut
7281066 Right hand pedal axle with thread Ø 9/16″ x 20 F
7281067 Left hand pedal axle with thread Ø 9/16″ x 20 F
7300001 Pedal axle washer
7300002 Toe clip washer
7350003 Pedal locking screw
89 Toe clip locking screw for superlight pedals
673 Pedal axle washer
675 Pedal axle lock nut
677 Toe clip washer
678 Inner dust cap
679/A Pedal dust cap
4024 Super Record right hand Titanium pedal
4025 Super Record left hand Titanium pedal
4026 Inserted pedal race (available also in oversize)
4027 Pedal axle cone
4028 Set (64) special Ø 1/8″ pedal balls selected with 1/1000 of mm. tolerance

Gran Sport

Callouts: 7131053 7131053 7133002 [7300001] 673 [7161001] 675 7146008 [7142002] 679/A [7300002] 677 [7350003] 676 7281067 7281066

Super Record Road and Track

Callouts: 4026 4026 4027 673 675 678 679/A 677 89 4028 4025 4024

[Numbers in brackets are new identification numbers]

17

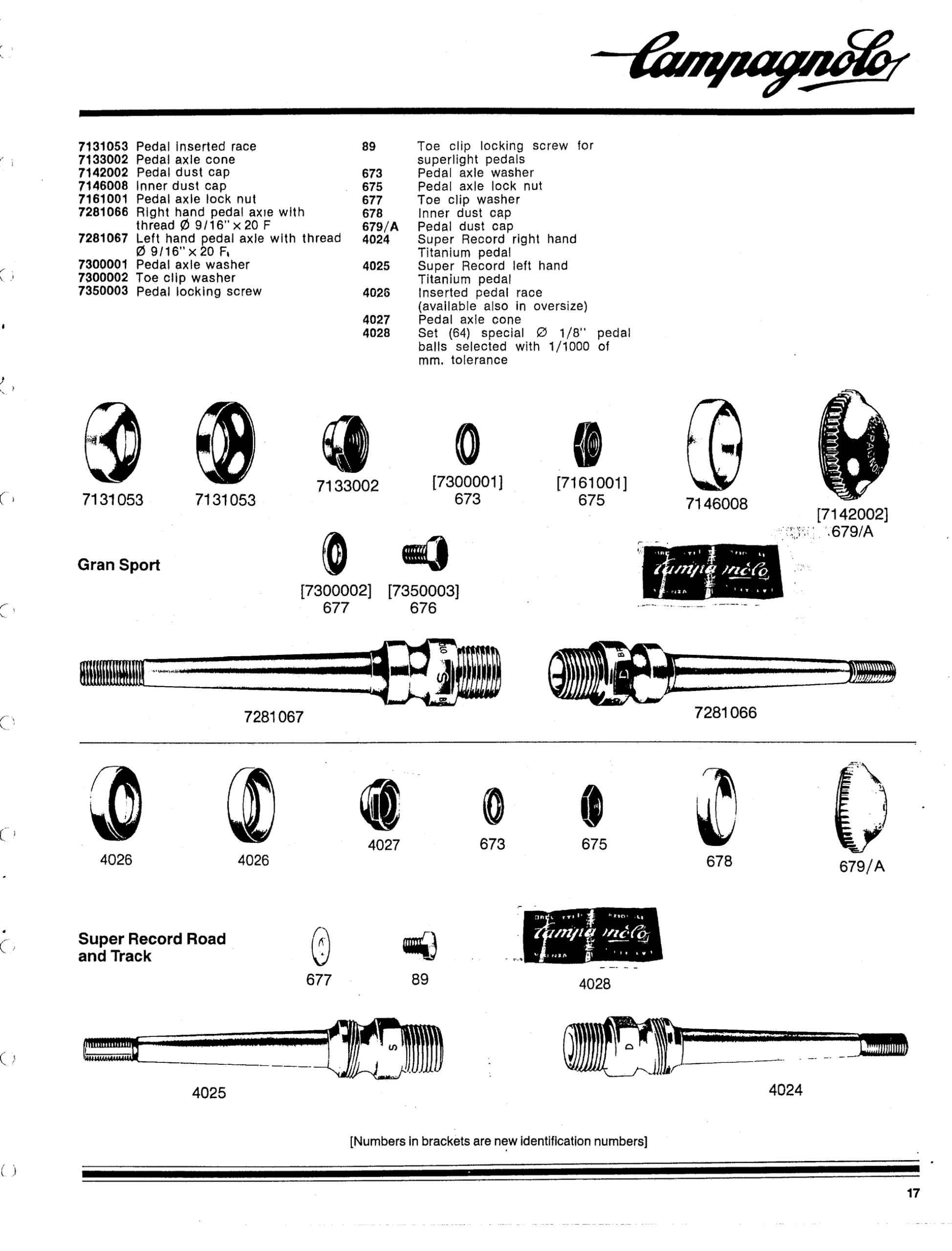

[Photographs of the parts of Campagnolo Gran Sport pedals, above, and Super Record Road and Track pedals, below, each set showing races, cone, washer, lock nut, dust caps, toe clip hardware, a packet of pedal balls and the left and right axles. Two parts lists at the top key the part numbers, new seven-digit numbers in brackets, to names, including the 4024 and 4025 Super Record titanium pedals.]

— Page 17 —
Campagnolo

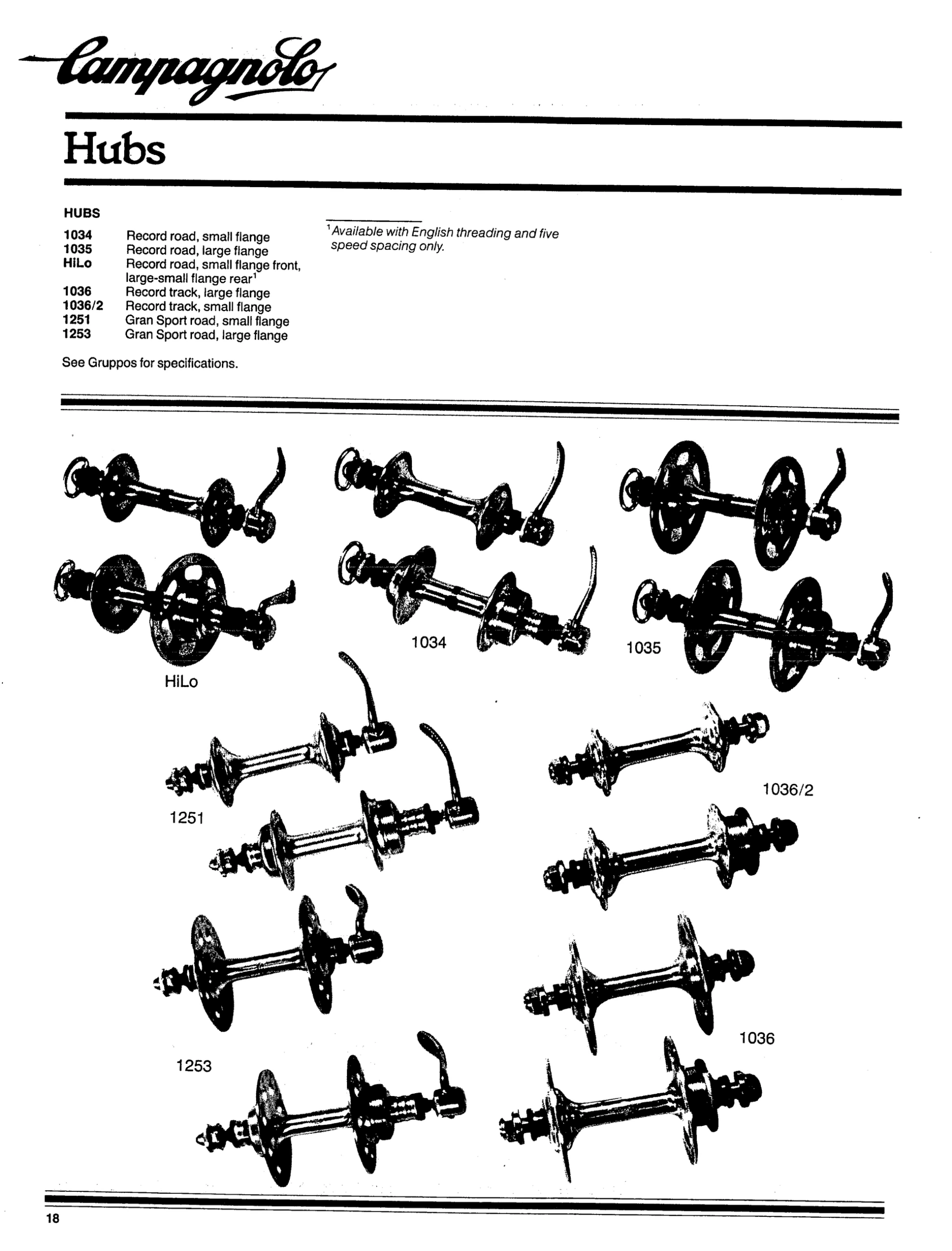

Hubs

HUBS
1034 Record road, small flange
1035 Record road, large flange
HiLo Record road, small flange front, large-small flange rear¹
1036 Record track, large flange
1036/2 Record track, small flange
1251 Gran Sport road, small flange
1253 Gran Sport road, large flange

See Gruppos for specifications.

1034

1035

HiLo

1036/2

1251

1036

1253

¹Available with English threading and five speed spacing only.

18

[Photographs of pairs of Campagnolo front and rear hubs under the section heading Hubs, captioned HiLo, 1034, 1035, 1251, 1036/2, 1253 and 1036; the road hubs carry quick release levers and the track hubs carry axle nuts. A list above names each model as Record road or track or Gran Sport road, small or large flange.]

— Page 18 —
Campagnolo

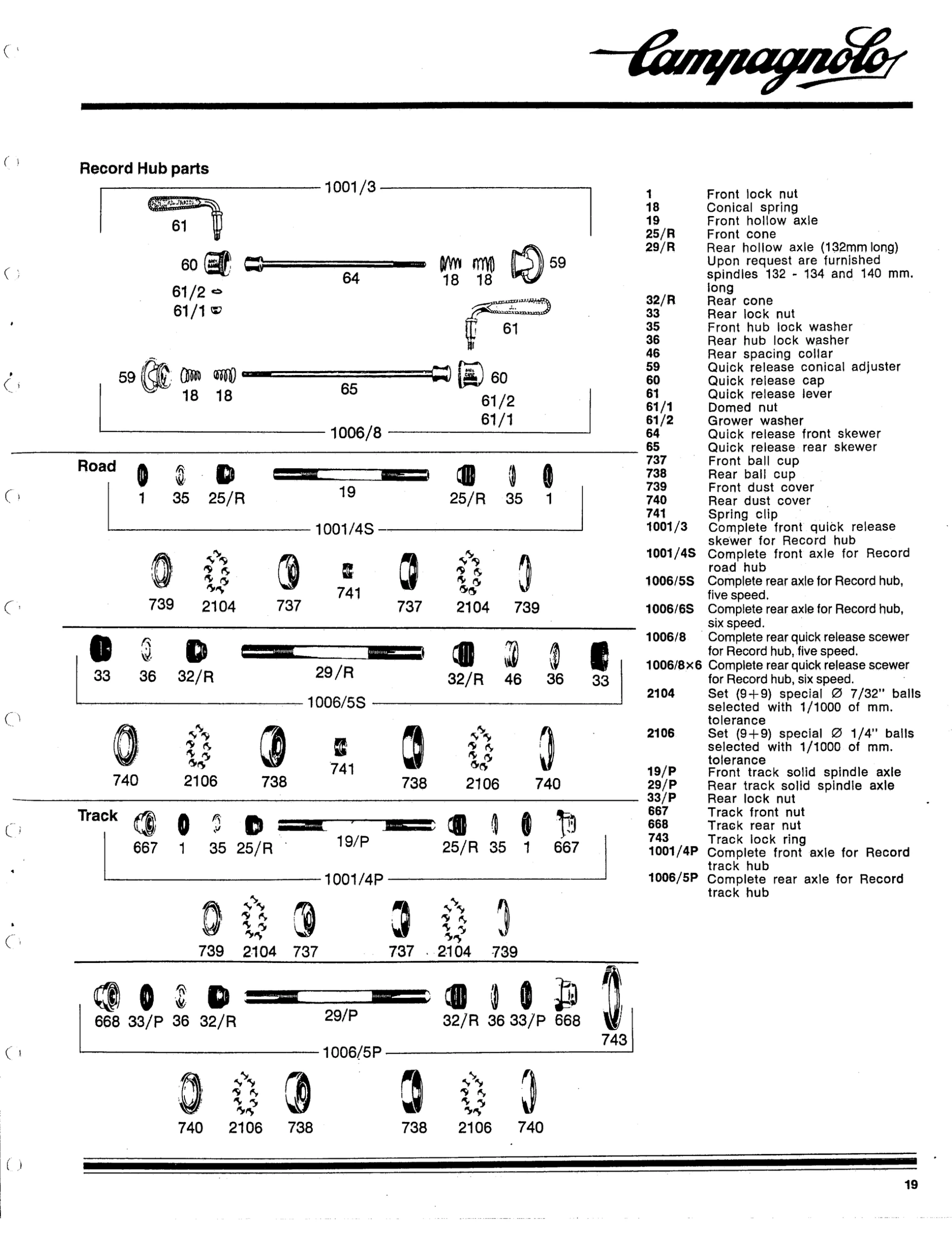

Record Hub parts

Callouts: 1001/3 61 60 64 18 18 59 61/2 61/1 61 59 18 18 65 60 61/2 61/1 1006/8

Road

Callouts: 1 35 25/R 19 25/R 35 1 1001/4S 739 2104 737 741 737 2104 739 33 36 32/R 29/R 32/R 46 36 33 1006/5S 740 2106 738 741 738 2106 740

Track

Callouts: 667 1 35 25/R 19/P 25/R 35 1 667 1001/4P 739 2104 737 737 2104 739 668 33/P 36 32/R 29/P 32/R 36 33/P 668 743 1006/5P 740 2106 738 738 2106 740

1 Front lock nut
18 Conical spring
19 Front hollow axle
25/R Front cone
29/R Rear hollow axle (132mm long) Upon request are furnished spindles 132 – 134 and 140 mm. long
32/R Rear cone
33 Rear lock nut
35 Front hub lock washer
36 Rear hub lock washer
46 Rear spacing collar
59 Quick release conical adjuster
60 Quick release cap
61 Quick release lever
61/1 Domed nut
61/2 Grower washer
64 Quick release front skewer
65 Quick release rear skewer
737 Front ball cup
738 Rear ball cup
739 Front dust cover
740 Rear dust cover
741 Spring clip

1001/3 Complete front quick release skewer for Record hub
1001/4S Complete front axle for Record road hub
1006/5S Complete rear axle for Record hub, five speed.
1006/6S Complete rear axle for Record hub, six speed.
1006/8 Complete rear quick release scewer for Record hub, five speed.
1006/8×6 Complete rear quick release scewer for Record hub, six speed.
2104 Set (9+9) special Ø 7/32″ balls selected with 1/1000 of mm. tolerance
2106 Set (9+9) special Ø 1/4″ balls selected with 1/1000 of mm. tolerance
19/P Front track solid spindle axle
29/P Rear track solid spindle axle
33/P Rear lock nut
667 Track front nut
668 Track rear nut
743 Track lock ring
1001/4P Complete front axle for Record track hub
1006/5P Complete rear axle for Record track hub

19

[Photographs of the parts of Campagnolo Record hubs, laid out in rows: the front and rear quick release skewers 1001/3 and 1006/8, then the road front and rear axle assemblies 1001/4S and 1006/5S, then the track front and rear axle assemblies 1001/4P and 1006/5P, each with its cones, nuts, washers, ball cups, dust covers and ball sets. A parts list down the right side names every part and assembly.]

— Page 19 —
Campagnolo

1 Front lock nut
18 Conical spring
19 Front hollow axle
25 Front cone
29 Rear hollow axle (132mm long). Upon request is furnished with the 134mm long spindle.
32 Rear cone
35 Front hub lock washer
36 Rear hub lock washer
46 Rear spacing collar
1001/4 Complete front hollow spindle for Nuovo Tipo hub
1256 Complete rear hollow spindle for Nuovo Tipo hub
1270 Front ball cup
1271 Rear ball cup
1272 Front dust cover
1273 Rear dust cover
1283 Rear lock nut
1285 Large spacing collar

1301 Quick release cap
1302 Quick release lever
1303 Circlip for lever
1304 Conical tension spring
1305 Quick release front skewer
1306 Quick release rear skewer
1307 Knurled adjusting nut
1309 Washer for skewer
1310 Complete front quick release skewer for Nuovo Tipo hub
1311 Complete rear quick release skewer for Nuovo Tipo hub
2105 Set (10+10) special Ø 3/16″ balls selected with 1/1000 of mm. tolerance
2106 Set (9+9) special Ø 1/4″ balls selected with 1/1000 of mm. tolerance

Callouts: 1310 1302 1309 1301 1304 1305 18 18 1307 1303 1302 1307 1309 18 18 1306 1304 1301 1303 1311 1 35 25 19 25 35 1 1001/4 1272 2105 1270 1270 2105 1272 1283 36 46 32 29 32 1285 36 1283 1256 1273 2106 1271 1271 2106 1273

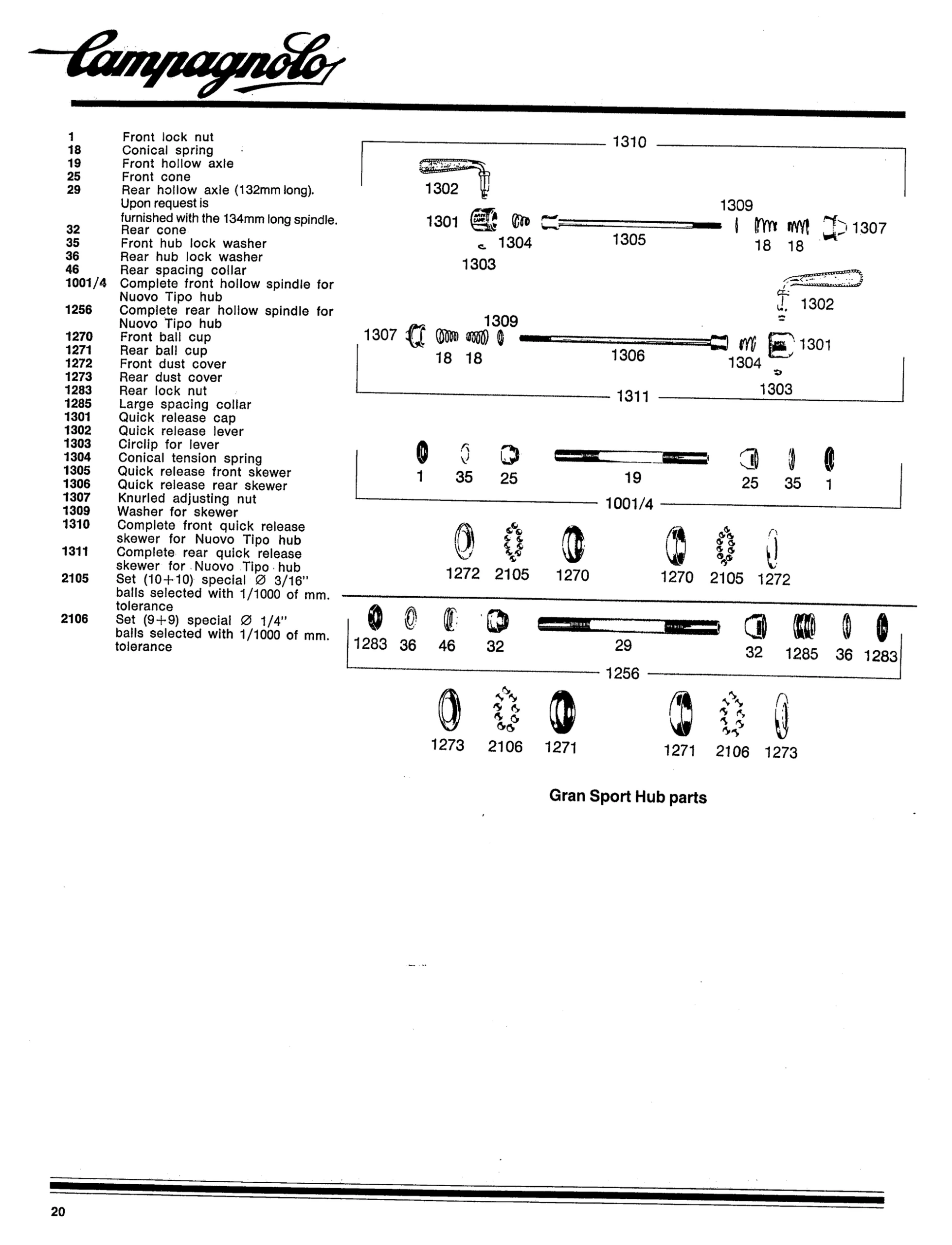

Gran Sport Hub parts

20

[Photographs of the parts of Campagnolo Gran Sport hubs, laid out in rows: the front and rear quick release skewers 1310 and 1311, then the front axle assembly 1001/4 and the rear axle assembly 1256, each with its cones, nuts, washers, ball cups, dust covers and ball sets. A parts list at the top left names every part, and the lower half of the page is blank.]

— Page 20 —
Campagnolo

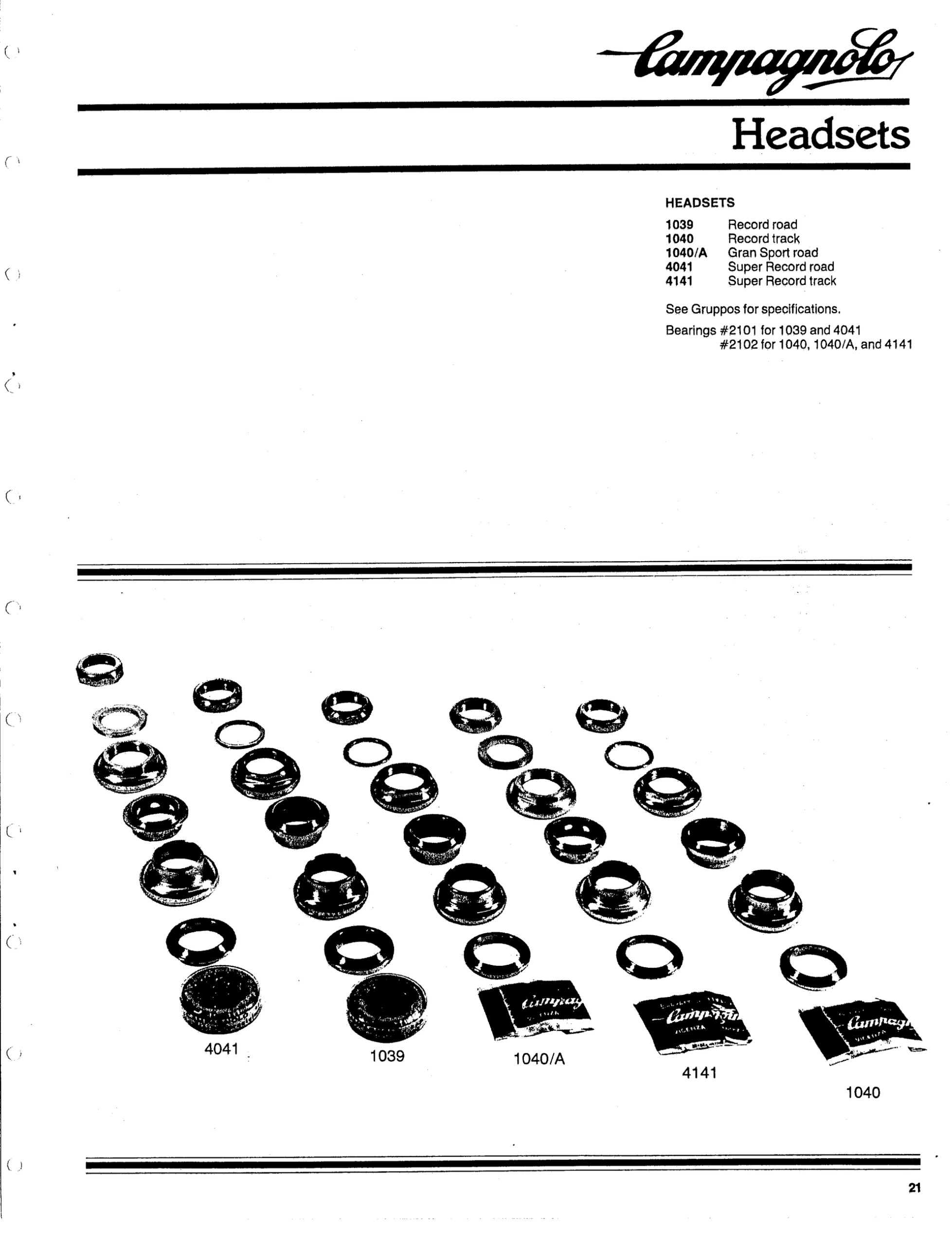

Headsets

HEADSETS
1039 Record road
1040 Record track
1040/A Gran Sport road
4041 Super Record road
4141 Super Record track

See Gruppos for specifications.

Bearings #2101 for 1039 and 4041
#2102 for 1040, 1040/A, and 4141

4041

1039

1040/A

4141

1040

21

[Photographs of five Campagnolo headsets, each laid out as a diagonal column of its parts from the top locknut down to the crown race and bearings, captioned 4041, 1039, 1040/A, 4141 and 1040 under the section heading Headsets. Each column ends in a round item (4041 and 1039) or a flat packet printed with the Campagnolo name (1040/A, 4141 and 1040).]

— Page 21 —
Campagnolo

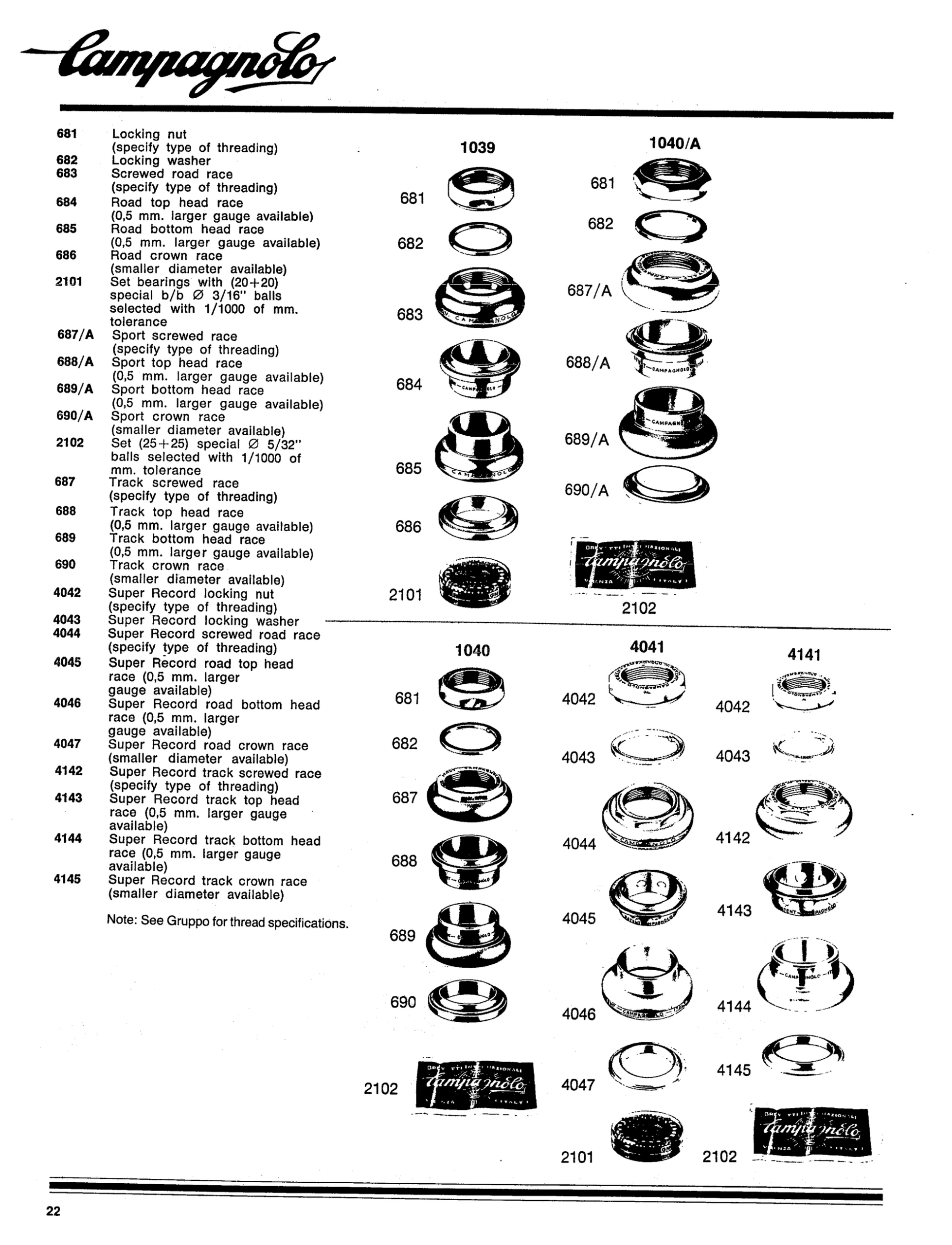

681 Locking nut (specify type of threading)
682 Locking washer
683 Screwed road race (specify type of threading)
684 Road top head race (0,5 mm. larger gauge available)
685 Road bottom head race (0,5 mm. larger gauge available)
686 Road crown race (smaller diameter available)
2101 Set bearings with (20+20) special b/b Ø 3/16″ balls selected with 1/1000 of mm. tolerance
687/A Sport screwed race (specify type of threading)
688/A Sport top head race (0,5 mm. larger gauge available)
689/A Sport bottom head race (0,5 mm. larger gauge available)
690/A Sport crown race (smaller diameter available)
2102 Set (25+25) special Ø 5/32″ balls selected with 1/1000 of mm. tolerance
687 Track screwed race (specify type of threading)
688 Track top head race (0,5 mm. larger gauge available)
689 Track bottom head race (0,5 mm. larger gauge available)
690 Track crown race (smaller diameter available)
4042 Super Record locking nut (specify type of threading)
4043 Super Record locking washer
4044 Super Record screwed road race (specify type of threading)
4045 Super Record road top head race (0,5 mm. larger gauge available)
4046 Super Record road bottom head race (0,5 mm. larger gauge available)
4047 Super Record road crown race (smaller diameter available)
4142 Super Record track screwed race (specify type of threading)
4143 Super Record track top head race (0,5 mm. larger gauge available)
4144 Super Record track bottom head race (0,5 mm. larger gauge available)
4145 Super Record track crown race (smaller diameter available)

Note: See Gruppo for thread specifications.

1039
Callouts: 681 682 683 684 685 686 2101

1040/A
Callouts: 681 682 687/A 688/A 689/A 690/A 2102

1040
Callouts: 681 682 687 688 689 690 2102

4041
Callouts: 4042 4043 4044 4045 4046 4047 2101

4141
Callouts: 4042 4043 4142 4143 4144 4145 2102

22

[Photographs of five Campagnolo headsets, 1039, 1040/A, 1040, 4041 and 4141, each shown as a column of its separate parts with part numbers, beside a parts list of the headset races, nuts, washers and ball sets. The ball sets 2101 and 2102 are shown as a bearing cage and as a packet labeled with the Campagnolo script logo.]

— Page 22 —
Campagnolo

Freewheel

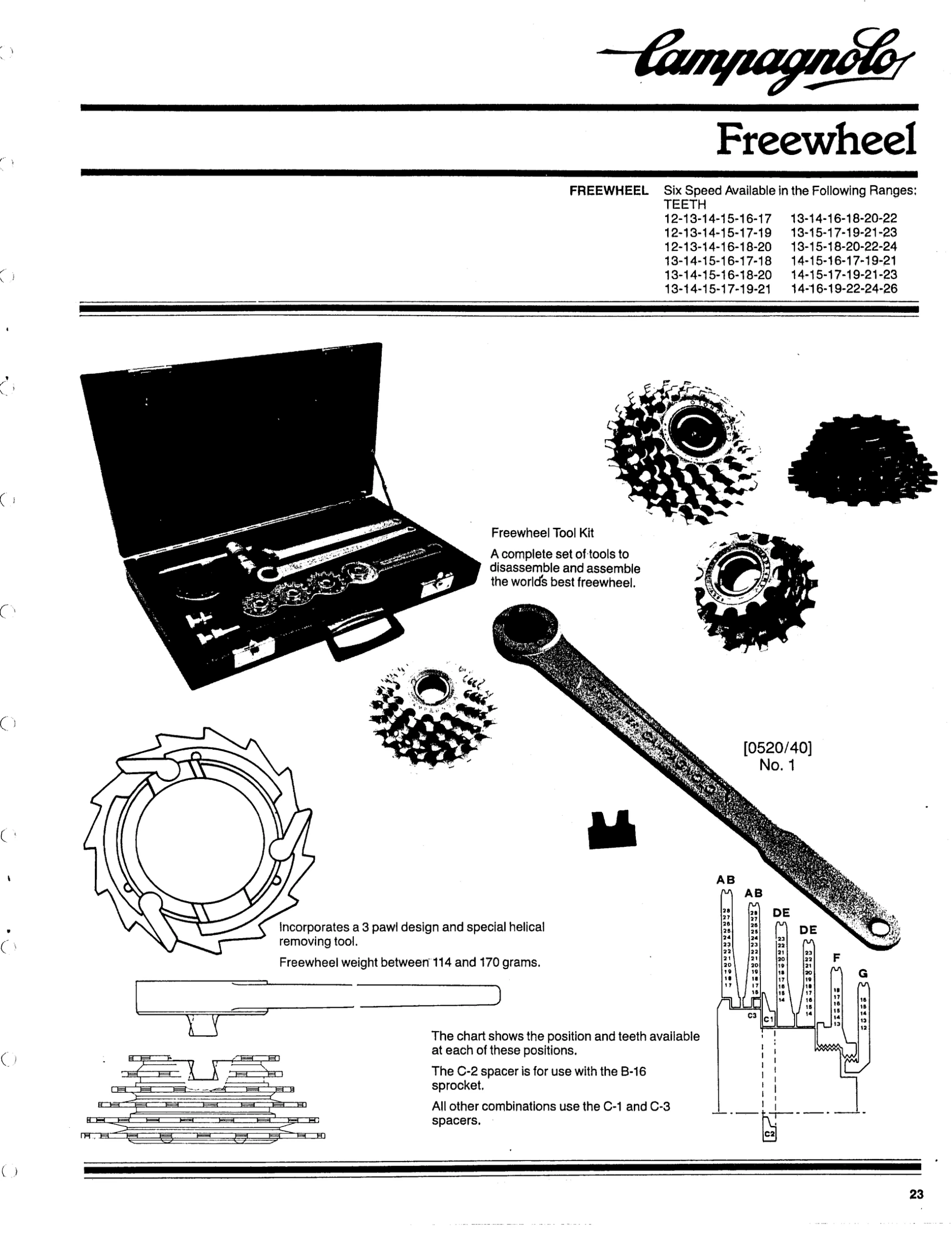

FREEWHEEL Six Speed Available in the Following Ranges:
TEETH
12-13-14-15-16-17 | 13-14-16-18-20-22
12-13-14-15-17-19 | 13-15-17-19-21-23
12-13-14-16-18-20 | 13-15-18-20-22-24
13-14-15-16-17-18 | 14-15-16-17-19-21
13-14-15-16-18-20 | 14-15-17-19-21-23
13-14-15-17-19-21 | 14-16-19-22-24-26

Freewheel Tool Kit
A complete set of tools to disassemble and assemble the world’s best freewheel.

[0520/40]
No. 1

Incorporates a 3 pawl design and special helical removing tool.

Freewheel weight between 114 and 170 grams.

The chart shows the position and teeth available at each of these positions.

The C-2 spacer is for use with the B-16 sprocket.

All other combinations use the C-1 and C-3 spacers.

AB 28 27 26 25 24 23 22 21 20 19 18 17
AB 28 27 26 25 24 23 22 21 20 19 18 17 16
DE 23 22 21 20 19 18 17 16 15 14
DE 23 22 21 20 19 18 17 16 15 14
F 18 17 16 15 14 13
G 16 15 14 13 12
C3 C1 C2

23

[A page on the Campagnolo six speed freewheel, with photographs of the Freewheel Tool Kit in its open case, the freewheel removing wrench (captioned 0520/40, No. 1), several assembled freewheels and a small notched tool. Line drawings show the three pawl ratchet, the removing tool and a section through the freewheel body, and a chart gives the sprocket positions AB, DE, F and G with the teeth available at each and the spacers C1, C2 and C3.]

— Page 23 —
Campagnolo

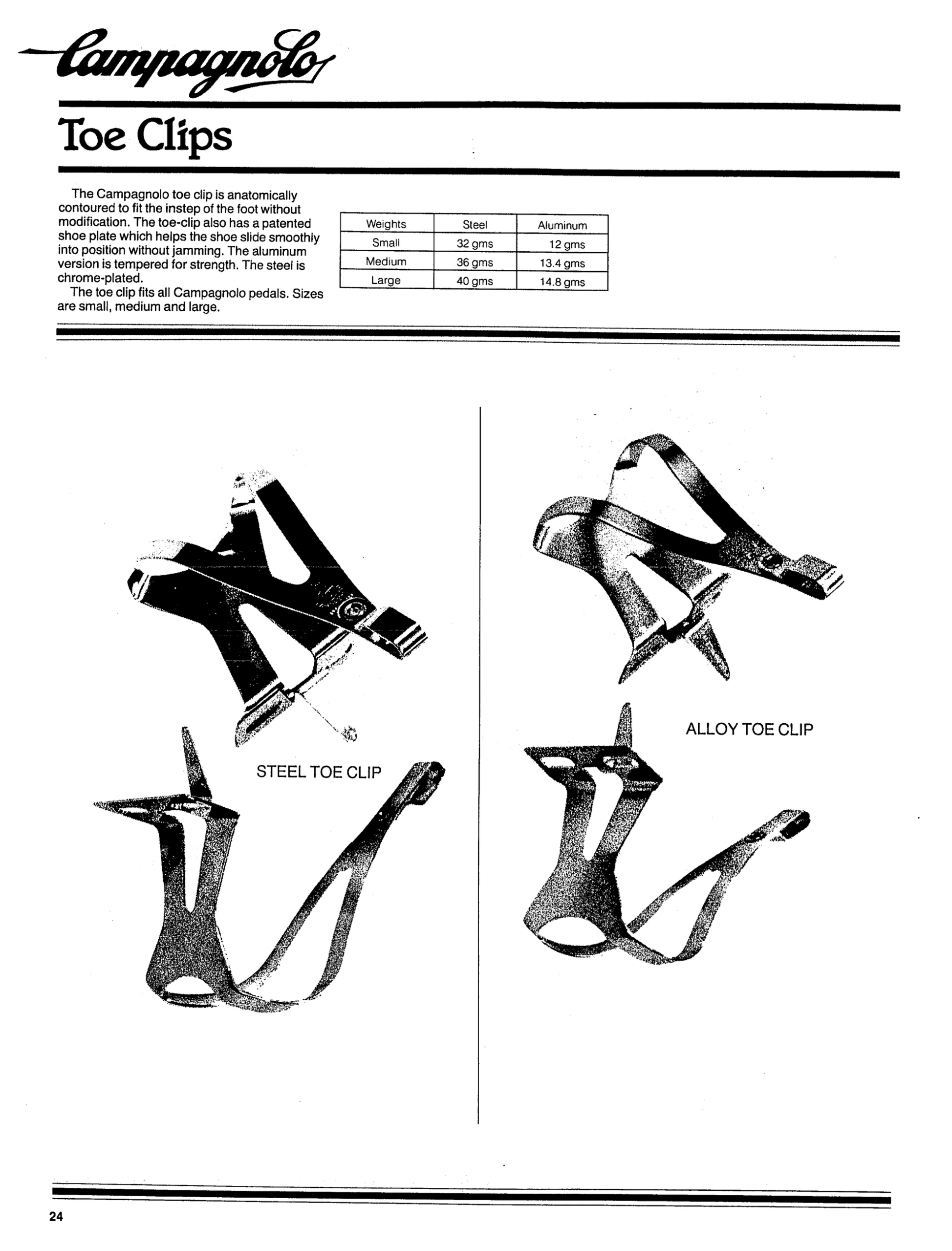

Toe Clips

The Campagnolo toe clip is anatomically contoured to fit the instep of the foot without modification. The toe-clip also has a patented shoe plate which helps the shoe slide smoothly into position without jamming. The aluminum version is tempered for strength. The steel is chrome-plated.

The toe clip fits all Campagnolo pedals. Sizes are small, medium and large.

Weights | Steel | Aluminum
Small | 32 gms | 12 gms
Medium | 36 gms | 13.4 gms
Large | 40 gms | 14.8 gms

STEEL TOE CLIP

ALLOY TOE CLIP

24

[Photographs of the Campagnolo steel toe clip and alloy toe clip, each shown from two angles, under a short text and a table of weights for the small, medium and large sizes.]

— Page 24 —
Campagnolo

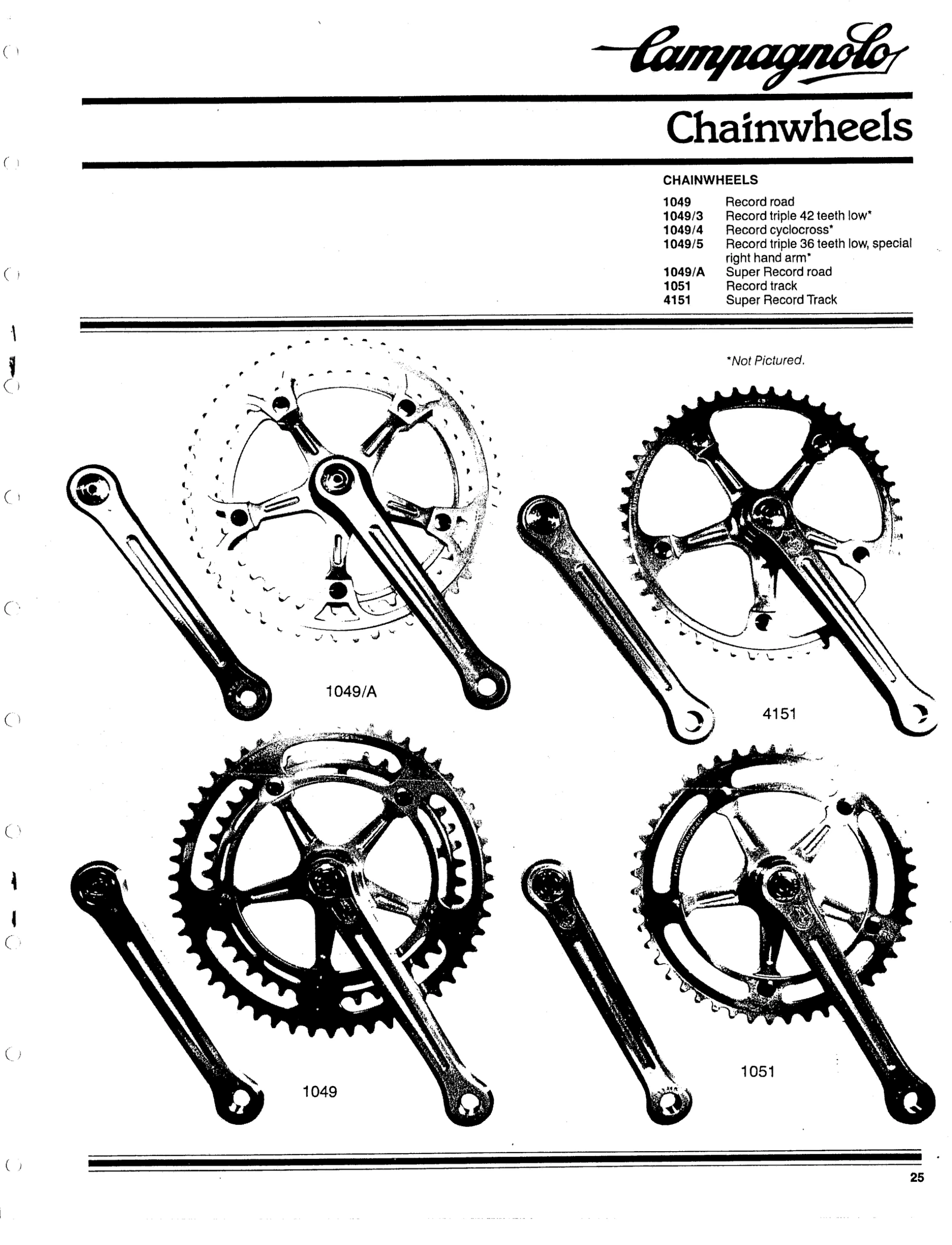

Chainwheels

CHAINWHEELS
1049 Record road
1049/3 Record triple 42 teeth low*
1049/4 Record cyclocross*
1049/5 Record triple 36 teeth low, special right hand arm*
1049/A Super Record road
1051 Record track
4151 Super Record Track

*Not Pictured.

1049/A

4151

1049

1051

25

[Photographs of four Campagnolo chainwheel sets with both crank arms, captioned 1049/A, 4151, 1049 and 1051, under a list of the Record and Super Record road, triple, cyclocross and track chainwheels.]

— Page 25 —
Campagnolo

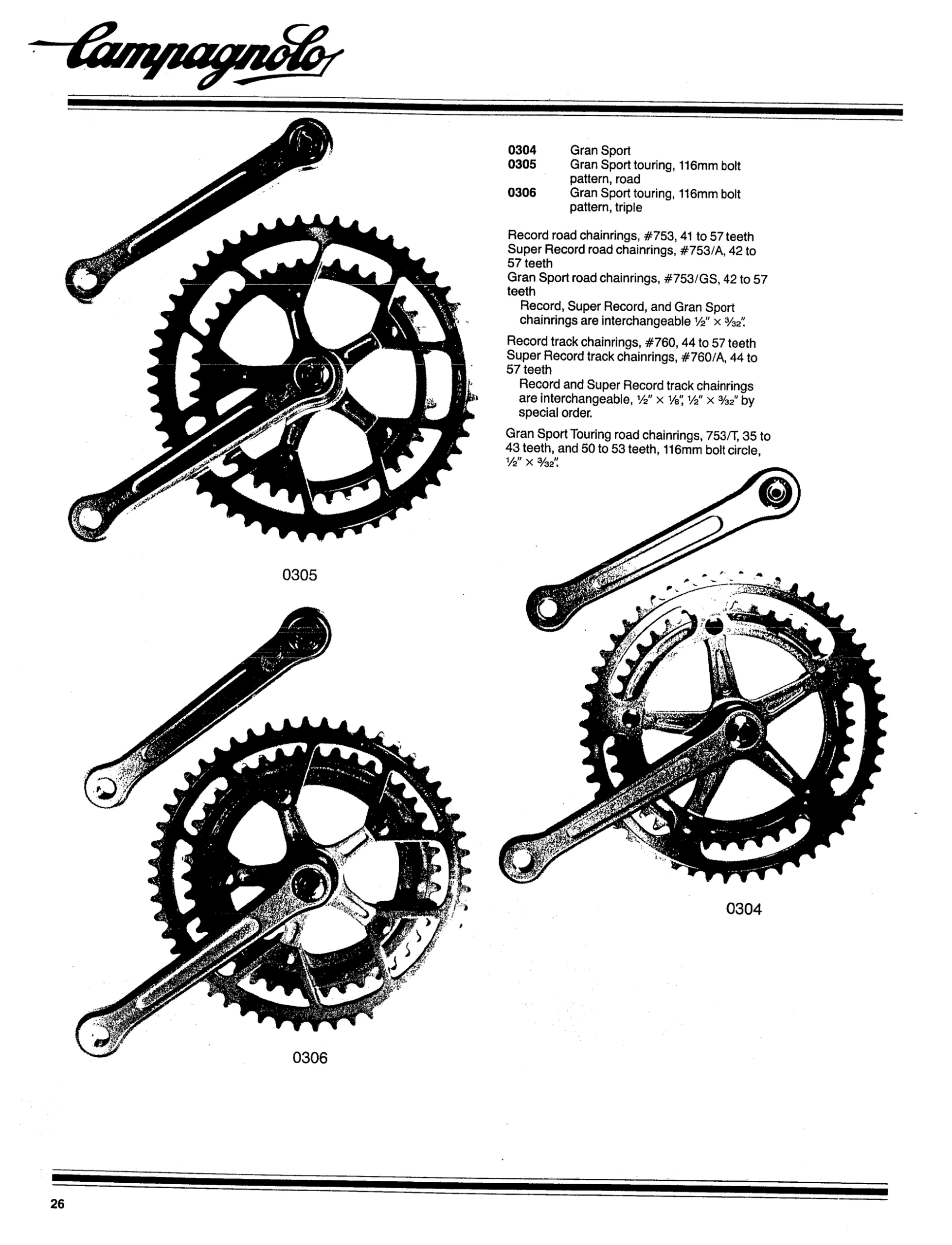

0304 Gran Sport
0305 Gran Sport touring, 116mm bolt pattern, road
0306 Gran Sport touring, 116mm bolt pattern, triple

Record road chainrings, #753, 41 to 57 teeth
Super Record road chainrings, #753/A, 42 to 57 teeth
Gran Sport road chainrings, #753/GS, 42 to 57 teeth
Record, Super Record, and Gran Sport chainrings are interchangeable ½” × 3/32″.

Record track chainrings, #760, 44 to 57 teeth
Super Record track chainrings, #760/A, 44 to 57 teeth
Record and Super Record track chainrings are interchangeable, ½” × ⅛”, ½” × 3/32″ by special order.

Gran Sport Touring road chainrings, 753/T, 35 to 43 teeth, and 50 to 53 teeth, 116mm bolt circle, ½” × 3/32″.

0305

0304

0306

26

[Photographs of three Campagnolo Gran Sport chainwheel sets with both crank arms, captioned 0305, 0304 and 0306, beside a list of the Gran Sport models and of the Record, Super Record and Gran Sport road and track chainrings.]

— Page 26 —
Campagnolo

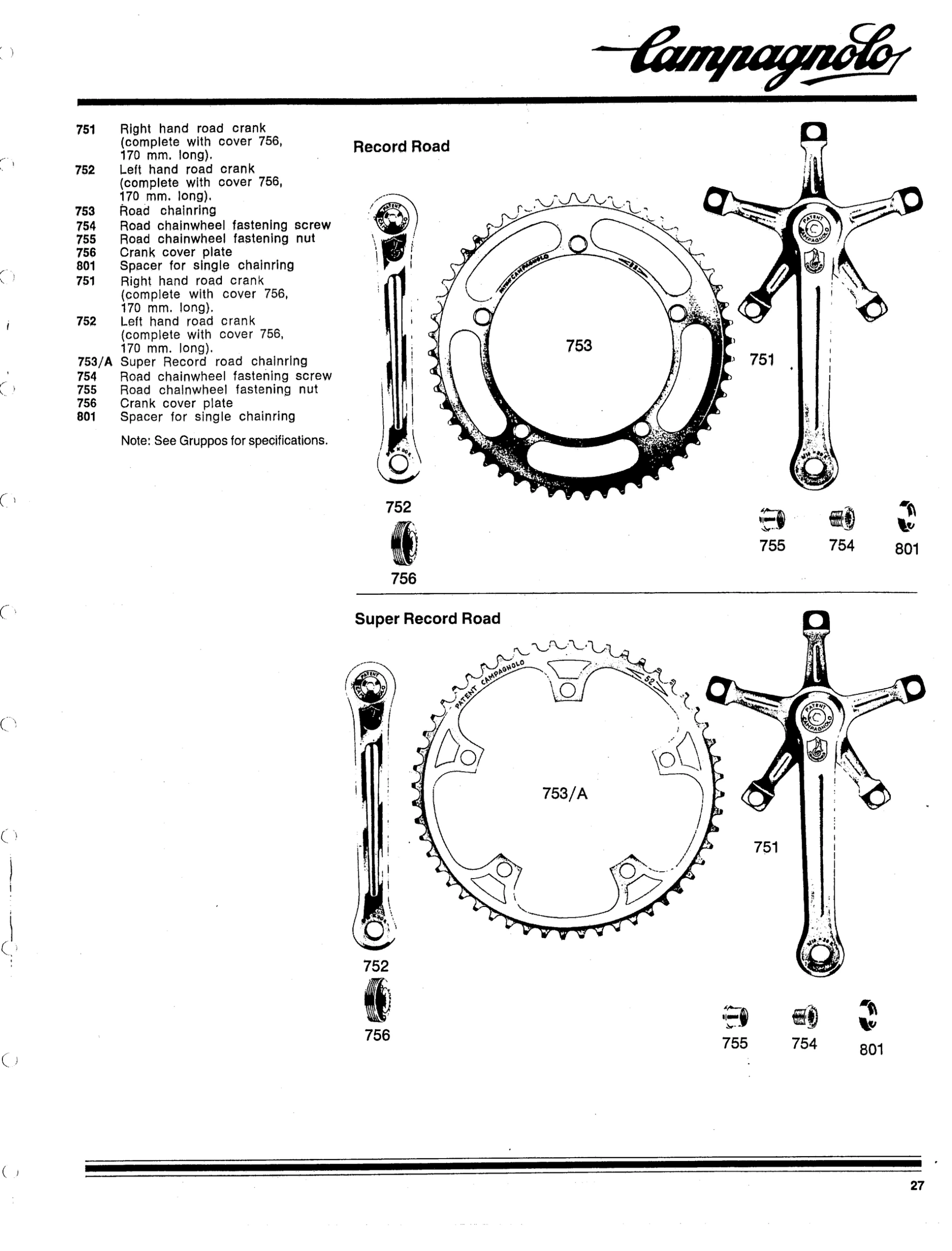

751 Right hand road crank (complete with cover 756, 170 mm. long).
752 Left hand road crank (complete with cover 756, 170 mm. long).
753 Road chainring
754 Road chainwheel fastening screw
755 Road chainwheel fastening nut
756 Crank cover plate
801 Spacer for single chainring
751 Right hand road crank (complete with cover 756, 170 mm. long).
752 Left hand road crank (complete with cover 756, 170 mm. long).
753/A Super Record road chainring
754 Road chainwheel fastening screw
755 Road chainwheel fastening nut
756 Crank cover plate
801 Spacer for single chainring

Note: See Gruppos for specifications.

Record Road
Callouts: 753 751 752 755 754 801 756

Super Record Road
Callouts: 753/A 751 752 756 755 754 801

27

[Photographs of the parts of the Campagnolo Record Road and Super Record Road chainwheel sets, each showing the left crank 752, the right crank 751 with its spider, the chainring 753 or 753/A, the cover plate 756, the fastening screw and nut 754 and 755 and the spacer 801, beside a parts list.]

— Page 27 —
Campagnolo

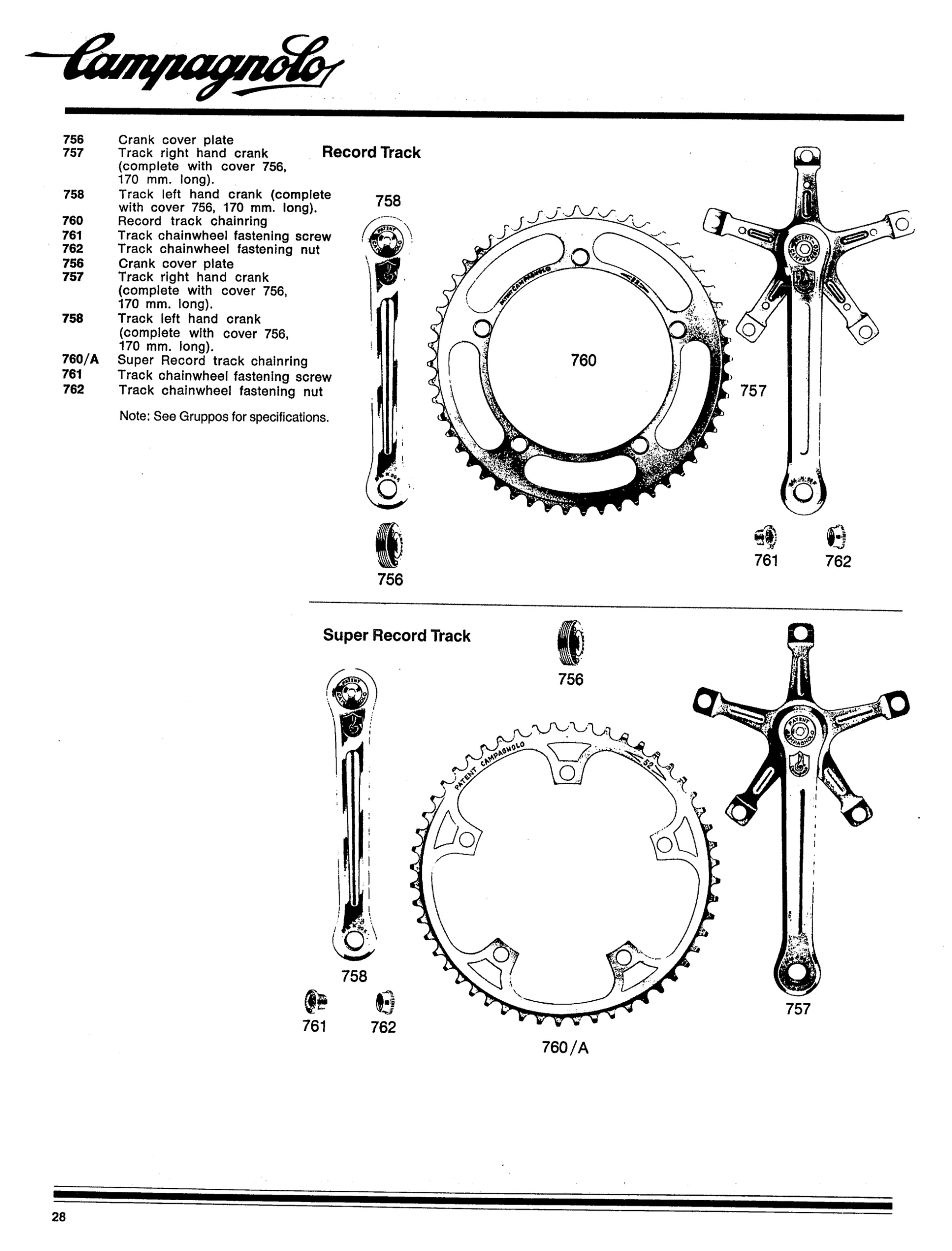

756 Crank cover plate
757 Track right hand crank (complete with cover 756, 170 mm. long).
758 Track left hand crank (complete with cover 756, 170 mm. long).
760 Record track chainring
761 Track chainwheel fastening screw
762 Track chainwheel fastening nut
756 Crank cover plate
757 Track right hand crank (complete with cover 756, 170 mm. long).
758 Track left hand crank (complete with cover 756, 170 mm. long).
760/A Super Record track chainring
761 Track chainwheel fastening screw
762 Track chainwheel fastening nut

Note: See Gruppos for specifications.

Record Track
Callouts: 758 760 757 761 762 756

Super Record Track
Callouts: 756 758 757 761 762 760/A

28

[Photographs of the parts of the Campagnolo Record Track and Super Record Track chainwheel sets, each showing the left crank 758, the right crank 757 with its spider, the chainring 760 or 760/A, the cover plate 756 and the fastening screw and nut 761 and 762, beside a parts list.]

— Page 28 —
Campagnolo

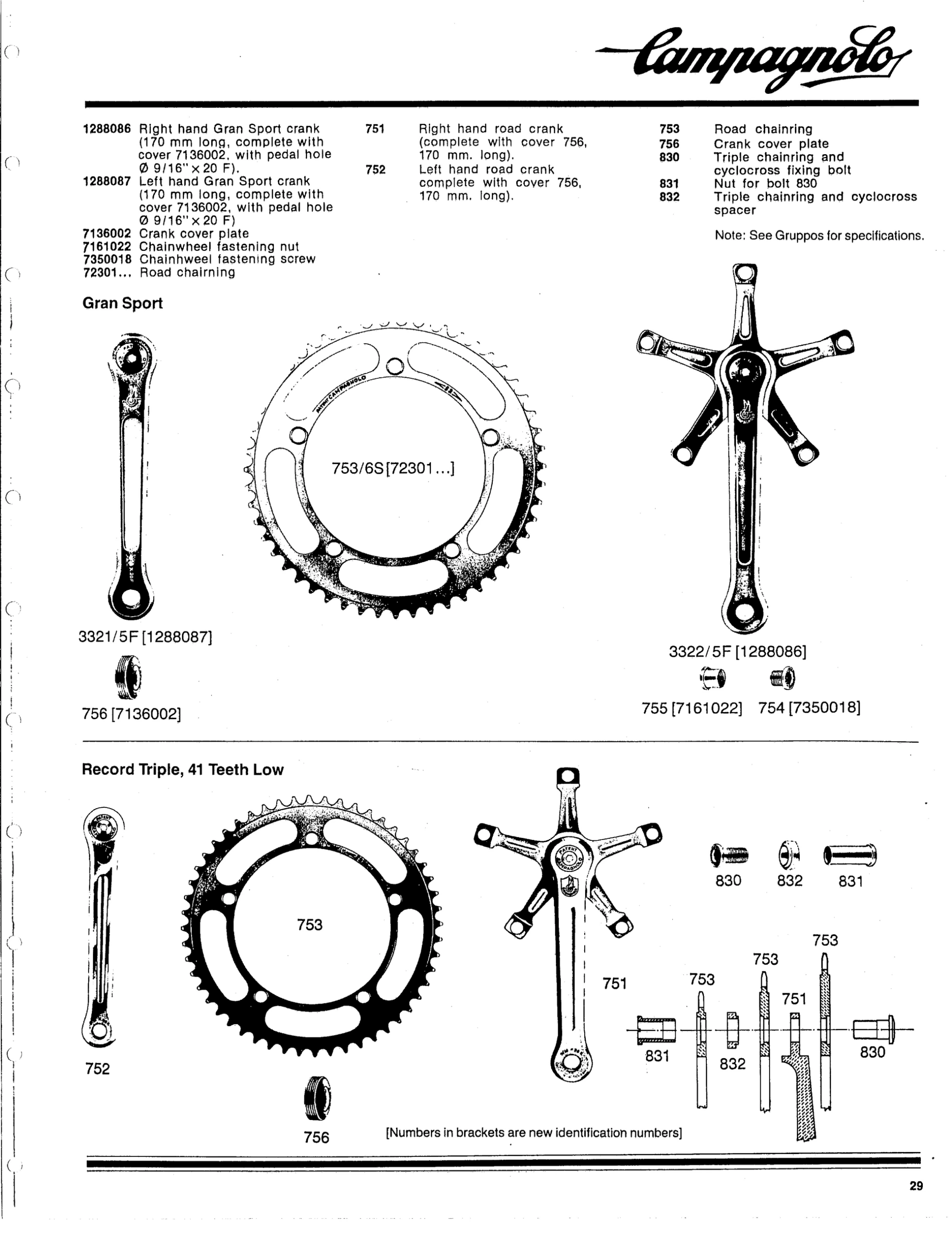

1288086 Right hand Gran Sport crank (170 mm long, complete with cover 7136002, with pedal hole Ø 9/16″ × 20 F).
1288087 Left hand Gran Sport crank (170 mm long, complete with cover 7136002, with pedal hole Ø 9/16″ × 20 F)
7136002 Crank cover plate
7161022 Chainwheel fastening nut
7350018 Chainhweel fastening screw
72301… Road chairning

751 Right hand road crank (complete with cover 756, 170 mm. long).
752 Left hand road crank complete with cover 756, 170 mm. long).

753 Road chainring
756 Crank cover plate
830 Triple chainring and cyclocross fixing bolt
831 Nut for bolt 830
832 Triple chainring and cyclocross spacer

Note: See Gruppos for specifications.

Gran Sport
Callouts: 753/6S [72301…] 3321/5F [1288087] 3322/5F [1288086] 756 [7136002] 755 [7161022] 754 [7350018]

Record Triple, 41 Teeth Low
Callouts: 752 753 756 751 830 832 831
Callouts: 831 753 832 753 751 753 830

[Numbers in brackets are new identification numbers]

29

[Photographs of the parts of the Campagnolo Gran Sport chainwheel set and of the Record Triple, 41 Teeth Low, with the cranks, chainring, cover plate, fastening screw, nut and spacer each numbered, under a three column parts list. A section drawing beside the Record Triple shows how the three chainrings 753 mount on the right crank 751 with the bolt 830, nut 831 and spacer 832.]

— Page 29 —
Campagnolo

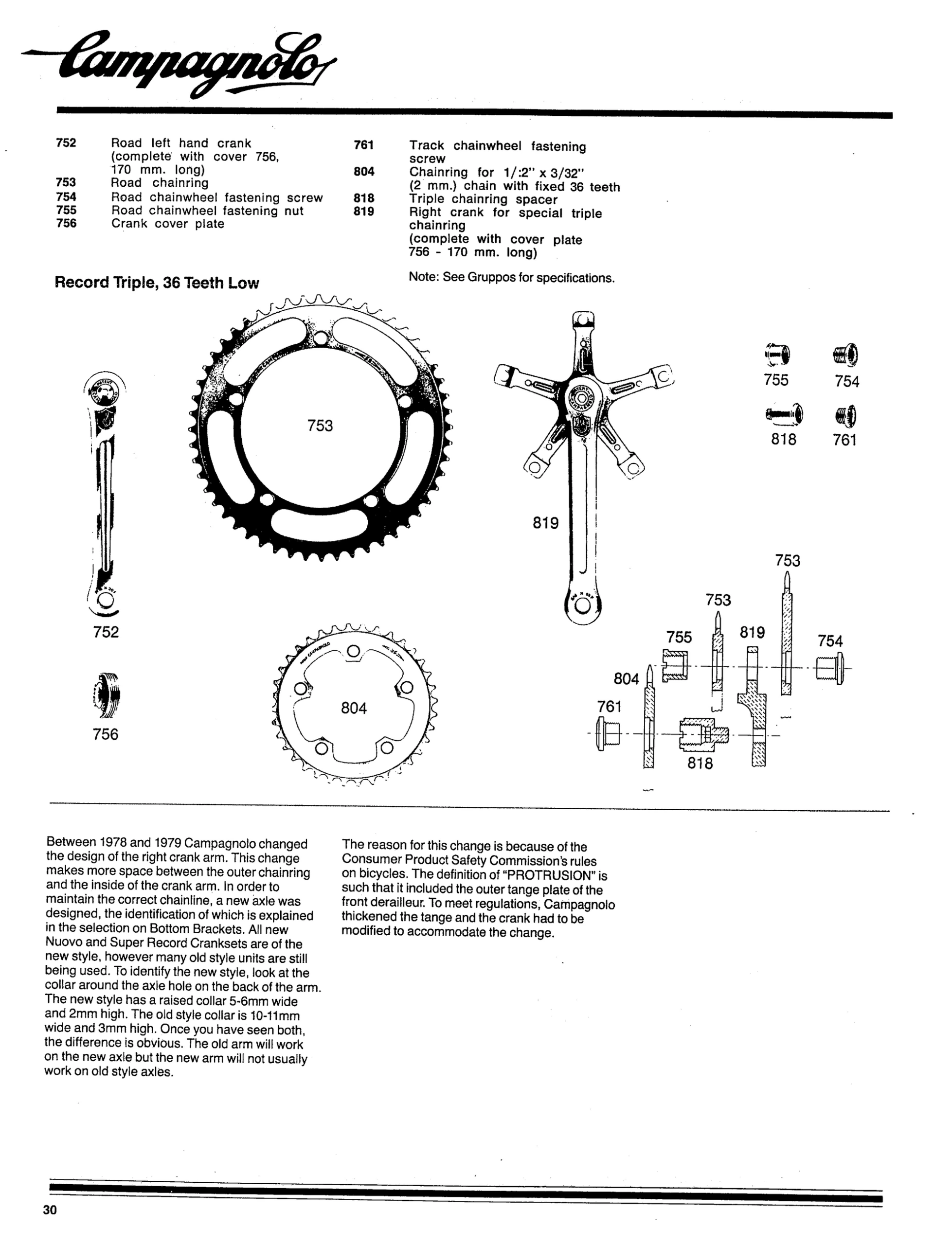

752 Road left hand crank (complete with cover 756, 170 mm. long)
753 Road chainring
754 Road chainwheel fastening screw
755 Road chainwheel fastening nut
756 Crank cover plate

761 Track chainwheel fastening screw
804 Chainring for 1/:2″ x 3/32″ (2 mm.) chain with fixed 36 teeth
818 Triple chainring spacer
819 Right crank for special triple chainring (complete with cover plate 756 – 170 mm. long)

Note: See Gruppos for specifications.

Record Triple, 36 Teeth Low
Callouts: 755 754 753 818 761 819 752 804 756
Callouts: 753 753 755 819 754 804 761 818

Between 1978 and 1979 Campagnolo changed the design of the right crank arm. This change makes more space between the outer chainring and the inside of the crank arm. In order to maintain the correct chainline, a new axle was designed, the identification of which is explained in the selection on Bottom Brackets. All new Nuovo and Super Record Cranksets are of the new style, however many old style units are still being used. To identify the new style, look at the collar around the axle hole on the back of the arm. The new style has a raised collar 5-6mm wide and 2mm high. The old style collar is 10-11mm wide and 3mm high. Once you have seen both, the difference is obvious. The old arm will work on the new axle but the new arm will not usually work on old style axles.

The reason for this change is because of the Consumer Product Safety Commission’s rules on bicycles. The definition of “PROTRUSION” is such that it included the outer tange plate of the front derailleur. To meet regulations, Campagnolo thickened the tange and the crank had to be modified to accommodate the change.

30

[Photographs of the parts of the Campagnolo Record Triple, 36 Teeth Low, with the left crank 752, the special right crank 819, the chainrings 753 and 804, the cover plate 756 and the screws, nuts and spacer, with a section drawing of how the three chainrings mount on the crank. Below, two columns of text explain the change to the right crank arm and its axle between 1978 and 1979 and how to tell the new style from the old.]

— Page 30 —
Campagnolo

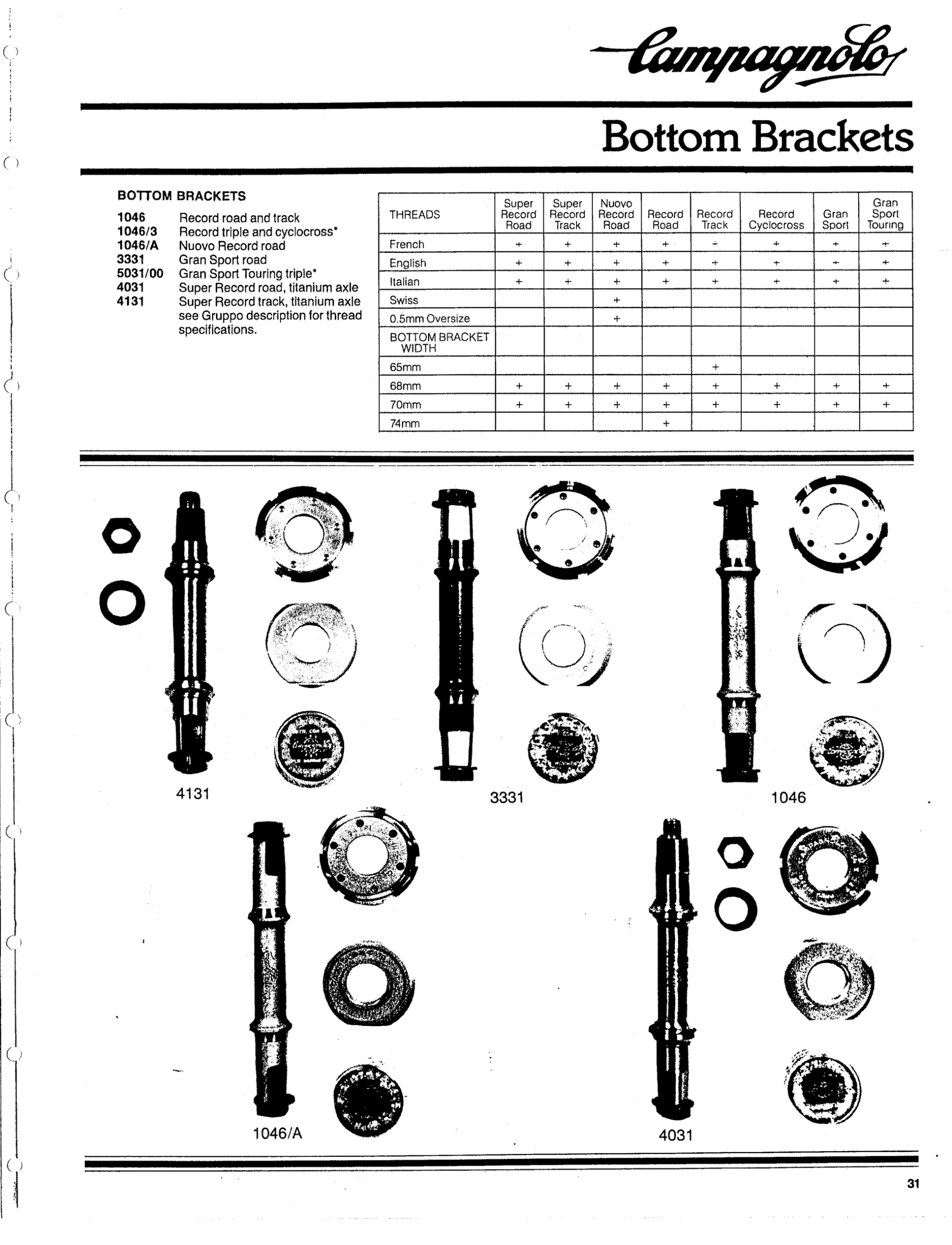

Bottom Brackets

BOTTOM BRACKETS
1046 Record road and track
1046/3 Record triple and cyclocross*
1046/A Nuovo Record road
3331 Gran Sport road
5031/00 Gran Sport Touring triple*
4031 Super Record road, titanium axle
4131 Super Record track, titanium axle see Gruppo description for thread specifications.

THREADS | Super Record Road | Super Record Track | Nuovo Record Road | Record Road | Record Track | Record Cyclocross | Gran Sport | Gran Sport Touring
French | + | + | + | + | + | + | + | +
English | + | + | + | + | + | + | + | +
Italian | + | + | + | + | + | + | + | +
Swiss | | | + | | | | |
0.5mm Oversize | | | + | | | | |
BOTTOM BRACKET WIDTH | | | | | | | |
65mm | | | | | + | | |
68mm | + | + | + | + | + | + | + | +
70mm | + | + | + | + | + | + | + | +
74mm | | | | + | | | |

4131

3331

1046

1046/A

4031

31

[Photographs of five Campagnolo bottom brackets, captioned 4131, 3331, 1046, 1046/A and 4031, each shown as an axle beside its cups and bearing parts, under a list of models and a table of the threads and bottom bracket widths available for each group.]

— Page 31 —
Campagnolo

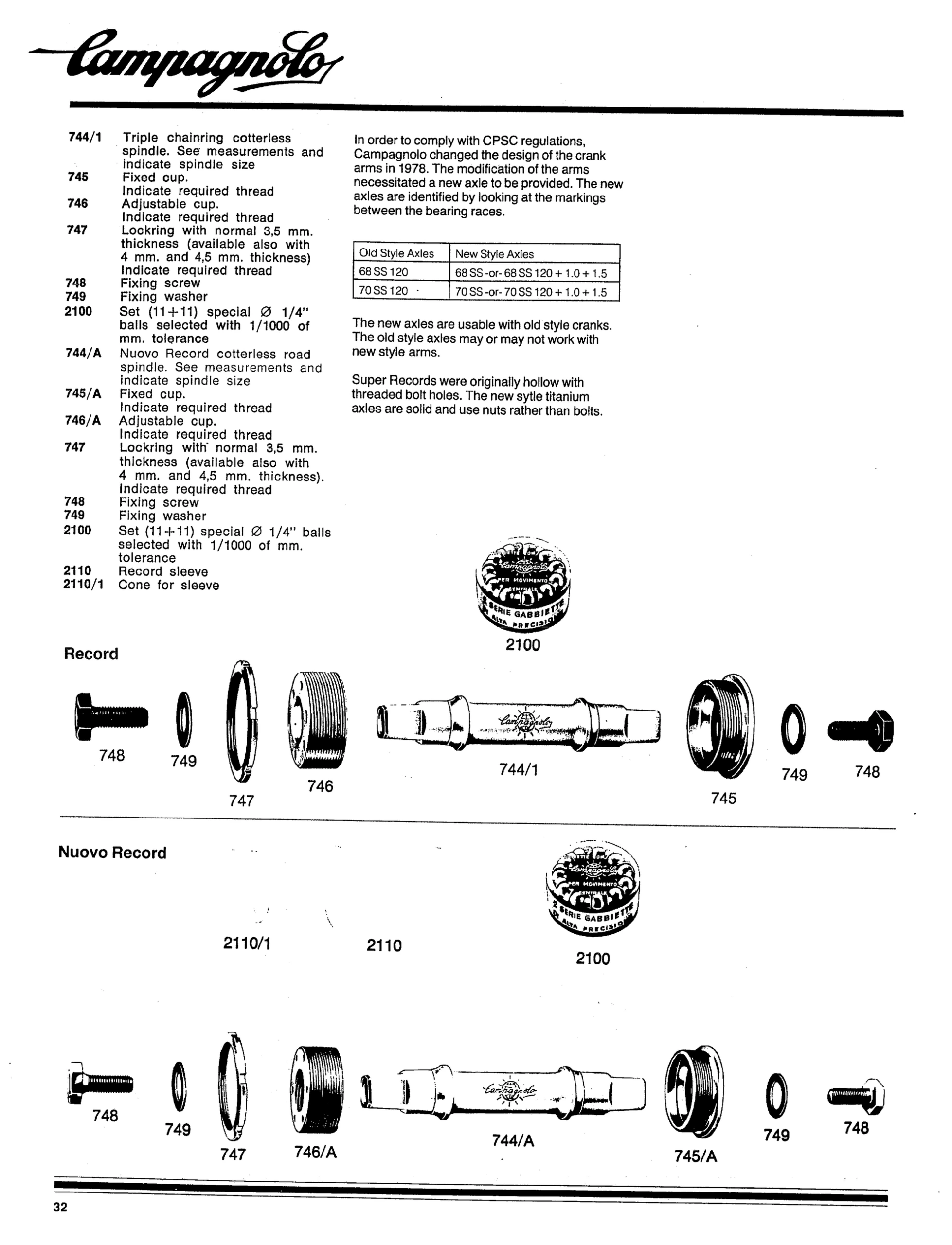

744/1 Triple chainring cotterless spindle. See measurements and indicate spindle size
745 Fixed cup. Indicate required thread
746 Adjustable cup. Indicate required thread
747 Lockring with normal 3,5 mm. thickness (available also with 4 mm. and 4,5 mm. thickness) Indicate required thread
748 Fixing screw
749 Fixing washer
2100 Set (11+11) special Ø 1/4″ balls selected with 1/1000 of mm. tolerance
744/A Nuovo Record cotterless road spindle. See measurements and indicate spindle size
745/A Fixed cup. Indicate required thread
746/A Adjustable cup. Indicate required thread
747 Lockring with normal 3,5 mm. thickness (available also with 4 mm. and 4,5 mm. thickness). Indicate required thread
748 Fixing screw
749 Fixing washer
2100 Set (11+11) special Ø 1/4″ balls selected with 1/1000 of mm. tolerance
2110 Record sleeve
2110/1 Cone for sleeve

In order to comply with CPSC regulations, Campagnolo changed the design of the crank arms in 1978. The modification of the arms necessitated a new axle to be provided. The new axles are identified by looking at the markings between the bearing races.

Old Style Axles | New Style Axles
68 SS 120 | 68 SS -or- 68 SS 120 + 1.0 + 1.5
70 SS 120 | 70 SS -or- 70 SS 120 + 1.0 + 1.5

The new axles are usable with old style cranks. The old style axles may or may not work with new style arms.

Super Records were originally hollow with threaded bolt holes. The new sytle titanium axles are solid and use nuts rather than bolts.

Record
Callouts: 2100 748 749 747 746 744/1 745 749 748

Nuovo Record
Callouts: 2110/1 2110 2100 748 749 747 746/A 744/A 745/A 749 748

32

[Photographs of the parts of the Campagnolo Record and Nuovo Record bottom brackets laid out in a row, each with its spindle, cups, lockring, fixing screws and washers and a box of 2100 ball cages, keyed to a parts list. A note and a small table explain the new style axles introduced with the 1978 change in crank arm design required by CPSC regulations; the photographs of the sleeve 2110 and its cone 2110/1 are missing above their numbers, apparently lost in the black and white scan.]

— Page 32 —
Campagnolo

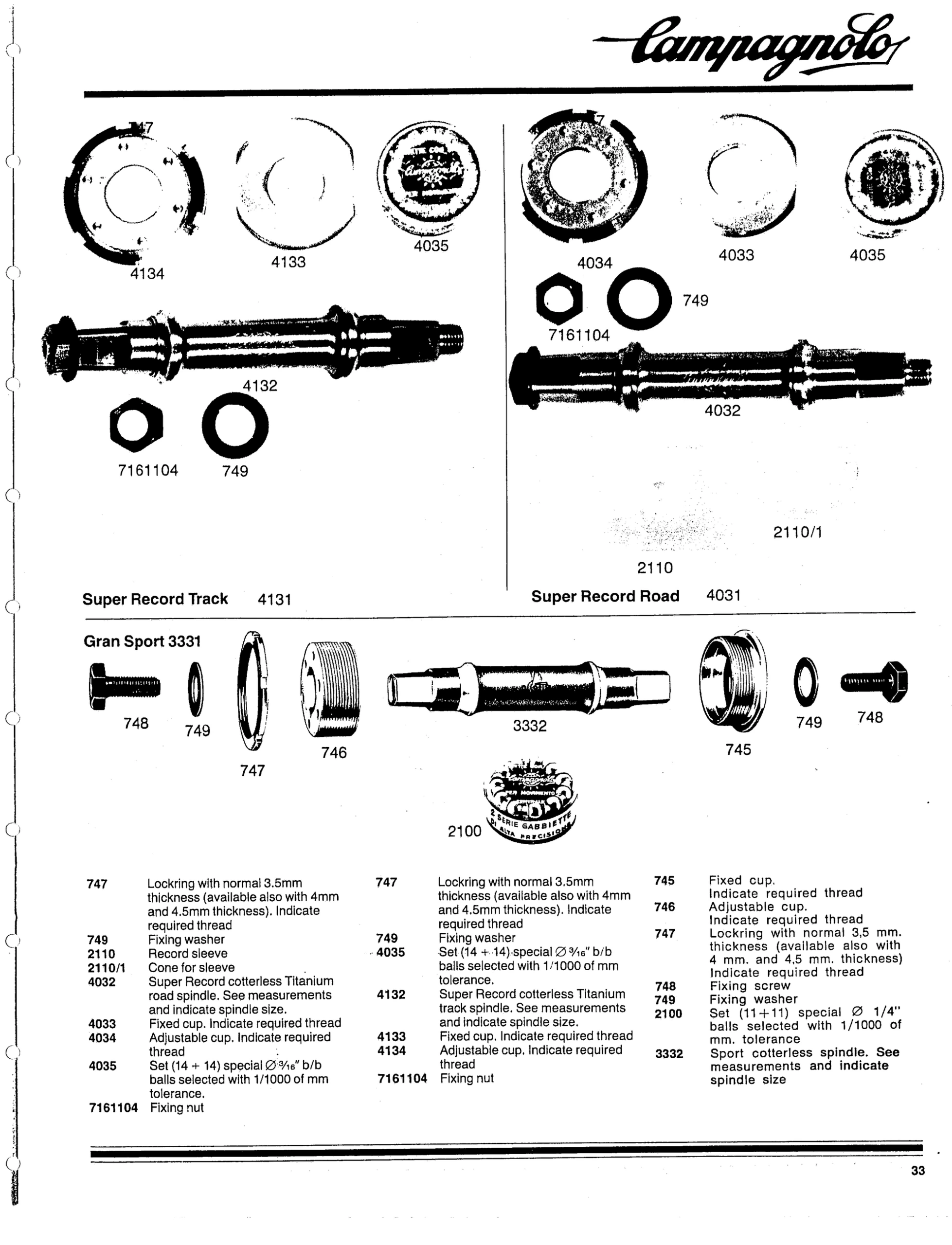

Super Record Track 4131
Callouts: 747[?] 4134 4133 4035 4132 7161104 749

Super Record Road 4031
Callouts: [illegible]7 4034 4033 4035 7161104 749 4032 2110/1 2110

Gran Sport 3331
Callouts: 748 749 747 746 3332 745 749 748 2100

747 Lockring with normal 3.5mm thickness (available also with 4mm and 4.5mm thickness). Indicate required thread
749 Fixing washer
2110 Record sleeve
2110/1 Cone for sleeve
4032 Super Record cotterless Titanium road spindle. See measurements and indicate spindle size.
4033 Fixed cup. Indicate required thread
4034 Adjustable cup. Indicate required thread
4035 Set (14 + 14) special Ø 3/16″ b/b balls selected with 1/1000 of mm tolerance.
7161104 Fixing nut

747 Lockring with normal 3,5mm thickness (available also with 4mm and 4,5mm thickness). Indicate required thread
749 Fixing washer
4035 Set (14 + 14) special Ø 3/16″ b/b balls selected with 1/1000 of mm tolerance.
4132 Super Record cotterless Titanium track spindle. See measurements and indicate spindle size.
4133 Fixed cup. Indicate required thread
4134 Adjustable cup. Indicate required thread
7161104 Fixing nut

745 Fixed cup. Indicate required thread
746 Adjustable cup. Indicate required thread
747 Lockring with normal 3,5 mm. thickness (available also with 4 mm. and 4,5 mm. thickness) Indicate required thread
748 Fixing screw
749 Fixing washer
2100 Set (11+11) special Ø 1/4″ balls selected with 1/1000 of mm. tolerance
3332 Sport cotterless spindle. See measurements and indicate spindle size

33

[Photographs of the parts of three Campagnolo bottom brackets, the Super Record Track 4131 and Super Record Road 4031 with titanium spindles and fixing nuts, and the Gran Sport 3331 laid out in a row, each part numbered and keyed to three parts lists. The Super Record ball sets 4035 are shown as a labeled packet, and the photographs of the sleeve 2110 and cone 2110/1 have almost vanished in the black and white scan.]

— Page 33 —
Campagnolo

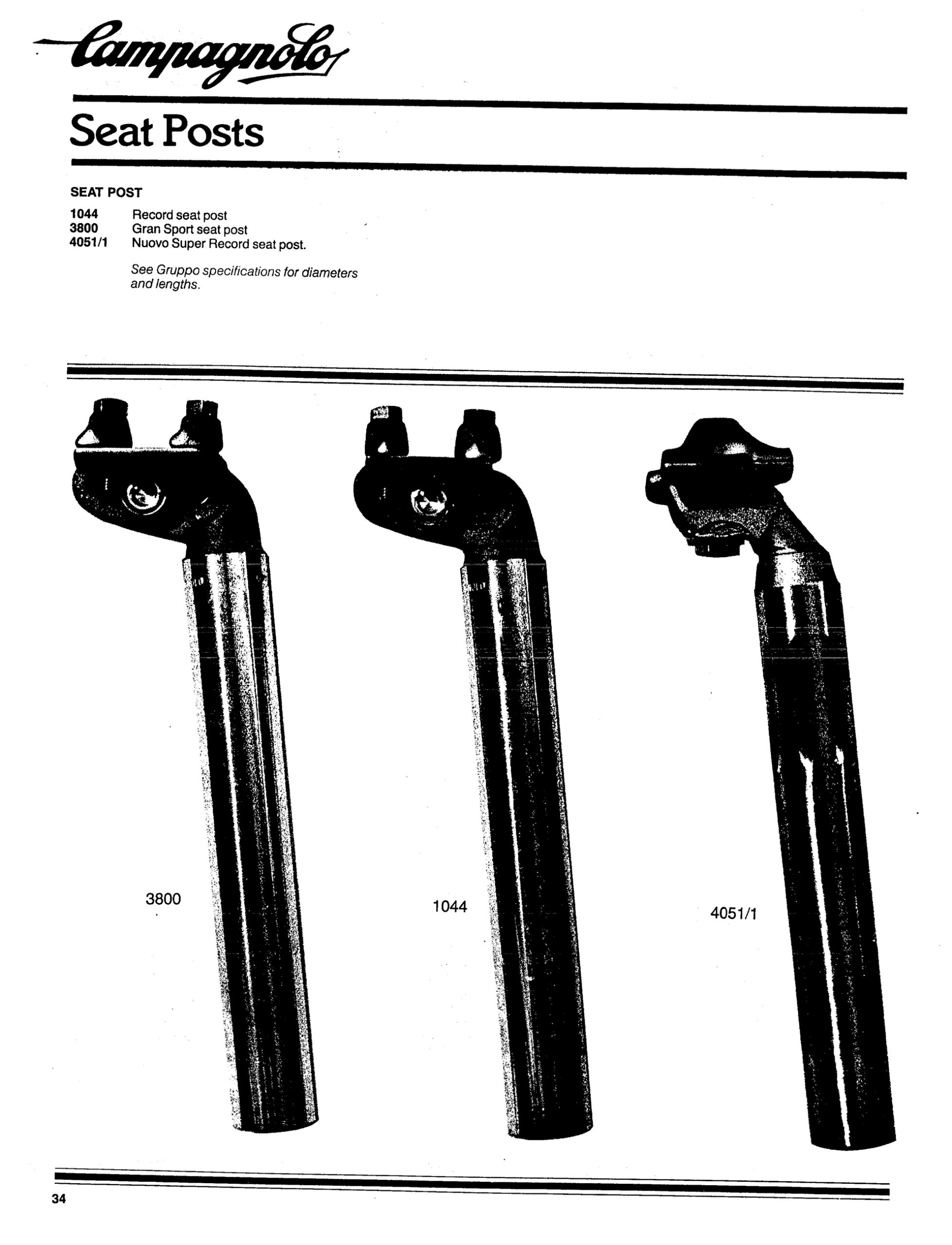

Seat Posts

SEAT POST

1044 Record seat post
3800 Gran Sport seat post
4051/1 Nuovo Super Record seat post.

See Gruppo specifications for diameters and lengths.

Callouts: 3800 1044 4051/1

34

[Photographs of three Campagnolo seat posts standing side by side, the Gran Sport 3800, the Record 1044 and the Nuovo Super Record 4051/1, under the section heading “Seat Posts” with a short parts list. A note refers the reader to the Gruppo specifications for diameters and lengths.]

— Page 34 —
Campagnolo

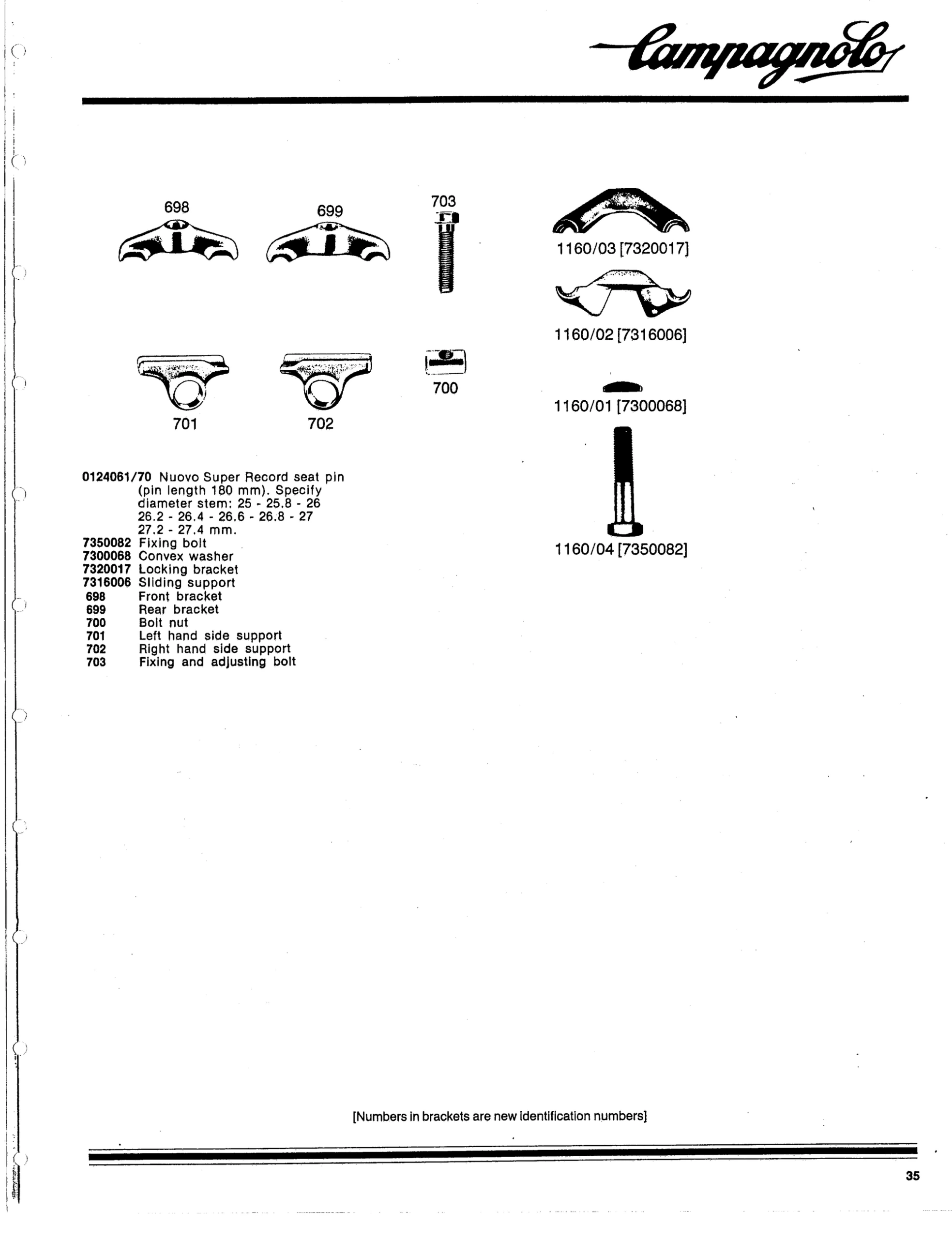

Callouts: 698 699 703 701 702 700

1160/03 [7320017]
1160/02 [7316006]
1160/01 [7300068]
1160/04 [7350082]

0124061/70 Nuovo Super Record seat pin (pin length 180 mm). Specify diameter stem: 25 – 25,8 – 26 26.2 – 26,4 – 26,6 – 26.8 – 27 27,2 – 27,4 mm.
7350082 Fixing bolt
7300068 Convex washer
7320017 Locking bracket
7316006 Sliding support
698 Front bracket
699 Rear bracket
700 Bolt nut
701 Left hand side support
702 Right hand side support
703 Fixing and adjusting bolt

[Numbers in brackets are new identification numbers]

35

[Photographs of the separate small parts of Campagnolo seat posts, the front and rear brackets, side supports, bolt and bolt nut 698 to 703 and the Nuovo Super Record clamp parts 1160/01 to 1160/04, each with its part number, beside a parts list. The square brackets around the clamp numbers and around the footnote are printed on the page, which explains that the bracketed numbers are new identification numbers.]

— Page 35 —
Campagnolo

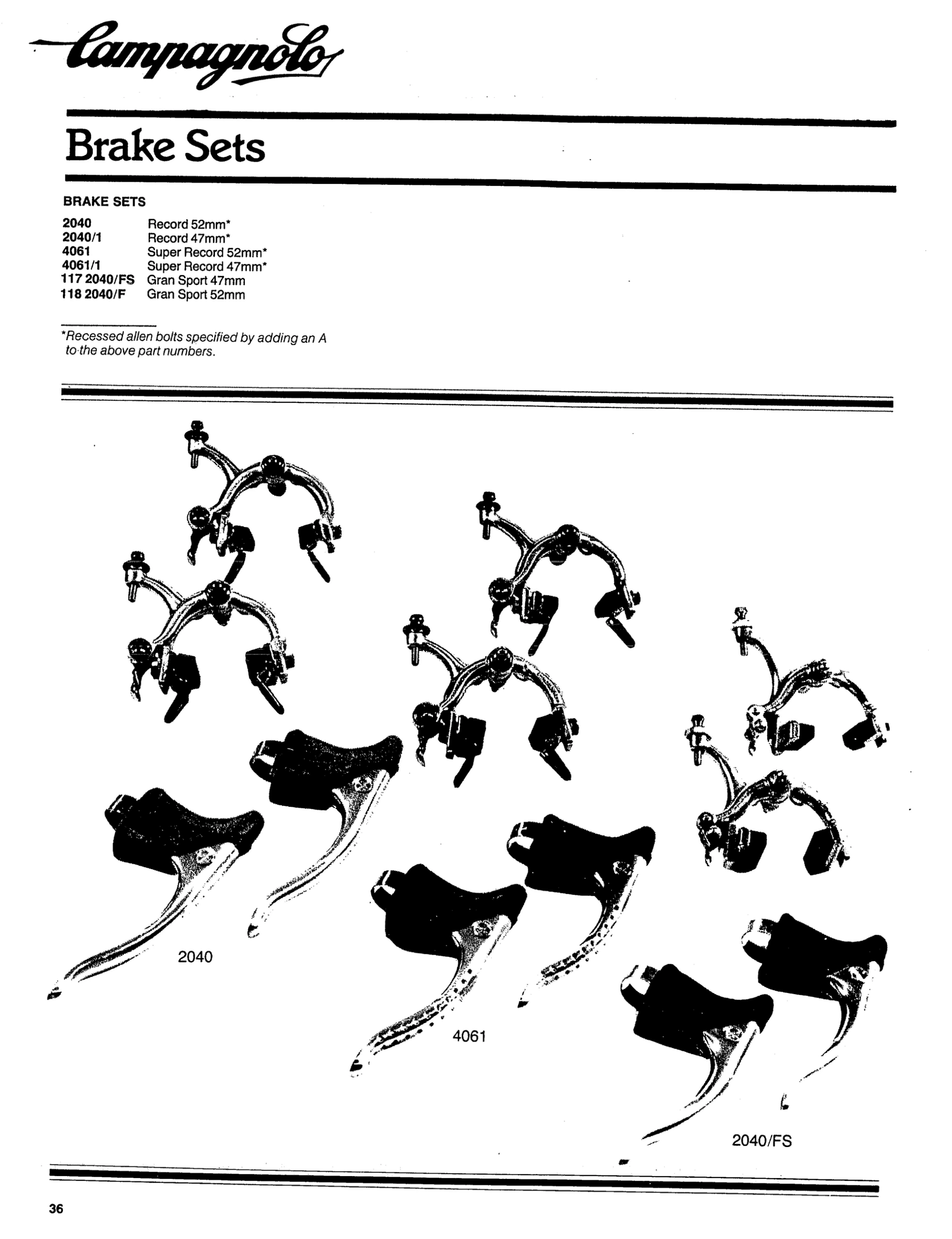

Brake Sets

BRAKE SETS

2040 Record 52mm*
2040/1 Record 47mm*
4061 Super Record 52mm*
4061/1 Super Record 47mm*
117 2040/FS Gran Sport 47mm
118 2040/F Gran Sport 52mm

*Recessed allen bolts specified by adding an A to the above part numbers.

Callouts: 2040 4061 2040/FS

36

[Photographs of three Campagnolo brake sets, the Record 2040, the Super Record 4061 and the Gran Sport 2040/FS, each a pair of side-pull calipers with a pair of brake levers and black rubber hoods, under the section heading “Brake Sets” with a list of the sets in 52 mm and 47 mm reach. The Super Record levers are drilled along the blade.]

— Page 36 —
Campagnolo

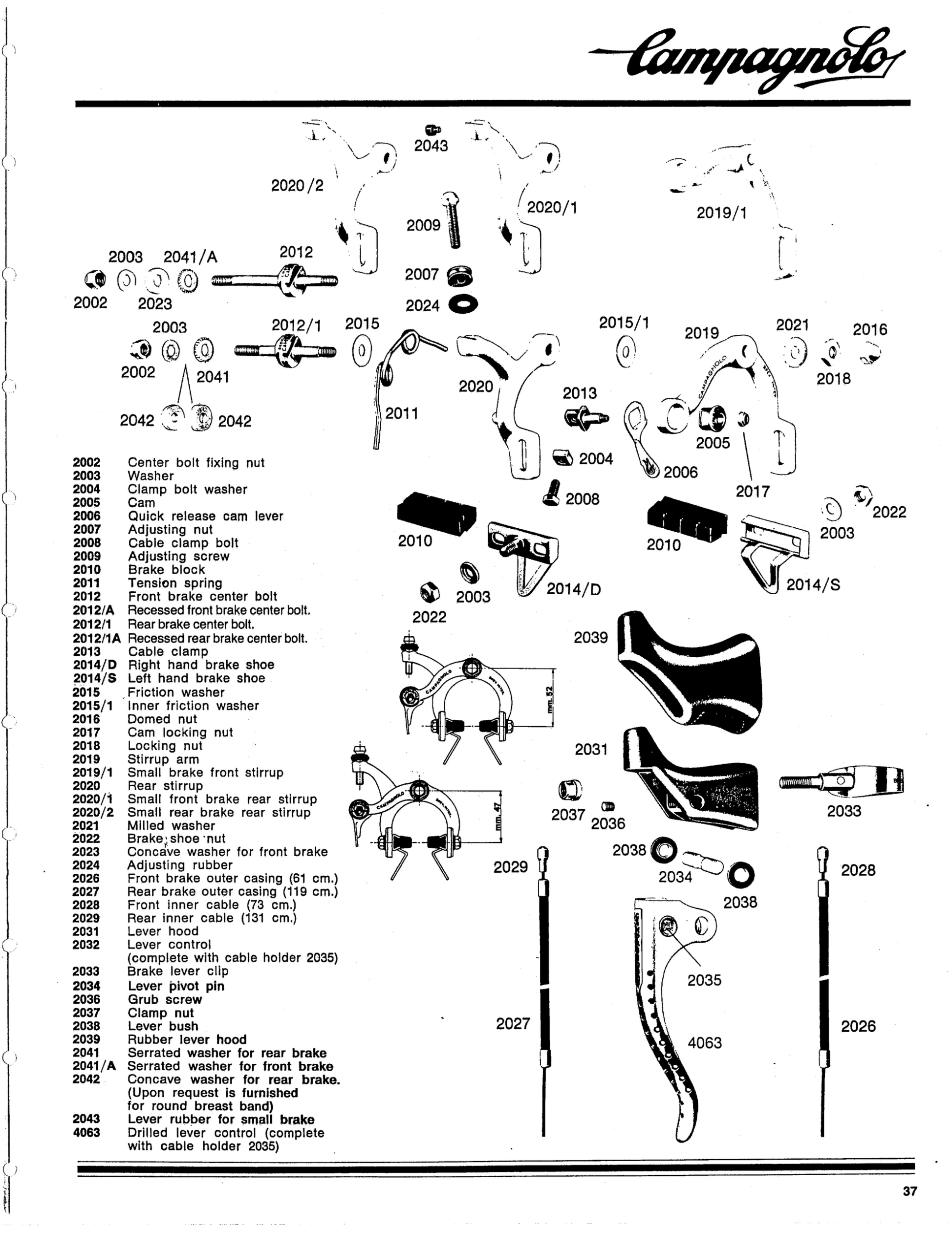

Callouts: 2043 2020/2 2020/1 2019/1 2009 2003 2041/A 2012 2007 2002 2023 2024 2003 2012/1 2015 2015/1 2019 2021 2016 2002 2041 2020 2013 2018 2011 2042 2042 2004 2005 2006 2017 2008 2022 2010 2003 2010 2003 2014/D 2014/S 2022 2039 2031 2037 2036 2033 2038 2029 2034 2028 2038 2035 2027 4063 2026

mm. 52

mm. 47

2002 Center bolt fixing nut
2003 Washer
2004 Clamp bolt washer
2005 Cam
2006 Quick release cam lever
2007 Adjusting nut
2008 Cable clamp bolt
2009 Adjusting screw
2010 Brake block
2011 Tension spring
2012 Front brake center bolt
2012/A Recessed front brake center bolt.
2012/1 Rear brake center bolt.
2012/1A Recessed rear brake center bolt.
2013 Cable clamp
2014/D Right hand brake shoe
2014/S Left hand brake shoe
2015 Friction washer
2015/1 Inner friction washer
2016 Domed nut
2017 Cam locking nut
2018 Locking nut
2019 Stirrup arm
2019/1 Small brake front stirrup
2020 Rear stirrup
2020/1 Small front brake rear stirrup
2020/2 Small rear brake rear stirrup
2021 Milled washer
2022 Brake shoe nut
2023 Concave washer for front brake
2024 Adjusting rubber
2026 Front brake outer casing (61 cm.)
2027 Rear brake outer casing (119 cm.)
2028 Front inner cable (73 cm.)
2029 Rear inner cable (131 cm.)
2031 Lever hood
2032 Lever control (complete with cable holder 2035)
2033 Brake lever clip
2034 Lever pivot pin
2036 Grub screw
2037 Clamp nut
2038 Lever bush
2039 Rubber lever hood
2041 Serrated washer for rear brake
2041/A Serrated washer for front brake
2042 Concave washer for rear brake. (Upon request is furnished for round breast band)
2043 Lever rubber for small brake
4063 Drilled lever control (complete with cable holder 2035)

37

[Photographs of the separate parts of the Campagnolo side-pull brake and brake lever, among them the center bolts, stirrups, return spring, quick release cam, brake shoes and blocks, lever hoods, lever clip, cables and the drilled lever 4063, each numbered and keyed to a parts list. Two line drawings of assembled calipers give the reach as 52 mm and 47 mm, and the small parts at the top of the page are faint in the black and white scan.]

— Page 37 —
Campagnolo

Control Levers

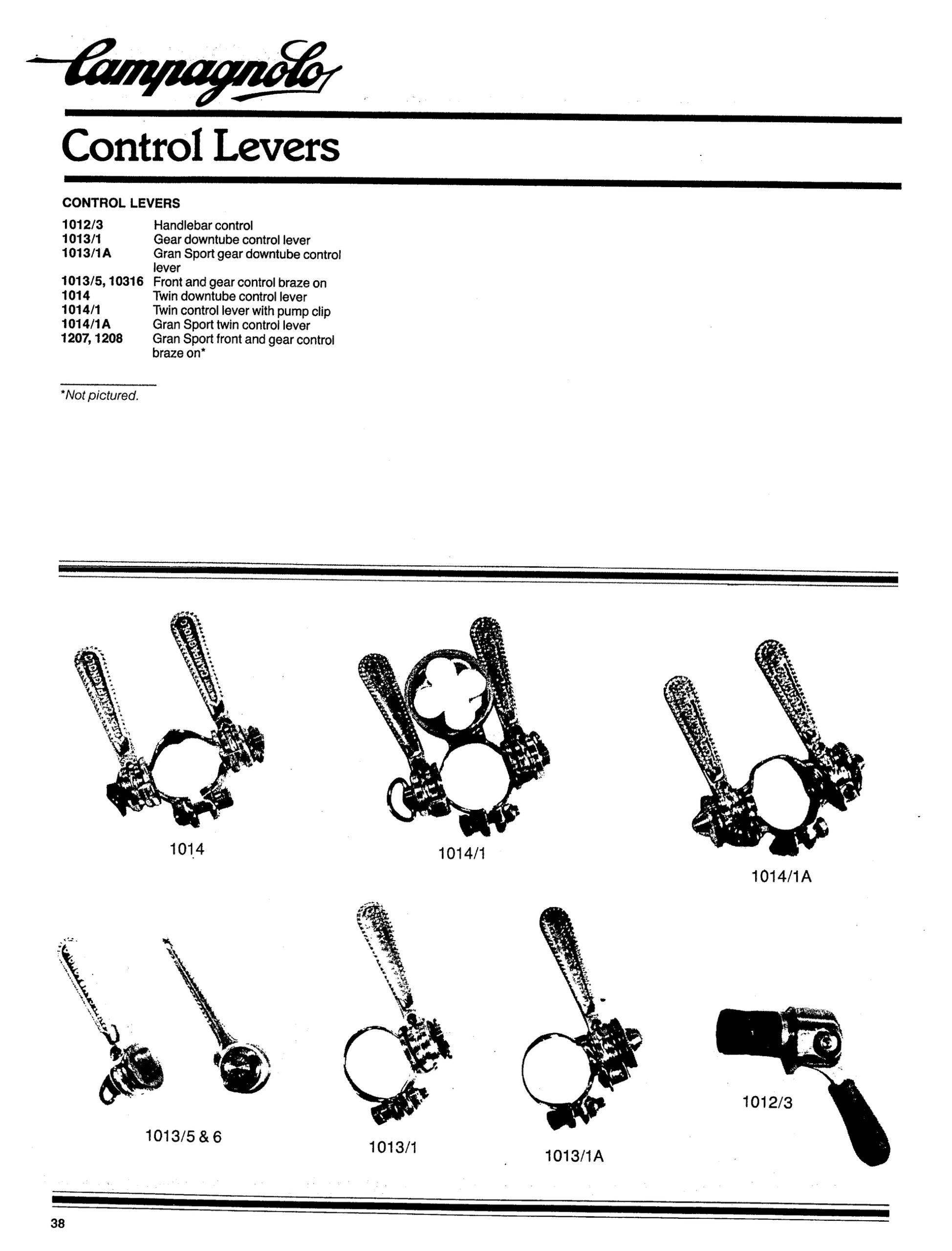

CONTROL LEVERS

1012/3 Handlebar control
1013/1 Gear downtube control lever
1013/1A Gran Sport gear downtube control lever
1013/5, 10316 Front and gear control braze on
1014 Twin downtube control lever
1014/1 Twin control lever with pump clip
1014/1A Gran Sport twin control lever
1207, 1208 Gran Sport front and gear control braze on*

*Not pictured.

Callouts: 1014 1014/1 1014/1A 1013/5 & 6 1013/1 1013/1A 1012/3

38

[Photographs of seven Campagnolo gear control levers under the section heading “Control Levers”: the twin downtube levers 1014, 1014/1 with a pump clip and Gran Sport 1014/1A, the braze-on levers 1013/5 and 6, the single downtube levers 1013/1 and Gran Sport 1013/1A, and the handlebar end control 1012/3. A short parts list sits above, with the Gran Sport braze-on levers 1207 and 1208 marked as not pictured.]

— Page 38 —
Campagnolo

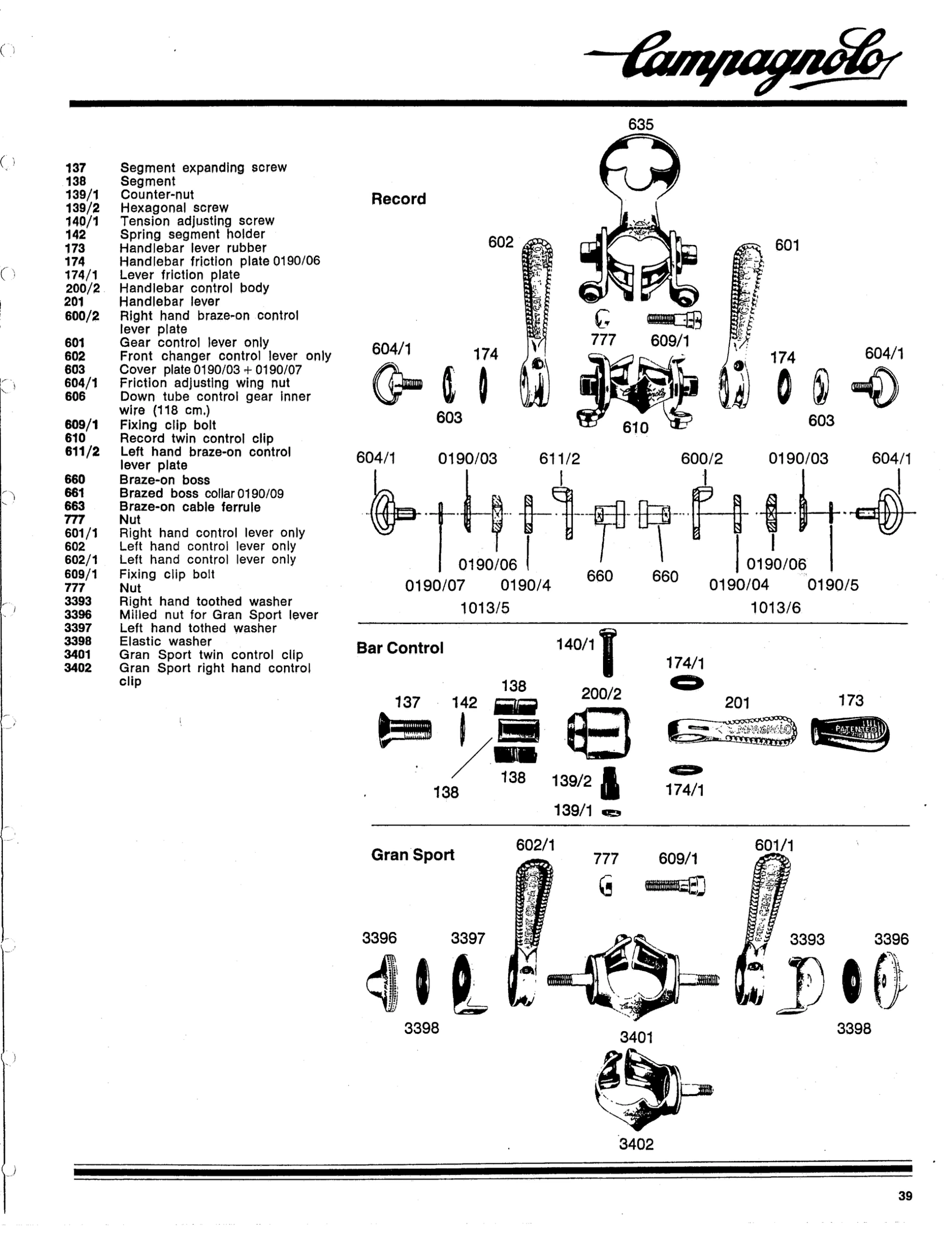

137 Segment expanding screw
138 Segment
139/1 Counter-nut
139/2 Hexagonal screw
140/1 Tension adjusting screw
142 Spring segment holder
173 Handlebar lever rubber
174 Handlebar friction plate 0190/06
174/1 Lever friction plate
200/2 Handlebar control body
201 Handlebar lever
600/2 Right hand braze-on control lever plate
601 Gear control lever only
602 Front changer control lever only
603 Cover plate 0190/03 + 0190/07
604/1 Friction adjusting wing nut
606 Down tube control gear inner wire (118 cm.)
609/1 Fixing clip bolt
610 Record twin control clip
611/2 Left hand braze-on control lever plate
660 Braze-on boss
661 Brazed boss collar 0190/09
663 Braze-on cable ferrule
777 Nut
601/1 Right hand control lever only
602 Left hand control lever only
602/1 Left hand control lever only
609/1 Fixing clip bolt
777 Nut
3393 Right hand toothed washer
3396 Milled nut for Gran Sport lever
3397 Left hand tothed washer
3398 Elastic washer
3401 Gran Sport twin control clip
3402 Gran Sport right hand control clip

Record
Callouts: 635 602 601 777 609/1 604/1 174 174 604/1 603 610 603

Callouts: 604/1 0190/03 611/2 600/2 0190/03 604/1 0190/06 0190/07 0190/4 660 660 0190/06 0190/04 0190/5
1013/5
1013/6

Bar Control
Callouts: 140/1 174/1 138 200/2 137 142 201 173 138 139/2 174/1 138 139/1

Gran Sport
Callouts: 602/1 777 609/1 601/1 3396 3397 3393 3396 3398 3401 3398 3402

39

[Photographs and a sectional drawing of the separate parts of Campagnolo gear control levers, keyed to a parts list: the Record twin downtube levers and clip, the braze-on levers 1013/5 and 1013/6 drawn in section on a common axis, the bar end control and the Gran Sport twin levers with their clips. Each part carries its number, and the braze-on drawing also gives the 0190 series numbers of the washers and plates.]

— Page 39 —
Campagnolo

Fork Ends

FORK ENDS

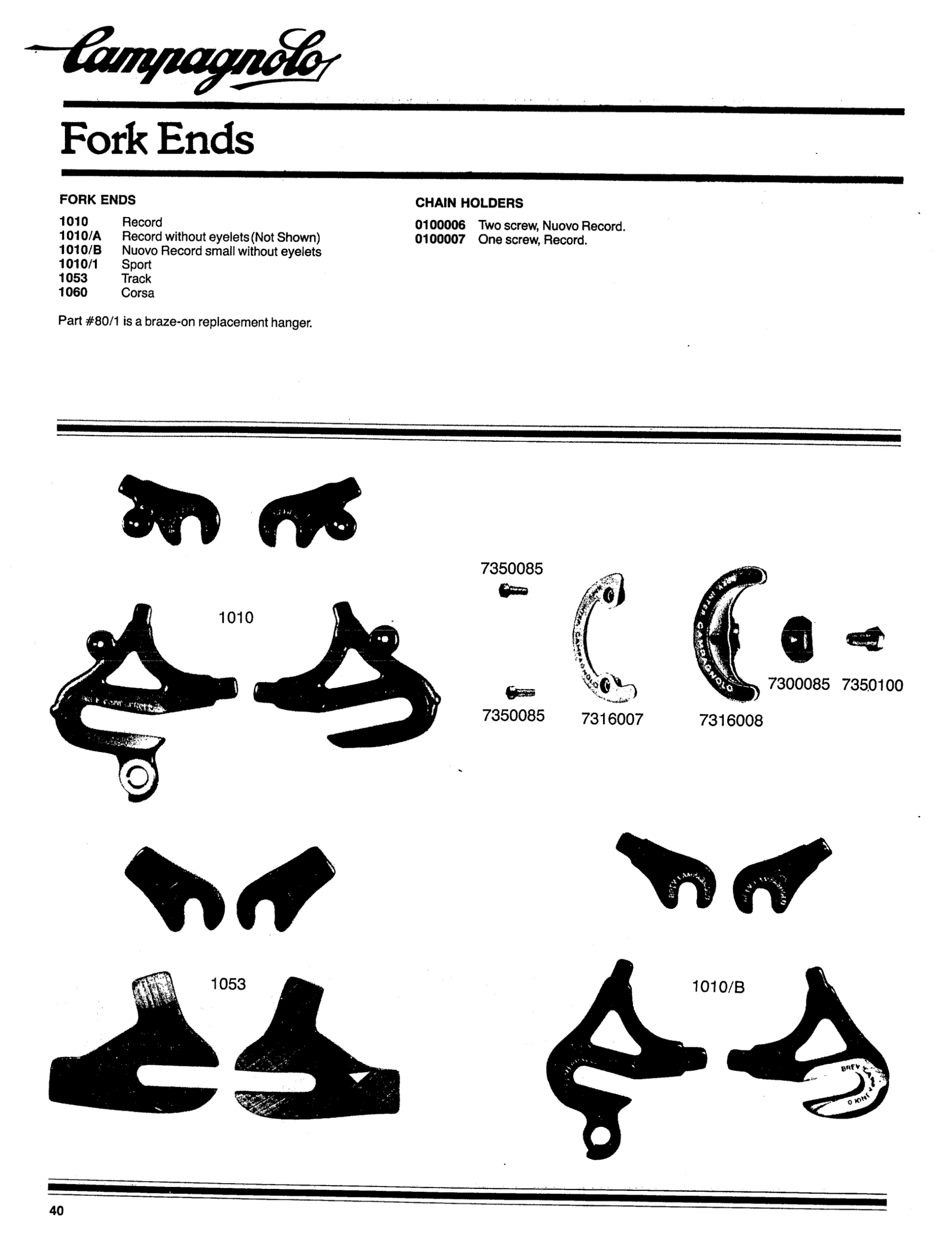

1010 Record
1010/A Record without eyelets (Not Shown)
1010/B Nuovo Record small without eyelets
1010/1 Sport
1053 Track
1060 Corsa

Part #80/1 is a braze-on replacement hanger.

CHAIN HOLDERS

0100006 Two screw, Nuovo Record.
0100007 One screw, Record.

Callouts: 1010 7350085 7350085 7316007 7316008 7300085 7350100 1053 1010/B

40

[Photographs of three sets of Campagnolo fork ends, each a pair of front fork ends above a pair of rear dropouts: the Record 1010 with eyelets and a derailleur hanger, the track 1053 and the Nuovo Record small 1010/B without eyelets. Beside them are the parts of the chain holders, two curved plates with their screws, under the section heading “Fork Ends”.]

— Page 40 —
Campagnolo

BMX

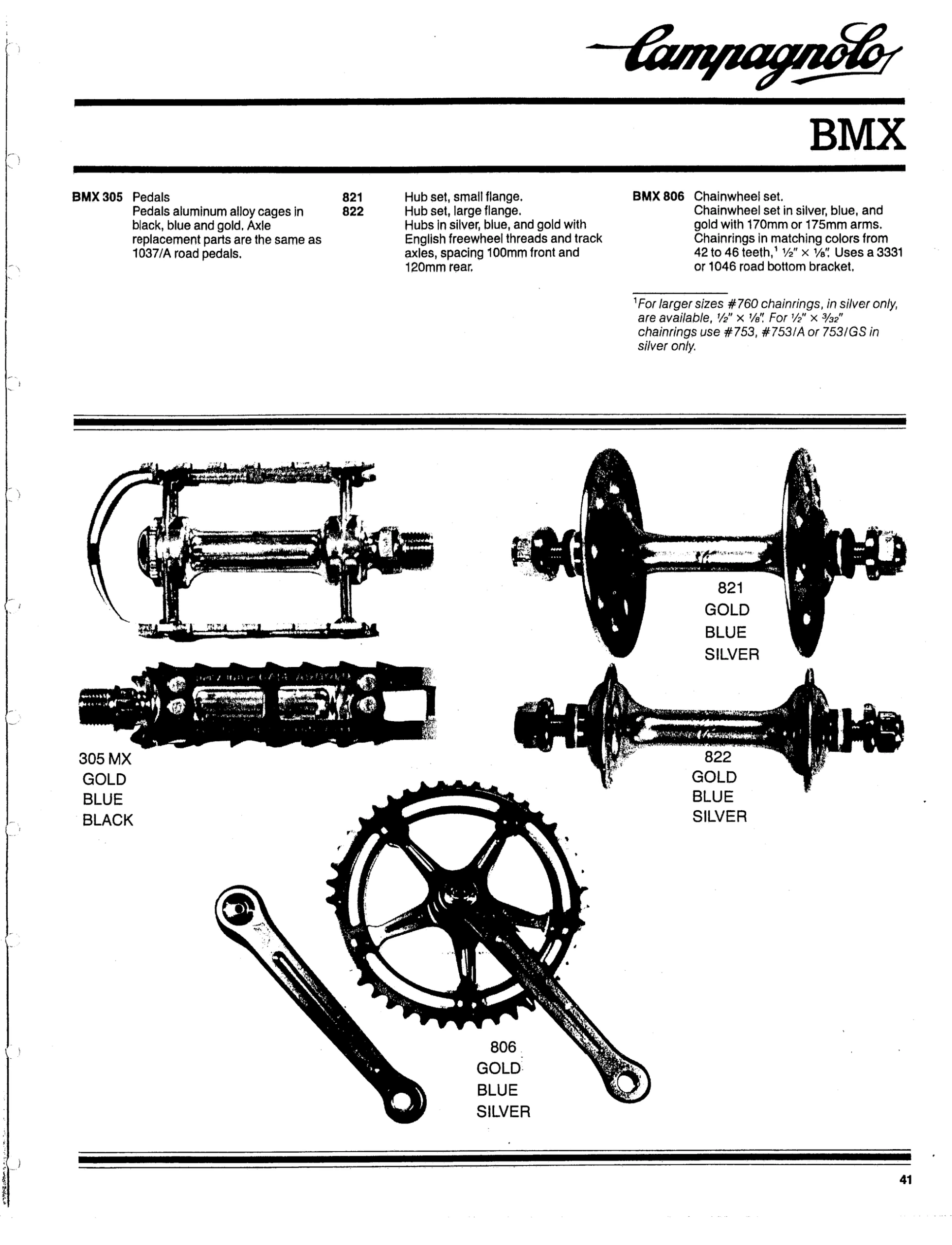

BMX 305 Pedals
Pedals aluminum alloy cages in black, blue and gold. Axle replacement parts are the same as 1037/A road pedals.

821 Hub set, small flange.
822 Hub set, large flange.
Hubs in silver, blue, and gold with English freewheel threads and track axles, spacing 100mm front and 120mm rear,[?]

BMX 806 Chainwheel set.
Chainwheel set in silver, blue, and gold with 170mm or 175mm arms. Chainrings in matching colors from 42 to 46 teeth,¹ 1/2″ × 1/8″. Uses a 3331 or 1046 road bottom bracket,[?]

¹For larger sizes #760 chainrings, in silver only, are available, 1/2″ × 1/8″. For 1/2″ × 3/32″ chainrings use #753, #753/A or 753/GS in silver only.

305 MX
GOLD
BLUE
BLACK

821
GOLD
BLUE
SILVER

822
GOLD
BLUE
SILVER

806
GOLD
BLUE
SILVER

41

[Photographs of the Campagnolo BMX components under the section heading “BMX”: the 305 MX pedal seen from the front and from above, the small flange hub 821 and large flange hub 822, and the 806 chainwheel set with a single chainring and two crank arms. Each caption lists the colors offered, gold, blue and black for the pedals and gold, blue and silver for the hubs and chainwheel set.]

— Page 41 —
Campagnolo

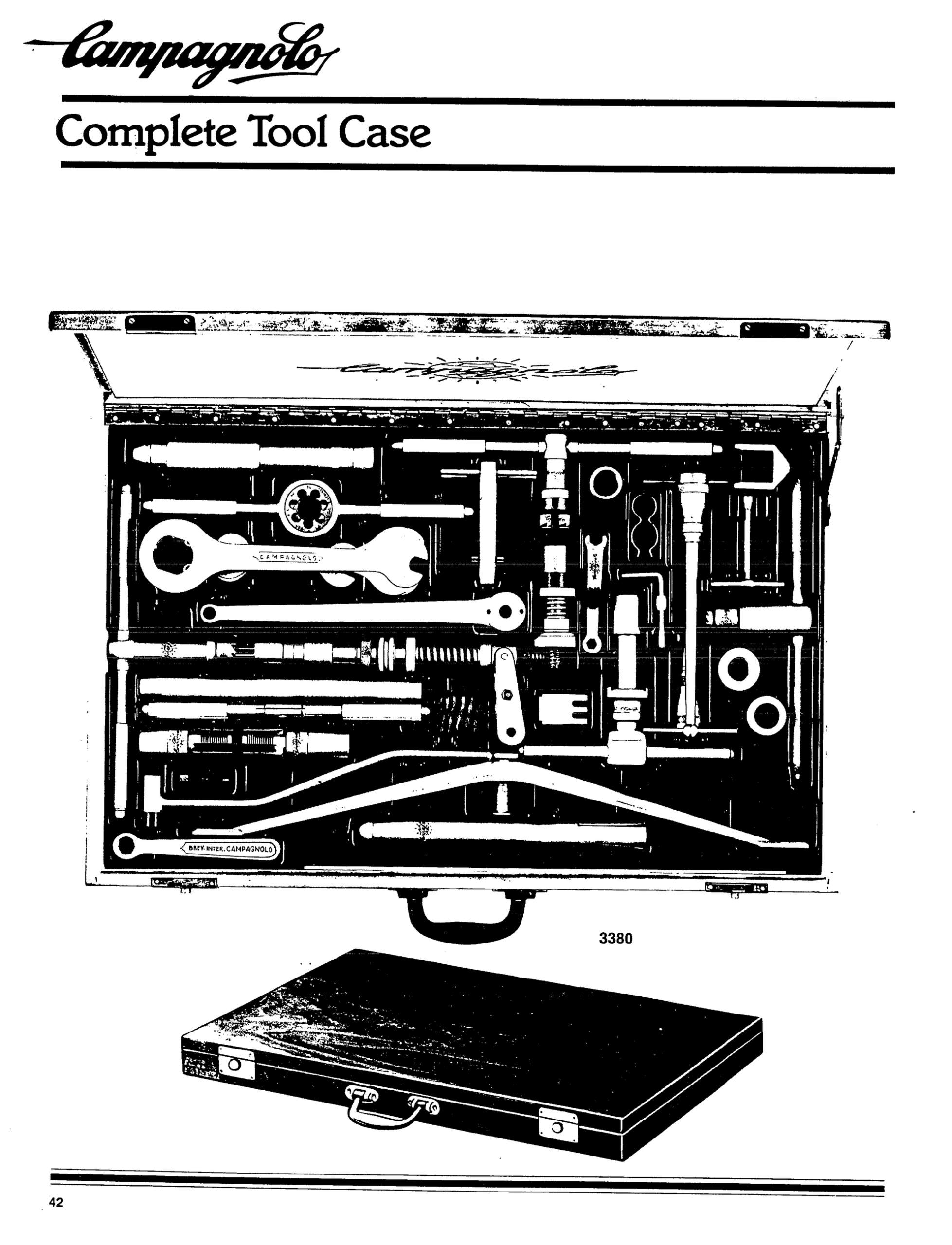

Complete Tool Case

3380

42

[A photograph of the Campagnolo Complete Tool Case, 3380, shown open with its full set of workshop tools fitted into the molded tray, above a second view of the case closed. The underside of the open lid carries the Campagnolo script logo, and two of the wrenches in the tray are stamped “CAMPAGNOLO” and “BREV. INTER. CAMPAGNOLO”.]

— Page 42 —
Campagnolo

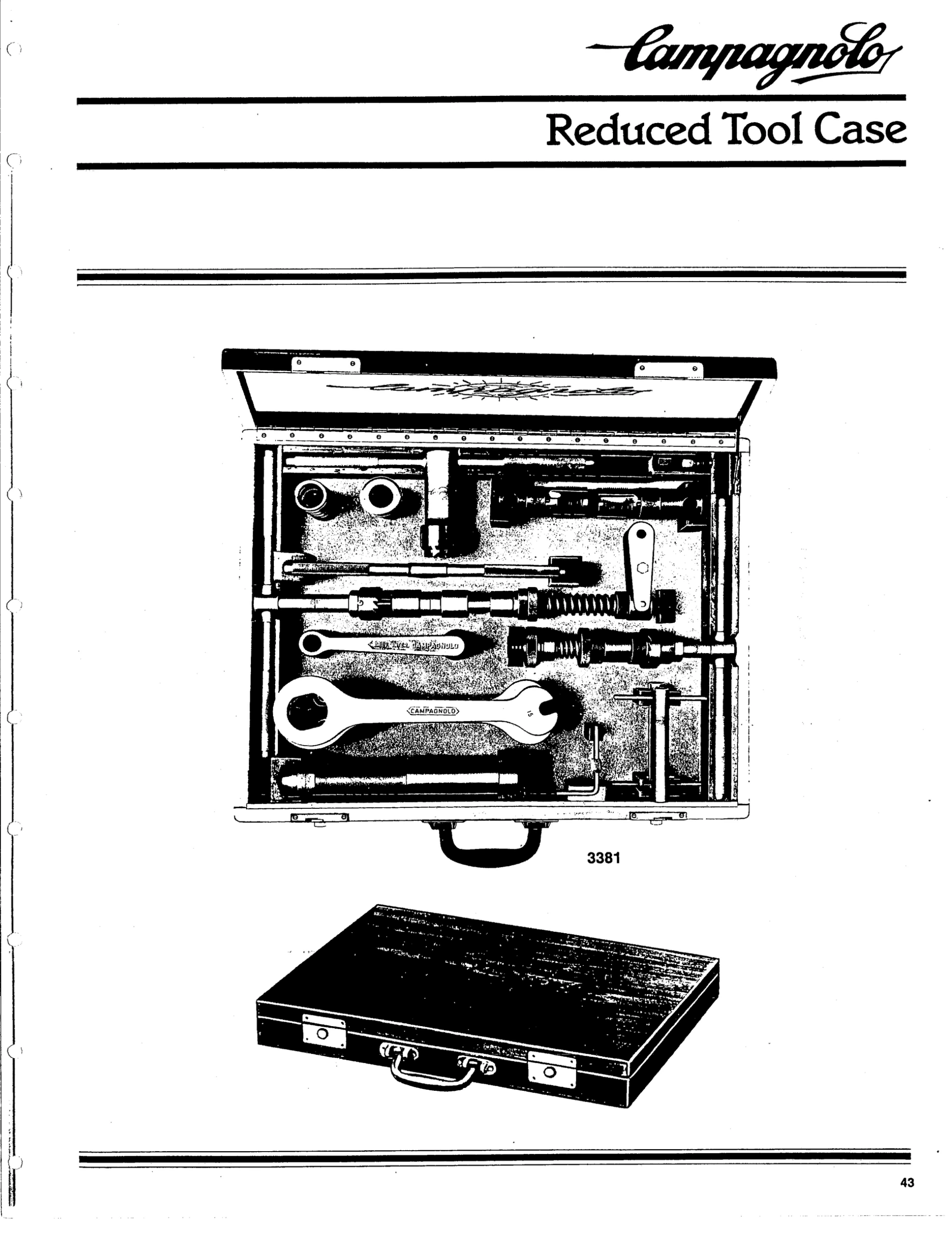

Reduced Tool Case

3381

43

[A photograph of the Campagnolo Reduced Tool Case, 3381, shown open with its smaller set of workshop tools in the tray, above a second view of the case closed. The underside of the lid carries the Campagnolo script logo; the ring binder holes show along the left edge of the page.]

— Page 43 —
Campagnolo

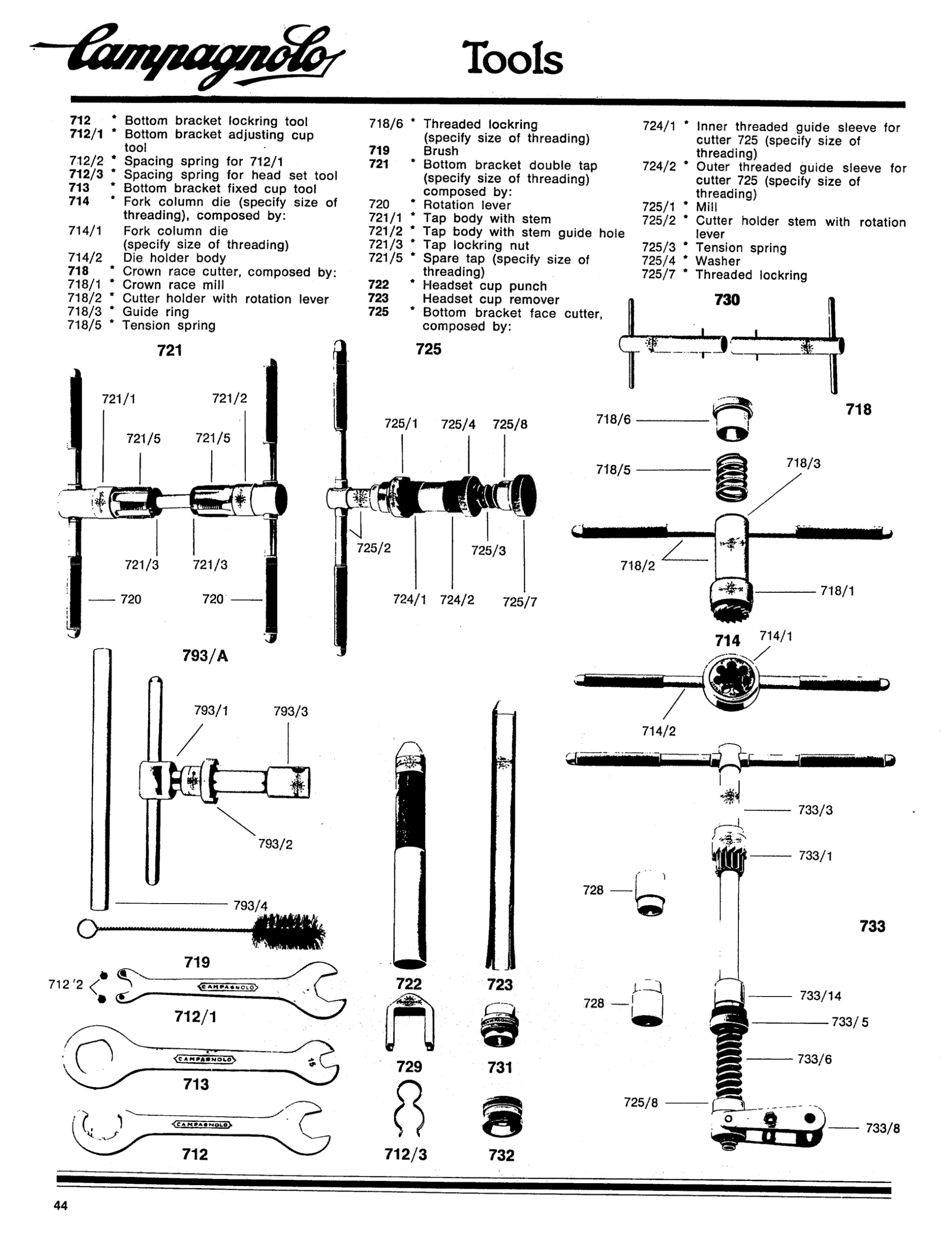

Tools

Callouts: 730 721 725 721/1 721/2 718 718/6 725/1 725/4 725/8 721/5 721/5 718/3 718/5 725/2 725/3 721/3 721/3 718/2 718/1 720 720 724/1 724/2 725/7 714 714/1 793/A 793/1 793/3 714/2 733/3 793/2 733/1 728 793/4 733 719 712/2 722 723 728 733/14 712/1 733/5 733/6 729 731 713 725/8 733/8 712 712/3 732

712 * Bottom bracket lockring tool
712/1 * Bottom bracket adjusting cup tool
712/2 * Spacing spring for 712/1
712/3 * Spacing spring for head set tool
713 * Bottom bracket fixed cup tool
714 * Fork column die (specify size of threading), composed by:
714/1 Fork column die (specify size of threading)
714/2 Die holder body
718 * Crown race cutter, composed by:
718/1 * Crown race mill
718/2 * Cutter holder with rotation lever
718/3 * Guide ring
718/5 * Tension spring
718/6 * Threaded lockring (specify size of threading)
719 Brush
721 * Bottom bracket double tap (specify size of threading) composed by:
720 * Rotation lever
721/1 * Tap body with stem
721/2 * Tap body with stem guide hole
721/3 * Tap lockring nut
721/5 * Spare tap (specify size of threading)
722 * Headset cup punch
723 Headset cup remover
725 * Bottom bracket face cutter, composed by:
724/1 * Inner threaded guide sleeve for cutter 725 (specify size of threading)
724/2 * Outer threaded guide sleeve for cutter 725 (specify size of threading)
725/1 * Mill
725/2 * Cutter holder stem with rotation lever
725/3 * Tension spring
725/4 * Washer
725/7 * Threaded lockring

44

[Drawings of Campagnolo workshop tools, each numbered and keyed to a three-column parts list: the bottom bracket double tap 721, the bottom bracket face cutter 725, the 730 tool, the crown race cutter 718, the fork column die 714, the 793/A tool, the head race mill 733, the punch and remover 722 and 723, the brush 719 and the bottom bracket wrenches 712, 712/1 and 713. Most entries carry an asterisk, which is not explained on this page.]

— Page 44 —
Campagnolo

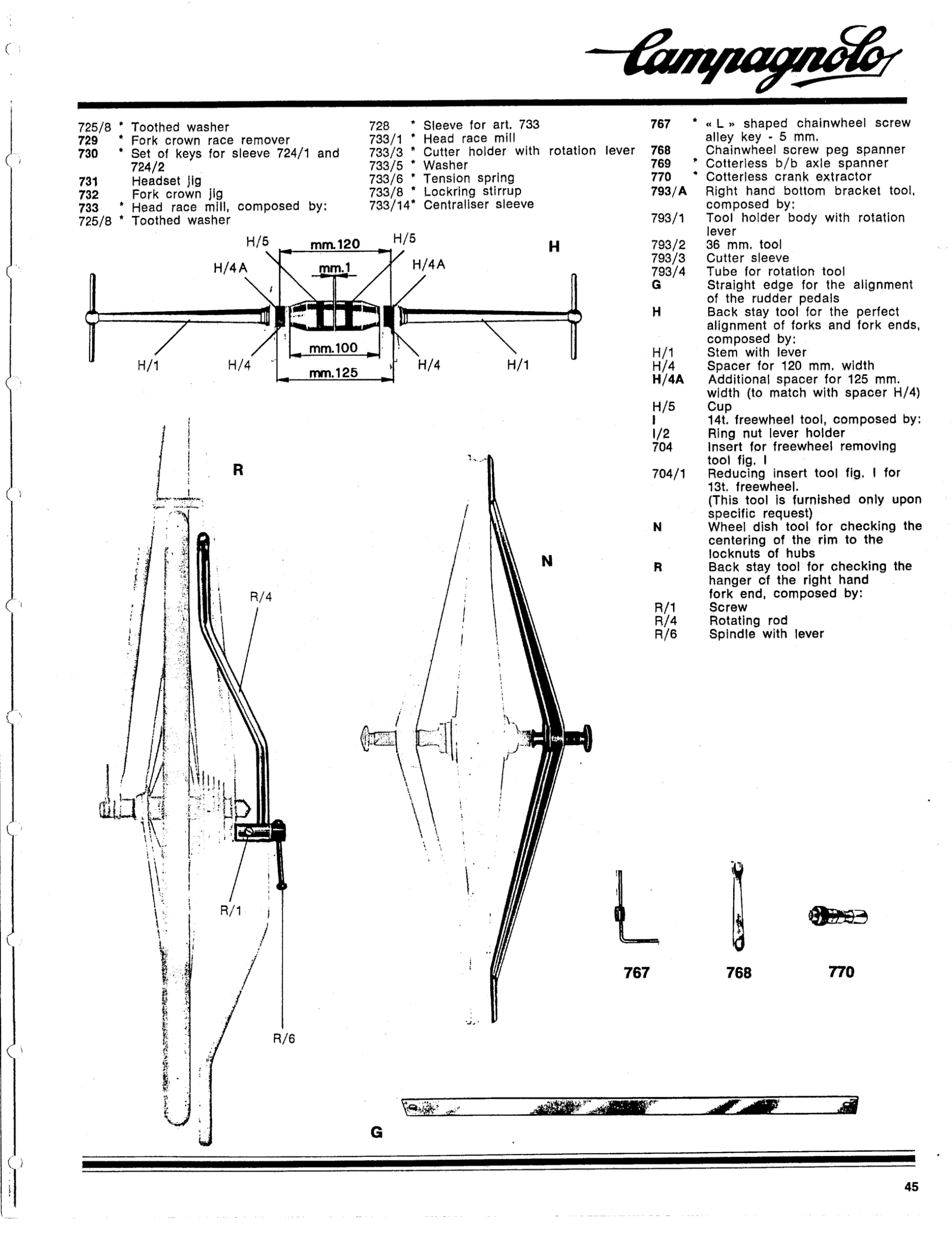

Callouts: H/5 mm.120 H/5 H H/4A mm.1 H/4A mm.100 H/1 H/4 H/4 H/1 mm.125 R N R/4 R/1 767 768 770 R/6 G

725/8 * Toothed washer
729 * Fork crown race remover
730 * Set of keys for sleeve 724/1 and 724/2
731 Headset jig
732 Fork crown jig
733 * Head race mill, composed by:
725/8 * Toothed washer
728 * Sleeve for art. 733
733/1 * Head race mill
733/3 * Cutter holder with rotation lever
733/5 * Washer
733/6 * Tension spring
733/8 * Lockring stirrup
733/14* Centraliser sleeve
767 * « L » shaped chainwheel screw alley key – 5 mm.
768 Chainwheel screw peg spanner
769 * Cotterless b/b axle spanner
770 * Cotterless crank extractor
793/A Right hand bottom bracket tool, composed by:
793/1 Tool holder body with rotation lever
793/2 36 mm. tool
793/3 Cutter sleeve
793/4 Tube for rotation tool
G Straight edge for the alignment of the rudder pedals
H Back stay tool for the perfect alignment of forks and fork ends, composed by:
H/1 Stem with lever
H/4 Spacer for 120 mm. width
H/4A Additional spacer for 125 mm. width (to match with spacer H/4)
H/5 Cup
I 14t. freewheel tool, composed by:
I/2 Ring nut lever holder
704 Insert for freewheel removing tool fig. I
704/1 Reducing insert tool fig. I for 13t. freewheel. (This tool is furnished only upon specific request)
N Wheel dish tool for checking the centering of the rim to the locknuts of hubs
R Back stay tool for checking the hanger cf the right hand fork end, composed by:
R/1 Screw
R/4 Rotating rod
R/6 Spindle with lever

45

[Drawings of Campagnolo frame and wheel tools keyed to a three-column parts list: the back stay tool H with its spacers and dimensions, the back stay tool R fitted to a rear fork end and wheel, the wheel dish tool N set across a wheel, the straight edge G and the small tools 767, 768 and 770. The list continues the tool numbers of the previous page; the 14t. freewheel tool I, 704 and 704/1 are listed but not drawn here.]

— Page 45 —
Campagnolo

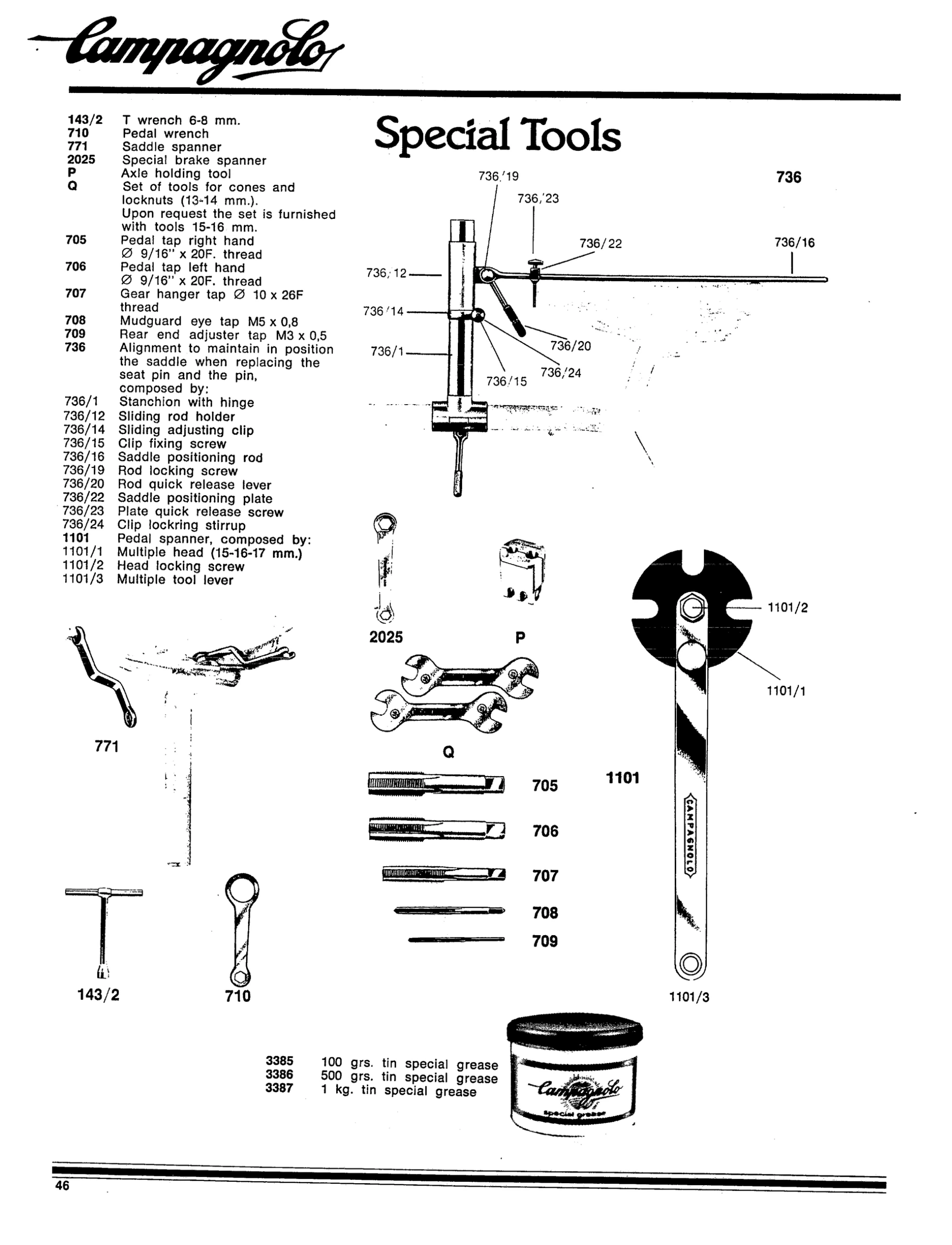

Special Tools

Callouts: 736/19 736 736/23 736/22 736/16 736/12 736/14 736/20 736/1 736/24 736/15 1101/2 2025 P 1101/1 771 Q 1101 705 706 707 708 709 143/2 710 1101/3

143/2 T wrench 6-8 mm.
710 Pedal wrench
771 Saddle spanner
2025 Special brake spanner
P Axle holding tool
Q Set of tools for cones and locknuts (13-14 mm.). Upon request the set is furnished with tools 15-16 mm.
705 Pedal tap right hand Ø 9/16″ x 20F. thread
706 Pedal tap left hand Ø 9/16″ x 20F. thread
707 Gear hanger tap Ø 10 x 26F thread
708 Mudguard eye tap M5 x 0,8
709 Rear end adjuster tap M3 x 0,5
736 Alignment to maintain in position the saddle when replacing the seat pin and the pin, composed by:
736/1 Stanchion with hinge
736/12 Sliding rod holder
736/14 Sliding adjusting clip
736/15 Clip fixing screw
736/16 Saddle positioning rod
736/19 Rod locking screw
736/20 Rod quick release lever
736/22 Saddle positioning plate
736/23 Plate quick release screw
736/24 Clip lockring stirrup
1101 Pedal spanner, composed by:
1101/1 Multiple head (15-16-17 mm.)
1101/2 Head locking screw
1101/3 Multiple tool lever

3385 100 grs. tin special grease
3386 500 grs. tin special grease
3387 1 kg. tin special grease

46

[Drawings of Campagnolo special tools keyed to a parts list: the saddle alignment tool 736 clamped to a seat post, the pedal spanner 1101 with its multiple head, the brake spanner 2025, the axle holding tool P, the cone wrench set Q, the pedal, gear hanger, mudguard eye and rear end adjuster taps 705 to 709, the saddle spanner 771, the T wrench 143/2 and the pedal wrench 710. A photograph of a tin of Campagnolo special grease sits beside the grease part numbers 3385 to 3387.]

— Page 46 —
Campagnolo

Promotional Items

For the purist in you…

The Campagnolo Wings Belt Buckle…available in a brass and pewter 3″ round design.

NEW ITEM!

Set of three different Campagnolo 1984 Olympic Lapel Pins. Pins in gold, red and blue colors showing the “Stars in Motion”, the 1984 Olympic theme, and each pin with a different Campagnolo logo. Set of three individually boxed.

The Campagnolo Spoken Here Sticker…available in 5″ window stickers or 12″ cardboard signs.

The Campagnolo equipped Frame Sticker…printed in black, blue, red and yellow on mylar. Available in packages of 100.

The Campagnolo equipped Gold Sticker…designed with a striped border of the world champion. Available in packages of 100.

The Campagnolo Travel Bag… designed in nylon with reinforced bottom for extra wear. The Deluxe Model is available with shoulder strap and double bottom that zips from the side for easy access. Both styles, light blue with dark blue and white trim.

The Campagnolo Nutcracker… designed to crack not crush all sizes and types of nuts.

Finished in bright silver and packed in a custom-fitted gift-box.

The Campagnolo Corkscrew… designed to remove even the most difficult cork. Available in either 18K gold, silver or bronze light alloy; yellow, orange or brown plastic. Packed in a custom-fitted gift box.

The Oval Stickers…designed for frames, doors, windows, bumpers or tool chests.The Campagnolo Oval is available in 1″, 4″ and 12″ sizes; all, in packages of 100.

LIMITED EDITION

Gold Vermeil Collectors Belt Buckle Set

Actual Size 3″ x 2½”

This special limited edition 24 karat gold vermeil and silver plated buckle set commemorates Tullio Campagnolo’s eightieth birthday. Tullio Campagnolo is probably the single most influential individual in the history of bicycling.

The set consists of three magnificent 24 karat gold vermeil and silver plated buckles, one each as follows:
i. A 2½” circular buckle with the “Campagnolo Wings” logo — the symbol of unexcelled quality in bicycle parts.
2. A 3¾” oval buckle with the “Prodotti Campagnolo Speciali” logo — the world renowned symbol of quality.
3. A 3″ x 2½” rectangular buckle of an exquisite reproduction of a picture of Tullio Campagnolo competing in a cycle race on the Aune Cross pass on November 11, 1927. It was during this race that Tullio Campagnolo conceived the ideas that would change the mechanics of the world of bicycling.

The collector series is elegantly packaged in a royal blue case. The custom designed insert holds each buckle in place.

47

[A page of Campagnolo promotional items with photographs of each: the Campagnolo Wings belt buckle in two finishes, a boxed set of 1984 Olympic lapel pins, the “Campagnolo spoken here” sticker, the Campagnolo equipped frame and gold stickers, the travel bag, the nutcracker, the corkscrew and the oval sticker. Below, the limited edition Gold Vermeil Collectors Belt Buckle Set is shown as an actual size rectangular buckle with a racing cyclist and the date 1927, and as the three buckles in their presentation case.]

— Page 47 —
Campagnolo

Notations

48

[A blank page for notes, headed “Notations” under the Campagnolo script logo and ruled off at the foot.]

— Page 48 (back cover) —
Campagnolo

CAMPAGNOLO–U.S.A., INC.
P.O. BOX 37426
HOUSTON, TEXAS 77036
(713) 661-9132
TX #910-881-6293

[illegible]RINTED IN U.S.A

COPYRIGHT ©[?] 1982

FORM 982[?]

[The back cover of the catalog, blank but for the Campagnolo script logo and the name, post office box, telephone and telex numbers of Campagnolo-U.S.A., Inc. of Houston, Texas, set in the middle of the page. A line of small type along the foot gives the place of printing, a 1982 copyright and a form number; its first letter is lost at the left edge of the scan.]
