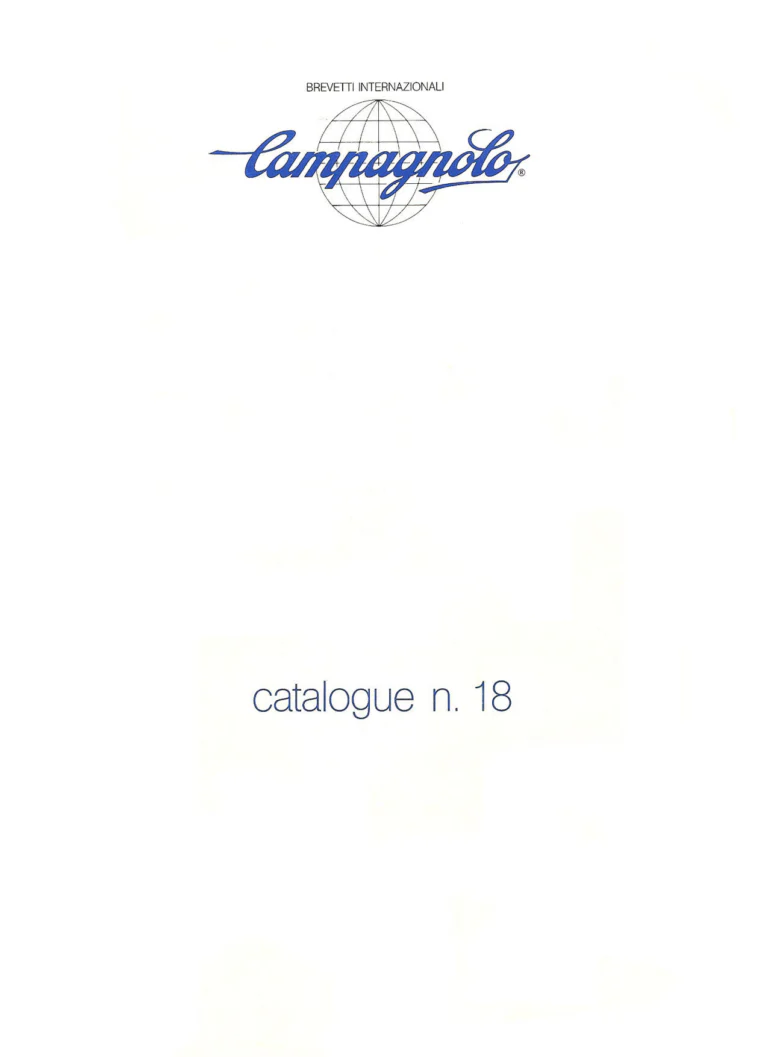

— Page 1 (front cover) —
BREVETTI INTERNAZIONALI
Campagnolo®

catalogue n. 18

[The white front cover of Campagnolo catalogue n. 18, with the blue Campagnolo script logo over a globe at the top and the title in blue type below the center. Faint pale blotches across the white ground appear to be scan or paper tone rather than printing.]

— Page 2 —
Campagnolo®

INDEX

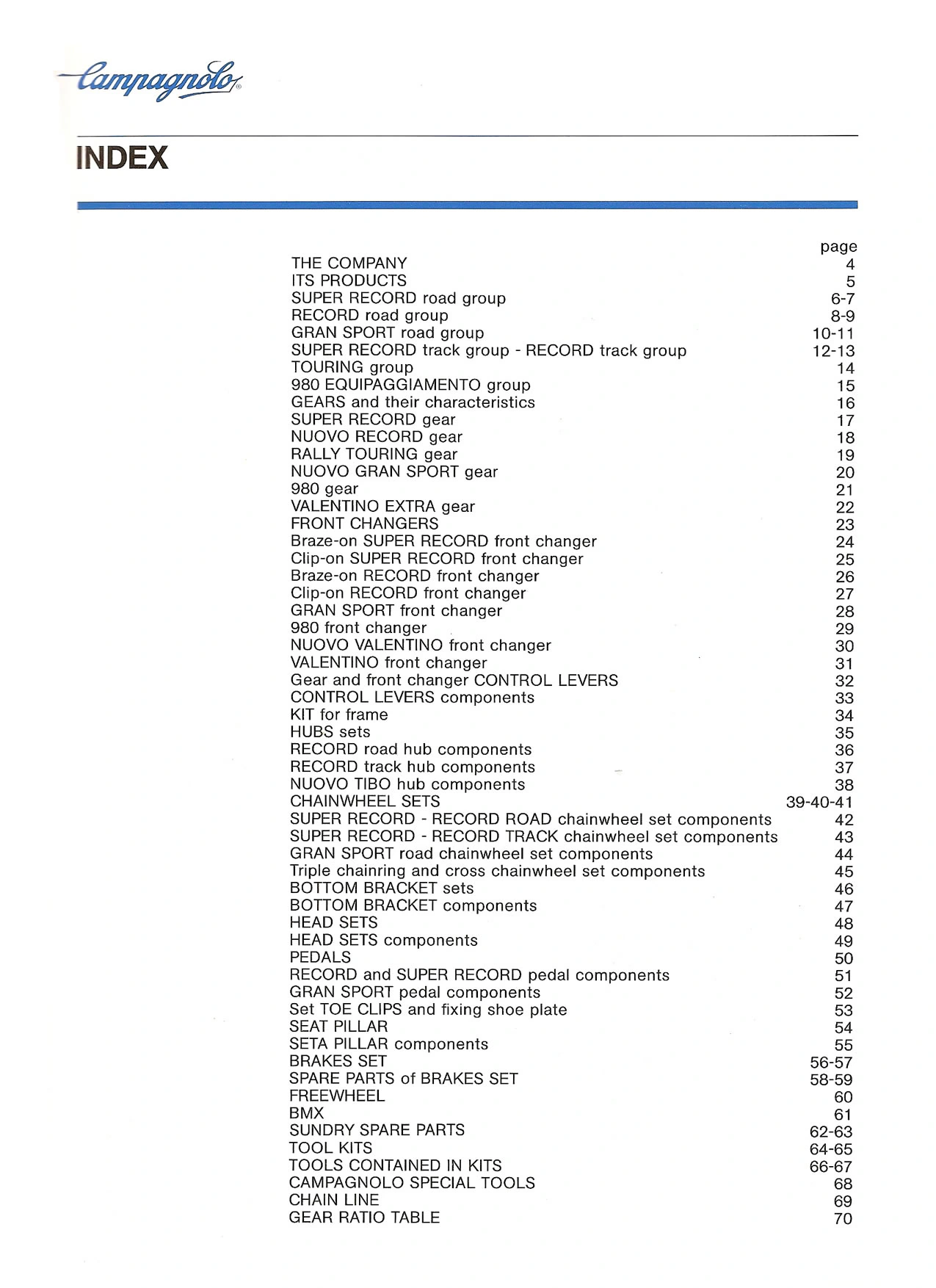

[The index page of Campagnolo catalogue n. 18, listing each section from the company history through the gear ratio table against its page number, under the blue Campagnolo script logo and a blue rule. The page carries no printed folio.]

— Page 3 —
Campagnolo®

THE COMPANY

1927. Tullio Campagnolo, valid cyclist, punctures during a race on the Croce d’Aune pass.
It is winter time: the cold, the snow and the frozen hands do not permit him to release the screws that fix the wheel to the frame.
Tullio Campagnolo loses the race, but that event is the push of a series of happy intuitions that in a few years radically change the bicycle and the cycling sport too.
Those times are now far away: today the most famous components in the world are produced by a leader Company that entrusts its performances to a valid managerial team, to its technicians’ experience, to the qualifications of the employees, to its capacity to change and of updating its range of products.

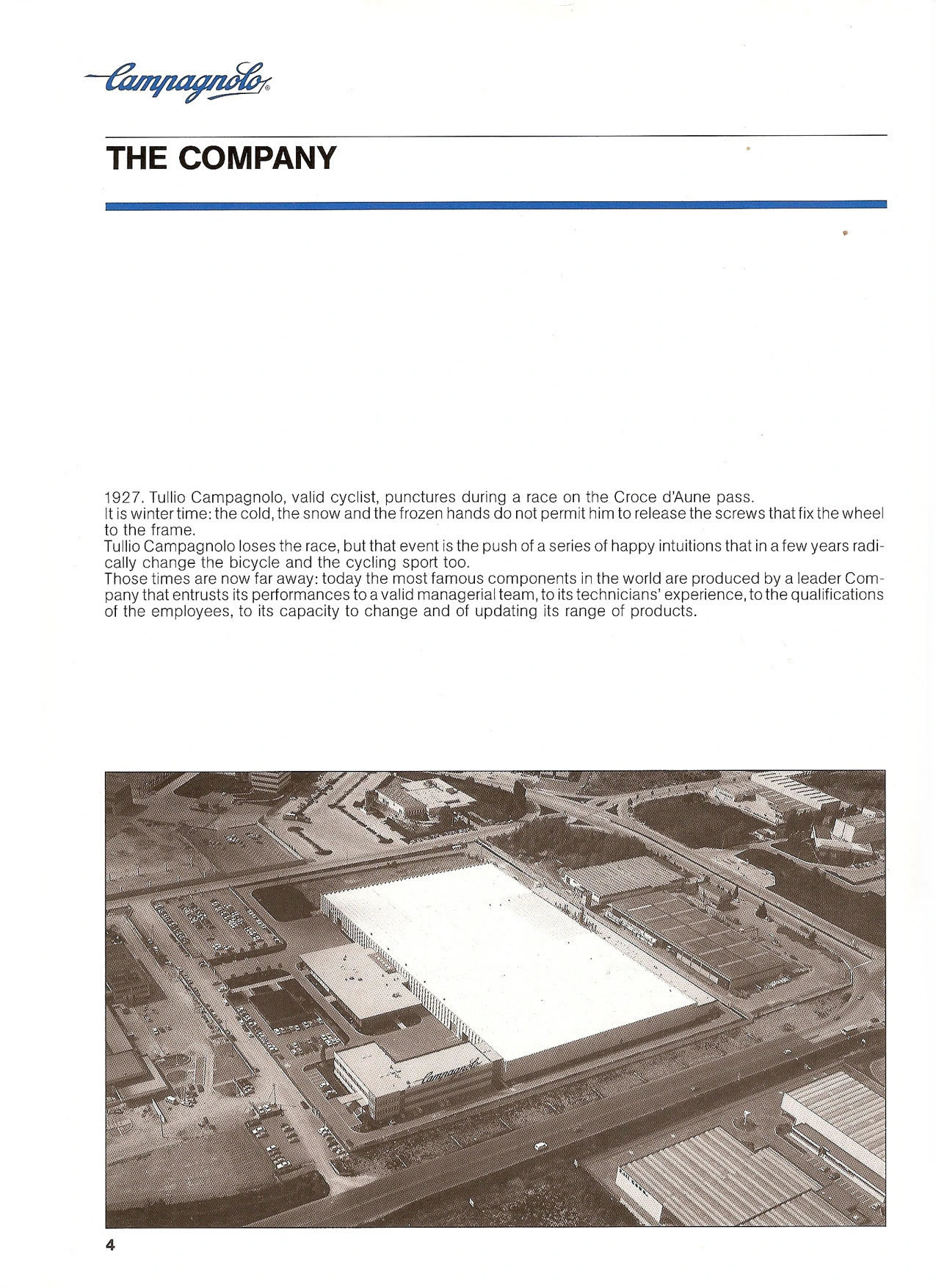

[A page on the Campagnolo company, with a short account of Tullio Campagnolo’s 1927 puncture on the Croce d’Aune pass above a large black and white aerial photograph of a factory complex. The main building in the photograph carries the Campagnolo script name on its front.]

— Page 4 —
Campagnolo®

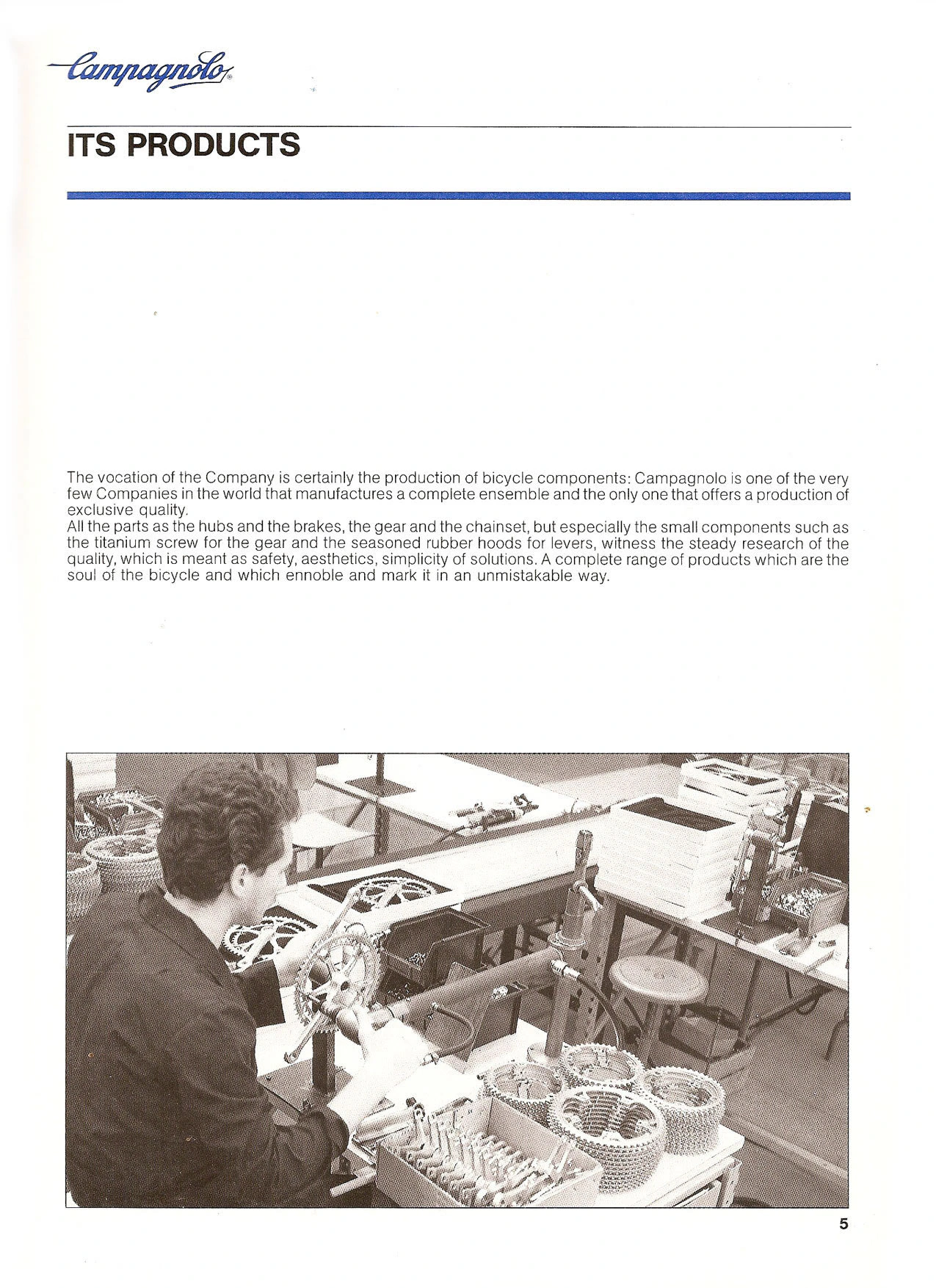

ITS PRODUCTS

The vocation of the Company is certainly the production of bicycle components: Campagnolo is one of the very few Companies in the world that manufactures a complete ensemble and the only one that offers a production of exclusive quality.
All the parts as the hubs and the brakes, the gear and the chainset, but especially the small components such as the titanium screw for the gear and the seasoned rubber hoods for levers, witness the steady research of the quality, which is meant as safety, aesthetics, simplicity of solutions. A complete range of products which are the soul of the bicycle and which ennoble and mark it in an unmistakable way.

[A page on Campagnolo’s products, with a short text above a black and white photograph of a worker at an assembly bench fitting a chainring to a crank arm, with boxes of chainrings and crank parts around him.]

— Page 5 —
Campagnolo®

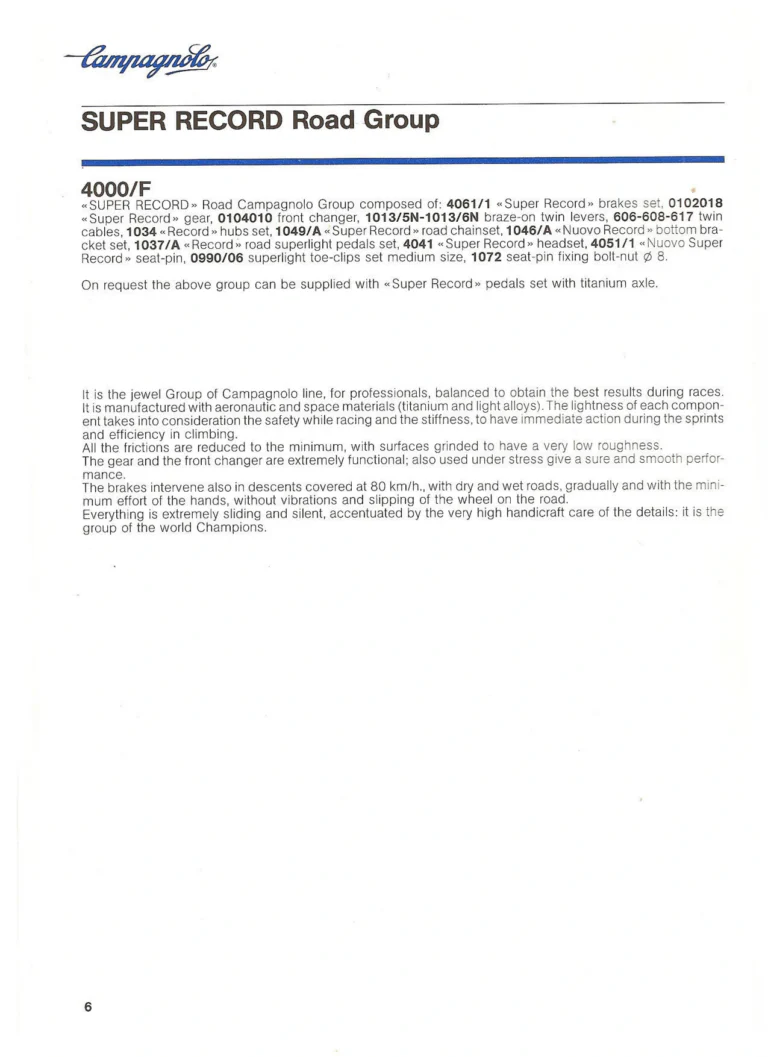

SUPER RECORD Road Group

4000/F
«SUPER RECORD» Road Campagnolo Group composed of: 4061/1 «Super Record» brakes set, 0102018 «Super Record» gear, 0104010 front changer, 1013/5N-1013/6N braze-on twin levers, 606-608-617 twin cables, 1034 «Record» hubs set, 1049/A «Super Record» road chainset, 1046/A «Nuovo Record» bottom bracket set, 1037/A «Record» road superlight pedals set, 4041 «Super Record» headset, 4051/1 «Nuovo Super Record» seat-pin, 0990/06 superlight toe-clips set medium size, 1072 seat-pin fixing bolt-nut ø 8.

On request the above group can be supplied with «Super Record» pedals set with titanium axle.

It is the jewel Group of Campagnolo line, for professionals, balanced to obtain the best results during races.
It is manufactured with aeronautic and space materials (titanium and light alloys). The lightness of each component takes into consideration the safety while racing and the stiffness, to have immediate action during the sprints and efficiency in climbing.
All the frictions are reduced to the minimum, with surfaces grinded to have a very low roughness.
The gear and the front changer are extremely functional; also used under stress give a sure and smooth performance.
The brakes intervene also in descents covered at 80 km/h., with dry and wet roads, gradually and with the minimum effort of the hands, without vibrations and slipping of the wheel on the road.
Everything is extremely sliding and silent, accentuated by the very high handicraft care of the details: it is the group of the world Champions.

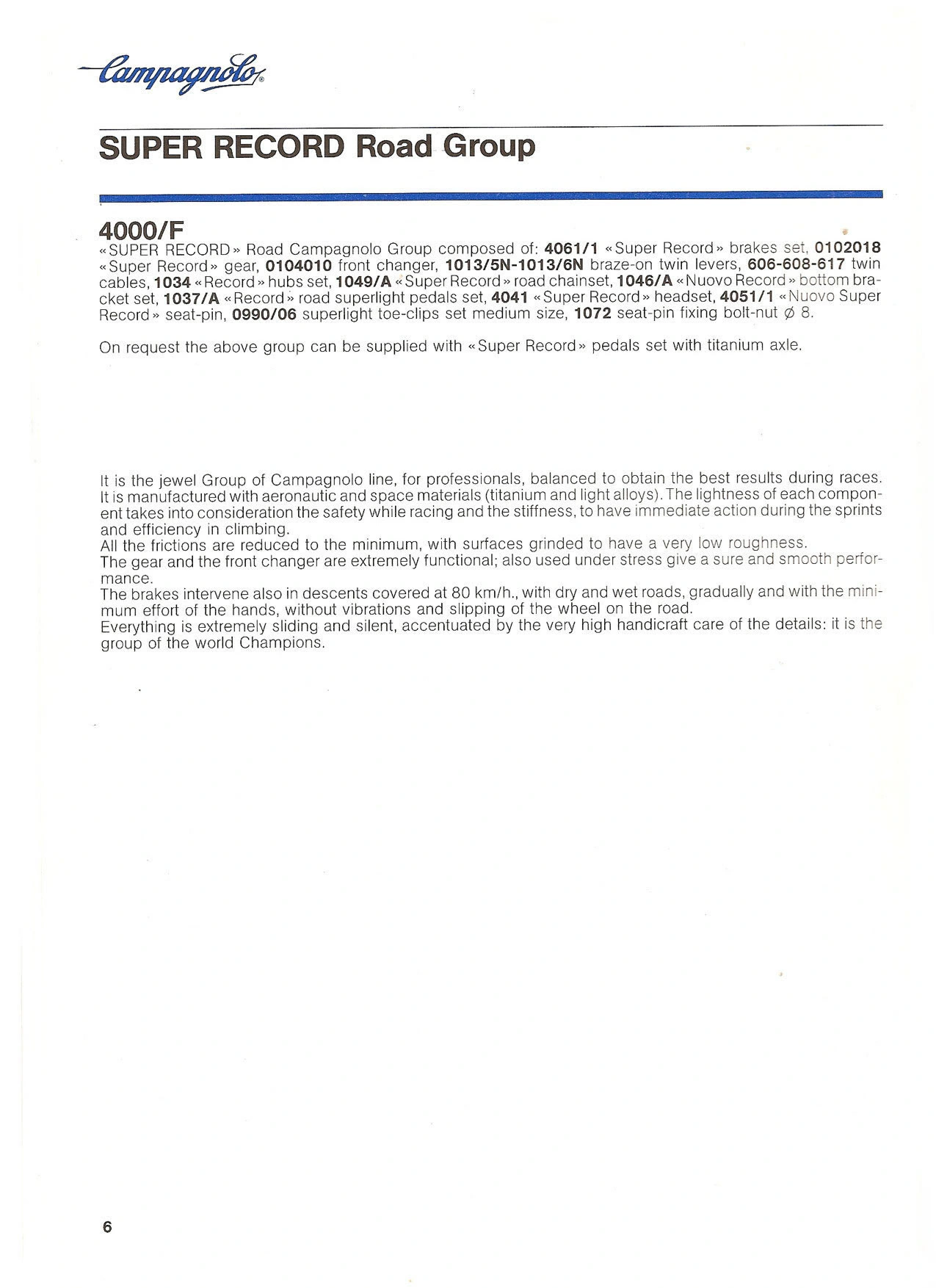

[A text page for the Campagnolo Super Record road group, 4000/F, listing the part numbers that make up the group above a description of its qualities. The lower half of the page is blank.]

— Page 6 —
Campagnolo®

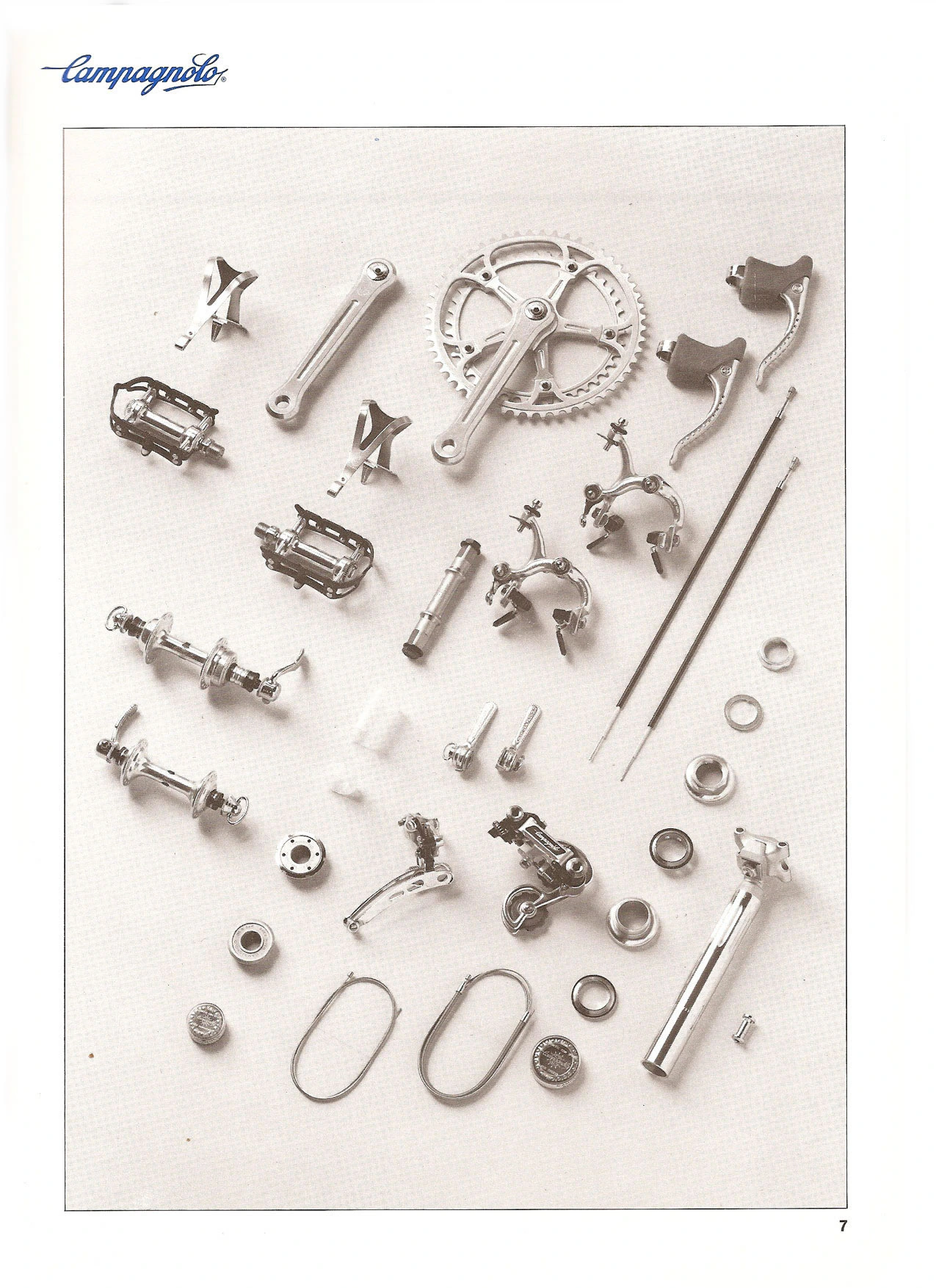

[A black and white photograph of the parts of the Campagnolo Super Record road group laid out on a white ground: chainset, pedals and toe clips, hubs, brakes and levers, rear and front derailleurs, shift levers, headset, bottom bracket, seat pillar and cables. The photograph carries no caption.]

— Page 7 —
Campagnolo®

RECORD Road Group

1032/F
«RECORD» Road Campagnolo Group composed of: 2040/1 «Record» brakes set, 1020/A «Nuovo Record» gear, 0104007 front changer, 1013/5N-1013/6N braze-on twin levers, 606-608-617 twin cables, 1034 «Record» hubs set, 1049 «Record» road chainset, 1046/A «Nuovo Record» bottom bracket set, 1037 «Record» road pedals set, 1039 «Record» headset, 1044 «Record» seat-pin, 0110056 fixing shoe plates set, 1072 seat-pin fixing bolt-nut ø 8.

This group has all the ideal characteristics to obtain the victory during the races, but it has been planned to keep the efficiency of the bicycle with a less specialized assistance. It is destined to professional riders and to the amateurs of the sporting cycling.
The production of all the components is always balanced to give the best performances to the riders, exploiting at the most their agonistic and sporting capacities.
The safety is at the maximum level even if the bicycle is not always overhauled before the race.
It is a group that lasts long, either aesthetically or functionally; the care of the details continues during the manufacturing process and the standards of test at different stages are very severe: according to Campagnolo level.

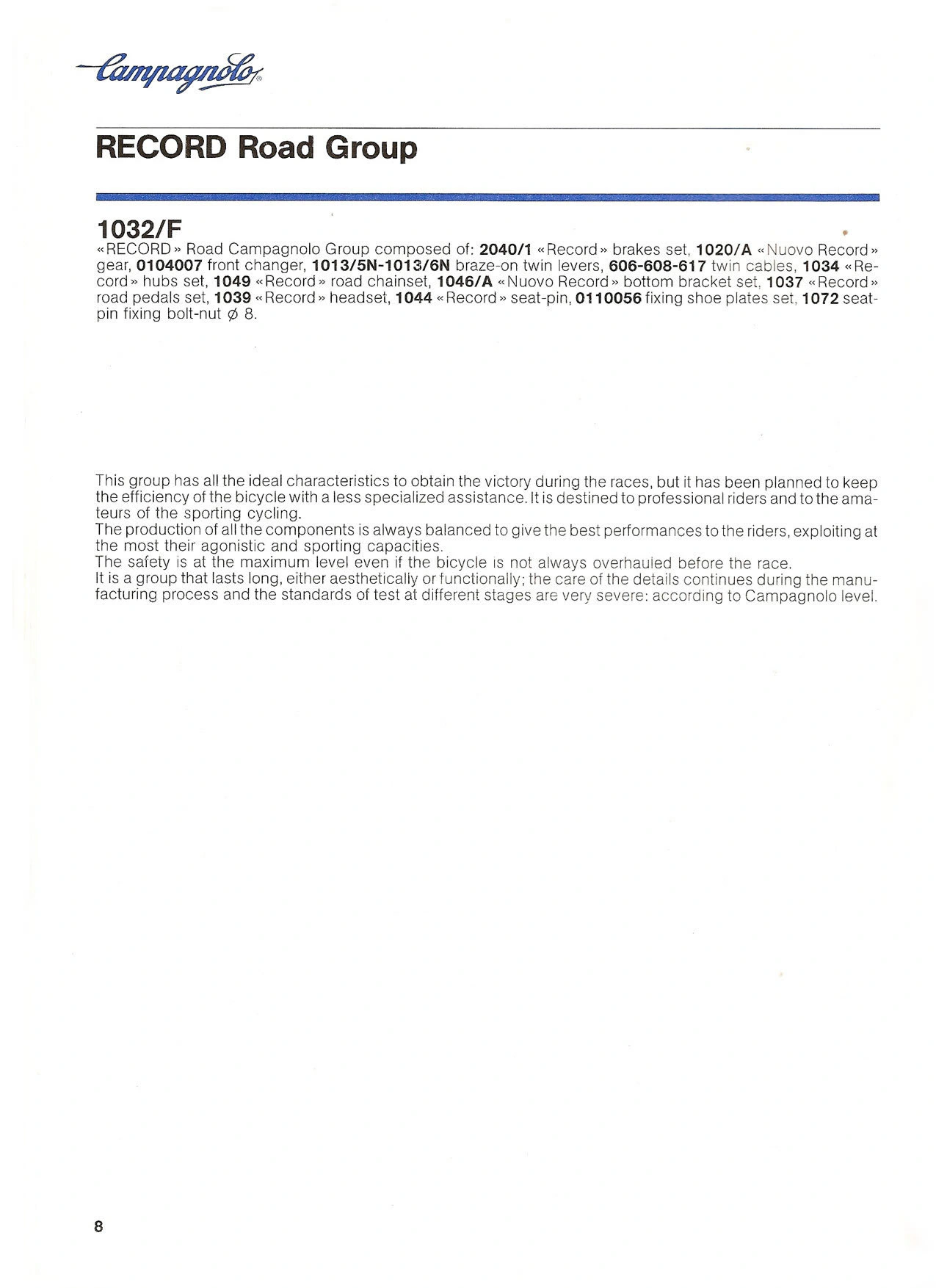

[A text page for the Campagnolo Record road group, 1032/F, listing the part numbers that make up the group above a description of its qualities. The lower half of the page is blank.]

— Page 8 —
Campagnolo®

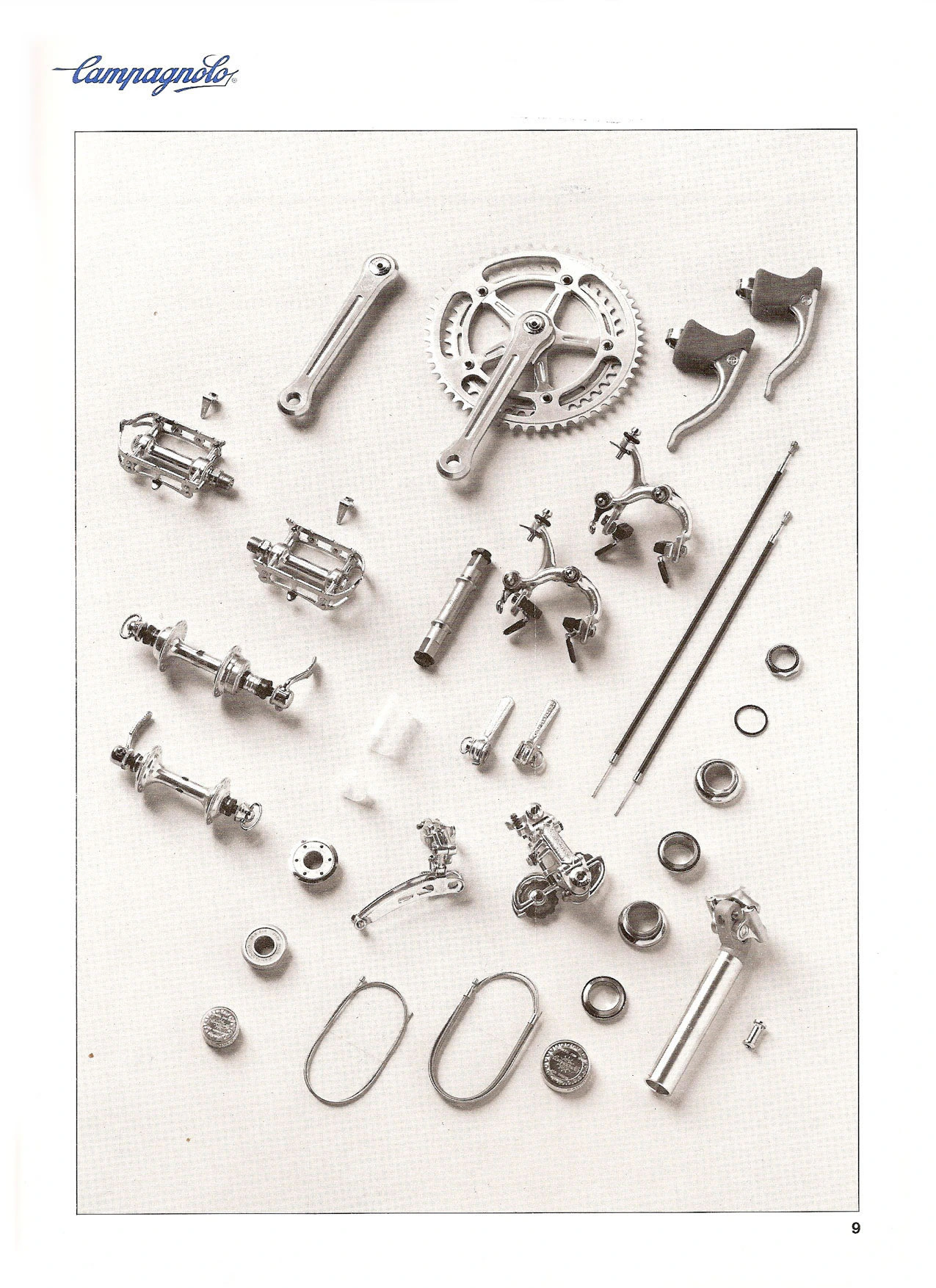

[A black and white photograph of the parts of the Campagnolo Record road group laid out on a white ground: chainset, pedals with shoe plates, hubs, brakes and levers, rear and front derailleurs, shift levers, headset, bottom bracket, seat pillar and cables. The photograph carries no caption.]

— Page 9 —
Campagnolo®

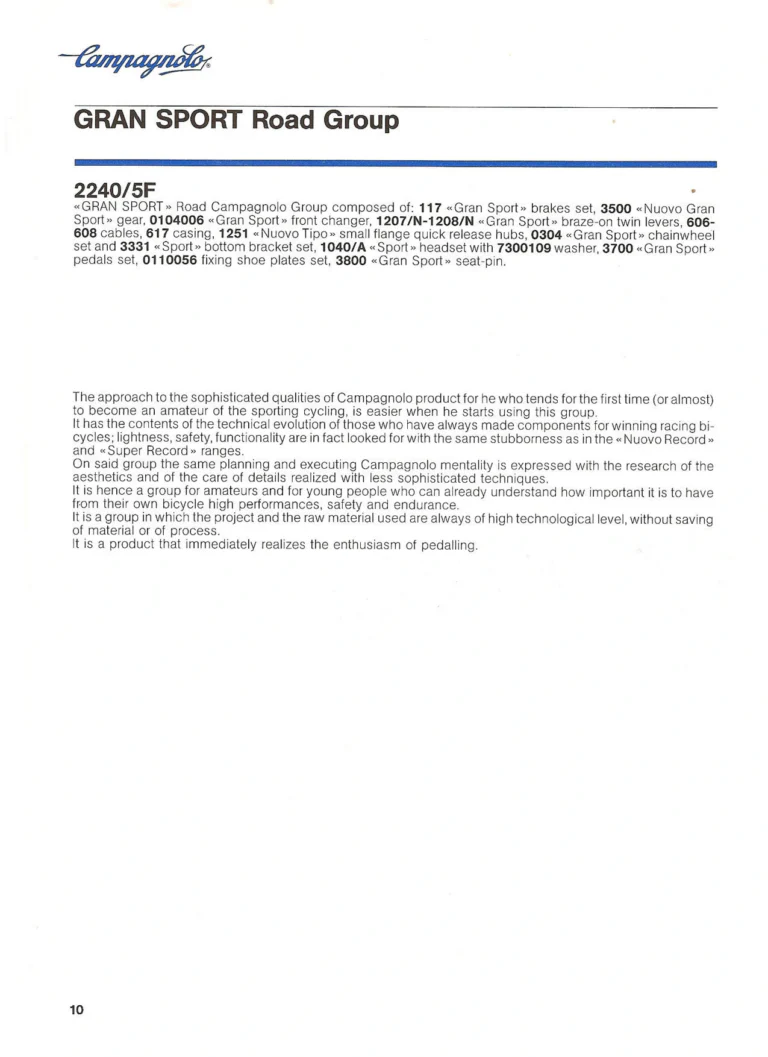

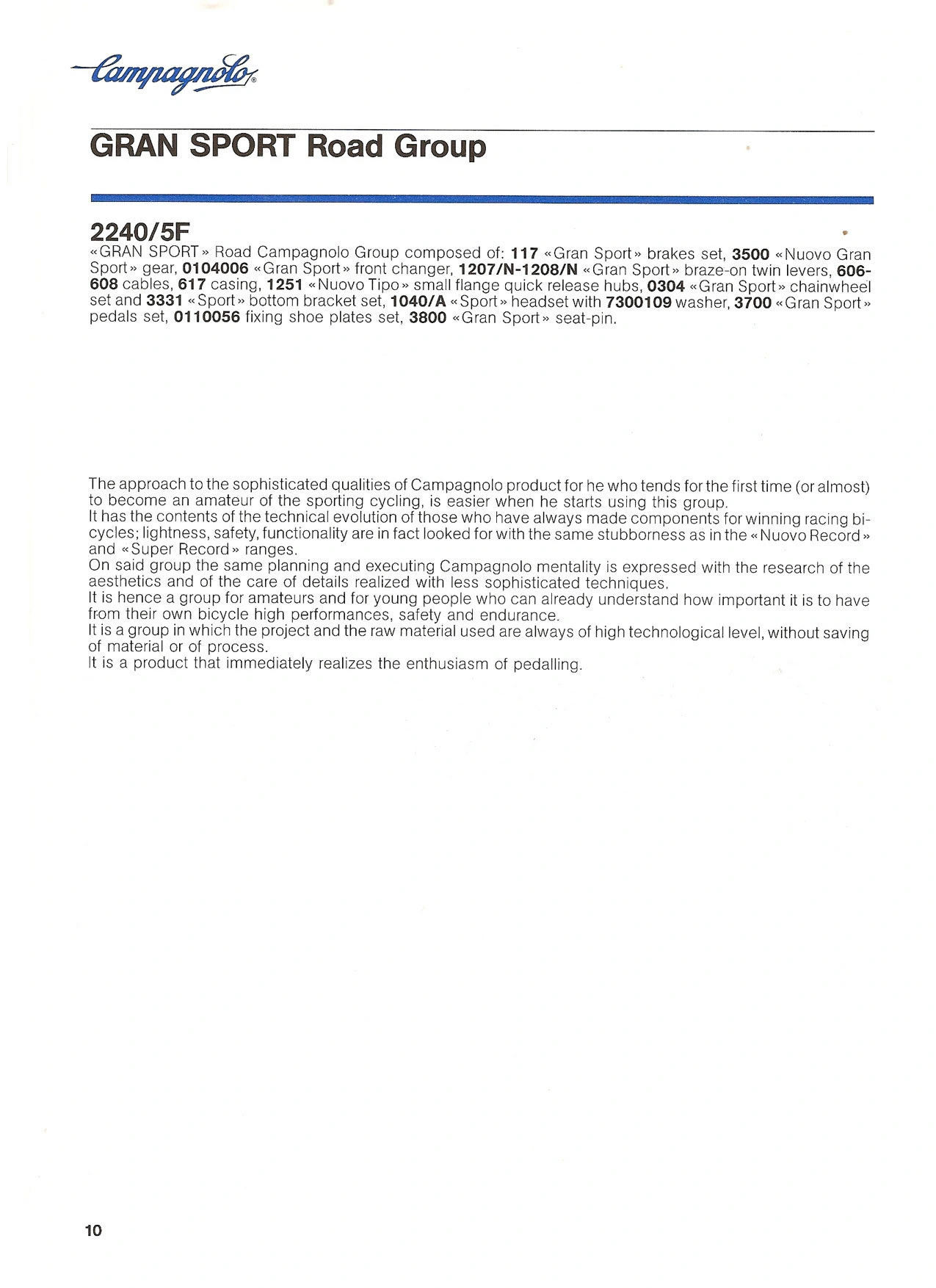

GRAN SPORT Road Group

2240/5F
«GRAN SPORT» Road Campagnolo Group composed of: 117 «Gran Sport» brakes set, 3500 «Nuovo Gran Sport» gear, 0104006 «Gran Sport» front changer, 1207/N-1208/N «Gran Sport» braze-on twin levers, 606-608 cables, 617 casing, 1251 «Nuovo Tipo» small flange quick release hubs, 0304 «Gran Sport» chainwheel set and 3331 «Sport» bottom bracket set, 1040/A «Sport» headset with 7300109 washer, 3700 «Gran Sport» pedals set, 0110056 fixing shoe plates set, 3800 «Gran Sport» seat-pin.

The approach to the sophisticated qualities of Campagnolo product for he who tends for the first time (or almost) to become an amateur of the sporting cycling, is easier when he starts using this group.
It has the contents of the technical evolution of those who have always made components for winning racing bicycles; lightness, safety, functionality are in fact looked for with the same stubborness as in the «Nuovo Record» and «Super Record» ranges.
On said group the same planning and executing Campagnolo mentality is expressed with the research of the aesthetics and of the care of details realized with less sophisticated techniques.
It is hence a group for amateurs and for young people who can already understand how important it is to have from their own bicycle high performances, safety and endurance.
It is a group in which the project and the raw material used are always of high technological level, without saving of material or of process.
It is a product that immediately realizes the enthusiasm of pedalling.

[A text page for the Campagnolo Gran Sport road group, 2240/5F, listing the part numbers that make up the group above a description of its qualities. The lower part of the page is blank.]

— Page 10 —
Campagnolo®

*No more available and replaced by the “Victory” range.

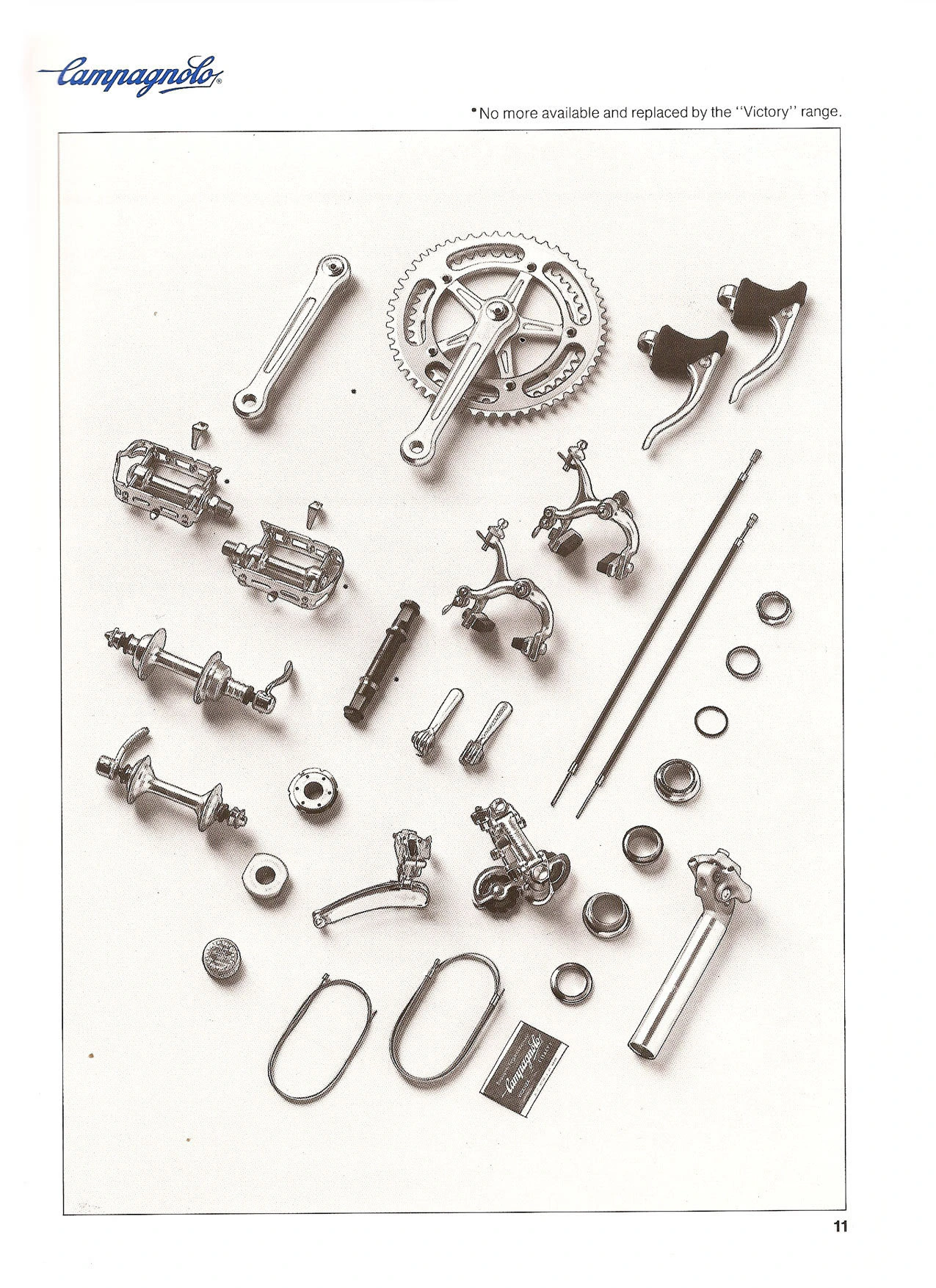

[A black and white photograph of the parts of the Campagnolo Gran Sport road group laid out on a white ground: chainset, pedals with shoe plates, hubs, brakes and levers, rear and front derailleurs, shift levers, headset, bottom bracket, seat pillar, cables and a Campagnolo decal sheet. A printed note above the photograph, marked with an asterisk, says “No more available” and names the Victory range as the replacement.]

— Page 11 —
Campagnolo®

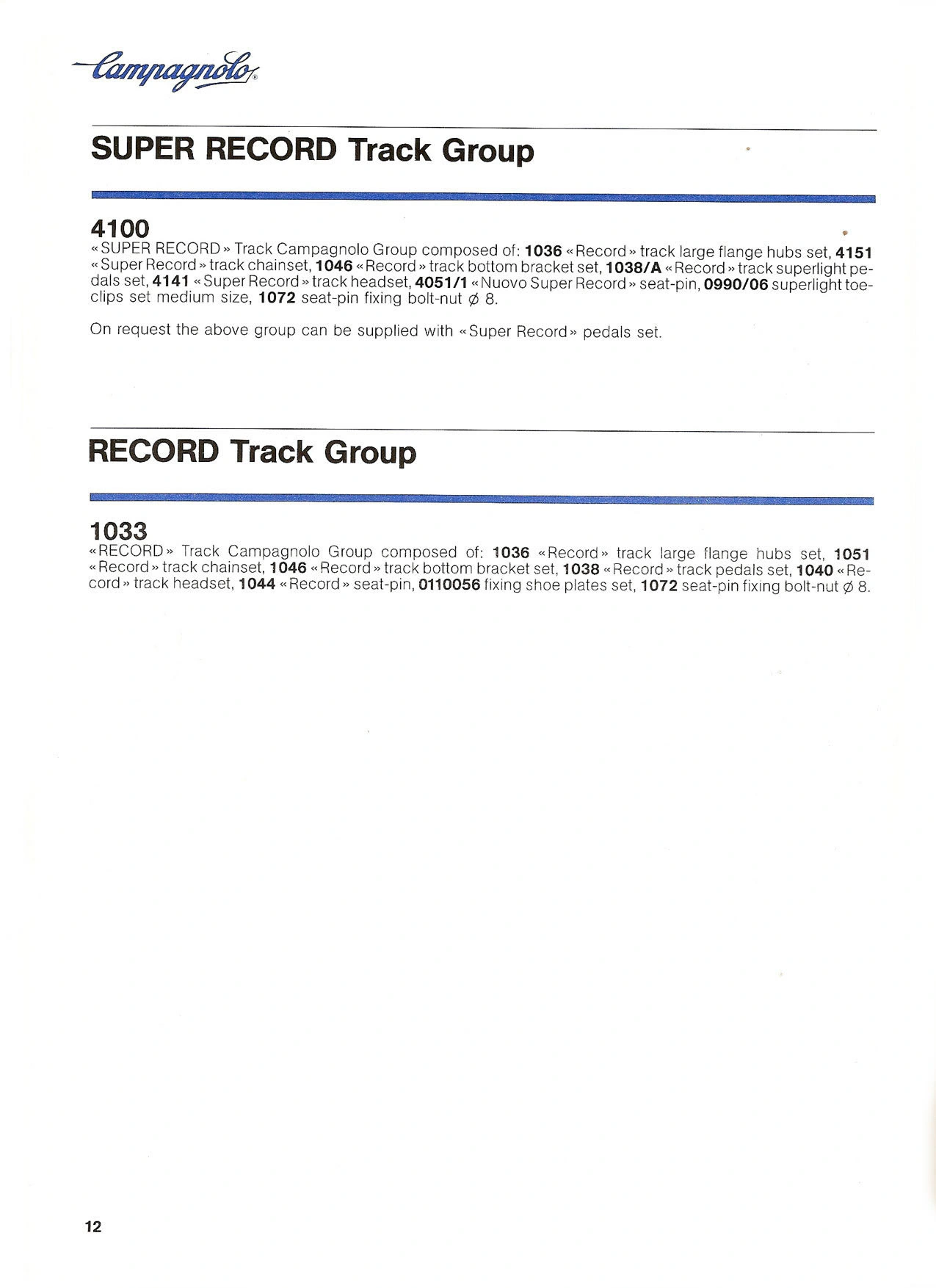

SUPER RECORD Track Group

4100
«SUPER RECORD» Track Campagnolo Group composed of: 1036 «Record» track large flange hubs set, 4151 «Super Record» track chainset, 1046 «Record» track bottom bracket set, 1038/A «Record» track superlight pedals set, 4141 «Super Record» track headset, 4051/1 «Nuovo Super Record» seat-pin, 0990/06 superlight toe-clips set medium size, 1072 seat-pin fixing bolt-nut Ø 8.

On request the above group can be supplied with «Super Record» pedals set.

RECORD Track Group

1033
«RECORD» Track Campagnolo Group composed of: 1036 «Record» track large flange hubs set, 1051 «Record» track chainset, 1046 «Record» track bottom bracket set, 1038 «Record» track pedals set, 1040 «Record» track headset, 1044 «Record» seat-pin, 0110056 fixing shoe plates set, 1072 seat-pin fixing bolt-nut Ø 8.

[A text page listing the contents of the Campagnolo Super Record Track Group, 4100, and the Record Track Group, 1033, under the blue Campagnolo script logo. The lower half of the page is blank.]

— Page 12 —
Campagnolo®

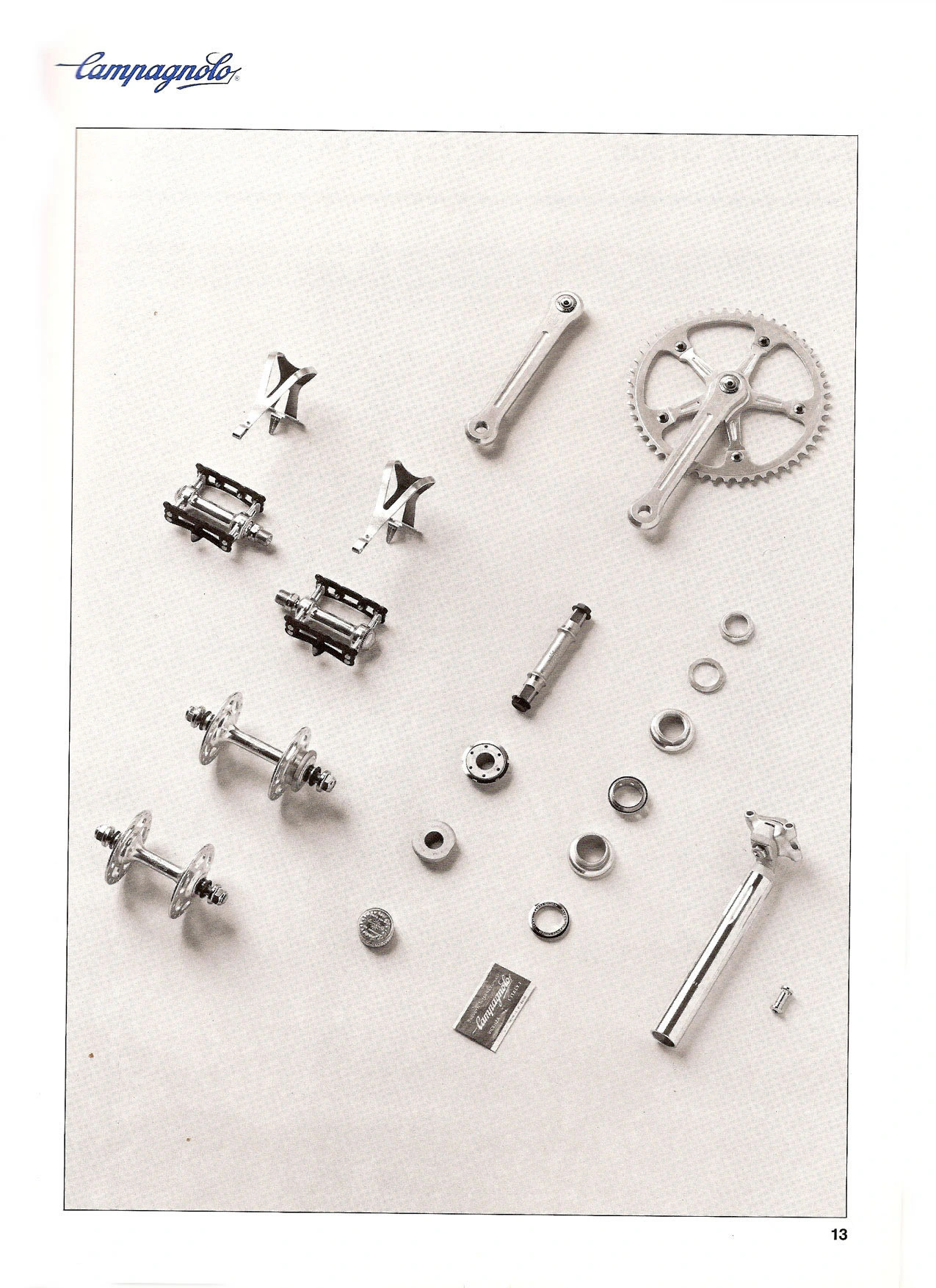

[An uncaptioned black and white photograph of a Campagnolo track group laid out on a white ground: a pair of toe clips, a pair of pedals, front and rear large flange hubs, a single-chainring track chainset with its left crank, a bottom bracket axle and cups, the headset parts, a seat-pin with its fixing bolt-nut and a Campagnolo decal. The page carries no caption naming the group; it faces the listing of the Super Record and Record track groups.]

— Page 13 —
Campagnolo®

TOURING Group

279
«TOURING» group composed of: 5011/06 Rally Touring» gear, 0104012 front changer, 1013/5N-1013/6N braze-on twin levers, 606-608 cables, 617 casing, 1251 «Nuovo Tipo» small flange quick release hubs set, 0306/C 116 mm. chainwheel set complete with 5031/00 «Gran Sport» bottom bracket set for triple chainring, 1040/A «Sport» headset with 7300109 «Sport» headset washer.

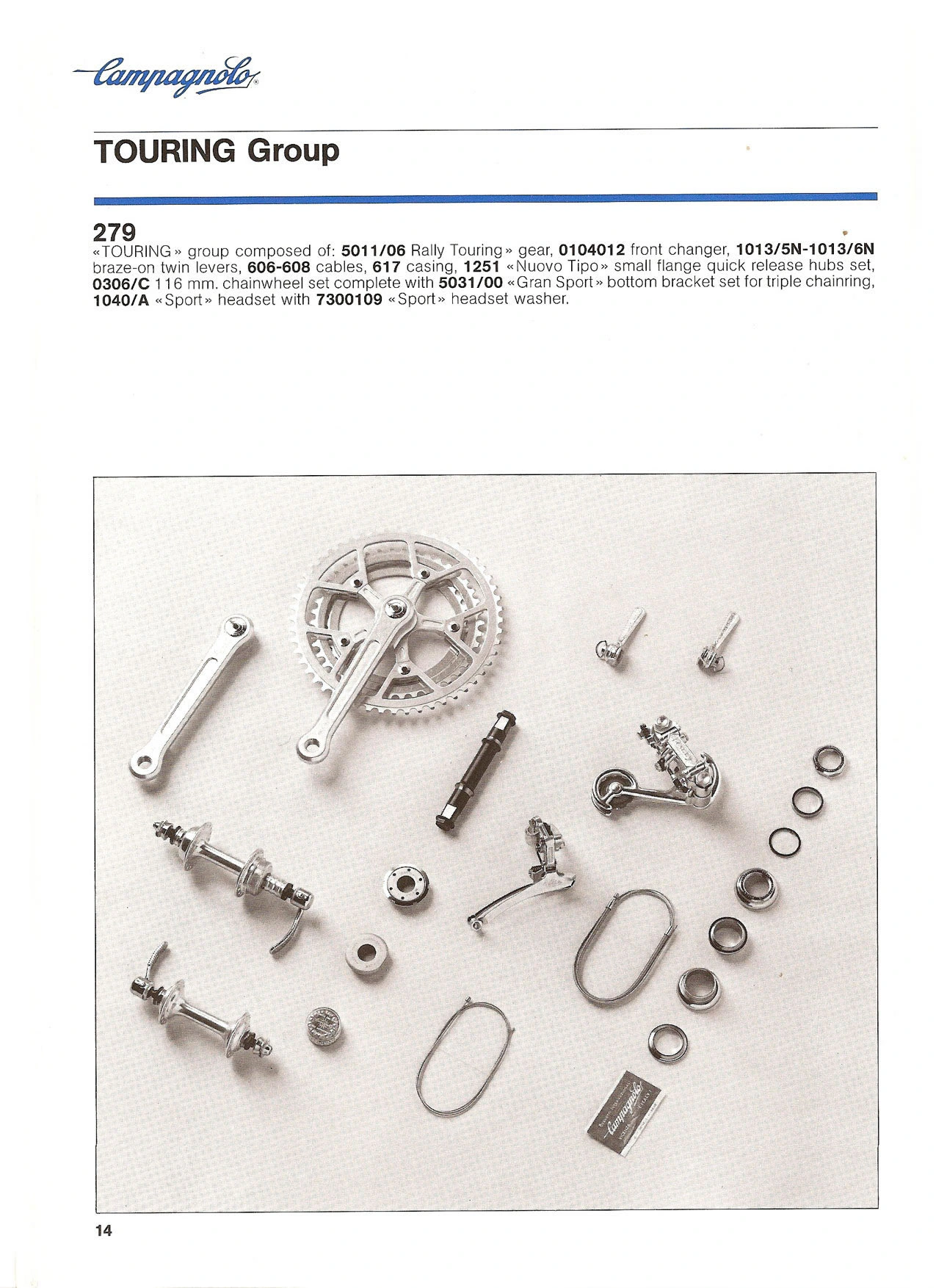

[The Campagnolo Touring Group, 279, with its contents listed above a black and white photograph of the parts: a triple chainwheel set and left crank, bottom bracket parts, small flange quick release hubs, the Rally rear derailleur, a front changer, a pair of braze-on levers, cables and casing, headset parts and a Campagnolo decal.]

— Page 14 —
Campagnolo®

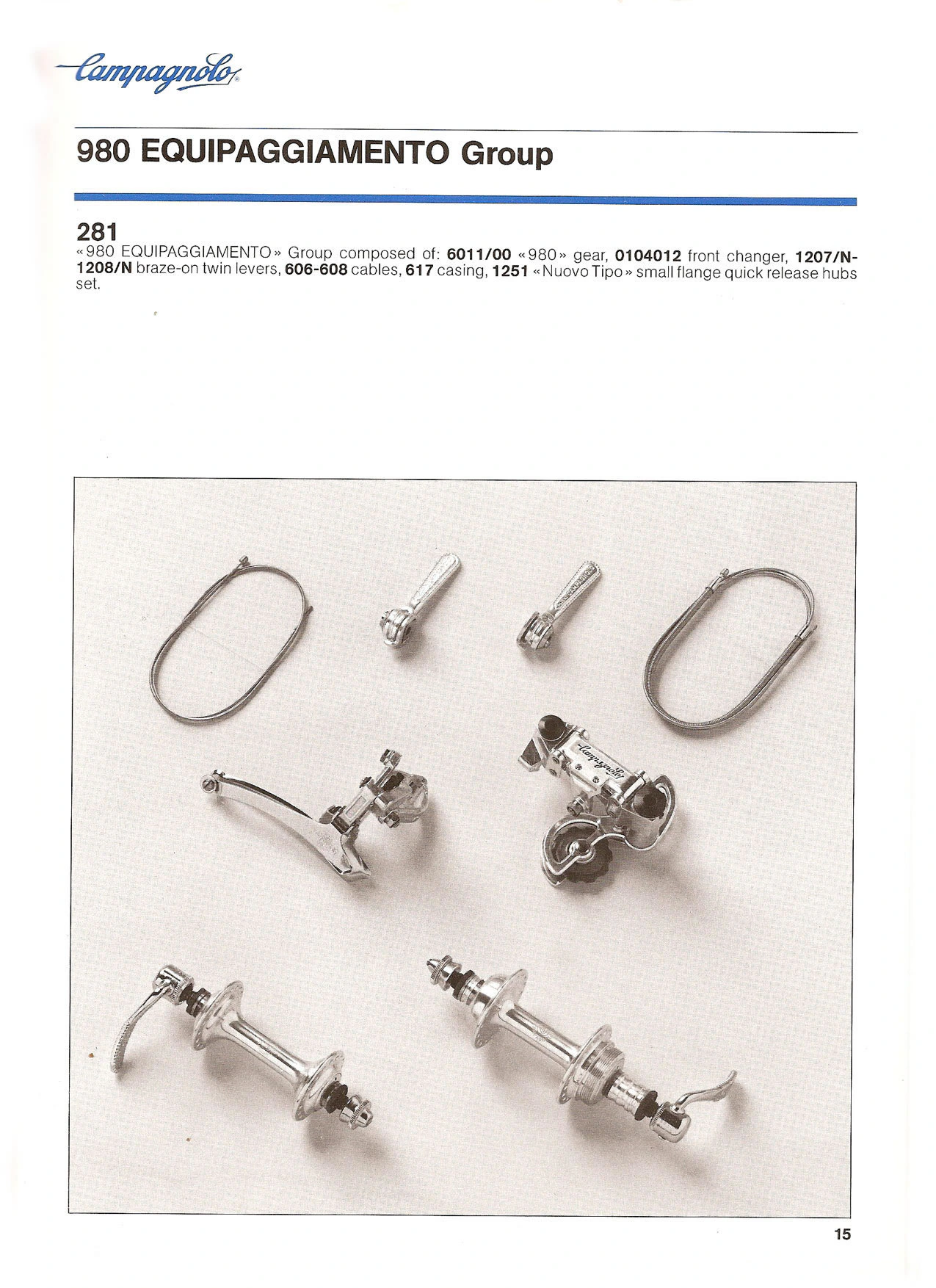

980 EQUIPAGGIAMENTO Group

281
«980 EQUIPAGGIAMENTO» Group composed of: 6011/00 «980» gear, 0104012 front changer, 1207/N-1208/N braze-on twin levers, 606-608 cables, 617 casing, 1251 «Nuovo Tipo» small flange quick release hubs set.

[The Campagnolo 980 Equipaggiamento Group, 281, with its contents listed above a black and white photograph of the parts: the 980 rear derailleur, a front changer, a pair of braze-on levers, two cables with casing and a pair of small flange quick release hubs.]

— Page 15 —
Campagnolo®

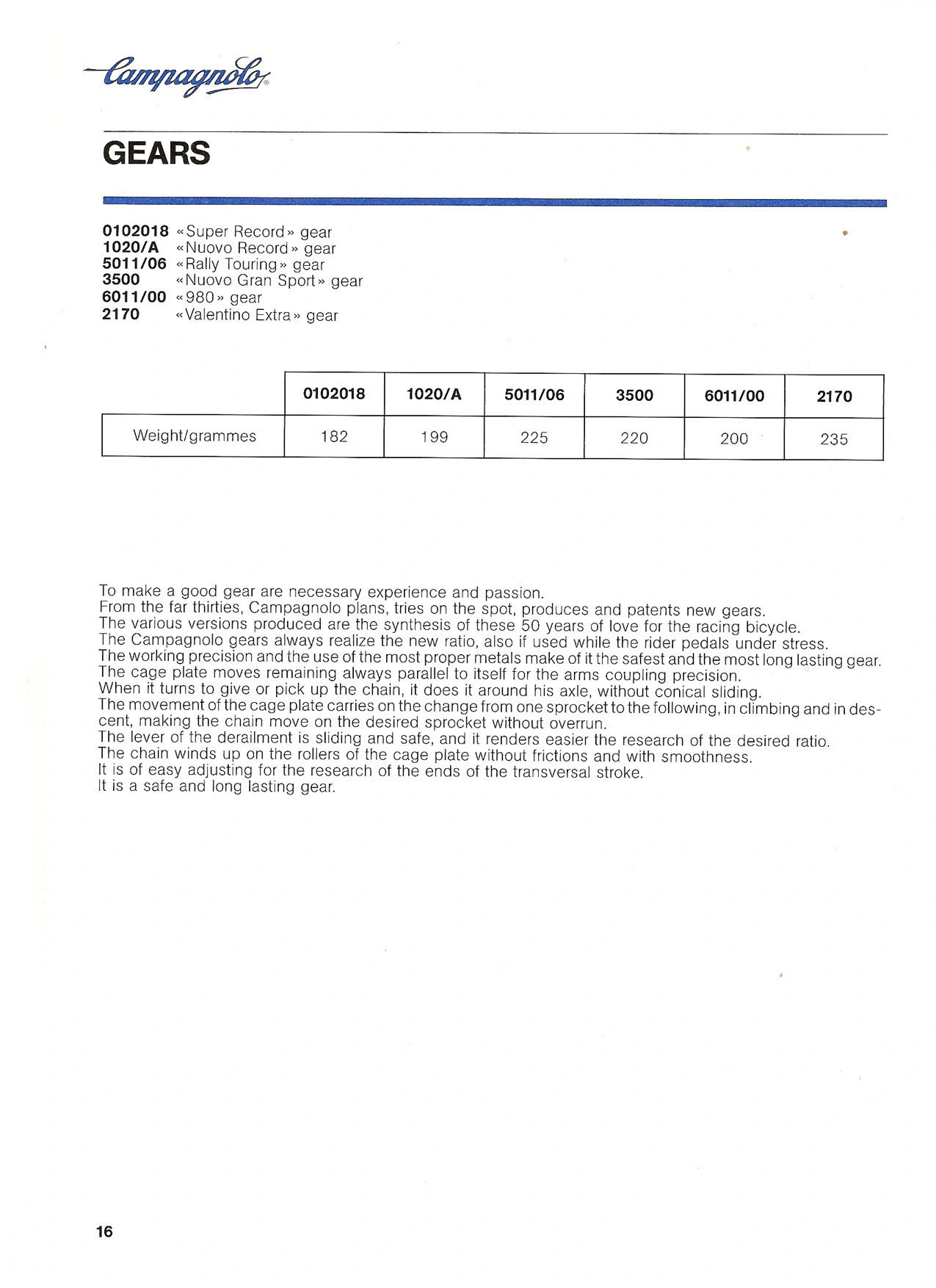

GEARS

0102018 «Super Record» gear
1020/A «Nuovo Record» gear
5011/06 «Rally Touring» gear
3500 «Nuovo Gran Sport» gear
6011/00 «980» gear
2170 «Valentino Extra» gear

| 0102018 | 1020/A | 5011/06 | 3500 | 6011/00 | 2170
Weight/grammes | 182 | 199 | 225 | 220 | 200 | 235

To make a good gear are necessary experience and passion.
From the far thirties, Campagnolo plans, tries on the spot, produces and patents new gears.
The various versions produced are the synthesis of these 50 years of love for the racing bicycle.
The Campagnolo gears always realize the new ratio, also if used while the rider pedals under stress.
The working precision and the use of the most proper metals make of it the safest and the most long lasting gear.
The cage plate moves remaining always parallel to itself for the arms coupling precision.
When it turns to give or pick up the chain, it does it around his axle, without conical sliding.
The movement of the cage plate carries on the change from one sprocket to the following, in climbing and in descent, making the chain move on the desired sprocket without overrun.
The lever of the derailment is sliding and safe, and it renders easier the research of the desired ratio.
The chain winds up on the rollers of the cage plate without frictions and with smoothness.
It is of easy adjusting for the research of the ends of the transversal stroke.
It is a safe and long lasting gear.

[The opening page of the Campagnolo gears (rear derailleurs) section, listing six models from the Super Record, 0102018, to the Valentino Extra, 2170, with a table of their weights in grams and a paragraph on the design of Campagnolo gears. The table’s top left cell is blank; the lower half of the page is blank.]

— Page 16 —
Campagnolo®

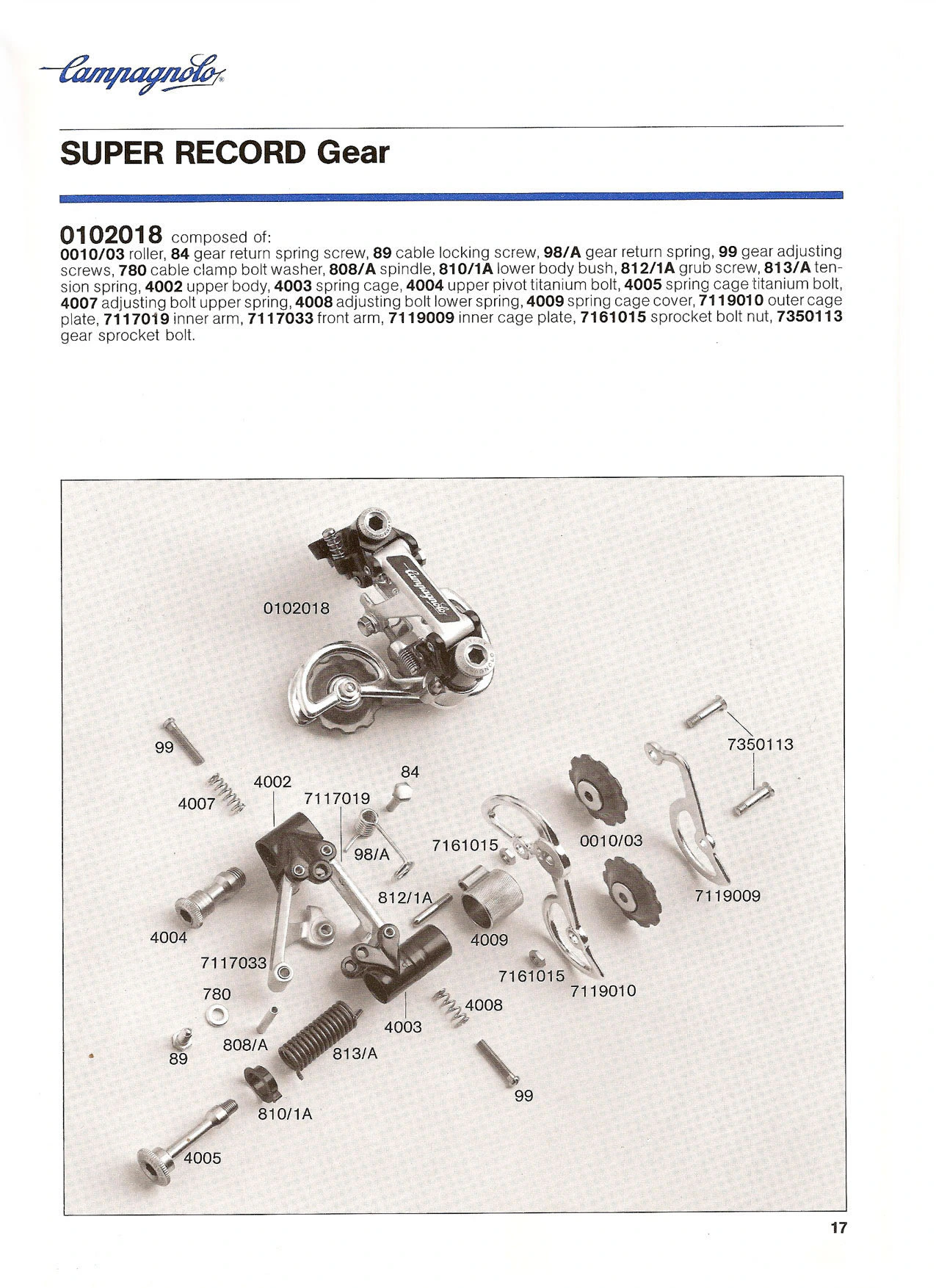

SUPER RECORD Gear

0102018 composed of:
0010/03 roller, 84 gear return spring screw, 89 cable locking screw, 98/A gear return spring, 99 gear adjusting screws, 780 cable clamp bolt washer, 808/A spindle, 810/1A lower body bush, 812/1A grub screw, 813/A tension spring, 4002 upper body, 4003 spring cage, 4004 upper pivot titanium bolt, 4005 spring cage titanium bolt, 4007 adjusting bolt upper spring, 4008 adjusting bolt lower spring, 4009 spring cage cover, 7119010 outer cage plate, 7117019 inner arm, 7117033 front arm, 7119009 inner cage plate, 7161015 sprocket bolt nut, 7350113 gear sprocket bolt.

Callouts: 0102018 99 7350113 4002 84 4007 7117019 98/A 7161015 0010/03 812/1A 7119009 4004 4009 7117033 7161015 7119010 780 4008 4003 808/A 89 813/A 99 810/1A 4005

[An exploded photograph of the Campagnolo Super Record rear derailleur, 0102018, shown assembled above its separated parts, each numbered and keyed to the parts list above. The Campagnolo script logo heads the page.]

— Page 17 —
Campagnolo®

NUOVO RECORD Gear

1020/A composed of:
0010/03 gear roller, 84 gear return spring screw, 88 clamp washer, 89 cable locking screw, 93/A sprocket bolt, 98/A gear return spring, 99 adjusting screw, 120 lower adjusting spring, 120/1 upper adjusting spring, 166/A upper pivot bolt, 805/A upper body, 806/A front arm, 807/A inner arm, 808/A spindle, 810/A lower body, 810/1A lower body bush, 811/A gear spring bolt, 812/A spring cage cover, 812/1A grub screw, 813/A tension spring, 814/A outer cage plate, 815/A inner cage plate.

Callouts: 1020/A 99 814/A 805/A 84 0010/03 807/A 120/1 815/A 93/A 98/A 166/A 812/1A 93/A 806/A 88 812/A 120 89 808/A 813/A 99 810/1A 810/A 811/A

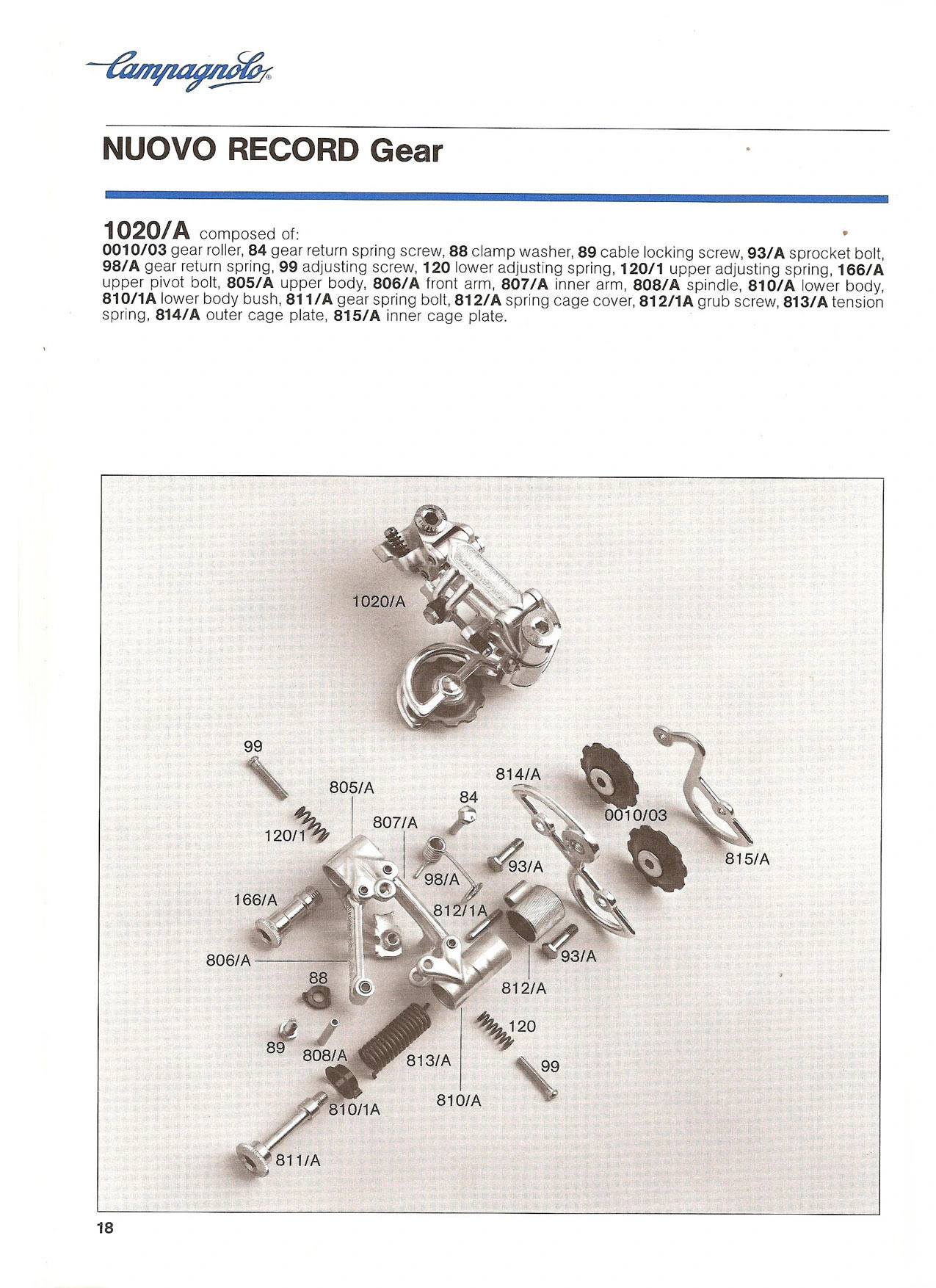

[An exploded photograph of the Campagnolo Nuovo Record rear derailleur, 1020/A, shown assembled above its separated parts, each numbered and keyed to the parts list above. The Campagnolo script logo heads the page.]

— Page 18 —
Campagnolo®

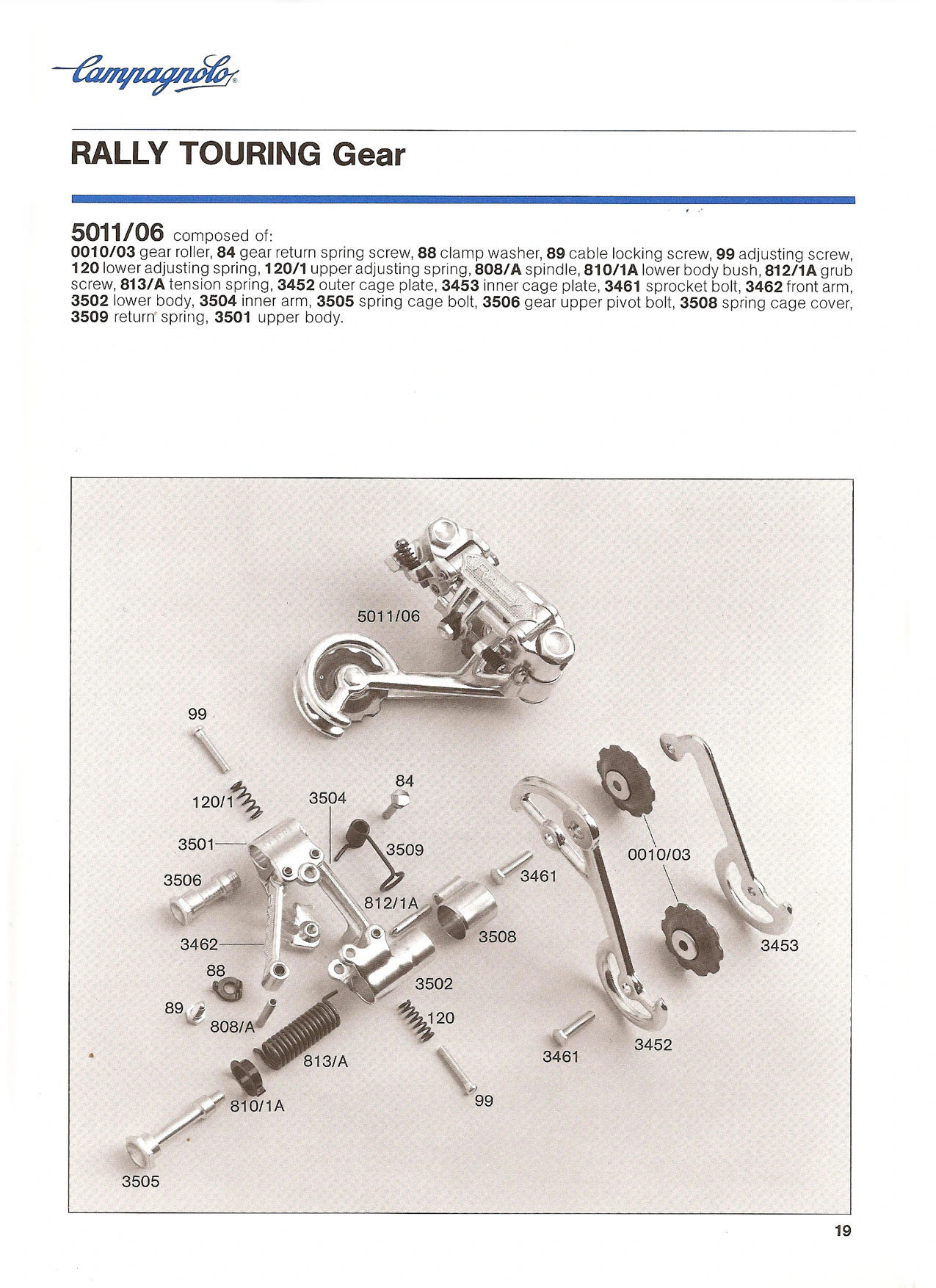

RALLY TOURING Gear

5011/06 composed of:
0010/03 gear roller, 84 gear return spring screw, 88 clamp washer, 89 cable locking screw, 99 adjusting screw, 120 lower adjusting spring, 120/1 upper adjusting spring, 808/A spindle, 810/1A lower body bush, 812/1A grub screw, 813/A tension spring, 3452 outer cage plate, 3453 inner cage plate, 3461 sprocket bolt, 3462 front arm, 3502 lower body, 3504 inner arm, 3505 spring cage bolt, 3506 gear upper pivot bolt, 3508 spring cage cover, 3509 return spring, 3501 upper body.

Callouts: 5011/06 99 84 120/1 3504 3501 3509 0010/03 3506 3461 812/1A 3508 3462 3453 88 3502 89 808/A 120 3461 3452 813/A 99 810/1A 3505

[An exploded photograph of the Campagnolo Rally Touring rear derailleur, 5011/06, shown assembled above its separated parts, each numbered and keyed to the parts list above. The Campagnolo script logo heads the page.]

— Page 19 —
Campagnolo®

NUOVO GRAN SPORT Gear

3500 composed of:
0010/03 gear roller, 84 return spring screw, 89 cable locking screw, 99 adjusting screw, 120 lower adjusting spring, 120/1 upper adjusting spring, 780 cable clamp bolt washer, 808/A spindle, 810/1A lower body bush, 812/1A grub screw, 813/A tension spring, 926 inner cage plate, 933 roller screw, 3501 upper body, 3502 lower body, 3503 front arm, 3504 inner arm, 3505 spring cage bolt, 3506 upper pivot bolt, 3507 outer cage plate, 3508 spring cage cover, 3509 return spring.

Callouts: 3500 99 120/1 84 3504 812/1A 0010/03 3501 933 3509 926 3506 3508 3503 3507 933 780 120 3502 89 808/A 813/A 99 810/1A 3505

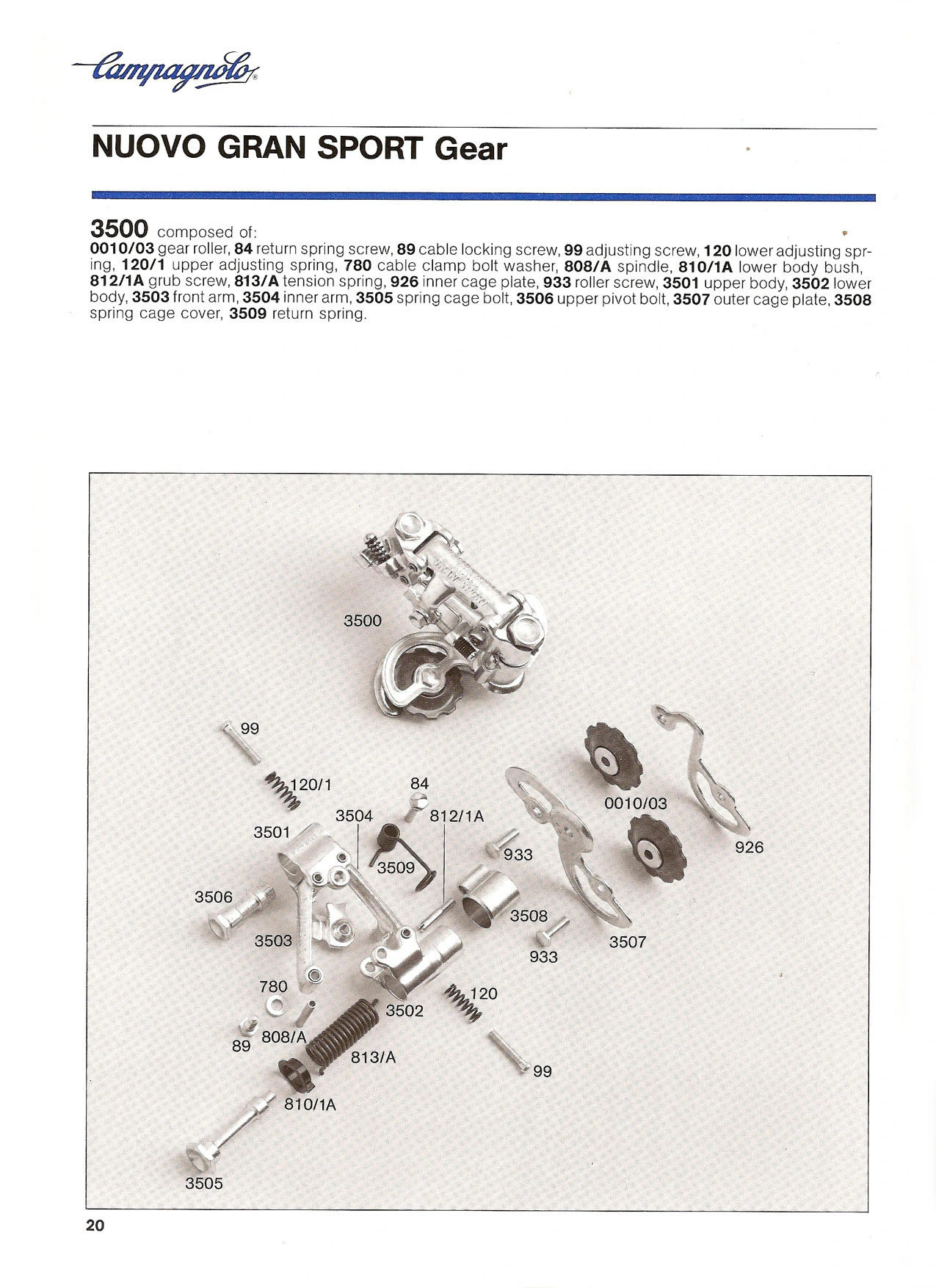

[An exploded photograph of the Campagnolo Nuovo Gran Sport rear derailleur, 3500, shown assembled above its separated parts, each numbered and keyed to the parts list above. The Campagnolo script logo heads the page.]

— Page 20 —
Campagnolo®

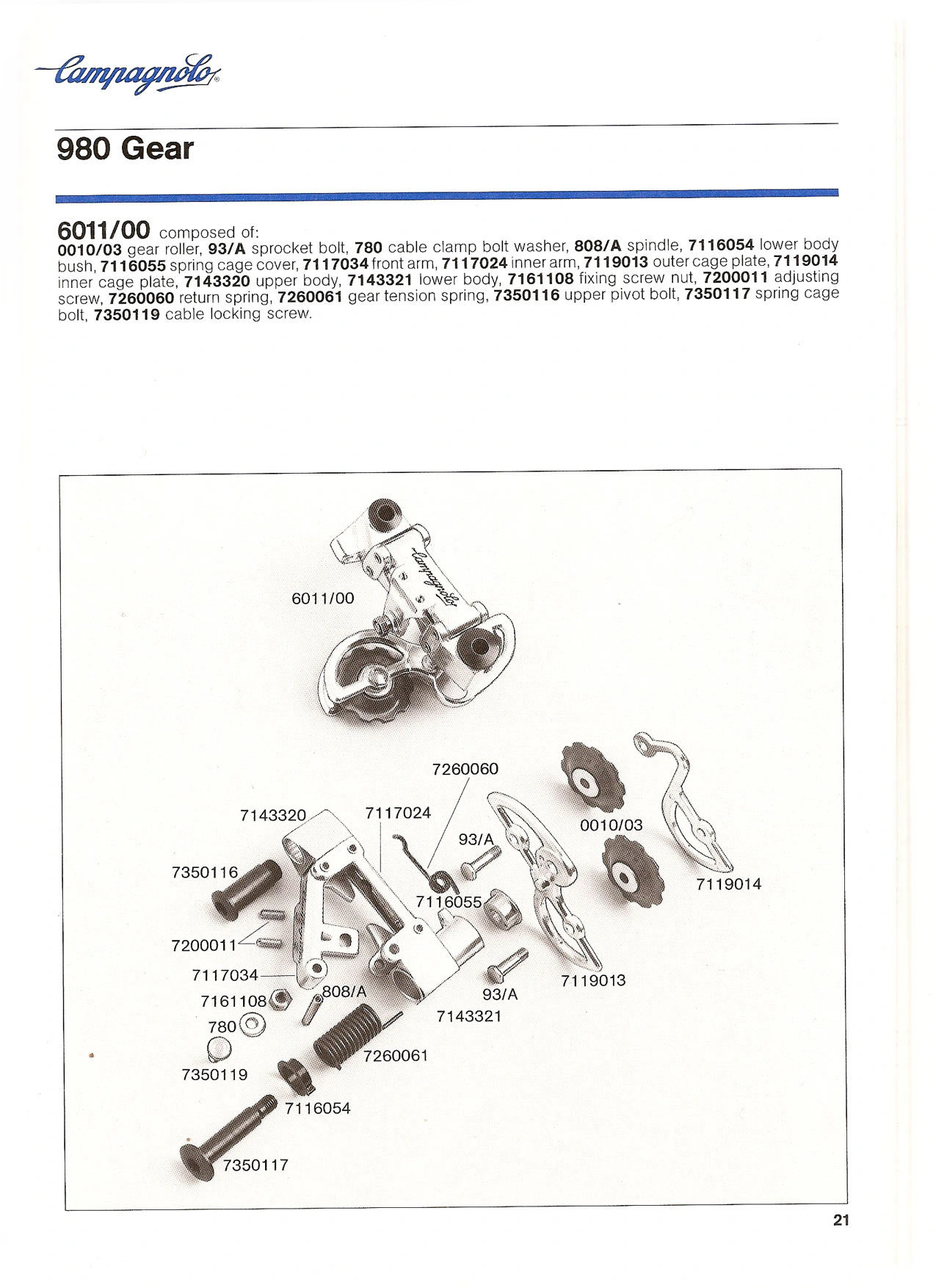

980 Gear

6011/00 composed of:
0010/03 gear roller, 93/A sprocket bolt, 780 cable clamp bolt washer, 808/A spindle, 7116054 lower body bush, 7116055 spring cage cover, 7117034 front arm, 7117024 inner arm, 7119013 outer cage plate, 7119014 inner cage plate, 7143320 upper body, 7143321 lower body, 7161108 fixing screw nut, 7200011 adjusting screw, 7260060 return spring, 7260061 gear tension spring, 7350116 upper pivot bolt, 7350117 spring cage bolt, 7350119 cable locking screw.

Callouts: 6011/00 7260060 7143320 7117024 93/A 0010/03 7350116 7116055 7119014 7200011 7117034 7119013 7161108 808/A 93/A 780 7143321 7350119 7260061 7116054 7350117

[An exploded photograph of the Campagnolo 980 rear derailleur, 6011/00, shown assembled above its separated parts, each numbered and keyed to the parts list above. The Campagnolo script logo heads the page.]

— Page 21 —
Campagnolo®

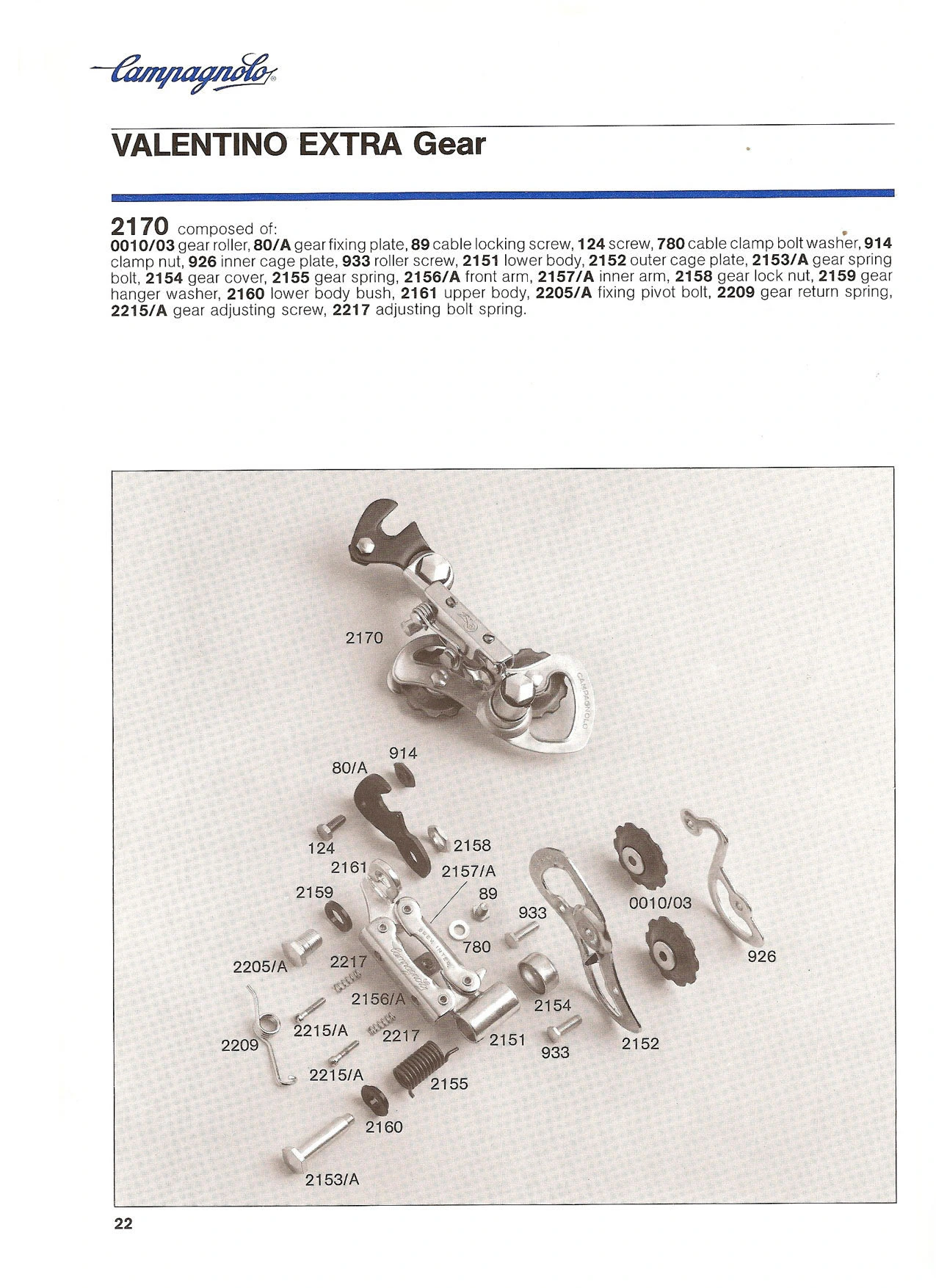

VALENTINO EXTRA Gear

2170 composed of:
0010/03 gear roller, 80/A gear fixing plate, 89 cable locking screw, 124 screw, 780 cable clamp bolt washer, 914 clamp nut, 926 inner cage plate, 933 roller screw, 2151 lower body, 2152 outer cage plate, 2153/A gear spring bolt, 2154 gear cover, 2155 gear spring, 2156/A front arm, 2157/A inner arm, 2158 gear lock nut, 2159 gear hanger washer, 2160 lower body bush, 2161 upper body, 2205/A fixing pivot bolt, 2209 gear return spring, 2215/A gear adjusting screw, 2217 adjusting bolt spring.

Callouts: 2170 80/A 914 124 2158 2161 2157/A 2159 89 933 0010/03 2205/A 2217 780 926 2156/A 2154 2209 2215/A 2217 2151 933 2152 2215/A 2155 2160 2153/A

[An exploded photograph of the Campagnolo Valentino Extra rear derailleur, 2170, shown assembled above its separated parts, each numbered and keyed to the parts list above. The Campagnolo script logo heads the page.]

— Page 22 —
Campagnolo®

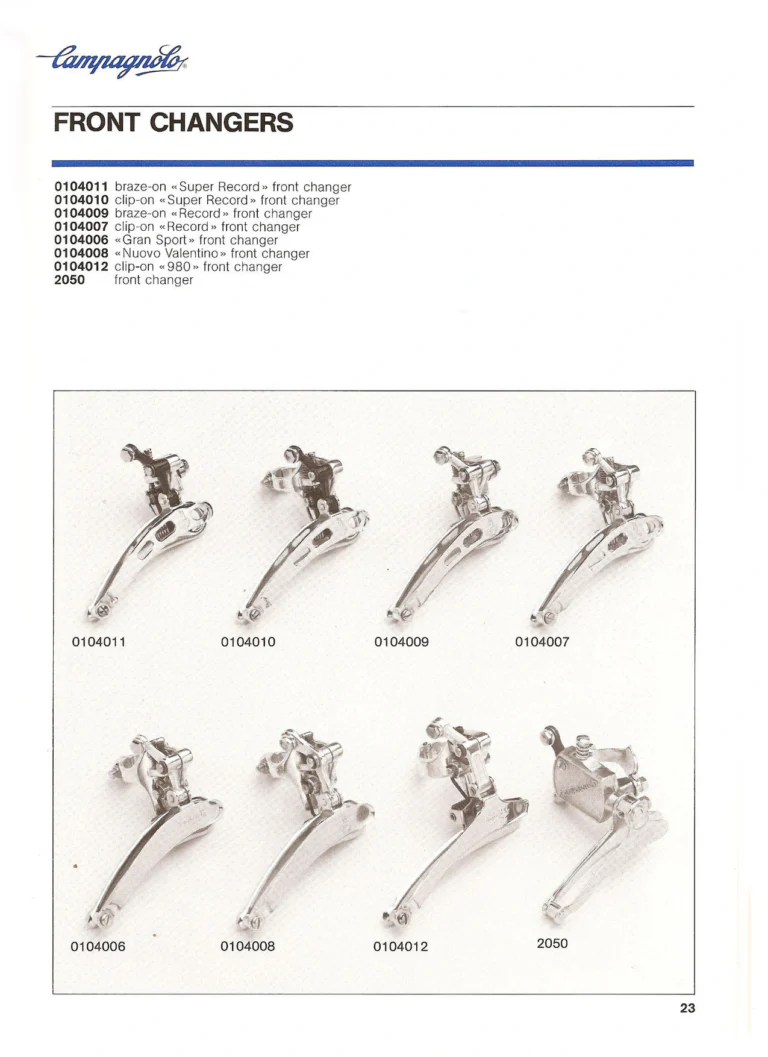

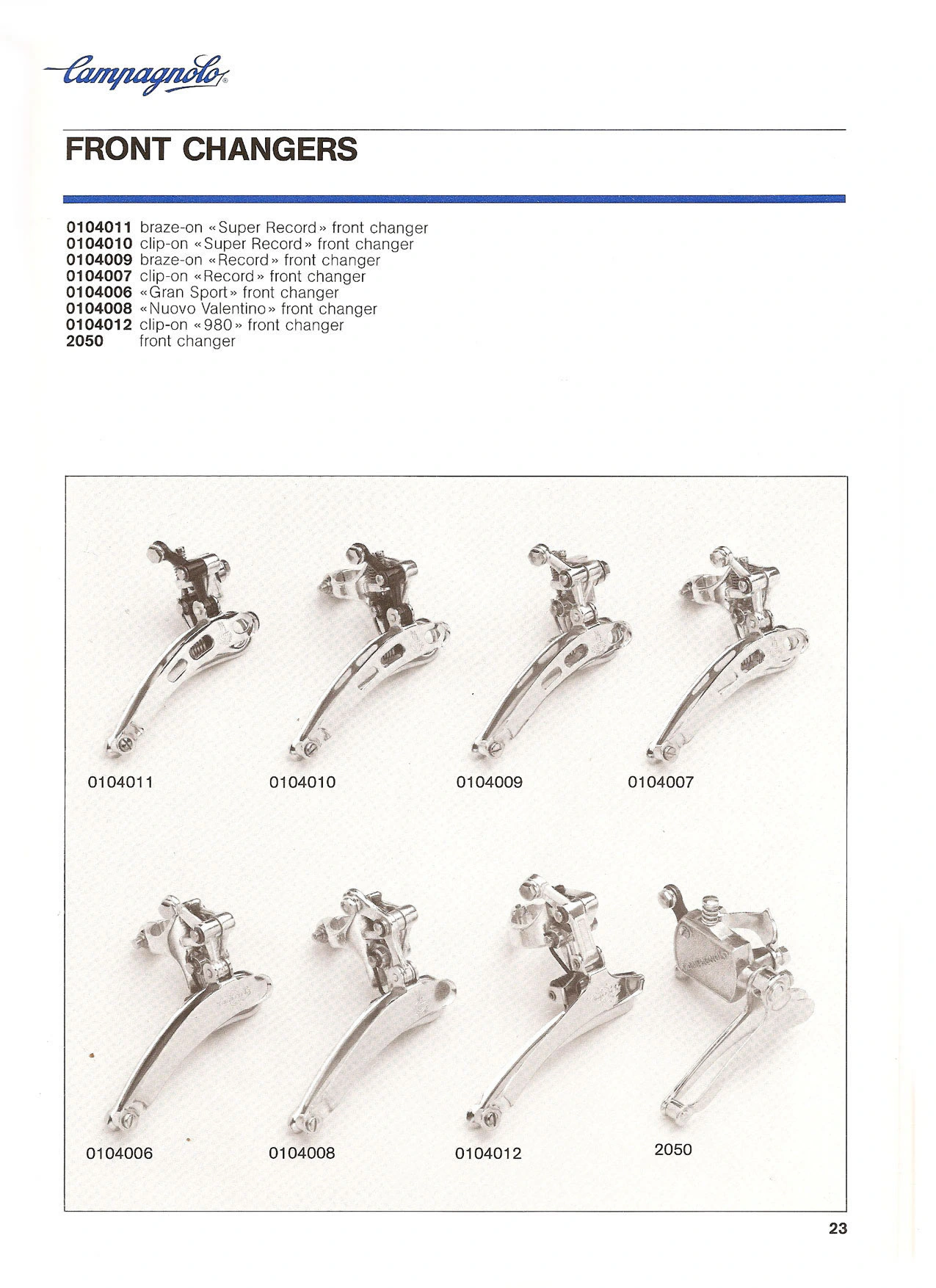

FRONT CHANGERS

0104011 braze-on «Super Record» front changer
0104010 clip-on «Super Record» front changer
0104009 braze-on «Record» front changer
0104007 clip-on «Record» front changer
0104006 «Gran Sport» front changer
0104008 «Nuovo Valentino» front changer
0104012 clip-on «980» front changer
2050 front changer

Callouts: 0104011 0104010 0104009 0104007 0104006 0104008 0104012 2050

[Photographs of eight Campagnolo front changers in two rows, each captioned with its part number: the braze-on and clip-on Super Record, the braze-on and clip-on Record, the Gran Sport, the Nuovo Valentino, the clip-on 980 and the 2050 front changer. A list above the photographs names each model.]

— Page 23 —
Campagnolo®

Braze-on SUPER RECORD Front Changer

0104011 composed of:
89 locking screw, 215 cage spanner bolt, 217 cage spacer bolt nut, 774 adjusting screw, 7117027 upper arm, 780 cable clamp bolt washer, 7117028 lower arm, 788 cage shank bolt, 790 bush, 7260047 spring for adjusting screw, 787 return spring, 7102012 braze-on hanger, 7300105 concave washer, 7350115 screw for braze-on front changer, 941 circlip.

1180006 Fork complete with: 215 – 217 – 790 – 1052/7 – 7117027.

1143036 Body complete with: 2143014 – 7300105 – 7350115 – 941.

Callouts: 0104011 787 7117028 217 217 89 780 774 790 788 7117027 7260047 215 1052/7 7102012 941 2143014 7300105 7350115

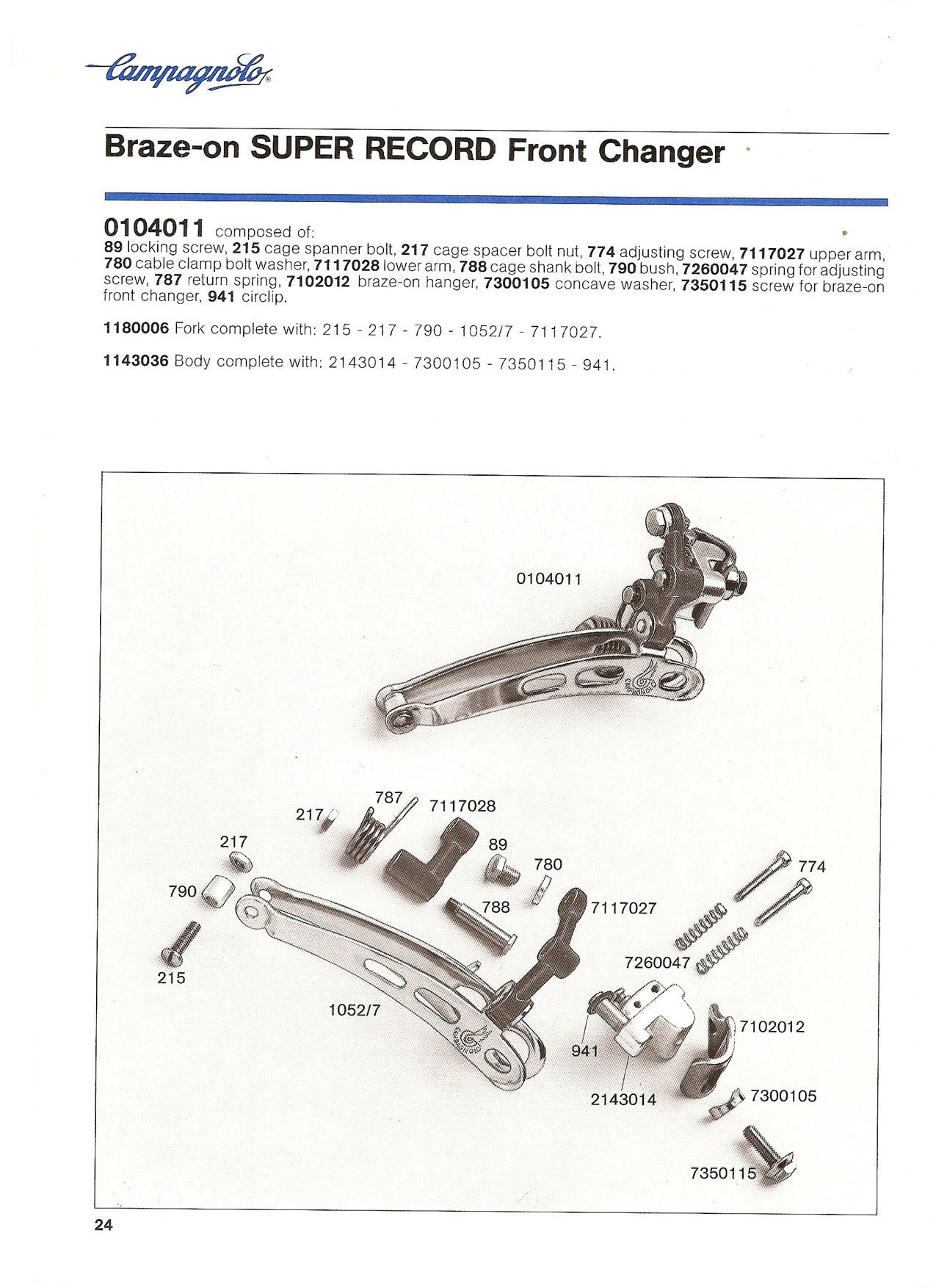

[An exploded photograph of the Campagnolo braze-on Super Record front changer, 0104011, shown assembled above its separated parts, each numbered and keyed to the parts list above. Two further lines give the part numbers of the complete fork and the complete body.]

— Page 24 —
Campagnolo®

Clip-on SUPER RECORD Front Changer

0104010 composed of:
89 locking screw, 215 cage spanner bolt, 217 cage spacer bolt nut, 774 adjusting screw, 776 clip fixing screw, 777 nut, 7117027 upper arm, 780 cable clamp bolt washer, 7117028 lower arm, 788 cage shank bolt, 790 bush, 7260047 spring for adjusting screw, 787 return spring, 7182025 clip, 773/1 hinge, 773/2 hinge spindle, 941 circlip.

1180001 Fork complete with: 215 – 217 – 790 – 1052/7 – 7117027.

1143029 Body complete with: 776 – 777 – 2143004 – 7182025 – 773/1 – 773/2 – 941.

Callouts: 0104010 787 217 7117028 217 89 774 790 780 7117027 788 777 215 7260047 7182025 773/1 1052/7 941 776 2143004 773/2

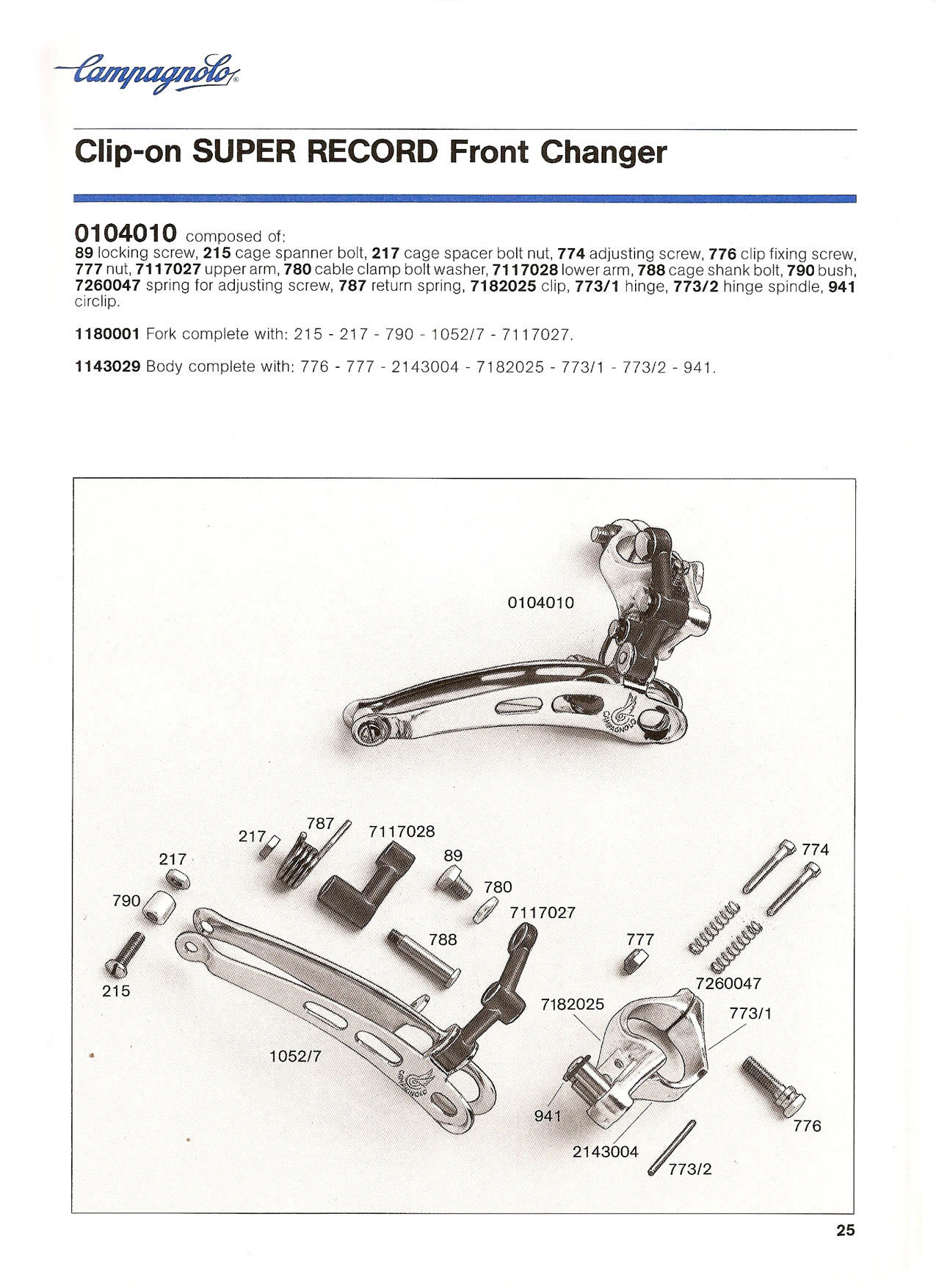

[An exploded photograph of the Campagnolo clip-on Super Record front changer, 0104010, shown assembled above its separated parts, each numbered and keyed to the parts list above. Two further lines give the part numbers of the complete fork and the complete body.]

— Page 25 —
Campagnolo®

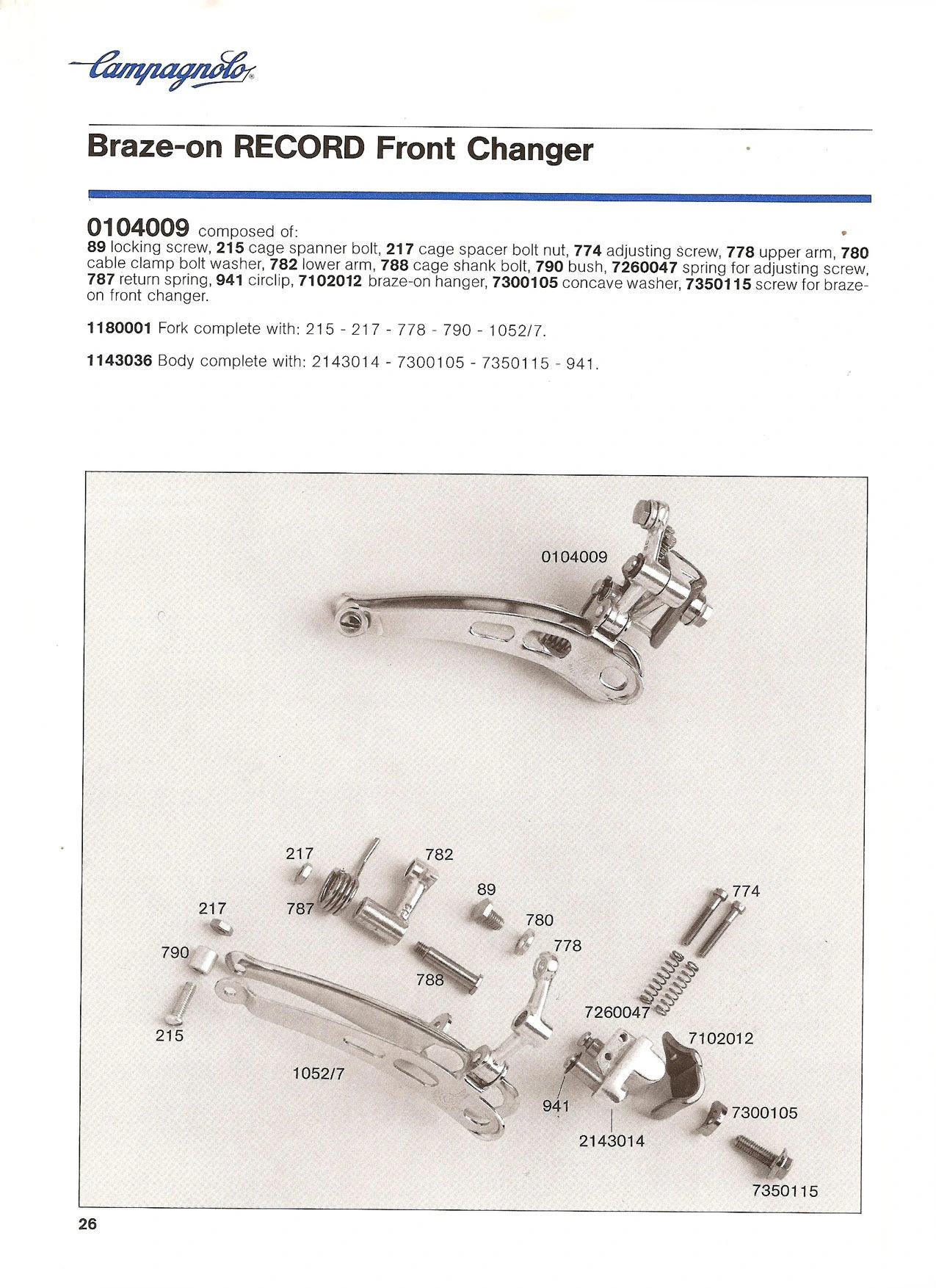

Braze-on RECORD Front Changer

0104009 composed of:
89 locking screw, 215 cage spanner bolt, 217 cage spacer bolt nut, 774 adjusting screw, 778 upper arm, 780 cable clamp bolt washer, 782 lower arm, 788 cage shank bolt, 790 bush, 7260047 spring for adjusting screw, 787 return spring, 941 circlip, 7102012 braze-on hanger, 7300105 concave washer, 7350115 screw for braze-on front changer.

1180001 Fork complete with: 215 – 217 – 778 – 790 – 1052/7.

1143036 Body complete with: 2143014 – 7300105 – 7350115 – 941.

Callouts: 0104009 217 782 217 787 89 774 780 790 778 788 7260047 215 7102012 1052/7 941 7300105 2143014 7350115

[An exploded photograph of the Campagnolo braze-on Record front changer, 0104009, shown assembled above its separated parts, each numbered and keyed to the parts list above. Two further lines give the part numbers of the complete fork and the complete body.]

— Page 26 —
Campagnolo®

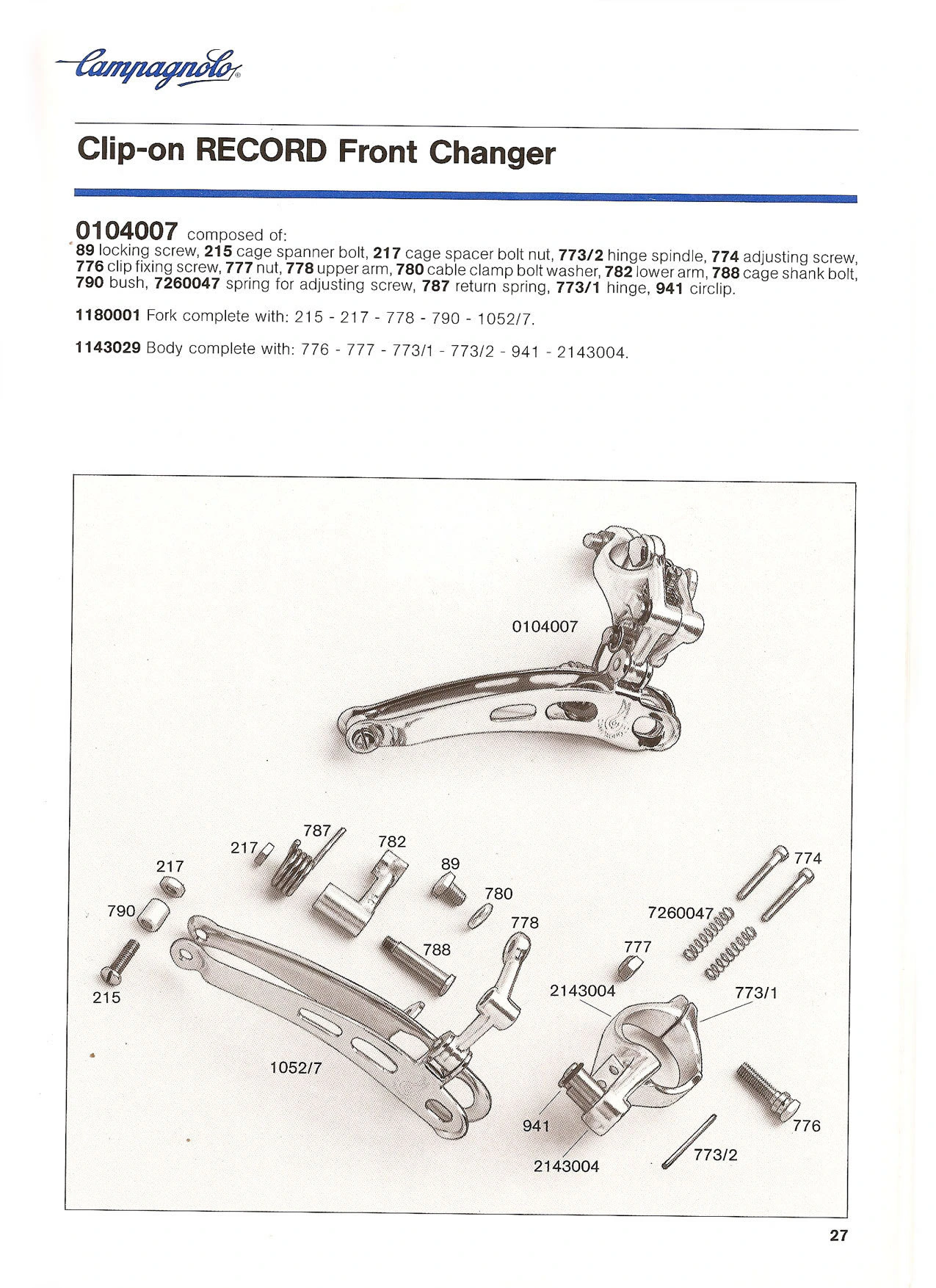

Clip-on RECORD Front Changer

0104007 composed of:
89 locking screw, 215 cage spanner bolt, 217 cage spacer bolt nut, 773/2 hinge spindle, 774 adjusting screw, 776 clip fixing screw, 777 nut, 778 upper arm, 780 cable clamp bolt washer, 782 lower arm, 788 cage shank bolt, 790 bush, 7260047 spring for adjusting screw, 787 return spring, 773/1 hinge, 941 circlip.

1180001 Fork complete with: 215 – 217 – 778 – 790 – 1052/7.

1143029 Body complete with: 776 – 777 – 773/1 – 773/2 – 941 – 2143004.

Callouts: 0104007 217 787 782 217 89 774 780 790 7260047 778 788 777 215 2143004 773/1 1052/7 941 776 2143004 773/2

[An exploded photograph of the Campagnolo clip-on Record front changer, 0104007, shown assembled above its separated parts, each numbered and keyed to the parts list above. Two further lines give the part numbers of the complete fork and the complete body.]

— Page 27 —
Campagnolo®

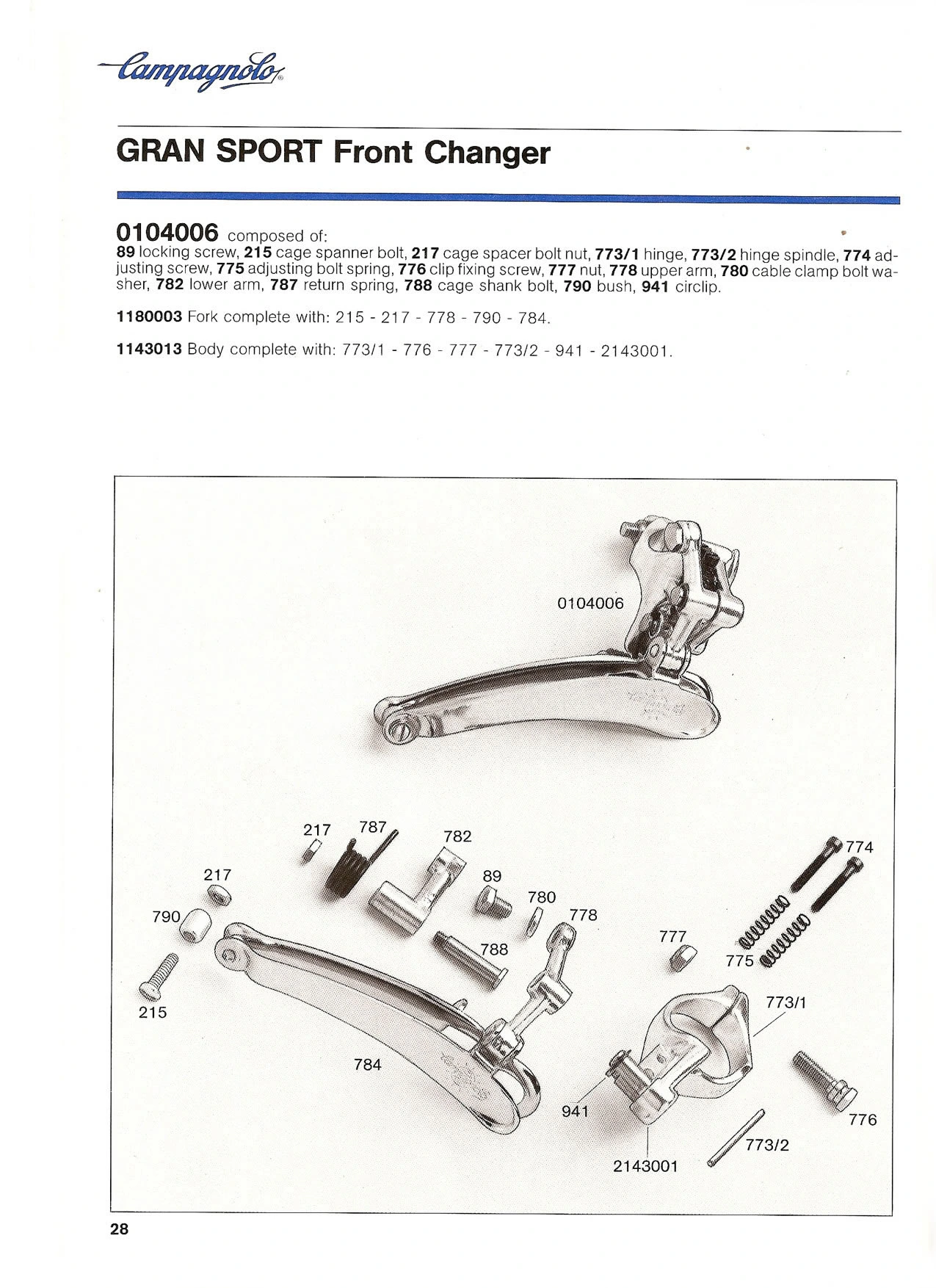

GRAN SPORT Front Changer

0104006 composed of:
89 locking screw, 215 cage spanner bolt, 217 cage spacer bolt nut, 773/1 hinge, 773/2 hinge spindle, 774 adjusting screw, 775 adjusting bolt spring, 776 clip fixing screw, 777 nut, 778 upper arm, 780 cable clamp bolt washer, 782 lower arm, 787 return spring, 788 cage shank bolt, 790 bush, 941 circlip.

1180003 Fork complete with: 215 – 217 – 778 – 790 – 784.

1143013 Body complete with: 773/1 – 776 – 777 – 773/2 – 941 – 2143001.

Callouts: 0104006 217 787 782 774 217 89 780 790 778 777 788 775 215 773/1 784 941 776 773/2 2143001

[An exploded photograph of the Campagnolo Gran Sport front changer, 0104006, shown assembled above its separated parts, each numbered and keyed to the parts list above. Two further lines give the part numbers of the complete fork and the complete body.]

— Page 28 —
Campagnolo®

980 Front Changer

0104012 composed of:
89 locking screw, 215 cage spanner bolt, 217 cage spacer bolt nut, 773/2 hinge spindle, 790 bush, 2003 cable clamp bolt washer, 2215/A upper adjusting screw, 2217 spring for adjusting screw, 7117025 upper arm, 7117026 lower arm, 7161108 nut, 7182026 hinge, 7260063 return spring, 941 circlip.

1180005 Fork complete with: 215 – 217 – 790 – 7117025 – 7117026 – 7180077 – 7260063.

1143046 Body complete with: 2143015 – 7161108 – 7182026 – 941 – 773/2.

Callouts: 0104012 2215/A 89 217 2003 2217 790 7117025 7117026 7260063 773/2 215 7180077 7182026 941 7161108 2143015

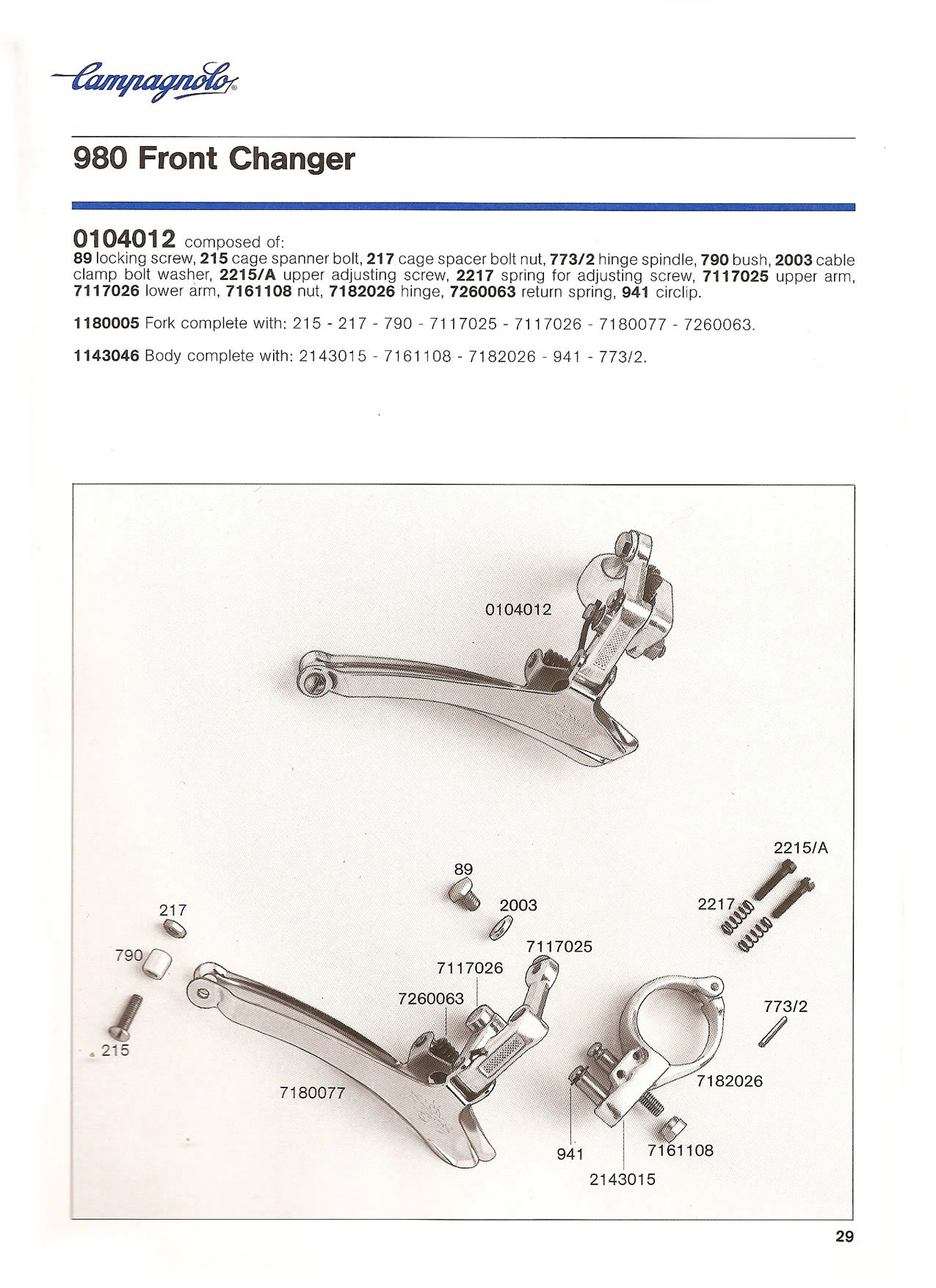

[An exploded photograph of the Campagnolo 980 front changer, 0104012, shown assembled above its separated parts, each numbered and keyed to the parts list above. Two further lines give the part numbers of the complete fork and the complete body.]

— Page 29 —
Campagnolo®

NUOVO VALENTINO Front Changer

0104008 composed of:
89 locking screw, 215 cage spanner bolt, 217 cage spacer bolt nut, 773/1 hinge, 773/2 hinge spindle, 774 adjusting screw, 775 adjusting bolt spring, 776 clip fixing screw, 777 nut, 780 cable clamp bolt washer, 788 cage shank bolt, 790 bush, 787 return spring, 7117017 upper arm, 7117018 lower arm, 941 circlip.

1180004 Fork complete with: 215 – 217 – 790 – 7117017 – 2050/7.

1143013 Body complete with: 773 – 773/1 – 776 – 777 – 773/2 – 941.

Callouts: 0104008 787 217 7117018 89 774 217 780 7117017 777 790 788 775 215 2050/7 773/1 776 941 773/2 773

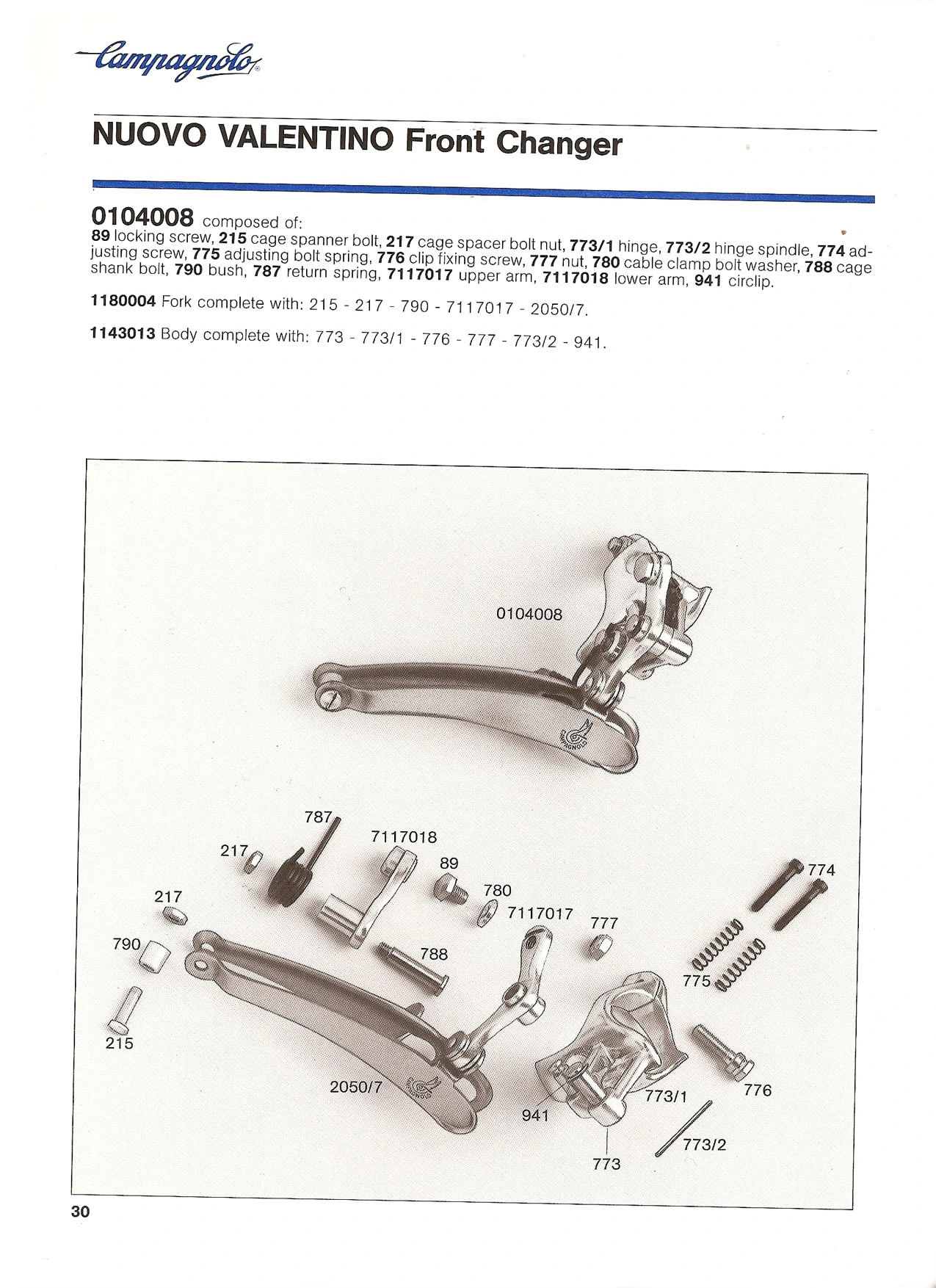

[An exploded photograph of the Campagnolo Nuovo Valentino front changer, 0104008, shown assembled above its separated parts, each numbered and keyed to the parts list above. Two further lines give the part numbers of the complete fork and the complete body.]

— Page 30 —
Campagnolo®

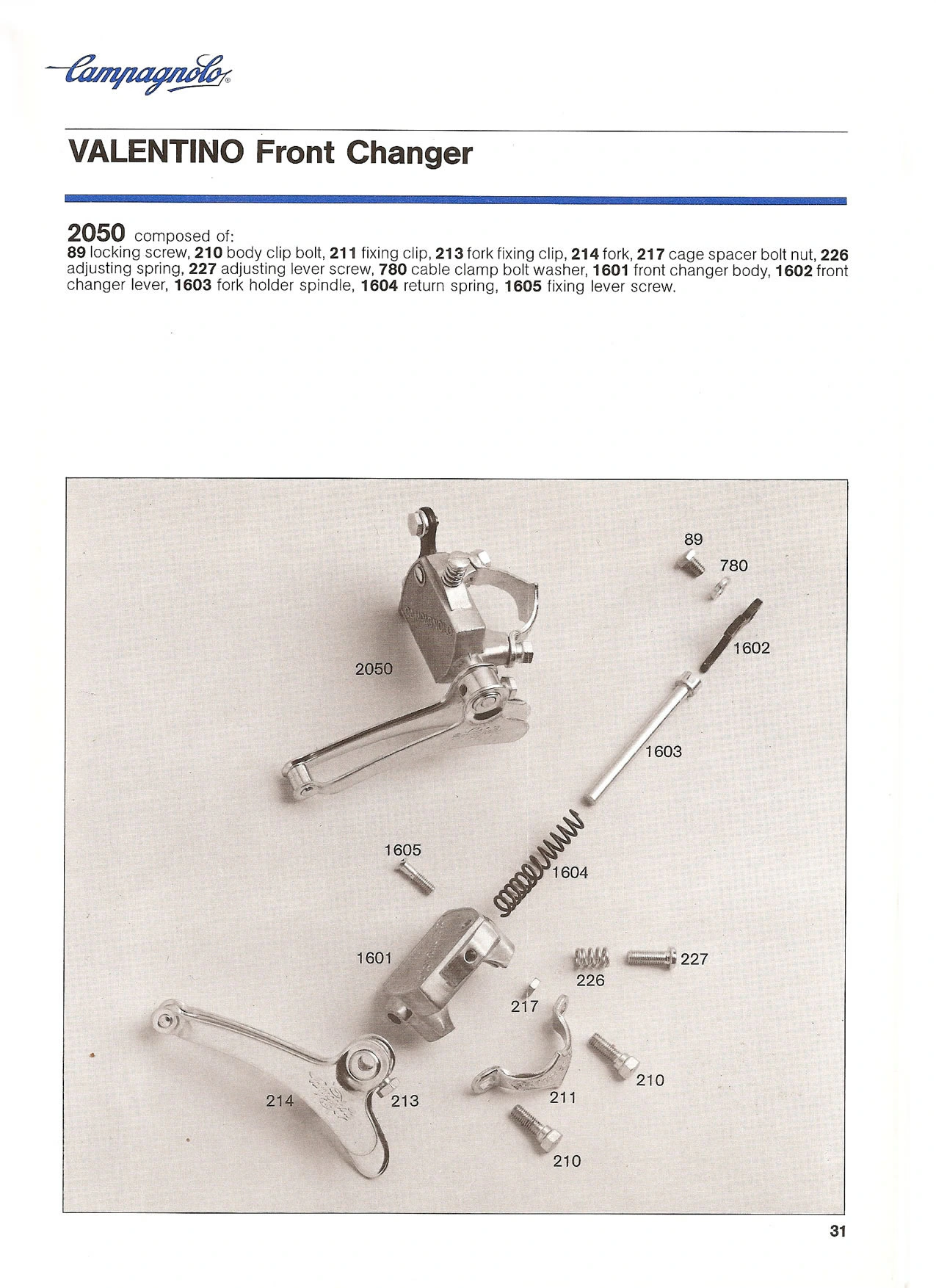

VALENTINO Front Changer

2050 composed of:
89 locking screw, 210 body clip bolt, 211 fixing clip, 213 fork fixing clip, 214 fork, 217 cage spacer bolt nut, 226 adjusting spring, 227 adjusting lever screw, 780 cable clamp bolt washer, 1601 front changer body, 1602 front changer lever, 1603 fork holder spindle, 1604 return spring, 1605 fixing lever screw.

Callouts: 89 780 2050 1602 1603 1605 1604 1601 227 226 217 210 214 213 211 210

[An exploded photograph of the Campagnolo Valentino front changer, 2050, shown assembled above its separated parts, each numbered and keyed to the parts list above.]

— Page 31 —
Campagnolo®

CONTROL LEVERS

1012/3 handlebar control lever
1013/1 «Record» gear down tube control lever

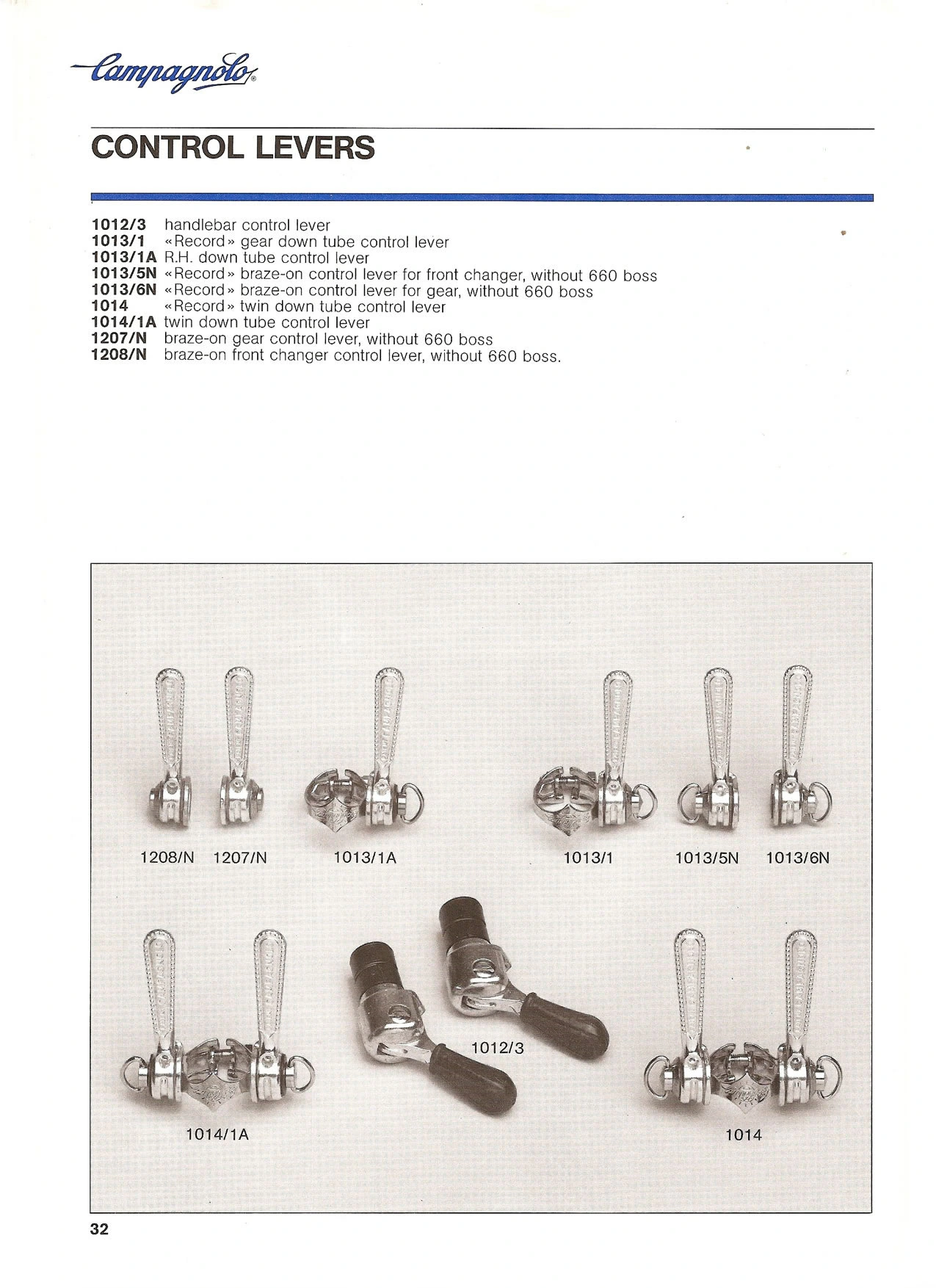

1013/1A R.H. down tube control lever
1013/5N «Record» braze-on control lever for front changer, without 660 boss
1013/6N «Record» braze-on control lever for gear, without 660 boss
1014 «Record» twin down tube control lever
1014/1A twin down tube control lever
1207/N braze-on gear control lever, without 660 boss
1208/N braze-on front changer control lever, without 660 boss.

Callouts: 1208/N 1207/N 1013/1A 1013/1 1013/5N 1013/6N 1012/3 1014/1A 1014

[A photograph of the Campagnolo control levers on a gray background, each captioned with its number: the braze-on levers 1208/N, 1207/N, 1013/5N and 1013/6N, the single down tube levers 1013/1A and 1013/1 on their clamps, the pair of 1012/3 handlebar levers with black rubber ends, and the twin down tube levers 1014/1A and 1014. The page heading sits under the Campagnolo script logo between a black rule and a blue band.]

— Page 32 —
Campagnolo®

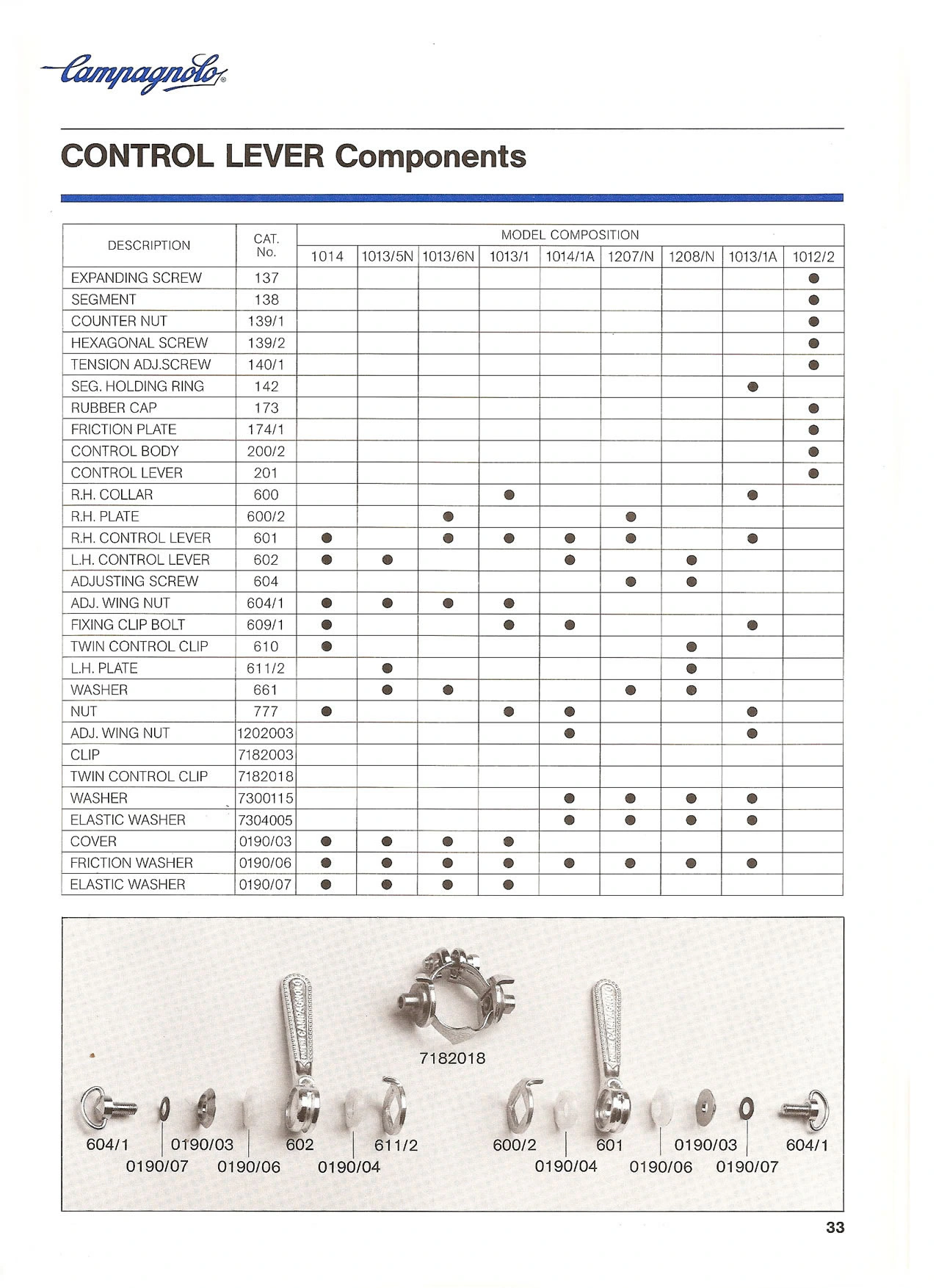

CONTROL LEVER Components

DESCRIPTION | CAT. No. | MODEL COMPOSITION
| | 1014 | 1013/5N | 1013/6N | 1013/1 | 1014/1A | 1207/N | 1208/N | 1013/1A | 1012/2
EXPANDING SCREW | 137 | | | | | | | | | ●
SEGMENT | 138 | | | | | | | | | ●
COUNTER NUT | 139/1 | | | | | | | | | ●
HEXAGONAL SCREW | 139/2 | | | | | | | | | ●
TENSION ADJ.SCREW | 140/1 | | | | | | | | | ●
SEG. HOLDING RING | 142 | | | | | | | | ● |
RUBBER CAP | 173 | | | | | | | | | ●
FRICTION PLATE | 174/1 | | | | | | | | | ●
CONTROL BODY | 200/2 | | | | | | | | | ●
CONTROL LEVER | 201 | | | | | | | | | ●
R.H. COLLAR | 600 | | | | ● | | | | ● |
R.H. PLATE | 600/2 | | | ● | | | ● | | |
R.H. CONTROL LEVER | 601 | ● | | ● | ● | ● | ● | | ● |
L.H. CONTROL LEVER | 602 | ● | ● | | | ● | | ● | |
ADJUSTING SCREW | 604 | | | | | | ● | ● | |
ADJ. WING NUT | 604/1 | ● | ● | ● | ● | | | | |
FIXING CLIP BOLT | 609/1 | ● | | | ● | ● | | | ● |
TWIN CONTROL CLIP | 610 | ● | | | | | | ● | |
L.H. PLATE | 611/2 | | ● | | | | | ● | |
WASHER | 661 | | ● | ● | | | ● | ● | |
NUT | 777 | ● | | | ● | ● | | | ● |
ADJ. WING NUT | 1202003 | | | | | ● | | | ● |
CLIP | 7182003 | | | | | | | | |
TWIN CONTROL CLIP | 7182018 | | | | | | | | |
WASHER | 7300115 | | | | | ● | ● | ● | ● |
ELASTIC WASHER | 7304005 | | | | | ● | ● | ● | ● |
COVER | 0190/03 | ● | ● | ● | ● | | | | |
FRICTION WASHER | 0190/06 | ● | ● | ● | ● | ● | ● | ● | ● |
ELASTIC WASHER | 0190/07 | ● | ● | ● | ● | | | | |

Callouts: 7182018 604/1 0190/03 602 611/2 600/2 601 0190/03 604/1 0190/07 0190/06 0190/04 0190/04 0190/06 0190/07

[A table of the Campagnolo control lever components gives each part’s description and catalog number, with a dot marking which of the nine lever models (1014, 1013/5N, 1013/6N, 1013/1, 1014/1A, 1207/N, 1208/N, 1013/1A and 1012/2) uses it. Below, a photograph lays out the parts of a pair of down tube levers in assembly order, left and right, with the twin control clip 7182018 above, each part numbered.]

— Page 33 —
Campagnolo®

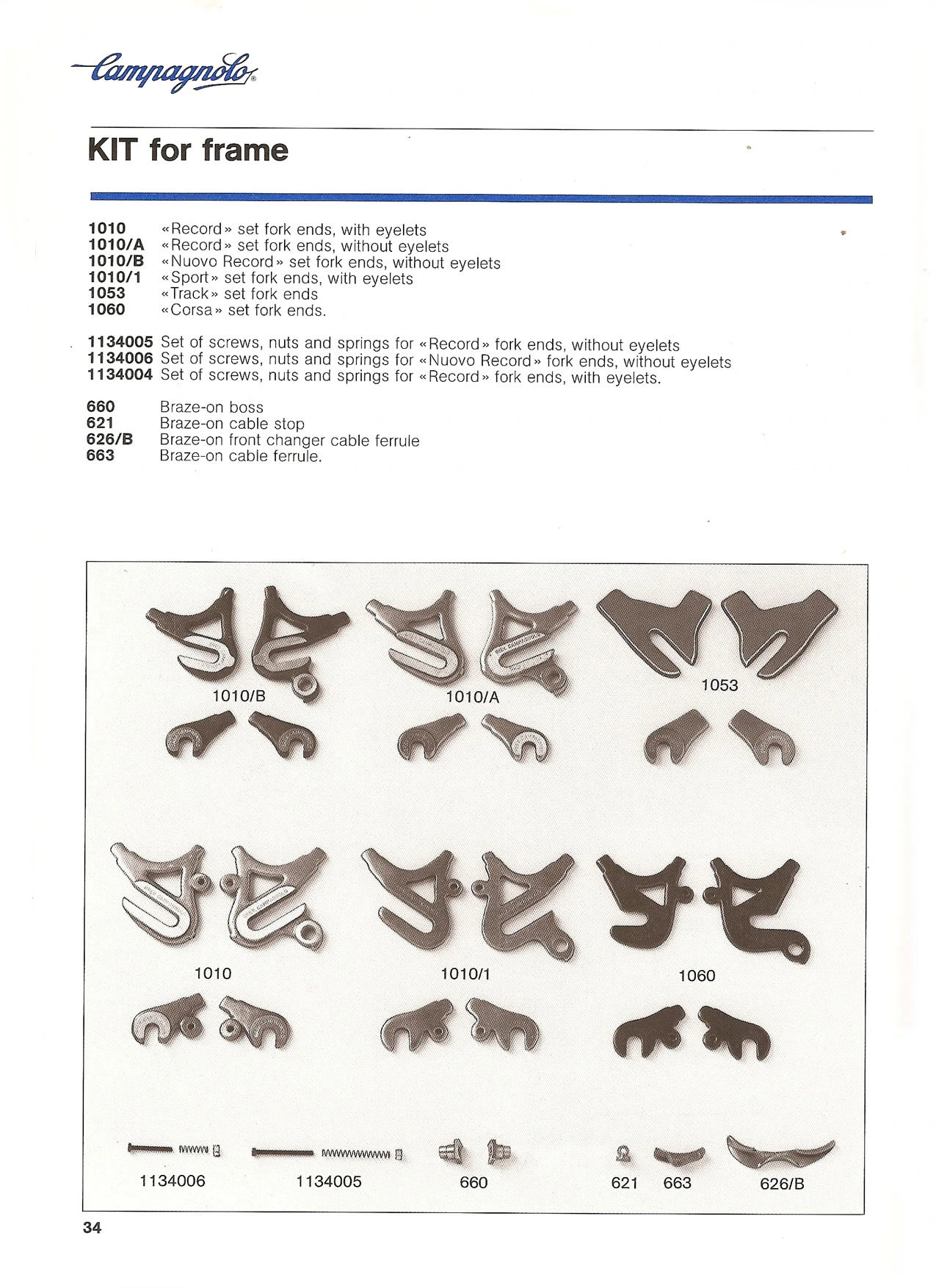

KIT for frame

1010 «Record» set fork ends, with eyelets
1010/A «Record» set fork ends, without eyelets
1010/B «Nuovo Record» set fork ends, without eyelets
1010/1 «Sport» set fork ends, with eyelets
1053 «Track» set fork ends
1060 «Corsa» set fork ends.

1134005 Set of screws, nuts and springs for «Record» fork ends, without eyelets
1134006 Set of screws, nuts and springs for «Nuovo Record» fork ends, without eyelets
1134004 Set of screws, nuts and springs for «Record» fork ends, with eyelets.

660 Braze-on boss
621 Braze-on cable stop
626/B Braze-on front changer cable ferrule
663 Braze-on cable ferrule.

Callouts: 1010/B 1010/A 1053 1010 1010/1 1060 1134006 1134005 660 621 663 626/B

[A photograph of the Campagnolo frame kit on a gray background: six sets of rear and front fork ends (the 1010/B, 1010/A, 1053, 1010, 1010/1 and 1060), each pair shown above its matching front fork ends, and along the bottom the adjuster screw sets 1134006 and 1134005 with the braze-on boss 660, cable stop 621 and cable ferrules 663 and 626/B, each captioned with its number.]

— Page 34 —
Campagnolo®

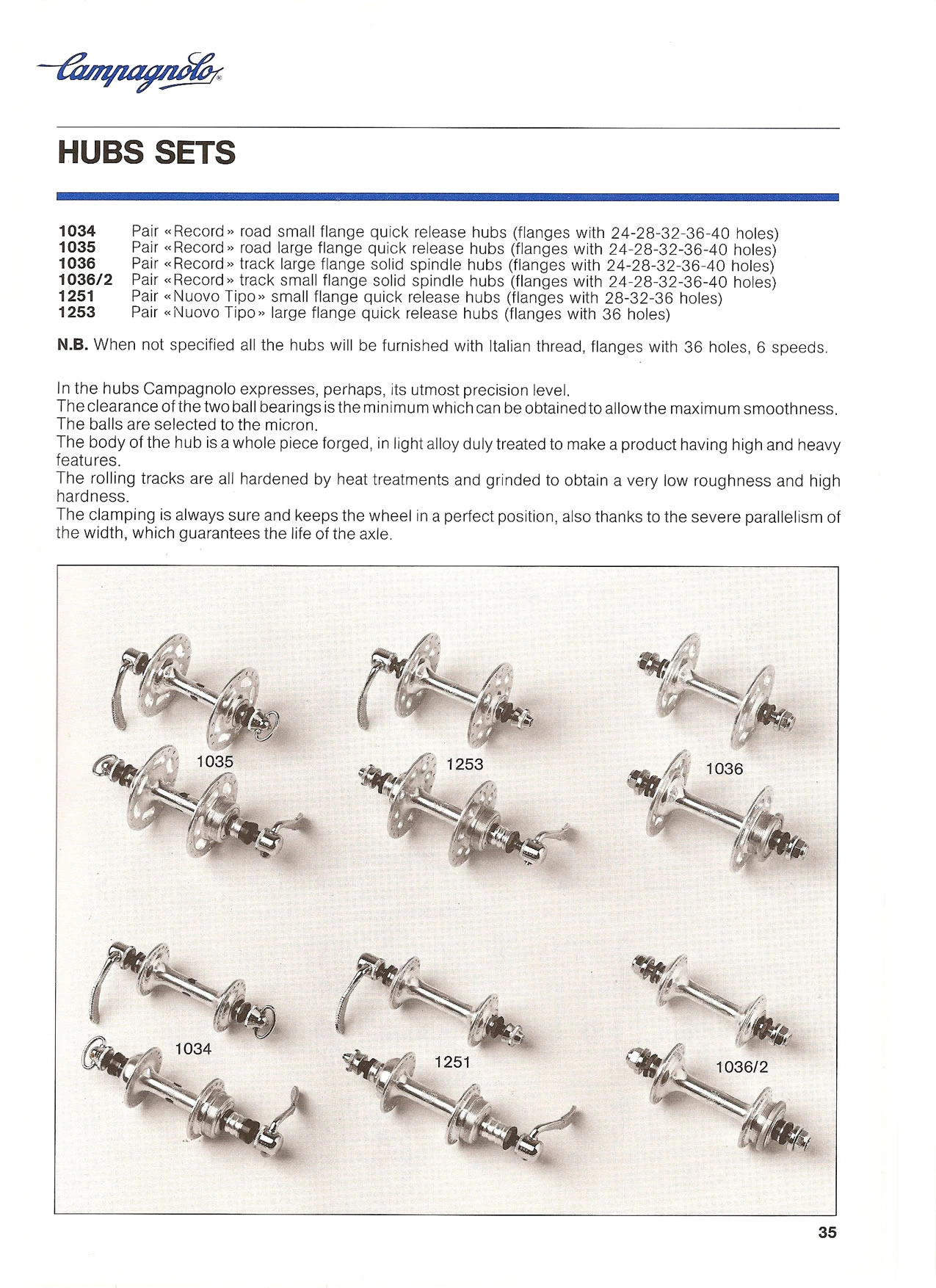

HUBS SETS

1034 Pair «Record» road small flange quick release hubs (flanges with 24-28-32-36-40 holes)
1035 Pair «Record» road large flange quick release hubs (flanges with 24-28-32-36-40 holes)
1036 Pair «Record» track large flange solid spindle hubs (flanges with 24-28-32-36-40 holes)
1036/2 Pair «Record» track small flange solid spindle hubs (flanges with 24-28-32-36-40 holes)
1251 Pair «Nuovo Tipo» small flange quick release hubs (flanges with 28-32-36 holes)
1253 Pair «Nuovo Tipo» large flange quick release hubs (flanges with 36 holes)

N.B. When not specified all the hubs will be furnished with Italian thread, flanges with 36 holes, 6 speeds.

In the hubs Campagnolo expresses, perhaps, its utmost precision level.
The clearance of the two ball bearings is the minimum which can be obtained to allow the maximum smoothness.
The balls are selected to the micron.
The body of the hub is a whole piece forged, in light alloy duly treated to make a product having high and heavy features.
The rolling tracks are all hardened by heat treatments and grinded to obtain a very low roughness and high hardness.
The clamping is always sure and keeps the wheel in a perfect position, also thanks to the severe parallelism of the width, which guarantees the life of the axle.

Callouts: 1035 1253 1036 1034 1251 1036/2

[A photograph of six pairs of Campagnolo hubs on a gray background, front hub above rear hub: the large flange quick release 1035 and 1253 and the large flange track 1036 in the top row, the small flange quick release 1034 and 1251 and the small flange track 1036/2 in the bottom row, each captioned with its number.]

— Page 35 —
Campagnolo®

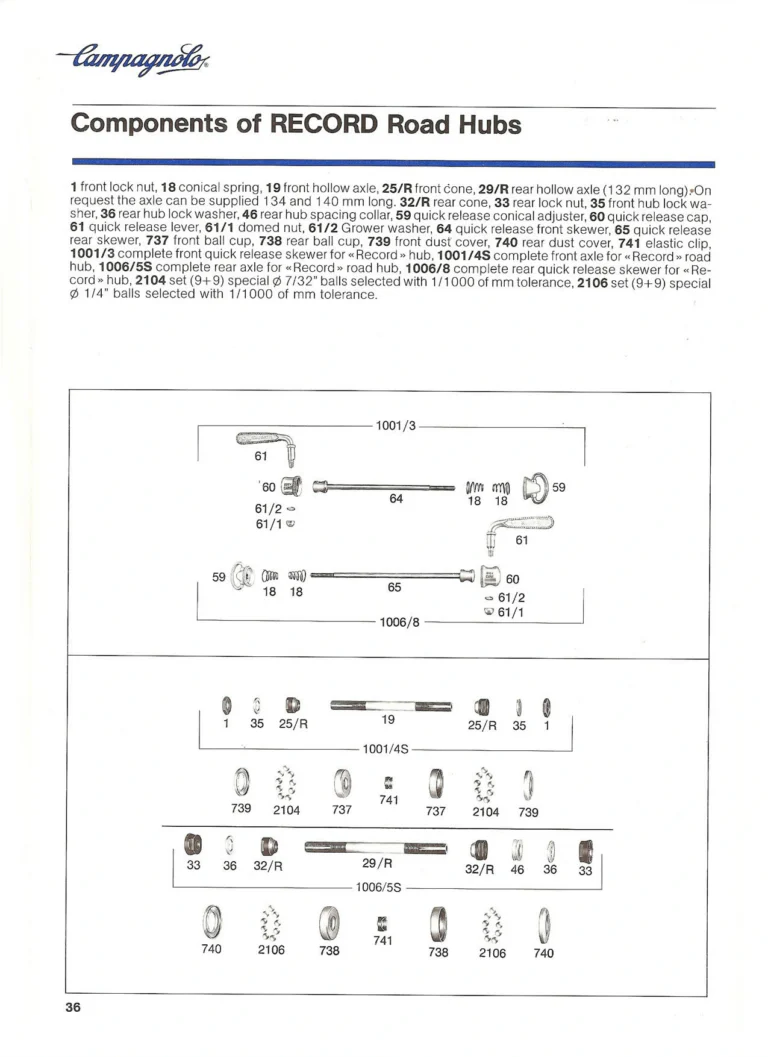

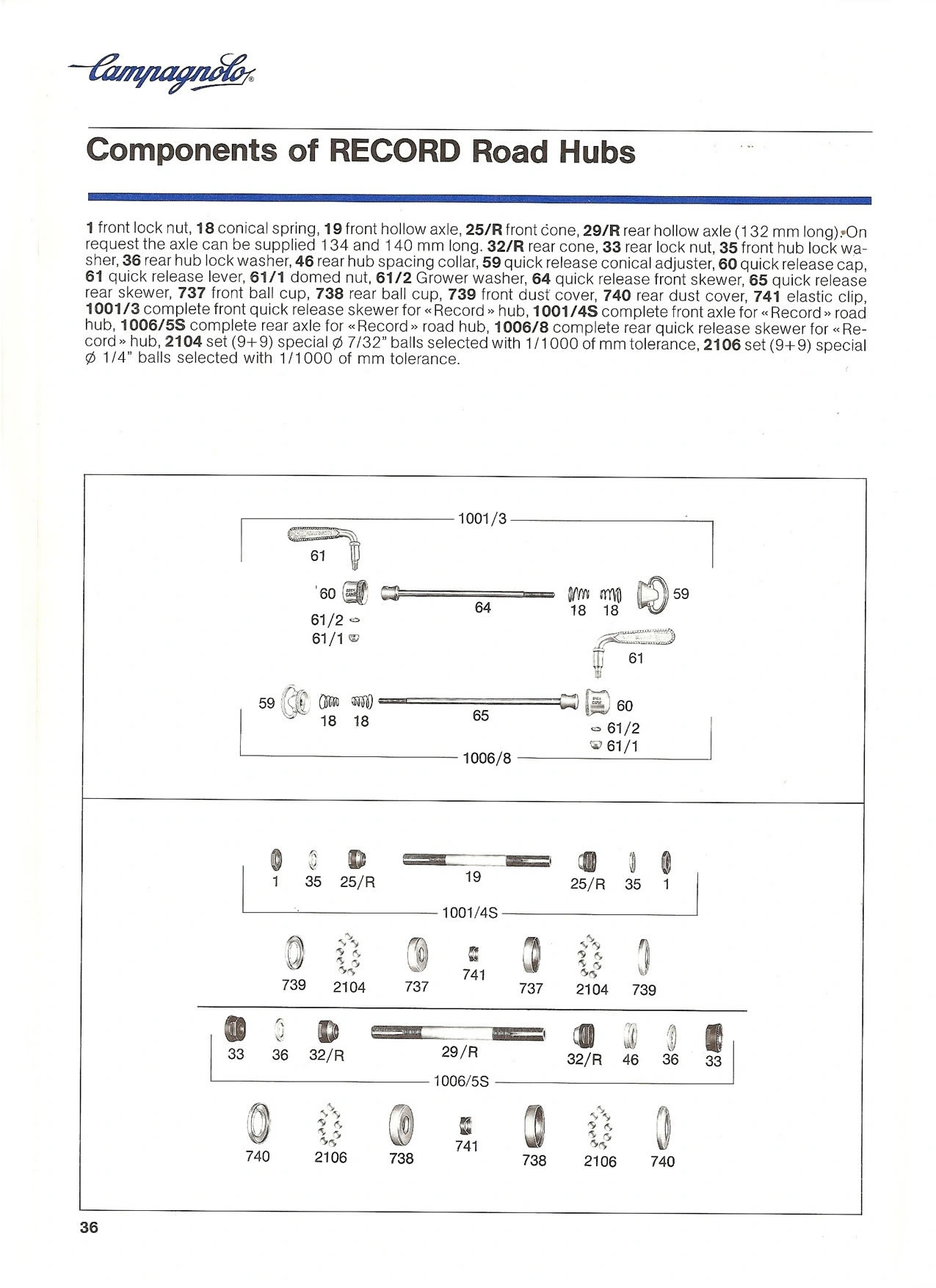

Components of RECORD Road Hubs

1 front lock nut, 18 conical spring, 19 front hollow axle, 25/R front cone, 29/R rear hollow axle (132 mm long).On request the axle can be supplied 134 and 140 mm long. 32/R rear cone, 33 rear lock nut, 35 front hub lock washer, 36 rear hub lock washer, 46 rear hub spacing collar, 59 quick release conical adjuster, 60 quick release cap, 61 quick release lever, 61/1 domed nut, 61/2 Grower washer, 64 quick release front skewer, 65 quick release rear skewer, 737 front ball cup, 738 rear ball cup, 739 front dust cover, 740 rear dust cover, 741 elastic clip, 1001/3 complete front quick release skewer for «Record» hub, 1001/4S complete front axle for «Record» road hub, 1006/5S complete rear axle for «Record» road hub, 1006/8 complete rear quick release skewer for «Record» hub, 2104 set (9+9) special ø 7/32″ balls selected with 1/1000 of mm tolerance, 2106 set (9+9) special ø 1/4″ balls selected with 1/1000 of mm tolerance.

Callouts: 1001/3 61 60 64 18 18 59 61/2 61/1 61 59 18 18 65 60 61/2 61/1 1006/8 1 35 25/R 19 25/R 35 1 1001/4S 739 2104 737 741 737 2104 739 33 36 32/R 29/R 32/R 46 36 33 1006/5S 740 2106 738 741 738 2106 740

[An exploded drawing of the components of the Campagnolo Record road hubs, with every part numbered and keyed to the run-in parts list above it. The front and rear quick release skewers, 1001/3 and 1006/8, are bracketed at the top; below them the front axle 1001/4S and the rear axle 1006/5S are bracketed with their cones, washers and lock nuts, each followed by its dust covers, ball sets, ball cups and elastic clip.]

— Page 36 —
Campagnolo®

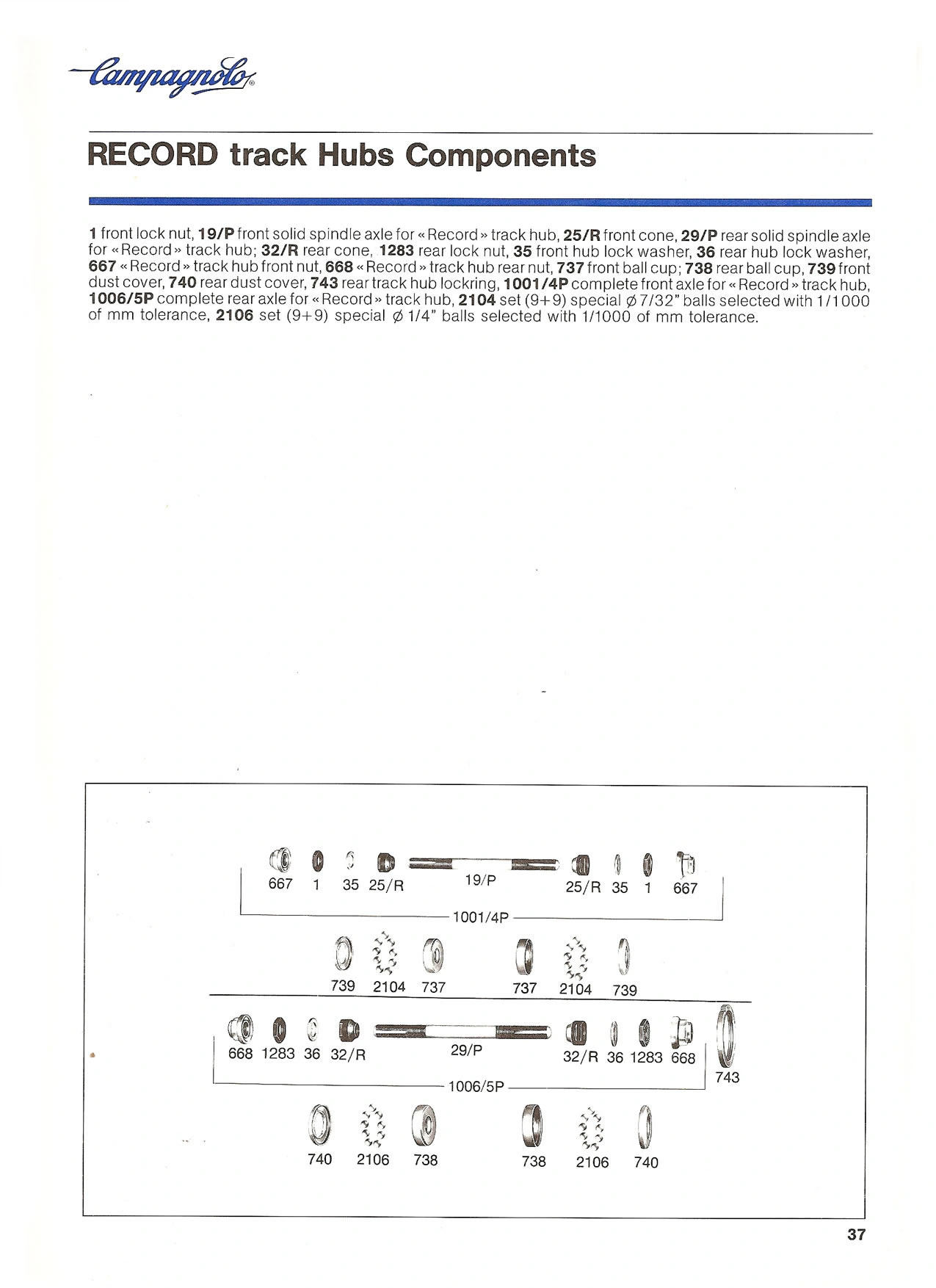

RECORD track Hubs Components

1 front lock nut, 19/P front solid spindle axle for «Record» track hub, 25/R front cone, 29/P rear solid spindle axle for «Record» track hub; 32/R rear cone, 1283 rear lock nut, 35 front hub lock washer, 36 rear hub lock washer, 667 «Record» track hub front nut, 668 «Record» track hub rear nut, 737 front ball cup; 738 rear ball cup, 739 front dust cover, 740 rear dust cover, 743 rear track hub lockring, 1001/4P complete front axle for «Record» track hub, 1006/5P complete rear axle for «Record» track hub, 2104 set (9+9) special ø 7/32″ balls selected with 1/1000 of mm tolerance, 2106 set (9+9) special ø 1/4″ balls selected with 1/1000 of mm tolerance.

Callouts: 667 1 35 25/R 19/P 25/R 35 1 667 1001/4P 739 2104 737 737 2104 739 668 1283 36 32/R 29/P 32/R 36 1283 668 743 1006/5P 740 2106 738 738 2106 740

[An exploded drawing of the components of the Campagnolo Record track hubs, with every part numbered and keyed to the run-in parts list above it. The front axle 1001/4P and the rear axle 1006/5P are each bracketed with their cones, washers, lock nuts and track nuts, followed by their dust covers, ball sets and ball cups; the rear track hub lockring 743 stands at the right. The upper half of the page is blank.]

— Page 37 —
Campagnolo®

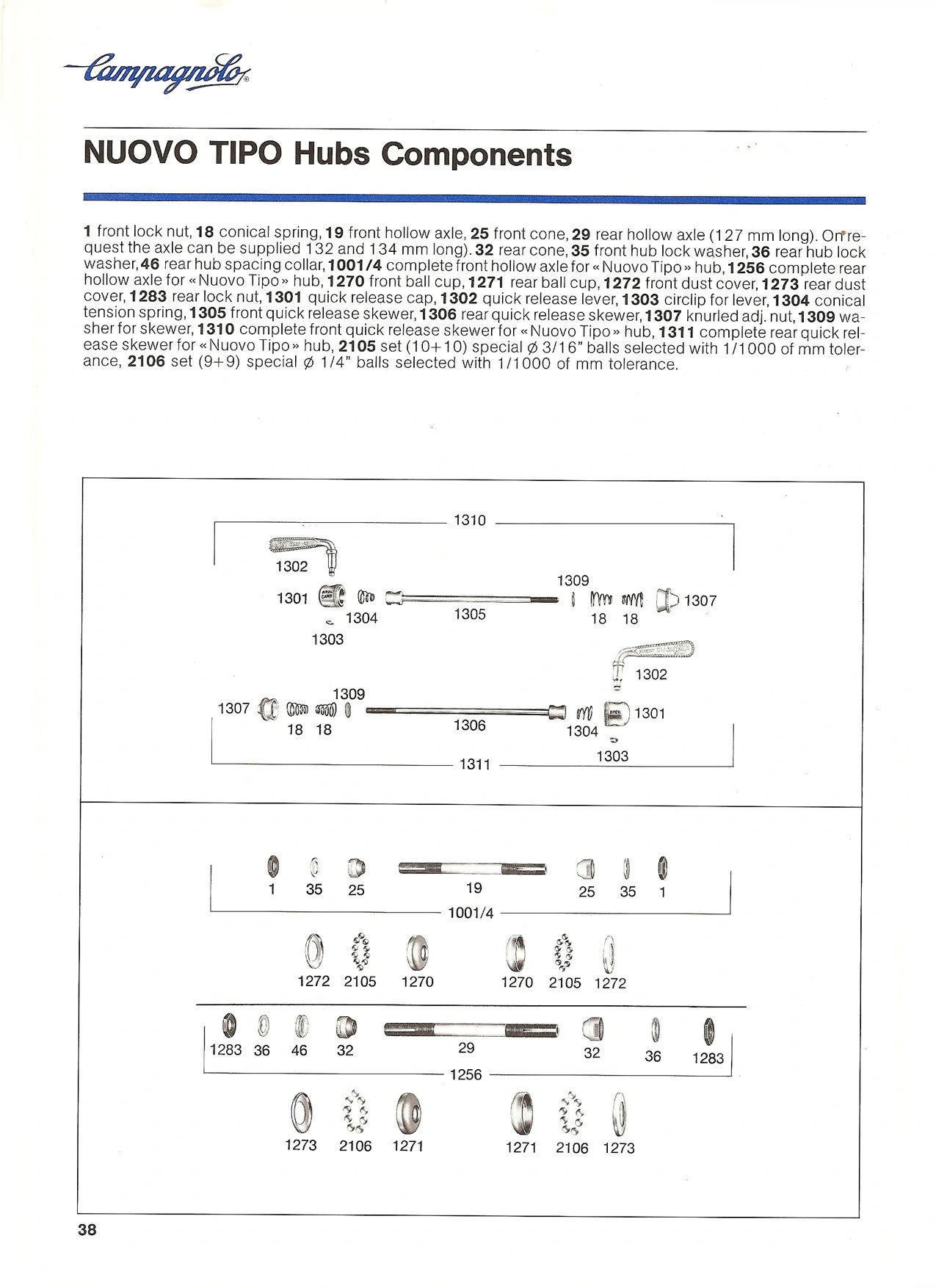

NUOVO TIPO Hubs Components

1 front lock nut, 18 conical spring, 19 front hollow axle, 25 front cone, 29 rear hollow axle (127 mm long). On request the axle can be supplied 132 and 134 mm long). 32 rear cone, 35 front hub lock washer, 36 rear hub lock washer, 46 rear hub spacing collar, 1001/4 complete front hollow axle for «Nuovo Tipo» hub, 1256 complete rear hollow axle for «Nuovo Tipo» hub, 1270 front ball cup, 1271 rear ball cup, 1272 front dust cover, 1273 rear dust cover, 1283 rear lock nut, 1301 quick release cap, 1302 quick release lever, 1303 circlip for lever, 1304 conical tension spring, 1305 front quick release skewer, 1306 rear quick release skewer, 1307 knurled adj. nut, 1309 washer for skewer, 1310 complete front quick release skewer for «Nuovo Tipo» hub, 1311 complete rear quick release skewer for «Nuovo Tipo» hub, 2105 set (10+10) special ø 3/16″ balls selected with 1/1000 of mm tolerance, 2106 set (9+9) special ø 1/4″ balls selected with 1/1000 of mm tolerance.

Callouts: 1310 1302 1309 1301 1304 1305 18 18 1307 1303 1302 1309 1307 18 18 1306 1304 1301 1303 1311 1 35 25 19 25 35 1 1001/4 1272 2105 1270 1270 2105 1272 1283 36 46 32 29 32 36 1283 1256 1273 2106 1271 1271 2106 1273

[An exploded drawing of the components of the Campagnolo Nuovo Tipo hubs, with every part numbered and keyed to the run-in parts list above it. The front and rear quick release skewers, 1310 and 1311, are bracketed at the top; below them the front hollow axle 1001/4 and the rear hollow axle 1256 are bracketed with their cones, washers and lock nuts, each followed by its dust covers, ball sets and ball cups.]

— Page 38 —
Campagnolo®

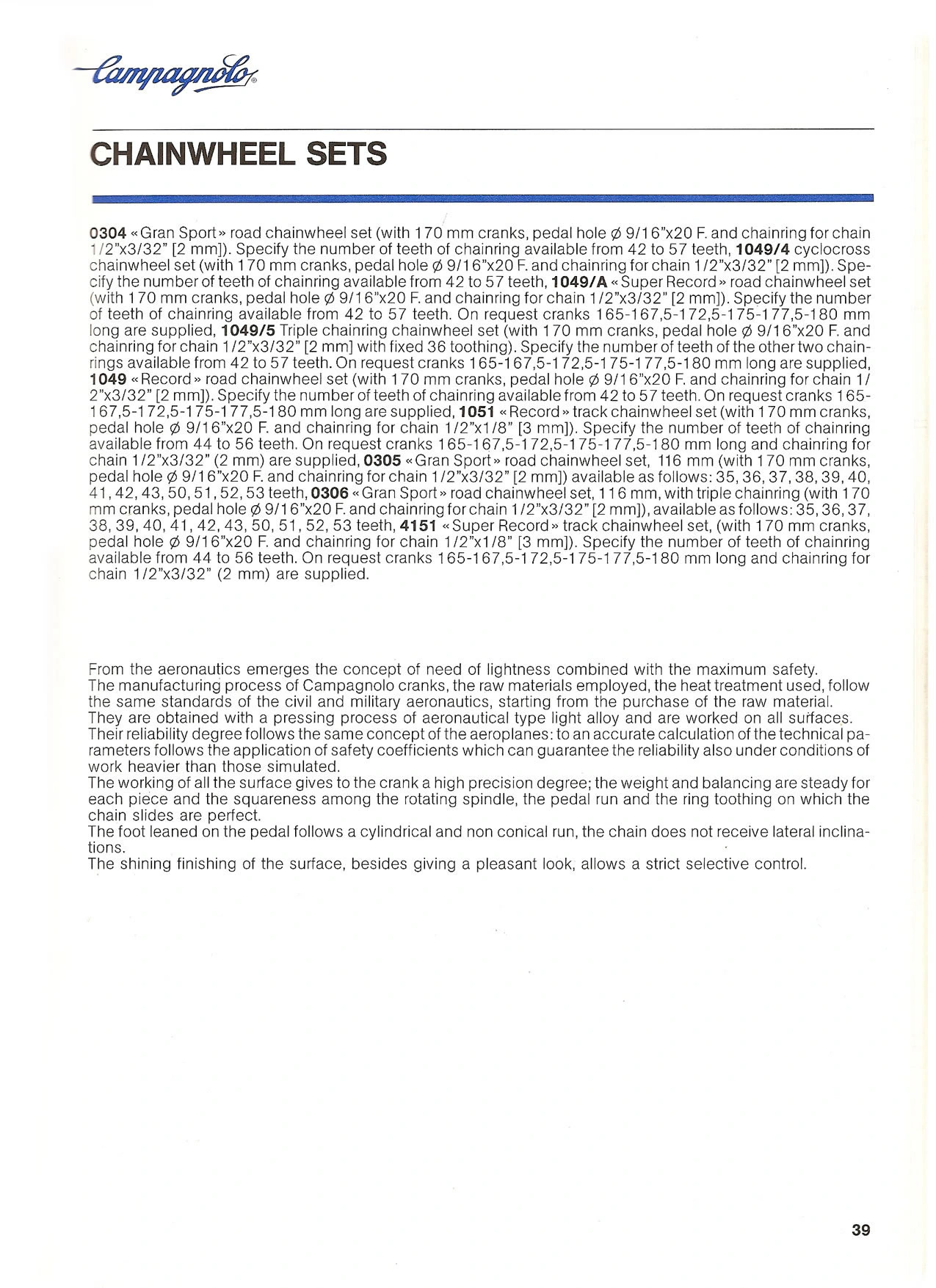

CHAINWHEEL SETS

0304 «Gran Sport» road chainwheel set (with 170 mm cranks, pedal hole ø 9/16″x20 F. and chainring for chain 1/2″x3/32″ [2 mm]). Specify the number of teeth of chainring available from 42 to 57 teeth, 1049/4 cyclocross chainwheel set (with 170 mm cranks, pedal hole ø 9/16″x20 F. and chainring for chain 1/2″x3/32″ [2 mm]). Specify the number of teeth of chainring available from 42 to 57 teeth, 1049/A «Super Record» road chainwheel set (with 170 mm cranks, pedal hole ø 9/16″x20 F. and chainring for chain 1/2″x3/32″ [2 mm]). Specify the number of teeth of chainring available from 42 to 57 teeth. On request cranks 165-167,5-172,5-175-177,5-180 mm long are supplied, 1049/5 Triple chainring chainwheel set (with 170 mm cranks, pedal hole ø 9/16″x20 F. and chainring for chain 1/2″x3/32″ [2 mm] with fixed 36 toothing). Specify the number of teeth of the other two chainrings available from 42 to 57 teeth. On request cranks 165-167,5-172,5-175-177,5-180 mm long are supplied, 1049 «Record» road chainwheel set (with 170 mm cranks, pedal hole ø 9/16″x20 F. and chainring for chain 1/2″x3/32″ [2 mm]). Specify the number of teeth of chainring available from 42 to 57 teeth. On request cranks 165-167,5-172,5-175-177,5-180 mm long are supplied, 1051 «Record» track chainwheel set (with 170 mm cranks, pedal hole ø 9/16″x20 F. and chainring for chain 1/2″x1/8″ [3 mm]). Specify the number of teeth of chainring available from 44 to 56 teeth. On request cranks 165-167,5-172,5-175-177,5-180 mm long and chainring for chain 1/2″x3/32″ (2 mm) are supplied, 0305 «Gran Sport» road chainwheel set, 116 mm (with 170 mm cranks, pedal hole ø 9/16″x20 F. and chainring for chain 1/2″x3/32″ [2 mm]) available as follows: 35, 36, 37, 38, 39, 40, 41, 42, 43, 50, 51, 52, 53 teeth, 0306 «Gran Sport» road chainwheel set, 116 mm, with triple chainring (with 170 mm cranks, pedal hole ø 9/16″x20 F. and chainring for chain 1/2″x3/32″ [2 mm]), available as follows: 35, 36, 37, 38, 39, 40, 41, 42, 43, 50, 51, 52, 53 teeth, 4151 «Super Record» track chainwheel set, (with 170 mm cranks, pedal hole ø 9/16″x20 F. and chainring for chain 1/2″x1/8″ [3 mm]). Specify the number of teeth of chainring available from 44 to 56 teeth. On request cranks 165-167,5-172,5-175-177,5-180 mm long and chainring for chain 1/2″x3/32″ (2 mm) are supplied.

From the aeronautics emerges the concept of need of lightness combined with the maximum safety.
The manufacturing process of Campagnolo cranks, the raw materials employed, the heat treatment used, follow the same standards of the civil and military aeronautics, starting from the purchase of the raw material.
They are obtained with a pressing process of aeronautical type light alloy and are worked on all surfaces.
Their reliability degree follows the same concept of the aeroplanes: to an accurate calculation of the technical parameters follows the application of safety coefficients which can guarantee the reliability also under conditions of work heavier than those simulated.
The working of all the surface gives to the crank a high precision degree; the weight and balancing are steady for each piece and the squareness among the rotating spindle, the pedal run and the ring toothing on which the chain slides are perfect.
The foot leaned on the pedal follows a cylindrical and non conical run, the chain does not receive lateral inclinations.
The shining finishing of the surface, besides giving a pleasant look, allows a strict selective control.

[A text page listing the Campagnolo chainwheel sets in one run-in paragraph, from the 0304 Gran Sport road set to the 4151 Super Record track set, with crank lengths, pedal threads and chainring sizes, followed by a passage on how Campagnolo cranks are made. There are no illustrations; the lower third of the page is blank.]

— Page 39 —
Campagnolo®

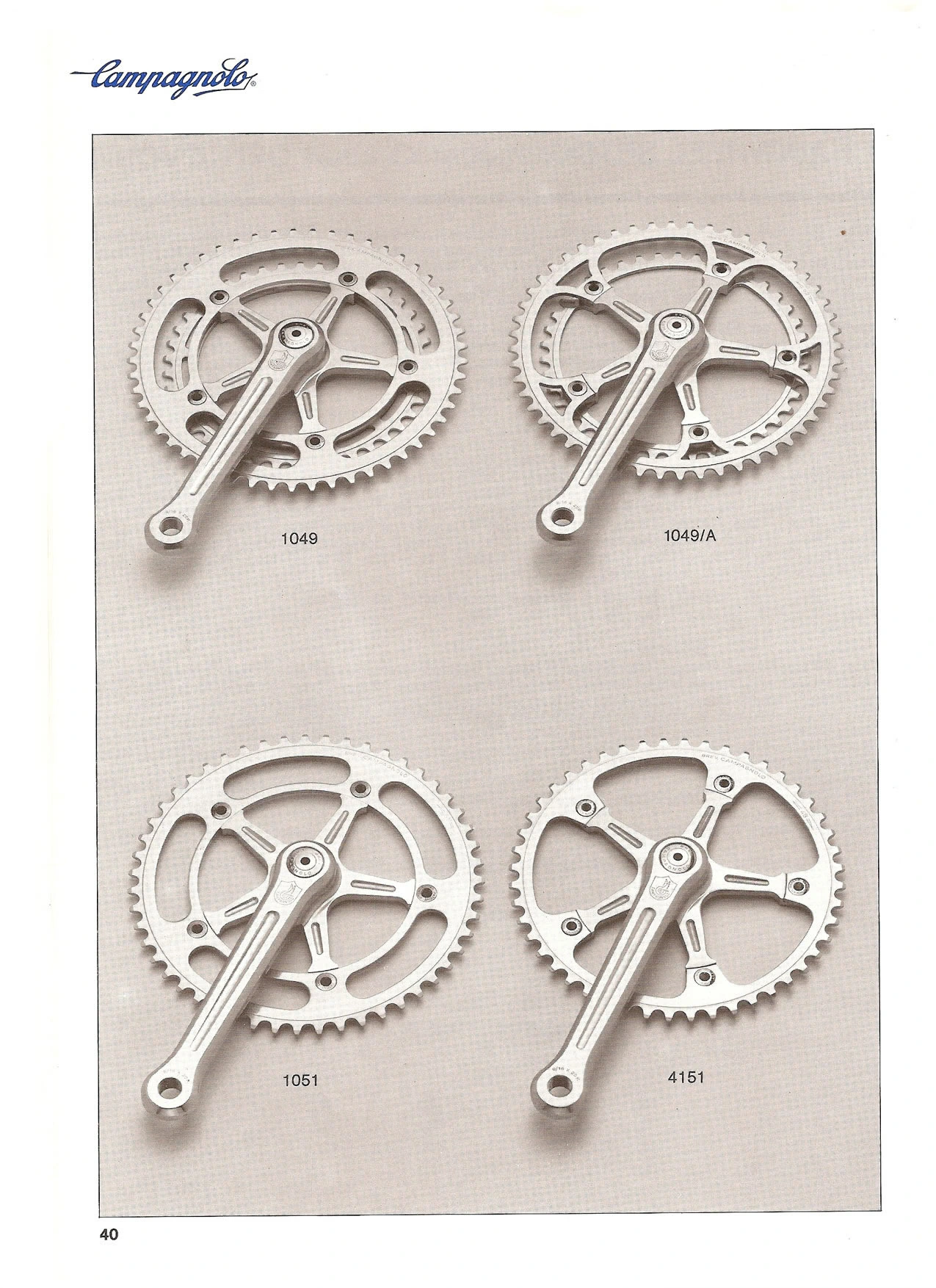

Callouts: 1049 1049/A 1051 4151

[A photograph of four Campagnolo right hand cranks with chainrings on a gray background, each captioned with its number: the 1049 Record road double and the 1049/A Super Record road double above, and the 1051 Record track and the 4151 Super Record track single chainring sets below.]

— Page 40 —
Campagnolo®

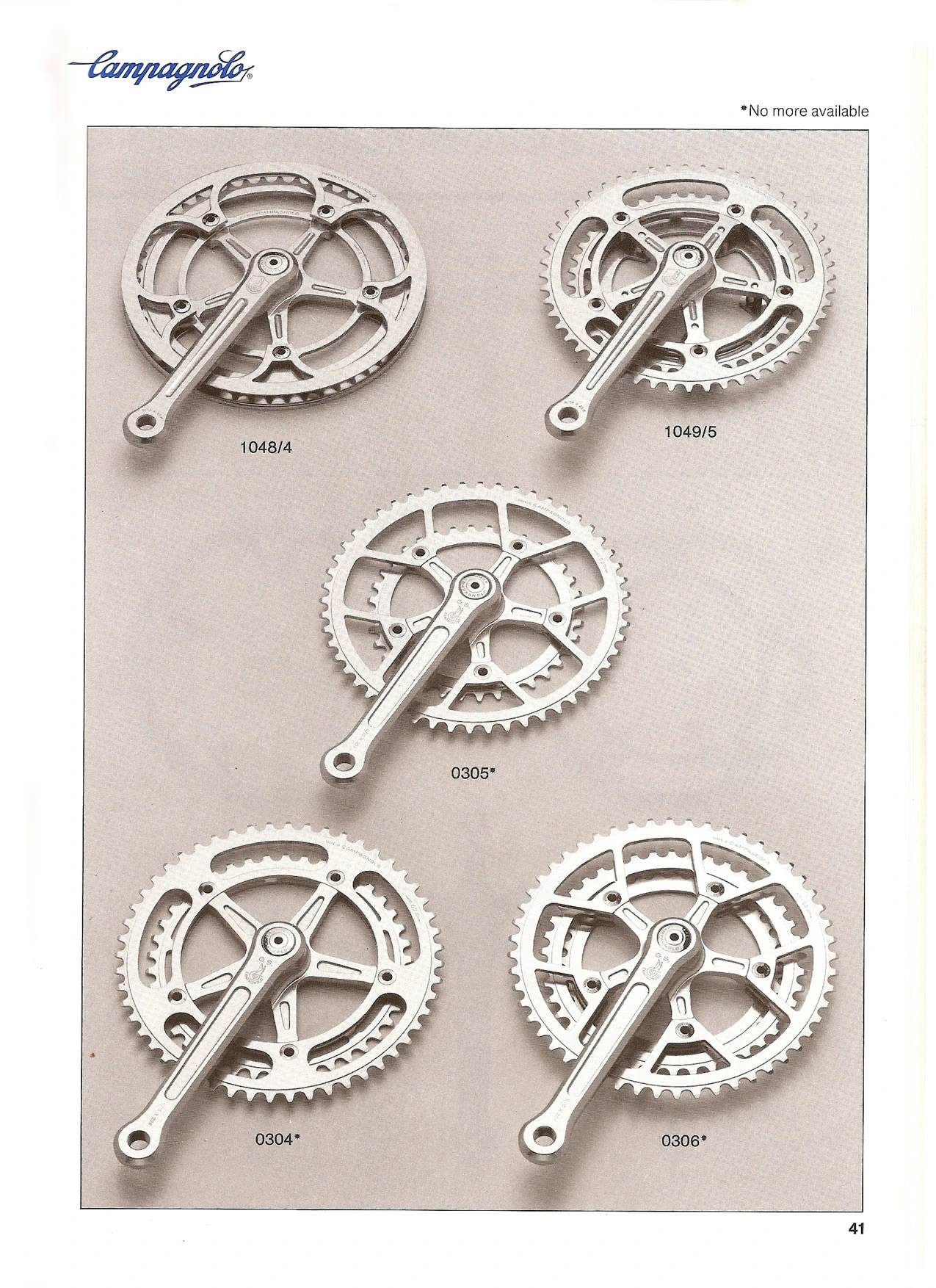

*No more available

Callouts: 1048/4 1049/5 0305* 0304* 0306*

[A photograph of five Campagnolo right hand cranks with chainrings on a gray background, each captioned with its number: the 1048/4 with a guard ring and the 1049/5 triple above, the 0305* Gran Sport in the center, and the 0304* and 0306* Gran Sport sets below. The asterisk refers to the note at the top right, which marks the three Gran Sport sets as no more available.]

— Page 41 —
Campagnolo®

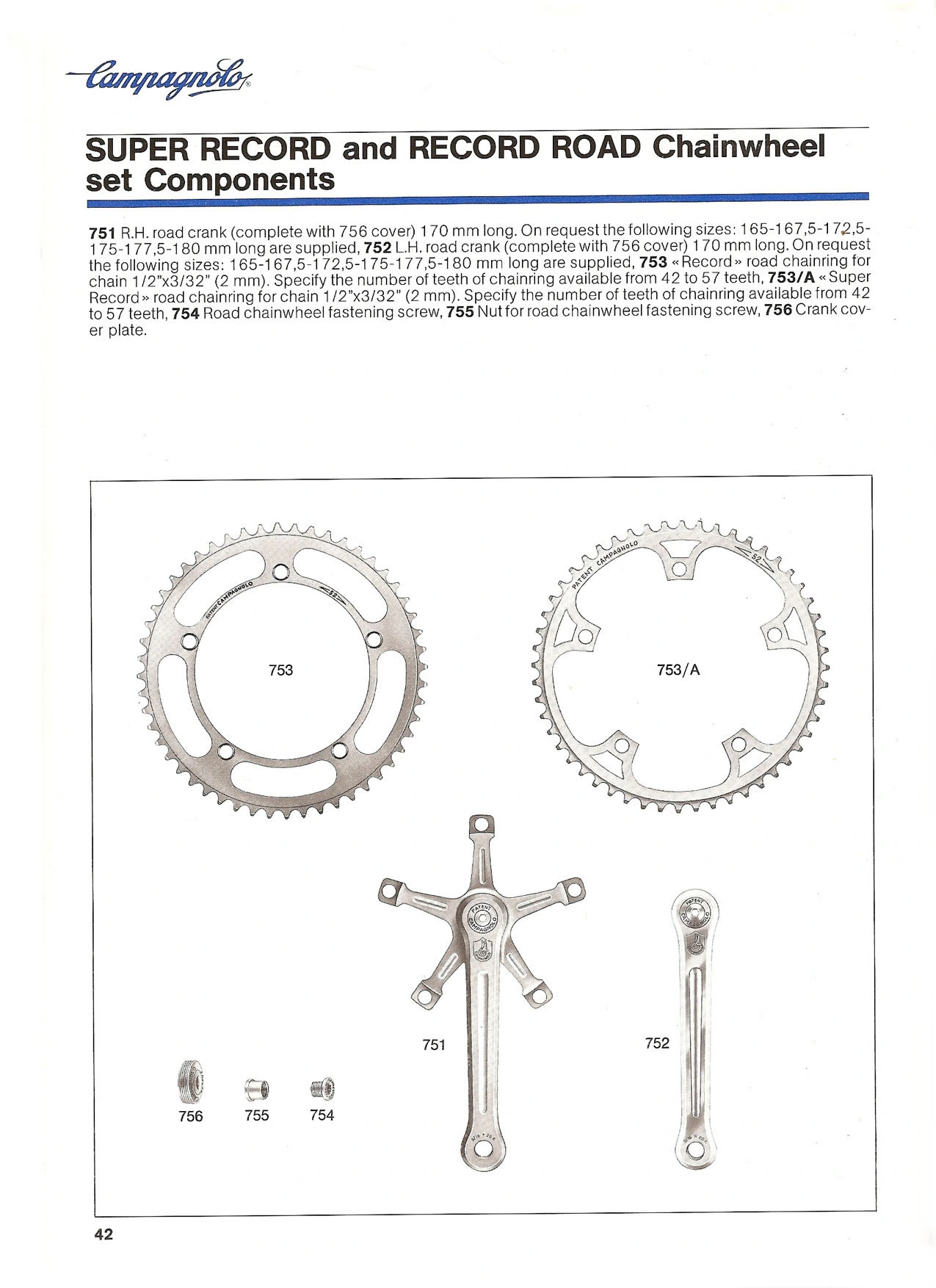

SUPER RECORD and RECORD ROAD Chainwheel set Components

Callouts: 753 753/A 751 752 756 755 754

[A boxed black and white photograph of the Campagnolo Super Record and Record road chainwheel set components: the Record road chainring 753 with its five round holes, the drilled Super Record road chainring 753/A, the right-hand five-arm crank 751, the left-hand crank 752, and the cover plate 756, nut 755 and fastening screw 754. A running paragraph above the photograph keys each part number to its name and the available sizes.]

— Page 42 —
Campagnolo®

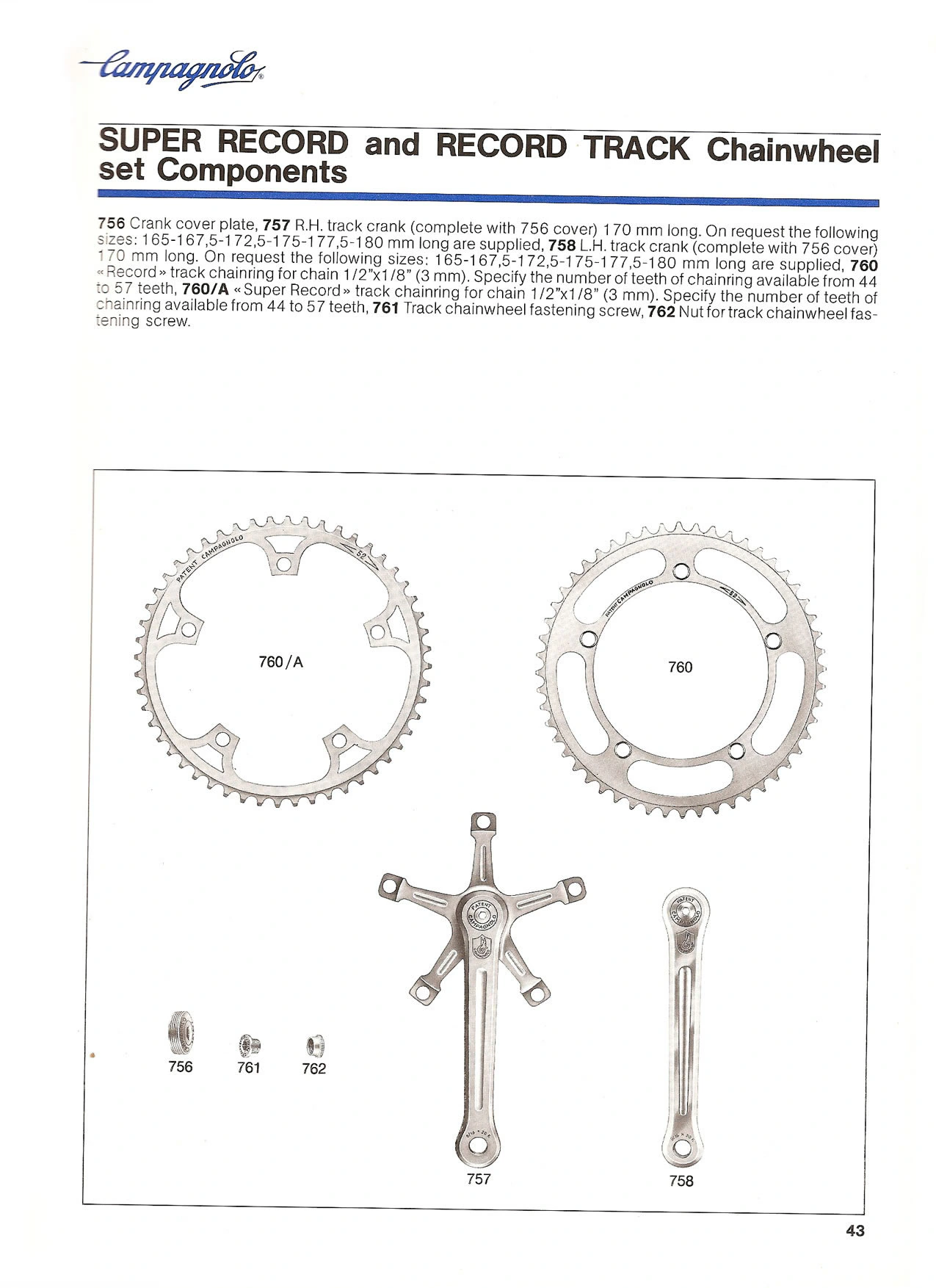

SUPER RECORD and RECORD TRACK Chainwheel set Components

756 Crank cover plate, 757 R.H. track crank (complete with 756 cover) 170 mm long. On request the following sizes: 165-167,5-172,5-175-177,5-180 mm long are supplied, 758 L.H. track crank (complete with 756 cover) 170 mm long. On request the following sizes: 165-167,5-172,5-175-177,5-180 mm long are supplied, 760 «Record» track chainring for chain 1/2″x1/8″ (3 mm). Specify the number of teeth of chainring available from 44 to 57 teeth, 760/A «Super Record» track chainring for chain 1/2″x1/8″ (3 mm). Specify the number of teeth of chainring available from 44 to 57 teeth, 761 Track chainwheel fastening screw, 762 Nut for track chainwheel fastening screw.

Callouts: 760/A 760 756 761 762 757 758

[A boxed black and white photograph of the Campagnolo Super Record and Record track chainwheel set components: the drilled Super Record track chainring 760/A, the Record track chainring 760, the right-hand five-arm track crank 757, the left-hand crank 758, and the cover plate 756, fastening screw 761 and nut 762. A running paragraph above the photograph keys each part number to its name and the available sizes.]

— Page 43 —
Campagnolo®

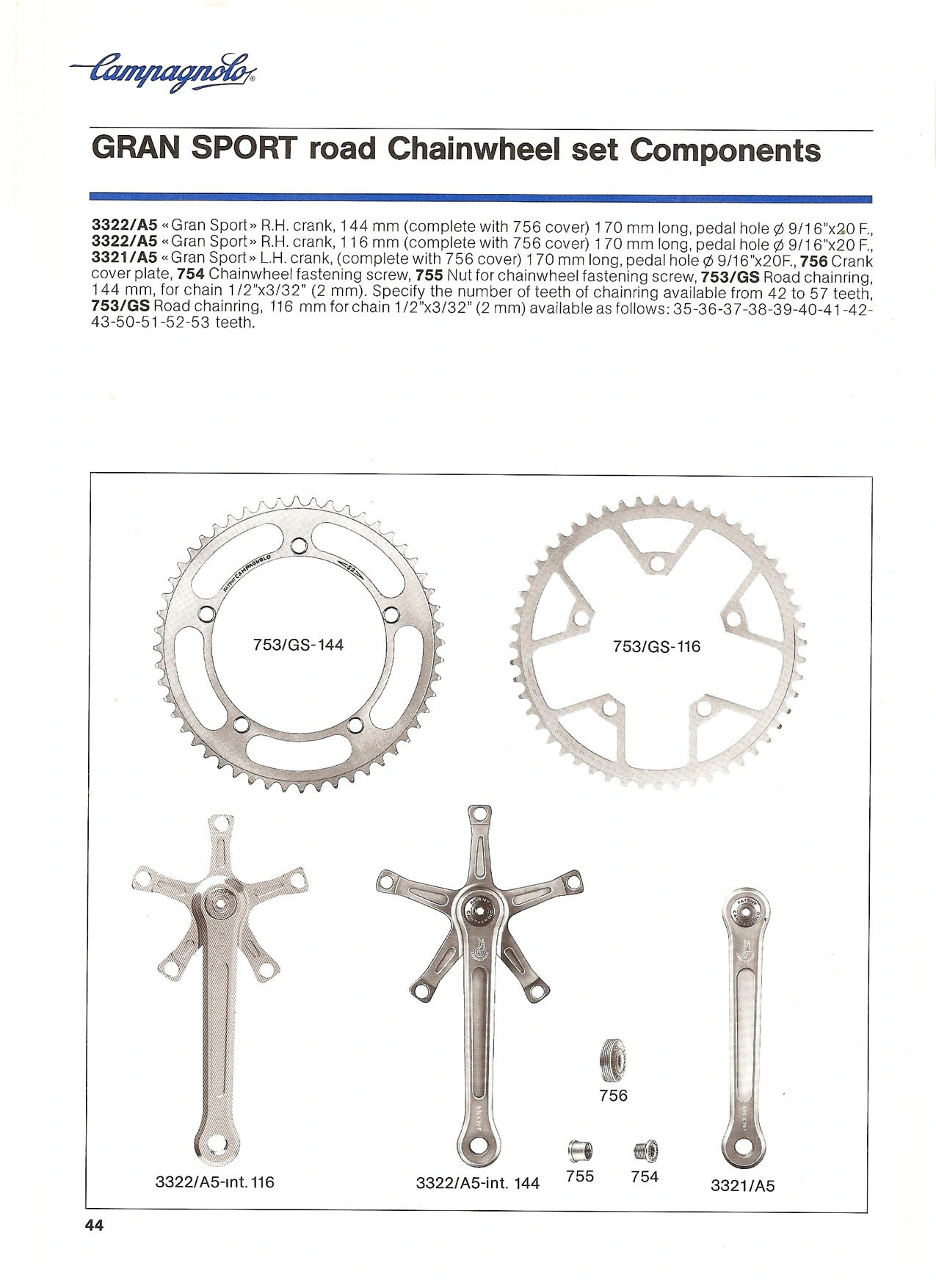

GRAN SPORT road Chainwheel set Components

3322/A5 «Gran Sport» R.H. crank, 144 mm (complete with 756 cover) 170 mm long, pedal hole Ø 9/16″x20 F., 3322/A5 «Gran Sport» R.H. crank, 116 mm (complete with 756 cover) 170 mm long, pedal hole Ø 9/16″x20 F., 3321/A5 «Gran Sport» L.H. crank, (complete with 756 cover) 170 mm long, pedal hole Ø 9/16″x20F., 756 Crank cover plate, 754 Chainwheel fastening screw, 755 Nut for chainwheel fastening screw, 753/GS Road chainring, 144 mm, for chain 1/2″x3/32″ (2 mm). Specify the number of teeth of chainring available from 42 to 57 teeth, 753/GS Road chainring, 116 mm for chain 1/2″x3/32″ (2 mm) available as follows: 35-36-37-38-39-40-41-42-43-50-51-52-53 teeth.

Callouts: 753/GS-144 753/GS-116 756 3322/A5-int. 116 3322/A5-int. 144 755 754 3321/A5

[A boxed black and white photograph of the Campagnolo Gran Sport road chainwheel set components: the 144 mm chainring 753/GS-144, the smaller-circle 116 mm chainring 753/GS-116, two right-hand five-arm cranks for the 116 mm and 144 mm bolt circles (3322/A5-int. 116 and 3322/A5-int. 144), the left-hand crank 3321/A5, and the cover plate 756, nut 755 and fastening screw 754. A running paragraph above the photograph keys each part number to its name, pedal thread and available chainring sizes.]

— Page 44 —
Campagnolo®

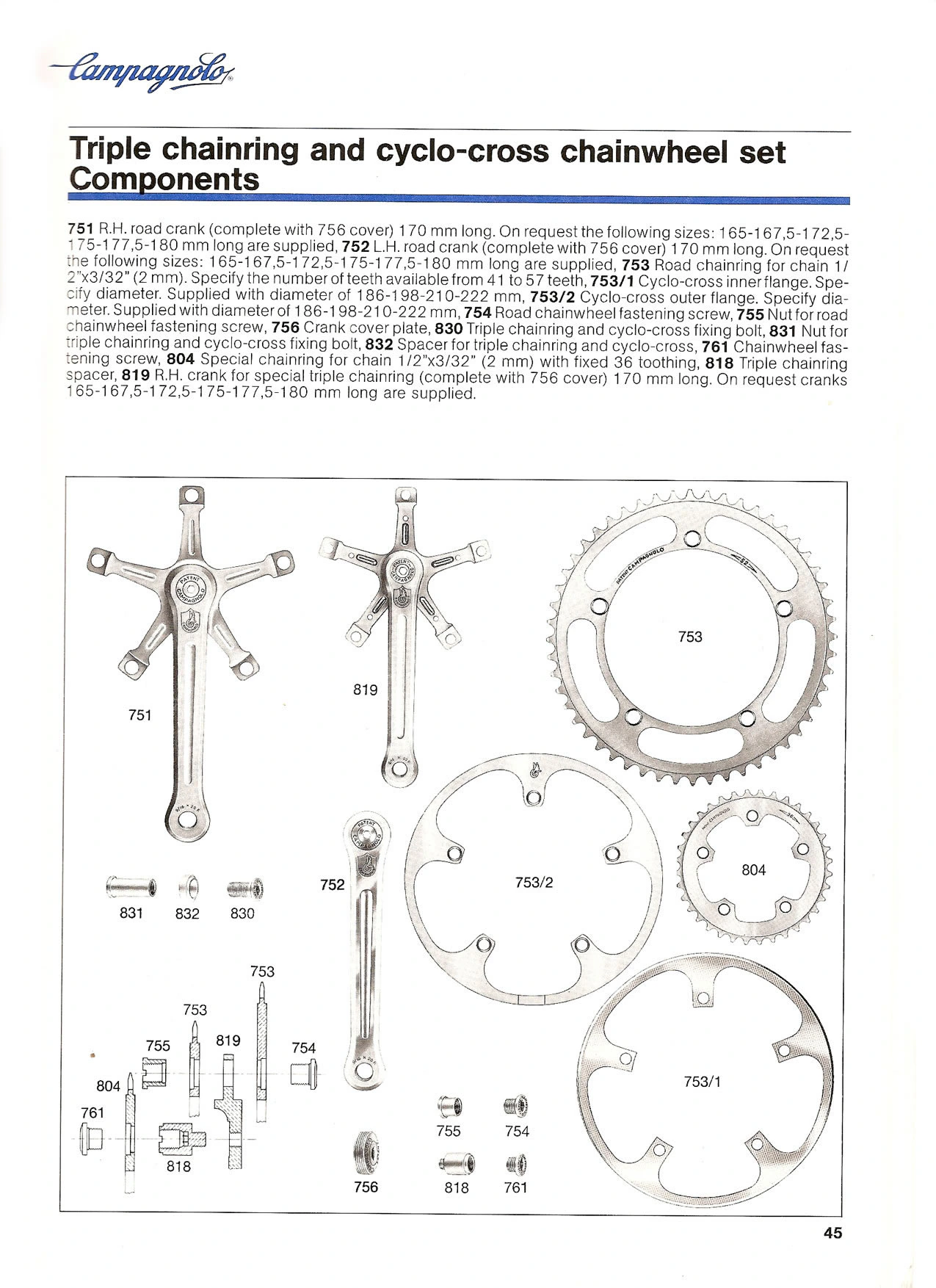

Triple chainring and cyclo-cross chainwheel set Components

751 R.H. road crank (complete with 756 cover) 170 mm long. On request the following sizes: 165-167,5-172,5-175-177,5-180 mm long are supplied, 752 L.H. road crank (complete with 756 cover) 170 mm long. On request the following sizes: 165-167,5-172,5-175-177,5-180 mm long are supplied, 753 Road chainring for chain 1/2″x3/32″ (2 mm). Specify the number of teeth available from 41 to 57 teeth, 753/1 Cyclo-cross inner flange. Specify diameter. Supplied with diameter of 186-198-210-222 mm, 753/2 Cyclo-cross outer flange. Specify diameter. Supplied with diameter of 186-198-210-222 mm, 754 Road chainwheel fastening screw, 755 Nut for road chainwheel fastening screw, 756 Crank cover plate, 830 Triple chainring and cyclo-cross fixing bolt, 831 Nut for triple chainring and cyclo-cross fixing bolt, 832 Spacer for triple chainring and cyclo-cross, 761 Chainwheel fastening screw, 804 Special chainring for chain 1/2″x3/32″ (2 mm) with fixed 36 toothing, 818 Triple chainring spacer, 819 R.H. crank for special triple chainring (complete with 756 cover) 170 mm long. On request cranks 165-167,5-172,5-175-177,5-180 mm long are supplied.

Callouts: 751 819 753 831 832 830 752 753/2 804 804 755 753 819 753 754 753/1 761 818 756 755 754 818 761

[A boxed black and white photograph of the Campagnolo triple chainring and cyclo-cross chainwheel set components: the right-hand road crank 751, the special triple-chainring crank 819 with its extended spider tabs, the left-hand crank 752, the road chainring 753, the 36-tooth special chainring 804, the cyclo-cross outer and inner flanges 753/2 and 753/1, and the small bolts, nuts and spacers 830, 831, 832, 754, 755, 761 and 818 with the cover plate 756. A hatched sectional drawing at the lower left shows how the three chainrings, the 819 crank, the 818 spacer and their screws and nuts assemble.]

— Page 45 —
Campagnolo®

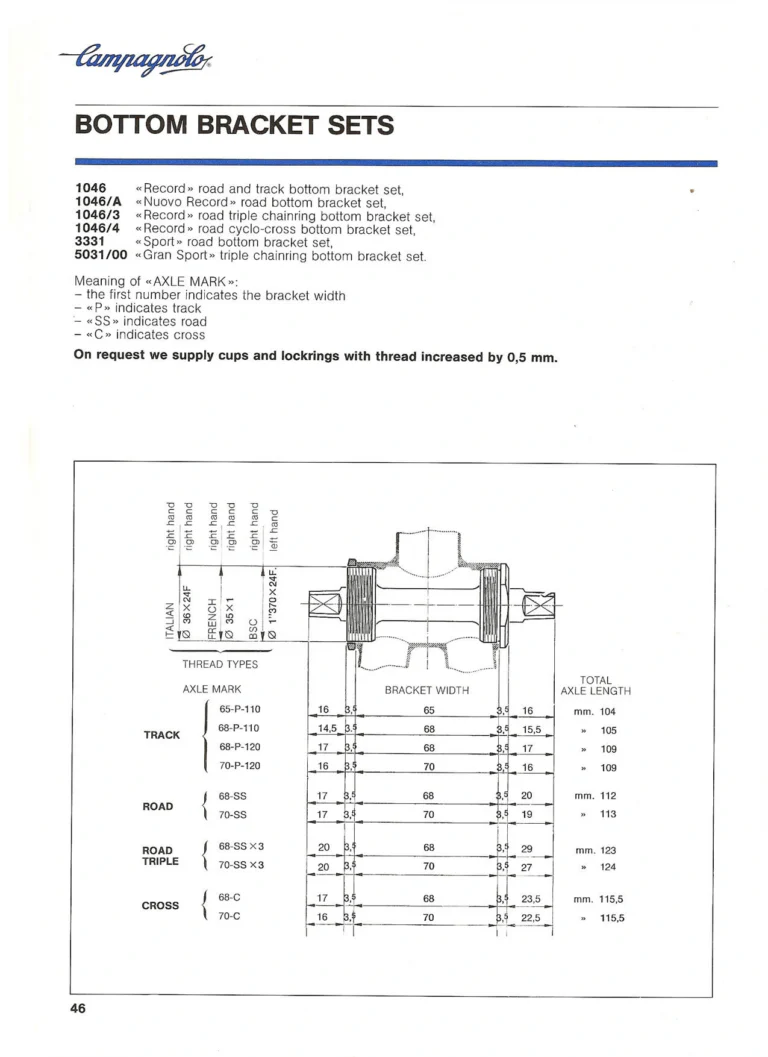

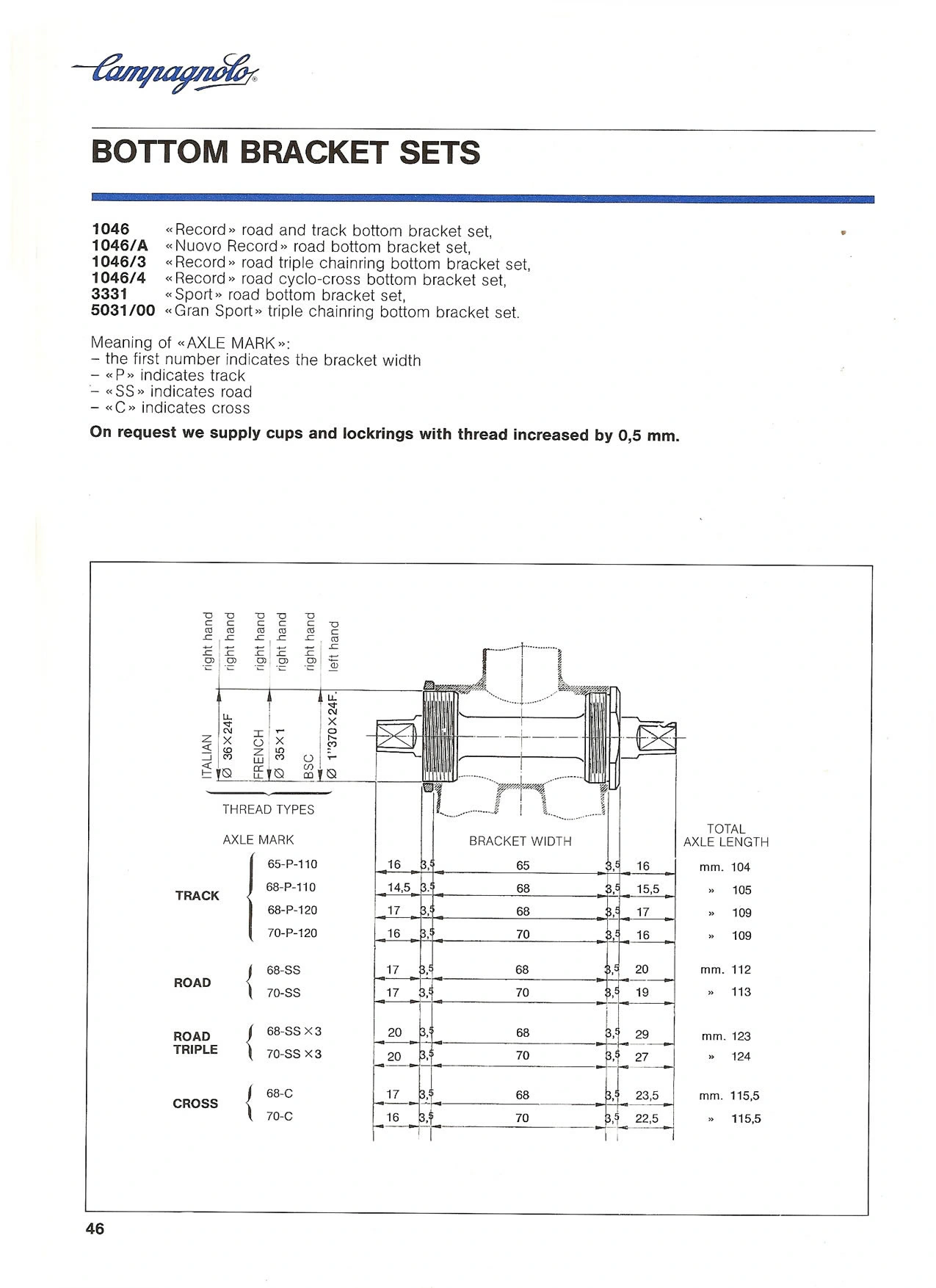

BOTTOM BRACKET SETS

1046 «Record» road and track bottom bracket set,
1046/A «Nuovo Record» road bottom bracket set,
1046/3 «Record» road triple chainring bottom bracket set,
1046/4 «Record» road cyclo-cross bottom bracket set,
3331 «Sport» road bottom bracket set,
5031/00 «Gran Sport» triple chainring bottom bracket set.

Meaning of «AXLE MARK»:
– the first number indicates the bracket width
– «P» indicates track
– «SS» indicates road
– «C» indicates cross

On request we supply cups and lockrings with thread increased by 0,5 mm.

AXLE MARK | | | BRACKET WIDTH | | | TOTAL AXLE LENGTH
TRACK
65-P-110 | 16 | 3,5 | 65 | 3,5 | 16 | mm. 104
68-P-110 | 14,5 | 3.5 [?] | 68 | 3,5 | 15,5 | » 105
68-P-120 | 17 | 3,5 | 68 | 3,5 | 17 | » 109
70-P-120 | 16 | 3,5 | 70 | 3,5 | 16 | » 109
ROAD
68-SS | 17 | 3,5 | 68 | 3,5 | 20 | mm. 112
70-SS | 17 | 3,5 | 70 | 3,5 | 19 | » 113
ROAD TRIPLE
68-SS ×3 | 20 | 3,5 | 68 | 3,5 | 29 | mm. 123
70-SS ×3 | 20 | 3,5 | 70 | 3,5 | 27 | » 124
CROSS
68-C | 17 | 3,5 | 68 | 3,5 | 23,5 | mm. 115,5
70-C | 16 | 3,5 | 70 | 3,5 | 22,5 | » 115,5

[A boxed technical drawing of a Campagnolo bottom bracket shell in section, with its cups and axle, above a dimension table giving, for each axle mark, the left spacing, cup widths, bracket width, right spacing and total axle length for track, road, road triple and cross axles. Above the drawing the page lists the six bottom bracket sets by number, explains the axle mark code and names the Italian, French and BSC thread types with the hand of each cup thread.]

— Page 46 —
Campagnolo®

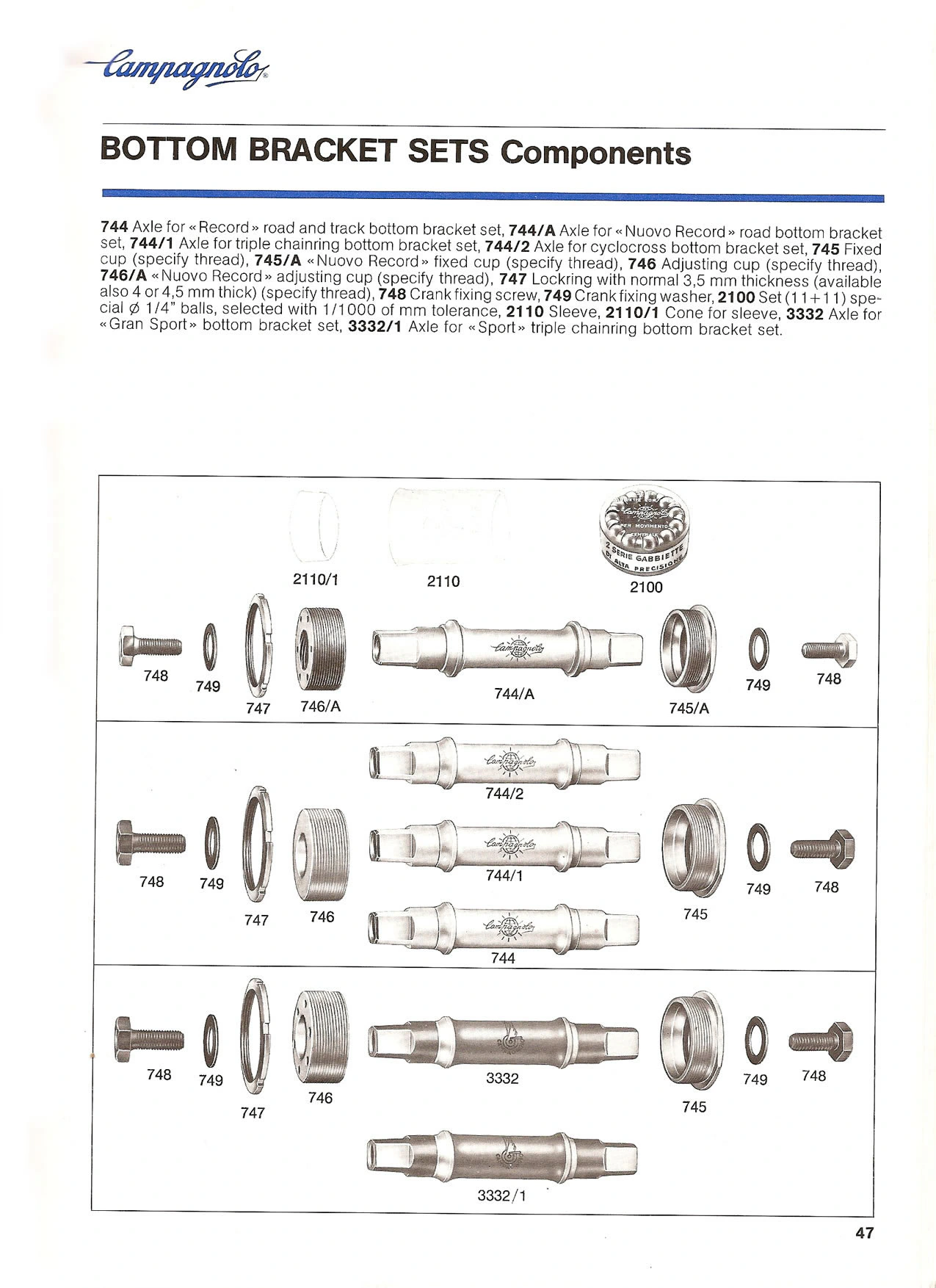

BOTTOM BRACKET SETS Components

744 Axle for «Record» road and track bottom bracket set, 744/A Axle for «Nuovo Record» road bottom bracket set, 744/1 Axle for triple chainring bottom bracket set, 744/2 Axle for cyclocross bottom bracket set, 745 Fixed cup (specify thread), 745/A «Nuovo Record» fixed cup (specify thread), 746 Adjusting cup (specify thread), 746/A «Nuovo Record» adjusting cup (specify thread), 747 Lockring with normal 3,5 mm thickness (available also 4 or 4,5 mm thick) (specify thread), 748 Crank fixing screw, 749 Crank fixing washer, 2100 Set (11+11) special Ø 1/4″ balls, selected with 1/1000 of mm tolerance, 2110 Sleeve, 2110/1 Cone for sleeve, 3332 Axle for «Gran Sport» bottom bracket set, 3332/1 Axle for «Sport» triple chainring bottom bracket set.

Callouts: 2110/1 2110 2100 748 749 747 746/A 744/A 745/A 749 748 748 749 747 746 744/2 744/1 744 745 749 748 748 749 747 746 3332 3332/1 745 749 748

[A boxed black and white photograph in three panels of the Campagnolo bottom bracket set components, each row laid out in assembly order from crank fixing screw and washer through lockring, adjusting cup, axle and fixed cup. The top panel shows the Nuovo Record parts with axle 744/A and a boxed set of caged balls 2100, with the sleeve 2110 and its cone 2110/1 drawn as faint outlines; the middle panel shows the Record parts with the axles 744/2, 744/1 and 744; the bottom panel shows the plainer axles 3332 and 3332/1.]

— Page 47 —
Campagnolo®

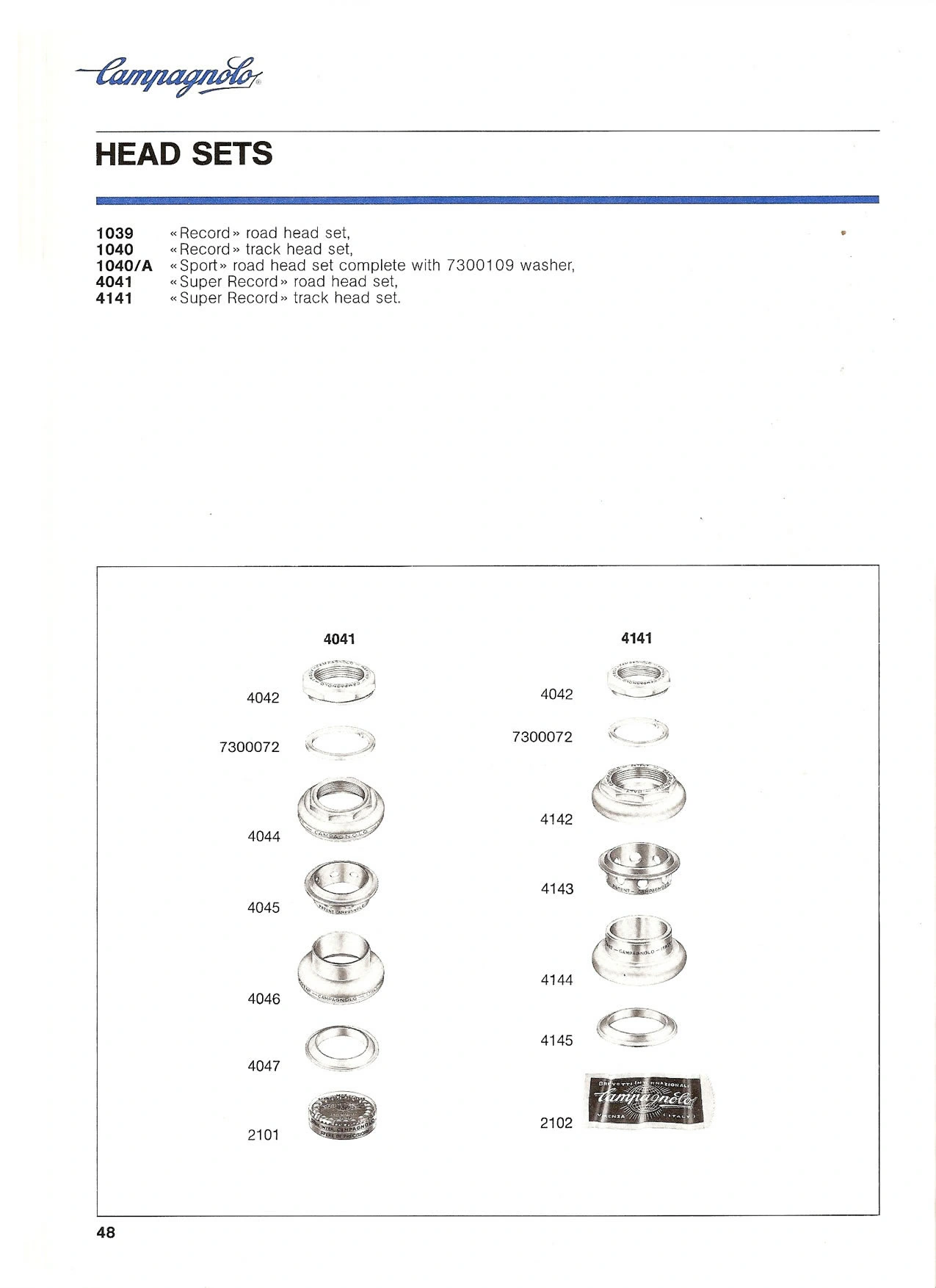

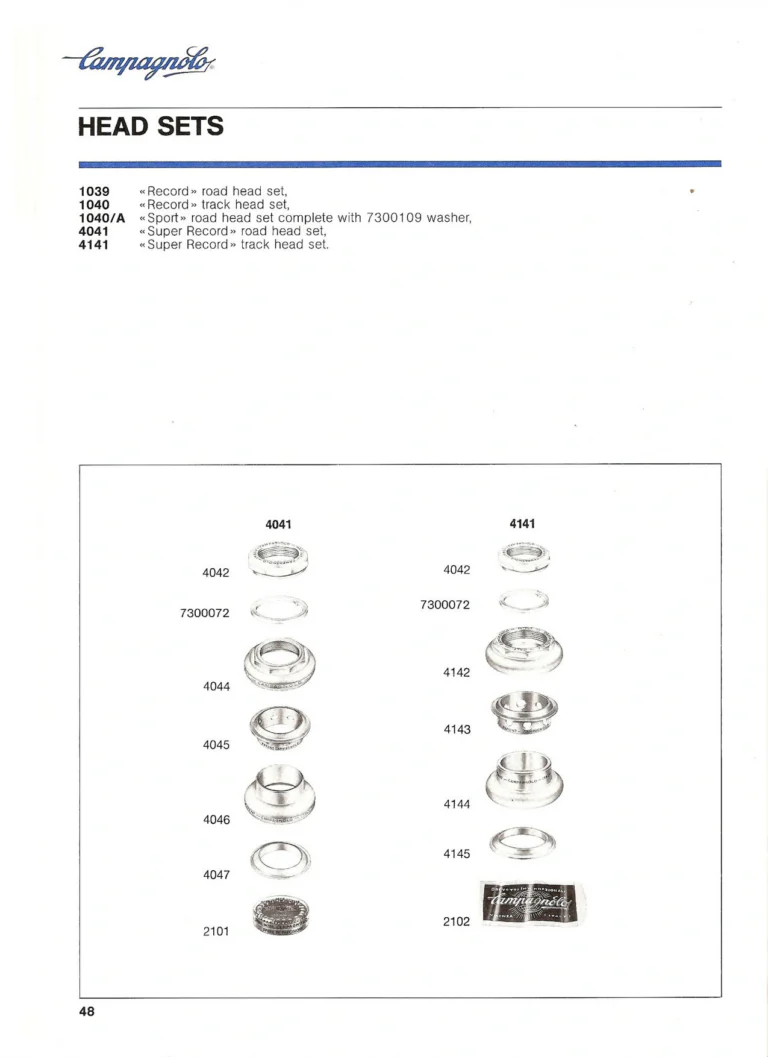

HEAD SETS

1039 «Record» road head set,
1040 «Record» track head set,
1040/A «Sport» road head set complete with 7300109 washer,
4041 «Super Record» road head set,
4141 «Super Record» track head set.

Callouts: 4041 4042 7300072 4044 4045 4046 4047 2101 4141 4042 7300072 4142 4143 4144 4145 2102

[A boxed black and white photograph of the Campagnolo Super Record road head set 4041 and track head set 4141, each shown as a vertical stack of parts from locking nut and washer down through top race, top cone, bottom race and bottom cone to its set of balls, 2101 in a clear box and 2102 in a Campagnolo packet. The upper half of the page lists the five head sets by number; the Record and Sport head sets are not pictured.]

— Page 48 —
Campagnolo®

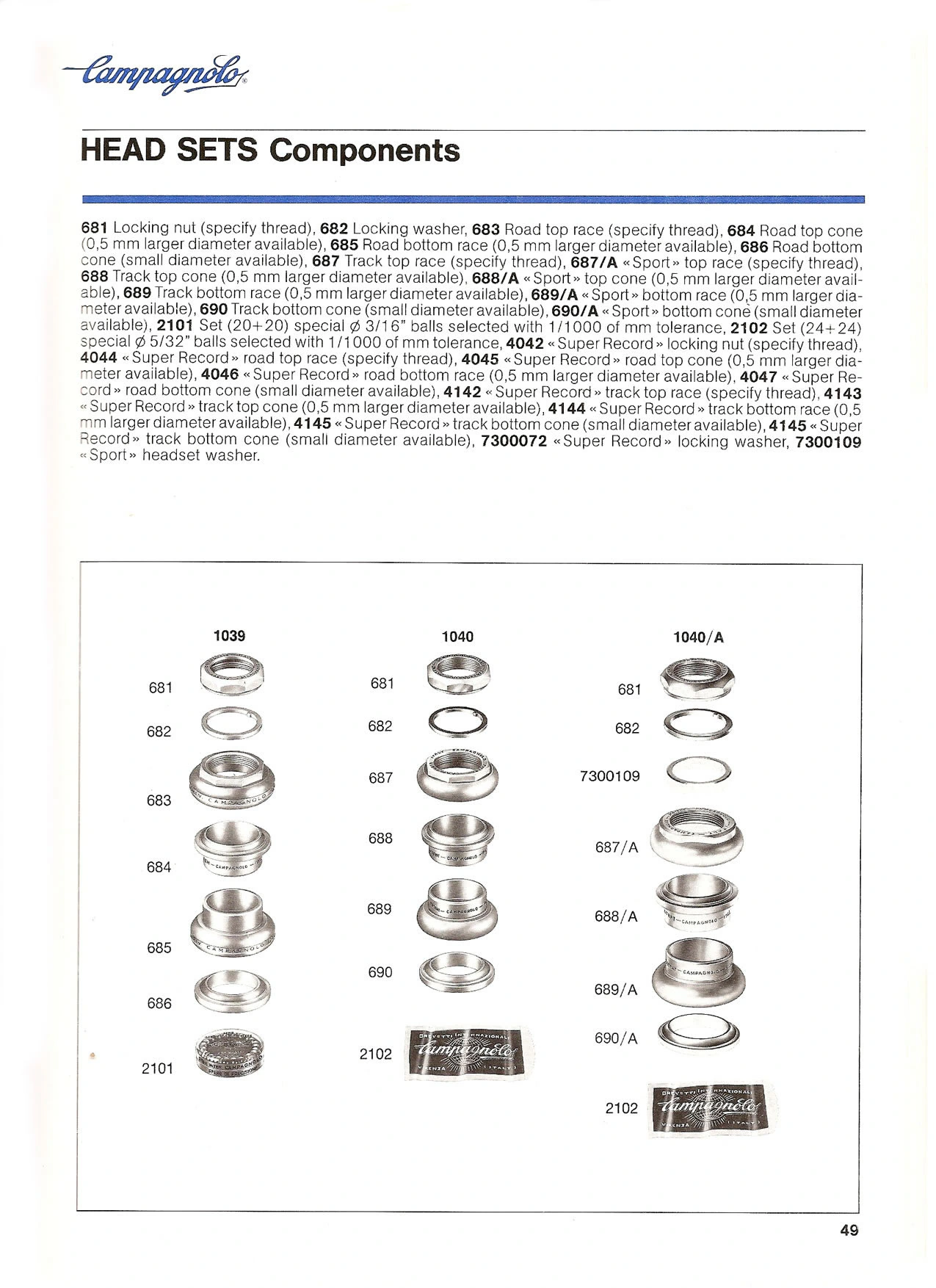

HEAD SETS Components

681 Locking nut (specify thread), 682 Locking washer, 683 Road top race (specify thread), 684 Road top cone (0,5 mm larger diameter available), 685 Road bottom race (0,5 mm larger diameter available), 686 Road bottom cone (small diameter available), 687 Track top race (specify thread), 687/A «Sport» top race (specify thread), 688 Track top cone (0,5 mm larger diameter available), 688/A «Sport» top cone (0,5 mm larger diameter available), 689 Track bottom race (0,5 mm larger diameter available), 689/A «Sport» bottom race (0,5 mm larger diameter available), 690 Track bottom cone (small diameter available), 690/A «Sport» bottom cone (small diameter available), 2101 Set (20+20) special Ø 3/16″ balls selected with 1/1000 of mm tolerance, 2102 Set (24+24) special Ø 5/32″ balls selected with 1/1000 of mm tolerance, 4042 «Super Record» locking nut (specify thread), 4044 «Super Record» road top race (specify thread), 4045 «Super Record» road top cone (0,5 mm larger diameter available), 4046 «Super Record» road bottom race (0,5 mm larger diameter available), 4047 «Super Record» road bottom cone (small diameter available), 4142 «Super Record» track top race (specify thread), 4143 «Super Record» track top cone (0,5 mm larger diameter available), 4144 «Super Record» track bottom race (0,5 mm larger diameter available), 4145 «Super Record» track bottom cone (small diameter available), 4145 «Super Record» track bottom cone (small diameter available), 7300072 «Super Record» locking washer, 7300109 «Sport» headset washer.

Callouts: 1039 681 682 683 684 685 686 2101 1040 681 682 687 688 689 690 2102 1040/A 681 682 7300109 687/A 688/A 689/A 690/A 2102

[A boxed black and white photograph of three Campagnolo head sets, the Record road 1039, the Record track 1040 and the Sport road 1040/A, each shown as a vertical stack of parts from locking nut and washer down through races and cones to its set of balls. A running paragraph above the photograph keys every head set part number, including the Super Record parts shown on the facing page, to its name.]

— Page 49 —
Campagnolo®

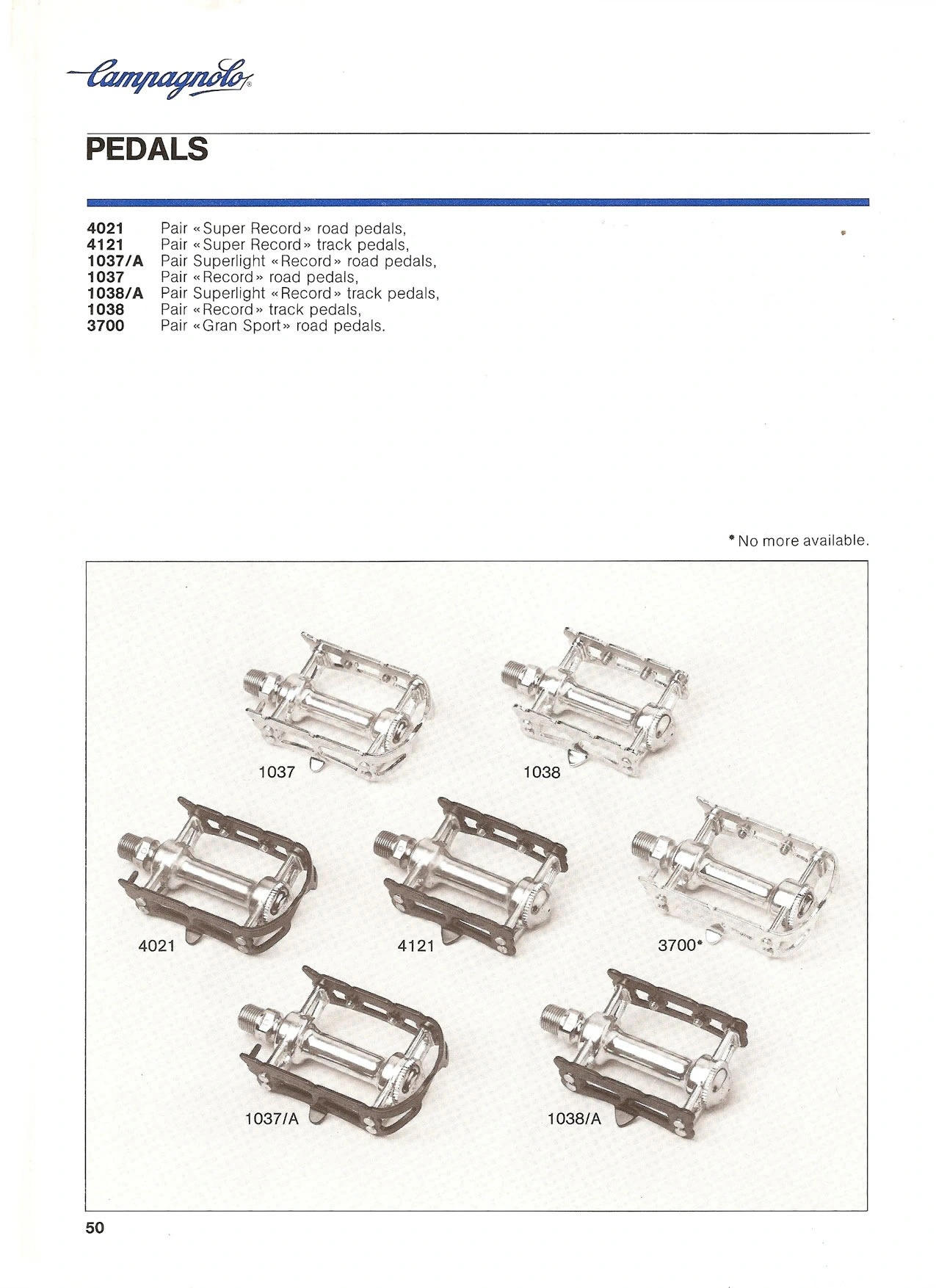

PEDALS

4021 Pair «Super Record» road pedals,
4121 Pair «Super Record» track pedals,
1037/A Pair Superlight «Record» road pedals,
1037 Pair «Record» road pedals,
1038/A Pair Superlight «Record» track pedals,
1038 Pair «Record» track pedals,
3700 Pair «Gran Sport» road pedals.

* No more available.

Callouts: 1037 1038 4021 4121 3700* 1037/A 1038/A

[A boxed black and white photograph of seven Campagnolo quill pedals, each a single pedal seen from above at an angle: the Record road and track pedals 1037 and 1038 with chromed cages, the Super Record road and track pedals 4021 and 4121 and the Superlight Record pedals 1037/A and 1038/A with black cages, and the Gran Sport road pedal 3700 with a chromed cage. An asterisk on the 3700 callout refers to the printed note that it is no longer available.]

— Page 50 —
Campagnolo®

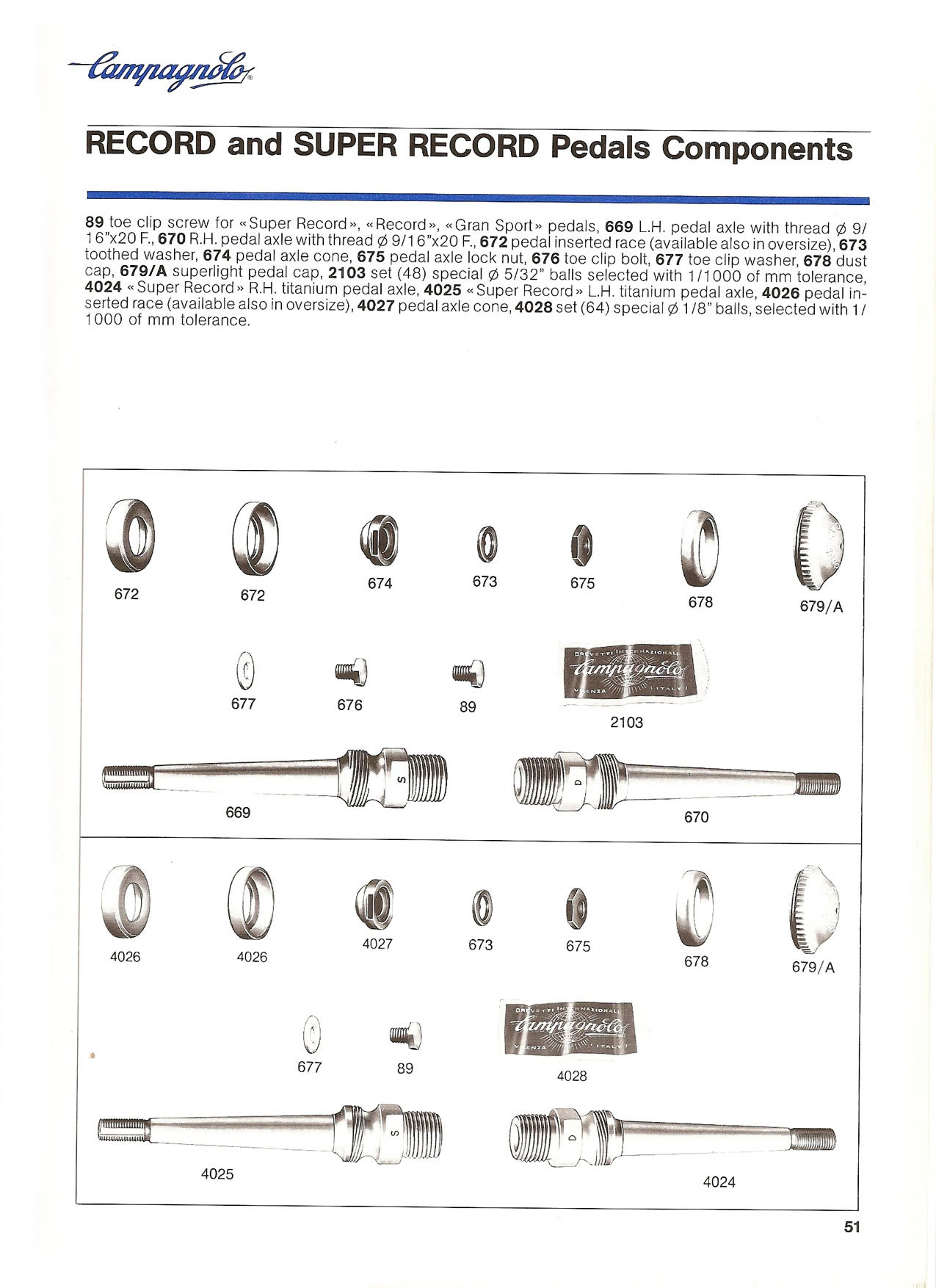

RECORD and SUPER RECORD Pedals Components

89 toe clip screw for «Super Record», «Record», «Gran Sport» pedals, 669 L.H. pedal axle with thread Ø 9/16″x20 F., 670 R.H. pedal axle with thread Ø 9/16″x20 F., 672 pedal inserted race (available also in oversize), 673 toothed washer, 674 pedal axle cone, 675 pedal axle lock nut, 676 toe clip bolt, 677 toe clip washer, 678 dust cap, 679/A superlight pedal cap, 2103 set (48) special Ø 5/32″ balls selected with 1/1000 of mm tolerance, 4024 «Super Record» R.H. titanium pedal axle, 4025 «Super Record» L.H. titanium pedal axle, 4026 pedal inserted race (available also in oversize), 4027 pedal axle cone, 4028 set (64) special Ø 1/8″ balls, selected with 1/1000 of mm tolerance.

Callouts: 672 672 674 673 675 678 679/A 677 676 89 2103 669 670 4026 4026 4027 673 675 678 679/A 677 89 4028 4025 4024

[A boxed black and white photograph in two panels of the Campagnolo Record and Super Record pedal components. The upper panel shows the Record parts, with the steel axles 669 and 670, races, cone, washers, lock nut, dust cap, superlight cap, toe clip bolt and screw and a Campagnolo packet of balls 2103; the lower panel shows the matching Super Record parts with the titanium axles 4025 and 4024, races 4026, cone 4027 and the ball packet 4028.]

— Page 51 —
Campagnolo®

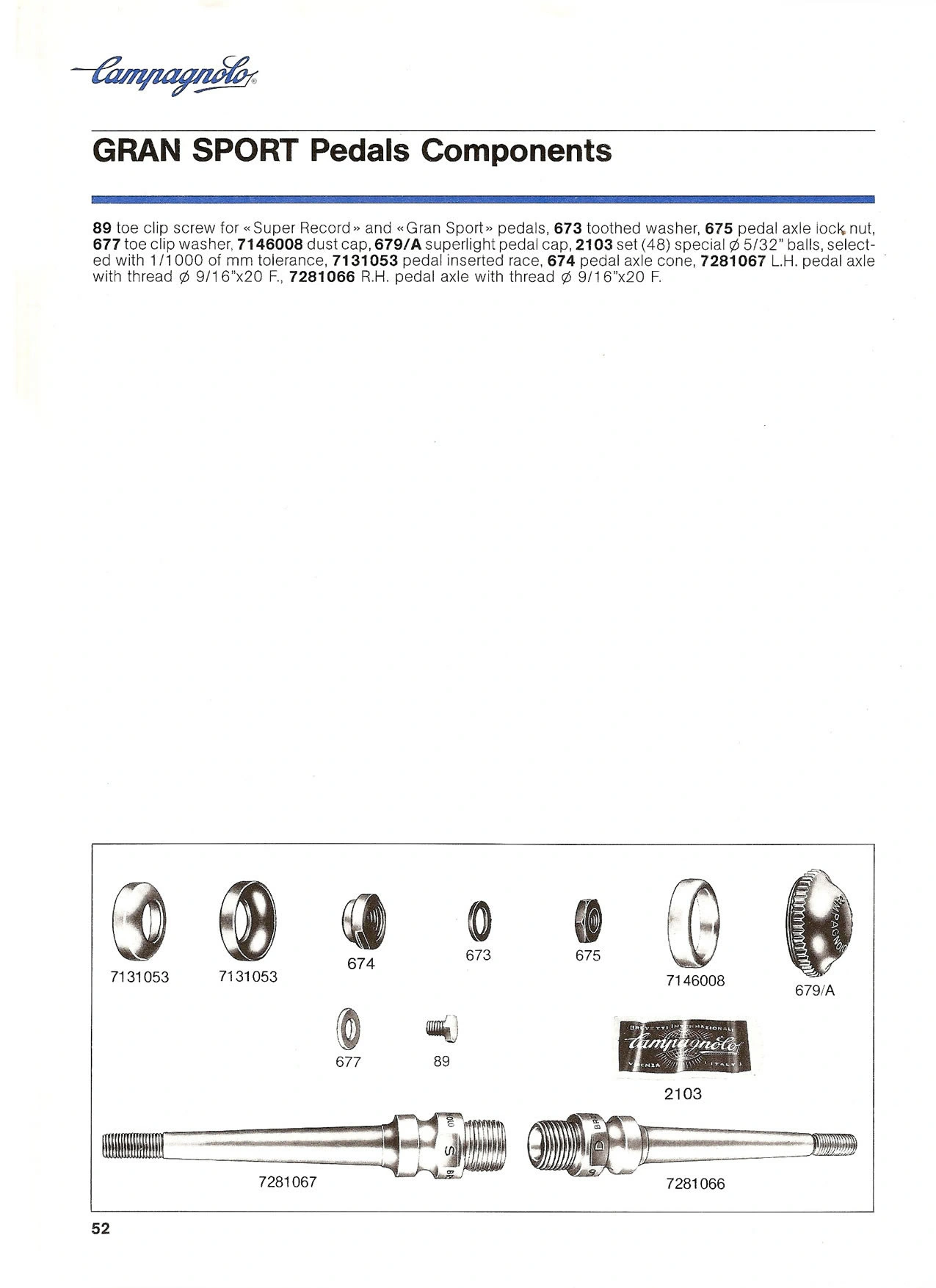

GRAN SPORT Pedals Components

89 toe clip screw for «Super Record» and «Gran Sport» pedals, 673 toothed washer, 675 pedal axle lock nut, 677 toe clip washer, 7146008 dust cap, 679/A superlight pedal cap, 2103 set (48) special ø 5/32″ balls, selected with 1/1000 of mm tolerance, 7131053 pedal inserted race, 674 pedal axle cone, 7281067 L.H. pedal axle with thread ø 9/16″x20 F., 7281066 R.H. pedal axle with thread ø 9/16″x20 F.

Callouts: 7131053 7131053 674 673 675 7146008 679/A 677 89 2103 7281067 7281066

[A boxed black and white photograph of the Campagnolo Gran Sport pedal components: two inserted races 7131053, the cone 674, toothed washer 673, lock nut 675, dust cap 7146008, the knurled superlight pedal cap 679/A, toe clip washer 677 and screw 89, a packet of balls 2103 labeled “Brevetti Internazionali Campagnolo Vicenza Italy,” and the left and right pedal axles 7281067 and 7281066. A running paragraph above the photograph keys each part number to its name.]

— Page 52 —
Campagnolo®

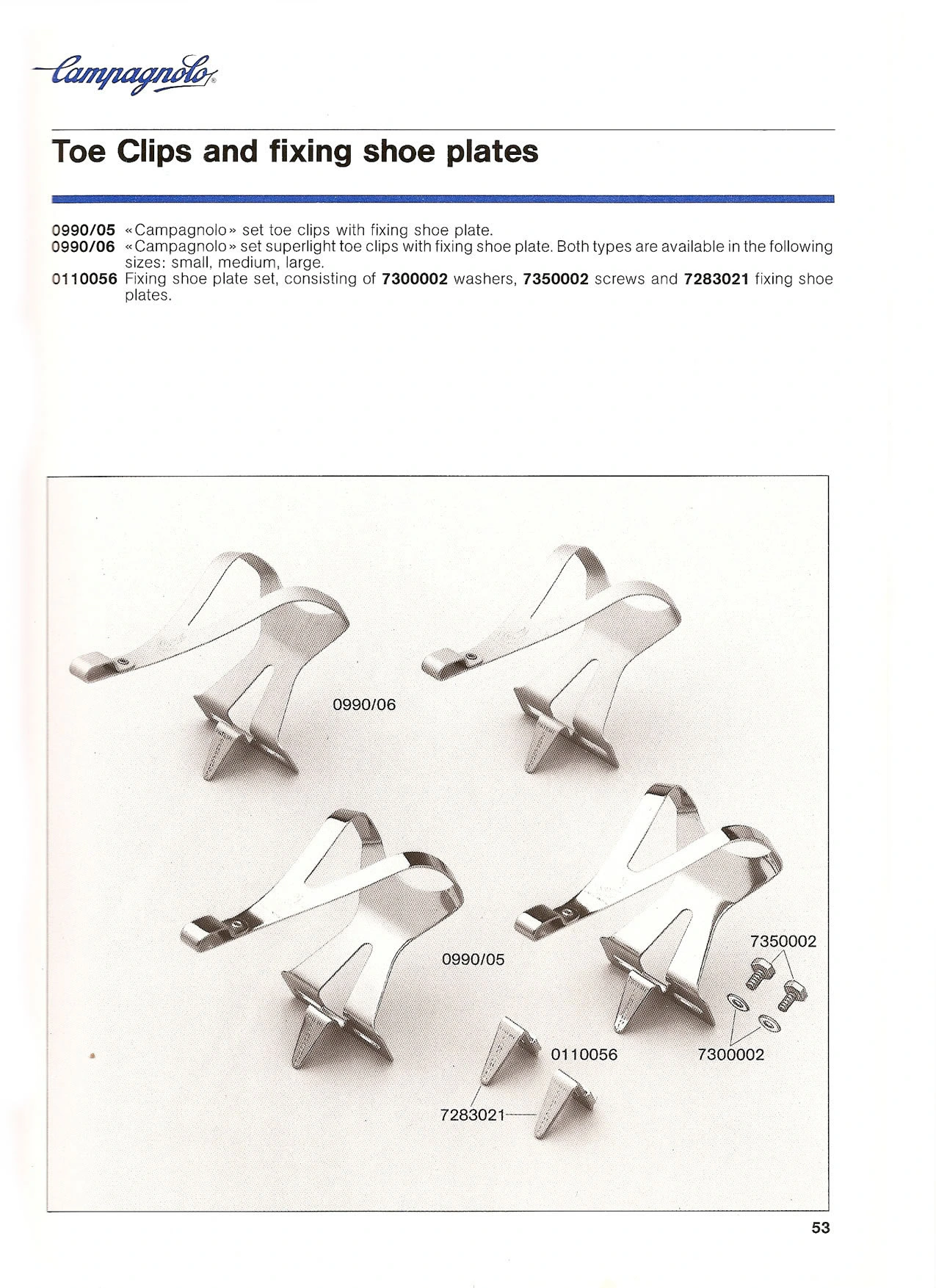

Toe Clips and fixing shoe plates

0990/05 «Campagnolo» set toe clips with fixing shoe plate.
0990/06 «Campagnolo» set superlight toe clips with fixing shoe plate. Both types are available in the following sizes: small, medium, large.
0110056 Fixing shoe plate set, consisting of 7300002 washers, 7350002 screws and 7283021 fixing shoe plates.

Callouts: 0990/06 0990/05 7350002 0110056 7300002 7283021

[A boxed black and white photograph of Campagnolo toe clips: two pairs of chromed toe clips, the superlight set 0990/06 and the standard set 0990/05, each with a shoe plate fitted, and below them the fixing shoe plate set 0110056 with its two plates 7283021, screws 7350002 and washers 7300002.]

— Page 53 —
Campagnolo®

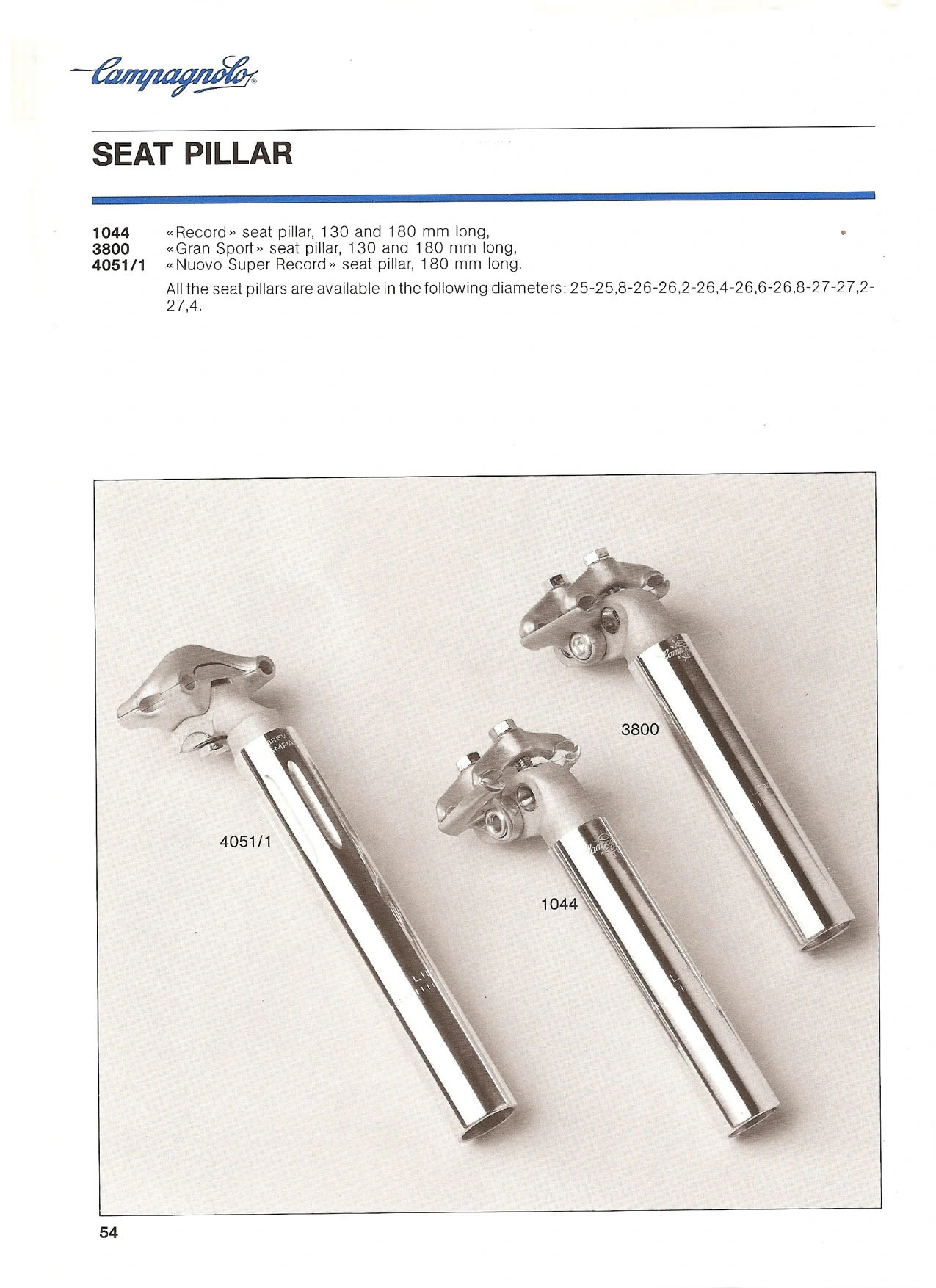

SEAT PILLAR

1044 «Record» seat pillar, 130 and 180 mm long,
3800 «Gran Sport» seat pillar, 130 and 180 mm long,
4051/1 «Nuovo Super Record» seat pillar, 180 mm long.

All the seat pillars are available in the following diameters: 25-25,8-26-26,2-26,4-26,6-26,8-27-27,2-27,4.

Callouts: 3800 4051/1 1044

[A boxed black and white photograph of three Campagnolo seat pillars: the fluted Nuovo Super Record 4051/1, the Record 1044 and the Gran Sport 3800, each shown with its saddle clamp fitted.]

— Page 54 —
Campagnolo®

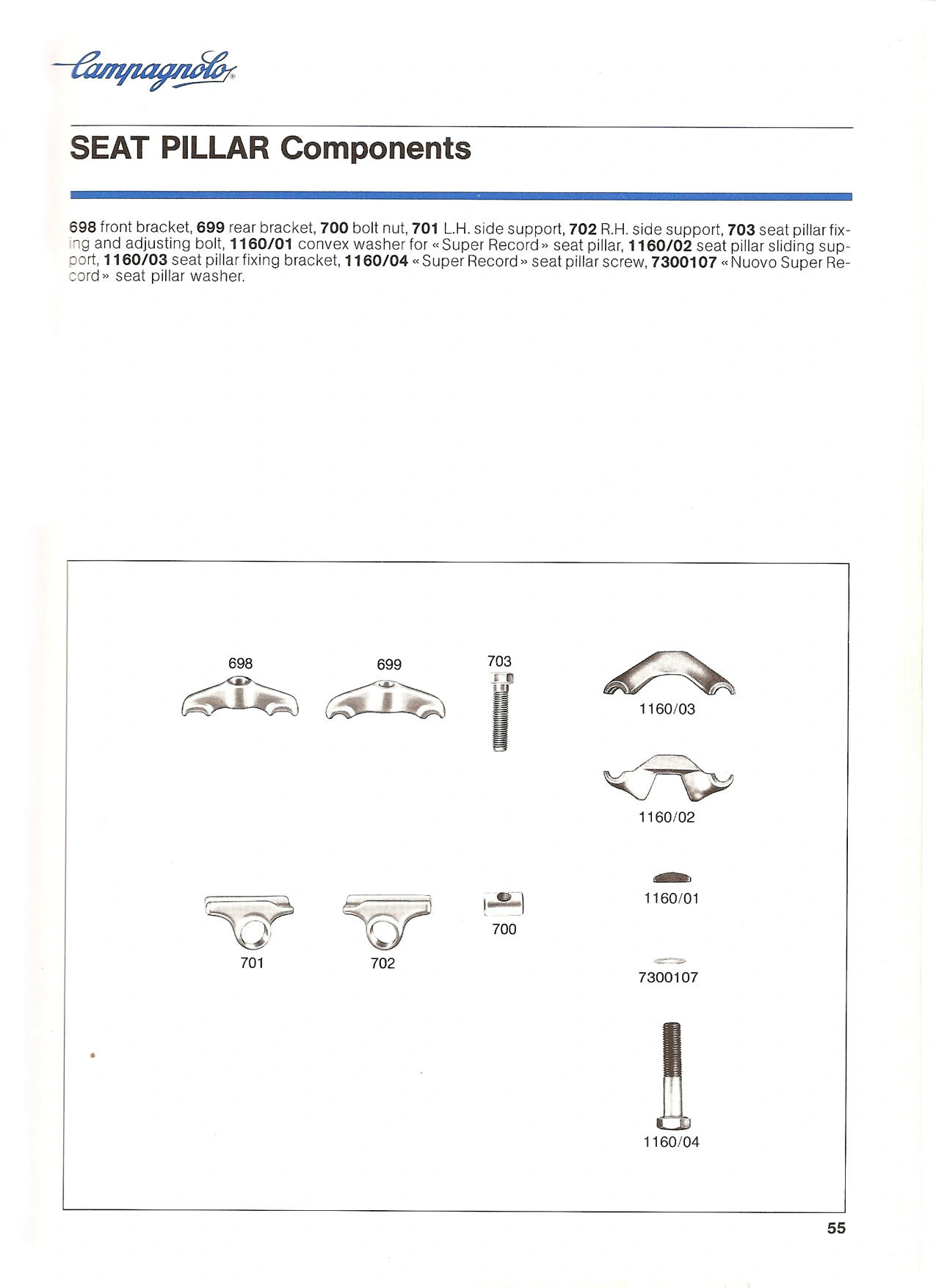

SEAT PILLAR Components

698 front bracket, 699 rear bracket, 700 bolt nut, 701 L.H. side support, 702 R.H. side support, 703 seat pillar fixing and adjusting bolt, 1160/01 convex washer for «Super Record» seat pillar, 1160/02 seat pillar sliding support, 1160/03 seat pillar fixing bracket, 1160/04 «Super Record» seat pillar screw, 7300107 «Nuovo Super Record» seat pillar washer.

Callouts: 698 699 703 1160/03 1160/02 1160/01 700 701 702 7300107 1160/04

[A boxed black and white photograph of the Campagnolo seat pillar components laid out separately: the front and rear brackets 698 and 699, the fixing bolt 703, bolt nut 700 and side supports 701 and 702 of the two-bolt clamp, and the Super Record parts, fixing bracket 1160/03, sliding support 1160/02, convex washer 1160/01, washer 7300107 and screw 1160/04. A running paragraph above the photograph keys each part number to its name.]

— Page 55 —
Campagnolo®

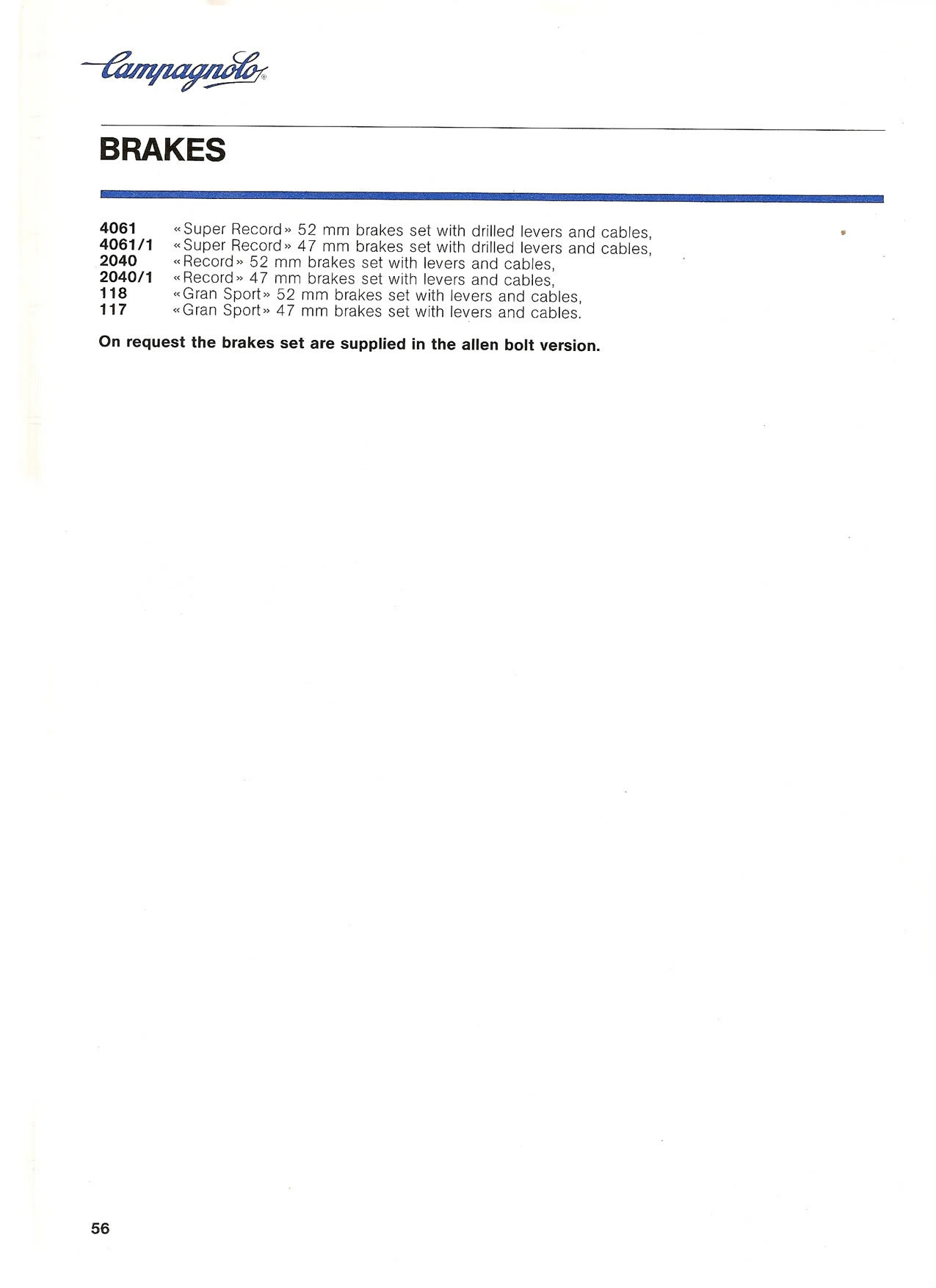

BRAKES

4061 «Super Record» 52 mm brakes set with drilled levers and cables,
4061/1 «Super Record» 47 mm brakes set with drilled levers and cables,
2040 «Record» 52 mm brakes set with levers and cables,
2040/1 «Record» 47 mm brakes set with levers and cables,
118 «Gran Sport» 52 mm brakes set with levers and cables,
117 «Gran Sport» 47 mm brakes set with levers and cables.

On request the brakes set are supplied in the allen bolt version.

[A text page listing the Campagnolo brake sets by part number, the Super Record, Record and Gran Sport sets in 52 mm and 47 mm sizes, with a bold note on the allen bolt version; the rest of the page is blank, and the brakes are pictured on the facing page.]

— Page 56 —
Campagnolo®

4061
Callouts: 4062 4062 2001 2000

2040
Callouts: 2030 2030 2000 2001

117
Callouts: 0118028 0118028 0116010 0116011

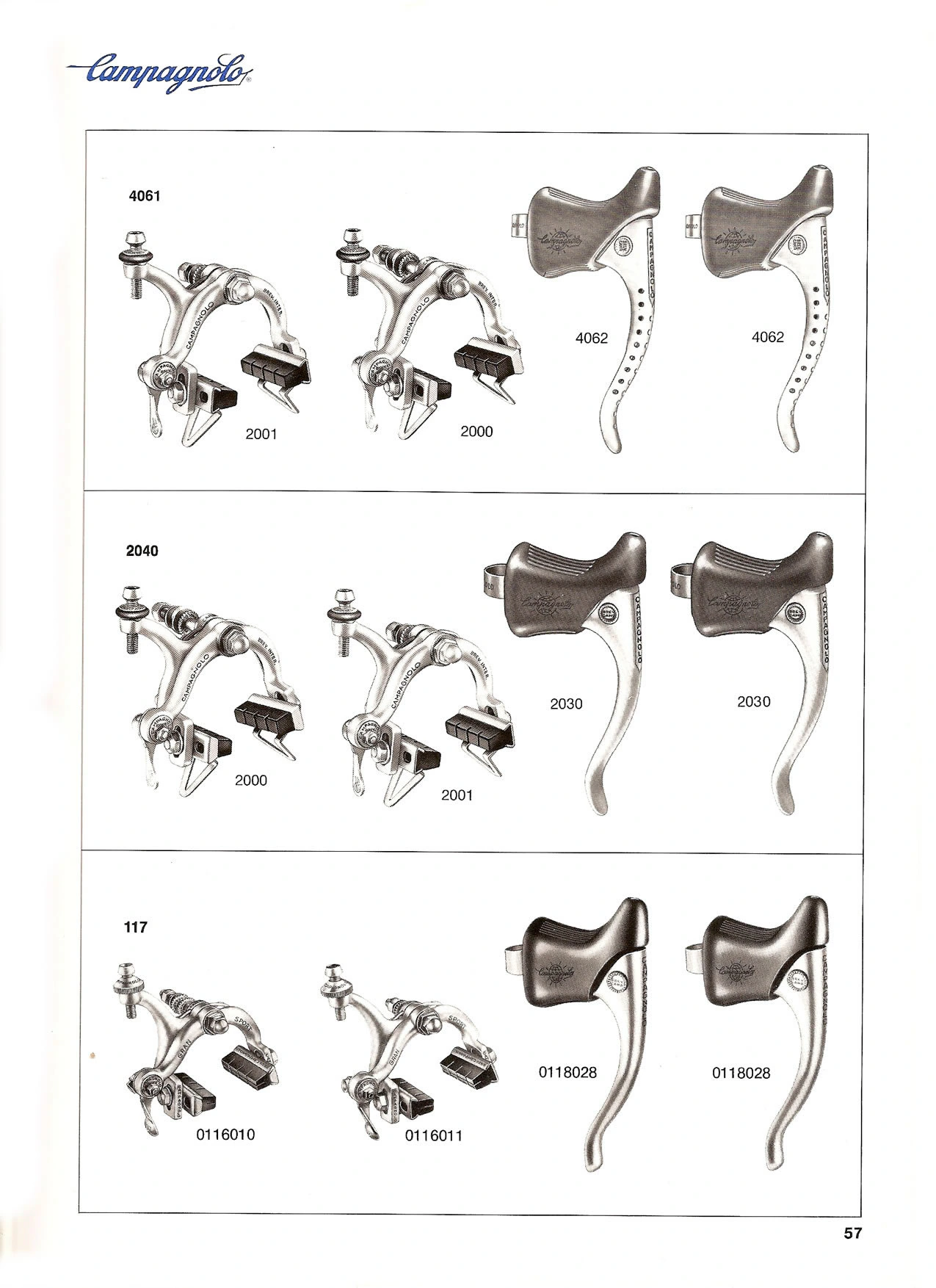

[Three boxed black and white drawings of Campagnolo brake sets, each a pair of sidepull calipers with a pair of hooded levers: the Super Record set 4061 with drilled levers 4062 and calipers 2001 and 2000, the Record set 2040 with levers 2030 and calipers 2000 and 2001, and the Gran Sport set 117 with levers 0118028 and calipers 0116010 and 0116011. The page carries no text block; it illustrates the brake list on the facing page.]

— Page 57 —
Campagnolo®

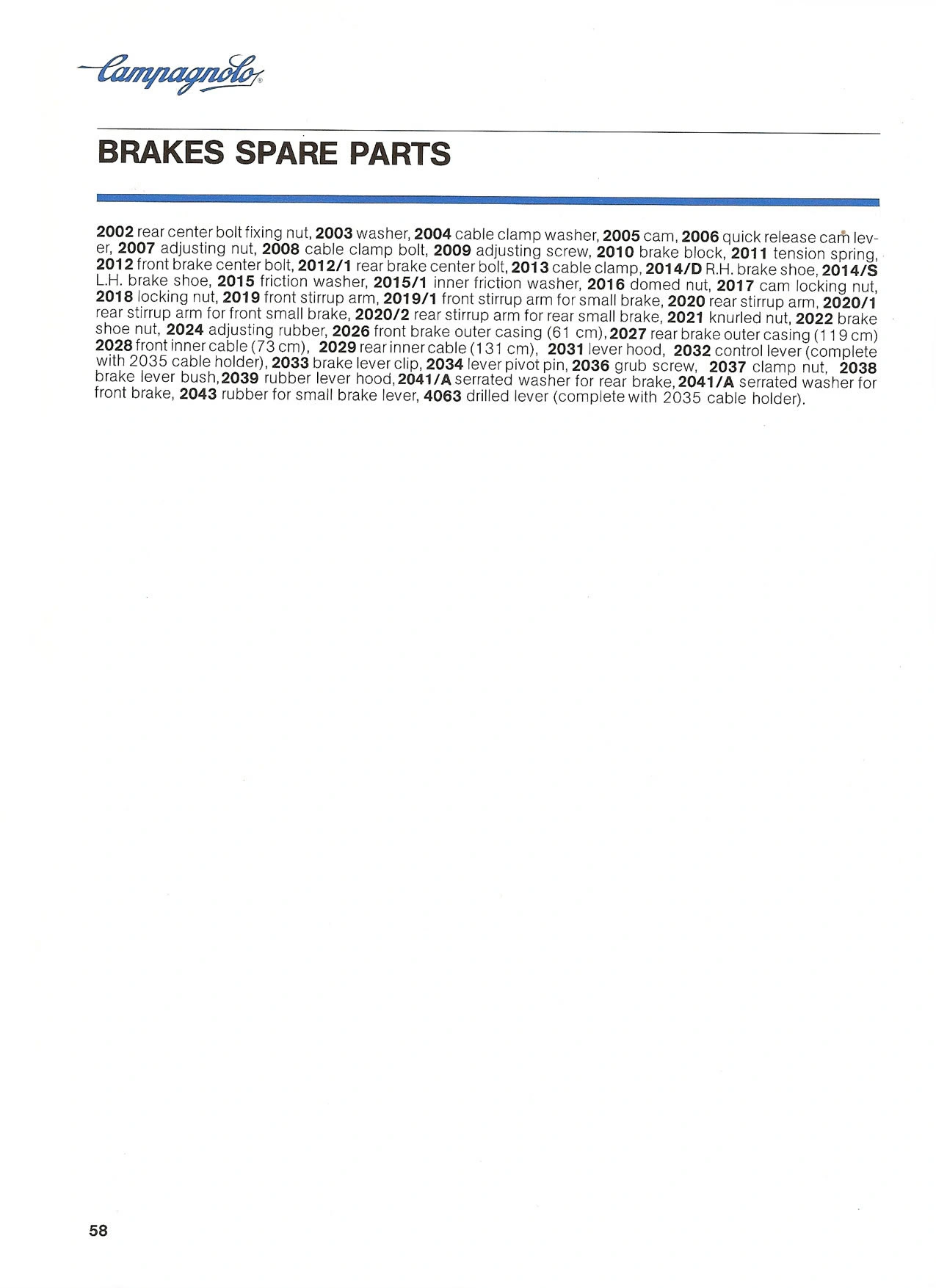

BRAKES SPARE PARTS

2002 rear center bolt fixing nut, 2003 washer, 2004 cable clamp washer, 2005 cam, 2006 quick release cam lever, 2007 adjusting nut, 2008 cable clamp bolt, 2009 adjusting screw, 2010 brake block, 2011 tension spring, 2012 front brake center bolt, 2012/1 rear brake center bolt, 2013 cable clamp, 2014/D R.H. brake shoe, 2014/S L.H. brake shoe, 2015 friction washer, 2015/1 inner friction washer, 2016 domed nut, 2017 cam locking nut, 2018 locking nut, 2019 front stirrup arm, 2019/1 front stirrup arm for small brake, 2020 rear stirrup arm, 2020/1 rear stirrup arm for front small brake, 2020/2 rear stirrup arm for rear small brake, 2021 knurled nut, 2022 brake shoe nut, 2024 adjusting rubber, 2026 front brake outer casing (61 cm),2027 rear brake outer casing (119 cm) 2028 front inner cable (73 cm), 2029 rear inner cable (131 cm), 2031 lever hood, 2032 control lever (complete with 2035 cable holder), 2033 brake lever clip, 2034 lever pivot pin, 2036 grub screw, 2037 clamp nut, 2038 brake lever bush,2039 rubber lever hood,2041/A serrated washer for rear brake,2041/A serrated washer for front brake, 2043 rubber for small brake lever, 4063 drilled lever (complete with 2035 cable holder).

[A text page keying the part numbers of the Campagnolo brake spare parts to their names, from the center bolt nut 2002 to the drilled lever 4063, set as one running paragraph; the rest of the page is blank, and the exploded drawing is on the facing page.]

— Page 58 —
Campagnolo®

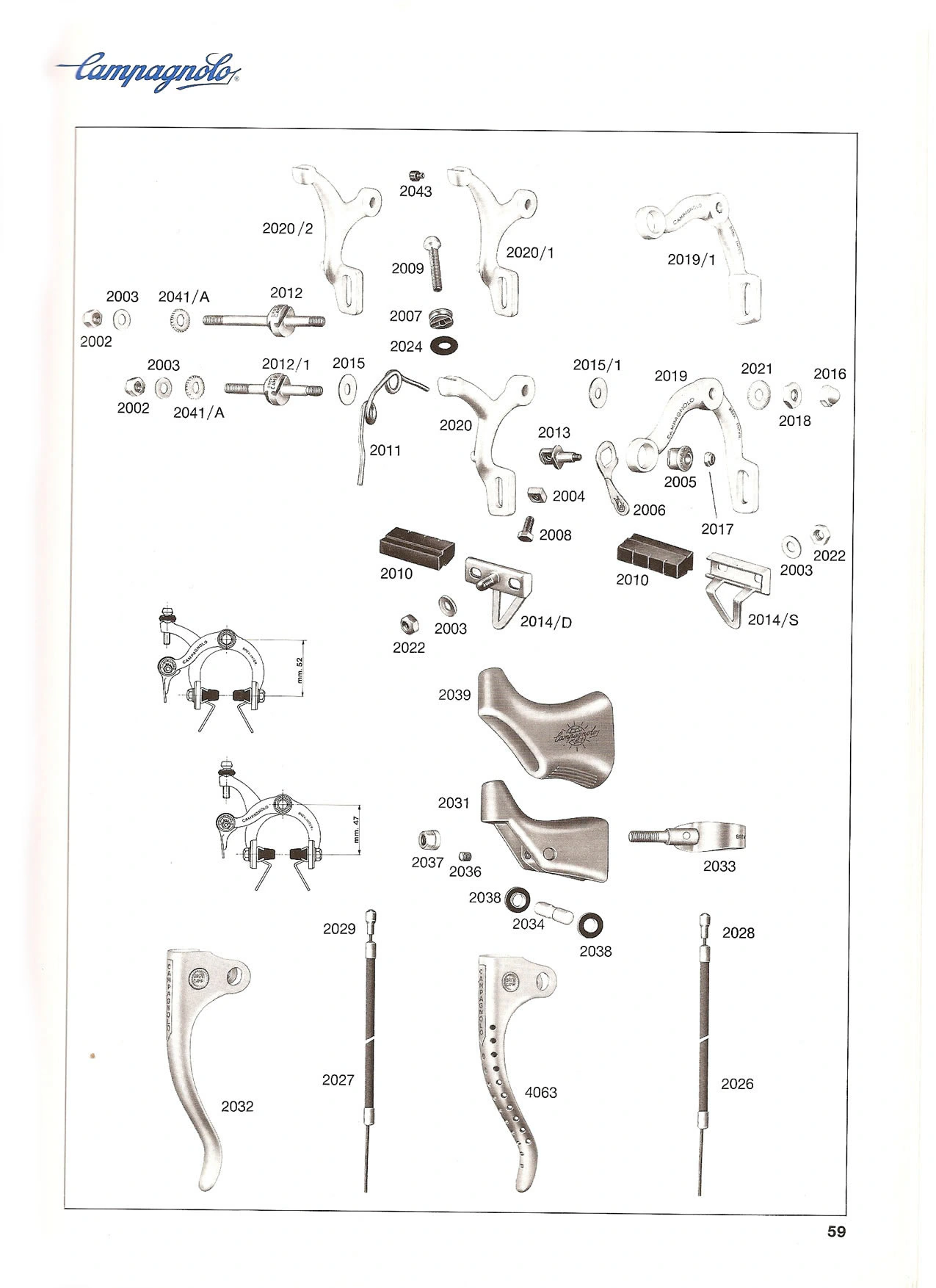

Callouts: 2043 2020/2 2009 2020/1 2019/1 2003 2041/A 2012 2007 2002 2024 2003 2012/1 2015 2015/1 2019 2021 2016 2002 2041/A 2018 2020 2011 2013 2004 2005 2006 2017 2008 2010 2010 2003 2022 2003 2014/D 2014/S 2022 2039 2031 2037 2036 2033 2038 2034 2038 2029 2028 2027 4063 2026 2032

mm. 52

mm. 47

[A boxed exploded drawing of the Campagnolo sidepull brake with every part numbered: the front and rear center bolts 2012 and 2012/1, the stirrup arms 2019, 2020 and their small brake versions, spring, cam and quick release lever, brake blocks 2010 in shoes 2014/D and 2014/S, the lever hoods 2039 and 2031, the plain and drilled control levers 2032 and 4063, and the inner cables and outer casings. Two small outline drawings of an assembled caliper are dimensioned “mm. 52” and “mm. 47″ for the two reach sizes.]

— Page 59 —
Campagnolo®

FREEWHEEL

0521/00

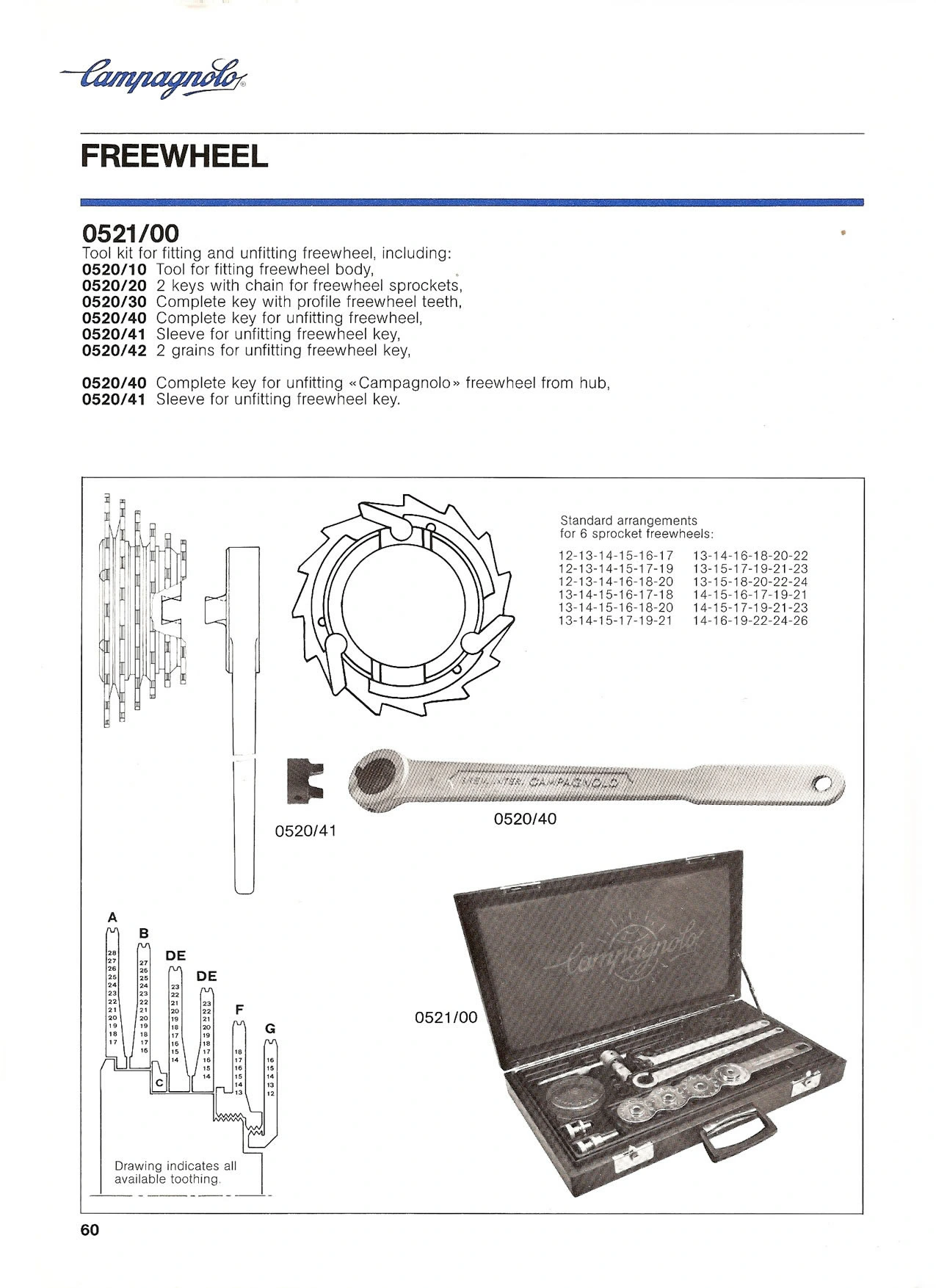

Tool kit for fitting and unfitting freewheel, including:
0520/10 Tool for fitting freewheel body,
0520/20 2 keys with chain for freewheel sprockets,
0520/30 Complete key with profile freewheel teeth,
0520/40 Complete key for unfitting freewheel,
0520/41 Sleeve for unfitting freewheel key,
0520/42 2 grains for unfitting freewheel key,

0520/40 Complete key for unfitting «Campagnolo» freewheel from hub,
0520/41 Sleeve for unfitting freewheel key.

Standard arrangements for 6 sprocket freewheels:
12-13-14-15-16-17 | 13-14-16-18-20-22
12-13-14-15-17-19 | 13-15-17-19-21-23
12-13-14-16-18-20 | 13-15-18-20-22-24
13-14-15-16-17-18 | 14-15-16-17-19-21
13-14-15-16-18-20 | 14-15-17-19-21-23
13-14-15-17-19-21 | 14-16-19-22-24-26

Callouts: 0520/41 0520/40 0521/00

A 28 27 26 25 24 23 22 21 20 19 18 17
B 27 26 25 24 23 22 21 20 19 18 17 16
C
DE 23 22 21 20 19 18 17 16 15 14
DE 23 22 21 20 19 18 17 16 15 14
F 18 17 16 15 14 13
G 16 15 14 13 12

Drawing indicates all available toothing.

[A page on the Campagnolo freewheel tools: a boxed panel with an outline drawing of a six-sprocket freewheel in section and its body with pawls, the freewheel removing key 0520/40 and sleeve 0520/41, and the tool kit 0521/00 in its open case with the Campagnolo script on the lid. A section drawing at lower left shows the sprocket positions A, B, C, DE, DE, F and G with the tooth counts available at each, beside a table of standard arrangements for six-sprocket freewheels.]

— Page 60 —
Campagnolo®

BMX

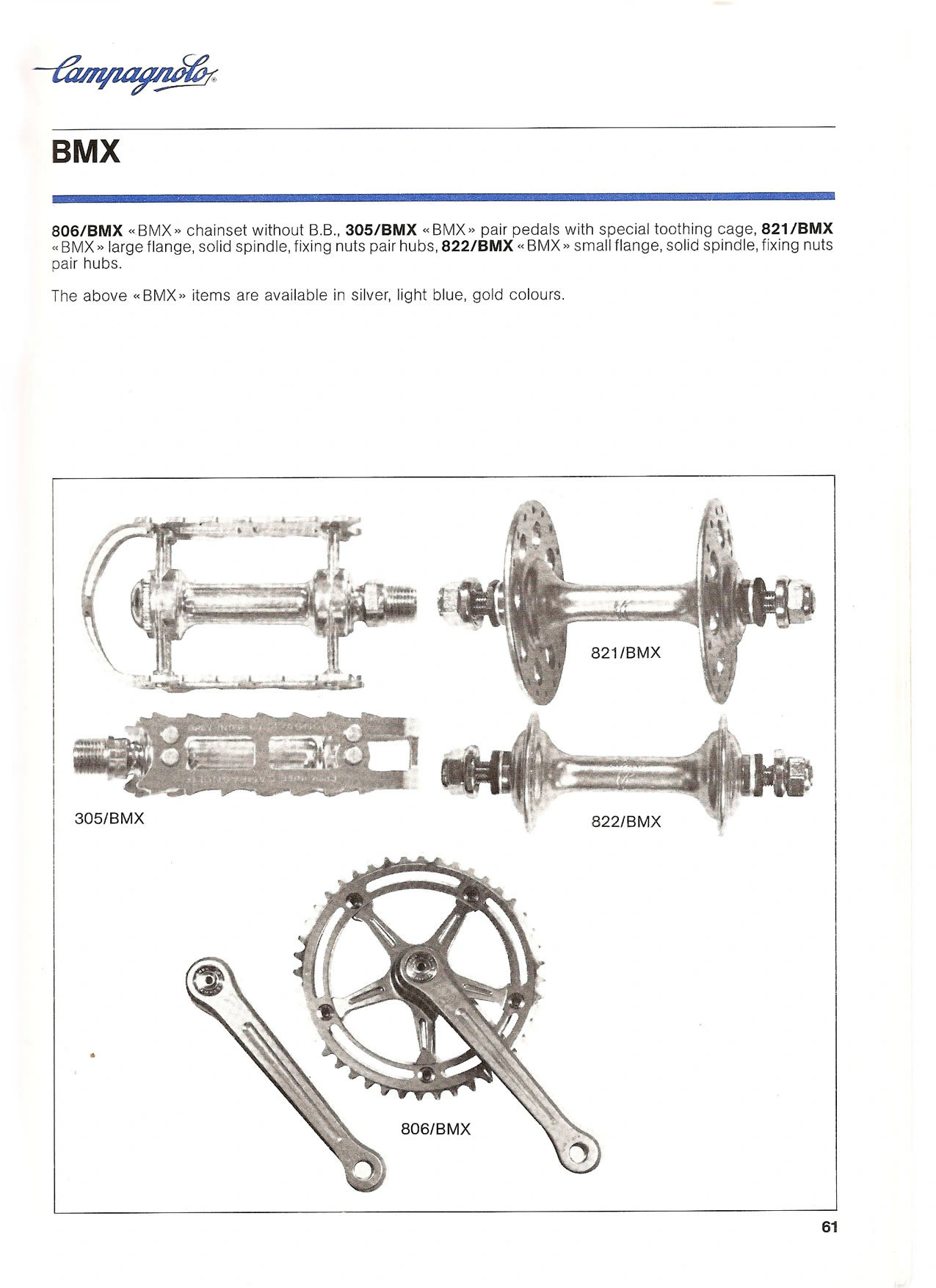

806/BMX «BMX» chainset without B.B., 305/BMX «BMX» pair pedals with special toothing cage, 821/BMX «BMX» large flange, solid spindle, fixing nuts pair hubs, 822/BMX «BMX» small flange, solid spindle, fixing nuts pair hubs.

The above «BMX» items are available in silver, light blue, gold colours.

Callouts: 821/BMX 305/BMX 822/BMX 806/BMX

[A boxed black and white photograph of the Campagnolo BMX components: the BMX pedal 305/BMX with its toothed cage, seen from above and from the side, the large flange hub 821/BMX and small flange hub 822/BMX with axle nuts, and the one-piece chainset 806/BMX with a single chainring.]

— Page 61 —
Campagnolo®

SUNDRY SPARE PARTS

80/1 gear fixing plate, 80/2 fixing plate for « Super Record » « Nuovo Record » « Rally Touring » « Gran Sport » and « 980 » gears, 80/A fixing plate for « Valentino Extra » gear, 124 fixing screw, 125 clamp nut, 763 standard sprocket for normal chain 1/2″x1/8″ (3 mm). Sprockets available with 12-13-14-15-16 teeth. On request sprockets for chain 1/2″x3/32″ (2 mm) are supplied, 763/A superlight sprocket for normal chain 1/2″x1/8” (3 mm). sprockets available with 13-14-15-16 teeth. On request sprockets for chain 1/2″x3/32 (2 mm) are supplied, 914 clamp nut, 1030/2 pump connector with square base, 3346 superlight pump connector with square base, 3385 100 grs. tin special grease, 3386 500 grs. tin special grease, 3387 1 kg. tin special grease.

Callouts: 80/1 1030/2 3346 3385 124 914 80/A 124 125 80/2 3386 763/A 763 3387

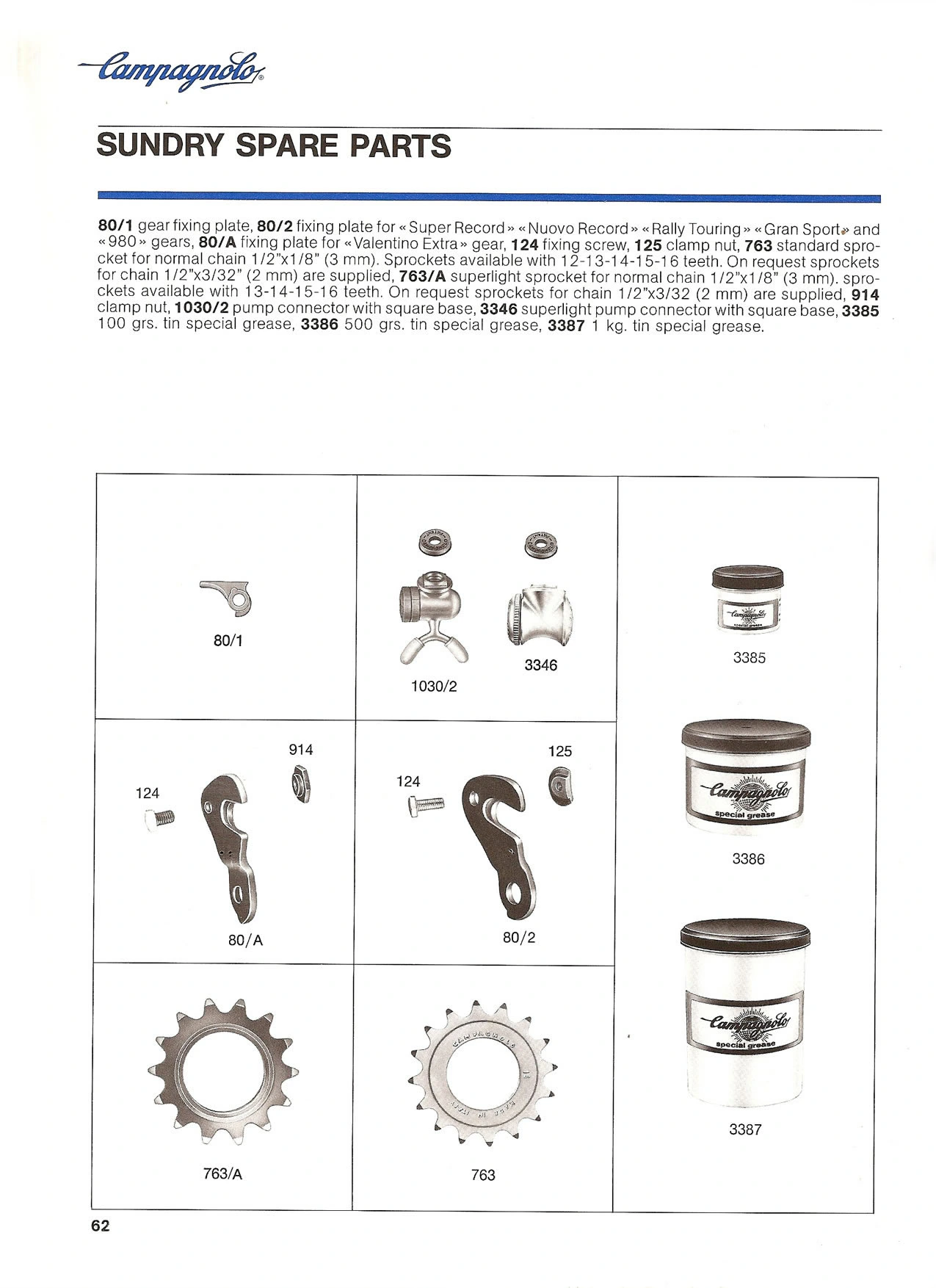

[A grid of photographs of Campagnolo sundry spare parts: the 80/1, 80/2 and 80/A derailleur fixing plates with the 124 screw and the 125 and 914 clamp nuts, the 763 and 763/A track sprockets, the 1030/2 and 3346 pump connectors, and three sizes of Campagnolo special grease tin, 3385, 3386 and 3387. A paragraph above the grid lists every part by number with its description.]

— Page 62 —
Campagnolo®

SUNDRY SPARE PARTS

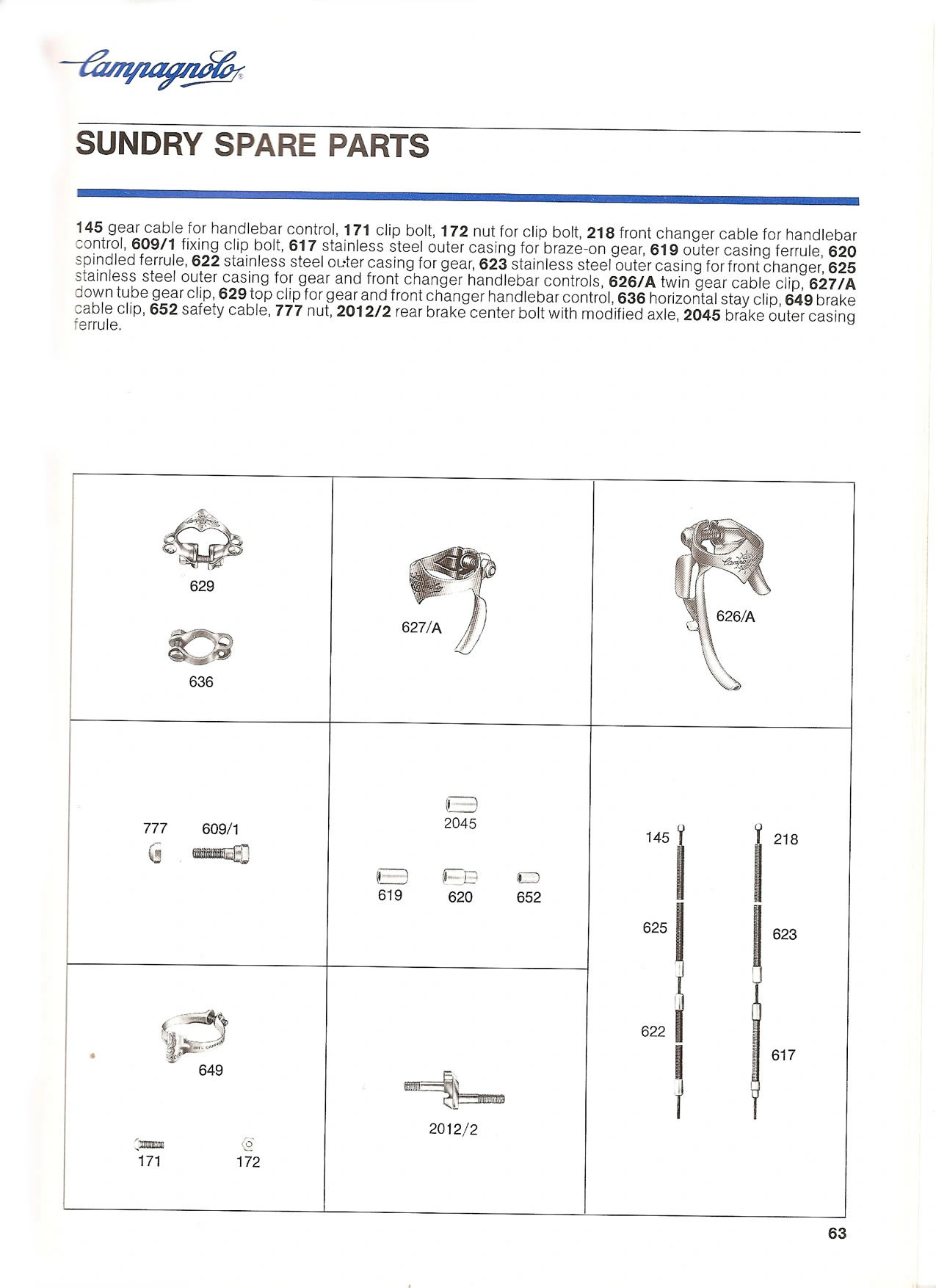

145 gear cable for handlebar control, 171 clip bolt, 172 nut for clip bolt, 218 front changer cable for handlebar control, 609/1 fixing clip bolt, 617 stainless steel outer casing for braze-on gear, 619 outer casing ferrule, 620 spindled ferrule, 622 stainless steel outer casing for gear, 623 stainless steel outer casing for front changer, 625 stainless steel outer casing for gear and front changer handlebar controls, 626/A twin gear cable clip, 627/A down tube gear clip, 629 top clip for gear and front changer handlebar control, 636 horizontal stay clip, 649 brake cable clip, 652 safety cable, 777 nut, 2012/2 rear brake center bolt with modified axle, 2045 brake outer casing ferrule.

Callouts: 629 636 627/A 626/A 777 609/1 2045 619 620 652 145 218 625 623 622 617 649 171 172 2012/2

[A grid of photographs of Campagnolo sundry spare parts for gear and brake cables: the 629, 636, 627/A, 626/A and 649 cable clips, the 171 clip bolt and 172 nut, the 609/1 bolt and 777 nut, the 619, 620, 652 and 2045 ferrules, the 2012/2 rear brake center bolt, and the 145 and 218 gear cables with the 617, 622, 623 and 625 stainless steel outer casings. A paragraph above the grid lists every part by number with its description.]

— Page 63 —
Campagnolo®

TOOL CASE – REDUCED

Watching a mechanic specialized in racing bicycles while he assembles on the frame all the components to make of it a winning bicycle, one may realize how many specific tools to overhaul the frame on the coupling points, how many calipers to test the work made and the perfect squaring of all parts, are needed.
Campagnolo has manufactured, with the utmost precision, all the set of these tools and calipers to make a perfect bike.
When a mechanic or a fan is in a position to use, as he must, all the kit tools, the bicycle that originates is a « Master » bicycle.
The reduced version si destined only to the fitting of the headset and of the bottom bracket set.

3381

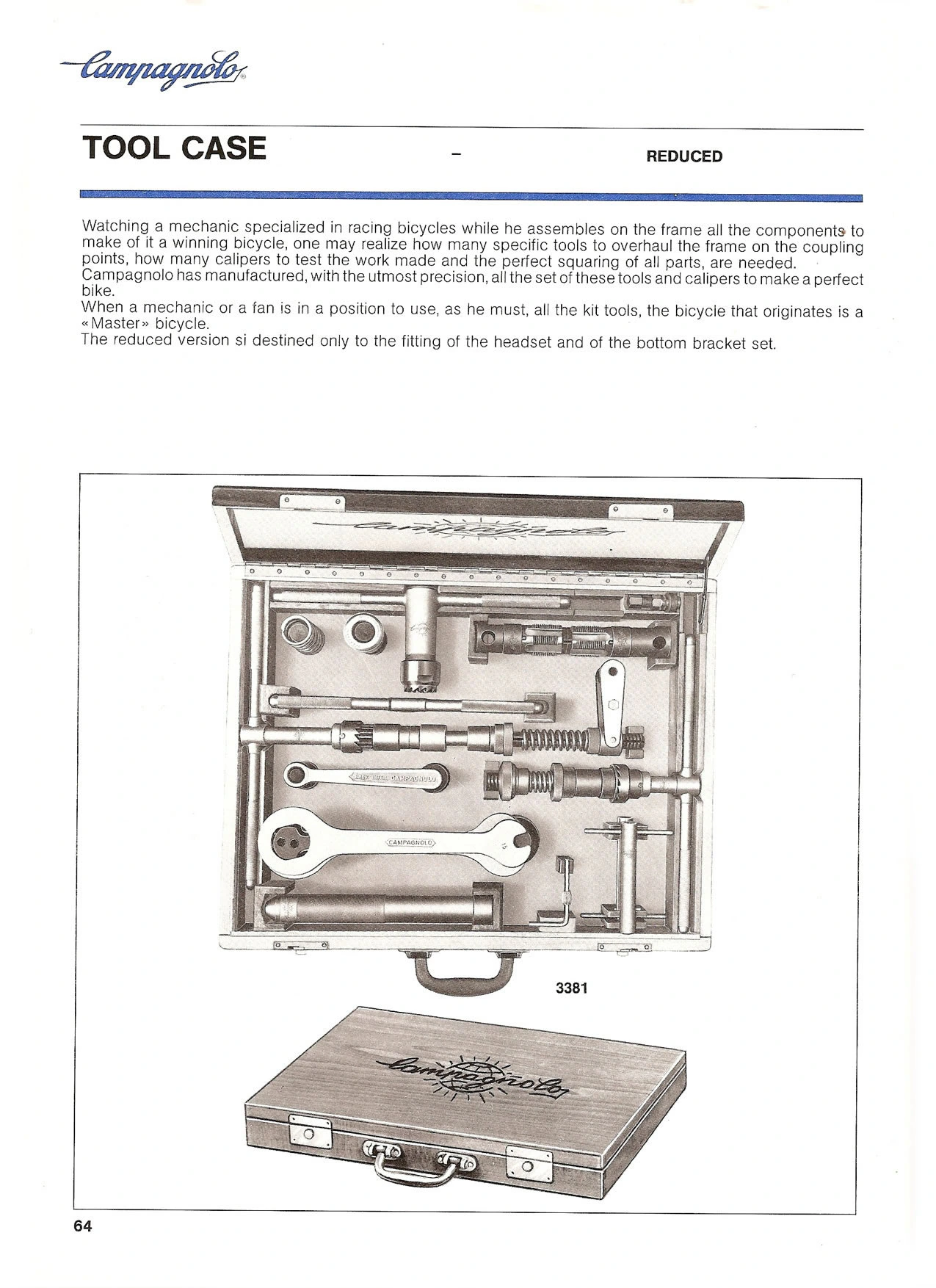

[A photograph of the reduced Campagnolo tool case, 3381, shown open with its fitted tools for the headset and bottom bracket, above a second view of the closed wooden case with the Campagnolo logo on its lid. A short text above describes the purpose of the tool kit.]

— Page 64 —
Campagnolo®

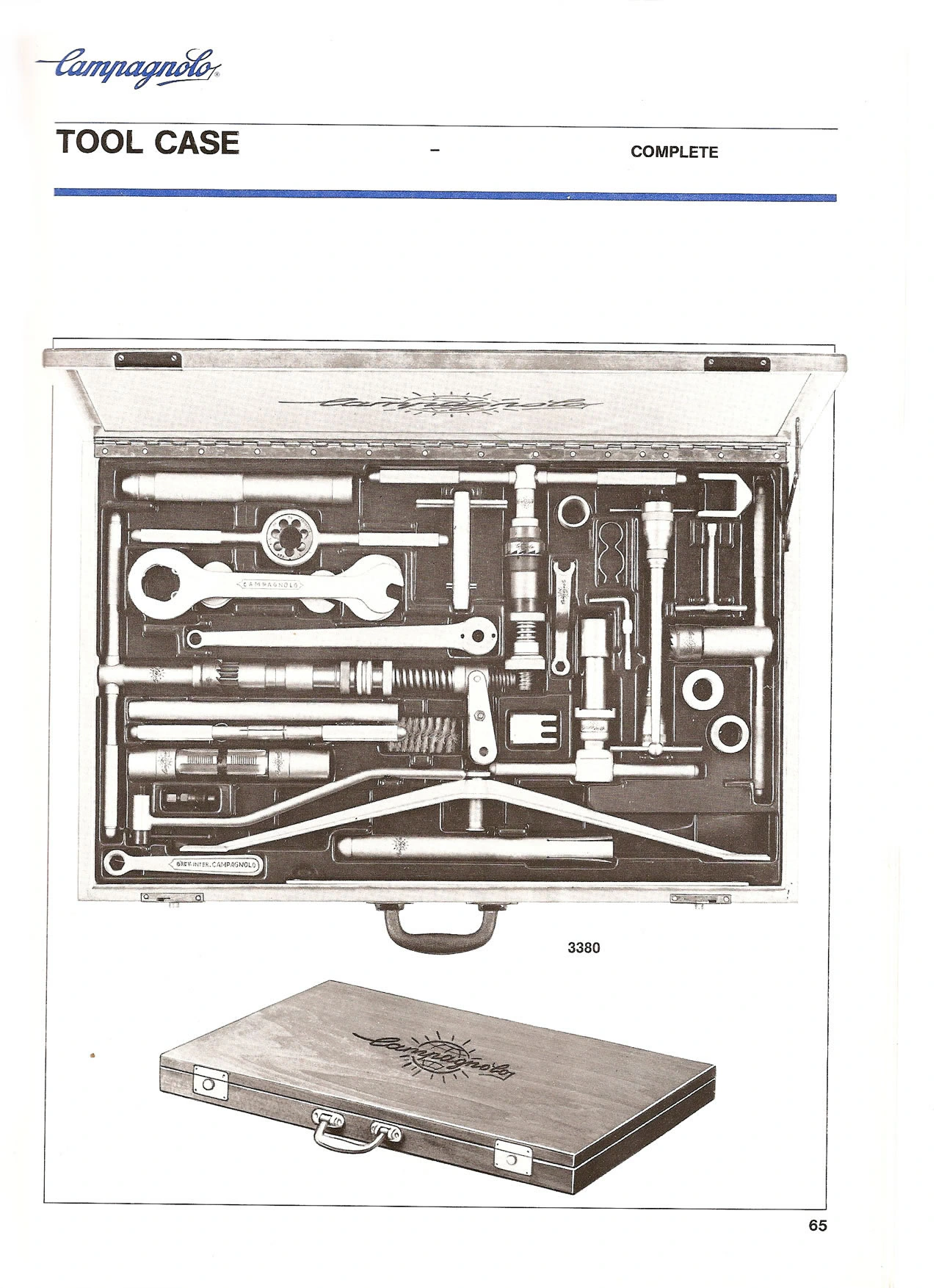

TOOL CASE – COMPLETE

3380

[A photograph of the complete Campagnolo tool case, 3380, shown open with its full set of fitted frame and component tools, above a second view of the closed wooden case with the Campagnolo logo on its lid. One wrench in the case is engraved “BREV. INTER. CAMPAGNOLO”.]

— Page 65 —
Campagnolo®

TOOLS CONTAINED IN KITS

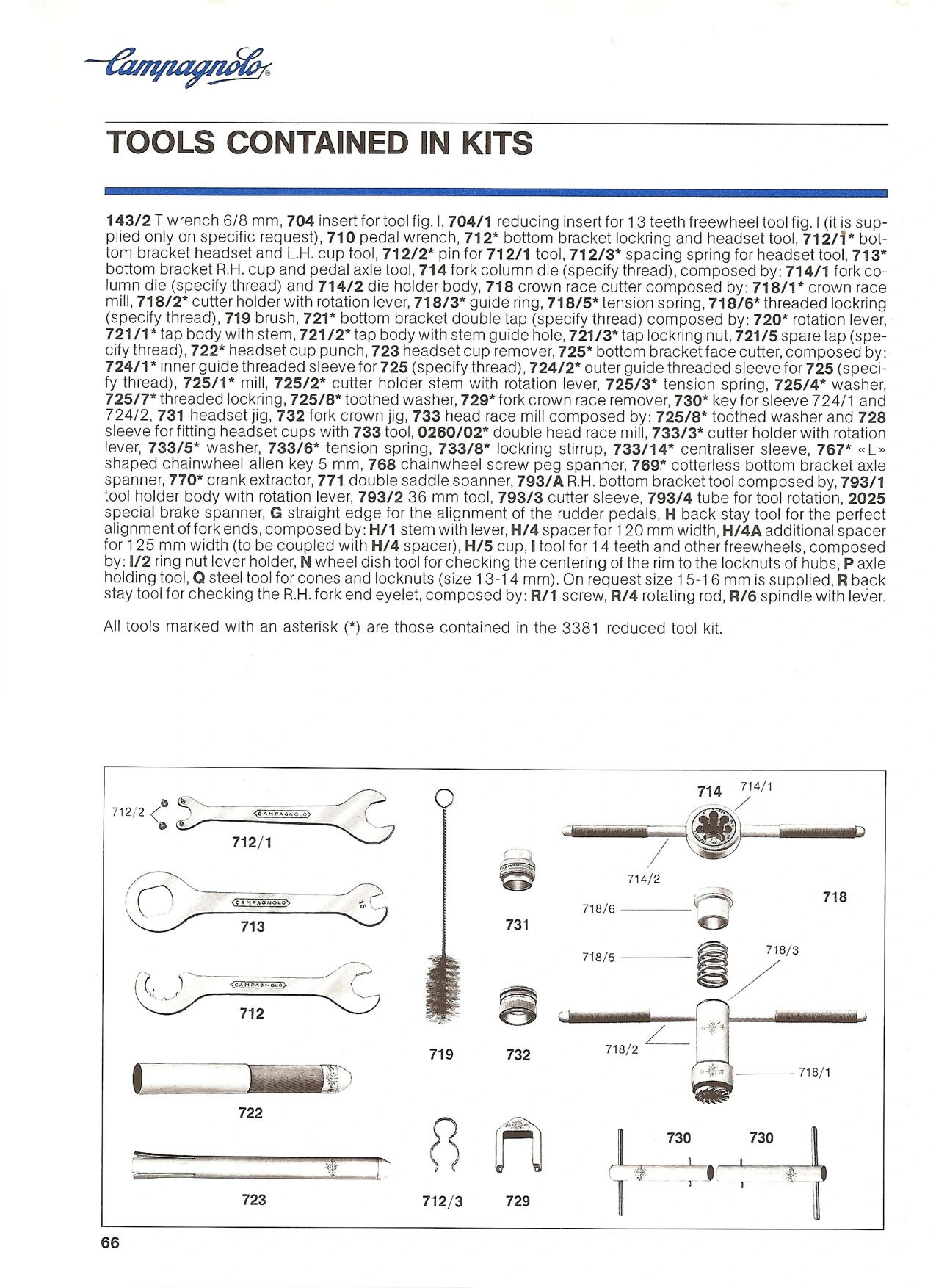

143/2 T wrench 6/8 mm, 704 insert for tool fig. I, 704/1 reducing insert for 13 teeth freewheel tool fig. I (it is supplied only on specific request), 710 pedal wrench, 712* bottom bracket lockring and headset tool, 712/1* bottom bracket headset and L.H. cup tool, 712/2* pin for 712/1 tool, 712/3* spacing spring for headset tool, 713* bottom bracket R.H. cup and pedal axle tool, 714 fork column die (specify thread), composed by: 714/1 fork column die (specify thread) and 714/2 die holder body, 718 crown race cutter composed by: 718/1* crown race mill, 718/2* cutter holder with rotation lever, 718/3* guide ring, 718/5* tension spring, 718/6* threaded lockring (specify thread), 719 brush, 721* bottom bracket double tap (specify thread) composed by: 720* rotation lever, 721/1* tap body with stem, 721/2* tap body with stem guide hole, 721/3* tap lockring nut, 721/5 spare tap (specify thread), 722* headset cup punch, 723 headset cup remover, 725* bottom bracket face cutter, composed by: 724/1* inner guide threaded sleeve for 725 (specify thread), 724/2* outer guide threaded sleeve for 725 (specify thread), 725/1* mill, 725/2* cutter holder stem with rotation lever, 725/3* tension spring, 725/4* washer, 725/7* threaded lockring, 725/8* toothed washer, 729* fork crown race remover, 730* key for sleeve 724/1 and 724/2, 731 headset jig, 732 fork crown jig, 733 head race mill composed by: 725/8* toothed washer and 728 sleeve for fitting headset cups with 733 tool, 0260/02* double head race mill, 733/3* cutter holder with rotation lever, 733/5* washer, 733/6* tension spring, 733/8* lockring stirrup, 733/14* centraliser sleeve, 767* « L » shaped chainwheel allen key 5 mm, 768 chainwheel screw peg spanner, 769* cotterless bottom bracket axle spanner, 770* crank extractor, 771 double saddle spanner, 793/A R.H. bottom bracket tool composed by, 793/1 tool holder body with rotation lever, 793/2 36 mm tool, 793/3 cutter sleeve, 793/4 tube for tool rotation, 2025 special brake spanner, G straight edge for the alignment of the rudder pedals, H back stay tool for the perfect alignment of fork ends, composed by: H/1 stem with lever, H/4 spacer for 120 mm width, H/4A additional spacer for 125 mm width (to be coupled with H/4 spacer), H/5 cup, I tool for 14 teeth and other freewheels, composed by: I/2 ring nut lever holder, N wheel dish tool for checking the centering of the rim to the locknuts of hubs, P axle holding tool, Q steel tool for cones and locknuts (size 13-14 mm). On request size 15-16 mm is supplied, R back stay tool for checking the R.H. fork end eyelet, composed by: R/1 screw, R/4 rotating rod, R/6 spindle with lever.

All tools marked with an asterisk (*) are those contained in the 3381 reduced tool kit.

Callouts: 712/2 712/1 713 712 722 723 731 719 732 712/3 729 714 714/1 714/2 718 718/6 718/5 718/3 718/2 718/1 730 730

[Photographs of tools from the Campagnolo tool kits: the 712, 712/1 and 713 wrenches with the 712/2 pins, the 722 headset cup punch, the 723 headset cup remover, the 719 brush, the 731 headset jig, the 732 fork crown jig, the 712/3 spring, the 729 crown race remover, the 714 fork column die, the 718 crown race cutter with its parts and the two 730 keys. A paragraph above lists every tool in the kits by number, with an asterisk marking those in the 3381 reduced kit.]

— Page 66 —
Campagnolo®

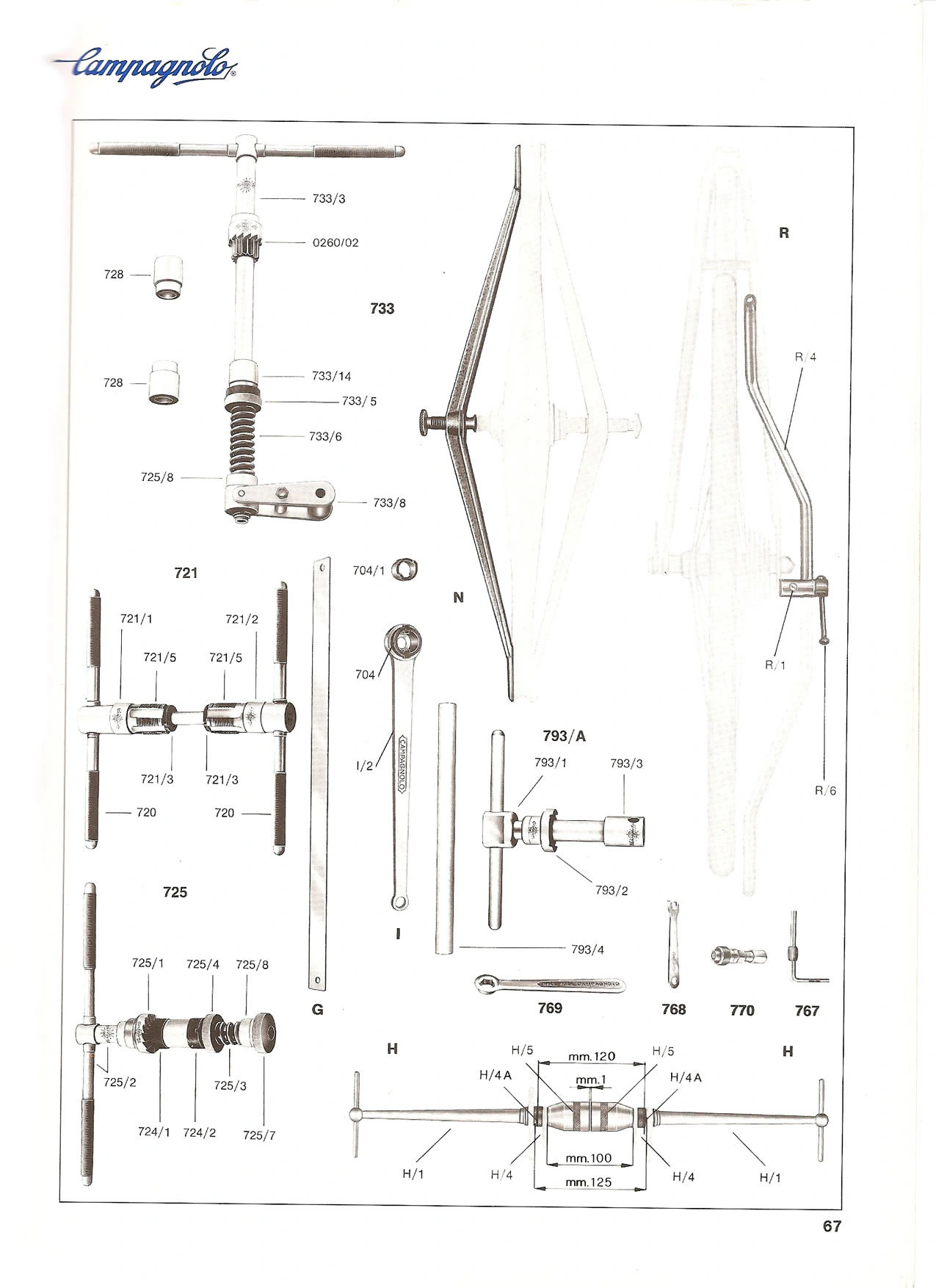

Callouts: 733/3 0260/02 728 733 728 733/14 733/5 733/6 725/8 733/8 N R R/4 R/1 R/6 721 721/1 721/2 721/5 721/5 721/3 721/3 720 720 725 725/1 725/4 725/8 725/2 725/3 724/1 724/2 725/7 G 704/1 704 I/2 I 793/A 793/1 793/3 793/2 793/4 769 768 770 767 H H H/5 H/5 H/4A H/4A H/1 H/4 H/4 H/1

mm.120 mm.1 mm.100 mm.125

[Photographs of the larger tools in the Campagnolo tool kits, each labeled with its number or letter: the 733 head race mill, the 721 bottom bracket double tap, the 725 bottom bracket face cutter, the G straight edge, the I freewheel tool with the 704 and 704/1 inserts, the N wheel dish tool, the R back stay tool, the 793/A bottom bracket tool, the 769, 768, 770 and 767 spanners, crank extractor and key, and the H back stay tool with its spacers. The H tool carries dimension lines marked in millimeters.]

— Page 67 —
Campagnolo®

CAMPAGNOLO SPECIAL TOOLS

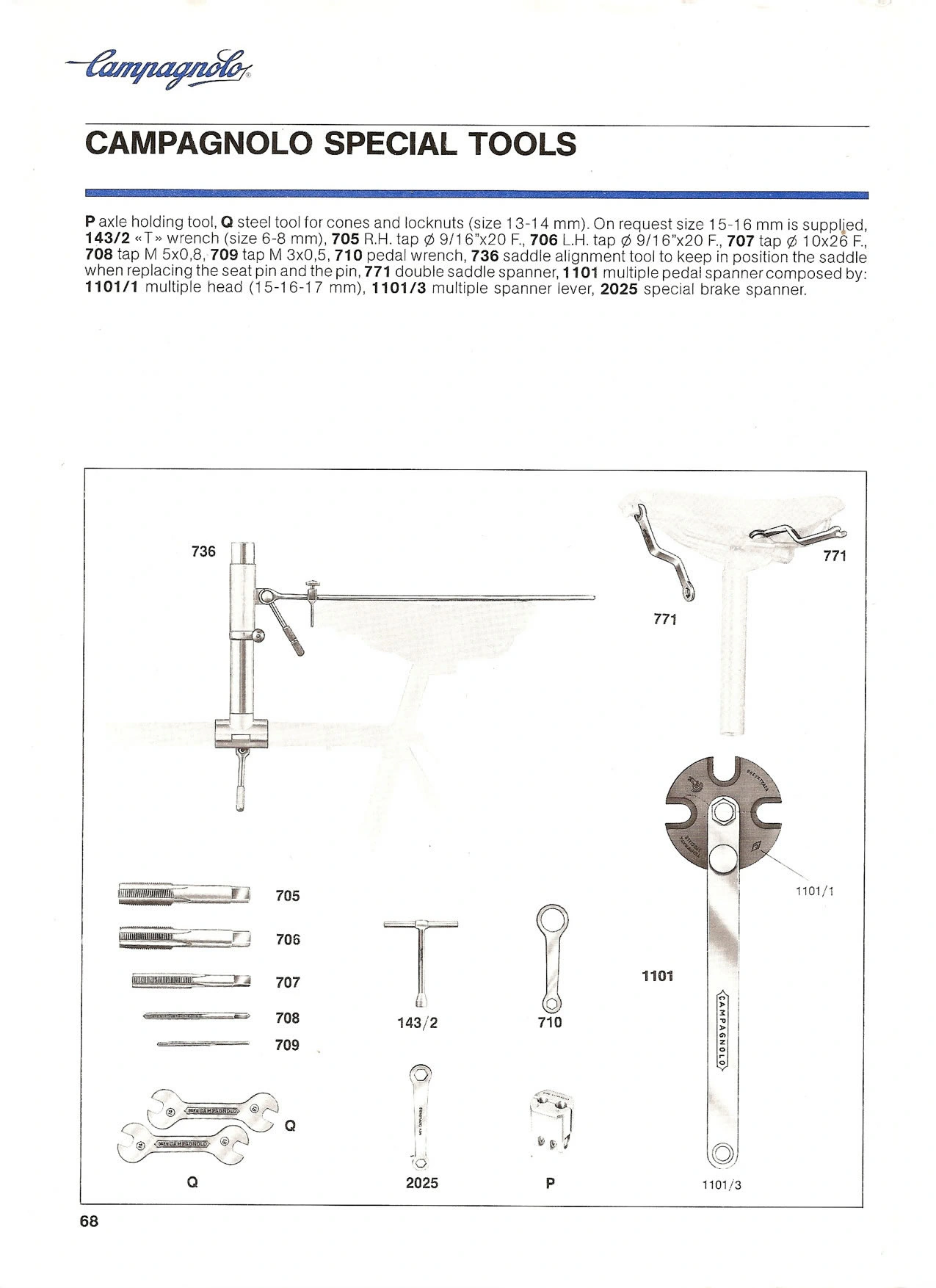

P axle holding tool, Q steel tool for cones and locknuts (size 13-14 mm). On request size 15-16 mm is supplied, 143/2 « T » wrench (size 6-8 mm), 705 R.H. tap ø 9/16″x20 F., 706 L.H. tap ø 9/16″x20 F., 707 tap ø 10×26 F., 708 tap M 5×0,8, 709 tap M 3×0,5, 710 pedal wrench, 736 saddle alignment tool to keep in position the saddle when replacing the seat pin and the pin, 771 double saddle spanner, 1101 multiple pedal spanner composed by: 1101/1 multiple head (15-16-17 mm), 1101/3 multiple spanner lever, 2025 special brake spanner.

Callouts: 736 771 771 1101/1 705 706 1101 707 708 143/2 710 709 Q Q 2025 P 1101/3

[Photographs of Campagnolo special tools: the 736 saddle alignment tool shown clamped to a frame, the 771 double saddle spanner shown on a saddle, the 705 to 709 taps, the 143/2 T wrench, the 710 pedal wrench, the 2025 brake spanner, the two Q cone spanners, the P axle holding tool and the 1101 multiple pedal spanner with its 1101/1 head and 1101/3 lever. A paragraph above lists each tool by number or letter with its description.]

— Page 68 —
Campagnolo®

ROAD CHAIN LINE

BOTTOM BRACKET WIDTH
CHAIN LINE
CENTRE LINE
Callouts: C B A

BOTTOM BRACKET WIDTH | REAR HUB WIDTH « A » | FREEWHEEL WIDTH « B » | CHAIN LINE « C »
68 | 120 | 29 | 43,5
70 | 120 | 29 | 43,5
74 | 120 | 29 | 43,5

TRACK CHAIN LINE

BOTTOM BRACKET WIDTH
CHAIN LINE
CENTRE LINE
Callouts: C B A

BOTTOM BRACKET WIDTH | REAR HUB WIDTH « A » | SPROCKET WIDTH « B » | CHAIN LINE « C »
65 | 110 | 21.5 | 40
68 | 110 | 21.5 | 40
68 | 120 | 24 | 42,5
70 | 120 | 24 | 42,5

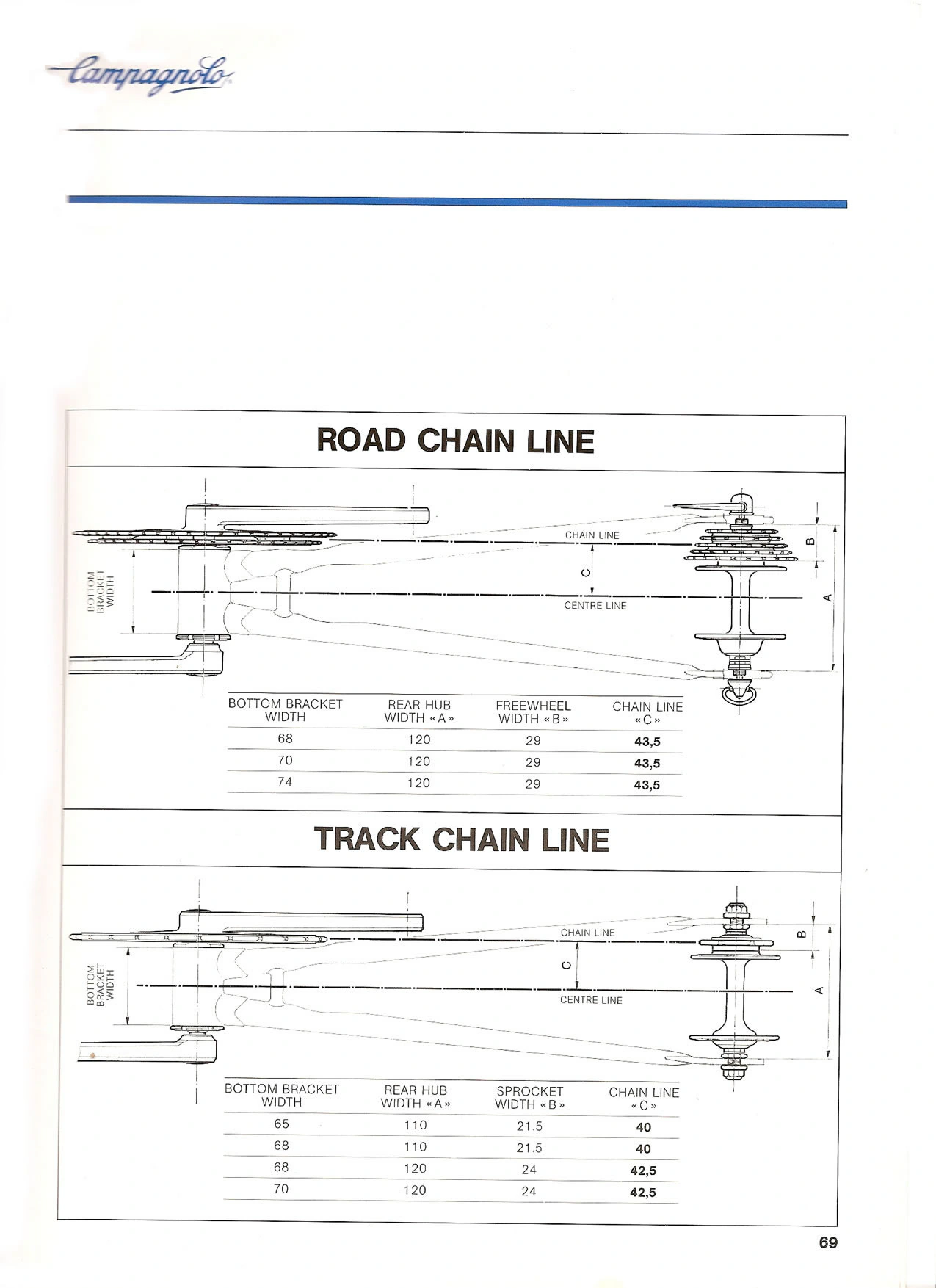

[Two plan drawings of a bicycle drivetrain seen from above, one for the road chain line with a multiple freewheel and one for the track chain line with a single sprocket, each marking the bottom bracket width, the chain line, the center line and the dimensions A, B and C. Each drawing has a table giving the chain line for three or four combinations of bottom bracket width and rear hub width; the heading band at the top of the page is printed empty.]

— Page 69 —
Campagnolo®

GEAR TABLE

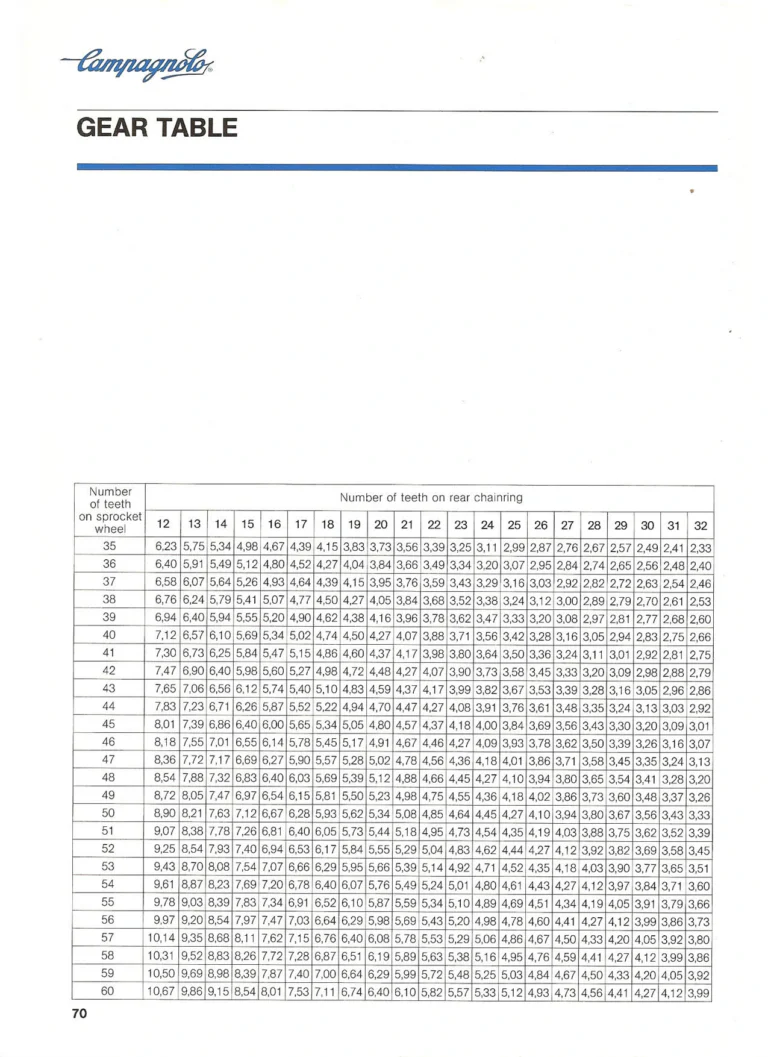

Number of teeth on sprocket wheel | Number of teeth on rear chainring
| 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32
35 | 6,23 | 5,75 | 5,34 | 4,98 | 4,67 | 4,39 | 4,15 | 3,83 | 3,73 | 3,56 | 3,39 | 3,25 | 3,11 | 2,99 | 2,87 | 2,76 | 2,67 | 2,57 | 2,49 | 2,41 | 2,33
36 | 6,40 | 5,91 | 5,49 | 5,12 | 4,80 | 4,52 | 4,27 | 4,04 | 3,84 | 3,66 | 3,49 | 3,34 | 3,20 | 3,07 | 2,95 | 2,84 | 2,74 | 2,65 | 2,56 | 2,48 | 2,40
37 | 6,58 | 6,07 | 5,64 | 5,26 | 4,93 | 4,64 | 4,39 | 4,15 | 3,95 | 3,76 | 3,59 | 3,43 | 3,29 | 3,16 | 3,03 | 2,92 | 2,82 | 2,72 | 2,63 | 2,54 | 2,46
38 | 6,76 | 6,24 | 5,79 | 5,41 | 5,07 | 4,77 | 4,50 | 4,27 | 4,05 | 3,84 | 3,68 | 3,52 | 3,38 | 3,24 | 3,12 | 3,00 | 2,89 | 2,79 | 2,70 | 2,61 | 2,53
39 | 6,94 | 6,40 | 5,94 | 5,55 | 5,20 | 4,90 | 4,62 | 4,38 | 4,16 | 3,96 | 3,78 | 3,62 | 3,47 | 3,33 | 3,20 | 3,08 | 2,97 | 2,81 | 2,77 | 2,68 | 2,60
40 | 7,12 | 6,57 | 6,10 | 5,69 | 5,34 | 5,02 | 4,74 | 4,50 | 4,27 | 4,07 | 3,88 | 3,71 | 3,56 | 3,42 | 3,28 | 3,16 | 3,05 | 2,94 | 2,83 | 2,75 | 2,66
41 | 7,30 | 6,73 | 6,25 | 5,84 | 5,47 | 5,15 | 4,86 | 4,60 | 4,37 | 4,17 | 3,98 | 3,80 | 3,64 | 3,50 | 3,36 | 3,24 | 3,11 | 3,01 | 2,92 | 2,81 | 2,75
42 | 7,47 | 6,90 | 6,40 | 5,98 | 5,60 | 5,27 | 4,98 | 4,72 | 4,48 | 4,27 | 4,07 | 3,90 | 3,73 | 3,58 | 3,45 | 3,33 | 3,20 | 3,09 | 2,98 | 2,88 | 2,79
43 | 7,65 | 7,06 | 6,56 | 6,12 | 5,74 | 5,40 | 5,10 | 4,83 | 4,59 | 4,37 | 4,17 | 3,99 | 3,82 | 3,67 | 3,53 | 3,39 | 3,28 | 3,16 | 3,05 | 2,96 | 2,86
44 | 7,83 | 7,23 | 6,71 | 6,26 | 5,87 | 5,52 | 5,22 | 4,94 | 4,70 | 4,47 | 4,27 | 4,08 | 3,91 | 3,76 | 3,61 | 3,48 | 3,35 | 3,24 | 3,13 | 3,03 | 2,92
45 | 8,01 | 7,39 | 6,86 | 6,40 | 6,00 | 5,65 | 5,34 | 5,05 | 4,80 | 4,57 | 4,37 | 4,18 | 4,00 | 3,84 | 3,69 | 3,56 | 3,43 | 3,30 | 3,20 | 3,09 | 3,01
46 | 8,18 | 7,55 | 7,01 | 6,55 | 6,14 | 5,78 | 5,45 | 5,17 | 4,91 | 4,67 | 4,46 | 4,27 | 4,09 | 3,93 | 3,78 | 3,62 | 3,50 | 3,39 | 3,26 | 3,16 | 3,07
47 | 8,36 | 7,72 | 7,17 | 6,69 | 6,27 | 5,90 | 5,57 | 5,28 | 5,02 | 4,78 | 4,56 | 4,36 | 4,18 | 4,01 | 3,86 | 3,71 | 3,58 | 3,45 | 3,35 | 3,24 | 3,13

48 | 8,54 | 7,88 | 7,32 | 6,83 | 6,40 | 6,03 | 5,69 | 5,39 | 5,12 | 4,88 | 4,66 | 4,45 | 4,27 | 4,10 | 3,94 | 3,80 | 3,65 | 3,54 | 3,41 | 3,28 | 3,20
49 | 8,72 | 8,05 | 7,47 | 6,97 | 6,54 | 6,15 | 5,81 | 5,50 | 5,23 | 4,98 | 4,75 | 4,55 | 4,36 | 4,18 | 4,02 | 3,86 | 3,73 | 3,60 | 3,48 | 3,37 | 3,26
50 | 8,90 | 8,21 | 7,63 | 7,12 | 6,67 | 6,28 | 5,93 | 5,62 | 5,34 | 5,08 | 4,85 | 4,64 | 4,45 | 4,27 | 4,10 | 3,94 | 3,80 | 3,67 | 3,56 | 3,43 | 3,33
51 | 9,07 | 8,38 | 7,78 | 7,26 | 6,81 | 6,40 | 6,05 | 5,73 | 5,44 | 5,18 | 4,95 | 4,73 | 4,54 | 4,35 | 4,19 | 4,03 | 3,88 | 3,75 | 3,62 | 3,52 | 3,39
52 | 9,25 | 8,54 | 7,93 | 7,40 | 6,94 | 6,53 | 6,17 | 5,84 | 5,55 | 5,29 | 5,04 | 4,83 | 4,62 | 4,44 | 4,27 | 4,12 | 3,92 | 3,82 | 3,69 | 3,58 | 3,45
53 | 9,43 | 8,70 | 8,08 | 7,54 | 7,07 | 6,66 | 6,29 | 5,95 | 5,66 | 5,39 | 5,14 | 4,92 | 4,71 | 4,52 | 4,35 | 4,18 | 4,03 | 3,90 | 3,77 | 3,65 | 3,51
54 | 9,61 | 8,87 | 8,23 | 7,69 | 7,20 | 6,78 | 6,40 | 6,07 | 5,76 | 5,49 | 5,24 | 5,01 | 4,80 | 4,61 | 4,43 | 4,27 | 4,12 | 3,97 | 3,84 | 3,71 | 3,60
55 | 9,78 | 9,03 | 8,39 | 7,83 | 7,34 | 6,91 | 6,52 | 6,10 | 5,87 | 5,59 | 5,34 | 5,10 | 4,89 | 4,69 | 4,51 | 4,34 | 4,19 | 4,05 | 3,91 | 3,79 | 3,66
56 | 9,97 | 9,20 | 8,54 | 7,97 | 7,47 | 7,03 | 6,64 | 6,29 | 5,98 | 5,69 | 5,43 | 5,20 | 4,98 | 4,78 | 4,60 | 4,41 | 4,27 | 4,12 | 3,99 | 3,86 | 3,73
57 | 10,14 | 9,35 | 8,68 | 8,11 | 7,62 | 7,15 | 6,76 | 6,40 | 6,08 | 5,78 | 5,53 | 5,29 | 5,06 | 4,86 | 4,67 | 4,50 | 4,33 | 4,20 | 4,05 | 3,92 | 3,80
58 | 10,31 | 9,52 | 8,83 | 8,26 | 7,72 | 7,28 | 6,87 | 6,51 | 6,19 | 5,89 | 5,63 | 5,38 | 5,16 | 4,95 | 4,76 | 4,59 | 4,41 | 4,27 | 4,12 | 3,99 | 3,86
59 | 10,50 | 9,69 | 8,98 | 8,39 | 7,87 | 7,40 | 7,00 | 6,64 | 6,29 | 5,99 | 5,72 | 5,48 | 5,25 | 5,03 | 4,84 | 4,67 | 4,50 | 4,33 | 4,20 | 4,05 | 3,92
60 | 10,67 | 9,86 | 9,15 | 8,54 | 8,01 | 7,53 | 7,11 | 6,74 | 6,40 | 6,10 | 5,82 | 5,57 | 5,33 | 5,12 | 4,93 | 4,73 | 4,56 | 4,41 | 4,27 | 4,12 | 3,99

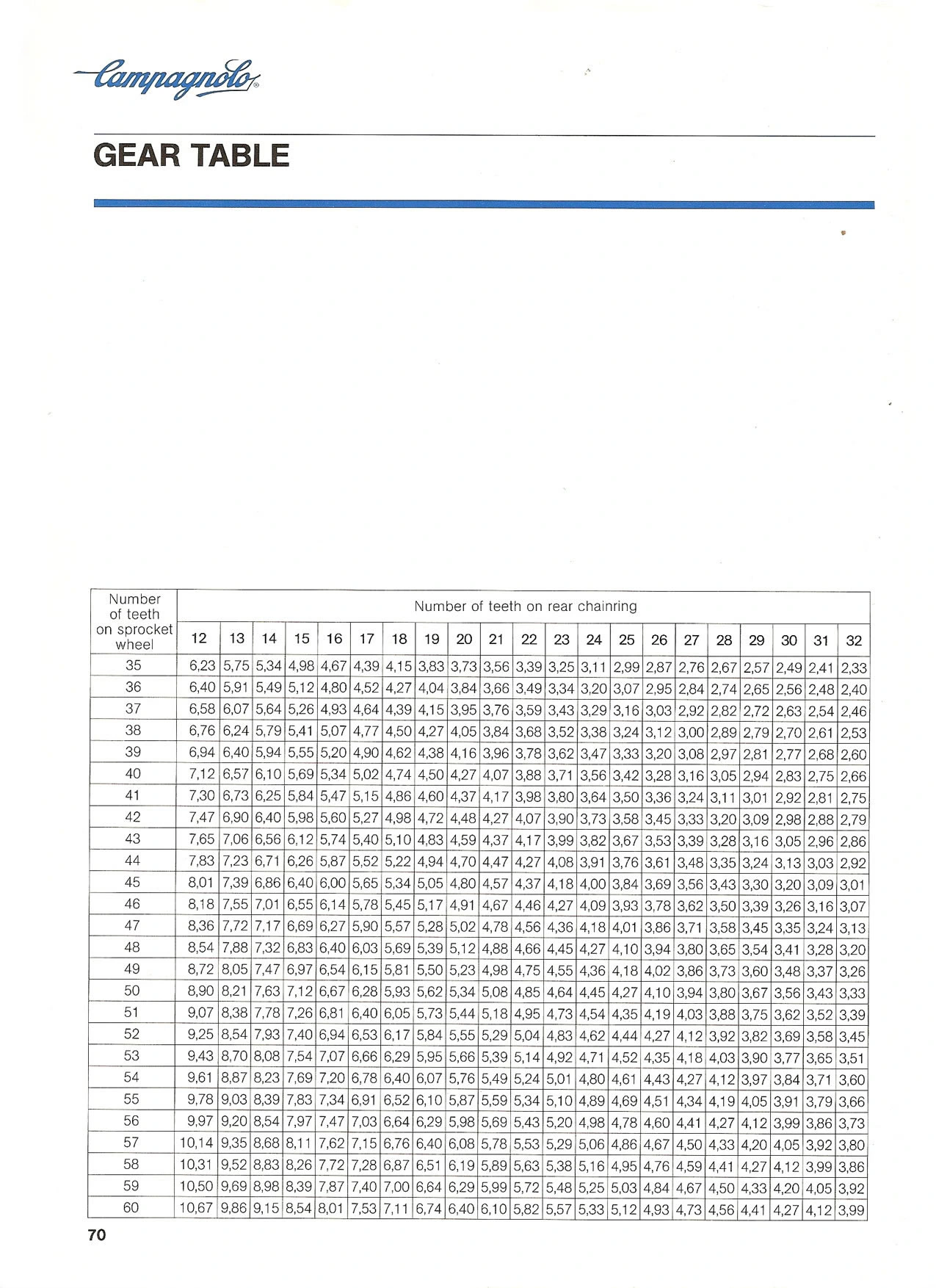

[A Campagnolo gear table giving a value for every combination of 35 to 60 teeth in the rows and 12 to 32 teeth in the columns. The row heading reads “Number of teeth on sprocket wheel” and the column heading “Number of teeth on rear chainring”, though the rows range over chainring sizes and the columns over sprocket sizes. The upper half of the page is blank.]

— Page 70 (back cover) —
BREVETTI INTERNAZIONALI
Campagnolo®

Via della Chimica, 4
36100 VICENZA – Italia

società per azioni
Capitale Sociale Lit. 16.000.000.000
N. 11558 Reg. Soc. Tribunale di Vicenza
Telefono 0444/564933 (16 linee con r.a.)
Telefax 0444/565062
Telex 480074 CAMPA I
Telegr. CAMPAGNOLO VICENZA
Casella Postale N. 822

FOTOTECNICA – Vicenza — Printed in Italy / OFFSET INVICTA S.p.A. – Limena/Padova – 12/86

[The back cover of the catalog, white and otherwise blank, with the Brevetti Internazionali Campagnolo globe logo and the company’s address and registration details printed in blue at the lower left. A printer’s line runs vertically up the right edge.]

Ebykr presents this material for research and education. If you hold rights to it or notice an ownership issue, please contact us and we will respond promptly.

About this document

Transcription

More from Campagnolo

A monthly letter on classic lightweight bicycles
