Fuji 1990 Catalog — Edition No. 20, The Fuji Feeling, from the Titanium ATB to the Arcadia

— Page 1 (front cover) —
Fuji.™

Edition No.20

$1.00

[The front cover of the Fuji catalog, a stylized drawing of the snow-streaked cone of Mount Fuji shading from mint green at the summit to deep violet blue at its base, set against a gray sky banded with flat white clouds, with the large red outlined “Fuji.” wordmark at upper right and the edition line in black beneath it. The cover price is printed small at lower left, and the copy shows light scuffing along the left edge.]

— Page 2 —
The Fuji Feeling.
It’s the fusion of engineering, artistry and an unyielding drive for perfection.
It’s an uncompromising quest for precision in even the most seemingly insignificant detail.It’s an appreciation for the calibre of performance a rider demands that comes from designers who are, first and foremost, demanding cyclists themselves.
And, ultimately, it’s the pride of possessing the best.Precision. Performance. Pride.
There’s no feeling like a Fuji.

FRAME GEOMETRY : The geometry of the bicycle frame is established by eight critical dimensions which, when matched to the engineering characteristics of the tubing material used, determine the handling characteristics of a bike, These eight critical dimensions and how they most directly affect the bike are:

a. Seat Tube Length governs the size of the frame and influences the other critical dimensions. Seat tube length, bottom bracket drop and wheel diameter together determine the overall size of the bike. Generally, you should select the smallest frame size you can ride comfortably, and in no case should you select a bike that you cannot straddle with both feet flat on the ground.
All Fuji bicycles are measured from the center of the B/B to the top of the seat tube.
b. Top Tube Length influences riding position and wheelbase. Its minimum dimension is restricted by the need for clearance between the front wheel and the pedals.
c. Chainstay Length position the rear wheel and controls clearance for fenders or clearance between the rider’s heel and the panniers on a touring bike.
d. Seat Tube Angle is the determining factor in positioning the rider’s center of gravity, and thereby controls the bike’s center of gravity and the riding position. To some degree, it also affects road shock absorption, in that a shallower angle allows the tube to absorb more road shock.
e. Head Tube Angle influences steering response, handling characteristics and front wheel road shock absorption, and affects some of the other critical dimensions.
f. Fork Rake or Offset works with the head tube angle to determine steering characteristics and responsiveness to directional change.
g. Bottom Bracket Height is the distance between the center of the bottom bracket and the ground, It determines the clearance of the crankset during cornering and from debris.
h. Wheelbase influences the bike’s ride characteristics. A long wheelbase tends to be more comfortable and have better straight running characteristics. A short wheelbase tends to make a stiffer bike with quicker response to directional change.

mm
TITANIUM ROAD: a — 580; b — 566; c — 415; d° — 73.5; e° — 74.0; f — 45; g — 70; h — 997
ROUBAIX: a — 580; b — 566; c — 415; d° — 73.5; e° — 74.0; f — 45; g — 70; h — 997
ACE: a — 580; b — 566; c — 415; d° — 73.5; e° — 74.0; f — 45; g — 70; h — 997
SARATOGA (23″): a — 584; b — 565; c — 440; d° — 73.0; e° — 73.0; f — 55; g — 63; h — 1,037
DEL REY CX (23″): a — 584; b — 605; c — 432; d° — 73.0; e° — 72.0; f — 45; g — 38; h — 1,074
VANTAGE CX (23″): a — 584; b — 605; c — 432; d° — 73.0; e° — 72.0; f — 45; g — 38; h — 1,074
TITANIUM ATB: a — 520; b — 590; c — 420; d° — 74.0; e° — 71.0; f — 45; g — 31; h — 1,072
MT. FUJI LTD: a — 520; b — 590; c — 420; d° — 74.0; e° — 71.0; f — 45; g — 31; h — 1,072
MT. FUJI: a — 520; b — 590; c — 420; d° — 74.0; e° — 71.0; f — 45; g — 31; h — 1,072
SUNCREST: a — 520; b — 590; c — 420; d° — 74.0; e° — 71.0; f — 45; g — 31; h — 1,072
TAHOE: a — 520; b — 580; c — 425; d° — 73.0; e° — 70.0; f — 45; g — 32; h — 1,068
THRILL: a — 520; b — 580; c — 425; d° — 73.0; e° — 70.0; f — 45; g — 32; h — 1,068
SAND BLASTER: a — 520; b — 565; c — 438; d° — 72.0; e° — 70.0; f — 50; g — 38; h — 1,060

Fuji matches handlebar width and length of stem, crank arms, and toe clips to frame size.

FRAME SIZING CONVERSION CHART
17″ | 18″ | 19″ | 20″ | 21″ | 22″ | 23″ | 24″ | 25″ | 26″ | 27″
44cm | 46cm | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm | 64cm | 66cm | 68cm

Specifications subject to change without notice.

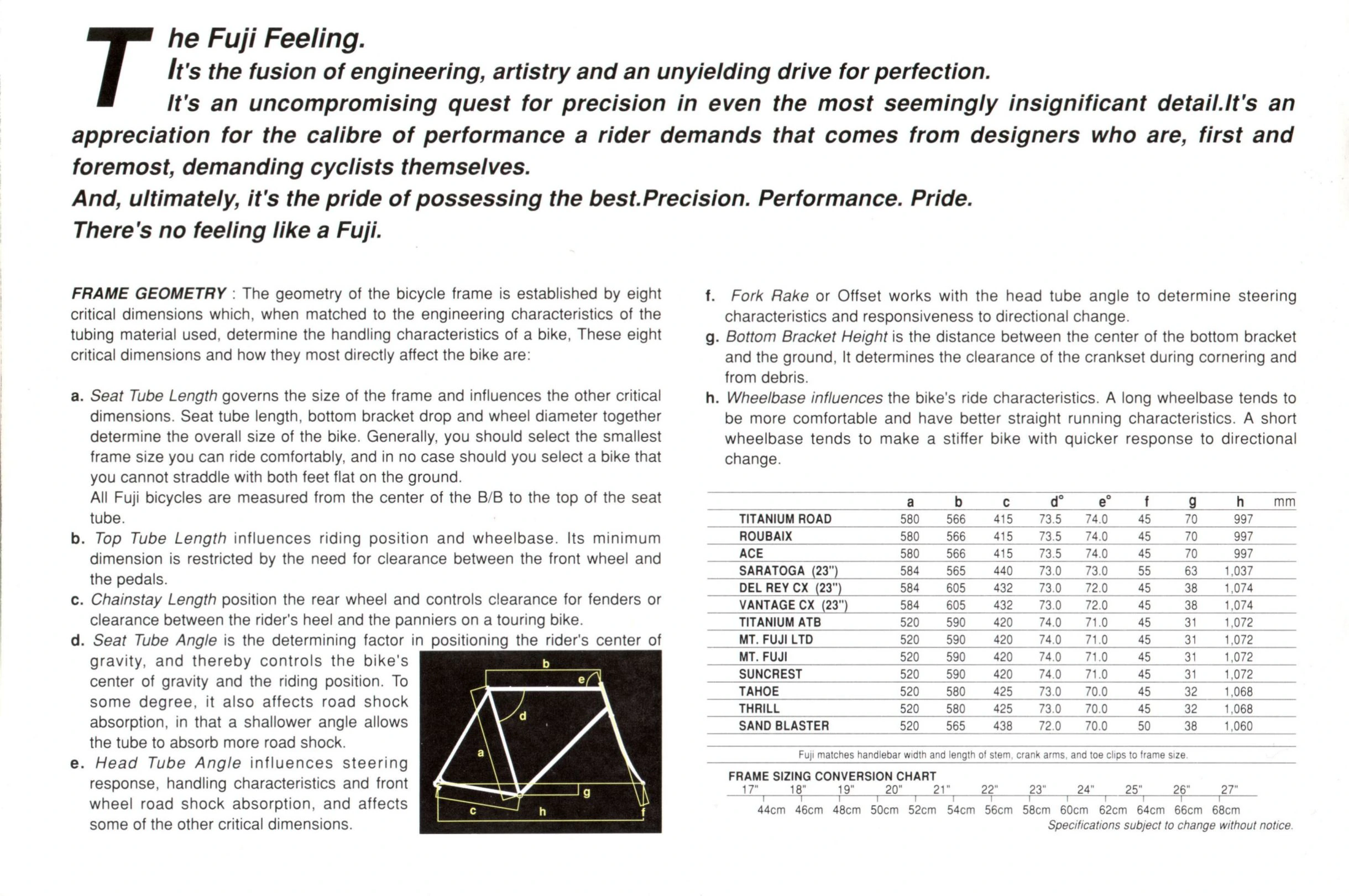

[A text page headed by “The Fuji Feeling.”, an italic statement opening with a large drop capital T, above two columns on frame geometry: lettered definitions of the eight critical dimensions, a line drawing of a white frame on a black panel marked with yellow dimension lines lettered a to h, and a geometry chart listing 13 models in millimeters. A frame sizing conversion chart sets inch sizes against centimeter sizes on a ruled scale at lower right.]

— Page 3 —

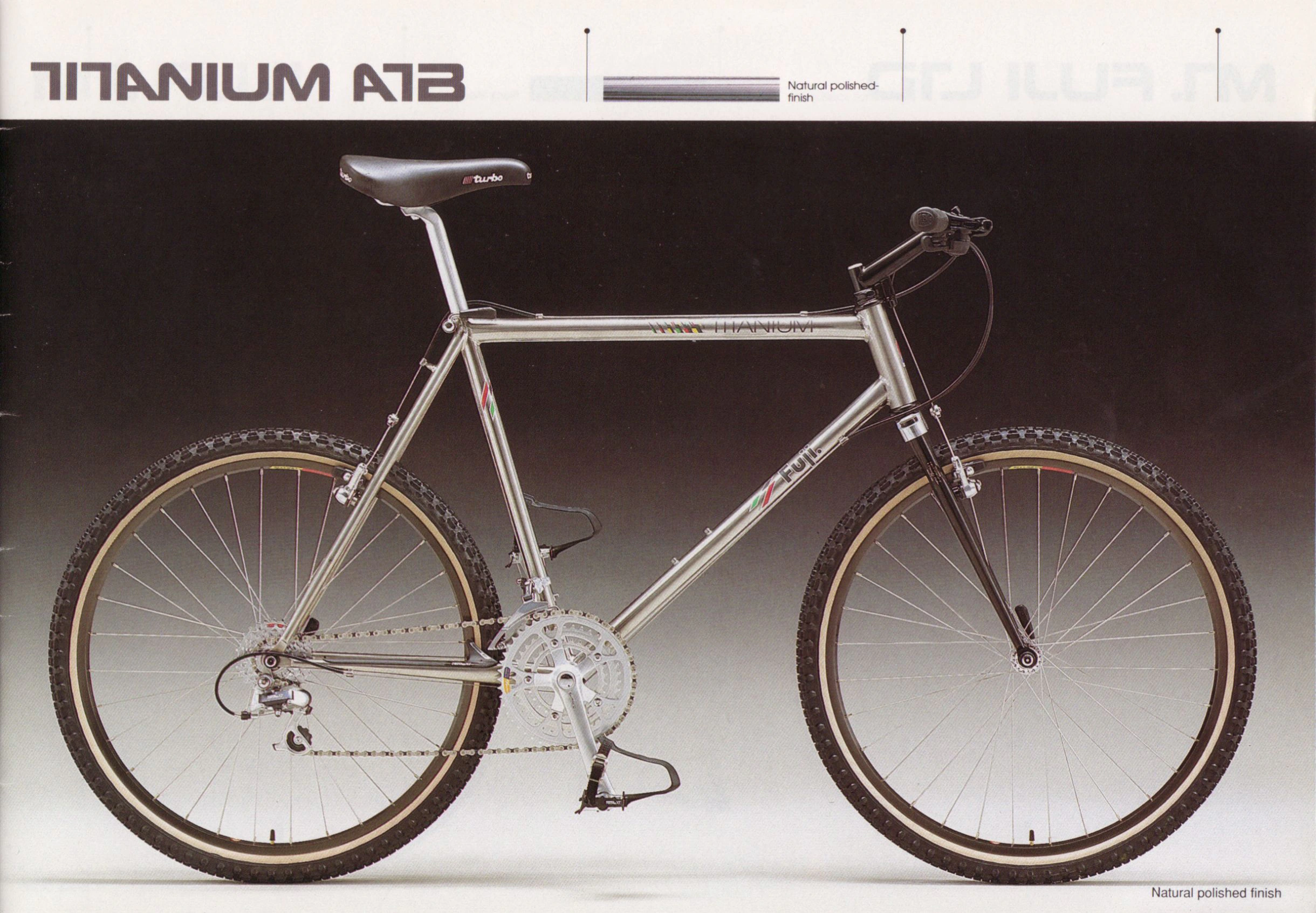

TITANIUM ATB

Natural polished-finish

Natural polished finish

[The Fuji Titanium ATB in its natural polished finish, an all-terrain bicycle with an unpainted titanium frame, black fork, flat handlebar, triple chainring crankset and knobby tires on tan sidewalls, photographed against a backdrop shading from black to pale gray. The stencil-style model name runs across a white band at the top beside a single color bar of polished metal, and the frame carries a “TITANIUM” top tube decal and a Fuji down tube logo with a Turbo saddle.]

— Page 4 —

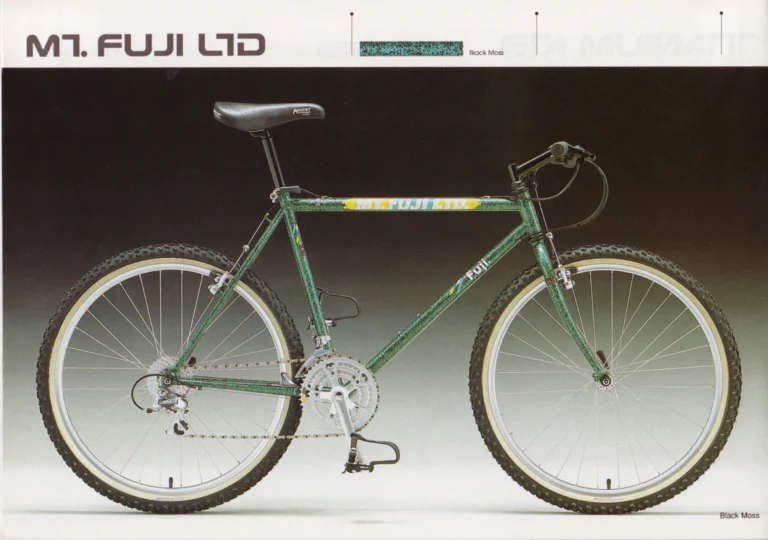

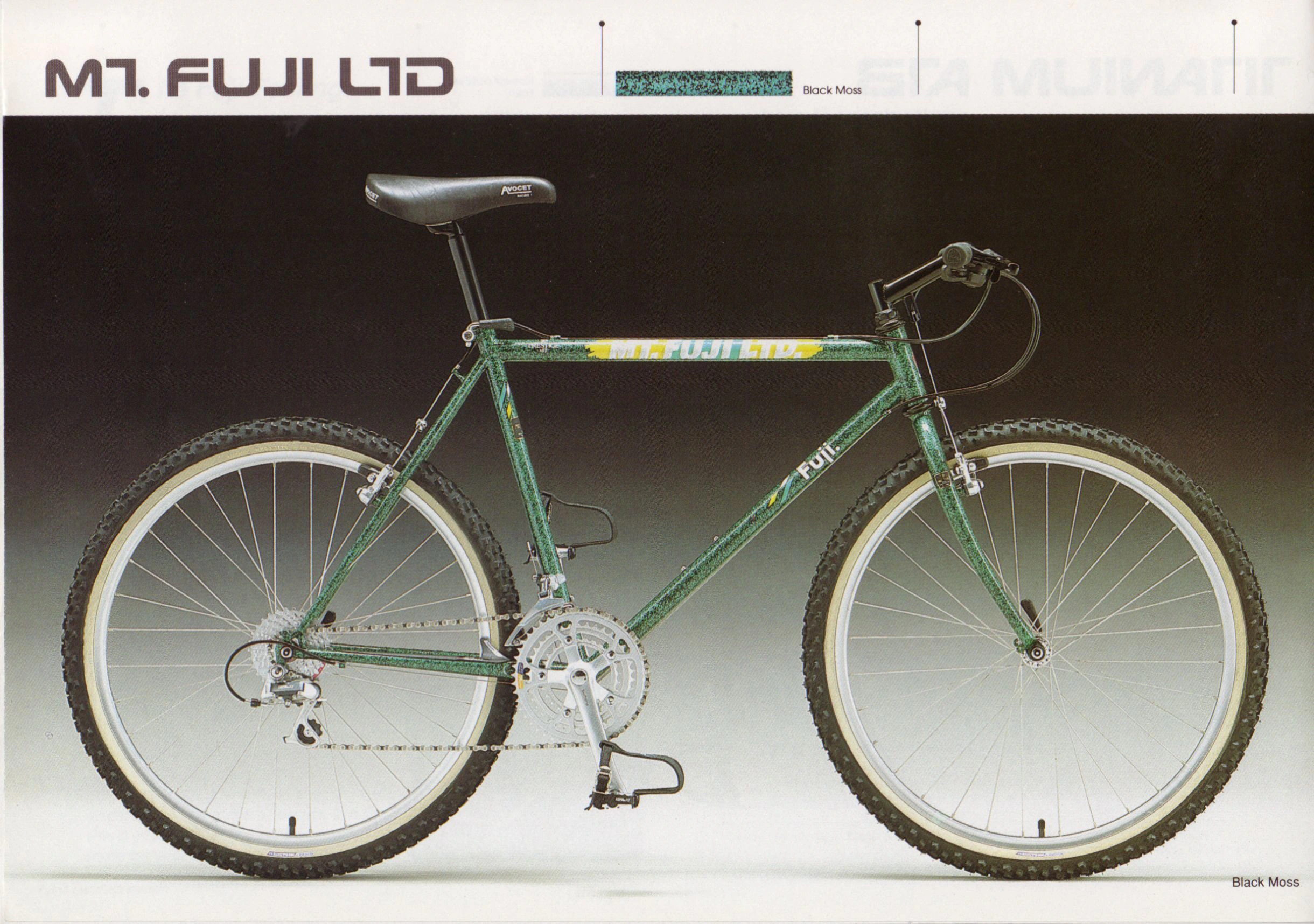

MT. FUJI LTD

Black Moss

Black Moss

[The Fuji Mt. Fuji LTD in Black Moss, an all-terrain bicycle with a frame and fork speckled in black and green, flat handlebar, triple chainring crankset and knobby tires on tan sidewalls, photographed against a backdrop shading from black to pale gray. The stencil-style model name runs across a white band at the top beside a single speckled color bar, and the top tube carries a “MT. FUJI LTD.” decal over a yellow brush stroke with an Avocet saddle above.]

— Page 5 —

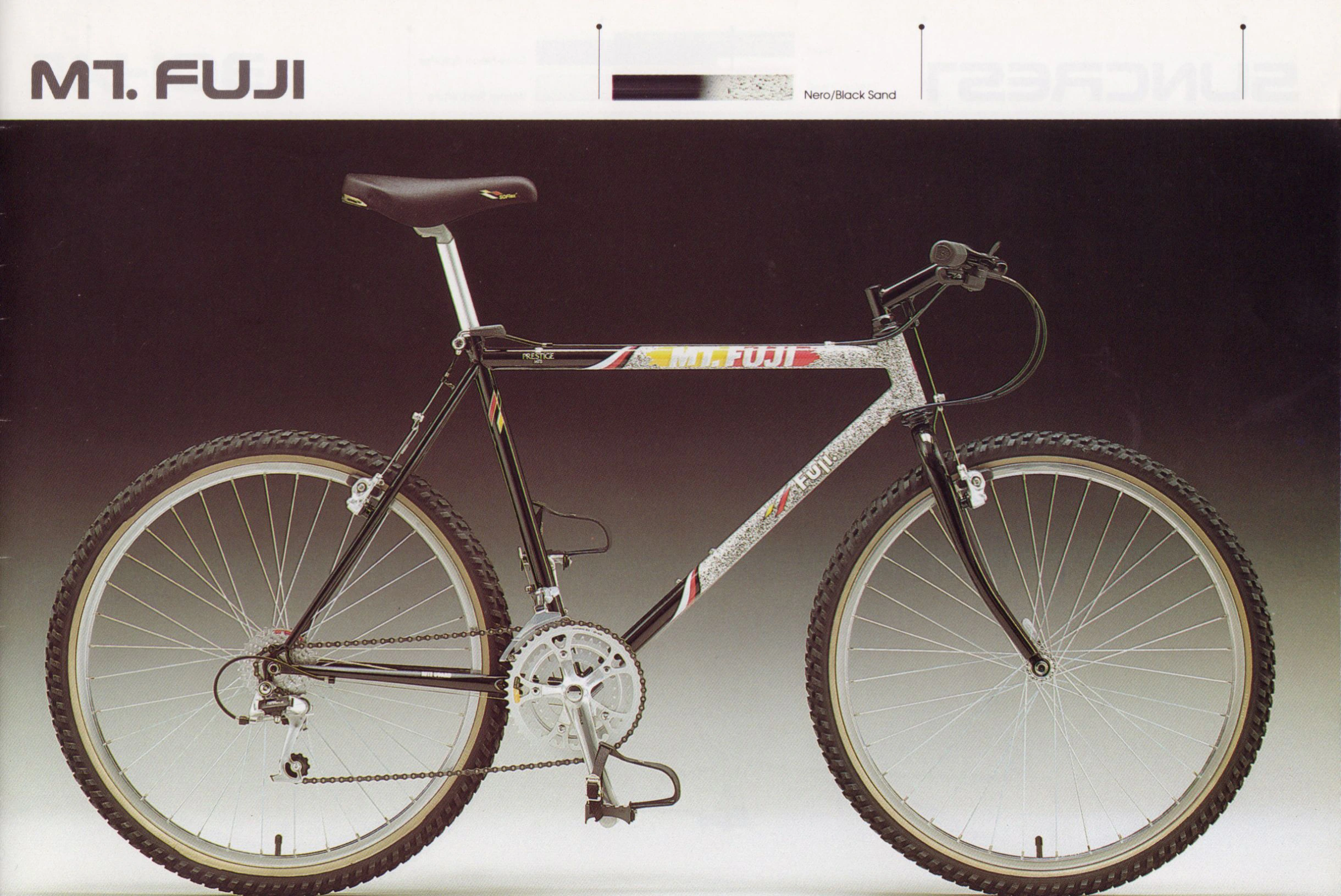

MT. FUJI

Nero/Black Sand

[The Fuji Mt. Fuji in Nero/Black Sand, an all-terrain bicycle with a black rear triangle, seat tube and fork and a white main triangle speckled in black, a flat handlebar, triple chainring crankset and knobby tires on tan sidewalls, photographed against a backdrop shading from dark maroon to pale gray. The stencil-style model name runs across a white band at the top beside a single color bar that fades from black to speckled white, and the top tube carries a “MT. FUJI” decal in yellow and red with a small “PRESTIGE” tubing decal near the seat cluster.]

— Page 6 —

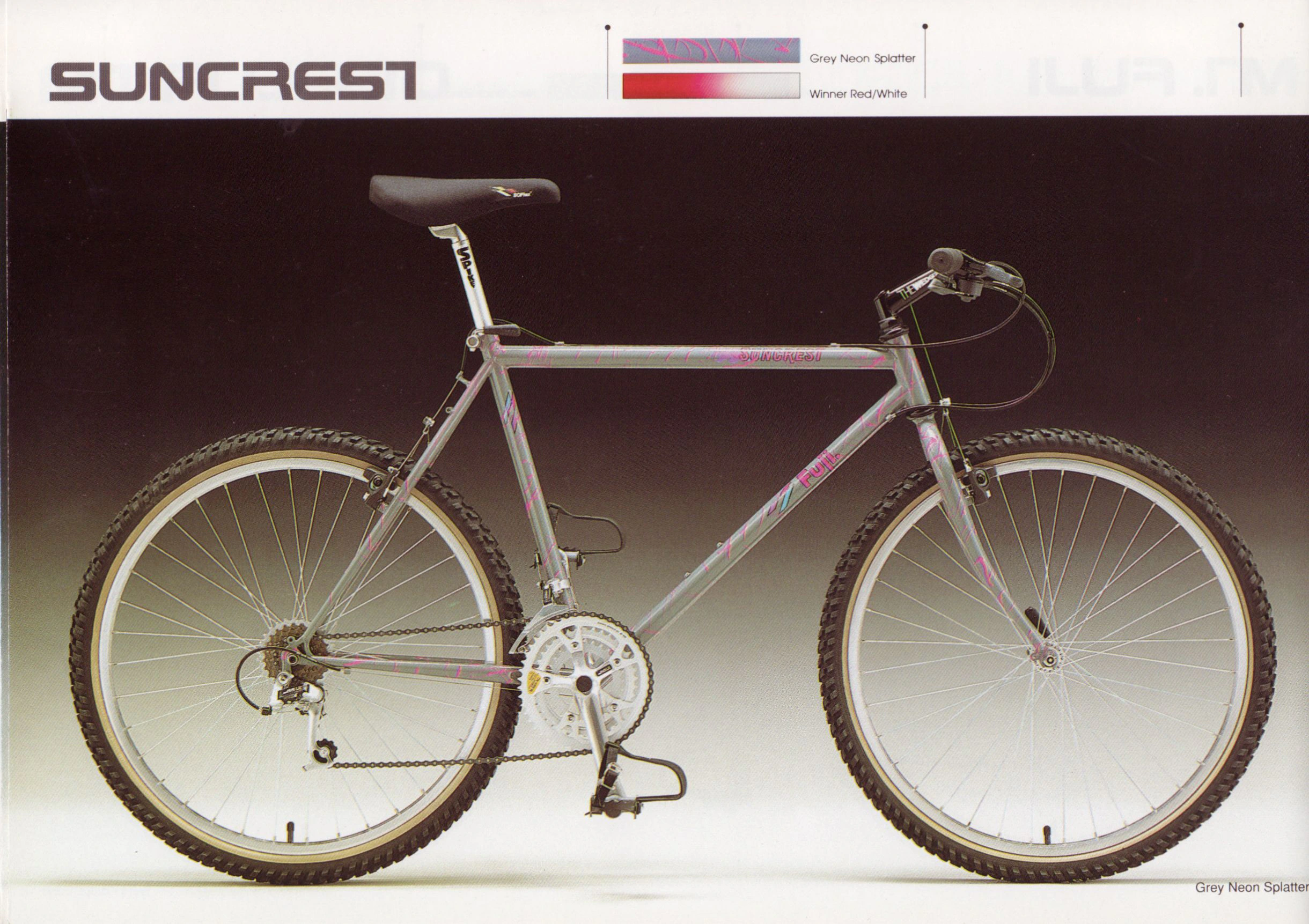

SUNCREST

Grey Neon Splatter
Winner Red/White

Grey Neon Splatter

[The Fuji Suncrest in Grey Neon Splatter, an all-terrain bicycle with a silver gray frame and fork streaked with pink and blue, a flat handlebar, triple chainring crankset and knobby tires on tan sidewalls, photographed against a backdrop shading from black to pale gray. The stencil-style model name runs across a white band at the top beside two color bars, the second fading from red to white, and the top tube carries a “SUNCREST” decal with a “SPIKE” seatpost below the saddle.]

— Page 7 —

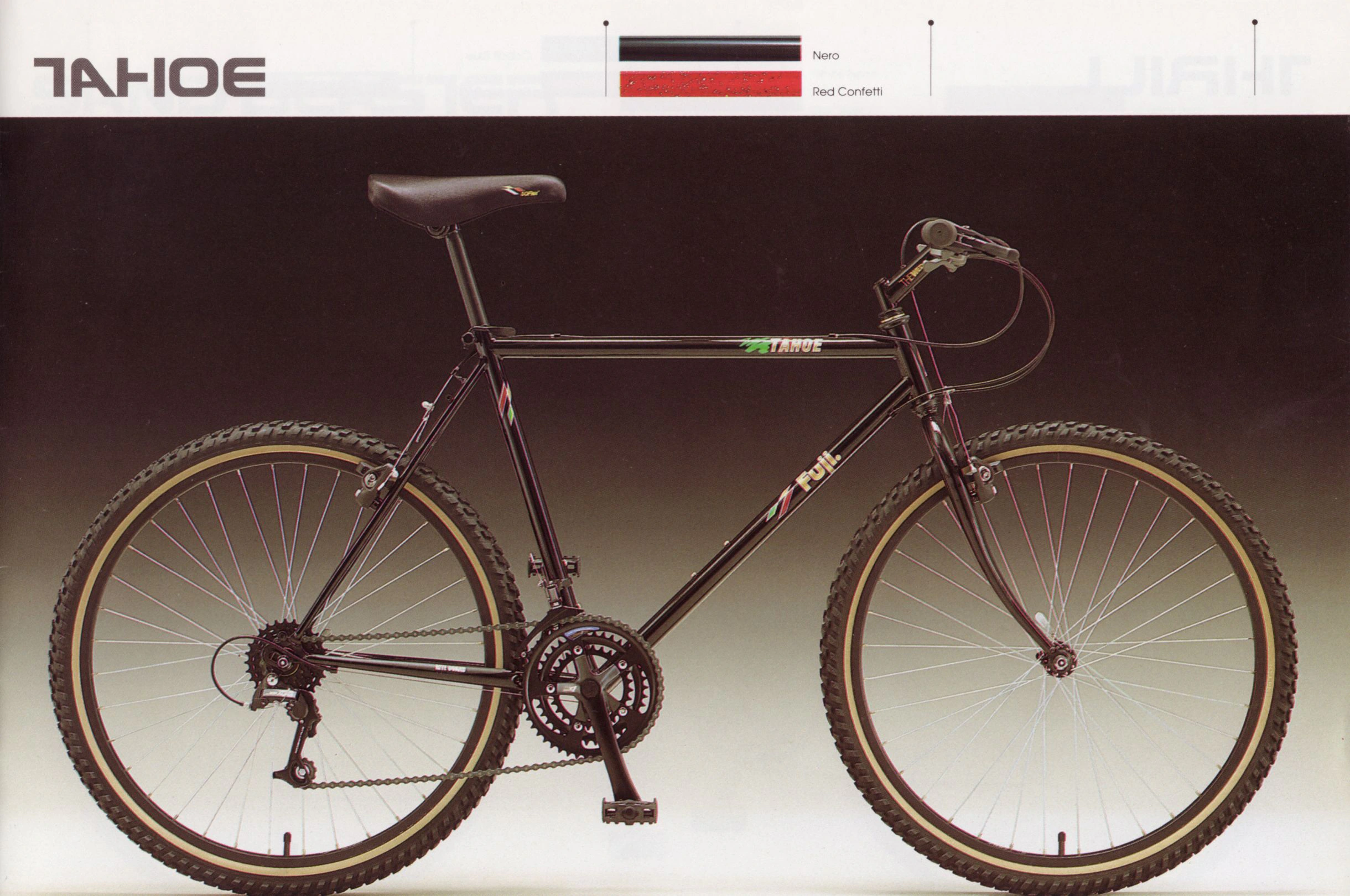

TAHOE

Nero
Red Confetti

[The Fuji Tahoe, an all-terrain bicycle with a black frame and fork, a flat handlebar, black triple chainring crankset, flat pedals and knobby tires on tan sidewalls, photographed against a backdrop shading from dark maroon to pale gray. The stencil-style model name runs across a white band at the top beside two color bars, the second red flecked with white, and the top tube carries a “TAHOE” decal in yellow and green.]

— Page 8 —

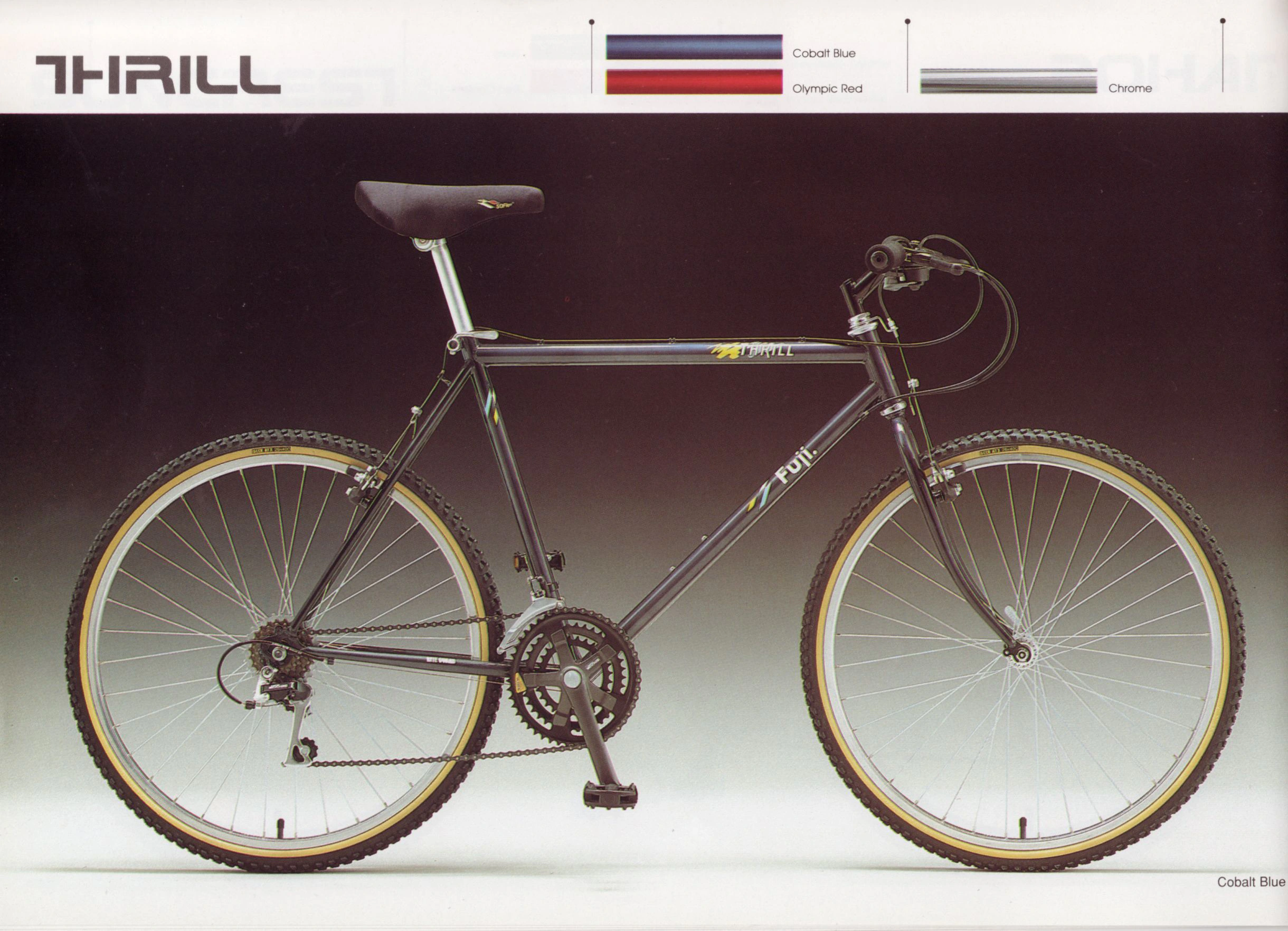

THRILL

Cobalt Blue
Olympic Red

Chrome

Cobalt Blue

[The Fuji Thrill in Cobalt Blue, an all-terrain bicycle with a dark blue frame and fork, a flat handlebar, black triple chainring crankset, flat pedals and knobby tires on tan sidewalls, photographed against a backdrop shading from dark maroon to pale gray. The stencil-style model name runs across a white band at the top beside blue and red color bars, with a chrome color bar set apart in the next column, and the top tube carries a “THRILL” decal over a yellow flash.]

— Page 9 —

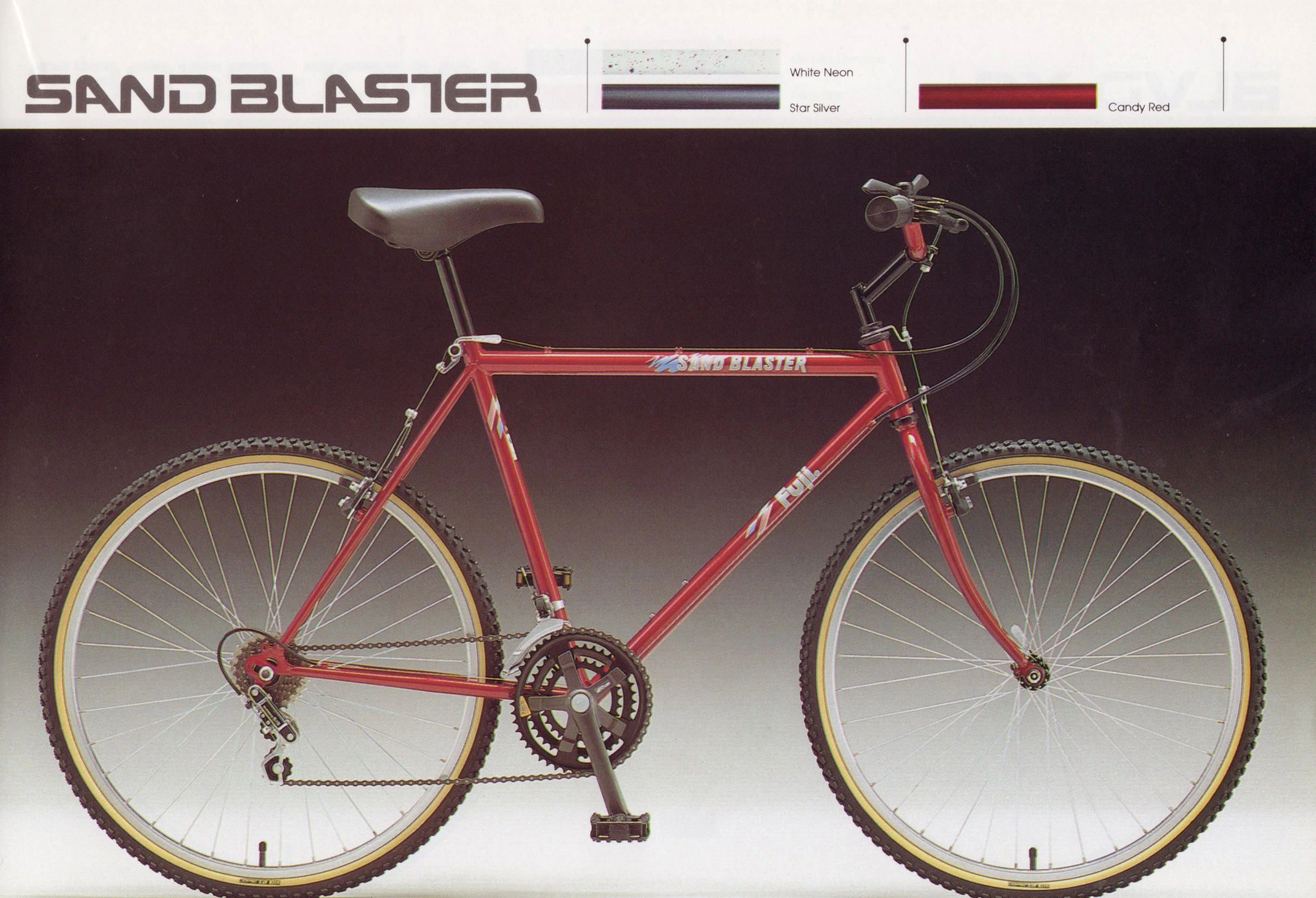

SAND BLASTER

White Neon
Star Silver

Candy Red

[The Fuji Sand Blaster, an all-terrain bicycle with a red frame and fork, a flat handlebar on a tall stem, black triple chainring crankset, flat pedals and knobby tires on tan sidewalls, photographed against a backdrop shading from dark maroon to pale gray. The stencil-style model name runs across a white band at the top beside white speckled and silver color bars, with a red color bar set apart in the next column, and the top tube carries a “SAND BLASTER” decal in silver and blue.]

— Page 10 —

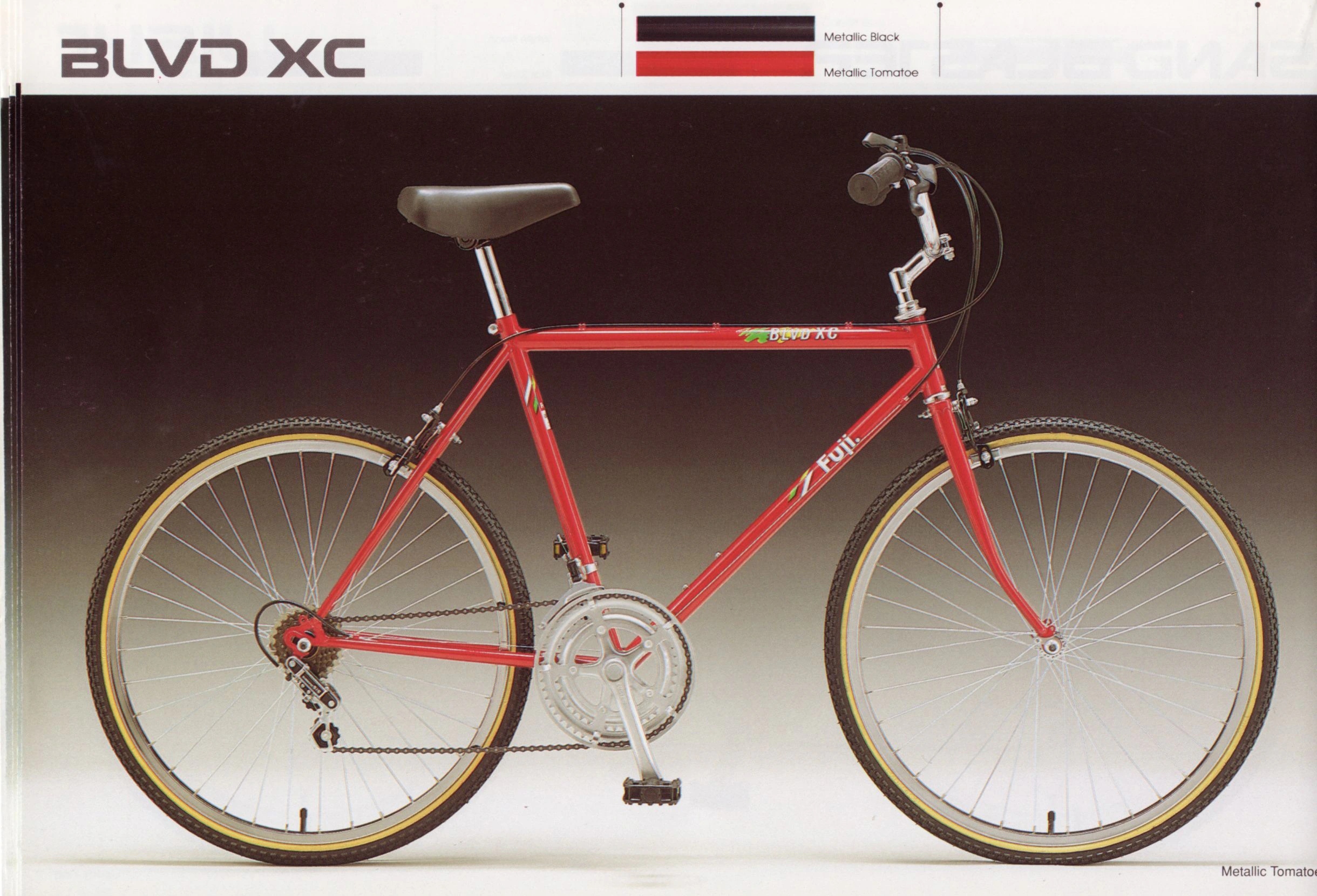

BLVD XC

Metallic Black
Metallic Tomatoe

Metallic Tomatoe

[The Fuji Blvd XC in Metallic Tomatoe, a bicycle with a bright red frame and fork, a flat handlebar on a tall forward stem, silver crankset, flat pedals and finely treaded tires on tan sidewalls, photographed against a backdrop shading from black to pale gray. The stencil-style model name runs across a white band at the top beside black and red color bars, and the top tube carries a “BLVD XC” decal over a green and yellow flash.]

— Page 11 —

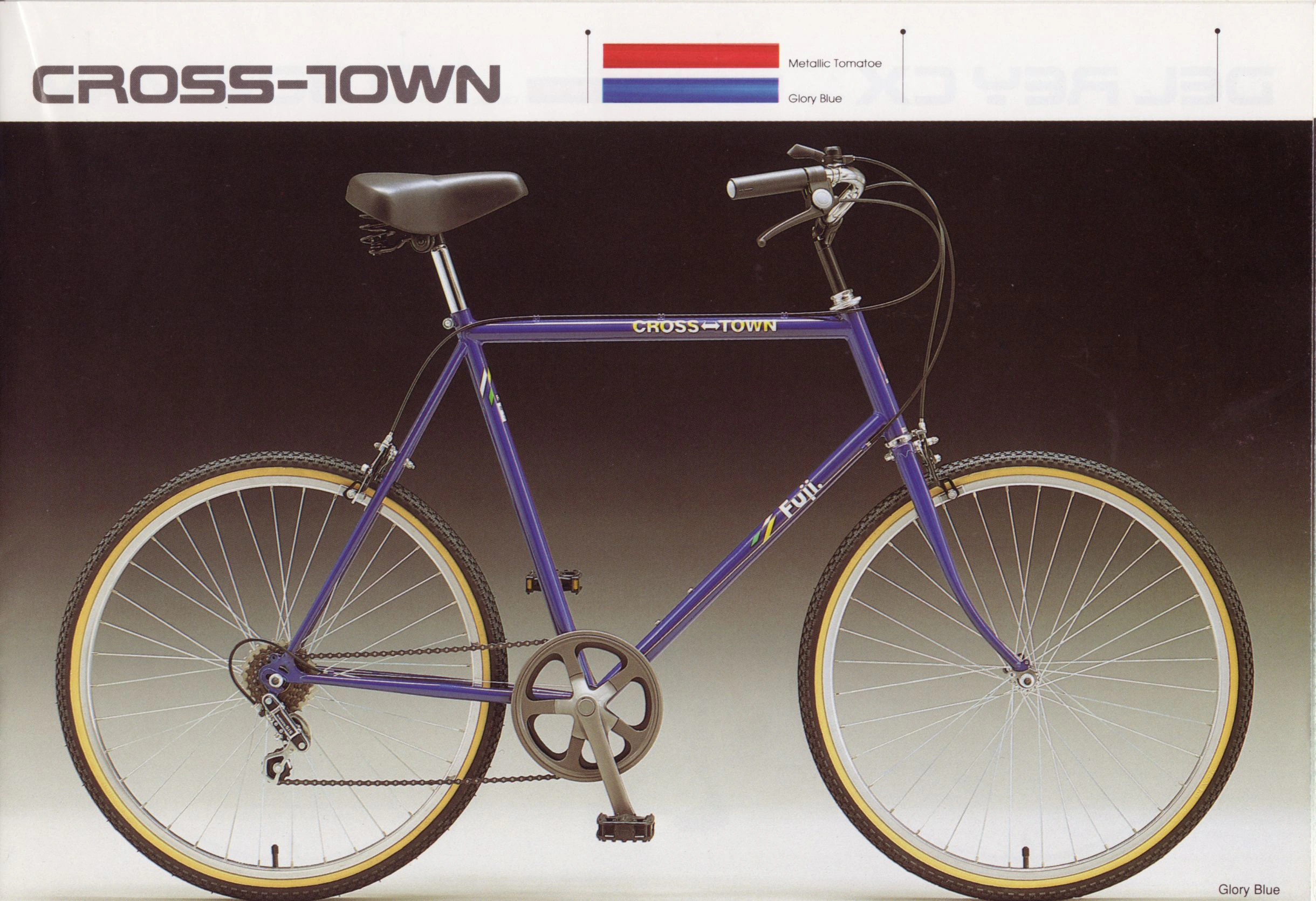

CROSS-TOWN

Metallic Tomatoe
Glory Blue

Glory Blue

[The Fuji Cross-Town in Glory Blue, a bicycle with a violet blue frame and fork, a swept-back handlebar on a tall quill stem, a sprung saddle, a single chainring behind a gray disc chain guard, flat pedals and finely treaded tires on tan sidewalls, photographed against a backdrop shading from black to pale gray. The stencil-style model name runs across a white band at the top beside red and blue color bars, and the top tube carries a yellow decal reading CROSS and TOWN joined by a double-headed arrow.]

— Page 12 —

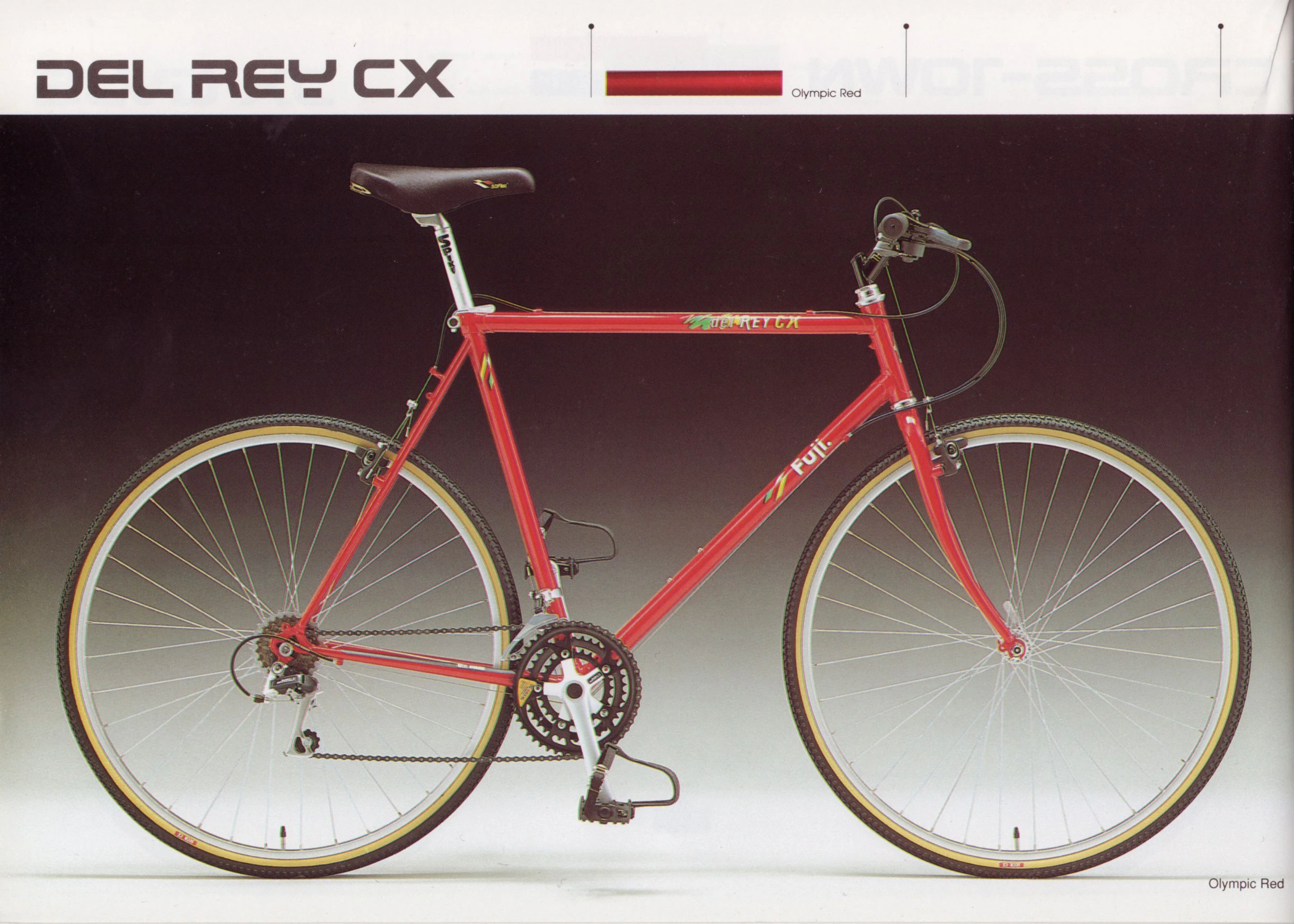

DEL REY CX

Olympic Red

Olympic Red

[The Fuji Del Rey CX in Olympic Red, a cross bicycle with a flat handlebar photographed in profile on a dark studio backdrop that fades to gray. It has a black saddle, combined brake and shift levers on the short flat bar, cantilever brakes, a silver triple crankset, platform pedals and finely treaded tires with tan sidewalls; a single red color bar labeled “Olympic Red” runs beside the model name in the white band above the photograph.]

— Page 13 —

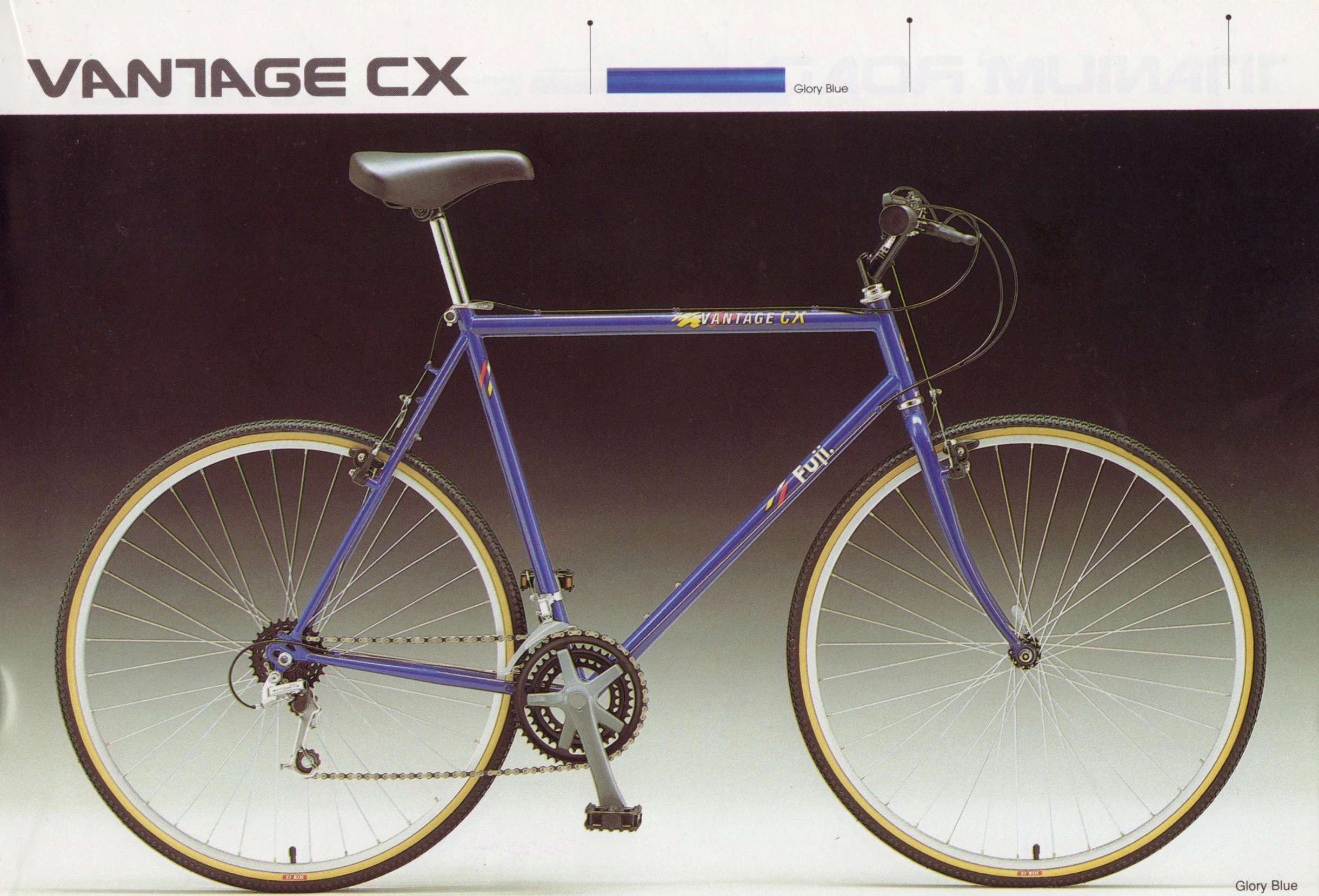

VANTAGE CX

Glory Blue

Glory Blue

[The Fuji Vantage CX in Glory Blue, a cross bicycle with a flat handlebar photographed in profile on a dark studio backdrop that fades to gray. It has a wide black saddle, combined brake and shift levers on the short flat bar, cantilever brakes, a gray triple crankset, platform pedals and finely treaded tires with tan sidewalls; a single blue color bar labeled “Glory Blue” runs beside the model name in the white band above the photograph.]

— Page 14 —

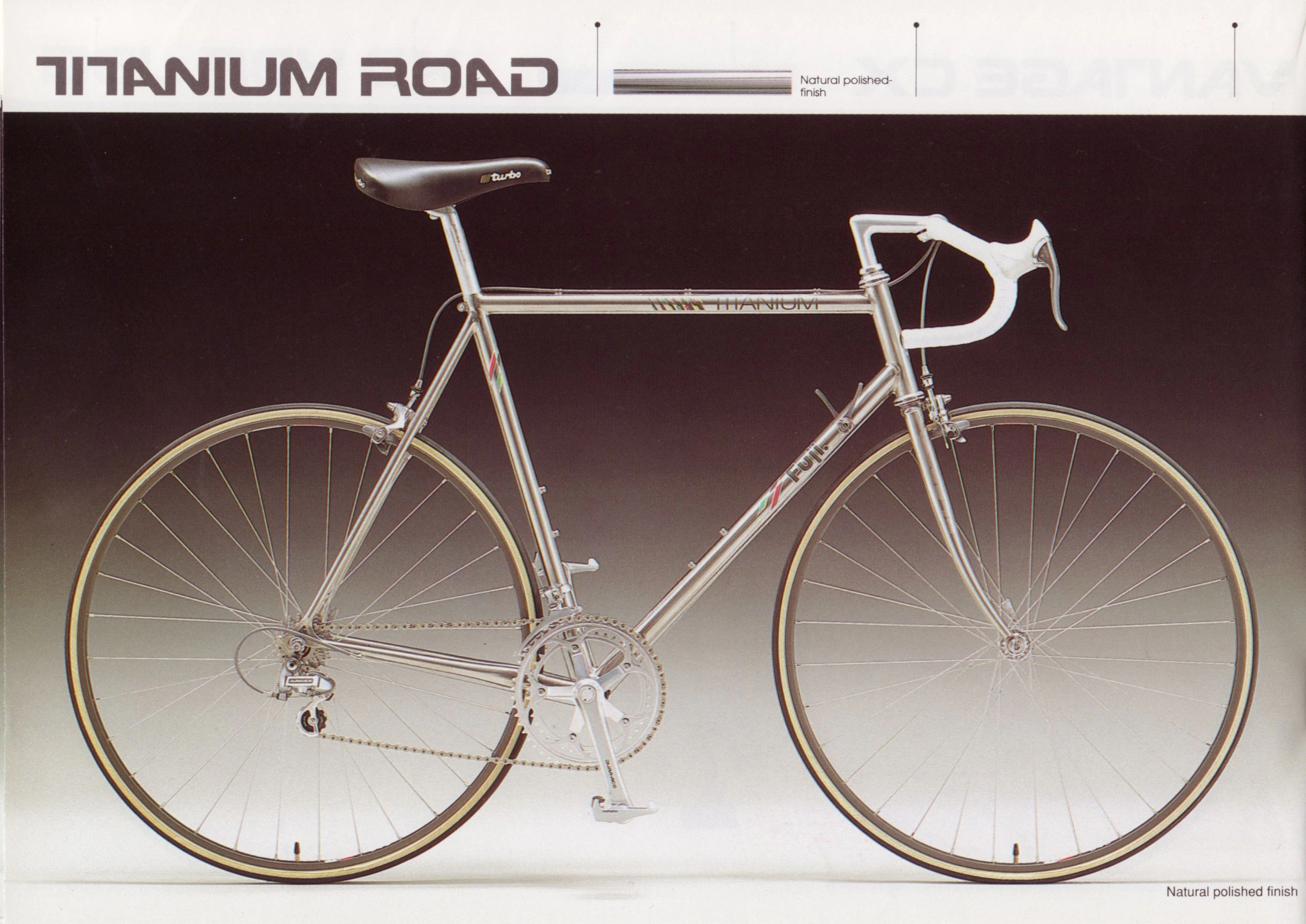

TITANIUM ROAD

Natural polished-finish

Natural polished finish

[The Fuji Titanium Road in a natural polished finish, a road racing bicycle with an unpainted titanium frame photographed in profile on a dark studio backdrop that fades to gray. It has a black saddle lettered “turbo”, white handlebar tape, a “TITANIUM” decal on the top tube, a double crankset and rear derailleur both lettered “DURA-ACE” and tires with tan sidewalls; a silver color bar labeled “Natural polished-finish” runs beside the model name in the white band above the photograph.]

— Page 15 —

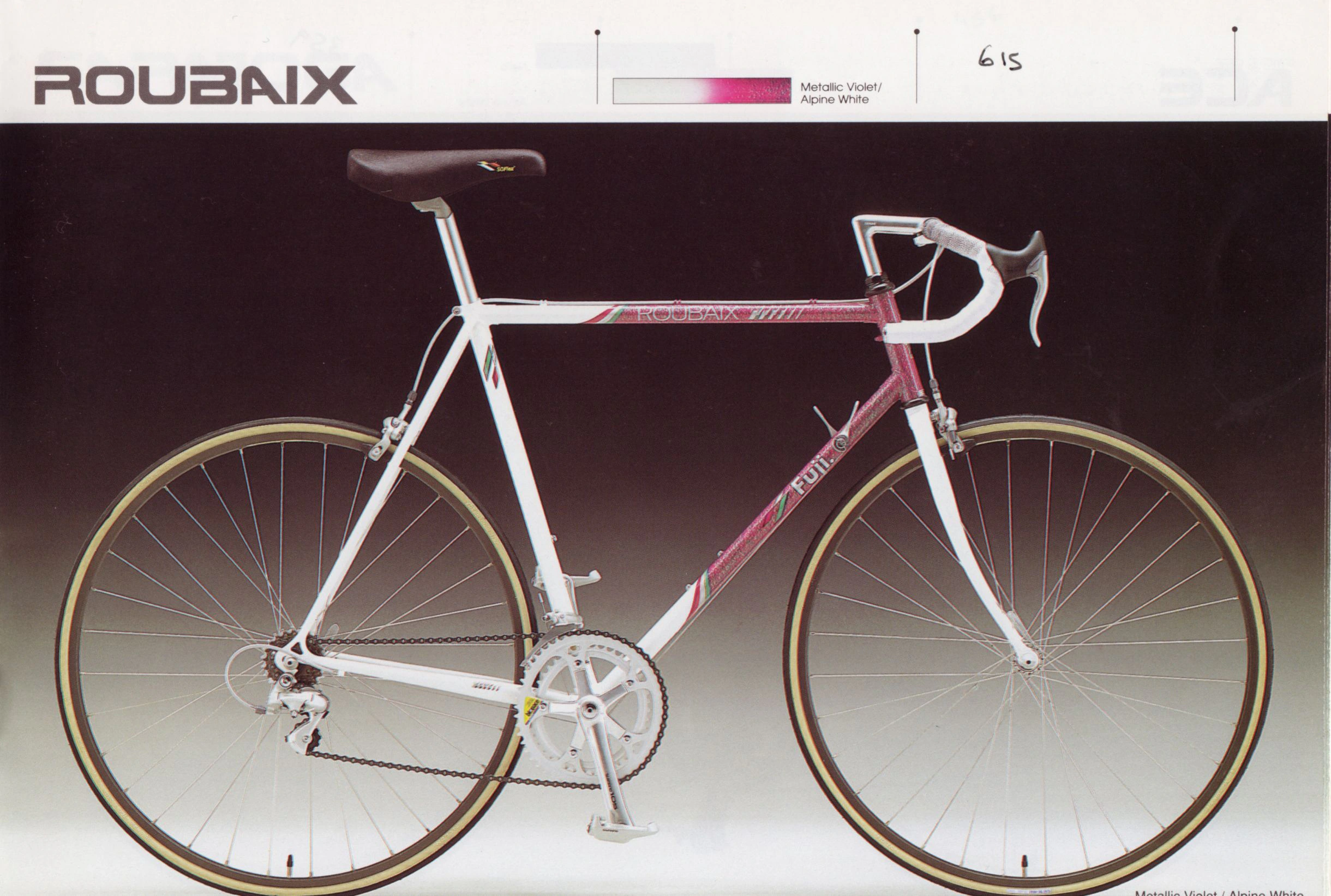

ROUBAIX

Metallic Violet/ Alpine White

Metallic Violet / Alpine White

[The Fuji Roubaix in Metallic Violet and Alpine White, a road racing bicycle photographed in profile on a dark studio backdrop that fades to gray. The white frame has a speckled violet top tube, down tube and head tube, with a white fork, white handlebar tape, a black saddle, a silver double crankset and tires with tan sidewalls; a white and violet color bar sits beside the model name in the white band above the photograph. A price is handwritten in pen in that band to the right of the color bar: “615”.]

— Page 16 —

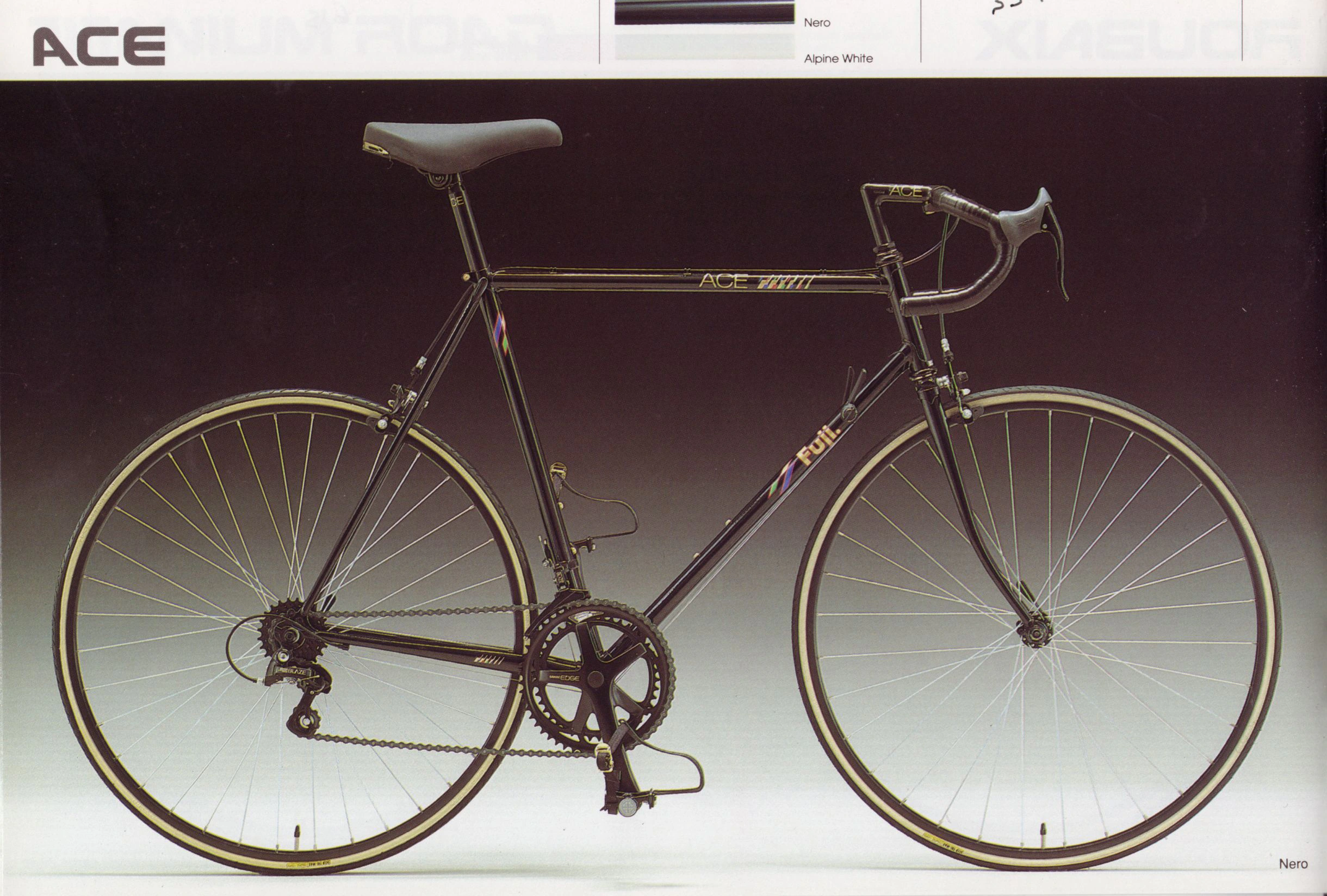

ACE

Nero

Alpine White

Nero

[The Fuji Ace in Nero, a road bicycle with a black frame photographed in profile on a dark studio backdrop that fades to gray. It has black handlebar tape, a black saddle, a black rear derailleur lettered “BLAZE”, a black double crankset lettered “EDGE”, pedals with toe clips and straps and tires with tan sidewalls; black and white color bars labeled “Nero” and “Alpine White” sit beside the model name in the white band above the photograph. A number handwritten in pen in that band is cut off by the upper edge of the scan, leaving only the lower strokes of three figures.]

— Page 17 —

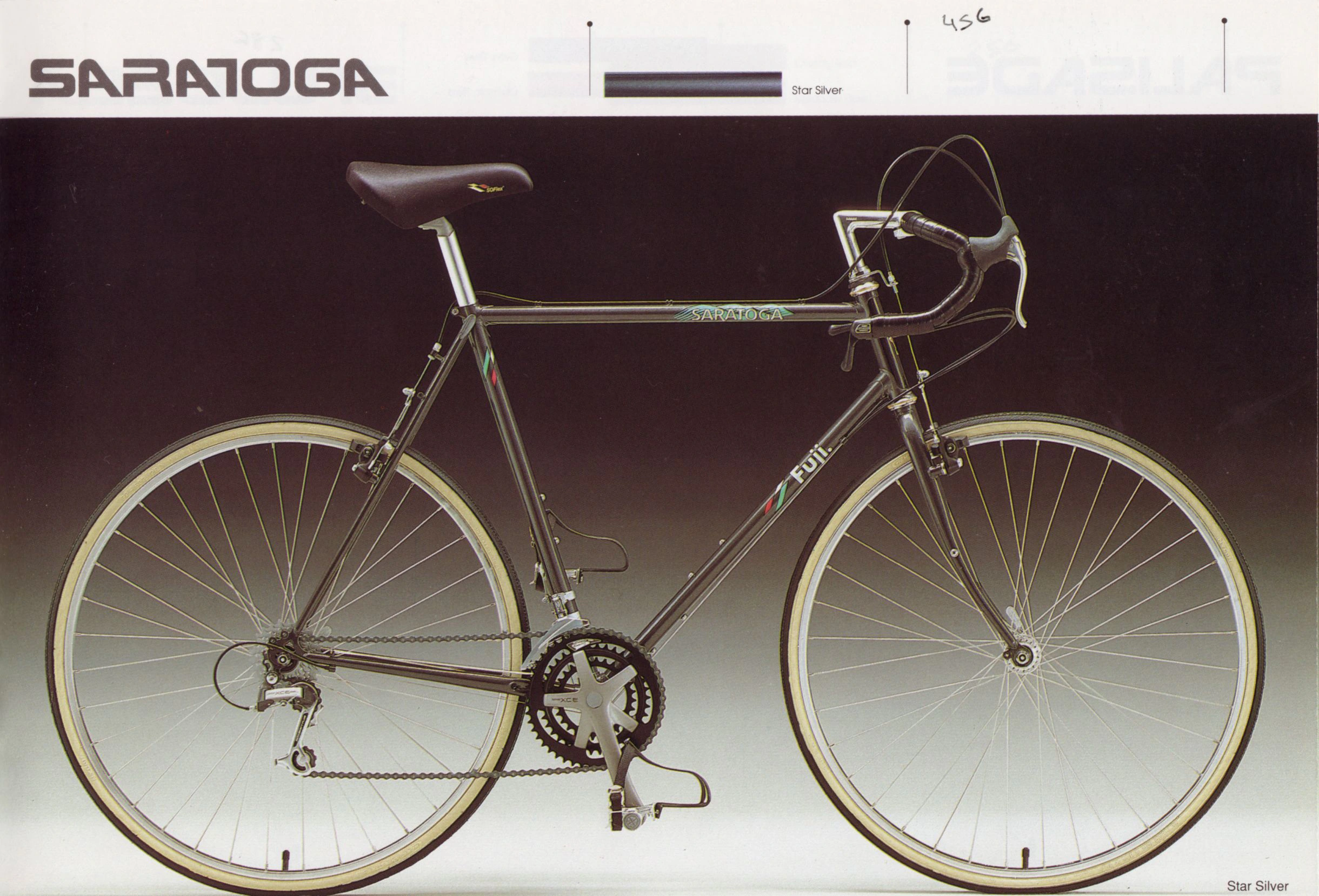

SARATOGA

Star Silver

Star Silver

[The Fuji Saratoga in Star Silver, a touring road bicycle with a dark metallic gray frame photographed in profile on a dark studio backdrop that fades to gray. It has a drop handlebar with black tape and shift levers on the bar top, a wide black saddle, a triple crankset and rear derailleur both lettered “XCE”, pedals with toe clips and straps and tires with tan sidewalls; a single gray color bar labeled “Star Silver” sits beside the model name in the white band above the photograph. A price is handwritten in pen in that band to the right of the color bar: “456”.]

— Page 18 —

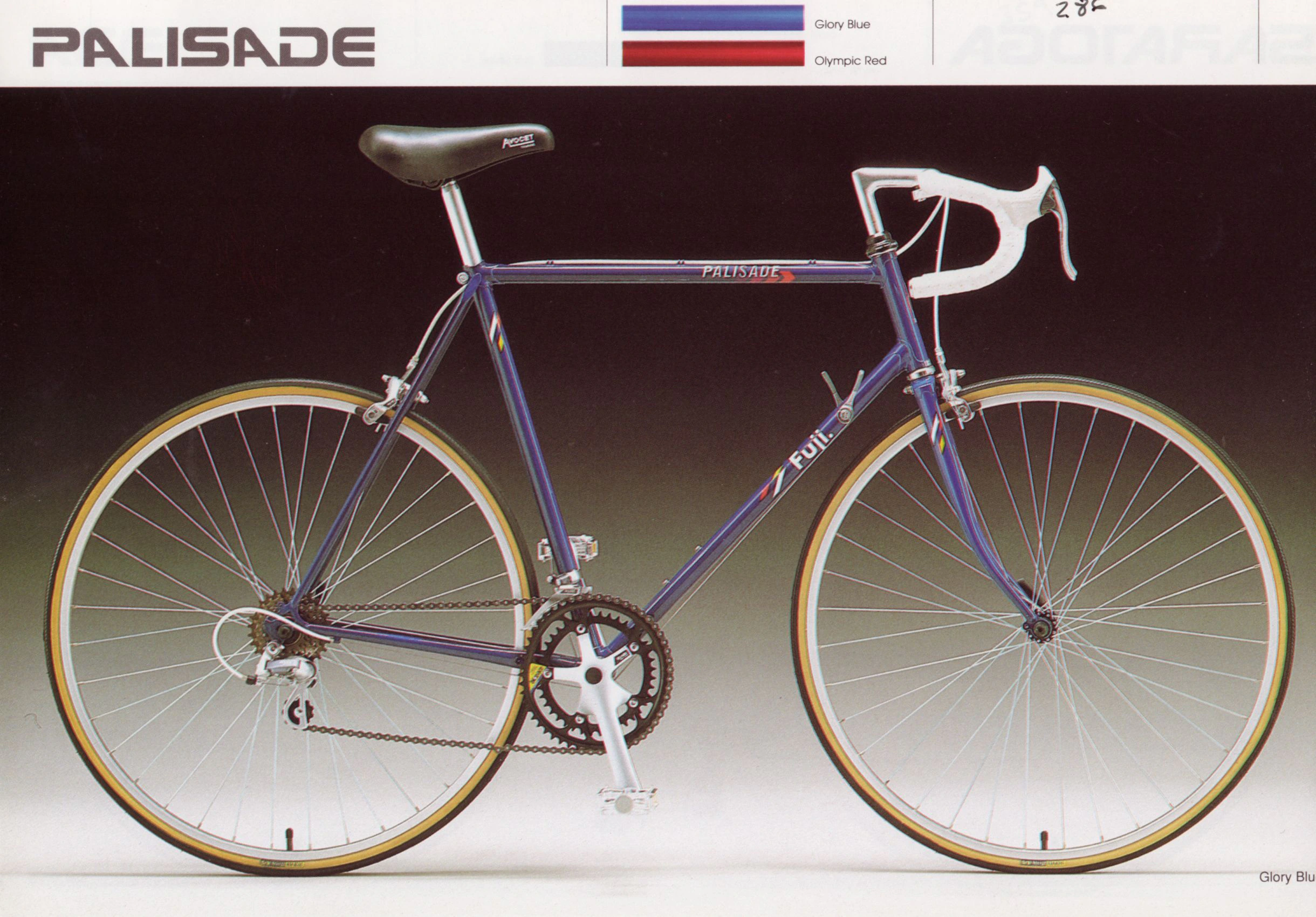

PALISADE

Glory Blue
Olympic Red

Glory Blu

[The Fuji Palisade in Glory Blue, a road bicycle with a violet blue frame photographed in profile on a dark studio backdrop that fades to gray. It has white handlebar tape and white cable housing, a black saddle lettered “AVOCET”, down tube shift levers, a double crankset with silver arms, platform pedals and tires with tan sidewalls; blue and red color bars sit beside the model name in the white band above the photograph. A price handwritten in pen in that band appears to read “282”, the tops of its figures cut off by the upper edge of the scan, and the color caption at the lower right is cut off by the right edge after “Glory Blu”.]

— Page 19 —

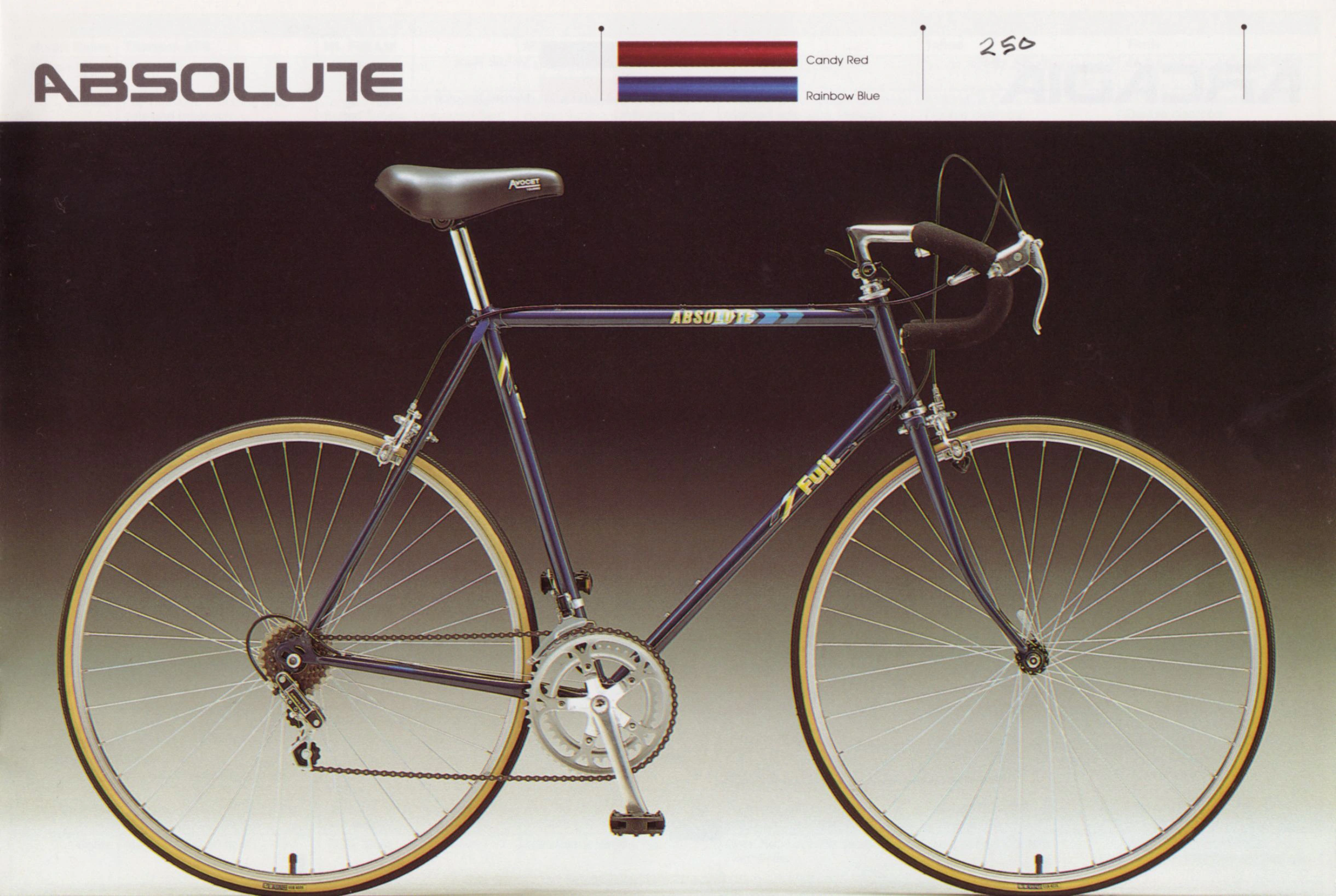

ABSOLUTE

Candy Red
Rainbow Blue

[The Fuji Absolute in a dark metallic blue, a road bicycle photographed in profile on a dark studio backdrop that fades to gray. It has a drop handlebar wrapped in black foam with extension brake levers, stem-mounted shift levers, a black saddle lettered “AVOCET”, an “ABSOLUTE” decal on the top tube, a double crankset, platform pedals and tires with tan sidewalls; red and blue color bars sit beside the model name in the white band above the photograph. A price is handwritten in pen in that band to the right of the color bars: “250”.]

— Page 20 —

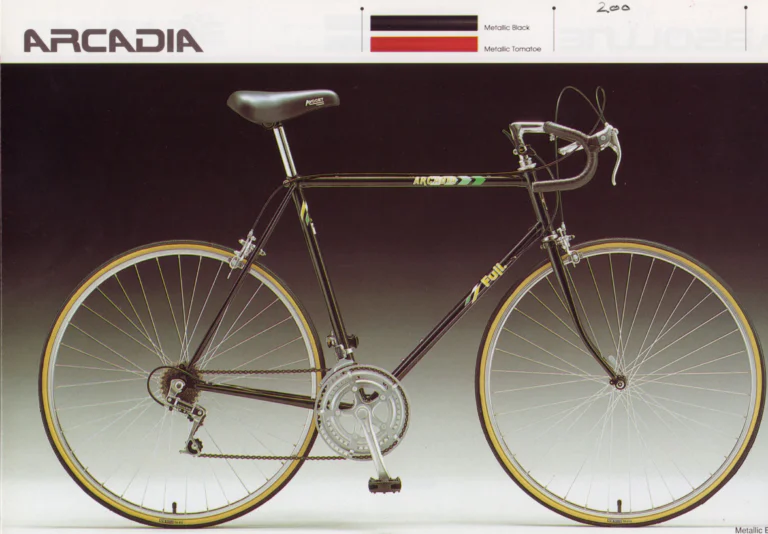

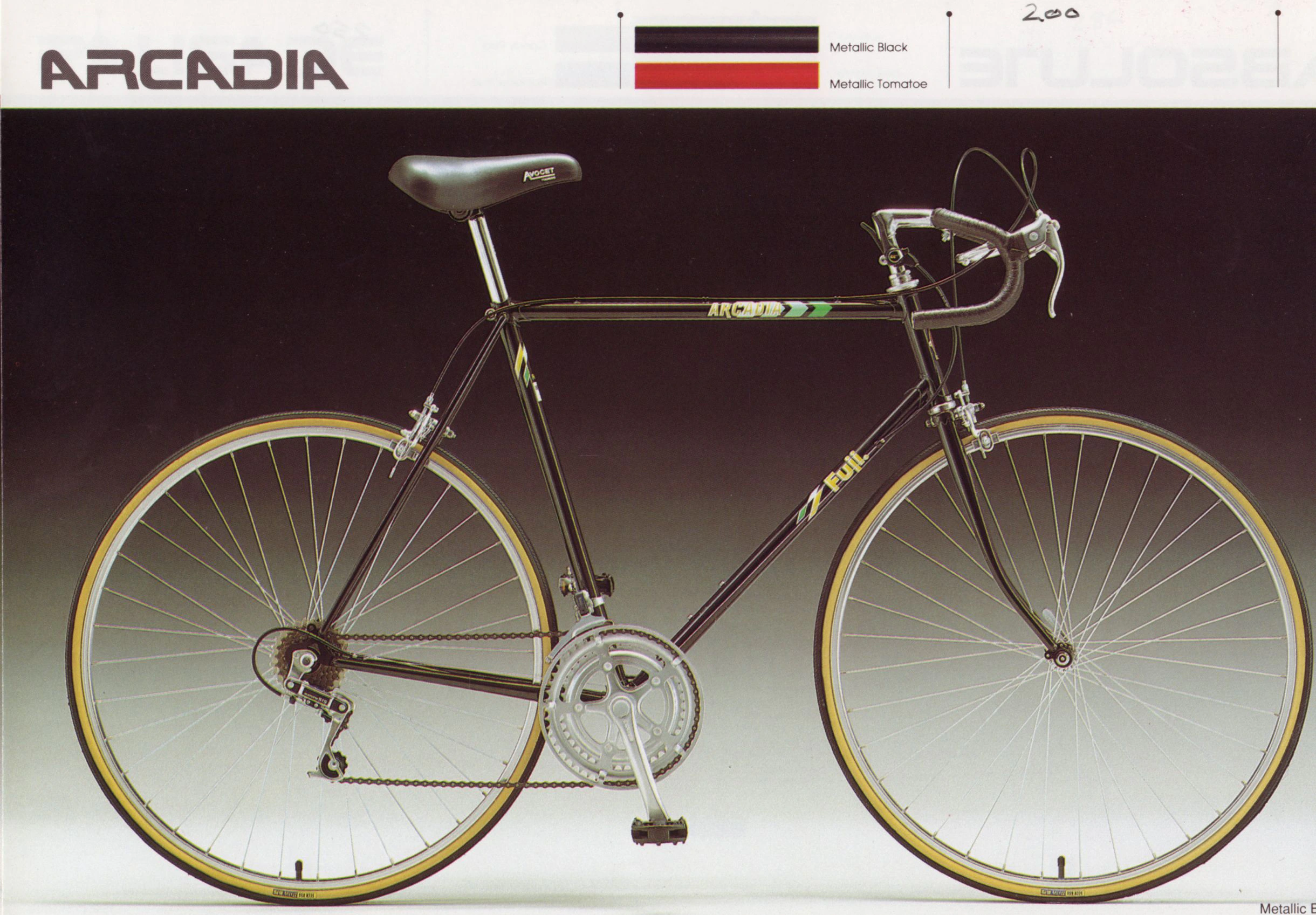

ARCADIA

Metallic Black
Metallic Tomatoe

Metallic B

[The Fuji Arcadia in Metallic Black, a road bicycle photographed in profile on a dark studio backdrop that fades to gray. It has a drop handlebar with black tape and extension brake levers, a black saddle lettered “AVOCET”, an “ARCADIA” decal with green chevrons on the top tube, a silver double crankset, platform pedals and tires with tan sidewalls; black and red color bars sit beside the model name in the white band above the photograph. A price is handwritten in pen in that band to the right of the color bars: “200”; the color caption at the lower right is cut off by the right edge of the scan after “Metallic B”.]

— Page 21 —
Model Name: ATB — Titanium ATB; Mt. Fuji Ltd; Mt. Fuji; Suncrest; Tahoe; Thrill
Frame Sizes: Titanium ATB, Mt. Fuji Ltd and Mt. Fuji — 44, 48, 52, 56 cm.; Suncrest — 38, 44, 48, 52, 56cm.; Tahoe — 38, 44, 48, 52, 56, 60 cm.; Thrill — 44, 48, 52, 56, 44L, 48L.
Frame: Titanium ATB — Fuji Titanium, including drop-outs and braze -on.; Mt. Fuji Ltd and Mt. Fuji — Tange Prestige MTB Double Butted Tubing. Unibrazed Seat Cap. Vertical forged drop-outs. Double clearcoat.; Suncrest — 4130 MTB Composite Cromoly, ovalized seat tube, vertical forged drop-outs. Double clearcoat.; Tahoe — 4130 MTB Composite Cromoly. Double clearcoat.; Thrill — 4130 Fuji Composite Cromoly. Double clearcoat.
Fork: Titanium ATB — Tange Switchblade with oversized steerer tube.; Mt. Fuji Ltd — Tange Prestige with oversized blades and steerer tube. Lost-wax drop-outs.; Mt. Fuji — Spinner Unicrown cromoly with oversized blades and steerer tube. Lost wax drop-outs.; Suncrest — Spinner Unicrown cromoly with forged drop-outs and oversized steerer tube.; Tahoe — Spinner Unicrown cromoly with forged drop-outs.; Thrill — Spinner Unicrown Hi-ten
Handlebar: Titanium ATB — Ritchey Force Directional, butted Tange Prestige.; Mt. Fuji Ltd — Alloy tapered MTB 580 mm flat.; Mt. Fuji — Alloy tapered MTB 580mm flat.; Suncrest — Tapered MTB 580mm flat.; Tahoe and Thrill — MTB 580mm, flat.
Stem: Titanium ATB — Ritchey Force “Comp”.; Mt. Fuji Ltd — Ritchey “Force”, oversized, cromoly.; Mt. Fuji — Ritchey “Force”, oversized cromoly.; Suncrest — The Wedge II, oversized. cromoly.; Tahoe — The Wedge.; Thrill — Tig welded MTB.
Grips: Titanium ATB, Mt. Fuji Ltd and Mt. Fuji — Ritchey “True”.; Suncrest and Tahoe — Fuji Kraton rubber.; Thrill — Black Foam.

Brakes: Titanium ATB and Mt. Fuji Ltd — Shimano Deore XT SLR cantilevers front and rear.; Mt. Fuji — Shimano Deore LX SLR cantilevers front and rear.; Suncrest — Shimano Exage SLR cantilevers front and rear (38cm uses rear U-brake).; Tahoe — SunTour XCT BRS cantilevers front and rear (38cm uses rear U brake). XCT BRS levers.; Thrill — Shimano 200GS SLR cantilevers front and rear with 200GS levers.
Crankset: Titanium ATB and Mt. Fuji Ltd — Shimano Deore XT with 48/38/28T round Superglide chainrings.; Mt. Fuji — Shimano Deore LX with 48/38/28T round Superglide chainrings.; Suncrest — Shimano Exage 500 LX with 48/38/28T round Superglide chainrings.; Tahoe — SunTour XCT with 48/38/28T round Powering chainrings.; Thrill — Shimano 200GS with 48/38/28T Biopace Superglide chainrings.
Derailleur: Titanium ATB and Mt. Fuji Ltd — Shimano Deore XT with STI/Hyperglide.; Mt. Fuji — Shimano Deore LX with STI/Hyperglide.; Suncrest — Shimano 500/300LX with STI/Hyperglide.; Tahoe — SunTour XCT Accushift PLUS.; Thrill — Shimano 200GS with STI/Hyperglide.
Shifters: Titanium ATB and Mt. Fuji Ltd — Shimano Deore XT STI Rapid Fire integral two-finger brake levers.; Mt. Fuji — Shimano Deore DX STI Rapid Fire integral two-finger brake levers.; Suncrest — Shimano Exage 500LX STI Rapid Fire with integral brake levers.; Tahoe — SunTour XCT Express.; Thrill — Shimano 200GS STI. Rapid Fire.
Cluster: Titanium ATB — Shimano Deore XT STI/Hyperglide 12-28T 7-speed cassette.; Mt. Fuji Ltd — Shimano Deore XT STI/Hyperglide, 12-28T 7-speed cassette.; Mt. Fuji — Shimano Deore LX STI/Hyperglide, 12-28T 7-speed cassette.; Suncrest — Shimano Exage LX STI/Hyperglide 12-28T 7-speed cassette.; Tahoe — SunTour XCT Accushift PLUS 13-28T 7-speed.; Thrill — Shimano 200GS STI/Hyperglide 12-28T 7-speed, cassette.
Chain: Titanium ATB and Mt. Fuji Ltd — Shimano Deore XT STI/Hyperglide.; Mt. Fuji — Shimano Deore LX STI/Hyperglide.; Suncrest — Shimano Exage LX STI/Hyperglide.; Tahoe — SunTour XCT Accushift PLUS.; Thrill — Shimano 200GS STI/Hyperglide.

Pedals: Titanium ATB and Mt. Fuji Ltd — Shimano Deore XT “Comp” with toe-clips and straps.; Mt. Fuji — HTI “Comp” with toe-clips and straps.; Suncrest — SR “Lowfat”; Tahoe — Victor MTB; Thrill — Victor MTB.
Rims: Titanium ATB — Ritchey Vantage Comp, Duronomic finish, 32 hole.; Mt. Fuji Ltd — Araya RM-17, 32 hole.; Mt. Fuji — Araya RX-7, 32-hole.; Suncrest — Araya RX-7, silver polished, 36 hole.; Tahoe — Alesa #421, black anodized, 36 hole.; Thrill — Alesa #421 silver polished, 36 hole.
Hubs: Titanium ATB and Mt. Fuji Ltd — Shimano Deore XT, quick-release 32 hole front and rear.; Mt. Fuji — Shimano Deore LX, quick-release 32 hole front and rear.; Suncrest — Shimano Exage LX 500 cassette and Fuji sealed system front. Quick release front and rear.; Tahoe — Joy Yu Alloy with front and rear quick release.; Thrill — Shimano 200GS cassette rear with Fuji alloy front quick release.
Tires: Titanium ATB — Ritchey Force Racing K, with presta valve tubes.; Mt. Fuji Ltd — Ritchey “Megabite Hard Drives” 26 × 2.1 with presta valves.; Mt. Fuji — SCCR MTX “Comp” 26 × 1.95 skinwall with presta valves.; Suncrest and Tahoe — SCCR MTX “Comp” 26 × 1.95 Skinwall.; Thrill — SCCR ATX 26 × 1.55 Gumwall.
Saddle: Titanium ATB — Sella Italia Turbo.; Mt. Fuji Ltd — Avocet Racing Leather.; Mt. Fuji — Fuji SOFlex PLUS MTB.; Suncrest, Tahoe and Thrill — Fuji SOFlex MTB.

Seatpost: Titanium ATB — Ritchey Force Directional heat-treated butted alloy.; Mt. Fuji Ltd — SR MTE-300mm Black anodized. Quick release seatpin.; Mt. Fuji — SR CLE-300mm. Quick release seatpin.; Suncrest — Fuji “Spike” 300mm forged alloy with micro adjust. Quick release seatpin.; Tahoe — Fuji Alloy 300mm with quick release seatpin.; Thrill — Fuji alloy 300mm with quick release seatpin.
Accessories: Titanium ATB and Mt. Fuji Ltd — Shimano Shark Fin. Toe-clips and straps.; Mt. Fuji and Suncrest — Fuji Rite Guard chainstay protector. Toe-clips and straps.; Tahoe and Thrill — Fuji Rite Guard chainstay protector.
Color: Titanium ATB — Natural polished finish.; Mt. Fuji Ltd — Black Moss.; Mt. Fuji — Nero/Black Sand; Suncrest — Grey Neon Splatter or Winner Red/White.; Tahoe — Nero or Red Confetti.; Thrill — Cobalt Blue, Olympic Red or Chrome. (Ladies Blue and Red only).
Weight Approx.: Titanium ATB — 24.5 lbs.; Mt. Fuji Ltd — 26.0 lbs.; Mt. Fuji — 27.0 lbs.; Suncrest — 29.0 lbs.; Tahoe and Thrill — 30.0 lbs.

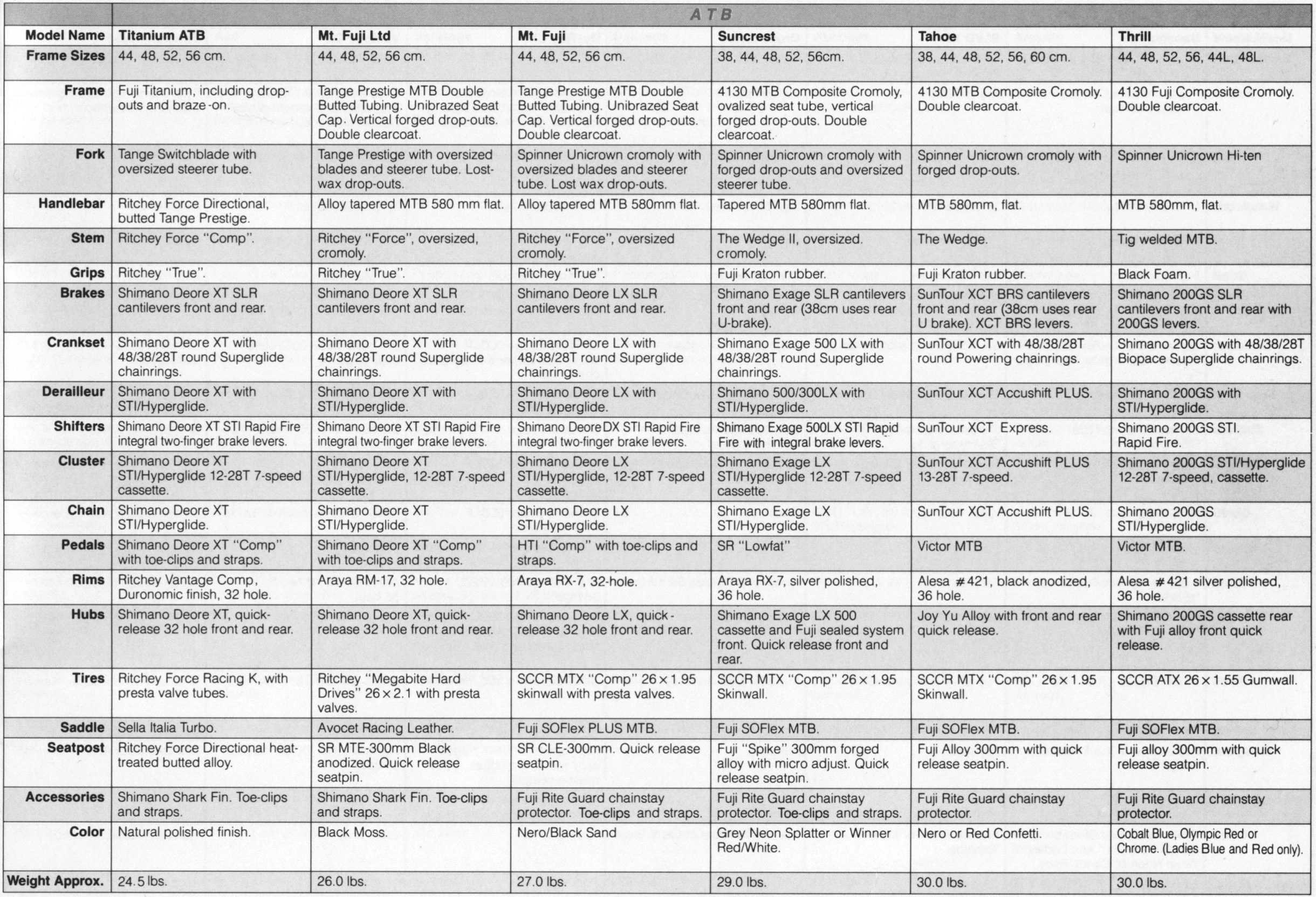

[A specifications table for six Fuji ATB models, the Titanium ATB, Mt. Fuji Ltd, Mt. Fuji, Suncrest, Tahoe and Thrill, set in columns under a gray band lettered ATB, with 21 rows of frame and component details from Frame Sizes to Weight Approx. The row labels run down the left side and the rows alternate gray and white; the page has no photographs and no printed folio.]

— Page 22 —

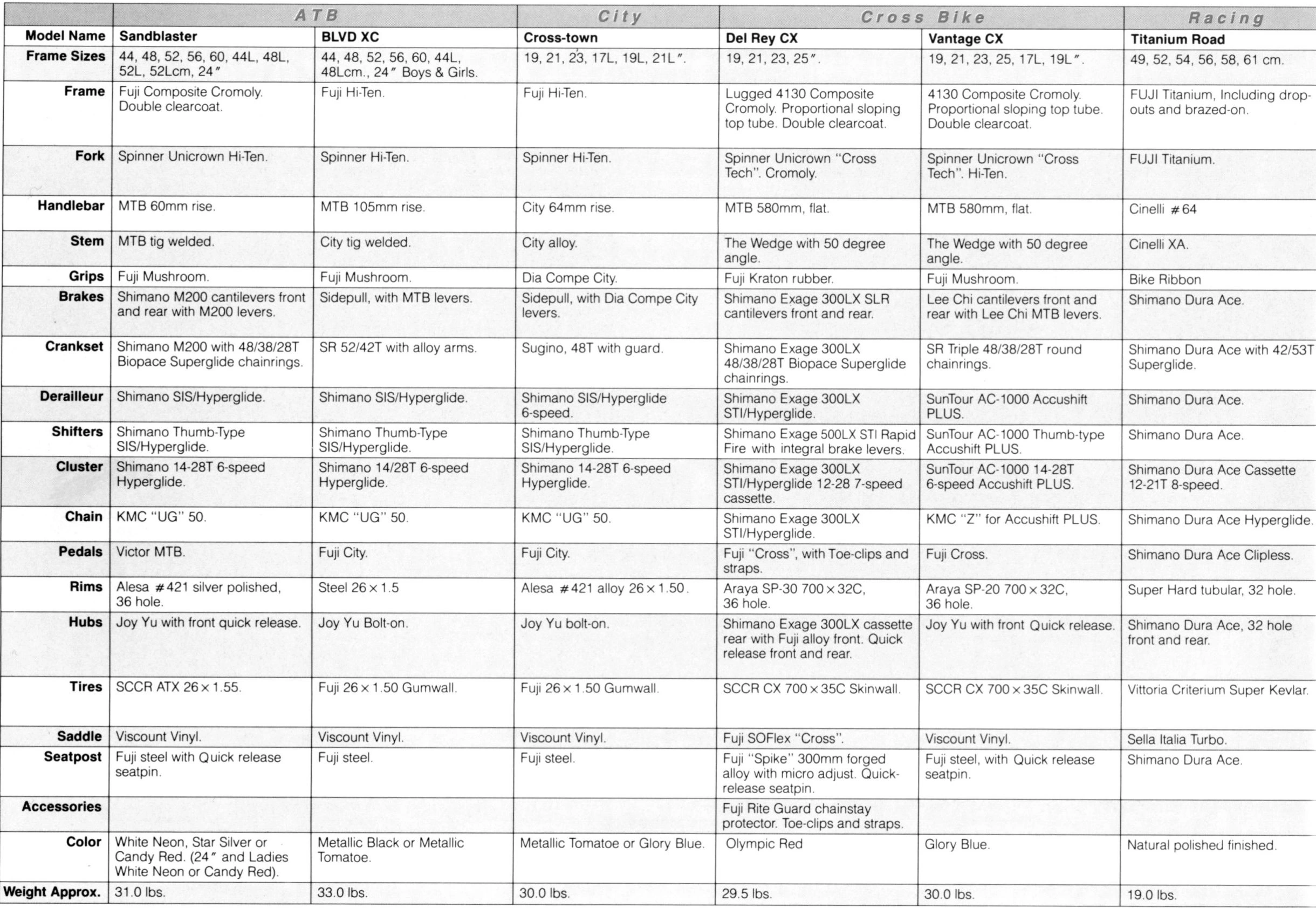

Model Name: ATB — Sandblaster; BLVD XC; City — Cross-town; Cross Bike — Del Rey CX; Vantage CX; Racing — Titanium Road
Frame Sizes: Sandblaster — 44, 48, 52, 56, 60, 44L, 48L, 52L, 52Lcm, 24″; BLVD XC — 44, 48, 52, 56, 60, 44L, 48Lcm., 24″ Boys & Girls.; Cross-town — 19, 21, 23, 17L, 19L, 21L”.; Del Rey CX — 19, 21, 23, 25″.; Vantage CX — 19, 21, 23, 25, 17L, 19L”.; Titanium Road — 49, 52, 54, 56, 58, 61 cm.
Frame: Sandblaster — Fuji Composite Cromoly. Double clearcoat.; BLVD XC and Cross-town — Fuji Hi-Ten.; Del Rey CX — Lugged 4130 Composite Cromoly. Proportional sloping top tube. Double clearcoat.; Vantage CX — 4130 Composite Cromoly. Proportional sloping top tube. Double clearcoat.; Titanium Road — FUJI Titanium, Including drop-outs and brazed-on.
Fork: Sandblaster — Spinner Unicrown Hi-Ten.; BLVD XC and Cross-town — Spinner Hi-Ten.; Del Rey CX — Spinner Unicrown “Cross Tech”. Cromoly.; Vantage CX — Spinner Unicrown “Cross Tech”. Hi-Ten.; Titanium Road — FUJI Titanium.
Handlebar: Sandblaster — MTB 60mm rise.; BLVD XC — MTB 105mm rise.; Cross-town — City 64mm rise.; Del Rey CX and Vantage CX — MTB 580mm, flat.; Titanium Road — Cinelli #64
Stem: Sandblaster — MTB tig welded.; BLVD XC — City tig welded.; Cross-town — City alloy.; Del Rey CX and Vantage CX — The Wedge with 50 degree angle.; Titanium Road — Cinelli XA.
Grips: Sandblaster and BLVD XC — Fuji Mushroom.; Cross-town — Dia Compe City.; Del Rey CX — Fuji Kraton rubber.; Vantage CX — Fuji Mushroom.; Titanium Road — Bike Ribbon

Brakes: Sandblaster — Shimano M200 cantilevers front and rear with M200 levers.; BLVD XC — Sidepull, with MTB levers.; Cross-town — Sidepull, with Dia Compe City levers.; Del Rey CX — Shimano Exage 300LX SLR cantilevers front and rear.; Vantage CX — Lee Chi cantilevers front and rear with Lee Chi MTB levers.; Titanium Road — Shimano Dura Ace.
Crankset: Sandblaster — Shimano M200 with 48/38/28T Biopace Superglide chainrings.; BLVD XC — SR 52/42T with alloy arms.; Cross-town — Sugino, 48T with guard.; Del Rey CX — Shimano Exage 300LX 48/38/28T Biopace Superglide chainrings.; Vantage CX — SR Triple 48/38/28T round chainrings.; Titanium Road — Shimano Dura Ace with 42/53T Superglide.
Derailleur: Sandblaster and BLVD XC — Shimano SIS/Hyperglide.; Cross-town — Shimano SIS/Hyperglide 6-speed.; Del Rey CX — Shimano Exage 300LX STI/Hyperglide.; Vantage CX — SunTour AC-1000 Accushift PLUS.; Titanium Road — Shimano Dura Ace.
Shifters: Sandblaster, BLVD XC and Cross-town — Shimano Thumb-Type SIS/Hyperglide.; Del Rey CX — Shimano Exage 500LX STI Rapid Fire with integral brake levers.; Vantage CX — SunTour AC-1000 Thumb-type Accushift PLUS.; Titanium Road — Shimano Dura Ace.
Cluster: Sandblaster — Shimano 14-28T 6-speed Hyperglide.; BLVD XC — Shimano 14/28T 6-speed Hyperglide.; Cross-town — Shimano 14-28T 6-speed Hyperglide.; Del Rey CX — Shimano Exage 300LX STI/Hyperglide 12-28 7-speed cassette.; Vantage CX — SunTour AC-1000 14-28T 6-speed Accushift PLUS.; Titanium Road — Shimano Dura Ace Cassette 12-21T 8-speed.
Chain: Sandblaster, BLVD XC and Cross-town — KMC “UG” 50.; Del Rey CX — Shimano Exage 300LX STI/Hyperglide.; Vantage CX — KMC “Z” for Accushift PLUS.; Titanium Road — Shimano Dura Ace Hyperglide.

Pedals: Sandblaster — Victor MTB.; BLVD XC and Cross-town — Fuji City.; Del Rey CX — Fuji “Cross”, with Toe-clips and straps.; Vantage CX — Fuji Cross.; Titanium Road — Shimano Dura Ace Clipless.
Rims: Sandblaster — Alesa #421 silver polished, 36 hole.; BLVD XC — Steel 26 × 1.5; Cross-town — Alesa #421 alloy 26 × 1.50.; Del Rey CX — Araya SP-30 700 × 32C, 36 hole.; Vantage CX — Araya SP-20 700 × 32C, 36 hole.; Titanium Road — Super Hard tubular, 32 hole.
Hubs: Sandblaster — Joy Yu with front quick release.; BLVD XC — Joy Yu Bolt-on.; Cross-town — Joy Yu bolt-on.; Del Rey CX — Shimano Exage 300LX cassette rear with Fuji alloy front. Quick release front and rear.; Vantage CX — Joy Yu with front Quick release.; Titanium Road — Shimano Dura Ace, 32 hole front and rear.
Tires: Sandblaster — SCCR ATX 26 × 1.55.; BLVD XC and Cross-town — Fuji 26 × 1.50 Gumwall.; Del Rey CX and Vantage CX — SCCR CX 700 × 35C Skinwall.; Titanium Road — Vittoria Criterium Super Kevlar.
Saddle: Sandblaster, BLVD XC and Cross-town — Viscount Vinyl.; Del Rey CX — Fuji SOFlex “Cross”.; Vantage CX — Viscount Vinyl.; Titanium Road — Sella Italia Turbo.

Seatpost: Sandblaster — Fuji steel with Quick release seatpin.; BLVD XC and Cross-town — Fuji steel.; Del Rey CX — Fuji “Spike” 300mm forged alloy with micro adjust. Quick-release seatpin.; Vantage CX — Fuji steel, with Quick release seatpin.; Titanium Road — Shimano Dura Ace.
Accessories: Del Rey CX — Fuji Rite Guard chainstay protector. Toe-clips and straps.
Color: Sandblaster — White Neon, Star Silver or Candy Red. (24″ and Ladies White Neon or Candy Red).; BLVD XC — Metallic Black or Metallic Tomatoe.; Cross-town — Metallic Tomatoe or Glory Blue.; Del Rey CX — Olympic Red; Vantage CX — Glory Blue.; Titanium Road — Natural polished finished.
Weight Approx.: Sandblaster — 31.0 lbs.; BLVD XC — 33.0 lbs.; Cross-town — 30.0 lbs.; Del Rey CX — 29.5 lbs.; Vantage CX — 30.0 lbs.; Titanium Road — 19.0 lbs.

[A specifications table for six Fuji models set in columns under gray category bands: the Sandblaster and BLVD XC under ATB, the Cross-town under City, the Del Rey CX and Vantage CX under Cross Bike and the Titanium Road under Racing. Its 21 rows of frame and component details run from Frame Sizes to Weight Approx. with the row labels down the left side, and the Accessories row is filled only for the Del Rey CX; the page has no photographs and no printed folio.]

— Page 23 —

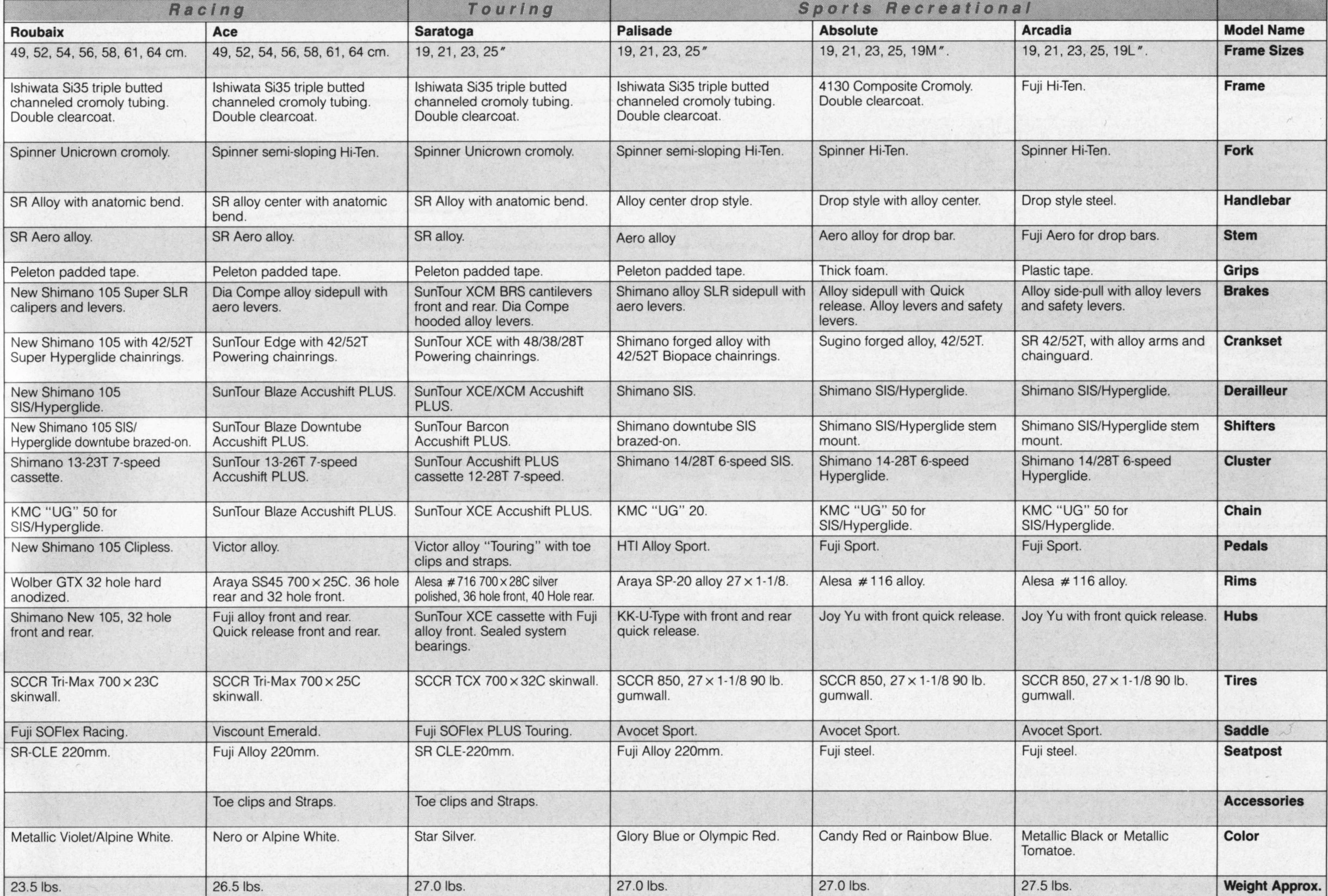

Model Name: Racing — Roubaix; Ace; Touring — Saratoga; Sports Recreational — Palisade; Absolute; Arcadia
Frame Sizes: Roubaix and Ace — 49, 52, 54, 56, 58, 61, 64 cm.; Saratoga and Palisade — 19, 21, 23, 25″; Absolute — 19, 21, 23, 25, 19M”.; Arcadia — 19, 21, 23, 25, 19L”.
Frame: Roubaix, Ace, Saratoga and Palisade — Ishiwata Si35 triple butted channeled cromoly tubing. Double clearcoat.; Absolute — 4130 Composite Cromoly. Double clearcoat.; Arcadia — Fuji Hi-Ten.
Fork: Roubaix — Spinner Unicrown cromoly.; Ace — Spinner semi-sloping Hi-Ten.; Saratoga — Spinner Unicrown cromoly.; Palisade — Spinner semi-sloping Hi-Ten.; Absolute and Arcadia — Spinner Hi-Ten.
Handlebar: Roubaix — SR Alloy with anatomic bend.; Ace — SR alloy center with anatomic bend.; Saratoga — SR Alloy with anatomic bend.; Palisade — Alloy center drop style.; Absolute — Drop style with alloy center.; Arcadia — Drop style steel.
Stem: Roubaix and Ace — SR Aero alloy.; Saratoga — SR alloy.; Palisade — Aero alloy; Absolute — Aero alloy for drop bar.; Arcadia — Fuji Aero for drop bars.

Grips: Roubaix, Ace, Saratoga and Palisade — Peleton padded tape.; Absolute — Thick foam.; Arcadia — Plastic tape.
Brakes: Roubaix — New Shimano 105 Super SLR calipers and levers.; Ace — Dia Compe alloy sidepull with aero levers.; Saratoga — SunTour XCM BRS cantilevers front and rear. Dia Compe hooded alloy levers.; Palisade — Shimano alloy SLR sidepull with aero levers.; Absolute — Alloy sidepull with Quick release. Alloy levers and safety levers.; Arcadia — Alloy side-pull with alloy levers and safety levers.
Crankset: Roubaix — New Shimano 105 with 42/52T Super Hyperglide chainrings.; Ace — SunTour Edge with 42/52T Powering chainrings.; Saratoga — SunTour XCE with 48/38/28T Powering chainrings.; Palisade — Shimano forged alloy with 42/52T Biopace chainrings.; Absolute — Sugino forged alloy, 42/52T.; Arcadia — SR 42/52T, with alloy arms and chainguard.
Derailleur: Roubaix — New Shimano 105 SIS/Hyperglide.; Ace — SunTour Blaze Accushift PLUS.; Saratoga — SunTour XCE/XCM Accushift PLUS.; Palisade — Shimano SIS.; Absolute and Arcadia — Shimano SIS/Hyperglide.
Shifters: Roubaix — New Shimano 105 SIS/Hyperglide downtube brazed-on.; Ace — SunTour Blaze Downtube Accushift PLUS.; Saratoga — SunTour Barcon Accushift PLUS.; Palisade — Shimano downtube SIS brazed-on.; Absolute and Arcadia — Shimano SIS/Hyperglide stem mount.
Cluster: Roubaix — Shimano 13-23T 7-speed cassette.; Ace — SunTour 13-26T 7-speed Accushift PLUS.; Saratoga — SunTour Accushift PLUS cassette 12-28T 7-speed.; Palisade — Shimano 14/28T 6-speed SIS.; Absolute — Shimano 14-28T 6-speed Hyperglide.; Arcadia — Shimano 14/28T 6-speed Hyperglide.

Chain: Roubaix — KMC “UG” 50 for SIS/Hyperglide.; Ace — SunTour Blaze Accushift PLUS.; Saratoga — SunTour XCE Accushift PLUS.; Palisade — KMC “UG” 20.; Absolute and Arcadia — KMC “UG” 50 for SIS/Hyperglide.
Pedals: Roubaix — New Shimano 105 Clipless.; Ace — Victor alloy.; Saratoga — Victor alloy “Touring” with toe clips and straps.; Palisade — HTI Alloy Sport.; Absolute and Arcadia — Fuji Sport.
Rims: Roubaix — Wolber GTX 32 hole hard anodized.; Ace — Araya SS45 700 × 25C. 36 hole rear and 32 hole front.; Saratoga — Alesa #716 700 × 28C silver polished, 36 hole front, 40 Hole rear.; Palisade — Araya SP-20 alloy 27 × 1-1/8.; Absolute and Arcadia — Alesa #116 alloy.
Hubs: Roubaix — Shimano New 105, 32 hole front and rear.; Ace — Fuji alloy front and rear. Quick release front and rear.; Saratoga — SunTour XCE cassette with Fuji alloy front. Sealed system bearings.; Palisade — KK-U-Type with front and rear quick release.; Absolute and Arcadia — Joy Yu with front quick release.
Tires: Roubaix — SCCR Tri-Max 700 × 23C skinwall.; Ace — SCCR Tri-Max 700 × 25C skinwall.; Saratoga — SCCR TCX 700 × 32C skinwall.; Palisade, Absolute and Arcadia — SCCR 850, 27 × 1-1/8 90 lb. gumwall.
Saddle: Roubaix — Fuji SOFlex Racing.; Ace — Viscount Emerald.; Saratoga — Fuji SOFlex PLUS Touring.; Palisade, Absolute and Arcadia — Avocet Sport.

Seatpost: Roubaix — SR-CLE 220mm.; Ace — Fuji Alloy 220mm.; Saratoga — SR CLE-220mm.; Palisade — Fuji Alloy 220mm.; Absolute and Arcadia — Fuji steel.
Accessories: Ace and Saratoga — Toe clips and Straps.
Color: Roubaix — Metallic Violet/Alpine White.; Ace — Nero or Alpine White.; Saratoga — Star Silver.; Palisade — Glory Blue or Olympic Red.; Absolute — Candy Red or Rainbow Blue.; Arcadia — Metallic Black or Metallic Tomatoe.
Weight Approx.: Roubaix — 23.5 lbs.; Ace — 26.5 lbs.; Saratoga, Palisade and Absolute — 27.0 lbs.; Arcadia — 27.5 lbs.

[The Fuji model specifications table for six models, the Roubaix and Ace under the head Racing, the Saratoga under Touring and the Palisade, Absolute and Arcadia under Sports Recreational, set as a ruled grid of alternating gray and white rows with the bold row labels down the right edge. The gray band of category heads runs to the top edge of the scan and the Weight Approx. row to the bottom edge, with no folio visible; a faint wavy hairline beside the Saddle label looks like a fiber caught in the scan.]

— Page 24 (back cover) —
FUJI AMERICA
a Division of
Toshoku America, Inc.
118 Bauer Drive
Oakland,New Jersey 07436
Phone: 201-337-1700 212-661-5421

FUJI AMERICA CENTRAL
1840 Northwestern Avenue,
Gurnee, Illinois 60031
Phone: 708-336-0450

FUJI AMERICA WEST
2801 East 208 Street
Carsón [?], California, 90810
Phone: 213-605-5461

Printed in Japan
