Fuji 1986 Catalog — Edition No. 16, from the Opus III and Team Fuji to the Design Series

Fuji’s 1986 catalog, Edition No. 16, is incomplete in this copy as scanned. Four pages are missing between the Dyna-Mite and Mini-Mite page and the Design Series spread: they show through their neighbors in mirror image, a heading beginning “Fu” on the first and “FRAME GEOMETRY” on the last. The back cover is missing too. The 29 pages that survive, from the Opus III and Team Fuji to the Lil’ Fuji, are transcribed in full below.

— Page 1 (front cover) —
FUJI
Edition No.16

[The front cover: an aerial photograph of the snow-covered cone of Mount Fuji rising above a sea of clouds, with FUJI in large purple capitals and the edition line at the upper left. The copy shows wear: a small red ink spot and a faint ring stain on the mountain’s flank and scratches across the sky.]

— Page 2 —

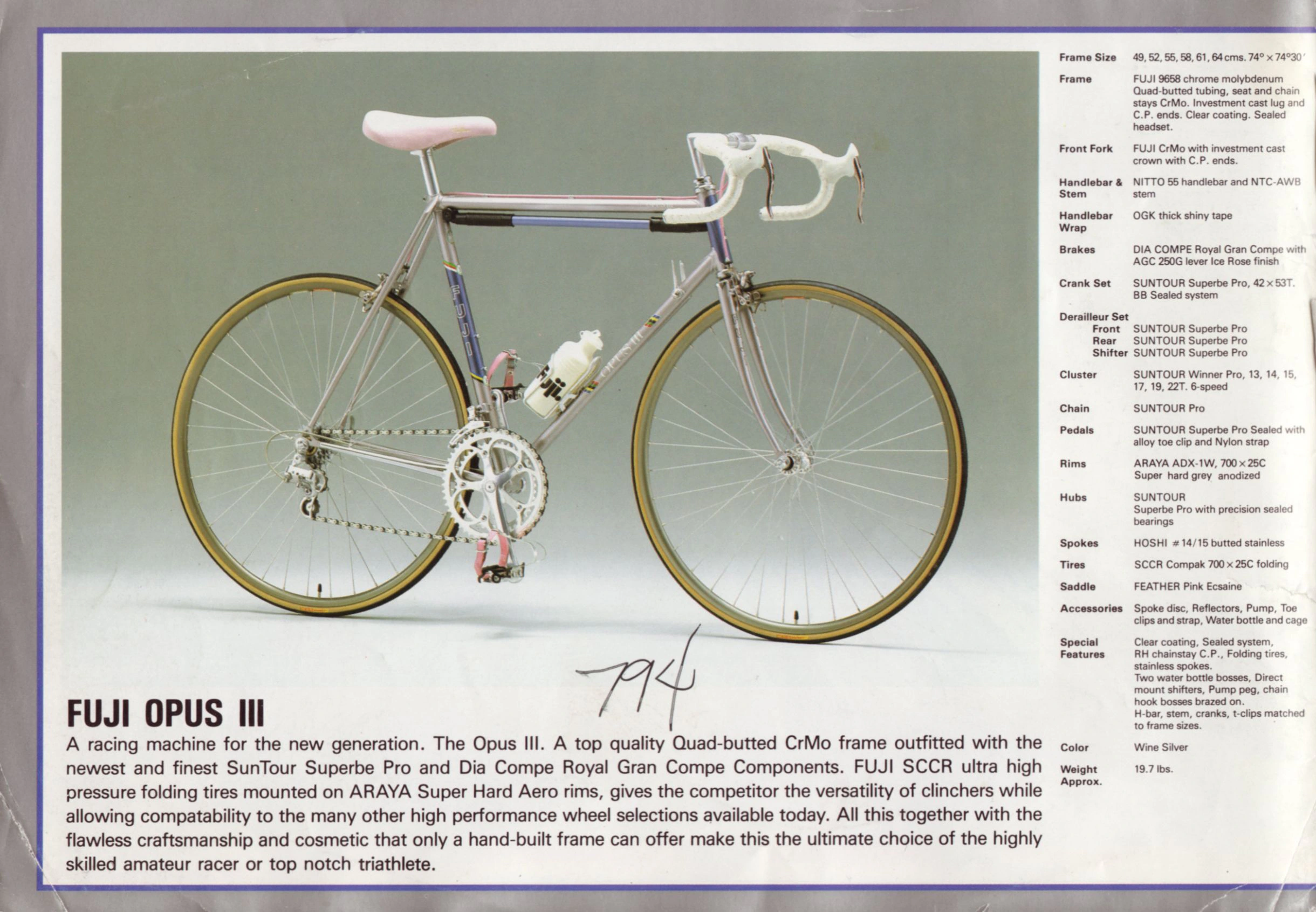

FUJI OPUS III
A racing machine for the new generation. The Opus III. A top quality Quad-butted CrMo frame outfitted with the newest and finest SunTour Superbe Pro and Dia Compe Royal Gran Compe Components. FUJI SCCR ultra high pressure folding tires mounted on ARAYA Super Hard Aero rims, gives the competitor the versatility of clinchers while allowing compatability to the many other high performance wheel selections available today. All this together with the flawless craftsmanship and cosmetic that only a hand-built frame can offer make this the ultimate choice of the highly skilled amateur racer or top notch triathlete.

Frame Size: 49, 52, 55, 58, 61, 64 cms. 74° × 74°30′
Frame: FUJI 9658 chrome molybdenum Quad-butted tubing, seat and chain stays CrMo. Investment cast lug and C.P. ends. Clear coating. Sealed headset.
Front Fork: FUJI CrMo with investment cast crown with C.P. ends.
Handlebar & Stem: NITTO 55 handlebar and NTC-AWB stem
Handlebar Wrap: OGK thick shiny tape
Brakes: DIA COMPE Royal Gran Compe with AGC 250G lever Ice Rose finish
Crank Set: SUNTOUR Superbe Pro, 42 × 53T. BB Sealed system
Derailleur Set
Front: SUNTOUR Superbe Pro
Rear: SUNTOUR Superbe Pro
Shifter: SUNTOUR Superbe Pro
Cluster: SUNTOUR Winner Pro, 13, 14, 15, 17, 19, 22T. 6-speed
Chain: SUNTOUR Pro
Pedals: SUNTOUR Superbe Pro Sealed with alloy toe clip and Nylon strap
Rims: ARAYA ADX-1W, 700 × 25C Super hard grey anodized
Hubs: SUNTOUR Superbe Pro with precision sealed bearings
Spokes: HOSHI #14/15 butted stainless
Tires: SCCR Compak 700 × 25C folding
Saddle: FEATHER Pink Ecsaine
Accessories: Spoke disc, Reflectors, Pump, Toe clips and strap, Water bottle and cage
Special Features: Clear coating, Sealed system, RH chainstay C.P., Folding tires, stainless spokes. Two water bottle bosses, Direct mount shifters, Pump peg, chain hook bosses brazed on. H-bar, stem, cranks, t-clips matched to frame sizes.
Color: Wine Silver
Weight Approx.: 19.7 lbs.

[The Fuji Opus III in Wine Silver, a road racing bicycle with a silver lugged frame, violet seat tube and head tube panels and a pink saddle, photographed in profile on a gray studio backdrop beside its specification column. The bicycle carries white handlebar tape, pink toe straps, a frame pump under the top tube and a white bottle lettered Fuji. A price, “794”, is handwritten in ink below the front wheel, above the heading.]

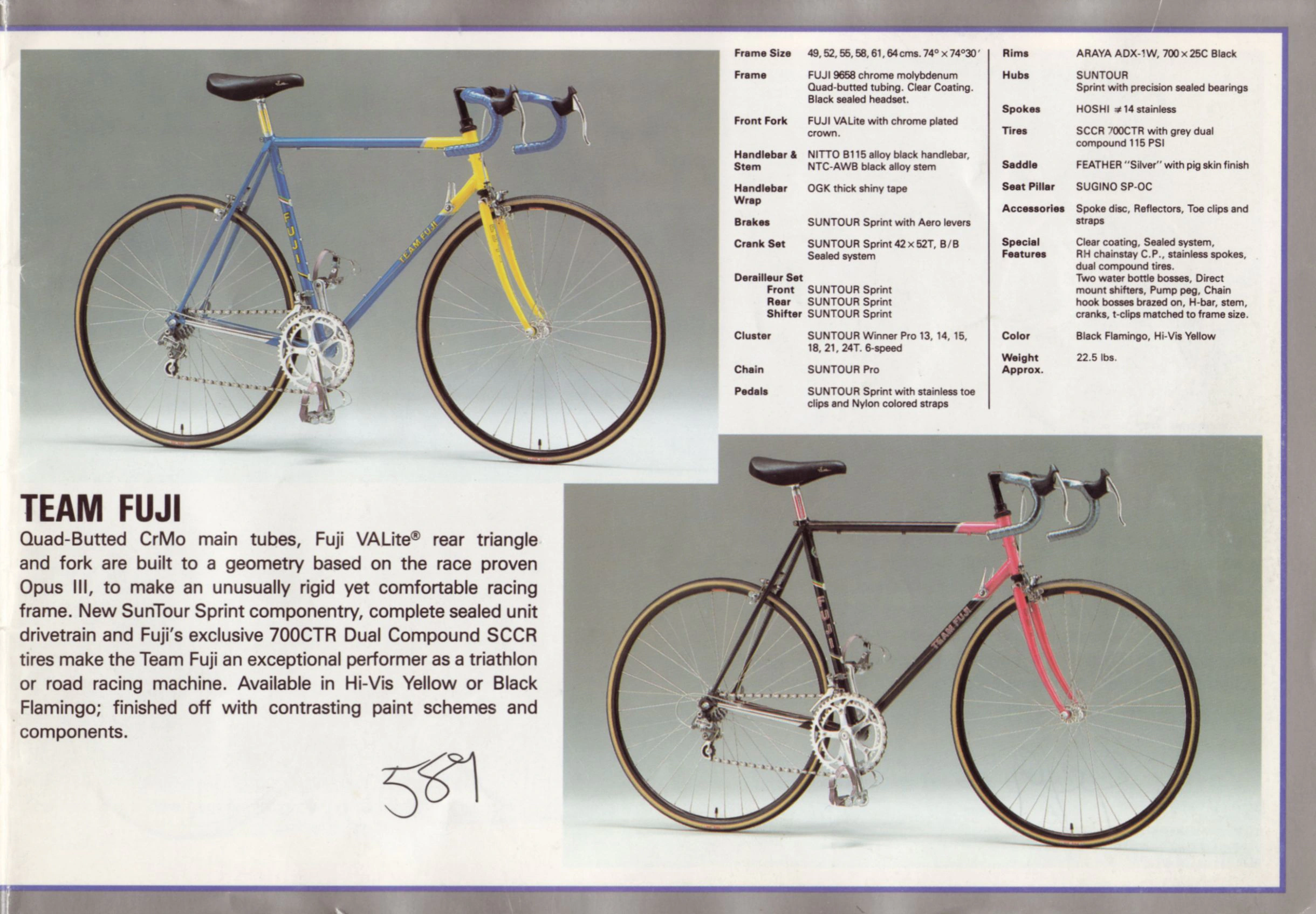

— Page 3 —
TEAM FUJI
Quad-Butted CrMo main tubes, Fuji VALite® rear triangle and fork are built to a geometry based on the race proven Opus III, to make an unusually rigid yet comfortable racing frame. New SunTour Sprint componentry, complete sealed unit drivetrain and Fuji’s exclusive 700CTR Dual Compound SCCR tires make the Team Fuji an exceptional performer as a triathlon or road racing machine. Available in Hi-Vis Yellow or Black Flamingo; finished off with contrasting paint schemes and components.

Frame Size: 49, 52, 55, 58, 61, 64 cms. 74° × 74°30′
Frame: FUJI 9658 chrome molybdenum Quad-butted tubing. Clear Coating. Black sealed headset.
Front Fork: FUJI VALite with chrome plated crown.
Handlebar & Stem: NITTO B115 alloy black handlebar, NTC-AWB black alloy stem
Handlebar Wrap: OGK thick shiny tape
Brakes: SUNTOUR Sprint with Aero levers
Crank Set: SUNTOUR Sprint 42 × 52T, B/B Sealed system
Derailleur Set
Front: SUNTOUR Sprint
Rear: SUNTOUR Sprint
Shifter: SUNTOUR Sprint
Cluster: SUNTOUR Winner Pro 13, 14, 15, 18, 21, 24T. 6-speed
Chain: SUNTOUR Pro
Pedals: SUNTOUR Sprint with stainless toe clips and Nylon colored straps
Rims: ARAYA ADX-1W, 700 × 25C Black
Hubs: SUNTOUR Sprint with precision sealed bearings
Spokes: HOSHI #14 stainless
Tires: SCCR 700CTR with grey dual compound 115 PSI
Saddle: FEATHER “Silver” with pig skin finish
Seat Pillar: SUGINO SP-OC
Accessories: Spoke disc, Reflectors, Toe clips and straps
Special Features: Clear coating, Sealed system, RH chainstay C.P., stainless spokes, dual compound tires. Two water bottle bosses, Direct mount shifters, Pump peg, Chain hook bosses brazed on, H-bar, stem, cranks, t-clips matched to frame size.
Color: Black Flamingo, Hi-Vis Yellow
Weight Approx.: 22.5 lbs.

[The Team Fuji in its two colors, Hi-Vis Yellow and Black Flamingo, two road racing bicycles photographed in profile on gray studio backdrops beside a two-column specification list. The upper bicycle has a blue frame with a yellow head tube, fork and front tube ends; the lower one has a black frame with a pink head tube and fork; both carry black saddles and TEAM FUJI on the down tube. A price, “589”, is handwritten in ink below the description at the lower left.]

— Page 4 —

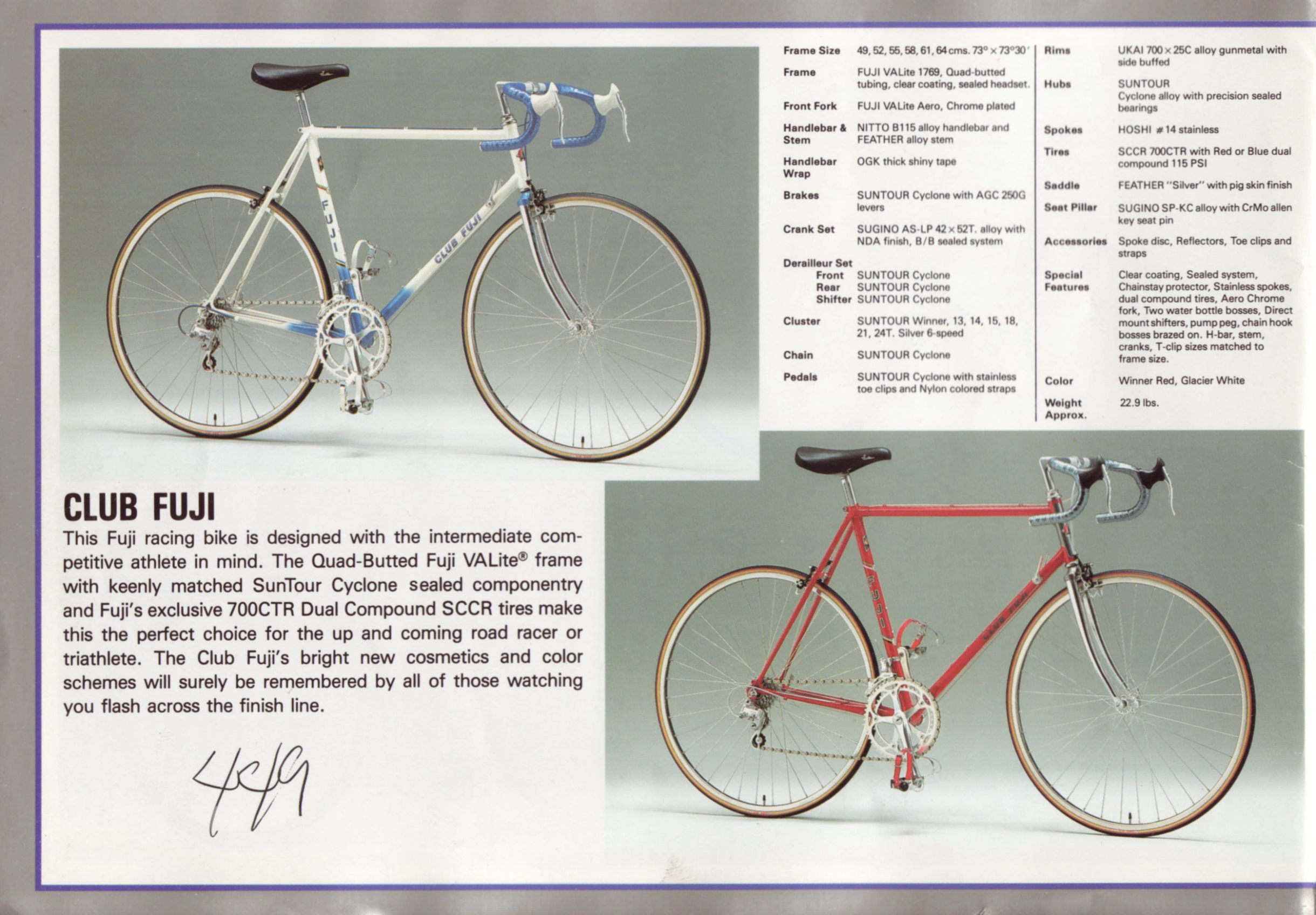

CLUB FUJI
This Fuji racing bike is designed with the intermediate competitive athlete in mind. The Quad-Butted Fuji VALite® frame with keenly matched SunTour Cyclone sealed componentry and Fuji’s exclusive 700CTR Dual Compound SCCR tires make this the perfect choice for the up and coming road racer or triathlete. The Club Fuji’s bright new cosmetics and color schemes will surely be remembered by all of those watching you flash across the finish line.

Frame Size: 49, 52, 55, 58, 61, 64 cms. 73° × 73°30′
Frame: FUJI VALite 1769, Quad-butted tubing, clear coating, sealed headset.
Front Fork: FUJI VALite Aero, Chrome plated
Handlebar & Stem: NITTO B115 alloy handlebar and FEATHER alloy stem
Handlebar Wrap: OGK thick shiny tape
Brakes: SUNTOUR Cyclone with AGC 250G levers
Crank Set: SUGINO AS-LP 42 × 52T. alloy with NDA finish, B/B sealed system
Derailleur Set
Front: SUNTOUR Cyclone
Rear: SUNTOUR Cyclone
Shifter: SUNTOUR Cyclone
Cluster: SUNTOUR Winner, 13, 14, 15, 18, 21, 24T. Silver 6-speed
Chain: SUNTOUR Cyclone
Pedals: SUNTOUR Cyclone with stainless toe clips and Nylon colored straps
Rims: UKAI 700 × 25C alloy gunmetal with side buffed
Hubs: SUNTOUR Cyclone alloy with precision sealed bearings
Spokes: HOSHI #14 stainless
Tires: SCCR 700CTR with Red or Blue dual compound 115 PSI
Saddle: FEATHER “Silver” with pig skin finish
Seat Pillar: SUGINO SP-KC alloy with CrMo allen key seat pin
Accessories: Spoke disc, Reflectors, Toe clips and straps
Special Features: Clear coating, Sealed system, Chainstay protector, Stainless spokes, dual compound tires, Aero Chrome fork, Two water bottle bosses, Direct mount shifters, pump peg, chain hook bosses brazed on. H-bar, stem, cranks, T-clip sizes matched to frame size.
Color: Winner Red, Glacier White
Weight Approx.: 22.9 lbs.

[The Club Fuji in its two colors, Glacier White and Winner Red, two road racing bicycles with chrome forks photographed in profile on gray studio backdrops beside a two-column specification list. The white bicycle shades to blue around the bottom bracket and carries blue handlebar tape; the red one carries light blue tape; both have black saddles and CLUB FUJI on the down tube. A price, “449”, is handwritten in ink below the description at the lower left.]

— Page 5 —

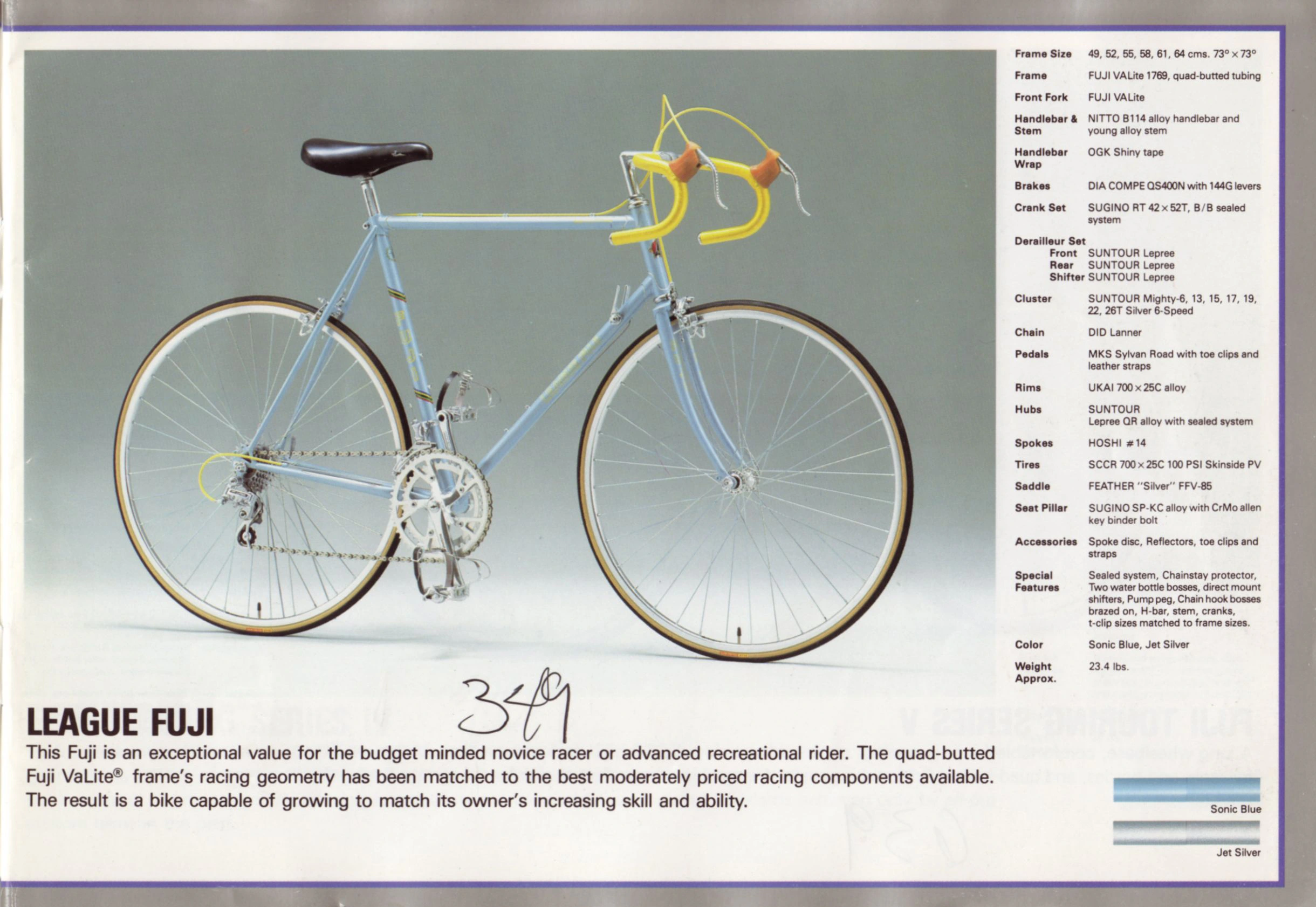

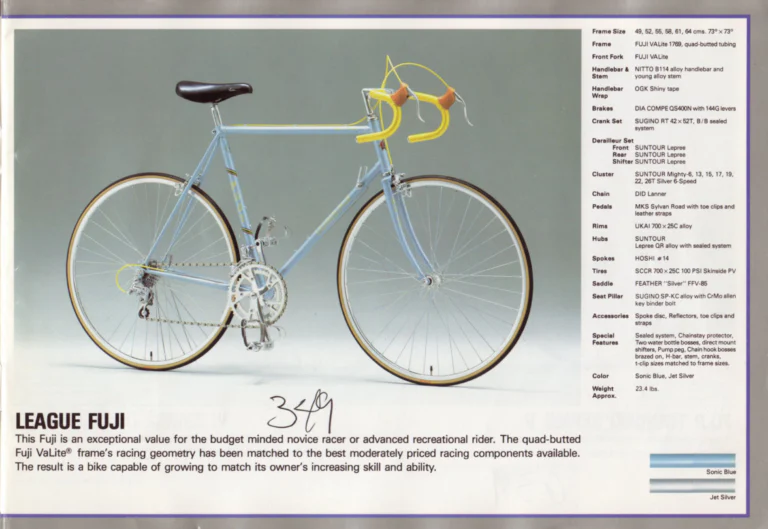

LEAGUE FUJI
This Fuji is an exceptional value for the budget minded novice racer or advanced recreational rider. The quad-butted Fuji VaLite® frame’s racing geometry has been matched to the best moderately priced racing components available. The result is a bike capable of growing to match its owner’s increasing skill and ability.

Frame Size: 49, 52, 55, 58, 61, 64 cms. 73° × 73°
Frame: FUJI VALite 1769, quad-butted tubing
Front Fork: FUJI VALite
Handlebar & Stem: NITTO B114 alloy handlebar and young alloy stem
Handlebar Wrap: OGK Shiny tape
Brakes: DIA COMPE QS400N with 144G levers
Crank Set: SUGINO RT 42 × 52T, B/B sealed system
Derailleur Set
Front: SUNTOUR Lepree
Rear: SUNTOUR Lepree
Shifter: SUNTOUR Lepree
Cluster: SUNTOUR Mighty-6, 13, 15, 17, 19, 22, 26T Silver 6-Speed
Chain: DID Lanner
Pedals: MKS Sylvan Road with toe clips and leather straps
Rims: UKAI 700 × 25C alloy
Hubs: SUNTOUR Lepree QR alloy with sealed system
Spokes: HOSHI #14
Tires: SCCR 700 × 25C 100 PSI Skinside PV
Saddle: FEATHER “Silver” FFV-85
Seat Pillar: SUGINO SP-KC alloy with CrMo allen key binder bolt
Accessories: Spoke disc, Reflectors, toe clips and straps
Special Features: Sealed system, Chainstay protector, Two water bottle bosses, direct mount shifters, Pump peg, Chain hook bosses brazed on, H-bar, stem, cranks, t-clip sizes matched to frame sizes.
Color: Sonic Blue, Jet Silver
Weight Approx.: 23.4 lbs.

Sonic Blue
Jet Silver

[The League Fuji in Sonic Blue, a road racing bicycle with yellow handlebar tape, yellow cable housing and a black saddle, photographed in profile on a gray studio backdrop beside its specification column. Two color chips at the lower right show the Sonic Blue and Jet Silver finishes. A price, “349”, is handwritten in ink above the description, and the mirrored heading and a mirrored handwritten “639” from the reverse of the leaf show through faintly at the lower right.]

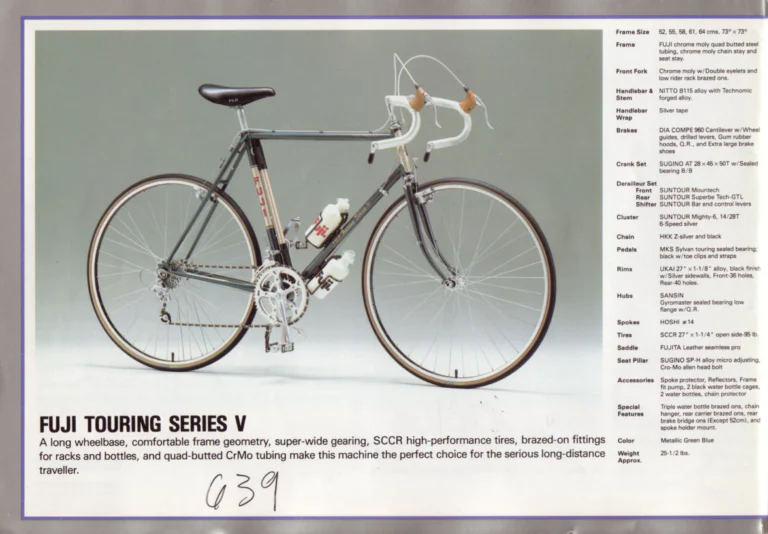

— Page 6 —

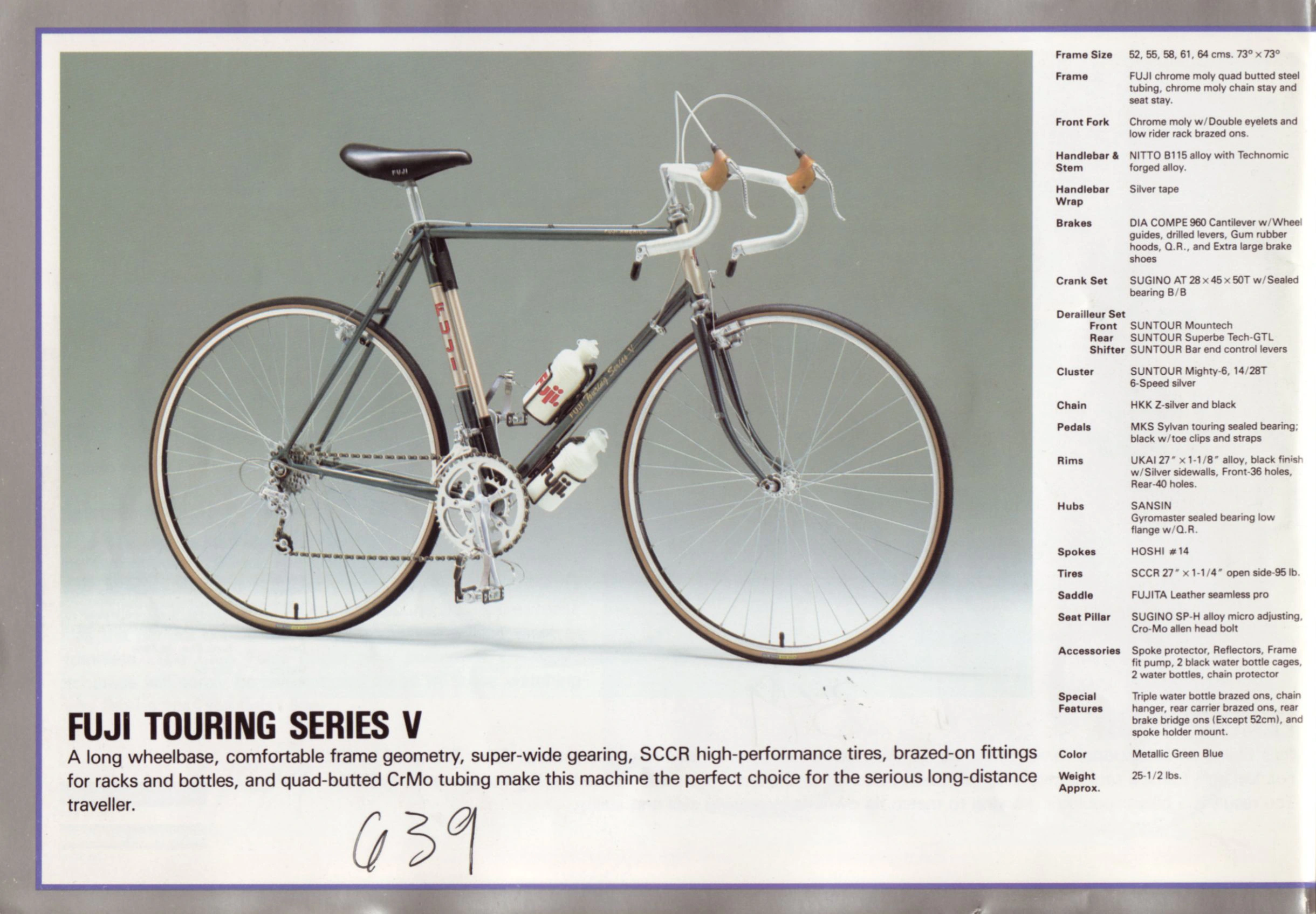

FUJI TOURING SERIES V
A long wheelbase, comfortable frame geometry, super-wide gearing, SCCR high-performance tires, brazed-on fittings for racks and bottles, and quad-butted CrMo tubing make this machine the perfect choice for the serious long-distance traveller.

Frame Size: 52, 55, 58, 61, 64 cms. 73° × 73°
Frame: FUJI chrome moly quad butted steel tubing, chrome moly chain stay and seat stay.
Front Fork: Chrome moly w/Double eyelets and low rider rack brazed ons.
Handlebar & Stem: NITTO B115 alloy with Technomic forged alloy.
Handlebar Wrap: Silver tape
Brakes: DIA COMPE 960 Cantilever w/Wheel guides, drilled levers, Gum rubber hoods, Q.R., and Extra large brake shoes
Crank Set: SUGINO AT 28 × 45 × 50T w/Sealed bearing B/B
Derailleur Set
Front: SUNTOUR Mountech
Rear: SUNTOUR Superbe Tech-GTL
Shifter: SUNTOUR Bar end control levers
Cluster: SUNTOUR Mighty-6, 14/28T 6-Speed silver
Chain: HKK Z-silver and black
Pedals: MKS Sylvan touring sealed bearing; black w/toe clips and straps
Rims: UKAI 27″ × 1-1/8″ alloy, black finish w/Silver sidewalls, Front-36 holes, Rear-40 holes.
Hubs: SANSIN Gyromaster sealed bearing low flange w/Q.R.
Spokes: HOSHI #14
Tires: SCCR 27″ × 1-1/4″ open side-95 lb.
Saddle: FUJITA Leather seamless pro
Seat Pillar: SUGINO SP-H alloy micro adjusting, Cro-Mo allen head bolt
Accessories: Spoke protector, Reflectors, Frame fit pump, 2 black water bottle cages, 2 water bottles, chain protector
Special Features: Triple water bottle brazed ons, chain hanger, rear carrier brazed ons, rear brake bridge ons (Except 52cm), and spoke holder mount.
Color: Metallic Green Blue
Weight Approx.: 25-1/2 lbs.

[The Fuji Touring Series V in Metallic Green Blue, a touring bicycle with champagne seat tube and head tube panels, photographed in profile on a gray studio backdrop beside its specification column. It carries silver handlebar tape with tan rubber brake hoods, a black saddle and two white bottles lettered Fuji, with the model name in script on the down tube. A price, “639”, is handwritten in ink below the description at the lower left.]

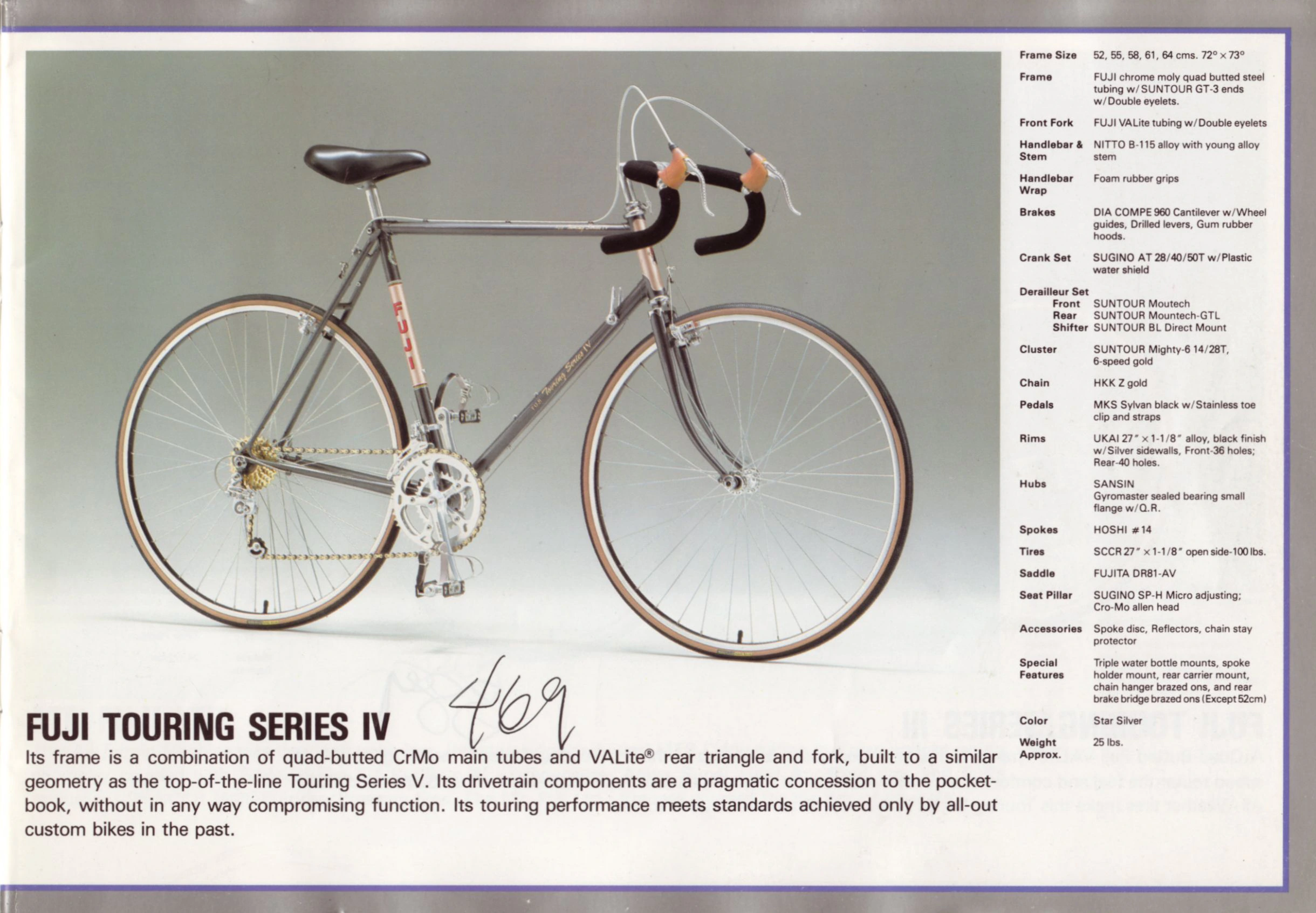

— Page 7 —
FUJI TOURING SERIES IV
Its frame is a combination of quad-butted CrMo main tubes and VALite® rear triangle and fork, built to a similar geometry as the top-of-the-line Touring Series V. Its drivetrain components are a pragmatic concession to the pocketbook, without in any way compromising function. Its touring performance meets standards achieved only by all-out custom bikes in the past.

Frame Size: 52, 55, 58, 61, 64 cms. 72° × 73°
Frame: FUJI chrome moly quad butted steel tubing w/SUNTOUR GT-3 ends w/Double eyelets.
Front Fork: FUJI VALite tubing w/Double eyelets
Handlebar & Stem: NITTO B-115 alloy with young alloy stem
Handlebar Wrap: Foam rubber grips
Brakes: DIA COMPE 960 Cantilever w/Wheel guides, Drilled levers, Gum rubber hoods.
Crank Set: SUGINO AT 28/40/50T w/Plastic water shield
Derailleur Set
Front: SUNTOUR Moutech
Rear: SUNTOUR Mountech-GTL
Shifter: SUNTOUR BL Direct Mount
Cluster: SUNTOUR Mighty-6 14/28T, 6-speed gold
Chain: HKK Z gold
Pedals: MKS Sylvan black w/Stainless toe clip and straps
Rims: UKAI 27″ × 1-1/8″ alloy, black finish w/Silver sidewalls, Front-36 holes; Rear-40 holes.
Hubs: SANSIN Gyromaster sealed bearing small flange w/Q.R.
Spokes: HOSHI #14
Tires: SCCR 27″ × 1-1/8″ open side-100 lbs.
Saddle: FUJITA DR81-AV
Seat Pillar: SUGINO SP-H Micro adjusting; Cro-Mo allen head
Accessories: Spoke disc, Reflectors, chain stay protector
Special Features: Triple water bottle mounts, spoke holder mount, rear carrier mount, chain hanger brazed ons, and rear brake bridge brazed ons (Except 52cm)
Color: Star Silver
Weight Approx.: 25 lbs.

[The Fuji Touring Series IV in Star Silver, a gray metallic touring bicycle with champagne seat tube and head tube panels, photographed in profile on a gray studio backdrop beside its specification column. It carries black foam handlebar grips with tan rubber brake hoods, a black saddle and a gold freewheel and chain, with the model name in script on the down tube. A price, “469”, is handwritten in ink beside the heading, and the mirrored heading and handwriting from the reverse of the leaf show through faintly.]

— Page 8 —

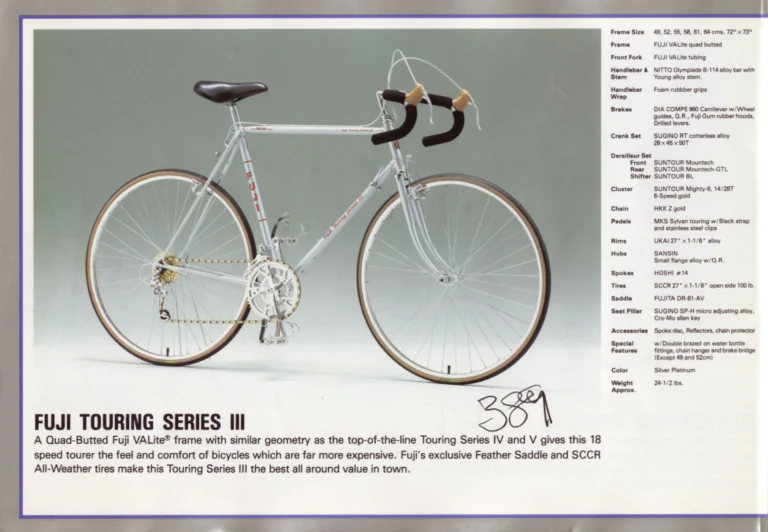

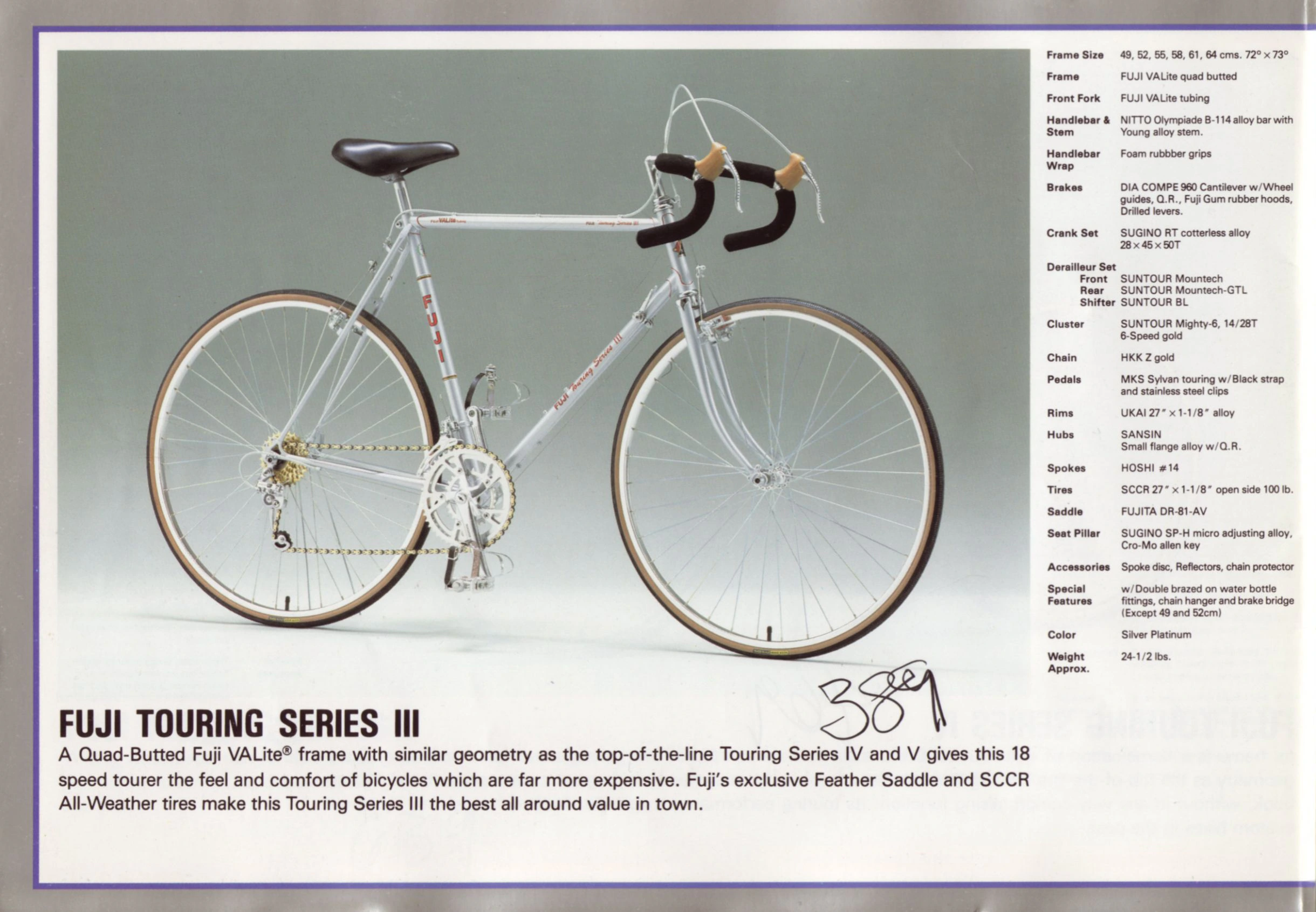

FUJI TOURING SERIES III
A Quad-Butted Fuji VALite® frame with similar geometry as the top-of-the-line Touring Series IV and V gives this 18 speed tourer the feel and comfort of bicycles which are far more expensive. Fuji’s exclusive Feather Saddle and SCCR All-Weather tires make this Touring Series III the best all around value in town.

Frame Size: 49, 52, 55, 58, 61, 64 cms. 72° × 73°
Frame: FUJI VALite quad butted
Front Fork: FUJI VALite tubing
Handlebar & Stem: NITTO Olympiade B-114 alloy bar with Young alloy stem.
Handlebar Wrap: Foam rubbber grips
Brakes: DIA COMPE 960 Cantilever w/Wheel guides, Q.R., Fuji Gum rubber hoods, Drilled levers.
Crank Set: SUGINO RT cotterless alloy 28 × 45 × 50T
Derailleur Set
Front: SUNTOUR Mountech
Rear: SUNTOUR Mountech-GTL
Shifter: SUNTOUR BL
Cluster: SUNTOUR Mighty-6, 14/28T 6-Speed gold
Chain: HKK Z gold
Pedals: MKS Sylvan touring w/Black strap and stainless steel clips
Rims: UKAI 27″ × 1-1/8″ alloy
Hubs: SANSIN Small flange alloy w/Q.R.
Spokes: HOSHI #14
Tires: SCCR 27″ × 1-1/8″ open side 100 lb.
Saddle: FUJITA DR-81-AV
Seat Pillar: SUGINO SP-H micro adjusting alloy, Cro-Mo allen key
Accessories: Spoke disc, Reflectors, chain protector
Special Features: w/Double brazed on water bottle fittings, chain hanger and brake bridge (Except 49 and 52cm)
Color: Silver Platinum
Weight Approx.: 24-1/2 lbs.

[The Fuji Touring Series III in Silver Platinum, a silver touring bicycle with FUJI in red on the seat tube, photographed in profile on a gray studio backdrop beside its specification column. It carries black foam handlebar grips with tan rubber brake hoods, a black saddle and a gold freewheel and chain, with the model name in script on the down tube. A price, “389”, is handwritten in ink beside the heading, and the mirrored heading and handwriting from the reverse of the leaf show through faintly at the right.]

— Page 9 —

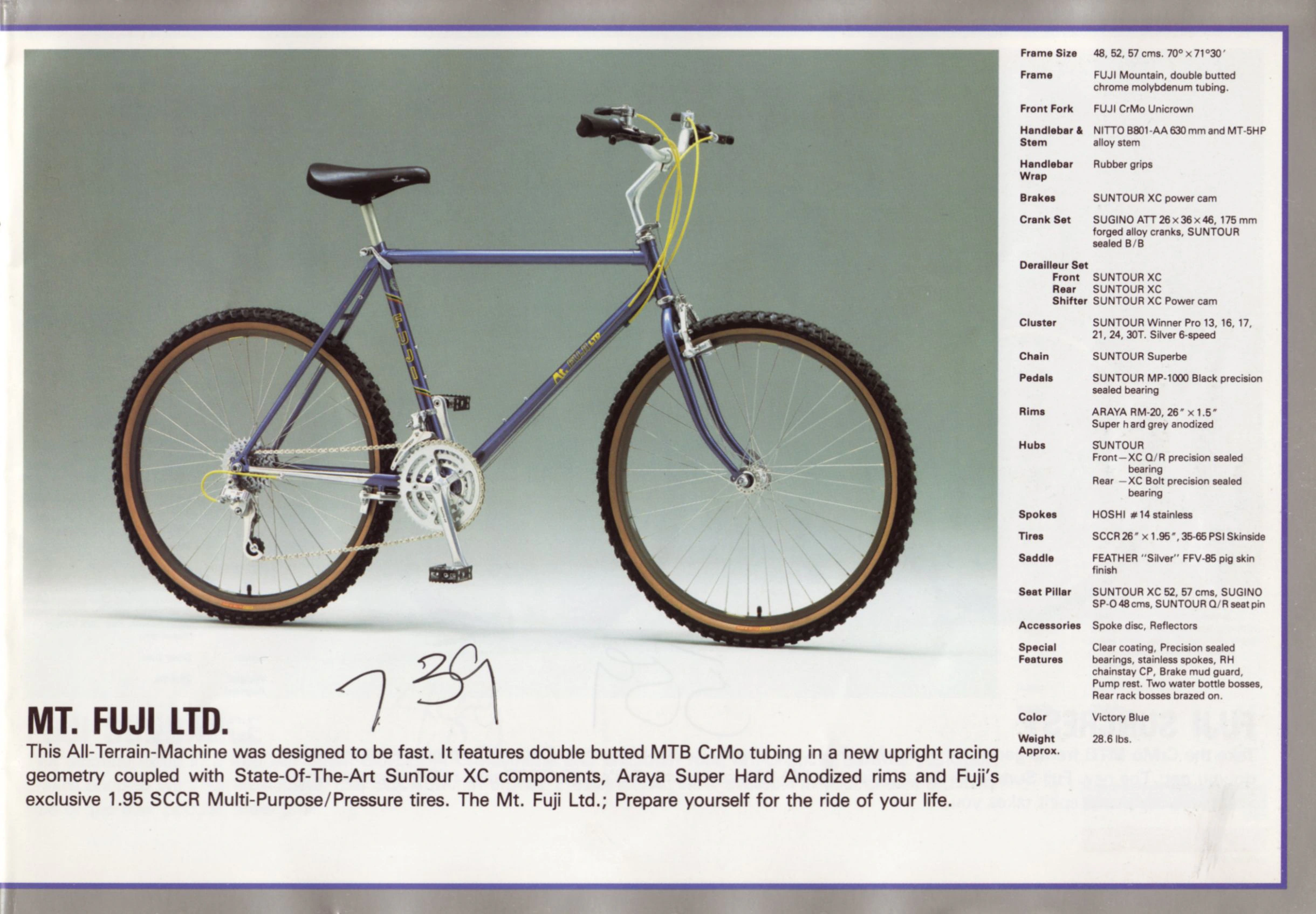

MT. FUJI LTD.
This All-Terrain-Machine was designed to be fast. It features double butted MTB CrMo tubing in a new upright racing geometry coupled with State-Of-The-Art SunTour XC components, Araya Super Hard Anodized rims and Fuji’s exclusive 1.95 SCCR Multi-Purpose/Pressure tires. The Mt. Fuji Ltd.; Prepare yourself for the ride of your life.

Frame Size: 48, 52, 57 cms. 70° × 71°30′
Frame: FUJI Mountain, double butted chrome molybdenum tubing.
Front Fork: FUJI CrMo Unicrown
Handlebar & Stem: NITTO B801-AA 630 mm and MT-5HP alloy stem
Handlebar Wrap: Rubber grips
Brakes: SUNTOUR XC power cam
Crank Set: SUGINO ATT 26 × 36 × 46, 175 mm forged alloy cranks, SUNTOUR sealed B/B
Derailleur Set
Front: SUNTOUR XC
Rear: SUNTOUR XC
Shifter: SUNTOUR XC Power cam
Cluster: SUNTOUR Winner Pro 13, 16, 17, 21, 24, 30T. Silver 6-speed
Chain: SUNTOUR Superbe
Pedals: SUNTOUR MP-1000 Black precision sealed bearing
Rims: ARAYA RM-20, 26″ × 1.5″ Super h ard grey anodized
Hubs: SUNTOUR Front—XC Q/R precision sealed bearing Rear —XC Bolt precision sealed bearing
Spokes: HOSHI #14 stainless
Tires: SCCR 26″ × 1.95″, 35-65 PSI Skinside
Saddle: FEATHER “Silver” FFV-85 pig skin finish
Seat Pillar: SUNTOUR XC 52, 57 cms, SUGINO SP-O 48 cms, SUNTOUR Q/R seat pin
Accessories: Spoke disc, Reflectors
Special Features: Clear coating, Precision sealed bearings, stainless spokes, RH chainstay CP, Brake mud guard, Pump rest. Two water bottle bosses, Rear rack bosses brazed on.
Color: Victory Blue
Weight Approx.: 28.6 lbs.

[The Fuji Mt. Fuji Ltd. in Victory Blue, a blue mountain bicycle with a unicrown fork, photographed in profile on a gray-green studio backdrop beside its specification column. It has a flat handlebar on a tall silver stem, yellow cable housing, a triple chainset, black pedals, a black saddle and knobby tires with tan sidewalls, with FUJI in yellow letters down the seat tube. A price, “739”, is handwritten in ink above the heading, and a mirrored heading and handwritten figure from the reverse of the leaf show through faintly.]

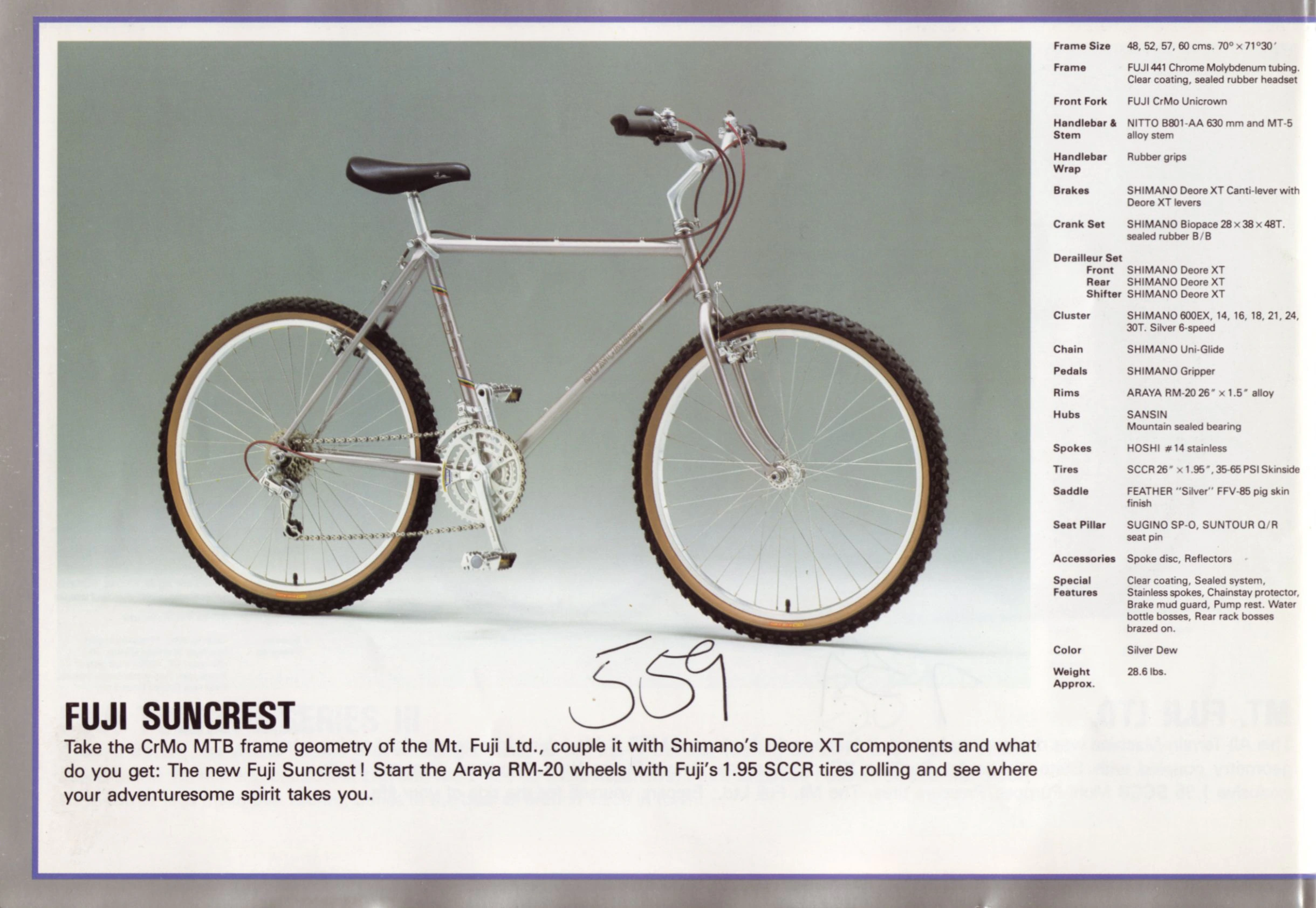

— Page 10 —
FUJI SUNCREST
Take the CrMo MTB frame geometry of the Mt. Fuji Ltd., couple it with Shimano’s Deore XT components and what do you get: The new Fuji Suncrest! Start the Araya RM-20 wheels with Fuji’s 1.95 SCCR tires rolling and see where your adventuresome spirit takes you.

Frame Size: 48, 52, 57, 60 cms. 70° × 71°30′
Frame: FUJI 441 Chrome Molybdenum tubing. Clear coating, sealed rubber headset
Front Fork: FUJI CrMo Unicrown
Handlebar & Stem: NITTO B801-AA 630 mm and MT-5 alloy stem
Handlebar Wrap: Rubber grips
Brakes: SHIMANO Deore XT Canti-lever with Deore XT levers
Crank Set: SHIMANO Biopace 28 × 38 × 48T. sealed rubber B/B
Derailleur Set
Front: SHIMANO Deore XT
Rear: SHIMANO Deore XT
Shifter: SHIMANO Deore XT
Cluster: SHIMANO 600EX, 14, 16, 18, 21, 24, 30T. Silver 6-speed
Chain: SHIMANO Uni-Glide
Pedals: SHIMANO Gripper
Rims: ARAYA RM-20 26″ × 1.5″ alloy
Hubs: SANSIN Mountain sealed bearing
Spokes: HOSHI #14 stainless
Tires: SCCR 26″ × 1.95″, 35-65 PSI Skinside
Saddle: FEATHER “Silver” FFV-85 pig skin finish
Seat Pillar: SUGINO SP-O, SUNTOUR Q/R seat pin
Accessories: Spoke disc, Reflectors
Special Features: Clear coating, Sealed system, Stainless spokes, Chainstay protector, Brake mud guard, Pump rest. Water bottle bosses, Rear rack bosses brazed on.
Color: Silver Dew
Weight Approx.: 28.6 lbs.

[The Fuji Suncrest in Silver Dew, a silver mountain bicycle with a unicrown fork, photographed in profile on a gray studio backdrop beside its specification column. It has a flat handlebar on a tall silver stem, maroon cable housing, cantilever brakes, a triple chainset, a black saddle and knobby tires with tan sidewalls, with the model name on the down tube and multicolored bands on the seat tube. A price, “559”, is handwritten in ink above the body text, and faint ghost lettering from other pages, including the Mt. Fuji Ltd. heading, shows through at the lower right.]

— Page 11 —

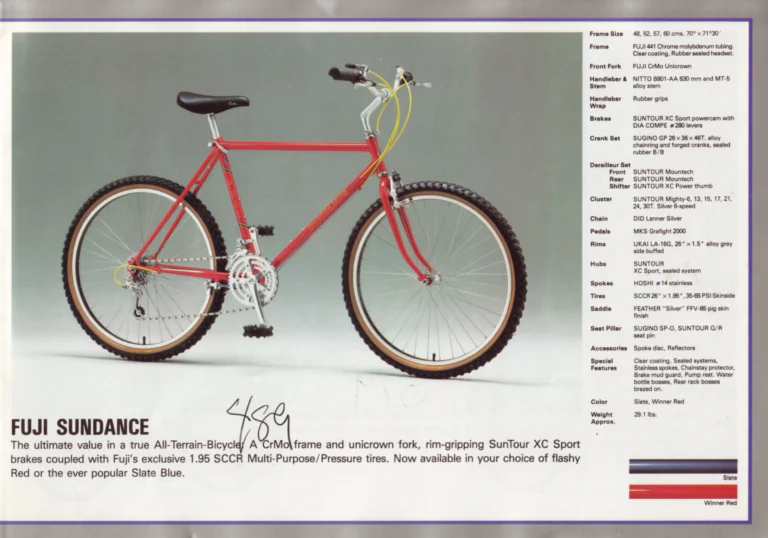

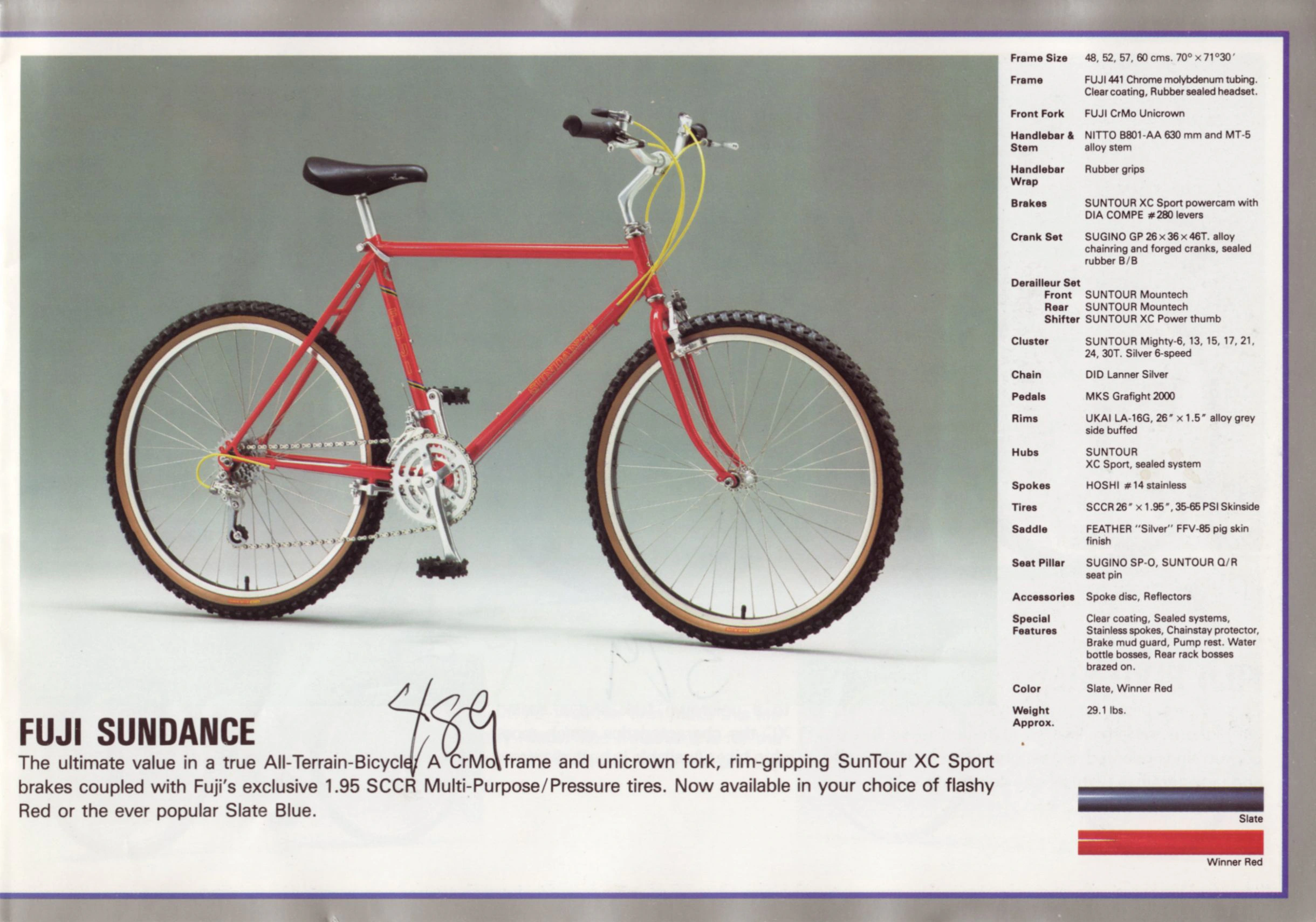

FUJI SUNDANCE
The ultimate value in a true All-Terrain-Bicycle: [?] A CrMo frame and unicrown fork, rim-gripping SunTour XC Sport brakes coupled with Fuji’s exclusive 1.95 SCCR Multi-Purpose/Pressure tires. Now available in your choice of flashy Red or the ever popular Slate Blue.

Frame Size: 48, 52, 57, 60 cms. 70° × 71°30′
Frame: FUJI 441 Chrome molybdenum tubing. Clear coating, Rubber sealed headset.
Front Fork: FUJI CrMo Unicrown
Handlebar & Stem: NITTO B801-AA 630 mm and MT-5 alloy stem
Handlebar Wrap: Rubber grips
Brakes: SUNTOUR XC Sport powercam with DIA COMPE #280 levers
Crank Set: SUGINO GP 26 × 36 × 46T. alloy chainring and forged cranks, sealed rubber B/B
Derailleur Set
Front: SUNTOUR Mountech
Rear: SUNTOUR Mountech
Shifter: SUNTOUR XC Power thumb
Cluster: SUNTOUR Mighty-6, 13, 15, 17, 21, 24, 30T. Silver 6-speed
Chain: DID Lanner Silver
Pedals: MKS Grafight 2000
Rims: UKAI LA-16G, 26″ × 1.5″ alloy grey side buffed
Hubs: SUNTOUR XC Sport, sealed system
Spokes: HOSHI #14 stainless
Tires: SCCR 26″ × 1.95″, 35-65 PSI Skinside
Saddle: FEATHER “Silver” FFV-85 pig skin finish
Seat Pillar: SUGINO SP-O, SUNTOUR Q/R seat pin
Accessories: Spoke disc, Reflectors
Special Features: Clear coating, Sealed systems, Stainless spokes, Chainstay protector, Brake mud guard, Pump rest. Water bottle bosses, Rear rack bosses brazed on.
Color: Slate, Winner Red
Weight Approx.: 29.1 lbs.

Slate
Winner Red

[The Fuji Sundance in Winner Red, a red mountain bicycle with a unicrown fork, photographed in profile on a gray studio backdrop beside its specification column and two color bars labeled Slate and Winner Red. It has a flat handlebar on a tall silver stem, yellow cable housing, a triple chainset, black pedals, a black saddle and knobby tires with tan sidewalls, with the model name on the down tube and FUJI down the seat tube. A price, “489”, is handwritten in ink across the first line of the body text, its strokes crossing the punctuation after “All-Terrain-Bicycle”.]

— Page 12 —

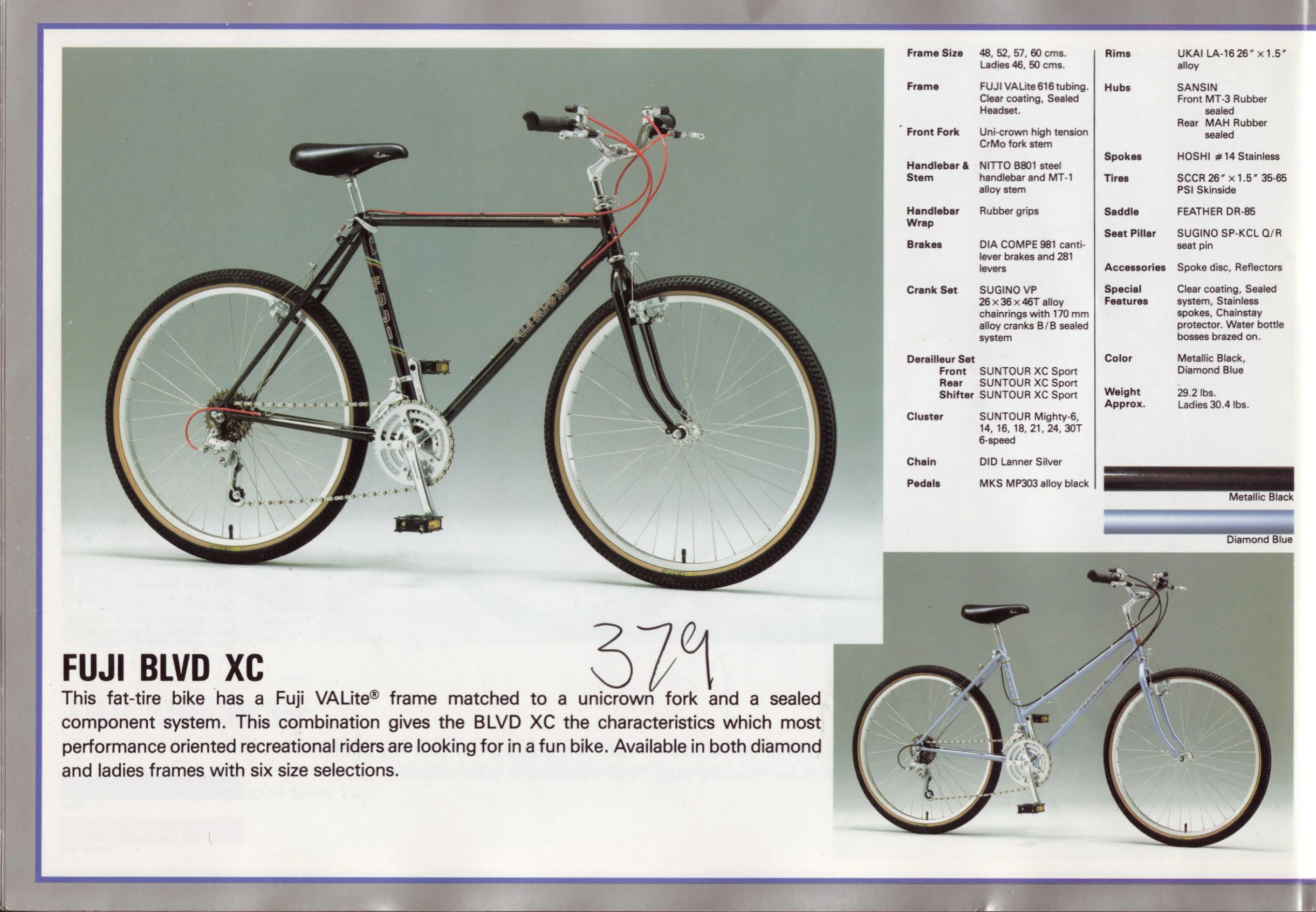

FUJI BLVD XC
This fat-tire bike has a Fuji VALite® frame matched to a unicrown fork and a sealed component system. This combination gives the BLVD XC the characteristics which most performance oriented recreational riders are looking for in a fun bike. Available in both diamond and ladies frames with six size selections.

Frame Size: 48, 52, 57, 60 cms. Ladies 46, 50 cms.
Frame: FUJI VALite 616 tubing. Clear coating, Sealed Headset.
Front Fork: Uni-crown high tension CrMo fork stem
Handlebar & Stem: NITTO B801 steel handlebar and MT-1 alloy stem
Handlebar Wrap: Rubber grips
Brakes: DIA COMPE 981 canti-lever brakes and 281 levers
Crank Set: SUGINO VP 26 × 36 × 46T alloy chainrings with 170 mm alloy cranks B/B sealed system
Derailleur Set
Front: SUNTOUR XC Sport
Rear: SUNTOUR XC Sport
Shifter: SUNTOUR XC Sport
Cluster: SUNTOUR Mighty-6, 14, 16, 18, 21, 24, 30T 6-speed
Chain: DID Lanner Silver
Pedals: MKS MP303 alloy black
Rims: UKAI LA-16 26″ × 1.5″ alloy
Hubs: SANSIN Front MT-3 Rubber sealed Rear MAH Rubber sealed
Spokes: HOSHI #14 Stainless
Tires: SCCR 26″ × 1.5″ 35-65 PSI Skinside
Saddle: FEATHER DR-85
Seat Pillar: SUGINO SP-KCL Q/R seat pin
Accessories: Spoke disc, Reflectors
Special Features: Clear coating, Sealed system, Stainless spokes, Chainstay protector. Water bottle bosses brazed on.
Color: Metallic Black, Diamond Blue
Weight Approx.: 29.2 lbs. Ladies 30.4 lbs.

Metallic Black
Diamond Blue

[The Fuji Blvd XC in Metallic Black, a black diamond-frame fat-tire bicycle with a unicrown fork, photographed in profile on a gray studio backdrop, with an inset photograph at the lower right of the ladies frame in Diamond Blue, its single top tube sloping from the head tube to the seat tube. The black bicycle has red cable housing, cantilever brakes, a flat handlebar on a tall silver stem, a triple chainset, a black saddle and tires with tan sidewalls, with FUJI down the seat tube and the model name on the down tube; two specification columns and two color bars labeled Metallic Black and Diamond Blue stand at the upper right. A price, “379”, is handwritten in ink beside the heading.]

— Page 13 —

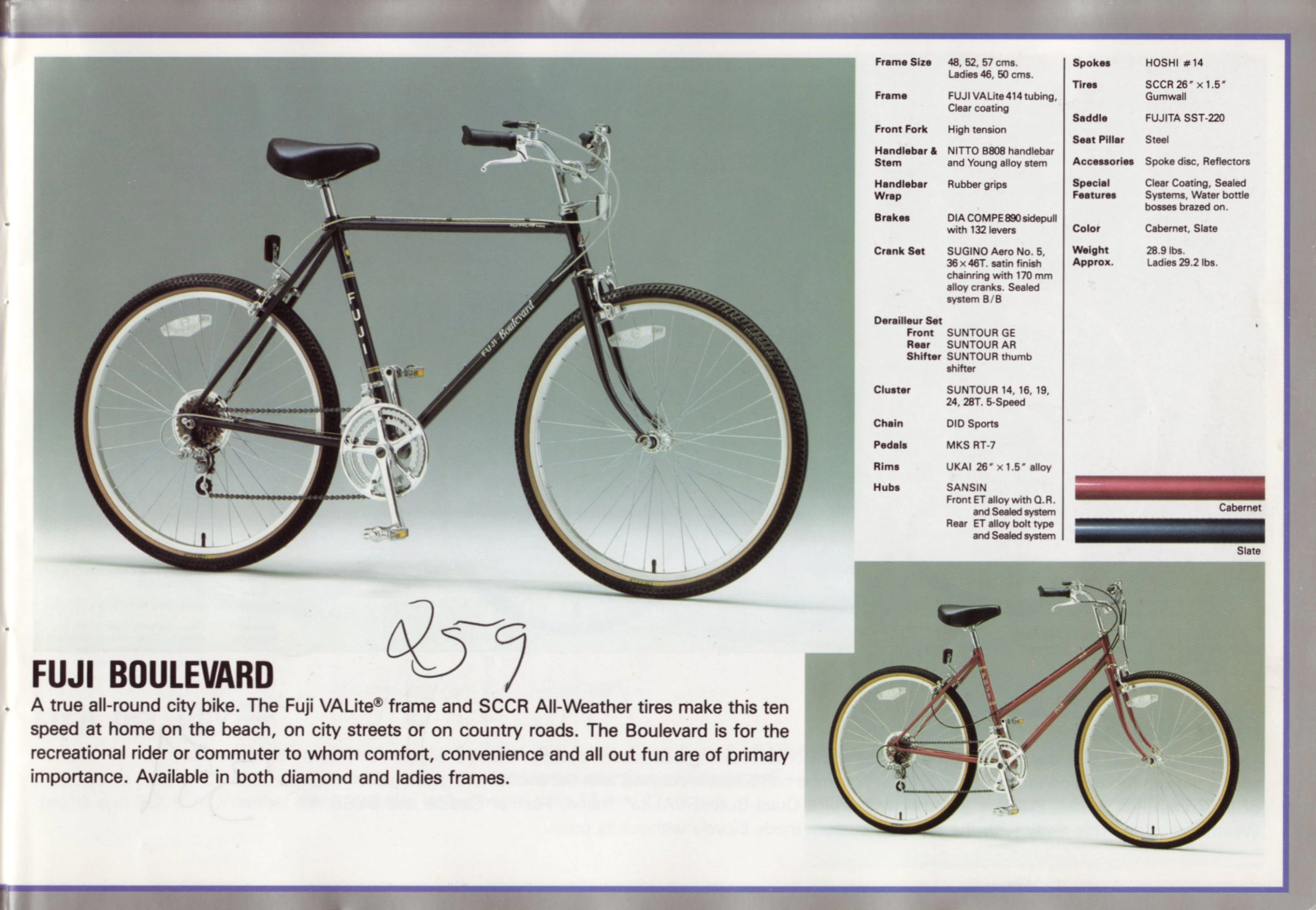

FUJI BOULEVARD
A true all-round city bike. The Fuji VALite® frame and SCCR All-Weather tires make this ten speed at home on the beach, on city streets or on country roads. The Boulevard is for the recreational rider or commuter to whom comfort, convenience and all out fun are of primary importance. Available in both diamond and ladies frames.

Frame Size: 48, 52, 57 cms. Ladies 46, 50 cms.
Frame: FUJI VALite 414 tubing, Clear coating
Front Fork: High tension
Handlebar & Stem: NITTO B808 handlebar and Young alloy stem
Handlebar Wrap: Rubber grips
Brakes: DIA COMPE 890 sidepull with 132 levers
Crank Set: SUGINO Aero No. 5, 36 × 46T. satin finish chainring with 170 mm alloy cranks. Sealed system B/B
Derailleur Set
Front: SUNTOUR GE
Rear: SUNTOUR AR
Shifter: SUNTOUR thumb shifter
Cluster: SUNTOUR 14, 16, 19, 24, 28T. 5-Speed
Chain: DID Sports
Pedals: MKS RT-7
Rims: UKAI 26″ × 1.5″ alloy
Hubs: SANSIN Front ET alloy with Q.R. and Sealed system Rear ET alloy bolt type and Sealed system
Spokes: HOSHI #14
Tires: SCCR 26″ × 1.5″ Gumwall
Saddle: FUJITA SST-220
Seat Pillar: Steel
Accessories: Spoke disc, Reflectors
Special Features: Clear Coating, Sealed Systems, Water bottle bosses brazed on.
Color: Cabernet, Slate
Weight Approx.: 28.9 lbs. Ladies 29.2 lbs.

Cabernet
Slate

[The Fuji Boulevard, a ten-speed city bicycle with a dark slate diamond frame, photographed in profile on a gray studio backdrop, with an inset photograph at the lower right of the ladies frame in Cabernet red. The diamond-frame bicycle has a flat handlebar with black grips, sidepull brakes, a double chainset, a black saddle, spoke reflectors and tires with tan sidewalls, with FUJI down the seat tube and “Fuji Boulevard” in script on the down tube; two specification columns and two color bars labeled Cabernet and Slate stand at the upper right. A price, “259”, is handwritten in ink beside the heading.]

— Page 14 —

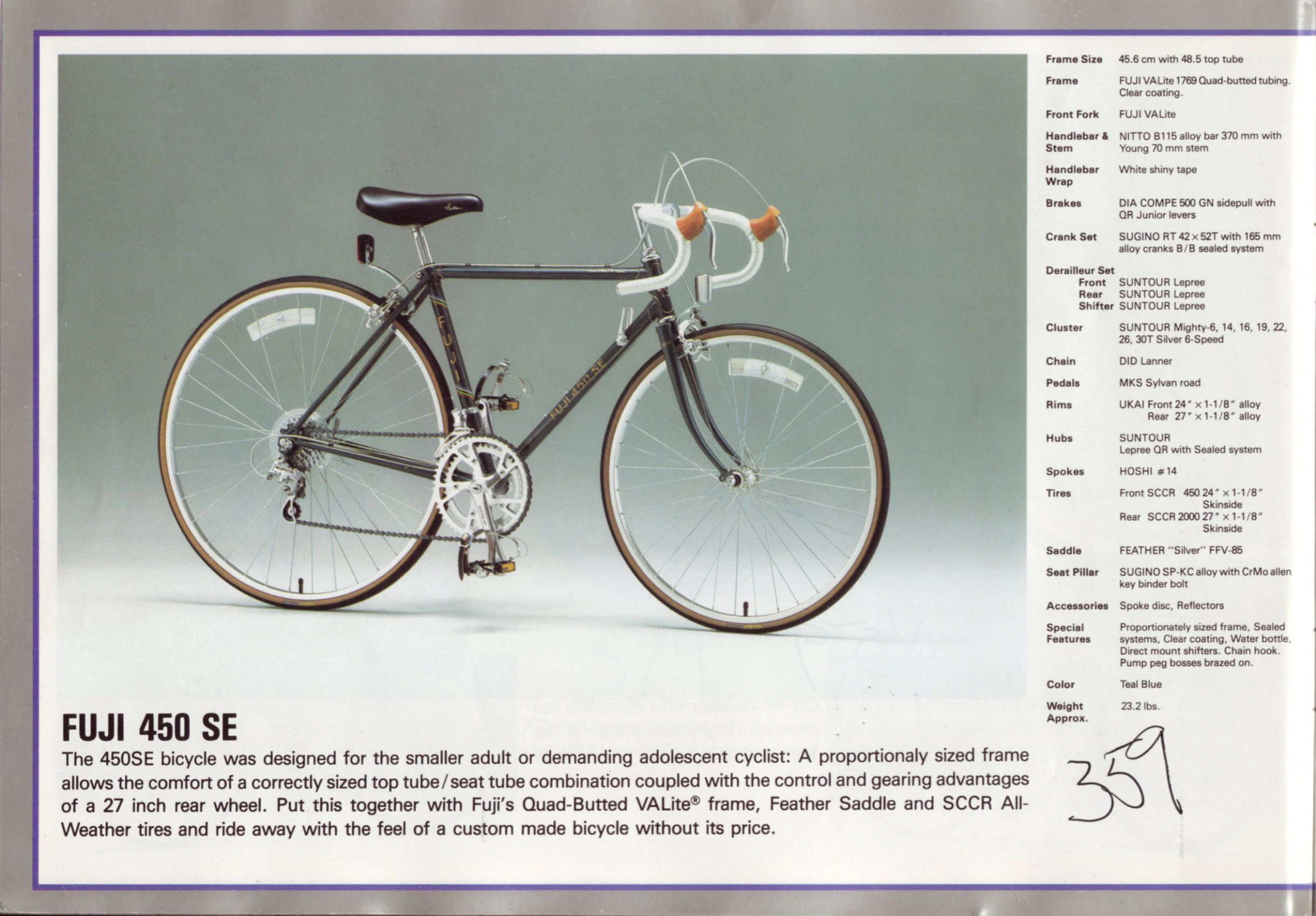

FUJI 450 SE
The 450SE bicycle was designed for the smaller adult or demanding adolescent cyclist: A proportionaly sized frame allows the comfort of a correctly sized top tube/seat tube combination coupled with the control and gearing advantages of a 27 inch rear wheel. Put this together with Fuji’s Quad-Butted VALite® frame, Feather Saddle and SCCR All-Weather tires and ride away with the feel of a custom made bicycle without its price.

Frame Size: 45.6 cm with 48.5 top tube
Frame: FUJI VALite 1769 Quad-butted tubing. Clear coating.
Front Fork: FUJI VALite
Handlebar & Stem: NITTO B115 alloy bar 370 mm with Young 70 mm stem
Handlebar Wrap: White shiny tape
Brakes: DIA COMPE 500 GN sidepull with QR Junior levers
Crank Set: SUGINO RT 42 × 52T with 165 mm alloy cranks B/B sealed system
Derailleur Set
Front: SUNTOUR Lepree
Rear: SUNTOUR Lepree
Shifter: SUNTOUR Lepree
Cluster: SUNTOUR Mighty-6, 14, 16, 19, 22, 26, 30T Silver 6-Speed
Chain: DID Lanner
Pedals: MKS Sylvan road
Rims: UKAI Front 24″ × 1-1/8″ alloy Rear 27″ × 1-1/8″ alloy
Hubs: SUNTOUR Lepree QR with Sealed system
Spokes: HOSHI #14
Tires: Front SCCR 450 24″ × 1-1/8″ Skinside Rear SCCR 2000 27″ × 1-1/8″ Skinside
Saddle: FEATHER “Silver” FFV-85
Seat Pillar: SUGINO SP-KC alloy with CrMo allen key binder bolt
Accessories: Spoke disc, Reflectors
Special Features: Proportionately sized frame, Sealed systems, Clear coating, Water bottle, Direct mount shifters. Chain hook. Pump peg bosses brazed on.
Color: Teal Blue
Weight Approx.: 23.2 lbs.

[The Fuji 450 SE in Teal Blue, a dark blue-green twelve-speed road bicycle with a 24-inch front wheel and a 27-inch rear wheel, photographed in profile on a gray studio backdrop beside its specification column. It has dropped handlebars wrapped in white tape with tan rubber brake hoods, sidepull brakes, a double chainset, a black saddle, spoke reflectors and tires with tan sidewalls, with FUJI down the seat tube and the model name on the down tube. A price, “359”, is handwritten in ink at the lower right beside the body text.]

— Page 15 —

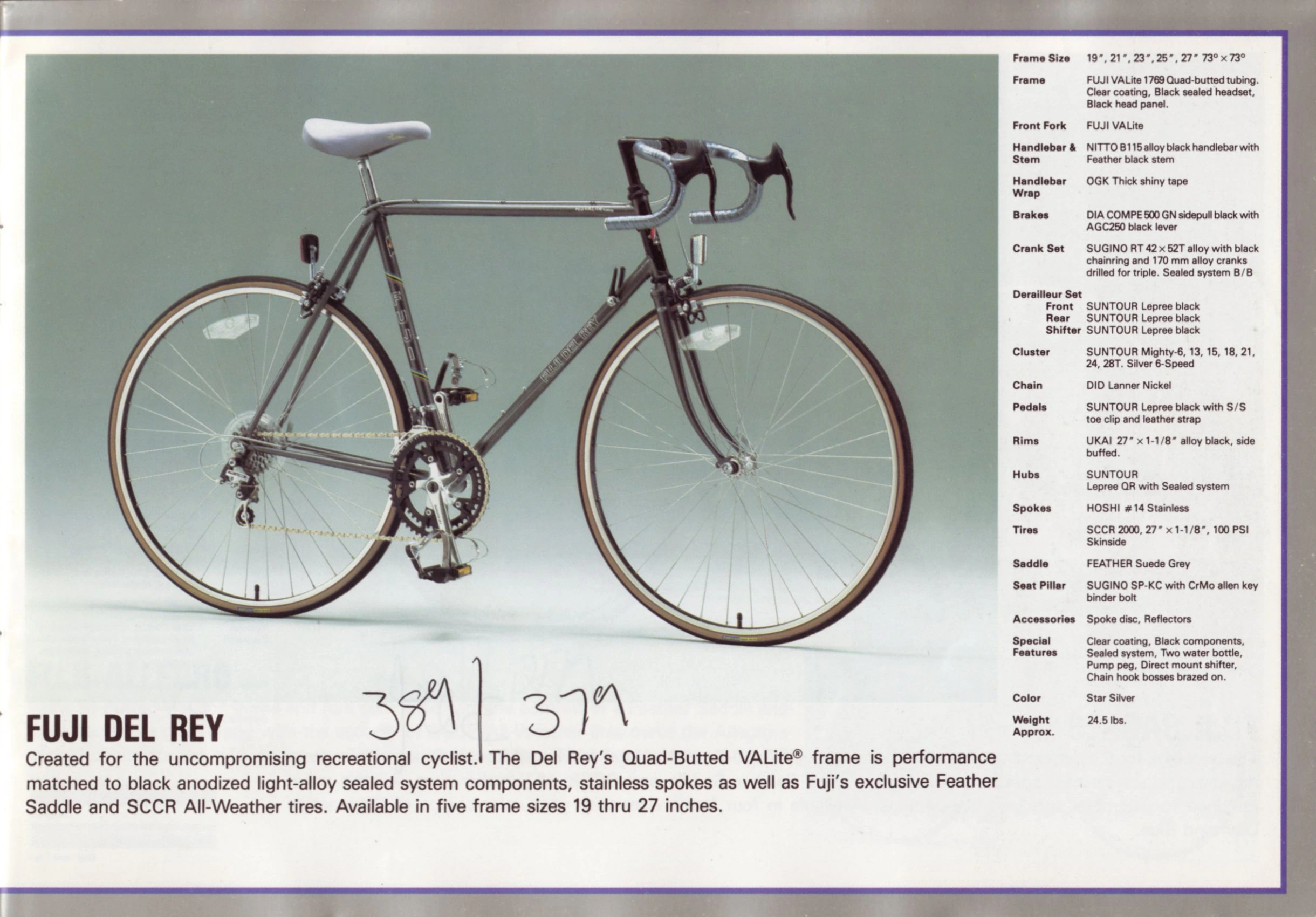

FUJI DEL REY
Created for the uncompromising recreational cyclist. The Del Rey’s Quad-Butted VALite® frame is performance matched to black anodized light-alloy sealed system components, stainless spokes as well as Fuji’s exclusive Feather Saddle and SCCR All-Weather tires. Available in five frame sizes 19 thru 27 inches.

Frame Size: 19″, 21″, 23″, 25″, 27″ 73° × 73°
Frame: FUJI VALite 1769 Quad-butted tubing. Clear coating, Black sealed headset, Black head panel.
Front Fork: FUJI VALite
Handlebar & Stem: NITTO B115 alloy black handlebar with Feather black stem
Handlebar Wrap: OGK Thick shiny tape
Brakes: DIA COMPE 500 GN sidepull black with AGC250 black lever
Crank Set: SUGINO RT 42 × 52T alloy with black chainring and 170 mm alloy cranks drilled for triple. Sealed system B/B
Derailleur Set
Front: SUNTOUR Lepree black
Rear: SUNTOUR Lepree black
Shifter: SUNTOUR Lepree black
Cluster: SUNTOUR Mighty-6, 13, 15, 18, 21, 24, 28T. Silver 6-Speed
Chain: DID Lanner Nickel
Pedals: SUNTOUR Lepree black with S/S toe clip and leather strap
Rims: UKAI 27″ × 1-1/8″ alloy black, side buffed.
Hubs: SUNTOUR Lepree QR with Sealed system
Spokes: HOSHI #14 Stainless
Tires: SCCR 2000, 27″ × 1-1/8″, 100 PSI Skinside
Saddle: FEATHER Suede Grey
Seat Pillar: SUGINO SP-KC with CrMo allen key binder bolt
Accessories: Spoke disc, Reflectors
Special Features: Clear coating, Black components, Sealed system, Two water bottle, Pump peg, Direct mount shifter, Chain hook bosses brazed on.
Color: Star Silver
Weight Approx.: 24.5 lbs.

[The Fuji Del Rey in Star Silver, a gray metallic twelve-speed road bicycle with a black head tube panel, photographed in profile on a gray studio backdrop beside its specification column. It has a black stem, dropped handlebars in shiny silver tape with black brake levers, black sidepull brakes, black chainrings and derailleurs, a gray saddle, toe clips, spoke reflectors and tires with tan sidewalls, with FUJI down the seat tube and the model name on the down tube. Two prices, “389” and “379”, are handwritten in ink above the body text, divided by a vertical pen stroke that runs down to the first line.]

— Page 16 —

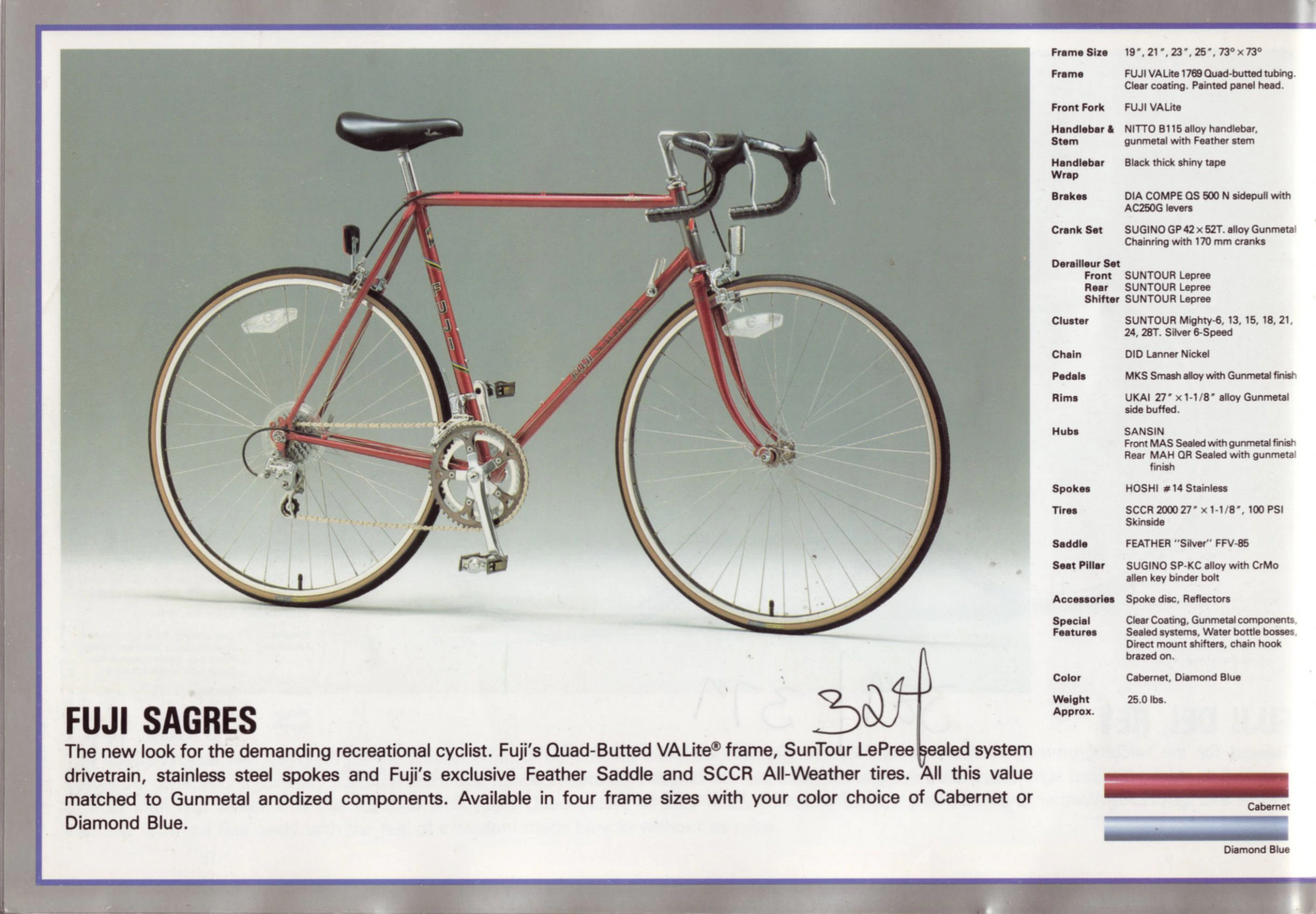

FUJI SAGRES
The new look for the demanding recreational cyclist. Fuji’s Quad-Butted VALite® frame, SunTour LePree sealed system drivetrain, stainless steel spokes and Fuji’s exclusive Feather Saddle and SCCR All-Weather tires. All this value matched to Gunmetal anodized components. Available in four frame sizes with your color choice of Cabernet or Diamond Blue.

Frame Size: 19″, 21″, 23″, 25″, 73° × 73°
Frame: FUJI VALite 1769 Quad-butted tubing. Clear coating. Painted panel head.
Front Fork: FUJI VALite
Handlebar & Stem: NITTO B115 alloy handlebar, gunmetal with Feather stem
Handlebar Wrap: Black thick shiny tape
Brakes: DIA COMPE QS 500 N sidepull with AC250G levers
Crank Set: SUGINO GP 42 × 52T. alloy Gunmetal Chainring with 170 mm cranks
Derailleur Set
Front: SUNTOUR Lepree
Rear: SUNTOUR Lepree
Shifter: SUNTOUR Lepree
Cluster: SUNTOUR Mighty-6, 13, 15, 18, 21, 24, 28T. Silver 6-Speed
Chain: DID Lanner Nickel
Pedals: MKS Smash alloy with Gunmetal finish
Rims: UKAI 27″ × 1-1/8″ alloy Gunmetal side buffed.
Hubs: SANSIN Front MAS Sealed with gunmetal finish Rear MAH QR Sealed with gunmetal finish
Spokes: HOSHI #14 Stainless
Tires: SCCR 2000 27″ × 1-1/8″, 100 PSI Skinside
Saddle: FEATHER “Silver” FFV-85
Seat Pillar: SUGINO SP-KC alloy with CrMo allen key binder bolt
Accessories: Spoke disc, Reflectors
Special Features: Clear Coating, Gunmetal components, Sealed systems, Water bottle bosses, Direct mount shifters, chain hook brazed on.
Color: Cabernet, Diamond Blue
Weight Approx.: 25.0 lbs.

Cabernet
Diamond Blue

[The Fuji Sagres in Cabernet, a red twelve-speed road bicycle photographed in profile on a gray studio backdrop beside its specification column and two color bars labeled Cabernet and Diamond Blue. It has dropped handlebars in black tape, sidepull brakes, gunmetal chainrings, a black saddle, spoke reflectors and tires with tan sidewalls, with FUJI down the seat tube and the model name on the down tube. A price, read as “324” with the last figure uncertain, is handwritten in ink above the body text, its long final stroke crossing the word “sealed”.]

— Page 17 —

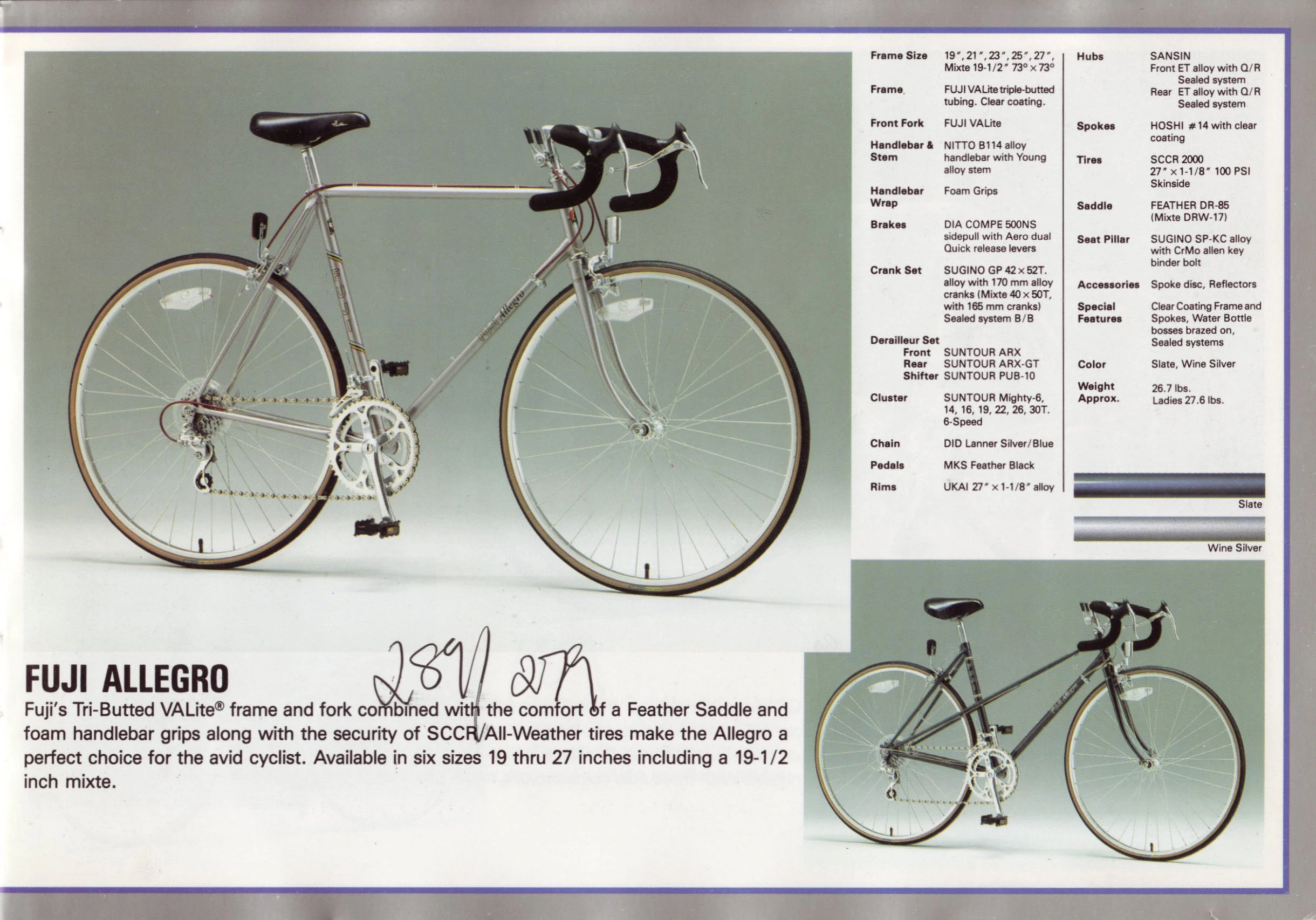

FUJI ALLEGRO
Fuji’s Tri-Butted VALite® frame and fork combined with the comfort of a Feather Saddle and foam handlebar grips along with the security of SCCR All-Weather tires make the Allegro a perfect choice for the avid cyclist. Available in six sizes 19 thru 27 inches including a 19-1/2 inch mixte.

Frame Size: 19″, 21″, 23″, 25″, 27″, Mixte 19-1/2″ 73° × 73°
Frame: FUJI VALite triple-butted tubing. Clear coating.
Front Fork: FUJI VALite
Handlebar & Stem: NITTO B114 alloy handlebar with Young alloy stem
Handlebar Wrap: Foam Grips
Brakes: DIA COMPE 500NS sidepull with Aero dual Quick release levers
Crank Set: SUGINO GP 42 × 52T. alloy with 170 mm alloy cranks (Mixte 40 × 50T, with 165 mm cranks) Sealed system B/B
Derailleur Set
Front: SUNTOUR ARX
Rear: SUNTOUR ARX-GT
Shifter: SUNTOUR PUB-10
Cluster: SUNTOUR Mighty-6, 14, 16, 19, 22, 26, 30T. 6-Speed
Chain: DID Lanner Silver/Blue
Pedals: MKS Feather Black
Rims: UKAI 27″ × 1-1/8″ alloy
Hubs: SANSIN Front ET alloy with Q/R Sealed system Rear ET alloy with Q/R Sealed system
Spokes: HOSHI #14 with clear coating
Tires: SCCR 2000 27″ × 1-1/8″ 100 PSI Skinside
Saddle: FEATHER DR-85 (Mixte DRW-17)
Seat Pillar: SUGINO SP-KC alloy with CrMo allen key binder bolt
Accessories: Spoke disc, Reflectors
Special Features: Clear Coating Frame and Spokes, Water Bottle bosses brazed on, Sealed systems
Color: Slate, Wine Silver
Weight Approx.: 26.7 lbs. Ladies 27.6 lbs.

Slate
Wine Silver

[The Fuji Allegro, a silver twelve-speed road bicycle with maroon cable housings, photographed in profile on a gray-green studio backdrop above its heading, with the Allegro mixte in dark gray shown in an inset photograph below the specification columns. Both carry black foam handlebar grips, black saddles, gumwall tires and wheel reflectors, with FUJI lettered down the seat tube and the model name in script on the down tube, and two color bars label the finishes Slate and Wine Silver. Prices, “289/279”, are handwritten in ink above the paragraph, the long stroke of the slash running down through the text and ending in a hook between “SCCR” and “All-Weather”, and print from the reverse of the leaf shows through faintly below the paragraph.]

— Page 18 —

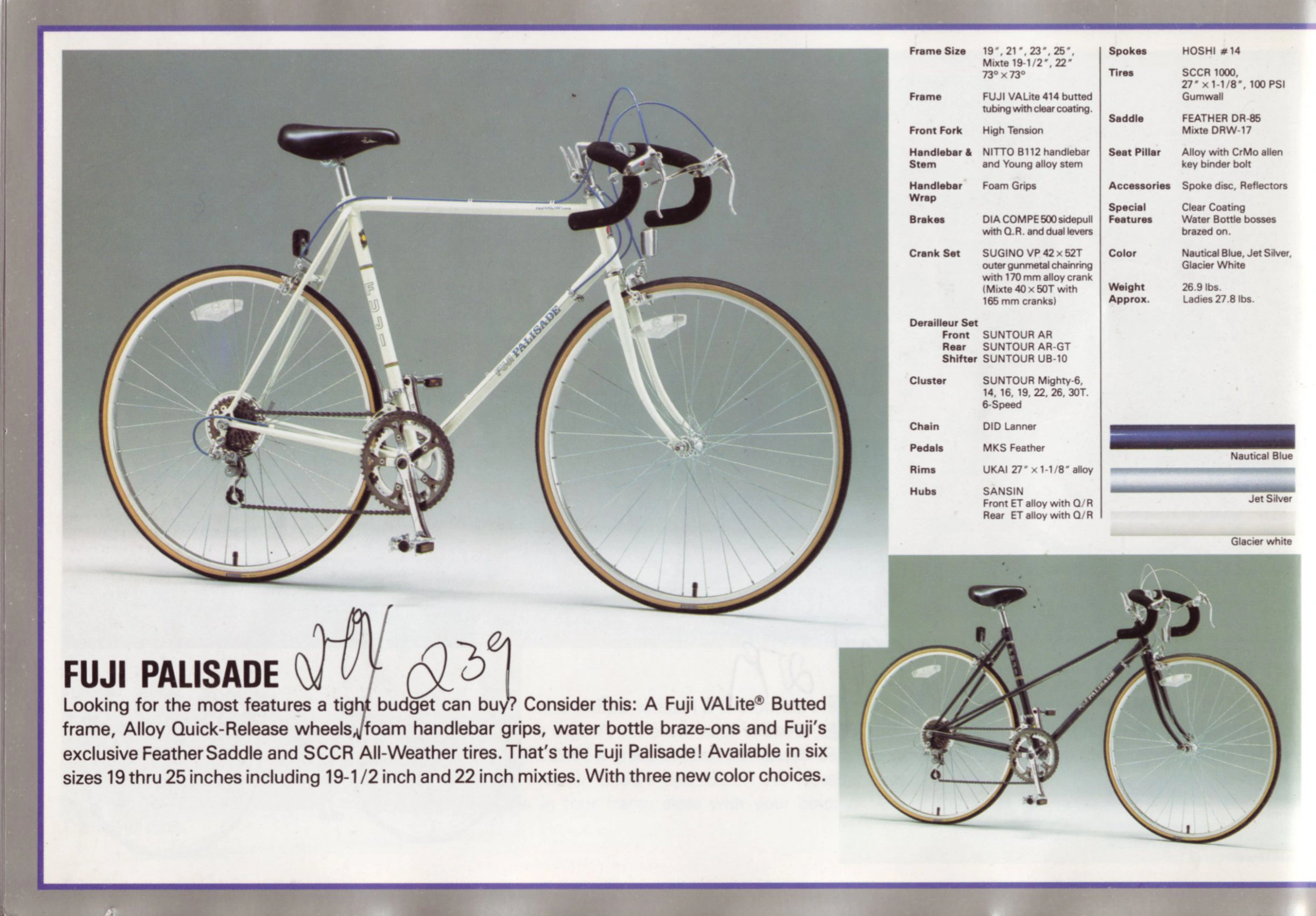

FUJI PALISADE
Looking for the most features a tight budget can buy? Consider this: A Fuji VALite® Butted frame, Alloy Quick-Release wheels, foam handlebar grips, water bottle braze-ons and Fuji’s exclusive Feather Saddle and SCCR All-Weather tires. That’s the Fuji Palisade! Available in six sizes 19 thru 25 inches including 19-1/2 inch and 22 inch mixties. With three new color choices.

Frame Size: 19″, 21″, 23″, 25″, Mixte 19-1/2″, 22″ 73° × 73°
Frame: FUJI VALite 414 butted tubing with clear coating.
Front Fork: High Tension
Handlebar & Stem: NITTO B112 handlebar and Young alloy stem
Handlebar Wrap: Foam Grips
Brakes: DIA COMPE 500 sidepull with Q.R. and dual levers
Crank Set: SUGINO VP 42 × 52T outer gunmetal chainring with 170 mm alloy crank (Mixte 40 × 50T with 165 mm cranks)
Derailleur Set
Front: SUNTOUR AR
Rear: SUNTOUR AR-GT
Shifter: SUNTOUR UB-10
Cluster: SUNTOUR Mighty-6, 14, 16, 19, 22, 26, 30T. 6-Speed
Chain: DID Lanner
Pedals: MKS Feather
Rims: UKAI 27″ × 1-1/8″ alloy
Hubs: SANSIN Front ET alloy with Q/R Rear ET alloy with Q/R
Spokes: HOSHI #14
Tires: SCCR 1000, 27″ × 1-1/8″, 100 PSI Gumwall
Saddle: FEATHER DR-85 Mixte DRW-17
Seat Pillar: Alloy with CrMo allen key binder bolt
Accessories: Spoke disc, Reflectors
Special Features: Clear Coating Water Bottle bosses brazed on.
Color: Nautical Blue, Jet Silver, Glacier White
Weight Approx.: 26.9 lbs. Ladies 27.8 lbs.

Nautical Blue
Jet Silver
Glacier white

[The Fuji Palisade, a white twelve-speed road bicycle with blue cable housings and a gunmetal outer chainring, photographed in profile on a gray studio backdrop above its heading, with the Palisade mixte in dark navy blue shown in an inset photograph below the specification columns. Both carry black foam handlebar grips, black saddles, gumwall tires and wheel reflectors, with FUJI lettered down the seat tube and PALISADE on the down tube, and three color bars label the finishes Nautical Blue, Jet Silver and Glacier white. Prices, “249/239″, are handwritten in ink beside the heading, the long stroke of the slash running down into the paragraph, and mirrored handwriting from the reverse of the leaf shows through faintly at the right of the paragraph.]

— Page 19 —

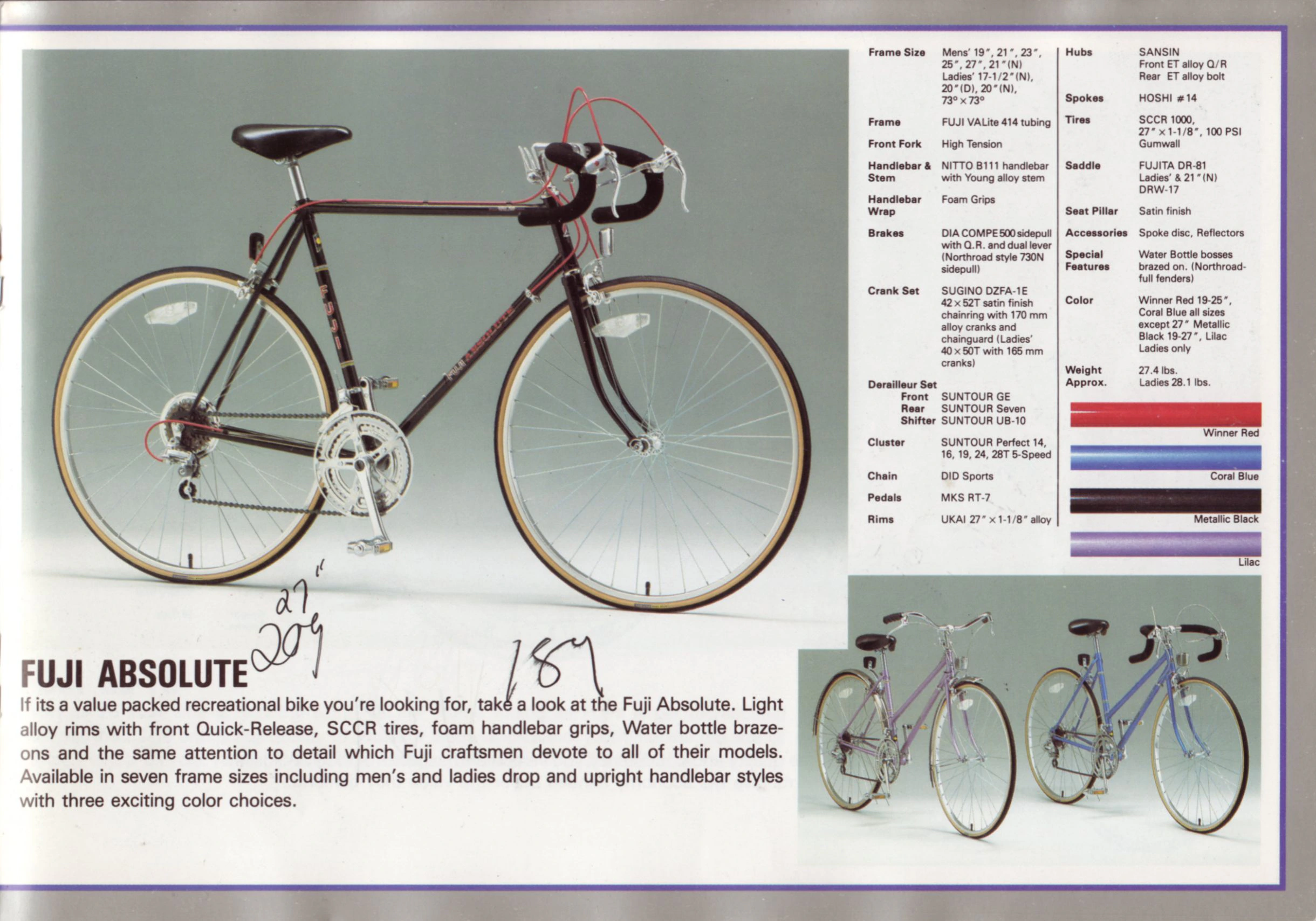

FUJI ABSOLUTE
If its a value packed recreational bike you’re looking for, take a look at the Fuji Absolute. Light alloy rims with front Quick-Release, SCCR tires, foam handlebar grips, Water bottle braze-ons and the same attention to detail which Fuji craftsmen devote to all of their models. Available in seven frame sizes including men’s and ladies drop and upright handlebar styles with three exciting color choices.

Frame Size: Mens’ 19″, 21″, 23″, 25″, 27″, 21″(N) Ladies’ 17-1/2″(N), 20″(D), 20″(N), 73° × 73°
Frame: FUJI VALite 414 tubing
Front Fork: High Tension
Handlebar & Stem: NITTO B111 handlebar with Young alloy stem
Handlebar Wrap: Foam Grips
Brakes: DIA COMPE 500 sidepull with Q.R. and dual lever (Northroad style 730N sidepull)
Crank Set: SUGINO DZFA-1E 42 × 52T satin finish chainring with 170 mm alloy cranks and chainguard (Ladies’ 40 × 50T with 165 mm cranks)
Derailleur Set
Front: SUNTOUR GE
Rear: SUNTOUR Seven
Shifter: SUNTOUR UB-10
Cluster: SUNTOUR Perfect 14, 16, 19, 24, 28T 5-Speed
Chain: DID Sports
Pedals: MKS RT-7
Rims: UKAI 27″ × 1-1/8″ alloy
Hubs: SANSIN Front ET alloy Q/R Rear ET alloy bolt
Spokes: HOSHI #14
Tires: SCCR 1000, 27″ × 1-1/8″, 100 PSI Gumwall
Saddle: FUJITA DR-81 Ladies’ & 21″(N) DRW-17
Seat Pillar: Satin finish
Accessories: Spoke disc, Reflectors
Special Features: Water Bottle bosses brazed on. (Northroad-full fenders)
Color: Winner Red 19-25″, Coral Blue all sizes except 27″ Metallic Black 19-27”, Lilac Ladies only
Weight Approx.: 27.4 lbs. Ladies 28.1 lbs.

Winner Red
Coral Blue
Metallic Black
Lilac

[The Fuji Absolute, a black ten-speed road bicycle with red cable housings and a guard on the chainrings, photographed in profile on a gray studio backdrop above its heading, with two ladies’ Absolute models shown in an inset photograph below the specification columns: one in lilac with upright handlebars and full fenders, one in blue with drop handlebars. The bicycles carry black saddles, gumwall tires and wheel reflectors, the men’s model with black foam handlebar grips, FUJI lettered down the seat tube and ABSOLUTE on the down tube, and four color bars label the finishes Winner Red, Coral Blue, Metallic Black and Lilac. Prices are handwritten in ink: “209” beside the heading, with 27 and an inch mark written above it, and “189” above the paragraph.]

— Page 20 —

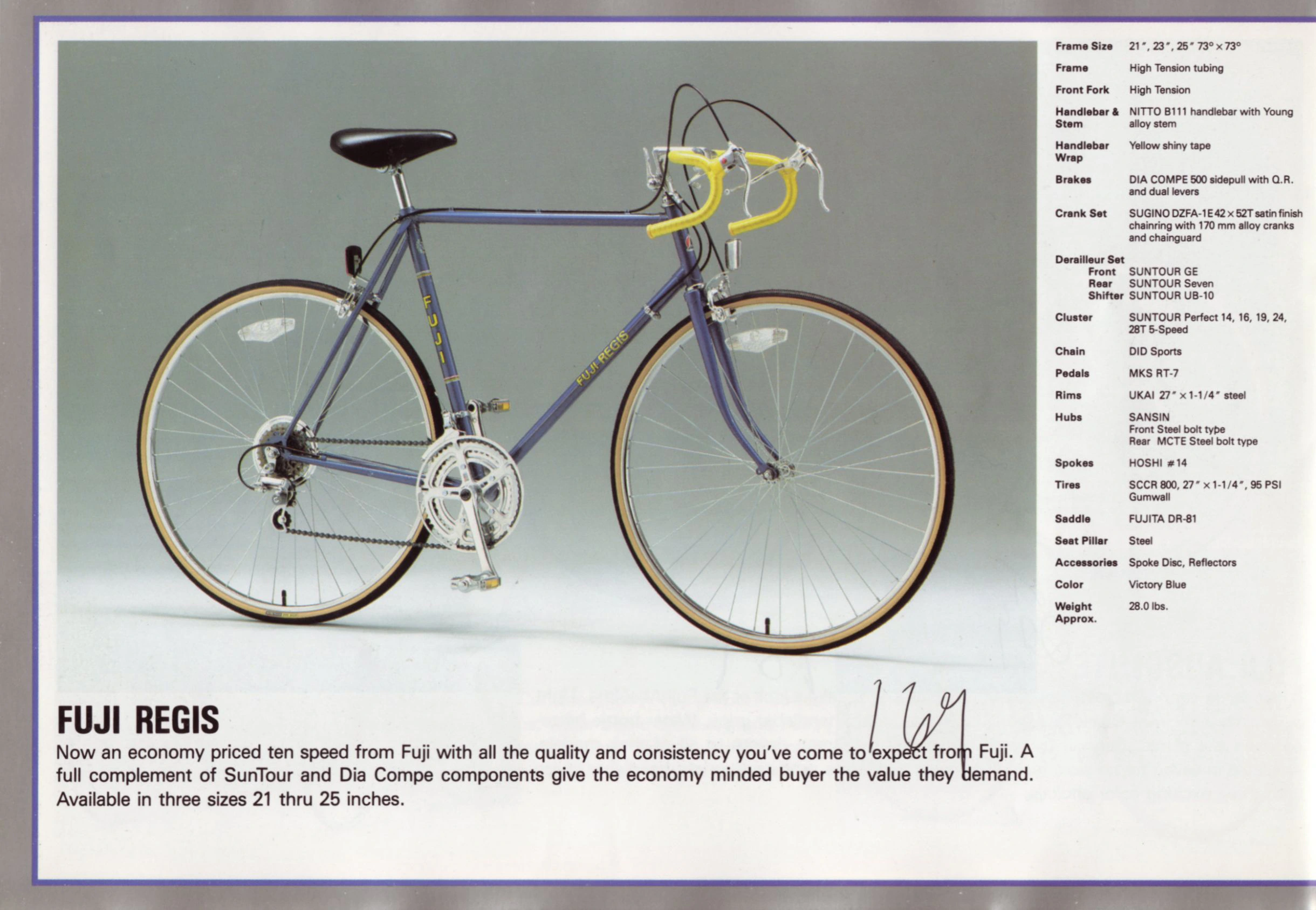

FUJI REGIS
Now an economy priced ten speed from Fuji with all the quality and consistency you’ve come to expect from Fuji. A full complement of SunTour and Dia Compe components give the economy minded buyer the value they demand. Available in three sizes 21 thru 25 inches.

Frame Size: 21″, 23″, 25″ 73° × 73°
Frame: High Tension tubing
Front Fork: High Tension
Handlebar & Stem: NITTO B111 handlebar with Young alloy stem
Handlebar Wrap: Yellow shiny tape
Brakes: DIA COMPE 500 sidepull with Q.R. and dual levers
Crank Set: SUGINO DZFA-1E 42 × 52T satin finish chainring with 170 mm alloy cranks and chainguard
Derailleur Set
Front: SUNTOUR GE
Rear: SUNTOUR Seven
Shifter: SUNTOUR UB-10
Cluster: SUNTOUR Perfect 14, 16, 19, 24, 28T 5-Speed
Chain: DID Sports
Pedals: MKS RT-7
Rims: UKAI 27″ × 1-1/4″ steel
Hubs: SANSIN Front Steel bolt type Rear MCTE Steel bolt type
Spokes: HOSHI #14
Tires: SCCR 800, 27″ × 1-1/4″, 95 PSI Gumwall
Saddle: FUJITA DR-81
Seat Pillar: Steel
Accessories: Spoke Disc, Reflectors
Color: Victory Blue
Weight Approx.: 28.0 lbs.

[The Fuji Regis in Victory Blue, a blue ten-speed road bicycle with yellow handlebar tape and black cable housings, photographed in profile on a gray studio backdrop above its heading and beside its specification column. It carries a black saddle, a guard on the chainrings, gumwall tires and wheel reflectors, with FUJI lettered in yellow down the seat tube and FUJI REGIS on the down tube, and the page has no color bar. A price, “169”, is handwritten in ink above the end of the paragraph, and print from the reverse of the leaf shows through faintly around it.]

— Page 21 —

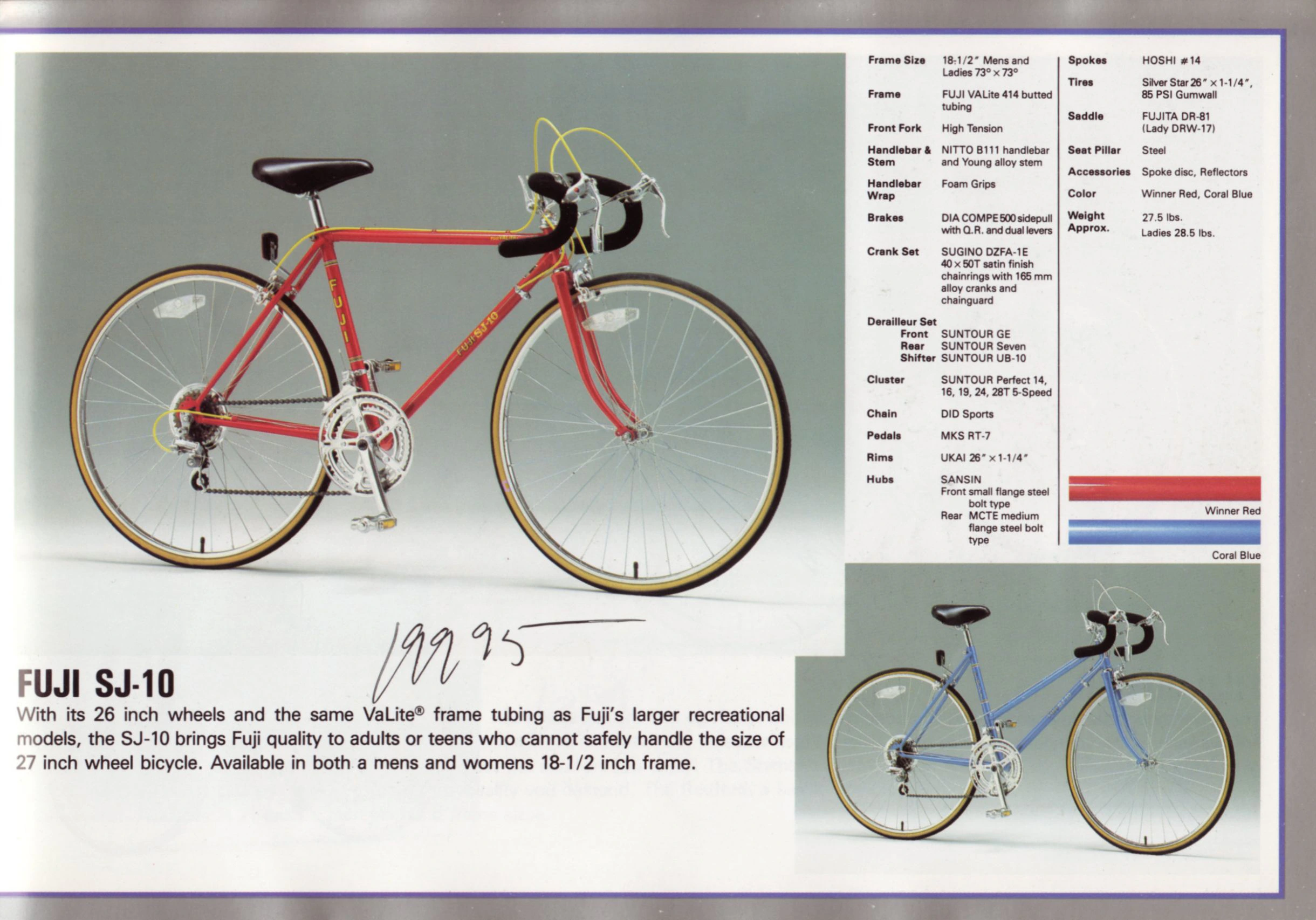

FUJI SJ-10
With its 26 inch wheels and the same VaLite® frame tubing as Fuji’s larger recreational models, the SJ-10 brings Fuji quality to adults or teens who cannot safely handle the size of 27 inch wheel bicycle. Available in both a mens and womens 18-1/2 inch frame.

Frame Size: 18-1/2″ Mens and Ladies 73° × 73°
Frame: FUJI VALite 414 butted tubing
Front Fork: High Tension
Handlebar & Stem: NITTO B111 handlebar and Young alloy stem
Handlebar Wrap: Foam Grips
Brakes: DIA COMPE 500 sidepull with Q.R. and dual levers
Crank Set: SUGINO DZFA-1E 40 × 50T satin finish chainrings with 165 mm alloy cranks and chainguard
Derailleur Set
Front: SUNTOUR GE
Rear: SUNTOUR Seven
Shifter: SUNTOUR UB-10
Cluster: SUNTOUR Perfect 14, 16, 19, 24, 28T 5-Speed
Chain: DID Sports
Pedals: MKS RT-7
Rims: UKAI 26″ × 1-1/4″
Hubs: SANSIN Front small flange steel bolt type Rear MCTE medium flange steel bolt type
Spokes: HOSHI #14
Tires: Silver Star 26″ × 1-1/4″, 85 PSI Gumwall
Saddle: FUJITA DR-81 (Lady DRW-17)
Seat Pillar: Steel
Accessories: Spoke disc, Reflectors
Color: Winner Red, Coral Blue
Weight Approx.: 27.5 lbs. Ladies 28.5 lbs.

Winner Red
Coral Blue

[The Fuji SJ-10, a red ten-speed road bicycle on 26 inch wheels with yellow cable housings and a guard on the chainrings, photographed in profile on a gray studio backdrop above its heading, with the ladies’ SJ-10 mixte in light blue shown in an inset photograph below the specification columns. Both carry black foam handlebar grips, black saddles, gumwall tires and wheel reflectors, the red model with FUJI lettered down the seat tube and FUJI SJ-10 on the down tube, and two color bars label the finishes Winner Red and Coral Blue. A price, “199” with a raised “95” and a long horizontal stroke after it, is handwritten in ink above the paragraph.]

— Page 22 —

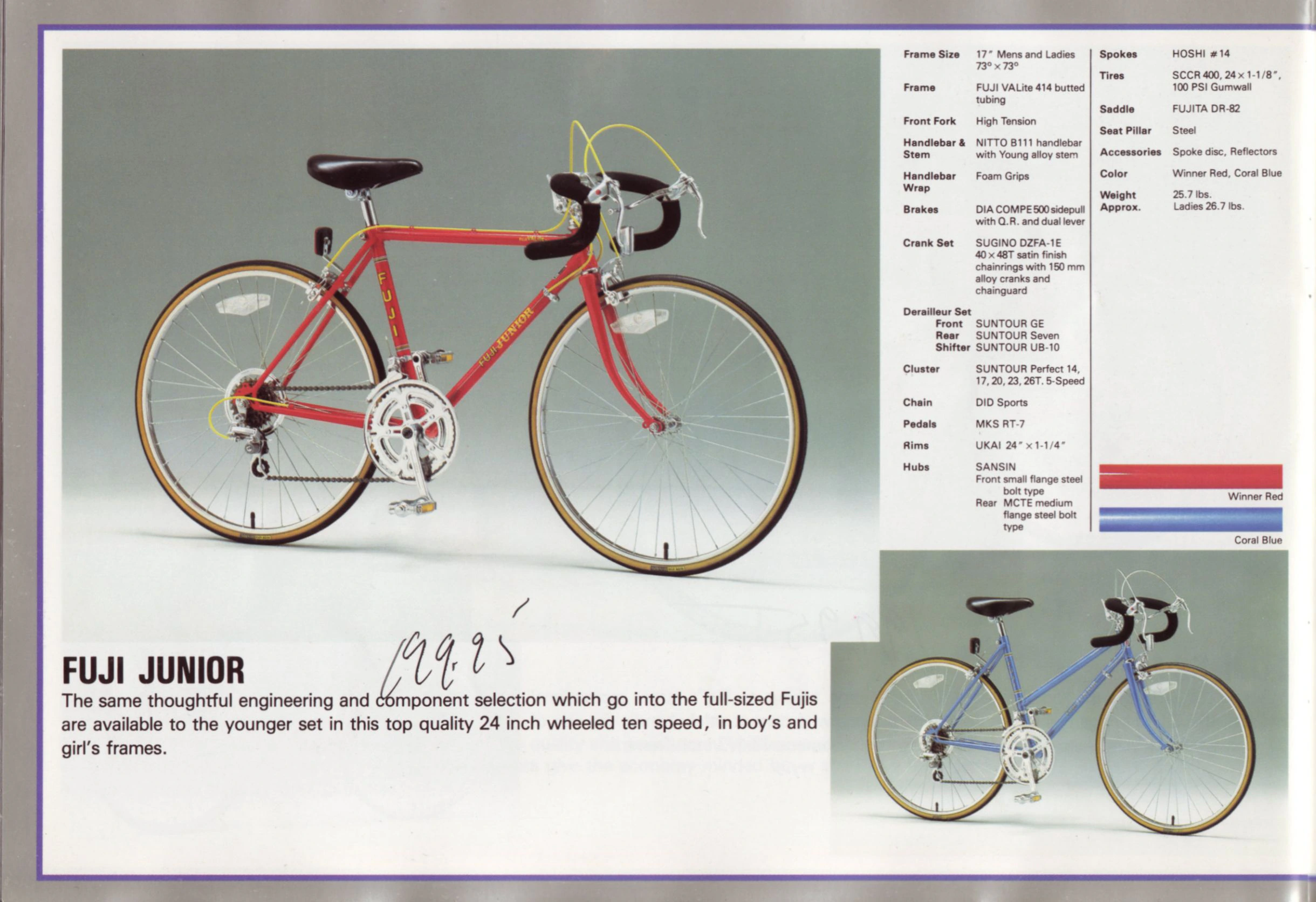

FUJI JUNIOR
The same thoughtful engineering and component selection which go into the full-sized Fujis are available to the younger set in this top quality 24 inch wheeled ten speed, in boy’s and girl’s frames.

Frame Size: 17″ Mens and Ladies 73° × 73°
Frame: FUJI VALite 414 butted tubing
Front Fork: High Tension
Handlebar & Stem: NITTO B111 handlebar with Young alloy stem
Handlebar Wrap: Foam Grips
Brakes: DIA COMPE 500 sidepull with Q.R. and dual lever
Crank Set: SUGINO DZFA-1E 40 × 48T satin finish chainrings with 150 mm alloy cranks and chainguard
Derailleur Set
Front: SUNTOUR GE
Rear: SUNTOUR Seven
Shifter: SUNTOUR UB-10
Cluster: SUNTOUR Perfect 14, 17, 20, 23, 26T. 5-Speed
Chain: DID Sports
Pedals: MKS RT-7
Rims: UKAI 24″ × 1-1/4″
Hubs: SANSIN Front small flange steel bolt type Rear MCTE medium flange steel bolt type
Spokes: HOSHI #14
Tires: SCCR 400, 24 × 1-1/8″, 100 PSI Gumwall
Saddle: FUJITA DR-82
Seat Pillar: Steel
Accessories: Spoke disc, Reflectors
Color: Winner Red, Coral Blue
Weight Approx.: 25.7 lbs. Ladies 26.7 lbs.

Winner Red
Coral Blue

[The Fuji Junior, a red ten-speed boy’s bicycle on 24 inch wheels with yellow cable housings and a guard on the chainrings, photographed in profile on a gray studio backdrop above its heading, with the girl’s Junior mixte in light blue shown in an inset photograph below the specification columns. Both carry black foam handlebar grips, black saddles, gumwall tires and wheel reflectors, the red model with FUJI lettered down the seat tube and FUJI JUNIOR on the down tube, and two color bars label the finishes Winner Red and Coral Blue. A price, “199.95”, is handwritten in ink beside the heading, and print from the reverse of the leaf shows through faintly beside and below the paragraph.]

— Page 23 —

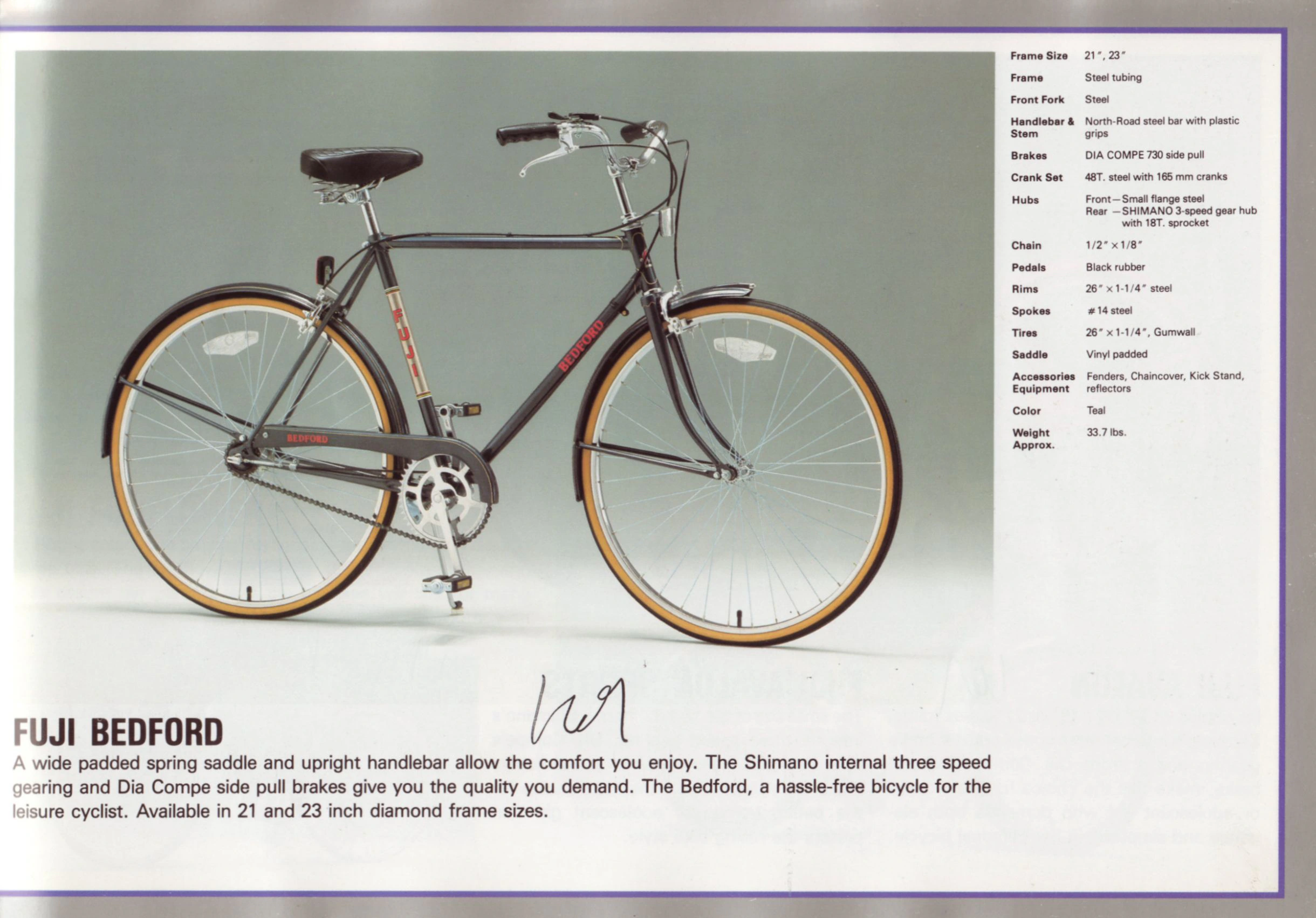

FUJI BEDFORD
A wide padded spring saddle and upright handlebar allow the comfort you enjoy. The Shimano internal three speed gearing and Dia Compe side pull brakes give you the quality you demand. The Bedford, a hassle-free bicycle for the leisure cyclist. Available in 21 and 23 inch diamond frame sizes.

Frame Size: 21″, 23″
Frame: Steel tubing
Front Fork: Steel
Handlebar & Stem: North-Road steel bar with plastic grips
Brakes: DIA COMPE 730 side pull
Crank Set: 48T. steel with 165 mm cranks
Hubs: Front—Small flange steel Rear—SHIMANO 3-speed gear hub with 18T. sprocket
Chain: 1/2″ × 1/8″
Pedals: Black rubber
Rims: 26″ × 1-1/4″ steel
Spokes: #14 steel
Tires: 26″ × 1-1/4″, Gumwall
Saddle: Vinyl padded
Accessories Equipment: Fenders, Chaincover, Kick Stand, reflectors
Color: Teal
Weight Approx.: 33.7 lbs.

[The Fuji Bedford in Teal, a dark three-speed roadster with a diamond frame, upright North-Road handlebars with black grips and a padded spring saddle, photographed in profile on a gray studio backdrop above its heading and beside its specification column. It has full fenders, a chaincover lettered BEDFORD, a kickstand, gumwall tires and wheel reflectors, with FUJI in red on a cream seat tube panel and BEDFORD in red on the down tube, and the page has no color bar. A price, “169”, is handwritten in ink above the paragraph, and mirrored headings and text from the reverse of the leaf show through faintly at the right of the paragraph.]

— Page 24 —

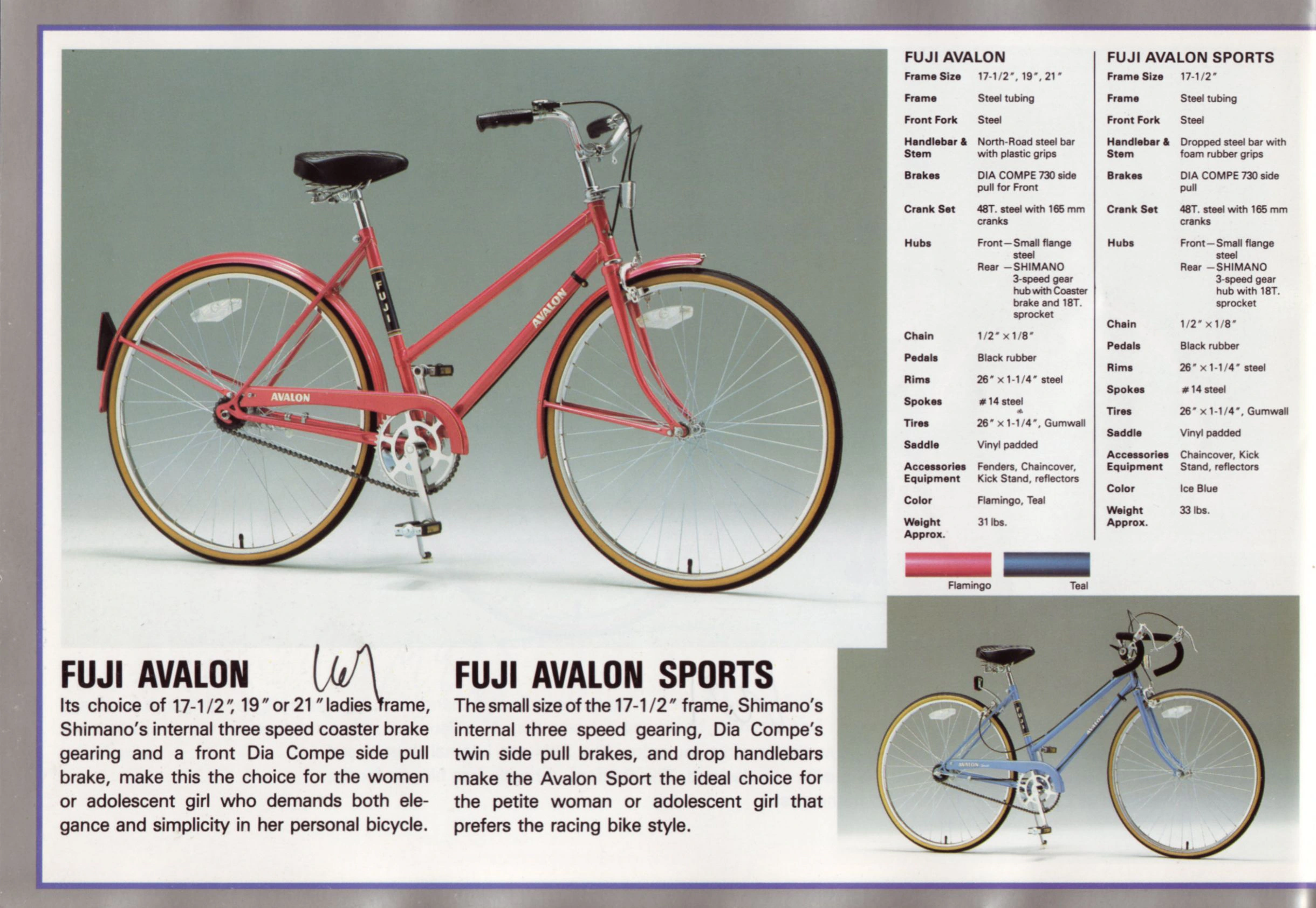

FUJI AVALON
Its choice of 17-1/2″, 19″ or 21″ ladies frame, Shimano’s internal three speed coaster brake gearing and a front Dia Compe side pull brake, make this the choice for the women or adolescent girl who demands both elegance and simplicity in her personal bicycle.

FUJI AVALON SPORTS
The small size of the 17-1/2″ frame, Shimano’s internal three speed gearing, Dia Compe’s twin side pull brakes, and drop handlebars make the Avalon Sport the ideal choice for the petite woman or adolescent girl that prefers the racing bike style.

FUJI AVALON
Frame Size: 17-1/2″, 19″, 21″
Frame: Steel tubing
Front Fork: Steel
Handlebar & Stem: North-Road steel bar with plastic grips
Brakes: DIA COMPE 730 side pull for Front
Crank Set: 48T. steel with 165 mm cranks
Hubs: Front—Small flange steel Rear—SHIMANO 3-speed gear hub with Coaster brake and 18T. sprocket
Chain: 1/2″ × 1/8″
Pedals: Black rubber
Rims: 26″ × 1-1/4″ steel
Spokes: #14 steel
Tires: 26″ × 1-1/4″, Gumwall
Saddle: Vinyl padded
Accessories Equipment: Fenders, Chaincover, Kick Stand, reflectors
Color: Flamingo, Teal
Weight Approx.: 31 lbs.

FUJI AVALON SPORTS
Frame Size: 17-1/2″
Frame: Steel tubing
Front Fork: Steel
Handlebar & Stem: Dropped steel bar with foam rubber grips
Brakes: DIA COMPE 730 side pull
Crank Set: 48T. steel with 165 mm cranks
Hubs: Front—Small flange steel Rear—SHIMANO 3-speed gear hub with 18T. sprocket
Chain: 1/2″ × 1/8″
Pedals: Black rubber
Rims: 26″ × 1-1/4″ steel
Spokes: #14 steel
Tires: 26″ × 1-1/4″, Gumwall
Saddle: Vinyl padded
Accessories Equipment: Chaincover, Kick Stand, reflectors
Color: Ice Blue
Weight Approx.: 33 lbs.

Flamingo
Teal

[The Fuji Avalon in pink, a ladies’ three-speed bicycle with a step-through frame, upright North-Road handlebars with black grips and a padded spring saddle, photographed in profile on a gray studio backdrop above its heading, with the Avalon Sports in light blue, a ladies’ frame with drop handlebars and black foam grips, shown in an inset photograph below the two specification columns. The Avalon has matching pink fenders, a chaincover lettered AVALON, a kickstand, gumwall tires and reflectors, with FUJI on a black seat tube panel and AVALON on the down tube, and two color bars under the Avalon column label the finishes Flamingo and Teal, with none for the Ice Blue of the Avalon Sports. A price, “169”, is handwritten in ink beside the FUJI AVALON heading, and nothing is written beside the Avalon Sports.]

— Page 25 —

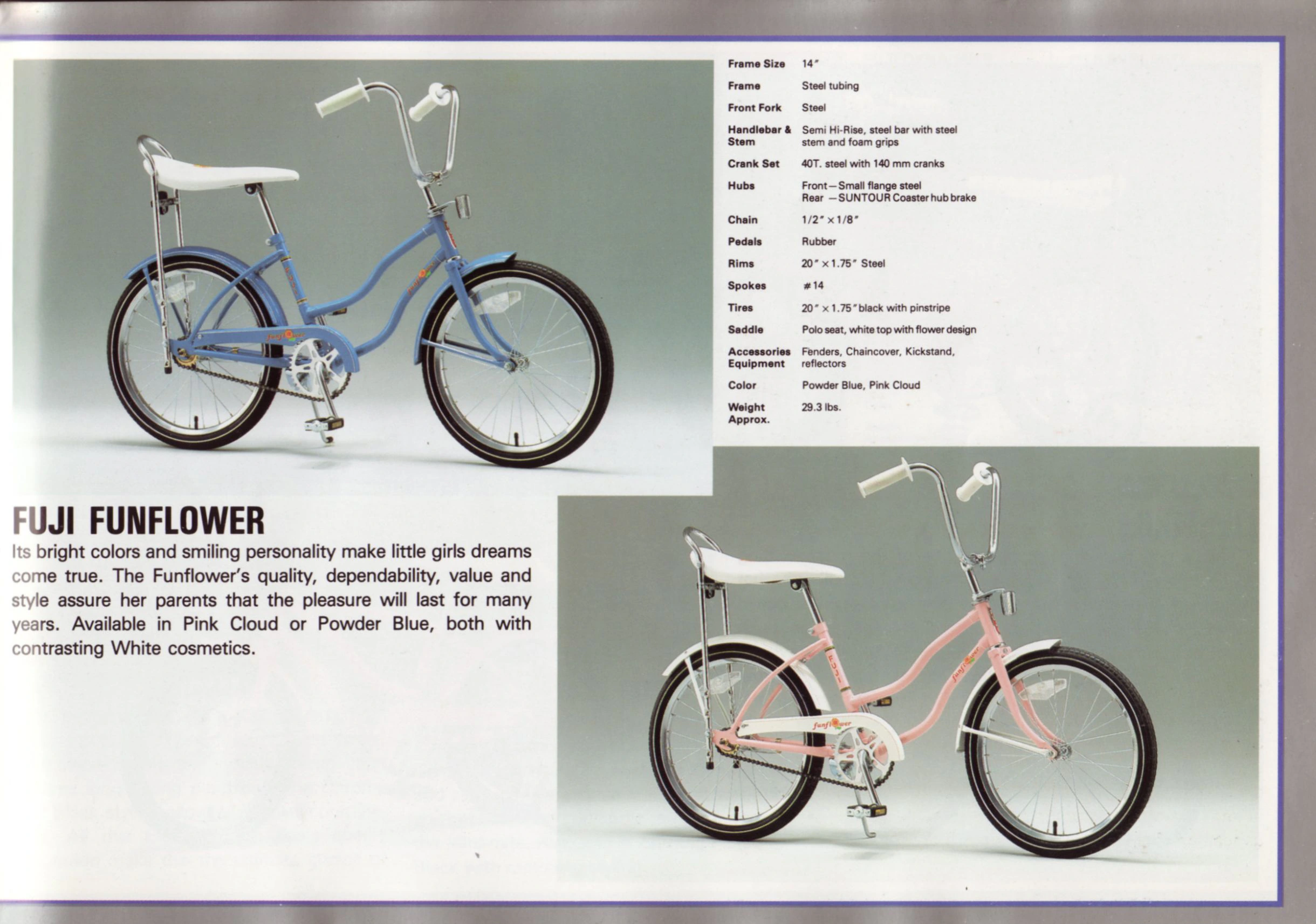

FUJI FUNFLOWER
Its bright colors and smiling personality make little girls dreams come true. The Funflower’s quality, dependability, value and style assure her parents that the pleasure will last for many years. Available in Pink Cloud or Powder Blue, both with contrasting White cosmetics.

Frame Size: 14″
Frame: Steel tubing
Front Fork: Steel
Handlebar & Stem: Semi Hi-Rise, steel bar with steel stem and foam grips
Crank Set: 40T. steel with 140 mm cranks
Hubs: Front—Small flange steel Rear —SUNTOUR Coaster hub brake
Chain: 1/2″ × 1/8″
Pedals: Rubber
Rims: 20″ × 1.75″ Steel
Spokes: #14
Tires: 20″ × 1.75″ black with pinstripe
Saddle: Polo seat, white top with flower design
Accessories Equipment: Fenders, Chaincover, Kickstand, reflectors
Color: Powder Blue, Pink Cloud
Weight Approx.: 29.3 lbs.

[The Fuji Funflower in its two colors, Powder Blue and Pink Cloud, two 20 inch girls’ bicycles with curved step-through frames photographed on gray studio backdrops beside the specification column. Each has a white polo seat on a chrome sissy bar, semi hi-rise handlebars with white foam grips and a coaster brake; the Powder Blue bicycle has matching blue fenders and chain cover, while the Pink Cloud bicycle has white fenders and a white chain cover lettered funflower.]

— Page 26 —

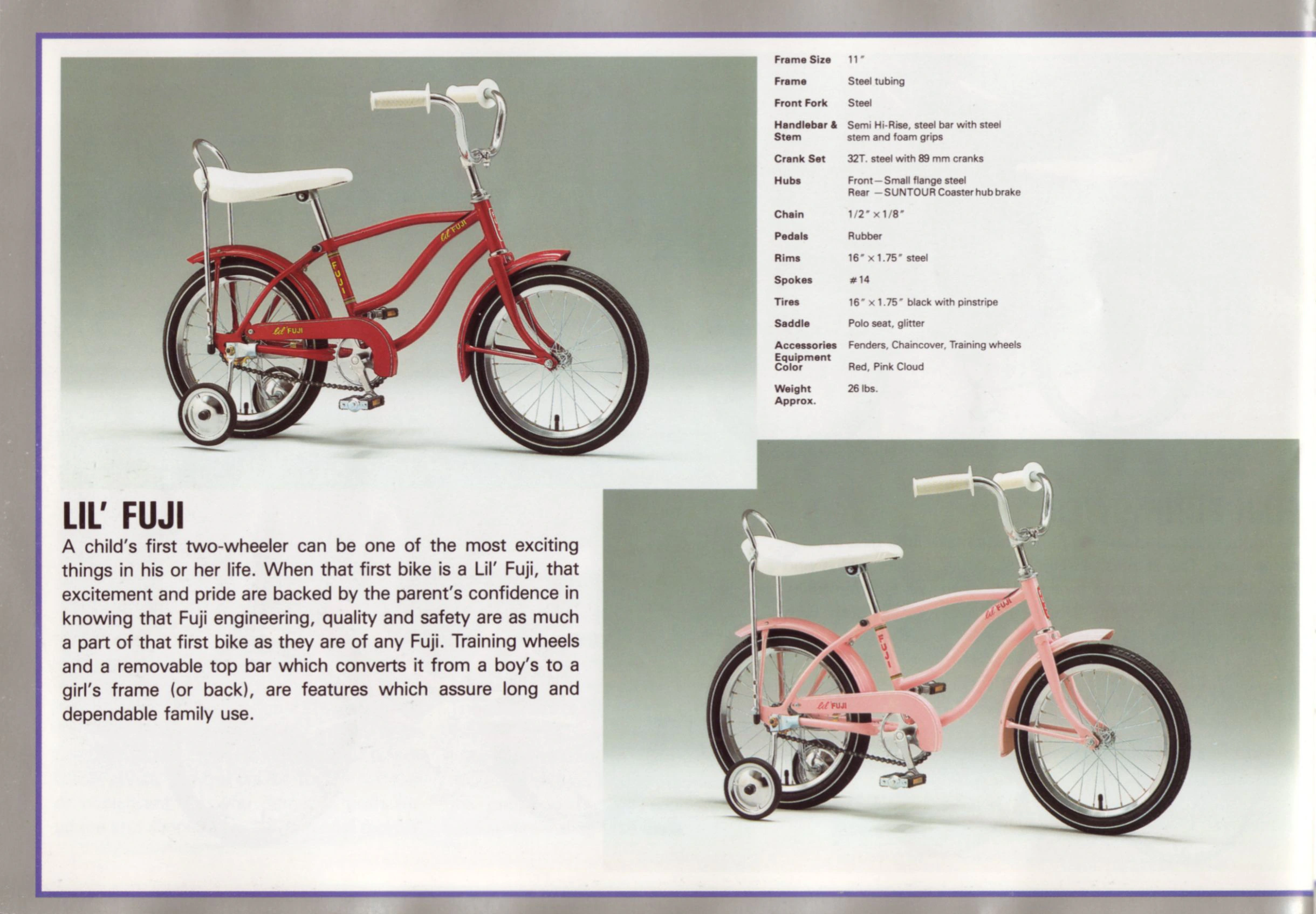

LIL’ FUJI
A child’s first two-wheeler can be one of the most exciting things in his or her life. When that first bike is a Lil’ Fuji, that excitement and pride are backed by the parent’s confidence in knowing that Fuji engineering, quality and safety are as much a part of that first bike as they are of any Fuji. Training wheels and a removable top bar which converts it from a boy’s to a girl’s frame (or back), are features which assure long and dependable family use.

Frame Size: 11″
Frame: Steel tubing
Front Fork: Steel
Handlebar & Stem: Semi Hi-Rise, steel bar with steel stem and foam grips
Crank Set: 32T. steel with 89 mm cranks
Hubs: Front—Small flange steel Rear —SUNTOUR Coaster hub brake
Chain: 1/2″ × 1/8″
Pedals: Rubber
Rims: 16″ × 1.75″ steel
Spokes: #14
Tires: 16″ × 1.75″ black with pinstripe
Saddle: Polo seat, glitter
Accessories Equipment: Fenders, Chaincover, Training wheels
Color: Red, Pink Cloud
Weight Approx.: 26 lbs.

[The Lil’ Fuji in its two colors, Red and Pink Cloud, two 16 inch child’s bicycles with training wheels photographed on gray studio backdrops beside the specification column. Each has a curved frame lettered FUJI on the seat tube, matching fenders and chain cover, a white polo seat on a chrome sissy bar and semi hi-rise handlebars with white foam grips.]

— Page 27 —

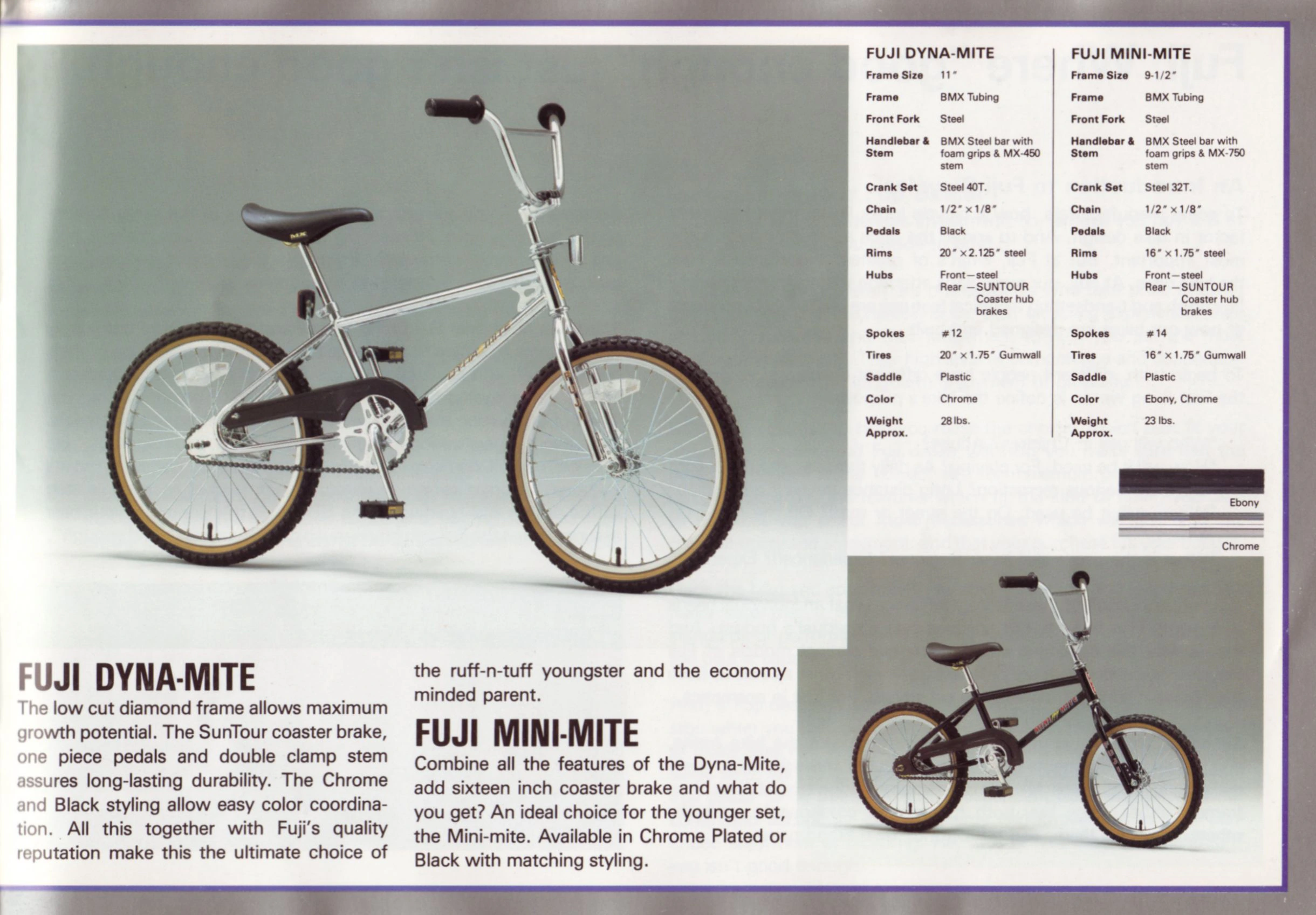

FUJI DYNA-MITE
The low cut diamond frame allows maximum growth potential. The SunTour coaster brake, one piece pedals and double clamp stem assures long-lasting durability. The Chrome and Black styling allow easy color coordination. All this together with Fuji’s quality reputation make this the ultimate choice of the ruff-n-tuff youngster and the economy minded parent.

FUJI MINI-MITE
Combine all the features of the Dyna-Mite, add sixteen inch coaster brake and what do you get? An ideal choice for the younger set, the Mini-mite. Available in Chrome Plated or Black with matching styling.

FUJI DYNA-MITE
Frame Size: 11″
Frame: BMX Tubing
Front Fork: Steel
Handlebar & Stem: BMX Steel bar with foam grips & MX-450 stem
Crank Set: Steel 40T.
Chain: 1/2″ × 1/8″
Pedals: Black
Rims: 20″ × 2.125″ steel
Hubs: Front—steel Rear —SUNTOUR Coaster hub brakes
Spokes: #12
Tires: 20″ × 1.75″ Gumwall
Saddle: Plastic
Color: Chrome
Weight Approx.: 28 lbs.

FUJI MINI-MITE
Frame Size: 9-1/2″
Frame: BMX Tubing
Front Fork: Steel
Handlebar & Stem: BMX Steel bar with foam grips & MX-750 stem
Crank Set: Steel 32T.
Chain: 1/2″ × 1/8″
Pedals: Black
Rims: 16″ × 1.75″ steel
Hubs: Front—steel Rear —SUNTOUR Coaster hub brakes
Spokes: #14
Tires: 16″ × 1.75″ Gumwall
Saddle: Plastic
Color: Ebony, Chrome
Weight Approx.: 23 lbs.

Ebony
Chrome

[The Fuji Dyna-Mite in Chrome, a 20 inch BMX-style child’s bicycle with a low chrome-plated diamond frame, a black plastic saddle, a black chain guard, a BMX handlebar with black grips and gumwall tires, photographed on a gray studio backdrop. A smaller photograph at the lower right shows the Fuji Mini-Mite in Ebony, a 16 inch version with a black frame, chrome handlebar and gumwall tires; the two specification lists stand side by side at the upper right above two color chips labeled Ebony and Chrome.]

— Page 28 —

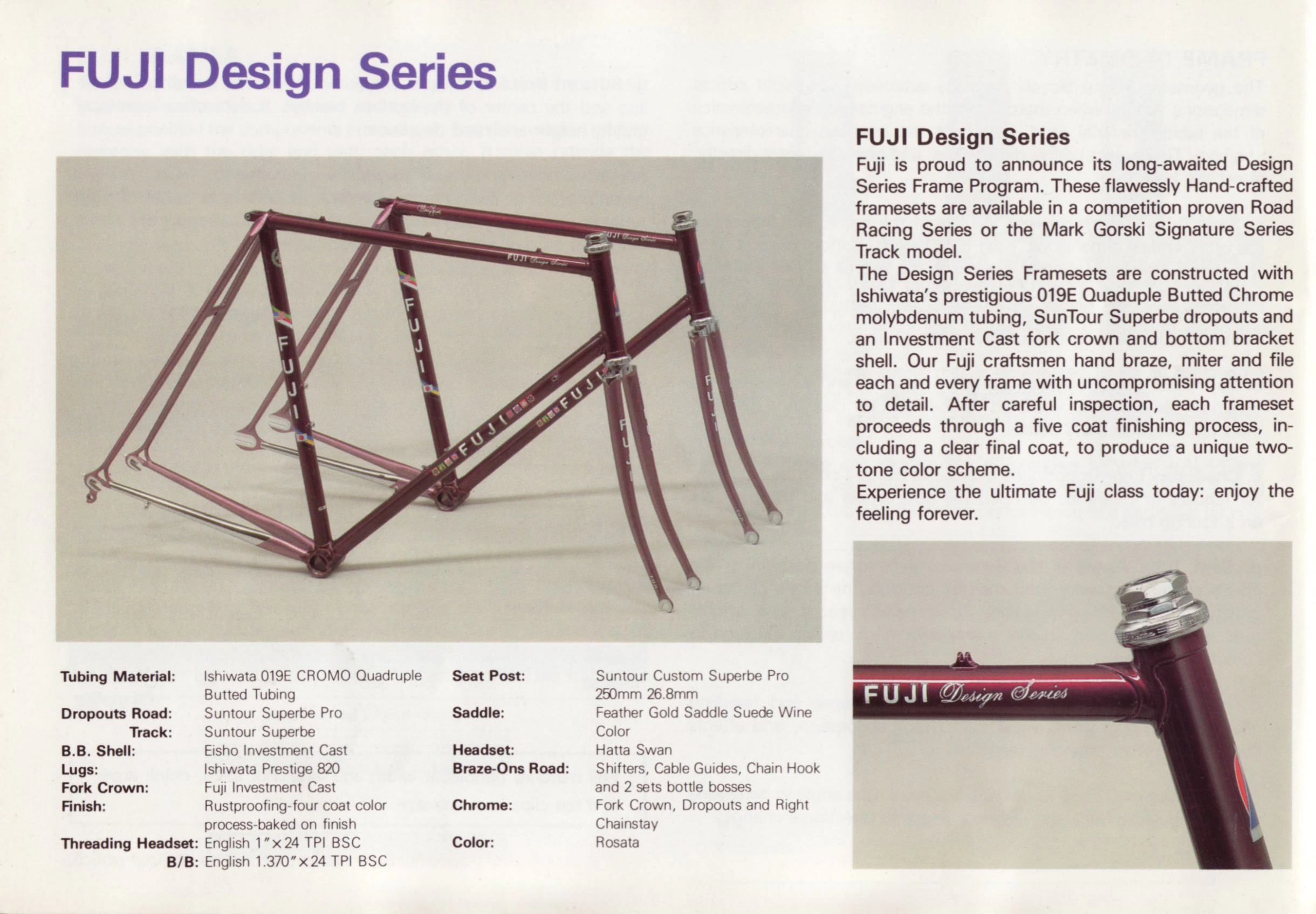

FUJI Design Series

FUJI Design Series
Fuji is proud to announce its long-awaited Design Series Frame Program. These flawessly Hand-crafted framesets are available in a competition proven Road Racing Series or the Mark Gorski Signature Series Track model.
The Design Series Framesets are constructed with Ishiwata’s prestigious 019E Quaduple Butted Chrome molybdenum tubing, SunTour Superbe dropouts and an Investment Cast fork crown and bottom bracket shell. Our Fuji craftsmen hand braze, miter and file each and every frame with uncompromising attention to detail. After careful inspection, each frameset proceeds through a five coat finishing process, including a clear final coat, to produce a unique two-tone color scheme.
Experience the ultimate Fuji class today: enjoy the feeling forever.

Tubing Material: Ishiwata 019E CROMO Quadruple Butted Tubing
Dropouts Road: Suntour Superbe Pro
Track: Suntour Superbe
B.B. Shell: Eisho Investment Cast
Lugs: Ishiwata Prestige 820
Fork Crown: Fuji Investment Cast
Finish: Rustproofing-four coat color process-baked on finish
Threading Headset: English 1″ × 24 TPI BSC
B/B: English 1.370″ × 24 TPI BSC
Seat Post: Suntour Custom Superbe Pro 250mm 26.8mm
Saddle: Feather Gold Saddle Suede Wine Color
Headset: Hatta Swan
Braze-Ons Road: Shifters, Cable Guides, Chain Hook and 2 sets bottle bosses
Chrome: Fork Crown, Dropouts and Right Chainstay
Color: Rosata

[The Fuji Design Series in Rosata, two lugged framesets with forks in a two-tone wine and pink finish, photographed side by side on a gray studio backdrop under the large purple heading, with FUJI lettered down the seat tubes and along the down tubes. A close-up photograph at the lower right shows the chrome headset and the top tube lettered FUJI Design Series, and the specification list runs in two columns below the main photograph. Mirrored text from the reverse of the leaf shows through faintly in the white margins, including the heading FRAME GEOMETRY at the upper right.]

— Page 29 —

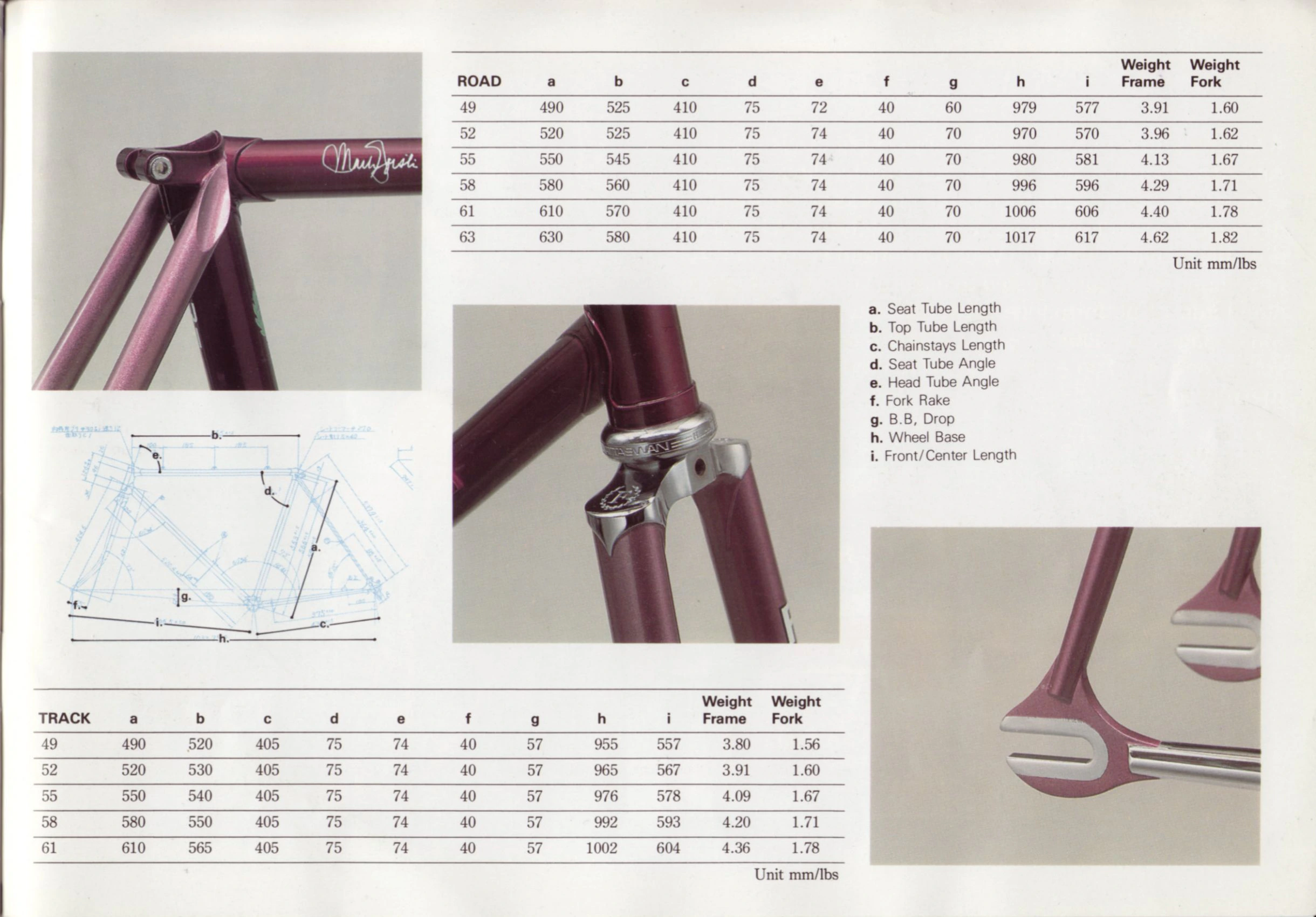

ROAD / 49: a — 490; b — 525; c — 410; d — 75; e — 72; f — 40; g — 60; h — 979; i — 577; Weight Frame — 3.91; Weight Fork — 1.60
ROAD / 52: a — 520; b — 525; c — 410; d — 75; e — 74; f — 40; g — 70; h — 970; i — 570; Weight Frame — 3.96; Weight Fork — 1.62
ROAD / 55: a — 550; b — 545; c — 410; d — 75; e — 74; f — 40; g — 70; h — 980; i — 581; Weight Frame — 4.13; Weight Fork — 1.67
ROAD / 58: a — 580; b — 560; c — 410; d — 75; e — 74; f — 40; g — 70; h — 996; i — 596; Weight Frame — 4.29; Weight Fork — 1.71
ROAD / 61: a — 610; b — 570; c — 410; d — 75; e — 74; f — 40; g — 70; h — 1006; i — 606; Weight Frame — 4.40; Weight Fork — 1.78
ROAD / 63: a — 630; b — 580; c — 410; d — 75; e — 74; f — 40; g — 70; h — 1017; i — 617; Weight Frame — 4.62; Weight Fork — 1.82
Unit mm/lbs

a. Seat Tube Length
b. Top Tube Length
c. Chainstays Length
d. Seat Tube Angle
e. Head Tube Angle
f. Fork Rake
g. B.B, Drop
h. Wheel Base
i. Front/Center Length

b.
e.
d.
a.
g.
f.
i.
c.
h.

TRACK / 49: a — 490; b — 520; c — 405; d — 75; e — 74; f — 40; g — 57; h — 955; i — 557; Weight Frame — 3.80; Weight Fork — 1.56
TRACK / 52: a — 520; b — 530; c — 405; d — 75; e — 74; f — 40; g — 57; h — 965; i — 567; Weight Frame — 3.91; Weight Fork — 1.60
TRACK / 55: a — 550; b — 540; c — 405; d — 75; e — 74; f — 40; g — 57; h — 976; i — 578; Weight Frame — 4.09; Weight Fork — 1.67
TRACK / 58: a — 580; b — 550; c — 405; d — 75; e — 74; f — 40; g — 57; h — 992; i — 593; Weight Frame — 4.20; Weight Fork — 1.71
TRACK / 61: a — 610; b — 565; c — 405; d — 75; e — 74; f — 40; g — 57; h — 1002; i — 604; Weight Frame — 4.36; Weight Fork — 1.78
Unit mm/lbs

[Frame geometry tables for road and track framesets, set beside three close-up photographs of a wine-colored lugged frame and a blue engineering drawing of the frame overprinted with the letters a to i. The photographs show the seat cluster with a white script signature on the top tube, the chrome fork crown and headset, and the chrome-faced dropouts; the drawing’s own small annotations in Japanese are too small to read at this resolution.]
