Fuji 1980 Catalog — No. 10 Edition, with the Fuji Factory, the Monterey and the Feather BMX

— Page 1 (front cover) —
FUJI

No. 10 Edition

[illegible] 77

[The front cover of the Fuji No. 10 Edition catalog: the FUJI wordmark in tan letters outlined in dark brown at the lower left of a violet ground, beside a white-framed abstract painting of a hazy landscape in pale gray with bands of yellow, orange, green, blue and violet, above a thin tan and navy rule. The line “[illegible] 77” is the painter’s signature reproduced at the lower left of the painting, an illegible stroke followed by “77”. A dark ink smear at the lower right corner of the painting runs across the white frame onto the violet border, and the cover shows wear along its left edge and a small crease at the top.]

— Page 2 —

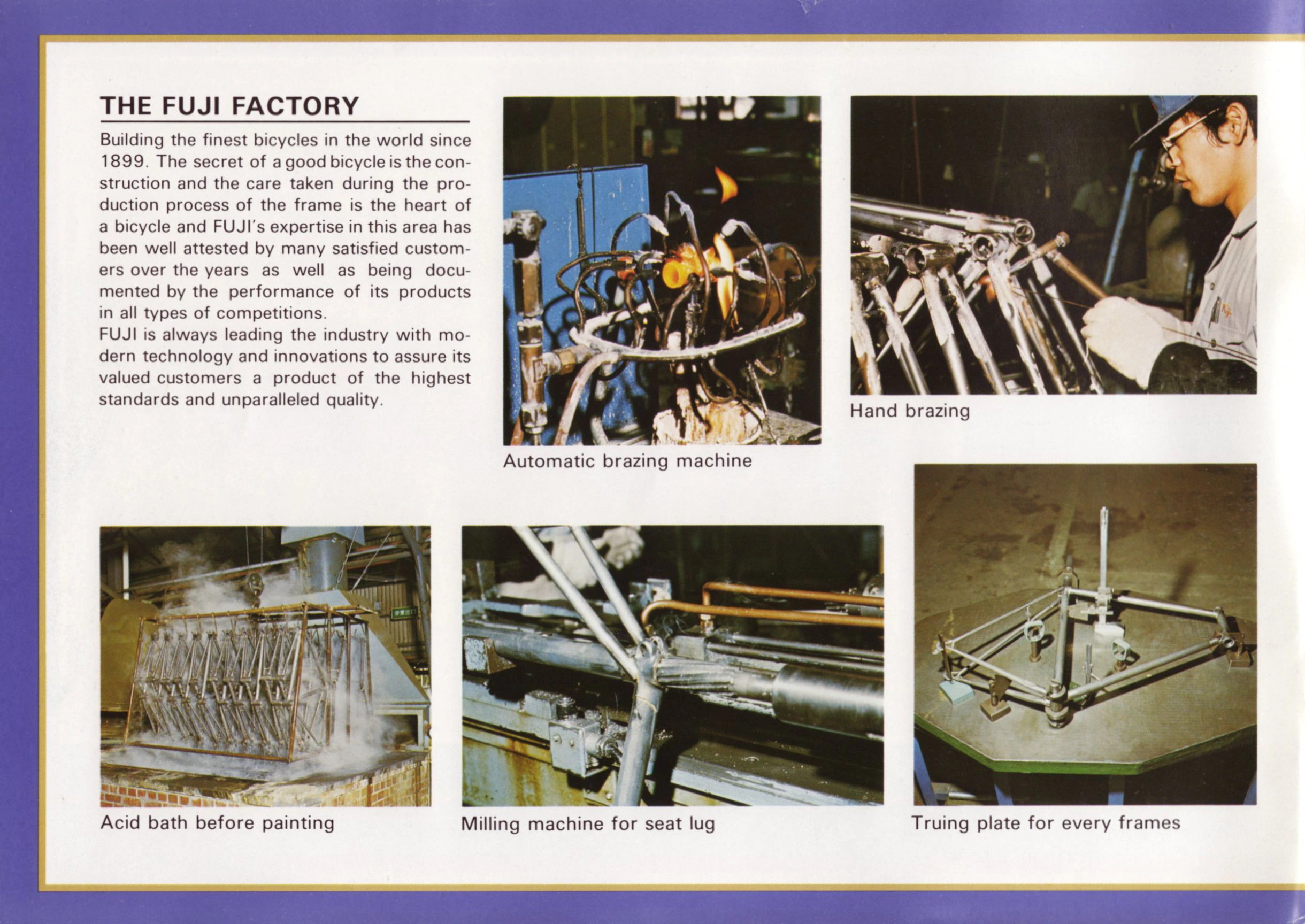

THE FUJI FACTORY

Building the finest bicycles in the world since 1899. The secret of a good bicycle is the construction and the care taken during the production process of the frame is the heart of a bicycle and FUJI’s expertise in this area has been well attested by many satisfied customers over the years as well as being documented by the performance of its products in all types of competitions.

FUJI is always leading the industry with modern technology and innovations to assure its valued customers a product of the highest standards and unparalleled quality.

Automatic brazing machine

Hand brazing

Acid bath before painting

Milling machine for seat lug

Truing plate for every frames

[Five captioned color photographs of the Fuji factory on a white panel inside a violet border: a ring of gas burners brazing a frame joint in an automatic brazing machine, a worker in a cap and glasses hand brazing a rack of lugged frames, a crate of bare frames lowered into a steaming acid bath, a lugged frame clamped in a milling machine and a bare frame held in jigs on an octagonal truing plate. The heading and two paragraphs sit at the upper left.]

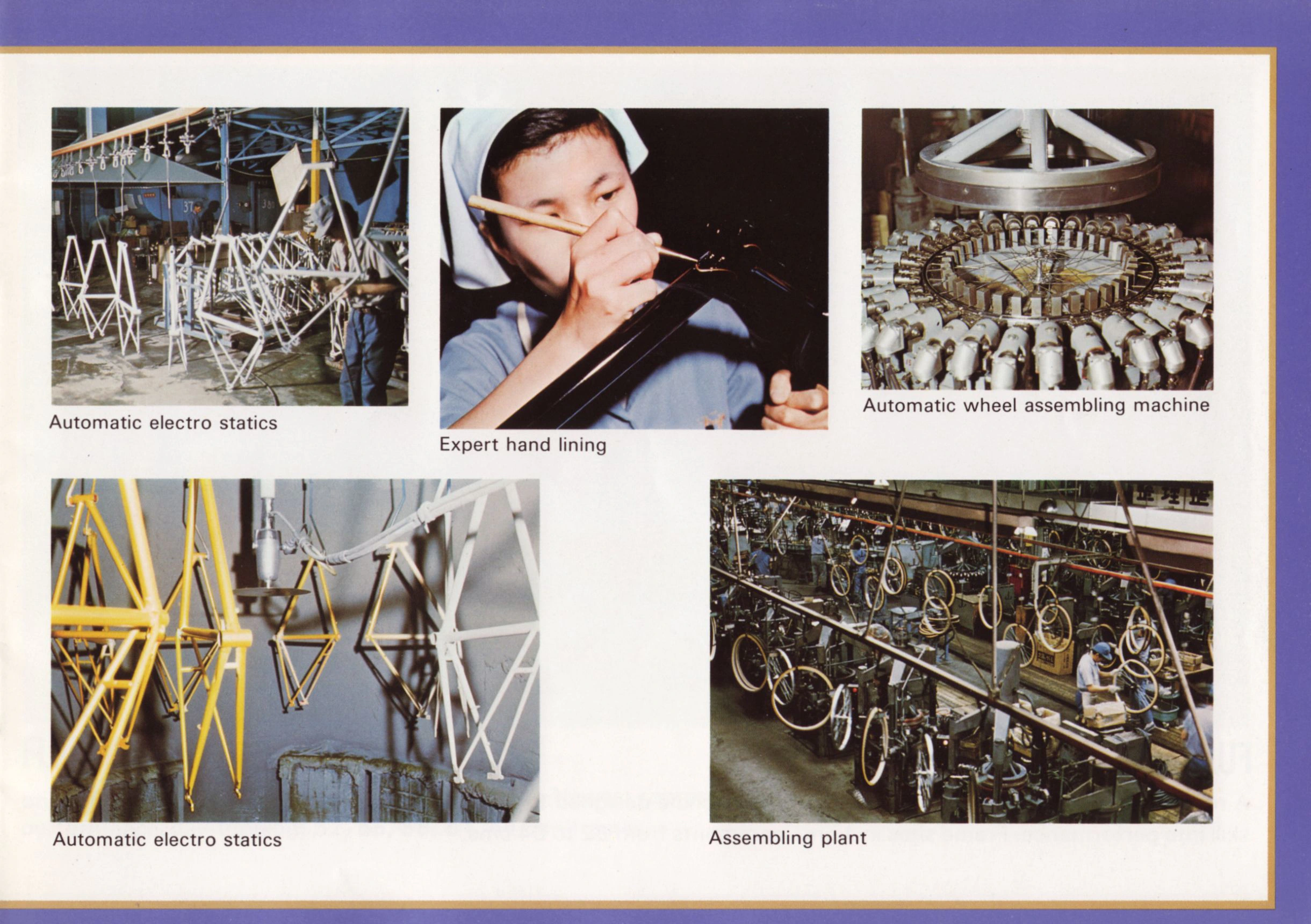

— Page 3 —
Automatic electro statics

Expert hand lining

Automatic wheel assembling machine

Automatic electro statics

Assembling plant

[Five captioned color photographs of the Fuji factory on a white panel inside a violet border: workers among white frames hanging from an overhead conveyor in the electrostatic paint line, a woman in a white head scarf hand lining a black frame tube with a fine brush, a circular automatic wheel assembling machine with a ring of spoke heads around a rim, yellow and white frames hanging beside a spray head and a long assembly line of bicycles and wheels with workers at their stations. Faint lettering from another page shows through the white panel at the lower right and is not part of this page.]

— Page 4 —

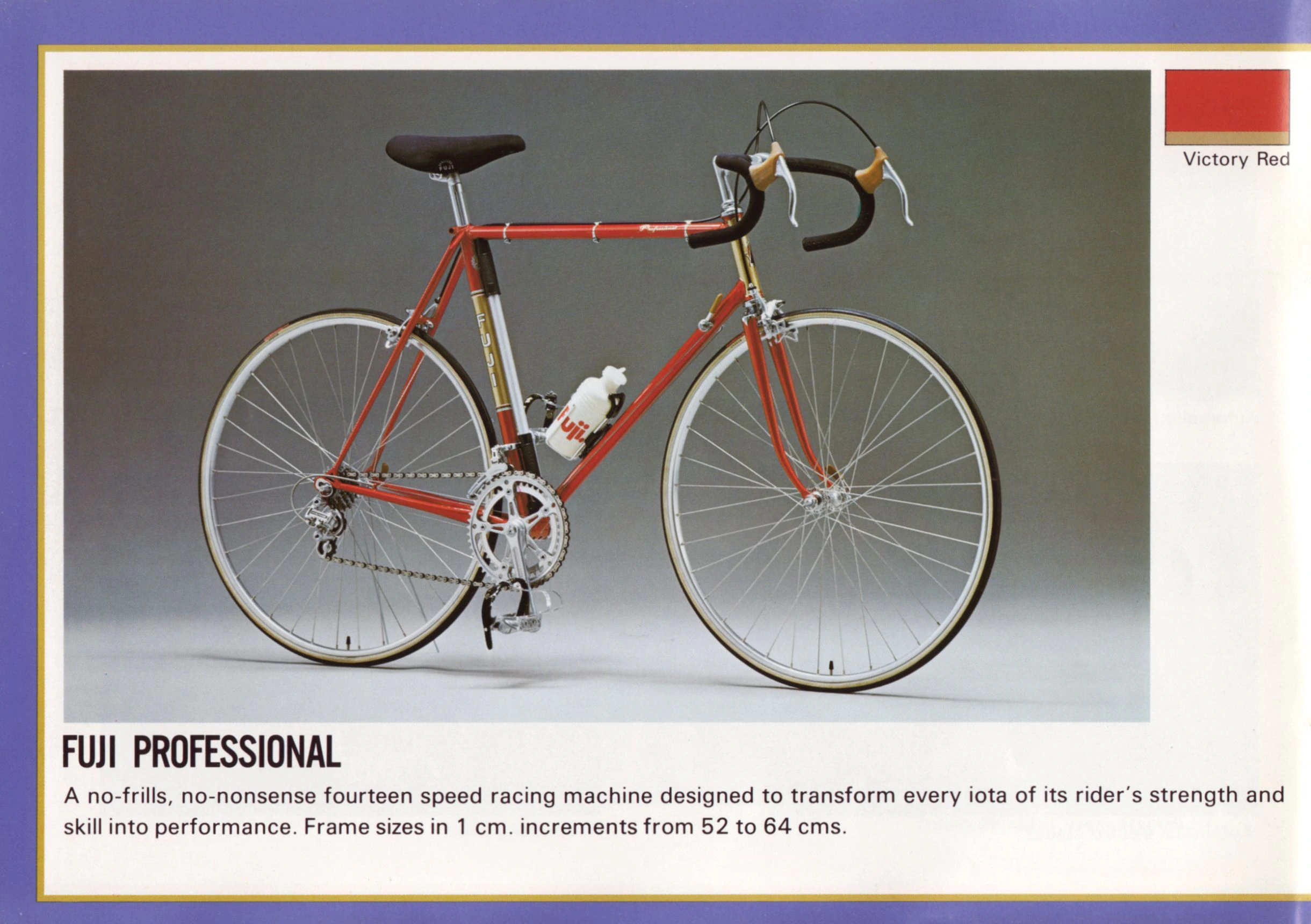

FUJI PROFESSIONAL

A no-frills, no-nonsense fourteen speed racing machine designed to transform every iota of its rider’s strength and skill into performance. Frame sizes in 1 cm. increments from 52 to 64 cms.

Victory Red

[The Fuji Professional in Victory Red, a road racing bicycle with a gold head tube and a gold seat tube panel lettered FUJI, photographed on a gray studio backdrop with black handlebar tape, tan brake hoods, a black saddle, a black frame pump behind the seat tube, toe clips and a white Fuji water bottle. The heading and paragraph run below the photograph, with a single red and gold color chip at the upper right.]

— Page 5 —

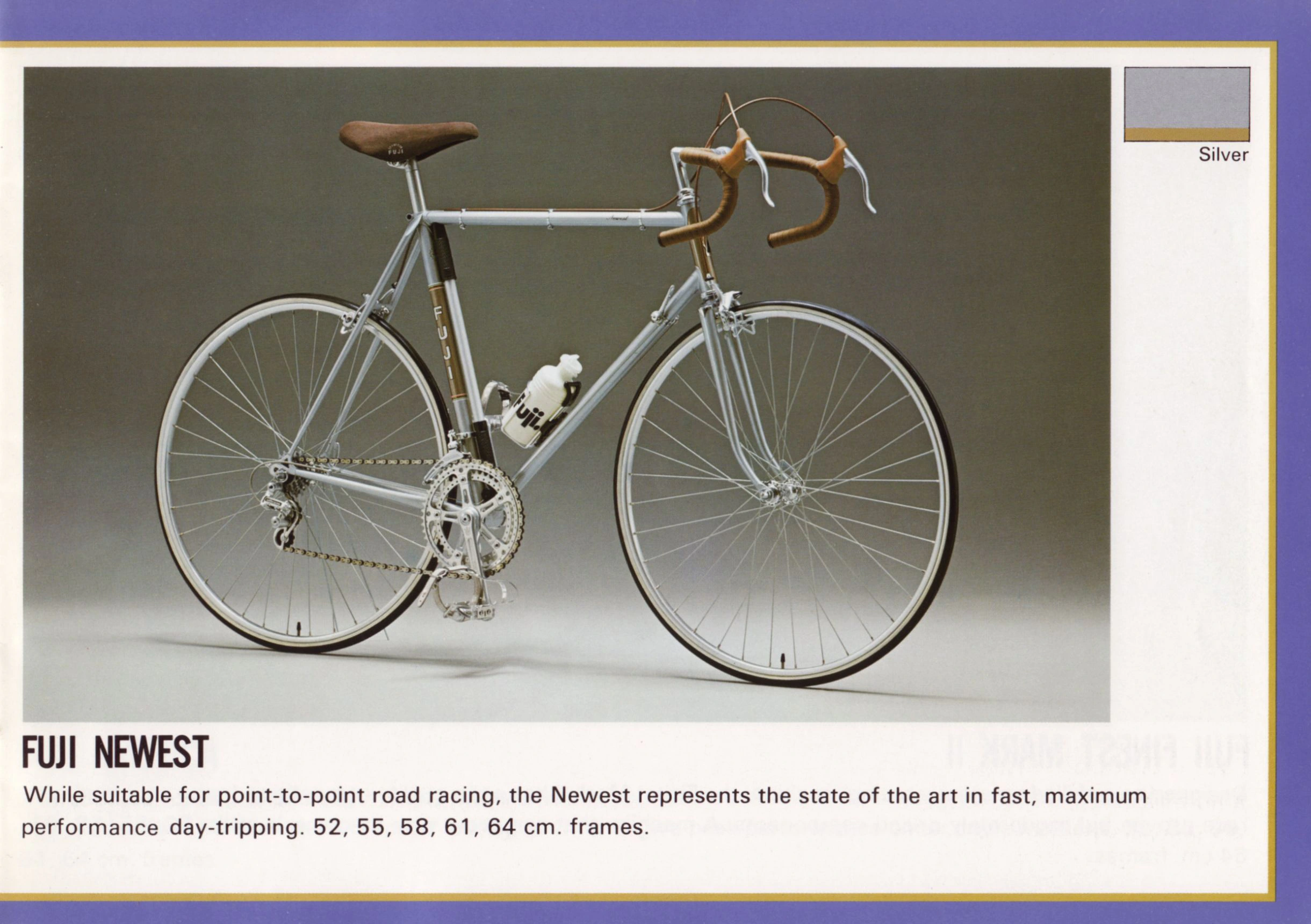

FUJI NEWEST

While suitable for point-to-point road racing, the Newest represents the state of the art in fast, maximum performance day-tripping. 52, 55, 58, 61, 64 cm. frames.

Silver

[The Fuji Newest in Silver, a road bicycle with a bronze head tube and a bronze seat tube panel lettered FUJI, photographed on a gray studio backdrop with brown handlebar tape, tan brake hoods, a brown suede saddle, a black frame pump behind the seat tube, toe clips and a white Fuji water bottle. The heading and paragraph run below the photograph, with a single silver and gold color chip at the upper right; the heading of the Finest Mark II page shows through faintly at the lower right.]

— Page 6 —

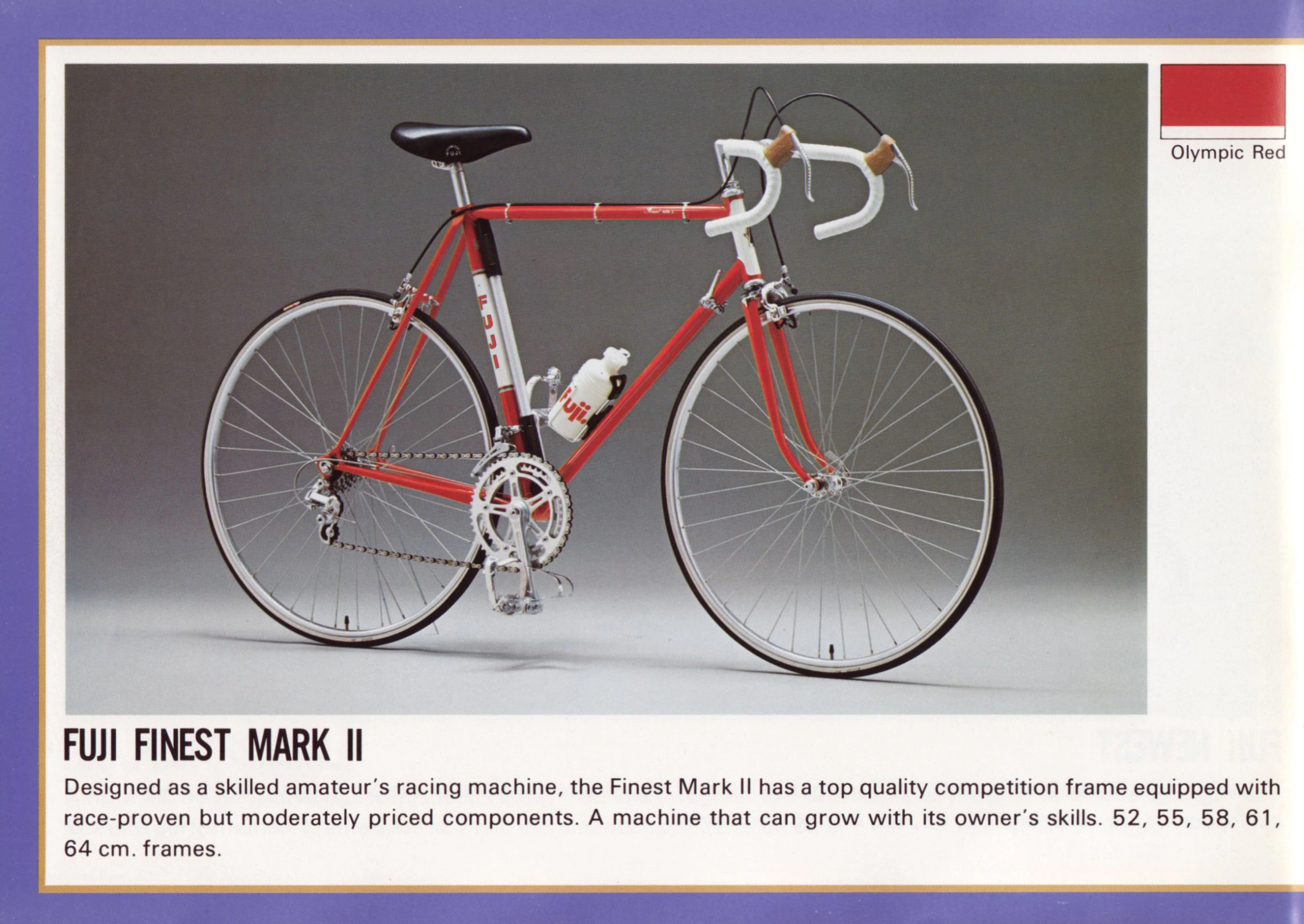

FUJI FINEST MARK II

Designed as a skilled amateur’s racing machine, the Finest Mark II has a top quality competition frame equipped with race-proven but moderately priced components. A machine that can grow with its owner’s skills. 52, 55, 58, 61, 64 cm. frames.

Olympic Red

[The Fuji Finest Mark II in Olympic Red, a road racing bicycle with a white head tube and a white seat tube panel lettered FUJI in red, photographed on a gray studio backdrop with white handlebar tape, tan brake hoods, a black saddle, a black frame pump behind the seat tube, toe clips and a white Fuji water bottle. The heading and paragraph run below the photograph, with a single red and white color chip at the upper right; the heading of the Newest page shows through faintly at the right.]

— Page 7 —

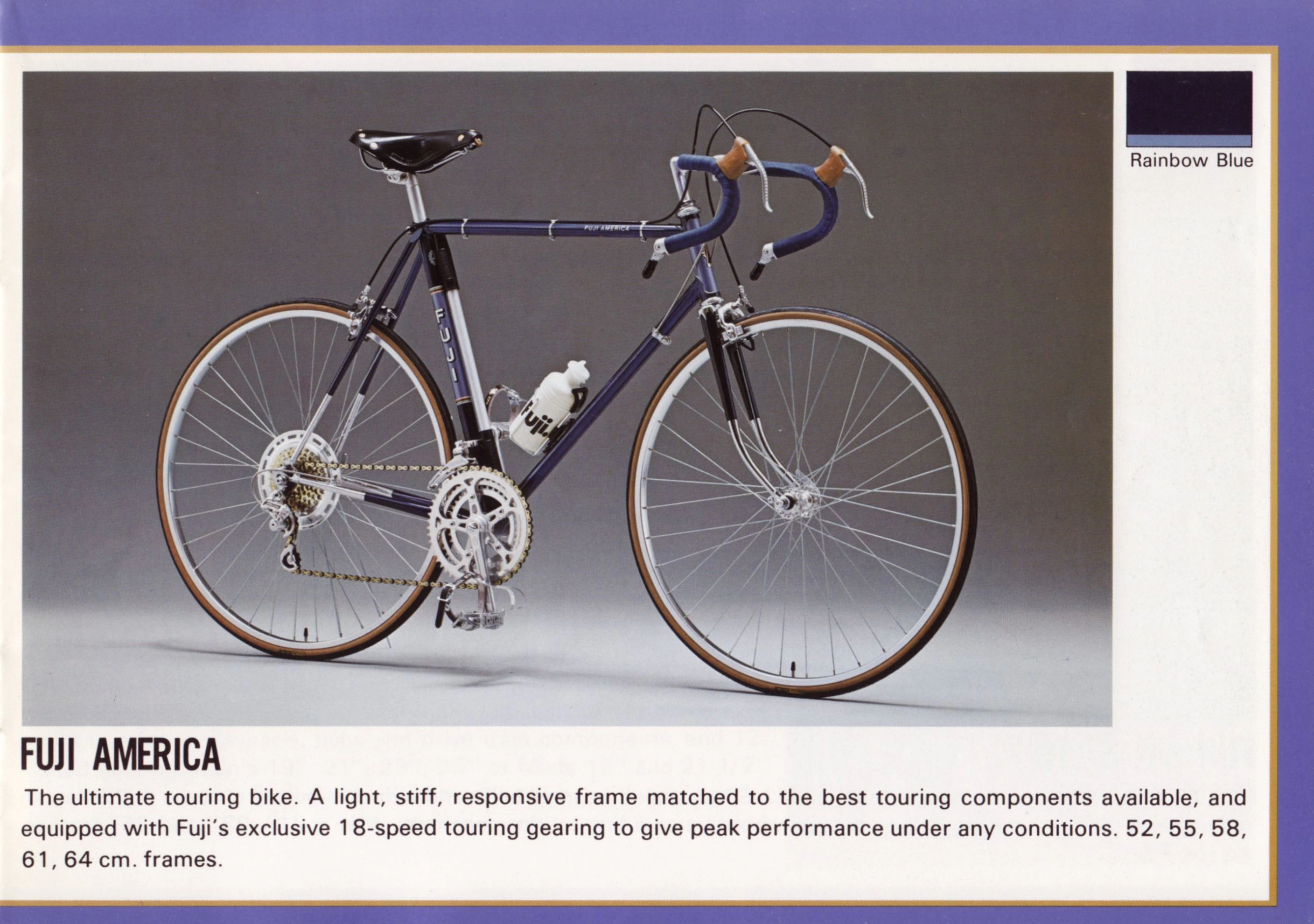

FUJI AMERICA

The ultimate touring bike. A light, stiff, responsive frame matched to the best touring components available, and equipped with Fuji’s exclusive 18-speed touring gearing to give peak performance under any conditions. 52, 55, 58, 61, 64 cm. frames.

Rainbow Blue

[The Fuji America in Rainbow Blue, an 18-speed touring bicycle with a dark blue frame, chromed fork blades and stay ends and a lighter blue seat tube panel lettered FUJI, photographed on a gray studio backdrop with a triple chainset, a gold chain, a spoke protector behind the freewheel, bar-end shift levers, blue handlebar tape, tan brake hoods, a black riveted leather saddle and tan sidewall tires. The heading and paragraph run below the photograph, with a single dark blue and light blue color chip at the upper right; the top tube decal reads FUJI AMERICA.]

— Page 8 —

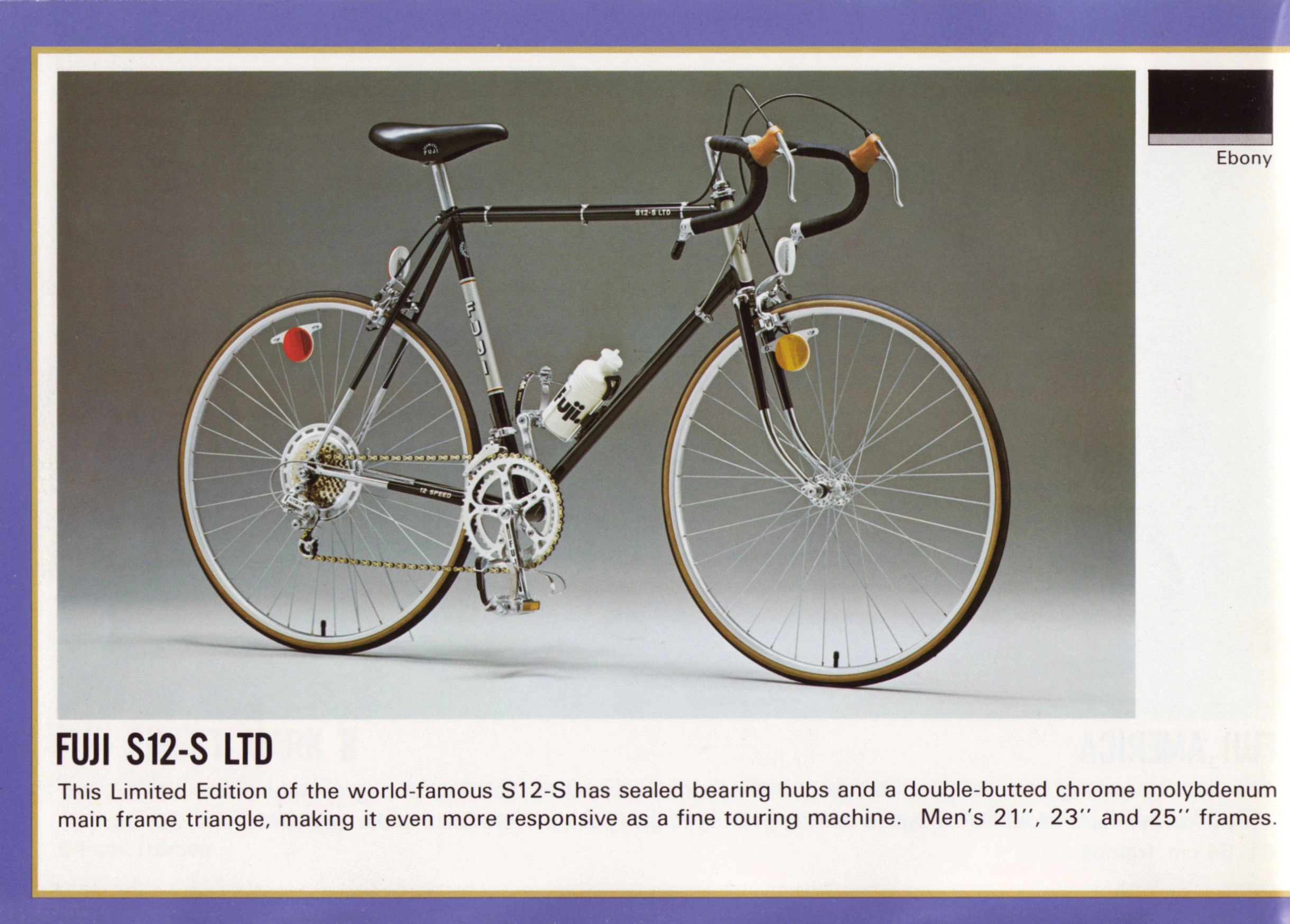

FUJI S12-S LTD

This Limited Edition of the world-famous S12-S has sealed bearing hubs and a double-butted chrome molybdenum main frame triangle, making it even more responsive as a fine touring machine. Men’s 21″, 23″ and 25″ frames.

Ebony

[The Fuji S12-S LTD in Ebony, a twelve-speed road touring bicycle with a black frame, a silver head tube, a silver seat tube panel lettered FUJI and chromed stay ends and fork tips, photographed on a gray studio backdrop with black handlebar tape, tan brake hoods, brake extension levers, a spoke protector, a gold chain, red and amber wheel reflectors, tan sidewall tires and a white Fuji water bottle. The heading and paragraph run below the photograph, with a single black and silver color chip at the upper right; the decals read S12-S LTD on the top tube and 12 SPEED on the chainstay.]

— Page 9 —

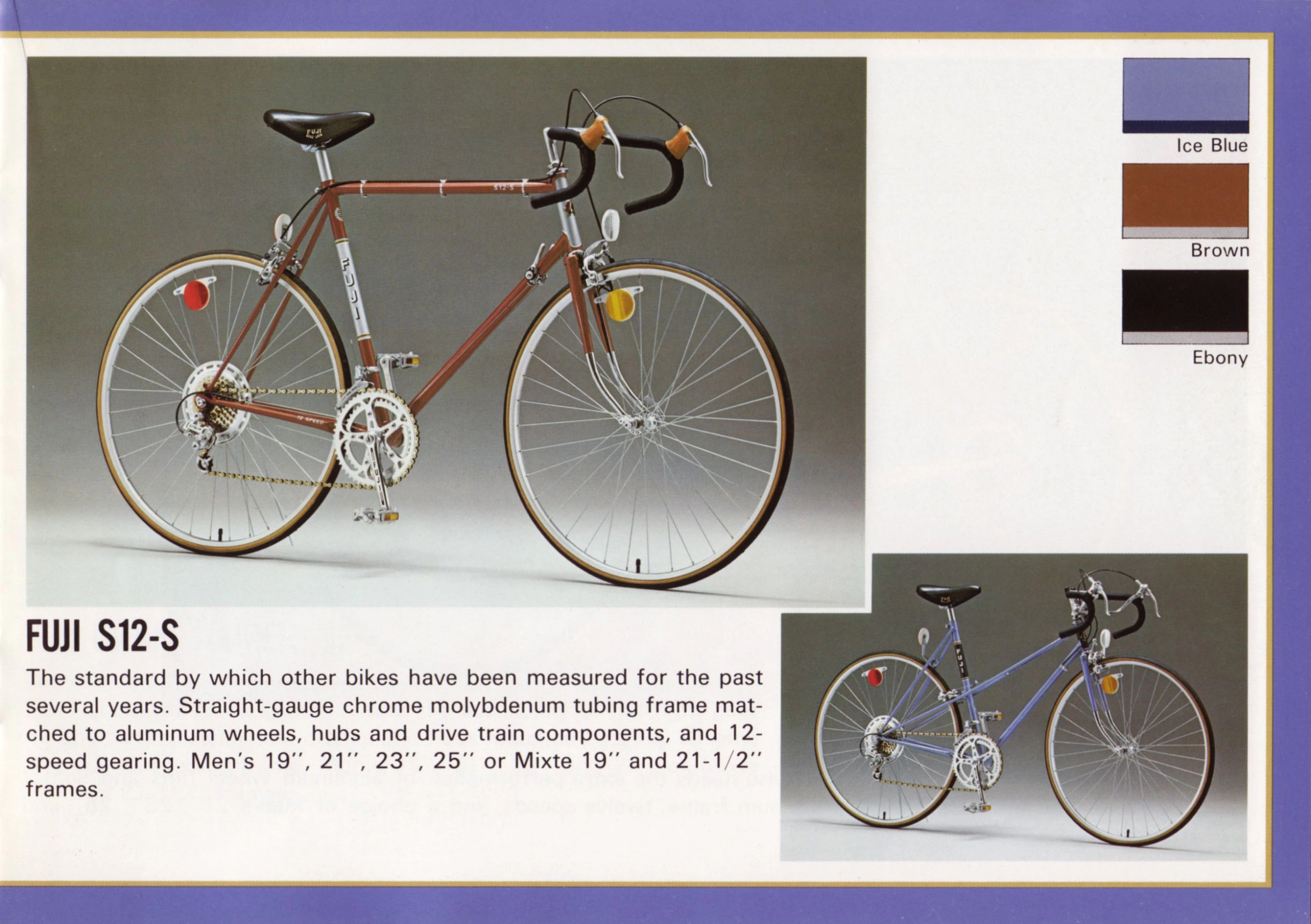

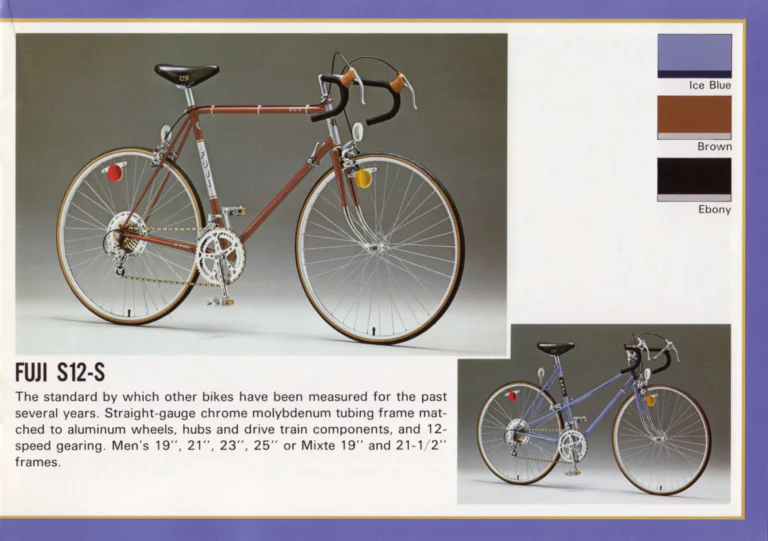

FUJI S12-S

The standard by which other bikes have been measured for the past several years. Straight-gauge chrome molybdenum tubing frame matched to aluminum wheels, hubs and drive train components, and 12-speed gearing. Men’s 19″, 21″, 23″, 25″ or Mixte 19″ and 21-1/2″ frames.

Ice Blue

Brown

Ebony

[The Fuji S12-S in Brown, a twelve-speed road bicycle with a silver head tube and a silver seat tube panel lettered FUJI, photographed on a gray studio backdrop with black handlebar tape, tan brake hoods, brake extension levers, a spoke protector, red and amber wheel reflectors and tan sidewall tires; an inset photograph at the lower right shows the Mixte version in Ice Blue. Three color chips run down the upper right, and the decals read S12-S on the top tube and 12 SPEED on the chainstay.]

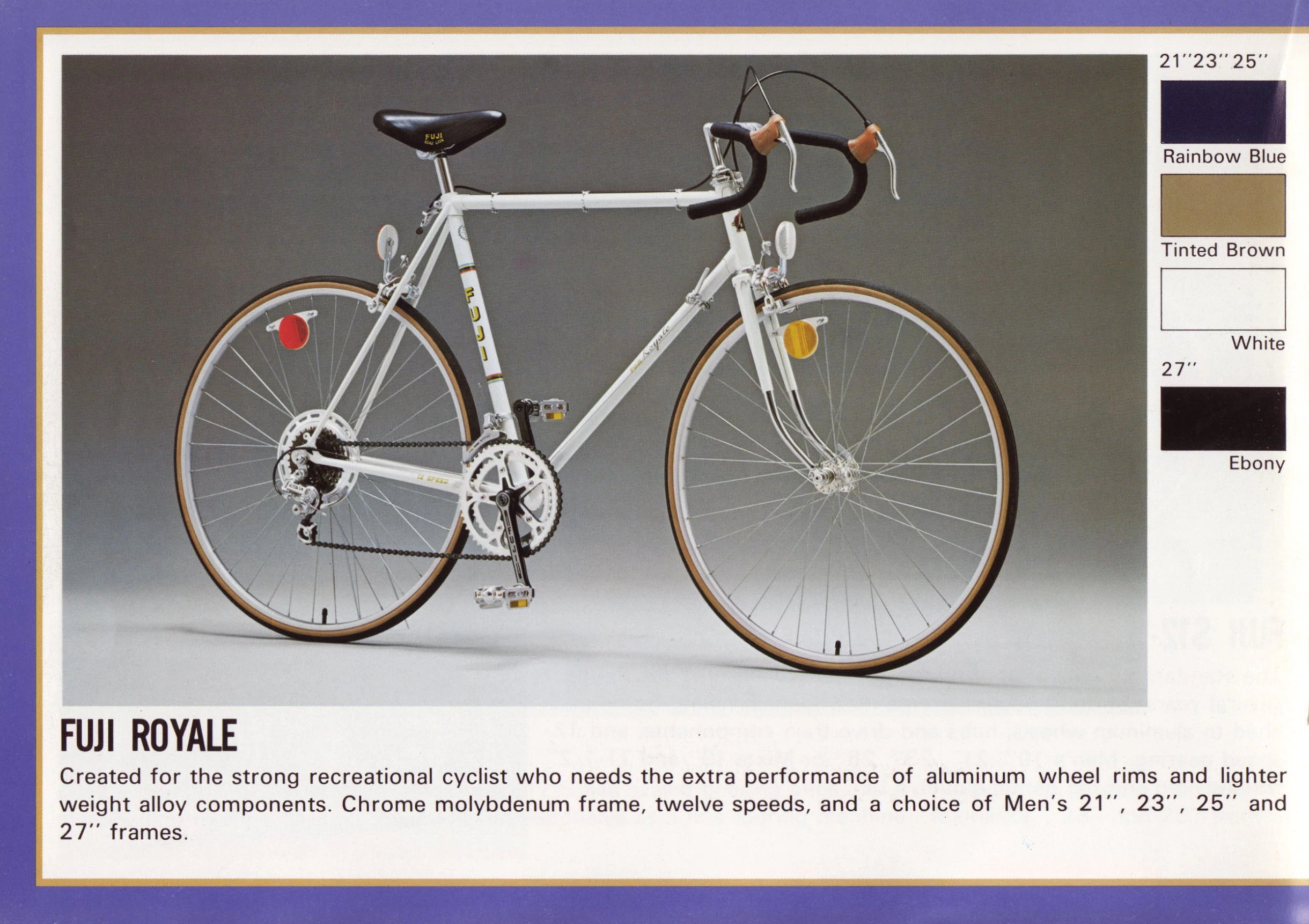

— Page 10 —
FUJI ROYALE

Created for the strong recreational cyclist who needs the extra performance of aluminum wheel rims and lighter weight alloy components. Chrome molybdenum frame, twelve speeds, and a choice of Men’s 21″, 23″, 25″ and 27″ frames.

21″23″ 25″

Rainbow Blue

Tinted Brown

White

27″

Ebony

[The Fuji Royale in White, a twelve-speed road bicycle with a seat tube panel lettered FUJI in gold between multicolored bands and chromed fork tips, photographed on a gray studio backdrop with black handlebar tape, tan brake hoods, brake extension levers, a black saddle, a spoke protector, red and amber wheel reflectors, pedal reflectors and tan sidewall tires. The heading and paragraph run below the photograph; four color chips run down the right, the first three under the sizes 21″, 23″ and 25″ and the Ebony chip under 27″, and the decals read Royale on the down tube and 12 SPEED on the chainstay.]

— Page 11 —

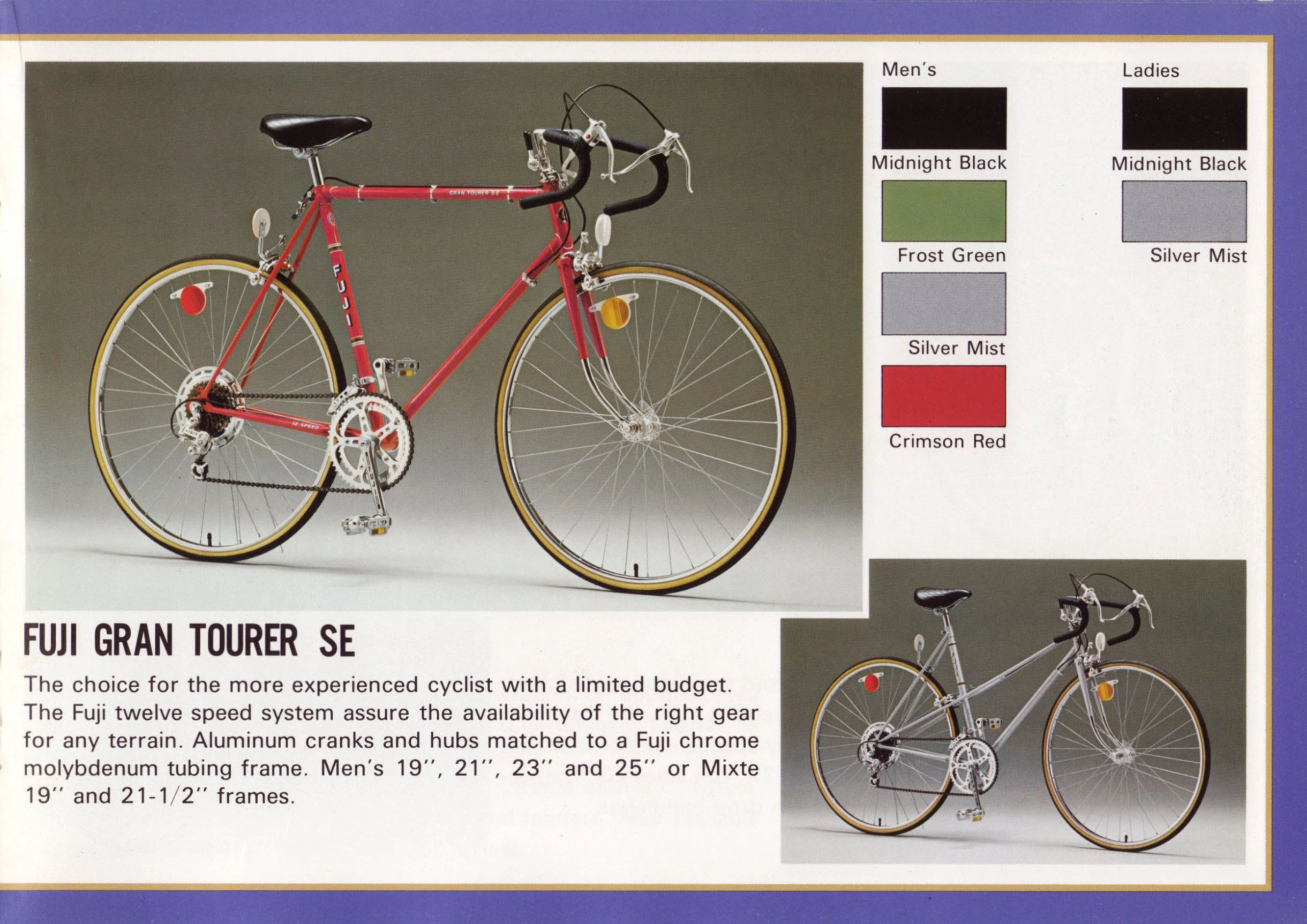

FUJI GRAN TOURER SE

The choice for the more experienced cyclist with a limited budget. The Fuji twelve speed system assure the availability of the right gear for any terrain. Aluminum cranks and hubs matched to a Fuji chrome molybdenum tubing frame. Men’s 19″, 21″, 23″ and 25″ or Mixte 19″ and 21-1/2″ frames.

Men’s

Midnight Black

Frost Green

Silver Mist

Crimson Red

Ladies

Midnight Black

Silver Mist

[The Fuji Gran Tourer SE in Crimson Red, a twelve-speed road bicycle with a seat tube panel lettered FUJI and chromed fork tips, photographed on a gray studio backdrop with black handlebar tape, brake extension levers, a black saddle, red and amber wheel reflectors, pedal reflectors and tan sidewall tires; an inset photograph at the lower right shows the Mixte version in Silver Mist. Two columns of color chips at the upper right are headed Men’s and Ladies, and the decals read GRAN TOURER SE on the top tube and 12 SPEED on the chainstay.]

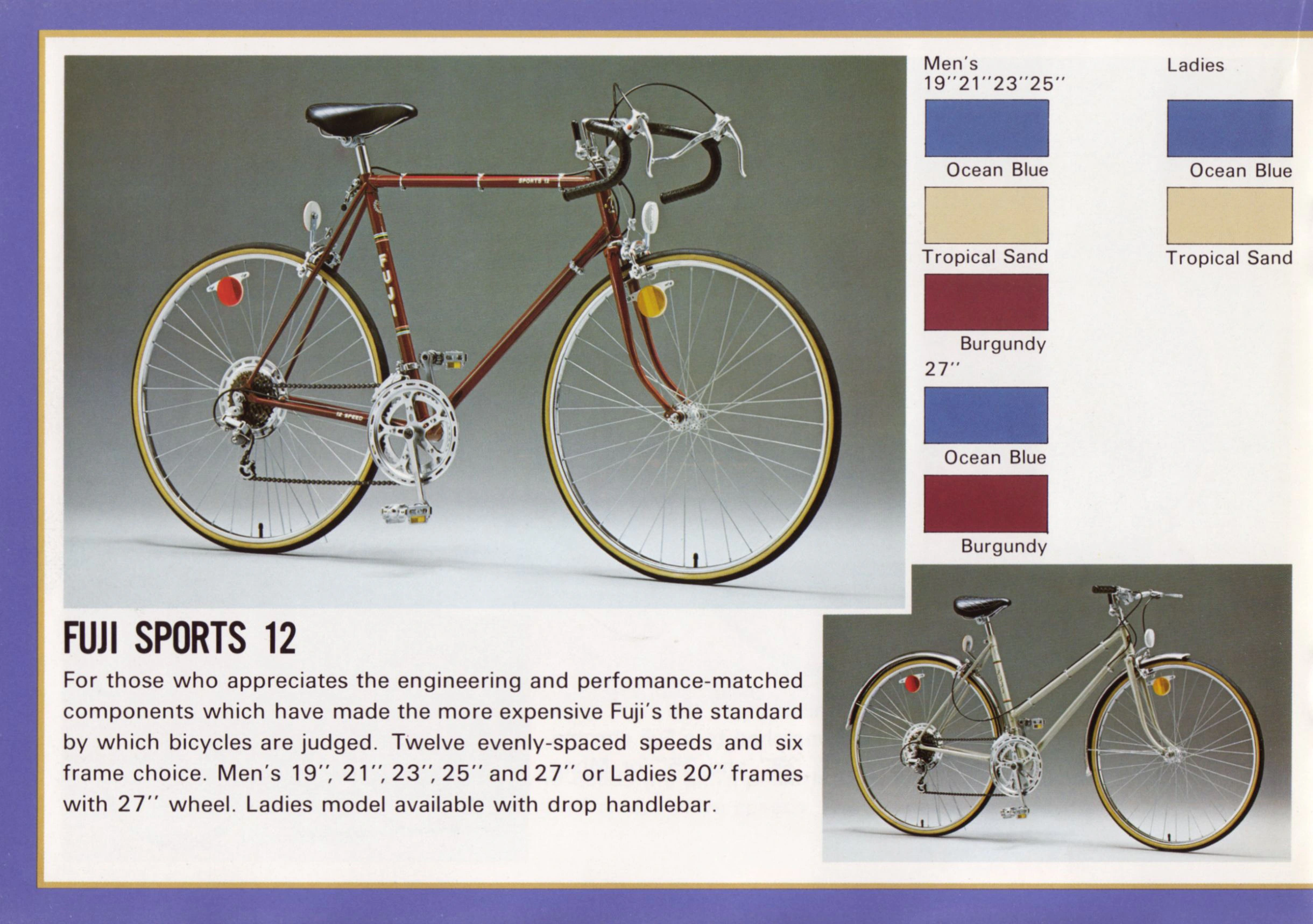

— Page 12 —
FUJI SPORTS 12

For those who appreciates the engineering and perfomance-matched components which have made the more expensive Fuji’s the standard by which bicycles are judged. Twelve evenly-spaced speeds and six frame choice. Men’s 19″, 21″, 23″, 25″ and 27″ or Ladies 20″ frames with 27″ wheel. Ladies model available with drop handlebar.

Men’s
19″21″23″25″

Ocean Blue

Tropical Sand

Burgundy

27″

Ocean Blue

Burgundy

Ladies

Ocean Blue

Tropical Sand

[The Fuji Sports 12 in Burgundy, a twelve-speed road bicycle with a seat tube panel lettered FUJI, photographed on a gray studio backdrop with black handlebar tape, brake extension levers, a black saddle, red and amber wheel reflectors, pedal reflectors and tan sidewall tires; an inset photograph at the lower right shows the Ladies model in Tropical Sand with a sloping top tube, a flat handlebar and chromed fenders. Two columns of color chips at the upper right are headed Men’s with its sizes and Ladies, and the decals read SPORTS 12 on the top tube and 12 SPEED on the chainstay.]

— Page 13 —

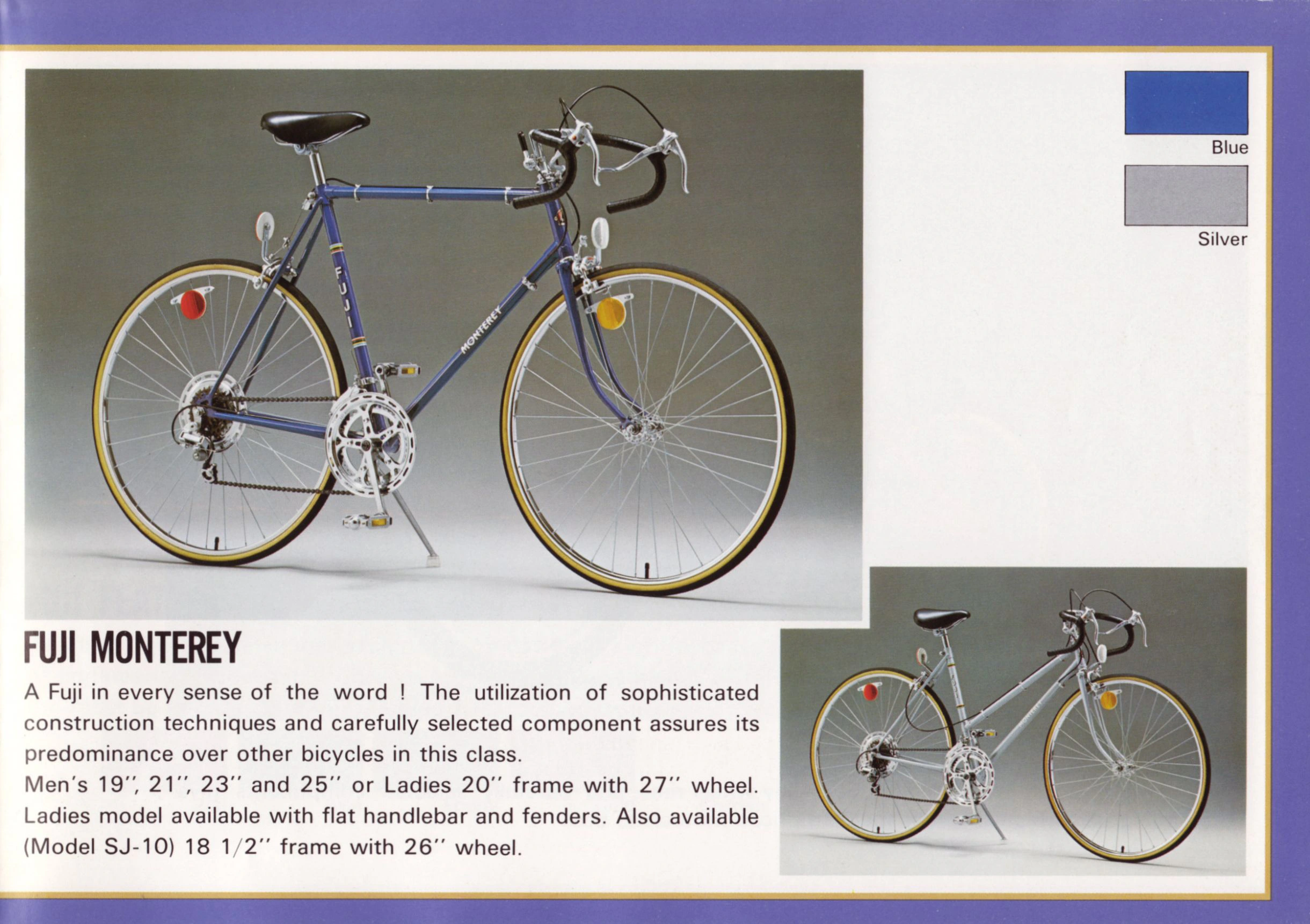

FUJI MONTEREY

A Fuji in every sense of the word ! The utilization of sophisticated construction techniques and carefully selected component assures its predominance over other bicycles in this class.

Men’s 19″, 21″, 23″ and 25″ or Ladies 20″ frame with 27″ wheel. Ladies model available with flat handlebar and fenders. Also available (Model SJ-10) 18 1/2″ frame with 26″ wheel.

Blue

Silver

[The Fuji Monterey in Blue, a road bicycle with a seat tube panel lettered FUJI, photographed on a gray studio backdrop with black handlebar tape, brake extension levers, a black saddle, a kickstand, red and amber wheel reflectors, pedal reflectors and tan sidewall tires; an inset photograph at the lower right shows the Ladies model in Silver with drop handlebars and a sloping top tube. Two color chips sit at the upper right, and the down tube decal reads MONTEREY.]

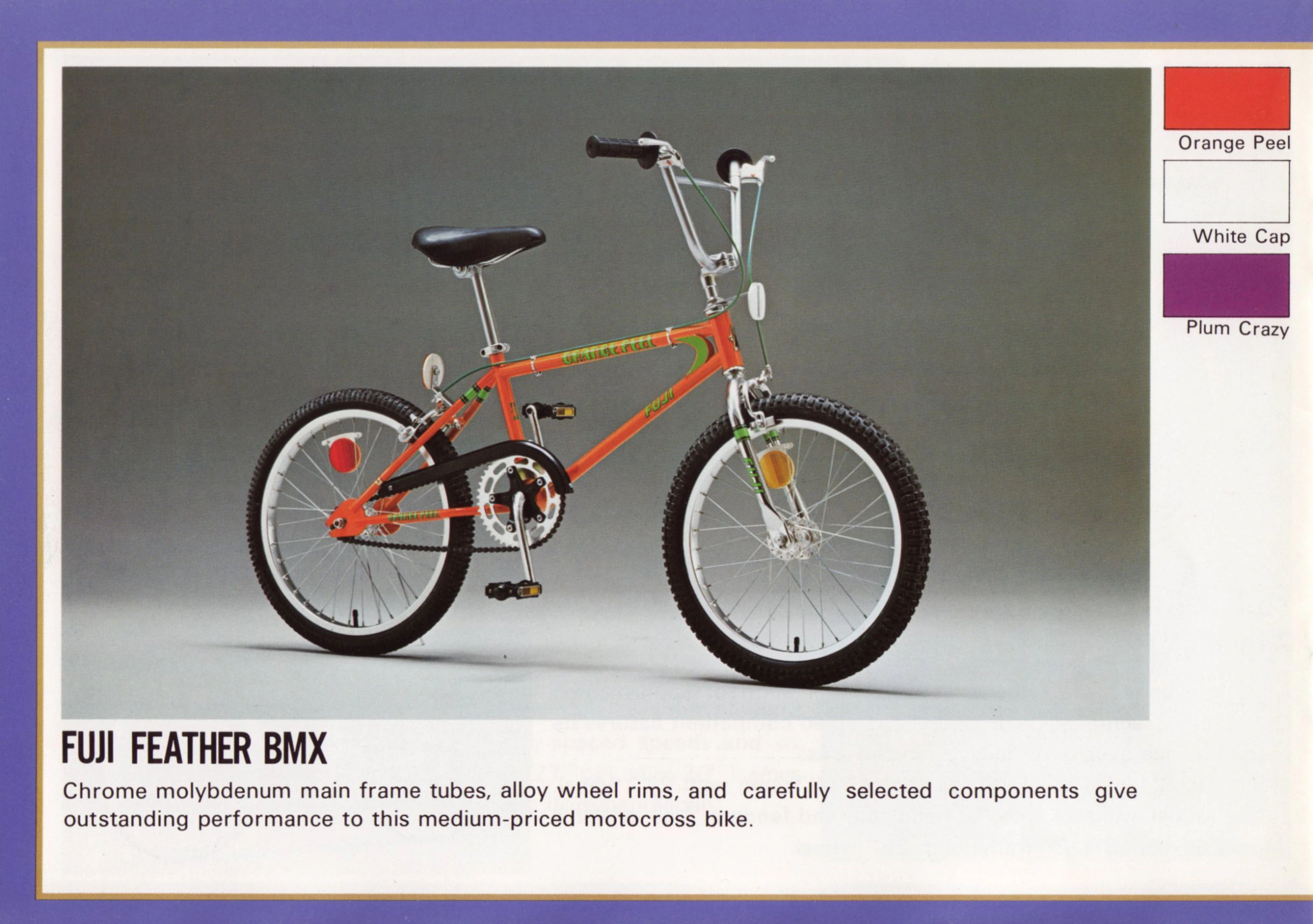

— Page 14 —
FUJI FEATHER BMX

Chrome molybdenum main frame tubes, alloy wheel rims, and carefully selected components give outstanding performance to this medium-priced motocross bike.

Orange Peel
White Cap
Plum Crazy

[The Fuji Feather BMX in Orange Peel, a motocross bicycle with chrome handlebars, knobby tires and alloy rims, photographed on a gray studio backdrop. Its top tube carries an “Orange Peel” decal and its down tube a “FUJI” decal; three color chips (Orange Peel, White Cap and Plum Crazy) run down the right edge, and the page is framed in a violet border with no printed folio.]

— Page 15 —

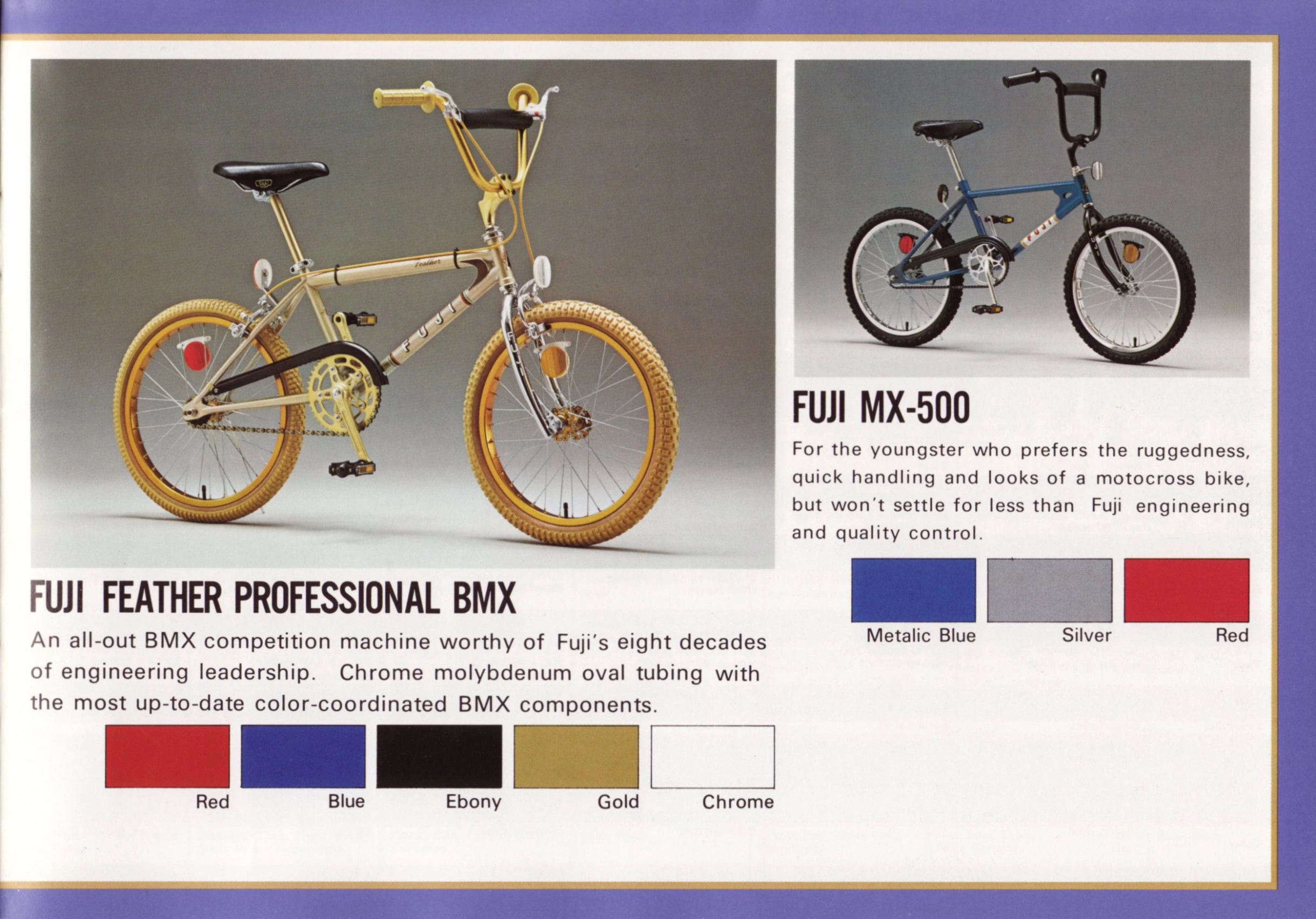

FUJI FEATHER PROFESSIONAL BMX

An all-out BMX competition machine worthy of Fuji’s eight decades of engineering leadership. Chrome molybdenum oval tubing with the most up-to-date color-coordinated BMX components.

Red
Blue
Ebony
Gold
Chrome

FUJI MX-500

For the youngster who prefers the ruggedness, quick handling and looks of a motocross bike, but won’t settle for less than Fuji engineering and quality control.

Metalic Blue
Silver
Red

[The Fuji Feather Professional BMX in gold, a motocross bicycle with gold handlebars, rims and tires and a chrome fork, photographed on a gray studio backdrop, beside a smaller photograph of the Fuji MX-500 in blue with black handlebars and fork. The Professional’s top tube carries a script “Feather” decal and its down tube a “FUJI” decal; five color chips sit under the Professional’s text and three under the MX-500’s, and the page has no printed folio.]

— Page 16 —

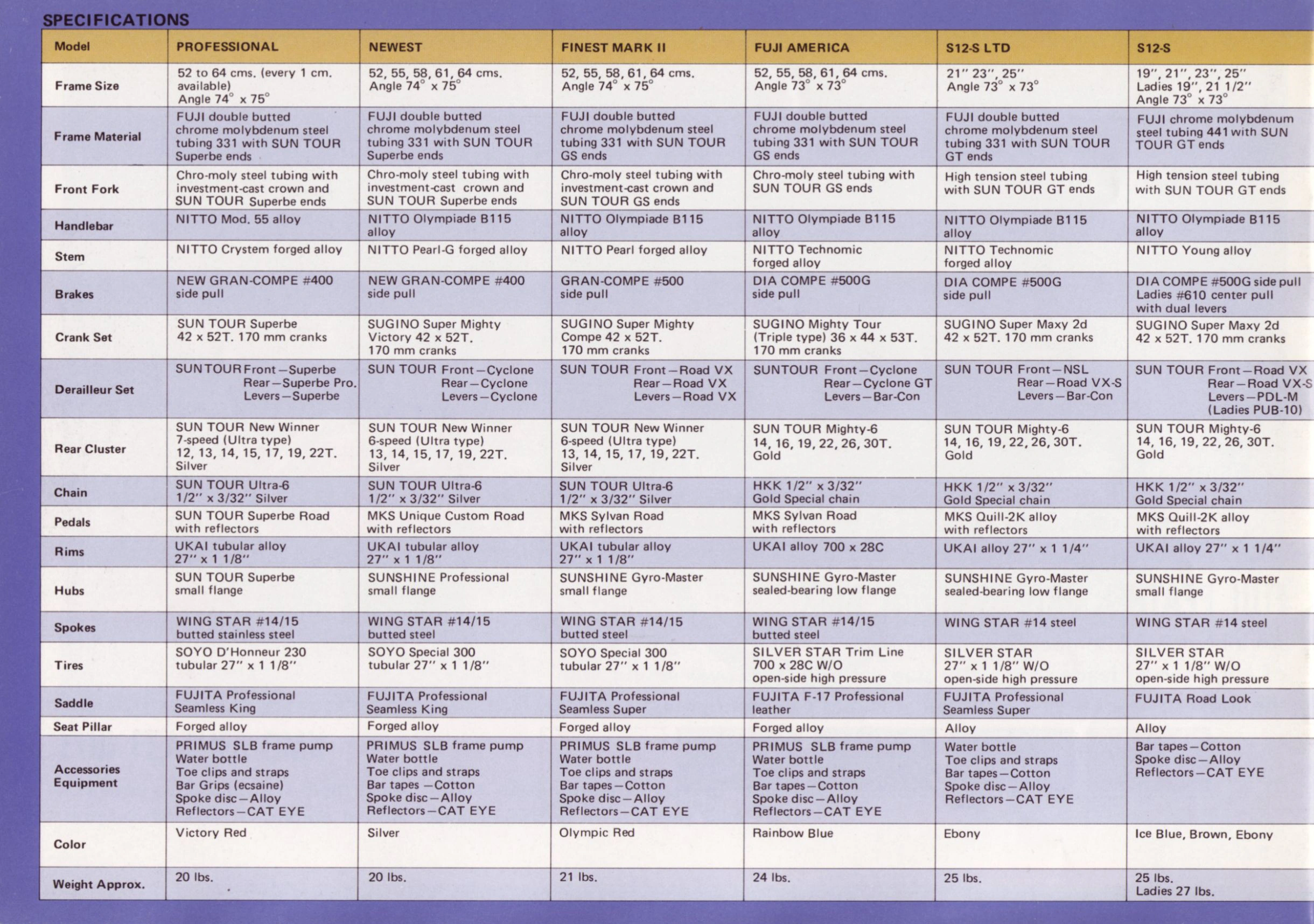

SPECIFICATIONS
Model: PROFESSIONAL; NEWEST; FINEST MARK II; FUJI AMERICA; S12-S LTD; S12-S
Frame Size: PROFESSIONAL — 52 to 64 cms. (every 1 cm. available) Angle 74° x 75°; NEWEST and FINEST MARK II — 52, 55, 58, 61, 64 cms. Angle 74° x 75°; FUJI AMERICA — 52, 55, 58, 61, 64 cms. Angle 73° x 73°; S12-S LTD — 21″ 23″, 25″ Angle 73° x 73°; S12-S — 19″, 21″, 23″, 25″ Ladies 19″, 21 1/2″ Angle 73° x 73°
Frame Material: PROFESSIONAL and NEWEST — FUJI double butted chrome molybdenum steel tubing 331 with SUN TOUR Superbe ends; FINEST MARK II and FUJI AMERICA — FUJI double butted chrome molybdenum steel tubing 331 with SUN TOUR GS ends; S12-S LTD — FUJI double butted chrome molybdenum steel tubing 331 with SUN TOUR GT ends; S12-S — FUJI chrome molybdenum steel tubing 441 with SUN TOUR GT ends
Front Fork: PROFESSIONAL and NEWEST — Chro-moly steel tubing with investment-cast crown and SUN TOUR Superbe ends; FINEST MARK II — Chro-moly steel tubing with investment-cast crown and SUN TOUR GS ends; FUJI AMERICA — Chro-moly steel tubing with SUN TOUR GS ends; S12-S LTD and S12-S — High tension steel tubing with SUN TOUR GT ends
Handlebar: PROFESSIONAL — NITTO Mod. 55 alloy; NEWEST, FINEST MARK II, FUJI AMERICA, S12-S LTD and S12-S — NITTO Olympiade B115 alloy
Stem: PROFESSIONAL — NITTO Crystem forged alloy; NEWEST — NITTO Pearl-G forged alloy; FINEST MARK II — NITTO Pearl forged alloy; FUJI AMERICA and S12-S LTD — NITTO Technomic forged alloy; S12-S — NITTO Young alloy
Brakes: PROFESSIONAL and NEWEST — NEW GRAN-COMPE #400 side pull; FINEST MARK II — GRAN-COMPE #500 side pull; FUJI AMERICA and S12-S LTD — DIA COMPE #500G side pull; S12-S — DIA COMPE #500G side pull Ladies #610 center pull with dual levers
Crank Set: PROFESSIONAL — SUN TOUR Superbe 42 x 52T. 170 mm cranks; NEWEST — SUGINO Super Mighty Victory 42 x 52T. 170 mm cranks; FINEST MARK II — SUGINO Super Mighty Compe 42 x 52T. 170 mm cranks; FUJI AMERICA — SUGINO Mighty Tour (Triple type) 36 x 44 x 53T. 170 mm cranks; S12-S LTD and S12-S — SUGINO Super Maxy 2d 42 x 52T. 170 mm cranks
Derailleur Set: PROFESSIONAL — SUN TOUR Front—Superbe Rear—Superbe Pro. Levers—Superbe; NEWEST — SUN TOUR Front—Cyclone Rear—Cyclone Levers—Cyclone; FINEST MARK II — SUN TOUR Front—Road VX Rear—Road VX Levers—Road VX; FUJI AMERICA — SUNTOUR Front—Cyclone Rear—Cyclone GT Levers—Bar-Con; S12-S LTD — SUN TOUR Front—NSL Rear—Road VX-S Levers—Bar-Con; S12-S — SUN TOUR Front—Road VX Rear—Road VX-S Levers—PDL-M (Ladies PUB-10)
Rear Cluster: PROFESSIONAL — SUN TOUR New Winner 7-speed (Ultra type) 12, 13, 14, 15, 17, 19, 22T. Silver; NEWEST and FINEST MARK II — SUN TOUR New Winner 6-speed (Ultra type) 13, 14, 15, 17, 19, 22T. Silver; FUJI AMERICA, S12-S LTD and S12-S — SUN TOUR Mighty-6 14, 16, 19, 22, 26, 30T. Gold

Chain: PROFESSIONAL, NEWEST and FINEST MARK II — SUN TOUR Ultra-6 1/2″ x 3/32″ Silver; FUJI AMERICA, S12-S LTD and S12-S — HKK 1/2″ x 3/32″ Gold Special chain
Pedals: PROFESSIONAL — SUN TOUR Superbe Road with reflectors; NEWEST — MKS Unique Custom Road with reflectors; FINEST MARK II and FUJI AMERICA — MKS Sylvan Road with reflectors; S12-S LTD and S12-S — MKS Quill-2K alloy with reflectors
Rims: PROFESSIONAL, NEWEST and FINEST MARK II — UKAI tubular alloy 27″ x 1 1/8″; FUJI AMERICA — UKAI alloy 700 x 28C; S12-S LTD and S12-S — UKAI alloy 27″ x 1 1/4″
Hubs: PROFESSIONAL — SUN TOUR Superbe small flange; NEWEST — SUNSHINE Professional small flange; FINEST MARK II — SUNSHINE Gyro-Master small flange; FUJI AMERICA and S12-S LTD — SUNSHINE Gyro-Master sealed-bearing low flange; S12-S — SUNSHINE Gyro-Master small flange
Spokes: PROFESSIONAL — WING STAR #14/15 butted stainless steel; NEWEST, FINEST MARK II and FUJI AMERICA — WING STAR #14/15 butted steel; S12-S LTD and S12-S — WING STAR #14 steel
Tires: PROFESSIONAL — SOYO D’Honneur 230 tubular 27″ x 1 1/8″; NEWEST and FINEST MARK II — SOYO Special 300 tubular 27″ x 1 1/8″; FUJI AMERICA — SILVER STAR Trim Line 700 x 28C W/O open-side high pressure; S12-S LTD and S12-S — SILVER STAR 27″ x 1 1/8″ W/O open-side high pressure
Saddle: PROFESSIONAL and NEWEST — FUJITA Professional Seamless King; FINEST MARK II — FUJITA Professional Seamless Super; FUJI AMERICA — FUJITA F-17 Professional leather; S12-S LTD — FUJITA Professional Seamless Super; S12-S — FUJITA Road Look
Seat Pillar: PROFESSIONAL, NEWEST, FINEST MARK II and FUJI AMERICA — Forged alloy; S12-S LTD and S12-S — Alloy
Accessories Equipment: PROFESSIONAL — PRIMUS SLB frame pump Water bottle Toe clips and straps Bar Grips (ecsaine) Spoke disc—Alloy Reflectors—CAT EYE; NEWEST, FINEST MARK II and FUJI AMERICA — PRIMUS SLB frame pump Water bottle Toe clips and straps Bar tapes—Cotton Spoke disc—Alloy Reflectors—CAT EYE; S12-S LTD — Water bottle Toe clips and straps Bar tapes—Cotton Spoke disc—Alloy Reflectors—CAT EYE; S12-S — Bar tapes—Cotton Spoke disc—Alloy Reflectors—CAT EYE
Color: PROFESSIONAL — Victory Red; NEWEST — Silver; FINEST MARK II — Olympic Red; FUJI AMERICA — Rainbow Blue; S12-S LTD — Ebony; S12-S — Ice Blue, Brown, Ebony
Weight Approx.: PROFESSIONAL and NEWEST — 20 lbs.; FINEST MARK II — 21 lbs.; FUJI AMERICA — 24 lbs.; S12-S LTD — 25 lbs.; S12-S — 25 lbs. Ladies 27 lbs.

[The first page of the catalog’s specifications table, a six-column grid with gold header and alternating white and lavender rows on a violet ground, comparing the Professional, Newest, Finest Mark II, Fuji America, S12-S LTD and S12-S. The rows run from frame size and frame material through components, accessories, color and approximate weight; the page has no printed folio.]

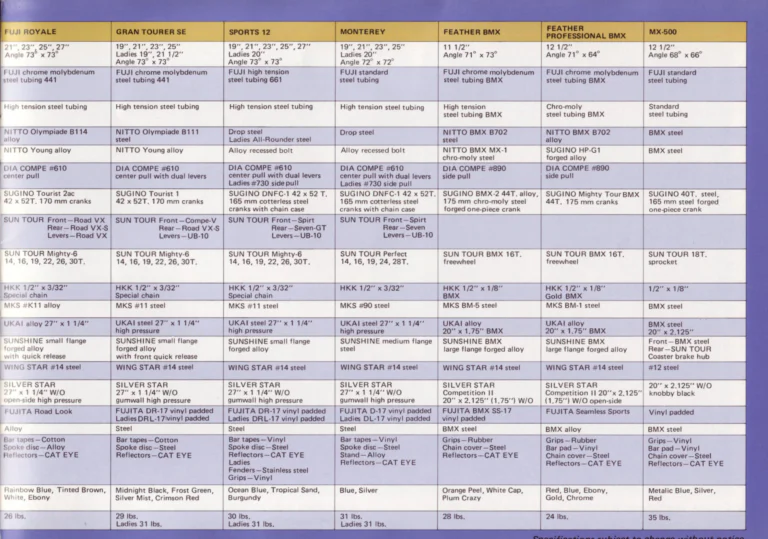

— Page 17 —

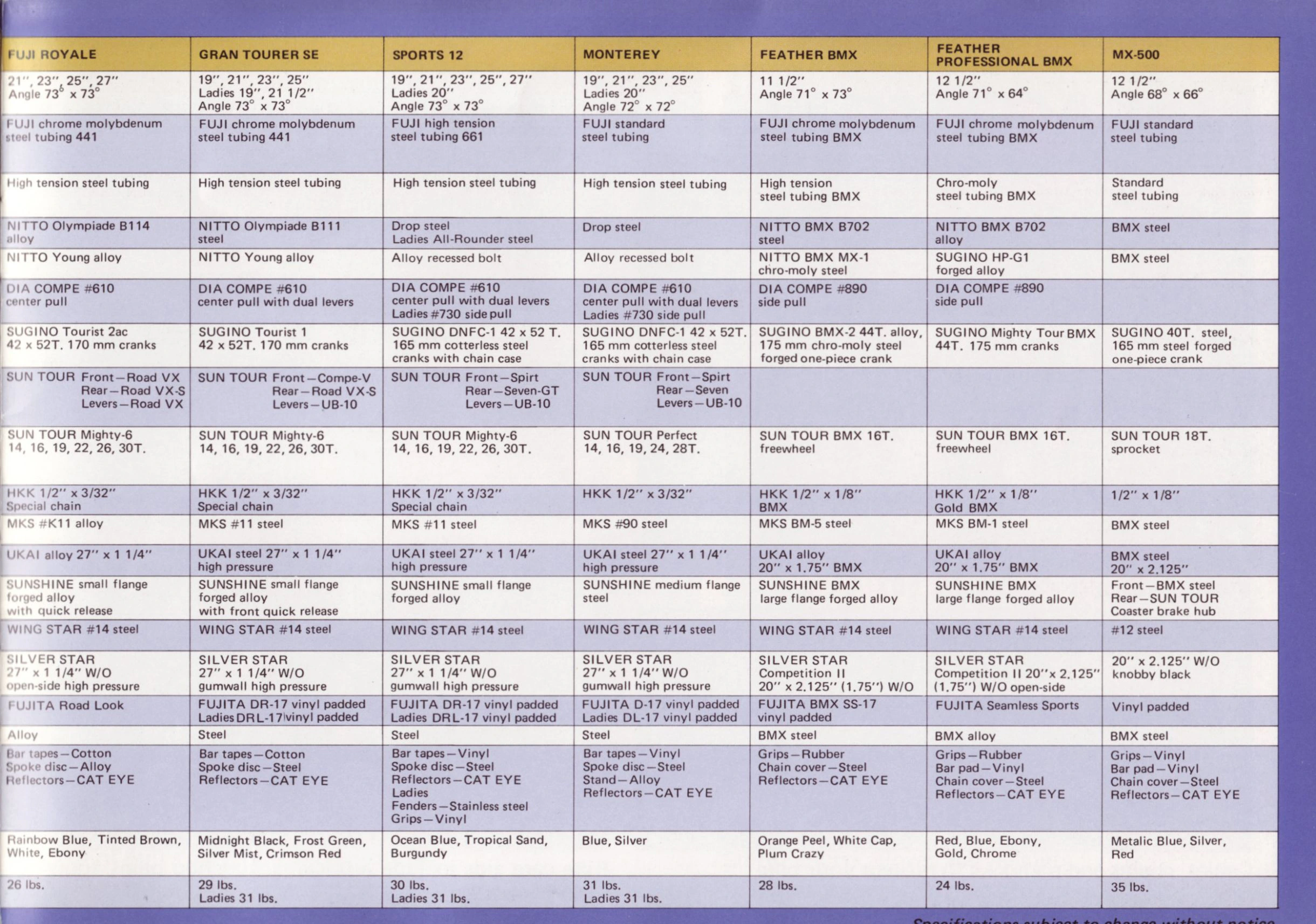

[Model:] FUJI ROYALE; GRAN TOURER SE; SPORTS 12; MONTEREY; FEATHER BMX; FEATHER PROFESSIONAL BMX; MX-500
[Frame Size:] FUJI ROYALE — 21″, 23″, 25″, 27″ Angle 73⁶ x 73°; GRAN TOURER SE — 19″, 21″, 23″, 25″ Ladies 19″, 21 1/2″ Angle 73° x 73°; SPORTS 12 — 19″, 21″, 23″, 25″, 27″ Ladies 20″ Angle 73° x 73°; MONTEREY — 19″, 21″, 23″, 25″ Ladies 20″ Angle 72° x 72°; FEATHER BMX — 11 1/2″ Angle 71° x 73°; FEATHER PROFESSIONAL BMX — 12 1/2″ Angle 71° x 64°; MX-500 — 12 1/2″ Angle 68° x 66°
[Frame Material:] FUJI ROYALE and GRAN TOURER SE — FUJI chrome molybdenum steel tubing 441; SPORTS 12 — FUJI high tension steel tubing 661; MONTEREY — FUJI standard steel tubing; FEATHER BMX and FEATHER PROFESSIONAL BMX — FUJI chrome molybdenum steel tubing BMX; MX-500 — FUJI standard steel tubing
[Front Fork:] FUJI ROYALE, GRAN TOURER SE, SPORTS 12 and MONTEREY — High tension steel tubing; FEATHER BMX — High tension steel tubing BMX; FEATHER PROFESSIONAL BMX — Chro-moly steel tubing BMX; MX-500 — Standard steel tubing
[Handlebar:] FUJI ROYALE — NITTO Olympiade B114 alloy; GRAN TOURER SE — NITTO Olympiade B111 steel; SPORTS 12 — Drop steel Ladies All-Rounder steel; MONTEREY — Drop steel; FEATHER BMX — NITTO BMX B702 steel; FEATHER PROFESSIONAL BMX — NITTO BMX B702 alloy; MX-500 — BMX steel
[Stem:] FUJI ROYALE and GRAN TOURER SE — NITTO Young alloy; SPORTS 12 and MONTEREY — Alloy recessed bolt; FEATHER BMX — NITTO BMX MX-1 chro-moly steel; FEATHER PROFESSIONAL BMX — SUGINO HP-G1 forged alloy; MX-500 — BMX steel
[Brakes:] FUJI ROYALE — DIA COMPE #610 center pull; GRAN TOURER SE — DIA COMPE #610 center pull with dual levers; SPORTS 12 and MONTEREY — DIA COMPE #610 center pull with dual levers Ladies #730 side pull; FEATHER BMX and FEATHER PROFESSIONAL BMX — DIA COMPE #890 side pull

[Crank Set:] FUJI ROYALE — SUGINO Tourist 2ac 42 x 52T. 170 mm cranks; GRAN TOURER SE — SUGINO Tourist 1 42 x 52T. 170 mm cranks; SPORTS 12 — SUGINO DNFC-1 42 x 52 T. 165 mm cotterless steel cranks with chain case; MONTEREY — SUGINO DNFC-1 42 x 52T. 165 mm cotterless steel cranks with chain case; FEATHER BMX — SUGINO BMX-2 44T. alloy, 175 mm chro-moly steel forged one-piece crank; FEATHER PROFESSIONAL BMX — SUGINO Mighty Tour BMX 44T. 175 mm cranks; MX-500 — SUGINO 40T. steel, 165 mm steel forged one-piece crank
[Derailleur Set:] FUJI ROYALE — SUN TOUR Front—Road VX Rear—Road VX-S Levers—Road VX; GRAN TOURER SE — SUN TOUR Front—Compe-V Rear—Road VX-S Levers—UB-10; SPORTS 12 — SUN TOUR Front—Spirt Rear—Seven-GT Levers—UB-10; MONTEREY — SUN TOUR Front—Spirt Rear—Seven Levers—UB-10
[Rear Cluster:] FUJI ROYALE, GRAN TOURER SE and SPORTS 12 — SUN TOUR Mighty-6 14, 16, 19, 22, 26, 30T.; MONTEREY — SUN TOUR Perfect 14, 16, 19, 24, 28T.; FEATHER BMX and FEATHER PROFESSIONAL BMX — SUN TOUR BMX 16T. freewheel; MX-500 — SUN TOUR 18T. sprocket
[Chain:] FUJI ROYALE, GRAN TOURER SE and SPORTS 12 — HKK 1/2″ x 3/32″ Special chain; MONTEREY — HKK 1/2″ x 3/32″; FEATHER BMX — HKK 1/2″ x 1/8″ BMX; FEATHER PROFESSIONAL BMX — HKK 1/2″ x 1/8″ Gold BMX; MX-500 — 1/2″ x 1/8″
[Pedals:] FUJI ROYALE — MKS #K11 alloy; GRAN TOURER SE and SPORTS 12 — MKS #11 steel; MONTEREY — MKS #90 steel; FEATHER BMX — MKS BM-5 steel; FEATHER PROFESSIONAL BMX — MKS BM-1 steel; MX-500 — BMX steel
[Rims:] FUJI ROYALE — UKAI alloy 27″ x 1 1/4″; GRAN TOURER SE, SPORTS 12 and MONTEREY — UKAI steel 27″ x 1 1/4″ high pressure; FEATHER BMX and FEATHER PROFESSIONAL BMX — UKAI alloy 20″ x 1.75″ BMX; MX-500 — BMX steel 20″ x 2.125″
[Hubs:] FUJI ROYALE — SUNSHINE small flange forged alloy with quick release; GRAN TOURER SE — SUNSHINE small flange forged alloy with front quick release; SPORTS 12 — SUNSHINE small flange forged alloy; MONTEREY — SUNSHINE medium flange steel; FEATHER BMX and FEATHER PROFESSIONAL BMX — SUNSHINE BMX large flange forged alloy; MX-500 — Front—BMX steel Rear—SUN TOUR Coaster brake hub
[Spokes:] FUJI ROYALE, GRAN TOURER SE, SPORTS 12, MONTEREY, FEATHER BMX and FEATHER PROFESSIONAL BMX — WING STAR #14 steel; MX-500 — #12 steel

[Tires:] FUJI ROYALE — SILVER STAR 27″ x 1 1/4″ W/O open-side high pressure; GRAN TOURER SE, SPORTS 12 and MONTEREY — SILVER STAR 27″ x 1 1/4″ W/O gumwall high pressure; FEATHER BMX — SILVER STAR Competition II 20″ x 2.125″ (1.75″) W/O; FEATHER PROFESSIONAL BMX — SILVER STAR Competition II 20″x 2.125″ (1.75″) W/O open-side; MX-500 — 20″ x 2.125″ W/O knobby black
[Saddle:] FUJI ROYALE — FUJITA Road Look; GRAN TOURER SE and SPORTS 12 — FUJITA DR-17 vinyl padded Ladies DRL-17 vinyl padded; MONTEREY — FUJITA D-17 vinyl padded Ladies DL-17 vinyl padded; FEATHER BMX — FUJITA BMX SS-17 vinyl padded; FEATHER PROFESSIONAL BMX — FUJITA Seamless Sports; MX-500 — Vinyl padded
[Seat Pillar:] FUJI ROYALE — Alloy; GRAN TOURER SE, SPORTS 12 and MONTEREY — Steel; FEATHER BMX — BMX steel; FEATHER PROFESSIONAL BMX — BMX alloy; MX-500 — BMX steel
[Accessories Equipment:] FUJI ROYALE — Bar tapes—Cotton Spoke disc—Alloy Reflectors—CAT EYE; GRAN TOURER SE — Bar tapes—Cotton Spoke disc—Steel Reflectors—CAT EYE; SPORTS 12 — Bar tapes—Vinyl Spoke disc—Steel Reflectors—CAT EYE Ladies Fenders—Stainless steel Grips—Vinyl; MONTEREY — Bar tapes—Vinyl Spoke disc—Steel Stand—Alloy Reflectors—CAT EYE; FEATHER BMX — Grips—Rubber Chain cover—Steel Reflectors—CAT EYE; FEATHER PROFESSIONAL BMX — Grips—Rubber Bar pad—Vinyl Chain cover—Steel Reflectors—CAT EYE; MX-500 — Grips—Vinyl Bar pad—Vinyl Chain cover—Steel Reflectors—CAT EYE
[Color:] FUJI ROYALE — Rainbow Blue, Tinted Brown, White, Ebony; GRAN TOURER SE — Midnight Black, Frost Green, Silver Mist, Crimson Red; SPORTS 12 — Ocean Blue, Tropical Sand, Burgundy; MONTEREY — Blue, Silver; FEATHER BMX — Orange Peel, White Cap, Plum Crazy; FEATHER PROFESSIONAL BMX — Red, Blue, Ebony, Gold, Chrome; MX-500 — Metalic Blue, Silver, Red
[Weight Approx.:] FUJI ROYALE — 26 lbs.; GRAN TOURER SE — 29 lbs. Ladies 31 lbs.; SPORTS 12 — 30 lbs. Ladies 31 lbs.; MONTEREY — 31 lbs. Ladies 31 lbs.; FEATHER BMX — 28 lbs.; FEATHER PROFESSIONAL BMX — 24 lbs.; MX-500 — 35 lbs.

Specifications subject to change without notice

[The second page of the specifications table, continuing the same gold-headed grid on a violet ground for the Fuji Royale, Gran Tourer SE, Sports 12, Monterey, Feather BMX, Feather Professional BMX and MX-500. The page prints no row labels, so they are supplied here in brackets from the facing page; an italic line at the foot is cut through by the bottom edge of the scan, and there is no printed folio.]

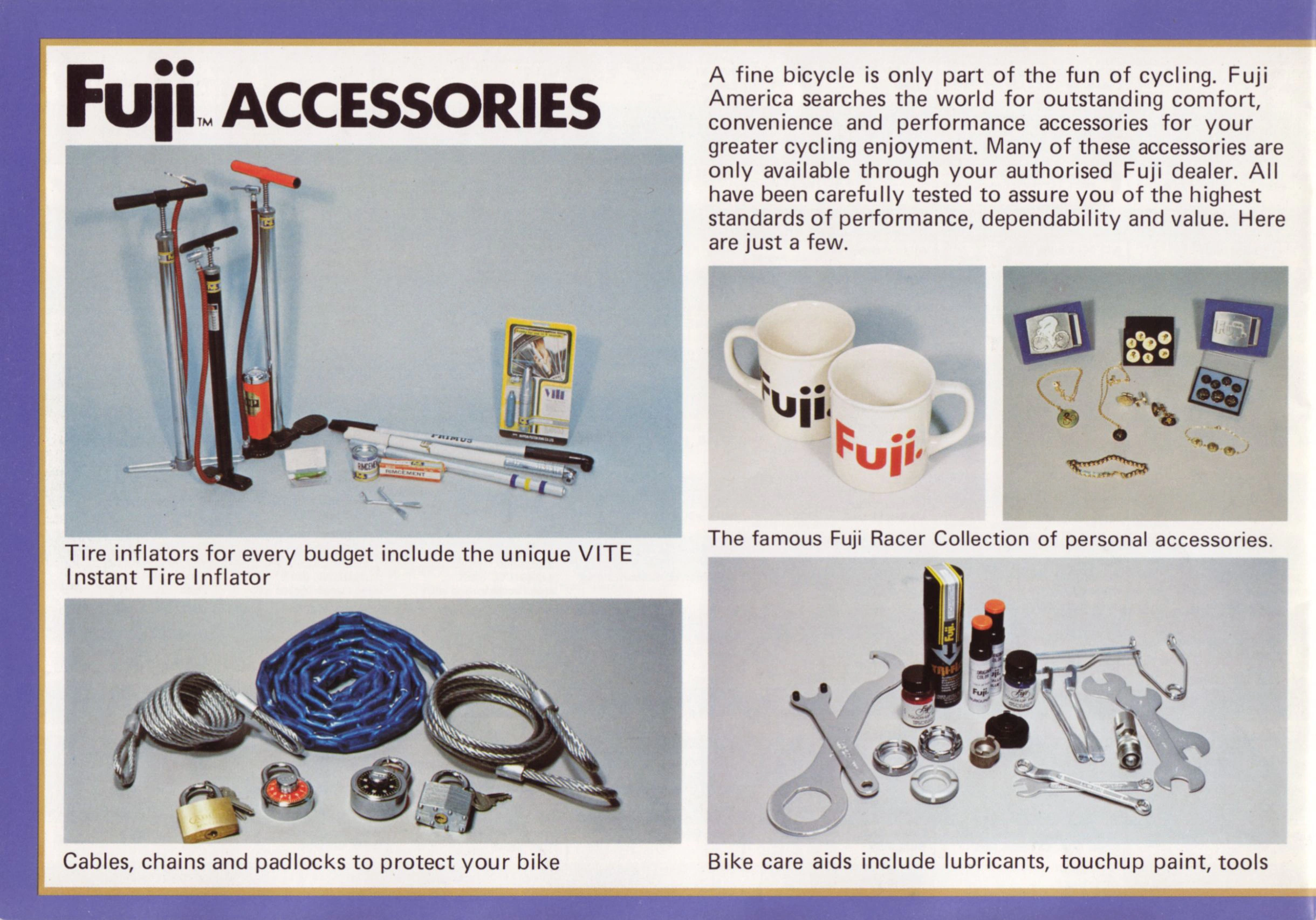

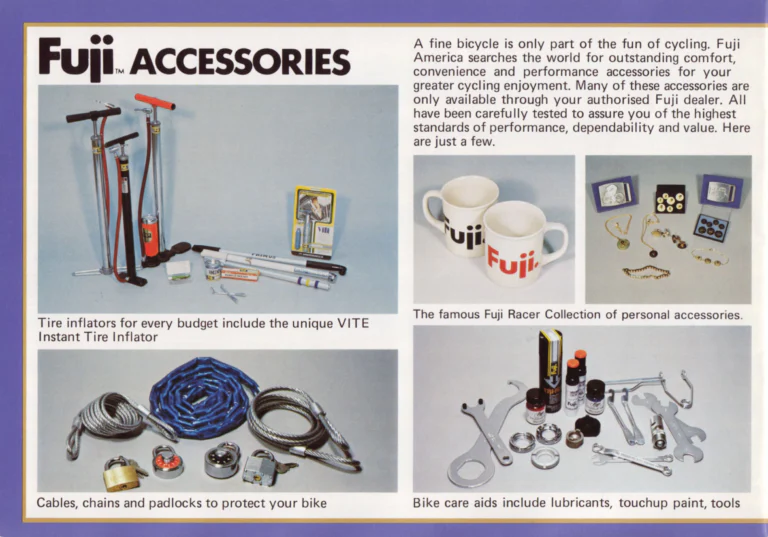

— Page 18 —
Fuji™ ACCESSORIES

A fine bicycle is only part of the fun of cycling. Fuji America searches the world for outstanding comfort, convenience and performance accessories for your greater cycling enjoyment. Many of these accessories are only available through your authorised Fuji dealer. All have been carefully tested to assure you of the highest standards of performance, dependability and value. Here are just a few.

Tire inflators for every budget include the unique VITE Instant Tire Inflator

The famous Fuji Racer Collection of personal accessories.

Cables, chains and padlocks to protect your bike

Bike care aids include lubricants, touchup paint, tools

[The first Fuji accessories page, with five photographs: floor and frame pumps with a carded inflator kit, two white mugs printed “Fuji,” belt buckles, pendants and pins, coiled cables with a blue chain and padlocks, and bottom bracket and headset tools with touchup paint and lubricants. The page is framed in a violet border with no printed folio.]

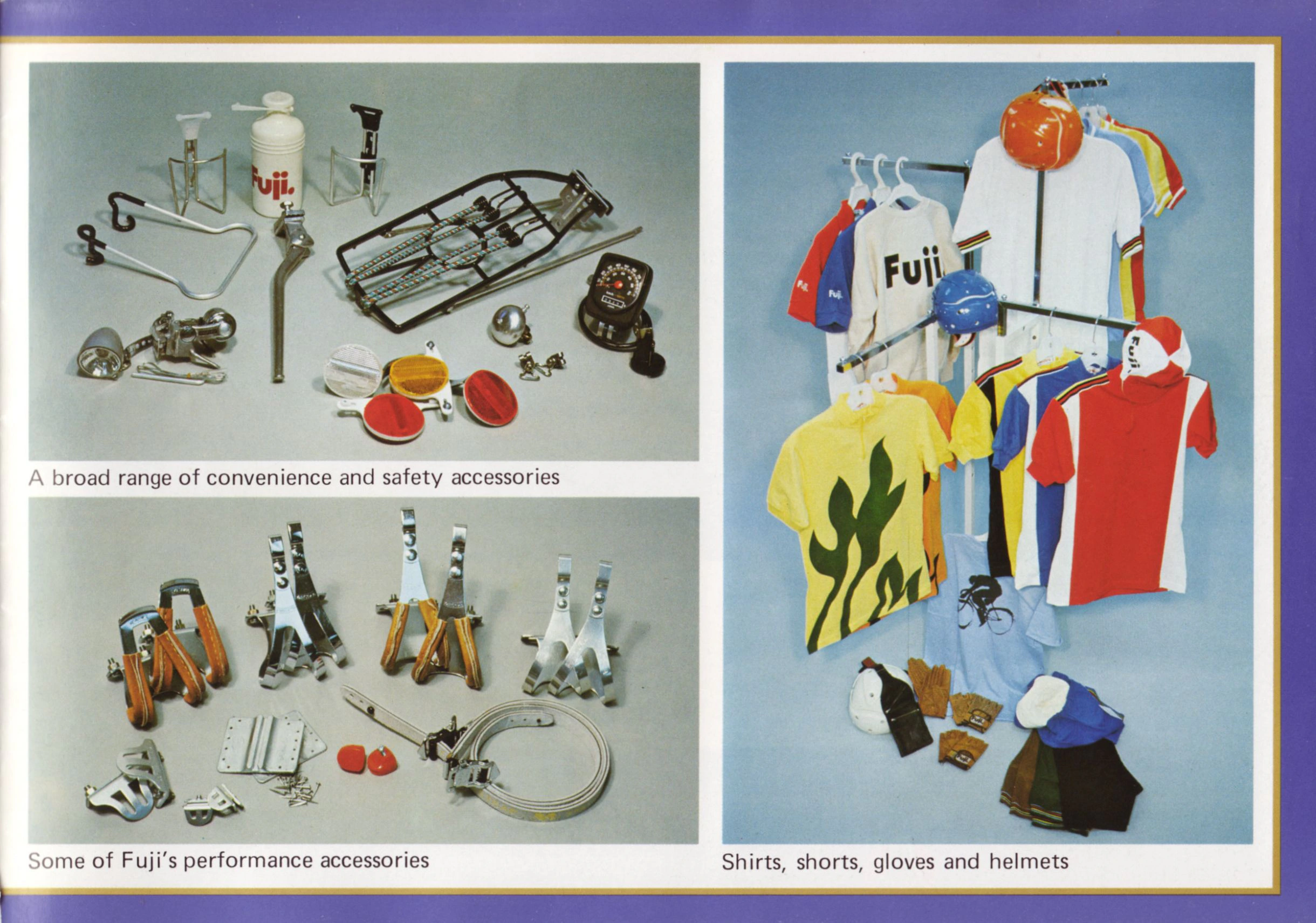

— Page 19 —
A broad range of convenience and safety accessories

Some of Fuji’s performance accessories

Shirts, shorts, gloves and helmets

[The second Fuji accessories page, with three photographs: bottle cages, a “Fuji” water bottle, a rear carrier, a kickstand, a lamp, a speedometer, a bell and reflectors; toe clips, straps and cleats; and a rack of cycling jerseys, shirts, caps, gloves and two leather hairnet helmets. One shirt is printed “Fuji,” and the page is framed in a violet border with no printed folio.]

— Page 20 (back cover) —

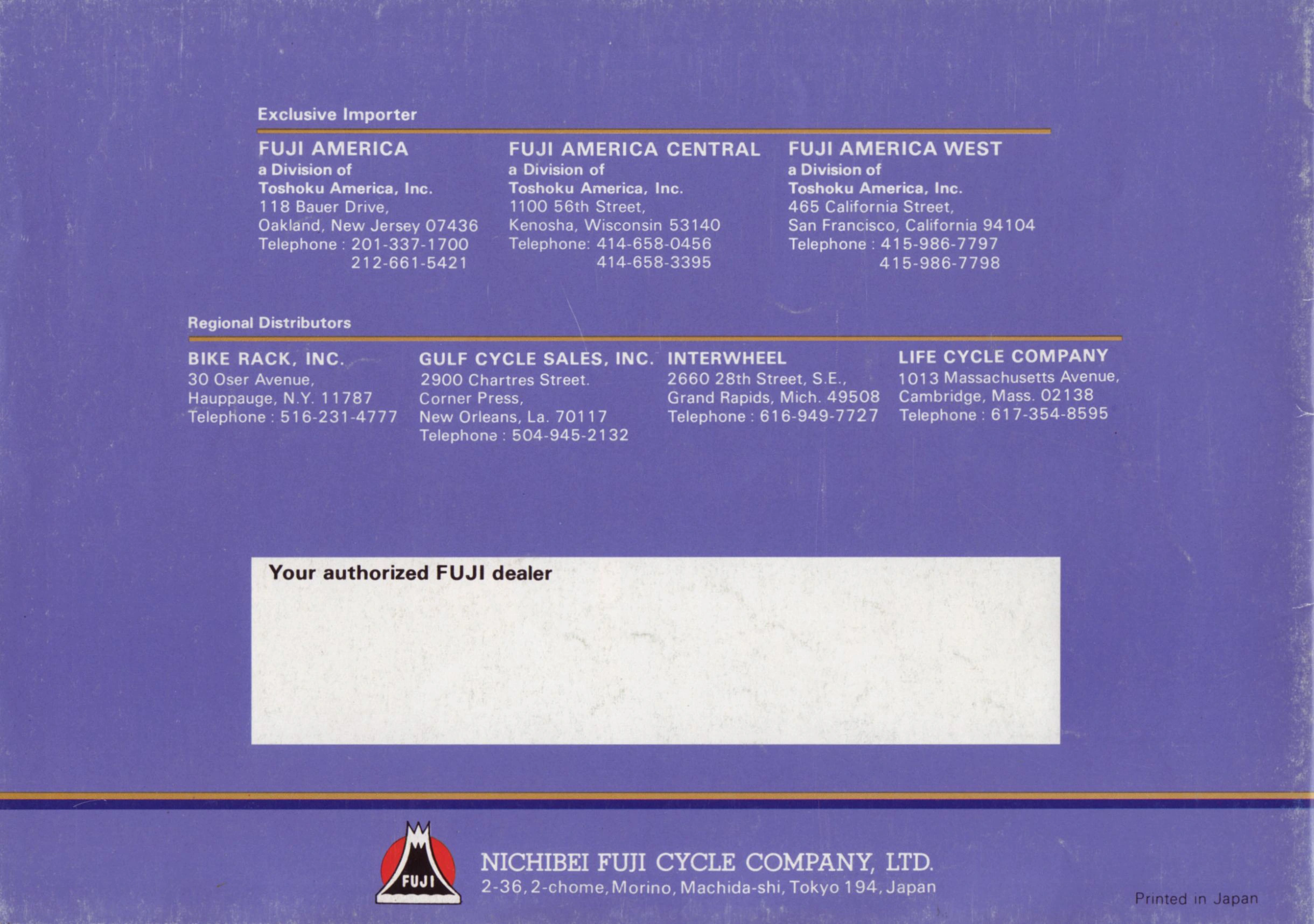

Exclusive Importer

FUJI AMERICA
a Division of
Toshoku America, Inc.
118 Bauer Drive,
Oakland, New Jersey 07436
Telephone : 201-337-1700
212-661-5421

FUJI AMERICA CENTRAL
a Division of
Toshoku America, Inc.
1100 56th Street,
Kenosha, Wisconsin 53140
Telephone: 414-658-0456
414-658-3395

FUJI AMERICA WEST
a Division of
Toshoku America, Inc.
465 California Street,
San Francisco, California 94104
Telephone : 415-986-7797
415-986-7798

Regional Distributors

BIKE RACK, INC.
30 Oser Avenue,
Hauppauge, N.Y. 11787
Telephone : 516-231-4777

GULF CYCLE SALES, INC.
2900 Chartres Street.
Corner Press,
New Orleans, La. 70117
Telephone : 504-945-2132

INTERWHEEL
2660 28th Street, S.E.,
Grand Rapids, Mich. 49508
Telephone : 616-949-7727

LIFE CYCLE COMPANY
1013 Massachusetts Avenue,
Cambridge, Mass. 02138
Telephone : 617-354-8595

Your authorized FUJI dealer

FUJI
NICHIBEI FUJI CYCLE COMPANY, LTD.
2-36, 2-chome, Morino, Machida-shi, Tokyo 194, Japan

Printed in Japan

[The violet back cover, listing the exclusive importer Fuji America with its Central and West divisions, four regional distributors and an empty white box for the authorized Fuji dealer. Across the foot runs the Nichibei Fuji Cycle Company emblem, a white Mount Fuji on a red sun lettered “FUJI,” with the Tokyo address and “Printed in Japan”; the dealer box carries no stamp or handwriting.]
