De Rosa 1989 Catalog — Frames and Bicycles, with the 35° Anniversario Limited Edition

— Cover —
DE ROSA®
FRAMES AND BICYCLES
1989

[A red bicycle photographed head-on out of darkness, red bar tape across the top, the heart mark over its banded diamond on the head tube; the same mark repeated at the lower right.]

— Page 2 —
PROFESSIONAL

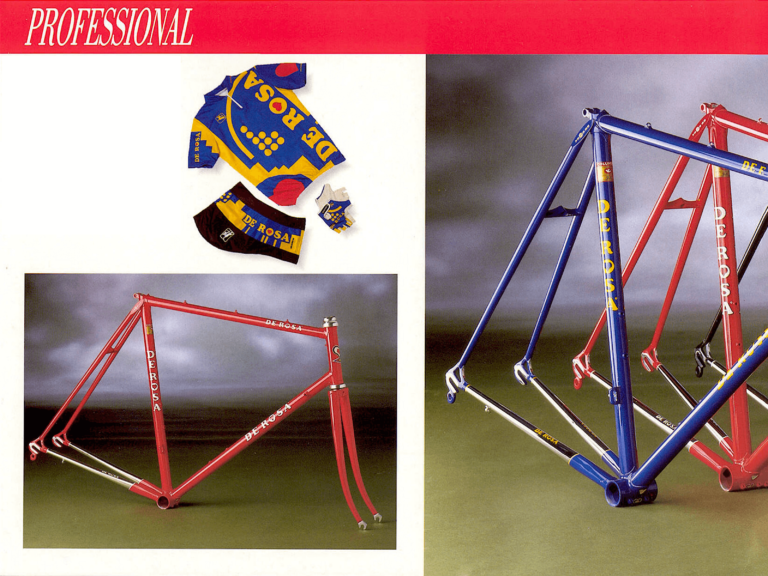

[At the top, a blue and yellow De Rosa jersey with matching shorts and gloves. Below, a red Professional frame and fork against a stormy studio sky, and at the right a blue frame and a red frame seen from the rear.]

— Page 3 —
PROFESSIONAL

Of the great framebuilders, none is more revered than Ugo DeRosa. Now celebrating some thirty-five years as framebuilder to many of Europe’s top professional teams and riders, DeRosa and his sons continue to build each bicycle as if it were for Eddy Merckx. Today, demand for these bicycles has increased as riders throughout the world have spread the word of their performance.

Each DeRosa frame must go through fourteen separate brazing operations, on jigs designed by DeRosa. This attention to detail assures the correct angles and proper alignment. All frames feature investment cast conjunctions, a special bridgeless bottom bracket shell, and the classic flat fork crown. Front derailleur mount, dropouts, fork crown, and chainstays are finished in chrome.

For 1989, three DeRosa models will be offered: the road frame, a pista frame, and a completely new mountain frame made with Columbus MAX tubing. In addition, a special version of the road model commemorating 35 years of DeRosa bicycles will be produced in a limited edition.

Regardless of type, each DeRosa bicycle is built to Ugo DeRosa’s exacting standards, assuring the highest quality and built frame available.

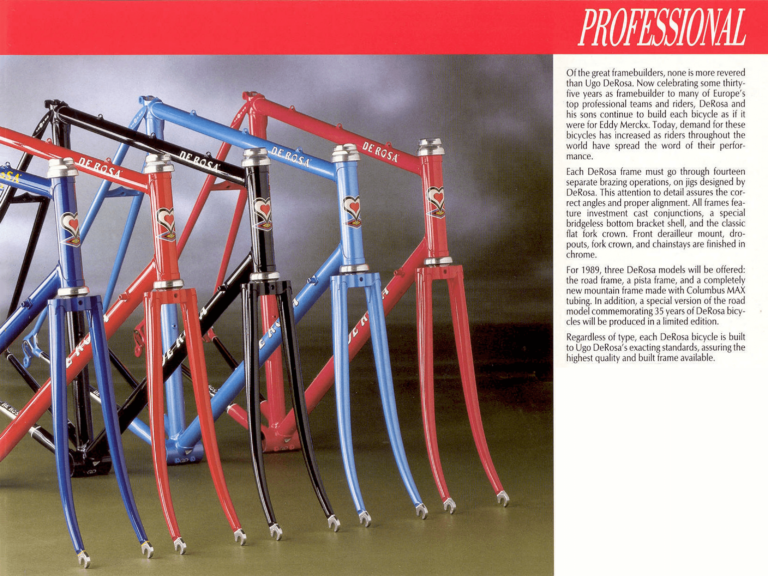

[Five framesets in a row, in blue, red, black, light blue and red, the heart mark on each head tube.]

— Page 4 —
35° ANNIVERSARIO

35° ANNIVERSARIO
Tubing: Columbus SLX.
Dropouts: Campagnolo.
Braze-ons: Front derailleur hanger, shift lever bosses, 2 water bottles, pump peg.
Sizes: 47 cm. to 64 cm. in 1 cm. increments, measured center to center.
Chrome: Front derailleur hanger, dropouts, fork crown, chainstays.
Color: Pearl White with Limited edition Signature graphics.
Component Group: Campagnolo Record-C Delta with pantographed caliper cover, 3T handlebar and pantographed stem, Campagnolo rims, Vittoria tires.

35° anniversario

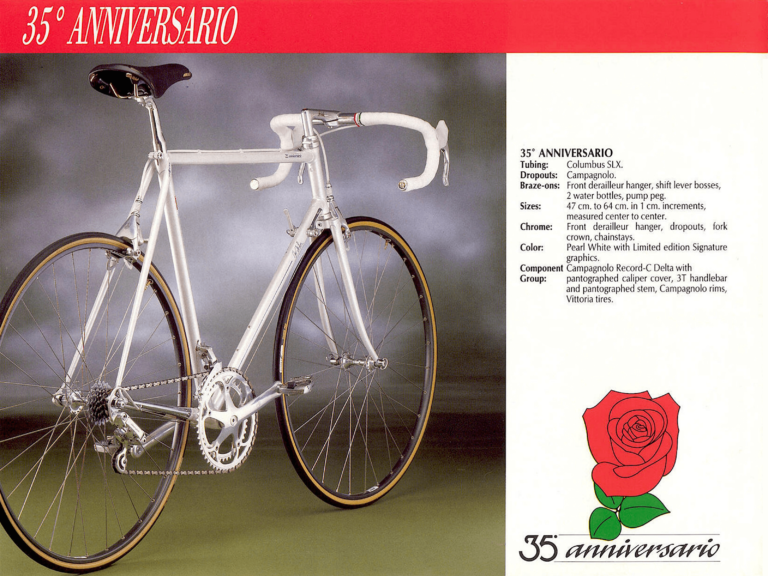

[The anniversary bicycle from the rear three-quarter against a stormy sky: pearl white, a black saddle, white bar tape and Campagnolo Delta brakes. Beside the specification, a red rose on a green stem above the 35° anniversario script.]

— Page 5 —
35° ANNIVERSARIO

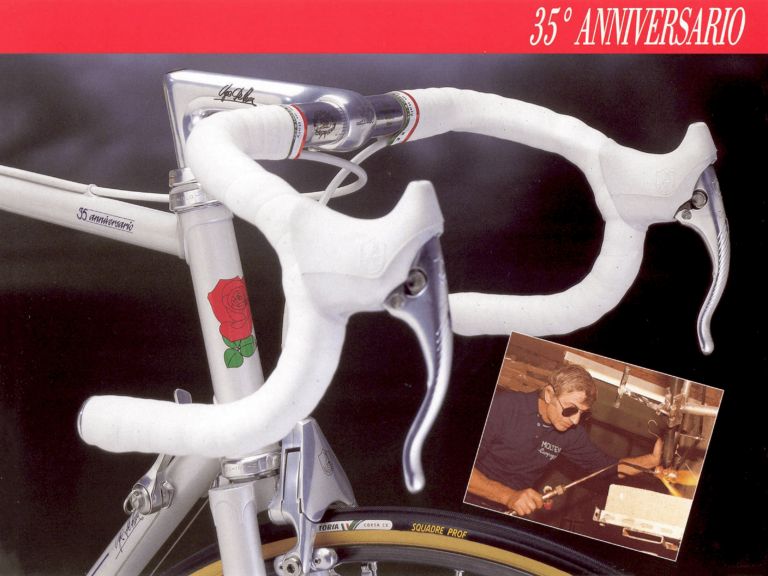

[A close view of the anniversary bicycle’s front end: a pantographed stem signed Ugo De Rosa, the 35 anniversario script on the top tube, a red rose on the head tube, white bar tape over Campagnolo levers, and a Vittoria Corsa CX Squadre Prof tubular below. Inset: Ugo De Rosa in dark glasses and a Molteni Campagnolo shirt, brazing a frame held in a jig.]

— Page 6 —
ATHENA
CHORUS

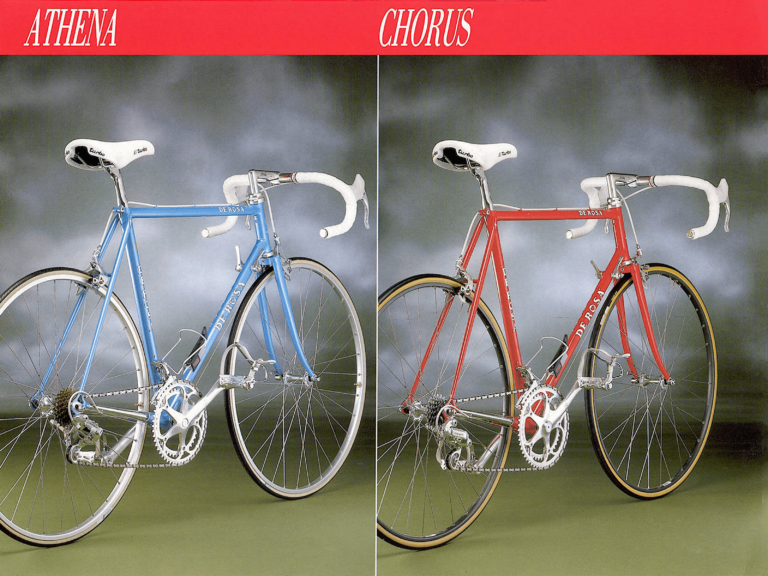

[Two complete road bicycles from the rear three-quarter, headed with the names of the two Campagnolo groups: at the left a light blue machine, at the right a red one, both with white Turbo saddles and white bar tape.]

— Page 7 —
CROCE D’AUNE

PROFESSIONAL SLX
Tubing: Columbus SLX.
Lugs: Investment cast bridgeless bottom bracket shell, flat fork crown, and lug set.
Dropouts: Campagnolo.
Braze-ons: Front derailleur hanger, shift lever bosses, 2 water bottles, pump peg.
Sizes: 47 cm. to 64 cm. in 1 cm. increments, measured center to center.
Chrome: Front derailleur hanger, dropouts, fork crown, chainstays.
Colors Ferrari Red, Ugo Blue, Spanish Blue, Black, Plum, others as available.
Available as a complete bicycle with Nisi rims, 3T handlebar and stem, Vittoria tires, and any Campagnolo or Shimano gruppo.

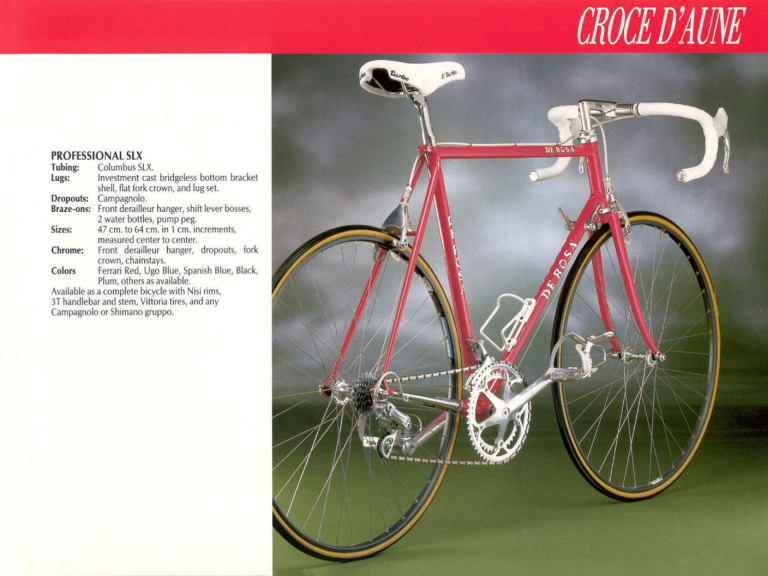

[A red Professional SLX from the rear three-quarter, headed with the name of the Campagnolo Croce d’Aune group, with a white Turbo saddle and white bar tape.]

— Page 8 —
PISTA
Tubing: Columbus SL.
Lugs: Investment cast bridgeless bottom bracket shell, flat fork crown, and lug set.
Dropouts: Campagnolo pista.
Sizes: 48 cm. to 62 cm. in 1 cm. increments, measured center to center.
Chrome: Front fork, chainstays.
Colors: Azzurro, Ferrari Red

DE ROSA®
RIDE THE LEGEND
AUTHORIZED DEALER

NORTH AMERICAN AGENT
GITA
SPORTING GOODS, LTD.
P.O. Box 7266
Charlotte, N.C. 28241-7266 U.S.A.

First Class
U.S. Postage
PAID
Charlotte, N.C.
Permit #3283

Prograf (Verona) – Printed in Italy

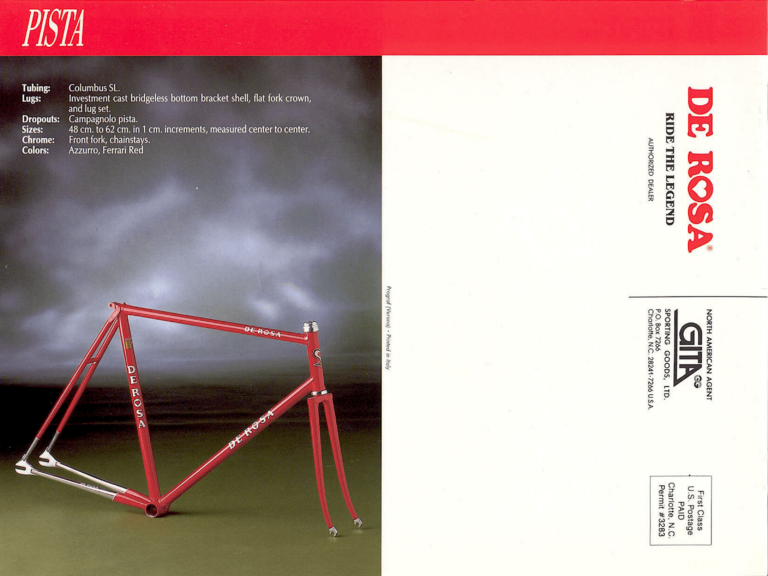

[The back cover. At the left, a red pista frame and fork against a stormy sky under the specification; the right half is the mailing panel, printed sideways.]
