Reynolds c.1990 Constructors Tube Guide — Every Tube Set and Its Gauges on One Page

A folded two-face sheet from TI Reynolds 531 Limited, printed for the Italian market and bilingual throughout in English and Italian. One face is a photographic cover under the line Energy Efficient Technology; the other is the Constructors Tube Guide, a single table giving every tube set in the range with its material and its wall gauges tube by tube.

That table is the reason to hold it. Eighteen sets are listed in one place — 753, 708, 653, 531 Competition, 531 Super Tourist, 525, 525 Triathlon, 501 double butted, 501 single butted and 500, then the five All Terrain sets, then the three Magnum sets — each with material given as Mn Mo or Cr Mo and gauges for top tube, down tube, seat tube, head tube, fork, seat stay, chain stay and steering column. Nothing else in this group states the whole range on one page.

Dating. The sheet is undated. It carries the TI Reynolds 531 Limited imprint at P.O. Box 765 with telephone 021-706 5151 and fax 021-707 0081, the same imprint as the set leaflets elsewhere in this collection, and the copy claims over 90 years of experience, which places it no earlier than 1988. It lists 708 rather than 700, and it carries the New Magnum All Terrain Range, which appears in the 1990 Product Range but not the 1988 one. It also refers to our new transfers. About 1990 follows. A code at the foot reads 22/190 Pentad.

The distributor panel is worth noting for anyone tracing how Reynolds tube reached the Continent: Newman Distributors of Redditch and Manchester, and Milan International Commerce of Rescaldina, Milan, contact Mr A Colombo.

The sheet reached the Ebykr collection through the National Cycle Archive in partnership with the Veteran-Cycle Club, whose courtesy card is the first page of the source file. That card is not reproduced here.

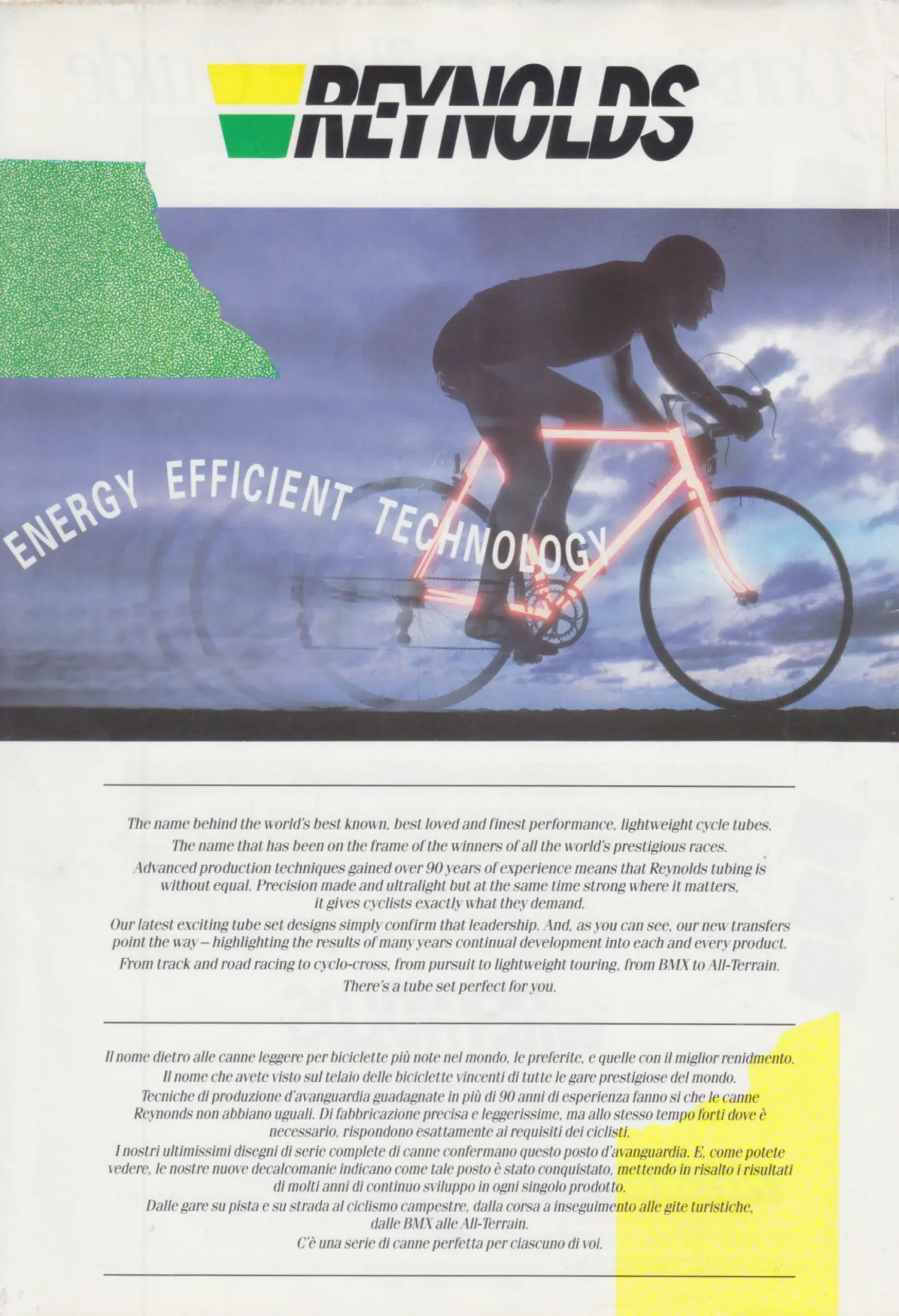

— Page 1 —

REYNOLDS

ENERGY EFFICIENT TECHNOLOGY

[A photograph of a rider on the drops in silhouette against a dusk sky, the frame picked out in glowing pink line so that the tubing reads as the only lit object in the picture.]

The name behind the world’s best known, best loved and finest performance, lightweight cycle tubes.

The name that has been on the frame of the winners of all the world’s prestigious races.

Advanced production techniques gained over 90 years of experience means that Reynolds tubing is without equal. Precision made and ultralight but at the same time strong where it matters, it gives cyclists exactly what they demand.

Our latest exciting tube set designs simply confirm that leadership. And, as you can see, our new transfers point the way – highlighting the results of many years continual development into each and every product.

From track and road racing to cyclo-cross, from pursuit to lightweight touring, from BMX to All-Terrain.

There’s a tube set perfect for you.

Il nome dietro alle canne leggere per biciclette più note nel mondo, le preferite, e quelle con il miglior rendimento.

Il nome che avete visto sul telaio delle biciclette vincenti di tutte le gare prestigiose del mondo.

Tecniche di produzione d’avanguardia guadagnate in più di 90 anni di esperienza fanno si che le canne Reynolds non abbiano uguali. Di fabbricazione precisa e leggerissime, ma allo stesso tempo forti dove è necessario, rispondono esattamente ai requisiti dei ciclisti.

I nostri ultimissimi disegni di serie complete di canne confermano questo posto d’avanguardia. E, come potete vedere, le nostre nuove decalcomanie indicano come tale posto è stato conquistato, mettendo in risalto i risultati di molti anni di continuo sviluppo in ogni singolo prodotto.

Dalle gare su pista e su strada al ciclismo campestre, dalla corsa a inseguimento alle gite turistiche, dalle BMX alle All-Terrain.

C’è una serie di canne perfetta per ciascuno di voi.

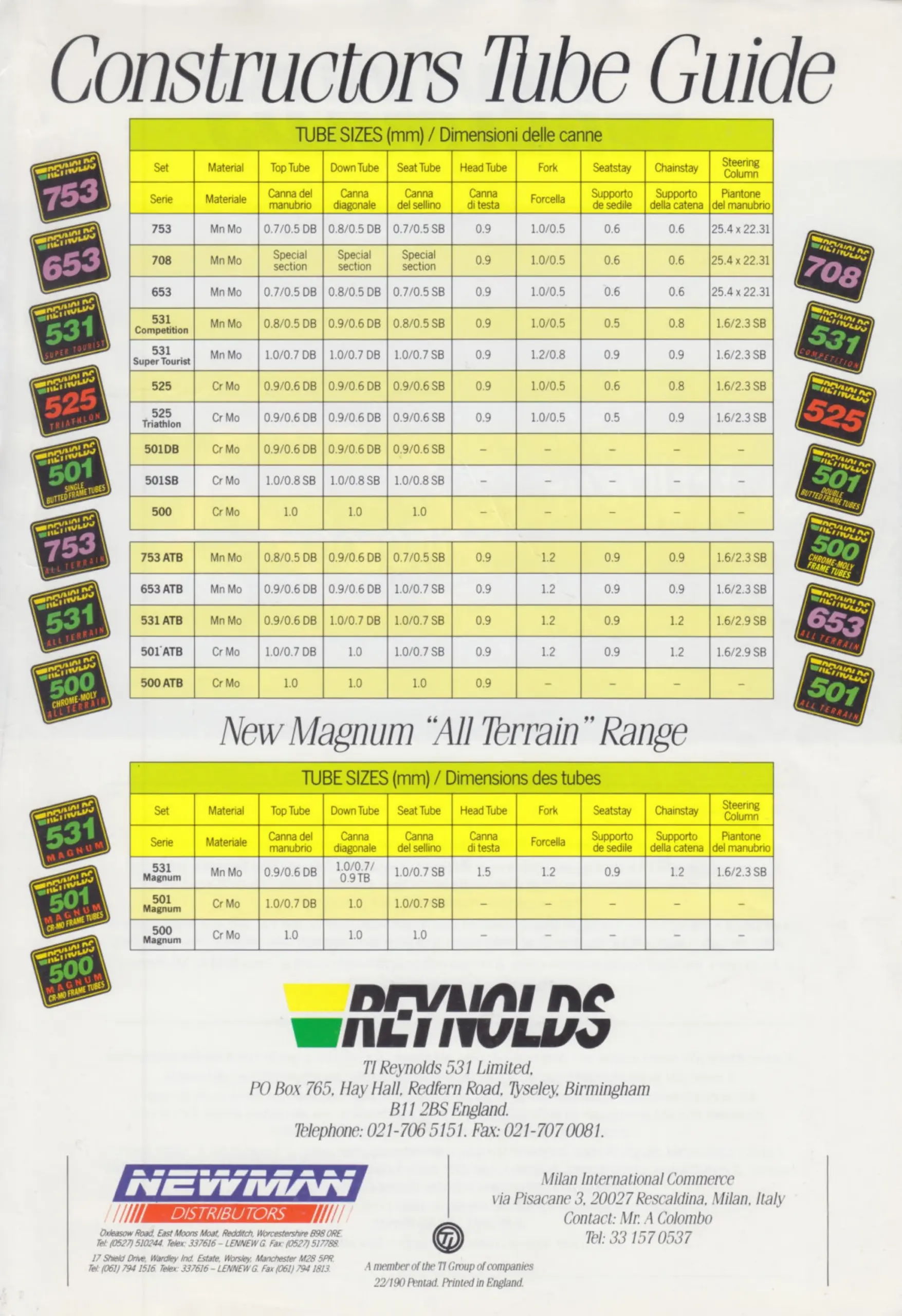

— Page 2 —

Constructors Tube Guide

[The transfer for each set is reproduced down both margins of the page beside its row.]

TUBE SIZES (mm) / Dimensioni delle canne

Columns: Set (Serie) — Material (Materiale) — Top Tube (Canna del manubrio) — Down Tube (Canna diagonale) — Seat Tube (Canna del sellino) — Head Tube (Canna di testa) — Fork (Forcella) — Seatstay (Supporto de sedile) — Chainstay (Supporto della catena) — Steering Column (Piantone del manubrio)

753 — Mn Mo — 0.7/0.5 DB — 0.8/0.5 DB — 0.7/0.5 SB — 0.9 — 1.0/0.5 — 0.6 — 0.6 — 25.4 x 22.31
708 — Mn Mo — Special section — Special section — Special section — 0.9 — 1.0/0.5 — 0.6 — 0.6 — 25.4 x 22.31
653 — Mn Mo — 0.7/0.5 DB — 0.8/0.5 DB — 0.7/0.5 SB — 0.9 — 1.0/0.5 — 0.6 — 0.6 — 25.4 x 22.31
531 Competition — Mn Mo — 0.8/0.5 DB — 0.9/0.6 DB — 0.8/0.5 SB — 0.9 — 1.0/0.5 — 0.5 — 0.8 — 1.6/2.3 SB
531 Super Tourist — Mn Mo — 1.0/0.7 DB — 1.0/0.7 DB — 1.0/0.7 SB — 0.9 — 1.2/0.8 — 0.9 — 0.9 — 1.6/2.3 SB
525 — Cr Mo — 0.9/0.6 DB — 0.9/0.6 DB — 0.9/0.6 SB — 0.9 — 1.0/0.5 — 0.6 — 0.8 — 1.6/2.3 SB
525 Triathlon — Cr Mo — 0.9/0.6 DB — 0.9/0.6 DB — 0.9/0.6 SB — 0.9 — 1.0/0.5 — 0.5 — 0.9 — 1.6/2.3 SB
501DB — Cr Mo — 0.9/0.6 DB — 0.9/0.6 DB — 0.9/0.6 SB — – — – — – — – — –
501SB — Cr Mo — 1.0/0.8 SB — 1.0/0.8 SB — 1.0/0.8 SB — – — – — – — – — –
500 — Cr Mo — 1.0 — 1.0 — 1.0 — – — – — – — – — –

753 ATB — Mn Mo — 0.8/0.5 DB — 0.9/0.6 DB — 0.7/0.5 DB — 0.9 — 1.2 — 0.9 — 0.9 — 1.6/2.3 SB
653 ATB — Mn Mo — 0.9/0.6 DB — 0.9/0.6 DB — 1.0/0.7 DB — 0.9 — 1.2 — 0.9 — 0.9 — 1.6/2.3 SB
531 ATB — Mn Mo — 0.9/0.6 DB — 1.0/0.7 DB — 1.0/0.7 DB — 0.9 — 1.2 — 0.9 — 1.2 — 1.6/2.9 SB
501 ATB — Cr Mo — 1.0/0.7 DB — 1.0 — 1.0/0.7 DB — 0.9 — 1.2 — 0.9 — 1.2 — 1.6/2.9 SB
500 ATB — Cr Mo — 1.0 — 1.0 — 1.0 — 0.9 — – — – — – — –

New Magnum “All Terrain” Range

TUBE SIZES (mm) / Dimensions des tubes

531 Magnum — Mn Mo — 0.9/0.6 DB — 1.0/0.7/0.9 TB — 1.0/0.7 SB — 1.5 — 1.2 — 0.9 — 1.2 — 1.6/2.3 SB
501 Magnum — Cr Mo — 1.0/0.7 DB — 1.0 — 1.0/0.7 SB — – — – — – — – — –
500 Magnum — Cr Mo — 1.0 — 1.0 — 1.0 — – — – — – — – — –

REYNOLDS

TI Reynolds 531 Limited,
PO Box 765, Hay Hall, Redfern Road, Tyseley, Birmingham B11 2BS England.
Telephone: 021-706 5151. Fax: 021-707 0081.

NEWMAN DISTRIBUTORS
Oxleasow Road, East Moons Moat, Redditch, Worcestershire B98 ORE. Tel: (0527) 510244. Telex: 337616 – LENNEW G. Fax: (0527) 517788.
17 Shield Drive, Wardley Ind. Estate, Worsley, Manchester M28 5PR. Tel: (061) 794 1516. Telex: 337616 – LENNEW G. Fax: (061) 794 1813.

Milan International Commerce
via Pisacane 3, 20027 Rescaldina, Milan, Italy
Contact: Mr. A Colombo
Tel: 33 157 0537

A member of the TI Group of companies
22/190 Pentad. Printed in England.

[The second table heads its columns in French, Dimensions des tubes, where the first heads them in Italian, Dimensioni delle canne. Both are as printed.]
