Reynolds c.1989 Set Leaflets — 531 Speedstream, 700 Classic and 753 All Terrain

Three single-sheet set data sheets issued by TI Reynolds 531 Limited from Hay Hall, Redfern Road, Tyseley, Birmingham, and bound together in one source file: 531 Speedstream, 700 Classic and 753 All Terrain. Each sheet gives one frame set in full, and the three are printed to a common template, so they read as one document rather than three fragments.

None of the sheets carries a date. Four things place them at the turn of the 1990s. The imprint is TI Reynolds 531 Limited, a member of the TI Group of companies. The telephone and fax numbers are Birmingham 021 numbers, which fixes them before the April 1995 change to 0121. The 753 All Terrain set does not appear in the 1988 Product Range but does appear in the 1990 one. And the tube is called 700 Classic here, where the 1990 Product Range calls it 708 Classic. The sheets therefore sit between those two catalogs, and 1989 is the best single year for them. Treat that as inferred rather than documented.

What earns them a place is the ordering data. Each sheet lists every tube in the set by Reynolds part number with outside diameter, gauge, length and tip count, which is the information a constructor actually worked from and the information that lets a frame be read backward from its tubing today. The three sets also sit at three different points in the range: 531 Speedstream is drawn for lugless construction, 700 Classic is a special-section tube with a flat-sided profile, and 753 All Terrain is restricted stock.

Two details are worth pulling out. The 700 Classic diagram carries an identification note in its own words, that the Reynolds mark will always be above a flat, which is a fact about how a finished frame can be read rather than a fact about the tube. And the 753 All Terrain sheet gives its typical tensile strength as 195,500 psi in English and 195,000 psi in French on the same page. The discrepancy is in the original and is reproduced here rather than reconciled.

The sheets reached the Ebykr collection through the National Cycle Archive in partnership with the Veteran-Cycle Club, whose courtesy card is the first page of the source file. That card is not reproduced here. The scan sits near the resolution floor, and a small number of figures in the set tables are soft; where a figure could not be read with confidence it is omitted rather than guessed.

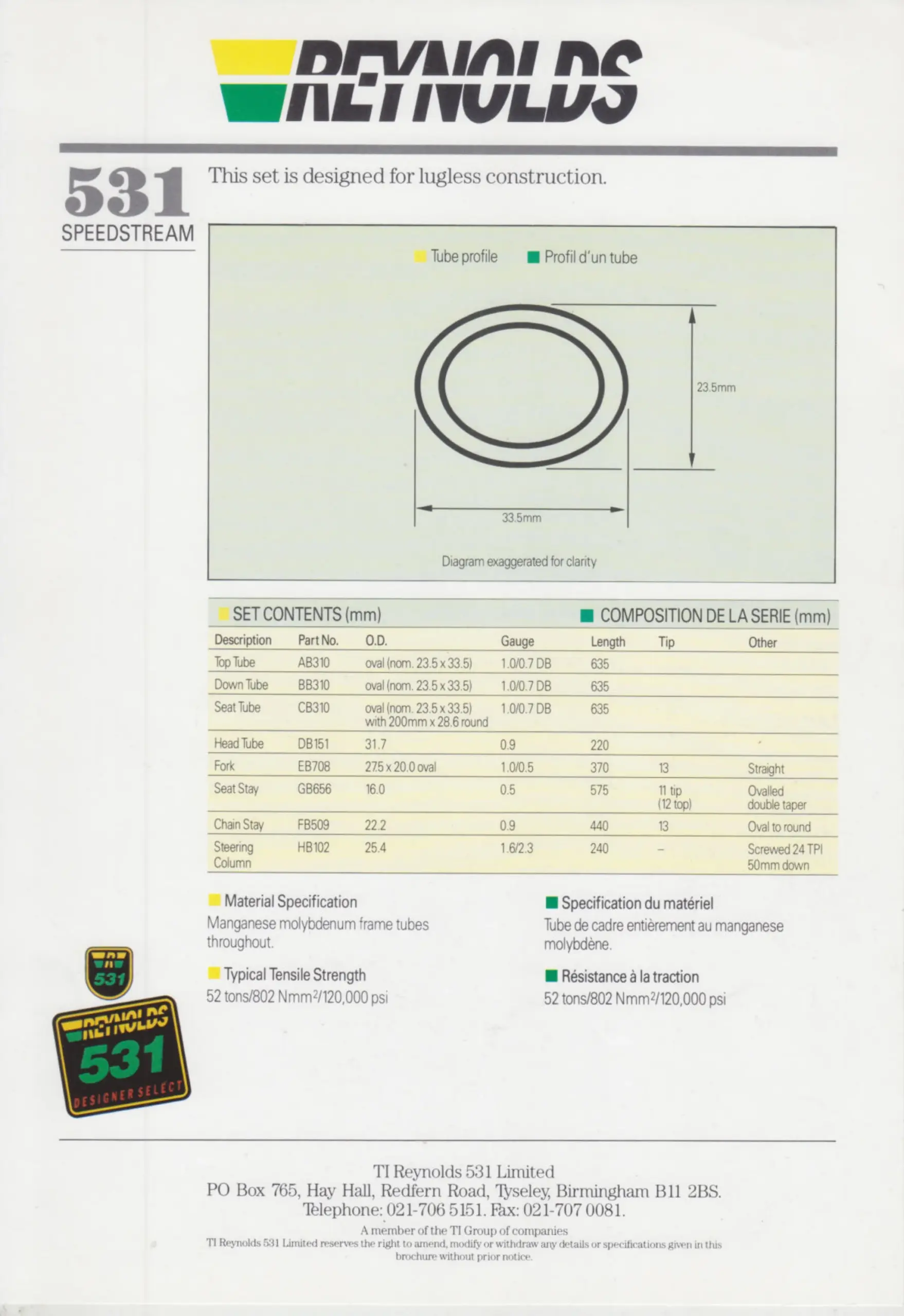

— Page 1 —

REYNOLDS

531 SPEEDSTREAM

This set is designed for lugless construction.

[Diagram: a single oval tube section, nominal 23.5mm by 33.5mm. Legend: Tube profile / Profil d’un tube. Note beneath: Diagram exaggerated for clarity.]

SET CONTENTS (mm) — COMPOSITION DE LA SERIE (mm)

Description — Part No. — O.D. — Gauge — Length — Tip — Other

Top Tube — AB310 — oval (nom. 23.5 x 33.5) — 1.0/0.7 DB — 635
Down Tube — BB310 — oval (nom. 23.5 x 33.5) — 1.0/0.7 DB — 635
Seat Tube — CB310 — oval (nom. 23.5 x 33.5) with 200mm x 28.6 round — 1.0/0.7 DB — 635
Head Tube — DB151 — 31.7 — 0.9 — 220
Fork — EB708 — 27.5 x 20.0 oval — 1.0/0.5 — 370 — 13 — Straight
Seat Stay — GB656 — 16.0 — 0.5 — 575 — 11 tip (12 top) — Ovalled double taper
Chain Stay — FB509 — 22.2 — 0.9 — 440 — 13 — Oval to round
Steering Column — HB102 — 25.4 — 1.6/2.3 — 240 — – — Screwed 24 TPI 50mm down

Material Specification
Manganese molybdenum frame tubes throughout.

Typical Tensile Strength
52 tons/802 Nmm2/120,000 psi

Spécification du matériel
Tube de cadre entièrement au manganèse molybdène.

Résistance à la traction
52 tonnes/802 Nmm2/120,000 psi

TI Reynolds 531 Limited
PO Box 765, Hay Hall, Redfern Road, Tyseley, Birmingham B11 2BS.
Telephone: 021-706 5151. Fax: 021-707 0081.
A member of the TI Group of companies.
TI Reynolds 531 Limited reserves the right to amend, modify or withdraw any details or specifications given in this brochure without prior notice.

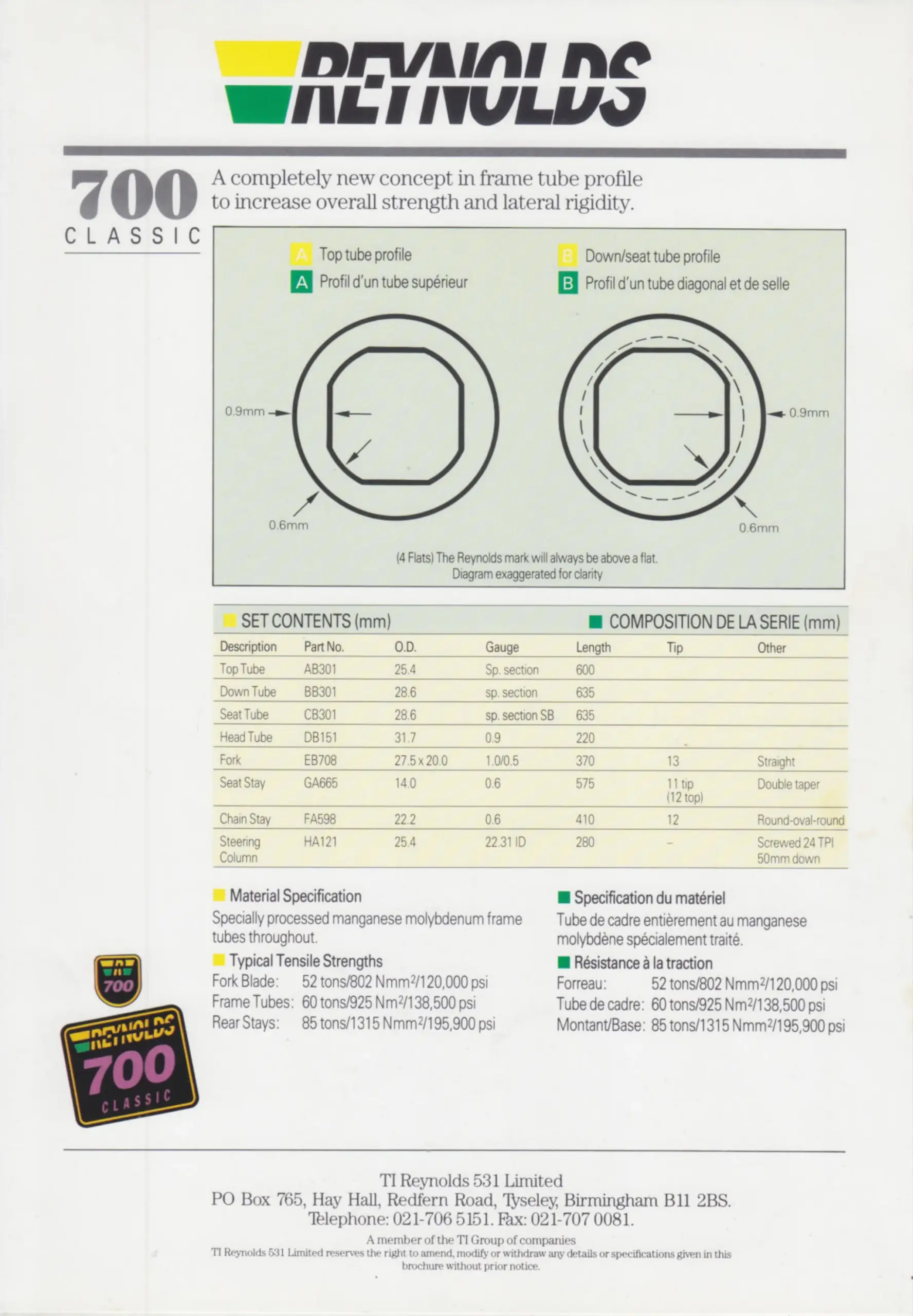

— Page 2 —

REYNOLDS

700 CLASSIC

A completely new concept in frame tube profile to increase overall strength and lateral rigidity.

[Diagram: two tube sections side by side, each a round outer wall enclosing an octagonal bore. Legend: A Top tube profile / A Profil d’un tube supérieur; B Down/seat tube profile / B Profil d’un tube diagonal et de selle. Wall figures 0.9mm and 0.6mm are called out on both. Note beneath: (4 Flats) The Reynolds mark will always be above a flat. Diagram exaggerated for clarity.]

SET CONTENTS (mm) — COMPOSITION DE LA SERIE (mm)

Description — Part No. — O.D. — Gauge — Length — Tip — Other

Top Tube — AB301 — 25.4 — Sp. section — 600
Down Tube — BB301 — 28.6 — sp. section — 635
Seat Tube — CB301 — 28.6 — sp. section SB — 635
Head Tube — DB151 — 31.7 — 0.9 — 220
Fork — EB708 — 27.5 x 20.0 — 1.0/0.5 — 370 — 13 — Straight
Seat Stay — GA665 — 14.0 — 0.6 — 575 — 11 tip (12 top) — Double taper
Chain Stay — FA598 — 22.2 — 0.6 — 410 — 12 — Round-oval-round
Steering Column — HA121 — 25.4 — 22.31 ID — 280 — – — Screwed 24 TPI 50mm down

Material Specification
Specially processed manganese molybdenum frame tubes throughout.

Typical Tensile Strengths
Fork Blade: 52 tons/802 Nmm2/120,000 psi
Frame Tubes: 60 tons/925 Nm2/138,500 psi
Rear Stays: 85 tons/1315 Nmm2/195,900 psi

Spécification du matériel
Tube de cadre entièrement au manganèse molybdène spécialement traité.

Résistance à la traction
Forreau: 52 tonnes/802 Nmm2/120,000 psi
Tube de cadre: 60 tonnes/925 Nm2/138,500 psi
Montant/Base: 85 tonnes/1315 Nmm2/195,900 psi

TI Reynolds 531 Limited
PO Box 765, Hay Hall, Redfern Road, Tyseley, Birmingham B11 2BS.
Telephone: 021-706 5151. Fax: 021-707 0081.
A member of the TI Group of companies.
TI Reynolds 531 Limited reserves the right to amend, modify or withdraw any details or specifications given in this brochure without prior notice.

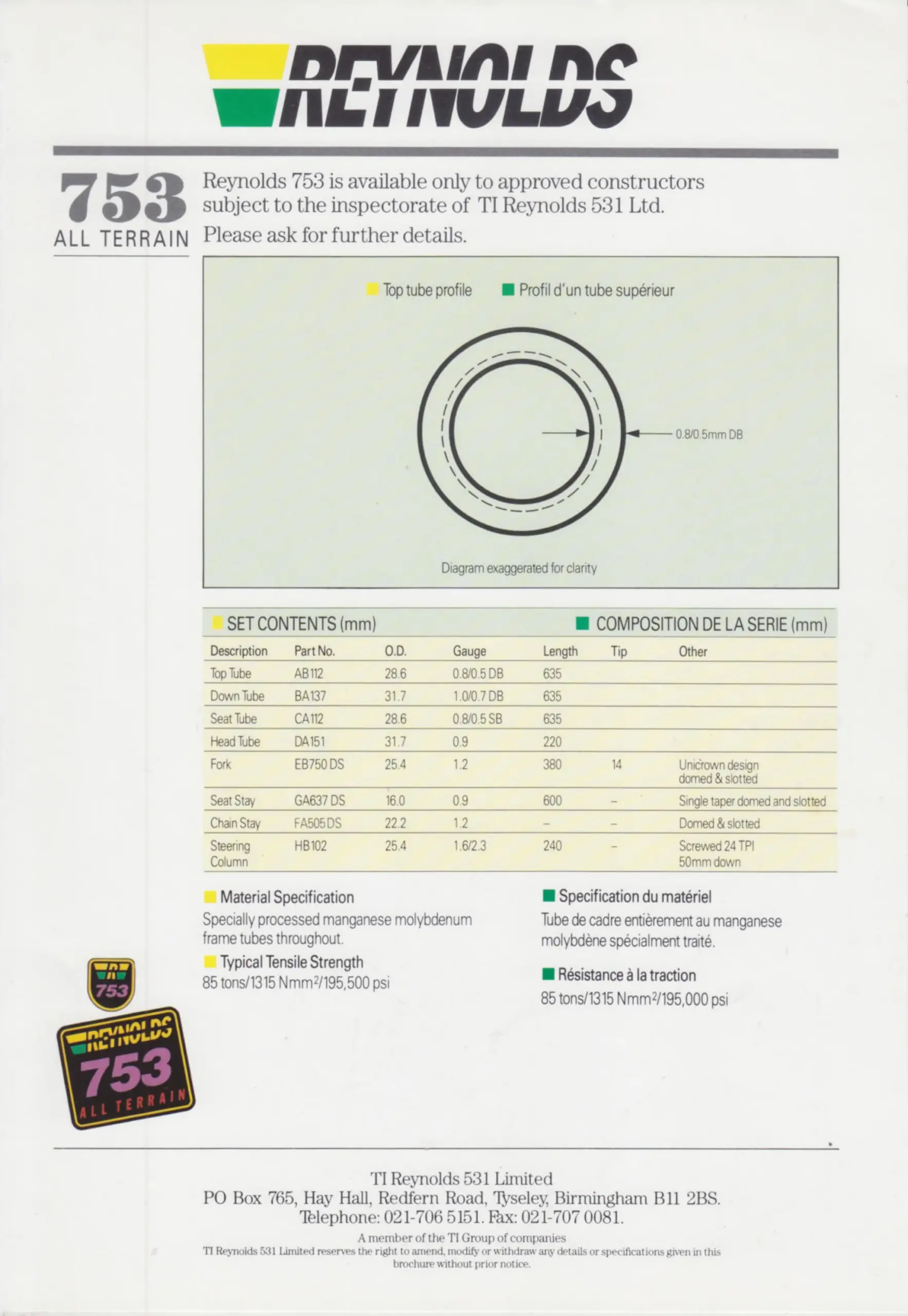

— Page 3 —

REYNOLDS

753 ALL TERRAIN

Reynolds 753 is available only to approved constructors subject to the inspectorate of TI Reynolds 531 Ltd. Please ask for further details.

[Diagram: a single round tube section with a double-butted wall called out as 0.8/0.5mm DB. Legend: Top tube profile / Profil d’un tube supérieur. Note beneath: Diagram exaggerated for clarity.]

SET CONTENTS (mm) — COMPOSITION DE LA SERIE (mm)

Description — Part No. — O.D. — Gauge — Length — Tip — Other

Top Tube — AB112 — 28.6 — 0.8/0.5 DB — 635
Down Tube — BA137 — 31.7 — 1.0/0.7 DB — 635
Seat Tube — CA112 — 28.6 — 0.8/0.5 SB — 635
Head Tube — DA151 — 31.7 — 0.9 — 220
Fork — EB750 DS — 25.4 — 1.2 — 380 — 14 — Unicrown design domed & slotted
Seat Stay — GA637 DS — 16.0 — 0.9 — 600 — – — Single taper domed and slotted
Chain Stay — FA505 DS — 22.2 — 1.2 — – — – — Domed & slotted
Steering Column — HB102 — 25.4 — 1.6/2.3 — 240 — – — Screwed 24 TPI 50mm down

Material Specification
Specially processed manganese molybdenum frame tubes throughout.

Typical Tensile Strength
85 tons/1315 Nmm2/195,500 psi

Spécification du matériel
Tube de cadre entièrement au manganèse molybdène spécialment traité.

Résistance à la traction
85 tonnes/1315 Nmm2/195,000 psi

[The English and French tensile figures differ on this sheet, 195,500 against 195,000. Both are as printed.]

TI Reynolds 531 Limited
PO Box 765, Hay Hall, Redfern Road, Tyseley, Birmingham B11 2BS.
Telephone: 021-706 5151. Fax: 021-707 0081.
A member of the TI Group of companies.
TI Reynolds 531 Limited reserves the right to amend, modify or withdraw any details or specifications given in this brochure without prior notice.
