Nervex 1958 Catalog — Frame Design No 2, Upright, Gents Frame 22 to 24 Inch (Page 15)

— Page 15 —
15

NERVEX

FRAME DESIGN N° 2
UPRIGHT
GENTS FRAME, SIZE 22 TO 24 INCH

COMPOSITION AND ORDERING

YOUR ORDER : (code for standard specification).

a) One NERVEX lug set, “Professional” model 49/162 for frame design N° 2, boxed. (English/French size – specify).
b) One NERVEX lug set, “Serie Legere” model….. (specify reference of feature cut and nozzle cut required), for frame design N° 2, boxed. (English/French size – specify).

WE SHALL DELIVER :

INDIVIDUAL LUG REFERENCES
(Pages 4 to 12)

One box containing the following in the model lug set you ordered | French size | English size | Angles | Weight – gr. average
One – Head lug, top | 228 | 228A | 73.30° | 40
One – Head lug, bottom | 236 | 236A | 59.30° | 40
One – Seat lug, top and bottom cut ° a) without spigot for “Professional” model ° b) with spigot EF for all “Serie Legere” models | 406 | 406A | 73.30° | 55
One – Bottom bracket shell “V” Pattern, H = 67 m/m | 3103 | 3103A | 59.30°x64° | 180

° NOTE : If you require the seat lug different from the type described above, refer to page 9 for the correcr code specification and add to your order, as per heading a) and b) above.

MODELS

Lug sets for frame design N° 2 are readily available in sets Models 85/156, 86 bis/158, 45/159, 48/161 49/162 (see illustrations on pages 5, 6, 7). Other models on request.

STANDARD PACKING
150 sets per case – GW : 61 kg 134 lb – NW : 49 kg 108 lb – Measurements : 75 cm x 55 cm x 42 cm 2’6″ x 1’10” x 1’4½”

[Dimensions lettered on the frame drawing:]
568
Tube: 544
73°30′
ø = 26
130
ø = 32
73°30′
545
59°30′
ø = 28
ø = 28
R = 360
Tube: 550
570
59°30′
Tube: 602
64°
626
170
335 (Roue 650 ½ bal.)
450
Flèche: 70
270
Chasse : 26

[Angles lettered on the lug drawing:]
73’30 [?]
73’30 [?]
59’30 [?]
59’30
64°

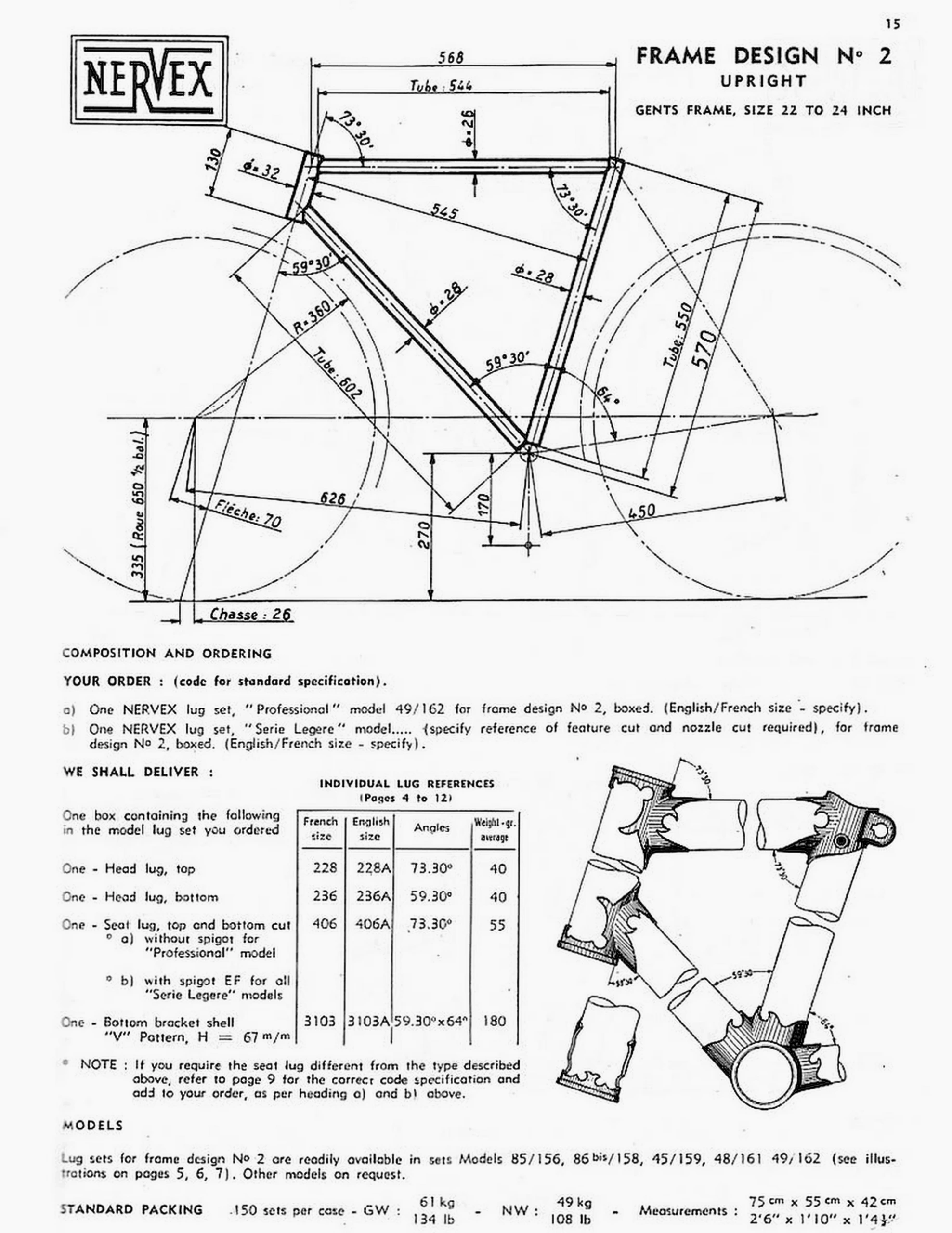

[A lug catalog page shows a dimensioned line drawing of an upright men’s frame with its wheel outlines, beside an exploded drawing of the head, seat and bottom bracket lugs and the frame tubes cut between them. Below the drawing are the ordering instructions, a lug reference table and the packing details.]
