About Ebykr
Ebykr celebrates classic and vintage lightweight bicycles through provocative imagery and opinion. Ride along with us.
Quelques productions Nervar — Le Cycle, May 1971
Source: Le Cycle, n° 119, May 1971, page 17; scan of the issue from Cycle Memory (Mémoire du Cycle), Collection privée H.D.
About this document
| Marque | Nervar |
|---|---|
| Type | Review |
| Year | 1971 |
| Publisher | Le Cycle |
| Country | France |
| Language | French |
| Pages | 1 |
| Source | Le Cycle, n° 119, May 1971, page 17; scan of the issue from Cycle Memory (Mémoire du Cycle), Collection privée H.D. |
| Credit | Ebykr archive |
| Identifier | Permalink https://cyclememory.org/fr/search-coll-list.php?collectionID=773&docID=B-1-0000000811 |
| Transcription | Headings and specifications transcribed; article text summarized |
Transcription
LE CYCLE Quelques productions NERVAR 17
This is a magazine article, so its running text is summarized here rather than reproduced; the headline, byline, specifications and scores are transcribed as printed.
Read the headings, specifications and summary (1 page)

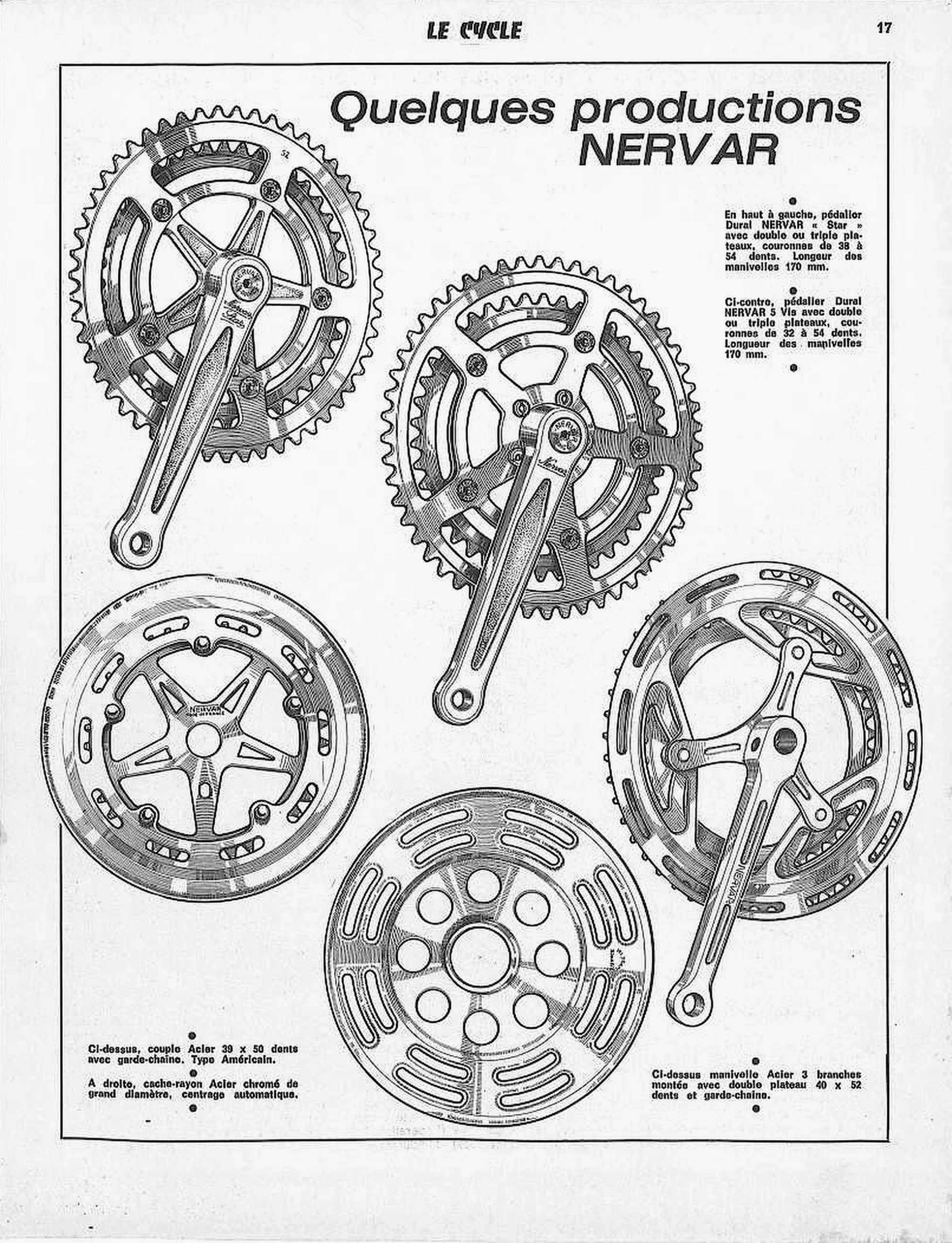

Le Cycle’s plate “Quelques productions Nervar”, page 17 of n° 119, May 1971: five drawings of Nervar chainsets and parts made by Ets Peyrard of L’Horme, the Star and 5 Vis Dural chainsets, a steel chainring pair with its chainguard, a spoke protector and a three-arm steel crank, each with its caption. The title is transcribed as printed; the captions are summarized in Ebykr’s words, and the page image carries them in full.
— Page 1 —
LE CYCLE
Quelques productions NERVAR
[Ebykr summary; the article’s text is not reproduced. A plate of five Nervar products, each identified in a short caption set in three blocks in the margins. Top left: the Nervar Dural chainset named « Star », supplied with double or triple chainrings of 38 to 54 teeth (dents) and 170 mm cranks (manivelles). Center: the Nervar 5 Vis Dural chainset, also double or triple, with chainrings of 32 to 54 teeth and 170 mm cranks. Lower left: a steel (Acier) chainring pair of 39 x 50 teeth with a chainguard (garde-chaine), described as Type Américain. Bottom center: a large-diameter chrome-plated steel spoke protector (cache-rayon) that centers itself automatically. Lower right: a three-arm steel crank (manivelle Acier 3 branches) assembled with a double chainring of 40 x 52 teeth and a chainguard.]
[Five detailed line drawings fill a ruled frame under the italic title. At top left a Star double chainset with five-arm spider, fluted crank and NERVAR dust cap, the outer ring marked 52 and the crank arm lettered in script; at center a 5 Vis double chainset with a NERVAR dust cap and Nervar script on the arm; at lower left a steel chainring pair without its crank, its five-arm spider stamped NERVAR and MADE IN FRANCE, inside a slotted chainguard disc; at bottom center a slotted spoke protector disc with eight round holes about its hub; and at right a three-arm steel crank lettered NERVAR along the arm, mounted with a double chainring behind a slotted chainguard. No drawing on the page carries a Rebour signature.]
17
