Fuji 1977 Catalog — No. 7 Edition, with the Factory and the New Twelve-Speed Models

— Page 1 (front cover) —
FUJI

No. 7 Edition

Exclusive Importer:
FUJI AMERICA
a Division of
Toshoku America, Inc.
Room 520, 551 Fifth Ave.
New York, N.Y. 10017
Telephone: 212-661-5421

[The front cover of the Fuji catalog, with FUJI in tall orange letters down a black band on the left and a painting of racing cyclists seen from above, riding down a gray road in yellow, orange, blue and white jerseys, filling the rest of the page. The edition line and the importer box sit at the foot of the black band.]

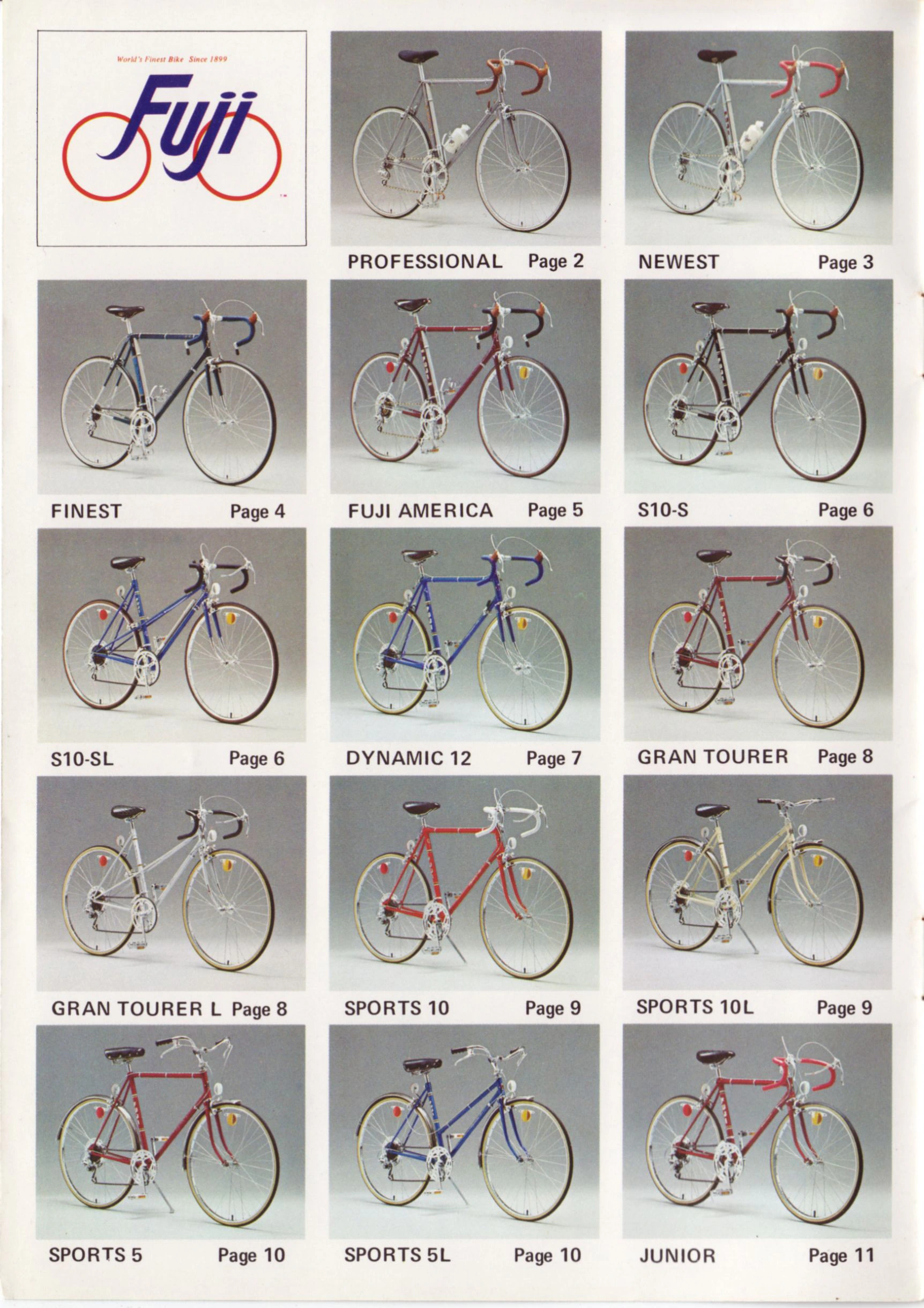

— Page 2 —
World’s Finest Bike Since 1899
Fuji™

PROFESSIONAL Page 2
NEWEST Page 3
FINEST Page 4
FUJI AMERICA Page 5
S10-S Page 6
S10-SL Page 6
DYNAMIC 12 Page 7
GRAN TOURER Page 8
GRAN TOURER L Page 8
SPORTS 10 Page 9
SPORTS 10L Page 9
SPORTS 5 Page 10
SPORTS 5L Page 10
JUNIOR Page 11

[A contents page of 14 small studio photographs of Fuji bicycles on gray backdrops, each captioned with its model name and catalog page, beside a boxed Fuji logo whose two red circles form the wheels of a bicycle. The models run from the silver Professional and the pale blue Newest to the red Junior, with the step-through S10-SL, Gran Tourer L, Sports 10L and Sports 5L shown beside their diamond-frame counterparts.]

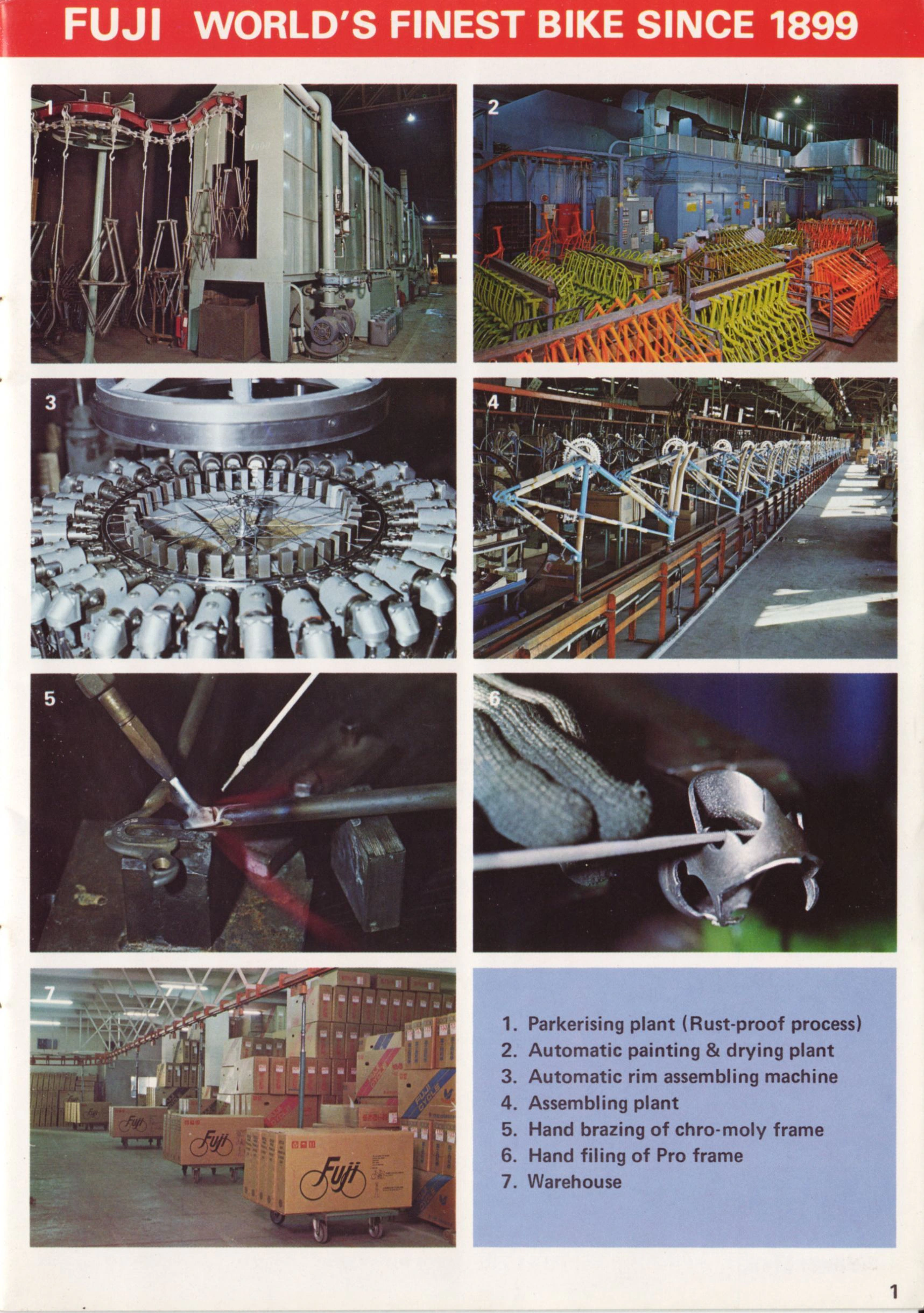

— Page 3 —
FUJI WORLD’S FINEST BIKE SINCE 1899

1. Parkerising plant (Rust-proof process)
2. Automatic painting & drying plant
3. Automatic rim assembling machine
4. Assembling plant
5. Hand brazing of chro-moly frame
6. Hand filing of Pro frame
7. Warehouse

1

[Seven numbered photographs of the Fuji factory under a red heading band, keyed in a blue panel: frames hanging from an overhead conveyor in the rust-proofing plant, freshly painted yellow and orange frames in the painting plant, a circular automatic rim assembling machine, a long assembly line of frames, a lug being brazed by torch, a gloved hand filing a lug and a warehouse stacked with Fuji cartons. The page number 1 is printed at the lower right.]

— Page 4 —

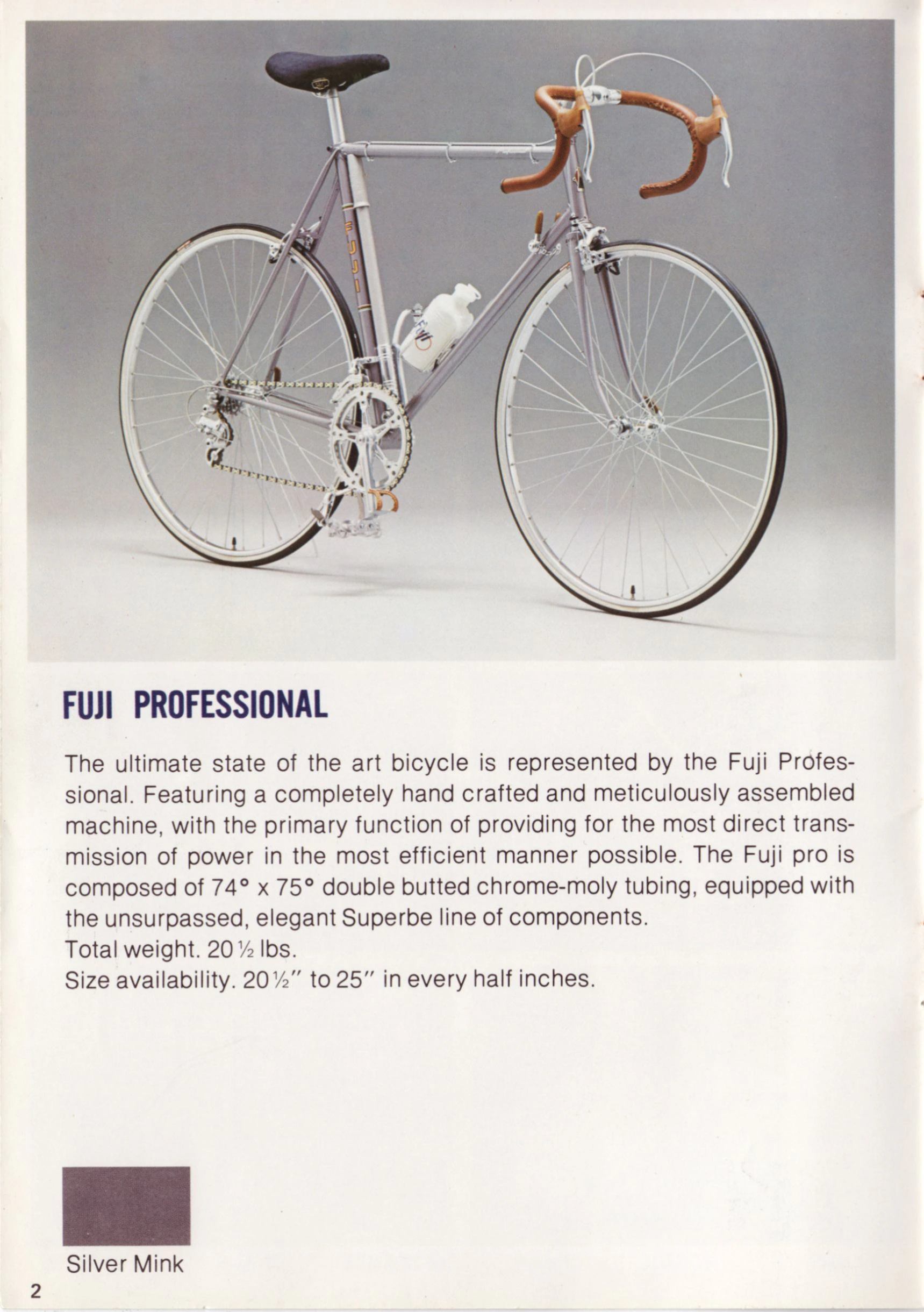

FUJI PROFESSIONAL

The ultimate state of the art bicycle is represented by the Fuji Professional. Featuring a completely hand crafted and meticulously assembled machine, with the primary function of providing for the most direct transmission of power in the most efficient manner possible. The Fuji pro is composed of 74° x 75° double butted chrome-moly tubing, equipped with the unsurpassed, elegant Superbe line of components.
Total weight. 20 ½ lbs.
Size availability. 20½” to 25″ in every half inches.

Silver Mink

2

[The Fuji Professional in Silver Mink, a lightweight road racing bicycle with brown handlebar tape, a black saddle and a water bottle, photographed on a gray studio backdrop above its description. A single color chip labeled Silver Mink sits at the lower left beside the page number 2.]

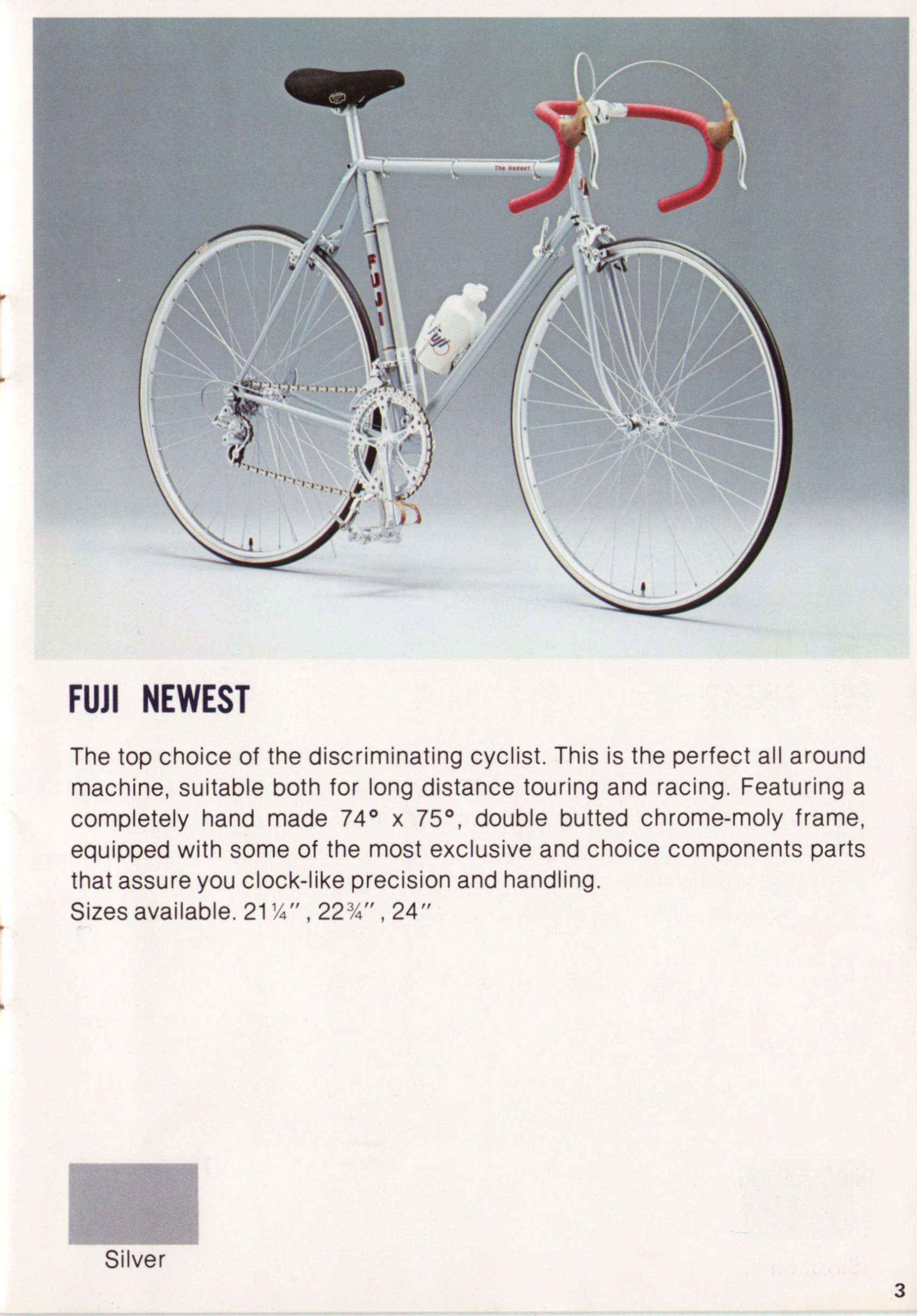

— Page 5 —
FUJI NEWEST

The top choice of the discriminating cyclist. This is the perfect all around machine, suitable both for long distance touring and racing. Featuring a completely hand made 74° x 75°, double butted chrome-moly frame, equipped with some of the most exclusive and choice components parts that assure you clock-like precision and handling.
Sizes available. 21¼”, 22¾”, 24″

Silver

3

[The Fuji Newest in Silver, a lightweight road bicycle with red handlebar tape, a black saddle, a water bottle and “The Newest” lettered on its top tube, photographed on a gray studio backdrop above its description. A single color chip labeled Silver sits at the lower left and the page number 3 at the lower right.]

— Page 6 —

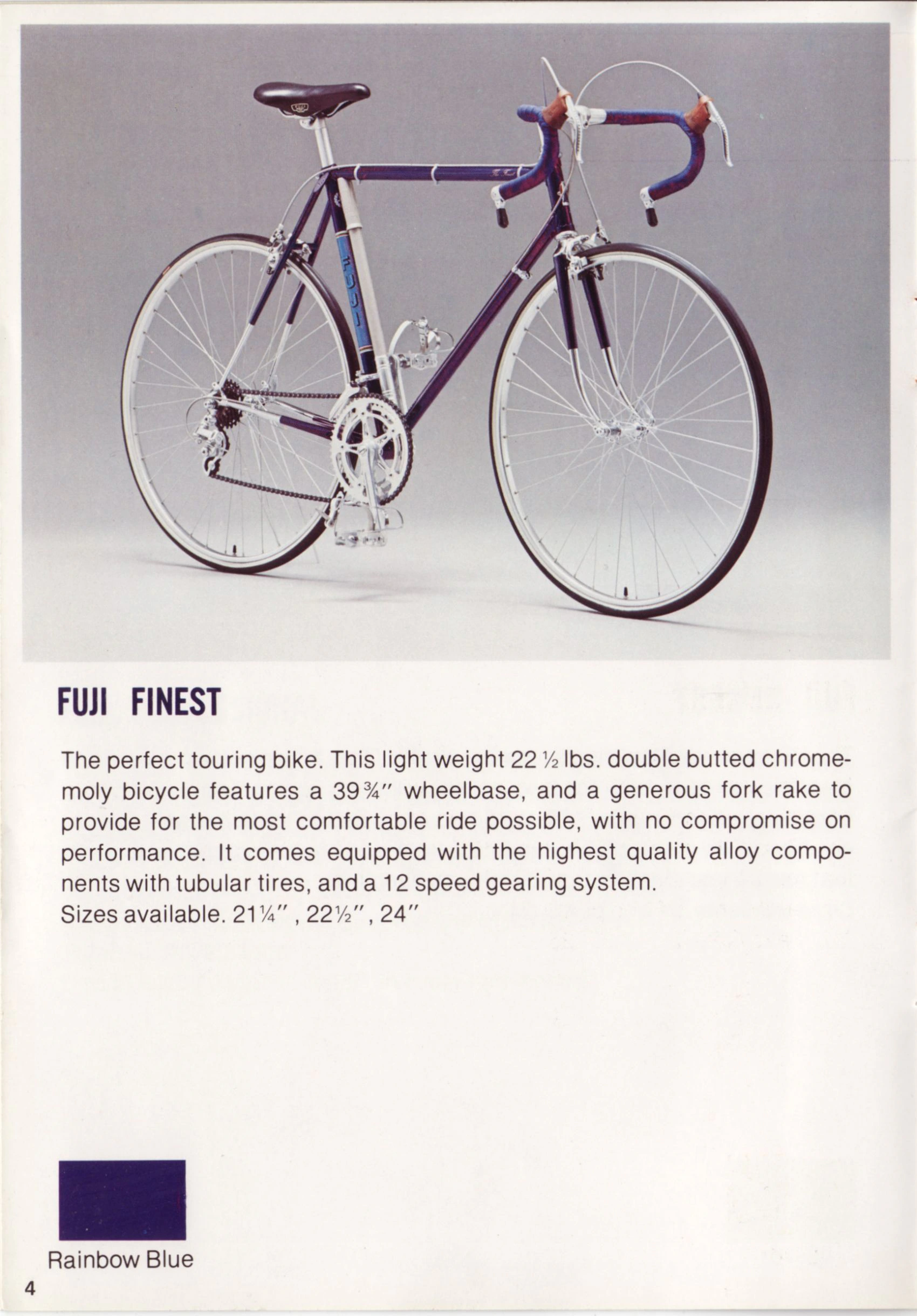

FUJI FINEST

The perfect touring bike. This light weight 22 ½ lbs. double butted chrome-moly bicycle features a 39¾” wheelbase, and a generous fork rake to provide for the most comfortable ride possible, with no compromise on performance. It comes equipped with the highest quality alloy components with tubular tires, and a 12 speed gearing system.
Sizes available. 21¼”, 22½”, 24″

Rainbow Blue

4

[The Fuji Finest in Rainbow Blue, a lightweight road bicycle with a deep blue frame, a silver seat tube panel, chromed fork tips, blue handlebar tape and toe clips, photographed on a gray studio backdrop above its description. A single color chip labeled Rainbow Blue sits at the lower left above the page number 4.]

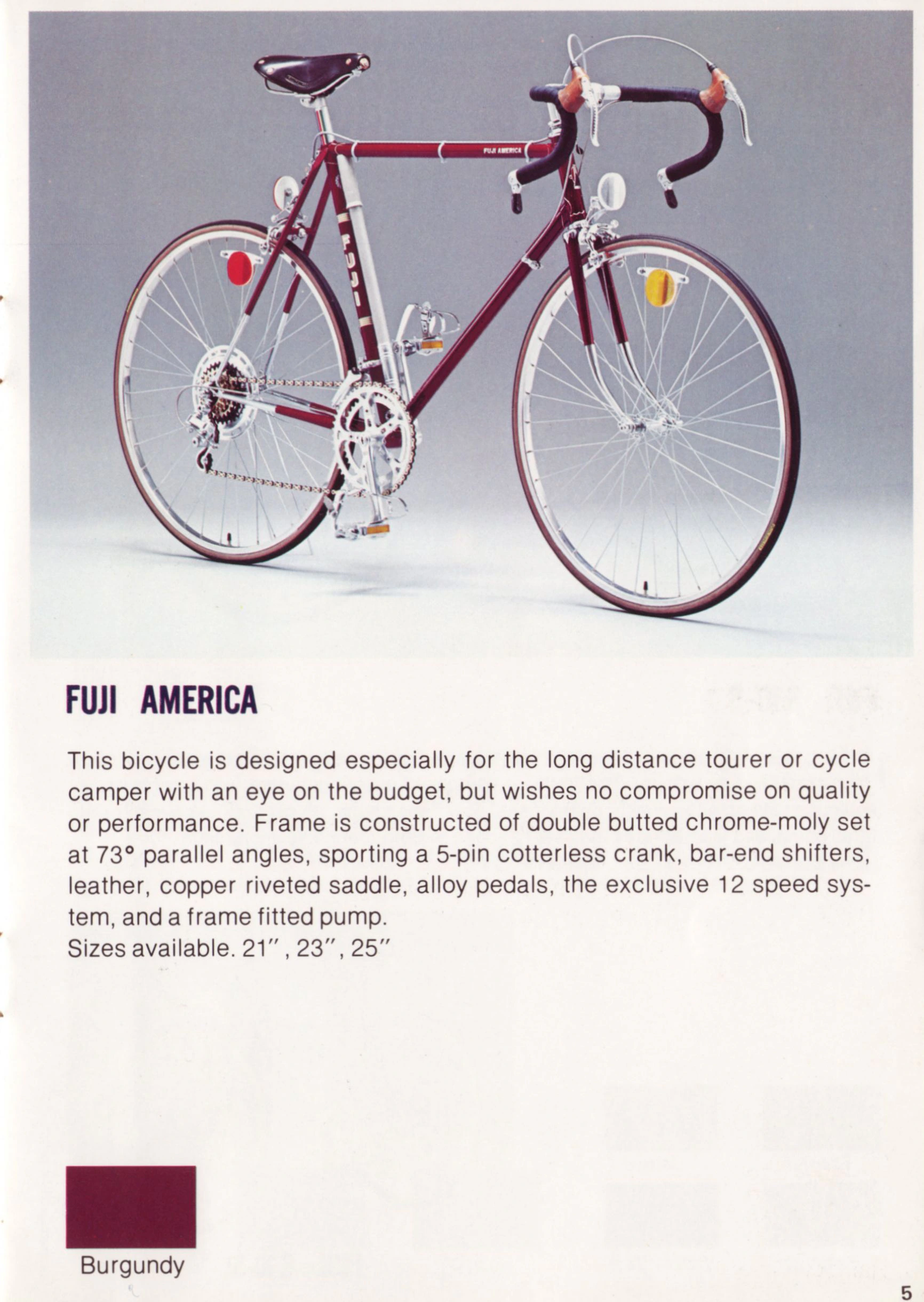

— Page 7 —
FUJI AMERICA

This bicycle is designed especially for the long distance tourer or cycle camper with an eye on the budget, but wishes no compromise on quality or performance. Frame is constructed of double butted chrome-moly set at 73° parallel angles, sporting a 5-pin cotterless crank, bar-end shifters, leather, copper riveted saddle, alloy pedals, the exclusive 12 speed system, and a frame fitted pump.
Sizes available. 21″, 23″, 25″

Burgundy

5

[The Fuji America in Burgundy, a twelve-speed touring bicycle with black handlebar tape, bar-end shifters, a brown leather saddle, toe clips and red, amber and white reflectors, photographed on a gray studio backdrop with “Fuji America” lettered on its top tube. A single color chip labeled Burgundy sits at the lower left and the page number 5 at the lower right.]

— Page 8 —

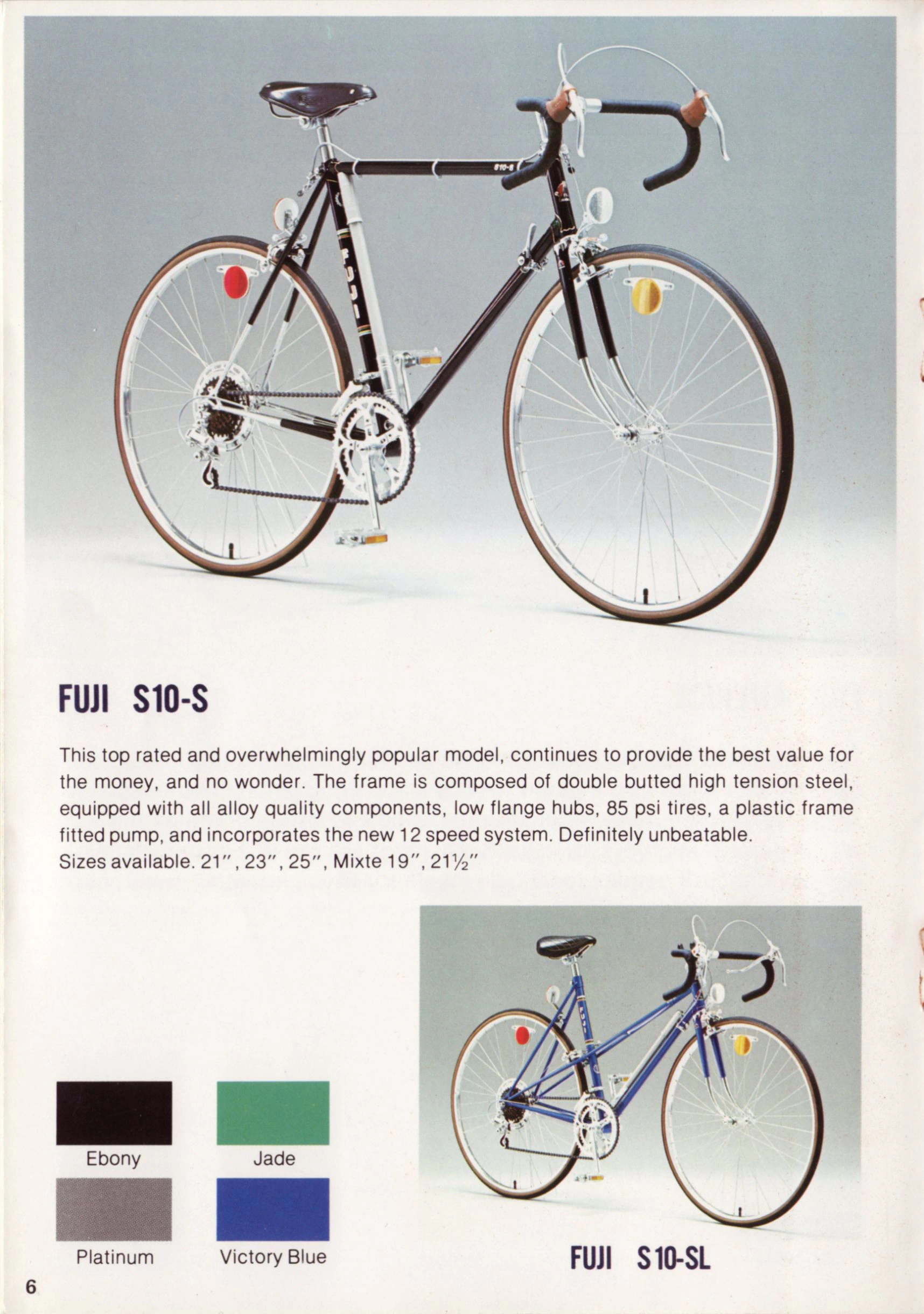

FUJI S10-S

This top rated and overwhelmingly popular model, continues to provide the best value for the money, and no wonder. The frame is composed of double butted high tension steel, equipped with all alloy quality components, low flange hubs, 85 psi tires, a plastic frame fitted pump, and incorporates the new 12 speed system. Definitely unbeatable.
Sizes available. 21″, 23″, 25″, Mixte 19″, 21½”

Ebony
Jade
Platinum
Victory Blue

FUJI S 10-SL

6

[The Fuji S10-S in black, a twelve-speed road bicycle with black handlebar tape, a black saddle, a silver seat tube panel and red, amber and white reflectors, photographed on a gray studio backdrop with “S10-S” lettered on its top tube. Below the description, four color chips labeled Ebony, Jade, Platinum and Victory Blue sit beside an inset photograph of the S10-SL, a blue mixte version of the same bicycle; the page number 6 is at the lower left.]

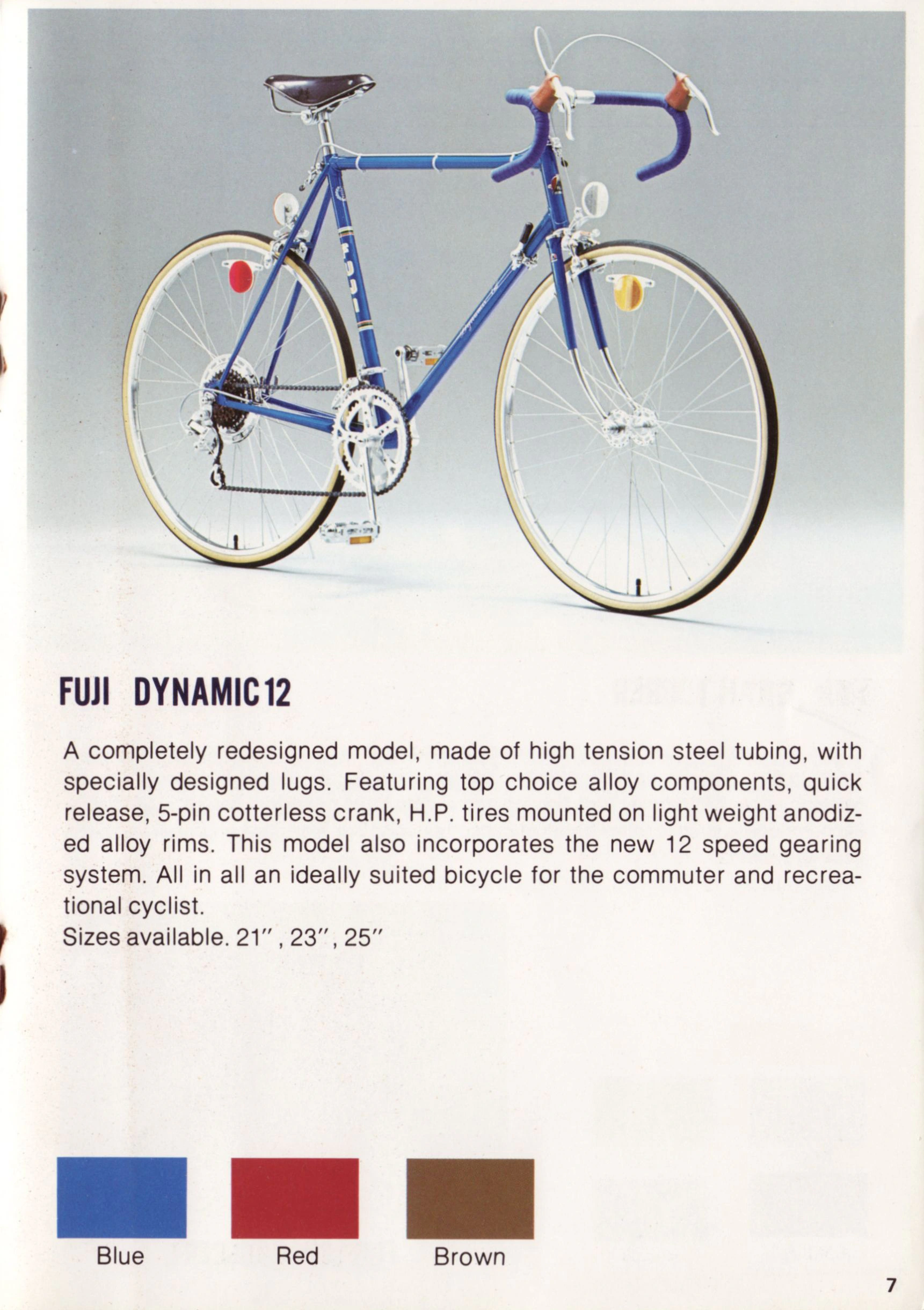

— Page 9 —
FUJI DYNAMIC 12

A completely redesigned model, made of high tension steel tubing, with specially designed lugs. Featuring top choice alloy components, quick release, 5-pin cotterless crank, H.P. tires mounted on light weight anodized alloy rims. This model also incorporates the new 12 speed gearing system. All in all an ideally suited bicycle for the commuter and recreational cyclist.
Sizes available. 21″, 23″, 25″

Blue
Red
Brown

7

[The Fuji Dynamic 12 in blue, a twelve-speed road bicycle with blue handlebar tape, a brown leather saddle, quick release hubs, tan sidewall tires and red, amber and white reflectors, photographed on a gray studio backdrop with the model name in script on its down tube. Three color chips labeled Blue, Red and Brown sit along the foot of the page above the page number 7.]

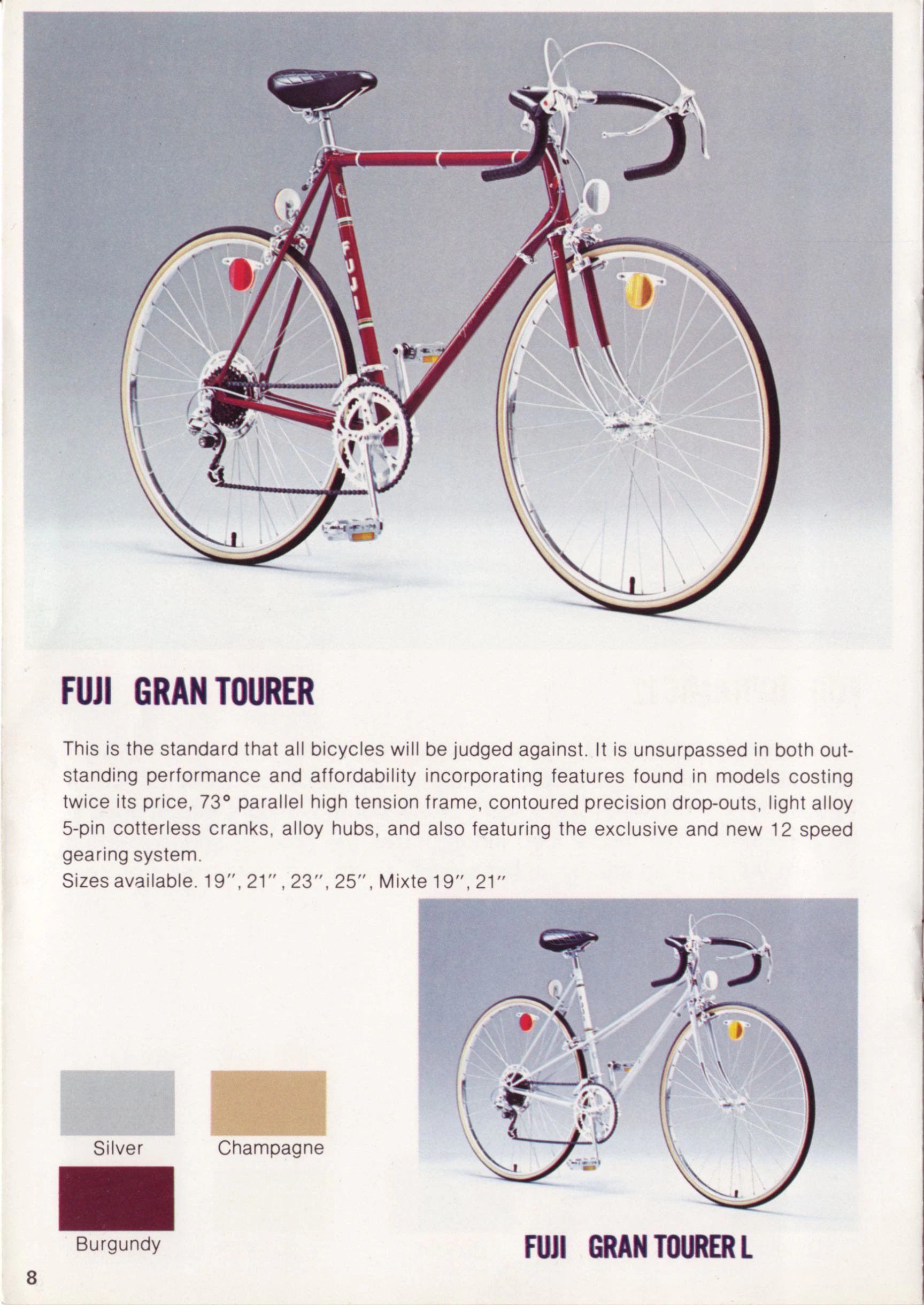

— Page 10 —
FUJI GRAN TOURER

This is the standard that all bicycles will be judged against. It is unsurpassed in both outstanding performance and affordability incorporating features found in models costing twice its price, 73° parallel high tension frame, contoured precision drop-outs, light alloy 5-pin cotterless cranks, alloy hubs, and also featuring the exclusive and new 12 speed gearing system.
Sizes available. 19″, 21″, 23″, 25″, Mixte 19″, 21″

Silver
Champagne
Burgundy

FUJI GRAN TOURER L

8

[The Fuji Gran Tourer in burgundy, a twelve-speed road bicycle with black handlebar tape, a black saddle, tan sidewall tires and red, amber and white reflectors, photographed on a gray studio backdrop. Below the description, three color chips labeled Silver, Champagne and Burgundy sit beside an inset photograph of the Gran Tourer L, a silver mixte version of the same bicycle; the page number 8 is at the lower left.]

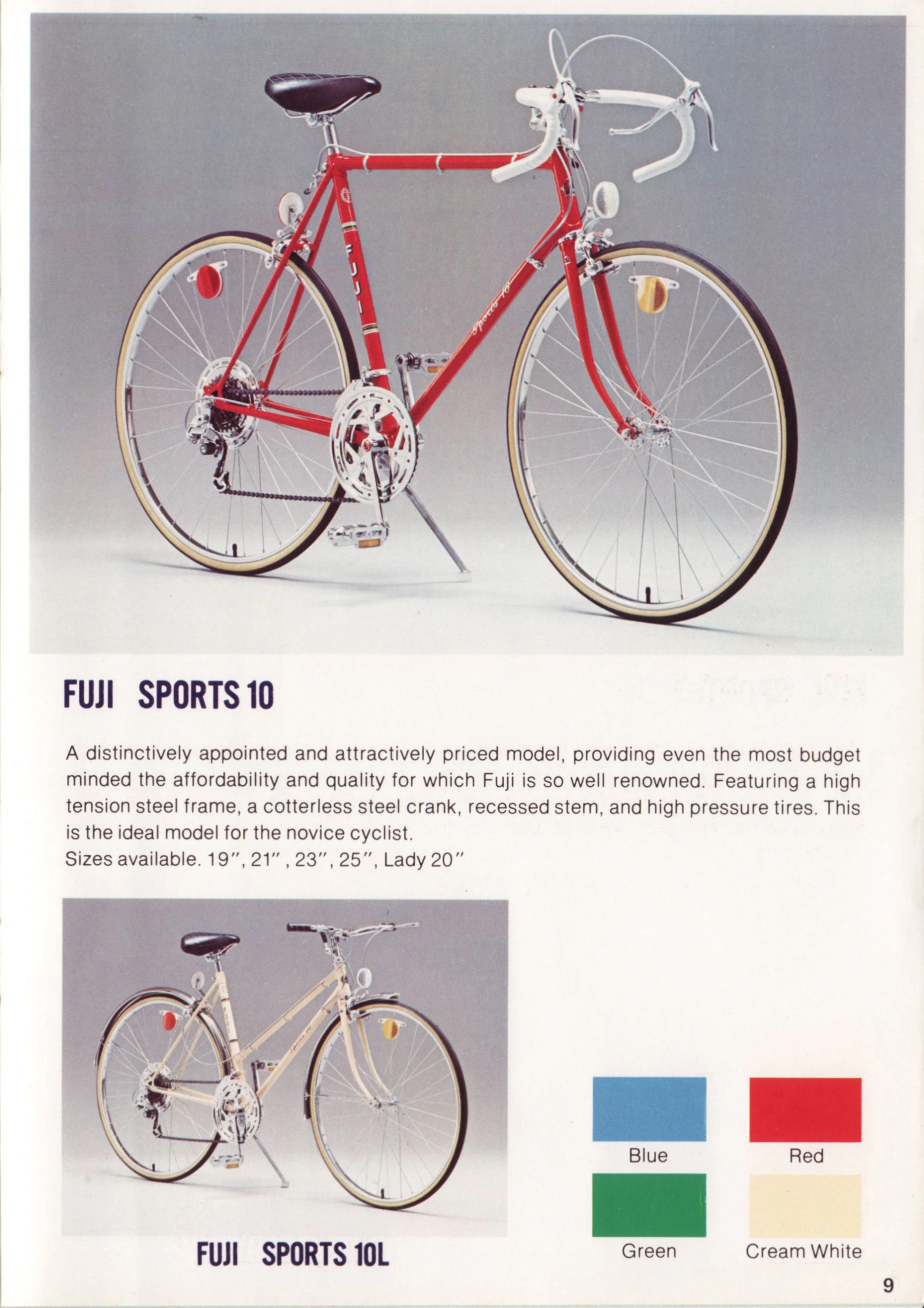

— Page 11 —
FUJI SPORTS 10

A distinctively appointed and attractively priced model, providing even the most budget minded the affordability and quality for which Fuji is so well renowned. Featuring a high tension steel frame, a cotterless steel crank, recessed stem, and high pressure tires. This is the ideal model for the novice cyclist.
Sizes available. 19″, 21″, 23″, 25″, Lady 20″

FUJI SPORTS 10L

Blue
Red
Green
Cream White

9

[The Fuji Sports 10 in red, a road bicycle with white handlebar tape, a black saddle, a kickstand, tan sidewall tires and red, amber and white reflectors, photographed on a gray studio backdrop with the model name in script on its down tube. Below the description, an inset photograph shows the Sports 10L, a cream step-through version with flat handlebars and fenders, beside four color chips labeled Blue, Red, Green and Cream White; the page number 9 is at the lower right.]

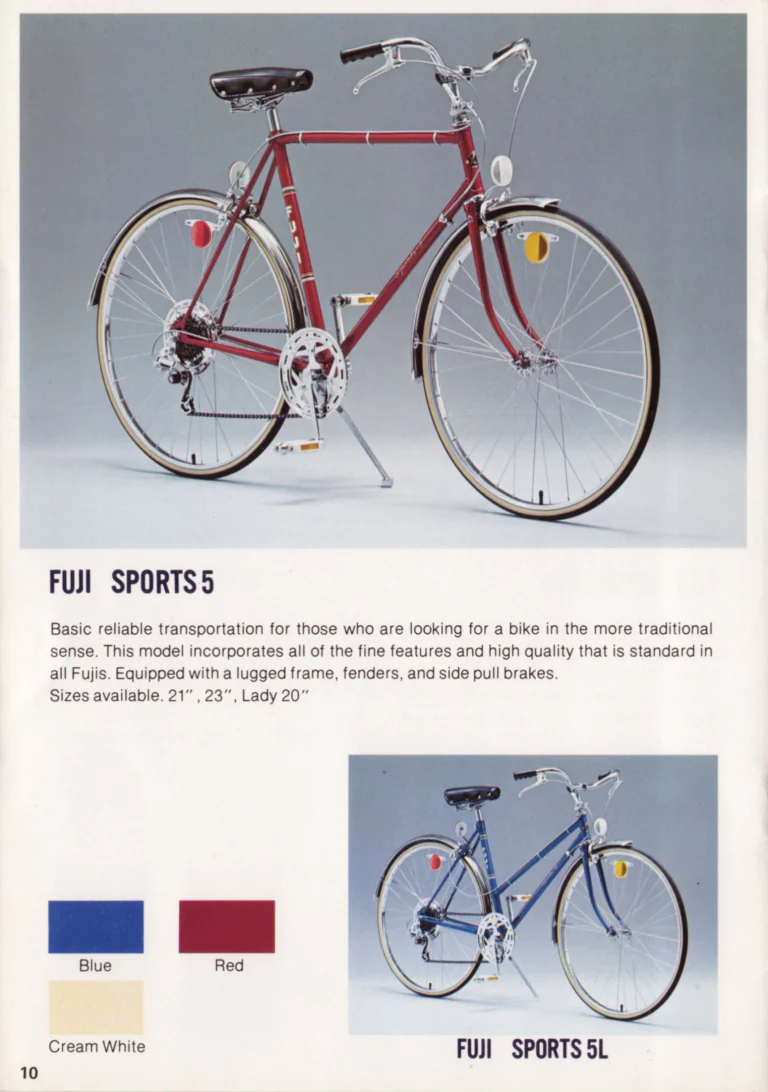

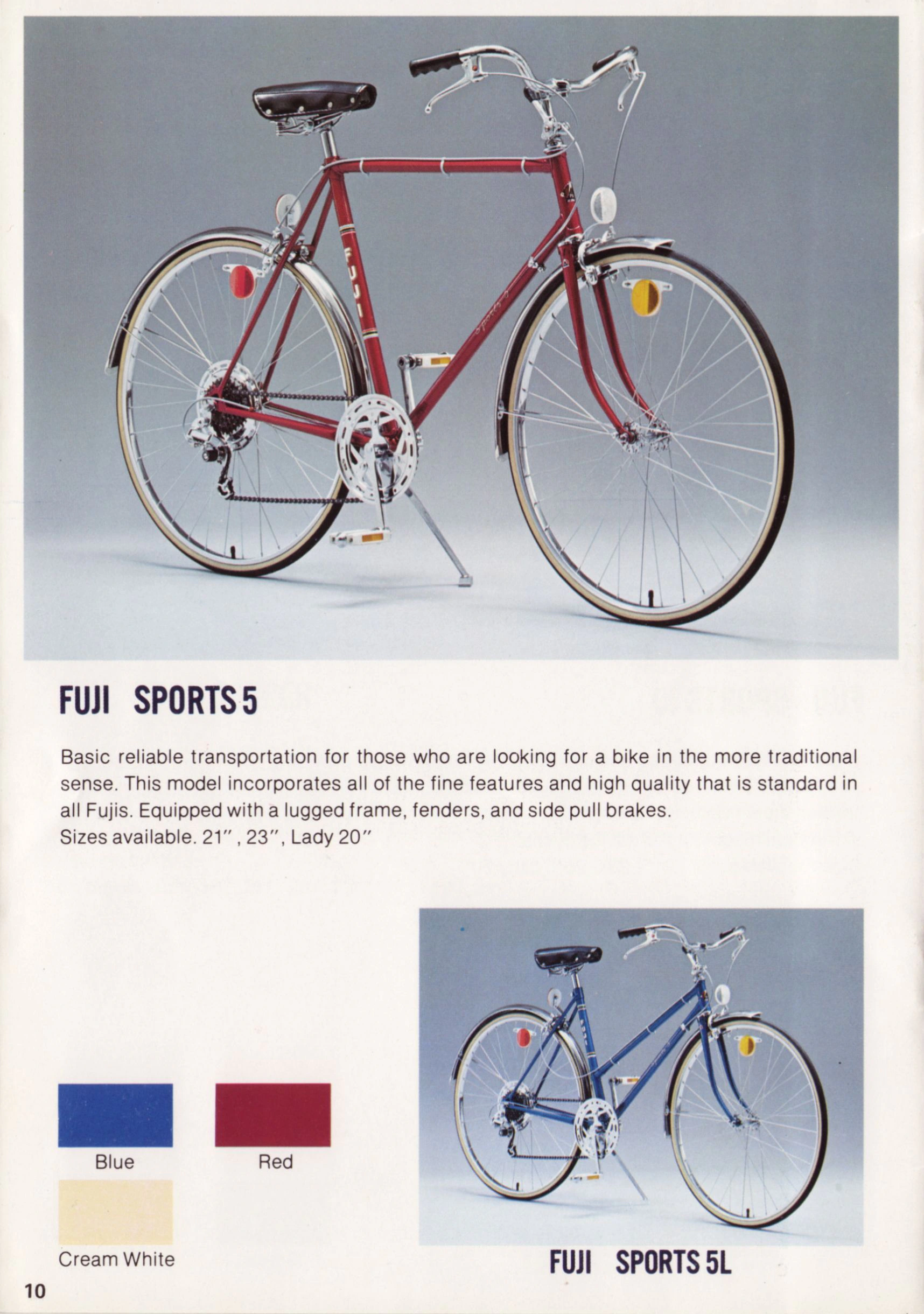

— Page 12 —
FUJI SPORTS 5

Basic reliable transportation for those who are looking for a bike in the more traditional sense. This model incorporates all of the fine features and high quality that is standard in all Fujis. Equipped with a lugged frame, fenders, and side pull brakes.
Sizes available. 21″, 23″, Lady 20″

Blue
Red
Cream White

FUJI SPORTS 5L

10

[The Fuji Sports 5 in red, a bicycle with flat handlebars and grips, chromed fenders, a black saddle, a kickstand and red, amber and white reflectors, photographed on a gray studio backdrop. Below the description, three color chips labeled Blue, Red and Cream White sit beside an inset photograph of the Sports 5L, a blue step-through version with the same flat handlebars and fenders; the page number 10 is at the lower left.]

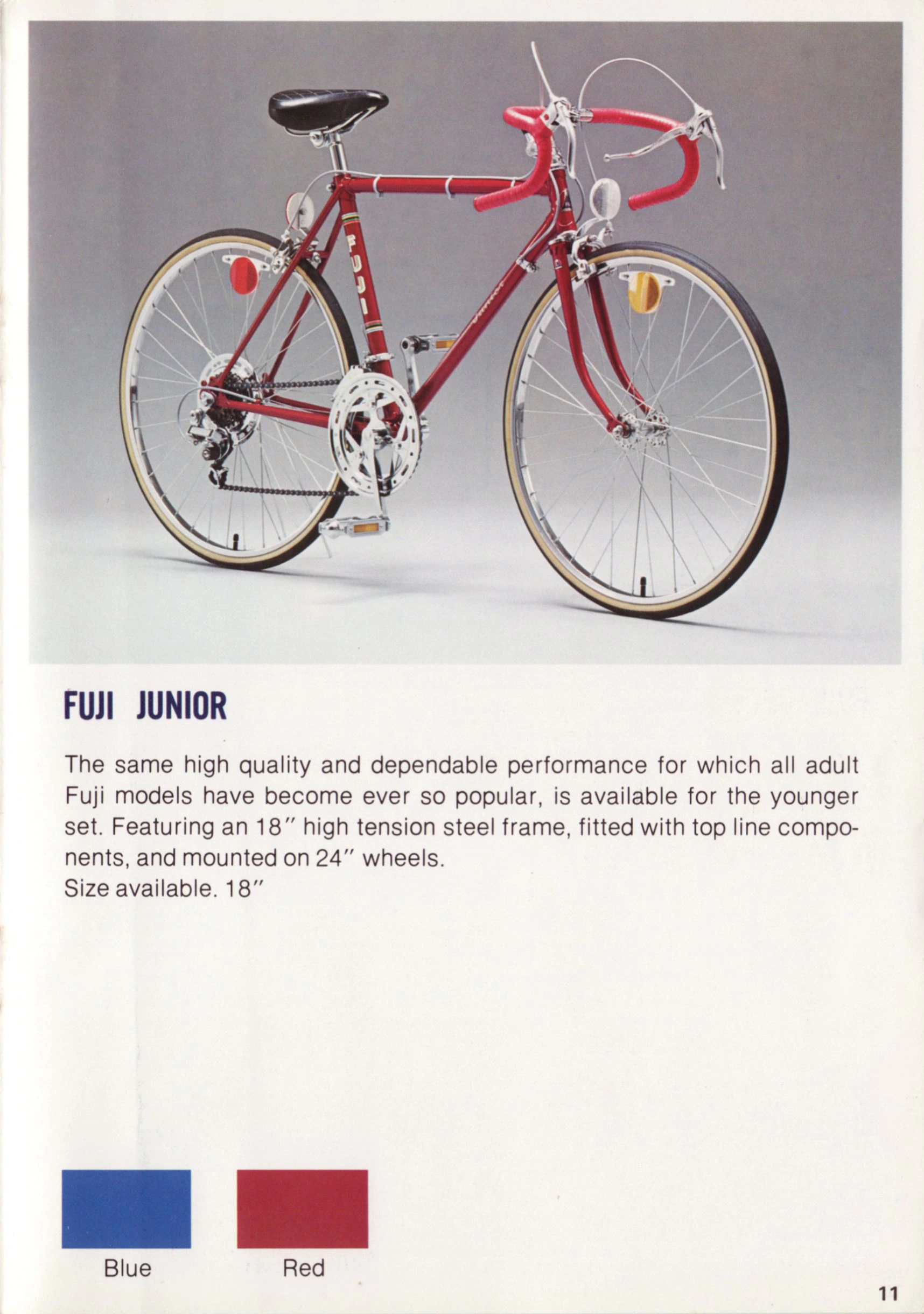

— Page 13 —
FUJI JUNIOR

The same high quality and dependable performance for which all adult Fuji models have become ever so popular, is available for the younger set. Featuring an 18″ high tension steel frame, fitted with top line components, and mounted on 24″ wheels.
Size available. 18″

Blue

Red

11

[The Fuji Junior in red, a youth-size 10-speed road bicycle on 24-inch wheels with drop handlebars, photographed on a gray studio backdrop. It has red handlebar tape with extension brake levers, a double chainring with a chain guard ring, gumwall tires and reflectors; below the description are two color chips, Blue and Red, and the page is numbered 11.]

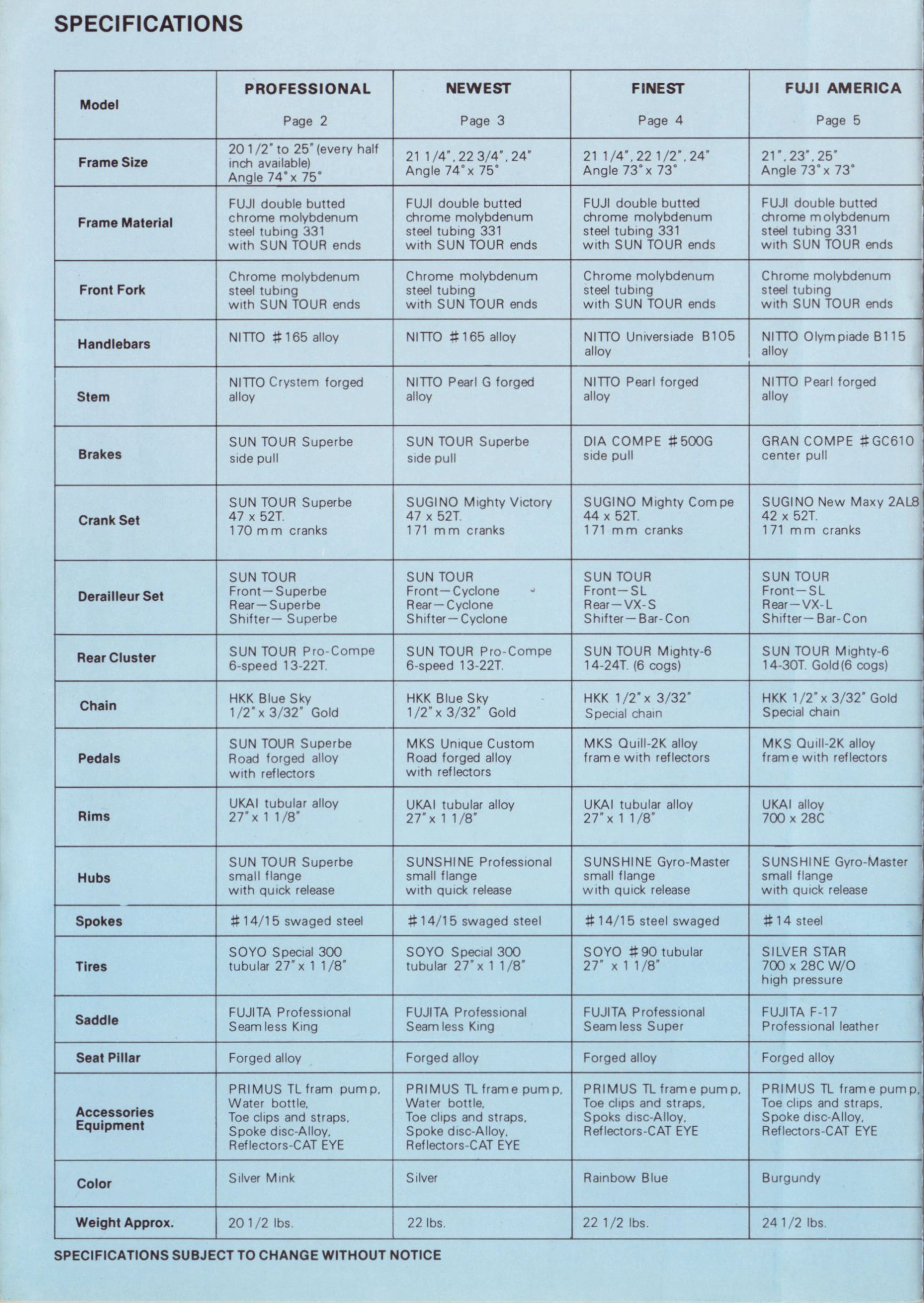

— Page 14 —
SPECIFICATIONS
Model: PROFESSIONAL (Page 2); NEWEST (Page 3); FINEST (Page 4); FUJI AMERICA (Page 5)
Frame Size: PROFESSIONAL — 20 1/2″ to 25″ (every half inch available) Angle 74° x 75°; NEWEST — 21 1/4″, 22 3/4″, 24″ Angle 74° x 75°; FINEST — 21 1/4″, 22 1/2″, 24″ Angle 73° x 73°; FUJI AMERICA — 21″, 23″, 25″ Angle 73° x 73°
Frame Material: PROFESSIONAL, NEWEST, FINEST and FUJI AMERICA — FUJI double butted chrome molybdenum steel tubing 331 with SUN TOUR ends
Front Fork: PROFESSIONAL, NEWEST, FINEST and FUJI AMERICA — Chrome molybdenum steel tubing with SUN TOUR ends
Handlebars: PROFESSIONAL and NEWEST — NITTO #165 alloy; FINEST — NITTO Universiade B105 alloy; FUJI AMERICA — NITTO Olympiade B115 alloy
Stem: PROFESSIONAL — NITTO Crystem forged alloy; NEWEST — NITTO Pearl G forged alloy; FINEST and FUJI AMERICA — NITTO Pearl forged alloy
Brakes: PROFESSIONAL and NEWEST — SUN TOUR Superbe side pull; FINEST — DIA COMPE #500G side pull; FUJI AMERICA — GRAN COMPE #GC610 center pull
Crank Set: PROFESSIONAL — SUN TOUR Superbe 47 x 52T. 170 mm cranks; NEWEST — SUGINO Mighty Victory 47 x 52T. 171 mm cranks; FINEST — SUGINO Mighty Compe 44 x 52T. 171 mm cranks; FUJI AMERICA — SUGINO New Maxy 2AL8 42 x 52T. 171 mm cranks
Derailleur Set: PROFESSIONAL — SUN TOUR Front—Superbe Rear—Superbe Shifter— Superbe; NEWEST — SUN TOUR Front—Cyclone Rear—Cyclone Shifter—Cyclone; FINEST — SUN TOUR Front—SL Rear—VX-S Shifter—Bar-Con; FUJI AMERICA — SUN TOUR Front—SL Rear—VX-L Shifter—Bar-Con
Rear Cluster: PROFESSIONAL and NEWEST — SUN TOUR Pro-Compe 6-speed 13-22T.; FINEST — SUN TOUR Mighty-6 14-24T. (6 cogs); FUJI AMERICA — SUN TOUR Mighty-6 14-30T. Gold(6 cogs)

Chain: PROFESSIONAL and NEWEST — HKK Blue Sky 1/2″ x 3/32″ Gold; FINEST — HKK 1/2″ x 3/32″ Special chain; FUJI AMERICA — HKK 1/2″ x 3/32″ Gold Special chain
Pedals: PROFESSIONAL — SUN TOUR Superbe Road forged alloy with reflectors; NEWEST — MKS Unique Custom Road forged alloy with reflectors; FINEST and FUJI AMERICA — MKS Quill-2K alloy frame with reflectors
Rims: PROFESSIONAL, NEWEST and FINEST — UKAI tubular alloy 27″ x 1 1/8″; FUJI AMERICA — UKAI alloy 700 x 28C
Hubs: PROFESSIONAL — SUN TOUR Superbe small flange with quick release; NEWEST — SUNSHINE Professional small flange with quick release; FINEST and FUJI AMERICA — SUNSHINE Gyro-Master small flange with quick release
Spokes: PROFESSIONAL and NEWEST — #14/15 swaged steel; FINEST — #14/15 steel swaged; FUJI AMERICA — #14 steel
Tires: PROFESSIONAL and NEWEST — SOYO Special 300 tubular 27″ x 1 1/8″; FINEST — SOYO #90 tubular 27″ x 1 1/8″; FUJI AMERICA — SILVER STAR 700 x 28C W/O high pressure
Saddle: PROFESSIONAL and NEWEST — FUJITA Professional Seamless King; FINEST — FUJITA Professional Seamless Super; FUJI AMERICA — FUJITA F-17 Professional leather
Seat Pillar: PROFESSIONAL, NEWEST, FINEST and FUJI AMERICA — Forged alloy
Accessories Equipment: PROFESSIONAL — PRIMUS TL fram pump, Water bottle, Toe clips and straps, Spoke disc-Alloy, Reflectors-CAT EYE; NEWEST — PRIMUS TL frame pump, Water bottle, Toe clips and straps, Spoke disc-Alloy, Reflectors-CAT EYE; FINEST — PRIMUS TL frame pump, Toe clips and straps, Spoks disc-Alloy, Reflectors-CAT EYE; FUJI AMERICA — PRIMUS TL frame pump, Toe clips and straps, Spoke disc-Alloy, Reflectors-CAT EYE
Color: PROFESSIONAL — Silver Mink; NEWEST — Silver; FINEST — Rainbow Blue; FUJI AMERICA — Burgundy
Weight Approx.: PROFESSIONAL — 20 1/2 lbs.; NEWEST — 22 lbs.; FINEST — 22 1/2 lbs.; FUJI AMERICA — 24 1/2 lbs.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

[The first page of the specifications table, a ruled grid on a pale blue ground comparing the PROFESSIONAL, NEWEST, FINEST and FUJI AMERICA models row by row, from frame size to approximate weight. Each column head gives the page on which the model is shown, and the grid runs to the folded right edge of the sheet, where its closing rule is not visible.]

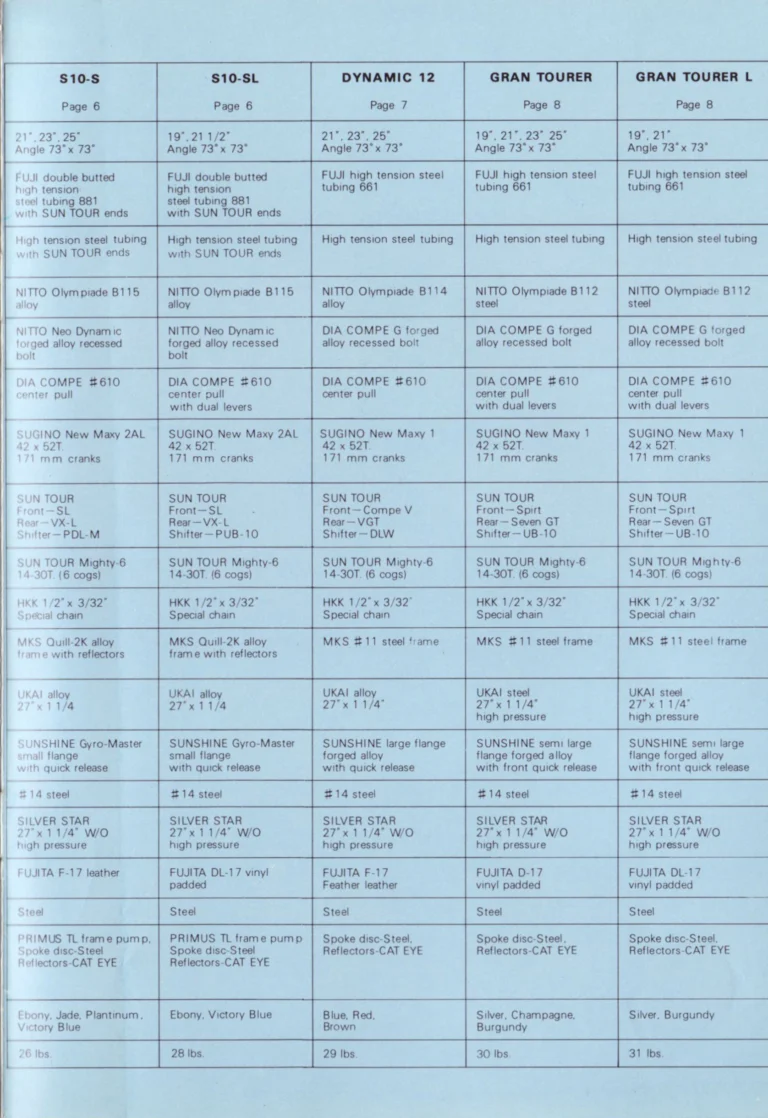

— Page 15 —

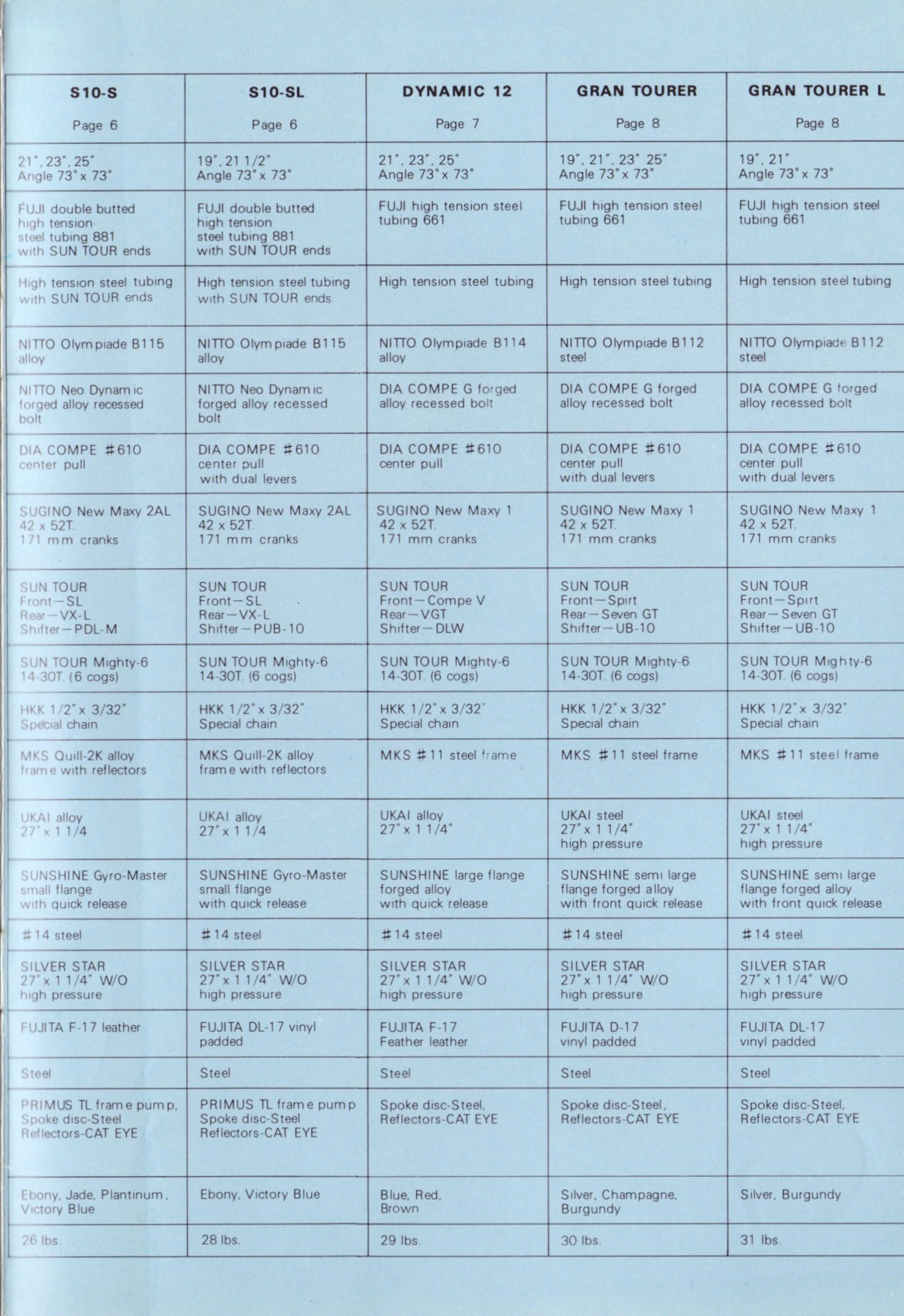

[Model:] S10-S (Page 6); S10-SL (Page 6); DYNAMIC 12 (Page 7); GRAN TOURER (Page 8); GRAN TOURER L (Page 8)
[Frame Size:] S10-S — 21″, 23″, 25″ Angle 73° x 73°; S10-SL — 19″, 21 1/2″ Angle 73° x 73°; DYNAMIC 12 — 21″, 23″, 25″ Angle 73° x 73°; GRAN TOURER — 19″, 21″, 23″ 25″ Angle 73° x 73°; GRAN TOURER L — 19″, 21″ Angle 73° x 73°
[Frame Material:] S10-S and S10-SL — FUJI double butted high tension steel tubing 881 with SUN TOUR ends; DYNAMIC 12, GRAN TOURER and GRAN TOURER L — FUJI high tension steel tubing 661
[Front Fork:] S10-S and S10-SL — High tension steel tubing with SUN TOUR ends; DYNAMIC 12, GRAN TOURER and GRAN TOURER L — High tension steel tubing
[Handlebars:] S10-S and S10-SL — NITTO Olympiade B115 alloy; DYNAMIC 12 — NITTO Olympiade B114 alloy; GRAN TOURER and GRAN TOURER L — NITTO Olympiade B112 steel
[Stem:] S10-S and S10-SL — NITTO Neo Dynamic forged alloy recessed bolt; DYNAMIC 12, GRAN TOURER and GRAN TOURER L — DIA COMPE G forged alloy recessed bolt
[Brakes:] S10-S — DIA COMPE #610 center pull; S10-SL — DIA COMPE #610 center pull with dual levers; DYNAMIC 12 — DIA COMPE #610 center pull; GRAN TOURER and GRAN TOURER L — DIA COMPE #610 center pull with dual levers
[Crank Set:] S10-S and S10-SL — SUGINO New Maxy 2AL 42 x 52T. 171 mm cranks; DYNAMIC 12, GRAN TOURER and GRAN TOURER L — SUGINO New Maxy 1 42 x 52T. 171 mm cranks
[Derailleur Set:] S10-S — SUN TOUR Front—SL Rear—VX-L Shifter—PDL-M; S10-SL — SUN TOUR Front—SL Rear—VX-L Shifter—PUB-10; DYNAMIC 12 — SUN TOUR Front—Compe V Rear—VGT Shifter—DLW; GRAN TOURER and GRAN TOURER L — SUN TOUR Front—Spirt Rear—Seven GT Shifter—UB-10
[Rear Cluster:] S10-S, S10-SL, DYNAMIC 12, GRAN TOURER and GRAN TOURER L — SUN TOUR Mighty-6 14-30T. (6 cogs)

[Chain:] S10-S, S10-SL, DYNAMIC 12, GRAN TOURER and GRAN TOURER L — HKK 1/2″ x 3/32″ Special chain
[Pedals:] S10-S and S10-SL — MKS Quill-2K alloy frame with reflectors; DYNAMIC 12, GRAN TOURER and GRAN TOURER L — MKS #11 steel frame
[Rims:] S10-S and S10-SL — UKAI alloy 27″ x 1 1/4; DYNAMIC 12 — UKAI alloy 27″ x 1 1/4″; GRAN TOURER and GRAN TOURER L — UKAI steel 27″ x 1 1/4″ high pressure
[Hubs:] S10-S and S10-SL — SUNSHINE Gyro-Master small flange with quick release; DYNAMIC 12 — SUNSHINE large flange forged alloy with quick release; GRAN TOURER and GRAN TOURER L — SUNSHINE semi large flange forged alloy with front quick release
[Spokes:] S10-S, S10-SL, DYNAMIC 12, GRAN TOURER and GRAN TOURER L — #14 steel
[Tires:] S10-S, S10-SL, DYNAMIC 12, GRAN TOURER and GRAN TOURER L — SILVER STAR 27″ x 1 1/4″ W/O high pressure
[Saddle:] S10-S — FUJITA F-17 leather; S10-SL — FUJITA DL-17 vinyl padded; DYNAMIC 12 — FUJITA F-17 Feather leather; GRAN TOURER — FUJITA D-17 vinyl padded; GRAN TOURER L — FUJITA DL-17 vinyl padded
[Seat Pillar:] S10-S, S10-SL, DYNAMIC 12, GRAN TOURER and GRAN TOURER L — Steel
[Accessories Equipment:] S10-S — PRIMUS TL frame pump, Spoke disc-Steel Reflectors-CAT EYE; S10-SL — PRIMUS TL frame pump Spoke disc-Steel Reflectors-CAT EYE; DYNAMIC 12, GRAN TOURER and GRAN TOURER L — Spoke disc-Steel, Reflectors-CAT EYE
[Color:] S10-S — Ebony, Jade, Plantinum, Victory Blue; S10-SL — Ebony, Victory Blue; DYNAMIC 12 — Blue, Red, Brown; GRAN TOURER — Silver, Champagne, Burgundy; GRAN TOURER L — Silver, Burgundy
[Weight Approx.:] S10-S — 26 lbs.; S10-SL — 28 lbs.; DYNAMIC 12 — 29 lbs.; GRAN TOURER — 30 lbs.; GRAN TOURER L — 31 lbs.

[The second page of the specifications table, continuing the ruled grid on a pale blue ground for the S10-S, S10-SL, DYNAMIC 12, GRAN TOURER and GRAN TOURER L models. The row labels are printed only on the first page of the table, so they are supplied here in brackets.]

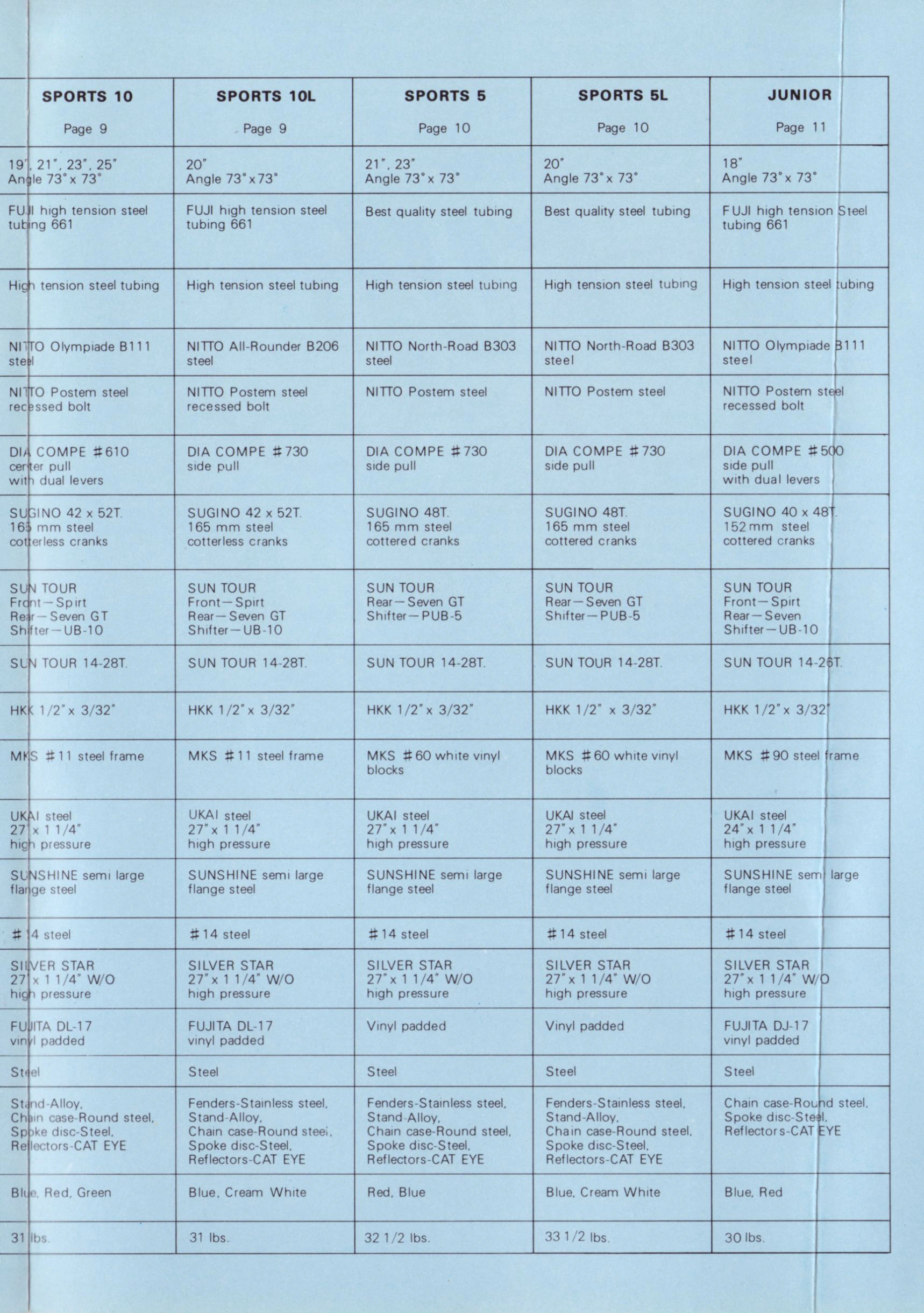

— Page 16 —
[Model:] SPORTS 10 (Page 9); SPORTS 10L (Page 9); SPORTS 5 (Page 10); SPORTS 5L (Page 10); JUNIOR (Page 11)
[Frame Size:] SPORTS 10 — 19″, 21″, 23″, 25″ Angle 73° x 73°; SPORTS 10L — 20″ Angle 73° x 73°; SPORTS 5 — 21″, 23″ Angle 73° x 73°; SPORTS 5L — 20″ Angle 73° x 73°; JUNIOR — 18″ Angle 73° x 73°
[Frame Material:] SPORTS 10 and SPORTS 10L — FUJI high tension steel tubing 661; SPORTS 5 and SPORTS 5L — Best quality steel tubing; JUNIOR — FUJI high tension Steel tubing 661
[Front Fork:] SPORTS 10, SPORTS 10L, SPORTS 5, SPORTS 5L and JUNIOR — High tension steel tubing
[Handlebars:] SPORTS 10 — NITTO Olympiade B111 steel; SPORTS 10L — NITTO All-Rounder B206 steel; SPORTS 5 and SPORTS 5L — NITTO North-Road B303 steel; JUNIOR — NITTO Olympiade B111 steel
[Stem:] SPORTS 10 and SPORTS 10L — NITTO Postem steel recessed bolt; SPORTS 5 and SPORTS 5L — NITTO Postem steel; JUNIOR — NITTO Postem steel recessed bolt
[Brakes:] SPORTS 10 — DIA COMPE #610 center pull with dual levers; SPORTS 10L, SPORTS 5 and SPORTS 5L — DIA COMPE #730 side pull; JUNIOR — DIA COMPE #500 side pull with dual levers
[Crank Set:] SPORTS 10 and SPORTS 10L — SUGINO 42 x 52T. 165 mm steel cotterless cranks; SPORTS 5 and SPORTS 5L — SUGINO 48T. 165 mm steel cottered cranks; JUNIOR — SUGINO 40 x 48T. 152mm steel cottered cranks
[Derailleur Set:] SPORTS 10 and SPORTS 10L — SUN TOUR Front—Spirt Rear—Seven GT Shifter—UB-10; SPORTS 5 and SPORTS 5L — SUN TOUR Rear—Seven GT Shifter—PUB-5; JUNIOR — SUN TOUR Front—Spirt Rear—Seven Shifter—UB-10
[Rear Cluster:] SPORTS 10, SPORTS 10L, SPORTS 5 and SPORTS 5L — SUN TOUR 14-28T.; JUNIOR — SUN TOUR 14-26T.

[Chain:] SPORTS 10, SPORTS 10L, SPORTS 5, SPORTS 5L and JUNIOR — HKK 1/2″ x 3/32″
[Pedals:] SPORTS 10 and SPORTS 10L — MKS #11 steel frame; SPORTS 5 and SPORTS 5L — MKS #60 white vinyl blocks; JUNIOR — MKS #90 steel frame
[Rims:] SPORTS 10, SPORTS 10L, SPORTS 5 and SPORTS 5L — UKAI steel 27″ x 1 1/4″ high pressure; JUNIOR — UKAI steel 24″ x 1 1/4″ high pressure
[Hubs:] SPORTS 10, SPORTS 10L, SPORTS 5, SPORTS 5L and JUNIOR — SUNSHINE semi large flange steel
[Spokes:] SPORTS 10, SPORTS 10L, SPORTS 5, SPORTS 5L and JUNIOR — #14 steel
[Tires:] SPORTS 10, SPORTS 10L, SPORTS 5, SPORTS 5L and JUNIOR — SILVER STAR 27″ x 1 1/4″ W/O high pressure
[Saddle:] SPORTS 10 and SPORTS 10L — FUJITA DL-17 vinyl padded; SPORTS 5 and SPORTS 5L — Vinyl padded; JUNIOR — FUJITA DJ-17 vinyl padded
[Seat Pillar:] SPORTS 10, SPORTS 10L, SPORTS 5, SPORTS 5L and JUNIOR — Steel
[Accessories Equipment:] SPORTS 10 — Stand-Alloy, Chain case-Round steel, Spoke disc-Steel, Reflectors-CAT EYE; SPORTS 10L — Fenders-Stainless steel, Stand-Alloy, Chain case-Round steei, Spoke disc-Steel, Reflectors-CAT EYE; SPORTS 5 and SPORTS 5L — Fenders-Stainless steel, Stand-Alloy, Chain case-Round steel, Spoke disc-Steel, Reflectors-CAT EYE; JUNIOR — Chain case-Round steel, Spoke disc-Steel, Reflectors-CAT EYE
[Color:] SPORTS 10 — Blue, Red, Green; SPORTS 10L — Blue, Cream White; SPORTS 5 — Red, Blue; SPORTS 5L — Blue, Cream White; JUNIOR — Blue, Red
[Weight Approx.:] SPORTS 10 and SPORTS 10L — 31 lbs.; SPORTS 5 — 32 1/2 lbs.; SPORTS 5L — 33 1/2 lbs.; JUNIOR — 30 lbs.

[The third page of the specifications table, continuing the ruled grid on a pale blue ground for the SPORTS 10, SPORTS 10L, SPORTS 5, SPORTS 5L and JUNIOR models. The row labels are printed only on the first page of the table and are supplied here in brackets; two vertical crease lines run the height of the sheet, one through the SPORTS 10 column and one through the JUNIOR column, without hiding any word.]

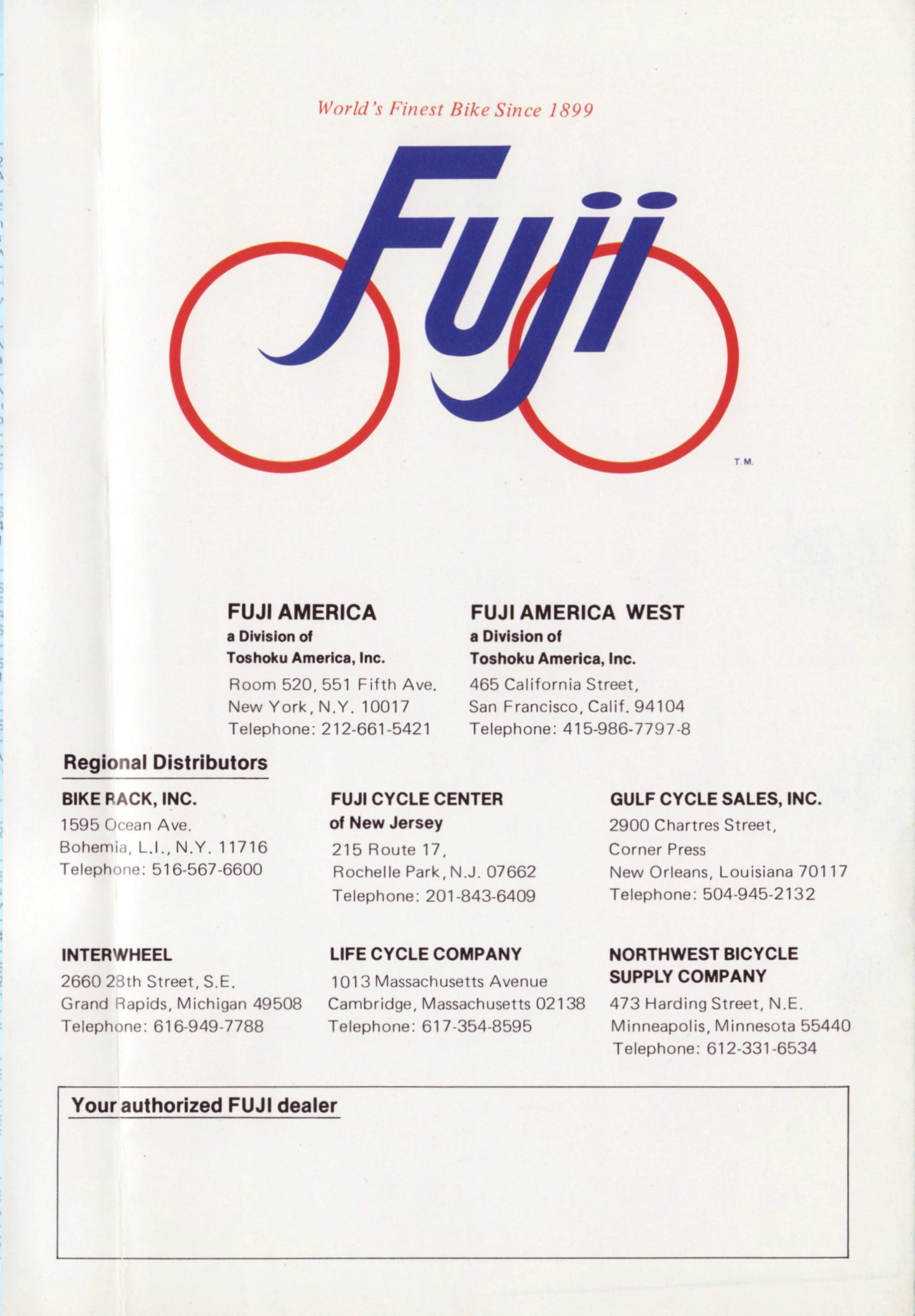

— Page 17 (inside back cover) —
World’s Finest Bike Since 1899

Fuji

T.M.

FUJI AMERICA
a Division of
Toshoku America, Inc.
Room 520, 551 Fifth Ave.
New York, N.Y. 10017
Telephone: 212-661-5421

FUJI AMERICA WEST
a Division of
Toshoku America, Inc.
465 California Street,
San Francisco, Calif. 94104
Telephone: 415-986-7797-8

Regional Distributors

BIKE RACK, INC.
1595 Ocean Ave.
Bohemia, L.I., N.Y. 11716
Telephone: 516-567-6600

FUJI CYCLE CENTER
of New Jersey
215 Route 17,
Rochelle Park, N.J. 07662
Telephone: 201-843-6409

GULF CYCLE SALES, INC.
2900 Chartres Street,
Corner Press
New Orleans, Louisiana 70117
Telephone: 504-945-2132

INTERWHEEL
2660 28th Street, S.E.
Grand Rapids, Michigan 49508
Telephone: 616-949-7788

LIFE CYCLE COMPANY
1013 Massachusetts Avenue
Cambridge, Massachusetts 02138
Telephone: 617-354-8595

NORTHWEST BICYCLE SUPPLY COMPANY
473 Harding Street, N.E.
Minneapolis, Minnesota 55440
Telephone: 612-331-6534

Your authorized FUJI dealer

[The inside back cover, with the red italic tagline above the blue Fuji wordmark, whose letters are drawn over two red circles so that the word reads as a bicycle. Below are the addresses of Fuji America in New York and Fuji America West in San Francisco, both divisions of Toshoku America, six regional distributors and a ruled box headed for the authorized dealer, which is empty in this copy.]

— Page 18 (back cover) —
Hajime [?] Kato

FUJI

NICHIBEI FUJI CYCLE COMPANY, LTD.
2-36, 2-chome Morino, Machida-shi, Tokyo 194, Japan

Printed in Japan

[The back cover, a black brush drawing of a racing cyclist crouched low over drop handlebars and riding to the left, set on a red rectangle on a white ground and signed in the lower right corner of the red field. At the foot are the Fuji mountain emblem on a red sun, the Nichibei Fuji Cycle Company imprint with its Tokyo address and the line “Printed in Japan”; the cover is soiled and creased along the right side.]
