Fuji 1975 Catalog — No. 5 Edition, The Connoisseur’s Bike, from The Finest to the S-5L

— Page 1 (front cover) —
Japan’s Finest Bikes Since 1899

Fuji
T.M.

THE CONNOISSEUR’S BIKE

No.5 Edition
Exclusive Importer:
FUJI AMERICA a Division of Toshoku America, Inc. Room 520, 551 Fifth Ave. New York, N.Y. 10017 Phone: 212-661-5421

[The cover of the Fuji catalog No.5 Edition: the Fuji wordmark in dark blue set over two red circles drawn as the wheels of a bicycle, on a plain cream landscape sheet. The importer line runs along the foot of the sheet. The Tourer page printed on the back of the sheet shows faintly through the paper in mirror image, with the pencil price written beside its heading.]

— Page 2 —

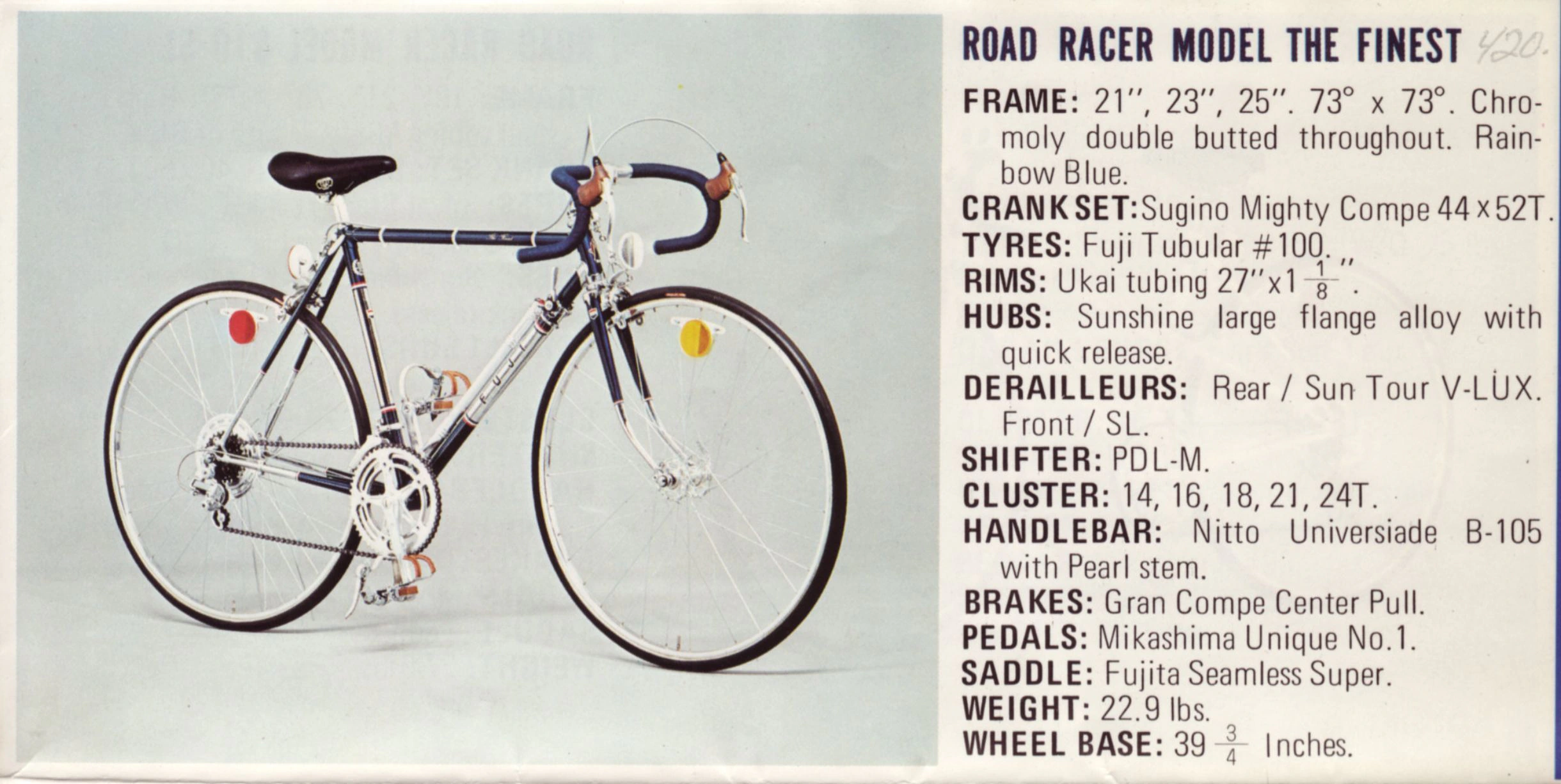

ROAD RACER MODEL THE FINEST

FRAME: 21″, 23″, 25″. 73° x 73°. Chro-moly double butted throughout. Rainbow Blue.
CRANK SET: Sugino Mighty Compe 44 x 52T.
TYRES: Fuji Tubular #100.
RIMS: Ukai tubing 27″x1⅛”.
HUBS: Sunshine large flange alloy with quick release.
DERAILLEURS: Rear / Sun Tour V-LUX. Front / SL.
SHIFTER: PDL-M.
CLUSTER: 14, 16, 18, 21, 24T.
HANDLEBAR: Nitto Universiade B-105 with Pearl stem.
BRAKES: Gran Compe Center Pull.
PEDALS: Mikashima Unique No.1.
SADDLE: Fujita Seamless Super.
WEIGHT: 22.9 lbs.
WHEEL BASE: 39 ¾ Inches.

[The Fuji Finest road racer in dark blue, a ten-speed bicycle with a silver panel on the down tube bearing the name FUJI, photographed on a pale gray studio backdrop beside its specification list. It has center-pull brakes, blue handlebar tape with brown brake hoods, a black saddle, toe clips with brown straps and red and yellow reflectors in the spokes. A price of “420.” is written in pencil beside the model name.]

— Page 3 —

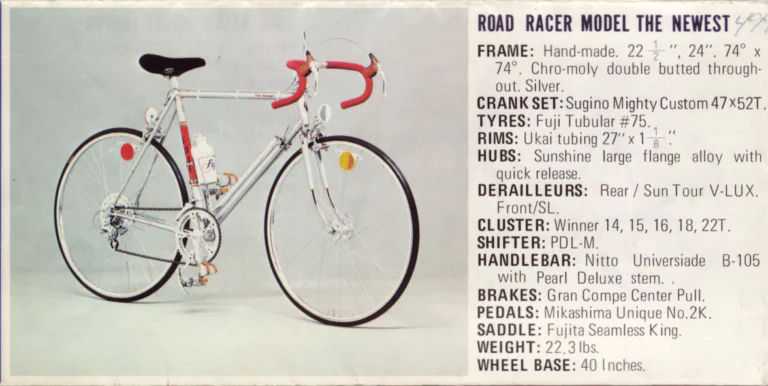

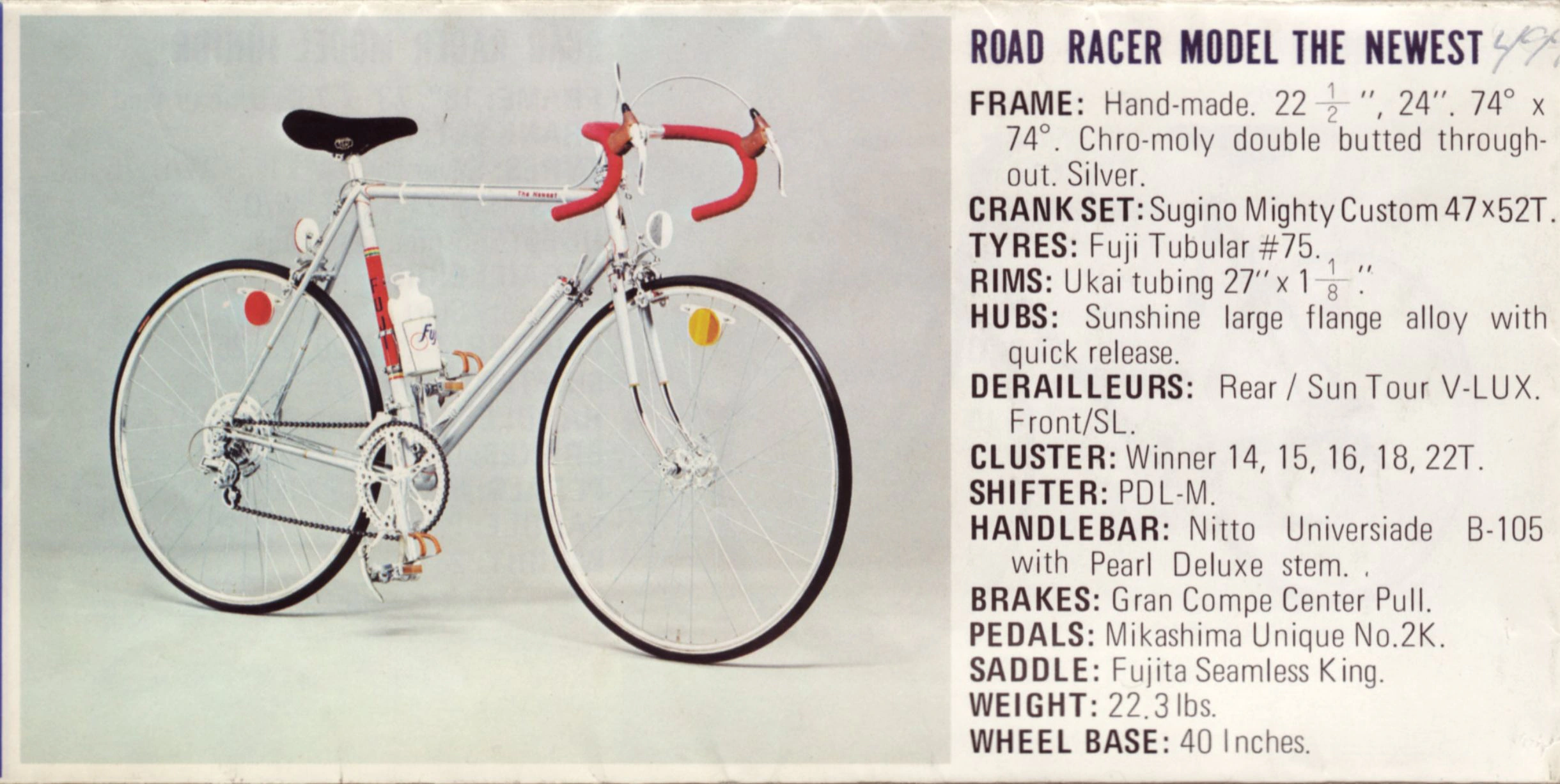

ROAD RACER MODEL THE NEWEST

FRAME: Hand-made. 22 ½”, 24″. 74° x 74°. Chro-moly double butted throughout. Silver.
CRANK SET: Sugino Mighty Custom 47 x 52T.
TYRES: Fuji Tubular #75.
RIMS: Ukai tubing 27″ x 1⅛”.
HUBS: Sunshine large flange alloy with quick release.
DERAILLEURS: Rear / Sun Tour V-LUX. Front/SL.
CLUSTER: Winner 14, 15, 16, 18, 22T.
SHIFTER: PDL-M.
HANDLEBAR: Nitto Universiade B-105 with Pearl Deluxe stem.
BRAKES: Gran Compe Center Pull.
PEDALS: Mikashima Unique No.2K.
SADDLE: Fujita Seamless King.
WEIGHT: 22.3 lbs.
WHEEL BASE: 40 Inches.

[The Fuji Newest road racer in silver, a ten-speed bicycle with a red panel on the seat tube bearing the name FUJI, photographed on a pale gray studio backdrop beside its specification list. It has red handlebar tape with brown brake hoods, center-pull brakes, a black saddle, a white Fuji water bottle on the seat tube and red and yellow reflectors in the spokes. A pencil price beginning “49” is written beside the model name, its last figures cut off at the edge of the scan.]

— Page 4 —

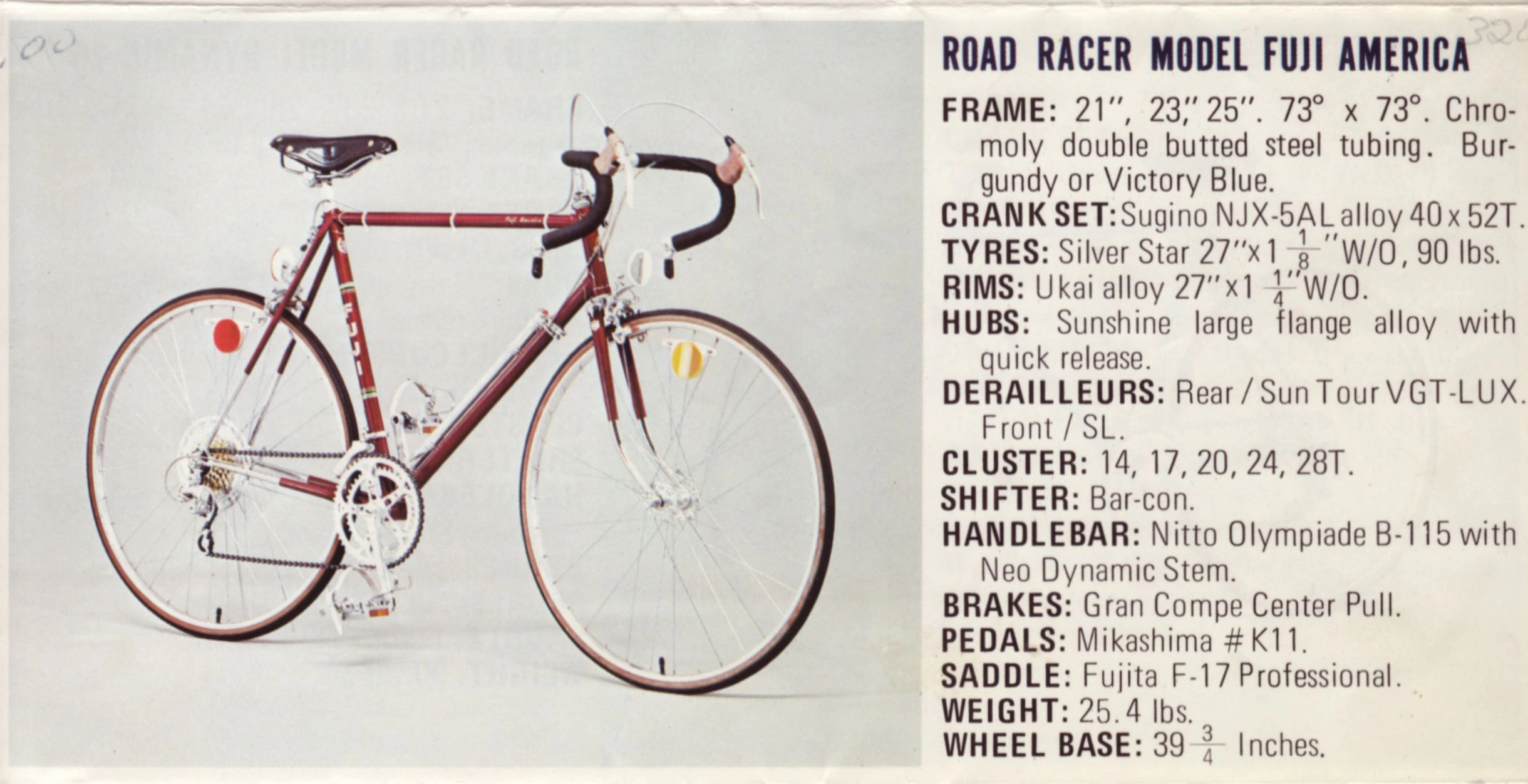

ROAD RACER MODEL FUJI AMERICA

FRAME: 21″, 23,” 25″. 73° x 73°. Chro-moly double butted steel tubing. Burgundy or Victory Blue.
CRANK SET: Sugino NJX-5AL alloy 40 x 52T.
TYRES: Silver Star 27″x1⅛” W/O, 90 lbs.
RIMS: Ukai alloy 27″x1¼”W/O.
HUBS: Sunshine large flange alloy with quick release.
DERAILLEURS: Rear / Sun Tour VGT-LUX. Front / SL.
CLUSTER: 14, 17, 20, 24, 28T.
SHIFTER: Bar-con.
HANDLEBAR: Nitto Olympiade B-115 with Neo Dynamic Stem.
BRAKES: Gran Compe Center Pull.
PEDALS: Mikashima # K11.
SADDLE: Fujita F-17 Professional.
WEIGHT: 25.4 lbs.
WHEEL BASE: 39 ¾ Inches.

[The Fuji America road racer in burgundy, a ten-speed bicycle with the name FUJI on the seat tube, photographed on a pale gray studio backdrop beside its specification list. It has bar-end shifters, center-pull brakes, black handlebar tape, a brown saddle, a wide-range freewheel, gumwall tires and red and yellow reflectors in the spokes. A pencil figure beginning “32” is written beside the model name and cut off at the right edge, and the tail of another handwritten figure, “.00″, runs in from the top left edge.]

— Page 5 —

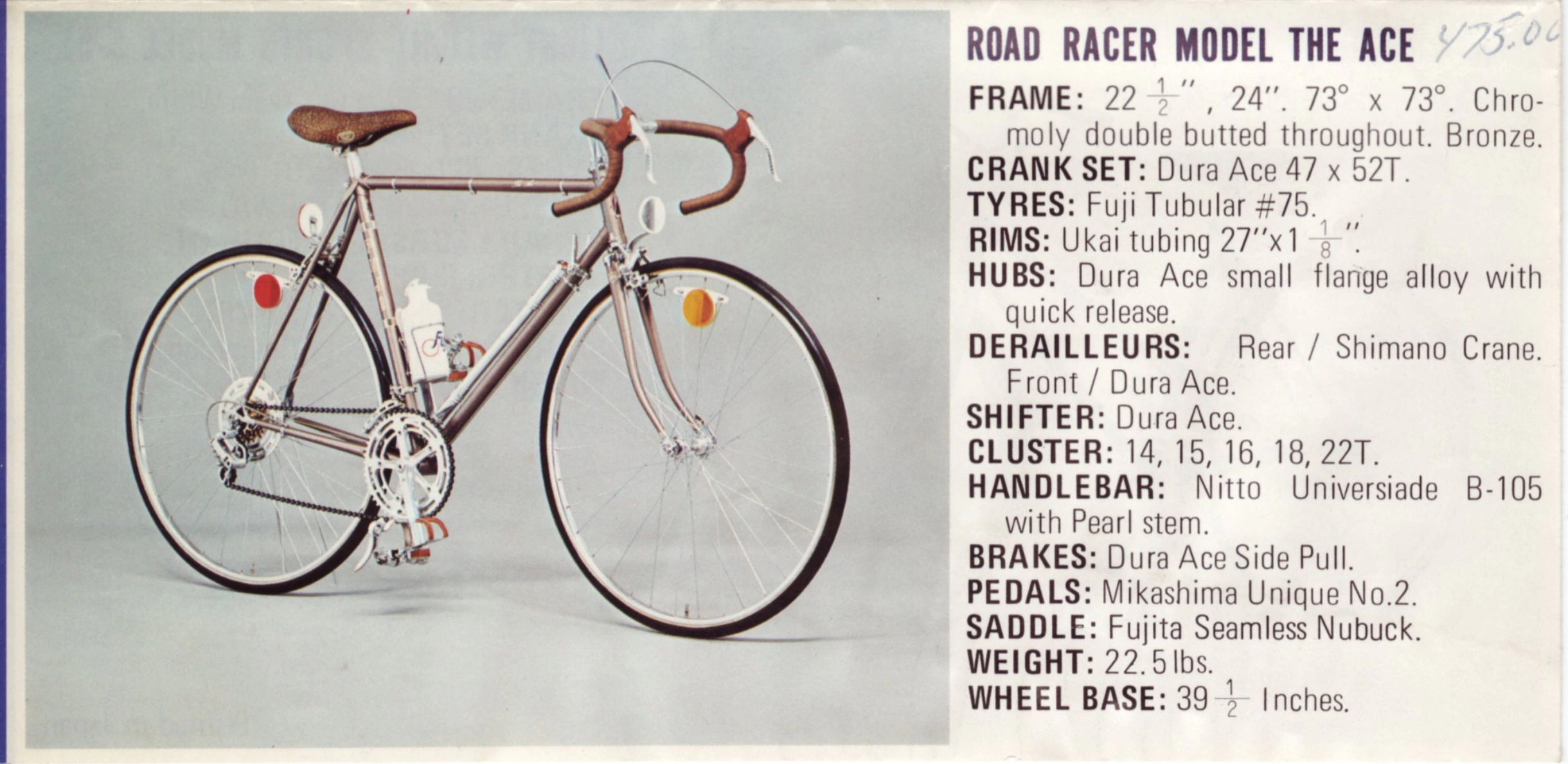

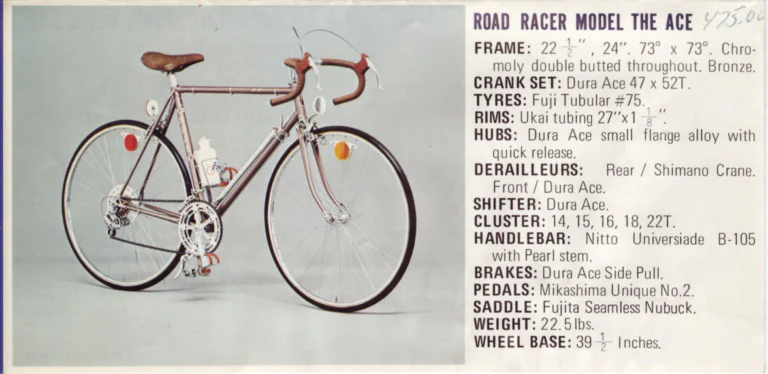

ROAD RACER MODEL THE ACE

FRAME: 22 ½”, 24″. 73° x 73°. Chro-moly double butted throughout. Bronze.
CRANK SET: Dura Ace 47 x 52T.
TYRES: Fuji Tubular #75.
RIMS: Ukai tubing 27″x1⅛”.
HUBS: Dura Ace small flange alloy with quick release.
DERAILLEURS: Rear / Shimano Crane. Front / Dura Ace.
SHIFTER: Dura Ace.
CLUSTER: 14, 15, 16, 18, 22T.
HANDLEBAR: Nitto Universiade B-105 with Pearl stem.
BRAKES: Dura Ace Side Pull.
PEDALS: Mikashima Unique No.2.
SADDLE: Fujita Seamless Nubuck.
WEIGHT: 22.5 lbs.
WHEEL BASE: 39 ½ Inches.

[The Fuji Ace road racer in bronze, a ten-speed bicycle with side-pull brakes, photographed on a pale gray studio backdrop beside its specification list. It has brown handlebar tape, a brown saddle, a white water bottle on the seat tube and red and yellow reflectors in the spokes. A price of “475.00” is written in blue ink beside the model name, its last figure cut off at the edge of the scan.]

— Page 6 —

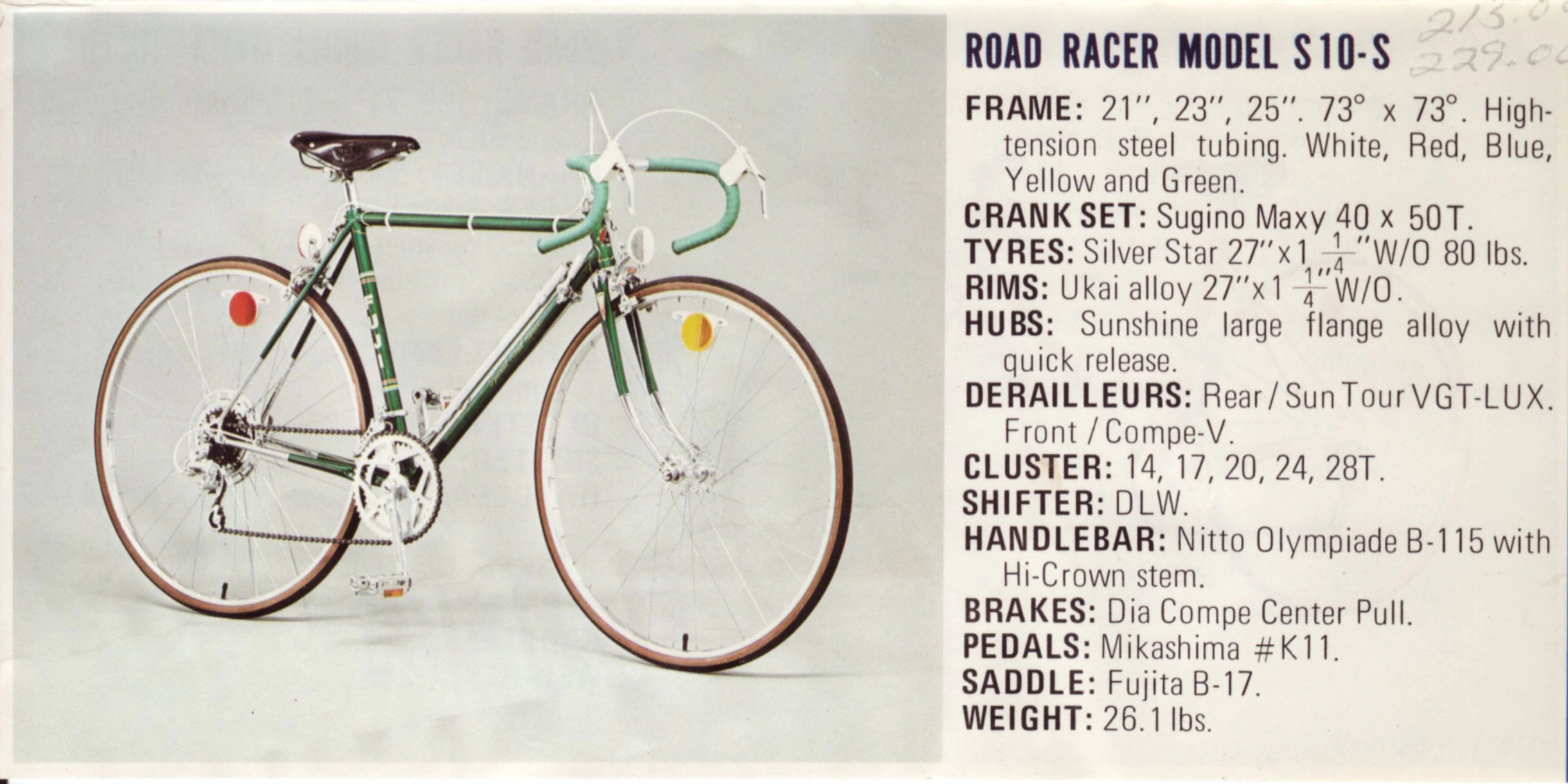

ROAD RACER MODEL S10-S

FRAME: 21″, 23″, 25″. 73° x 73°. High-tension steel tubing. White, Red, Blue, Yellow and Green.
CRANK SET: Sugino Maxy 40 x 50T.
TYRES: Silver Star 27″x1¼”W/O 80 lbs.
RIMS: Ukai alloy 27″x1¼”W/O.
HUBS: Sunshine large flange alloy with quick release.
DERAILLEURS: Rear / Sun Tour VGT-LUX. Front / Compe-V.
CLUSTER: 14, 17, 20, 24, 28T.
SHIFTER: DLW.
HANDLEBAR: Nitto Olympiade B-115 with Hi-Crown stem.
BRAKES: Dia Compe Center Pull.
PEDALS: Mikashima #K11.
SADDLE: Fujita B-17.
WEIGHT: 26.1 lbs.

[The Fuji S10-S road racer in green, a ten-speed bicycle with the name FUJI on the seat tube, photographed on a pale gray studio backdrop beside its specification list. It has green handlebar tape, center-pull brakes, a brown saddle, gumwall tires and red and yellow reflectors in the spokes. Two prices are written in pencil beside the model name, “213.00” above “229.00”, both cut off at the right edge.]

— Page 7 —

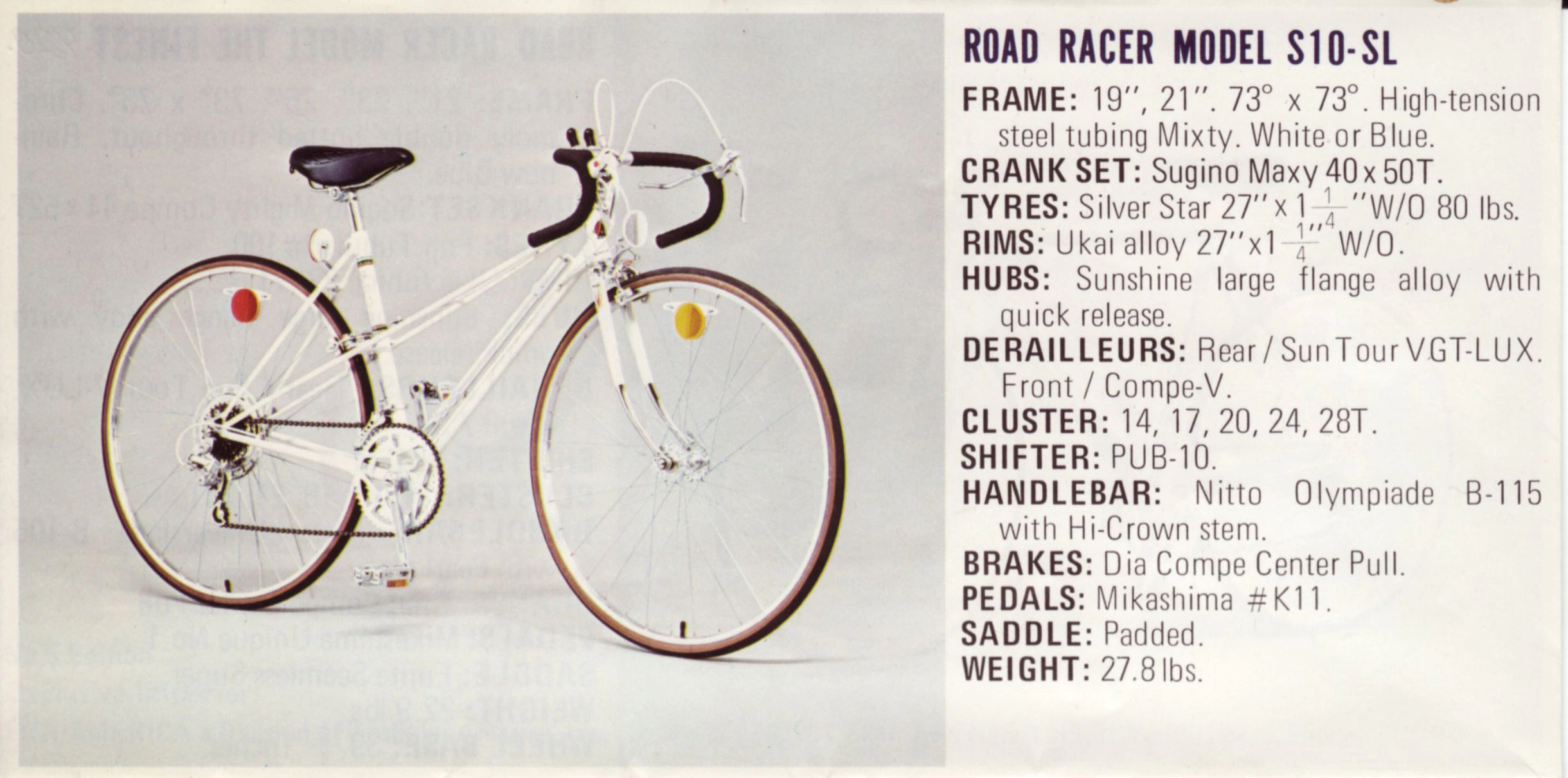

ROAD RACER MODEL S10-SL

FRAME: 19″, 21″. 73° x 73°. High-tension steel tubing Mixty. White or Blue.
CRANK SET: Sugino Maxy 40 x 50T.
TYRES: Silver Star 27″ x 1¼”W/O 80 lbs.
RIMS: Ukai alloy 27″x1¼” W/O.
HUBS: Sunshine large flange alloy with quick release.
DERAILLEURS: Rear / Sun Tour VGT-LUX. Front / Compe-V.
CLUSTER: 14, 17, 20, 24, 28T.
SHIFTER: PUB-10.
HANDLEBAR: Nitto Olympiade B-115 with Hi-Crown stem.
BRAKES: Dia Compe Center Pull.
PEDALS: Mikashima #K11.
SADDLE: Padded.
WEIGHT: 27.8 lbs.

[The Fuji S10-SL road racer in white, a ten-speed bicycle with a mixte frame whose twin lateral tubes run from the head tube to the rear dropouts, photographed on a pale gray studio backdrop beside its specification list. It has dropped handlebars with black tape, center-pull brakes, a black padded saddle, gumwall tires and red and yellow reflectors in the spokes. The specification block of the Finest page shows through the paper in mirror image, with its pencil price.]

— Page 8 —

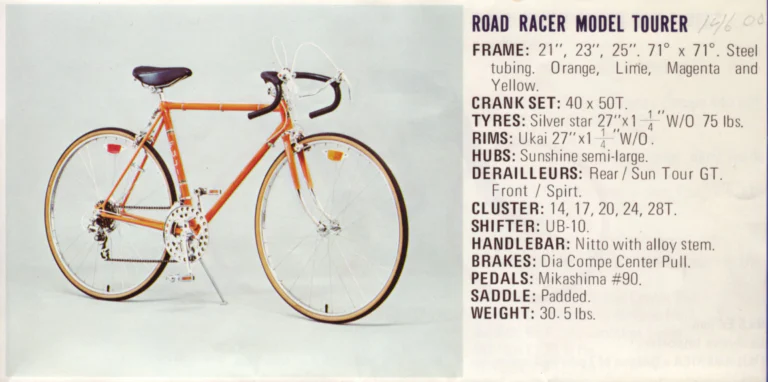

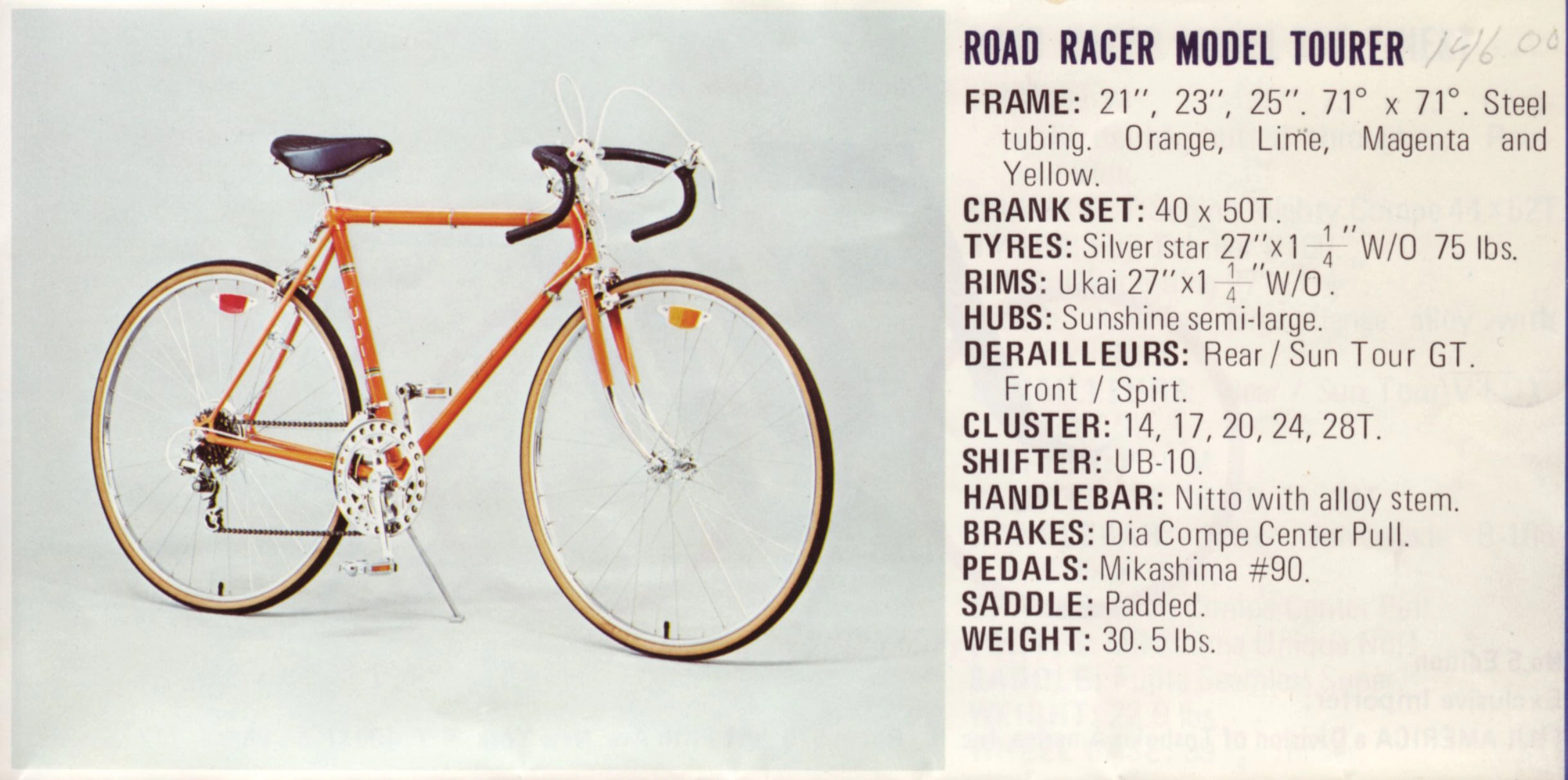

ROAD RACER MODEL TOURER

FRAME: 21″, 23″, 25″. 71° x 71°. Steel tubing. Orange, Lime, Magenta and Yellow.
CRANK SET: 40 x 50T.
TYRES: Silver star 27″x1¼” W/O 75 lbs.
RIMS: Ukai 27″x1¼”W/O.
HUBS: Sunshine semi-large.
DERAILLEURS: Rear / Sun Tour GT. Front / Spirt.
CLUSTER: 14, 17, 20, 24, 28T.
SHIFTER: UB-10.
HANDLEBAR: Nitto with alloy stem.
BRAKES: Dia Compe Center Pull.
PEDALS: Mikashima #90.
SADDLE: Padded.
WEIGHT: 30.5 lbs.

[The Fuji Tourer road racer in orange, a ten-speed bicycle with the name FUJI on the seat tube, photographed on a pale gray studio backdrop beside its specification list. It has black handlebar tape, center-pull brakes, a black padded saddle, a kickstand, gumwall tires and reflectors in the spokes. A price of “146.00” is written in pencil beside the model name, and the importer lines of the cover show through the paper in mirror image at the lower right.]

— Page 9 —

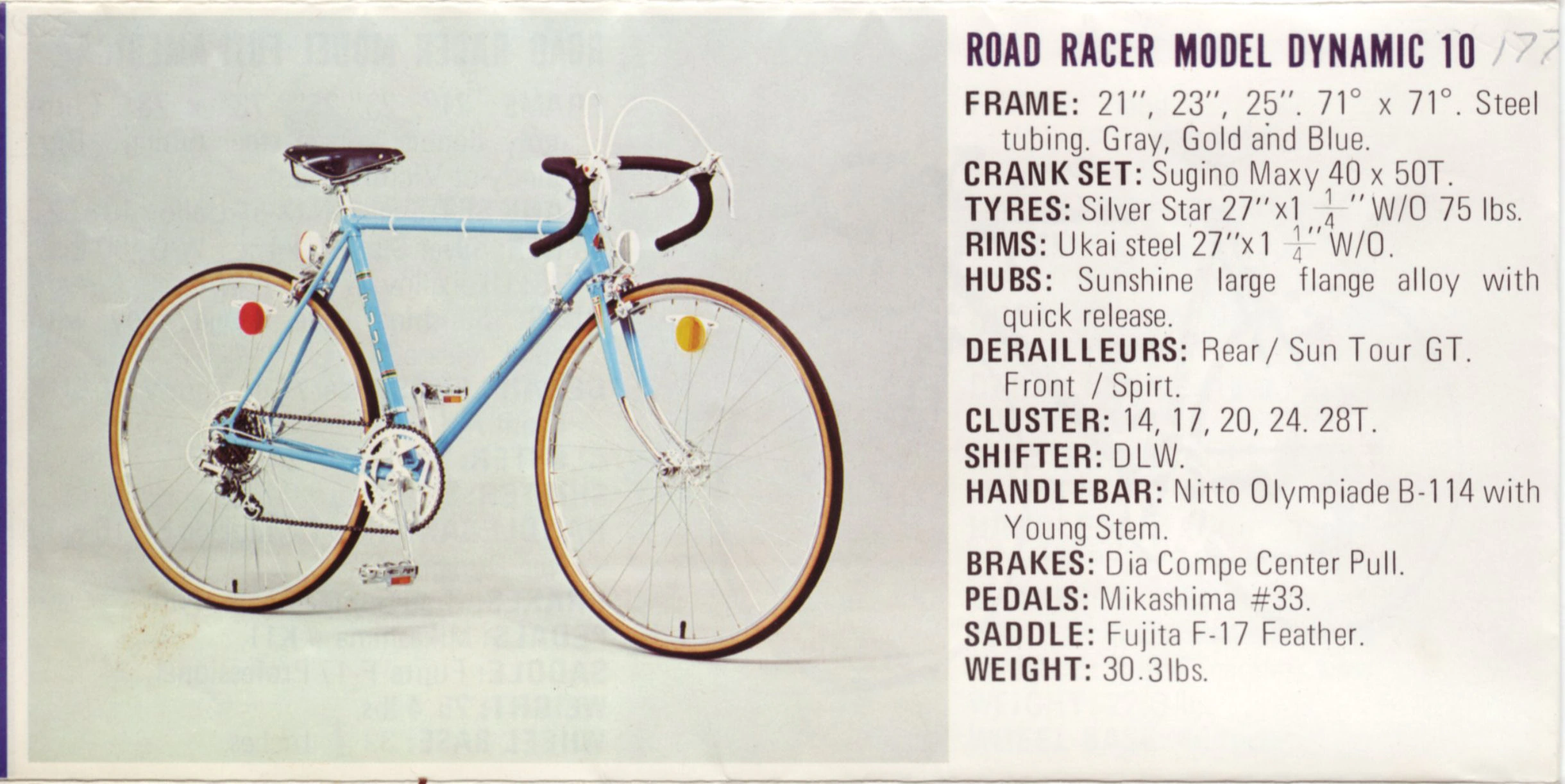

ROAD RACER MODEL DYNAMIC 10

FRAME: 21″, 23″, 25″. 71° x 71°. Steel tubing. Gray, Gold and Blue.
CRANK SET: Sugino Maxy 40 x 50T.
TYRES: Silver Star 27″x1¼” W/O 75 lbs.
RIMS: Ukai steel 27″x1¼”W/O.
HUBS: Sunshine large flange alloy with quick release.
DERAILLEURS: Rear / Sun Tour GT. Front / Spirt.
CLUSTER: 14, 17, 20, 24. 28T.
SHIFTER: DLW.
HANDLEBAR: Nitto Olympiade B-114 with Young Stem.
BRAKES: Dia Compe Center Pull.
PEDALS: Mikashima #33.
SADDLE: Fujita F-17 Feather.
WEIGHT: 30.3 lbs.

[The Fuji Dynamic 10 road racer in light blue, a ten-speed bicycle with the name FUJI on the seat tube, photographed on a pale gray studio backdrop beside its specification list. It has black handlebar tape, center-pull brakes, a black saddle, gumwall tires and red and yellow reflectors in the spokes. A figure “177” is written in pencil beside the model name, and the Fuji America page shows through the paper in mirror image across the photograph.]

— Page 10 —

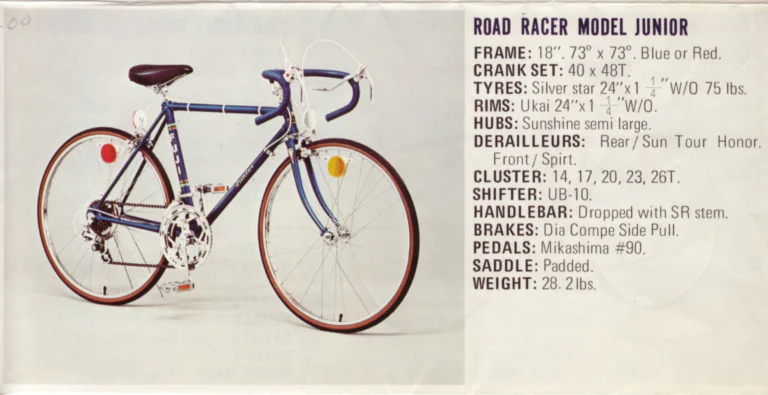

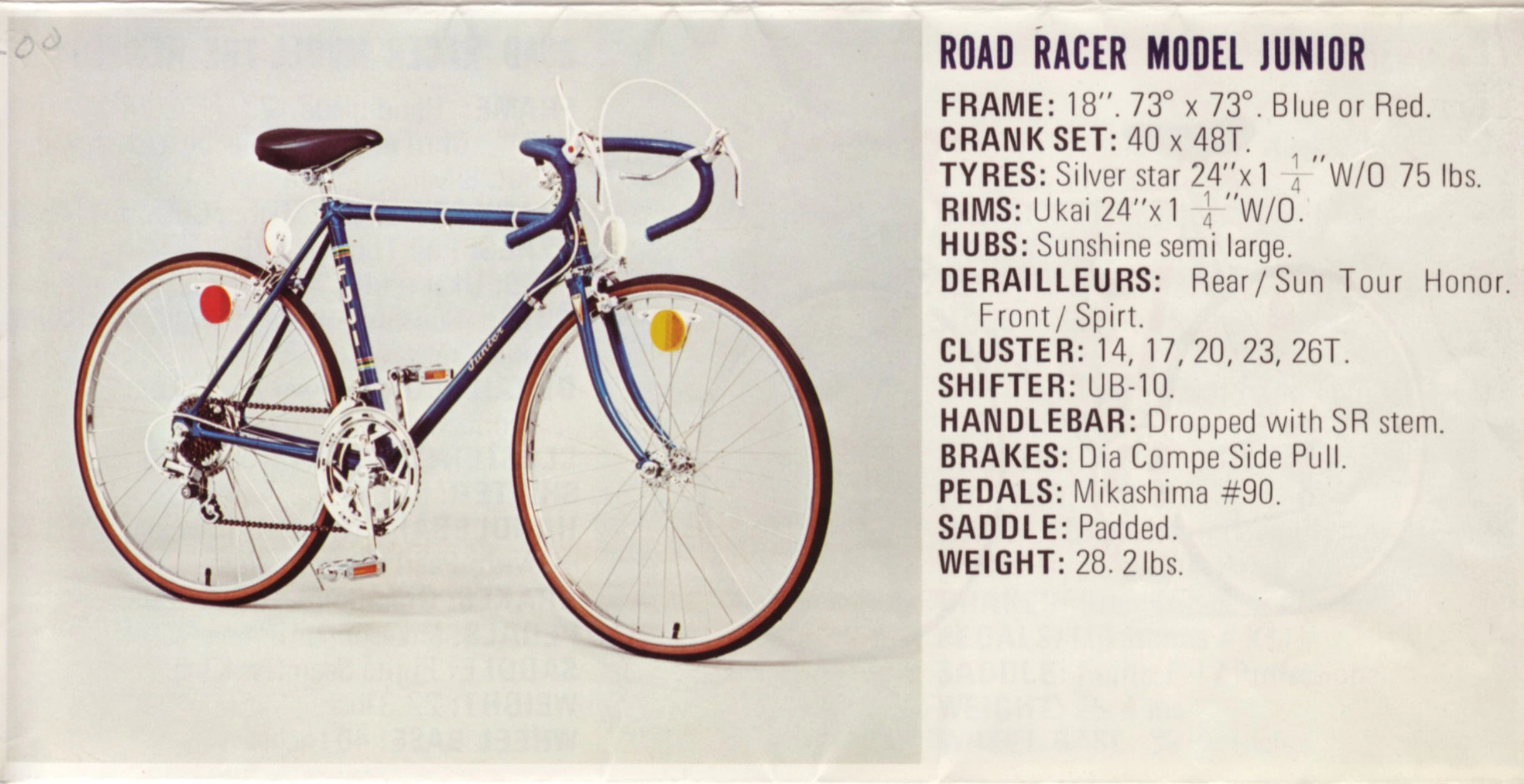

ROAD RACER MODEL JUNIOR

FRAME: 18″. 73° x 73°. Blue or Red.
CRANK SET: 40 x 48T.
TYRES: Silver star 24″x1¼” W/O 75 lbs.
RIMS: Ukai 24″x1¼”W/O.
HUBS: Sunshine semi large.
DERAILLEURS: Rear / Sun Tour Honor. Front / Spirt.
CLUSTER: 14, 17, 20, 23, 26T.
SHIFTER: UB-10.
HANDLEBAR: Dropped with SR stem.
BRAKES: Dia Compe Side Pull.
PEDALS: Mikashima #90.
SADDLE: Padded.
WEIGHT: 28.2 lbs.

[The Fuji Junior road racer in blue, a ten-speed bicycle on 24-inch wheels with the name FUJI on the seat tube and the script name Junior on the down tube, photographed on a pale gray studio backdrop beside its specification list. It has blue handlebar tape, side-pull brakes, a black padded saddle, a guard ring on the chainwheel, gumwall tires and red and yellow reflectors in the spokes. The tail of a pencil figure, “.00″, runs in from the top left edge, and the Newest page shows through the paper in mirror image.]

— Page 11 —

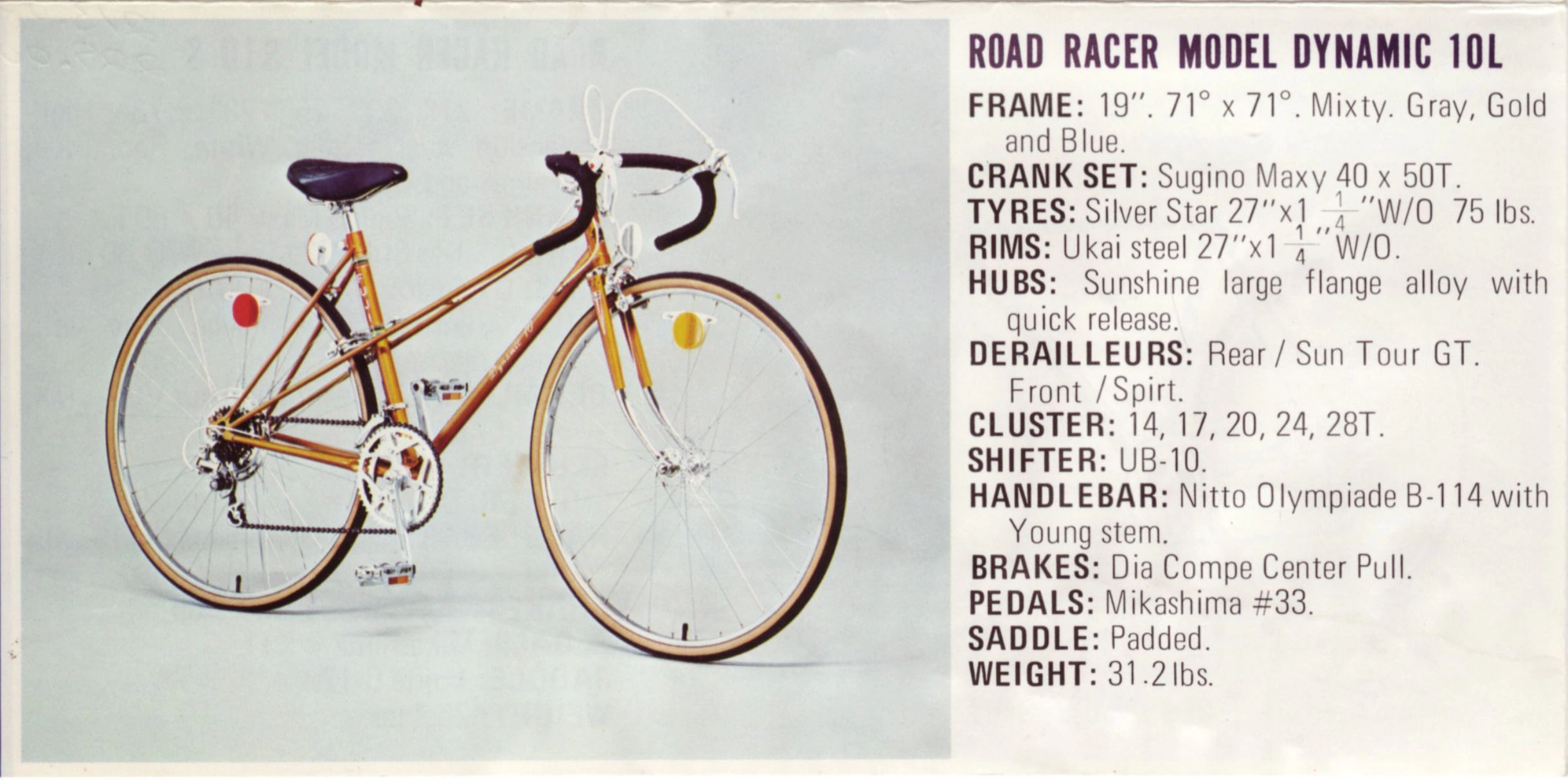

ROAD RACER MODEL DYNAMIC 10L

FRAME: 19″. 71° x 71°. Mixty. Gray, Gold and Blue.
CRANK SET: Sugino Maxy 40 x 50T.
TYRES: Silver Star 27″x1¼”W/O 75 lbs.
RIMS: Ukai steel 27″x1¼”W/O.
HUBS: Sunshine large flange alloy with quick release.
DERAILLEURS: Rear / Sun Tour GT. Front / Spirt.
CLUSTER: 14, 17, 20, 24, 28T.
SHIFTER: UB-10.
HANDLEBAR: Nitto Olympiade B-114 with Young stem.
BRAKES: Dia Compe Center Pull.
PEDALS: Mikashima #33.
SADDLE: Padded.
WEIGHT: 31.2 lbs.

[The Fuji Dynamic 10L road racer in gold, a ten-speed bicycle with a mixte frame and a script model name on the down tube, photographed on a pale gray studio backdrop beside its specification list. It has dropped handlebars with black tape, center-pull brakes, a black padded saddle, gumwall tires and red and yellow reflectors in the spokes. The S10-S page shows through the paper in mirror image, and the pencil prices written on that side have left impressions at the top left.]

— Page 12 —

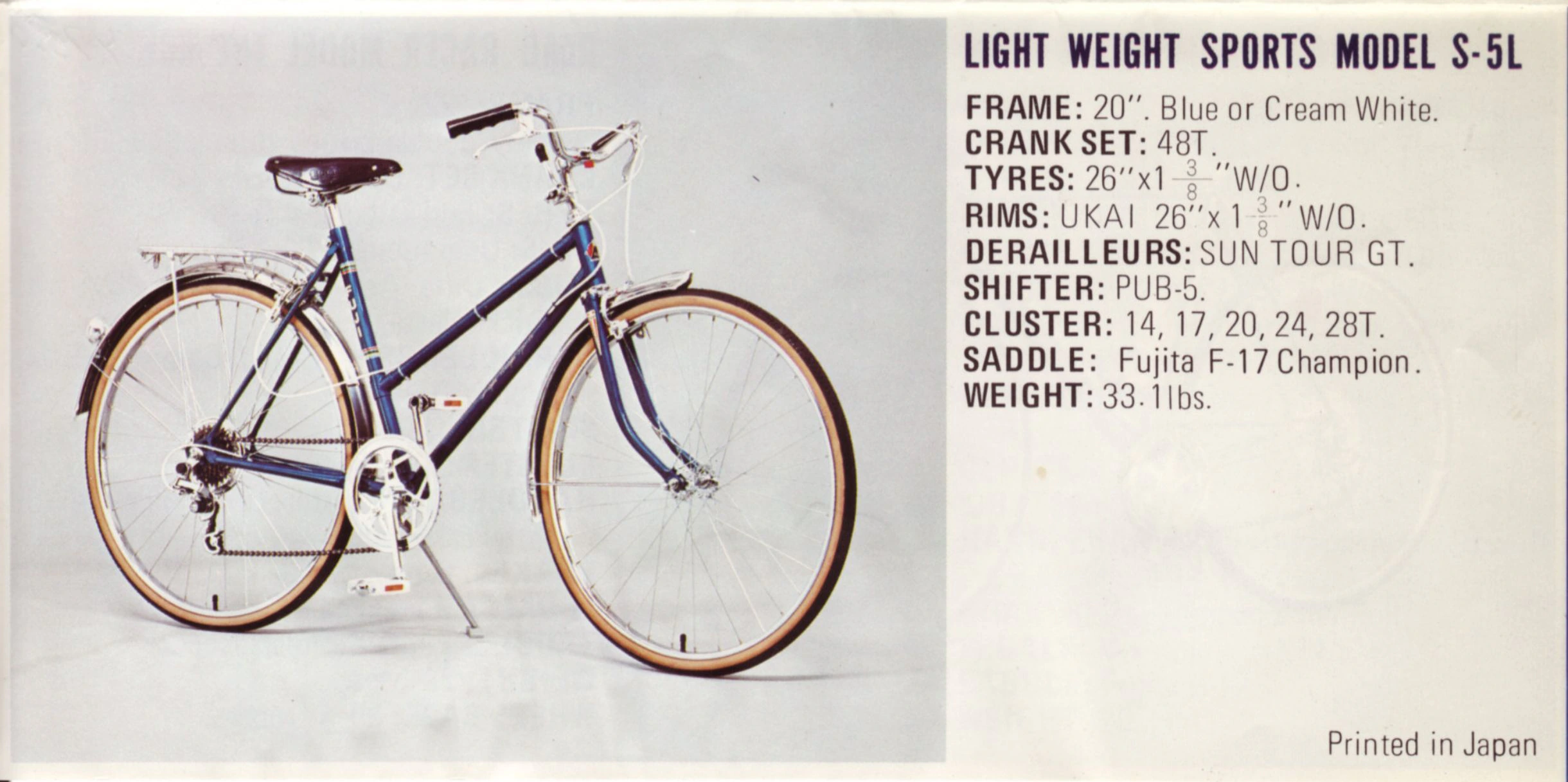

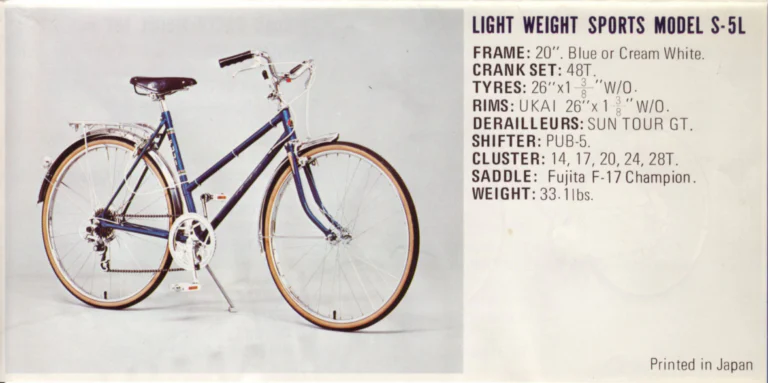

LIGHT WEIGHT SPORTS MODEL S-5L

FRAME: 20″. Blue or Cream White.
CRANK SET: 48T.
TYRES: 26″x1⅜”W/O.
RIMS: UKAI 26″x1⅜” W/O.
DERAILLEURS: SUN TOUR GT.
SHIFTER: PUB-5.
CLUSTER: 14, 17, 20, 24, 28T.
SADDLE: Fujita F-17 Champion.
WEIGHT: 33.1 lbs.

Printed in Japan

[The Fuji S-5L light weight sports model in blue, a five-speed bicycle with a step-through frame, photographed on a pale gray studio backdrop beside its specification list. It has upright handlebars with black grips, chrome fenders, a rear carrier, a kickstand, a brown saddle and gumwall tires. The imprint “Printed in Japan” sits at the lower right of the sheet, and the Ace page printed on the back of the sheet shows through the paper in mirror image.]
