Fuji 1976 Catalog — No. 6 Edition, from the Professional to the Junior

— Page 1 (front cover) —
FUJI

No. 6 Edition

Exclusive Importer:
FUJI AMERICA
a Division of
Toshoku America, Inc.
Room 520, 551 Fifth Ave.
New York, N.Y. 10017
Telephone: 212-661-5421

[The front cover of the Fuji No. 6 Edition catalog, with the name FUJI set vertically in orange capitals down a black band at the left and a painting of a pack of racing cyclists seen from above filling the rest of the cover. The edition number and a boxed importer’s address sit at the foot of the black band; the cover shows light creasing and wear along its left edge.]

— Page 2 —

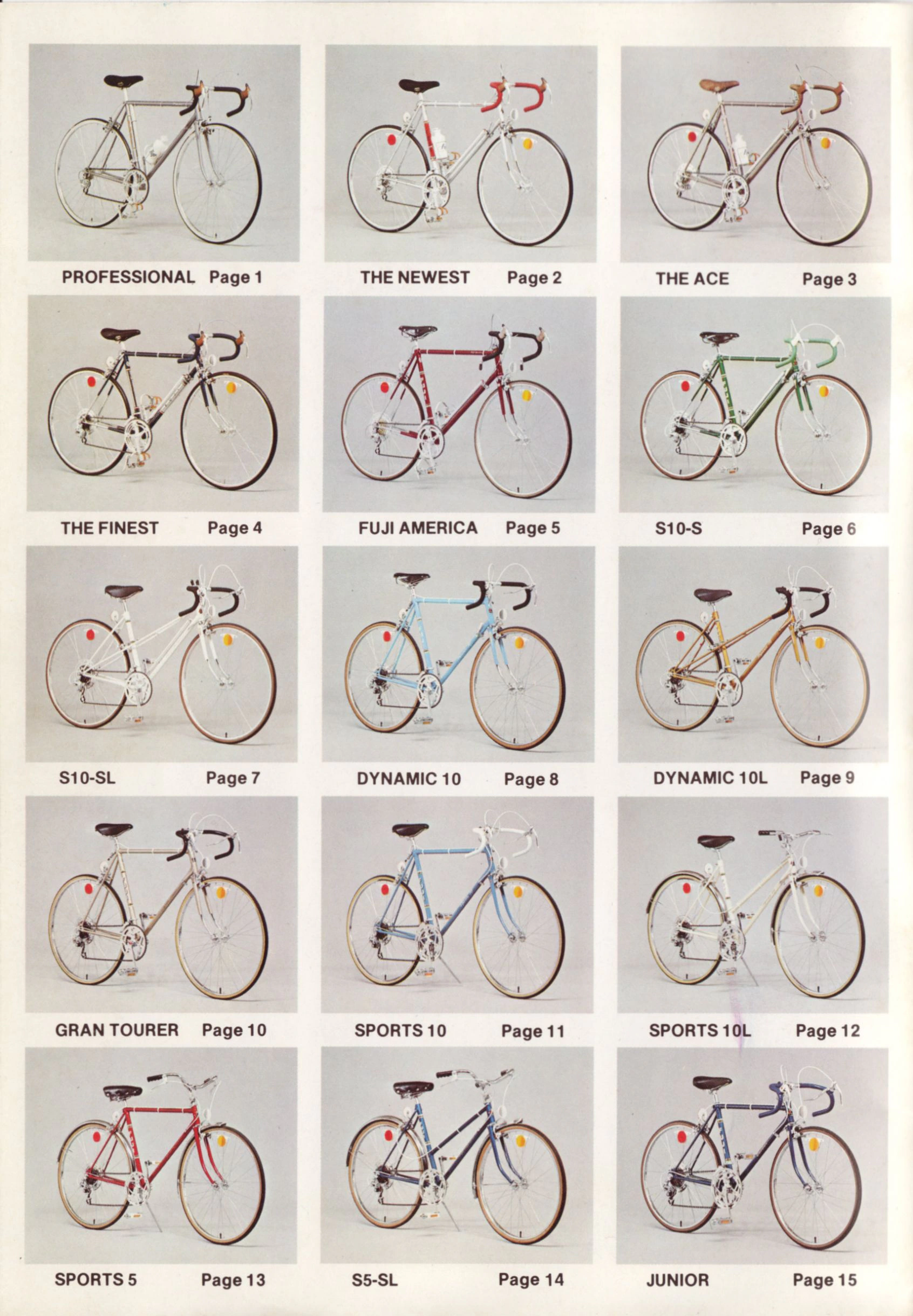

PROFESSIONAL Page 1

THE NEWEST Page 2

THE ACE Page 3

THE FINEST Page 4

FUJI AMERICA Page 5

S10-S Page 6

S10-SL Page 7

DYNAMIC 10 Page 8

DYNAMIC 10L Page 9

GRAN TOURER Page 10

SPORTS 10 Page 11

SPORTS 10L Page 12

SPORTS 5 Page 13

S5-SL Page 14

JUNIOR Page 15

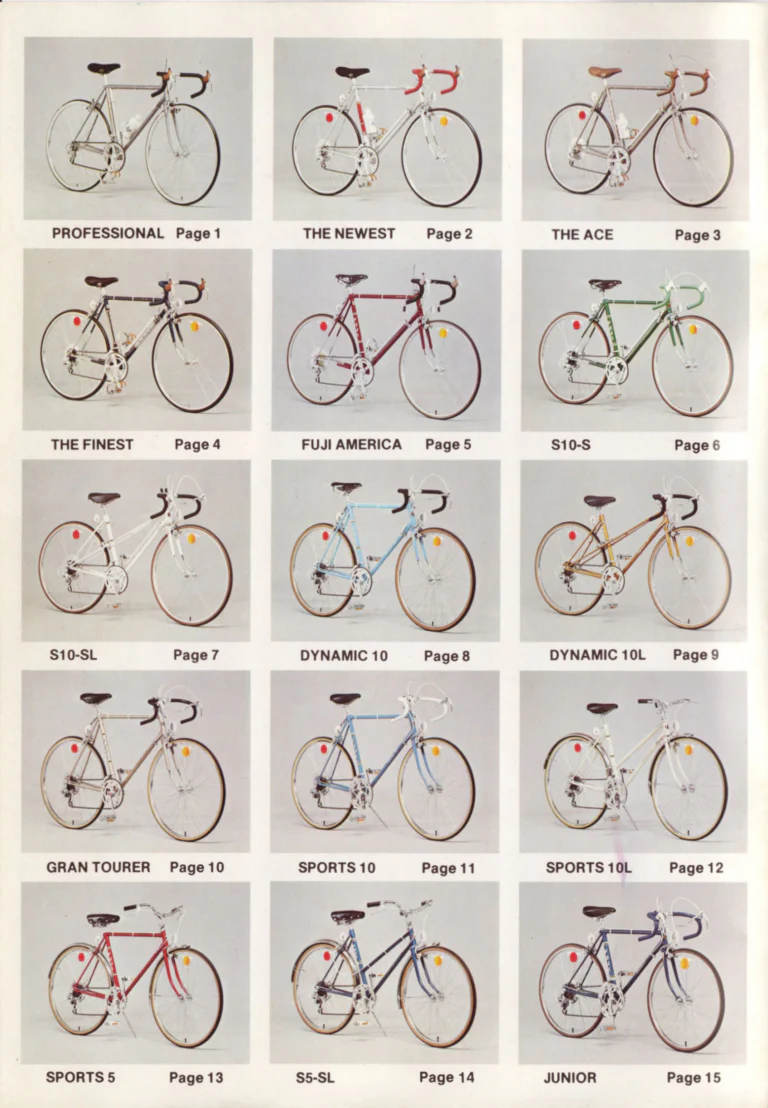

[A contents page of 15 small color photographs of Fuji bicycles on a gray studio backdrop, set five rows of three, each captioned with the model name and the catalog page on which it appears, from the Professional on Page 1 to the Junior on Page 15. The range runs from drop-bar racing and touring machines to ladies’ mixte and step-through frames and flat-bar Sports 5 and S5-SL models with fenders; a faint violet streak, apparently a later ink trace with no lettering, crosses the Sports 10L caption.]

— Page 3 —

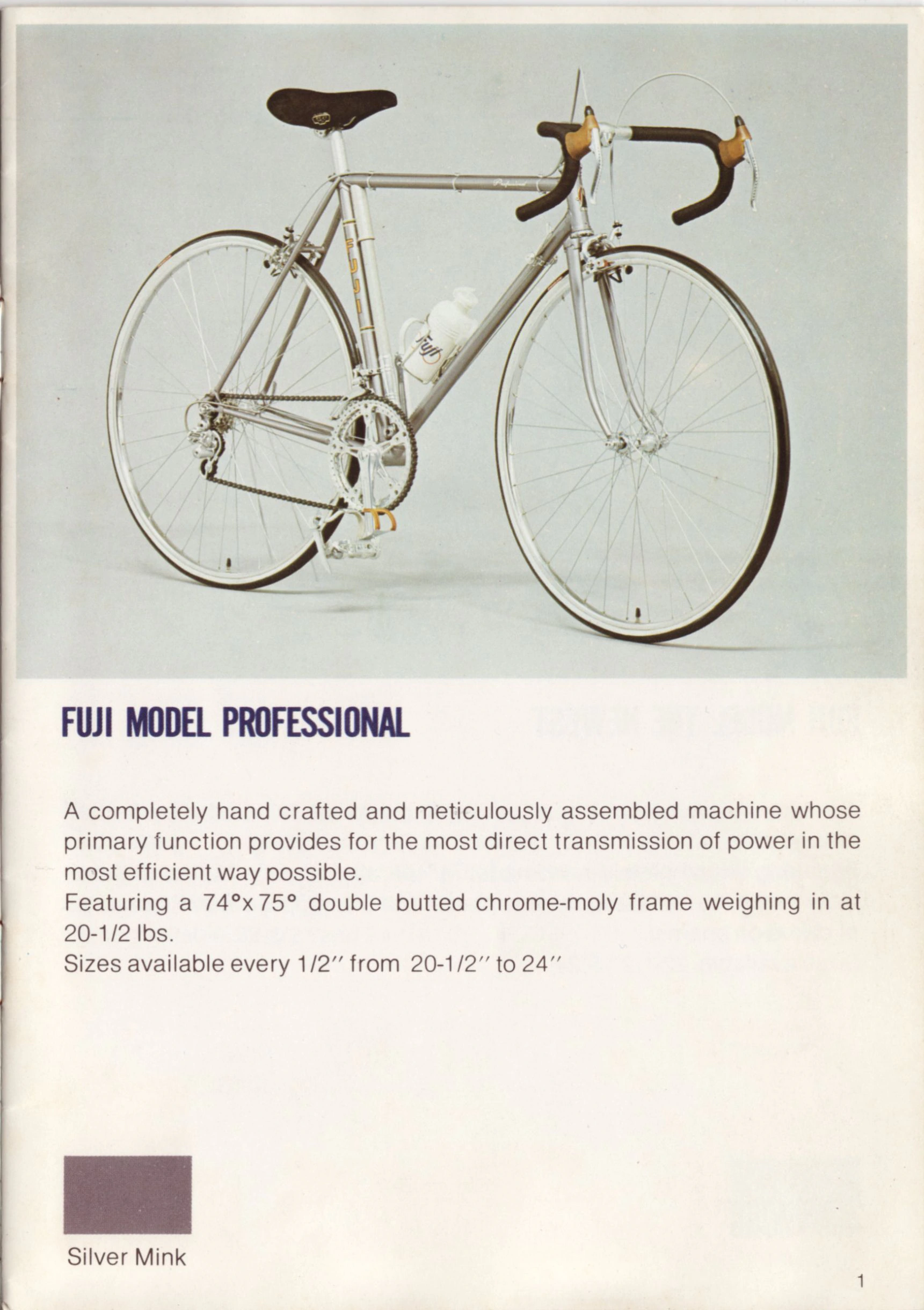

FUJI MODEL PROFESSIONAL

A completely hand crafted and meticulously assembled machine whose primary function provides for the most direct transmission of power in the most efficient way possible.
Featuring a 74°x75° double butted chrome-moly frame weighing in at 20-1/2 lbs.
Sizes available every 1/2″ from 20-1/2″ to 24″

Silver Mink

1

[The Fuji Model Professional in Silver Mink, a drop-bar road racing bicycle photographed on a gray studio backdrop above its descriptive paragraph and a single color chip. The bicycle has side-pull brakes with tan lever hoods, black handlebar tape, a black saddle, double chainrings, toe clips and a Fuji water bottle on the down tube, with FUJI lettered down the seat tube and a script model name on the top tube.]

— Page 4 —

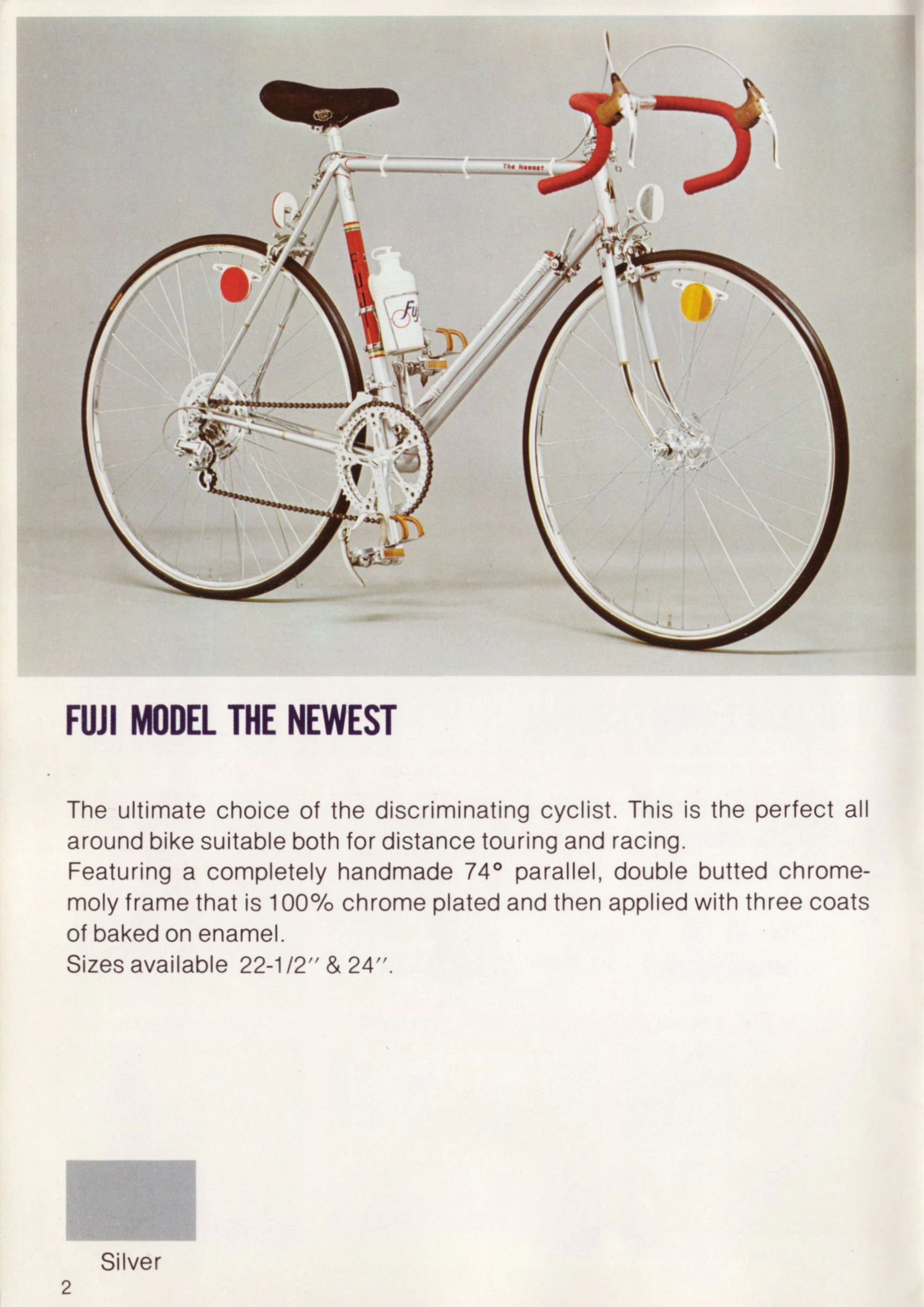

FUJI MODEL THE NEWEST

The ultimate choice of the discriminating cyclist. This is the perfect all around bike suitable both for distance touring and racing.
Featuring a completely handmade 74° parallel, double butted chrome-moly frame that is 100% chrome plated and then applied with three coats of baked on enamel.
Sizes available 22-1/2″ & 24″.

Silver

2

[The Fuji Model The Newest in Silver, a drop-bar road bicycle photographed on a gray studio backdrop above its descriptive paragraph and a single color chip. The bicycle has red handlebar tape with tan lever hoods, a red panel with FUJI down the seat tube, chromed fork ends, center-pull brakes, double chainrings, toe clips, a Fuji water bottle and red and amber reflectors.]

— Page 5 —

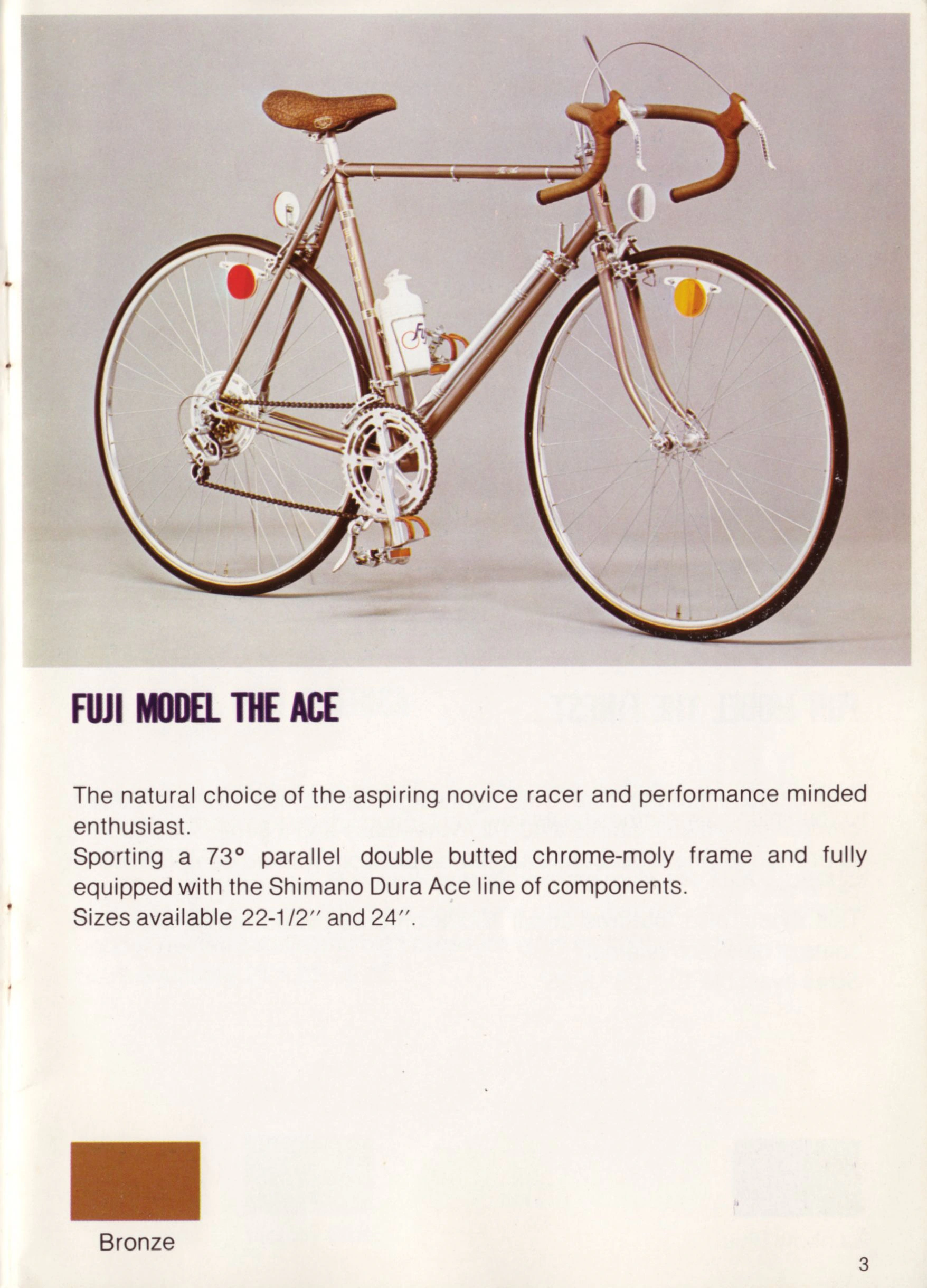

FUJI MODEL THE ACE

The natural choice of the aspiring novice racer and performance minded enthusiast.
Sporting a 73° parallel double butted chrome-moly frame and fully equipped with the Shimano Dura Ace line of components.
Sizes available 22-1/2″ and 24″.

Bronze

3

[The Fuji Model The Ace in Bronze, a drop-bar road bicycle photographed on a gray studio backdrop above its descriptive paragraph and a single color chip. The bicycle has brown handlebar tape and a matching textured brown saddle, side-pull brakes, double chainrings, toe clips, a Fuji water bottle and red and amber reflectors.]

— Page 6 —

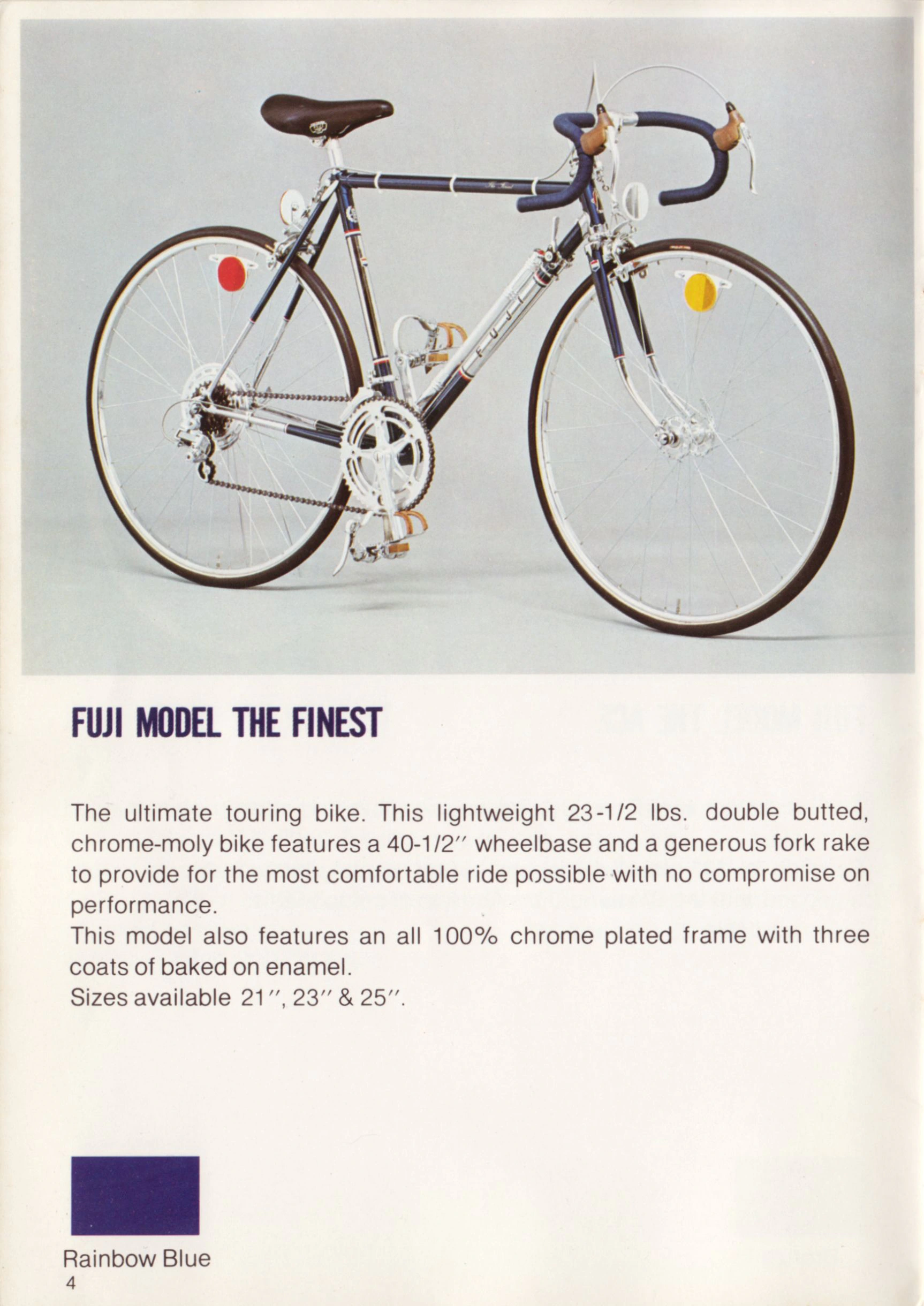

FUJI MODEL THE FINEST

The ultimate touring bike. This lightweight 23-1/2 lbs. double butted, chrome-moly bike features a 40-1/2″ wheelbase and a generous fork rake to provide for the most comfortable ride possible with no compromise on performance.
This model also features an all 100% chrome plated frame with three coats of baked on enamel.
Sizes available 21″, 23″ & 25″.

Rainbow Blue

4

[The Fuji Model The Finest in Rainbow Blue, a drop-bar touring bicycle photographed on a gray studio backdrop above its descriptive paragraph and a single color chip. The dark blue frame shows chromed sections, including a down tube panel lettered FUJI and chromed fork blades, and the bicycle has blue handlebar tape with tan lever hoods, center-pull brakes, double chainrings, toe clips and red and amber reflectors.]

— Page 7 —

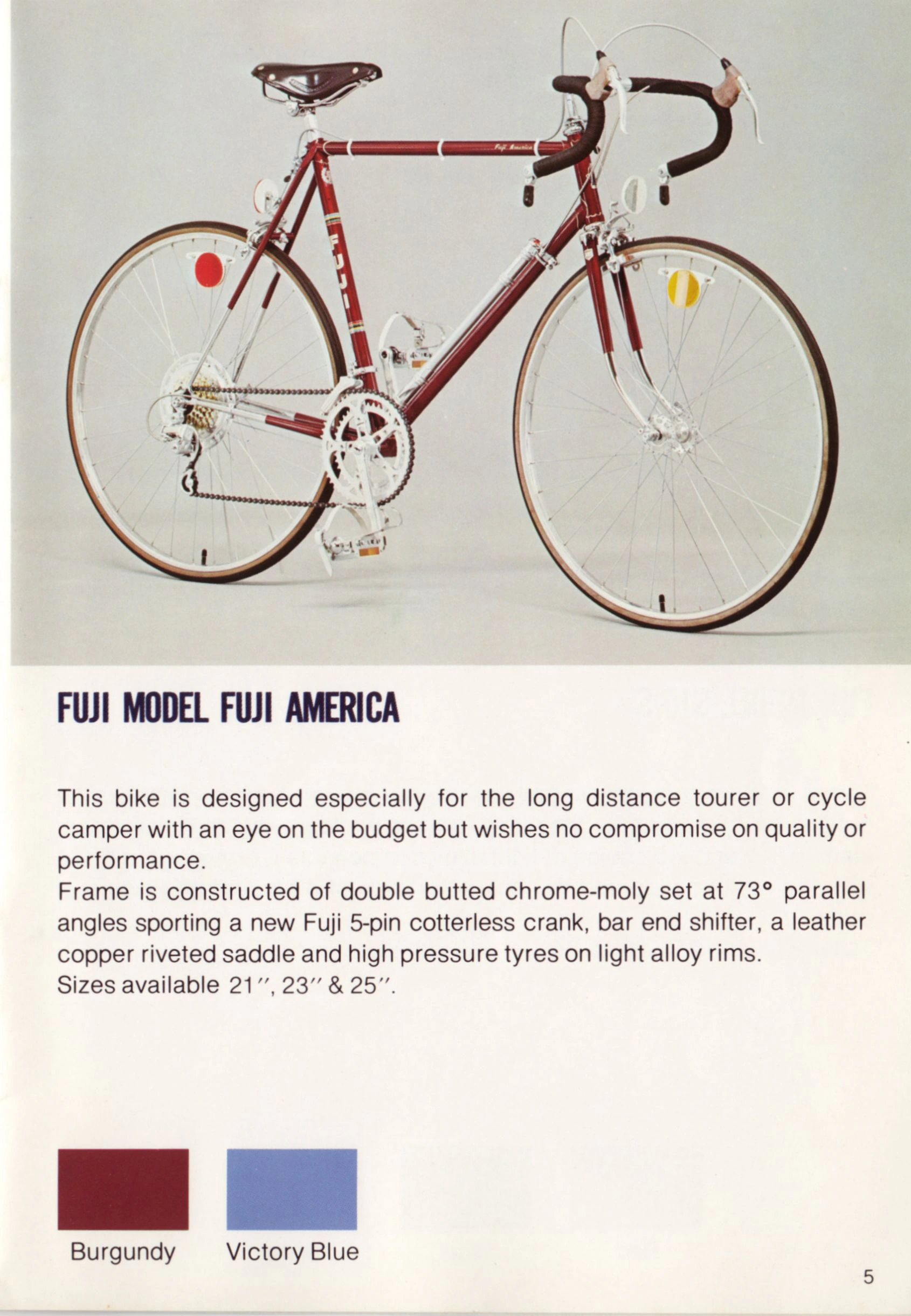

FUJI MODEL FUJI AMERICA

This bike is designed especially for the long distance tourer or cycle camper with an eye on the budget but wishes no compromise on quality or performance.
Frame is constructed of double butted chrome-moly set at 73° parallel angles sporting a new Fuji 5-pin cotterless crank, bar end shifter, a leather copper riveted saddle and high pressure tyres on light alloy rims.
Sizes available 21″, 23″ & 25″.

Burgundy

Victory Blue

5

[The Fuji Model Fuji America in Burgundy, a drop-bar touring bicycle photographed on a gray studio backdrop above its descriptive paragraph and two color chips. The bicycle has bar-end shift levers, dark handlebar tape with tan lever hoods, a brown leather saddle with copper rivets, chromed fork blades, double chainrings, gum-wall tires and red and amber reflectors, with FUJI lettered down the seat tube.]

— Page 8 —

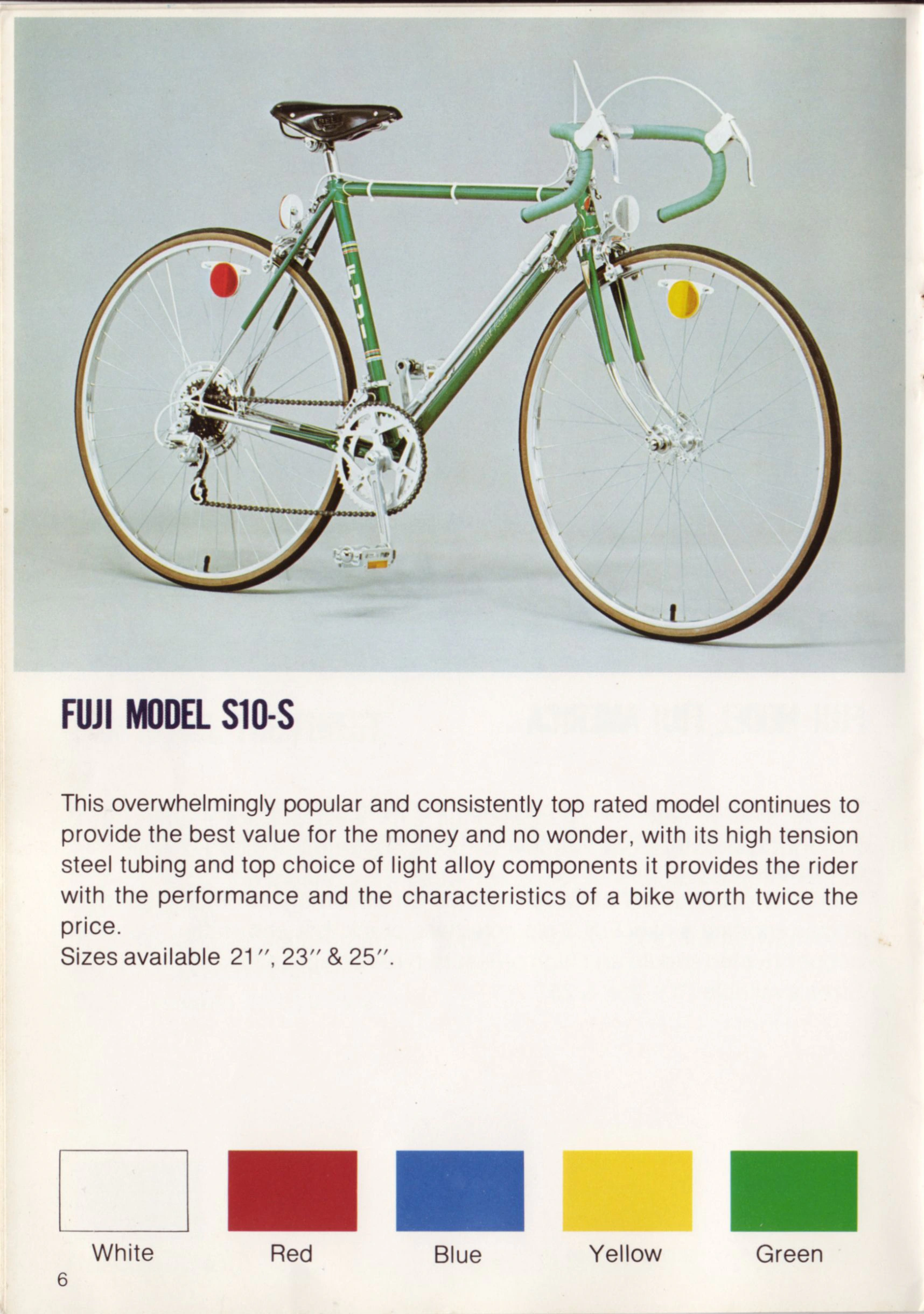

FUJI MODEL S10-S

This overwhelmingly popular and consistently top rated model continues to provide the best value for the money and no wonder, with its high tension steel tubing and top choice of light alloy components it provides the rider with the performance and the characteristics of a bike worth twice the price.
Sizes available 21″, 23″ & 25″.

White

Red

Blue

Yellow

Green

6

[The Fuji Model S10-S shown in green, a drop-bar road bicycle photographed on a gray studio backdrop above its descriptive paragraph and a row of five color chips. The bicycle has light green handlebar tape with white lever hoods, a black leather saddle, chromed fork blades, double chainrings, gum-wall tires and red and amber reflectors, with FUJI lettered down the seat tube.]

— Page 9 —

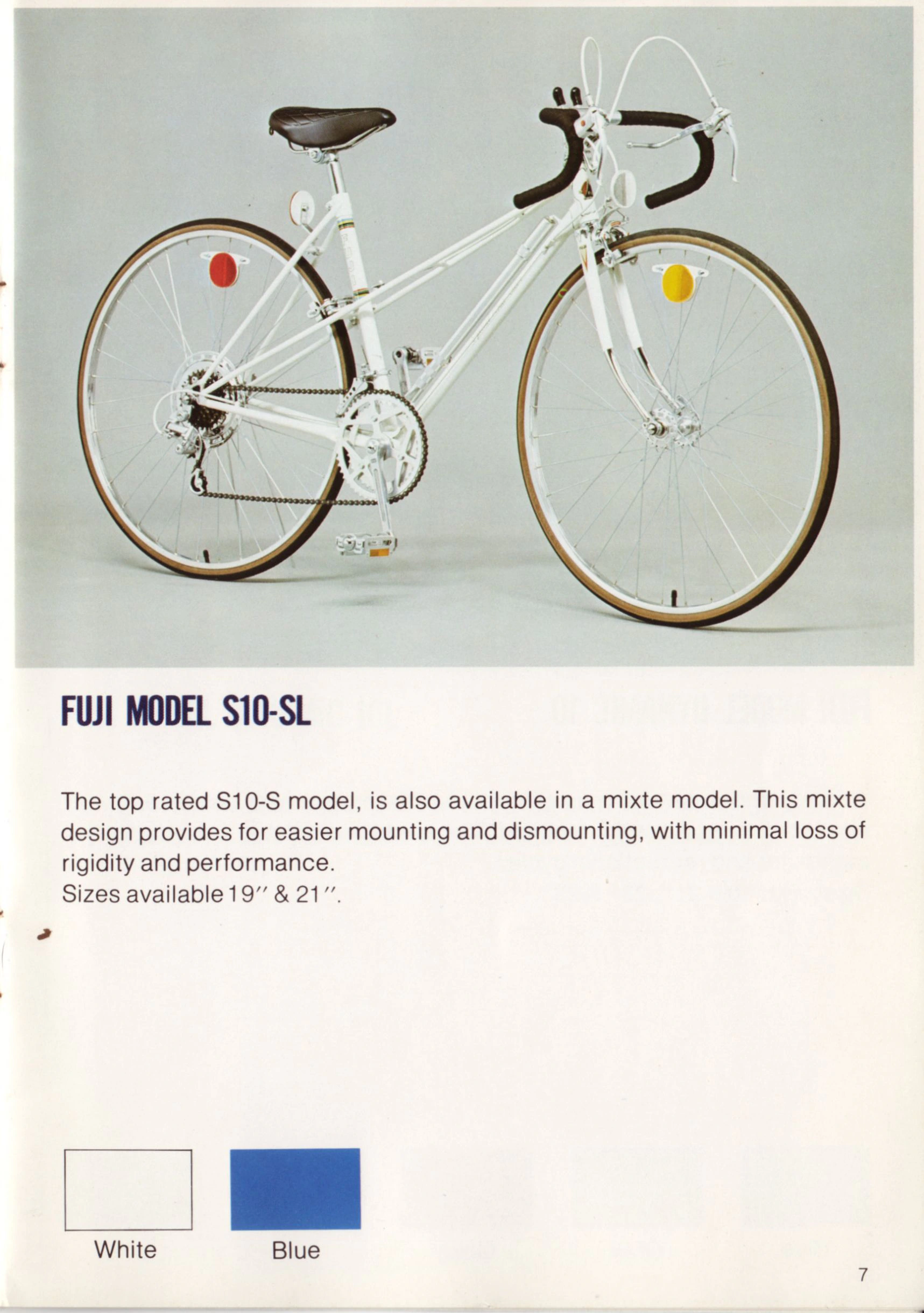

FUJI MODEL S10-SL

The top rated S10-S model, is also available in a mixte model. This mixte design provides for easier mounting and dismounting, with minimal loss of rigidity and performance.
Sizes available 19″ & 21″.

White

Blue

7

[The Fuji Model S10-SL shown in white, a drop-bar mixte bicycle with twin lateral tubes running from the head tube to the rear dropouts, photographed on a gray studio backdrop above its descriptive paragraph and two color chips. The bicycle has black handlebar tape, brake levers with extension levers, a brown saddle, chromed fork blades, double chainrings, gum-wall tires and red and amber reflectors.]

— Page 10 —

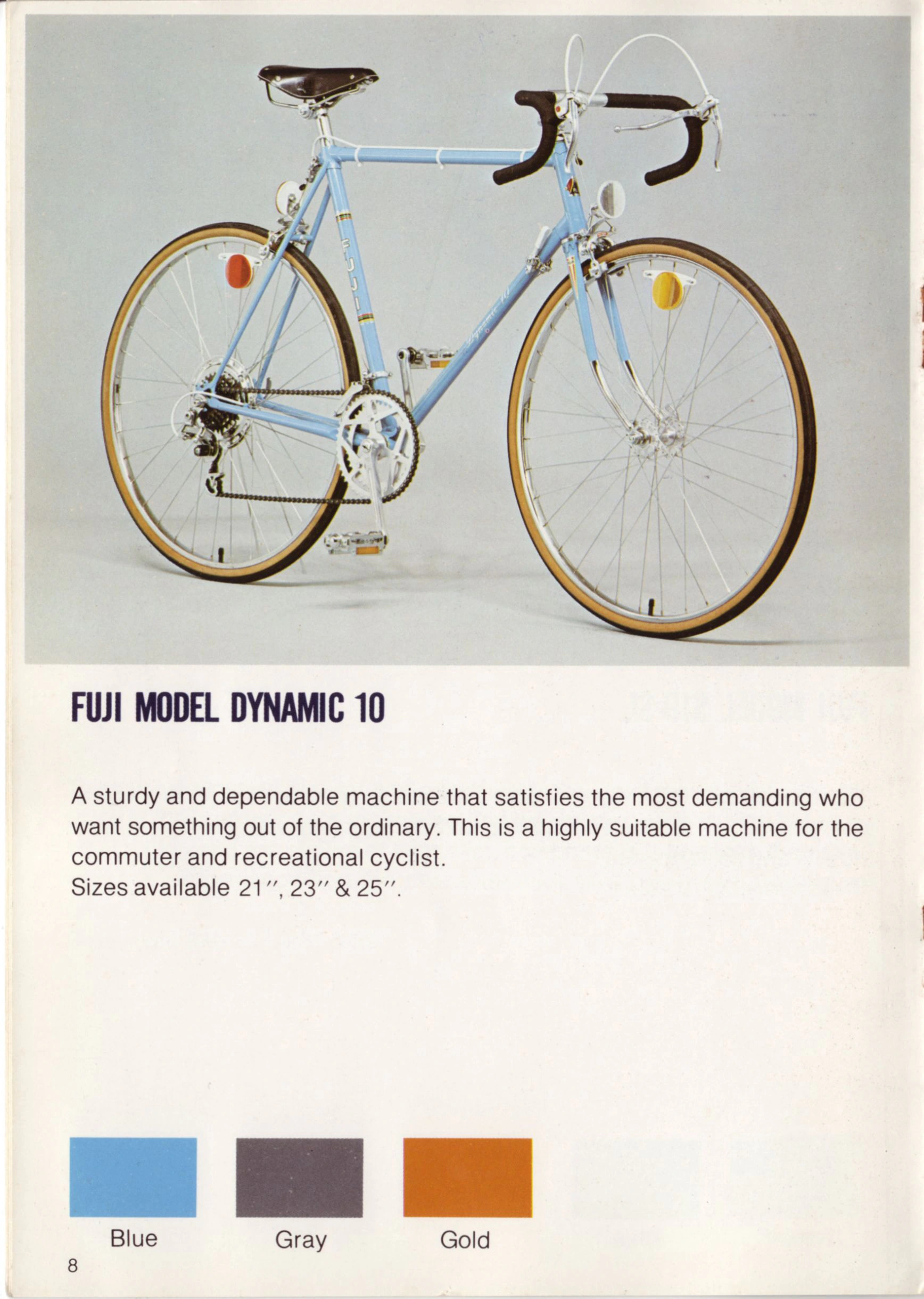

FUJI MODEL DYNAMIC 10

A sturdy and dependable machine that satisfies the most demanding who want something out of the ordinary. This is a highly suitable machine for the commuter and recreational cyclist.
Sizes available 21″, 23″ & 25″.

Blue

Gray

Gold

8

[The Fuji Model Dynamic 10 shown in light blue, a drop-bar road bicycle photographed on a gray studio backdrop above its descriptive paragraph and three color chips. The bicycle has black handlebar tape, brake levers with extension levers, a black leather saddle, chromed fork blades, double chainrings, gum-wall tires and red and amber reflectors, with FUJI down the seat tube and a script model name on the down tube.]

— Page 11 —

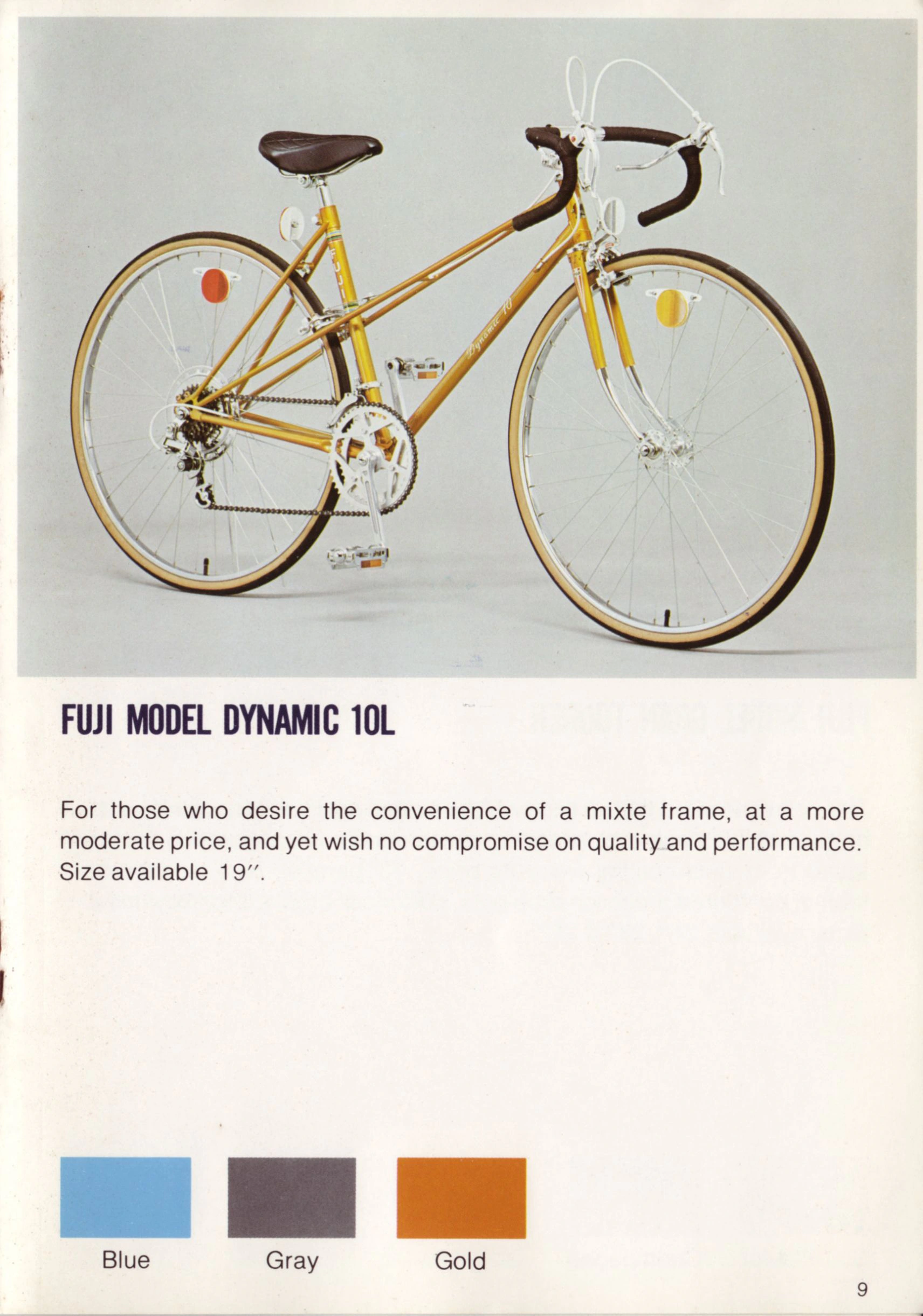

FUJI MODEL DYNAMIC 10L

For those who desire the convenience of a mixte frame, at a more moderate price, and yet wish no compromise on quality and performance.
Size available 19″.

Blue

Gray

Gold

9

[The Fuji Model Dynamic 10L shown in gold, a drop-bar mixte bicycle with twin lateral tubes running from the head tube to the rear dropouts, photographed on a gray studio backdrop above its descriptive paragraph and three color chips. The bicycle has black handlebar tape, brake levers with extension levers, a dark brown saddle, chromed fork blades, double chainrings, gum-wall tires and red and amber reflectors, with a script model name on the down tube.]

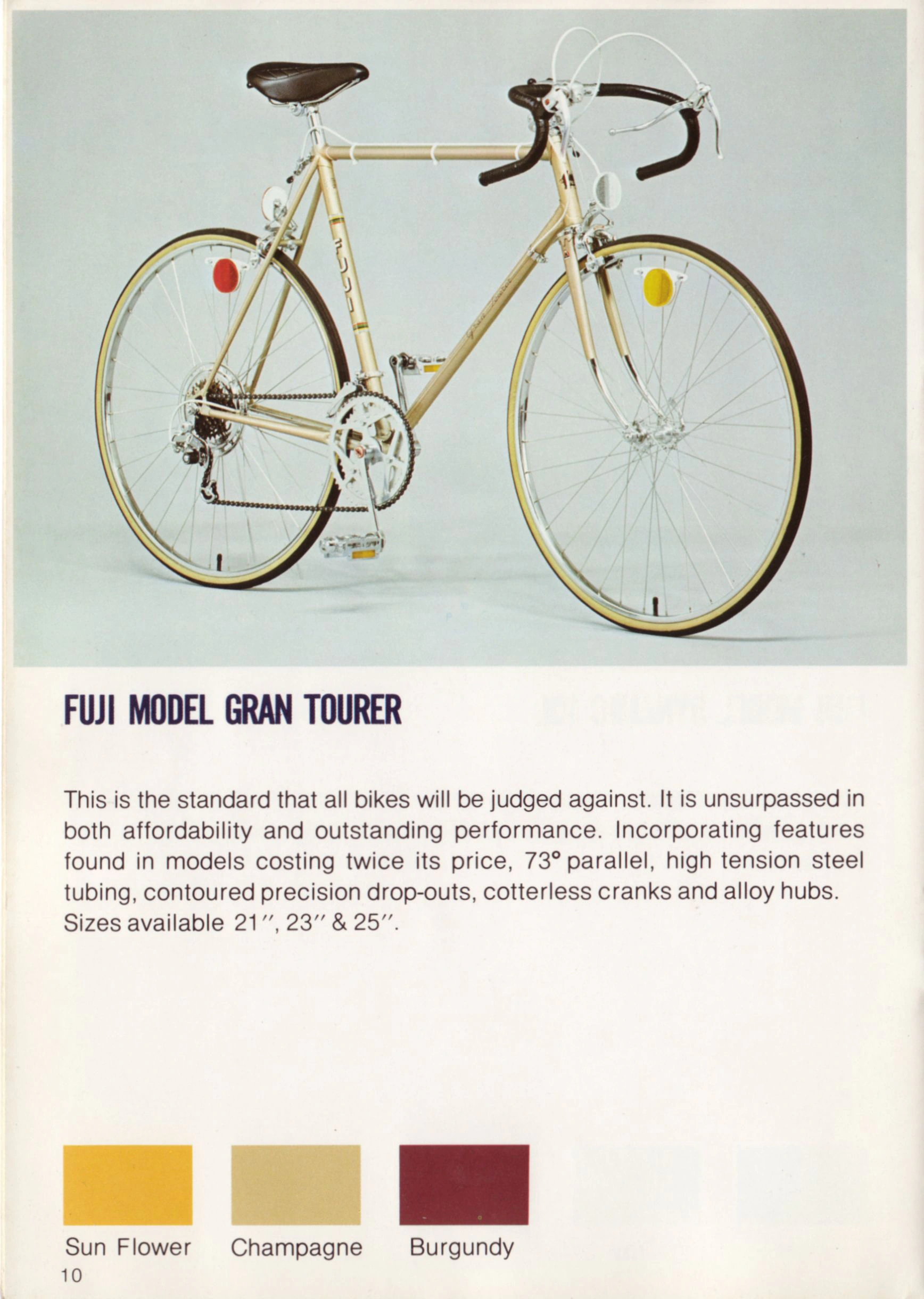

— Page 12 —
FUJI MODEL GRAN TOURER

This is the standard that all bikes will be judged against. It is unsurpassed in both affordability and outstanding performance. Incorporating features found in models costing twice its price, 73° parallel, high tension steel tubing, contoured precision drop-outs, cotterless cranks and alloy hubs.
Sizes available 21″, 23″ & 25″.

Sun Flower

Champagne

Burgundy

10

[The Fuji Model Gran Tourer shown in a champagne finish, a drop-bar road bicycle photographed on a gray studio backdrop above its descriptive paragraph and three color chips. The bicycle has black handlebar tape, brake levers with extension levers, a brown saddle, chromed fork blades, double chainrings, gum-wall tires and red and amber reflectors, with FUJI down the seat tube and a script model name on the down tube.]

— Page 13 —

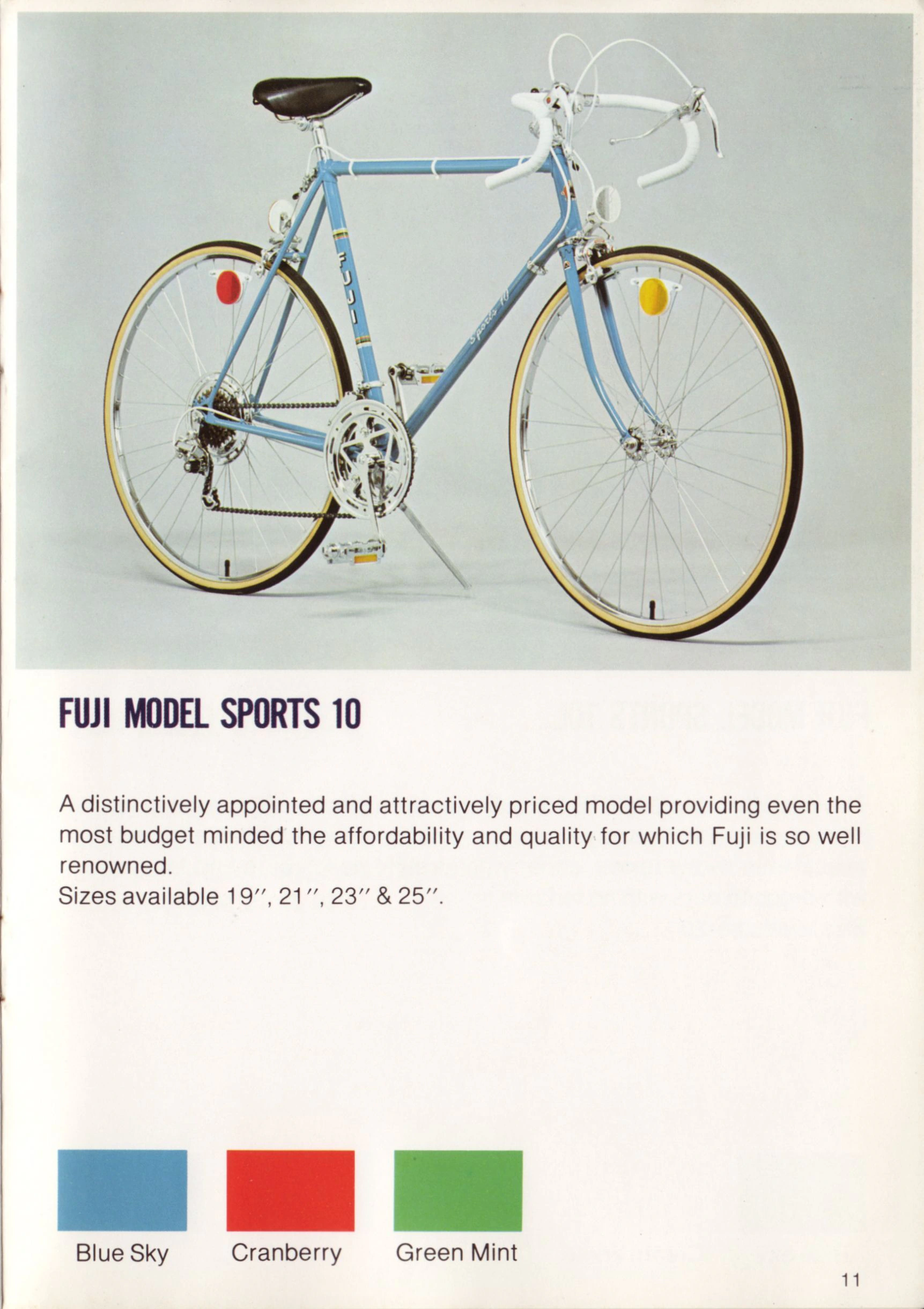

FUJI MODEL SPORTS 10

A distinctively appointed and attractively priced model providing even the most budget minded the affordability and quality for which Fuji is so well renowned.
Sizes available 19″, 21″, 23″ & 25″.

Blue Sky
Cranberry
Green Mint

11

[The Fuji Model Sports 10, a light blue ten-speed road bicycle photographed on a gray studio backdrop, with white handlebar tape, extension brake levers, a black saddle, a kickstand, a chainring guard, gumwall tires and red and amber spoke reflectors. Below the photograph are the heading, a short paragraph with the sizes and three color chips labeled Blue Sky, Cranberry and Green Mint.]

— Page 14 —

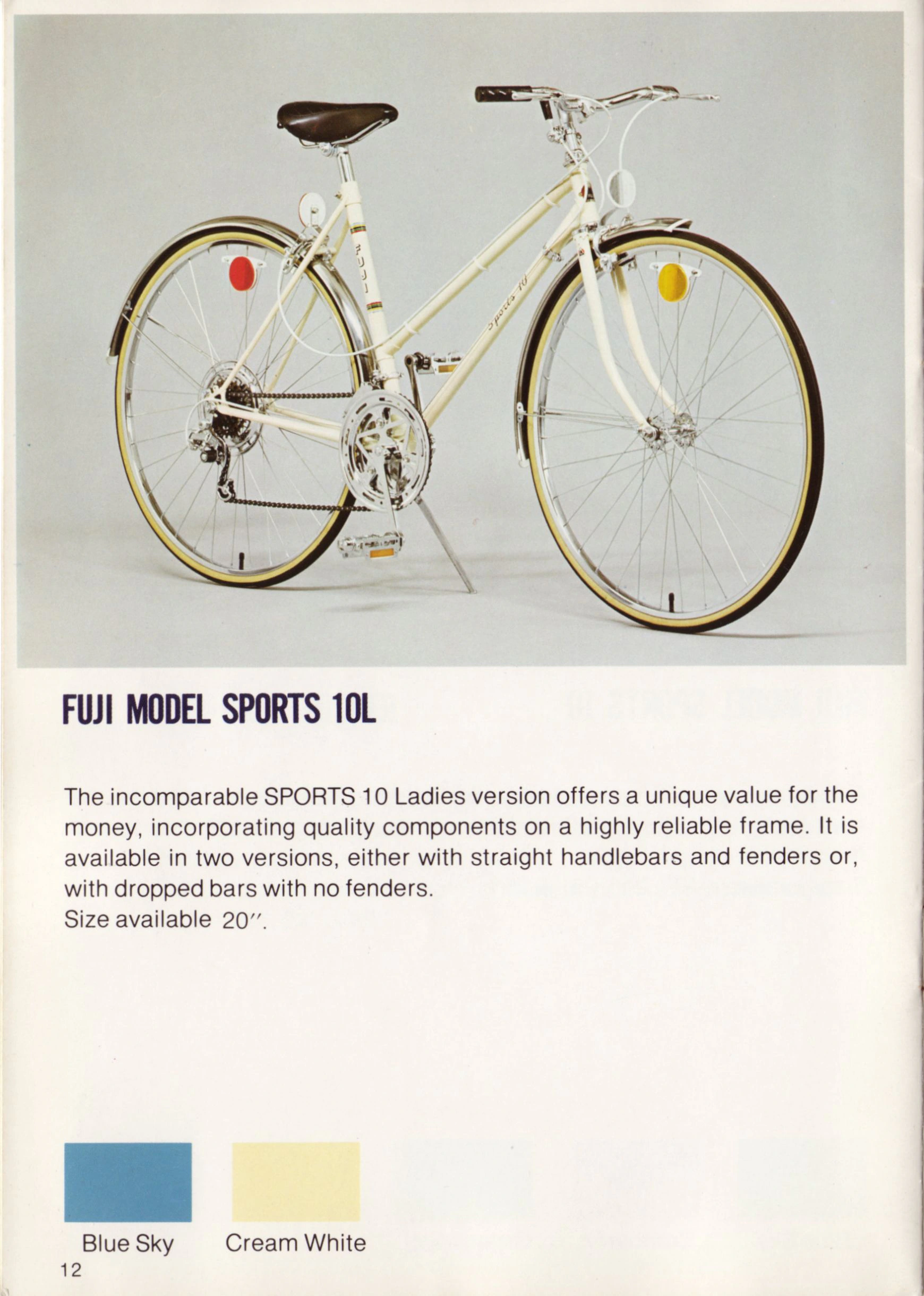

FUJI MODEL SPORTS 10L

The incomparable SPORTS 10 Ladies version offers a unique value for the money, incorporating quality components on a highly reliable frame. It is available in two versions, either with straight handlebars and fenders or, with dropped bars with no fenders.
Size available 20″.

Blue Sky
Cream White

12

[The Fuji Model Sports 10L, a cream white ten-speed mixte bicycle with twin lateral tubes, photographed on a gray studio backdrop in its straight handlebar version with chrome fenders, a kickstand, gumwall tires and red and amber spoke reflectors. Below the photograph are the heading, a short paragraph with the size and two color chips labeled Blue Sky and Cream White.]

— Page 15 —

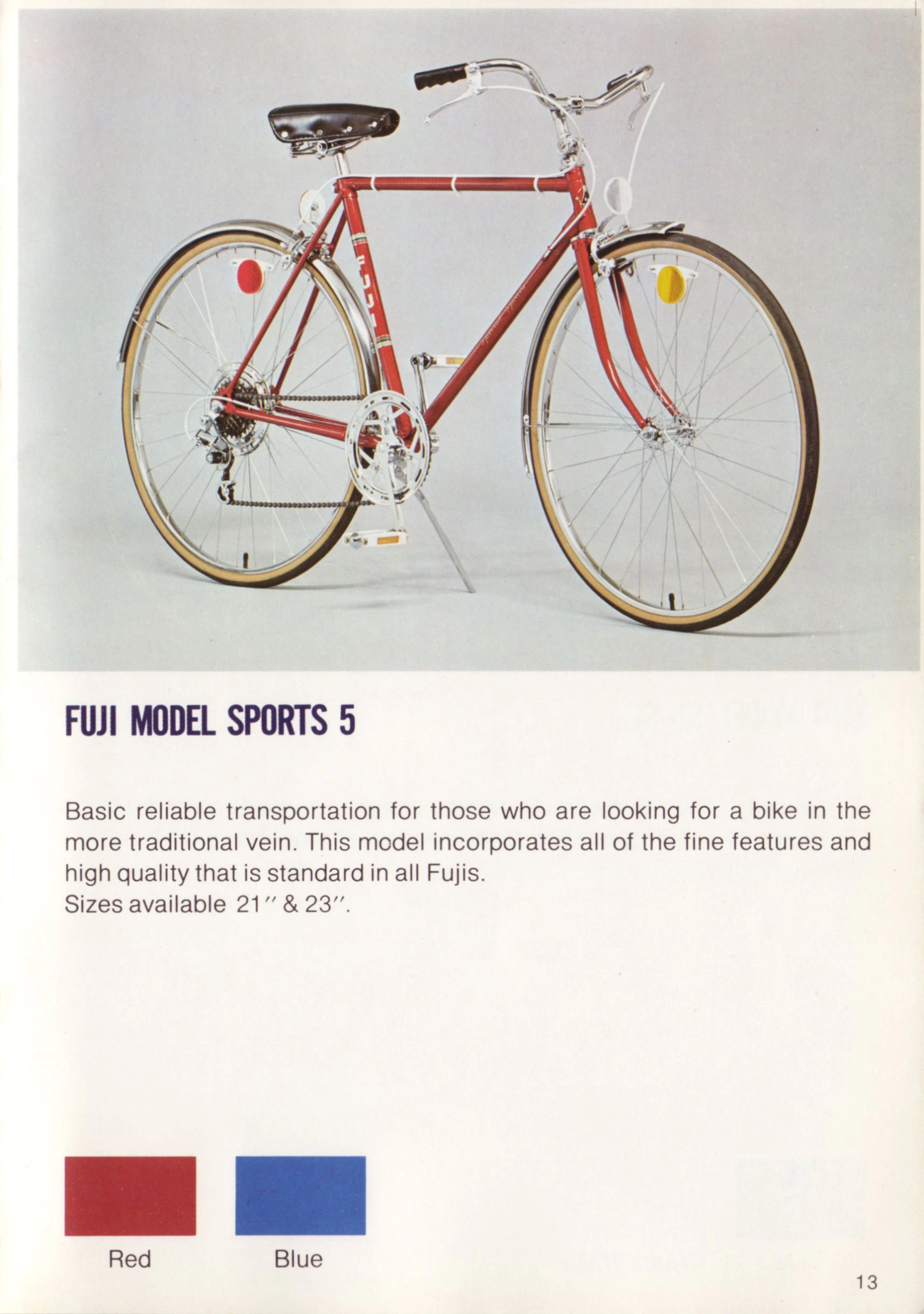

FUJI MODEL SPORTS 5

Basic reliable transportation for those who are looking for a bike in the more traditional vein. This model incorporates all of the fine features and high quality that is standard in all Fujis.
Sizes available 21″ & 23″.

Red
Blue

13

[The Fuji Model Sports 5, a red five-speed bicycle with a single guarded chainring, photographed on a gray studio backdrop with raised handlebars and grips, extension brake levers, chrome fenders, a kickstand, gumwall tires and red and amber spoke reflectors. Below the photograph are the heading, a short paragraph with the sizes and two color chips labeled Red and Blue.]

— Page 16 —

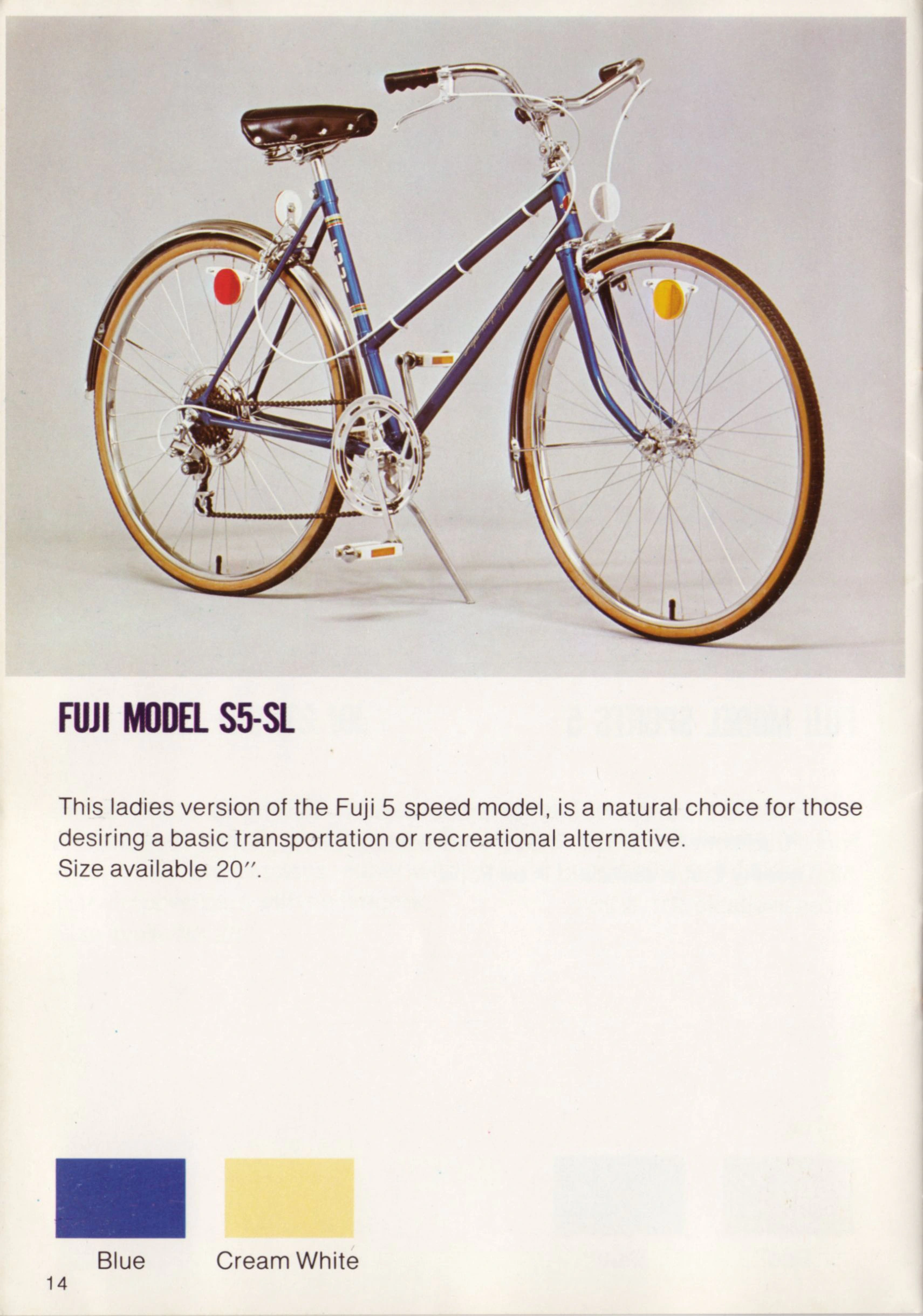

FUJI MODEL S5-SL

This ladies version of the Fuji 5 speed model, is a natural choice for those desiring a basic transportation or recreational alternative.
Size available 20″.

Blue
Cream White

14

[The Fuji Model S5-SL, a blue five-speed step-through bicycle with a sloping upper tube and a single guarded chainring, photographed on a gray studio backdrop with raised handlebars and grips, extension brake levers, chrome fenders, a kickstand, gumwall tires and red and amber spoke reflectors. Below the photograph are the heading, a short paragraph with the size and two color chips labeled Blue and Cream White.]

— Page 17 —

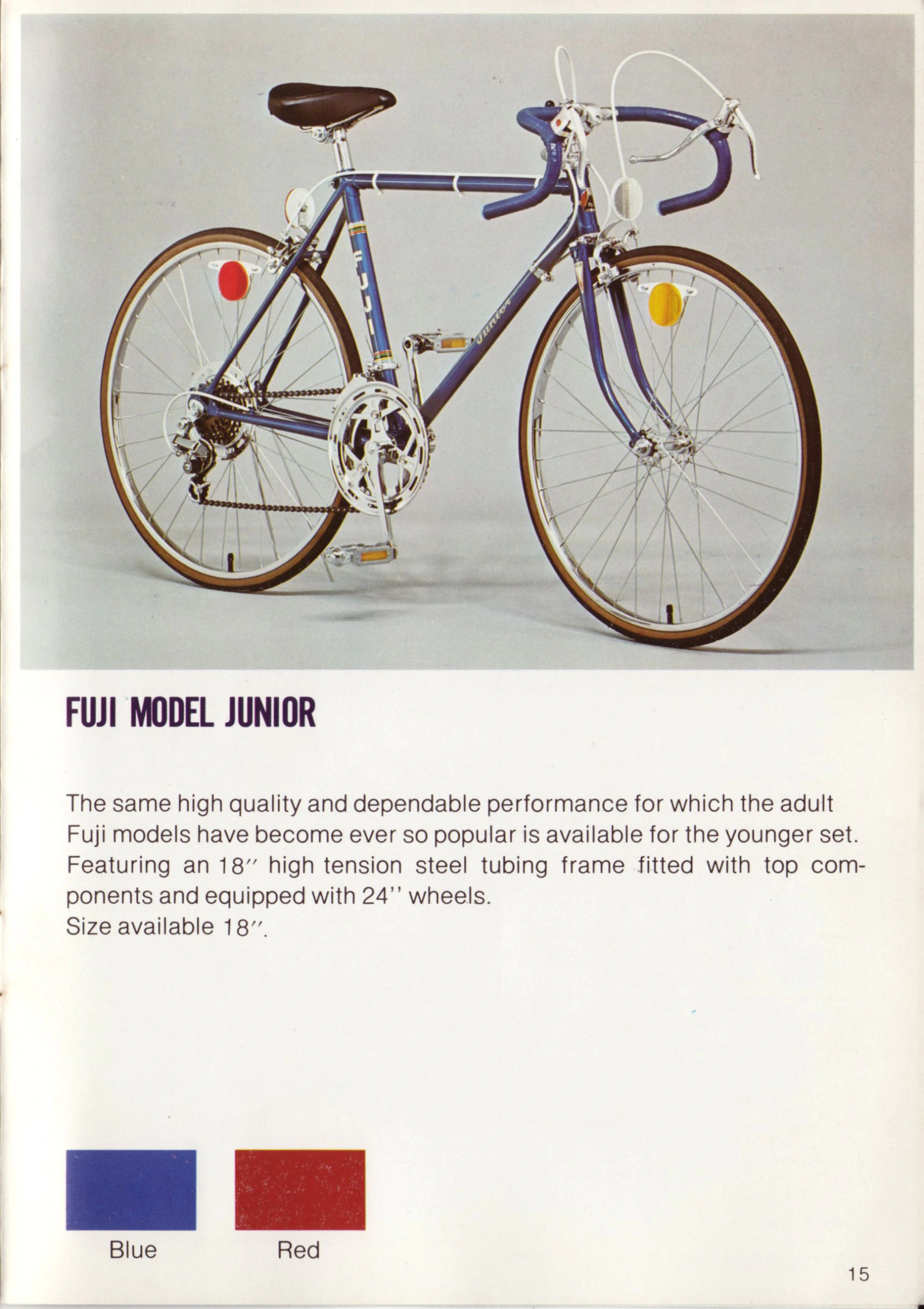

FUJI MODEL JUNIOR

The same high quality and dependable performance for which the adult Fuji models have become ever so popular is available for the younger set. Featuring an 18″ high tension steel tubing frame fitted with top components and equipped with 24″ wheels.
Size available 18″.

Blue
Red

15

[The Fuji Model Junior, a blue ten-speed road bicycle on 24 inch wheels photographed on a gray studio backdrop, with dropped handlebars in blue tape, extension brake levers, a black saddle, a chainring guard, gumwall tires and red and amber spoke reflectors. Below the photograph are the heading, a short paragraph with the size and two color chips labeled Blue and Red.]

— Page 18 —

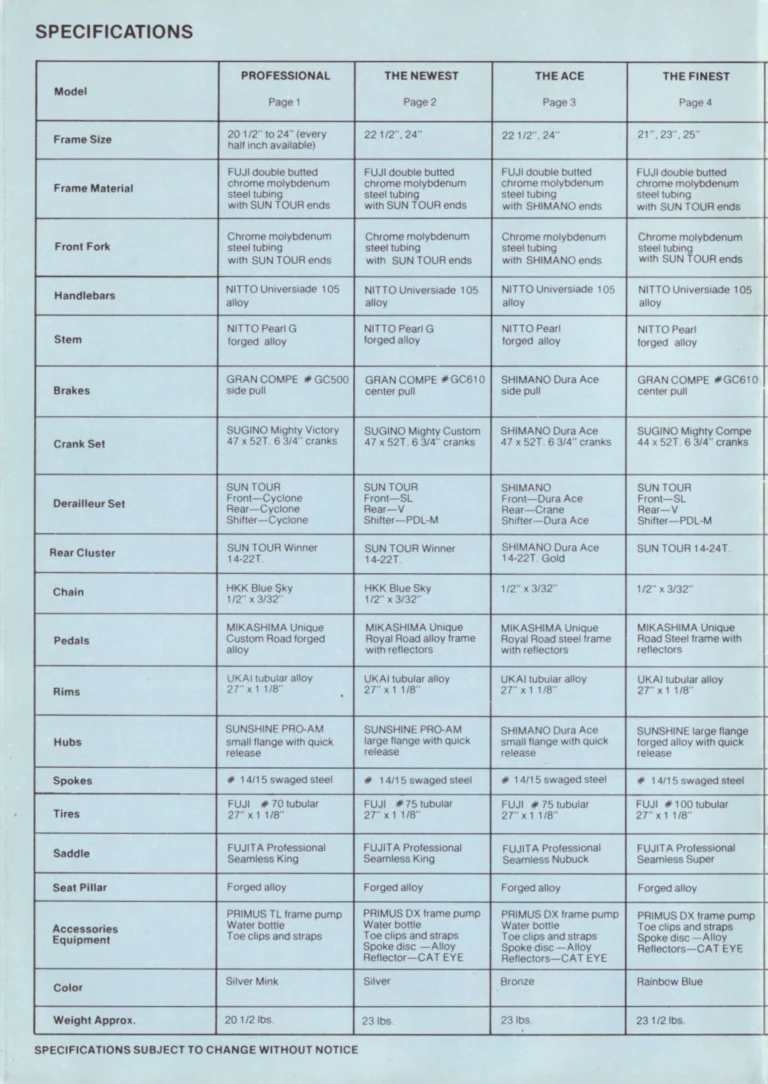

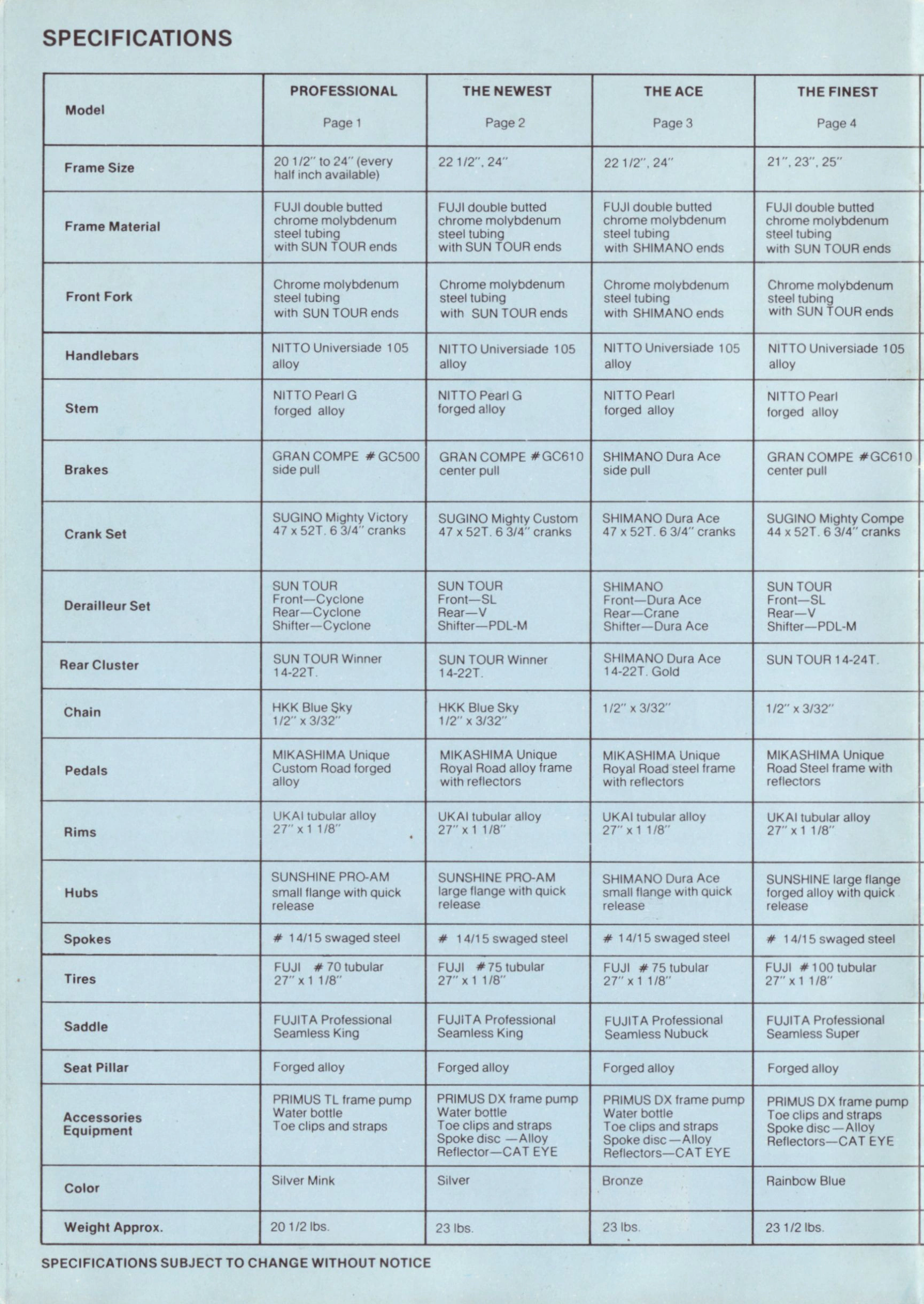

SPECIFICATIONS
Model: PROFESSIONAL (Page 1); THE NEWEST (Page 2); THE ACE (Page 3); THE FINEST (Page 4)
Frame Size: PROFESSIONAL — 20 1/2″ to 24″ (every half inch available); THE NEWEST and THE ACE — 22 1/2″, 24″; THE FINEST — 21″, 23″, 25″
Frame Material: PROFESSIONAL and THE NEWEST — FUJI double butted chrome molybdenum steel tubing with SUN TOUR ends; THE ACE — FUJI double butted chrome molybdenum steel tubing with SHIMANO ends; THE FINEST — FUJI double butted chrome molybdenum steel tubing with SUN TOUR ends
Front Fork: PROFESSIONAL and THE NEWEST — Chrome molybdenum steel tubing with SUN TOUR ends; THE ACE — Chrome molybdenum steel tubing with SHIMANO ends; THE FINEST — Chrome molybdenum steel tubing with SUN TOUR ends
Handlebars: PROFESSIONAL, THE NEWEST, THE ACE and THE FINEST — NITTO Universiade 105 alloy
Stem: PROFESSIONAL and THE NEWEST — NITTO Pearl G forged alloy; THE ACE and THE FINEST — NITTO Pearl forged alloy
Brakes: PROFESSIONAL — GRAN COMPE #GC500 side pull; THE NEWEST — GRAN COMPE #GC610 center pull; THE ACE — SHIMANO Dura Ace side pull; THE FINEST — GRAN COMPE #GC610 center pull
Crank Set: PROFESSIONAL — SUGINO Mighty Victory 47 x 52T. 6 3/4″ cranks; THE NEWEST — SUGINO Mighty Custom 47 x 52T. 6 3/4″ cranks; THE ACE — SHIMANO Dura Ace 47 x 52T. 6 3/4″ cranks; THE FINEST — SUGINO Mighty Compe 44 x 52T. 6 3/4″ cranks
Derailleur Set: PROFESSIONAL — SUN TOUR Front—Cyclone Rear—Cyclone Shifter—Cyclone; THE NEWEST — SUN TOUR Front—SL Rear—V Shifter—PDL-M; THE ACE — SHIMANO Front—Dura Ace Rear—Crane Shifter—Dura Ace; THE FINEST — SUN TOUR Front—SL Rear—V Shifter—PDL-M

Rear Cluster: PROFESSIONAL and THE NEWEST — SUN TOUR Winner 14-22T.; THE ACE — SHIMANO Dura Ace 14-22T. Gold; THE FINEST — SUN TOUR 14-24T.
Chain: PROFESSIONAL and THE NEWEST — HKK Blue Sky 1/2″ x 3/32″; THE ACE and THE FINEST — 1/2″ x 3/32″
Pedals: PROFESSIONAL — MIKASHIMA Unique Custom Road forged alloy; THE NEWEST — MIKASHIMA Unique Royal Road alloy frame with reflectors; THE ACE — MIKASHIMA Unique Royal Road steel frame with reflectors; THE FINEST — MIKASHIMA Unique Road Steel frame with reflectors
Rims: PROFESSIONAL, THE NEWEST, THE ACE and THE FINEST — UKAI tubular alloy 27″ x 1 1/8″
Hubs: PROFESSIONAL — SUNSHINE PRO-AM small flange with quick release; THE NEWEST — SUNSHINE PRO-AM large flange with quick release; THE ACE — SHIMANO Dura Ace small flange with quick release; THE FINEST — SUNSHINE large flange forged alloy with quick release
Spokes: PROFESSIONAL, THE NEWEST, THE ACE and THE FINEST — # 14/15 swaged steel
Tires: PROFESSIONAL — FUJI #70 tubular 27″ x 1 1/8″; THE NEWEST and THE ACE — FUJI #75 tubular 27″ x 1 1/8″; THE FINEST — FUJI #100 tubular 27″ x 1 1/8″
Saddle: PROFESSIONAL and THE NEWEST — FUJITA Professional Seamless King; THE ACE — FUJITA Professional Seamless Nubuck; THE FINEST — FUJITA Professional Seamless Super
Seat Pillar: PROFESSIONAL, THE NEWEST, THE ACE and THE FINEST — Forged alloy
Accessories Equipment: PROFESSIONAL — PRIMUS TL frame pump Water bottle Toe clips and straps; THE NEWEST — PRIMUS DX frame pump Water bottle Toe clips and straps Spoke disc —Alloy Reflector—CAT EYE; THE ACE — PRIMUS DX frame pump Water bottle Toe clips and straps Spoke disc—Alloy Reflectors—CAT EYE; THE FINEST — PRIMUS DX frame pump Toe clips and straps Spoke disc—Alloy Reflectors—CAT EYE
Color: PROFESSIONAL — Silver Mink; THE NEWEST — Silver; THE ACE — Bronze; THE FINEST — Rainbow Blue
Weight Approx.: PROFESSIONAL — 20 1/2 lbs.; THE NEWEST and THE ACE — 23 lbs.; THE FINEST — 23 1/2 lbs.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

[The first page of the Fuji specifications table, comparing the Professional, The Newest, The Ace and The Finest in four ruled columns on a pale blue ground, with the row names down the left and the column heads keyed to catalog pages one to four. The table runs on past the right edge of the page, where the border of a further column is cut off, and the page carries no printed folio.]

— Page 19 —

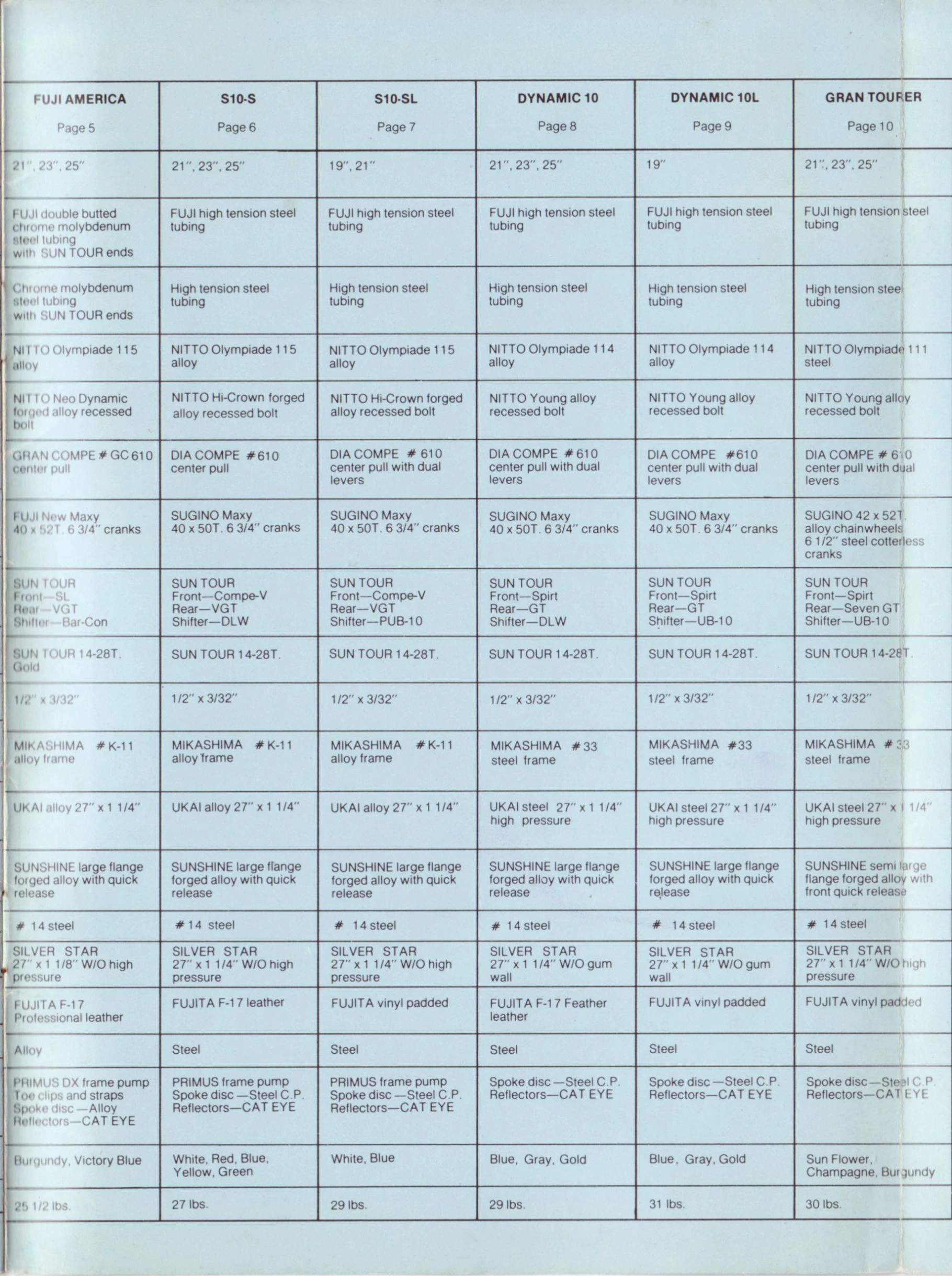

[Model:] FUJI AMERICA (Page 5); S10-S (Page 6); S10-SL (Page 7); DYNAMIC 10 (Page 8); DYNAMIC 10L (Page 9); GRAN TOURER (Page 10)
[Frame Size:] FUJI AMERICA and S10-S — 21″, 23″, 25″; S10-SL — 19″, 21″; DYNAMIC 10 — 21″, 23″, 25″; DYNAMIC 10L — 19″; GRAN TOURER — 21″, 23″, 25″
[Frame Material:] FUJI AMERICA — FUJI double butted chrome molybdenum steel tubing with SUN TOUR ends; S10-S, S10-SL, DYNAMIC 10, DYNAMIC 10L and GRAN TOURER — FUJI high tension steel tubing
[Front Fork:] FUJI AMERICA — Chrome molybdenum steel tubing with SUN TOUR ends; S10-S, S10-SL, DYNAMIC 10, DYNAMIC 10L and GRAN TOURER — High tension steel tubing
[Handlebars:] FUJI AMERICA, S10-S and S10-SL — NITTO Olympiade 115 alloy; DYNAMIC 10 and DYNAMIC 10L — NITTO Olympiade 114 alloy; GRAN TOURER — NITTO Olympiade 111 steel
[Stem:] FUJI AMERICA — NITTO Neo Dynamic forged alloy recessed bolt; S10-S and S10-SL — NITTO Hi-Crown forged alloy recessed bolt; DYNAMIC 10, DYNAMIC 10L and GRAN TOURER — NITTO Young alloy recessed bolt
[Brakes:] FUJI AMERICA — GRAN COMPE #GC 610 center pull; S10-S — DIA COMPE #610 center pull; S10-SL, DYNAMIC 10, DYNAMIC 10L and GRAN TOURER — DIA COMPE #610 center pull with dual levers
[Crank Set:] FUJI AMERICA — FUJI New Maxy 40 x 52T. 6 3/4″ cranks; S10-S, S10-SL, DYNAMIC 10 and DYNAMIC 10L — SUGINO Maxy 40 x 50T. 6 3/4″ cranks; GRAN TOURER — SUGINO 42 x 52T. alloy chainwheels 6 1/2″ steel cotterless cranks
[Derailleur Set:] FUJI AMERICA — SUN TOUR Front—SL Rear—VGT Shifter—Bar-Con; S10-S — SUN TOUR Front—Compe-V Rear—VGT Shifter—DLW; S10-SL — SUN TOUR Front—Compe-V Rear—VGT Shifter—PUB-10; DYNAMIC 10 — SUN TOUR Front—Spirt Rear—GT Shifter—DLW; DYNAMIC 10L — SUN TOUR Front—Spirt Rear—GT Shifter—UB-10; GRAN TOURER — SUN TOUR Front—Spirt Rear—Seven GT Shifter—UB-10

[Rear Cluster:] FUJI AMERICA — SUN TOUR 14-28T. Gold; S10-S, S10-SL, DYNAMIC 10, DYNAMIC 10L and GRAN TOURER — SUN TOUR 14-28T.
[Chain:] FUJI AMERICA, S10-S, S10-SL, DYNAMIC 10, DYNAMIC 10L and GRAN TOURER — 1/2″ x 3/32″
[Pedals:] FUJI AMERICA, S10-S and S10-SL — MIKASHIMA #K-11 alloy frame; DYNAMIC 10, DYNAMIC 10L and GRAN TOURER — MIKASHIMA #33 steel frame
[Rims:] FUJI AMERICA, S10-S and S10-SL — UKAI alloy 27″ x 1 1/4″; DYNAMIC 10, DYNAMIC 10L and GRAN TOURER — UKAI steel 27″ x 1 1/4″ high pressure
[Hubs:] FUJI AMERICA, S10-S, S10-SL, DYNAMIC 10 and DYNAMIC 10L — SUNSHINE large flange forged alloy with quick release; GRAN TOURER — SUNSHINE semi large flange forged alloy with front quick release
[Spokes:] FUJI AMERICA, S10-S, S10-SL, DYNAMIC 10, DYNAMIC 10L and GRAN TOURER — # 14 steel
[Tires:] FUJI AMERICA — SILVER STAR 27″ x 1 1/8″ W/O high pressure; S10-S and S10-SL — SILVER STAR 27″ x 1 1/4″ W/O high pressure; DYNAMIC 10 and DYNAMIC 10L — SILVER STAR 27″ x 1 1/4″ W/O gum wall; GRAN TOURER — SILVER STAR 27″ x 1 1/4″ W/O high pressure
[Saddle:] FUJI AMERICA — FUJITA F-17 Professional leather; S10-S — FUJITA F-17 leather; S10-SL — FUJITA vinyl padded; DYNAMIC 10 — FUJITA F-17 Feather leather; DYNAMIC 10L and GRAN TOURER — FUJITA vinyl padded
[Seat Pillar:] FUJI AMERICA — Alloy; S10-S, S10-SL, DYNAMIC 10, DYNAMIC 10L and GRAN TOURER — Steel
[Accessories Equipment:] FUJI AMERICA — PRIMUS DX frame pump Toe clips and straps Spoke disc —Alloy Reflectors—CAT EYE; S10-S and S10-SL — PRIMUS frame pump Spoke disc —Steel C.P. Reflectors—CAT EYE; DYNAMIC 10, DYNAMIC 10L and GRAN TOURER — Spoke disc —Steel C.P. Reflectors—CAT EYE
[Color:] FUJI AMERICA — Burgundy, Victory Blue; S10-S — White, Red, Blue, Yellow, Green; S10-SL — White, Blue; DYNAMIC 10 and DYNAMIC 10L — Blue, Gray, Gold; GRAN TOURER — Sun Flower, Champagne, Burgundy
[Weight Approx.:] FUJI AMERICA — 25 1/2 lbs.; S10-S — 27 lbs.; S10-SL and DYNAMIC 10 — 29 lbs.; DYNAMIC 10L — 31 lbs.; GRAN TOURER — 30 lbs.

[The second page of the Fuji specifications table, comparing the Fuji America, S10-S, S10-SL, Dynamic 10, Dynamic 10L and Gran Tourer in six ruled columns on a pale blue ground, with each column head keyed to a catalog page from five to 10. This page prints no row labels, heading, footnote or folio of its own: the table continues from the previous page, which carries the “SPECIFICATIONS” heading, the row names and the footnote, so the row names given here in brackets are supplied from that page. The printing of the Fuji America column fades toward the left edge, and a vertical crease runs down the Gran Tourer column near the right edge.]

— Page 20 —

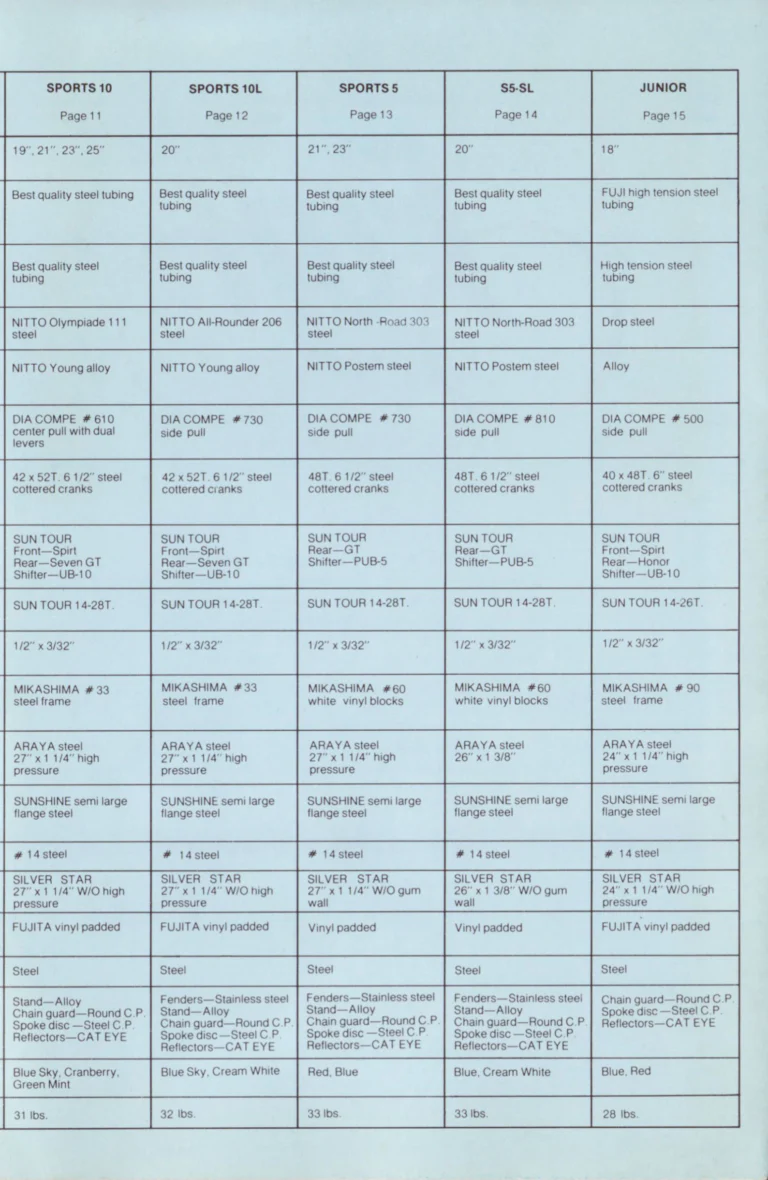

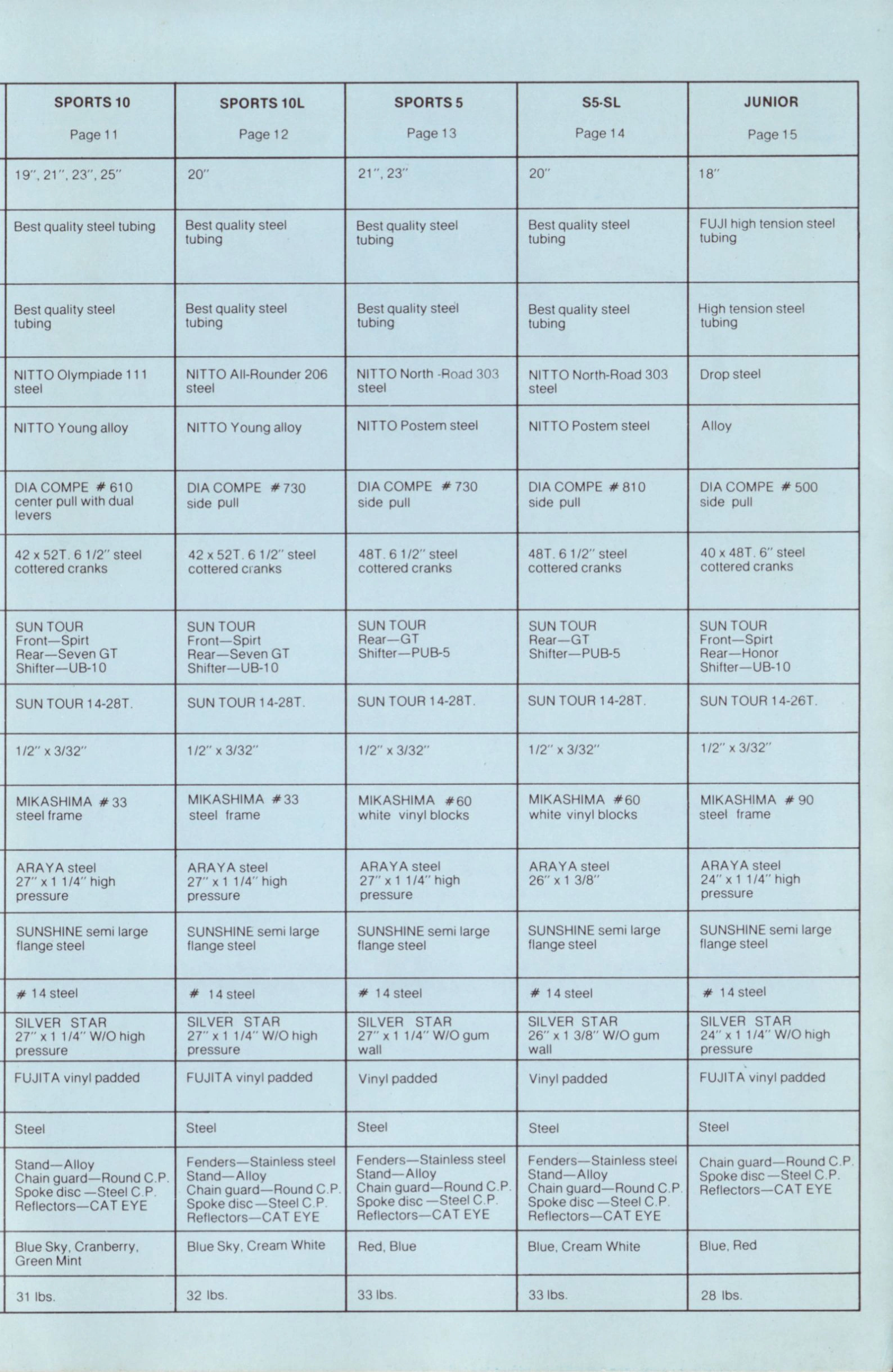

[Model:] SPORTS 10 (Page 11); SPORTS 10L (Page 12); SPORTS 5 (Page 13); S5-SL (Page 14); JUNIOR (Page 15)
[Frame Size:] SPORTS 10 — 19″, 21″, 23″, 25″; SPORTS 10L — 20″; SPORTS 5 — 21″, 23″; S5-SL — 20″; JUNIOR — 18″
[Frame Material:] SPORTS 10, SPORTS 10L, SPORTS 5 and S5-SL — Best quality steel tubing; JUNIOR — FUJI high tension steel tubing
[Front Fork:] SPORTS 10, SPORTS 10L, SPORTS 5 and S5-SL — Best quality steel tubing; JUNIOR — High tension steel tubing
[Handlebars:] SPORTS 10 — NITTO Olympiade 111 steel; SPORTS 10L — NITTO All-Rounder 206 steel; SPORTS 5 — NITTO North -Road 303 steel; S5-SL — NITTO North-Road 303 steel; JUNIOR — Drop steel
[Stem:] SPORTS 10 and SPORTS 10L — NITTO Young alloy; SPORTS 5 and S5-SL — NITTO Postem steel; JUNIOR — Alloy
[Brakes:] SPORTS 10 — DIA COMPE # 610 center pull with dual levers; SPORTS 10L and SPORTS 5 — DIA COMPE # 730 side pull; S5-SL — DIA COMPE # 810 side pull; JUNIOR — DIA COMPE # 500 side pull
[Crank Set:] SPORTS 10 and SPORTS 10L — 42 x 52T. 6 1/2″ steel cottered cranks; SPORTS 5 and S5-SL — 48T. 6 1/2″ steel cottered cranks; JUNIOR — 40 x 48T. 6″ steel cottered cranks
[Derailleur Set:] SPORTS 10 and SPORTS 10L — SUN TOUR Front—Spirt Rear—Seven GT Shifter—UB-10; SPORTS 5 and S5-SL — SUN TOUR Rear—GT Shifter—PUB-5; JUNIOR — SUN TOUR Front—Spirt Rear—Honor Shifter—UB-10

[Rear Cluster:] SPORTS 10, SPORTS 10L, SPORTS 5 and S5-SL — SUN TOUR 14-28T.; JUNIOR — SUN TOUR 14-26T.
[Chain:] SPORTS 10, SPORTS 10L, SPORTS 5, S5-SL and JUNIOR — 1/2″ x 3/32″
[Pedals:] SPORTS 10 and SPORTS 10L — MIKASHIMA # 33 steel frame; SPORTS 5 and S5-SL — MIKASHIMA # 60 white vinyl blocks; JUNIOR — MIKASHIMA # 90 steel frame
[Rims:] SPORTS 10, SPORTS 10L and SPORTS 5 — ARAYA steel 27″ x 1 1/4″ high pressure; S5-SL — ARAYA steel 26″ x 1 3/8″; JUNIOR — ARAYA steel 24″ x 1 1/4″ high pressure
[Hubs:] SPORTS 10, SPORTS 10L, SPORTS 5, S5-SL and JUNIOR — SUNSHINE semi large flange steel
[Spokes:] SPORTS 10, SPORTS 10L, SPORTS 5, S5-SL and JUNIOR — # 14 steel
[Tires:] SPORTS 10 and SPORTS 10L — SILVER STAR 27″ x 1 1/4″ W/O high pressure; SPORTS 5 — SILVER STAR 27″ x 1 1/4″ W/O gum wall; S5-SL — SILVER STAR 26″ x 1 3/8″ W/O gum wall; JUNIOR — SILVER STAR 24″ x 1 1/4″ W/O high pressure
[Saddle:] SPORTS 10 and SPORTS 10L — FUJITA vinyl padded; SPORTS 5 and S5-SL — Vinyl padded; JUNIOR — FUJITA vinyl padded
[Seat Pillar:] SPORTS 10, SPORTS 10L, SPORTS 5, S5-SL and JUNIOR — Steel
[Accessories Equipment:] SPORTS 10 — Stand—Alloy Chain guard—Round C.P. Spoke disc —Steel C.P. Reflectors—CAT EYE; SPORTS 10L, SPORTS 5 and S5-SL — Fenders—Stainless steel Stand—Alloy Chain guard—Round C.P. Spoke disc —Steel C.P. Reflectors—CAT EYE; JUNIOR — Chain guard—Round C.P. Spoke disc —Steel C.P. Reflectors—CAT EYE
[Color:] SPORTS 10 — Blue Sky, Cranberry, Green Mint; SPORTS 10L — Blue Sky, Cream White; SPORTS 5 — Red, Blue; S5-SL — Blue, Cream White; JUNIOR — Blue, Red
[Weight Approx.:] SPORTS 10 — 31 lbs.; SPORTS 10L — 32 lbs.; SPORTS 5 and S5-SL — 33 lbs.; JUNIOR — 28 lbs.

[The last page of the Fuji specifications table, comparing the Sports 10, Sports 10L, Sports 5, S5-SL and Junior in five ruled columns on a pale blue ground. This page prints no row labels or heading of its own: the table continues across from the facing pages, whose first page carries the “SPECIFICATIONS” heading, the row names and the footnote, so the row names given here in brackets are supplied from that page.]

— Page 21 (inside back cover) —

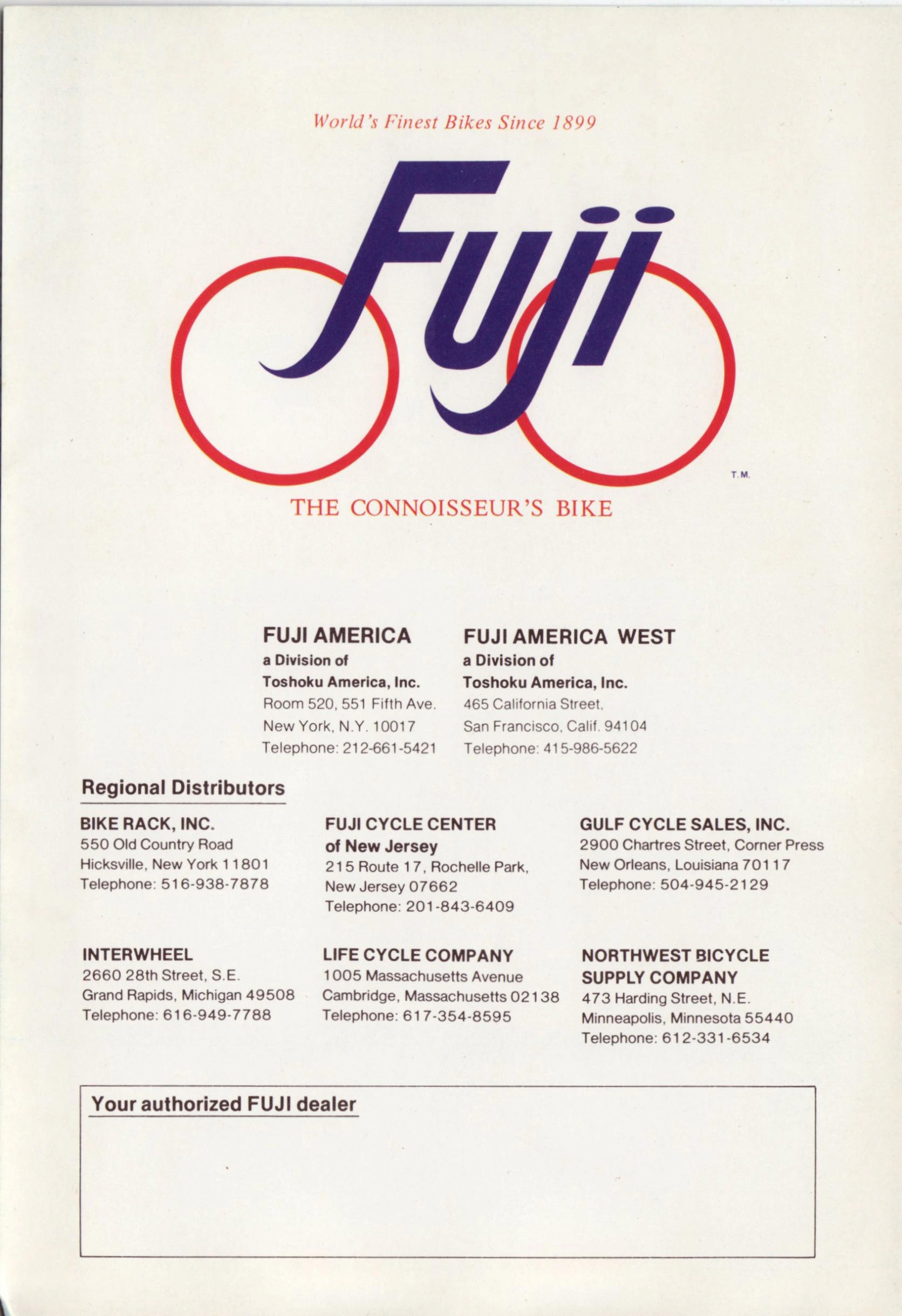

World’s Finest Bikes Since 1899

Fuji
T.M.

THE CONNOISSEUR’S BIKE

FUJI AMERICA
a Division of
Toshoku America, Inc.
Room 520, 551 Fifth Ave.
New York, N.Y. 10017
Telephone: 212-661-5421

FUJI AMERICA WEST
a Division of
Toshoku America, Inc.
465 California Street,
San Francisco, Calif. 94104
Telephone: 415-986-5622

Regional Distributors

BIKE RACK, INC.
550 Old Country Road
Hicksville, New York 11801
Telephone: 516-938-7878

FUJI CYCLE CENTER of New Jersey
215 Route 17, Rochelle Park,
New Jersey 07662
Telephone: 201-843-6409

GULF CYCLE SALES, INC.
2900 Chartres Street, Corner Press
New Orleans, Louisiana 70117
Telephone: 504-945-2129

INTERWHEEL
2660 28th Street, S.E.
Grand Rapids, Michigan 49508
Telephone: 616-949-7788

LIFE CYCLE COMPANY
1005 Massachusetts Avenue
Cambridge, Massachusetts 02138
Telephone: 617-354-8595

NORTHWEST BICYCLE SUPPLY COMPANY
473 Harding Street, N.E.
Minneapolis, Minnesota 55440
Telephone: 612-331-6534

Your authorized FUJI dealer

[The inside back cover of the Fuji catalog, with the navy blue Fuji script wordmark set across two red circles drawn as bicycle wheels between the red lines “World’s Finest Bikes Since 1899” and “THE CONNOISSEUR’S BIKE”. Below are the New York and San Francisco addresses of Fuji America and Fuji America West, both divisions of Toshoku America, Inc., then six regional distributors in three columns and a ruled box headed “Your authorized FUJI dealer”, which is empty on this copy.]

— Page 22 (back cover) —
Hajime [?] Kato

FUJI
NICHIBEI FUJI CYCLE COMPANY, LTD.
2-36, 2-chome Morino, Machida-shi, Tokyo 194, Japan

Printed in Japan

[The back cover of the Fuji catalog: a black brush drawing of a racing cyclist bent low over a bicycle, its wheels drawn as two loose ink circles, reproduced in a light gray panel on a near-black ground and signed in script at lower right. At the foot of the cover is the Fuji emblem, a white Mount Fuji with “FUJI” lettered on it against a red sun, beside the Nichibei Fuji Cycle Company imprint and its Tokyo address, with “Printed in Japan” at the bottom right corner.]
