CAMPAGNOLO «RECORD» GEAR

Callouts: 99 124 80/2 125 84 120 166 98 805 807 806 813 808 816 93 94 100 96 89 88 811 810 120 99 812 93 814 169 815

It is the gear which dominates all others because of:
● its careful construction
● its modern conception
● its very excellent service
giving it absolute superiority.
● It allows the use of 13-36 teeth freewheels.
● It operates with freewheels with six cogs.
● It always keeps the chain tension constant.
● It may be assembled and set with the greatest facility.
● Its operation is smooth, sure, silent.
● It lasts for a long time, with the minimum attention.
● It will function also with the transmission cable broken.

INSTRUCTIONS FOR FITTING:

1) Ensure that the gear is fitted in line with chainwheel (or central in case of double chainwheel) and that screw 166 is very tight.
2) Be certain that chain is long enough to allow using the largest chainwheel with the largest freewheel cog.
3) Adjust the two screws 99 so that the chain cannot jump off the outside cog of the freewheel when changing gear.
4) If the freewheel is too near to the spokes, fit the spacing ring 651.
5) To give more or less tension to the chain remove the screw 815 and move spring end to another hole of equalizer.

N. B. – When cable is broken, the gear will still function on any cog il the spring 98 is disengaged.

WE DO NOT HOLD OURSELVES RESPONSIBLE FOR INCOVENIENCE OR DAMAGE CAUSED IF THE ABOVE INSTRUCTIONS ARE NOT CAREFULLY FOLLOWED.

1020 Record gear complete
80/2 Gear fixing plate
84 Spring bearing screw
88 Cable lip plate
89 Lip plate screw
93 Roller axle bolt
94 Roller cone screw
96 Roller cone
98 Gear return spring
99 Adjusting screw
100 Roller
120 Adjusting screw spring
124 Fixing screw
125 Screw fixing nut
166 Pivot fixing screw
169 Small roller with cones and balls
805 Rear body
806 Front plate
807 Inner plate
808 [?] Pivot pin
810 Lower spring body holder
811 Spring holder pivot screw
812 Spring retaining cap
813 Tension spring
814 Front roller plate
815 Inner roller plate
816 Roller axle bolt

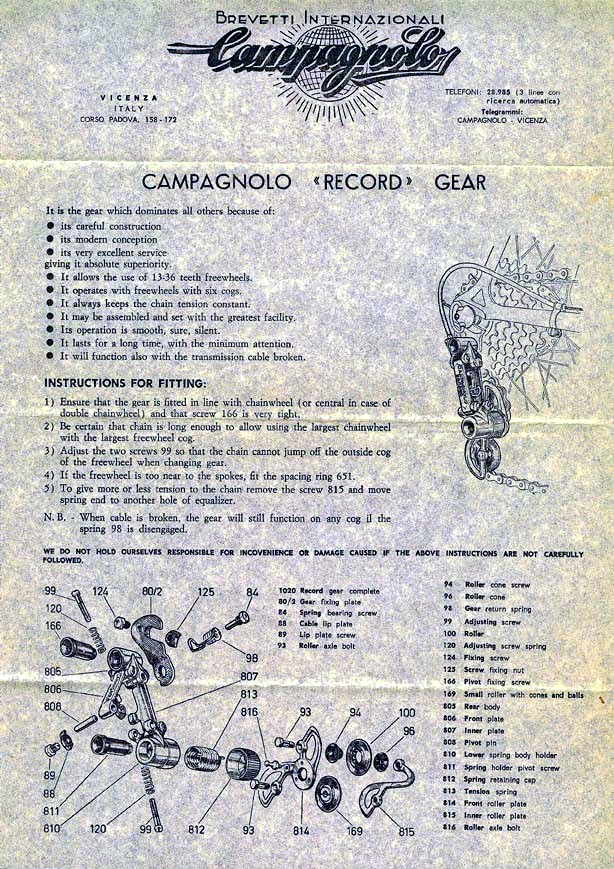

[A Campagnolo instruction sheet for the «Record» gear printed in black on gray paper, with the Brevetti Internazionali letterhead, a drawing of the rear derailleur fitted on a bicycle and an exploded drawing at the foot with every part numbered. A bulleted list of advantages, five numbered fitting instructions, a disclaimer and a parts list of 27 numbered items fill the rest of the sheet.]
