Campagnolo Gran Sport Gear Instructions of about 1960 — Advantages and Instructions for Fitting

This Campagnolo instruction sheet for the Gran Sport gear is shown color-corrected by Ebykr (22 October 2026): the yellowed paper of the scan was white-balanced and its contrast set, with the colors of the ink kept. The scan as received from Campybike is kept in Ebykr’s files.

— Page 1 —
BREVETTI INTERNAZIONALI
Campagnolo

VICENZA
ITALY
CORSO PADOVA, 168

TELEFONI 23048 – 32536
Telegrammi:
CAMPAGNOLO – VICENZA

CAMPAGNOLO «GRAN SPORT» GEAR

Callouts: 166 [?] 98 99 506 [?]

ADVANTAGES

The handiest gear.
Fitting very simple.
It operates even if cable breaks by simply disengaging spring 98.
It allows the use of freewheels with any number of cogs.
It stands up to rough usage and always maintains its performance.
Very fast and silent.
It lasts for a long time owing to its accurate workmanship.

INSTRUCTIONS FOR FITTING

1. Ensure that the gear is fitted in line with chainwheel and that screw 166 is very tight.
2. Be certain that chain is long enough to allow using the largest chainwheelring with the largest freewheel cog.
3. Adjust the two screws 99 so that the chain cannot jump off from outside cogs of the freewheel when changing gear.
4. If the freewheel is too near to the spokes, fit the spacing ring 651.
5. To give more or less tension to the chain, remove spring end to another hole and tighten screw 506.

N.B. When cable breaks, the gear may still be used by disengaging spring 98.

THE FIRM IS NOT RESPONSIBLE FOR INCONVENIENCE OR DAMAGE CAUSED BY NOT HAVING FOLLOWED THE ABOVE RECOMMENDATIONS.

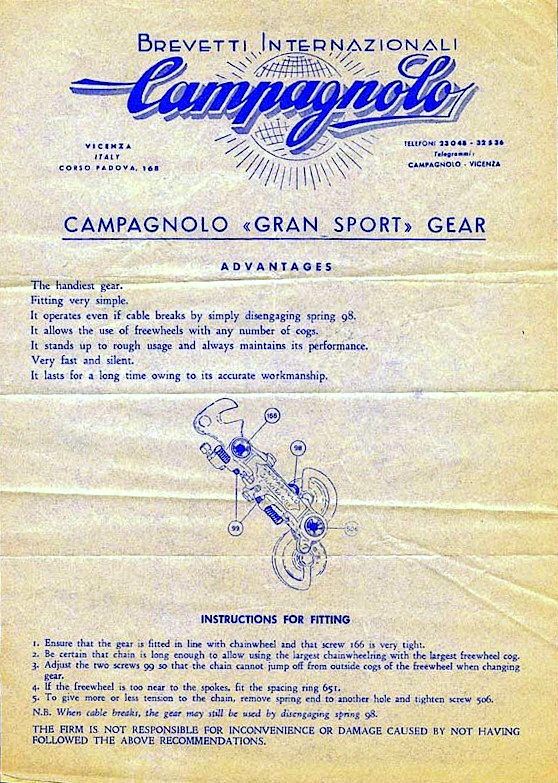

[A Campagnolo instruction sheet for the «Gran Sport» gear printed in blue on yellowed paper, with the Brevetti Internazionali letterhead and a line drawing of the rear derailleur with four parts numbered. A list of advantages, five numbered fitting instructions and a disclaimer fill the rest of the sheet, which shows horizontal fold creases.]
