Campagnolo Catalogue No. 16 of about 1969, English Edition — Nuovo Record, Valentino Extra and Sport Extra Gears and the Record Sidepull Brakes

— Page 1 (front cover) —
Catalogue No. 16

English Edition

PRODOTTI SPECIALI

Campagnolo

[The front cover of Campagnolo Catalogue No. 16, English Edition: a large oval badge in blue, red and yellow lettered “Prodotti Speciali” around the Campagnolo script over a striped globe. The cover is spiral bound along its left edge.]

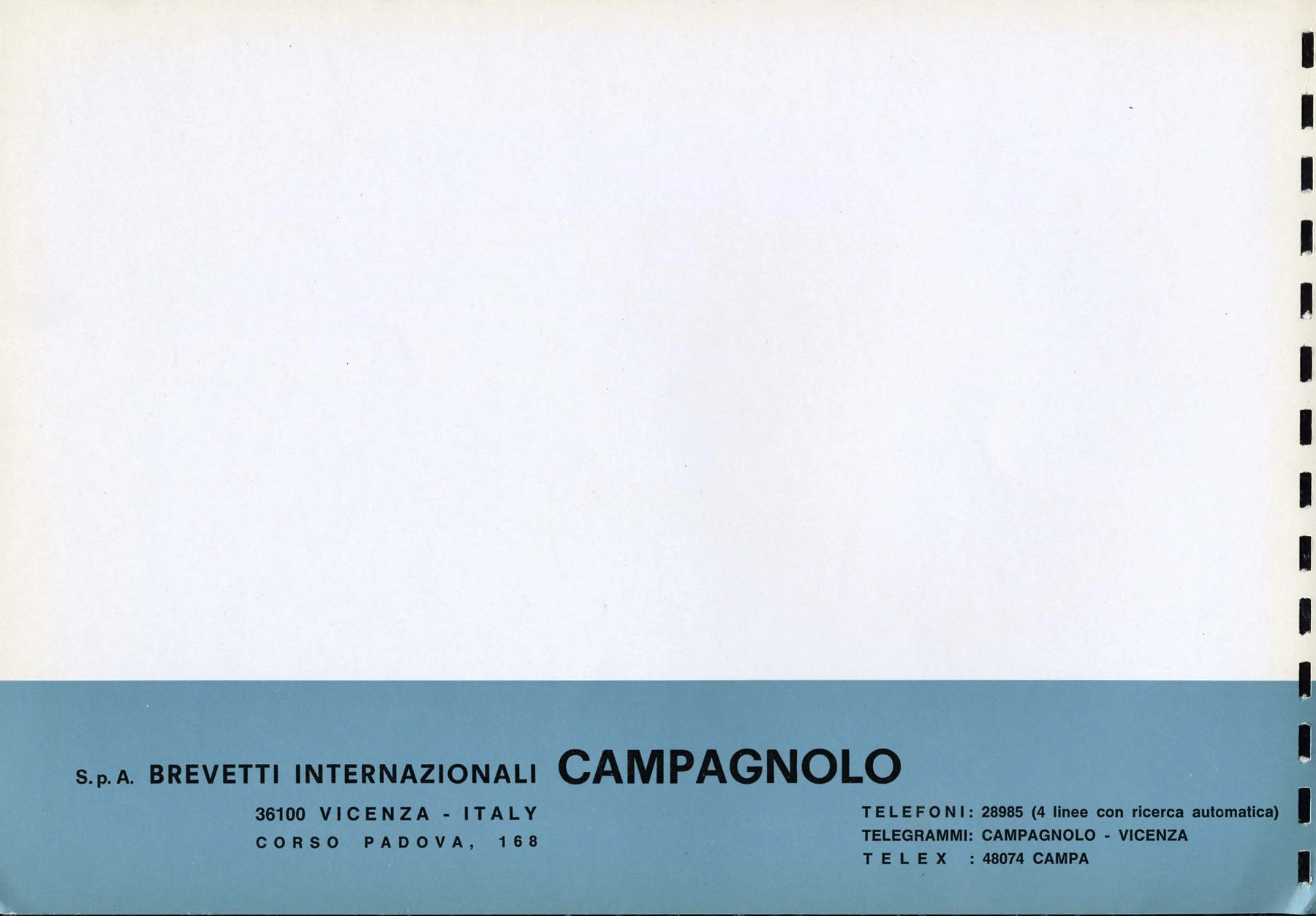

— Page 2 (inside front cover) —
S.p.A. BREVETTI INTERNAZIONALI CAMPAGNOLO

36100 VICENZA – ITALY
CORSO PADOVA, 168

TELEFONI: 28985 (4 linee con ricerca automatica)
TELEGRAMMI: CAMPAGNOLO – VICENZA
TELEX : 48074 CAMPA

[The inside front cover: a plain white page with a blue band along the foot carrying the company name, address, telephone, telegram and telex details of S.p.A. Brevetti Internazionali Campagnolo, Vicenza.]

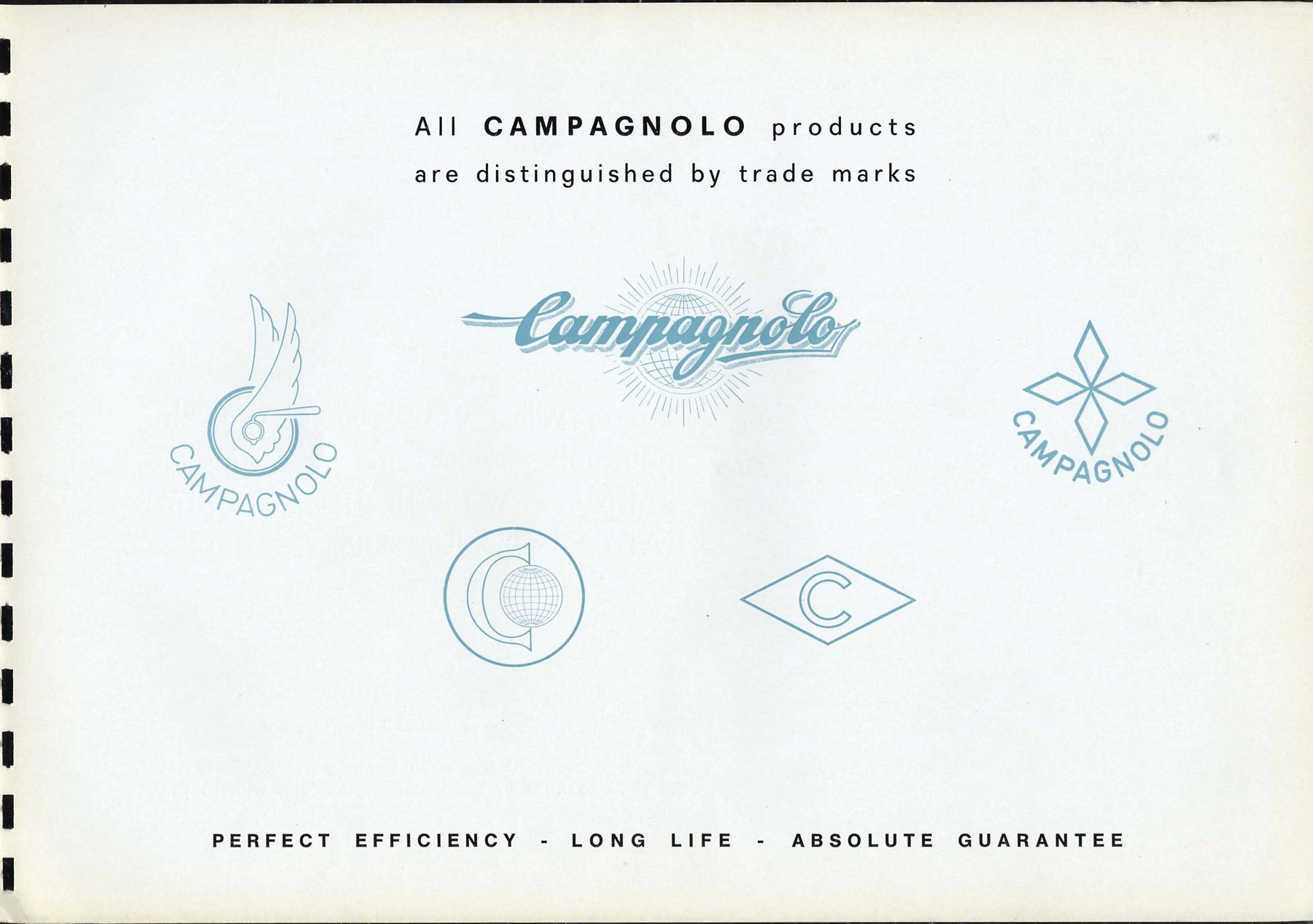

— Page 3 —
All CAMPAGNOLO products are distinguished by trade marks

PERFECT EFFICIENCY – LONG LIFE – ABSOLUTE GUARANTEE

[The Campagnolo trademarks page: five marks printed in pale blue, namely the winged wheel lettered “Campagnolo”, the Campagnolo script over a rayed globe, the four-diamond star lettered “Campagnolo”, a C enclosing a globe in a circle, and a C in a diamond. A slogan runs along the foot of the page.]

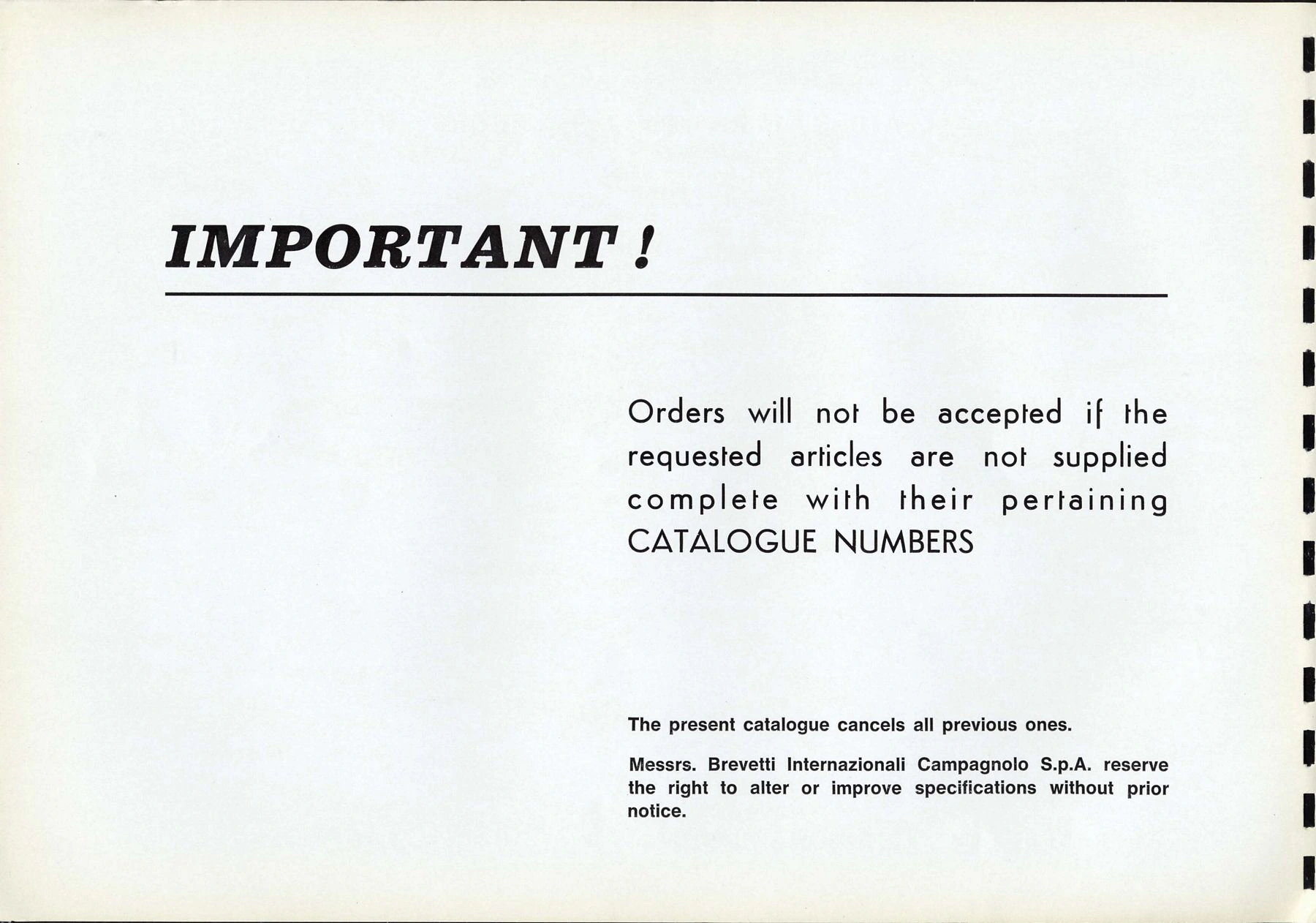

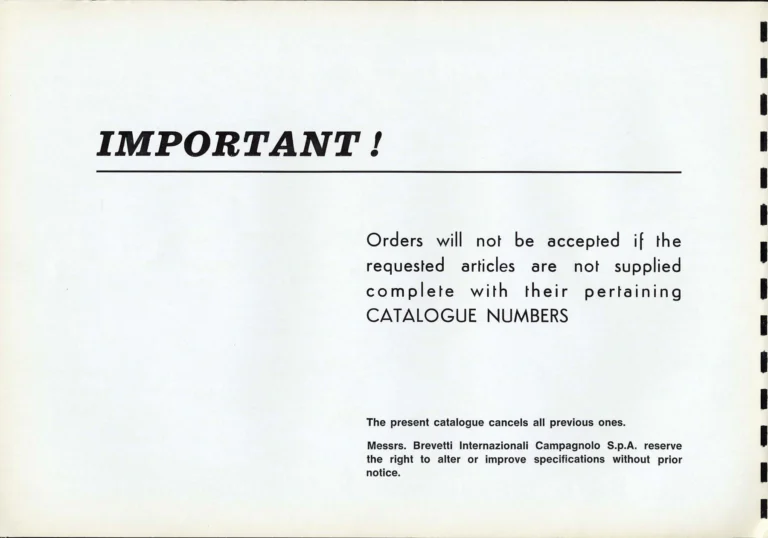

— Page 4 —
IMPORTANT !

Orders will not be accepted if the requested articles are not supplied complete with their pertaining CATALOGUE NUMBERS

The present catalogue cancels all previous ones.

Messrs. Brevetti Internazionali Campagnolo S.p.A. reserve the right to alter or improve specifications without prior notice.

[A text page headed “Important!” asking that orders quote catalog numbers, with a note that this catalog cancels all earlier ones and that specifications may change without notice.]

— Page 5 —

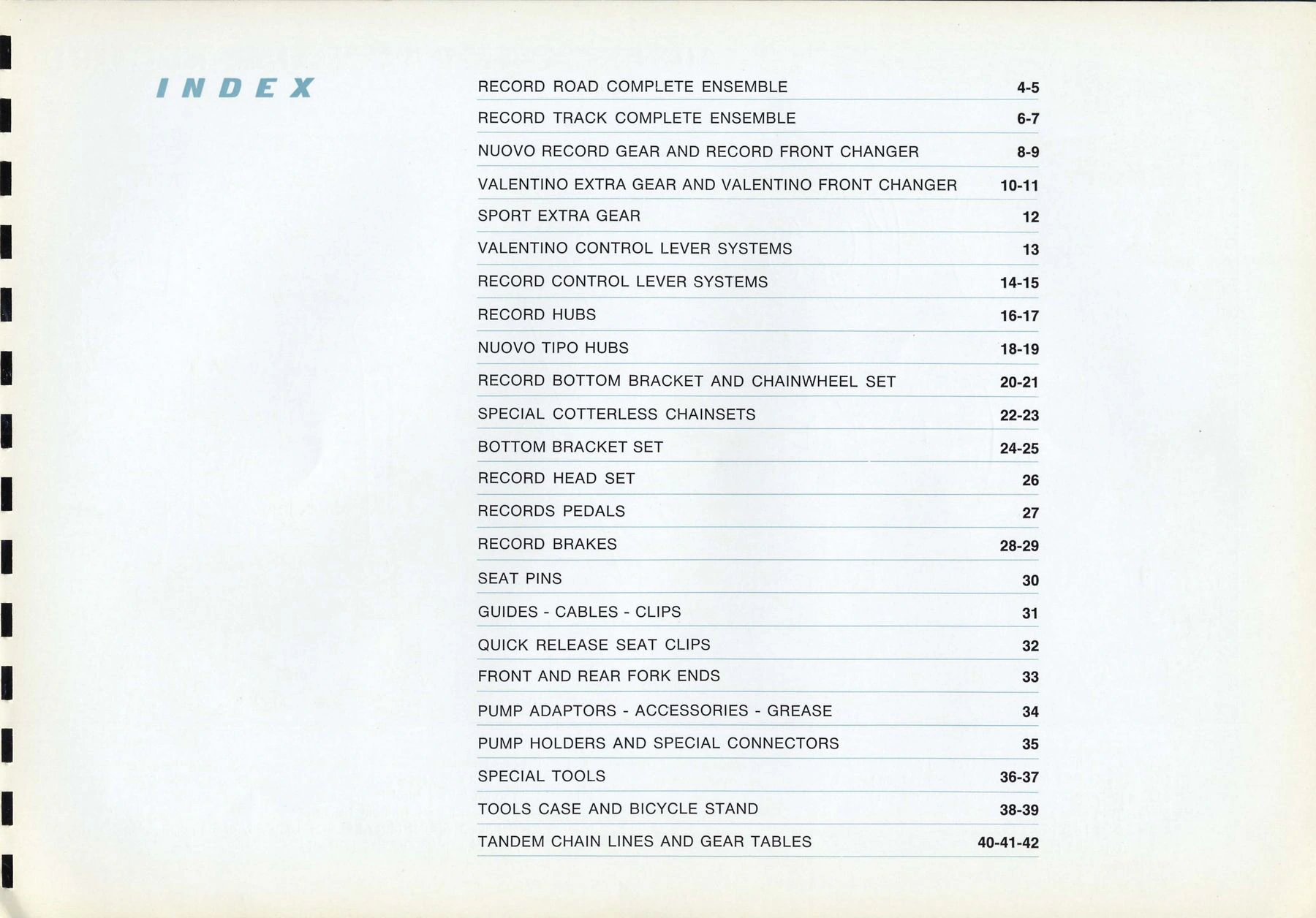

INDEX

RECORD ROAD COMPLETE ENSEMBLE | 4-5
RECORD TRACK COMPLETE ENSEMBLE | 6-7
NUOVO RECORD GEAR AND RECORD FRONT CHANGER | 8-9
VALENTINO EXTRA GEAR AND VALENTINO FRONT CHANGER | 10-11
SPORT EXTRA GEAR | 12
VALENTINO CONTROL LEVER SYSTEMS | 13
RECORD CONTROL LEVER SYSTEMS | 14-15

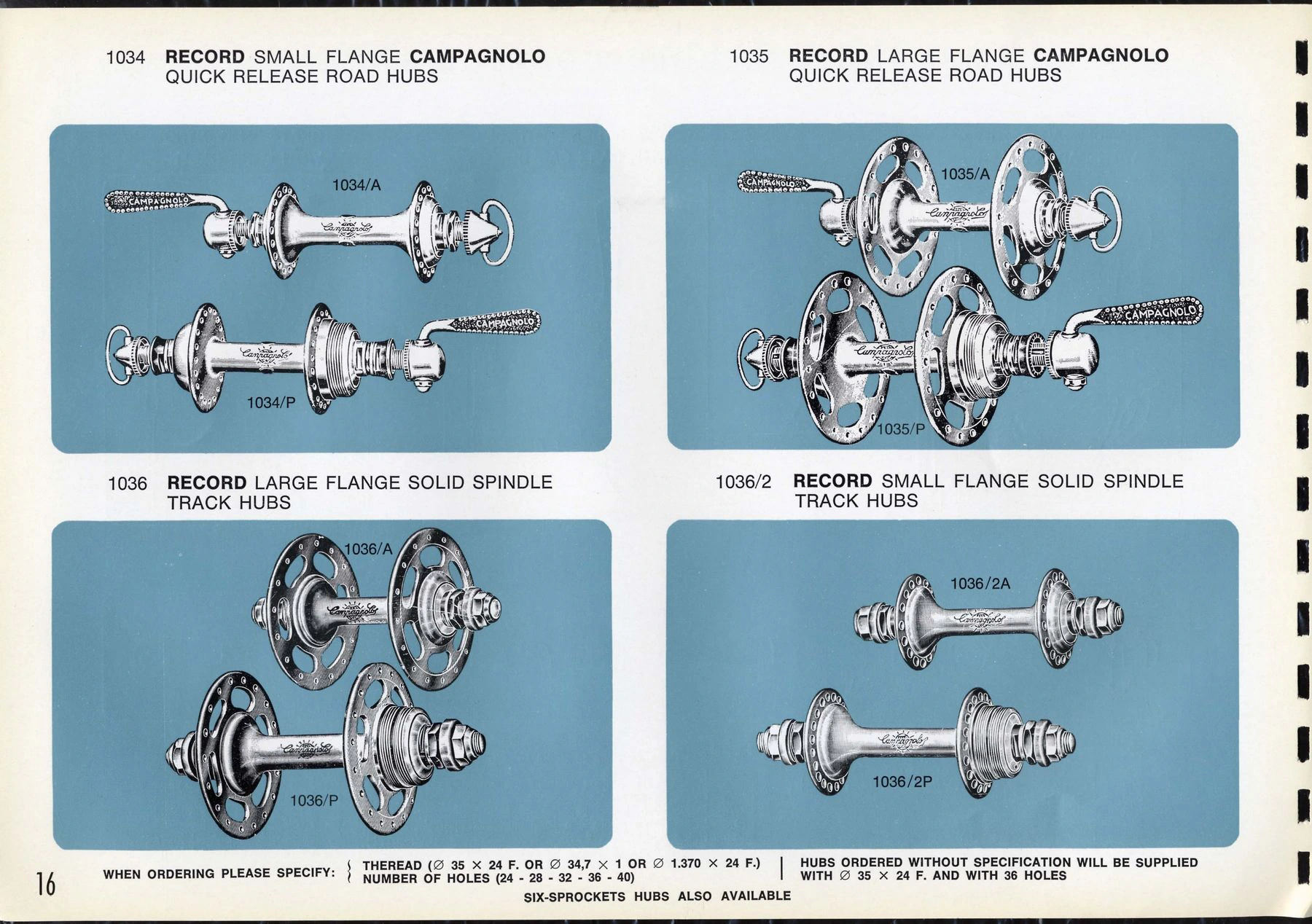

RECORD HUBS | 16-17

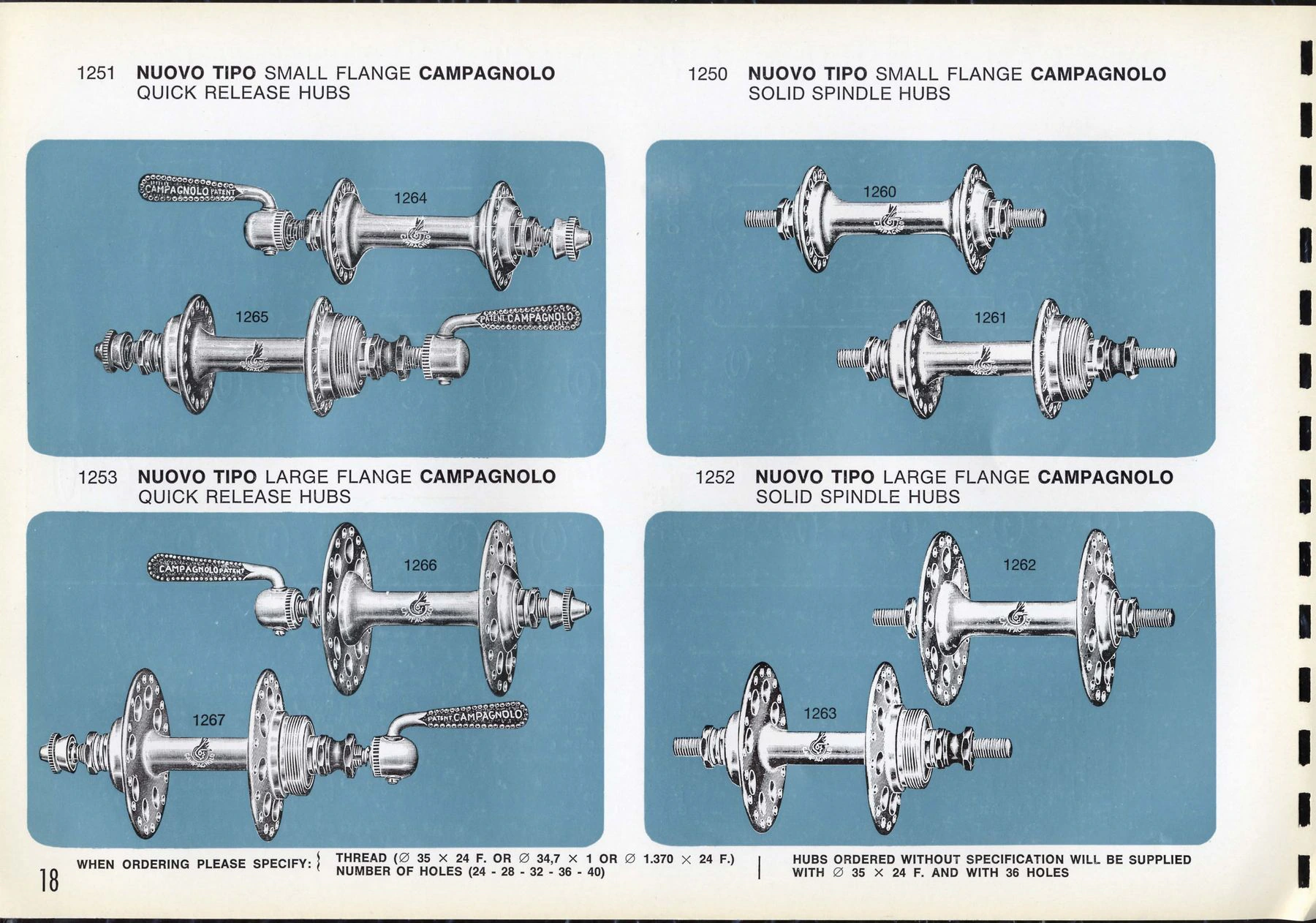

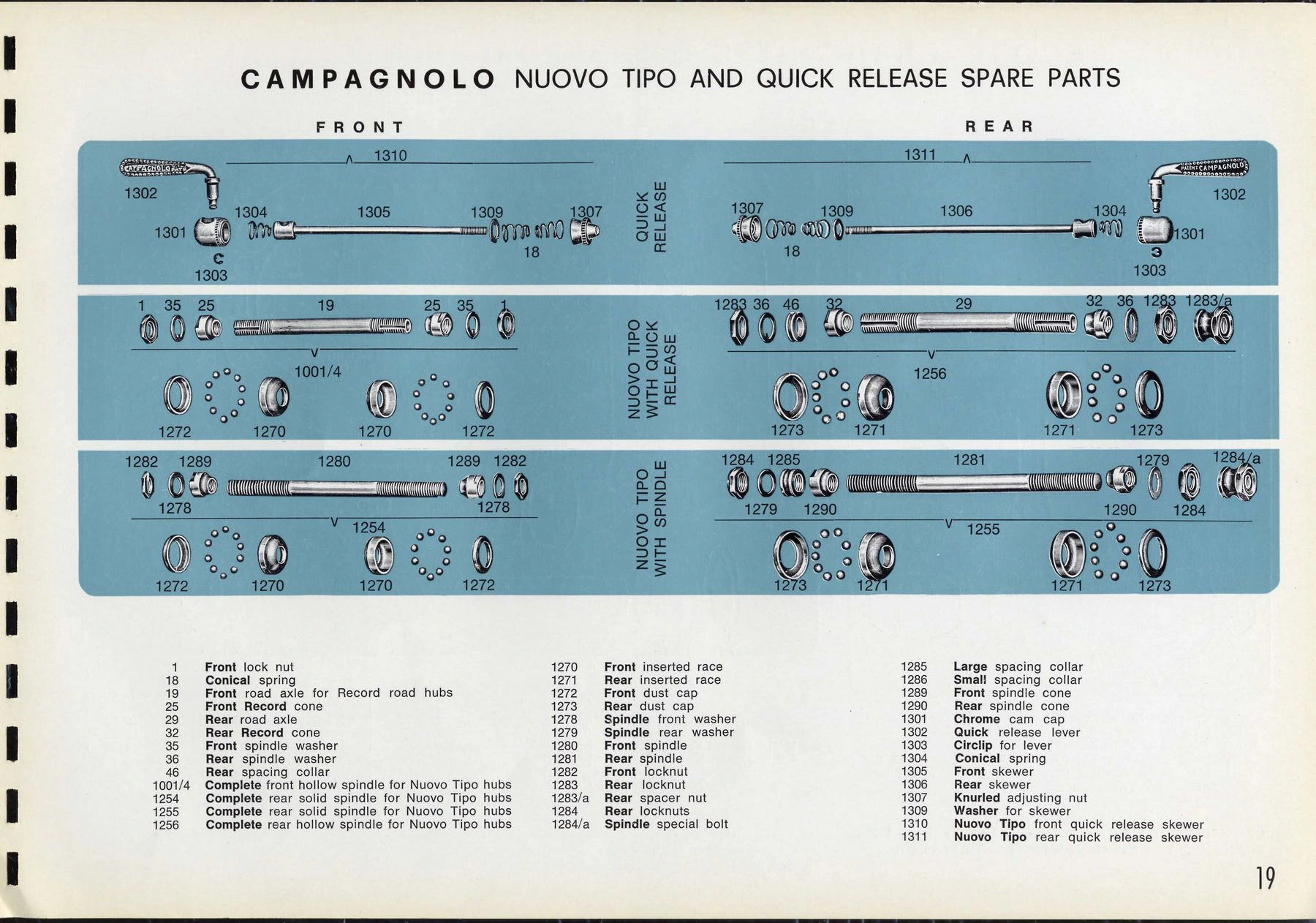

NUOVO TIPO HUBS | 18-19

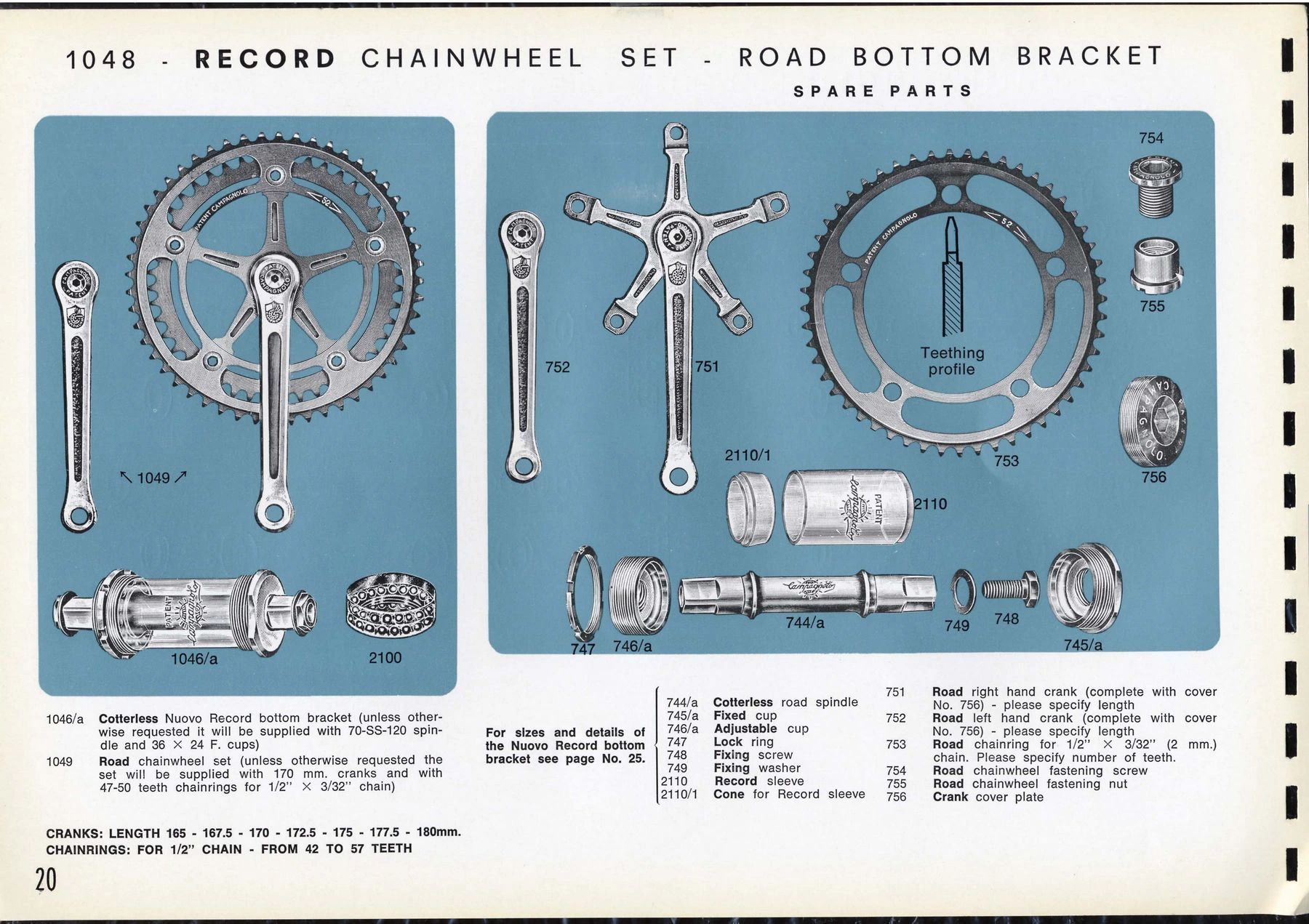

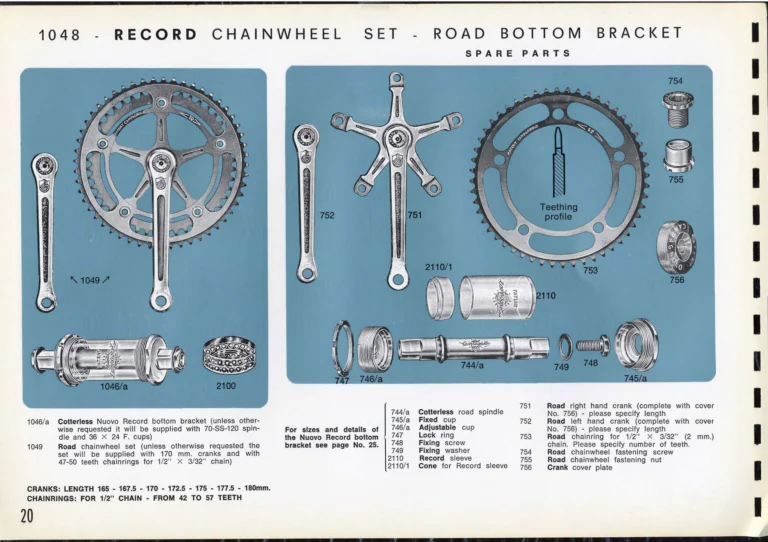

RECORD BOTTOM BRACKET AND CHAINWHEEL SET | 20-21

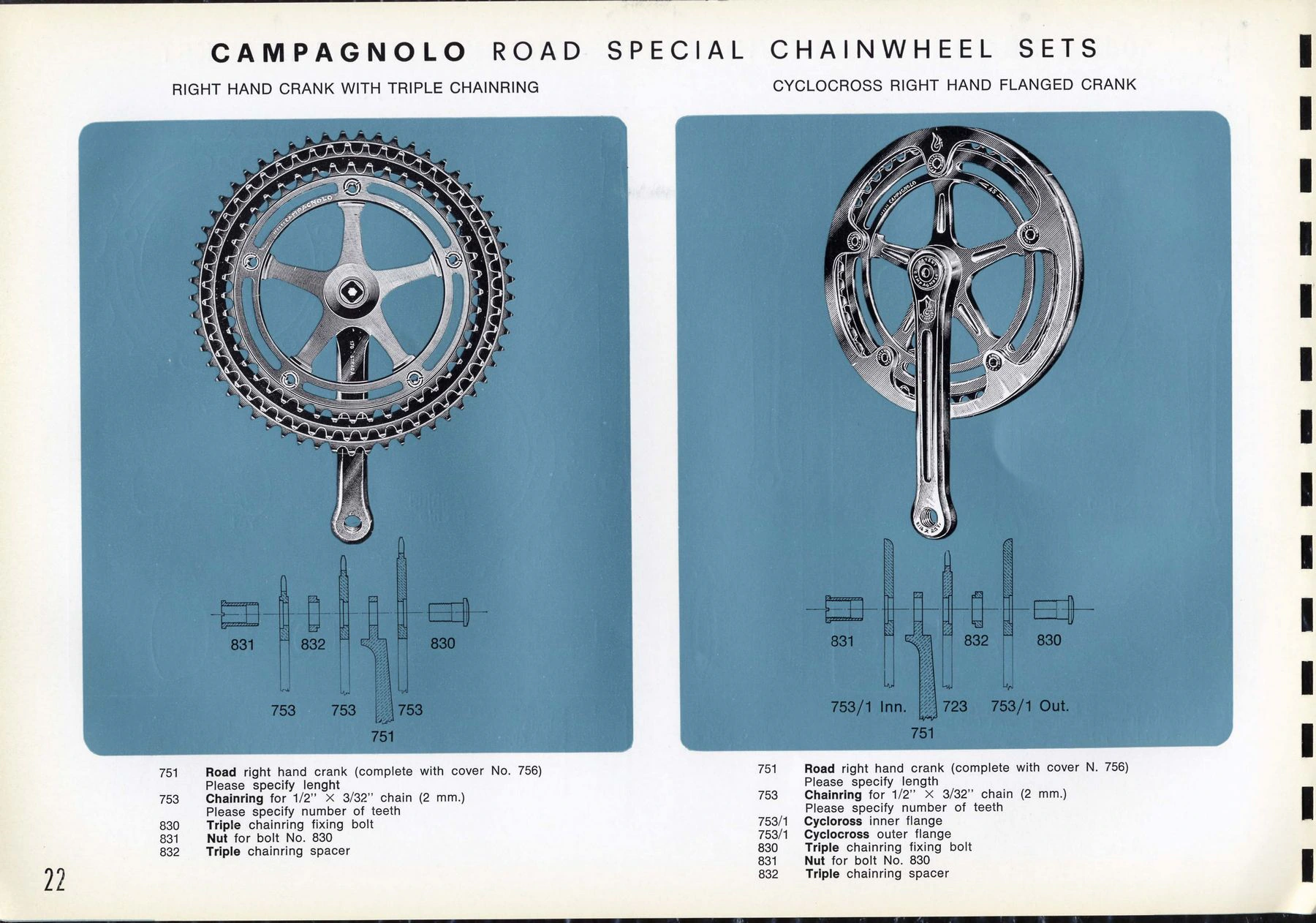

SPECIAL COTTERLESS CHAINSETS | 22-23

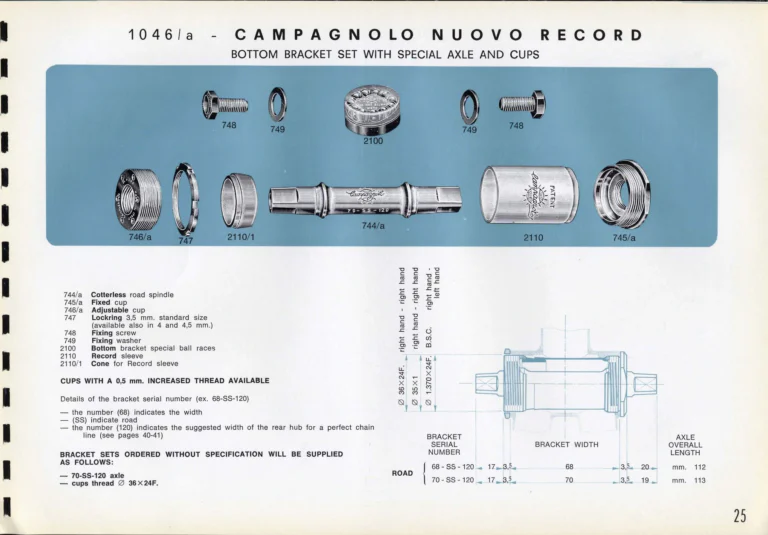

BOTTOM BRACKET SET | 24-25

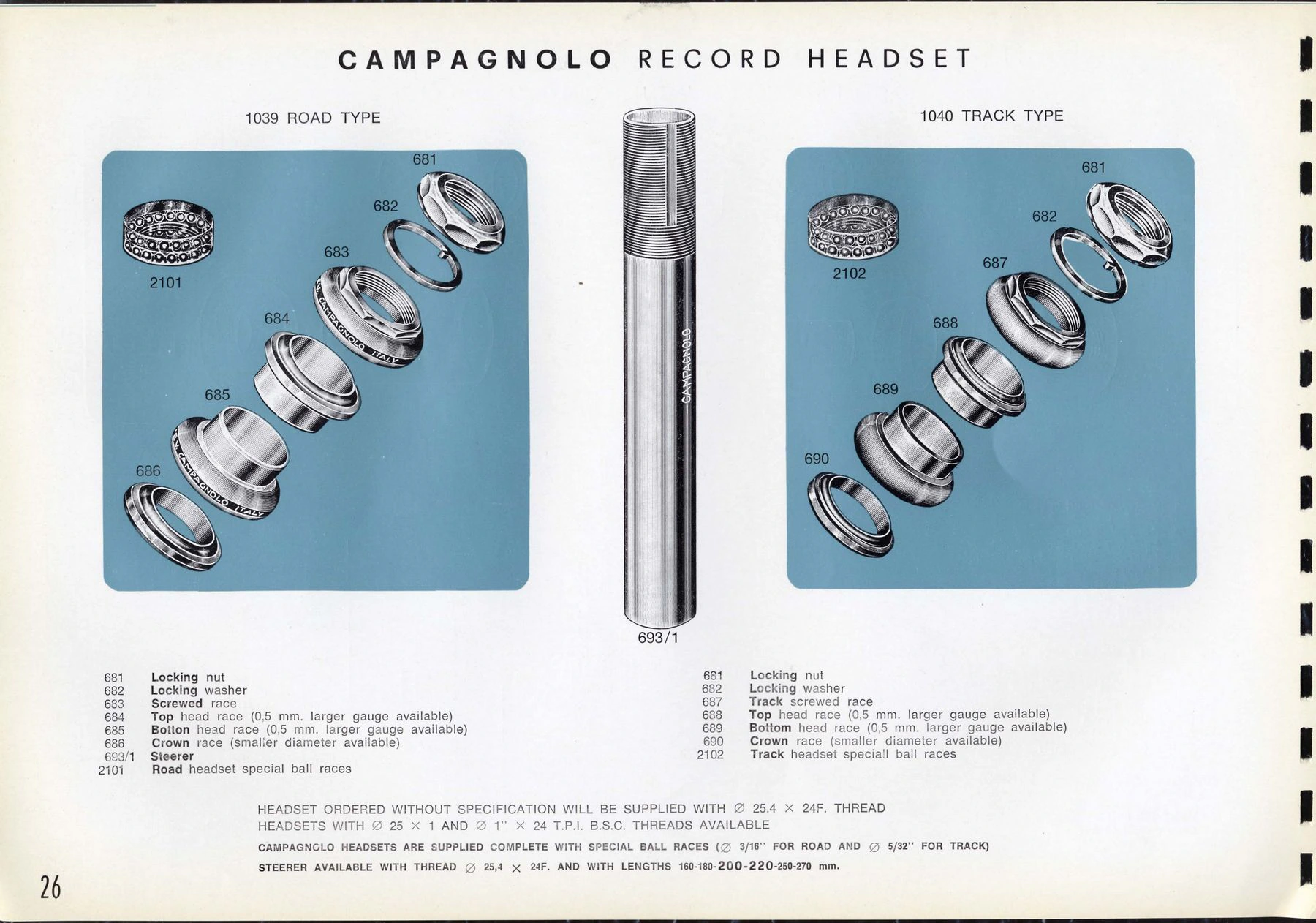

RECORD HEAD SET | 26
RECORDS PEDALS | 27

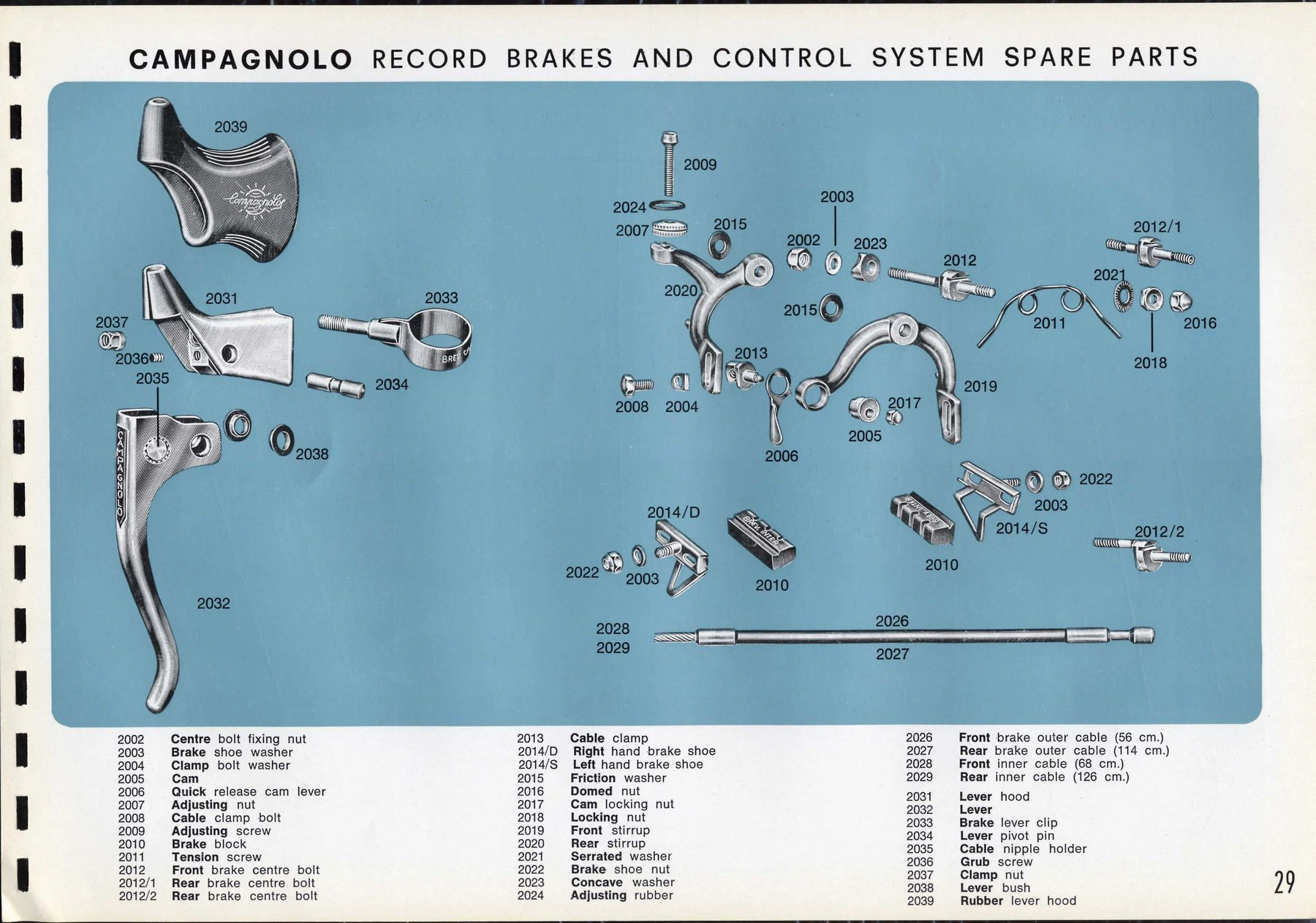

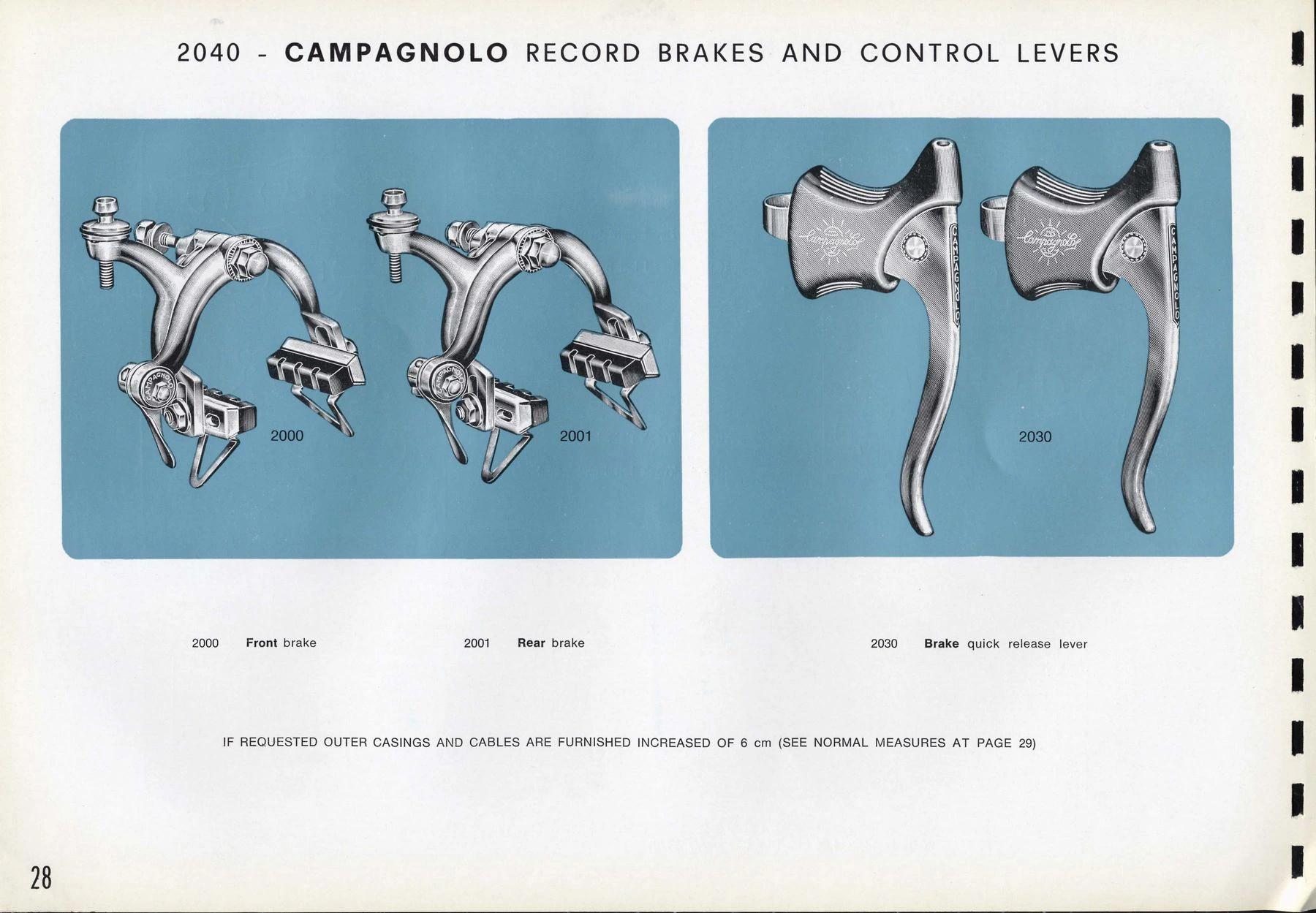

RECORD BRAKES | 28-29
SEAT PINS | 30

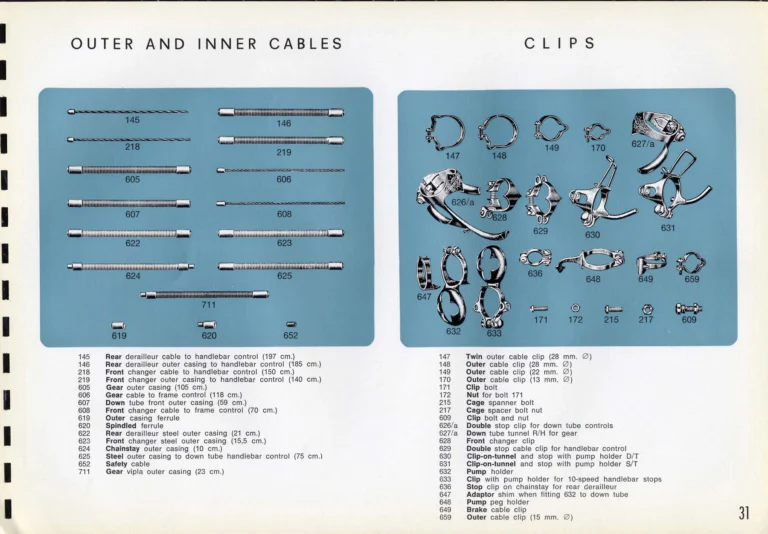

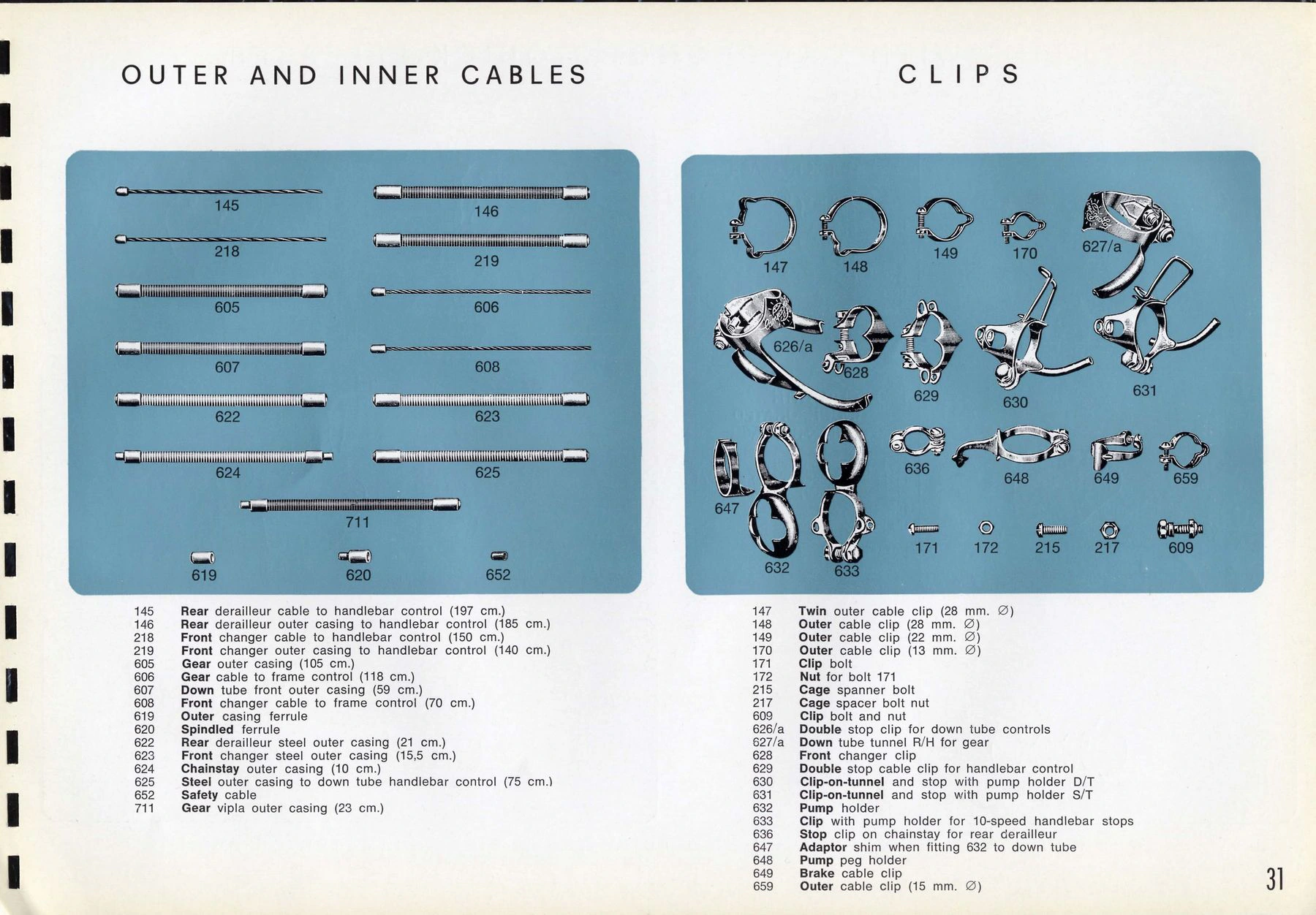

GUIDES – CABLES – CLIPS | 31
QUICK RELEASE SEAT CLIPS | 32
FRONT AND REAR FORK ENDS | 33

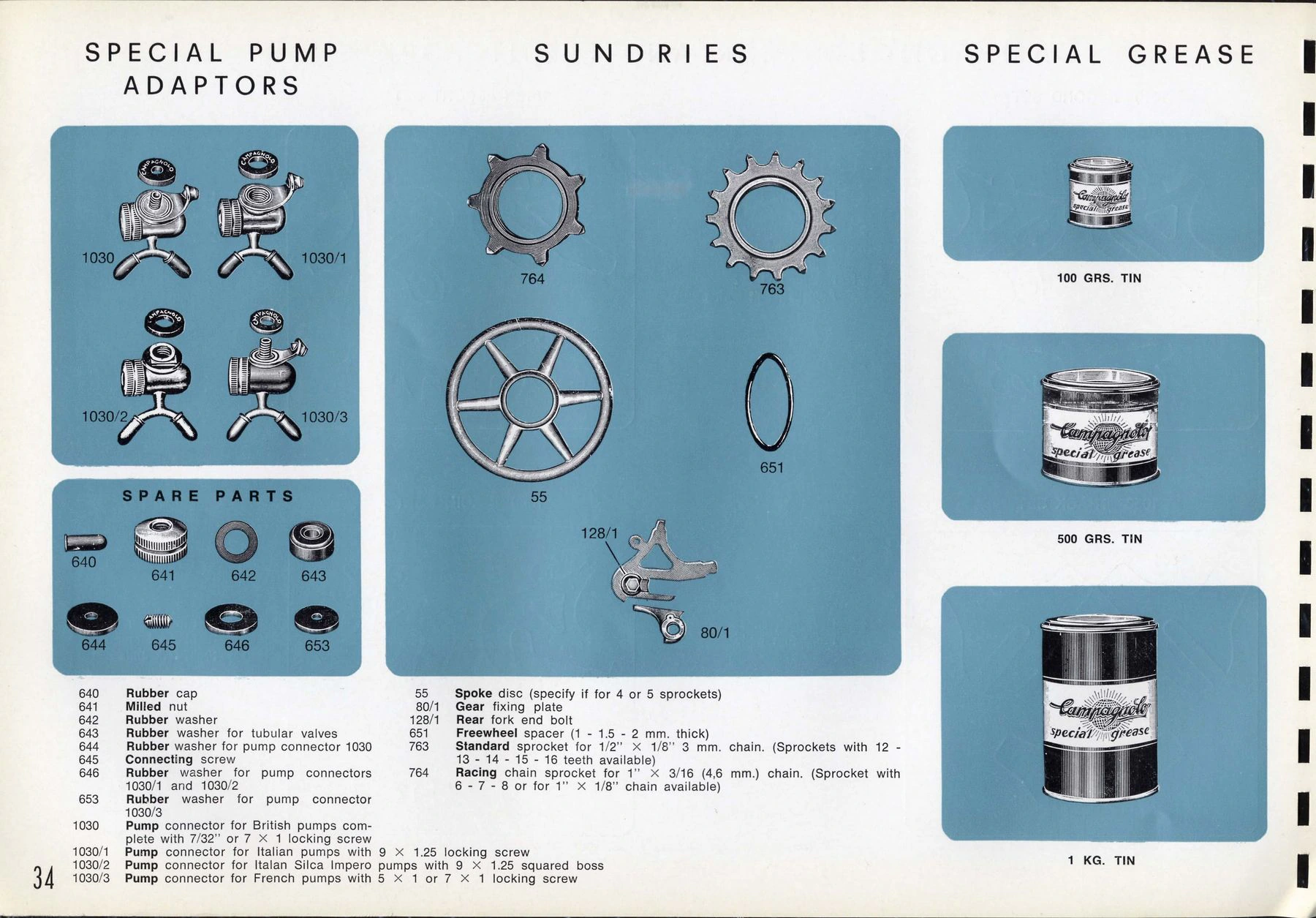

PUMP ADAPTORS – ACCESSORIES – GREASE | 34
PUMP HOLDERS AND SPECIAL CONNECTORS | 35

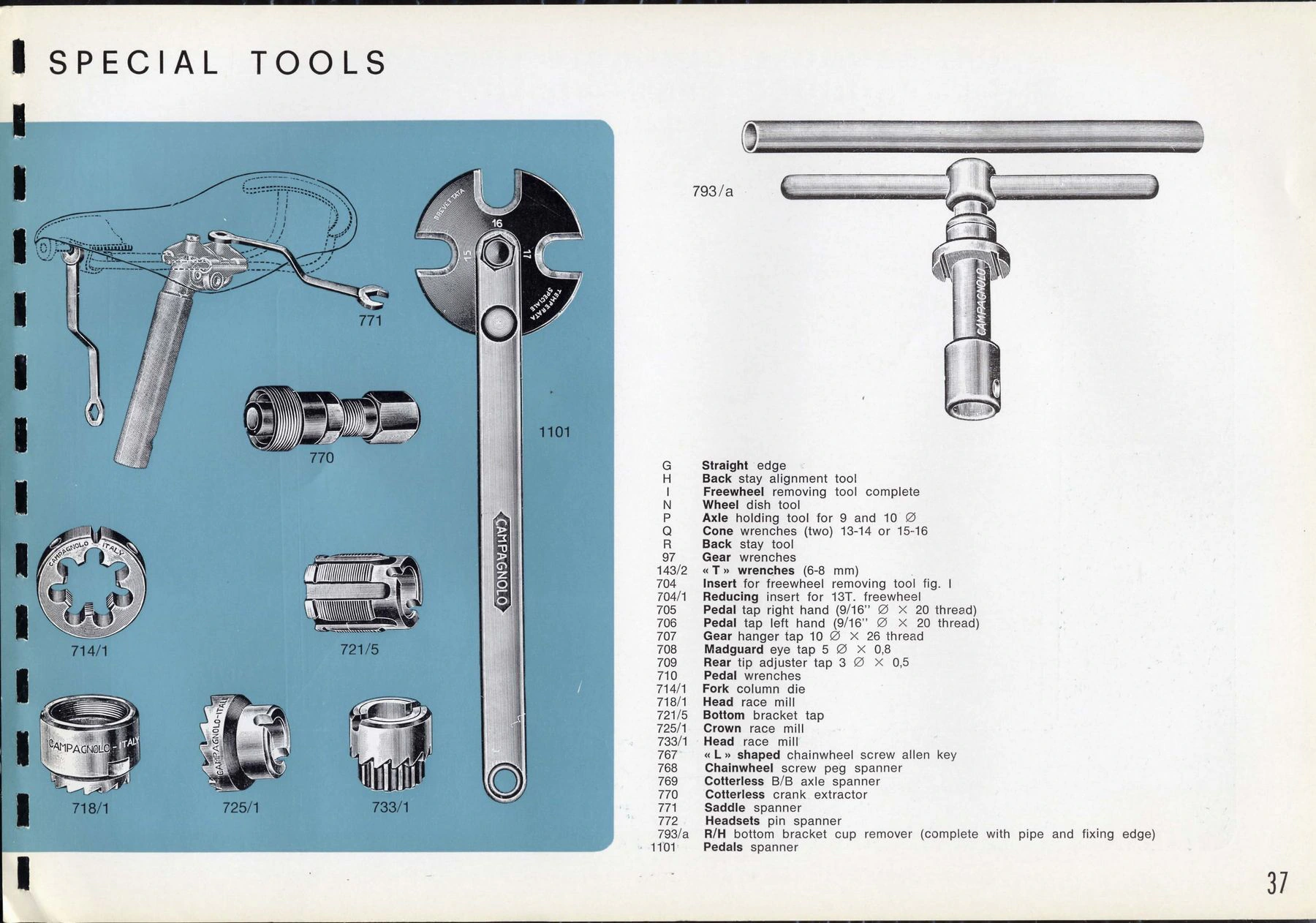

SPECIAL TOOLS | 36-37

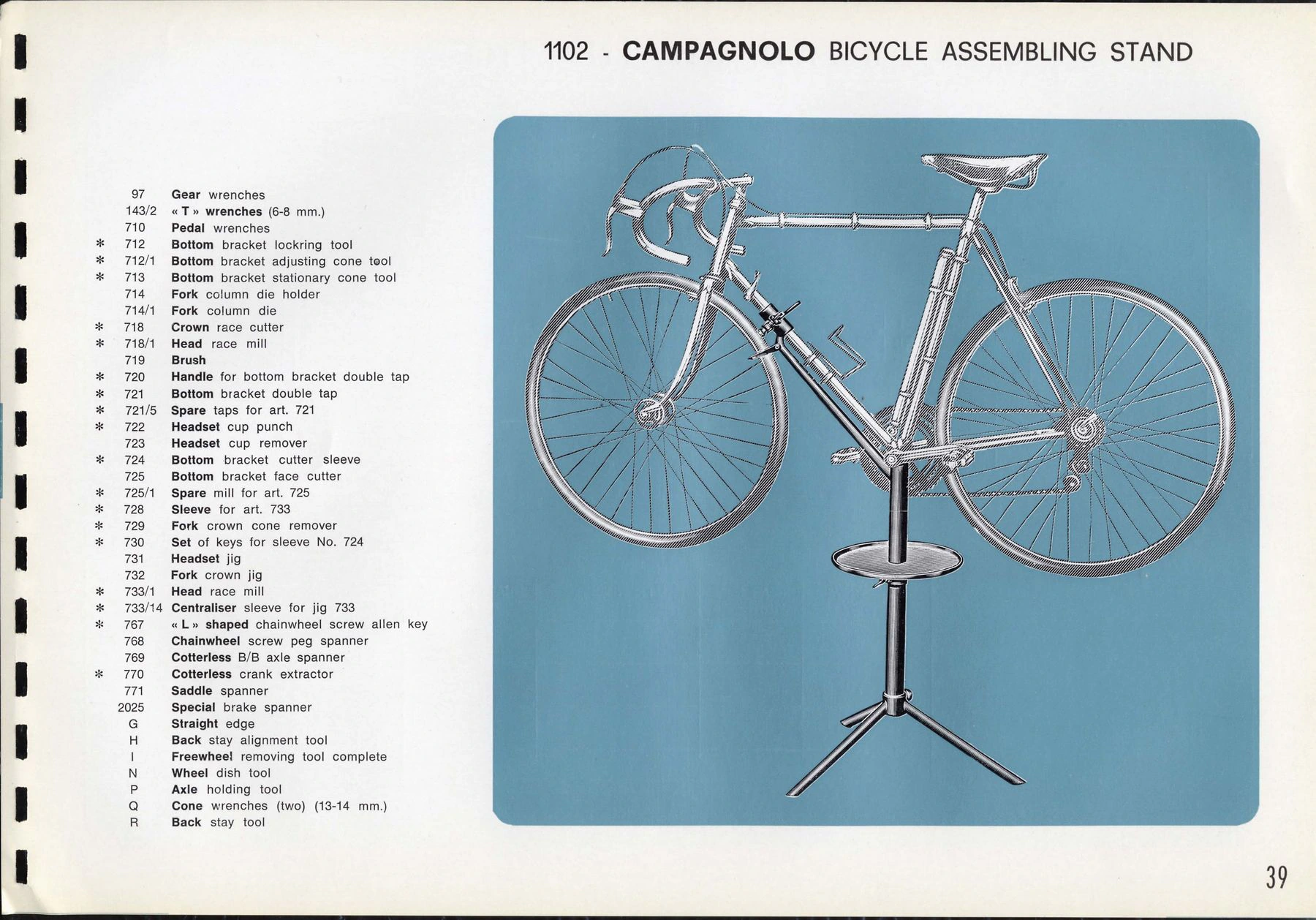

TOOLS CASE AND BICYCLE STAND | 38-39

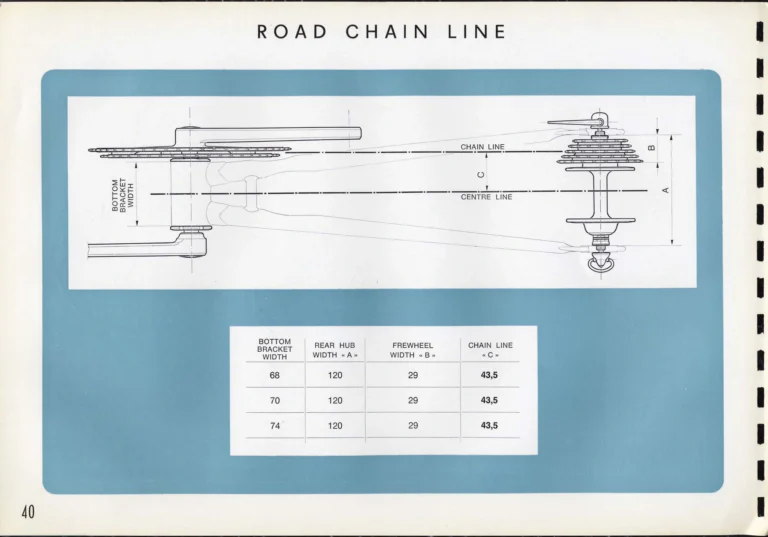

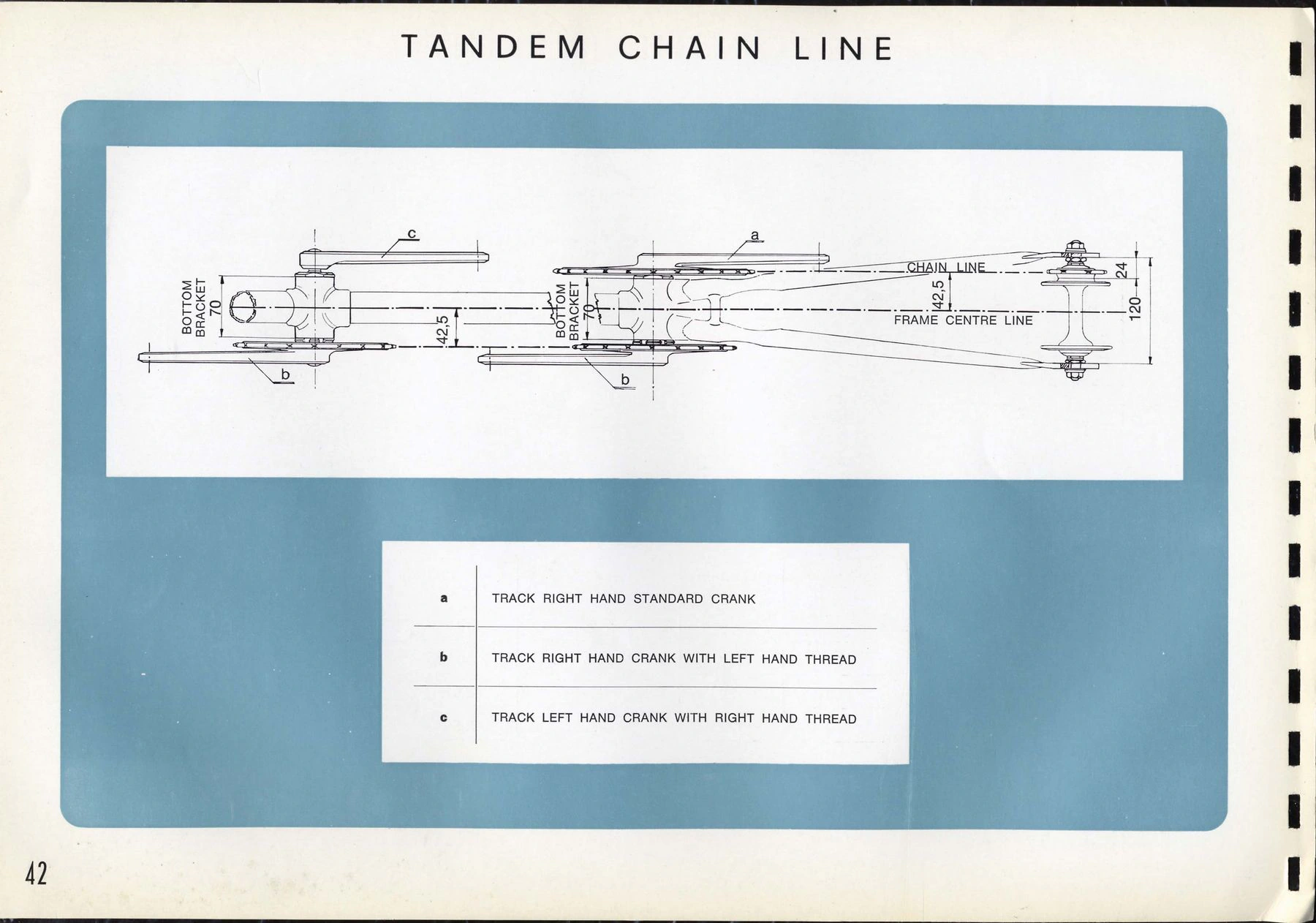

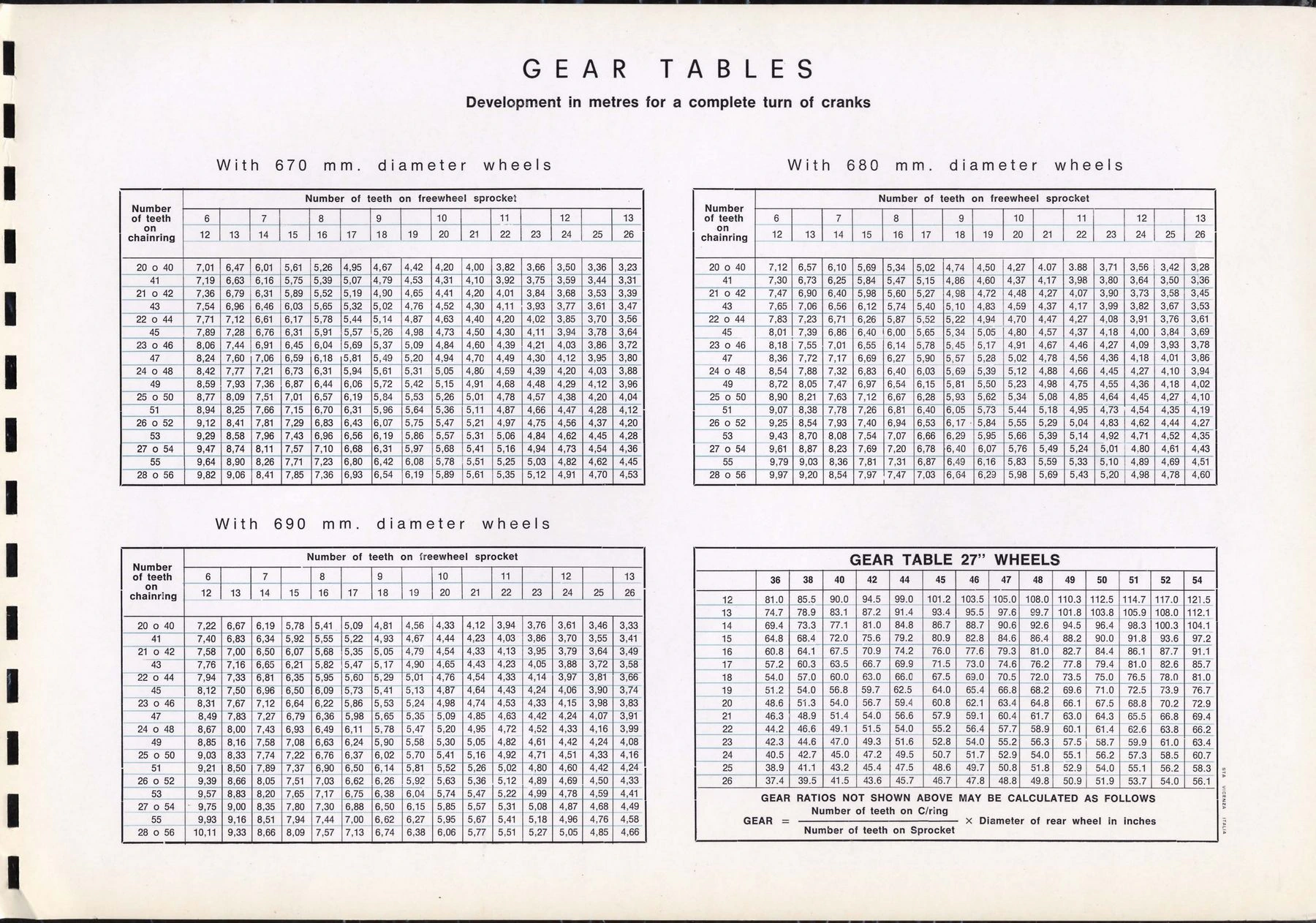

TANDEM CHAIN LINES AND GEAR TABLES | 40-41-42

[The index of Catalogue No. 16: 24 sections from the Record road and track ensembles through derailleurs, control levers, hubs, chainsets, head sets, pedals, brakes, seat pins and small fittings to special tools, the tool case and bicycle stand and the tandem chain lines and gear tables, each with its page numbers.]

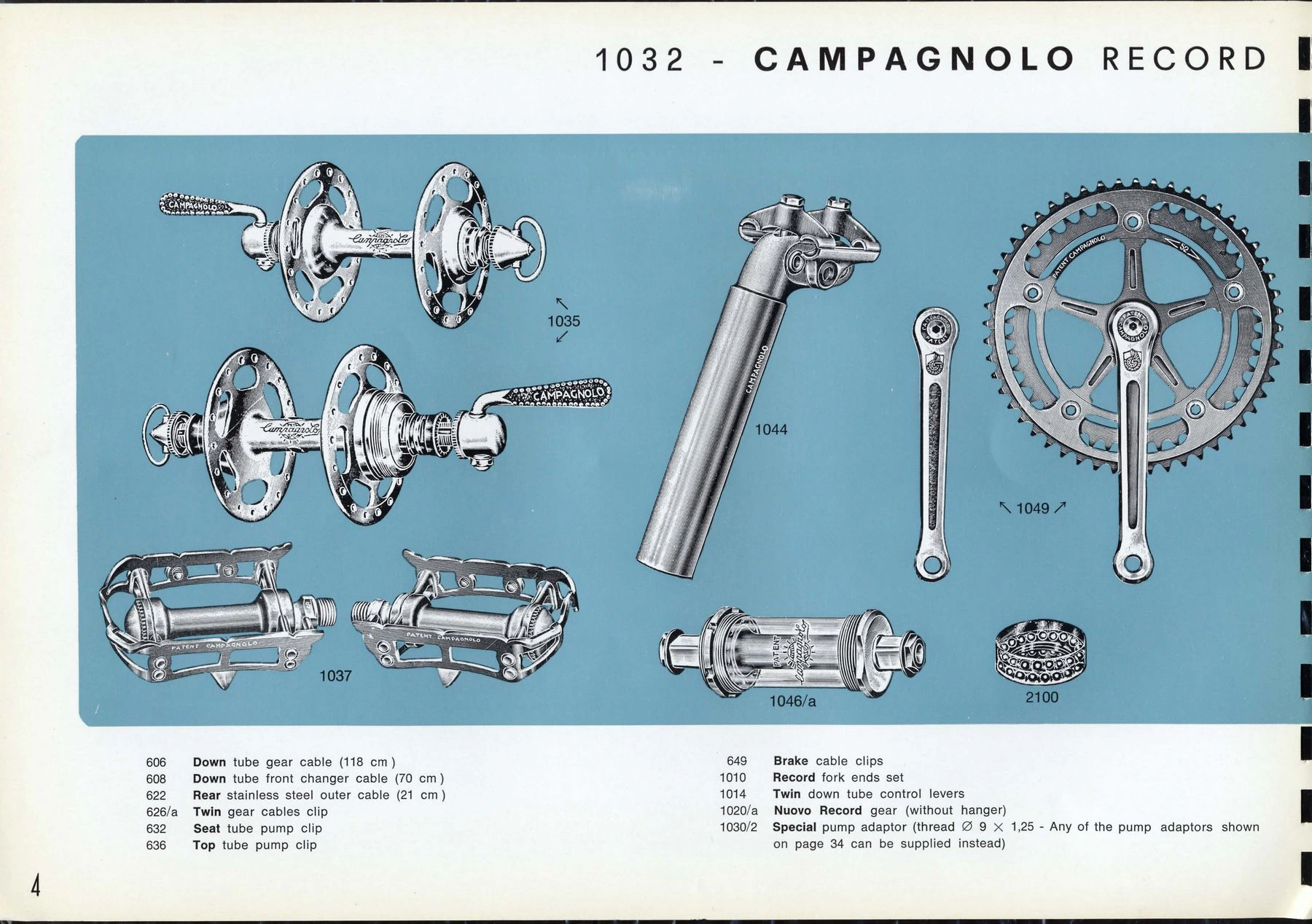

— Page 6 —
1032 – CAMPAGNOLO RECORD

Callouts: 1035 1044 1049 1037 1046/a 2100

606 Down tube gear cable (118 cm )
608 Down tube front changer cable (70 cm )
622 Rear stainless steel outer cable (21 cm )
626/a Twin gear cables clip
632 Seat tube pump clip
636 Top tube pump clip
649 Brake cable clips
1010 Record fork ends set
1014 Twin down tube control levers
1020/a Nuovo Record gear (without hanger)
1030/2 Special pump adaptor (thread Ø 9 × 1,25 – Any of the pump adaptors shown on page 34 can be supplied instead)

4

[The left half of the spread presenting the Campagnolo Record road ensemble, 1032: drawings on a blue panel of the large flange quick release hubs 1035, the road pedals 1037, the seat pin 1044, the bottom bracket set 1046/a, the chainwheel set 1049 and the ballraces 2100. Below runs the first part of the ensemble’s parts list, continued on the facing page.]

— Page 7 —

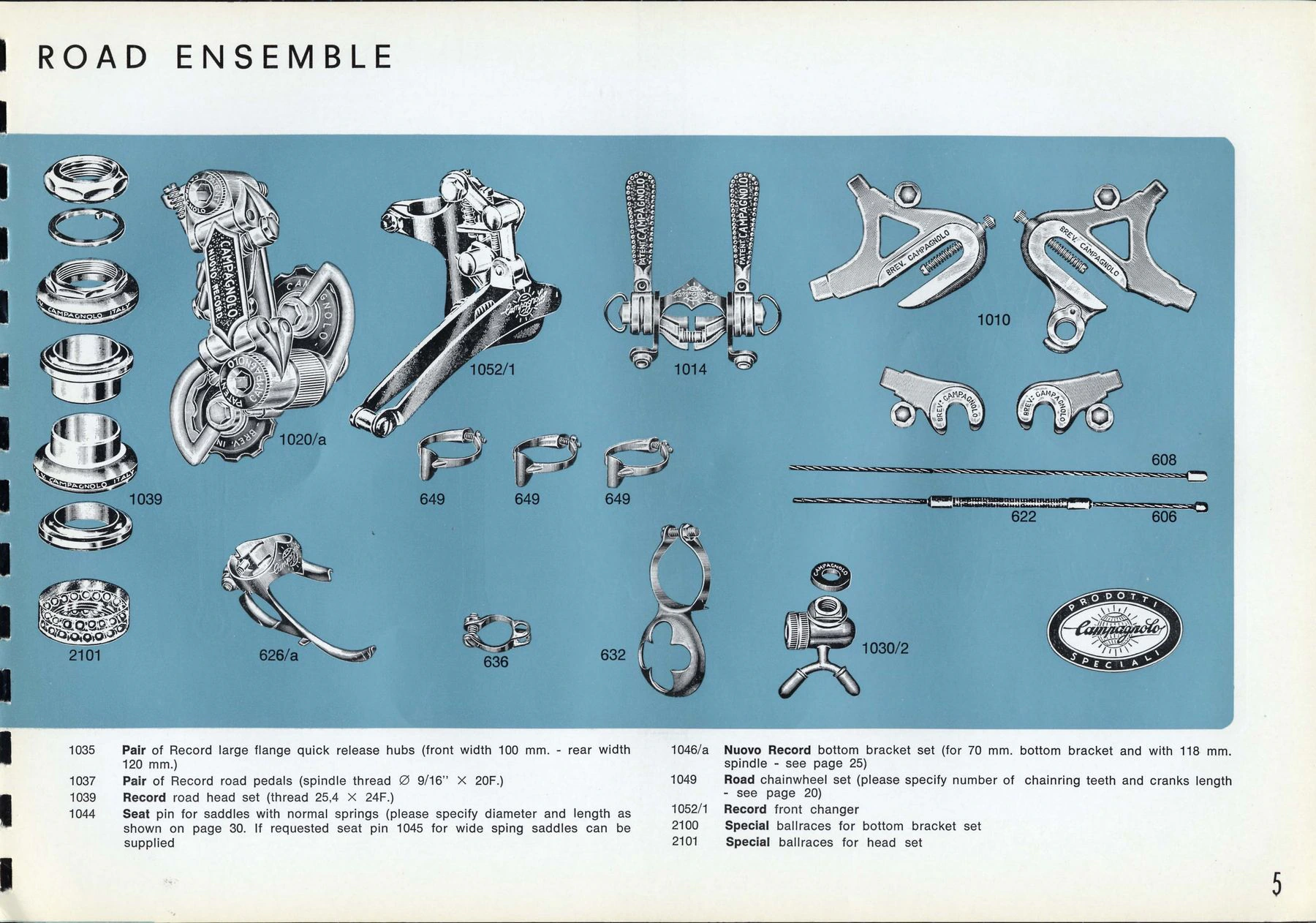

ROAD ENSEMBLE

Callouts: 1052/1 1014 1010 1020/a 608 1039 649 649 649 622 606 2101 626/a 636 632 1030/2

1035 Pair of Record large flange quick release hubs (front width 100 mm. – rear width 120 mm.)
1037 Pair of Record road pedals (spindle thread Ø 9/16″ × 20F.)
1039 Record road head set (thread 25,4 × 24F.)
1044 Seat pin for saddles with normal springs (please specify diameter and length as shown on page 30. If requested seat pin 1045 for wide sping saddles can be supplied
1046/a Nuovo Record bottom bracket set (for 70 mm. bottom bracket and with 118 mm. spindle – see page 25)
1049 Road chainwheel set (please specify number of chainring teeth and cranks length – see page 20)
1052/1 Record front changer
2100 Special ballraces for bottom bracket set
2101 Special ballraces for head set

5

[The right half of the spread presenting the Campagnolo Record road ensemble: drawings on a blue panel of the head set 1039 and its ballraces 2101, the Nuovo Record rear derailleur 1020/a, the Record front changer 1052/1, the twin down tube levers 1014, the fork ends 1010, cables, clips and the pump adaptor 1030/2, with a small “Prodotti Speciali” Campagnolo badge in the corner. Below runs the rest of the ensemble’s parts list.]

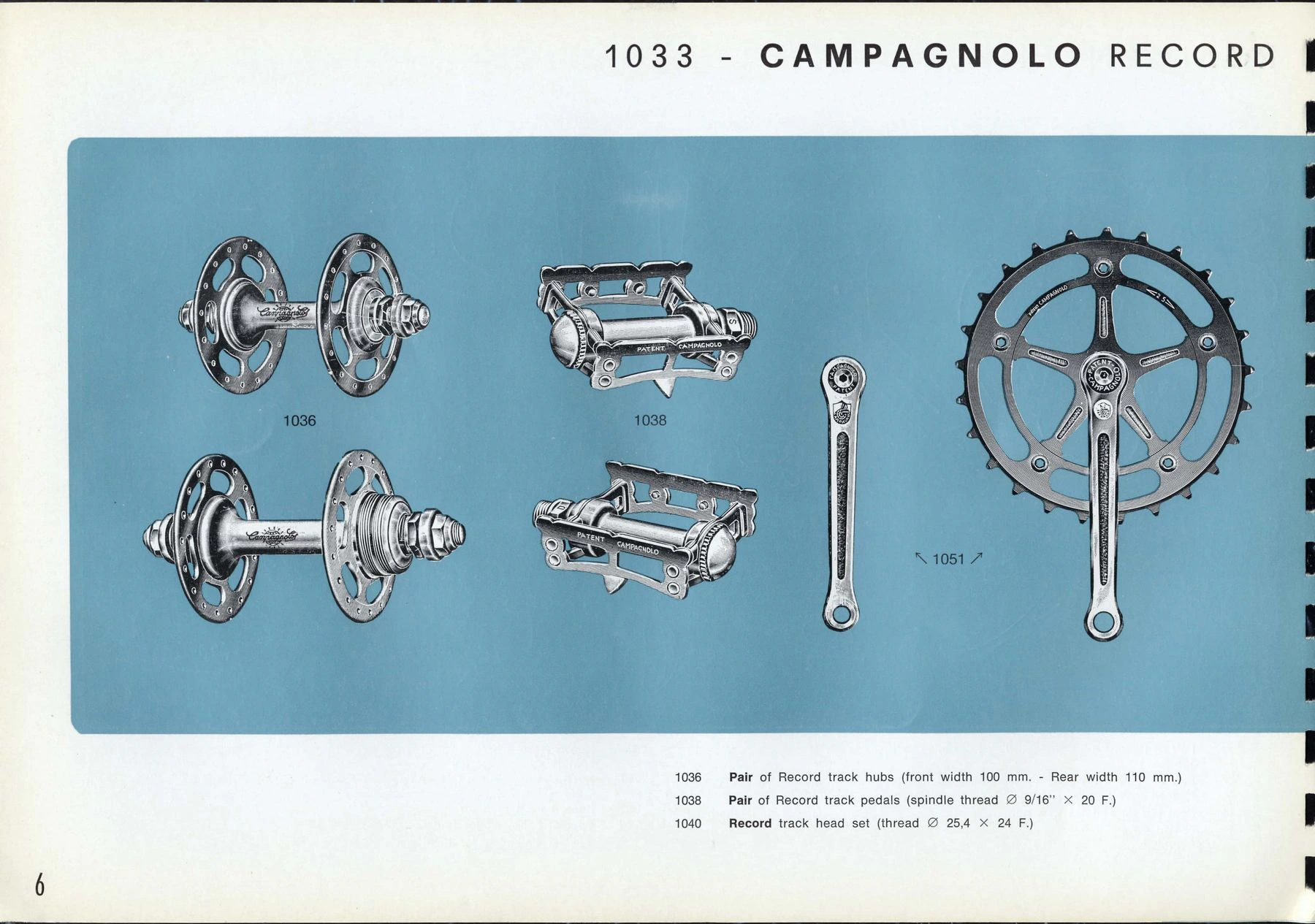

— Page 8 —
1033 – CAMPAGNOLO RECORD

Callouts: 1036 1038 1051

1036 Pair of Record track hubs (front width 100 mm. – Rear width 110 mm.)
1038 Pair of Record track pedals (spindle thread Ø 9/16″ × 20 F.)
1040 Record track head set (thread Ø 25,4 × 24 F.)

6

[The left half of the spread presenting the Campagnolo Record track ensemble, 1033: drawings on a blue panel of the track hubs 1036, the track pedals 1038 and the track chainwheel set 1051 with a single chainring. Below runs the first part of the ensemble’s parts list, continued on the facing page.]

— Page 9 —

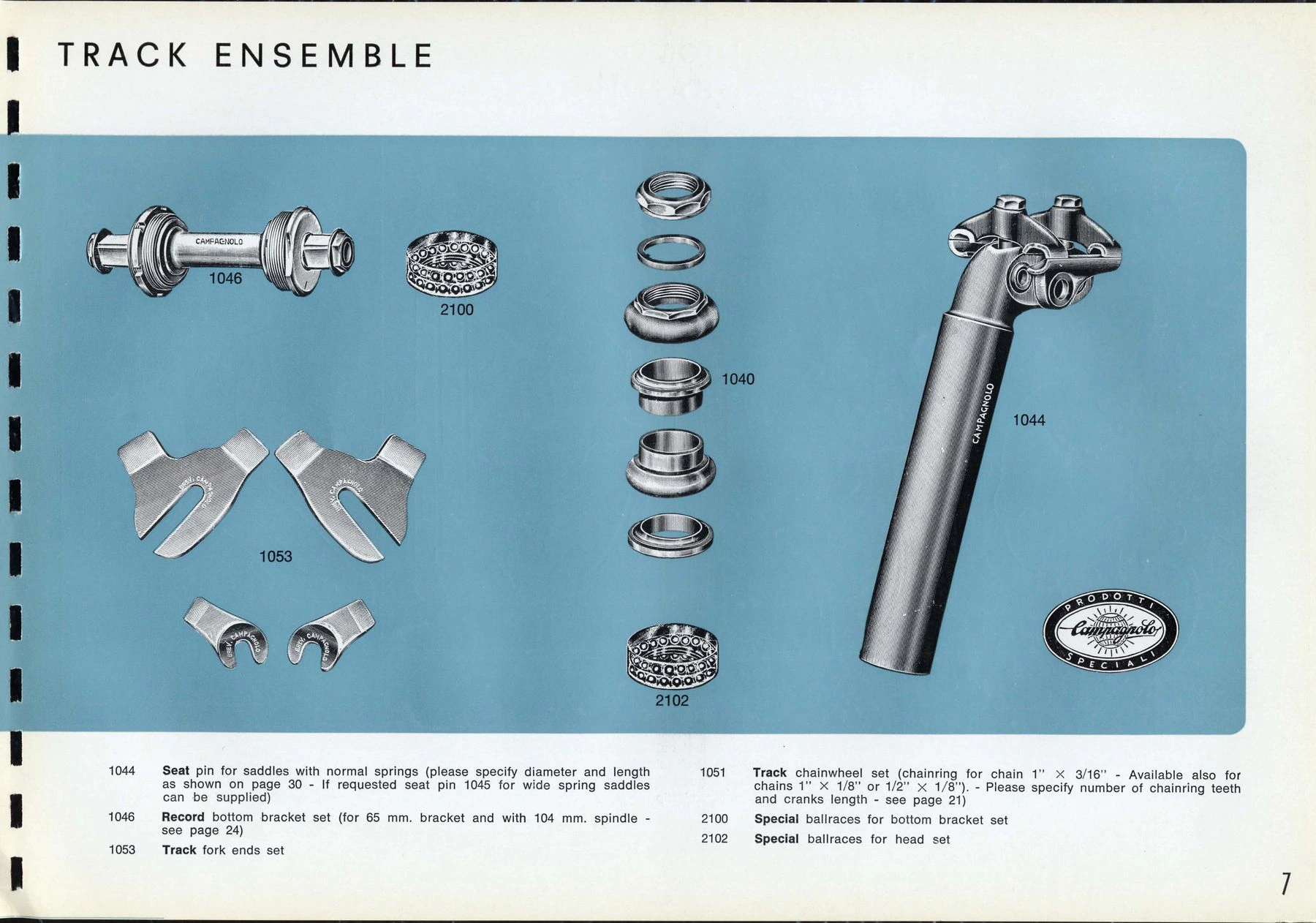

TRACK ENSEMBLE

Callouts: 1046 2100 1040 1044 1053 2102

1044 Seat pin for saddles with normal springs (please specify diameter and length as shown on page 30 – If requested seat pin 1045 for wide spring saddles can be supplied)
1046 Record bottom bracket set (for 65 mm. bracket and with 104 mm. spindle – see page 24)
1053 Track fork ends set
1051 Track chainwheel set (chainring for chain 1″ × 3/16″ – Available also for chains 1″ × 1/8″ or 1/2″ × 1/8″). – Please specify number of chainring teeth and cranks length – see page 21)
2100 Special ballraces for bottom bracket set
2102 Special ballraces for head set

7

[The right half of the spread presenting the Campagnolo Record track ensemble: drawings on a blue panel of the Record bottom bracket set 1046 and its ballraces 2100, the track fork ends 1053, the track head set 1040 and its ballraces 2102 and the seat pin 1044, with a small “Prodotti Speciali” Campagnolo badge in the corner. Below runs the rest of the ensemble’s parts list.]

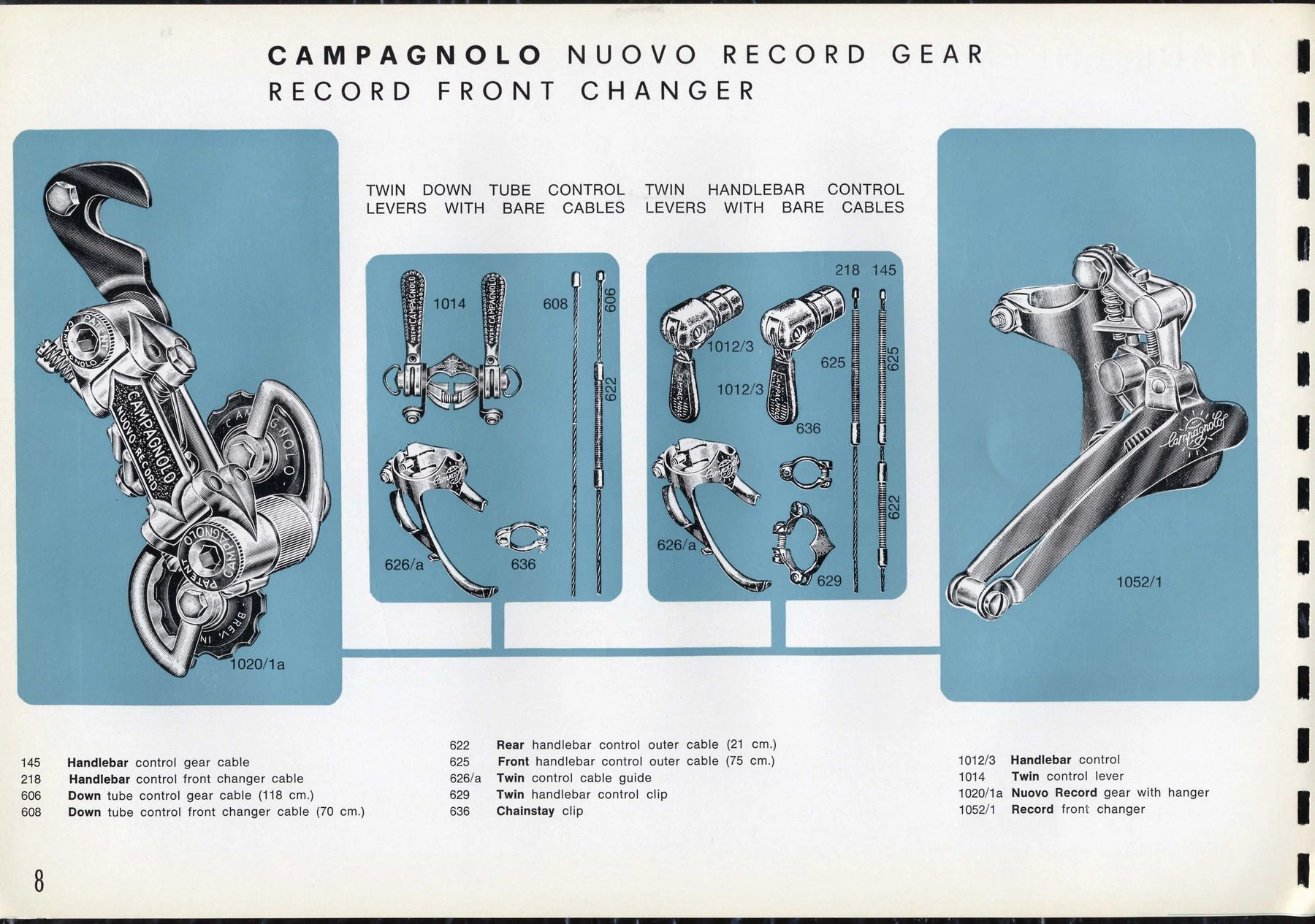

— Page 10 —
CAMPAGNOLO NUOVO RECORD GEAR
RECORD FRONT CHANGER

TWIN DOWN TUBE CONTROL LEVERS WITH BARE CABLES

TWIN HANDLEBAR CONTROL LEVERS WITH BARE CABLES

Callouts: 1020/1a 1014 608 606 622 626/a 636 218 145 1012/3 625 625 1012/3 636 622 626/a 629 1052/1

145 Handlebar control gear cable
218 Handlebar control front changer cable
606 Down tube control gear cable (118 cm.)
608 Down tube control front changer cable (70 cm.)
622 Rear handlebar control outer cable (21 cm.)
625 Front handlebar control outer cable (75 cm.)
626/a Twin control cable guide
629 Twin handlebar control clip
636 Chainstay clip
1012/3 Handlebar control
1014 Twin control lever
1020/1a Nuovo Record gear with hanger
1052/1 Record front changer

8

[Photographs of the Campagnolo Nuovo Record rear derailleur with hanger, 1020/1a, and the Record front derailleur, 1052/1, on blue panels, flanking two sets of controls: twin down tube levers and twin handlebar controls with their bare cables, outer cables, cable guide and clips. Every part is numbered and keyed to a parts list below.]

— Page 11 —

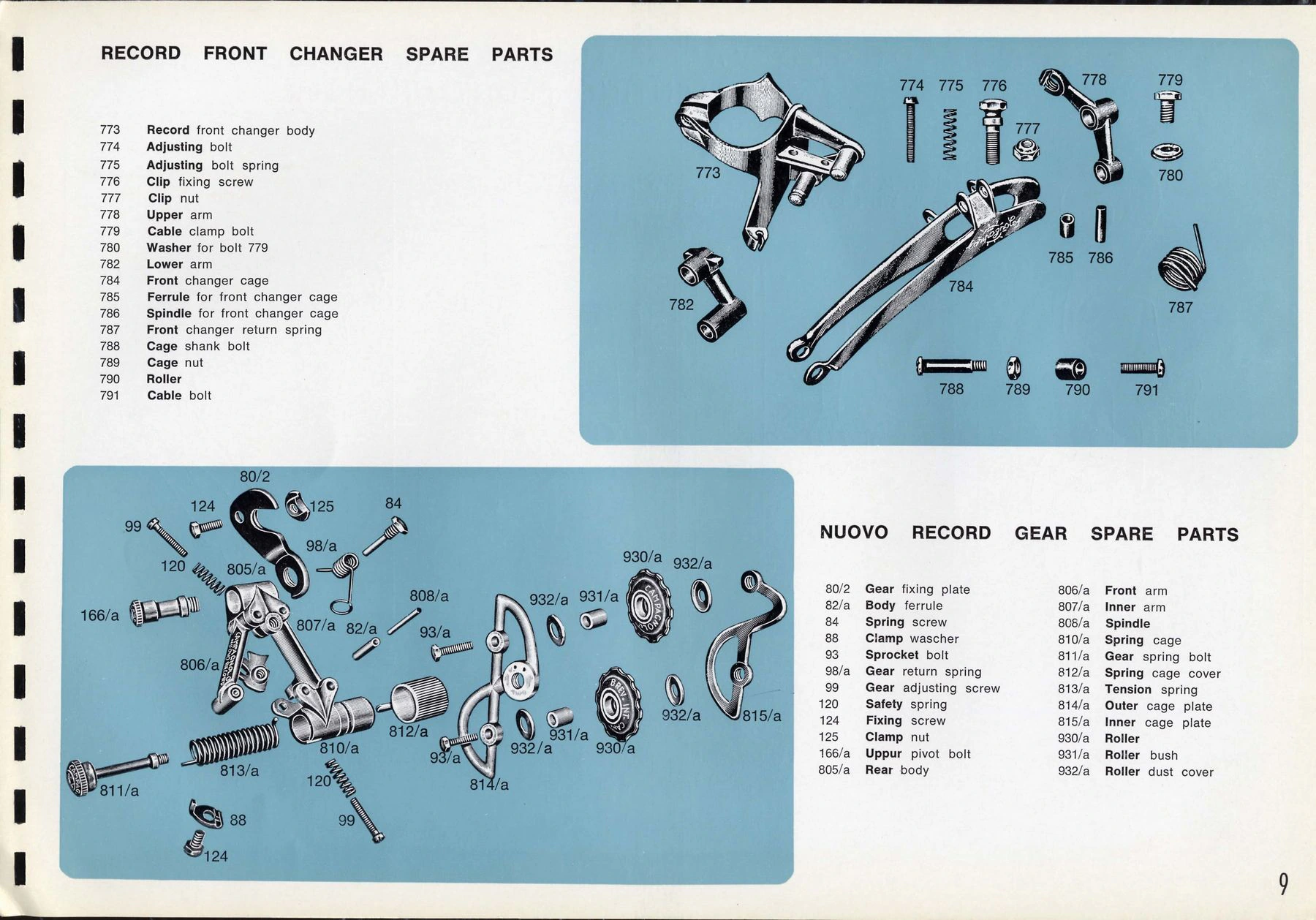

RECORD FRONT CHANGER SPARE PARTS

Callouts: 774 775 776 778 779 777 773 780 785 786 784 782 787 788 789 790 791

773 Record front changer body
774 Adjusting bolt
775 Adjusting bolt spring
776 Clip fixing screw
777 Clip nut
778 Upper arm
779 Cable clamp bolt
780 Washer for bolt 779
782 Lower arm
784 Front changer cage
785 Ferrule for front changer cage
786 Spindle for front changer cage
787 Front changer return spring
788 Cage shank bolt
789 Cage nut
790 Roller
791 Cable bolt

NUOVO RECORD GEAR SPARE PARTS

Callouts: 80/2 124 125 84 99 98/a 120 805/a 930/a 932/a 808/a 932/a 931/a 166/a 807/a 82/a 93/a 806/a 932/a 815/a 812/a 931/a 930/a 932/a 810/a 93/a 813/a 811/a 120 814/a 88 99 124

80/2 Gear fixing plate
82/a Body ferrule
84 Spring screw
88 Clamp wascher
93 Sprocket bolt
98/a Gear return spring
99 Gear adjusting screw
120 Safety spring
124 Fixing screw
125 Clamp nut
166/a Uppur pivot bolt
805/a Rear body
806/a Front arm
807/a Inner arm
808/a Spindle
810/a Spring cage
811/a Gear spring bolt
812/a Spring cage cover
813/a Tension spring
814/a Outer cage plate
815/a Inner cage plate
930/a Roller
931/a Roller bush
932/a Roller dust cover

9

[Exploded drawings of the Campagnolo Record front derailleur and the Nuovo Record rear derailleur on blue panels, with every part numbered and keyed to two parts lists. The rear derailleur drawing shows the hanger, body, arms, springs, cage plates and both jockey wheels.]

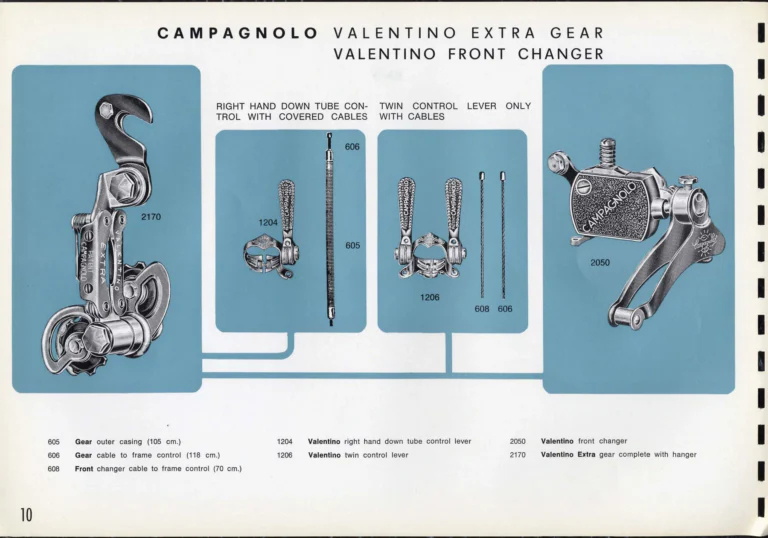

— Page 12 —

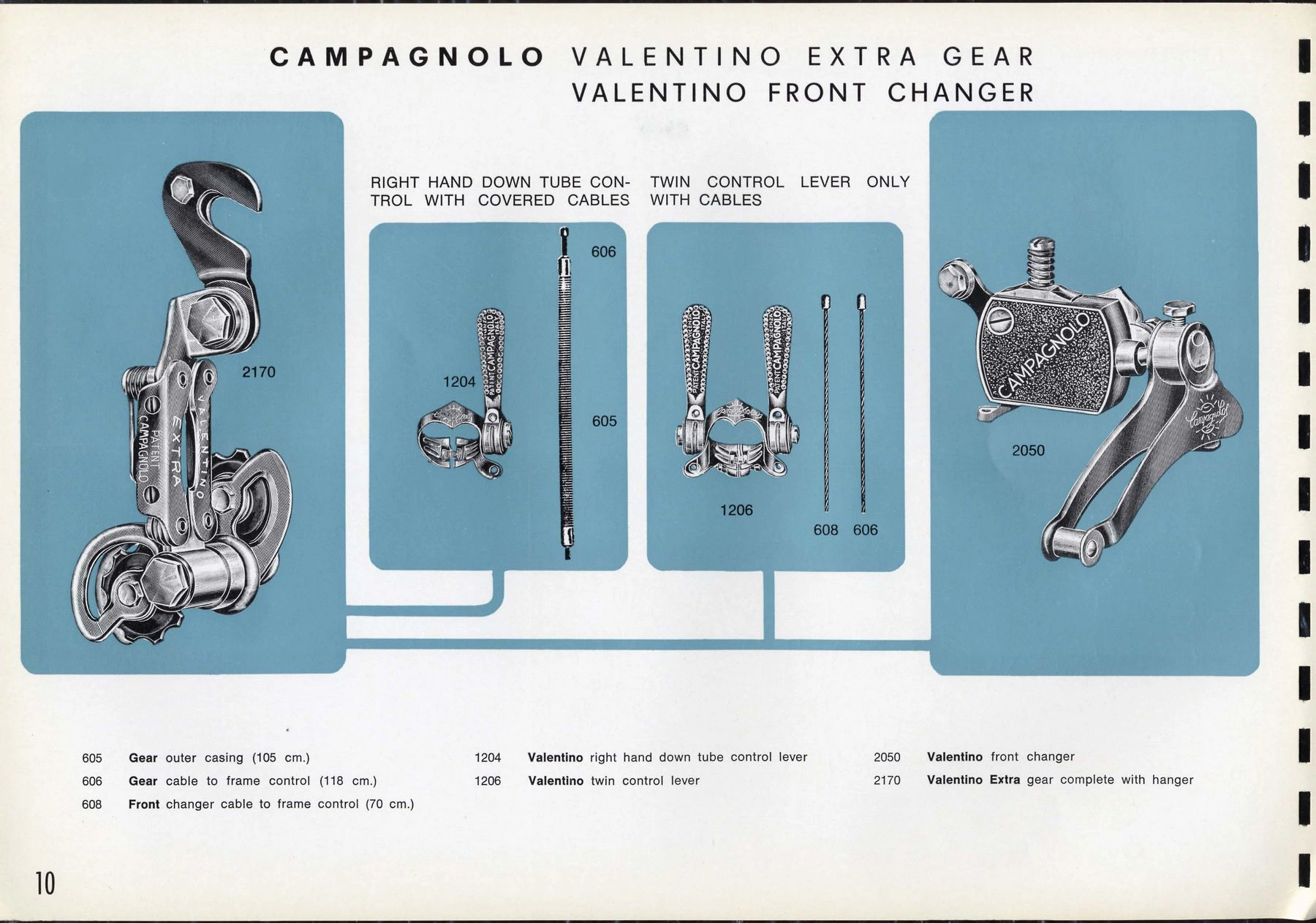

CAMPAGNOLO VALENTINO EXTRA GEAR
VALENTINO FRONT CHANGER

RIGHT HAND DOWN TUBE CONTROL WITH COVERED CABLES

TWIN CONTROL LEVER ONLY WITH CABLES

Callouts: 2170 606 1204 605 1206 608 606 2050

605 Gear outer casing (105 cm.)
606 Gear cable to frame control (118 cm.)
608 Front changer cable to frame control (70 cm.)
1204 Valentino right hand down tube control lever
1206 Valentino twin control lever
2050 Valentino front changer
2170 Valentino Extra gear complete with hanger

10

[Photographs of the Campagnolo Valentino Extra rear derailleur with hanger, 2170, and the Valentino front derailleur, 2050, on blue panels, flanking a right hand down tube lever with its covered cable and a twin control lever with bare cables. Every part is numbered and keyed to a parts list below.]

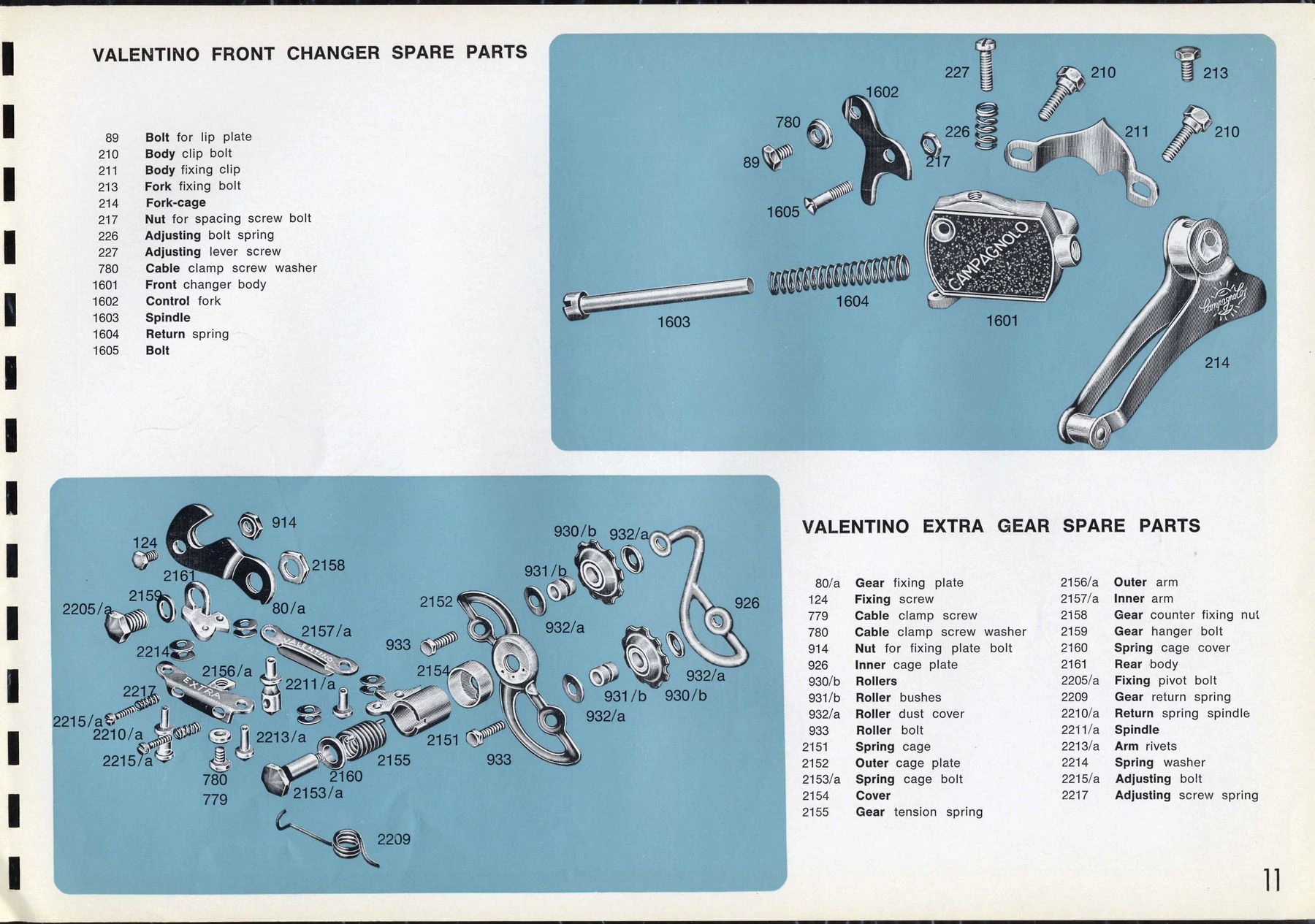

— Page 13 —

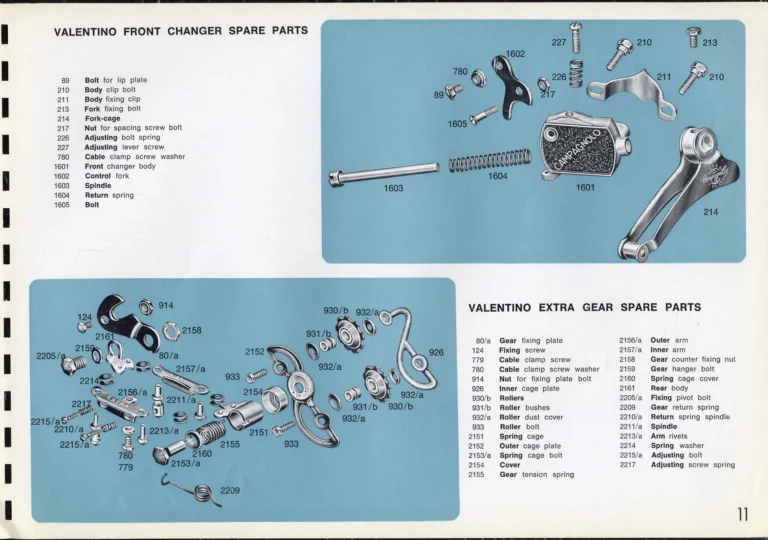

VALENTINO FRONT CHANGER SPARE PARTS

Callouts: 227 213 210 1602 780 226 211 210 89 217 1605 1604 1603 1601 214

89 Bolt for lip plate
210 Body clip bolt
211 Body fixing clip
213 Fork fixing bolt
214 Fork-cage
217 Nut for spacing screw bolt
226 Adjusting bolt spring
227 Adjusting lever screw
780 Cable clamp screw washer
1601 Front changer body
1602 Control fork
1603 Spindle
1604 Return spring
1605 Bolt

VALENTINO EXTRA GEAR SPARE PARTS

Callouts: 914 124 2158 930/b 932/a 2161 931/b 2159 2205/a 2152 80/a 926 932/a 2157/a 2214 933 2156/a 2154 932/a 2211/a 2217 931/b 930/b 2215/a 932/a 2210/a 2213/a 2151 2215/a 2155 933 780 2160 2153/a 779 2209

80/a Gear fixing plate
124 Fixing screw
779 Cable clamp screw
780 Cable clamp screw washer
914 Nut for fixing plate bolt
926 Inner cage plate
930/b Rollers
931/b Roller bushes
932/a Roller dust cover
933 Roller bolt
2151 Spring cage
2152 Outer cage plate
2153/a Spring cage bolt
2154 Cover
2155 Gear tension spring
2156/a Outer arm
2157/a Inner arm
2158 Gear counter fixing nut
2159 Gear hanger bolt
2160 Spring cage cover
2161 Rear body
2205/a Fixing pivot bolt
2209 Gear return spring
2210/a Return spring spindle
2211/a Spindle
2213/a Arm rivets
2214 Spring washer
2215/a Adjusting bolt
2217 Adjusting screw spring

11

[Exploded drawings of the Campagnolo Valentino front derailleur and the Valentino Extra rear derailleur on blue panels, with every part numbered and keyed to two parts lists. The rear derailleur drawing shows the hanger, the arms marked “Valentino” and “Extra”, the springs, cage plates and both jockey wheels.]

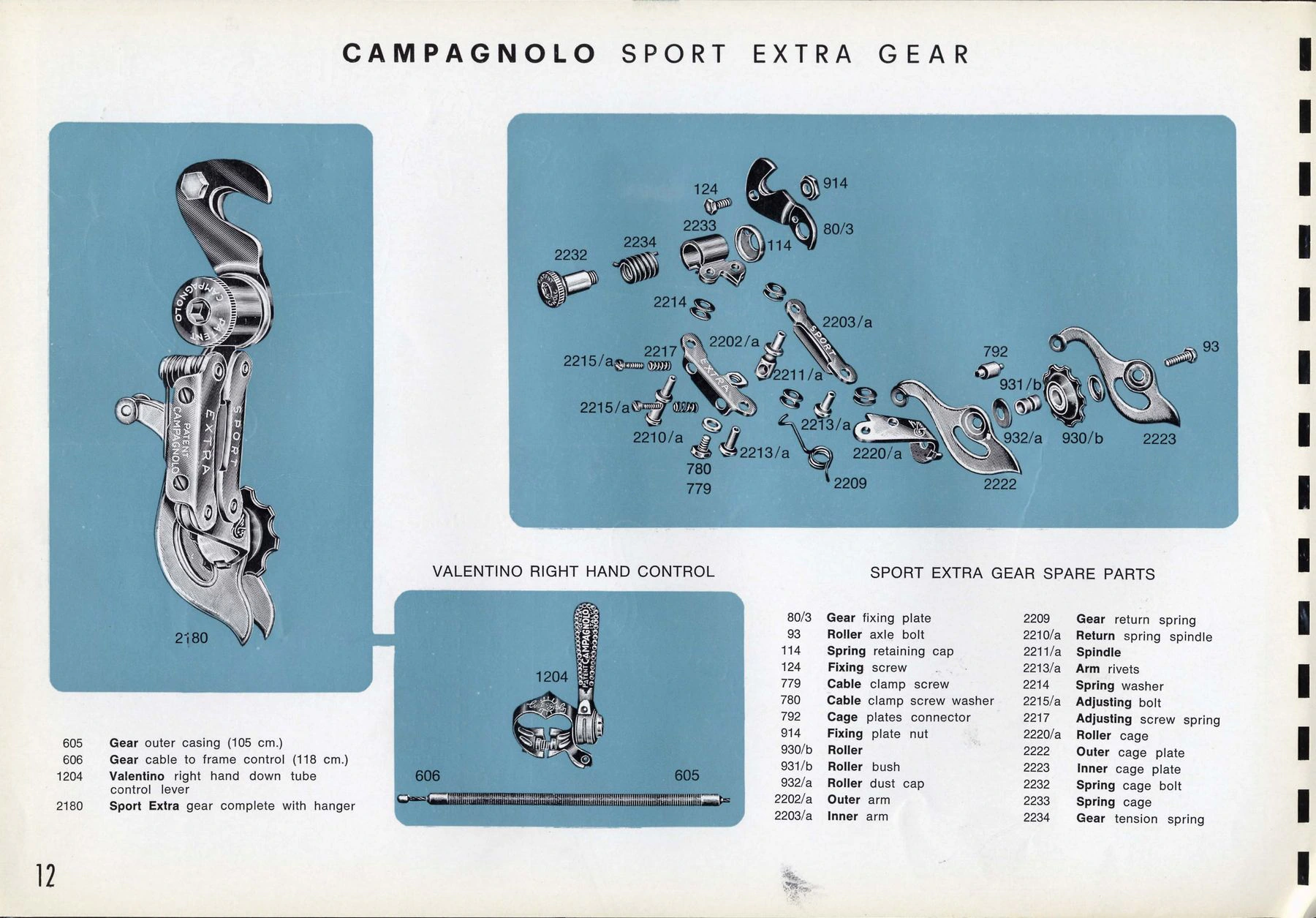

— Page 14 —
CAMPAGNOLO SPORT EXTRA GEAR

Callouts: 2180

605 Gear outer casing (105 cm.)
606 Gear cable to frame control (118 cm.)
1204 Valentino right hand down tube control lever
2180 Sport Extra gear complete with hanger

VALENTINO RIGHT HAND CONTROL

Callouts: 1204 606 605

SPORT EXTRA GEAR SPARE PARTS

Callouts: 124 914 2233 80/3 2234 2232 114 2214 2203/a 2202/a 2217 93 792 2215/a 2211/a 931/b 2215/a 2213/a 932/a 930/b 2223 2210/a 2220/a 2213/a 780 2209 2222 779

80/3 Gear fixing plate
93 Roller axle bolt
114 Spring retaining cap
124 Fixing screw
779 Cable clamp screw
780 Cable clamp screw washer
792 Cage plates connector
914 Fixing plate nut
930/b Roller
931/b Roller bush
932/a Roller dust cap
2202/a Outer arm
2203/a Inner arm
2209 Gear return spring
2210/a Return spring spindle
2211/a Spindle
2213/a Arm rivets
2214 Spring washer
2215/a Adjusting bolt
2217 Adjusting screw spring
2220/a Roller cage
2222 Outer cage plate
2223 Inner cage plate
2232 Spring cage bolt
2233 Spring cage
2234 Gear tension spring

12

[A photograph of the Campagnolo Sport Extra rear derailleur with hanger, 2180, beside an exploded drawing of the same derailleur with every part numbered, a Valentino right hand down tube lever with its covered cable, and two parts lists. The derailleur arms carry the words “Sport” and “Extra”.]

— Page 15 —

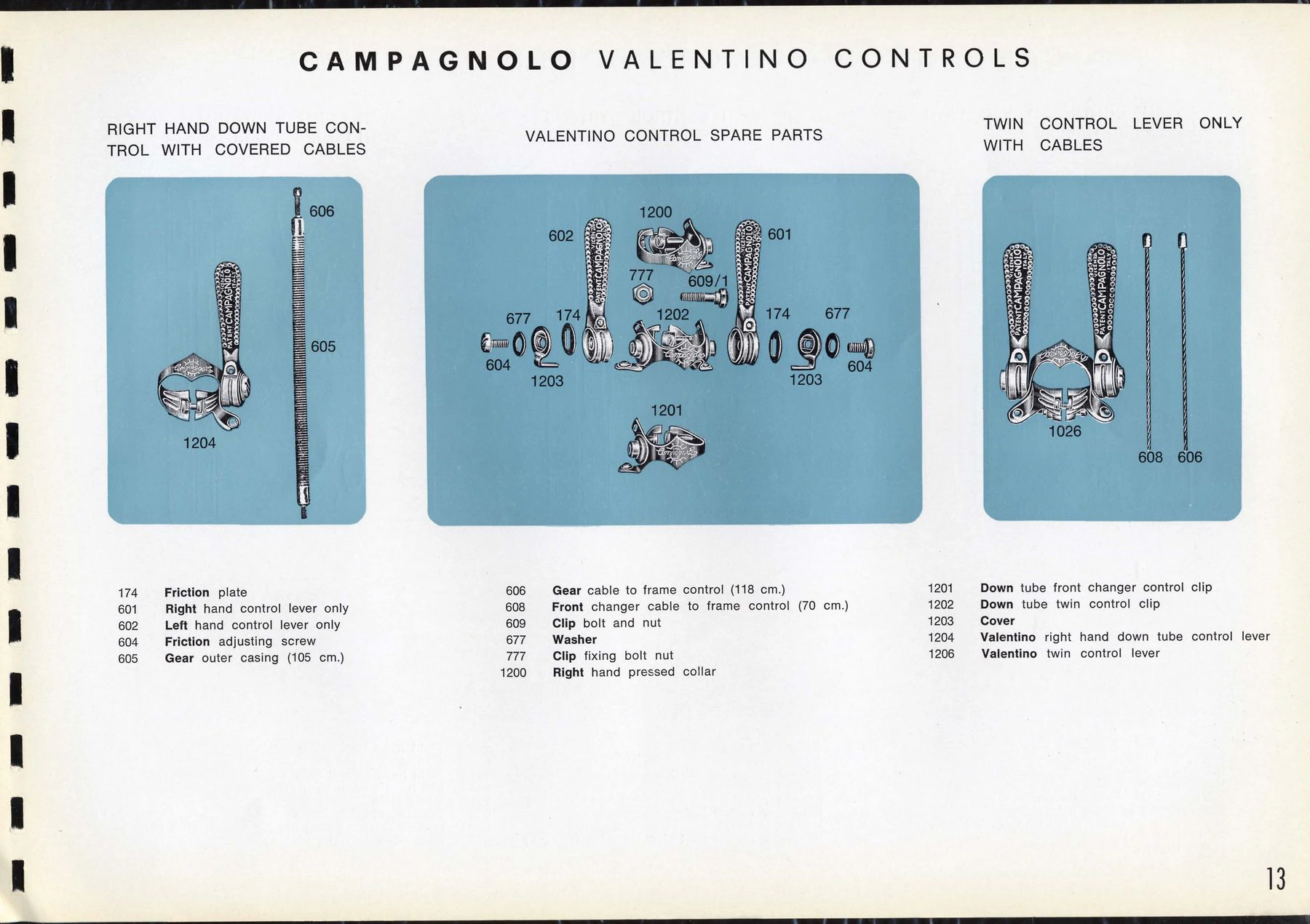

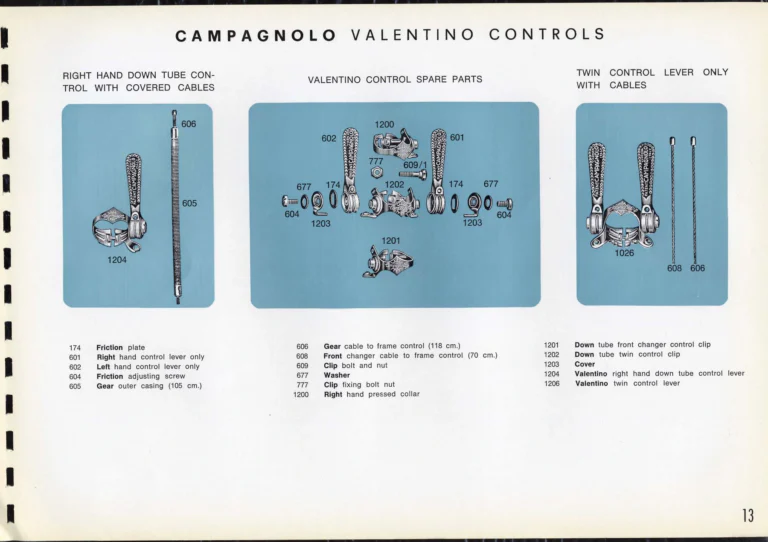

CAMPAGNOLO VALENTINO CONTROLS

RIGHT HAND DOWN TUBE CONTROL WITH COVERED CABLES

Callouts: 606 605 1204

VALENTINO CONTROL SPARE PARTS

Callouts: 1200 602 601 777 609/1 677 174 1202 174 677 604 1203 1203 604 1201

TWIN CONTROL LEVER ONLY WITH CABLES

Callouts: 1026 608 606

174 Friction plate
601 Right hand control lever only
602 Left hand control lever only
604 Friction adjusting screw
605 Gear outer casing (105 cm.)
606 Gear cable to frame control (118 cm.)
608 Front changer cable to frame control (70 cm.)
609 Clip bolt and nut
677 Washer
777 Clip fixing bolt nut
1200 Right hand pressed collar
1201 Down tube front changer control clip
1202 Down tube twin control clip
1203 Cover
1204 Valentino right hand down tube control lever
1206 Valentino twin control lever

13

[Campagnolo Valentino down tube shift levers on three blue panels: a right hand lever with its covered cable, an exploded view of the levers, clips, covers, washers and screws, and a twin lever with two bare cables. Every part is numbered and keyed to a parts list below.]

— Page 16 —

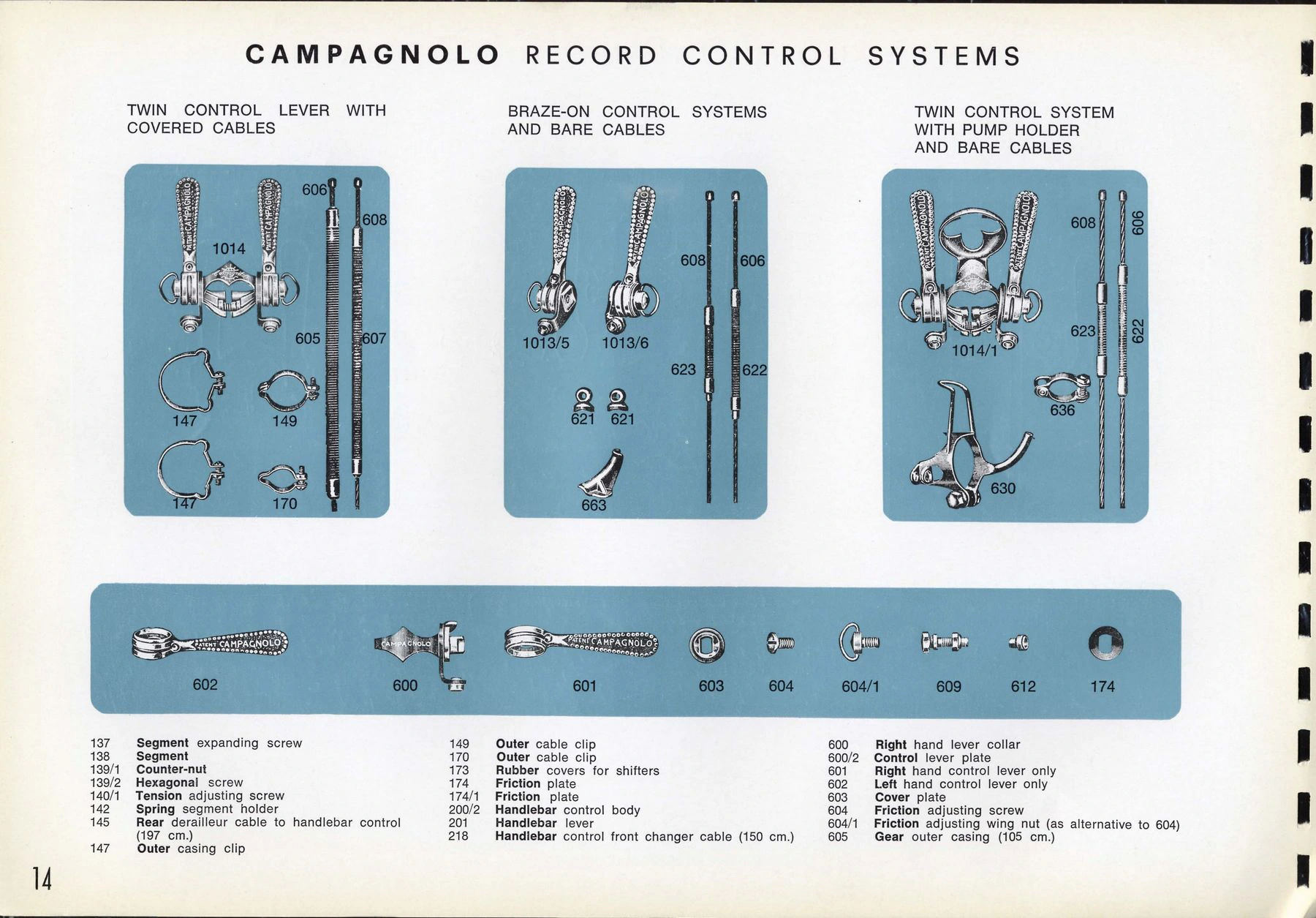

CAMPAGNOLO RECORD CONTROL SYSTEMS

TWIN CONTROL LEVER WITH COVERED CABLES

Callouts: 606 608 1014 605 607 147 149 147 170

BRAZE-ON CONTROL SYSTEMS AND BARE CABLES

Callouts: 608 606 1013/5 1013/6 623 622 621 621 663

TWIN CONTROL SYSTEM WITH PUMP HOLDER AND BARE CABLES

Callouts: 608 606 623 622 1014/1 636 630

Callouts: 602 600 601 603 604 604/1 609 612 174

137 Segment expanding screw
138 Segment
139/1 Counter-nut
139/2 Hexagonal screw
140/1 Tension adjusting screw
142 Spring segment holder
145 Rear derailleur cable to handlebar control (197 cm.)
147 Outer casing clip
149 Outer cable clip
170 Outer cable clip
173 Rubber covers for shifters
174 Friction plate
174/1 Friction plate
200/2 Handlebar control body
201 Handlebar lever
218 Handlebar control front changer cable (150 cm.)
600 Right hand lever collar
600/2 Control lever plate
601 Right hand control lever only
602 Left hand control lever only
603 Cover plate
604 Friction adjusting screw
604/1 Friction adjusting wing nut (as alternative to 604)
605 Gear outer casing (105 cm.)

14

[Campagnolo Record shift levers on blue panels: twin down tube levers with covered cables and casing clips, braze-on levers with bare cables and cable stops, and twin levers on a clip with a pump holder. A strip below shows the separate lever parts, and the parts list, which continues on the facing page, is numbered from 137 to 605.]

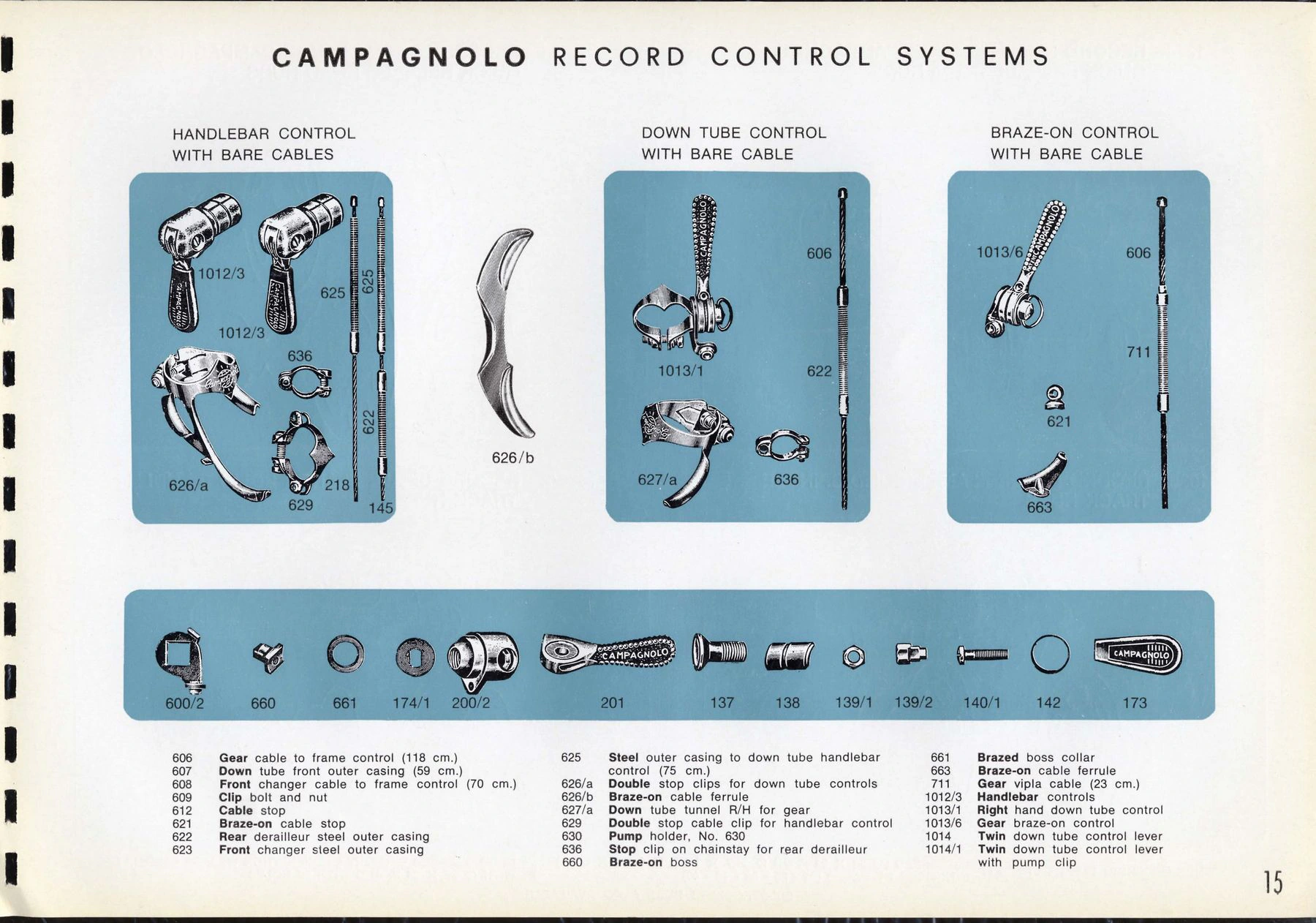

— Page 17 —
CAMPAGNOLO RECORD CONTROL SYSTEMS

HANDLEBAR CONTROL WITH BARE CABLES

Callouts: 1012/3 625 625 1012/3 636 622 626/a 218 629 145

Callouts: 626/b

DOWN TUBE CONTROL WITH BARE CABLE

Callouts: 606 1013/1 622 627/a 636

BRAZE-ON CONTROL WITH BARE CABLE

Callouts: 1013/6 606 711 621 663

Callouts: 600/2 660 661 174/1 200/2 201 137 138 139/1 139/2 140/1 142 173

606 Gear cable to frame control (118 cm.)
607 Down tube front outer casing (59 cm.)
608 Front changer cable to frame control (70 cm.)
609 Clip bolt and nut
612 Cable stop
621 Braze-on cable stop
622 Rear derailleur steel outer casing
623 Front changer steel outer casing
625 Steel outer casing to down tube handlebar control (75 cm.)
626/a Double stop clips for down tube controls
626/b Braze-on cable ferrule
627/a Down tube tunnel R/H for gear
629 Double stop cable clip for handlebar control
630 Pump holder, No. 630
636 Stop clip on chainstay for rear derailleur
660 Braze-on boss
661 Brazed boss collar
663 Braze-on cable ferrule
711 Gear vipla cable (23 cm.)
1012/3 Handlebar controls
1013/1 Right hand down tube control
1013/6 Gear braze-on control
1014 Twin down tube control lever
1014/1 Twin down tube control lever with pump clip

15

[Campagnolo Record shift controls on blue panels: handlebar end controls with bare cables, outer casings, cable guide and clips, a right hand down tube lever, and a braze-on lever with cable stops, beside a separate cable guide, 626/b. A strip below shows the handlebar control parts and lever parts, and the parts list continues from the facing page.]

— Page 18 —

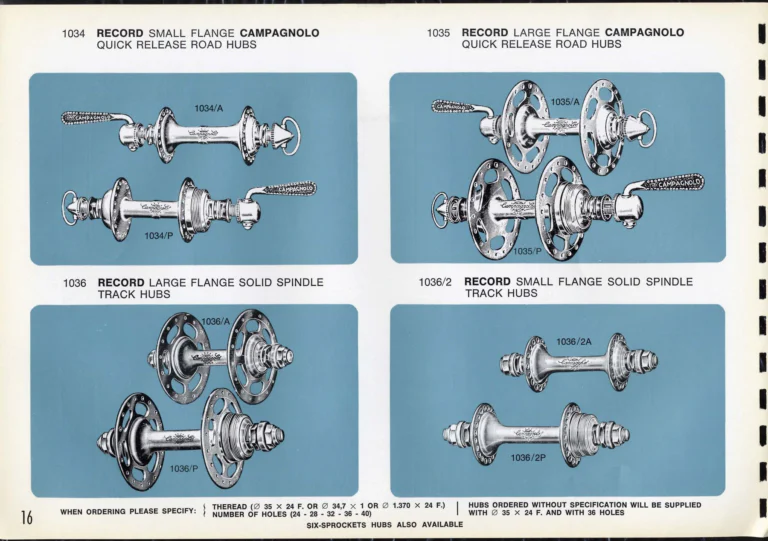

1034 RECORD SMALL FLANGE CAMPAGNOLO QUICK RELEASE ROAD HUBS

Callouts: 1034/A 1034/P

1035 RECORD LARGE FLANGE CAMPAGNOLO QUICK RELEASE ROAD HUBS

Callouts: 1035/A 1035/P

1036 RECORD LARGE FLANGE SOLID SPINDLE TRACK HUBS

Callouts: 1036/A 1036/P

1036/2 RECORD SMALL FLANGE SOLID SPINDLE TRACK HUBS

Callouts: 1036/2A 1036/2P

WHEN ORDERING PLEASE SPECIFY:
THEREAD (Ø 35 × 24 F. OR Ø 34,7 × 1 OR Ø 1.370 × 24 F.)
NUMBER OF HOLES (24 – 28 – 32 – 36 – 40)

HUBS ORDERED WITHOUT SPECIFICATION WILL BE SUPPLIED WITH Ø 35 × 24 F. AND WITH 36 HOLES

SIX-SPROCKETS HUBS ALSO AVAILABLE

16

[Photographs of four pairs of Campagnolo Record hubs on blue panels: small flange and large flange quick release road hubs, 1034 and 1035, and large flange and small flange solid spindle track hubs, 1036 and 1036/2, each pair shown as front and rear. A note at the foot gives the thread and spoke hole options to specify when ordering.]

— Page 19 —

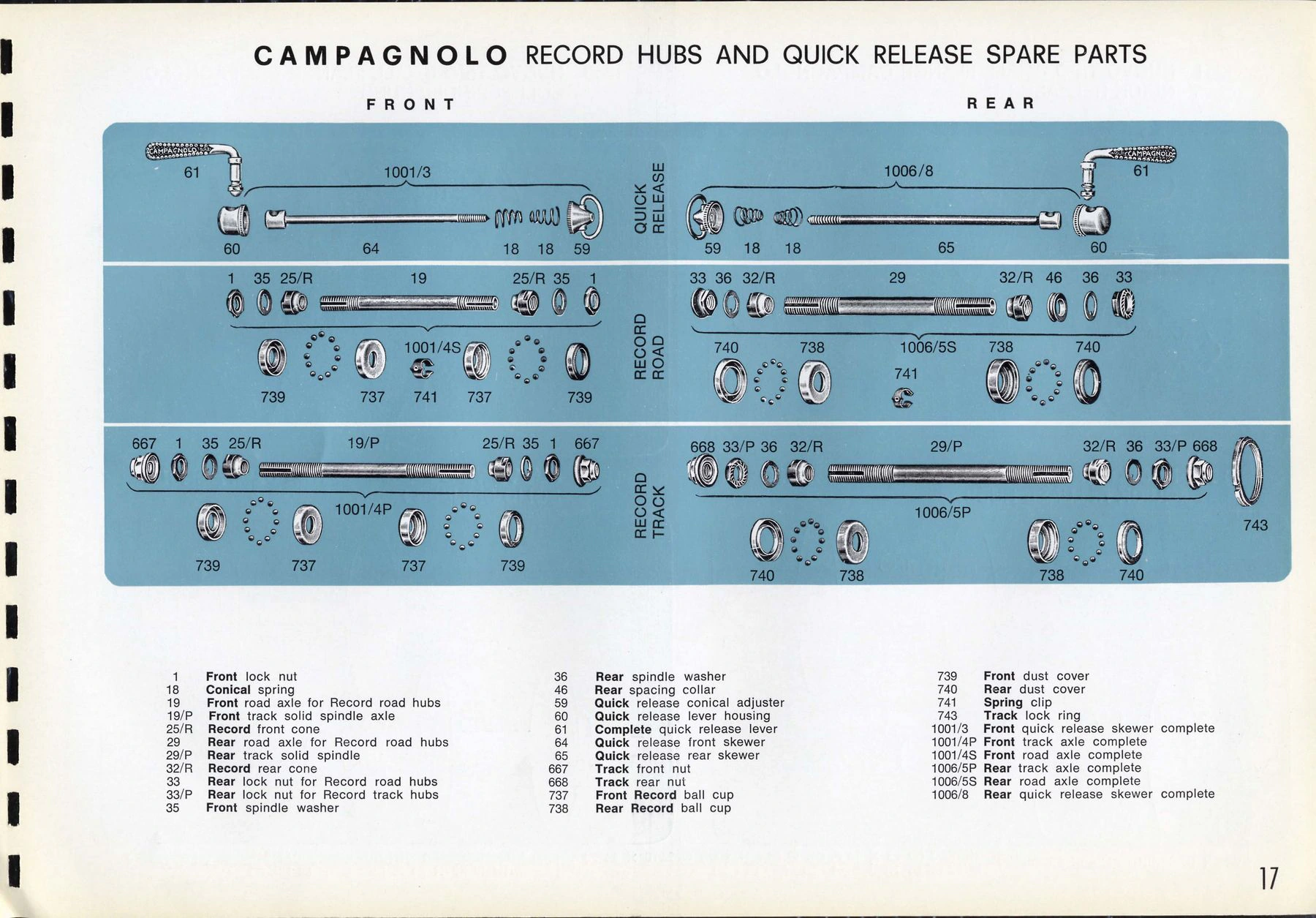

CAMPAGNOLO RECORD HUBS AND QUICK RELEASE SPARE PARTS

FRONT

REAR

QUICK RELEASE

RECORD ROAD

RECORD TRACK

Callouts: 61 1001/3 60 64 18 18 59 1 35 25/R 19 25/R 35 1 1001/4S 739 737 741 737 739 667 1 35 25/R 19/P 25/R 35 1 667 1001/4P 739 737 737 739 1006/8 61 59 18 18 65 60 33 36 32/R 29 32/R 46 36 33 740 738 1006/5S 738 740 741 668 33/P 36 32/R 29/P 32/R 36 33/P 668 1006/5P 743 740 738 738 740

1 Front lock nut
18 Conical spring
19 Front road axle for Record road hubs
19/P Front track solid spindle axle
25/R Record front cone
29 Rear road axle for Record road hubs
29/P Rear track solid spindle
32/R Record rear cone
33 Rear lock nut for Record road hubs
33/P Rear lock nut for Record track hubs
35 Front spindle washer
36 Rear spindle washer
46 Rear spacing collar
59 Quick release conical adjuster
60 Quick release lever housing
61 Complete quick release lever
64 Quick release front skewer
65 Quick release rear skewer
667 Track front nut
668 Track rear nut
737 Front Record ball cup
738 Rear Record ball cup
739 Front dust cover
740 Rear dust cover
741 Spring clip
743 Track lock ring
1001/3 Front quick release skewer complete
1001/4P Front track axle complete
1001/4S Front road axle complete
1006/5P Rear track axle complete
1006/5S Rear road axle complete
1006/8 Rear quick release skewer complete

17

[Exploded drawings of the Campagnolo Record hub axles and quick release skewers, front on the left and rear on the right, in three blue bands for the quick release, the Record road axle and the Record track axle, with every part numbered and keyed to a parts list. The quick release levers carry the Campagnolo name on their handles.]

— Page 20 —
1251 NUOVO TIPO SMALL FLANGE CAMPAGNOLO QUICK RELEASE HUBS

Callouts: 1264 1265

1250 NUOVO TIPO SMALL FLANGE CAMPAGNOLO SOLID SPINDLE HUBS

Callouts: 1260 1261

1253 NUOVO TIPO LARGE FLANGE CAMPAGNOLO QUICK RELEASE HUBS

Callouts: 1266 1267

1252 NUOVO TIPO LARGE FLANGE CAMPAGNOLO SOLID SPINDLE HUBS

Callouts: 1262 1263

WHEN ORDERING PLEASE SPECIFY: THREAD (Ø 35 × 24 F. OR Ø 34,7 × 1 OR Ø 1.370 × 24 F.) NUMBER OF HOLES (24 – 28 – 32 – 36 – 40)

HUBS ORDERED WITHOUT SPECIFICATION WILL BE SUPPLIED WITH Ø 35 × 24 F. AND WITH 36 HOLES

18

[Photographs of four pairs of Campagnolo Nuovo Tipo hubs on blue panels: the small flange quick release hubs 1251, the small flange solid spindle hubs 1250, the large flange quick release hubs 1253 and the large flange solid spindle hubs 1252, each pair with its front and rear hub numbered. The quick release levers carry “CAMPAGNOLO PATENT” on their handles; a line at the foot of the page gives the thread and spoke-hole options to specify when ordering.]

— Page 21 —
CAMPAGNOLO NUOVO TIPO AND QUICK RELEASE SPARE PARTS

FRONT

REAR

QUICK RELEASE

NUOVO TIPO WITH QUICK RELEASE

NUOVO TIPO WITH SPINDLE

Callouts: 1310 1302 1304 1305 1309 1307 1301 18 1303 1 35 25 19 25 35 1 1001/4 1272 1270 1270 1272 1282 1289 1280 1289 1282 1278 1278 1254 1272 1270 1270 1272 1311 1302 1307 1309 1306 1304 1301 18 1303 1283 36 46 32 29 32 36 1283 1283/a 1256 1273 1271 1271 1273 1284 1285 1281 1279 1284/a 1279 1290 1290 1284 1255 1273 1271 1271 1273

1 Front lock nut
18 Conical spring
19 Front road axle for Record road hubs
25 Front Record cone
29 Rear road axle
32 Rear Record cone
35 Front spindle washer
36 Rear spindle washer
46 Rear spacing collar
1001/4 Complete front hollow spindle for Nuovo Tipo hubs
1254 Complete rear solid spindle for Nuovo Tipo hubs
1255 Complete rear solid spindle for Nuovo Tipo hubs
1256 Complete rear hollow spindle for Nuovo Tipo hubs
1270 Front inserted race
1271 Rear inserted race
1272 Front dust cap
1273 Rear dust cap
1278 Spindle front washer
1279 Spindle rear washer
1280 Front spindle
1281 Rear spindle
1282 Front locknut
1283 Rear locknut
1283/a Rear spacer nut
1284 Rear locknuts
1284/a Spindle special bolt
1285 Large spacing collar
1286 Small spacing collar
1289 Front spindle cone
1290 Rear spindle cone
1301 Chrome cam cap
1302 Quick release lever
1303 Circlip for lever
1304 Conical spring
1305 Front skewer
1306 Rear skewer
1307 Knurled adjusting nut
1309 Washer for skewer
1310 Nuovo Tipo front quick release skewer
1311 Nuovo Tipo rear quick release skewer

19

[Exploded drawings of the Campagnolo Nuovo Tipo hub axles and quick release skewers, front on the left and rear on the right, in three blue bands for the quick release, the Nuovo Tipo axle with quick release and the Nuovo Tipo axle with solid spindle, with every part numbered and keyed to a parts list. The quick release levers carry the Campagnolo name on their handles.]

— Page 22 —
1048 – RECORD CHAINWHEEL SET – ROAD BOTTOM BRACKET

SPARE PARTS

Callouts: 1049 1046/a 2100

Callouts: 754 755 752 751 Teething profile 2110/1 753 756 2110 744/a 749 748 747 746/a 745/a

1046/a Cotterless Nuovo Record bottom bracket (unless otherwise requested it will be supplied with 70-SS-120 spindle and 36 × 24 F. cups)
1049 Road chainwheel set (unless otherwise requested the set will be supplied with 170 mm. cranks and with 47-50 teeth chainrings for 1/2″ × 3/32″ chain)

CRANKS: LENGTH 165 – 167.5 – 170 – 172.5 – 175 – 177.5 – 180mm.
CHAINRINGS: FOR 1/2″ CHAIN – FROM 42 TO 57 TEETH

For sizes and details of the Nuovo Record bottom bracket see page No. 25.

744/a Cotterless road spindle
745/a Fixed cup
746/a Adjustable cup
747 Lock ring
748 Fixing screw
749 Fixing washer
2110 Record sleeve
2110/1 Cone for Record sleeve
751 Road right hand crank (complete with cover No. 756) – please specify length
752 Road left hand crank (complete with cover No. 756) – please specify length
753 Road chainring for 1/2″ × 3/32″ (2 mm.) chain. Please specify number of teeth.
754 Road chainwheel fastening screw
755 Road chainwheel fastening nut
756 Crank cover plate

20

[Photographs of the Campagnolo Record road chainwheel set 1048: on the left the assembled cranks and double chainwheel 1049 with the Nuovo Record bottom bracket 1046/a and a ball retainer 2100, and on the right the spare parts laid out separately, including the five-arm right crank, a chainring with an inset diagram of its teething profile, the spindle, cups, lock ring, sleeve, fixing bolts and crank cover. The parts carry “PATENT CAMPAGNOLO” markings.]

— Page 23 —

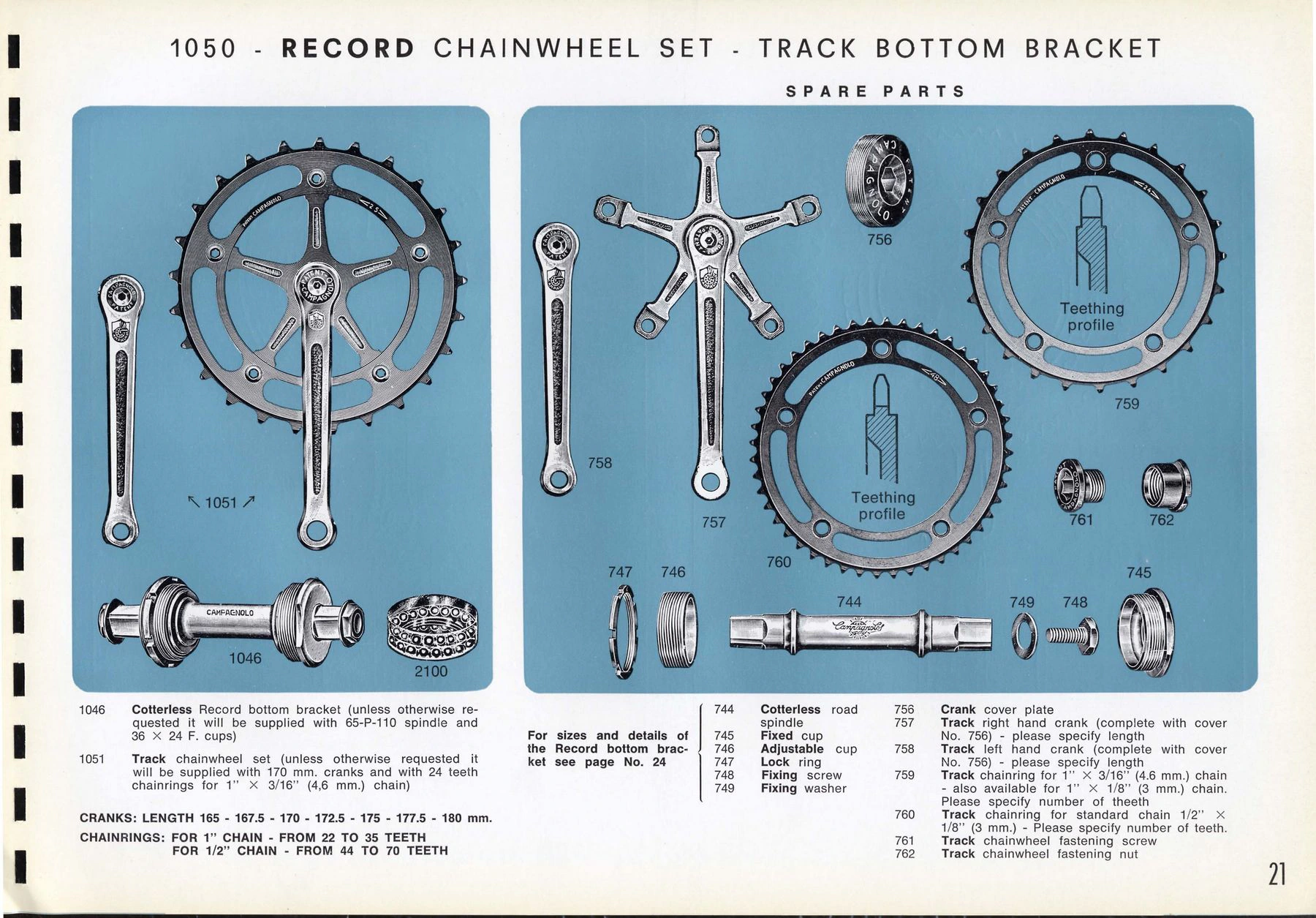

1050 – RECORD CHAINWHEEL SET – TRACK BOTTOM BRACKET

SPARE PARTS

Callouts: 1051 1046 2100

Callouts: 756 Teething profile 759 758 Teething profile 761 762 757 760 747 746 745 744 749 748

1046 Cotterless Record bottom bracket (unless otherwise requested it will be supplied with 65-P-110 spindle and 36 × 24 F. cups)
1051 Track chainwheel set (unless otherwise requested it will be supplied with 170 mm. cranks and with 24 teeth chainrings for 1″ × 3/16″ (4,6 mm.) chain)

CRANKS: LENGTH 165 – 167.5 – 170 – 172.5 – 175 – 177.5 – 180 mm.
CHAINRINGS: FOR 1″ CHAIN – FROM 22 TO 35 TEETH
FOR 1/2″ CHAIN – FROM 44 TO 70 TEETH

For sizes and details of the Record bottom bracket see page No. 24

744 Cotterless road spindle
745 Fixed cup
746 Adjustable cup
747 Lock ring
748 Fixing screw
749 Fixing washer
756 Crank cover plate
757 Track right hand crank (complete with cover No. 756) – please specify length
758 Track left hand crank (complete with cover No. 756) – please specify length
759 Track chainring for 1″ × 3/16″ (4.6 mm.) chain – also available for 1″ × 1/8″ (3 mm.) chain. Please specify number of theeth
760 Track chainring for standard chain 1/2″ × 1/8″ (3 mm.) – Please specify number of teeth.
761 Track chainwheel fastening screw
762 Track chainwheel fastening nut

21

[Photographs of the Campagnolo Record track chainwheel set 1050: on the left the assembled cranks and single chainwheel 1051 for 1 inch pitch chain with the Record bottom bracket 1046 and a ball retainer 2100, and on the right the spare parts laid out separately, including the five-arm right crank, two chainrings each with an inset diagram of its teething profile, the spindle, cups, lock ring, fixing bolt and crank cover. The parts carry “PATENT CAMPAGNOLO” markings.]

— Page 24 —
CAMPAGNOLO ROAD SPECIAL CHAINWHEEL SETS

RIGHT HAND CRANK WITH TRIPLE CHAINRING

Callouts: 831 832 830 753 753 753 751

751 Road right hand crank (complete with cover No. 756) Please specify lenght
753 Chainring for 1/2″ × 3/32″ chain (2 mm.) Please specify number of teeth
830 Triple chainring fixing bolt
831 Nut for bolt No. 830
832 Triple chainring spacer

CYCLOCROSS RIGHT HAND FLANGED CRANK

Callouts: 831 832 830 753/1 Inn. 723 753/1 Out. 751

751 Road right hand crank (complete with cover N. 756) Please specify length
753 Chainring for 1/2″ × 3/32″ chain (2 mm.) Please specify number of teeth
753/1 Cycloross inner flange
753/1 Cyclocross outer flange
830 Triple chainring fixing bolt
831 Nut for bolt No. 830
832 Triple chainring spacer

22

[Photographs of two Campagnolo road special chainwheel sets: a right hand crank with a triple chainring and a cyclocross right hand crank with a single chainring between inner and outer guard flanges. Below each photograph a sectional diagram shows how the chainrings, spacer, flanges, bolt and nut stack on the crank spider, with each part numbered and keyed to a parts list.]

— Page 25 —

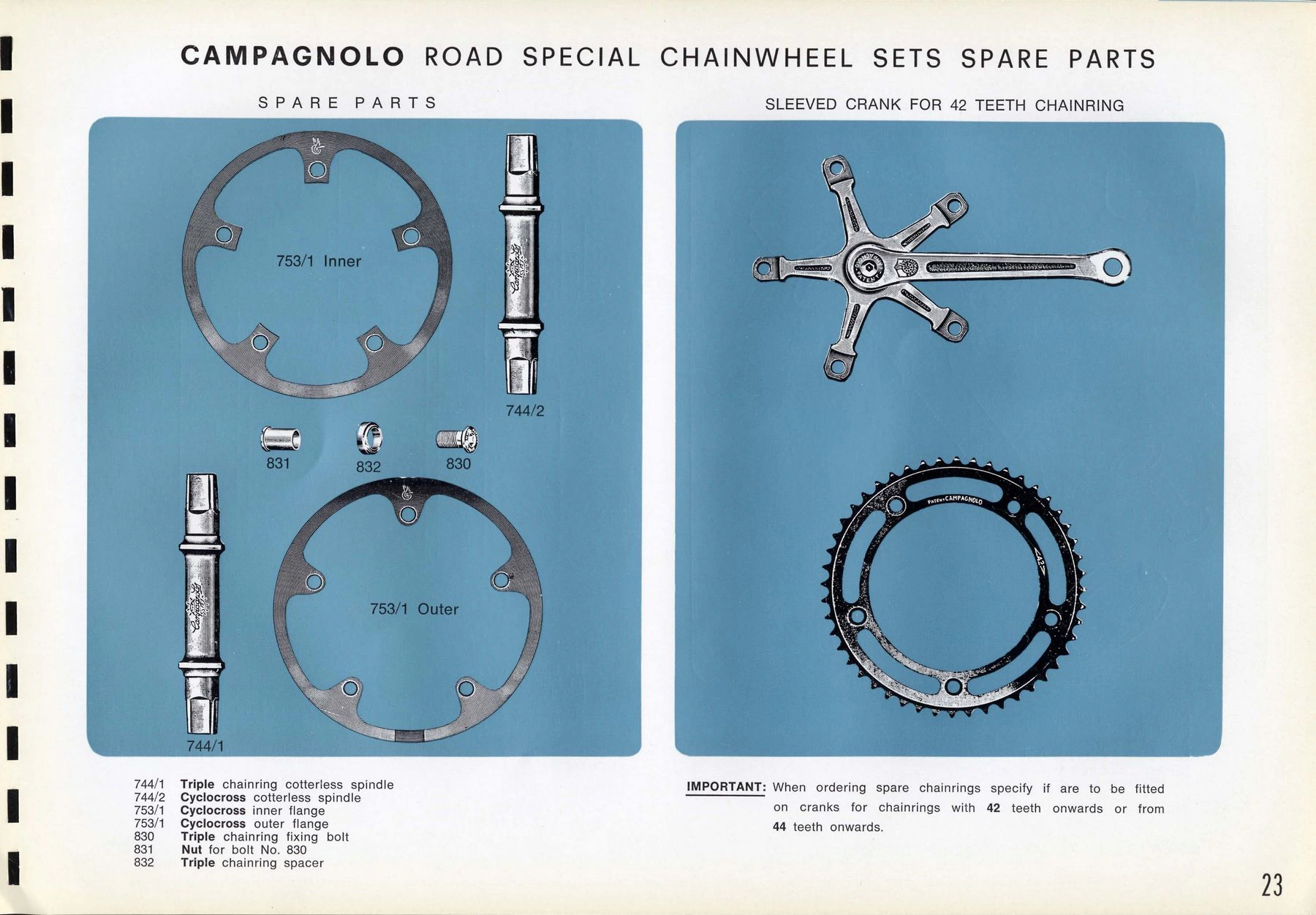

CAMPAGNOLO ROAD SPECIAL CHAINWHEEL SETS SPARE PARTS

SPARE PARTS

Callouts: 753/1 Inner 744/2 831 832 830 753/1 Outer 744/1

744/1 Triple chainring cotterless spindle
744/2 Cyclocross cotterless spindle
753/1 Cyclocross inner flange
753/1 Cyclocross outer flange
830 Triple chainring fixing bolt
831 Nut for bolt No. 830
832 Triple chainring spacer

SLEEVED CRANK FOR 42 TEETH CHAINRING

IMPORTANT: When ordering spare chainrings specify if are to be fitted on cranks for chainrings with 42 teeth onwards or from 44 teeth onwards.

23

[Photographs of spare parts for the Campagnolo road special chainwheel sets on the left: the cyclocross inner and outer guard flanges 753/1, the triple chainring and cyclocross cotterless spindles 744/1 and 744/2, and the triple chainring bolt, nut and spacer. On the right a sleeved five-arm right crank and a 42 tooth chainring marked “PATENT CAMPAGNOLO” are shown separately.]

— Page 26 —

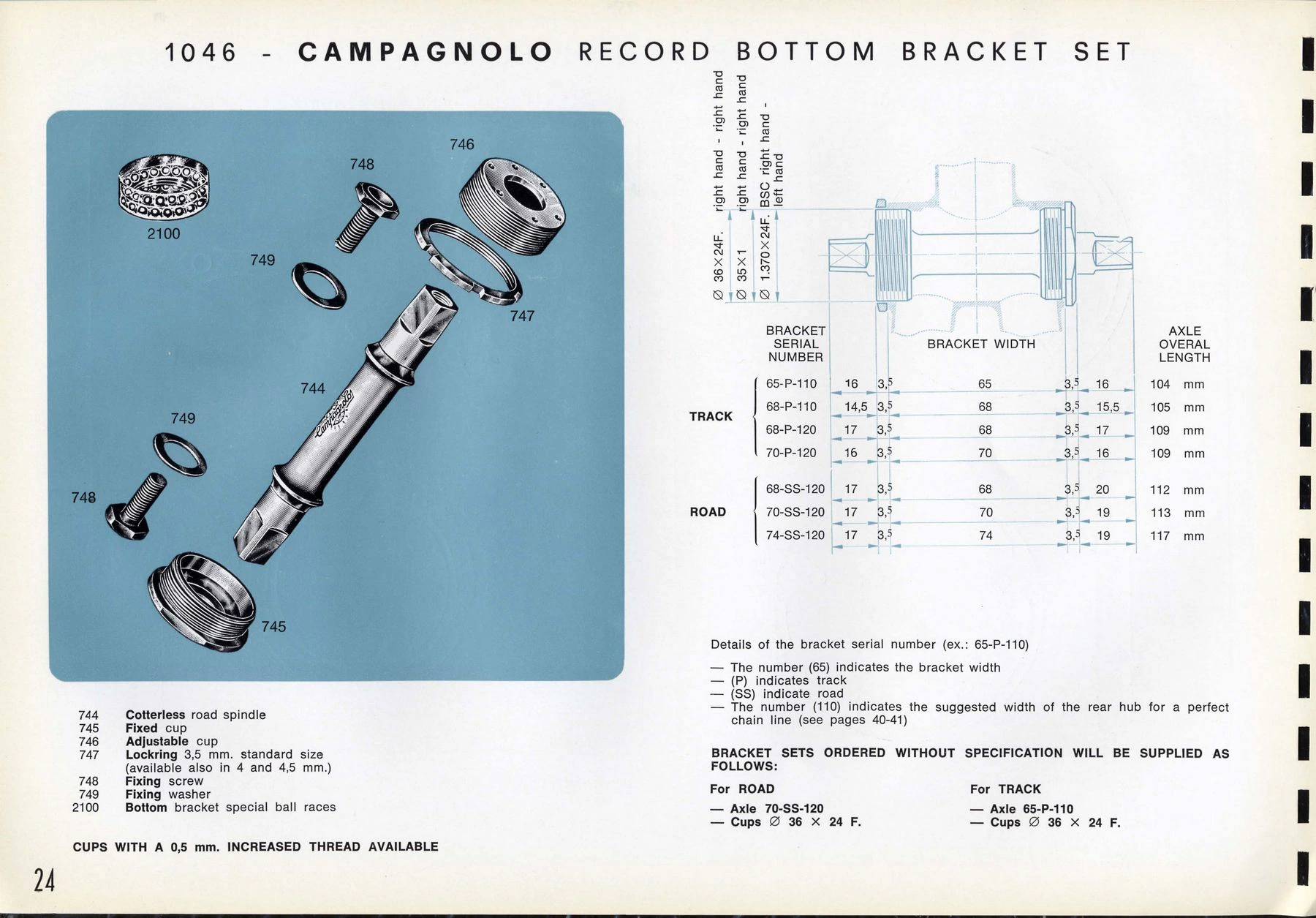

1046 – CAMPAGNOLO RECORD BOTTOM BRACKET SET

Callouts: 746 748 2100 749 747 744 749 748 745

Ø 36×24F. right hand – right hand
Ø 35×1 right hand – right hand
Ø 1.370×24F. BSC right hand – left hand

| BRACKET SERIAL NUMBER | | | BRACKET WIDTH | | | AXLE OVERAL LENGTH
TRACK | 65-P-110 | 16 | 3,5 | 65 | 3,5 | 16 | 104 mm
TRACK | 68-P-110 | 14,5 | 3,5 | 68 | 3,5 | 15,5 | 105 mm
TRACK | 68-P-120 | 17 | 3,5 | 68 | 3,5 | 17 | 109 mm
TRACK | 70-P-120 | 16 | 3,5 | 70 | 3,5 | 16 | 109 mm
ROAD | 68-SS-120 | 17 | 3,5 | 68 | 3,5 | 20 | 112 mm
ROAD | 70-SS-120 | 17 | 3,5 | 70 | 3,5 | 19 | 113 mm
ROAD | 74-SS-120 | 17 | 3,5 | 74 | 3,5 | 19 | 117 mm

744 Cotterless road spindle
745 Fixed cup
746 Adjustable cup
747 Lockring 3,5 mm. standard size (available also in 4 and 4,5 mm.)
748 Fixing screw
749 Fixing washer
2100 Bottom bracket special ball races

CUPS WITH A 0,5 mm. INCREASED THREAD AVAILABLE

Details of the bracket serial number (ex.: 65-P-110)

— The number (65) indicates the bracket width
— (P) indicates track
— (SS) indicate road
— The number (110) indicates the suggested width of the rear hub for a perfect chain line (see pages 40-41)

BRACKET SETS ORDERED WITHOUT SPECIFICATION WILL BE SUPPLIED AS FOLLOWS:

For ROAD
— Axle 70-SS-120
— Cups Ø 36 × 24 F.

For TRACK
— Axle 65-P-110
— Cups Ø 36 × 24 F.

24

[An exploded photograph of the Campagnolo Record bottom bracket set 1046, showing the cotterless spindle, fixed and adjustable cups, lockring, fixing screws and washers and the ball races, with each part numbered and keyed to a parts list. A line drawing of the assembled bracket in a shell gives the three cup thread standards, and a dimension table lists the track and road spindles by bracket serial number with their bracket widths and axle lengths in millimeters.]

— Page 27 —

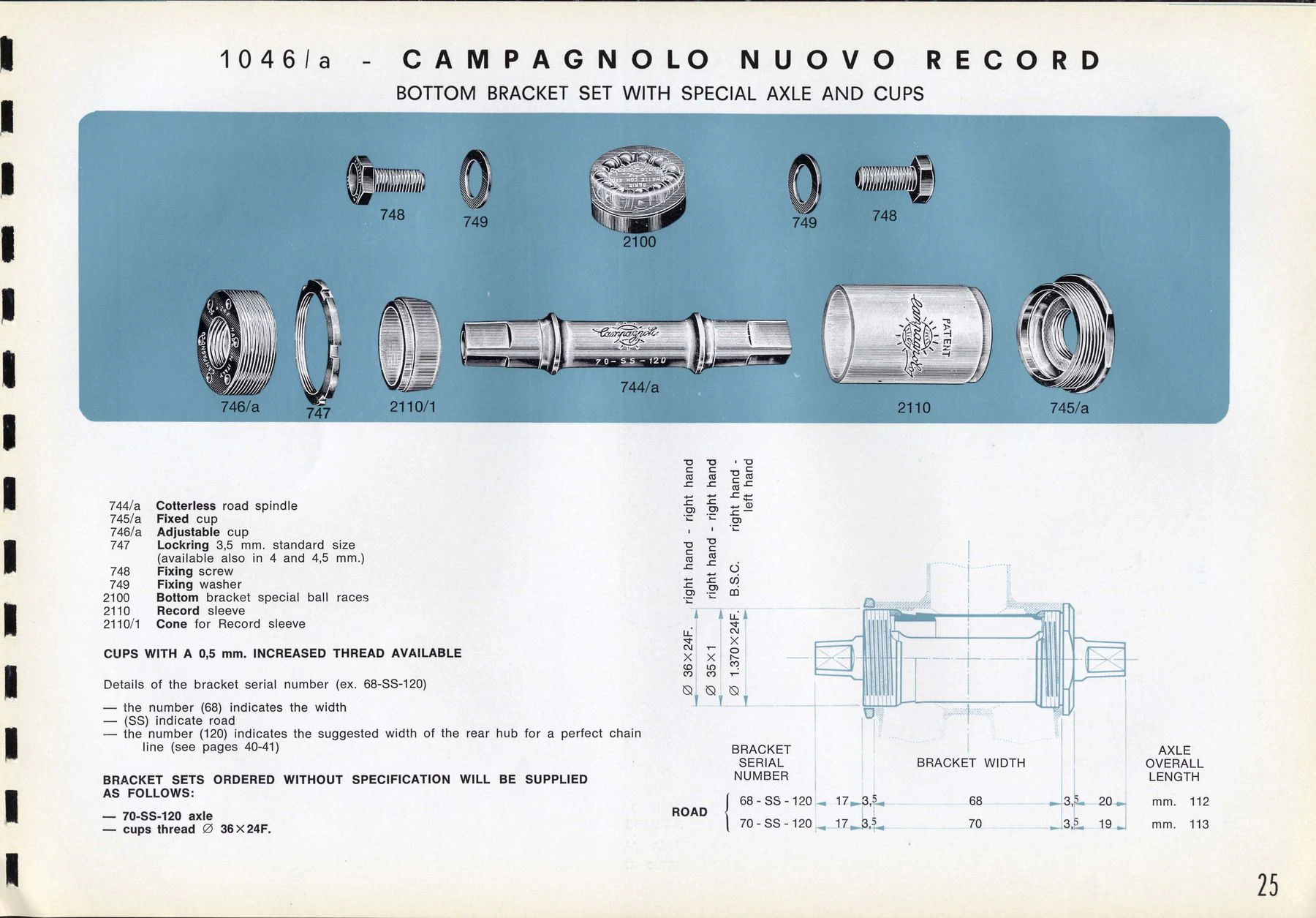

1046/a – CAMPAGNOLO NUOVO RECORD

BOTTOM BRACKET SET WITH SPECIAL AXLE AND CUPS

Callouts: 748 749 2100 749 748 746/a 747 2110/1 744/a 2110 745/a

744/a Cotterless road spindle
745/a Fixed cup
746/a Adjustable cup
747 Lockring 3,5 mm. standard size (available also in 4 and 4,5 mm.)
748 Fixing screw
749 Fixing washer
2100 Bottom bracket special ball races
2110 Record sleeve
2110/1 Cone for Record sleeve

CUPS WITH A 0,5 mm. INCREASED THREAD AVAILABLE

Details of the bracket serial number (ex. 68-SS-120)

— the number (68) indicates the width
— (SS) indicate road
— the number (120) indicates the suggested width of the rear hub for a perfect chain line (see pages 40-41)

BRACKET SETS ORDERED WITHOUT SPECIFICATION WILL BE SUPPLIED AS FOLLOWS:

— 70-SS-120 axle
— cups thread Ø 36×24F.

Ø 36×24F. right hand – right hand
Ø 35×1 right hand – right hand
Ø 1.370×24F. B.S.C. right hand – left hand

| BRACKET SERIAL NUMBER | | | BRACKET WIDTH | | | AXLE OVERALL LENGTH
ROAD | 68 – SS – 120 | 17 | 3,5 | 68 | 3,5 | 20 | mm. 112
ROAD | 70 – SS – 120 | 17 | 3,5 | 70 | 3,5 | 19 | mm. 113

25

[An exploded photograph of the Campagnolo Nuovo Record bottom bracket set 1046/a with special axle and cups, showing the cotterless spindle marked 70-SS-120, the fixed and adjustable cups, lockring, the Record sleeve and its cone, the ball races and the fixing screws and washers, each numbered and keyed to a parts list. A line drawing of the assembled bracket gives the three cup thread standards, and a dimension table lists the two road spindles by bracket serial number with their widths and axle lengths in millimeters.]

— Page 28 —
CAMPAGNOLO RECORD HEADSET

1039 ROAD TYPE

1040 TRACK TYPE

Callouts: 681 682 683 2101 684 685 686 693/1 681 682 687 2102 688 689 690

681 Locking nut
682 Locking washer
683 Screwed race
684 Top head race (0,5 mm. larger gauge available)
685 Botton head race (0,5 mm. larger gauge available)
686 Crown race (smaller diameter available)
693/1 Steerer
2101 Road headset special ball races

681 Locking nut
682 Locking washer
687 Track screwed race
688 Top head race (0,5 mm. larger gauge available)
689 Bottom head race (0,5 mm. larger gauge available)
690 Crown race (smaller diameter available)
2102 Track headset speciall ball races

HEADSET ORDERED WITHOUT SPECIFICATION WILL BE SUPPLIED WITH Ø 25.4 × 24F. THREAD
HEADSETS WITH Ø 25 × 1 AND Ø 1″ × 24 T.P.I. B.S.C. THREADS AVAILABLE

CAMPAGNOLO HEADSETS ARE SUPPLIED COMPLETE WITH SPECIAL BALL RACES (Ø 3/16″ FOR ROAD AND Ø 5/32″ FOR TRACK)
STEERER AVAILABLE WITH THREAD Ø 25,4 × 24F. AND WITH LENGTHS 160-180-200-220-250-270 mm.

26

[Two exploded color photographs of the Campagnolo Record headsets, the 1039 road type and the 1040 track type, each part numbered on a blue panel and keyed to a parts list, with the 693/1 steerer shown between them. Below, notes give the standard and optional threads, the ball sizes and the steerer lengths; in the last note the lengths 200 and 220 are set in larger bold type.]

— Page 29 —

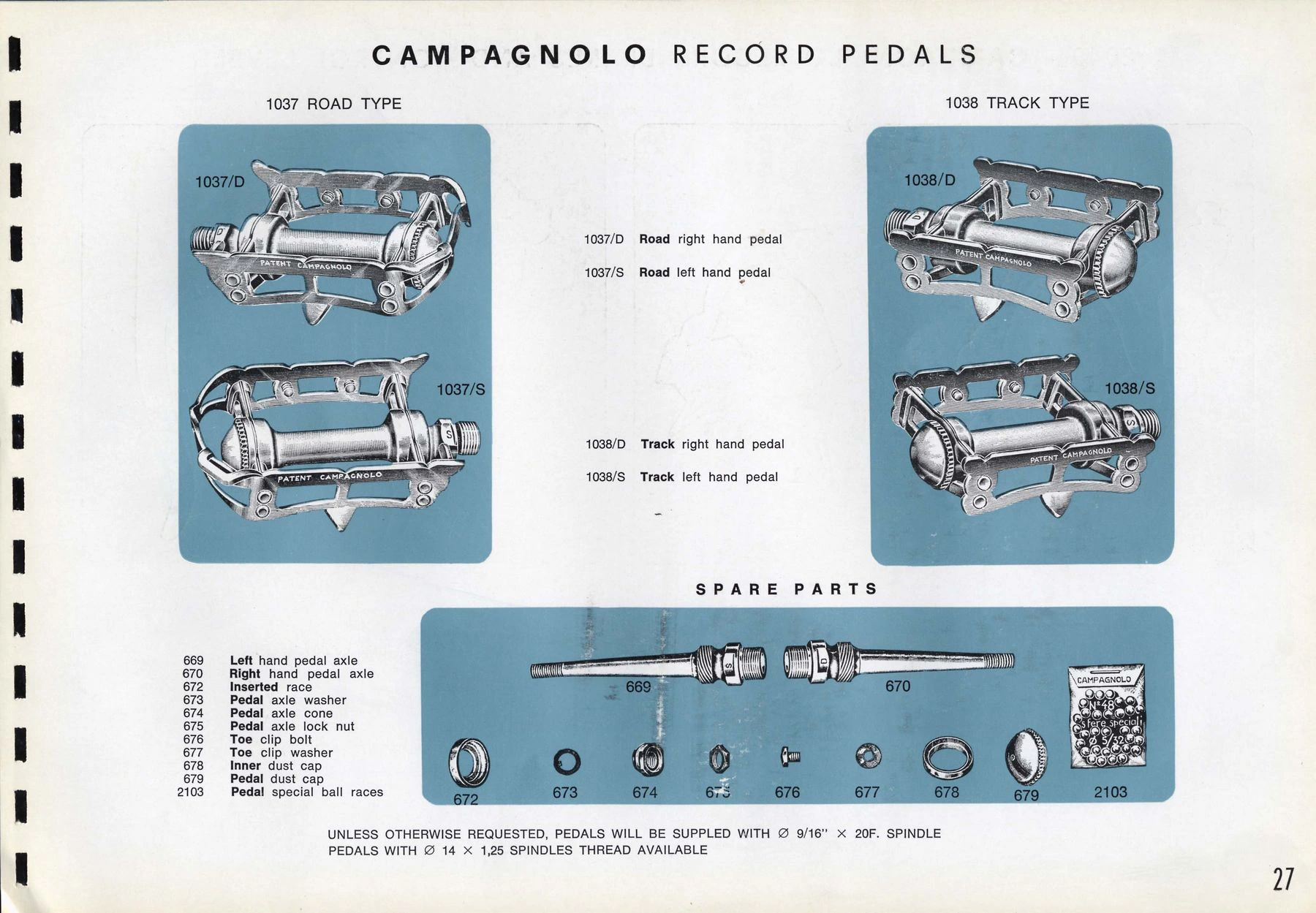

CAMPAGNOLO RECORD PEDALS

1037 ROAD TYPE

1038 TRACK TYPE

Callouts: 1037/D 1037/S 1038/D 1038/S

1037/D Road right hand pedal
1037/S Road left hand pedal

1038/D Track right hand pedal
1038/S Track left hand pedal

SPARE PARTS

Callouts: 669 670 672 673 674 675 676 677 678 679 2103

669 Left hand pedal axle
670 Right hand pedal axle
672 Inserted race
673 Pedal axle washer
674 Pedal axle cone
675 Pedal axle lock nut
676 Toe clip bolt
677 Toe clip washer
678 Inner dust cap
679 Pedal dust cap
2103 Pedal special ball races

UNLESS OTHERWISE REQUESTED, PEDALS WILL BE SUPPLED WITH Ø 9/16″ × 20F. SPINDLE
PEDALS WITH Ø 14 × 1,25 SPINDLES THREAD AVAILABLE

27

[Color photographs of the Campagnolo Record pedals, the 1037 road type and the 1038 track type, each shown as a right and a left pedal on a blue panel, with their spare parts laid out below in a numbered row keyed to a parts list. The spare parts include both pedal axles, the cones, washers and dust caps, the toe clip bolt and a packet of Campagnolo special ball races; the pedal cages carry the stamped words “PATENT CAMPAGNOLO”.]

— Page 30 —
2040 – CAMPAGNOLO RECORD BRAKES AND CONTROL LEVERS

Callouts: 2000 2001 2030

2000 Front brake
2001 Rear brake
2030 Brake quick release lever

IF REQUESTED OUTER CASINGS AND CABLES ARE FURNISHED INCREASED OF 6 cm (SEE NORMAL MEASURES AT PAGE 29)

28

[Color photographs of the Campagnolo Record brakes and control levers, 2040: the 2000 front and 2001 rear sidepull brakes on one blue panel and a pair of 2030 brake quick release levers on another. The lever hoods carry the Campagnolo script logo and the lever blades the word “CAMPAGNOLO”.]

— Page 31 —
CAMPAGNOLO RECORD BRAKES AND CONTROL SYSTEM SPARE PARTS

Callouts: 2039 2031 2033 2037 2036 2035 2034 2038 2032 2009 2024 2007 2015 2003 2002 2023 2012 2012/1 2020 2021 2015 2011 2016 2018 2013 2008 2004 2019 2017 2005 2006 2022 2003 2014/D 2014/S 2022 2003 2010 2010 2012/2 2028 2029 2026 2027

2002 Centre bolt fixing nut
2003 Brake shoe washer
2004 Clamp bolt washer
2005 Cam
2006 Quick release cam lever
2007 Adjusting nut
2008 Cable clamp bolt
2009 Adjusting screw
2010 Brake block
2011 Tension screw
2012 Front brake centre bolt
2012/1 Rear brake centre bolt
2012/2 Rear brake centre bolt
2013 Cable clamp
2014/D Right hand brake shoe
2014/S Left hand brake shoe
2015 Friction washer
2016 Domed nut
2017 Cam locking nut
2018 Locking nut
2019 Front stirrup
2020 Rear stirrup
2021 Serrated washer
2022 Brake shoe nut
2023 Concave washer
2024 Adjusting rubber
2026 Front brake outer cable (56 cm.)
2027 Rear brake outer cable (114 cm.)
2028 Front inner cable (68 cm.)
2029 Rear inner cable (126 cm.)

2031 Lever hood
2032 Lever
2033 Brake lever clip
2034 Lever pivot pin
2035 Cable nipple holder
2036 Grub screw
2037 Clamp nut
2038 Lever bush
2039 Rubber lever hood

29

[An exploded color photograph of the Campagnolo Record brakes and control system spare parts on a blue panel, with the brake lever and its hood and clip on the left and the sidepull brake stirrups, bolts, springs, brake shoes and cables on the right, every part numbered and keyed to a three-column parts list. The brake blocks carry the molded words “BREV. INTER”.]

— Page 32 —

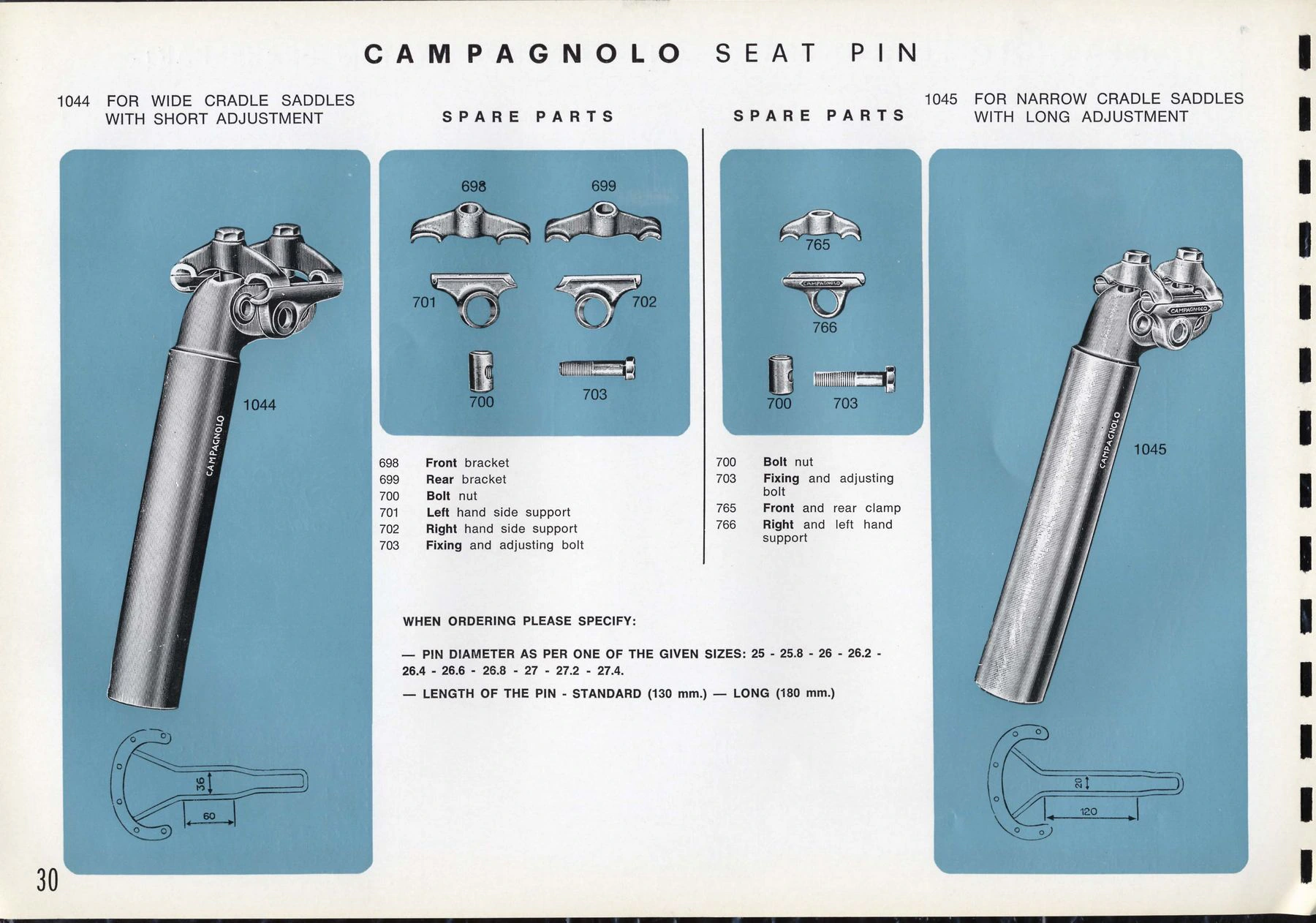

CAMPAGNOLO SEAT PIN

1044 FOR WIDE CRADLE SADDLES WITH SHORT ADJUSTMENT

Callouts: 1044 36 60

SPARE PARTS

Callouts: 698 699 701 702 700 703

698 Front bracket
699 Rear bracket
700 Bolt nut
701 Left hand side support
702 Right hand side support
703 Fixing and adjusting bolt

SPARE PARTS

Callouts: 765 766 700 703

700 Bolt nut
703 Fixing and adjusting bolt
765 Front and rear clamp
766 Right and left hand support

1045 FOR NARROW CRADLE SADDLES WITH LONG ADJUSTMENT

Callouts: 1045 20 120

WHEN ORDERING PLEASE SPECIFY:

— PIN DIAMETER AS PER ONE OF THE GIVEN SIZES: 25 – 25.8 – 26 – 26.2 – 26.4 – 26.6 – 26.8 – 27 – 27.2 – 27.4.

— LENGTH OF THE PIN – STANDARD (130 mm.) — LONG (180 mm.)

30

[Color photographs of the two Campagnolo seat pins, the 1044 for wide cradle saddles with short adjustment and the 1045 for narrow cradle saddles with long adjustment, each with a line drawing of the saddle frame it fits, dimensioned 36 by 60 and 20 by 120. Between them, two panels of spare parts are keyed to parts lists, above a note on the diameters and lengths to specify when ordering.]

— Page 33 —
OUTER AND INNER CABLES

Callouts: 145 146 218 219 605 606 607 608 622 623 624 625 711 619 620 652

145 Rear derailleur cable to handlebar control (197 cm.)
146 Rear derailleur outer casing to handlebar control (185 cm.)
218 Front changer cable to handlebar control (150 cm.)
219 Front changer outer casing to handlebar control (140 cm.)
605 Gear outer casing (105 cm.)
606 Gear cable to frame control (118 cm.)
607 Down tube front outer casing (59 cm.)
608 Front changer cable to frame control (70 cm.)
619 Outer casing ferrule
620 Spindled ferrule
622 Rear derailleur steel outer casing (21 cm.)
623 Front changer steel outer casing (15,5 cm.)
624 Chainstay outer casing (10 cm.)
625 Steel outer casing to down tube handlebar control (75 cm.)
652 Safety cable
711 Gear vipla outer casing (23 cm.)

CLIPS

Callouts: 147 148 149 170 627/a 626/a 628 629 630 631 647 632 633 636 648 649 659 171 172 215 217 609

147 Twin outer cable clip (28 mm. Ø)
148 Outer cable clip (28 mm. Ø)
149 Outer cable clip (22 mm. Ø)
170 Outer cable clip (13 mm. Ø)
171 Clip bolt
172 Nut for bolt 171
215 Cage spanner bolt
217 Cage spacer bolt nut
609 Clip bolt and nut
626/a Double stop clip for down tube controls
627/a Down tube tunnel R/H for gear
628 Front changer clip
629 Double stop cable clip for handlebar control
630 Clip-on-tunnel and stop with pump holder D/T
631 Clip-on-tunnel and stop with pump holder S/T
632 Pump holder
633 Clip with pump holder for 10-speed handlebar stops
636 Stop clip on chainstay for rear derailleur
647 Adaptor shim when fitting 632 to down tube
648 Pump peg holder
649 Brake cable clip
659 Outer cable clip (15 mm. Ø)

31

[Color photographs of Campagnolo outer and inner cables and of cable clips, each item numbered on a blue panel and keyed to a parts list. The cables panel shows inner cables, outer casings and ferrules; the clips panel shows outer cable clips, down tube shift lever bosses, a front changer clip, pump holders and small bolts and nuts.]

— Page 34 —

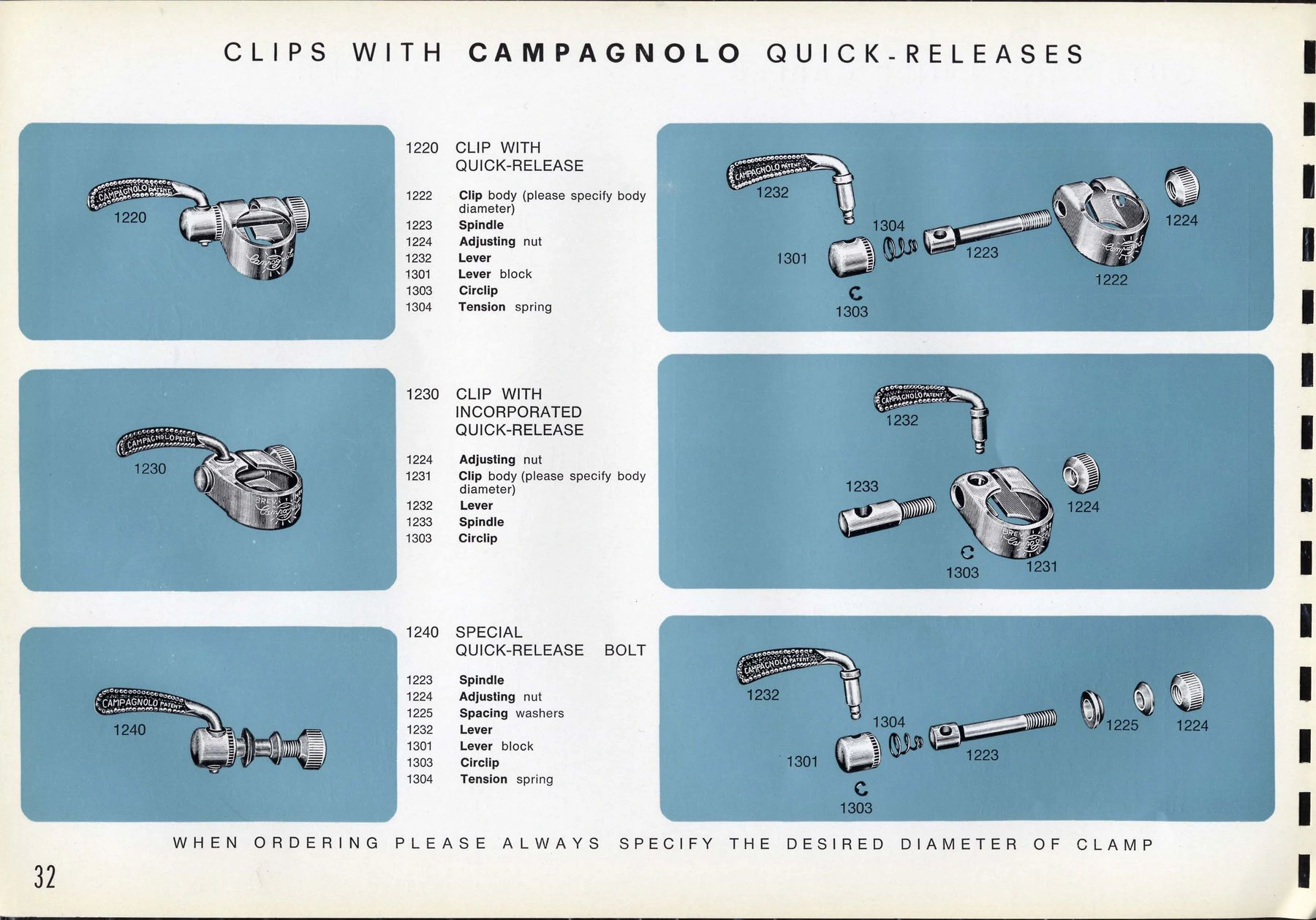

CLIPS WITH CAMPAGNOLO QUICK-RELEASES

Callouts: 1220

1220 CLIP WITH QUICK-RELEASE

1222 Clip body (please specify body diameter)
1223 Spindle
1224 Adjusting nut
1232 Lever
1301 Lever block
1303 Circlip
1304 Tension spring

Callouts: 1232 1304 1224 1301 1223 1222 1303

Callouts: 1230

1230 CLIP WITH INCORPORATED QUICK-RELEASE

1224 Adjusting nut
1231 Clip body (please specify body diameter)
1232 Lever
1233 Spindle
1303 Circlip

Callouts: 1232 1233 1224 1303 1231

Callouts: 1240

1240 SPECIAL QUICK-RELEASE BOLT

1223 Spindle
1224 Adjusting nut
1225 Spacing washers
1232 Lever
1301 Lever block
1303 Circlip
1304 Tension spring

Callouts: 1232 1304 1225 1224 1301 1223 1303

WHEN ORDERING PLEASE ALWAYS SPECIFY THE DESIRED DIAMETER OF CLAMP

32

[Color photographs of three Campagnolo quick-release seat clamps, the 1220 clip with quick-release, the 1230 clip with incorporated quick-release and the 1240 special quick-release bolt, each shown assembled on the left and exploded on the right with its parts numbered and keyed to a parts list. The levers are stamped “CAMPAGNOLO PATENT” and the clip bodies carry the Campagnolo script logo.]

— Page 35 —

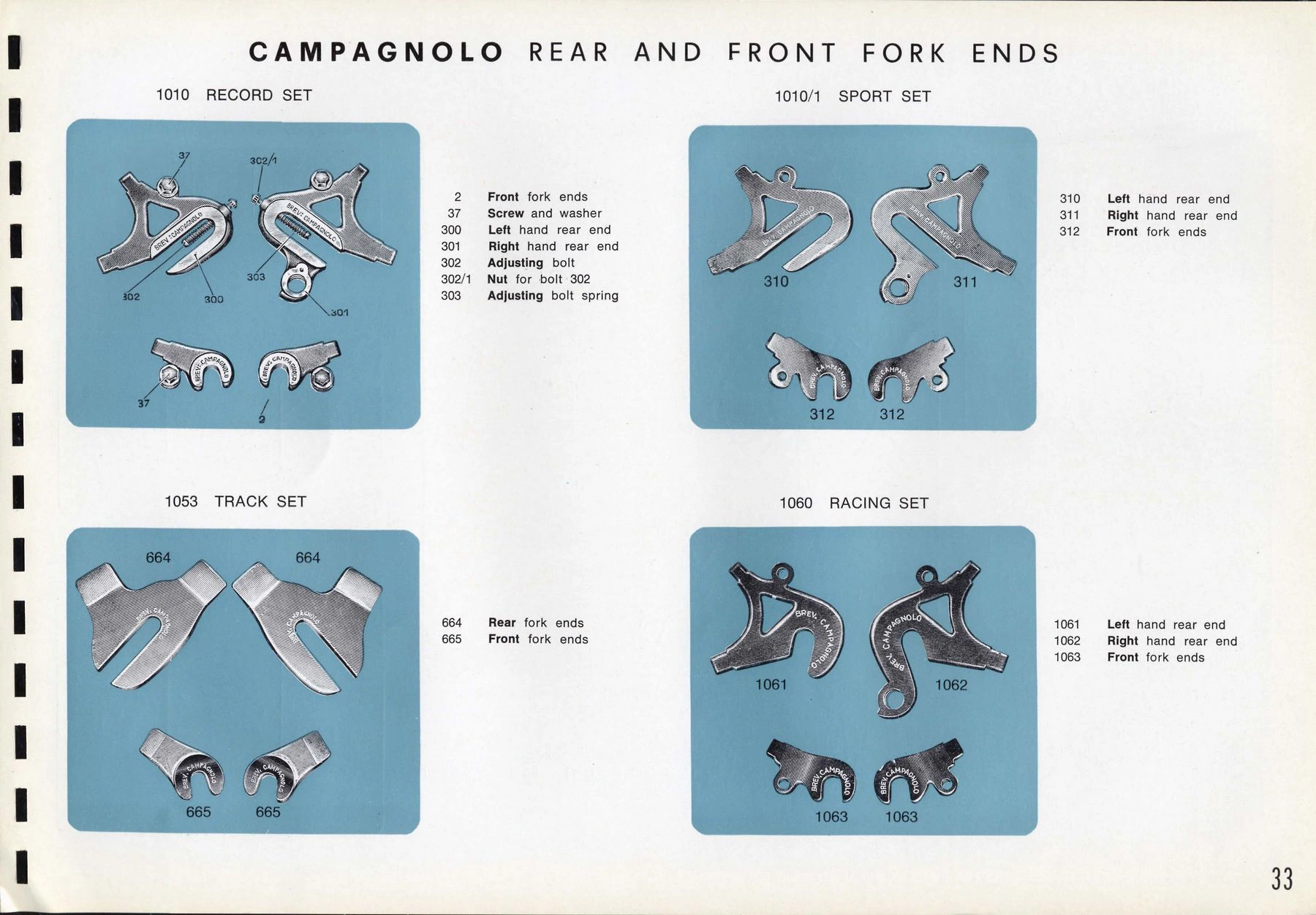

CAMPAGNOLO REAR AND FRONT FORK ENDS

1010 RECORD SET

Callouts: 37 302/1 303 302 300 301 37 2

2 Front fork ends
37 Screw and washer
300 Left hand rear end
301 Right hand rear end
302 Adjusting bolt
302/1 Nut for bolt 302
303 Adjusting bolt spring

1010/1 SPORT SET

Callouts: 310 311 312 312

310 Left hand rear end
311 Right hand rear end
312 Front fork ends

1053 TRACK SET

Callouts: 664 664 665 665

664 Rear fork ends
665 Front fork ends

1060 RACING SET

Callouts: 1061 1062 1063 1063

1061 Left hand rear end
1062 Right hand rear end
1063 Front fork ends

33

[Color photographs of four sets of Campagnolo rear and front fork ends, the 1010 Record set with adjusting screws, the 1010/1 Sport set, the 1053 Track set and the 1060 Racing set, each on a blue panel with its parts numbered and keyed to a parts list. The dropouts are stamped “BREV. CAMPAGNOLO”.]

— Page 36 —
SPECIAL PUMP ADAPTORS

Callouts: 1030 1030/1 1030/2 1030/3

SPARE PARTS

Callouts: 640 641 642 643 644 645 646 653

640 Rubber cap
641 Milled nut
642 Rubber washer
643 Rubber washer for tubular valves
644 Rubber washer for pump connector 1030
645 Connecting screw
646 Rubber washer for pump connectors 1030/1 and 1030/2
653 Rubber washer for pump connector 1030/3
1030 Pump connector for British pumps complete with 7/32″ or 7 × 1 locking screw
1030/1 Pump connector for Italian pumps with 9 × 1.25 locking screw
1030/2 Pump connector for Italan Silca Impero pumps with 9 × 1.25 squared boss
1030/3 Pump connector for French pumps with 5 × 1 or 7 × 1 locking screw

SUNDRIES

Callouts: 764 763 55 651 128/1 80/1

55 Spoke disc (specify if for 4 or 5 sprockets)
80/1 Gear fixing plate
128/1 Rear fork end bolt
651 Freewheel spacer (1 – 1.5 – 2 mm. thick)
763 Standard sprocket for 1/2″ × 1/8″ 3 mm. chain. (Sprockets with 12 – 13 – 14 – 15 – 16 teeth available)
764 Racing chain sprocket for 1″ × 3/16 (4,6 mm.) chain. (Sprocket with 6 – 7 – 8 or for 1″ × 1/8″ chain available)

SPECIAL GREASE

100 GRS. TIN

500 GRS. TIN

1 KG. TIN

34

[Color photographs on blue panels of Campagnolo special pump adaptors, 1030 to 1030/3, with their spare parts; of sundries, including a track sprocket, a spoke disc, a freewheel spacer and a gear fixing plate with its fork end bolt; and of Campagnolo special grease in 100 gram, 500 gram and one kilogram tins. The tins carry the Campagnolo script logo and the words “special grease”, and the pump adaptor caps are marked “CAMPAGNOLO”.]

— Page 37 —

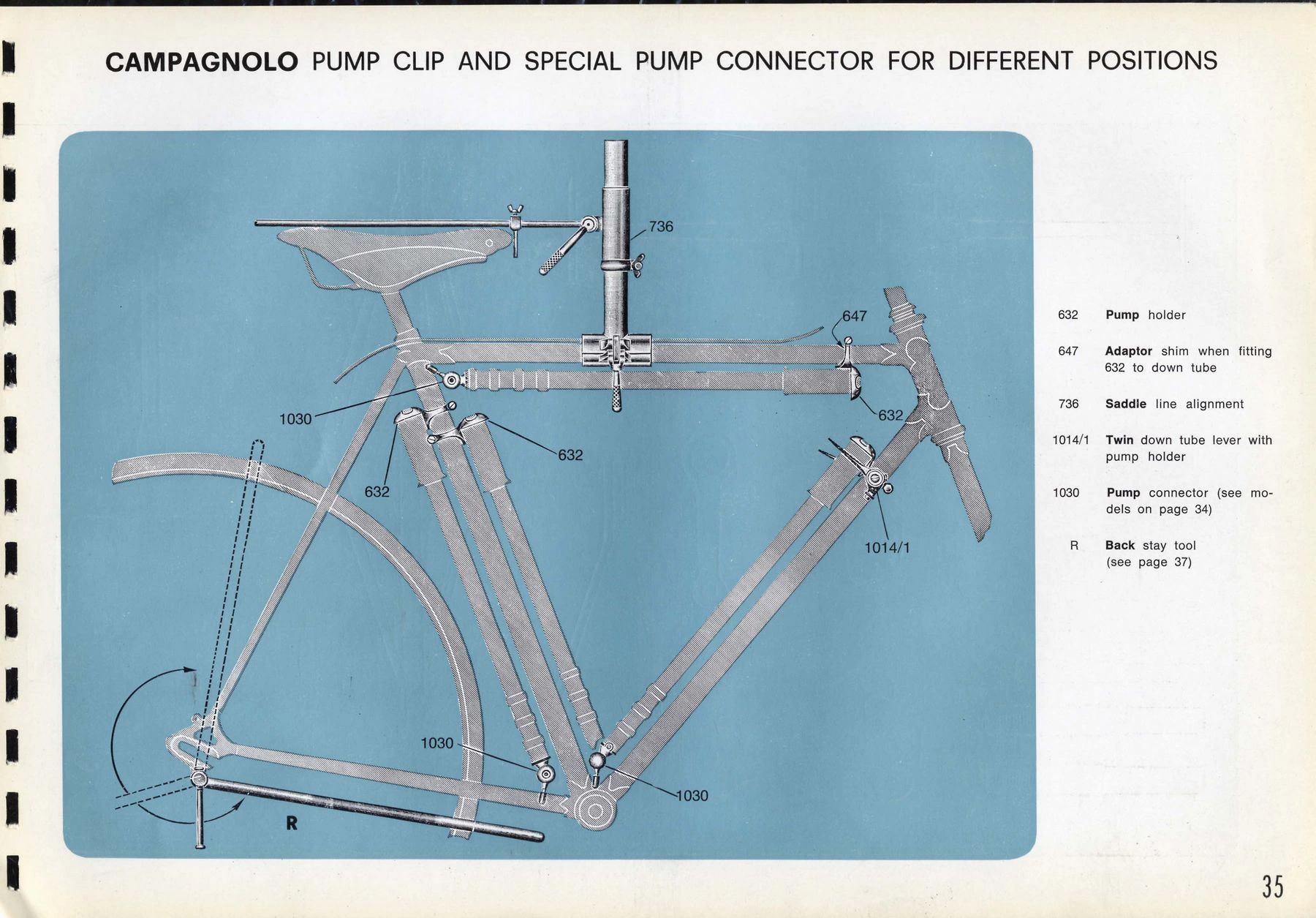

CAMPAGNOLO PUMP CLIP AND SPECIAL PUMP CONNECTOR FOR DIFFERENT POSITIONS

Callouts: 736 647 1030 632 632 632 1014/1 1030 1030 R

632 Pump holder
647 Adaptor shim when fitting 632 to down tube
736 Saddle line alignment
1014/1 Twin down tube lever with pump holder
1030 Pump connector (see models on page 34)
R Back stay tool (see page 37)

35

[A drawing of a bicycle frame on a blue panel showing where the Campagnolo pump holder 632, the adaptor shim 647, the pump connector 1030 and the twin down tube lever with pump holder 1014/1 fit, with pumps drawn on the top tube, seat tube and down tube. A saddle line alignment tool, 736, is shown clamped to the seat post, and a back stay tool, R, is drawn at the rear dropout with an arrow showing its swing.]

— Page 38 —

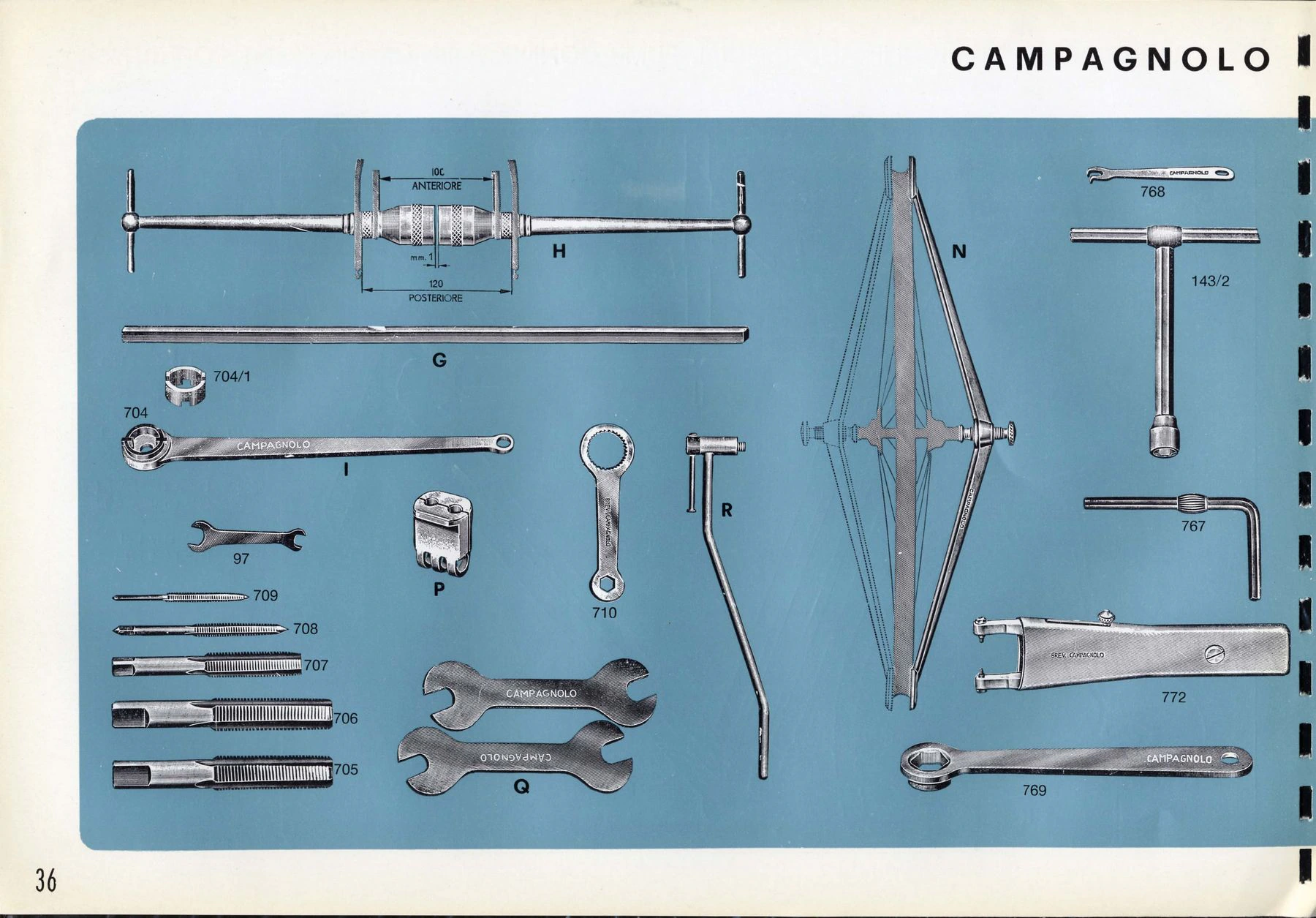

CAMPAGNOLO

100 [?] ANTERIORE

mm. 1

120 POSTERIORE

Callouts: 768 H N 143/2 G 704/1 704 I R 767 97 P 709 710 708 707 772 706 705 Q 769

36

[Drawings on a blue panel of Campagnolo workshop tools, each marked with a letter or part number: a hub axle tool, H, with front and rear spacing dimensions, a straight bar, G, a frame alignment gauge, N, wrenches, taps, a T wrench and other tools. The tools are keyed by number and letter to the list on the facing page.]

— Page 39 —

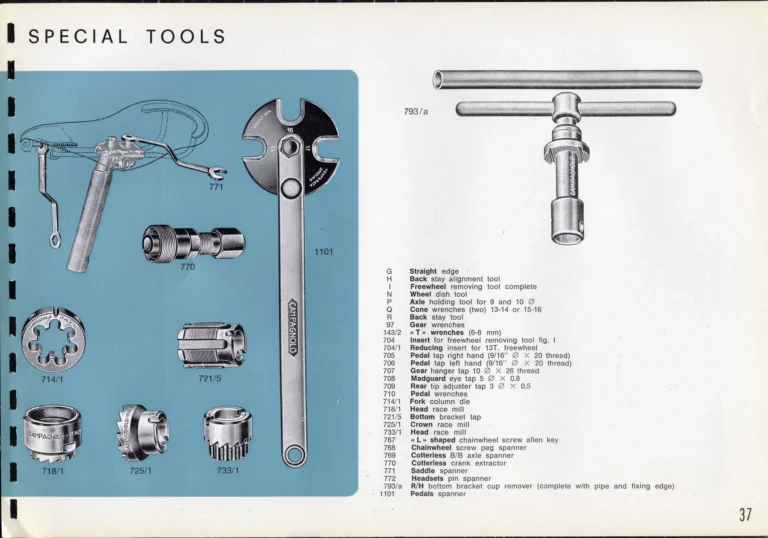

SPECIAL TOOLS

Callouts: 793/a 771 1101 770 714/1 721/5 718/1 725/1 733/1

G Straight edge
H Back stay alignment tool
I Freewheel removing tool complete
N Wheel dish tool
P Axle holding tool for 9 and 10 Ø
Q Cone wrenches (two) 13-14 or 15-16
R Back stay tool
97 Gear wrenches
143/2 « T » wrenches (6-8 mm)
704 Insert for freewheel removing tool fig. I
704/1 Reducing insert for 13T. freewheel
705 Pedal tap right hand (9/16″ Ø × 20 thread)
706 Pedal tap left hand (9/16″ Ø × 20 thread)
707 Gear hanger tap 10 Ø × 26 thread
708 Madguard eye tap 5 Ø × 0,8
709 Rear tip adjuster tap 3 Ø × 0,5
710 Pedal wrenches
714/1 Fork column die
718/1 Head race mill
721/5 Bottom bracket tap
725/1 Crown race mill
733/1 Head race mill
767 « L » shaped chainwheel screw allen key
768 Chainwheel screw peg spanner
769 Cotterless B/B axle spanner
770 Cotterless crank extractor
771 Saddle spanner
772 Headsets pin spanner
793/a R/H bottom bracket cup remover (complete with pipe and fixing edge)
1101 Pedals spanner

37

[Drawings of Campagnolo special tools: a saddle spanner, 771, shown on a seat post clamp, a cotterless crank extractor, 770, a fork column die, a bottom bracket tap, head and crown race mills, the long pedals spanner, 1101, and the bottom bracket cup remover, 793/a, with its T handle. A list below keys every tool on this page and the facing page by letter or part number.]

— Page 40 —

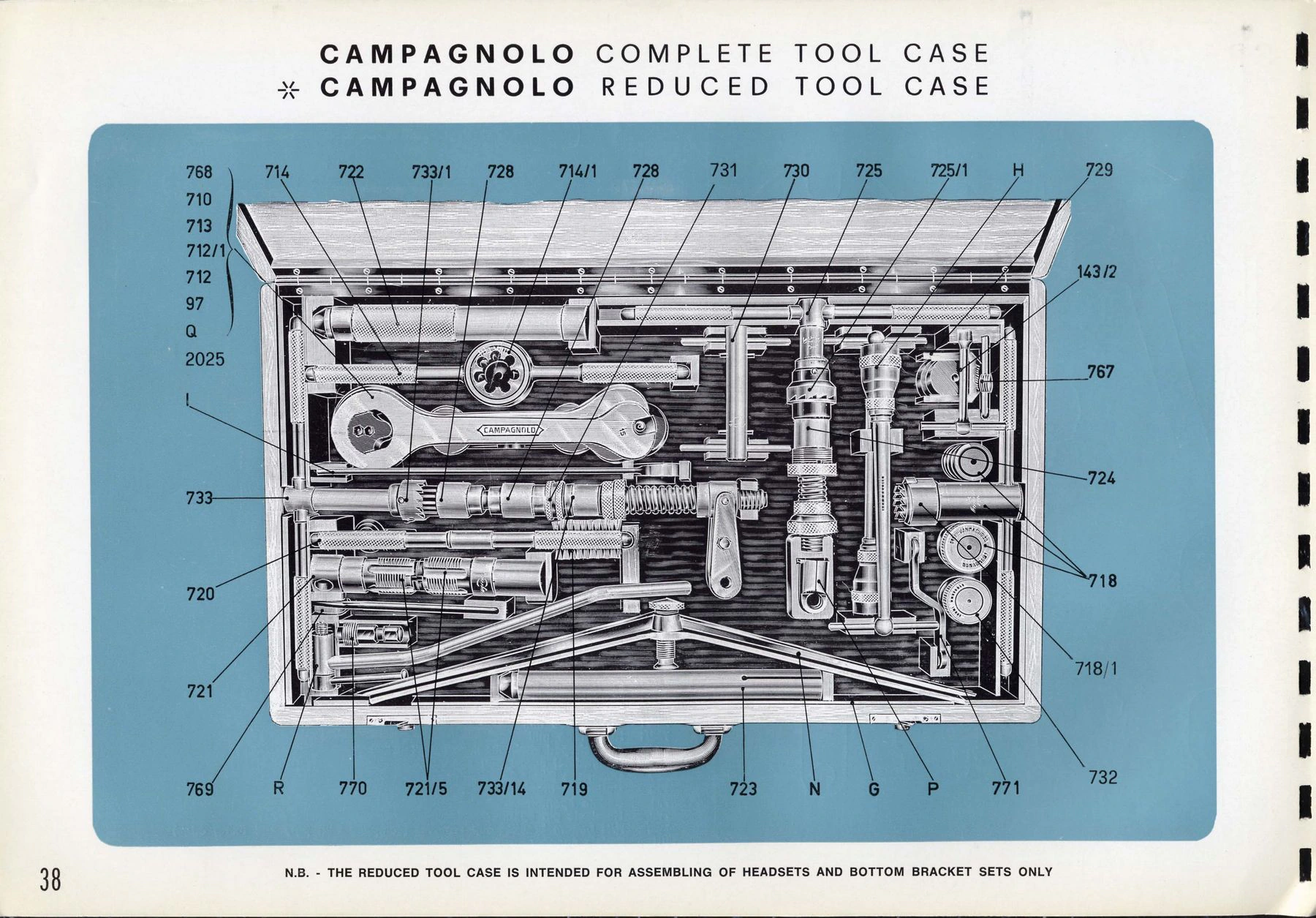

CAMPAGNOLO COMPLETE TOOL CASE
* CAMPAGNOLO REDUCED TOOL CASE

Callouts: 768 714 722 733/1 728 714/1 728 731 730 725 725/1 H 729 710 713 712/1 712 143/2 97 Q 2025 767 I 724 733 718 720 718/1 721 732 769 R 770 721/5 733/14 719 723 N G P 771

N.B. – THE REDUCED TOOL CASE IS INTENDED FOR ASSEMBLING OF HEADSETS AND BOTTOM BRACKET SETS ONLY

38

[A drawing of the open Campagnolo complete tool case on a blue panel, every tool in its fitted place and keyed by part number or letter, with the items from 768 to Q grouped by a brace at the upper left. Some callout numbers are set in bold and others in regular type, and the asterisk in the heading marks the reduced tool case.]

— Page 41 —
1102 – CAMPAGNOLO BICYCLE ASSEMBLING STAND

97 Gear wrenches
143/2 « T » wrenches (6-8 mm.)
710 Pedal wrenches
* 712 Bottom bracket lockring tool
* 712/1 Bottom bracket adjusting cone tool
* 713 Bottom bracket stationary cone tool
714 Fork column die holder
714/1 Fork column die
* 718 Crown race cutter
* 718/1 Head race mill
719 Brush
* 720 Handle for bottom bracket double tap
* 721 Bottom bracket double tap
* 721/5 Spare taps for art. 721
* 722 Headset cup punch
723 Headset cup remover
* 724 Bottom bracket cutter sleeve
725 Bottom bracket face cutter
* 725/1 Spare mill for art. 725
* 728 Sleeve for art. 733
* 729 Fork crown cone remover
* 730 Set of keys for sleeve No. 724
731 Headset jig
732 Fork crown jig
* 733/1 Head race mill
* 733/14 Centraliser sleeve for jig 733
* 767 « L » shaped chainwheel screw allen key
768 Chainwheel screw peg spanner
769 Cotterless B/B axle spanner
* 770 Cotterless crank extractor
771 Saddle spanner
2025 Special brake spanner
G Straight edge
H Back stay alignment tool
I Freewheel removing tool complete
N Wheel dish tool
P Axle holding tool
Q Cone wrenches (two) (13-14 mm.)
R Back stay tool

39

[A drawing on a blue panel of a road bicycle held by its seat tube in the Campagnolo bicycle assembling stand, 1102, a tall column with a round parts tray on a three-legged base. The list at the left keys the contents of the tool case drawn on the facing page, with an asterisk marking the tools of the reduced tool case.]

— Page 42 —

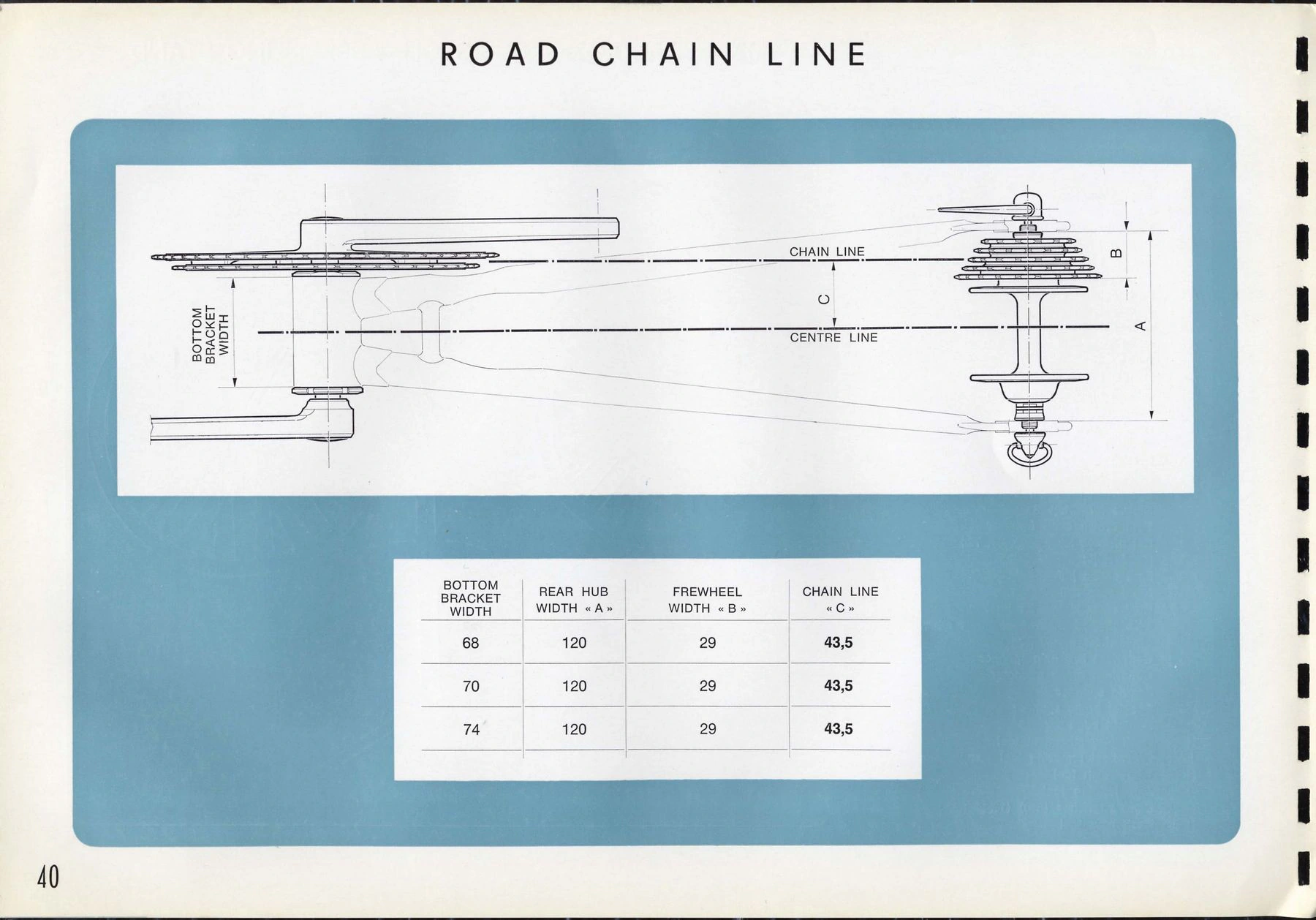

ROAD CHAIN LINE

BOTTOM BRACKET WIDTH

CHAIN LINE

C

CENTRE LINE

B

A

BOTTOM BRACKET WIDTH | REAR HUB WIDTH « A » | FREWHEEL WIDTH « B » | CHAIN LINE « C »
68 | 120 | 29 | 43,5
70 | 120 | 29 | 43,5
74 | 120 | 29 | 43,5

40

[A plan view line drawing of a road bicycle’s double chainwheel, bottom bracket, chain stays and five speed freewheel on a rear hub, marking the bottom bracket width, the chain line, the center line and the dimensions A, B and C. A table below gives the rear hub width, freewheel width and chain line for bottom bracket widths of 68, 70 and 74, with the chain line values set in bold.]

— Page 43 —

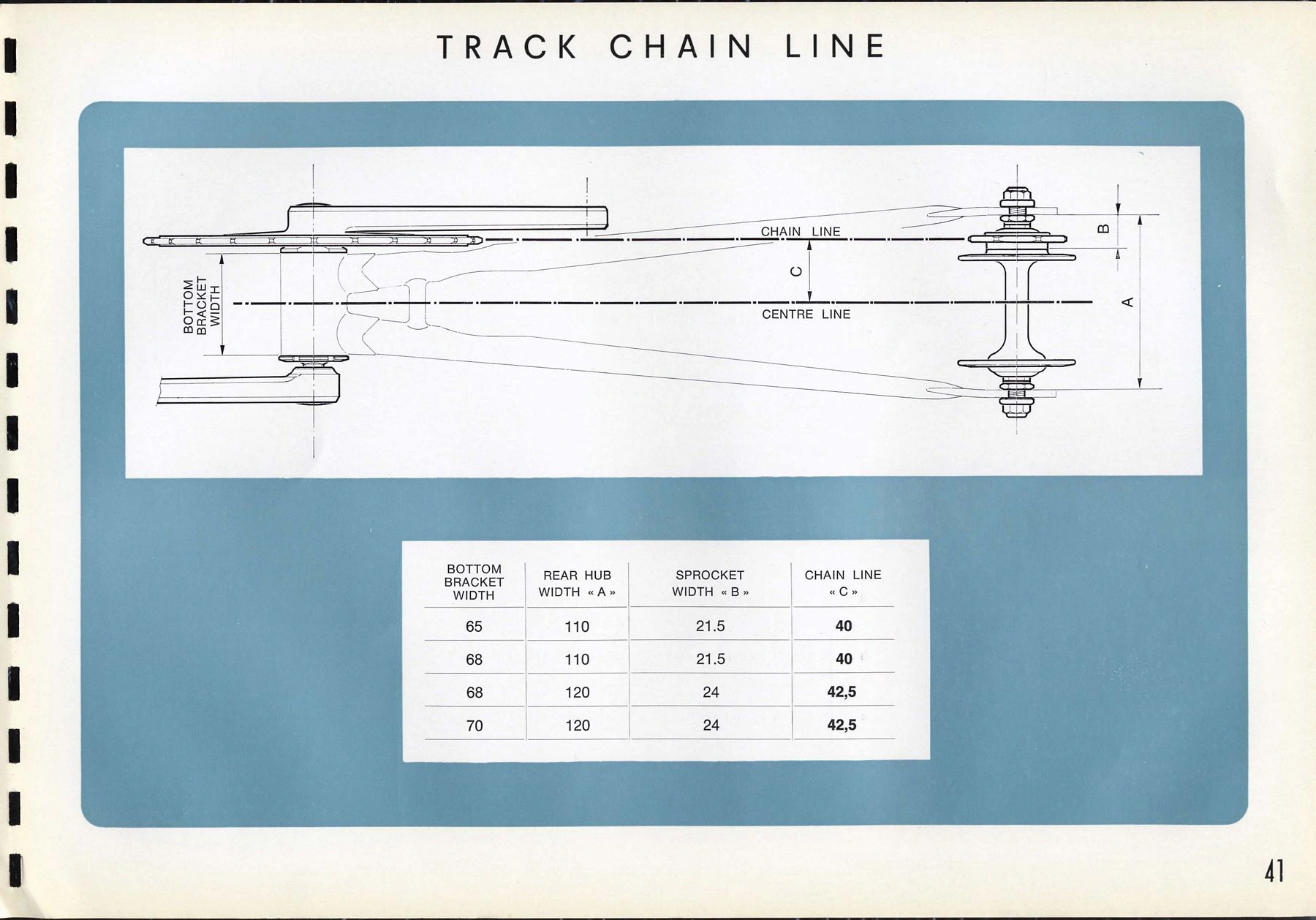

TRACK CHAIN LINE

BOTTOM BRACKET WIDTH

CHAIN LINE

C

CENTRE LINE

B

A

BOTTOM BRACKET WIDTH | REAR HUB WIDTH « A » | SPROCKET WIDTH « B » | CHAIN LINE « C »
65 | 110 | 21.5 | 40
68 | 110 | 21.5 | 40
68 | 120 | 24 | 42,5
70 | 120 | 24 | 42,5

41

[A plan view line drawing of a track bicycle’s single chainwheel, bottom bracket, chain stays and rear hub with one sprocket, marking the bottom bracket width, the chain line, the center line and the dimensions A, B and C. A table below gives the rear hub width, sprocket width and chain line for bottom bracket widths of 65, 68 and 70, with the chain line values set in bold.]

— Page 44 —
TANDEM CHAIN LINE

Callouts: c a BOTTOM BRACKET 70 42,5 BOTTOM BRACKET 70 CHAIN LINE 42,5 24 FRAME CENTRE LINE 120 b b

a | TRACK RIGHT HAND STANDARD CRANK
b | TRACK RIGHT HAND CRANK WITH LEFT HAND THREAD
c | TRACK LEFT HAND CRANK WITH RIGHT HAND THREAD

42

[A plan view line drawing of a tandem’s two bottom brackets, cranks and chainwheels and the rear hub, giving a bottom bracket width of 70, a chain line of 42,5 from the frame center line, a sprocket dimension of 24 and a hub width of 120. The cranks are lettered a, b and c and keyed to a table naming the track crank and thread for each position.]

— Page 45 —
GEAR TABLES

Development in metres for a complete turn of cranks

With 670 mm. diameter wheels

Number of teeth on freewheel sprocket
| 6 | | 7 | | 8 | | 9 | | 10 | | 11 | | 12 | | 13
Number of teeth on chainring | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26
20 o 40 | 7,01 | 6,47 | 6,01 | 5,61 | 5,26 | 4,95 | 4,67 | 4,42 | 4,20 | 4,00 | 3,82 | 3,66 | 3,50 | 3,36 | 3,23
41 | 7,19 | 6,63 | 6,16 | 5,75 | 5,39 | 5,07 | 4,79 | 4,53 | 4,31 | 4,10 | 3,92 | 3,75 | 3,59 | 3,44 | 3,31
21 o 42 | 7,36 | 6,79 | 6,31 | 5,89 | 5,52 | 5,19 | 4,90 | 4,65 | 4,41 | 4,20 | 4,01 | 3,84 | 3,68 | 3,53 | 3,39
43 | 7,54 | 6,96 | 6,46 | 6,03 | 5,65 | 5,32 | 5,02 | 4,76 | 4,52 | 4,30 | 4,11 | 3,93 | 3,77 | 3,61 | 3,47
22 o 44 | 7,71 | 7,12 | 6,61 | 6,17 | 5,78 | 5,44 | 5,14 | 4,87 | 4,63 | 4,40 | 4,20 | 4,02 | 3,85 | 3,70 | 3,56
45 | 7,89 | 7,28 | 6,76 | 6,31 | 5,91 | 5,57 | 5,26 | 4,98 | 4,73 | 4,50 | 4,30 | 4,11 | 3,94 | 3,78 | 3,64
23 o 46 | 8,06 | 7,44 | 6,91 | 6,45 | 6,04 | 5,69 | 5,37 | 5,09 | 4,84 | 4,60 | 4,39 | 4,21 | 4,03 | 3,86 | 3,72
47 | 8,24 | 7,60 | 7,06 | 6,59 | 6,18 | 5,81 | 5,49 | 5,20 | 4,94 | 4,70 | 4,49 | 4,30 | 4,12 | 3,95 | 3,80
24 o 48 | 8,42 | 7,77 | 7,21 | 6,73 | 6,31 | 5,94 | 5,61 | 5,31 | 5,05 | 4,80 | 4,59 | 4,39 | 4,20 | 4,03 | 3,88
49 | 8,59 | 7,93 | 7,36 | 6,87 | 6,44 | 6,06 | 5,72 | 5,42 | 5,15 | 4,91 | 4,68 | 4,48 | 4,29 | 4,12 | 3,96
25 o 50 | 8,77 | 8,09 | 7,51 | 7,01 | 6,57 | 6,19 | 5,84 | 5,53 | 5,26 | 5,01 | 4,78 | 4,57 | 4,38 | 4,20 | 4,04
51 | 8,94 | 8,25 | 7,66 | 7,15 | 6,70 | 6,31 | 5,96 | 5,64 | 5,36 | 5,11 | 4,87 | 4,66 | 4,47 | 4,28 | 4,12
26 o 52 | 9,12 | 8,41 | 7,81 | 7,29 | 6,83 | 6,43 | 6,07 | 5,75 | 5,47 | 5,21 | 4,97 | 4,75 | 4,56 | 4,37 | 4,20
53 | 9,29 | 8,58 | 7,96 | 7,43 | 6,96 | 6,56 | 6,19 | 5,86 | 5,57 | 5,31 | 5,06 | 4,84 | 4,62 | 4,45 | 4,28
27 o 54 | 9,47 | 8,74 | 8,11 | 7,57 | 7,10 | 6,68 | 6,31 | 5,97 | 5,68 | 5,41 | 5,16 | 4,94 | 4,73 | 4,54 | 4,36
55 | 9,64 | 8,90 | 8,26 | 7,71 | 7,23 | 6,80 | 6,42 | 6,08 | 5,78 | 5,51 | 5,25 | 5,03 | 4,82 | 4,62 | 4,45
28 o 56 | 9,82 | 9,06 | 8,41 | 7,85 | 7,36 | 6,93 | 6,54 | 6,19 | 5,89 | 5,61 | 5,35 | 5,12 | 4,91 | 4,70 | 4,53

With 680 mm. diameter wheels

Number of teeth on freewheel sprocket
| 6 | | 7 | | 8 | | 9 | | 10 | | 11 | | 12 | | 13
Number of teeth on chainring | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26
20 o 40 | 7,12 | 6,57 | 6,10 | 5,69 | 5,34 | 5,02 | 4,74 | 4,50 | 4,27 | 4.07 | 3.88 | 3,71 | 3,56 | 3,42 | 3,28
41 | 7,30 | 6,73 | 6,25 | 5,84 | 5,47 | 5,15 | 4,86 | 4,60 | 4,37 | 4,17 | 3,98 | 3,80 | 3,64 | 3,50 | 3,36
21 o 42 | 7,47 | 6,90 | 6,40 | 5,98 | 5,60 | 5,27 | 4,98 | 4,72 | 4,48 | 4,27 | 4,07 | 3,90 | 3,73 | 3,58 | 3,45
43 | 7,65 | 7,06 | 6,56 | 6,12 | 5,74 | 5,40 | 5,10 | 4,83 | 4,59 | 4,37 | 4,17 | 3,99 | 3,82 | 3,67 | 3,53
22 o 44 | 7,83 | 7,23 | 6,71 | 6,26 | 5,87 | 5,52 | 5,22 | 4,94 | 4,70 | 4,47 | 4,27 | 4,08 | 3,91 | 3,76 | 3,61
45 | 8,01 | 7,39 | 6,86 | 6,40 | 6,00 | 5,65 | 5,34 | 5,05 | 4,80 | 4,57 | 4,37 | 4,18 | 4,00 | 3,84 | 3,69
23 o 46 | 8,18 | 7,55 | 7,01 | 6,55 | 6,14 | 5,78 | 5,45 | 5,17 | 4,91 | 4,67 | 4,46 | 4,27 | 4,09 | 3,93 | 3,78
47 | 8,36 | 7,72 | 7,17 | 6,69 | 6,27 | 5,90 | 5,57 | 5,28 | 5,02 | 4,78 | 4,56 | 4,36 | 4,18 | 4,01 | 3,86
24 o 48 | 8,54 | 7,88 | 7,32 | 6,83 | 6,40 | 6,03 | 5,69 | 5,39 | 5,12 | 4,88 | 4,66 | 4,45 | 4,27 | 4,10 | 3,94
49 | 8,72 | 8,05 | 7,47 | 6,97 | 6,54 | 6,15 | 5,81 | 5,50 | 5,23 | 4,98 | 4,75 | 4,55 | 4,36 | 4,18 | 4,02
25 o 50 | 8,90 | 8,21 | 7,63 | 7,12 | 6,67 | 6,28 | 5,93 | 5,62 | 5,34 | 5,08 | 4,85 | 4,64 | 4,45 | 4,27 | 4,10
51 | 9,07 | 8,38 | 7,78 | 7,26 | 6,81 | 6,40 | 6,05 | 5,73 | 5,44 | 5,18 | 4,95 | 4,73 | 4,54 | 4,35 | 4,19
26 o 52 | 9,25 | 8,54 | 7,93 | 7,40 | 6,94 | 6,53 | 6,17 | 5,84 | 5,55 | 5,29 | 5,04 | 4,83 | 4,62 | 4,44 | 4,27
53 | 9,43 | 8,70 | 8,08 | 7,54 | 7,07 | 6,66 | 6,29 | 5,95 | 5,66 | 5,39 | 5,14 | 4,92 | 4,71 | 4,52 | 4,35
27 o 54 | 9,61 | 8,87 | 8,23 | 7,69 | 7,20 | 6,78 | 6,40 | 6,07 | 5,76 | 5,49 | 5,24 | 5,01 | 4,80 | 4,61 | 4,43
55 | 9,79 | 9,03 | 8,36 | 7,81 | 7,31 | 6,87 | 6,49 | 6,16 | 5,83 | 5,59 | 5,33 | 5,10 | 4,89 | 4,69 | 4,51
28 o 56 | 9,97 | 9,20 | 8,54 | 7,97 | 7,47 | 7,03 | 6,64 | 6,29 | 5,98 | 5,69 | 5,43 | 5,20 | 4,98 | 4,78 | 4,60

With 690 mm. diameter wheels

Number of teeth on freewheel sprocket
| 6 | | 7 | | 8 | | 9 | | 10 | | 11 | | 12 | | 13
Number of teeth on chainring | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26
20 o 40 | 7,22 | 6,67 | 6,19 | 5,78 | 5,41 | 5,09 | 4,81 | 4,56 | 4,33 | 4,12 | 3,94 | 3,76 | 3,61 | 3,46 | 3,33
41 | 7,40 | 6,83 | 6,34 | 5,92 | 5,55 | 5,22 | 4,93 | 4,67 | 4,44 | 4,23 | 4,03 | 3,86 | 3,70 | 3,55 | 3,41
21 o 42 | 7,58 | 7,00 | 6,50 | 6,07 | 5,68 | 5,35 | 5,05 | 4,79 | 4,54 | 4,33 | 4,13 | 3,95 | 3,79 | 3,64 | 3,49
43 | 7,76 | 7,16 | 6,65 | 6,21 | 5,82 | 5,47 | 5,17 | 4,90 | 4,65 | 4,43 | 4,23 | 4,05 | 3,88 | 3,72 | 3,58
22 o 44 | 7,94 | 7,33 | 6,81 | 6,35 | 5,95 | 5,60 | 5,29 | 5,01 | 4,76 | 4,54 | 4,33 | 4,14 | 3,97 | 3,81 | 3,66
45 | 8,12 | 7,50 | 6,96 | 6,50 | 6,09 | 5,73 | 5,41 | 5,13 | 4,87 | 4,64 | 4,43 | 4,24 | 4,06 | 3,90 | 3,74
23 o 46 | 8,31 | 7,67 | 7,12 | 6,64 | 6,22 | 5,86 | 5,53 | 5,24 | 4,98 | 4,74 | 4,53 | 4,33 | 4,15 | 3,98 | 3,83
47 | 8,49 | 7,83 | 7,27 | 6,79 | 6,36 | 5,98 | 5,65 | 5,35 | 5,09 | 4,85 | 4,63 | 4,42 | 4,24 | 4,07 | 3,91
24 o 48 | 8,67 | 8,00 | 7,43 | 6,93 | 6,49 | 6,11 | 5,78 | 5,47 | 5,20 | 4,95 | 4,72 | 4,52 | 4,33 | 4,16 | 3,99
49 | 8,85 | 8,16 | 7,58 | 7,08 | 6,63 | 6,24 | 5,90 | 5,58 | 5,30 | 5,05 | 4,82 | 4,61 | 4,42 | 4,24 | 4,08
25 o 50 | 9,03 | 8,33 | 7,74 | 7,22 | 6,76 | 6,37 | 6,02 | 5,70 | 5,41 | 5,16 | 4,92 | 4,71 | 4,51 | 4,33 | 4,16
51 | 9,21 | 8,50 | 7,89 | 7,37 | 6,90 | 6,50 | 6,14 | 5,81 | 5,52 | 5,26 | 5,02 | 4,80 | 4,60 | 4,42 | 4,24
26 o 52 | 9,39 | 8,66 | 8,05 | 7,51 | 7,03 | 6,62 | 6,26 | 5,92 | 5,63 | 5,36 | 5,12 | 4,89 | 4,69 | 4,50 | 4,33
53 | 9,57 | 8,83 | 8,20 | 7,65 | 7,17 | 6,75 | 6,38 | 6,04 | 5,74 | 5,47 | 5,22 | 4,99 | 4,78 | 4,59 | 4,41
27 o 54 | 9,75 | 9,00 | 8,35 | 7,80 | 7,30 | 6,88 | 6,50 | 6,15 | 5,85 | 5,57 | 5,31 | 5,08 | 4,87 | 4,68 | 4,49
55 | 9,93 | 9,16 | 8,51 | 7,94 | 7,44 | 7,00 | 6,62 | 6,27 | 5,95 | 5,67 | 5,41 | 5,18 | 4,96 | 4,76 | 4,58
28 o 56 | 10,11 | 9,33 | 8,66 | 8,09 | 7,57 | 7,13 | 6,74 | 6,38 | 6,06 | 5,77 | 5,51 | 5,27 | 5,05 | 4,85 | 4,66

GEAR TABLE 27″ WHEELS

| 36 | 38 | 40 | 42 | 44 | 45 | 46 | 47 | 48 | 49 | 50 | 51 | 52 | 54
12 | 81.0 | 85.5 | 90.0 | 94.5 | 99.0 | 101.2 | 103.5 | 105.0 | 108.0 | 110.3 | 112.5 | 114.7 | 117.0 | 121.5
13 | 74.7 | 78.9 | 83.1 | 87.2 | 91.4 | 93.4 | 95.5 | 97.6 | 99.7 | 101.8 | 103.8 | 105.9 | 108.0 | 112.1
14 | 69.4 | 73.3 | 77.1 | 81.0 | 84.8 | 86.7 | 88.7 | 90.6 | 92.6 | 94.5 | 96.4 | 98.3 | 100.3 | 104.1
15 | 64.8 | 68.4 | 72.0 | 75.6 | 79.2 | 80.9 | 82.8 | 84.6 | 86.4 | 88.2 | 90.0 | 91.8 | 93.6 | 97.2
16 | 60.8 | 64.1 | 67.5 | 70.9 | 74.2 | 76.0 | 77.6 | 79.3 | 81.0 | 82.7 | 84.4 | 86.1 | 87.7 | 91.1
17 | 57.2 | 60.3 | 63.5 | 66.7 | 69.9 | 71.5 | 73.0 | 74.6 | 76.2 | 77.8 | 79.4 | 81.0 | 82.6 | 85.7
18 | 54.0 | 57.0 | 60.0 | 63.0 | 66.0 | 67.5 | 69.0 | 70.5 | 72.0 | 73.5 | 75.0 | 76.5 | 78.0 | 81.0
19 | 51.2 | 54.0 | 56.8 | 59.7 | 62.5 | 64.0 | 65.4 | 66.8 | 68.2 | 69.6 | 71.0 | 72.5 | 73.9 | 76.7
20 | 48.6 | 51.3 | 54.0 | 56.7 | 59.4 | 60.8 | 62.1 | 63.4 | 64.8 | 66.1 | 67.5 | 68.8 | 70.2 | 72.9
21 | 46.3 | 48.9 | 51.4 | 54.0 | 56.6 | 57.9 | 59.1 | 60.4 | 61.7 | 63.0 | 64.3 | 65.5 | 66.8 | 69.4
22 | 44.2 | 46.6 | 49.1 | 51.5 | 54.0 | 55.2 | 56.4 | 57.7 | 58.9 | 60.1 | 61.4 | 62.6 | 63.8 | 66.2
23 | 42.3 | 44.6 | 47.0 | 49.3 | 51.6 | 52.8 | 54.0 | 55.2 | 56.3 | 57.5 | 58.7 | 59.9 | 61.0 | 63.4
24 | 40.5 | 42.7 | 45.0 | 47.2 | 49.5 | 50.7 | 51.7 | 52.9 | 54.0 | 55.1 | 56.2 | 57.3 | 58.5 | 60.7
25 | 38.9 | 41.1 | 43.2 | 45.4 | 47.5 | 48.6 | 49.7 | 50.8 | 51.8 | 52.9 | 54.0 | 55.1 | 56.2 | 58.3
26 | 37.4 | 39.5 | 41.5 | 43.6 | 45.7 | 46.7 | 47.8 | 48.8 | 49.8 | 50.9 | 51.9 | 53.7 | 54.0 | 56.1

GEAR RATIOS NOT SHOWN ABOVE MAY BE CALCULATED AS FOLLOWS

GEAR = Number of teeth on C/ring / Number of teeth on Sprocket × Diameter of rear wheel in inches

STA VICENZA ITALIA

[A page of four gear tables: the development in meters for one turn of the cranks with 670, 680 and 690 mm diameter wheels, for chainrings of 40 to 56 teeth (and 20 to 28 teeth) against sprockets of 12 to 26 teeth (and 6 to 13 teeth), and a gear table in inches for 27 inch wheels, for chainrings of 36 to 54 teeth against sprockets of 12 to 26 teeth. A formula below the 27 inch table explains how to calculate other gear ratios, and a small printer’s line runs vertically at the right edge.]
