Raleigh 1987 Catalog — Handbuilt Lightweights

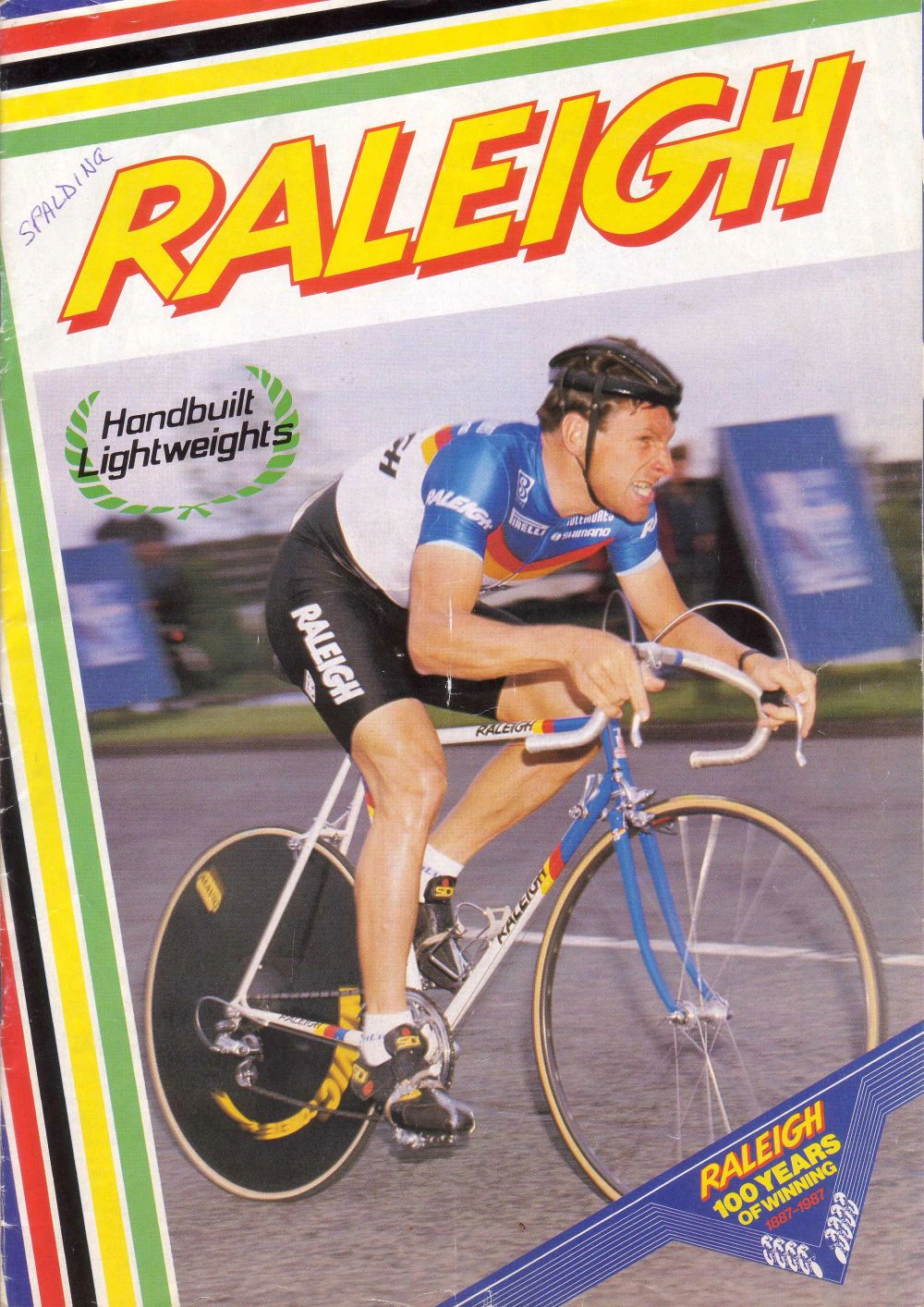

— Page 1 (front cover) —
RALEIGH

Handbuilt Lightweights

RALEIGH 100 YEARS OF WINNING 1887-1987

[Front cover of the Raleigh Handbuilt Lightweights catalog: a rider in a Raleigh team jersey and shorts races a Raleigh lightweight with a rear disc wheel, under rainbow-striped borders and a “100 Years of Winning” pennant. Page 2 identifies the cover rider as Paul Sherwen, 1986 National Criterium Champion. A later handwritten note in blue ink at upper left reads “SPALDING”.]

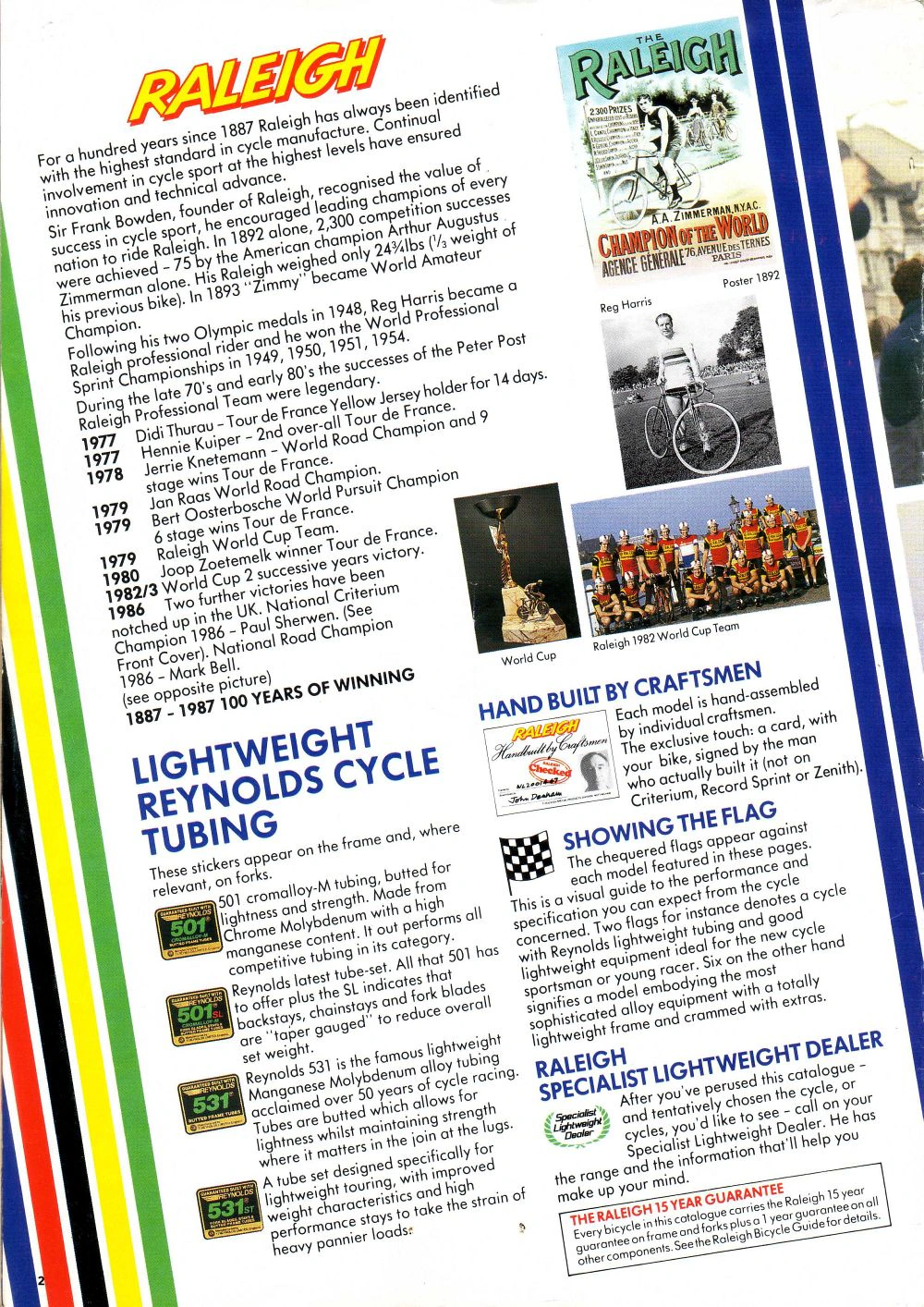

— Page 2 —
RALEIGH

For a hundred years since 1887 Raleigh has always been identified with the highest standard in cycle manufacture. Continual involvement in cycle sport at the highest levels have ensured innovation and technical advance.
Sir Frank Bowden, founder of Raleigh, recognised the value of success in cycle sport, he encouraged leading champions of every nation to ride Raleigh. In 1892 alone, 2,300 competition successes were achieved – 75 by the American champion Arthur Augustus Zimmerman alone. His Raleigh weighed only 24¾lbs (⅓ weight of his previous bike). In 1893 “Zimmy” became World Amateur Champion.
Following his two Olympic medals in 1948, Reg Harris became a Raleigh professional rider and he won the World Professional Sprint Championships in 1949, 1950, 1951, 1954.
During the late 70’s and early 80’s the successes of the Peter Post Raleigh Professional Team were legendary.
1977 Didi Thurau – Tour de France Yellow Jersey holder for 14 days.
1977 Hennie Kuiper – 2nd over-all Tour de France.
1978 Jerrie Knetemann – World Road Champion and 9 stage wins Tour de France.
1979 Jan Raas World Road Champion.
1979 Bert Oosterbosche World Pursuit Champion 6 stage wins Tour de France.
1979 Raleigh World Cup Team.
1980 Joop Zoetemelk winner Tour de France.
1982/3 World Cup 2 successive years victory.
1986 Two further victories have been notched up in the UK. National Criterium Champion 1986 – Paul Sherwen. (See Front Cover). National Road Champion 1986 – Mark Bell.
(see opposite picture)
1887 – 1987 100 YEARS OF WINNING

Poster 1892

Reg Harris

World Cup

Raleigh 1982 World Cup Team

LIGHTWEIGHT REYNOLDS CYCLE TUBING

These stickers appear on the frame and, where relevant, on forks.

501 cromalloy-M tubing, butted for lightness and strength. Made from Chrome Molybdenum with a high manganese content. It out performs all competitive tubing in its category.

Reynolds latest tube-set. All that 501 has to offer plus the SL indicates that backstays, chainstays and fork blades are “taper gauged” to reduce overall set weight.

Reynolds 531 is the famous lightweight Manganese Molybdenum alloy tubing acclaimed over 50 years of cycle racing. Tubes are butted which allows for lightness whilst maintaining strength where it matters in the join at the lugs.

A tube set designed specifically for lightweight touring, with improved weight characteristics and high performance stays to take the strain of heavy pannier loads.

HAND BUILT BY CRAFTSMEN
Each model is hand-assembled by individual craftsmen.
The exclusive touch: a card, with your bike, signed by the man who actually built it (not on Criterium, Record Sprint or Zenith).

SHOWING THE FLAG
The chequered flags appear against each model featured in these pages. This is a visual guide to the performance and specification you can expect from the cycle concerned. Two flags for instance denotes a cycle with Reynolds lightweight tubing and good lightweight equipment ideal for the new cycle sportsman or young racer. Six on the other hand signifies a model embodying the most sophisticated alloy equipment with a totally lightweight frame and crammed with extras.

RALEIGH SPECIALIST LIGHTWEIGHT DEALER
After you’ve perused this catalogue – and tentatively chosen the cycle, or cycles, you’d like to see – call on your Specialist Lightweight Dealer. He has the range and the information that’ll help you make up your mind.

THE RALEIGH 15 YEAR GUARANTEE
Every bicycle in this catalogue carries the Raleigh 15 year guarantee on frame and forks plus a 1 year guarantee on all other components. See the Raleigh Bicycle Guide for details.

2

[A page of Raleigh racing history and catalog notes: an 1892 Raleigh poster of A. A. Zimmerman, “Champion of the World,” a photograph of Reg Harris with his bicycle, the World Cup trophy and the Raleigh 1982 World Cup Team. Below are the four Reynolds tubing transfers (501, 501 SL, 531 and 531 ST), a sample “Handbuilt by Craftsmen” builder’s card, a checkered flag and the Specialist Lightweight Dealer emblem.]

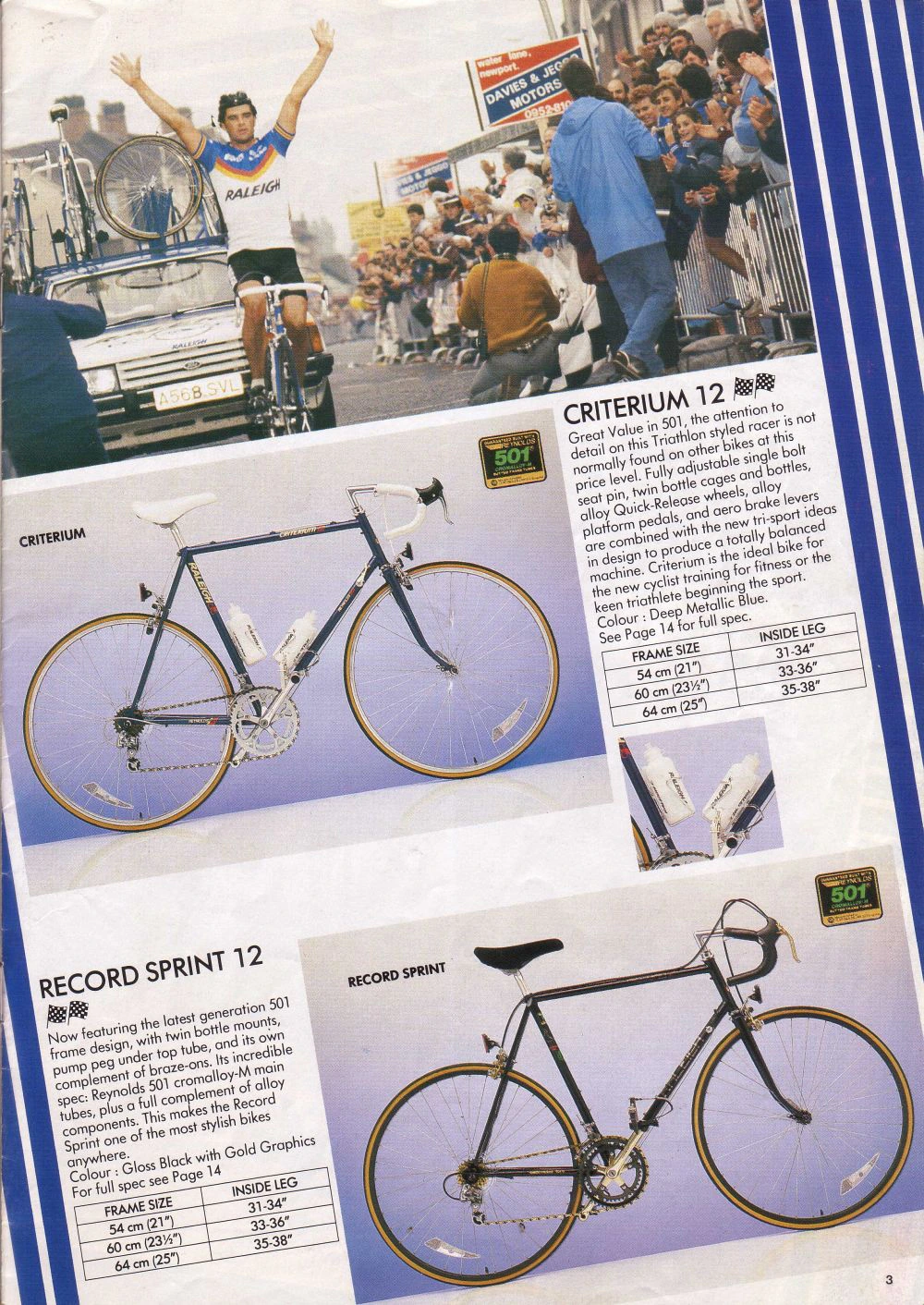

— Page 3 —
CRITERIUM 12
Great Value in 501, the attention to detail on this Triathlon styled racer is not normally found on other bikes at this price level. Fully adjustable single bolt seat pin, twin bottle cages and bottles, alloy Quick-Release wheels, alloy platform pedals, and aero brake levers are combined with the new tri-sport ideas in design to produce a totally balanced machine. Criterium is the ideal bike for the new cyclist training for fitness or the keen triathlete beginning the sport.
Colour : Deep Metallic Blue.
See Page 14 for full spec.

FRAME SIZE | INSIDE LEG
54 cm (21″) | 31-34″
60 cm (23½”) | 33-36″
64 cm (25″) | 35-38″

CRITERIUM

RECORD SPRINT 12
Now featuring the latest generation 501 frame design, with twin bottle mounts, pump peg under top tube, and its own complement of braze-ons. Its incredible spec: Reynolds 501 cromalloy-M main tubes, plus a full complement of alloy components. This makes the Record Sprint one of the most stylish bikes anywhere.
Colour : Gloss Black with Gold Graphics
For full spec see Page 14

FRAME SIZE | INSIDE LEG
54 cm (21″) | 31-34″
60 cm (23½”) | 33-36″
64 cm (25″) | 35-38″

RECORD SPRINT

3

[The Raleigh Criterium 12 in deep metallic blue and the Record Sprint 12 in gloss black shown in studio photographs, each with a Reynolds 501 transfer, two checkered flags and a frame size chart, plus a close view of the Criterium’s twin bottles. At the top a rider in a Raleigh jersey raises both arms as he crosses a finish line before a crowd; page 2’s note on Mark Bell, 1986 National Road Champion, says “(see opposite picture).”]

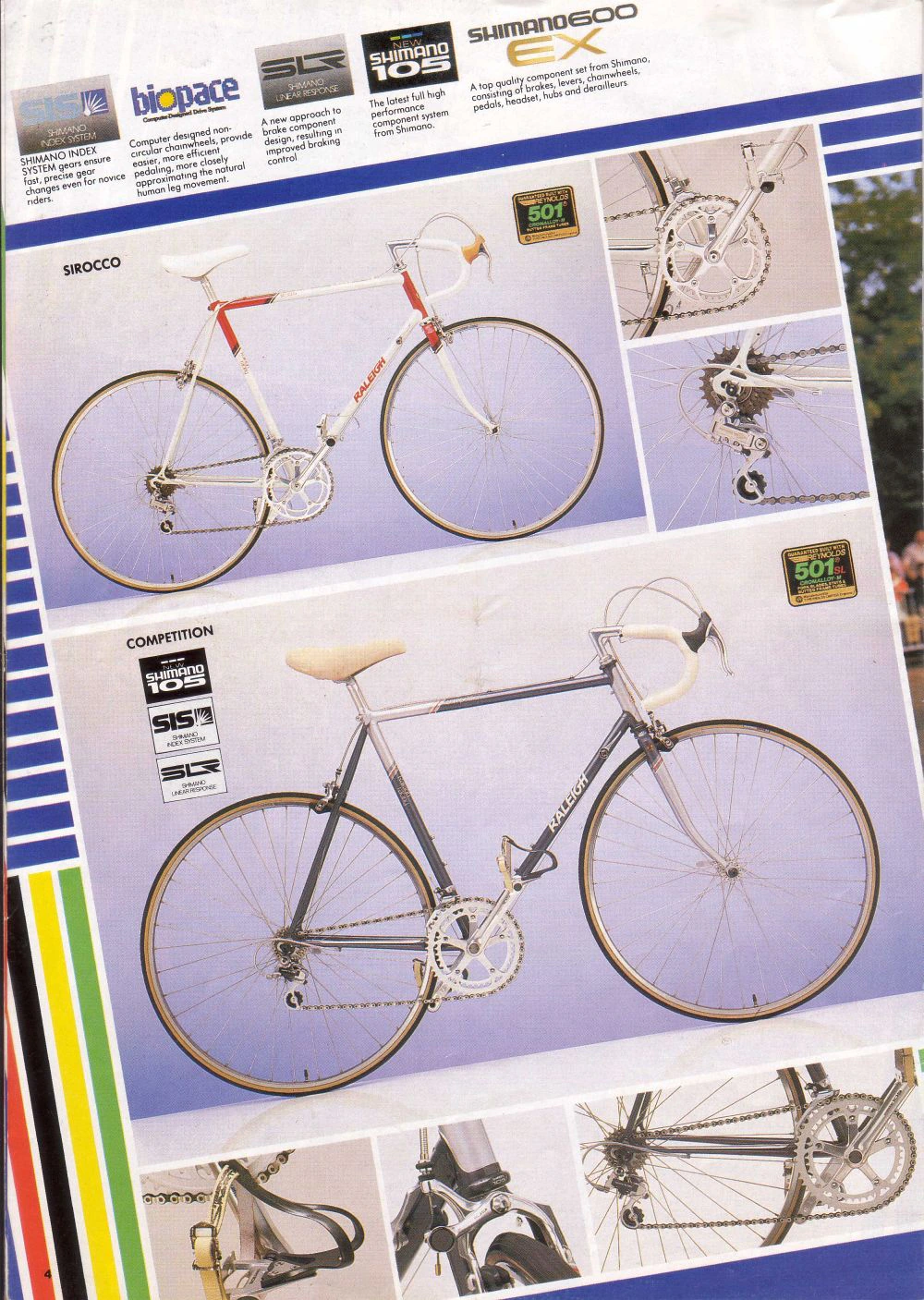

— Page 4 —
SIS SHIMANO INDEX SYSTEM
SHIMANO INDEX SYSTEM gears ensure fast, precise gear changes even for novice riders.

biopace Computer Designed Drive System
Computer designed non-circular chainwheels, provide easier, more efficient pedaling, more closely approximating the natural human leg movement.

SLR SHIMANO LINEAR RESPONSE
A new approach to brake component design, resulting in improved braking control

NEW SHIMANO 105
The latest full high performance component system from Shimano.

SHIMANO 600 EX
A top quality component set from Shimano, consisting of brakes, levers, chainwheels, pedals, headset, hubs and derailleurs.

SIROCCO

COMPETITION
NEW SHIMANO 105
SIS SHIMANO INDEX SYSTEM
SLR SHIMANO LINEAR RESPONSE

4

[The Raleigh Sirocco in white with red panels and the Raleigh Competition in gray and silver shown in studio photographs, each with its Reynolds 501 or 501 SL transfer, with close views of the chainset, rear derailleur, pedal, brake and drivetrain. A strip of Shimano emblems across the top explains SIS indexing, Biopace chainwheels, SLR brakes, the new 105 group and the 600 EX group.]

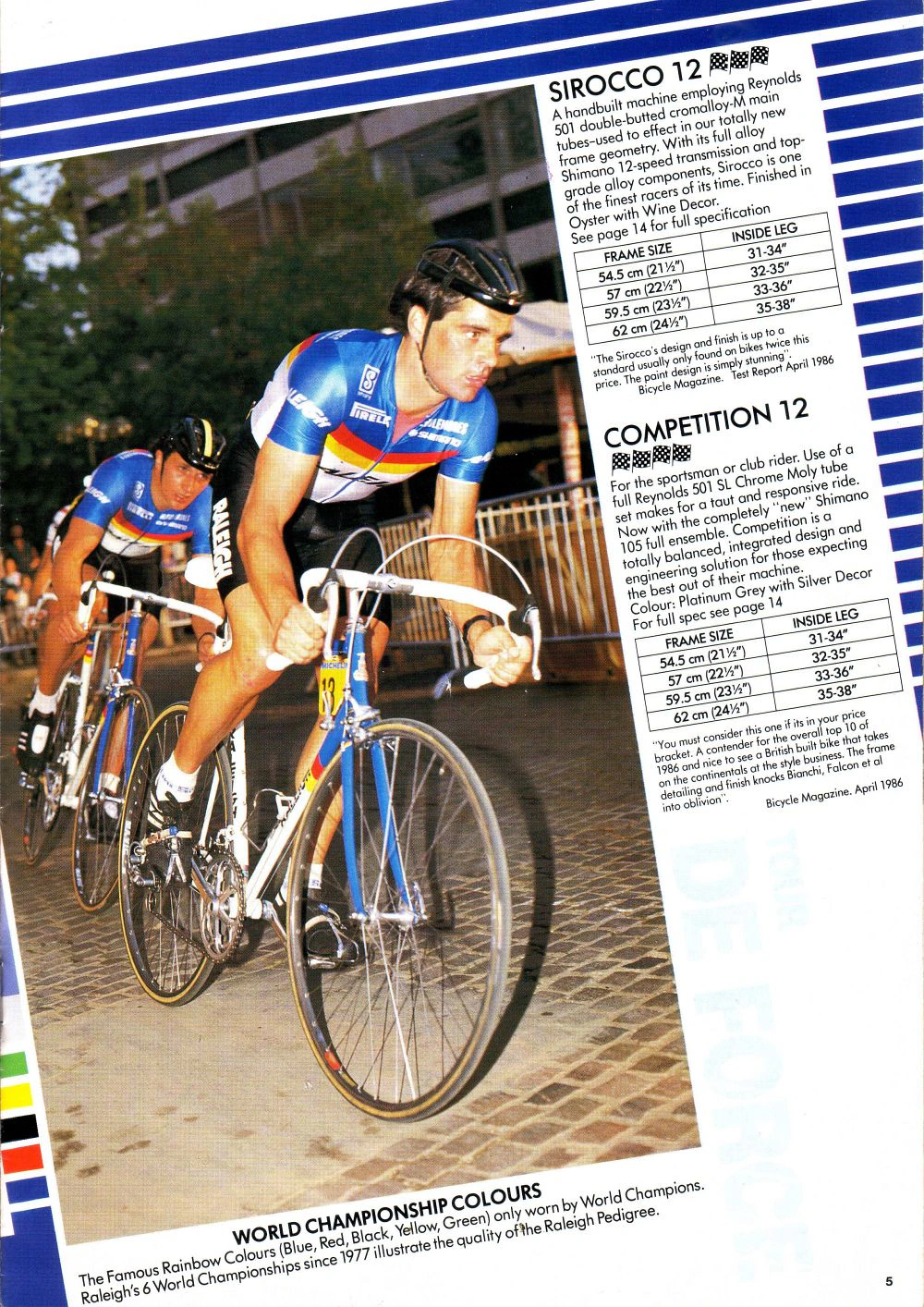

— Page 5 —
SIROCCO 12
A handbuilt machine employing Reynolds 501 double-butted cromalloy-M main tubes–used to effect in our totally new frame geometry. With its full alloy Shimano 12-speed transmission and top-grade alloy components, Sirocco is one of the finest racers of its time. Finished in Oyster with Wine Decor.
See page 14 for full specification

FRAME SIZE | INSIDE LEG
54.5 cm (21½”) | 31-34″
57 cm (22½”) | 32-35″
59.5 cm (23½”) | 33-36″
62 cm (24½”) | 35-38″

“The Sirocco’s design and finish is up to a standard usually only found on bikes twice this price. The paint design is simply stunning”.
Bicycle Magazine. Test Report April 1986

COMPETITION 12
For the sportsman or club rider. Use of a full Reynolds 501 SL Chrome Moly tube set makes for a taut and responsive ride. Now with the completely “new” Shimano 105 full ensemble. Competition is a totally balanced, integrated design and engineering solution for those expecting the best out of their machine.
Colour: Platinum Grey with Silver Decor
For full spec see page 14

FRAME SIZE | INSIDE LEG
54.5 cm (21½”) | 31-34″
57 cm (22½”) | 32-35″
59.5 cm (23½”) | 33-36″
62 cm (24½”) | 35-38″

“You must consider this one if its in your price bracket. A contender for the overall top 10 of 1986 and nice to see a British built bike that takes on the continentals at the style business. The frame detailing and finish knocks Bianchi, Falcon et al into oblivion”.
Bicycle Magazine. April 1986

TOUR DE FORCE

WORLD CHAMPIONSHIP COLOURS
The Famous Rainbow Colours (Blue, Red, Black, Yellow, Green) only worn by World Champions. Raleigh’s 6 World Championships since 1977 illustrate the quality of the Raleigh Pedigree.

5

[Text for the Raleigh Sirocco 12 (three checkered flags) and Competition 12 (four flags), each with a frame size chart and a Bicycle Magazine review quotation, beside a large photograph of two riders in Raleigh team jerseys racing on a cobbled street. The words “Tour de Force” are printed in very pale blue running down the right margin.]

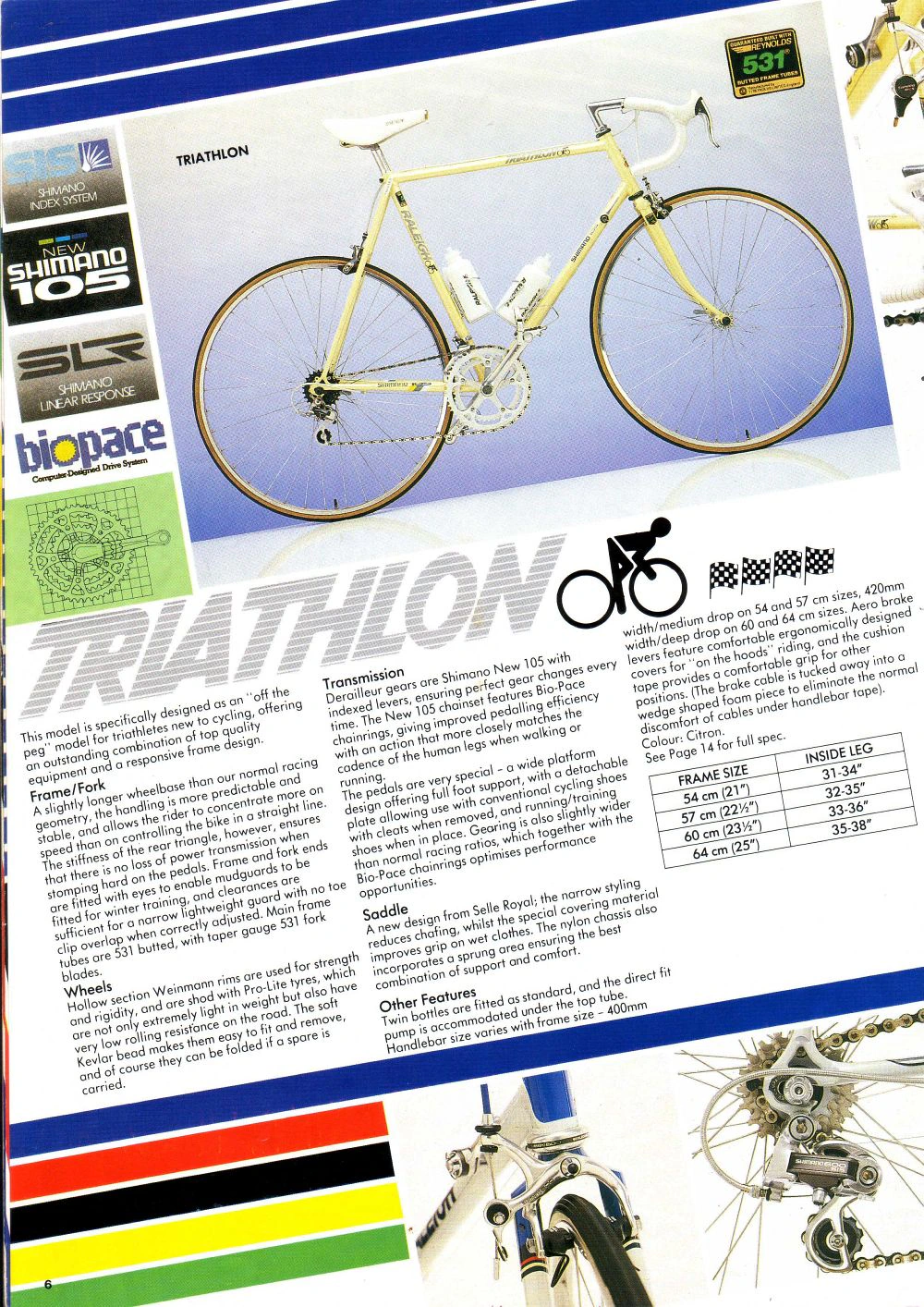

— Page 6 —
SIS SHIMANO INDEX SYSTEM

NEW SHIMANO 105

SLR SHIMANO LINEAR RESPONSE

biopace Computer-Designed Drive System

TRIATHLON

TRIATHLON

This model is specifically designed as an “off the peg” model for triathletes new to cycling, offering an outstanding combination of top quality equipment and a responsive frame design.

Frame/Fork
A slightly longer wheelbase than our normal racing geometry, the handling is more predictable and stable, and allows the rider to concentrate more on speed than on controlling the bike in a straight line. The stiffness of the rear triangle, however, ensures that there is no loss of power transmission when stomping hard on the pedals. Frame and fork ends are fitted with eyes to enable mudguards to be fitted for winter training, and clearances are sufficient for a narrow lightweight guard with no toe clip overlap when correctly adjusted. Main frame tubes are 531 butted, with taper gauge 531 fork blades.

Wheels
Hollow section Weinmann rims are used for strength and rigidity, and are shod with Pro-Lite tyres, which are not only extremely light in weight but also have very low rolling resistance on the road. The soft Kevlar bead makes them easy to fit and remove, and of course they can be folded if a spare is carried.

Transmission
Derailleur gears are Shimano New 105 with indexed levers, ensuring perfect gear changes every time. The New 105 chainset features Bio-Pace chainrings, giving improved pedalling efficiency with an action that more closely matches the cadence of the human legs when walking or running.
The pedals are very special – a wide platform design offering full foot support, with a detachable plate allowing use with conventional cycling shoes with cleats when removed, and running/training shoes when in place. Gearing is also slightly wider than normal racing ratios, which together with the Bio-Pace chainrings optimises performance opportunities.

Saddle
A new design from Selle Royal; the narrow styling reduces chafing, whilst the special covering material improves grip on wet clothes. The nylon chassis also incorporates a sprung area ensuring the best combination of support and comfort.

Other Features
Twin bottles are fitted as standard, and the direct fit pump is accommodated under the top tube. Handlebar size varies with frame size – 400mm width/medium drop on 54 and 57 cm sizes, 420mm width/deep drop on 60 and 64 cm sizes. Aero brake levers feature comfortable ergonomically designed covers for “on the hoods” riding, and the cushion tape provides a comfortable grip for other positions. (The brake cable is tucked away into a wedge shaped foam piece to eliminate the normal discomfort of cables under handlebar tape).
Colour: Citron.
See Page 14 for full spec.

FRAME SIZE | INSIDE LEG
54 cm (21″) | 31-34″
57 cm (22½”) | 32-35″
60 cm (23½”) | 33-36″
64 cm (25″) | 35-38″

6

[The Raleigh Triathlon in citron shown in a studio photograph with its Reynolds 531 transfer and four checkered flags, beside a column of Shimano SIS, New 105, SLR and Biopace emblems and a diagram of a Biopace chainring. Below the model text are close views of the front brake and the rear derailleur.]

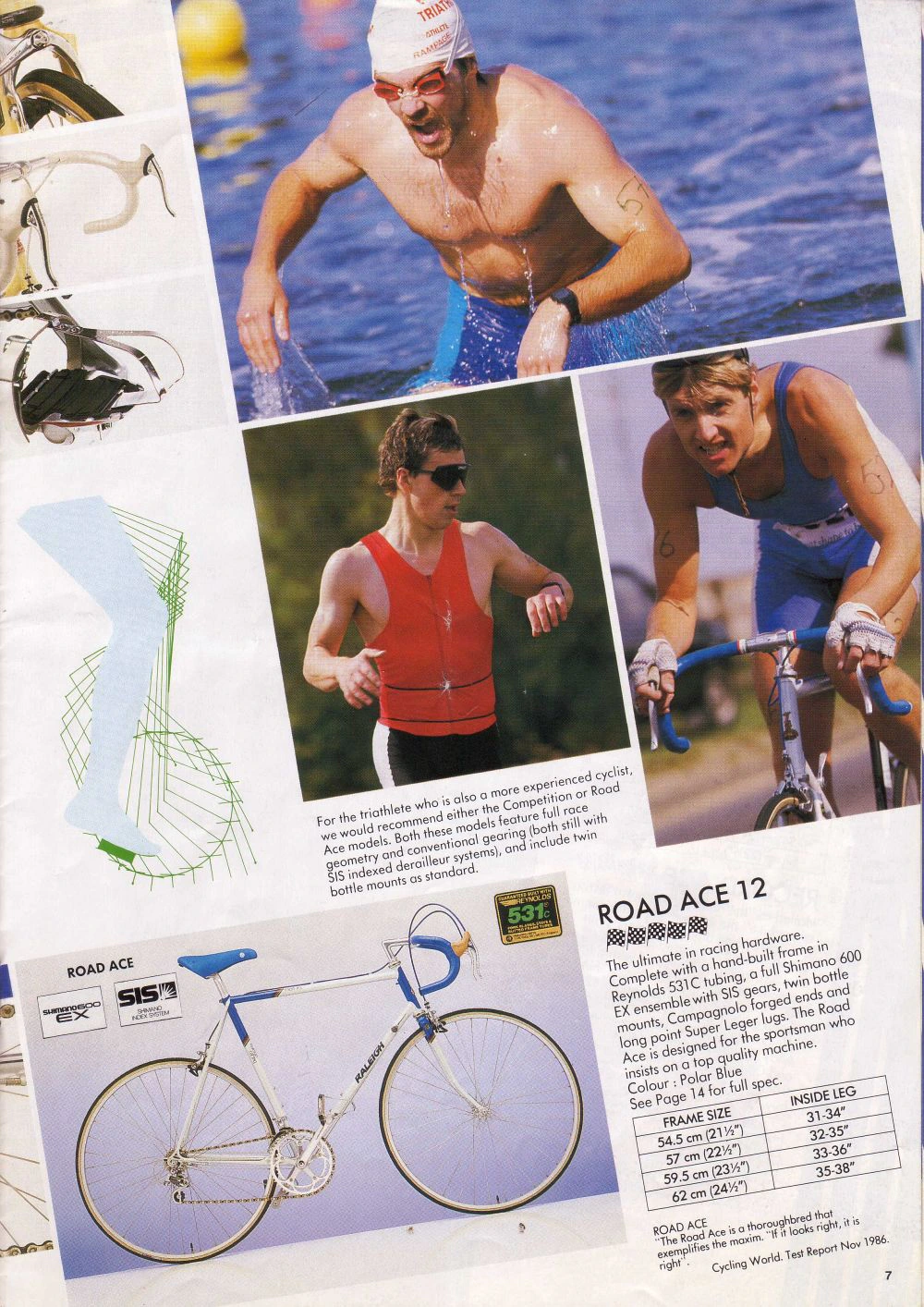

— Page 7 —
For the triathlete who is also a more experienced cyclist, we would recommend either the Competition or Road Ace models. Both these models feature full race geometry and conventional gearing (both still with SIS indexed derailleur systems), and include twin bottle mounts as standard.

ROAD ACE
SHIMANO 600 EX
SIS SHIMANO INDEX SYSTEM

ROAD ACE 12
The ultimate in racing hardware. Complete with a hand-built frame in Reynolds 531C tubing, a full Shimano 600 EX ensemble with SIS gears, twin bottle mounts, Campagnolo forged ends and long point Super Leger lugs. The Road Ace is designed for the sportsman who insists on a top quality machine.
Colour : Polar Blue
See Page 14 for full spec.

FRAME SIZE | INSIDE LEG
54.5 cm (21½”) | 31-34″
57 cm (22½”) | 32-35″
59.5 cm (23½”) | 33-36″
62 cm (24½”) | 35-38″

ROAD ACE
“The Road Ace is a thoroughbred that exemplifies the maxim. “If it looks right, it is right”.
Cycling World. Test Report Nov 1986.

7

[The Raleigh Road Ace 12 in white with polar blue panels shown in a studio photograph with its Reynolds 531C transfer, Shimano 600 EX and SIS emblems and five checkered flags. Above are triathlon photographs of a swimmer leaving the water, a runner checking his watch and a cyclist on a blue-taped bar, with close views of the Triathlon’s brake, levers and platform pedal and a drawing of a leg’s pedaling motion.]

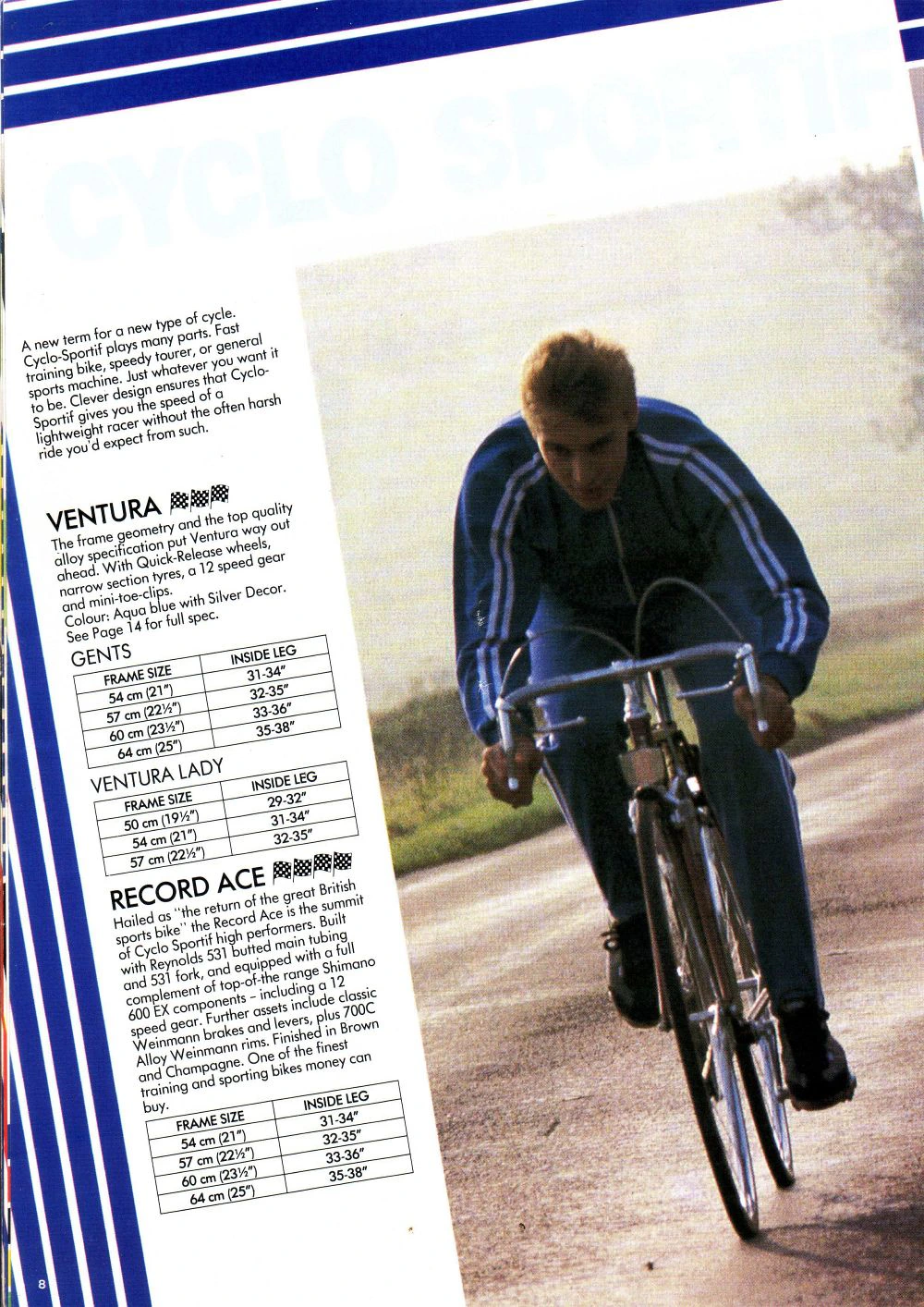

— Page 8 —
CYCLO SPORTIF

A new term for a new type of cycle. Cyclo-Sportif plays many parts. Fast training bike, speedy tourer, or general sports machine. Just whatever you want it to be. Clever design ensures that Cyclo-Sportif gives you the speed of a lightweight racer without the often harsh ride you’d expect from such.

VENTURA
The frame geometry and the top quality alloy specification put Ventura way out ahead. With Quick-Release wheels, narrow section tyres, a 12 speed gear and mini-toe-clips.
Colour: Aqua blue with Silver Decor.
See Page 14 for full spec.

GENTS
FRAME SIZE | INSIDE LEG
54 cm (21″) | 31-34″
57 cm (22½”) | 32-35″
60 cm (23½”) | 33-36″
64 cm (25″) | 35-38″

VENTURA LADY
FRAME SIZE | INSIDE LEG
50 cm (19½”) | 29-32″
54 cm (21″) | 31-34″
57 cm (22½”) | 32-35″

RECORD ACE
Hailed as “the return of the great British sports bike” the Record Ace is the summit of Cyclo Sportif high performers. Built with Reynolds 531 butted main tubing and 531 fork, and equipped with a full complement of top-of-the range Shimano 600 EX components – including a 12 speed gear. Further assets include classic Weinmann brakes and levers, plus 700C Alloy Weinmann rims. Finished in Brown and Champagne. One of the finest training and sporting bikes money can buy.

FRAME SIZE | INSIDE LEG
54 cm (21″) | 31-34″
57 cm (22½”) | 32-35″
60 cm (23½”) | 33-36″
64 cm (25″) | 35-38″

8

[The opening page of the Cyclo Sportif range, with text and frame size charts for the Raleigh Ventura (three checkered flags), the Ventura Lady and the Record Ace (four flags), beside a large photograph of a rider in a blue tracksuit on a misty country road. The heading “Cyclo Sportif” is printed in very pale blue across the top.]

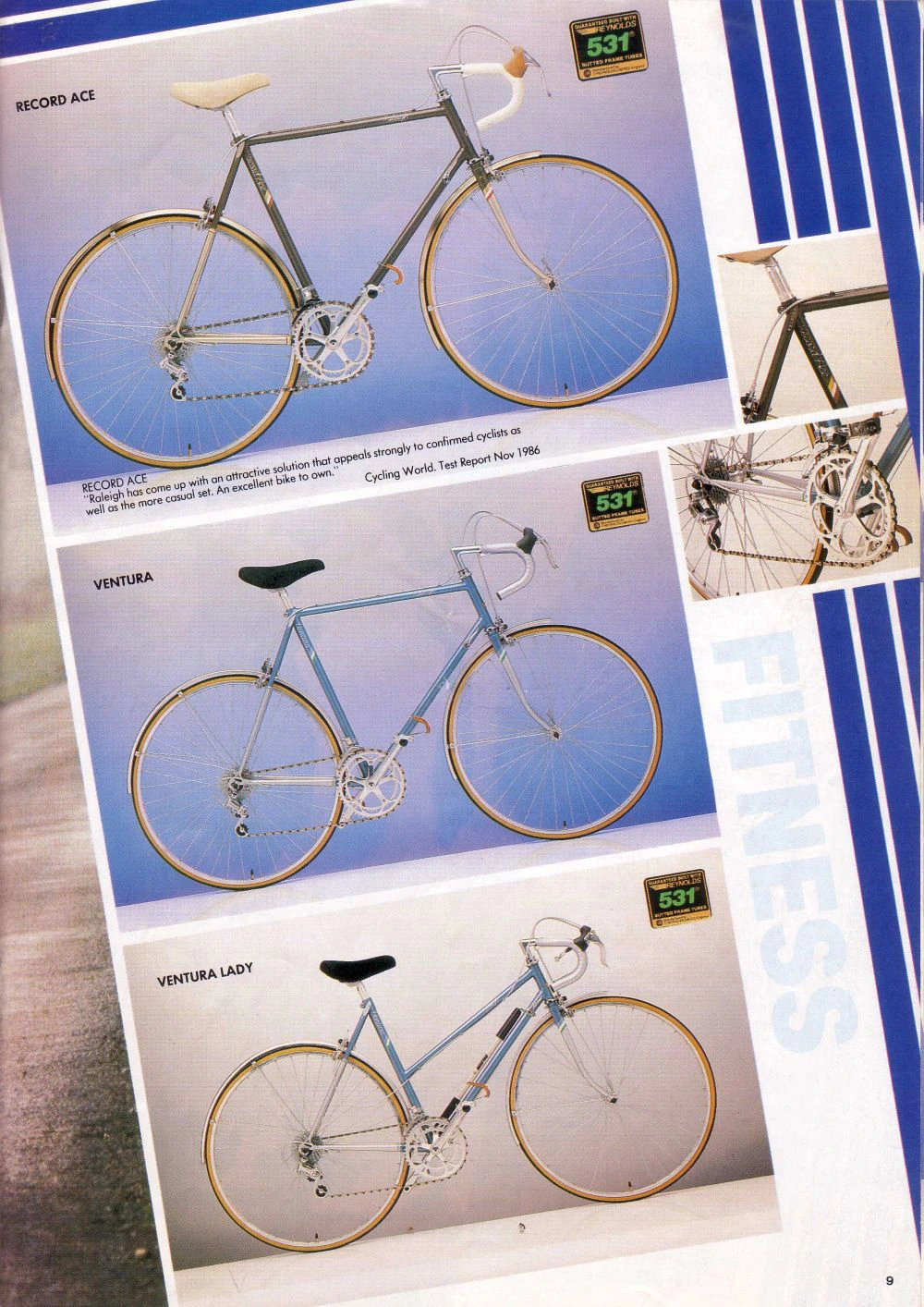

— Page 9 —
FITNESS

RECORD ACE

RECORD ACE
“Raleigh has come up with an attractive solution that appeals strongly to confirmed cyclists as well as the more casual set. An excellent bike to own.”
Cycling World. Test Report Nov 1986

VENTURA

VENTURA LADY

9

[The Raleigh Record Ace, Ventura and Ventura Lady shown in three studio photographs, each with the Reynolds 531 butted frame tubes transfer reproduced beside it, and two close views of the Record Ace seat cluster and chainset. The section word “FITNESS” runs down the right margin over blue stripes.]

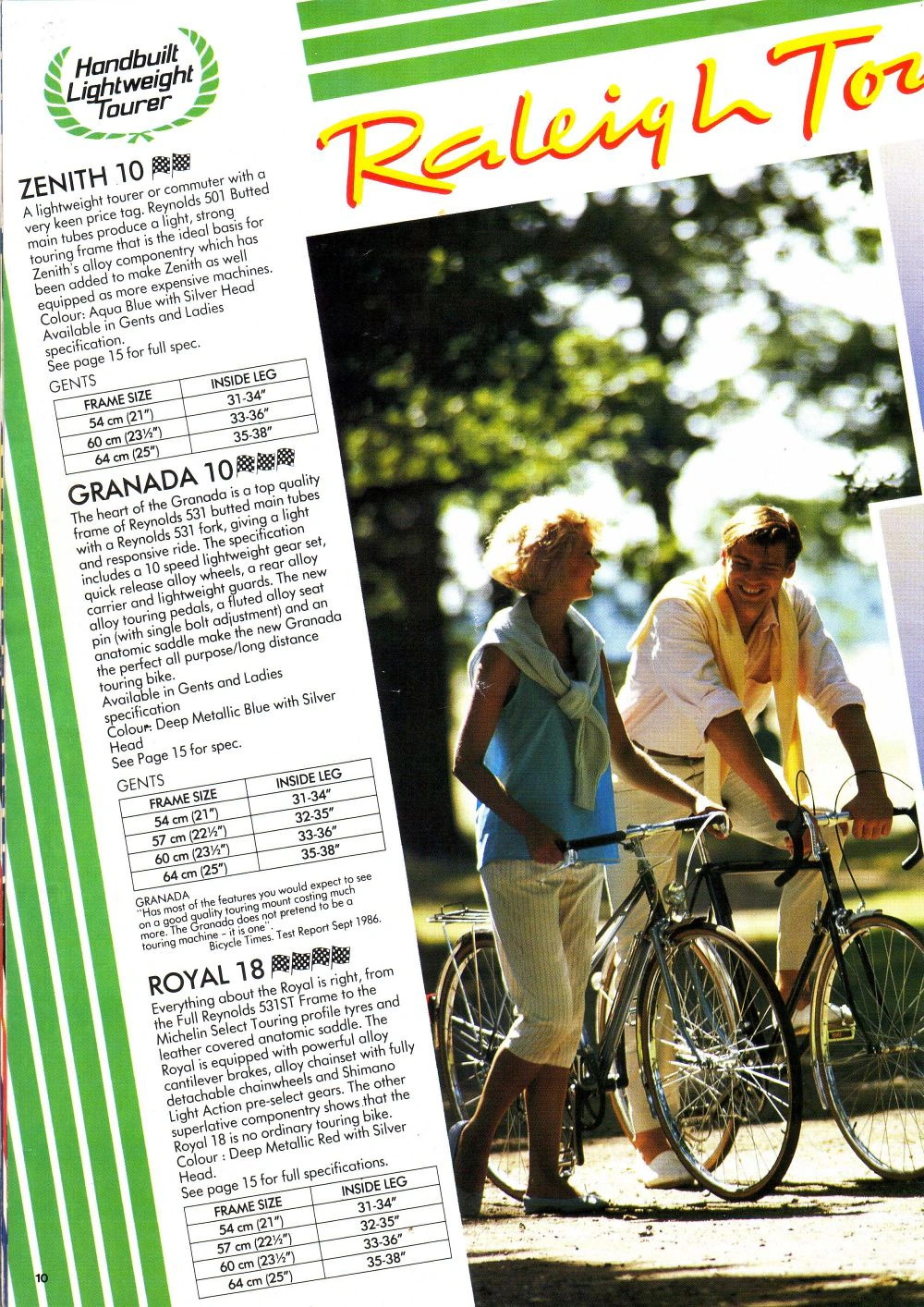

— Page 10 —
Raleigh To[cut off]

Handbuilt Lightweight Tourer

ZENITH 10
A lightweight tourer or commuter with a very keen price tag. Reynolds 501 Butted main tubes produce a light, strong touring frame that is the ideal basis for Zenith’s alloy componentry which has been added to make Zenith as well equipped as more expensive machines.
Colour: Aqua Blue with Silver Head
Available in Gents and Ladies specification.
See page 15 for full spec.

GENTS
FRAME SIZE | INSIDE LEG
54 cm (21″) | 31-34″
60 cm (23½”) | 33-36″
64 cm (25″) | 35-38″

GRANADA 10
The heart of the Granada is a top quality frame of Reynolds 531 butted main tubes with a Reynolds 531 fork, giving a light and responsive ride. The specification includes a 10 speed lightweight gear set, quick release alloy wheels, a rear alloy carrier and lightweight guards. The new alloy touring pedals, a fluted alloy seat pin (with single bolt adjustment) and an anatomic saddle make the new Granada the perfect all purpose/long distance touring bike.
Available in Gents and Ladies specification
Colour: Deep Metallic Blue with Silver Head
See Page 15 for spec.

GENTS
FRAME SIZE | INSIDE LEG
54 cm (21″) | 31-34″
57 cm (22½”) | 32-35″
60 cm (23½”) | 33-36″
64 cm (25″) | 35-38″

GRANADA
“Has most of the features you would expect to see on a good quality touring mount costing much more. The Granada does not pretend to be a touring machine – it is one”.
Bicycle Times. Test Report Sept 1986.

ROYAL 18
Everything about the Royal is right, from the Full Reynolds 531ST Frame to the Michelin Select Touring profile tyres and leather covered anatomic saddle. The Royal is equipped with powerful alloy cantilever brakes, alloy chainset with fully detachable chainwheels and Shimano Light Action pre-select gears. The other superlative componentry shows that the Royal 18 is no ordinary touring bike.
Colour : Deep Metallic Red with Silver Head.
See page 15 for full specifications.

FRAME SIZE | INSIDE LEG
54 cm (21″) | 31-34″
57 cm (22½”) | 32-35″
60 cm (23½”) | 33-36″
64 cm (25″) | 35-38″

10

[A man and a woman with touring bicycles in a sunlit park, beside the text and frame size tables for the Raleigh Zenith 10, Granada 10 and Royal 18 under a laurel wreath badge reading “Handbuilt Lightweight Tourer”. Each model name is followed by a row of checkered flags (two for the Zenith 10, three for the Granada 10, four for the Royal 18), and the script headline “Raleigh Touring” runs across this page and the next.]

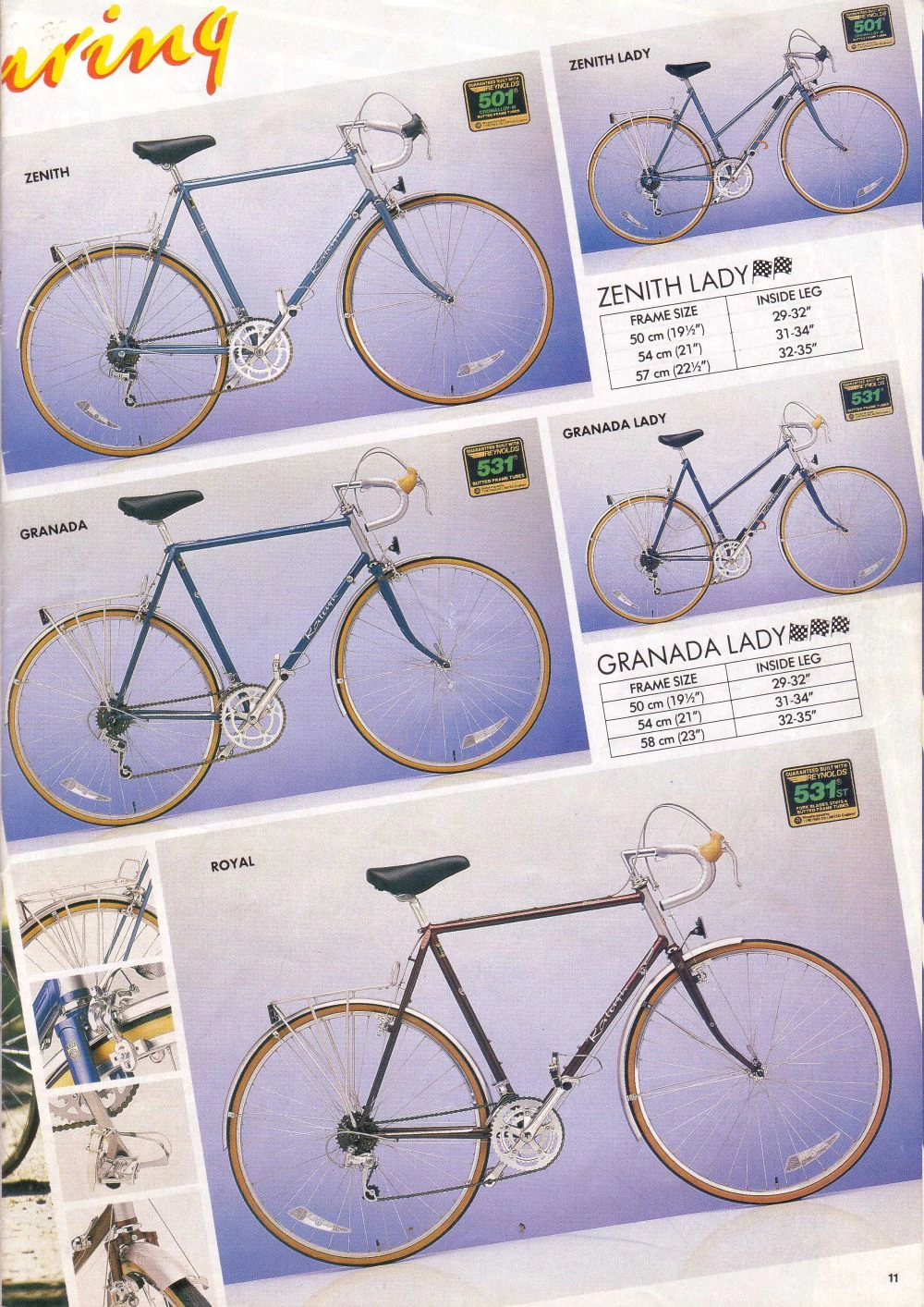

— Page 11 —
[cut off]uring

ZENITH

ZENITH LADY

ZENITH LADY
FRAME SIZE | INSIDE LEG
50 cm (19½”) | 29-32″
54 cm (21″) | 31-34″
57 cm (22½”) | 32-35″

GRANADA LADY

GRANADA

GRANADA LADY
FRAME SIZE | INSIDE LEG
50 cm (19½”) | 29-32″
54 cm (21″) | 31-34″
58 cm (23″) | 32-35″

ROYAL

11

[The Raleigh Zenith, Zenith Lady, Granada, Granada Lady and Royal touring bicycles shown in studio photographs, each with its Reynolds 501, 531 or 531ST tubing transfer reproduced beside it, and frame size tables for the two ladies’ models. A strip of close views down the left edge shows a rear carrier, a cantilever brake, a pedal and a fork crown; the script headline “Raleigh Touring” begins on the facing page, and the Zenith Lady and Granada Lady carry two and three checkered flags.]

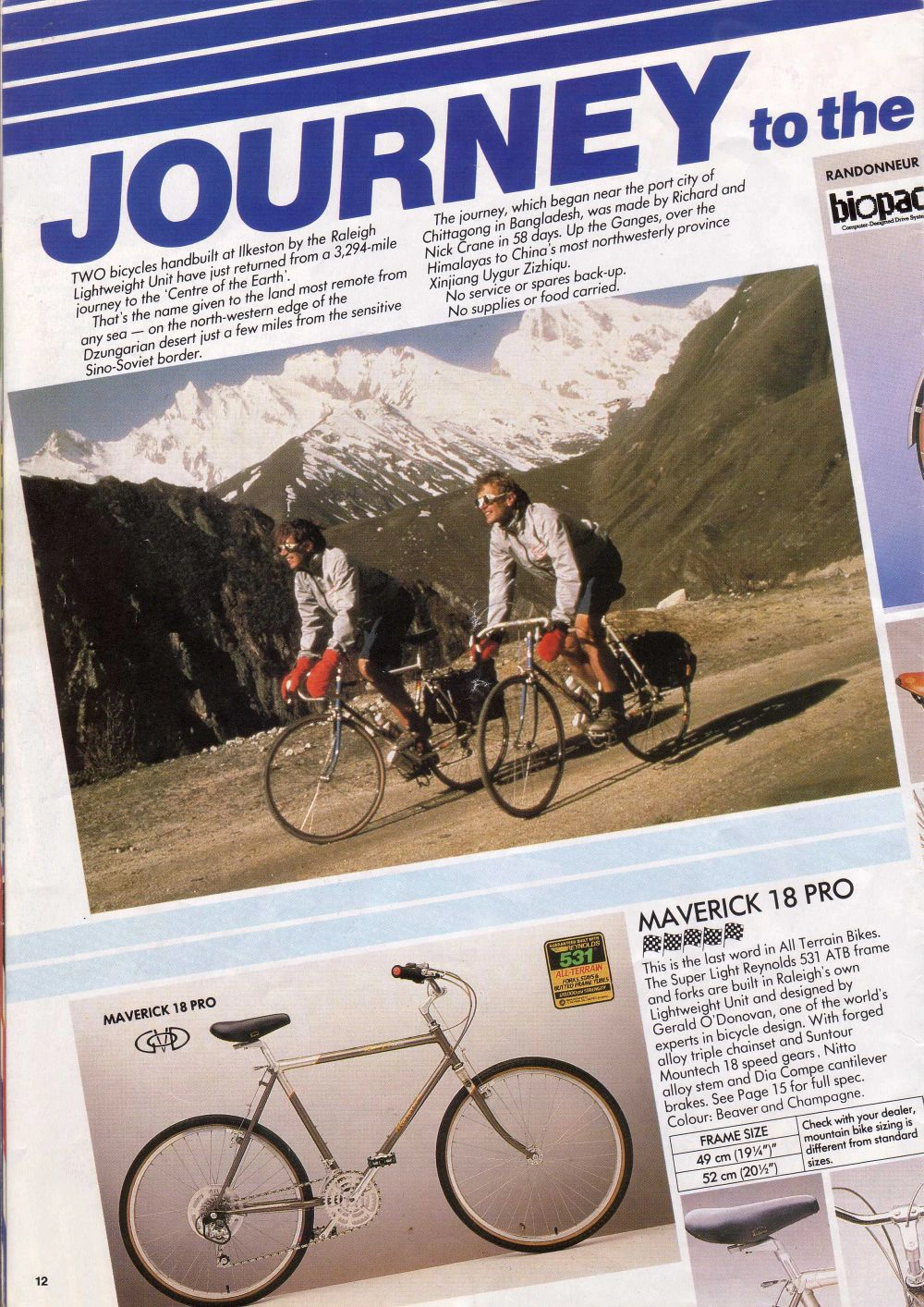

— Page 12 —
JOURNEY to the

TWO bicycles handbuilt at Ilkeston by the Raleigh Lightweight Unit have just returned from a 3,294-mile journey to the ‘Centre of the Earth’.
That’s the name given to the land most remote from any sea — on the north-western edge of the Dzungarian desert just a few miles from the sensitive Sino-Soviet border.

The journey, which began near the port city of Chittagong in Bangladesh, was made by Richard and Nick Crane in 58 days. Up the Ganges, over the Himalayas to China’s most northwesterly province Xinjiang Uygur Zizhiqu.
No service or spares back-up.
No supplies or food carried.

RANDONNEUR

biopac[cut off]
Computer-Designed Drive Syste[cut off]

MAVERICK 18 PRO

MAVERICK 18 PRO
This is the last word in All Terrain Bikes. The Super Light Reynolds 531 ATB frame and forks are built in Raleigh’s own Lightweight Unit and designed by Gerald O’Donovan, one of the world’s experts in bicycle design. With forged alloy triple chainset and Suntour Mountech 18 speed gears, Nitto alloy stem and Dia Compe cantilever brakes. See Page 15 for full spec.
Colour: Beaver and Champagne.

FRAME SIZE | Check with your dealer, mountain bike sizing is different from standard sizes.
49 cm (19¼”)” |
52 cm (20½”) |

12

[Two riders on loaded touring bicycles on a mountain road below snow peaks, under the headline “JOURNEY to the centre of the earth…” that runs across this page and the next, with the story of Richard and Nick Crane’s ride from Bangladesh to Xinjiang. Below, the Raleigh Maverick 18 Pro all terrain bicycle is shown in a studio photograph with its Reynolds 531 All-Terrain tubing transfer, a monogram logo, five checkered flags and a frame size table; at the right edge the corner of the Randonneur panel with a Biopace logo continues onto the next page.]

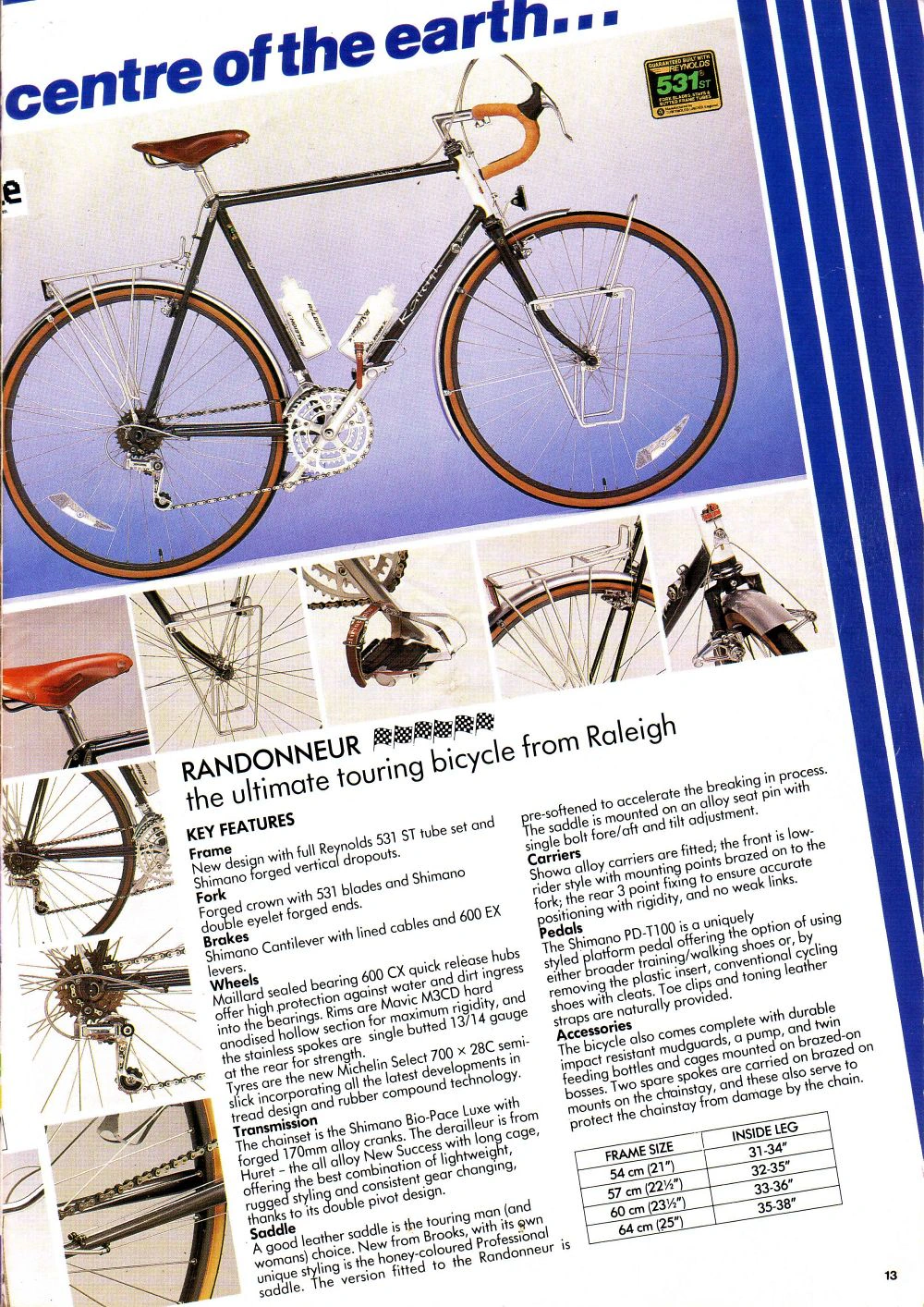

— Page 13 —
centre of the earth…

[cut off]e

RANDONNEUR
the ultimate touring bicycle from Raleigh

KEY FEATURES
Frame
New design with full Reynolds 531 ST tube set and Shimano forged vertical dropouts.
Fork
Forged crown with 531 blades and Shimano double eyelet forged ends.
Brakes
Shimano Cantilever with lined cables and 600 EX levers.
Wheels
Maillard sealed bearing 600 CX quick release hubs offer high protection against water and dirt ingress into the bearings. Rims are Mavic M3CD hard anodised hollow section for maximum rigidity, and the stainless spokes are single butted 13/14 gauge at the rear for strength.
Tyres are the new Michelin Select 700 × 28C semi-slick incorporating all the latest developments in tread design and rubber compound technology.
Transmission
The chainset is the Shimano Bio-Pace Luxe with forged 170mm alloy cranks. The derailleur is from Huret – the all alloy New Success with long cage, offering the best combination of lightweight, rugged styling and consistent gear changing, thanks to its double pivot design.
Saddle
A good leather saddle is the touring man (and womans) choice. New from Brooks, with its own unique styling is the honey-coloured Professional saddle. The version fitted to the Randonneur is pre-softened to accelerate the breaking in process. The saddle is mounted on an alloy seat pin with single bolt fore/aft and tilt adjustment.
Carriers
Showa alloy carriers are fitted; the front is low-rider style with mounting points brazed on to the fork; the rear 3 point fixing to ensure accurate positioning with rigidity, and no weak links.
Pedals
The Shimano PD-T100 is a uniquely styled platform pedal offering the option of using either broader training/walking shoes or, by removing the plastic insert, conventional cycling shoes with cleats. Toe clips and toning leather straps are naturally provided.
Accessories
The bicycle also comes complete with durable impact resistant mudguards, a pump, and twin feeding bottles and cages mounted on brazed-on bosses. Two spare spokes are carried on brazed on mounts on the chainstay, and these also serve to protect the chainstay from damage by the chain.

FRAME SIZE | INSIDE LEG
54 cm (21″) | 31-34″
57 cm (22½”) | 32-35″
60 cm (23½”) | 33-36″
64 cm (25″) | 35-38″

13

[The Raleigh Randonneur touring bicycle shown in a large studio photograph with front and rear carriers, mudguards and twin bottles, its Reynolds 531ST tubing transfer reproduced beside it, above a row of close views of the Brooks saddle, front carrier, pedal, rear carrier and fork crown. Below are six checkered flags, the key features text and a frame size table, with further close views of the frame and gears down the left edge; the headline “centre of the earth…” completes the “JOURNEY to the” headline from the facing page.]

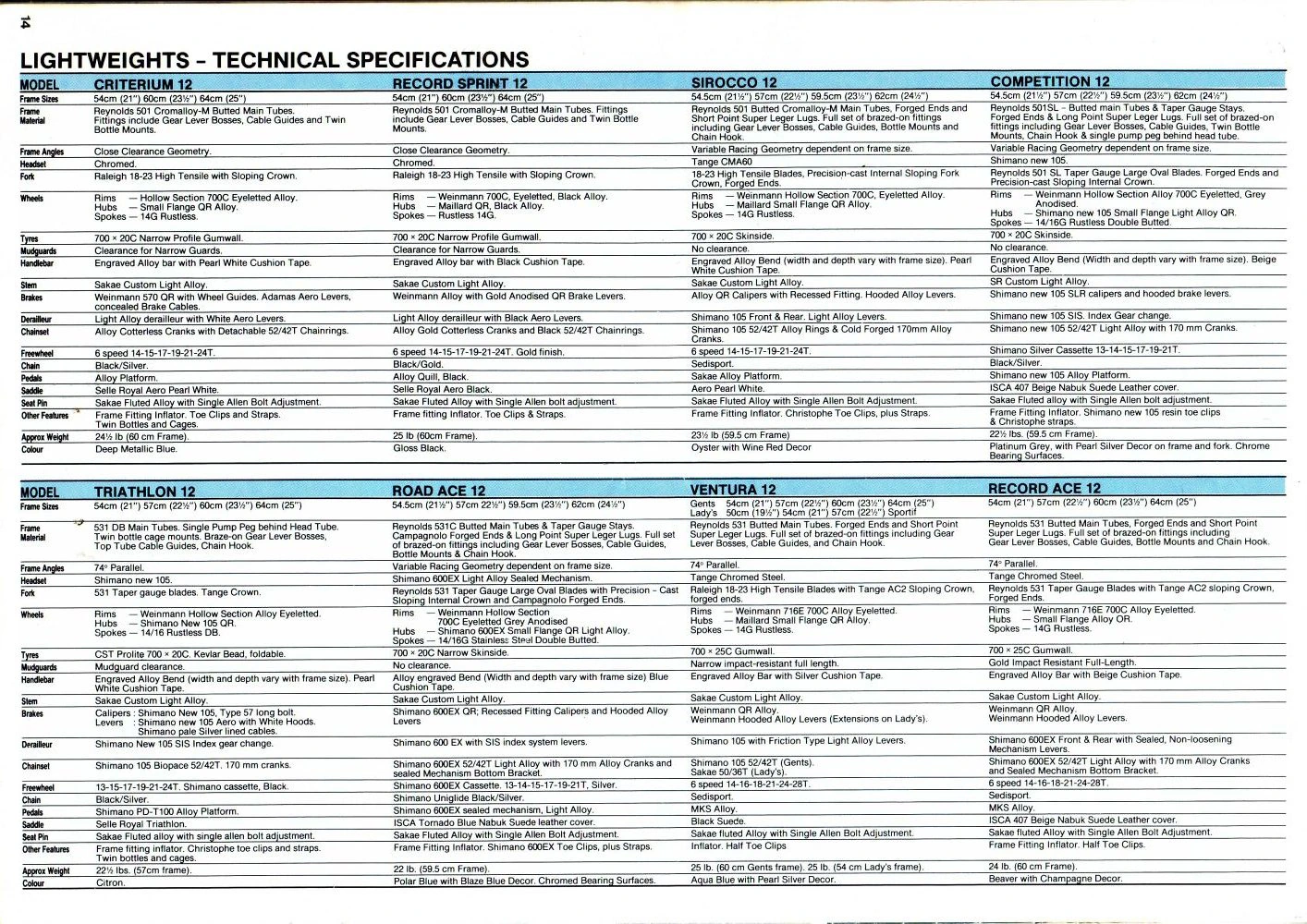

— Page 14 —
LIGHTWEIGHTS – TECHNICAL SPECIFICATIONS

MODEL | CRITERIUM 12 | RECORD SPRINT 12 | SIROCCO 12 | COMPETITION 12
Frame Sizes | 54cm (21″) 60cm (23½”) 64cm (25″) | 54cm (21″) 60cm (23½”) 64cm (25″) | 54.5cm (21½”) 57cm (22½”) 59.5cm (23½”) 62cm (24½”) | 54.5cm (21½”) 57cm (22½”) 59.5cm (23½”) 62cm (24½”)
Frame Material | Reynolds 501 Cromalloy-M Butted Main Tubes. Fittings include Gear Lever Bosses, Cable Guides and Twin Bottle Mounts. | Reynolds 501 Cromalloy-M Butted Main Tubes. Fittings include Gear Lever Bosses, Cable Guides and Twin Bottle Mounts. | Reynolds 501 Butted Cromalloy-M Main Tubes, Forged Ends and Short Point Super Leger Lugs. Full set of brazed-on fittings including Gear Lever Bosses, Cable Guides, Bottle Mounts and Chain Hook. | Reynolds 501SL – Butted main Tubes & Taper Gauge Stays. Forged Ends & Long Point Super Leger Lugs. Full set of brazed-on fittings including Gear Lever Bosses, Cable Guides, Twin Bottle Mounts, Chain Hook & single pump peg behind head tube.
Frame Angles | Close Clearance Geometry. | Close Clearance Geometry. | Variable Racing Geometry dependent on frame size. | Variable Racing Geometry dependent on frame size.
Headset | Chromed. | Chromed. | Tange CMA60 | Shimano new 105.
Fork | Raleigh 18-23 High Tensile with Sloping Crown. | Raleigh 18-23 High Tensile with Sloping Crown. | 18-23 High Tensile Blades, Precision-cast Internal Sloping Fork Crown, Forged Ends. | Reynolds 501 SL Taper Gauge Large Oval Blades. Forged Ends and Precision-cast Sloping Internal Crown.
Wheels | Rims — Hollow Section 700C Eyeletted Alloy. Hubs — Small Flange QR Alloy. Spokes — 14G Rustless. | Rims — Weinmann 700C, Eyeletted, Black Alloy. Hubs — Maillard QR, Black Alloy. Spokes — Rustless 14G. | Rims — Weinmann Hollow Section 700C, Eyeletted Alloy. Hubs — Maillard Small Flange QR Alloy. Spokes — 14G Rustless. | Rims — Weinmann Hollow Section Alloy 700C Eyeletted, Grey Anodised. Hubs — Shimano new 105 Small Flange Light Alloy QR. Spokes — 14/16G Rustless Double Butted.
Tyres | 700 × 20C Narrow Profile Gumwall. | 700 × 20C Narrow Profile Gumwall. | 700 × 20C Skinside. | 700 × 20C Skinside.
Mudguards | Clearance for Narrow Guards. | Clearance for Narrow Guards. | No clearance. | No clearance.
Handlebar | Engraved Alloy bar with Pearl White Cushion Tape. | Engraved Alloy bar with Black Cushion Tape. | Engraved Alloy Bend (width and depth vary with frame size). Pearl White Cushion Tape. | Engraved Alloy Bend (Width and depth vary with frame size). Beige Cushion Tape.

Stem | Sakae Custom Light Alloy. | Sakae Custom Light Alloy. | Sakae Custom Light Alloy. | SR Custom Light Alloy.
Brakes | Weinmann 570 QR with Wheel Guides. Adamas Aero Levers, concealed Brake Cables. | Weinmann Alloy with Gold Anodised QR Brake Levers. | Alloy QR Calipers with Recessed Fitting. Hooded Alloy Levers. | Shimano new 105 SLR calipers and hooded brake levers.
Derailleur | Light Alloy derailleur with White Aero Levers. | Light Alloy derailleur with Black Aero Levers. | Shimano 105 Front & Rear. Light Alloy Levers. | Shimano new 105 SIS. Index Gear change.
Chainset | Alloy Cotterless Cranks with Detachable 52/42T Chainrings. | Alloy Gold Cotterless Cranks and Black 52/42T Chainrings. | Shimano 105 52/42T Alloy Rings & Cold Forged 170mm Alloy Cranks. | Shimano new 105 52/42T Light Alloy with 170 mm Cranks.
Freewheel | 6 speed 14-15-17-19-21-24T. | 6 speed 14-15-17-19-21-24T. Gold finish. | 6 speed 14-15-17-19-21-24T. | Shimano Silver Cassette 13-14-15-17-19-21T.
Chain | Black/Silver. | Black/Gold. | Sedisport. | Black/Silver.
Pedals | Alloy Platform. | Alloy Quill, Black. | Sakae Alloy Platform. | Shimano new 105 Alloy Platform.
Saddle | Selle Royal Aero Pearl White. | Selle Royal Aero Black. | Aero Pearl White. | ISCA 407 Beige Nabuk Suede Leather cover.
Seat Pin | Sakae Fluted Alloy with Single Allen Bolt Adjustment. | Sakae Fluted Alloy with Single Allen bolt adjustment. | Sakae Fluted Alloy with Single Allen Bolt Adjustment. | Sakae Fluted alloy with Single Allen bolt adjustment.
Other Features | Frame Fitting Inflator. Toe Clips and Straps. Twin Bottles and Cages. | Frame fitting Inflator. Toe Clips & Straps. | Frame Fitting Inflator. Christophe Toe Clips, plus Straps. | Frame Fitting Inflator. Shimano new 105 resin toe clips & Christophe straps.
Approx Weight | 24½ lb (60 cm Frame). | 25 lb (60cm Frame). | 23½ lb (59.5 cm Frame) | 22½ lbs. (59.5 cm Frame).
Colour | Deep Metallic Blue. | Gloss Black. | Oyster with Wine Red Decor | Platinum Grey, with Pearl Silver Decor on frame and fork. Chrome Bearing Surfaces.

MODEL | TRIATHLON 12 | ROAD ACE 12 | VENTURA 12 | RECORD ACE 12
Frame Sizes | 54cm (21″) 57cm (22½”) 60cm (23½”) 64cm (25″) | 54.5cm (21½”) 57cm 22½”) 59.5cm (23½”) 62cm (24½”) | Gents 54cm (21″) 57cm (22½”) 60cm (23½”) 64cm (25″) Lady’s 50cm (19½”) 54cm (21″) 57cm (22½”) Sportif | 54cm (21″) 57cm (22½”) 60cm (23½”) 64cm (25″)
Frame Material | 531 DB Main Tubes. Single Pump Peg behind Head Tube. Twin bottle cage mounts. Braze-on Gear Lever Bosses, Top Tube Cable Guides, Chain Hook. | Reynolds 531C Butted Main Tubes & Taper Gauge Stays. Campagnolo Forged Ends & Long Point Super Leger Lugs. Full set of brazed-on fittings including Gear Lever Bosses, Cable Guides, Bottle Mounts & Chain Hook. | Reynolds 531 Butted Main Tubes. Forged Ends and Short Point Super Leger Lugs. Full set of brazed-on fittings including Gear Lever Bosses, Cable Guides, and Chain Hook. | Reynolds 531 Butted Main Tubes, Forged Ends and Short Point Super Leger Lugs. Full set of brazed-on fittings including Gear Lever Bosses, Cable Guides, Bottle Mounts and Chain Hook.
Frame Angles | 74° Parallel. | Variable Racing Geometry dependent on frame size. | 74° Parallel. | 74° Parallel.
Headset | Shimano new 105. | Shimano 600EX Light Alloy Sealed Mechanism. | Tange Chromed Steel. | Tange Chromed Steel.
Fork | 531 Taper gauge blades. Tange Crown. | Reynolds 531 Taper Gauge Large Oval Blades with Precision – Cast Sloping Internal Crown and Campagnolo Forged Ends. | Raleigh 18-23 High Tensile Blades with Tange AC2 Sloping Crown, forged ends. | Reynolds 531 Taper Gauge Blades with Tange AC2 sloping Crown, Forged Ends.
Wheels | Rims — Weinmann Hollow Section Alloy Eyeletted. Hubs — Shimano New 105 QR. Spokes — 14/16 Rustless DB. | Rims — Weinmann Hollow Section 700C Eyeletted Grey Anodised Hubs — Shimano 600EX Small Flange QR Light Alloy. Spokes — 14/16G Stainless Steel Double Butted. | Rims — Weinmann 716E 700C Alloy Eyeletted. Hubs — Maillard Small Flange QR Alloy. Spokes — 14G Rustless. | Rims — Weinmann 716E 700C Alloy Eyeletted. Hubs — Small Flange Alloy OR. Spokes — 14G Rustless.
Tyres | CST Prolite 700 × 20C. Kevlar Bead, foldable. | 700 × 20C Narrow Skinside. | 700 × 25C Gumwall. | 700 × 25C Gumwall.
Mudguards | Mudguard clearance. | No clearance. | Narrow impact-resistant full length. | Gold Impact Resistant Full-Length.
Handlebar | Engraved Alloy Bend (width and depth vary with frame size). Pearl White Cushion Tape. | Alloy engraved Bend (Width and depth vary with frame size) Blue Cushion Tape. | Engraved Alloy Bar with Silver Cushion Tape. | Engraved Alloy Bar with Beige Cushion Tape.

Stem | Sakae Custom Light Alloy. | Sakae Custom Light Alloy. | Sakae Custom Light Alloy. | Sakae Custom Light Alloy.
Brakes | Calipers : Shimano New 105, Type 57 long bolt. Levers : Shimano new 105 Aero with White Hoods. Shimano pale Silver lined cables. | Shimano 600EX QR; Recessed Fitting Calipers and Hooded Alloy Levers | Weinmann QR Alloy. Weinmann Hooded Alloy Levers (Extensions on Lady’s). | Weinmann QR Alloy. Weinmann Hooded Alloy Levers.
Derailleur | Shimano New 105 SIS Index gear change. | Shimano 600 EX with SIS index system levers. | Shimano 105 with Friction Type Light Alloy Levers. | Shimano 600EX Front & Rear with Sealed, Non-loosening Mechanism Levers.
Chainset | Shimano 105 Biopace 52/42T. 170 mm cranks. | Shimano 600EX 52/42T Light Alloy with 170 mm Alloy Cranks and sealed Mechanism Bottom Bracket. | Shimano 105 52/42T (Gents). Sakae 50/36T (Lady’s). | Shimano 600EX 52/42T Light Alloy with 170 mm Alloy Cranks and Sealed Mechanism Bottom Bracket.
Freewheel | 13-15-17-19-21-24T. Shimano cassette, Black. | Shimano 600EX Cassette. 13-14-15-17-19-21T, Silver. | 6 speed 14-16-18-21-24-28T. | 6 speed 14-16-18-21-24-28T.
Chain | Black/Silver. | Shimano Uniglide Black/Silver. | Sedisport. | Sedisport.
Pedals | Shimano PD-T100 Alloy Platform. | Shimano 600EX sealed mechanism, Light Alloy. | MKS Alloy. | MKS Alloy.
Saddle | Selle Royal Triathlon. | ISCA Tornado Blue Nabuk Suede leather cover. | Black Suede. | ISCA 407 Beige Nabuk Suede Leather cover.
Seat Pin | Sakae Fluted alloy with single allen bolt adjustment. | Sakae Fluted Alloy with Single Allen Bolt Adjustment. | Sakae fluted Alloy with Single Allen Bolt Adjustment. | Sakae fluted Alloy with Single Allen Bolt Adjustment.
Other Features | Frame fitting inflator. Christophe toe clips and straps. Twin bottles and cages. | Frame Fitting Inflator. Shimano 600EX Toe Clips, plus Straps. | Inflator. Half Toe Clips | Frame Fitting Inflator. Half Toe Clips.
Approx Weight | 22½ lbs. (57cm frame). | 22 lb. (59.5 cm Frame). | 25 lb. (60 cm Gents frame). 25 lb. (54 cm Lady’s frame). | 24 lb. (60 cm Frame).
Colour | Citron. | Polar Blue with Blaze Blue Decor. Chromed Bearing Surfaces. | Aqua Blue with Pearl Silver Decor. | Beaver with Champagne Decor.

14

[A specifications table headed “LIGHTWEIGHTS – TECHNICAL SPECIFICATIONS” giving frame sizes, frame material, angles, components, weight and color for eight Raleigh models: the Criterium 12, Record Sprint 12, Sirocco 12, Competition 12, Triathlon 12, Road Ace 12, Ventura 12 and Record Ace 12. The page is printed sideways in landscape, with the folio set vertically in the top left corner.]

— Page 15 —

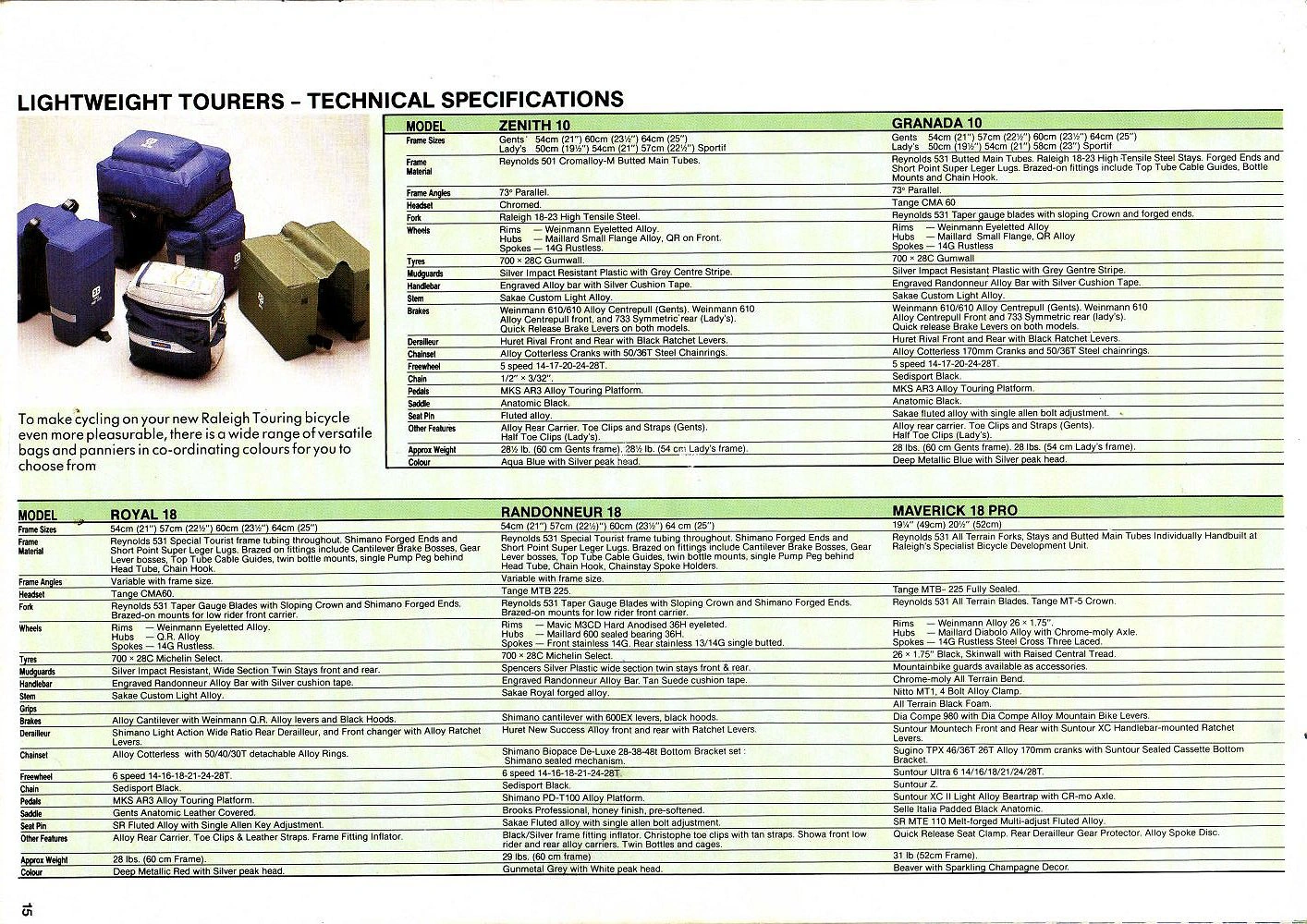

LIGHTWEIGHT TOURERS – TECHNICAL SPECIFICATIONS

To make cycling on your new Raleigh Touring bicycle even more pleasurable, there is a wide range of versatile bags and panniers in co-ordinating colours for you to choose from

MODEL | ZENITH 10 | GRANADA 10
Frame Sizes | Gents’ [?] 54cm (21″) 60cm (23½”) 64cm (25″) Lady’s 50cm (19½”) 54cm (21″) 57cm (22½”) Sportif | Gents 54cm (21″) 57cm (22½”) 60cm (23½”) 64cm (25″) Lady’s 50cm (19½”) 54cm (21″) 58cm (23″) Sportif
Frame Material | Reynolds 501 Cromalloy-M Butted Main Tubes. | Reynolds 531 Butted Main Tubes. Raleigh 18-23 High Tensile Steel Stays. Forged Ends and Short Point Super Leger Lugs. Brazed-on fittings include Top Tube Cable Guides, Bottle Mounts and Chain Hook.
Frame Angles | 73° Parallel. | 73° Parallel.
Headset | Chromed. | Tange CMA 60
Fork | Raleigh 18-23 High Tensile Steel. | Reynolds 531 Taper gauge blades with sloping Crown and forged ends.
Wheels | Rims — Weinmann Eyeletted Alloy. Hubs — Maillard Small Flange Alloy, QR on Front. Spokes — 14G Rustless. | Rims — Weinmann Eyeletted Alloy Hubs — Maillard Small Flange, QR Alloy Spokes — 14G Rustless
Tyres | 700 × 28C Gumwall. | 700 × 28C Gumwall
Mudguards | Silver Impact Resistant Plastic with Grey Centre Stripe. | Silver Impact Resistant Plastic with Grey Gentre Stripe.
Handlebar | Engraved Alloy bar with Silver Cushion Tape. | Engraved Randonneur Alloy Bar with Silver Cushion Tape.
Stem | Sakae Custom Light Alloy. | Sakae Custom Light Alloy.
Brakes | Weinmann 610/610 Alloy Centrepull (Gents). Weinmann 610 Alloy Centrepull front, and 733 Symmetric rear (Lady’s). Quick Release Brake Levers on both models. | Weinmann 610/610 Alloy Centrepull (Gents). Weinmann 610 Alloy Centrepull Front and 733 Symmetric rear (lady’s). Quick release Brake Levers on both models.
Derailleur | Huret Rival Front and Rear with Black Ratchet Levers. | Huret Rival Front and Rear with Black Ratchet Levers.
Chainset | Alloy Cotterless Cranks with 50/36T Steel Chainrings. | Alloy Cotterless 170mm Cranks and 50/36T Steel chainrings.
Freewheel | 5 speed 14-17-20-24-28T. | 5 speed 14-17-20-24-28T.
Chain | 1/2″ × 3/32″. | Sedisport Black.
Pedals | MKS AR3 Alloy Touring Platform. | MKS AR3 Alloy Touring Platform.
Saddle | Anatomic Black. | Anatomic Black.
Seat Pin | Fluted alloy. | Sakae fluted alloy with single allen bolt adjustment.
Other Features | Alloy Rear Carrier. Toe Clips and Straps (Gents). Half Toe Clips (Lady’s). | Alloy rear carrier. Toe Clips and Straps (Gents). Half Toe Clips (Lady’s).
Approx Weight | 28½ lb. (60 cm Gents frame). 28½ lb. (54 cm Lady’s frame). | 28 lbs. (60 cm Gents frame). 28 lbs. (54 cm Lady’s frame).
Colour | Aqua Blue with Silver peak head. | Deep Metallic Blue with Silver peak head.

MODEL | ROYAL 18 | RANDONNEUR 18 | MAVERICK 18 PRO
Frame Sizes | 54cm (21″) 57cm (22½”) 60cm (23½”) 64cm (25″) | 54cm (21″) 57cm (22½)”) 60cm (23½”) 64 cm (25″) | 19¼” (49cm) 20½” (52cm)
Frame Material | Reynolds 531 Special Tourist frame tubing throughout. Shimano Forged Ends and Short Point Super Leger Lugs. Brazed on fittings include Cantilever Brake Bosses, Gear Lever bosses, Top Tube Cable Guides, twin bottle mounts, single Pump Peg behind Head Tube, Chain Hook. | Reynolds 531 Special Tourist frame tubing throughout. Shimano Forged Ends and Short Point Super Leger Lugs. Brazed on fittings include Cantilever Brake Bosses, Gear Lever bosses, Top Tube Cable Guides, twin bottle mounts, single Pump Peg behind Head Tube, Chain Hook, Chainstay Spoke Holders. | Reynolds 531 All Terrain Forks, Stays and Butted Main Tubes Individually Handbuilt at Raleigh’s Specialist Bicycle Development Unit.
Frame Angles | Variable with frame size. | Variable with frame size. |
Headset | Tange CMA60. | Tange MTB 225. | Tange MTB- 225 Fully Sealed.
Fork | Reynolds 531 Taper Gauge Blades with Sloping Crown and Shimano Forged Ends. Brazed-on mounts for low rider front carrier. | Reynolds 531 Taper Gauge Blades with Sloping Crown and Shimano Forged Ends. Brazed-on mounts for low rider front carrier. | Reynolds 531 All Terrain Blades. Tange MT-5 Crown.
Wheels | Rims — Weinmann Eyeletted Alloy. Hubs — Q.R. Alloy Spokes — 14G Rustless. | Rims — Mavic M3CD Hard Anodised 36H eyeleted. Hubs — Maillard 600 sealed bearing 36H. Spokes — Front stainless 14G. Rear stainless 13/14G single butted. | Rims — Weinmann Alloy 26 × 1.75″. Hubs — Maillard Diabolo Alloy with Chrome-moly Axle. Spokes — 14G Rustless Steel Cross Three Laced.
Tyres | 700 × 28C Michelin Select. | 700 × 28C Michelin Select. | 26 × 1.75″ Black, Skinwall with Raised Central Tread.
Mudguards | Silver Impact Resistant, Wide Section Twin Stays front and rear. | Spencers Silver Plastic wide section twin stays front & rear. | Mountainbike guards available as accessories.
Handlebar | Engraved Randonneur Alloy Bar with Silver cushion tape. | Engraved Randonneur Alloy Bar. Tan Suede cushion tape. | Chrome-moly All Terrain Bend.
Stem | Sakae Custom Light Alloy. | Sakae Royal forged alloy. | Nitto MT1, 4 Bolt Alloy Clamp.
Grips | | | All Terrain Black Foam.
Brakes | Alloy Cantilever with Weinmann Q.R. Alloy levers and Black Hoods. | Shimano cantilever with 600EX levers, black hoods. | Dia Compe 980 with Dia Compe Alloy Mountain Bike Levers.
Derailleur | Shimano Light Action Wide Ratio Rear Derailleur, and Front changer with Alloy Ratchet Levers. | Huret New Success Alloy front and rear with Ratchet Levers. | Suntour Mountech Front and Rear with Suntour XC Handlebar-mounted Ratchet Levers.
Chainset | Alloy Cotterless with 50/40/30T detachable Alloy Rings. | Shimano Biopace De-Luxe 28-38-48t Bottom Bracket set : Shimano sealed mechanism. | Sugino TPX 46/36T 26T Alloy 170mm cranks with Suntour Sealed Cassette Bottom Bracket.
Freewheel | 6 speed 14-16-18-21-24-28T. | 6 speed 14-16-18-21-24-28T. | Suntour Ultra 6 14/16/18/21/24/28T.
Chain | Sedisport Black. | Sedisport Black. | Suntour Z.
Pedals | MKS AR3 Alloy Touring Platform. | Shimano PD-T100 Alloy Platform. | Suntour XC II Light Alloy Beartrap with CR-mo Axle.
Saddle | Gents Anatomic Leather Covered. | Brooks Professional, honey finish, pre-softened. | Selle Italia Padded Black Anatomic.
Seat Pin | SR Fluted Alloy with Single Allen Key Adjustment. | Sakae Fluted alloy with single allen bolt adjustment. | SR MTE 110 Melt-forged Multi-adjust Fluted Alloy.
Other Features | Alloy Rear Carrier. Toe Clips & Leather Straps. Frame Fitting Inflator. | Black/Silver frame fitting inflator. Christophe toe clips with tan straps. Showa front low rider and rear alloy carriers. Twin Bottles and cages. | Quick Release Seat Clamp. Rear Derailleur Gear Protector. Alloy Spoke Disc.
Approx Weight | 28 lbs. (60 cm Frame). | 29 lbs. (60 cm frame) | 31 lb (52cm Frame).
Colour | Deep Metallic Red with Silver peak head. | Gunmetal Grey with White peak head. | Beaver with Sparkling Champagne Decor.

15

[A specifications table headed “LIGHTWEIGHT TOURERS – TECHNICAL SPECIFICATIONS” for the Raleigh Zenith 10, Granada 10, Royal 18, Randonneur 18 and Maverick 18 Pro, printed in landscape with the folio set vertically in the bottom left corner. At top left a photograph shows blue and green handlebar bags and panniers with a caption about matching bags for Raleigh touring bicycles.]

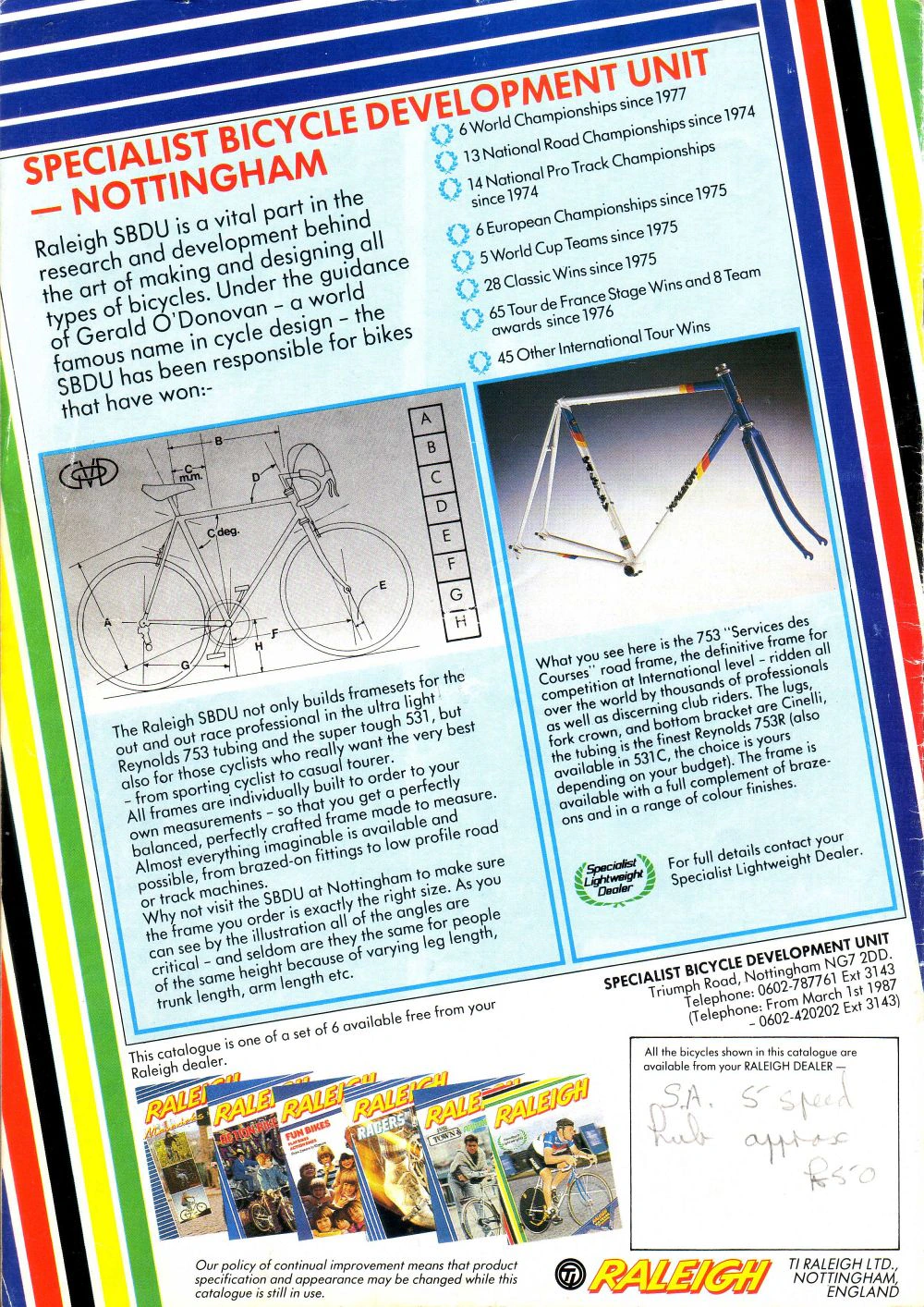

— Page 16 (back cover) —
SPECIALIST BICYCLE DEVELOPMENT UNIT — NOTTINGHAM

Raleigh SBDU is a vital part in the research and development behind the art of making and designing all types of bicycles. Under the guidance of Gerald O’Donovan – a world famous name in cycle design – the SBDU has been responsible for bikes that have won:-

6 World Championships since 1977
13 National Road Championships since 1974
14 National Pro Track Championships since 1974
6 European Championships since 1975
5 World Cup Teams since 1975
28 Classic Wins since 1975
65 Tour de France Stage Wins and 8 Team awards since 1976
45 Other International Tour Wins

A
B
C
D
E
F
G
H

B | C m.m. | D | C deg. | A | E | F | H | G

The Raleigh SBDU not only builds framesets for the out and out race professional in the ultra light Reynolds 753 tubing and the super tough 531, but also for those cyclists who really want the very best – from sporting cyclist to casual tourer.
All frames are individually built to order to your own measurements – so that you get a perfectly balanced, perfectly crafted frame made to measure.
Almost everything imaginable is available and possible, from brazed-on fittings to low profile road or track machines.
Why not visit the SBDU at Nottingham to make sure the frame you order is exactly the right size. As you can see by the illustration all of the angles are critical – and seldom are they the same for people of the same height because of varying leg length, trunk length, arm length etc.

What you see here is the 753 “Services des Courses” road frame, the definitive frame for competition at International level – ridden all over the world by thousands of professionals as well as discerning club riders. The lugs, fork crown, and bottom bracket are Cinelli, the tubing is the finest Reynolds 753R (also available in 531C, the choice is yours depending on your budget). The frame is available with a full complement of braze-ons and in a range of colour finishes.

Specialist Lightweight Dealer

For full details contact your Specialist Lightweight Dealer.

SPECIALIST BICYCLE DEVELOPMENT UNIT
Triumph Road, Nottingham NG7 2DD.
Telephone: 0602-787761 Ext 3143
(Telephone: From March 1st 1987 – 0602-420202 Ext 3143)

This catalogue is one of a set of 6 available free from your Raleigh dealer.

All the bicycles shown in this catalogue are available from your RALEIGH DEALER —

Our policy of continual improvement means that product specification and appearance may be changed while this catalogue is still in use.

RALEIGH

TI RALEIGH LTD., NOTTINGHAM, ENGLAND

[The back cover, presenting the Raleigh Specialist Bicycle Development Unit at Nottingham with its list of racing successes, a lettered fitting diagram of a road bicycle beside a monogram logo, and a photograph of the 753 “Services des Courses” road frame and fork. Below are the covers of the six catalogs in the set, a laurel badge reading “Specialist Lightweight Dealer” and the TI Raleigh imprint; in the dealer box a handwritten pencil note reads “S.A. 5 speed hub approx £50” (the last figure is uncertain).]
