Raleigh 1986 Catalog — Racer and Lightweight

— Page 1 (front cover) —
RALEIGH

RACER
AND
LIGHTWEIGHT

[The front cover: a track rider in a Raleigh skinsuit and aero helmet crouched over a Raleigh pursuit bicycle with a disc rear wheel on a wooden velodrome, under a large Raleigh wordmark and the title Racer and Lightweight. The rider is not named.]

— Page 2 —

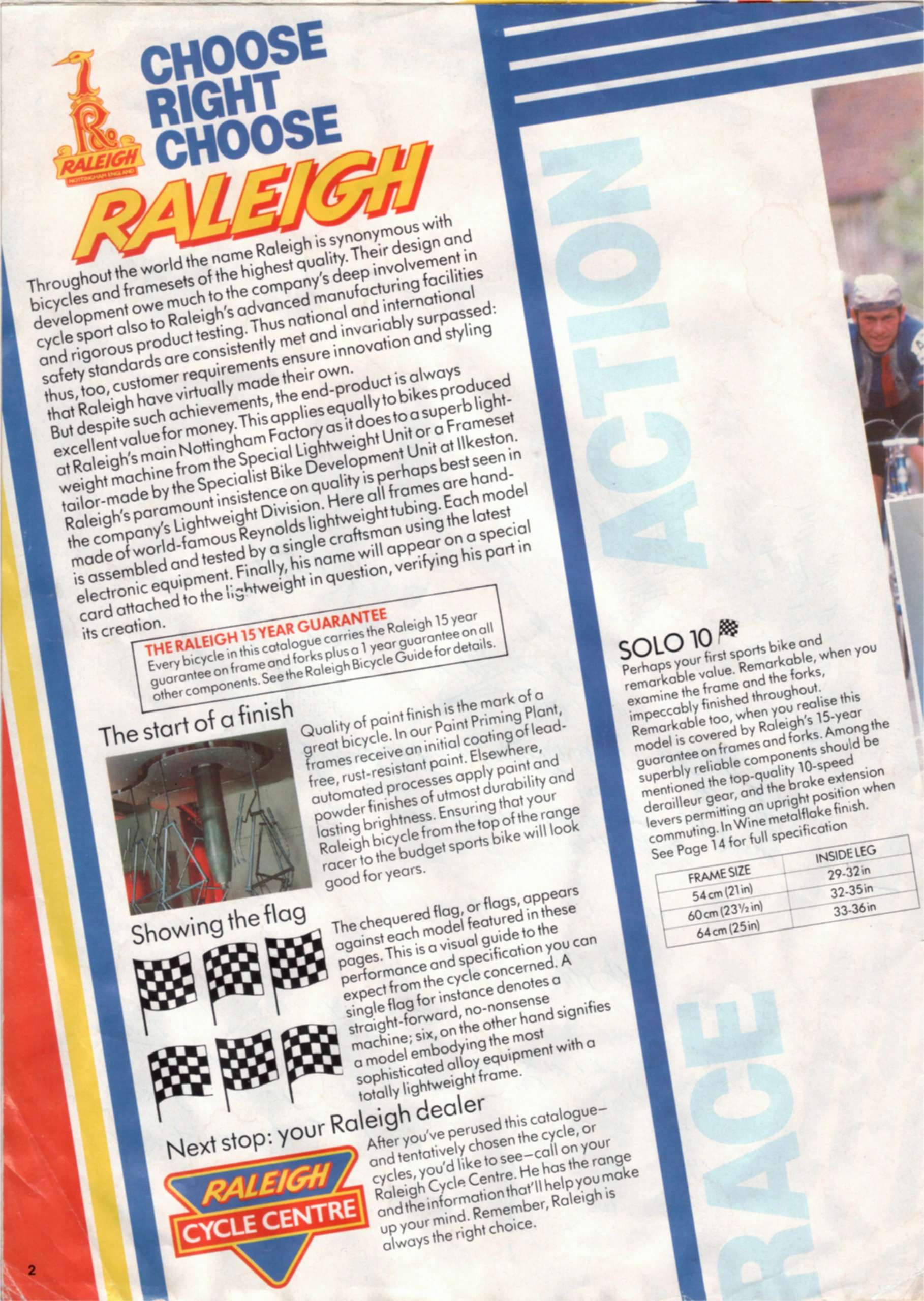

RALEIGH
NOTTINGHAM ENGLAND

CHOOSE
RIGHT
CHOOSE
RALEIGH

Throughout the world the name Raleigh is synonymous with bicycles and framesets of the highest quality. Their design and development owe much to the company’s deep involvement in cycle sport also to Raleigh’s advanced manufacturing facilities and rigorous product testing. Thus national and international safety standards are consistently met and invariably surpassed: thus, too, customer requirements ensure innovation and styling that Raleigh have virtually made their own.
But despite such achievements, the end-product is always excellent value for money. This applies equally to bikes produced at Raleigh’s main Nottingham Factory as it does to a superb lightweight machine from the Special Lightweight Unit or a Frameset tailor-made by the Specialist Bike Development Unit at Ilkeston. Raleigh’s paramount insistence on quality is perhaps best seen in the company’s Lightweight Division. Here all frames are hand-made of world-famous Reynolds lightweight tubing. Each model is assembled and tested by a single craftsman using the latest electronic equipment. Finally, his name will appear on a special card attached to the lightweight in question, verifying his part in its creation.

THE RALEIGH 15 YEAR GUARANTEE
Every bicycle in this catalogue carries the Raleigh 15 year guarantee on frame and forks plus a 1 year guarantee on all other components. See the Raleigh Bicycle Guide for details.

The start of a finish
Quality of paint finish is the mark of a great bicycle. In our Paint Priming Plant, frames receive an initial coating of lead-free, rust-resistant paint. Elsewhere, automated processes apply paint and powder finishes of utmost durability and lasting brightness. Ensuring that your Raleigh bicycle from the top of the range racer to the budget sports bike will look good for years.

Showing the flag
The chequered flag, or flags, appears against each model featured in these pages. This is a visual guide to the performance and specification you can expect from the cycle concerned. A single flag for instance denotes a straight-forward, no-nonsense machine; six, on the other hand signifies a model embodying the most sophisticated alloy equipment with a totally lightweight frame.

Next stop: your Raleigh dealer
RALEIGH
CYCLE CENTRE
After you’ve perused this catalogue–and tentatively chosen the cycle, or cycles, you’d like to see–call on your Raleigh Cycle Centre. He has the range and the information that’ll help you make up your mind. Remember, Raleigh is always the right choice.

RACE
ACTION

SOLO 10
Perhaps your first sports bike and remarkable value. Remarkable, when you examine the frame and the forks, impeccably finished throughout. Remarkable too, when you realise this model is covered by Raleigh’s 15-year guarantee on frames and forks. Among the superbly reliable components should be mentioned the top-quality 10-speed derailleur gear, and the brake extension levers permitting an upright position when commuting. In Wine metalflake finish.
See Page 14 for full specification

FRAME SIZE | INSIDE LEG
54 cm (21 in) | 29-32 in
60 cm (23½ in) | 32-35 in
64 cm (25 in) | 33-36 in

2

[An introductory page headed Choose Right Choose Raleigh, with the Raleigh heron head badge, a photograph of frames hanging in the paint priming plant, six chequered flags explaining the catalog’s one to six flag rating and the Raleigh Cycle Centre dealer sign. The right column introduces the Solo 10, rated one flag, with its frame size chart, beside the left half of a road race photograph that continues on page 3 under the large pale words Race Action.]

— Page 3 —
SOLO 10

PURSUIT 10

PURSUIT 10

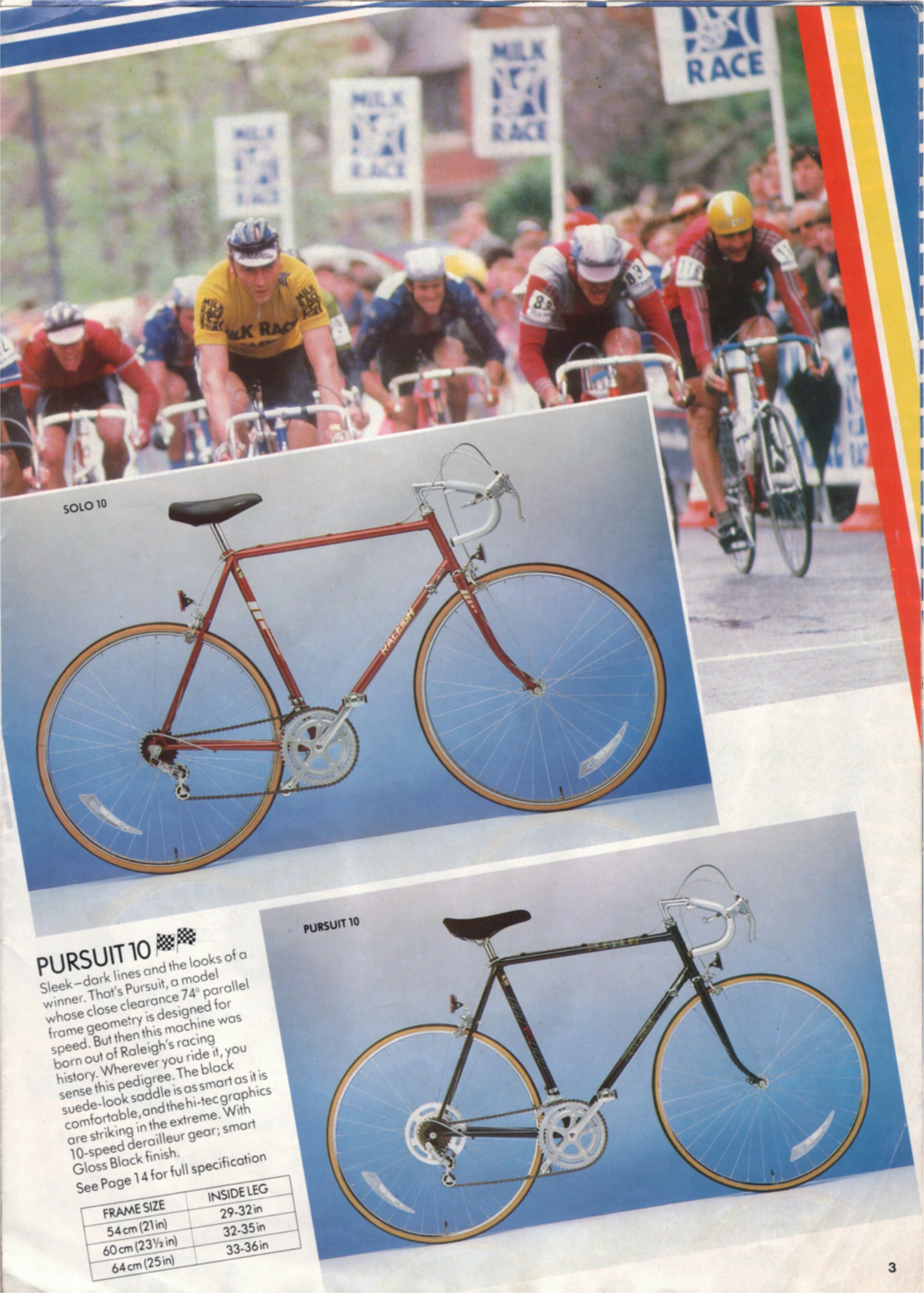

Sleek–dark lines and the looks of a winner. That’s Pursuit, a model whose close clearance 74° parallel frame geometry is designed for speed. But then this machine was born out of Raleigh’s racing history. Wherever you ride it, you sense this pedigree. The black suede-look saddle is as smart as it is comfortable, and the hi-tec graphics are striking in the extreme. With 10-speed derailleur gear; smart Gloss Black finish.
See Page 14 for full specification

FRAME SIZE | INSIDE LEG
54 cm (21 in) | 29-32 in
60 cm (23½ in) | 32-35 in
64 cm (25 in) | 33-36 in

3

[The Raleigh Solo 10 in red and the Pursuit 10 in black shown in studio photographs, below the right half of a road race photograph in which riders sprint past spectators and Milk Race banners, the leader in a yellow Milk Race jersey. The Pursuit 10 is rated two chequered flags and has its own frame size chart.]

— Page 4 —
MILK
RACE

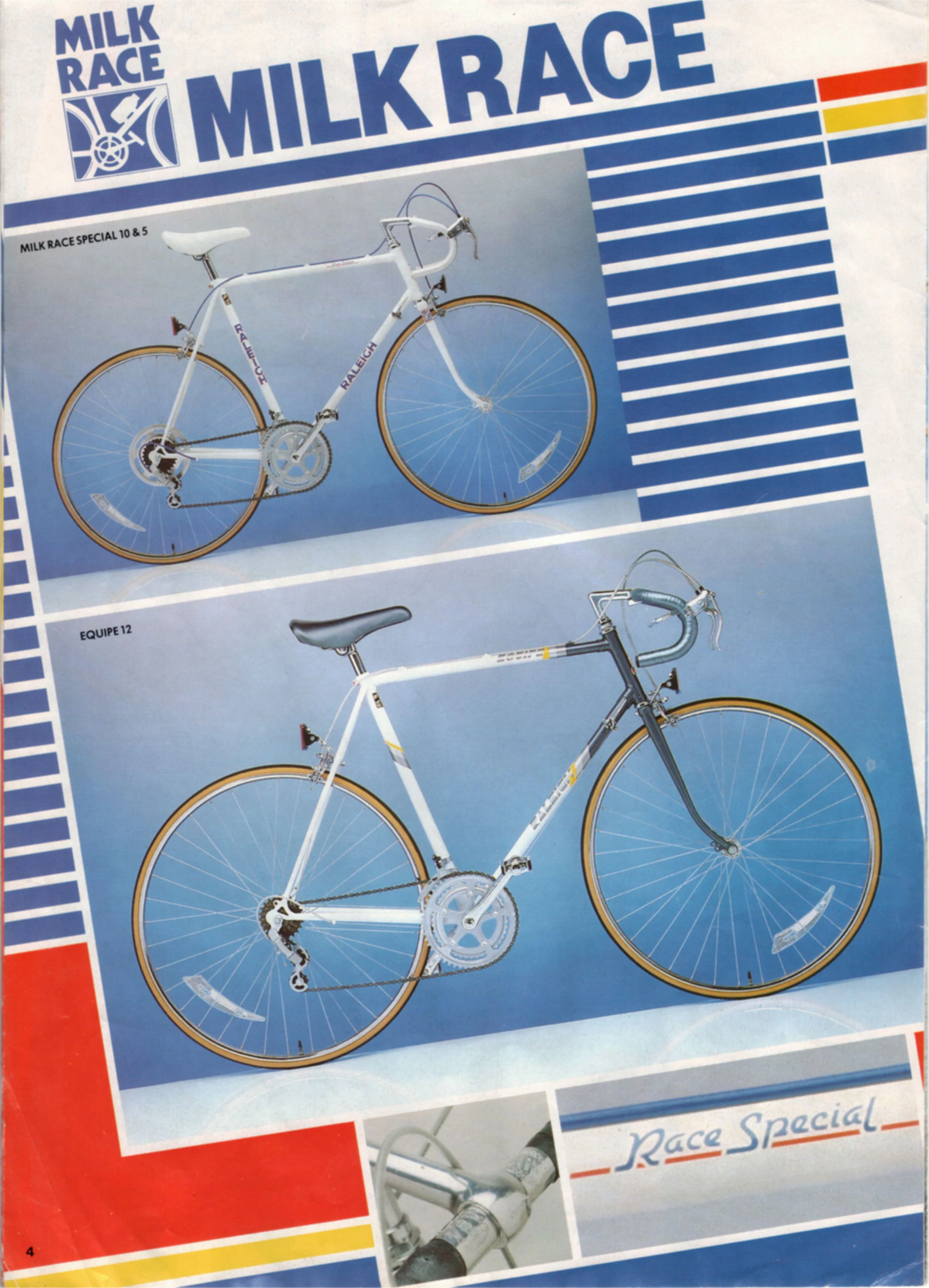

MILK RACE

MILK RACE SPECIAL 10 & 5

EQUIPE 12

4

[The Raleigh Milk Race Special 10 & 5 in white and the Equipe 12 in white and gray shown in studio photographs under a Milk Race heading and logo. Two close-up photographs below show a handlebar stem and the Race Special script decal on a top tube.]

— Page 5 —
RACE BRED
STYLE

MILK RACE SPECIAL
10 & 5
As its name implies, that great race proving ground, the Round Britain Milk Race is the inspiration for this model. For instance, the graphics are those of the Milk Race itself, and the bike has been built for fast, purposeful cycling. You’ll like the matching saddle and handlebar tape co-ordinated with the white frame finish. You’ll also appreciate the 10-speed gear that takes hills and dales in its stride. Dare we say it–this Special has “gotta lotta bottle”! Colour: Warm White finish.
See Page 14 for full specification

FRAME SIZE | INSIDE LEG
47 cm (18½ in) | 26-29 in
50 cm (19½ in) | 27-30 in
60 cm (23½ in) | 32-35 in
64 cm (25 in) | 33-36 in

EQUIPE 12
A race-bred aristocrat. Points that’ll please the professional eye include the short wheelbase frame, continental style 700C tyres for extra low rolling resistance, and the 12-speed cotterless chain set. An aero-style saddle and Italiene handlebar with engraved alloy sleeve, complete a picture of elegance, pace, and absolute quality. In White and Shark Grey finish.
See Page 14 for full specification

FRAME SIZE | INSIDE LEG
54.5 cm (21½ in) | 29-32 in
60 cm (23½ in) | 32-35 in
64 cm (25 in) | 33-36 in

5

[A road racer in a Raleigh Weinmann team jersey crosses the finish line with both fists raised, beside the text and frame size charts for the Raleigh Milk Race Special 10 & 5 and the Equipe 12, each rated two chequered flags. The rider is not named; the large pale words Race Bred Style run up the left column.]

— Page 6 —
RACE
LEADERS

Spot the difference? It’s in the tubing. All these Raleighs have been built of unique round-oval-round tubing. Either Reynolds 501 cromalloy-M, or Raleigh’s own 18-23. Not just a pretty shape, but designed for lightness and racing speed. Other refinements include 74° parallel close clearance frames; narrow section wheels and tyres for low rolling resistance; new sloping fork crowns; and brazed-on gear levers and front changer.

PULSAR 10
This is the first in the ‘New Generation’ of sports racers. A racing model bred ‘to go’, with its 10-speed gear, concealed brake cables, and unique water bottle. A sleek, streamlined, aero style machine, Pulsar comes in glistening Pearl Silver with Shark Grey shading. Ride it, show it off, and let the rest of the world stand by in envy…
See Page 14 for full specification

FRAME SIZE | INSIDE LEG
54 cm (21 in) | 29-32 in
60 cm (23½ in) | 32-35 in
64 cm (25 in) | 33-36 in

RECORD SPRINT 12
Graphically, technically, this is fast being regarded as the last word in cycle graphic design. The incredible spec: Reynolds 501 cromalloy-M main tubes, plus full alloy components; Shimano 12-speed derailleur gear; smart black pedals with toe-clips; and unique Gold coloured chain set and Gold alloy handlebar sleeve. The finish: Gloss Black.
See Page 14 for full specification

FRAME SIZE | INSIDE LEG
54 cm (21 in) | 29-32 in
60 cm (23½ in) | 32-35 in
64 cm (25 in) | 33-36 in

TEAM CADET 12
One of the finest sights on the road is this sparkling number with its full Raleigh racing livery. Our team colours set off a machine that wants for nothing. There’s a 12-speed gear, a light-alloy multi-adjustable seatpin, quick-release wheels for rapid changes, and super slick levers. Add a water bottle and toe clips, and you’re under starter’s orders.
See Page 14 for full specification

FRAME SIZE | INSIDE LEG
54 cm (21 in) | 29-32 in
60 cm (23½ in) | 32-35 in
64 cm (25 in) | 33-36 in

6

[A rider in Raleigh team kit, with a Kellogg’s number plate on his frame, sprints past spectators at a crowd barrier in an evening street race, beside the text and frame size charts for the Raleigh Pulsar 10, Record Sprint 12 and Team Cadet 12. The Pulsar 10 and Team Cadet 12 are rated three chequered flags and the Record Sprint 12 four; the large pale words Race Leaders head the column.]

— Page 7 —
[hidden]

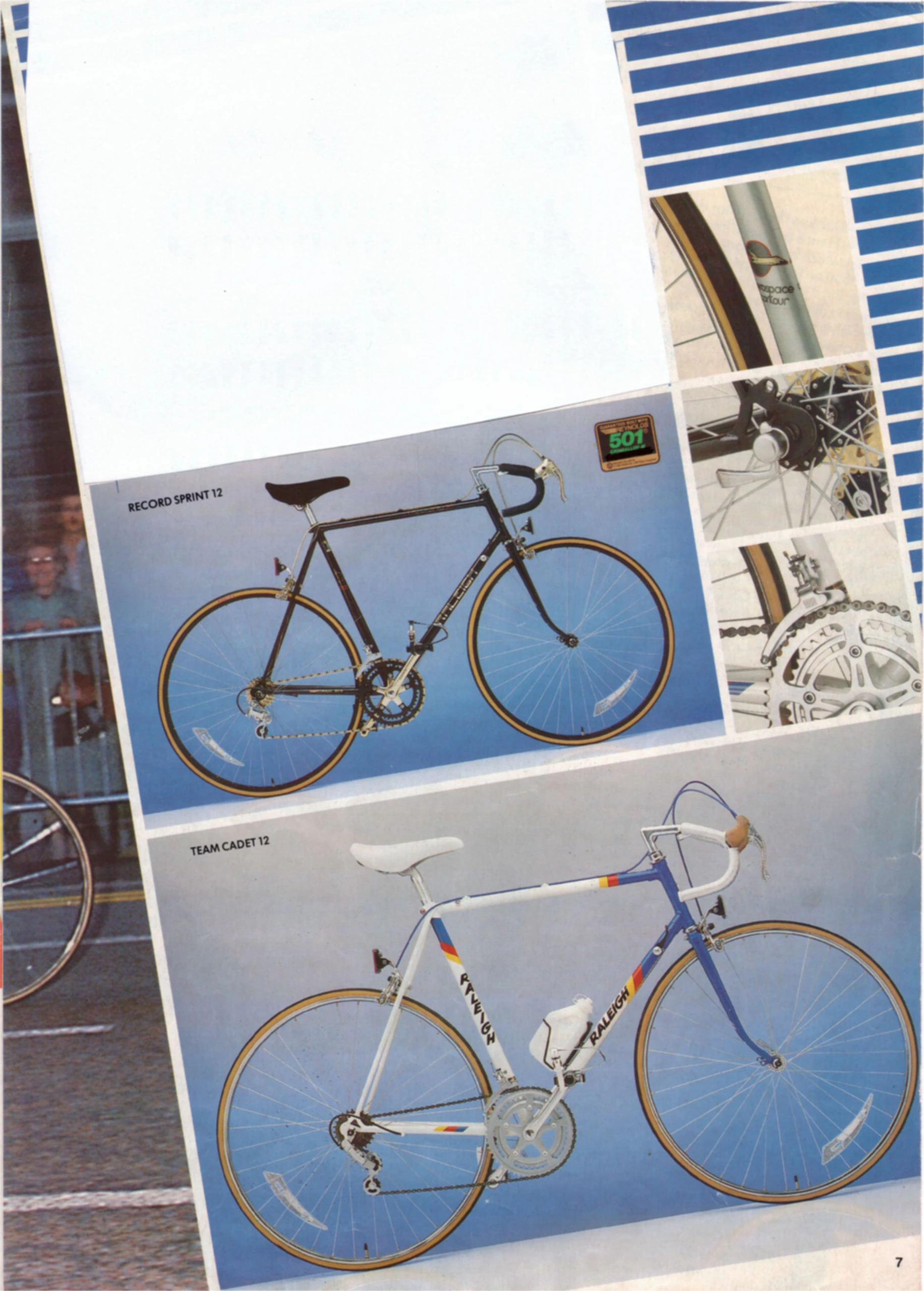

RECORD SPRINT 12

TEAM CADET 12

7

[The Raleigh Record Sprint 12 in black and the Team Cadet 12 in white and blue shown in studio photographs, with a Reynolds 501 Cromalloy-M tubing badge beside the Record Sprint 12 and three close-up photographs of a frame tube decal, a rear hub with quick-release and a front changer and chainset. The upper left of the page is covered in this scan by a loose sheet of blank white paper laid over it, through which the underlying print shows only faintly and cannot be read.]

— Page 8 —
The world looks to Raleigh for design and style. Hence our latest line in graphics which is earning so much admiration on the European racing circuits. But it pays to examine these models in depth, for each is hand-assembled by individual craftsmen i[hidden] our Lightweight Division. The final, exclusive touch: a card, with your b[hidden] signed by the man who actually b[hidden]

CRITERIUM 12
Great value in 501–the Criterium is a racing bike of classic proportions. Chrome front forks and fully adjustable alloy seat pin plus matching white saddle and handlebar tape set off the new graphic design and beautifully contrasting frame treatment. The alloy chain set and new quick release Weinmann brakes, illustrate the attention to detail on this new model, (not assembled at Lightweight Unit). Colour: Red,
See Page 14 for full specification

FRAME SIZE | INSIDE LEG
54 cm (21 in) | 29-32 in
60 cm (23½ in) | 32-35 in
64 cm (25 in) | 33-36 in

SIROCCO 12
A handbuilt machine employing Reynolds 501 double-butted cromalloy-M main tubes–used to effect in our totally new frame geometry. With its full alloy Shimano 12-speed transmission and top-grade alloy components, Sirocco is one of the finest racers of its time. Finished in Oyster with Wine Decor.
See Page 15 for full specification

FRAME SIZE | INSIDE LEG
54.5 cm (21½ in) | 29-32 in
57 cm (22½ in) | 30-33 in
60 cm (23½ in) | 32-35 in
62 cm (24½ in) | 33-36 in

TEAM CORSA 12
Only a great cycle is worthy to be finished in Raleigh team livery. And this is one! It’s host of features are a roll call of excellence: Reynolds 501 main tubes and 501 SL front forks, full Shimano 105 ensemble comprising alloy headset, 12-speed gear, chainset, hubs, and Silver Cassette block. Colour: Team.
See Page 15 for full specification

FRAME SIZE | INSIDE LEG
54.5 cm (21½ in) | 29-32 in
57 cm (22½ in) | 30-33 in
60 cm (23½ in) | 32-35 in
62 cm (24½ in) | 33-36 in

[hidden]um
[hidden]s the
double bu[hidden]tain-
ing strength whe[hidden]

8

[Riders in Raleigh team kit racing in a close line, photographed from the front, beside the text and frame size charts for the Raleigh Criterium 12, Sirocco 12 and Team Corsa 12, rated four, five and five chequered flags. A reproduced Raleigh “Handbuilt by Craftsmen” card with a “Checked” stamp, a frame number that appears to read “NL2001447”, a signature that appears to read “John Denham” and the builder’s portrait heads the page, and a Reynolds 531 Butted Frame Tubes badge marks a further text block at upper right. That block and the right ends of the opening paragraph are covered in this scan by a loose sheet of blank white paper laid over the page, so only fragments of it can be read.]

— Page 9 —

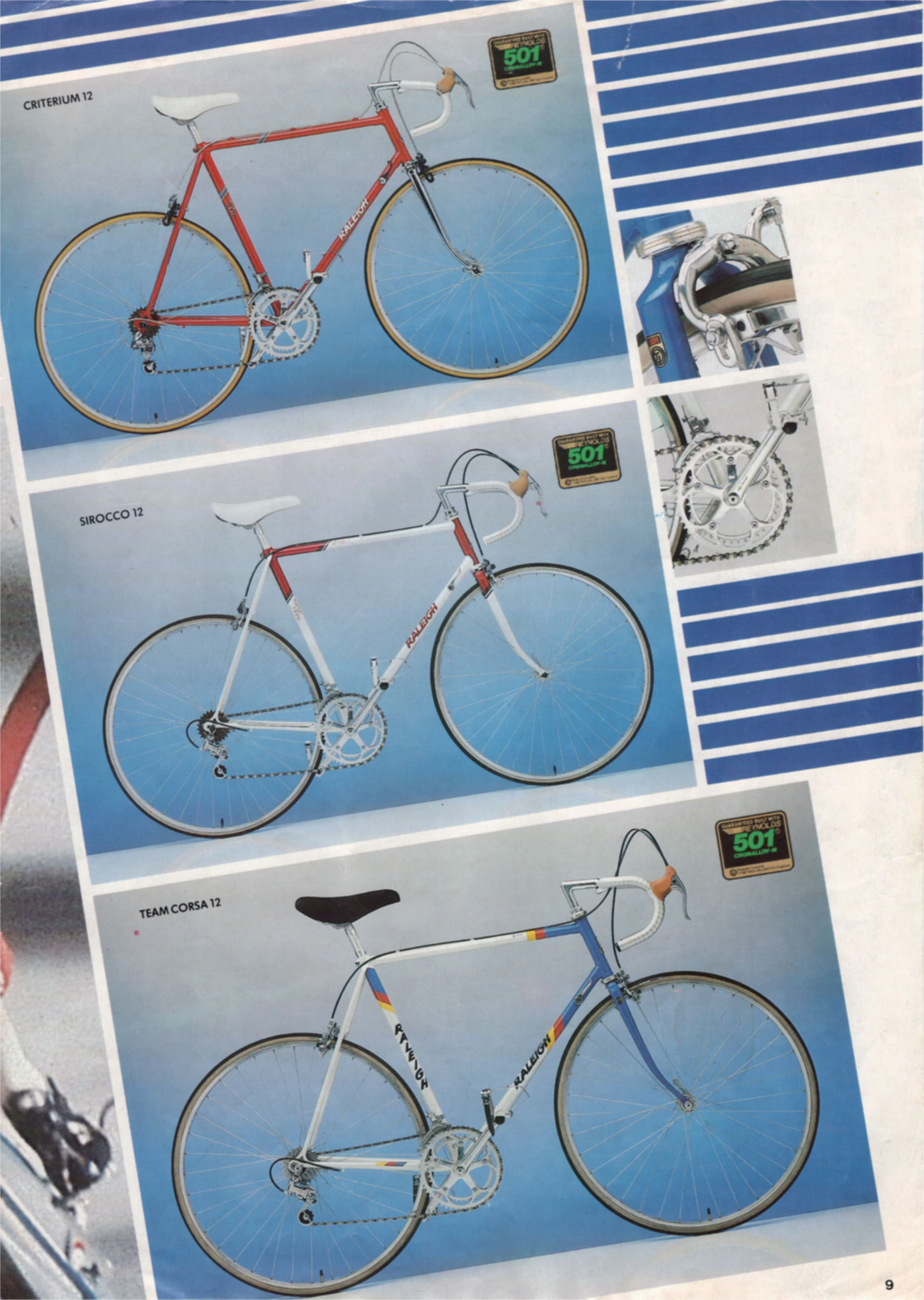

CRITERIUM 12

SIROCCO 12

TEAM CORSA 12

9

[The Raleigh Criterium 12 in red, the Sirocco 12 in white with red panels and the Team Corsa 12 in white and blue shown in studio photographs, each with a Reynolds 501 frame tubing transfer pictured beside it. Two small close-up photographs show a brake caliper and a chainset, set among blue striped panels, and the edge of an action photograph shows at the left margin.]

— Page 10 —

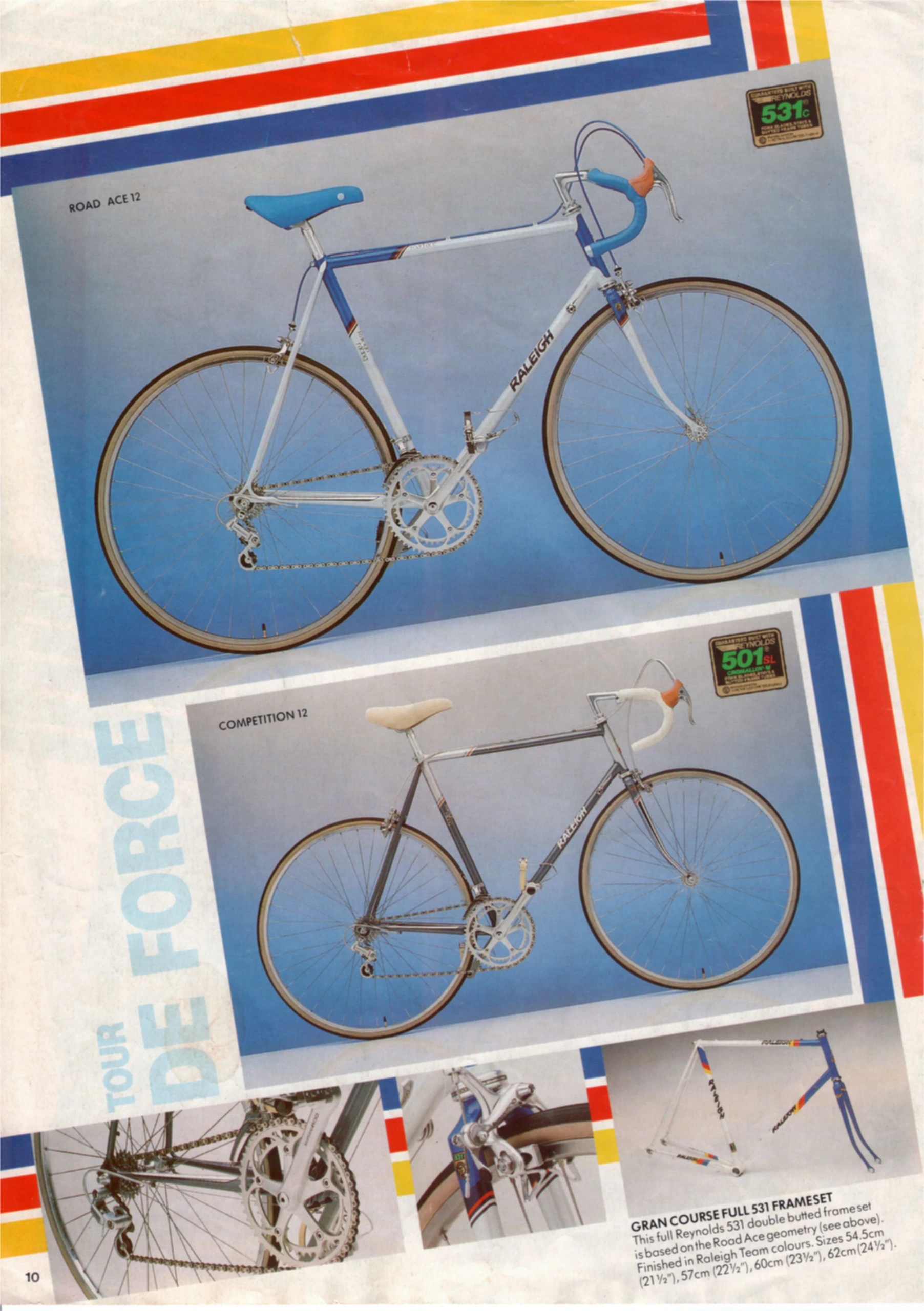

ROAD ACE 12

TOUR DE FORCE

COMPETITION 12

GRAN COURSE FULL 531 FRAMESET
This full Reynolds 531 double butted frame set is based on the Road Ace geometry (see above). Finished in Raleigh Team colours. Sizes 54.5cm (21½”), 57cm (22½”), 60cm (23½”), 62cm (24½”).

10

[The Raleigh Road Ace 12 in white and blue and the Competition 12 in gray and white shown in studio photographs, with a Reynolds 531c transfer pictured beside the Road Ace and a Reynolds 501 SL transfer beside the Competition. A strip of smaller photographs along the bottom shows a rear derailleur and chainset, a brake caliper and the Gran Course full 531 frameset in Raleigh Team colors, framed by red, yellow and blue stripes, with the words “Tour de Force” set vertically in pale blue.]

— Page 11 —
RACE PROFESSIONAL

ROAD ACE 12
This is it! The ultimate in racing hardware. Complete with 531 double-butted hand-built frame, full Shimano 600 EX Alloy components including 12-speed gear, and Campagnolo forged dropouts. The Road Ace is designed for the sportsman who insists on the finest componentry in a bike that’s built to be first past the flag. Finished in Polar Blue.
See Page 15 for full specification

FRAME SIZE | INSIDE LEG
54.5 cm (21½ in) | 29-32 in
57 cm (22½ in) | 30-33 in
60 cm (23½ in) | 32-35 in
62 cm (24½ in) | 33-36 in

COMPETITION 12
For the sportsman or club rider. Use of the brand-new full 501 SL Chrome Moly tube set makes for a taut and responsive ride. A mix of Shimano 600 EX and 105 Alloy system components offers an ideal selection in a most competitively priced machine. With 12-speed gear. Finished in Ambassador Blue.
See Page 15 for full specification

FRAME SIZE | INSIDE LEG
54.5 cm (21½ in) | 29-32 in
57 cm (22½ in) | 30-33 in
60 cm (23½ in) | 32-35 in
62 cm (24½ in) | 33-36 in

11

[A racing photograph of a rider in a blue Raleigh team jersey cornering at the head of a group in a criterium, beside text and frame size tables for the Raleigh Road Ace 12 and Competition 12. The words “Race Professional” run up the text column in large pale blue letters, and each model heading carries a row of checkered flag symbols.]

— Page 12 —
CYCLO SPORTIF

A new term for a new type of cycle. Cyclo-Sportif plays many parts. Fast training bike, speedy tourer, or general sports machine. Just whatever you want it to be. Clever design ensures that Cyclo-Sportif gives you the speed of a lightweight racer without the often harsh ride you’d expect from such. Fact is, the two models shown here go like the wind, but their more relaxed frame geometry means comfort all the way.

VENTURA
The Cyclo-Sportif for the discerning professional who appreciates a machine with many roles. Use it for serious training, light touring, or a day out. The revolutionary frame geometry and top-class specification puts Ventura way out ahead. With quick release wheels, narrow section tyres. 12-speed gear, and mini toe clips. Finished in Aqua Blue.
See Page 15 for full specification

FRAME SIZE | INSIDE LEG
54 cm (21 in) | 29-32 in
57 cm (22½ in) | 30-33 in
60 cm (23½ in) | 32-35 in
64 cm (25 in) | 33-36 in

RECORD ACE
The summit of Cyclo-Sportif high performers. Built with Reynolds D.B. 531 main tubing and 531 forks, and equipped with a full complement of top-of-the-range Shimano 600 EX components–including a 12-speed gear. Further assets: classic Weinmann 500 brakes and 149-1 levers, plus 700C alloy Weinmann rims. Finished in Brown and Champagne. One of the finest Training and Sporting bikes money can buy.
See Page 15 for full specification

FRAME SIZE | INSIDE LEG
54.cm (21 in) | 29-32 in
57 cm (22½ in) | 30-33 in
60 cm (23½ in) | 32-35 in
64 cm (25 in) | 33-36 in

VENTURA

12

[A photograph of a rider in a blue tracksuit training on a drop-handlebar bicycle on an open road, beside text and frame size tables for the Raleigh Ventura and Record Ace, introduced under the heading “Cyclo Sportif” in large pale blue letters. At the top right edge, a studio photograph labeled Ventura begins and continues onto the facing page, and each model heading carries a row of checkered flag symbols.]

— Page 13 —

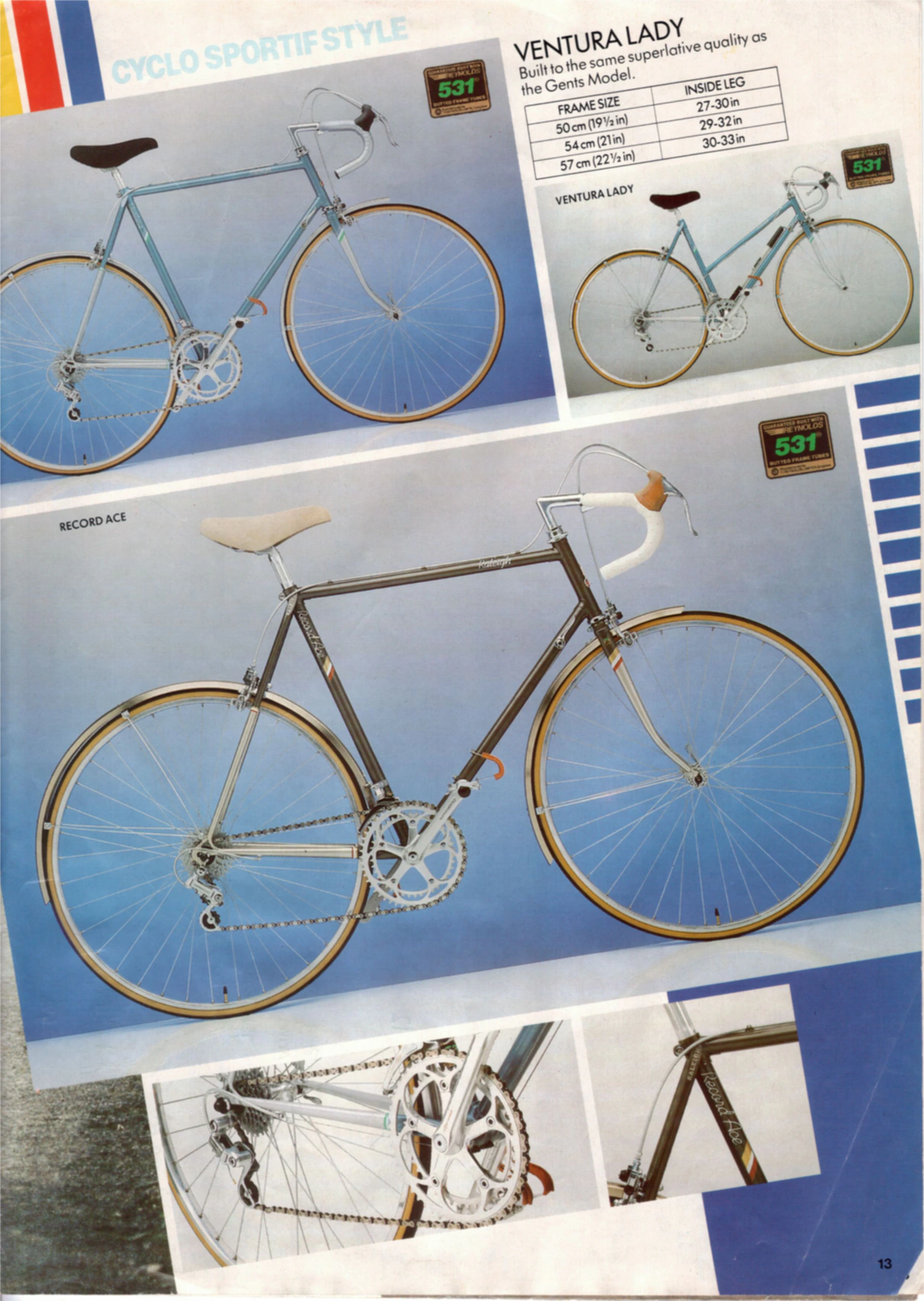

CYCLO SPORTIF STYLE

VENTURA LADY
Built to the same superlative quality as the Gents Model.

FRAME SIZE | INSIDE LEG
50 cm (19½ in) | 27-30 in
54 cm (21 in) | 29-32 in
57 cm (22½ in) | 30-33 in

VENTURA LADY

RECORD ACE

13

[The Raleigh Ventura in pale blue, the Ventura Lady with a mixte frame and the Record Ace in brown and champagne with mudguards shown in studio photographs, each with a Reynolds 531 butted frame tubes transfer pictured beside it. The Ventura photograph continues from the facing page, where its label is printed, and two close-up photographs along the bottom show the Record Ace chainset and rear derailleur and its seat tube with the Record Ace script transfer.]

— Page 14 —
SPORTS BICYCLES–TECHNICAL SPECIFICATIONS

MODEL | SOLO 10 | PURSUIT 10 | MILK RACE SPECIAL 10 AND 5 | EQUIPE 12
Frame Sizes | 54 cm (21″) 60 cm (23½”) 64 cm (25″) | 54 cm (21″) 60 cm (23½”) 64 cm (25″) | 10 Speed 54 cm (21″) 60 cm (23½”) 64 cm (25″) 5 Speed 47 cm (18½”) 50 cm (19½”) 54 cm (21″) 60 cm (23½”) | 54 cm (21″) 60 cm (23½”) 64 cm (25″)
Frame Material | Raleigh 18-23 High Tensile Tubing. Sports Geometry. | Raleigh 18-23 High Tensile Tubing. Close Clearance Racing Geometry. | Raleigh 18-23 High Tensile Tubing. Close Clearance Racing Geometry. | Raleigh 18-23 High Tensile Tubing. Close Clearance Racing Geometry.
Headset | Chrome Plated. | Chrome Plated. | Chrome Plated. | Chrome Plated.
Fork | Raleigh 18-23 High Tensile. | Raleigh 18-23 High Tensile. | Raleigh 18-23 High Tensile | Raleigh 18-23 High Tensile.
Wheels | Rims –27″ x 1¼” Chrome Plated. Hubs –Alloy. Spokes–Rustless. | Rims –700C Chrome Plated. Hubs –Alloy. Spokes–Rustless. | 10 Speed Rims –700C C/Plated Hubs –Alloy Spokes–Rustless. 5 Speed Rims Hubs Spokes 47 cm 600C Alloy Rustless 50 cm 26 x 1¼” Alloy Rustless 54/60 cm 700C Alloy Rustless | Rims –700C Chrome Plated. Hubs –Alloy. Spokes–14G Rustless.
Tyres | 27″ x 1¼” Raleigh Supalite Gumwall. | 700 x 25C Narrow Profile Gumwall. | 700 x 25C Narrow Profile Gumwall. 600 x 28C Gumwall. 26 x 1¼” Gumwall. As 10 Speed | 700 x 25C Narrow Profile Gumwall.
Mudguards | Clearance for Wide Guards. | Clearance for Narrow Guards. | Clearance for Narrow Guards. | Clearance for Narrow Guards.
Handlebar | Italienne with Silver Tape. | Italienne with Silver Tape. | Italienne with White Tape. | Raleigh Italienne Engraved Alloy Bend with Graphite Grey Cushioned Tape.
Stem | Light Alloy. | Light Alloy. | Light Alloy. | Light Alloy.
Brakes | Alloy Sidepull with Extension Levers. | Alloy Sidepull with Extension Levers. | Alloy Sidepull with Extension Levers. | Alloy Sidepull with Extension Levers.
Derailleur | Sachs-Huret 10 speed. | Sachs-Huret 10 speed. | Sachs-Huret 10 speed, or 5 speed. | Sachs-Huret 12 speed.
Chainset | Alloy Cotterless Cranks with 52/42T Chainrings. | Alloy Cotterless Cranks with 52/42T Chainrings. | 10 speed–Alloy Cotterless Cranks with 52/42T Chainrings. 5 speed–46T Cottered with Disc. | Alloy Cotterless Cranks with 52/42T Chainrings.
Freewheel | 14-17-20-23-26T. | 14-17-20-23-26T with Spoke Protector Disc. | 14-17-20-23-26T. | 14-15-17-19-21-24T.
Pedals | Steel Sports. | Chrome Plated. | Chrome Plated. | Chrome Plated Steel.
Saddle | Black Padded Sports. | Selle Royal Aero. Black Suede-look cover. | Selle Royal Aero Pearl White. Selle Royal Junior Padded Black–5 speed 47 cm only. | Selle Royal Aero Metallic Grey.
Seat Pin | Chrome Plated. | Chrome Plated. | Chrome Plated. | Chrome Plated.
Other Features | Frame Fitting Inflator with Push Fit Valve Connector. | Frame Fitting Inflator with Push Fit Valve Connector. | Frame Fitting Inflator with Push Fit Valve Connector. Silver Alloy Peg Fitting on 47 cm and 50 cm Models. | Frame Fitting Inflator with Push Fit Valve Connector.
Approx Weight | 29 lb (60 cm Frame). | 28 lb (60 cm Frame). | 28 lb (60 cm Frame). | 27 lb (60 cm Frame).
Colour | Sparkling Wine. | Gloss Black. | Warm White. | White with Shark Grey Frontal Decor.

MODEL | PULSAR 10 | TEAM CADET 12 | RECORD SPRINT 12 | CRITERIUM 12
Frame Sizes | 54 cm (21″) 60 cm (23½”) 64 cm (25″) | 54 cm (21″) 60 cm (23½”) 64 cm (25″) | 54 cm (21″) 60 cm (23½”) 64 cm (25″) | 54 cm (21″) 60 cm (23½”) 64 cm (25″)
Frame Material | 18-23 High Tensile Aero Tubing. Close Clearance Racing Geometry. | 18-23 High Tensile Aero Tubing. Close Clearance Racing Geometry. | Reynolds 501, Double Butted, Aero Main Tubes. Close Clearance Racing Geometry. | Reynolds 501 Butted Cromalloy-M Main Tubes. Full set of brazed-on fittings including Gear Lever Bosses. Cable Guides and Bottle Mounts.
Headset | Chrome Plated. | Tange MA 60. | Tange MA 60. | Tange MA 60.
Fork | 18-23 High Tensile Blades. Sloping Crown. | 18-23 High Tensile Blades. Sloping Crown. | 18-23 High Tensile Blades. Sloping Crown. | Raleigh 18-23 High Tensile with Tange Sloping Crown.
Wheels | Rims –700C Chrome Plated. Hubs –Alloy. Spokes–Rustless. | Rims –700C Chrome Plated. Hubs –Maillard Alloy QR. Spokes–Rustless. | Rims –Weinmann A124, Eyeletted, Black Alloy. Hubs –Maillard QR, Black Alloy. Spokes–Rustless 14G. | Rims –Weinmann 513E 700C Eyeletted Alloy. Hubs –Small Flange QR Alloy. Spokes–14G Rustless.
Tyres | 700 x 25C Narrow Profile Gumwall. | 700 x 25C Narrow Profile Gumwall. | 700 x 20C Narrow Profile Gumwall. | 700 x 20C Gumwall.
Mudguards | Clearance for Narrow Guards. | Clearance for Narrow Guards. | Clearance for Narrow Guards. | Clearance for Narrow Guards.
Handlebar | Chrome Plated Bar, Colour keyed Tape. | Italienne with White Translucent Tape. | Alloy Italienne Bar, Black Tape. | Engraved Alloy Bend. Pearl White Tape.
Stem | Light Alloy. | Light Alloy. | Light Alloy. | SR Custom Light Alloy.
Brakes | Alloy Sidepull with Aero-style Levers. | Weinmann 500 Alloy, QR Levers. | Weinmann 500. QR Levers, Alloy Gold, with Gold cables. | Weinmann 500 Black QR Calipers. Weinmann Hooded Alloy Levers.
Derailleur | Sachs-Huret 10 speed Gears with Contoured Black Resin Levers. | Sachs-Huret 12 speed Derailleur, Brazed-on Front, with Contoured Black Resin Levers. | Shimano 105 rear Derailleur, Huret Club brazed-on front Derailleur, Black Aero Levers. | Suntour AR Front and Rear. Black Aero Levers.
Chainset | Alloy Cotterless Cranks with 52/42T Chainrings. | Alloy Cotterless Cranks with 52/42T Chainrings. | Alloy Gold Cotterless Cranks and Black 52/42T Chainrings. | SR Alloy Cotterless Cranks with Detachable 52/42T Chainrings.
Freewheel | 14-17-20-23-26T. | Suntour PN6000 6 speed. 14-15-17-19-21-24T. | Gold 14-15-17-19-21-24T. | Suntour PN6000. 14-15-17-19-21-24T.
Pedals | Chrome Plated. | Chrome Plated Sports. | Alloy Quill, Black. | Alloy Quill.
Saddle | Selle Royal Aero Silver. | Selle Royal Aero Pearl White. | Selle Royal Aero Black. | Selle Royal Aero Pearl White.
Seat Pin | Chrome Plated Sports. | Alloy Fluted, Single Allen Bolt Adjustment. | Alloy Fluted. | SR Fluted Alloy. Single Allen Bolt Adjustment.
Extras | Aero Water Bottle & Cage. | Toe Clips & Straps. Aero Water Bottle & Cage. | Bottle Cage Mounts. Toe Clips & Straps. | Frame Fitting Inflator with Push Fit Valve Connector. Christophe Toe Clips and Straps.
Approx Weight | 27½ lb (60 cm Frame). | 28 lb (60 cm Frame). | 25 lb (60 cm Frame). | 24½ lb (60 cm Frame).
Colour | Pearl Silver with Shark Grey ‘Streamline’ shading. | Team Colours. | Gloss Black. | Regal Red.

14

[A specifications table printed sideways across the page, headed “Sports Bicycles–Technical Specifications,” giving frame sizes, frame material, components, weight and color for the Raleigh Solo 10, Pursuit 10, Milk Race Special 10 and 5, Equipe 12, Pulsar 10, Team Cadet 12, Record Sprint 12 and Criterium 12. The Pulsar 10 column carries handwritten annotations in blue ink and pencil: blue check marks and the notes “ch.”, “fr. ch.” and “(ch)” in the margin and a cross by Mudguards, with pencil notes “12” in the model heading, “Tange MA 60”, “Mavic GP4”, “QR”, “Tube 1800” (doubtful reading), “never”, “Alloy bar”, “Shimano 600 Gears + Levers”, “13-14-15-16-17-18”, “Alloy”, “Aero black suede look”, “Alloy, single allen bolt”, “Toe Clips” and “24½” written beside the printed entries.]

— Page 15 —
LIGHTWEIGHTS–TECHNICAL SPECIFICATIONS

MODEL | SIROCCO 12 | TEAM CORSA 12 | COMPETITION 12
Frame Sizes | 54.5 cm (21½”) 57 cm (22½”) 59.5 cm (23½”) 62 cm (24½”) | 54.5 cm (21½”) 57 cm (22½”) 59.5 cm (23½”) 62 cm (24½”) | 54.5 cm (21½”) 57 cm (22½”) 59.5 cm (23½”) 62 cm (24½”)
Frame Material | Reynolds 501 Butted Cromalloy-M Main Tubes, Gipiemme Forged Ends and Short Point Super Leger Lugs. Full set of brazed-on fittings including Gear Lever Bosses, Cable Guides, Bottle Mounts & Chain Hook. | Reynolds 501 Double Butted Cromalloy-M Main Tubes. Gipiemme Forged Ends and Short Point Super Leger Lugs. Full set of brazed-on fittings including Gear Lever Bosses, Cable Guides, Bottle Mounts & Chain Hook. | Reynolds 501SL–Double Butted Main Tubes and Taper Gauge Stays. Gipiemme Forged Ends and Long Point Super Leger Lugs. Full set of brazed-on fittings including Gear Lever Bosses, Cable Guides, Bottle Mounts & Chain Hook.
Frame Angles | Variable Racing Geometry dependent on frame size | Variable Racing Geometry dependent on frame size | Variable Racing Geometry dependent on frame size
Headset | Tange CMA60 | Shimano 105 Light Alloy | Shimano 105 Light Alloy.
Fork | 18-23 High Tensile Blades, Precision-cast Internal Sloping Fork Crown, Gipiemme Forged Ends. | Reynolds 501 SL Taper Gauge Blades. Precision-cast Sloping Internal Crown, Gipiemme Forged Ends. | Reynolds 501 SL Taper Gauge Large Oval Blades. Gipiemme Forged Ends and Precision-cast Sloping Internal Crown.
Wheels | Rims –Weinmann 513E 700C, Eyeletted Alloy. Hubs –Maillard Small Flange QR Alloy. Spokes–14G Rustless | Rims –Weinmann 513E 700C, Eyeletted Alloy. Hubs –Shimano 105 Small Flange Light Alloy, QR. Spokes–14G Rustless | Rims –Weinmann 513E 700C, Eyeletted Alloy. Hubs –Shimano 105 Small Flange Light Alloy, QR. Spokes–14/16G Rustless Double Butted.
Tyres | 700 x 20 Skinside. | 700 x 20 Skinside. | 700 x 20 Skinside.
Mudguards | No clearance | No clearance | No clearance
Handlebars | Engraved Alloy Bend. Pearl White Tape. | Engraved Alloy Bend. (Width alters with frame size) Black Tape. | Engraved Alloy Bend (Width alters with frame size). Beige Padded Tape.
Stem | SR Custom Light Alloy. | SR Custom Light Alloy. | SR Custom Light Alloy.
Brakes | Weinmann 500 QR Calipers with Recessed Fitting. Weinmann Hooded Alloy Levers. | Shimano 105 QR. Recessed Fitting Calipers & Hooded Alloy Levers. | Shimano 105 QR. Recessed Fitting Calipers & Hooded Alloy Levers.
Derailleur | Shimano 105 Front & Rear. Light Alloy Levers. | Shimano 105 Front & Rear. Light Alloy Levers. | Shimano 600EX Front & Rear with Sealed, Non-loosening Mechanism Levers.
Chainset | Shimano 105 52/42T Alloy Rings & Cold Forged 170mm Alloy Cranks. | Shimano 105 52/42T Alloy Rings & Cold Forged 170mm Alloy Cranks. | Shimano 600EX 52/42T Light Alloy with 170mm Cranks and Sealed Mechanism Bottom Bracket.
Freewheel | Suntour PN6000. 14-15-17-19-21-24T | Shimano Cassette. Silver 13-15-17-19-21-24T | Shimano 600EX Cassette with Polished Bearing Races. 13-14-15-17-19-21T Silver.
Chain | Suntour Z Black. | Black/Silver. | Black/Silver.
Pedals | Alloy Quill. | Alloy Quill. | Alloy Quill.
Saddle | Aero Pearl White | ISCA 406 Black. | ISCA 407 Beige Nabuk Suede Leather cover.
Seat Pin | Fluted Alloy. Single Allen Bolt Adjustment. | Fluted Alloy. Single Allen Bolt Adjustment. | Sakae Fluted Alloy. Single Allen Bolt adjustment.
Other Features | Frame Fitting Inflator. Christophe Toe Clips, plus Straps. Allen Key Recessed Seat Bolt. | Frame Fitting Inflator. Christophe Toe Clips, plus Straps. Allen Key Recessed Seat Bolt. | Frame Fitting Inflator. Christophe Toe Clips, plus Straps. Allen Key Recessed Seat Bolt.
Approx Weight | 23½ lb (59.5cm Frame) | 23 lb (59.5cm Frame) | 22½ lb (59.5cm Frame)
Colour | Oyster with Wine Red Decor. | Team Colours. Chromed Bearing Surfaces. | Platinum Grey, with Pearl Silver Decor. Chromed Bearing Surfaces.

MODEL | ROAD ACE 12 | VENTURA 12 | RECORD ACE 12
Frame Sizes | 54.5 cm (21½”) 57 cm (22½”) 59.5 cm (23½”) 62 cm (24½”) | Gents: 54 cm (21″) 57 cm (22½”) 59.5 cm (23½”) 64 cm (25″) Ladys: 50 cm (19½”) 54 cm (21″) 57 cm (22½”) | 54 cm (21½”) 57 cm (22½”) 59.5 cm (23½”) 64 cm (25″)
Frame Material | Reynolds 531C Double Butted Main Tubes & Taper Gauge Stays. Campagnolo Forged Ends & Long Point Super Leger Lugs. Full set of brazed-on fittings including Gear Lever Bosses, Cable Guides, Bottle Mounts & Chain Hook. | Reynolds 531 Double Butted Main Tubes. Forged Ends and Short Point Super Leger Lugs. Full set of brazed-on fittings including Gear Lever Bosses, Cable Guides. Bottle Mounts (Gents only) & Chain Hook. | Reynolds 531 Double Butted Main Tubes, Forged Ends and Short Point Super Leger Lugs. Full set of Brazed-on fittings including Gear Lever Bosses, Cable Guides, Bottle Mounts & Chain Hook.
Frame Angles | Variable Racing Geometry dependent on frame size. | 74° Parallel | 74° Parallel
Headset | Shimano 600EX Light Alloy Sealed Mechanism. | Tange CMA60. | Tange CMA60.
Fork | Reynolds 531 Taper Gauge Large Oval Blades with Precision–Cast Sloping Internal Crown and Campagnolo Forged Ends. | Raleigh 18-23 High Tensile with Sloping Crown. | Reynolds 531 Taper Gauge Small Oval Blades. Tange AC2 Crown, Gipiemme Forged Ends.
Wheels | Rims –Weinmann 513E 700C Grey Anodised Eyeletted Hubs –Shimano 600EX Small Flange QR 36H Light Alloy. Spokes–Double Butted Stainless Steel 14/16G | Rims –Weinmann 716E 700C Hubs –Maillard Small Flange QR Alloy. Spokes–14G Rustless. | Rims –Weinmann 716E 700C Hubs –Maillard Competition Small Flange Alloy QR. Spokes–14G Rustless.
Tyres | 700 x 20C Skinside. | 700 x 25C Gumwall. | 700 x 25C Gumwall.
Mudguards | No clearance. | Narrow Impact-Resistant Full Length. | Gold Impact Resistant Full-Length.
Handlebars | Shimano Dura-Ace Alloy Engraved. Blue Padded Tape. | Engraved Alloy Bend. | Engraved Alloy Bend.
Stem | Shimano Dura-Ace Light Alloy. | SR Light Alloy. | SR Light Alloy.
Brakes | Shimano 600EX QR; Recessed Fitting Calipers and Hooded Alloy Levers. | Weinmann 500 QR Alloy. Weinmann Hooded Alloy Levers. | Weinmann 500 QR Alloy. Weinmann Hooded Alloy Levers.
Derailleur | Shimano 600EX Front & Rear with Sealed, Non-loosening Mechanism Levers. | Shimano 105 with Friction Type Light Alloy Levers. | Shimano 600EX Front & Rear with Sealed, Non-loosening Mechanism Levers.
Chainset | Shimano 600EX 52/42T Light Alloy with 170mm Alloy Cranks and Sealed Mechanism Bottom Bracket. | Shimano 105 52/42T Alloy Rings and Cold Forged 170mm Alloy Cranks. | Shimano 600EX 52/42T Light Alloy with 170mm Alloy Cranks and Sealed Mechanism Bottom Bracket.
Freewheel | Shimano 600EX Cassette with Polished Bearing Races. 13-14-15-17-19-21T, Silver. | Suntour Ultra 6. 14-16-18-21-24-28T. | Suntour Ultra 6. 14-16-18-21-24-28T.
Chain | Shimano Uniglide Black/Silver | Sedisport. | Sedisport.
Pedals | Shimano 600EX. Sealed, Posi-Torque Mechanism. Light Alloy. | Alloy Quill. | Alloy Quill.
Saddle | Isca Tornado Blue Nabuk Suede leather cover. | Isca 406 Black Suede (Gents) Selle Royal Donna Black Suede (Ladys) | Isca 407 Beige Nabuk Suede Leather cover.
Seat Pin | Sakae Fluted Alloy. Single Allen Bolt Adjustment. | Fluted Alloy. Single Allen Bolt Adjustment. | Fluted Alloy. Single Allen Bolt Adjustment.
Other Features | Frame Fitting Inflator.Shimano 600EX Toe Clips, plus Straps. Allen Key Recessed Seat Bolt. | Frame Fitting Inflator. Half Toe Clips (for comfort and safety). Allen Key Recessed Seat Bolt. | Frame Fitting Inflator. Half Toe Clips (for comfort and safety). Allen Key Recessed Seat Bolt.
Approx Weight | 22 lb (59.5 cm Frame). | 25 lb (59.5 cm G). 25 lb (54 cm L). | 24 lb (59.5 cm Frame).
Colour | Polar Blue with Blaze Blue Decor. Chromed Bearing Surfaces. | Aqua Blue with Pearl Silver Decor. | Beaver with Champagne Decor.

15

[A specifications table printed sideways across the page, headed “Lightweights–Technical Specifications,” giving frame sizes, frame material, angles, components, weight and color for the Raleigh Sirocco 12, Team Corsa 12, Competition 12, Road Ace 12, Ventura 12 and Record Ace 12.]

— Page 16 (back cover) —
SPECIALIST BICYCLE DEVELOPMENT UNIT–ILKESTON

Raleigh SBDU is a vital part in all the research and development behind the art of making and designing all types of bicycles. Managed by Gerald O’Donovan–a world famous name in cycle design–the SBDU has been responsible for bikes that have won:–

6 World Championships since 1977
13 National Road Championships since 1974
14 National Pro Track Championships since 1974
6 European Championships since 1975
5 World Cup Teams since 1975
28 Classic Wins since 1975
65 Tour de France Stage Wins and 8 Team awards since 1976
45 Other International Tour Wins

B
C m.m.
D
C deg.
A
E
F
G
H

| mm
A |
B |
C |
D |
E |
F |
G |
H |

The Raleigh SBDU not only builds framesets for the out and out race professional in the ultra light Reynolds 753 tubing, the super tough 531 or 501, but also for those cyclists who really want the very best–from sporting cyclist to casual tourer.
All frames are individually built to order to your own measurements–so that you get a perfectly balanced, perfectly crafted frame made to measure. Almost everything imaginable is available and possible from brazed-on fittings to low profile road or track machines.
Why not visit the SBDU at Ilkeston to make sure the frame you order is exactly the right size. As you can see by the illustration all of the angles are critical–and seldom are they the same for people of the same height because of varying leg length, trunk length, arm length etc.

What you see here is the 753 “Services des Courses” road frame, the definitive frame for competition at International level–ridden all over the world by thousands of professionals as well as discerning club riders.
The lugs, fork crown, and bottom bracket are Cinelli, the tubing is the finest Reynolds 753R (also available in 531C) the choice is yours depending on your budget. The frame is available with a full complement of braze-ons and in all colours in the range from gloss enamels, pearlescents, metallic and semi-chrome.

Phone for a quotation or ask your local dealer.
Full details are available from the SBDU.

SPECIALIST BICYCLE DEVELOPMENT UNIT
Digby Street, Ilkeston, Derby.
Gerald O’Donovan Telephone: 0602 324211

This catalogue is one of a set of 5 available free from your Raleigh dealer.

Our policy of continual improvement means that product specification and appearance may be changed while this catalogue is still in use.

All the bicycles shown in this catalogue are available from your RALEIGH DEALER –

RALEIGH
TI RALEIGH LTD., NOTTINGHAM, ENGLAND

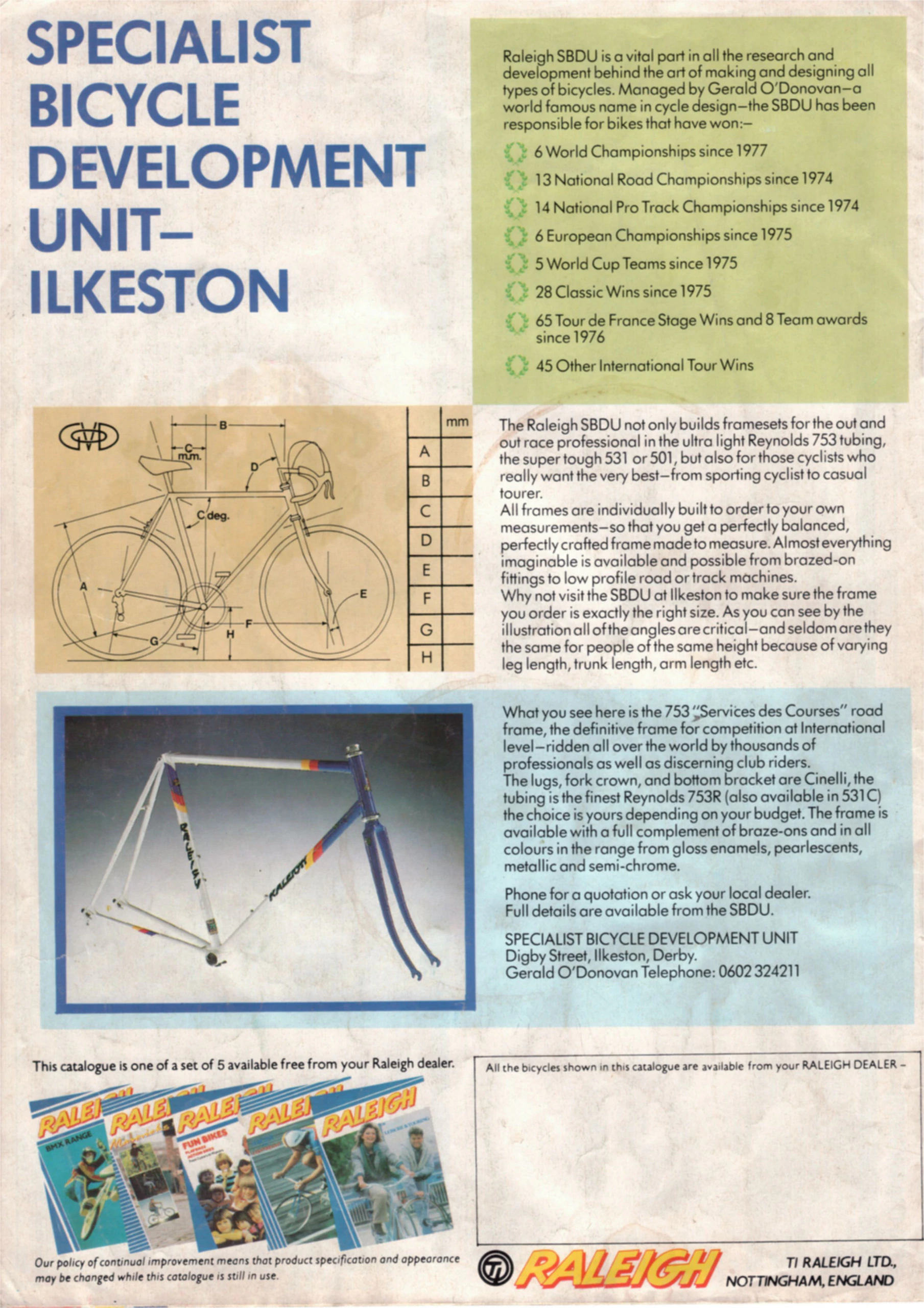

[A page on the Raleigh Specialist Bicycle Development Unit at Ilkeston, with a list of racing successes, a line drawing of a bicycle marked with fitting measurements A to H beside a blank measurement chart and a photograph of the 753 “Services des Courses” road frame in white and blue. Along the bottom, five Raleigh catalog covers are pictured fanned out (among them BMX Range, Fun Bikes and Leisure and Touring), beside an empty dealer imprint box and the TI Raleigh imprint; the drawing carries a “GOD” monogram.]
