Raleigh 1976 Catalog — Lightweight Bicycles (United States)

— Page 1 (front cover) —
RALEIGH
lightweight bicycles

[Front cover: a Raleigh heron head badge lettered “THE RALEIGH NOTTINGHAM ENGLAND” photographed on a dark gray ground above the red and yellow Raleigh logotype.]

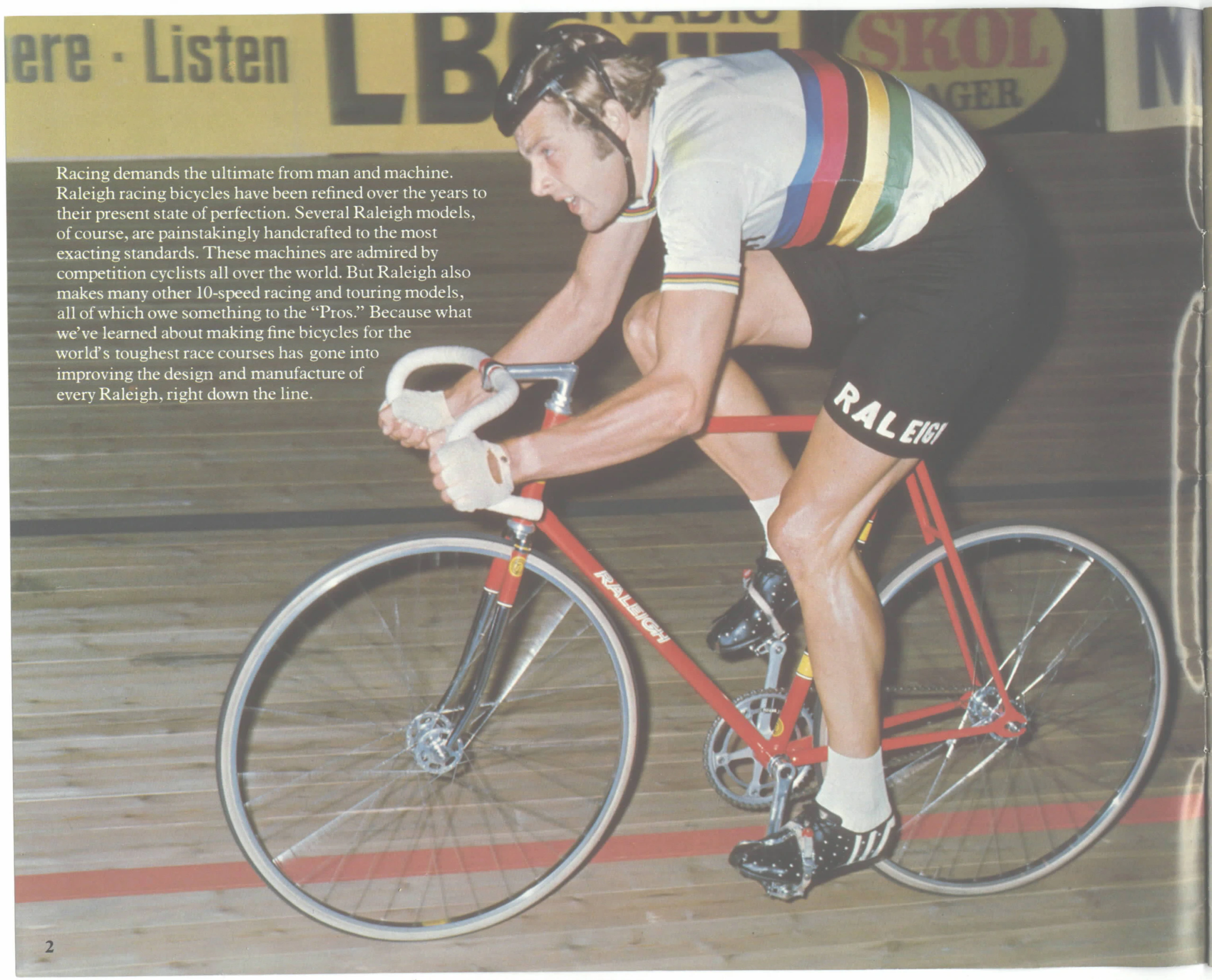

— Page 2 —
Racing demands the ultimate from man and machine. Raleigh racing bicycles have been refined over the years to their present state of perfection. Several Raleigh models, of course, are painstakingly handcrafted to the most exacting standards. These machines are admired by competition cyclists all over the world. But Raleigh also makes many other 10-speed racing and touring models, all of which owe something to the “Pros.” Because what we’ve learned about making fine bicycles for the world’s toughest race courses has gone into improving the design and manufacture of every Raleigh, right down the line.

2

[A track rider in a world champion’s rainbow jersey and Raleigh shorts races a red Raleigh track bicycle on a board track, with advertising hoardings behind him. The rider is not named on the page.]

— Page 3 —

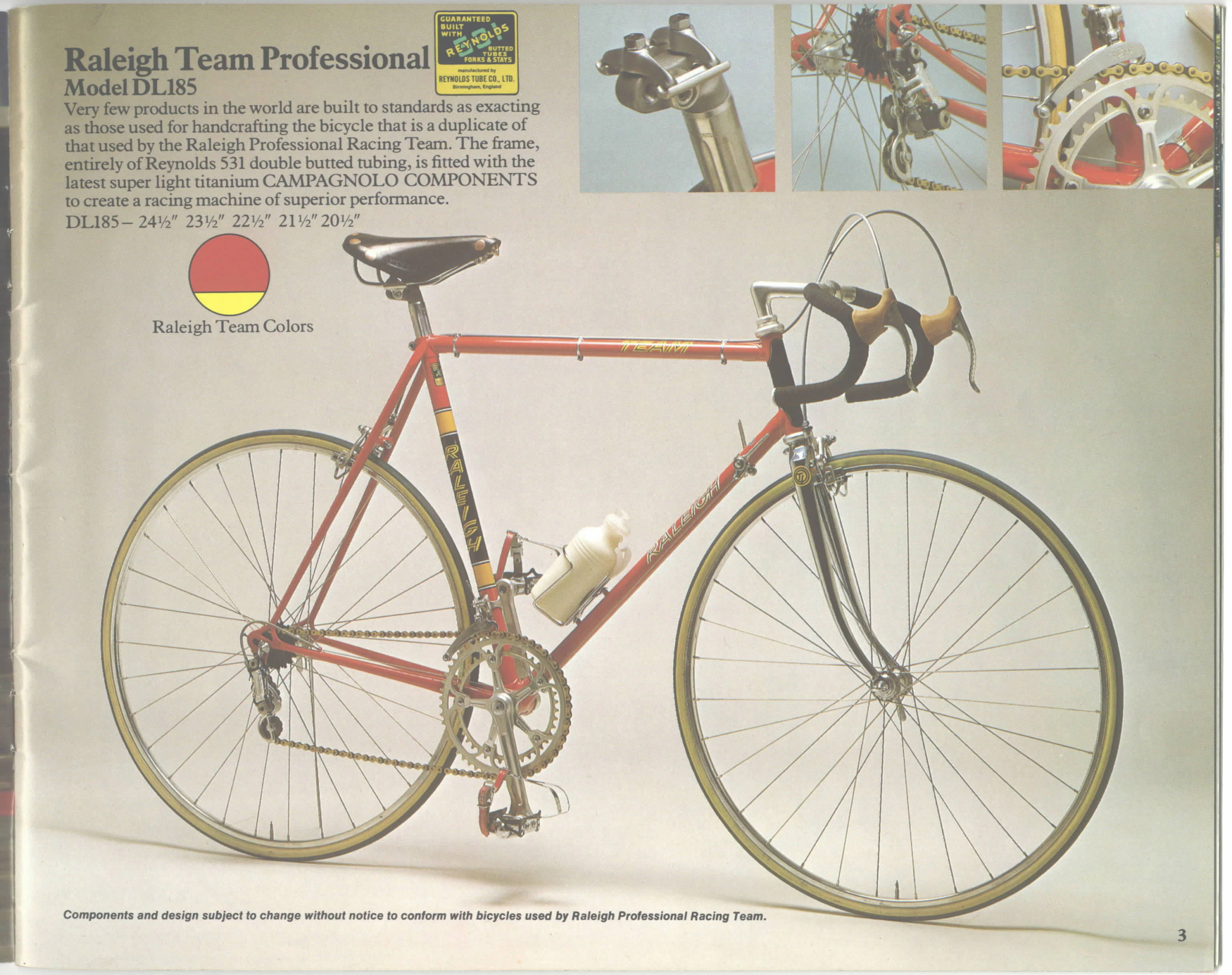

Raleigh Team Professional
Model DL185

GUARANTEED BUILT WITH REYNOLDS 531 BUTTED TUBES FORKS & STAYS
manufactured by REYNOLDS TUBE CO., LTD. Birmingham, England

Very few products in the world are built to standards as exacting as those used for handcrafting the bicycle that is a duplicate of that used by the Raleigh Professional Racing Team. The frame, entirely of Reynolds 531 double butted tubing, is fitted with the latest super light titanium CAMPAGNOLO COMPONENTS to create a racing machine of superior performance.

DL185–24½” 23½” 22½” 21½” 20½”

Raleigh Team Colors

Components and design subject to change without notice to conform with bicycles used by Raleigh Professional Racing Team.

3

[The Raleigh Team Professional Model DL185 in red with black and yellow seat tube panels and “TEAM” on the top tube, shown in a studio photograph with a Reynolds 531 transfer, frame sizes and a red and yellow color dot. Three detail photographs across the top show the seat pillar, the rear derailleur and the chainset.]

— Page 4 —

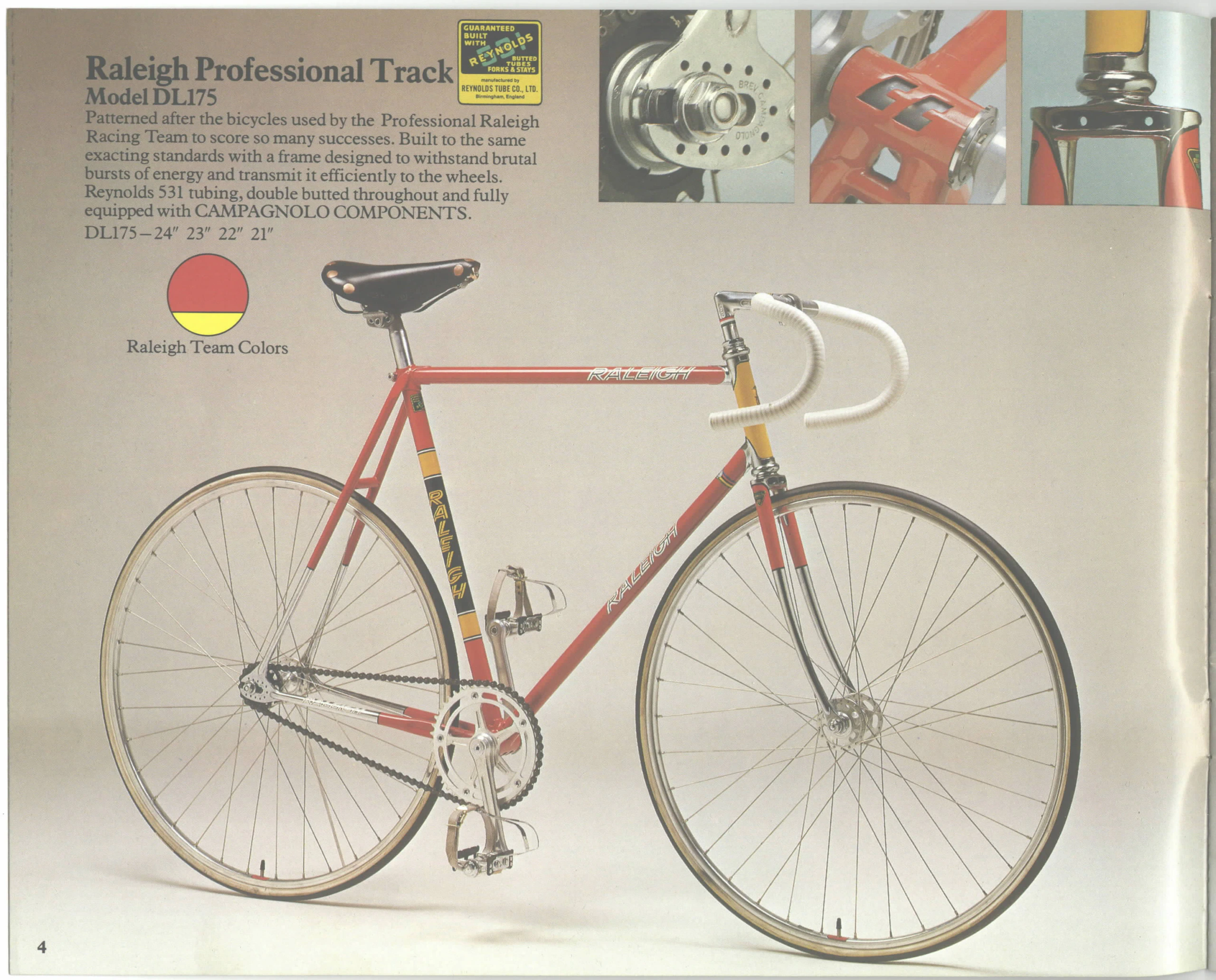

Raleigh Professional Track
Model DL175

GUARANTEED BUILT WITH REYNOLDS 531 BUTTED TUBES FORKS & STAYS
manufactured by REYNOLDS TUBE CO., LTD. Birmingham, England

Patterned after the bicycles used by the Professional Raleigh Racing Team to score so many successes. Built to the same exacting standards with a frame designed to withstand brutal bursts of energy and transmit it efficiently to the wheels. Reynolds 531 tubing, double butted throughout and fully equipped with CAMPAGNOLO COMPONENTS.

DL175–24″ 23″ 22″ 21″

Raleigh Team Colors

4

[The Raleigh Professional Track Model DL175, a red fixed-wheel track bicycle with black and yellow seat tube panels, shown in a studio photograph with a Reynolds 531 transfer, frame sizes and a red and yellow color dot. Three detail photographs across the top show a drilled Campagnolo hub flange, the bottom bracket shell and the fork crown.]

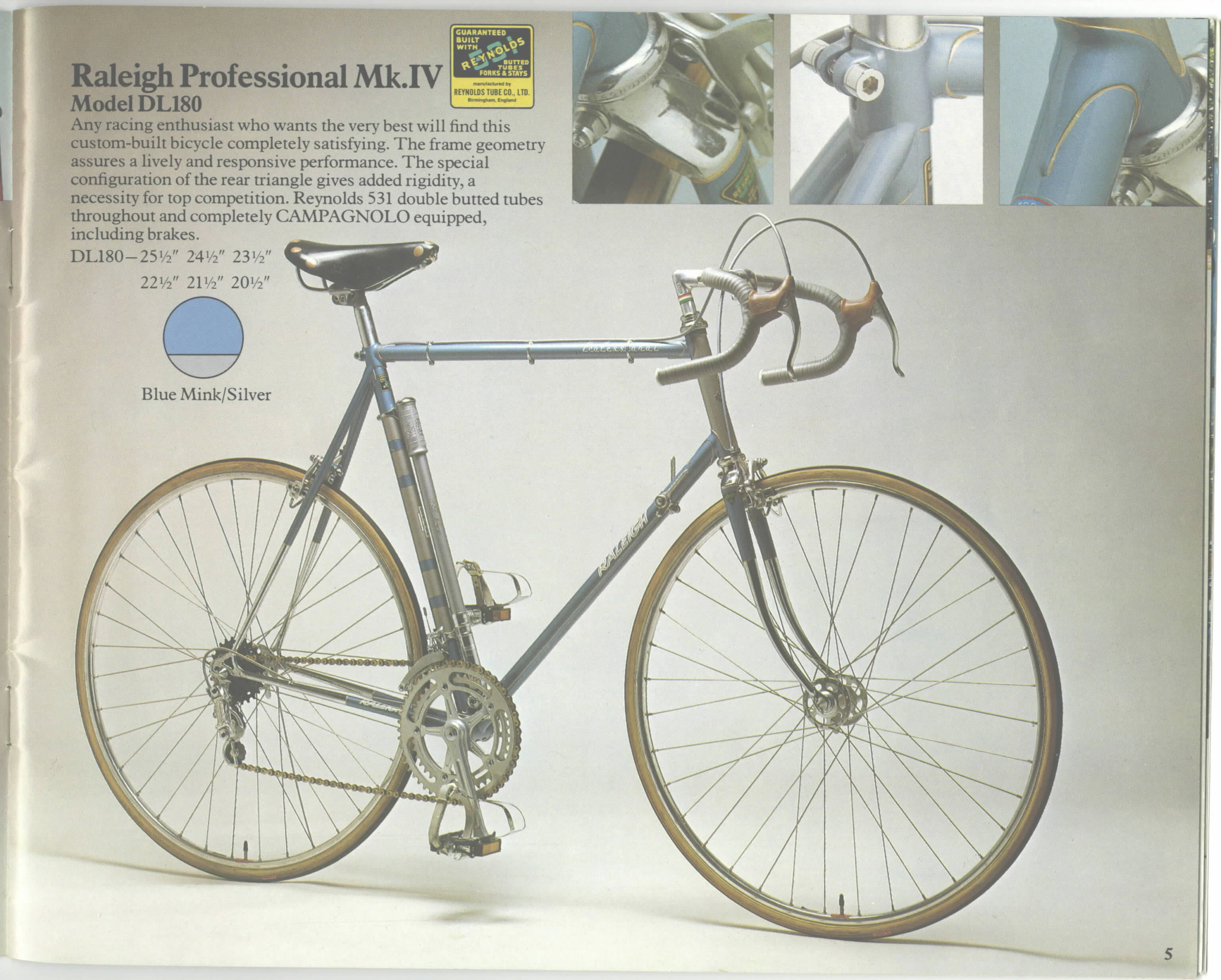

— Page 5 —
Raleigh Professional Mk.IV
Model DL180

GUARANTEED BUILT WITH REYNOLDS 531 BUTTED TUBES FORKS & STAYS
manufactured by REYNOLDS TUBE CO., LTD. Birmingham, England

Any racing enthusiast who wants the very best will find this custom-built bicycle completely satisfying. The frame geometry assures a lively and responsive performance. The special configuration of the rear triangle gives added rigidity, a necessity for top competition. Reynolds 531 double butted tubes throughout and completely CAMPAGNOLO equipped, including brakes.

DL180–25½” 24½” 23½” 22½” 21½” 20½”

Blue Mink/Silver

5

[The Raleigh Professional Mk.IV Model DL180 in pale blue with silver panels, shown in a studio photograph with a Reynolds 531 transfer, frame sizes and a blue and silver color dot. Three detail photographs across the top show the front brake and fork crown, the seat cluster and a gold-lined head lug.]

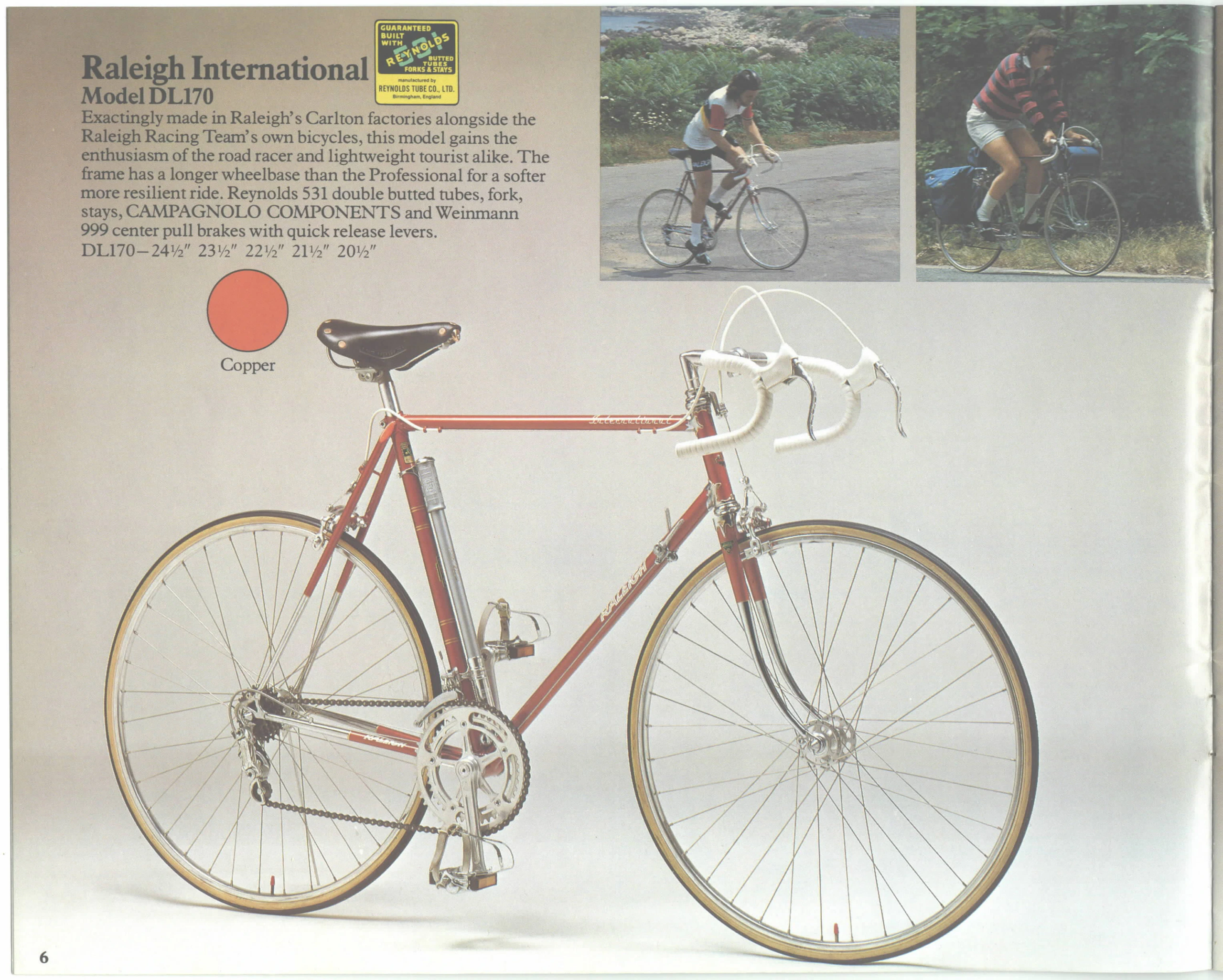

— Page 6 —
Raleigh International
Model DL170

GUARANTEED BUILT WITH REYNOLDS 531 BUTTED TUBES FORKS & STAYS
manufactured by REYNOLDS TUBE CO., LTD. Birmingham, England

Exactingly made in Raleigh’s Carlton factories alongside the Raleigh Racing Team’s own bicycles, this model gains the enthusiasm of the road racer and lightweight tourist alike. The frame has a longer wheelbase than the Professional for a softer more resilient ride. Reynolds 531 double butted tubes, fork, stays, CAMPAGNOLO COMPONENTS and Weinmann 999 center pull brakes with quick release levers.

DL170–24½” 23½” 22½” 21½” 20½”

Copper

6

[The Raleigh International Model DL170 in copper, shown in a studio photograph with a Reynolds 531 transfer, frame sizes and a copper color dot. Two outdoor photographs across the top show a rider in a racing jersey on a country road and a rider in a striped shirt on a bicycle with touring bags.]

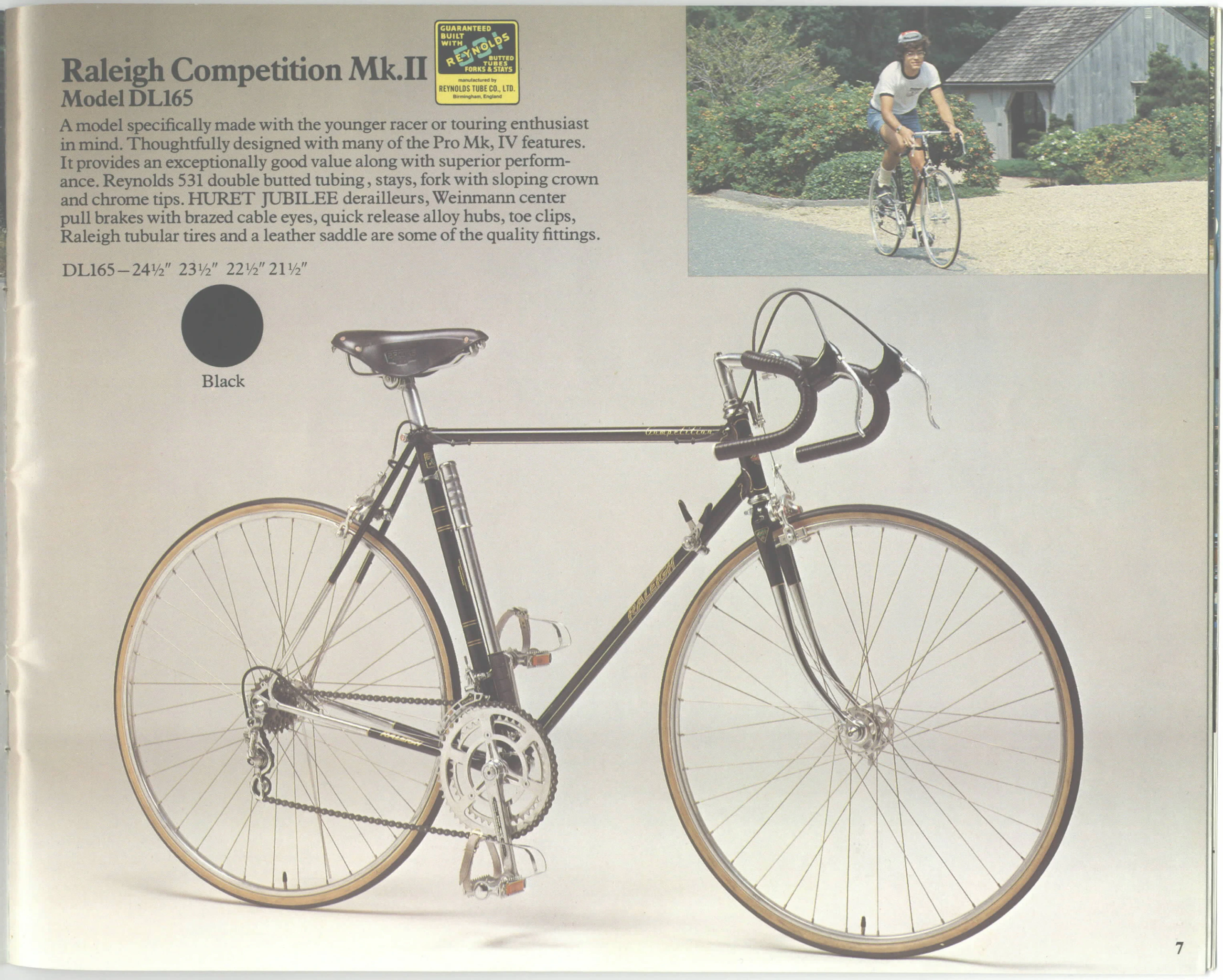

— Page 7 —
Raleigh Competition Mk.II
Model DL165

GUARANTEED BUILT WITH REYNOLDS 531 BUTTED TUBES FORKS & STAYS
manufactured by REYNOLDS TUBE CO., LTD. Birmingham, England

A model specifically made with the younger racer or touring enthusiast in mind. Thoughtfully designed with many of the Pro Mk, IV features. It provides an exceptionally good value along with superior performance. Reynolds 531 double butted tubing , stays, fork with sloping crown and chrome tips. HURET JUBILEE derailleurs, Weinmann center pull brakes with brazed cable eyes, quick release alloy hubs, toe clips, Raleigh tubular tires and a leather saddle are some of the quality fittings.

DL165–24½” 23½” 22½” 21½”

Black

7

[The Raleigh Competition Mk.II Model DL165 in black, shown in a studio photograph with a Reynolds 531 transfer, frame sizes and a black color dot. An outdoor photograph at top right shows a young rider in a helmet riding the model on a drive in front of a gray shingled house.]

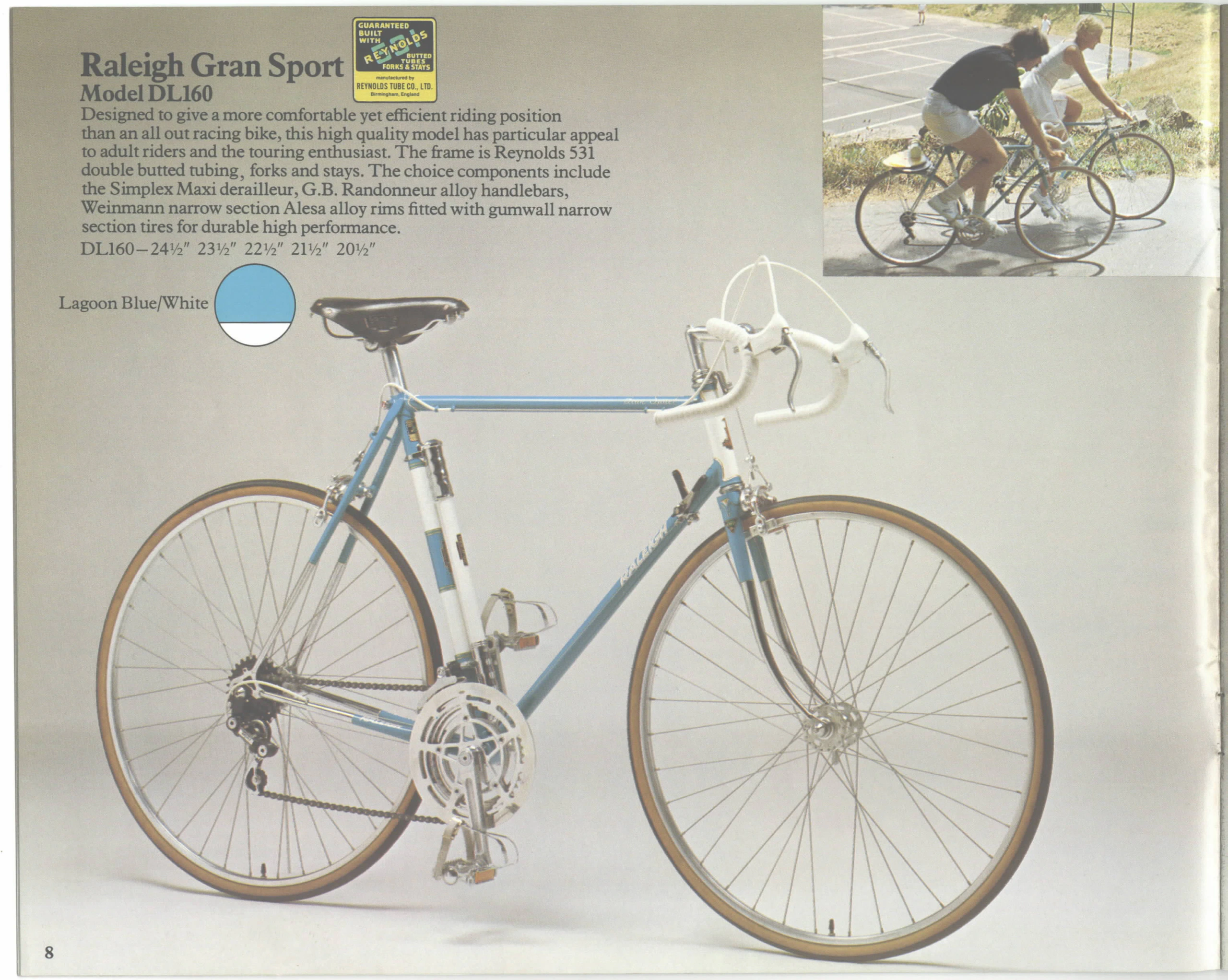

— Page 8 —
Raleigh Gran Sport
Model DL160

GUARANTEED BUILT WITH REYNOLDS 531 BUTTED TUBES FORKS & STAYS
manufactured by REYNOLDS TUBE CO., LTD. Birmingham, England

Designed to give a more comfortable yet efficient riding position than an all out racing bike, this high quality model has particular appeal to adult riders and the touring enthusiast. The frame is Reynolds 531 double butted tubing, forks and stays. The choice components include the Simplex Maxi derailleur, G.B. Randonneur alloy handlebars, Weinmann narrow section Alesa alloy rims fitted with gumwall narrow section tires for durable high performance.

DL160–24½” 23½” 22½” 21½” 20½”

Lagoon Blue/White

8

[The Raleigh Gran Sport Model DL160 in light blue with white seat tube and head tube panels, shown in a studio photograph with a Reynolds 531 transfer, frame sizes and a blue and white color dot. An outdoor photograph at top right shows a man and a woman riding side by side on a paved path.]

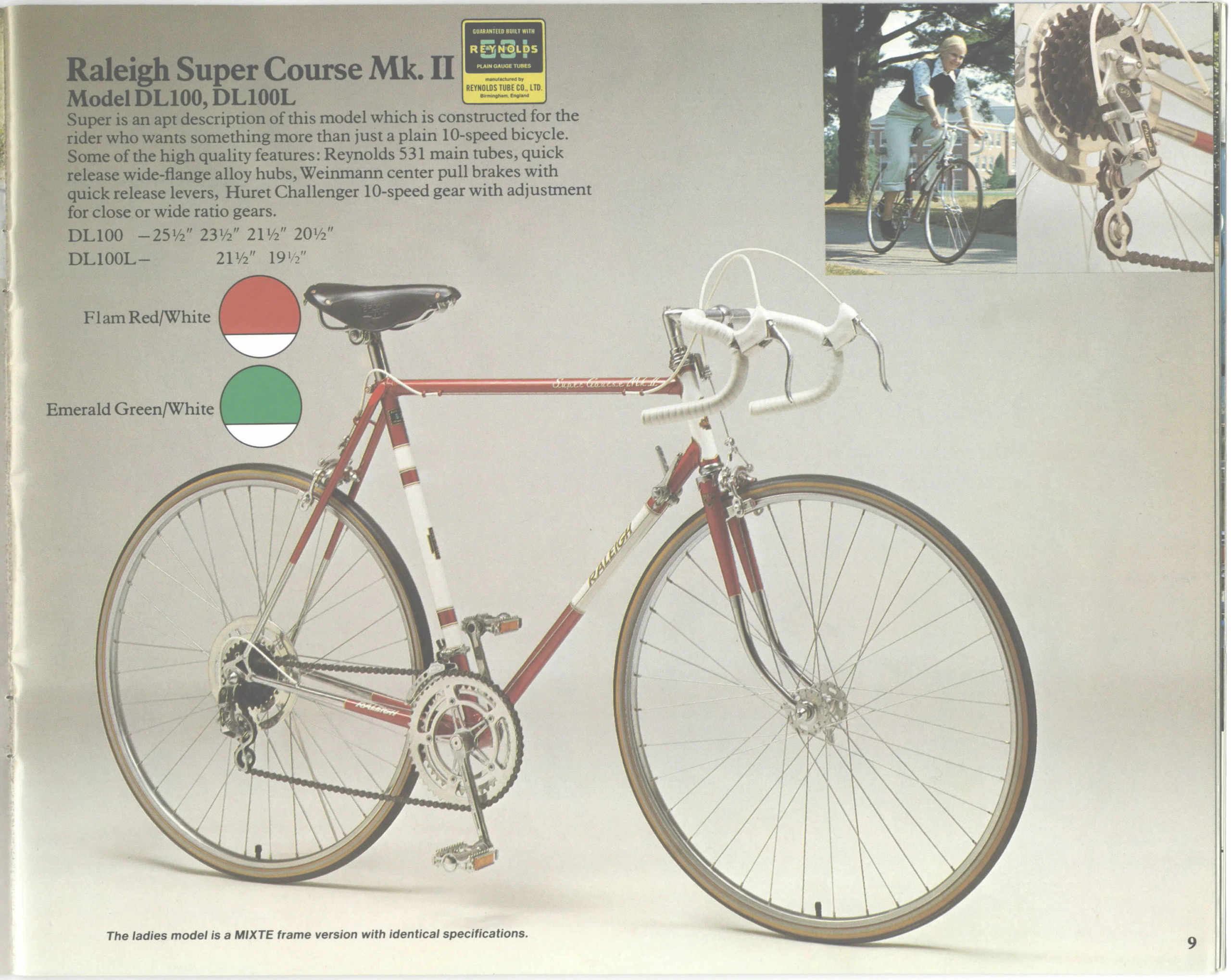

— Page 9 —
Raleigh Super Course Mk. II
Model DL100, DL100L

GUARANTEED BUILT WITH REYNOLDS 531 PLAIN GAUGE TUBES manufactured by REYNOLDS TUBE CO., LTD. Birmingham, England

Super is an apt description of this model which is constructed for the rider who wants something more than just a plain 10-speed bicycle. Some of the high quality features: Reynolds 531 main tubes, quick release wide-flange alloy hubs, Weinmann center pull brakes with quick release levers, Huret Challenger 10-speed gear with adjustment for close or wide ratio gears.

DL100 -25½” 23½” 21½” 20½”
DL100L- 21½” 19½”

Flam Red/White
Emerald Green/White

The ladies model is a MIXTE frame version with identical specifications.

9

[The Raleigh Super Course Mk. II in red and white shown in a large studio photograph, with a reproduction of the Reynolds 531 plain gauge tubes label, frame sizes and two color swatches. Two smaller photographs at top right show a woman riding a mixte frame bicycle on a path among trees and a close view of the rear derailleur and freewheel.]

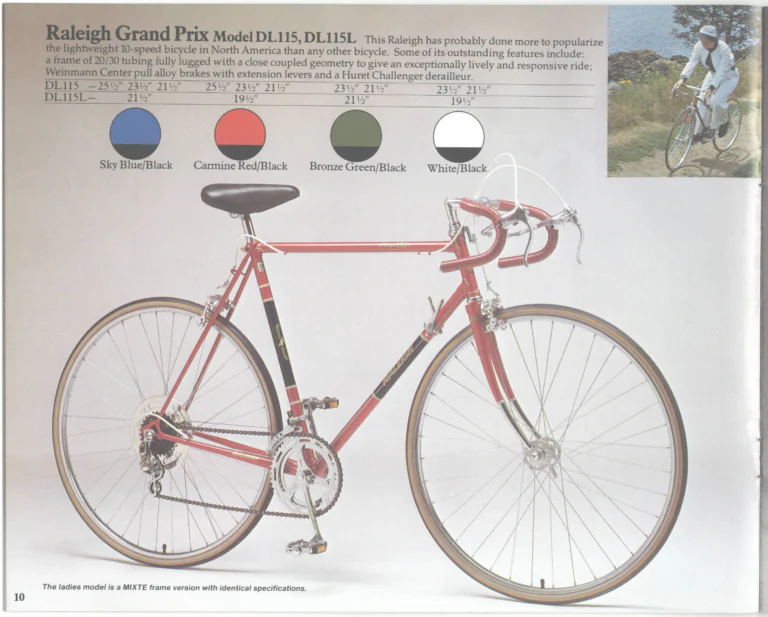

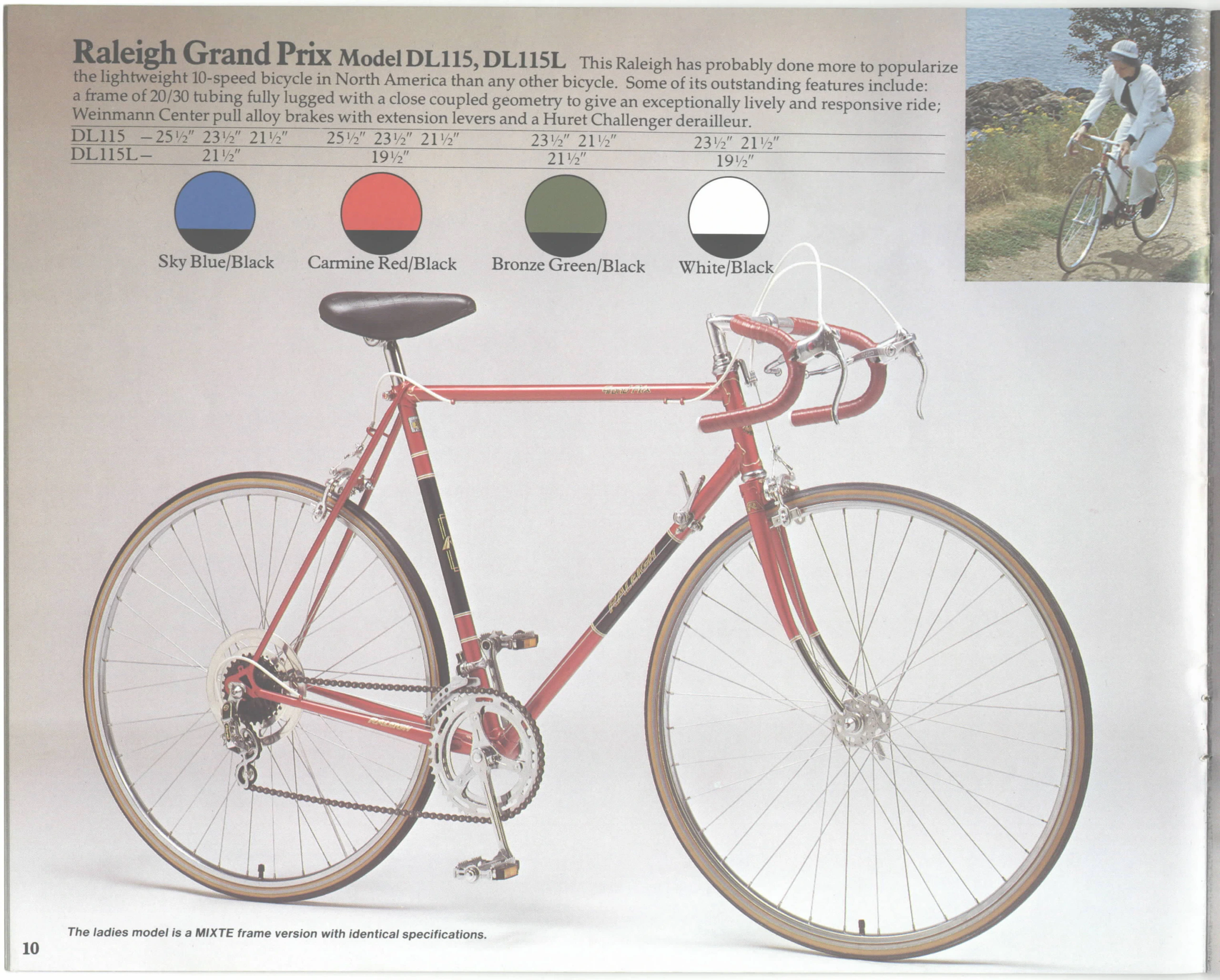

— Page 10 —
Raleigh Grand Prix Model DL115, DL115L This Raleigh has probably done more to popularize the lightweight 10-speed bicycle in North America than any other bicycle. Some of its outstanding features include: a frame of 20/30 tubing fully lugged with a close coupled geometry to give an exceptionally lively and responsive ride; Weinmann Center pull alloy brakes with extension levers and a Huret Challenger derailleur.

DL115 -25½” 23½” 21½” | 25½” 23½” 21½” | 23½” 21½” | 23½” 21½”
DL115L- 21½” | 19½” | 21½” | 19½”

Sky Blue/Black | Carmine Red/Black | Bronze Green/Black | White/Black

The ladies model is a MIXTE frame version with identical specifications.

10

[The Raleigh Grand Prix in Carmine Red and black shown in a large studio photograph, with a frame-size table that gives the sizes offered in each of four colors, the color swatches printed under their columns. A smaller photograph at top right shows a rider in white on a mixte frame bicycle on a path beside the water.]

— Page 11 —

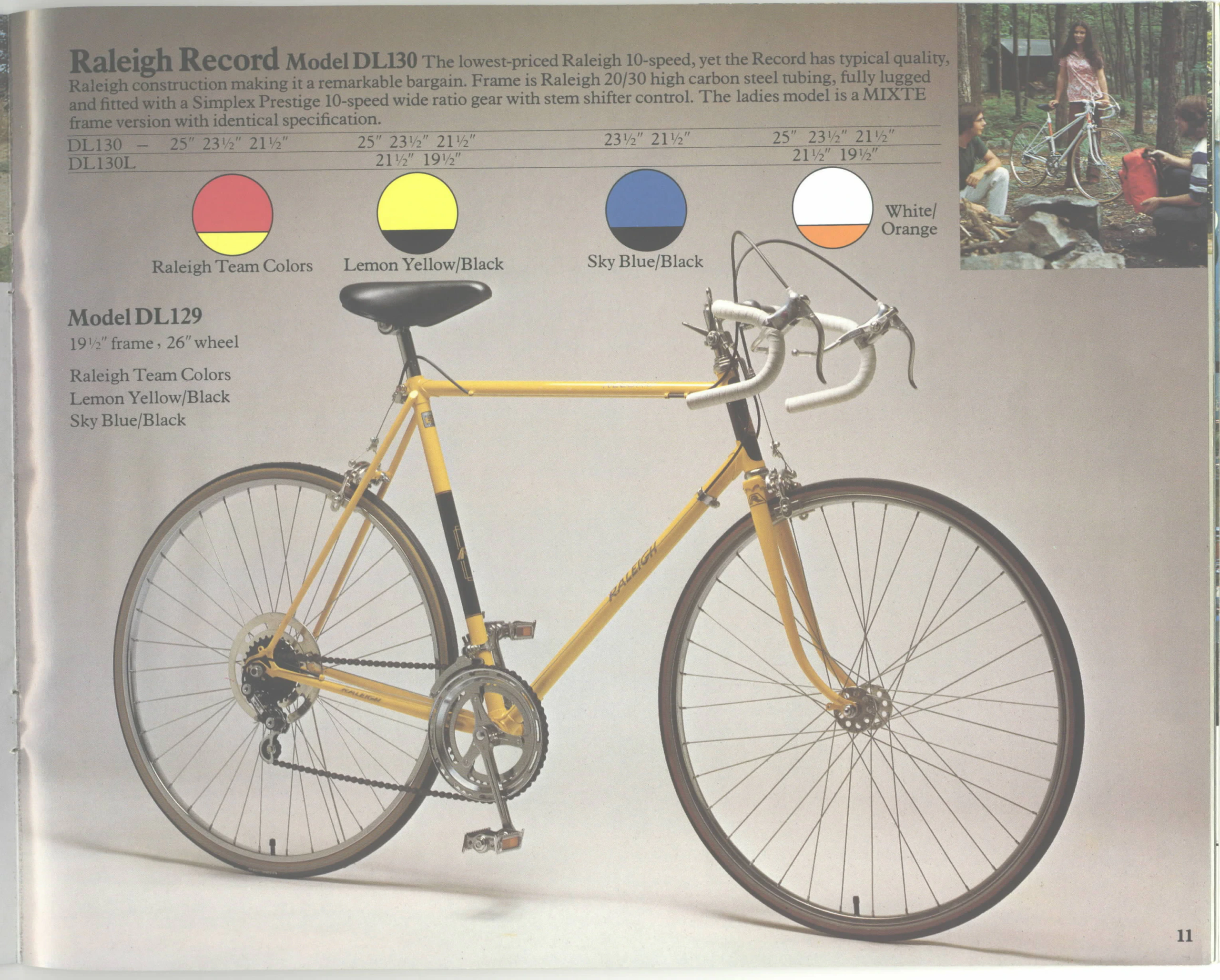

Raleigh Record Model DL130 The lowest-priced Raleigh 10-speed, yet the Record has typical quality, Raleigh construction making it a remarkable bargain. Frame is Raleigh 20/30 high carbon steel tubing, fully lugged and fitted with a Simplex Prestige 10-speed wide ratio gear with stem shifter control. The ladies model is a MIXTE frame version with identical specification.

DL130 – 25″ 23½” 21½” | 25″ 23½” 21½” | 23½” 21½” | 25″ 23½” 21½”
DL130L | 21½” 19½” | | 21½” 19½”

Raleigh Team Colors | Lemon Yellow/Black | Sky Blue/Black | White/Orange

Model DL129
19½” frame, 26″ wheel

Raleigh Team Colors
Lemon Yellow/Black
Sky Blue/Black

11

[The Raleigh Record in Lemon Yellow and black shown in a large studio photograph, with a frame-size table for four colors (the DL130L is offered in two of them), the color swatches, and a short note on the smaller Model DL129. A photograph at top right shows three young people camping in a wood, one standing with a mixte frame bicycle.]

— Page 12 —
12

[A full-page photograph of a man lifting a bicycle onto a rack on the back of a car while a woman beside him, standing with a red ladies frame bicycle fitted with a rear carrier, points across a lake. The page carries no text beyond its folio.]

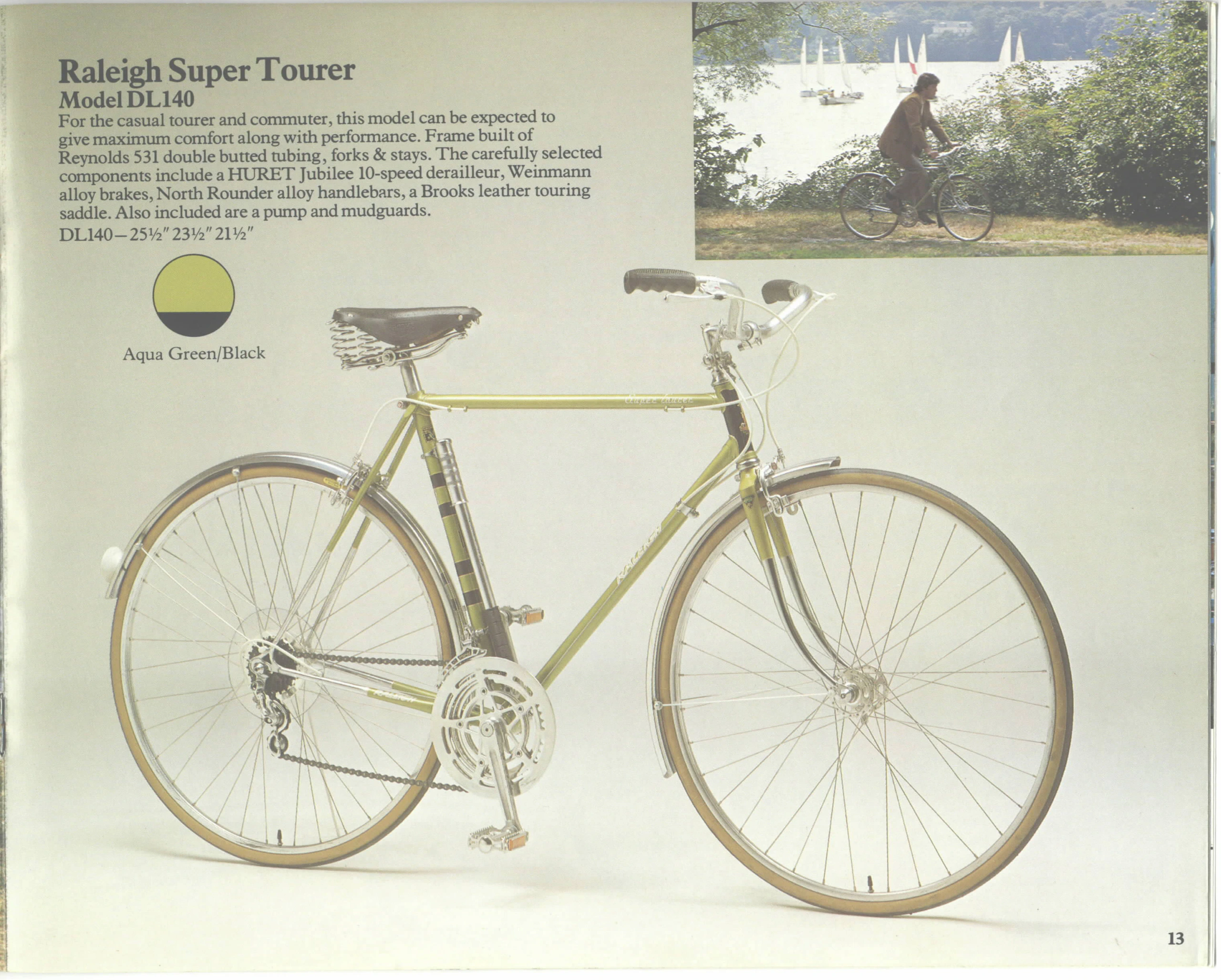

— Page 13 —
Raleigh Super Tourer
Model DL140

For the casual tourer and commuter, this model can be expected to give maximum comfort along with performance. Frame built of Reynolds 531 double butted tubing, forks & stays. The carefully selected components include a HURET Jubilee 10-speed derailleur, Weinmann alloy brakes, North Rounder alloy handlebars, a Brooks leather touring saddle. Also included are a pump and mudguards.

DL140-25½” 23½” 21½”

Aqua Green/Black

13

[The Raleigh Super Tourer in Aqua Green and black shown in a large studio photograph, with flat handlebars, mudguards, a frame-fitted pump and a sprung leather saddle, and a single color swatch. A smaller photograph at top right shows a man riding the bicycle along a lakeside path with sailboats behind.]

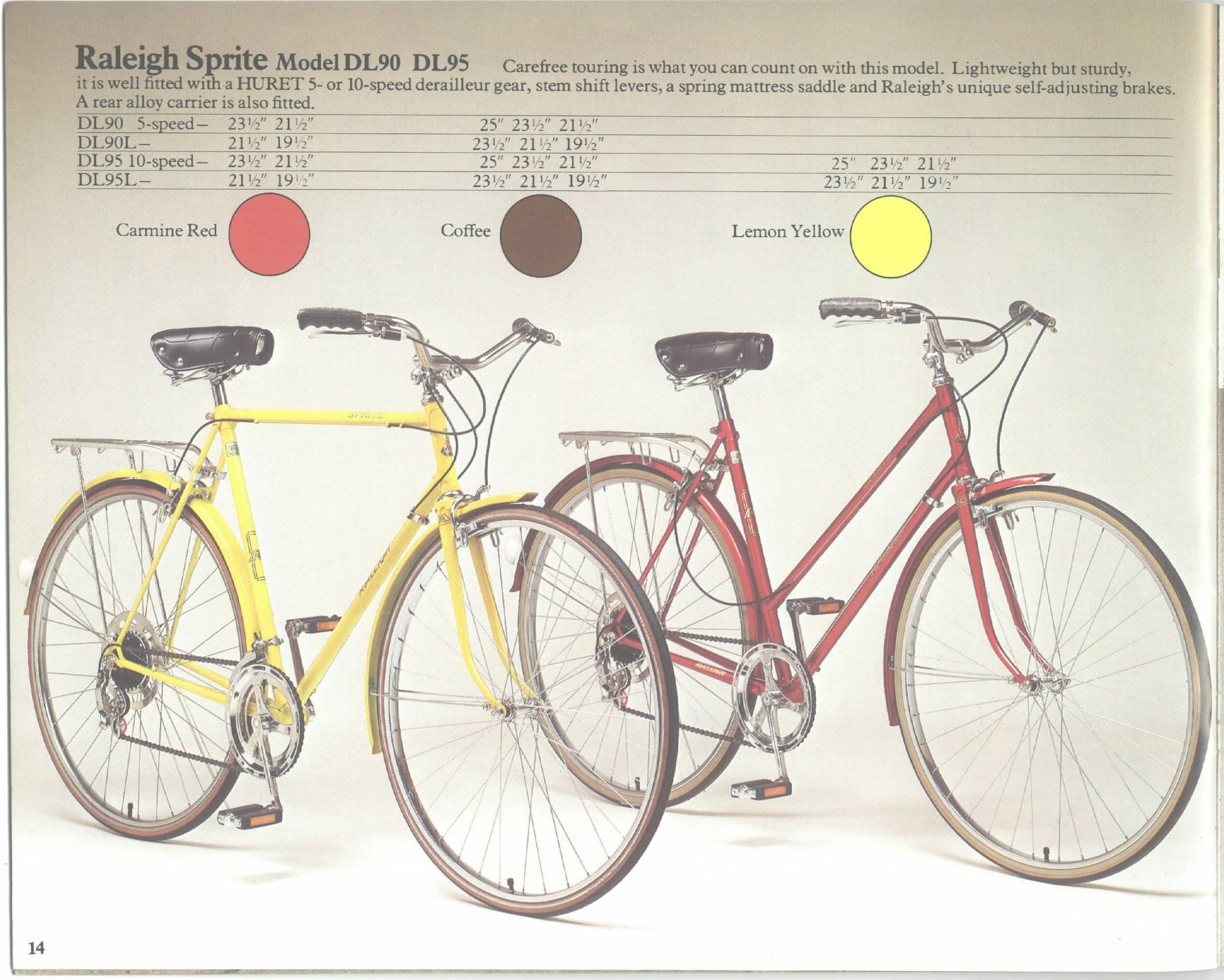

— Page 14 —
Raleigh Sprite Model DL90 DL95 Carefree touring is what you can count on with this model. Lightweight but sturdy, it is well fitted with a HURET 5- or 10-speed derailleur gear, stem shift levers, a spring mattress saddle and Raleigh’s unique self-adjusting brakes. A rear alloy carrier is also fitted.

DL90 5-speed- 23½” 21½” | 25″ 23½” 21½” |
DL90L- 21½” 19½” | 23½” 21½” 19½” |
DL95 10-speed- 23½” 21½” | 25″ 23½” 21½” | 25″ 23½” 21½”
DL95L- 21½” 19½” | 23½” 21½” 19½” | 23½” 21½” 19½”

Carmine Red | Coffee | Lemon Yellow

14

[The Raleigh Sprite shown in a studio photograph as a yellow men’s frame and a red ladies frame side by side, both with upright handlebars, mudguards and rear carriers. A frame-size table gives the sizes of the 5-speed DL90 and 10-speed DL95 in each of three colors, with Lemon Yellow listed for the DL95 only.]

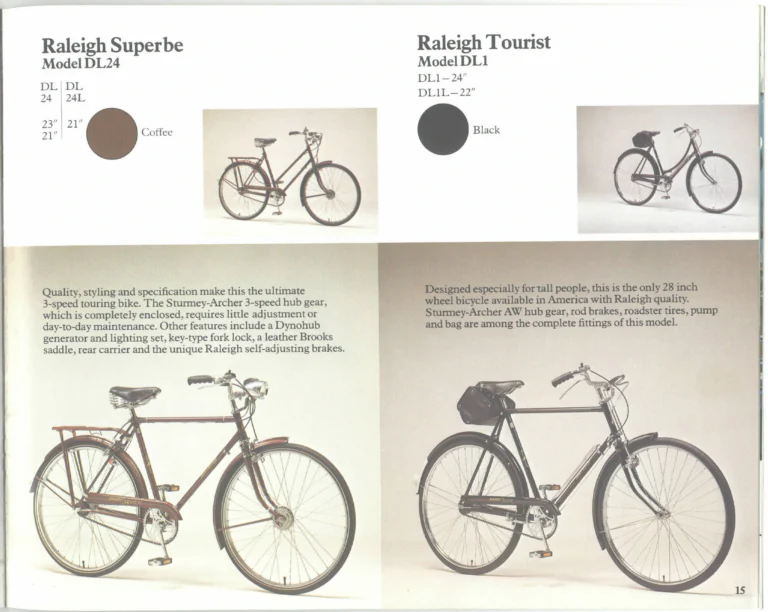

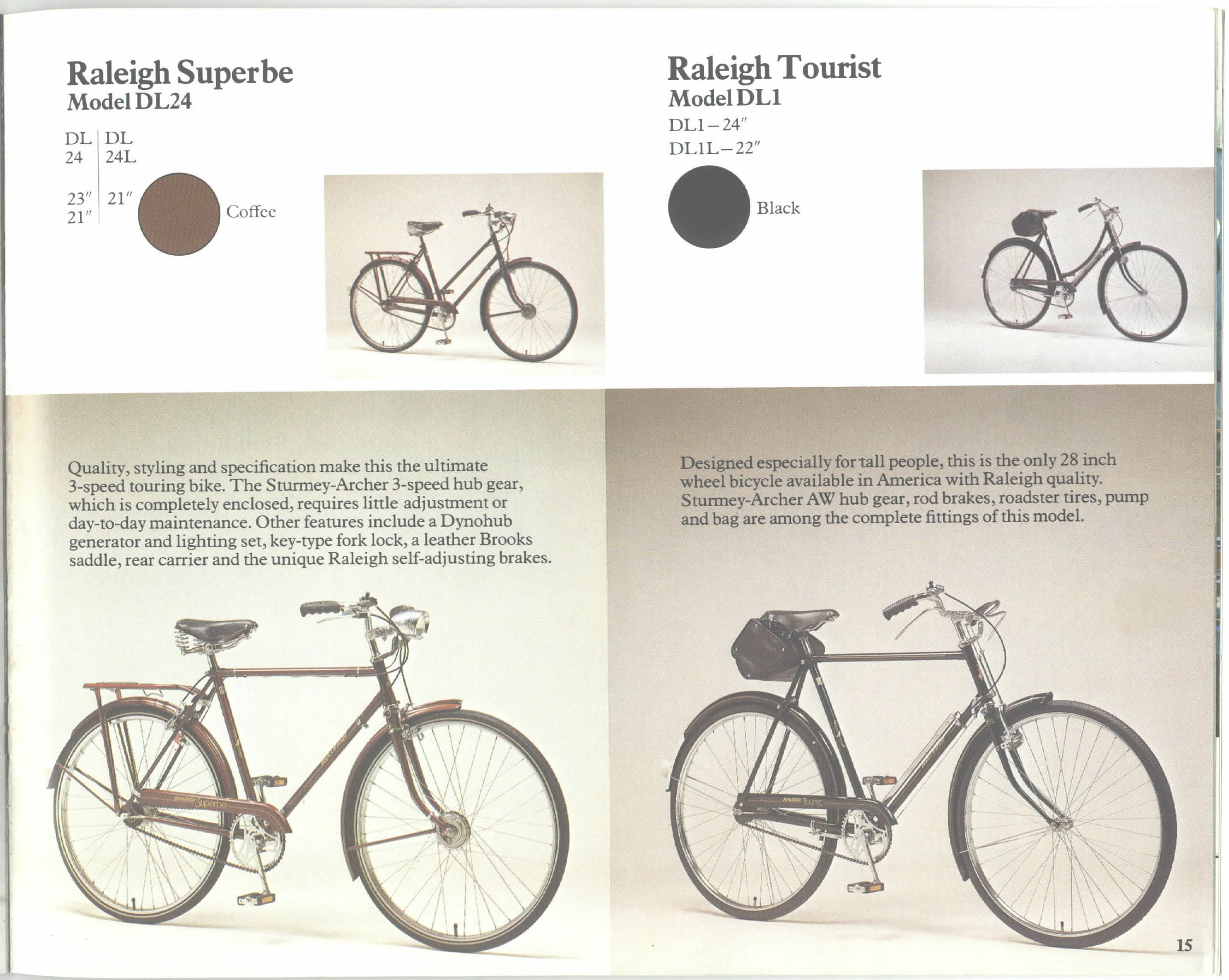

— Page 15 —
Raleigh Superbe
Model DL24

DL 24 | DL 24L
23″ 21″ | 21″

Coffee

Raleigh Tourist
Model DL1

DL1-24″
DL1L-22″

Black

Quality, styling and specification make this the ultimate 3-speed touring bike. The Sturmey-Archer 3-speed hub gear, which is completely enclosed, requires little adjustment or day-to-day maintenance. Other features include a Dynohub generator and lighting set, key-type fork lock, a leather Brooks saddle, rear carrier and the unique Raleigh self-adjusting brakes.

Designed especially for tall people, this is the only 28 inch wheel bicycle available in America with Raleigh quality. Sturmey-Archer AW hub gear, rod brakes, roadster tires, pump and bag are among the complete fittings of this model.

15

[The Raleigh Superbe in Coffee and the Raleigh Tourist in black, each shown as a men’s frame in a large studio photograph with a smaller photograph of the ladies frame above, together with frame sizes and a single color swatch for each. The Superbe carries a headlamp, chaincase and rear carrier; the Tourist has rod brakes and a saddle bag.]

— Page 16 —

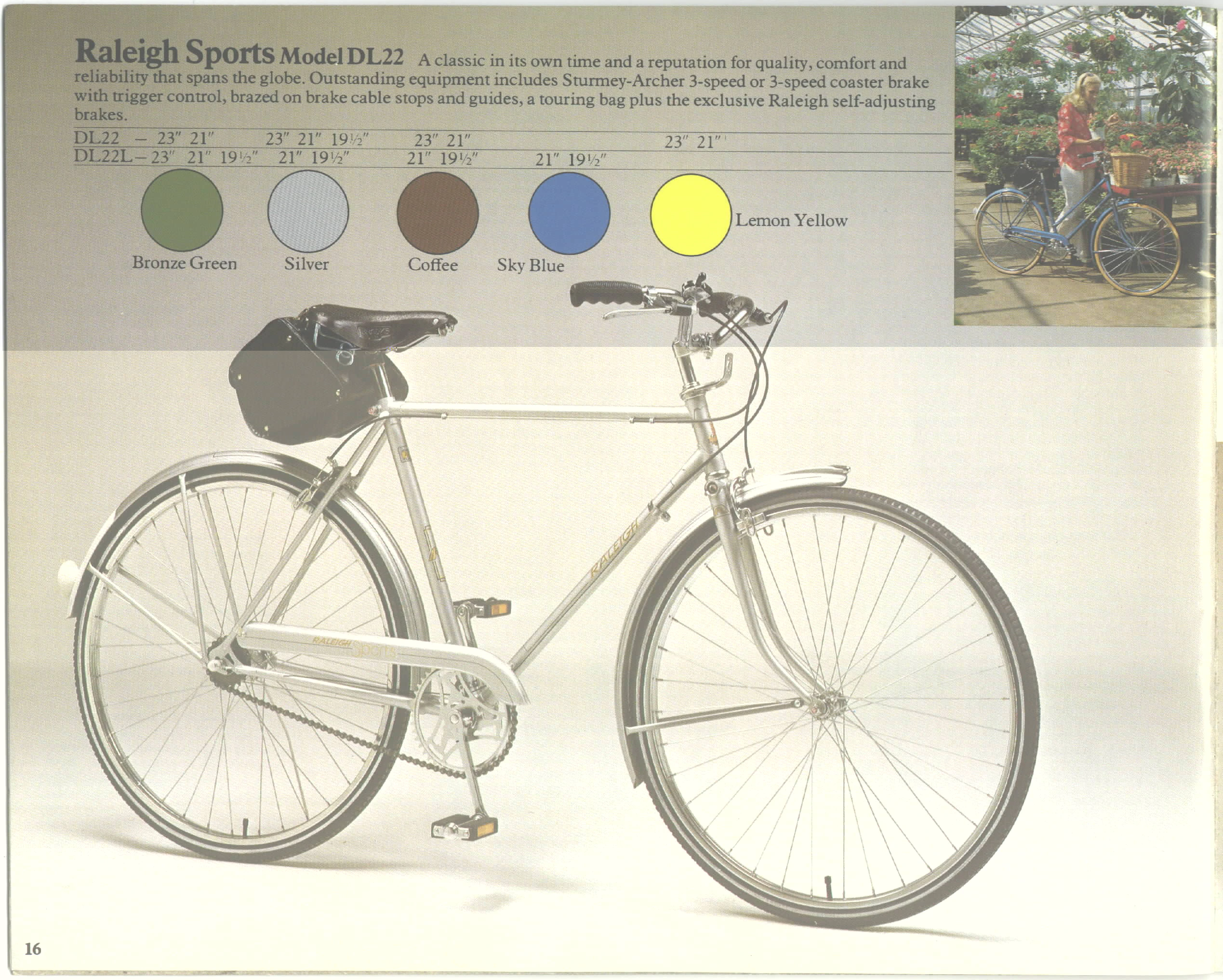

Raleigh Sports Model DL22

A classic in its own time and a reputation for quality, comfort and reliability that spans the globe. Outstanding equipment includes Sturmey-Archer 3-speed or 3-speed coaster brake with trigger control, brazed on brake cable stops and guides, a touring bag plus the exclusive Raleigh self-adjusting brakes.

DL22 – 23″ 21″ | 23″ 21″ 19½” | 23″ 21″ | | 23″ 21″
DL22L – 23″ 21″ 19½” | 21″ 19½” | 21″ 19½” | 21″ 19½” |

Bronze Green | Silver | Coffee | Sky Blue | Lemon Yellow

16

[The Raleigh Sports Model DL22 in silver shown in a studio photograph, fitted with a leather saddle, touring bag, chainguard and full mudguards. The frame sizes for the DL22 and the DL22L are printed in columns above five color swatches, so each color is offered in the sizes printed above it; an inset photograph shows a woman with a blue step-through Sports with a front basket in a greenhouse.]

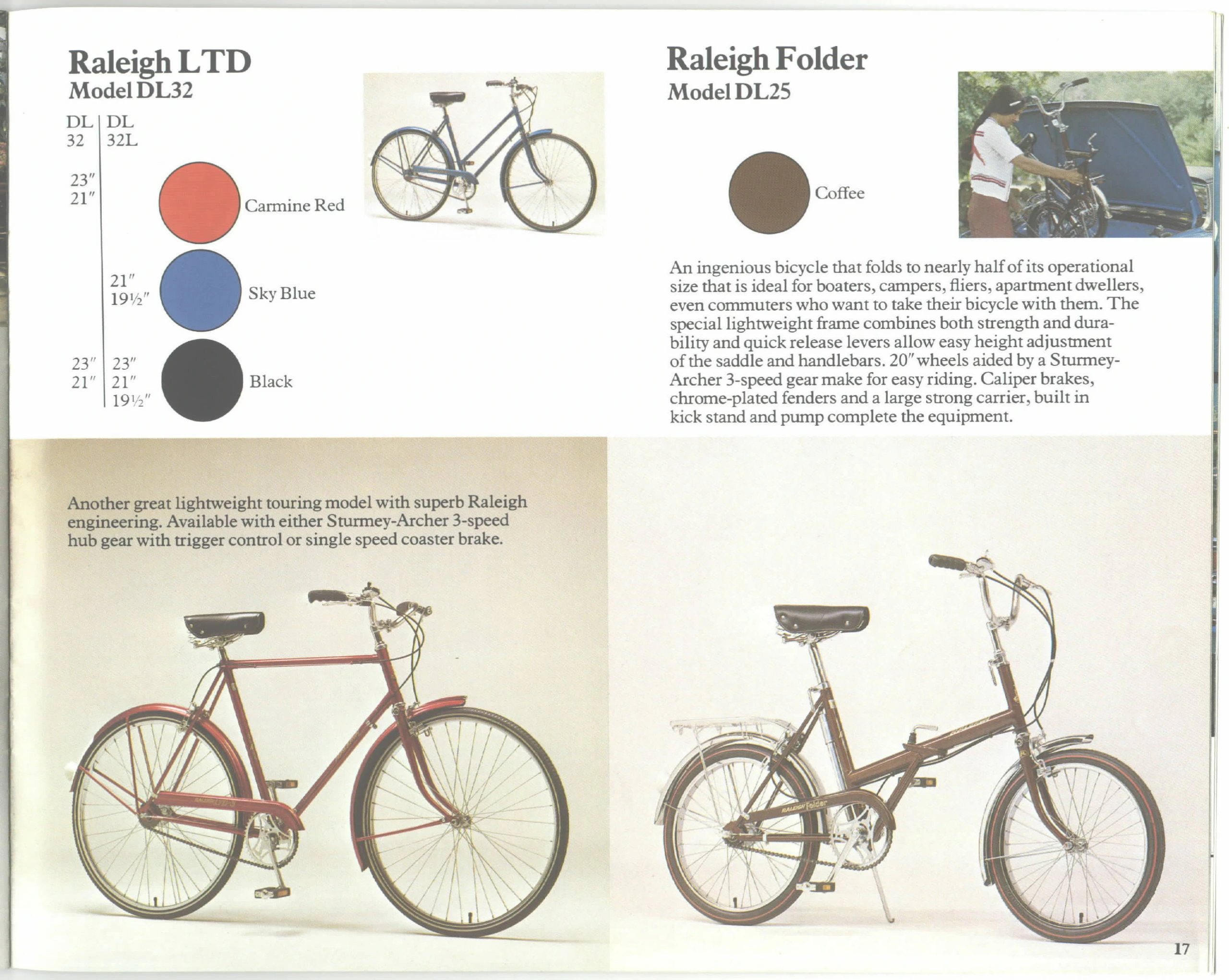

— Page 17 —
Raleigh LTD
Model DL32

DL 32 | DL 32L
23″ 21″ | | Carmine Red
| 21″ 19½” | Sky Blue
23″ 21″ | 23″ 21″ 19½” | Black

Another great lightweight touring model with superb Raleigh engineering. Available with either Sturmey-Archer 3-speed hub gear with trigger control or single speed coaster brake.

Raleigh Folder
Model DL25

Coffee

An ingenious bicycle that folds to nearly half of its operational size that is ideal for boaters, campers, fliers, apartment dwellers, even commuters who want to take their bicycle with them. The special lightweight frame combines both strength and durability and quick release levers allow easy height adjustment of the saddle and handlebars. 20″ wheels aided by a Sturmey-Archer 3-speed gear make for easy riding. Caliper brakes, chrome-plated fenders and a large strong carrier, built in kick stand and pump complete the equipment.

17

[The Raleigh LTD Model DL32 in red and the Raleigh Folder Model DL25 in coffee brown shown in studio photographs, with frame sizes for the DL32 and DL32L beside three color swatches and one color swatch for the Folder. A small photograph shows a blue step-through LTD, and an inset photograph shows a woman lifting a folded Folder into the trunk of a blue car.]

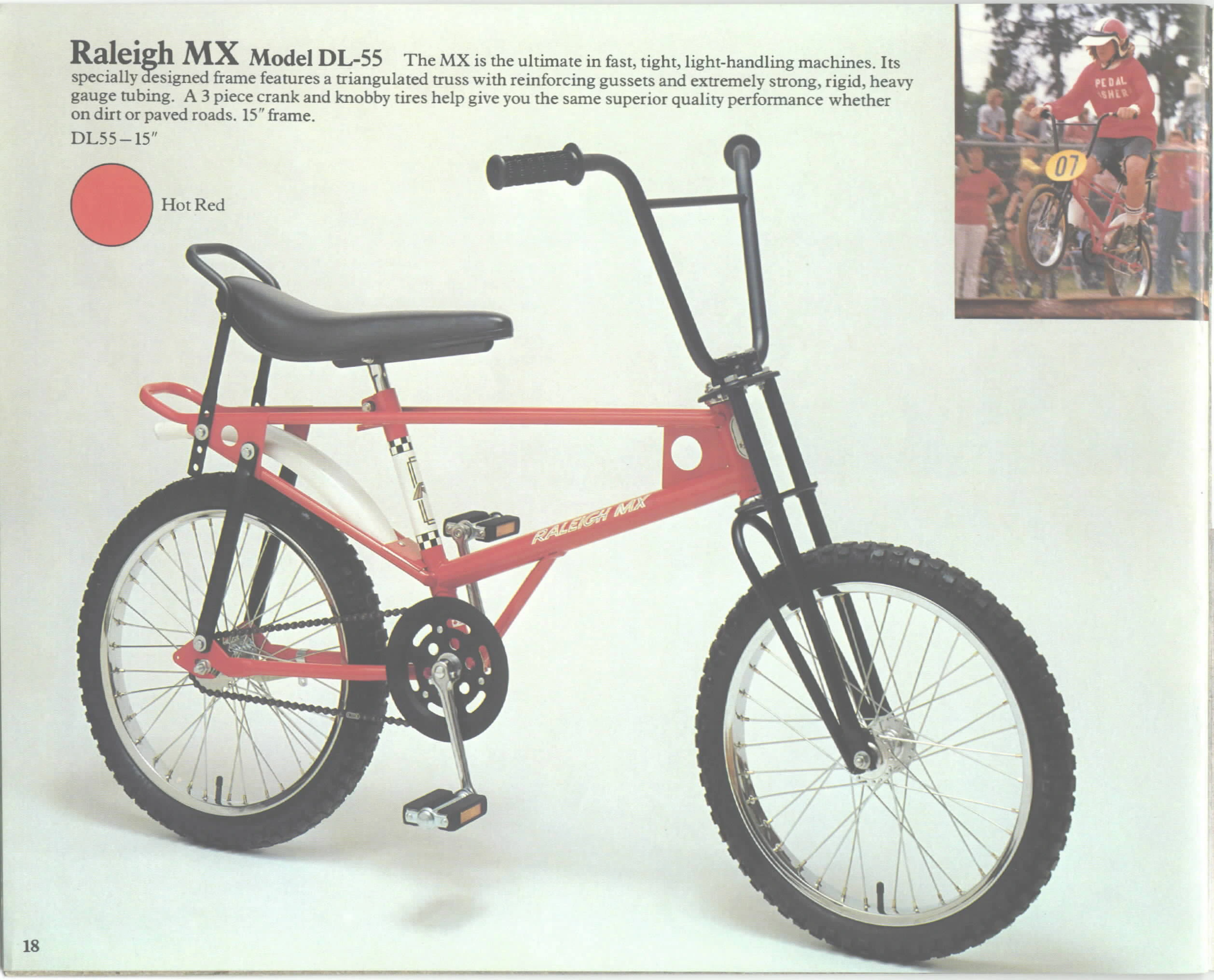

— Page 18 —

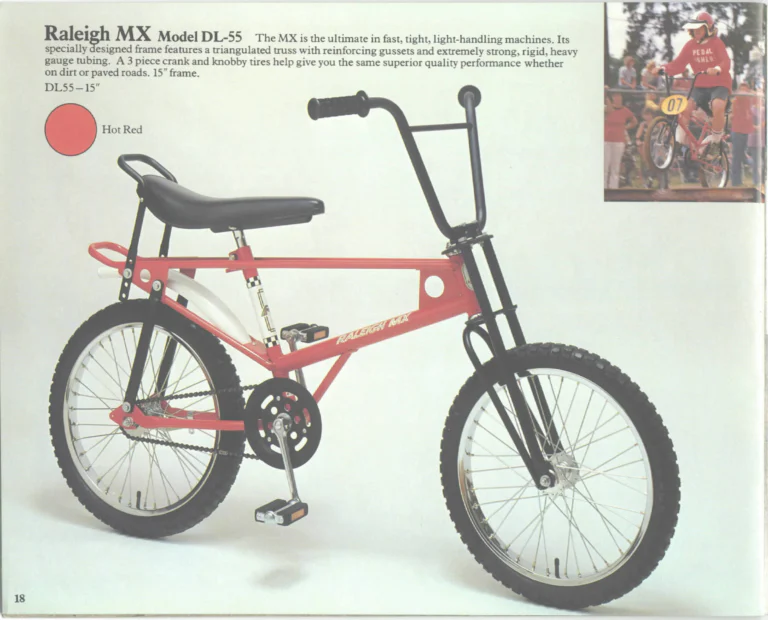

Raleigh MX Model DL-55

The MX is the ultimate in fast, tight, light-handling machines. Its specially designed frame features a triangulated truss with reinforcing gussets and extremely strong, rigid, heavy gauge tubing. A 3 piece crank and knobby tires help give you the same superior quality performance whether on dirt or paved roads. 15″ frame.

DL55 – 15″

Hot Red

18

[The Raleigh MX Model DL-55 in red shown in a studio photograph, with a high-rise handlebar, knobby tires, a black saddle with a rear grab bar and a frame with a triangulated truss. An inset photograph shows a young rider in a helmet and a red sweatshirt lettered “PEDAL” over a partly hidden second word riding a red MX with number plate 07 over a wooden ramp in front of spectators.]

— Page 19 —

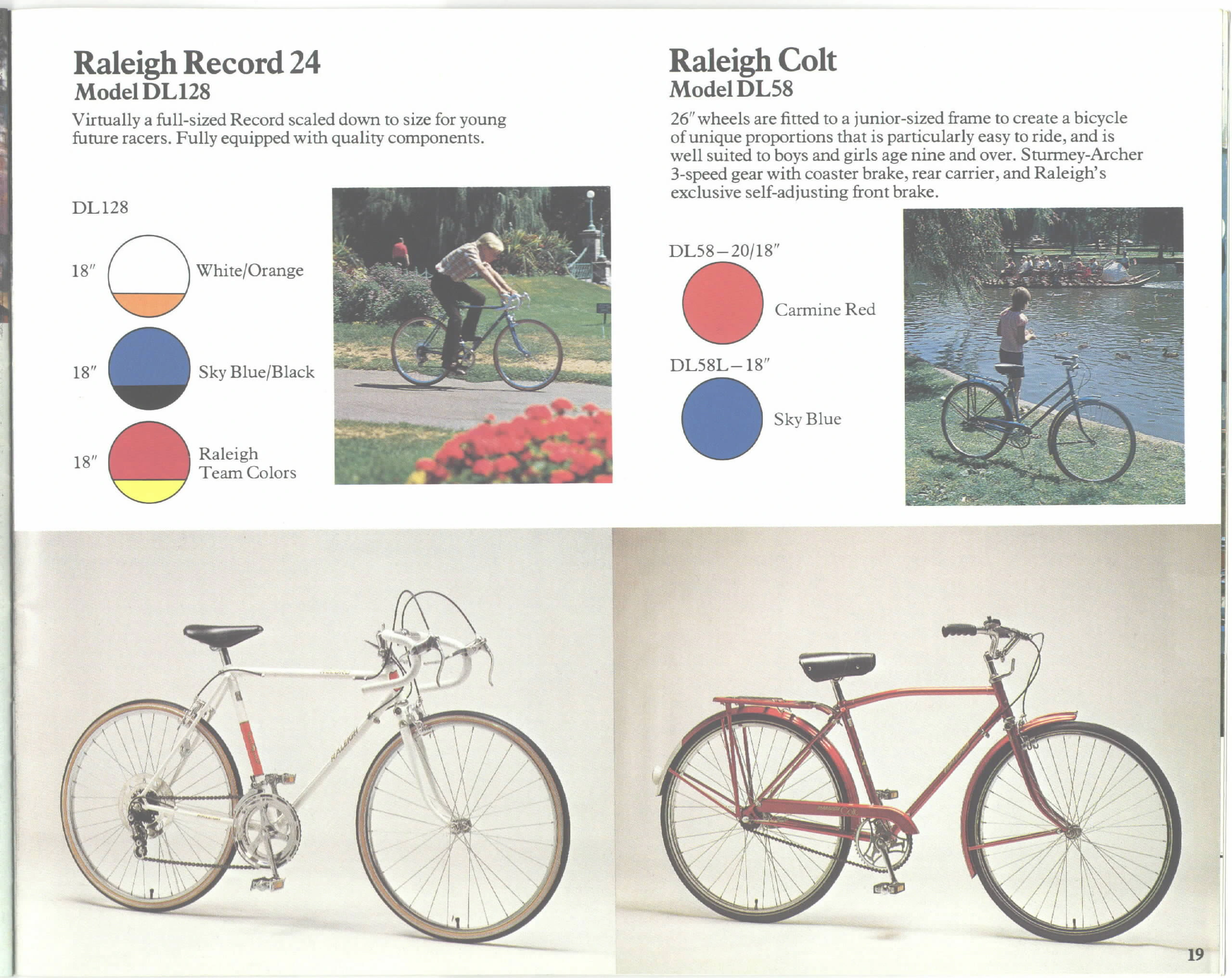

Raleigh Record 24
Model DL128

Virtually a full-sized Record scaled down to size for young future racers. Fully equipped with quality components.

DL128
18″ | White/Orange
18″ | Sky Blue/Black
18″ | Raleigh Team Colors

Raleigh Colt
Model DL58

26″ wheels are fitted to a junior-sized frame to create a bicycle of unique proportions that is particularly easy to ride, and is well suited to boys and girls age nine and over. Sturmey-Archer 3-speed gear with coaster brake, rear carrier, and Raleigh’s exclusive self-adjusting front brake.

DL58 – 20/18″
Carmine Red

DL58L – 18″
Sky Blue

19

[The Raleigh Record 24 Model DL128 in white and the Raleigh Colt Model DL58 in red shown in studio photographs, with frame sizes beside two-tone color swatches for the Record 24 and single color swatches for the Colt and the Colt DL58L. Inset photographs show a boy riding a blue Record 24 along a park path and a child standing beside a blue step-through Colt at the edge of a pond with a swan boat.]

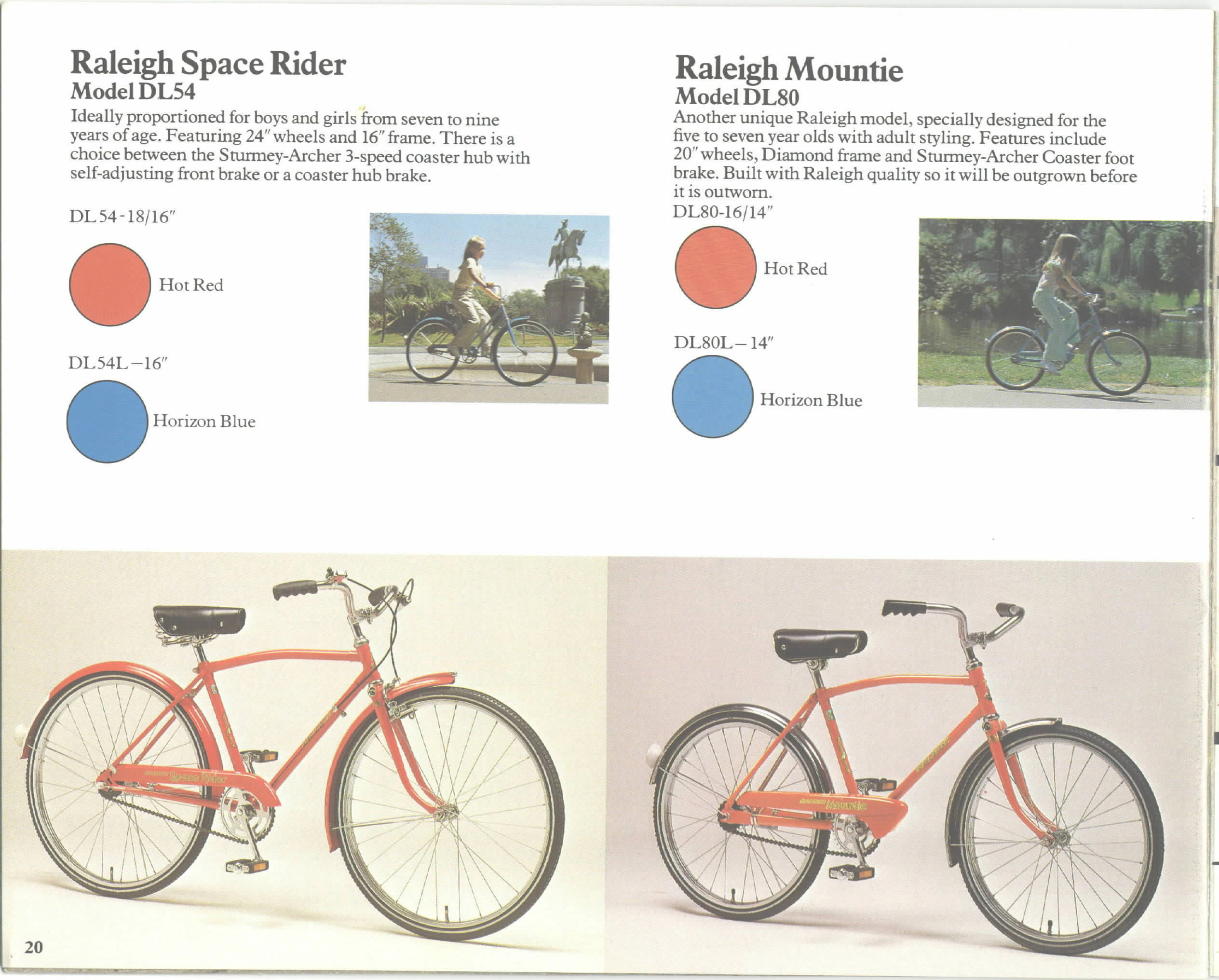

— Page 20 —
Raleigh Space Rider
Model DL54

Ideally proportioned for boys and girls from seven to nine years of age. Featuring 24″ wheels and 16″ frame. There is a choice between the Sturmey-Archer 3-speed coaster hub with self-adjusting front brake or a coaster hub brake.

DL 54-18/16″
Hot Red

DL54L – 16″
Horizon Blue

Raleigh Mountie
Model DL80

Another unique Raleigh model, specially designed for the five to seven year olds with adult styling. Features include 20″ wheels, Diamond frame and Sturmey-Archer Coaster foot brake. Built with Raleigh quality so it will be outgrown before it is outworn.

DL80-16/14″
Hot Red

DL80L – 14″
Horizon Blue

20

[The Raleigh Space Rider Model DL54 and the Raleigh Mountie Model DL80, both in red, shown in studio photographs, with frame sizes and color swatches for each model and its step-through L version. Inset photographs show a girl riding a blue step-through Space Rider past an equestrian statue and a girl riding a blue step-through Mountie along a path beside a pond.]

— Page 21 —

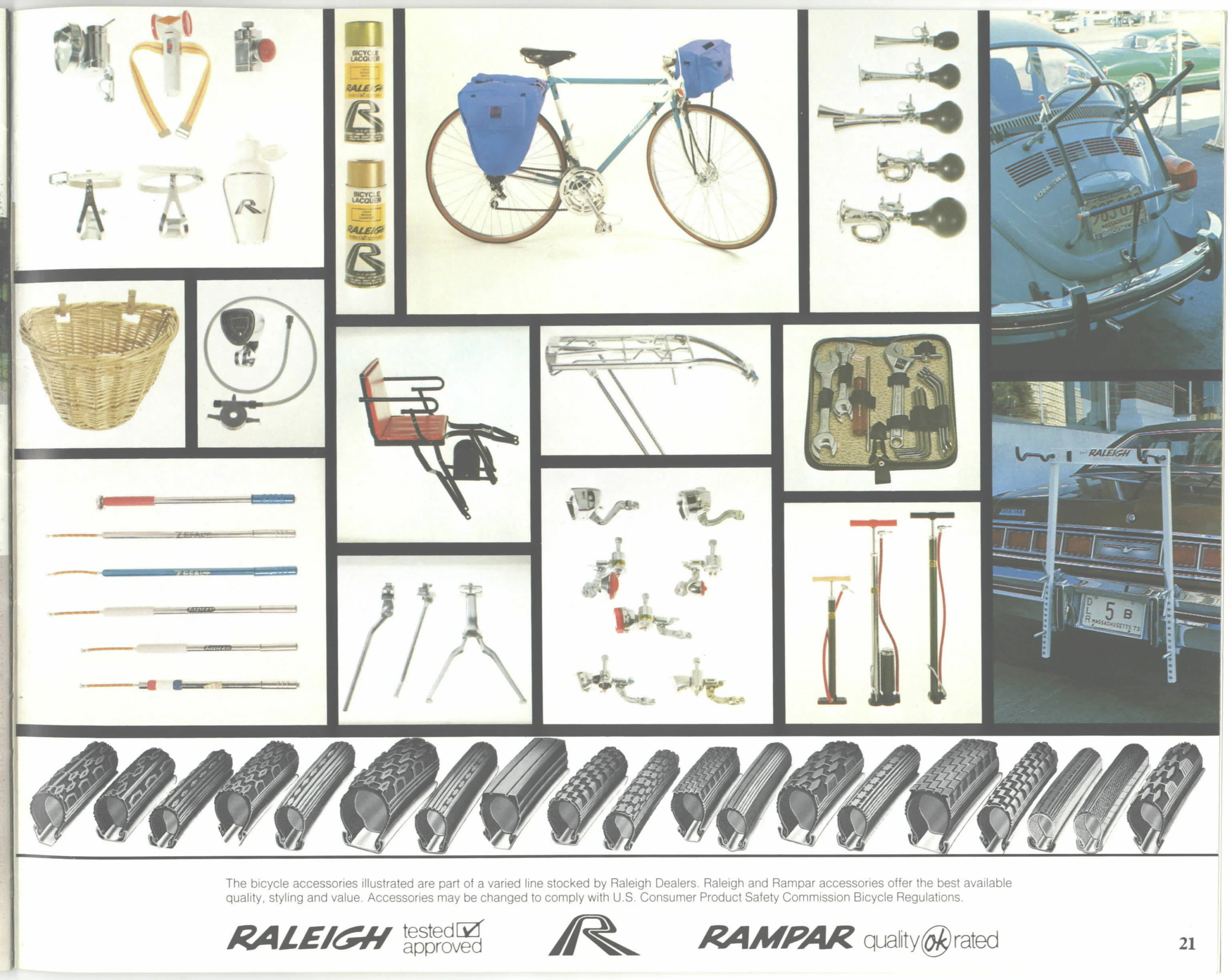

The bicycle accessories illustrated are part of a varied line stocked by Raleigh Dealers. Raleigh and Rampar accessories offer the best available quality, styling and value. Accessories may be changed to comply with U.S. Consumer Product Safety Commission Bicycle Regulations.

RALEIGH tested ☑ approved

RAMPAR quality (ok) rated

21

[A grid of accessory photographs: lamps, toe clips and straps, a water bottle and cage, two cans of Raleigh bicycle lacquer, a blue touring bicycle with panniers and a handlebar bag, bulb horns, a wicker basket, a speedometer, a child seat, a rear carrier, a tool kit in a zip case, frame pumps, kickstands, bell and lamp brackets, floor pumps and a row of tire tread cross sections. Two photographs show car bicycle racks, one on a Volkswagen Beetle and a white Raleigh rack on a sedan whose dealer plate reads “DLR 5B MASSACHUSETTS 73”; the foot of the page carries the Raleigh “tested approved” mark, the Raleigh R emblem and the Rampar “quality ok rated” mark.]

— Page 22 —

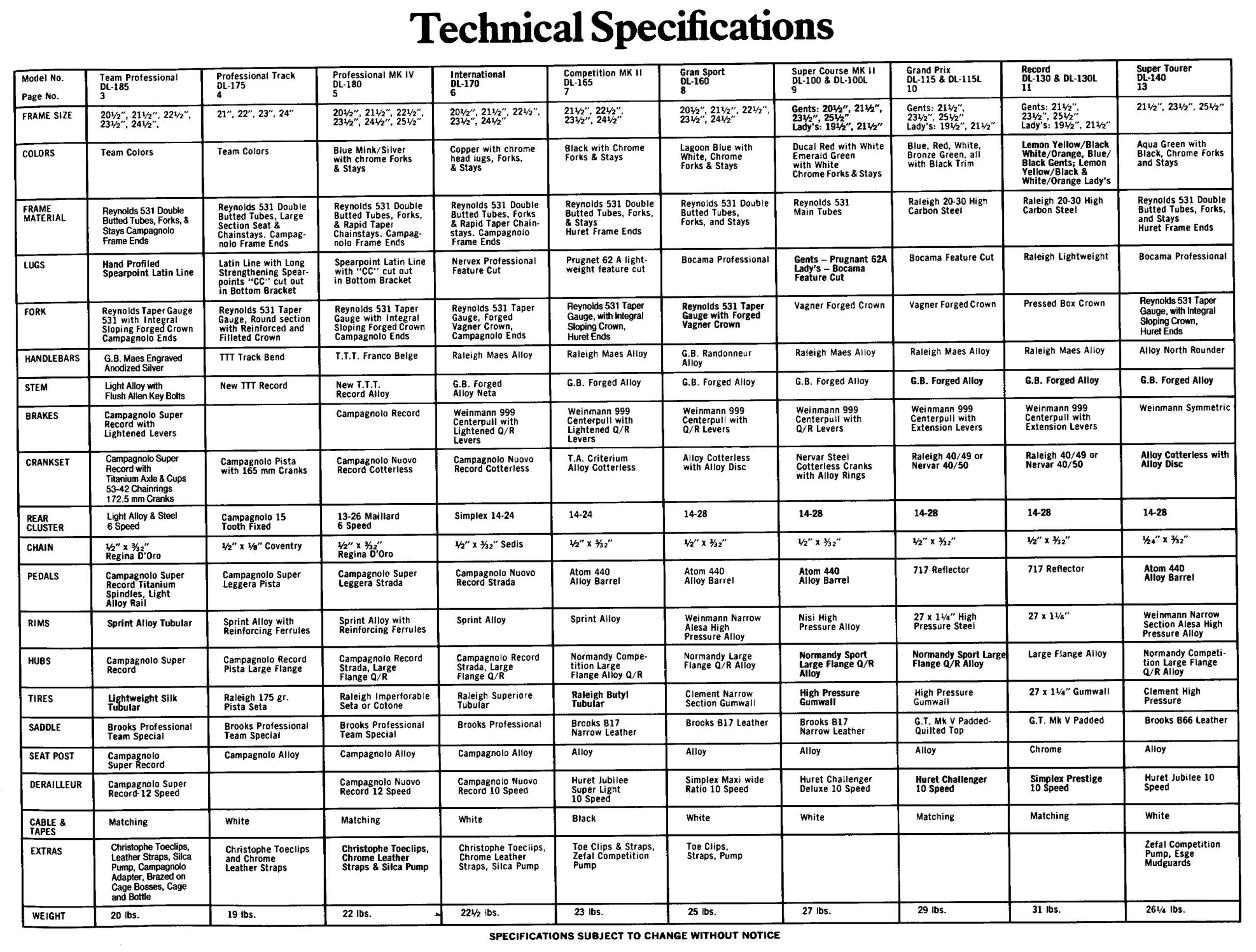

Technical Specifications

Model No. | Team Professional DL-185 | Professional Track DL-175 | Professional MK IV DL-180 | International DL-170 | Competition MK II DL-165 | Gran Sport DL-160 | Super Course MK II DL-100 & DL-100L | Grand Prix DL-115 & DL-115L | Record DL-130 & DL-130L | Super Tourer DL-140
Page No. | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 13
FRAME SIZE | 20½”, 21½”, 22½”, 23½”, 24½”, | 21″, 22″, 23″, 24″ | 20½”, 21½”, 22½”, 23½”, 24½”, 25½” | 20½”, 21½”, 22½”, 23½”, 24½” | 21½”, 22½”, 23½”, 24½” | 20½”, 21½”, 22½”, 23½”, 24½” | Gents: 20½”, 21½”, 23½”, 25½” Lady’s: 19½”, 21½” | Gents: 21½”, 23½”, 25½” Lady’s: 19½”, 21½” | Gents: 21½”, 23½”, 25½” Lady’s: 19½”, 21½” | 21½”, 23½”, 25½”
COLORS | Team Colors | Team Colors | Blue Mink/Silver with chrome Forks & Stays | Copper with chrome head lugs, Forks, & Stays | Black with Chrome Forks & Stays | Lagoon Blue with White, Chrome Forks & Stays | Ducal Red with White Emerald Green with White Chrome Forks & Stays | Blue, Red, White, Bronze Green, all with Black Trim | Lemon Yellow/Black White/Orange, Blue/Black Gents; Lemon Yellow/Black & White/Orange Lady’s | Aqua Green with Black, Chrome Forks and Stays
FRAME MATERIAL | Reynolds 531 Double Butted Tubes, Forks, & Stays Campagnolo Frame Ends | Reynolds 531 Double Butted Tubes, Large Section Seat & Chainstays. Campagnolo Frame Ends | Reynolds 531 Double Butted Tubes, Forks, & Rapid Taper Chainstays. Campagnolo Frame Ends | Reynolds 531 Double Butted Tubes, Forks & Rapid Taper Chainstays. Campagnolo Frame Ends | Reynolds 531 Double Butted Tubes, Forks, & Stays Huret Frame Ends | Reynolds 531 Double Butted Tubes, Forks, and Stays | Reynolds 531 Main Tubes | Raleigh 20-30 High Carbon Steel | Raleigh 20-30 High Carbon Steel | Reynolds 531 Double Butted Tubes, Forks, and Stays Huret Frame Ends
LUGS | Hand Profiled Spearpoint Latin Line | Latin Line with Long Strengthening Spearpoints “CC” cut out in Bottom Bracket | Spearpoint Latin Line with “CC” cut out in Bottom Bracket | Nervex Professional Feature Cut | Prugnet 62 A lightweight feature cut | Bocama Professional | Gents – Prugnant 62A Lady’s – Bocama Feature Cut | Bocama Feature Cut | Raleigh Lightweight | Bocama Professional

FORK | Reynolds Taper Gauge 531 with Integral Sloping Forged Crown Campagnolo Ends | Reynolds 531 Taper Gauge, Round section with Reinforced and Filleted Crown | Reynolds 531 Taper Gauge with Integral Sloping Forged Crown Campagnolo Ends | Reynolds 531 Taper Gauge, Forged Vagner Crown, Campagnolo Ends | Reynolds 531 Taper Gauge, with Integral Sloping Crown, Huret Ends | Reynolds 531 Taper Gauge with Forged Vagner Crown | Vagner Forged Crown | Vagner Forged Crown | Pressed Box Crown | Reynolds 531 Taper Gauge, with Integral Sloping Crown, Huret Ends
HANDLEBARS | G.B. Maes Engraved Anodized Silver | TTT Track Bend | T.T.T. Franco Belge | Raleigh Maes Alloy | Raleigh Maes Alloy | G.B. Randonneur Alloy | Raleigh Maes Alloy | Raleigh Maes Alloy | Raleigh Maes Alloy | Alloy North Rounder
STEM | Light Alloy with Flush Allen Key Bolts | New TTT Record | New T.T.T. Record Alloy | G.B. Forged Alloy Neta | G.B. Forged Alloy | G.B. Forged Alloy | G.B. Forged Alloy | G.B. Forged Alloy | G.B. Forged Alloy | G.B. Forged Alloy
BRAKES | Campagnolo Super Record with Lightened Levers | | Campagnolo Record | Weinmann 999 Centerpull with Lightened Q/R Levers | Weinmann 999 Centerpull with Lightened Q/R Levers | Weinmann 999 Centerpull with Q/R Levers | Weinmann 999 Centerpull with Q/R Levers | Weinmann 999 Centerpull with Extension Levers | Weinmann 999 Centerpull with Extension Levers | Weinmann Symmetric
CRANKSET | Campagnolo Super Record with Titanium Axle & Cups 53-42 Chainrings 172.5 mm Cranks | Campagnolo Pista with 165 mm Cranks | Campagnolo Nuovo Record Cotterless | Campagnolo Nuovo Record Cotterless | T.A. Criterium Alloy Cotterless | Alloy Cotterless with Alloy Disc | Nervar Steel Cotterless Cranks with Alloy Rings | Raleigh 40/49 or Nervar 40/50 | Raleigh 40/49 or Nervar 40/50 | Alloy Cotterless with Alloy Disc
REAR CLUSTER | Light Alloy & Steel 6 Speed | Campagnolo 15 Tooth Fixed | 13-26 Maillard 6 Speed | Simplex 14-24 | 14-24 | 14-28 | 14-28 | 14-28 | 14-28 | 14-28
CHAIN | ½” x 3/32″ Regina D’Oro | ½” x ⅛” Coventry | ½” x 3/32″ Regina D’Oro | ½” x 3/32″ Sedis | ½” x 3/32″ | ½” x 3/32″ | ½” x 3/32″ | ½” x 3/32″ | ½” x 3/32″ | 1/24″ x 3/32″
PEDALS | Campagnolo Super Record Titanium Spindles, Light Alloy Rail | Campagnolo Super Leggera Pista | Campagnolo Super Leggera Strada | Campagnolo Nuovo Record Strada | Atom 440 Alloy Barrel | Atom 440 Alloy Barrel | Atom 440 Alloy Barrel | 717 Reflector | 717 Reflector | Atom 440 Alloy Barrel

RIMS | Sprint Alloy Tubular | Sprint Alloy with Reinforcing Ferrules | Sprint Alloy with Reinforcing Ferrules | Sprint Alloy | Sprint Alloy | Weinmann Narrow Alesa High Pressure Alloy | Nisi High Pressure Alloy | 27 x 1¼” High Pressure Steel | 27 x 1¼” | Weinmann Narrow Section Alesa High Pressure Alloy
HUBS | Campagnolo Super Record | Campagnolo Record Pista Large Flange | Campagnolo Record Strada, Large Flange Q/R | Campagnolo Record Strada, Large Flange Q/R | Normandy Competition Large Flange Alloy Q/R | Normandy Large Flange Q/R Alloy | Normandy Sport Large Flange Q/R Alloy | Normandy Sport Large Flange Q/R Alloy | Large Flange Alloy | Normandy Competition Large Flange Q/R Alloy
TIRES | Lightweight Silk Tubular | Raleigh 175 gr. Pista Seta | Raleigh Imperforable Seta or Cotone | Raleigh Superiore Tubular | Raleigh Butyl Tubular | Clement Narrow Section Gumwall | High Pressure Gumwall | High Pressure Gumwall | 27 x 1¼” Gumwall | Clement High Pressure
SADDLE | Brooks Professional Team Special | Brooks Professional Team Special | Brooks Professional Team Special | Brooks Professional | Brooks B17 Narrow Leather | Brooks B17 Leather | Brooks B17 Narrow Leather | G.T. Mk V Padded-Quilted Top | G.T. Mk V Padded | Brooks B66 Leather
SEAT POST | Campagnolo Super Record | Campagnolo Alloy | Campagnolo Alloy | Campagnolo Alloy | Alloy | Alloy | Alloy | Alloy | Chrome | Alloy
DERAILLEUR | Campagnolo Super Record-12 Speed | | Campagnolo Nuovo Record 12 Speed | Campagnolo Nuovo Record 10 Speed | Huret Jubilee Super Light 10 Speed | Simplex Maxi wide Ratio 10 Speed | Huret Challenger Deluxe 10 Speed | Huret Challenger 10 Speed | Simplex Prestige 10 Speed | Huret Jubilee 10 Speed
CABLE & TAPES | Matching | White | Matching | White | Black | White | White | Matching | Matching | White
EXTRAS | Christophe Toeclips, Leather Straps, Silca Pump, Campagnolo Adapter, Brazed on Cage Bosses, Cage and Bottle | Christophe Toeclips and Chrome Leather Straps | Christophe Toeclips, Chrome Leather Straps & Silca Pump | Christophe Toeclips, Chrome Leather Straps, Silca Pump | Toe Clips & Straps, Zefal Competition Pump | Toe Clips, Straps, Pump | | | | Zefal Competition Pump, Esge Mudguards
WEIGHT | 20 lbs. | 19 lbs. | 22 lbs. | 22½ lbs. | 23 lbs. | 25 lbs. | 27 lbs. | 29 lbs. | 31 lbs. | 26¼ lbs.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

[A technical specifications table for 10 models, the Team Professional DL-185, Professional Track DL-175, Professional MK IV DL-180, International DL-170, Competition MK II DL-165, Gran Sport DL-160, Super Course MK II DL-100 and DL-100L, Grand Prix DL-115 and DL-115L, Record DL-130 and DL-130L and Super Tourer DL-140. Each column gives the catalog page number, frame sizes, colors, frame material, lugs, fork, components, extras and weight; the page carries no printed folio.]
