Raleigh 1975 Catalog — Lightweight Bicycles (United States)

— Page 1 (front cover) —
RALEIGH

lightweight bicycles

[Front cover: two women and two men ride Raleigh lightweight bicycles along a paved waterside path under a willow tree, below the Raleigh wordmark. A photograph of the Raleigh heron head badge, lettered “THE RALEIGH NOTTINGHAM ENGLAND”, sits at the top right.]

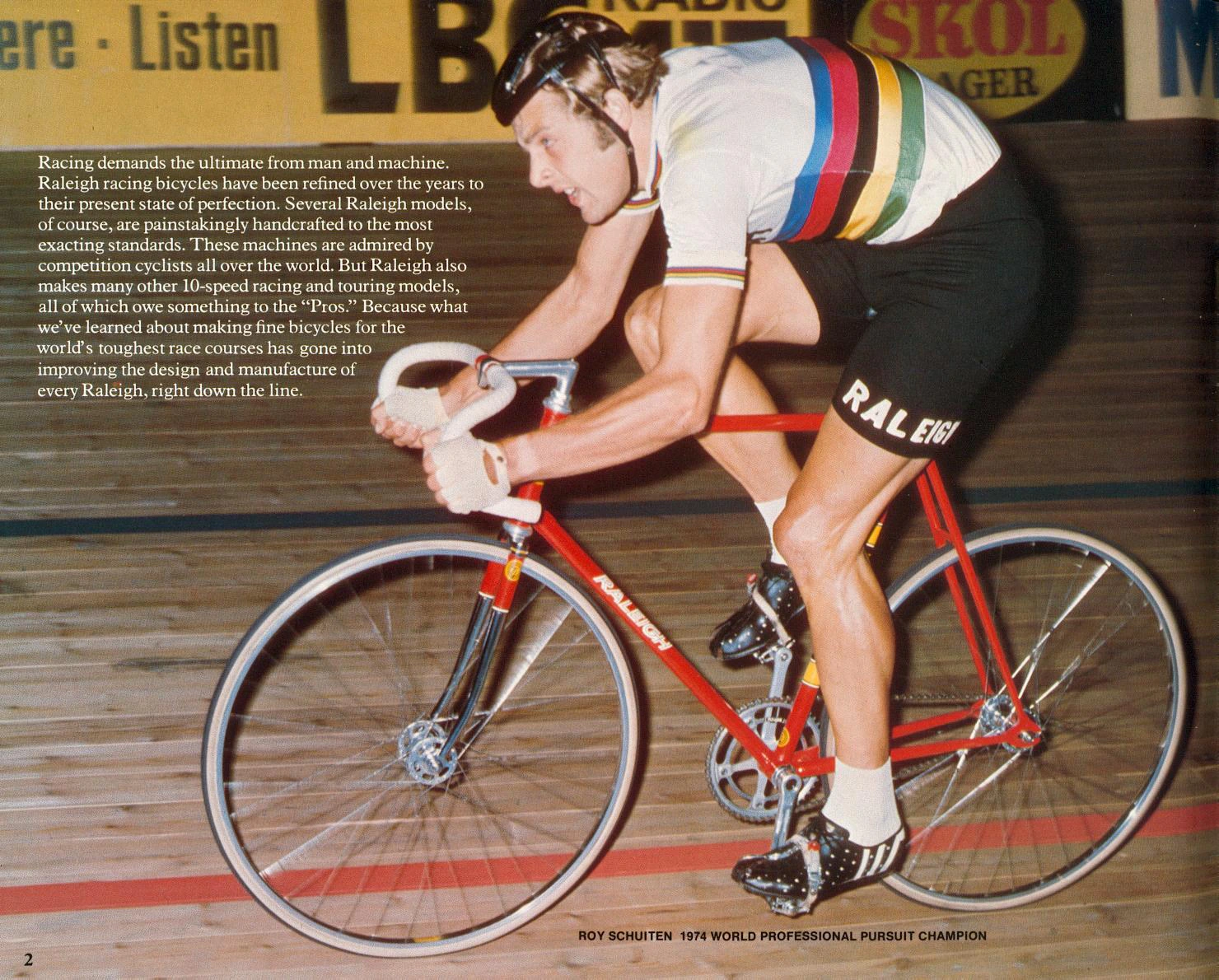

— Page 2 —
Racing demands the ultimate from man and machine. Raleigh racing bicycles have been refined over the years to their present state of perfection. Several Raleigh models, of course, are painstakingly handcrafted to the most exacting standards. These machines are admired by competition cyclists all over the world. But Raleigh also makes many other 10-speed racing and touring models, all of which owe something to the “Pros.” Because what we’ve learned about making fine bicycles for the world’s toughest race courses has gone into improving the design and manufacture of every Raleigh, right down the line.

ROY SCHUITEN 1974 WORLD PROFESSIONAL PURSUIT CHAMPION

2

[Roy Schuiten, captioned as the 1974 world professional pursuit champion, rides a red Raleigh track bicycle on a wooden velodrome in the rainbow jersey, with “RALEIGH” lettered on his shorts. Track-side advertising boards appear behind him.]

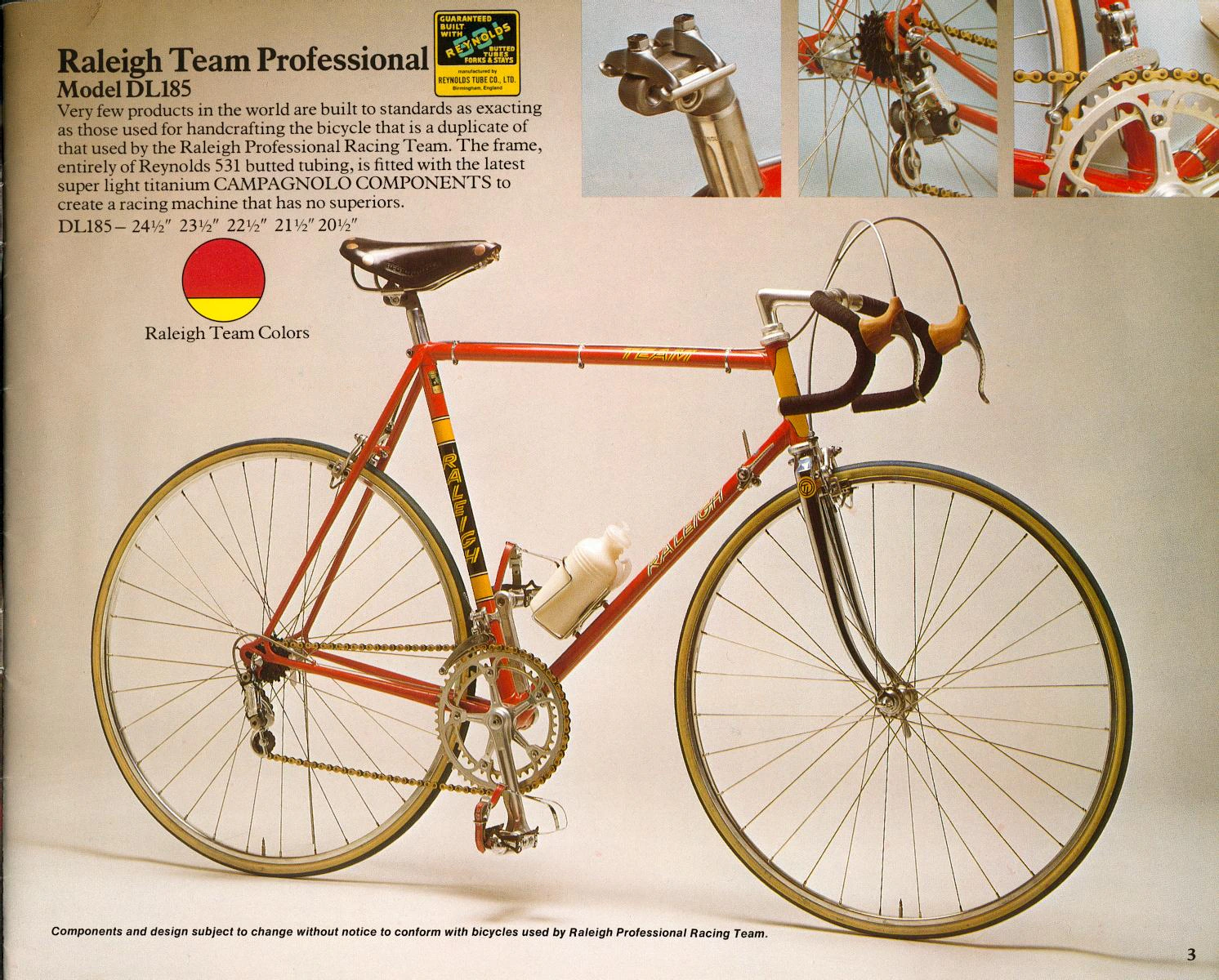

— Page 3 —
Raleigh Team Professional

Model DL185

GUARANTEED BUILT WITH 531 REYNOLDS BUTTED TUBES FORKS & STAYS manufactured by REYNOLDS TUBE CO., LTD. Birmingham, England

Very few products in the world are built to standards as exacting as those used for handcrafting the bicycle that is a duplicate of that used by the Raleigh Professional Racing Team. The frame, entirely of Reynolds 531 butted tubing, is fitted with the latest super light titanium CAMPAGNOLO COMPONENTS to create a racing machine that has no superiors.

DL185 – 24½” 23½” 22½” 21½” 20½”

Raleigh Team Colors

Components and design subject to change without notice to conform with bicycles used by Raleigh Professional Racing Team.

3

[The Raleigh Team Professional, Model DL185, shown in a studio photograph in red with yellow and black team panels, with three close-up photographs of its seat post, rear derailleur and chainset. A printed Reynolds 531 tubing transfer, a red and yellow swatch labeled “Raleigh Team Colors” and the five frame sizes accompany the text.]

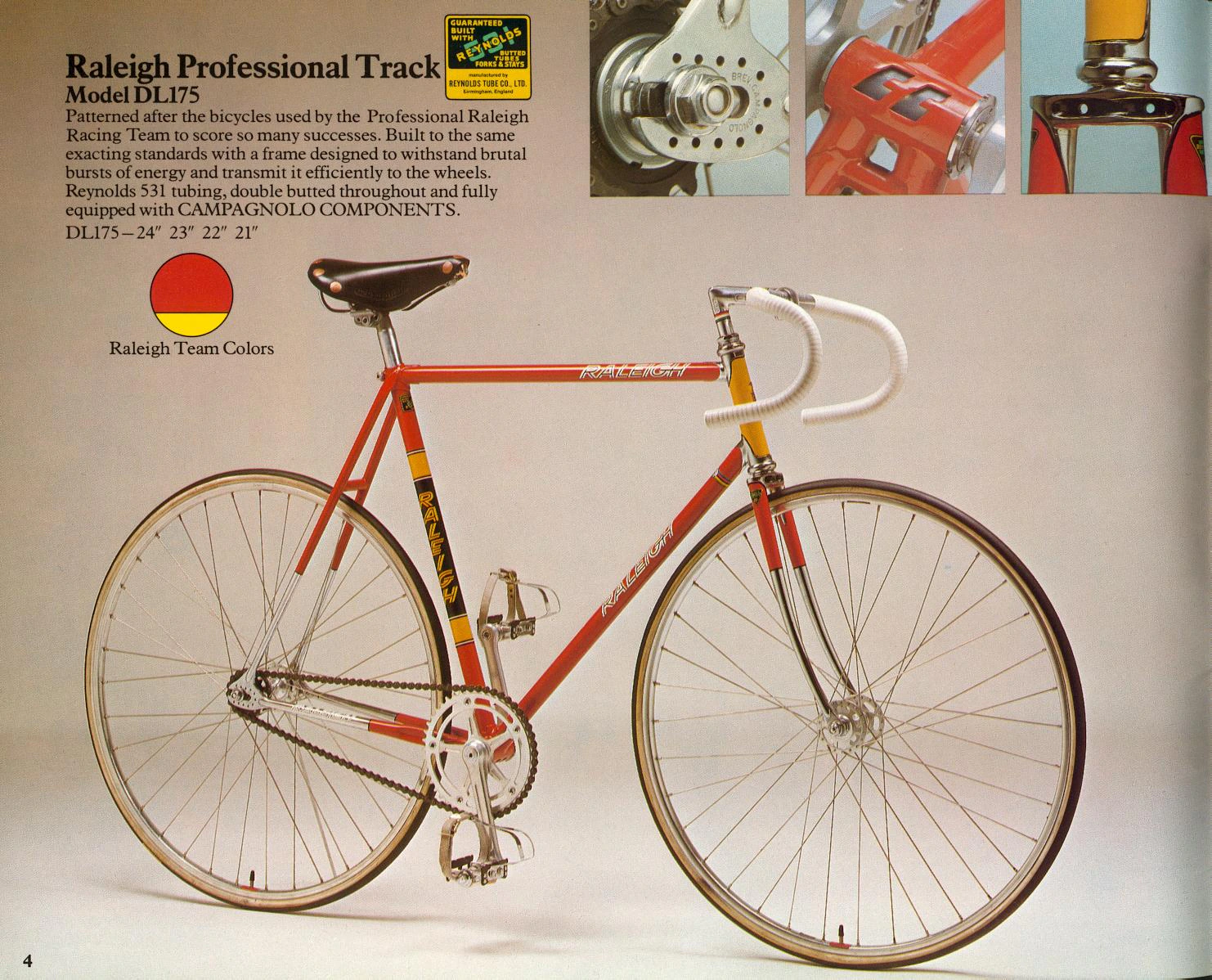

— Page 4 —
Raleigh Professional Track

Model DL175

GUARANTEED BUILT WITH 531 REYNOLDS BUTTED TUBES FORKS & STAYS manufactured by REYNOLDS TUBE CO., LTD. Birmingham, England

Patterned after the bicycles used by the Professional Raleigh Racing Team to score so many successes. Built to the same exacting standards with a frame designed to withstand brutal bursts of energy and transmit it efficiently to the wheels. Reynolds 531 tubing, double butted throughout and fully equipped with CAMPAGNOLO COMPONENTS.

DL175 – 24″ 23″ 22″ 21″

Raleigh Team Colors

4

[The Raleigh Professional Track, Model DL175, shown in a studio photograph as a red track bicycle with yellow and black team panels, with three close-up photographs of a Campagnolo rear hub, a cut-out lug and the fork crown. A printed Reynolds 531 tubing transfer, a red and yellow swatch labeled “Raleigh Team Colors” and the four frame sizes accompany the text.]

— Page 5 —

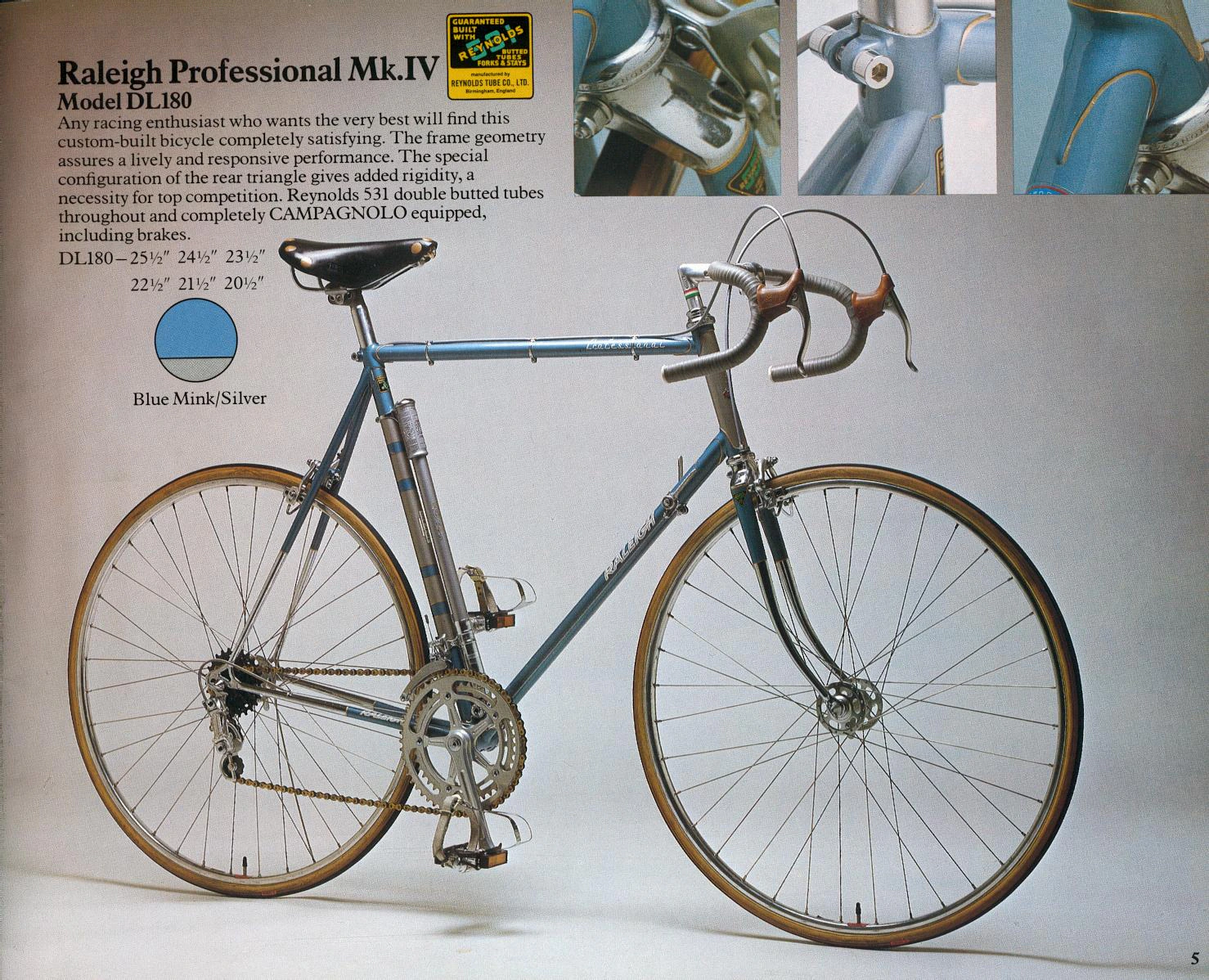

Raleigh Professional Mk.IV

Model DL180

GUARANTEED BUILT WITH 531 REYNOLDS BUTTED TUBES FORKS & STAYS manufactured by REYNOLDS TUBE CO., LTD. Birmingham, England

Any racing enthusiast who wants the very best will find this custom-built bicycle completely satisfying. The frame geometry assures a lively and responsive performance. The special configuration of the rear triangle gives added rigidity, a necessity for top competition. Reynolds 531 double butted tubes throughout and completely CAMPAGNOLO equipped, including brakes.

DL180 – 25½” 24½” 23½” 22½” 21½” 20½”

Blue Mink/Silver

5

[The Raleigh Professional Mk.IV, Model DL180, shown in a studio photograph in blue with a silver seat tube panel and a frame pump, with three close-up photographs of the front brake and fork crown, the seat cluster and a lined head lug. A printed Reynolds 531 tubing transfer, a “Blue Mink/Silver” color swatch and the six frame sizes accompany the text.]

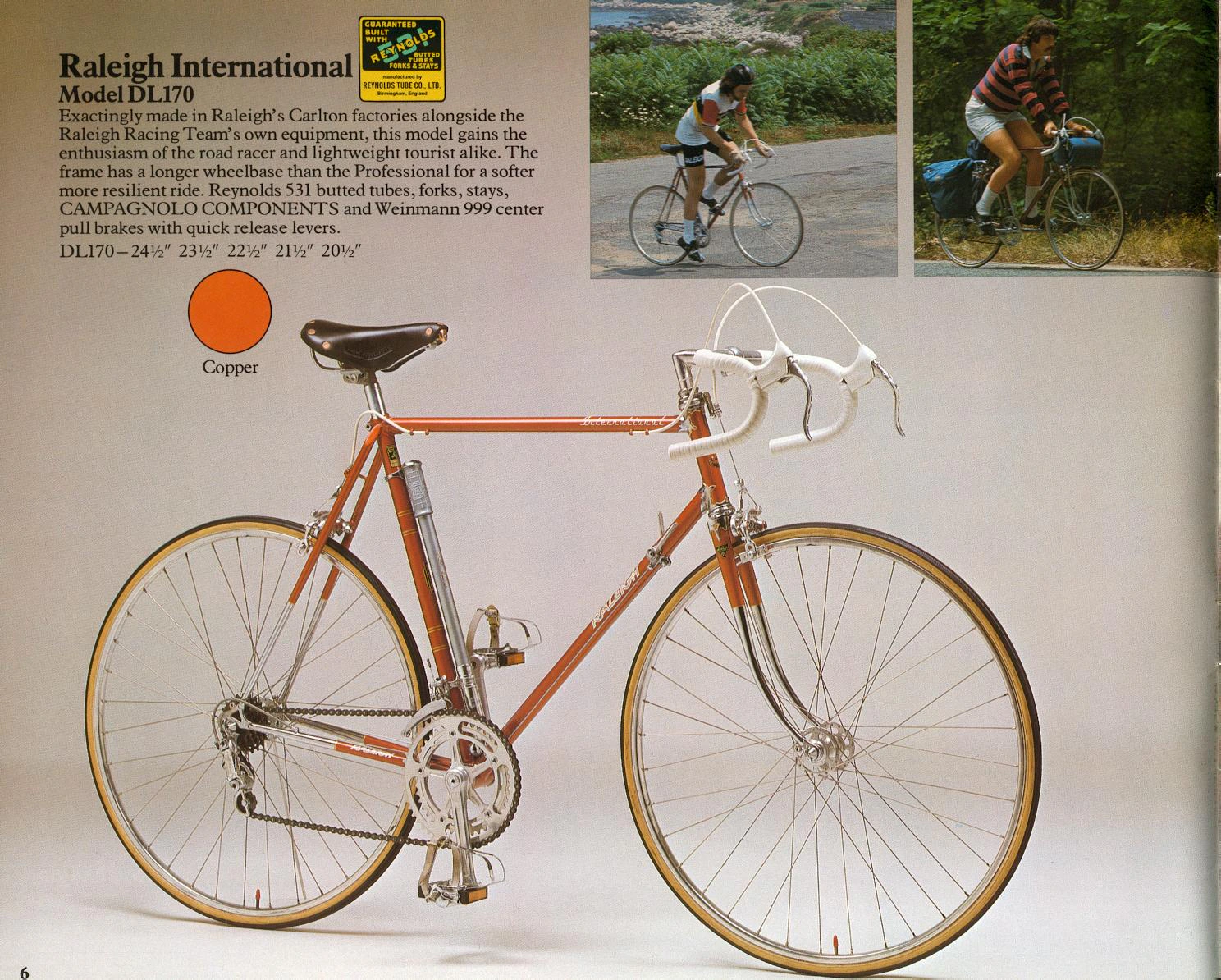

— Page 6 —
Raleigh International

Model DL170

GUARANTEED BUILT WITH 531 REYNOLDS BUTTED TUBES FORKS & STAYS manufactured by REYNOLDS TUBE CO., LTD. Birmingham, England

Exactingly made in Raleigh’s Carlton factories alongside the Raleigh Racing Team’s own equipment, this model gains the enthusiasm of the road racer and lightweight tourist alike. The frame has a longer wheelbase than the Professional for a softer more resilient ride. Reynolds 531 butted tubes, forks, stays, CAMPAGNOLO COMPONENTS and Weinmann 999 center pull brakes with quick release levers.

DL170 – 24½” 23½” 22½” 21½” 20½”

Copper

6

[The Raleigh International, Model DL170, shown in a studio photograph in copper with a silver seat tube panel and a frame pump, beside two outdoor photographs of a man riding it on a road and a touring rider with bar and pannier bags. A printed Reynolds 531 tubing transfer, a “Copper” color swatch and the five frame sizes accompany the text.]

— Page 7 —

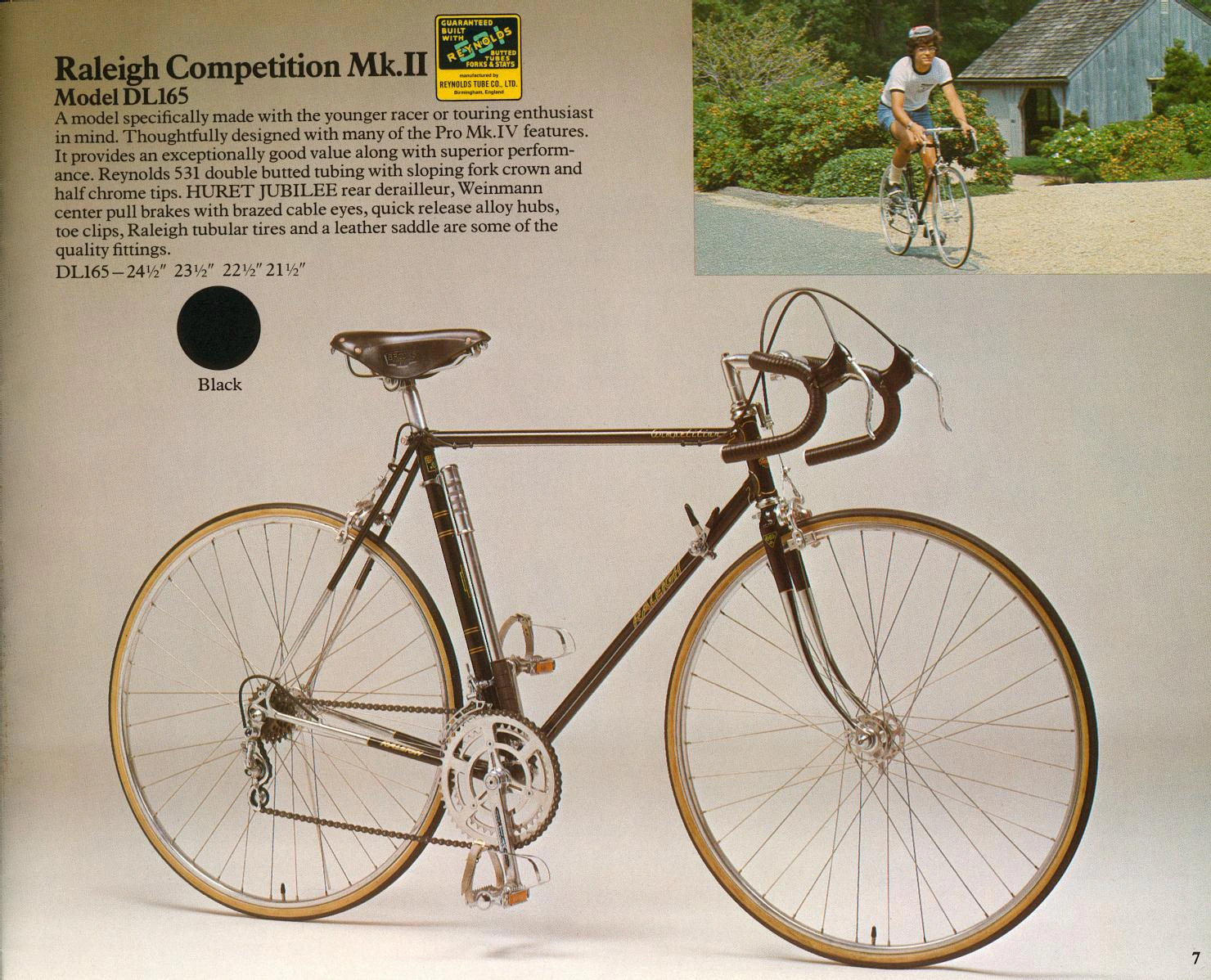

Raleigh Competition Mk.II

Model DL165

GUARANTEED BUILT WITH 531 REYNOLDS BUTTED TUBES FORKS & STAYS manufactured by REYNOLDS TUBE CO., LTD. Birmingham, England

A model specifically made with the younger racer or touring enthusiast in mind. Thoughtfully designed with many of the Pro Mk.IV features. It provides an exceptionally good value along with superior performance. Reynolds 531 double butted tubing with sloping fork crown and half chrome tips. HURET JUBILEE rear derailleur, Weinmann center pull brakes with brazed cable eyes, quick release alloy hubs, toe clips, Raleigh tubular tires and a leather saddle are some of the quality fittings.

DL165 – 24½” 23½” 22½” 21½”

Black

7

[The Raleigh Competition Mk.II, Model DL165, shown in a studio photograph in black with a frame pump, beside an outdoor photograph of a young man in a helmet riding it on a drive. A printed Reynolds 531 tubing transfer, a “Black” color swatch and the four frame sizes accompany the text.]

— Page 8 —

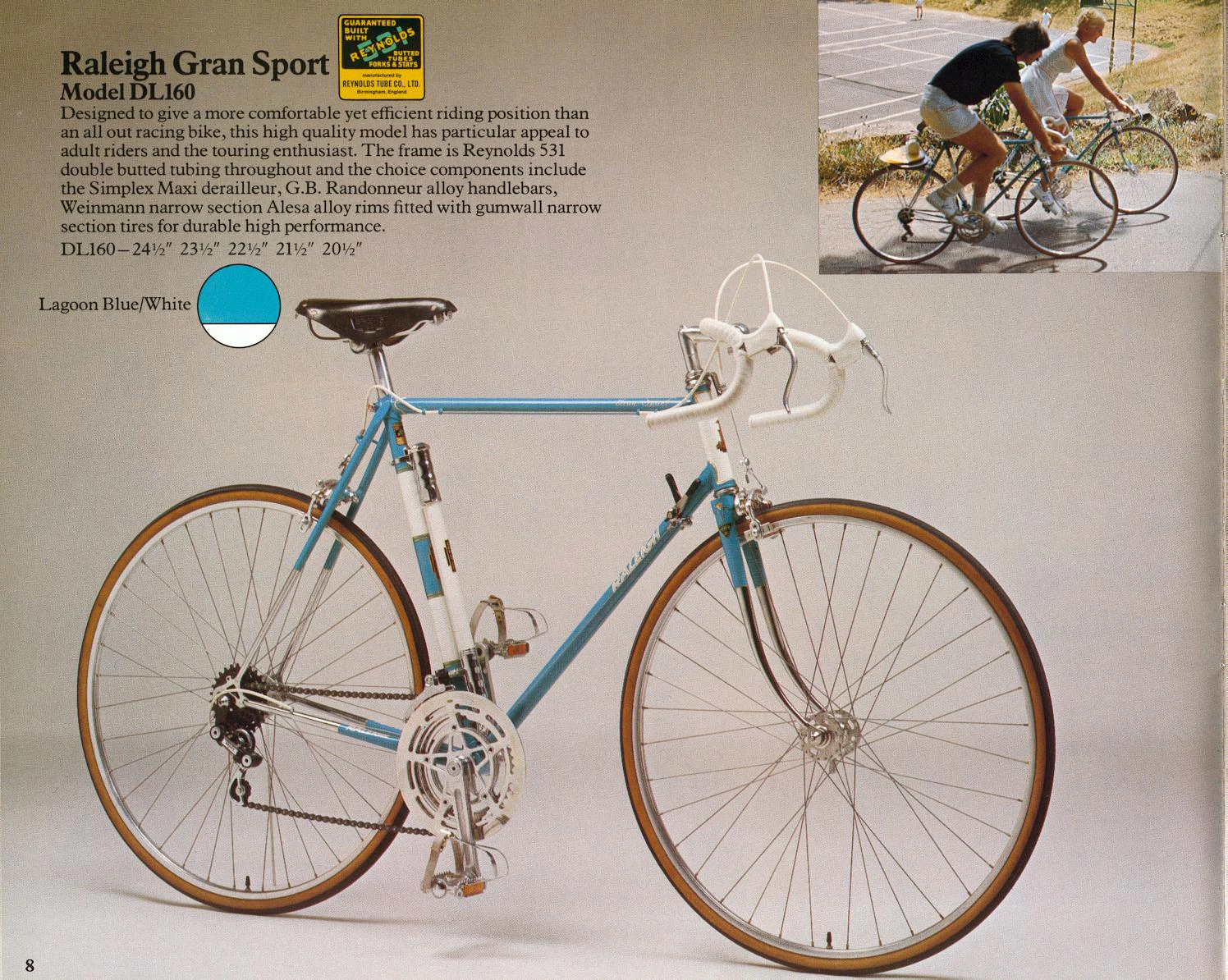

Raleigh Gran Sport

Model DL160

GUARANTEED BUILT WITH 531 REYNOLDS BUTTED TUBES FORKS & STAYS manufactured by REYNOLDS TUBE CO., LTD. Birmingham, England

Designed to give a more comfortable yet efficient riding position than an all out racing bike, this high quality model has particular appeal to adult riders and the touring enthusiast. The frame is Reynolds 531 double butted tubing throughout and the choice components include the Simplex Maxi derailleur, G.B. Randonneur alloy handlebars, Weinmann narrow section Alesa alloy rims fitted with gumwall narrow section tires for durable high performance.

DL160 – 24½” 23½” 22½” 21½” 20½”

Lagoon Blue/White

8

[The Raleigh Gran Sport, Model DL160, shown in a studio photograph in light blue with white head and seat tube panels and a frame pump, beside an outdoor photograph of a man and a woman riding two of them. A printed Reynolds 531 tubing transfer, a “Lagoon Blue/White” color swatch and the five frame sizes accompany the text.]

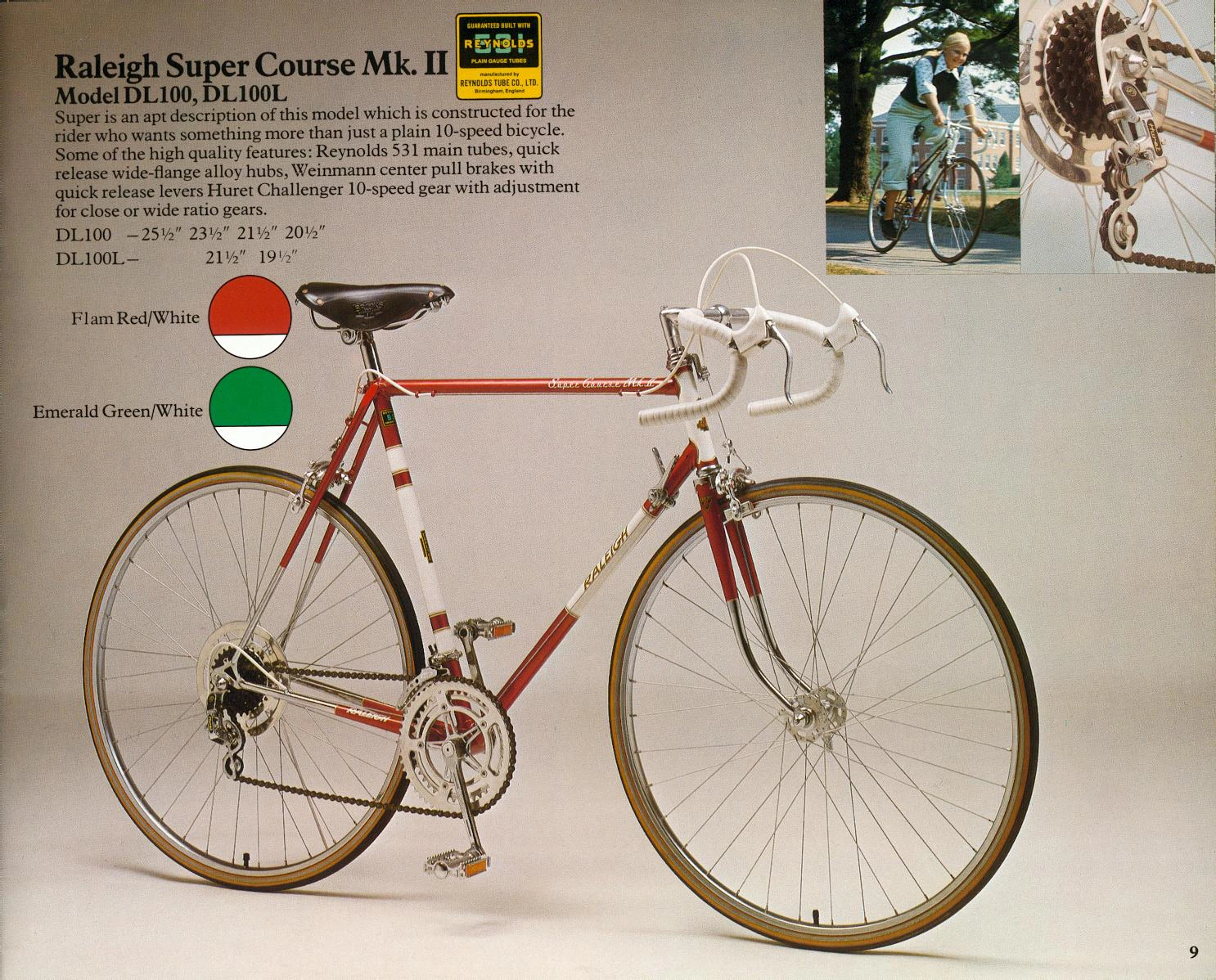

— Page 9 —
Raleigh Super Course Mk. II
Model DL100, DL100L

GUARANTEED BUILT WITH
REYNOLDS 531
PLAIN GAUGE TUBES
manufactured by
REYNOLDS TUBE CO., LTD.
Birmingham, England

Super is an apt description of this model which is constructed for the rider who wants something more than just a plain 10-speed bicycle. Some of the high quality features: Reynolds 531 main tubes, quick release wide-flange alloy hubs, Weinmann center pull brakes with quick release levers Huret Challenger 10-speed gear with adjustment for close or wide ratio gears.

DL100 -25½” 23½” 21½” 20½”
DL100L- 21½” 19½”

Flam Red/White

Emerald Green/White

9

[The Raleigh Super Course Mk. II (DL100) shown in Flam Red and white in a studio photograph, with frame sizes for the DL100 and DL100L and two color swatches. Smaller photographs show a woman riding a mixte frame Super Course on a tree-lined path and a close view of the Huret rear derailleur and freewheel; a printed Reynolds 531 plain gauge tubes decal appears beside the heading.]

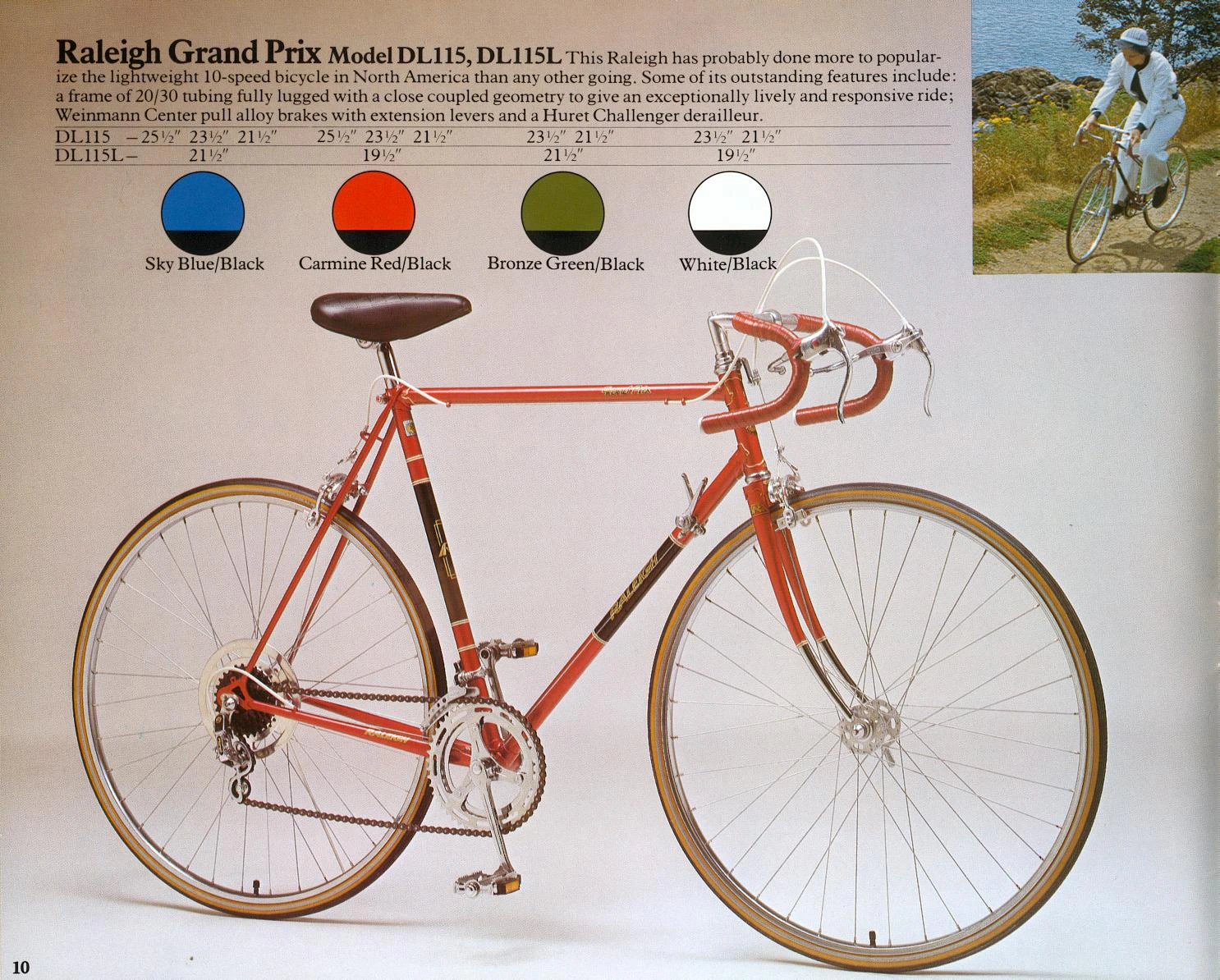

— Page 10 —
Raleigh Grand Prix Model DL115, DL115L This Raleigh has probably done more to popularize the lightweight 10-speed bicycle in North America than any other going. Some of its outstanding features include: a frame of 20/30 tubing fully lugged with a close coupled geometry to give an exceptionally lively and responsive ride; Weinmann Center pull alloy brakes with extension levers and a Huret Challenger derailleur.

DL115 | -25½” 23½” 21½” | 25½” 23½” 21½” | 23½” 21½” | 23½” 21½”
DL115L- | 21½” | 19½” | 21½” | 19½”

Sky Blue/Black | Carmine Red/Black | Bronze Green/Black | White/Black

10

[The Raleigh Grand Prix (DL115) shown in Carmine Red and black in a studio photograph, under a frame size chart that lists the DL115 and DL115L sizes for each of four color swatches. A smaller photograph shows a woman in a white outfit and cap riding a mixte frame Grand Prix on a coastal path.]

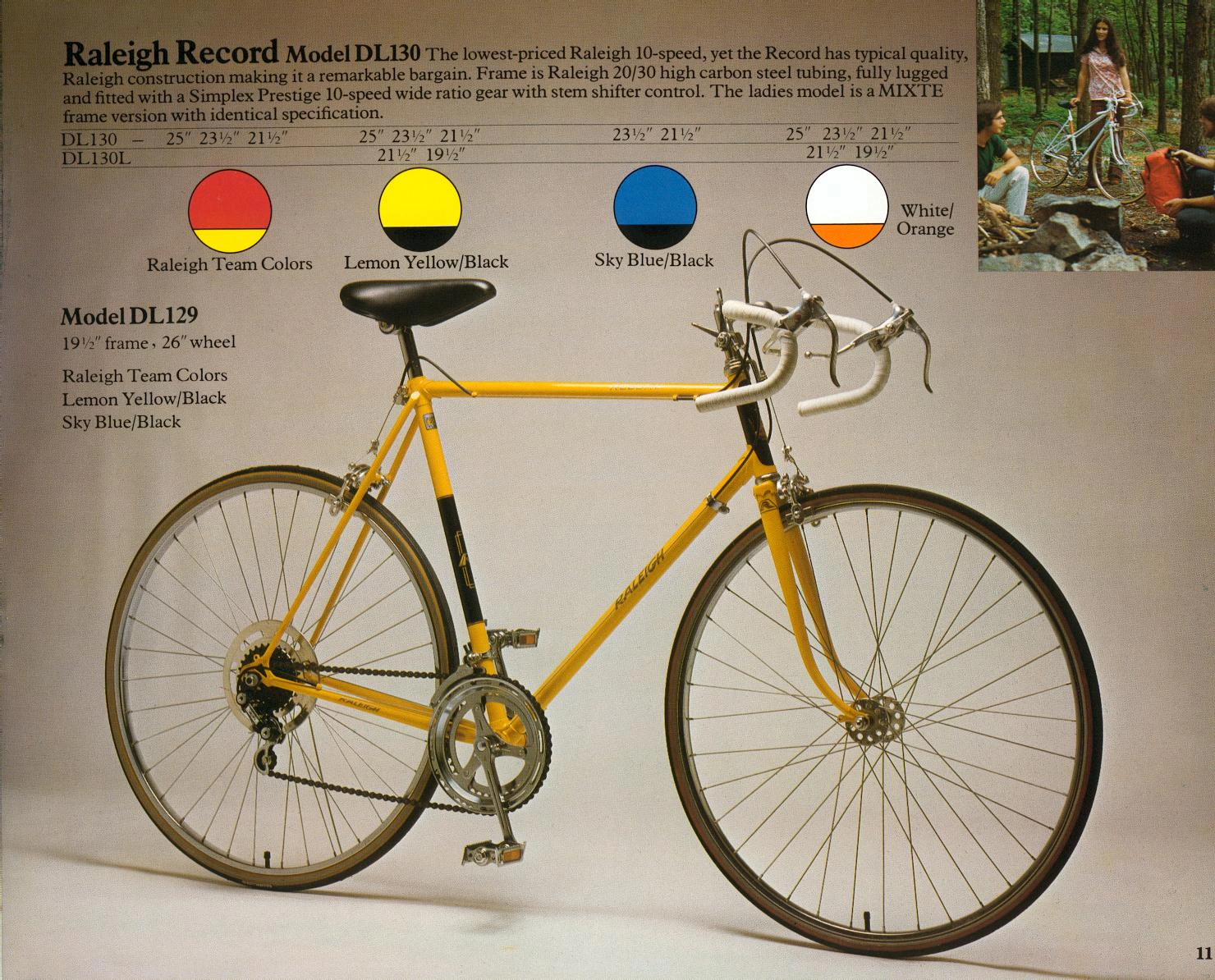

— Page 11 —
Raleigh Record Model DL130 The lowest-priced Raleigh 10-speed, yet the Record has typical quality, Raleigh construction making it a remarkable bargain. Frame is Raleigh 20/30 high carbon steel tubing, fully lugged and fitted with a Simplex Prestige 10-speed wide ratio gear with stem shifter control. The ladies model is a MIXTE frame version with identical specification.

DL130 – | 25″ 23½” 21½” | 25″ 23½” 21½” | 23½” 21½” | 25″ 23½” 21½”
DL130L | | 21½” 19½” | | 21½” 19½”

Raleigh Team Colors | Lemon Yellow/Black | Sky Blue/Black | White/Orange

Model DL129
19½” frame , 26″ wheel

Raleigh Team Colors
Lemon Yellow/Black
Sky Blue/Black

11

[The Raleigh Record (DL130) shown in Lemon Yellow and black in a studio photograph, under a frame size chart that lists the DL130 and DL130L sizes for each of four color swatches, with a note on the smaller Model DL129. A smaller photograph shows a young woman with a mixte frame Record standing among trees beside two seated young men and a campfire.]

— Page 12 —
12

[A full page color photograph of a man lifting a black Raleigh bicycle onto a rack on the back of a dark green car while a smiling woman in a light blue dress points across a lake, holding a red ladies bicycle with a rear carrier and mudguards. The page has no caption; only the folio is printed.]

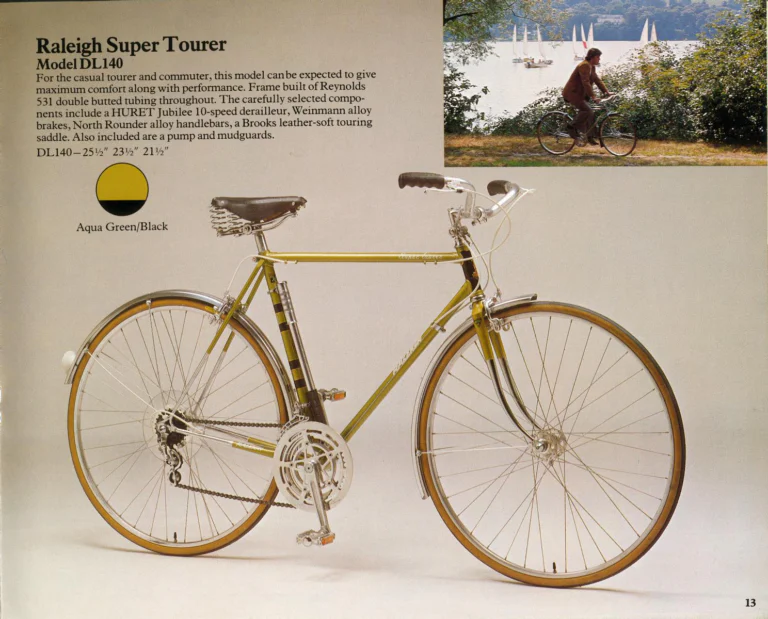

— Page 13 —

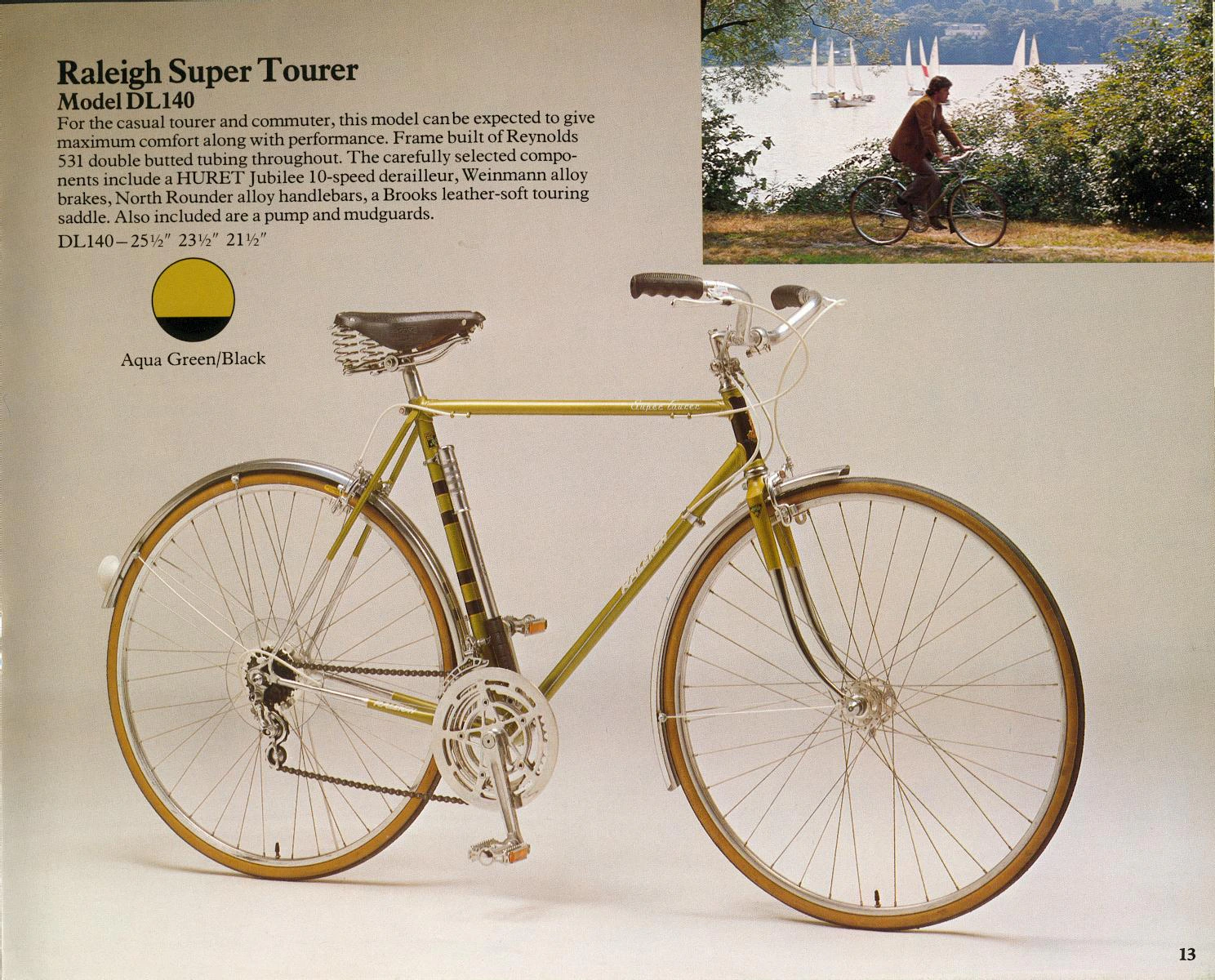

Raleigh Super Tourer
Model DL140
For the casual tourer and commuter, this model can be expected to give maximum comfort along with performance. Frame built of Reynolds 531 double butted tubing throughout. The carefully selected components include a HURET Jubilee 10-speed derailleur, Weinmann alloy brakes, North Rounder alloy handlebars, a Brooks leather-soft touring saddle. Also included are a pump and mudguards.

DL140-25½” 23½” 21½”

Aqua Green/Black

13

[The Raleigh Super Tourer (DL140) shown in Aqua Green and black in a studio photograph, fitted with flat touring handlebars, a sprung Brooks saddle, mudguards and a frame pump, with its frame sizes and one color swatch. A smaller photograph shows a man in a brown jacket riding the Super Tourer along a lakeside path with sailboats behind him.]

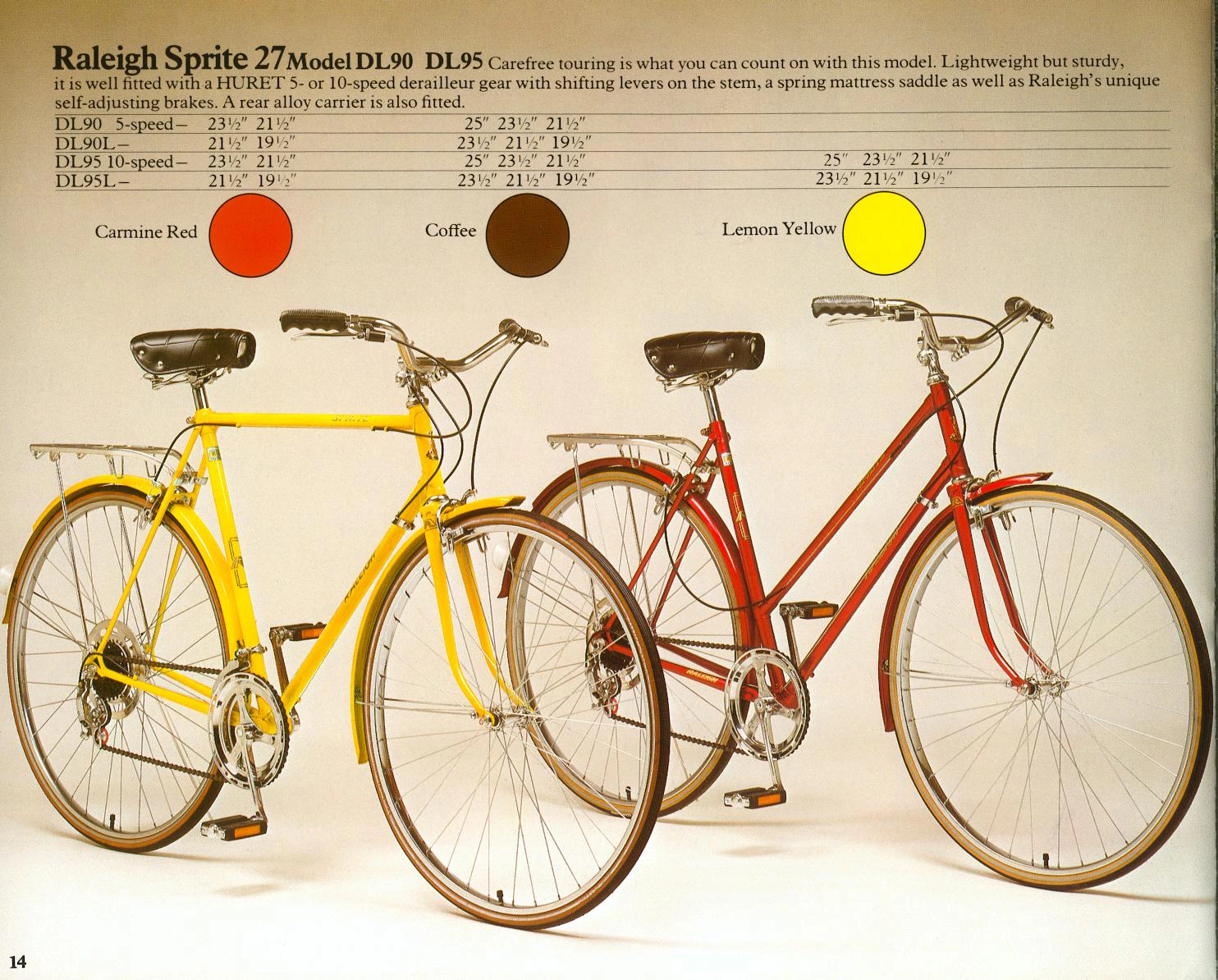

— Page 14 —
Raleigh Sprite 27 Model DL90 DL95 Carefree touring is what you can count on with this model. Lightweight but sturdy, it is well fitted with a HURET 5- or 10-speed derailleur gear with shifting levers on the stem, a spring mattress saddle as well as Raleigh’s unique self-adjusting brakes. A rear alloy carrier is also fitted.

DL90 5-speed- | 23½” 21½” | 25″ 23½” 21½” |
DL90L- | 21½” 19½” | 23½” 21½” 19½” |
DL95 10-speed- | 23½” 21½” | 25″ 23½” 21½” | 25″ 23½” 21½”
DL95L- | 21½” 19½” | 23½” 21½” 19½” | 23½” 21½” 19½”

Carmine Red | Coffee | Lemon Yellow

14

[The Raleigh Sprite 27 shown in studio photographs as a yellow diamond frame model and a red ladies step-through model, both with upright handlebars, mattress saddles, mudguards and rear alloy carriers. A frame size chart lists the DL90 5-speed and DL95 10-speed, with their L versions, under three color swatches: Carmine Red, Coffee and Lemon Yellow.]

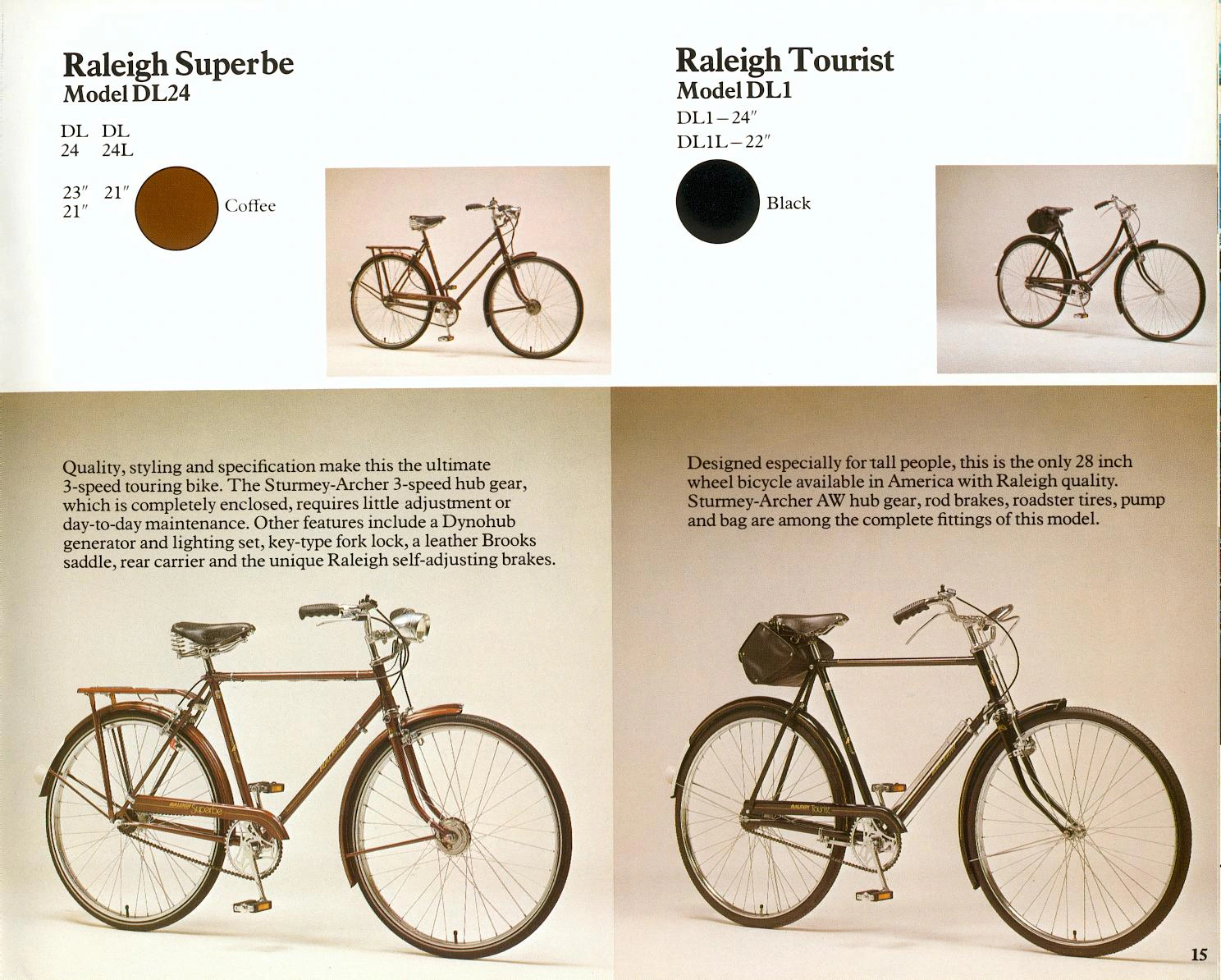

— Page 15 —
Raleigh Superbe
Model DL24

DL 24 | DL 24L
23″ | 21″
21″ |

Coffee

Raleigh Tourist
Model DL1
DL1-24″
DL1L-22″

Black

Quality, styling and specification make this the ultimate 3-speed touring bike. The Sturmey-Archer 3-speed hub gear, which is completely enclosed, requires little adjustment or day-to-day maintenance. Other features include a Dynohub generator and lighting set, key-type fork lock, a leather Brooks saddle, rear carrier and the unique Raleigh self-adjusting brakes.

Designed especially for tall people, this is the only 28 inch wheel bicycle available in America with Raleigh quality. Sturmey-Archer AW hub gear, rod brakes, roadster tires, pump and bag are among the complete fittings of this model.

15

[The Raleigh Superbe (DL24) in Coffee and the Raleigh Tourist (DL1) in black shown side by side in studio photographs, each as a gentleman’s model with a smaller photograph of the ladies model above it. The Superbe has a headlamp, rear carrier and chain case; the Tourist has rod brakes, a saddlebag and a frame pump.]

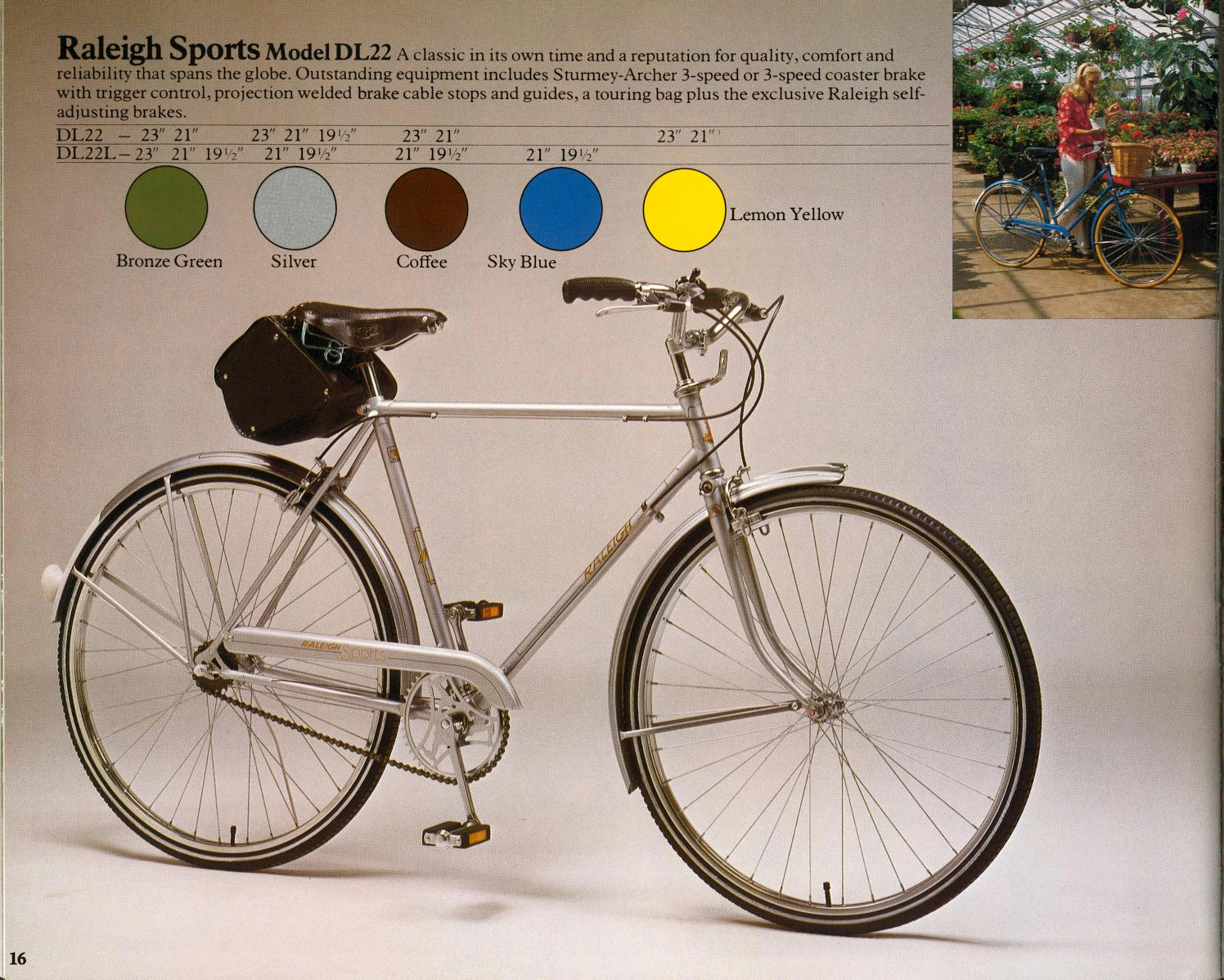

— Page 16 —
Raleigh Sports Model DL22 A classic in its own time and a reputation for quality, comfort and reliability that spans the globe. Outstanding equipment includes Sturmey-Archer 3-speed or 3-speed coaster brake with trigger control, projection welded brake cable stops and guides, a touring bag plus the exclusive Raleigh self-adjusting brakes.

DL22 – | 23″ 21″ | 23″ 21″ 19½” | 23″ 21″ | | 23″ 21″
DL22L- | 23″ 21″ 19½” | 21″ 19½” | 21″ 19½” | 21″ 19½” |

Bronze Green | Silver | Coffee | Sky Blue | Lemon Yellow

16

[The Raleigh Sports (DL22) shown in silver in a studio photograph, with a Sturmey-Archer hub gear, chain case, mudguards and a touring bag behind the saddle, under a frame size chart for the DL22 and DL22L and five color swatches. A smaller photograph shows a woman in a greenhouse with a blue ladies Sports fitted with a front basket.]

— Page 17 —

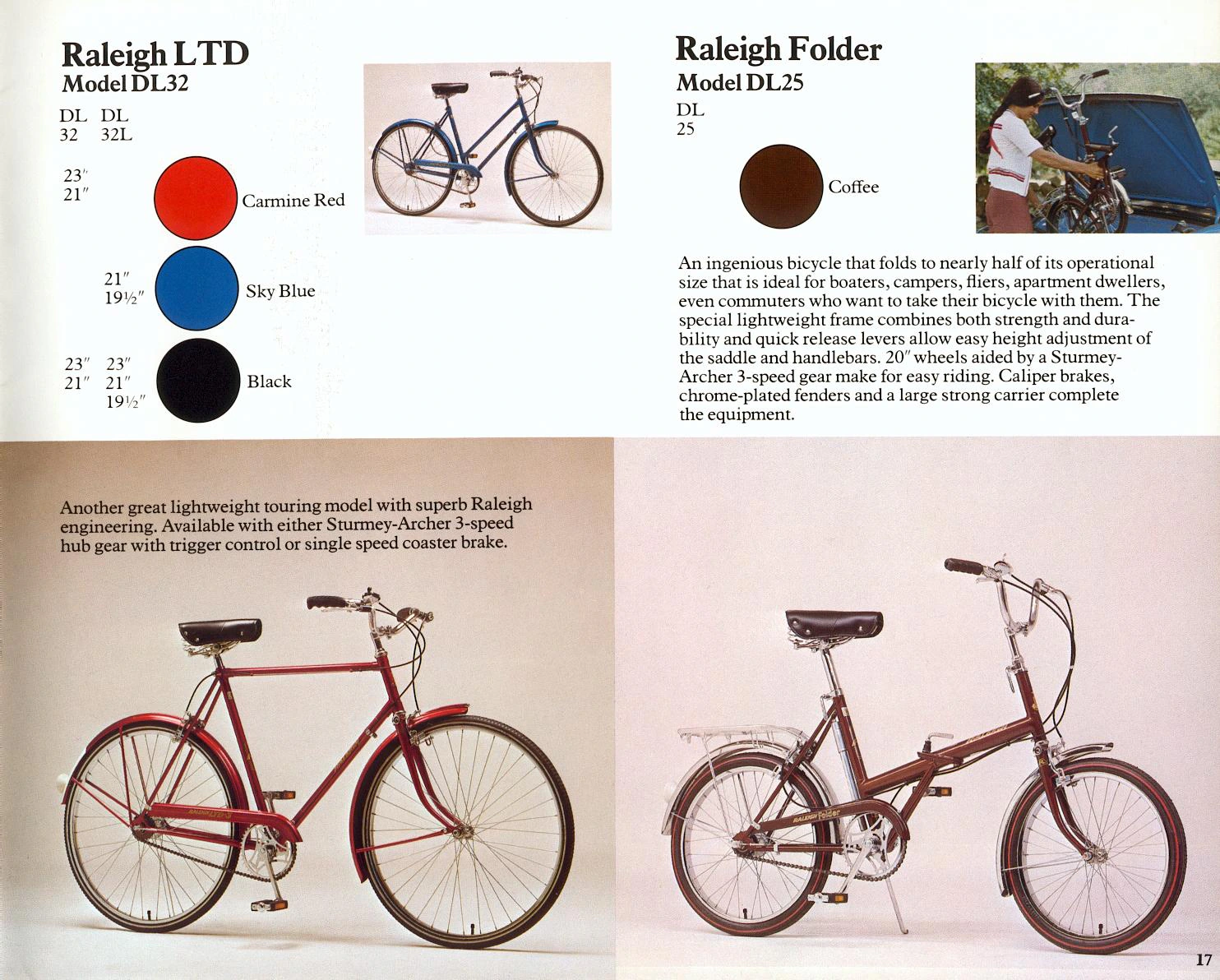

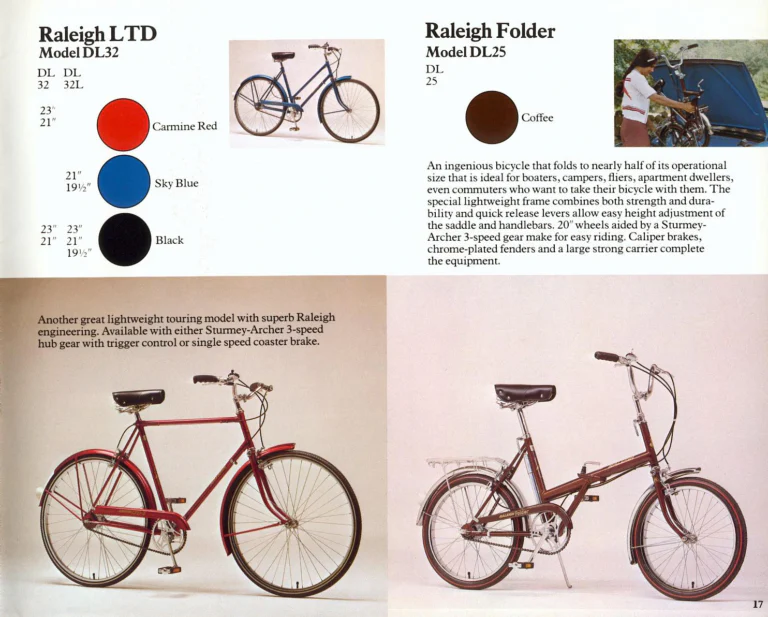

Raleigh LTD
Model DL32

DL 32 | DL 32L |
23″ 21″ | | Carmine Red
| 21″ 19½” | Sky Blue
23″ 21″ | 23″ 21″ 19½” | Black

Another great lightweight touring model with superb Raleigh engineering. Available with either Sturmey-Archer 3-speed hub gear with trigger control or single speed coaster brake.

Raleigh Folder
Model DL25

DL 25

Coffee

An ingenious bicycle that folds to nearly half of its operational size that is ideal for boaters, campers, fliers, apartment dwellers, even commuters who want to take their bicycle with them. The special lightweight frame combines both strength and durability and quick release levers allow easy height adjustment of the saddle and handlebars. 20″ wheels aided by a Sturmey-Archer 3-speed gear make for easy riding. Caliper brakes, chrome-plated fenders and a large strong carrier complete the equipment.

17

[The Raleigh LTD (DL32) and Raleigh Folder (DL25) shown in studio photographs, the LTD in red with full fenders and the Folder in brown with a rear carrier, with frame sizes and color swatches for each. A small photograph shows a blue mixte frame LTD, and another shows a woman lifting a folded Folder from the open trunk of a car.]

— Page 18 —
18

[Four young men sit on a bench beside a golf course while four Raleigh ten speed bicycles with dropped handlebars stand in a rack in the foreground. A golfer swings a club behind them; the page has no other printed lettering than its folio.]

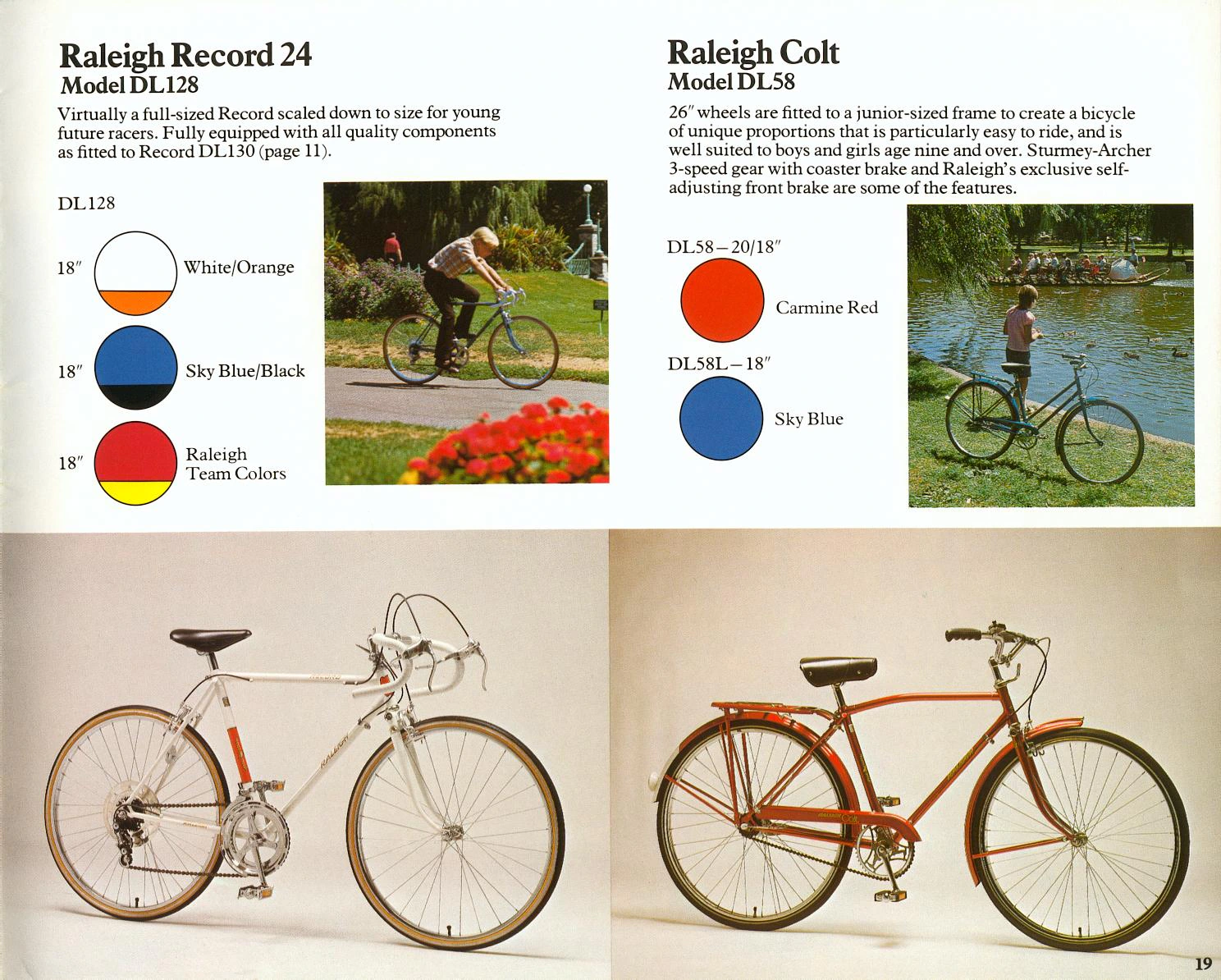

— Page 19 —
Raleigh Record 24
Model DL128

Virtually a full-sized Record scaled down to size for young future racers. Fully equipped with all quality components as fitted to Record DL130 (page 11).

DL128

18″ | White/Orange
18″ | Sky Blue/Black
18″ | Raleigh Team Colors

Raleigh Colt
Model DL58

26″ wheels are fitted to a junior-sized frame to create a bicycle of unique proportions that is particularly easy to ride, and is well suited to boys and girls age nine and over. Sturmey-Archer 3-speed gear with coaster brake and Raleigh’s exclusive self-adjusting front brake are some of the features.

DL58–20/18″

Carmine Red

DL58L–18″

Sky Blue

19

[The Raleigh Record 24 (DL128) and Raleigh Colt (DL58) shown in studio photographs, the Record 24 in white with orange panels and dropped handlebars and the Colt in red with a rear carrier and fenders, with frame sizes and color swatches for each. Smaller photographs show a boy riding a blue Record 24 on a park path and a girl with a blue mixte frame Colt feeding ducks beside a pond with a swan boat.]

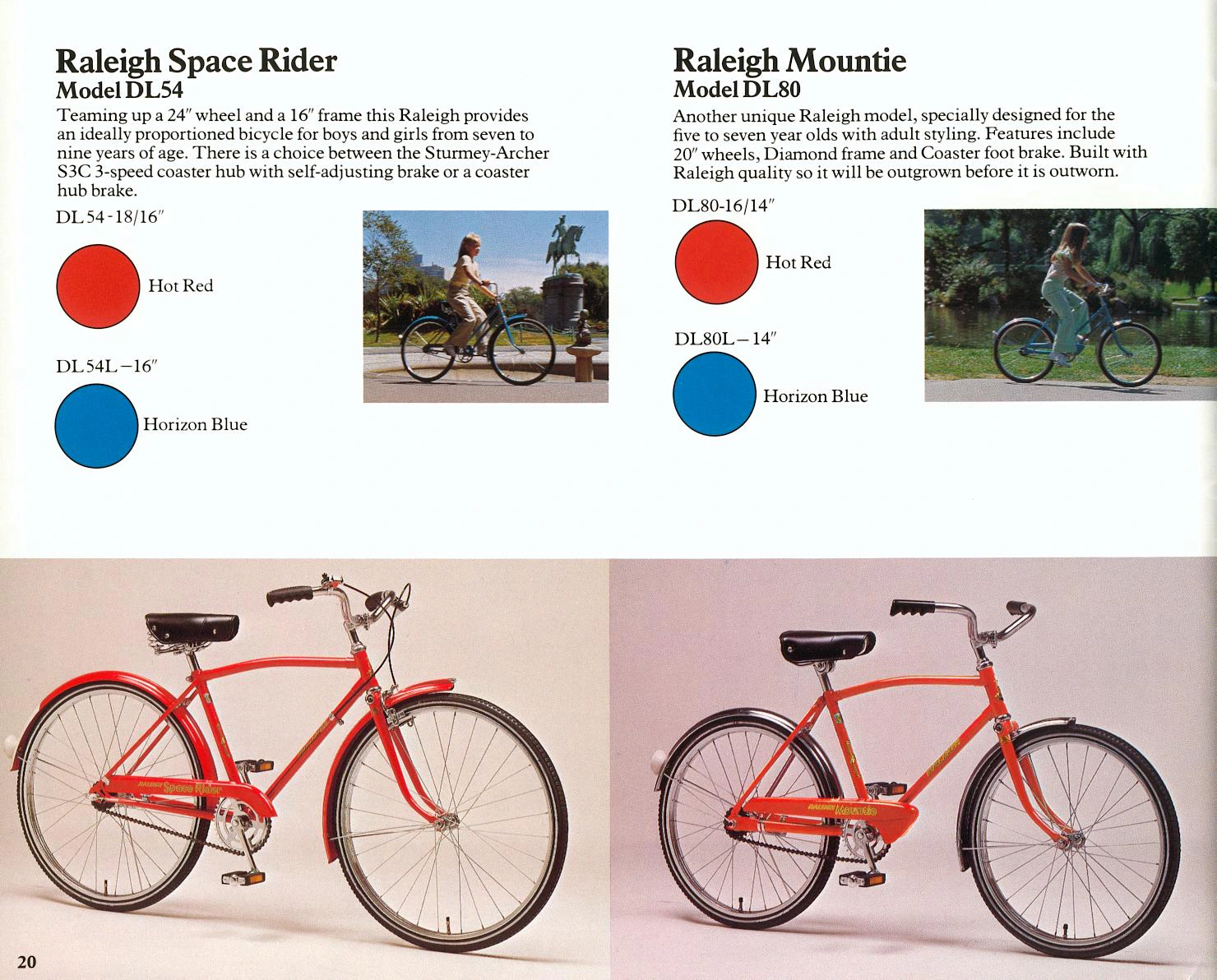

— Page 20 —
Raleigh Space Rider
Model DL54

Teaming up a 24″ wheel and a 16″ frame this Raleigh provides an ideally proportioned bicycle for boys and girls from seven to nine years of age. There is a choice between the Sturmey-Archer S3C 3-speed coaster hub with self-adjusting brake or a coaster hub brake.

DL 54 – 18/16″

Hot Red

DL 54L–16″

Horizon Blue

Raleigh Mountie
Model DL80

Another unique Raleigh model, specially designed for the five to seven year olds with adult styling. Features include 20″ wheels, Diamond frame and Coaster foot brake. Built with Raleigh quality so it will be outgrown before it is outworn.

DL80-16/14″

Hot Red

DL80L–14″

Horizon Blue

20

[The Raleigh Space Rider (DL54) and Raleigh Mountie (DL80) shown in red in studio photographs, each with full fenders and flat handlebars, with frame sizes and color swatches for each. Smaller photographs show a girl riding a blue Space Rider past an equestrian statue and a girl riding a blue Mountie beside a pond.]

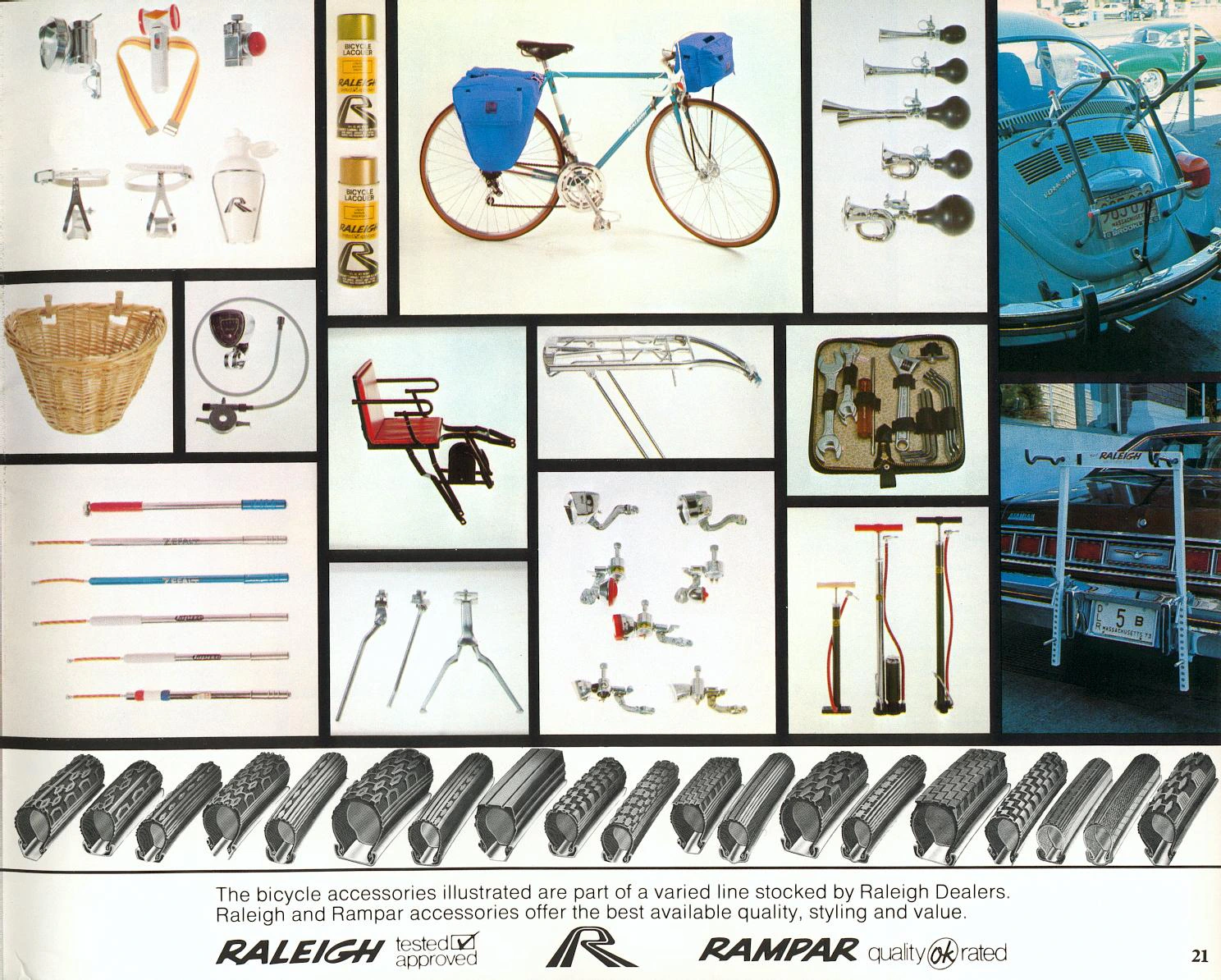

— Page 21 —
The bicycle accessories illustrated are part of a varied line stocked by Raleigh Dealers. Raleigh and Rampar accessories offer the best available quality, styling and value.

RALEIGH tested approved

RAMPAR quality ok rated

21

[Raleigh and Rampar bicycle accessories shown in a grid of studio photographs: lamps and a battery lamp set, toe clips, a water bottle, Raleigh bicycle lacquer spray cans, a ten speed bicycle fitted with blue pannier and handlebar bags, bulb horns, a wicker basket, a dynamo lighting set, a child seat, a rear carrier, a tool kit, pumps, kickstands, reflectors and a row of tire tread patterns. Two photographs show car-mounted bicycle racks, one lettered RALEIGH on the back of a car with a Massachusetts dealer plate; along the foot run the Raleigh “tested approved” mark (a check mark in a box), the Raleigh R logo and the Rampar “quality ok rated” mark (ok in a circle).]

— Page 22 —

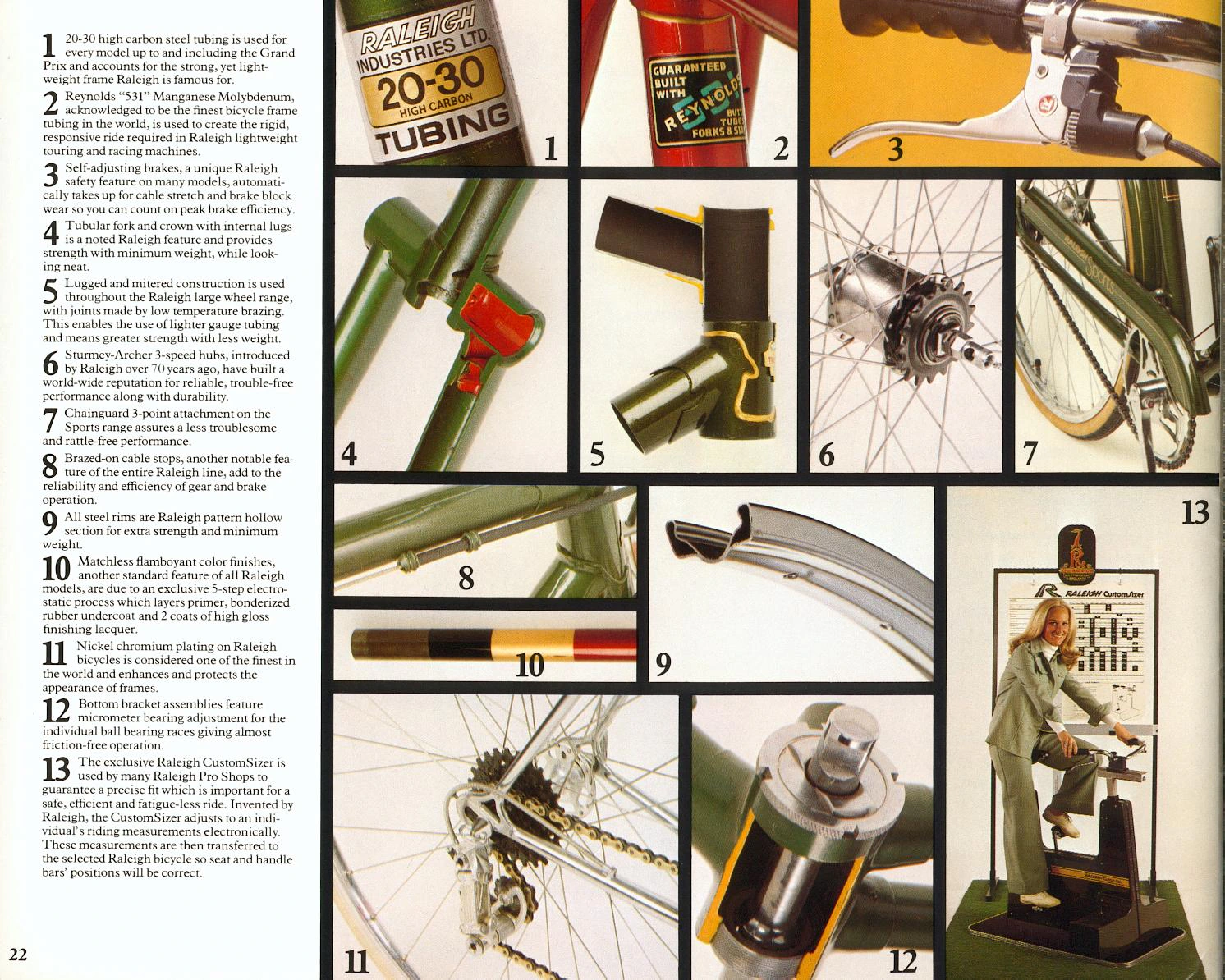

1 20-30 high carbon steel tubing is used for every model up to and including the Grand Prix and accounts for the strong, yet lightweight frame Raleigh is famous for.

2 Reynolds “531” Manganese Molybdenum, acknowledged to be the finest bicycle frame tubing in the world, is used to create the rigid, responsive ride required in Raleigh lightweight touring and racing machines.

3 Self-adjusting brakes, a unique Raleigh safety feature on many models, automatically takes up for cable stretch and brake block wear so you can count on peak brake efficiency.

4 Tubular fork and crown with internal lugs is a noted Raleigh feature and provides strength with minimum weight, while looking neat.

5 Lugged and mitered construction is used throughout the Raleigh large wheel range, with joints made by low temperature brazing. This enables the use of lighter gauge tubing and means greater strength with less weight.

6 Sturmey-Archer 3-speed hubs, introduced by Raleigh over 70 years ago, have built a world-wide reputation for reliable, trouble-free performance along with durability.

7 Chainguard 3-point attachment on the Sports range assures a less troublesome and rattle-free performance.

8 Brazed-on cable stops, another notable feature of the entire Raleigh line, add to the reliability and efficiency of gear and brake operation.

9 All steel rims are Raleigh pattern hollow section for extra strength and minimum weight.

10 Matchless flamboyant color finishes, another standard feature of all Raleigh models, are due to an exclusive 5-step electrostatic process which layers primer, bonderized rubber undercoat and 2 coats of high gloss finishing lacquer.

11 Nickel chromium plating on Raleigh bicycles is considered one of the finest in the world and enhances and protects the appearance of frames.

12 Bottom bracket assemblies feature micrometer bearing adjustment for the individual ball bearing races giving almost friction-free operation.

13 The exclusive Raleigh CustomSizer is used by many Raleigh Pro Shops to guarantee a precise fit which is important for a safe, efficient and fatigue-less ride. Invented by Raleigh, the CustomSizer adjusts to an individual’s riding measurements electronically. These measurements are then transferred to the selected Raleigh bicycle so seat and handle bars’ positions will be correct.

22

[Thirteen numbered close-up photographs of Raleigh construction features keyed to the text: the Raleigh Industries Ltd. 20-30 high carbon tubing decal, a Reynolds 531 tubing decal, a self-adjusting brake lever, cutaway fork crown and bottom bracket lugs, a Sturmey-Archer hub, a Sports chainguard, brazed-on cable stops, a hollow section rim, a section of layered paint finish, a plated rear dropout and derailleur, and a cutaway bottom bracket. The 13th photograph shows a woman seated on the Raleigh CustomSizer fitting machine in front of its sizing chart.]

— Page 23 —

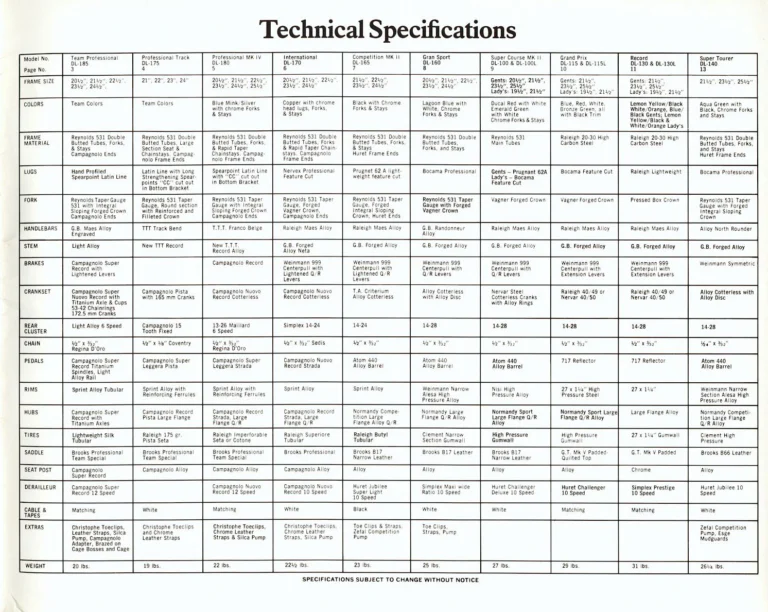

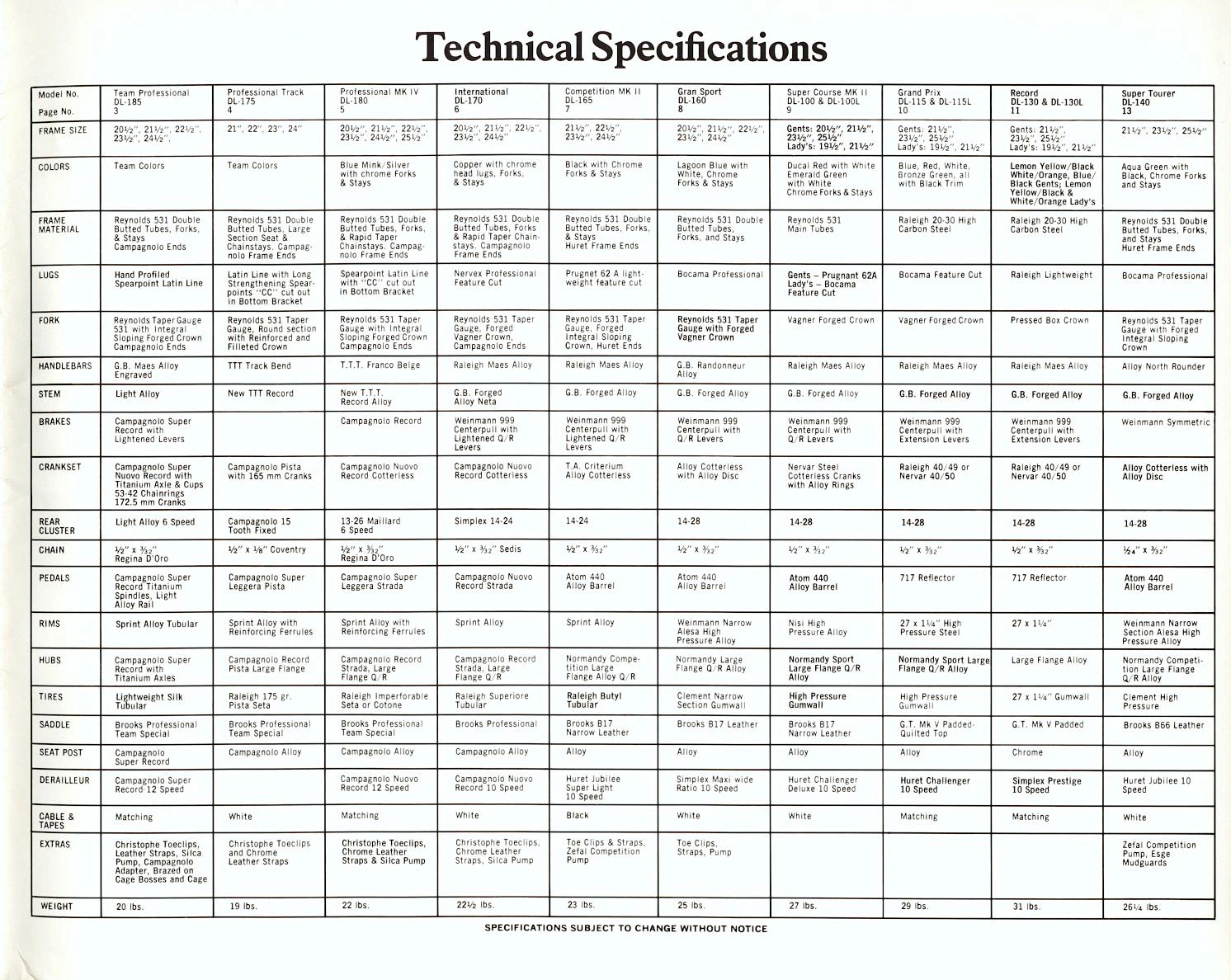

Technical Specifications

Model No. Page No. | Team Professional DL-185 3 | Professional Track DL-175 4 | Professional MK IV DL-180 5 | International DL-170 6 | Competition MK II DL-165 7 | Gran Sport DL-160 8 | Super Course MK II DL-100 & DL-100L 9 | Grand Prix DL-115 & DL-115L 10 | Record DL-130 & DL-130L 11 | Super Tourer DL-140 13
FRAME SIZE | 20½”, 21½”, 22½”, 23½”, 24½”, | 21″, 22″, 23″, 24″ | 20½”, 21½”, 22½”, 23½”, 24½”, 25½” | 20½”, 21½”, 22½”, 23½”, 24½” | 21½”, 22½”, 23½”, 24½” | 20½”, 21½”, 22½”, 23½”, 24½” | Gents: 20½”, 21½”, 23½”, 25½” Lady’s: 19½”, 21½” | Gents: 21½”, 23½”, 25½” Lady’s: 19½”, 21½” | Gents: 21½”, 23½”, 25½” Lady’s: 19½”, 21½” | 21½”, 23½”, 25½”
COLORS | Team Colors | Team Colors | Blue Mink/Silver with chrome Forks & Stays | Copper with chrome head lugs, Forks, & Stays | Black with Chrome Forks & Stays | Lagoon Blue with White, Chrome Forks & Stays | Ducal Red with White Emerald Green with White Chrome Forks & Stays | Blue, Red, White, Bronze Green, all with Black Trim | Lemon Yellow/Black White/Orange, Blue/Black Gents; Lemon Yellow/Black & White/Orange Lady’s | Aqua Green with Black, Chrome Forks and Stays
FRAME MATERIAL | Reynolds 531 Double Butted Tubes, Forks, & Stays Campagnolo Ends | Reynolds 531 Double Butted Tubes, Large Section Seat & Chainstays. Campagnolo Frame Ends | Reynolds 531 Double Butted Tubes, Forks, & Rapid Taper Chainstays. Campagnolo Frame Ends | Reynolds 531 Double Butted Tubes, Forks & Rapid Taper Chainstays. Campagnolo Frame Ends | Reynolds 531 Double Butted Tubes, Forks, & Stays Huret Frame Ends | Reynolds 531 Double Butted Tubes, Forks, and Stays | Reynolds 531 Main Tubes | Raleigh 20-30 High Carbon Steel | Raleigh 20-30 High Carbon Steel | Reynolds 531 Double Butted Tubes, Forks, and Stays Huret Frame Ends
LUGS | Hand Profiled Spearpoint Latin Line | Latin Line with Long Strengthening Spearpoints “CC” cut out in Bottom Bracket | Spearpoint Latin Line with “CC” cut out in Bottom Bracket | Nervex Professional Feature Cut | Prugnet 62 A lightweight feature cut | Bocama Professional | Gents – Prugnant 62A Lady’s – Bocama Feature Cut | Bocama Feature Cut | Raleigh Lightweight | Bocama Professional
FORK | Reynolds Taper Gauge 531 with Integral Sloping Forged Crown Campagnolo Ends | Reynolds 531 Taper Gauge, Round section with Reinforced and Filleted Crown | Reynolds 531 Taper Gauge with Integral Sloping Forged Crown Campagnolo Ends | Reynolds 531 Taper Gauge, Forged Vagner Crown, Campagnolo Ends | Reynolds 531 Taper Gauge, Forged Integral Sloping Crown, Huret Ends | Reynolds 531 Taper Gauge with Forged Vagner Crown | Vagner Forged Crown | Vagner Forged Crown | Pressed Box Crown | Reynolds 531 Taper Gauge with Forged Integral Sloping Crown
HANDLEBARS | G.B. Maes Alloy Engraved | TTT Track Bend | T.T.T. Franco Belge | Raleigh Maes Alloy | Raleigh Maes Alloy | G.B. Randonneur Alloy | Raleigh Maes Alloy | Raleigh Maes Alloy | Raleigh Maes Alloy | Alloy North Rounder
STEM | Light Alloy | New TTT Record | New T.T.T. Record Alloy | G.B. Forged Alloy Neta | G.B. Forged Alloy | G.B. Forged Alloy | G.B. Forged Alloy | G.B. Forged Alloy | G.B. Forged Alloy | G.B. Forged Alloy
BRAKES | Campagnolo Super Record with Lightened Levers | | Campagnolo Record | Weinmann 999 Centerpull with Lightened Q/R Levers | Weinmann 999 Centerpull with Lightened Q/R Levers | Weinmann 999 Centerpull with Q/R Levers | Weinmann 999 Centerpull with Q/R Levers | Weinmann 999 Centerpull with Extension Levers | Weinmann 999 Centerpull with Extension Levers | Weinmann Symmetric
CRANKSET | Campagnolo Super Nuovo Record with Titanium Axle & Cups 53-42 Chainrings 172.5 mm Cranks | Campagnolo Pista with 165 mm Cranks | Campagnolo Nuovo Record Cotterless | Campagnolo Nuovo Record Cotterless | T.A. Criterium Alloy Cotterless | Alloy Cotterless with Alloy Disc | Nervar Steel Cotterless Cranks with Alloy Rings | Raleigh 40/49 or Nervar 40/50 | Raleigh 40/49 or Nervar 40/50 | Alloy Cotterless with Alloy Disc
REAR CLUSTER | Light Alloy 6 Speed | Campagnolo 15 Tooth Fixed | 13-26 Maillard 6 Speed | Simplex 14-24 | 14-24 | 14-28 | 14-28 | 14-28 | 14-28 | 14-28
CHAIN | ½” x 3/32″ Regina D’Oro | ½” x 1/8″ Coventry | ½” x 3/32″ Regina D’Oro | ½” x 3/32″ Sedis | ½” x 3/32″ | ½” x 3/32″ | ½” x 3/32″ | ½” x 3/32″ | ½” x 3/32″ | 1/24″ x 3/32″

PEDALS | Campagnolo Super Record Titanium Spindles, Light Alloy Rail | Campagnolo Super Leggera Pista | Campagnolo Super Leggera Strada | Campagnolo Nuovo Record Strada | Atom 440 Alloy Barrel | Atom 440 Alloy Barrel | Atom 440 Alloy Barrel | 717 Reflector | 717 Reflector | Atom 440 Alloy Barrel
RIMS | Sprint Alloy Tubular | Sprint Alloy with Reinforcing Ferrules | Sprint Alloy with Reinforcing Ferrules | Sprint Alloy | Sprint Alloy | Weinmann Narrow Alesa High Pressure Alloy | Nisi High Pressure Alloy | 27 x 1¼” High Pressure Steel | 27 x 1¼” | Weinmann Narrow Section Alesa High Pressure Alloy
HUBS | Campagnolo Super Record with Titanium Axles | Campagnolo Record Pista Large Flange | Campagnolo Record Strada, Large Flange Q/R | Campagnolo Record Strada, Large Flange Q/R | Normandy Competition Large Flange Alloy Q/R | Normandy Large Flange Q/R Alloy | Normandy Sport Large Flange Q/R Alloy | Normandy Sport Large Flange Q/R Alloy | Large Flange Alloy | Normandy Competition Large Flange Q/R Alloy
TIRES | Lightweight Silk Tubular | Raleigh 175 gr. Pista Seta | Raleigh Imperforable Seta or Cotone | Raleigh Superiore Tubular | Raleigh Butyl Tubular | Clement Narrow Section Gumwall | High Pressure Gumwall | High Pressure Gumwall | 27 x 1¼” Gumwall | Clement High Pressure
SADDLE | Brooks Professional Team Special | Brooks Professional Team Special | Brooks Professional Team Special | Brooks Professional | Brooks B17 Narrow Leather | Brooks B17 Leather | Brooks B17 Narrow Leather | G.T. Mk V Padded-Quilted Top | G.T. Mk V Padded | Brooks B66 Leather
SEAT POST | Campagnolo Super Record | Campagnolo Alloy | Campagnolo Alloy | Campagnolo Alloy | Alloy | Alloy | Alloy | Alloy | Chrome | Alloy
DERAILLEUR | Campagnolo Super Record-12 Speed | | Campagnolo Nuovo Record 12 Speed | Campagnolo Nuovo Record 10 Speed | Huret Jubilee Super Light 10 Speed | Simplex Maxi wide Ratio 10 Speed | Huret Challenger Deluxe 10 Speed | Huret Challenger 10 Speed | Simplex Prestige 10 Speed | Huret Jubilee 10 Speed
CABLE & TAPES | Matching | White | Matching | White | Black | White | White | Matching | Matching | White
EXTRAS | Christophe Toeclips, Leather Straps, Silca Pump, Campagnolo Adapter, Brazed on Cage Bosses and Cage | Christophe Toeclips and Chrome Leather Straps | Christophe Toeclips, Chrome Leather Straps & Silca Pump | Christophe Toeclips, Chrome Leather Straps, Silca Pump | Toe Clips & Straps, Zefal Competition Pump | Toe Clips, Straps, Pump | | | | Zefal Competition Pump, Esge Mudguards
WEIGHT | 20 lbs. | 19 lbs. | 22 lbs. | 22½ lbs. | 23 lbs. | 25 lbs. | 27 lbs. | 29 lbs. | 31 lbs. | 26¼ lbs.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

[A technical specifications table for 10 Raleigh models: Team Professional DL-185, Professional Track DL-175, Professional MK IV DL-180, International DL-170, Competition MK II DL-165, Gran Sport DL-160, Super Course MK II DL-100 and DL-100L, Grand Prix DL-115 and DL-115L, Record DL-130 and DL-130L and Super Tourer DL-140. Each is listed with its catalog page number, frame sizes, colors, frame material, lugs, fork, components and weight; the page carries no printed folio.]

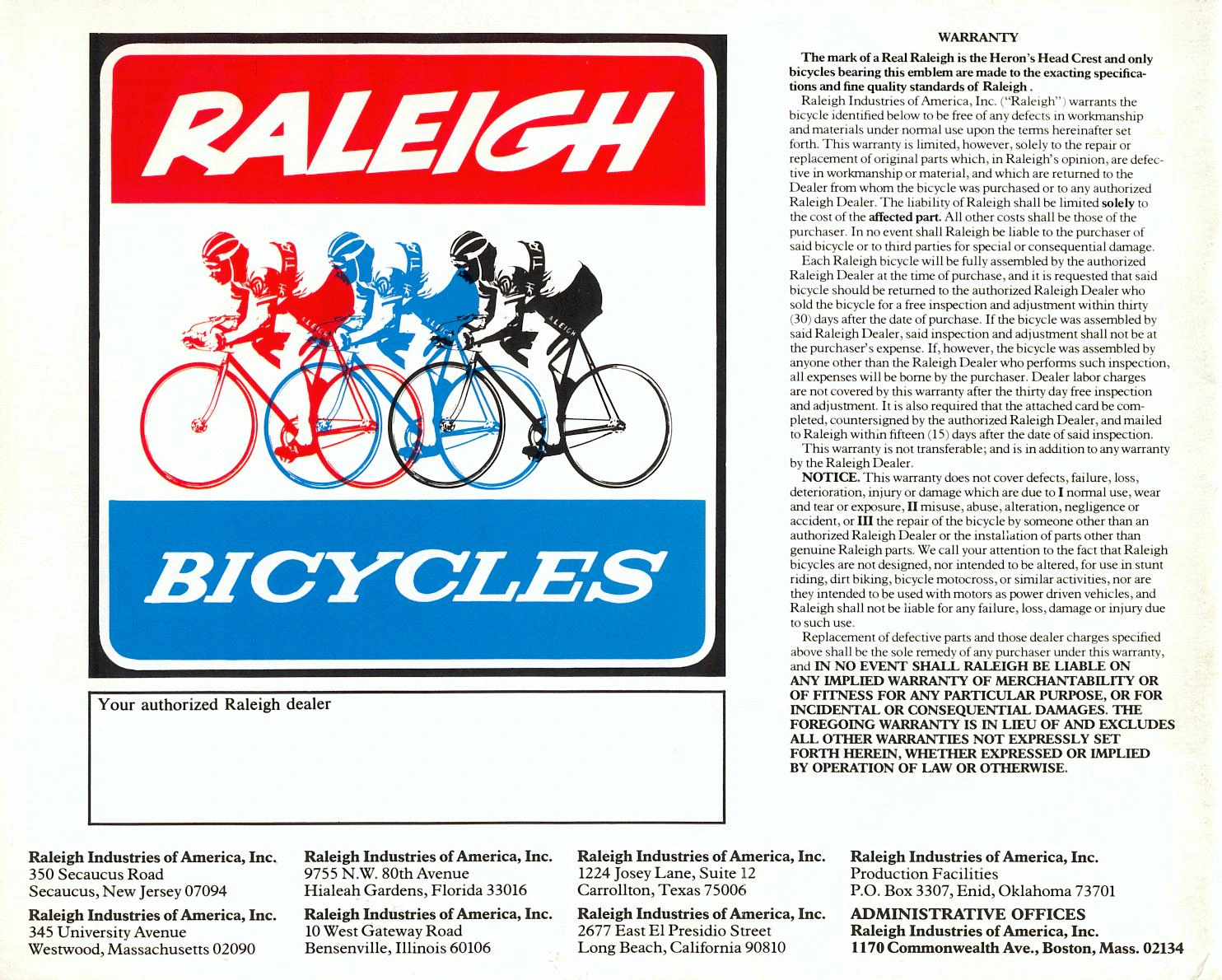

— Page 24 (back cover) —
RALEIGH

BICYCLES

Your authorized Raleigh dealer

WARRANTY

The mark of a Real Raleigh is the Heron’s Head Crest and only bicycles bearing this emblem are made to the exacting specifications and fine quality standards of Raleigh .

Raleigh Industries of America, Inc. (“Raleigh”) warrants the bicycle identified below to be free of any defects in workmanship and materials under normal use upon the terms hereinafter set forth. This warranty is limited, however, solely to the repair or replacement of original parts which, in Raleigh’s opinion, are defective in workmanship or material, and which are returned to the Dealer from whom the bicycle was purchased or to any authorized Raleigh Dealer. The liability of Raleigh shall be limited solely to the cost of the affected part. All other costs shall be those of the purchaser. In no event shall Raleigh be liable to the purchaser of said bicycle or to third parties for special or consequential damage.

Each Raleigh bicycle will be fully assembled by the authorized Raleigh Dealer at the time of purchase, and it is requested that said bicycle should be returned to the authorized Raleigh Dealer who sold the bicycle for a free inspection and adjustment within thirty (30) days after the date of purchase. If the bicycle was assembled by said Raleigh Dealer, said inspection and adjustment shall not be at the purchaser’s expense. If, however, the bicycle was assembled by anyone other than the Raleigh Dealer who performs such inspection, all expenses will be borne by the purchaser. Dealer labor charges are not covered by this warranty after the thirty day free inspection and adjustment. It is also required that the attached card be completed, countersigned by the authorized Raleigh Dealer, and mailed to Raleigh within fifteen (15) days after the date of said inspection.

This warranty is not transferable; and is in addition to any warranty by the Raleigh Dealer.

NOTICE. This warranty does not cover defects, failure, loss, deterioration, injury or damage which are due to I normal use, wear and tear or exposure, II misuse, abuse, alteration, negligence or accident, or III the repair of the bicycle by someone other than an authorized Raleigh Dealer or the installation of parts other than genuine Raleigh parts. We call your attention to the fact that Raleigh bicycles are not designed, nor intended to be altered, for use in stunt riding, dirt biking, bicycle motocross, or similar activities, nor are they intended to be used with motors as power driven vehicles, and Raleigh shall not be liable for any failure, loss, damage or injury due to such use.

Replacement of defective parts and those dealer charges specified above shall be the sole remedy of any purchaser under this warranty, and IN NO EVENT SHALL RALEIGH BE LIABLE ON ANY IMPLIED WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE, OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. THE FOREGOING WARRANTY IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES NOT EXPRESSLY SET FORTH HEREIN, WHETHER EXPRESSED OR IMPLIED BY OPERATION OF LAW OR OTHERWISE.

Raleigh Industries of America, Inc.
350 Secaucus Road
Secaucus, New Jersey 07094

Raleigh Industries of America, Inc.
345 University Avenue
Westwood, Massachusetts 02090

Raleigh Industries of America, Inc.
9755 N.W. 80th Avenue
Hialeah Gardens, Florida 33016

Raleigh Industries of America, Inc.
10 West Gateway Road
Bensenville, Illinois 60106

Raleigh Industries of America, Inc.
1224 Josey Lane, Suite 12
Carrollton, Texas 75006

Raleigh Industries of America, Inc.
2677 East El Presidio Street
Long Beach, California 90810

Raleigh Industries of America, Inc.
Production Facilities
P.O. Box 3307, Enid, Oklahoma 73701

ADMINISTRATIVE OFFICES
Raleigh Industries of America, Inc.
1170 Commonwealth Ave., Boston, Mass. 02134

[Back cover: a Raleigh Bicycles sign in red, white and blue showing three overlapping silhouettes of racing cyclists in red, blue and black whose jerseys are lettered TI and RALEIGH, with an empty box for the dealer’s name below it. The Raleigh warranty fills the right column and the addresses of the Raleigh Industries of America branches run along the foot; the dealer box carries no stamp or sticker.]
