Holdsworth 1982 Catalog — Bicycles & Frames

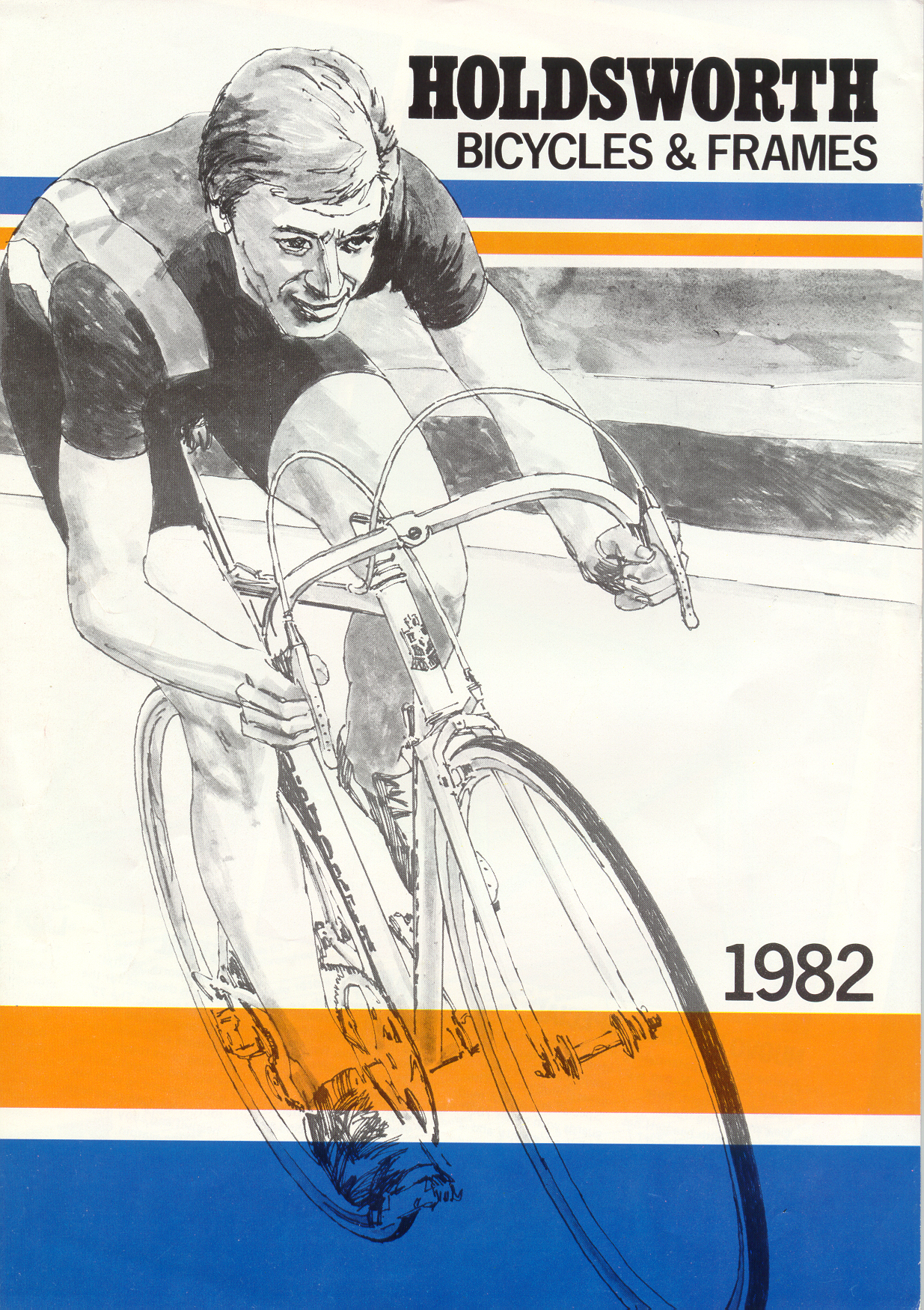

— Page 1 (front cover) —
HOLDSWORTH
BICYCLES & FRAMES
1982

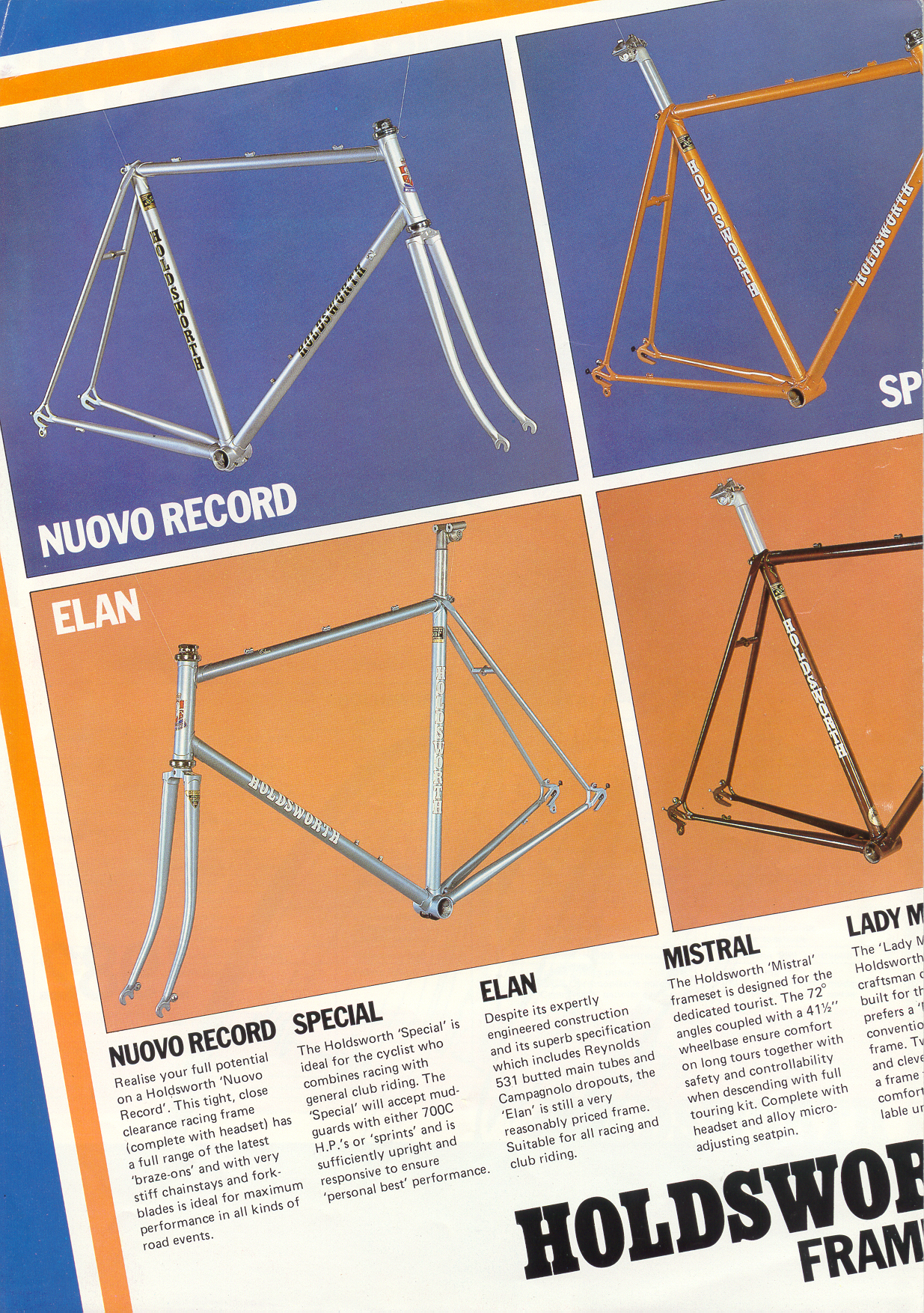

— Page 2 (framesets) —
HOLDSWORTH FRAMESETS

Models: NUOVO RECORD · SPECIAL · ELAN · MISTRAL · LADY MISTRAL

NUOVO RECORD
Realise your full potential on a Holdsworth ‘Nuovo Record’. This tight, close clearance racing frame (complete with headset) has a full range of the latest ‘braze-ons’ and with very stiff chainstays and fork-blades is ideal for maximum performance in all kinds of road events.

SPECIAL
The Holdsworth ‘Special’ is ideal for the cyclist who combines racing with general club riding. The ‘Special’ will accept mudguards with either 700C H.P.’s or ‘sprints’ and is sufficiently upright and responsive to ensure ‘personal best’ performance.

ELAN
Despite its expertly engineered construction and its superb specification which includes Reynolds 531 butted main tubes and Campagnolo dropouts, the ‘Elan’ is still a very reasonably priced frame. Suitable for all racing and club riding.

MISTRAL
The Holdsworth ‘Mistral’ frameset is designed for the dedicated tourist. The 72 degree angles coupled with a 41 1/2” wheelbase ensure comfort on long tours together with safety and controllability when descending with full touring kit. Complete with headset and alloy micro-adjusting seatpin.

LADY MISTRAL
The ‘Lady Mistral’ is a new frameset, designed and built for the girl who prefers a ‘mixte’ to the conventional diamond frame. Twin lateral stays and clever geometry ensure a frame that is rigid but comfortable and controllable under all conditions.

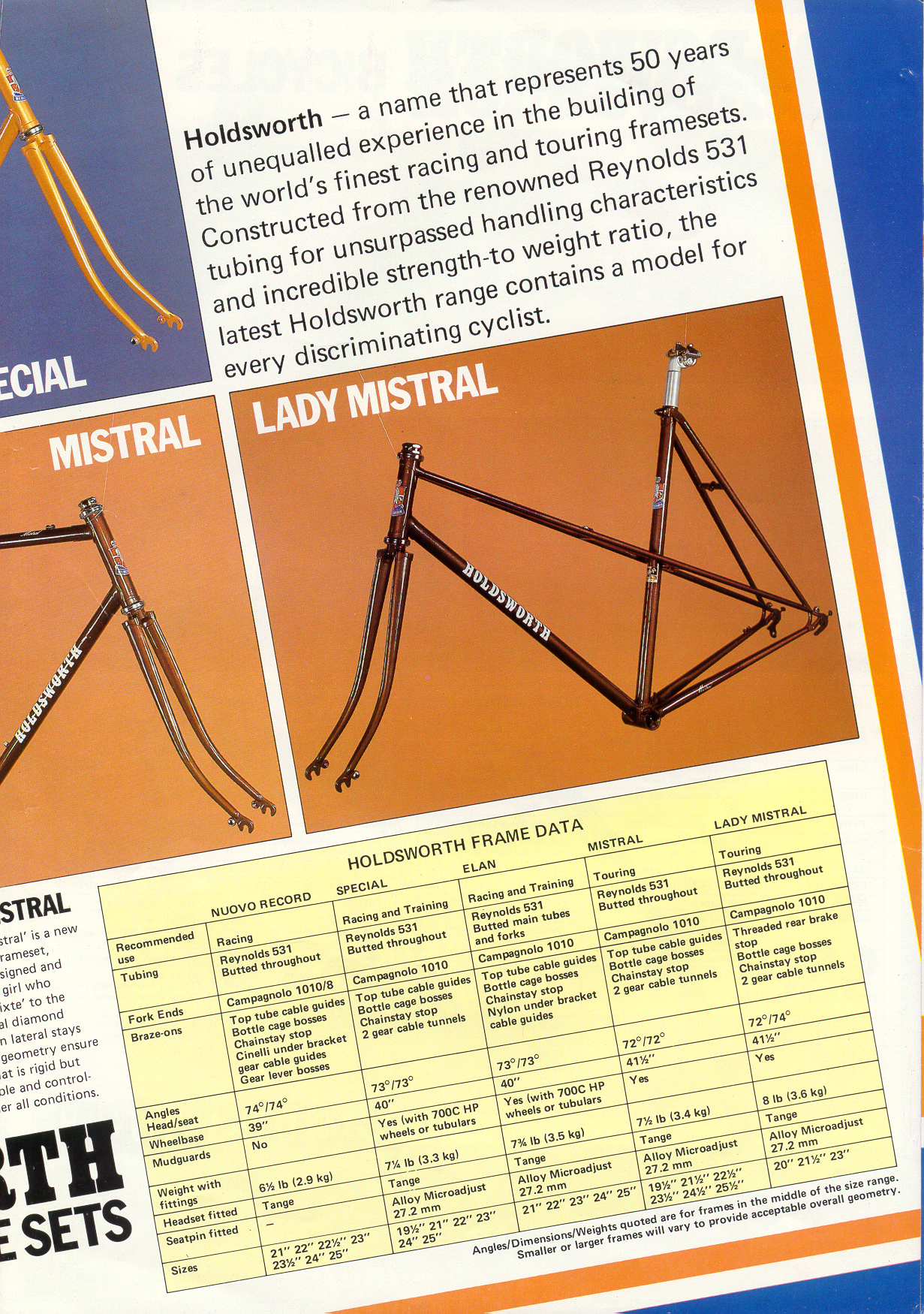

— Page 3 (frame data) —
Holdsworth — a name that represents 50 years of unequalled experience in the building of the world’s finest racing and touring framesets. Constructed from the renowned Reynolds 531 tubing for unsurpassed handling characteristics and incredible strength-to-weight ratio, the latest Holdsworth range contains a model for every discriminating cyclist.

HOLDSWORTH FRAME DATA

NUOVO RECORD — Recommended use: Racing. Tubing: Reynolds 531 Butted throughout. Fork Ends: Campagnolo 1010/8. Braze-ons: Top tube cable guides, Bottle cage bosses, Chainstay stop, Cinelli under bracket gear cable guides, Gear lever bosses. Angles Head/seat: 74/74 degrees. Wheelbase: 39”. Mudguards: No. Weight with fittings: 6 1/2 lb (2.9 kg). Headset fitted: Tange. Seatpin fitted: —. Sizes: 21” 22” 22 1/2” 23” 23 1/2” 24” 25”.

SPECIAL — Recommended use: Racing and Training. Tubing: Reynolds 531 Butted throughout. Fork Ends: Campagnolo 1010. Braze-ons: Top tube cable guides, Bottle cage bosses, Chainstay stop, 2 gear cable tunnels. Angles Head/seat: 73/73 degrees. Wheelbase: 40”. Mudguards: Yes (with 700C HP wheels or tubulars). Weight with fittings: 7 1/4 lb (3.3 kg). Headset fitted: Tange. Seatpin fitted: Alloy Microadjust 27.2 mm. Sizes: 19 1/2” 21” 22” 23” 24” 25”.

ELAN — Recommended use: Racing and Training. Tubing: Reynolds 531 Butted main tubes and forks. Fork Ends: Campagnolo 1010. Braze-ons: Top tube cable guides, Bottle cage bosses, Chainstay stop, Nylon under bracket cable guides. Angles Head/seat: 73/73 degrees. Wheelbase: 40”. Mudguards: Yes (with 700C HP wheels or tubulars). Weight with fittings: 7 3/4 lb (3.5 kg). Headset fitted: Tange. Seatpin fitted: Alloy Microadjust 27.2 mm. Sizes: 21” 22” 23” 24” 25”.

MISTRAL — Recommended use: Touring. Tubing: Reynolds 531 Butted throughout. Fork Ends: Campagnolo 1010. Braze-ons: Top tube cable guides, Bottle cage bosses, Chainstay stop, 2 gear cable tunnels. Angles Head/seat: 72/72 degrees. Wheelbase: 41 1/2”. Mudguards: Yes. Weight with fittings: 7 1/2 lb (3.4 kg). Headset fitted: Tange. Seatpin fitted: Alloy Microadjust 27.2 mm. Sizes: 19 1/2” 21 1/2” 22 1/2” 23 1/2” 24 1/2” 25 1/2”.

LADY MISTRAL — Recommended use: Touring. Tubing: Reynolds 531 Butted throughout. Fork Ends: Campagnolo 1010. Braze-ons: Threaded rear brake stop, Bottle cage bosses, Chainstay stop, 2 gear cable tunnels. Angles Head/seat: 72/74 degrees. Wheelbase: 41 1/2”. Mudguards: Yes. Weight with fittings: 8 lb (3.6 kg). Headset fitted: Tange. Seatpin fitted: Alloy Microadjust 27.2 mm. Sizes: 20” 21 1/2” 23”.

Angles/Dimensions/Weights quoted are for frames in the middle of the size range. Smaller or larger frames will vary to provide acceptable overall geometry.

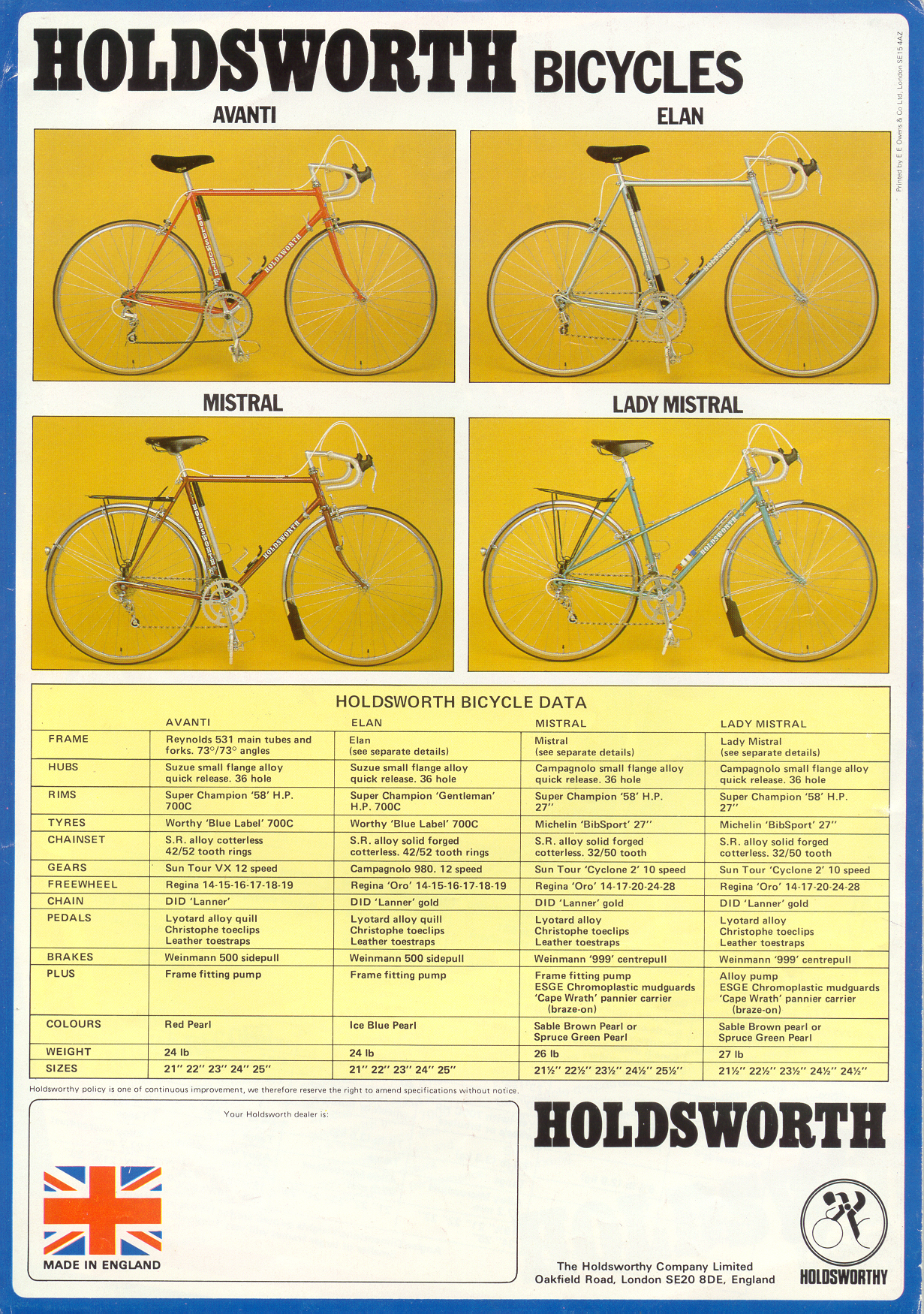

— Page 4 (back cover — complete bicycles) —
HOLDSWORTH BICYCLES

Models: AVANTI · ELAN · MISTRAL · LADY MISTRAL

HOLDSWORTH BICYCLE DATA

AVANTI — Frame: Reynolds 531 main tubes and forks, 73/73 degree angles. Hubs: Suzue small flange alloy quick release, 36 hole. Rims: Super Champion ’58’ H.P. 700C. Tyres: Worthy ‘Blue Label’ 700C. Chainset: S.R. alloy cotterless 42/52 tooth rings. Gears: Sun Tour VX 12 speed. Freewheel: Regina 14-15-16-17-18-19. Chain: DID ‘Lanner’. Pedals: Lyotard alloy quill, Christophe toeclips, Leather toestraps. Brakes: Weinmann 500 sidepull. Plus: Frame fitting pump. Colours: Red Pearl. Weight: 24 lb. Sizes: 21” 22” 23” 24” 25”.

ELAN — Frame: Elan (see separate details). Hubs: Suzue small flange alloy quick release, 36 hole. Rims: Super Champion ‘Gentleman’ H.P. 700C. Tyres: Worthy ‘Blue Label’ 700C. Chainset: S.R. alloy solid forged cotterless 42/52 tooth rings. Gears: Campagnolo 980, 12 speed. Freewheel: Regina ‘Oro’ 14-15-16-17-18-19. Chain: DID ‘Lanner’ gold. Pedals: Lyotard alloy quill, Christophe toeclips, Leather toestraps. Brakes: Weinmann 500 sidepull. Plus: Frame fitting pump. Colours: Ice Blue Pearl. Weight: 24 lb. Sizes: 21” 22” 23” 24” 25”.

MISTRAL — Frame: Mistral (see separate details). Hubs: Campagnolo small flange alloy quick release, 36 hole. Rims: Super Champion ’58’ H.P. 27”. Tyres: Michelin ‘BibSport’ 27”. Chainset: S.R. alloy solid forged cotterless 32/50 tooth. Gears: Sun Tour ‘Cyclone 2’ 10 speed. Freewheel: Regina ‘Oro’ 14-17-20-24-28. Chain: DID ‘Lanner’ gold. Pedals: Lyotard alloy, Christophe toeclips, Leather toestraps. Brakes: Weinmann ‘999’ centrepull. Plus: Frame fitting pump, ESGE Chromoplastic mudguards, ‘Cape Wrath’ pannier carrier (braze-on). Colours: Sable Brown Pearl or Spruce Green Pearl. Weight: 26 lb. Sizes: 21 1/2” 22 1/2” 23 1/2” 24 1/2” 25 1/2”.

LADY MISTRAL — Frame: Lady Mistral (see separate details). Hubs: Campagnolo small flange alloy quick release, 36 hole. Rims: Super Champion ’58’ H.P. 27”. Tyres: Michelin ‘BibSport’ 27”. Chainset: S.R. alloy solid forged cotterless 32/50 tooth. Gears: Sun Tour ‘Cyclone 2’ 10 speed. Freewheel: Regina ‘Oro’ 14-17-20-24-28. Chain: DID ‘Lanner’ gold. Pedals: Lyotard alloy, Christophe toeclips, Leather toestraps. Brakes: Weinmann ‘999’ centrepull. Plus: Alloy pump, ESGE Chromoplastic mudguards, ‘Cape Wrath’ pannier carrier (braze-on). Colours: Sable Brown Pearl or Spruce Green Pearl. Weight: 27 lb. Sizes: 21 1/2” 22 1/2” 23 1/2” 24 1/2”.

Holdsworthy policy is one of continuous improvement, we therefore reserve the right to amend specifications without notice.

MADE IN ENGLAND

The Holdsworthy Company Limited, Oakfield Road, London SE20 8DE, England.
Printed by C E Owens & Co. Ltd. London SE15 4AZ.
