— Page 1 —
SIMPLEX
JUY
TRADE MARKS
PATENTS AND DESIGNS

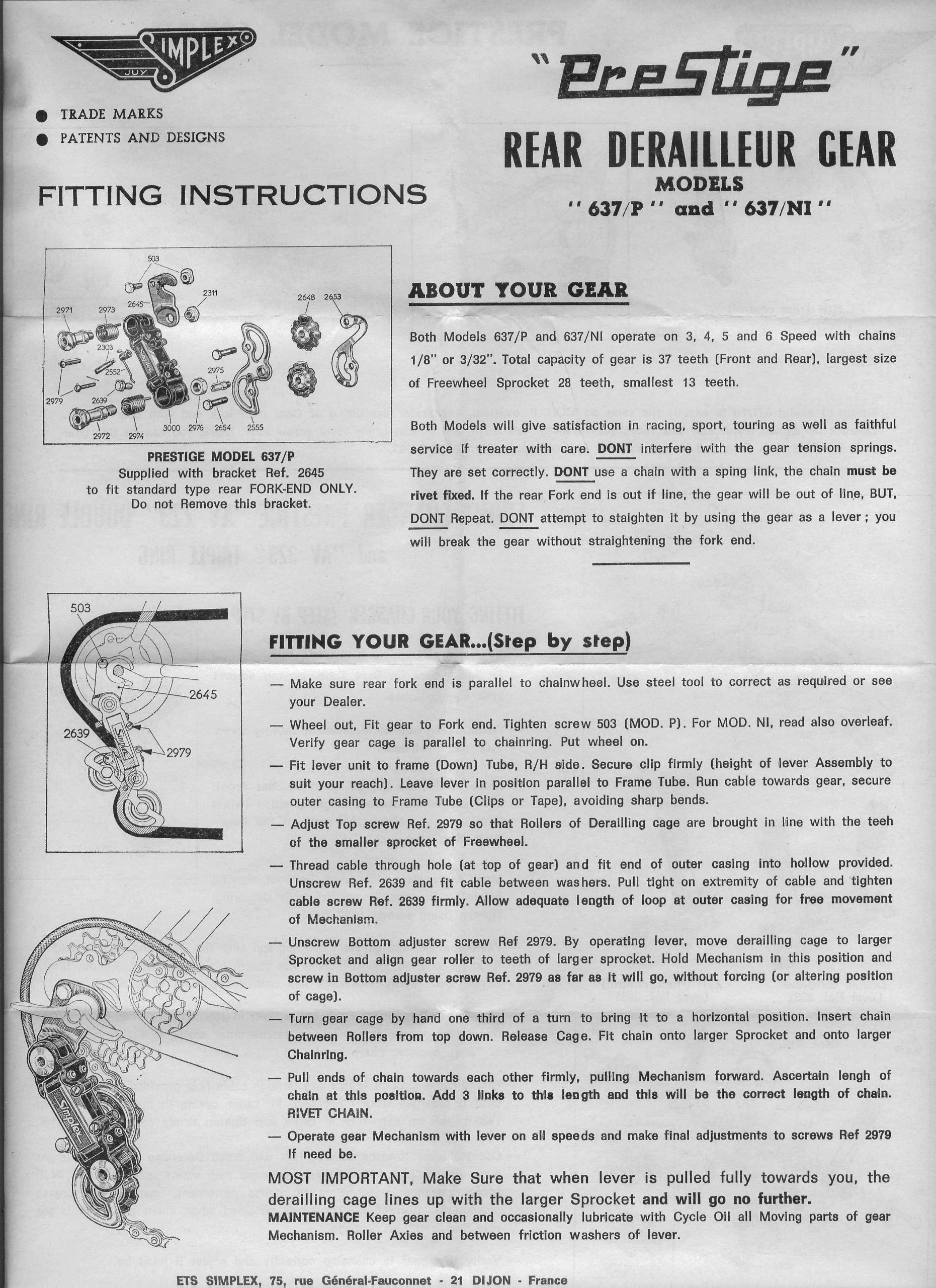

FITTING INSTRUCTIONS
“PreStige”
REAR DERAILLEUR GEAR
MODELS
” 637/P ” and ” 637/NI ”

PRESTIGE MODEL 637/P
Supplied with bracket Ref. 2645
to fit standard type rear FORK-END ONLY.
Do not Remove this bracket.
Callouts: 503 2311 2645 2648 2653 2971 2973 2303 2552 2975 2979 2639 2972 2974 3000 2976 2654 2555

ABOUT YOUR GEAR
Both Models 637/P and 637/NI operate on 3, 4, 5 and 6 Speed with chains 1/8″ or 3/32″. Total capacity of gear is 37 teeth (Front and Rear), largest size of Freewheel Sprocket 28 teeth, smallest 13 teeth.
Both Models will give satisfaction in racing, sport, touring as well as faithful service if treater with care. DONT interfere with the gear tension springs. They are set correctly. DONT use a chain with a sping link, the chain must be rivet fixed. If the rear Fork end is out if line, the gear will be out of line, BUT, DONT Repeat. DONT attempt to staighten it by using the gear as a lever ; you will break the gear without straightening the fork end.

FITTING YOUR GEAR…(Step by step)
— Make sure rear fork end is parallel to chainwheel. Use steel tool to correct as required or see your Dealer.
— Wheel out, Fit gear to Fork end. Tighten screw 503 (MOD. P). For MOD. NI, read also overleaf. Verify gear cage is parallel to chainring. Put wheel on.
— Fit lever unit to frame (Down) Tube, R/H side. Secure clip firmly (height of lever Assembly to suit your reach). Leave lever in position parallel to Frame Tube. Run cable towards gear, secure outer casing to Frame Tube (Clips or Tape), avoiding sharp bends.
— Adjust Top screw Ref. 2979 so that Rollers of Derailling cage are brought in line with the teeh of the smaller sprocket of Freewheel.
— Thread cable through hole (at top of gear) and fit end of outer casing into hollow provided. Unscrew Ref. 2639 and fit cable between washers. Pull tight on extremity of cable and tighten cable screw Ref. 2639 firmly. Allow adequate length of loop at outer casing for free movement of Mechanism.
— Unscrew Bottom adjuster screw Ref 2979. By operating lever, move derailling cage to larger Sprocket and align gear roller to teeth of larger sprocket. Hold Mechanism in this position and screw in Bottom adjuster screw Ref. 2979 as far as it will go, without forcing (or altering position of cage).
— Turn gear cage by hand one third of a turn to bring it to a horizontal position. Insert chain between Rollers from top down. Release Cage. Fit chain onto larger Sprocket and onto larger Chainring.
— Pull ends of chain towards each other firmly, pulling Mechanism forward. Ascertain lengh of chain at this position. Add 3 links to this length and this will be the correct length of chain. RIVET CHAIN.
— Operate gear Mechanism with lever on all speeds and make final adjustments to screws Ref 2979 If need be.
Callouts: 503 2645 2639 2979
MOST IMPORTANT, Make Sure that when lever is pulled fully towards you, the derailling cage lines up with the larger Sprocket and will go no further.
MAINTENANCE Keep gear clean and occasionally lubricate with Cycle Oil all Moving parts of gear Mechanism. Roller Axies and between friction washers of lever.
ETS SIMPLEX, 75, rue Général-Fauconnet – 21 DIJON – France

[Simplex fitting instructions for the Prestige rear derailleur gear models 637/P and 637/NI, with an exploded drawing of the 637/P and its numbered parts and two drawings of the gear fitted to a rear fork end. The Simplex wing emblem with “JUY” heads the page; the print of the other side shows through the paper in mirror image.]

— Page 2 —

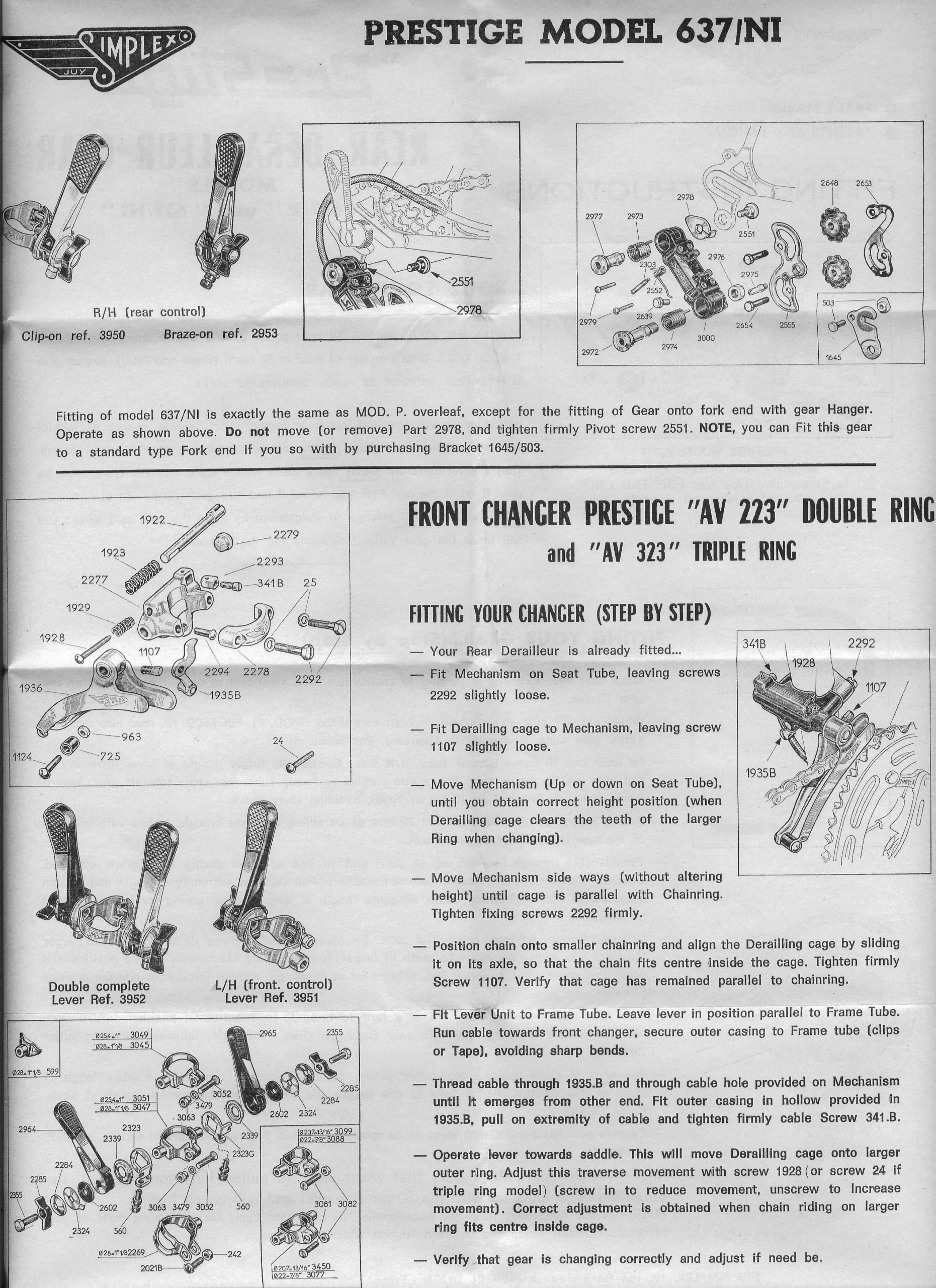

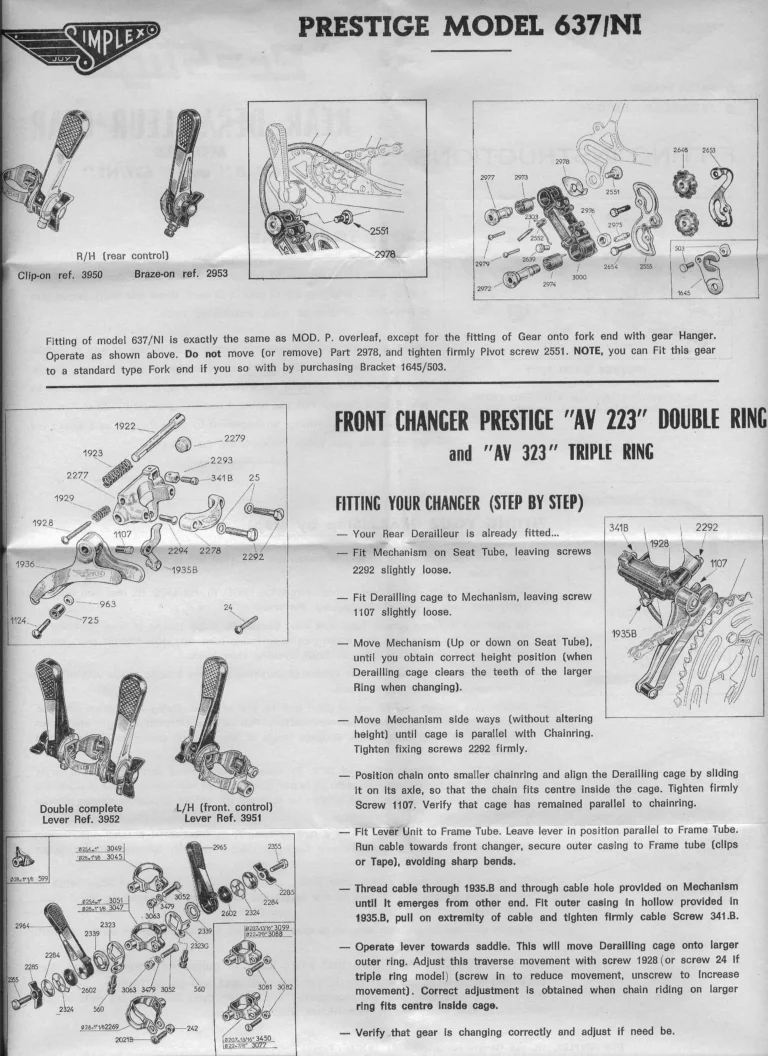

PRESTIGE MODEL 637/NI

R/H (rear control)
Clip-on ref. 3950
Braze-on ref. 2953
Callouts: 2551 2978
Callouts: 2978 2648 2653 2977 2973 2551 2976 2303 2975 2552 2979 2639 2654 2555 503 3000 2974 2972 1645
Fitting of model 637/NI is exactly the same as MOD. P. overleaf, except for the fitting of Gear onto fork end with gear Hanger. Operate as shown above. Do not move (or remove) Part 2978, and tighten firmly Pivot screw 2551. NOTE, you can Fit this gear to a standard type Fork end if you so with by purchasing Bracket 1645/503.

FRONT CHANGER PRESTIGE “AV 223” DOUBLE RING
and “AV 323″ TRIPLE RING

FITTING YOUR CHANGER (STEP BY STEP)
— Your Rear Derailleur is already fitted…
— Fit Mechanism on Seat Tube, leaving screws 2292 slightly loose.
— Fit Derailling cage to Mechanism, leaving screw 1107 slightly loose.
— Move Mechanism (Up or down on Seat Tube), until you obtain correct height position (when Derailling cage clears the teeth of the larger Ring when changing).
— Move Mechanism side ways (without altering height) until cage is parallel with Chainring. Tighten fixing screws 2292 firmly.
— Position chain onto smaller chainring and align the Derailling cage by sliding it on its axle, so that the chain fits centre inside the cage. Tighten firmly Screw 1107. Verify that cage has remained parallel to chainring.
— Fit Lever Unit to Frame Tube. Leave lever in position parallel to Frame Tube. Run cable towards front changer, secure outer casing to Frame tube (clips or Tape), avoiding sharp bends.
— Thread cable through 1935.B and through cable hole provided on Mechanism until It emerges from other end. Fit outer casing in hollow provided in 1935.B, pull on extremity of cable and tighten firmly cable Screw 341.B.
— Operate lever towards saddle. This will move Derailling cage onto larger outer ring. Adjust this traverse movement with screw 1928 (or screw 24 if triple ring model) (screw in to reduce movement, unscrew to Increase movement). Correct adjustment is obtained when chain riding on larger ring fits centre inside cage.
— Verify that gear is changing correctly and adjust if need be.
Callouts: 341B 2292 1928 1107 1935B

Callouts: 1922 2279 1923 2293 2277 341B 25 1929 1928 1107 2294 2278 2292 1935B 1936 963 24 1124 725

Double complete
Lever Ref. 3952
L/H (front. control)
Lever Ref. 3951

Ø28=1″1/8 | 599
Ø25,4=1″ | 3049
Ø28=1″1/8 | 3045
Ø25,4=1″ | 3051
Ø28=1″ 1/8 | 3047
Ø28=1″1/8 | 2269
Ø20,7=13/16″ | 3099
Ø22=7/8″ | 3088
Ø20,7=13/16″ | 3450
Ø22=7/8” | 3077
Callouts: 2965 2355 3052 2285 3479 2284 3063 2602 2324 2339 2964 2323 2323G 560 242 2021B 3081 3082

[Simplex fitting instructions for the Prestige 637/NI rear derailleur with gear hanger and the Prestige AV 223 double ring and AV 323 triple ring front changers, with exploded drawings of their numbered parts. The control levers are drawn as the R/H clip-on 3950 and braze-on 2953, the double 3952 and the L/H 3951, with an exploded drawing of the lever parts and clamp sizes; the print of the other side shows through the paper in mirror image.]
