Schwinn 1976 Catalog — Cycling America: Paramount, Lightweight, Sting-Ray and Junior Bicycles, Parts and Accessories, with the Price List

The Schwinn catalog for 1976, the Bicentennial year: 62 of its 64 pages (pages 62 and 63 are missing from this copy), followed by both sides of its price list. The scanner’s faint digital credit has been removed from five pages.

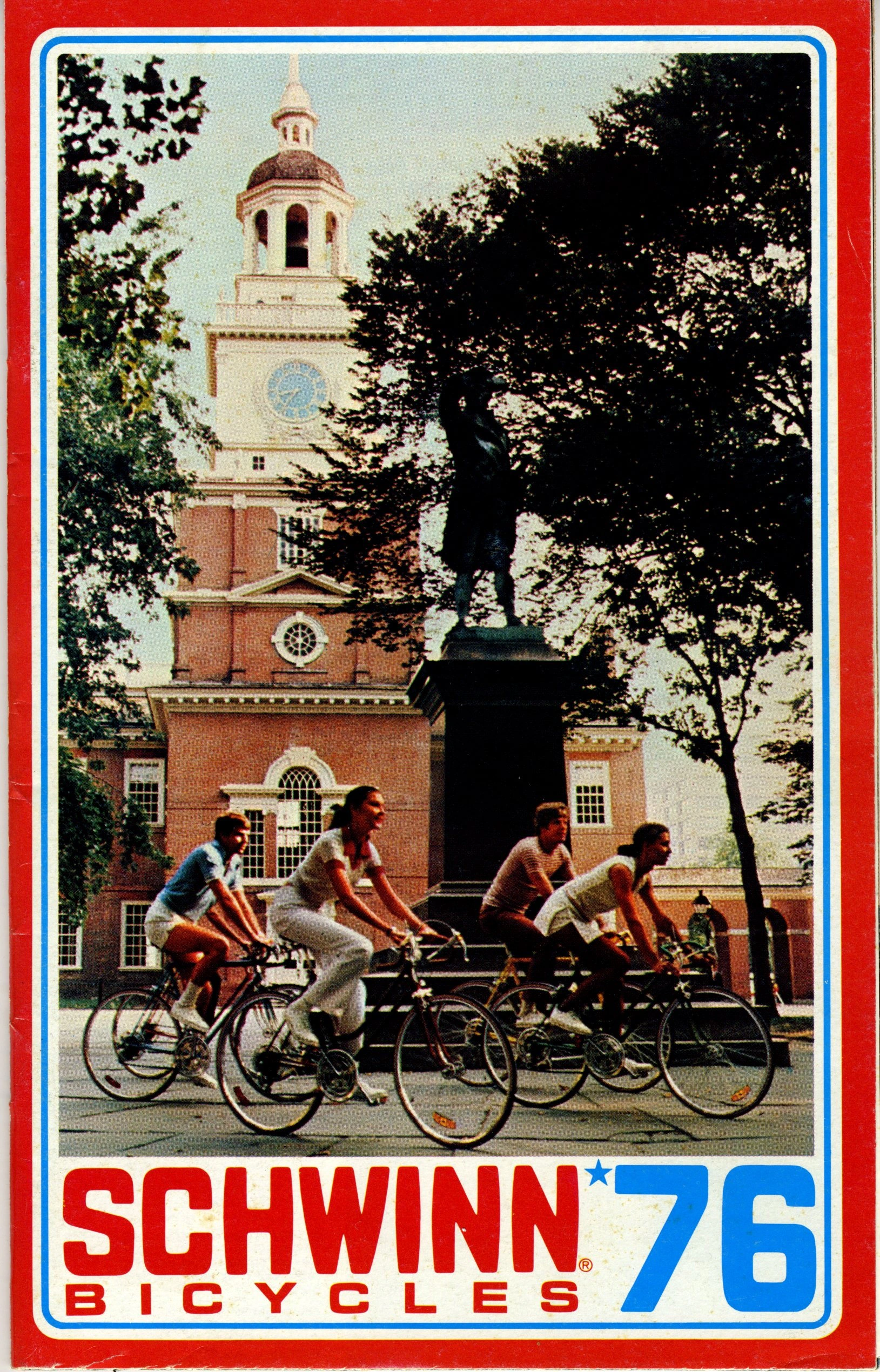

— Page 1 (front cover) —
SCHWINN® ★ 76
BICYCLES

[Four young cyclists ride lightweight bicycles past a statue on a tall plinth in front of a brick clock tower (Independence Hall in Philadelphia, as the cover caption inside the catalog names it), with the red and blue “SCHWINN® BICYCLES 76” logo below the photograph inside a red border. The red border is creased and scuffed along the foot.]

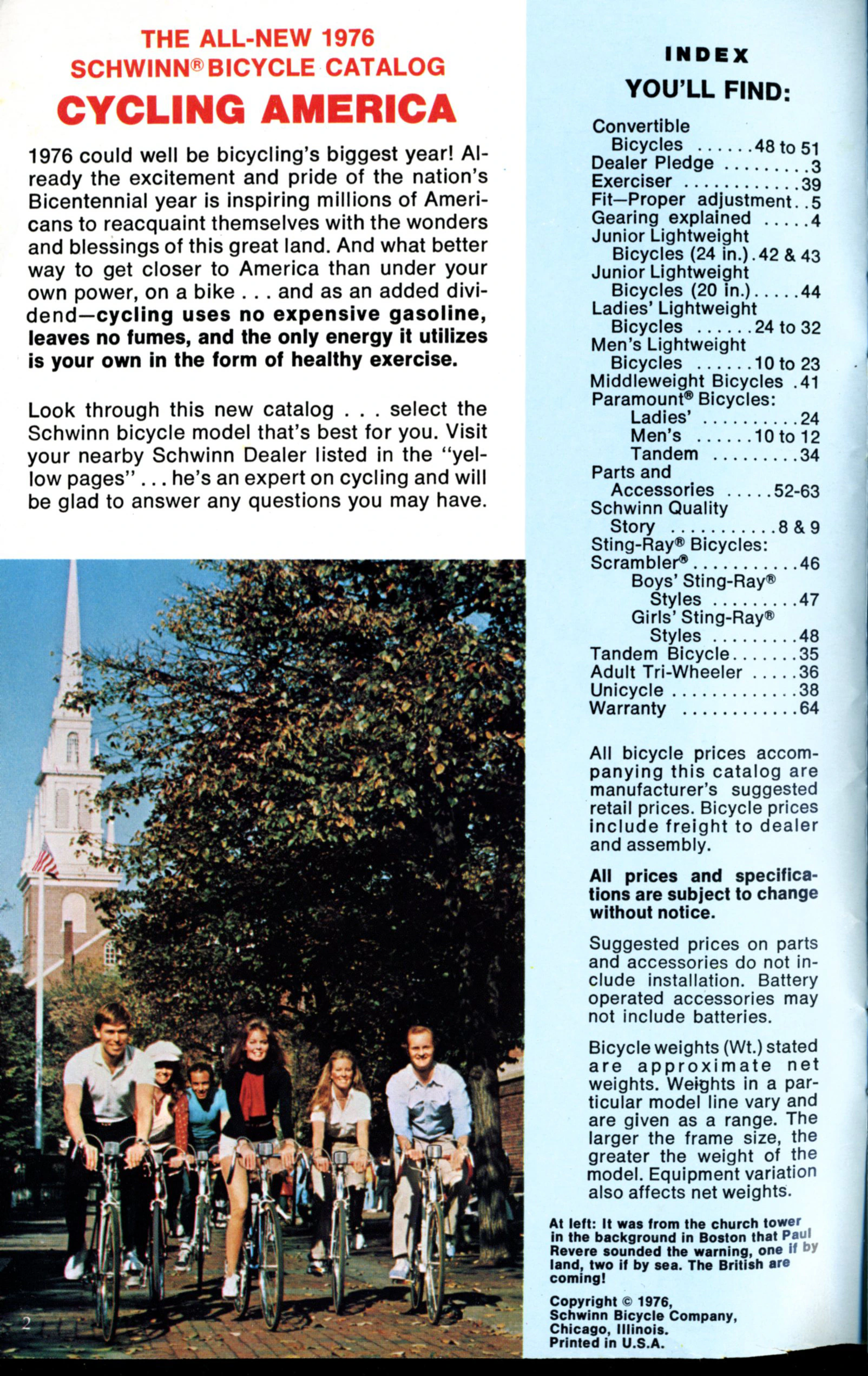

— Page 2 (inside front cover) —
THE ALL-NEW 1976
SCHWINN® BICYCLE CATALOG
CYCLING AMERICA

1976 could well be bicycling’s biggest year! Already the excitement and pride of the nation’s Bicentennial year is inspiring millions of Americans to reacquaint themselves with the wonders and blessings of this great land. And what better way to get closer to America than under your own power, on a bike . . . and as an added dividend—cycling uses no expensive gasoline, leaves no fumes, and the only energy it utilizes is your own in the form of healthy exercise.

Look through this new catalog . . . select the Schwinn bicycle model that’s best for you. Visit your nearby Schwinn Dealer listed in the “yellow pages” . . . he’s an expert on cycling and will be glad to answer any questions you may have.

INDEX
YOU’LL FIND:
Convertible Bicycles | 48 to 51
Dealer Pledge | 3

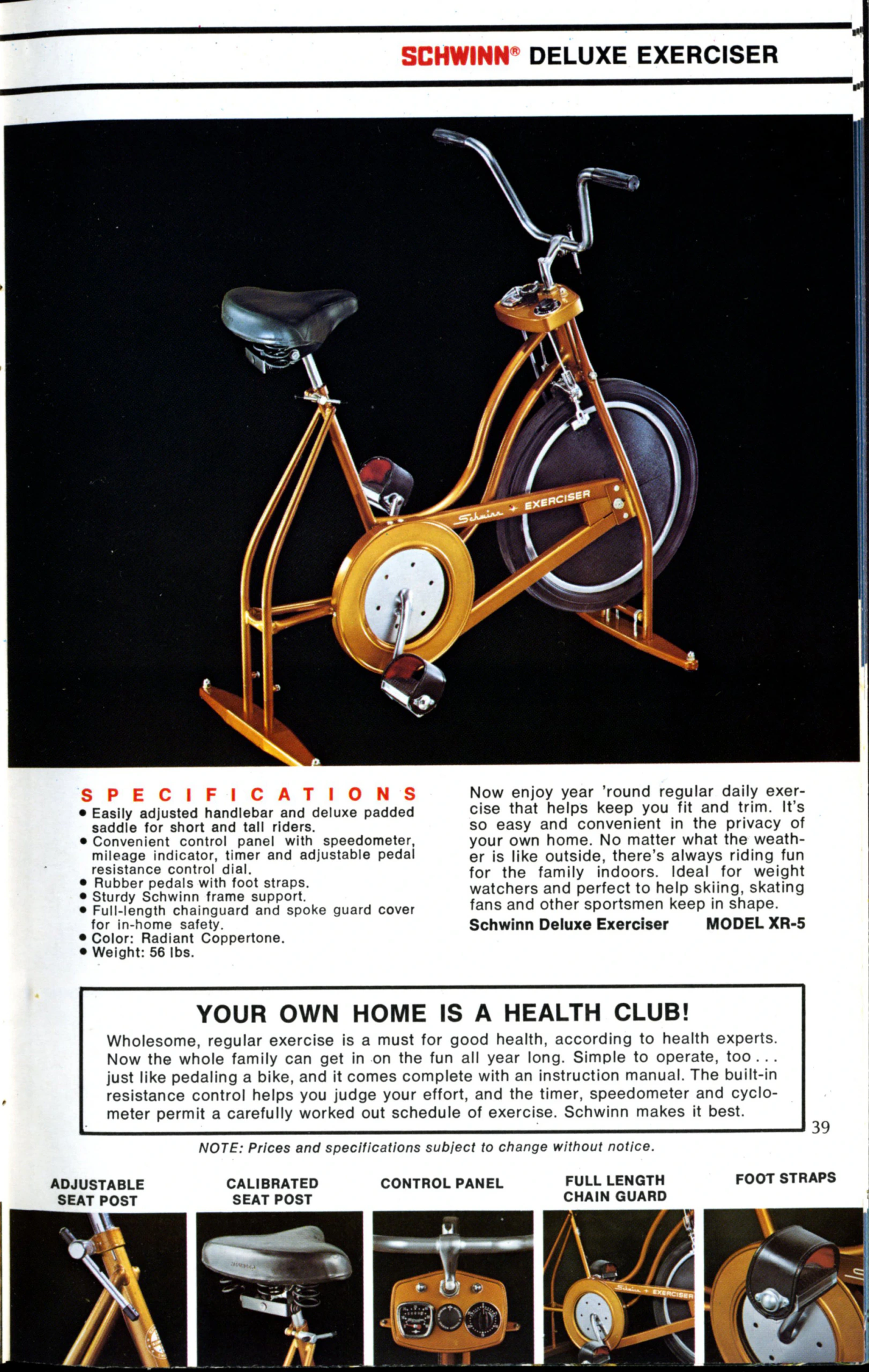

Exerciser | 39
Fit—Proper adjustment | 5
Gearing explained | 4

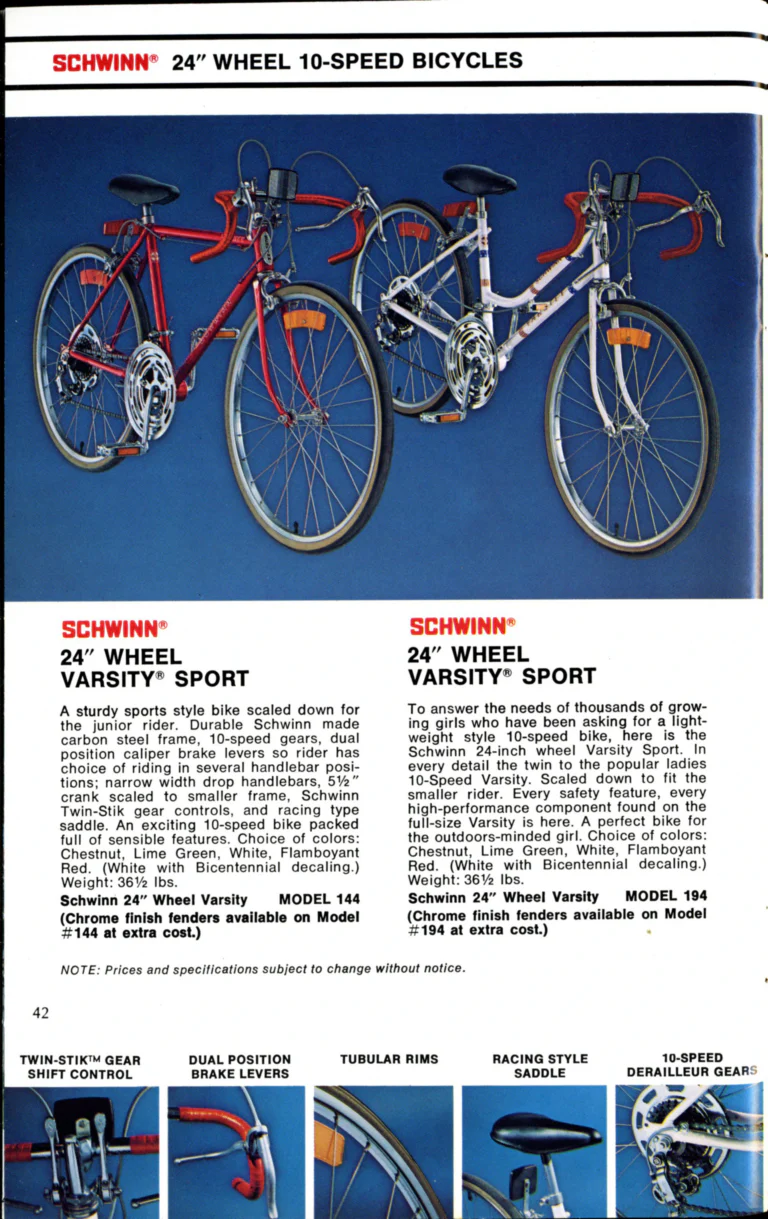

Junior Lightweight Bicycles (24 in.) | 42 & 43
Junior Lightweight Bicycles (20 in.) | 44
Ladies’ Lightweight Bicycles | 24 to 32
Men’s Lightweight Bicycles | 10 to 23

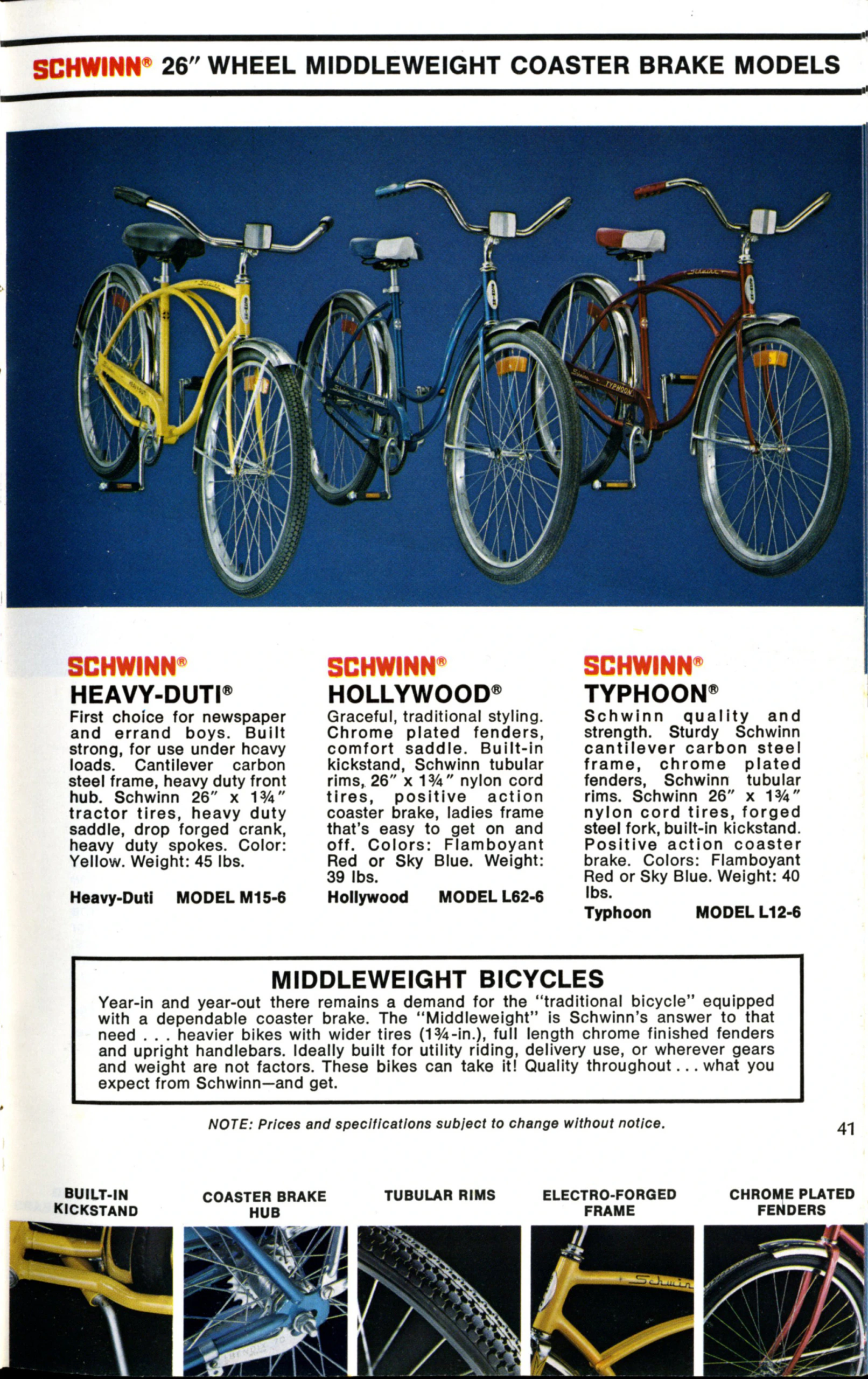

Middleweight Bicycles | 41
Paramount® Bicycles:

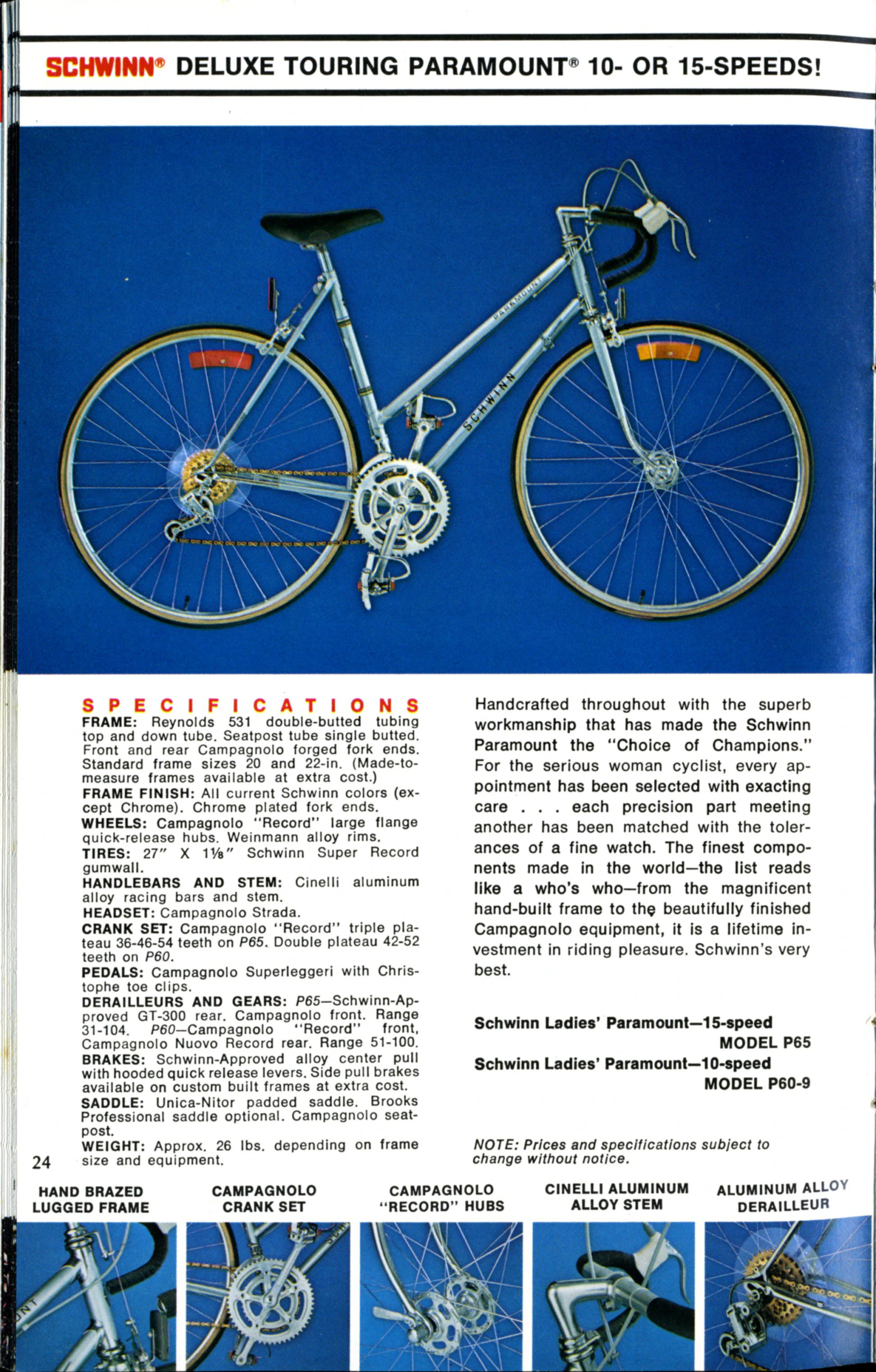

Ladies’ | 24

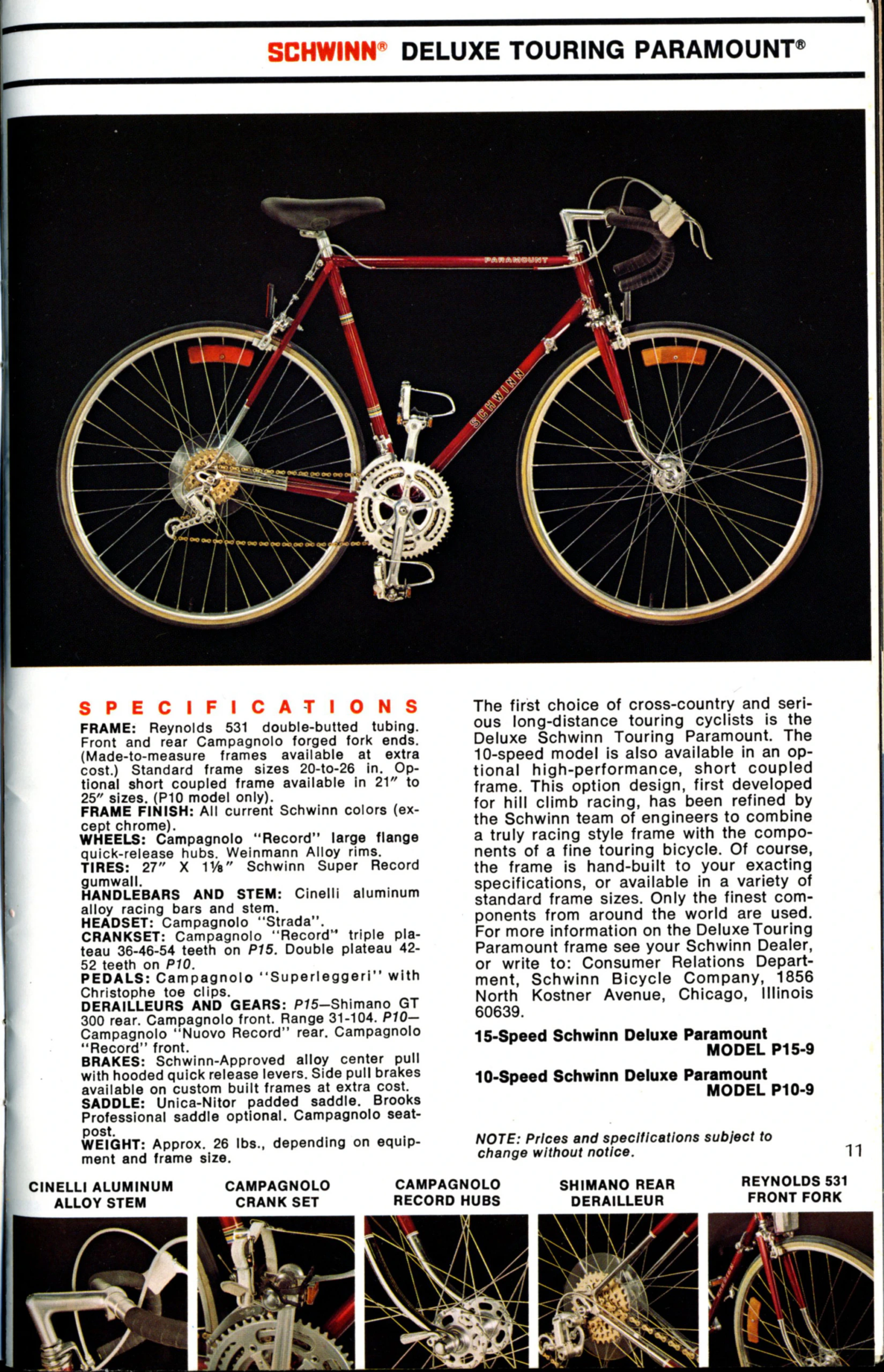

Men’s | 10 to 12
Tandem | 34

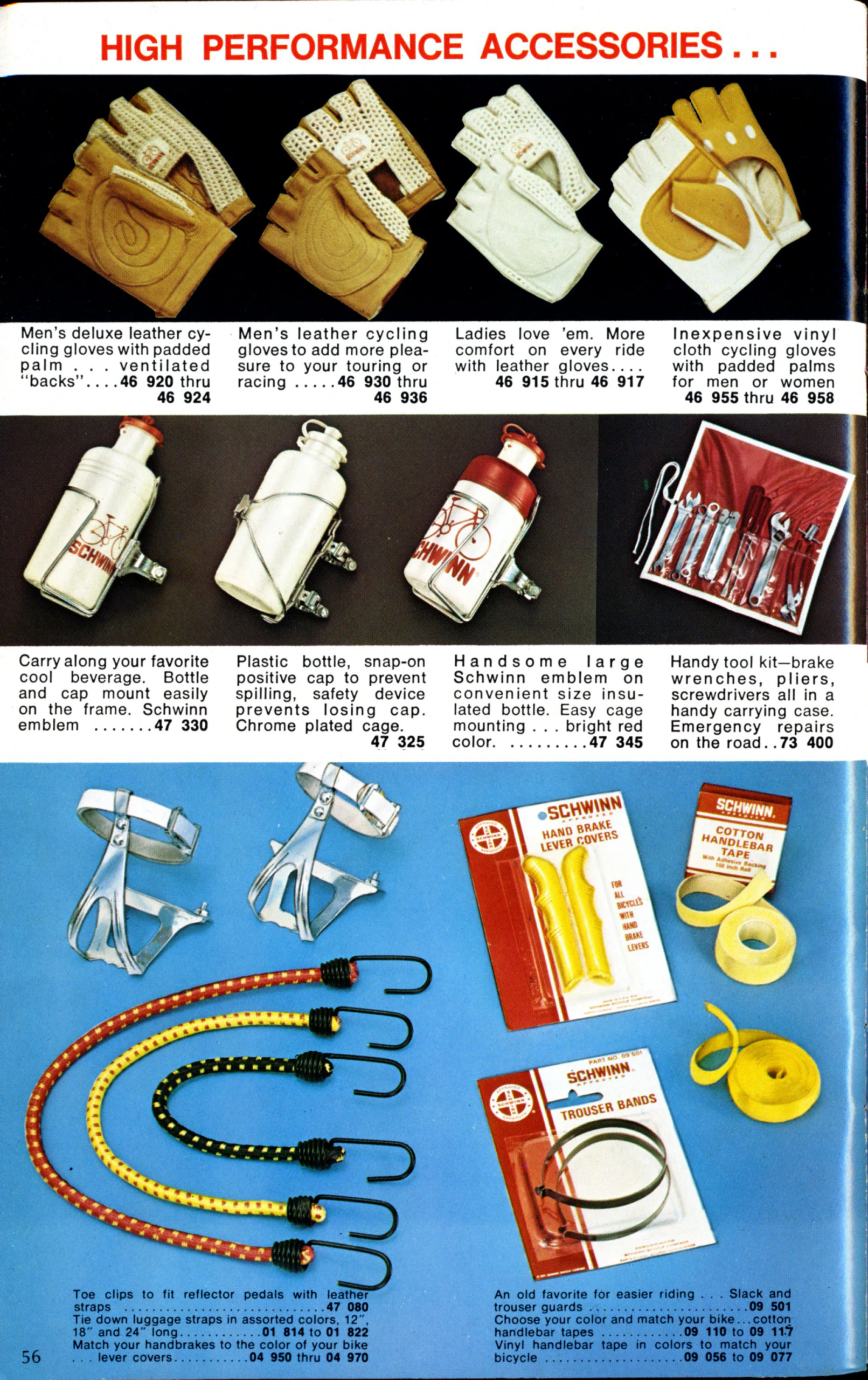

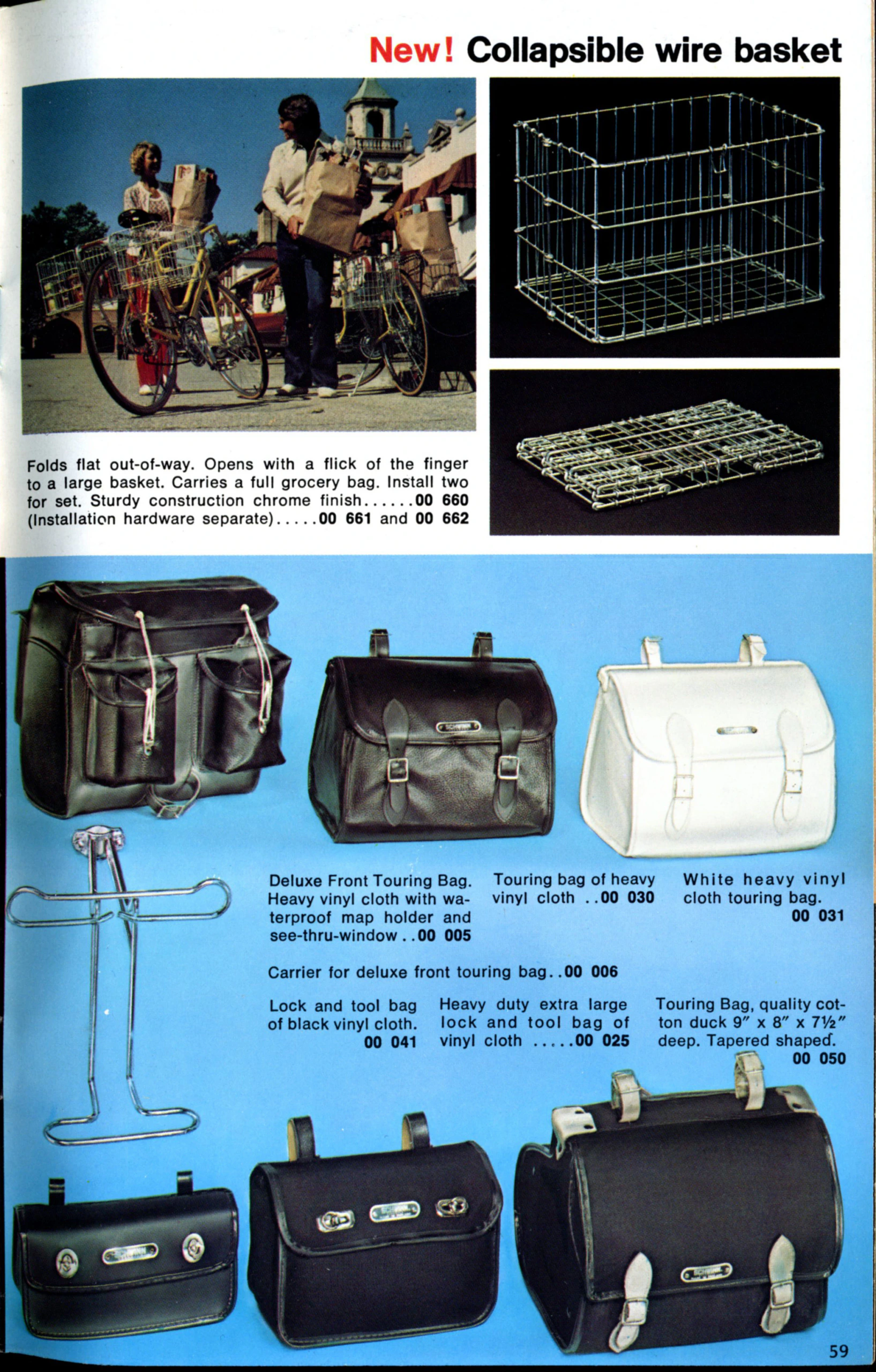

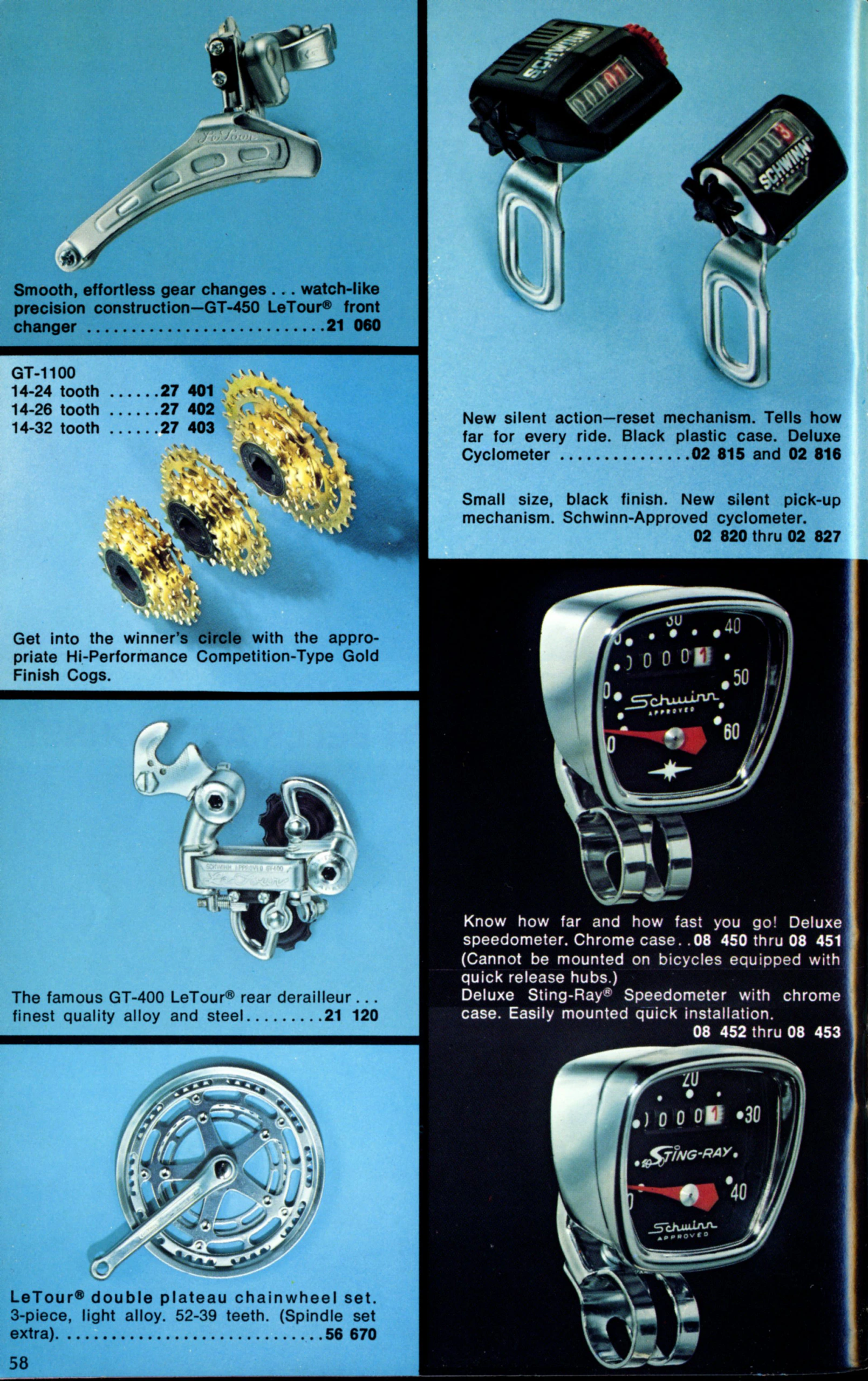

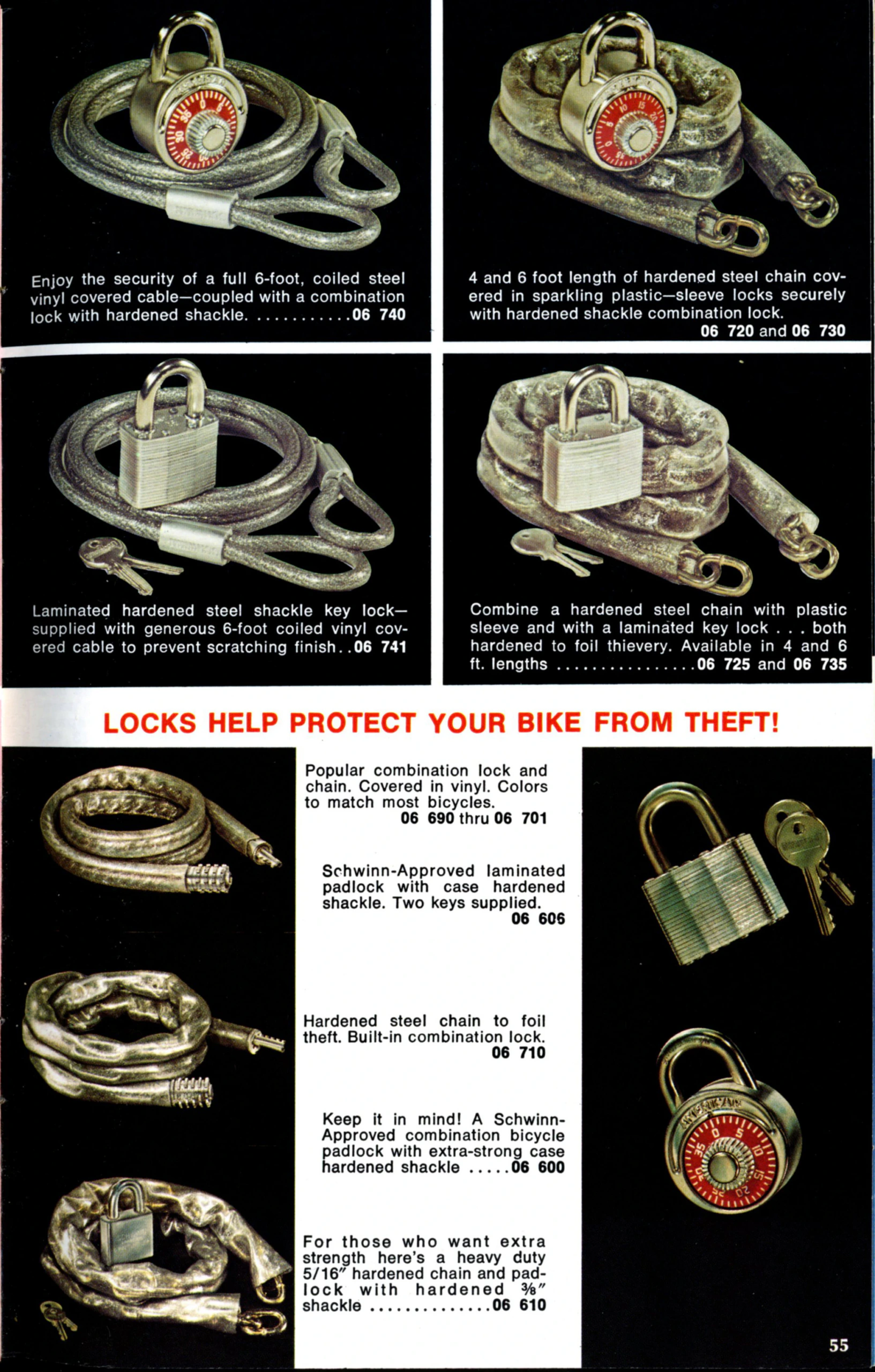

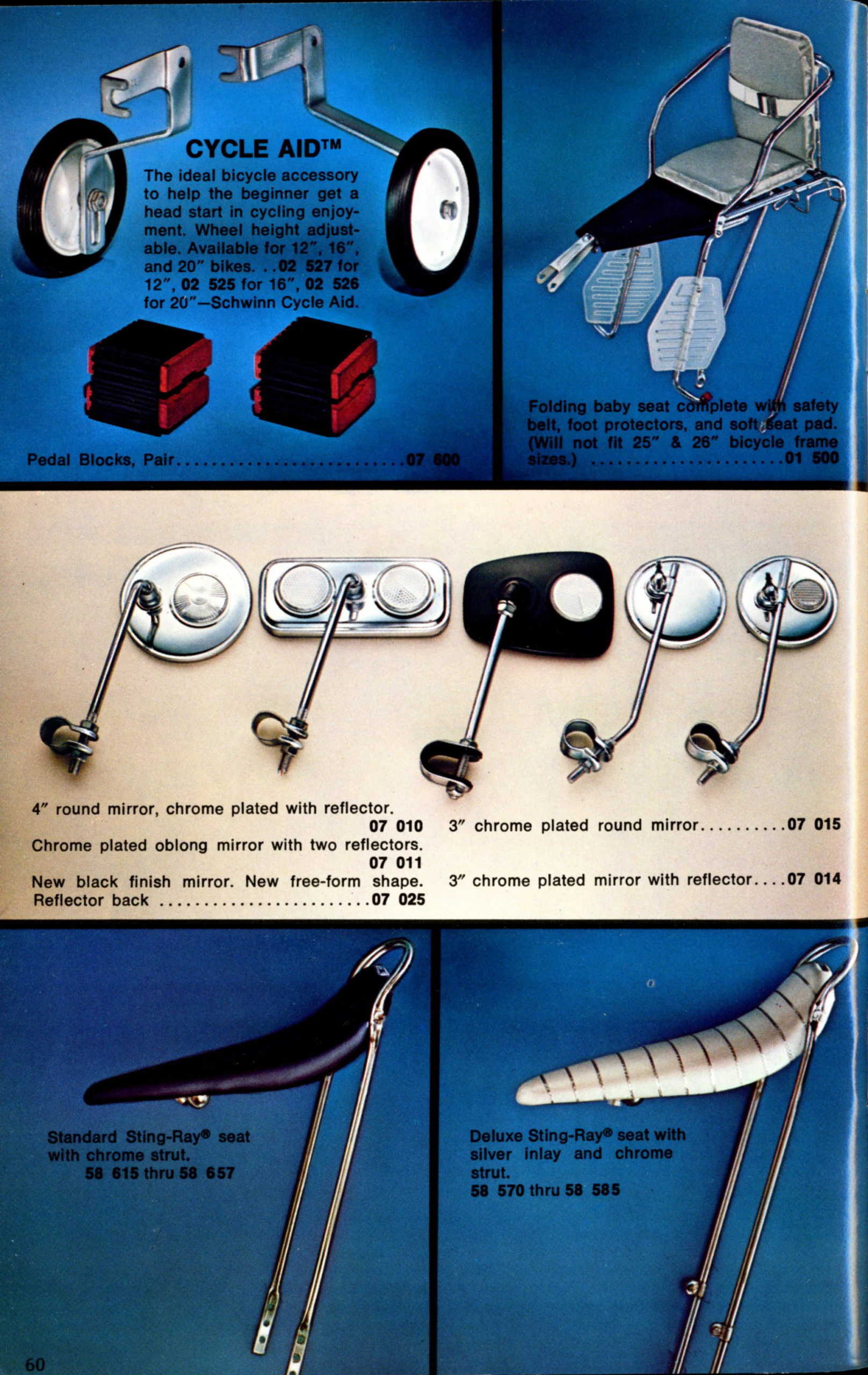

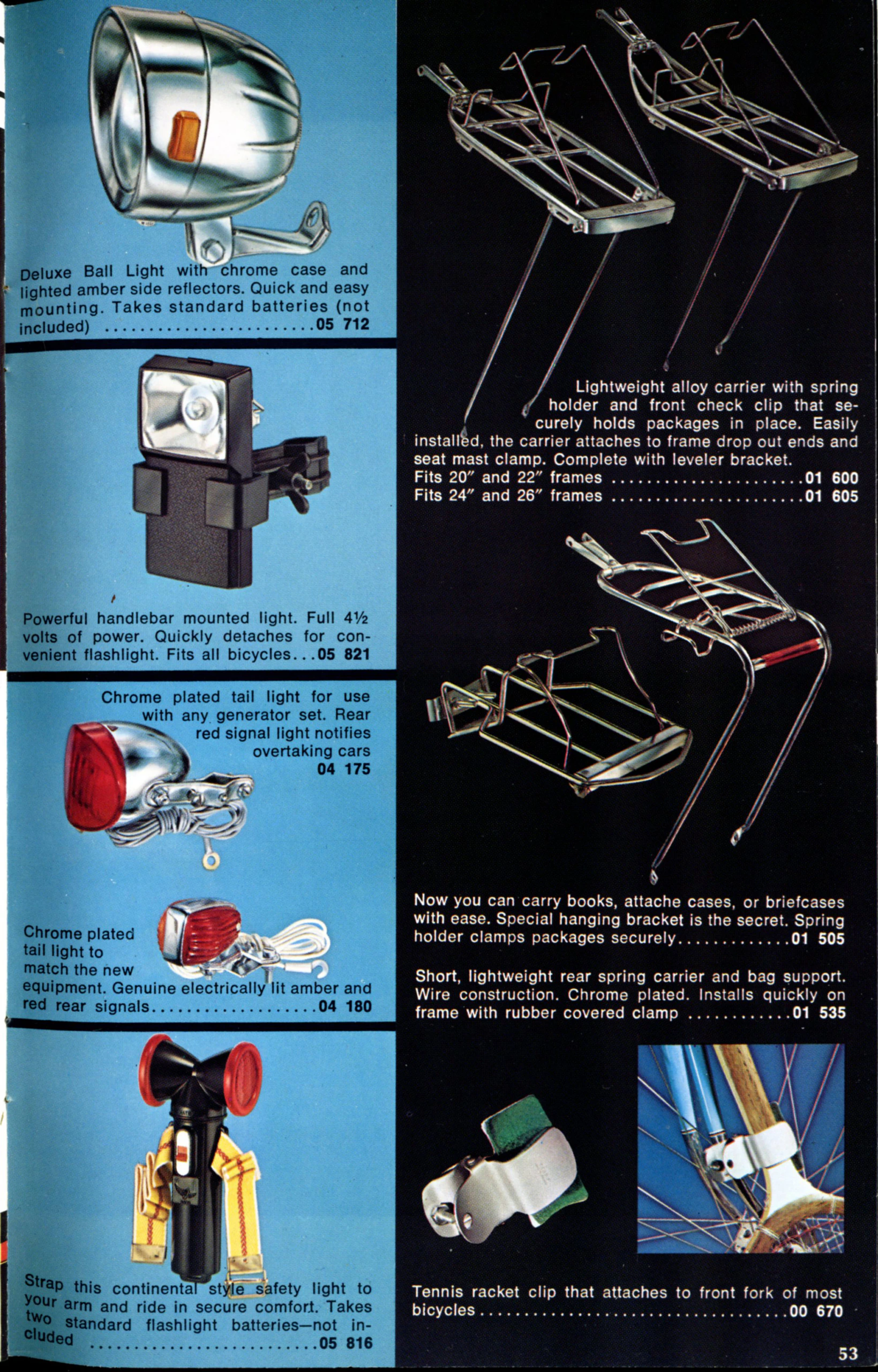

Parts and Accessories | 52-63
Schwinn Quality Story | 8 & 9
Sting-Ray® Bicycles:

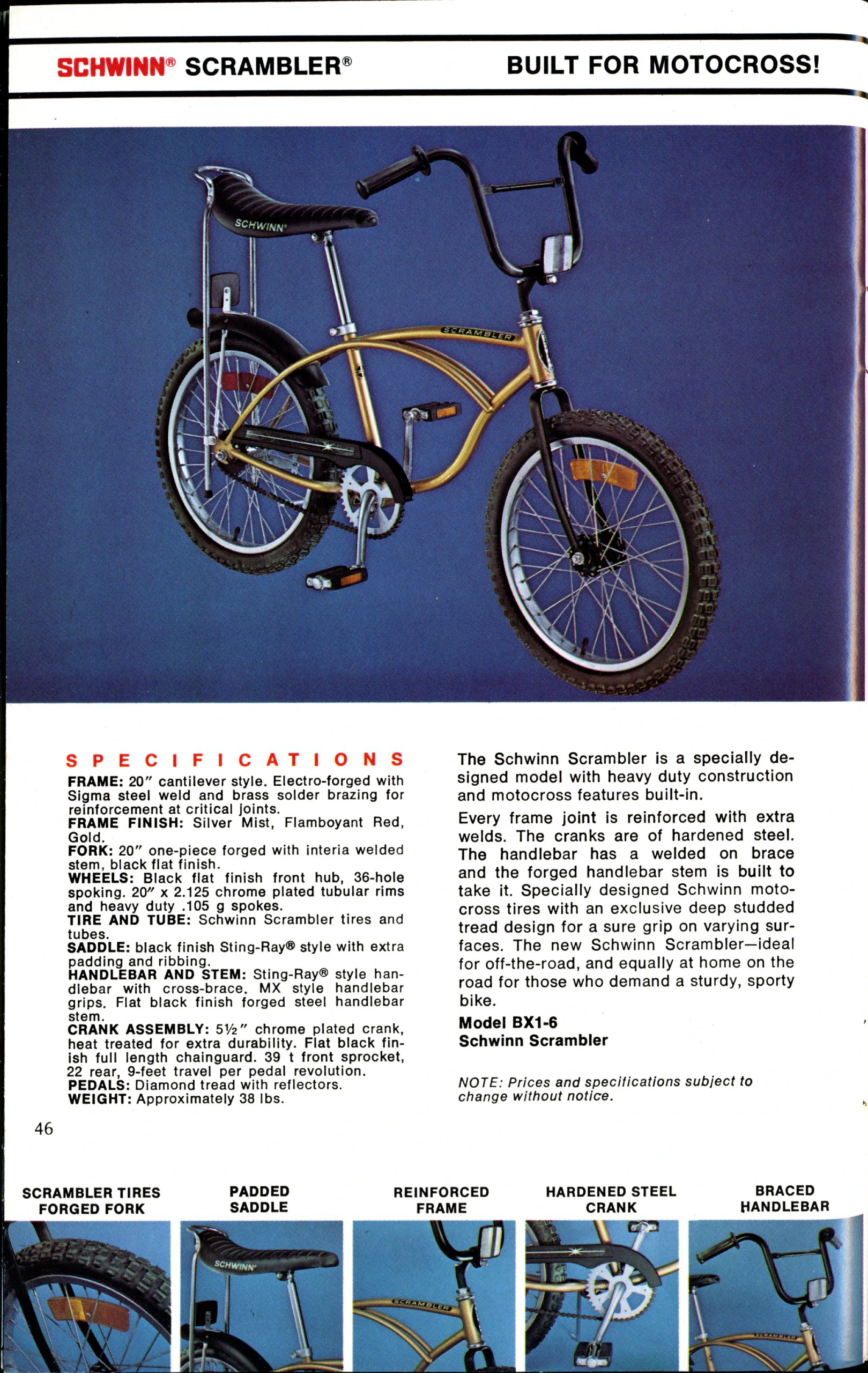

Scrambler® | 46
Boys’ Sting-Ray® Styles | 47
Girls’ Sting-Ray® Styles | 48

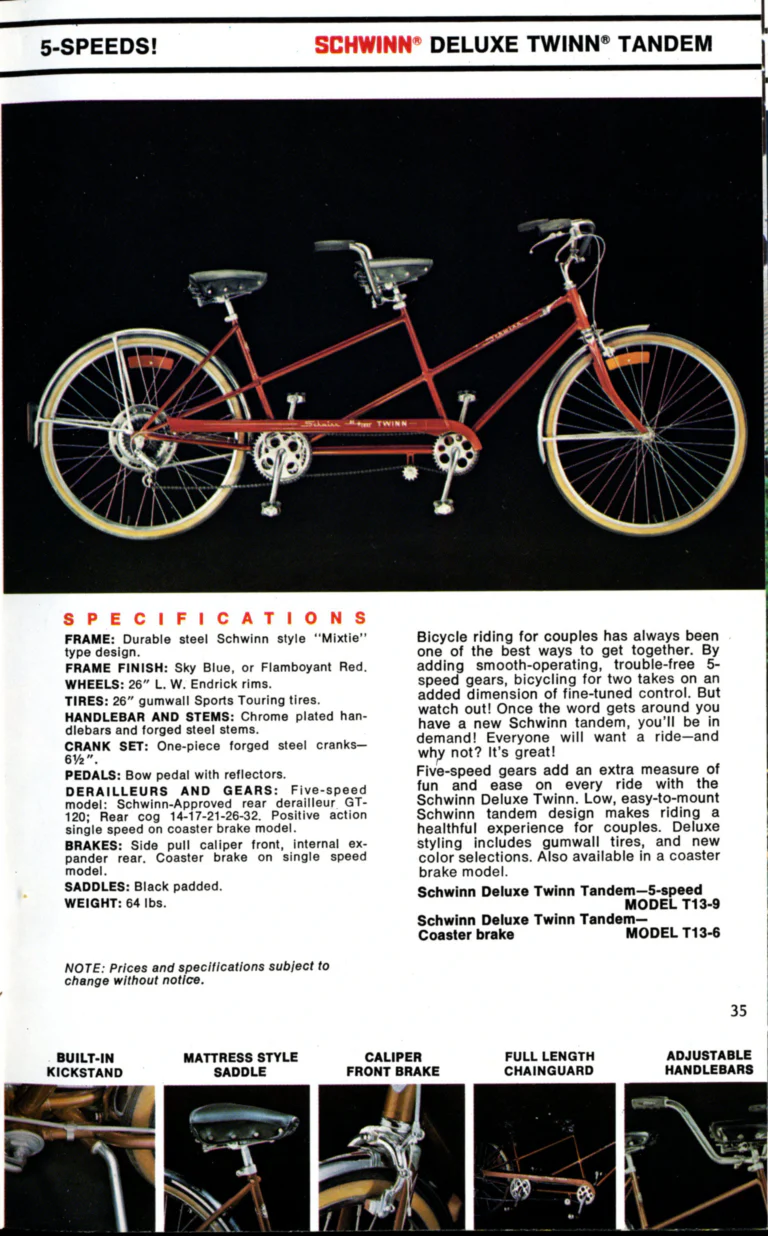

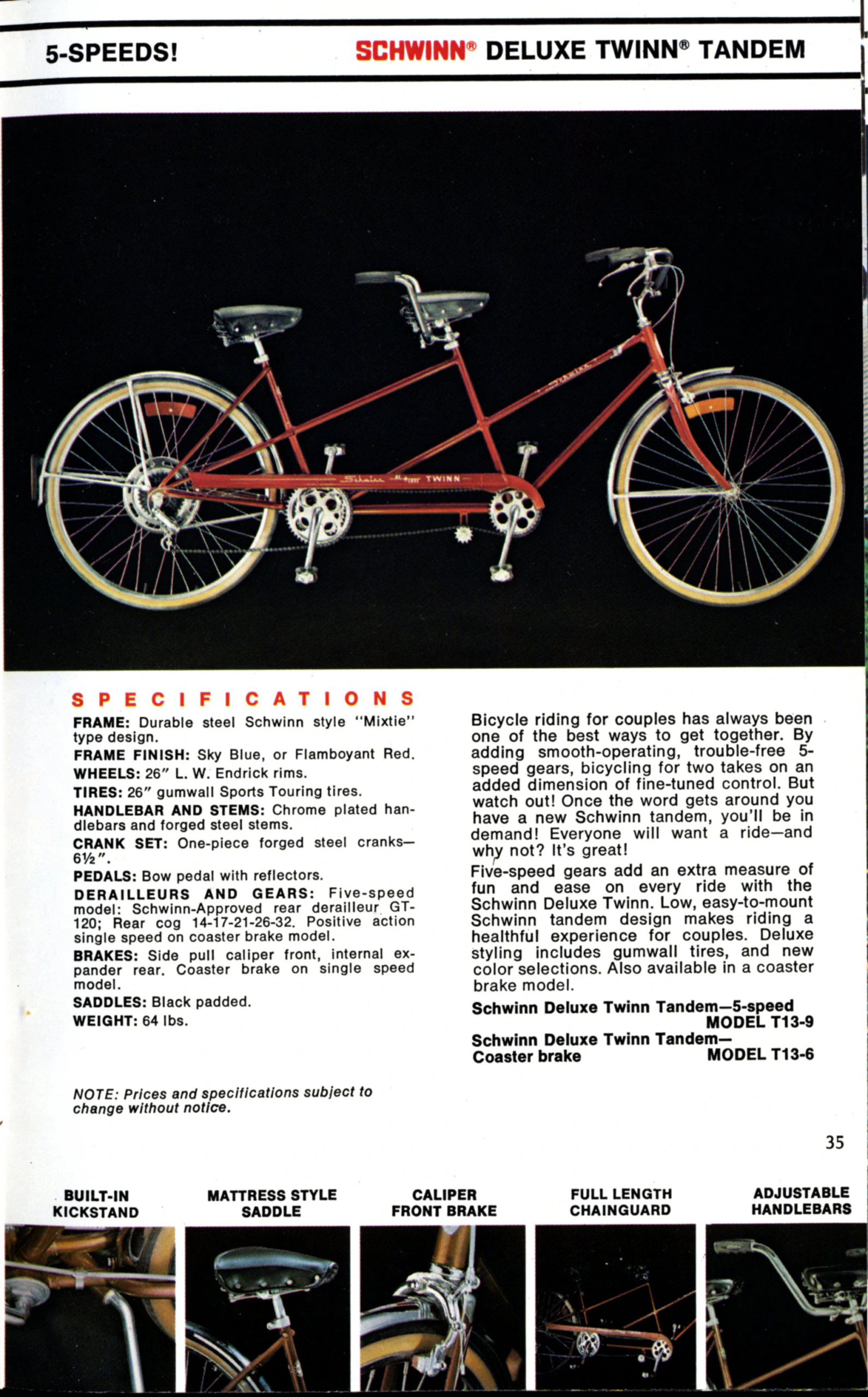

Tandem Bicycle | 35

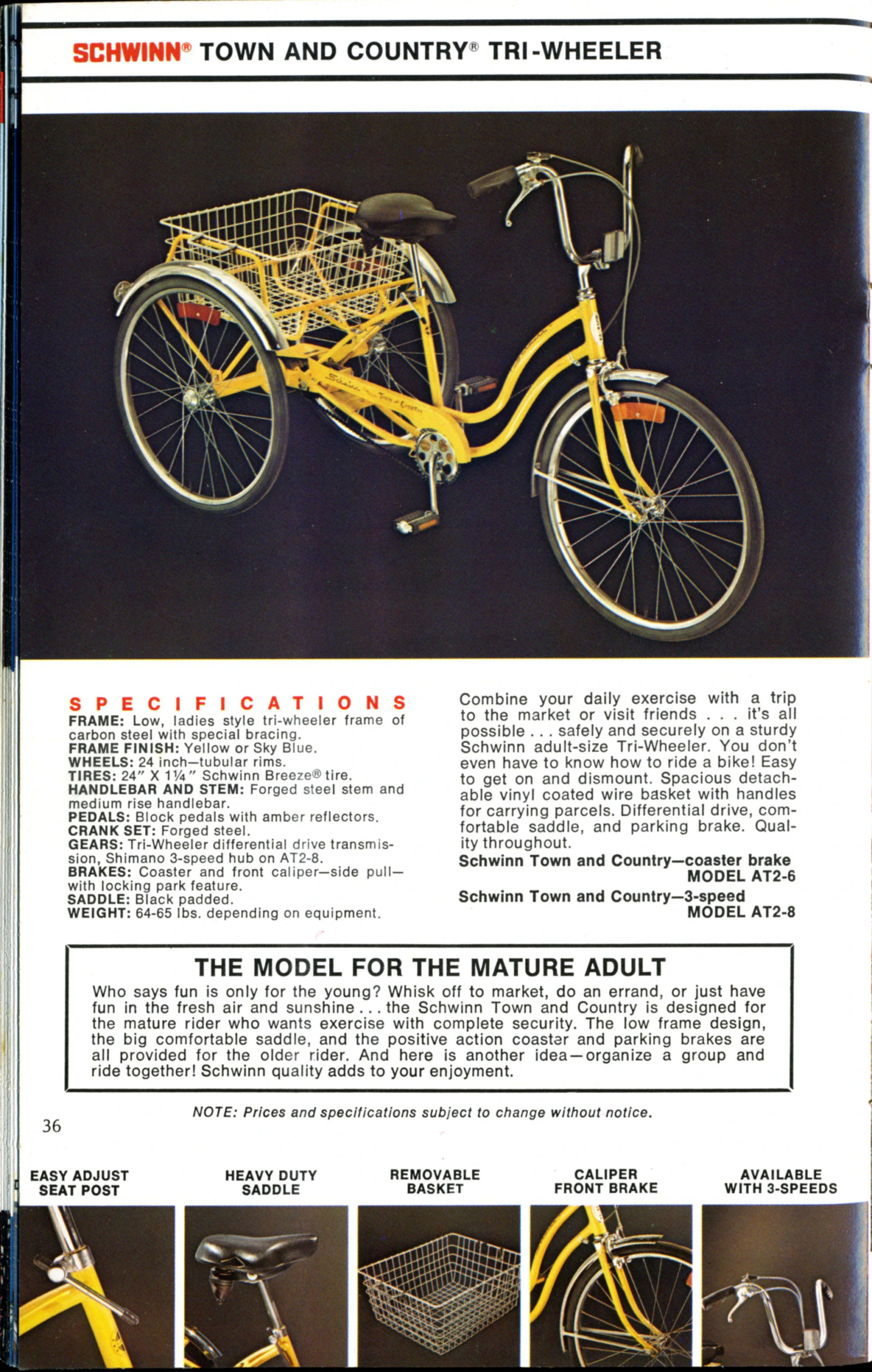

Adult Tri-Wheeler | 36
Unicycle | 38
Warranty | 64

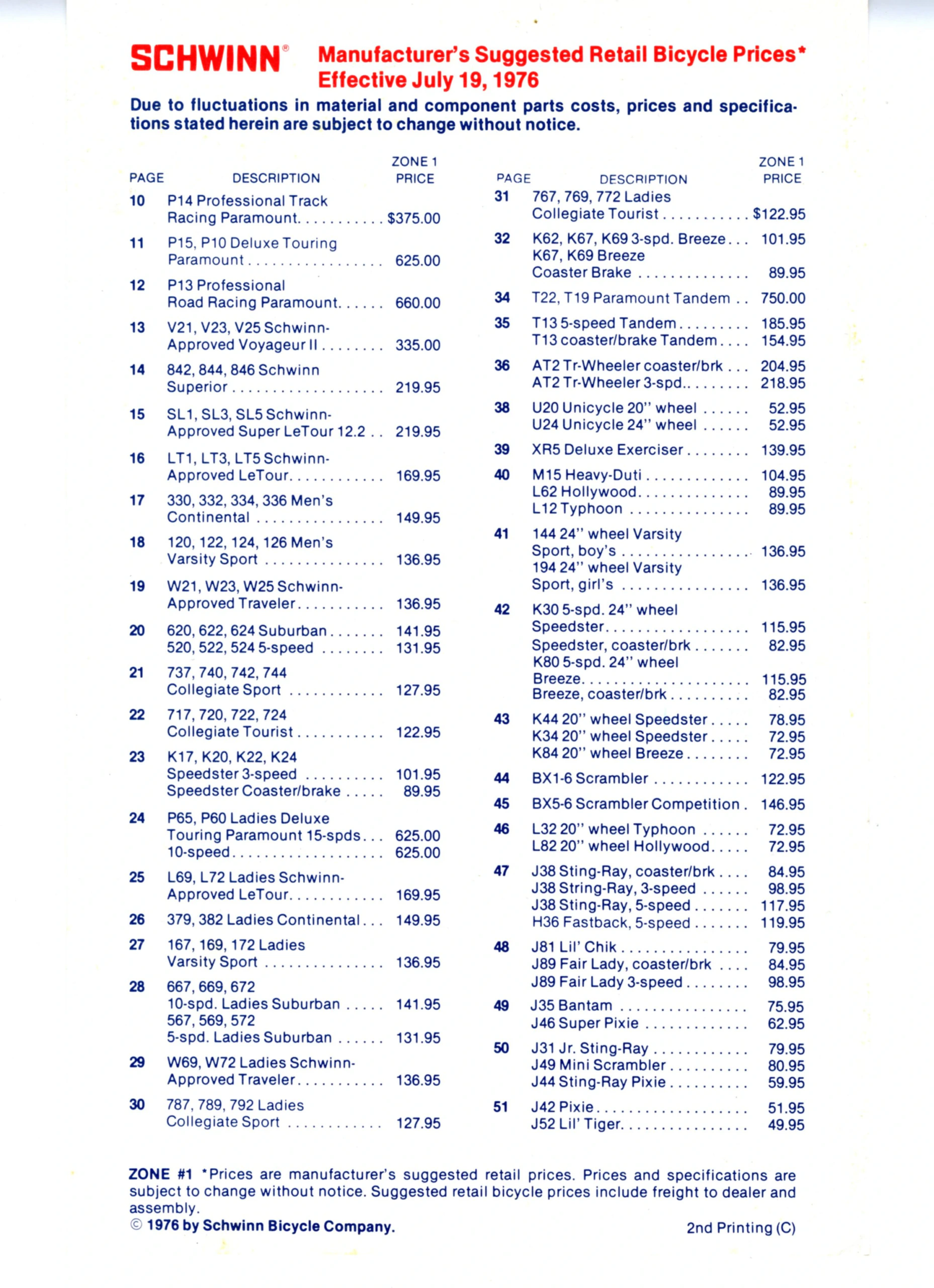

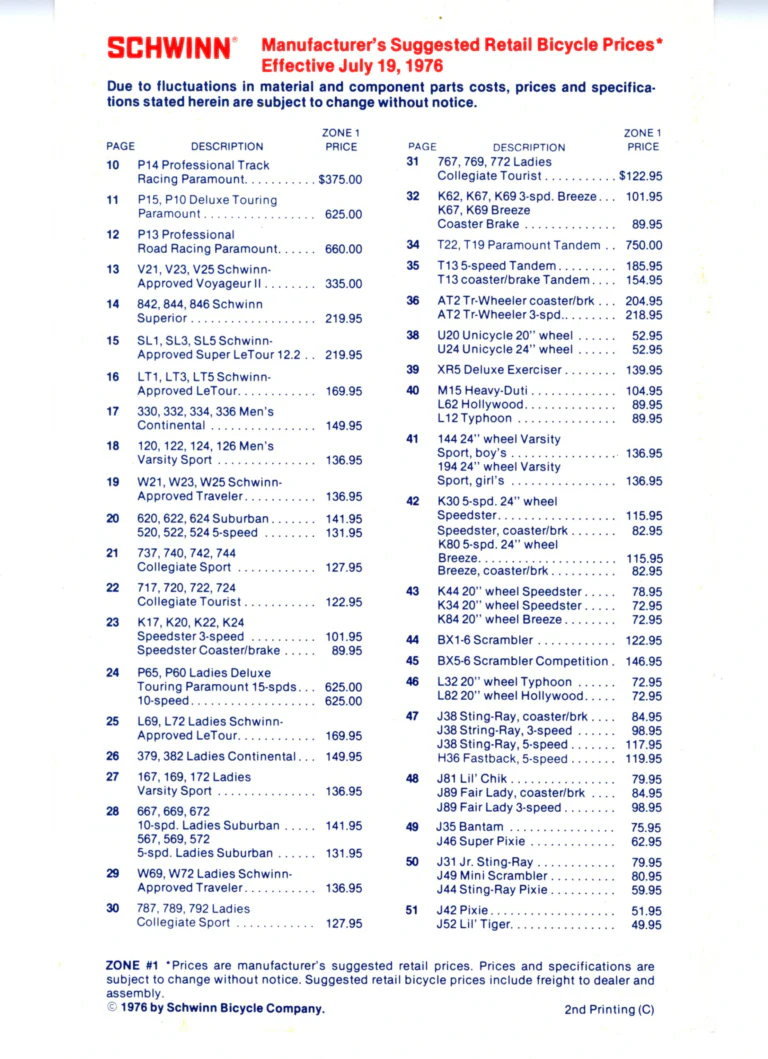

All bicycle prices accompanying this catalog are manufacturer’s suggested retail prices. Bicycle prices include freight to dealer and assembly.

All prices and specifications are subject to change without notice.

Suggested prices on parts and accessories do not include installation. Battery operated accessories may not include batteries.

Bicycle weights (Wt.) stated are approximate net weights. Weights in a particular model line vary and are given as a range. The larger the frame size, the greater the weight of the model. Equipment variation also affects net weights.

At left: It was from the church tower in the background in Boston that Paul Revere sounded the warning, one if by land, two if by sea. The British are coming!

Copyright © 1976,
Schwinn Bicycle Company,
Chicago, Illinois.
Printed in U.S.A.

2

[The catalog’s opening page, headed “The All-New 1976 Schwinn Bicycle Catalog” and “Cycling America”, with an introduction, an index of the catalog’s sections and a photograph of a group of young cyclists riding toward the camera on a brick path beneath a white church steeple. The caption in the right column names the steeple as the Boston church tower of Paul Revere’s warning, and the column closes with the copyright and “Printed in U.S.A.” lines. The passage from “cycling uses no expensive gasoline” to “healthy exercise” and the line “All prices and specifications are subject to change without notice.” are set in bold.]

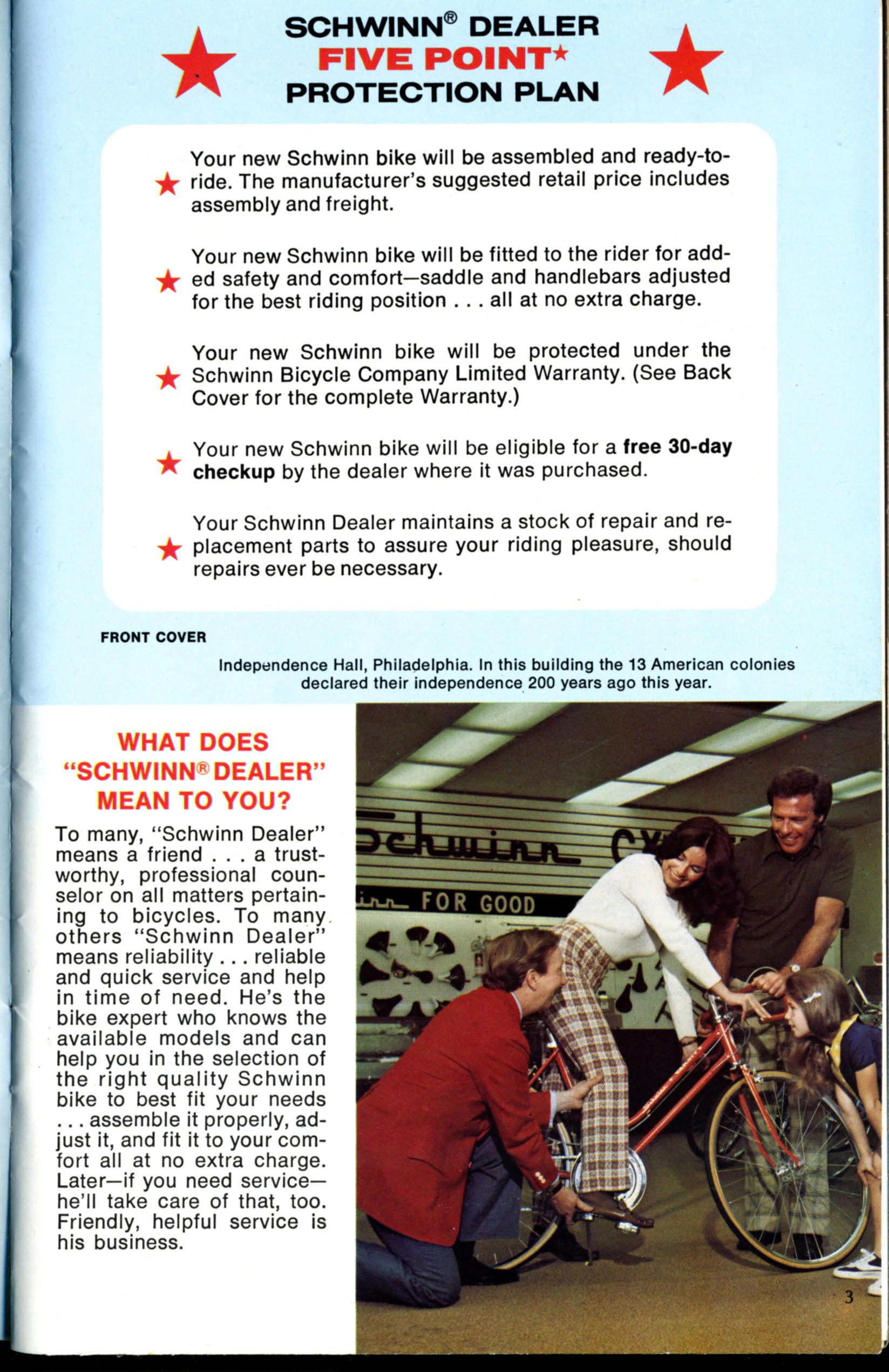

— Page 3 —
SCHWINN® DEALER
FIVE POINT★
PROTECTION PLAN

Your new Schwinn bike will be assembled and ready-to-ride. The manufacturer’s suggested retail price includes assembly and freight.

Your new Schwinn bike will be fitted to the rider for added safety and comfort—saddle and handlebars adjusted for the best riding position . . . all at no extra charge.

Your new Schwinn bike will be protected under the Schwinn Bicycle Company Limited Warranty. (See Back Cover for the complete Warranty.)

Your new Schwinn bike will be eligible for a free 30-day checkup by the dealer where it was purchased.

Your Schwinn Dealer maintains a stock of repair and replacement parts to assure your riding pleasure, should repairs ever be necessary.

FRONT COVER
Independence Hall, Philadelphia. In this building the 13 American colonies declared their independence 200 years ago this year.

WHAT DOES
“SCHWINN® DEALER”
MEAN TO YOU?

To many, “Schwinn Dealer” means a friend . . . a trustworthy, professional counselor on all matters pertaining to bicycles. To many others “Schwinn Dealer” means reliability . . . reliable and quick service and help in time of need. He’s the bike expert who knows the available models and can help you in the selection of the right quality Schwinn bike to best fit your needs . . . assemble it properly, adjust it, and fit it to your comfort all at no extra charge. Later—if you need service—he’ll take care of that, too. Friendly, helpful service is his business.

3

[The Schwinn Dealer “Five Point Protection Plan”, its five promises set in a white panel with a red star beside each, above the caption for the front cover and a column on what “Schwinn Dealer” means. A photograph shows a dealer in a red blazer kneeling to adjust a red ladies’ bicycle for a seated young woman while a man and a small girl look on, with saddles displayed on the shop wall behind. The words “free 30-day checkup” are set in bold.]

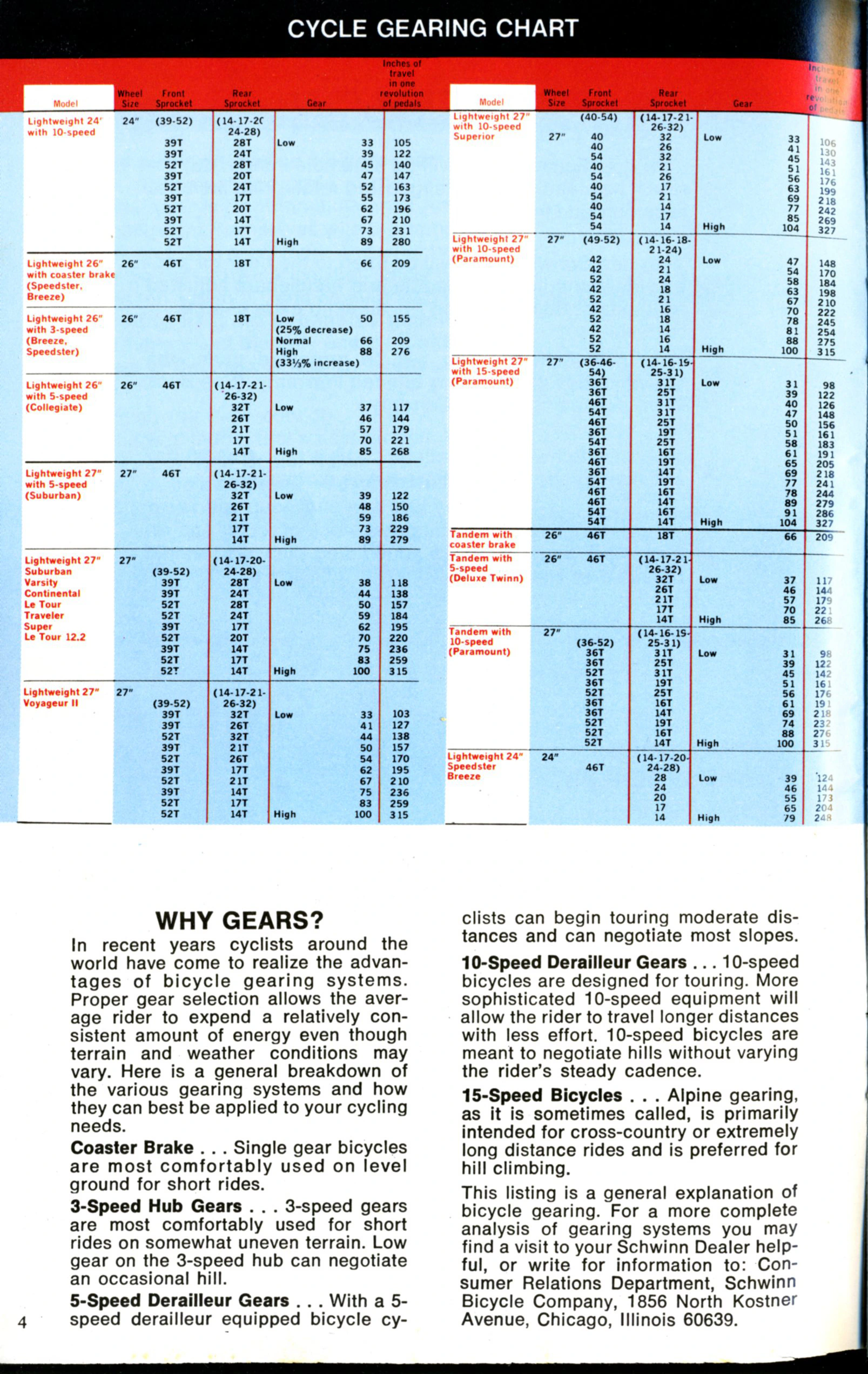

— Page 4 —
CYCLE GEARING CHART

Model | Wheel Size | Front Sprocket | Rear Sprocket | Gear | Inches of travel in one revolution of pedals
Lightweight 24′ with 10-speed | 24″ | (39-52) | (14-17-20[?] 24-28) | |
| | 39T | 28T | Low 33 | 105
| | 39T | 24T | 39 | 122
| | 52T | 28T | 45 | 140
| | 39T | 20T | 47 | 147
| | 52T | 24T | 52 | 163
| | 39T | 17T | 55 | 173
| | 52T | 20T | 62 | 196
| | 39T | 14T | 67 | 210
| | 52T | 17T | 73 | 231
| | 52T | 14T | High 89 | 280
Lightweight 26″ with coaster brake (Speedster, Breeze) | 26″ | 46T | 18T | 66[?] | 209
Lightweight 26″ with 3-speed (Breeze, Speedster) | 26″ | 46T | 18T | Low 50 | 155
| | | | (25% decrease) |
| | | | Normal 66 | 209
| | | | High 88 | 276
| | | | (33⅓% increase) |
Lightweight 26″ with 5-speed (Collegiate) | 26″ | 46T | (14-17-21-26-32) | |
| | | 32T | Low 37 | 117
| | | 26T | 46 | 144
| | | 21T | 57 | 179
| | | 17T | 70 | 221
| | | 14T | High 85 | 268

Lightweight 27″ with 5-speed (Suburban) | 27″ | 46T | (14-17-21-26-32) | |
| | | 32T | Low 39 | 122
| | | 26T | 48 | 150
| | | 21T | 59 | 186
| | | 17T | 73 | 229
| | | 14T | High 89 | 279
Lightweight 27″ Suburban Varsity Continental Le Tour Traveler Super Le Tour 12.2 | 27″ | (39-52) | (14-17-20-24-28) | |
| | 39T | 28T | Low 38 | 118
| | 39T | 24T | 44 | 138
| | 52T | 28T | 50 | 157
| | 52T | 24T | 59 | 184
| | 39T | 17T | 62 | 195
| | 52T | 20T | 70 | 220
| | 39T | 14T | 75 | 236
| | 52T | 17T | 83 | 259
| | 52T | 14T | High 100 | 315
Lightweight 27″ Voyageur II | 27″ | (39-52) | (14-17-21-26-32) | |
| | 39T | 32T | Low 33 | 103
| | 39T | 26T | 41 | 127
| | 52T | 32T | 44 | 138
| | 39T | 21T | 50 | 157
| | 52T | 26T | 54 | 170
| | 39T | 17T | 62 | 195
| | 52T | 21T | 67 | 210
| | 39T | 14T | 75 | 236
| | 52T | 17T | 83 | 259
| | 52T | 14T | High 100 | 315

Model | Wheel Size | Front Sprocket | Rear Sprocket | Gear | Inches of travel in one revolution of pedals
Lightweight 27″ with 10-speed Superior | | (40-54) | (14-17-21-26-32) | |
| 27″ | 40 | 32 | Low 33 | 106
| | 40 | 26 | 41 | 130
| | 54 | 32 | 45 | 143
| | 40 | 21 | 51 | 161
| | 54 | 26 | 56 | 176
| | 40 | 17 | 63 | 199
| | 54 | 21 | 69 | 218
| | 40 | 14 | 77 | 242
| | 54 | 17 | 85 | 269
| | 54 | 14 | High 104 | 327
Lightweight 27″ with 10-speed (Paramount) | 27″ | (49-52) | (14-16-18-21-24) | |
| | 42 | 24 | Low 47 | 148
| | 42 | 21 | 54 | 170
| | 52 | 24 | 58 | 184
| | 42 | 18 | 63 | 198
| | 52 | 21 | 67 | 210
| | 42 | 16 | 70 | 222
| | 52 | 18 | 78 | 245
| | 42 | 14 | 81 | 254
| | 52 | 16 | 88 | 275
| | 52 | 14 | High 100 | 315
Lightweight 27″ with 15-speed (Paramount) | 27″ | (36-46-54) | (14-16-19[?]-25-31) | |
| | 36T | 31T | Low 31 | 98
| | 36T | 25T | 39 | 122
| | 46T | 31T | 40 | 126
| | 54T | 31T | 47 | 148
| | 46T | 25T | 50 | 156
| | 36T | 19T | 51 | 161
| | 54T | 25T | 58 | 183
| | 36T | 16T | 61 | 191
| | 46T | 19T | 65 | 205
| | 36T | 14T | 69 | 218
| | 54T | 19T | 77 | 241
| | 46T | 16T | 78 | 244
| | 46T | 14T | 89 | 279
| | 54T | 16T | 91 | 286
| | 54T | 14T | High 104 | 327

Tandem with coaster brake | 26″ | 46T | 18T | 66 | 209
Tandem with 5-speed (Deluxe Twinn) | 26″ | 46T | (14-17-21-26-32) | |
| | | 32T | Low 37 | 117
| | | 26T | 46 | 144
| | | 21T | 57 | 179
| | | 17T | 70 | 221
| | | 14T | High 85 | 268
Tandem with 10-speed (Paramount) | 27″ | (36-52) | (14-16-19[?]-25-31) | |
| | 36T | 31T | Low 31 | 98
| | 36T | 25T | 39 | 122
| | 52T | 31T | 45 | 142
| | 36T | 19T | 51 | 161
| | 52T | 25T | 56 | 176
| | 36T | 16T | 61 | 191
| | 36T | 14T | 69 | 218
| | 52T | 19T | 74 | 232
| | 52T | 16T | 88 | 276
| | 52T | 14T | High 100 | 315
Lightweight 24″ Speedster Breeze | 24″ | 46T | (14-17-20-24-28) | |
| | | 28 | Low 39 | 124
| | | 24 | 46 | 144
| | | 20 | 55 | 173
| | | 17 | 65 | 204
| | | 14 | High 79 | 248

WHY GEARS?
In recent years cyclists around the world have come to realize the advantages of bicycle gearing systems. Proper gear selection allows the average rider to expend a relatively consistent amount of energy even though terrain and weather conditions may vary. Here is a general breakdown of the various gearing systems and how they can best be applied to your cycling needs.

Coaster Brake . . . Single gear bicycles are most comfortably used on level ground for short rides.

3-Speed Hub Gears . . . 3-speed gears are most comfortably used for short rides on somewhat uneven terrain. Low gear on the 3-speed hub can negotiate an occasional hill.

5-Speed Derailleur Gears . . . With a 5-speed derailleur equipped bicycle cyclists can begin touring moderate distances and can negotiate most slopes.

10-Speed Derailleur Gears . . . 10-speed bicycles are designed for touring. More sophisticated 10-speed equipment will allow the rider to travel longer distances with less effort. 10-speed bicycles are meant to negotiate hills without varying the rider’s steady cadence.

15-Speed Bicycles . . . Alpine gearing, as it is sometimes called, is primarily intended for cross-country or extremely long distance rides and is preferred for hill climbing.

This listing is a general explanation of bicycle gearing. For a more complete analysis of gearing systems you may find a visit to your Schwinn Dealer helpful, or write for information to: Consumer Relations Department, Schwinn Bicycle Company, 1856 North Kostner Avenue, Chicago, Illinois 60639.

4

[The “Cycle Gearing Chart”, two tables set side by side that give for each Schwinn lightweight and tandem gearing (from the Speedster and Breeze with coaster brake to the 15-speed Paramount) the wheel size, front and rear sprockets, gear figure and inches of travel in one revolution of the pedals, above a two-column text headed “Why Gears?”. Model names are printed in red; the run-in headings of the text (“Coaster Brake”, “3-Speed Hub Gears” and the rest) are set in bold. The last column of the right table runs into the binding shadow at the gutter but every figure can still be read.]

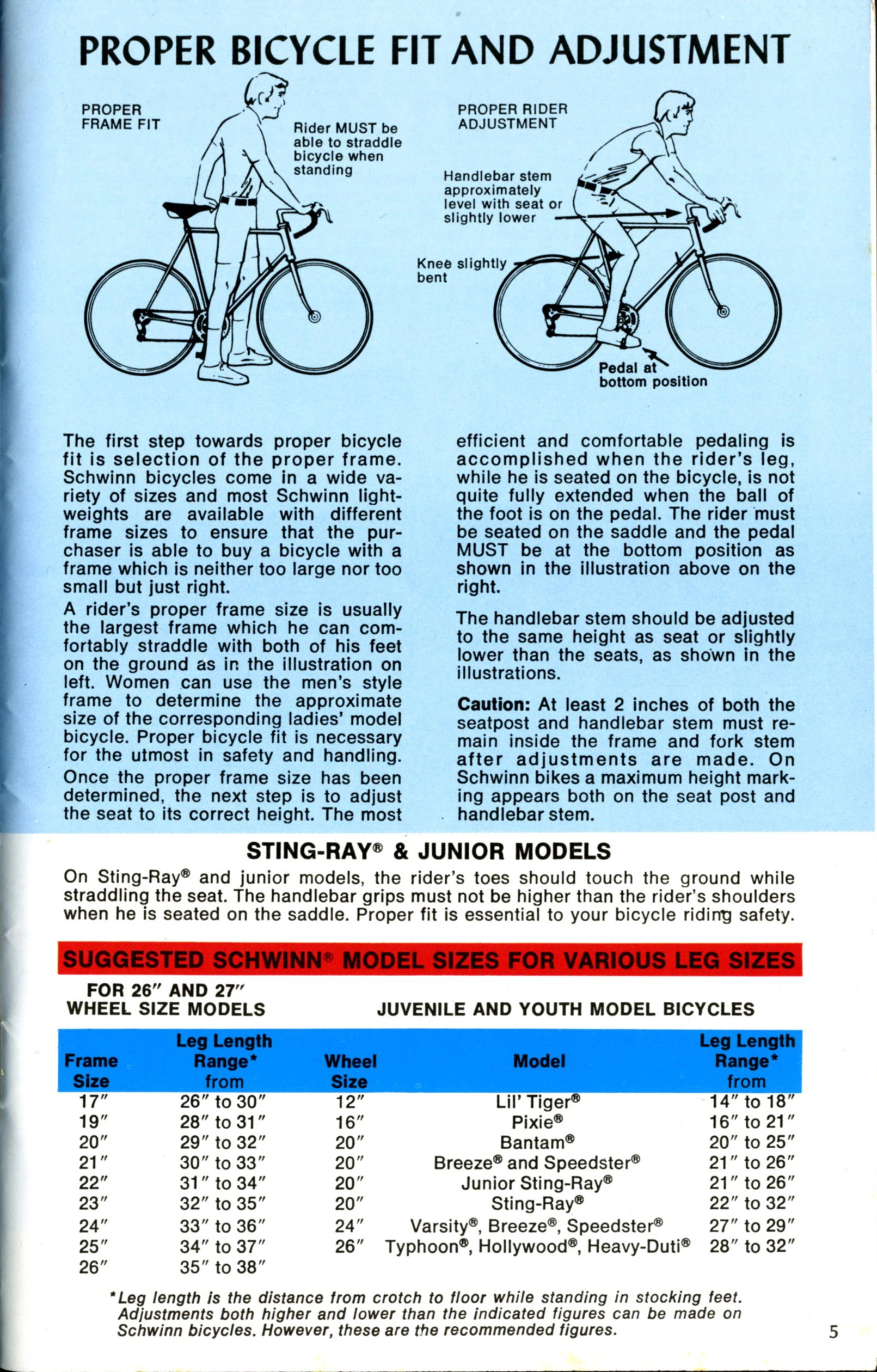

— Page 5 —
PROPER BICYCLE FIT AND ADJUSTMENT

PROPER FRAME FIT
Rider MUST be able to straddle bicycle when standing

PROPER RIDER ADJUSTMENT
Handlebar stem approximately level with seat or slightly lower
Knee slightly bent
Pedal at bottom position

The first step towards proper bicycle fit is selection of the proper frame. Schwinn bicycles come in a wide variety of sizes and most Schwinn lightweights are available with different frame sizes to ensure that the purchaser is able to buy a bicycle with a frame which is neither too large nor too small but just right.

A rider’s proper frame size is usually the largest frame which he can comfortably straddle with both of his feet on the ground as in the illustration on left. Women can use the men’s style frame to determine the approximate size of the corresponding ladies’ model bicycle. Proper bicycle fit is necessary for the utmost in safety and handling.

Once the proper frame size has been determined, the next step is to adjust the seat to its correct height. The most efficient and comfortable pedaling is accomplished when the rider’s leg, while he is seated on the bicycle, is not quite fully extended when the ball of the foot is on the pedal. The rider must be seated on the saddle and the pedal MUST be at the bottom position as shown in the illustration above on the right.

The handlebar stem should be adjusted to the same height as seat or slightly lower than the seats, as shown in the illustrations.

Caution: At least 2 inches of both the seatpost and handlebar stem must remain inside the frame and fork stem after adjustments are made. On Schwinn bikes a maximum height marking appears both on the seat post and handlebar stem.

STING-RAY® & JUNIOR MODELS
On Sting-Ray® and junior models, the rider’s toes should touch the ground while straddling the seat. The handlebar grips must not be higher than the rider’s shoulders when he is seated on the saddle. Proper fit is essential to your bicycle riding safety.

SUGGESTED SCHWINN® MODEL SIZES FOR VARIOUS LEG SIZES

FOR 26″ AND 27″
WHEEL SIZE MODELS
Frame Size | Leg Length Range* from
17″ | 26″ to 30″
19″ | 28″ to 31″
20″ | 29″ to 32″
21″ | 30″ to 33″
22″ | 31″ to 34″
23″ | 32″ to 35″
24″ | 33″ to 36″
25″ | 34″ to 37″
26″ | 35″ to 38″

JUVENILE AND YOUTH MODEL BICYCLES
Wheel Size | Model | Leg Length Range* from
12″ | Lil’ Tiger® | 14″ to 18″
16″ | Pixie® | 16″ to 21″
20″ | Bantam® | 20″ to 25″
20″ | Breeze® and Speedster® | 21″ to 26″
20″ | Junior Sting-Ray® | 21″ to 26″
20″ | Sting-Ray® | 22″ to 32″
24″ | Varsity®, Breeze®, Speedster® | 27″ to 29″
26″ | Typhoon®, Hollywood®, Heavy-Duti® | 28″ to 32″

*Leg length is the distance from crotch to floor while standing in stocking feet. Adjustments both higher and lower than the indicated figures can be made on Schwinn bicycles. However, these are the recommended figures.

5

[Two line drawings of a young man and a 10-speed with drop handlebars, labeled “Proper Frame Fit” (standing astride the top tube) and “Proper Rider Adjustment” (seated, pedal at the bottom of its stroke), above the text on frame fit, seat and handlebar height and the fit of Sting-Ray and junior models, and the table “Suggested Schwinn Model Sizes for Various Leg Sizes” in two parts: frame sizes for the 26 and 27 inch wheel models and wheel sizes for the juvenile and youth models. The footnote is set in italic.]

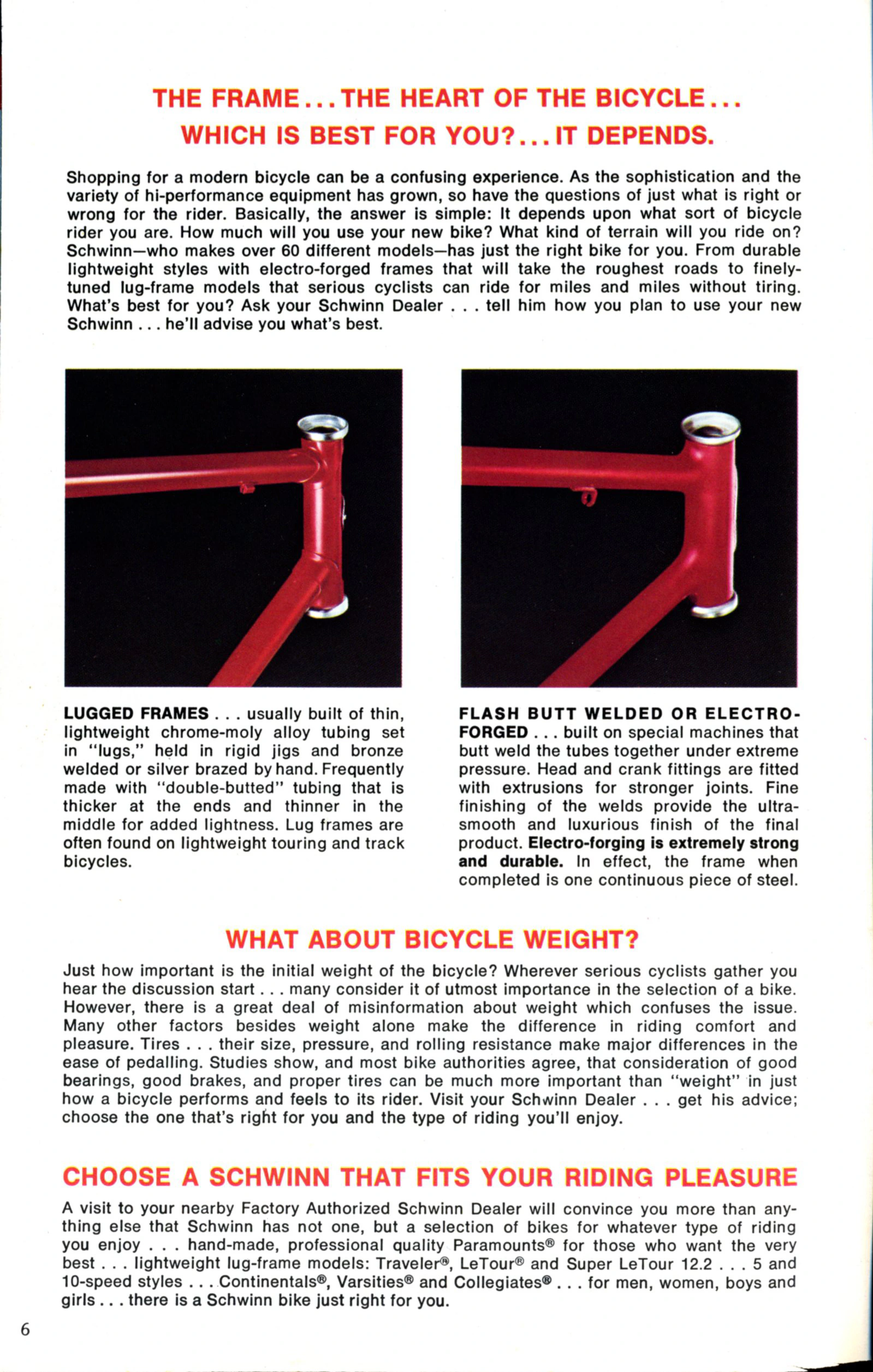

— Page 6 —
THE FRAME…THE HEART OF THE BICYCLE…
WHICH IS BEST FOR YOU?…IT DEPENDS.

Shopping for a modern bicycle can be a confusing experience. As the sophistication and the variety of hi-performance equipment has grown, so have the questions of just what is right or wrong for the rider. Basically, the answer is simple: It depends upon what sort of bicycle rider you are. How much will you use your new bike? What kind of terrain will you ride on? Schwinn—who makes over 60 different models—has just the right bike for you. From durable lightweight styles with electro-forged frames that will take the roughest roads to finely-tuned lug-frame models that serious cyclists can ride for miles and miles without tiring. What’s best for you? Ask your Schwinn Dealer . . . tell him how you plan to use your new Schwinn . . . he’ll advise you what’s best.

LUGGED FRAMES . . . usually built of thin, lightweight chrome-moly alloy tubing set in “lugs,” held in rigid jigs and bronze welded or silver brazed by hand. Frequently made with “double-butted” tubing that is thicker at the ends and thinner in the middle for added lightness. Lug frames are often found on lightweight touring and track bicycles.

FLASH BUTT WELDED OR ELECTRO-FORGED . . . built on special machines that butt weld the tubes together under extreme pressure. Head and crank fittings are fitted with extrusions for stronger joints. Fine finishing of the welds provide the ultra-smooth and luxurious finish of the final product. Electro-forging is extremely strong and durable. In effect, the frame when completed is one continuous piece of steel.

WHAT ABOUT BICYCLE WEIGHT?
Just how important is the initial weight of the bicycle? Wherever serious cyclists gather you hear the discussion start . . . many consider it of utmost importance in the selection of a bike. However, there is a great deal of misinformation about weight which confuses the issue. Many other factors besides weight alone make the difference in riding comfort and pleasure. Tires . . . their size, pressure, and rolling resistance make major differences in the ease of pedalling. Studies show, and most bike authorities agree, that consideration of good bearings, good brakes, and proper tires can be much more important than “weight” in just how a bicycle performs and feels to its rider. Visit your Schwinn Dealer . . . get his advice; choose the one that’s right for you and the type of riding you’ll enjoy.

CHOOSE A SCHWINN THAT FITS YOUR RIDING PLEASURE
A visit to your nearby Factory Authorized Schwinn Dealer will convince you more than anything else that Schwinn has not one, but a selection of bikes for whatever type of riding you enjoy . . . hand-made, professional quality Paramounts® for those who want the very best . . . lightweight lug-frame models: Traveler®, LeTour® and Super LeTour 12.2 . . . 5 and 10-speed styles . . . Continentals®, Varsities® and Collegiates® . . . for men, women, boys and girls . . . there is a Schwinn bike just right for you.

6

[Two close-up photographs of the head of a red bicycle frame against black, a lugged frame at left and a flash butt welded or electro-forged frame at right, each above its explanation, with text on the choice of frame, on bicycle weight and on choosing a Schwinn. The run-in headings “LUGGED FRAMES” and “FLASH BUTT WELDED OR ELECTRO-FORGED” and the sentence “Electro-forging is extremely strong and durable.” are set in bold.]

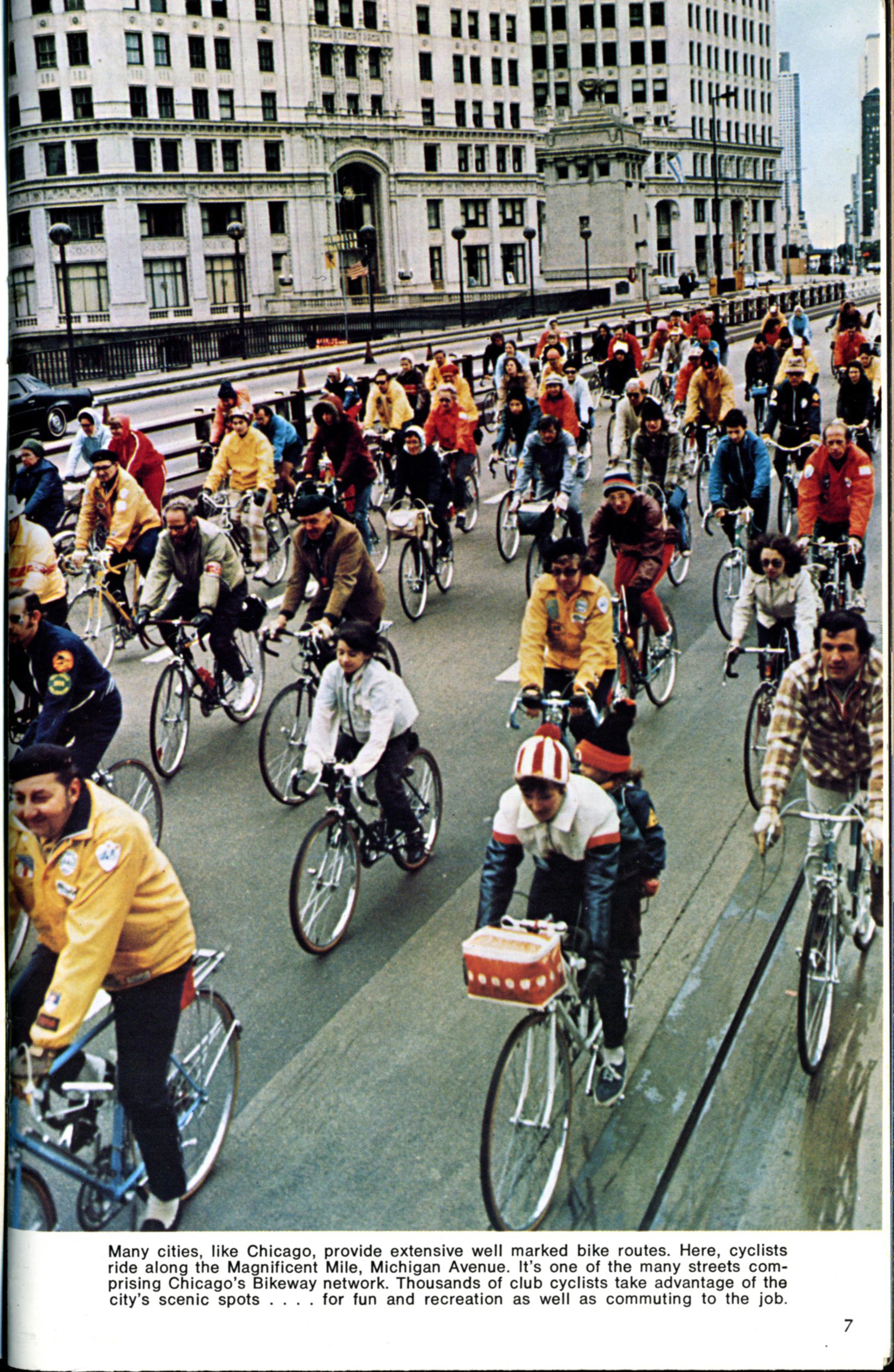

— Page 7 —
Many cities, like Chicago, provide extensive well marked bike routes. Here, cyclists ride along the Magnificent Mile, Michigan Avenue. It’s one of the many streets comprising Chicago’s Bikeway network. Thousands of club cyclists take advantage of the city’s scenic spots . . . . for fun and recreation as well as commuting to the job.

7

[A large group of club cyclists, many in yellow and red jackets with club patches, riding toward the camera along Michigan Avenue in Chicago, as the caption names it, with tall stone office buildings behind them; the photograph fills the page above a short caption.]

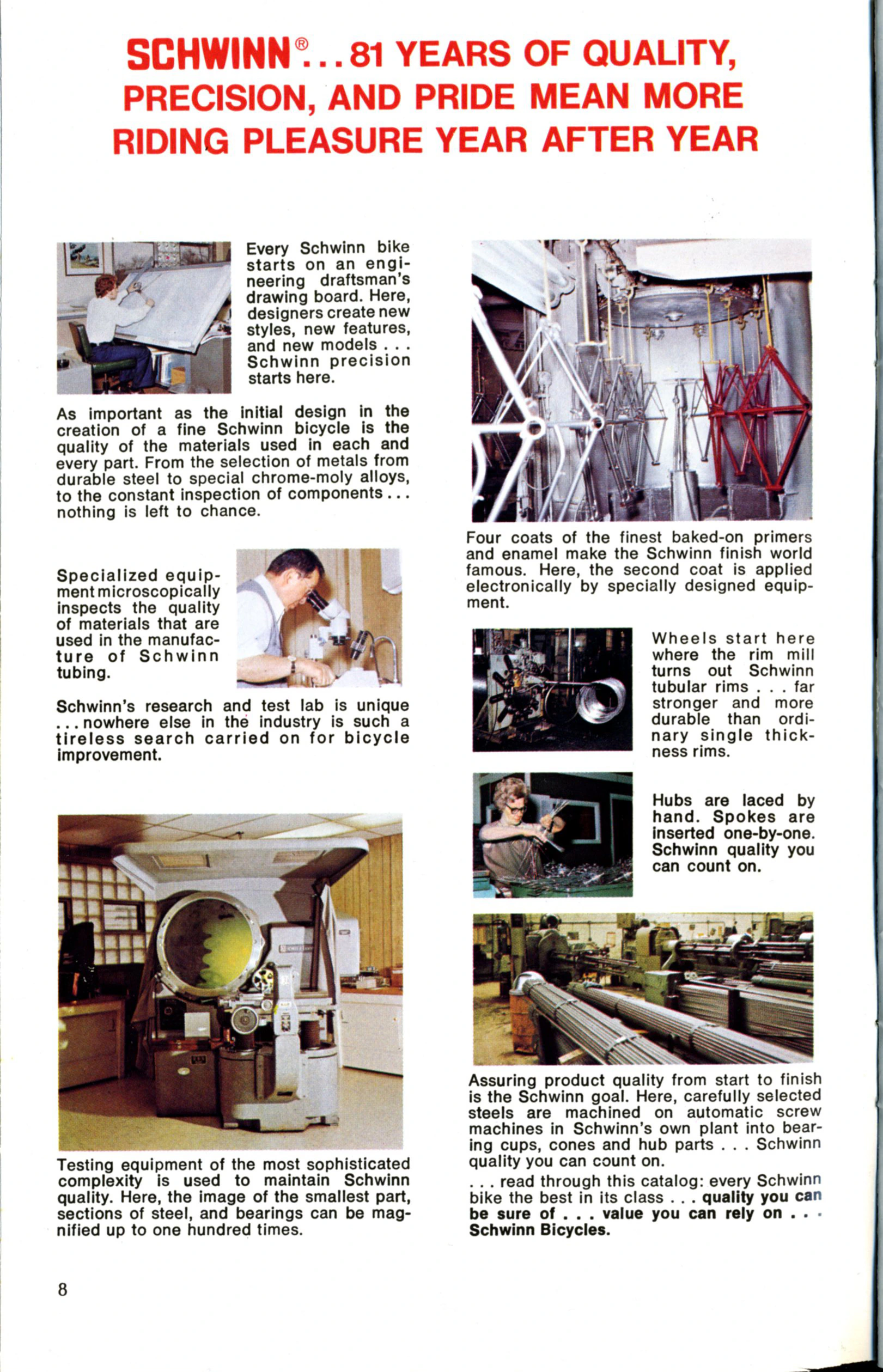

— Page 8 —
SCHWINN®…81 YEARS OF QUALITY, PRECISION, AND PRIDE MEAN MORE RIDING PLEASURE YEAR AFTER YEAR

Every Schwinn bike starts on an engineering draftsman’s drawing board. Here, designers create new styles, new features, and new models . . . Schwinn precision starts here.

As important as the initial design in the creation of a fine Schwinn bicycle is the quality of the materials used in each and every part. From the selection of metals from durable steel to special chrome-moly alloys, to the constant inspection of components… nothing is left to chance.

Specialized equipment microscopically inspects the quality of materials that are used in the manufacture of Schwinn tubing.

Schwinn’s research and test lab is unique …nowhere else in the industry is such a tireless search carried on for bicycle improvement.

Testing equipment of the most sophisticated complexity is used to maintain Schwinn quality. Here, the image of the smallest part, sections of steel, and bearings can be magnified up to one hundred times.

Four coats of the finest baked-on primers and enamel make the Schwinn finish world famous. Here, the second coat is applied electronically by specially designed equipment.

Wheels start here where the rim mill turns out Schwinn tubular rims . . . far stronger and more durable than ordinary single thickness rims.

Hubs are laced by hand. Spokes are inserted one-by-one. Schwinn quality you can count on.

Assuring product quality from start to finish is the Schwinn goal. Here, carefully selected steels are machined on automatic screw machines in Schwinn’s own plant into bearing cups, cones and hub parts . . . Schwinn quality you can count on.

. . . read through this catalog: every Schwinn bike the best in its class . . . quality you can be sure of . . . value you can rely on . . . Schwinn Bicycles.

8

[Seven photographs of Schwinn design, testing and manufacture, each beside its block of copy: a draftsman at a drawing board, a technician at a microscope, a large testing machine with a round magnifying screen, white and red frames hanging in the painting plant, the rim mill, a worker lacing hubs and bar stock at the automatic screw machines. The heading is printed in red; the closing lines from “quality you can be sure of” onward are set in bold.]

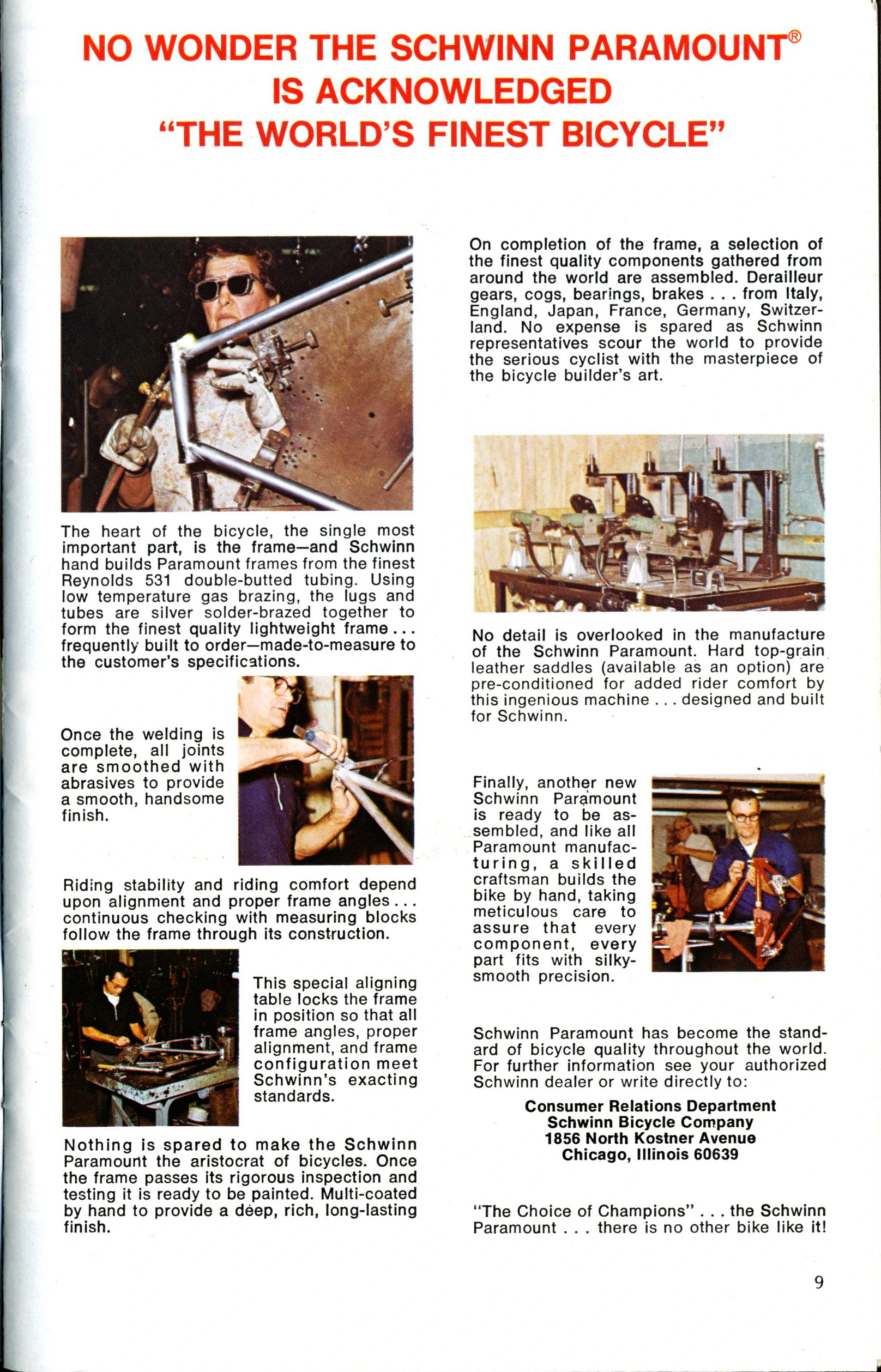

— Page 9 —
NO WONDER THE SCHWINN PARAMOUNT® IS ACKNOWLEDGED “THE WORLD’S FINEST BICYCLE”

The heart of the bicycle, the single most important part, is the frame—and Schwinn hand builds Paramount frames from the finest Reynolds 531 double-butted tubing. Using low temperature gas brazing, the lugs and tubes are silver solder-brazed together to form the finest quality lightweight frame… frequently built to order—made-to-measure to the customer’s specifications.

Once the welding is complete, all joints are smoothed with abrasives to provide a smooth, handsome finish.

Riding stability and riding comfort depend upon alignment and proper frame angles… continuous checking with measuring blocks follow the frame through its construction.

This special aligning table locks the frame in position so that all frame angles, proper alignment, and frame configuration meet Schwinn’s exacting standards.

Nothing is spared to make the Schwinn Paramount the aristocrat of bicycles. Once the frame passes its rigorous inspection and testing it is ready to be painted. Multi-coated by hand to provide a deep, rich, long-lasting finish.

On completion of the frame, a selection of the finest quality components gathered from around the world are assembled. Derailleur gears, cogs, bearings, brakes . . . from Italy, England, Japan, France, Germany, Switzerland. No expense is spared as Schwinn representatives scour the world to provide the serious cyclist with the masterpiece of the bicycle builder’s art.

No detail is overlooked in the manufacture of the Schwinn Paramount. Hard top-grain leather saddles (available as an option) are pre-conditioned for added rider comfort by this ingenious machine . . . designed and built for Schwinn.

Finally, another new Schwinn Paramount is ready to be assembled, and like all Paramount manufacturing, a skilled craftsman builds the bike by hand, taking meticulous care to assure that every component, every part fits with silky-smooth precision.

Schwinn Paramount has become the standard of bicycle quality throughout the world. For further information see your authorized Schwinn dealer or write directly to:

Consumer Relations Department
Schwinn Bicycle Company
1856 North Kostner Avenue
Chicago, Illinois 60639

“The Choice of Champions” . . . the Schwinn Paramount . . . there is no other bike like it!

9

[Five photographs of Schwinn Paramount frame building and assembly, each beside its block of copy: a worker in dark glasses and gloves brazing a frame, a man in glasses smoothing the joints of a frame, a man at the aligning table, the machine that conditions leather saddles and a craftsman assembling a red frame. The heading is printed in red, and the copy closes with the address of the Consumer Relations Department of the Schwinn Bicycle Company in Chicago, set in bold.]

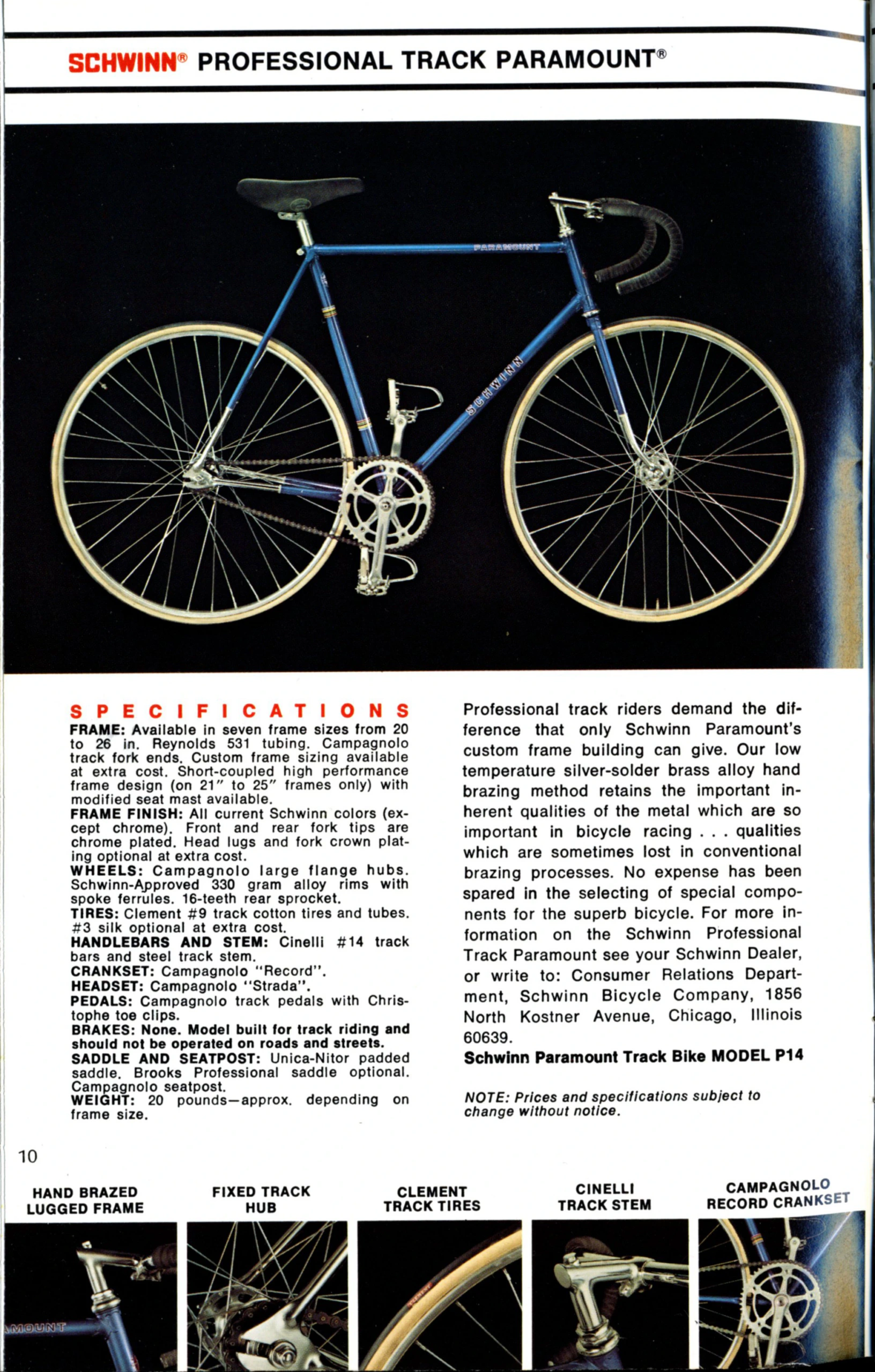

— Page 10 —
SCHWINN® PROFESSIONAL TRACK PARAMOUNT®

SPECIFICATIONS
FRAME: Available in seven frame sizes from 20 to 26 in. Reynolds 531 tubing. Campagnolo track fork ends. Custom frame sizing available at extra cost. Short-coupled high performance frame design (on 21″ to 25″ frames only) with modified seat mast available.
FRAME FINISH: All current Schwinn colors (except chrome). Front and rear fork tips are chrome plated. Head lugs and fork crown plating optional at extra cost.
WHEELS: Campagnolo large flange hubs. Schwinn-Approved 330 gram alloy rims with spoke ferrules. 16-teeth rear sprocket.
TIRES: Clement #9 track cotton tires and tubes. #3 silk optional at extra cost.
HANDLEBARS AND STEM: Cinelli #14 track bars and steel track stem.
CRANKSET: Campagnolo “Record”.
HEADSET: Campagnolo “Strada”.
PEDALS: Campagnolo track pedals with Christophe toe clips.
BRAKES: None. Model built for track riding and should not be operated on roads and streets.
SADDLE AND SEATPOST: Unica-Nitor padded saddle. Brooks Professional saddle optional. Campagnolo seatpost.
WEIGHT: 20 pounds—approx. depending on frame size.

Professional track riders demand the difference that only Schwinn Paramount’s custom frame building can give. Our low temperature silver-solder brass alloy hand brazing method retains the important inherent qualities of the metal which are so important in bicycle racing . . . qualities which are sometimes lost in conventional brazing processes. No expense has been spared in the selecting of special components for the superb bicycle. For more information on the Schwinn Professional Track Paramount see your Schwinn Dealer, or write to: Consumer Relations Department, Schwinn Bicycle Company, 1856 North Kostner Avenue, Chicago, Illinois 60639.

Schwinn Paramount Track Bike MODEL P14

NOTE: Prices and specifications subject to change without notice.

HAND BRAZED LUGGED FRAME
FIXED TRACK HUB
CLEMENT TRACK TIRES
CINELLI TRACK STEM
CAMPAGNOLO RECORD CRANKSET

10

[The Schwinn Professional Track Paramount, a blue track bicycle without brakes, shown in a side-view studio photograph against a black background, with its specifications, descriptive copy, the model number P14 and a strip of five detail photographs below. The whole sentence on the brakes, from “BRAKES: None.” to “roads and streets.”, is set in bold.]

— Page 11 —
SCHWINN® DELUXE TOURING PARAMOUNT®

SPECIFICATIONS
FRAME: Reynolds 531 double-butted tubing. Front and rear Campagnolo forged fork ends. (Made-to-measure frames available at extra cost.) Standard frame sizes 20-to-26 in. Optional short coupled frame available in 21″ to 25″ sizes. (P10 model only).
FRAME FINISH: All current Schwinn colors (except chrome).
WHEELS: Campagnolo “Record” large flange quick-release hubs. Weinmann Alloy rims.
TIRES: 27″ X 1⅛” Schwinn Super Record gumwall.
HANDLEBARS AND STEM: Cinelli aluminum alloy racing bars and stem.
HEADSET: Campagnolo “Strada”.
CRANKSET: Campagnolo “Record” triple plateau 36-46-54 teeth on P15. Double plateau 42-52 teeth on P10.
PEDALS: Campagnolo “Superleggeri” with Christophe toe clips.
DERAILLEURS AND GEARS: P15—Shimano GT 300 rear. Campagnolo front. Range 31-104. P10—Campagnolo “Nuovo Record” rear. Campagnolo “Record” front.
BRAKES: Schwinn-Approved alloy center pull with hooded quick release levers. Side pull brakes available on custom built frames at extra cost.
SADDLE: Unica-Nitor padded saddle. Brooks Professional saddle optional. Campagnolo seatpost.
WEIGHT: Approx. 26 lbs., depending on equipment and frame size.

The first choice of cross-country and serious long-distance touring cyclists is the Deluxe Schwinn Touring Paramount. The 10-speed model is also available in an optional high-performance, short coupled frame. This option design, first developed for hill climb racing, has been refined by the Schwinn team of engineers to combine a truly racing style frame with the components of a fine touring bicycle. Of course, the frame is hand-built to your exacting specifications, or available in a variety of standard frame sizes. Only the finest components from around the world are used. For more information on the Deluxe Touring Paramount frame see your Schwinn Dealer, or write to: Consumer Relations Department, Schwinn Bicycle Company, 1856 North Kostner Avenue, Chicago, Illinois 60639.

15-Speed Schwinn Deluxe Paramount | MODEL P15-9
10-Speed Schwinn Deluxe Paramount | MODEL P10-9

NOTE: Prices and specifications subject to change without notice.

CINELLI ALUMINUM ALLOY STEM
CAMPAGNOLO CRANK SET
CAMPAGNOLO RECORD HUBS
SHIMANO REAR DERAILLEUR
REYNOLDS 531 FRONT FORK

11

[The Schwinn Deluxe Touring Paramount, a red touring bicycle with a triple chainwheel and orange wheel reflectors, shown in a side-view studio photograph against a black background, with its specifications, descriptive copy, the model numbers P15-9 and P10-9 and a strip of five detail photographs below.]

— Page 12 —

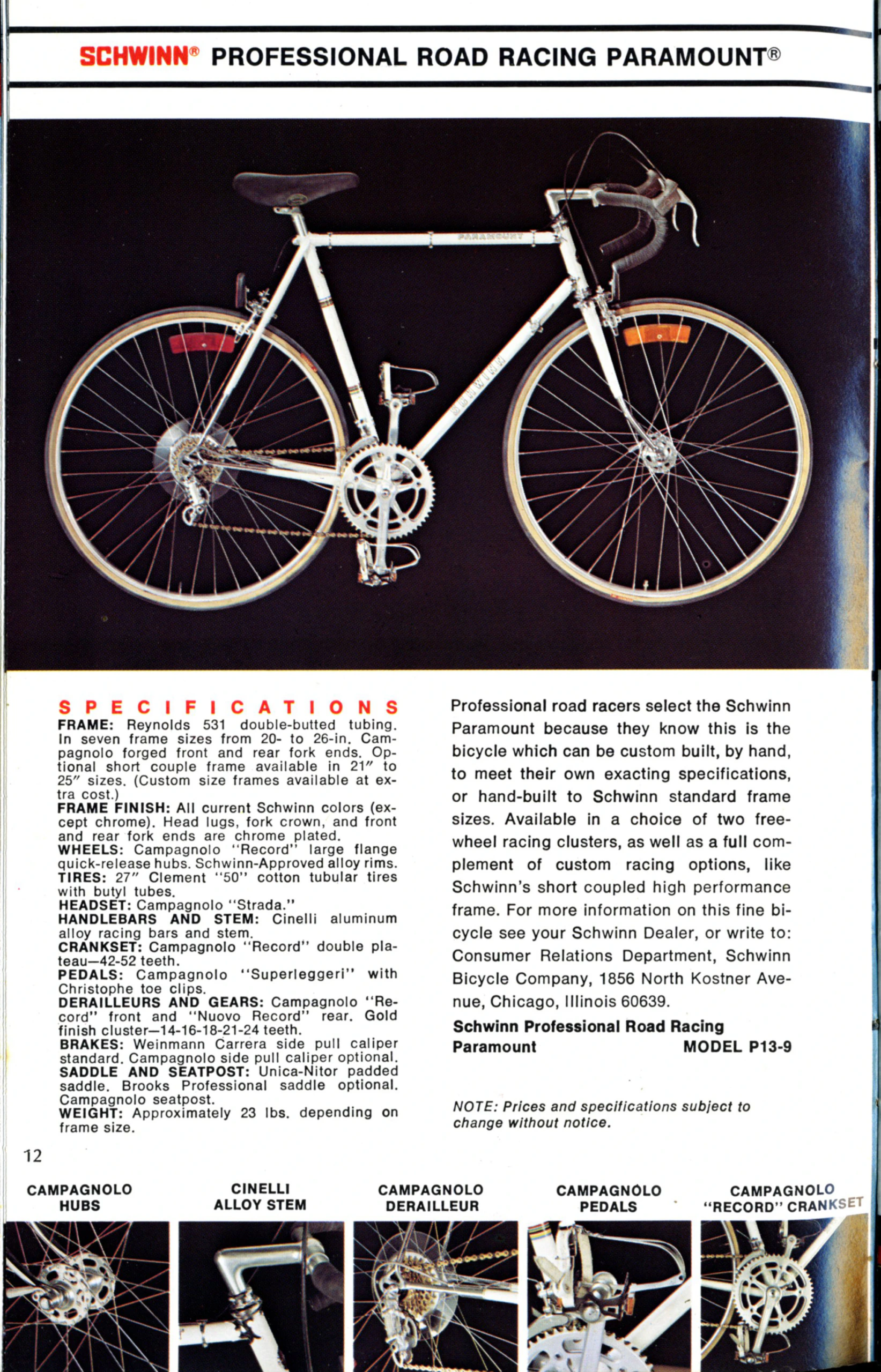

SCHWINN® PROFESSIONAL ROAD RACING PARAMOUNT®

SPECIFICATIONS
FRAME: Reynolds 531 double-butted tubing. In seven frame sizes from 20- to 26-in. Campagnolo forged front and rear fork ends. Optional short couple frame available in 21″ to 25″ sizes. (Custom size frames available at extra cost.)
FRAME FINISH: All current Schwinn colors (except chrome). Head lugs, fork crown, and front and rear fork ends are chrome plated.
WHEELS: Campagnolo “Record” large flange quick-release hubs. Schwinn-Approved alloy rims.
TIRES: 27″ Clement “50” cotton tubular tires with butyl tubes.
HEADSET: Campagnolo “Strada.”
HANDLEBARS AND STEM: Cinelli aluminum alloy racing bars and stem.
CRANKSET: Campagnolo “Record” double plateau—42-52 teeth.
PEDALS: Campagnolo “Superleggeri” with Christophe toe clips.
DERAILLEURS AND GEARS: Campagnolo “Record” front and “Nuovo Record” rear. Gold finish cluster—14-16-18-21-24 teeth.
BRAKES: Weinmann Carrera side pull caliper standard. Campagnolo side pull caliper optional.
SADDLE AND SEATPOST: Unica-Nitor padded saddle. Brooks Professional saddle optional. Campagnolo seatpost.
WEIGHT: Approximately 23 lbs. depending on frame size.

Professional road racers select the Schwinn Paramount because they know this is the bicycle which can be custom built, by hand, to meet their own exacting specifications, or hand-built to Schwinn standard frame sizes. Available in a choice of two freewheel racing clusters, as well as a full complement of custom racing options, like Schwinn’s short coupled high performance frame. For more information on this fine bicycle see your Schwinn Dealer, or write to: Consumer Relations Department, Schwinn Bicycle Company, 1856 North Kostner Avenue, Chicago, Illinois 60639.

Schwinn Professional Road Racing Paramount | MODEL P13-9

NOTE: Prices and specifications subject to change without notice.

CAMPAGNOLO HUBS
CINELLI ALLOY STEM
CAMPAGNOLO DERAILLEUR
CAMPAGNOLO PEDALS
CAMPAGNOLO “RECORD” CRANKSET

12

[The Schwinn Professional Road Racing Paramount, a white road racing bicycle with red and orange wheel reflectors, shown in a side-view studio photograph against a dark background, with its specifications, descriptive copy, the model number P13-9 and a strip of five detail photographs below.]

— Page 13 —

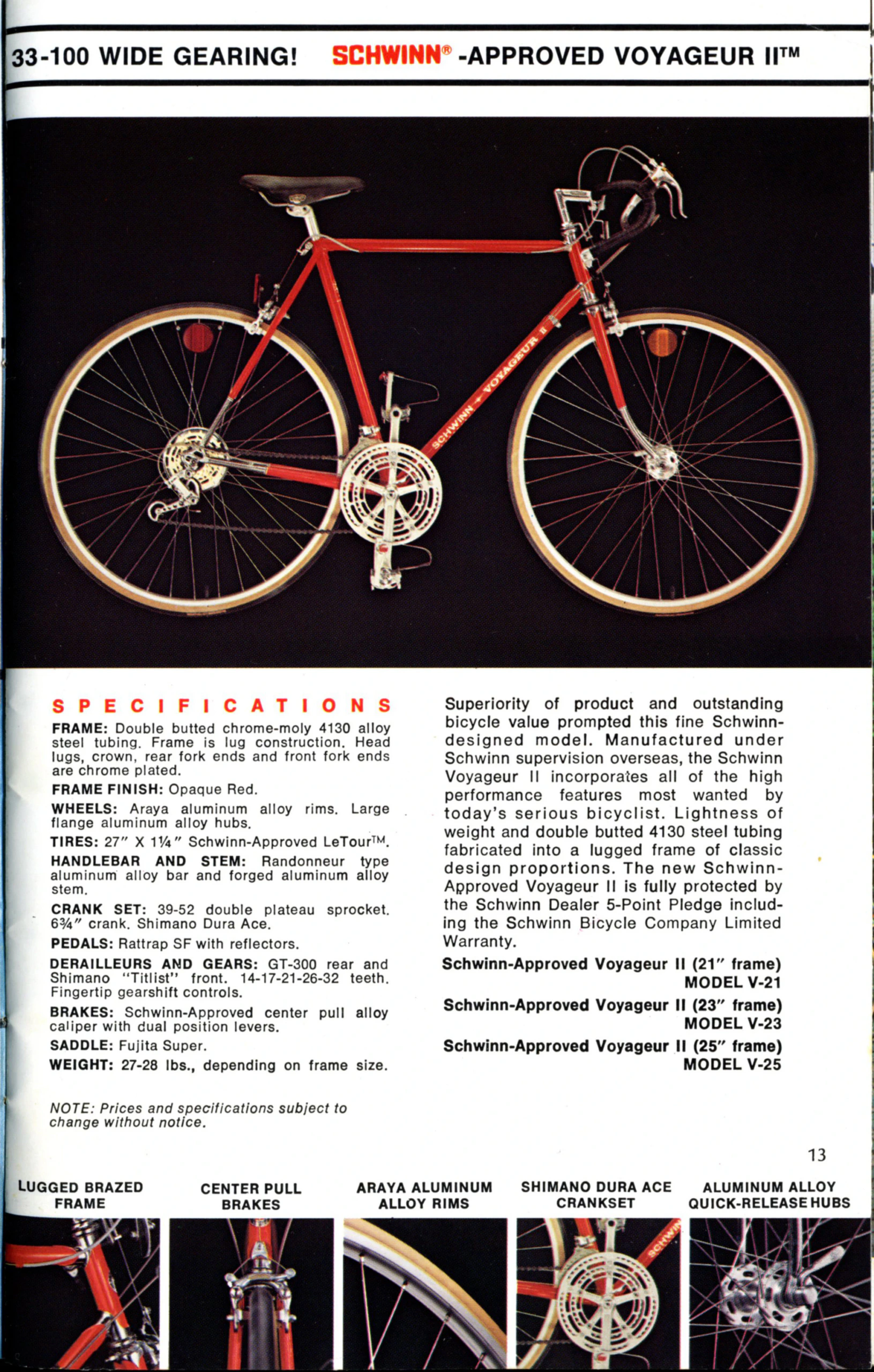

33-100 WIDE GEARING!
SCHWINN® -APPROVED VOYAGEUR II™

SPECIFICATIONS
FRAME: Double butted chrome-moly 4130 alloy steel tubing. Frame is lug construction. Head lugs, crown, rear fork ends and front fork ends are chrome plated.
FRAME FINISH: Opaque Red.
WHEELS: Araya aluminum alloy rims. Large flange aluminum alloy hubs.
TIRES: 27″ X 1¼” Schwinn-Approved LeTour™.
HANDLEBAR AND STEM: Randonneur type aluminum alloy bar and forged aluminum alloy stem.
CRANK SET: 39-52 double plateau sprocket. 6¾” crank. Shimano Dura Ace.
PEDALS: Rattrap SF with reflectors.
DERAILLEURS AND GEARS: GT-300 rear and Shimano “Titlist” front. 14-17-21-26-32 teeth. Fingertip gearshift controls.
BRAKES: Schwinn-Approved center pull alloy caliper with dual position levers.
SADDLE: Fujita Super.
WEIGHT: 27-28 lbs., depending on frame size.

NOTE: Prices and specifications subject to change without notice.

Superiority of product and outstanding bicycle value prompted this fine Schwinn-designed model. Manufactured under Schwinn supervision overseas, the Schwinn Voyageur II incorporates all of the high performance features most wanted by today’s serious bicyclist. Lightness of weight and double butted 4130 steel tubing fabricated into a lugged frame of classic design proportions. The new Schwinn-Approved Voyageur II is fully protected by the Schwinn Dealer 5-Point Pledge including the Schwinn Bicycle Company Limited Warranty.

Schwinn-Approved Voyageur II (21″ frame) | MODEL V-21
Schwinn-Approved Voyageur II (23″ frame) | MODEL V-23
Schwinn-Approved Voyageur II (25″ frame) | MODEL V-25

LUGGED BRAZED FRAME
CENTER PULL BRAKES
ARAYA ALUMINUM ALLOY RIMS
SHIMANO DURA ACE CRANKSET
ALUMINUM ALLOY QUICK-RELEASE HUBS

13

[The Schwinn-Approved Voyageur II, a red bicycle with drop handlebars, a double chainwheel and round wheel reflectors, shown in a side-view studio photograph against a black background, with its specifications, descriptive copy, model numbers for three frame sizes and a strip of five detail photographs below. The down tube decal reads “SCHWINN” and “VOYAGEUR II”.]

— Page 14 —

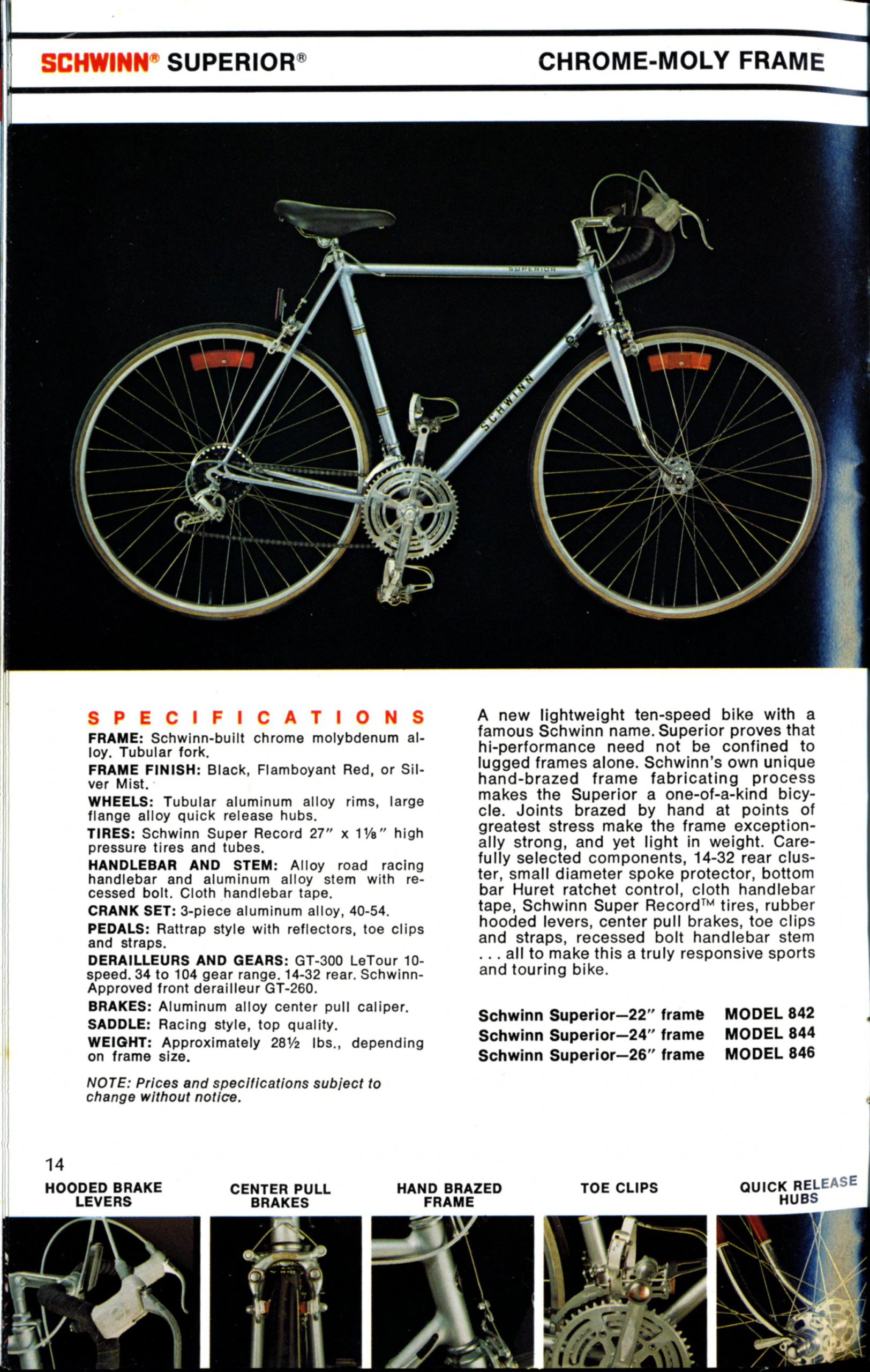

SCHWINN® SUPERIOR®
CHROME-MOLY FRAME

SPECIFICATIONS
FRAME: Schwinn-built chrome molybdenum alloy. Tubular fork.
FRAME FINISH: Black, Flamboyant Red, or Silver Mist.
WHEELS: Tubular aluminum alloy rims, large flange alloy quick release hubs.
TIRES: Schwinn Super Record 27″ x 1⅛” high pressure tires and tubes.
HANDLEBAR AND STEM: Alloy road racing handlebar and aluminum alloy stem with recessed bolt. Cloth handlebar tape.
CRANK SET: 3-piece aluminum alloy, 40-54.
PEDALS: Rattrap style with reflectors, toe clips and straps.
DERAILLEURS AND GEARS: GT-300 LeTour 10-speed. 34 to 104 gear range. 14-32 rear. Schwinn-Approved front derailleur GT-260.
BRAKES: Aluminum alloy center pull caliper.
SADDLE: Racing style, top quality.
WEIGHT: Approximately 28½ lbs., depending on frame size.

NOTE: Prices and specifications subject to change without notice.

A new lightweight ten-speed bike with a famous Schwinn name. Superior proves that hi-performance need not be confined to lugged frames alone. Schwinn’s own unique hand-brazed frame fabricating process makes the Superior a one-of-a-kind bicycle. Joints brazed by hand at points of greatest stress make the frame exceptionally strong, and yet light in weight. Carefully selected components, 14-32 rear cluster, small diameter spoke protector, bottom bar Huret ratchet control, cloth handlebar tape, Schwinn Super Record™ tires, rubber hooded levers, center pull brakes, toe clips and straps, recessed bolt handlebar stem . . . all to make this a truly responsive sports and touring bike.

Schwinn Superior—22″ frame | MODEL 842
Schwinn Superior—24″ frame | MODEL 844
Schwinn Superior—26″ frame | MODEL 846

HOODED BRAKE LEVERS
CENTER PULL BRAKES
HAND BRAZED FRAME
TOE CLIPS
QUICK RELEASE HUBS

14

[The Schwinn Superior, a silver blue ten-speed bicycle with drop handlebars, a double chainwheel and wheel reflectors, shown in a side-view studio photograph against a black background, with its specifications, descriptive copy, model numbers for three frame sizes and a strip of five detail photographs below.]

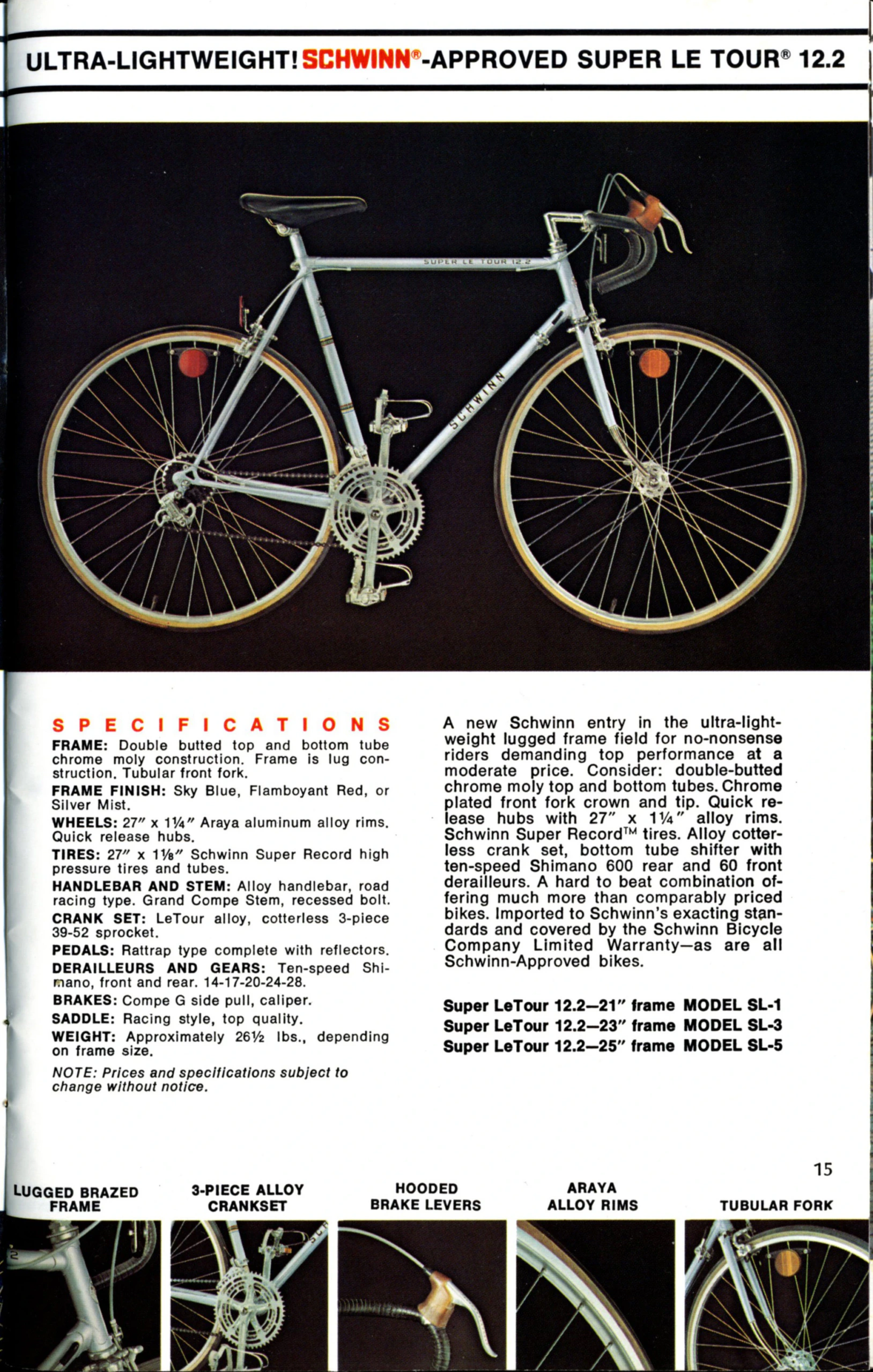

— Page 15 —
ULTRA-LIGHTWEIGHT!
SCHWINN®-APPROVED SUPER LE TOUR® 12.2

SPECIFICATIONS
FRAME: Double butted top and bottom tube chrome moly construction. Frame is lug construction. Tubular front fork.
FRAME FINISH: Sky Blue, Flamboyant Red, or Silver Mist.
WHEELS: 27″ x 1¼” Araya aluminum alloy rims. Quick release hubs.
TIRES: 27″ x 1⅛” Schwinn Super Record high pressure tires and tubes.
HANDLEBAR AND STEM: Alloy handlebar, road racing type. Grand Compe Stem, recessed bolt.
CRANK SET: LeTour alloy, cotterless 3-piece 39-52 sprocket.
PEDALS: Rattrap type complete with reflectors.
DERAILLEURS AND GEARS: Ten-speed Shimano, front and rear. 14-17-20-24-28.
BRAKES: Compe G side pull, caliper.
SADDLE: Racing style, top quality.
WEIGHT: Approximately 26½ lbs., depending on frame size.

NOTE: Prices and specifications subject to change without notice.

A new Schwinn entry in the ultra-lightweight lugged frame field for no-nonsense riders demanding top performance at a moderate price. Consider: double-butted chrome moly top and bottom tubes. Chrome plated front fork crown and tip. Quick release hubs with 27″ x 1¼” alloy rims. Schwinn Super Record™ tires. Alloy cotterless crank set, bottom tube shifter with ten-speed Shimano 600 rear and 60 front derailleurs. A hard to beat combination offering much more than comparably priced bikes. Imported to Schwinn’s exacting standards and covered by the Schwinn Bicycle Company Limited Warranty—as are all Schwinn-Approved bikes.

Super LeTour 12.2—21″ frame | MODEL SL-1
Super LeTour 12.2—23″ frame | MODEL SL-3
Super LeTour 12.2—25″ frame | MODEL SL-5

LUGGED BRAZED FRAME
3-PIECE ALLOY CRANKSET
HOODED BRAKE LEVERS
ARAYA ALLOY RIMS
TUBULAR FORK

15

[The Schwinn-Approved Super Le Tour 12.2 ultra-lightweight 10-speed shown in a side-view studio photograph against a dark background, with its specifications, three model numbers and a strip of five detail photographs below. The detail photographs show the lugged frame, the crankset, a hooded brake lever, an Araya rim and the fork.]

— Page 16 —

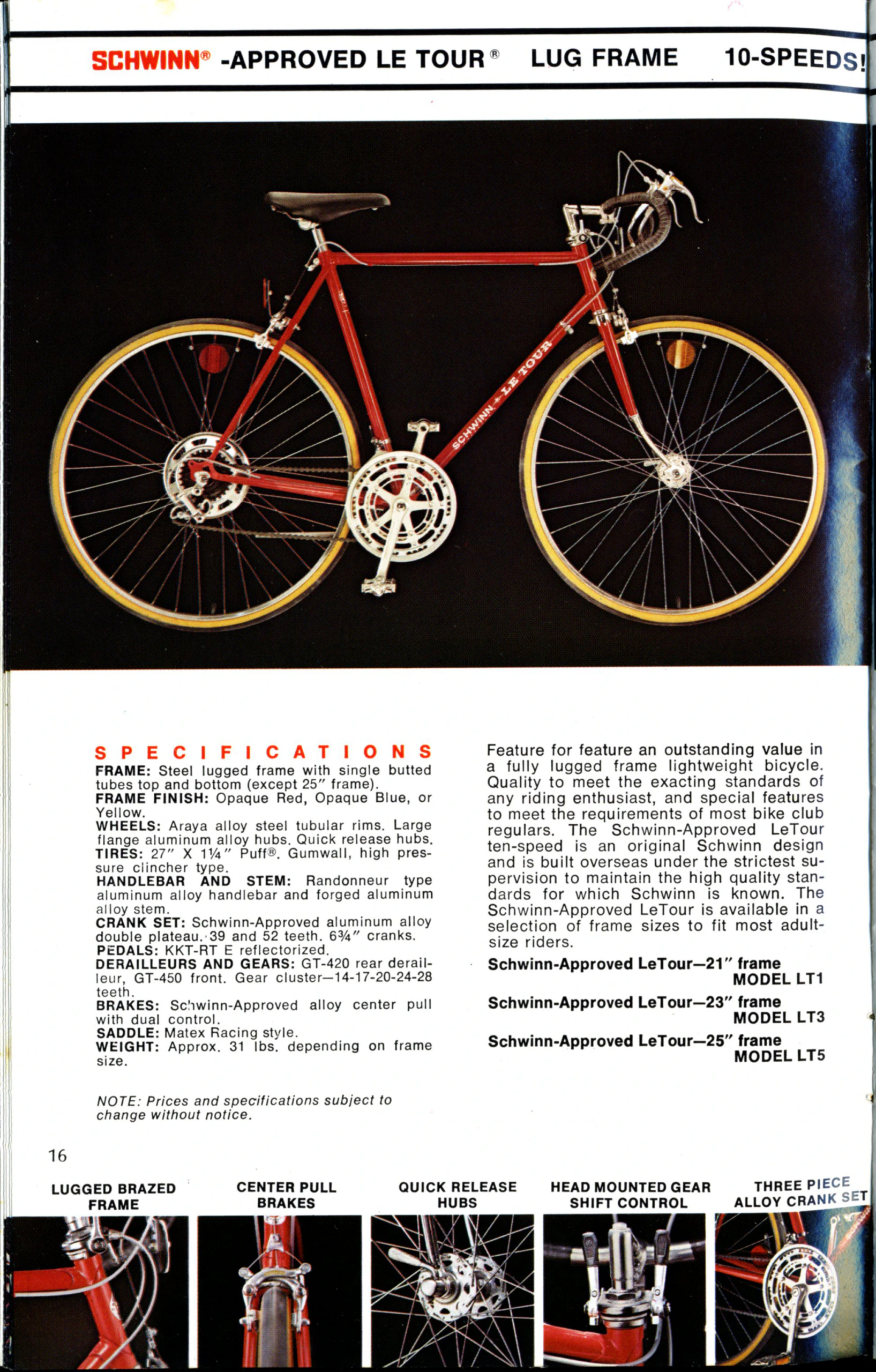

SCHWINN® -APPROVED LE TOUR®
LUG FRAME
10-SPEEDS!

SPECIFICATIONS
FRAME: Steel lugged frame with single butted tubes top and bottom (except 25″ frame).
FRAME FINISH: Opaque Red, Opaque Blue, or Yellow.
WHEELS: Araya alloy steel tubular rims. Large flange aluminum alloy hubs. Quick release hubs.
TIRES: 27″ X 1¼” Puff®. Gumwall, high pressure clincher type.
HANDLEBAR AND STEM: Randonneur type aluminum alloy handlebar and forged aluminum alloy stem.
CRANK SET: Schwinn-Approved aluminum alloy double plateau. 39 and 52 teeth. 6¾” cranks.
PEDALS: KKT-RT E reflectorized.
DERAILLEURS AND GEARS: GT-420 rear derailleur, GT-450 front. Gear cluster—14-17-20-24-28 teeth.
BRAKES: Schwinn-Approved alloy center pull with dual control.
SADDLE: Matex Racing style.
WEIGHT: Approx. 31 lbs. depending on frame size.

NOTE: Prices and specifications subject to change without notice.

Feature for feature an outstanding value in a fully lugged frame lightweight bicycle. Quality to meet the exacting standards of any riding enthusiast, and special features to meet the requirements of most bike club regulars. The Schwinn-Approved LeTour ten-speed is an original Schwinn design and is built overseas under the strictest supervision to maintain the high quality standards for which Schwinn is known. The Schwinn-Approved LeTour is available in a selection of frame sizes to fit most adult-size riders.

Schwinn-Approved LeTour—21″ frame | MODEL LT1
Schwinn-Approved LeTour—23″ frame | MODEL LT3
Schwinn-Approved LeTour—25″ frame | MODEL LT5

LUGGED BRAZED FRAME
CENTER PULL BRAKES
QUICK RELEASE HUBS
HEAD MOUNTED GEAR SHIFT CONTROL
THREE PIECE ALLOY CRANK SET

16

[The Schwinn-Approved Le Tour lug frame 10-speed shown in a side-view studio photograph against a dark background, with its specifications, three model numbers and a strip of five detail photographs below. The detail photographs show the lugged frame, the center pull brakes, a quick release hub, the head mounted shift levers and the crankset.]

— Page 17 —

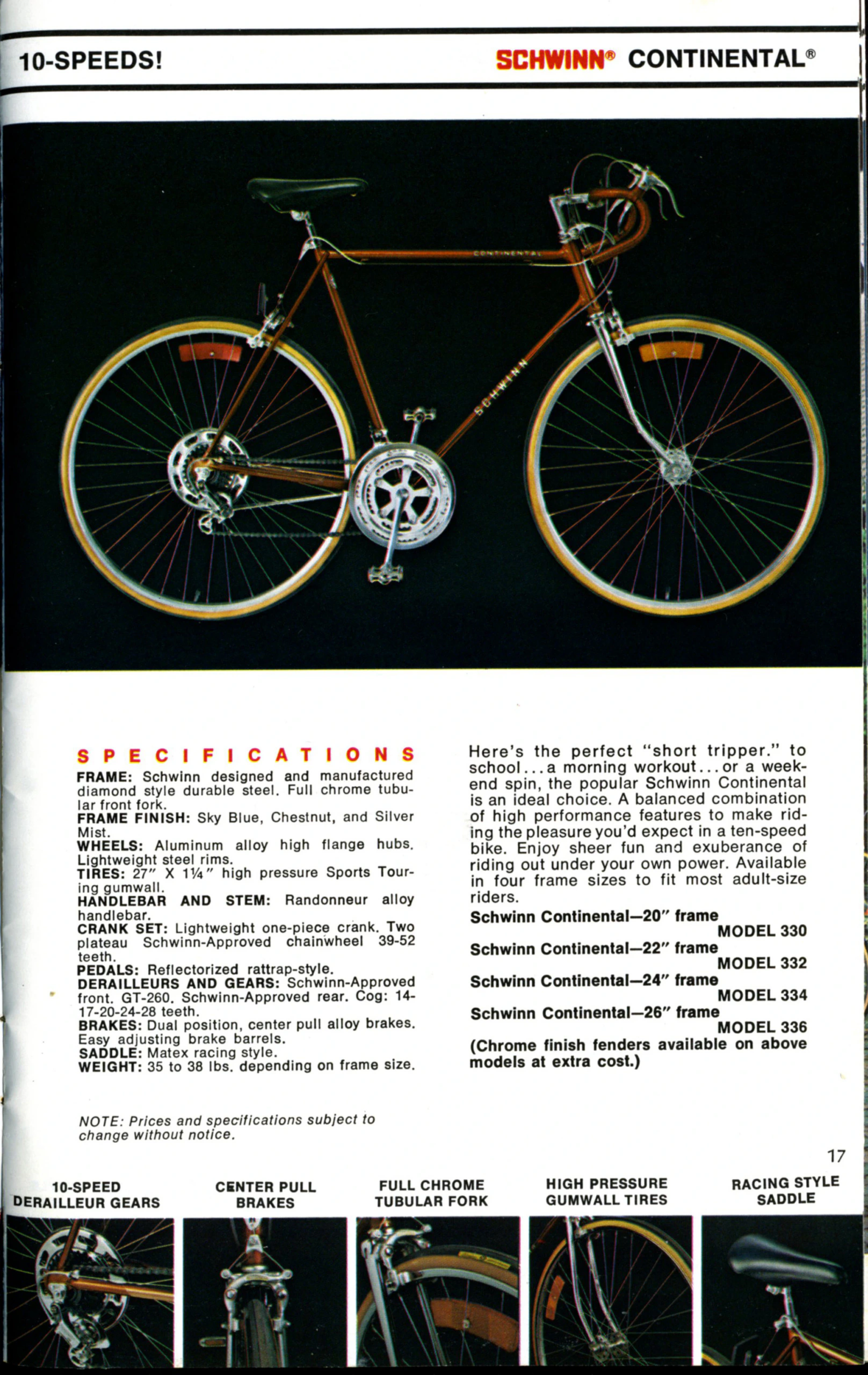

10-SPEEDS!
SCHWINN® CONTINENTAL®

SPECIFICATIONS
FRAME: Schwinn designed and manufactured diamond style durable steel. Full chrome tubular front fork.
FRAME FINISH: Sky Blue, Chestnut, and Silver Mist.
WHEELS: Aluminum alloy high flange hubs. Lightweight steel rims.
TIRES: 27″ X 1¼” high pressure Sports Touring gumwall.
HANDLEBAR AND STEM: Randonneur alloy handlebar.
CRANK SET: Lightweight one-piece crank. Two plateau Schwinn-Approved chainwheel 39-52 teeth.
PEDALS: Reflectorized rattrap-style.
DERAILLEURS AND GEARS: Schwinn-Approved front. GT-260. Schwinn-Approved rear. Cog: 14-17-20-24-28 teeth.
BRAKES: Dual position, center pull alloy brakes. Easy adjusting brake barrels.
SADDLE: Matex racing style.
WEIGHT: 35 to 38 lbs. depending on frame size.

NOTE: Prices and specifications subject to change without notice.

Here’s the perfect “short tripper.” to school…a morning workout…or a weekend spin, the popular Schwinn Continental is an ideal choice. A balanced combination of high performance features to make riding the pleasure you’d expect in a ten-speed bike. Enjoy sheer fun and exuberance of riding out under your own power. Available in four frame sizes to fit most adult-size riders.

Schwinn Continental—20″ frame | MODEL 330
Schwinn Continental—22″ frame | MODEL 332
Schwinn Continental—24″ frame | MODEL 334
Schwinn Continental—26″ frame | MODEL 336
(Chrome finish fenders available on above models at extra cost.)

10-SPEED DERAILLEUR GEARS
CENTER PULL BRAKES
FULL CHROME TUBULAR FORK
HIGH PRESSURE GUMWALL TIRES
RACING STYLE SADDLE

17

[The Schwinn Continental 10-speed shown in a side-view studio photograph against a dark background, with its specifications, four model numbers and a strip of five detail photographs below. The detail photographs show the rear derailleur, the center pull brakes, the chrome fork, a gumwall tire and the saddle.]

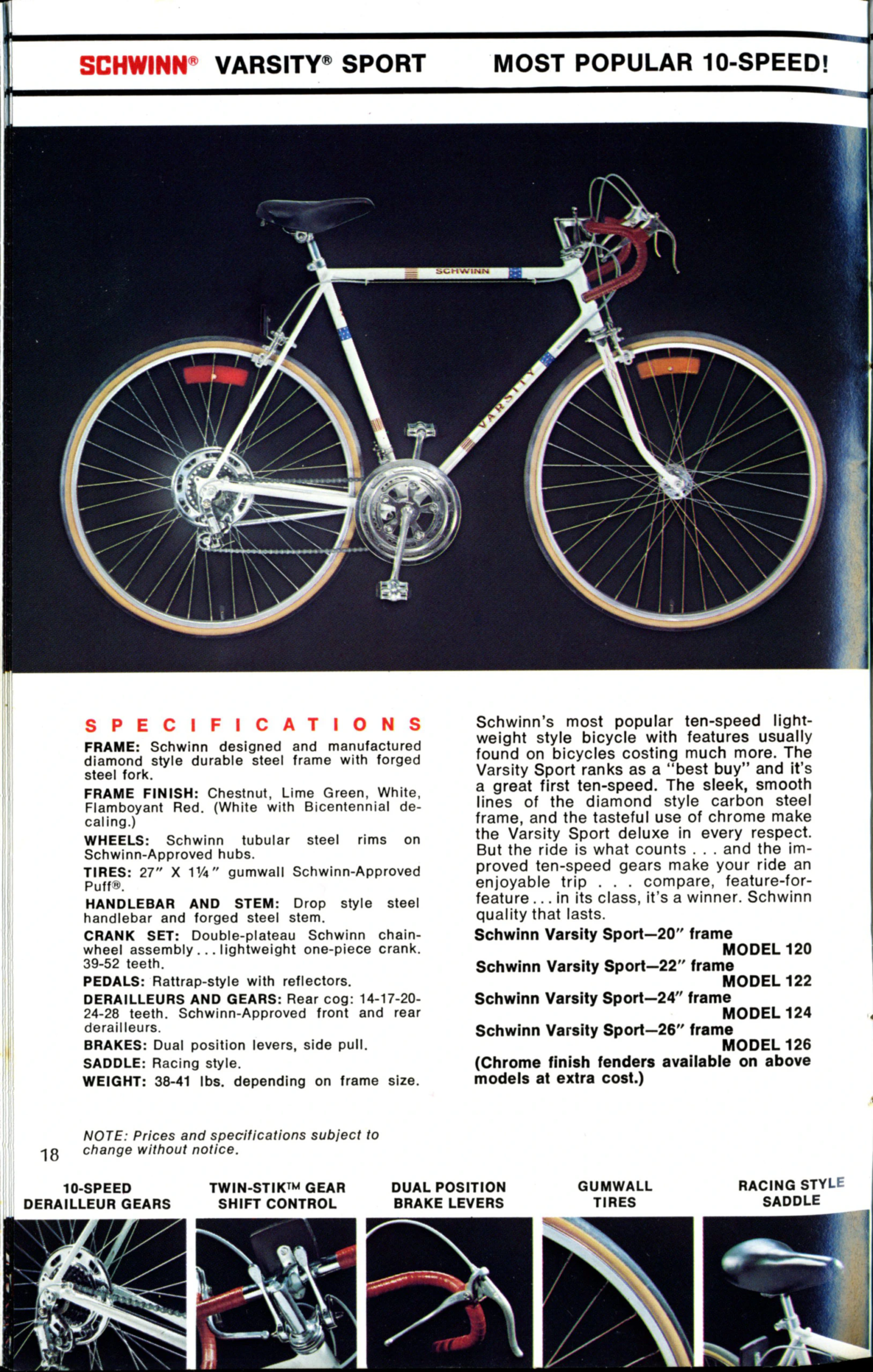

— Page 18 —
SCHWINN® VARSITY® SPORT
MOST POPULAR 10-SPEED!

SPECIFICATIONS
FRAME: Schwinn designed and manufactured diamond style durable steel frame with forged steel fork.
FRAME FINISH: Chestnut, Lime Green, White, Flamboyant Red. (White with Bicentennial decaling.)
WHEELS: Schwinn tubular steel rims on Schwinn-Approved hubs.
TIRES: 27″ X 1¼” gumwall Schwinn-Approved Puff®.
HANDLEBAR AND STEM: Drop style steel handlebar and forged steel stem.
CRANK SET: Double-plateau Schwinn chainwheel assembly…lightweight one-piece crank. 39-52 teeth.
PEDALS: Rattrap-style with reflectors.
DERAILLEURS AND GEARS: Rear cog: 14-17-20-24-28 teeth. Schwinn-Approved front and rear derailleurs.
BRAKES: Dual position levers, side pull.
SADDLE: Racing style.
WEIGHT: 38-41 lbs. depending on frame size.

NOTE: Prices and specifications subject to change without notice.

Schwinn’s most popular ten-speed lightweight style bicycle with features usually found on bicycles costing much more. The Varsity Sport ranks as a “best buy” and it’s a great first ten-speed. The sleek, smooth lines of the diamond style carbon steel frame, and the tasteful use of chrome make the Varsity Sport deluxe in every respect. But the ride is what counts . . . and the improved ten-speed gears make your ride an enjoyable trip . . . compare, feature-for-feature…in its class, it’s a winner. Schwinn quality that lasts.

Schwinn Varsity Sport—20″ frame | MODEL 120
Schwinn Varsity Sport—22″ frame | MODEL 122
Schwinn Varsity Sport—24″ frame | MODEL 124
Schwinn Varsity Sport—26″ frame | MODEL 126
(Chrome finish fenders available on above models at extra cost.)

10-SPEED DERAILLEUR GEARS
TWIN-STIK™ GEAR SHIFT CONTROL
DUAL POSITION BRAKE LEVERS
GUMWALL TIRES
RACING STYLE SADDLE

18

[The Schwinn Varsity Sport 10-speed in white with stars and stripes decals, shown in a side-view studio photograph against a dark background, with its specifications, four model numbers and a strip of five detail photographs below. The detail photographs show the rear derailleur, the Twin-Stik shift levers, a dual position brake lever, a gumwall tire and the saddle.]

— Page 19 —
10-SPEEDS!
LUG FRAME

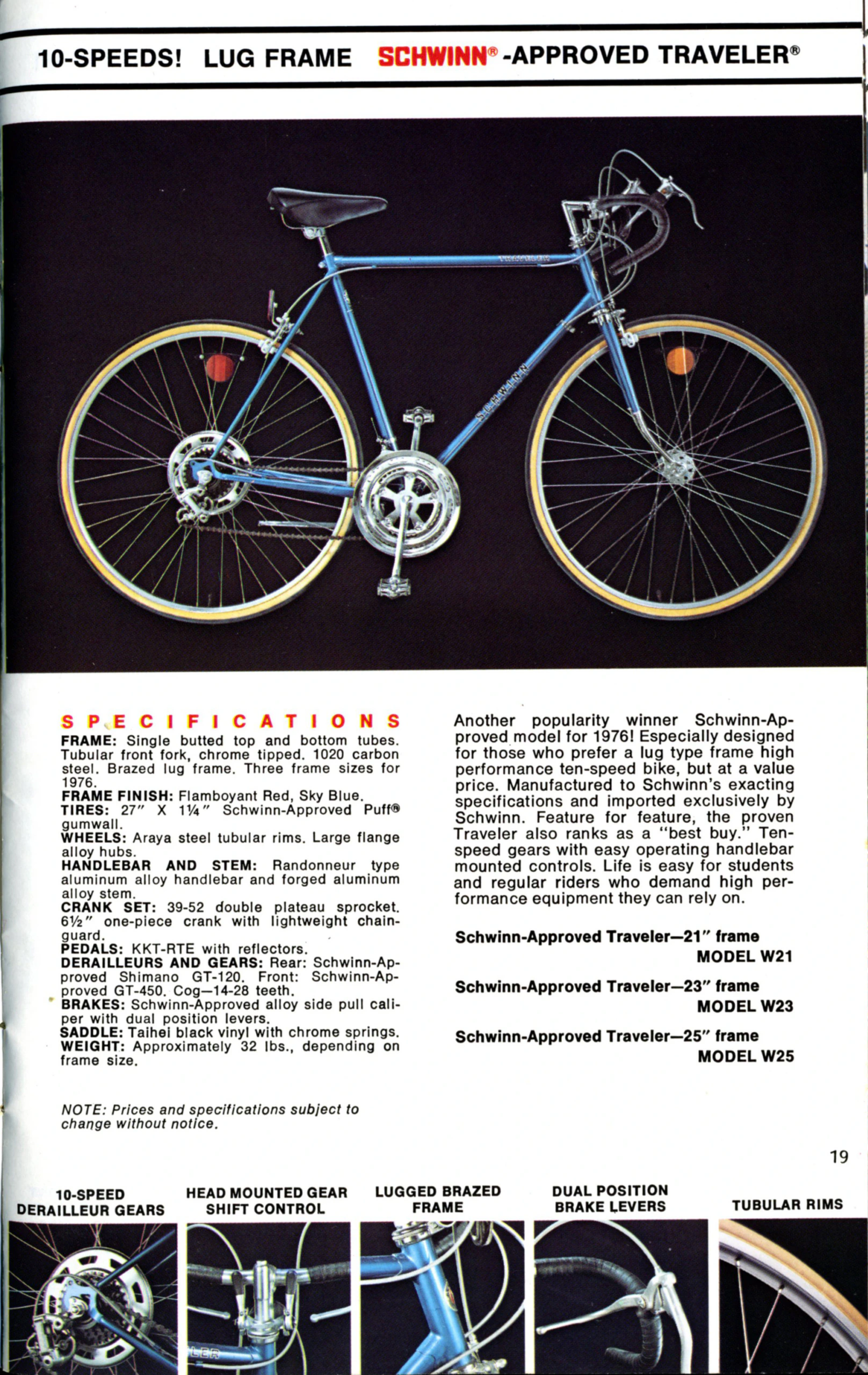

SCHWINN® -APPROVED TRAVELER®

SPECIFICATIONS
FRAME: Single butted top and bottom tubes. Tubular front fork, chrome tipped. 1020 carbon steel. Brazed lug frame. Three frame sizes for 1976.
FRAME FINISH: Flamboyant Red, Sky Blue.
TIRES: 27″ X 1¼” Schwinn-Approved Puff® gumwall.
WHEELS: Araya steel tubular rims. Large flange alloy hubs.
HANDLEBAR AND STEM: Randonneur type aluminum alloy handlebar and forged aluminum alloy stem.
CRANK SET: 39-52 double plateau sprocket. 6½” one-piece crank with lightweight chainguard.
PEDALS: KKT-RTE with reflectors.
DERAILLEURS AND GEARS: Rear: Schwinn-Approved Shimano GT-120. Front: Schwinn-Approved GT-450. Cog—14-28 teeth.
BRAKES: Schwinn-Approved alloy side pull caliper with dual position levers.
SADDLE: Taihei black vinyl with chrome springs.
WEIGHT: Approximately 32 lbs., depending on frame size.

NOTE: Prices and specifications subject to change without notice.

Another popularity winner Schwinn-Approved model for 1976! Especially designed for those who prefer a lug type frame high performance ten-speed bike, but at a value price. Manufactured to Schwinn’s exacting specifications and imported exclusively by Schwinn. Feature for feature, the proven Traveler also ranks as a “best buy.” Ten-speed gears with easy operating handlebar mounted controls. Life is easy for students and regular riders who demand high performance equipment they can rely on.

Schwinn-Approved Traveler—21″ frame | MODEL W21
Schwinn-Approved Traveler—23″ frame | MODEL W23
Schwinn-Approved Traveler—25″ frame | MODEL W25

10-SPEED DERAILLEUR GEARS
HEAD MOUNTED GEAR SHIFT CONTROL
LUGGED BRAZED FRAME
DUAL POSITION BRAKE LEVERS
TUBULAR RIMS

19

[The Schwinn-Approved Traveler lug frame 10-speed shown in a side-view studio photograph against a dark background, with its specifications, three model numbers and a strip of five detail photographs below. The detail photographs show the rear derailleur, the head mounted shift levers, a frame lug, a dual position brake lever and a rim.]

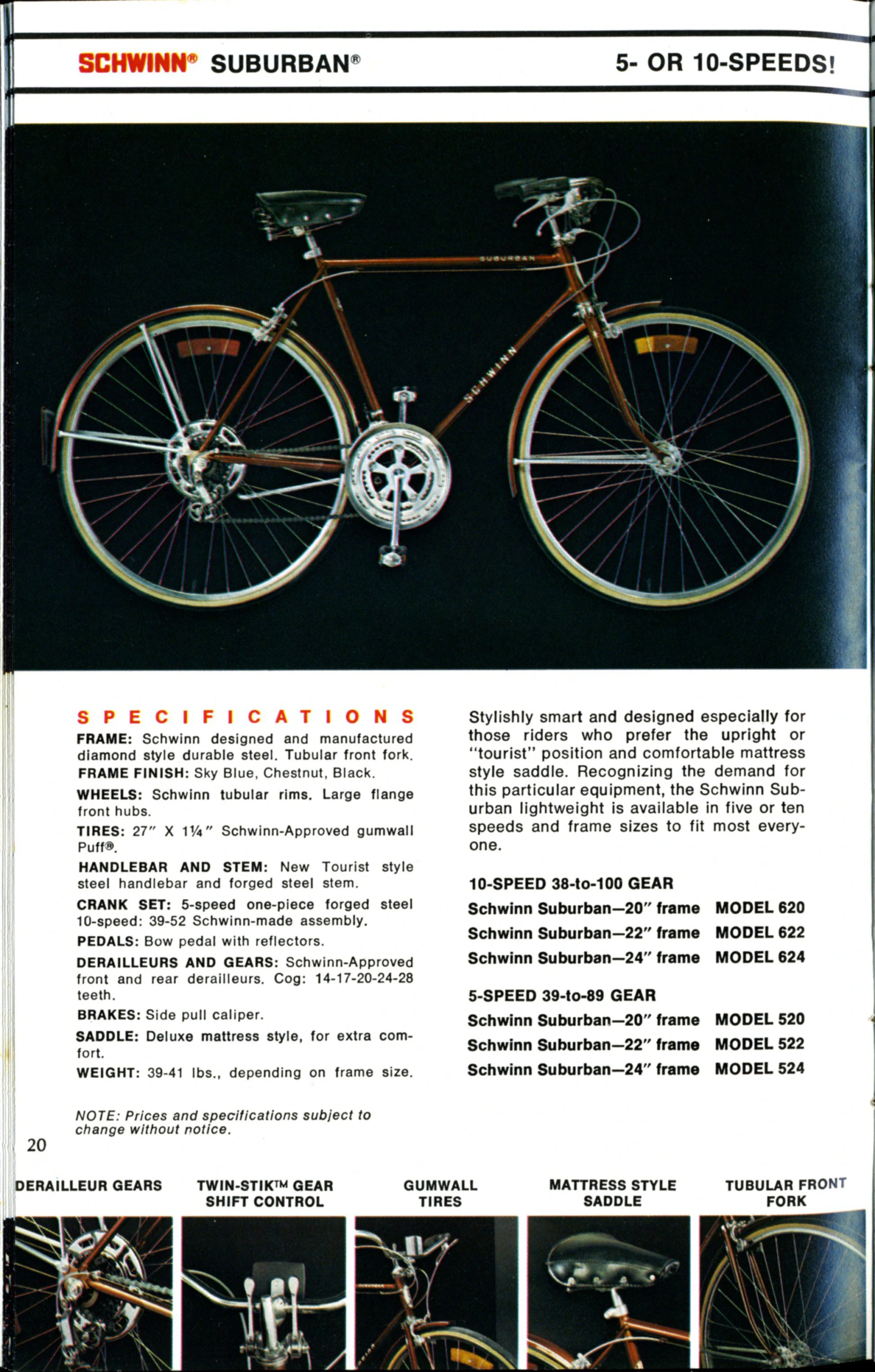

— Page 20 —
SCHWINN® SUBURBAN®
5- OR 10-SPEEDS!

SPECIFICATIONS
FRAME: Schwinn designed and manufactured diamond style durable steel. Tubular front fork.
FRAME FINISH: Sky Blue, Chestnut, Black.
WHEELS: Schwinn tubular rims. Large flange front hubs.
TIRES: 27″ X 1¼” Schwinn-Approved gumwall Puff®.
HANDLEBAR AND STEM: New Tourist style steel handlebar and forged steel stem.
CRANK SET: 5-speed one-piece forged steel 10-speed: 39-52 Schwinn-made assembly.
PEDALS: Bow pedal with reflectors.
DERAILLEURS AND GEARS: Schwinn-Approved front and rear derailleurs. Cog: 14-17-20-24-28 teeth.
BRAKES: Side pull caliper.
SADDLE: Deluxe mattress style, for extra comfort.
WEIGHT: 39-41 lbs., depending on frame size.

NOTE: Prices and specifications subject to change without notice.

Stylishly smart and designed especially for those riders who prefer the upright or “tourist” position and comfortable mattress style saddle. Recognizing the demand for this particular equipment, the Schwinn Suburban lightweight is available in five or ten speeds and frame sizes to fit most everyone.

10-SPEED 38-to-100 GEAR
Schwinn Suburban—20″ frame | MODEL 620
Schwinn Suburban—22″ frame | MODEL 622
Schwinn Suburban—24″ frame | MODEL 624

5-SPEED 39-to-89 GEAR
Schwinn Suburban—20″ frame | MODEL 520
Schwinn Suburban—22″ frame | MODEL 522
Schwinn Suburban—24″ frame | MODEL 524

DERAILLEUR GEARS
TWIN-STIK™ GEAR SHIFT CONTROL
GUMWALL TIRES
MATTRESS STYLE SADDLE
TUBULAR FRONT FORK

20

[The Schwinn Suburban 5- or 10-speed with fenders, upright handlebar and mattress saddle, shown in a side-view studio photograph against a dark background, with its specifications, six model numbers and a strip of five detail photographs below. The detail photographs show the rear derailleur, the Twin-Stik shift levers, a gumwall tire, the mattress saddle and the front fork.]

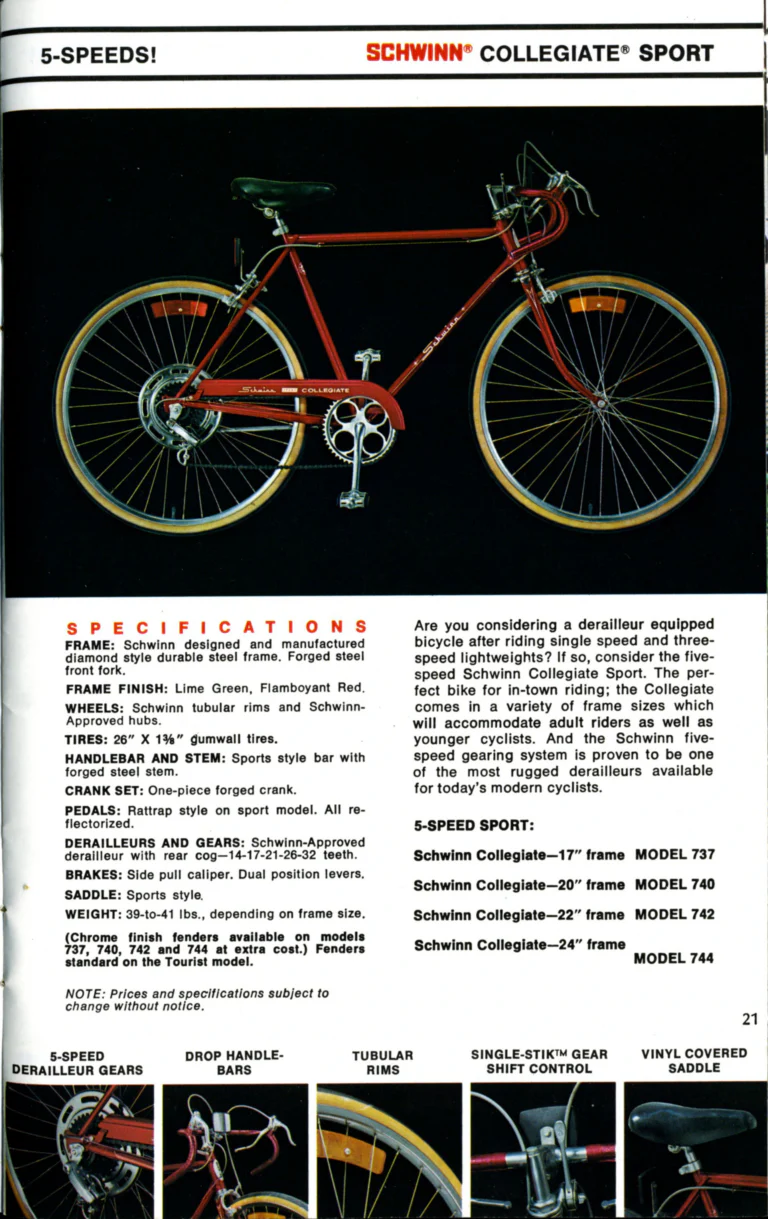

— Page 21 —
5-SPEEDS!

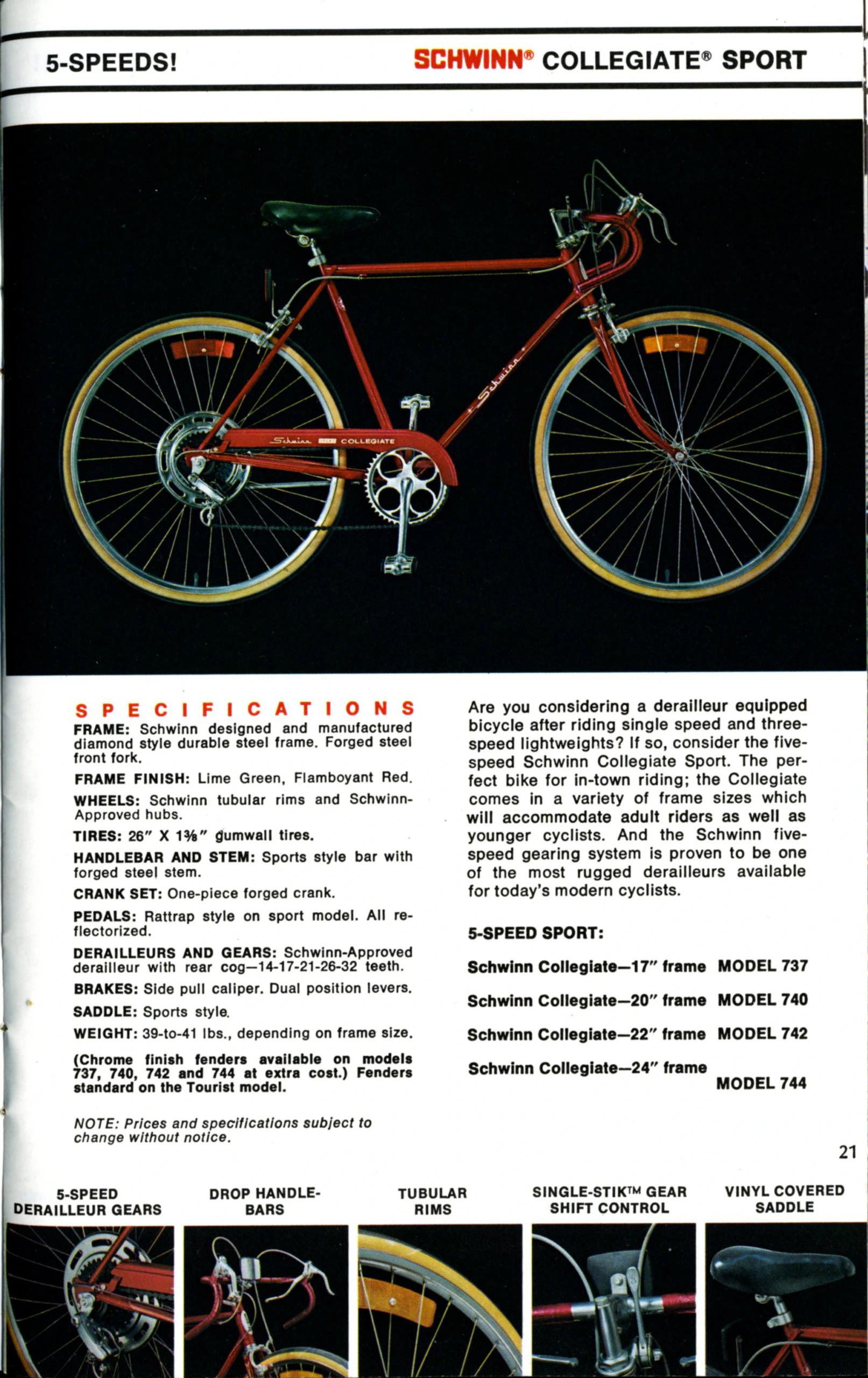

SCHWINN® COLLEGIATE® SPORT

SPECIFICATIONS
FRAME: Schwinn designed and manufactured diamond style durable steel frame. Forged steel front fork.
FRAME FINISH: Lime Green, Flamboyant Red.
WHEELS: Schwinn tubular rims and Schwinn-Approved hubs.
TIRES: 26″ X 1⅜” gumwall tires.
HANDLEBAR AND STEM: Sports style bar with forged steel stem.
CRANK SET: One-piece forged crank.
PEDALS: Rattrap style on sport model. All reflectorized.
DERAILLEURS AND GEARS: Schwinn-Approved derailleur with rear cog—14-17-21-26-32 teeth.
BRAKES: Side pull caliper. Dual position levers.
SADDLE: Sports style.
WEIGHT: 39-to-41 lbs., depending on frame size.
(Chrome finish fenders available on models 737, 740, 742 and 744 at extra cost.) Fenders standard on the Tourist model.

NOTE: Prices and specifications subject to change without notice.

Are you considering a derailleur equipped bicycle after riding single speed and three-speed lightweights? If so, consider the five-speed Schwinn Collegiate Sport. The perfect bike for in-town riding; the Collegiate comes in a variety of frame sizes which will accommodate adult riders as well as younger cyclists. And the Schwinn five-speed gearing system is proven to be one of the most rugged derailleurs available for today’s modern cyclists.

5-SPEED SPORT:
Schwinn Collegiate—17″ frame | MODEL 737
Schwinn Collegiate—20″ frame | MODEL 740
Schwinn Collegiate—22″ frame | MODEL 742
Schwinn Collegiate—24″ frame | MODEL 744

5-SPEED DERAILLEUR GEARS
DROP HANDLEBARS
TUBULAR RIMS
SINGLE-STIK™ GEAR SHIFT CONTROL
VINYL COVERED SADDLE

21

[The Schwinn Collegiate Sport 5-speed in red, shown in a side-view studio photograph against a dark background, with its specifications, four model numbers and a strip of five detail photographs below. The detail photographs show the rear derailleur, the drop handlebars, a rim, the Single-Stik shift lever and the saddle.]

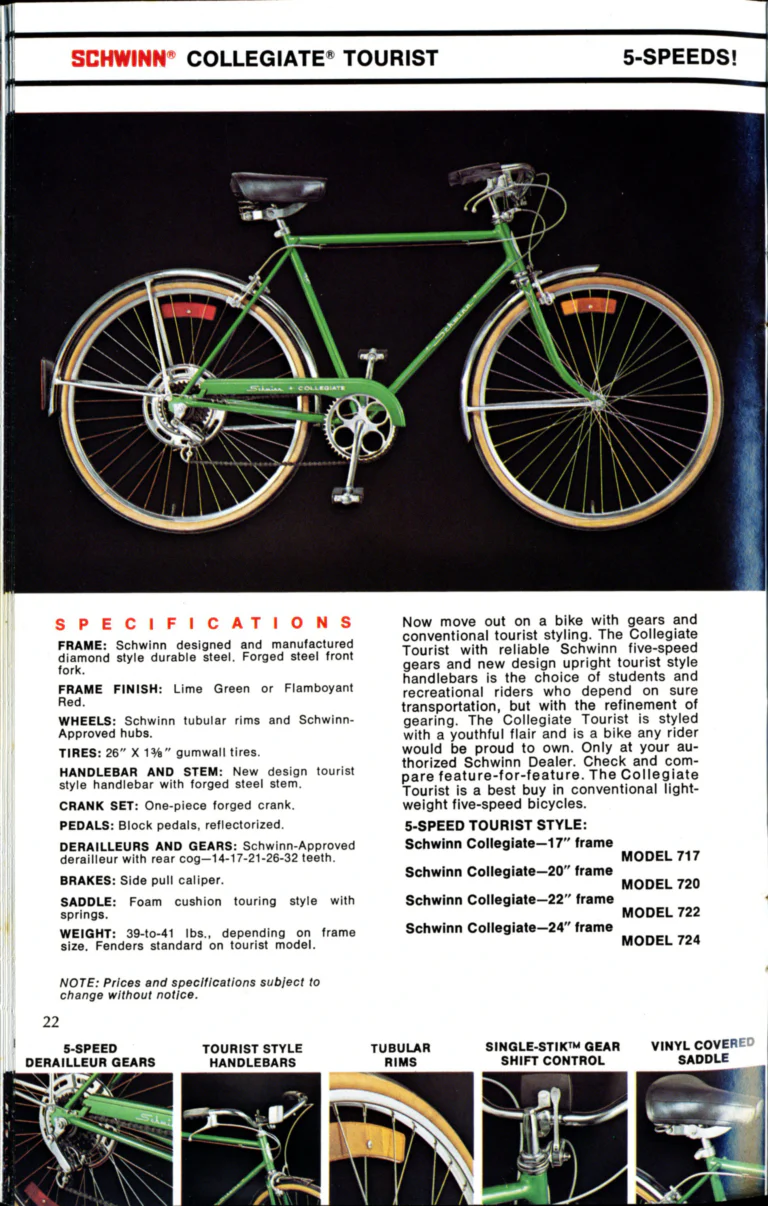

— Page 22 —

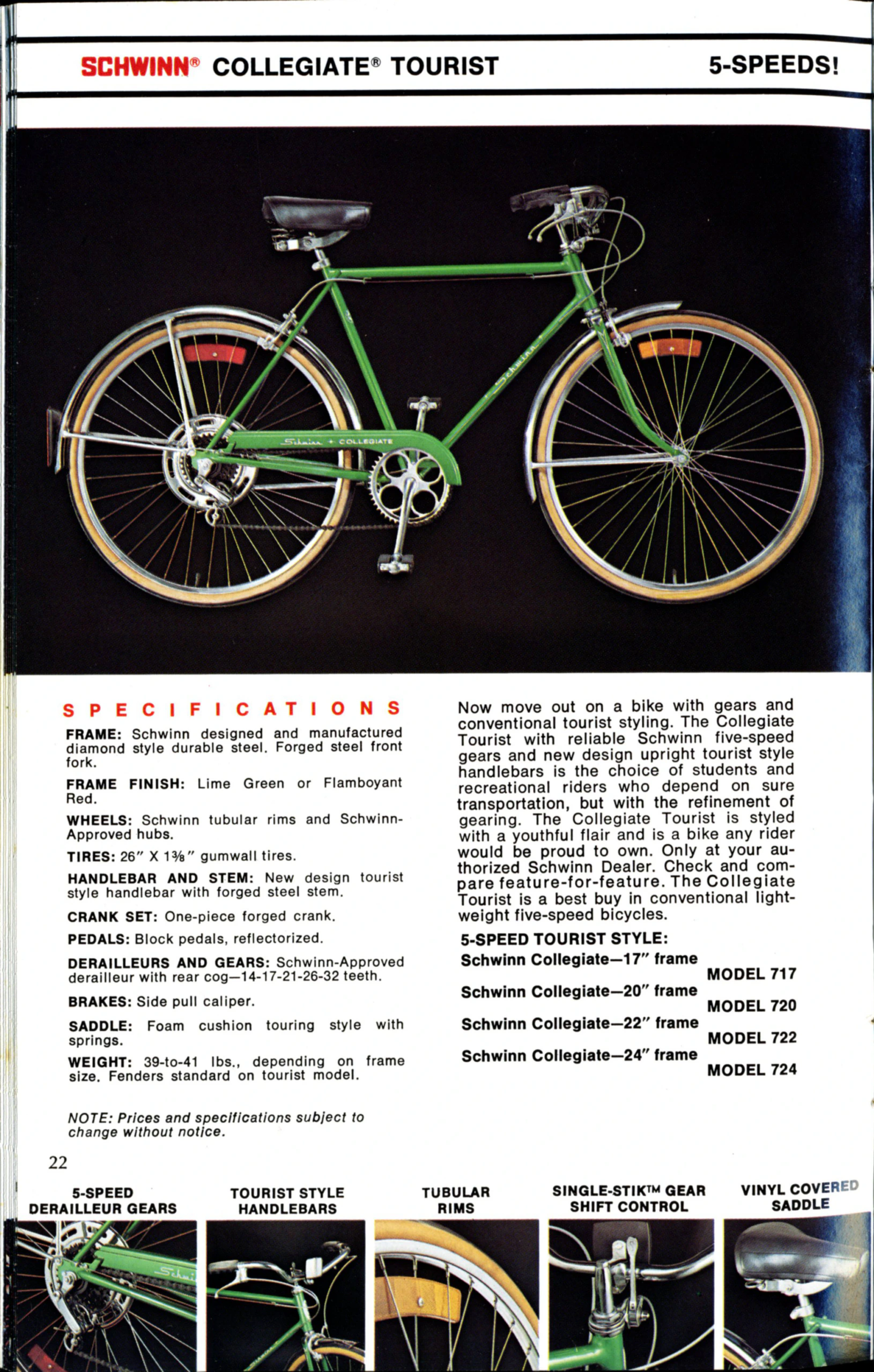

SCHWINN® COLLEGIATE® TOURIST
5-SPEEDS!

SPECIFICATIONS
FRAME: Schwinn designed and manufactured diamond style durable steel. Forged steel front fork.
FRAME FINISH: Lime Green or Flamboyant Red.
WHEELS: Schwinn tubular rims and Schwinn-Approved hubs.
TIRES: 26″ X 1⅜” gumwall tires.
HANDLEBAR AND STEM: New design tourist style handlebar with forged steel stem.
CRANK SET: One-piece forged crank.
PEDALS: Block pedals, reflectorized.
DERAILLEURS AND GEARS: Schwinn-Approved derailleur with rear cog—14-17-21-26-32 teeth.
BRAKES: Side pull caliper.
SADDLE: Foam cushion touring style with springs.
WEIGHT: 39-to-41 lbs., depending on frame size. Fenders standard on tourist model.

NOTE: Prices and specifications subject to change without notice.

Now move out on a bike with gears and conventional tourist styling. The Collegiate Tourist with reliable Schwinn five-speed gears and new design upright tourist style handlebars is the choice of students and recreational riders who depend on sure transportation, but with the refinement of gearing. The Collegiate Tourist is styled with a youthful flair and is a bike any rider would be proud to own. Only at your authorized Schwinn Dealer. Check and compare feature-for-feature. The Collegiate Tourist is a best buy in conventional lightweight five-speed bicycles.

5-SPEED TOURIST STYLE:
Schwinn Collegiate—17″ frame | MODEL 717
Schwinn Collegiate—20″ frame | MODEL 720
Schwinn Collegiate—22″ frame | MODEL 722
Schwinn Collegiate—24″ frame | MODEL 724

5-SPEED DERAILLEUR GEARS
TOURIST STYLE HANDLEBARS
TUBULAR RIMS
SINGLE-STIK™ GEAR SHIFT CONTROL
VINYL COVERED SADDLE
22

[The Schwinn Collegiate Tourist five-speed, a green men’s diamond frame bicycle with fenders and upright tourist handlebars, shown in a side-view studio photograph, with its specifications, four model numbers by frame size and a strip of five detail photographs below. The strip shows the rear derailleur and freewheel, the handlebars, a rim and tire, the Single-Stik shift lever on the stem and the saddle.]

— Page 23 —
3-SPEED OR COASTER BRAKE!

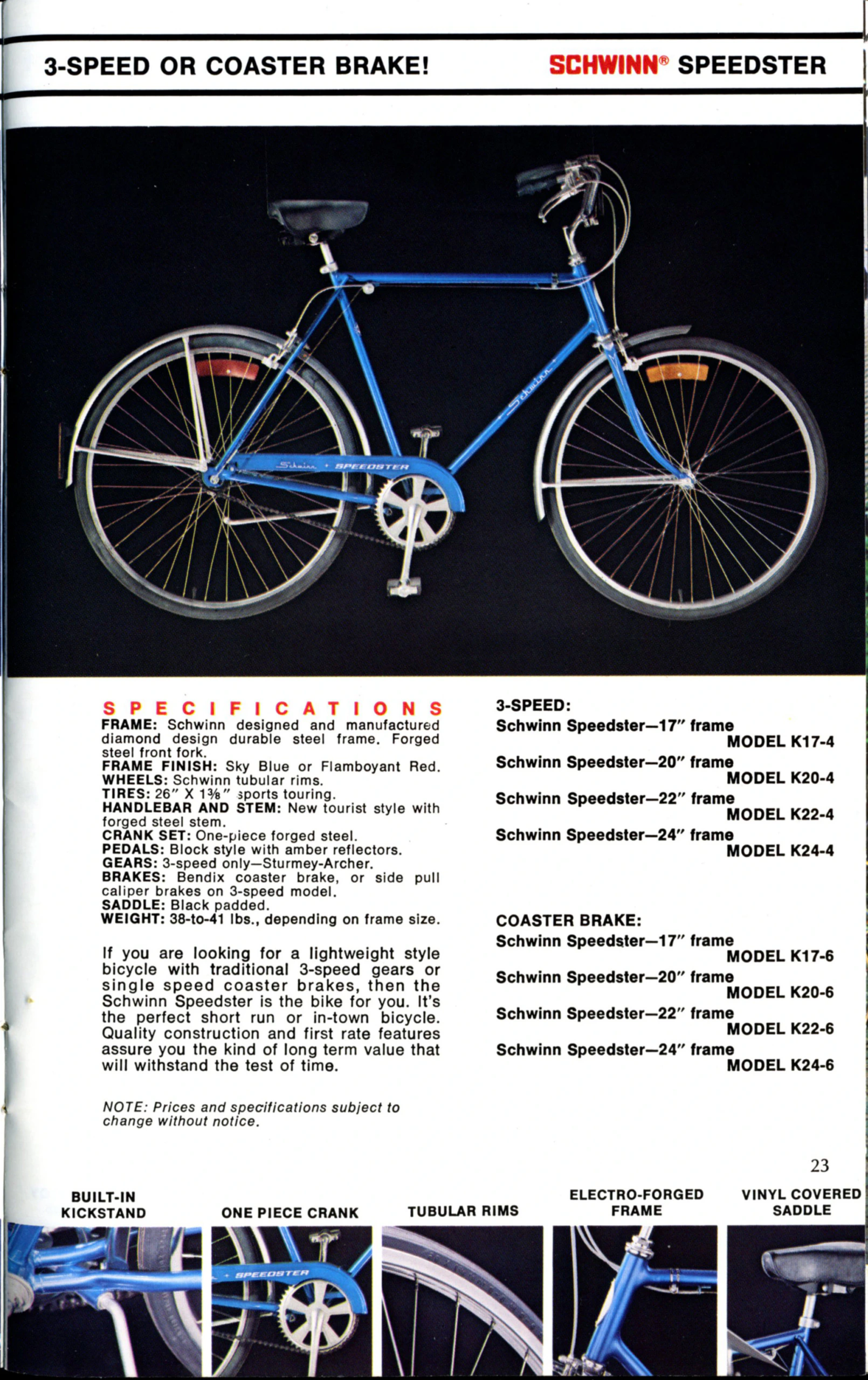

SCHWINN® SPEEDSTER

SPECIFICATIONS
FRAME: Schwinn designed and manufactured diamond design durable steel frame. Forged steel front fork.
FRAME FINISH: Sky Blue or Flamboyant Red.
WHEELS: Schwinn tubular rims.
TIRES: 26″ X 1⅜” sports touring.
HANDLEBAR AND STEM: New tourist style with forged steel stem.
CRANK SET: One-piece forged steel.
PEDALS: Block style with amber reflectors.
GEARS: 3-speed only—Sturmey-Archer.
BRAKES: Bendix coaster brake, or side pull caliper brakes on 3-speed model.
SADDLE: Black padded.
WEIGHT: 38-to-41 lbs., depending on frame size.

If you are looking for a lightweight style bicycle with traditional 3-speed gears or single speed coaster brakes, then the Schwinn Speedster is the bike for you. It’s the perfect short run or in-town bicycle. Quality construction and first rate features assure you the kind of long term value that will withstand the test of time.

NOTE: Prices and specifications subject to change without notice.

3-SPEED:
Schwinn Speedster—17″ frame | MODEL K17-4
Schwinn Speedster—20″ frame | MODEL K20-4
Schwinn Speedster—22″ frame | MODEL K22-4
Schwinn Speedster—24″ frame | MODEL K24-4

COASTER BRAKE:
Schwinn Speedster—17″ frame | MODEL K17-6
Schwinn Speedster—20″ frame | MODEL K20-6
Schwinn Speedster—22″ frame | MODEL K22-6
Schwinn Speedster—24″ frame | MODEL K24-6

BUILT-IN KICKSTAND
ONE PIECE CRANK
TUBULAR RIMS
ELECTRO-FORGED FRAME
VINYL COVERED SADDLE
23

[The Schwinn Speedster, a blue men’s diamond frame bicycle with fenders, upright handlebars and a chainguard, shown in a side-view studio photograph, with its specifications, eight model numbers in three-speed and coaster brake versions and a strip of five detail photographs below. The strip shows the kickstand, the one-piece crank and chainwheel, a rim and tire, the head of the frame and the saddle.]

— Page 24 —
SCHWINN® DELUXE TOURING PARAMOUNT® 10- OR 15-SPEEDS!

SPECIFICATIONS
FRAME: Reynolds 531 double-butted tubing top and down tube. Seatpost tube single butted. Front and rear Campagnolo forged fork ends. Standard frame sizes 20 and 22-in. (Made-to-measure frames available at extra cost.)
FRAME FINISH: All current Schwinn colors (except Chrome). Chrome plated fork ends.
WHEELS: Campagnolo “Record” large flange quick-release hubs. Weinmann alloy rims.
TIRES: 27″ X 1⅛” Schwinn Super Record gumwall.
HANDLEBARS AND STEM: Cinelli aluminum alloy racing bars and stem.
HEADSET: Campagnolo Strada.
CRANK SET: Campagnolo “Record” triple plateau 36-46-54 teeth on P65. Double plateau 42-52 teeth on P60.
PEDALS: Campagnolo Superleggeri with Christophe toe clips.
DERAILLEURS AND GEARS: P65—Schwinn-Approved GT-300 rear. Campagnolo front. Range 31-104. P60—Campagnolo “Record” front, Campagnolo Nuovo Record rear. Range 51-100.
BRAKES: Schwinn-Approved alloy center pull with hooded quick release levers. Side pull brakes available on custom built frames at extra cost.
SADDLE: Unica-Nitor padded saddle. Brooks Professional saddle optional. Campagnolo seatpost.
WEIGHT: Approx. 26 lbs. depending on frame size and equipment.

Handcrafted throughout with the superb workmanship that has made the Schwinn Paramount the “Choice of Champions.” For the serious woman cyclist, every appointment has been selected with exacting care . . . each precision part meeting another has been matched with the tolerances of a fine watch. The finest components made in the world—the list reads like a who’s who—from the magnificent hand-built frame to the beautifully finished Campagnolo equipment, it is a lifetime investment in riding pleasure. Schwinn’s very best.

Schwinn Ladies’ Paramount—15-speed | MODEL P65
Schwinn Ladies’ Paramount—10-speed | MODEL P60-9

NOTE: Prices and specifications subject to change without notice.

HAND BRAZED LUGGED FRAME
CAMPAGNOLO CRANK SET
CAMPAGNOLO “RECORD” HUBS
CINELLI ALUMINUM ALLOY STEM
ALUMINUM ALLOY DERAILLEUR
24

[The Schwinn Deluxe Touring Paramount, a silver women’s frame bicycle with dropped handlebars, shown in a side-view studio photograph against a blue background, with its specifications, two model numbers for the Ladies’ Paramount in 15-speed and 10-speed versions and a strip of five detail photographs below. The strip shows the lugged head of the frame, the chainwheel and crank, a hub with its quick release lever, the stem and brake lever and the rear derailleur and freewheel.]

— Page 25 —

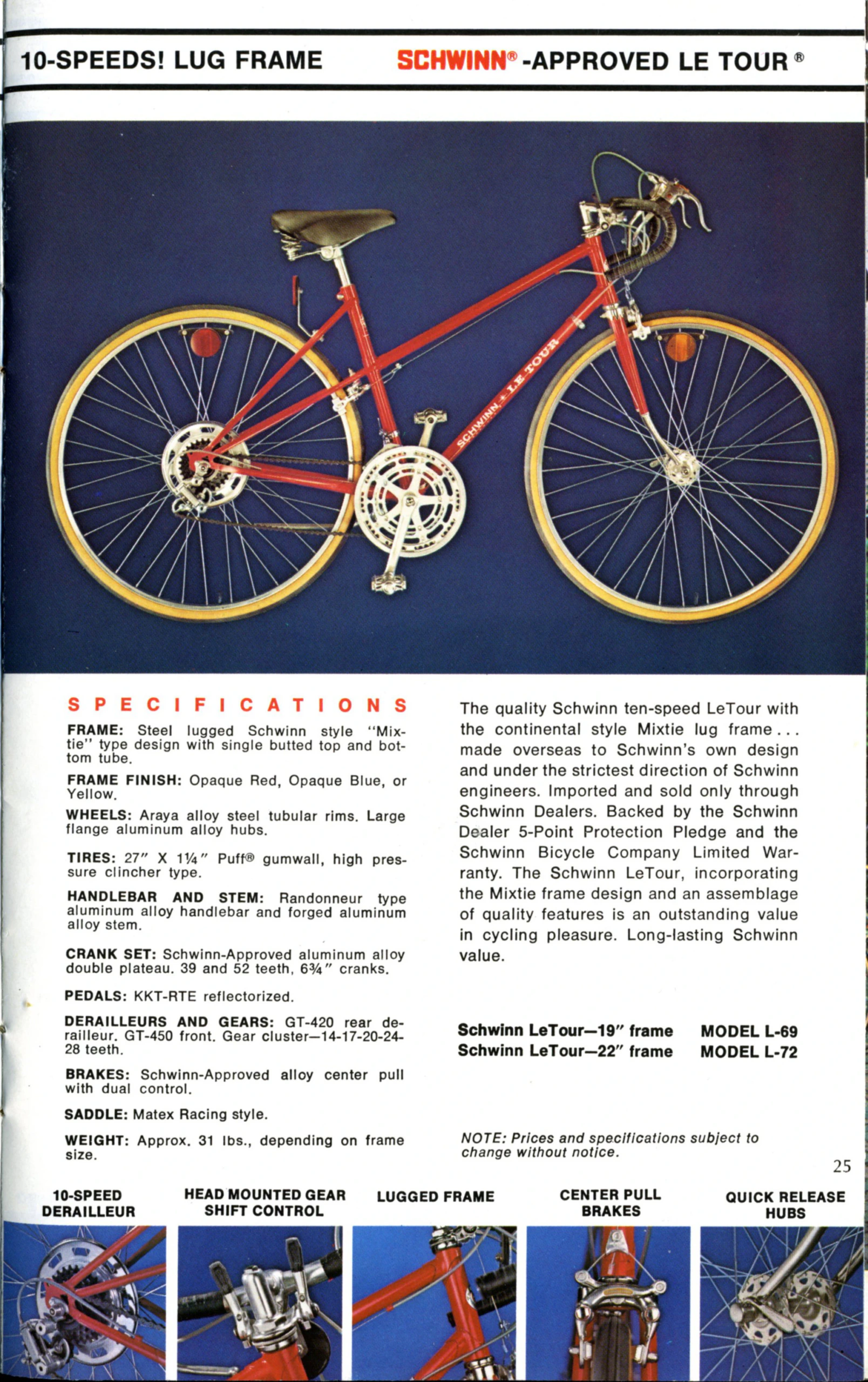

10-SPEEDS! LUG FRAME
SCHWINN® -APPROVED LE TOUR®

SPECIFICATIONS
FRAME: Steel lugged Schwinn style “Mixtie” type design with single butted top and bottom tube.
FRAME FINISH: Opaque Red, Opaque Blue, or Yellow.
WHEELS: Araya alloy steel tubular rims. Large flange aluminum alloy hubs.
TIRES: 27″ X 1¼” Puff® gumwall, high pressure clincher type.
HANDLEBAR AND STEM: Randonneur type aluminum alloy handlebar and forged aluminum alloy stem.
CRANK SET: Schwinn-Approved aluminum alloy double plateau. 39 and 52 teeth, 6¾” cranks.
PEDALS: KKT-RTE reflectorized.
DERAILLEURS AND GEARS: GT-420 rear derailleur. GT-450 front. Gear cluster—14-17-20-24-28 teeth.
BRAKES: Schwinn-Approved alloy center pull with dual control.
SADDLE: Matex Racing style.
WEIGHT: Approx. 31 lbs., depending on frame size.

The quality Schwinn ten-speed LeTour with the continental style Mixtie lug frame . . . made overseas to Schwinn’s own design and under the strictest direction of Schwinn engineers. Imported and sold only through Schwinn Dealers. Backed by the Schwinn Dealer 5-Point Protection Pledge and the Schwinn Bicycle Company Limited Warranty. The Schwinn LeTour, incorporating the Mixtie frame design and an assemblage of quality features is an outstanding value in cycling pleasure. Long-lasting Schwinn value.

Schwinn LeTour—19″ frame | MODEL L-69
Schwinn LeTour—22″ frame | MODEL L-72

NOTE: Prices and specifications subject to change without notice.

10-SPEED DERAILLEUR
HEAD MOUNTED GEAR SHIFT CONTROL
LUGGED FRAME
CENTER PULL BRAKES
QUICK RELEASE HUBS
25

[The Schwinn-Approved Le Tour, a red 10-speed with a lugged mixte frame, dropped handlebars and gumwall tires, shown in a side-view studio photograph against a blue background, with its specifications, two model numbers by frame size and a strip of five detail photographs below. The strip shows the rear derailleur, the stem-mounted shift levers, the lugged frame, a center pull brake and a quick release hub.]

— Page 26 —

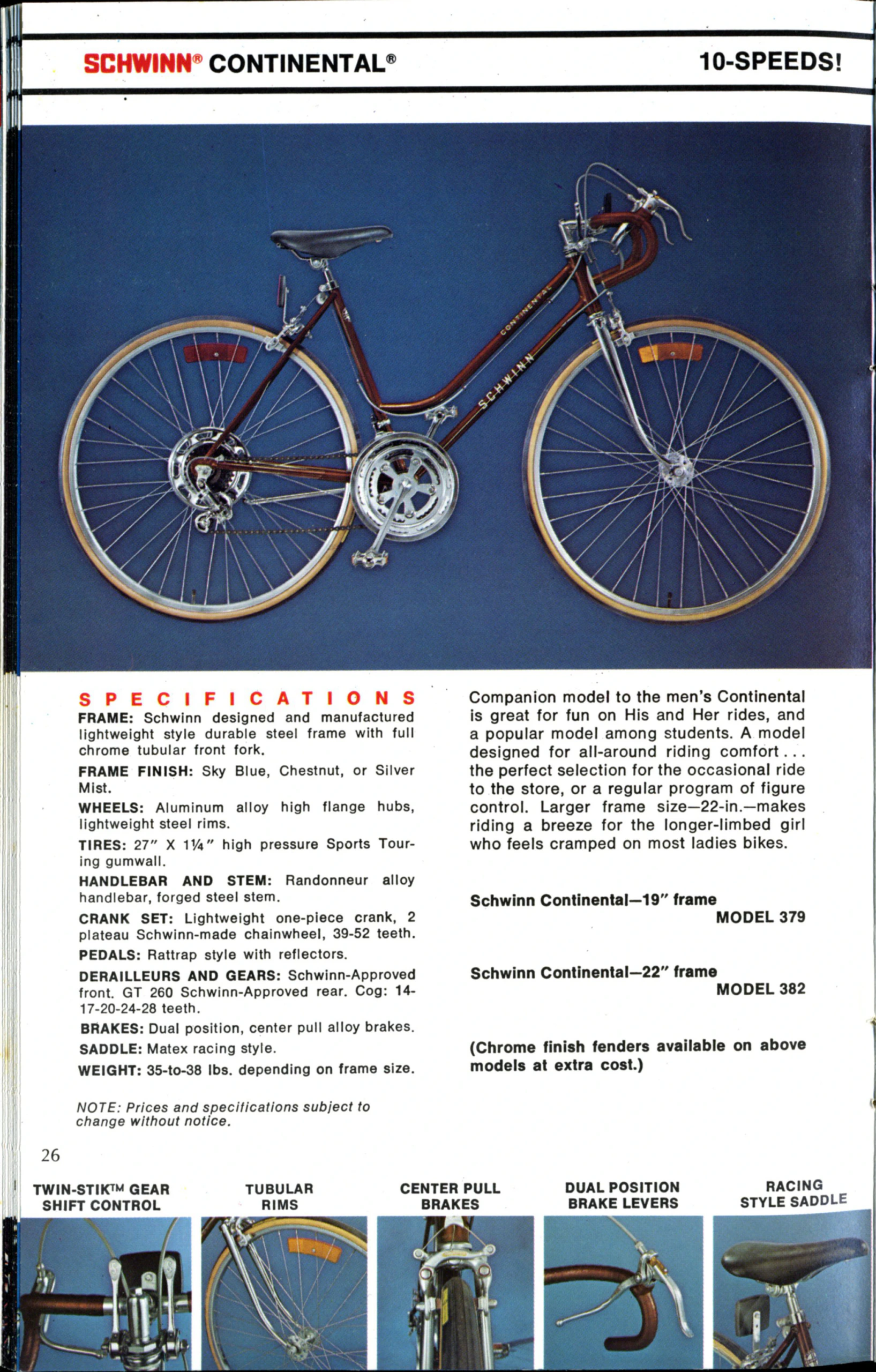

SCHWINN® CONTINENTAL®
10-SPEEDS!

SPECIFICATIONS
FRAME: Schwinn designed and manufactured lightweight style durable steel frame with full chrome tubular front fork.
FRAME FINISH: Sky Blue, Chestnut, or Silver Mist.
WHEELS: Aluminum alloy high flange hubs, lightweight steel rims.
TIRES: 27″ X 1¼” high pressure Sports Touring gumwall.
HANDLEBAR AND STEM: Randonneur alloy handlebar, forged steel stem.
CRANK SET: Lightweight one-piece crank, 2 plateau Schwinn-made chainwheel, 39-52 teeth.
PEDALS: Rattrap style with reflectors.
DERAILLEURS AND GEARS: Schwinn-Approved front. GT 260 Schwinn-Approved rear. Cog: 14-17-20-24-28 teeth.
BRAKES: Dual position, center pull alloy brakes.
SADDLE: Matex racing style.
WEIGHT: 35-to-38 lbs. depending on frame size.

NOTE: Prices and specifications subject to change without notice.

Companion model to the men’s Continental is great for fun on His and Her rides, and a popular model among students. A model designed for all-around riding comfort . . . the perfect selection for the occasional ride to the store, or a regular program of figure control. Larger frame size—22-in.—makes riding a breeze for the longer-limbed girl who feels cramped on most ladies bikes.

Schwinn Continental—19″ frame | MODEL 379
Schwinn Continental—22″ frame | MODEL 382

(Chrome finish fenders available on above models at extra cost.)

TWIN-STIK™ GEAR SHIFT CONTROL
TUBULAR RIMS
CENTER PULL BRAKES
DUAL POSITION BRAKE LEVERS
RACING STYLE SADDLE
26

[The Schwinn Continental 10-speed in its women’s frame, a brown bicycle with dropped handlebars and gumwall tires, shown in a side-view studio photograph against a blue background, with its specifications, two model numbers by frame size and a strip of five detail photographs below. The strip shows the Twin-Stik shift levers on the stem, a rim and front fork, a center pull brake, a brake lever with its extension lever and the saddle.]

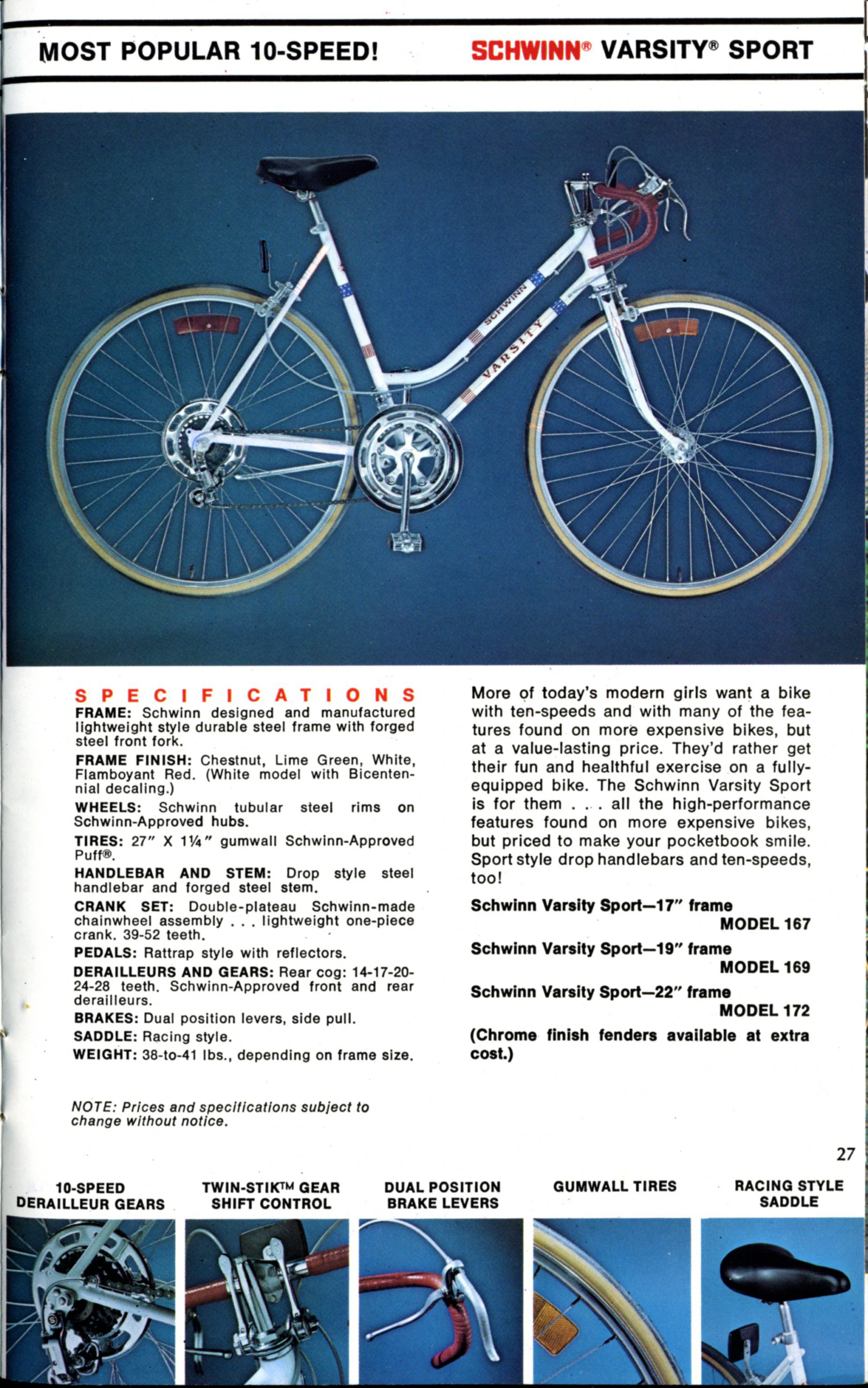

— Page 27 —
MOST POPULAR 10-SPEED!
SCHWINN® VARSITY® SPORT

SPECIFICATIONS
FRAME: Schwinn designed and manufactured lightweight style durable steel frame with forged steel front fork.
FRAME FINISH: Chestnut, Lime Green, White, Flamboyant Red. (White model with Bicentennial decaling.)
WHEELS: Schwinn tubular steel rims on Schwinn-Approved hubs.
TIRES: 27″ X 1¼” gumwall Schwinn-Approved Puff®.
HANDLEBAR AND STEM: Drop style steel handlebar and forged steel stem.
CRANK SET: Double-plateau Schwinn-made chainwheel assembly . . . lightweight one-piece crank. 39-52 teeth.
PEDALS: Rattrap style with reflectors.
DERAILLEURS AND GEARS: Rear cog: 14-17-20-24-28 teeth. Schwinn-Approved front and rear derailleurs.
BRAKES: Dual position levers, side pull.
SADDLE: Racing style.
WEIGHT: 38-to-41 lbs., depending on frame size.

NOTE: Prices and specifications subject to change without notice.

More of today’s modern girls want a bike with ten-speeds and with many of the features found on more expensive bikes, but at a value-lasting price. They’d rather get their fun and healthful exercise on a fully-equipped bike. The Schwinn Varsity Sport is for them . . . all the high-performance features found on more expensive bikes, but priced to make your pocketbook smile. Sport style drop handlebars and ten-speeds, too!

Schwinn Varsity Sport—17″ frame | MODEL 167
Schwinn Varsity Sport—19″ frame | MODEL 169
Schwinn Varsity Sport—22″ frame | MODEL 172

(Chrome finish fenders available at extra cost.)

10-SPEED DERAILLEUR GEARS
TWIN-STIK™ GEAR SHIFT CONTROL
DUAL POSITION BRAKE LEVERS
GUMWALL TIRES
RACING STYLE SADDLE
27

[The Schwinn Varsity Sport 10-speed in its women’s frame, a white bicycle with dropped handlebars and bands of stars and stripes decals on its tubes, shown in a side-view studio photograph against a blue background, with its specifications, three model numbers by frame size and a strip of five detail photographs below. The strip shows the rear derailleur and freewheel, the Twin-Stik shift levers on the stem, a brake lever with its extension lever, a gumwall tire with a spoke reflector and the saddle.]

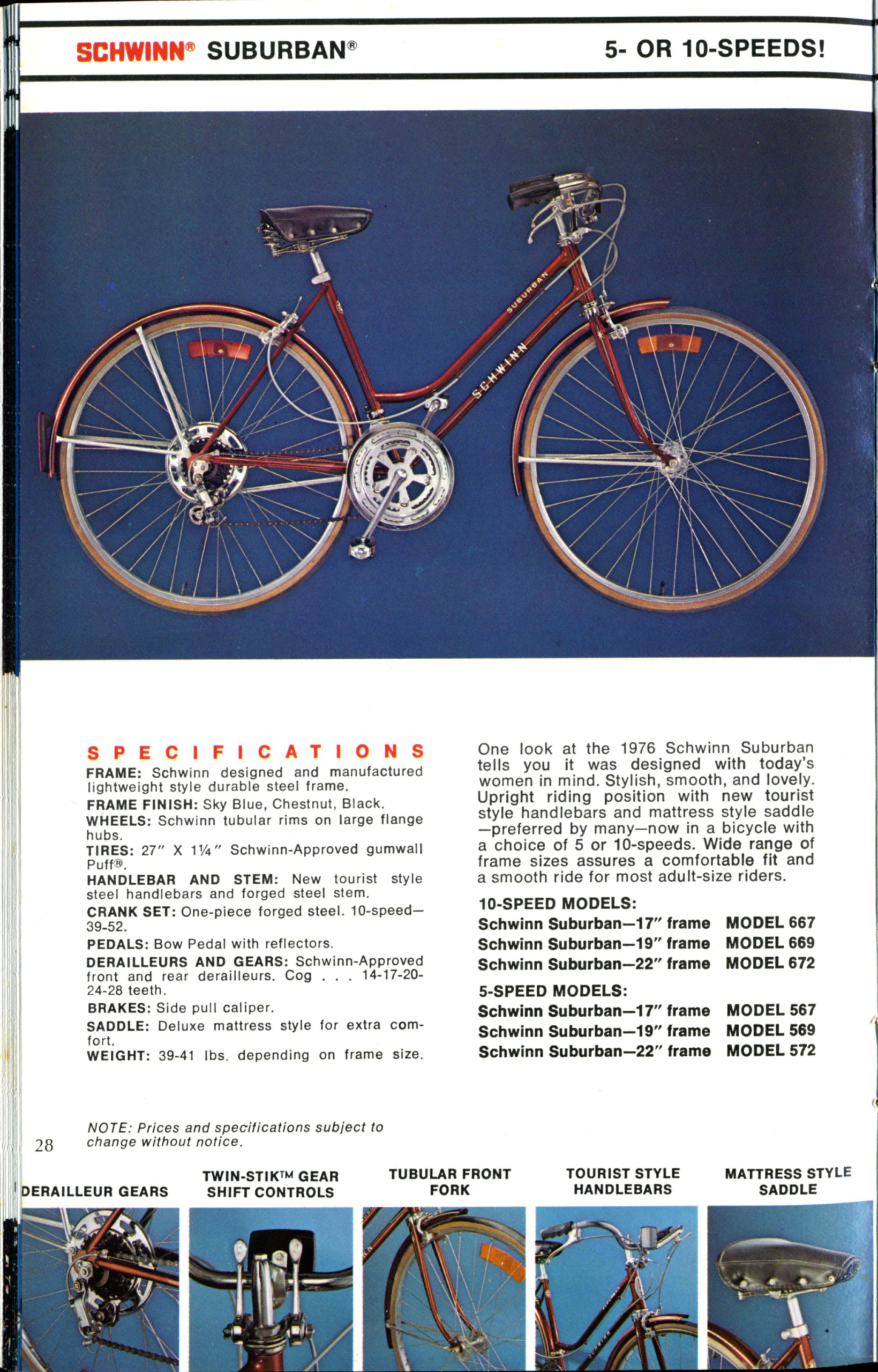

— Page 28 —
SCHWINN® SUBURBAN®
5- OR 10-SPEEDS!

SPECIFICATIONS
FRAME: Schwinn designed and manufactured lightweight style durable steel frame.
FRAME FINISH: Sky Blue, Chestnut, Black.
WHEELS: Schwinn tubular rims on large flange hubs.
TIRES: 27″ X 1¼” Schwinn-Approved gumwall Puff®.
HANDLEBAR AND STEM: New tourist style steel handlebars and forged steel stem.
CRANK SET: One-piece forged steel. 10-speed—39-52.
PEDALS: Bow Pedal with reflectors.
DERAILLEURS AND GEARS: Schwinn-Approved front and rear derailleurs. Cog . . . 14-17-20-24-28 teeth.
BRAKES: Side pull caliper.
SADDLE: Deluxe mattress style for extra comfort.
WEIGHT: 39-41 lbs. depending on frame size.

NOTE: Prices and specifications subject to change without notice.

One look at the 1976 Schwinn Suburban tells you it was designed with today’s women in mind. Stylish, smooth, and lovely. Upright riding position with new tourist style handlebars and mattress style saddle—preferred by many—now in a bicycle with a choice of 5 or 10-speeds. Wide range of frame sizes assures a comfortable fit and a smooth ride for most adult-size riders.

10-SPEED MODELS:
Schwinn Suburban—17″ frame | MODEL 667
Schwinn Suburban—19″ frame | MODEL 669
Schwinn Suburban—22″ frame | MODEL 672

5-SPEED MODELS:
Schwinn Suburban—17″ frame | MODEL 567
Schwinn Suburban—19″ frame | MODEL 569
Schwinn Suburban—22″ frame | MODEL 572

DERAILLEUR GEARS
TWIN-STIK™ GEAR SHIFT CONTROLS
TUBULAR FRONT FORK
TOURIST STYLE HANDLEBARS
MATTRESS STYLE SADDLE
28

[The Schwinn Suburban, a brown women’s frame bicycle with fenders, upright tourist handlebars and a mattress saddle, shown in a side-view studio photograph against a blue background, with its specifications, six model numbers in 10-speed and five-speed versions and a strip of five detail photographs below. The strip shows the rear derailleur and freewheel, the Twin-Stik shift levers on the stem, the front fork and fender, the handlebars and the saddle.]

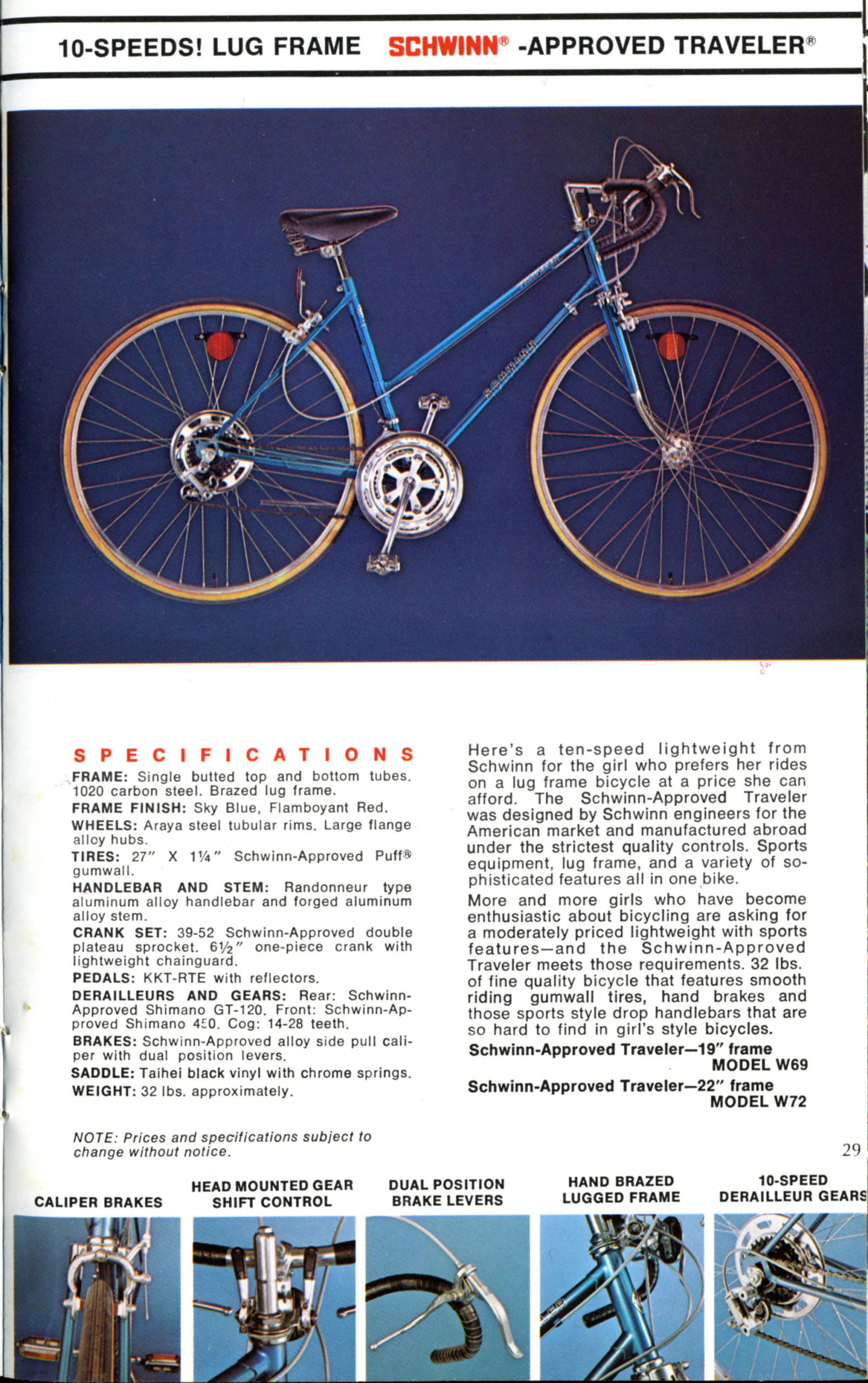

— Page 29 —
10-SPEEDS! LUG FRAME
SCHWINN® -APPROVED TRAVELER®

SPECIFICATIONS
FRAME: Single butted top and bottom tubes. 1020 carbon steel. Brazed lug frame.
FRAME FINISH: Sky Blue, Flamboyant Red.
WHEELS: Araya steel tubular rims. Large flange alloy hubs.
TIRES: 27″ X 1¼” Schwinn-Approved Puff® gumwall.
HANDLEBAR AND STEM: Randonneur type aluminum alloy handlebar and forged aluminum alloy stem.
CRANK SET: 39-52 Schwinn-Approved double plateau sprocket. 6½” one-piece crank with lightweight chainguard.
PEDALS: KKT-RTE with reflectors.
DERAILLEURS AND GEARS: Rear: Schwinn-Approved Shimano GT-120. Front: Schwinn-Approved Shimano 450. Cog: 14-28 teeth.
BRAKES: Schwinn-Approved alloy side pull caliper with dual position levers.
SADDLE: Taihei black vinyl with chrome springs.
WEIGHT: 32 lbs. approximately.

Here’s a ten-speed lightweight from Schwinn for the girl who prefers her rides on a lug frame bicycle at a price she can afford. The Schwinn-Approved Traveler was designed by Schwinn engineers for the American market and manufactured abroad under the strictest quality controls. Sports equipment, lug frame, and a variety of sophisticated features all in one bike.

More and more girls who have become enthusiastic about bicycling are asking for a moderately priced lightweight with sports features—and the Schwinn-Approved Traveler meets those requirements. 32 lbs. of fine quality bicycle that features smooth riding gumwall tires, hand brakes and those sports style drop handlebars that are so hard to find in girl’s style bicycles.

Schwinn-Approved Traveler—19″ frame | MODEL W69
Schwinn-Approved Traveler—22″ frame | MODEL W72

NOTE: Prices and specifications subject to change without notice.

CALIPER BRAKES
HEAD MOUNTED GEAR SHIFT CONTROL
DUAL POSITION BRAKE LEVERS
HAND BRAZED LUGGED FRAME
10-SPEED DERAILLEUR GEARS
29

[The Schwinn-Approved Traveler 10-speed with a blue women’s lug frame shown in a side-view studio photograph, with its specifications, two model numbers and a strip of five detail photographs below. The detail photographs show the caliper brakes, the gear shift control on the stem, the dual position brake levers, a brazed lug and the rear derailleur.]

— Page 30 —

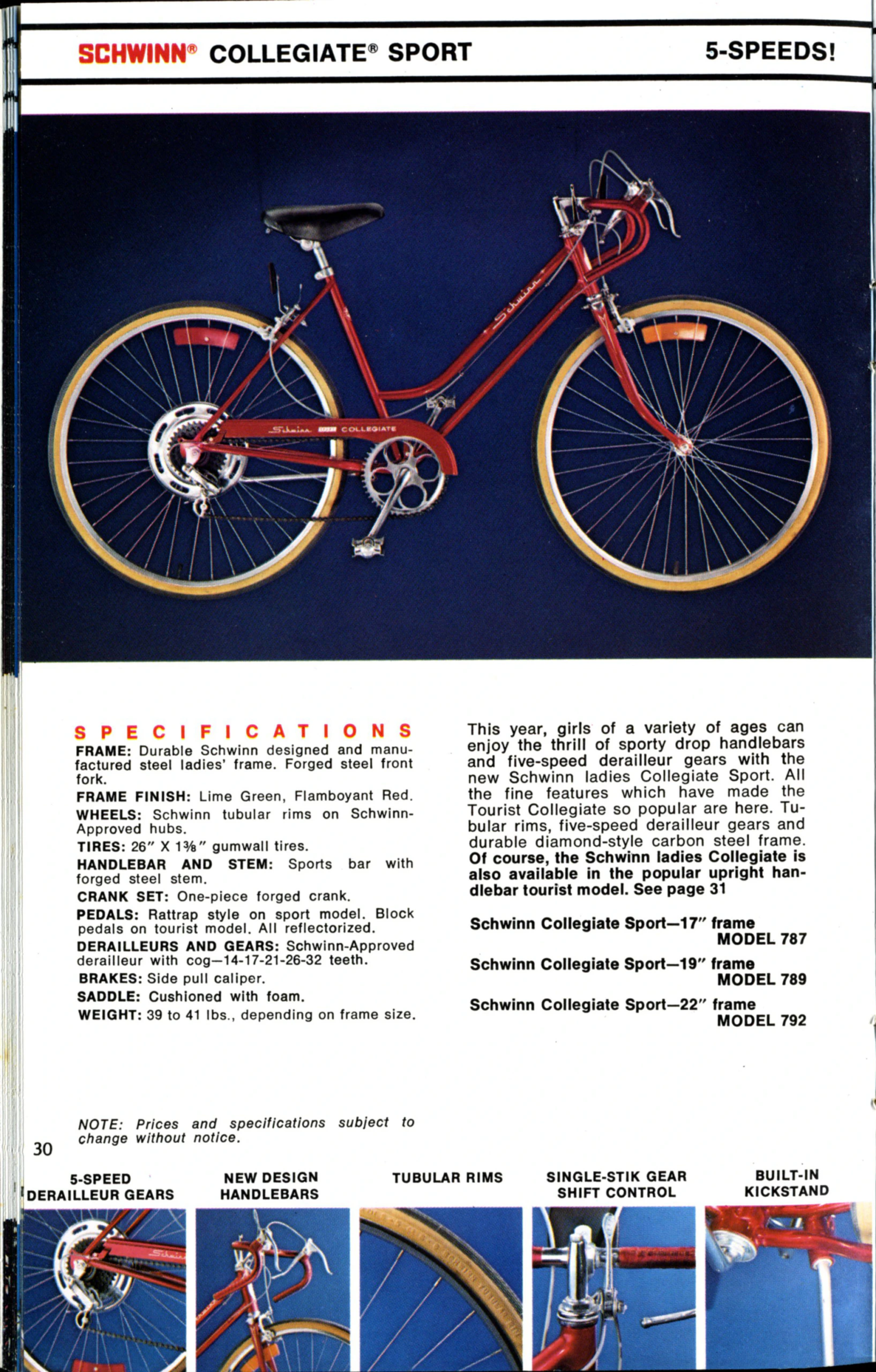

SCHWINN® COLLEGIATE® SPORT
5-SPEEDS!

SPECIFICATIONS
FRAME: Durable Schwinn designed and manufactured steel ladies’ frame. Forged steel front fork.
FRAME FINISH: Lime Green, Flamboyant Red.
WHEELS: Schwinn tubular rims on Schwinn-Approved hubs.
TIRES: 26″ X 1⅜” gumwall tires.
HANDLEBAR AND STEM: Sports bar with forged steel stem.
CRANK SET: One-piece forged crank.
PEDALS: Rattrap style on sport model. Block pedals on tourist model. All reflectorized.
DERAILLEURS AND GEARS: Schwinn-Approved derailleur with cog—14-17-21-26-32 teeth.
BRAKES: Side pull caliper.
SADDLE: Cushioned with foam.
WEIGHT: 39 to 41 lbs., depending on frame size.

This year, girls of a variety of ages can enjoy the thrill of sporty drop handlebars and five-speed derailleur gears with the new Schwinn ladies Collegiate Sport. All the fine features which have made the Tourist Collegiate so popular are here. Tubular rims, five-speed derailleur gears and durable diamond-style carbon steel frame. Of course, the Schwinn ladies Collegiate is also available in the popular upright handlebar tourist model. See page 31

Schwinn Collegiate Sport—17″ frame | MODEL 787
Schwinn Collegiate Sport—19″ frame | MODEL 789
Schwinn Collegiate Sport—22″ frame | MODEL 792

NOTE: Prices and specifications subject to change without notice.

5-SPEED DERAILLEUR GEARS
NEW DESIGN HANDLEBARS
TUBULAR RIMS
SINGLE-STIK GEAR SHIFT CONTROL
BUILT-IN KICKSTAND
30

[The Schwinn Collegiate Sport 5-speed with a red women’s frame and drop handlebars shown in a side-view studio photograph, with its specifications, three model numbers and a strip of five detail photographs below. The detail photographs show the rear derailleur, the handlebars, a rim and tire, the shift lever on the stem and the kickstand.]

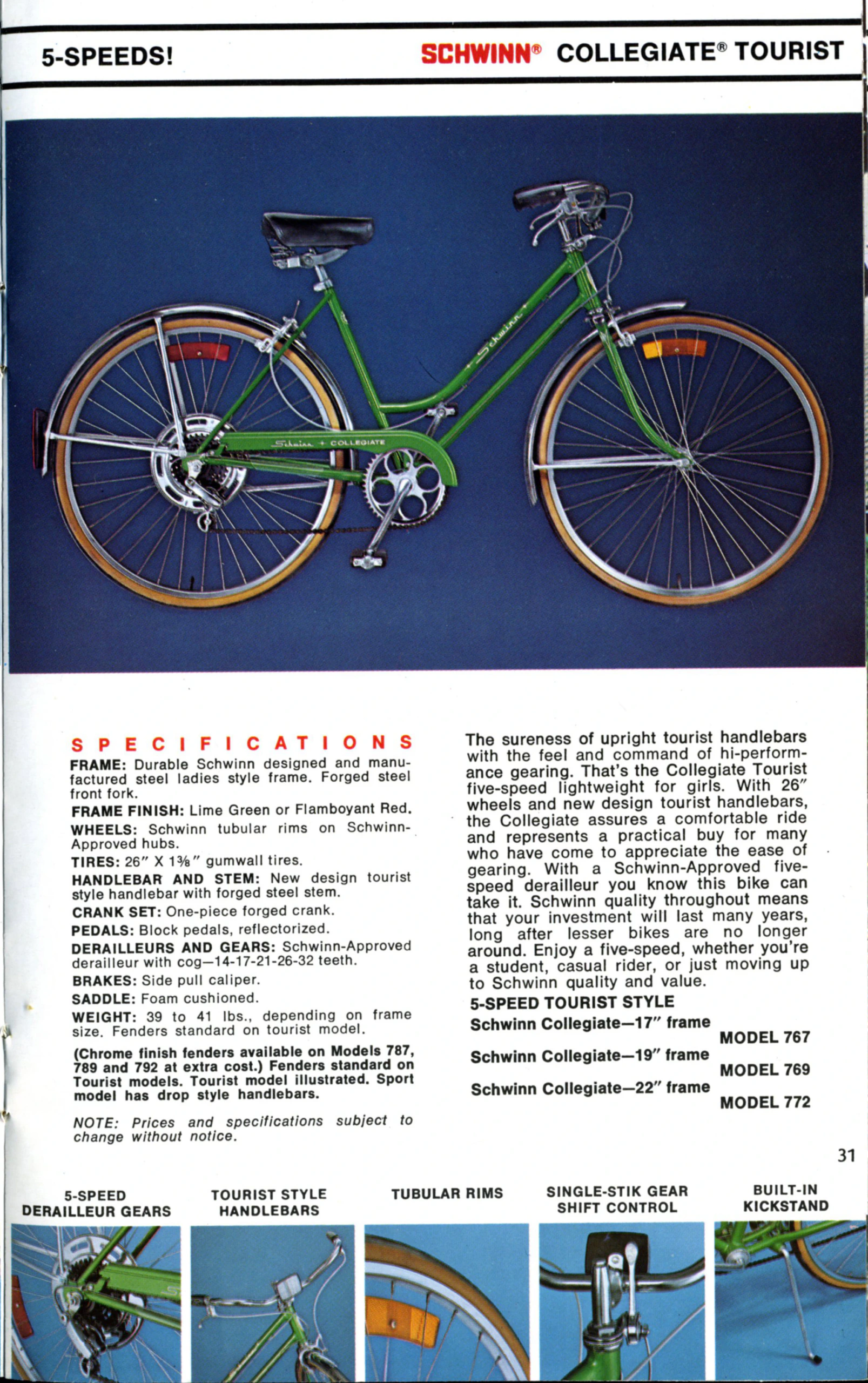

— Page 31 —
5-SPEEDS!
SCHWINN® COLLEGIATE® TOURIST

SPECIFICATIONS
FRAME: Durable Schwinn designed and manufactured steel ladies style frame. Forged steel front fork.
FRAME FINISH: Lime Green or Flamboyant Red.
WHEELS: Schwinn tubular rims on Schwinn-Approved hubs.
TIRES: 26″ X 1⅜” gumwall tires.
HANDLEBAR AND STEM: New design tourist style handlebar with forged steel stem.
CRANK SET: One-piece forged crank.
PEDALS: Block pedals, reflectorized.
DERAILLEURS AND GEARS: Schwinn-Approved derailleur with cog—14-17-21-26-32 teeth.
BRAKES: Side pull caliper.
SADDLE: Foam cushioned.
WEIGHT: 39 to 41 lbs., depending on frame size. Fenders standard on tourist model.

(Chrome finish fenders available on Models 787, 789 and 792 at extra cost.) Fenders standard on Tourist models. Tourist model illustrated. Sport model has drop style handlebars.

The sureness of upright tourist handlebars with the feel and command of hi-performance gearing. That’s the Collegiate Tourist five-speed lightweight for girls. With 26″ wheels and new design tourist handlebars, the Collegiate assures a comfortable ride and represents a practical buy for many who have come to appreciate the ease of gearing. With a Schwinn-Approved five-speed derailleur you know this bike can take it. Schwinn quality throughout means that your investment will last many years, long after lesser bikes are no longer around. Enjoy a five-speed, whether you’re a student, casual rider, or just moving up to Schwinn quality and value.

5-SPEED TOURIST STYLE
Schwinn Collegiate—17″ frame | MODEL 767
Schwinn Collegiate—19″ frame | MODEL 769
Schwinn Collegiate—22″ frame | MODEL 772

NOTE: Prices and specifications subject to change without notice.

5-SPEED DERAILLEUR GEARS
TOURIST STYLE HANDLEBARS
TUBULAR RIMS
SINGLE-STIK GEAR SHIFT CONTROL
BUILT-IN KICKSTAND
31

[The Schwinn Collegiate Tourist 5-speed with a green women’s frame, upright tourist handlebars and fenders shown in a side-view studio photograph, with its specifications, three model numbers and a strip of five detail photographs below. The detail photographs show the rear derailleur, the handlebars, a rim with its reflector, the shift lever on the stem and the kickstand.]

— Page 32 —

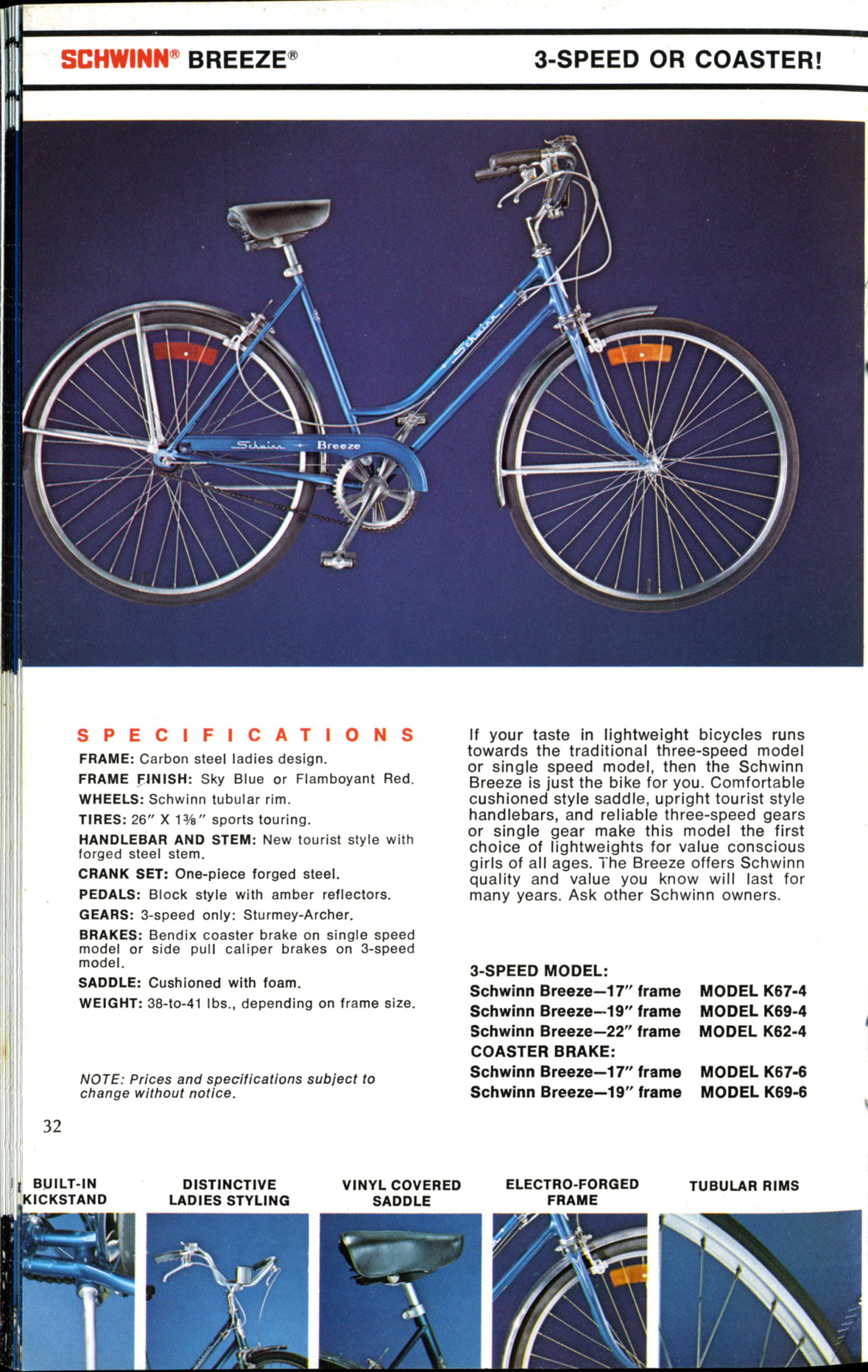

SCHWINN® BREEZE®
3-SPEED OR COASTER!

SPECIFICATIONS
FRAME: Carbon steel ladies design.
FRAME FINISH: Sky Blue or Flamboyant Red.
WHEELS: Schwinn tubular rim.
TIRES: 26″ X 1⅜” sports touring.
HANDLEBAR AND STEM: New tourist style with forged steel stem.
CRANK SET: One-piece forged steel.
PEDALS: Block style with amber reflectors.
GEARS: 3-speed only: Sturmey-Archer.
BRAKES: Bendix coaster brake on single speed model or side pull caliper brakes on 3-speed model.
SADDLE: Cushioned with foam.
WEIGHT: 38-to-41 lbs., depending on frame size.

If your taste in lightweight bicycles runs towards the traditional three-speed model or single speed model, then the Schwinn Breeze is just the bike for you. Comfortable cushioned style saddle, upright tourist style handlebars, and reliable three-speed gears or single gear make this model the first choice of lightweights for value conscious girls of all ages. The Breeze offers Schwinn quality and value you know will last for many years. Ask other Schwinn owners.

3-SPEED MODEL:
Schwinn Breeze—17″ frame | MODEL K67-4
Schwinn Breeze—19″ frame | MODEL K69-4
Schwinn Breeze—22″ frame | MODEL K62-4
COASTER BRAKE:
Schwinn Breeze—17″ frame | MODEL K67-6
Schwinn Breeze—19″ frame | MODEL K69-6

NOTE: Prices and specifications subject to change without notice.

BUILT-IN KICKSTAND
DISTINCTIVE LADIES STYLING
VINYL COVERED SADDLE
ELECTRO-FORGED FRAME
TUBULAR RIMS
32

[The Schwinn Breeze with a blue women’s frame, upright tourist handlebars and fenders shown in a side-view studio photograph, with its specifications, five model numbers for the three-speed and coaster brake versions and a strip of five detail photographs below. The detail photographs show the kickstand, the handlebars and frame, the saddle, a frame joint and a rim.]

— Page 33 —
Bicycling is: healthful, economical, considerate of the environment, a great way to get in shape or stay fit, for all ages, easy on a Schwinn ten-speed lightweight bicycle—and reliable—but most of all it’s a super fun thing to do . . . a fantastic way to meet and make friends as these young adults have discovered. And, oh, the scenery!
33

[A full-page color photograph of six young adults, three women and three men, riding 10-speed bicycles with drop handlebars toward the camera on a sunlit paved road under a large tree, with a four-line caption below. The bicycles are blue, yellow and red.]

— Page 34 —

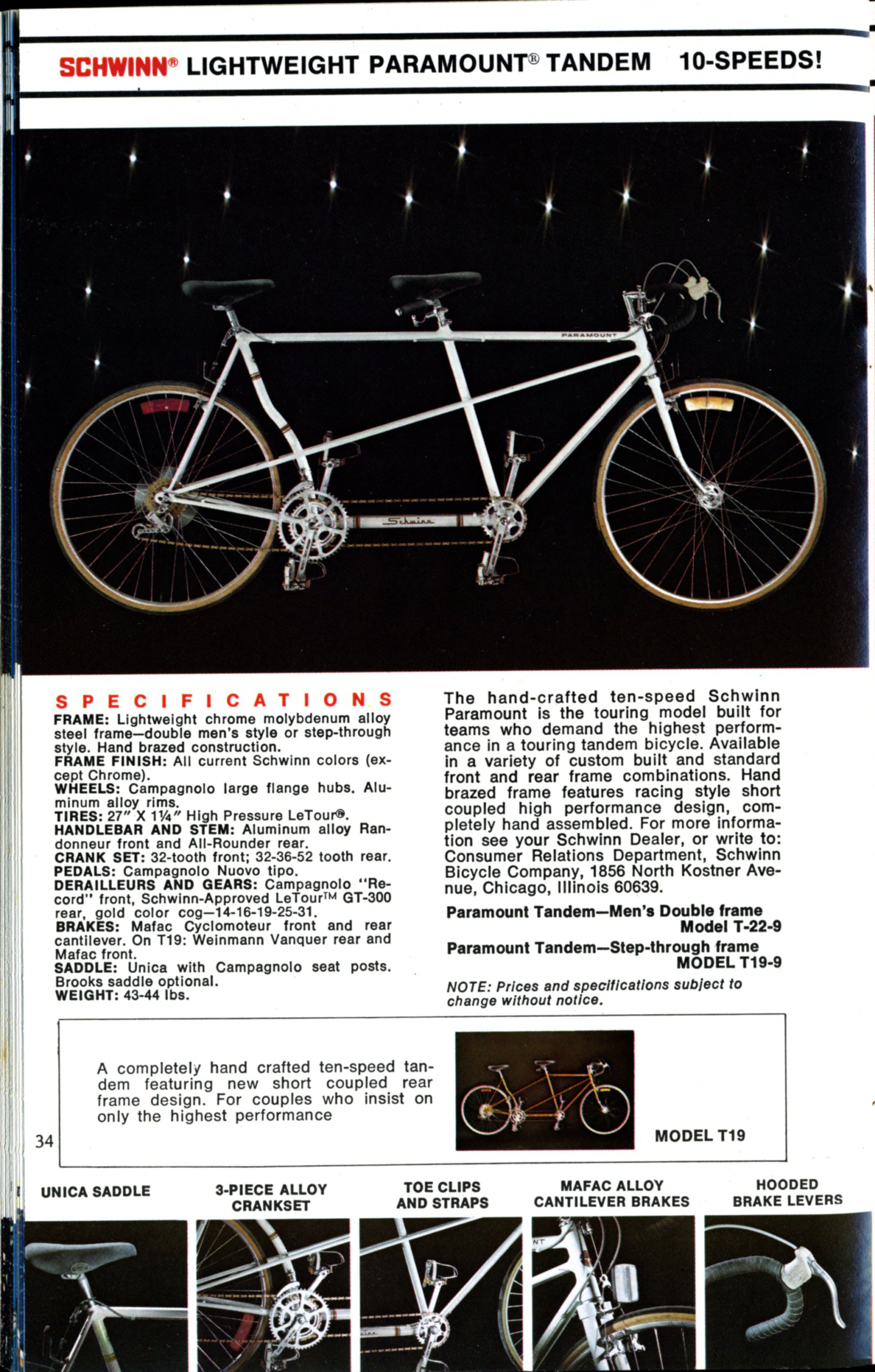

SCHWINN® LIGHTWEIGHT PARAMOUNT® TANDEM
10-SPEEDS!

SPECIFICATIONS
FRAME: Lightweight chrome molybdenum alloy steel frame—double men’s style or step-through style. Hand brazed construction.
FRAME FINISH: All current Schwinn colors (except Chrome).
WHEELS: Campagnolo large flange hubs. Aluminum alloy rims.
TIRES: 27″ X 1¼” High Pressure LeTour®.
HANDLEBAR AND STEM: Aluminum alloy Randonneur front and All-Rounder rear.
CRANK SET: 32-tooth front; 32-36-52 tooth rear.
PEDALS: Campagnolo Nuovo tipo.
DERAILLEURS AND GEARS: Campagnolo “Record” front, Schwinn-Approved LeTour™ GT-300 rear, gold color cog—14-16-19-25-31.
BRAKES: Mafac Cyclomoteur front and rear cantilever. On T19: Weinmann Vanquer rear and Mafac front.
SADDLE: Unica with Campagnolo seat posts. Brooks saddle optional.
WEIGHT: 43-44 lbs.

The hand-crafted ten-speed Schwinn Paramount is the touring model built for teams who demand the highest performance in a touring tandem bicycle. Available in a variety of custom built and standard front and rear frame combinations. Hand brazed frame features racing style short coupled high performance design, completely hand assembled. For more information see your Schwinn Dealer, or write to: Consumer Relations Department, Schwinn Bicycle Company, 1856 North Kostner Avenue, Chicago, Illinois 60639.

Paramount Tandem—Men’s Double frame | Model T-22-9
Paramount Tandem—Step-through frame | MODEL T19-9

NOTE: Prices and specifications subject to change without notice.

A completely hand crafted ten-speed tandem featuring new short coupled rear frame design. For couples who insist on only the highest performance
MODEL T19

UNICA SADDLE
3-PIECE ALLOY CRANKSET
TOE CLIPS AND STRAPS
MAFAC ALLOY CANTILEVER BRAKES
HOODED BRAKE LEVERS
34

[The Schwinn Lightweight Paramount Tandem 10-speed with a white men’s double frame shown in a side-view studio photograph against a black background with points of light, with its specifications, two model numbers and a strip of five detail photographs below. A ruled box holds a short paragraph and a small photograph of the Model T19, a gold step-through tandem. The detail photographs show the saddle, the crankset, a pedal with toe clip and strap, a cantilever brake and a brake lever.]

— Page 35 —
5-SPEEDS!
SCHWINN® DELUXE TWINN® TANDEM

SPECIFICATIONS
FRAME: Durable steel Schwinn style “Mixtie” type design.
FRAME FINISH: Sky Blue, or Flamboyant Red.
WHEELS: 26″ L. W. Endrick rims.
TIRES: 26″ gumwall Sports Touring tires.
HANDLEBAR AND STEMS: Chrome plated handlebars and forged steel stems.
CRANK SET: One-piece forged steel cranks—6½”.
PEDALS: Bow pedal with reflectors.
DERAILLEURS AND GEARS: Five-speed model: Schwinn-Approved rear derailleur GT-120; Rear cog 14-17-21-26-32. Positive action single speed on coaster brake model.
BRAKES: Side pull caliper front, internal expander rear. Coaster brake on single speed model.
SADDLES: Black padded.
WEIGHT: 64 lbs.

Bicycle riding for couples has always been one of the best ways to get together. By adding smooth-operating, trouble-free 5-speed gears, bicycling for two takes on an added dimension of fine-tuned control. But watch out! Once the word gets around you have a new Schwinn tandem, you’ll be in demand! Everyone will want a ride—and why not? It’s great!

Five-speed gears add an extra measure of fun and ease on every ride with the Schwinn Deluxe Twinn. Low, easy-to-mount Schwinn tandem design makes riding a healthful experience for couples. Deluxe styling includes gumwall tires, and new color selections. Also available in a coaster brake model.

Schwinn Deluxe Twinn Tandem—5-speed | MODEL T13-9
Schwinn Deluxe Twinn Tandem—Coaster brake | MODEL T13-6

NOTE: Prices and specifications subject to change without notice.

BUILT-IN KICKSTAND
MATTRESS STYLE SADDLE
CALIPER FRONT BRAKE
FULL LENGTH CHAINGUARD
ADJUSTABLE HANDLEBARS
35

[The Schwinn Deluxe Twinn Tandem 5-speed, a red tandem with a low frame, fenders and upright handlebars, shown in a side-view studio photograph against a black background, with its specifications, two model numbers and a strip of five detail photographs below. The detail photographs show the kickstand, a saddle, the front caliper brake, the chainguard and the handlebars.]

— Page 36 —
SCHWINN® TOWN AND COUNTRY® TRI-WHEELER

SPECIFICATIONS
FRAME: Low, ladies style tri-wheeler frame of carbon steel with special bracing.
FRAME FINISH: Yellow or Sky Blue.
WHEELS: 24 inch—tubular rims.
TIRES: 24″ X 1¼” Schwinn Breeze® tire.
HANDLEBAR AND STEM: Forged steel stem and medium rise handlebar.
PEDALS: Block pedals with amber reflectors.
CRANK SET: Forged steel.
GEARS: Tri-Wheeler differential drive transmission, Shimano 3-speed hub on AT2-8.
BRAKES: Coaster and front caliper—side pull—with locking park feature.
SADDLE: Black padded.
WEIGHT: 64-65 lbs. depending on equipment.

Combine your daily exercise with a trip to the market or visit friends . . . it’s all possible . . . safely and securely on a sturdy Schwinn adult-size Tri-Wheeler. You don’t even have to know how to ride a bike! Easy to get on and dismount. Spacious detachable vinyl coated wire basket with handles for carrying parcels. Differential drive, comfortable saddle, and parking brake. Quality throughout.

Schwinn Town and Country—coaster brake | MODEL AT2-6
Schwinn Town and Country—3-speed | MODEL AT2-8

THE MODEL FOR THE MATURE ADULT
Who says fun is only for the young? Whisk off to market, do an errand, or just have fun in the fresh air and sunshine . . . the Schwinn Town and Country is designed for the mature rider who wants exercise with complete security. The low frame design, the big comfortable saddle, and the positive action coaster and parking brakes are all provided for the older rider. And here is another idea—organize a group and ride together! Schwinn quality adds to your enjoyment.

NOTE: Prices and specifications subject to change without notice.

EASY ADJUST SEAT POST
HEAVY DUTY SADDLE
REMOVABLE BASKET
CALIPER FRONT BRAKE
AVAILABLE WITH 3-SPEEDS
36

[The Schwinn Town and Country Tri-Wheeler, a yellow adult tricycle with a rear wire basket, shown in a studio photograph, with its specifications, two model numbers and a boxed paragraph headed “The Model for the Mature Adult”. A strip of five detail photographs runs along the foot: the seat post, the saddle, the removable basket, the front caliper brake and the handlebar with its shift lever.]

— Page 37 —

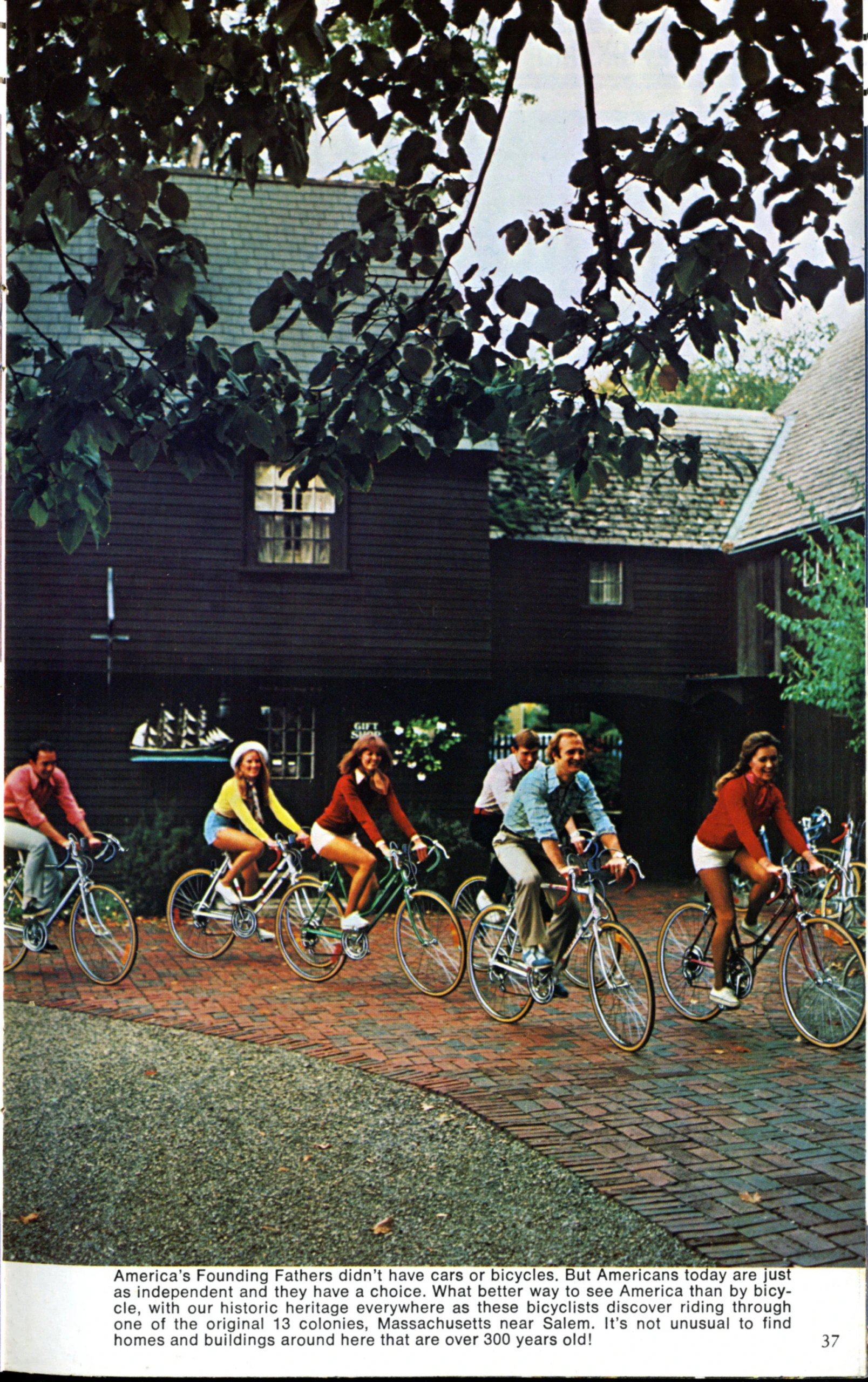

America’s Founding Fathers didn’t have cars or bicycles. But Americans today are just as independent and they have a choice. What better way to see America than by bicycle, with our historic heritage everywhere as these bicyclists discover riding through one of the original 13 colonies, Massachusetts near Salem. It’s not unusual to find homes and buildings around here that are over 300 years old!
37

[A full page color photograph of six riders on bicycles crossing a brick courtyard in front of a dark clapboard colonial house, with a printed caption below about riding in Massachusetts near Salem. A small “Gift Shop” sign and a ship model hang on the house front.]

— Page 38 —

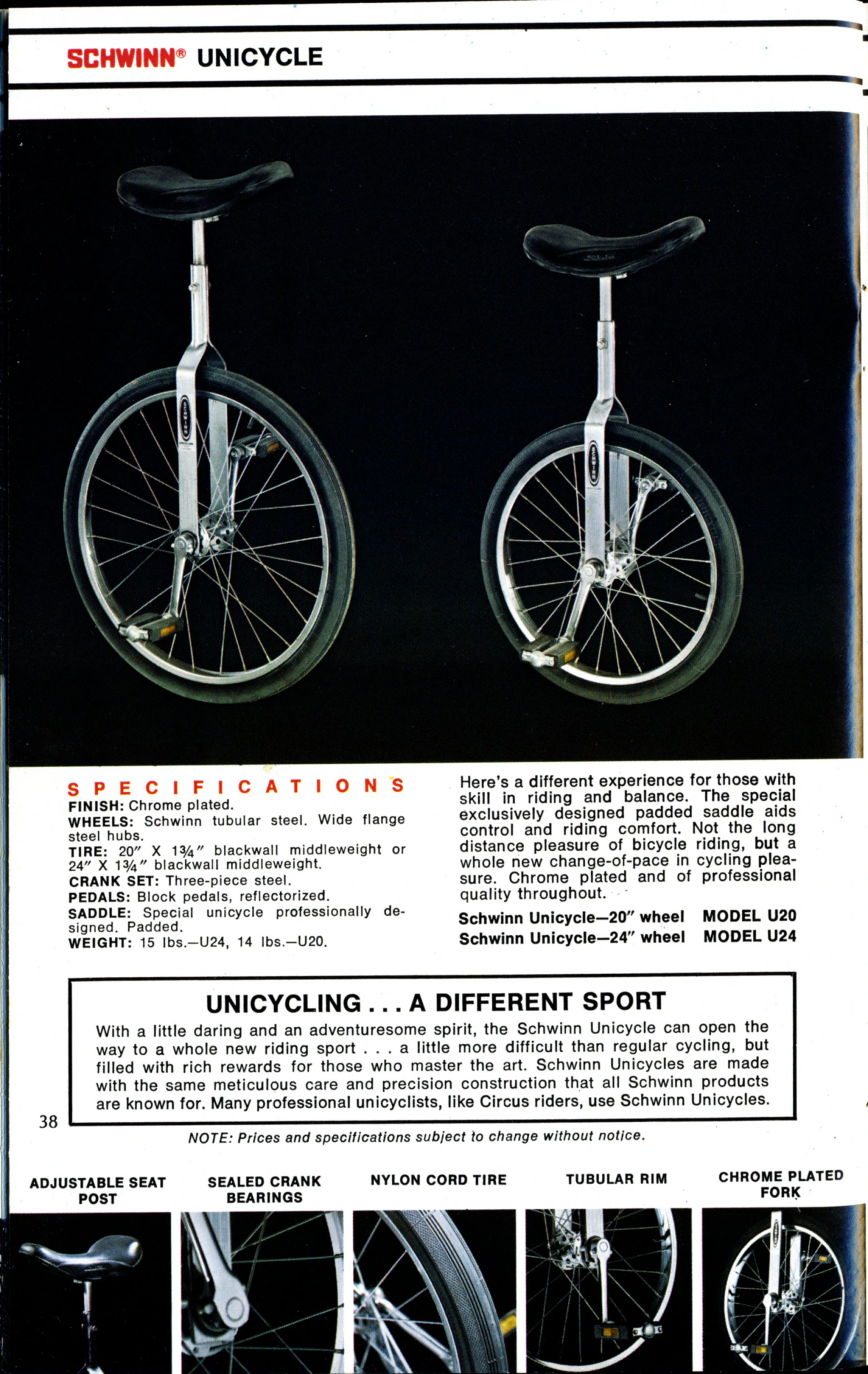

SCHWINN® UNICYCLE

SPECIFICATIONS
FINISH: Chrome plated.
WHEELS: Schwinn tubular steel. Wide flange steel hubs.
TIRE: 20″ X 1¾” blackwall middleweight or 24″ X 1¾” blackwall middleweight.
CRANK SET: Three-piece steel.
PEDALS: Block pedals, reflectorized.
SADDLE: Special unicycle professionally designed. Padded.
WEIGHT: 15 lbs.—U24, 14 lbs.—U20.

Here’s a different experience for those with skill in riding and balance. The special exclusively designed padded saddle aids control and riding comfort. Not the long distance pleasure of bicycle riding, but a whole new change-of-pace in cycling pleasure. Chrome plated and of professional quality throughout.

Schwinn Unicycle—20″ wheel | MODEL U20
Schwinn Unicycle—24″ wheel | MODEL U24

UNICYCLING . . . A DIFFERENT SPORT
With a little daring and an adventuresome spirit, the Schwinn Unicycle can open the way to a whole new riding sport . . . a little more difficult than regular cycling, but filled with rich rewards for those who master the art. Schwinn Unicycles are made with the same meticulous care and precision construction that all Schwinn products are known for. Many professional unicyclists, like Circus riders, use Schwinn Unicycles.

NOTE: Prices and specifications subject to change without notice.

ADJUSTABLE SEAT POST
SEALED CRANK BEARINGS
NYLON CORD TIRE
TUBULAR RIM
CHROME PLATED FORK
38

[The Schwinn Unicycle in two wheel sizes, two chrome unicycles shown side by side in a studio photograph, with their specifications, two model numbers and a boxed paragraph headed “Unicycling . . . a Different Sport”. A strip of five detail photographs runs along the foot: the seat post, the crank bearings, the tire, the rim and the fork.]

— Page 39 —
SCHWINN® DELUXE EXERCISER

SPECIFICATIONS
• Easily adjusted handlebar and deluxe padded saddle for short and tall riders.
• Convenient control panel with speedometer, mileage indicator, timer and adjustable pedal resistance control dial.
• Rubber pedals with foot straps.
• Sturdy Schwinn frame support.
• Full-length chainguard and spoke guard cover for in-home safety.
• Color: Radiant Coppertone.
• Weight: 56 lbs.

Now enjoy year ’round regular daily exercise that helps keep you fit and trim. It’s so easy and convenient in the privacy of your own home. No matter what the weather is like outside, there’s always riding fun for the family indoors. Ideal for weight watchers and perfect to help skiing, skating fans and other sportsmen keep in shape.

Schwinn Deluxe Exerciser | MODEL XR-5

YOUR OWN HOME IS A HEALTH CLUB!
Wholesome, regular exercise is a must for good health, according to health experts. Now the whole family can get in on the fun all year long. Simple to operate, too . . . just like pedaling a bike, and it comes complete with an instruction manual. The built-in resistance control helps you judge your effort, and the timer, speedometer and cyclometer permit a carefully worked out schedule of exercise. Schwinn makes it best.

NOTE: Prices and specifications subject to change without notice.

ADJUSTABLE SEAT POST
CALIBRATED SEAT POST
CONTROL PANEL
FULL LENGTH CHAIN GUARD
FOOT STRAPS
39

[The Schwinn Deluxe Exerciser, a copper colored stationary exercise bicycle with a large covered front wheel, shown in a studio photograph, with its specifications, its model number and a boxed paragraph headed “Your Own Home Is a Health Club!”. A strip of five detail photographs runs along the foot: the seat post clamp, the saddle on its seat post, the control panel with its dials, the chain guard and a pedal with its foot strap.]

— Page 40 —

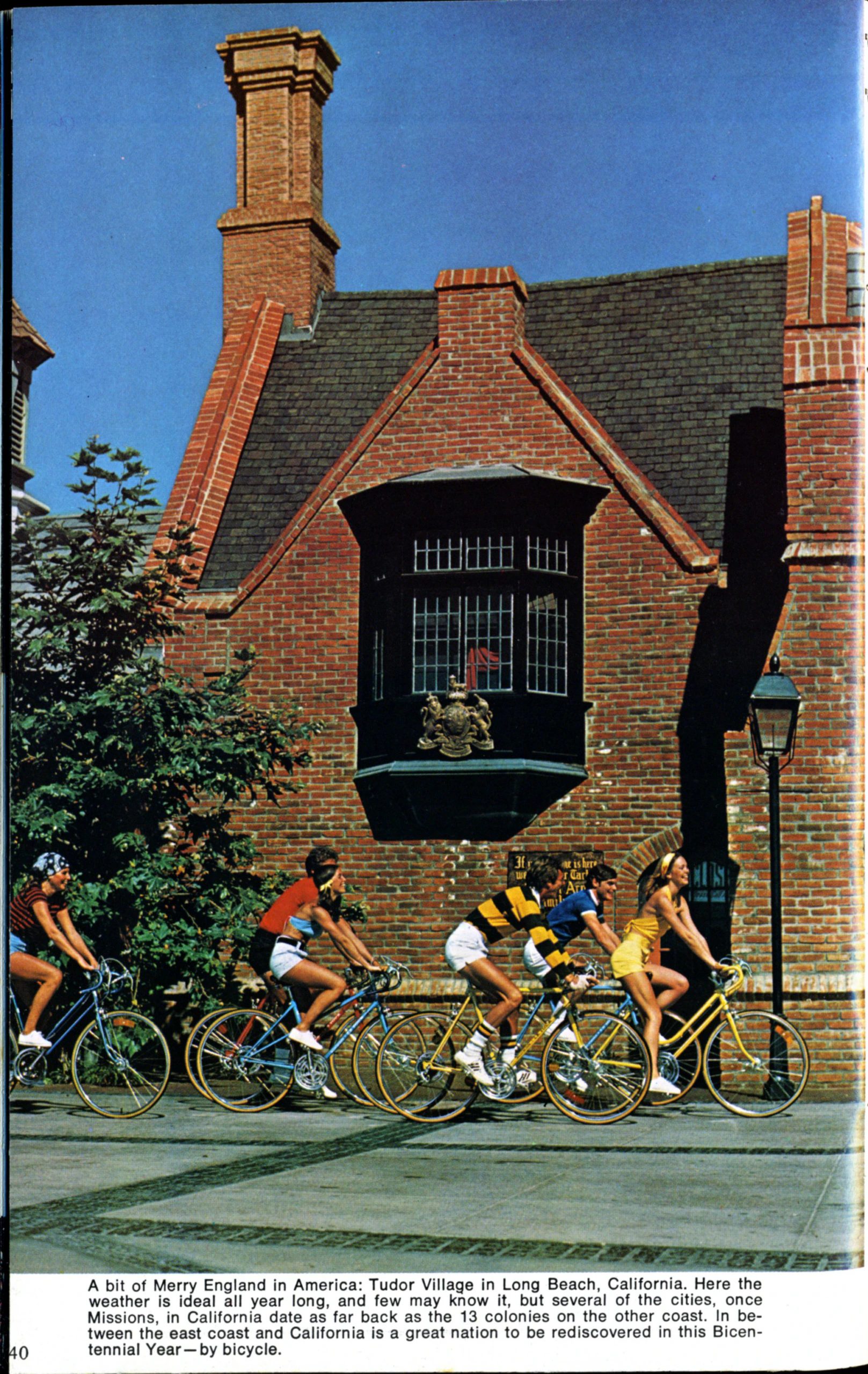

A bit of Merry England in America: Tudor Village in Long Beach, California. Here the weather is ideal all year long, and few may know it, but several of the cities, once Missions, in California date as far back as the 13 colonies on the other coast. In between the east coast and California is a great nation to be rediscovered in this Bicentennial Year—by bicycle.
40

[A full page color photograph of six riders on bicycles passing a red brick Tudor style building with tall chimneys and a dark bay window, with a printed caption below naming Tudor Village in Long Beach, California. A carved coat of arms sits below the bay window and a lettered plaque on the wall is partly hidden by the riders.]

— Page 41 —
SCHWINN® 26″ WHEEL MIDDLEWEIGHT COASTER BRAKE MODELS

SCHWINN®
HEAVY-DUTI®
First choice for newspaper and errand boys. Built strong, for use under heavy loads. Cantilever carbon steel frame, heavy duty front hub. Schwinn 26″ x 1¾” tractor tires, heavy duty saddle, drop forged crank, heavy duty spokes. Color: Yellow. Weight: 45 lbs.
Heavy-Duti | MODEL M15-6

SCHWINN®
HOLLYWOOD®
Graceful, traditional styling. Chrome plated fenders, comfort saddle. Built-in kickstand, Schwinn tubular rims, 26″ x 1¾” nylon cord tires, positive action coaster brake, ladies frame that’s easy to get on and off. Colors: Flamboyant Red or Sky Blue. Weight: 39 lbs.
Hollywood | MODEL L62-6

SCHWINN®
TYPHOON®
Schwinn quality and strength. Sturdy Schwinn cantilever carbon steel frame, chrome plated fenders, Schwinn tubular rims. Schwinn 26″ x 1¾” nylon cord tires, forged steel fork, built-in kickstand. Positive action coaster brake. Colors: Flamboyant Red or Sky Blue. Weight: 40 lbs.
Typhoon | MODEL L12-6

MIDDLEWEIGHT BICYCLES
Year-in and year-out there remains a demand for the “traditional bicycle” equipped with a dependable coaster brake. The “Middleweight” is Schwinn’s answer to that need . . . heavier bikes with wider tires (1¾-in.), full length chrome finished fenders and upright handlebars. Ideally built for utility riding, delivery use, or wherever gears and weight are not factors. These bikes can take it! Quality throughout . . . what you expect from Schwinn—and get.

NOTE: Prices and specifications subject to change without notice.

BUILT-IN KICKSTAND
COASTER BRAKE HUB
TUBULAR RIMS
ELECTRO-FORGED FRAME
CHROME PLATED FENDERS
41

[The Schwinn Heavy-Duti, Hollywood and Typhoon 26 inch middleweight coaster brake bicycles, in yellow, blue and red, shown side by side in a studio photograph, each with its description and model number, and a boxed paragraph headed “Middleweight Bicycles”. A strip of five detail photographs runs along the foot: the kickstand, the coaster brake hub with its arm stamped “Bendix 70″, a tire on its rim, the frame and the front fender.]

— Page 42 —
SCHWINN® 24″ WHEEL 10-SPEED BICYCLES

SCHWINN®
24″ WHEEL
VARSITY® SPORT
A sturdy sports style bike scaled down for the junior rider. Durable Schwinn made carbon steel frame, 10-speed gears, dual position caliper brake levers so rider has choice of riding in several handlebar positions; narrow width drop handlebars, 5½” crank scaled to smaller frame, Schwinn Twin-Stik gear controls, and racing type saddle. An exciting 10-speed bike packed full of sensible features. Choice of colors: Chestnut, Lime Green, White, Flamboyant Red. (White with Bicentennial decaling.) Weight: 36½ lbs.
Schwinn 24″ Wheel Varsity | MODEL 144
(Chrome finish fenders available on Model #144 at extra cost.)

SCHWINN®
24″ WHEEL
VARSITY® SPORT
To answer the needs of thousands of growing girls who have been asking for a lightweight style 10-speed bike, here is the Schwinn 24-inch wheel Varsity Sport. In every detail the twin to the popular ladies 10-Speed Varsity. Scaled down to fit the smaller rider. Every safety feature, every high-performance component found on the full-size Varsity is here. A perfect bike for the outdoors-minded girl. Choice of colors: Chestnut, Lime Green, White, Flamboyant Red. (White with Bicentennial decaling.) Weight: 36½ lbs.
Schwinn 24″ Wheel Varsity | MODEL 194
(Chrome finish fenders available on Model #194 at extra cost.)

NOTE: Prices and specifications subject to change without notice.

TWIN-STIK™ GEAR SHIFT CONTROL
DUAL POSITION BRAKE LEVERS
TUBULAR RIMS
RACING STYLE SADDLE
10-SPEED DERAILLEUR GEARS
42

[The Schwinn 24 inch wheel Varsity Sport 10-speed bicycles, a red diamond frame model and a white ladies frame model with stars and stripes decals, shown side by side in a studio photograph, each with its description, model number and a note on chrome fenders. A strip of five detail photographs runs along the foot: the stem shift levers, a brake lever on taped drop handlebars, a rim with its reflector, the saddle and the rear derailleur.]

— Page 43 —
SCHWINN® 5-SPEED AND COASTER BRAKE, 24″ WHEEL

SCHWINN®
24″ WHEEL
5-SPEED SPEEDSTER

The five-speed Speedster from Schwinn is a great choice for junior’s first derailleur equipped bicycle. The five-speed Speedster features Schwinn quality throughout. Camelback design durable steel frame, built-in kickstand, tubular rims, chrome plated fenders, cushioned saddle and new style handlebars are just a few of the fine components that make up this quality bicycle. ALSO AVAILABLE IN A COASTER BRAKE MODEL. Your choice of colors: Flamboyant Red, or Sky Blue.

Schwinn 24″ wheel 5-Speed Speedster | MODEL K30-9
Schwinn 24″ wheel Coaster Brake Speedster | MODEL K30-6

SCHWINN®
24″ WHEEL
5-SPEED BREEZE®

Now growing girls can enjoy the thrill of derailleur gears on the Schwinn 5-speed Breeze. The design is a scaled down version of mom’s full size Breeze, with the fun of 5-speed gears. Carbon steel frame, chrome fenders, cushioned saddle and built-in kickstand are just a few of the quality features found on this outstanding girls’ model. ALSO AVAILABLE IN A COASTER BRAKE MODEL. Choice of colors: Flamboyant Red, or Sky Blue.

Schwinn 24″ wheel 5-Speed Breeze | MODEL K80-9
Schwinn 24″ wheel Coaster Brake Breeze | MODEL K80-6

NOTE: Prices and specifications subject to change without notice.

BUILT-IN KICKSTAND
TOURIST STYLE HANDLEBARS
TUBULAR RIMS
CHROME PLATED FENDERS
VINYL COVERED SADDLE

43

[The Schwinn 24-inch wheel 5-Speed Speedster in red and 5-Speed Breeze in blue shown side by side in a studio photograph, with their copy, model numbers and a strip of five detail photographs below. The Speedster is the camelback frame and the Breeze the girls’ frame, and the copy notes that both also come as coaster brake models.]

— Page 44 —
SCHWINN® 20″ WHEEL JUNIOR MODELS – LIGHTWEIGHT STYLING

SCHWINN®
20″ WHEEL
SPEEDSTER SPORT

Now for the first time the junior rider five-to-seven can enjoy the thrill of a drop handlebar bicycle. The new Speedster Sport has all the fine features found on his bigger brother’s model. Features like lightweight carbon steel frame, tubular rims, built-in kickstand and chrome plated fenders. Also available in a tourist handlebar model. Choice of colors: Flamboyant Red, or Sky Blue.

Schwinn 20″ wheel Speedster Sport Coaster Brake | MODEL K44-6
Schwinn 20″ wheel Speedster Coaster Brake | MODEL K34-6

SCHWINN®
20″ WHEEL
BREEZE®

Growing girls of 5-to-7 years of age can appreciate the streamlined styling and chic good looks of the traditional Schwinn lightweight. What girl wouldn’t want the same look as her sister’s big bike! The new Schwinn 20″ Breeze is the obvious answer. As a young Miss she deserves a Schwinn and here it is. Scaled down from the popular full-size Schwinn Breeze with the same quality Schwinn construction. Chrome fenders, comfortable saddle. Schwinn tubular rims, built-in kickstand. Choice of colors: Sky Blue or Flamboyant Red. Wt. 31 lbs.

Schwinn 20″ wheel Breeze Coaster Brake | MODEL K84-6

NOTE: Prices and specifications subject to change without notice.

VINYL COVERED SADDLE
TOURIST STYLE HANDLEBARS
TUBULAR RIMS
BUILT-IN KICKSTAND
CHROME PLATED FENDERS

44

[The Schwinn 20-inch wheel Speedster Sport in red, with drop handlebars, and the 20-inch wheel Breeze in blue shown side by side in a studio photograph, with their copy, model numbers and a strip of five detail photographs below. The model list also names a 20-inch wheel Speedster Coaster Brake, and the copy says the Speedster Sport is also available in a tourist handlebar model.]

— Page 45 —
SCHWINN® NEW 20″ JUNIOR BIKES WITH MIDDLEWEIGHT STYLING

SCHWINN®
20″ WHEEL TYPHOON®

Now for 1976 Schwinn introduces a middleweight 20″ wheel bicycle for growing boys five-to-seven years old. Here’s a rugged, good-looking bike that can take it, and one that junior will be proud to ride. At the heart of the Typhoon is the famous electro-forged frame. Many parents know that this method of construction makes Schwinn juvenile bikes extremely strong and durable. That’s important, too, when it comes to value—as well as fun.

Colors: Sky Blue or Flamboyant Red.

Schwinn 20″ wheel Typhoon | MODEL L32-6

NOTE: Prices and specifications subject to change without notice.

SCHWINN®
20″ WHEEL HOLLYWOOD®

Growing girls five-to-seven need a strong, reliable bike . . . one that means fun and value. The 20″ wheel Hollywood middleweight answers the test—and it’s new for 1976. The generous use of chrome finishings make this an attractive bike which young ladies will take pride and pleasure in owning. It’s Schwinn built so you know that means quality and service. Colors: Sky Blue or Flamboyant Red.

Schwinn 20″ wheel Hollywood | MODEL L82-6

CHROME PLATED FENDERS
BUILT-IN KICKSTAND
COASTER BRAKE HUB
TUBULAR RIMS
ELECTRO-FORGED FRAME

45

[The Schwinn 20-inch wheel Typhoon in blue and 20-inch wheel Hollywood in red shown side by side in a studio photograph, with their copy, model numbers and a strip of five detail photographs below. Both are middleweight junior bikes with chrome fenders and two-tone saddles, the Typhoon a boys’ frame and the Hollywood a girls’ frame.]

— Page 46 —
SCHWINN® SCRAMBLER®
BUILT FOR MOTOCROSS!

SPECIFICATIONS
FRAME: 20″ cantilever style. Electro-forged with Sigma steel weld and brass solder brazing for reinforcement at critical joints.
FRAME FINISH: Silver Mist, Flamboyant Red, Gold.
FORK: 20″ one-piece forged with interia welded stem, black flat finish.
WHEELS: Black flat finish front hub, 36-hole spoking. 20″ x 2.125 chrome plated tubular rims and heavy duty .105 g spokes.
TIRE AND TUBE: Schwinn Scrambler tires and tubes.
SADDLE: black finish Sting-Ray® style with extra padding and ribbing.
HANDLEBAR AND STEM: Sting-Ray® style handlebar with cross-brace. MX style handlebar grips. Flat black finish forged steel handlebar stem.
CRANK ASSEMBLY: 5½” chrome plated crank, heat treated for extra durability. Flat black finish full length chainguard. 39 t front sprocket, 22 rear, 9-feet travel per pedal revolution.
PEDALS: Diamond tread with reflectors.
WEIGHT: Approximately 38 lbs.

The Schwinn Scrambler is a specially designed model with heavy duty construction and motocross features built-in.

Every frame joint is reinforced with extra welds. The cranks are of hardened steel. The handlebar has a welded on brace and the forged handlebar stem is built to take it. Specially designed Schwinn motocross tires with an exclusive deep studded tread design for a sure grip on varying surfaces. The new Schwinn Scrambler—ideal for off-the-road, and equally at home on the road for those who demand a sturdy, sporty bike.

Model BX1-6
Schwinn Scrambler

NOTE: Prices and specifications subject to change without notice.

SCRAMBLER TIRES FORGED FORK
PADDED SADDLE
REINFORCED FRAME
HARDENED STEEL CRANK
BRACED HANDLEBAR

46

[The Schwinn Scrambler motocross bike in gold shown in a side-view studio photograph, with its specifications, copy, model number and a strip of five detail photographs below. It has a 20-inch cantilever frame, studded tires, a braced high-rise handlebar and a long ribbed saddle with a sissy bar.]

— Page 47 —
SCHWINN® OFTEN COPIED, NEVER EQUALED
STING-RAY®

SCHWINN® STING-RAY®

This is it! The original Sting-Ray introduced first by Schwinn in 1963. Responsive, quick and easy riding. Bucket style saddle, Mag® design sprocket, 20″ x 2.125″ Sting-Ray® studded tire. Handlebar control on 5-speed model. Colors: Flamboyant Red, Yellow, Sky Blue, White. (White with Bicentennial decaling.) Wt. J38-6, 37½ lbs. J38-9, 41 lbs.

Schwinn Sting-Ray, coaster brake | MODEL J38-6
Schwinn Sting-Ray, 3-speed | MODEL J38-4
Schwinn Sting-Ray, 5-speed | MODEL J38-9

SCHWINN® FASTBACK®

Sleek Sting-Ray® styling. Strong carbon steel frame; quick and responsive performance. Five speed GT-120 Schwinn-Approved derailleur. Handy handlebar mounted gear control. Adjustable handlebar and saddle. 20″ x 1⅜” tires. MAG® sprocket. Colors: Sky Blue or Flamboyant Red. Wt. 39 lbs.

Schwinn 5-Speed Fastback | MODEL H36-9

WHY STING-RAY®?
Perhaps no new bicycle design has ever gained such wide acceptance and popularity as when Schwinn introduced Sting-Ray® designed bicycles in 1963. At first glance, the low slung design with the smaller wheels, higher handlebars, and raised seat may have seemed strange, and yet it is America’s most copied style of bicycle. It’s no secret . . . the unusual Sting-Ray® design provides a new feel of responsive riding, a new level of performance, and a new variety of cycling enjoyment that has made it a standard among the country’s young riders. Sting-Ray® is Schwinn’s exclusive trademark. Accept no substitute.

NOTE: Prices and specifications subject to change without notice.

BUILT-IN KICKSTAND
TUBULAR RIMS
MAG STYLE SPROCKET
BUCKET STYLE SADDLE
HIGH RISE HANDLEBAR

47

[The Schwinn Sting-Ray in white and the Schwinn 5-speed Fastback in red shown side by side in a studio photograph, with their copy, model numbers, a boxed note on the Sting-Ray design and a strip of five detail photographs below. Both have high-rise handlebars, bucket saddles with sissy bars and 20-inch wheels, the Fastback with a handlebar gear control and a striped red saddle.]

— Page 48 —
AROUND THE TOWN BIKES FOR MOTHER AND DAUGHTER

SCHWINN®
LIL’ CHIK®

Whether it is the first choice for the “second bike”, or the model that’s recognized as a “fun bike” wherever it’s ridden, the Schwinn Sting-Ray® design is the overwhelming favorite. Among many growing girls who want the advantages of the Sting-Ray® style with its exclusive Schwinn features, the Lil’ Chik is their first choice. Perfect and petite for growing girls. Sting-Ray® frame design, chrome plated fenders, floral design saddle, Schwinn 20″ x 1¾” tires and tubular rims, improved medium-rise handlebars. Full length chainguard. Choice of colors: Sky Blue or Yellow. Wt. 35 lbs.

Schwinn Lil’ Chik | MODEL J81-6

SCHWINN®
FAIR LADY®

If her first choice is a new Schwinn Sting-Ray® style bike, plus a selection of popular deluxe features, the new Schwinn Fair Lady is the one! Every feature of the famous Sting-Ray® design, with its remarkable performance, response, and unique ride, combined with a rich selection of extras. For the girl who wants stylish Sting-Ray® design. Low contoured frame that’s so easy to ride. Sting-Ray® style handlebars, floral design saddle, chrome plated fenders. 20″ X 1¾” Gripper Slik rear tire. Choice of colors: Sky Blue, Flamboyant Red, White. (White with Bicentennial decaling.) Wt. J89-6 37 lbs.; J89-4, 39 lbs.

Schwinn Fair Lady, Coaster Brake | MODEL J89-6
Schwinn Fair Lady, 3-speed | MODEL J89-4

NOTE: Prices and specifications subject to change without notice.

CHROME PLATED FENDERS
MEDIUM RISE HANDLEBAR
BUILT-IN KICKSTAND
BUCKET STYLE SADDLE
TUBULAR RIMS

48

[The Schwinn Lil’ Chik in yellow and the Schwinn Fair Lady in white shown side by side in a studio photograph, with their copy, model numbers and a strip of five detail photographs below. Both are girls’ Sting-Ray style bikes with floral saddles, sissy bars and raised handlebars, and the white Fair Lady carries small flag decals on its frame.]

— Page 49 —
CONVERTIBLE BIKES FOR THE GROWING FAMILY

SCHWINN®
CONVERTIBLE BANTAM®

Value you can count on in a convertible bike designed to fit the growing family. 20″ model quickly converts from a boy’s to a girl’s bike by simply removing the top bar. Chrome plated fenders, Schwinn tubular rims, 20″ x 1¾” nylon cord tires. Full length chainguard. Schwinn quality throughout. Colors: Sky Blue or Flamboyant Red. Wt. 33 lbs. with top bar.

Schwinn Convertible Bantam | MODEL J35-6

SCHWINN®
SUPER PIXIE®

Here it is—the 1976 Schwinn Super Pixie with the new racing styling that is sweeping the country . . . same popular convertible Pixie design with its easy-to-remove top bar for girls or boys, plus new flat finish black fenders and braced handlebar. 16-inch wheels on Schwinn tubular rims, one piece crank and Scrambler® style saddle. Frame finished in Silver Mist. Wt. 22 lbs. with top bar.

Schwinn Super Pixie | MODEL J46-6

NOTE: Prices and specifications subject to change without notice.

FOUR COAT FINISH
NYLON CORD TIRES
ADJUSTABLE SADDLE
BUILT-IN KICKSTAND
CONVERTIBLE TOP BAR

49

[The Schwinn Convertible Bantam in blue and the Schwinn Super Pixie in silver shown side by side in a studio photograph, with their copy, model numbers and a strip of five detail photographs below. Both have removable top bars, the Bantam with 20-inch wheels, chrome fenders and a two-tone saddle, the Super Pixie with 16-inch wheels, black fenders, a braced handlebar and a long saddle with a sissy bar.]

— Page 50 —
SCHWINN® SMART AND SNAPPY JUNIOR BIKES BUILT FOR FUN

SCHWINN®
JUNIOR
STING-RAY®

Sporty and smart for the younger set. Chrome plated fenders, improved medium-rise handlebars, bucket style saddle, 20″ x 1¾” Gripper Slik rear tire and treaded front tire, plus full length chainguard. Choice of Colors: Flamboyant Red or Yellow. Wt. 35 lbs.

Schwinn Junior Sting-Ray | MODEL J31-6

SCHWINN®
MINI
SCRAMBLER®

A design pacer among the younger sporty set is the mini version of the rugged Scrambler. Built-to-take-it forged fork with stylish black mat finish, Scrambler style braced handlebars, Schwinn racing style saddle, sturdy one-piece crank, and 16″ x 1¾” Gripper Slik rear tire. Style and durability all in one quality Schwinn model. Schwinn, the bikes millions of children have grown up on. But as new as today! Colors: Silver Mist or Flamboyant Red.

Schwinn Mini Scrambler | MODEL J49-6

SCHWINN®
CONVERTIBLE
STING-RAY® PIXIE®

A popular beginner’s bike with 16″ wheels. Top bar removes easily to convert it- from a boy’s to a girl’s bike in minutes. Sting-Ray® type handlebars, adjustable saddle, built-in kickstand, 16″ x 1¾” pneumatic tires. Full length chainguard. Choice of colors: Sky Blue or Flamboyant Red. Wt. 22 lbs. with top bar.

Schwinn Convertible Sting-Ray Pixie | MODEL J44-6

NOTE: Prices and specifications subject to change without notice.

4 COAT FINISH
BUILT-IN KICKSTAND
PNEUMATIC TIRES
BUCKET STYLE SADDLE
ADJUSTABLE HANDLEBAR

50

[Three Schwinn junior bicycles, the Junior Sting-Ray in yellow, the Mini Scrambler in silver and the Convertible Sting-Ray Pixie in red, shown together in a studio photograph against a blue backdrop, with a column of copy and a model number for each. A strip of five detail photographs along the foot shows the yellow frame finish, the kickstand, a tire, a red bucket saddle with its sissy bar and a raised handlebar.]

— Page 51 —
SCHWINN® JUNIOR BICYCLES FOR THE BEGINNERS!

SCHWINN®
CONVERTIBLE
PIXIE®

Easy-to-ride model with 16″ wheels designed for boys and girls 3-to-5 years old. Famous Schwinn quality features include chrome plated fenders, 16″ long wearing semi-pneumatic tires, patented Schwinn Cycle Aid training wheels and full length chainguard. Top bar removes to convert bike from boy’s to girl’s. Choice of colors: Sky Blue or Flamboyant Red. Wt. 32 lbs.

Schwinn Convertible Pixie | MODEL J42-6

SCHWINN®
CONVERTIBLE
LIL’ TIGER®

The perfect bike for boys and girls from 2-to-4 years old. Compact Sting-Ray® design complete with new design Schwinn Cycle Aid training wheels. Schwinn-quality equipment throughout. Chrome fenders, Sting-Ray style saddle. Full length chainguard. Choice of colors: Sky Blue or Flamboyant Red. Wt. 25½ lbs. with top bar.

Schwinn Convertible Lil’ Tiger | MODEL J52-0

HOW YOUNG FOR A TWO-WHEELER?
Frequently Schwinn Dealers are asked by concerned parents, “Isn’t my child a little young for a two-wheeler?” Recognizing the protective interest of parents, Schwinn has designed the Pixie and the Lil’ Tiger bicycles for riders as young as 2-years-old. The important factor is the size of the child. If he or she can manipulate a conventional “trike” . . . he or she can—with even greater safety—ride a two-wheeler fitted with training wheels. The possibility of upset is minimized, and the knowledge that the child has a bike like “big brother’s and sister’s” adds a measure of self-confidence. When the child is ready, graduation to a genuine two-wheeler is easy. Simply remove the training wheels (Cycle Aids) and away they go!

NOTE: Prices and specifications subject to change without notice.

TWO COLOR ADJUSTABLE SADDLE
CHROME PLATED FENDERS
ADJUSTABLE HANDLEBAR
CYCLE AID™ TRAINING WHEELS
BUCKET STYLE SADDLE (LIL’ TIGER [cut off]

51

[Two Schwinn children’s bicycles with training wheels, the Convertible Pixie in red and the Convertible Lil’ Tiger in blue, shown in a studio photograph against a blue backdrop, with copy and a model number for each and a boxed note headed “HOW YOUNG FOR A TWO-WHEELER?” below. A strip of five detail photographs along the foot shows a saddle in two colors, a chrome front fender, a handlebar, the Cycle Aid training wheels and a quilted bucket saddle, the last caption running off the right edge of the scan.]

— Page 52 —
Sparkling chrome plated generator set complete with headlight;[?] tail light, and generator. Helps make twilight and night riding safer and more fun | 04 140

Lightweight Super Sport® generator set complete with headlight, tail light, and generator. Designed especially for use on lightweight bicycles | 04 200

SNAP! AND YOU ADD LIGHTING SAFETY!

New, LeTour® lightweight generator set. Everything you need for quick installation. Added safety for night riding. Powerful beam. | 04 190

Block style generator with matte black and chrome finish. Single unit is easily mounted on front fork on most bicycles | 04 250

52

[Four Schwinn bicycle generator lighting sets shown in close studio photographs, two chrome sets with headlight, tail light and generator on a black ground above and the LeTour set and a black block style generator with its headlight on a blue ground below, each with a caption and part number. The large red headline “SNAP!” runs across the middle of the page.]

— Page 53 —
Deluxe Ball Light with chrome case and lighted amber side reflectors. Quick and easy mounting. Takes standard batteries (not included) | 05 712

Powerful handlebar mounted light. Full 4½ volts of power. Quickly detaches for convenient flashlight. Fits all bicycles | 05 821

Chrome plated tail light for use with any generator set. Rear red signal light notifies overtaking cars | 04 175

Chrome plated tail light to match the new equipment. Genuine electrically lit amber and red rear signals | 04 180

Strap this continental style safety light to your arm and ride in secure comfort. Takes two standard flashlight batteries—not included | 05 816

Lightweight alloy carrier with spring holder and front check clip that securely holds packages in place. Easily installed, the carrier attaches to frame drop out ends and seat mast clamp. Complete with leveler bracket.
Fits 20″ and 22″ frames | 01 600
Fits 24″ and 26″ frames | 01 605

Now you can carry books, attache cases, or briefcases with ease. Special hanging bracket is the secret. Spring holder clamps packages securely | 01 505

Short, lightweight rear spring carrier and bag support. Wire construction. Chrome plated. Installs quickly on frame with rubber covered clamp | 01 535

Tennis racket clip that attaches to front fork of most bicycles | 00 670

53

[Schwinn lighting and carrying accessories in studio photographs, with a chrome ball headlight, a battery handlebar light, two chrome tail lights and a safety light on arm straps on blue panels at the left and two lightweight alloy carriers, a carrier with a hanging bracket for cases, a short spring carrier and a tennis racket clip on black at the right, each captioned with its part number. One photograph shows the racket clip in use, holding a wooden racket against a blue front fork.]

— Page 54 —
TOURING BAGS WITH “THE DENIM LOOK”

A complete line of denim touring bags, made of a tough blue denim (Osnaberg) cotton fabric with a waterproof vinyl lining accented with bright orange nylon stitching. Fully zippered with nylon zippers and weather flapped for extra protection. Heavy-duty black nylon webbing straps and chrome buckles.

Cycling back pack. Tapered shaped back pack with adjustable extra wide shoulder straps,[?] adjustable waist straps. | 49 715

Pannier bags. Attaches easily and securely to any standard rear carrier. | 00 065

Rear touring bag. Designed for mounting on seat bag loops. | 00 061

Combination handlebar and rear seat bag. | 00 060

SCHWINN AUTOMOBILE CARRIERS TAKE THE FUN ALONG!

Carrier mounts easily on most model automobiles. No metal touches the car finish. Stand removes and stores in trunk.
Large size | 94 545 | Reg. size | 94 540

Straps and hooks secure unit. Bicycle Fits in “V” channel. Can be fitted on most cars including station wagons. Available with two channels or four channels. | 94 570

54

[Schwinn denim touring bags and automobile bicycle carriers on a pink page: a back pack, pannier bags, a rear touring bag and a combination handlebar and rear seat bag in studio photographs around an outdoor photograph of a young man and woman in denim with the bags on two yellow 10-speed bicycles. Below, under a red headline, four photographs show a carrier mounted on the rear of a cream sedan, then a young man loading a bicycle onto it, and a channel carrier strapped to the trunk lid of a green sedan, empty and then carrying two bicycles beside a couple at the open trunk.]

— Page 55 —
Enjoy the security of a full 6-foot, coiled steel vinyl covered cable—coupled with a combination lock with hardened shackle. | 06 740

4 and 6 foot length of hardened steel chain covered in sparkling plastic—sleeve locks securely with hardened shackle combination lock. | 06 720 and 06 730

Laminated hardened steel shackle key lock—supplied with generous 6-foot coiled vinyl covered cable to prevent scratching finish | 06 741

Combine a hardened steel chain with plastic sleeve and with a laminated key lock . . . both hardened to foil thievery. Available in 4 and 6 ft. lengths | 06 725 and 06 735

LOCKS HELP PROTECT YOUR BIKE FROM THEFT!

Popular combination lock and chain. Covered in vinyl. Colors to match most bicycles. | 06 690 thru 06 701

Schwinn-Approved laminated padlock with case hardened shackle. Two keys supplied. | 06 606

Hardened steel chain to foil theft. Built-in combination lock. | 06 710

Keep it in mind! A Schwinn-Approved combination bicycle padlock with extra-strong case hardened shackle | 06 600

For those who want extra strength here’s a heavy duty 5/16″ hardened chain and padlock with hardened ⅜” shackle | 06 610

55

[Schwinn bicycle locks in studio photographs on black panels: two coiled cables and two chains in plastic sleeves with combination or laminated key padlocks above, and below the red headline a vinyl covered combination chain, a chain with a built-in combination lock, a heavy chain with a padlock, a laminated padlock with keys and a combination padlock, each captioned with its part number.]

— Page 56 —
HIGH PERFORMANCE ACCESSORIES . . .

Men’s deluxe leather cycling gloves with padded palm . . . ventilated “backs” | 46 920 thru 46 924
Men’s leather cycling gloves to add more pleasure to your touring or racing | 46 930 thru 46 936
Ladies love ’em. More comfort on every ride with leather gloves | 46 915 thru 46 917
Inexpensive vinyl cloth cycling gloves with padded palms for men or women | 46 955 thru 46 958

Carry along your favorite cool beverage. Bottle and cap mount easily on the frame. Schwinn emblem | 47 330
Plastic bottle, snap-on positive cap to prevent spilling, safety device prevents losing cap. Chrome plated cage. | 47 325
Handsome large Schwinn emblem on convenient size insulated bottle. Easy cage mounting . . . bright red color. | 47 345
Handy tool kit—brake wrenches, pliers, screwdrivers all in a handy carrying case. Emergency repairs on the road | 73 400

Toe clips to fit reflector pedals with leather straps | 47 080
Tie down luggage straps in assorted colors, 12″, 18″ and 24″ long | 01 814 to 01 822
Match your handbrakes to the color of your bike . . . lever covers | 04 950 thru 04 970

An old favorite for easier riding . . . Slack and trouser guards | 09 501
Choose your color and match your bike…cotton handlebar tapes | 09 110 to 09 117
Vinyl handlebar tape in colors to match your bicycle | 09 056 to 09 077
56

[Schwinn accessories shown in color photographs: four pairs of cycling gloves, three water bottles in frame cages and a tool kit in a carrying case, then toe clips, tie down luggage straps, packaged hand brake lever covers, trouser bands and cotton handlebar tape, each with its caption and part numbers. The photographed packages carry Schwinn labels reading “HAND BRAKE LEVER COVERS”, “TROUSER BANDS” (marked “PART NO. 09 501”) and “COTTON HANDLEBAR TAPE”.]

— Page 57 —
LET THEM KNOW YOU’RE COMING
WITH BELLS AND HORNS!

Your choice of antique illustrations on bicycle bells | 01 006
Celebrate our Bicentennial with an American Flag Bell | 01 001
Lightweight alloy, finger tip action European style bell | 01 020
Funny folk, and famous animal cartoons highlight these bells. | 01 007
Schwinn-Approved design bell—chrome plated. | 01 010
Ladies style bicycle bells with antique bicycle illustrations | 01 015
DeLuxe “Ding-Dong” bell with red Schwinn-Approved Seal | 01 005

Triple tone chrome finish horn. Bulb style | 05 010
Chrome plated Bugle horn with hexagonal bell styling | 05 001
Long trumpet-style chrome plated bulb horn | 05 005
Brass bugle horn with large bulb | 05 003
New from Schwinn . . . modern electric horn with piercing beep! Uses standard batteries (not included) | 05 055
57

[Schwinn bicycle bells and horns shown in color photographs: bells decorated with antique bicycle illustrations, animal cartoons, an American flag and the Schwinn Approved seal, a black European style bell and a large chrome “Ding-Dong” bell, then four bulb horns in chrome and brass and a triangular electric horn, each with its caption and part number. The heading band sits across the middle of the page, between the bells above and the horns below.]

— Page 58 —
Smooth, effortless gear changes . . . watch-like precision construction—GT-450 LeTour® front changer | 21 060

GT-1100
14-24 tooth | 27 401
14-26 tooth | 27 402
14-32 tooth | 27 403
Get into the winner’s circle with the appropriate Hi-Performance Competition-Type Gold Finish Cogs.

The famous GT-400 LeTour® rear derailleur . . . finest quality alloy and steel | 21 120

LeTour® double plateau chainwheel set. 3-piece, light alloy. 52-39 teeth. (Spindle set extra). | 56 670

New silent action—reset mechanism. Tells how far for every ride. Black plastic case. Deluxe Cyclometer | 02 815 and 02 816
Small size, black finish. New silent pick-up mechanism. Schwinn-Approved cyclometer. | 02 820 thru 02 827

Know how far and how fast you go! Deluxe speedometer. Chrome case | 08 450 thru 08 451
(Cannot be mounted on bicycles equipped with quick release hubs.)
Deluxe Sting-Ray® Speedometer with chrome case. Easily mounted quick installation. | 08 452 thru 08 453
58

[Schwinn LeTour components and Schwinn cyclometers and speedometers shown in color photographs: the GT-450 LeTour front changer, three GT-1100 gold finish cog clusters, the GT-400 LeTour rear derailleur and the LeTour double plateau chainwheel set in the left column, with two cyclometers, a Deluxe speedometer and a Deluxe Sting-Ray speedometer in the right column, each with its caption and part numbers. The photographed speedometer faces read “Schwinn APPROVED”, one also “STING-RAY”.]

— Page 59 —
New! Collapsible wire basket

Folds flat out-of-way. Opens with a flick of the finger to a large basket. Carries a full grocery bag. Install two for set. Sturdy construction chrome finish | 00 660
(Installation hardware separate) | 00 661 and 00 662

Deluxe Front Touring Bag. Heavy vinyl cloth with waterproof map holder and see-thru-window | 00 005
Touring bag of heavy vinyl cloth | 00 030
White heavy vinyl cloth touring bag. | 00 031
Carrier for deluxe front touring bag | 00 006
Lock and tool bag of black vinyl cloth. | 00 041
Heavy duty extra large lock and tool bag of vinyl cloth | 00 025
Touring Bag, quality cotton duck 9″ x 8″ x 7½” deep. Tapered shaped. | 00 050
59

[The new Schwinn collapsible wire basket shown opened and folded flat, with a photograph of a young man and woman loading grocery bags into wire baskets on their bicycles outside a building with a tower. Below are Schwinn touring bags of vinyl cloth and cotton duck, lock and tool bags and the deluxe front touring bag with its wire carrier, each with its caption and part number.]

— Page 60 —
CYCLE AID™
The ideal bicycle accessory to help the beginner get a head start in cycling enjoyment. Wheel height adjustable. Available for 12″, 16″, and 20″ bikes. . .02 527 for 12″, 02 525 for 16″, 02 526 for 20″—Schwinn Cycle Aid.
Pedal Blocks, Pair | 07 600

Folding baby seat complete with safety belt, foot protectors, and soft seat pad. (Will not fit 25″ & 26″ bicycle frame sizes.) | 01 500

4″ round mirror, chrome plated with reflector. | 07 010
Chrome plated oblong mirror with two reflectors. | 07 011
New black finish mirror. New free-form shape. Reflector back | 07 025
3″ chrome plated round mirror | 07 015
3″ chrome plated mirror with reflector | 07 014

Standard Sting-Ray® seat with chrome strut. | 58 615 thru 58 657
Deluxe Sting-Ray® seat with silver inlay and chrome strut. | 58 570 thru 58 585
60

[The Schwinn Cycle Aid training wheels and a pair of pedal blocks, a folding baby seat with foot protectors, five bicycle mirrors and the Standard and Deluxe Sting-Ray seats with chrome struts, shown in color photographs with their captions and part numbers.]

— Page 61 —
Keep Your Bike in New Condition!
Schwinn® has the right product for every bike-care job.

Genuine woven reed basket . . . lightweight and roomy. Straps extra | 00 750
Woven plastic basket with color trim to match most bicycles. Mounts by straps to handlebar. | 00 720 thru 00 729
Junior size woven plastic basket with color trim to match most bicycles | 00 800 thru 00 806
61

[Schwinn Approved bike care products shown in a color photograph (bike storage hooks, LPD 9 lubricant, Self-Spraying lacquer, antiseptic hand cleaner, the DG-15 bike degreaser, bike polish, bicycle wax, chrome polish, Paint Stik, cycle oil, chain lube, cycle lube and rust-eraser), with three handlebar baskets in woven reed and woven plastic below. The page prints no part numbers for the bike care products, but the photographed labels carry them: storage hooks “PART NO. 94 525”, LPD 9 “72 020” and “72 021”, lacquer “72 531 KOOL LEMON” and “72 633 KOOL BLUE”, DG-15 bike degreaser “73 203”, bike polish “73 200” and “73 201”, chain lube “72 025” and rust-eraser “72 210”.]

— Page 62 (back cover) —
SCHWINN®…the bicycle people!™

Effective June 1, 1975
SCHWINN BICYCLE COMPANY®
LIMITED WARRANTY

Schwinn and Schwinn-Approved bicycles, parts and accessories are warranted to be free from defects in materials and workmanship . . . no time limit. Schwinn will replace . . . without charge . . . any Schwinn or Schwinn-Approved part or accessory that is determined by the factory to be defective under the terms of this warranty.

NOTICE: The user assumes the risk of any personal injuries, damage to or failure of the bicycle and any other losses if Schwinn bicycles are used in any competitive event, including bicycle racing, or in bicycle motocross, dirt biking or similar activities, or training for such competitive events or activities. DO NOT USE Schwinn bicycles for stunt riding, ramp jumping, acrobatics or similar activities, or with motors as power driven vehicles. This Warranty does not cover any personal injuries, damage to or failure of the bicycle or any other losses due to accident, misuse, neglect, abuse, normal wear, improper assembly or improper maintenance.

FREE 30-DAY CHECKUP

Each Schwinn Bicycle will be fully assembled by the Authorized Schwinn Dealer at time of purchase, and will be entitled to receive a Free 30-Day Checkup by the same Authorized Schwinn Dealer within the first 30 days of operation . . . such checkup to include free replacement of any parts and accessories found to be defective and free inspection and adjustment of all functional parts and assemblies . . . but not including any repair due to accident, improper use, neglect, abuse, normal wear, improper assembly or improper maintenance.

Dealer labor charges are not covered by this warranty after the free 30-Day Checkup, except for any labor charges due to free replacement of a defective frame within one year of original purchase at retail.

Replacement of defective parts and those dealer charges specified above shall be the sole remedy under this Warranty, and IN NO EVENT SHALL SCHWINN BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

See your Authorized Schwinn Dealer for service or replacement under the Schwinn Warranty, or write for assistance to the factory.

Consumer Relations Department
SCHWINN BICYCLE COMPANY
1856 North Kostner Avenue • Chicago, Illinois 60639

1pAZ 1976

[The back cover: a large empty white panel for a dealer’s imprint at the top, a drawing of a Schwinn dealer’s shop with its hanging Schwinn Bicycles sales and service sign and the Schwinn Bicycle Company limited warranty in a white panel below. Nothing is printed, stamped or written in the dealer panel, and the small code “1pAZ 1976″ is printed in white on the red at the lower left.]

— Page 63 —
SCHWINN® Manufacturer’s Suggested Retail Bicycle Prices*
Effective July 19, 1976

Due to fluctuations in material and component parts costs, prices and specifications stated herein are subject to change without notice.

PAGE | DESCRIPTION | ZONE 1 PRICE
10 | P14 Professional Track Racing Paramount | $375.00
11 | P15, P10 Deluxe Touring Paramount | 625.00
12 | P13 Professional Road Racing Paramount | 660.00
13 | V21, V23, V25 Schwinn-Approved Voyageur II | 335.00
14 | 842, 844, 846 Schwinn Superior | 219.95
15 | SL1, SL3, SL5 Schwinn-Approved Super LeTour 12.2 | 219.95
16 | LT1, LT3, LT5 Schwinn-Approved LeTour | 169.95
17 | 330, 332, 334, 336 Men’s Continental | 149.95
18 | 120, 122, 124, 126 Men’s Varsity Sport | 136.95
19 | W21, W23, W25 Schwinn-Approved Traveler | 136.95
20 | 620, 622, 624 Suburban | 141.95
| 520, 522, 524 5-speed | 131.95

21 | 737, 740, 742, 744 Collegiate Sport | 127.95
22 | 717, 720, 722, 724 Collegiate Tourist | 122.95
23 | K17, K20, K22, K24 Speedster 3-speed | 101.95
| Speedster Coaster/brake | 89.95
24 | P65, P60 Ladies Deluxe Touring Paramount 15-spds | 625.00
| 10-speed | 625.00
25 | L69, L72 Ladies Schwinn-Approved LeTour | 169.95
26 | 379, 382 Ladies Continental | 149.95
27 | 167, 169, 172 Ladies Varsity Sport | 136.95
28 | 667, 669, 672 10-spd. Ladies Suburban | 141.95
| 567, 569, 572 5-spd. Ladies Suburban | 131.95
29 | W69, W72 Ladies Schwinn-Approved Traveler | 136.95
30 | 787, 789, 792 Ladies Collegiate Sport | 127.95

PAGE | DESCRIPTION | ZONE 1 PRICE
31 | 767, 769, 772 Ladies Collegiate Tourist | $122.95
32 | K62, K67, K69 3-spd. Breeze | 101.95
| K67, K69 Breeze Coaster Brake | 89.95
34 | T22, T19 Paramount Tandem | 750.00
35 | T13 5-speed Tandem | 185.95
| T13 coaster/brake Tandem | 154.95
36 | AT2 Tr-Wheeler coaster/brk | 204.95
| AT2 Tr-Wheeler 3-spd. | 218.95
38 | U20 Unicycle 20″ wheel | 52.95
| U24 Unicycle 24″ wheel | 52.95
39 | XR5 Deluxe Exerciser | 139.95
40 | M15 Heavy-Duti | 104.95
| L62 Hollywood | 89.95
| L12 Typhoon | 89.95
41 | 144 24″ wheel Varsity Sport, boy’s | 136.95
| 194 24″ wheel Varsity Sport, girl’s | 136.95
42 | K30 5-spd. 24″ wheel Speedster | 115.95
| Speedster, coaster/brk | 82.95
| K80 5-spd. 24″ wheel Breeze | 115.95
| Breeze, coaster/brk | 82.95

43 | K44 20″ wheel Speedster | 78.95
| K34 20″ wheel Speedster | 72.95
| K84 20″ wheel Breeze | 72.95
44 | BX1-6 Scrambler | 122.95
45 | BX5-6 Scrambler Competition | 146.95
46 | L32 20″ wheel Typhoon | 72.95
| L82 20” wheel Hollywood | 72.95
47 | J38 Sting-Ray, coaster/brk | 84.95
| J38 String-Ray, 3-speed | 98.95
| J38 Sting-Ray, 5-speed | 117.95
| H36 Fastback, 5-speed | 119.95
48 | J81 Lil’ Chik | 79.95
| J89 Fair Lady, coaster/brk | 84.95
| J89 Fair Lady 3-speed | 98.95
49 | J35 Bantam | 75.95
| J46 Super Pixie | 62.95
50 | J31 Jr. Sting-Ray | 79.95
| J49 Mini Scrambler | 80.95
| J44 Sting-Ray Pixie | 59.95
51 | J42 Pixie | 51.95
| J52 Lil’ Tiger | 49.95

ZONE #1 *Prices are manufacturer’s suggested retail prices. Prices and specifications are subject to change without notice. Suggested retail bicycle prices include freight to dealer and assembly.

© 1976 by Schwinn Bicycle Company.
2nd Printing (C)

[The bicycle side of a separate Schwinn price list, “Manufacturer’s Suggested Retail Bicycle Prices” effective July 19, 1976, giving in two columns the catalog page, the models and the Zone 1 price of each bicycle from the P14 Professional Track Racing Paramount at $375.00 to the J52 Lil’ Tiger at 49.95. It is printed in red and dark blue, with a Zone 1 footnote, a copyright line and the mark “2nd Printing (C)” at the foot.]

— Page 64 —
SCHWINN® Suggested Retail Accessories Prices
Effective January 1, 1976

Due to fluctuations in material and component parts costs, prices and specifications stated herein are subject to change without notice.

PART NO. | DESCRIPTION | PRICE
Page 52
04140 | Generator | $12.95
04200 | Generator | 13.95
04190 | Generator | 11.49
04250 | Generator | 7.95
Page 53
05712 | Ball Light | 4.29
05821 | Headlight | 5.95
04175 | Tail Light | 3.85
04180 | Tail Light | 2.39
05816 | Safety Light | 2.79
01600 | Carrier | 8.95
01605 | Carrier | 8.95
01505 | Carrier | 5.95
01535 | Carrier | 1.29
00670 | Tennis Racquet Clip | 4.75
Page 54
00060 | Bag | 13.49
00061 | Bag | 9.95
00065 | Bag | 27.95
49715 | Back Pack | 16.59
94540 | Carrier | 29.95
94545 | Carrier | 29.95
94570 | Bike Porter | 39.95

Page 55
06740 | Comb. Lock Set | 7.99
06741 | Cable & Lock Set | 8.59
06720 | Chain & Comb. Lock | 8.49
06730 | Chain & Comb. Lock | 10.39
06725 | Chain & Key Lock | 8.95
06735 | Chain & Key Lock | 10.95
06690 thru 06701 | Chain Lock | 2.99
06710 | Chain Lock | 5.99
06610 | Chain & Lock Set | 17.89
06606 | Padlock | 4.25
06600 | Comb. Lock | 3.49

Page 56
46920 thru 46924 | Gloves | 13.95
46930 thru 46936 | Gloves | 12.95
46915 thru 46917 | Gloves | 13.95
46955 thru 46958 | Gloves | 2.95
47330 | Bottle Cage Set | 3.49
47325 | Bottle Cage Set | 2.49
47345 | Insulated Bottle | 6.59
47080 | Toe Clips | 4.39
09110 thru 09117 | Handlebar Tape | 1.39
09056 thru 09077 | Handlebar Tape | .84
04951 thru 04970 | Handbrake Lever | .59
09501 | Trouserbands | .94
01814, 01821, 01822 | Strap | .78 to 1.29
73400 | Tool Kit | 13.95

Page 57
01006 | Bell | 1.79
01010 | Bell | 1.99
01001 | Flag Bell | 1.99
01005 | Bell | 3.75
01015 | Bell | 1.79
01020 | Chime Bell | 1.99
01007 | Bell | 1.59
05010 | S.R. Horn | 5.50
05005 | Bulb Horn | 2.39
05001 | Bugle Horn | 5.50
05003 | Bugle Horn | 5.50
05055 | Electric Horn | 4.99

PART NO. | DESCRIPTION | PRICE
Page 58
21060 | Derailleur | $ 6.50
27401 thru 27403 | Gold Cog | 11.50 to 13.50
21120 | Derailleur | 12.95
56670 | Chainwheel | 32.95
08450 and 08451 | Speedometer | 11.95
08452 and 08453 | Speedometer | 11.95
02815 and 02816 | Cyclometers | 3.99
02820 to 02827 | Cyclometers | 2.79
Page 59
00005 | Bag | 1.95
00006 | Bag | 1.95
00030 | Bag | 3.95
00031 | Bag | 4.95
00041 | Lock & Tool Bag | 2.89
00025 | Lock & Tool Bag | 4.29
00050 | Touring Bag | 5.95
00660 with 00661 or 00662 | Basket | 8.95

Page 60
01500 | Baby Seat | 16.49
07600 | Pedal Blocks | 1.69
02525 | Cycle Aid | 8.95
02526 | Cycle Aid | 8.95
02527 | Cycle Aid | 8.95
07010 | Round Mirror | 2.19
07011 | Oblong Mirror | 2.19
07015 | Round Mirror | 1.09
07014 | Round Mirror | 1.39
07025 | Black Mirror | 3.49
58570 thru 58589 with 58674 | S.R. Seat to | 14.95
58615 thru 58619 with 58675 | S.R. Seat to | 12.95

Page 61
94525 | Bike Storage Hooks | 1.79
72500 thru 72541 | Spray Paint, Large | 2.49
72600 thru 72641 | Spray Paint, Small | 1.39
73004 | Hand Cleaner | .99
72020 | LPD9 | 2.49
73205 | Bicycle Wax | .99
73200 | Wax | 2.49
73203 | Degreaser | 1.99
72210 | Rust Eraser | 1.95
72025 | Chain Life Tube | 1.99
72001 | Lube | .79
72002 | Cycle Oil | .79
73206 | Chrome Cleaner | .99
72721 thru 72739 | Paint Stik | 1.49
72021 | LPD9 | 1.49
73201 | Wax | 1.49
00720 thru 00729 | Basket | 3.99
00800 thru 00806 | Basket | 3.29
00750 | Basket | 6.25

Page 62
60615 | Frame Pump | 7.95
06683 | Frame Pump | 3.29
60675 | Foot Pump | 17.95
60682 | Foot Pump | 14.95
60681 | Foot Pump | 7.50
60680 | Foot Pump | 5.29
60406 | Patch Kit | .59
60410 | Patch Kit | .66
60415 | Stop Leak | 1.59
69226 | Tire Gauge | 2.99
69230 | Tire Gauge | 5.49
69231 | Pump Gauge | 7.19

©1976 by Schwinn Bicycle Company.

[The accessories side of the separate Schwinn price list, “Suggested Retail Accessories Prices” effective January 1, 1976, giving in two columns and by catalog page, from Page 52 to Page 62, the part numbers, names and prices of Schwinn generators, lights, carriers, bags, locks, gloves, bells, horns, derailleurs, mirrors, bike care products, baskets and pumps. It is printed in red and dark blue, with a copyright line at the foot and no printing mark.]
