Raleigh Bicycles/Rampar Bicycles/Parts and Accessories.

RALEIGH®

[Front cover: a racing cyclist in a Raleigh cap and red and yellow jersey shown in a blurred motion photograph against a black background, above the red RALEIGH wordmark. The rider is not named.]

— Page 2 —

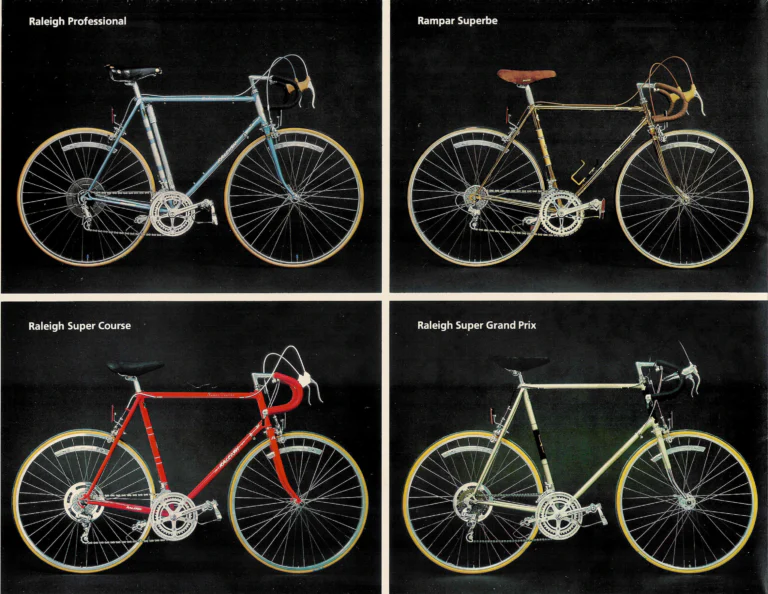

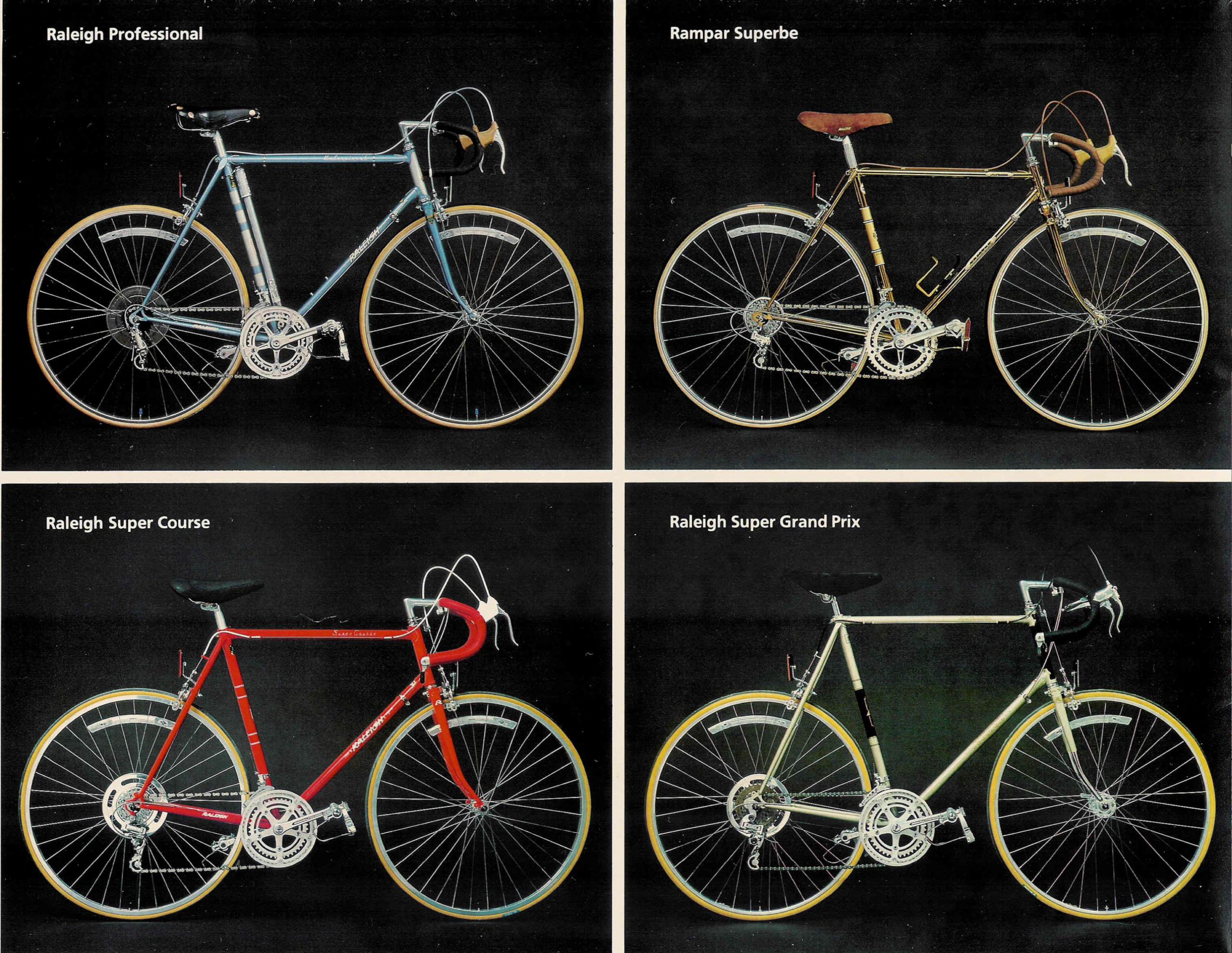

Raleigh Professional

Rampar Superbe

Raleigh Super Course

Raleigh Super Grand Prix

[The Raleigh Professional, Rampar Superbe, Raleigh Super Course and Raleigh Super Grand Prix shown in four color studio photographs against a black background. The page carries only the model names; the matching descriptions are on the line-art page with the same four models in the same positions.]

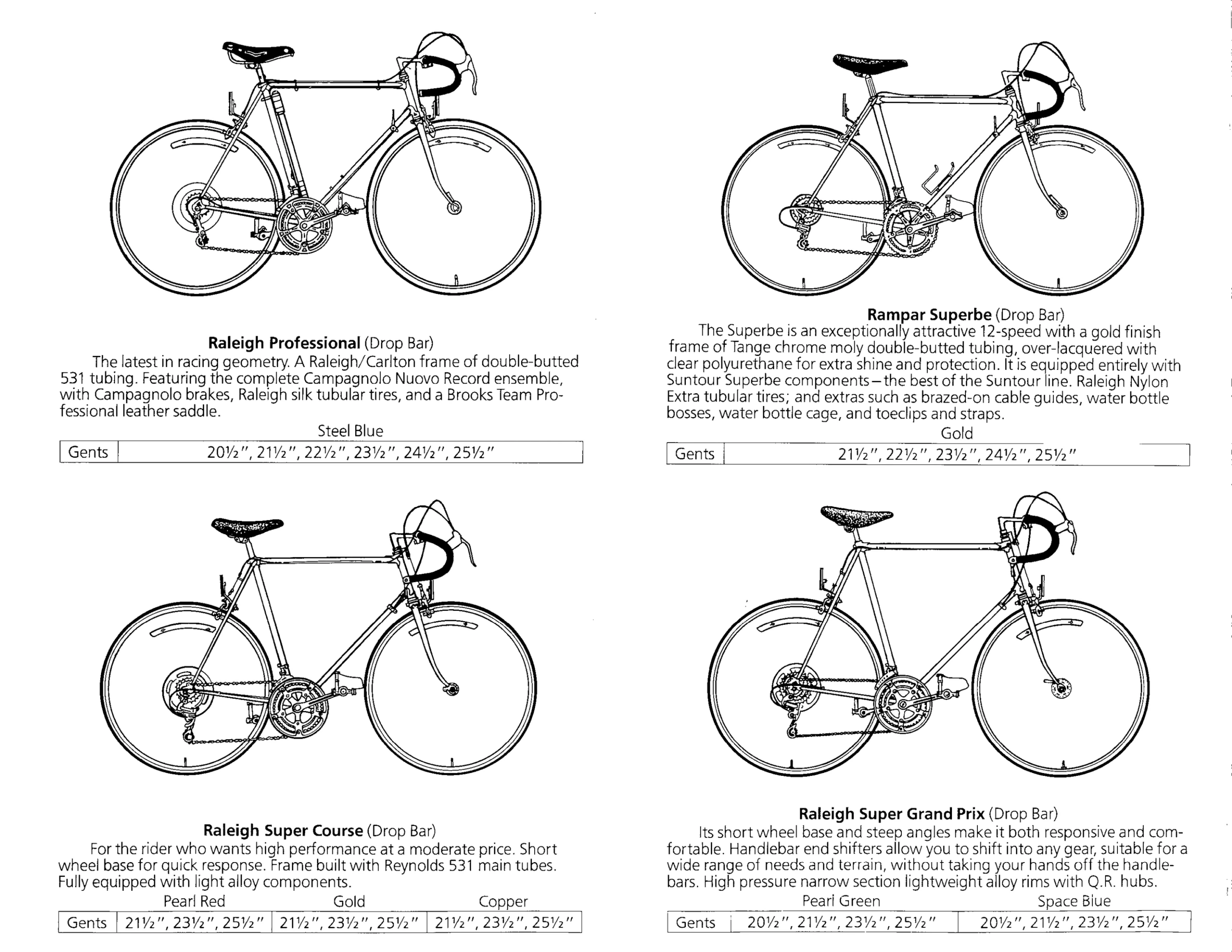

— Page 3 —
Raleigh Professional (Drop Bar)
The latest in racing geometry. A Raleigh/Carlton frame of double-butted 531 tubing. Featuring the complete Campagnolo Nuovo Record ensemble, with Campagnolo brakes, Raleigh silk tubular tires, and a Brooks Team Professional leather saddle.

| Steel Blue
Gents | 20½”, 21½”, 22½”, 23½”, 24½”, 25½”

Rampar Superbe (Drop Bar)
The Superbe is an exceptionally attractive 12-speed with a gold finish frame of Tange chrome moly double-butted tubing, over-lacquered with clear polyurethane for extra shine and protection. It is equipped entirely with Suntour Superbe components—the best of the Suntour line. Raleigh Nylon Extra tubular tires; and extras such as brazed-on cable guides, water bottle bosses, water bottle cage, and toeclips and straps.

| Gold
Gents | 21½”, 22½”, 23½”, 24½”, 25½”

Raleigh Super Course (Drop Bar)
For the rider who wants high performance at a moderate price. Short wheel base for quick response. Frame built with Reynolds 531 main tubes. Fully equipped with light alloy components.

| Pearl Red | Gold | Copper
Gents | 21½”, 23½”, 25½” | 21½”, 23½”, 25½” | 21½”, 23½”, 25½”

Raleigh Super Grand Prix (Drop Bar)
Its short wheel base and steep angles make it both responsive and comfortable. Handlebar end shifters allow you to shift into any gear, suitable for a wide range of needs and terrain, without taking your hands off the handlebars. High pressure narrow section lightweight alloy rims with Q.R. hubs.

| Pearl Green | Space Blue
Gents | 20½”, 21½”, 23½”, 25½” | 20½”, 21½”, 23½”, 25½”

[Line drawings of four drop bar road bicycles, the Raleigh Professional, Rampar Superbe, Raleigh Super Course and Raleigh Super Grand Prix, each with its description, colors and frame sizes. The four models sit in the same positions as their color photographs in the color section of the catalog.]

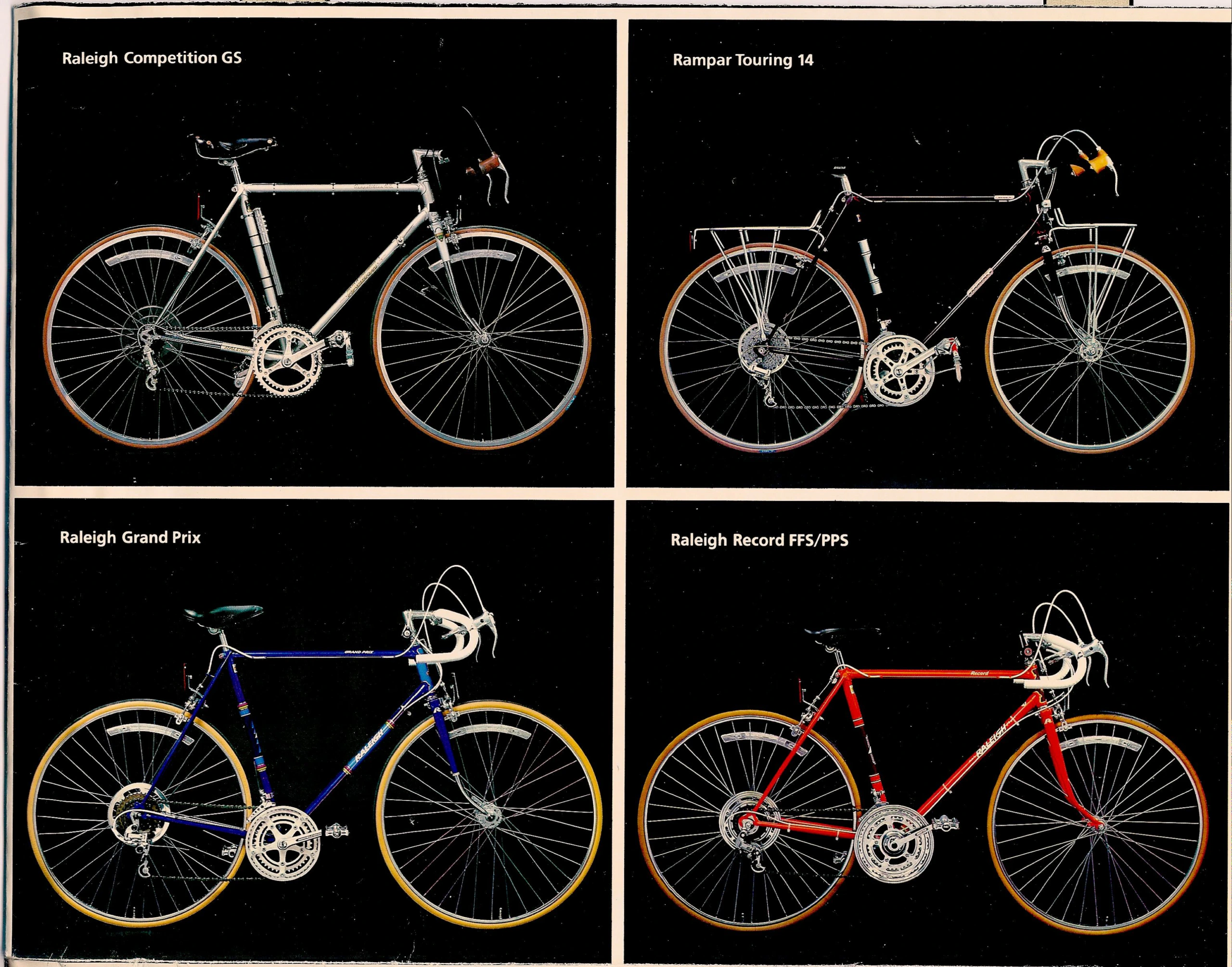

— Page 4 —
Raleigh Competition GS

Rampar Touring 14

Raleigh Grand Prix

Raleigh Record FFS/PPS

[The Raleigh Competition GS, Rampar Touring 14, Raleigh Grand Prix and Raleigh Record FFS/PPS shown in four color studio photographs against a black background. The Rampar Touring 14 is shown with front and rear carriers.]

— Page 5 —
Raleigh Competition GS (Drop Bar)
Built of lightweight 531 double butted tubing throughout, with chrome front and rear fork ends, and equipped with the Campagnolo Gran Sport ensemble. Plus high pressure narrow section tires on 700C alloy concave rims. No brake adjustment required when changing to tubular tire wheels.

| Black | Pearl Silver
Gents | 21½”, 22½”, 23½”, 24½”, 25½” | 21½”, 22½”, 23½”, 24½”, 25½”

Rampar Touring 14 (Drop Bar)
This model is a true touring bicycle, Suntour equipped, offered with a 7-speed freewheel, providing a full fourteen speeds with a range of 32.9 to 108.00. Equipment includes light alloy front and rear carriers, 700C rims and tires, toe clips and straps, cantilever brakes, and handlebar end-shifters.

| Burgundy
Gents | 21½”, 22½”, 23½”, 24½”, 25½”

Raleigh Grand Prix (Drop Bar)
One of our most popular models. An excellent recreational 10-speed with outstanding appearance. The Grand Prix gives you top-of-the-line styling and lightweight maneuverability, at a popular price. Equipped with light alloy equipment and comfortable, soft padded saddle.

| Midnight Blue | Bronze | Pearl Silver
Gents | 19¾”, 21½”, 23½”, 25½” | 19¾”, 21½”, 23½”, 25½” | 19¾”, 21½”, 23½”, 25½”
Ladies Mixte | 19½”, 21½”, 23½” | 19½”, 21½”, 23½” | 19½”, 21½”, 23½”

Raleigh Record FFS/PPS (Drop Bar)
A bicycle with the same quality and good looks of the Record Ace. Plus the smooth, easy shifting of the Shimano PPS derailleur. Lets you see and hear that the bicycle is in the gear of your choice. To make shifting even easier, you get the Shimano FF (front freewheeling) system that enables you to select a gear without pedaling.

| Horizon Blue | Royal Carmine | Brilliant Orange
Gents | 19¾”, 21½”, 23½”, 25½” | 19¾”, 21½”, 23½”, 25½” | 21½”, 23½”, 25½”
Ladies Mixte | 19½”, 21½” | 19½”, 21½” |

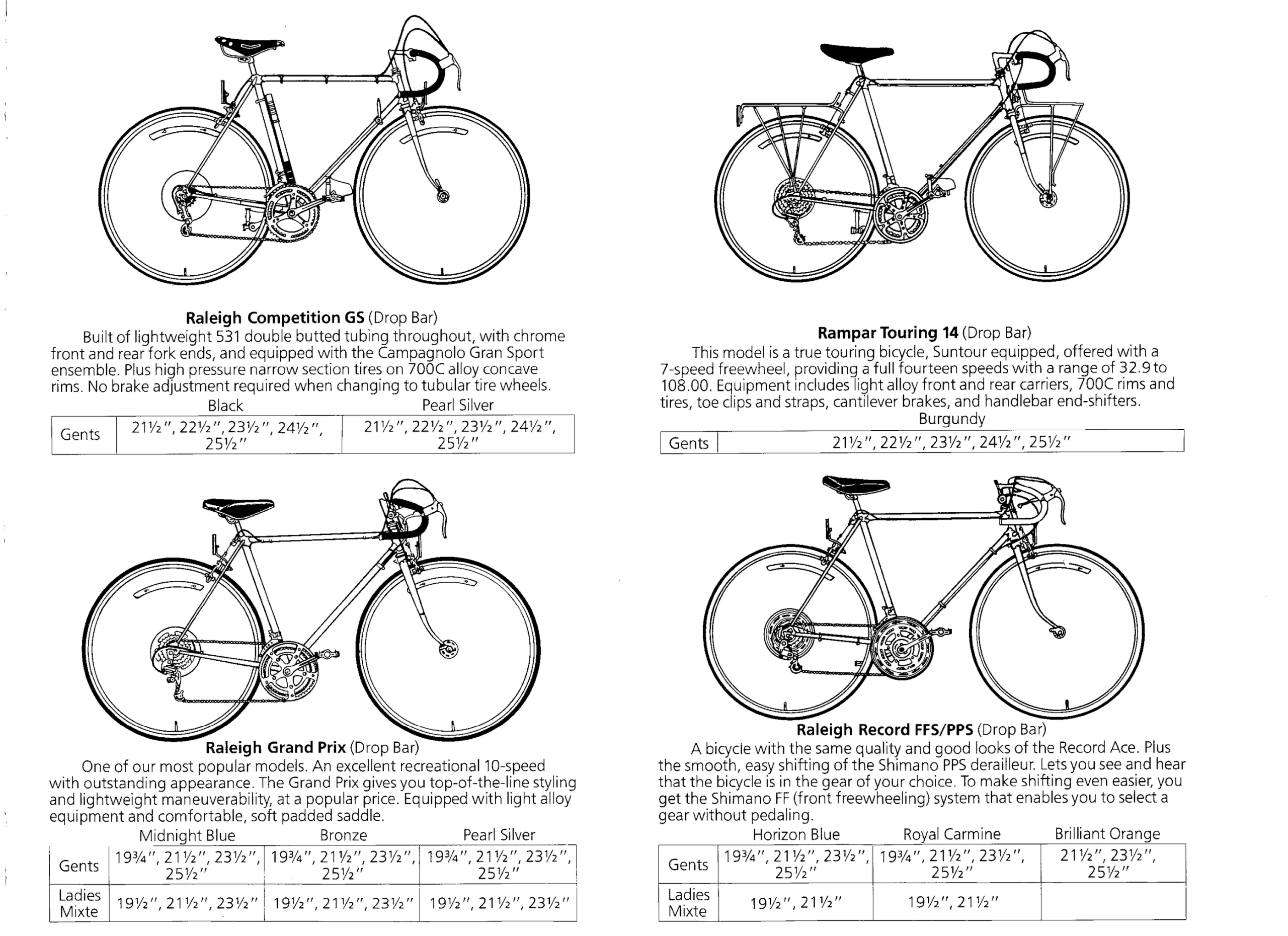

[Line drawings of four drop bar bicycles, the Raleigh Competition GS, Rampar Touring 14, Raleigh Grand Prix and Raleigh Record FFS/PPS, each with its description, colors and frame sizes. The Touring 14 is drawn with front and rear carriers, and the four models sit in the same positions as their color photographs in the color section of the catalog.]

— Page 6 —

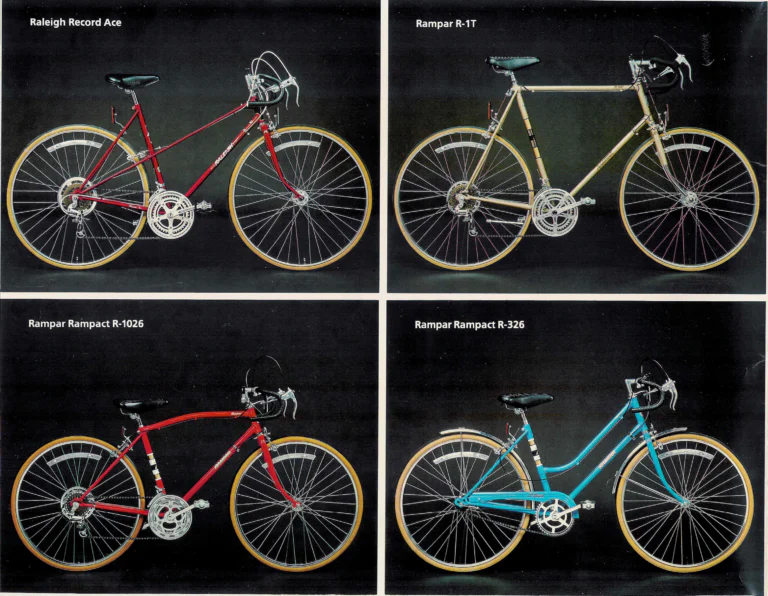

Raleigh Record Ace

Rampar R-1T

Rampar Rampact R-1026

Rampar Rampact R-326

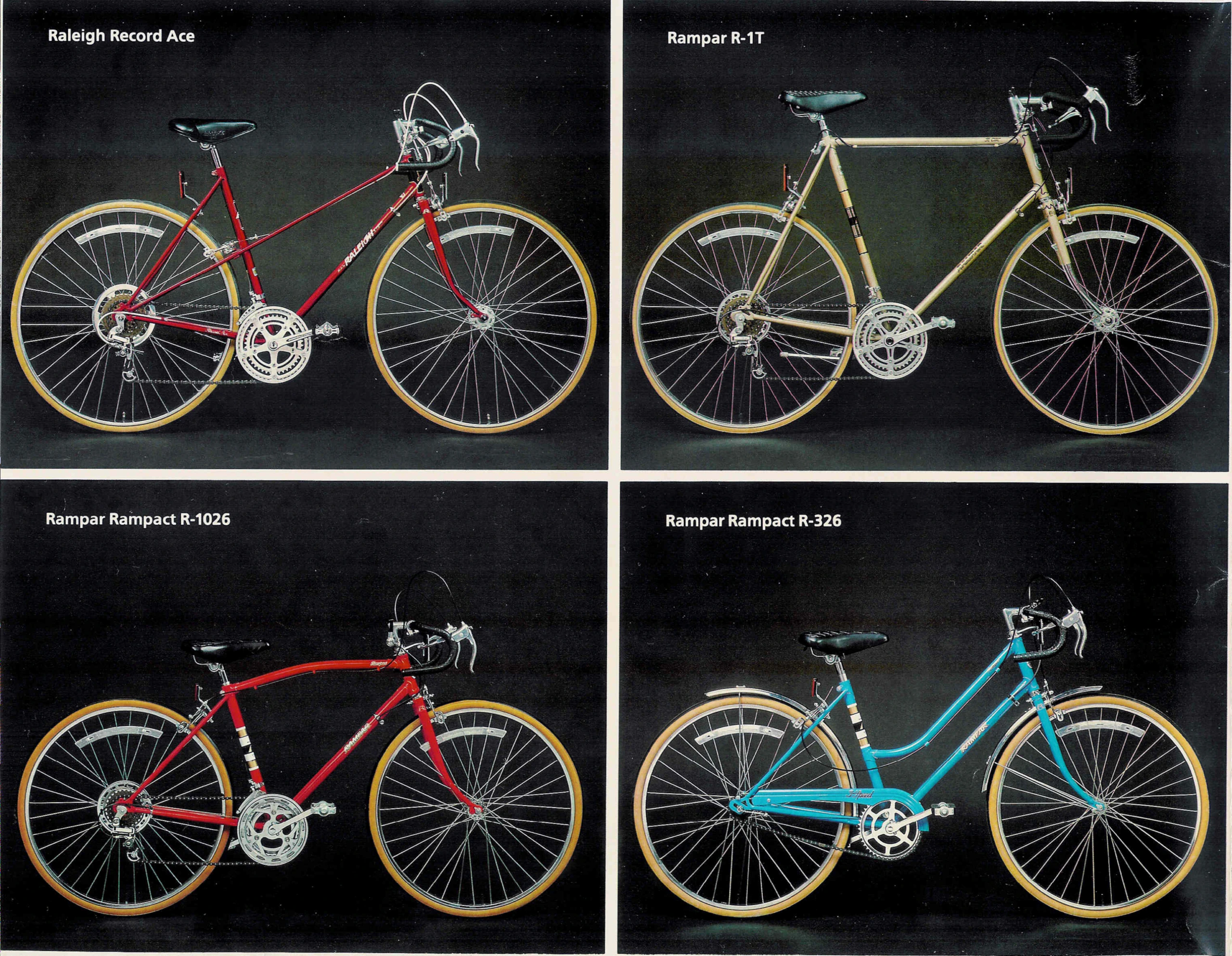

[The Raleigh Record Ace, Rampar R-1T, Rampar Rampact R-1026 and Rampar Rampact R-326 shown in four color studio photographs against a black background. The Record Ace is a mixte frame and the Rampact R-326 a step-through frame with fenders.]

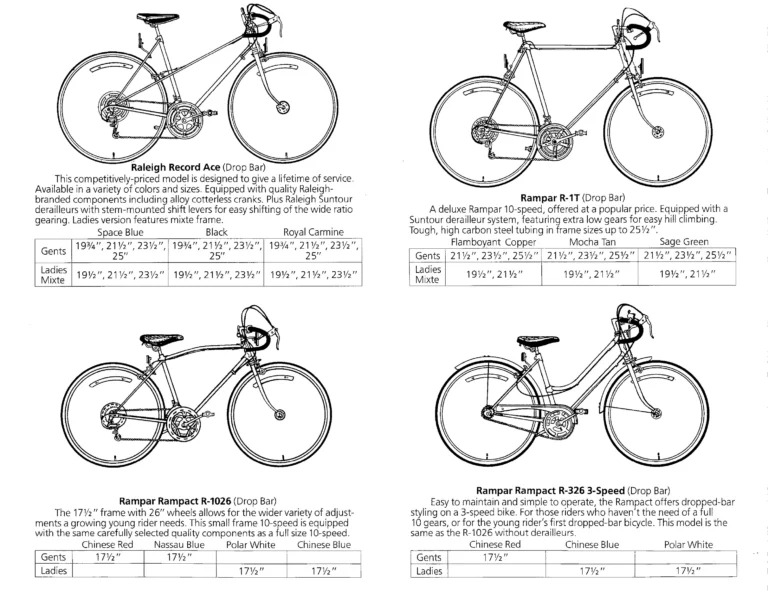

— Page 7 —

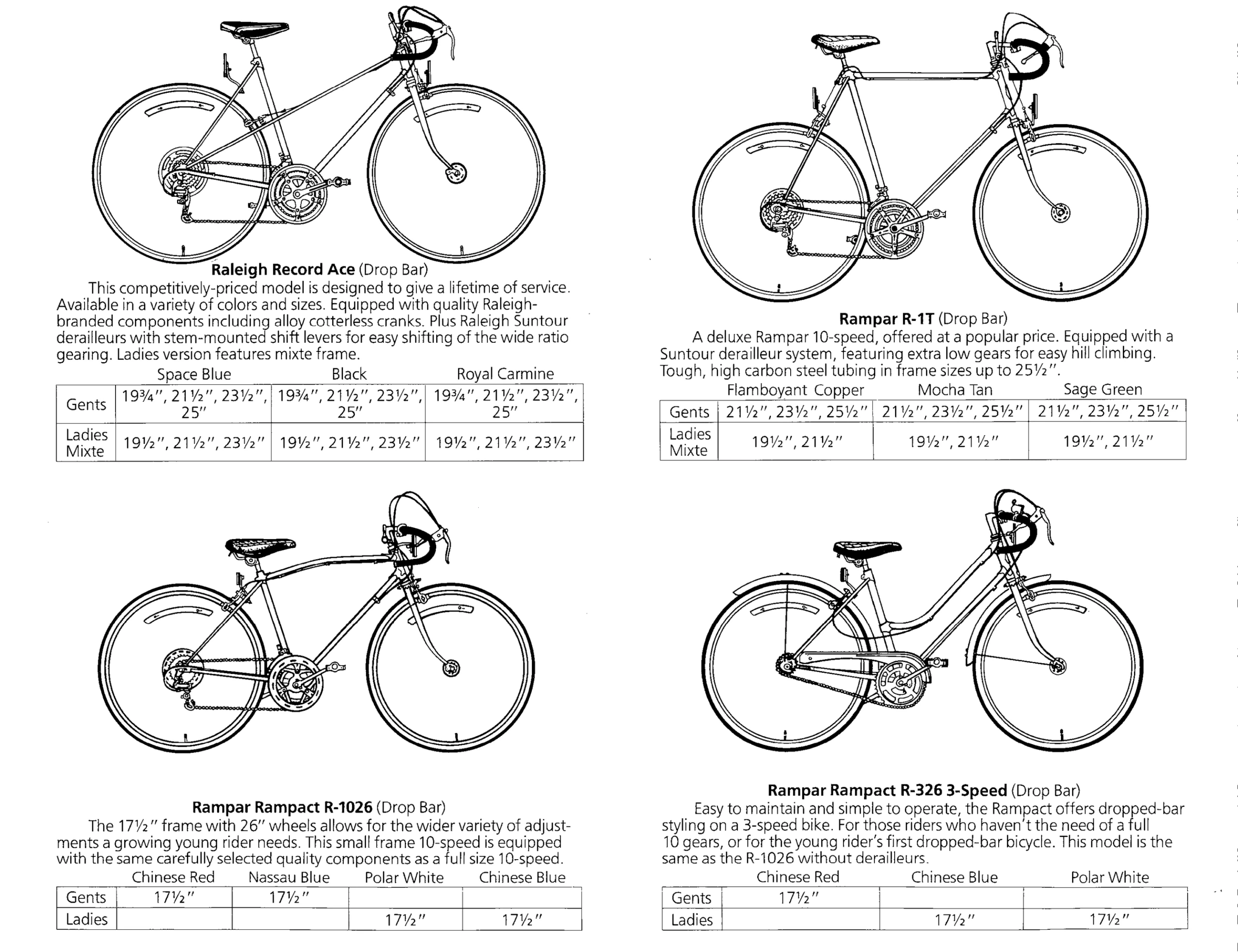

Raleigh Record Ace (Drop Bar)
This competitively-priced model is designed to give a lifetime of service. Available in a variety of colors and sizes. Equipped with quality Raleigh-branded components including alloy cotterless cranks. Plus Raleigh Suntour derailleurs with stem-mounted shift levers for easy shifting of the wide ratio gearing. Ladies version features mixte frame.

| Space Blue | Black | Royal Carmine
Gents | 19¾”, 21½”, 23½”, 25″ | 19¾”, 21½”, 23½”, 25″ | 19¾”, 21½”, 23½”, 25″
Ladies Mixte | 19½”, 21½”, 23½” | 19½”, 21½”, 23½” | 19½”, 21½”, 23½”

Rampar R-1T (Drop Bar)
A deluxe Rampar 10-speed, offered at a popular price. Equipped with a Suntour derailleur system, featuring extra low gears for easy hill climbing. Tough, high carbon steel tubing in frame sizes up to 25½”.

| Flamboyant Copper | Mocha Tan | Sage Green
Gents | 21½”, 23½”, 25½” | 21½”, 23½”, 25½” | 21½”, 23½”, 25½”
Ladies Mixte | 19½”, 21½” | 19½”, 21½” | 19½”, 21½”

Rampar Rampact R-1026 (Drop Bar)
The 17½” frame with 26″ wheels allows for the wider variety of adjustments a growing young rider needs. This small frame 10-speed is equipped with the same carefully selected quality components as a full size 10-speed.

| Chinese Red | Nassau Blue | Polar White | Chinese Blue
Gents | 17½” | 17½” | |
Ladies | | | 17½” | 17½”

Rampar Rampact R-326 3-Speed (Drop Bar)
Easy to maintain and simple to operate, the Rampact offers dropped-bar styling on a 3-speed bike. For those riders who haven’t the need of a full 10 gears, or for the young rider’s first dropped-bar bicycle. This model is the same as the R-1026 without derailleurs.

| Chinese Red | Chinese Blue | Polar White
Gents | 17½” | |
Ladies | | 17½” | 17½”

[Line drawings of four drop bar bicycles, the Raleigh Record Ace, Rampar R-1T, Rampar Rampact R-1026 and Rampar Rampact R-326 3-Speed, each with its description, colors and frame sizes. The Record Ace is drawn with a mixte frame and the R-326 with a step-through frame, fenders and a chainguard; the four models sit in the same positions as their color photographs in the color section of the catalog.]

— Page 8 —
Rampar R-2

Rampar R-1027

Rampar R-3

Raleigh Sprite 10

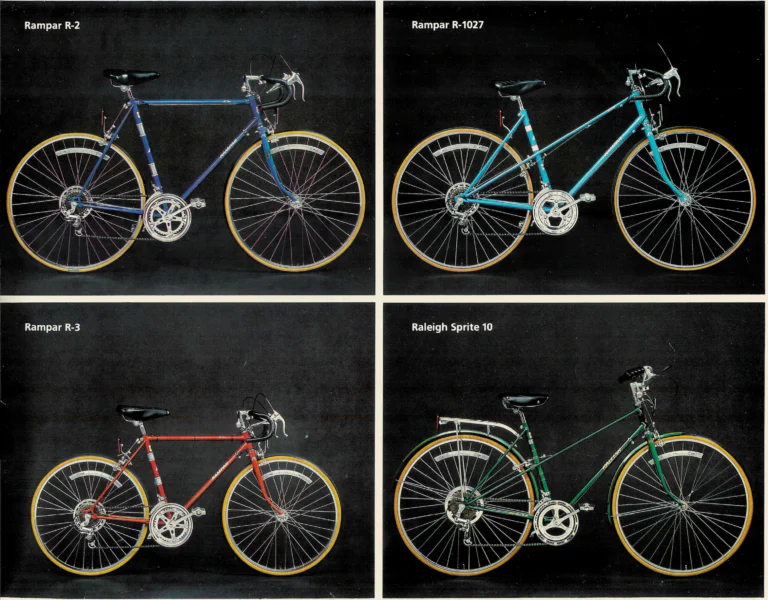

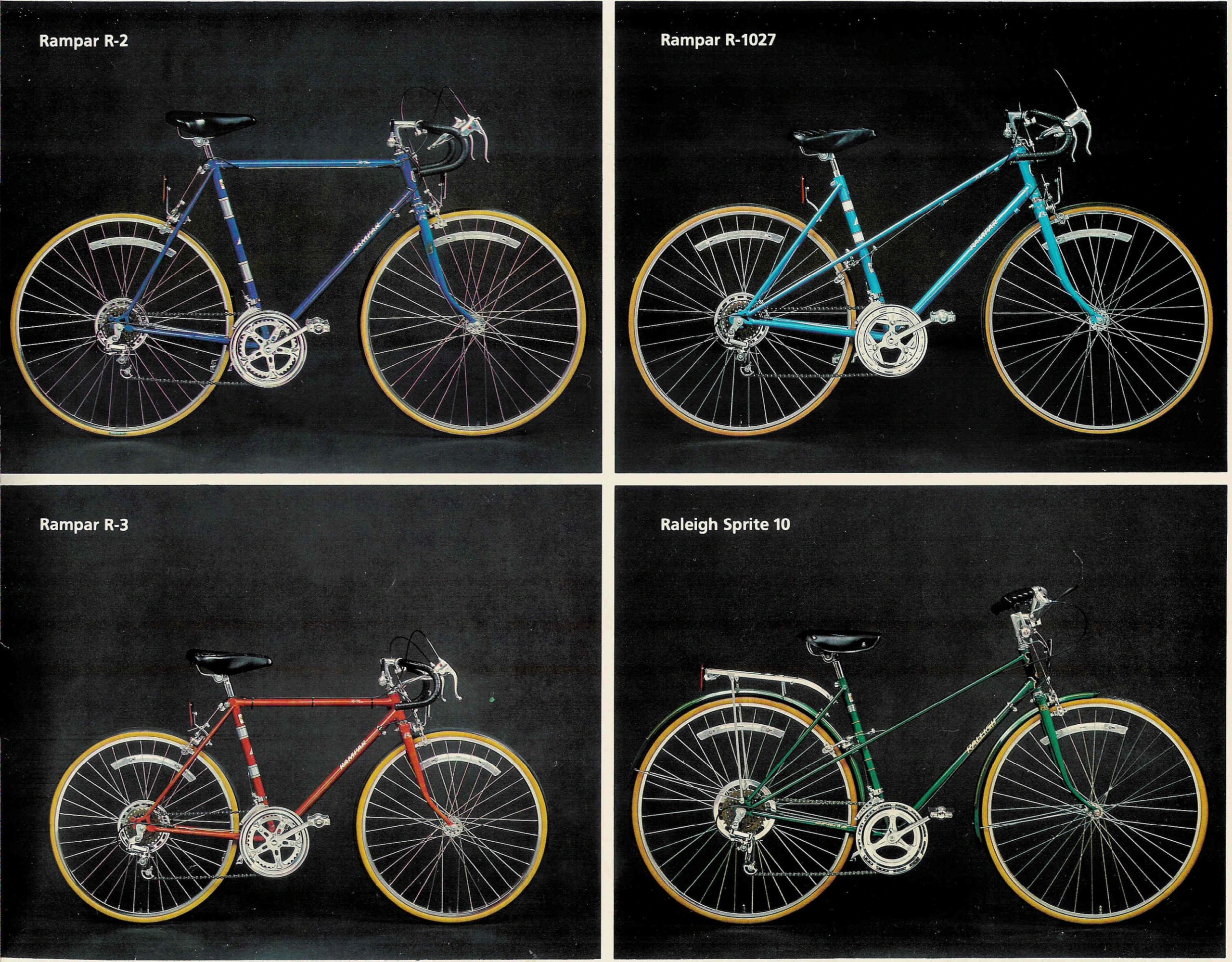

[The Rampar R-2, Rampar R-1027, Rampar R-3 and Raleigh Sprite 10 shown in four color studio photographs against a black background. The R-1027 and Sprite 10 are mixte frames; the Sprite 10 has upright handlebars, fenders and a rear carrier.]

— Page 9 —
Rampar R-2 (Drop Bar)
A popular 10-speed, featuring carefully selected steel components for strength, ruggedness, and reliability. Plus Raleigh gumwall tires with small-profile, low-rolling resistance design to make riding pleasurable and easy.

| Flamboyant Blue | Gold | Tangerine
Gents | 19¾”, 21½”, 23″, 25″ | 19¾”, 21½”, 23″, 25″ | 19¾”, 21½”, 23″

Rampar R-1027 (Drop Bar)
A great first 10-speed at a terrific bargain price. The fully-lugged frame gives the R-1027 the appearance, strength, and quality of more expensive models. Features dependable centerpull brakes and a Suntour derailleur system for easy accurate shifting and easier uphill riding.

| Flamboyant Red | Flamboyant Blue | Metallic Brown
Gents | 19¾”, 21½”, 23½”, 25½” | 19¾”, 21½”, 23½”, 25½” | 19¾”, 21½”, 23½”, 25½”
Ladies Mixte | 17½”, 19½”, 21½” | 17½”, 19½”, 21½” | 17½”, 19½”, 21½”

[The rest of the page is lost: the scan file ends here.]

[Line drawings of two drop bar 10-speed bicycles, the Rampar R-2 and Rampar R-1027, each with its description, colors and frame sizes. Below them the tops of two further bicycle drawings (a saddle on the left and a saddle and handlebar on the right) are cut off where the scan file turns solid black, so the lower half of the image and the models it showed are lost.]

— Page 10 —
Rampar R-90

Raleigh Tourist

Rampar Rambler

Rampar R-54

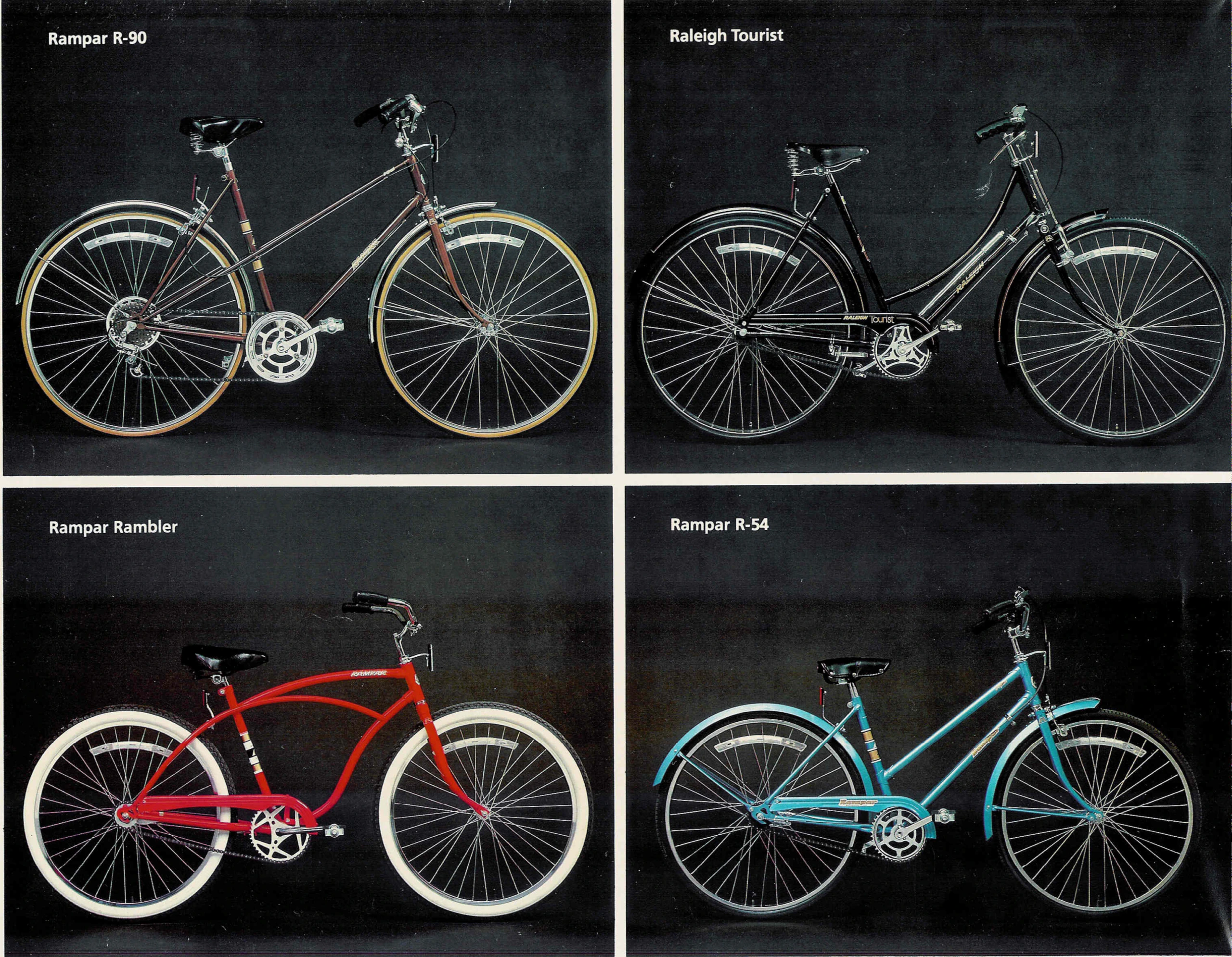

[The Rampar R-90, Raleigh Tourist, Rampar Rambler and Rampar R-54 shown in four color studio photographs against a black background. The Raleigh Tourist is a black ladies’ roadster with a full chaincase and the Rambler a red cruiser with white tires.]

— Page 11 —
Rampar R-90 (Tourist)
A five speed Suntour derailleur touring bicycle with upright handlebars and a stem mounted shift lever for easy accessibility while shifting. The versatile R-90 combines the styling of the classic 3-speed touring bike with the gear range of its derailleur 5-speed. Ideal for town or country.

| Flamboyant Red | Metallic Brown
Gents | 21½”, 23½”, 25½” | 21½”, 23½”, 25½”
Ladies Mixte | 19½”, 21½” | 19½”, 21½”

Raleigh Tourist (Tourist)
The Raleigh Tourist is a timeless classic. With rod brakes, 28″ wheels and glossy black finish. The only one of its type available in America. With long wheel base to provide a soft, comfortable ride.

| Black
Gents | 22″, 24″

| Black
Ladies | 22″

Rampar Rambler (Tourist)
Take a nostalgic trip down memory lane. This is the heavyweight cruiser of the fifties. Whether you ride down the boardwalk, the beach, or just cruise through the neighborhood, you’ll appreciate its wide steer-horn handlebars, big comfortable saddle and especially those smooth riding balloon white walls. Try one out—we haven’t forgotten what a bike used to be.

| Chinese Red | Ultra Black
Gents | 19″ | 19″

Rampar R-54 (Tourist)
A grown-up bicycle for the 7 to 9 year old, who is not quite ready for a full-sized adult bicycle. Equipped with Sturmey-Archer 3-speed coaster hub and front hand brake.

| Flamboyant Red | Merida Blue | Flamboyant Copper
Boys | 16″ | |
Girls | | 16″ | 16″

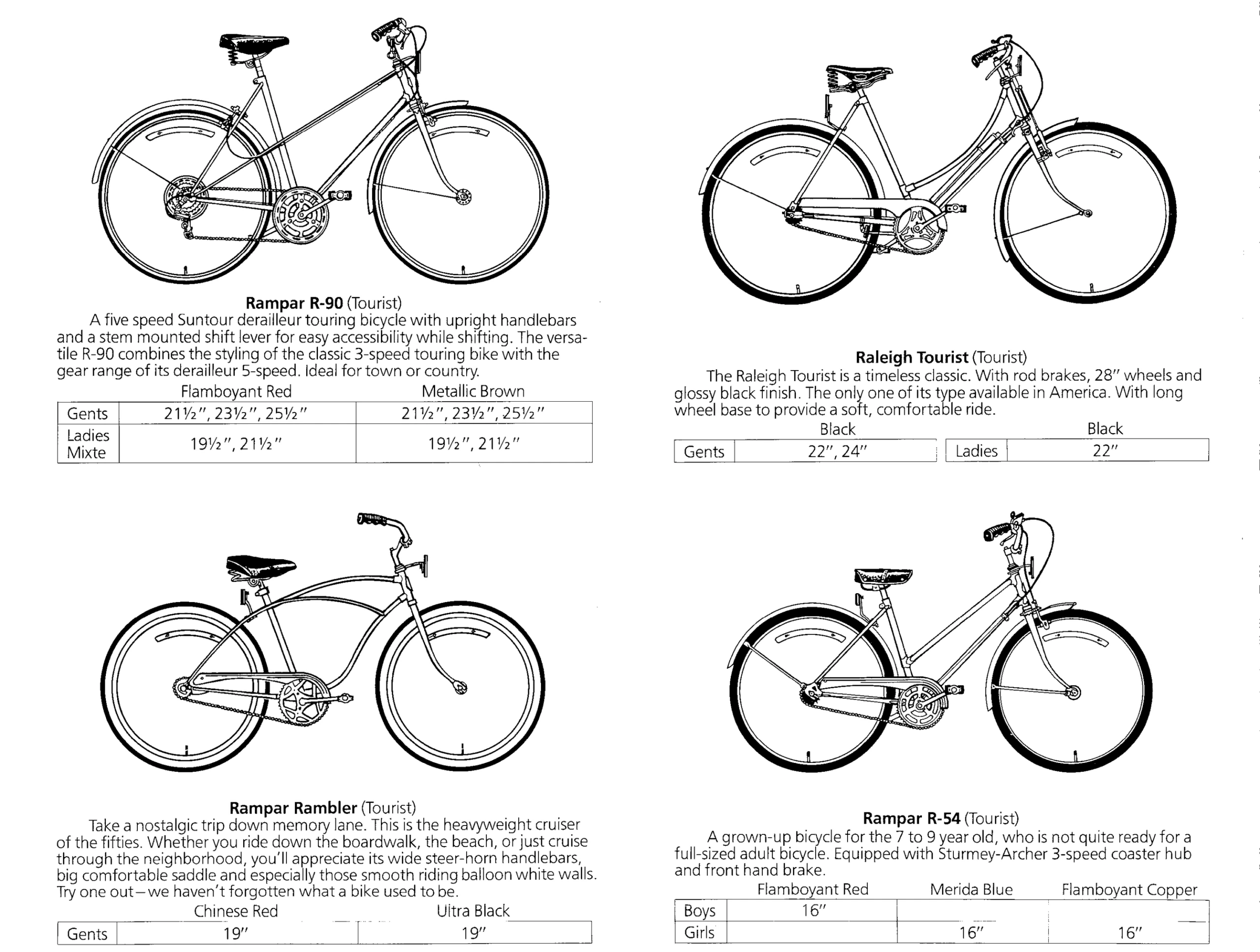

[Line drawings of four upright tourist bicycles, the Rampar R-90, Raleigh Tourist, Rampar Rambler and Rampar R-54, each with its description, colors and frame sizes. The R-90 is drawn with a mixte frame and derailleur gears, the Tourist as a ladies loop frame with rod brakes, the Rambler as a balloon tire cruiser and the R-54 as a small step-through bicycle, in the same positions as their color photographs in the color section of the catalog.]

— Page 12 —
Rampar R-32

Raleigh Sports

Rampar R-80

Rampar R-7

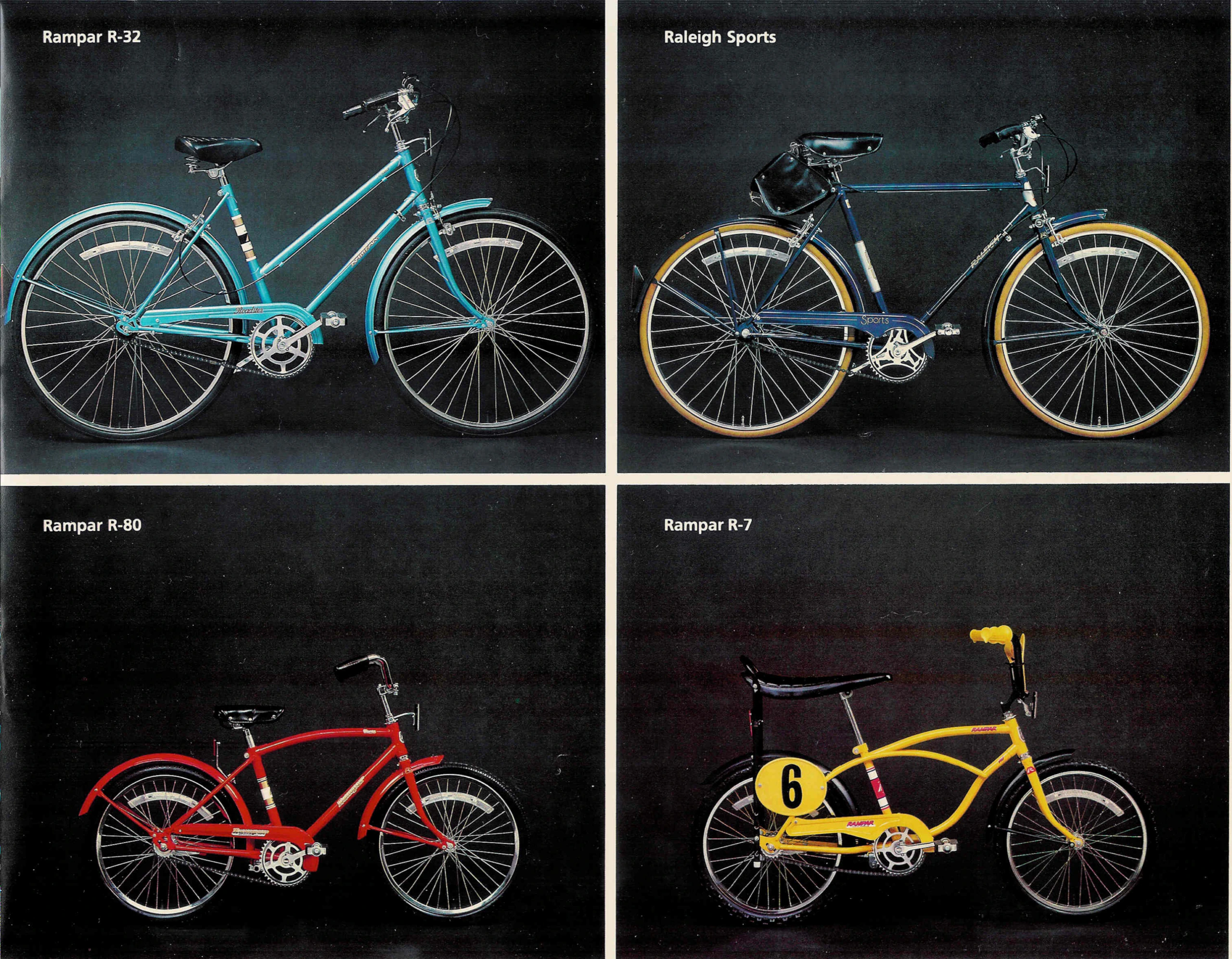

[The Rampar R-32, Raleigh Sports, Rampar R-80 and Rampar R-7 shown in four color studio photographs against a black background. The Raleigh Sports carries a saddlebag and the R-7 is a yellow high-rise bike with a number plate printed “6”.]

— Page 13 —

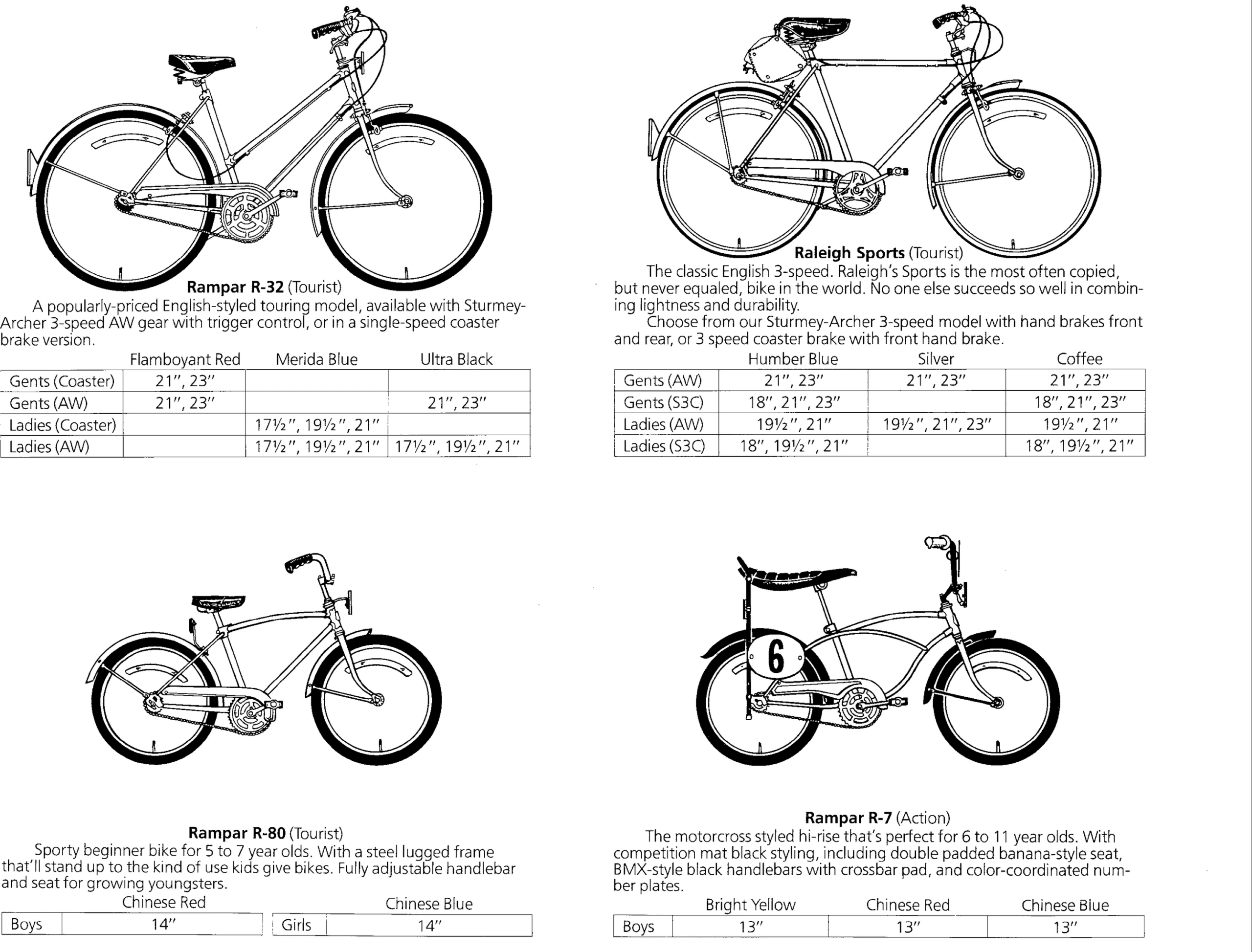

Rampar R-32 (Tourist)
A popularly-priced English-styled touring model, available with Sturmey-Archer 3-speed AW gear with trigger control, or in a single-speed coaster brake version.

| Flamboyant Red | Merida Blue | Ultra Black
Gents (Coaster) | 21″, 23″ | |
Gents (AW) | 21″, 23″ | | 21″, 23″
Ladies (Coaster) | | 17½”, 19½”, 21″ |
Ladies (AW) | | 17½”, 19½”, 21″ | 17½”, 19½”, 21″

Raleigh Sports (Tourist)
The classic English 3-speed. Raleigh’s Sports is the most often copied, but never equaled, bike in the world. No one else succeeds so well in combining lightness and durability.

Choose from our Sturmey-Archer 3-speed model with hand brakes front and rear, or 3 speed coaster brake with front hand brake.

| Humber Blue | Silver | Coffee
Gents (AW) | 21″, 23″ | 21″, 23″ | 21″, 23″
Gents (S3C) | 18″, 21″, 23″ | | 18″, 21″, 23″
Ladies (AW) | 19½”, 21″ | 19½”, 21″, 23″ | 19½”, 21″
Ladies (S3C) | 18″, 19½”, 21″ | | 18″, 19½”, 21″

Rampar R-80 (Tourist)
Sporty beginner bike for 5 to 7 year olds. With a steel lugged frame that’ll stand up to the kind of use kids give bikes. Fully adjustable handlebar and seat for growing youngsters.

| Chinese Red
Boys | 14″

| Chinese Blue
Girls | 14″

Rampar R-7 (Action)
The motorcross styled hi-rise that’s perfect for 6 to 11 year olds. With competition mat black styling, including double padded banana-style seat, BMX-style black handlebars with crossbar pad, and color-coordinated number plates.

| Bright Yellow | Chinese Red | Chinese Blue
Boys | 13″ | 13″ | 13″

[Line drawings of four bicycles, the Rampar R-32 and Raleigh Sports three-speed tourist models, the Rampar R-80 child’s bicycle and the Rampar R-7 hi-rise with a banana seat and a number plate drawn with the number 6, each with its description, colors and frame sizes. The R-32 is drawn as a ladies step-through frame and the Sports as a gents frame with a saddlebag, in the same positions as their color photographs in the color section of the catalog.]

— Page 14 —
Rampar R-20

Rampar R-16

Rampar R-6 AW [?] [cut off]

R[cut off]

[The rest of the page is lost: the scan file ends here.]

[The Rampar R-20 and Rampar R-16 shown in two color studio photographs against a black background; the R-16 has training wheels. The lower half of the page is lost because the scan file ends, leaving only the tops of the two lower headings, which match the Rampar R-6 AW and Rampar R-6 on the corresponding line-art page.]

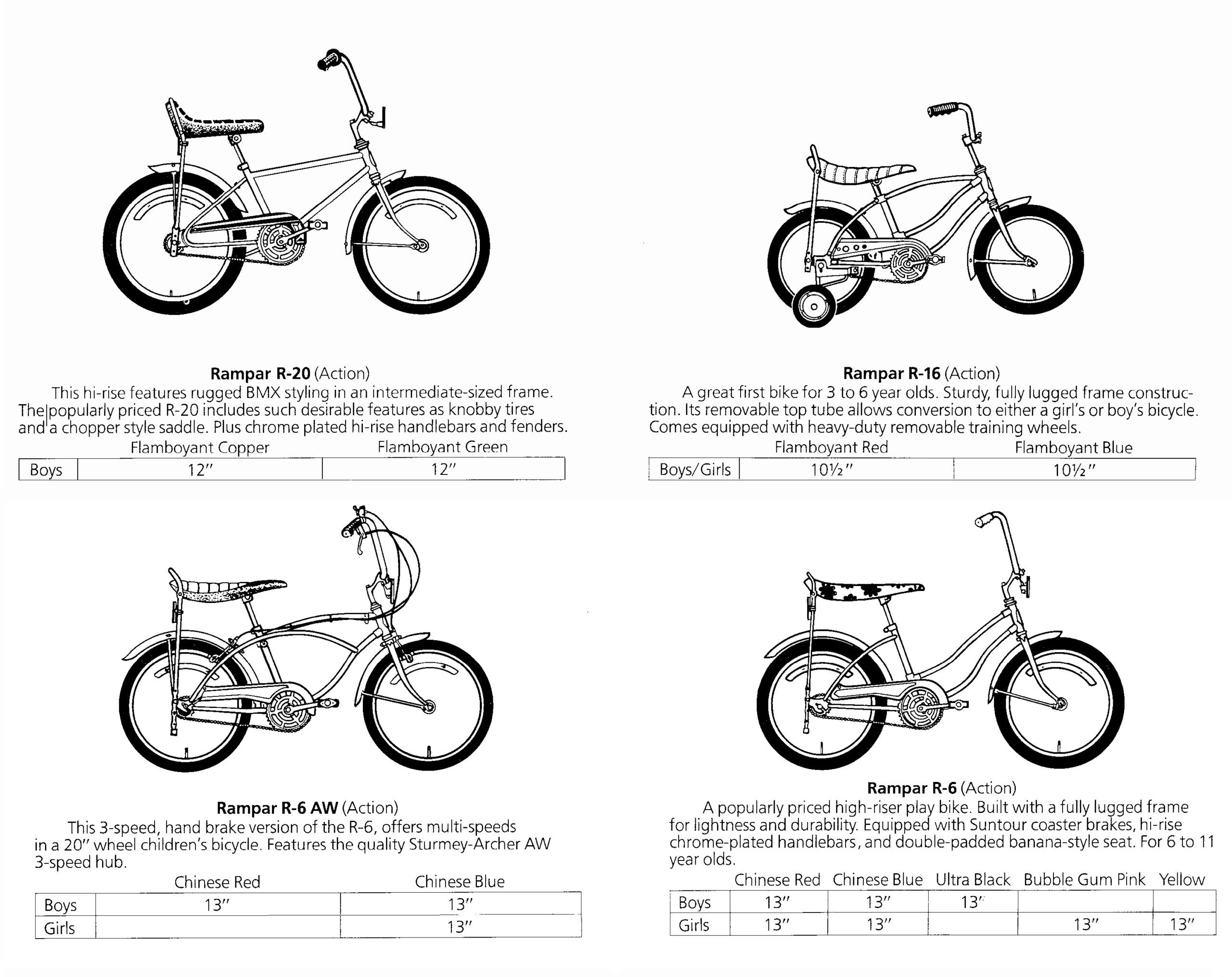

— Page 15 —
Rampar R-20 (Action)
This hi-rise features rugged BMX styling in an intermediate-sized frame. The popularly priced R-20 includes such desirable features as knobby tires and a chopper style saddle. Plus chrome plated hi-rise handlebars and fenders.

| Flamboyant Copper | Flamboyant Green
Boys | 12″ | 12″

Rampar R-16 (Action)
A great first bike for 3 to 6 year olds. Sturdy, fully lugged frame construction. Its removable top tube allows conversion to either a girl’s or boy’s bicycle. Comes equipped with heavy-duty removable training wheels.

| Flamboyant Red | Flamboyant Blue
Boys/Girls | 10½” | 10½”

Rampar R-6 AW (Action)
This 3-speed, hand brake version of the R-6, offers multi-speeds in a 20″ wheel children’s bicycle. Features the quality Sturmey-Archer AW 3-speed hub.

| Chinese Red | Chinese Blue
Boys | 13″ | 13″
Girls | | 13″

Rampar R-6 (Action)
A popularly priced high-riser play bike. Built with a fully lugged frame for lightness and durability. Equipped with Suntour coaster brakes, hi-rise chrome-plated handlebars, and double-padded banana-style seat. For 6 to 11 year olds.

| Chinese Red | Chinese Blue | Ultra Black | Bubble Gum Pink | Yellow
Boys | 13″ | 13″ | 13″ | |
Girls | 13″ | 13″ | | 13″ | 13″

[Line drawings of four children’s hi-rise bicycles with banana seats, the Rampar R-20, Rampar R-16, Rampar R-6 AW and Rampar R-6, each with its description, colors and frame sizes. The R-16 is drawn with training wheels and the R-6 with a step-through frame and a flower-patterned seat; the R-20 and R-16 match the first two color photographs on the last color page of the catalog, whose lower half is lost.]

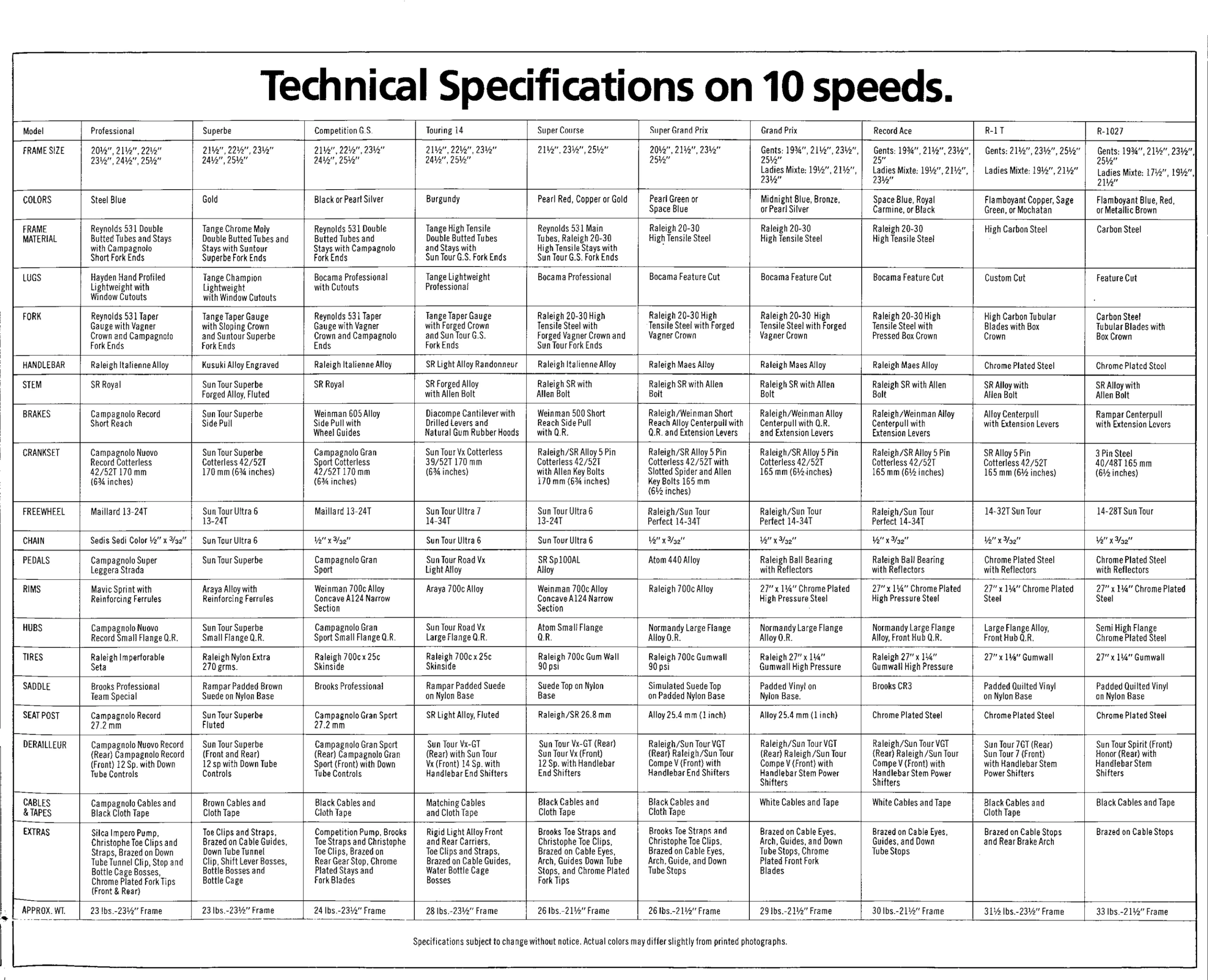

— Page 16 —
Technical Specifications on 10 speeds.

Model | Professional | Superbe | Competition G.S. | Touring 14 | Super Course | Super Grand Prix | Grand Prix | Record Ace | R-1 T | R-1027
FRAME SIZE | 20½”, 21½”, 22½” 23½”, 24½”, 25½” | 21½”, 22½”, 23½” 24½”, 25½” | 21½”, 22½”, 23½” 24½”, 25½” | 21½”, 22½”, 23½” 24½”, 25½” | 21½”, 23½”, 25½” | 20½”, 21½”, 23½” 25½” | Gents: 19¾”, 21½”, 23½”, 25½” Ladies Mixte: 19½”, 21½”, 23½” | Gents: 19¾”, 21½”, 23½”, 25″ Ladies Mixte: 19½”, 21½”, 23½” | Gents: 21½”, 23½”, 25½” Ladies Mixte: 19½”, 21½” | Gents: 19¾”, 21½”, 23½”, 25½” Ladies Mixte: 17½”, 19½”, 21½”
COLORS | Steel Blue | Gold | Black or Pearl Silver | Burgundy | Pearl Red, Copper or Gold | Pearl Green or Space Blue | Midnight Blue, Bronze, or Pearl Silver | Space Blue, Royal Carmine, or Black | Flamboyant Copper, Sage Green, or Mochatan | Flamboyant Blue, Red, or Metallic Brown
FRAME MATERIAL | Reynolds 531 Double Butted Tubes and Stays with Campagnolo Short Fork Ends | Tange Chrome Moly Double Butted Tubes and Stays with Suntour Superbe Fork Ends | Reynolds 531 Double Butted Tubes and Stays with Campagnolo Fork Ends | Tange High Tensile Double Butted Tubes and Stays with Sun Tour G.S. Fork Ends | Reynolds 531 Main Tubes, Raleigh 20-30 High Tensile Stays with Sun Tour G.S. Fork Ends | Raleigh 20-30 High Tensile Steel | Raleigh 20-30 High Tensile Steel | Raleigh 20-30 High Tensile Steel | High Carbon Steel | Carbon Steel
LUGS | Hayden Hand Profiled Lightweight with Window Cutouts | Tange Champion Lightweight with Window Cutouts | Bocama Professional with Cutouts | Tange Lightweight Professional | Bocama Professional | Bocama Feature Cut | Bocama Feature Cut | Bocama Feature Cut | Custom Cut | Feature Cut
FORK | Reynolds 531 Taper Gauge with Vagner Crown and Campagnolo Fork Ends | Tange Taper Gauge with Sloping Crown and Suntour Superbe Fork Ends | Reynolds 531 Taper Gauge with Vagner Crown and Campagnolo Ends | Tange Taper Gauge with Forged Crown and Sun Tour G.S. Fork Ends | Raleigh 20-30 High Tensile Steel with Forged Vagner Crown and Sun Tour Fork Ends | Raleigh 20-30 High Tensile Steel with Forged Vagner Crown | Raleigh 20-30 High Tensile Steel with Forged Vagner Crown | Raleigh 20-30 High Tensile Steel with Pressed Box Crown | High Carbon Tubular Blades with Box Crown | Carbon Steel Tubular Blades with Box Crown

HANDLEBAR | Raleigh Italienne Alloy | Kusuki Alloy Engraved | Raleigh Italienne Alloy | SR Light Alloy Randonneur | Raleigh Italienne Alloy | Raleigh Maes Alloy | Raleigh Maes Alloy | Raleigh Maes Alloy | Chrome Plated Steel | Chrome Plated Steel
STEM | SR Royal | Sun Tour Superbe Forged Alloy, Fluted | SR Royal | SR Forged Alloy with Allen Bolt | Raleigh SR with Allen Bolt | Raleigh SR with Allen Bolt | Raleigh SR with Allen Bolt | Raleigh SR with Allen Bolt | SR Alloy with Allen Bolt | SR Alloy with Allen Bolt
BRAKES | Campagnolo Record Short Reach | Sun Tour Superbe Side Pull | Weinman 605 Alloy Side Pull with Wheel Guides | Diacompe Cantilever with Drilled Levers and Natural Gum Rubber Hoods | Weinman 500 Short Reach Side Pull with Q.R. | Raleigh/Weinman Short Reach Alloy Centerpull with Q.R. and Extension Levers | Raleigh/Weinman Alloy Centerpull with Q.R. and Extension Levers | Raleigh/Weinman Alloy Centerpull with Extension Levers | Alloy Centerpull with Extension Levers | Rampar Centerpull with Extension Levers
CRANKSET | Campagnolo Nuovo Record Cotterless 42/52T 170 mm (6¾ inches) | Sun Tour Superbe Cotterless 42/52T 170 mm (6¾ inches) | Campagnolo Gran Sport Cotterless 42/52T 170 mm (6¾ inches) | Sun Tour Vx Cotterless 39/52T 170 mm (6¾ inches) | Raleigh/SR Alloy 5 Pin Cotterless 42/52T with Allen Key Bolts 170 mm (6¾ inches) | Raleigh/SR Alloy 5 Pin Cotterless 42/52T with Slotted Spider and Allen Key Bolts 165 mm (6½ inches) | Raleigh/SR Alloy 5 Pin Cotterless 42/52T 165 mm (6½ inches) | Raleigh/SR Alloy 5 Pin Cotterless 42/52T 165 mm (6½ inches) | SR Alloy 5 Pin Cotterless 42/52T 165 mm (6½ inches) | 3 Pin Steel 40/48T 165 mm (6½ inches)
FREEWHEEL | Maillard 13-24T | Sun Tour Ultra 6 13-24T | Maillard 13-24T | Sun Tour Ultra 7 14-34T | Sun Tour Ultra 6 13-24T | Raleigh/Sun Tour Perfect 14-34T | Raleigh/Sun Tour Perfect 14-34T | Raleigh/Sun Tour Perfect 14-34T | 14-32T Sun Tour | 14-28T Sun Tour
CHAIN | Sedis Sedi Color ½” x 3/32″ | Sun Tour Ultra 6 | ½” x 3/32″ | Sun Tour Ultra 6 | Sun Tour Ultra 6 | ½” x 3/32″ | ½” x 3/32″ | ½” x 3/32″ | ½” x 3/32″ | ½” x 3/32″
PEDALS | Campagnolo Super Leggera Strada | Sun Tour Superbe | Campagnolo Gran Sport | Sun Tour Road Vx Light Alloy | SR Sp100AL Alloy | Atom 440 Alloy | Raleigh Ball Bearing with Reflectors | Raleigh Ball Bearing with Reflectors | Chrome Plated Steel with Reflectors | Chrome Plated Steel with Reflectors
RIMS | Mavic Sprint with Reinforcing Ferrules | Araya Alloy with Reinforcing Ferrules | Weinman 700c Alloy Concave A124 Narrow Section | Araya 700c Alloy | Weinman 700c Alloy Concave A124 Narrow Section | Raleigh 700c Alloy | 27″ x 1¼” Chrome Plated High Pressure Steel | 27″ x 1¼” Chrome Plated High Pressure Steel | 27″ x 1¼” Chrome Plated Steel | 27″ x 1¼” Chrome Plated Steel
HUBS | Campagnolo Nuovo Record Small Flange Q.R. | Sun Tour Superbe Small Flange Q.R. | Campagnolo Gran Sport Small Flange Q.R. | Sun Tour Road Vx Large Flange Q.R. | Atom Small Flange Q.R. | Normandy Large Flange Alloy O.R. | Normandy Large Flange Alloy O.R. | Normandy Large Flange Alloy, Front Hub Q.R. | Large Flange Alloy, Front Hub Q.R. | Semi High Flange Chrome Plated Steel

TIRES | Raleigh Imperforable Seta | Raleigh Nylon Extra 270 grms. | Raleigh 700c x 25c Skinside | Raleigh 700c x 25c Skinside | Raleigh 700c Gum Wall 90 psi | Raleigh 700c Gumwall 90 psi | Raleigh 27″ x 1¼” Gumwall High Pressure | Raleigh 27″ x 1¼” Gumwall High Pressure | 27″ x 1⅛” Gumwall | 27″ x 1¼” Gumwall
SADDLE | Brooks Professional Team Special | Rampar Padded Brown Suede on Nylon Base | Brooks Professional | Rampar Padded Suede on Nylon Base | Suede Top on Nylon Base | Simulated Suede Top on Padded Nylon Base | Padded Vinyl on Nylon Base. | Brooks CR3 | Padded Quilted Vinyl on Nylon Base | Padded Quilted Vinyl on Nylon Base
SEAT POST | Campagnolo Record 27.2 mm | Sun Tour Superbe Fluted | Campagnolo Gran Sport 27.2 mm | SR Light Alloy, Fluted | Raleigh/SR 26.8 mm | Alloy 25.4 mm (1 inch) | Alloy 25.4 mm (1 inch) | Chrome Plated Steel | Chrome Plated Steel | Chrome Plated Steel
DERAILLEUR | Campagnolo Nuovo Record (Rear) Campagnolo Record (Front) 12 Sp. with Down Tube Controls | Sun Tour Superbe (Front and Rear) 12 sp with Down Tube Controls | Campagnolo Gran Sport (Rear) Campagnolo Gran Sport (Front) with Down Tube Controls | Sun Tour Vx-GT (Rear) with Sun Tour Vx (Front) 14 Sp. with Handlebar End Shifters | Sun Tour Vx-GT (Rear) Sun Tour Vx (Front) 12 Sp. with Handlebar End Shifters | Raleigh/Sun Tour VGT (Rear) Raleigh/Sun Tour Compe V (Front) with Handlebar End Shifters | Raleigh/Sun Tour VGT (Rear) Raleigh/Sun Tour Compe V (Front) with Handlebar Stem Power Shifters | Raleigh/Sun Tour VGT (Rear) Raleigh/Sun Tour Compe V (Front) with Handlebar Stem Power Shifters | Sun Tour 7GT (Rear) Sun Tour 7 (Front) with Handlebar Stem Power Shifters | Sun Tour Spirit (Front) Honor (Rear) with Handlebar Stem Shifters
CABLES & TAPES | Campagnolo Cables and Black Cloth Tape | Brown Cables and Cloth Tape | Black Cables and Cloth Tape | Matching Cables and Cloth Tape | Black Cables and Cloth Tape | Black Cables and Cloth Tape | White Cables and Tape | White Cables and Tape | Black Cables and Cloth Tape | Black Cables and Tape
EXTRAS | Silca Impero Pump, Christophe Toe Clips and Straps, Brazed on Down Tube Tunnel Clip, Stop and Bottle Cage Bosses, Chrome Plated Fork Tips (Front & Rear) | Toe Clips and Straps, Brazed on Cable Guides, Down Tube Tunnel Clip, Shift Lever Bosses, Bottle Bosses and Bottle Cage | Competition Pump, Brooks Toe Straps and Christophe Toe Clips, Brazed on Rear Gear Stop, Chrome Plated Stays and Fork Blades | Rigid Light Alloy Front and Rear Carriers, Toe Clips and Straps, Brazed on Cable Guides, Water Bottle Cage Bosses | Brooks Toe Straps and Christophe Toe Clips, Brazed on Cable Eyes, Arch, Guides Down Tube Stops, and Chrome Plated Fork Tips | Brooks Toe Straps and Christophe Toe Clips, Brazed on Cable Eyes, Arch, Guide, and Down Tube Stops | Brazed on Cable Eyes, Arch, Guides, and Down Tube Stops, Chrome Plated Front Fork Blades | Brazed on Cable Eyes, Guides, and Down Tube Stops | Brazed on Cable Stops and Rear Brake Arch | Brazed on Cable Stops
APPROX. WT. | 23 lbs.-23½” Frame | 23 lbs.-23½” Frame | 24 lbs.-23½” Frame | 28 lbs.-23½” Frame | 26 lbs.-21½” Frame | 26 lbs.-21½” Frame | 29 lbs.-21½” Frame | 30 lbs.-21½” Frame | 31½ lbs.-23½” Frame | 33 lbs.-21½” Frame

Specifications subject to change without notice. Actual colors may differ slightly from printed photographs.

[A full-page table of technical specifications for 10 models in the 10-speed range: the Professional, Superbe, Competition G.S., Touring 14, Super Course, Super Grand Prix, Grand Prix, Record Ace, R-1 T and R-1027. Each model is listed with its frame sizes, colors, frame material, lugs, fork, components, extras and approximate weight.]

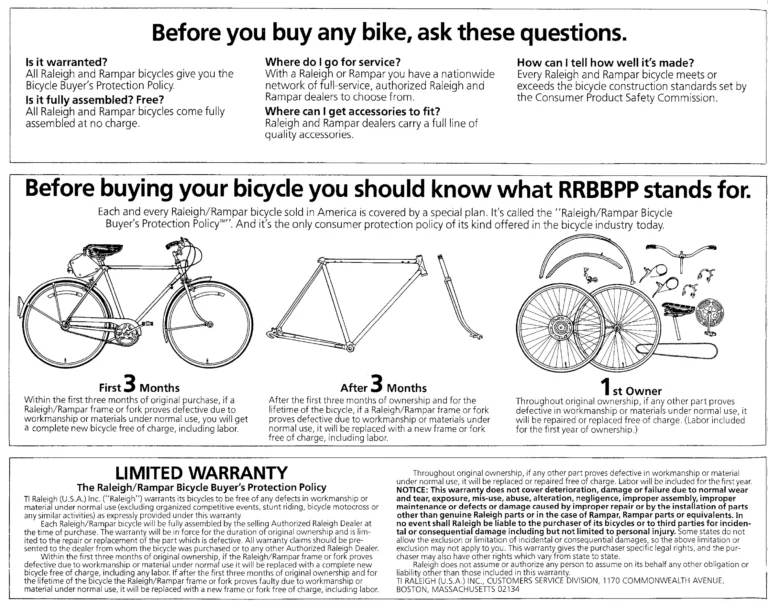

— Page 17 —

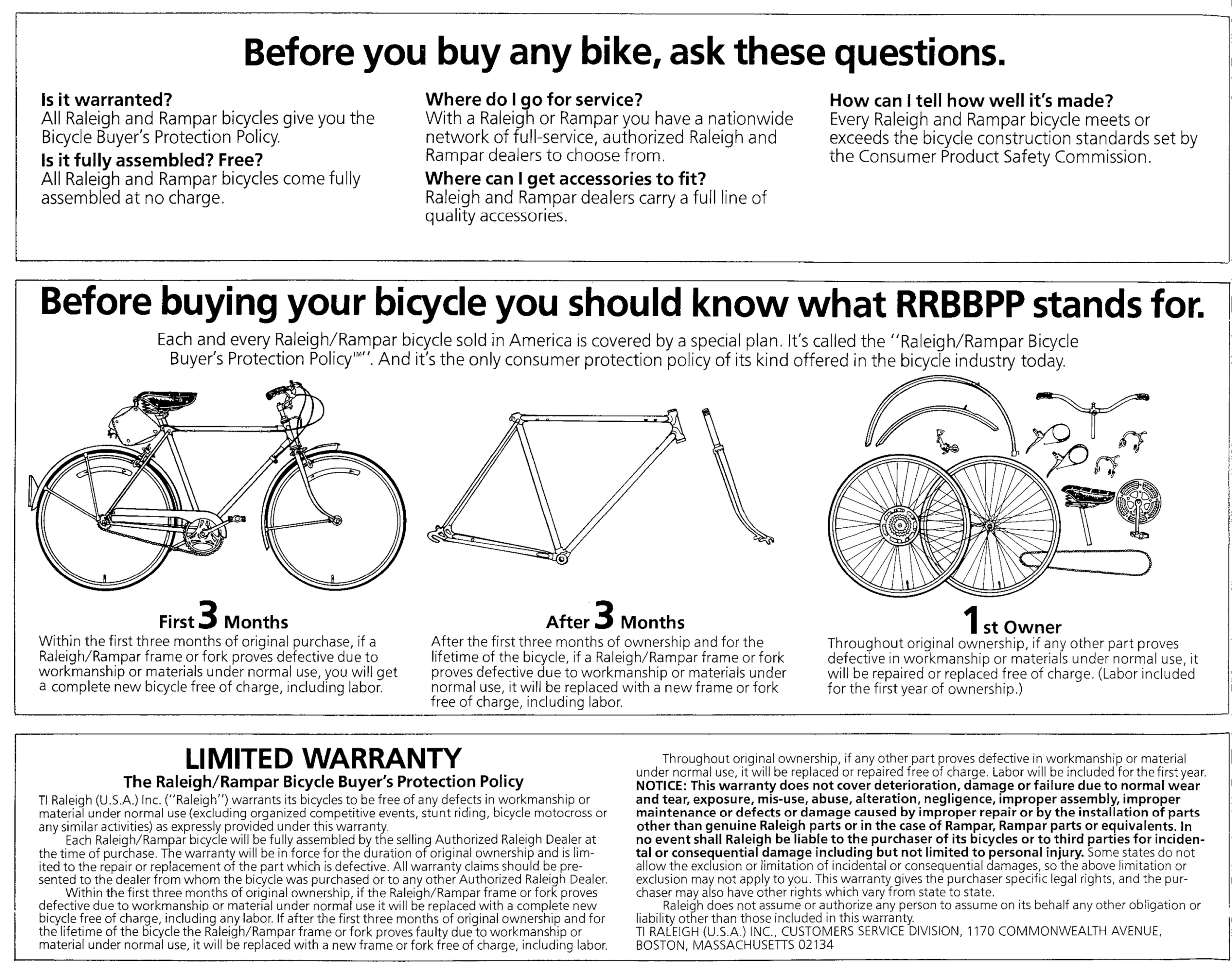

Before you buy any bike, ask these questions.

Is it warranted?
All Raleigh and Rampar bicycles give you the Bicycle Buyer’s Protection Policy.

Is it fully assembled? Free?
All Raleigh and Rampar bicycles come fully assembled at no charge.

Where do I go for service?
With a Raleigh or Rampar you have a nationwide network of full-service, authorized Raleigh and Rampar dealers to choose from.

Where can I get accessories to fit?
Raleigh and Rampar dealers carry a full line of quality accessories.

How can I tell how well it’s made?
Every Raleigh and Rampar bicycle meets or exceeds the bicycle construction standards set by the Consumer Product Safety Commission.

Before buying your bicycle you should know what RRBBPP stands for.

Each and every Raleigh/Rampar bicycle sold in America is covered by a special plan. It’s called the “Raleigh/Rampar Bicycle Buyer’s Protection Policy™”. And it’s the only consumer protection policy of its kind offered in the bicycle industry today.

First 3 Months
Within the first three months of original purchase, if a Raleigh/Rampar frame or fork proves defective due to workmanship or materials under normal use, you will get a complete new bicycle free of charge, including labor.

After 3 Months
After the first three months of ownership and for the lifetime of the bicycle, if a Raleigh/Rampar frame or fork proves defective due to workmanship or materials under normal use, it will be replaced with a new frame or fork free of charge, including labor.

1st Owner
Throughout original ownership, if any other part proves defective in workmanship or materials under normal use, it will be repaired or replaced free of charge. (Labor included for the first year of ownership.)

LIMITED WARRANTY
The Raleigh/Rampar Bicycle Buyer’s Protection Policy

TI Raleigh (U.S.A.) Inc. (“Raleigh”) warrants its bicycles to be free of any defects in workmanship or material under normal use (excluding organized competitive events, stunt riding, bicycle motocross or any similar activities) as expressly provided under this warranty.

Each Raleigh/Rampar bicycle will be fully assembled by the selling Authorized Raleigh Dealer at the time of purchase. The warranty will be in force for the duration of original ownership and is limited to the repair or replacement of the part which is defective. All warranty claims should be presented to the dealer from whom the bicycle was purchased or to any other Authorized Raleigh Dealer.

Within the first three months of original ownership, if the Raleigh/Rampar frame or fork proves defective due to workmanship or material under normal use it will be replaced with a complete new bicycle free of charge, including any labor. If after the first three months of original ownership and for the lifetime of the bicycle the Raleigh/Rampar frame or fork proves faulty due to workmanship or material under normal use, it will be replaced with a new frame or fork free of charge, including labor.

Throughout original ownership, if any other part proves defective in workmanship or material under normal use, it will be replaced or repaired free of charge. Labor will be included for the first year.

NOTICE: This warranty does not cover deterioration, damage or failure due to normal wear and tear, exposure, mis-use, abuse, alteration, negligence, improper assembly, improper maintenance or defects or damage caused by improper repair or by the installation of parts other than genuine Raleigh parts or in the case of Rampar, Rampar parts or equivalents. In no event shall Raleigh be liable to the purchaser of its bicycles or to third parties for incidental or consequential damage including but not limited to personal injury. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives the purchaser specific legal rights, and the purchaser may also have other rights which vary from state to state.

Raleigh does not assume or authorize any person to assume on its behalf any other obligation or liability other than those included in this warranty.

TI RALEIGH (U.S.A.) INC., CUSTOMERS SERVICE DIVISION, 1170 COMMONWEALTH AVENUE, BOSTON, MASSACHUSETTS 02134
