Raleigh Brochure — Dyna-Tech: Raleigh Enters a New Dimension

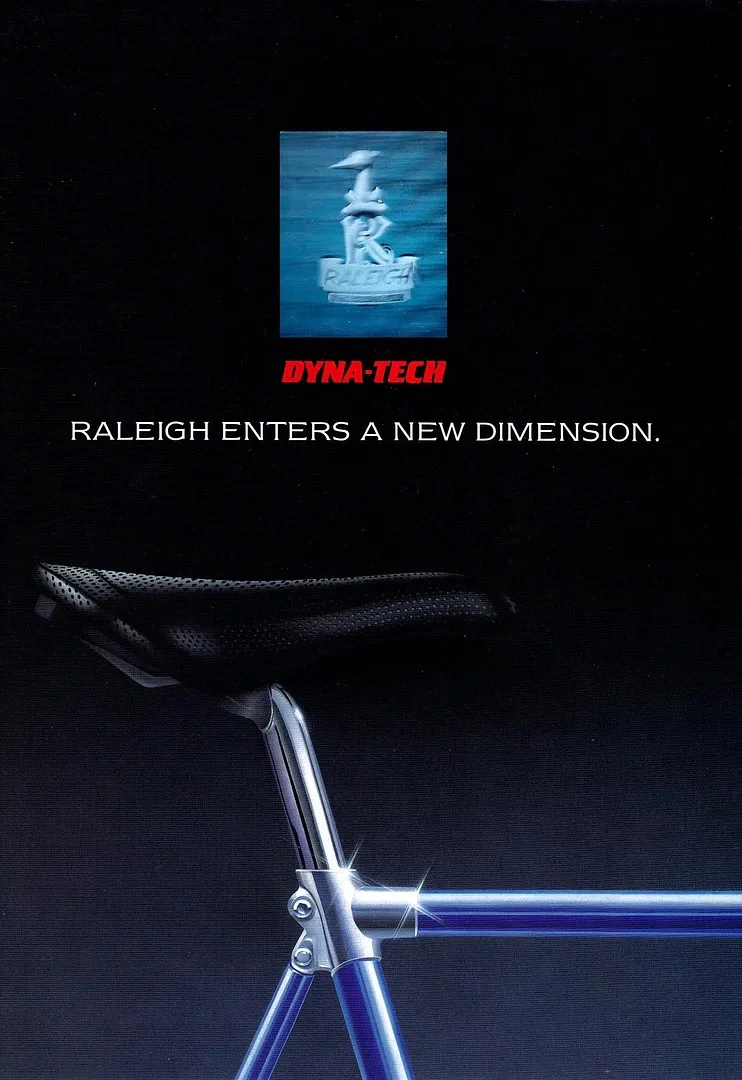

— Page 1 (front cover) —
DYNA-TECH
RALEIGH ENTERS A NEW DIMENSION.

[The front cover of the Raleigh Dyna-Tech brochure: a picture of the holographic Raleigh heron head badge above the Dyna-Tech name, and below it a close view of a perforated black saddle on a polished seat post and the silver seat lug of a blue frame against a dark background.]

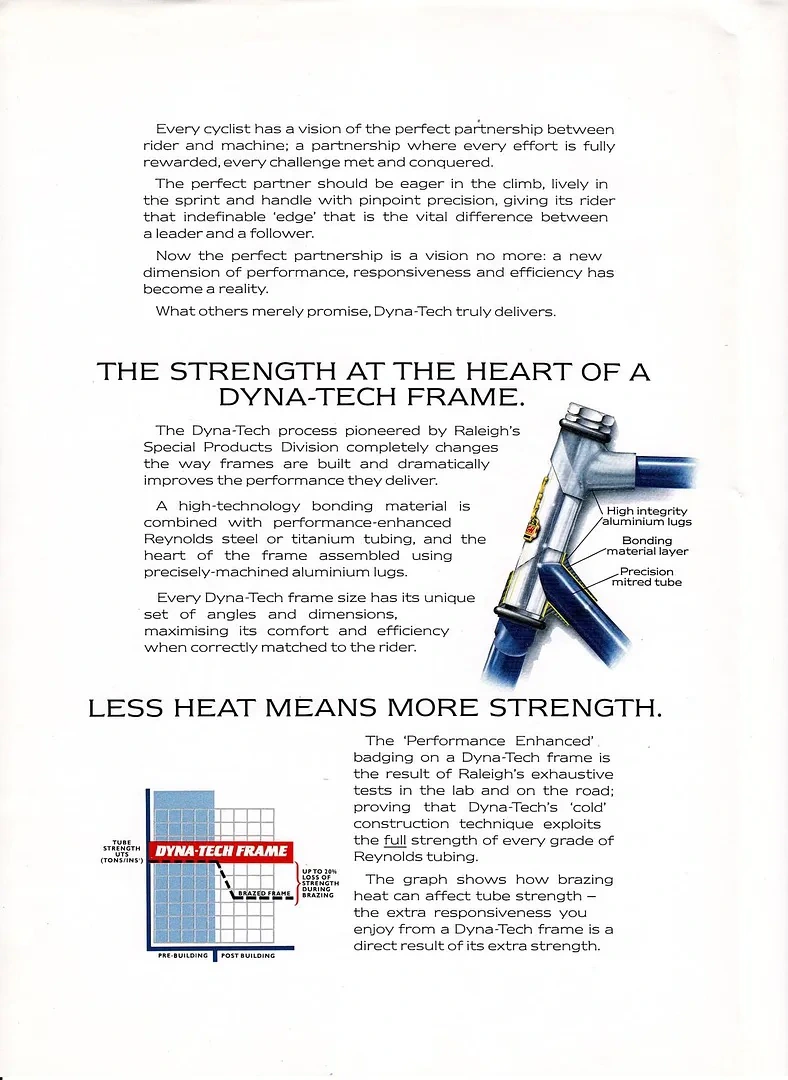

— Page 2 —
Every cyclist has a vision of the perfect partnership between rider and machine; a partnership where every effort is fully rewarded, every challenge met and conquered.
The perfect partner should be eager in the climb, lively in the sprint and handle with pinpoint precision, giving its rider that indefinable ‘edge’ that is the vital difference between a leader and a follower.
Now the perfect partnership is a vision no more: a new dimension of performance, responsiveness and efficiency has become a reality.
What others merely promise, Dyna-Tech truly delivers.

THE STRENGTH AT THE HEART OF A DYNA-TECH FRAME.

The Dyna-Tech process pioneered by Raleigh’s Special Products Division completely changes the way frames are built and dramatically improves the performance they deliver.
A high-technology bonding material is combined with performance-enhanced Reynolds steel or titanium tubing, and the heart of the frame assembled using precisely-machined aluminium lugs.
Every Dyna-Tech frame size has its unique set of angles and dimensions, maximising its comfort and efficiency when correctly matched to the rider.

High integrity aluminium lugs
Bonding material layer
Precision mitred tube

LESS HEAT MEANS MORE STRENGTH.

TUBE STRENGTH UTS (TONS/INS²[?])
DYNA-TECH FRAME
BRAZED FRAME
UP TO 20% LOSS OF STRENGTH DURING BRAZING
PRE-BUILDING | POST BUILDING

The ‘Performance Enhanced’ badging on a Dyna-Tech frame is the result of Raleigh’s exhaustive tests in the lab and on the road; proving that Dyna-Tech’s ‘cold’ construction technique exploits the full strength of every grade of Reynolds tubing.
The graph shows how brazing heat can affect tube strength – the extra responsiveness you enjoy from a Dyna-Tech frame is a direct result of its extra strength.

[An introduction to the Raleigh Dyna-Tech bonded frame process, with a cutaway drawing of a blue frame’s head lug showing the aluminum lug, bonding layer and mitered tube. A graph compares the tube strength of a Dyna-Tech frame with a brazed frame before and after building.]

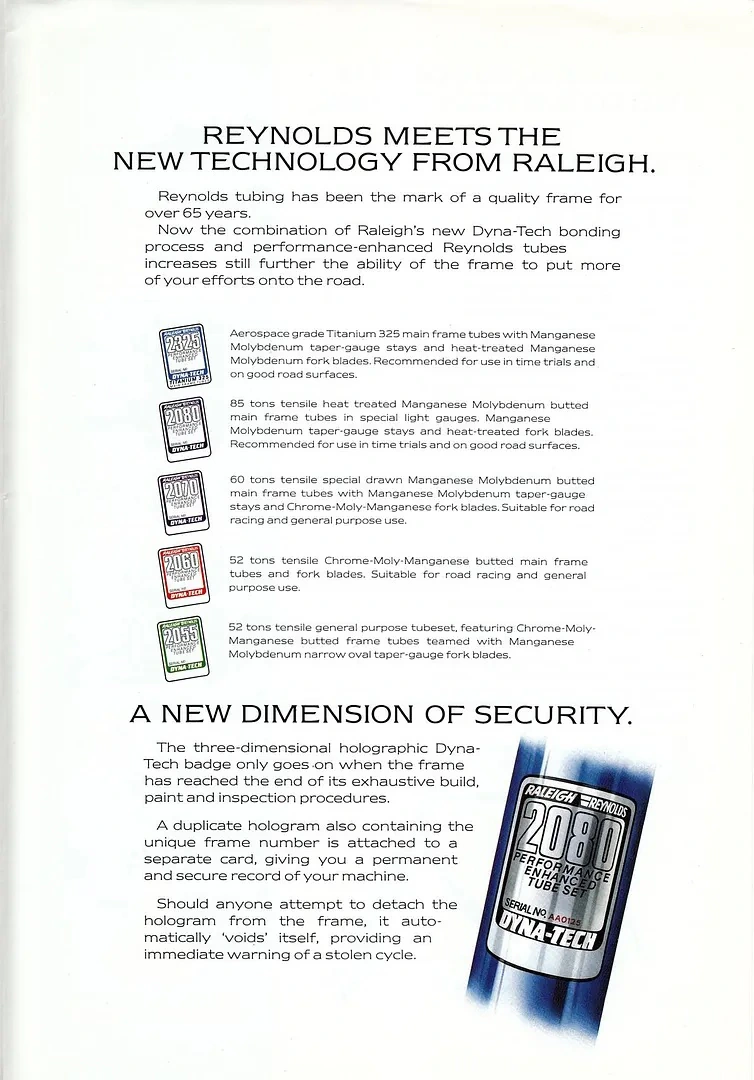

— Page 3 —
REYNOLDS MEETS THE NEW TECHNOLOGY FROM RALEIGH.

Reynolds tubing has been the mark of a quality frame for over 65 years.
Now the combination of Raleigh’s new Dyna-Tech bonding process and performance-enhanced Reynolds tubes increases still further the ability of the frame to put more of your efforts onto the road.

Aerospace grade Titanium 325 main frame tubes with Manganese Molybdenum taper-gauge stays and heat-treated Manganese Molybdenum fork blades. Recommended for use in time trials and on good road surfaces.

85 tons tensile heat treated Manganese Molybdenum butted main frame tubes in special light gauges. Manganese Molybdenum taper-gauge stays and heat-treated fork blades. Recommended for use in time trials and on good road surfaces.

60 tons tensile special drawn Manganese Molybdenum butted main frame tubes with Manganese Molybdenum taper-gauge stays and Chrome-Moly-Manganese fork blades. Suitable for road racing and general purpose use.

52 tons tensile Chrome-Moly-Manganese butted main frame tubes and fork blades. Suitable for road racing and general purpose use.

52 tons tensile general purpose tubeset, featuring Chrome-Moly-Manganese butted frame tubes teamed with Manganese Molybdenum narrow oval taper-gauge fork blades.

A NEW DIMENSION OF SECURITY.

The three-dimensional holographic Dyna-Tech badge only goes on when the frame has reached the end of its exhaustive build, paint and inspection procedures.
A duplicate hologram also containing the unique frame number is attached to a separate card, giving you a permanent and secure record of your machine.
Should anyone attempt to detach the hologram from the frame, it automatically ‘voids’ itself, providing an immediate warning of a stolen cycle.

[The Reynolds tube grades used in Raleigh Dyna-Tech frames, each paragraph keyed by a small picture of its Raleigh Reynolds Dyna-Tech tubing transfer, numbered 2325 (Titanium 325), 2080, 2070, 2060 and 2055. Below, a close photograph of a blue tube carrying the 2080 Performance Enhanced Tube Set transfer with “SERIAL No. AA0125” illustrates the security hologram text.]

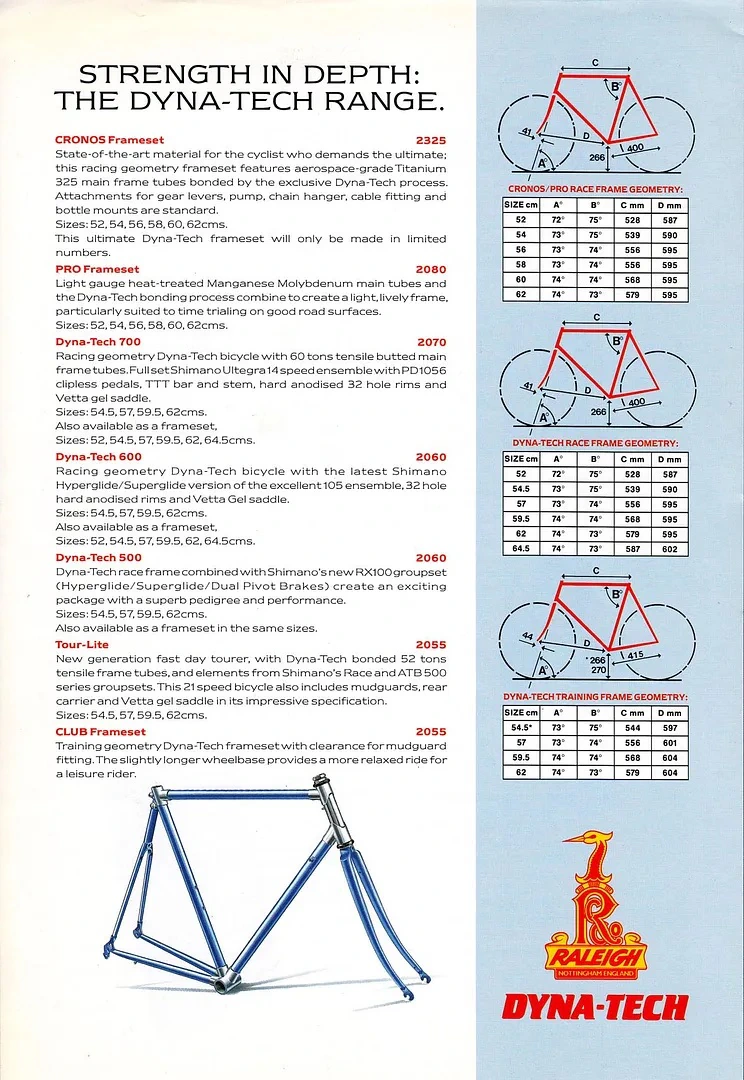

— Page 4 —
STRENGTH IN DEPTH: THE DYNA-TECH RANGE.

CRONOS Frameset 2325
State-of-the-art material for the cyclist who demands the ultimate; this racing geometry frameset features aerospace-grade Titanium 325 main frame tubes bonded by the exclusive Dyna-Tech process. Attachments for gear levers, pump, chain hanger, cable fitting and bottle mounts are standard.
Sizes: 52, 54, 56, 58, 60, 62cms.
This ultimate Dyna-Tech frameset will only be made in limited numbers.

PRO Frameset 2080
Light gauge heat-treated Manganese Molybdenum main tubes and the Dyna-Tech bonding process combine to create a light, lively frame, particularly suited to time trialing on good road surfaces.
Sizes: 52, 54, 56, 58, 60, 62cms.

Dyna-Tech 700 2070
Racing geometry Dyna-Tech bicycle with 60 tons tensile butted main frame tubes. Full set Shimano Ultegra 14 speed ensemble with PD1056 clipless pedals, TTT bar and stem, hard anodised 32 hole rims and Vetta gel saddle.
Sizes: 54.5, 57, 59.5, 62cms.
Also available as a frameset,
Sizes: 52, 54.5, 57, 59.5, 62, 64.5cms.

Dyna-Tech 600 2060
Racing geometry Dyna-Tech bicycle with the latest Shimano Hyperglide/Superglide version of the excellent 105 ensemble, 32 hole hard anodised rims and Vetta Gel saddle.
Sizes: 54.5, 57, 59.5, 62cms.
Also available as a frameset,
Sizes: 52, 54.5, 57, 59.5, 62, 64.5cms.

Dyna-Tech 500 2060
Dyna-Tech race frame combined with Shimano’s new RX100 groupset (Hyperglide/Superglide/Dual Pivot Brakes) create an exciting package with a superb pedigree and performance.
Sizes: 54.5, 57, 59.5, 62cms.
Also available as a frameset in the same sizes.

Tour-Lite 2055
New generation fast day tourer, with Dyna-Tech bonded 52 tons tensile frame tubes, and elements from Shimano’s Race and ATB 500 series groupsets. This 21 speed bicycle also includes mudguards, rear carrier and Vetta gel saddle in its impressive specification.
Sizes: 54.5, 57, 59.5, 62cms.

CLUB Frameset 2055
Training geometry Dyna-Tech frameset with clearance for mudguard fitting. The slightly longer wheelbase provides a more relaxed ride for a leisure rider.

C
B°
41
D
400
266
A°
CRONOS/PRO RACE FRAME GEOMETRY:
SIZE cm | A° | B° | C mm | D mm
52 | 72° | 75° | 528 | 587
54 | 73° | 75° | 539 | 590
56 | 73° | 74° | 556 | 595
58 | 73° | 74° | 556 | 595
60 | 74° | 74° | 568 | 595
62 | 74° | 73° | 579 | 595

C
B°
41
D
400
266
A°
DYNA-TECH RACE FRAME GEOMETRY:
SIZE cm | A° | B° | C mm | D mm
52 | 72° | 75° | 528 | 587
54.5 | 73° | 75° | 539 | 590
57 | 73° | 74° | 556 | 595
59.5 | 74° | 74° | 568 | 595
62 | 74° | 73° | 579 | 595
64.5 | 74° | 73° | 587 | 602

C
B°
44
D
415
*266
270
A°
DYNA-TECH TRAINING FRAME GEOMETRY:
SIZE cm | A° | B° | C mm | D mm
54.5* | 73° | 75° | 544 | 597
57 | 73° | 74° | 556 | 601
59.5 | 74° | 74° | 568 | 604
62 | 74° | 73° | 579 | 604

RALEIGH
NOTTINGHAM ENGLAND
DYNA-TECH

[The Raleigh Dyna-Tech range: the Cronos and Pro framesets, the Dyna-Tech 700, 600 and 500, the Tour-Lite and the Club frameset, each with its tubing grade number, beside a drawing of a blue Dyna-Tech frameset with silver lugs. Three frame diagrams with geometry tables give the Cronos/Pro race, Dyna-Tech race and Dyna-Tech training geometry, above the Raleigh heron head badge and the Dyna-Tech name.]
