Raleigh 1984 Catalog — Racers: The Race-Bred Raleighs

— Page 1 (front cover) —
RALEIGH RACERS
The Race-Bred Raleighs
[Front cover. A color photograph of a road race in progress, a rider in a blue and yellow Raleigh Weinmann jersey leading a bunch toward the camera on a tree-lined road. The title is set in yellow and white italic capitals on black.]

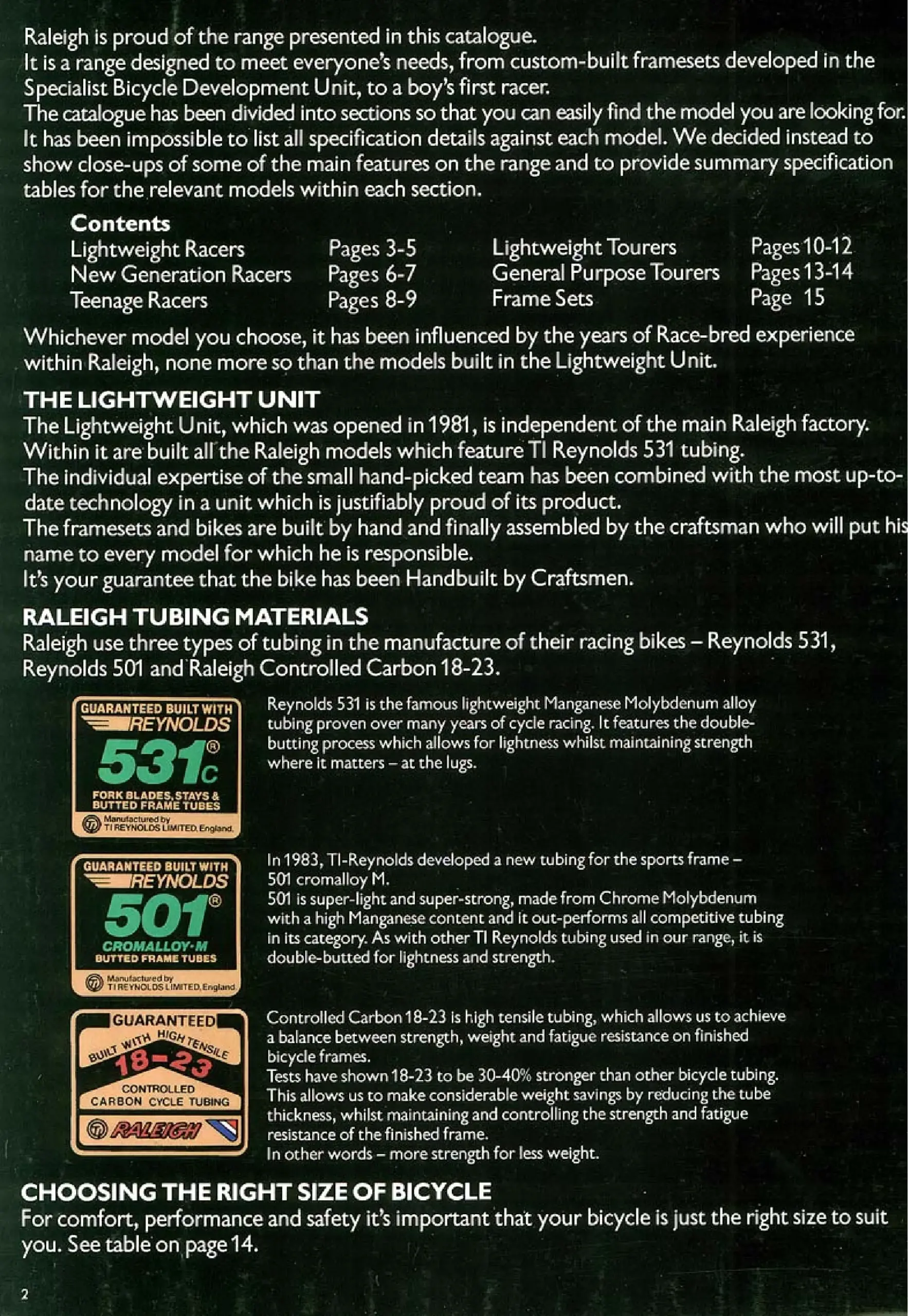

— Page 2 (printed page 2) —
Raleigh is proud of the range presented in this catalogue.
It is a range designed to meet everyone’s needs, from custom-built framesets developed in the Specialist Bicycle Development Unit, to a boy’s first racer.
The catalogue has been divided into sections so that you can easily find the model you are looking for.
It has been impossible to list all specification details against each model. We decided instead to show close-ups of some of the main features on the range and to provide summary specification tables for the relevant models within each section.
Contents
Lightweight Racers Pages 3-5
New Generation Racers Pages 6-7
Teenage Racers Pages 8-9
Lightweight Tourers Pages 10-12
General Purpose Tourers Pages 13-14
Frame Sets Page 15
Whichever model you choose, it has been influenced by the years of Race-bred experience within Raleigh, none more so than the models built in the Lightweight Unit.
THE LIGHTWEIGHT UNIT
The Lightweight Unit, which was opened in 1981, is independent of the main Raleigh factory.
Within it are built all the Raleigh models which feature TI Reynolds 531 tubing.
The individual expertise of the small hand-picked team has been combined with the most up-to-date technology in a unit which is justifiably proud of its product.
The framesets and bikes are built by hand and finally assembled by the craftsman who will put his name to every model for which he is responsible.
It’s your guarantee that the bike has been Handbuilt by Craftsmen.
RALEIGH TUBING MATERIALS
Raleigh use three types of tubing in the manufacture of their racing bikes – Reynolds 531, Reynolds 501 and Raleigh Controlled Carbon 18-23.
GUARANTEED BUILT WITH REYNOLDS 531c FORK BLADES, STAYS & BUTTED FRAME TUBES — Manufactured by TI REYNOLDS LIMITED, England.
Reynolds 531 is the famous lightweight Manganese Molybdenum alloy tubing proven over many years of cycle racing. It features the double-butting process which allows for lightness whilst maintaining strength where it matters – at the lugs.
GUARANTEED BUILT WITH REYNOLDS 501 CROMALLOY-M BUTTED FRAME TUBES — Manufactured by TI REYNOLDS LIMITED, England.
In 1983, TI-Reynolds developed a new tubing for the sports frame – 501 cromalloy M.
501 is super-light and super-strong, made from Chrome Molybdenum with a high Manganese content and it out-performs all competitive tubing in its category. As with other TI Reynolds tubing used in our range, it is double-butted for lightness and strength.
GUARANTEED BUILT WITH HIGH TENSILE 18-23 CONTROLLED CARBON CYCLE TUBING — RALEIGH
Controlled Carbon 18-23 is high tensile tubing, which allows us to achieve a balance between strength, weight and fatigue resistance on finished bicycle frames.
Tests have shown 18-23 to be 30-40% stronger than other bicycle tubing. This allows us to make considerable weight savings by reducing the tube thickness, whilst maintaining and controlling the strength and fatigue resistance of the finished frame.
In other words – more strength for less weight.
CHOOSING THE RIGHT SIZE OF BICYCLE
For comfort, performance and safety it’s important that your bicycle is just the right size to suit you. See table on page 14.
2
[The contents and introduction set in white on black, with the three Reynolds and Raleigh tubing transfers reproduced at actual size down the left of the lower half.]

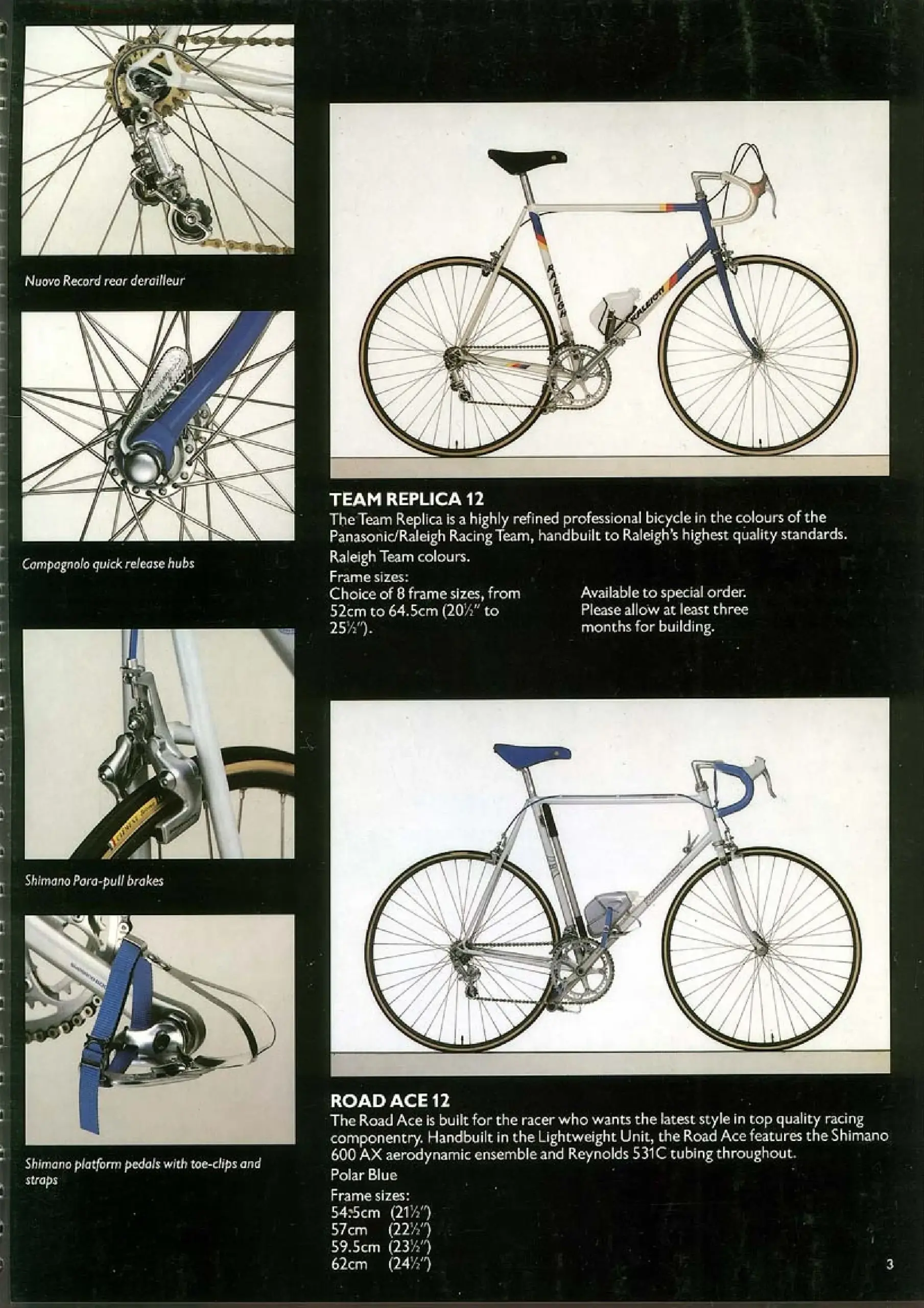

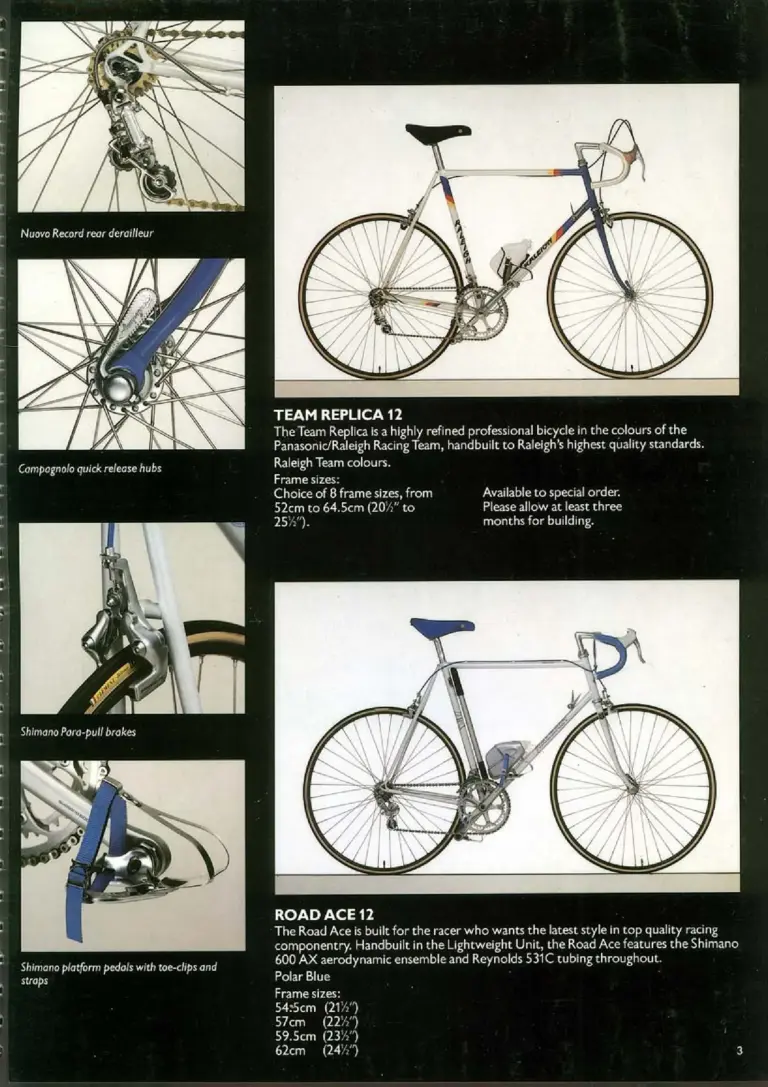

— Page 3 (printed page 3) —
TEAM REPLICA 12
The Team Replica is a highly refined professional bicycle in the colours of the Panasonic/Raleigh Racing Team, handbuilt to Raleigh’s highest quality standards.
Raleigh Team colours.
Frame sizes: Choice of 8 frame sizes, from 52cm to 64.5cm (20½” to 25½”).
Available to special order. Please allow at least three months for building.
ROAD ACE 12
The Road Ace is built for the racer who wants the latest style in top quality racing componentry. Handbuilt in the Lightweight Unit, the Road Ace features the Shimano 600 AX aerodynamic ensemble and Reynolds 531C tubing throughout.
Polar Blue
Frame sizes: 54.5cm (21½”), 57cm (22½”), 59.5cm (23½”), 62cm (24½”)
Nuovo Record rear derailleur
Campagnolo quick release hubs
Shimano Para-pull brakes
Shimano platform pedals with toe-clips and straps
3
[Two full side-view photographs on white: the white and blue Team Replica above, the Polar Blue Road Ace below. Four component close-ups run down the left margin, captioned in italic.]

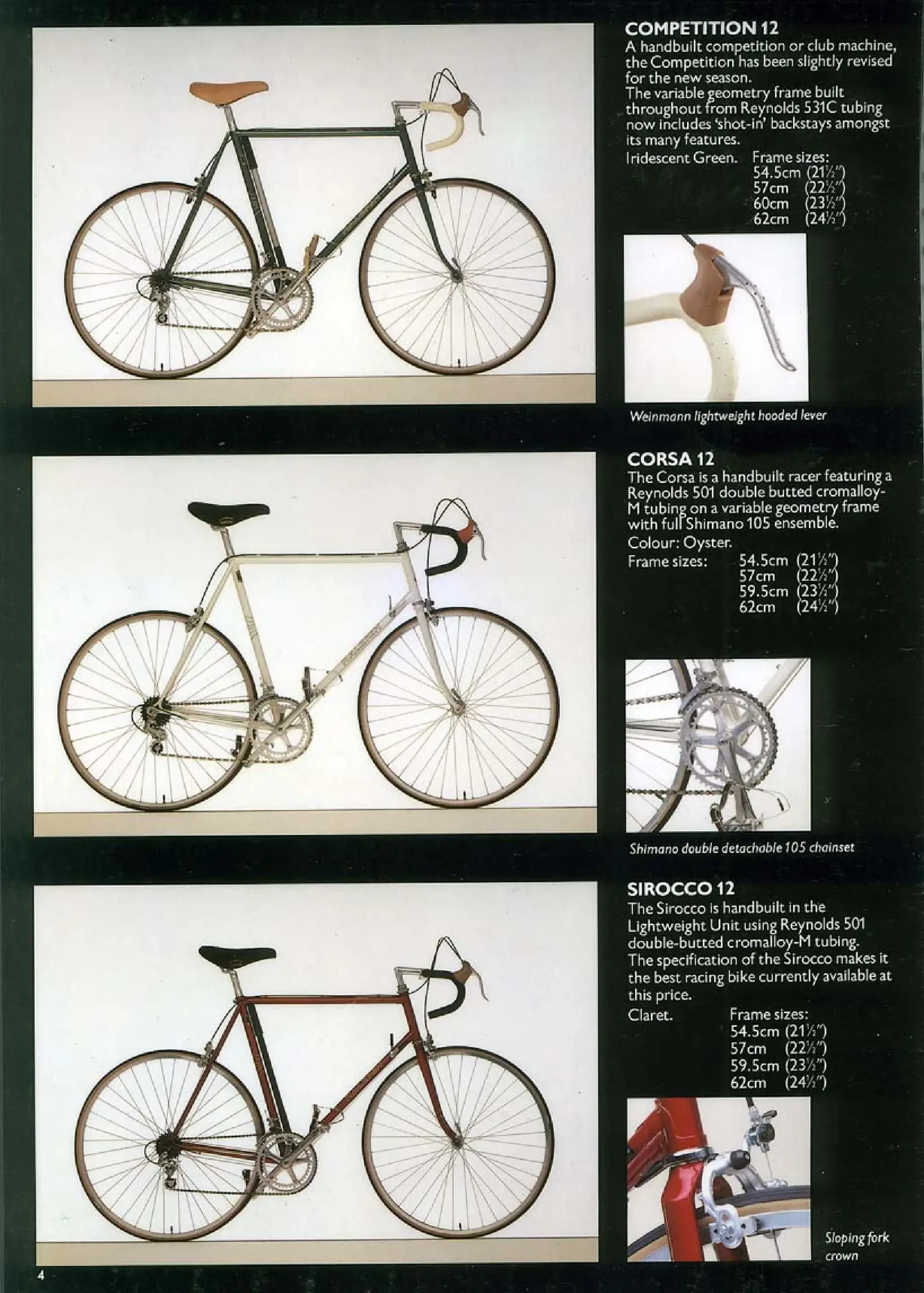

— Page 4 (printed page 4) —
COMPETITION 12
A handbuilt competition or club machine, the Competition has been slightly revised for the new season.
The variable geometry frame built throughout from Reynolds 531C tubing now includes ‘shot-in’ backstays amongst its many features.
Iridescent Green.
Frame sizes: 54.5cm (21½”), 57cm (22½”), 60cm (23½”), 62cm (24½”)
Weinmann lightweight hooded lever
CORSA 12
The Corsa is a handbuilt racer featuring a Reynolds 501 double butted cromalloy-M tubing on a variable geometry frame with full Shimano 105 ensemble.
Colour: Oyster.
Frame sizes: 54.5cm (21½”), 57cm (22½”), 59.5cm (23½”), 62cm (24½”)
Shimano double detachable 105 chainset
SIROCCO 12
The Sirocco is handbuilt in the Lightweight Unit using Reynolds 501 double-butted cromalloy-M tubing.
The specification of the Sirocco makes it the best racing bike currently available at this price.
Claret.
Frame sizes: 54.5cm (21½”), 57cm (22½”), 59.5cm (23½”), 62cm (24½”)
Sloping fork crown
4
[Three full side-view photographs stacked on white — the green Competition, the Oyster Corsa and the Claret Sirocco — each with a component close-up at right.]

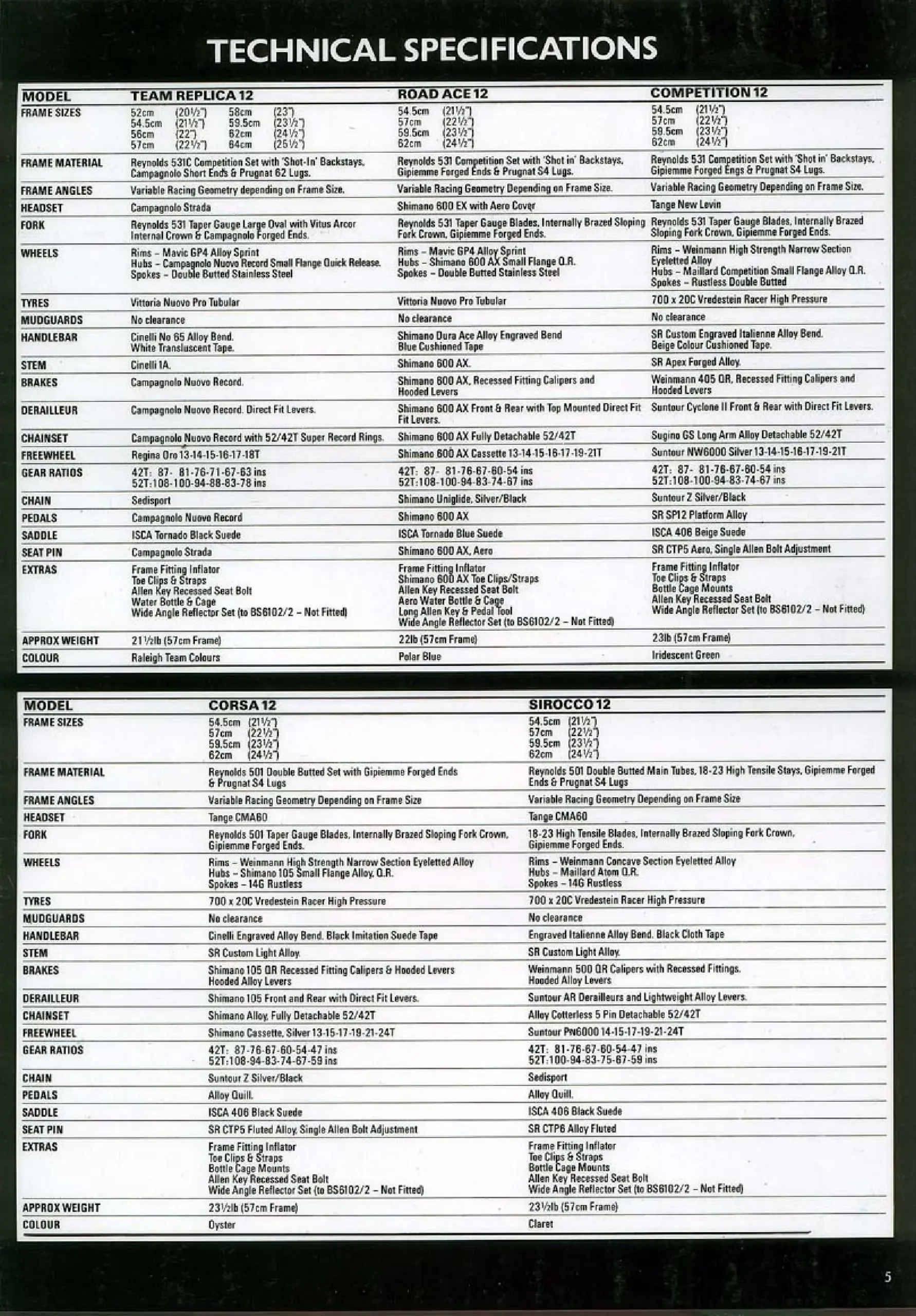

— Page 5 (printed page 5, technical specifications) —
TECHNICAL SPECIFICATIONS
TEAM REPLICA 12 — Frame sizes 52cm (20½”), 54.5cm (21½”), 56cm (22″), 57cm (22½”), 58cm (23″), 59.5cm (23½”), 62cm (24½”), 64cm (25½”). Frame material Reynolds 531C Competition Set with ‘Shot-In’ Backstays, Campagnolo Short Ends & Prugnat 62 Lugs. Variable Racing Geometry depending on Frame Size. Headset Campagnolo Strada. Fork Reynolds 531 Taper Gauge Large Oval with Vitus Arcor Internal Crown & Campagnolo Forged Ends. Wheels: rims Mavic GP4 Alloy Sprint; hubs Campagnolo Nuovo Record Small Flange Quick Release; spokes Double Butted Stainless Steel. Tyres Vittoria Nuovo Pro Tubular. Mudguards no clearance. Handlebar Cinelli No 65 Alloy Bend, White Transluscent Tape. Stem Cinelli 1A. Brakes Campagnolo Nuovo Record. Derailleur Campagnolo Nuovo Record, Direct Fit Levers. Chainset Campagnolo Nuovo Record with 52/42T Super Record Rings. Freewheel Regina Oro 13-14-15-16-17-18T. Gear ratios 42T: 87-81-76-71-67-63 ins, 52T: 108-100-94-88-83-78 ins. Chain Sedisport. Pedals Campagnolo Nuovo Record. Saddle ISCA Tornado Black Suede. Seat pin Campagnolo Strada. Extras Frame Fitting Inflator, Toe Clips & Straps, Allen Key Recessed Seat Bolt, Water Bottle & Cage, Wide Angle Reflector Set (to BS6102/2 – Not Fitted). Approx weight 21½lb (57cm Frame). Colour Raleigh Team Colours.
ROAD ACE 12 — Frame sizes 54.5cm (21½”), 57cm (22½”), 59.5cm (23½”), 62cm (24½”). Reynolds 531 Competition Set with ‘Shot in’ Backstays, Gipiemme Forged Ends & Prugnat S4 Lugs. Variable Racing Geometry Depending on Frame Size. Headset Shimano 600 EX with Aero Cover. Fork Reynolds 531 Taper Gauge Blades, Internally Brazed Sloping Fork Crown, Gipiemme Forged Ends. Wheels: rims Mavic GP4 Alloy Sprint; hubs Shimano 600 AX Small Flange Q.R.; spokes Double Butted Stainless Steel. Tyres Vittoria Nuovo Pro Tubular. No mudguard clearance. Handlebar Shimano Dura Ace Alloy Engraved Bend, Blue Cushioned Tape. Stem Shimano 600 AX. Brakes Shimano 600 AX, Recessed Fitting Calipers and Hooded Levers. Derailleur Shimano 600 AX Front & Rear with Top Mounted Direct Fit Fit Levers. Chainset Shimano 600 AX Fully Detachable 52/42T. Freewheel Shimano 600 AX Cassette 13-14-15-16-17-19-21T. Gear ratios 42T: 87-81-76-67-60-54 ins, 52T: 108-100-94-83-74-67 ins. Chain Shimano Uniglide, Silver/Black. Pedals Shimano 600 AX. Saddle ISCA Tornado Blue Suede. Seat pin Shimano 600 AX, Aero. Extras Frame Fitting Inflator, Shimano 600 AX Toe Clips/Straps, Allen Key Recessed Seat Bolt, Aero Water Bottle & Cage, Long Allen Key & Pedal Tool, Wide Angle Reflector Set (to BS6102/2 – Not Fitted). Approx weight 22lb (57cm Frame). Colour Polar Blue.
COMPETITION 12 — Frame sizes 54.5cm (21½”), 57cm (22½”), 59.5cm (23½”), 62cm (24½”). Reynolds 531 Competition Set with ‘Shot in’ Backstays, Gipiemme Forged Engs & Prugnat S4 Lugs. Variable Racing Geometry Depending on Frame Size. Headset Tange New Levin. Fork Reynolds 531 Taper Gauge Blades, Internally Brazed Sloping Fork Crown, Gipiemme Forged Ends. Wheels: rims Weinmann High Strength Narrow Section Eyeletted Alloy; hubs Maillard Competition Small Flange Alloy Q.R.; spokes Rustless Double Butted. Tyres 700 x 20C Vredestein Racer High Pressure. No mudguard clearance. Handlebar SR Custom Engraved Italienne Alloy Bend, Beige Colour Cushioned Tape. Stem SR Apex Forged Alloy. Brakes Weinmann 405 QR, Recessed Fitting Calipers and Hooded Levers. Derailleur Suntour Cyclone II Front & Rear with Direct Fit Levers. Chainset Sugino GS Long Arm Alloy Detachable 52/42T. Freewheel Suntour NW6000 Silver 13-14-15-16-17-19-21T. Gear ratios 42T: 87-81-76-67-60-54 ins, 52T: 108-100-94-83-74-67 ins. Chain Suntour Z Silver/Black. Pedals SR SP12 Platform Alloy. Saddle ISCA 406 Beige Suede. Seat pin SR CTP5 Aero, Single Allen Bolt Adjustment. Extras Frame Fitting Inflator, Toe Clips & Straps, Bottle Cage Mounts, Allen Key Recessed Seat Bolt, Wide Angle Reflector Set (to BS6102/2 – Not Fitted). Approx weight 23lb (57cm Frame). Colour Iridescent Green.
CORSA 12 — Frame sizes 54.5cm (21½”), 57cm (22½”), 59.5cm (23½”), 62cm (24½”). Reynolds 501 Double Butted Set with Gipiemme Forged Ends & Prugnat S4 Lugs. Variable Racing Geometry Depending on Frame Size. Headset Tange CMA60. Fork Reynolds 501 Taper Gauge Blades, Internally Brazed Sloping Fork Crown, Gipiemme Forged Ends. Wheels: rims Weinmann High Strength Narrow Section Eyeletted Alloy; hubs Shimano 105 Small Flange Alloy, Q.R.; spokes 14G Rustless. Tyres 700 x 20C Vredestein Racer High Pressure. No mudguard clearance. Handlebar Cinelli Engraved Alloy Bend, Black Imitation Suede Tape. Stem SR Custom Light Alloy. Brakes Shimano 105 QR Recessed Fitting Calipers & Hooded Levers, Hooded Alloy Levers. Derailleur Shimano 105 Front and Rear with Direct Fit Levers. Chainset Shimano Alloy, Fully Detachable 52/42T. Freewheel Shimano Cassette, Silver 13-15-17-19-21-24T. Gear ratios 42T: 87-76-67-60-54-47 ins, 52T: 108-94-83-74-67-59 ins. Chain Suntour Z Silver/Black. Pedals Alloy Quill. Saddle ISCA 406 Black Suede. Seat pin SR CTP5 Fluted Alloy, Single Allen Bolt Adjustment. Extras Frame Fitting Inflator, Toe Clips & Straps, Bottle Cage Mounts, Allen Key Recessed Seat Bolt, Wide Angle Reflector Set (to BS6102/2 – Not Fitted). Approx weight 23½lb (57cm Frame). Colour Oyster.
SIROCCO 12 — Frame sizes 54.5cm (21½”), 57cm (22½”), 59.5cm (23½”), 62cm (24½”). Reynolds 501 Double Butted Main Tubes, 18-23 High Tensile Stays, Gipiemme Forged Ends & Prugnat S4 Lugs. Variable Racing Geometry Depending on Frame Size. Headset Tange CMA60. Fork 18-23 High Tensile Blades, Internally Brazed Sloping Fork Crown, Gipiemme Forged Ends. Wheels: rims Weinmann Concave Section Eyeletted Alloy; hubs Maillard Atom Q.R.; spokes 14G Rustless. Tyres 700 x 20C Vredestein Racer High Pressure. No mudguard clearance. Handlebar Engraved Italienne Alloy Bend, Black Cloth Tape. Stem SR Custom Light Alloy. Brakes Weinmann 500 QR Calipers with Recessed Fittings, Hooded Alloy Levers. Derailleur Suntour AR Derailleurs and Lightweight Alloy Levers. Chainset Alloy Cotterless 5 Pin Detachable 52/42T. Freewheel Suntour Pro6000 14-15-17-19-21-24T. Gear ratios 42T: 81-76-67-60-54-47 ins, 52T: 100-94-83-75-67-59 ins. Chain Sedisport. Pedals Alloy Quill. Saddle ISCA 406 Black Suede. Seat pin SR CTP6 Alloy Fluted. Extras Frame Fitting Inflator, Toe Clips & Straps, Bottle Cage Mounts, Allen Key Recessed Seat Bolt, Wide Angle Reflector Set (to BS6102/2 – Not Fitted). Approx weight 23½lb (57cm Frame). Colour Claret.
5
[Two specification grids printed white-on-black, the upper carrying three model columns and the lower two.]

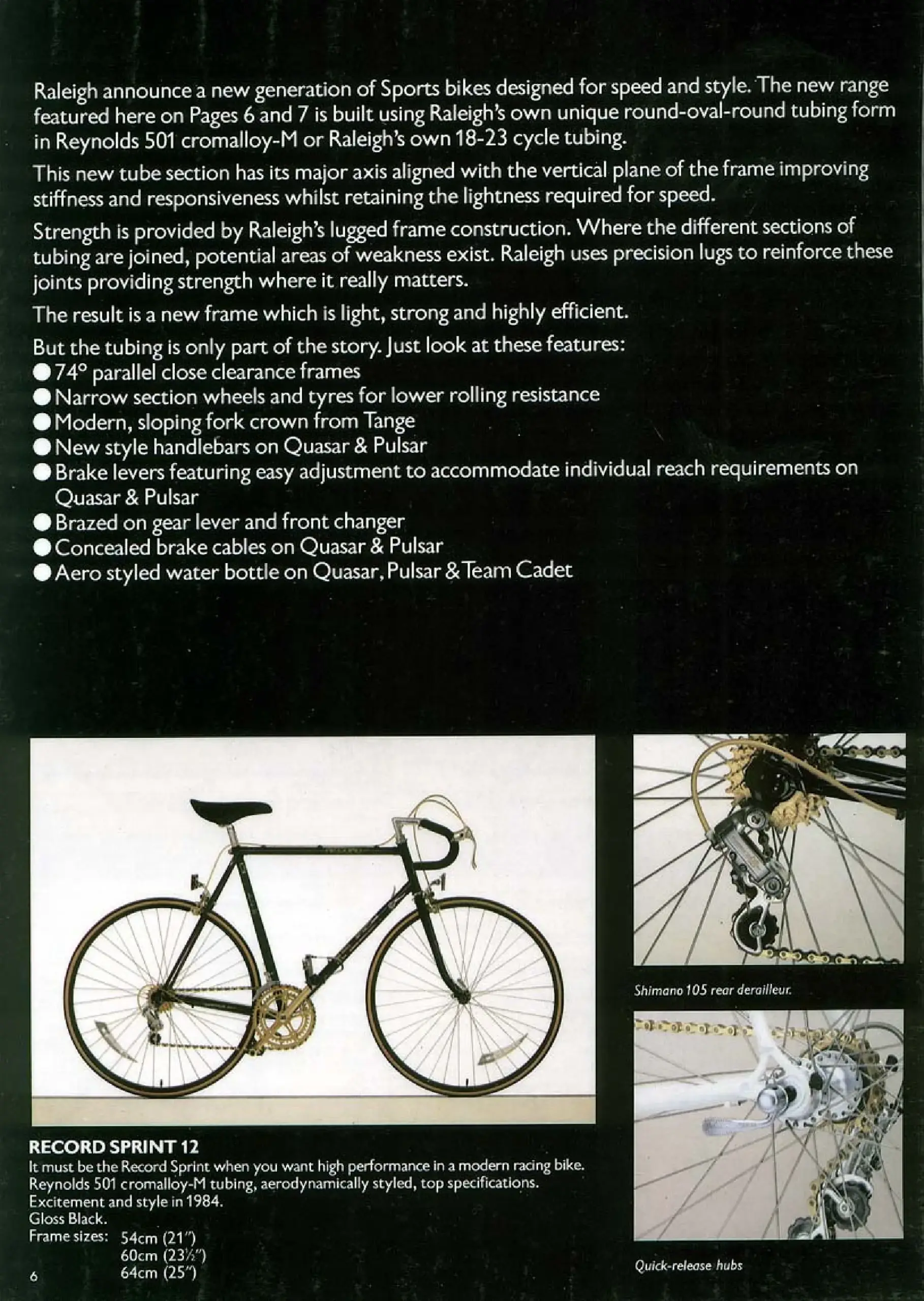

— Page 6 (printed page 6) —
Raleigh announce a new generation of Sports bikes designed for speed and style. The new range featured here on Pages 6 and 7 is built using Raleigh’s own unique round-oval-round tubing form in Reynolds 501 cromalloy-M or Raleigh’s own 18-23 cycle tubing.
This new tube section has its major axis aligned with the vertical plane of the frame improving stiffness and responsiveness whilst retaining the lightness required for speed.
Strength is provided by Raleigh’s lugged frame construction. Where the different sections of tubing are joined, potential areas of weakness exist. Raleigh uses precision lugs to reinforce these joints providing strength where it really matters.
The result is a new frame which is light, strong and highly efficient.
But the tubing is only part of the story. Just look at these features:
• 74° parallel close clearance frames
• Narrow section wheels and tyres for lower rolling resistance
• Modern, sloping fork crown from Tange
• New style handlebars on Quasar & Pulsar
• Brake levers featuring easy adjustment to accommodate individual reach requirements on Quasar & Pulsar
• Brazed on gear lever and front changer
• Concealed brake cables on Quasar & Pulsar
• Aero styled water bottle on Quasar, Pulsar & Team Cadet
RECORD SPRINT 12
It must be the Record Sprint when you want high performance in a modern racing bike. Reynolds 501 cromalloy-M tubing, aerodynamically styled, top specifications. Excitement and style in 1984.
Gloss Black.
Frame sizes: 54cm (21″), 60cm (23½”), 64cm (25″)
Shimano 105 rear derailleur.
Quick-release hubs
6
[Explanatory copy in white on black across the upper half, with a full side view of the Gloss Black Record Sprint below and two component close-ups at right.]

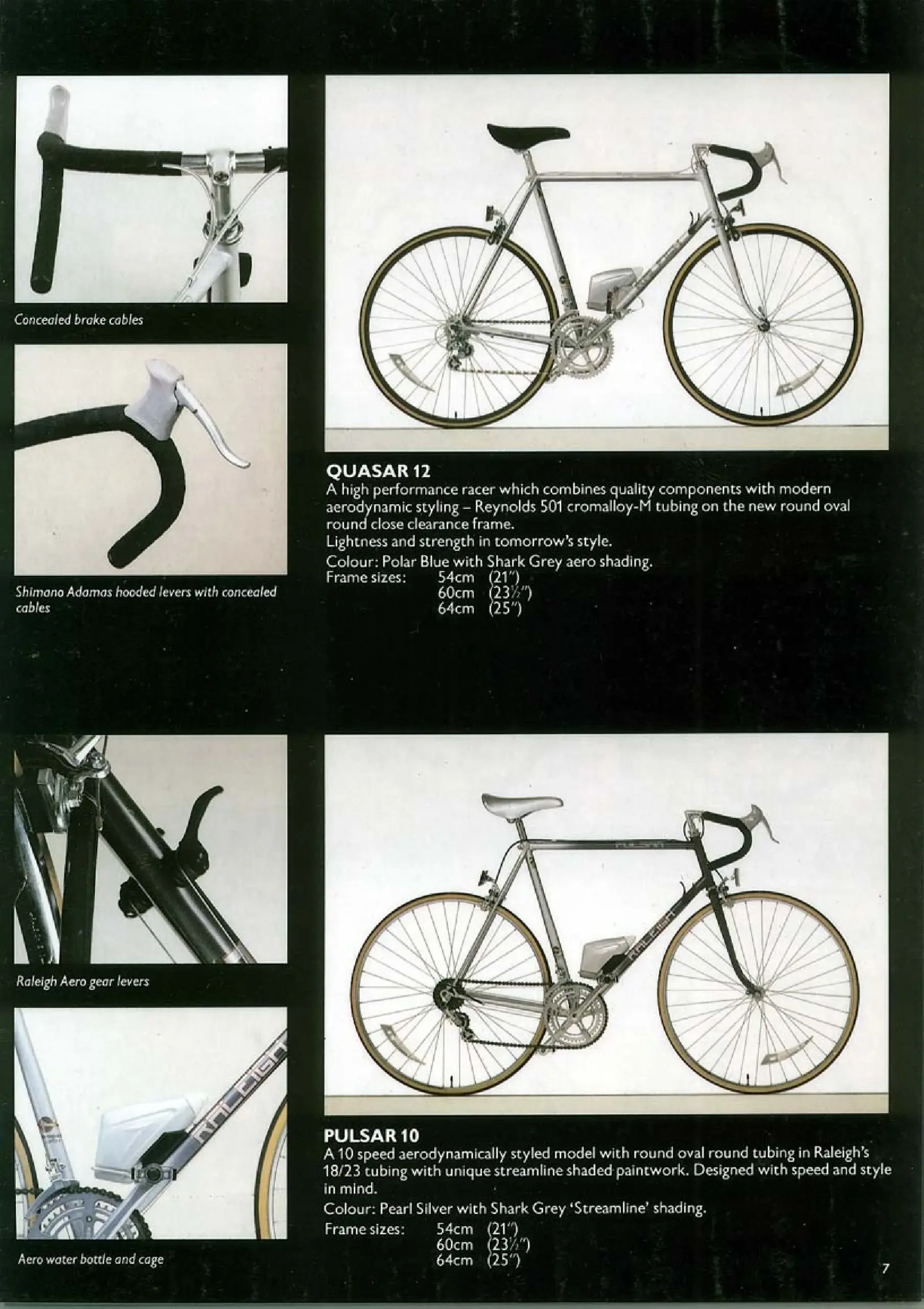

— Page 7 (printed page 7) —
QUASAR 12
A high performance racer which combines quality components with modern aerodynamic styling – Reynolds 501 cromalloy-M tubing on the new round oval round close clearance frame.
Lightness and strength in tomorrow’s style.
Colour: Polar Blue with Shark Grey aero shading.
Frame sizes: 54cm (21″), 60cm (23½”), 64cm (25″)
PULSAR 10
A 10 speed aerodynamically styled model with round oval round tubing in Raleigh’s 18/23 tubing with unique streamline shaded paintwork. Designed with speed and style in mind.
Colour: Pearl Silver with Shark Grey ‘Streamline’ shading.
Frame sizes: 54cm (21″), 60cm (23½”), 64cm (25″)
Concealed brake cables
Shimano Adamas hooded levers with concealed cables
Raleigh Aero gear levers
Aero water bottle and cage
7
[Side views of the Quasar above and the Pulsar below, with four component close-ups down the left margin.]

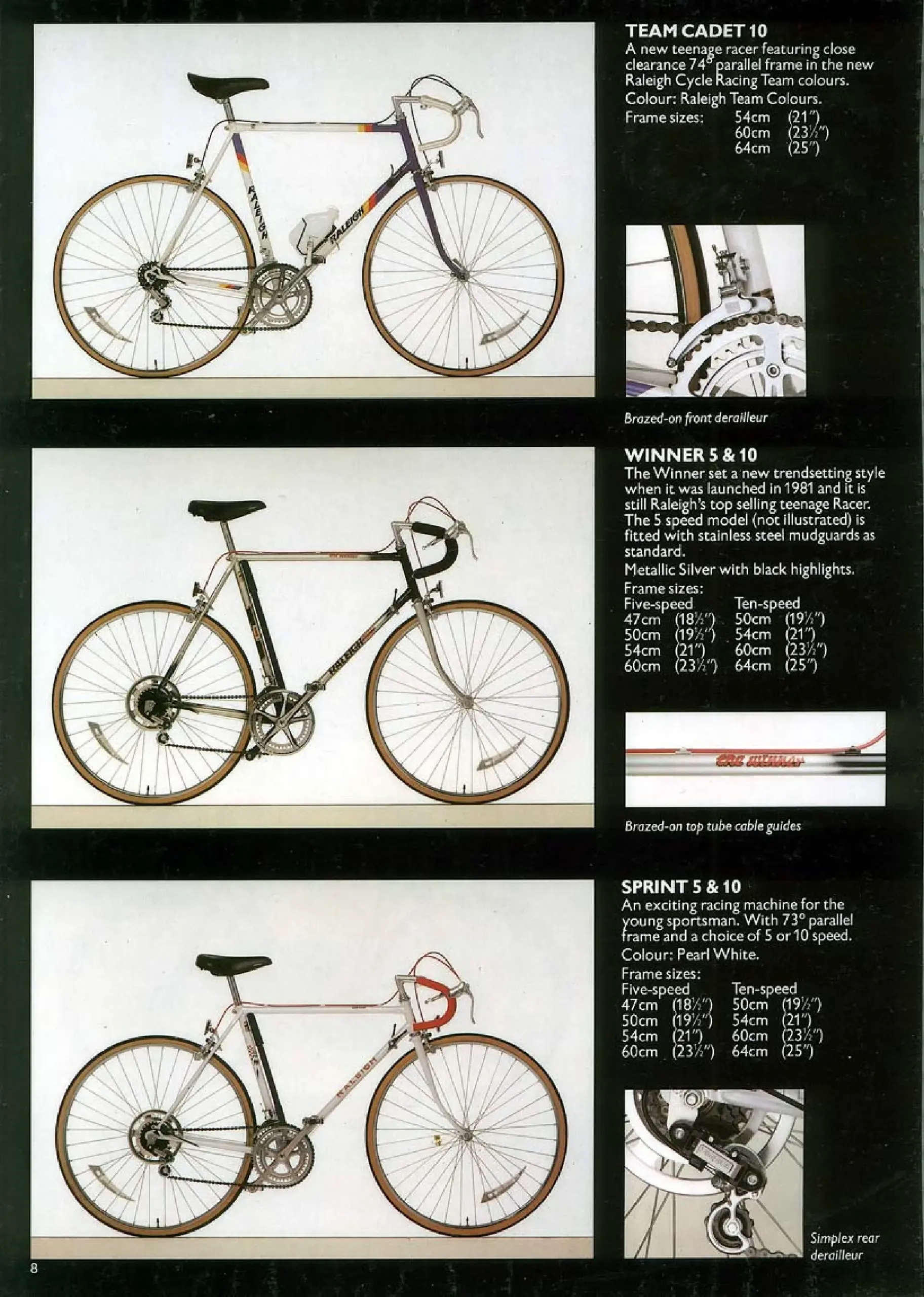

— Page 8 (printed page 8) —
TEAM CADET 10
A new teenage racer featuring close clearance 74° parallel frame in the new Raleigh Cycle Racing Team colours.
Colour: Raleigh Team Colours.
Frame sizes: 54cm (21″), 60cm (23½”), 64cm (25″)
Brazed-on front derailleur
WINNER 5 & 10
The Winner set a new trendsetting style when it was launched in 1981 and it is still Raleigh’s top selling teenage Racer. The 5 speed model (not illustrated) is fitted with stainless steel mudguards as standard.
Metallic Silver with black highlights.
Frame sizes: Five-speed 47cm (18½”), 50cm (19½”), 54cm (21″), 60cm (23½”); Ten-speed 50cm (19½”), 54cm (21″), 60cm (23½”), 64cm (25″)
Brazed-on top tube cable guides
SPRINT 5 & 10
An exciting racing machine for the young sportsman. With 73° parallel frame and a choice of 5 or 10 speed.
Colour: Pearl White.
Frame sizes: Five-speed 47cm (18½”), 50cm (19½”), 54cm (21″), 60cm (23½”); Ten-speed 50cm (19½”), 54cm (21″), 60cm (23½”), 64cm (25″)
Simplex rear derailleur
8
[Three side views stacked — the Team Cadet in team colours, the Metallic Silver Winner and the Pearl White Sprint — each with a component close-up at right.]

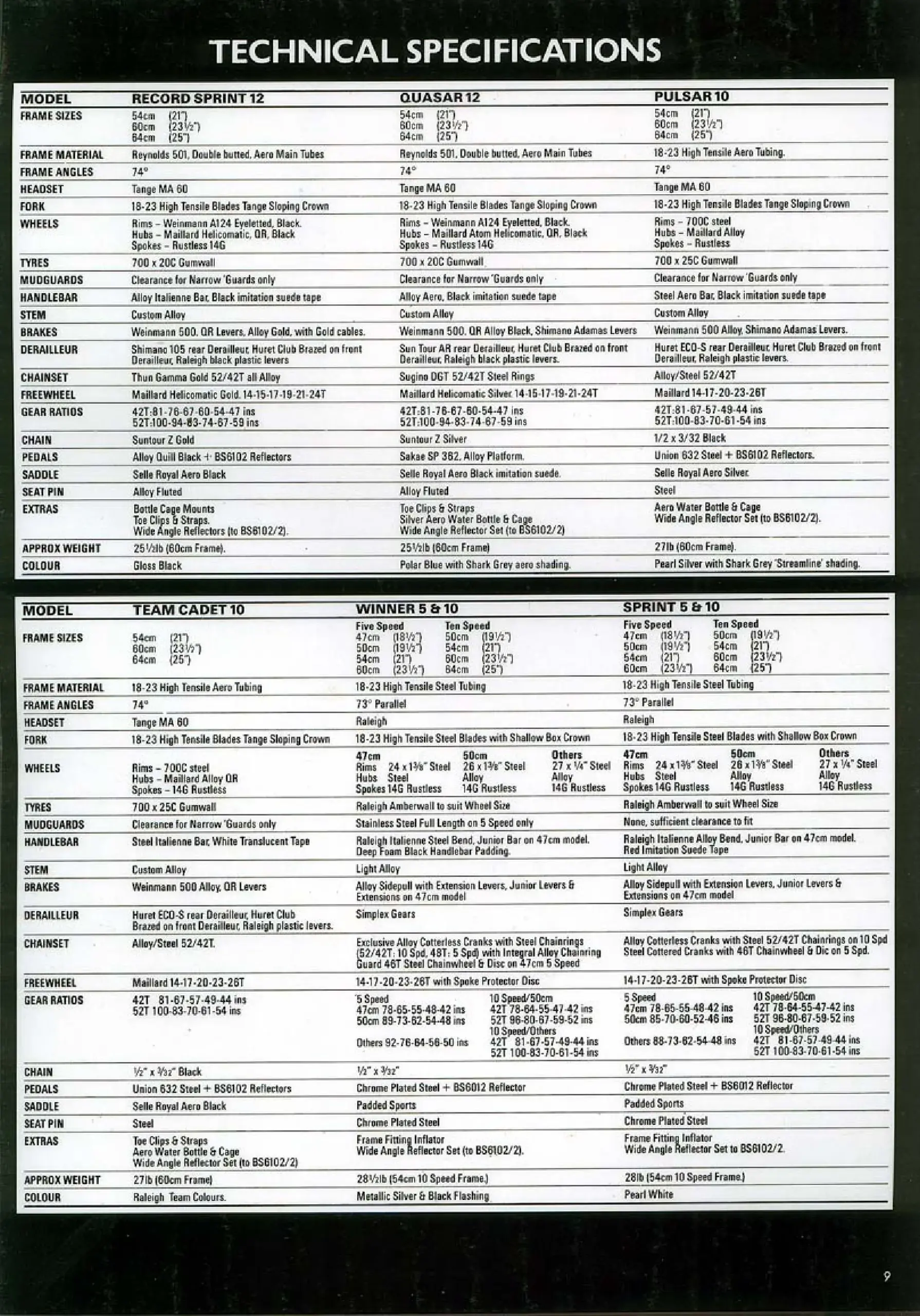

— Page 9 (printed page 9, technical specifications) —
TECHNICAL SPECIFICATIONS
RECORD SPRINT 12 — Frame sizes 54cm (21″), 60cm (23½”), 64cm (25″). Reynolds 501, Double butted, Aero Main Tubes. Frame angles 74°. Headset Tange MA 60. Fork 18-23 High Tensile Blades Tange Sloping Crown. Wheels: rims Weinmann A124 Eyeletted, Black; hubs Maillard Helicomatic, QR, Black; spokes Rustless 14G. Tyres 700 x 20C Gumwall. Clearance for Narrow ‘Guards only. Handlebar Alloy Italienne Bar, Black imitation suede tape. Stem Custom Alloy. Brakes Weinmann 500, QR Levers, Alloy Golden, with Gold cables. Derailleur Shimano 105 rear Derailleur, Huret Club Brazed on front Derailleur, Raleigh black plastic levers. Chainset Thun Gamma Gold 52/42T all Alloy. Freewheel Maillard Helicomatic Gold, 14-15-17-19-21-24T. Gear ratios 42T: 81-76-67-60-54-47 ins, 52T: 100-94-83-74-67-59 ins. Chain Suntour Z Gold. Pedals Alloy Quill Black + BS6102 Reflectors. Saddle Selle Royal Aero Black. Seat pin Alloy Fluted. Extras Bottle Cage Mounts, Toe Clips & Straps, Wide Angle Reflectors (to BS6102/2). Approx weight 25½lb (60cm Frame). Colour Gloss Black.
QUASAR 12 — Frame sizes 54cm (21″), 60cm (23½”), 64cm (25″). Reynolds 501, Double butted, Aero Main Tubes. 74°. Headset Tange MA 60. Fork 18-23 High Tensile Blades Tange Sloping Crown. Wheels: rims Weinmann A124 Eyeletted, Black; hubs Maillard Atom Helicomatic, QR, Black; spokes Rustless 14G. Tyres 700 x 20C Gumwall. Clearance for Narrow ‘Guards only. Handlebar Alloy Aero, Black imitation suede tape. Stem Custom Alloy. Brakes Weinmann 500, QR Alloy Black, Shimano Adamas Levers. Derailleur Sun Tour AR rear Derailleur, Huret Club Brazed on front Derailleur, Raleigh black plastic levers. Chainset Sugino DGT 52/42T Steel Rings. Freewheel Maillard Helicomatic Silver 14-15-17-19-21-24T. Gear ratios 42T: 81-76-67-60-54-47 ins, 52T: 100-94-83-74-67-59 ins. Chain Suntour Z Silver. Pedals Sakae SP 362, Alloy Platform. Saddle Selle Royal Aero Black imitation suede. Seat pin Alloy Fluted. Extras Toe Clips & Straps, Silver Aero Water Bottle & Cage, Wide Angle Reflector Set (to BS6102/2). Approx weight 25½lb (60cm Frame). Colour Polar Blue with Shark Grey aero shading.
PULSAR 10 — Frame sizes 54cm (21″), 60cm (23½”), 64cm (25″). 18-23 High Tensile Aero Tubing. 74°. Headset Tange MA 60. Fork 18-23 High Tensile Blades Tange Sloping Crown. Wheels: rims 700C steel; hubs Maillard Alloy; spokes Rustless. Tyres 700 x 25C Gumwall. Clearance for Narrow ‘Guards only. Handlebar Steel Aero Bar, Black imitation suede tape. Stem Custom Alloy. Brakes Weinmann 500 Alloy, Shimano Adamas Levers. Derailleur Huret ECO-S rear Derailleur, Huret Club Brazed on front Derailleur, Raleigh plastic levers. Chainset Alloy/Steel 52/42T. Freewheel Maillard 14-17-20-23-26T. Gear ratios 42T: 81-67-57-49-44 ins, 52T: 100-83-70-61-54 ins. Chain 1/2 x 3/32 Black. Pedals Union 632 Steel + BS6102 Reflectors. Saddle Selle Royal Aero Silver. Seat pin Steel. Extras Aero Water Bottle & Cage, Wide Angle Reflector Set (to BS6102/2). Approx weight 27lb (60cm Frame). Colour Pearl Silver with Shark Grey ‘Streamline’ shading.
TEAM CADET 10 — Frame sizes 54cm (21″), 60cm (23½”), 64cm (25″). 18-23 High Tensile Aero Tubing. 74°. Headset Tange MA 60. Fork 18-23 High Tensile Blades Tange Sloping Crown. Wheels: rims 700C steel; hubs Maillard Alloy QR; spokes 14G Rustless. Tyres 700 x 25C Gumwall. Clearance for Narrow ‘Guards only. Handlebar Steel Italienne Bar, White Translucent Tape. Stem Custom Alloy. Brakes Weinmann 500 Alloy, QR Levers. Derailleur Huret ECO-S rear Derailleur, Huret Club Brazed on front Derailleur, Raleigh plastic levers. Chainset Alloy/Steel 52/42T. Freewheel Maillard 14-17-20-23-26T. Gear ratios 42T: 81-67-57-49-44 ins, 52T: 100-83-70-61-54 ins. Chain ½” x 3⁄32″ Black. Pedals Union 632 Steel + BS6102 Reflectors. Saddle Selle Royal Aero Black. Seat pin Steel. Extras Toe Clips & Straps, Aero Water Bottle & Cage, Wide Angle Reflector Set (to BS6102/2). Approx weight 27lb (60cm Frame). Colour Raleigh Team Colours.
WINNER 5 & 10 — Five Speed 47cm (18½”), 50cm (19½”), 54cm (21″), 60cm (23½”); Ten Speed 50cm (19½”), 54cm (21″), 60cm (23½”), 64cm (25″). 18-23 High Tensile Steel Tubing. 73° Parallel. Headset Raleigh. Fork 18-23 High Tensile Steel Blades with Shallow Box Crown. Wheels: 47cm rims 24 x 1⅜” Steel, 50cm 26 x 1⅜” Alloy, Others 27 x 1¼” Alloy; hubs Steel, Alloy, Alloy; spokes 14G Rustless throughout. Tyres Raleigh Amberwall to suit Wheel Size. Mudguards Stainless Steel Full Length on 5 Speed only. Handlebar Raleigh Italienne Steel Bend, Junior Bar on 47cm model, Deep Foam Black Handlebar Padding. Stem Light Alloy. Brakes Alloy Sidepull with Extension Levers, Junior Levers & Extensions on 47cm model. Derailleur Simplex Gears. Chainset Exclusive Alloy Cotterless Cranks with Steel Chainrings (52/42T, 10 Spd, 48T, 5 Spd) with Integral Alloy Chainring Guard 46T Steel Chainwheel & Disc on 47cm 5 Speed. Freewheel 14-17-20-23-26T with Spoke Protector Disc. Gear ratios 5 Speed: 47cm 78-65-55-48-42 ins, 50cm 89-73-62-54-48 ins, Others 92-76-64-56-50 ins; 10 Speed/50cm 42T 78-64-55-47-42 ins, 52T 96-80-87-59-52 ins; 10 Speed/Others 42T 81-67-57-49-44 ins, 52T 100-83-70-61-54 ins. Chain ½” x 3⁄32″. Pedals Chrome Plated Steel + BS6012 Reflector. Saddle Padded Sports. Seat pin Chrome Plated Steel. Extras Frame Fitting Inflator, Wide Angle Reflector Set (to BS6102/2). Approx weight 28½lb (54cm 10 Speed Frame). Colour Metallic Silver & Black Flashing.
SPRINT 5 & 10 — Five Speed 47cm (18½”), 50cm (19½”), 54cm (21″), 60cm (23½”); Ten Speed 50cm (19½”), 54cm (21″), 60cm (23½”), 64cm (25″). 18-23 High Tensile Steel Tubing. 73° Parallel. Headset Raleigh. Fork 18-23 High Tensile Steel Blades with Shallow Box Crown. Wheels: 47cm rims 24 x 1⅜” Steel, 50cm 26 x 1⅜” Steel, Others 27 x 1¼” Steel; spokes 14G Rustless. Tyres Raleigh Amberwall to suit Wheel Size. Mudguards none, sufficient clearance to fit. Handlebar Raleigh Italienne Alloy Bend, Junior Bar on 47cm model, Red Imitation Suede Tape. Stem Light Alloy. Brakes Alloy Sidepull with Extension Levers, Junior Levers & Extensions on 47cm model. Derailleur Simplex Gears. Chainset Alloy Cotterless Cranks with Steel 52/42T Chainrings on 10 Spd, Steel Cottered Cranks with 46T Chainwheel & Disc on 5 Spd. Freewheel 14-17-20-23-26T with Spoke Protector Disc. Gear ratios 5 Speed: 47cm 78-65-55-48-42 ins, 50cm 85-70-60-52-46 ins, Others 88-73-62-54-48 ins; 10 Speed/50cm 42T 78-64-55-47-42 ins, 52T 96-80-87-59-52 ins; 10 Speed/Others 42T 81-67-57-49-44 ins, 52T 100-83-70-61-54 ins. Chain ½” x 3⁄32″. Pedals Chrome Plated Steel + BS6012 Reflector. Saddle Padded Sports. Seat pin Chrome Plated Steel. Extras Frame Fitting Inflator, Wide Angle Reflector Set to BS6102/2. Approx weight 28lb (54cm 10 Speed Frame). Colour Pearl White.
9
[Two white-on-black specification grids, three model columns each.]

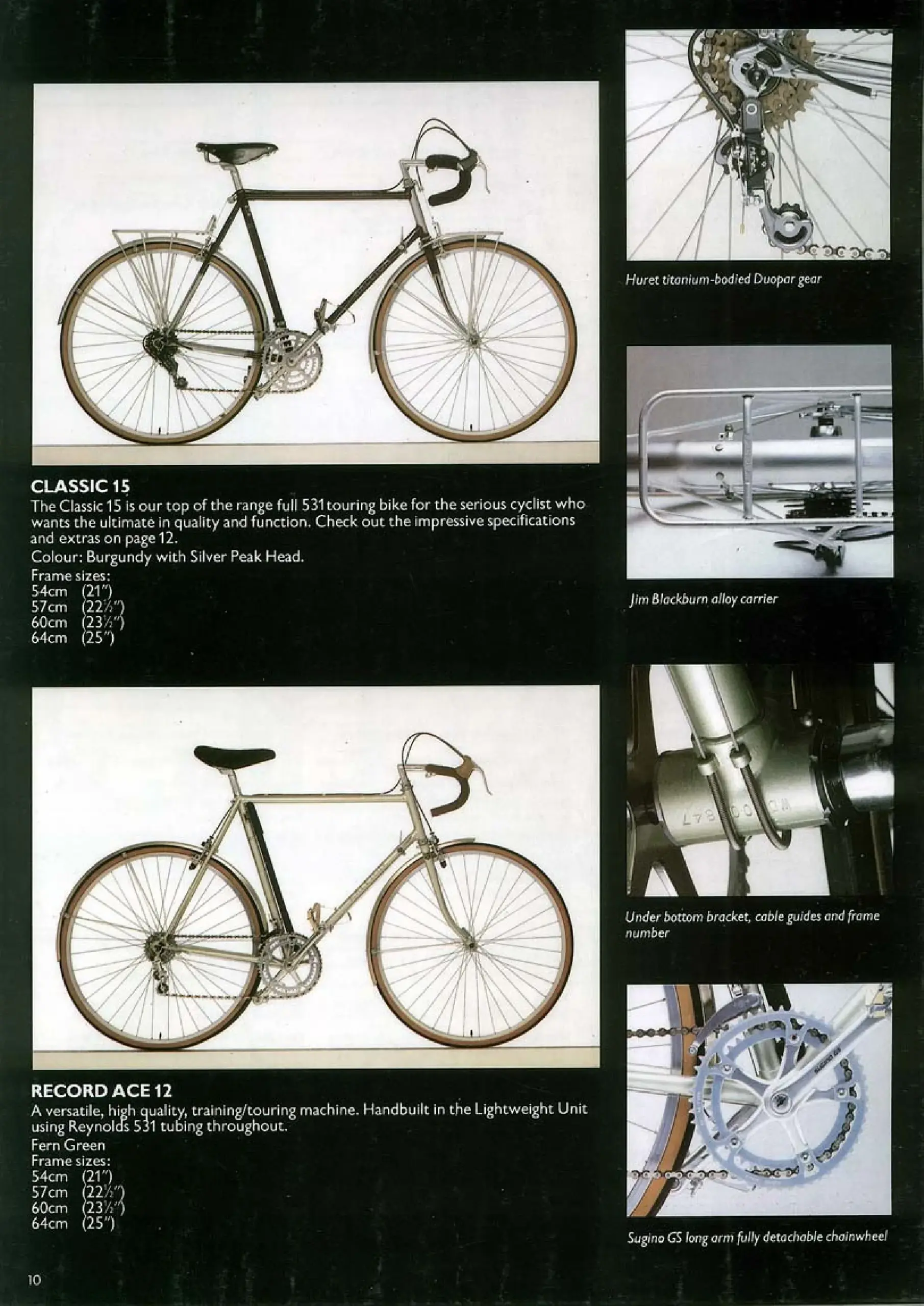

— Page 10 (printed page 10) —
CLASSIC 15
The Classic is our top of the range full 531 touring bike for the serious cyclist who wants the ultimate in quality and function. Check out the impressive specifications and extras on page 12.
Colour: Burgundy with Silver Peak Head.
Frame sizes: 54cm (21″), 57cm (22½”), 60cm (23½”), 64cm (25″)
RECORD ACE 12
A versatile, high quality, training/touring machine. Handbuilt in the Lightweight Unit using Reynolds 531 tubing throughout.
Fern Green
Frame sizes: 54cm (21″), 57cm (22½”), 60cm (23½”), 64cm (25″)
Huret titanium-bodied Duopar gear
Jim Blackburn alloy carrier
Under bottom bracket, cable guides and frame number
Sugino GS long arm fully detachable chainwheel
10
[The Burgundy Classic above and the Fern Green Record Ace below in full side view, with four component close-ups down the right margin — one of them showing the frame number stamped under the bottom bracket.]

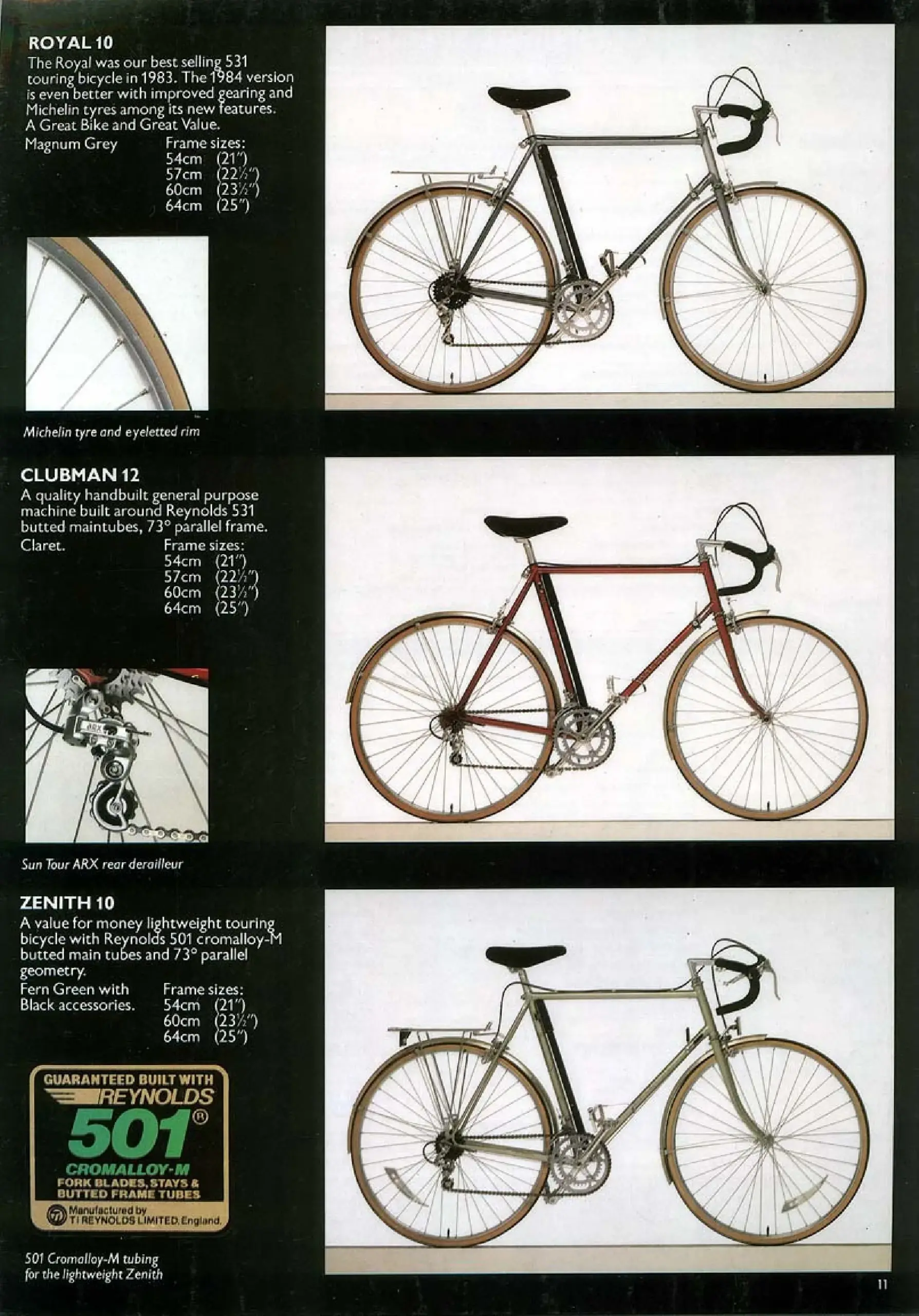

— Page 11 (printed page 11) —
ROYAL 10
The Royal was our best selling 531 touring bicycle in 1983. The 1984 version is even better with improved gearing and Michelin tyres among its new features.
A Great Bike and Great Value.
Magnum Grey
Frame sizes: 54cm (21″), 57cm (22½”), 60cm (23½”), 64cm (25″)
Michelin tyre and eyeletted rim
CLUBMAN 12
A quality handbuilt general purpose machine built around Reynolds 531 butted maintubes, 73° parallel frame.
Claret.
Frame sizes: 54cm (21″), 57cm (22½”), 60cm (23½”), 64cm (25″)
Sun Tour ARX rear derailleur
ZENITH 10
A value for money lightweight touring bicycle with Reynolds 501 cromalloy-M butted main tubes and 73° parallel geometry.
Fern Green with Black accessories.
Frame sizes: 54cm (21″), 60cm (23½”), 64cm (25″)
GUARANTEED BUILT WITH REYNOLDS 501 CROMALLOY-M FORK BLADES, STAYS & BUTTED FRAME TUBES — Manufactured by TI REYNOLDS LIMITED, England.
501 Cromalloy-M tubing for the lightweight Zenith
11
[Three side views stacked — the Magnum Grey Royal, the Claret Clubman and the Fern Green Zenith — with component close-ups and the Reynolds 501 transfer down the left margin.]

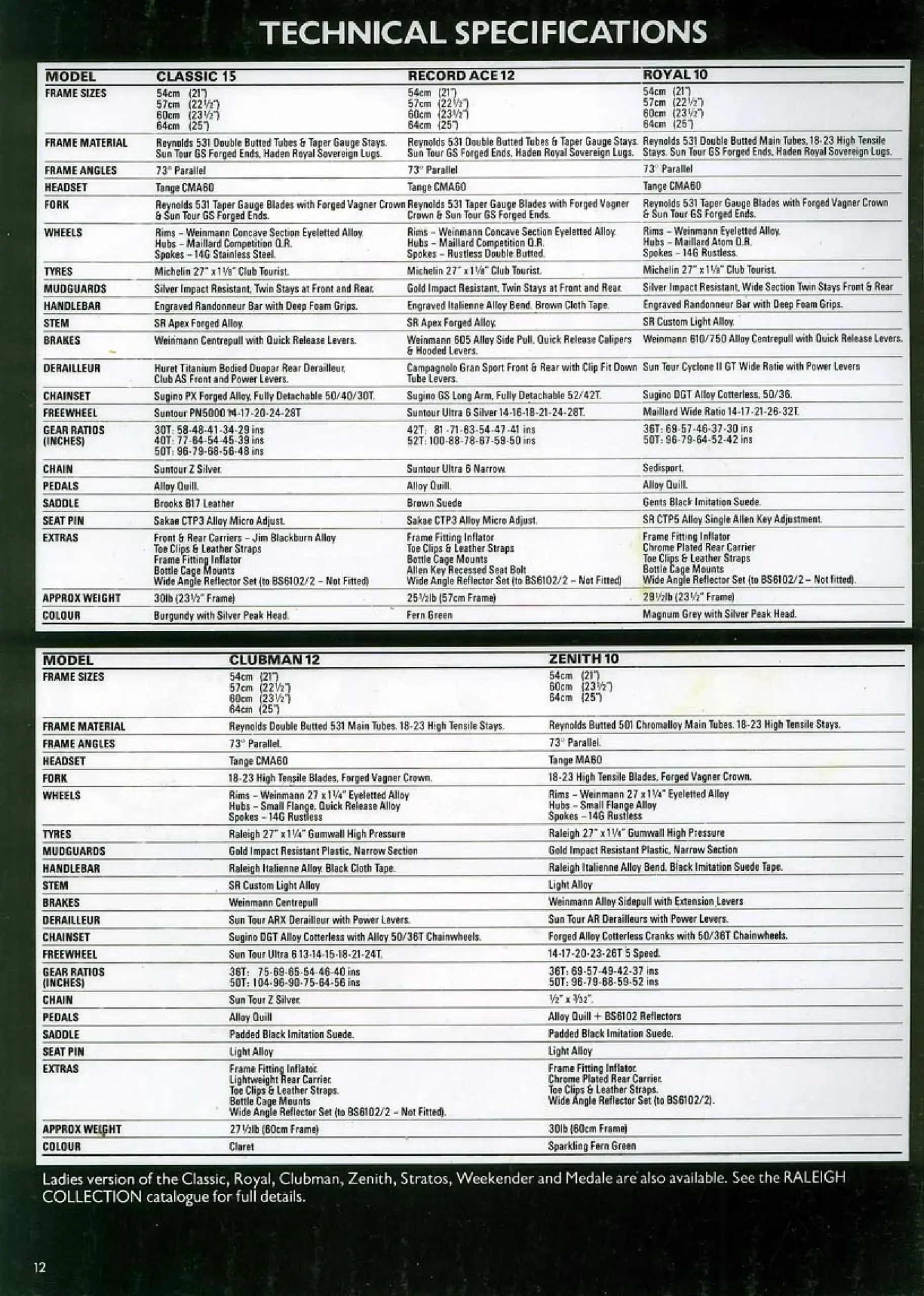

— Page 12 (printed page 12, technical specifications) —
TECHNICAL SPECIFICATIONS
CLASSIC 15 — Frame sizes 54cm (21″), 57cm (22½”), 60cm (23½”), 64cm (25″). Reynolds 531 Double Butted Tubes & Taper Gauge Stays, Sun Tour GS Forged Ends, Haden Royal Sovereign Lugs. 73° Parallel. Headset Tange CMA60. Fork Reynolds 531 Taper Gauge Blades with Forged Vagner Crown & Sun Tour GS Forged Ends. Wheels: rims Weinmann Concave Section Eyeletted Alloy; hubs Maillard Competition Q.R.; spokes 14G Stainless Steel. Tyres Michelin 27″ x 1⅛” Club Tourist. Mudguards Silver Impact Resistant, Twin Stays at Front and Rear. Handlebar Engraved Randonneur Bar with Deep Foam Grips. Stem SR Apex Forged Alloy. Brakes Weinmann Centrepull with Quick Release Levers. Derailleur Huret Titanium Bodied Duopar Rear Derailleur, Club AS Front and Power Levers. Chainset Sugino PX Forged Alloy, Fully Detachable 50/40/30T. Freewheel Suntour PN5000 14-17-20-24-28T. Gear ratios (inches) 30T: 58-48-41-34-29 ins, 40T: 77-64-54-45-39 ins, 50T: 96-79-68-56-48 ins. Chain Suntour Z Silver. Pedals Alloy Quill. Saddle Brooks B17 Leather. Seat pin Sakae CTP3 Alloy Micro Adjust. Extras Front & Rear Carriers – Jim Blackburn Alloy, Toe Clips & Leather Straps, Frame Fitting Inflator, Bottle Cage Mounts, Wide Angle Reflector Set (to BS6102/2 – Not Fitted). Approx weight 30lb (23½” Frame). Colour Burgundy with Silver Peak Head.
RECORD ACE 12 — Frame sizes 54cm (21″), 57cm (22½”), 60cm (23½”), 64cm (25″). Reynolds 531 Double Butted Tubes & Taper Gauge Stays, Sun Tour GS Forged Ends, Haden Royal Sovereign Lugs. 73° Parallel. Headset Tange CMA60. Fork Reynolds 531 Taper Gauge Blades with Forged Vagner Crown & Sun Tour GS Forged Ends. Wheels: rims Weinmann Concave Section Eyeletted Alloy; hubs Maillard Competition Q.R.; spokes Rustless Double Butted. Tyres Michelin 27″ x 1⅛” Club Tourist. Mudguards Gold Impact Resistant, Twin Stays at Front and Rear. Handlebar Engraved Italienne Alloy Bend, Brown Cloth Tape. Stem SR Apex Forged Alloy. Brakes Weinmann 605 Alloy Side Pull, Quick Release Calipers & Hooded Levers. Derailleur Campagnolo Gran Sport Front & Rear with Clip Fit Down Tube Levers. Chainset Sugino GS Long Arm, Fully Detachable 52/42T. Freewheel Suntour Ultra 6 Silver 14-16-18-21-24-28T. Gear ratios 42T: 81-71-63-54-47-41 ins, 52T: 100-88-78-67-59-50 ins. Chain Suntour Ultra 6 Narrow. Pedals Alloy Quill. Saddle Brown Suede. Seat pin Sakae CTP3 Alloy Micro Adjust. Extras Frame Fitting Inflator, Toe Clips & Leather Straps, Bottle Cage Mounts, Allen Key Recessed Seat Bolt, Wide Angle Reflector Set (to BS6102/2 – Not Fitted). Approx weight 25½lb (57cm Frame). Colour Fern Green.
ROYAL 10 — Frame sizes 54cm (21″), 57cm (22½”), 60cm (23½”), 64cm (25″). Reynolds 531 Double Butted Main Tubes, 18-23 High Tensile Stays, Sun Tour GS Forged Ends, Haden Royal Sovereign Lugs. 73° Parallel. Headset Tange CMA60. Fork Reynolds 531 Taper Gauge Blades with Forged Vagner Crown & Sun Tour GS Forged Ends. Wheels: rims Weinmann Eyeletted Alloy; hubs Maillard Atom Q.R.; spokes 14G Rustless. Tyres Michelin 27″ x 1⅛” Club Tourist. Mudguards Silver Impact Resistant, Wide Section Twin Stays Front & Rear. Handlebar Engraved Randonneur Bar with Deep Foam Grips. Stem SR Custom Light Alloy. Brakes Weinmann 610/750 Alloy Centrepull with Quick Release Levers. Derailleur Sun Tour Cyclone II GT Wide Ratio with Power Levers. Chainset Sugino DGT Alloy Cotterless, 50/36. Freewheel Maillard Wide Ratio 14-17-21-26-32T. Gear ratios 36T: 69-57-46-37-30 ins, 50T: 96-79-64-52-42 ins. Chain Sedisport. Pedals Alloy Quill. Saddle Gents Black Imitation Suede. Seat pin SR CTP5 Alloy Single Allen Key Adjustment. Extras Frame Fitting Inflator, Chrome Plated Rear Carrier, Toe Clips & Leather Straps, Bottle Cage Mounts, Wide Angle Reflector Set (to BS6102/2 – Not fitted). Approx weight 29½lb (23½” Frame). Colour Magnum Grey with Silver Peak Head.
CLUBMAN 12 — Frame sizes 54cm (21″), 57cm (22½”), 60cm (23½”), 64cm (25″). Reynolds Double Butted 531 Main Tubes, 18-23 High Tensile Stays. 73° Parallel. Headset Tange CMA60. Fork 18-23 High Tensile Blades, Forged Vagner Crown. Wheels: rims Weinmann 27 x 1¼” Eyeletted Alloy; hubs Small Flange, Quick Release Alloy; spokes 14G Rustless. Tyres Raleigh 27″ x 1¼” Gumwall High Pressure. Mudguards Gold Impact Resistant Plastic, Narrow Section. Handlebar Raleigh Italienne Alloy, Black Cloth Tape. Stem SR Custom Light Alloy. Brakes Weinmann Centrepull. Derailleur Sun Tour ARX Derailleur with Power Levers. Chainset Sugino DGT Alloy Cotterless with Alloy 50/36T Chainwheels. Freewheel Sun Tour Ultra 6 13-14-15-18-21-24T. Gear ratios 36T: 75-69-65-54-46-40 ins, 50T: 104-96-90-75-64-56 ins. Chain Sun Tour Z Silver. Pedals Alloy Quill. Saddle Padded Black Imitation Suede. Seat pin Light Alloy. Extras Frame Fitting Inflator, Lightweight Rear Carrier, Toe Clips & Leather Straps, Bottle Cage Mounts, Wide Angle Reflector Set (to BS6102/2 – Not Fitted). Approx weight 27½lb (60cm Frame). Colour Claret.
ZENITH 10 — Frame sizes 54cm (21″), 60cm (23½”), 64cm (25″). Reynolds Butted 501 Chromalloy Main Tubes, 18-23 High Tensile Stays. 73° Parallel. Headset Tange MA60. Fork 18-23 High Tensile Blades, Forged Vagner Crown. Wheels: rims Weinmann 27 x 1¼” Eyeletted Alloy; hubs Small Flange Alloy; spokes 14G Rustless. Tyres Raleigh 27″ x 1¼” Gumwall High Pressure. Mudguards Gold Impact Resistant Plastic, Narrow Section. Handlebar Raleigh Italienne Alloy Bend, Black Imitation Suede Tape. Stem Light Alloy. Brakes Weinmann Alloy Sidepull with Extension Levers. Derailleur Sun Tour AR Derailleurs with Power Levers. Chainset Forged Alloy Cotterless Cranks with 50/36T Chainwheels. Freewheel 14-17-20-23-26T 5 Speed. Gear ratios 36T: 69-57-49-42-37 ins, 50T: 96-79-68-59-52 ins. Chain ½” x 3⁄32″. Pedals Alloy Quill + BS6102 Reflectors. Saddle Padded Black Imitation Suede. Seat pin Light Alloy. Extras Frame Fitting Inflator, Chrome Plated Rear Carrier, Toe Clips & Leather Straps, Wide Angle Reflector Set (to BS6102/2). Approx weight 30lb (60cm Frame). Colour Sparkling Fern Green.
Ladies version of the Classic, Royal, Clubman, Zenith, Stratos, Weekender and Medale are also available. See the RALEIGH COLLECTION catalogue for full details.
12
[Two white-on-black specification grids, the upper with three model columns and the lower with two, and the ladies-models note printed beneath.]

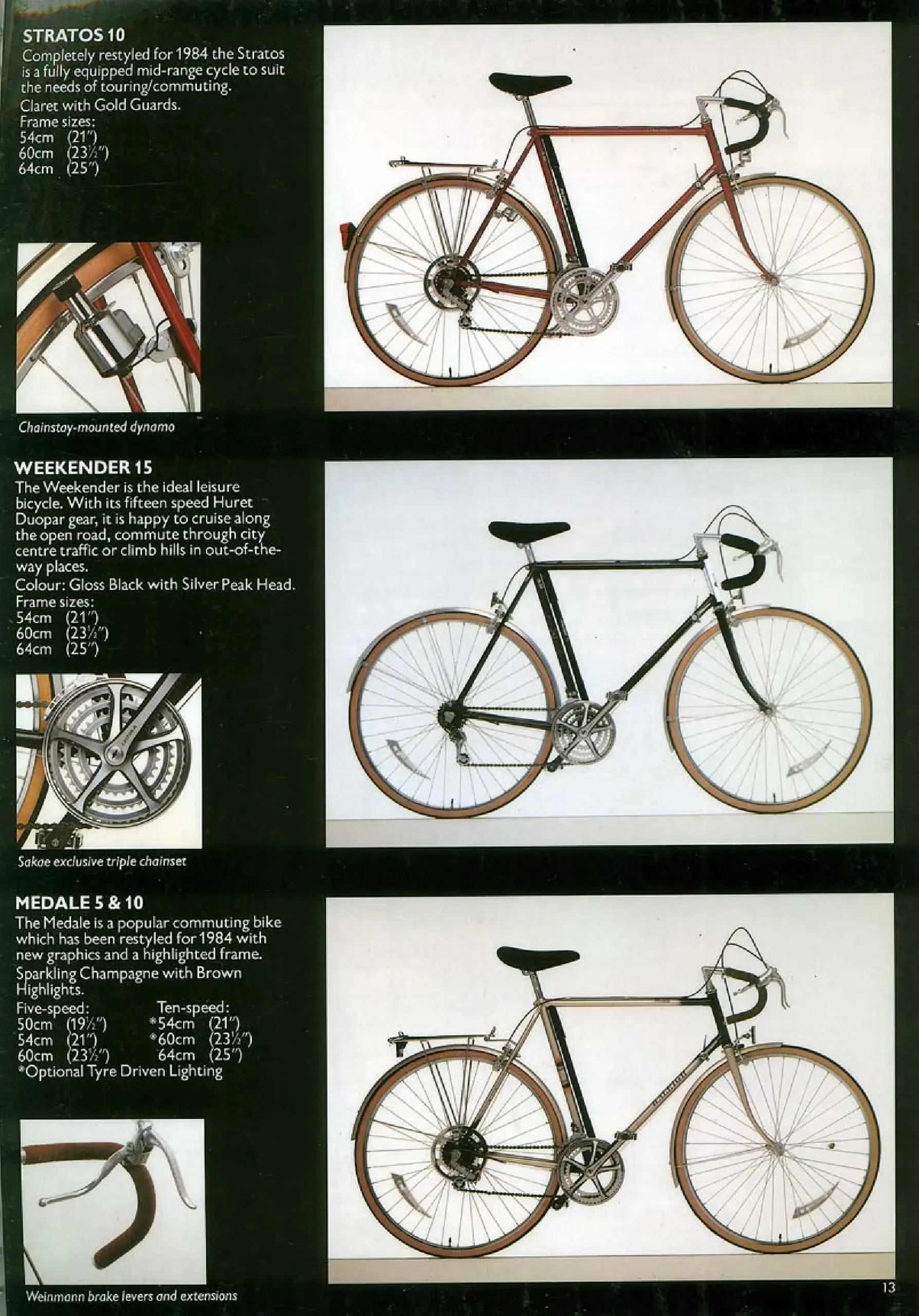

— Page 13 (printed page 13) —
STRATOS 10
Completely restyled for 1984 the Stratos is a fully equipped mid-range cycle to suit the needs of touring/commuting.
Claret with Gold Guards.
Frame sizes: 54cm (21″), 60cm (23½”), 64cm (25″)
Chainstay-mounted dynamo
WEEKENDER 15
The Weekender is the ideal leisure bicycle. With its fifteen speed Huret Duopar gear, it is happy to cruise along the open road, commute through city centre traffic or climb hills in out-of-the-way places.
Colour: Gloss Black with Silver Peak Head.
Frame sizes: 54cm (21″), 60cm (23½”), 64cm (25″)
Sakae exclusive triple chainset
MEDALE 5 & 10
The Medale is a popular commuting bike which has been restyled for 1984 with new graphics and a highlighted frame.
Sparkling Champagne with Brown Highlights.
Frame sizes: Five-speed 50cm (19½”), 54cm (21″), 60cm (23½”); Ten-speed *54cm (21″), *60cm (23½”), 64cm (25″)
*Optional Tyre Driven Lighting
Weinmann brake levers and extensions
13
[Three side views stacked — the Claret Stratos, the Gloss Black Weekender and the Sparkling Champagne Medale — with component close-ups down the left margin.]

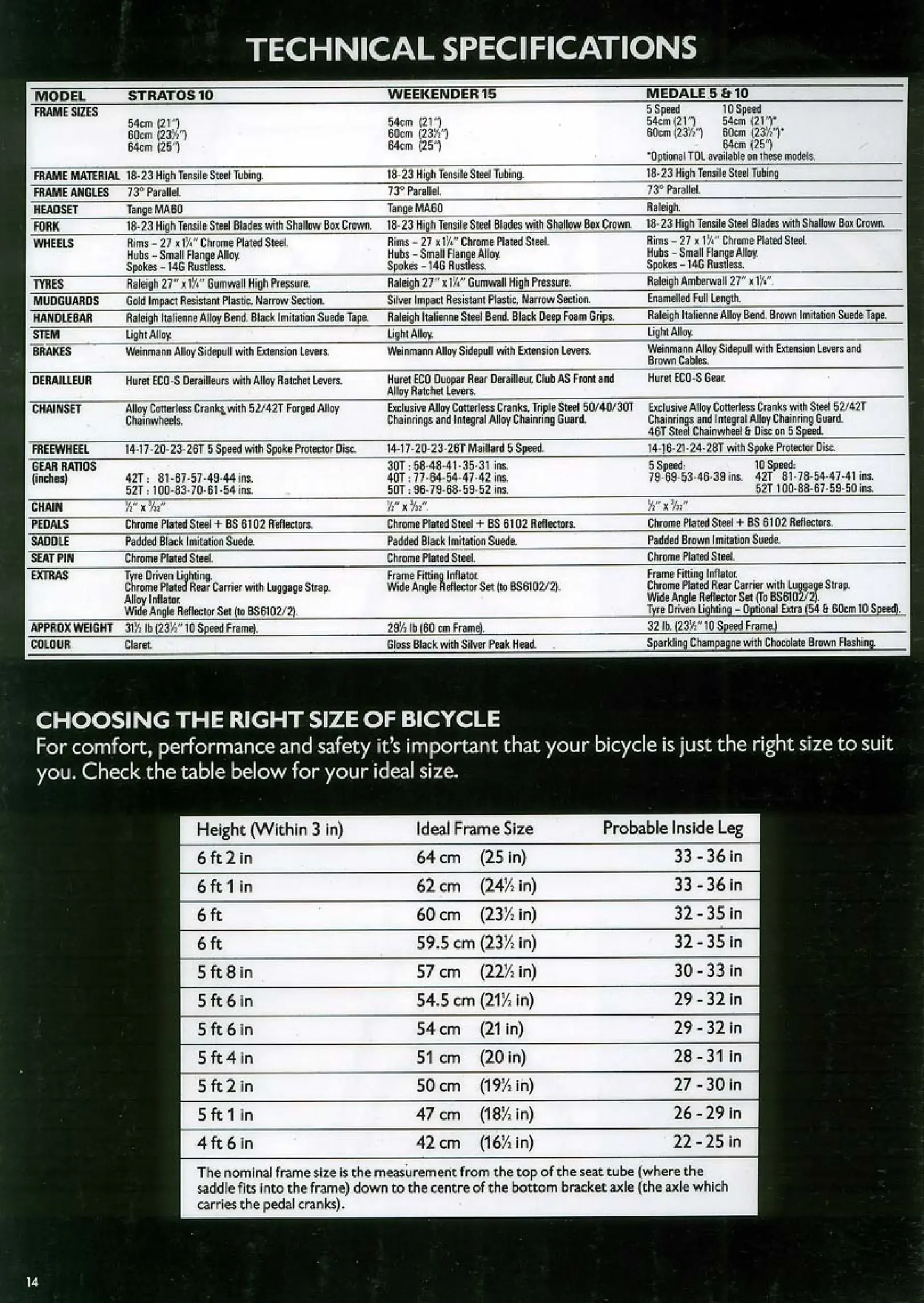

— Page 14 (printed page 14, technical specifications and sizing) —
TECHNICAL SPECIFICATIONS
STRATOS 10 — Frame sizes 54cm (21″), 60cm (23½”), 64cm (25″). 18-23 High Tensile Steel Tubing. 73° Parallel. Headset Tange MA60. Fork 18-23 High Tensile Steel Blades with Shallow Box Crown. Wheels: rims 27 x 1¼” Chrome Plated Steel; hubs Small Flange Alloy; spokes 14G Rustless. Tyres Raleigh 27″ x 1¼” Gumwall High Pressure. Mudguards Gold Impact Resistant Plastic, Narrow Section. Handlebar Raleigh Italienne Alloy Bend, Black Imitation Suede Tape. Stem Light Alloy. Brakes Weinmann Alloy Sidepull with Extension Levers. Derailleur Huret ECO-S Derailleurs with Alloy Ratchet Levers. Chainset Alloy Cotterless Cranks with 52/42T Forged Alloy Chainwheels. Freewheel 14-17-20-23-26T 5 Speed with Spoke Protector Disc. Gear ratios 42T: 81-67-57-49-44 ins, 52T: 100-83-70-61-54 ins. Chain ½” x 3⁄32″. Pedals Chrome Plated Steel + BS 6102 Reflectors. Saddle Padded Black Imitation Suede. Seat pin Chrome Plated Steel. Extras Tyre Driven Lighting, Chrome Plated Rear Carrier with Luggage Strap, Alloy Inflator, Wide Angle Reflector Set (to BS6102/2). Approx weight 31½ lb (23½” 10 Speed Frame). Colour Claret.
WEEKENDER 15 — Frame sizes 54cm (21″), 60cm (23½”), 64cm (25″). 18-23 High Tensile Steel Tubing. 73° Parallel. Headset Tange MA60. Fork 18-23 High Tensile Steel Blades with Shallow Box Crown. Wheels: rims 27 x 1¼” Chrome Plated Steel; hubs Small Flange Alloy; spokes 14G Rustless. Tyres Raleigh 27″ x 1¼” Gumwall High Pressure. Mudguards Silver Impact Resistant Plastic, Narrow Section. Handlebar Raleigh Italienne Steel Bend, Black Deep Foam Grips. Stem Light Alloy. Brakes Weinmann Alloy Sidepull with Extension Levers. Derailleur Huret ECO Duopar Rear Derailleur, Club AS Front and Alloy Ratchet Levers. Chainset Exclusive Alloy Cotterless Cranks, Triple Steel 50/40/30T Chainrings and Integral Alloy Chainring Guard. Freewheel 14-17-20-23-26T Maillard 5 Speed. Gear ratios 30T: 58-48-41-35-31 ins, 40T: 77-64-54-47-42 ins, 50T: 96-79-68-59-52 ins. Chain ½” x 3⁄32″. Pedals Chrome Plated Steel + BS 6102 Reflectors. Saddle Padded Black Imitation Suede. Seat pin Chrome Plated Steel. Extras Frame Fitting Inflator, Wide Angle Reflector Set (to BS6102/2). Approx weight 29½ lb (60 cm Frame). Colour Gloss Black with Silver Peak Head.
MEDALE 5 & 10 — Frame sizes 5 Speed 54cm (21″), 60cm (23½”); 10 Speed 54cm (21″)*, 60cm (23½”)*, 64cm (25″). *Optional TDL available on these models. 18-23 High Tensile Steel Tubing. 73° Parallel. Headset Raleigh. Fork 18-23 High Tensile Steel Blades with Shallow Box Crown. Wheels: rims 27 x 1¼” Chrome Plated Steel; hubs Small Flange Alloy; spokes 14G Rustless. Tyres Raleigh Amberwall 27″ x 1¼”. Mudguards Enamelled Full Length. Handlebar Raleigh Italienne Alloy Bend, Brown Imitation Suede Tape. Stem Light Alloy. Brakes Weinmann Alloy Sidepull with Extension Levers and Brown Cables. Derailleur Huret ECO-S Gear. Chainset Exclusive Alloy Cotterless Cranks with Steel 52/42T Chainrings and Integral Alloy Chainring Guard. 46T Steel Chainwheel & Disc on 5 Speed. Freewheel 14-16-21-24-28T with Spoke Protector Disc. Gear ratios 5 Speed: 79-69-53-46-39 ins; 10 Speed: 42T 81-78-64-54-47-41 ins, 52T 100-88-67-59-50 ins. Chain ½” x 3⁄32″. Pedals Chrome Plated Steel + BS 6102 Reflectors. Saddle Padded Brown Imitation Suede. Seat pin Chrome Plated Steel. Extras Frame Fitting Inflator, Chrome Plated Rear Carrier with Luggage Strap, Wide Angle Reflector Set (To BS6102/2), Tyre Driven Lighting – Optional Extra (54 & 60cm 10 Speed). Approx weight 32 lb. (23½” 10 Speed Frame). Colour Sparkling Champagne with Chocolate Brown Flashing.
CHOOSING THE RIGHT SIZE OF BICYCLE
For comfort, performance and safety it’s important that your bicycle is just the right size to suit you. Check the table below for your ideal size.
Height (Within 3 in) / Ideal Frame Size / Probable Inside Leg
6 ft 2 in — 64 cm (25 in) — 33-36 in
6 ft 1 in — 62 cm (24½ in) — 33-36 in
6 ft — 60 cm (23½ in) — 32-35 in
6 ft — 59.5 cm (23½ in) — 32-35 in
5 ft 8 in — 57 cm (22½ in) — 30-33 in
5 ft 6 in — 54.5 cm (21½ in) — 29-32 in
5 ft 6 in — 54 cm (21 in) — 29-32 in
5 ft 4 in — 51 cm (20 in) — 28-31 in
5 ft 2 in — 50 cm (19½ in) — 27-30 in
5 ft 1 in — 47 cm (18½ in) — 26-29 in
4 ft 6 in — 42 cm (16½ in) — 22-25 in
The nominal frame size is the measurement from the top of the seat tube (where the saddle fits into the frame) down to the centre of the bottom bracket axle (the axle which carries the pedal cranks).
14
[A three-column specification grid above the white sizing table.]

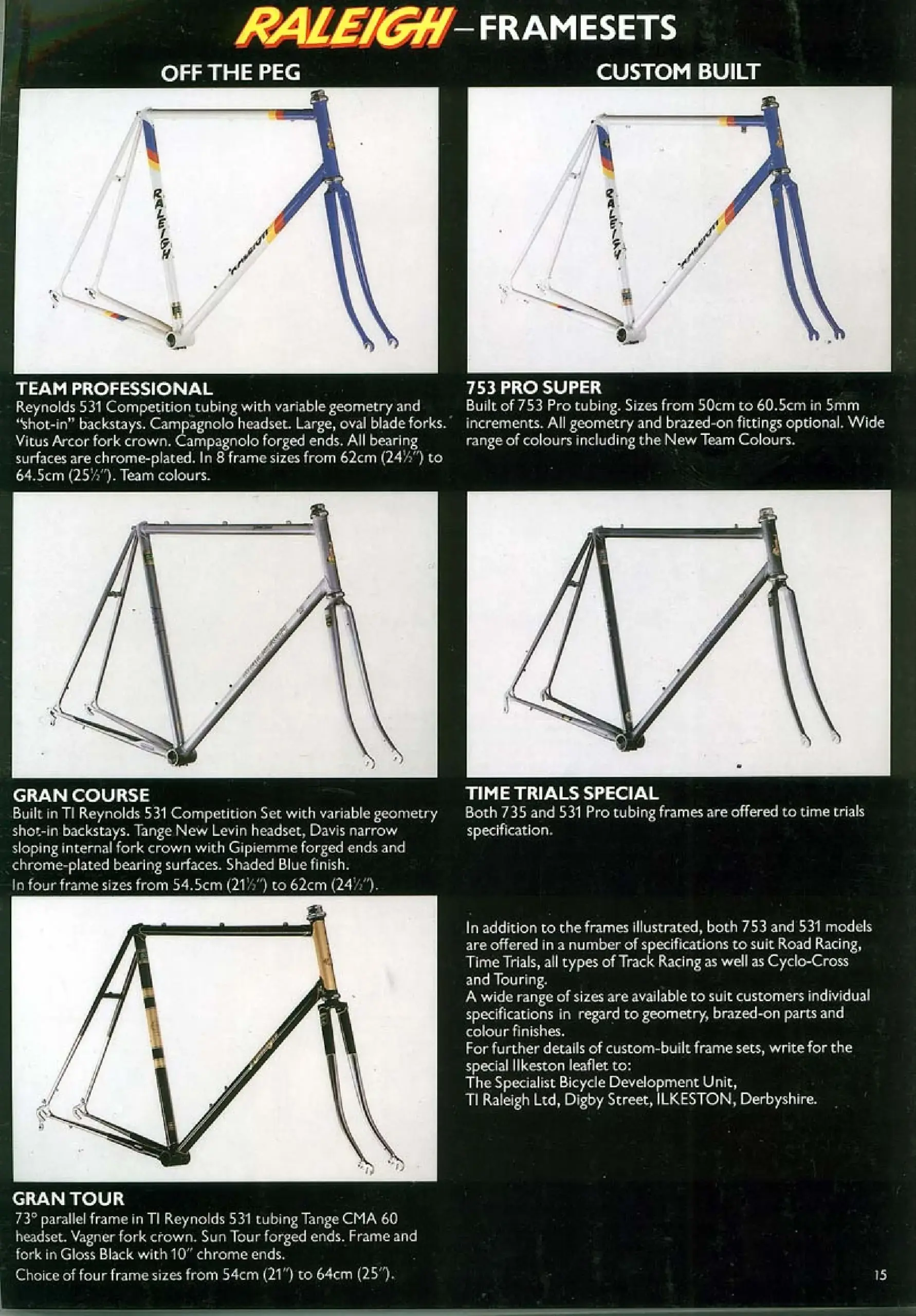

— Page 15 (printed page 15) —
RALEIGH – FRAMESETS
OFF THE PEG
TEAM PROFESSIONAL
Reynolds 531 Competition tubing with variable geometry and “shot-in” backstays. Campagnolo headset. Large, oval blade forks. Vitus Arcor fork crown. Campagnolo forged ends. All bearing surfaces are chrome-plated. In 8 frame sizes from 62cm (24½”) to 64.5cm (25½”). Team colours.
GRAN COURSE
Built in TI Reynolds 531 Competition Set with variable geometry shot-in backstays. Tange New Levin headset, Davis narrow sloping internal fork crown with Gipiemme forged ends and chrome-plated bearing surfaces. Shaded Blue finish.
In four frame sizes from 54.5cm (21½”) to 62cm (24½”).
GRAN TOUR
73° parallel frame in TI Reynolds 531 tubing Tange CMA 60 headset. Vagner fork crown. Sun Tour forged ends. Frame and fork in Gloss Black with 10″ chrome ends.
Choice of four frame sizes from 54cm (21″) to 64cm (25″).
CUSTOM BUILT
753 PRO SUPER
Built of 753 Pro tubing. Sizes from 50cm to 60.5cm in 5mm increments. All geometry and brazed-on fittings optional. Wide range of colours including the New Team Colours.
TIME TRIALS SPECIAL
Both 735 and 531 Pro tubing frames are offered to time trials specification.
In addition to the frames illustrated, both 753 and 531 models are offered in a number of specifications to suit Road Racing, Time Trials, all types of Track Racing as well as Cyclo-Cross and Touring.
A wide range of sizes are available to suit customers individual specifications in regard to geometry, brazed-on parts and colour finishes.
For further details of custom-built frame sets, write for the special Ilkeston leaflet to:
The Specialist Bicycle Development Unit,
TI Raleigh Ltd, Digby Street, ILKESTON, Derbyshire.
15
[Five framesets photographed bare on white — the Team Professional and 753 Pro Super in team colours at the top, the Gran Course and Time Trials Special below, and the Gloss Black Gran Tour at lower left.]

— Page 16 (printed page 16, back cover) —
THE RALEIGH WEINMANN PROFESSIONAL RACING TEAM
Steve Jones: Age 25 — Former British Junior 25-mile champion. Represented Britain in Moscow Olympics. Twice winner of Baracchi Trophy in Italy. Manager’s comments: “Very experienced, deceptively fast and strong individualist.”
John Wainwright: Age 21 — Prolific winner of schoolboy races. Represented Britain in 1980 World Junior Championships. Member of 1983 TI Raleigh/Campagnolo Team, with 2 Pro-Am wins. Manager’s comments: “Youngest team member who has already benefited enormously from a year as a Pro. Will really develop into a potent team member with us.”
Malcolm Elliott: Age 22 — Double Commonwealth gold medallist. Best all-round British rider 1983. Winner of 6 stages of Milk Race 1983. Winner of 2 stages Sealink International 1983. Manager’s comments: “Very fast finisher – physically and tactically strong.”
Dave Miller: Age 23 — Represented Scotland in Commonwealth Games 1982. Represented Britain many times. 21 wins in France and England in 1982. 13 wins in France 1983. Manager’s comments: “One of the few who can catch Malcolm Elliott at the finish.”
Nigel Bloor: Age 24 — Represented Britain in 1977 Junior World Championships. 10 wins 1982. 5 wins 1983. Represented Britain in Peace Race 1983. Manager’s comments: “Lots of unrealised potential and a fast finisher. This first season as a Pro will bring out his talents.”
George Shaw Team Manager — Managed successful Raleigh teams in the 1960s and early 1970s. He has managed professional teams throughout the continent and has also guided many of Britain’s top amateur riders in a professional career.
The Team bike specification is – Raleigh ‘Team’ framesets built from Reynolds 753 tubing; Weinmann 405/185 brakes and Carrera rims; Simplex 4000/422 Derailleurs, seat pillar and fork ends; Maillard 700 series Heliomatic hubs and freewheels, and CXC 700 pedals; Selle Italia Turbo saddles; Sedisport chains; Vittoria tyres; Ofmega Mistral chainsets and headsets. GB handlebars and stems.
Granada 2.3 GL is by Cowie Contract Hire.
Clothing is by Santini. Replica team clothing is available from your local Raleigh dealer.
This catalogue is one of a set of 6 available free from your Raleigh dealer.
RALEIGH FUN BIKES
RALEIGH LEISURE and COMMUTER CYCLES
RALEIGH STREET BIKES
RALEIGH RACERS — The Race-Bred Raleighs
RALEIGH BURNERS — Go for it with Aero Frame Burners
All the bicycles shown in this catalogue are available from your RALEIGH DEALER –
Our policy of continual improvement means that product specification and appearance may be changed while this catalogue is still in use.
TI RALEIGH LTD., NOTTINGHAM, ENGLAND
[Back cover. A color photograph of the six-man Raleigh Weinmann team in blue, yellow and white jerseys standing behind a team bicycle in front of the team car and van, the manager in a blue blazer at right. Rider biographies run beneath in six columns, and five companion catalog covers are reproduced at lower left beside a blank dealer stamp panel.]
