Raleigh 1974 Catalog — Lightweight Bicycles (United States)

— Page 1 (front cover) —
RALEIGH
lightweight bicycles

[The front cover of a Raleigh lightweight bicycles catalog, showing a man and a woman riding Raleigh bicycles along a leaf-covered path under autumn trees. The Raleigh heron head badge, lettered “THE RALEIGH NOTTINGHAM ENGLAND”, is pictured beside the wordmark.]

— Page 2 —
Raleigh Action
2

[A bunch of racing cyclists rounding a bend on a road circuit, led by riders in white Raleigh jerseys with TI shoulder badges. The page carries only the heading “Raleigh Action” and the folio.]

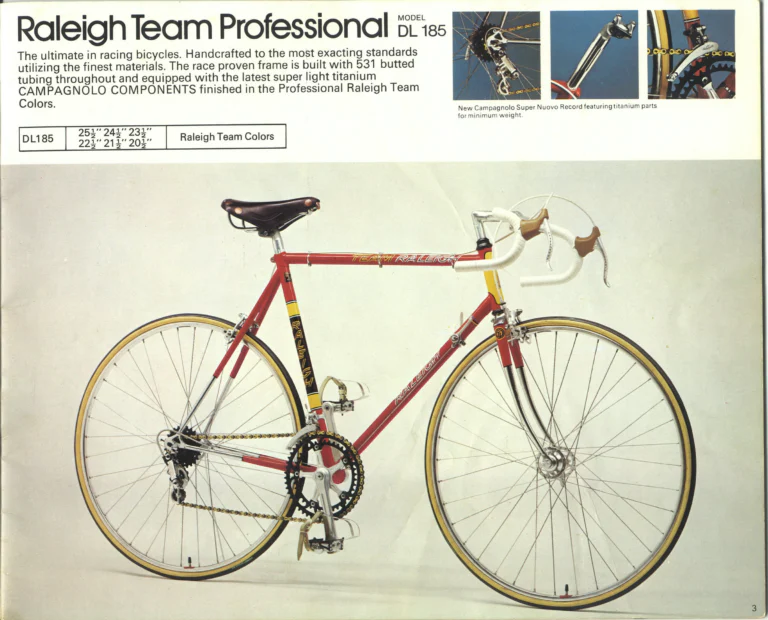

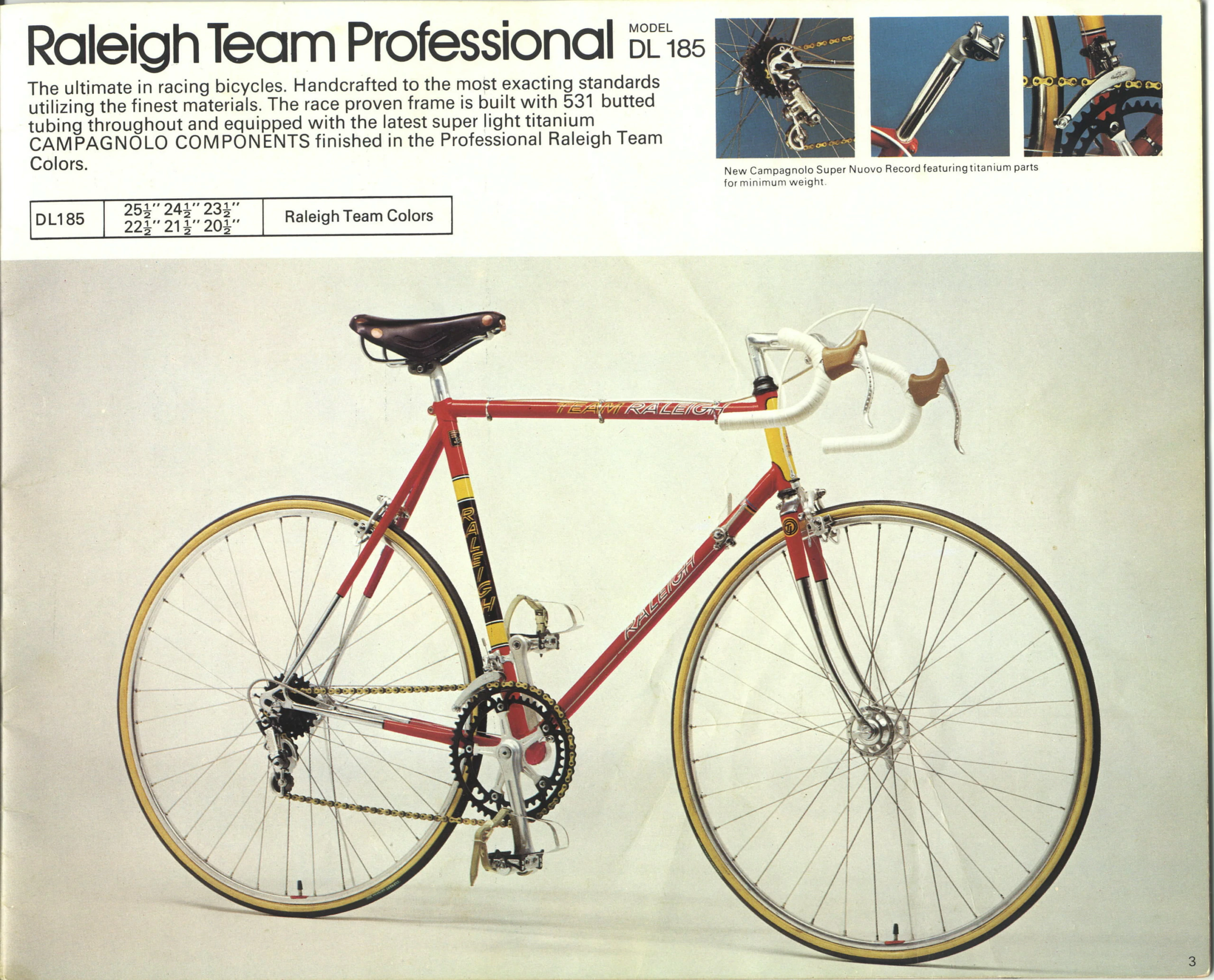

— Page 3 —
Raleigh Team Professional
MODEL DL 185

The ultimate in racing bicycles. Handcrafted to the most exacting standards utilizing the finest materials. The race proven frame is built with 531 butted tubing throughout and equipped with the latest super light titanium CAMPAGNOLO COMPONENTS finished in the Professional Raleigh Team Colors.

DL185 | 25½” 24½” 23½” 22½” 21½” 20½” | Raleigh Team Colors

New Campagnolo Super Nuovo Record featuring titanium parts for minimum weight.

3

[The Raleigh Team Professional, model DL 185, shown in a studio photograph in red with yellow and black panels and “TEAM RALEIGH” lettering on the top tube. Three close-up photographs show the Campagnolo rear derailleur, seat post and front derailleur with chainset, and a boxed line gives the frame sizes and color.]

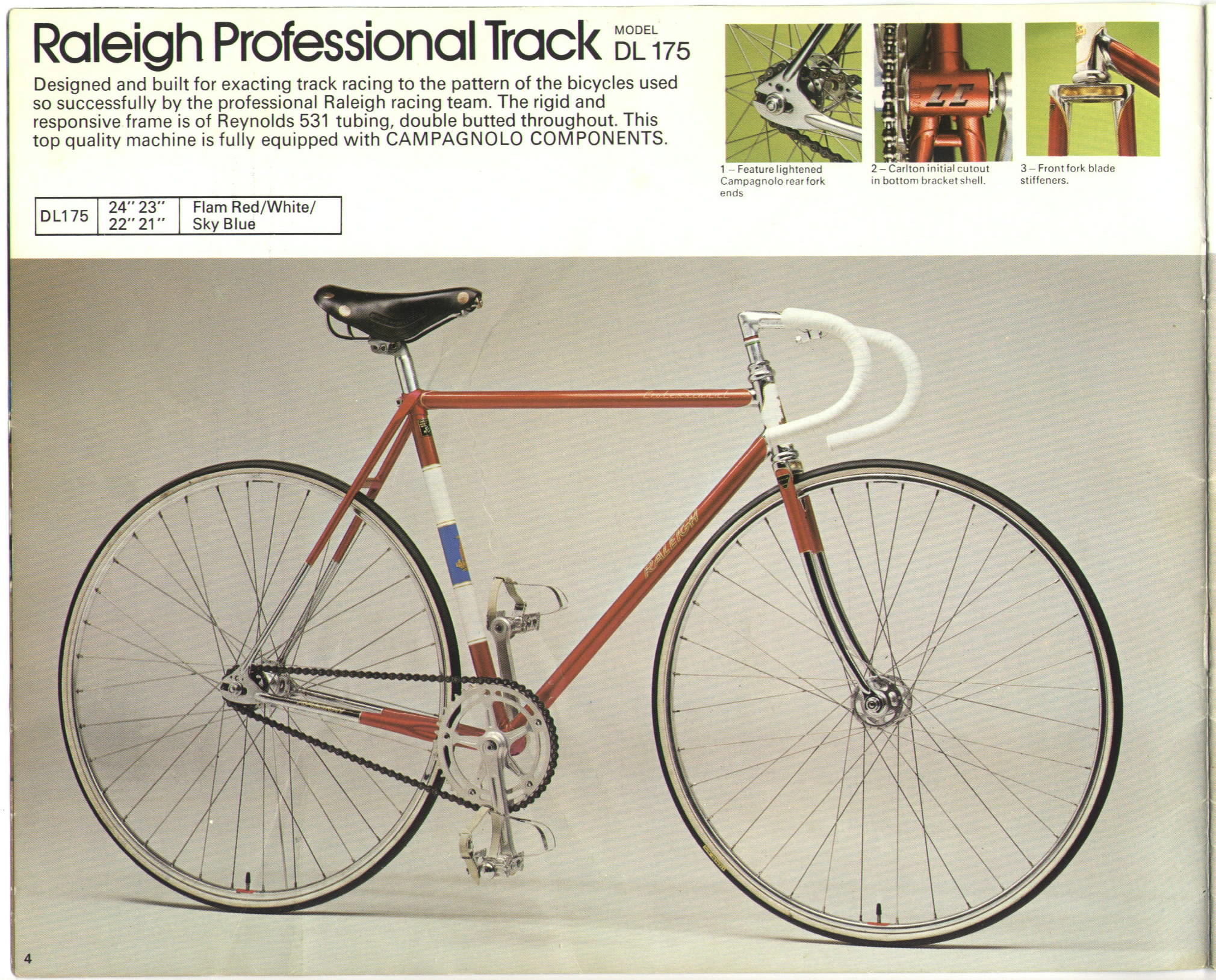

— Page 4 —
Raleigh Professional Track
MODEL DL 175

Designed and built for exacting track racing to the pattern of the bicycles used so successfully by the professional Raleigh racing team. The rigid and responsive frame is of Reynolds 531 tubing, double butted throughout. This top quality machine is fully equipped with CAMPAGNOLO COMPONENTS.

DL175 | 24″ 23″ 22″ 21″ | Flam Red/White/Sky Blue

1 – Feature lightened Campagnolo rear fork ends

2 – Carlton initial cutout in bottom bracket shell.

3 – Front fork blade stiffeners.

4

[The Raleigh Professional Track, model DL 175, shown in a studio photograph as a fixed-gear track bicycle in red with a white and blue seat tube panel. Three numbered close-up photographs show the Campagnolo rear fork ends, the Carlton initial cut into the bottom bracket shell and the front fork blade stiffeners, and a boxed line gives the frame sizes and color.]

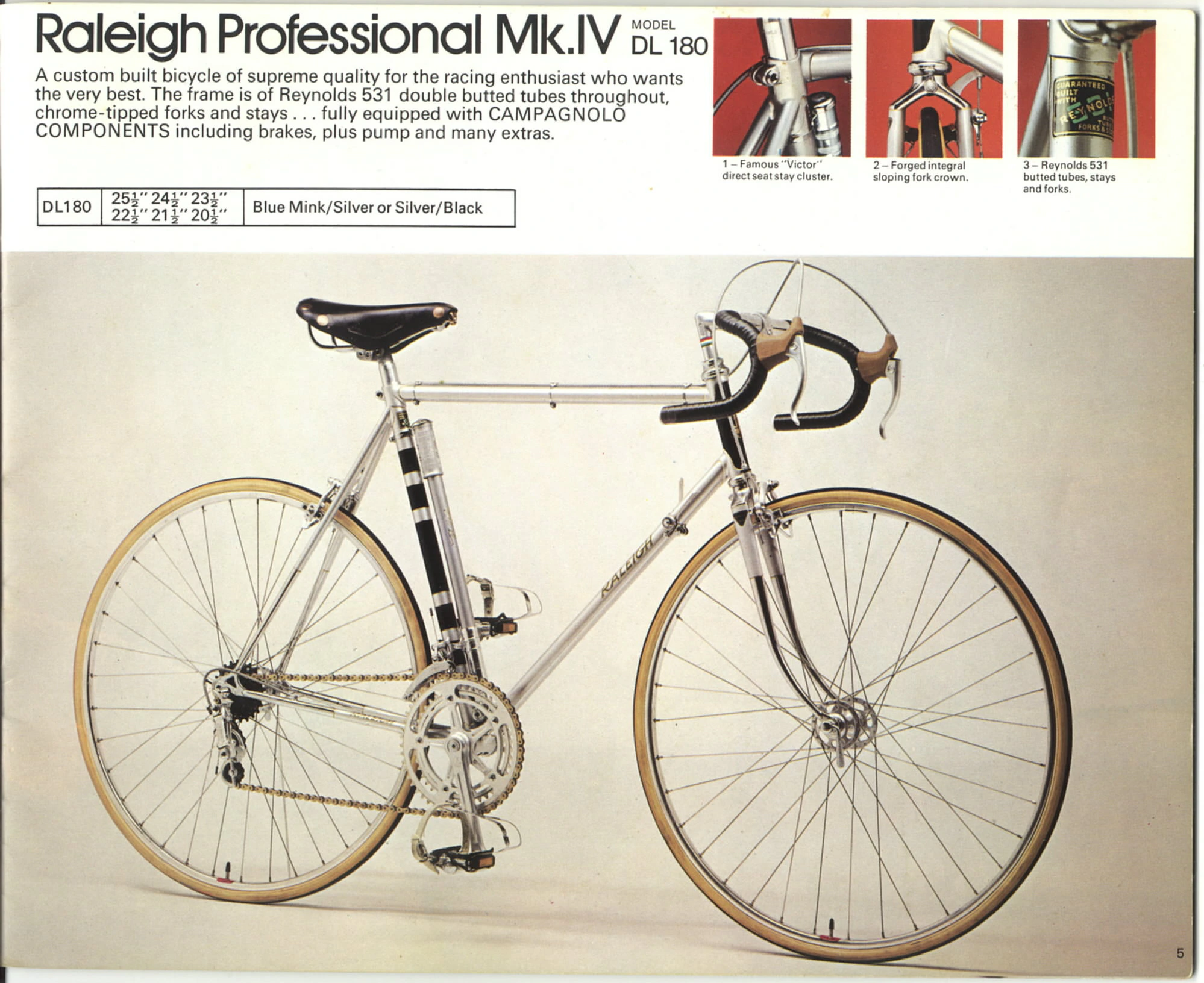

— Page 5 —
Raleigh Professional Mk.IV
MODEL DL 180

A custom built bicycle of supreme quality for the racing enthusiast who wants the very best. The frame is of Reynolds 531 double butted tubes throughout, chrome-tipped forks and stays . . . fully equipped with CAMPAGNOLO COMPONENTS including brakes, plus pump and many extras.

DL180 | 25½” 24½” 23½” 22½” 21½” 20½” | Blue Mink/Silver or Silver/Black

1 – Famous “Victor” direct seat stay cluster.

2 – Forged integral sloping fork crown.

3 – Reynolds 531 butted tubes, stays and forks.

5

[The Raleigh Professional Mk.IV, model DL 180, shown in a studio photograph in silver with black panels on the seat tube. Three numbered close-up photographs show the seat stay cluster, the fork crown and the Reynolds 531 tubing label, and a boxed line gives the frame sizes and color choices.]

— Page 6 —

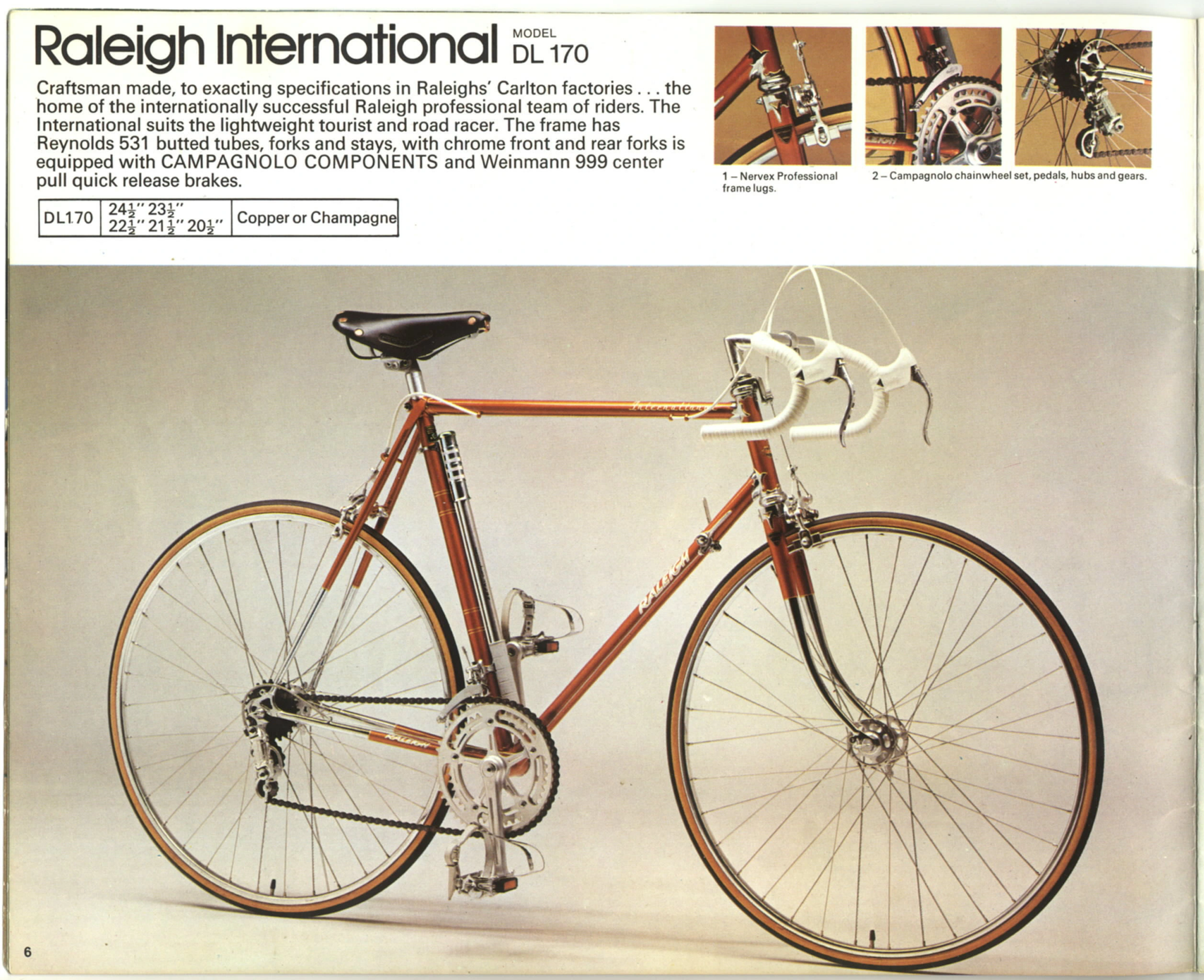

Raleigh International
MODEL DL 170

Craftsman made, to exacting specifications in Raleighs’ Carlton factories . . . the home of the internationally successful Raleigh professional team of riders. The International suits the lightweight tourist and road racer. The frame has Reynolds 531 butted tubes, forks and stays, with chrome front and rear forks is equipped with CAMPAGNOLO COMPONENTS and Weinmann 999 center pull quick release brakes.

DL170 | 24½” 23½” 22½” 21½” 20½” | Copper or Champagne

1 – Nervex Professional frame lugs.

2 – Campagnolo chainwheel set, pedals, hubs and gears.

6

[The Raleigh International, model DL 170, shown in a studio photograph in copper with a pump fitted along the seat tube. Two numbered close-up photographs show the Nervex Professional lugs with a front derailleur and the Campagnolo chainset and rear derailleur, and a boxed line gives the frame sizes and color choices.]

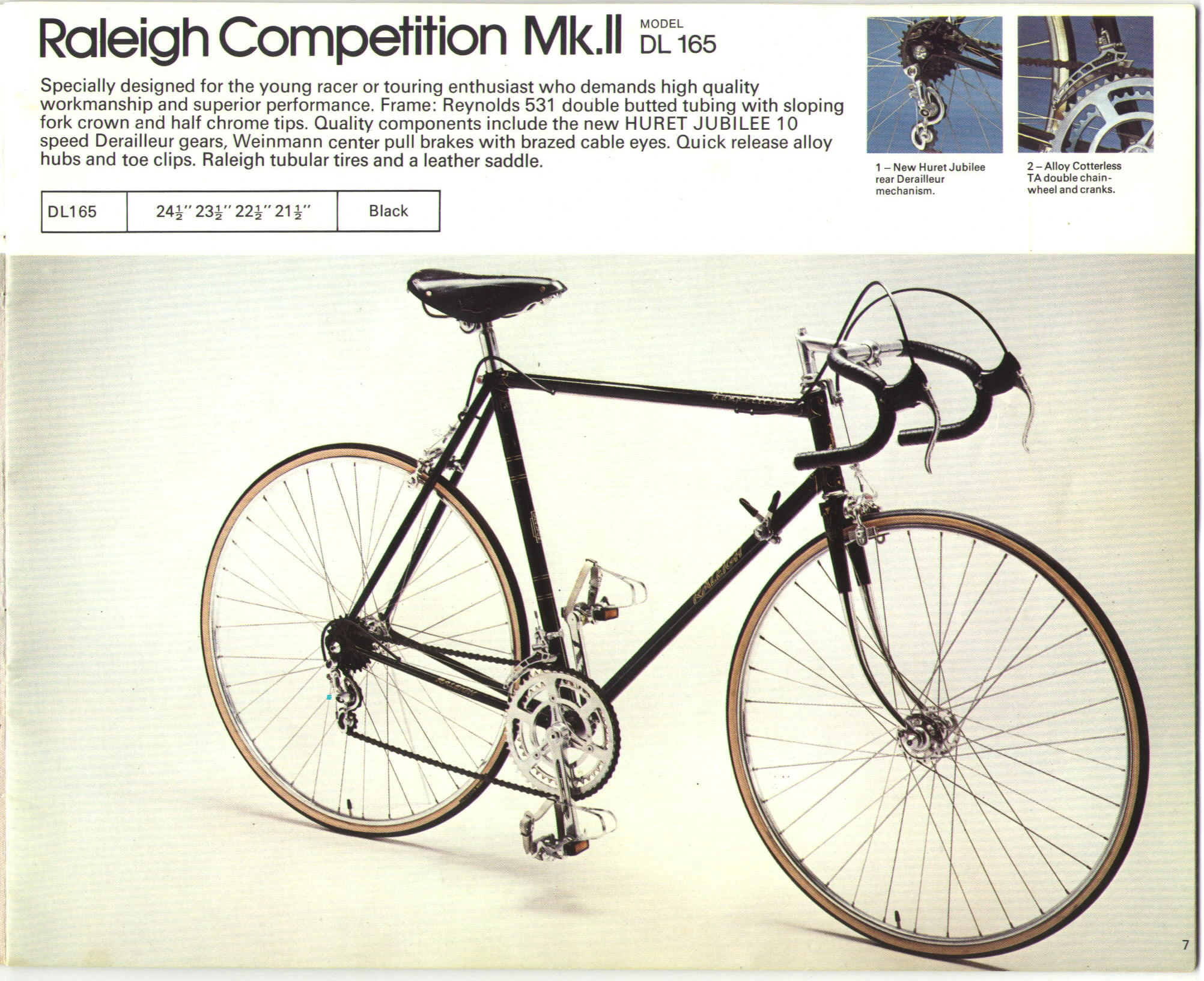

— Page 7 —
Raleigh Competition Mk.II
MODEL DL 165

Specially designed for the young racer or touring enthusiast who demands high quality workmanship and superior performance. Frame: Reynolds 531 double butted tubing with sloping fork crown and half chrome tips. Quality components include the new HURET JUBILEE 10 speed Derailleur gears, Weinmann center pull brakes with brazed cable eyes. Quick release alloy hubs and toe clips. Raleigh tubular tires and a leather saddle.

DL165 | 24½” 23½” 22½” 21½” | Black

1 – New Huret Jubilee rear Derailleur mechanism.

2 – Alloy Cotterless TA double chainwheel and cranks.

7

[The Raleigh Competition Mk.II, model DL 165, shown in a studio photograph in black with gold lettering. Two numbered close-up photographs show the Huret Jubilee rear derailleur and the TA double chainset, and a boxed line gives the frame sizes and color.]

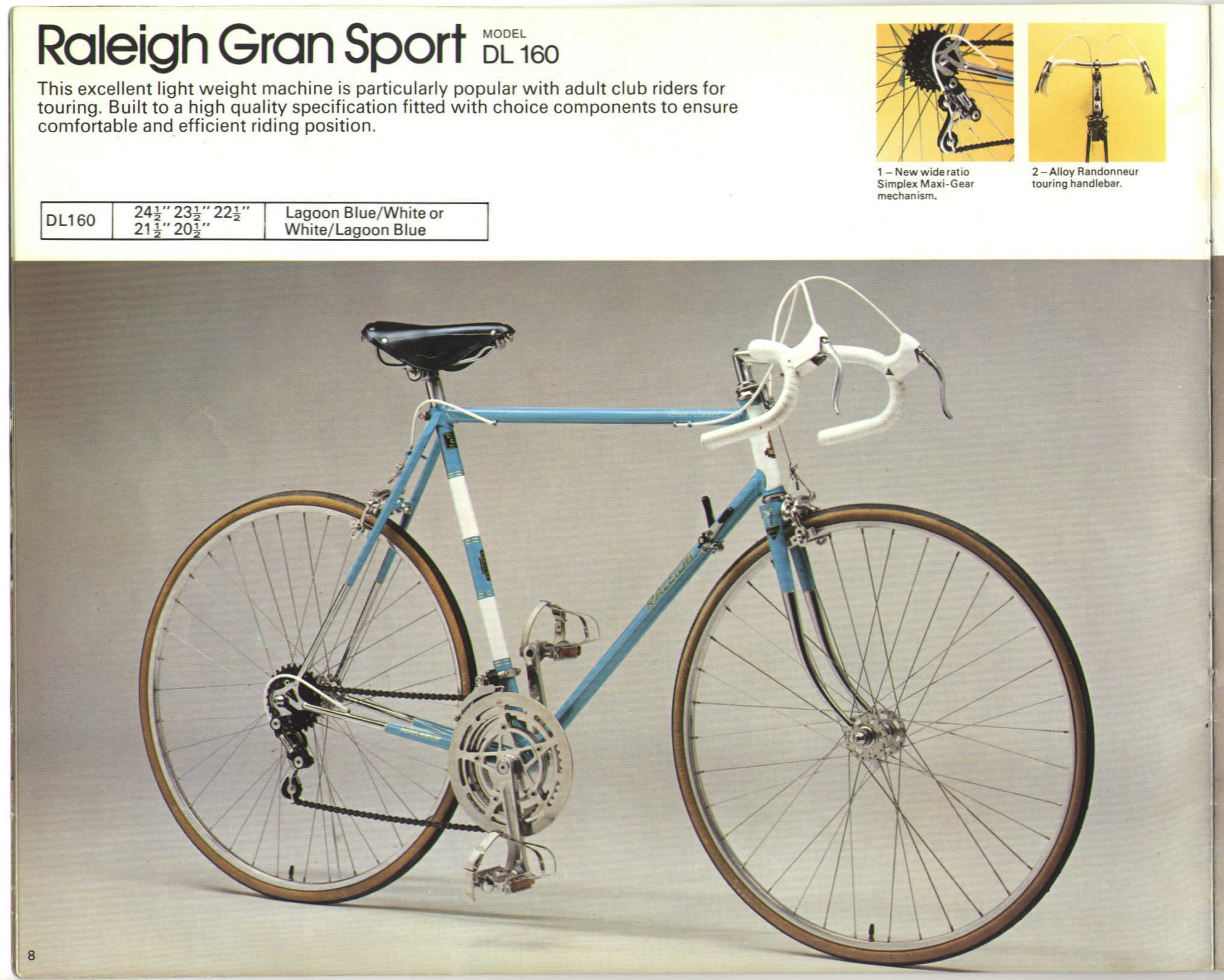

— Page 8 —
Raleigh Gran Sport
MODEL DL 160

This excellent light weight machine is particularly popular with adult club riders for touring. Built to a high quality specification fitted with choice components to ensure comfortable and efficient riding position.

DL160 | 24½” 23½” 22½” 21½” 20½” | Lagoon Blue/White or White/Lagoon Blue

1 – New wide ratio Simplex Maxi-Gear mechanism.

2 – Alloy Randonneur touring handlebar.

8

[The Raleigh Gran Sport, model DL 160, shown in a studio photograph in light blue with a white seat tube panel and a chainguard on the chainset. Two numbered close-up photographs show the Simplex wide ratio rear derailleur and the alloy Randonneur handlebar, and a boxed line gives the frame sizes and color choices.]

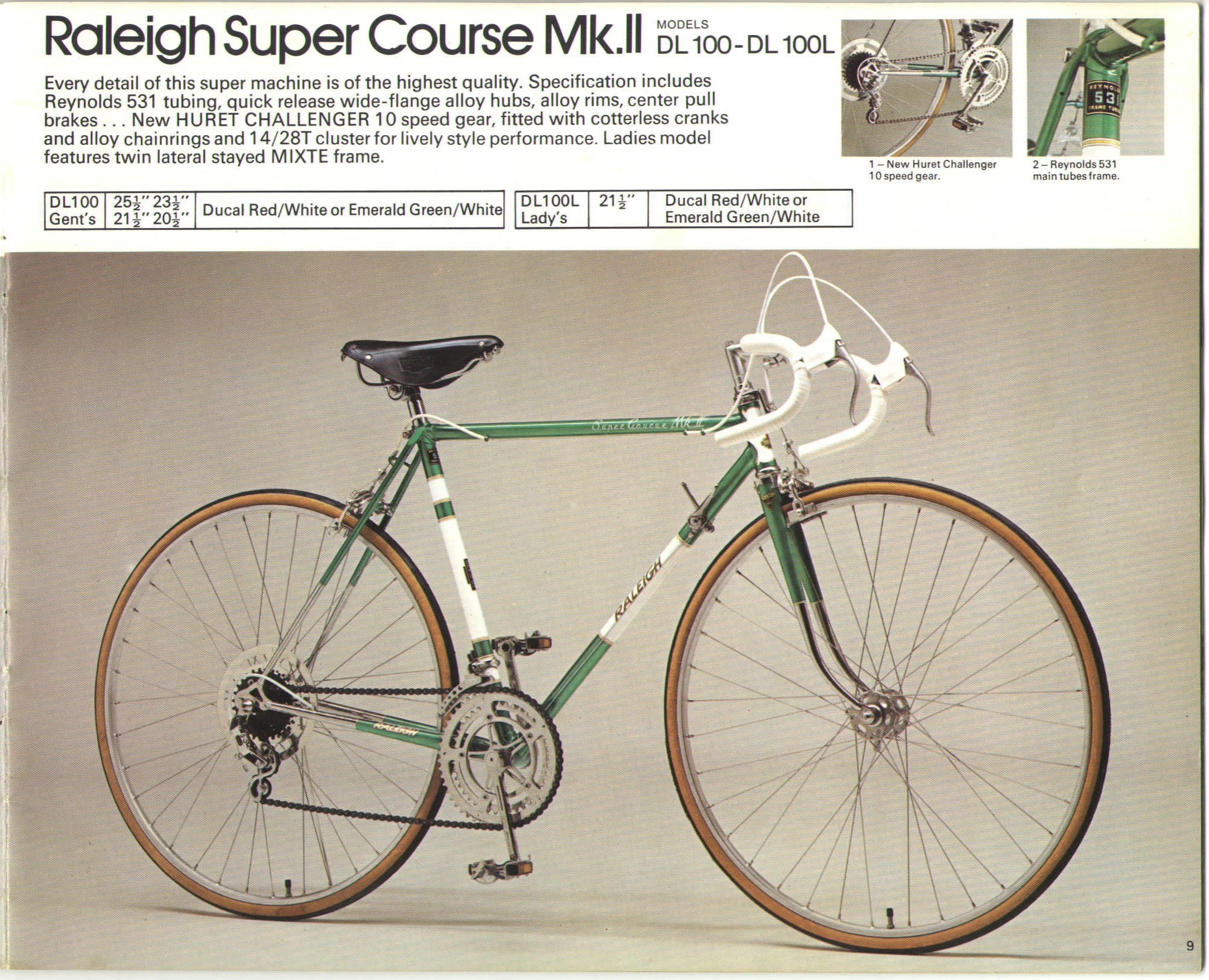

— Page 9 —
Raleigh Super Course Mk.II
MODELS DL 100 – DL 100L

Every detail of this super machine is of the highest quality. Specification includes Reynolds 531 tubing, quick release wide-flange alloy hubs, alloy rims, center pull brakes . . . New HURET CHALLENGER 10 speed gear, fitted with cotterless cranks and alloy chainrings and 14/28T cluster for lively style performance. Ladies model features twin lateral stayed MIXTE frame.

DL100 Gent’s | 25½” 23½” 21½” 20½” | Ducal Red/White or Emerald Green/White

DL100L Lady’s | 21½” | Ducal Red/White or Emerald Green/White

1 – New Huret Challenger 10 speed gear.

2 – Reynolds 531 main tubes frame.

9

[The Raleigh Super Course Mk.II, models DL 100 and DL 100L, with the gent’s model shown in a studio photograph in green with white panels. Two numbered close-up photographs show the Huret Challenger rear derailleur and the Reynolds 531 tubing label, and two boxed lines give the frame sizes and color choices for the gent’s and lady’s models.]

— Page 10 —

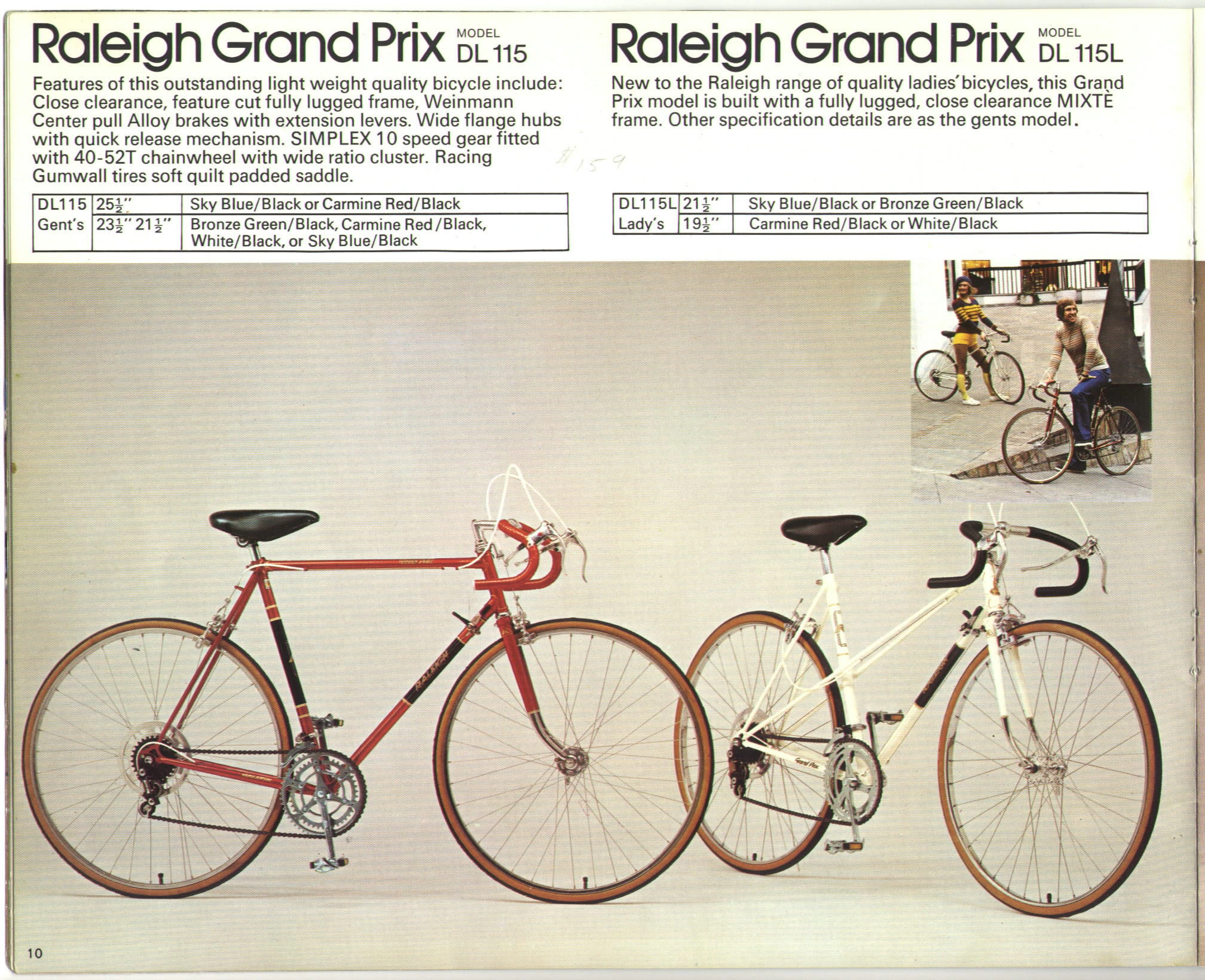

Raleigh Grand Prix MODEL DL 115

Features of this outstanding light weight quality bicycle include: Close clearance, feature cut fully lugged frame, Weinmann Center pull Alloy brakes with extension levers. Wide flange hubs with quick release mechanism. SIMPLEX 10 speed gear fitted with 40-52T chainwheel with wide ratio cluster. Racing Gumwall tires soft quilt padded saddle.

DL115 | 25½” | Sky Blue/Black or Carmine Red/Black
Gent’s | 23½” 21½” | Bronze Green/Black, Carmine Red /Black, White/Black, or Sky Blue/Black

Raleigh Grand Prix MODEL DL 115L

New to the Raleigh range of quality ladies’ bicycles, this Grand Prix model is built with a fully lugged, close clearance MIXTÈ frame. Other specification details are as the gents model.

DL115L | 21½” | Sky Blue/Black or Bronze Green/Black
Lady’s | 19½” | Carmine Red/Black or White/Black

10

[The Raleigh Grand Prix DL 115 in red and the Grand Prix DL 115L ladies’ mixte model in white shown side by side in a studio photograph, with frame sizes and color choices for each. A small inset photograph shows a woman and a man with their bicycles outdoors. A price of “$159″ is penciled in by hand beside the DL 115 text.]

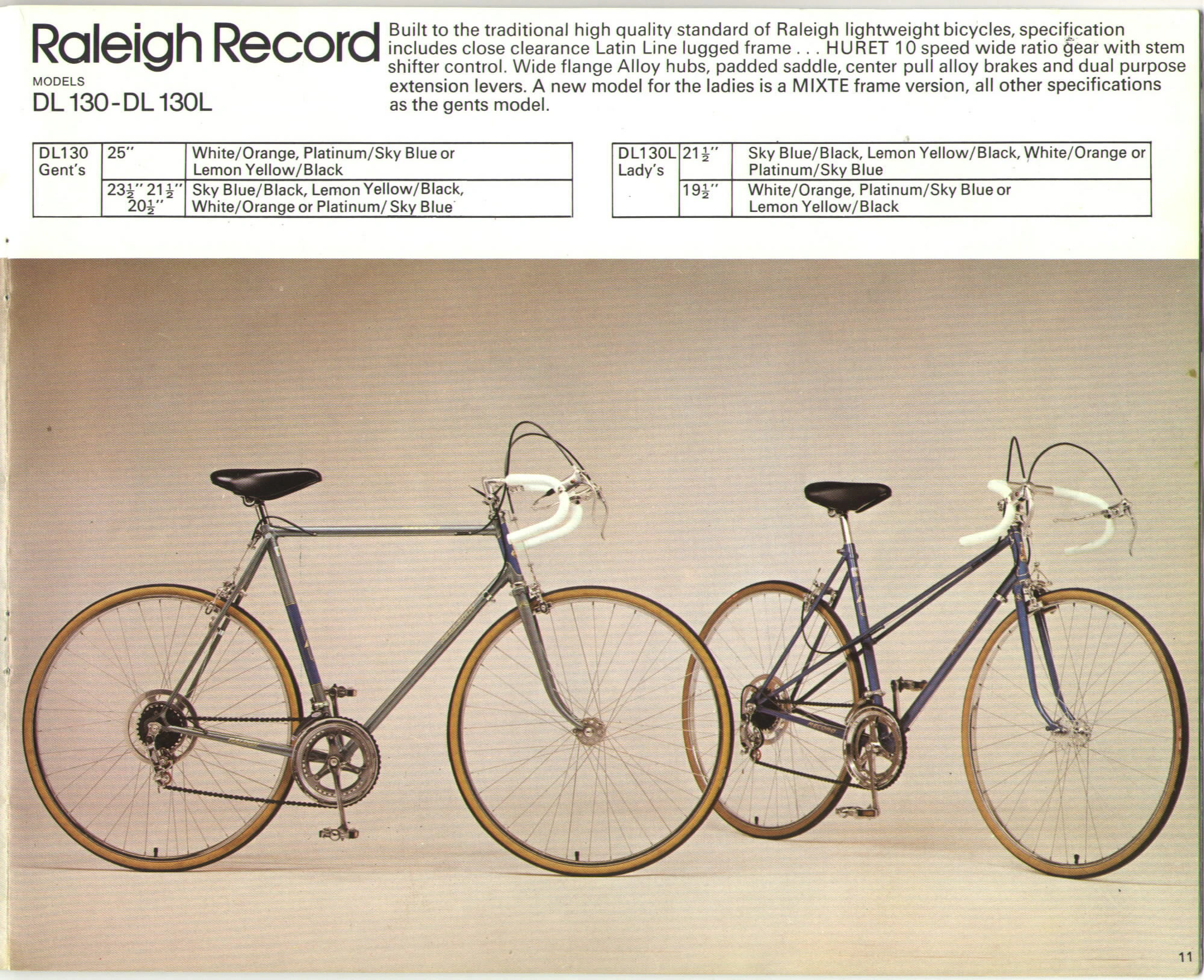

— Page 11 —
Raleigh Record

MODELS DL 130-DL 130L

Built to the traditional high quality standard of Raleigh lightweight bicycles, specification includes close clearance Latin Line lugged frame . . . HURET 10 speed wide ratio gear with stem shifter control. Wide flange Alloy hubs, padded saddle, center pull alloy brakes and dual purpose extension levers. A new model for the ladies is a MIXTE frame version, all other specifications as the gents model.

DL130 Gent’s | 25″ | White/Orange, Platinum/Sky Blue or Lemon Yellow/Black
| 23½” 21½” 20½” | Sky Blue/Black, Lemon Yellow/Black, White/Orange or Platinum/ Sky Blue

DL130L Lady’s | 21½” | Sky Blue/Black, Lemon Yellow/Black, White/Orange or Platinum/Sky Blue
| 19½” | White/Orange, Platinum/Sky Blue or Lemon Yellow/Black

11

[The Raleigh Record DL 130 in silver gray and the Record DL 130L ladies’ mixte model in blue shown side by side in a studio photograph, with frame sizes and color choices for each.]

— Page 12 —
12

[A full-page color photograph of a smiling couple on a grassy slope under a blue sky, the woman holding red balloons beside a black ladies’ bicycle with upright handlebars and the man astride a white gents’ bicycle with flat handlebars. The page carries no lettering other than the folio.]

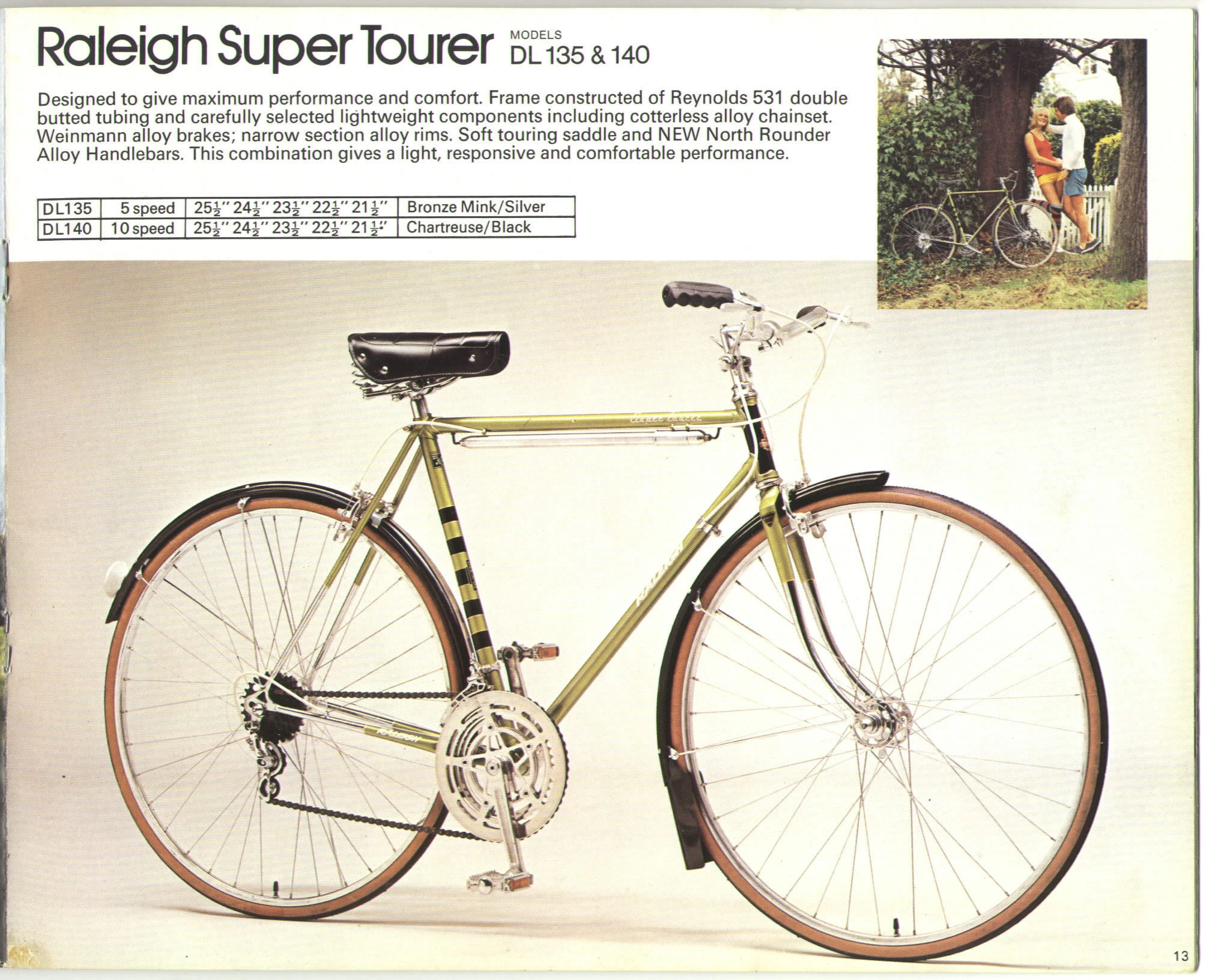

— Page 13 —
Raleigh Super Tourer MODELS DL 135 & 140

Designed to give maximum performance and comfort. Frame constructed of Reynolds 531 double butted tubing and carefully selected lightweight components including cotterless alloy chainset. Weinmann alloy brakes; narrow section alloy rims. Soft touring saddle and NEW North Rounder Alloy Handlebars. This combination gives a light, responsive and comfortable performance.

DL135 | 5 speed | 25½” 24½” 23½” 22½” 21½” | Bronze Mink/Silver
DL140 | 10 speed | 25½” 24½” 23½” 22½” 21½” | Chartreuse/Black

13

[The Raleigh Super Tourer DL 135 and DL 140 shown in a studio photograph of a chartreuse touring bicycle with flat handlebars, mudguards, a sprung saddle and a pump under the top tube, with frame sizes and colors for the 5 speed and 10 speed models. A small inset photograph shows a young couple beside a tree with the bicycle.]

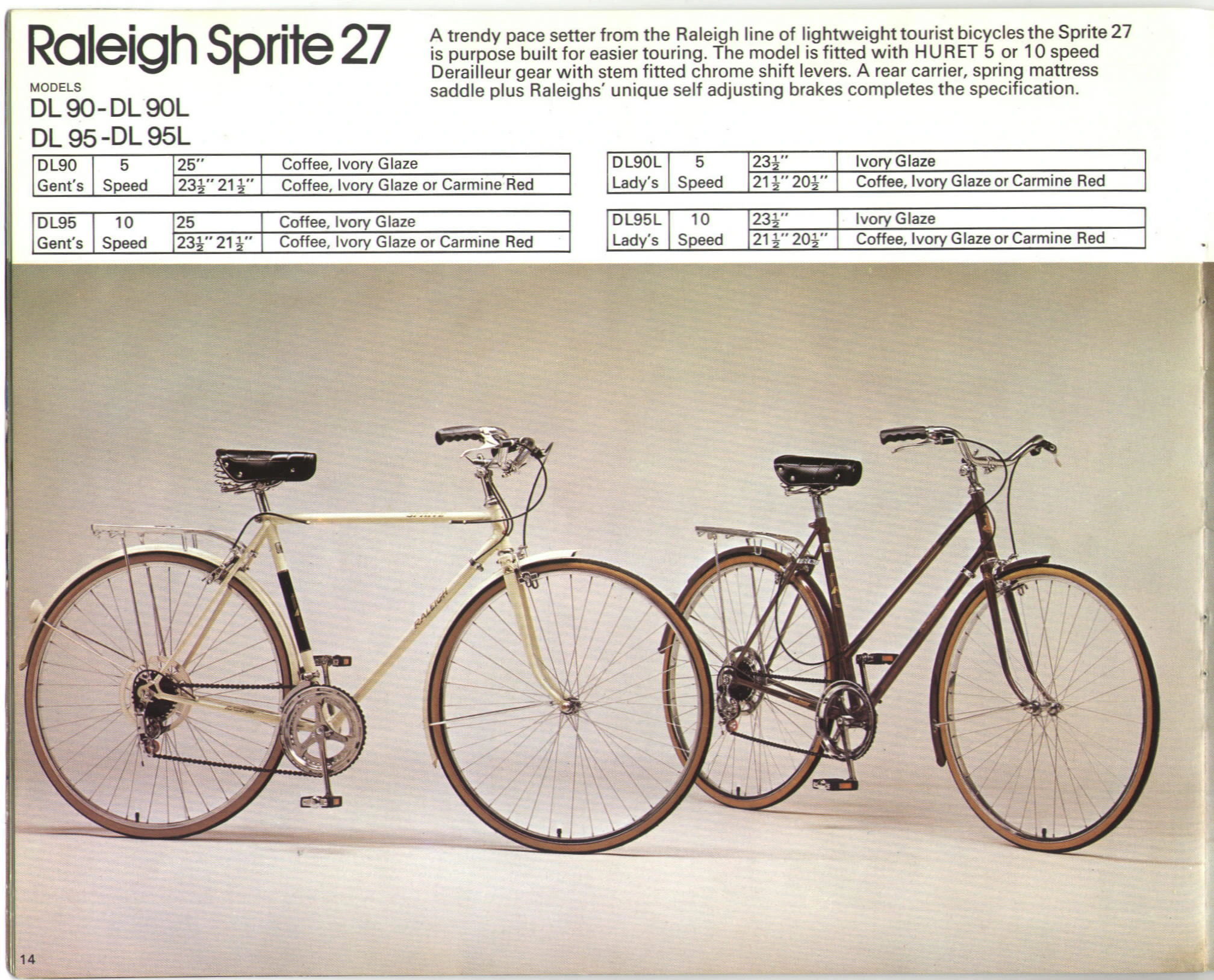

— Page 14 —
Raleigh Sprite 27

MODELS DL 90-DL 90L DL 95-DL 95L

A trendy pace setter from the Raleigh line of lightweight tourist bicycles the Sprite 27 is purpose built for easier touring. The model is fitted with HURET 5 or 10 speed Derailleur gear with stem fitted chrome shift levers. A rear carrier, spring mattress saddle plus Raleighs’ unique self adjusting brakes completes the specification.

DL90 Gent’s | 5 Speed | 25″ | Coffee, Ivory Glaze
| | 23½” 21½” | Coffee, Ivory Glaze or Carmine Red

DL95 Gent’s | 10 Speed | 25 | Coffee, Ivory Glaze
| | 23½” 21½” | Coffee, Ivory Glaze or Carmine Red

DL90L Lady’s | 5 Speed | 23½” | Ivory Glaze
| | 21½” 20½” | Coffee, Ivory Glaze or Carmine Red

DL95L Lady’s | 10 Speed | 23½” | Ivory Glaze
| | 21½” 20½” | Coffee, Ivory Glaze or Carmine Red

14

[The Raleigh Sprite 27 gents’ model in ivory and ladies’ model in brown shown side by side in a studio photograph, both with flat handlebars, mudguards, rear carriers and sprung saddles, with frame sizes and colors for the DL 90, DL 95, DL 90L and DL 95L.]

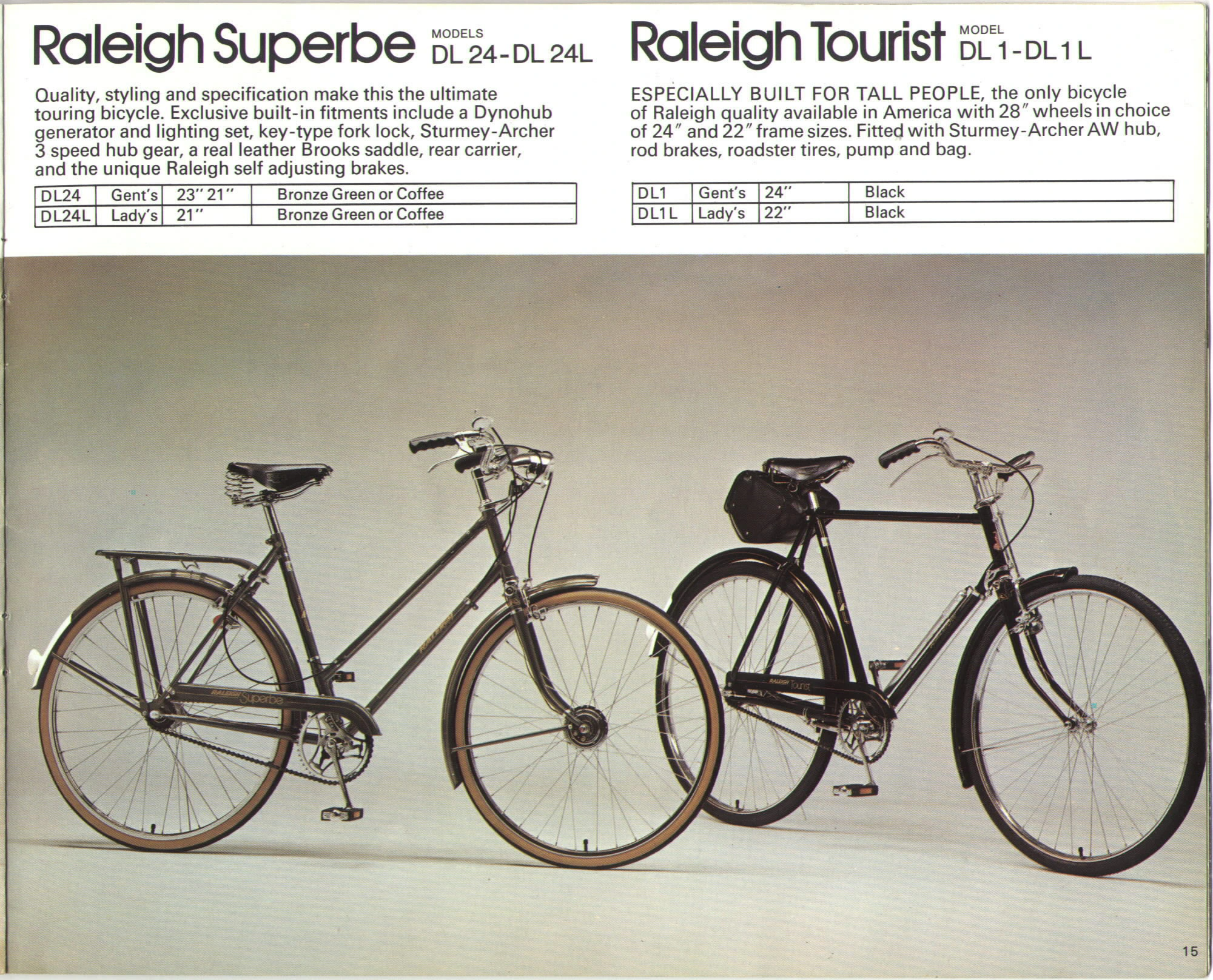

— Page 15 —
Raleigh Superbe MODELS DL 24-DL 24L

Quality, styling and specification make this the ultimate touring bicycle. Exclusive built-in fitments include a Dynohub generator and lighting set, key-type fork lock, Sturmey-Archer 3 speed hub gear, a real leather Brooks saddle, rear carrier, and the unique Raleigh self adjusting brakes.

DL24 | Gent’s | 23″ 21″ | Bronze Green or Coffee
DL24L | Lady’s | 21″ | Bronze Green or Coffee

Raleigh Tourist MODEL DL 1-DL 1 L

ESPECIALLY BUILT FOR TALL PEOPLE, the only bicycle of Raleigh quality available in America with 28″ wheels in choice of 24″ and 22″ frame sizes. Fitted with Sturmey-Archer AW hub, rod brakes, roadster tires, pump and bag.

DL1 | Gent’s | 24″ | Black
DL1L | Lady’s | 22″ | Black

15

[The Raleigh Superbe ladies’ model in dark green and the Raleigh Tourist gents’ model in black shown side by side in a studio photograph, the Superbe with a rear carrier, sprung saddle and front hub generator and the Tourist with rod brakes and a saddlebag, with frame sizes and colors for the DL 24, DL 24L, DL 1 and DL 1L.]

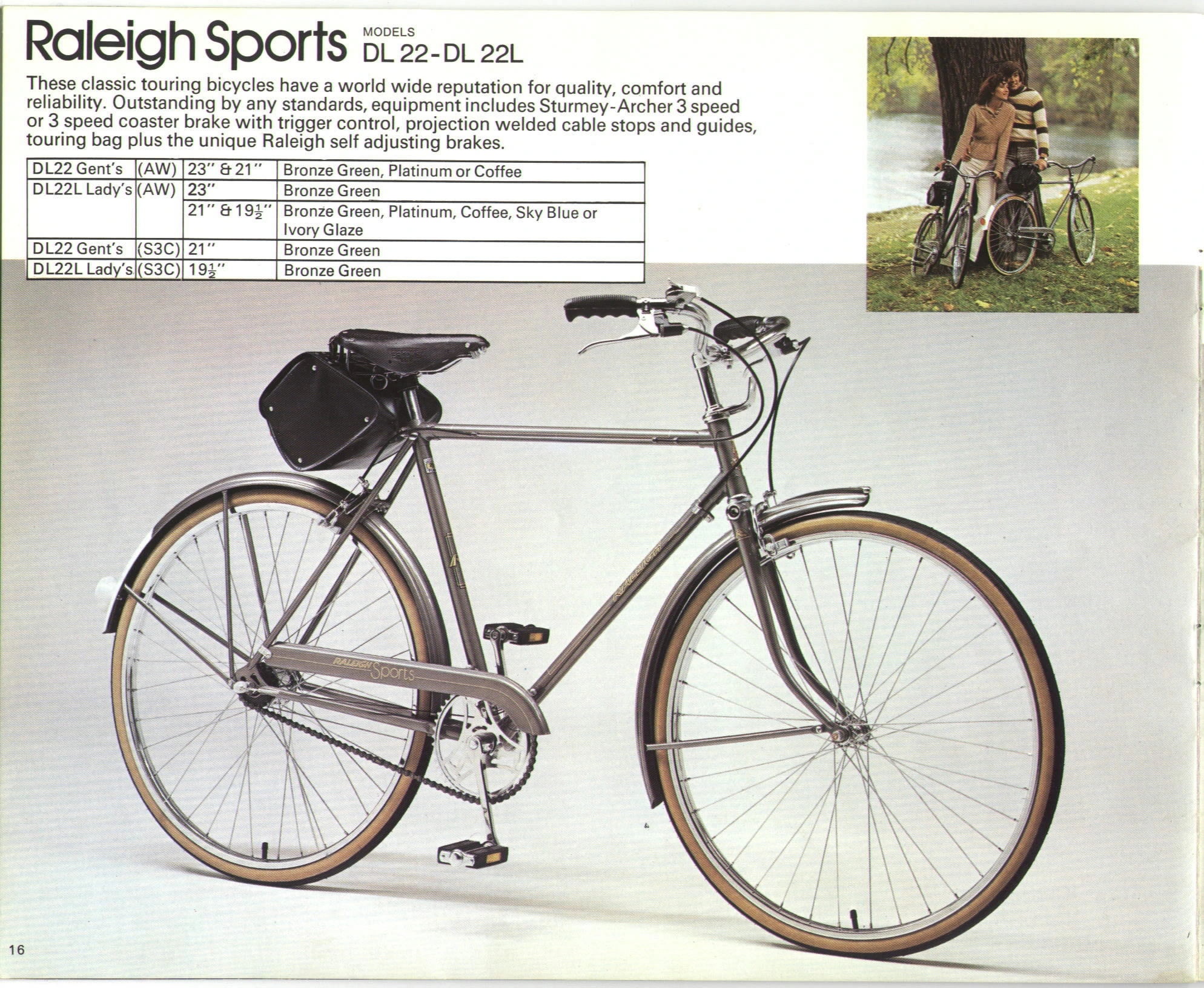

— Page 16 —
Raleigh Sports MODELS DL 22-DL 22L

These classic touring bicycles have a world wide reputation for quality, comfort and reliability. Outstanding by any standards, equipment includes Sturmey-Archer 3 speed or 3 speed coaster brake with trigger control, projection welded cable stops and guides, touring bag plus the unique Raleigh self adjusting brakes.

DL22 Gent’s | (AW) | 23″ & 21″ | Bronze Green, Platinum or Coffee
DL22L Lady’s | (AW) | 23″ | Bronze Green
| | 21″ & 19½” | Bronze Green, Platinum, Coffee, Sky Blue or Ivory Glaze
DL22 Gent’s | (S3C) | 21″ | Bronze Green
DL22L Lady’s | (S3C) | 19½” | Bronze Green

16

[The Raleigh Sports DL 22 gents’ three-speed shown in a studio photograph in a gray-green finish with flat handlebars, mudguards, a full chaincase and a saddlebag, with frame sizes and colors for the AW and S3C versions of the DL 22 and DL 22L. A small inset photograph shows a young couple standing under a tree beside a river with two bicycles.]

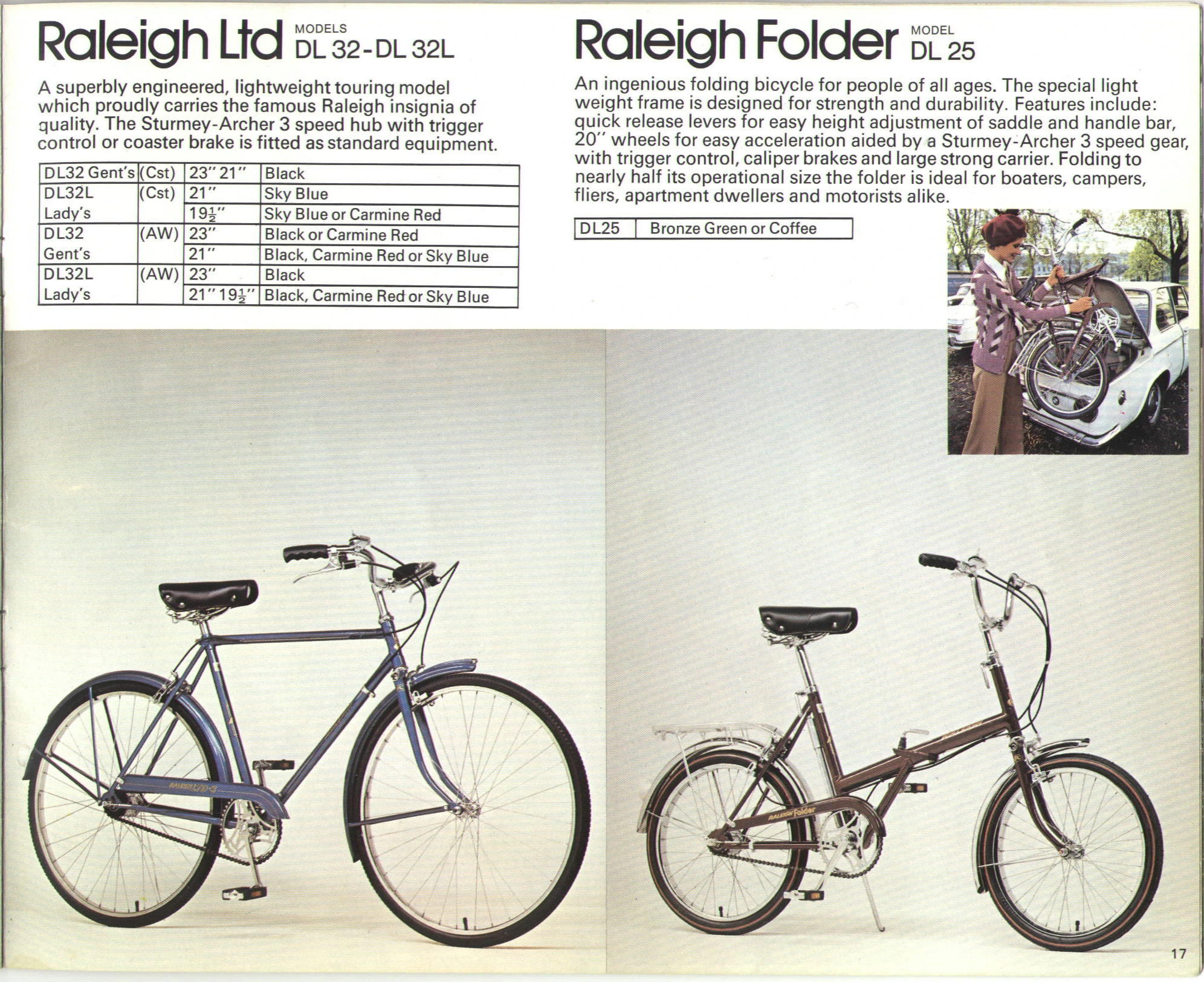

— Page 17 —
Raleigh Ltd MODELS DL 32-DL 32L

A superbly engineered, lightweight touring model which proudly carries the famous Raleigh insignia of quality. The Sturmey-Archer 3 speed hub with trigger control or coaster brake is fitted as standard equipment.

DL32 Gent’s | (Cst) | 23″ 21″ | Black
DL32L Lady’s | (Cst) | 21″ | Sky Blue
| | 19½” | Sky Blue or Carmine Red
DL32 Gent’s | (AW) | 23″ | Black or Carmine Red
| | 21″ | Black, Carmine Red or Sky Blue
DL32L Lady’s | (AW) | 23″ | Black
| | 21″ 19½” | Black, Carmine Red or Sky Blue

Raleigh Folder MODEL DL 25

An ingenious folding bicycle for people of all ages. The special light weight frame is designed for strength and durability. Features include: quick release levers for easy height adjustment of saddle and handle bar, 20″ wheels for easy acceleration aided by a Sturmey-Archer 3 speed gear, with trigger control, caliper brakes and large strong carrier. Folding to nearly half its operational size the folder is ideal for boaters, campers, fliers, apartment dwellers and motorists alike.

DL25 | Bronze Green or Coffee

17

[The Raleigh Ltd DL 32 gents’ three-speed in blue and the Raleigh Folder DL 25 in brown shown in studio photographs, with frame sizes and colors for the coaster brake and AW versions of the DL 32 and DL 32L and the colors of the Folder. A small inset photograph shows a woman lifting a folded Folder into the trunk of a white car.]

— Page 18 —
18

[A full-page color photograph of three children in a park under a willow tree: a boy in a baseball uniform with a bat sits astride a red Raleigh Chopper, while a girl and a second uniformed boy stand with a blue lightweight bicycle. The page carries no printed text apart from its folio.]

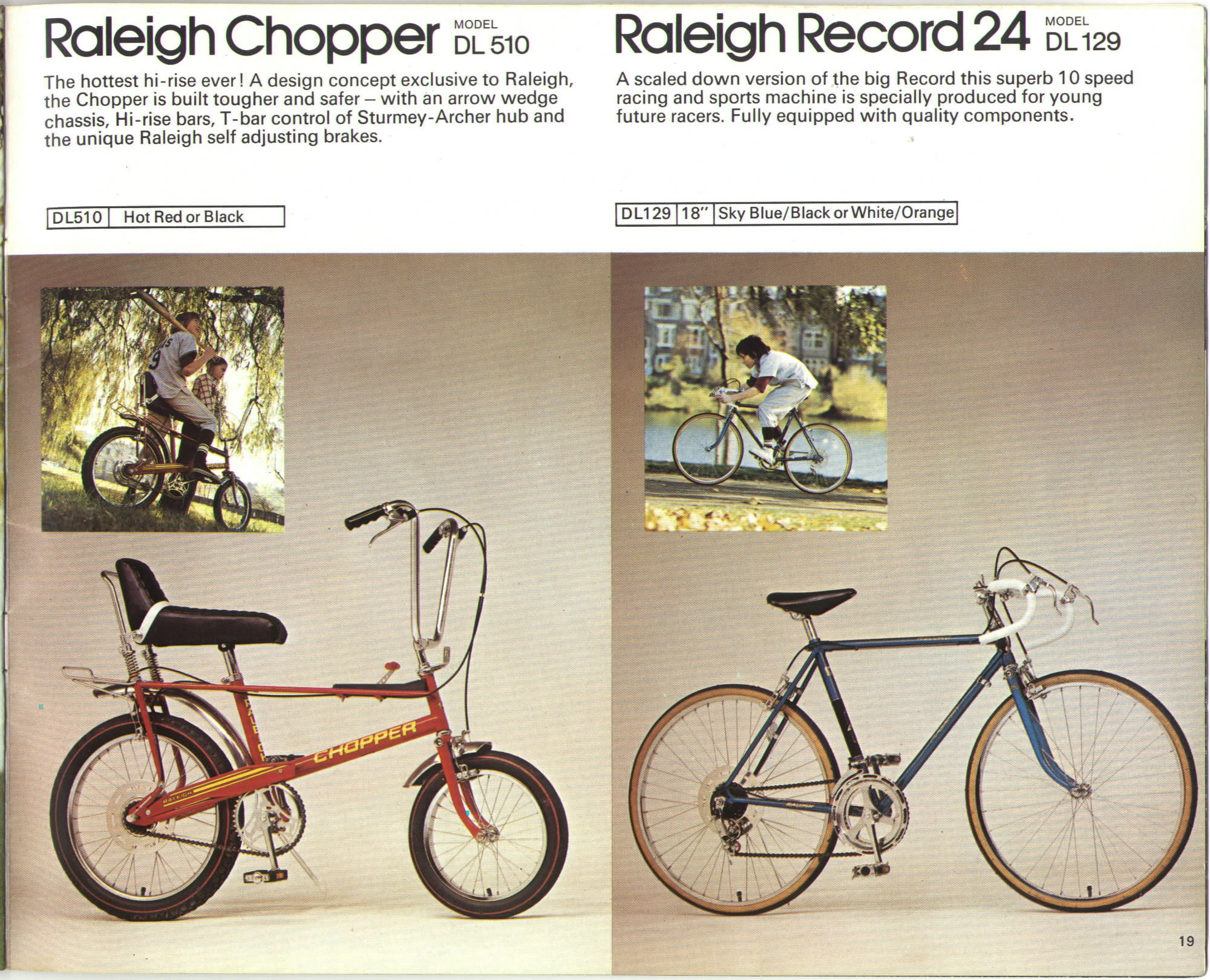

— Page 19 —
Raleigh Chopper MODEL DL 510

The hottest hi-rise ever! A design concept exclusive to Raleigh, the Chopper is built tougher and safer – with an arrow wedge chassis, Hi-rise bars, T-bar control of Sturmey-Archer hub and the unique Raleigh self adjusting brakes.

DL510 | Hot Red or Black

Raleigh Record 24 MODEL DL 129

A scaled down version of the big Record this superb 10 speed racing and sports machine is specially produced for young future racers. Fully equipped with quality components.

DL129 | 18″ | Sky Blue/Black or White/Orange

19

[The Raleigh Chopper DL 510 and Raleigh Record 24 DL 129 shown side by side in studio photographs, each with a small inset photograph of a child riding the model outdoors. The Chopper is red with a high-backed saddle and hi-rise bars; the Record 24 is a blue 10 speed with dropped bars.]

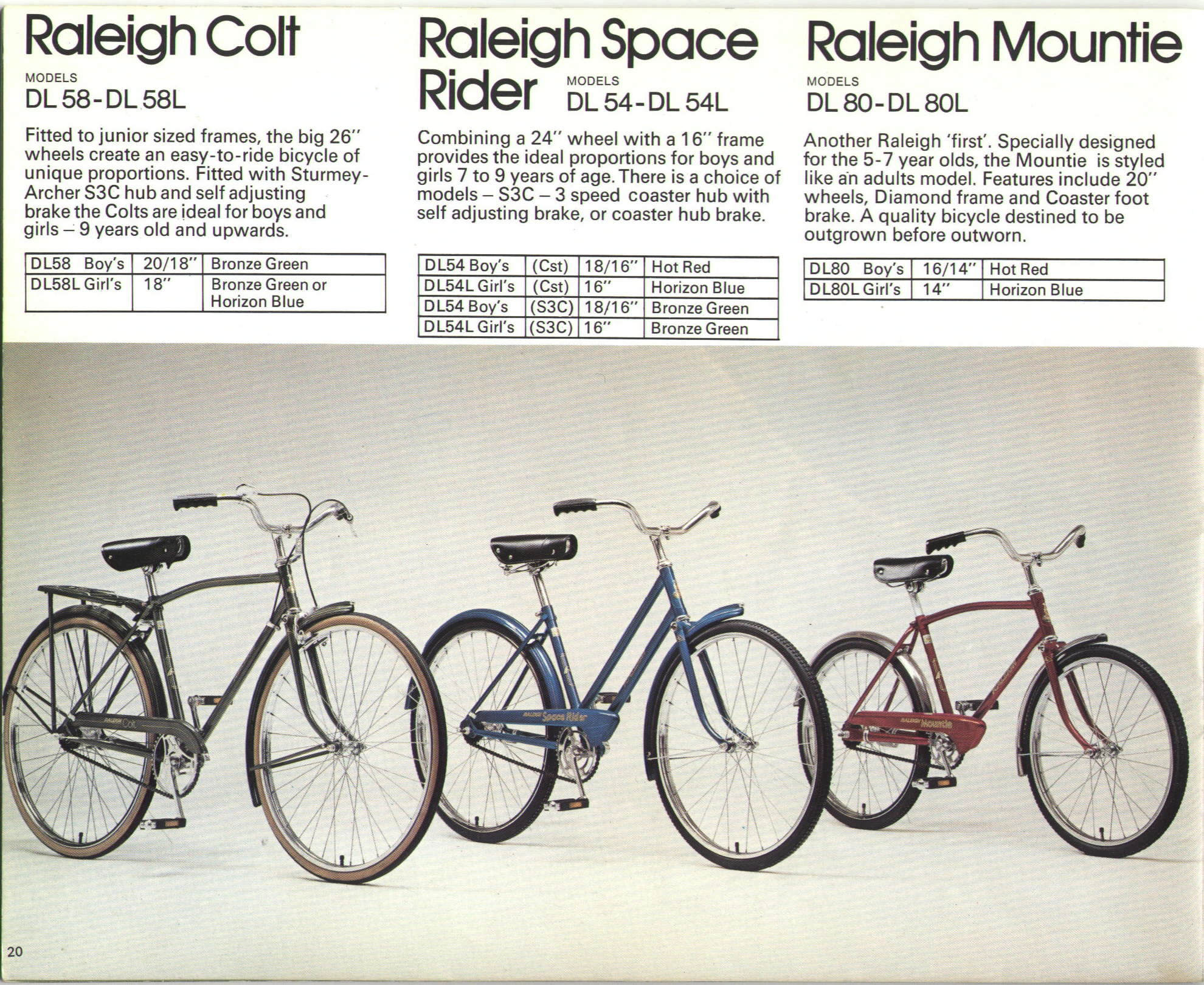

— Page 20 —
Raleigh Colt MODELS DL 58 – DL 58L

Fitted to junior sized frames, the big 26″ wheels create an easy-to-ride bicycle of unique proportions. Fitted with Sturmey-Archer S3C hub and self adjusting brake the Colts are ideal for boys and girls – 9 years old and upwards.

DL58 Boy’s | 20/18″ | Bronze Green
DL58L Girl’s | 18″ | Bronze Green or Horizon Blue

Raleigh Space Rider MODELS DL 54 – DL 54L

Combining a 24″ wheel with a 16″ frame provides the ideal proportions for boys and girls 7 to 9 years of age. There is a choice of models – S3C – 3 speed coaster hub with self adjusting brake, or coaster hub brake.

DL54 Boy’s | (Cst) | 18/16″ | Hot Red
DL54L Girl’s | (Cst) | 16″ | Horizon Blue
DL54 Boy’s | (S3C) | 18/16″ | Bronze Green
DL54L Girl’s | (S3C) | 16″ | Bronze Green

Raleigh Mountie MODELS DL 80 – DL 80L

Another Raleigh ‘first’. Specially designed for the 5-7 year olds, the Mountie is styled like an adults model. Features include 20″ wheels, Diamond frame and Coaster foot brake. A quality bicycle destined to be outgrown before outworn.

DL80 Boy’s | 16/14″ | Hot Red
DL80L Girl’s | 14″ | Horizon Blue

20

[The Raleigh Colt, Raleigh Space Rider and Raleigh Mountie children’s bicycles shown together in one studio photograph, with frame sizes and colors for each. The Colt is a dark green boy’s model with a rear carrier, the Space Rider a blue girl’s model and the Mountie a red boy’s model.]

— Page 21 —

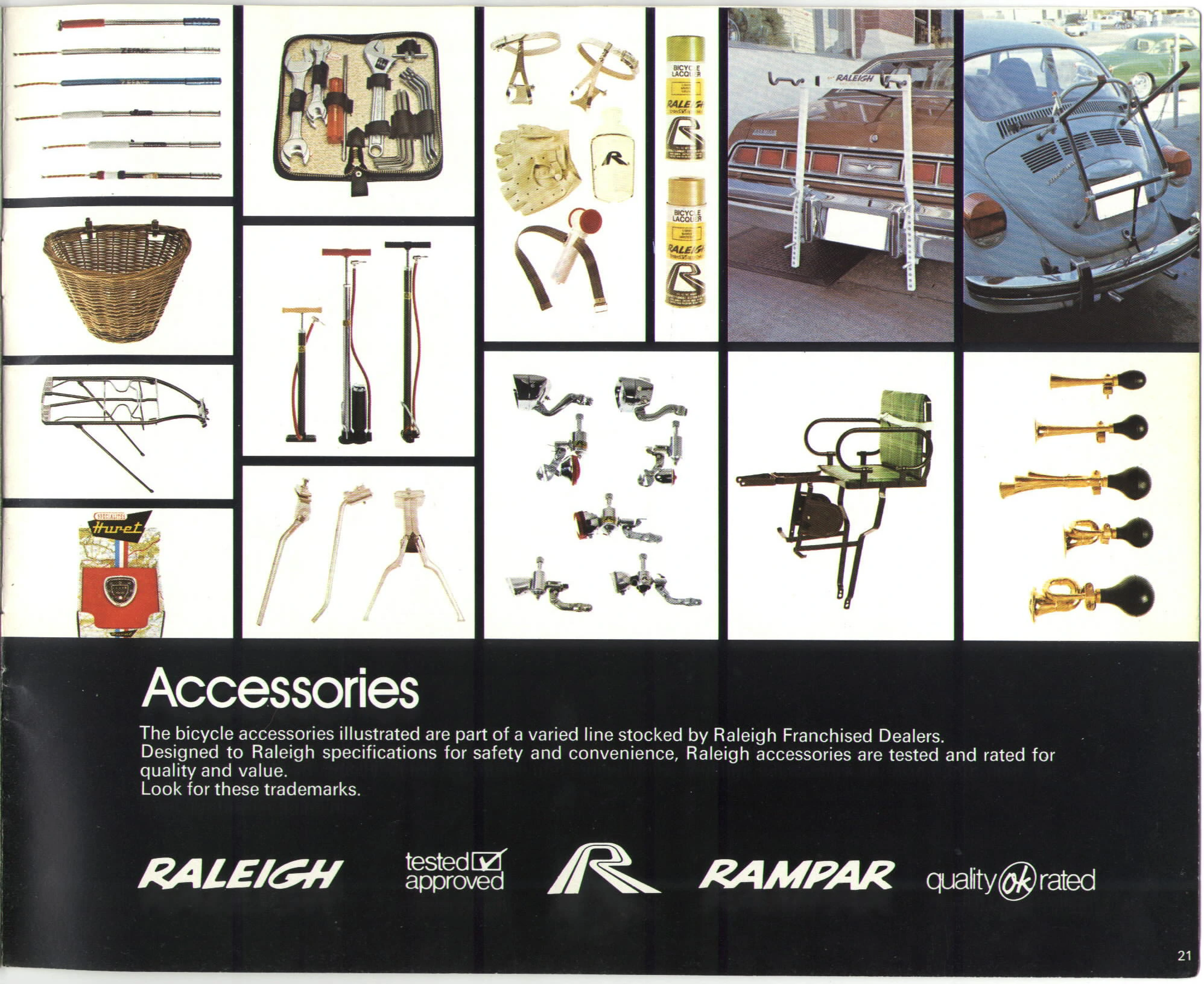

Accessories

The bicycle accessories illustrated are part of a varied line stocked by Raleigh Franchised Dealers. Designed to Raleigh specifications for safety and convenience, Raleigh accessories are tested and rated for quality and value. Look for these trademarks.

RALEIGH

tested approved

RAMPAR

quality ok rated

21

[A grid of studio photographs of Raleigh accessories: frame pumps, a tool kit, toe clips and straps, a wicker basket, floor pumps, two cans of Raleigh bicycle lacquer, rear carriers, kickstands, lamps and dynamos, a child seat, bulb horns and a Huret item in its display box, with two photographs of a bicycle car carrier fitted to the rear of a sedan and a Volkswagen Beetle. Below the accessories text runs a row of five trademarks: the Raleigh script, a “tested approved” check box, the Raleigh “R” symbol, the Rampar script and a “quality ok rated” mark.]

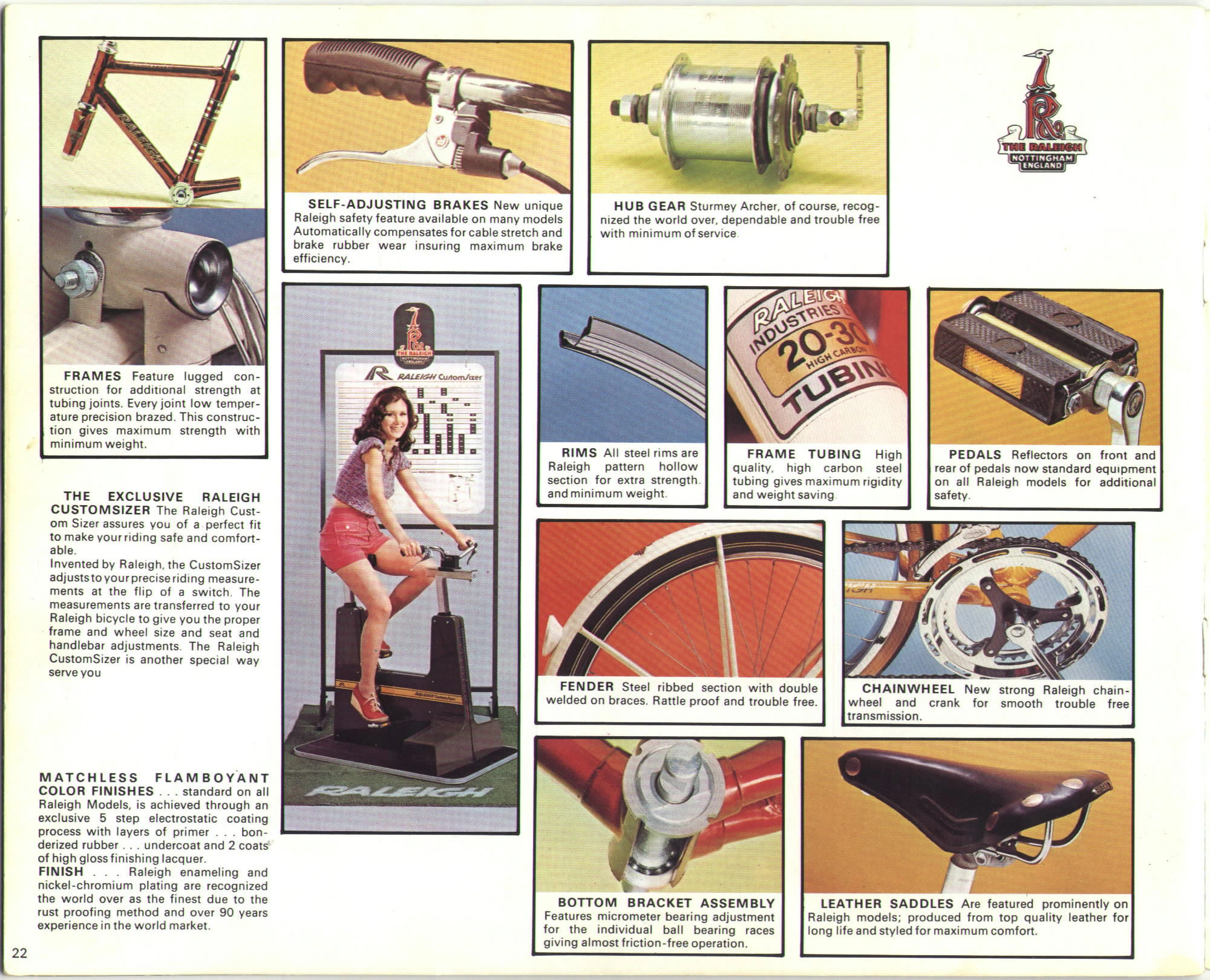

— Page 22 —
THE RALEIGH NOTTINGHAM ENGLAND

FRAMES Feature lugged construction for additional strength at tubing joints. Every joint low temperature precision brazed. This construction gives maximum strength with minimum weight.

SELF-ADJUSTING BRAKES New unique Raleigh safety feature available on many models Automatically compensates for cable stretch and brake rubber wear insuring maximum brake efficiency.

HUB GEAR Sturmey Archer, of course, recognized the world over, dependable and trouble free with minimum of service.

THE EXCLUSIVE RALEIGH CUSTOMSIZER The Raleigh Custom Sizer assures you of a perfect fit to make your riding safe and comfortable.

Invented by Raleigh, the CustomSizer adjusts to your precise riding measurements at the flip of a switch. The measurements are transferred to your Raleigh bicycle to give you the proper frame and wheel size and seat and handlebar adjustments. The Raleigh CustomSizer is another special way serve you

RIMS All steel rims are Raleigh pattern hollow section for extra strength. and minimum weight.

FRAME TUBING High quality, high carbon steel tubing gives maximum rigidity and weight saving.

PEDALS Reflectors on front and rear of pedals now standard equipment on all Raleigh models for additional safety.

FENDER Steel ribbed section with double welded on braces. Rattle proof and trouble free.

CHAINWHEEL New strong Raleigh chainwheel and crank for smooth trouble free transmission.

MATCHLESS FLAMBOYANT COLOR FINISHES . . . standard on all Raleigh Models, is achieved through an exclusive 5 step electrostatic coating process with layers of primer . . . bonderized rubber . . . undercoat and 2 coats of high gloss finishing lacquer.

FINISH . . . Raleigh enameling and nickel-chromium plating are recognized the world over as the finest due to the rust proofing method and over 90 years experience in the world market.

BOTTOM BRACKET ASSEMBLY Features micrometer bearing adjustment for the individual ball bearing races giving almost friction-free operation.

LEATHER SADDLES Are featured prominently on Raleigh models; produced from top quality leather for long life and styled for maximum comfort.

22

[A feature page of captioned close-up photographs explaining Raleigh construction: a lugged frame, a self-adjusting brake lever, a Sturmey-Archer hub gear, rims, a Raleigh 20-30 high carbon tubing decal, reflector pedals, a fender, a chainwheel, a bottom bracket and a leather saddle, with the Raleigh heron head badge printed at the top right. A larger photograph shows a young woman seated on the Raleigh CustomSizer fitting machine in front of a “Raleigh CustomSizer” sizing chart.]

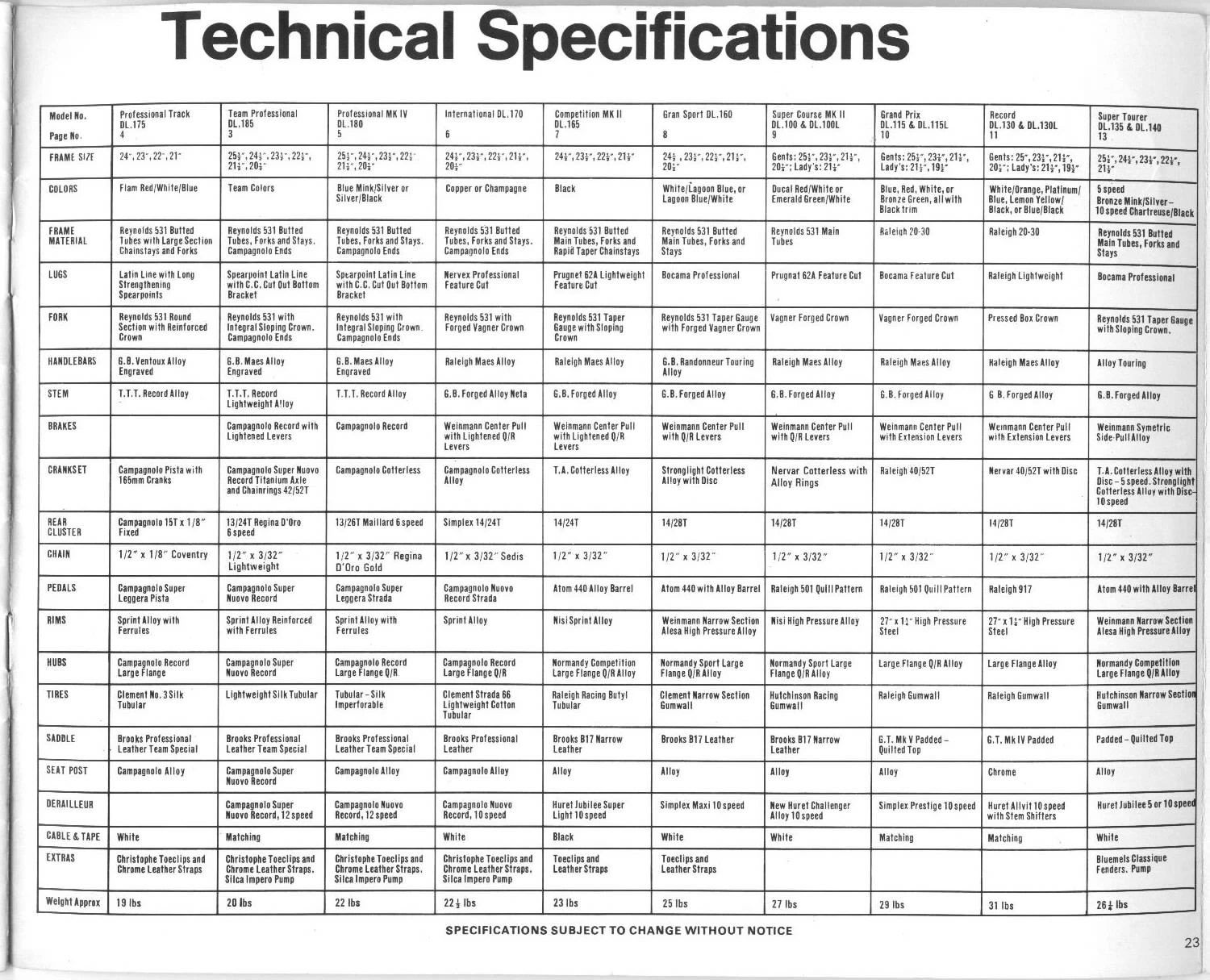

— Page 23 —
Technical Specifications

Model No. Page No. | Professional Track DL.175 4 | Team Professional DL.185 3 | Professional MK IV DL.180 5 | International DL.170 6 | Competition MK II DL.165 7 | Gran Sport DL.160 8 | Super Course MK II DL.100 & DL.100L 9 | Grand Prix DL.115 & DL.115L 10 | Record DL.130 & DL.130L 11 | Super Tourer DL.135 & DL.140 13
FRAME SIZE | 24″, 23″, 22″, 21″ | 25½”, 24½”, 23½”, 22½”, 21½”, 20½” | 25½”, 24½”, 23½”, 22½”, 21½”, 20½” | 24½”, 23½”, 22½”, 21½”, 20½” | 24½”, 23½”, 22½”, 21½” | 24½ [?], 23½”, 22½”, 21½”, 20½” | Gents: 25½”, 23½”, 21½”, 20½”; Lady’s: 21½” | Gents: 25½”, 23½”, 21½”, Lady’s: 21½”, 19½” | Gents: 25″, 23½”, 21½”, 20½”; Lady’s: 21½”, 19½” | 25½”, 24½”, 23½”, 22½”, 21½”
COLORS | Flam Red/White/Blue | Team Colors | Blue Mink/Silver or Silver/Black | Copper or Champagne | Black | White/Lagoon Blue, or Lagoon Blue/White | Ducal Red/White or Emerald Green/White | Blue, Red, White, or Bronze Green, all with Black trim | White/Orange, Platinum/Blue, Lemon Yellow/Black, or Blue/Black | 5 speed Bronze Mink/Silver – 10 speed Chartreuse/Black
FRAME MATERIAL | Reynolds 531 Butted Tubes with Large Section Chainstays and Forks | Reynolds 531 Butted Tubes, Forks and Stays. Campagnolo Ends | Reynolds 531 Butted Tubes, Forks and Stays. Campagnolo Ends | Reynolds 531 Butted Tubes, Forks and Stays. Campagnolo Ends | Reynolds 531 Butted Main Tubes, Forks and Rapid Taper Chainstays | Reynolds 531 Butted Main Tubes, Forks and Stays | Reynolds 531 Main Tubes | Raleigh 20-30 | Raleigh 20-30 | Reynolds 531 Butted Main Tubes, Forks and Stays
LUGS | Latin Line with Long Strengthening Spearpoints | Spearpoint Latin Line with C.C. Cut Out Bottom Bracket | Spearpoint Latin Line with C.C. Cut Out Bottom Bracket | Nervex Professional Feature Cut | Prugnet 62A Lightweight Feature Cut | Bocama Professional | Prugnat 62A Feature Cut | Bocama Feature Cut | Raleigh Lightweight | Bocama Professional
FORK | Reynolds 531 Round Section with Reinforced Crown | Reynolds 531 with Integral Sloping Crown. Campagnolo Ends | Reynolds 531 with Integral Sloping Crown. Campagnolo Ends | Reynolds 531 with Forged Vagner Crown | Reynolds 531 Taper Gauge with Sloping Crown | Reynolds 531 Taper Gauge with Forged Vagner Crown | Vagner Forged Crown | Vagner Forged Crown | Pressed Box Crown | Reynolds 531 Taper Gauge with Sloping Crown.
HANDLEBARS | G.B. Ventoux Alloy Engraved | G.B. Maes Alloy Engraved | G.B. Maes Alloy Engraved | Raleigh Maes Alloy | Raleigh Maes Alloy | G.B. Randonneur Touring Alloy | Raleigh Maes Alloy | Raleigh Maes Alloy | Raleigh Maes Alloy | Alloy Touring
STEM | T.T.T. Record Alloy | T.T.T. Record Lightweight Alloy | T.T.T. Record Alloy | G.B. Forged Alloy Neta | G.B. Forged Alloy | G.B. Forged Alloy | G.B. Forged Alloy | G.B. Forged Alloy | G B. Forged Alloy | G.B. Forged Alloy
BRAKES | | Campagnolo Record with Lightened Levers | Campagnolo Record | Weinmann Center Pull with Lightened Q/R Levers | Weinmann Center Pull with Lightened Q/R Levers | Weinmann Center Pull with Q/R Levers | Weinmann Center Pull with Q/R Levers | Weinmann Center Pull with Extension Levers | Weinmann Center Pull with Extension Levers | Weinmann Symetric Side-Pull Alloy
CRANKSET | Campagnolo Pista with 165mm Cranks | Campagnolo Super Nuovo Record Titanium Axle and Chainrings 42/52T | Campagnolo Cotterless | Campagnolo Cotterless Alloy | T.A. Cotterless Alloy | Stronglight Cotterless Alloy with Disc | Nervar Cotterless with Alloy Rings | Raleigh 40/52T | Nervar 40/52T with Disc | T.A. Cotterless Alloy with Disc – 5 speed. Stronglight Cotterless Alloy with Disc – 10 speed

REAR CLUSTER | Campagnolo 15T x 1/8″ Fixed | 13/24T Regina D’Oro 6 speed | 13/26T Maillard 6 speed | Simplex 14/24T | 14/24T | 14/28T | 14/28T | 14/28T | 14/28T | 14/28T
CHAIN | 1/2″ x 1/8″ Coventry | 1/2″ x 3/32″ Lightweight | 1/2″ x 3/32″ Regina D’Oro Gold | 1/2″ x 3/32″ Sedis | 1/2″ x 3/32″ | 1/2″ x 3/32″ | 1/2″ x 3/32″ | 1/2″ x 3/32″ | 1/2″ x 3/32″ | 1/2″ x 3/32″
PEDALS | Campagnolo Super Leggera Pista | Campagnolo Super Nuovo Record | Campagnolo Super Leggera Strada | Campagnolo Nuovo Record Strada | Atom 440 Alloy Barrel | Atom 440 with Alloy Barrel | Raleigh 501 Quill Pattern | Raleigh 501 Quill Pattern | Raleigh 917 | Atom 440 with Alloy Barrel
RIMS | Sprint Alloy with Ferrules | Sprint Alloy Reinforced with Ferrules | Sprint Alloy with Ferrules | Sprint Alloy | Nisi Sprint Alloy | Weinmann Narrow Section Alesa High Pressure Alloy | Nisi High Pressure Alloy | 27″ x 1¼” [?] High Pressure Steel | 27″ x 1¼” High Pressure Steel | Weinmann Narrow Section Alesa High Pressure Alloy
HUBS | Campagnolo Record Large Flange | Campagnolo Super Nuovo Record | Campagnolo Record Large Flange Q/R | Campagnolo Record Large Flange Q/R | Normandy Competition Large Flange Q/R Alloy | Normandy Sport Large Flange Q/R Alloy | Normandy Sport Large Flange Q/R Alloy | Large Flange Q/R Alloy | Large Flange Alloy | Normandy Competition Large Flange Q/R Alloy
TIRES | Clement No. 3 Silk Tubular | Lightweight Silk Tubular | Tubular – Silk Imperforable | Clement Strada 66 Lightweight Cotton Tubular | Raleigh Racing Butyl Tubular | Clement Narrow Section Gumwall | Hutchinson Racing Gumwall | Raleigh Gumwall | Raleigh Gumwall | Hutchinson Narrow Section Gumwall
SADDLE | Brooks Professional Leather Team Special | Brooks Professional Leather Team Special | Brooks Professional Leather Team Special | Brooks Professional Leather | Brooks B17 Narrow Leather | Brooks B17 Leather | Brooks B17 Narrow Leather | G.T. Mk V Padded – Quilted Top | G.T. Mk IV Padded | Padded – Quilted Top
SEAT POST | Campagnolo Alloy | Campagnolo Super Nuovo Record | Campagnolo Alloy | Campagnolo Alloy | Alloy | Alloy | Alloy | Alloy | Chrome | Alloy
DERAILLEUR | | Campagnolo Super Nuovo Record, 12 speed | Campagnolo Nuovo Record, 12 speed | Campagnolo Nuovo Record, 10 speed | Huret Jubilee Super Light 10 speed | Simplex Maxi 10 speed | New Huret Challenger Alloy 10 speed | Simplex Prestige 10 speed | Huret Allvit 10 speed with Stem Shifters | Huret Jubilee 5 or 10 speed
CABLE & TAPE | White | Matching | Matching | White | Black | White | White | Matching | Matching | White
EXTRAS | Christophe Toeclips and Chrome Leather Straps | Christophe Toeclips and Chrome Leather Straps. Silca Impero Pump | Christophe Toeclips and Chrome Leather Straps. Silca Impero Pump | Christophe Toeclips and Chrome Leather Straps. Silca Impero Pump | Toeclips and Leather Straps | Toeclips and Leather Straps | | | | Bluemels Classique Fenders. Pump
Weight Approx | 19 lbs | 20 lbs | 22 lbs | 22½ lbs | 23 lbs | 25 lbs | 27 lbs | 29 lbs | 31 lbs | 26¼ lbs

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

23

[A full-page technical specifications table for 10 Raleigh lightweight models, from the Professional Track DL.175 and Team Professional DL.185 to the Record DL.130 and Super Tourer DL.135 and DL.140, giving each model’s frame sizes, colors, tubing, lugs, components and approximate weight, with a cross-reference to the catalog page on which each model appears.]

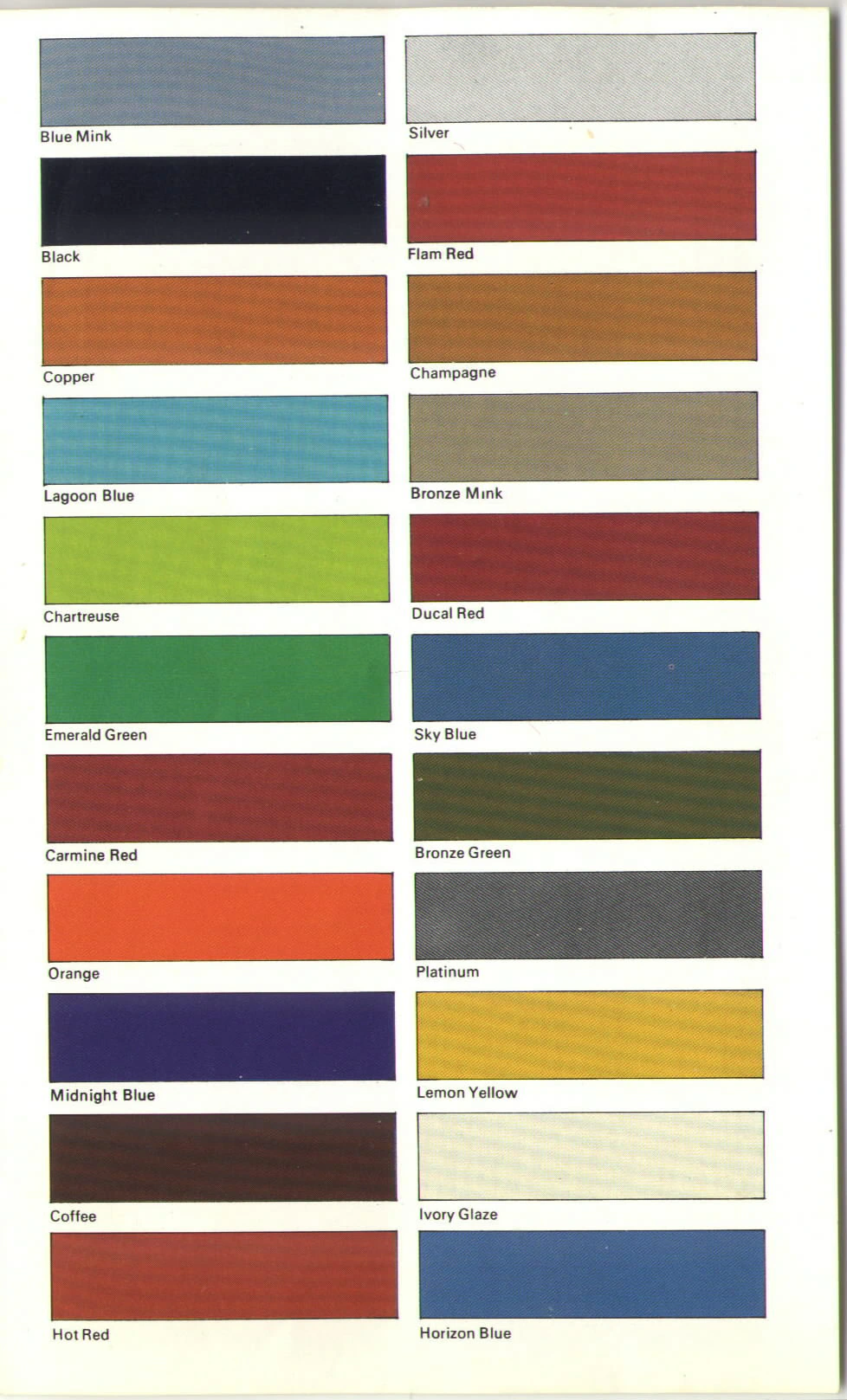

— Page 24 —
Blue Mink | Silver
Black | Flam Red
Copper | Champagne
Lagoon Blue | Bronze Mink
Chartreuse | Ducal Red
Emerald Green | Sky Blue
Carmine Red | Bronze Green
Orange | Platinum
Midnight Blue | Lemon Yellow
Coffee | Ivory Glaze
Hot Red | Horizon Blue

[A color chart of 22 named paint swatches set in two columns, from Blue Mink and Silver to Hot Red and Horizon Blue. This narrow portrait panel carries no heading and no folio.]

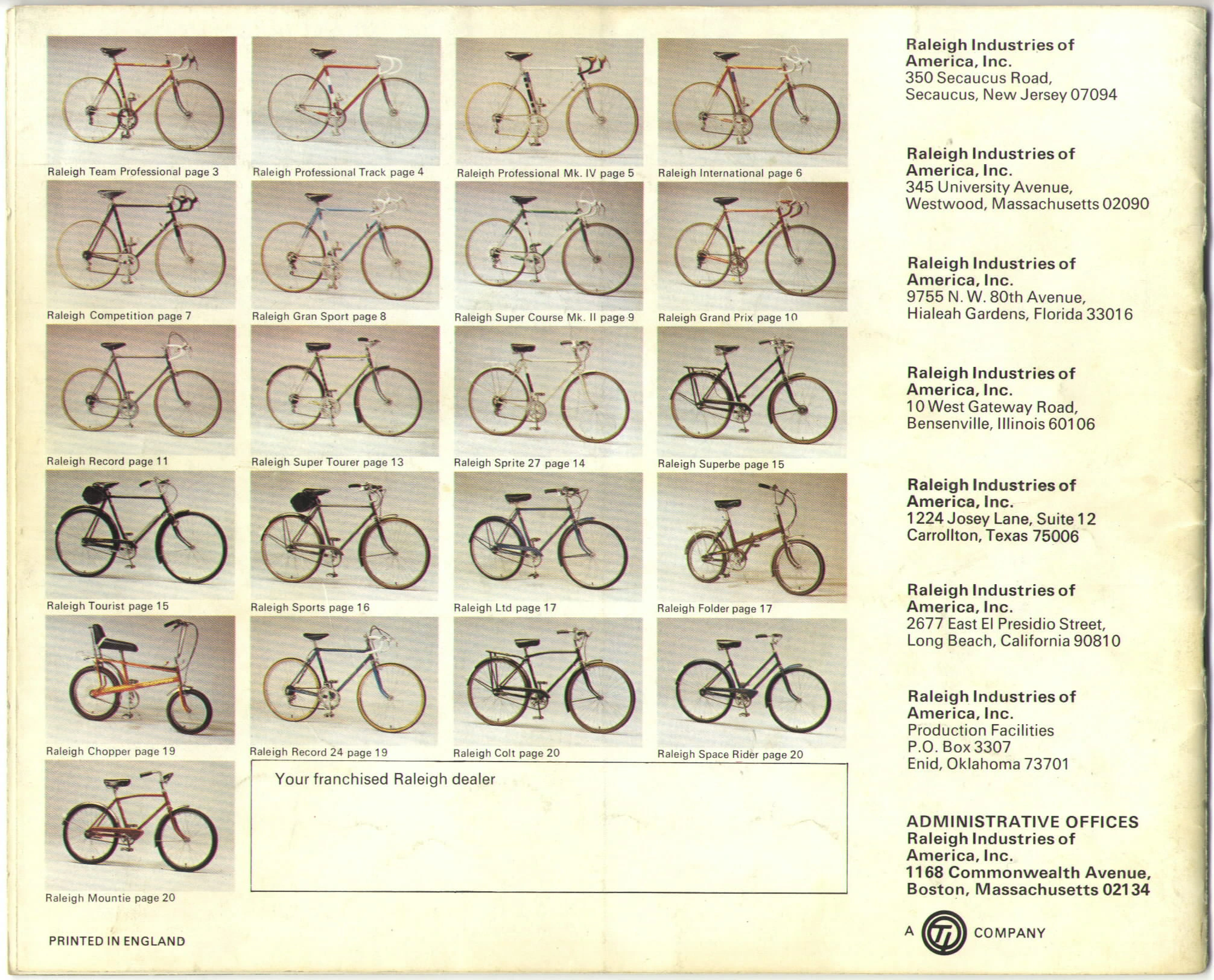

— Page 25 (back cover) —
Raleigh Team Professional page 3

Raleigh Professional Track page 4

Raleigh Professional Mk. IV page 5

Raleigh International page 6

Raleigh Competition page 7

Raleigh Gran Sport page 8

Raleigh Super Course Mk. II page 9

Raleigh Grand Prix page 10

Raleigh Record page 11

Raleigh Super Tourer page 13

Raleigh Sprite 27 page 14

Raleigh Superbe page 15

Raleigh Tourist page 15

Raleigh Sports page 16

Raleigh Ltd page 17

Raleigh Folder page 17

Raleigh Chopper page 19

Raleigh Record 24 page 19

Raleigh Colt page 20

Raleigh Space Rider page 20

Raleigh Mountie page 20

Your franchised Raleigh dealer

PRINTED IN ENGLAND

Raleigh Industries of America, Inc. 350 Secaucus Road, Secaucus, New Jersey 07094

Raleigh Industries of America, Inc. 345 University Avenue, Westwood, Massachusetts 02090

Raleigh Industries of America, Inc. 9755 N. W. 80th Avenue, Hialeah Gardens, Florida 33016

Raleigh Industries of America, Inc. 10 West Gateway Road, Bensenville, Illinois 60106

Raleigh Industries of America, Inc. 1224 Josey Lane, Suite 12 Carrollton, Texas 75006

Raleigh Industries of America, Inc. 2677 East El Presidio Street, Long Beach, California 90810

Raleigh Industries of America, Inc. Production Facilities P.O. Box 3307 Enid, Oklahoma 73701

ADMINISTRATIVE OFFICES Raleigh Industries of America, Inc. 1168 Commonwealth Avenue, Boston, Massachusetts 02134

A TI COMPANY

[The back cover: a grid of 21 small studio photographs indexing every model in the catalog by page, from the Raleigh Team Professional on page 3 to the Raleigh Mountie on page 20, beside the addresses of Raleigh Industries of America offices and its administrative offices in Boston. The boxed space headed “Your franchised Raleigh dealer” is blank, with no stamp or sticker, and the TI roundel sits between “A” and “COMPANY” at the foot of the address column.]
