Raleigh 1958 Catalog — ‘Magic Carpet’ Cycling with Raleigh

— Page 1 (front cover) —
‘Magic Carpet’ CYCLING WITH RALEIGH
THE ALL-STEEL BICYCLE
DURING 1958
THE RALEIGH, NOTTINGHAM, ENGLAND
[Front cover, a color illustration of a young man and a young woman riding side by side along a rolling country lane. The road under their wheels turns into a crimson carpet that unrolls into the distance across green fields. Both machines carry saddlebags. The heron head badge sits at lower left.]

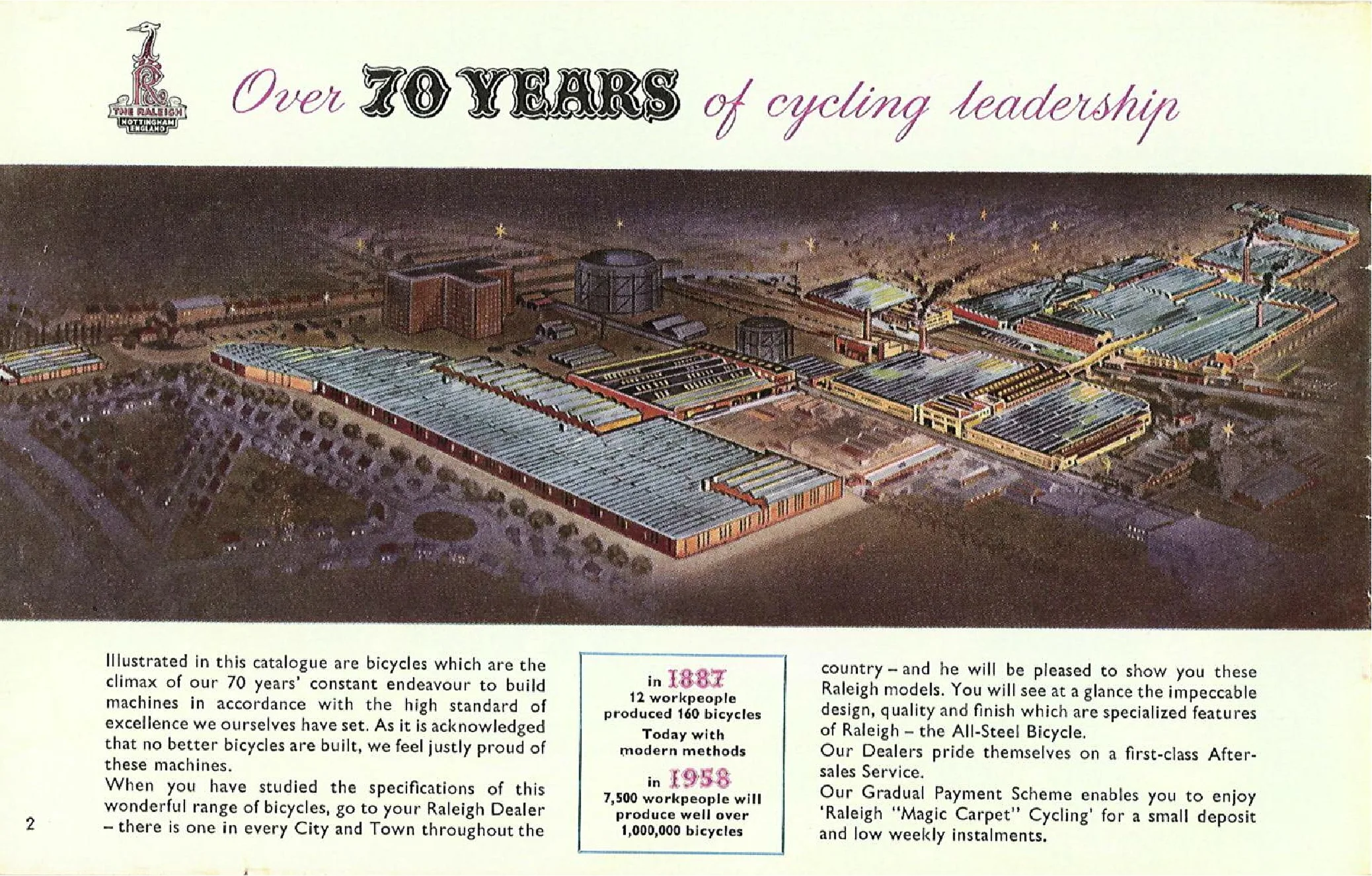

— Page 2 —
Over 70 YEARS of cycling leadership
Illustrated in this catalogue are bicycles which are the climax of our 70 years’ constant endeavour to build machines in accordance with the high standard of excellence we ourselves have set. As it is acknowledged that no better bicycles are built, we feel justly proud of these machines.
When you have studied the specifications of this wonderful range of bicycles, go to your Raleigh Dealer — there is one in every City and Town throughout the country — and he will be pleased to show you these Raleigh models. You will see at a glance the impeccable design, quality and finish which are specialized features of Raleigh — the All-Steel Bicycle.
Our Dealers pride themselves on a first-class After-sales Service.
Our Gradual Payment Scheme enables you to enjoy ‘Raleigh “Magic Carpet” Cycling’ for a small deposit and low weekly instalments.
in 1887 12 workpeople produced 160 bicycles
Today with modern methods
in 1958 7,500 workpeople will produce well over 1,000,000 bicycles
2
[A full-width painted bird’s-eye view of the Raleigh works at Lenton, Nottingham at dusk, the long saw-tooth roofs of the factory sheds lit from within, gasholders and chimneys behind, laid out across the whole page above the text.]

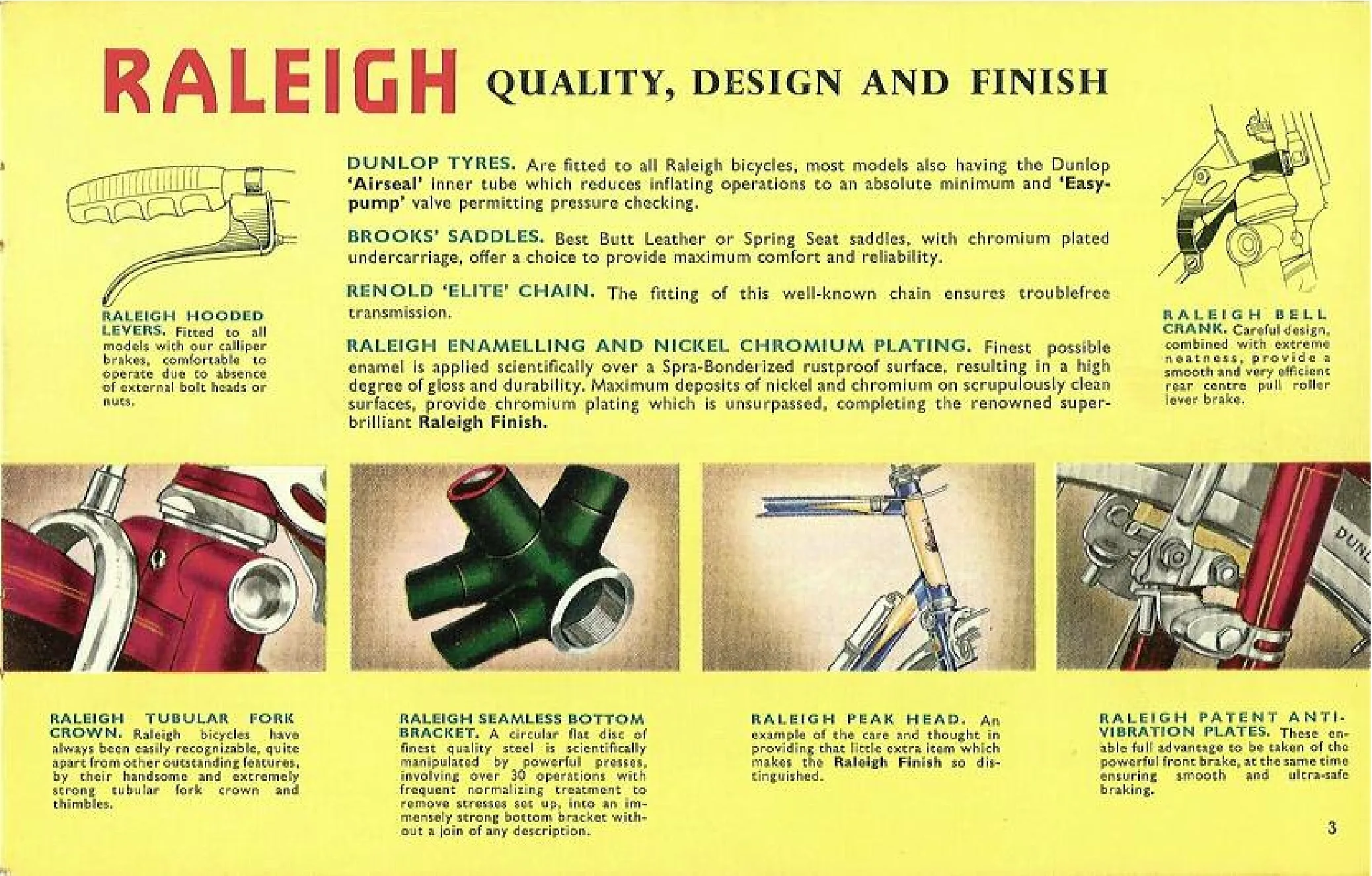

— Page 3 —
RALEIGH QUALITY, DESIGN AND FINISH
DUNLOP TYRES. Are fitted to all Raleigh bicycles, most models also having the Dunlop ‘Airseal’ inner tube which reduces inflating operations to an absolute minimum and ‘Easypump’ valve permitting pressure checking.
BROOKS’ SADDLES. Best Butt Leather or Spring Seat saddles, with chromium plated undercarriage, offer a choice to provide maximum comfort and reliability.
RENOLD ‘ELITE’ CHAIN. The fitting of this well-known chain ensures troublefree transmission.
RALEIGH ENAMELLING AND NICKEL CHROMIUM PLATING. Finest possible enamel is applied scientifically over a Spra-Bonderized rustproof surface, resulting in a high degree of gloss and durability. Maximum deposits of nickel and chromium on scrupulously clean surfaces, provide chromium plating which is unsurpassed, completing the renowned super-brilliant Raleigh Finish.
RALEIGH HOODED LEVERS. Fitted to all models with our calliper brakes, comfortable to operate due to absence of external bolt heads or nuts.
RALEIGH BELL CRANK. Careful design, combined with extreme neatness, provide a smooth and very efficient rear centre pull roller lever brake.
RALEIGH TUBULAR FORK CROWN. Raleigh bicycles have always been easily recognizable, quite apart from other outstanding features, by their handsome and extremely strong tubular fork crown and thimbles.
RALEIGH SEAMLESS BOTTOM BRACKET. A circular flat disc of finest quality steel is scientifically manipulated by powerful presses, involving over 30 operations with frequent normalizing treatment to remove stresses set up, into an immensely strong bottom bracket without a join of any description.
RALEIGH PEAK HEAD. An example of the care and thought in providing that little extra item which makes the Raleigh Finish so distinguished.
RALEIGH PATENT ANTI-VIBRATION PLATES. These enable full advantage to be taken of the powerful front brake, at the same time ensuring smooth and ultra-safe braking.
3
[A yellow page carrying six component illustrations: a hooded brake lever and a rear bell-crank roller lever at the top corners, then a row of four color plates along the foot showing a red frame’s tubular fork crown, a green bottom bracket shell with its cups, a peak head lug detail and a front brake with the anti-vibration plates fitted.]

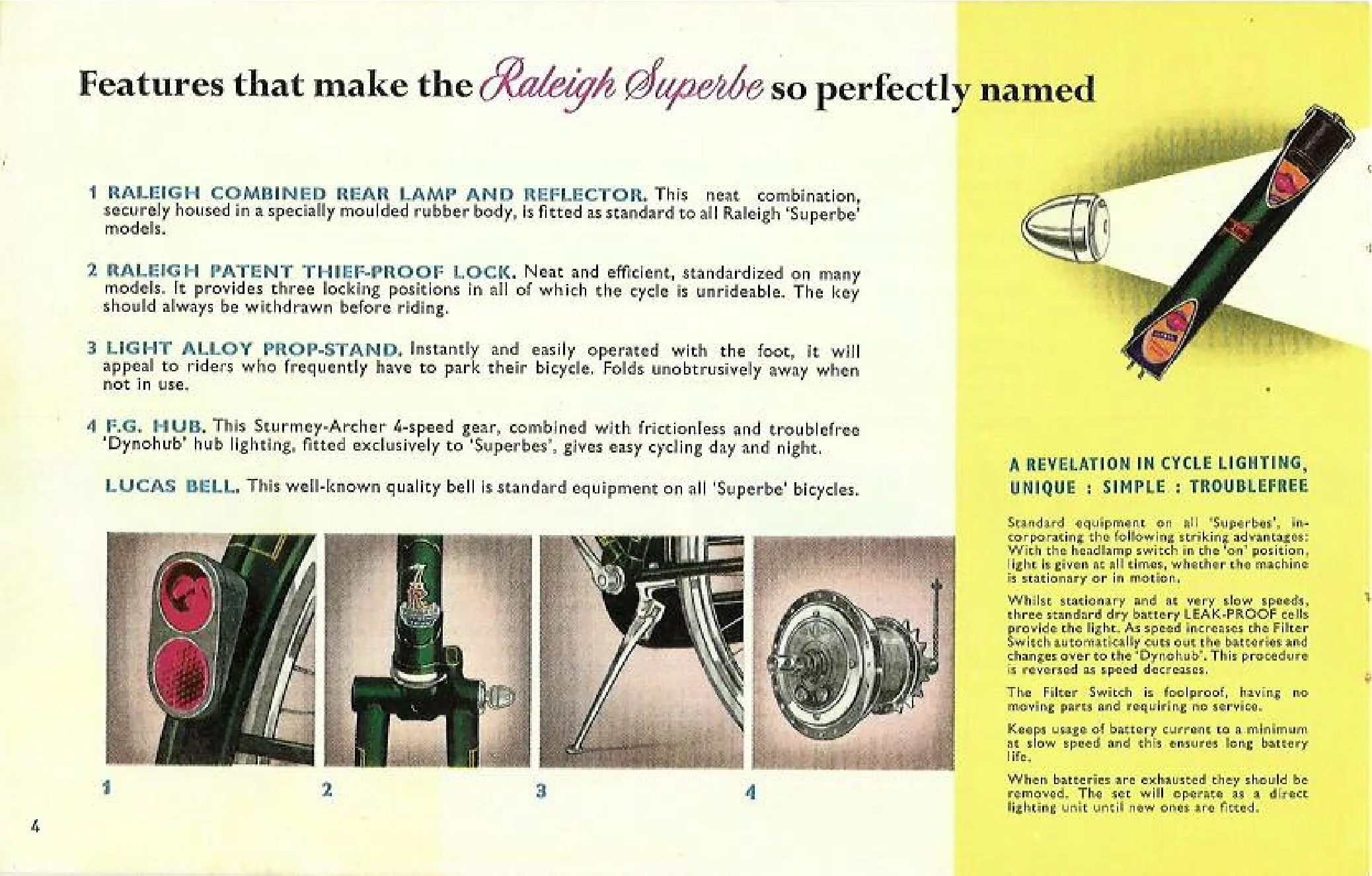

— Page 4 —
Features that make the Raleigh Superbe so perfectly named
1 RALEIGH COMBINED REAR LAMP AND REFLECTOR. This neat combination, securely housed in a specially moulded rubber body, is fitted as standard to all Raleigh ‘Superbe’ models.
2 RALEIGH PATENT THIEF-PROOF LOCK. Neat and efficient, standardized on many models. It provides three locking positions in all of which the cycle is unrideable. The key should always be withdrawn before riding.
3 LIGHT ALLOY PROP-STAND. Instantly and easily operated with the foot, it will appeal to riders who frequently have to park their bicycle. Folds unobtrusively away when not in use.
4 F.G. HUB. This Sturmey-Archer 4-speed gear, combined with frictionless and troublefree ‘Dynohub’ hub lighting, fitted exclusively to ‘Superbes’, gives easy cycling day and night.
LUCAS BELL. This well-known quality bell is standard equipment on all ‘Superbe’ bicycles.
A REVELATION IN CYCLE LIGHTING, UNIQUE : SIMPLE : TROUBLEFREE
Standard equipment on all ‘Superbes’, incorporating the following striking advantages:
With the headlamp switch in the ‘on’ position, light is given at all times, whether the machine is stationary or in motion.
Whilst stationary and at very slow speeds, three standard dry battery LEAK-PROOF cells provide the light. As speed increases the Filter Switch automatically cuts out the batteries and changes over to the ‘Dynohub’. This procedure is reversed as speed decreases.
The Filter Switch is foolproof, having no moving parts and requiring no service.
Keeps usage of battery current to a minimum at slow speed and this ensures long battery life.
When batteries are exhausted they should be removed. The set will operate as a direct lighting unit until new ones are fitted.
4
[Four numbered color photographs across the foot of the page: the combined rear lamp and reflector on a green mudguard, the patent thief-proof lock at the head tube, the light alloy prop-stand folded down, and the Sturmey-Archer F.G. hub. At right, a chromium headlamp on a yellow field throws a cone of light across the page.]

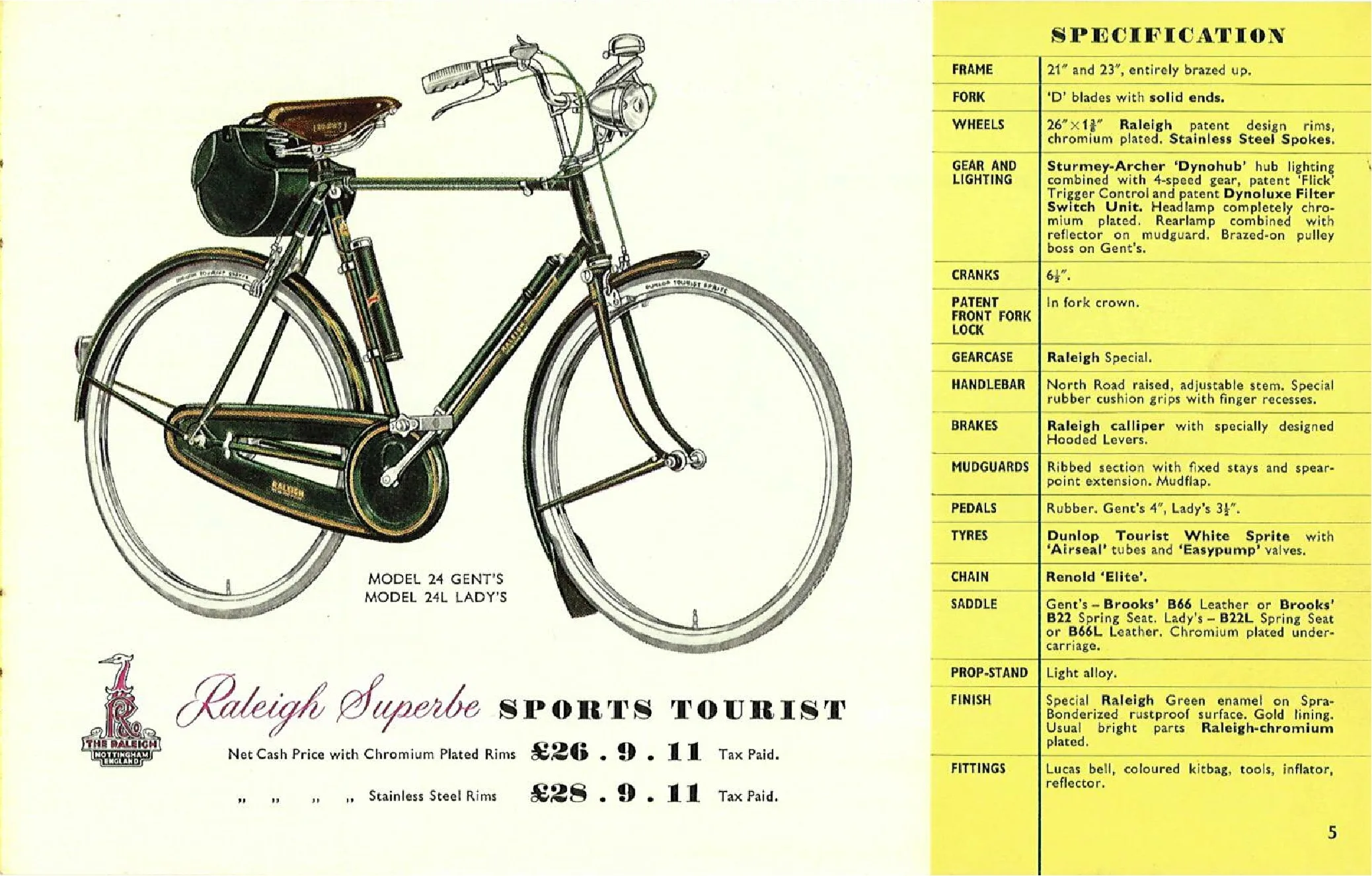

— Page 5 —
Raleigh Superbe SPORTS TOURIST
MODEL 24 GENT’S
MODEL 24L LADY’S
Net Cash Price with Chromium Plated Rims £26 . 9 . 11 Tax Paid.
” ” ” ” Stainless Steel Rims £28 . 9 . 11 Tax Paid.
SPECIFICATION
FRAME: 21″ and 23″, entirely brazed up.
FORK: ‘D’ blades with solid ends.
WHEELS: 26″ × 1⅜” Raleigh patent design rims, chromium plated. Stainless Steel Spokes.
GEAR AND LIGHTING: Sturmey-Archer ‘Dynohub’ hub lighting combined with 4-speed gear, patent ‘Flick’ Trigger Control and patent Dynoluxe Filter Switch Unit. Headlamp completely chromium plated. Rearlamp combined with reflector on mudguard. Brazed-on pulley boss on Gent’s.
CRANKS: 6½”.
PATENT FRONT FORK LOCK: In fork crown.
GEARCASE: Raleigh Special.
HANDLEBAR: North Road raised, adjustable stem. Special rubber cushion grips with finger recesses.
BRAKES: Raleigh calliper with specially designed Hooded Levers.
MUDGUARDS: Ribbed section with fixed stays and spear-point extension. Mudflap.
PEDALS: Rubber. Gent’s 4″, Lady’s 3½”.
TYRES: Dunlop Tourist White Sprite with ‘Airseal’ tubes and ‘Easypump’ valves.
CHAIN: Renold ‘Elite’.
SADDLE: Gent’s — Brooks’ B66 Leather or Brooks’ B22 Spring Seat. Lady’s — B22L Spring Seat or B66L Leather. Chromium plated undercarriage.
PROP-STAND: Light alloy.
FINISH: Special Raleigh Green enamel on Spra-Bonderized rustproof surface. Gold lining. Usual bright parts Raleigh-chromium plated.
FITTINGS: Lucas bell, coloured kitbag, tools, inflator, reflector.
5
[A side-view color illustration of the Gent’s Superbe Sports Tourist in Raleigh Green with a full gearcase, black saddlebag, Brooks leather saddle and a chromium headlamp on the fork crown.]

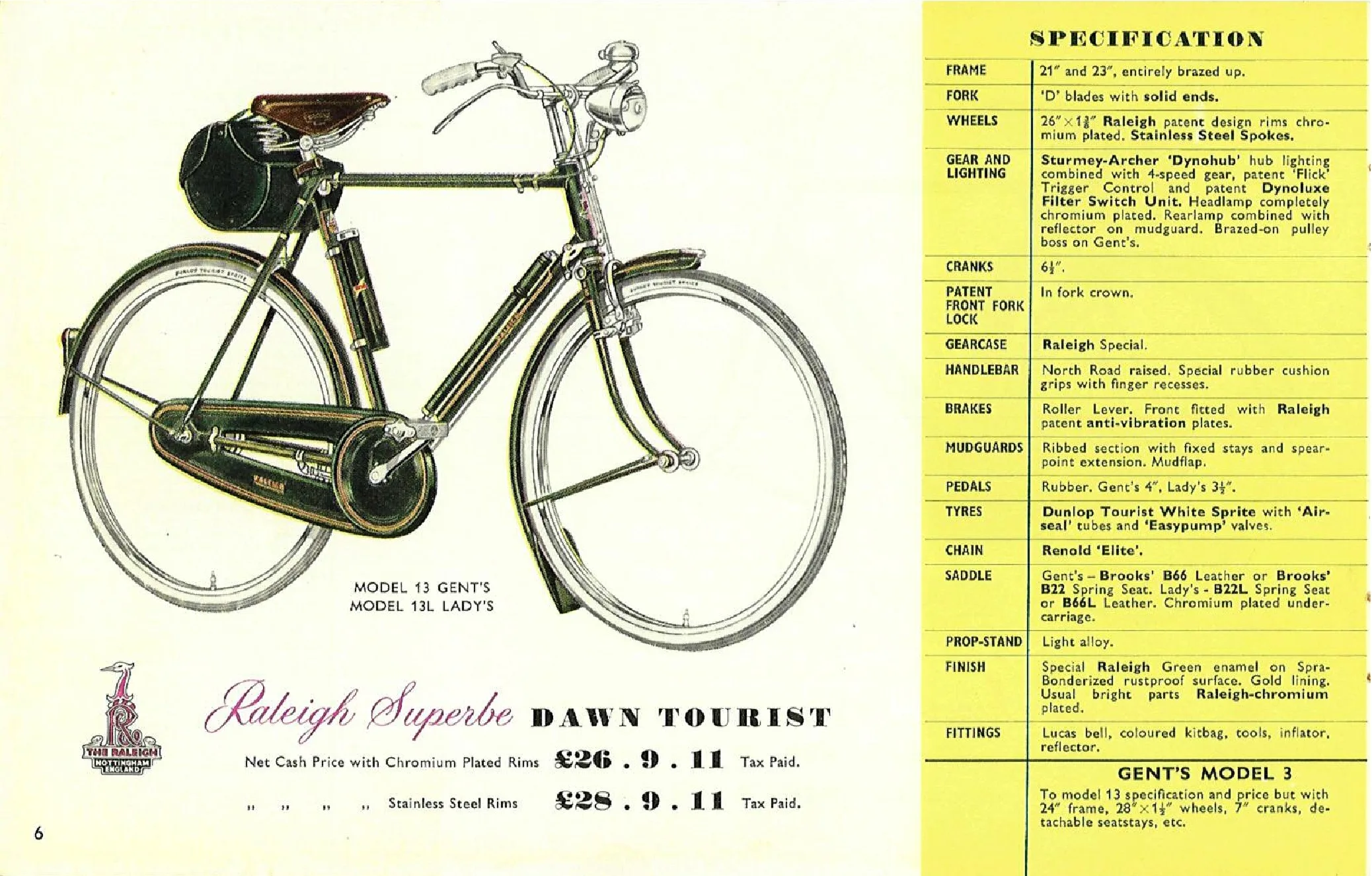

— Page 6 —
Raleigh Superbe DAWN TOURIST
MODEL 13 GENT’S
MODEL 13L LADY’S
Net Cash Price with Chromium Plated Rims £26 . 9 . 11 Tax Paid.
” ” ” ” Stainless Steel Rims £28 . 9 . 11 Tax Paid.
SPECIFICATION
FRAME: 21″ and 23″, entirely brazed up.
FORK: ‘D’ blades with solid ends.
WHEELS: 26″ × 1⅜” Raleigh patent design rims chromium plated. Stainless Steel Spokes.
GEAR AND LIGHTING: Sturmey-Archer ‘Dynohub’ hub lighting combined with 4-speed gear, patent ‘Flick’ Trigger Control and patent Dynoluxe Filter Switch Unit. Headlamp completely chromium plated. Rearlamp combined with reflector on mudguard. Brazed-on pulley boss on Gent’s.
CRANKS: 6½”.
PATENT FRONT FORK LOCK: In fork crown.
GEARCASE: Raleigh Special.
HANDLEBAR: North Road raised. Special rubber cushion grips with finger recesses.
BRAKES: Roller Lever. Front fitted with Raleigh patent anti-vibration plates.
MUDGUARDS: Ribbed section with fixed stays and spear-point extension. Mudflap.
PEDALS: Rubber. Gent’s 4″, Lady’s 3½”.
TYRES: Dunlop Tourist White Sprite with ‘Airseal’ tubes and ‘Easypump’ valves.
CHAIN: Renold ‘Elite’.
SADDLE: Gent’s — Brooks’ B66 Leather or Brooks’ B22 Spring Seat. Lady’s — B22L Spring Seat or B66L Leather. Chromium plated undercarriage.
PROP-STAND: Light alloy.
FINISH: Special Raleigh Green enamel on Spra-Bonderized rustproof surface. Gold lining. Usual bright parts Raleigh-chromium plated.
FITTINGS: Lucas bell, coloured kitbag, tools, inflator, reflector.
GENT’S MODEL 3
To model 13 specification and price but with 24″ frame, 28″ × 1½” wheels, 7″ cranks, detachable seatstays, etc.
6
[A side-view color illustration of the Gent’s Superbe Dawn Tourist in Raleigh Green with full gearcase, rod-operated roller lever brakes, saddlebag and headlamp.]

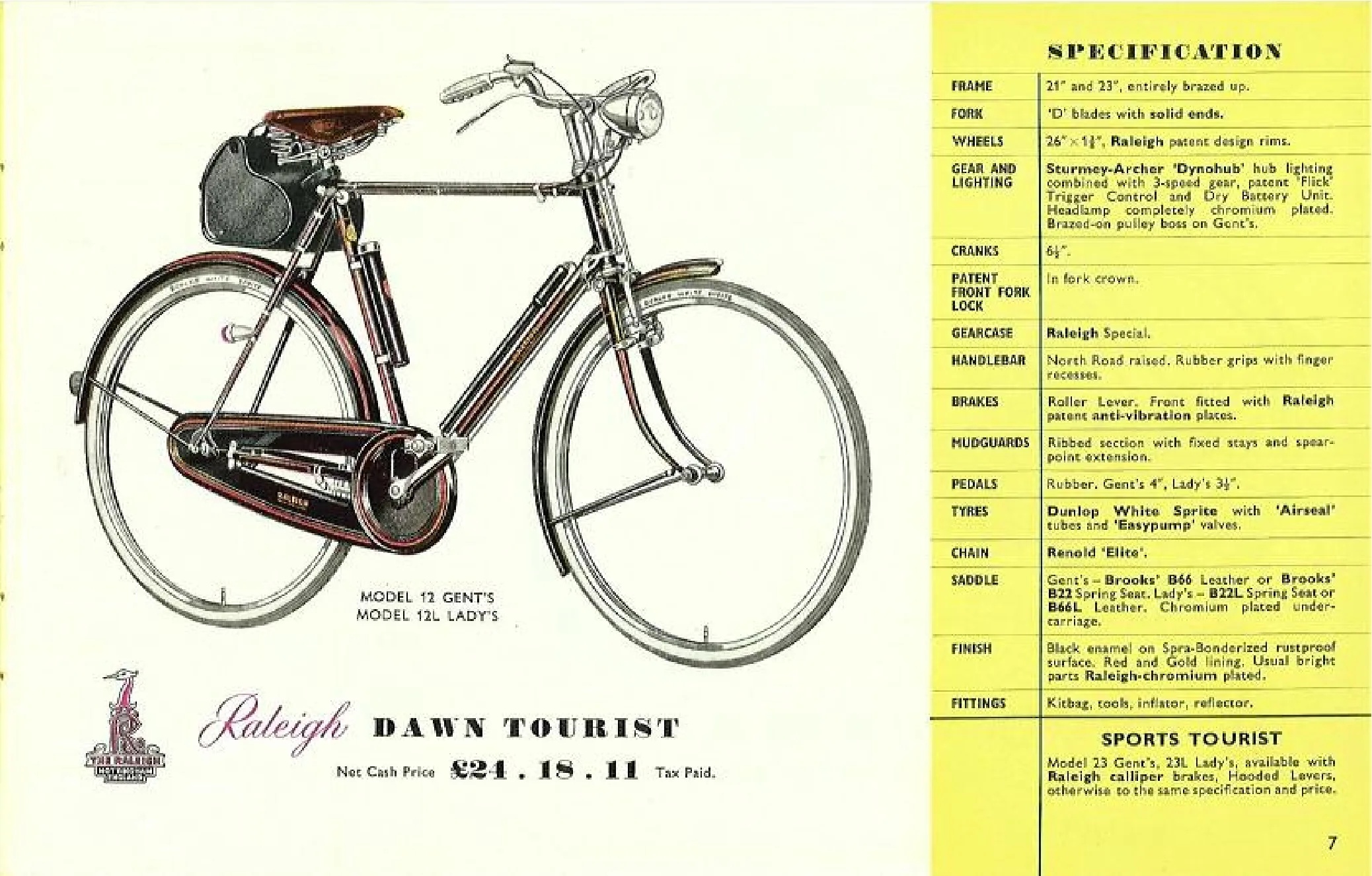

— Page 7 —
Raleigh DAWN TOURIST
MODEL 12 GENT’S
MODEL 12L LADY’S
Net Cash Price £24 . 18 . 11 Tax Paid.
SPECIFICATION
FRAME: 21″ and 23″, entirely brazed up.
FORK: ‘D’ blades with solid ends.
WHEELS: 26″ × 1⅜” Raleigh patent design rims.
GEAR AND LIGHTING: Sturmey-Archer ‘Dynohub’ hub lighting combined with 3-speed gear, patent ‘Flick’ Trigger Control and Dry Battery Unit. Headlamp completely chromium plated. Brazed-on pulley boss on Gent’s.
CRANKS: 6½”.
PATENT FRONT FORK LOCK: In fork crown.
GEARCASE: Raleigh Special.
HANDLEBAR: North Road raised. Rubber grips with finger recesses.
BRAKES: Roller Lever. Front fitted with Raleigh patent anti-vibration plates.
MUDGUARDS: Ribbed section with fixed stays and spear-point extension.
PEDALS: Rubber. Gent’s 4″, Lady’s 3½”.
TYRES: Dunlop White Sprite with ‘Airseal’ tubes and ‘Easypump’ valves.
CHAIN: Renold ‘Elite’.
SADDLE: Gent’s — Brooks’ B66 Leather or Brooks’ B22 Spring Seat. Lady’s — B22L Spring Seat or B66L Leather. Chromium plated undercarriage.
FINISH: Black enamel on Spra-Bonderized rustproof surface. Red and Gold lining. Usual bright parts Raleigh-chromium plated.
FITTINGS: Kitbag, tools, inflator, reflector.
SPORTS TOURIST
Model 23 Gent’s, 23L Lady’s, available with Raleigh calliper brakes, Hooded Levers, otherwise to the same specification and price.
7
[A side-view color illustration of the Gent’s Dawn Tourist in black with red and gold lining, full gearcase, roller lever brakes, kitbag behind the saddle and a headlamp on the fork crown.]

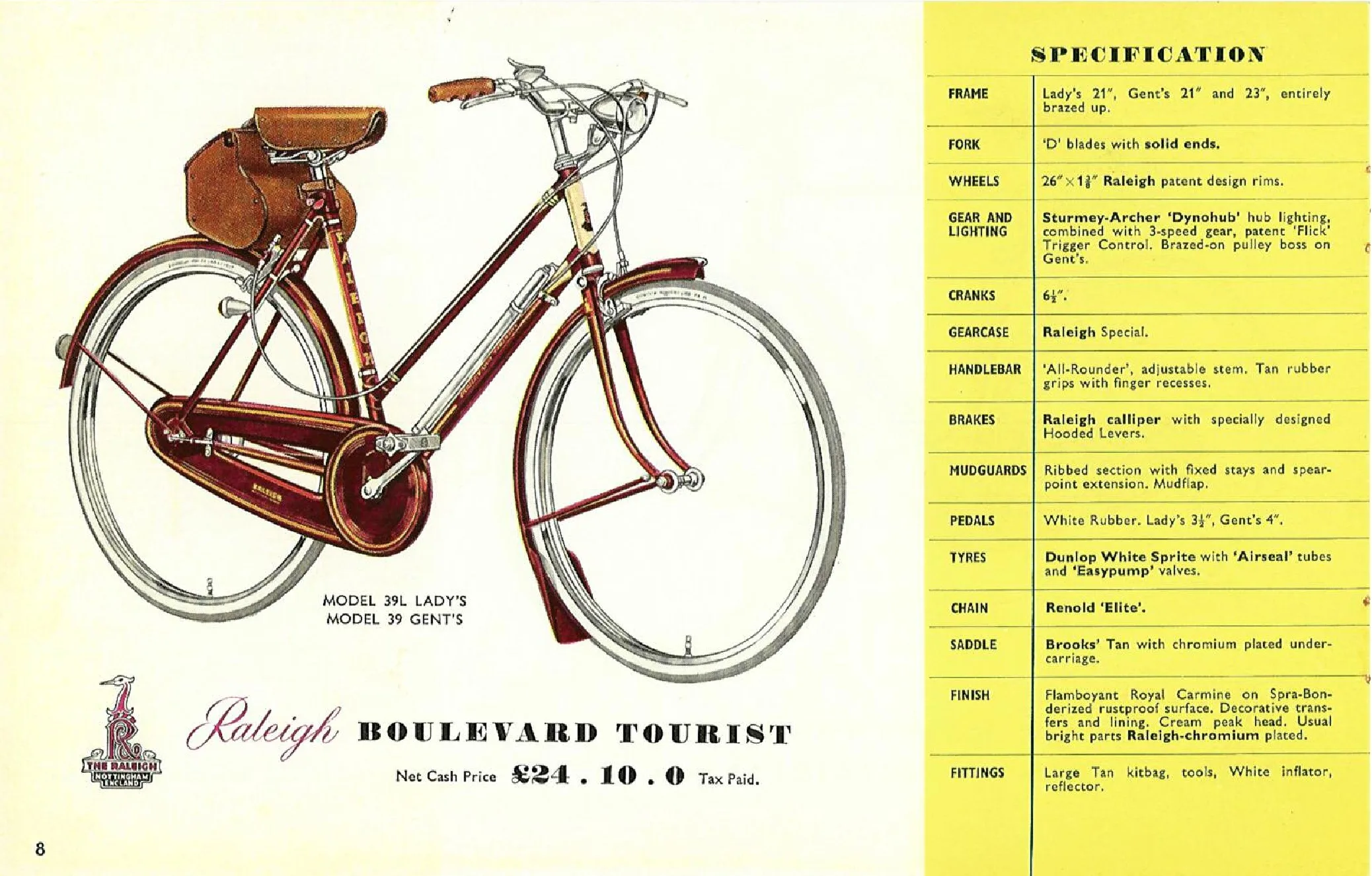

— Page 8 —
Raleigh BOULEVARD TOURIST
MODEL 39L LADY’S
MODEL 39 GENT’S
Net Cash Price £24 . 10 . 0 Tax Paid.
SPECIFICATION
FRAME: Lady’s 21″, Gent’s 21″ and 23″, entirely brazed up.
FORK: ‘D’ blades with solid ends.
WHEELS: 26″ × 1⅜” Raleigh patent design rims.
GEAR AND LIGHTING: Sturmey-Archer ‘Dynohub’ hub lighting, combined with 3-speed gear, patent ‘Flick’ Trigger Control. Brazed-on pulley boss on Gent’s.
CRANKS: 6½”.
GEARCASE: Raleigh Special.
HANDLEBAR: ‘All-Rounder’, adjustable stem. Tan rubber grips with finger recesses.
BRAKES: Raleigh calliper with specially designed Hooded Levers.
MUDGUARDS: Ribbed section with fixed stays and spear-point extension. Mudflap.
PEDALS: White Rubber. Lady’s 3½”, Gent’s 4″.
TYRES: Dunlop White Sprite with ‘Airseal’ tubes and ‘Easypump’ valves.
CHAIN: Renold ‘Elite’.
SADDLE: Brooks’ Tan with chromium plated undercarriage.
FINISH: Flamboyant Royal Carmine on Spra-Bonderized rustproof surface. Decorative transfers and lining. Cream peak head. Usual bright parts Raleigh-chromium plated.
FITTINGS: Large Tan kitbag, tools, White inflator, reflector.
8
[A side-view color illustration of the Lady’s Boulevard Tourist in flamboyant Royal Carmine with a cream peak head, gold-lined gearcase, tan Brooks saddle, large tan kitbag and white pedals.]

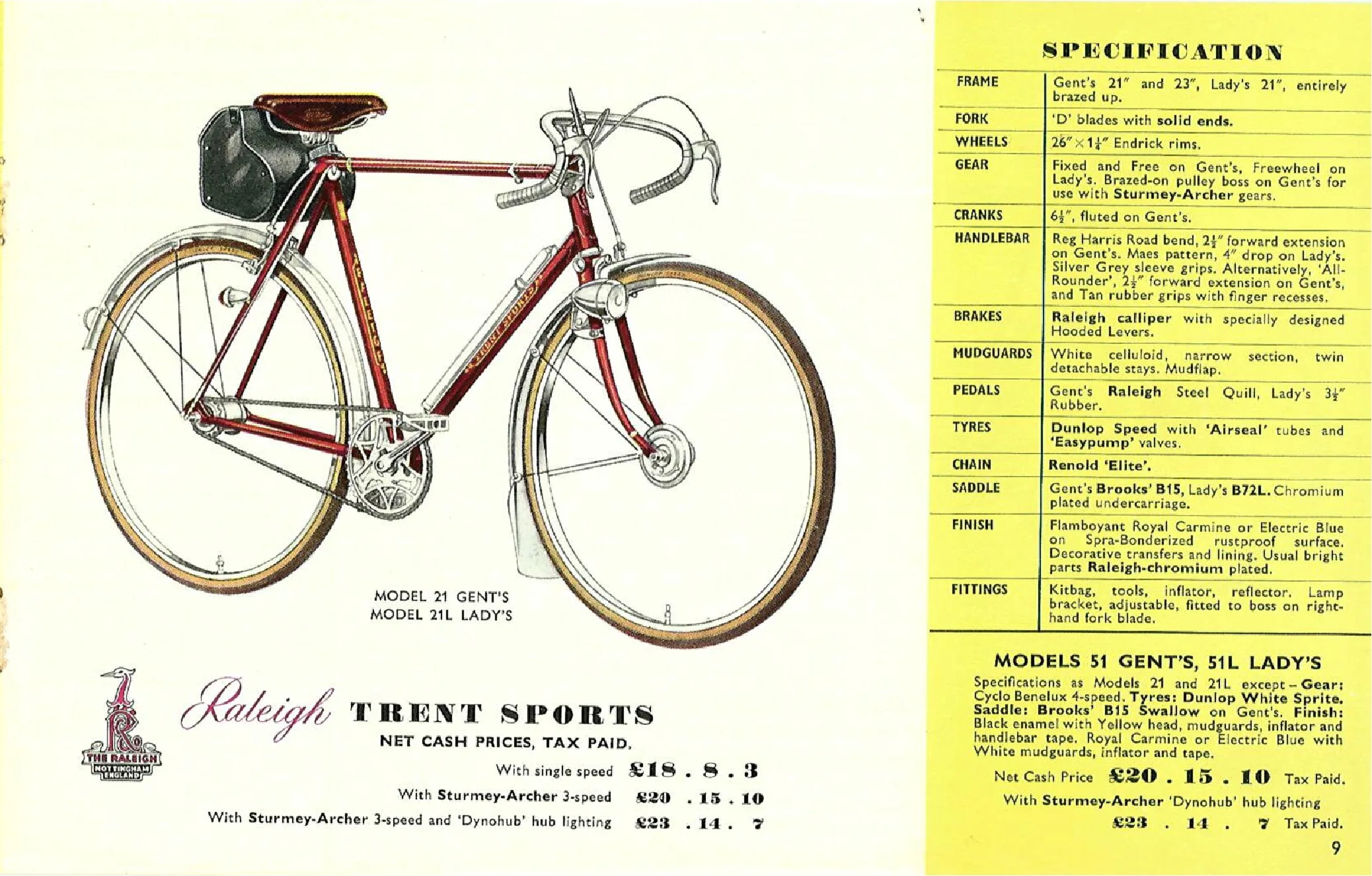

— Page 9 —
Raleigh TRENT SPORTS
MODEL 21 GENT’S
MODEL 21L LADY’S
NET CASH PRICES, TAX PAID.
With single speed £18 . 8 . 3
With Sturmey-Archer 3-speed £20 . 15 . 10
With Sturmey-Archer 3-speed and ‘Dynohub’ hub lighting £23 . 14 . 7
SPECIFICATION
FRAME: Gent’s 21″ and 23″, Lady’s 21″, entirely brazed up.
FORK: ‘D’ blades with solid ends.
WHEELS: 26″ × 1⅜” Endrick rims.
GEAR: Fixed and Free on Gent’s, Freewheel on Lady’s. Brazed-on pulley boss on Gent’s for use with Sturmey-Archer gears.
CRANKS: 6½”, fluted on Gent’s.
HANDLEBAR: Reg Harris Road bend, 2½” forward extension on Gent’s. Maes pattern, 4″ drop on Lady’s. Silver Grey sleeve grips. Alternatively, ‘All-Rounder’, 2½” forward extension on Gent’s, and Tan rubber grips with finger recesses.
BRAKES: Raleigh calliper with specially designed Hooded Levers.
MUDGUARDS: White celluloid, narrow section, twin detachable stays. Mudflap.
PEDALS: Gent’s Raleigh Steel Quill, Lady’s 3½” Rubber.
TYRES: Dunlop Speed with ‘Airseal’ tubes and ‘Easypump’ valves.
CHAIN: Renold ‘Elite’.
SADDLE: Gent’s Brooks’ B15, Lady’s B72L. Chromium plated undercarriage.
FINISH: Flamboyant Royal Carmine or Electric Blue on Spra-Bonderized rustproof surface. Decorative transfers and lining. Usual bright parts Raleigh-chromium plated.
FITTINGS: Kitbag, tools, inflator, reflector. Lamp bracket, adjustable, fitted to boss on right-hand fork blade.
MODELS 51 GENT’S, 51L LADY’S
Specifications as Models 21 and 21L except — Gear: Cyclo Benelux 4-speed. Tyres: Dunlop White Sprite. Saddle: Brooks’ B15 Swallow on Gent’s. Finish: Black enamel with Yellow head, mudguards, inflator and handlebar tape. Royal Carmine or Electric Blue with White mudguards, inflator and tape.
Net Cash Price £20 . 15 . 10 Tax Paid.
With Sturmey-Archer ‘Dynohub’ hub lighting £23 . 14 . 7 Tax Paid.
9
[A side-view color illustration of the Gent’s Trent Sports in flamboyant Royal Carmine with white celluloid mudguards, dropped bars, black saddlebag and gum-wall tyres.]

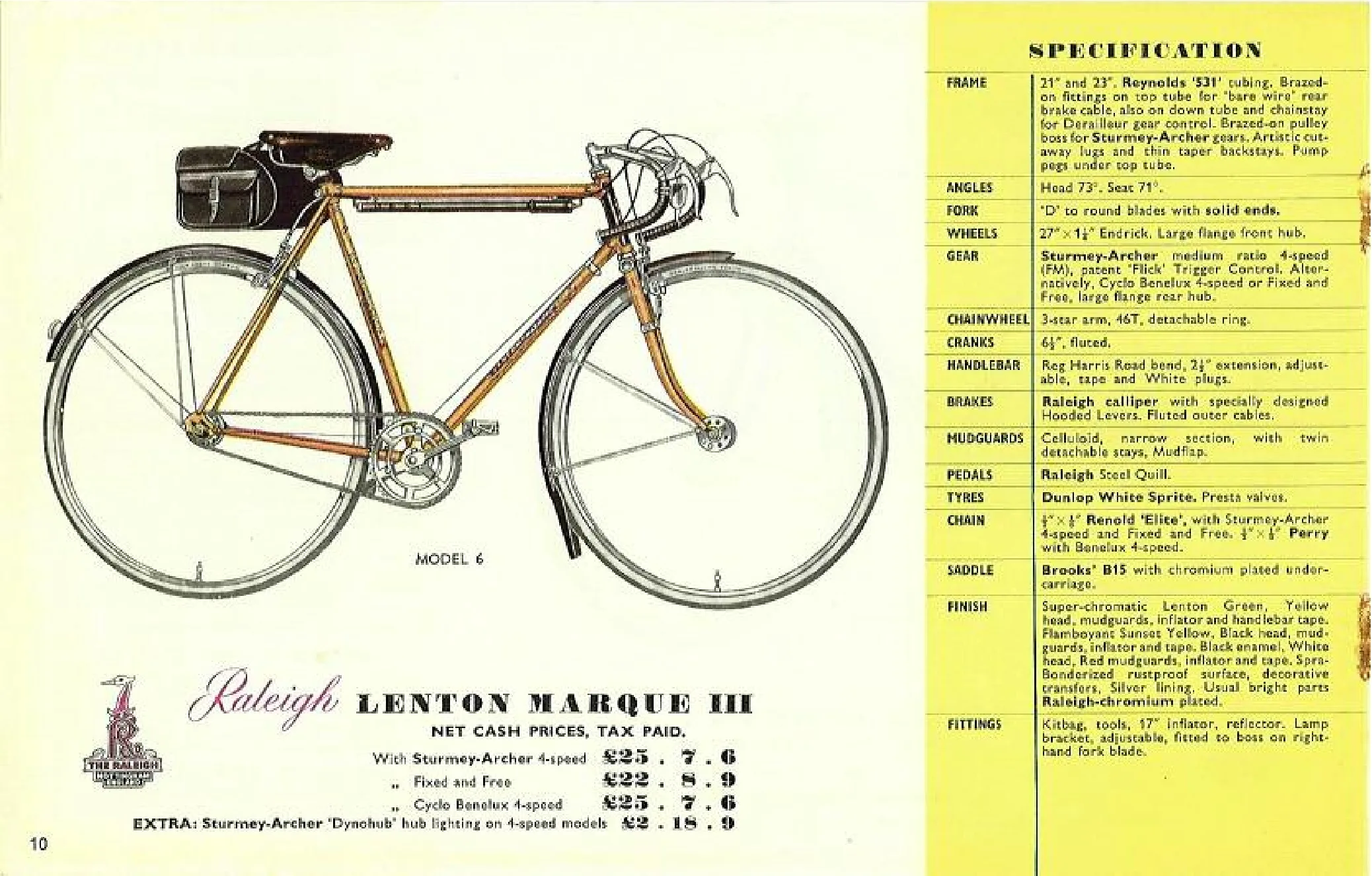

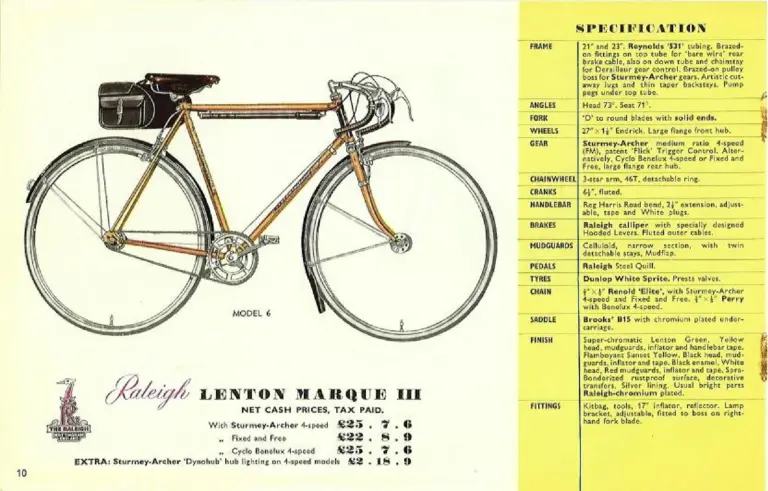

— Page 10 —
Raleigh LENTON MARQUE III
MODEL 6
NET CASH PRICES, TAX PAID.
With Sturmey-Archer 4-speed £25 . 7 . 6
” Fixed and Free £22 . 8 . 9
” Cyclo Benelux 4-speed £25 . 7 . 6
EXTRA: Sturmey-Archer ‘Dynohub’ hub lighting on 4-speed models £2 . 18 . 9
SPECIFICATION
FRAME: 21″ and 23″. Reynolds ‘531’ tubing. Brazed-on fittings on top tube for ‘bare wire’ rear brake cable, also on down tube and chainstay for Derailleur gear control. Brazed-on pulley boss for Sturmey-Archer gears. Artistic cut-away lugs and thin taper backstays. Pump pegs under top tube.
ANGLES: Head 73°. Seat 71°.
FORK: ‘D’ to round blades with solid ends.
WHEELS: 27″ × 1¼” Endrick. Large flange front hub.
GEAR: Sturmey-Archer medium ratio 4-speed (FM), patent ‘Flick’ Trigger Control. Alternatively, Cyclo Benelux 4-speed or Fixed and Free, large flange rear hub.
CHAINWHEEL: 3-star arm, 46T, detachable ring.
CRANKS: 6½”, fluted.
HANDLEBAR: Reg Harris Road bend, 2½” extension, adjustable, tape and White plugs.
BRAKES: Raleigh calliper with specially designed Hooded Levers. Fluted outer cables.
MUDGUARDS: Celluloid, narrow section, with twin detachable stays, Mudflap.
PEDALS: Raleigh Steel Quill.
TYRES: Dunlop White Sprite. Presta valves.
CHAIN: ½” × ⅛” Renold ‘Elite’, with Sturmey-Archer 4-speed and Fixed and Free. ½” × ³⁄₃₂” Perry with Benelux 4-speed.
SADDLE: Brooks’ B15 with chromium plated undercarriage.
FINISH: Super-chromatic Lenton Green, Yellow head, mudguards, inflator and handlebar tape. Flamboyant Sunset Yellow, Black head, mudguards, inflator and tape. Black enamel, White head, Red mudguards, inflator and tape. Spra-Bonderized rustproof surface, decorative transfers, Silver lining. Usual bright parts Raleigh-chromium plated.
FITTINGS: Kitbag, tools, 17″ inflator, reflector. Lamp bracket, adjustable, fitted to boss on right-hand fork blade.
10
[A side-view color illustration of the Gent’s Lenton Marque III in flamboyant Sunset Yellow with a black head, dropped bars, black saddlebag and a fluted chainset.]

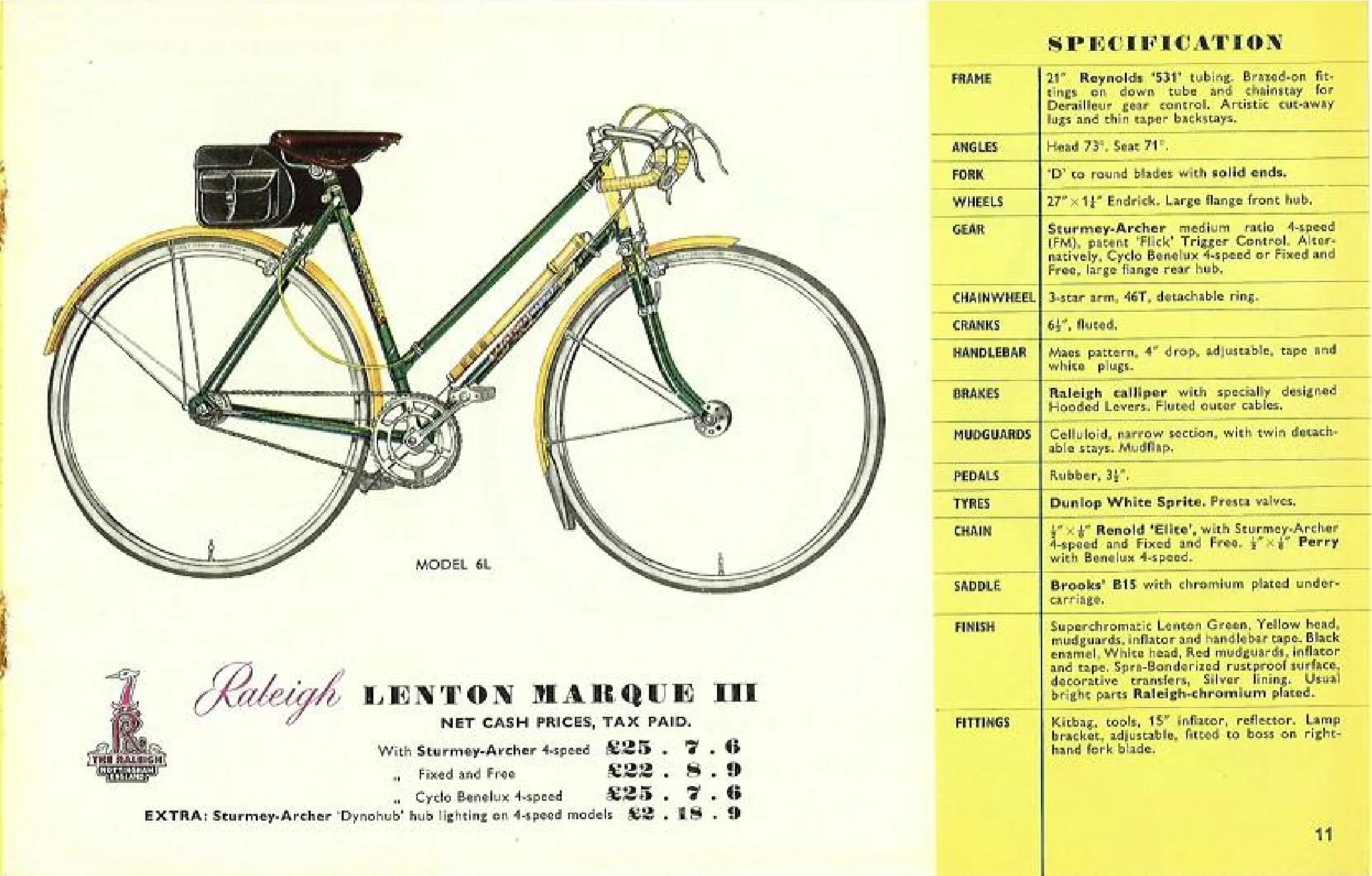

— Page 11 —
Raleigh LENTON MARQUE III
MODEL 6L
NET CASH PRICES, TAX PAID.
With Sturmey-Archer 4-speed £25 . 7 . 6
” Fixed and Free £22 . 8 . 9
” Cyclo Benelux 4-speed £25 . 7 . 6
EXTRA: Sturmey-Archer ‘Dynohub’ hub lighting on 4-speed models £2 . 18 . 9
SPECIFICATION
FRAME: 21″. Reynolds ‘531’ tubing. Brazed-on fittings on down tube and chainstay for Derailleur gear control. Artistic cut-away lugs and thin taper backstays.
ANGLES: Head 73°. Seat 71°.
FORK: ‘D’ to round blades with solid ends.
WHEELS: 27″ × 1¼” Endrick. Large flange front hub.
GEAR: Sturmey-Archer medium ratio 4-speed (FM), patent ‘Flick’ Trigger Control. Alternatively, Cyclo Benelux 4-speed or Fixed and Free, large flange rear hub.
CHAINWHEEL: 3-star arm, 46T, detachable ring.
CRANKS: 6½”, fluted.
HANDLEBAR: Maes pattern, 4″ drop, adjustable, tape and white plugs.
BRAKES: Raleigh calliper with specially designed Hooded Levers. Fluted outer cables.
MUDGUARDS: Celluloid, narrow section, with twin detachable stays. Mudflap.
PEDALS: Rubber, 3½”.
TYRES: Dunlop White Sprite. Presta valves.
CHAIN: ½” × ⅛” Renold ‘Elite’, with Sturmey-Archer 4-speed and Fixed and Free. ½” × ³⁄₃₂” Perry with Benelux 4-speed.
SADDLE: Brooks’ B15 with chromium plated undercarriage.
FINISH: Superchromatic Lenton Green, Yellow head, mudguards, inflator and handlebar tape. Black enamel, White head, Red mudguards, inflator and tape. Spra-Bonderized rustproof surface, decorative transfers, Silver lining. Usual bright parts Raleigh-chromium plated.
FITTINGS: Kitbag, tools, 15″ inflator, reflector. Lamp bracket, adjustable, fitted to boss on right-hand fork blade.
11
[A side-view color illustration of the Lady’s Lenton Marque III in super-chromatic Lenton Green with a yellow head and yellow mudguards, dropped Maes bars and a black saddlebag.]

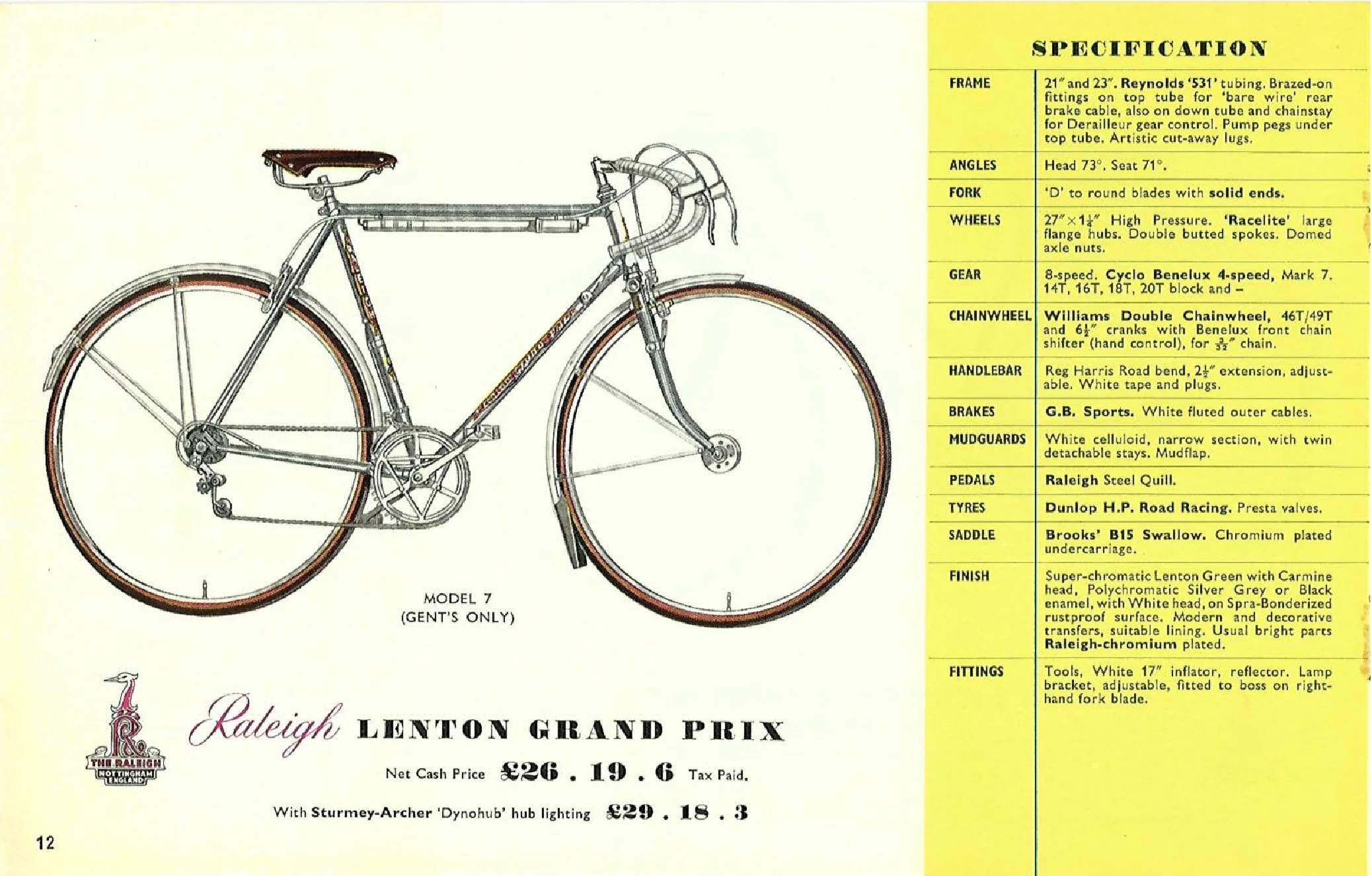

— Page 12 —
Raleigh LENTON GRAND PRIX
MODEL 7 (GENT’S ONLY)
Net Cash Price £26 . 19 . 6 Tax Paid.
With Sturmey-Archer ‘Dynohub’ hub lighting £29 . 18 . 3
SPECIFICATION
FRAME: 21″ and 23″. Reynolds ‘531’ tubing. Brazed-on fittings on top tube for ‘bare wire’ rear brake cable, also on down tube and chainstay for Derailleur gear control. Pump pegs under top tube. Artistic cut-away lugs.
ANGLES: Head 73°. Seat 71°.
FORK: ‘D’ to round blades with solid ends.
WHEELS: 27″ × 1¼” High Pressure. ‘Racelite’ large flange hubs. Double butted spokes. Domed axle nuts.
GEAR: 8-speed. Cyclo Benelux 4-speed, Mark 7. 14T, 16T, 18T, 20T block and —
CHAINWHEEL: Williams Double Chainwheel, 46T/49T and 6½” cranks with Benelux front chain shifter (hand control), for ³⁄₃₂” chain.
HANDLEBAR: Reg Harris Road bend, 2½” extension, adjustable. White tape and plugs.
BRAKES: G.B. Sports. White fluted outer cables.
MUDGUARDS: White celluloid, narrow section, with twin detachable stays. Mudflap.
PEDALS: Raleigh Steel Quill.
TYRES: Dunlop H.P. Road Racing. Presta valves.
SADDLE: Brooks’ B15 Swallow. Chromium plated undercarriage.
FINISH: Super-chromatic Lenton Green with Carmine head, Polychromatic Silver Grey or Black enamel, with White head, on Spra-Bonderized rustproof surface. Modern and decorative transfers, suitable lining. Usual bright parts Raleigh-chromium plated.
FITTINGS: Tools, White 17″ inflator, reflector. Lamp bracket, adjustable, fitted to boss on right-hand fork blade.
12
[A side-view color illustration of the Lenton Grand Prix in polychromatic Silver Grey with a white head, white celluloid mudguards, a double chainwheel with front changer and red-wall high-pressure tyres.]

— Page 13 —

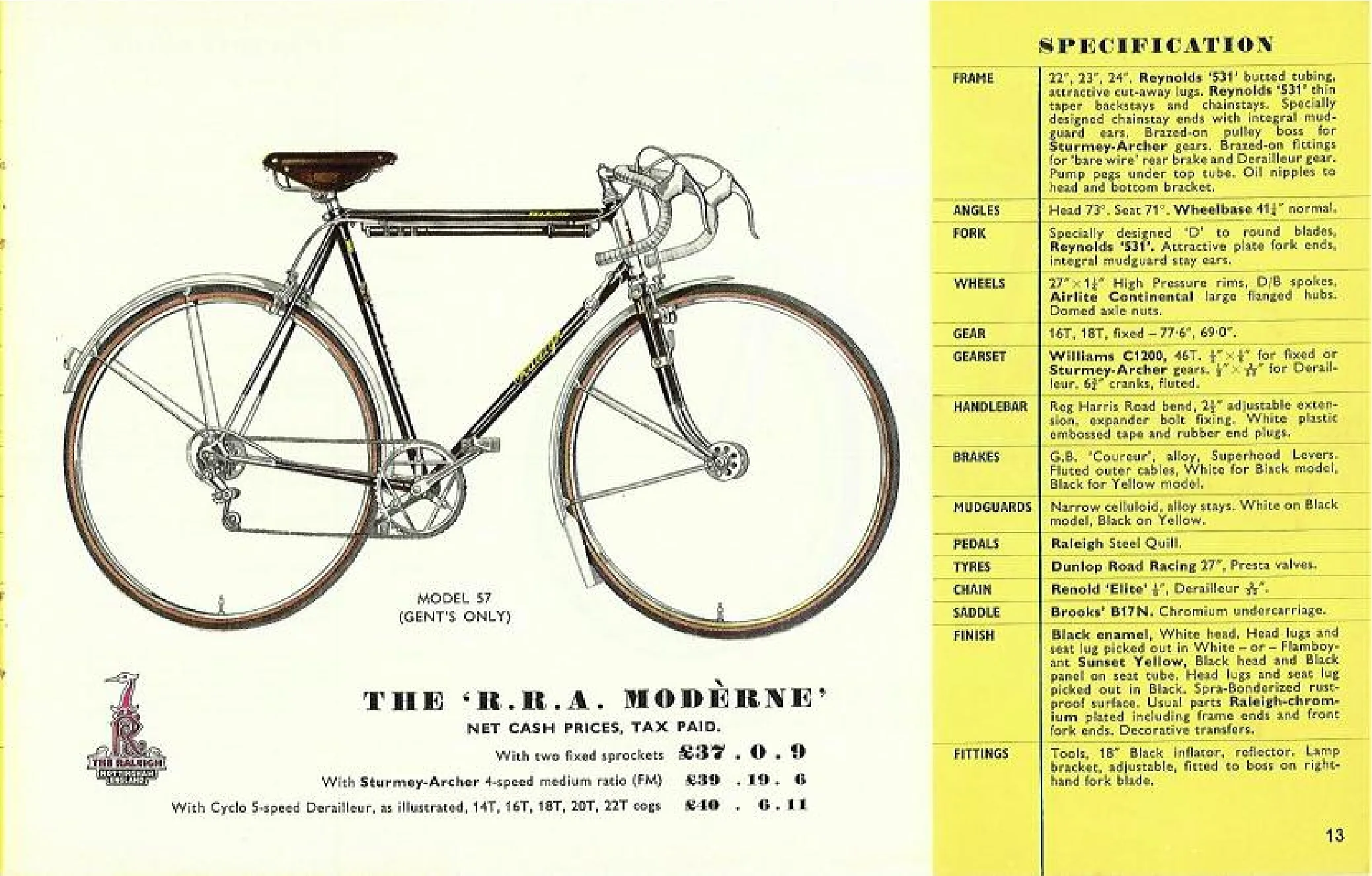

THE ‘R.R.A. MODÈRNE’
MODEL 57 (GENT’S ONLY)
NET CASH PRICES, TAX PAID.
With two fixed sprockets £37 . 0 . 9
With Sturmey-Archer 4-speed medium ratio (FM) £39 . 19 . 6
With Cyclo 5-speed Derailleur, as illustrated, 14T, 16T, 18T, 20T, 22T cogs £40 . 6 . 11
SPECIFICATION
FRAME: 22″, 23″, 24″. Reynolds ‘531’ butted tubing, attractive cut-away lugs. Reynolds ‘531’ thin taper backstays and chainstays. Specially designed chainstay ends with integral mudguard ears. Brazed-on pulley boss for Sturmey-Archer gears. Brazed-on fittings for ‘bare wire’ rear brake and Derailleur gear. Pump pegs under top tube. Oil nipples to head and bottom bracket.
ANGLES: Head 73°. Seat 71°. Wheelbase 41½” normal.
FORK: Specially designed ‘D’ to round blades, Reynolds ‘531’. Attractive plate fork ends, integral mudguard stay ears.
WHEELS: 27″ × 1¼” High Pressure rims, D/B spokes, Airlite Continental large flanged hubs. Domed axle nuts.
GEAR: 16T, 18T, fixed — 77·6″, 69·0″.
GEARSET: Williams C1200, 46T. ½” × ⅛” for fixed or Sturmey-Archer gears. ½” × ³⁄₃₂” for Derailleur. 6½” cranks, fluted.
HANDLEBAR: Reg Harris Road bend, 2½” adjustable extension, expander bolt fixing. White plastic embossed tape and rubber end plugs.
BRAKES: G.B. ‘Coureur’, alloy, Superhood Levers. Fluted outer cables, White for Black model, Black for Yellow model.
MUDGUARDS: Narrow celluloid, alloy stays. White on Black model, Black on Yellow.
PEDALS: Raleigh Steel Quill.
TYRES: Dunlop Road Racing 27″. Presta valves.
CHAIN: Renold ‘Elite’ ⅛”. Derailleur ³⁄₃₂”.
SADDLE: Brooks’ B17N. Chromium undercarriage.
FINISH: Black enamel, White head. Head lugs and seat lug picked out in White — or — Flamboyant Sunset Yellow, Black head and Black panel on seat tube. Head lugs and seat lug picked out in Black. Spra-Bonderized rustproof surface. Usual parts Raleigh-chromium plated including frame ends and front fork ends. Decorative transfers.
FITTINGS: Tools, 18″ Black inflator, reflector. Lamp bracket, adjustable, fitted to boss on right-hand fork blade.
13
[A side-view color illustration of the R.R.A. Modèrne in black with a white head, white celluloid mudguards, a Cyclo five-speed derailleur, Brooks B17N saddle and red-wall racing tyres.]

— Page 14 —

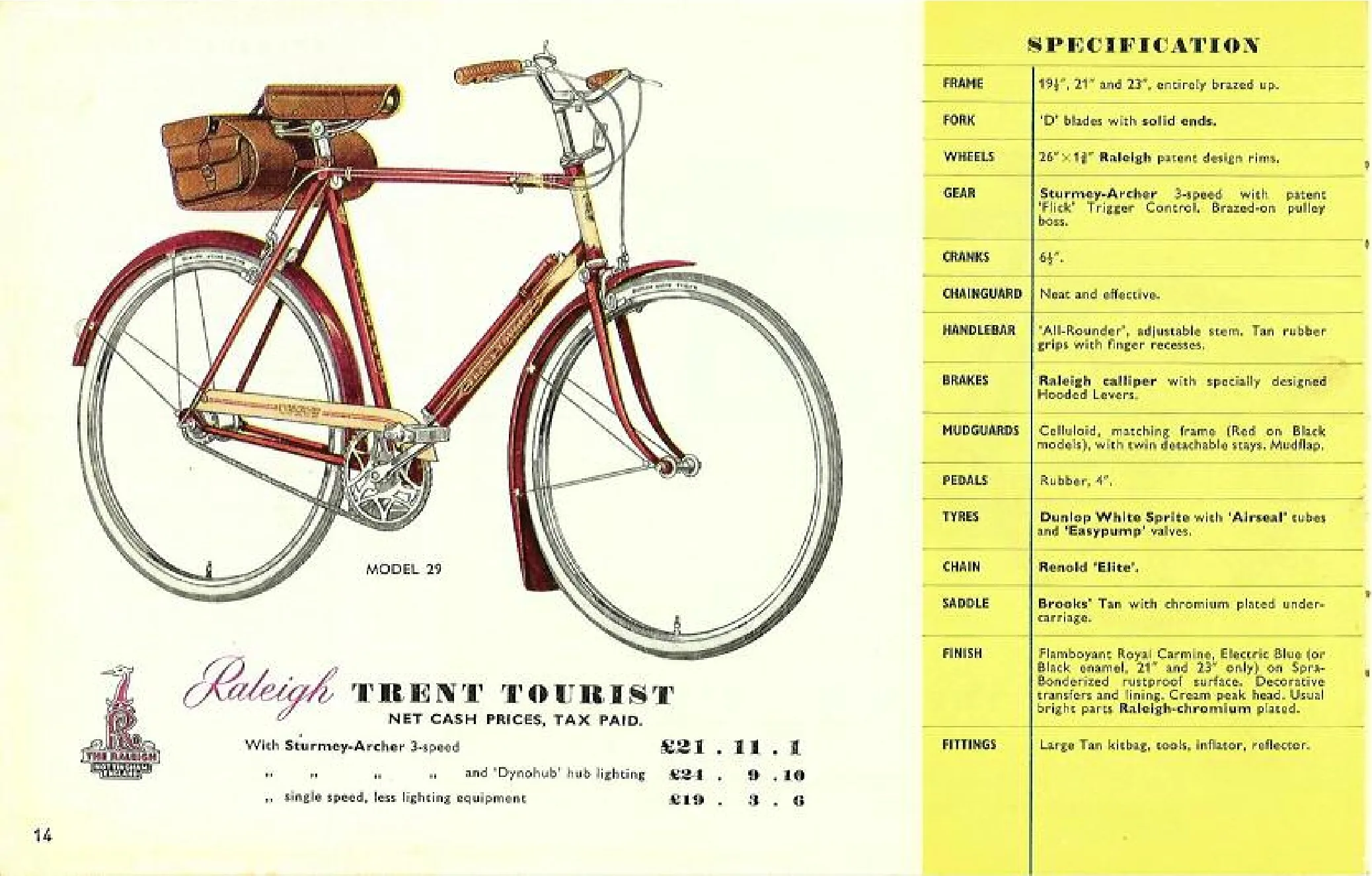

Raleigh TRENT TOURIST
MODEL 29
NET CASH PRICES, TAX PAID.
With Sturmey-Archer 3-speed £21 . 11 . 1
” ” ” ” and ‘Dynohub’ hub lighting £24 . 9 . 10
” single speed, less lighting equipment £19 . 3 . 6
SPECIFICATION
FRAME: 19½”, 21″ and 23″, entirely brazed up.
FORK: ‘D’ blades with solid ends.
WHEELS: 26″ × 1⅜” Raleigh patent design rims.
GEAR: Sturmey-Archer 3-speed with patent ‘Flick’ Trigger Control. Brazed-on pulley boss.
CRANKS: 6½”.
CHAINGUARD: Neat and effective.
HANDLEBAR: ‘All-Rounder’, adjustable stem. Tan rubber grips with finger recesses.
BRAKES: Raleigh calliper with specially designed Hooded Levers.
MUDGUARDS: Celluloid, matching frame (Red on Black models), with twin detachable stays. Mudflap.
PEDALS: Rubber, 4″.
TYRES: Dunlop White Sprite with ‘Airseal’ tubes and ‘Easypump’ valves.
CHAIN: Renold ‘Elite’.
SADDLE: Brooks’ Tan with chromium plated undercarriage.
FINISH: Flamboyant Royal Carmine, Electric Blue (or Black enamel, 21″ and 23″ only) on Spra-Bonderized rustproof surface. Decorative transfers and lining. Cream peak head. Usual bright parts Raleigh-chromium plated.
FITTINGS: Large Tan kitbag, tools, inflator, reflector.
14
[A side-view color illustration of the Gent’s Trent Tourist in flamboyant Royal Carmine with a cream peak head, matching celluloid mudguards, tan saddle, tan saddlebag and a bedroll strapped above it.]

— Page 15 —

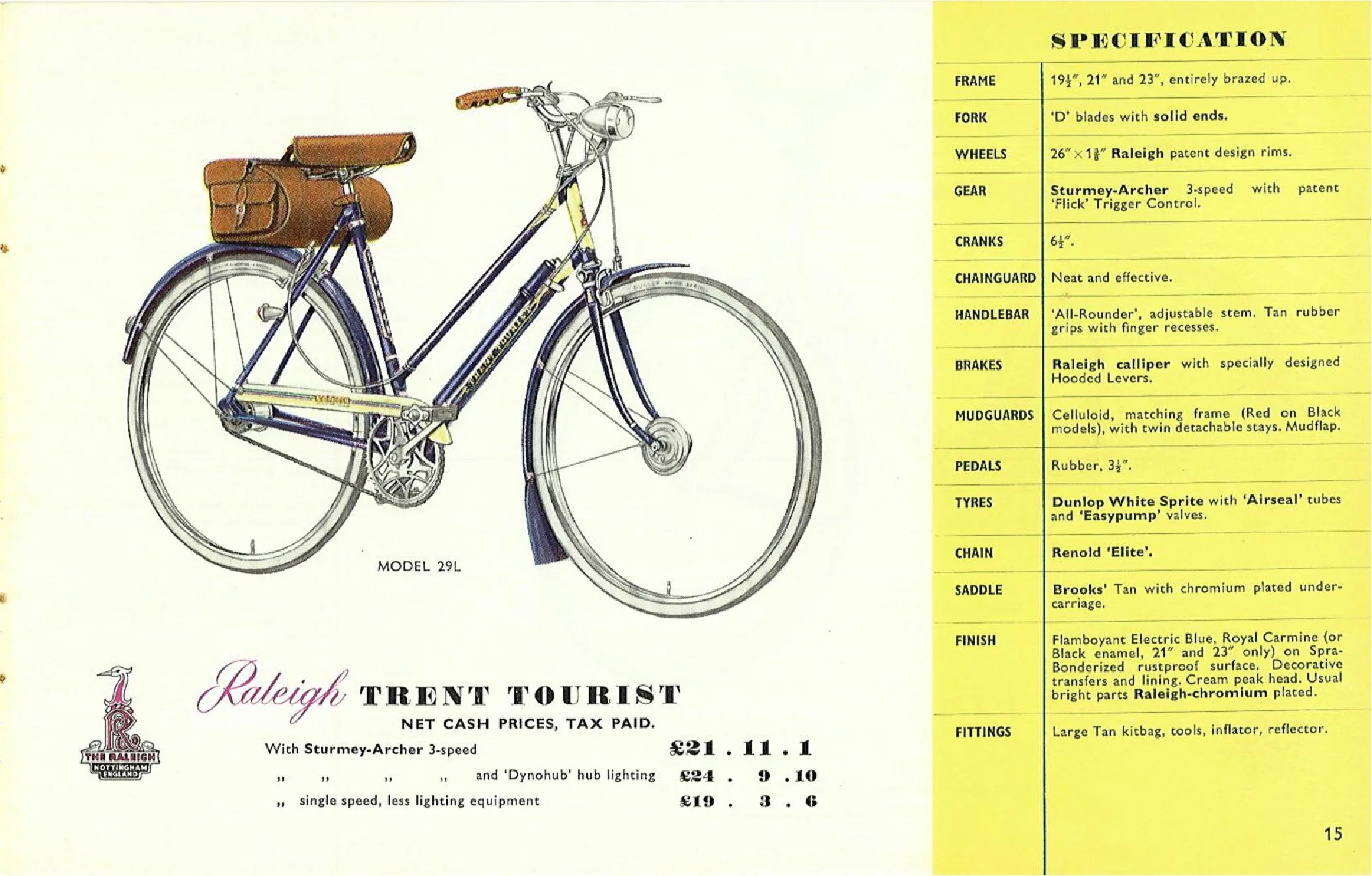

Raleigh TRENT TOURIST
MODEL 29L
NET CASH PRICES, TAX PAID.
With Sturmey-Archer 3-speed £21 . 11 . 1
” ” ” ” and ‘Dynohub’ hub lighting £24 . 9 . 10
” single speed, less lighting equipment £19 . 3 . 6
SPECIFICATION
FRAME: 19½”, 21″ and 23″, entirely brazed up.
FORK: ‘D’ blades with solid ends.
WHEELS: 26″ × 1⅜” Raleigh patent design rims.
GEAR: Sturmey-Archer 3-speed with patent ‘Flick’ Trigger Control.
CRANKS: 6½”.
CHAINGUARD: Neat and effective.
HANDLEBAR: ‘All-Rounder’, adjustable stem. Tan rubber grips with finger recesses.
BRAKES: Raleigh calliper with specially designed Hooded Levers.
MUDGUARDS: Celluloid, matching frame (Red on Black models), with twin detachable stays. Mudflap.
PEDALS: Rubber, 3½”.
TYRES: Dunlop White Sprite with ‘Airseal’ tubes and ‘Easypump’ valves.
CHAIN: Renold ‘Elite’.
SADDLE: Brooks’ Tan with chromium plated undercarriage.
FINISH: Flamboyant Electric Blue, Royal Carmine (or Black enamel, 21″ and 23″ only) on Spra-Bonderized rustproof surface. Decorative transfers and lining. Cream peak head. Usual bright parts Raleigh-chromium plated.
FITTINGS: Large Tan kitbag, tools, inflator, reflector.
15
[A side-view color illustration of the Lady’s Trent Tourist in flamboyant Electric Blue with a cream peak head, tan saddle and kitbag, a bedroll above the rear carrier and a headlamp on the bars.]

— Page 16 —

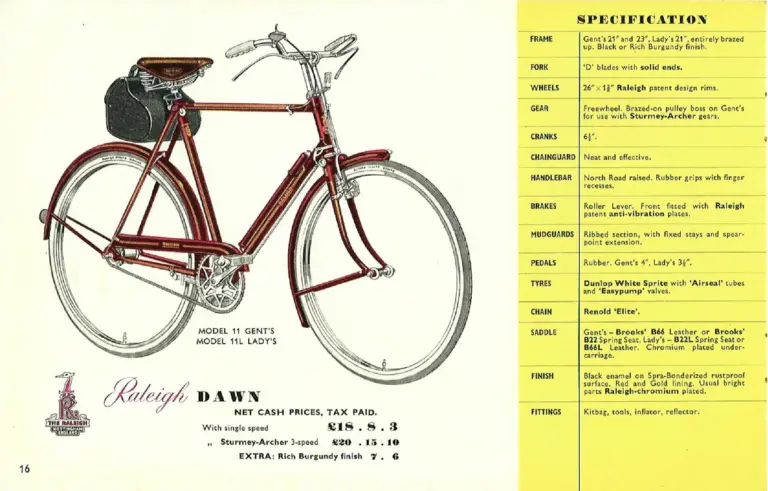

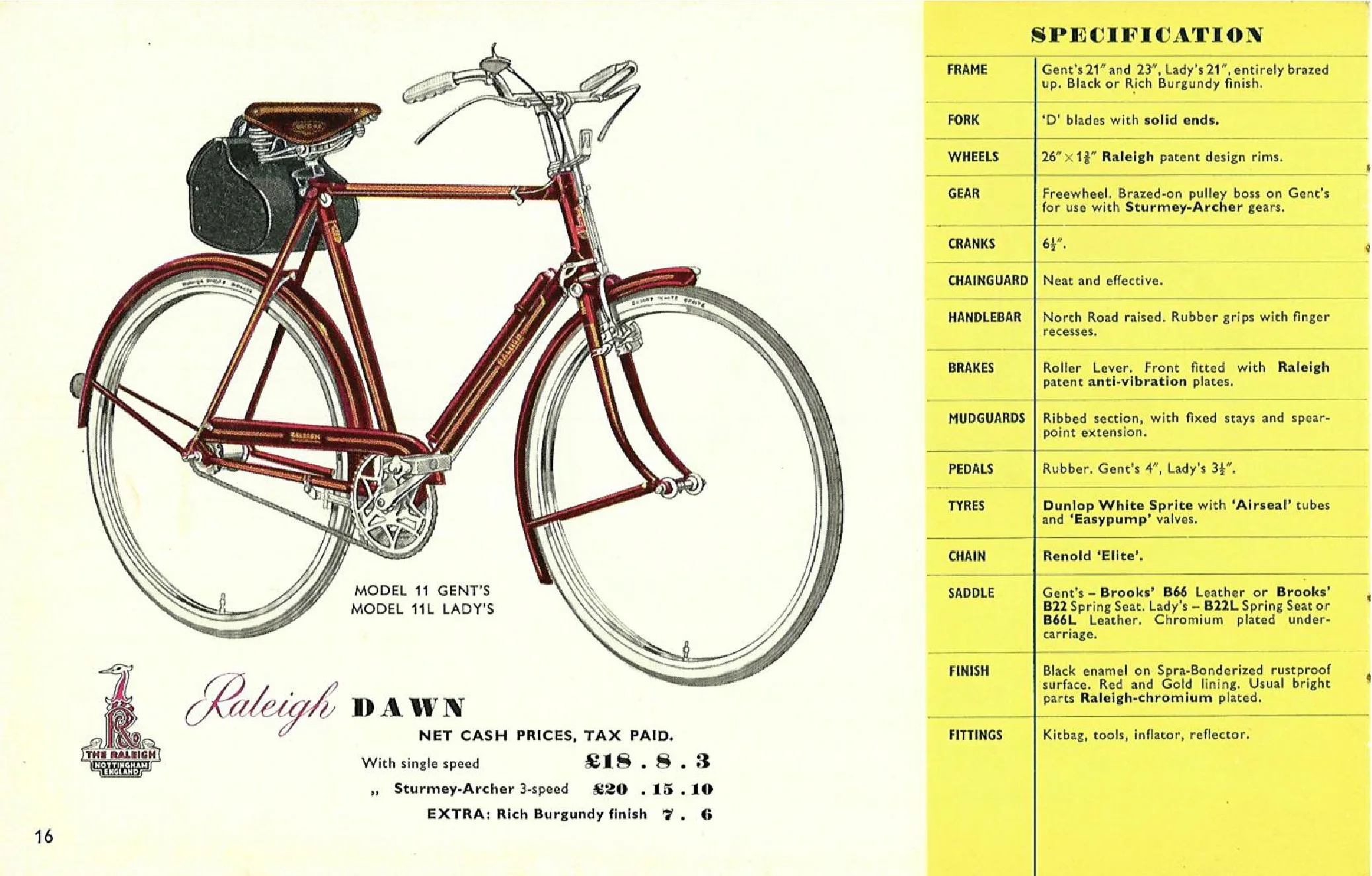

Raleigh DAWN
MODEL 11 GENT’S
MODEL 11L LADY’S
NET CASH PRICES, TAX PAID.
With single speed £18 . 8 . 3
” Sturmey-Archer 3-speed £20 . 15 . 10
EXTRA: Rich Burgundy finish 7 . 6
SPECIFICATION
FRAME: Gent’s 21″ and 23″, Lady’s 21″, entirely brazed up. Black or Rich Burgundy finish.
FORK: ‘D’ blades with solid ends.
WHEELS: 26″ × 1⅜” Raleigh patent design rims.
GEAR: Freewheel. Brazed-on pulley boss on Gent’s for use with Sturmey-Archer gears.
CRANKS: 6½”.
CHAINGUARD: Neat and effective.
HANDLEBAR: North Road raised. Rubber grips with finger recesses.
BRAKES: Roller Lever. Front fitted with Raleigh patent anti-vibration plates.
MUDGUARDS: Ribbed section, with fixed stays and spear-point extension.
PEDALS: Rubber. Gent’s 4″, Lady’s 3½”.
TYRES: Dunlop White Sprite with ‘Airseal’ tubes and ‘Easypump’ valves.
CHAIN: Renold ‘Elite’.
SADDLE: Gent’s — Brooks’ B66 Leather or Brooks’ B22 Spring Seat. Lady’s — B22L Spring Seat or B66L Leather. Chromium plated undercarriage.
FINISH: Black enamel on Spra-Bonderized rustproof surface. Red and Gold lining. Usual bright parts Raleigh-chromium plated.
FITTINGS: Kitbag, tools, inflator, reflector.
16
[A side-view color illustration of the Gent’s Dawn in Rich Burgundy with gold lining, an open chainguard, rod-operated roller lever brakes, black kitbag and Brooks leather saddle.]

— Page 17 —

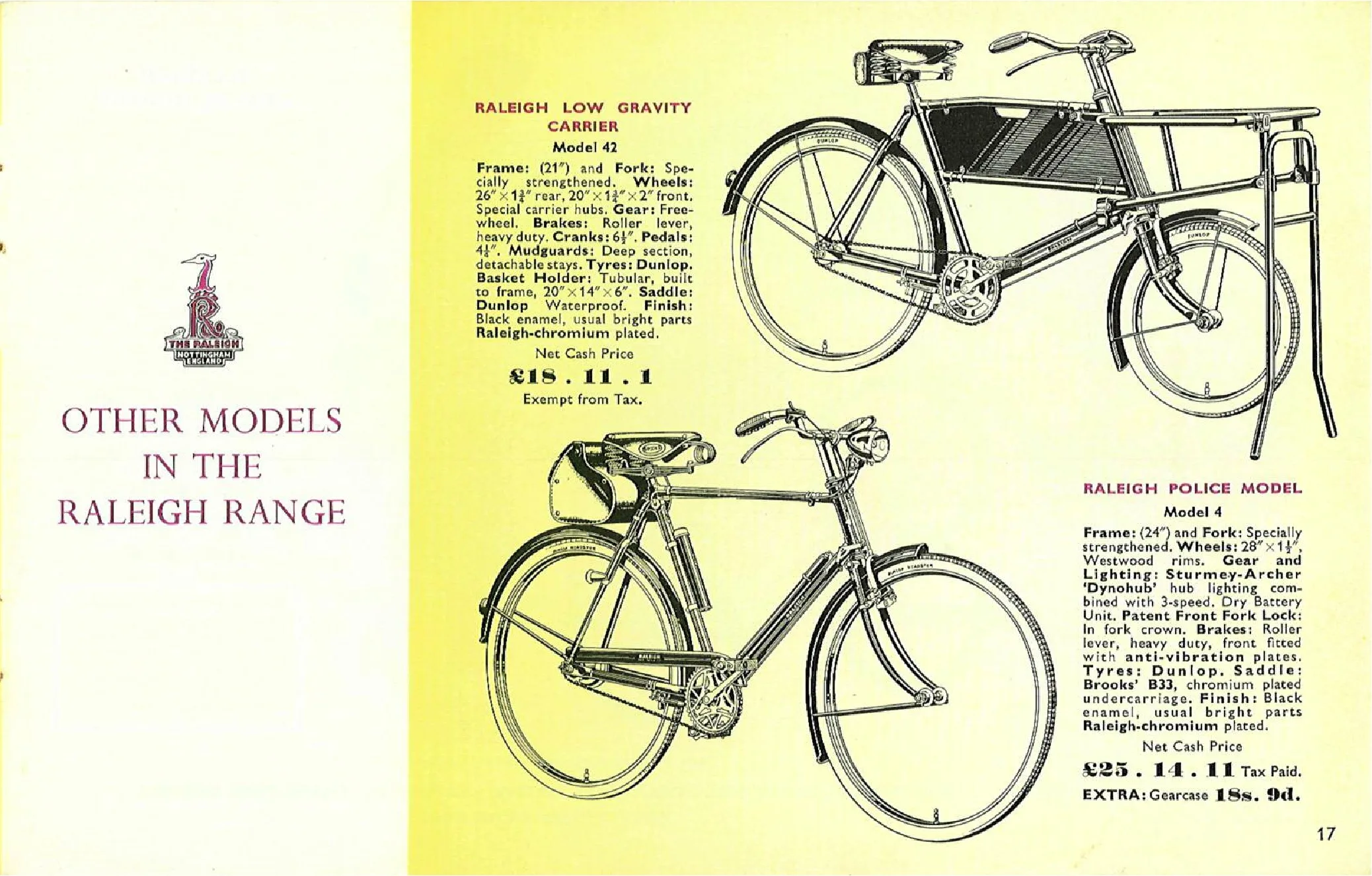

OTHER MODELS IN THE RALEIGH RANGE
RALEIGH LOW GRAVITY CARRIER
Model 42
Frame: (21″) and Fork: Specially strengthened. Wheels: 26″ × 1⅜” rear, 20″ × 1⅜” × 2″ front. Special carrier hubs. Gear: Freewheel. Brakes: Roller lever, heavy duty. Cranks: 6½”. Pedals: 4½”. Mudguards: Deep section, detachable stays. Tyres: Dunlop. Basket Holder: Tubular, built to frame, 20″ × 14″ × 6″. Saddle: Dunlop Waterproof. Finish: Black enamel, usual bright parts Raleigh-chromium plated.
Net Cash Price £18 . 11 . 1 Exempt from Tax.
RALEIGH POLICE MODEL
Model 4
Frame: (24″) and Fork: Specially strengthened. Wheels: 28″ × 1½”, Westwood rims. Gear and Lighting: Sturmey-Archer ‘Dynohub’ hub lighting combined with 3-speed. Dry Battery Unit. Patent Front Fork Lock: In fork crown. Brakes: Roller lever, heavy duty, front fitted with anti-vibration plates. Tyres: Dunlop. Saddle: Brooks’ B33, chromium plated undercarriage. Finish: Black enamel, usual bright parts Raleigh-chromium plated.
Net Cash Price £25 . 14 . 11 Tax Paid.
EXTRA: Gearcase 18s. 9d.
17
[Two line drawings on a yellow field: above, the Low Gravity Carrier with its small front wheel and large tubular basket holder; below, the Police Model with full-size wheels, a headlamp, saddlebag and heavy-duty roller lever brakes. The heron head badge sits at left beside the section title.]

— Page 18 —

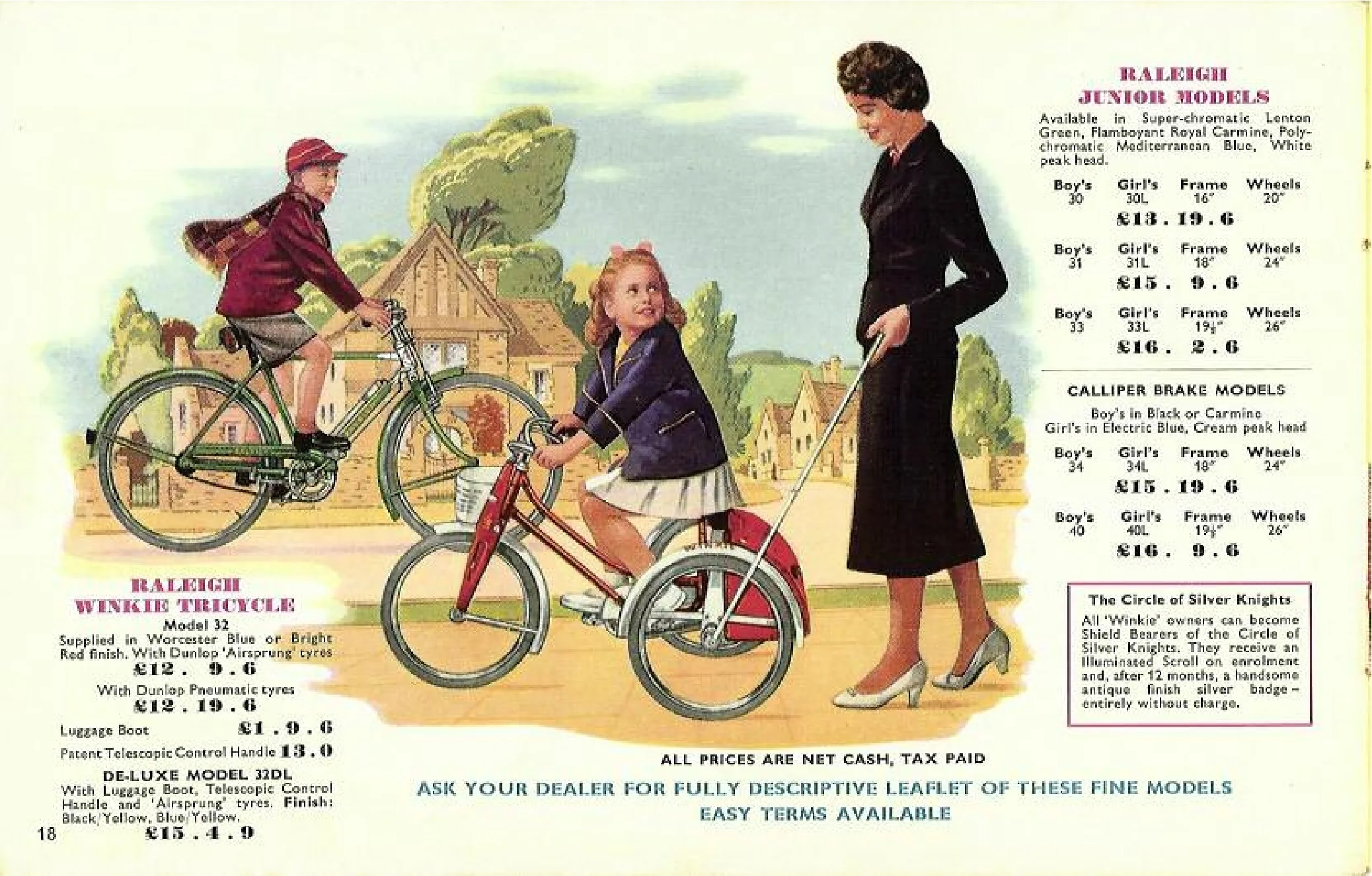

RALEIGH JUNIOR MODELS
Available in Super-chromatic Lenton Green, Flamboyant Royal Carmine, Polychromatic Mediterranean Blue, White peak head.
Boy’s 30, Girl’s 30L, Frame 16″, Wheels 20″ — £13 . 19 . 6
Boy’s 31, Girl’s 31L, Frame 18″, Wheels 24″ — £15 . 9 . 6
Boy’s 33, Girl’s 33L, Frame 19½”, Wheels 26″ — £16 . 2 . 6
CALLIPER BRAKE MODELS
Boy’s in Black or Carmine
Girl’s in Electric Blue, Cream peak head
Boy’s 34, Girl’s 34L, Frame 18″, Wheels 24″ — £15 . 19 . 6
Boy’s 40, Girl’s 40L, Frame 19½”, Wheels 26″ — £16 . 9 . 6
The Circle of Silver Knights
All ‘Winkie’ owners can become Shield Bearers of the Circle of Silver Knights. They receive an Illuminated Scroll on enrolment and, after 12 months, a handsome antique finish silver badge — entirely without charge.
RALEIGH WINKIE TRICYCLE
Model 32
Supplied in Worcester Blue or Bright Red finish. With Dunlop ‘Airsprung’ tyres £12 . 9 . 6
With Dunlop Pneumatic tyres £12 . 19 . 6
Luggage Boot £1 . 9 . 6
Patent Telescopic Control Handle 13 . 0
DE-LUXE MODEL 32DL
With Luggage Boot, Telescopic Control Handle and ‘Airsprung’ tyres. Finish: Black/Yellow, Blue/Yellow. £15 . 4 . 9
ALL PRICES ARE NET CASH, TAX PAID
ASK YOUR DEALER FOR FULLY DESCRIPTIVE LEAFLET OF THESE FINE MODELS
EASY TERMS AVAILABLE
18
[A color illustration of a village green scene: a boy in a red cap rides a green junior model past a half-timbered house, a small girl on a red Winkie tricycle is steered by the telescopic control handle held by a woman in a black suit, and cottages stand behind.]

— Page 19 —

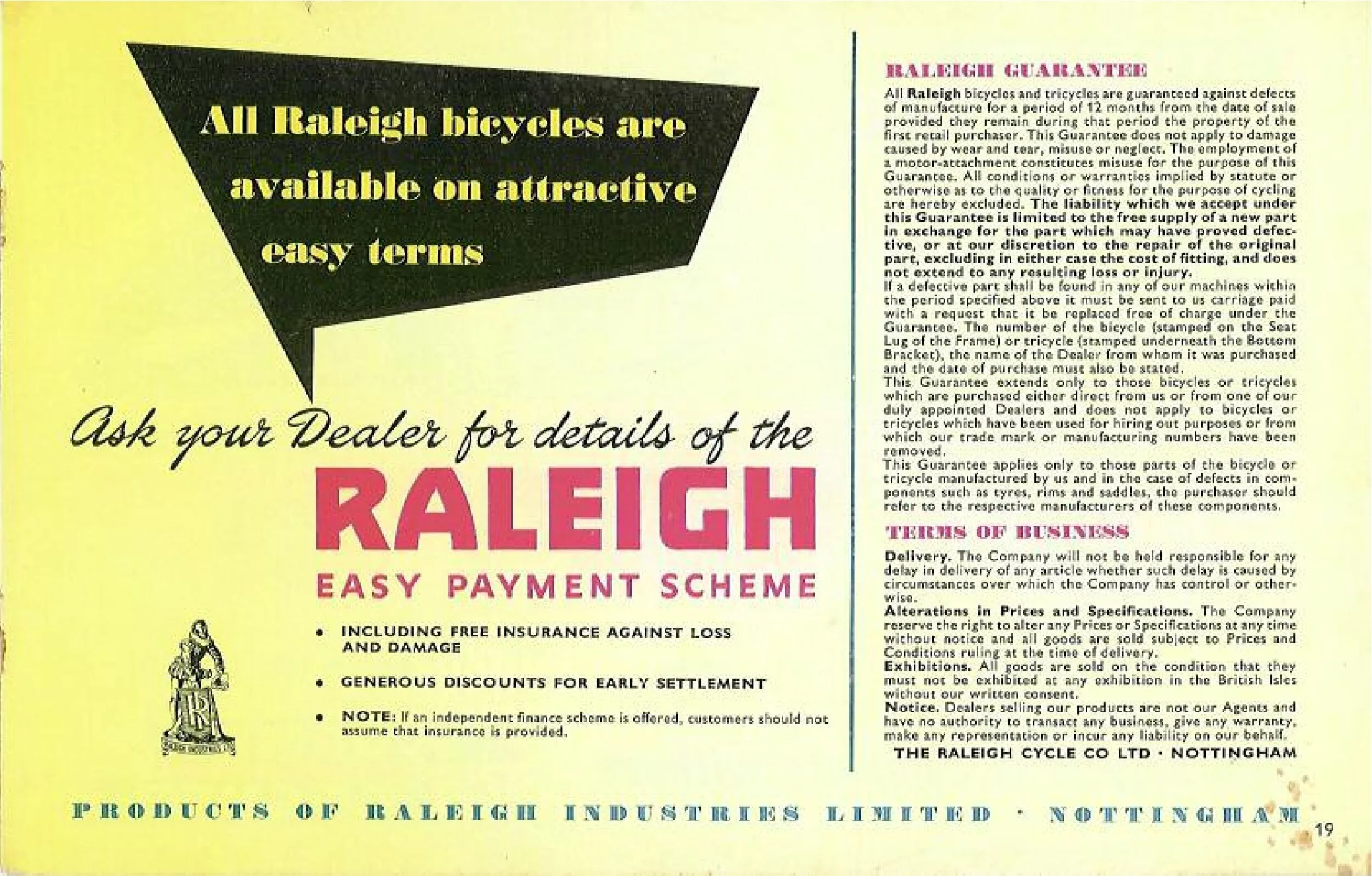

All Raleigh bicycles are available on attractive easy terms
Ask your Dealer for details of the RALEIGH EASY PAYMENT SCHEME
• INCLUDING FREE INSURANCE AGAINST LOSS AND DAMAGE
• GENEROUS DISCOUNTS FOR EARLY SETTLEMENT
• NOTE: If an independent finance scheme is offered, customers should not assume that insurance is provided.
RALEIGH GUARANTEE
All Raleigh bicycles and tricycles are guaranteed against defects of manufacture for a period of 12 months from the date of sale provided they remain during that period the property of the first retail purchaser. This Guarantee does not apply to damage caused by wear and tear, misuse or neglect. The employment of a motor-attachment constitutes misuse for the purpose of this Guarantee. All conditions or warranties implied by statute or otherwise as to the quality or fitness for the purpose of cycling are hereby excluded. The liability which we accept under this Guarantee is limited to the free supply of a new part in exchange for the part which may have proved defective, or at our discretion to the repair of the original part, excluding in either case the cost of fitting, and does not extend to any resulting loss or injury.
If a defective part shall be found in any of our machines within the period specified above it must be sent to us carriage paid with a request that it be replaced free of charge under the Guarantee. The number of the bicycle (stamped on the Seat Lug of the Frame) or tricycle (stamped underneath the Bottom Bracket), the name of the Dealer from whom it was purchased and the date of purchase must also be stated.
This Guarantee extends only to those bicycles or tricycles which are purchased either direct from us or from one of our duly appointed Dealers and does not apply to bicycles or tricycles which have been used for hiring out purposes or from which our trade mark or manufacturing numbers have been removed.
This Guarantee applies only to those parts of the bicycle or tricycle manufactured by us and in the case of defects in components such as tyres, rims and saddles, the purchaser should refer to the respective manufacturers of these components.
TERMS OF BUSINESS
Delivery. The Company will not be held responsible for any delay in delivery of any article whether such delay is caused by circumstances over which the Company has control or otherwise.
Alterations in Prices and Specifications. The Company reserve the right to alter any Prices or Specifications at any time without notice and all goods are sold subject to Prices and Conditions ruling at the time of delivery.
Exhibitions. All goods are sold on the condition that they must not be exhibited at any exhibition in the British Isles without our written consent.
Notice. Dealers selling our products are not our Agents and have no authority to transact any business, give any warranty, make any representation or incur any liability on our behalf.
THE RALEIGH CYCLE CO LTD · NOTTINGHAM
PRODUCTS OF RALEIGH INDUSTRIES LIMITED · NOTTINGHAM
19
[A yellow page with a large black speech-balloon carrying the easy-terms line in yellow, the Raleigh wordmark in red beneath it, and the Raleigh Industries seated-figure trademark at lower left.]

— Page 20 (back cover) —
STURMEY ARCHER
…Serving Cyclists Everywhere.
VARIABLE GEARS
The famous and extensive Sturmey-Archer range includes three- and four-speed hubs of wide and medium ratios: SW (3-speed wide) FW (4-speed wide) FM (4-speed medium). Lighting and braking are also combined with gears in the hubs described in adjacent paragraphs.
BRAKES
Internal expanding Sturmey-Archer front (BF) and rear (BR) brakes are world famous. This principle is combined with a 3-speed wide ratio gear in the AB. The TCW is a coaster brake combined with a 3-speed gear for those who prefer this method of braking.
BUILT-IN LIGHTING UNITS
Sturmey-Archer “Dynohub” Hub Lighting Equipment is offered in a front wheel unit (GH6) or combined with 3-speed or 4-speed gears (AG or FG). Choice of Sports or Roadster headlamps in chromium plated finish.
No Bicycle is complete without STURMEY ARCHER
Printed in England by Franklyn Ward & Wheeler Limited, Leicester.
AD 6355
[The back cover, printed in yellow. Three circular vignettes show a cyclist climbing, a cyclist descending, and a cyclist riding at night with the headlamp beam cutting the dark, each above a line drawing of the hub it advertises. The Sturmey-Archer banner logo appears at top left and again at lower right.]
