Lefol 1950 Catalog — Le Martelé, Le Paon and the Cantilever Brake

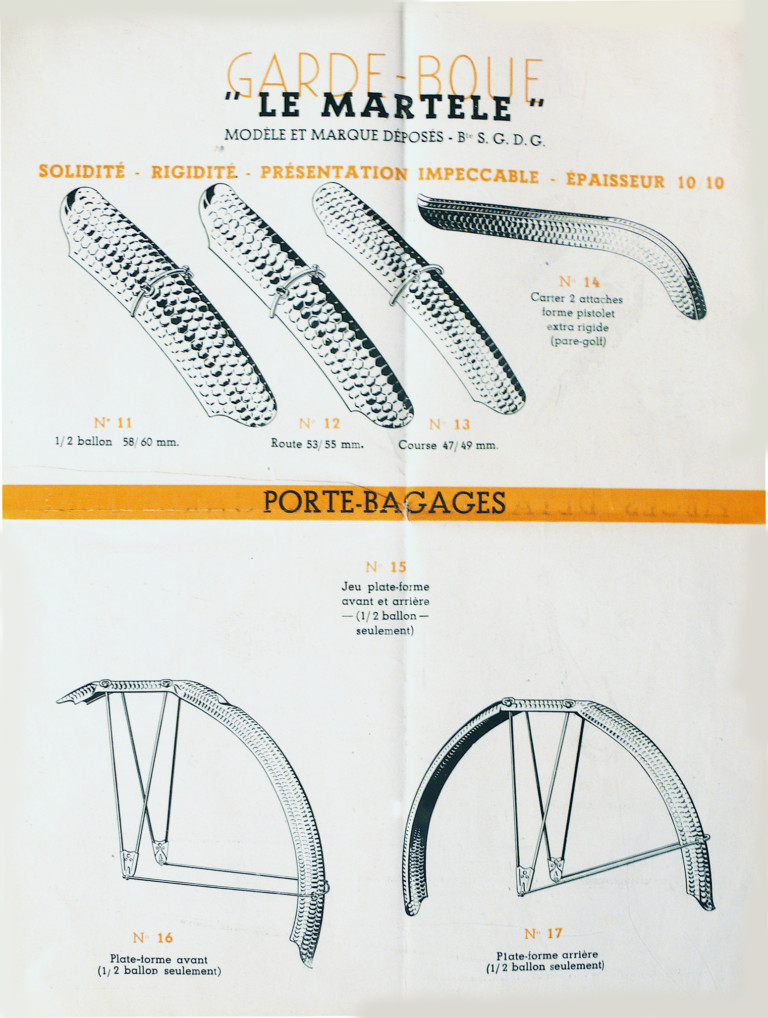

— Garde-boue “Le Martelé” —
GARDE-BOUE
” LE MARTELE ”
MODÈLE ET MARQUE DÉPOSÉS – Bte S. G. D. G.

SOLIDITÉ – RIGIDITÉ – PRÉSENTATION IMPECCABLE – ÉPAISSEUR 10/10

N° 11 1/2 ballon 58/60 mm.
N° 12 Route 53/55 mm.
N° 13 Course 47/49 mm.
N° 14 Carter 2 attaches forme pistolet extra rigide (pare-golf)

PORTE-BAGAGES

N° 15 Jeu plate-forme avant et arrière — (1/2 ballon — seulement)
N° 16 Plate-forme avant (1/2 ballon seulement)
N° 17 Plate-forme arrière (1/2 ballon seulement)

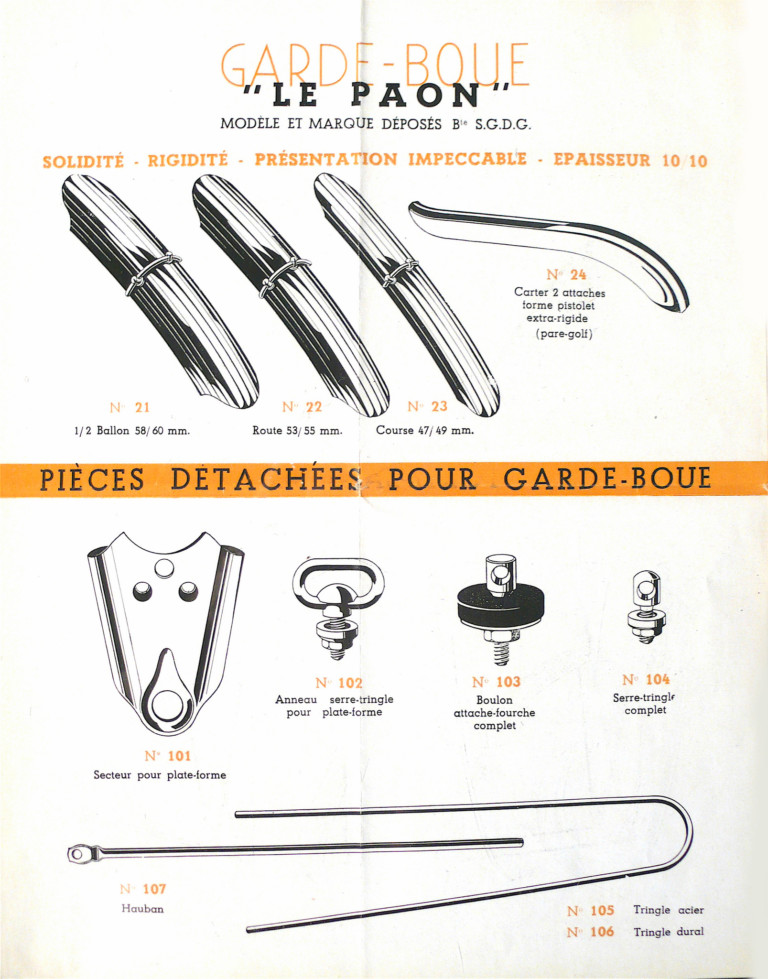

— Garde-boue “Le Paon” —
GARDE-BOUE
” LE PAON ”
MODÈLE ET MARQUE DÉPOSÉS Bte S. G. D. G.

SOLIDITÉ – RIGIDITÉ – PRÉSENTATION IMPECCABLE – EPAISSEUR 10/10

N° 21 1/2 Ballon 58/60 mm.
N° 22 Route 53/55 mm.
N° 23 Course 47/49 mm.
N° 24 Carter 2 attaches forme pistolet extra-rigide (pare-golf)

PIÈCES DÉTACHÉES POUR GARDE-BOUE

N° 101 Secteur pour plate-forme
N° 102 Anneau serre-tringle pour plate-forme
N° 103 Boulon attache-fourche complet
N° 104 Serre-tringle complet
N° 105 Tringle acier
N° 106 Tringle dural
N° 107 Hauban

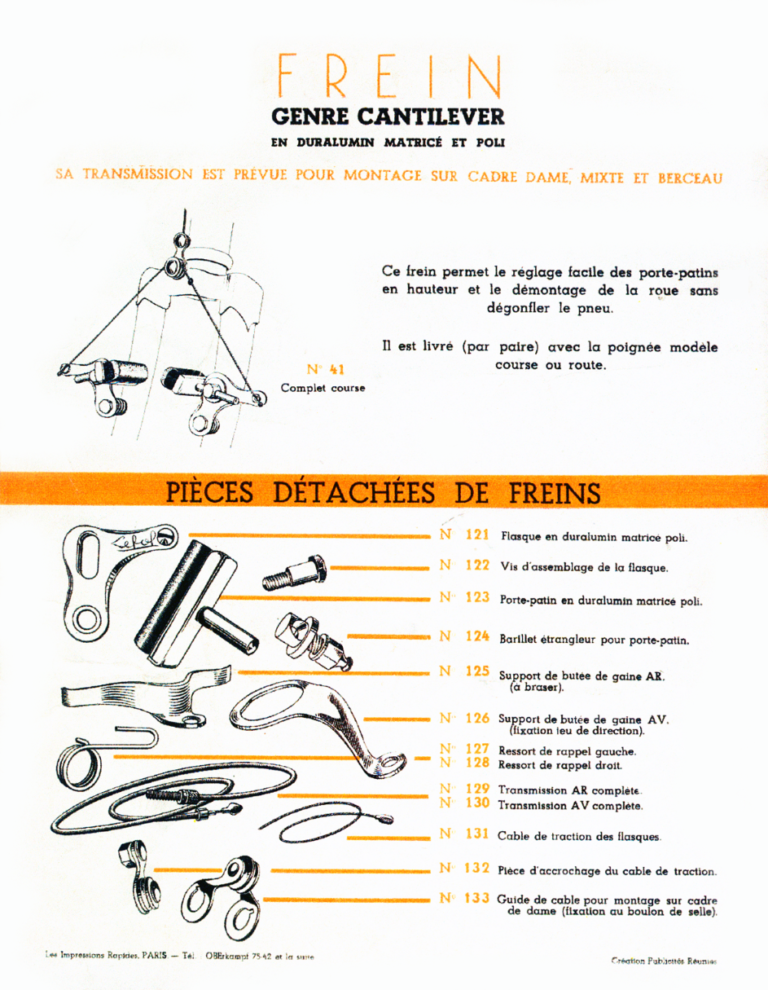

— Frein genre cantilever —
FREIN
GENRE CANTILEVER
EN DURALUMIN MATRICÉ ET POLI

SA TRANSMISSION EST PRÉVUE POUR MONTAGE SUR CADRE DAME, MIXTE ET BERCEAU

N° 41 Complet course

Ce frein permet le réglage facile des porte-patins en hauteur et le démontage de la roue sans
dégonfler le pneu.

Il est livré (par paire) avec la poignée modèle course ou route.

PIÈCES DÉTACHÉES DE FREINS

N° 121 Flasque en duralumin matricé poli.
N° 122 Vis d’assemblage de la flasque.
N° 123 Porte-patin en duralumin matricé poli.
N° 124 Barillet étrangleur pour porte-patin.
N° 125 Support de butée de gaine AR. (à braser).
N° 126 Support de butée de gaine AV. (fixation lieu de direction).
N° 127 Ressort de rappel gauche.
N° 128 Ressort de rappel droit.
N° 129 Transmission AR complète.
N° 130 Transmission AV complète.
N° 131 Cable de traction des flasques.
N° 132 Pièce d’accrochage du cable de traction.
N° 133 Guide de cable pour montage sur cadre de dame (fixation au boulon de selle).

Les Impressions Rapides, PARIS — Tél. : OBErkampf 75-42 et la suite

Création Publicités Réunies

[Three leaves from the Lefol catalog of 1950, held here as one record because they are plainly one
book: the same Art Deco outline capitals in orange over black for every section head, the same
orange banner rule across the middle of each page, and one continuous part-number scheme running
from the mudguards in the eleven to twenty-four range through the mudguard fittings at 101 to 107
and on to the brake fittings at 121 to 133.

The first two leaves are the two mudguard patterns, and the difference between them is entirely
surface. Le Martelé is hammered, its whole length covered in an even field of shallow dimples that
catch the light. Le Paon is fluted, drawn in long parallel ribs that run the length of the guard.
Both are offered in exactly three widths and the widths are exactly the same: 58 to 60 mm for the
half-balloon, 53 to 55 for the road and 47 to 49 for the racing section. Both are sold in ten-tenths
of a millimeter thickness and both come with the same accessory, a two-strap chaincase in the shape
the sheet calls forme pistolet and, in brackets, pare-golf.

The carriers on the Martelé leaf are platform racks in the constructeur manner, front and rear,
made only for the half-balloon width, with the guard and the platform drawn as one assembly. Below
them on the Paon leaf are the fittings that hold all of it together: the platform sector, the stay
clamp ring, the fork-crown bolt, the complete stay clamp, stays in steel and in dural, and the
hauban.

The third leaf is the Lefol cantilever brake, and it is the piece that makes the firm interesting.
It is a cantilever in forged and polished duralumin, pulled by a straddle wire, sold in pairs with a
road or racing lever, and the two selling points are the two things a cyclotourist wants: the pad
holders
adjust easily for height, and the wheel comes out without letting the tire down. The cable run
is made to suit a ladies, mixte or cradle frame as well as a diamond one. Thirteen spare parts are
then drawn and named individually, down to the left and right return springs sold separately.

Selling a brake by naming its thirteen replaceable parts is the argument of a firm that expects the
machine to be kept, not replaced, and the Lefol name is cast into the flasque in the drawing.

Printed by Les Impressions Rapides of Paris, design credited to Publicités Réunies.]
