Holdsworth 1971 Catalog — Cycles and Frames: the Cyclone, Equipe, Mistral, Super Mistral, Fastback, Record and the Professional Team Models

— Page 1 (front cover) —
HOLDSWORTH
CYCLES and FRAMES
1971

[The front cover of Holdsworth’s Cycles and Frames 1971, with blue lettering on an orange panel at left and a color photograph of a road racer in an orange and blue jersey and cap riding at speed at right. The lettering on his jersey is not legible at this scan size.]

— Page 2 —

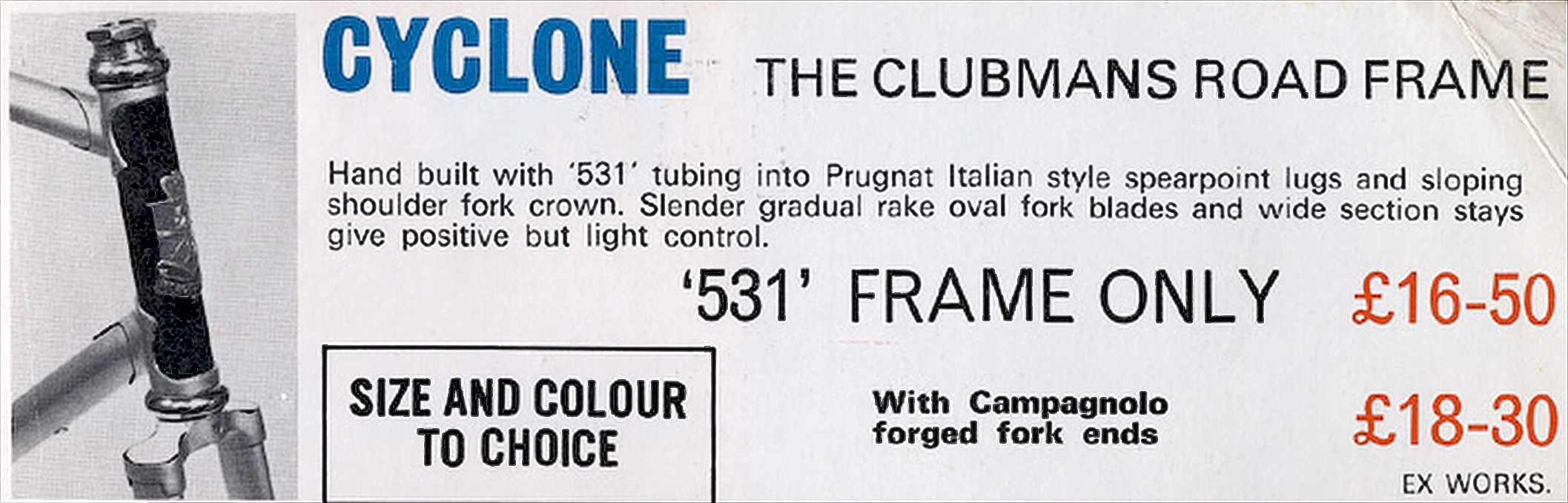

CYCLONE THE CLUBMANS ROAD FRAME
Hand built with ‘531’ tubing into Prugnat Italian style spearpoint lugs and sloping shoulder fork crown. Slender gradual rake oval fork blades and wide section stays give positive but light control.
‘531’ FRAME ONLY £16-50
SIZE AND COLOUR TO CHOICE
With Campagnolo forged fork ends £18-30
EX WORKS.

[Holdsworth’s Cyclone, the clubman’s road frame, in a wide strip with a photograph of its head tube, lugs, head badge and fork crown and prices for the frame alone or with Campagnolo forged fork ends. The image is a narrow strip, perhaps only part of a page, with a crease across its top right corner.]

— Page 3 —

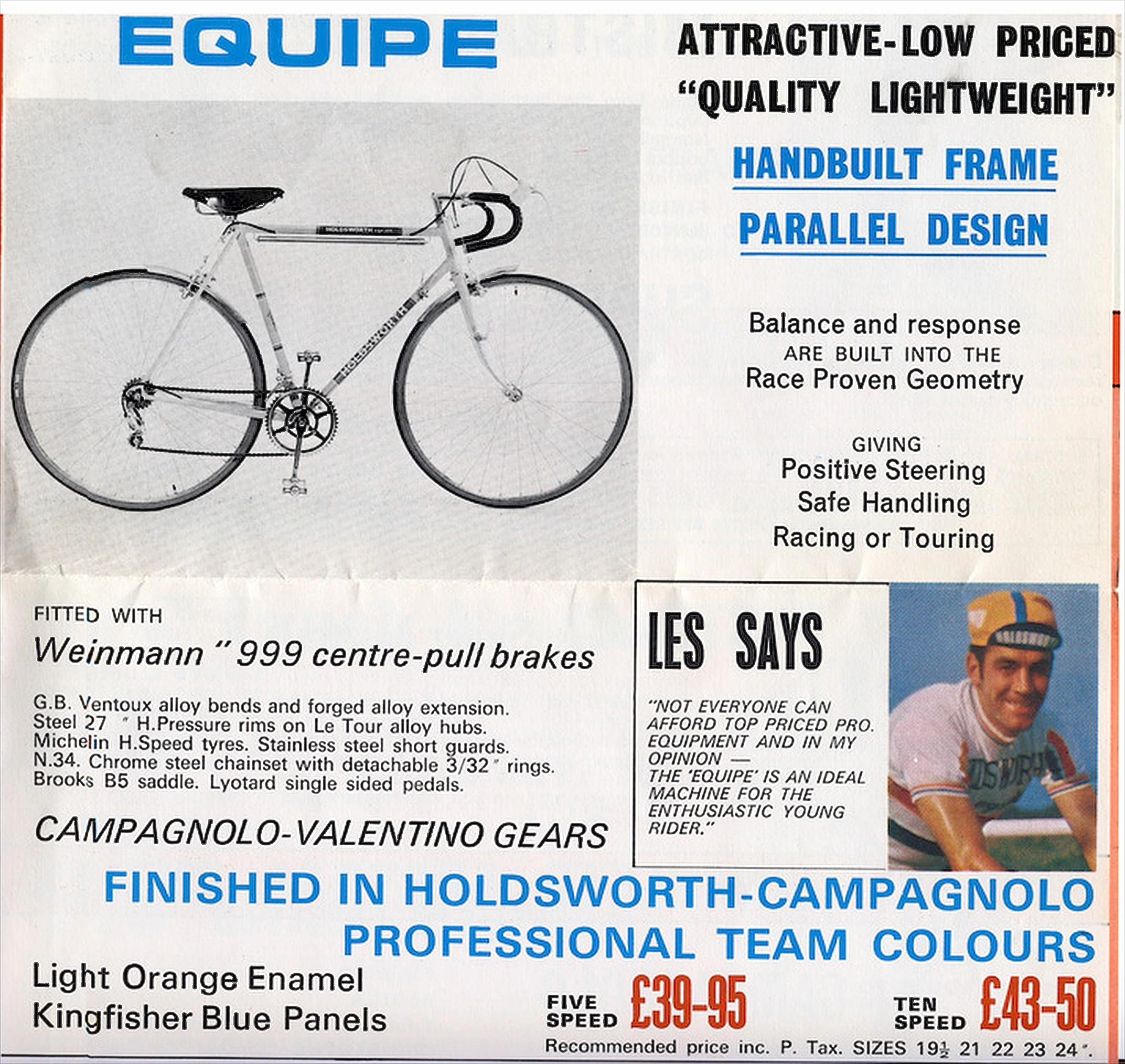

EQUIPE
ATTRACTIVE-LOW PRICED
“QUALITY LIGHTWEIGHT”
HANDBUILT FRAME
PARALLEL DESIGN
Balance and response
ARE BUILT INTO THE
Race Proven Geometry
GIVING
Positive Steering
Safe Handling
Racing or Touring

FITTED WITH
Weinmann ” 999 centre-pull brakes
G.B. Ventoux alloy bends and forged alloy extension.
Steel 27 ” H.Pressure rims on Le Tour alloy hubs.
Michelin H.Speed tyres. Stainless steel short guards.
N.34. Chrome steel chainset with detachable 3/32″ rings.
Brooks B5 saddle. Lyotard single sided pedals.
CAMPAGNOLO-VALENTINO GEARS

LES SAYS
“NOT EVERYONE CAN AFFORD TOP PRICED PRO. EQUIPMENT AND IN MY OPINION —
THE ‘EQUIPE’ IS AN IDEAL MACHINE FOR THE ENTHUSIASTIC YOUNG RIDER.”

FINISHED IN HOLDSWORTH-CAMPAGNOLO
PROFESSIONAL TEAM COLOURS
Light Orange Enamel
Kingfisher Blue Panels
FIVE SPEED £39-95
TEN SPEED £43-50
Recommended price inc. P. Tax. SIZES 19½ 21 22 23 24″.

[Holdsworth’s Equipe, a photograph of the complete bicycle with its equipment list, finished in the Holdsworth-Campagnolo team colors, with five and ten speed prices and a photograph of a smiling rider in a team cap beside “LES SAYS”. The frame carries Holdsworth transfers in the photograph, and a strip of orange from another leaf shows along the right edge.]

— Page 4 —

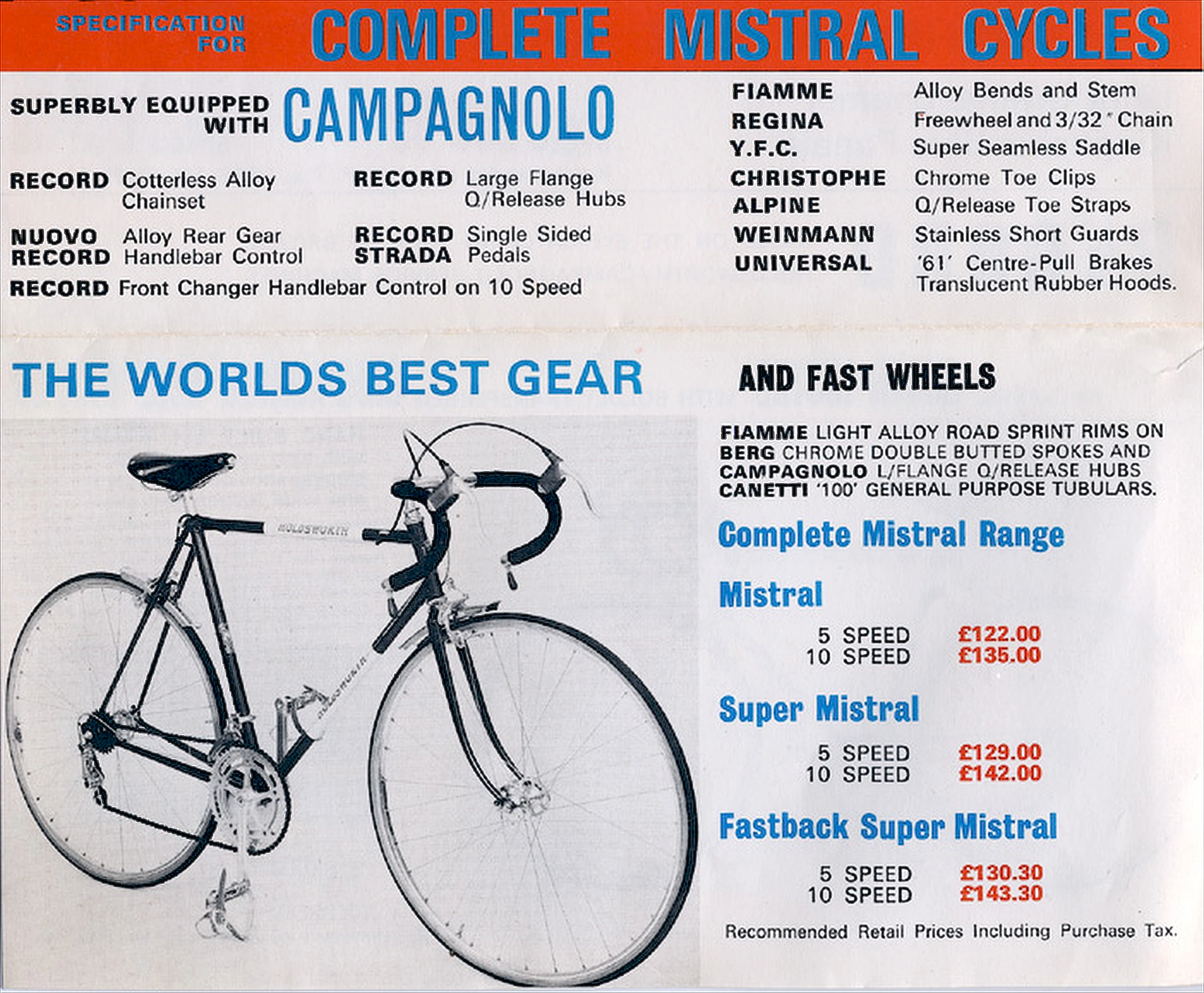

SPECIFICATION FOR COMPLETE MISTRAL CYCLES
SUPERBLY EQUIPPED WITH CAMPAGNOLO
RECORD | Cotterless Alloy Chainset
NUOVO RECORD | Alloy Rear Gear Handlebar Control
RECORD | Large Flange Q/Release Hubs
RECORD STRADA | Single Sided Pedals
RECORD | Front Changer Handlebar Control on 10 Speed
FIAMME | Alloy Bends and Stem
REGINA | Freewheel and 3/32″ Chain
Y.F.C. | Super Seamless Saddle
CHRISTOPHE | Chrome Toe Clips
ALPINE | Q/Release Toe Straps
WEINMANN | Stainless Short Guards
UNIVERSAL | ’61’ Centre-Pull Brakes Translucent Rubber Hoods.

THE WORLDS BEST GEAR
AND FAST WHEELS
FIAMME LIGHT ALLOY ROAD SPRINT RIMS ON BERG CHROME DOUBLE BUTTED SPOKES AND CAMPAGNOLO L/FLANGE Q/RELEASE HUBS CANETTI ‘100’ GENERAL PURPOSE TUBULARS.

Complete Mistral Range
Mistral
5 SPEED | £122.00
10 SPEED | £135.00
Super Mistral
5 SPEED | £129.00
10 SPEED | £142.00
Fastback Super Mistral
5 SPEED | £130.30
10 SPEED | £143.30
Recommended Retail Prices Including Purchase Tax.

[The specification of Holdsworth’s complete Mistral cycles with Campagnolo equipment, a photograph of a dark Mistral with Holdsworth transfers and the prices of the Mistral, Super Mistral and Fastback Super Mistral in five and ten speed form. A horizontal fold crease crosses the page below the equipment list.]

— Page 5 —

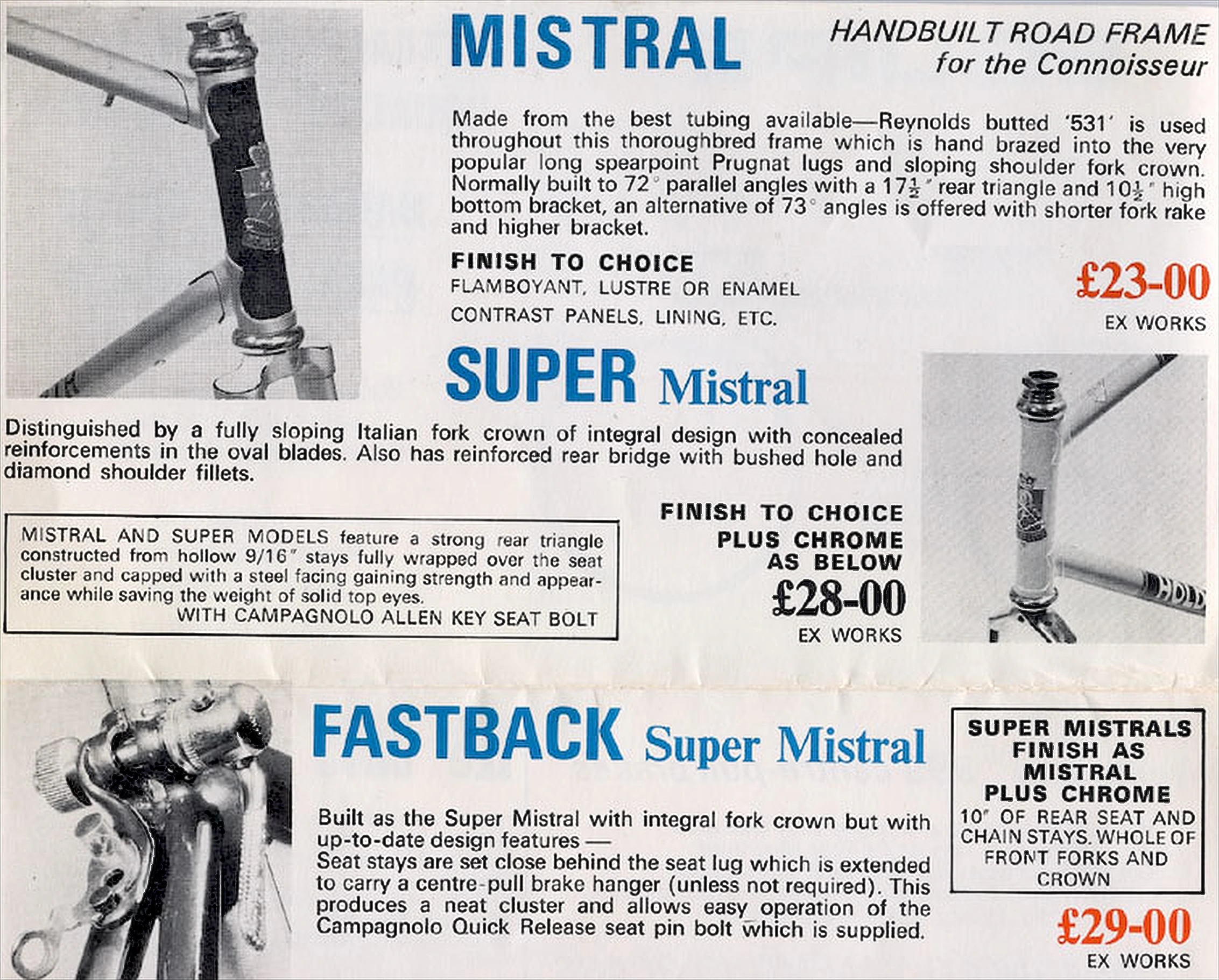

MISTRAL
HANDBUILT ROAD FRAME
for the Connoisseur
Made from the best tubing available—Reynolds butted ‘531’ is used throughout this thoroughbred frame which is hand brazed into the very popular long spearpoint Prugnat lugs and sloping shoulder fork crown. Normally built to 72° parallel angles with a 17½” rear triangle and 10½” high bottom bracket, an alternative of 73° angles is offered with shorter fork rake and higher bracket.
FINISH TO CHOICE
FLAMBOYANT, LUSTRE OR ENAMEL
CONTRAST PANELS, LINING, ETC.
£23-00
EX WORKS

SUPER Mistral
Distinguished by a fully sloping Italian fork crown of integral design with concealed reinforcements in the oval blades. Also has reinforced rear bridge with bushed hole and diamond shoulder fillets.
MISTRAL AND SUPER MODELS feature a strong rear triangle constructed from hollow 9/16″ stays fully wrapped over the seat cluster and capped with a steel facing gaining strength and appearance while saving the weight of solid top eyes.
WITH CAMPAGNOLO ALLEN KEY SEAT BOLT
FINISH TO CHOICE
PLUS CHROME
AS BELOW
£28-00
EX WORKS

FASTBACK Super Mistral
Built as the Super Mistral with integral fork crown but with up-to-date design features —
Seat stays are set close behind the seat lug which is extended to carry a centre-pull brake hanger (unless not required). This produces a neat cluster and allows easy operation of the Campagnolo Quick Release seat pin bolt which is supplied.
SUPER MISTRALS FINISH AS MISTRAL PLUS CHROME
10″ OF REAR SEAT AND CHAIN STAYS. WHOLE OF FRONT FORKS AND CROWN
£29-00
EX WORKS

[Holdsworth’s Mistral, Super Mistral and Fastback Super Mistral road frames, with photographs of two head tubes with their lugs and badges and a close-up of a seat cluster with its brake hanger and quick release seat bolt. The second head tube photograph shows “HOLD” of a down tube transfer, and a horizontal fold crease crosses the page above the Fastback section.]

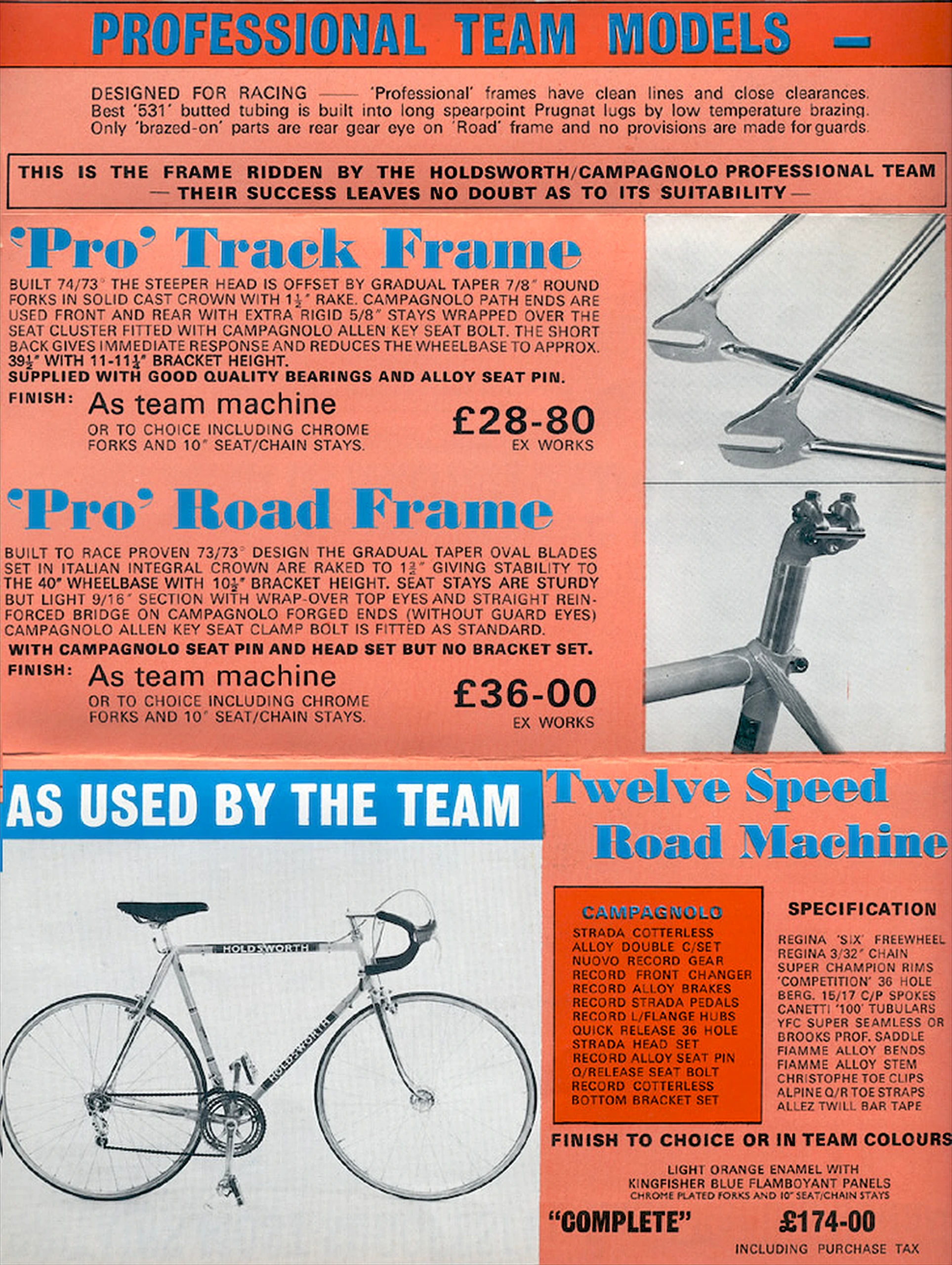

— Page 6 —
PROFESSIONAL TEAM MODELS —
DESIGNED FOR RACING —— ‘Professional’ frames have clean lines and close clearances. Best ‘531’ butted tubing is built into long spearpoint Prugnat lugs by low temperature brazing. Only ‘brazed-on’ parts are rear gear eye on ‘Road’ frame and no provisions are made for guards.
THIS IS THE FRAME RIDDEN BY THE HOLDSWORTH/CAMPAGNOLO PROFESSIONAL TEAM
— THEIR SUCCESS LEAVES NO DOUBT AS TO ITS SUITABILITY —

‘Pro’ Track Frame
BUILT 74/73° THE STEEPER HEAD IS OFFSET BY GRADUAL TAPER 7/8″ ROUND FORKS IN SOLID CAST CROWN WITH 1½” RAKE. CAMPAGNOLO PATH ENDS ARE USED FRONT AND REAR WITH EXTRA RIGID 5/8″ STAYS WRAPPED OVER THE SEAT CLUSTER FITTED WITH CAMPAGNOLO ALLEN KEY SEAT BOLT. THE SHORT BACK GIVES IMMEDIATE RESPONSE AND REDUCES THE WHEELBASE TO APPROX. 39½” WITH 11-11¼” BRACKET HEIGHT.
SUPPLIED WITH GOOD QUALITY BEARINGS AND ALLOY SEAT PIN.
FINISH: As team machine
OR TO CHOICE INCLUDING CHROME FORKS AND 10″ SEAT/CHAIN STAYS.
£28-80
EX WORKS

‘Pro’ Road Frame
BUILT TO RACE PROVEN 73/73° DESIGN THE GRADUAL TAPER OVAL BLADES SET IN ITALIAN INTEGRAL CROWN ARE RAKED TO 1¾” [?] GIVING STABILITY TO THE 40″ WHEELBASE WITH 10½” BRACKET HEIGHT. SEAT STAYS ARE STURDY BUT LIGHT 9/16″ SECTION WITH WRAP-OVER TOP EYES AND STRAIGHT REINFORCED BRIDGE ON CAMPAGNOLO FORGED ENDS (WITHOUT GUARD EYES) CAMPAGNOLO ALLEN KEY SEAT CLAMP BOLT IS FITTED AS STANDARD.
WITH CAMPAGNOLO SEAT PIN AND HEAD SET BUT NO BRACKET SET.
FINISH: As team machine
OR TO CHOICE INCLUDING CHROME FORKS AND 10″ SEAT/CHAIN STAYS.
£36-00
EX WORKS

AS USED BY THE TEAM
Twelve Speed Road Machine
CAMPAGNOLO
STRADA COTTERLESS
ALLOY DOUBLE C/SET
NUOVO RECORD GEAR
RECORD FRONT CHANGER
RECORD ALLOY BRAKES
RECORD STRADA PEDALS
RECORD L/FLANGE HUBS
QUICK RELEASE 36 HOLE
STRADA HEAD SET
RECORD ALLOY SEAT PIN
Q/RELEASE SEAT BOLT
RECORD COTTERLESS
BOTTOM BRACKET SET
SPECIFICATION
REGINA ‘SIX’ FREEWHEEL
REGINA 3/32″ CHAIN
SUPER CHAMPION RIMS
‘COMPETITION’ 36 HOLE
BERG. 15/17 C/P SPOKES
CANETTI ‘100’ TUBULARS
YFC SUPER SEAMLESS OR
BROOKS PROF. SADDLE
FIAMME ALLOY BENDS
FIAMME ALLOY STEM
CHRISTOPHE TOE CLIPS
ALPINE Q/R TOE STRAPS
ALLEZ TWILL BAR TAPE
FINISH TO CHOICE OR IN TEAM COLOURS
LIGHT ORANGE ENAMEL WITH
KINGFISHER BLUE FLAMBOYANT PANELS
CHROME PLATED FORKS AND 10″ SEAT/CHAIN STAYS
“COMPLETE” £174-00
INCLUDING PURCHASE TAX

[Holdsworth’s professional team models: the Pro Track and Pro Road frames with photographs of track rear ends and a seat cluster, and a photograph of the Twelve Speed Road Machine with its Campagnolo equipment and specification. The page is printed on orange, the bicycle carries Holdsworth transfers in the photograph, and a fold crease crosses it above “AS USED BY THE TEAM”.]

— Page 7 —

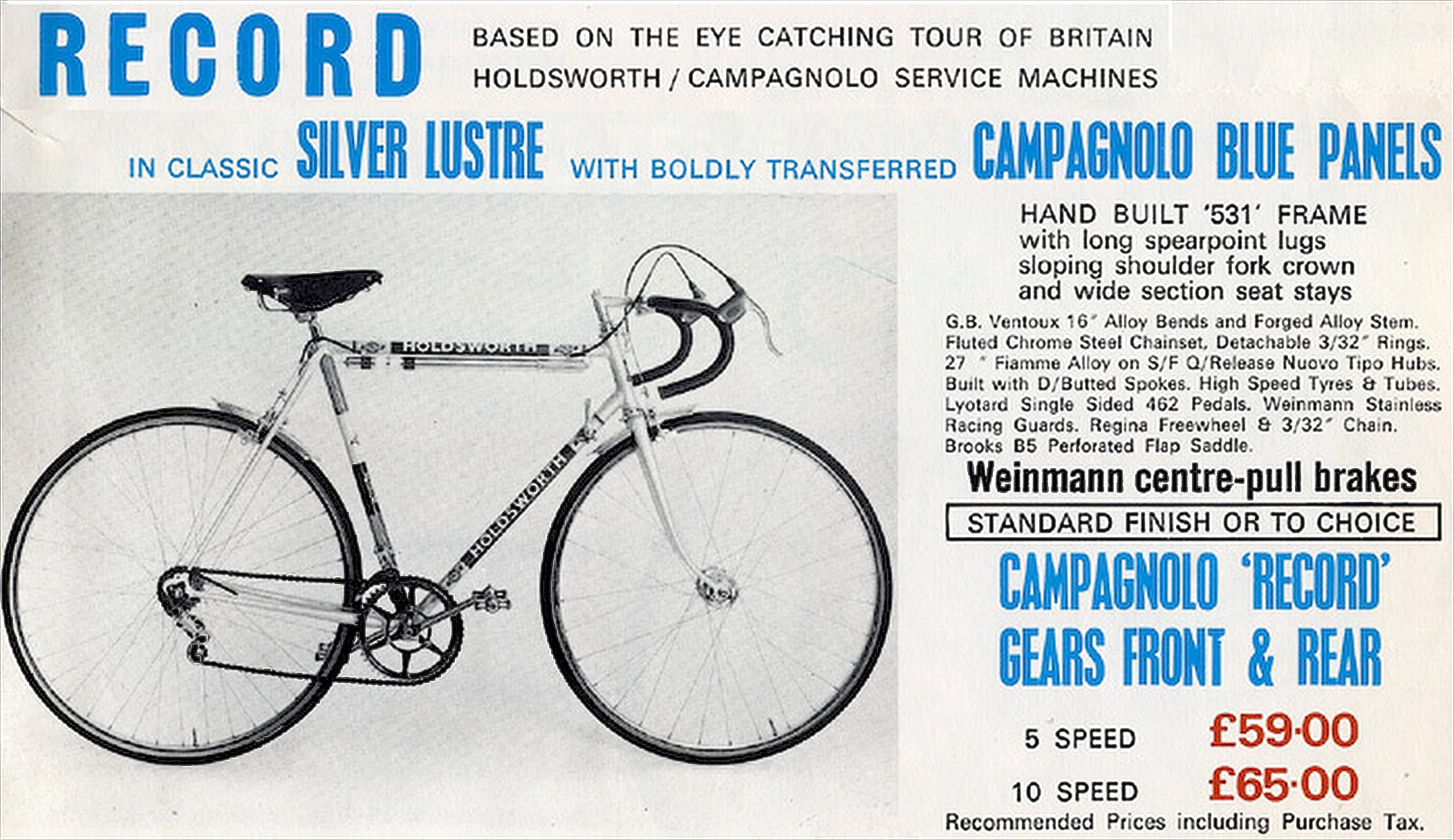

RECORD
BASED ON THE EYE CATCHING TOUR OF BRITAIN
HOLDSWORTH / CAMPAGNOLO SERVICE MACHINES
IN CLASSIC SILVER LUSTRE WITH BOLDLY TRANSFERRED CAMPAGNOLO BLUE PANELS
HAND BUILT ‘531’ FRAME
with long spearpoint lugs
sloping shoulder fork crown
and wide section seat stays
G.B. Ventoux 16″ Alloy Bends and Forged Alloy Stem. Fluted Chrome Steel Chainset, Detachable 3/32″ Rings. 27 ” Fiamme Alloy on S/F Q/Release Nuovo Tipo Hubs. Built with D/Butted Spokes. High Speed Tyres & Tubes. Lyotard Single Sided 462 Pedals. Weinmann Stainless Racing Guards. Regina Freewheel & 3/32″ Chain. Brooks B5 Perforated Flap Saddle.
Weinmann centre-pull brakes
STANDARD FINISH OR TO CHOICE
CAMPAGNOLO ‘RECORD’
GEARS FRONT & REAR
5 SPEED £59·00
10 SPEED £65·00
Recommended Prices including Purchase Tax.

[Holdsworth’s Record, a photograph of the complete bicycle in silver with Holdsworth transfers on its top and down tubes, with its specification, Campagnolo Record gears front and rear and five and ten speed prices.]

— Page 8 —

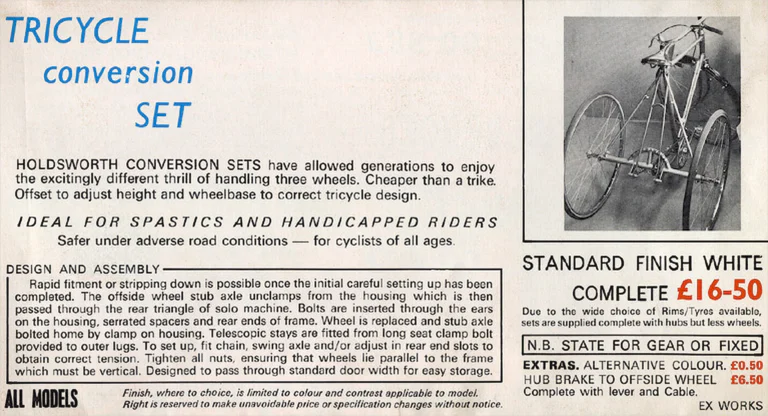

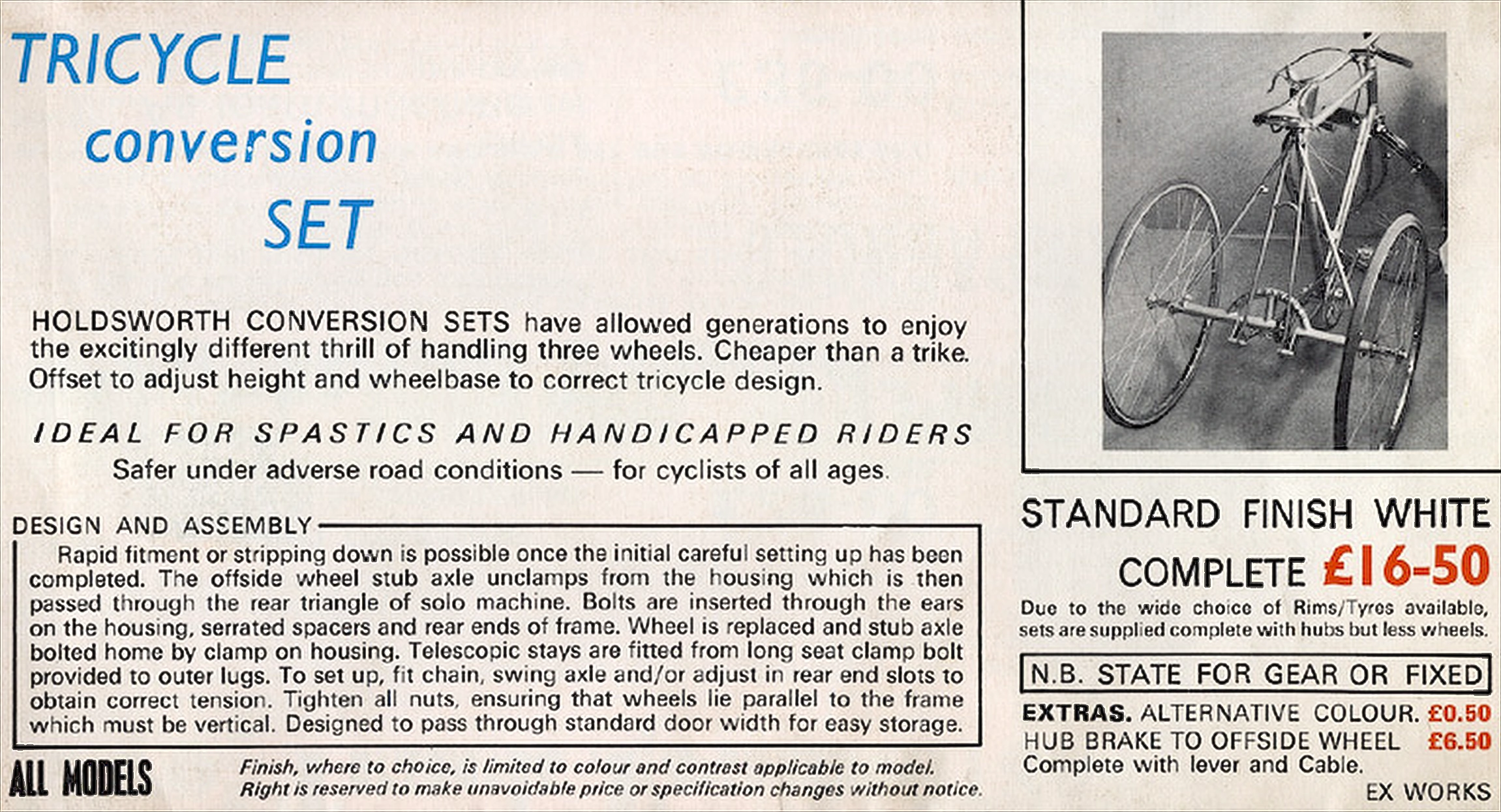

TRICYCLE conversion SET
HOLDSWORTH CONVERSION SETS have allowed generations to enjoy the excitingly different thrill of handling three wheels. Cheaper than a trike. Offset to adjust height and wheelbase to correct tricycle design.
IDEAL FOR SPASTICS AND HANDICAPPED RIDERS
Safer under adverse road conditions — for cyclists of all ages.
DESIGN AND ASSEMBLY
Rapid fitment or stripping down is possible once the initial careful setting up has been completed. The offside wheel stub axle unclamps from the housing which is then passed through the rear triangle of solo machine. Bolts are inserted through the ears on the housing, serrated spacers and rear ends of frame. Wheel is replaced and stub axle bolted home by clamp on housing. Telescopic stays are fitted from long seat clamp bolt provided to outer lugs. To set up, fit chain, swing axle and/or adjust in rear end slots to obtain correct tension. Tighten all nuts, ensuring that wheels lie parallel to the frame which must be vertical. Designed to pass through standard door width for easy storage.
ALL MODELS
Finish, where to choice, is limited to colour and contrast applicable to model.
Right is reserved to make unavoidable price or specification changes without notice.

STANDARD FINISH WHITE
COMPLETE £16-50
Due to the wide choice of Rims/Tyres available, sets are supplied complete with hubs but less wheels.
N.B. STATE FOR GEAR OR FIXED
EXTRAS. ALTERNATIVE COLOUR. £0.50
HUB BRAKE TO OFFSIDE WHEEL £6.50
Complete with lever and Cable.
EX WORKS

[Holdsworth’s Tricycle Conversion Set, with a photograph of a bicycle converted to a tricycle with two rear wheels, its design and assembly notes, the price complete in standard white and the extras.]

— Page 9 —

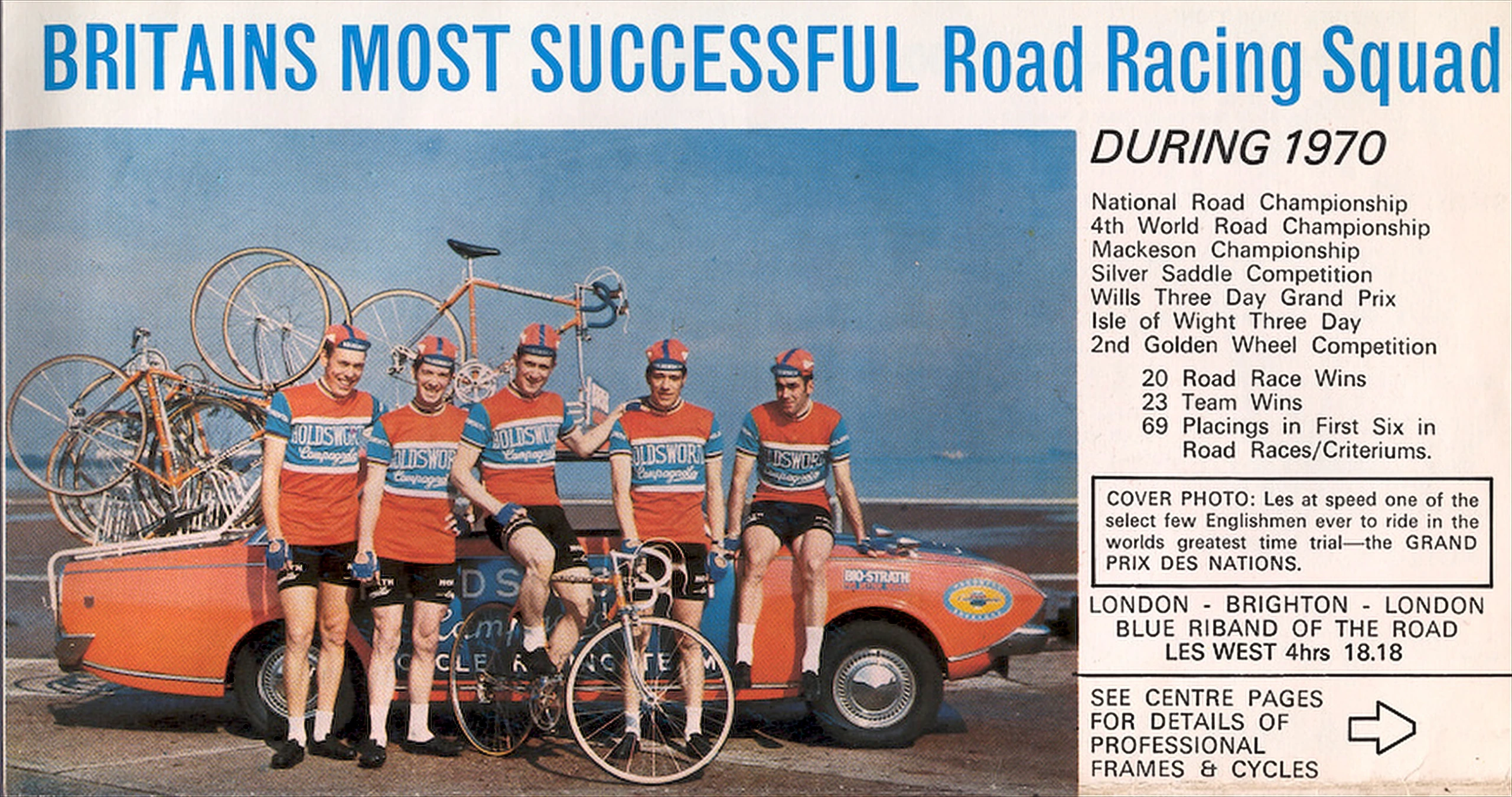

BRITAINS MOST SUCCESSFUL Road Racing Squad
DURING 1970
National Road Championship
4th World Road Championship
Mackeson Championship
Silver Saddle Competition
Wills Three Day Grand Prix
Isle of Wight Three Day
2nd Golden Wheel Competition
20 Road Race Wins
23 Team Wins
69 Placings in First Six in Road Races/Criteriums.
COVER PHOTO: Les at speed one of the select few Englishmen ever to ride in the worlds greatest time trial—the GRAND PRIX DES NATIONS.
LONDON – BRIGHTON – LONDON
BLUE RIBAND OF THE ROAD
LES WEST 4hrs 18.18
SEE CENTRE PAGES FOR DETAILS OF PROFESSIONAL FRAMES & CYCLES

[A color photograph of five riders of the Holdsworth team in orange and blue Holdsworth Campagnolo jerseys and caps, standing by an orange team car with bicycles on its roof rack, beside a list of the team’s results. The car carries the lettering “BIO-STRATH” and part of a “CYCLE RACING TEAM” legend, and an outline arrow points right beside the line about the center pages.]
