Cinelli Laser Catalog — The Laser America, Crono Strada and Rivoluzione Pista, with Helmets, Saddles, Bars, Stems and the M-71 Pedal

This Cinelli catalog of the Laser bicycles prints no year. The helmet page headed Caschi stands before the second helmet page, where its heading and the page sides place it. The back cover is not held.

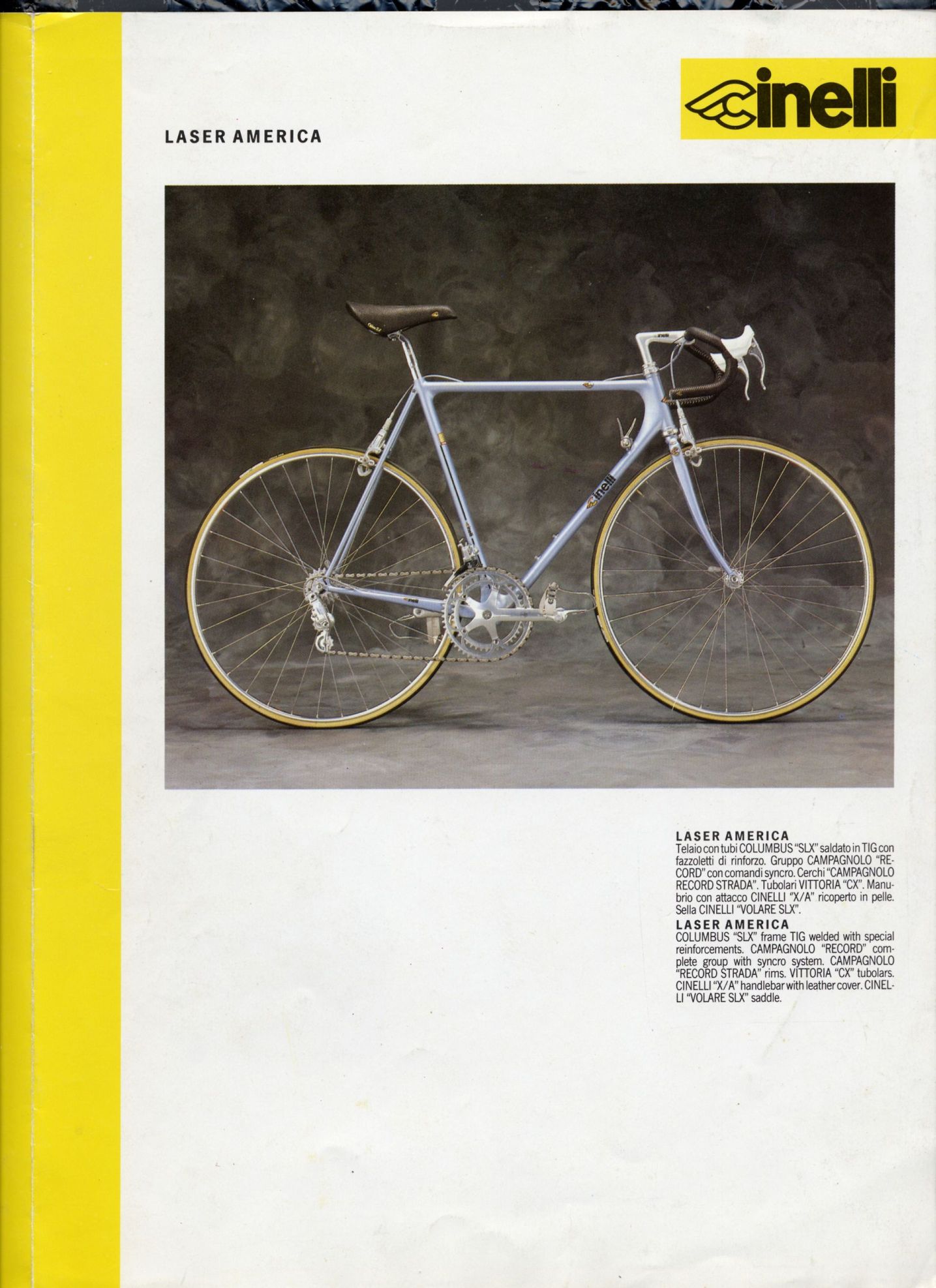

— Page 1 —
cinelli

LASER AMERICA

LASER AMERICA
Telaio con tubi COLUMBUS “SLX” saldato in TIG con fazzoletti di rinforzo. Gruppo CAMPAGNOLO “RECORD” con comandi syncro. Cerchi “CAMPAGNOLO RECORD STRADA”. Tubolari VITTORIA “CX”. Manubrio con attacco CINELLI “X/A” ricoperto in pelle. Sella CINELLI “VOLARE SLX”.

LASER AMERICA
COLUMBUS “SLX” frame TIG welded with special reinforcements. CAMPAGNOLO “RECORD” complete group with syncro system. CAMPAGNOLO “RECORD STRADA” rims. VITTORIA “CX” tubolars. CINELLI “X/A” handlebar with leather cover. CINELLI “VOLARE SLX” saddle.

[A yellow band runs down the left edge and the winged-C “cinelli” wordmark sits in a yellow panel at the top right. A large studio photograph shows the Laser America road bicycle in right-side view against a mottled gray backdrop: a pale metallic blue frame with a “cinelli” down-tube decal, a black saddle, a white stem and bar with dark leather-covered drops, white brake hoods and tan-wall tubular tires; the Italian and English captions sit below the photograph at right.]

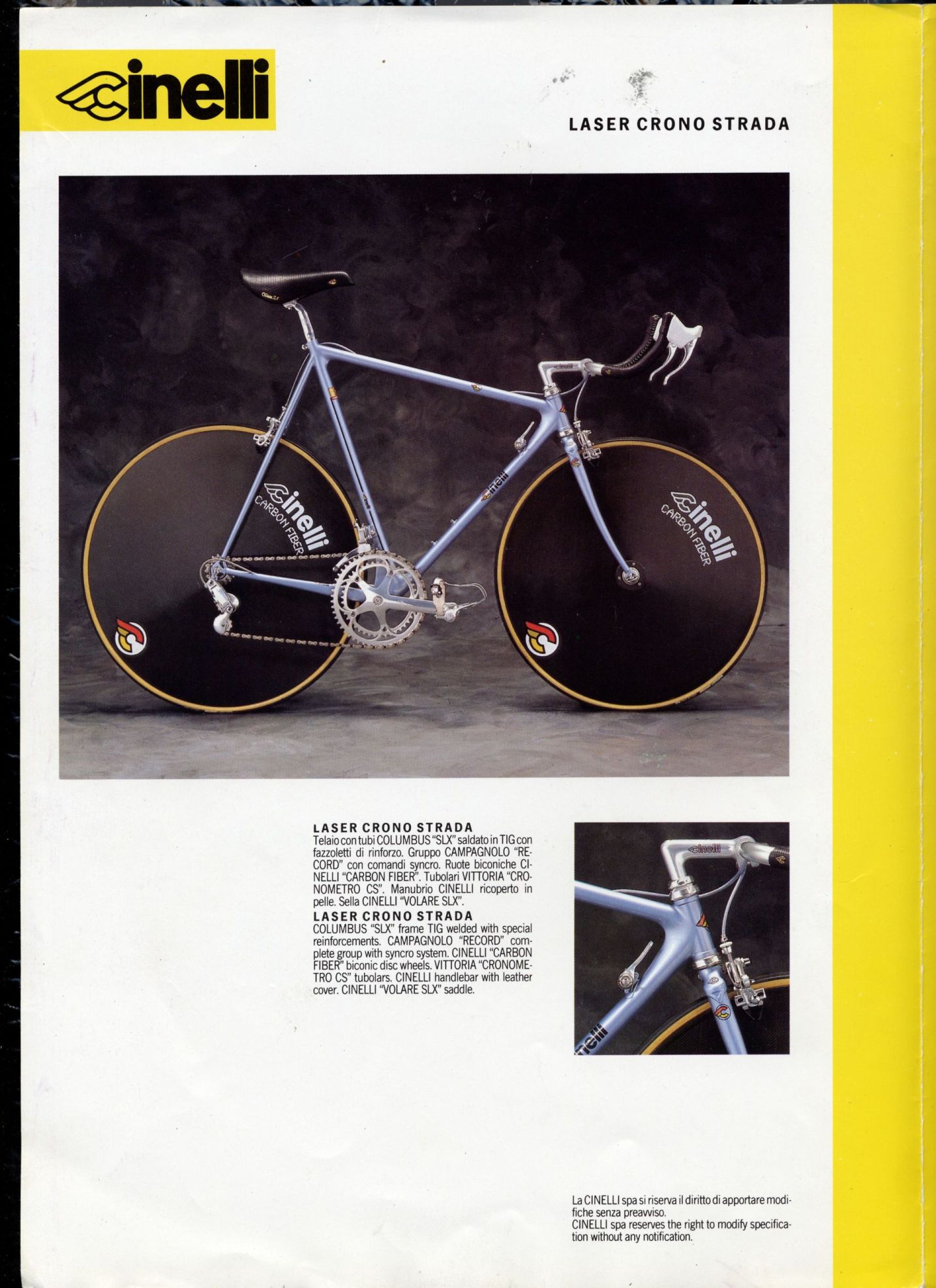

— Page 2 —
cinelli

LASER CRONO STRADA

LASER CRONO STRADA
Telaio con tubi COLUMBUS “SLX” saldato in TIG con fazzoletti di rinforzo. Gruppo CAMPAGNOLO “RECORD” con comandi syncro. Ruote biconiche CINELLI “CARBON FIBER”. Tubolari VITTORIA “CRONOMETRO CS”. Manubrio CINELLI ricoperto in pelle. Sella CINELLI “VOLARE SLX”.

LASER CRONO STRADA
COLUMBUS “SLX” frame TIG welded with special reinforcements. CAMPAGNOLO “RECORD” complete group with syncro system. CINELLI “CARBON FIBER” biconic disc wheels. VITTORIA “CRONOMETRO CS” tubolars. CINELLI handlebar with leather cover. CINELLI “VOLARE SLX” saddle.

La CINELLI spa si riserva il diritto di apportare modifiche senza preavviso.
CINELLI spa reserves the right to modify specification without any notification.

[The “cinelli” wordmark sits in a yellow panel at the top left and a yellow band runs down the right edge. A large studio photograph shows the Laser Crono Strada road bicycle in right-side view: a pale metallic blue frame on two black disc wheels lettered “cinelli CARBON FIBER” with the winged-C emblem, a black saddle and dark leather-covered bars. A smaller inset photograph at lower right shows the head tube, stem, front brake and down-tube shift levers close up; the captions sit at lower left and the specification notice at the foot of the page.]

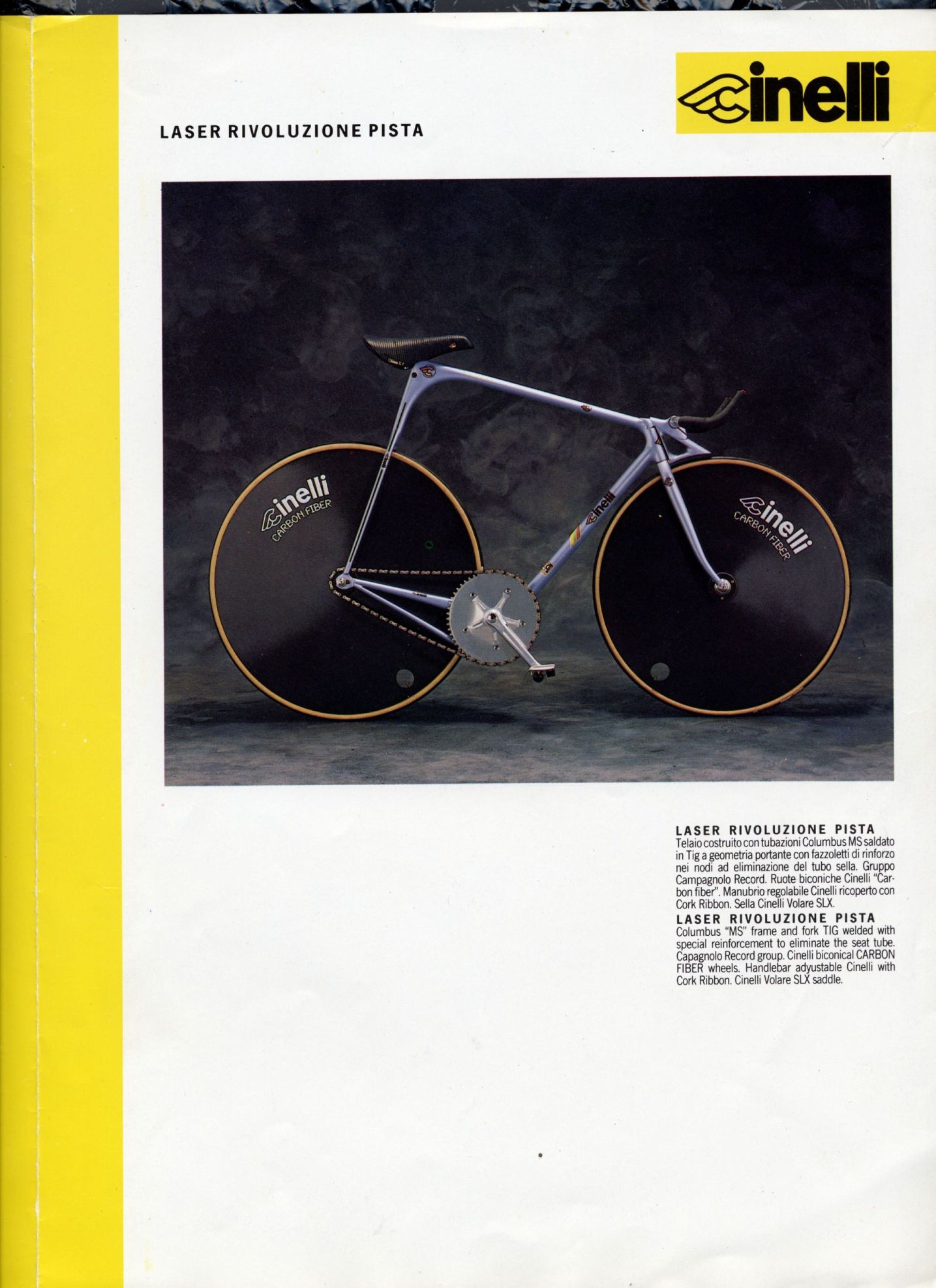

— Page 3 —
cinelli

LASER RIVOLUZIONE PISTA

LASER RIVOLUZIONE PISTA
Telaio costruito con tubazioni Columbus MS saldato in Tig a geometria portante con fazzoletti di rinforzo nei nodi ad eliminazione del tubo sella. Gruppo Campagnolo Record. Ruote biconiche Cinelli “Carbon fiber”. Manubrio regolabile Cinelli ricoperto con Cork Ribbon. Sella Cinelli Volare SLX.

LASER RIVOLUZIONE PISTA
Columbus “MS” frame and fork TIG welded with special reinforcement to eliminate the seat tube. Capagnolo Record group. Cinelli biconical CARBON FIBER wheels. Handlebar adyustable Cinelli with Cork Ribbon. Cinelli Volare SLX saddle.

[A yellow band runs down the left edge and the “cinelli” wordmark sits in a yellow panel at the top right. A large studio photograph shows the Laser Rivoluzione Pista track bicycle in right-side view: a pale metallic blue frame with no seat tube, the saddle mounted where the top tube meets the seat stays, a single chainring, forward-curving bars and two black disc wheels lettered “cinelli CARBON FIBER”. The Italian and English captions sit below the photograph at right.]

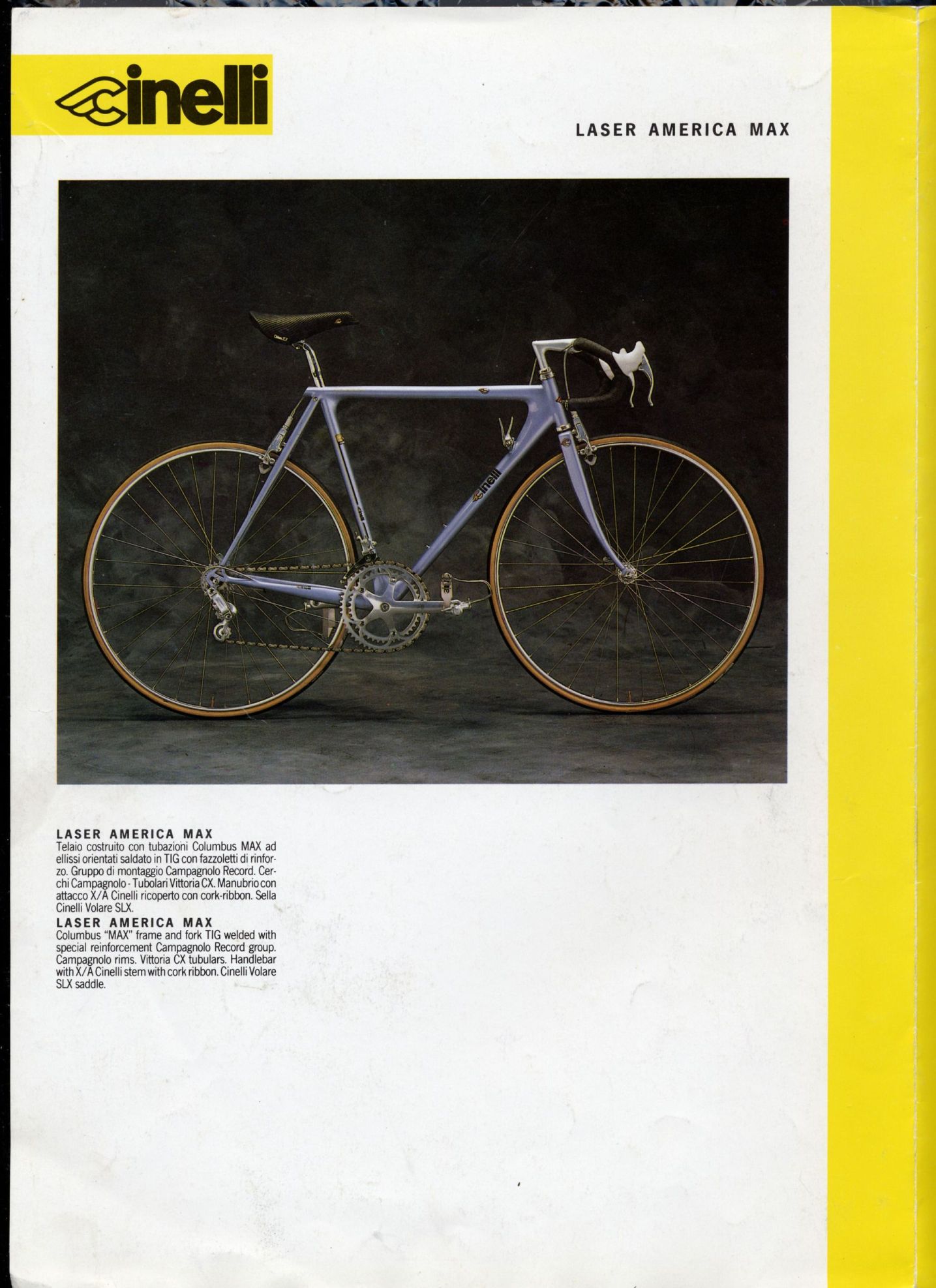

— Page 4 —
cinelli

LASER AMERICA MAX

LASER AMERICA MAX
Telaio costruito con tubazioni Columbus MAX ad ellissi orientati saldato in TIG con fazzoletti di rinforzo. Gruppo di montaggio Campagnolo Record. Cerchi Campagnolo – Tubolari Vittoria CX. Manubrio con attacco X/A Cinelli ricoperto con cork-ribbon. Sella Cinelli Volare SLX.

LASER AMERICA MAX
Columbus “MAX” frame and fork TIG welded with special reinforcement Campagnolo Record group. Campagnolo rims. Vittoria CX tubulars. Handlebar with X/A Cinelli stem with cork ribbon. Cinelli Volare SLX saddle.

[The “cinelli” wordmark sits in a yellow panel at the top left and a yellow band runs down the right edge. A large studio photograph shows the Laser America Max road bicycle in right-side view against a dark mottled backdrop: a lavender metallic frame with a “cinelli” down-tube decal, a black saddle, a white stem with black-taped drop bars, white brake hoods and tan-wall tubular tires. The Italian and English captions sit below the photograph at left.]

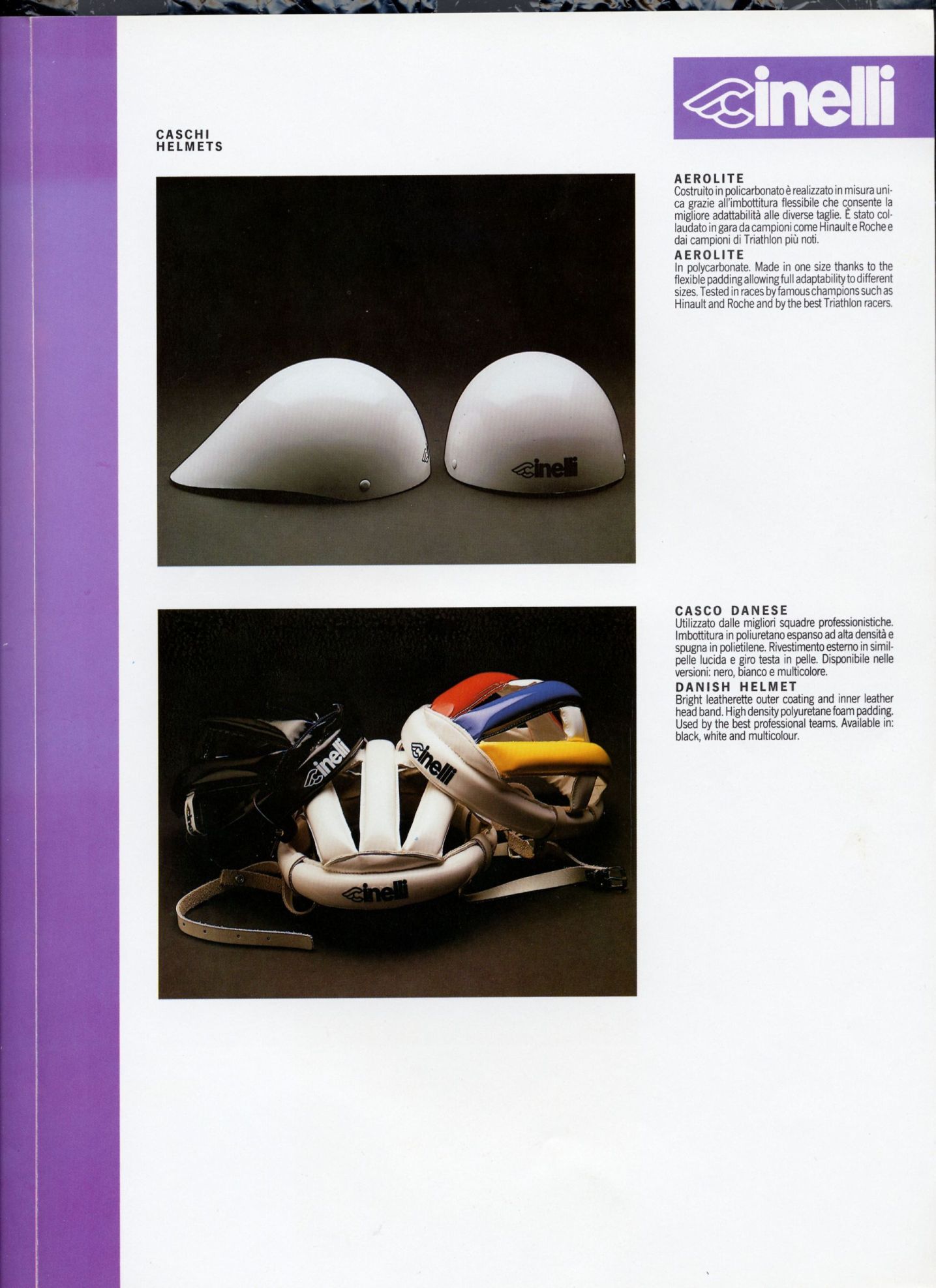

— Page 5 —
cinelli

CASCHI
HELMETS

AEROLITE
Costruito in policarbonato è realizzato in misura unica grazie all’imbottitura flessibile che consente la migliore adattabilità alle diverse taglie. È stato collaudato in gara da campioni come Hinault e Roche e dai campioni di Triathlon più noti.
AEROLITE
In polycarbonate. Made in one size thanks to the flexible padding allowing full adaptability to different sizes. Tested in races by famous champions such as Hinault and Roche and by the best Triathlon racers.

CASCO DANESE
Utilizzato dalle migliori squadre professionistiche. Imbottitura in poliuretano espanso ad alta densità e spugna in polietilene. Rivestimento esterno in similpelle lucida e giro testa in pelle. Disponibile nelle versioni: nero, bianco e multicolore.
DANISH HELMET
Bright leatherette outer coating and inner leather head band. High density polyuretane foam padding. Used by the best professional teams. Available in: black, white and multicolour.

[The helmet page, with a purple edge at left and the white “cinelli” wordmark on a purple panel at top right, has two photographs at left with text beside each. The upper photo shows two smooth white Aerolite shells, one elongated and one round, marked “cinelli”; the lower shows a pile of padded leather-strap Danish helmets in black, white and a red, blue and yellow multicolor version, each lettered “cinelli” on the band.]

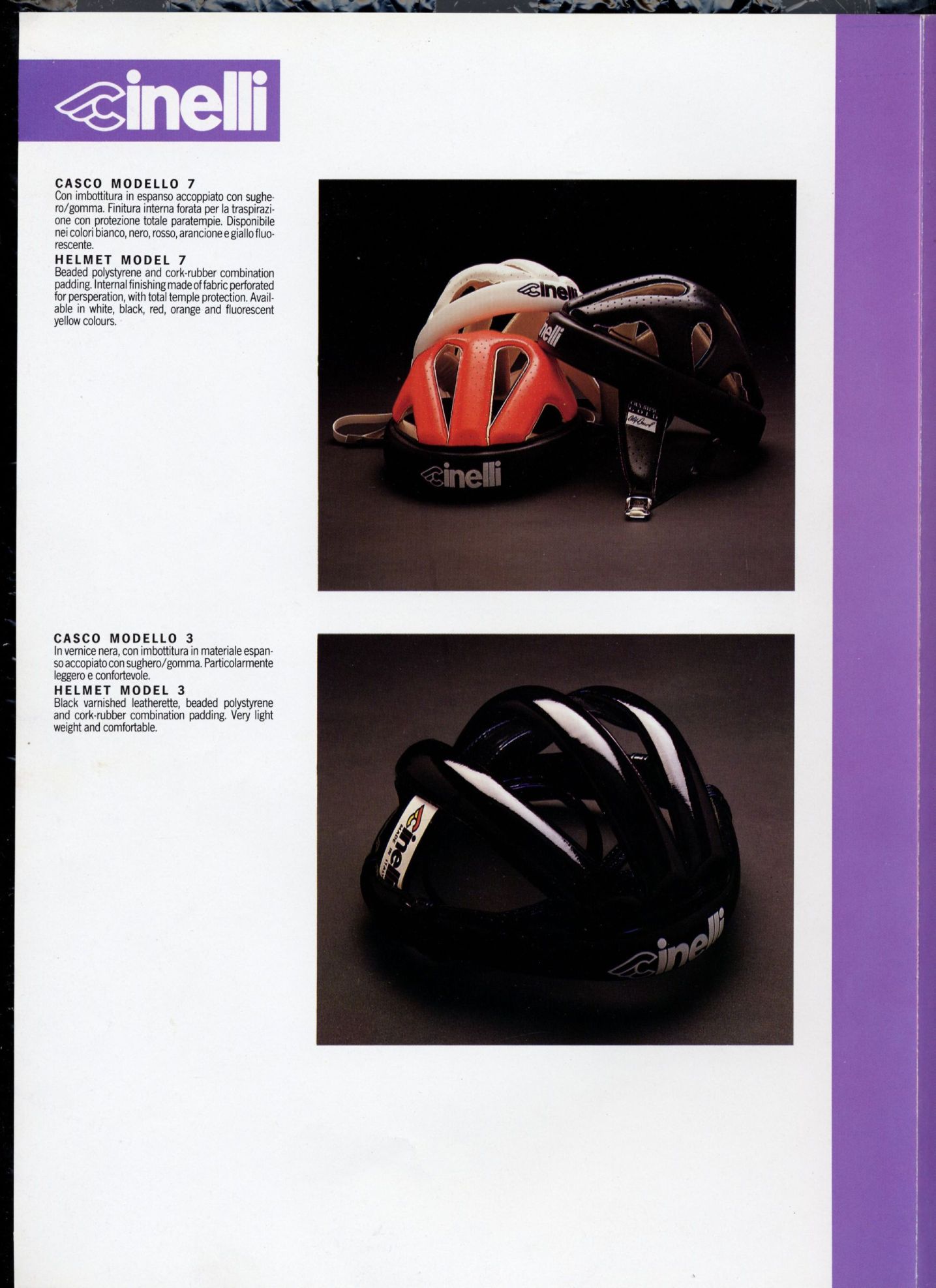

— Page 6 —
cinelli

CASCO MODELLO 7
Con imbottitura in espanso accoppiato con sughero/gomma. Finitura interna forata per la traspirazione con protezione totale paratempie. Disponibile nei colori bianco, nero, rosso, arancione e giallo fluorescente.

HELMET MODEL 7
Beaded polystyrene and cork-rubber combination padding. Internal finishing made of fabric perforated for persperation, with total temple protection. Available in white, black, red, orange and fluorescent yellow colours.

CASCO MODELLO 3
In vernice nera, con imbottitura in materiale espanso accopiato con sughero/gomma. Particolarmente leggero e confortevole.

HELMET MODEL 3
Black varnished leatherette, beaded polystyrene and cork-rubber combination padding. Very light weight and comfortable.

[The “cinelli” wordmark sits in a purple panel at the top left and a purple band runs down the right edge. The upper photograph shows three Model 7 padded strap helmets in white, red and black with perforated covers and “cinelli” on their brow bands, one chin strap carrying a small label with the word “GOLD” and a signature. The lower photograph shows a glossy black Model 3 helmet with white padding showing between its ribs, “cinelli” on the brow band and an inner label reading “cinelli MADE IN ITALY”; each pair of captions sits at left beside its photograph.]

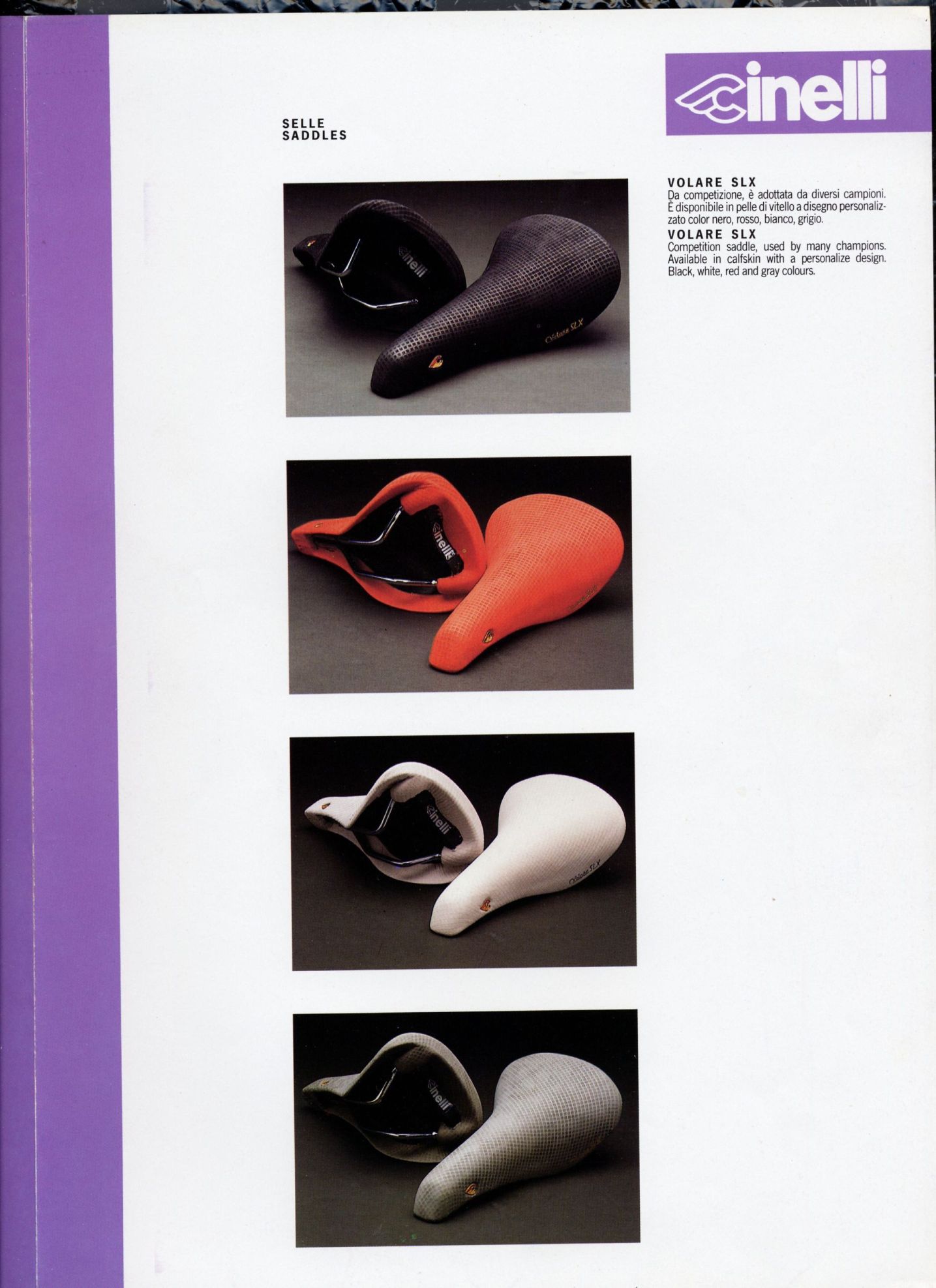

— Page 7 —
cinelli

SELLE
SADDLES

VOLARE SLX
Da competizione, è adottata da diversi campioni. È disponibile in pelle di vitello a disegno personalizzato color nero, rosso, bianco, grigio.

VOLARE SLX
Competition saddle, used by many champions. Available in calfskin with a personalize design. Black, white, red and gray colours.

[A purple band runs down the left edge and the “cinelli” wordmark sits in a purple panel at the top right. Four photographs stacked down the page each show a pair of Volare SLX saddles, one upturned to show its rails and a “cinelli” mark on the underside and one upright with a small winged-C badge and “Volare SLX” in script on the side: black, then red, then white, then gray, all with a grid-textured cover. The Italian and English captions sit at the top right beside the first photograph.]

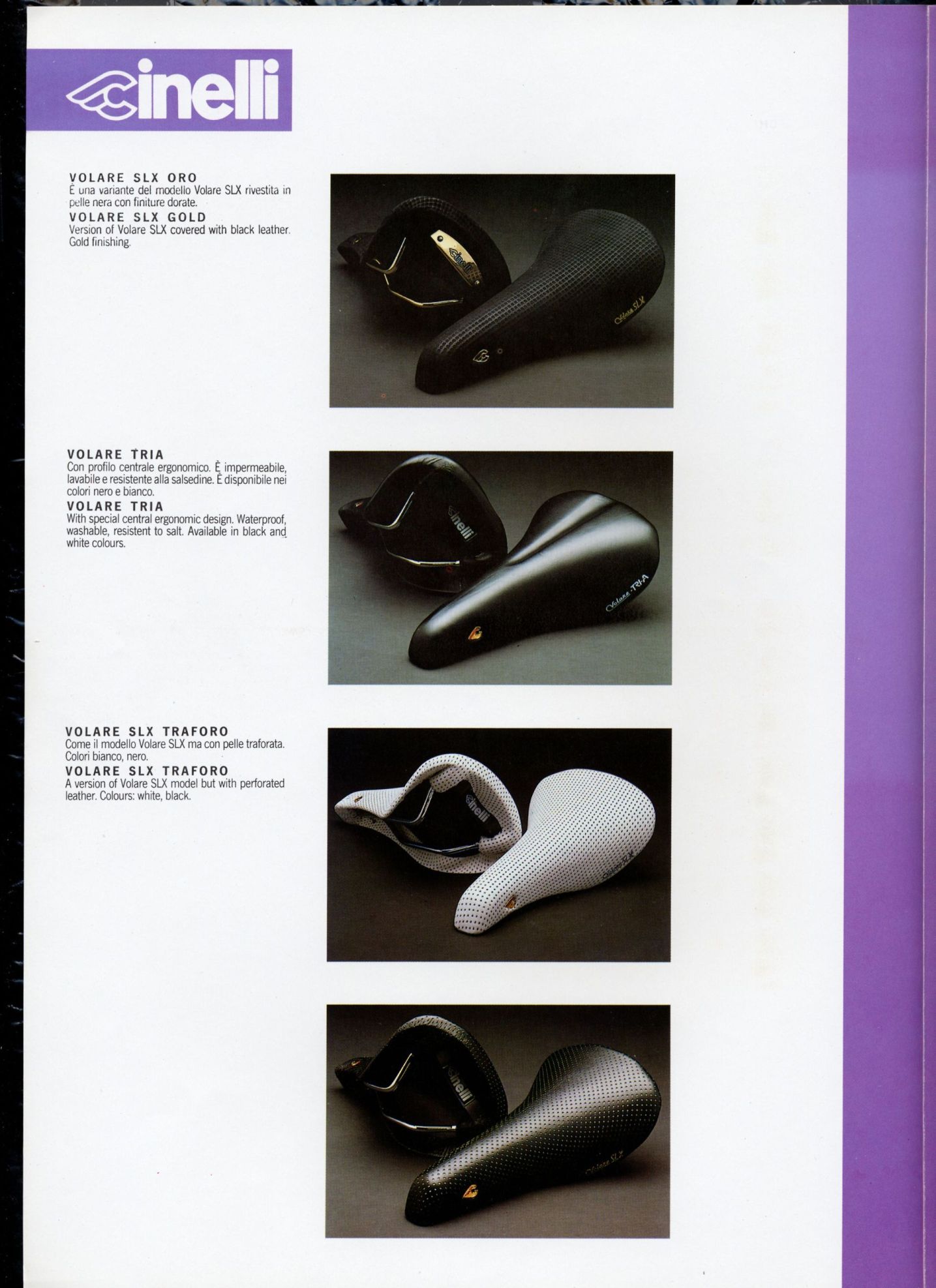

— Page 8 —
cinelli

VOLARE SLX ORO
È una variante del modello Volare SLX rivestita in pelle nera con finiture dorate.
VOLARE SLX GOLD
Version of Volare SLX covered with black leather. Gold finishing.

VOLARE TRIA
Con profilo centrale ergonomico. È impermeabile, lavabile e resistente alla salsedine. È disponibile nei colori nero e bianco.
VOLARE TRIA
With special central ergonomic design. Waterproof, washable, resistent to salt. Available in black and white colours.

VOLARE SLX TRAFORO
Come il modello Volare SLX ma con pelle traforata. Colori bianco, nero.
VOLARE SLX TRAFORO
A version of Volare SLX model but with perforated leather. Colours: white, black.

[A saddle page with a purple edge: the white “cinelli” wordmark sits on a purple panel at top left and four photographs run down the right, each pairing an upturned saddle (rails and the “cinelli” name on the underside) with one standing upright. From the top: the black textured Volare SLX Oro with a gold plate underneath and a “Volare SLX” script, the smooth black Volare Tria lettered “Volare TRI-A”, the white perforated Volare SLX Traforo and a black perforated saddle lettered “Volare SLX” with no text beside it.]

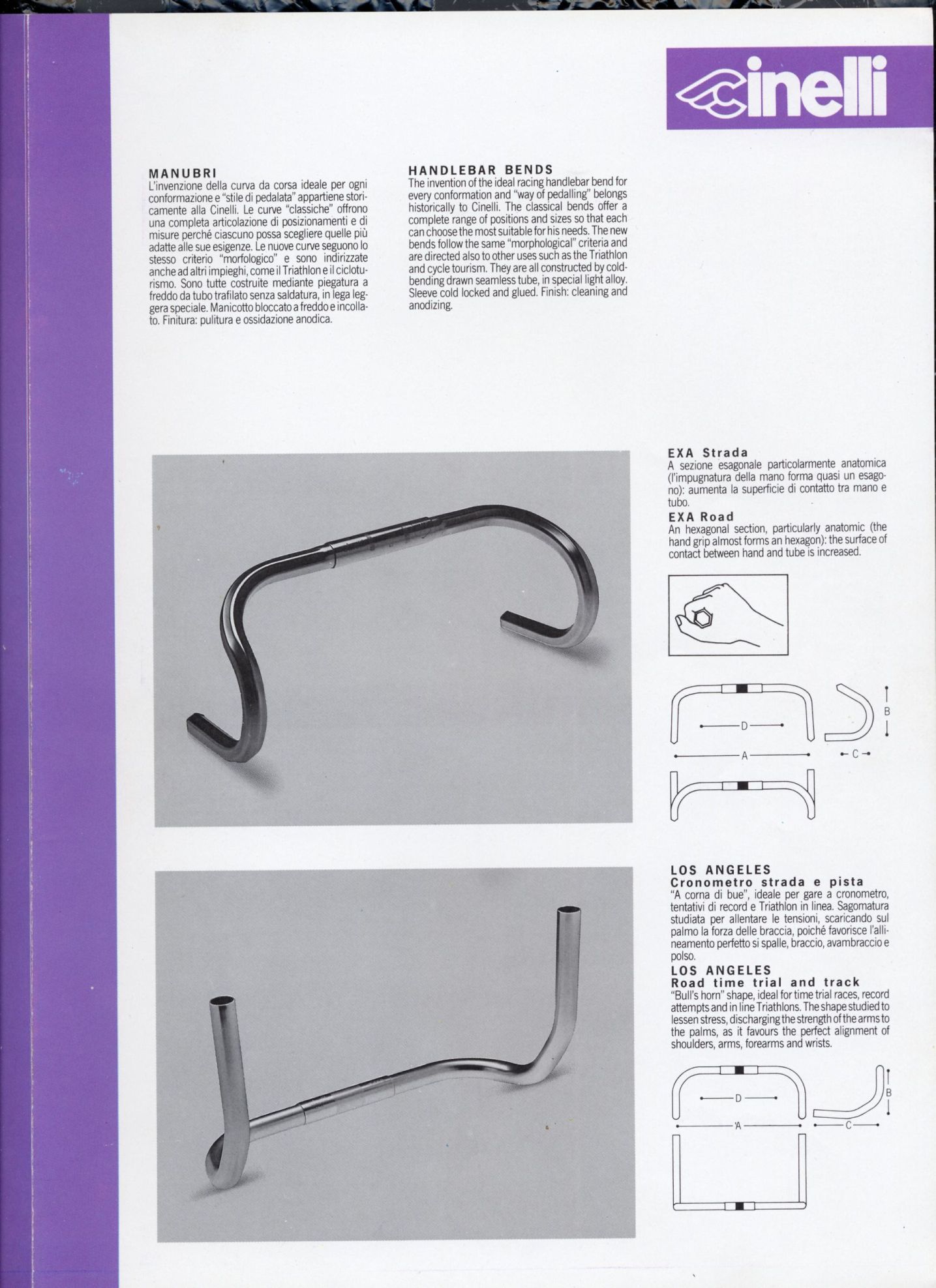

— Page 9 —
cinelli

MANUBRI
L’invenzione della curva da corsa ideale per ogni conformazione e “stile di pedalata” appartiene storicamente alla Cinelli. Le curve “classiche” offrono una completa articolazione di posizionamenti e di misure perché ciascuno possa scegliere quelle più adatte alle sue esigenze. Le nuove curve seguono lo stesso criterio “morfologico” e sono indirizzate anche ad altri impieghi, come il Triathlon e il cicloturismo. Sono tutte costruite mediante piegatura a freddo da tubo trafilato senza saldatura, in lega leggera speciale. Manicotto bloccato a freddo e incollato. Finitura: pulitura e ossidazione anodica.

HANDLEBAR BENDS
The invention of the ideal racing handlebar bend for every conformation and “way of pedalling” belongs historically to Cinelli. The classical bends offer a complete range of positions and sizes so that each can choose the most suitable for his needs. The new bends follow the same “morphological” criteria and are directed also to other uses such as the Triathlon and cycle tourism. They are all constructed by cold-bending drawn seamless tube, in special light alloy. Sleeve cold locked and glued. Finish: cleaning and anodizing.

EXA Strada
A sezione esagonale particolarmente anatomica (l’impugnatura della mano forma quasi un esagono): aumenta la superficie di contatto tra mano e tubo.
EXA Road
An hexagonal section, particularly anatomic (the hand grip almost forms an hexagon): the surface of contact between hand and tube is increased.

D
A
B
C

LOS ANGELES
Cronometro strada e pista
“A corna di bue”, ideale per gare a cronometro, tentativi di record e Triathlon in linea. Sagomatura studiata per allentare le tensioni, scaricando sul palmo la forza delle braccia, poiché favorisce l’allineamento perfetto si spalle, braccio, avambraccio e polso.
LOS ANGELES
Road time trial and track
“Bull’s horn” shape, ideal for time trial races, record attempts and in line Triathlons. The shape studied to lessen stress, discharging the strength of the arms to the palms, as it favours the perfect alignment of shoulders, arms, forearms and wrists.

D
A
B
C

[The first handlebar page, with a purple edge at left and the white “cinelli” wordmark on a purple panel at top right, opens with a two-column introduction in Italian and English. Below are two photographs of polished alloy bars on a gray ground, the EXA drop bar and the Los Angeles bull-horn bar, each with its text and line drawings of the bar in plan, front and side views with dimensions lettered A to D; the EXA also has a pictogram of a hand gripping a hexagonal tube section.]

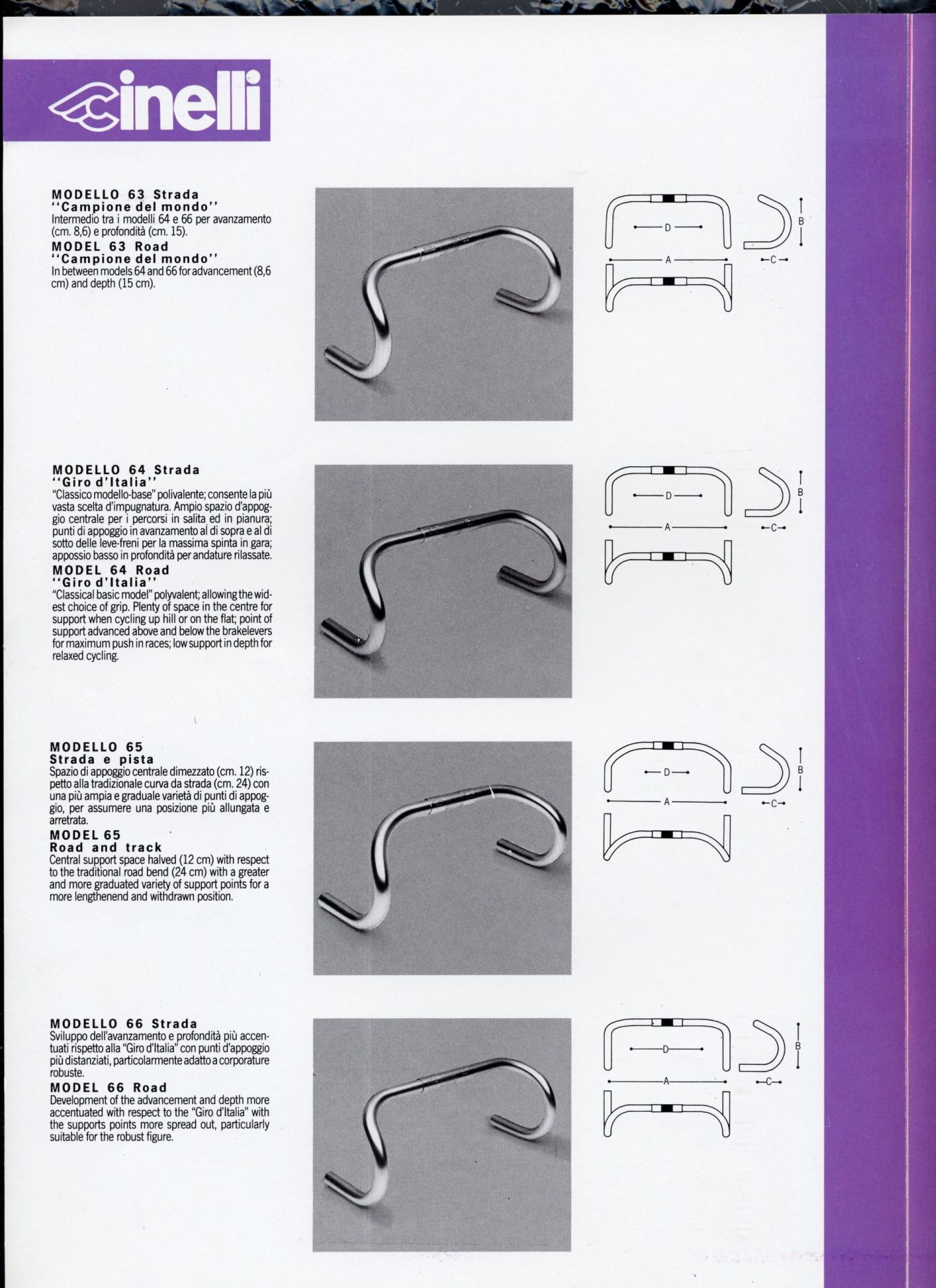

— Page 10 —
cinelli

MODELLO 63 Strada
“Campione del mondo”
Intermedio tra i modelli 64 e 66 per avanzamento (cm. 8,6) e profondità (cm. 15).
MODEL 63 Road
“Campione del mondo”
In between models 64 and 66 for advancement (8,6 cm) and depth (15 cm).

D
A
B
C

MODELLO 64 Strada
“Giro d’Italia”
“Classico modello-base” polivalente; consente la più vasta scelta d’impugnatura. Ampio spazio d’appoggio centrale per i percorsi in salita ed in pianura; punti di appoggio in avanzamento al di sopra e al di sotto delle leve-freni per la massima spinta in gara; appossio basso in profondità per andature rilassate.
MODEL 64 Road
“Giro d’Italia”
“Classical basic model” polyvalent; allowing the widest choice of grip. Plenty of space in the centre for support when cycling up hill or on the flat; point of support advanced above and below the brakelevers for maximum push in races; low support in depth for relaxed cycling.

D
A
B
C

MODELLO 65
Strada e pista
Spazio di appoggio centrale dimezzato (cm. 12) rispetto alla tradizionale curva da strada (cm. 24) con una più ampia e graduale varietà di punti di appoggio, per assumere una posizione più allungata e arretrata.
MODEL 65
Road and track
Central support space halved (12 cm) with respect to the traditional road bend (24 cm) with a greater and more graduated variety of support points for a more lengthenend and withdrawn position.

D
A
B
C

MODELLO 66 Strada
Sviluppo dell’avanzamento e profondità più accentuati rispetto alla “Giro d’Italia” con punti d’appoggio più distanziati, particolarmente adatto a corporature robuste.
MODEL 66 Road
Development of the advancement and depth more accentuated with respect to the “Giro d’Italia” with the supports points more spread out, particularly suitable for the robust figure.

D
A
B
C

[The second handlebar page, with a purple edge at right and the white “cinelli” wordmark on a purple panel at top left, sets four drop bars in a column: text at left, a photograph of the polished alloy bar on a gray ground at center and line drawings at right in front, plan and side views with dimensions lettered A to D. The bars are the Model 63, 64, 65 and 66.]

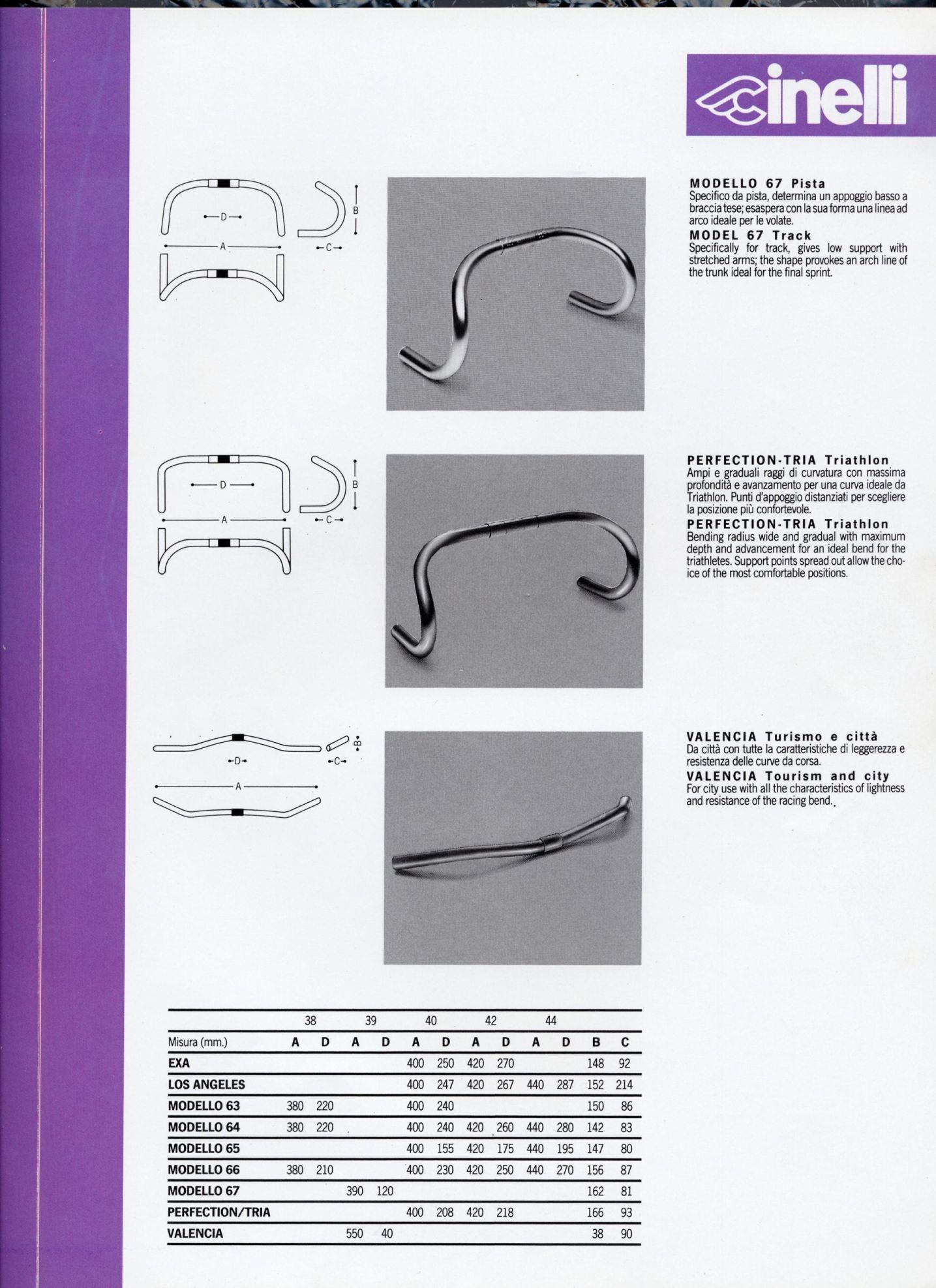

— Page 11 —
cinelli

D
A
B
C

MODELLO 67 Pista
Specifico da pista, determina un appoggio basso a braccia tese; esaspera con la sua forma una linea ad arco ideale per le volate.
MODEL 67 Track
Specifically for track, gives low support with stretched arms; the shape provokes an arch line of the trunk ideal for the final sprint.

D
A
B
C

PERFECTION-TRIA Triathlon
Ampi e graduali raggi di curvatura con massima profondità e avanzamento per una curva ideale da Triathlon. Punti d’appoggio distanziati per scegliere la posizione più confortevole.
PERFECTION-TRIA Triathlon
Bending radius wide and gradual with maximum depth and advancement for an ideal bend for the triathletes. Support points spread out allow the choice of the most comfortable positions.

D
C
B
A

VALENCIA Turismo e città
Da città con tutte la caratteristiche di leggerezza e resistenza delle curve da corsa.
VALENCIA Tourism and city
For city use with all the characteristics of lightness and resistance of the racing bend.

| 38 | | 39 | | 40 | | 42 | | 44 | | |
Misura (mm.) | A | D | A | D | A | D | A | D | A | D | B | C
EXA | | | | | 400 | 250 | 420 | 270 | | | 148 | 92
LOS ANGELES | | | | | 400 | 247 | 420 | 267 | 440 | 287 | 152 | 214
MODELLO 63 | 380 | 220 | | | 400 | 240 | | | | | 150 | 86
MODELLO 64 | 380 | 220 | | | 400 | 240 | 420 | 260 | 440 | 280 | 142 | 83
MODELLO 65 | | | | | 400 | 155 | 420 | 175 | 440 | 195 | 147 | 80
MODELLO 66 | 380 | 210 | | | 400 | 230 | 420 | 250 | 440 | 270 | 156 | 87
MODELLO 67 | | | 390 | 120 | | | | | | | 162 | 81
PERFECTION/TRIA | | | | | 400 | 208 | 420 | 218 | | | 166 | 93
VALENCIA | | | 550 | 40 | | | | | | | 38 | 90

[The third handlebar page, with a purple edge at left and the white “cinelli” wordmark on a purple panel at top right, sets three bars in rows: line drawings with dimensions lettered A to D at left, a photograph of the polished alloy bar on a gray ground at center and text at right, for the Model 67 track drop, the Perfection-Tria triathlon drop and the near-flat Valencia city bar. A ruled dimension table across the foot gives A and D by size, with B and C, for all nine bars on these three pages.]

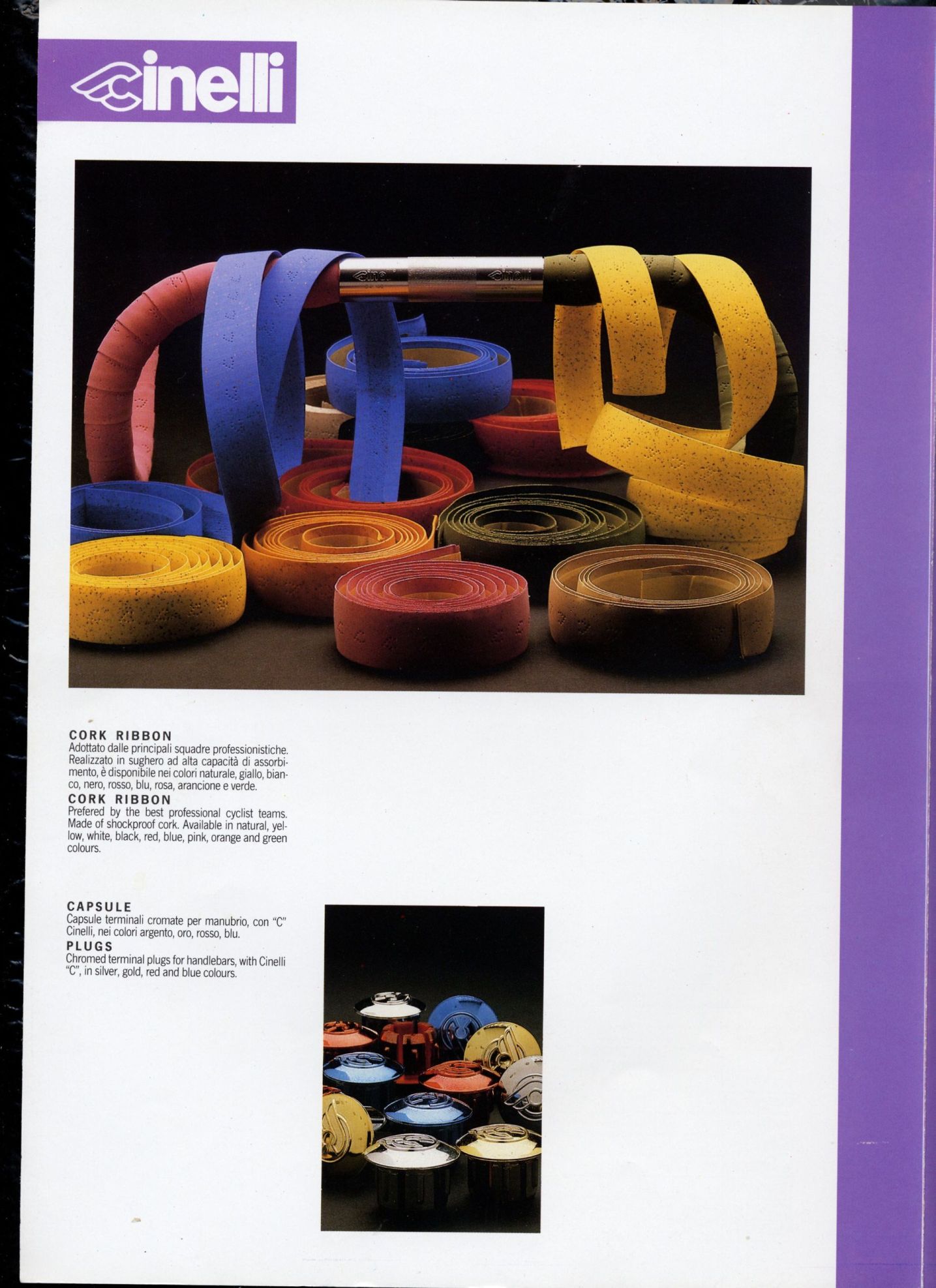

— Page 12 —
cinelli

CORK RIBBON
Adottato dalle principali squadre professionistiche. Realizzato in sughero ad alta capacità di assorbimento, è disponibile nei colori naturale, giallo, bianco, nero, rosso, blu, rosa, arancione e verde.
CORK RIBBON
Prefered by the best professional cyclist teams. Made of shockproof cork. Available in natural, yellow, white, black, red, blue, pink, orange and green colours.

CAPSULE
Capsule terminali cromate per manubrio, con “C” Cinelli, nei colori argento, oro, rosso, blu.
PLUGS
Chromed terminal plugs for handlebars, with Cinelli “C”, in silver, gold, red and blue colours.

[The bar tape page, with a purple edge at right and the white “cinelli” wordmark on a purple panel at top left, is led by a large color photograph of rolls of perforated cork ribbon in yellow, blue, red, pink, orange, olive and natural, some looped over a polished bar center sleeve marked “cinelli”. Below, beside the text, a smaller photograph shows a heap of end plugs in silver, gold, red and blue, their caps embossed with the winged “C”.]

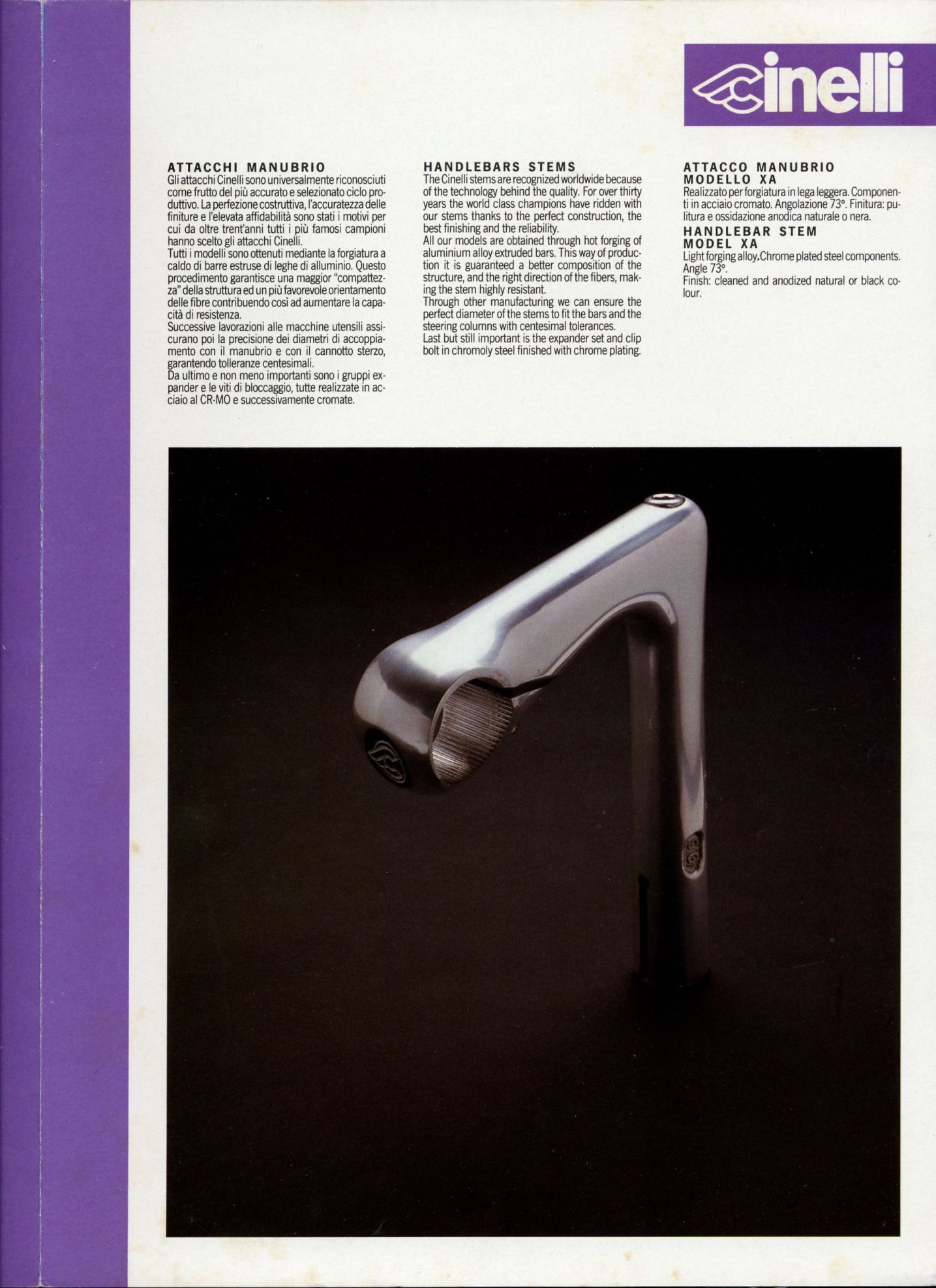

— Page 13 —
cinelli

ATTACCHI MANUBRIO
Gli attacchi Cinelli sono universalmente riconosciuti come frutto del più accurato e selezionato ciclo produttivo. La perfezione costruttiva, l’accuratezza delle finiture e l’elevata affidabilità sono stati i motivi per cui da oltre trent’anni tutti i più famosi campioni hanno scelto gli attacchi Cinelli.
Tutti i modelli sono ottenuti mediante la forgiatura a caldo di barre estruse di leghe di alluminio. Questo procedimento garantisce una maggior “compattezza” della struttura ed un più favorevole orientamento delle fibre contribuendo così ad aumentare la capacità di resistenza.
Successive lavorazioni alle macchine utensili assicurano poi la precisione dei diametri di accoppiamento con il manubrio e con il cannotto sterzo, garantendo tolleranze centesimali.
Da ultimo e non meno importanti sono i gruppi expander e le viti di bloccaggio, tutte realizzate in acciaio al CR-MO e successivamente cromate.

HANDLEBARS STEMS
The Cinelli stems are recognized worldwide because of the technology behind the quality. For over thirty years the world class champions have ridden with our stems thanks to the perfect construction, the best finishing and the reliability.
All our models are obtained through hot forging of aluminium alloy extruded bars. This way of production it is guaranteed a better composition of the structure, and the right direction of the fibers, making the stem highly resistant.
Through other manufacturing we can ensure the perfect diameter of the stems to fit the bars and the steering columns with centesimal tolerances.
Last but still important is the expander set and clip bolt in chromoly steel finished with chrome plating.

ATTACCO MANUBRIO
MODELLO XA
Realizzato per forgiatura in lega leggera. Componenti in acciaio cromato. Angolazione 73°. Finitura: pulitura e ossidazione anodica naturale o nera.

HANDLEBAR STEM
MODEL XA
Light forging alloy.Chrome plated steel components.
Angle 73°.
Finish: cleaned and anodized natural or black colour.

[A component page with a purple left edge and the purple cinelli wordmark panel at upper right; three columns of text sit above a large photograph of a polished silver Model XA quill stem against a black ground, seen in three-quarter view from the front with the winged-C emblem on the bar clamp.]

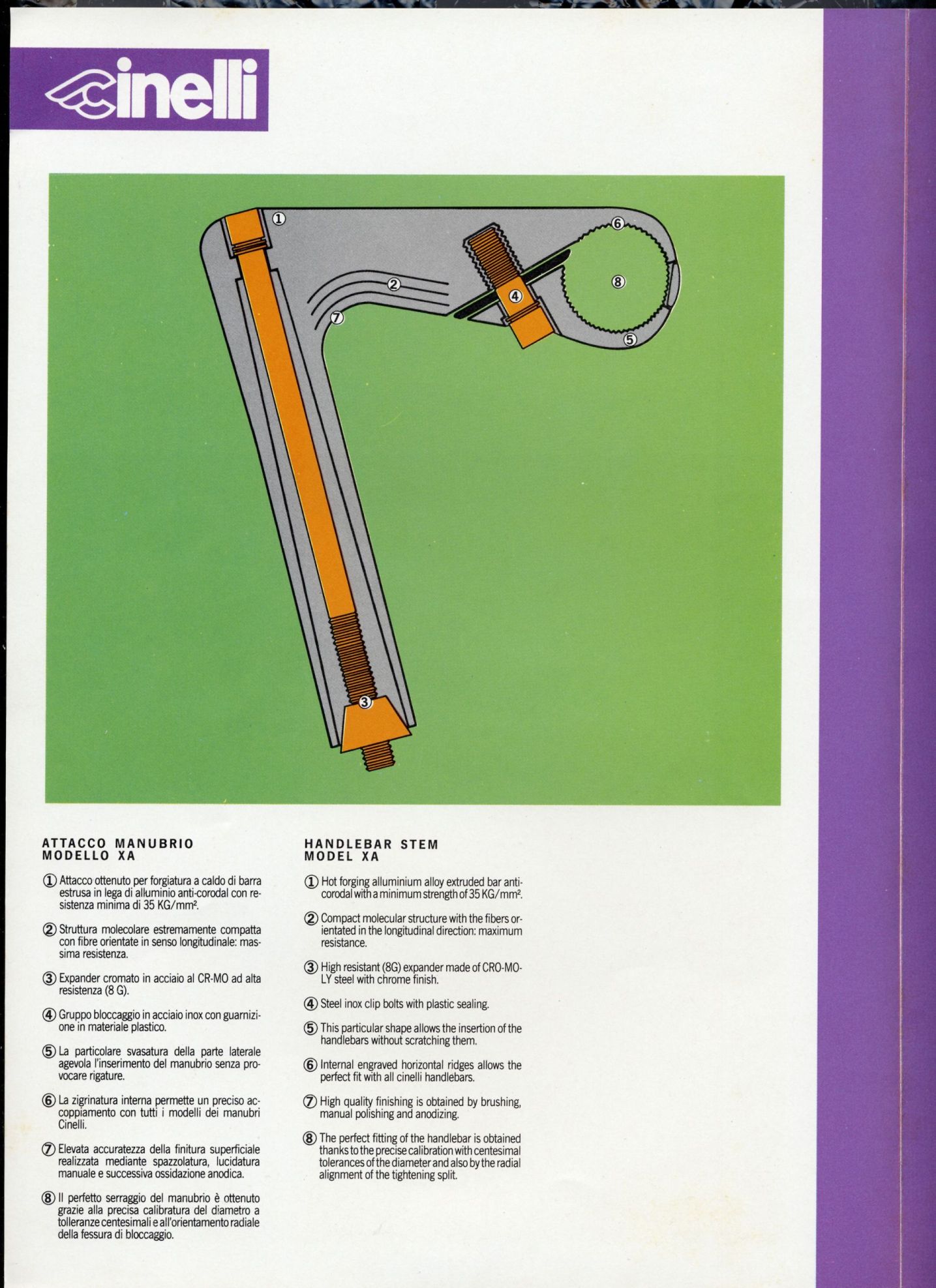

— Page 14 —
cinelli

ATTACCO MANUBRIO
MODELLO XA

① Attacco ottenuto per forgiatura a caldo di barra estrusa in lega di alluminio anti-corodal con resistenza minima di 35 KG/mm².

② Struttura molecolare estremamente compatta con fibre orientate in senso longitudinale: massima resistenza.

③ Expander cromato in acciaio al CR-MO ad alta resistenza (8 G).

④ Gruppo bloccaggio in acciaio inox con guarnizione in materiale plastico.

⑤ La particolare svasatura della parte laterale agevola l’inserimento del manubrio senza provocare rigature.

⑥ La zigrinatura interna permette un preciso accoppiamento con tutti i modelli dei manubri Cinelli.

⑦ Elevata accuratezza della finitura superficiale realizzata mediante spazzolatura, lucidatura manuale e successiva ossidazione anodica.

⑧ Il perfetto serraggio del manubrio è ottenuto grazie alla precisa calibratura del diametro a tolleranze centesimali e all’orientamento radiale della fessura di bloccaggio.

HANDLEBAR STEM
MODEL XA

① Hot forging alluminium alloy extruded bar anti-corodal with a minimum strength of 35 KG/mm².

② Compact molecular structure with the fibers orientated in the longitudinal direction: maximum resistance.

③ High resistant (8G) expander made of CRO-MOLY steel with chrome finish.

④ Steel inox clip bolts with plastic sealing.

⑤ This particular shape allows the insertion of the handlebars without scratching them.

⑥ Internal engraved horizontal ridges allows the perfect fit with all cinelli handlebars.

⑦ High quality finishing is obtained by brushing, manual polishing and anodizing.

⑧ The perfect fitting of the handlebar is obtained thanks to the precise calibration with centesimal tolerances of the diameter and also by the radial alignment of the tightening split.

[A component page with a purple right edge and the purple cinelli wordmark panel at upper left; a large cutaway drawing of the Model XA stem on a green ground shows the gray alloy body with the expander bolt, wedge and clamp bolt in orange, keyed by circled numerals 1 to 8 to the two columns of numbered notes below, Italian at left and English at right.]

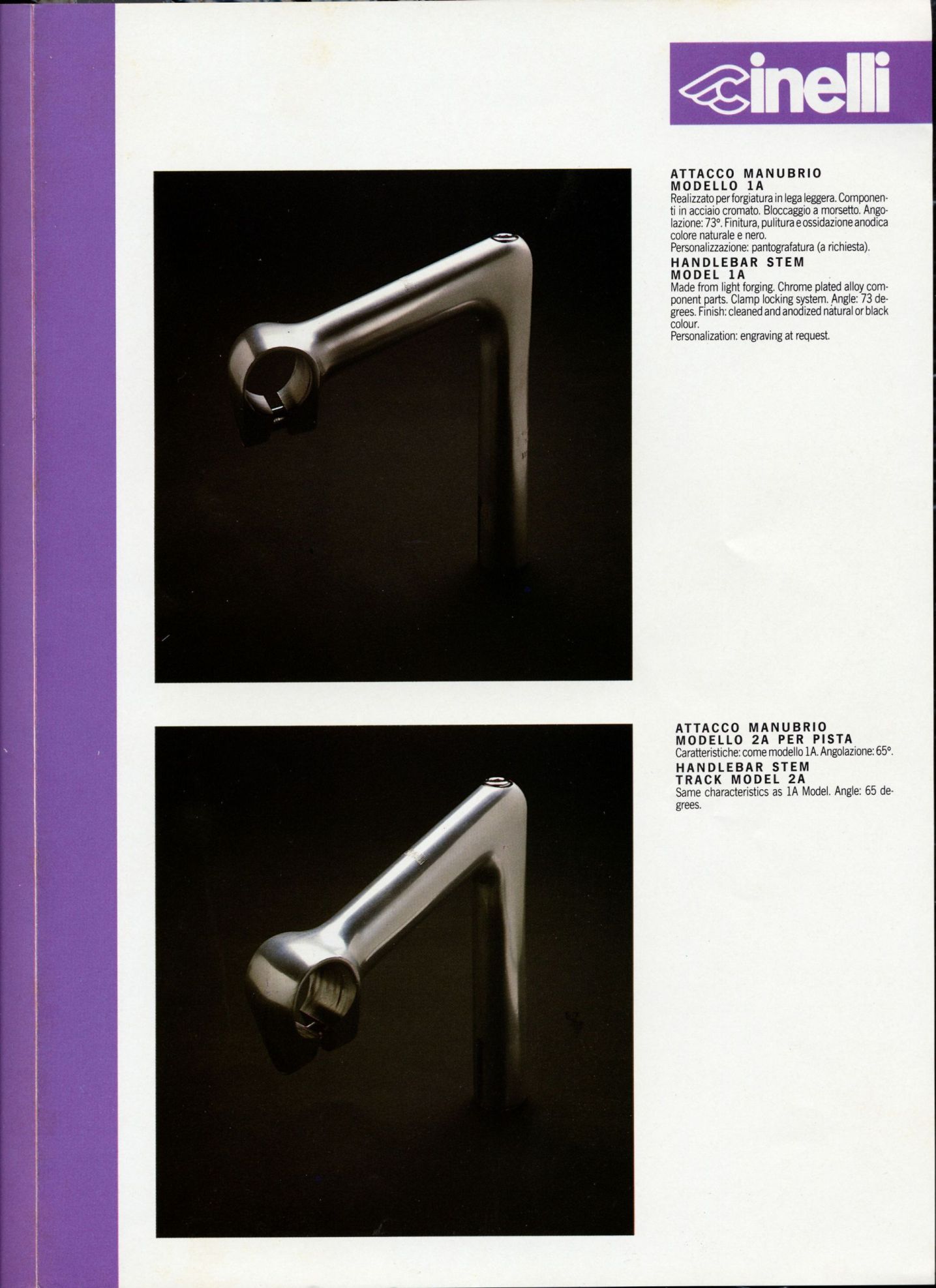

— Page 15 —
cinelli

ATTACCO MANUBRIO
MODELLO 1A
Realizzato per forgiatura in lega leggera. Componenti in acciaio cromato. Bloccaggio a morsetto. Angolazione: 73°. Finitura, pulitura e ossidazione anodica colore naturale e nero.
Personalizzazione: pantografatura (a richiesta).

HANDLEBAR STEM
MODEL 1A
Made from light forging. Chrome plated alloy component parts. Clamp locking system. Angle: 73 degrees. Finish: cleaned and anodized natural or black colour.
Personalization: engraving at request.

ATTACCO MANUBRIO
MODELLO 2A PER PISTA
Caratteristiche: come modello 1A. Angolazione: 65°.

HANDLEBAR STEM
TRACK MODEL 2A
Same characteristics as 1A Model. Angle: 65 degrees.

[A component page with a purple left edge and the purple cinelli wordmark panel at upper right; two stacked photographs on black grounds show polished silver quill stems in three-quarter view, the road Model 1A above and the track Model 2A below, each with its Italian and English text to the right.]

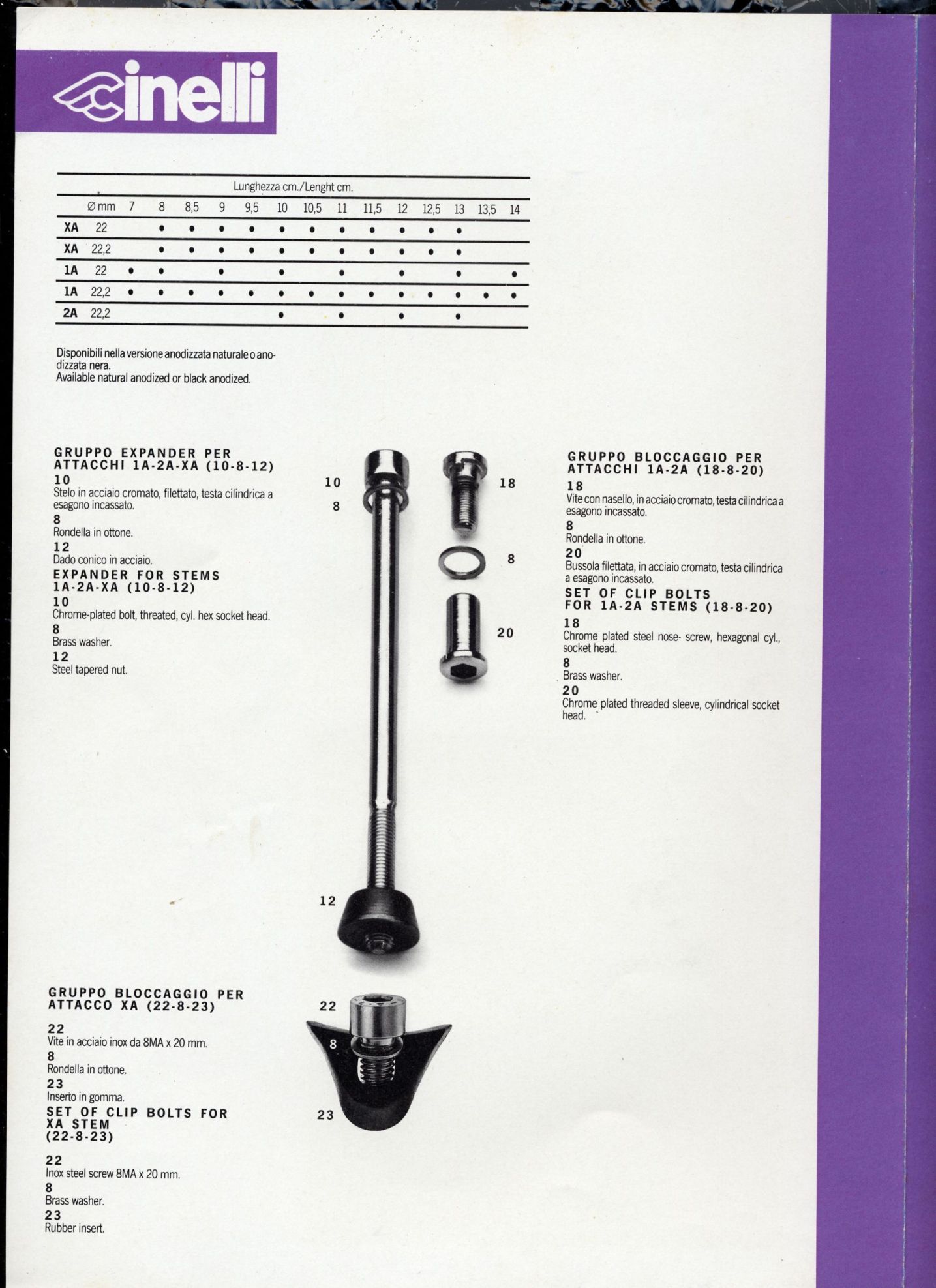

— Page 16 —
cinelli

Lunghezza cm./Lenght cm.
| Ø mm | 7 | 8 | 8,5 | 9 | 9,5 | 10 | 10,5 | 11 | 11,5 | 12 | 12,5 | 13 | 13,5 | 14
XA | 22 | | • | • | • | • | • | • | • | • | • | • | • | |
XA | 22,2 | | • | • | • | • | • | • | • | • | • | • | • | |
1A | 22 | • | • | | • | | • | | • | | • | | • | | •
1A | 22,2 | • | • | • | • | • | • | • | • | • | • | • | • | • | •
2A | 22,2 | | | | | | • | | • | | • | | • | |

Disponibili nella versione anodizzata naturale o anodizzata nera.
Available natural anodized or black anodized.

GRUPPO EXPANDER PER
ATTACCHI 1A-2A-XA (10-8-12)
10
Stelo in acciaio cromato, filettato, testa cilindrica a esagono incassato.
8
Rondella in ottone.
12
Dado conico in acciaio.

EXPANDER FOR STEMS
1A-2A-XA (10-8-12)
10
Chrome-plated bolt, threated, cyl. hex socket head.
8
Brass washer.
12
Steel tapered nut.

GRUPPO BLOCCAGGIO PER
ATTACCHI 1A-2A (18-8-20)
18
Vite con nasello, in acciaio cromato, testa cilindrica a esagono incassato.
8
Rondella in ottone.
20
Bussola filettata, in acciaio cromato, testa cilindrica a esagono incassato.

SET OF CLIP BOLTS
FOR 1A-2A STEMS (18-8-20)
18
Chrome plated steel nose- screw, hexagonal cyl., socket head.
8
Brass washer.
20
Chrome plated threaded sleeve, cylindrical socket head.

GRUPPO BLOCCAGGIO PER
ATTACCO XA (22-8-23)
22
Vite in acciaio inox da 8MA x 20 mm.
8
Rondella in ottone.
23
Inserto in gomma.

SET OF CLIP BOLTS FOR
XA STEM
(22-8-23)
22
Inox steel screw 8MA x 20 mm.
8
Brass washer.
23
Rubber insert.

[A component page with a purple right edge and the purple cinelli wordmark panel at upper left; a ruled table gives the stem lengths available for each model and bar diameter, and black-and-white photographs at center show the parts of the expander set (callouts 10, 8 and 12), the 1A-2A clip bolt set (18, 8 and 20) and the XA clip bolt set (22, 8 and 23), each keyed to its numbered Italian and English parts list.]

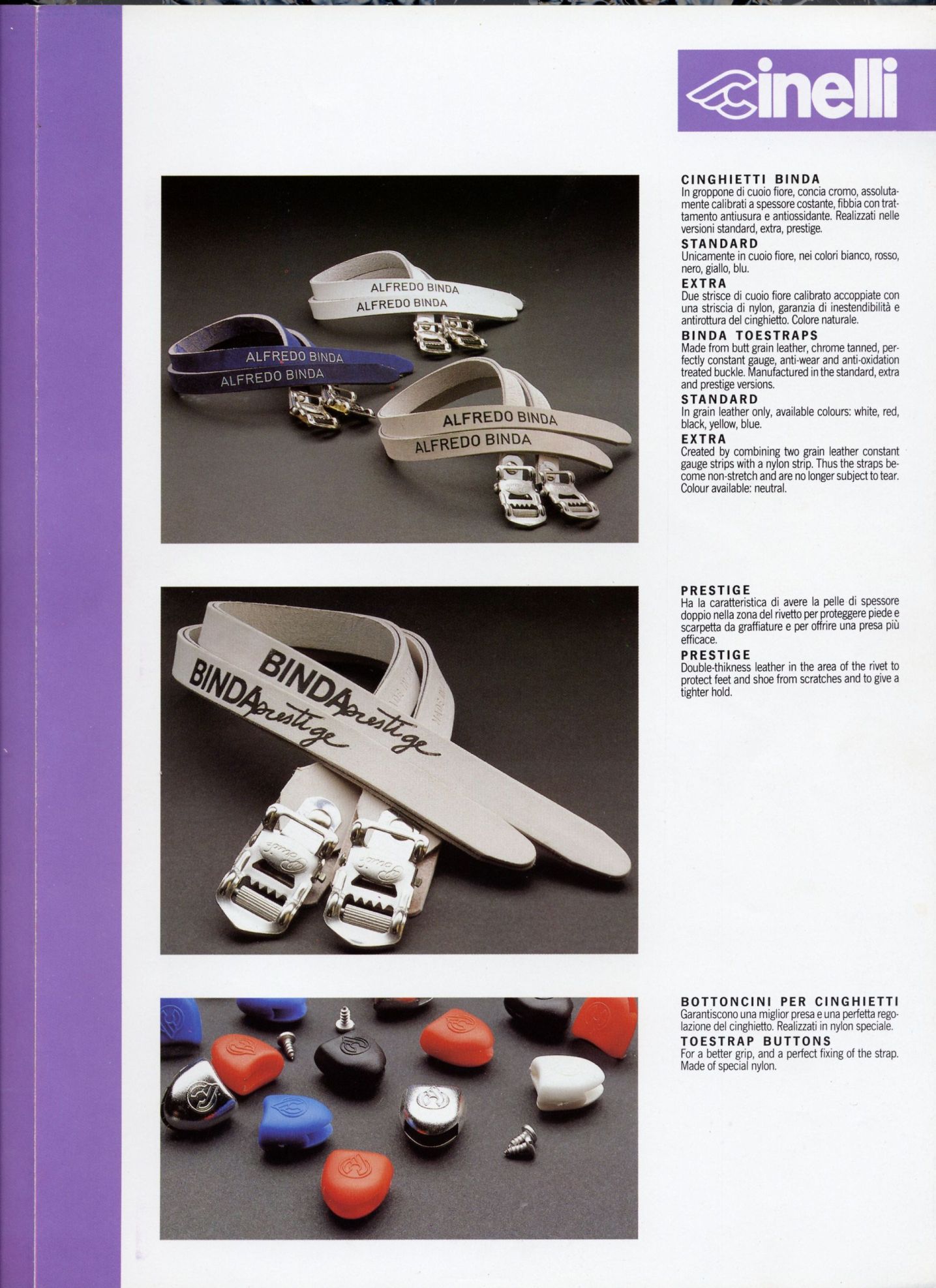

— Page 17 —
cinelli

CINGHIETTI BINDA
In groppone di cuoio fiore, concia cromo, assolutamente calibrati a spessore costante, fibbia con trattamento antiusura e antiossidante. Realizzati nelle versioni standard, extra, prestige.

STANDARD
Unicamente in cuoio fiore, nei colori bianco, rosso, nero, giallo, blu.

EXTRA
Due strisce di cuoio fiore calibrato accoppiate con una striscia di nylon, garanzia di inestendibilità e antirottura del cinghietto. Colore naturale.

BINDA TOESTRAPS
Made from butt grain leather, chrome tanned, perfectly constant gauge, anti-wear and anti-oxidation treated buckle. Manufactured in the standard, extra and prestige versions.

STANDARD
In grain leather only, available colours: white, red, black, yellow, blue.

EXTRA
Created by combining two grain leather constant gauge strips with a nylon strip. Thus the straps become non-stretch and are no longer subject to tear. Colour available: neutral.

PRESTIGE
Ha la caratteristica di avere la pelle di spessore doppio nella zona del rivetto per proteggere piede e scarpetta da graffiature e per offrire una presa più efficace.

PRESTIGE
Double-thikness leather in the area of the rivet to protect feet and shoe from scratches and to give a tighter hold.

BOTTONCINI PER CINGHIETTI
Garantiscono una miglior presa e una perfetta regolazione del cinghietto. Realizzati in nylon speciale.

TOESTRAP BUTTONS
For a better grip, and a perfect fixing of the strap. Made of special nylon.

[A component page with a purple left edge and the purple cinelli wordmark panel at upper right; three photographs on dark gray grounds run down the left with their text to the right: three pairs of leather toe straps in blue, white and natural stamped “ALFREDO BINDA”, a close view of a white pair stamped “BINDA prestige” with chromed buckles, and a scatter of toe-strap buttons in red, blue, black, white and chrome, molded with the winged-C emblem, with their screws.]

— Page 18 —
cinelli

PEDALE BREVETTATO ”M-71”
Senza fermapiede e senza cinghietta. Offre i vantaggi seguenti:
evita che il piede scivoli verso l’esterno a causa della flessione della pedivella, permette di accostarsi il più possibile alla pedivella, assicura la regolarità del flusso sanguigno, altrimenti ostacolato dalla pressione della cinghietta, presenta minor resistenza all’aria in quanto più leggero e a maggior profilo, aerodinamico.

PATENT-PEDAL MODEL ”M-71”
Without toeclip and toestrap. Offer the following advantages:
Avoids that the foot slides towards the pedal’s outside because of the cranks’ flection, allows to pedal as close as possible to the crank, assures a regular blood circulation, otherwise hindered by the straps’ pressure, offers less air resistance because of its lightness and its aerodynamic design.

TENDICATENA 604
Supporto per catena in plastica resistente, ideale per la pulizia e il trasporto della bicicletta senza ruota posteriore.

604 CHAIN SUPPORT
Plastic resistant chain support, perfect for cleaning and carrying the bike without the rear wheel.

TIRARAGGI
In PVC molto resistente con inserto in acciaio.

SPOKEY
Made of high resistent PVC, with a steel insert.

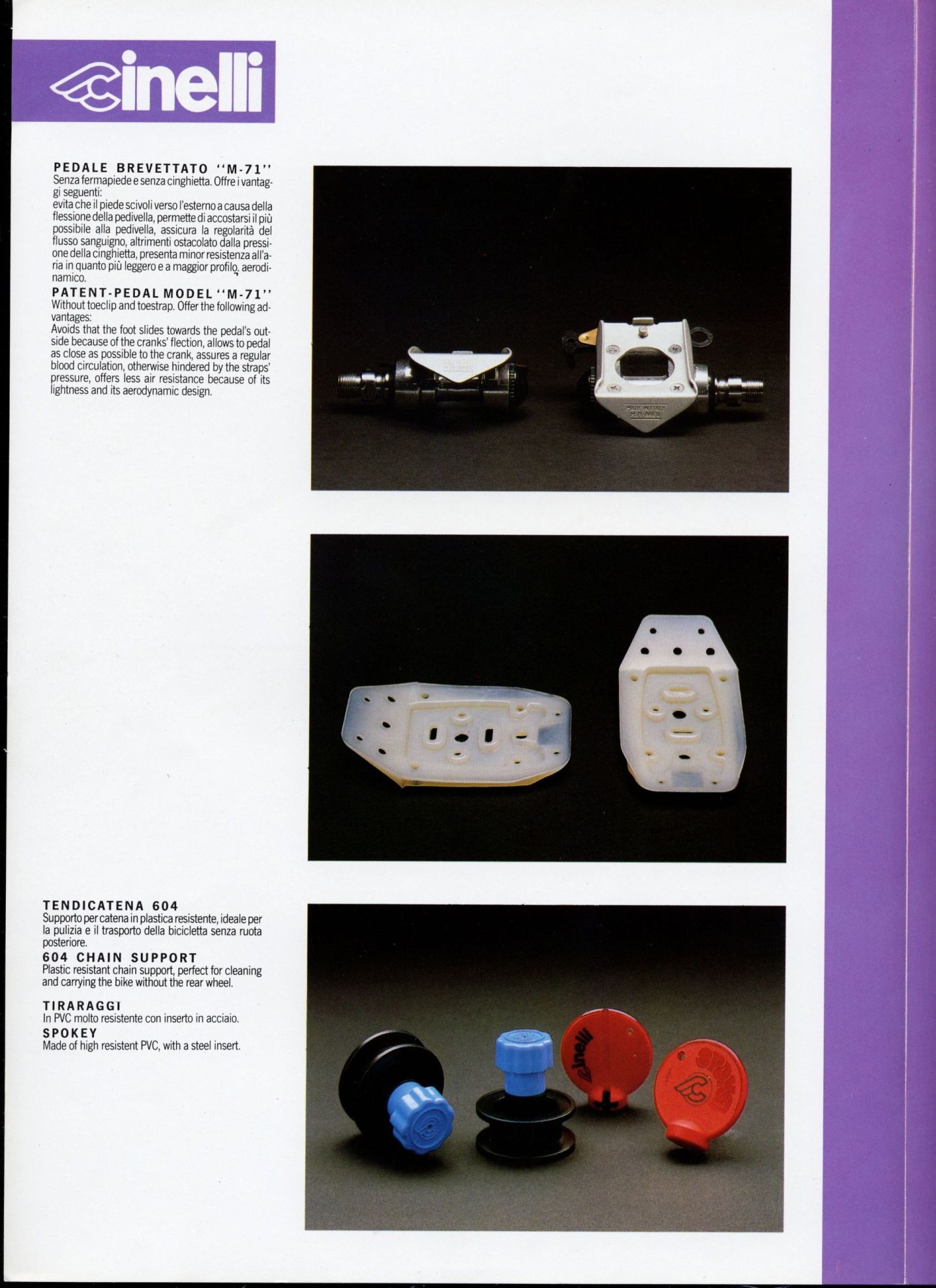

[A component page with a purple right edge and the purple cinelli wordmark panel at upper left; three photographs on dark grounds run down the right with the text at left: a pair of M-71 clipless pedals with silver alloy bodies seen side-on and from above, two translucent white plastic plates drilled with holes and slots, and two black 604 chain supports with blue knobs beside two red spoke keys, one printed “cinelli” and one molded with the winged-C emblem.]
