Dawes Catalog of about 1964 — Get Your Pleasure out of Dawes: the Concorde, Red Feather, Galaxy, Debonair, Realmrider, Compass Club and the Kingpin

Dawes’s catalog of sports, touring and children’s bicycles with the Kingpin small wheeler: fifteen scans of a folded sheet. It prints no date; it offers the Campagnolo Valentino and Gran Sport derailleurs side by side.

— Page 1 (front cover) —
Get your pleasure out of…
DAWES

[The front cover: the word DAWES in giant letters filled with a photograph of woodland, above a drawing of a family of four walking with their bicycles and two racing cyclists riding at the right. The front wheel of the second racing cyclist runs off the right edge of the image.]

— Page 2 —

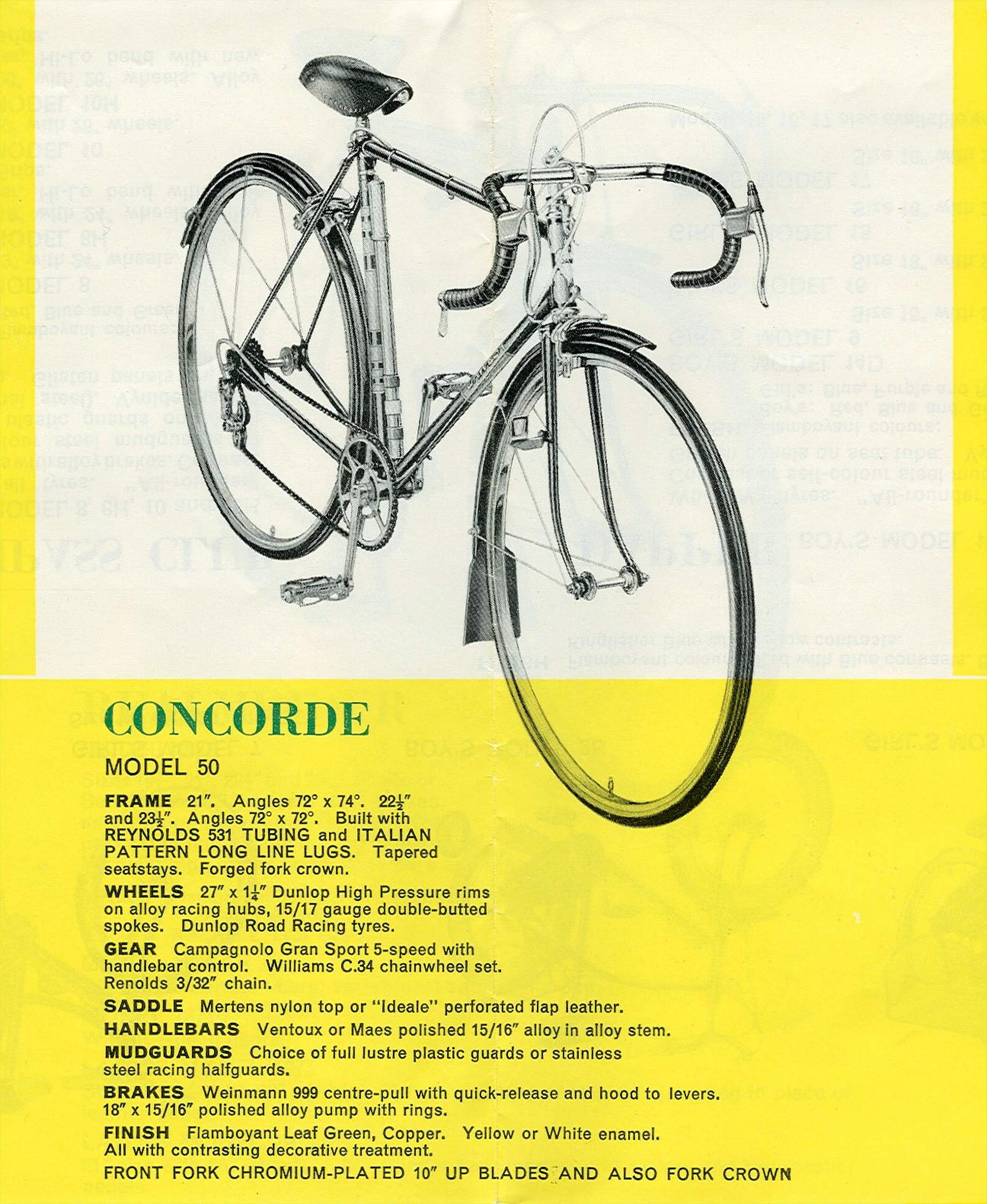

CONCORDE
MODEL 50
FRAME 21″. Angles 72° x 74°. 22½” and 23½”. Angles 72° x 72°. Built with REYNOLDS 531 TUBING and ITALIAN PATTERN LONG LINE LUGS. Tapered seatstays. Forged fork crown.
WHEELS 27″ x 1¼” Dunlop High Pressure rims on alloy racing hubs, 15/17 gauge double-butted spokes. Dunlop Road Racing tyres.
GEAR Campagnolo Gran Sport 5-speed with handlebar control. Williams C.34 chainwheel set. Renolds 3/32″ chain.
SADDLE Mertens nylon top or “Ideale” perforated flap leather.
HANDLEBARS Ventoux or Maes polished 15/16″ alloy in alloy stem.
MUDGUARDS Choice of full lustre plastic guards or stainless steel racing halfguards.
BRAKES Weinmann 999 centre-pull with quick-release and hood to levers. 18″ x 15/16″ polished alloy pump with rings.
FINISH Flamboyant Leaf Green, Copper. Yellow or White enamel. All with contrasting decorative treatment.
FRONT FORK CHROMIUM-PLATED 10″ UP BLADES AND ALSO FORK CROWN

[The Dawes Concorde Model 50 lightweight bicycle with dropped handlebars, mudguards and a frame pump, photographed in a three-quarter front view above its specification on a yellow panel. Mirrored text and drawings from the reverse show through faintly around the photograph.]

— Page 3 —

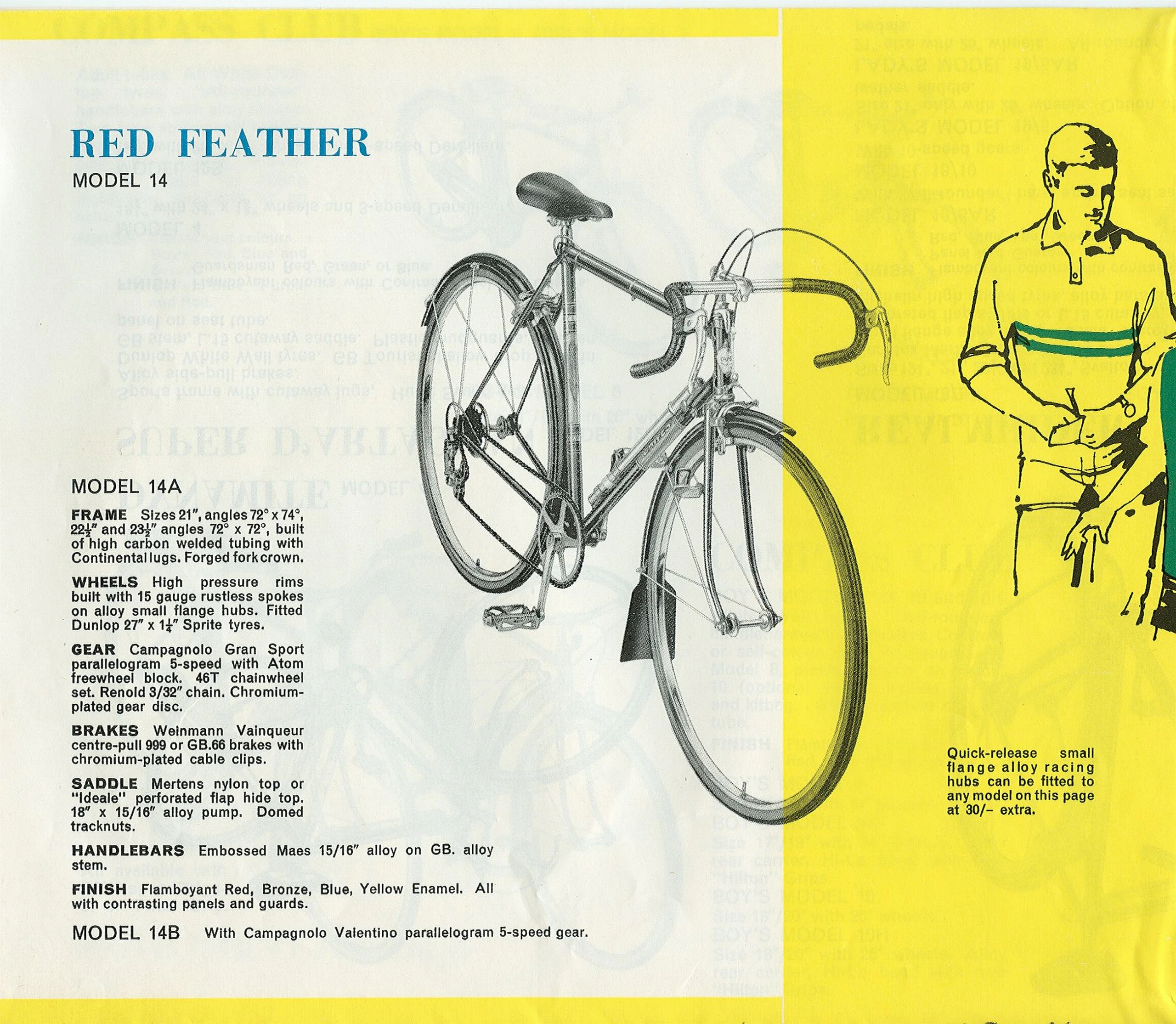

RED FEATHER
MODEL 14
MODEL 14A
FRAME Sizes 21″, angles 72° x 74°, 22½” and 23½” angles 72° x 72°, built of high carbon welded tubing with Continental lugs. Forged fork crown.
WHEELS High pressure rims built with 15 gauge rustless spokes on alloy small flange hubs. Fitted Dunlop 27″ x 1¼” Sprite tyres.
GEAR Campagnolo Gran Sport parallelogram 5-speed with Atom freewheel block. 46T chainwheel set. Renold 3/32″ chain. Chromium-plated gear disc.
BRAKES Weinmann Vainqueur centre-pull 999 or GB.66 brakes with chromium-plated cable clips.
SADDLE Mertens nylon top or “Ideale” perforated flap hide top. 18″ x 15/16″ alloy pump. Domed tracknuts.
HANDLEBARS Embossed Maes 15/16″ alloy on GB. alloy stem.
FINISH Flamboyant Red, Bronze, Blue, Yellow Enamel. All with contrasting panels and guards.
MODEL 14B With Campagnolo Valentino parallelogram 5-speed gear.
Quick-release small flange alloy racing hubs can be fitted to any model on this page at 30/– extra.

[The Dawes Red Feather Model 14 lightweight bicycle with dropped handlebars and mudguards, photographed, beside its specification for Models 14A and 14B. On the yellow panel at the right, a drawing of a man in a striped jersey and a second figure in green runs off the right edge of the image; faint ghost text from other pages shows through.]

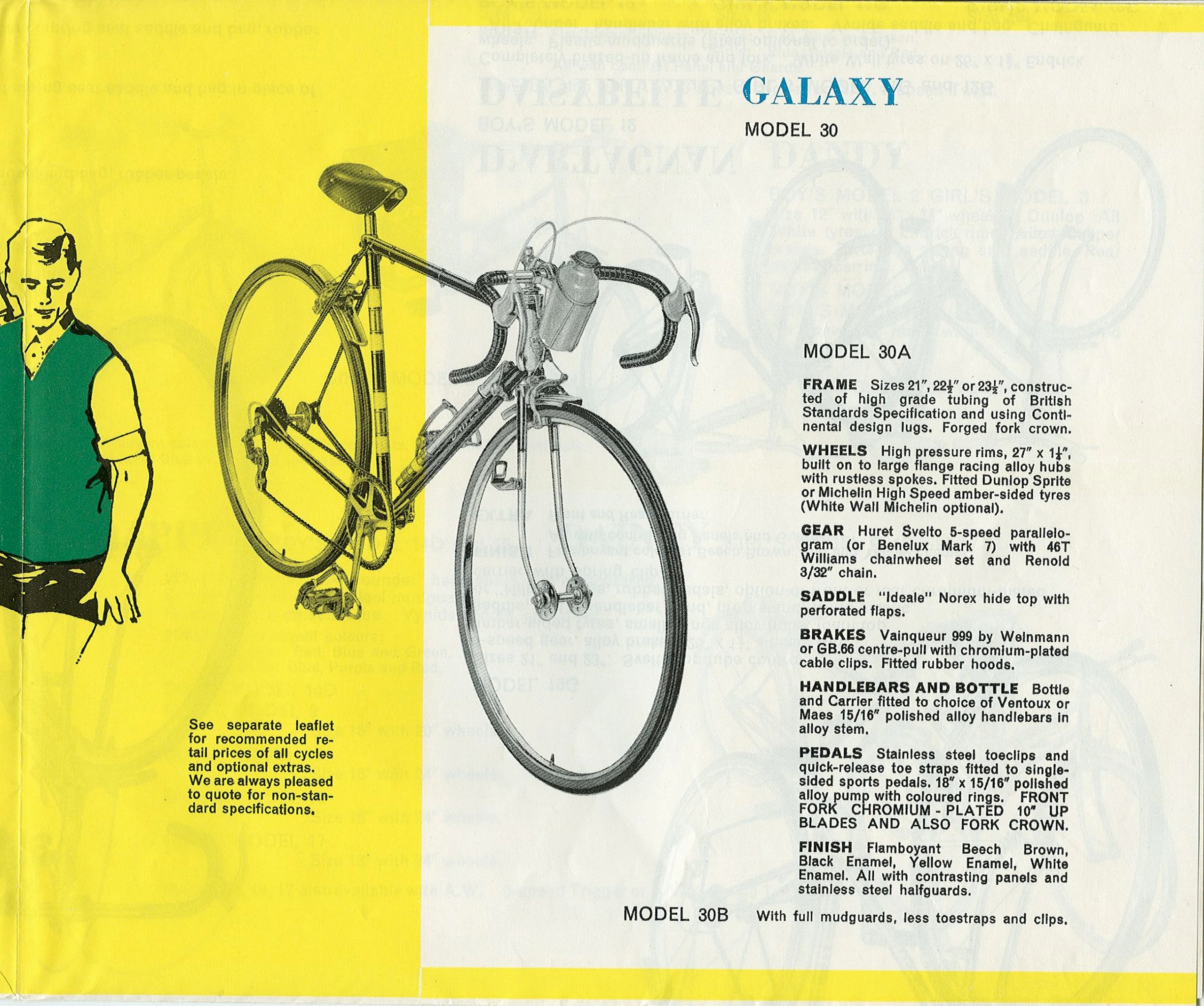

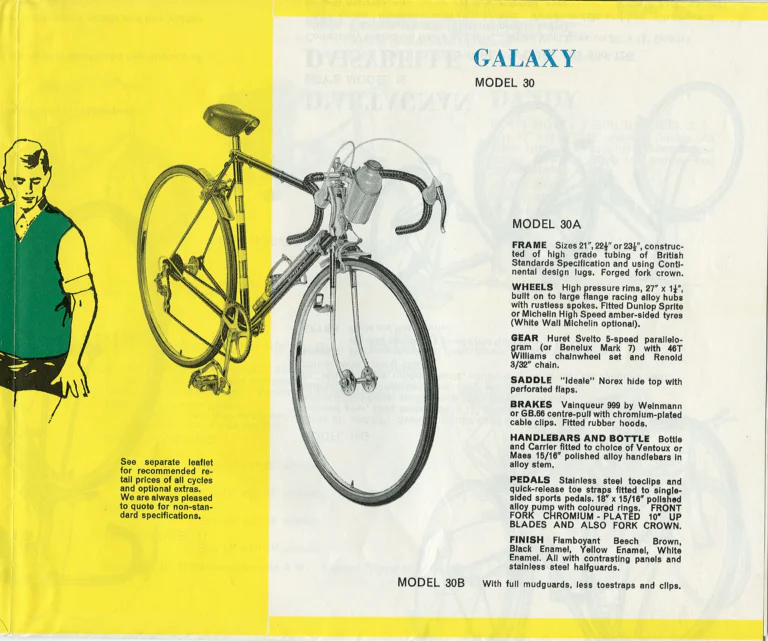

— Page 4 —
GALAXY
MODEL 30
MODEL 30A
FRAME Sizes 21″, 22½” or 23½”, constructed of high grade tubing of British Standards Specification and using Continental design lugs. Forged fork crown.
WHEELS High pressure rims, 27″ x 1¼”, built on to large flange racing alloy hubs with rustless spokes. Fitted Dunlop Sprite or Michelin High Speed amber-sided tyres (White Wall Michelin optional).
GEAR Huret Svelto 5-speed parallelogram (or Benelux Mark 7) with 46T Williams chainwheel set and Renold 3/32″ chain.
SADDLE “Ideale” Norex hide top with perforated flaps.
BRAKES Vainqueur 999 by Weinmann or GB.66 centre-pull with chromium-plated cable clips. Fitted rubber hoods.
HANDLEBARS AND BOTTLE Bottle and Carrier fitted to choice of Ventoux or Maes 15/16″ polished alloy handlebars in alloy stem.
PEDALS Stainless steel toeclips and quick-release toe straps fitted to single-sided sports pedals. 18″ x 15/16″ polished alloy pump with coloured rings. FRONT FORK CHROMIUM – PLATED 10″ UP BLADES AND ALSO FORK CROWN.
FINISH Flamboyant Beech Brown, Black Enamel, Yellow Enamel, White Enamel. All with contrasting panels and stainless steel halfguards.
MODEL 30B With full mudguards, less toestraps and clips.
See separate leaflet for recommended retail prices of all cycles and optional extras. We are always pleased to quote for non-standard specifications.

[The Dawes Galaxy lightweight bicycle, photographed without mudguards and with a bottle on its handlebars, beside a drawing of a man in a green sleeveless pullover, with its specification. A fold line runs down the left edge of the yellow panel, where the drawing of the man is cut off beside a sliver of the drawing on the facing panel.]

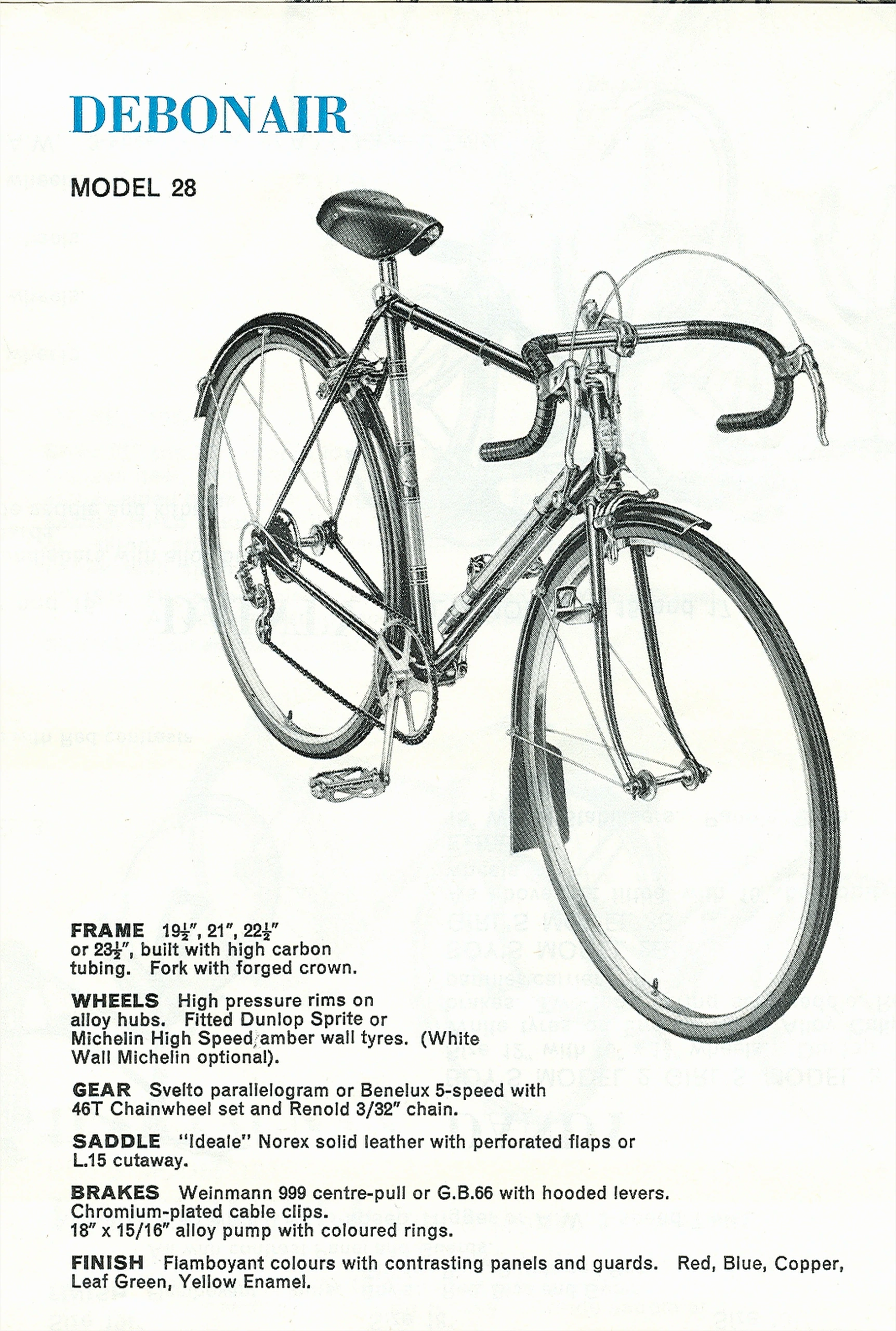

— Page 5 —
DEBONAIR
MODEL 28
FRAME 19½”, 21″, 22½” or 23½”, built with high carbon tubing. Fork with forged crown.
WHEELS High pressure rims on alloy hubs. Fitted Dunlop Sprite or Michelin High Speed amber wall tyres. (White Wall Michelin optional).
GEAR Svelto parallelogram or Benelux 5-speed with 46T Chainwheel set and Renold 3/32″ chain.
SADDLE “Ideale” Norex solid leather with perforated flaps or L.15 cutaway.
BRAKES Weinmann 999 centre-pull or G.B.66 with hooded levers. Chromium-plated cable clips.
18″ x 15/16″ alloy pump with coloured rings.
FINISH Flamboyant colours with contrasting panels and guards. Red, Blue, Copper, Leaf Green, Yellow Enamel.

[The Dawes Debonair lightweight bicycle with full mudguards, a front mudflap and drop handlebars, photographed, with its specification. The image holds the white panel only; a thin dark line runs along its top edge.]

— Page 6 —

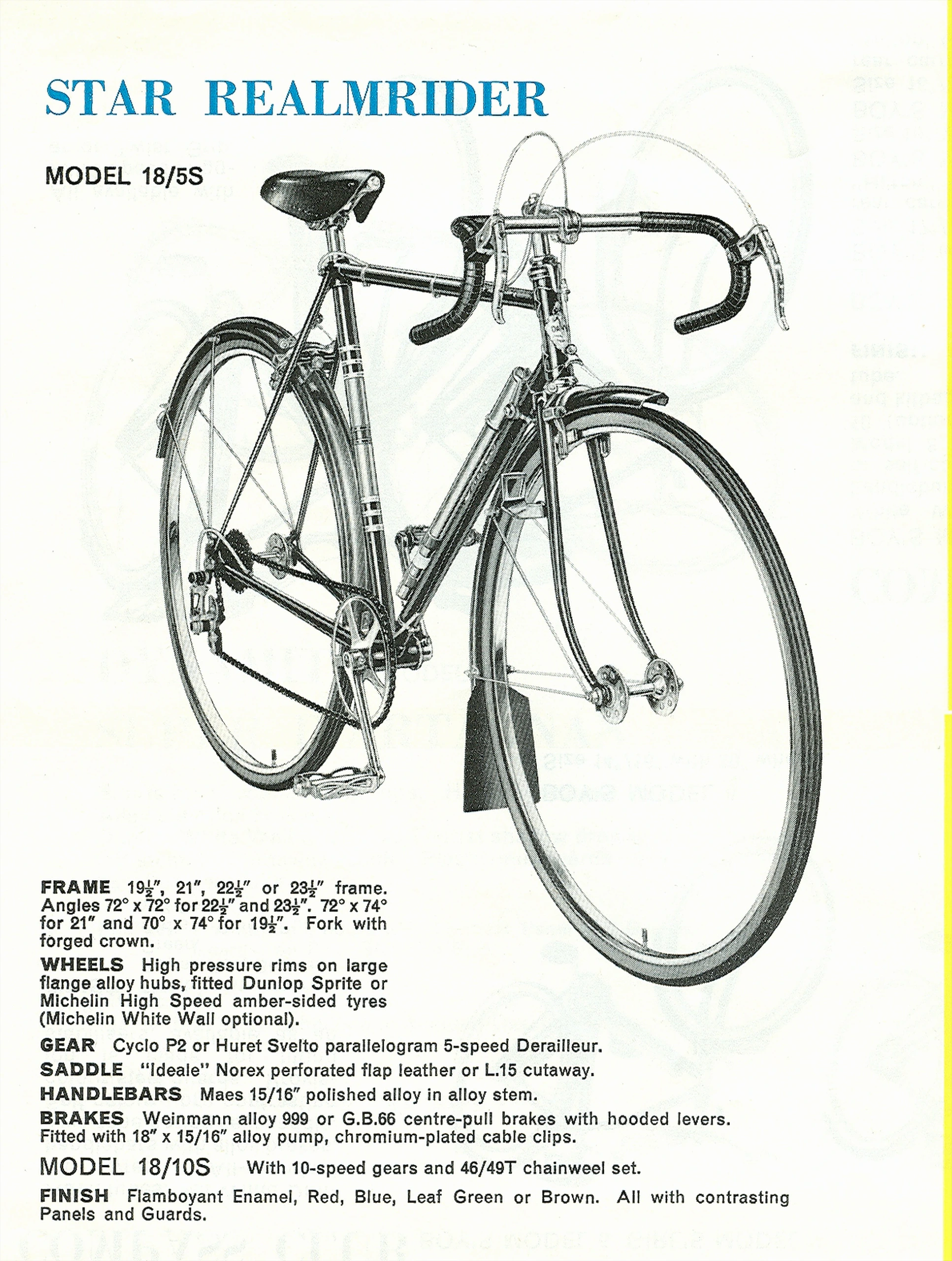

STAR REALMRIDER
MODEL 18/5S
FRAME 19½”, 21″, 22½” or 23½” frame. Angles 72° x 72° for 22½” and 23½”. 72° x 74° for 21″ and 70° x 74° for 19½”. Fork with forged crown.
WHEELS High pressure rims on large flange alloy hubs, fitted Dunlop Sprite or Michelin High Speed amber-sided tyres (Michelin White Wall optional).
GEAR Cyclo P2 or Huret Svelto parallelogram 5-speed Derailleur.
SADDLE “Ideale” Norex perforated flap leather or L.15 cutaway.
HANDLEBARS Maes 15/16″ polished alloy in alloy stem.
BRAKES Weinmann alloy 999 or G.B.66 centre-pull brakes with hooded levers. Fitted with 18″ x 15/16″ alloy pump, chromium-plated cable clips.
MODEL 18/10S With 10-speed gears and 46/49T chainweel set.
FINISH Flamboyant Enamel, Red, Blue, Leaf Green or Brown. All with contrasting Panels and Guards.

[The Dawes Star Realmrider lightweight bicycle with full mudguards, a front mudflap and drop handlebars, photographed, with its specification. A thin strip of the yellow panel beside it shows along the right edge.]

— Page 7 —

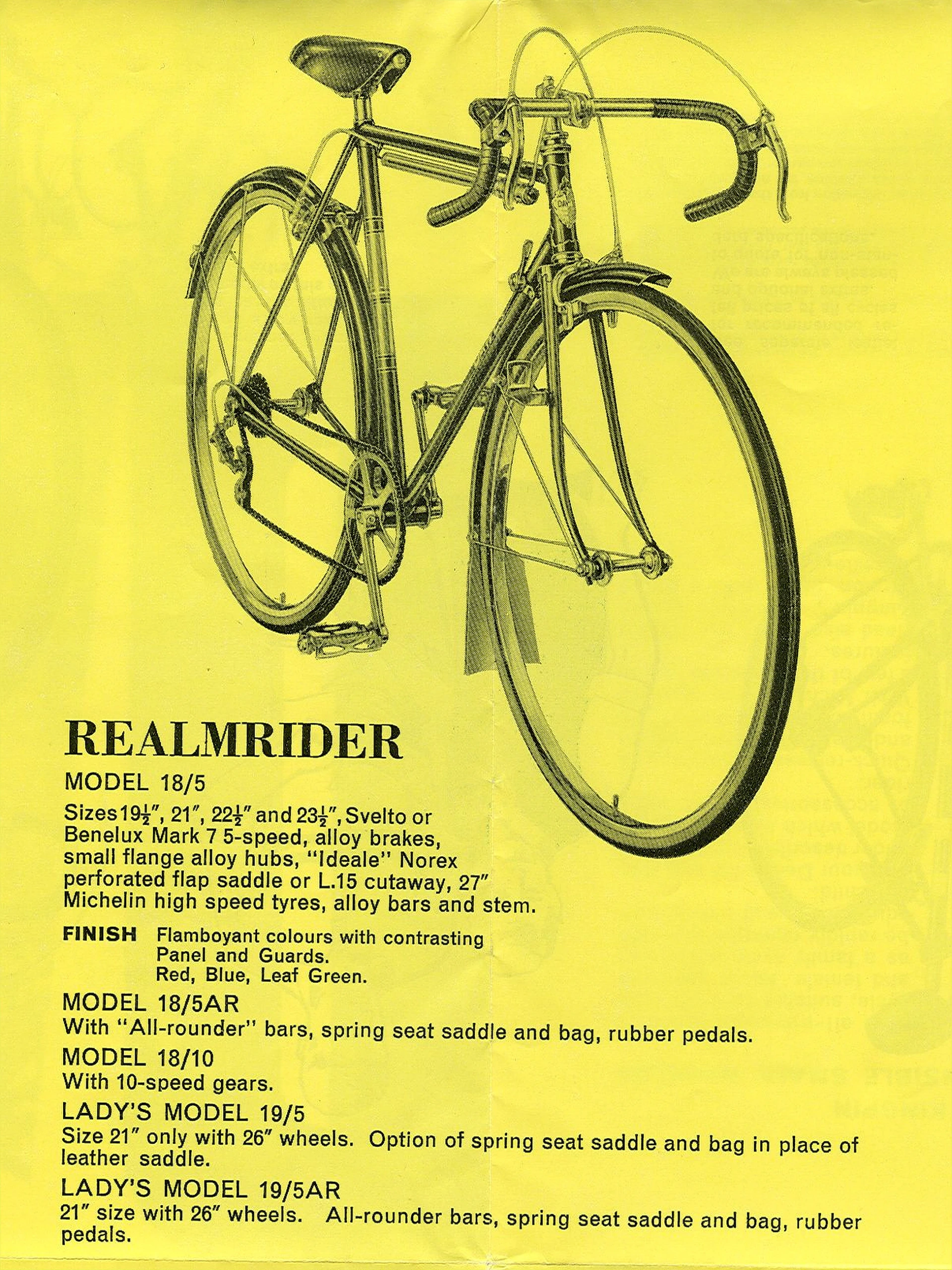

REALMRIDER
MODEL 18/5
Sizes 19½”, 21″, 22½” and 23½”, Svelto or Benelux Mark 7 5-speed, alloy brakes, small flange alloy hubs, “Ideale” Norex perforated flap saddle or L.15 cutaway, 27″ Michelin high speed tyres, alloy bars and stem.
FINISH Flamboyant colours with contrasting Panel and Guards.
Red, Blue, Leaf Green.
MODEL 18/5AR
With “All-rounder” bars, spring seat saddle and bag, rubber pedals.
MODEL 18/10
With 10-speed gears.
LADY’S MODEL 19/5
Size 21″ only with 26″ wheels. Option of spring seat saddle and bag in place of leather saddle.
LADY’S MODEL 19/5AR
21″ size with 26″ wheels. All-rounder bars, spring seat saddle and bag, rubber pedals.

[The Dawes Realmrider lightweight bicycle with drop bars, a derailleur gear and fenders, pictured in a halftone above the specifications of its models, among them two lady’s models. A vertical crease runs down the middle of the sheet.]

— Page 8 —

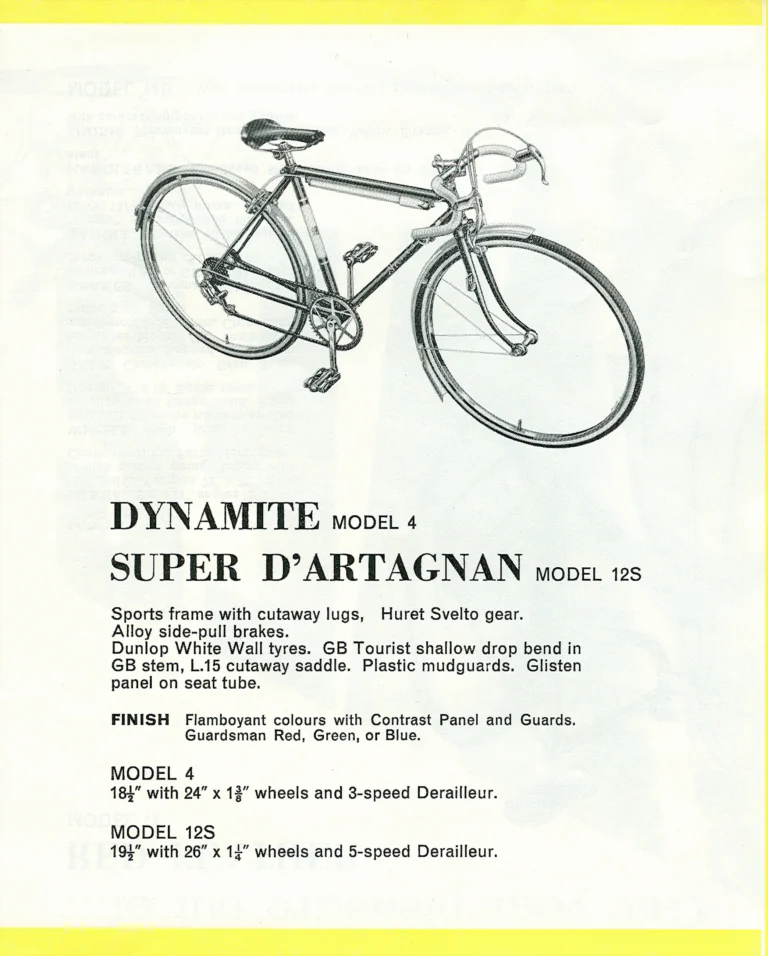

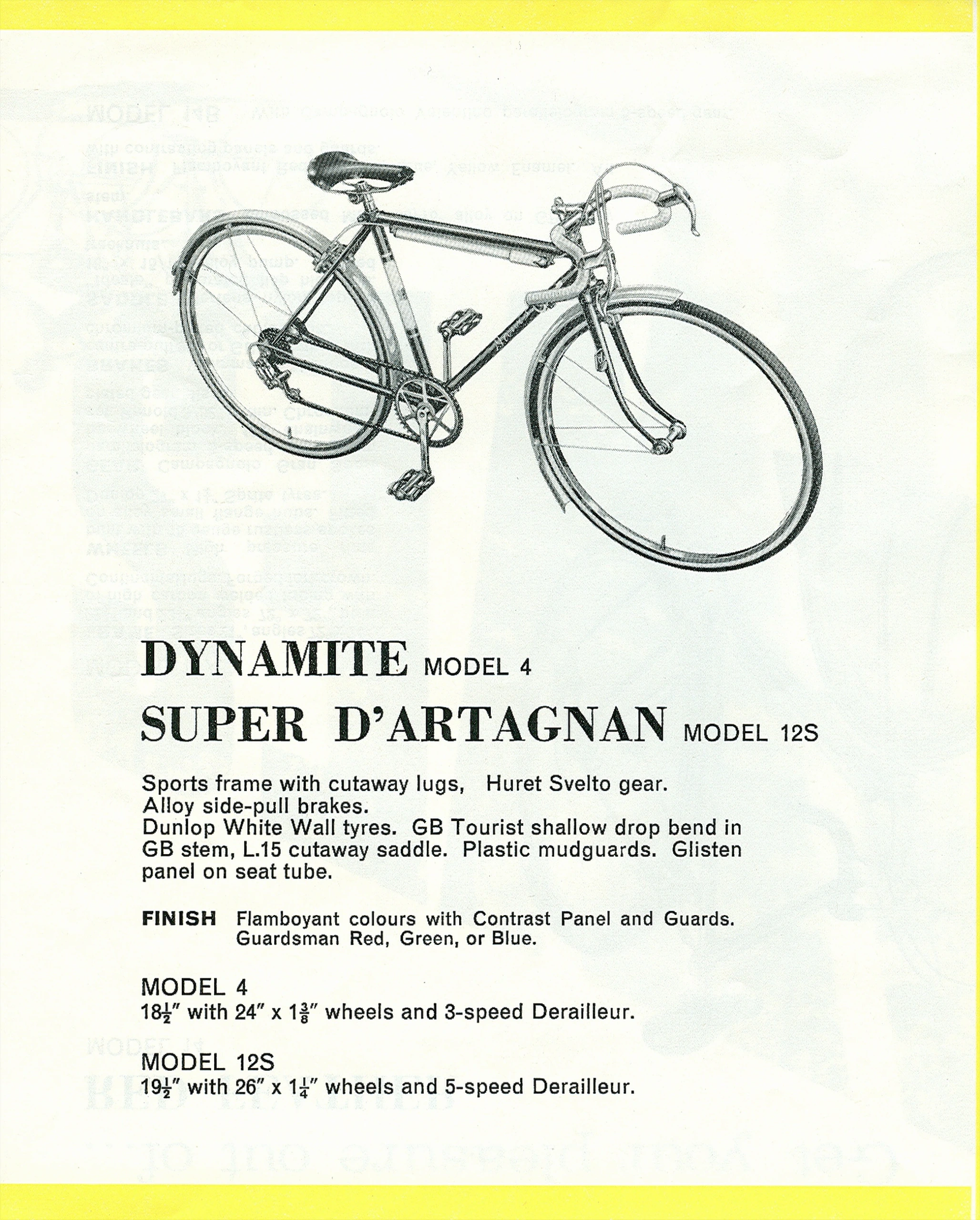

DYNAMITE MODEL 4
SUPER D’ARTAGNAN MODEL 12S
Sports frame with cutaway lugs, Huret Svelto gear.
Alloy side-pull brakes.
Dunlop White Wall tyres. GB Tourist shallow drop bend in GB stem, L.15 cutaway saddle. Plastic mudguards. Glisten panel on seat tube.
FINISH Flamboyant colours with Contrast Panel and Guards.
Guardsman Red, Green, or Blue.
MODEL 4
18½” with 24″ x 1⅜” wheels and 3-speed Derailleur.
MODEL 12S
19½” with 26″ x 1¼” wheels and 5-speed Derailleur.

[The Dawes Dynamite Model 4 and Super D’Artagnan Model 12S: one lightweight bicycle with drop bars, a derailleur gear and fenders, pictured in a halftone above their shared specification. The page is white with printed yellow bands at the top and bottom.]

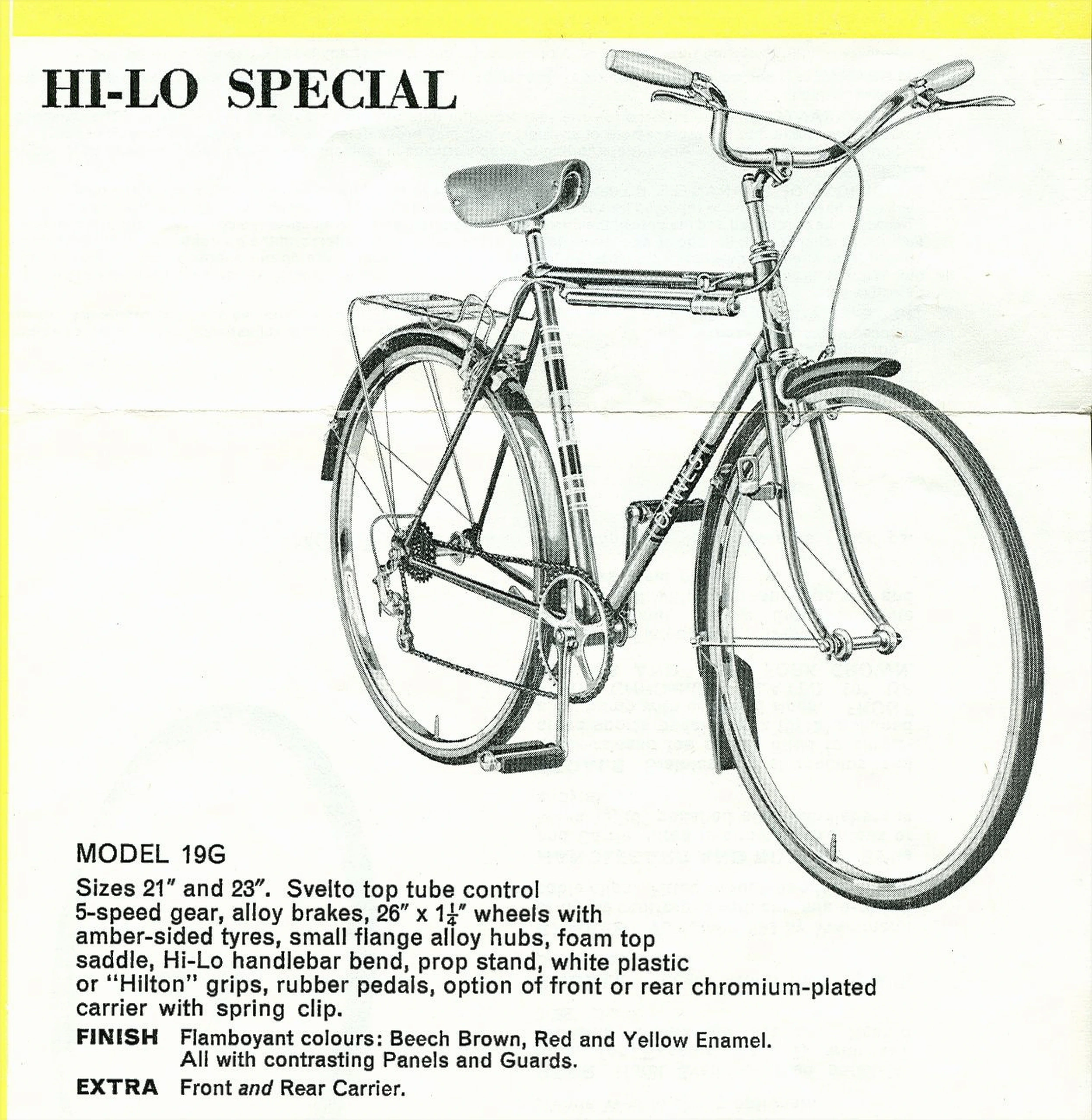

— Page 9 —

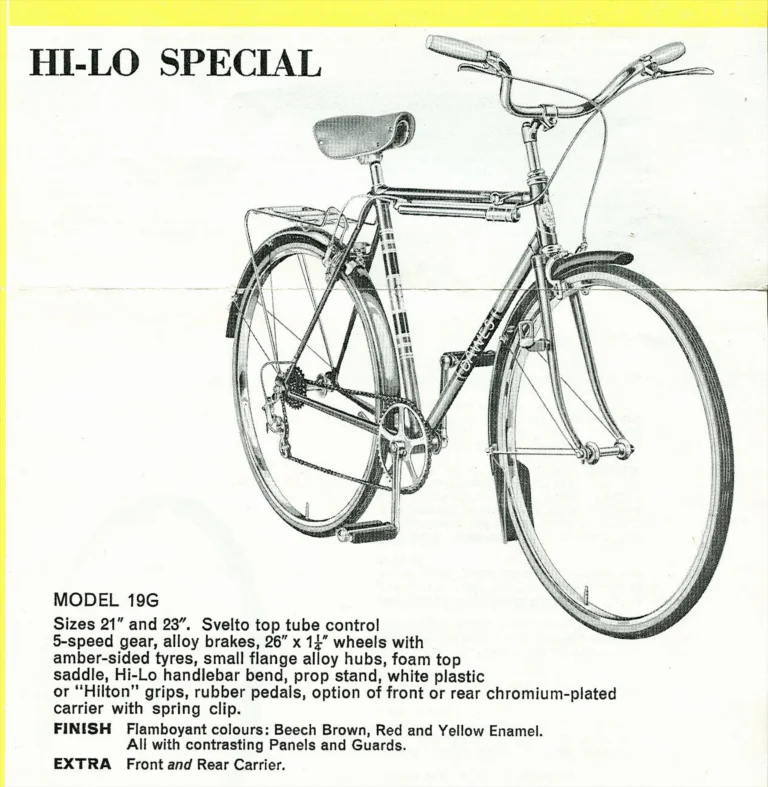

HI-LO SPECIAL
MODEL 19G
Sizes 21″ and 23″. Svelto top tube control 5-speed gear, alloy brakes, 26″ x 1¼” wheels with amber-sided tyres, small flange alloy hubs, foam top saddle, Hi-Lo handlebar bend, prop stand, white plastic or “Hilton” grips, rubber pedals, option of front or rear chromium-plated carrier with spring clip.
FINISH Flamboyant colours: Beech Brown, Red and Yellow Enamel.
All with contrasting Panels and Guards.
EXTRA Front and Rear Carrier.

[The Dawes Hi-Lo Special Model 19G, a bicycle with raised Hi-Lo handlebars, a rear carrier, fenders and a derailleur gear, pictured in a halftone above its specification. The page is white with a printed yellow band at the top; a horizontal fold crosses it a third of the way down.]

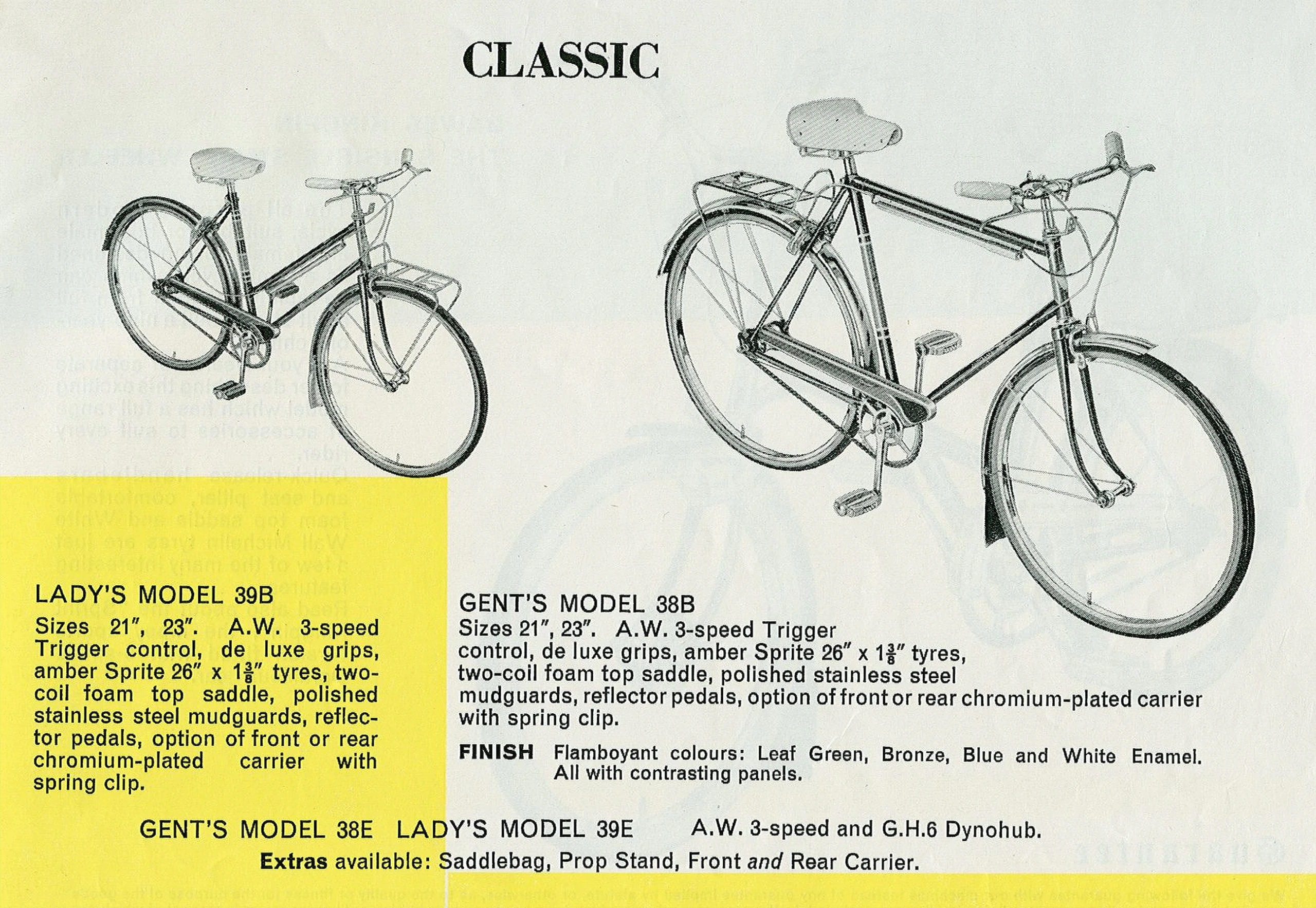

— Page 10 —
CLASSIC

LADY’S MODEL 39B
Sizes 21″, 23″. A.W. 3-speed Trigger control, de luxe grips, amber Sprite 26″ x 1⅜” tyres, two-coil foam top saddle, polished stainless steel mudguards, reflector pedals, option of front or rear chromium-plated carrier with spring clip.

GENT’S MODEL 38B
Sizes 21″, 23″. A.W. 3-speed Trigger control, de luxe grips, amber Sprite 26″ x 1⅜” tyres, two-coil foam top saddle, polished stainless steel mudguards, reflector pedals, option of front or rear chromium-plated carrier with spring clip.

FINISH Flamboyant colours: Leaf Green, Bronze, Blue and White Enamel. All with contrasting panels.

GENT’S MODEL 38E LADY’S MODEL 39E A.W. 3-speed and G.H.6 Dynohub.
Extras available: Saddlebag, Prop Stand, Front and Rear Carrier.

[The Dawes Classic lady’s Model 39B and gent’s Model 38B three-speed roadsters, pictured, the lady’s with a front carrier and the gent’s with a rear carrier, and their specifications on a yellow panel. Mirrored show-through from the reverse is faintly visible across the page but does not obscure the print.]

— Page 11 —

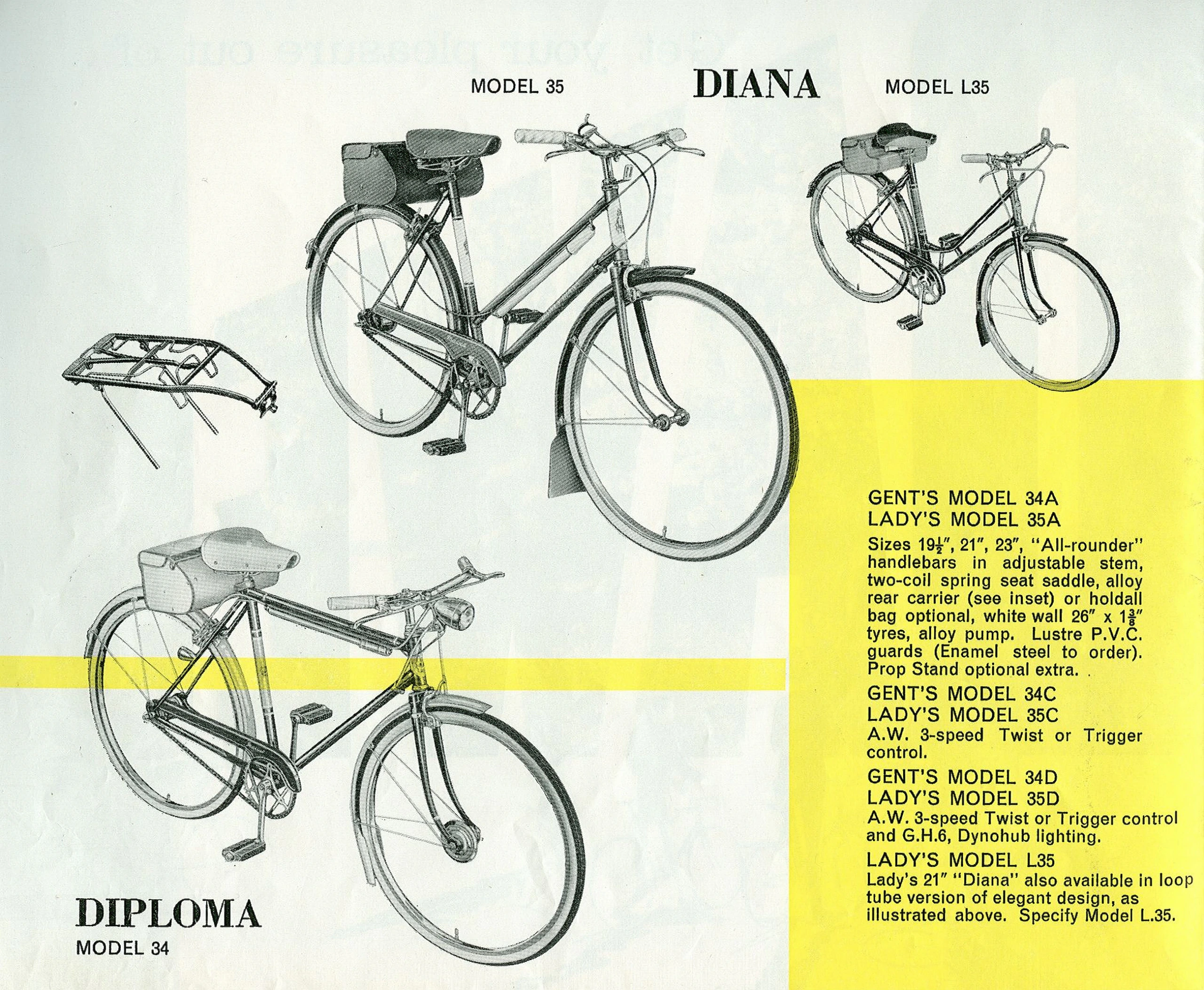

MODEL 35
DIANA
MODEL L35

DIPLOMA
MODEL 34

GENT’S MODEL 34A
LADY’S MODEL 35A
Sizes 19½”, 21″, 23″, “All-rounder” handlebars in adjustable stem, two-coil spring seat saddle, alloy rear carrier (see inset) or holdall bag optional, white wall 26″ x 1⅜” tyres, alloy pump. Lustre P.V.C. guards (Enamel steel to order). Prop Stand optional extra.

GENT’S MODEL 34C
LADY’S MODEL 35C
A.W. 3-speed Twist or Trigger control.

GENT’S MODEL 34D
LADY’S MODEL 35D
A.W. 3-speed Twist or Trigger control and G.H.6, Dynohub lighting.

LADY’S MODEL L35
Lady’s 21″ “Diana” also available in loop tube version of elegant design, as illustrated above. Specify Model L.35.

[The Dawes Diana lady’s Model 35, the Diana Model L35 with a loop frame and the Diploma gent’s Model 34 with a lamp, pictured with holdall bags, beside an inset of the alloy rear carrier and their specifications. Mirrored show-through from the reverse is faintly visible, most clearly across the top, but does not obscure the print.]

— Page 12 —
[cut off] 2[illegible] size with 2[illegible] wheels. [cut off]
pedals.

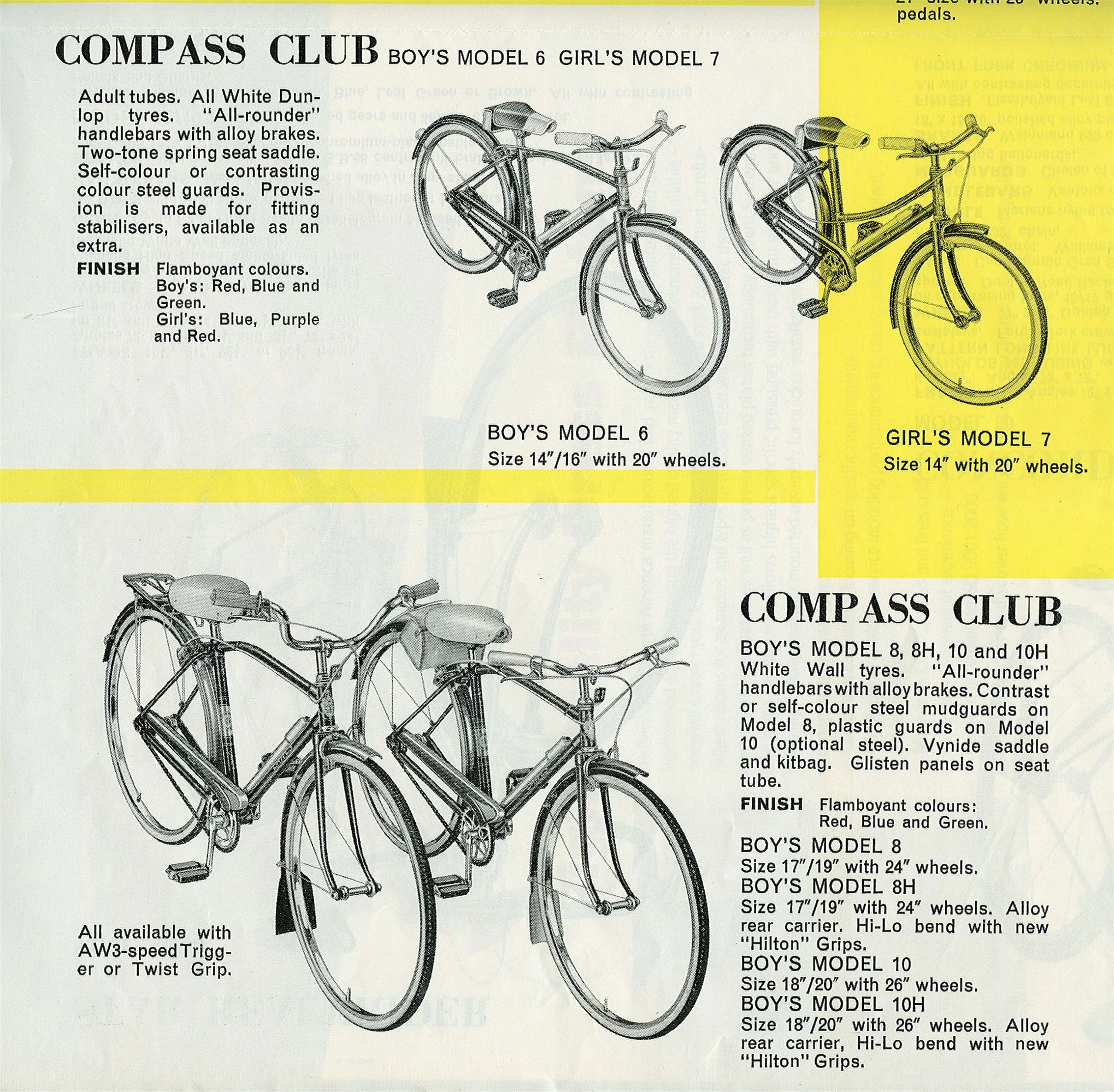

COMPASS CLUB BOY’S MODEL 6 GIRL’S MODEL 7
Adult tubes. All White Dunlop tyres. “All-rounder” handlebars with alloy brakes. Two-tone spring seat saddle. Self-colour or contrasting colour steel guards. Provision is made for fitting stabilisers, available as an extra.
FINISH Flamboyant colours. Boy’s: Red, Blue and Green. Girl’s: Blue, Purple and Red.

BOY’S MODEL 6
Size 14″/16″ with 20″ wheels.

GIRL’S MODEL 7
Size 14″ with 20″ wheels.

COMPASS CLUB
BOY’S MODEL 8, 8H, 10 and 10H
White Wall tyres. “All-rounder” handlebars with alloy brakes. Contrast or self-colour steel mudguards on Model 8, plastic guards on Model 10 (optional steel). Vynide saddle and kitbag. Glisten panels on seat tube.
FINISH Flamboyant colours: Red, Blue and Green.

BOY’S MODEL 8
Size 17″/19″ with 24″ wheels.
BOY’S MODEL 8H
Size 17″/19″ with 24″ wheels. Alloy rear carrier. Hi-Lo bend with new “Hilton” Grips.
BOY’S MODEL 10
Size 18″/20″ with 26″ wheels.
BOY’S MODEL 10H
Size 18″/20″ with 26″ wheels. Alloy rear carrier, Hi-Lo bend with new “Hilton” Grips.

All available with AW3-speed Trigger or Twist Grip.

[The Dawes Compass Club boy’s Model 6 and girl’s Model 7 with 20 inch wheels, and two larger boy’s Compass Club bicycles, one with a rear carrier and Hi-Lo bend and one with a kitbag, pictured with their specifications. Two lines of text cut off at the top edge, in a yellow panel, appear to belong to an adjacent page; heavy mirrored show-through from the reverse is visible across the page but does not obscure the print.]

— Page 13 —

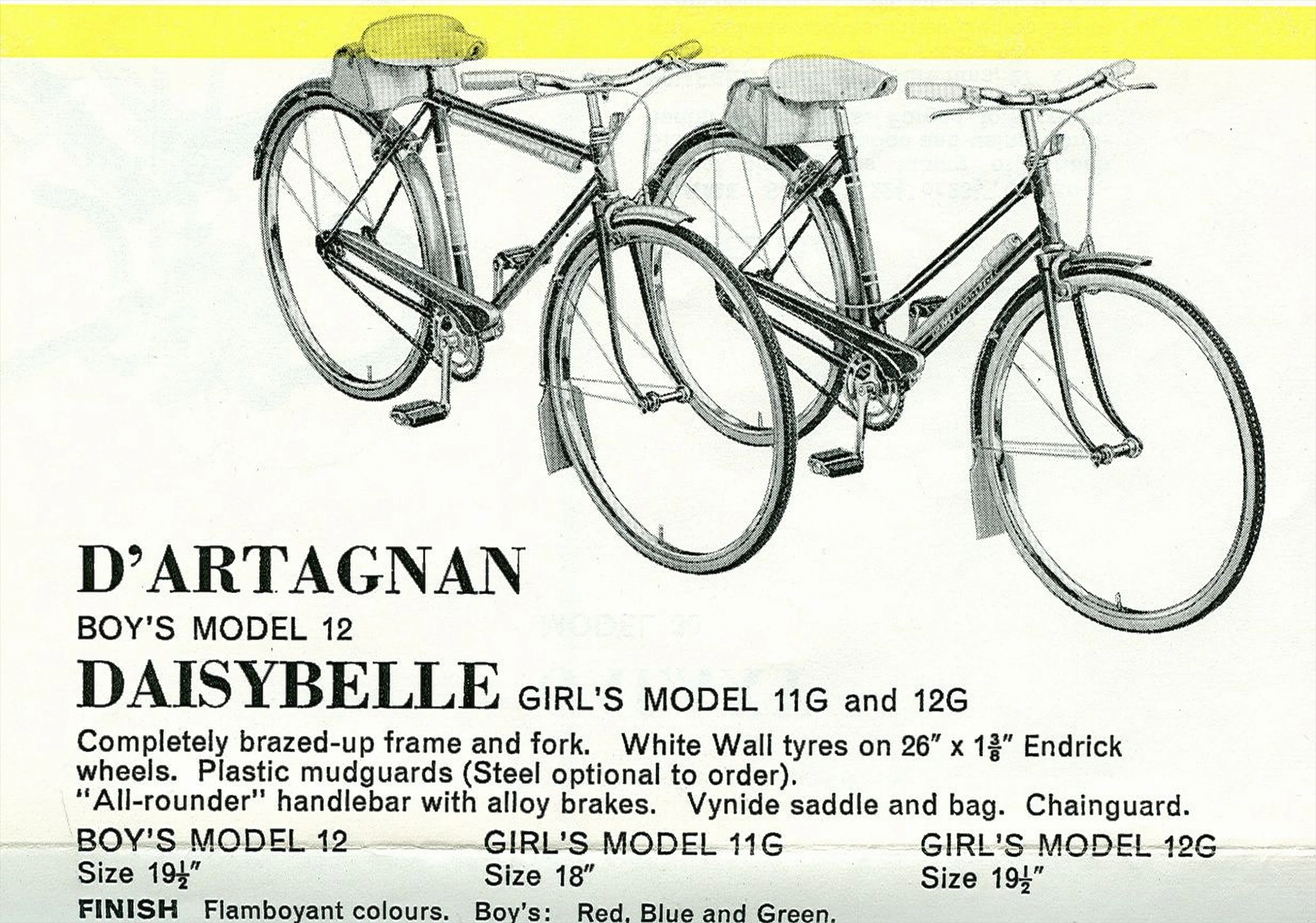

D’ARTAGNAN
BOY’S MODEL 12
DAISYBELLE GIRL’S MODEL 11G and 12G
Completely brazed-up frame and fork. White Wall tyres on 26″ x 1⅜” Endrick wheels. Plastic mudguards (Steel optional to order).
“All-rounder” handlebar with alloy brakes. Vynide saddle and bag. Chainguard.
BOY’S MODEL 12 | GIRL’S MODEL 11G | GIRL’S MODEL 12G
Size 19½” | Size 18″ | Size 19½”
FINISH Flamboyant colours. Boy’s: Red, Blue and Green. [cut off]

[The Dawes D’Artagnan boy’s bicycle and Daisybelle girl’s bicycle, pictured side by side, with their specification. The scan ends at the finish line, so the rest of the page is cut off; a horizontal crease runs through the row of model numbers and faint show-through from another leaf appears in the blank areas.]

— Page 14 —

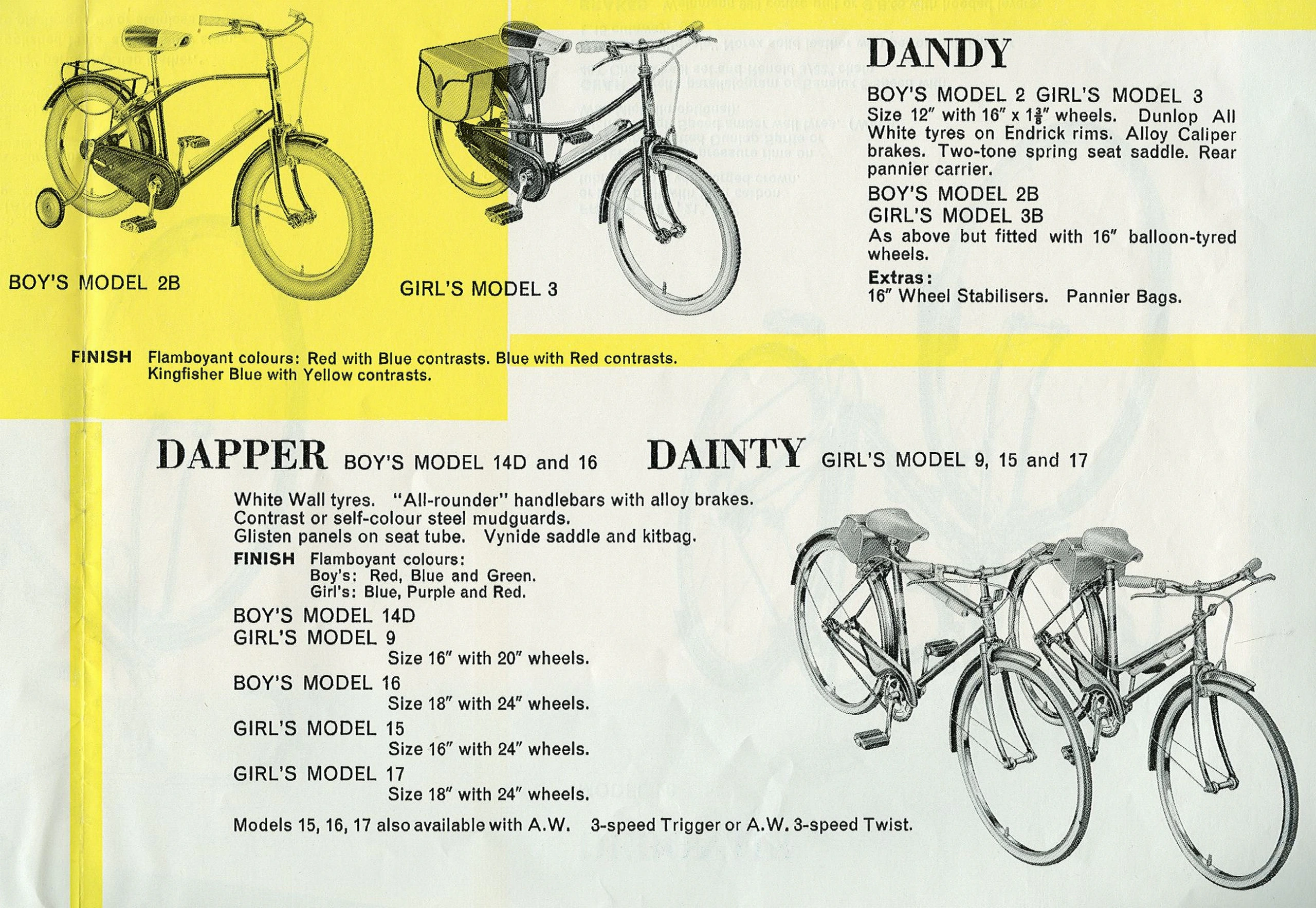

DANDY
BOY’S MODEL 2 GIRL’S MODEL 3
Size 12″ with 16″ x 1⅜” wheels. Dunlop All White tyres on Endrick rims. Alloy Caliper brakes. Two-tone spring seat saddle. Rear pannier carrier.
BOY’S MODEL 2B
GIRL’S MODEL 3B
As above but fitted with 16″ balloon-tyred wheels.
Extras :
16″ Wheel Stabilisers. Pannier Bags.
FINISH Flamboyant colours: Red with Blue contrasts. Blue with Red contrasts. Kingfisher Blue with Yellow contrasts.
BOY’S MODEL 2B
GIRL’S MODEL 3
DAPPER BOY’S MODEL 14D and 16
DAINTY GIRL’S MODEL 9, 15 and 17
White Wall tyres. “All-rounder” handlebars with alloy brakes.
Contrast or self-colour steel mudguards.
Glisten panels on seat tube. Vynide saddle and kitbag.
FINISH Flamboyant colours:
Boy’s: Red, Blue and Green.
Girl’s: Blue, Purple and Red.
BOY’S MODEL 14D
GIRL’S MODEL 9
Size 16″ with 20″ wheels.
BOY’S MODEL 16
Size 18″ with 24″ wheels.
GIRL’S MODEL 15
Size 16″ with 24″ wheels.
GIRL’S MODEL 17
Size 18″ with 24″ wheels.
Models 15, 16, 17 also available with A.W. 3-speed Trigger or A.W. 3-speed Twist.

[The Dawes Dandy boy’s Model 2B with stabilizer wheels, the Dandy girl’s Model 3 with pannier bags and the Dapper boy’s and Dainty girl’s bicycles, pictured with their specifications. A vertical fold runs through the left of the page, through the Model 2B picture and caption, and print from the reverse shows through, upside down, in the blank areas.]

— Page 15 —

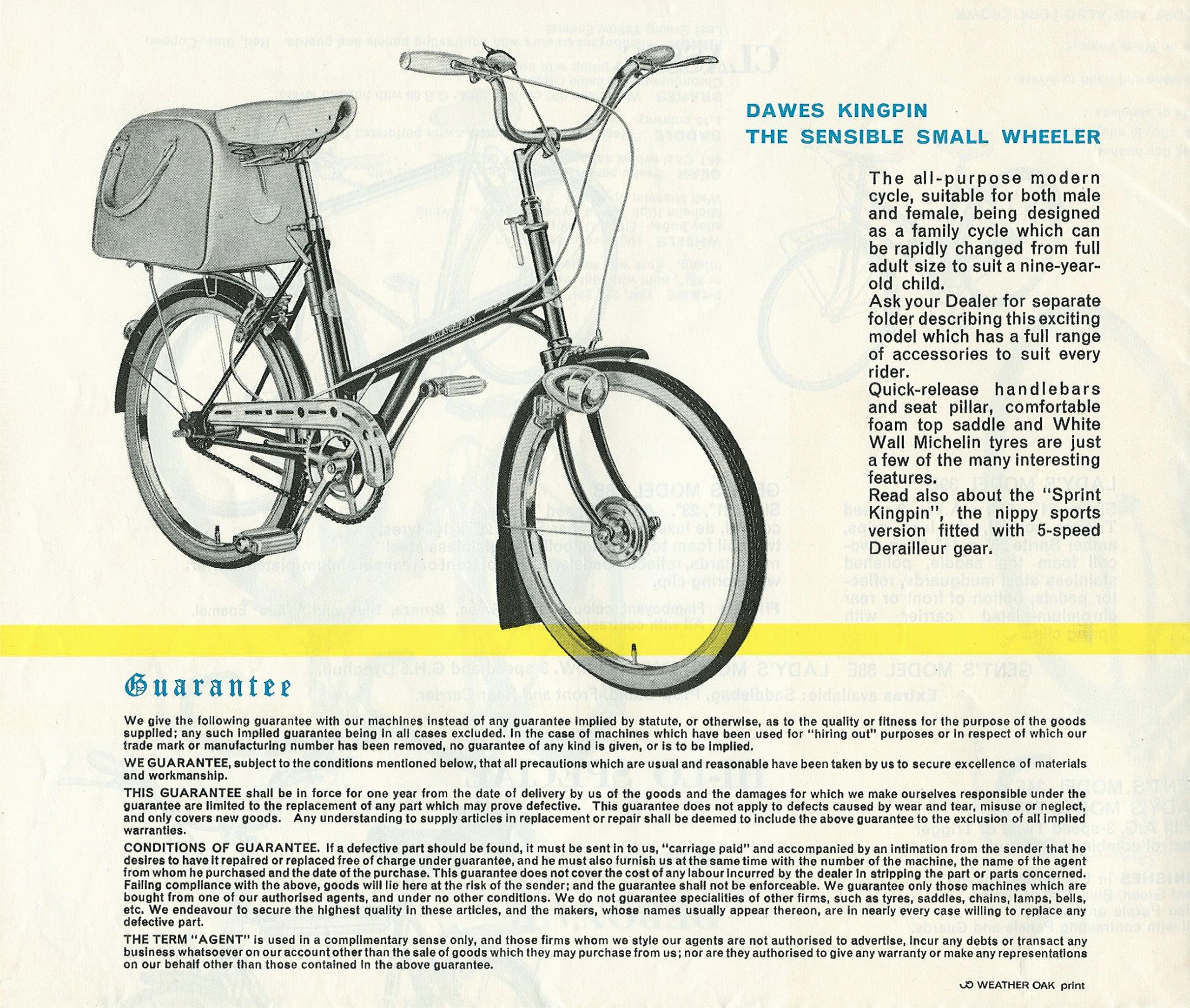

DAWES KINGPIN
THE SENSIBLE SMALL WHEELER
The all-purpose modern cycle, suitable for both male and female, being designed as a family cycle which can be rapidly changed from full adult size to suit a nine-year-old child.
Ask your Dealer for separate folder describing this exciting model which has a full range of accessories to suit every rider.
Quick-release handlebars and seat pillar, comfortable foam top saddle and White Wall Michelin tyres are just a few of the many interesting features.
Read also about the “Sprint Kingpin”, the nippy sports version fitted with 5-speed Derailleur gear.
Guarantee
We give the following guarantee with our machines instead of any guarantee implied by statute, or otherwise, as to the quality or fitness for the purpose of the goods supplied; any such implied guarantee being in all cases excluded. In the case of machines which have been used for “hiring out” purposes or in respect of which our trade mark or manufacturing number has been removed, no guarantee of any kind is given, or is to be implied.
WE GUARANTEE, subject to the conditions mentioned below, that all precautions which are usual and reasonable have been taken by us to secure excellence of materials and workmanship.
THIS GUARANTEE shall be in force for one year from the date of delivery by us of the goods and the damages for which we make ourselves responsible under the guarantee are limited to the replacement of any part which may prove defective. This guarantee does not apply to defects caused by wear and tear, misuse or neglect, and only covers new goods. Any understanding to supply articles in replacement or repair shall be deemed to include the above guarantee to the exclusion of all implied warranties.
CONDITIONS OF GUARANTEE. If a defective part should be found, it must be sent in to us, “carriage paid” and accompanied by an intimation from the sender that he desires to have it repaired or replaced free of charge under guarantee, and he must also furnish us at the same time with the number of the machine, the name of the agent from whom he purchased and the date of the purchase. This guarantee does not cover the cost of any labour incurred by the dealer in stripping the part or parts concerned. Failing compliance with the above, goods will lie here at the risk of the sender; and the guarantee shall not be enforceable. We guarantee only those machines which are bought from one of our authorised agents, and under no other conditions. We do not guarantee specialities of other firms, such as tyres, saddles, chains, lamps, bells, etc. We endeavour to secure the highest quality in these articles, and the makers, whose names usually appear thereon, are in nearly every case willing to replace any defective part.
THE TERM “AGENT” is used in a complimentary sense only, and those firms whom we style our agents are not authorised to advertise, incur any debts or transact any business whatsoever on our account other than the sale of goods which they may purchase from us; nor are they authorised to give any warranty or make any representations on our behalf other than those contained in the above guarantee.
WEATHER OAK print

[The Dawes Kingpin small-wheeled bicycle with a large rear bag, a front lamp and a chainguard, pictured above its description, with the maker’s Guarantee below a yellow band. A small printer’s device precedes the printer’s line at the lower right, and heavy mirrored show-through from the reverse appears in the blank areas.]
