Campagnolo Parts Sheets of about 1980, Vicenza Edition — Super Record Gear, Seat Pin, Front Changers, Gran Sport Chainset, Pedals and Chain Holders, in Four Languages

— Page 1 —

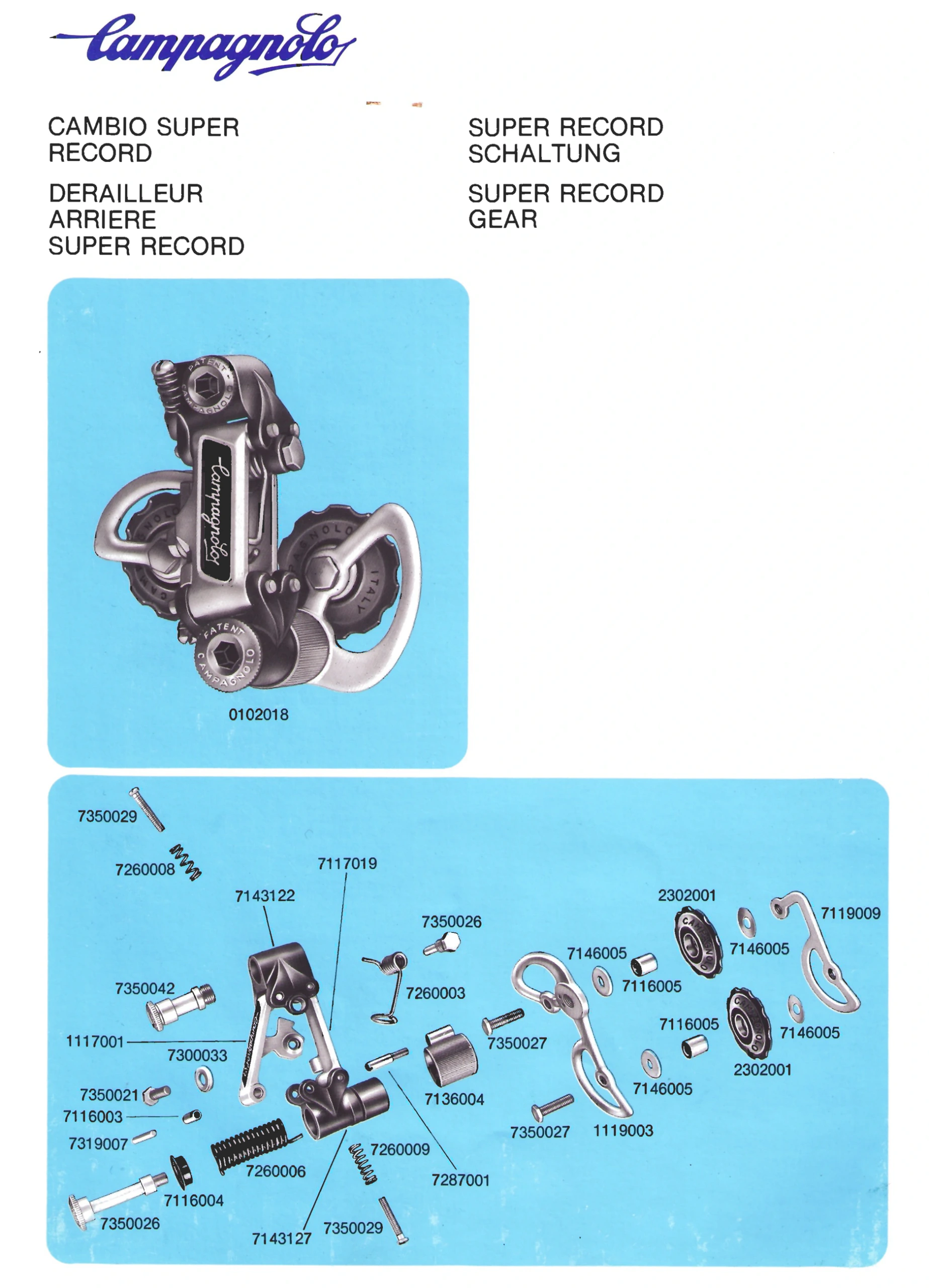

Campagnolo

CAMBIO SUPER RECORD

DERAILLEUR ARRIERE SUPER RECORD

SUPER RECORD SCHALTUNG

SUPER RECORD GEAR

Callouts: 0102018 7350029 7260008 7117019 7143122 7350026 2302001 7119009 7146005 7146005 7350042 7260003 7116005 1117001 7350027 7116005 7146005 7300033 2302001 7350021 7136004 7146005 7116003 7350027 1119003 7319007 7260009 7260006 7287001 7116004 7350026 7143127 7350029

[A Campagnolo parts sheet with a photograph of the Super Record rear derailleur (0102018) on a blue panel above an exploded drawing with every part numbered. The photographed derailleur carries the script Campagnolo name on its body, “PATENT CAMPAGNOLO” on its two pivot bolts and “CAMPAGNOLO” on its jockey wheels. The parts list for this sheet is on the following page.]

— Page 2 —

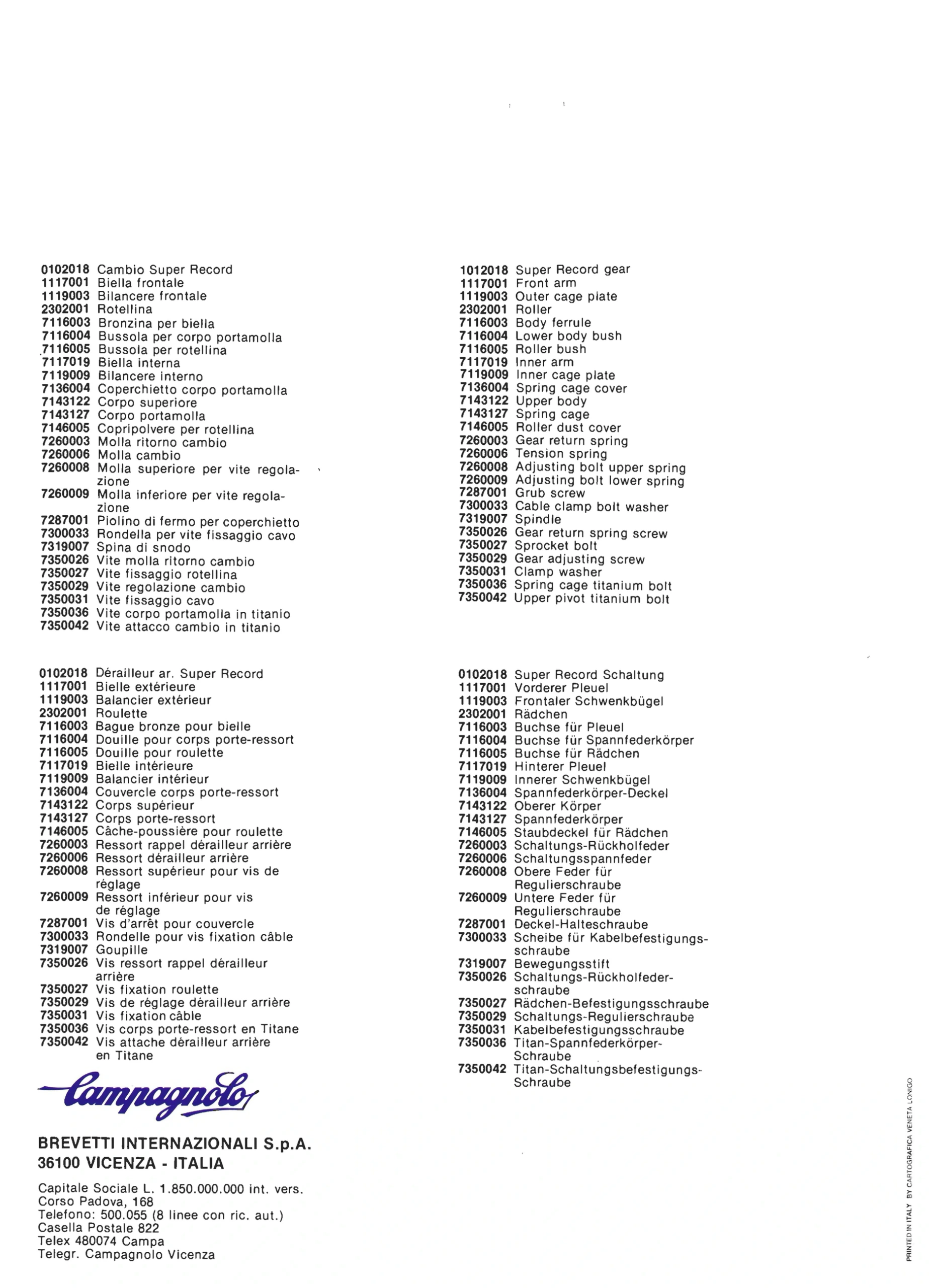

0102018 Cambio Super Record
1117001 Biella frontale
1119003 Bilancere frontale
2302001 Rotellina
7116003 Bronzina per biella
7116004 Bussola per corpo portamolla
7116005 Bussola per rotellina
7117019 Biella interna
7119009 Bilancere interno
7136004 Coperchietto corpo portamolla
7143122 Corpo superiore
7143127 Corpo portamolla
7146005 Copripolvere per rotellina
7260003 Molla ritorno cambio
7260006 Molla cambio
7260008 Molla superiore per vite regolazione
7260009 Molla inferiore per vite regolazione
7287001 Piolino di fermo per coperchietto
7300033 Rondella per vite fissaggio cavo
7319007 Spina di snodo
7350026 Vite molla ritorno cambio
7350027 Vite fissaggio rotellina
7350029 Vite regolazione cambio
7350031 Vite fissaggio cavo
7350036 Vite corpo portamolla in titanio
7350042 Vite attacco cambio in titanio

0102018 Dérailleur ar. Super Record
1117001 Bielle extérieure
1119003 Balancier extérieur
2302001 Roulette
7116003 Bague bronze pour bielle
7116004 Douille pour corps porte-ressort
7116005 Douille pour roulette
7117019 Bielle intérieure
7119009 Balancier intérieur
7136004 Couvercle corps porte-ressort
7143122 Corps supérieur
7143127 Corps porte-ressort
7146005 Câche-poussière pour roulette
7260003 Ressort rappel dérailleur arrière
7260006 Ressort dérailleur arrière
7260008 Ressort supérieur pour vis de réglage
7260009 Ressort inférieur pour vis de réglage
7287001 Vis d’arrêt pour couvercle
7300033 Rondelle pour vis fixation câble
7319007 Goupille
7350026 Vis ressort rappel dérailleur arrière
7350027 Vis fixation roulette
7350029 Vis de réglage dérailleur arrière
7350031 Vis fixation câble
7350036 Vis corps porte-ressort en Titane
7350042 Vis attache dérailleur arrière en Titane

1012018 Super Record gear
1117001 Front arm
1119003 Outer cage plate
2302001 Roller
7116003 Body ferrule
7116004 Lower body bush
7116005 Roller bush
7117019 Inner arm
7119009 Inner cage plate
7136004 Spring cage cover
7143122 Upper body
7143127 Spring cage
7146005 Roller dust cover
7260003 Gear return spring
7260006 Tension spring
7260008 Adjusting bolt upper spring
7260009 Adjusting bolt lower spring
7287001 Grub screw
7300033 Cable clamp bolt washer
7319007 Spindle
7350026 Gear return spring screw
7350027 Sprocket bolt
7350029 Gear adjusting screw
7350031 Clamp washer
7350036 Spring cage titanium bolt
7350042 Upper pivot titanium bolt

0102018 Super Record Schaltung
1117001 Vorderer Pleuel
1119003 Frontaler Schwenkbügel
2302001 Rädchen
7116003 Buchse für Pleuel
7116004 Buchse für Spannfederkörper
7116005 Buchse für Rädchen
7117019 Hinterer Pleuel
7119009 Innerer Schwenkbügel
7136004 Spannfederkörper-Deckel
7143122 Oberer Körper
7143127 Spannfederkörper
7146005 Staubdeckel für Rädchen
7260003 Schaltungs-Rückholfeder
7260006 Schaltungsspannfeder
7260008 Obere Feder für Regulierschraube
7260009 Untere Feder für Regulierschraube
7287001 Deckel-Halteschraube
7300033 Scheibe für Kabelbefestigungsschraube
7319007 Bewegungsstift
7350026 Schaltungs-Rückholfederschraube
7350027 Rädchen-Befestigungsschraube
7350029 Schaltungs-Regulierschraube
7350031 Kabelbefestigungsschraube
7350036 Titan-Spannfederkörper-Schraube
7350042 Titan-Schaltungsbefestigungs-Schraube

Campagnolo

BREVETTI INTERNAZIONALI S.p.A.
36100 VICENZA – ITALIA

Capitale Sociale L. 1.850.000.000 int. vers.
Corso Padova, 168
Telefono: 500.055 (8 linee con ric. aut.)
Casella Postale 822
Telex 480074 Campa
Telegr. Campagnolo Vicenza

PRINTED IN ITALY BY CARTOGRAFICA VENETA LONIGO

[A Campagnolo parts list sheet for the Super Record rear derailleur in four languages, each part number followed by its name, with the script Campagnolo logo and the Brevetti Internazionali imprint at the foot. The four lists are set in two columns, Italian and French on the left and English and German on the right, and the printer’s line runs up the right margin.]

— Page 3 —
Campagnolo

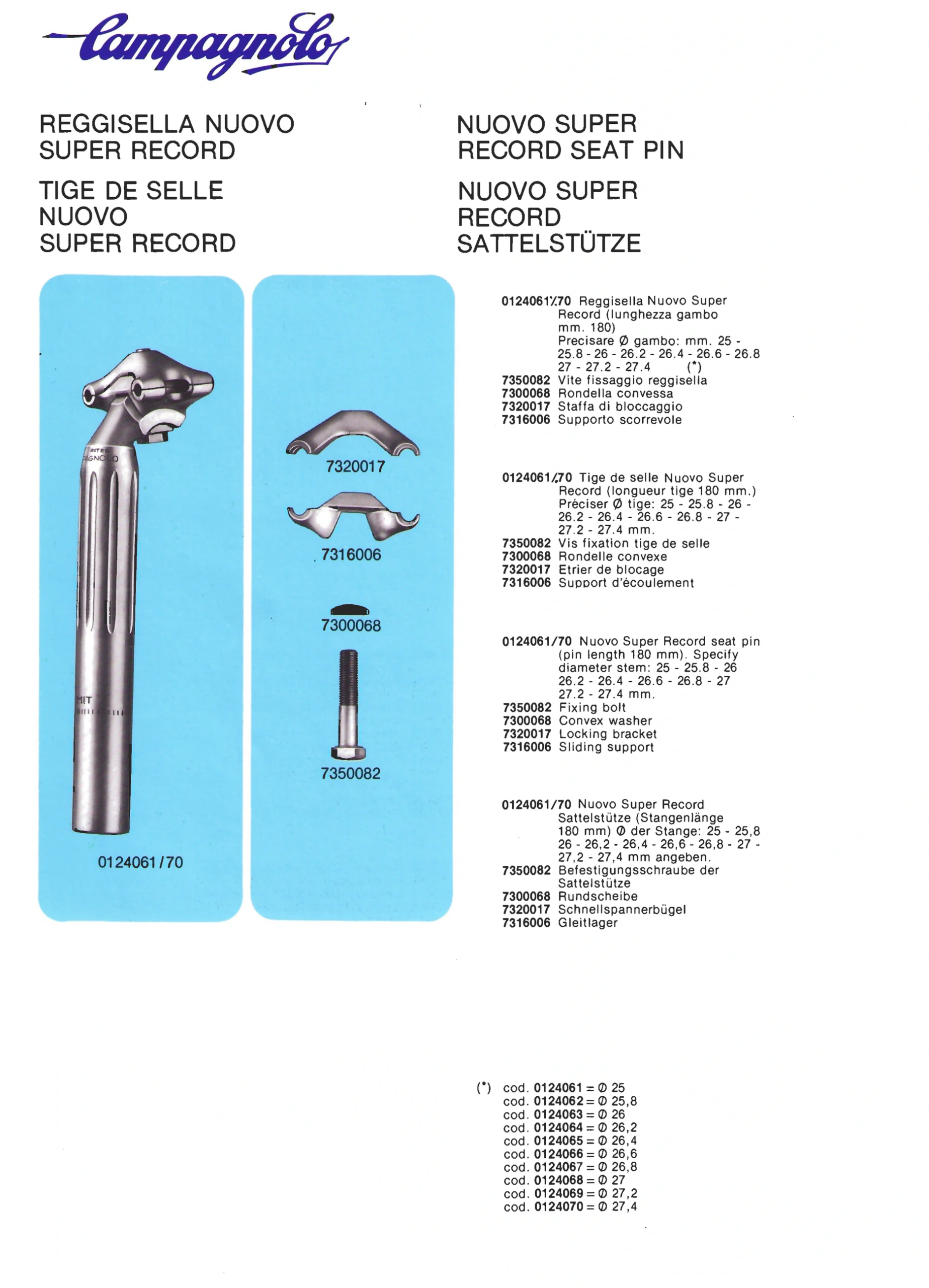

REGGISELLA NUOVO SUPER RECORD

TIGE DE SELLE NUOVO SUPER RECORD

NUOVO SUPER RECORD SEAT PIN

NUOVO SUPER RECORD SATTELSTÜTZE

Callouts: 7320017 7316006 7300068 7350082 0124061/70

0124061/70 Reggisella Nuovo Super Record (lunghezza gambo mm. 180) Precisare Ø gambo: mm. 25 – 25.8 – 26 – 26.2 – 26.4 – 26.6 – 26.8 27 – 27.2 – 27.4 (*)
7350082 Vite fissaggio reggisella
7300068 Rondella convessa
7320017 Staffa di bloccaggio
7316006 Supporto scorrevole

0124061/70 Tige de selle Nuovo Super Record (longueur tige 180 mm.) Préciser Ø tige: 25 – 25.8 – 26 – 26.2 – 26.4 – 26.6 – 26.8 – 27 – 27.2 – 27.4 mm.
7350082 Vis fixation tige de selle
7300068 Rondelle convexe
7320017 Etrier de blocage
7316006 Support d’écoulement

0124061/70 Nuovo Super Record seat pin (pin length 180 mm). Specify diameter stem: 25 – 25.8 – 26 26.2 – 26.4 – 26.6 – 26.8 – 27 27.2 – 27.4 mm.
7350082 Fixing bolt
7300068 Convex washer
7320017 Locking bracket
7316006 Sliding support

0124061/70 Nuovo Super Record Sattelstütze (Stangenlänge 180 mm) Ø der Stange: 25 – 25,8 26 – 26,2 – 26,4 – 26,6 – 26,8 – 27 – 27,2 – 27,4 mm angeben.
7350082 Befestigungsschraube der Sattelstütze
7300068 Rundscheibe
7320017 Schnellspannerbügel
7316006 Gleitlager

(*) cod. 0124061 = Ø 25
cod. 0124062 = Ø 25,8
cod. 0124063 = Ø 26
cod. 0124064 = Ø 26,2
cod. 0124065 = Ø 26,4
cod. 0124066 = Ø 26,6
cod. 0124067 = Ø 26,8
cod. 0124068 = Ø 27
cod. 0124069 = Ø 27,2
cod. 0124070 = Ø 27,4

[A Campagnolo parts sheet for the Nuovo Super Record seat pin (0124061/70), with a photograph of the fluted seat pin and its four clamp parts on blue panels beside the parts list in four languages. A footnote table at the foot gives a separate code for each of the 10 stem diameters, from 0124061 for 25 mm to 0124070 for 27.4 mm.]

— Page 4 —

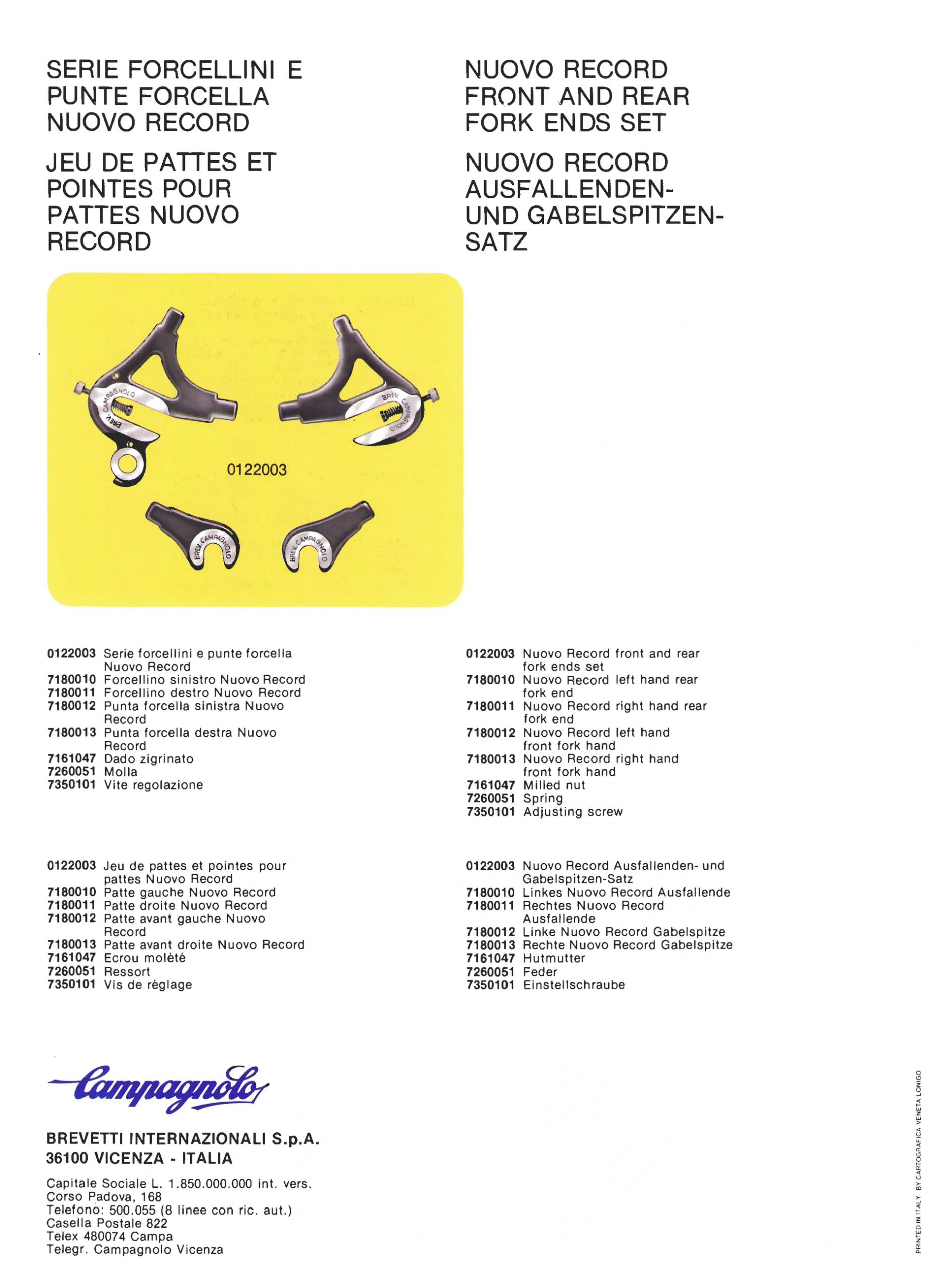

SERIE FORCELLINI E PUNTE FORCELLA NUOVO RECORD

JEU DE PATTES ET POINTES POUR PATTES NUOVO RECORD

NUOVO RECORD FRONT AND REAR FORK ENDS SET

NUOVO RECORD AUSFALLENDEN- UND GABELSPITZEN-SATZ

Callouts: 0122003

0122003 Serie forcellini e punte forcella Nuovo Record
7180010 Forcellino sinistro Nuovo Record
7180011 Forcellino destro Nuovo Record
7180012 Punta forcella sinistra Nuovo Record
7180013 Punta forcella destra Nuovo Record
7161047 Dado zigrinato
7260051 Molla
7350101 Vite regolazione

0122003 Jeu de pattes et pointes pour pattes Nuovo Record
7180010 Patte gauche Nuovo Record
7180011 Patte droite Nuovo Record
7180012 Patte avant gauche Nuovo Record
7180013 Patte avant droite Nuovo Record
7161047 Ecrou molété
7260051 Ressort
7350101 Vis de réglage

0122003 Nuovo Record front and rear fork ends set
7180010 Nuovo Record left hand rear fork end
7180011 Nuovo Record right hand rear fork end
7180012 Nuovo Record left hand front fork hand
7180013 Nuovo Record right hand front fork hand
7161047 Milled nut
7260051 Spring
7350101 Adjusting screw

0122003 Nuovo Record Ausfallenden- und Gabelspitzen-Satz
7180010 Linkes Nuovo Record Ausfallende
7180011 Rechtes Nuovo Record Ausfallende
7180012 Linke Nuovo Record Gabelspitze
7180013 Rechte Nuovo Record Gabelspitze
7161047 Hutmutter
7260051 Feder
7350101 Einstellschraube

Campagnolo

BREVETTI INTERNAZIONALI S.p.A.
36100 VICENZA – ITALIA

Capitale Sociale L. 1.850.000.000 int. vers.
Corso Padova, 168
Telefono: 500.055 (8 linee con ric. aut.)
Casella Postale 822
Telex 480074 Campa
Telegr. Campagnolo Vicenza

PRINTED IN ITALY BY CARTOGRAFICA VENETA LONIGO

[A Campagnolo parts sheet for the Nuovo Record front and rear fork ends set (0122003), with a photograph on a yellow panel of the two rear fork ends with their adjusting screws and the two front fork ends, each stamped “BREV. CAMPAGNOLO”. Below are the parts lists in four languages and the Brevetti Internazionali imprint with the script Campagnolo logo; the printer’s line runs up the right margin.]

— Page 5 —
Campagnolo

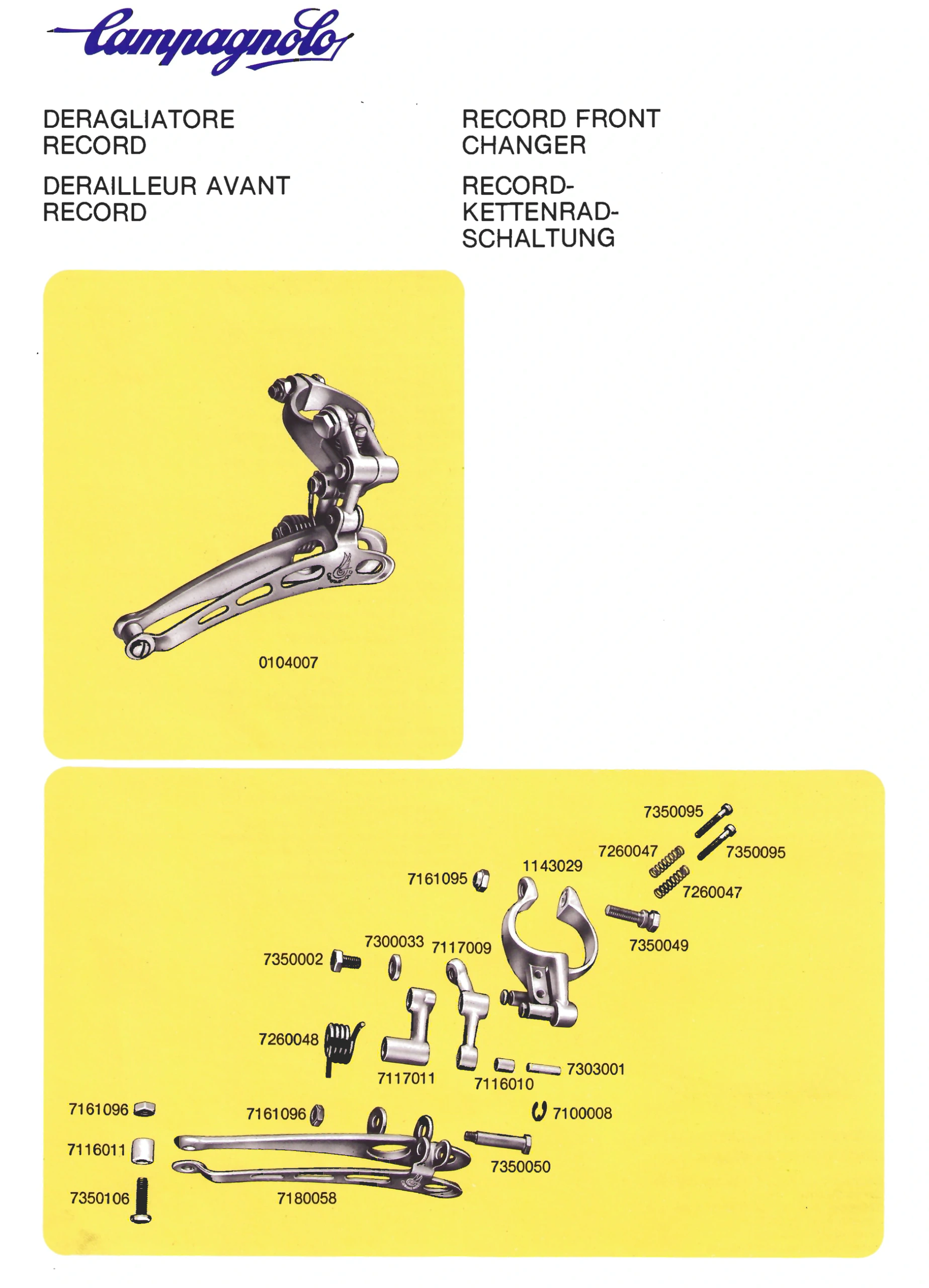

DERAGLIATORE RECORD

DERAILLEUR AVANT RECORD

RECORD FRONT CHANGER

RECORD-KETTENRADSCHALTUNG

Callouts: 0104007 7350095 7260047 7350095 7161095 1143029 7260047 7350002 7300033 7117009 7350049 7260048 7117011 7116010 7303001 7161096 7161096 7100008 7116011 7350050 7350106 7180058

[A Campagnolo parts sheet with a photograph of the Record front changer (0104007) on a yellow panel above an exploded drawing with every part numbered. The photographed changer carries the Campagnolo winged-wheel emblem on its cage. The parts list for this sheet is on the following page.]

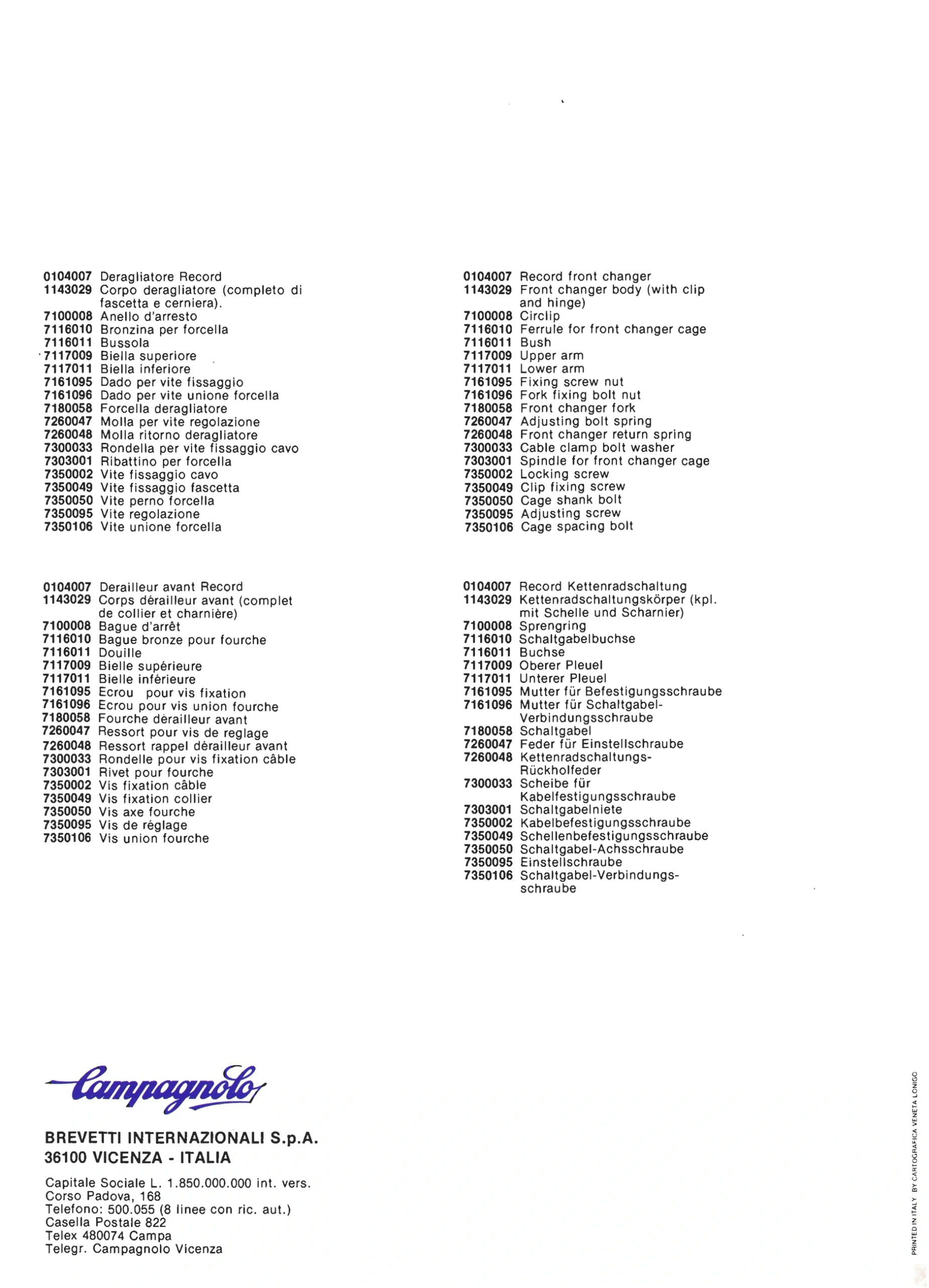

— Page 6 —
0104007 Deragliatore Record
1143029 Corpo deragliatore (completo di fascetta e cerniera).
7100008 Anello d’arresto
7116010 Bronzina per forcella
7116011 Bussola
7117009 Biella superiore
7117011 Biella inferiore
7161095 Dado per vite fissaggio
7161096 Dado per vite unione forcella
7180058 Forcella deragliatore
7260047 Molla per vite regolazione
7260048 Molla ritorno deragliatore
7300033 Rondella per vite fissaggio cavo
7303001 Ribattino per forcella
7350002 Vite fissaggio cavo
7350049 Vite fissaggio fascetta
7350050 Vite perno forcella
7350095 Vite regolazione
7350106 Vite unione forcella

0104007 Derailleur avant Record
1143029 Corps dérailleur avant (complet de collier et charnière)
7100008 Bague d’arrêt
7116010 Bague bronze pour fourche
7116011 Douille
7117009 Bielle supérieure
7117011 Bielle inférieure
7161095 Ecrou pour vis fixation
7161096 Ecrou pour vis union fourche
7180058 Fourche dérailleur avant
7260047 Ressort pour vis de reglage
7260048 Ressort rappel dérailleur avant
7300033 Rondelle pour vis fixation câble
7303001 Rivet pour fourche
7350002 Vis fixation câble
7350049 Vis fixation collier
7350050 Vis axe fourche
7350095 Vis de réglage
7350106 Vis union fourche

0104007 Record front changer
1143029 Front changer body (with clip and hinge)
7100008 Circlip
7116010 Ferrule for front changer cage
7116011 Bush
7117009 Upper arm
7117011 Lower arm
7161095 Fixing screw nut
7161096 Fork fixing bolt nut
7180058 Front changer fork
7260047 Adjusting bolt spring
7260048 Front changer return spring
7300033 Cable clamp bolt washer
7303001 Spindle for front changer cage
7350002 Locking screw
7350049 Clip fixing screw
7350050 Cage shank bolt
7350095 Adjusting screw
7350106 Cage spacing bolt

0104007 Record Kettenradschaltung
1143029 Kettenradschaltungskörper (kpl. mit Schelle und Scharnier)
7100008 Sprengring
7116010 Schaltgabelbuchse
7116011 Buchse
7117009 Oberer Pleuel
7117011 Unterer Pleuel
7161095 Mutter für Befestigungsschraube
7161096 Mutter für Schaltgabel-Verbindungsschraube
7180058 Schaltgabel
7260047 Feder für Einstellschraube
7260048 Kettenradschaltungs-Rückholfeder
7300033 Scheibe für Kabelfestigungsschraube
7303001 Schaltgabelniete
7350002 Kabelbefestigungsschraube
7350049 Schellenbefestigungsschraube
7350050 Schaltgabel-Achsschraube
7350095 Einstellschraube
7350106 Schaltgabel-Verbindungsschraube

Campagnolo

BREVETTI INTERNAZIONALI S.p.A.
36100 VICENZA – ITALIA

Capitale Sociale L. 1.850.000.000 int. vers.
Corso Padova, 168
Telefono: 500.055 (8 linee con ric. aut.)
Casella Postale 822
Telex 480074 Campa
Telegr. Campagnolo Vicenza

PRINTED IN ITALY BY CARTOGRAFICA VENETA LONIGO

[A Campagnolo parts list sheet for the Record front changer in four languages, each part number followed by its name, with the script Campagnolo logo and the Brevetti Internazionali imprint at the foot. The four lists are set in two columns, Italian and French on the left and English and German on the right, and the printer’s line runs up the right margin.]

— Page 7 —
Campagnolo

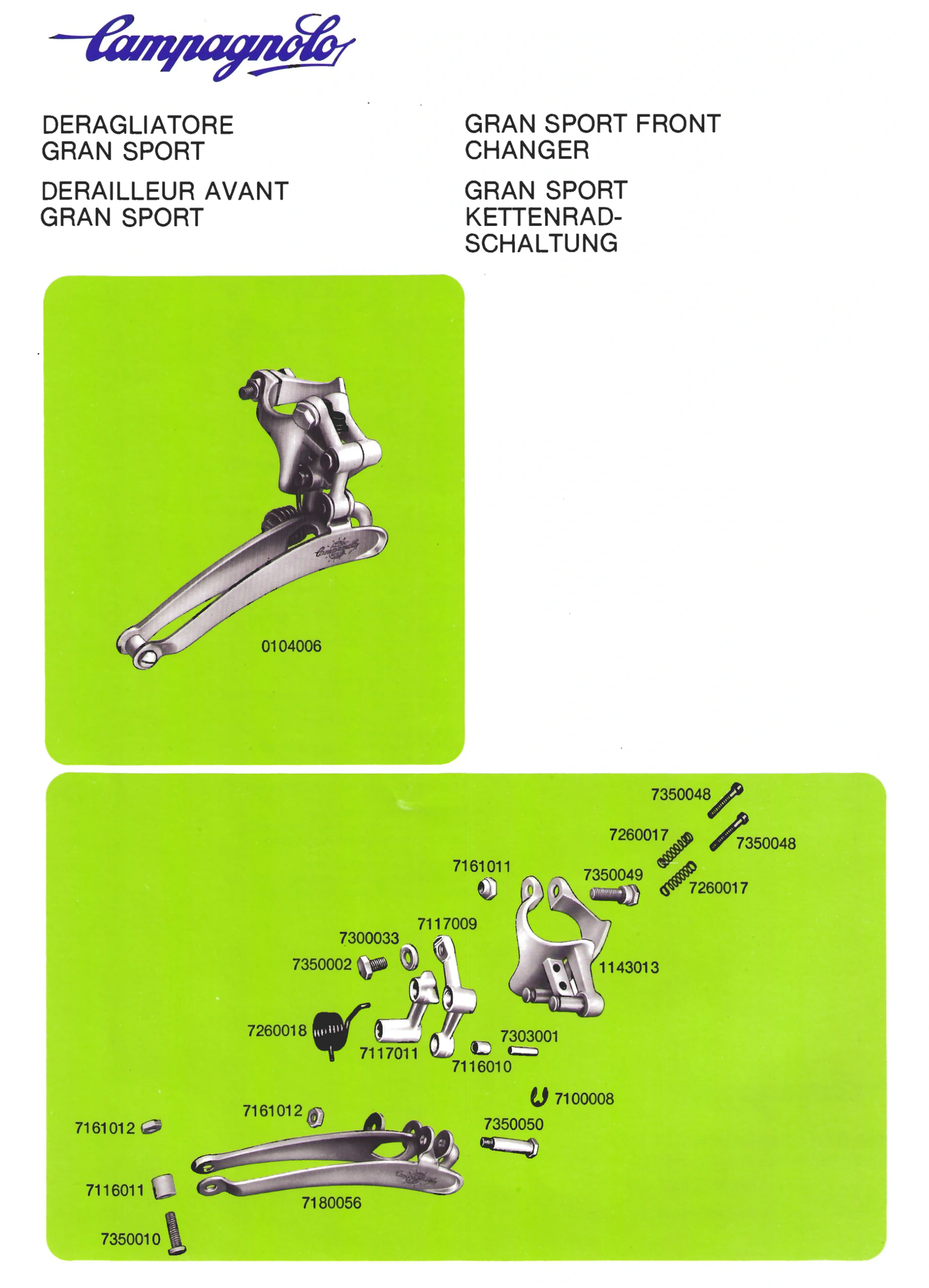

DERAGLIATORE GRAN SPORT

DERAILLEUR AVANT GRAN SPORT

GRAN SPORT FRONT CHANGER

GRAN SPORT KETTENRADSCHALTUNG

Callouts: 0104006 7350048 7260017 7350048 7161011 7350049 7260017 7350002 7300033 7117009 1143013 7260018 7117011 7116010 7303001 7161012 7161012 7350050 7100008 7116011 7180056 7350010

[A Campagnolo parts sheet with a photograph of the Gran Sport front changer (0104006) on a green panel above an exploded drawing with every part numbered. The photographed changer carries the script Campagnolo name over a sunburst emblem on its cage. The parts list for this sheet is on the following page.]

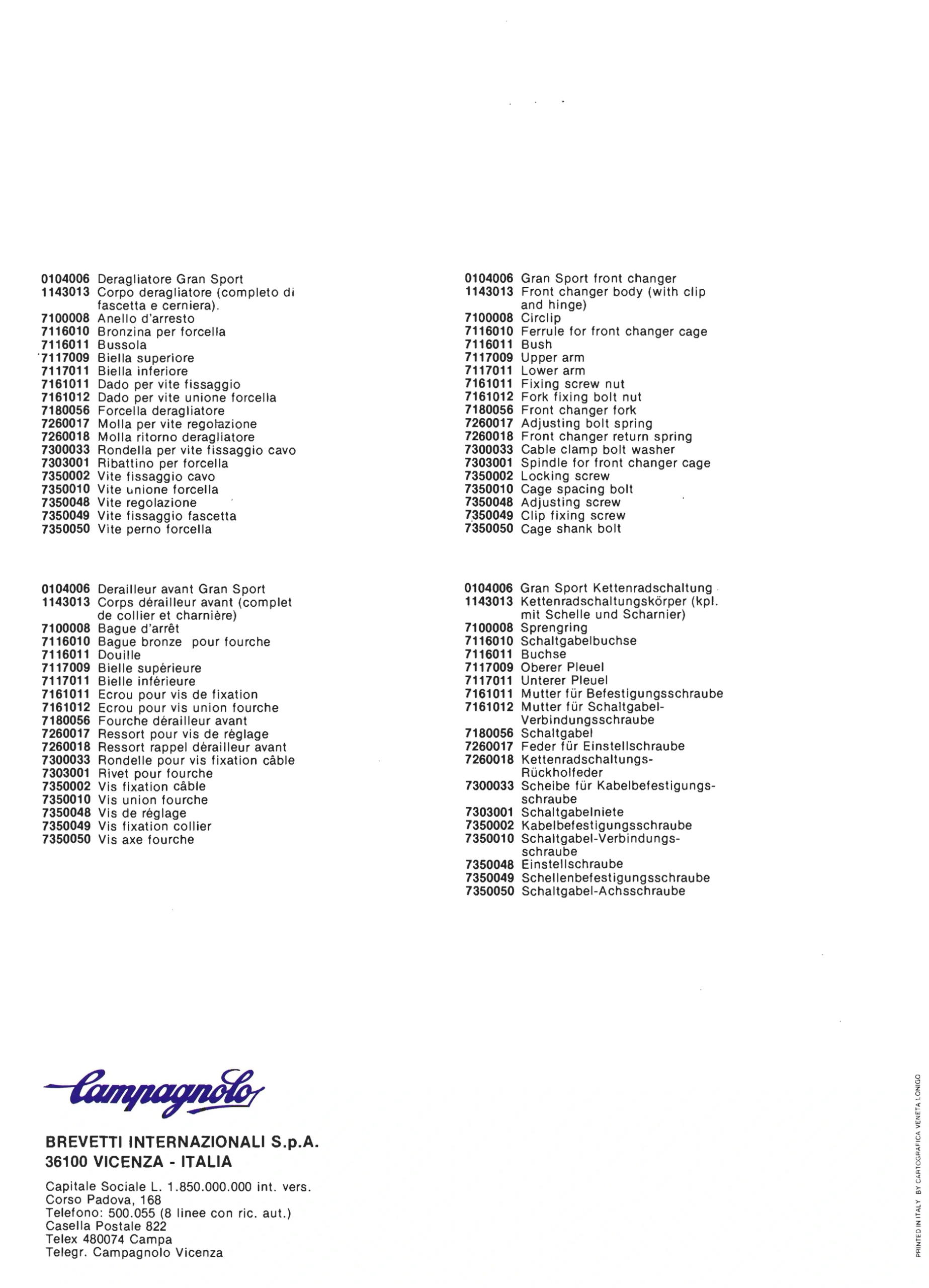

— Page 8 —
0104006 Deragliatore Gran Sport
1143013 Corpo deragliatore (completo di fascetta e cerniera).
7100008 Anello d’arresto
7116010 Bronzina per forcella
7116011 Bussola
7117009 Biella superiore
7117011 Biella inferiore
7161011 Dado per vite fissaggio
7161012 Dado per vite unione forcella
7180056 Forcella deragliatore
7260017 Molla per vite regolazione
7260018 Molla ritorno deragliatore
7300033 Rondella per vite fissaggio cavo
7303001 Ribattino per forcella
7350002 Vite fissaggio cavo
7350010 Vite unione forcella
7350048 Vite regolazione
7350049 Vite fissaggio fascetta
7350050 Vite perno forcella

0104006 Derailleur avant Gran Sport
1143013 Corps dérailleur avant (complet de collier et charnière)
7100008 Bague d’arrêt
7116010 Bague bronze pour fourche
7116011 Douille
7117009 Bielle supérieure
7117011 Bielle inférieure
7161011 Ecrou pour vis de fixation
7161012 Ecrou pour vis union fourche
7180056 Fourche dérailleur avant
7260017 Ressort pour vis de réglage
7260018 Ressort rappel dérailleur avant
7300033 Rondelle pour vis fixation câble
7303001 Rivet pour fourche
7350002 Vis fixation câble
7350010 Vis union fourche
7350048 Vis de réglage
7350049 Vis fixation collier
7350050 Vis axe fourche

0104006 Gran Sport front changer
1143013 Front changer body (with clip and hinge)
7100008 Circlip
7116010 Ferrule for front changer cage
7116011 Bush
7117009 Upper arm
7117011 Lower arm
7161011 Fixing screw nut
7161012 Fork fixing bolt nut
7180056 Front changer fork
7260017 Adjusting bolt spring
7260018 Front changer return spring
7300033 Cable clamp bolt washer
7303001 Spindle for front changer cage
7350002 Locking screw
7350010 Cage spacing bolt
7350048 Adjusting screw
7350049 Clip fixing screw
7350050 Cage shank bolt

0104006 Gran Sport Kettenradschaltung
1143013 Kettenradschaltungskörper (kpl. mit Schelle und Scharnier)
7100008 Sprengring
7116010 Schaltgabelbuchse
7116011 Buchse
7117009 Oberer Pleuel
7117011 Unterer Pleuel
7161011 Mutter für Befestigungsschraube
7161012 Mutter für Schaltgabel-Verbindungsschraube
7180056 Schaltgabel
7260017 Feder für Einstellschraube
7260018 Kettenradschaltungs-Rückholfeder
7300033 Scheibe für Kabelbefestigungsschraube
7303001 Schaltgabelniete
7350002 Kabelbefestigungsschraube
7350010 Schaltgabel-Verbindungsschraube
7350048 Einstellschraube
7350049 Schellenbefestigungsschraube
7350050 Schaltgabel-Achsschraube

Campagnolo

BREVETTI INTERNAZIONALI S.p.A.
36100 VICENZA – ITALIA

Capitale Sociale L. 1.850.000.000 int. vers.
Corso Padova, 168
Telefono: 500.055 (8 linee con ric. aut.)
Casella Postale 822
Telex 480074 Campa
Telegr. Campagnolo Vicenza

PRINTED IN ITALY BY CARTOGRAFICA VENETA LONIGO

[A Campagnolo parts list sheet for the Gran Sport front changer in four languages, each part number followed by its name, with the script Campagnolo logo and the Brevetti Internazionali imprint at the foot. The four lists are set in two columns, Italian and French on the left and English and German on the right, and the printer’s line runs up the right margin.]

— Page 9 —
Campagnolo

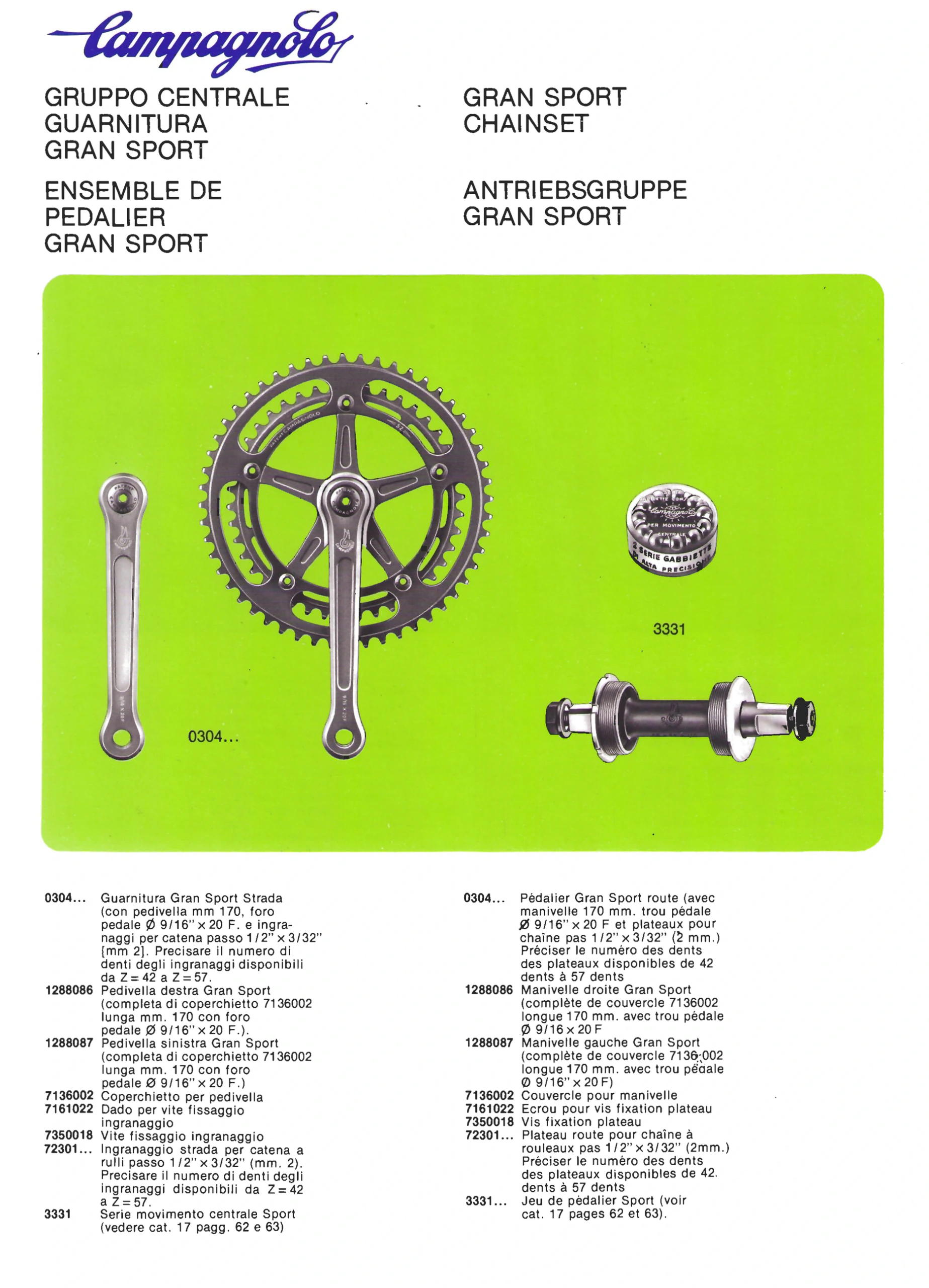

GRUPPO CENTRALE GUARNITURA GRAN SPORT

ENSEMBLE DE PEDALIER GRAN SPORT

GRAN SPORT CHAINSET

ANTRIEBSGRUPPE GRAN SPORT

Callouts: 3331 0304…

0304… Guarnitura Gran Sport Strada (con pedivella mm 170, foro pedale Ø 9/16″ × 20 F. e ingranaggi per catena passo 1/2″ × 3/32″ [mm 2]. Precisare il numero di denti degli ingranaggi disponibili da Z = 42 a Z = 57.
1288086 Pedivella destra Gran Sport (completa di coperchietto 7136002 lunga mm. 170 con foro pedale Ø 9/16″ × 20 F.).
1288087 Pedivella sinistra Gran Sport (completa di coperchietto 7136002 lunga mm. 170 con foro pedale Ø 9/16″ × 20 F.)
7136002 Coperchietto per pedivella
7161022 Dado per vite fissaggio ingranaggio
7350018 Vite fissaggio ingranaggio
72301… Ingranaggio strada per catena a rulli passo 1/2″ × 3/32″ (mm. 2). Precisare il numero di denti degli ingranaggi disponibili da Z = 42 a Z = 57.
3331 Serie movimento centrale Sport (vedere cat. 17 pagg. 62 e 63)

0304… Pédalier Gran Sport route (avec manivelle 170 mm. trou pédale Ø 9/16″ × 20 F et plateaux pour chaîne pas 1/2″ × 3/32″ (2 mm.) Préciser le numéro des dents des plateaux disponibles de 42 dents à 57 dents
1288086 Manivelle droite Gran Sport (complète de couvercle 7136002 longue 170 mm. avec trou pédale Ø 9/16 × 20 F
1288087 Manivelle gauche Gran Sport (complète de couvercle 7136002 longue 170 mm. avec trou pédale Ø 9/16″ × 20 F)
7136002 Couvercle pour manivelle
7161022 Ecrou pour vis fixation plateau
7350018 Vis fixation plateau
72301… Plateau route pour chaîne à rouleaux pas 1/2″ × 3/32″ (2mm.) Préciser le numéro des dents des plateaux disponibles de 42.[?] dents à 57 dents
3331… Jeu de pédalier Sport (voir cat. 17 pages 62 et 63).

[A Campagnolo parts sheet with a photograph of the Gran Sport double chainset beside its left-hand crank, a Sport bottom bracket set and a round tin of bottom bracket ball cages lettered “PER MOVIMENTO CENTRALE” and “2 SERIE GABBIETTE”, on a green panel. Below the photograph are the parts lists in Italian and French; the English and German lists follow on the next sheet.]

— Page 10 —

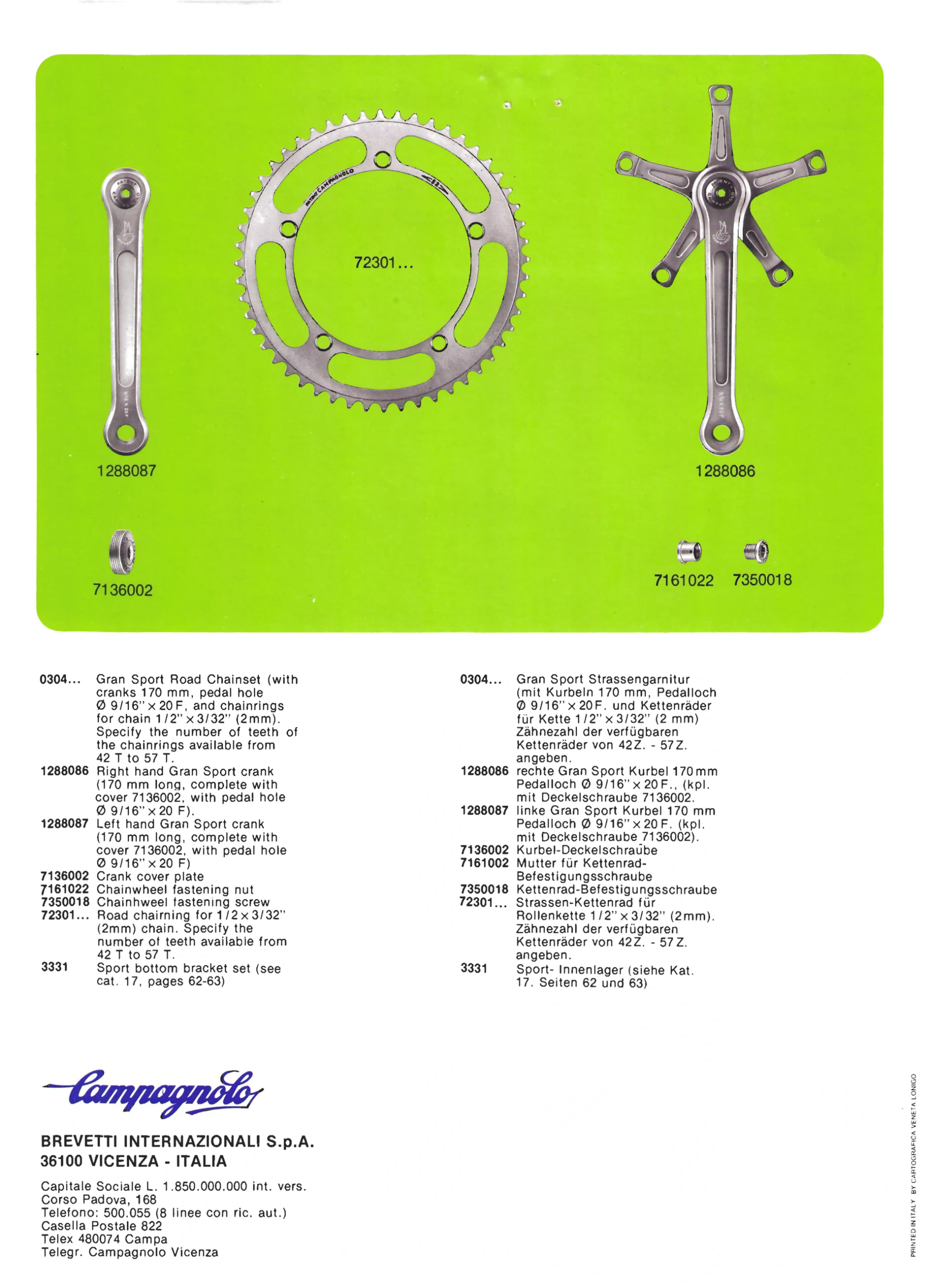

Callouts: 72301… 1288087 1288086 7136002 7161022 7350018

0304… Gran Sport Road Chainset (with cranks 170 mm, pedal hole Ø 9/16″ × 20 F, and chainrings for chain 1/2″ × 3/32″ (2mm). Specify the number of teeth of the chainrings available from 42 T to 57 T.
1288086 Right hand Gran Sport crank (170 mm long, complete with cover 7136002, with pedal hole Ø 9/16″ × 20 F).
1288087 Left hand Gran Sport crank (170 mm long, complete with cover 7136002, with pedal hole Ø 9/16″ × 20 F)
7136002 Crank cover plate
7161022 Chainwheel fastening nut
7350018 Chainhweel fastening screw
72301… Road chairning for 1/2 × 3/32″ (2mm) chain. Specify the number of teeth available from 42 T to 57 T.
3331 Sport bottom bracket set (see cat. 17, pages 62-63)

0304… Gran Sport Strassengarnitur (mit Kurbeln 170 mm, Pedalloch Ø 9/16″ × 20 F. und Kettenräder für Kette 1/2″ × 3/32″ (2 mm) Zähnezahl der verfügbaren Kettenräder von 42 Z. – 57 Z. angeben.
1288086 rechte Gran Sport Kurbel 170 mm Pedalloch Ø 9/16″ × 20 F., (kpl. mit Deckelschraube 7136002.
1288087 linke Gran Sport Kurbel 170 mm Pedalloch Ø 9/16″ × 20 F. (kpl. mit Deckelschraube 7136002).
7136002 Kurbel-Deckelschraube
7161002 Mutter für Kettenrad-Befestigungsschraube
7350018 Kettenrad-Befestigungsschraube
72301… Strassen-Kettenrad für Rollenkette 1/2″ × 3/32″ (2mm). Zähnezahl der verfügbaren Kettenräder von 42 Z. – 57 Z. angeben.
3331 Sport- Innenlager (siehe Kat. 17. Seiten 62 und 63)

Campagnolo
BREVETTI INTERNAZIONALI S.p.A.
36100 VICENZA – ITALIA

Capitale Sociale L. 1.850.000.000 int. vers.
Corso Padova, 168
Telefono: 500.055 (8 linee con ric. aut.)
Casella Postale 822
Telex 480074 Campa
Telegr. Campagnolo Vicenza

PRINTED IN ITALY BY CARTOGRAFICA VENETA LONIGO

[A Campagnolo parts sheet with a photograph of the separate parts of the Gran Sport chainset on a green panel: the left-hand crank, a chainring, the right-hand crank with its spider, the crank cover and the chainring nut and screw, every part numbered. Below are the parts lists in English and German, the Brevetti Internazionali imprint block at the foot and the printer’s line set vertically at the right edge.]

— Page 11 —
Campagnolo

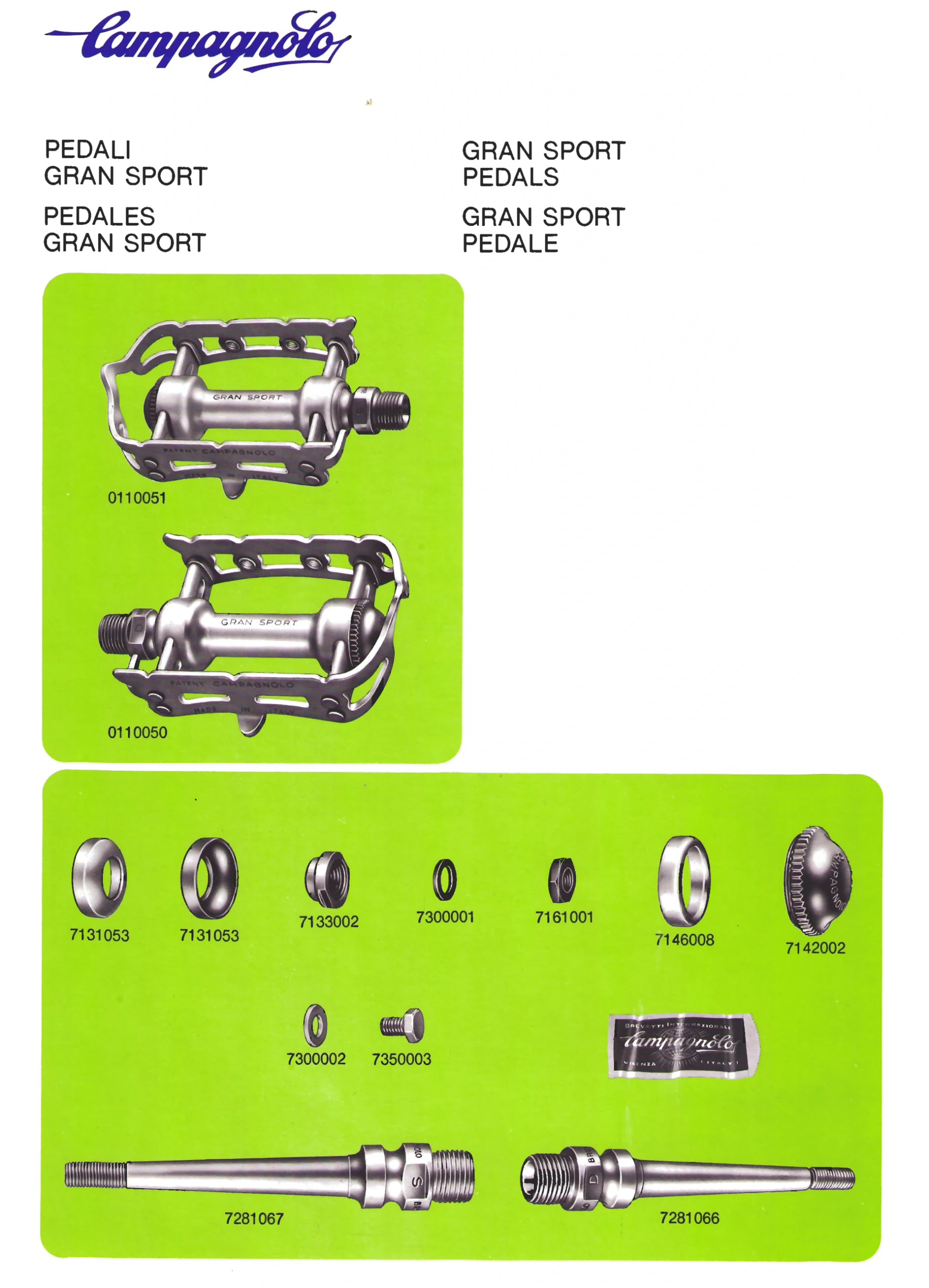

PEDALI GRAN SPORT

PEDALES GRAN SPORT

GRAN SPORT PEDALS

GRAN SPORT PEDALE

Callouts: 0110051 0110050 7131053 7131053 7133002 7300001 7161001 7146008 7142002 7300002 7350003 7281067 7281066

[A Campagnolo parts sheet with photographs of a pair of Gran Sport pedals on a green panel, above a second green panel with the pedal parts laid out and numbered: races, cone, washers, lock nut, dust caps, toe-clip screw and the two pedal axles. The pedal bodies carry the words “GRAN SPORT” and the cage plates “PATENT CAMPAGNOLO”, and an unnumbered foil label reading “BREVETTI INTERNAZIONALI Campagnolo VICENZA (ITALY)” is shown among the parts.]

— Page 12 —

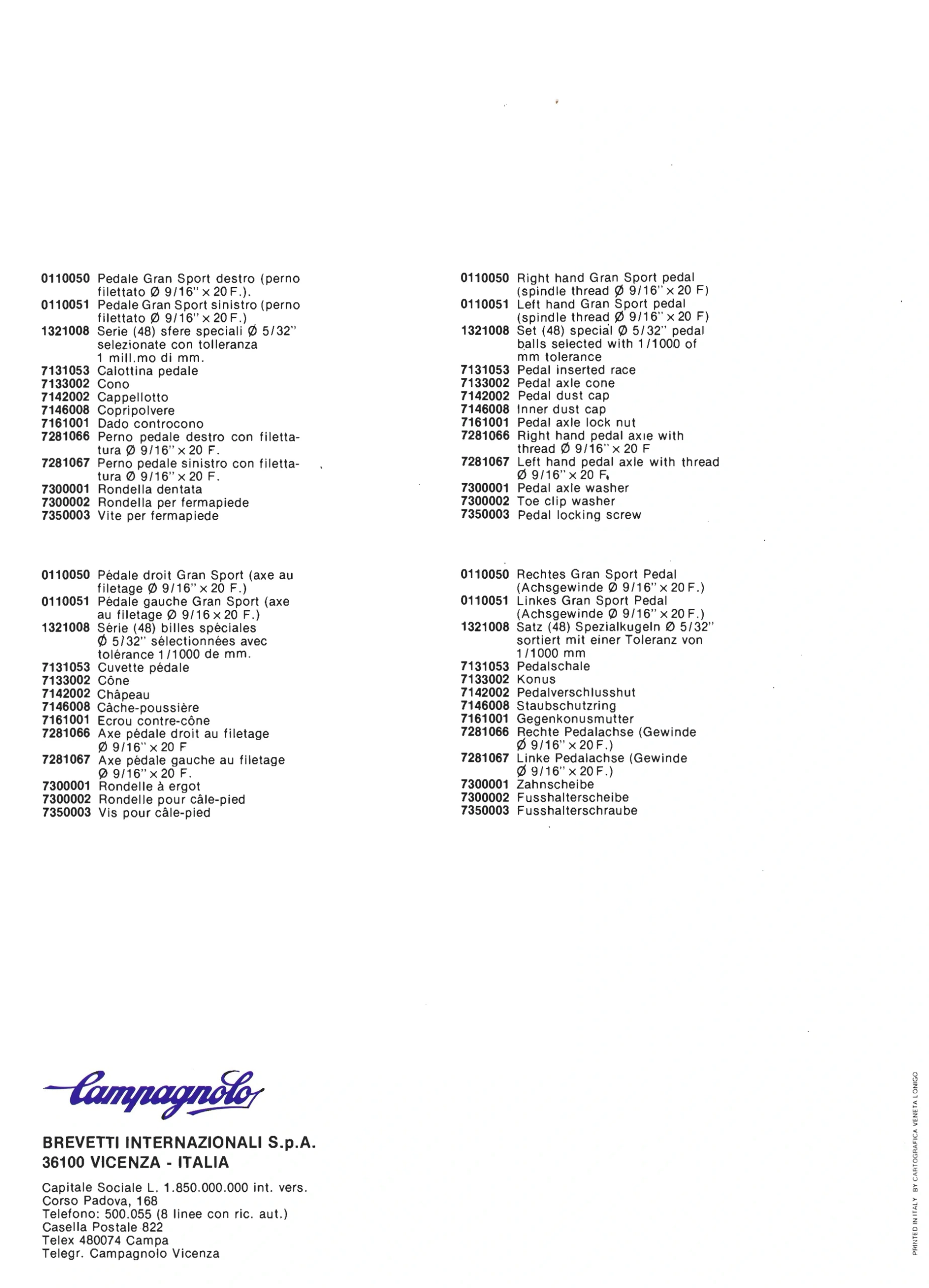

0110050 Pedale Gran Sport destro (perno filettato Ø 9/16″ × 20 F.).
0110051 Pedale Gran Sport sinistro (perno filettato Ø 9/16″ × 20 F.)
1321008 Serie (48) sfere speciali Ø 5/32″ selezionate con tolleranza 1 mill.mo di mm.
7131053 Calottina pedale
7133002 Cono
7142002 Cappellotto
7146008 Copripolvere
7161001 Dado controcono
7281066 Perno pedale destro con filettatura Ø 9/16″ × 20 F.
7281067 Perno pedale sinistro con filettatura Ø 9/16″ × 20 F.
7300001 Rondella dentata
7300002 Rondella per fermapiede
7350003 Vite per fermapiede

0110050 Pédale droit Gran Sport (axe au filetage Ø 9/16″ × 20 F.)
0110051 Pédale gauche Gran Sport (axe au filetage Ø 9/16 × 20 F.)
1321008 Série (48) billes spéciales Ø 5/32″ sélectionnées avec tolérance 1/1000 de mm.
7131053 Cuvette pédale
7133002 Cône
7142002 Châpeau
7146008 Câche-poussière
7161001 Ecrou contre-cône
7281066 Axe pédale droit au filetage Ø 9/16″ × 20 F
7281067 Axe pédale gauche au filetage Ø 9/16″ × 20 F.
7300001 Rondelle à ergot
7300002 Rondelle pour câle-pied
7350003 Vis pour câle-pied

0110050 Right hand Gran Sport pedal (spindle thread Ø 9/16″ × 20 F)
0110051 Left hand Gran Sport pedal (spindle thread Ø 9/16″ × 20 F)
1321008 Set (48) special Ø 5/32″ pedal balls selected with 1/1000 of mm tolerance
7131053 Pedal inserted race
7133002 Pedal axle cone
7142002 Pedal dust cap
7146008 Inner dust cap
7161001 Pedal axle lock nut
7281066 Right hand pedal axle with thread Ø 9/16″ × 20 F
7281067 Left hand pedal axle with thread Ø 9/16″ × 20 F.[?]
7300001 Pedal axle washer
7300002 Toe clip washer
7350003 Pedal locking screw

0110050 Rechtes Gran Sport Pedal (Achsgewinde Ø 9/16″ × 20 F.)
0110051 Linkes Gran Sport Pedal (Achsgewinde Ø 9/16″ × 20 F.)
1321008 Satz (48) Spezialkugeln Ø 5/32″ sortiert mit einer Toleranz von 1/1000 mm
7131053 Pedalschale
7133002 Konus
7142002 Pedalverschlusshut
7146008 Staubschutzring
7161001 Gegenkonusmutter
7281066 Rechte Pedalachse (Gewinde Ø 9/16″ × 20 F.)
7281067 Linke Pedalachse (Gewinde Ø 9/16″ × 20 F.)
7300001 Zahnscheibe
7300002 Fusshalterscheibe
7350003 Fusshalterschraube

Campagnolo
BREVETTI INTERNAZIONALI S.p.A.
36100 VICENZA – ITALIA

Capitale Sociale L. 1.850.000.000 int. vers.
Corso Padova, 168
Telefono: 500.055 (8 linee con ric. aut.)
Casella Postale 822
Telex 480074 Campa
Telegr. Campagnolo Vicenza

PRINTED IN ITALY BY CARTOGRAFICA VENETA LONIGO

[A Campagnolo parts list sheet for the Gran Sport pedals, with no picture: four lists of the same 13 part numbers set in two columns, in Italian and English above and French and German below. The Brevetti Internazionali imprint block is at the foot and the printer’s line is set vertically at the right edge.]

— Page 13 —

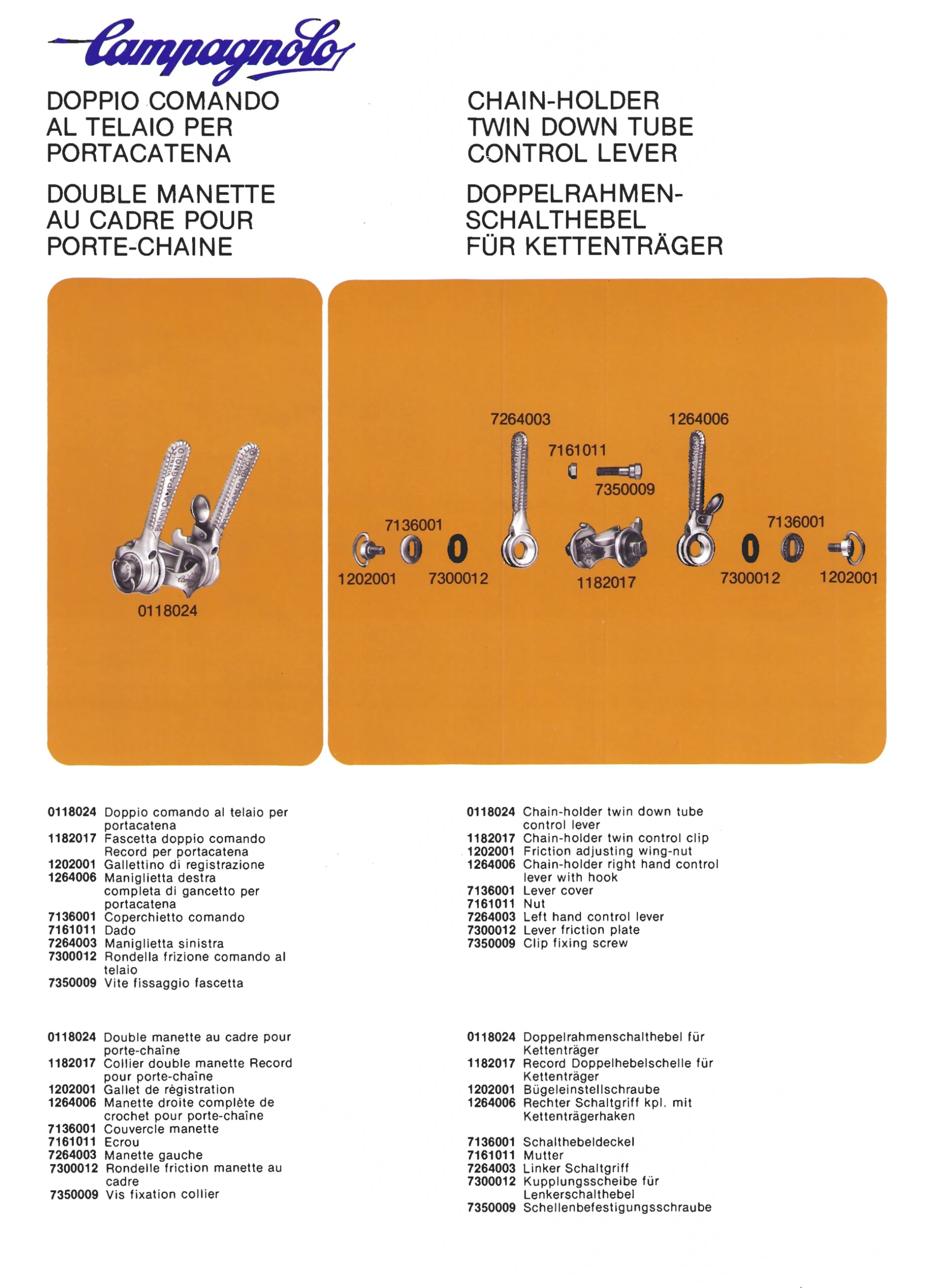

Campagnolo

DOPPIO COMANDO AL TELAIO PER PORTACATENA

DOUBLE MANETTE AU CADRE POUR PORTE-CHAINE

CHAIN-HOLDER TWIN DOWN TUBE CONTROL LEVER

DOPPELRAHMENSCHALTHEBEL FÜR KETTENTRÄGER

Callouts: 0118024 7264003 1264006 7161011 7350009 7136001 7136001 1202001 7300012 1182017 7300012 1202001

0118024 Doppio comando al telaio per portacatena
1182017 Fascetta doppio comando Record per portacatena
1202001 Gallettino di registrazione
1264006 Maniglietta destra completa di gancetto per portacatena
7136001 Coperchietto comando
7161011 Dado
7264003 Maniglietta sinistra
7300012 Rondella frizione comando al telaio
7350009 Vite fissaggio fascetta

0118024 Double manette au cadre pour porte-chaîne
1182017 Collier double manette Record pour porte-chaîne
1202001 Gallet de régistration
1264006 Manette droite complète de crochet pour porte-chaîne
7136001 Couvercle manette
7161011 Ecrou
7264003 Manette gauche
7300012 Rondelle friction manette au cadre
7350009 Vis fixation collier

0118024 Chain-holder twin down tube control lever
1182017 Chain-holder twin control clip
1202001 Friction adjusting wing-nut
1264006 Chain-holder right hand control lever with hook
7136001 Lever cover
7161011 Nut
7264003 Left hand control lever
7300012 Lever friction plate
7350009 Clip fixing screw

0118024 Doppelrahmenschalthebel für Kettenträger
1182017 Record Doppelhebelschelle für Kettenträger
1202001 Bügeleinstellschraube
1264006 Rechter Schaltgriff kpl. mit Kettenträgerhaken
7136001 Schalthebeldeckel
7161011 Mutter
7264003 Linker Schaltgriff
7300012 Kupplungsscheibe für Lenkerschalthebel
7350009 Schellenbefestigungsschraube

[A Campagnolo parts sheet with a photograph of the chain-holder twin down tube control levers, assembled on their clip, beside a photograph of the same levers taken apart with every part numbered, both on orange panels. The right-hand lever carries the small hook for the chain-holder, and the parts lists below are set in Italian and English above and French and German below.]

— Page 14 —
Campagnolo
BREVETTI INTERNAZIONALI S.p.A.
36100 VICENZA – ITALIA

Capitale Sociale L. 1.820.000.000 int. vers.
Corso Padova. 168
Telefono: 500.055 (8 linee con ric. aut.)
Casella Postale 822
Telex 48074 Campa
Telegr.: Campagnolo Vicenza

PRINTED IN ITALY BY CARTOGRAFICA VENETA LONIGO

[A Campagnolo sheet left blank except for the Campagnolo script logo and the Brevetti Internazionali imprint block at the foot and the printer’s line set vertically at the right edge. This imprint gives the share capital as 1.820.000.000 lire and the telex as 48074, where the Gran Sport sheets give 1.850.000.000 and 480074.]

— Page 15 —
Campagnolo

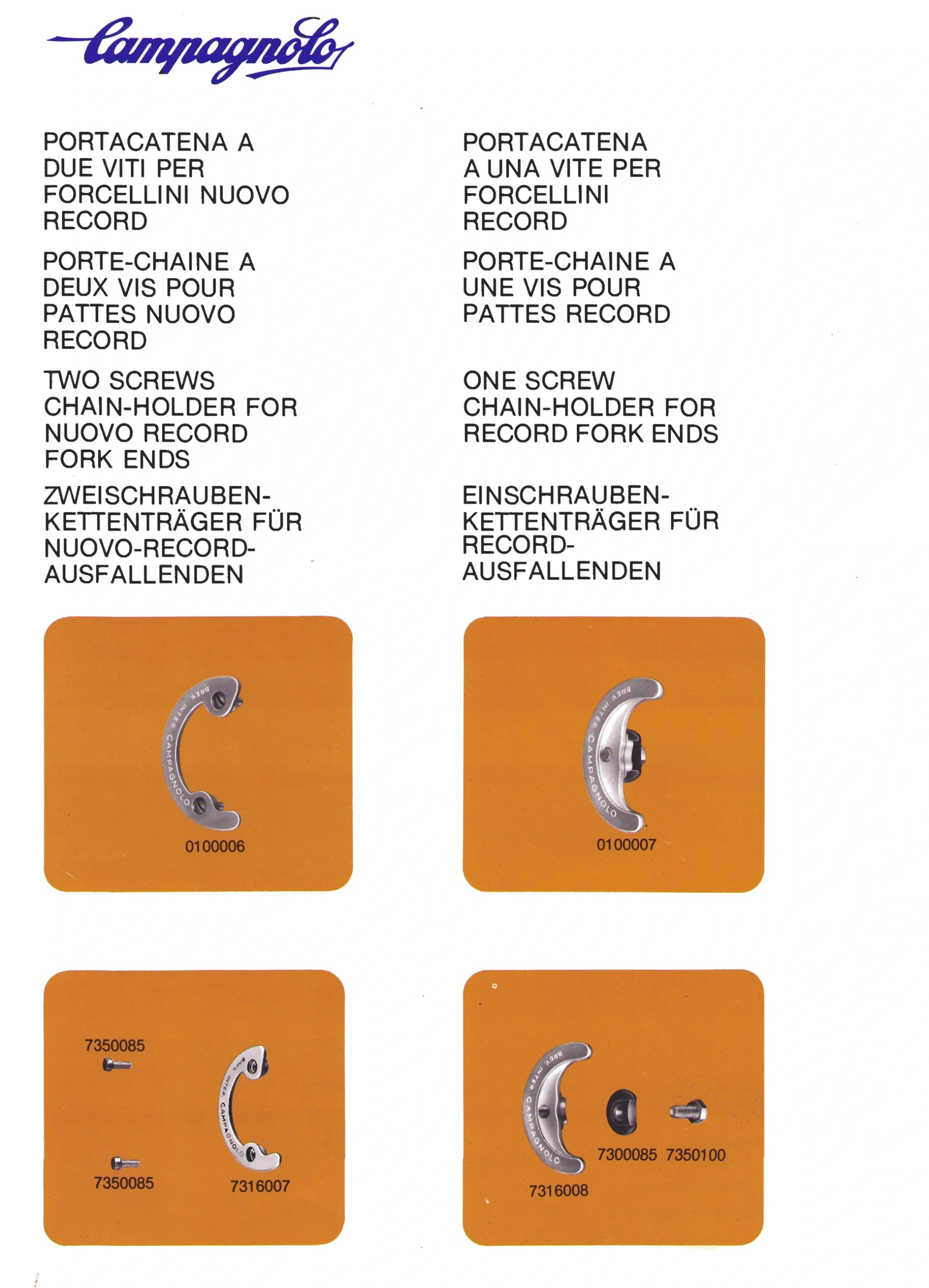

PORTACATENA A DUE VITI PER FORCELLINI NUOVO RECORD

PORTE-CHAINE A DEUX VIS POUR PATTES NUOVO RECORD

TWO SCREWS CHAIN-HOLDER FOR NUOVO RECORD FORK ENDS

ZWEISCHRAUBEN-KETTENTRÄGER FÜR NUOVO-RECORD-AUSFALLENDEN

PORTACATENA A UNA VITE PER FORCELLINI RECORD

PORTE-CHAINE A UNE VIS POUR PATTES RECORD

ONE SCREW CHAIN-HOLDER FOR RECORD FORK ENDS

EINSCHRAUBEN-KETTENTRÄGER FÜR RECORD-AUSFALLENDEN

Callouts: 0100006 0100007 7350085 7350085 7316007 7300085 7350100 7316008

[A Campagnolo parts sheet for two chain-holders, each on its own pair of orange panels: on the left the two-screw chain-holder for Nuovo Record fork ends, whole and then as its plate and two screws, and on the right the one-screw chain-holder for Record fork ends, whole and then as its plate, washer and screw, every part numbered. The plates carry the words “BREV. INTER. CAMPAGNOLO”; the parts lists are on the next sheet.]

— Page 16 —
0100006 Portacatena a due viti per forcellini Nuovo Record (0122003)
7316007 Portacatena a due viti
7350085 Vite fissaggio

0100006 Porte-chaîne à deux vis pour pattes Nuovo Record (0122003)
7316007 Porte-chaîne à deux vis
7350085 Vis fixation

0100006 Two screws chain-holder for Nuovo Record fork ends (0122003)
7316007 Two screws chain-holder
7350085 Fixing screw

0100006 Zweischrauben-Kettenträger für Nuovo Record-Ausfallenden (0122003)
7316007 Zweischrauben-Kettenträger
7350085 Befestigungsschraube

0100007 Portacatena a una vite per forcellini Record (0122001 e 0122002)
7300085 Rondella per portacatena
7316008 Portacatena a una vite
7350100 Vite fissaggio

0100007 Porte-chaîne à une vis pour pattes Record (0122001 et 0122002)
7300085 Rondelle pour porte-chaîne
7316008 Porte-chaîne à une vis
7350100 Vis fixation

0100007 One screw chain-holder for Record fork ends (0122001 0122002)
7300085 Chain-holder washer
7316008 One screw chain-holder
7350100 Fixing screw

0100007 Einschrauben-Kettenträger für Record-Ausfallenden (0122001 und 0122002)
7300085 Kettenträger-Scheibe
7316008 Einschrauben-Kettenträger
7350100 Befestigungsschraube

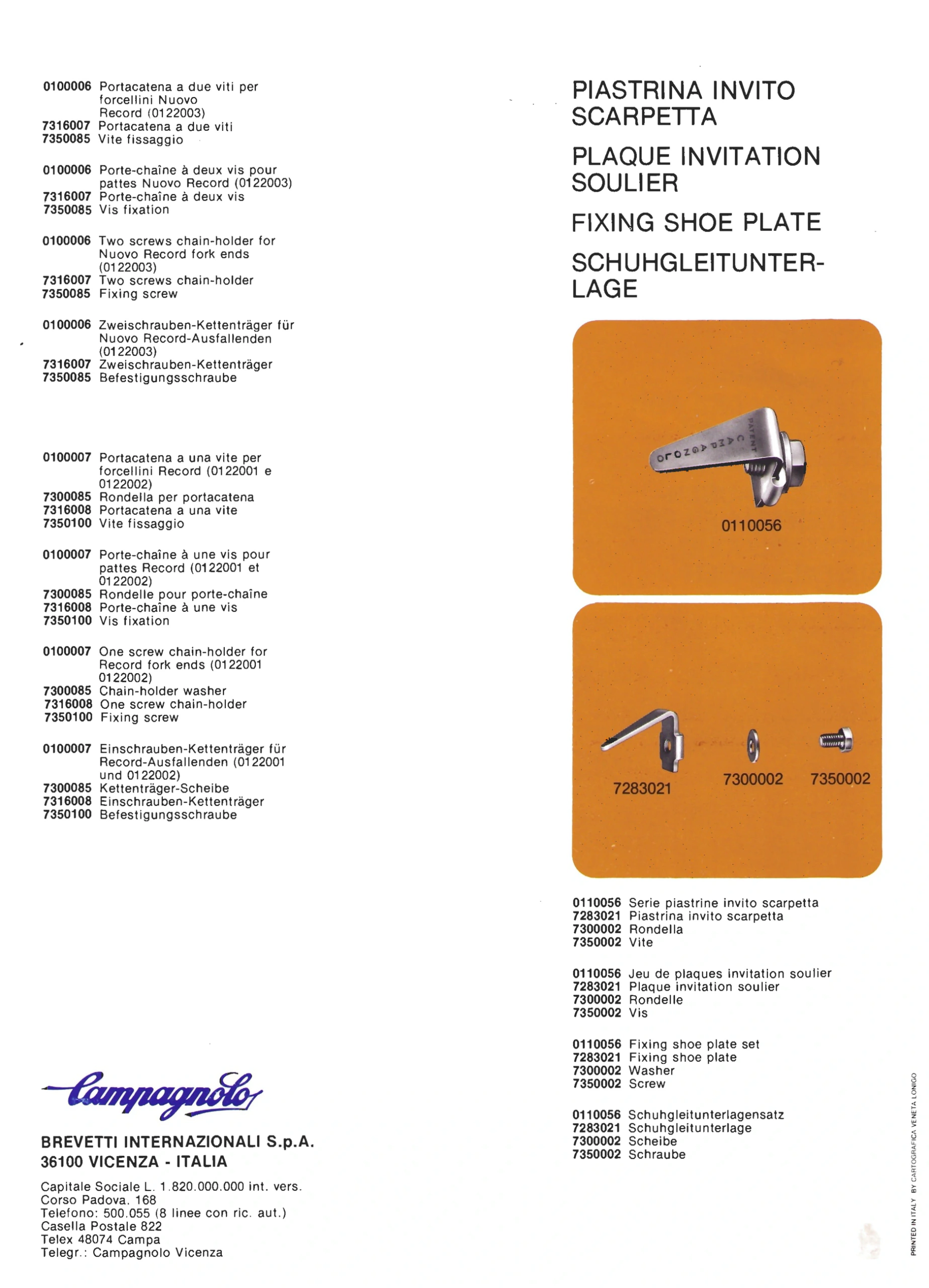

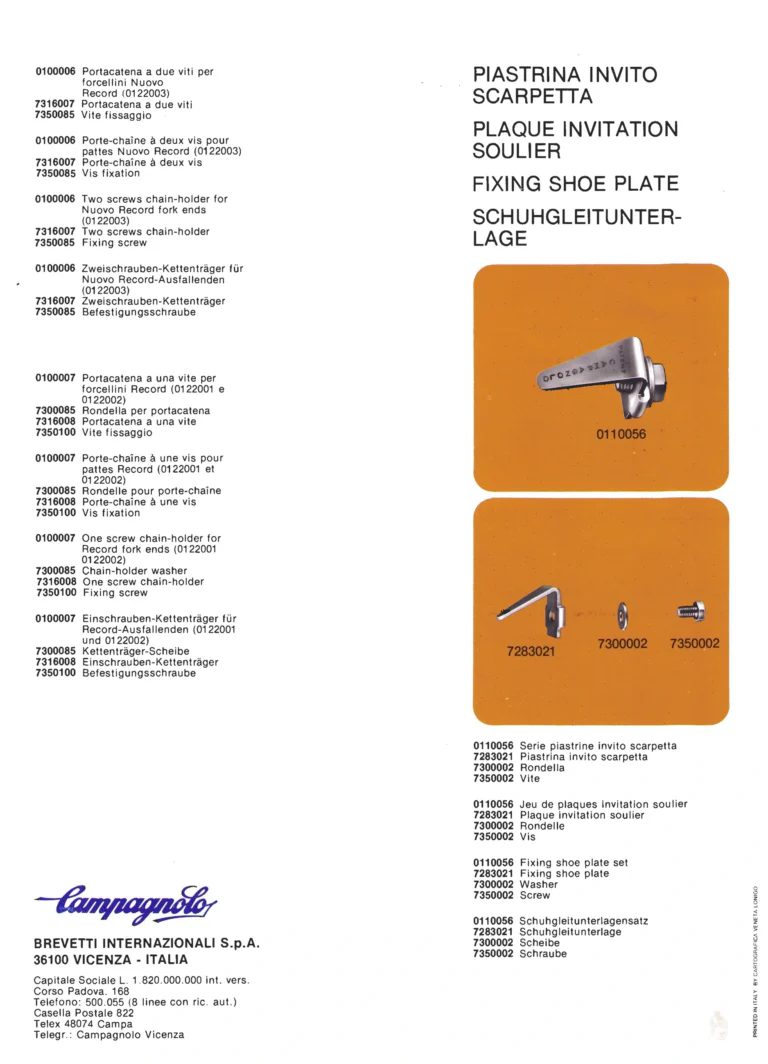

PIASTRINA INVITO SCARPETTA

PLAQUE INVITATION SOULIER

FIXING SHOE PLATE

SCHUHGLEITUNTERLAGE

Callouts: 0110056 7283021 7300002 7350002

0110056 Serie piastrine invito scarpetta
7283021 Piastrina invito scarpetta
7300002 Rondella
7350002 Vite

0110056 Jeu de plaques invitation soulier
7283021 Plaque invitation soulier
7300002 Rondelle
7350002 Vis

0110056 Fixing shoe plate set
7283021 Fixing shoe plate
7300002 Washer
7350002 Screw

0110056 Schuhgleitunterlagensatz
7283021 Schuhgleitunterlage
7300002 Scheibe
7350002 Schraube

Campagnolo
BREVETTI INTERNAZIONALI S.p.A.
36100 VICENZA – ITALIA

Capitale Sociale L. 1.820.000.000 int. vers.
Corso Padova. 168
Telefono: 500.055 (8 linee con ric. aut.)
Casella Postale 822
Telex 48074 Campa
Telegr.: Campagnolo Vicenza

PRINTED IN ITALY BY CARTOGRAFICA VENETA LONIGO

[A Campagnolo parts sheet with the parts lists for the two-screw and one-screw chain-holders in four languages down the left column, and on the right the fixing shoe plate: a four-language heading, a photograph of the assembled plate and a photograph of its plate, washer and screw on orange panels, every part numbered, followed by its own four-language parts list. The Brevetti Internazionali imprint block is at the foot and the printer’s line is set vertically at the right edge.]
