BOB JACKSON

With over 40 years of trend setting design and quality building, Bob Jackson is one of the world’s most famous names in custom frames and enjoys considerable popularity in many countries. Mr. Jackson takes great pride in being 100% flexible — ready and willing to tackle any custom design the customer desires. With 2 tandems, mixte, racing trike, tracks, touring and racing models Mr. Jackson is also one of the most versatile builders in the business. Every frame is made under the close and careful personal supervision of Bob Jackson himself. The Jackson painting, which has been copied by many, is his most famous trademark. Each frame is sprayed in several separate, time consuming stages then baked. The end result is one of the most durable and beautiful finishes in the industry. For 1981, we continue our two all-time best sellers, one for racing, the other for touring. Both are recognized everywhere; as finely made

Gran Prix — Rake 17 Racing

This is a very light, short wheelbase, stiff design with highly responsive steering and maneuverability. It is ideally suited to the many criteriums, time trials, and short road races which are so popular in America. For the serious racer who desires a famous brand and great looks with superior performance.

Grand Prix special features

• New semi-sloping streamlined crown.
• Campy Super Record dropouts without eyelets
• Jackson Rake 17 fork of 531 SL
• Indented round-oval-round stays for maximum stiffness.
• 700C wheel size. Brake hole to axle distance 360mm Rr, 362 Fr.
• Fits 500 side pull brakes

Frame & fork – headset
$370.00

A. Top quality Vagner crown.
B. Brazed Tips.
C. Sup Rec tips. Stay flat-filed for chain clearance.
D. Campy guides. Round-oval-round stays.
E. Hand-form stay tips. Top tube cable guides.

Specifications for Bob [cut off]
Gran Prix — Rake 17
Tubing | Reynolds 531 double butted [cut off]
Fork | 531 continental-style big oval blade 27.4 x 20.4mm Ø
Bottom bracket | Closed, [cut off]
Dropouts | Campy Super Record w/o eyes
Headset | Tange New Levin
Seat lug bolt | KKT Chromolly double allen head [cut off]
Braze-ons | bottle bosses on downtube, [cut off]
Seat tube I.D. | 27.2 [cut off]
BB | [cut off]
Dropout width | 120 [cut off]
Brake fit | Standard reach [cut off]
Wheel size | 700C
Sizes | 19,20,21,22,23, [cut off]

2

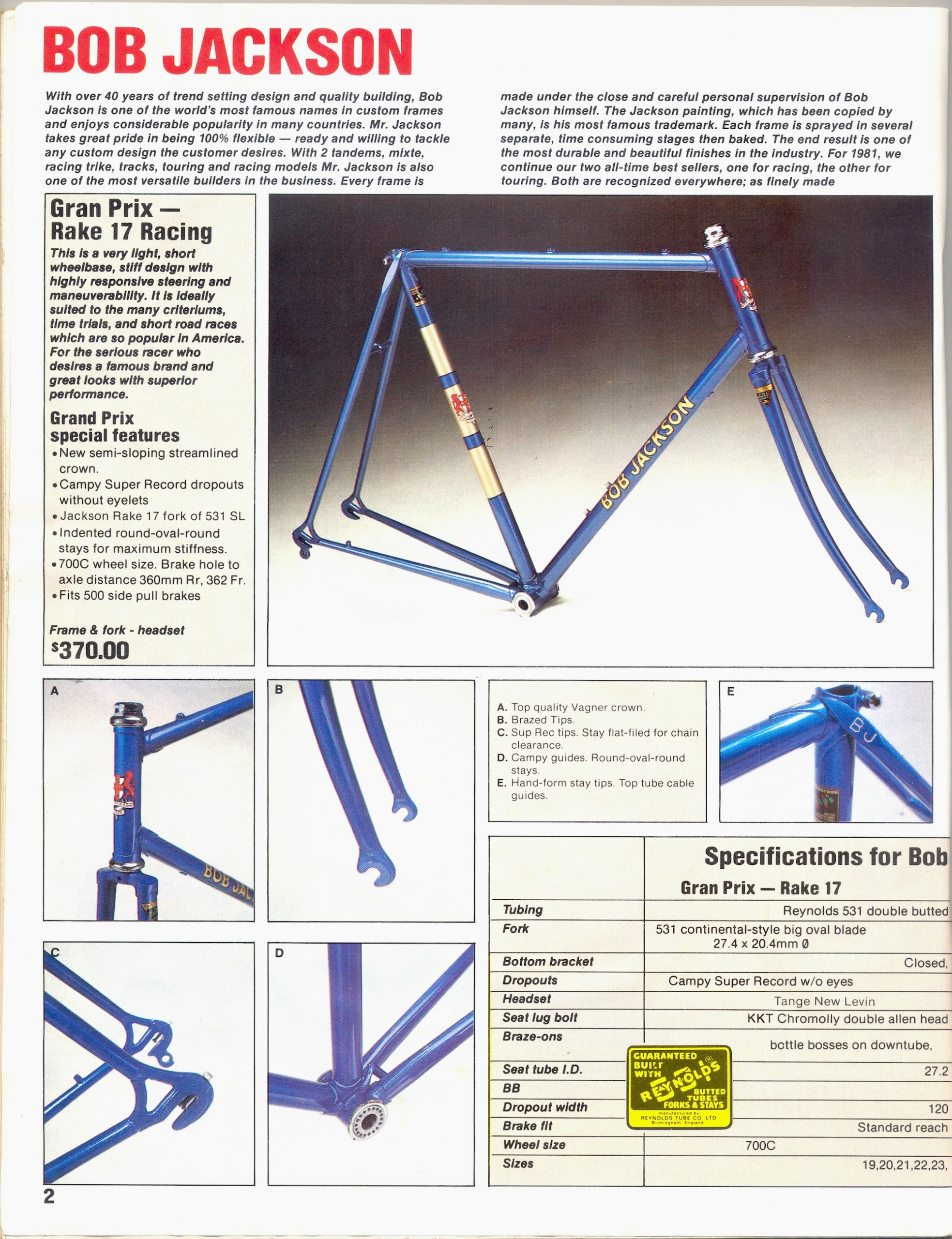

[A catalog page shows a metallic blue Bob Jackson Gran Prix racing frame and fork with a pale gold seat-tube panel, five lettered close-ups of the crown, fork tips, rear dropouts, bottom bracket shell and seat cluster and a specifications table that carries a yellow Reynolds tubing transfer. The specifications table runs off the right edge of the scan, and the introduction breaks off mid-sentence at the foot of its second column.]
