Masi World Wide Sheets — Gran Criterium, 3V Volumetrica and Nuova Strada, with Specifications (San Marcos, California)

— Page 1 —

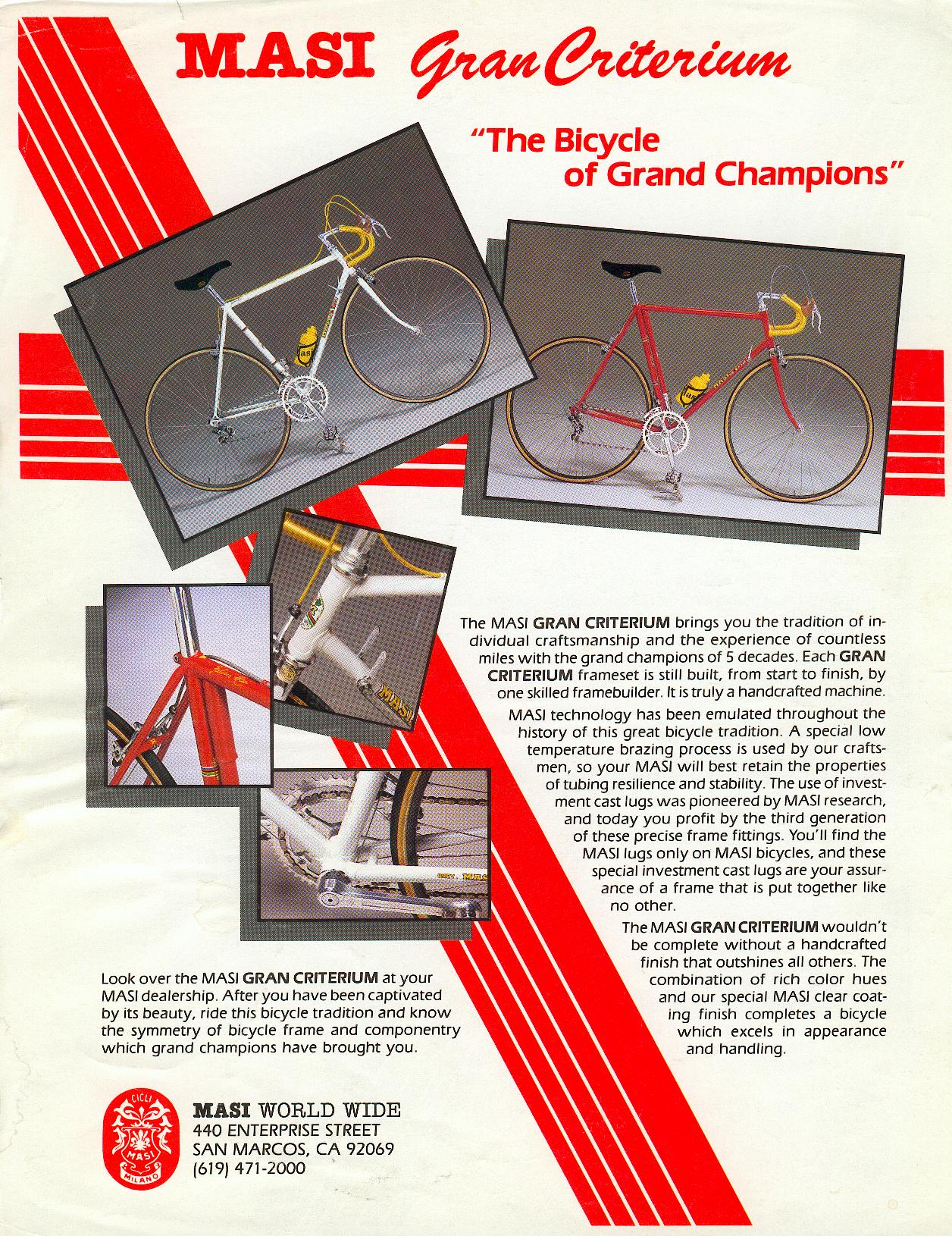

MASI Gran Criterium

“The Bicycle of Grand Champions”

The MASI GRAN CRITERIUM brings you the tradition of individual craftsmanship and the experience of countless miles with the grand champions of 5 decades. Each GRAN CRITERIUM frameset is still built, from start to finish, by one skilled framebuilder. It is truly a handcrafted machine.

MASI technology has been emulated throughout the history of this great bicycle tradition. A special low temperature brazing process is used by our craftsmen, so your MASI will best retain the properties of tubing resilience and stability. The use of investment cast lugs was pioneered by MASI research, and today you profit by the third generation of these precise frame fittings. You’ll find the MASI lugs only on MASI bicycles, and these special investment cast lugs are your assurance of a frame that is put together like no other.

The MASI GRAN CRITERIUM wouldn’t be complete without a handcrafted finish that outshines all others. The combination of rich color hues and our special MASI clear coating finish completes a bicycle which excels in appearance and handling.

Look over the MASI GRAN CRITERIUM at your MASI dealership. After you have been captivated by its beauty, ride this bicycle tradition and know the symmetry of bicycle frame and componentry which grand champions have brought you.

CICLI MASI MILANO

MASI WORLD WIDE
440 ENTERPRISE STREET
SAN MARCOS, CA 92069
(619) 471-2000

[A white sheet crossed by red diagonal and horizontal stripes. Two photographs show complete Gran Criterium bicycles, one white and one red, each with yellow handlebar tape, tan sidewall tires and a yellow MASI water bottle; three detail photographs show a red seat cluster with its stays, a white head lug with yellow cable housing and a white bottom bracket with the chainrings. The red Masi seal stands beside the address at the foot.]

— Page 2 —

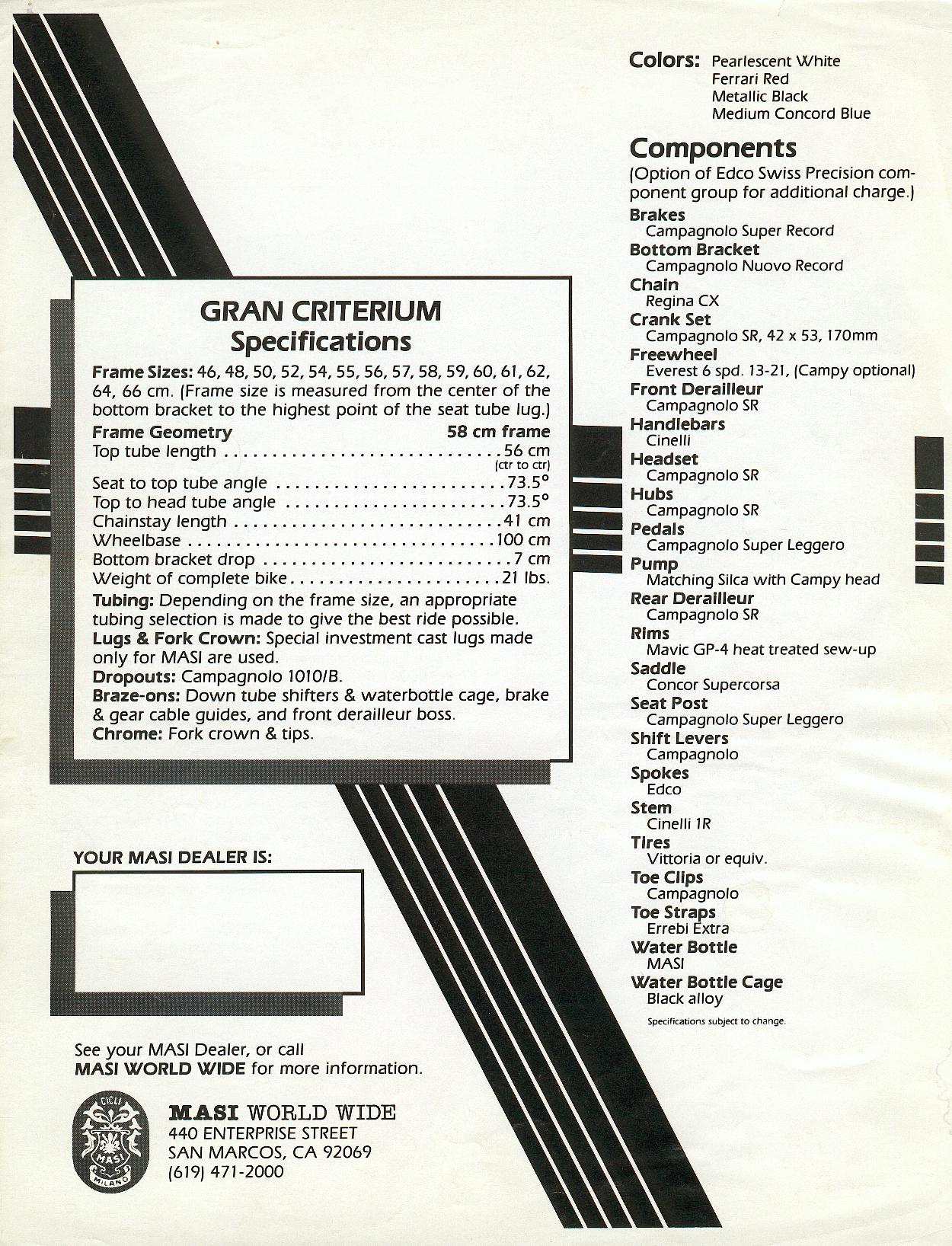

GRAN CRITERIUM Specifications

Frame Sizes: 46, 48, 50, 52, 54, 55, 56, 57, 58, 59, 60, 61, 62, 64, 66 cm. (Frame size is measured from the center of the bottom bracket to the highest point of the seat tube lug.)

Frame Geometry … 58 cm frame
Top tube length … 56 cm (ctr to ctr)
Seat to top tube angle … 73.5°
Top to head tube angle … 73.5°
Chainstay length … 41 cm
Wheelbase … 100 cm
Bottom bracket drop … 7 cm
Weight of complete bike … 21 lbs.

Tubing: Depending on the frame size, an appropriate tubing selection is made to give the best ride possible.
Lugs & Fork Crown: Special investment cast lugs made only for MASI are used.
Dropouts: Campagnolo 1010/B.
Braze-ons: Down tube shifters & waterbottle cage, brake & gear cable guides, and front derailleur boss.
Chrome: Fork crown & tips.

YOUR MASI DEALER IS:

Colors: Pearlescent White
Ferrari Red
Metallic Black
Medium Concord Blue

Components

(Option of Edco Swiss Precision component group for additional charge.)

Brakes
Campagnolo Super Record
Bottom Bracket
Campagnolo Nuovo Record
Chain
Regina CX
Crank Set
Campagnolo SR, 42 x 53, 170mm
Freewheel
Everest 6 spd. 13-21, (Campy optional)
Front Derailleur
Campagnolo SR
Handlebars
Cinelli
Headset
Campagnolo SR
Hubs
Campagnolo SR
Pedals
Campagnolo Super Leggero
Pump
Matching Silca with Campy head
Rear Derailleur
Campagnolo SR
Rims
Mavic GP-4 heat treated sew-up
Saddle
Concor Supercorsa
Seat Post
Campagnolo Super Leggero
Shift Levers
Campagnolo
Spokes
Edco
Stem
Cinelli 1R
Tires
Vittoria or equiv.
Toe Clips
Campagnolo
Toe Straps
Errebi Extra
Water Bottle
MASI
Water Bottle Cage
Black alloy

Specifications subject to change.

See your MASI Dealer, or call MASI WORLD WIDE for more information.

CICLI MASI MILANO

MASI WORLD WIDE
440 ENTERPRISE STREET
SAN MARCOS, CA 92069
(619) 471-2000

[A sheet printed in black only, crossed by heavy diagonal and horizontal black stripes. A boxed specification panel with a drop shadow sits at left over an empty box for the dealer’s stamp, and the color and component list runs down the right column. The Masi seal, here in black, stands beside the address at the foot.]

— Page 3 —

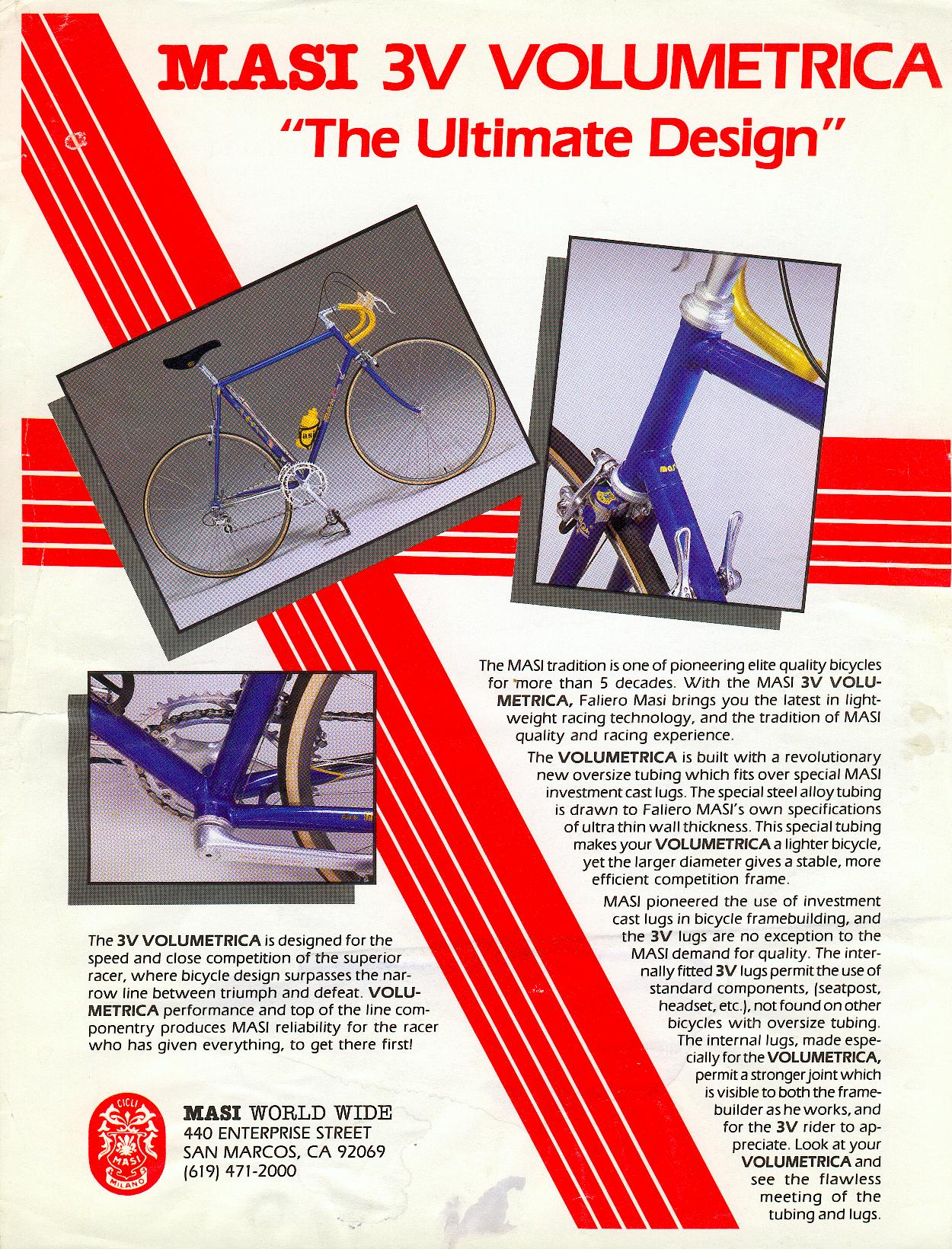

MASI 3V VOLUMETRICA

“The Ultimate Design”

The MASI tradition is one of pioneering elite quality bicycles for more than 5 decades. With the MASI 3V VOLUMETRICA, Faliero Masi brings you the latest in lightweight racing technology, and the tradition of MASI quality and racing experience.

The VOLUMETRICA is built with a revolutionary new oversize tubing which fits over special MASI investment cast lugs. The special steel alloy tubing is drawn to Faliero MASI’s own specifications of ultra thin wall thickness. This special tubing makes your VOLUMETRICA a lighter bicycle, yet the larger diameter gives a stable, more efficient competition frame.

MASI pioneered the use of investment cast lugs in bicycle framebuilding, and the 3V lugs are no exception to the MASI demand for quality. The internally fitted 3V lugs permit the use of standard components, (seatpost, headset, etc.), not found on other bicycles with oversize tubing. The internal lugs, made especially for the VOLUMETRICA, permit a stronger joint which is visible to both the framebuilder as he works, and for the 3V rider to appreciate. Look at your VOLUMETRICA and see the flawless meeting of the tubing and lugs.

The 3V VOLUMETRICA is designed for the speed and close competition of the superior racer, where bicycle design surpasses the narrow line between triumph and defeat. VOLUMETRICA performance and top of the line componentry produces MASI reliability for the racer who has given everything, to get there first!

CICLI MASI MILANO

MASI WORLD WIDE
440 ENTERPRISE STREET
SAN MARCOS, CA 92069
(619) 471-2000

[A white sheet crossed by red diagonal and horizontal stripes. A photograph of a complete blue 3V Volumetrica with yellow handlebar tape, tan sidewall tires and a yellow MASI water bottle is joined by two detail photographs: the blue head tube junction with the front brake and the down tube shift levers, and the blue bottom bracket with the chainrings. The red Masi seal stands beside the address at the foot.]

— Page 4 —

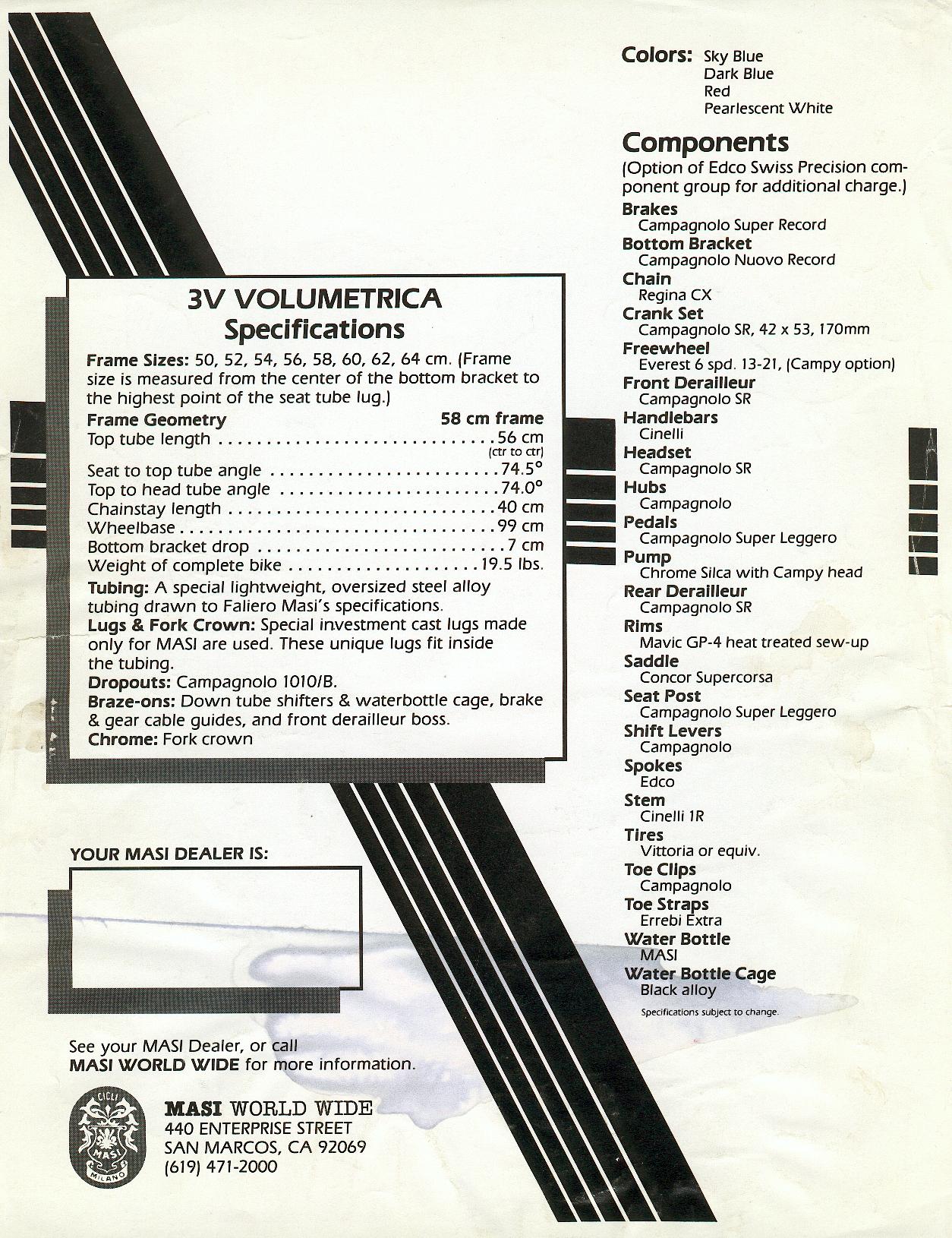

3V VOLUMETRICA Specifications

Frame Sizes: 50, 52, 54, 56, 58, 60, 62, 64 cm. (Frame size is measured from the center of the bottom bracket to the highest point of the seat tube lug.)

Frame Geometry … 58 cm frame
Top tube length … 56 cm (ctr to ctr)
Seat to top tube angle … 74.5°
Top to head tube angle … 74.0°
Chainstay length … 40 cm
Wheelbase … 99 cm
Bottom bracket drop … 7 cm
Weight of complete bike … 19.5 lbs.

Tubing: A special lightweight, oversized steel alloy tubing drawn to Faliero Masi’s specifications.
Lugs & Fork Crown: Special investment cast lugs made only for MASI are used. These unique lugs fit inside the tubing.
Dropouts: Campagnolo 1010/B.
Braze-ons: Down tube shifters & waterbottle cage, brake & gear cable guides, and front derailleur boss.
Chrome: Fork crown

YOUR MASI DEALER IS:

Colors: Sky Blue
Dark Blue
Red
Pearlescent White

Components

(Option of Edco Swiss Precision component group for additional charge.)

Brakes
Campagnolo Super Record
Bottom Bracket
Campagnolo Nuovo Record
Chain
Regina CX
Crank Set
Campagnolo SR, 42 x 53, 170mm
Freewheel
Everest 6 spd. 13-21, (Campy option)
Front Derailleur
Campagnolo SR
Handlebars
Cinelli
Headset
Campagnolo SR
Hubs
Campagnolo
Pedals
Campagnolo Super Leggero
Pump
Chrome Silca with Campy head
Rear Derailleur
Campagnolo SR
Rims
Mavic GP-4 heat treated sew-up
Saddle
Concor Supercorsa
Seat Post
Campagnolo Super Leggero
Shift Levers
Campagnolo
Spokes
Edco
Stem
Cinelli 1R
Tires
Vittoria or equiv.
Toe Clips
Campagnolo
Toe Straps
Errebi Extra
Water Bottle
MASI
Water Bottle Cage
Black alloy

Specifications subject to change.

See your MASI Dealer, or call MASI WORLD WIDE for more information.

CICLI MASI MILANO

MASI WORLD WIDE
440 ENTERPRISE STREET
SAN MARCOS, CA 92069
(619) 471-2000

[A sheet printed in black only, crossed by heavy diagonal and horizontal black stripes. A boxed specification panel with a drop shadow sits at left over an empty box for the dealer’s stamp, and the color and component list runs down the right column. The Masi seal, here in black, stands beside the address at the foot.]

— Page 5 —

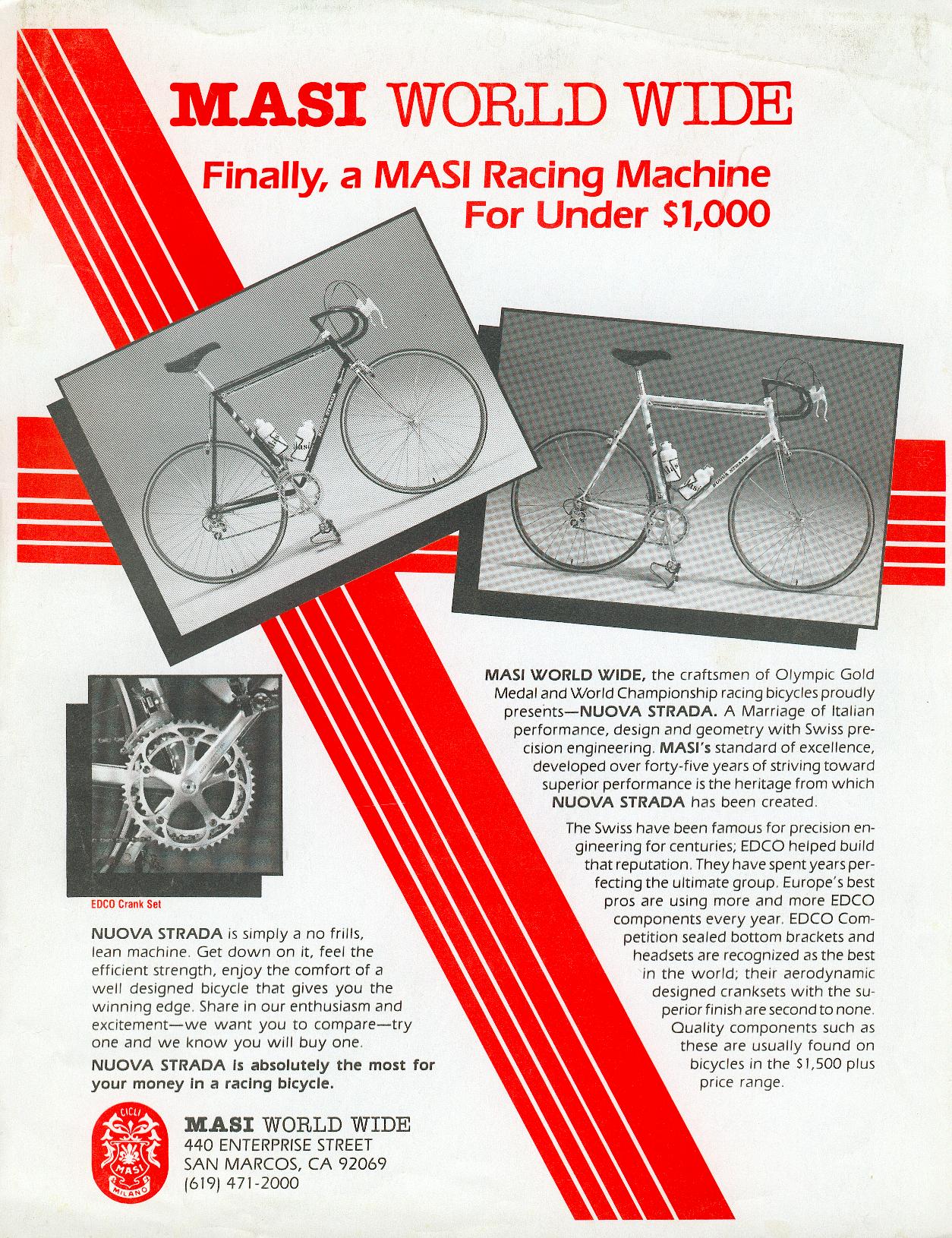

MASI WORLD WIDE

Finally, a MASI Racing Machine For Under $1,000

MASI WORLD WIDE, the craftsmen of Olympic Gold Medal and World Championship racing bicycles proudly presents—NUOVA STRADA. A Marriage of Italian performance, design and geometry with Swiss precision engineering. MASI’s standard of excellence, developed over forty-five years of striving toward superior performance is the heritage from which NUOVA STRADA has been created.

The Swiss have been famous for precision engineering for centuries; EDCO helped build that reputation. They have spent years perfecting the ultimate group. Europe’s best pros are using more and more EDCO components every year. EDCO Competition sealed bottom brackets and headsets are recognized as the best in the world; their aerodynamic designed cranksets with the superior finish are second to none. Quality components such as these are usually found on bicycles in the $1,500 plus price range.

NUOVA STRADA is simply a no frills, lean machine. Get down on it, feel the efficient strength, enjoy the comfort of a well designed bicycle that gives you the winning edge. Share in our enthusiasm and excitement—we want you to compare—try one and we know you will buy one.

NUOVA STRADA is absolutely the most for your money in a racing bicycle.

EDCO Crank Set

CICLI MASI MILANO

MASI WORLD WIDE
440 ENTERPRISE STREET
SAN MARCOS, CA 92069
(619) 471-2000

[A white sheet crossed by red diagonal and horizontal stripes. Two monochrome photographs show complete Nuova Strada bicycles, one with a dark frame and one with a white frame, each with black handlebar tape and two water bottles; a third monochrome photograph, captioned in red, shows the EDCO crankset close up. The red Masi seal stands beside the address at the foot.]

— Page 6 —

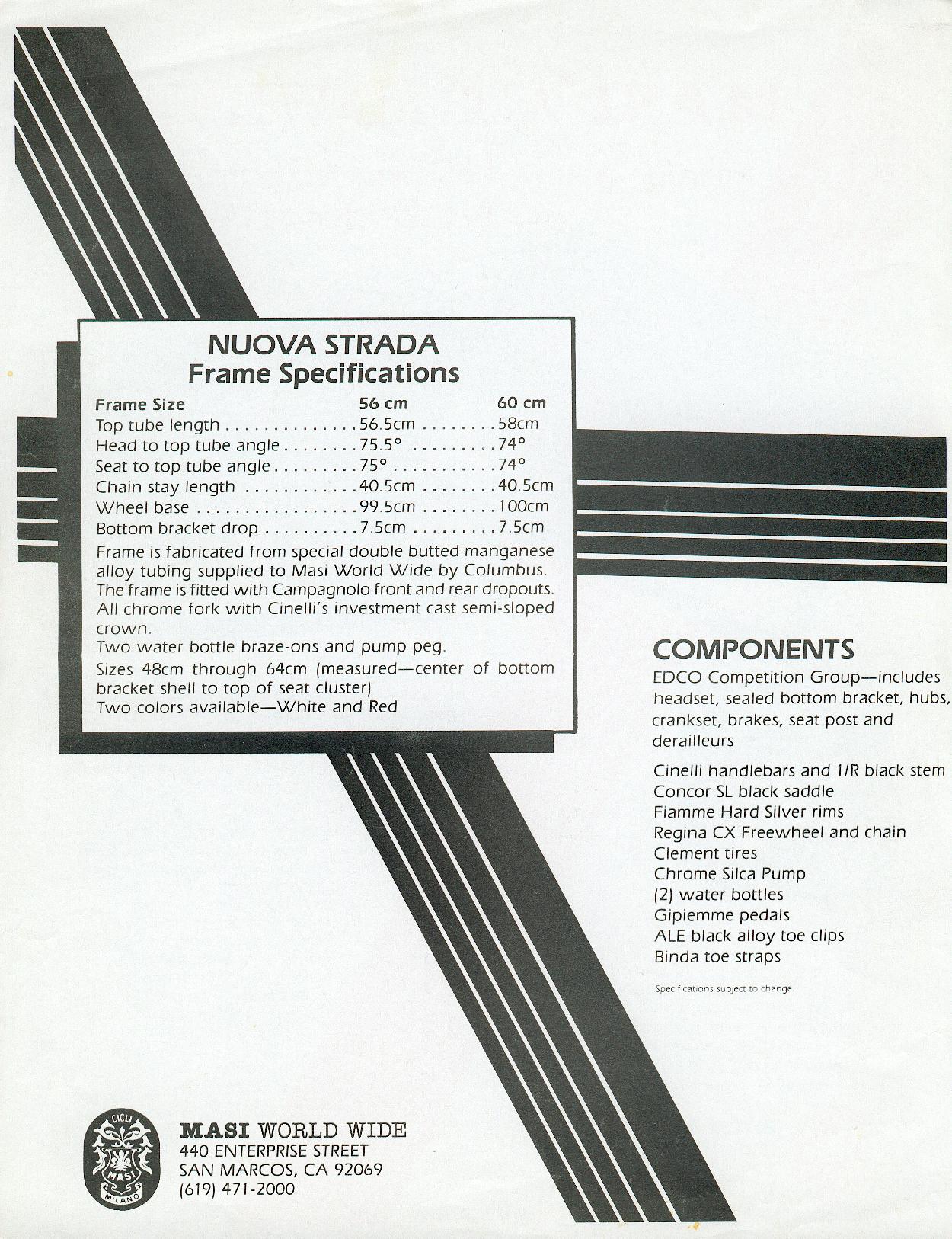

NUOVA STRADA Frame Specifications

Frame Size … 56 cm … 60 cm
Top tube length … 56.5cm … 58cm
Head to top tube angle … 75.5° … 74°
Seat to top tube angle … 75° … 74°
Chain stay length … 40.5cm … 40.5cm
Wheel base … 99.5cm … 100cm
Bottom bracket drop … 7.5cm … 7.5cm

Frame is fabricated from special double butted manganese alloy tubing supplied to Masi World Wide by Columbus. The frame is fitted with Campagnolo front and rear dropouts. All chrome fork with Cinelli’s investment cast semi-sloped crown.

Two water bottle braze-ons and pump peg.

Sizes 48cm through 64cm (measured—center of bottom bracket shell to top of seat cluster)

Two colors available—White and Red

COMPONENTS

EDCO Competition Group—includes headset, sealed bottom bracket, hubs, crankset, brakes, seat post and derailleurs

Cinelli handlebars and 1/R black stem
Concor SL black saddle
Fiamme Hard Silver rims
Regina CX Freewheel and chain
Clement tires
Chrome Silca Pump
(2) water bottles
Gipiemme pedals
ALE black alloy toe clips
Binda toe straps

Specifications subject to change.

CICLI MASI MILANO

MASI WORLD WIDE
440 ENTERPRISE STREET
SAN MARCOS, CA 92069
(619) 471-2000

[A sheet printed in black only, crossed by heavy diagonal and horizontal black stripes. A boxed frame specification panel with a drop shadow sits at left and the component list at lower right; this sheet has no dealer box. The Masi seal, here in black, stands beside the address at the foot.]
